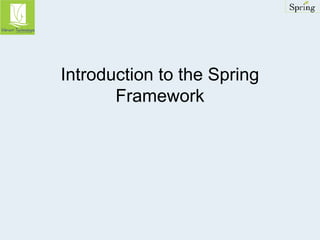

Introduction to the Spring
Framework

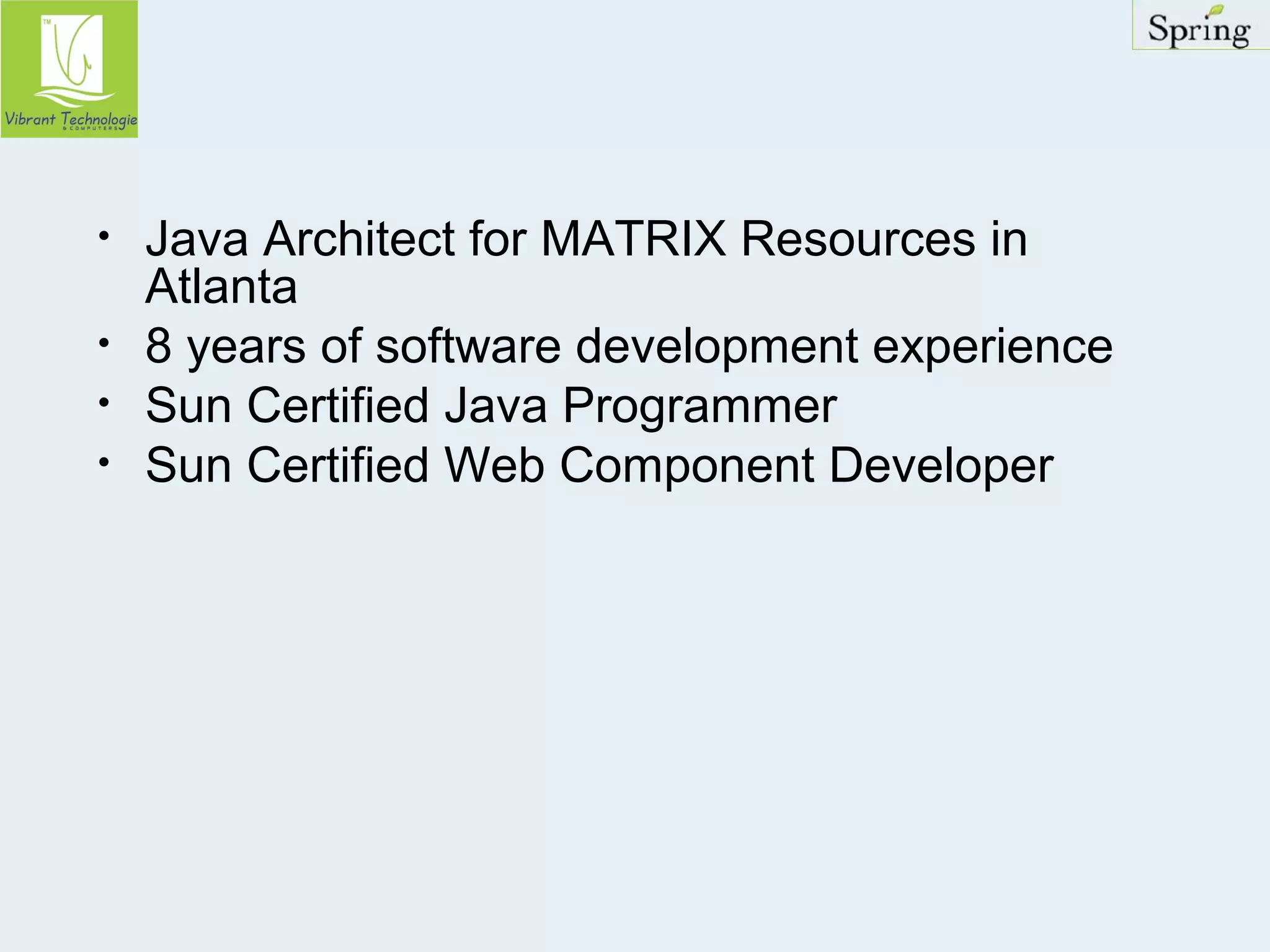

• Java Architect for MATRIX Resources in
Atlanta
• 8 years of software development experience
• Sun Certified Java Programmer
• Sun Certified Web Component Developer

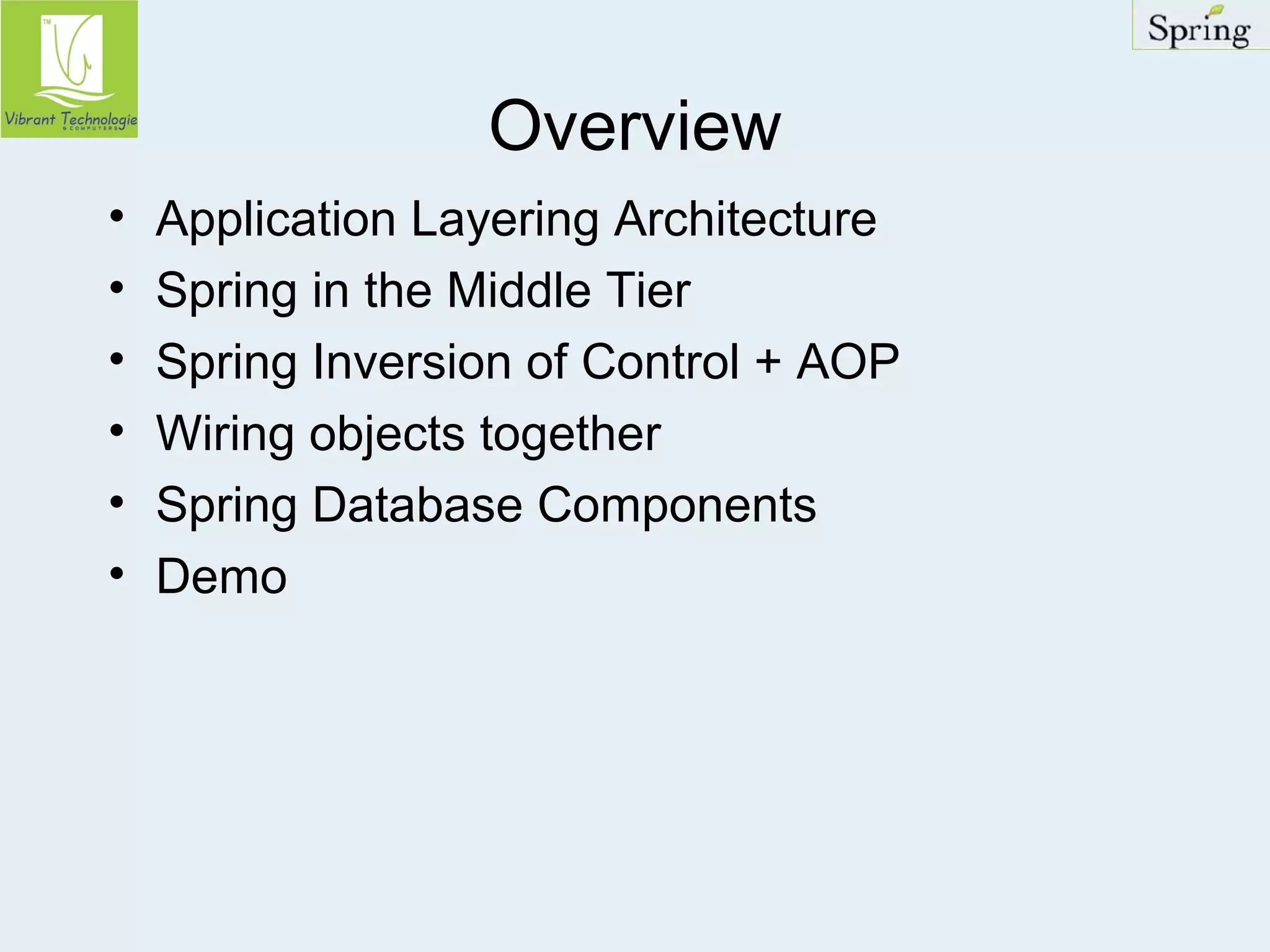

Overview
• Application Layering Architecture

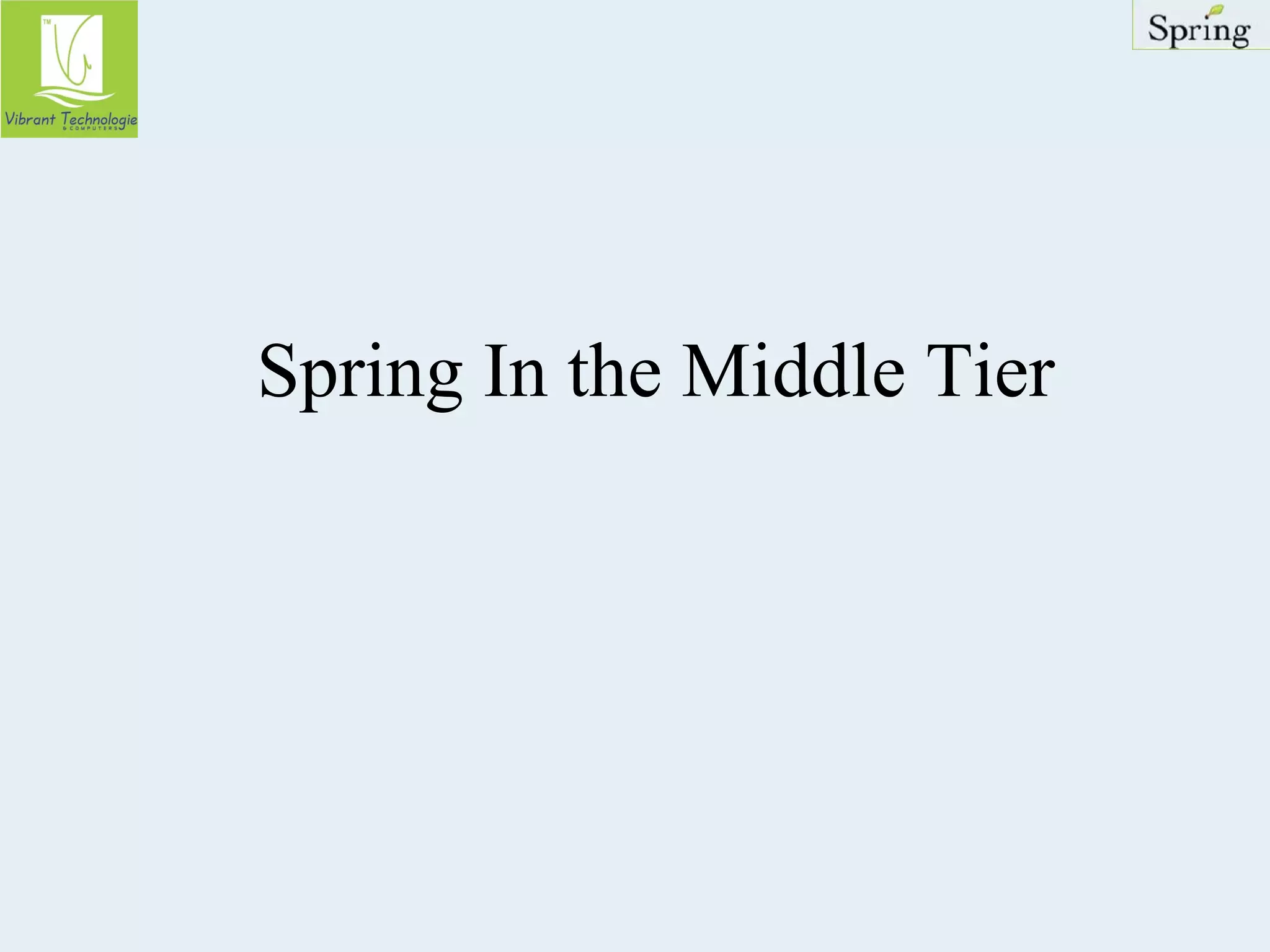

• Spring in the Middle Tier
• Spring Inversion of Control + AOP
• Wiring objects together

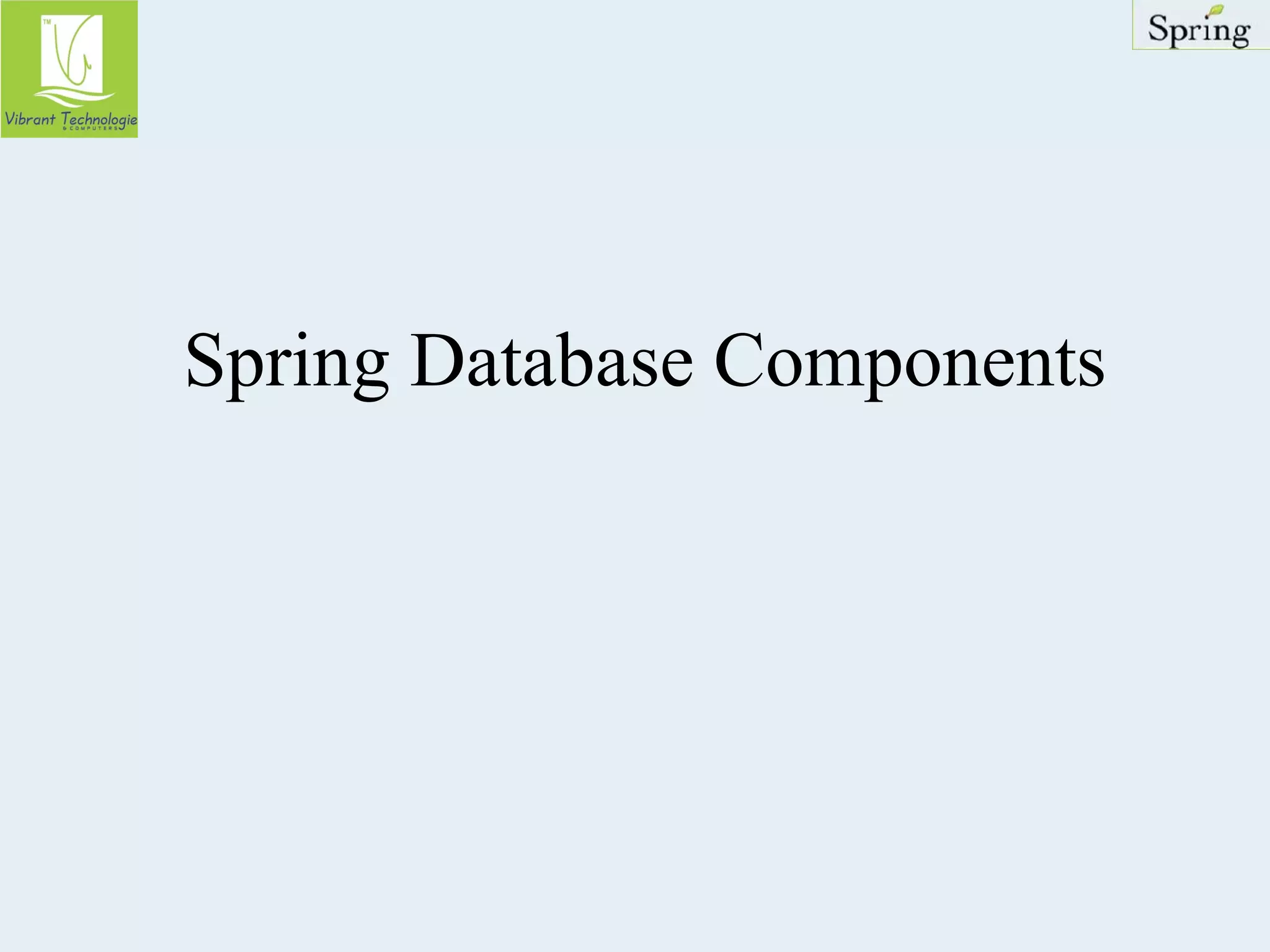

• Spring Database Components

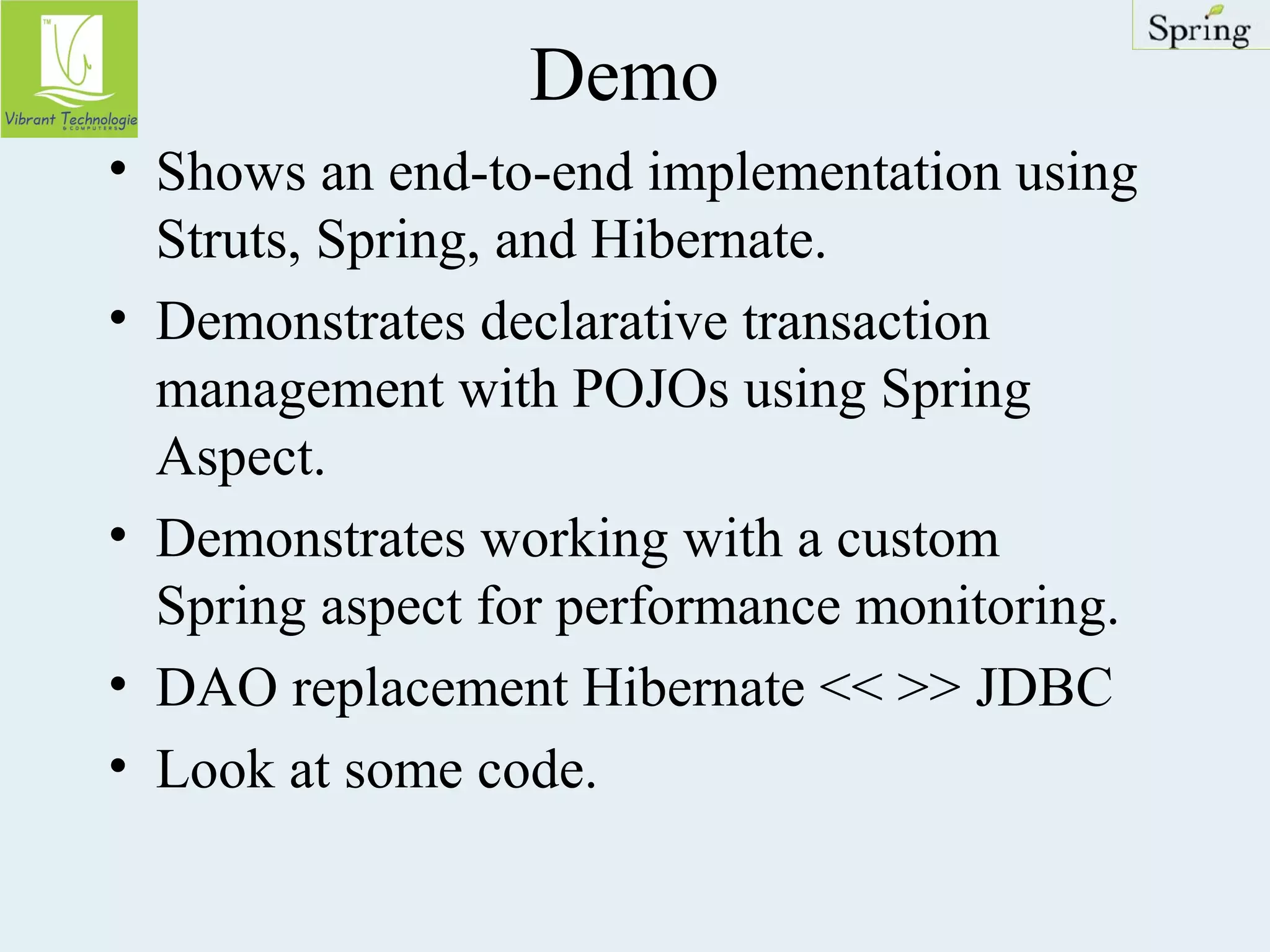

• Demo

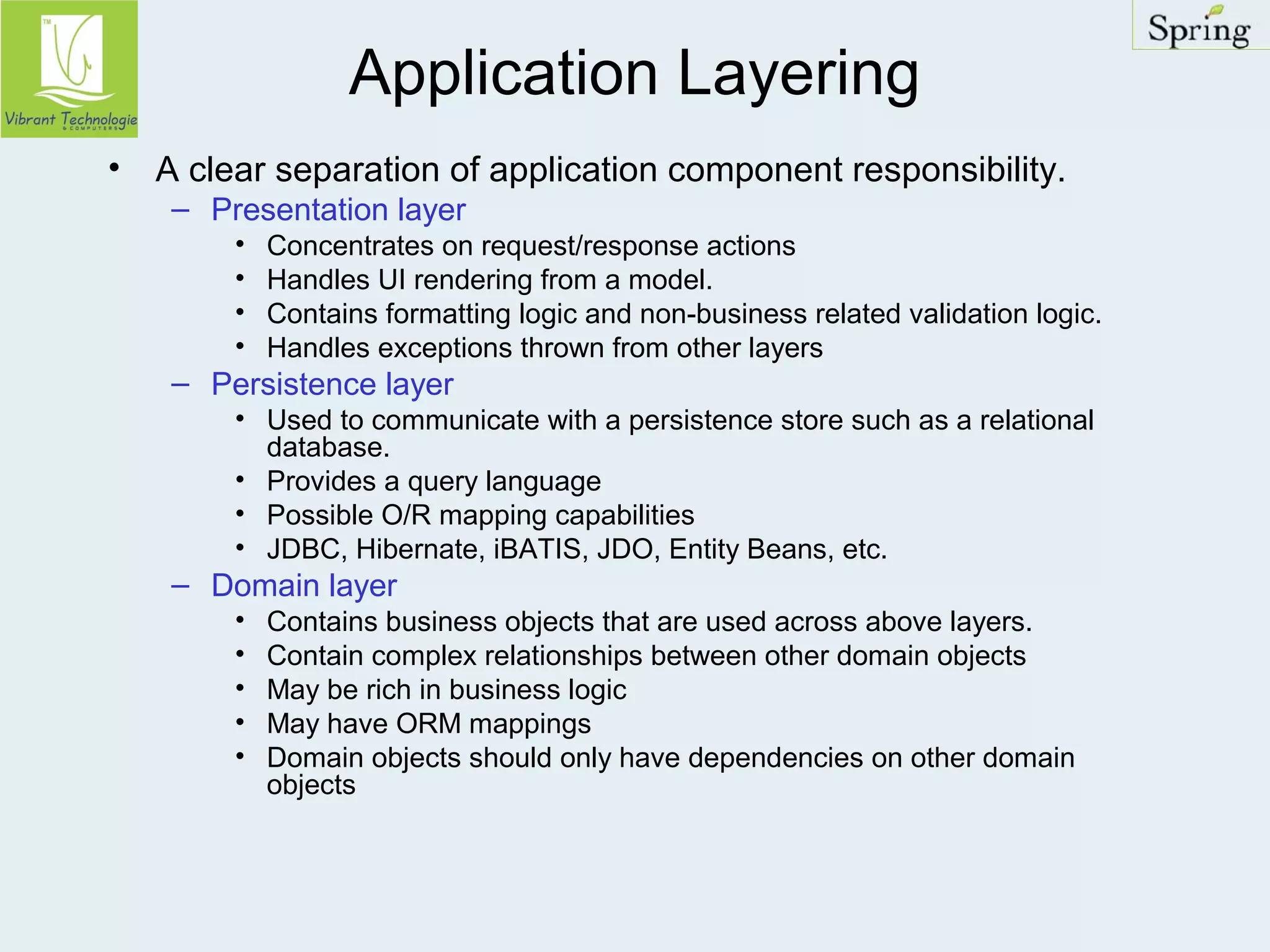

Application Layering
• A clear separation of application component responsibility.
– Presentation layer
• Concentrates on request/response actions
• Handles UI rendering from a model.
• Contains formatting logic and non-business related validation logic.
• Handles exceptions thrown from other layers
– Persistence layer
• Used to communicate with a persistence store such as a relational
database.
• Provides a query language
• Possible O/R mapping capabilities
• JDBC, Hibernate, iBATIS, JDO, Entity Beans, etc.
– Domain layer
• Contains business objects that are used across above layers.
• Contain complex relationships between other domain objects
• May be rich in business logic
• May have ORM mappings
• Domain objects should only have dependencies on other domain
objects

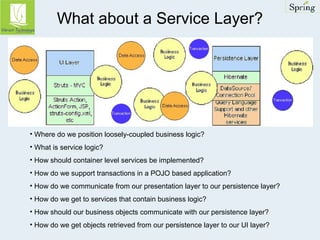

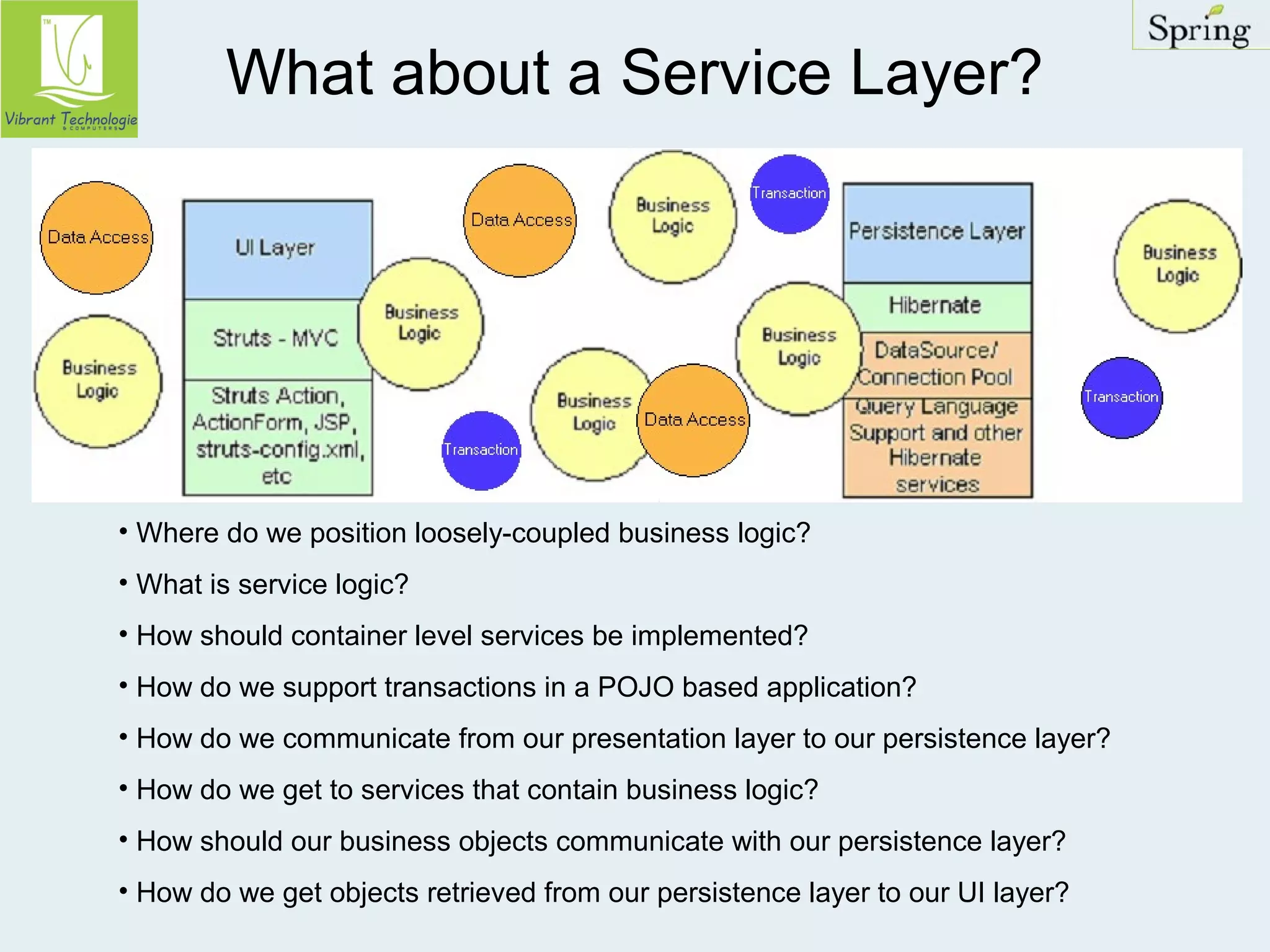

What about a Service Layer?
• Where do we position loosely-coupled business logic?
• What is service logic?
• How should container level services be implemented?
• How do we support transactions in a POJO based application?
• How do we communicate from our presentation layer to our persistence layer?
• How do we get to services that contain business logic?
• How should our business objects communicate with our persistence layer?
• How do we get objects retrieved from our persistence layer to our UI layer?

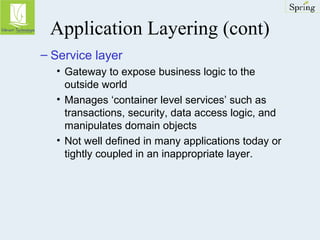

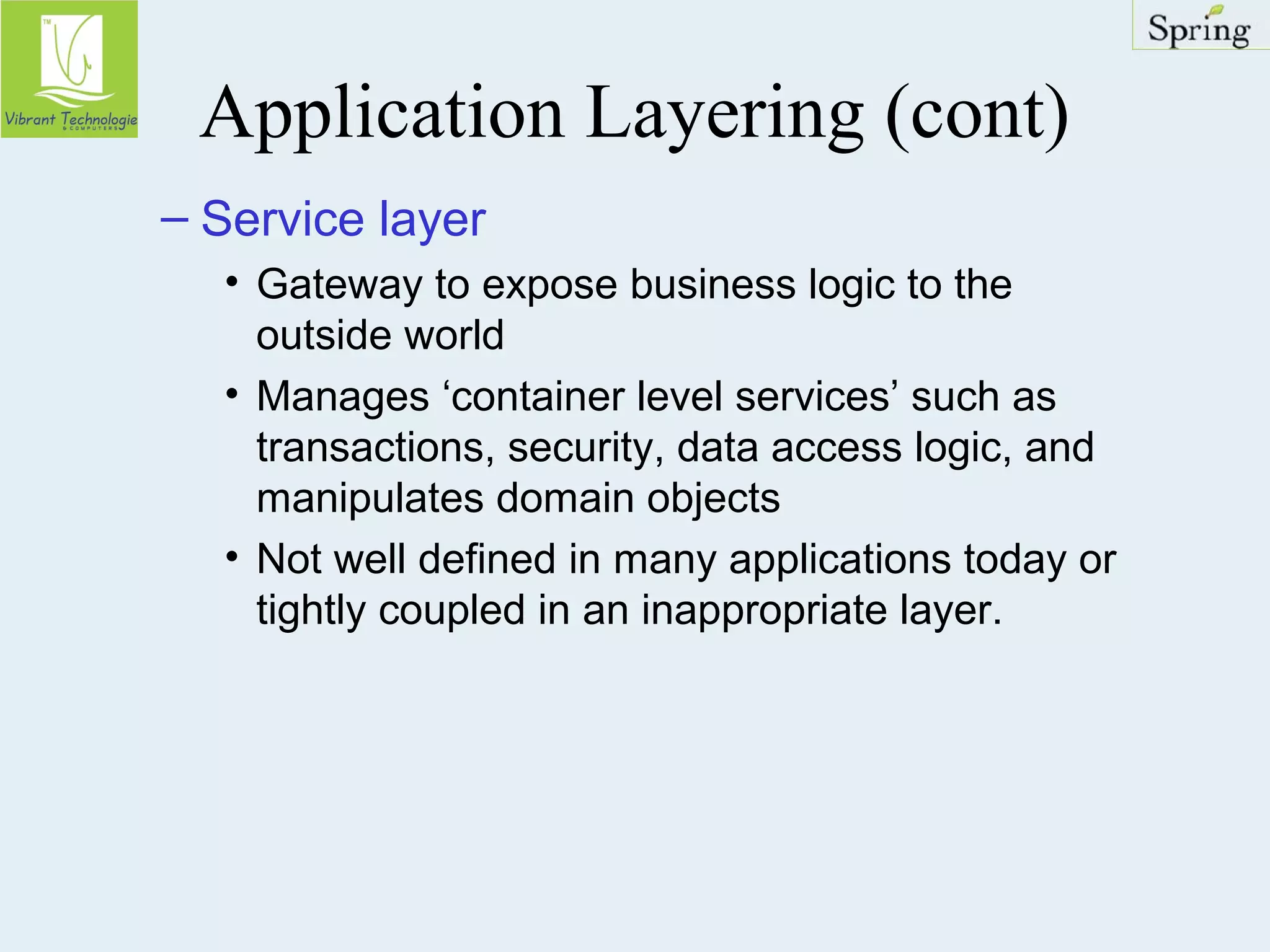

Application Layering (cont)
– Service layer
• Gateway to expose business logic to the
outside world
• Manages ‘container level services’ such as
transactions, security, data access logic, and
manipulates domain objects
• Not well defined in many applications today or
tightly coupled in an inappropriate layer.

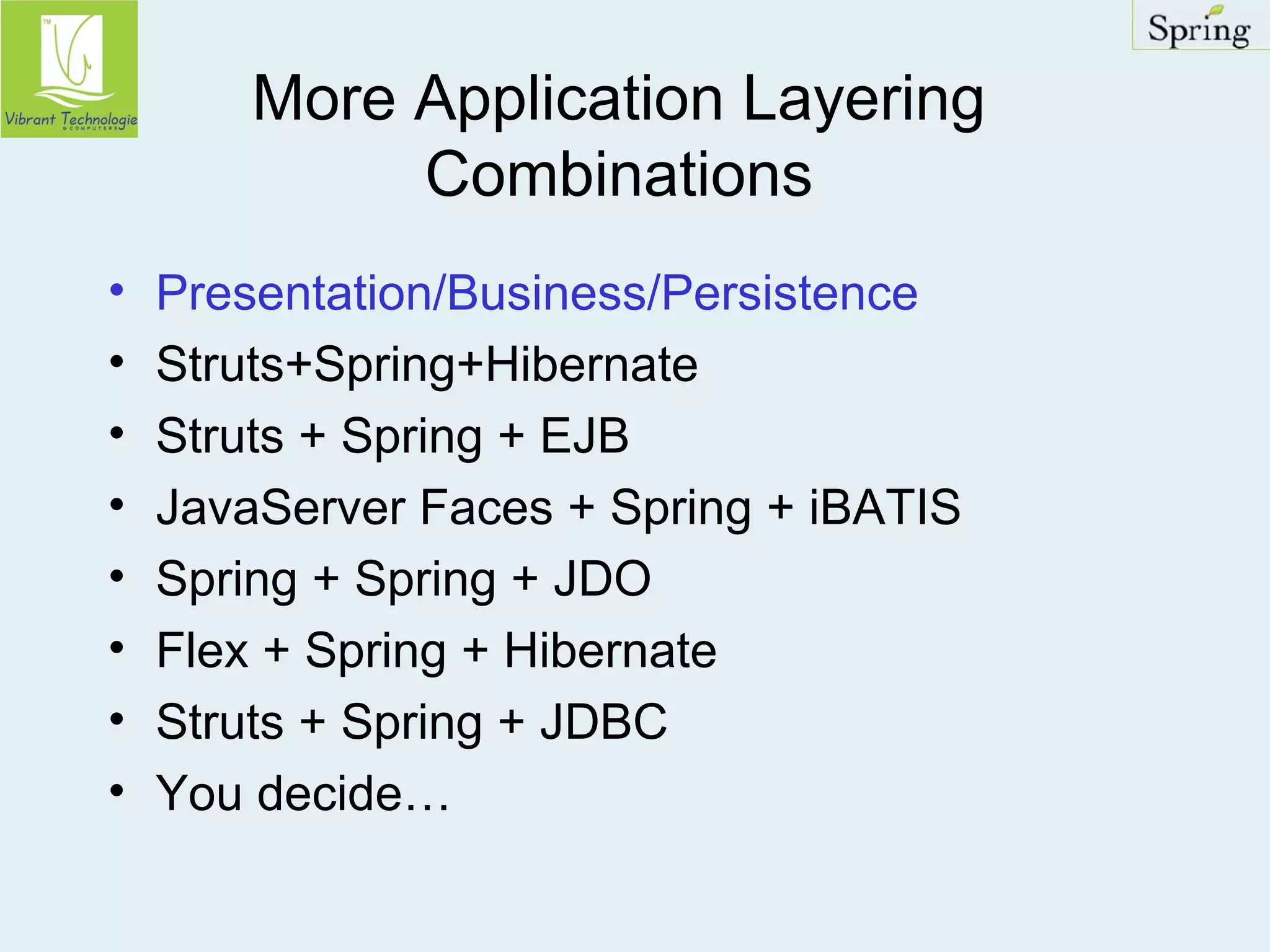

More Application Layering
Combinations
• Presentation/Business/Persistence
• Struts+Spring+Hibernate
• Struts + Spring + EJB
• JavaServer Faces + Spring + iBATIS
• Spring + Spring + JDO
• Flex + Spring + Hibernate
• Struts + Spring + JDBC
• You decide…

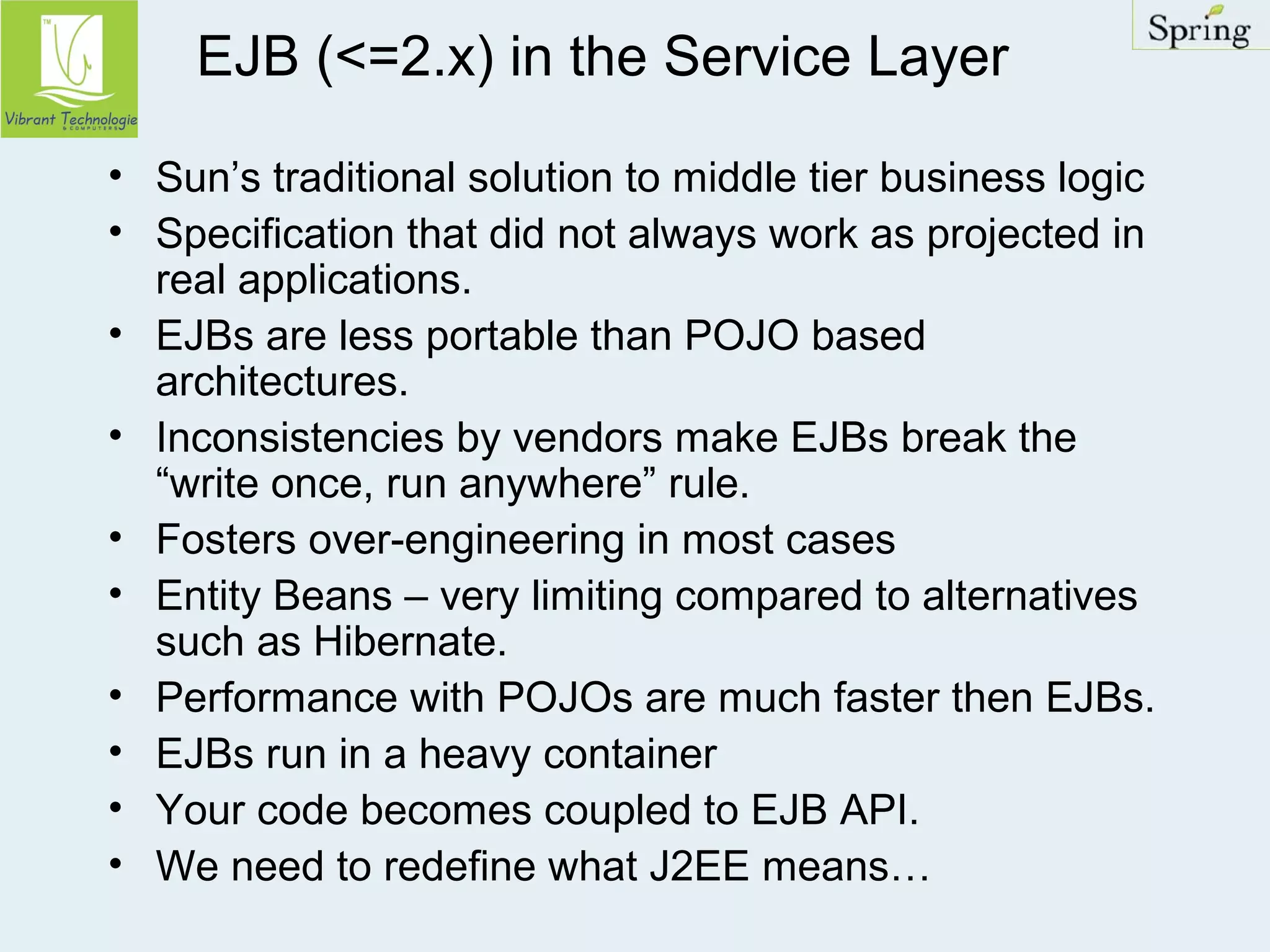

EJB (<=2.x) in the Service Layer
• Sun’s traditional solution to middle tier business logic
• Specification that did not always work as projected in
real applications.
• EJBs are less portable than POJO based
architectures.
• Inconsistencies by vendors make EJBs break the
“write once, run anywhere” rule.
• Fosters over-engineering in most cases
• Entity Beans – very limiting compared to alternatives
such as Hibernate.
• Performance with POJOs are much faster then EJBs.
• EJBs run in a heavy container
• Your code becomes coupled to EJB API.
• We need to redefine what J2EE means…

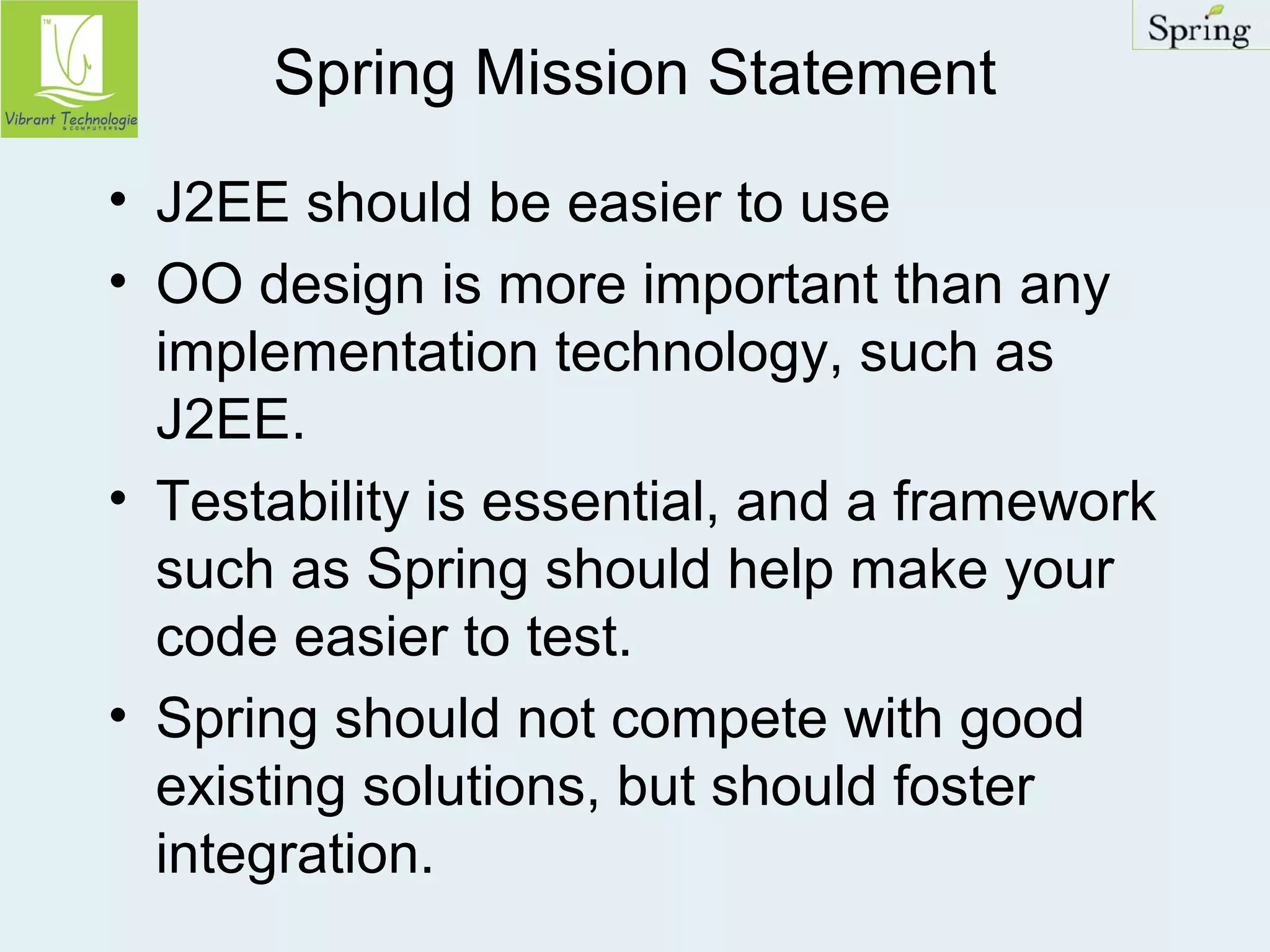

Spring Mission Statement
• J2EE should be easier to use
• OO design is more important than any
implementation technology, such as
J2EE.
• Testability is essential, and a framework
such as Spring should help make your
code easier to test.
• Spring should not compete with good
existing solutions, but should foster
integration.

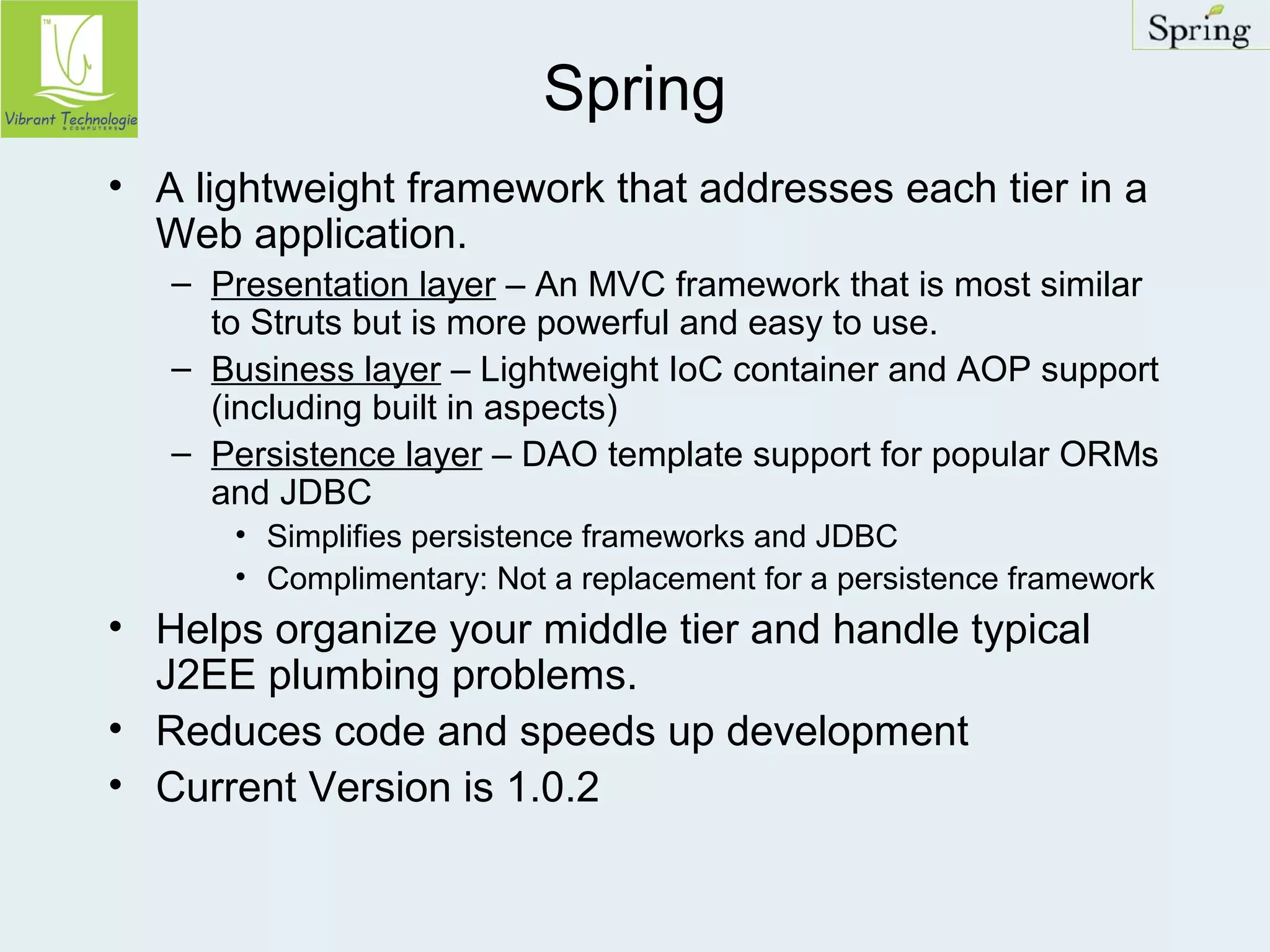

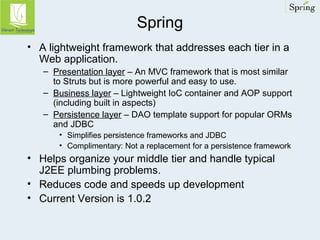

Spring
• A lightweight framework that addresses each tier in a
Web application.
– Presentation layer – An MVC framework that is most similar
to Struts but is more powerful and easy to use.
– Business layer – Lightweight IoC container and AOP support
(including built in aspects)
– Persistence layer – DAO template support for popular ORMs
and JDBC
• Simplifies persistence frameworks and JDBC
• Complimentary: Not a replacement for a persistence framework
• Helps organize your middle tier and handle typical
J2EE plumbing problems.
• Reduces code and speeds up development
• Current Version is 1.0.2

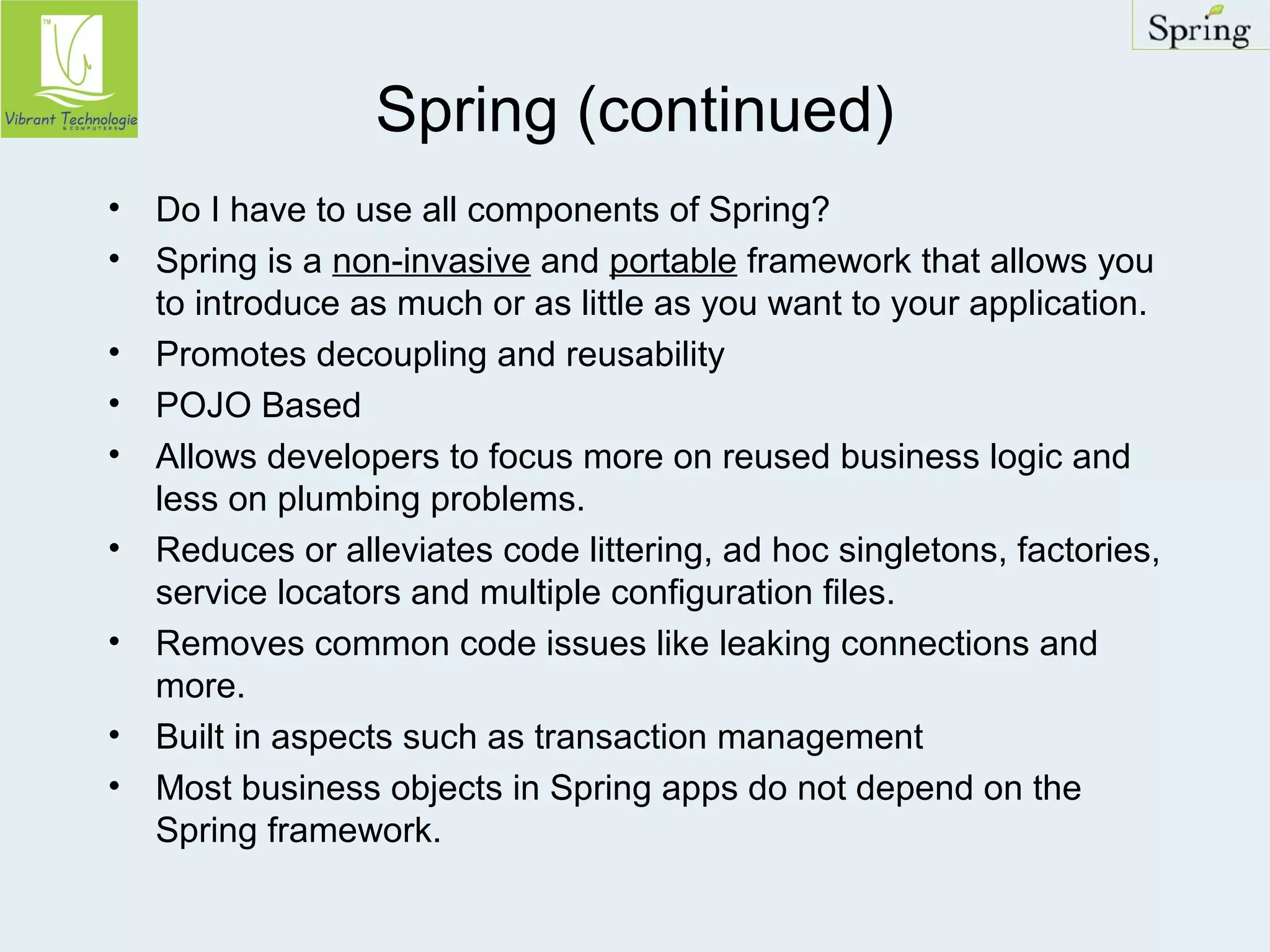

Spring (continued)
• Do I have to use all components of Spring?
• Spring is a non-invasive and portable framework that allows you
to introduce as much or as little as you want to your application.
• Promotes decoupling and reusability
• POJO Based
• Allows developers to focus more on reused business logic and
less on plumbing problems.
• Reduces or alleviates code littering, ad hoc singletons, factories,
service locators and multiple configuration files.
• Removes common code issues like leaking connections and
more.
• Built in aspects such as transaction management
• Most business objects in Spring apps do not depend on the
Spring framework.

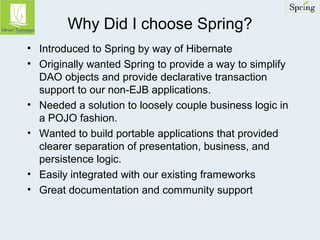

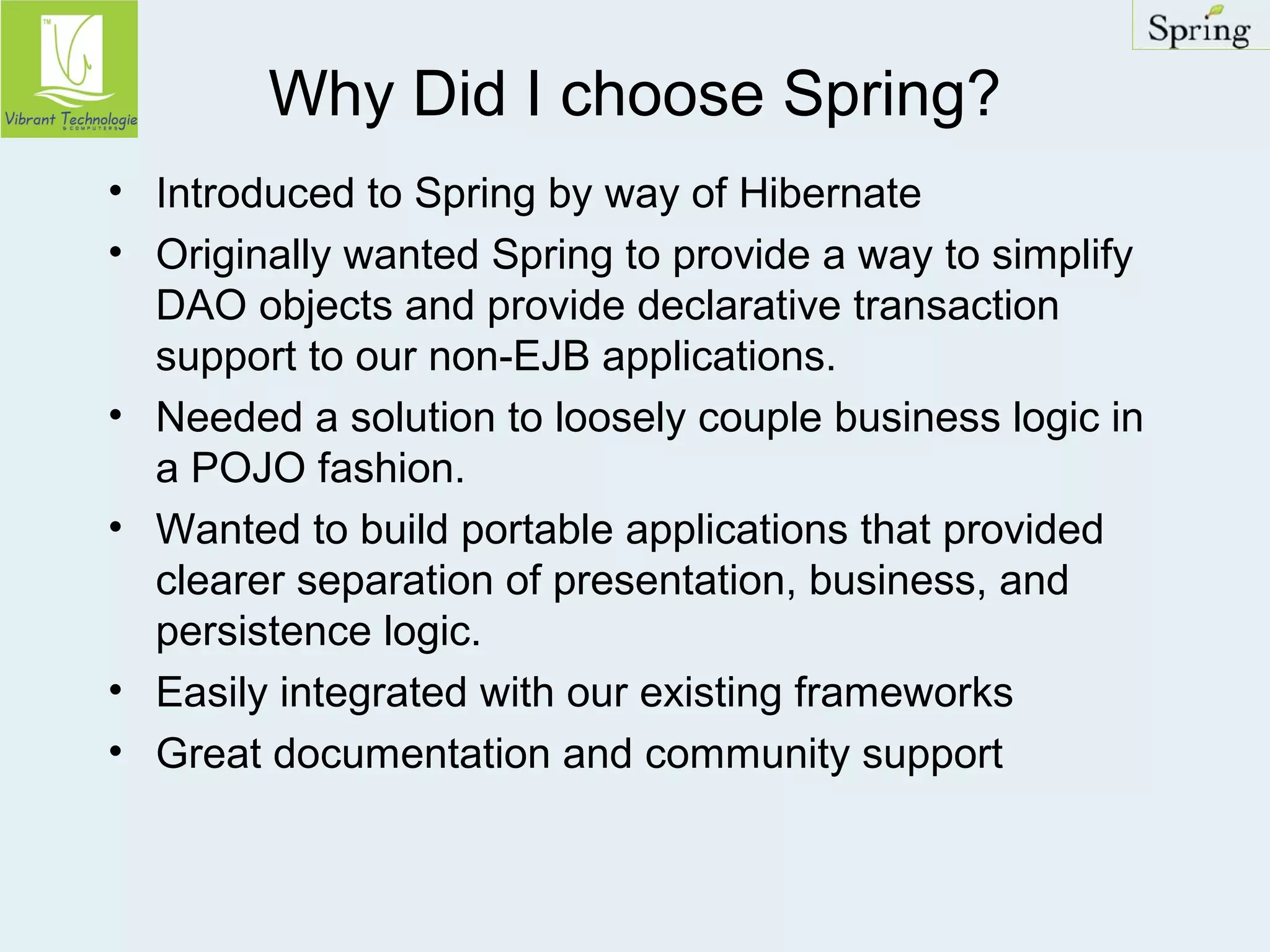

Why Did I choose Spring?
• Introduced to Spring by way of Hibernate
• Originally wanted Spring to provide a way to simplify
DAO objects and provide declarative transaction
support to our non-EJB applications.
• Needed a solution to loosely couple business logic in
a POJO fashion.
• Wanted to build portable applications that provided
clearer separation of presentation, business, and
persistence logic.
• Easily integrated with our existing frameworks
• Great documentation and community support

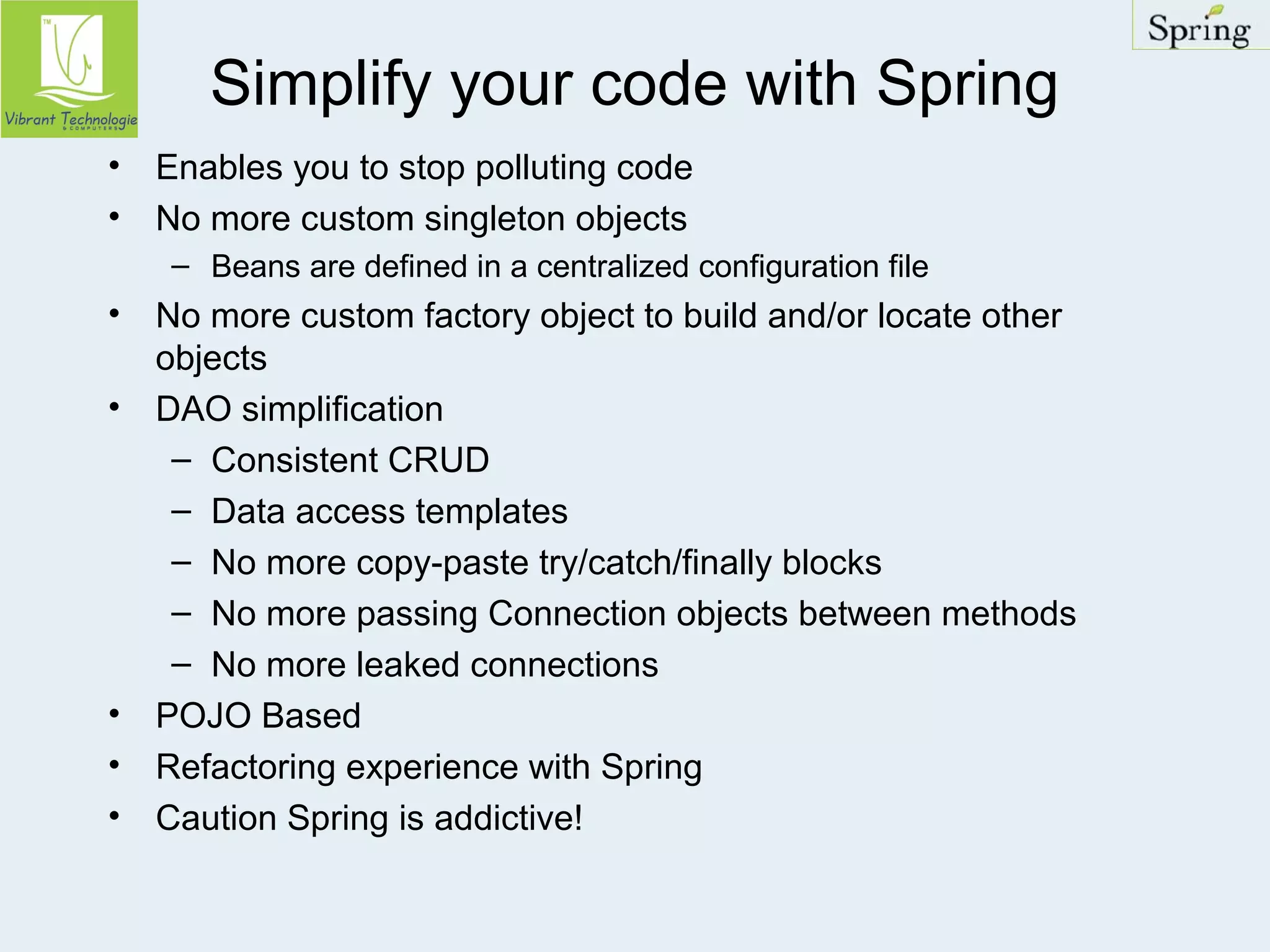

Simplify your code with Spring
• Enables you to stop polluting code
• No more custom singleton objects
– Beans are defined in a centralized configuration file
• No more custom factory object to build and/or locate other
objects
• DAO simplification
– Consistent CRUD
– Data access templates
– No more copy-paste try/catch/finally blocks
– No more passing Connection objects between methods
– No more leaked connections
• POJO Based
• Refactoring experience with Spring
• Caution Spring is addictive!

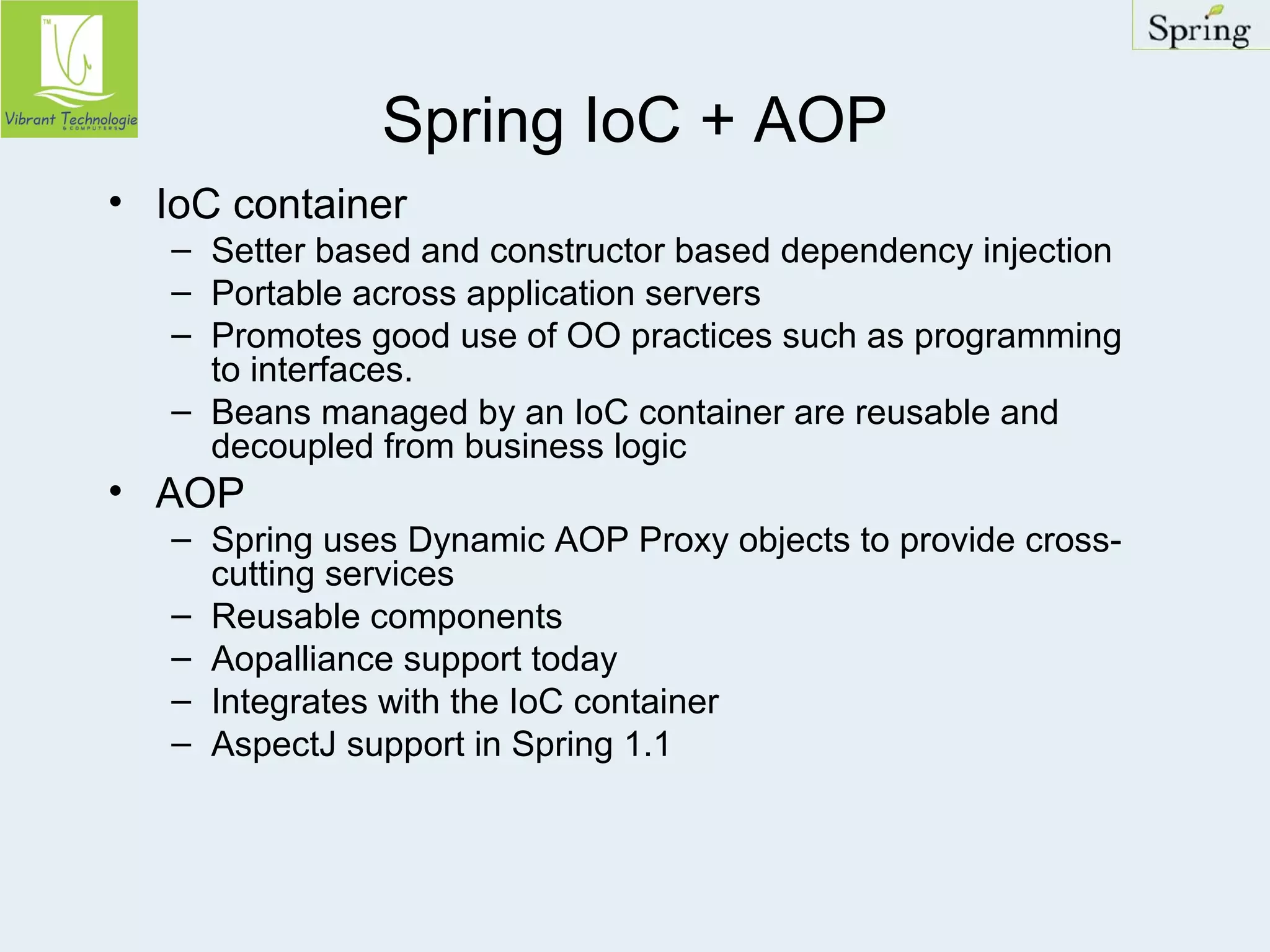

Spring IoC + AOP
• IoC container
– Setter based and constructor based dependency injection
– Portable across application servers
– Promotes good use of OO practices such as programming
to interfaces.
– Beans managed by an IoC container are reusable and
decoupled from business logic
• AOP
– Spring uses Dynamic AOP Proxy objects to provide cross-cutting
services
– Reusable components
– Aopalliance support today
– Integrates with the IoC container
– AspectJ support in Spring 1.1

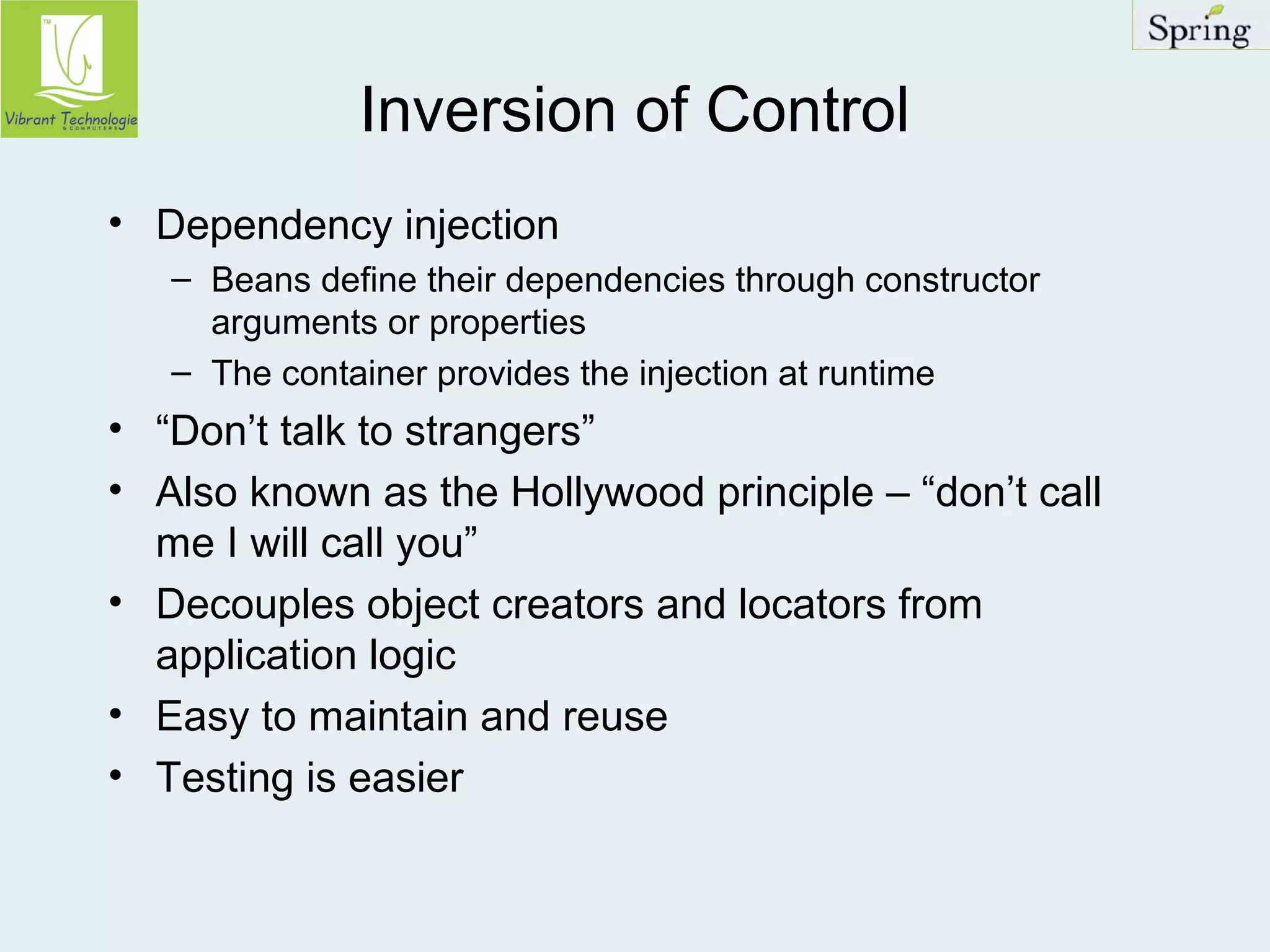

Inversion of Control
• Dependency injection
– Beans define their dependencies through constructor
arguments or properties
– The container provides the injection at runtime
• “Don’t talk to strangers”
• Also known as the Hollywood principle – “don’t call
me I will call you”
• Decouples object creators and locators from
application logic
• Easy to maintain and reuse
• Testing is easier

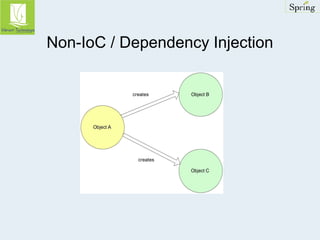

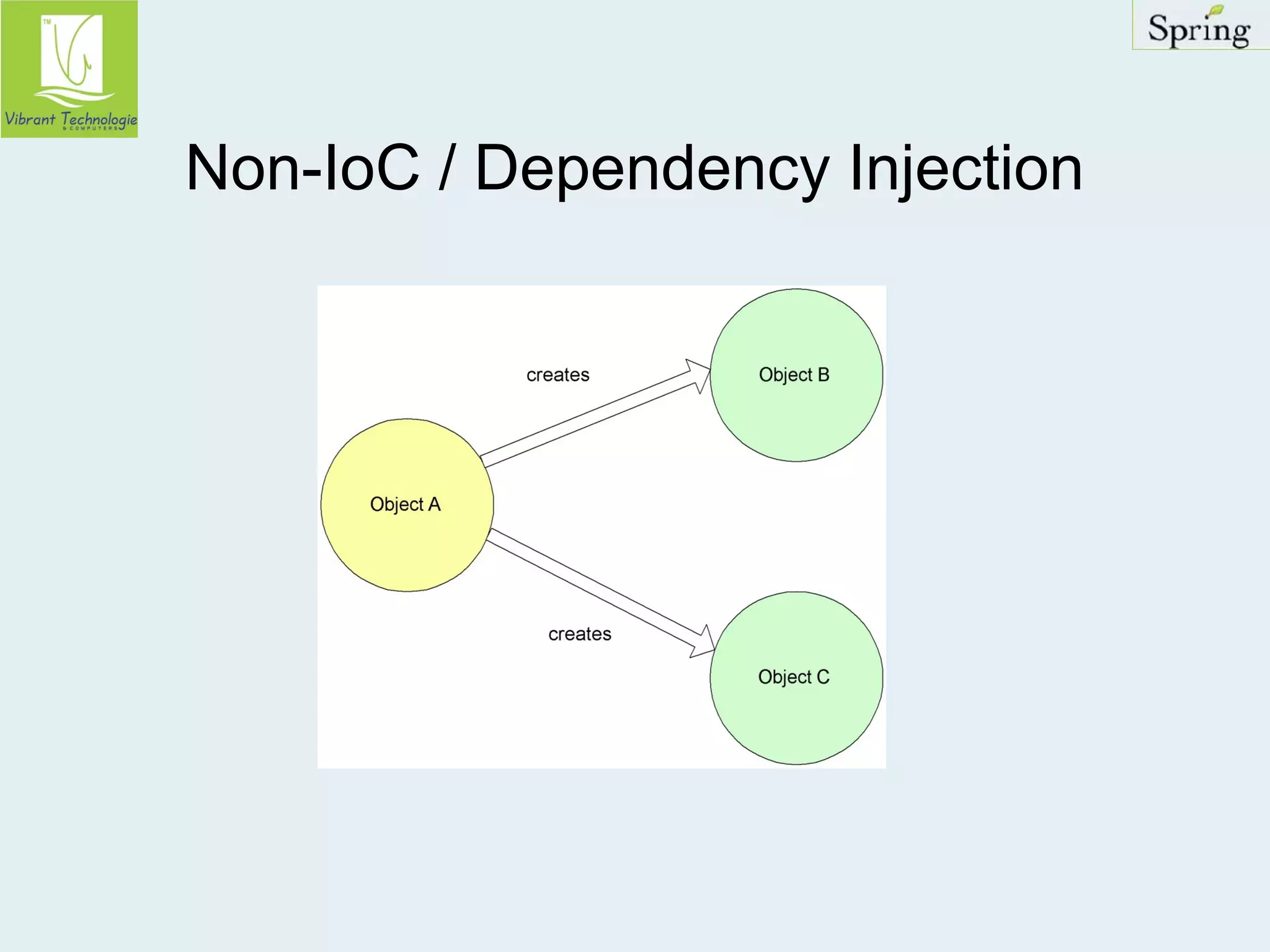

Non-IoC / Dependency Injection

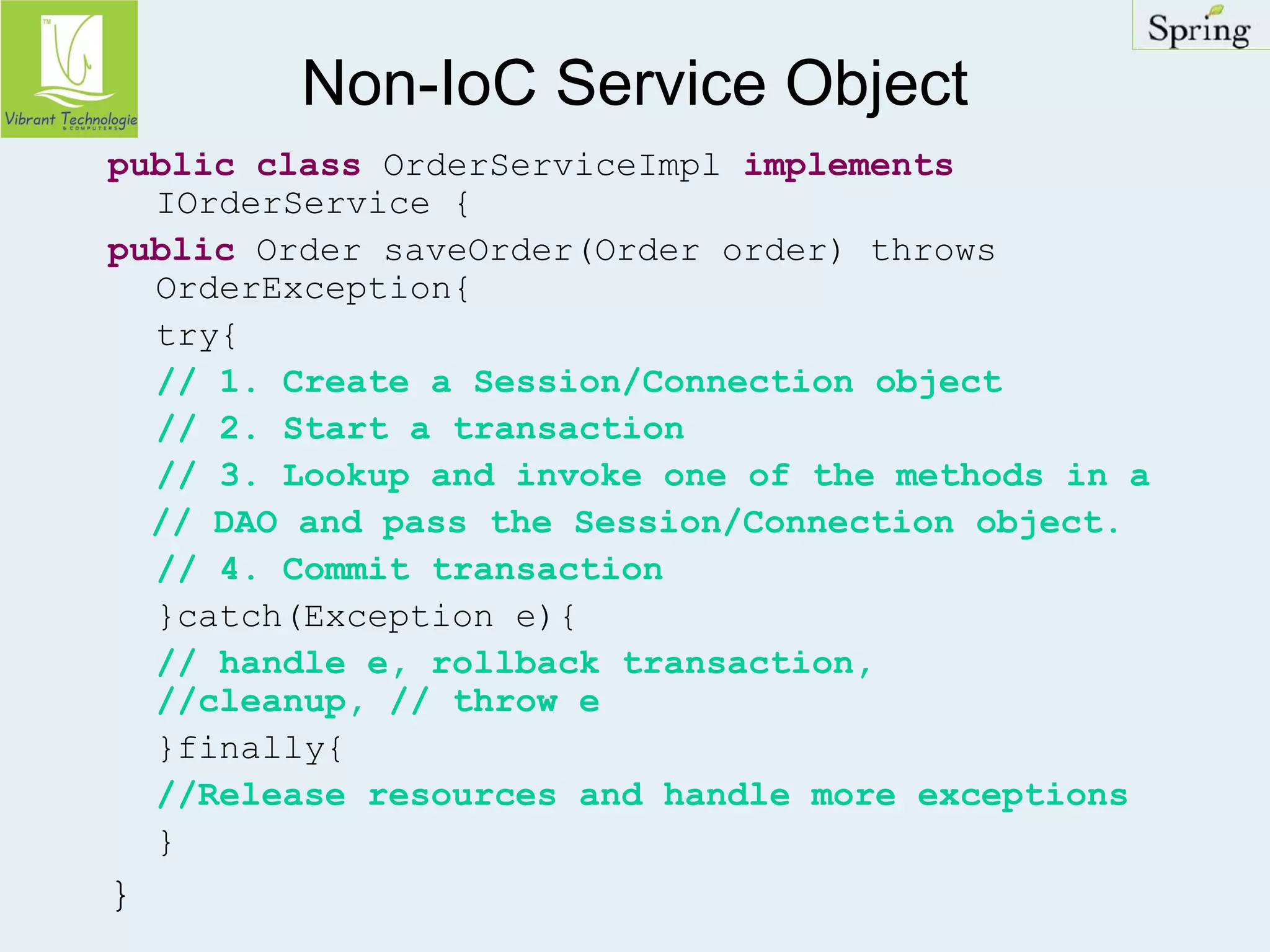

Non-IoC Service Object
public class OrderServiceImpl implements
IOrderService {
public Order saveOrder(Order order) throws
OrderException{
try{
// 1. Create a Session/Connection object
// 2. Start a transaction
// 3. Lookup and invoke one of the methods in a
// DAO and pass the Session/Connection object.
// 4. Commit transaction
}catch(Exception e){
// handle e, rollback transaction,
//cleanup, // throw e
}finally{
//Release resources and handle more exceptions
}
}

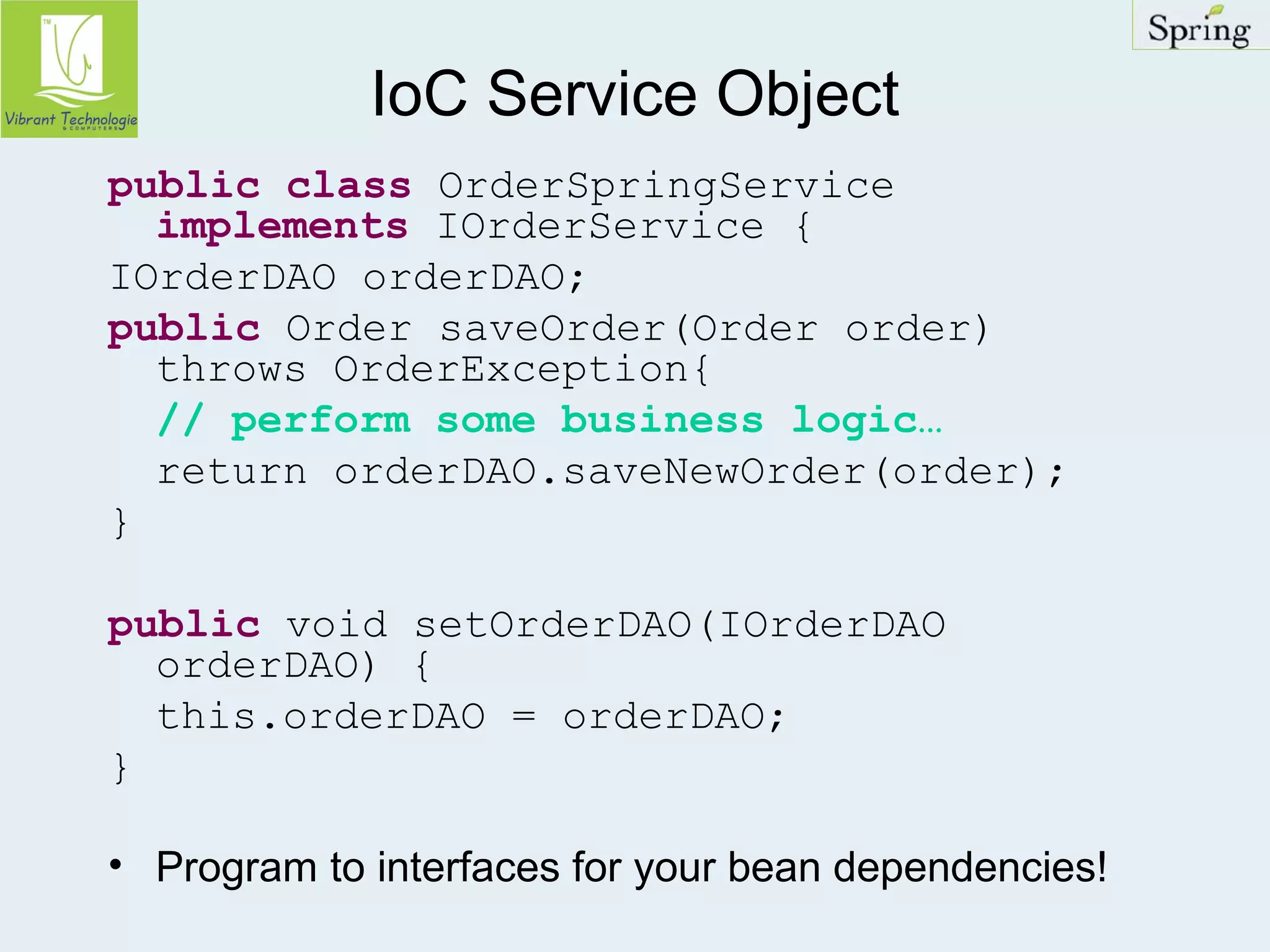

IoC Service Object
public class OrderSpringService
implements IOrderService {
IOrderDAO orderDAO;
public Order saveOrder(Order order)
throws OrderException{
// perform some business logic…
return orderDAO.saveNewOrder(order);
}
public void setOrderDAO(IOrderDAO
orderDAO) {
this.orderDAO = orderDAO;
}
• Program to interfaces for your bean dependencies!

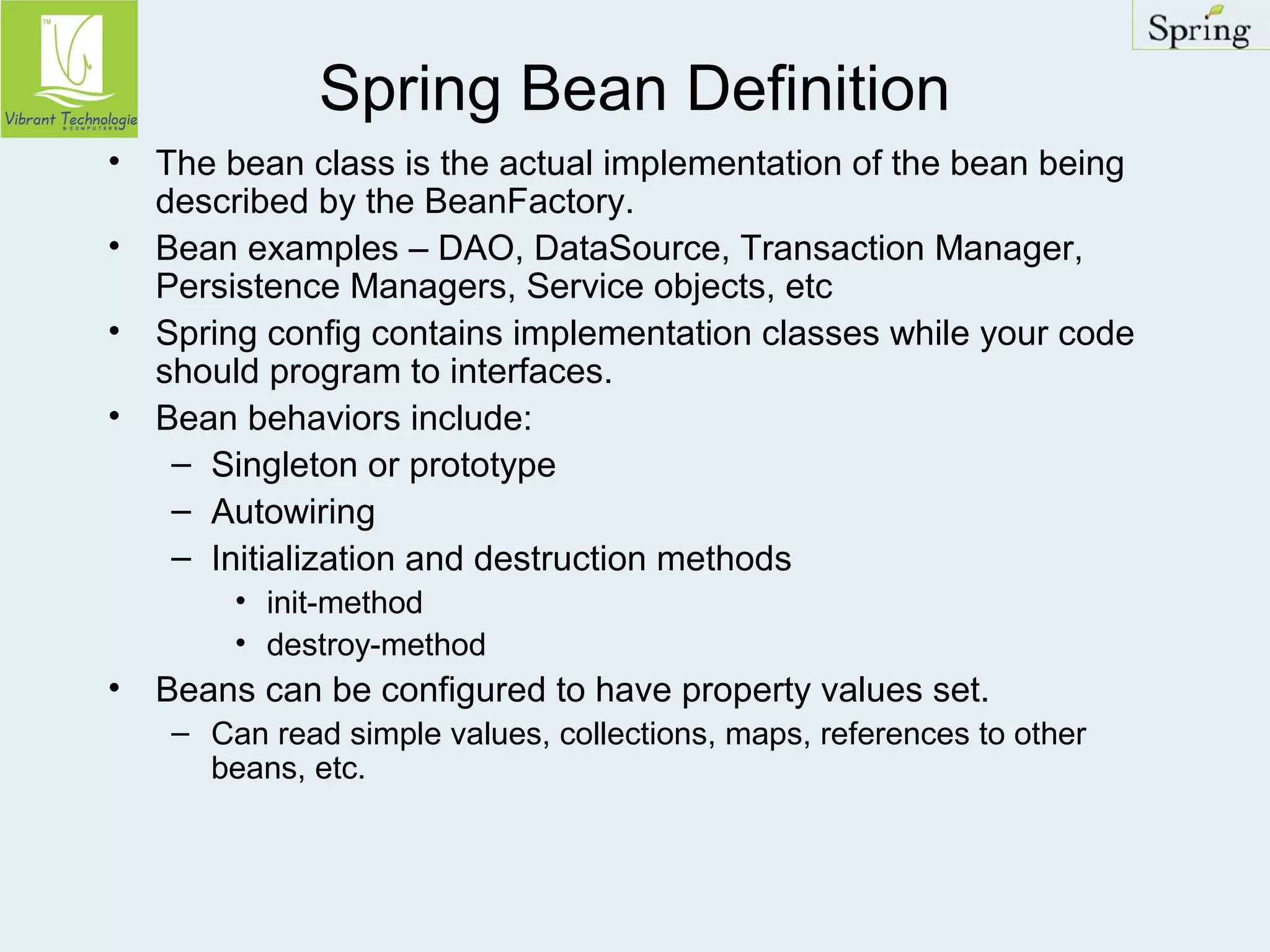

Spring Bean Definition
• The bean class is the actual implementation of the bean being
described by the BeanFactory.
• Bean examples – DAO, DataSource, Transaction Manager,
Persistence Managers, Service objects, etc
• Spring config contains implementation classes while your code
should program to interfaces.
• Bean behaviors include:
– Singleton or prototype
– Autowiring
– Initialization and destruction methods
• init-method
• destroy-method
• Beans can be configured to have property values set.
– Can read simple values, collections, maps, references to other
beans, etc.

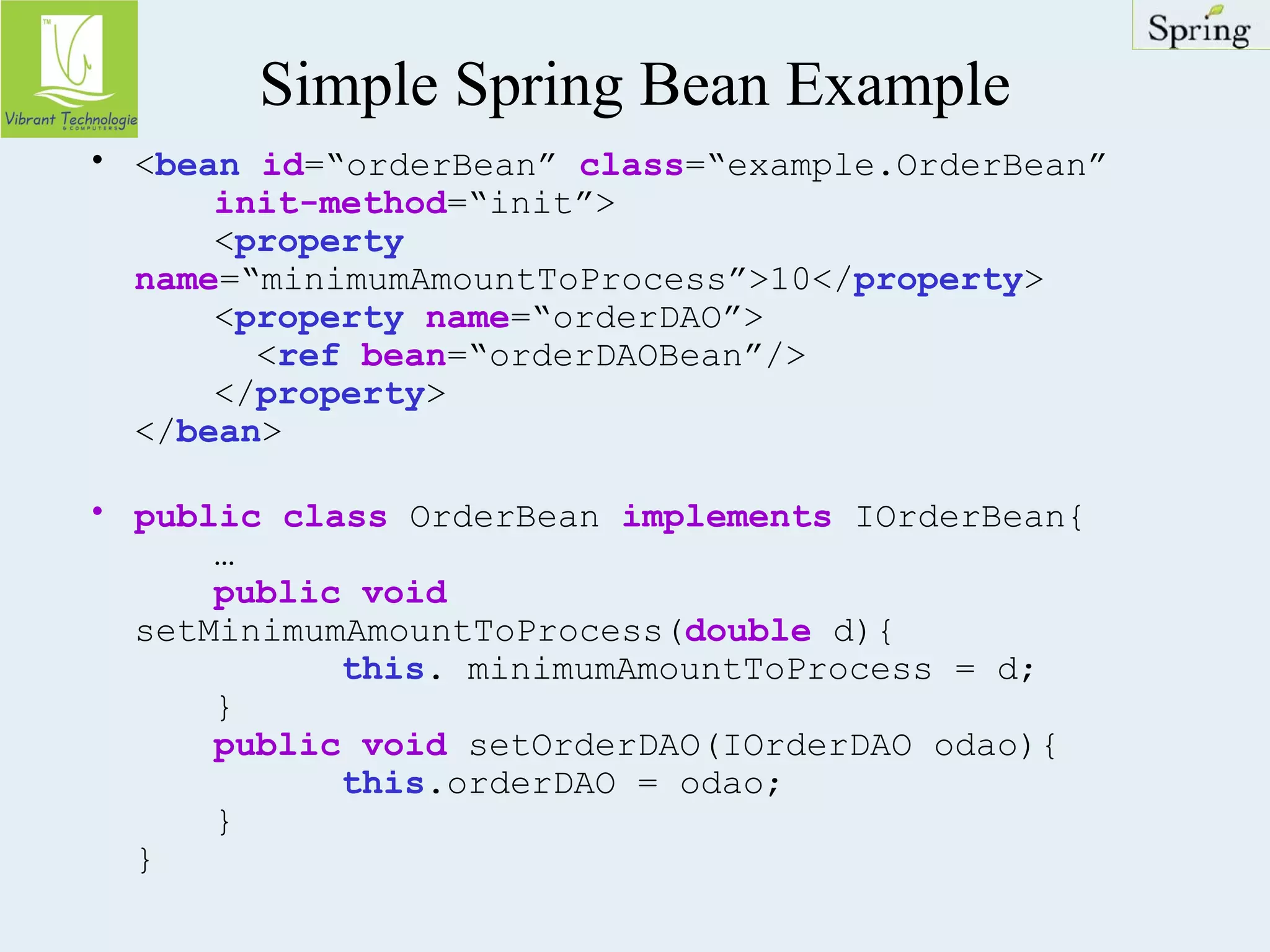

Simple Spring Bean Example
• <bean id=“orderBean” class=“example.OrderBean”
init-method=“init”>
<property
name=“minimumAmountToProcess”>10</property>
<property name=“orderDAO”>
<ref bean=“orderDAOBean”/>
</property>
</bean>
• public class OrderBean implements IOrderBean{
…
public void
setMinimumAmountToProcess(double d){
this. minimumAmountToProcess = d;
}
public void setOrderDAO(IOrderDAO odao){
this.orderDAO = odao;
}
}

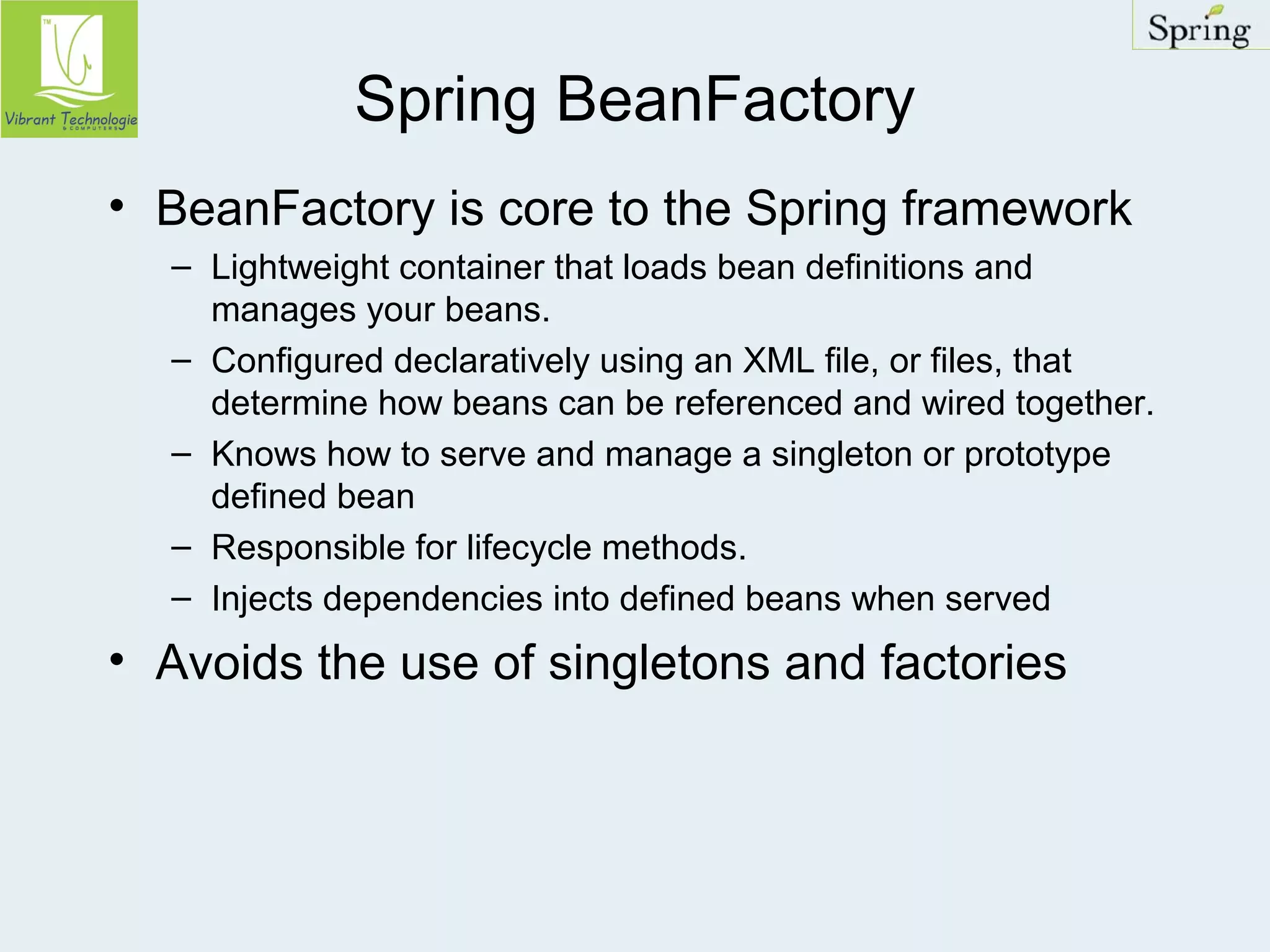

Spring BeanFactory
• BeanFactory is core to the Spring framework
– Lightweight container that loads bean definitions and
manages your beans.
– Configured declaratively using an XML file, or files, that
determine how beans can be referenced and wired together.
– Knows how to serve and manage a singleton or prototype
defined bean
– Responsible for lifecycle methods.
– Injects dependencies into defined beans when served
• Avoids the use of singletons and factories

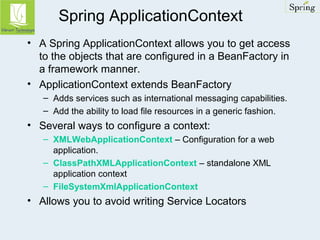

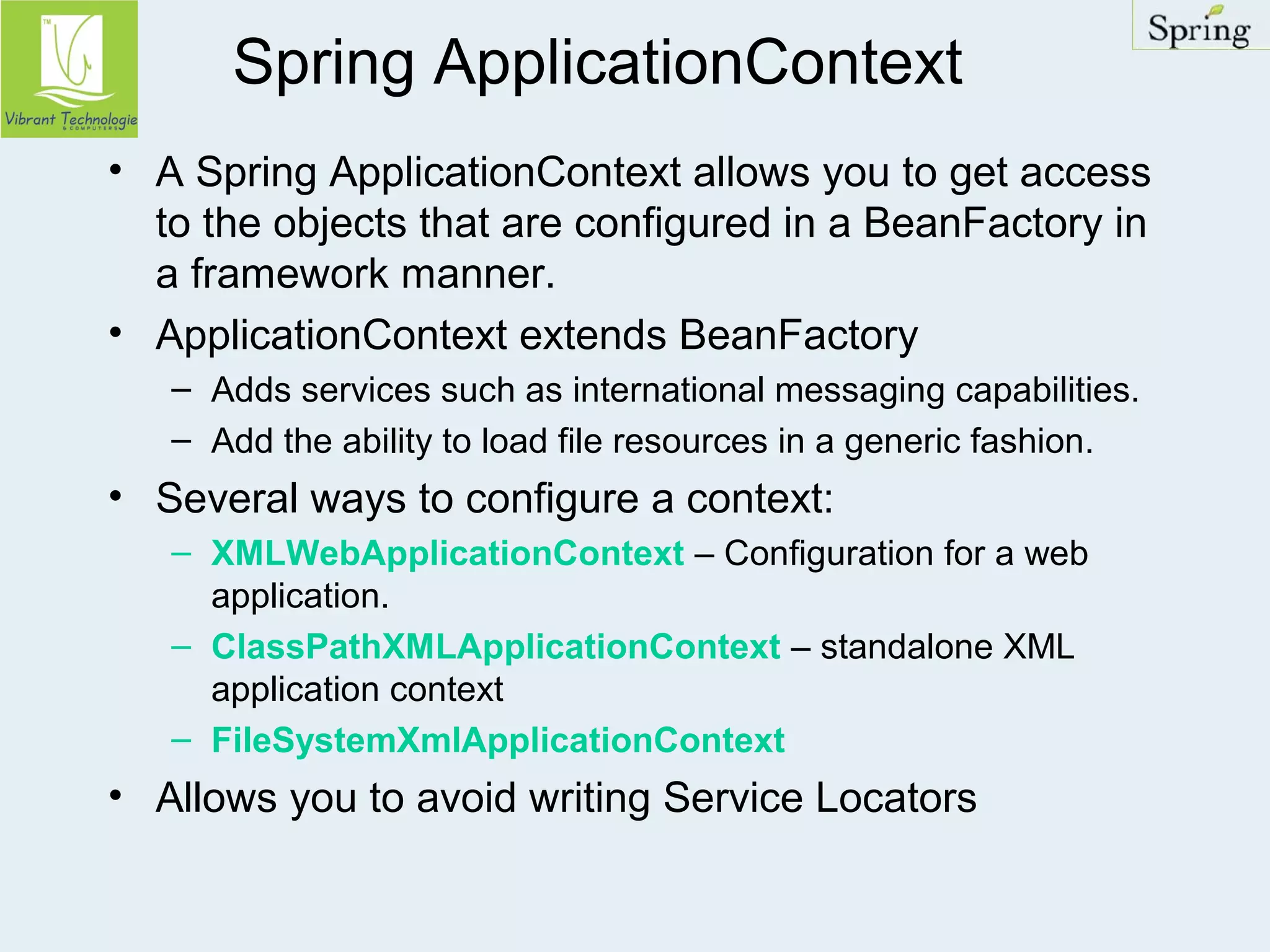

Spring ApplicationContext
• A Spring ApplicationContext allows you to get access
to the objects that are configured in a BeanFactory in
a framework manner.
• ApplicationContext extends BeanFactory
– Adds services such as international messaging capabilities.
– Add the ability to load file resources in a generic fashion.
• Several ways to configure a context:
– XMLWebApplicationContext – Configuration for a web
application.

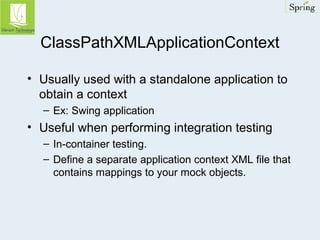

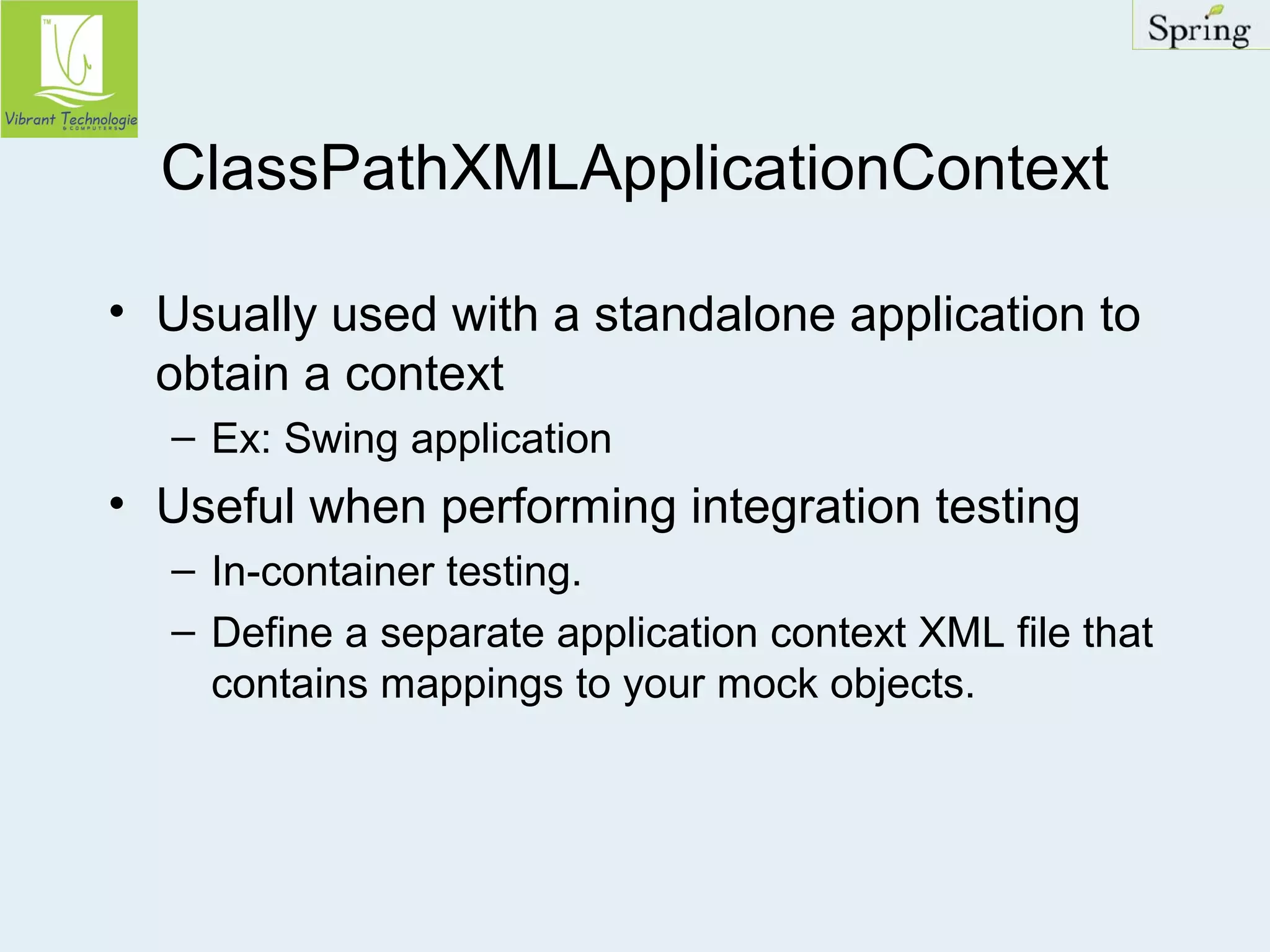

– ClassPathXMLApplicationContext – standalone XML
application context
– FileSystemXmlApplicationContext
• Allows you to avoid writing Service Locators

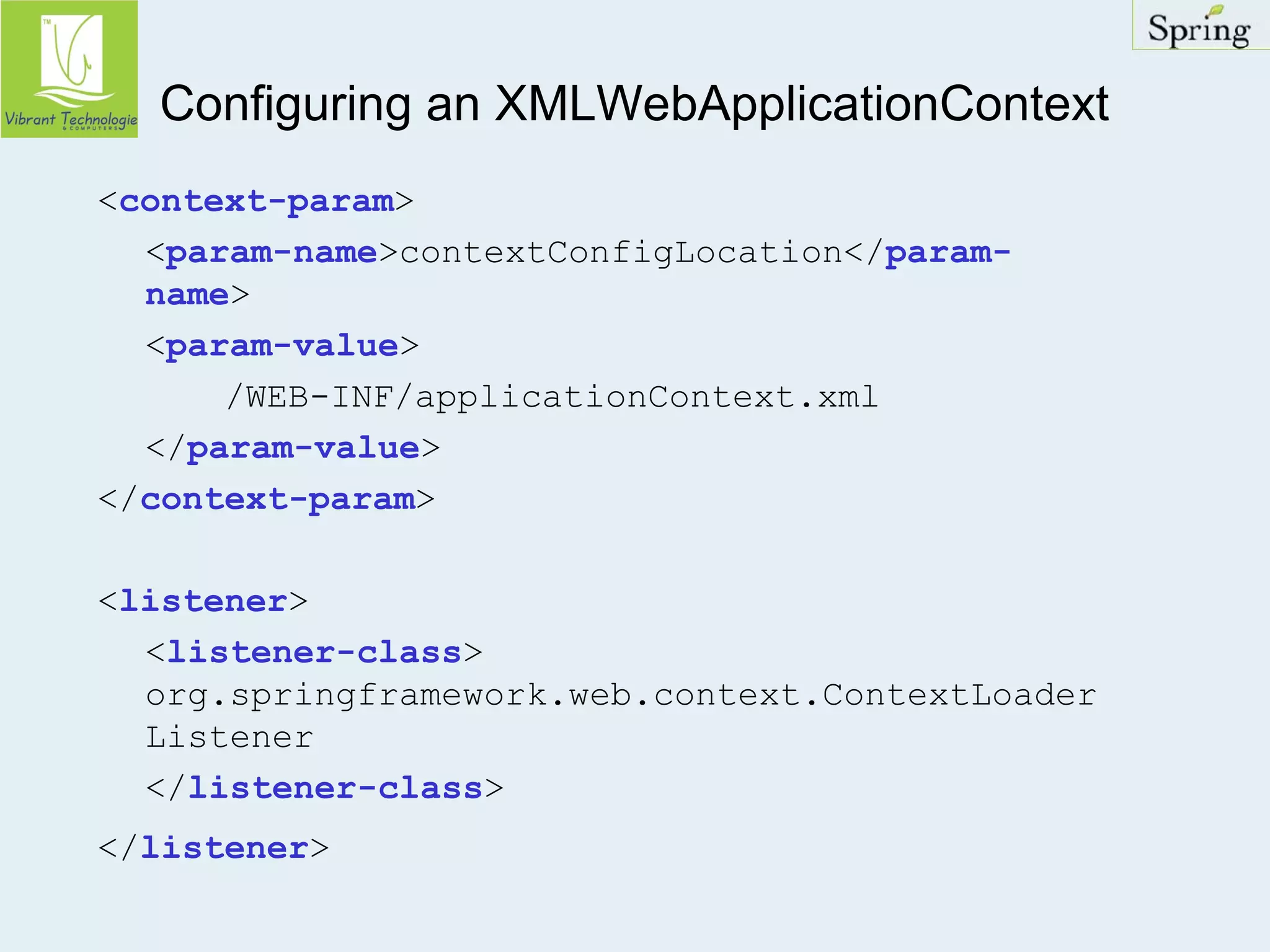

Configuring an XMLWebApplicationContext
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
/WEB-INF/applicationContext.xml
</param-value>
</context-param>
<listener>
<listener-class>
org.springframework.web.context.ContextLoader
Listener
</listener-class>
</listener>

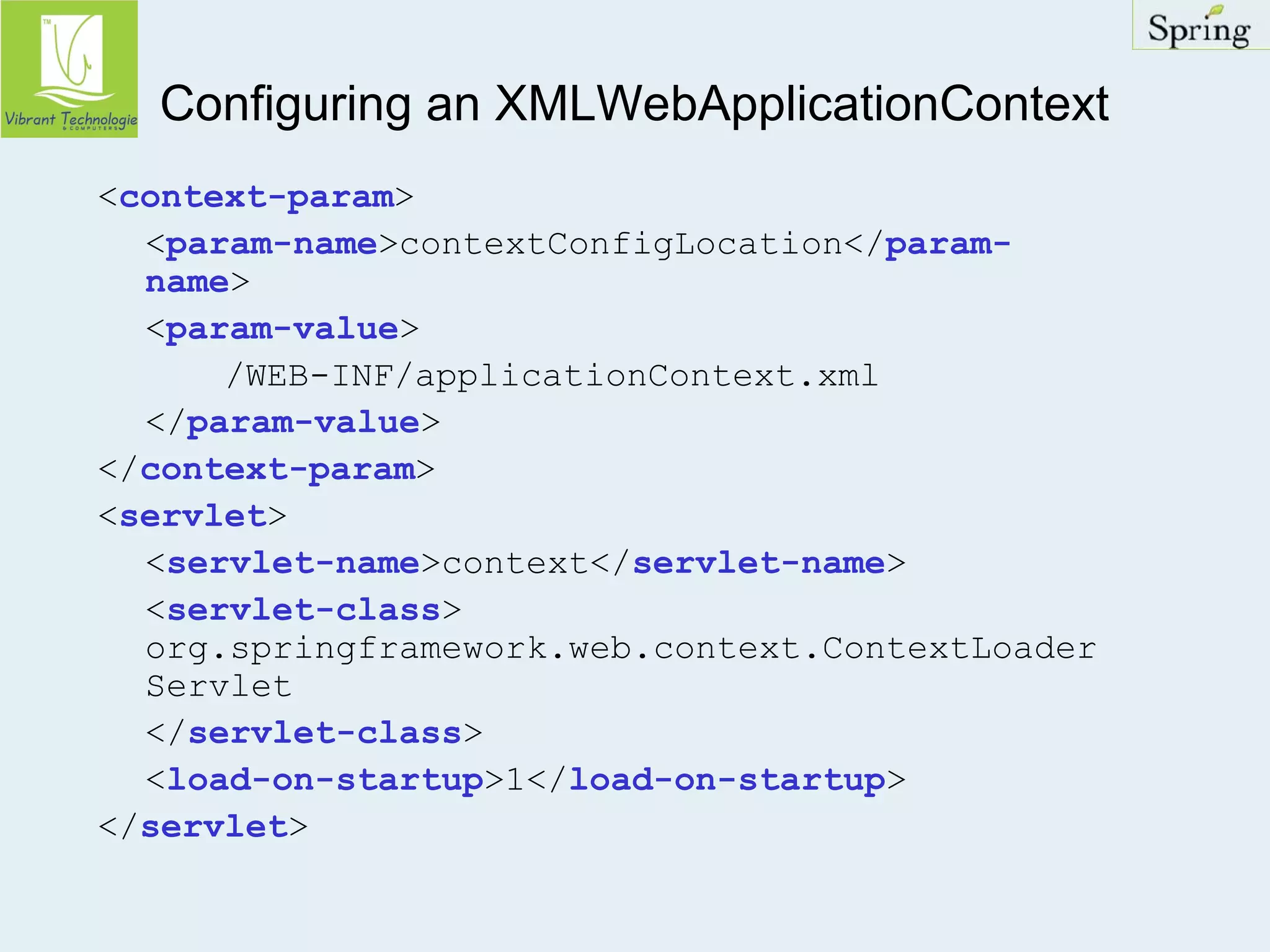

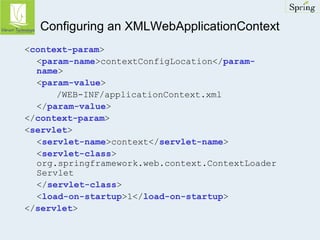

Configuring an XMLWebApplicationContext
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
/WEB-INF/applicationContext.xml
</param-value>
</context-param>
<servlet>
<servlet-name>context</servlet-name>
<servlet-class>
org.springframework.web.context.ContextLoader
Servlet
</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>

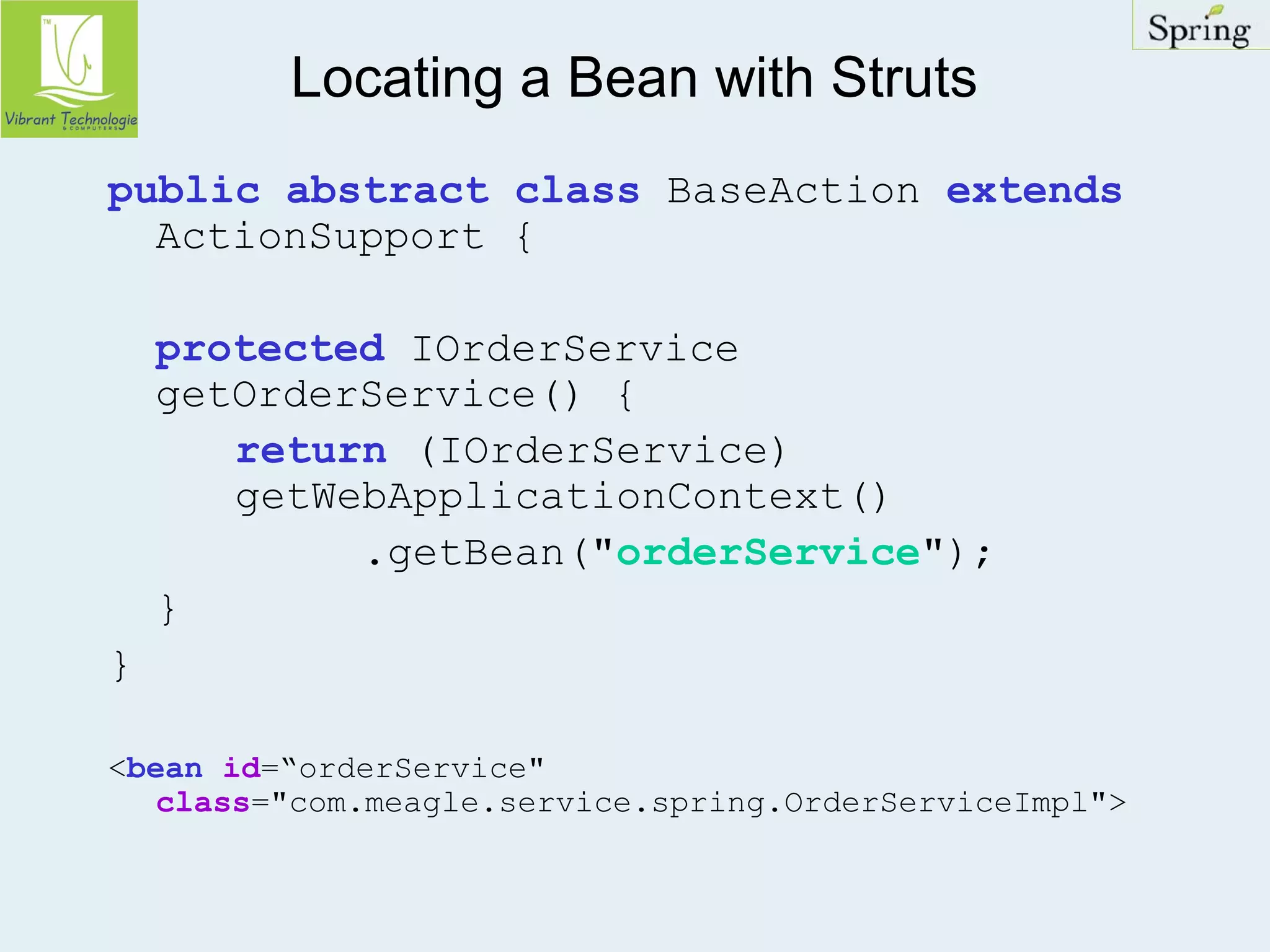

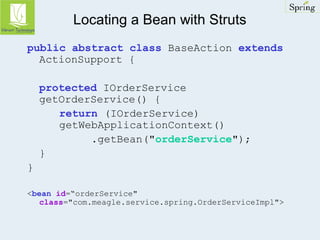

Locating a Bean with Struts
public abstract class BaseAction extends
ActionSupport {
protected IOrderService
getOrderService() {
return (IOrderService)
getWebApplicationContext()
.getBean("orderService");
}
}
<bean id=“orderService"
class="com.meagle.service.spring.OrderServiceImpl">

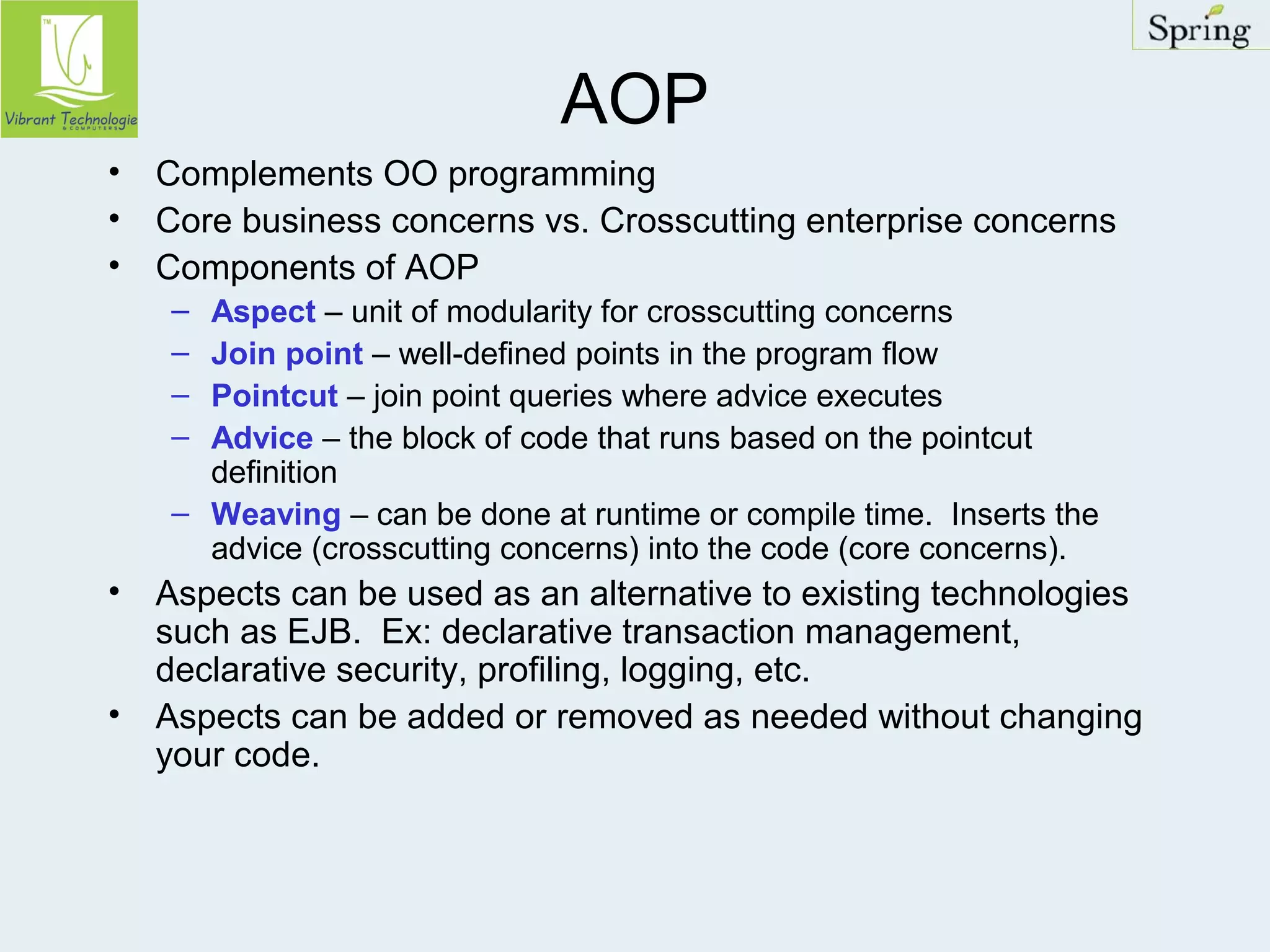

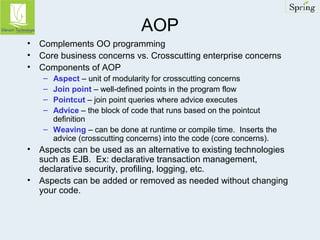

AOP
• Complements OO programming
• Core business concerns vs. Crosscutting enterprise concerns
• Components of AOP
– Aspect – unit of modularity for crosscutting concerns
– Join point – well-defined points in the program flow
– Pointcut – join point queries where advice executes
– Advice – the block of code that runs based on the pointcut
definition

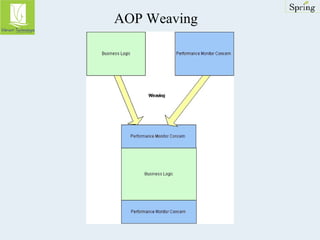

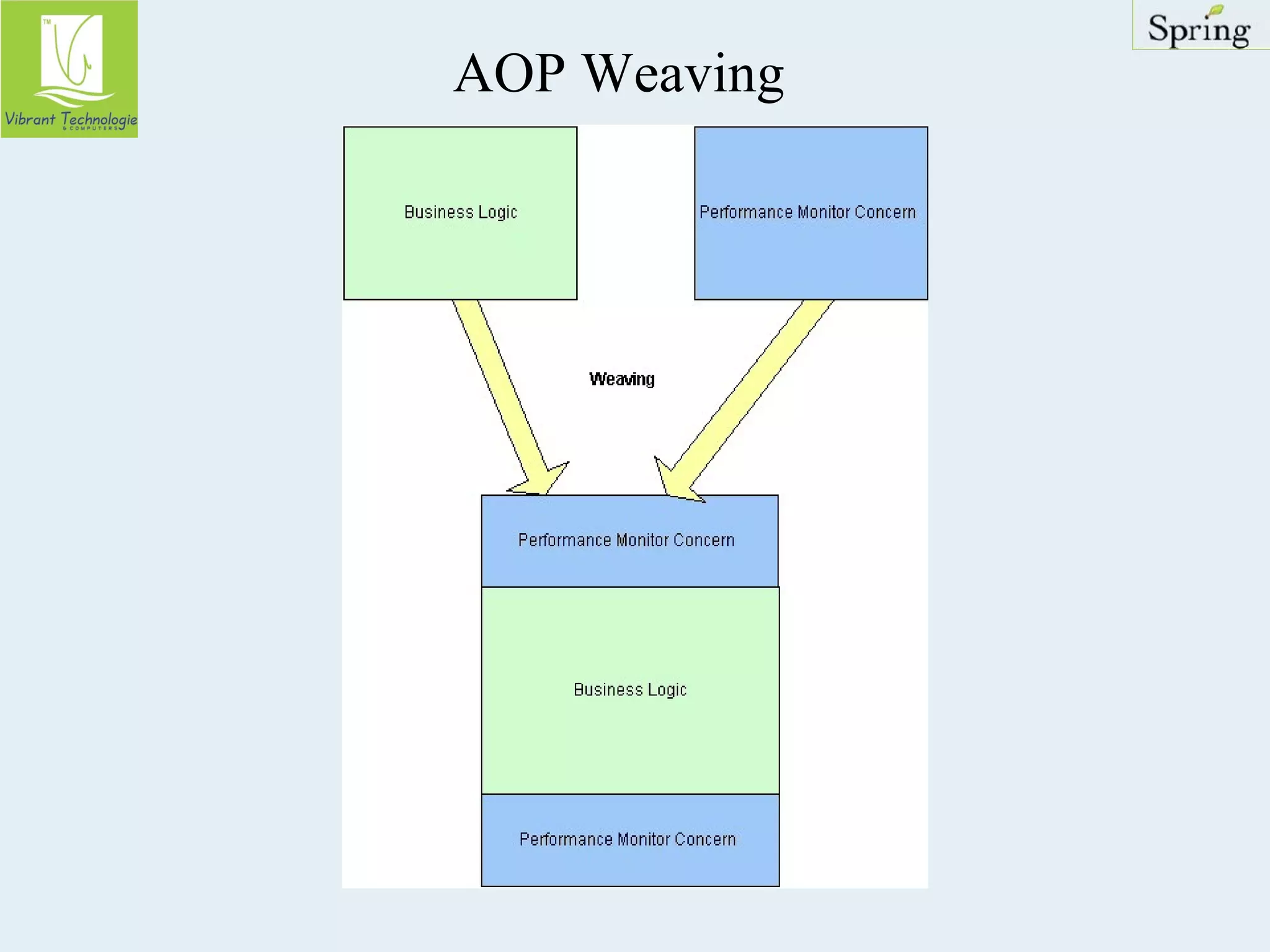

– Weaving – can be done at runtime or compile time. Inserts the
advice (crosscutting concerns) into the code (core concerns).
• Aspects can be used as an alternative to existing technologies
such as EJB. Ex: declarative transaction management,
declarative security, profiling, logging, etc.
• Aspects can be added or removed as needed without changing
your code.

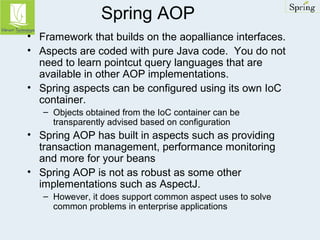

Spring AOP
• Framework that builds on the aopalliance interfaces.
• Aspects are coded with pure Java code. You do not
need to learn pointcut query languages that are
available in other AOP implementations.
• Spring aspects can be configured using its own IoC
container.
– Objects obtained from the IoC container can be
transparently advised based on configuration
• Spring AOP has built in aspects such as providing
transaction management, performance monitoring
and more for your beans
• Spring AOP is not as robust as some other
implementations such as AspectJ.
– However, it does support common aspect uses to solve
common problems in enterprise applications

Spring AOP
• Supports the following advices:
– method before
– method after returning
– throws advice
– around advice (uses AOPAlliance MethodInterceptor
directly)
• Spring allows you to chain together interceptors and
advice with precedence.
• Aspects are weaved together at runtime. AspectJ
uses compile time weaving.
• Spring AOP also includes advisors that contain
advice and pointcut filtering.
• ProxyFactoryBean – sources AOP proxies from a
Spring BeanFactory
• IoC + AOP is a great combination that is non-invasive

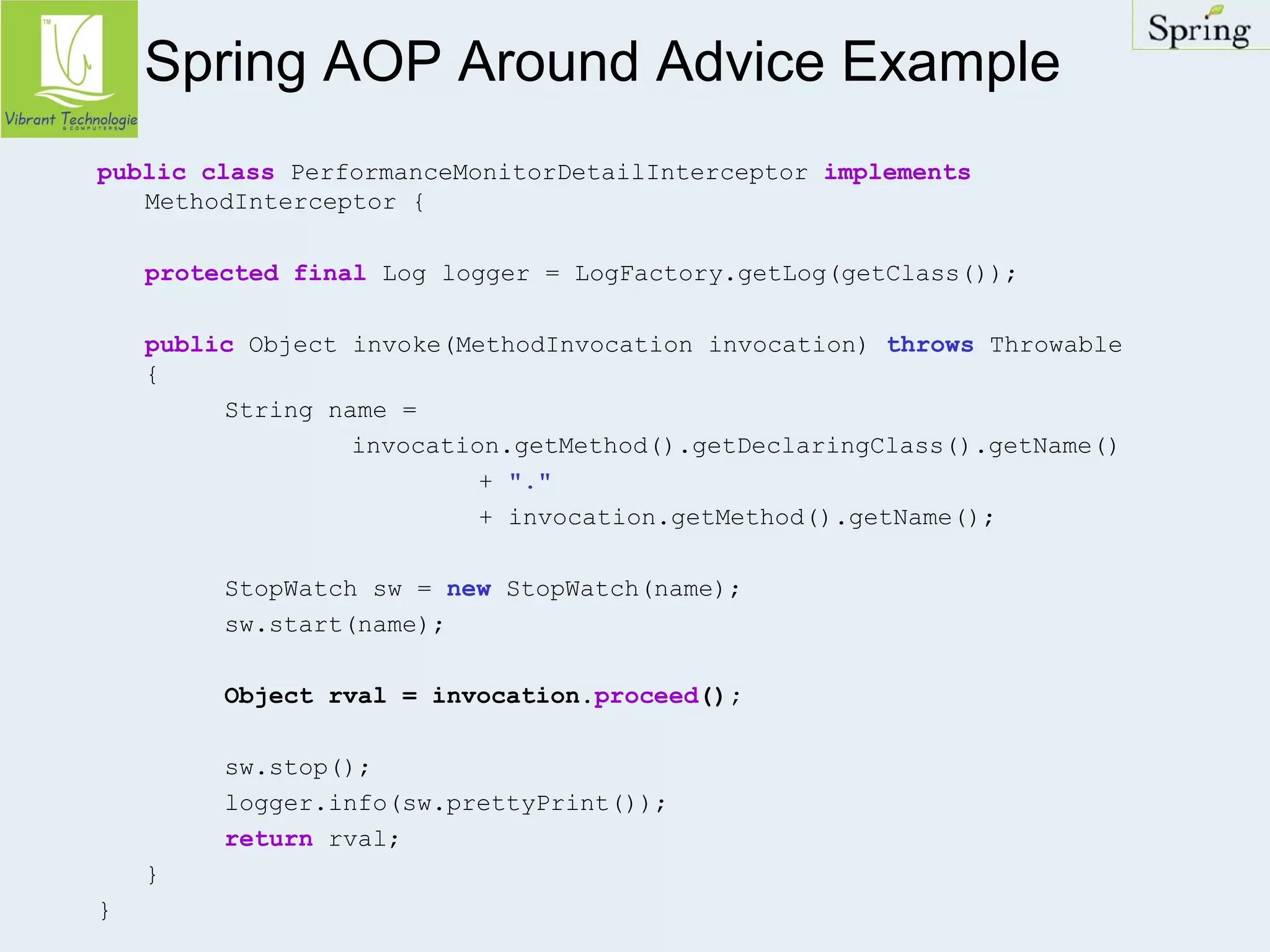

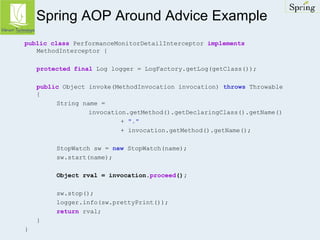

Spring AOP Around Advice Example
public class PerformanceMonitorDetailInterceptor implements
MethodInterceptor {
protected final Log logger = LogFactory.getLog(getClass());
public Object invoke(MethodInvocation invocation) throws Throwable
{
String name =
invocation.getMethod().getDeclaringClass().getName()
+ "."
+ invocation.getMethod().getName();
StopWatch sw = new StopWatch(name);
sw.start(name);
Object rval = invocation.proceed();
sw.stop();
logger.info(sw.prettyPrint());
return rval;
}
}

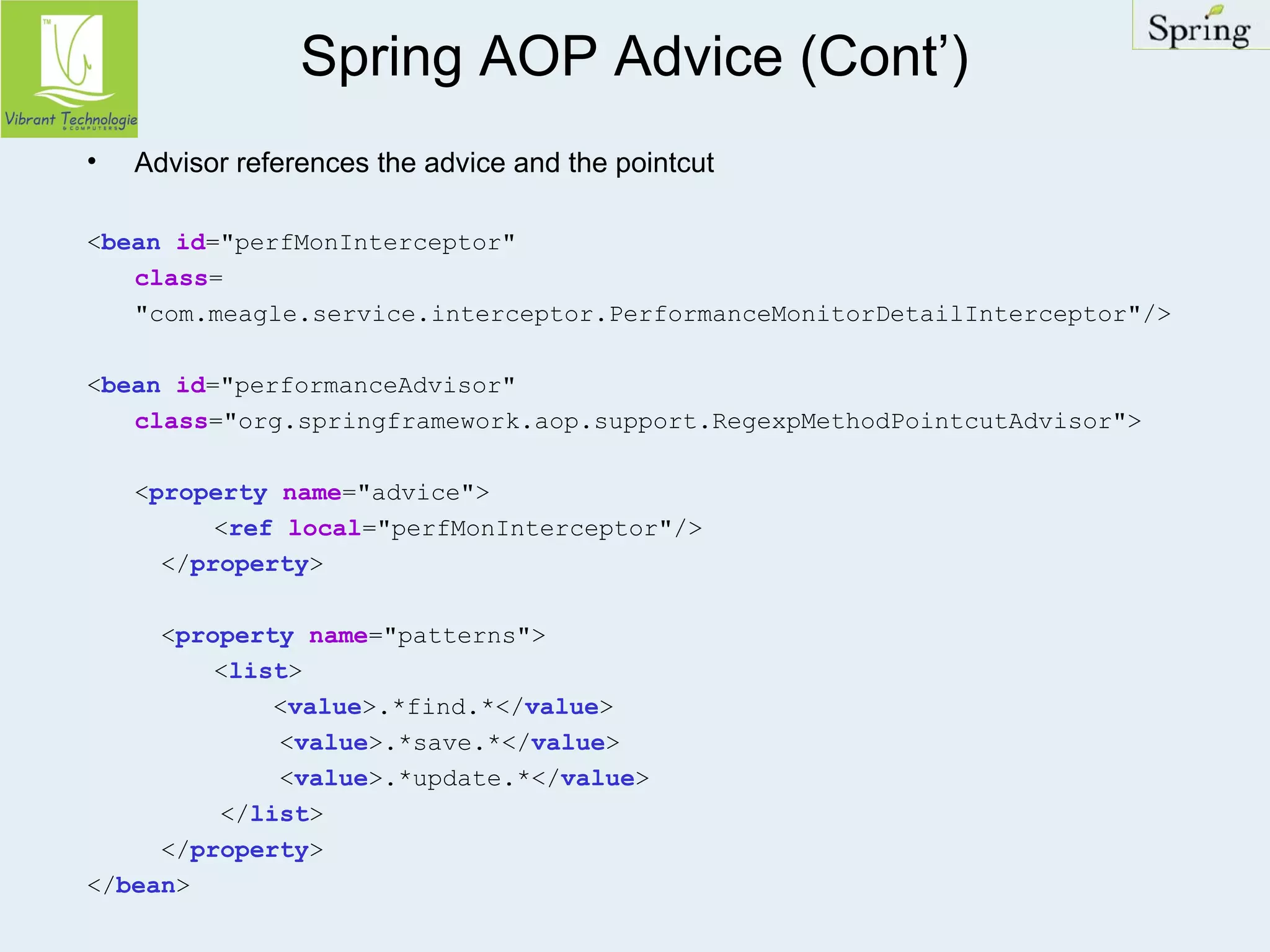

Spring AOP Advice (Cont’)
• Advisor references the advice and the pointcut
<bean id="perfMonInterceptor"
class=
"com.meagle.service.interceptor.PerformanceMonitorDetailInterceptor"/>
<bean id="performanceAdvisor"
class="org.springframework.aop.support.RegexpMethodPointcutAdvisor">
<property name="advice">
<ref local="perfMonInterceptor"/>
</property>
<property name="patterns">
<list>
<value>.*find.*</value>
<value>.*save.*</value>
<value>.*update.*</value>
</list>
</property>
</bean>

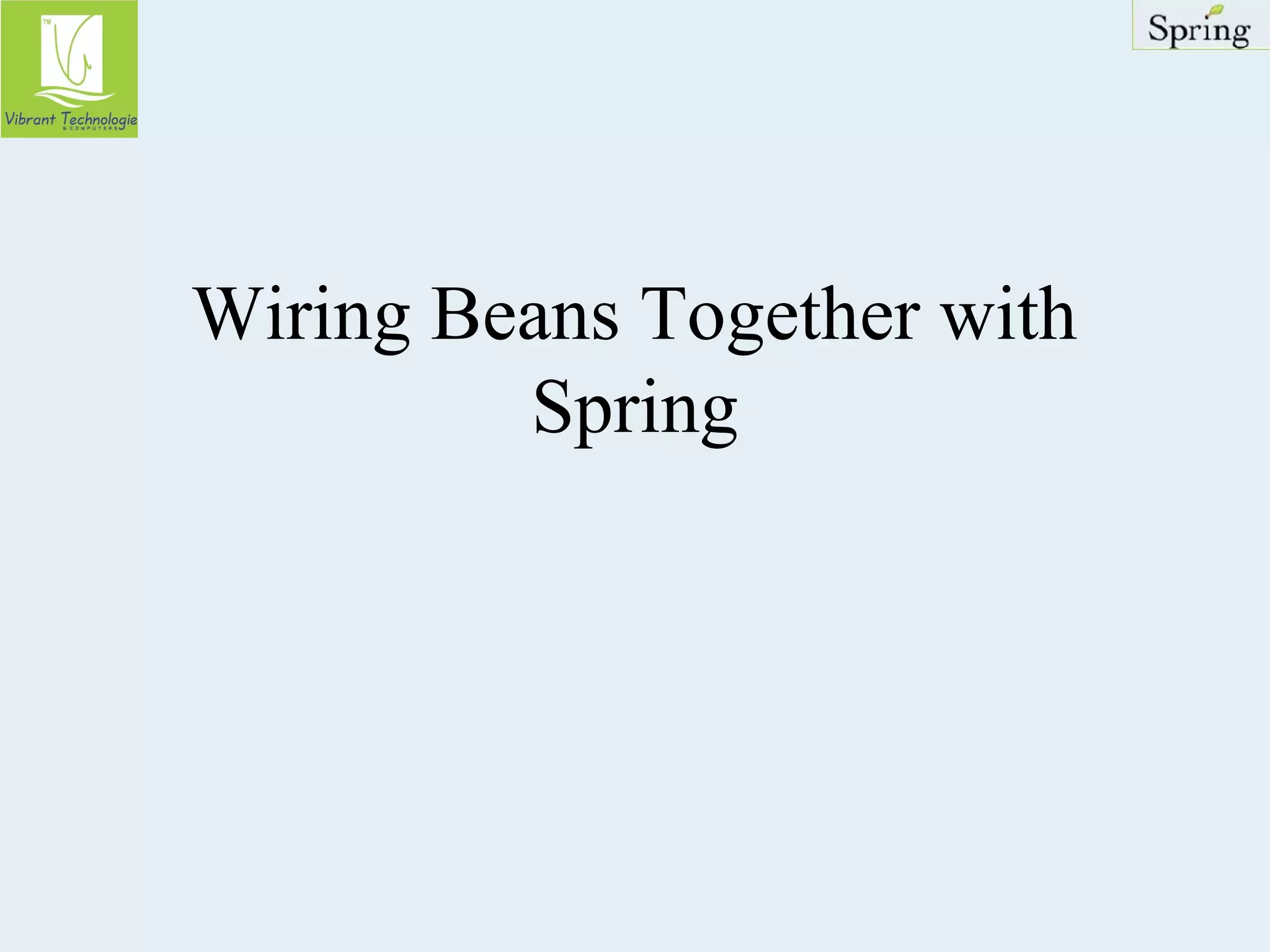

Wiring Beans Together with
Spring

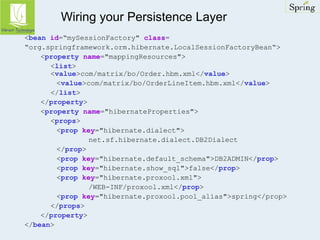

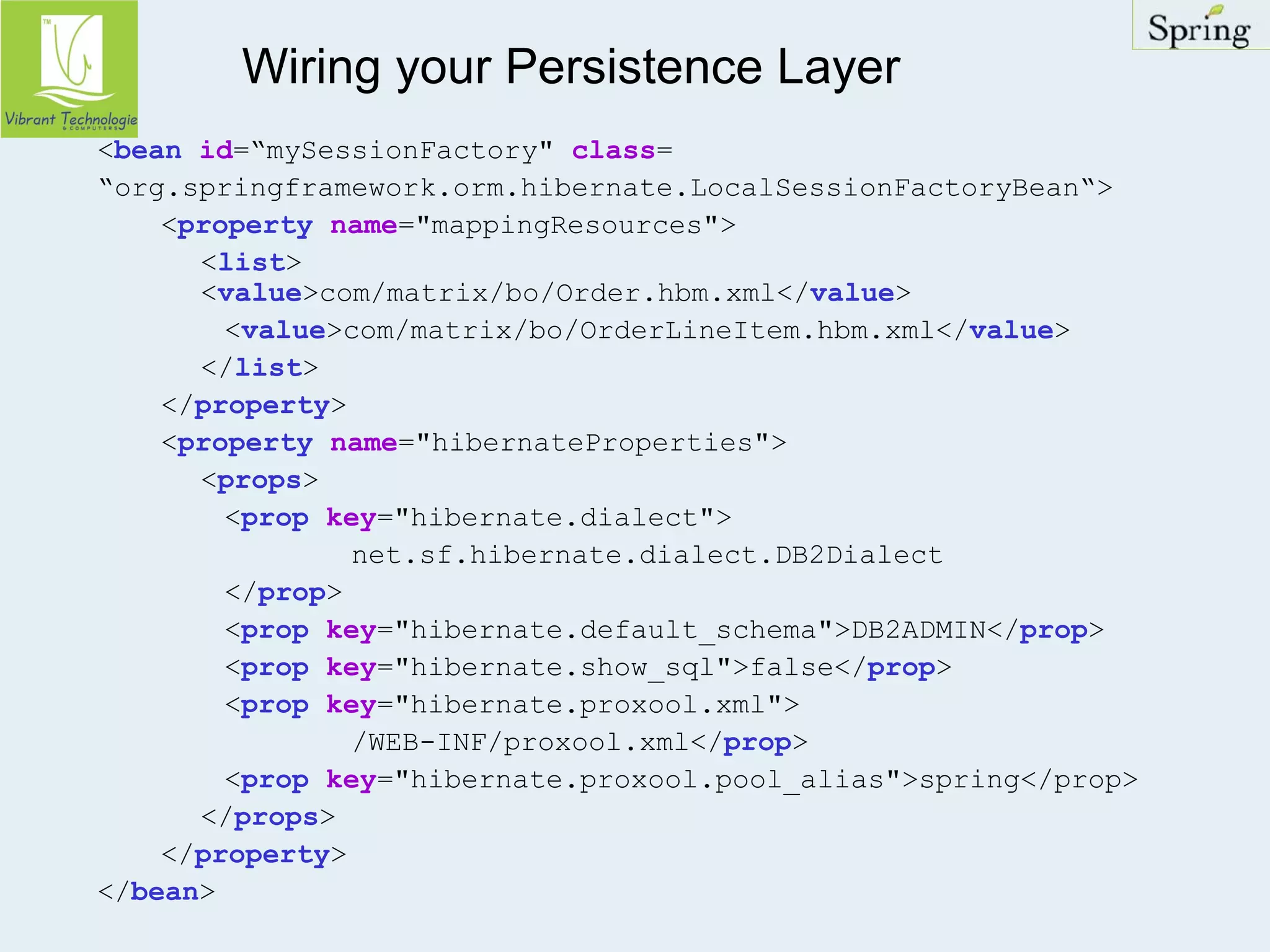

Wiring your Persistence Layer
<bean id=“mySessionFactory" class=
“org.springframework.orm.hibernate.LocalSessionFactoryBean“>
<property name="mappingResources">
<list>
<value>com/matrix/bo/Order.hbm.xml</value>
<value>com/matrix/bo/OrderLineItem.hbm.xml</value>
</list>
</property>
<property name="hibernateProperties">
<props>
<prop key="hibernate.dialect">
net.sf.hibernate.dialect.DB2Dialect
</prop>
<prop key="hibernate.default_schema">DB2ADMIN</prop>
<prop key="hibernate.show_sql">false</prop>
<prop key="hibernate.proxool.xml">
/WEB-INF/proxool.xml</prop>
<prop key="hibernate.proxool.pool_alias">spring</prop>
</props>
</property>
</bean>

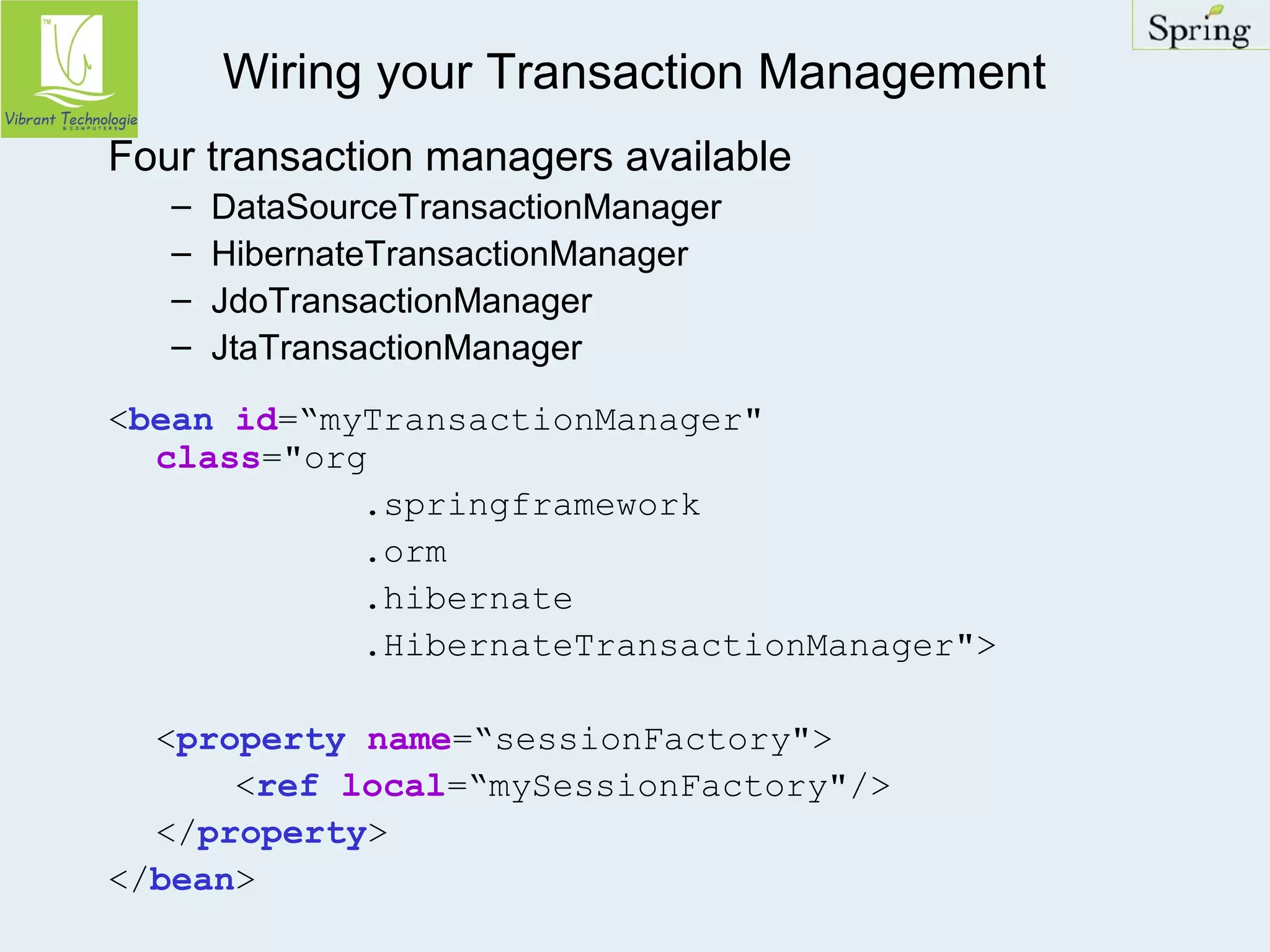

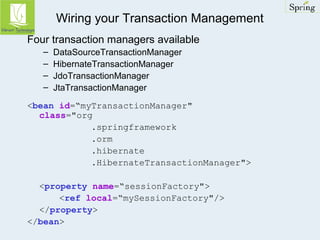

Wiring your Transaction Management
Four transaction managers available
– DataSourceTransactionManager
– HibernateTransactionManager
– JdoTransactionManager
– JtaTransactionManager
<bean id=“myTransactionManager"
class="org
.springframework
.orm
.hibernate
.HibernateTransactionManager">
<property name=“sessionFactory">
<ref local=“mySessionFactory"/>
</property>
</bean>

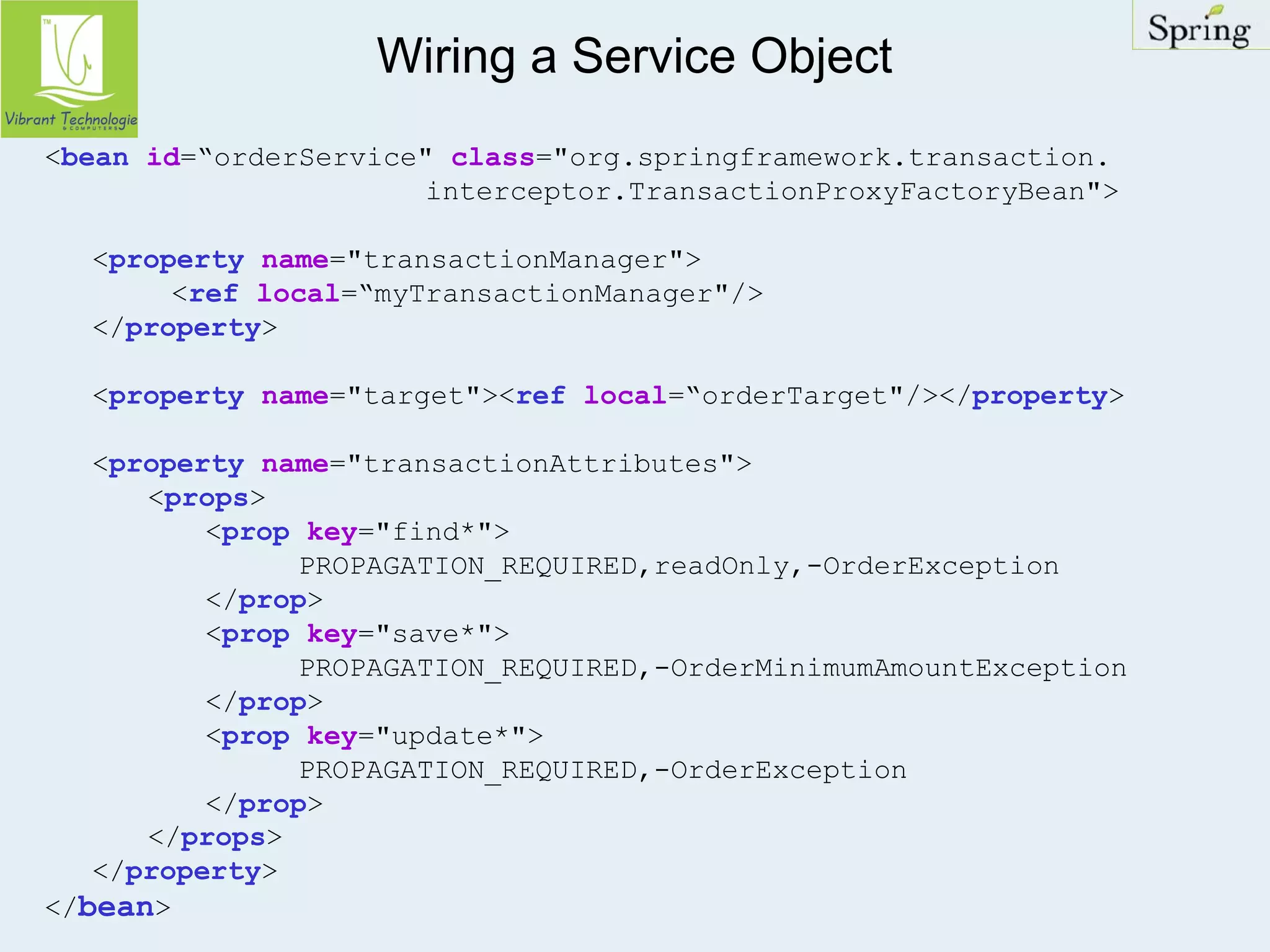

Wiring a Service Object
<bean id=“orderService" class="org.springframework.transaction.
interceptor.TransactionProxyFactoryBean">
<property name="transactionManager">
<ref local=“myTransactionManager"/>
</property>
<property name="target"><ref local=“orderTarget"/></property>
<property name="transactionAttributes">
<props>
<prop key="find*">
PROPAGATION_REQUIRED,readOnly,-OrderException
</prop>
<prop key="save*">
PROPAGATION_REQUIRED,-OrderMinimumAmountException
</prop>
<prop key="update*">
PROPAGATION_REQUIRED,-OrderException
</prop>
</props>
</property>
</bean>

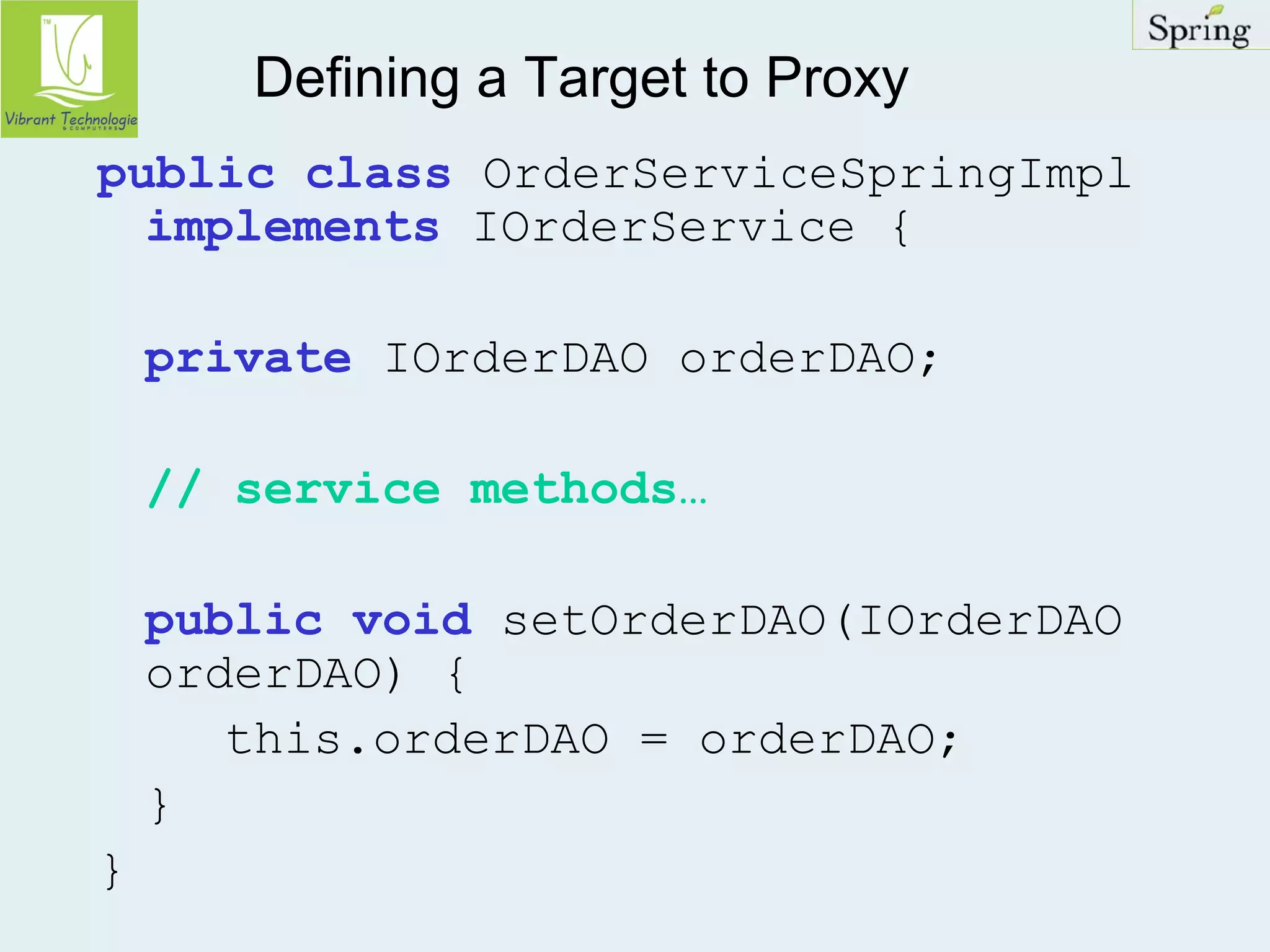

Defining a Target to Proxy
public class OrderServiceSpringImpl
implements IOrderService {
private IOrderDAO orderDAO;
// service methods…
public void setOrderDAO(IOrderDAO
orderDAO) {
this.orderDAO = orderDAO;
}
}

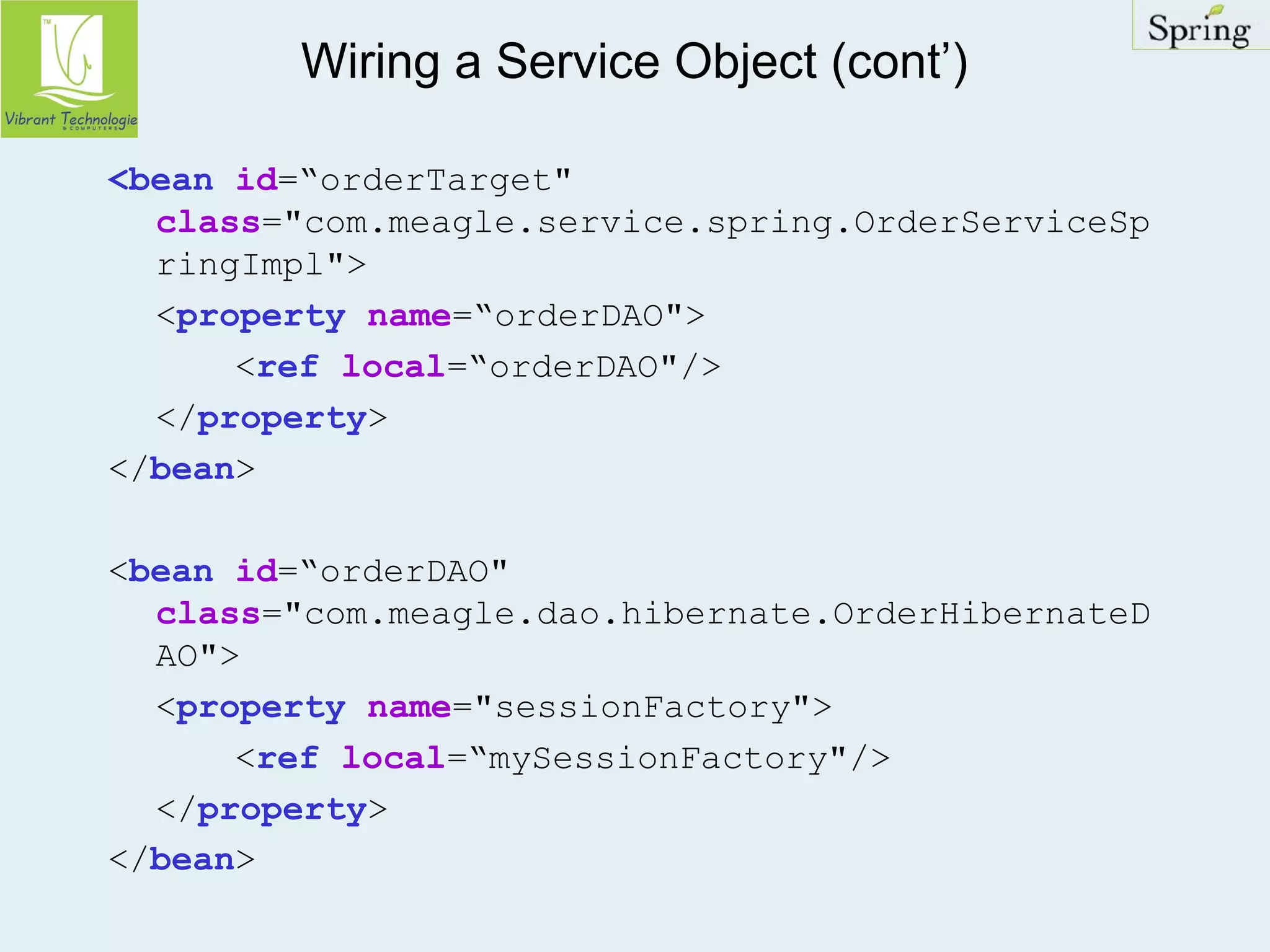

Wiring a Service Object (cont’)
<bean id=“orderTarget"
class="com.meagle.service.spring.OrderServiceSp
ringImpl">
<property name=“orderDAO">
<ref local=“orderDAO"/>
</property>
</bean>
<bean id=“orderDAO"
class="com.meagle.dao.hibernate.OrderHibernateD
AO">
<property name="sessionFactory">
<ref local=“mySessionFactory"/>
</property>
</bean>

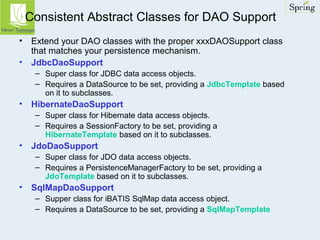

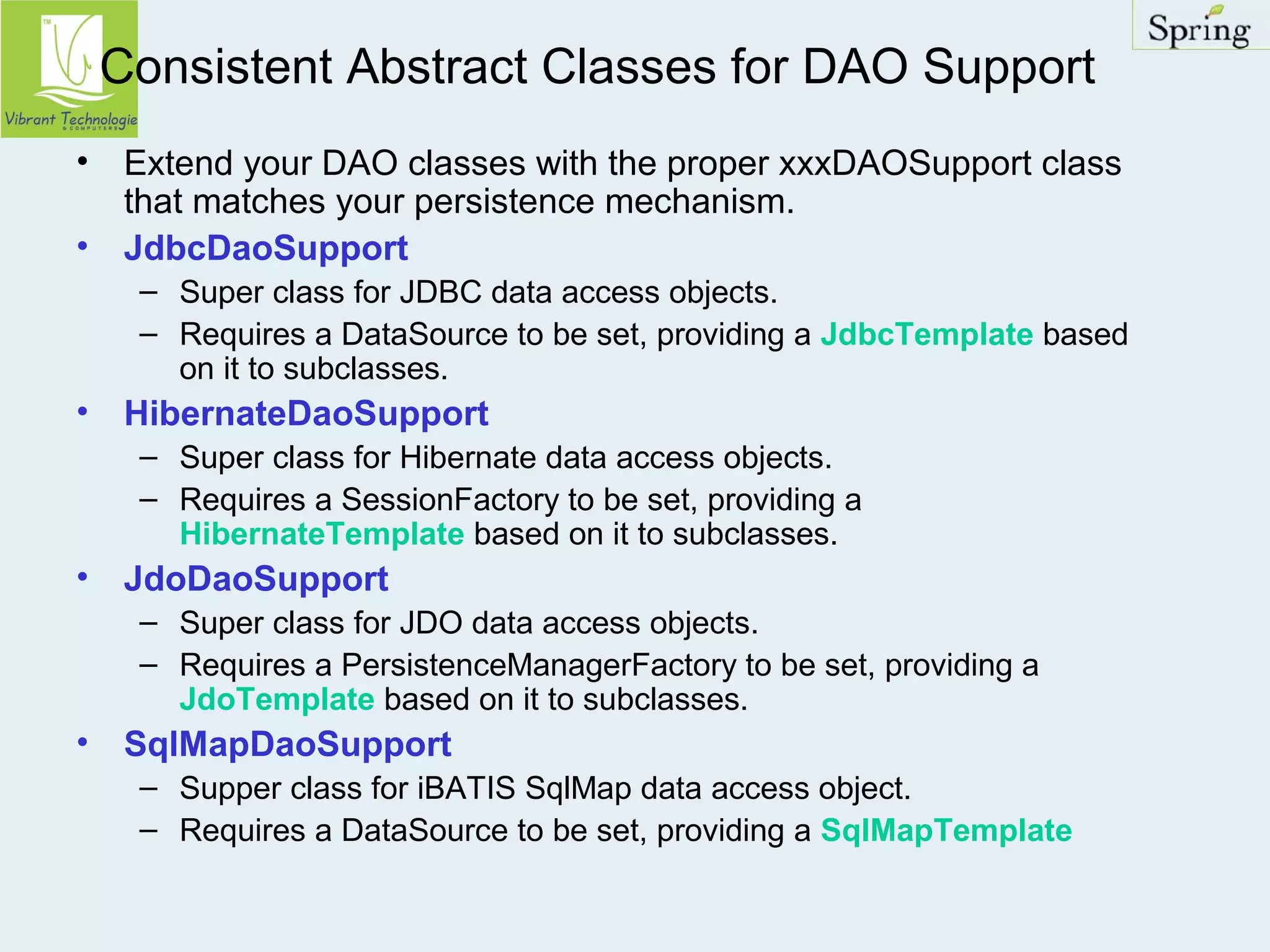

Consistent Abstract Classes for DAO Support
• Extend your DAO classes with the proper xxxDAOSupport class
that matches your persistence mechanism.
• JdbcDaoSupport
– Super class for JDBC data access objects.
– Requires a DataSource to be set, providing a JdbcTemplate based
on it to subclasses.
• HibernateDaoSupport
– Super class for Hibernate data access objects.
– Requires a SessionFactory to be set, providing a
HibernateTemplate based on it to subclasses.
• JdoDaoSupport
– Super class for JDO data access objects.
– Requires a PersistenceManagerFactory to be set, providing a
JdoTemplate based on it to subclasses.
• SqlMapDaoSupport
– Supper class for iBATIS SqlMap data access object.
– Requires a DataSource to be set, providing a SqlMapTemplate

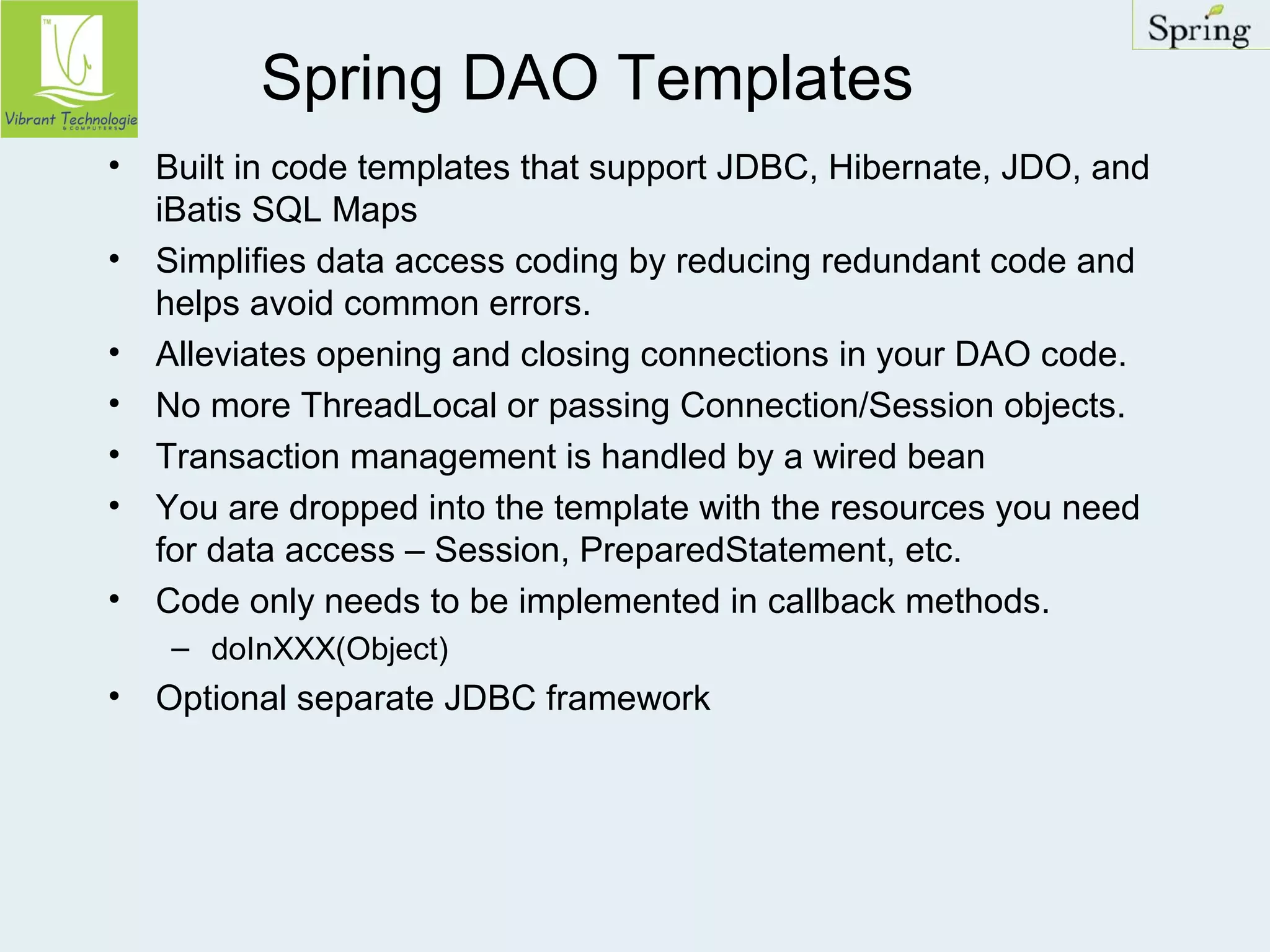

Spring DAO Templates
• Built in code templates that support JDBC, Hibernate, JDO, and
iBatis SQL Maps
• Simplifies data access coding by reducing redundant code and
helps avoid common errors.
• Alleviates opening and closing connections in your DAO code.
• No more ThreadLocal or passing Connection/Session objects.
• Transaction management is handled by a wired bean
• You are dropped into the template with the resources you need
for data access – Session, PreparedStatement, etc.
• Code only needs to be implemented in callback methods.
– doInXXX(Object)
• Optional separate JDBC framework

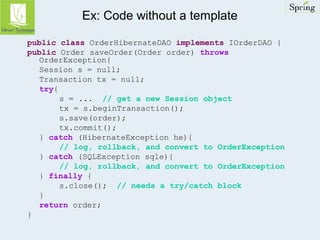

Ex: Code without a template
public class OrderHibernateDAO implements IOrderDAO {
public Order saveOrder(Order order) throws
OrderException{
Session s = null;
Transaction tx = null;
try{
s = ... // get a new Session object
tx = s.beginTransaction();
s.save(order);
tx.commit();
} catch (HibernateException he){
// log, rollback, and convert to OrderException
} catch (SQLException sqle){
// log, rollback, and convert to OrderException
} finally {
s.close(); // needs a try/catch block
}
return order;
}

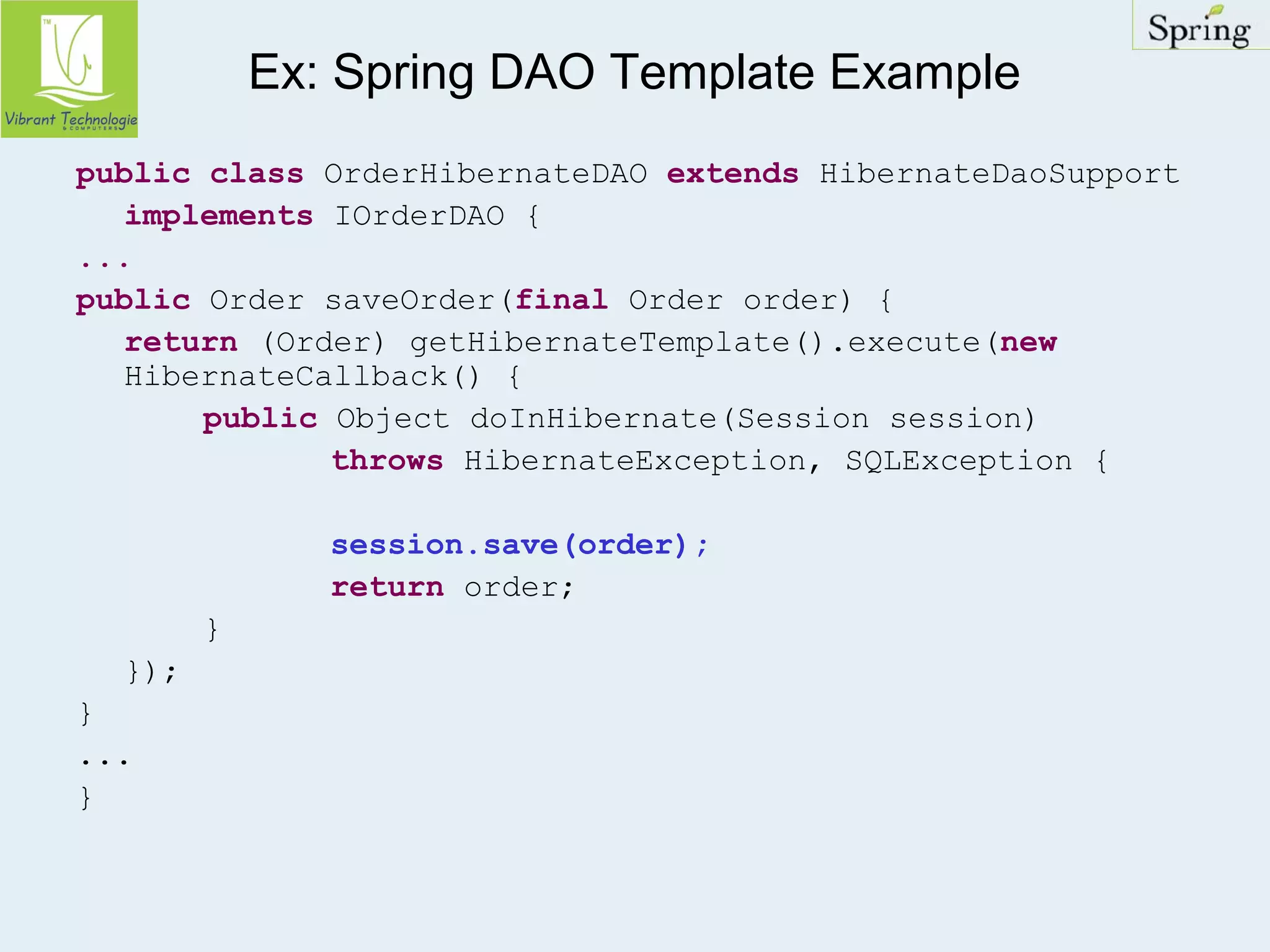

Ex: Spring DAO Template Example
public class OrderHibernateDAO extends HibernateDaoSupport
implements IOrderDAO {
...
public Order saveOrder(final Order order) {
return (Order) getHibernateTemplate().execute(new
HibernateCallback() {
public Object doInHibernate(Session session)
throws HibernateException, SQLException {
session.save(order);
return order;
}
});
}
...
}

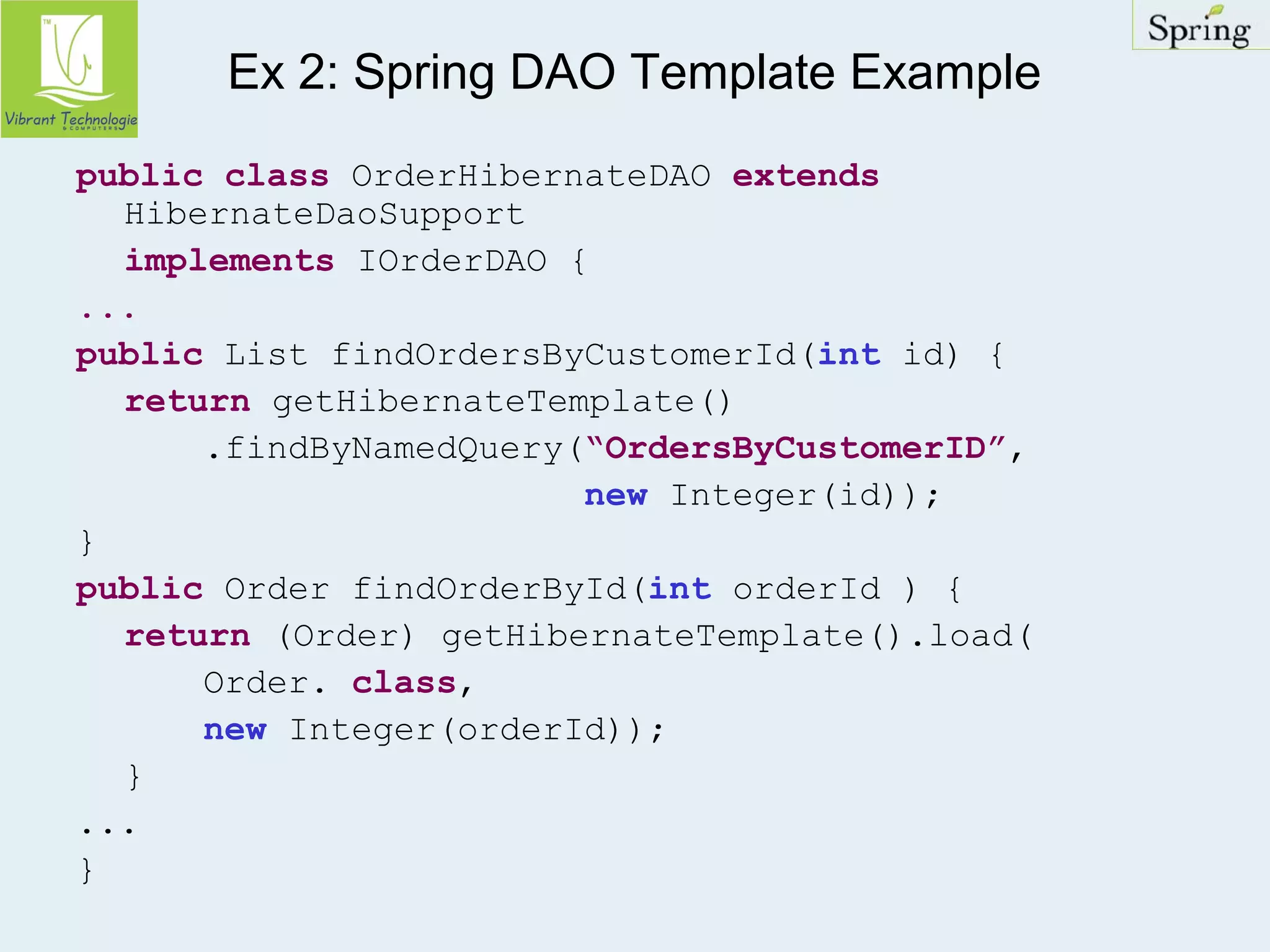

Ex 2: Spring DAO Template Example
public class OrderHibernateDAO extends
HibernateDaoSupport
implements IOrderDAO {
...
public List findOrdersByCustomerId(int id) {
return getHibernateTemplate()
.findByNamedQuery(“OrdersByCustomerID”,
new Integer(id));
}
public Order findOrderById(int orderId ) {
return (Order) getHibernateTemplate().load(
Order. class,
new Integer(orderId));
}
...
}

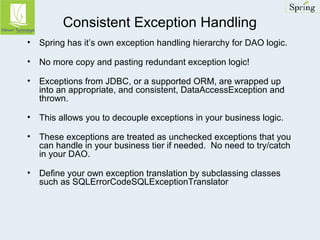

Consistent Exception Handling
• Spring has it’s own exception handling hierarchy for DAO logic.
• No more copy and pasting redundant exception logic!
• Exceptions from JDBC, or a supported ORM, are wrapped up
into an appropriate, and consistent, DataAccessException and
thrown.
• This allows you to decouple exceptions in your business logic.
• These exceptions are treated as unchecked exceptions that you
can handle in your business tier if needed. No need to try/catch
in your DAO.
• Define your own exception translation by subclassing classes
such as SQLErrorCodeSQLExceptionTranslator

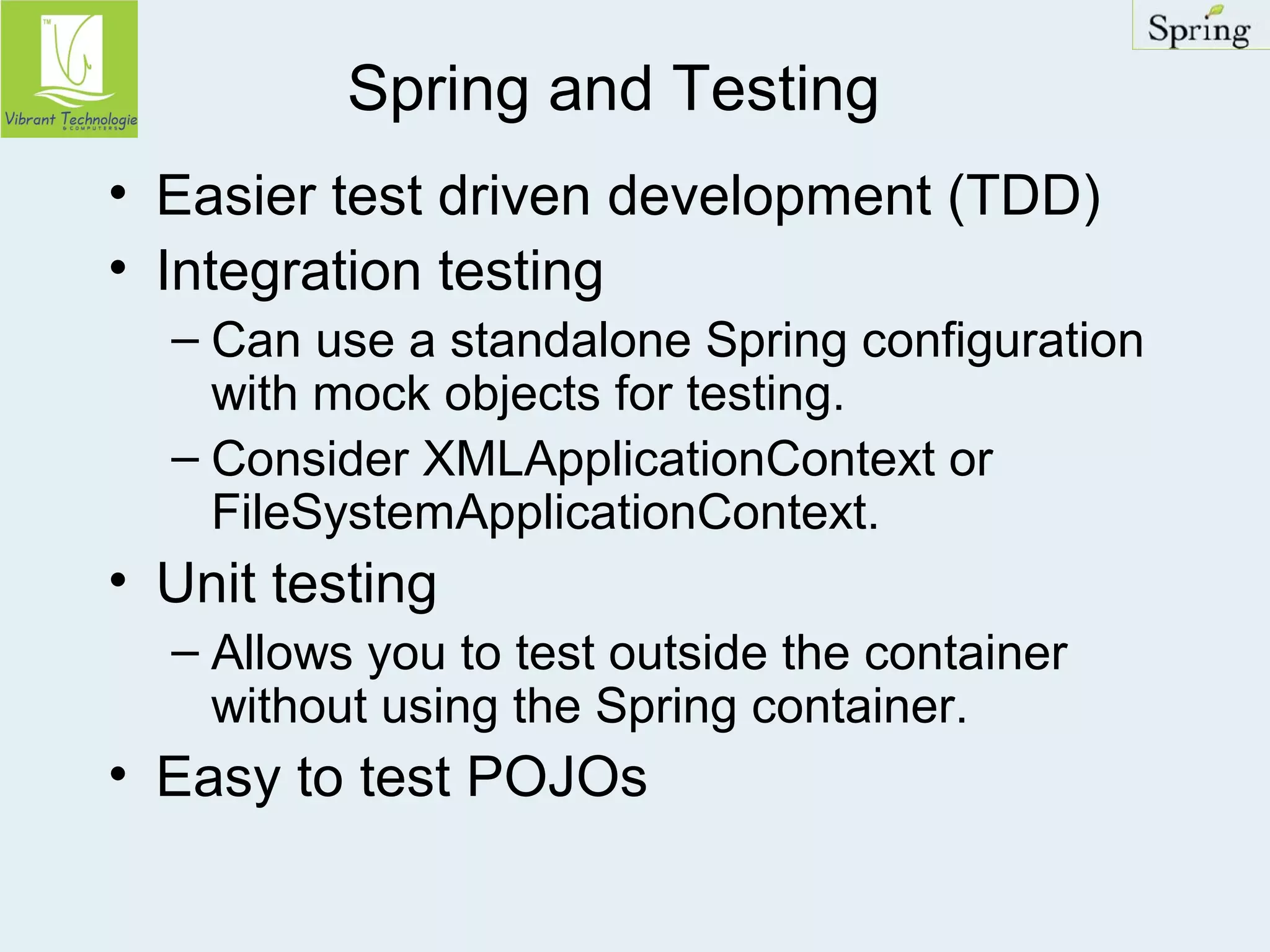

Spring and Testing
• Easier test driven development (TDD)
• Integration testing
– Can use a standalone Spring configuration
with mock objects for testing.
– Consider XMLApplicationContext or
FileSystemApplicationContext.
• Unit testing
– Allows you to test outside the container
without using the Spring container.
• Easy to test POJOs

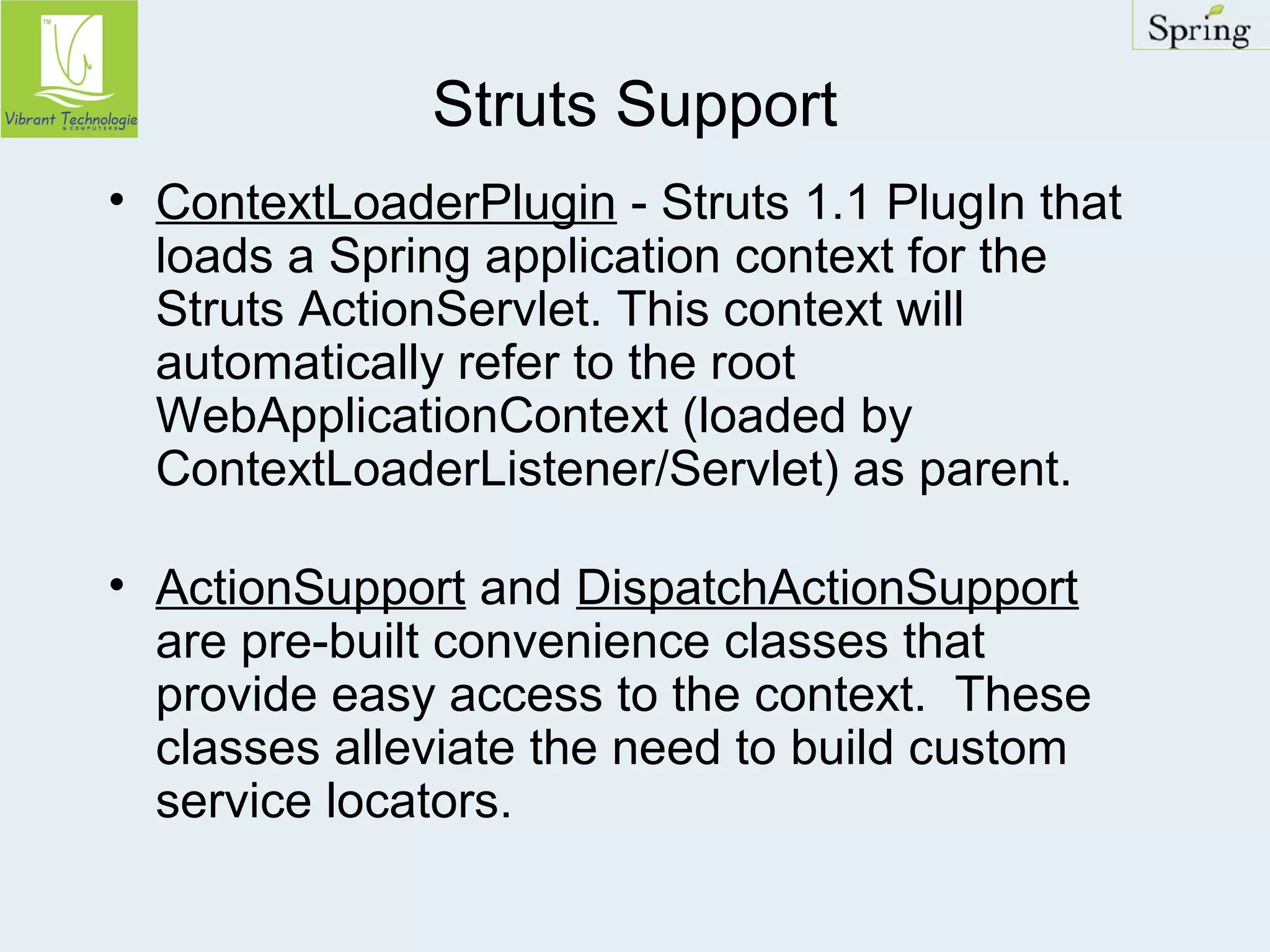

Struts Support
• ContextLoaderPlugin - Struts 1.1 PlugIn that
loads a Spring application context for the
Struts ActionServlet. This context will
automatically refer to the root
WebApplicationContext (loaded by
ContextLoaderListener/Servlet) as parent.
• ActionSupport and DispatchActionSupport
are pre-built convenience classes that
provide easy access to the context. These
classes alleviate the need to build custom
service locators.

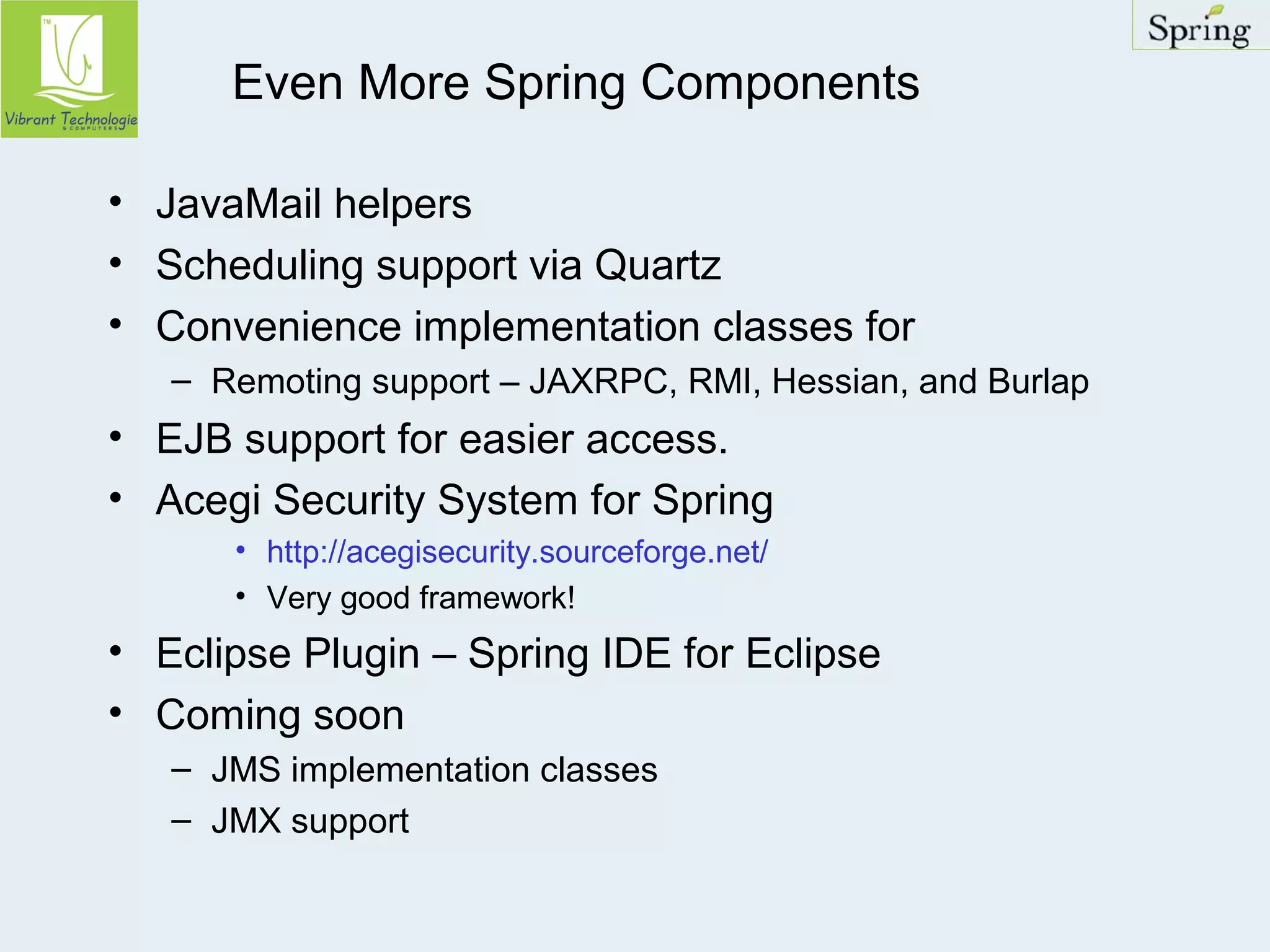

Even More Spring Components
• JavaMail helpers
• Scheduling support via Quartz
• Convenience implementation classes for
– Remoting support – JAXRPC, RMI, Hessian, and Burlap
• EJB support for easier access.
• Acegi Security System for Spring
• http://acegisecurity.sourceforge.net/
• Very good framework!
• Eclipse Plugin – Spring IDE for Eclipse
• Coming soon
– JMS implementation classes
– JMX support

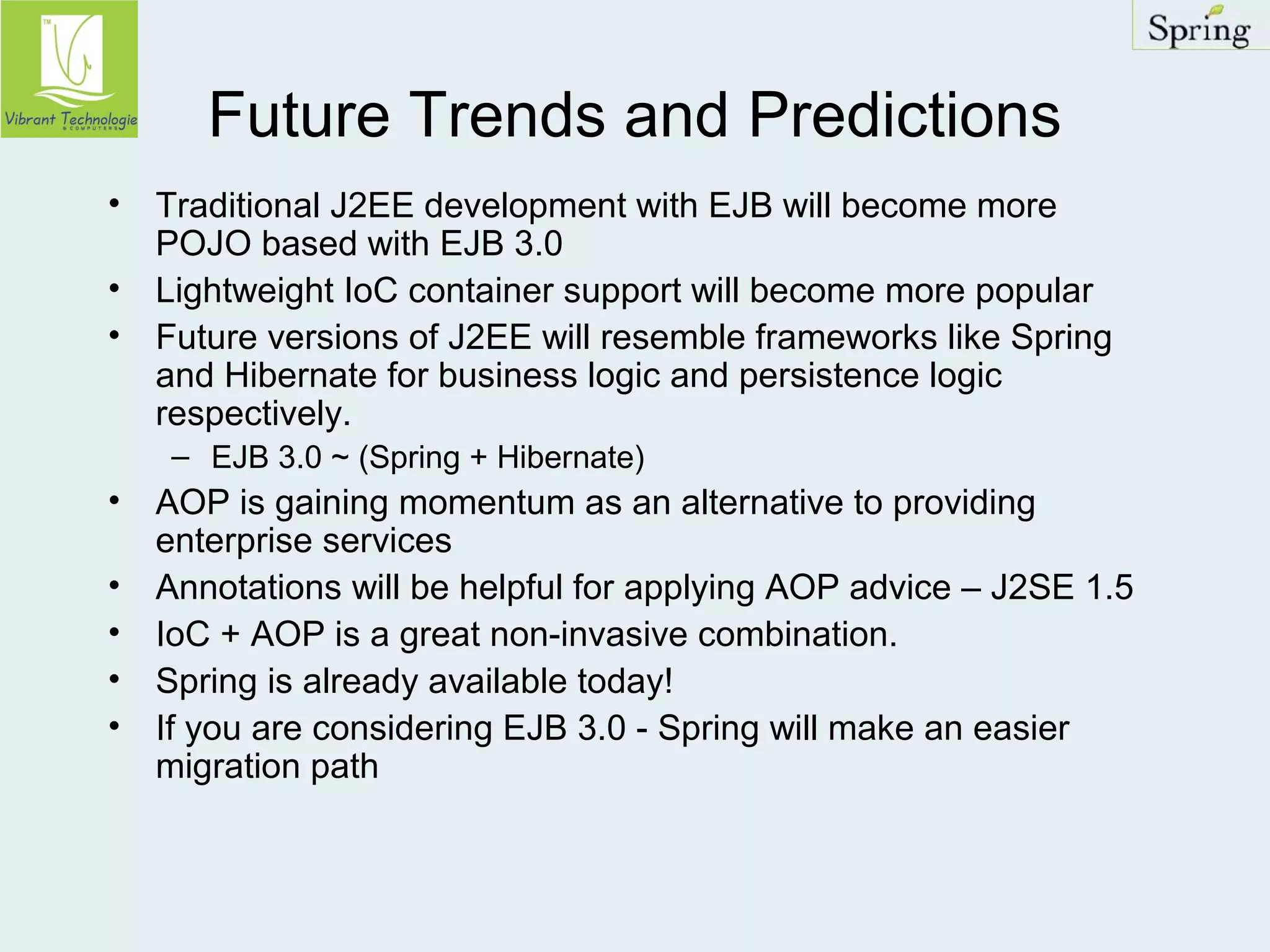

Future Trends and Predictions
• Traditional J2EE development with EJB will become more
POJO based with EJB 3.0
• Lightweight IoC container support will become more popular
• Future versions of J2EE will resemble frameworks like Spring
and Hibernate for business logic and persistence logic
respectively.
– EJB 3.0 ~ (Spring + Hibernate)
• AOP is gaining momentum as an alternative to providing
enterprise services
• Annotations will be helpful for applying AOP advice – J2SE 1.5
• IoC + AOP is a great non-invasive combination.
• Spring is already available today!
• If you are considering EJB 3.0 - Spring will make an easier
migration path

Demo
• Shows an end-to-end implementation using
Struts, Spring, and Hibernate.
• Demonstrates declarative transaction
management with POJOs using Spring
Aspect.
• Demonstrates working with a custom
Spring aspect for performance monitoring.
• DAO replacement Hibernate << >> JDBC
• Look at some code.

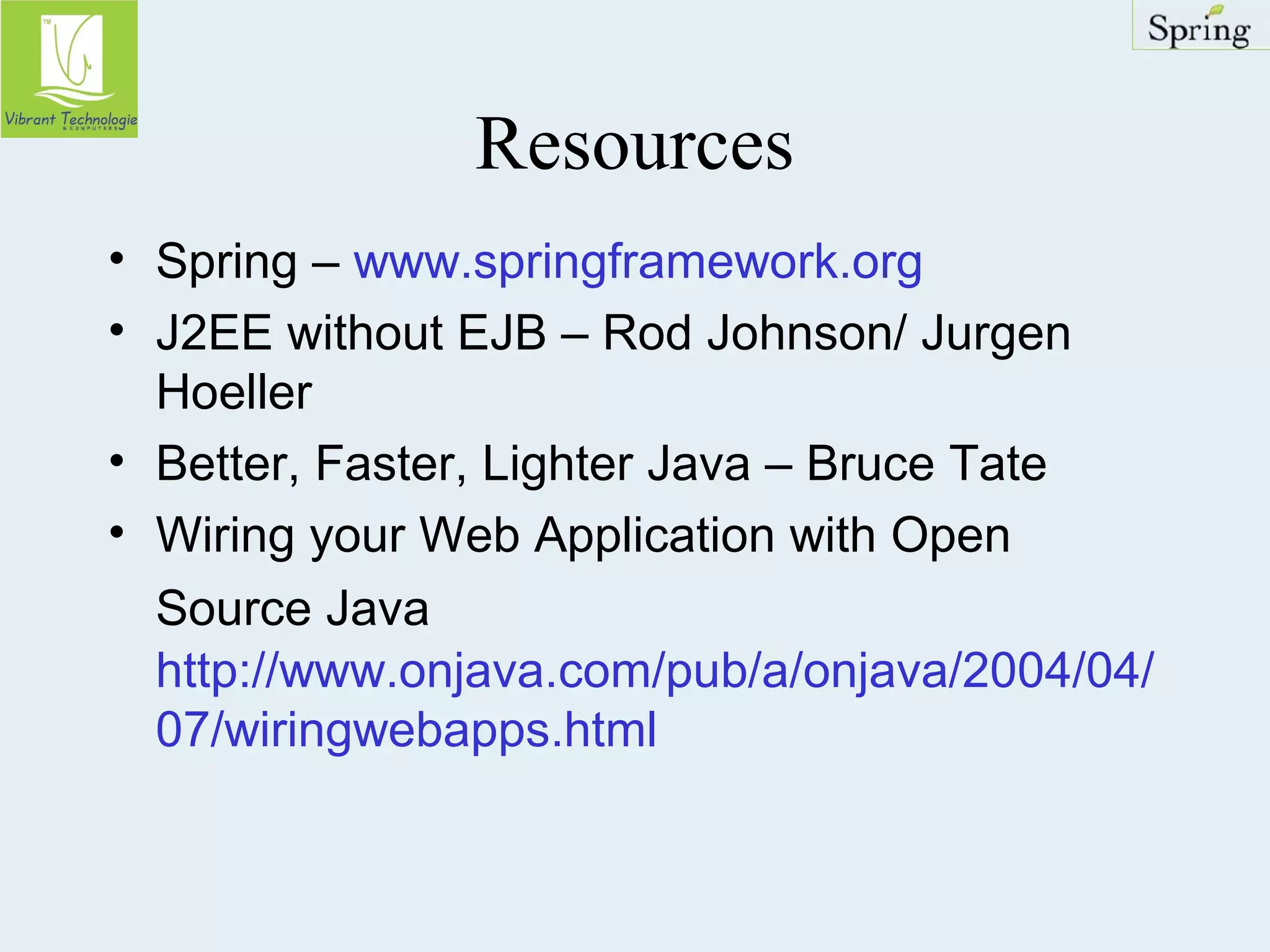

Resources
• Spring – www.springframework.org
• J2EE without EJB – Rod Johnson/ Jurgen
Hoeller
• Better, Faster, Lighter Java – Bruce Tate
• Wiring your Web Application with Open
Source Java
http://www.onjava.com/pub/a/onjava/2004/04/
07/wiringwebapps.html

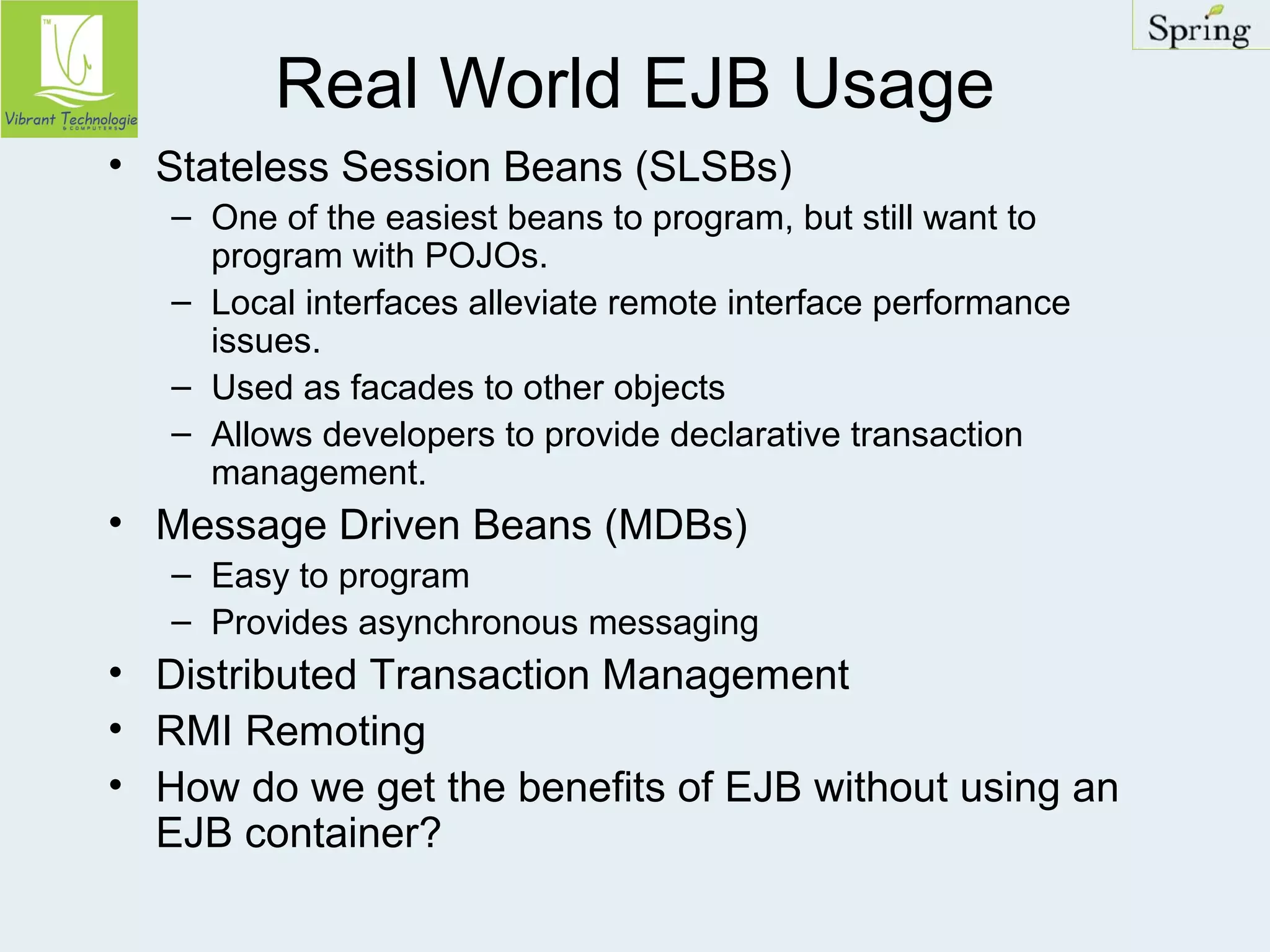

Real World EJB Usage
• Stateless Session Beans (SLSBs)
– One of the easiest beans to program, but still want to
program with POJOs.
– Local interfaces alleviate remote interface performance
issues.
– Used as facades to other objects
– Allows developers to provide declarative transaction
management.
• Message Driven Beans (MDBs)
– Easy to program
– Provides asynchronous messaging
• Distributed Transaction Management
• RMI Remoting
• How do we get the benefits of EJB without using an
EJB container?

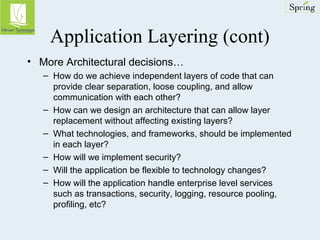

• More Architectural decisions…
– How do we achieve independent layers of code that can
provide clear separation, loose coupling, and allow
communication with each other?
– How can we design an architecture that can allow layer
replacement without affecting existing layers?
– What technologies, and frameworks, should be implemented
in each layer?
– How will we implement security?
– Will the application be flexible to technology changes?
– How will the application handle enterprise level services
such as transactions, security, logging, resource pooling,
profiling, etc?

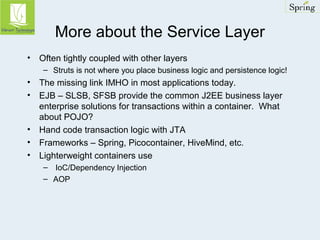

More about the Service Layer
• Often tightly coupled with other layers
– Struts is not where you place business logic and persistence logic!
• The missing link IMHO in most applications today.
• EJB – SLSB, SFSB provide the common J2EE business layer
enterprise solutions for transactions within a container. What
about POJO?
• Hand code transaction logic with JTA
• Frameworks – Spring, Picocontainer, HiveMind, etc.
• Lighterweight containers use
– IoC/Dependency Injection
– AOP

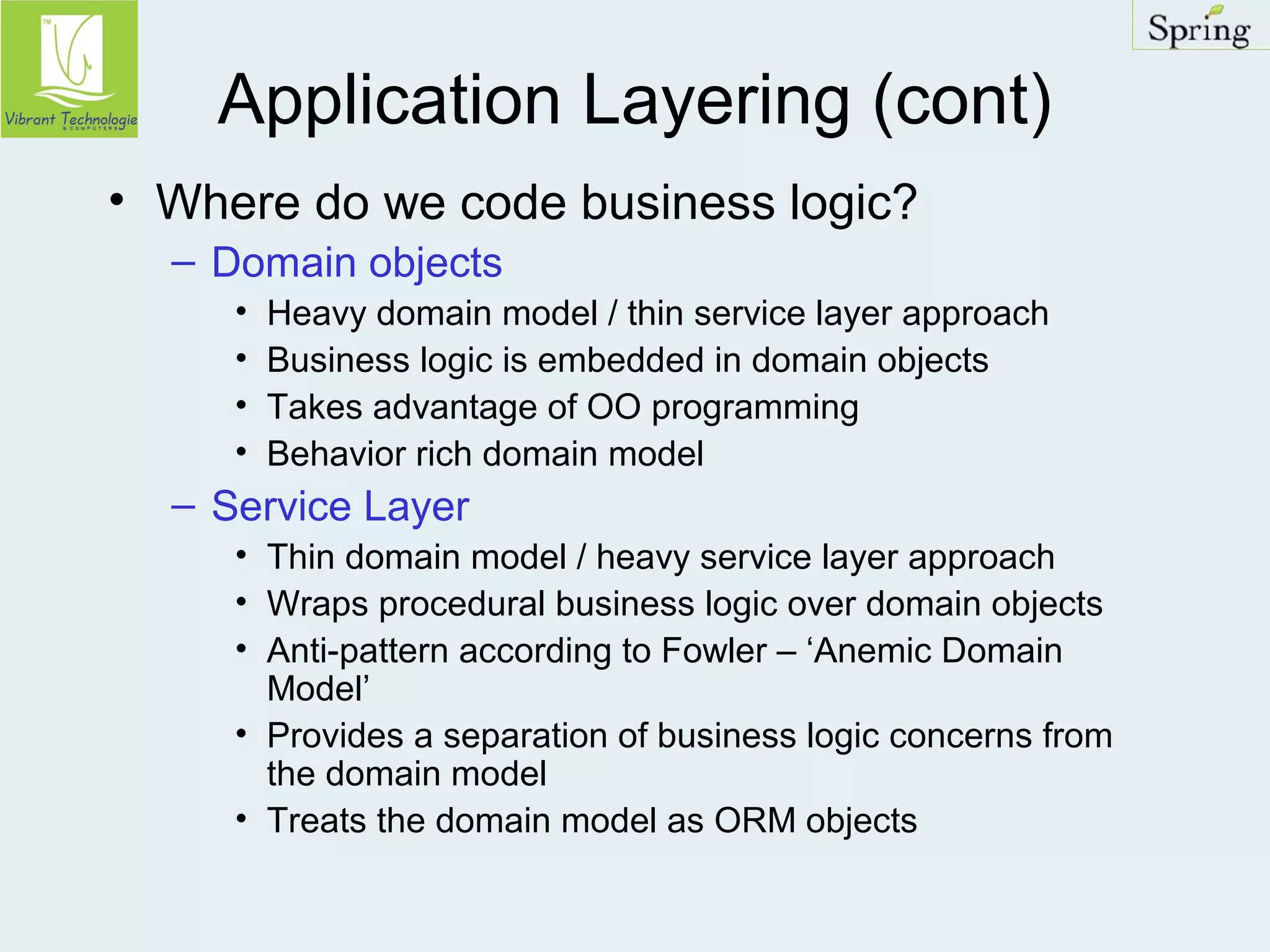

• Where do we code business logic?
– Domain objects
• Heavy domain model / thin service layer approach
• Business logic is embedded in domain objects
• Takes advantage of OO programming
• Behavior rich domain model
– Service Layer
• Thin domain model / heavy service layer approach
• Wraps procedural business logic over domain objects
• Anti-pattern according to Fowler – ‘Anemic Domain
Model’
• Provides a separation of business logic concerns from
the domain model
• Treats the domain model as ORM objects

ClassPathXMLApplicationContext
• Usually used with a standalone application to
obtain a context
– Ex: Swing application
• Useful when performing integration testing
– In-container testing.
– Define a separate application context XML file that
contains mappings to your mock objects.

Hybernat and structs, spring classes in mumbai

More Related Content

What's hot

Similar to Hybernat and structs, spring classes in mumbai

More from Vibrant Technologies & Computers

Recently uploaded

Hybernat and structs, spring classes in mumbai

Editor's Notes
