Stack Data Structure Intro and Explanation

Unit-3
Linear Data Structure (Stack)

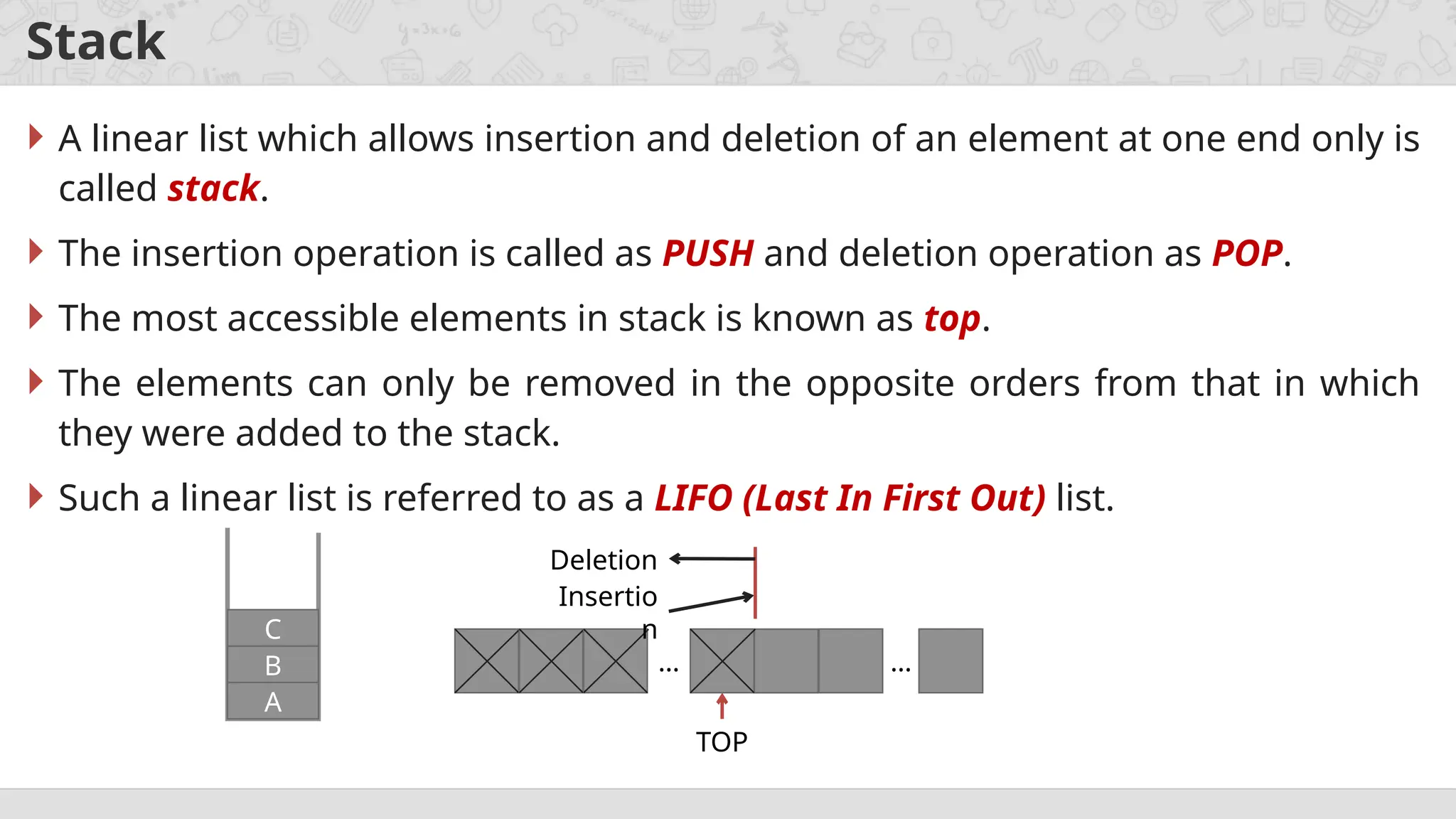

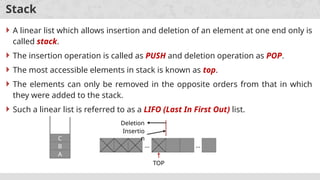

Stack
 A linear list which allows insertion and deletion of an element at one end only is
called stack.
 The insertion operation is called as PUSH and deletion operation as POP.
 The most accessible elements in stack is known as top.
 The elements can only be removed in the opposite orders from that in which
they were added to the stack.
 Such a linear list is referred to as a LIFO (Last In First Out) list.
… …
TOP
Insertio
n
Deletion
A
B
C

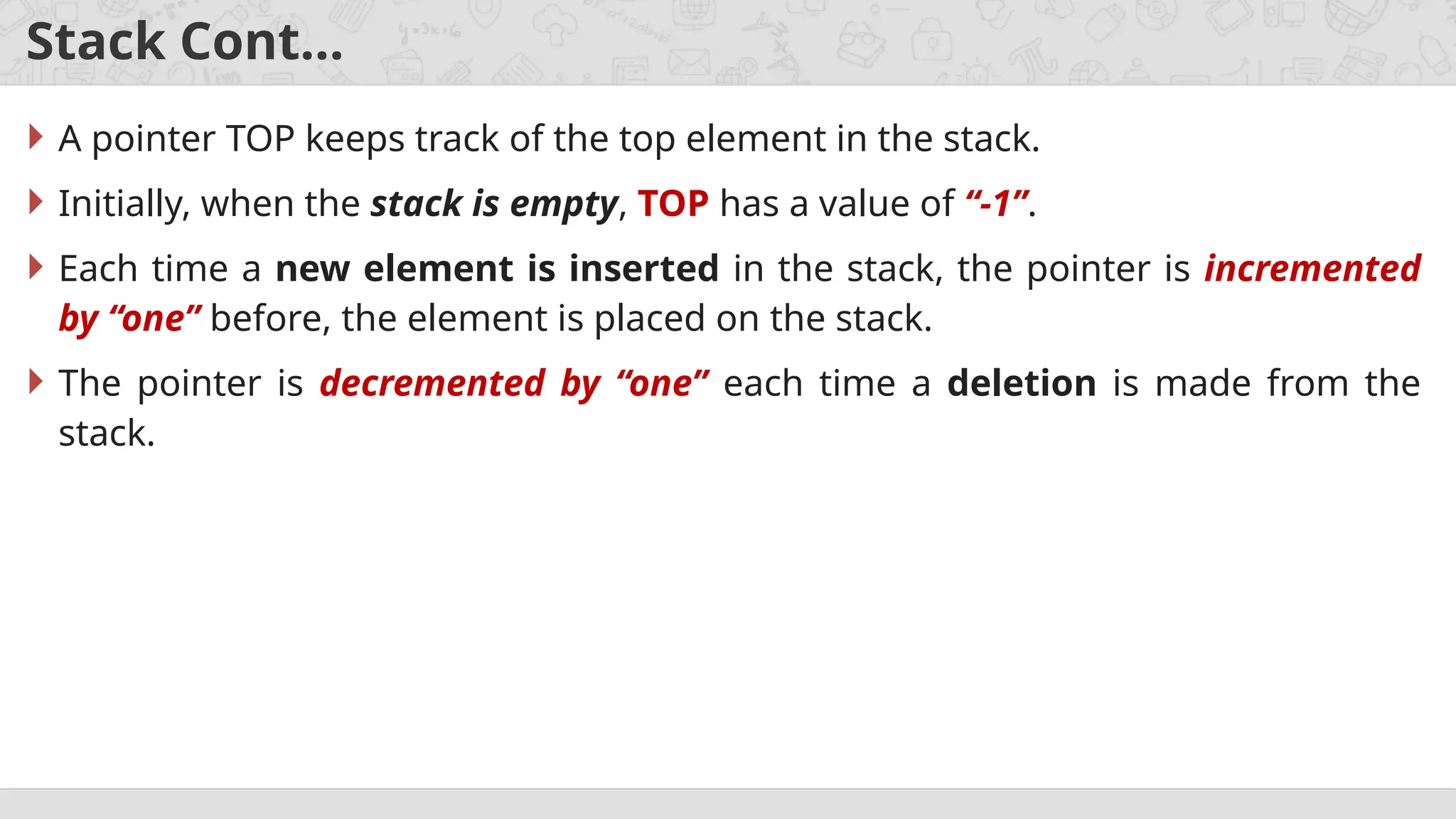

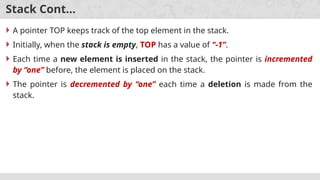

Stack Cont…
 A pointer TOP keeps track of the top element in the stack.
 Initially, when the stack is empty, TOP has a value of “-1”.
 Each time a new element is inserted in the stack, the pointer is incremented
by “one” before, the element is placed on the stack.
 The pointer is decremented by “one” each time a deletion is made from the
stack.

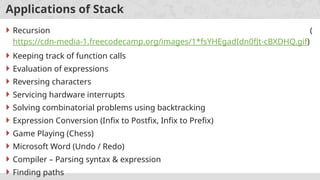

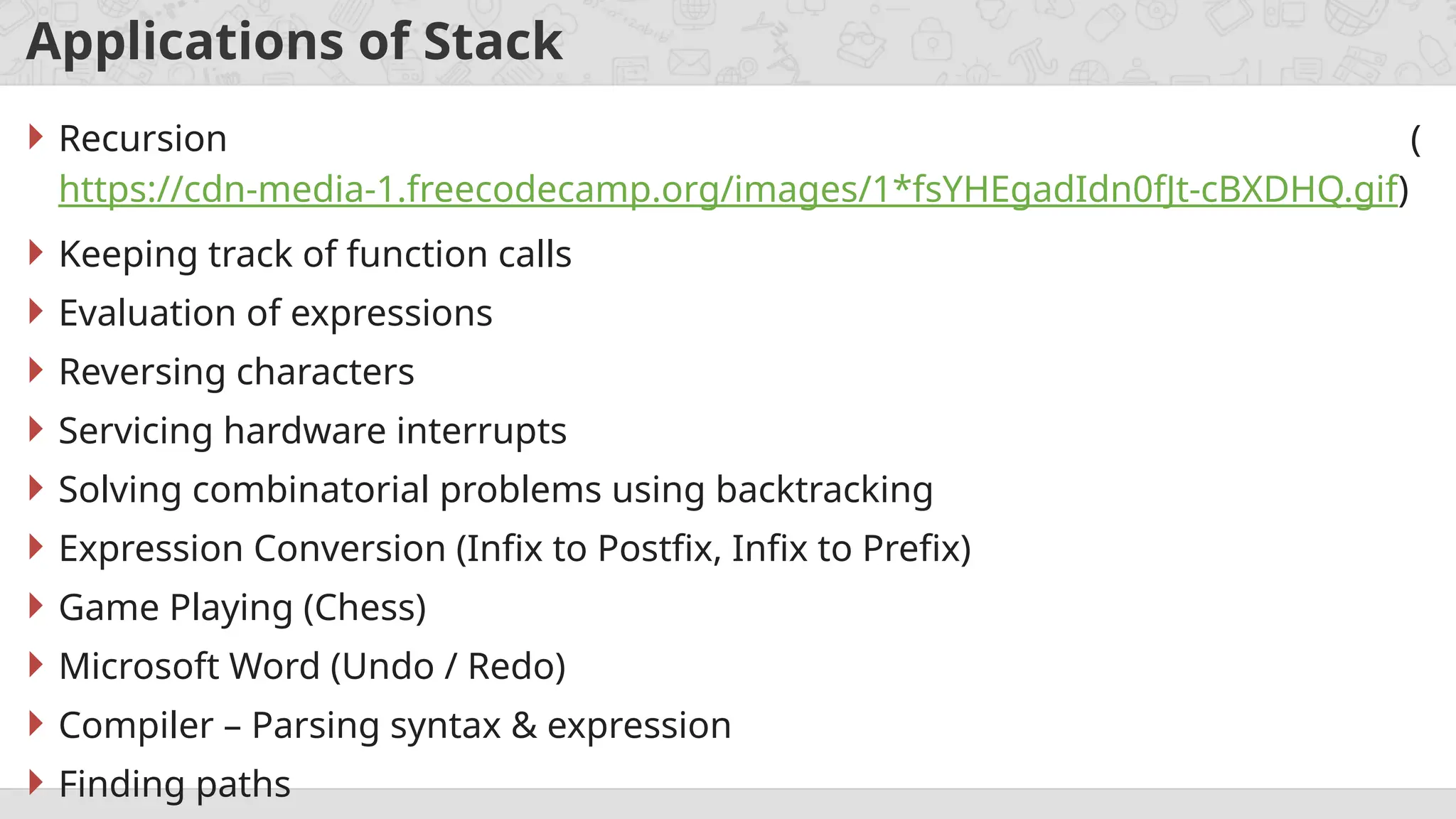

Applications of Stack
 Recursion (
https://cdn-media-1.freecodecamp.org/images/1*fsYHEgadIdn0fJt-cBXDHQ.gif)
 Keeping track of function calls
 Evaluation of expressions
 Reversing characters
 Servicing hardware interrupts
 Solving combinatorial problems using backtracking
 Expression Conversion (Infix to Postfix, Infix to Prefix)
 Game Playing (Chess)
 Microsoft Word (Undo / Redo)
 Compiler – Parsing syntax & expression
 Finding paths

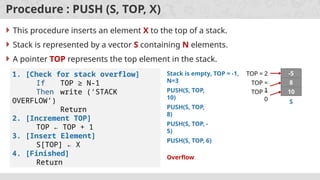

Procedure : PUSH (S, TOP, X)
 This procedure inserts an element X to the top of a stack.
 Stack is represented by a vector S containing N elements.
 A pointer TOP represents the top element in the stack.
1. [Check for stack overflow]
If TOP ≥ N-1
Then write (‘STACK
OVERFLOW’)
Return
2. [Increment TOP]
TOP ← TOP + 1
3. [Insert Element]
S[TOP] ← X
4. [Finished]
Return
S
Stack is empty, TOP = -1,
N=3
PUSH(S, TOP,
10)
TOP =
0
10
PUSH(S, TOP,
8)
TOP =
1
8
PUSH(S, TOP, -
5)
TOP = 2 -5
PUSH(S, TOP, 6)
Overflow

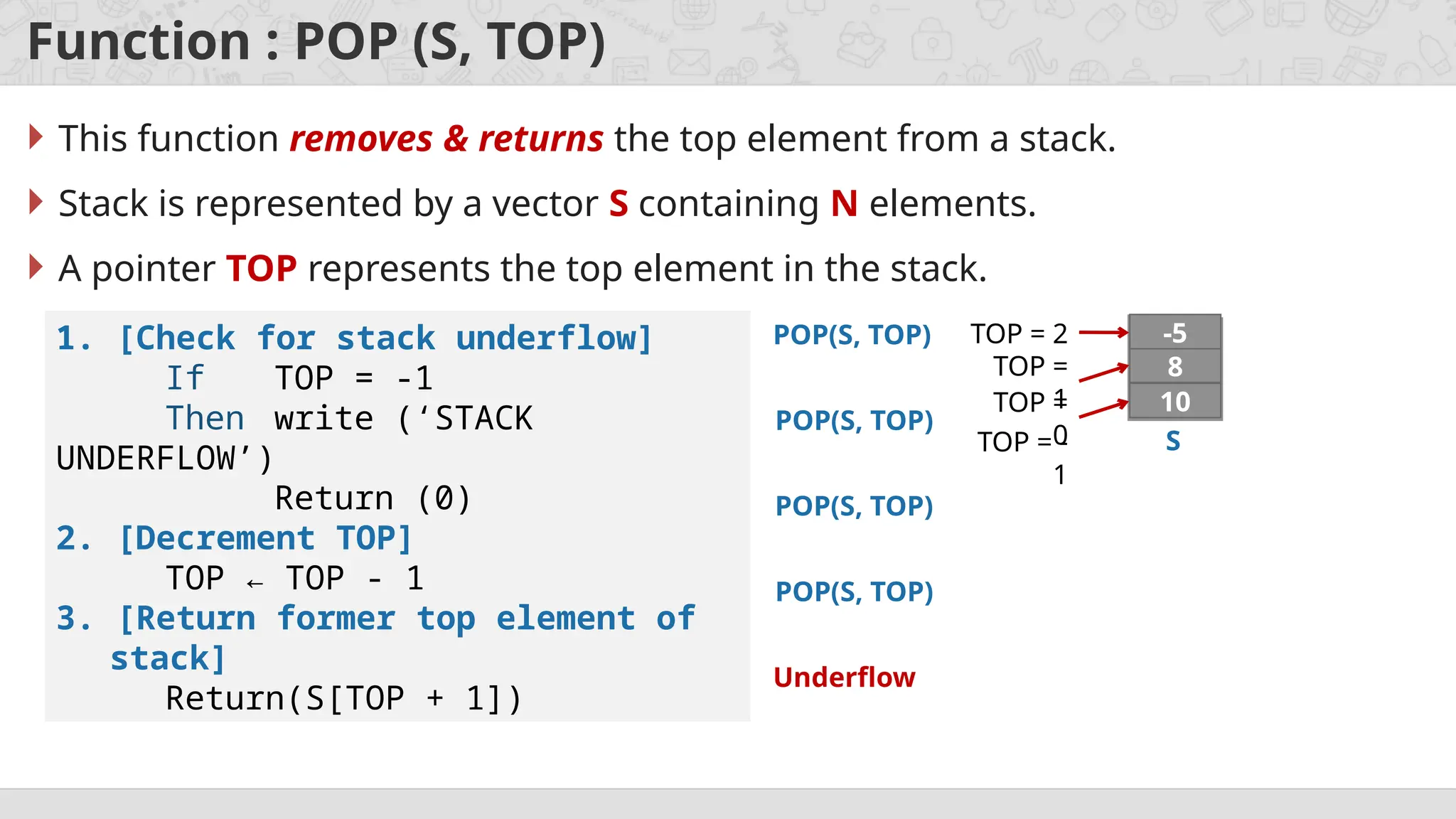

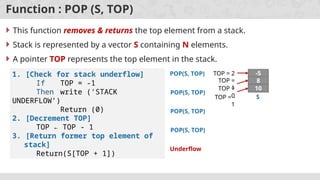

Function : POP (S, TOP)
 This function removes & returns the top element from a stack.
 A pointer TOP represents the top element in the stack.
1. [Check for stack underflow]
If TOP = -1
UNDERFLOW’)
Return (0)
2. [Decrement TOP]
TOP ← TOP - 1
3. [Return former top element of
stack]
Return(S[TOP + 1])
S
10
8
-5
POP(S, TOP) TOP = 2
TOP =
1
POP(S, TOP)
TOP =
0
POP(S, TOP)
TOP = -
1
POP(S, TOP)
Underflow

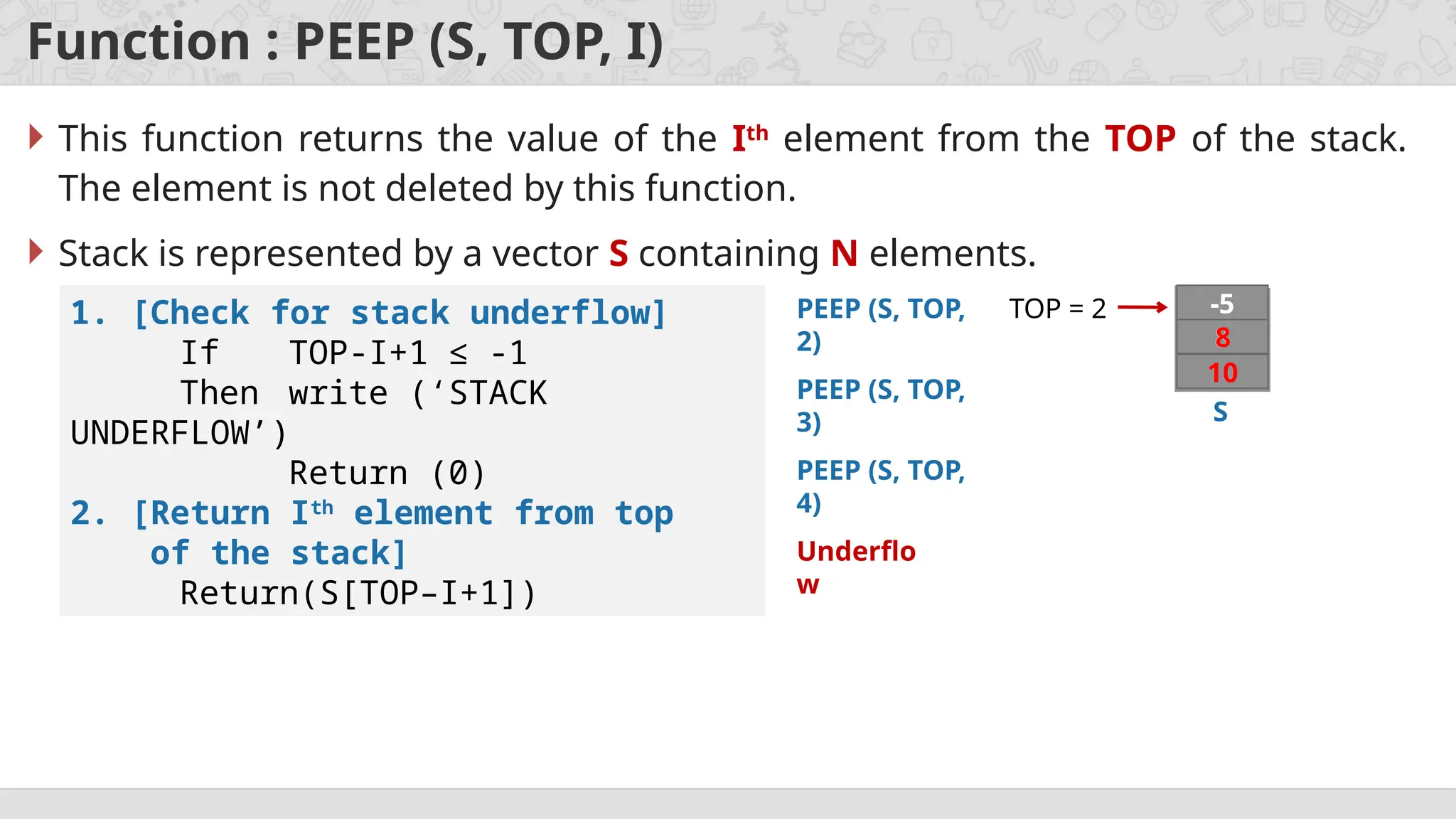

Function : PEEP (S, TOP, I)
 This function returns the value of the Ith
element from the TOP of the stack.
The element is not deleted by this function.
If TOP-I+1 ≤ -1
UNDERFLOW’)
Return (0)
2. [Return Ith
element from top
of the stack]
Return(S[TOP–I+1])
S
10
8
-5
TOP = 2
PEEP (S, TOP,
2) 8
PEEP (S, TOP,
3)
10
PEEP (S, TOP,
4)
Underflo
w

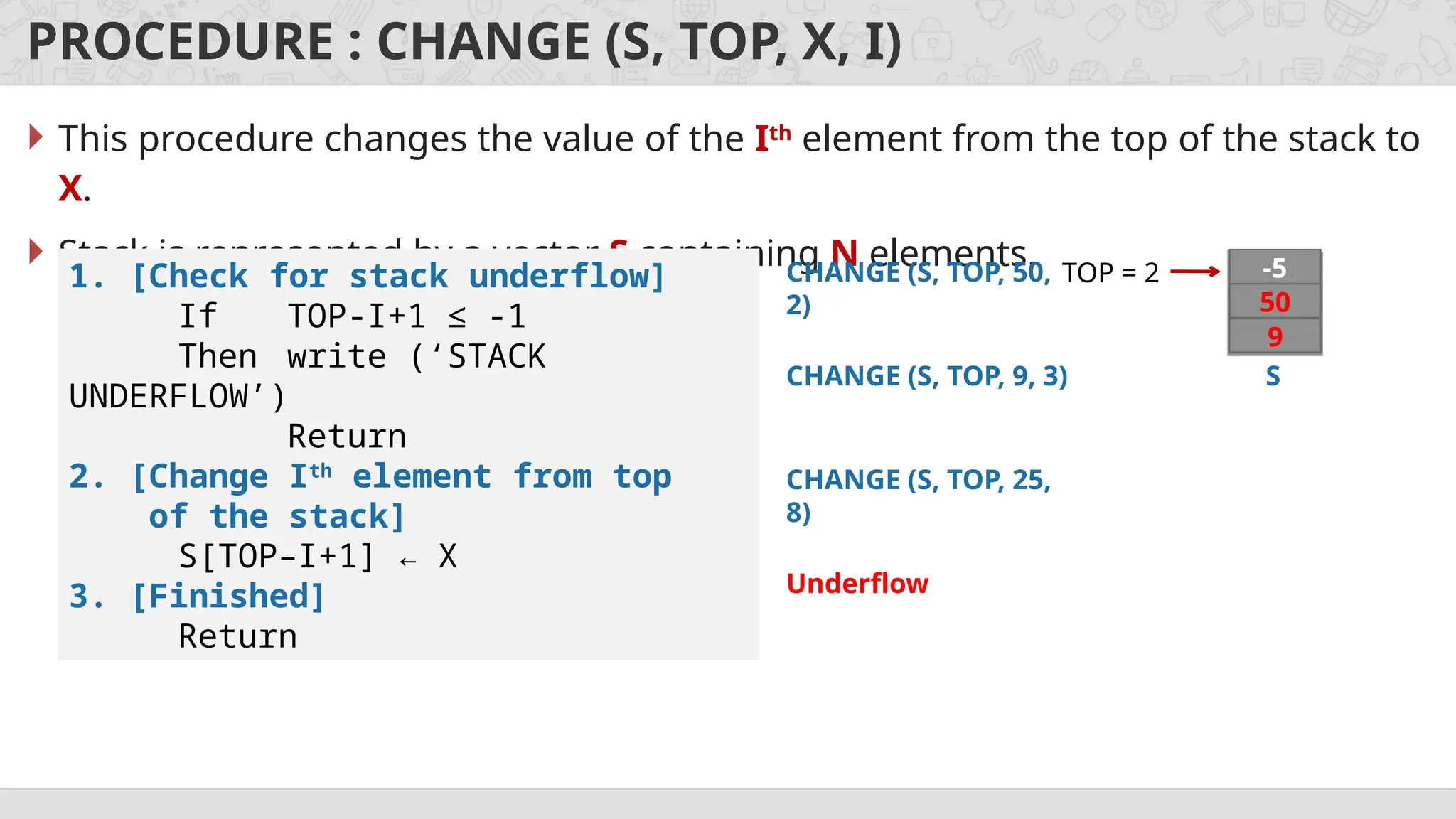

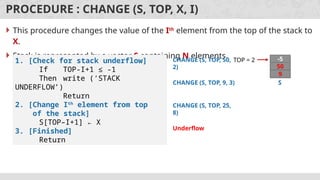

PROCEDURE : CHANGE (S, TOP, X, I)
 This procedure changes the value of the Ith
element from the top of the stack to
X.
If TOP-I+1 ≤ -1
UNDERFLOW’)
Return
2. [Change Ith
element from top
of the stack]
S[TOP–I+1] ← X
3. [Finished]
Return
S
10
8
-5
TOP = 2
CHANGE (S, TOP, 50,
2) 50
CHANGE (S, TOP, 9, 3)
9
CHANGE (S, TOP, 25,
8)
Underflow

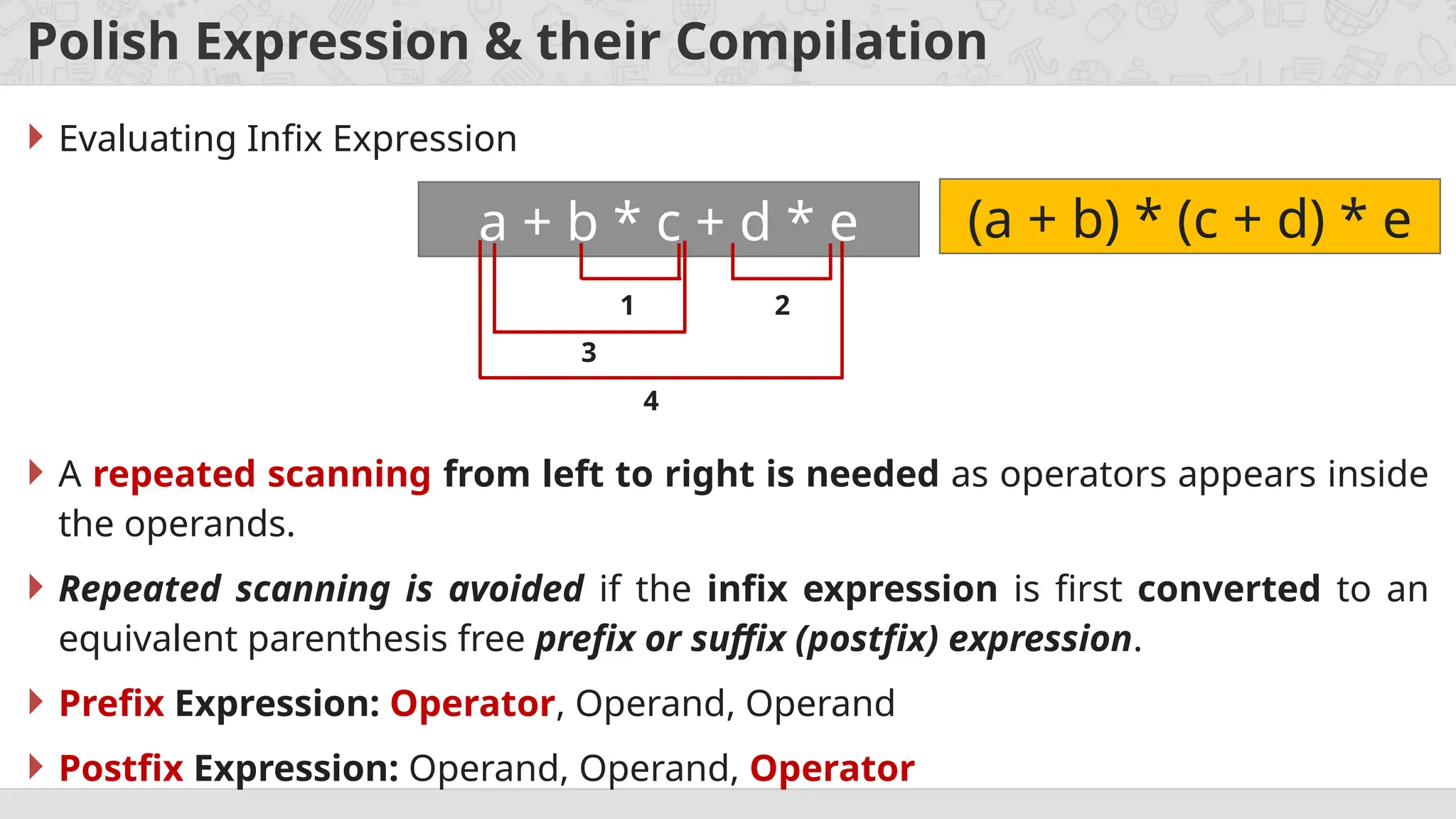

Polish Expression & their Compilation

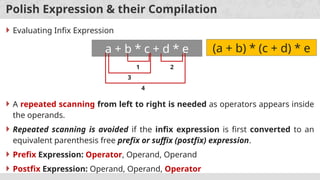

 Evaluating Infix Expression
a + b * c + d * e
1 2
3
4
 A repeated scanning from left to right is needed as operators appears inside
the operands.
 Repeated scanning is avoided if the infix expression is first converted to an
equivalent parenthesis free prefix or suffix (postfix) expression.
 Prefix Expression: Operator, Operand, Operand
 Postfix Expression: Operand, Operand, Operator
(a + b) * (c + d) * e

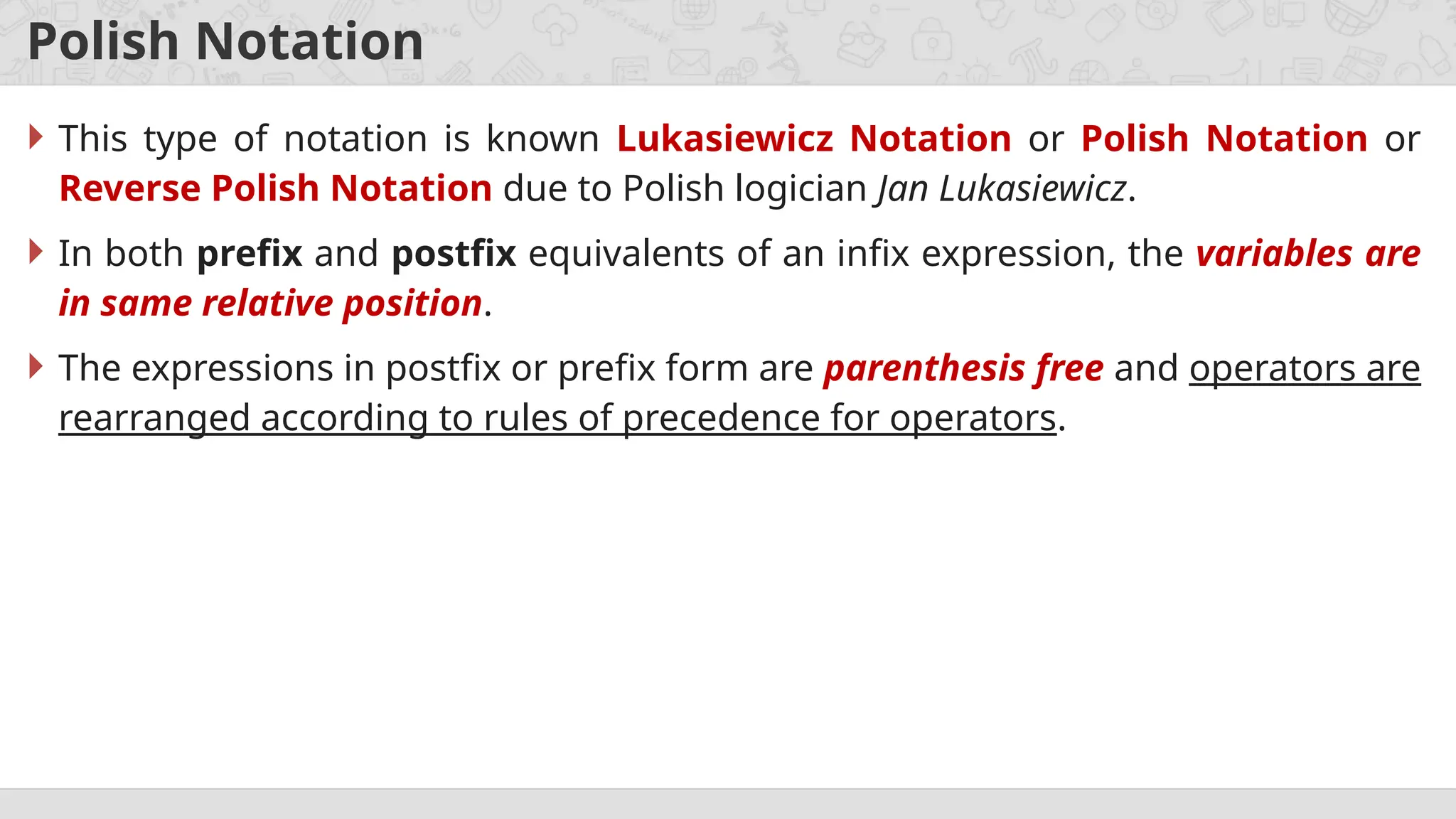

Polish Notation

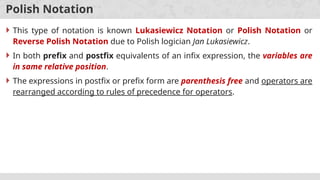

 This type of notation is known Lukasiewicz Notation or Polish Notation or
Reverse Polish Notation due to Polish logician Jan Lukasiewicz.
 In both prefix and postfix equivalents of an infix expression, the variables are
in same relative position.
 The expressions in postfix or prefix form are parenthesis free and operators are
rearranged according to rules of precedence for operators.

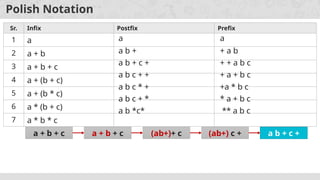

Polish Notation

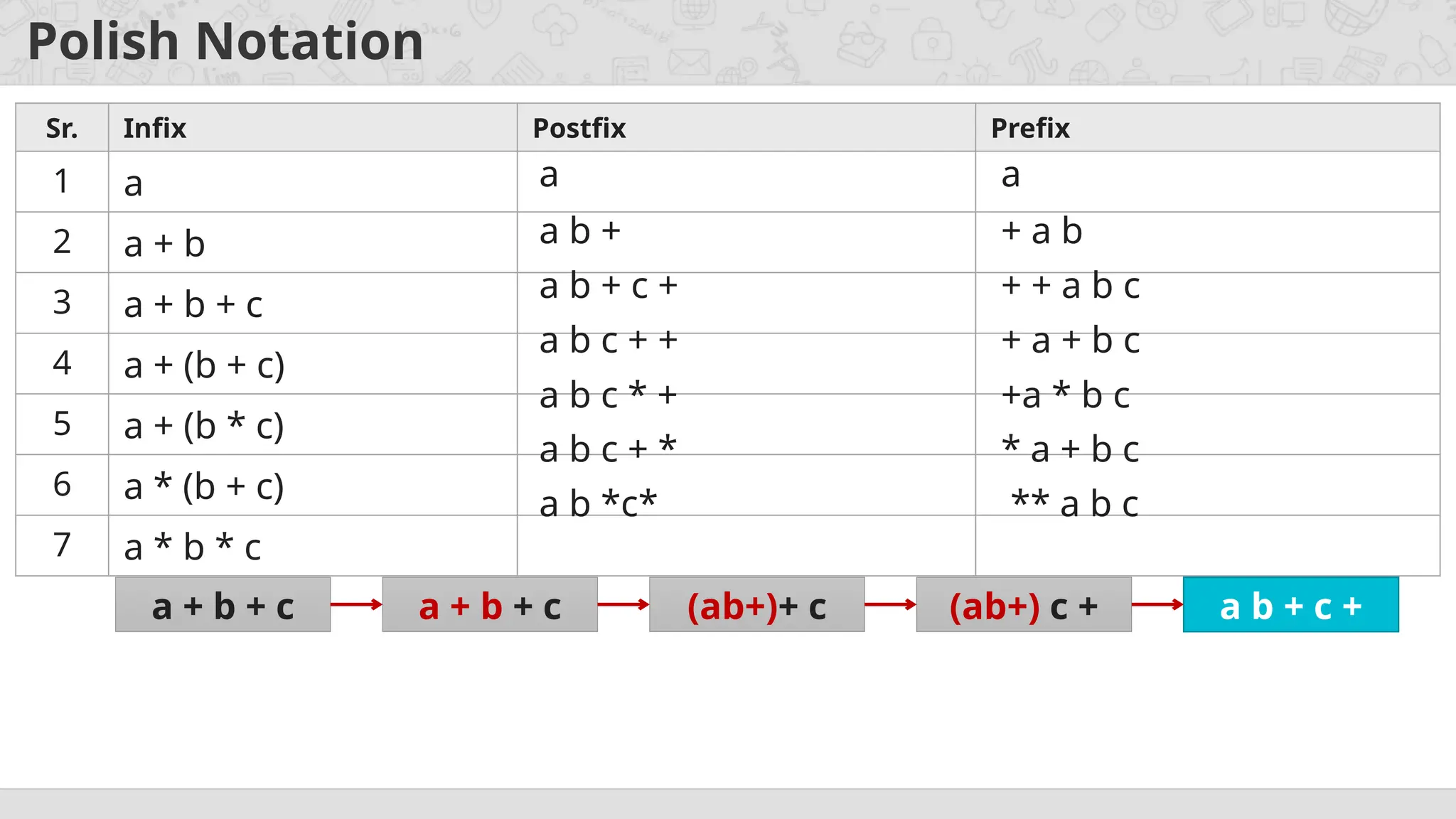

Sr. Infix Postfix Prefix
1 a
2 a + b
3 a + b + c
4 a + (b + c)
5 a + (b * c)
6 a * (b + c)
7 a * b * c
a a
a b + + a b
a + b + c a + b + c (ab+)+ c (ab+) c + a b + c +
a b + c + + + a b c
a b c + + + a + b c
a b c * + +a * b c
a b c + * * a + b c
a b *c* ** a b c

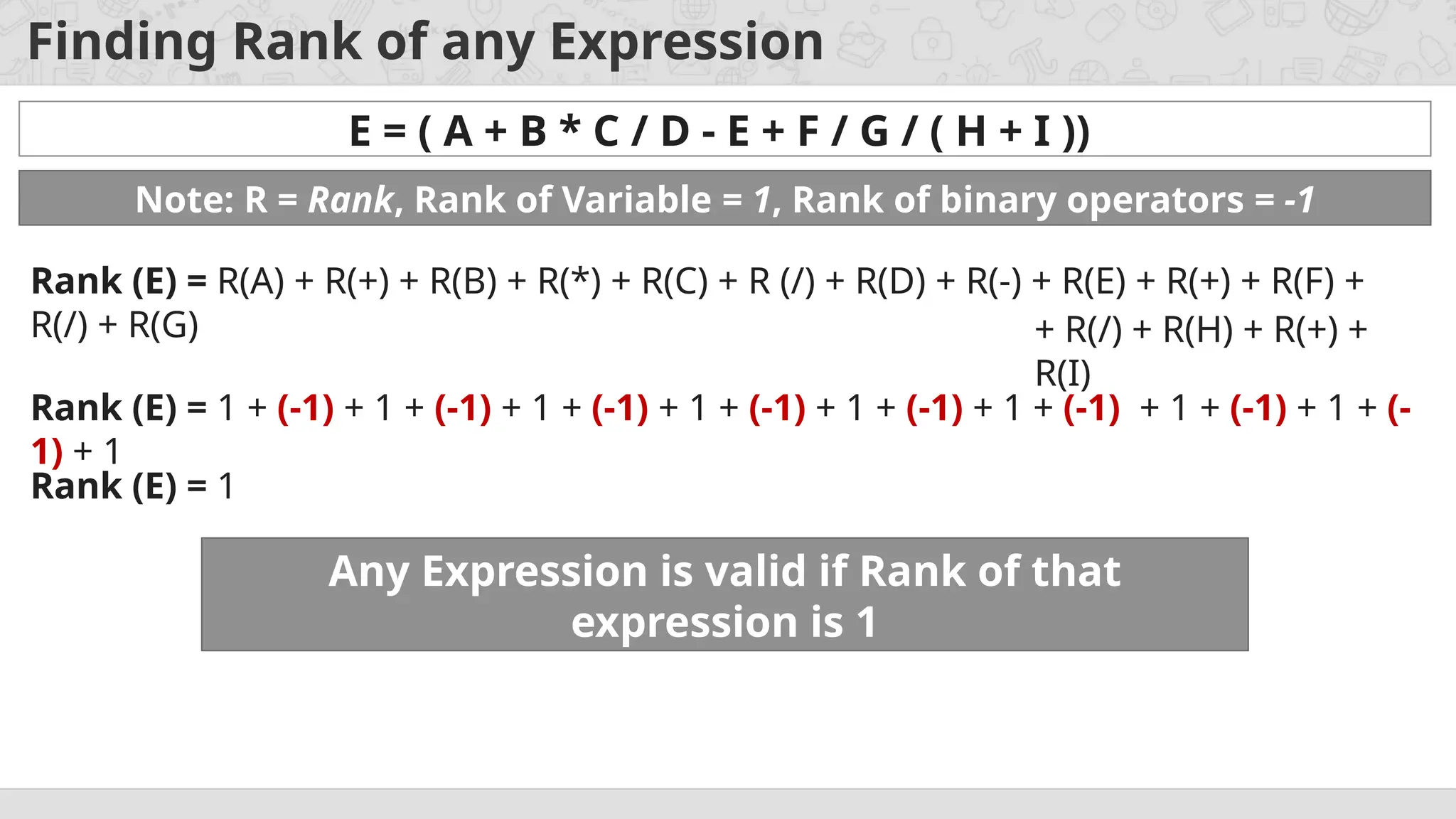

Finding Rank of any Expression
E = ( A + B * C / D - E + F / G / ( H + I ))
Rank (E) = R(A) + R(+) + R(B) + R(*) + R(C) + R (/) + R(D) + R(-) + R(E) + R(+) + R(F) +
R(/) + R(G) + R(/) + R(H) + R(+) +
R(I)
Note: R = Rank, Rank of Variable = 1, Rank of binary operators = -1
Rank (E) = 1 + (-1) + 1 + (-1) + 1 + (-1) + 1 + (-1) + 1 + (-1) + 1 + (-1) + 1 + (-1) + 1 + (-
1) + 1
Rank (E) = 1
Any Expression is valid if Rank of that
expression is 1

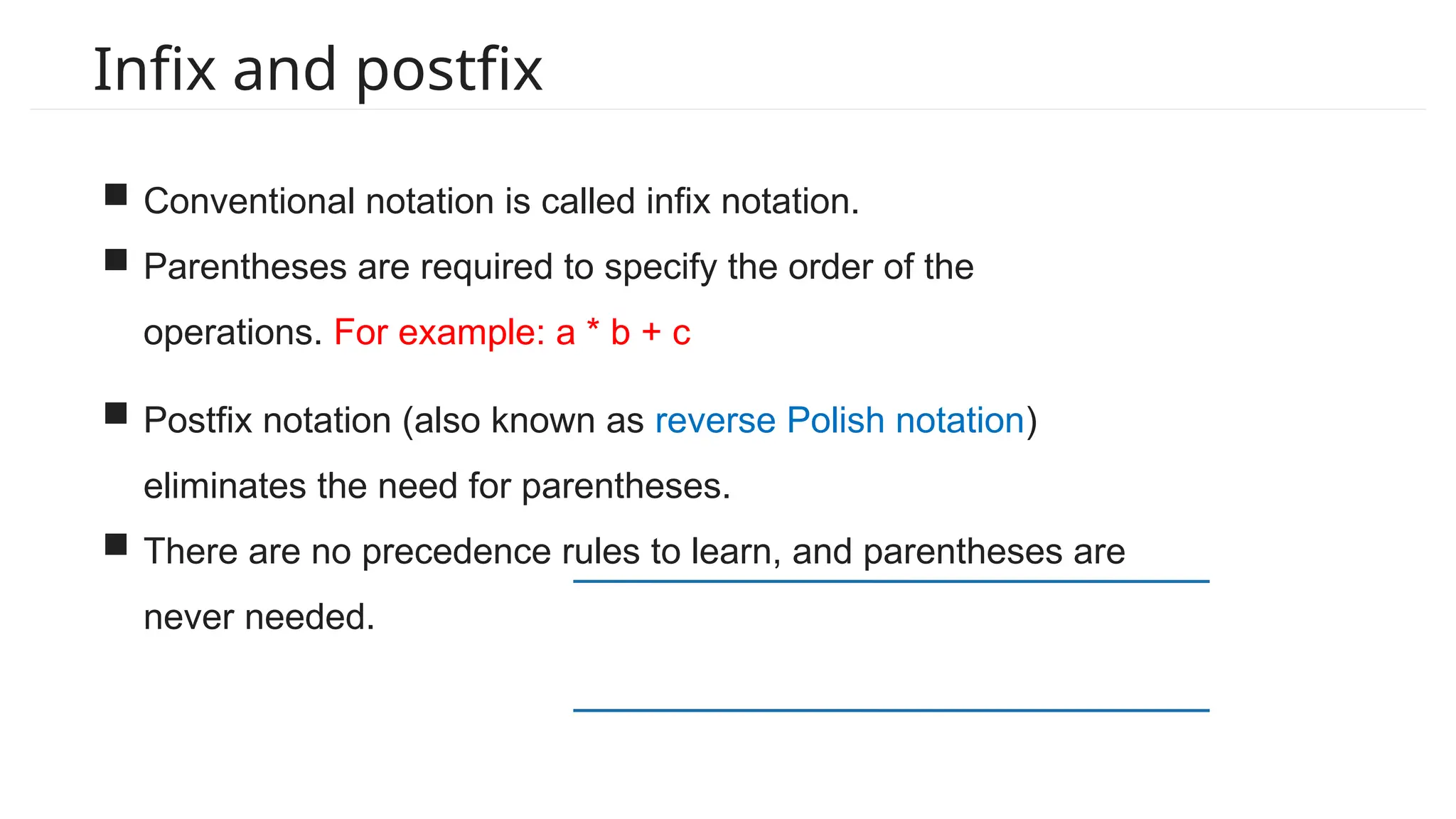

Infix and postfix
 Conventional notation is called infix notation.
 Parentheses are required to specify the order of the
operations. For example: a * b + c
 Postfix notation (also known as reverse Polish notation)
eliminates the need for parentheses.
 There are no precedence rules to learn, and parentheses are
never needed.

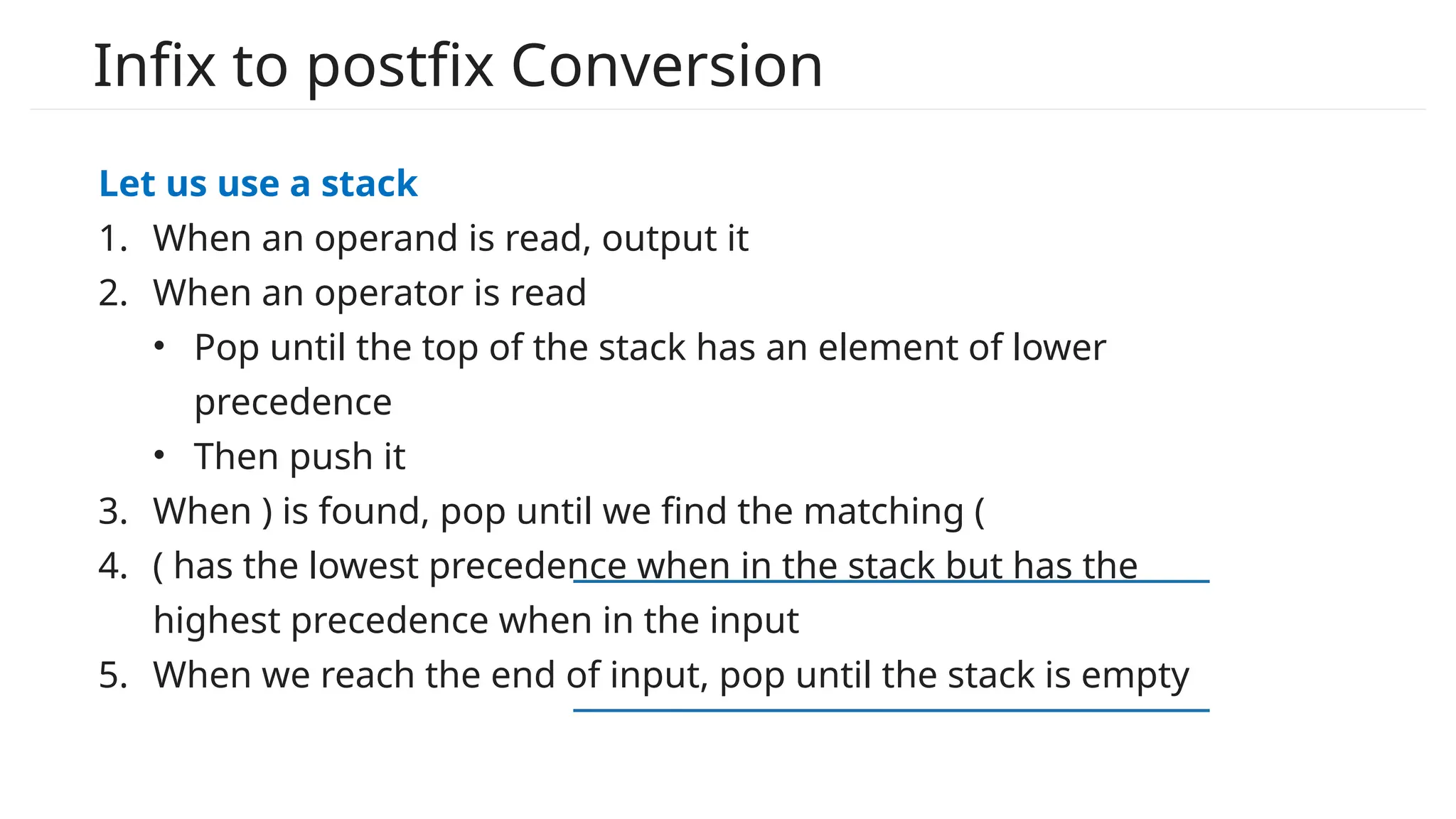

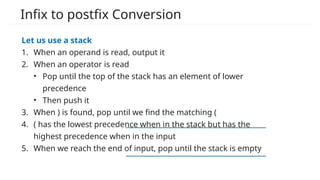

Infix to postfix Conversion
Let us use a stack
1. When an operand is read, output it
2. When an operator is read
• Pop until the top of the stack has an element of lower
precedence
• Then push it
3. When ) is found, pop until we find the matching (
4. ( has the lowest precedence when in the stack but has the
highest precedence when in the input
5. When we reach the end of input, pop until the stack is empty

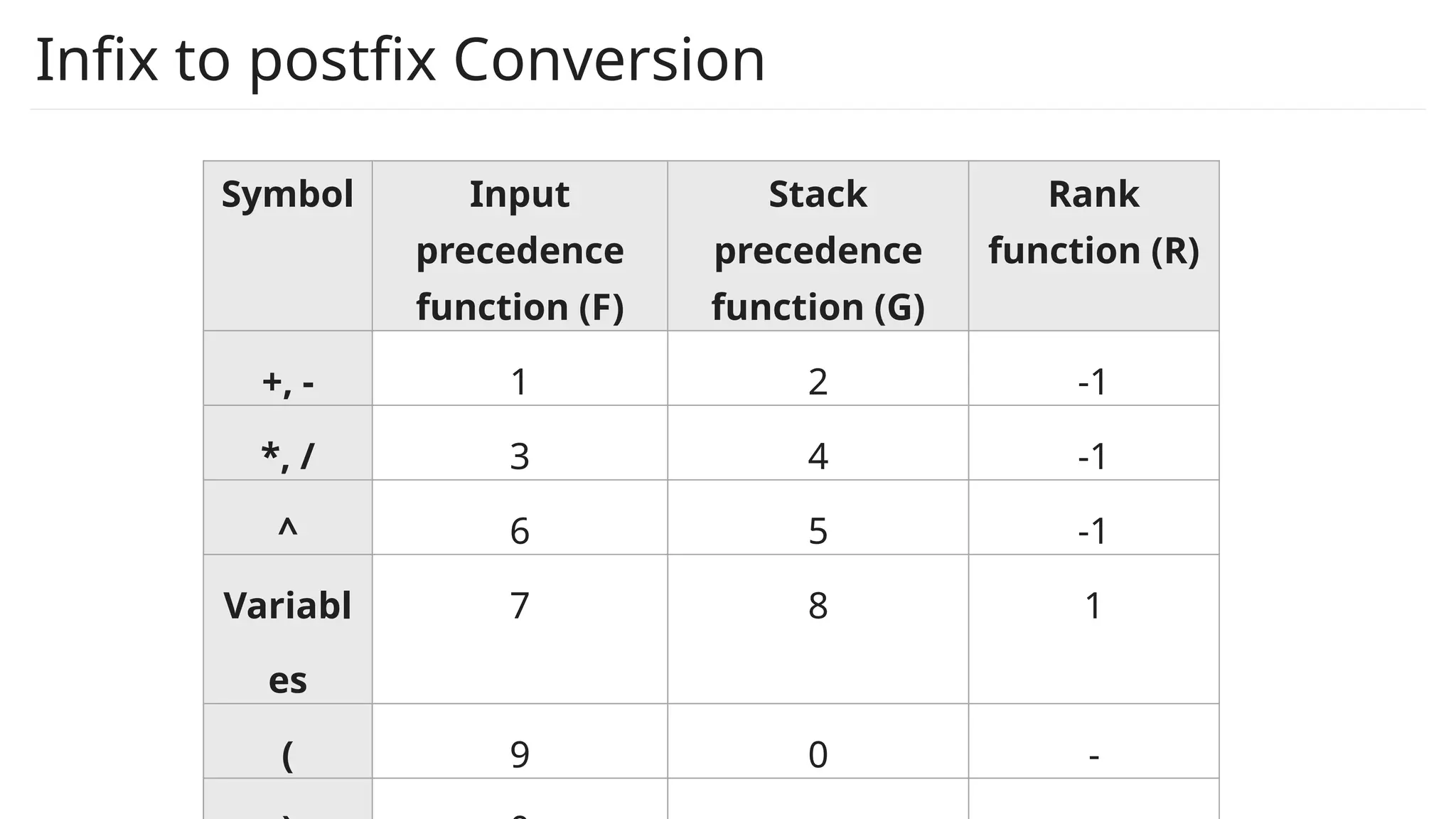

Infix to postfix Conversion
Symbol Input
precedence
function (F)
Stack
precedence
function (G)
Rank
function (R)
+, - 1 2 -1
*, / 3 4 -1
^ 6 5 -1
Variabl
es
7 8 1
( 9 0 -

infixVect
postfixVect
( a + b - c ) * d – ( e + f )

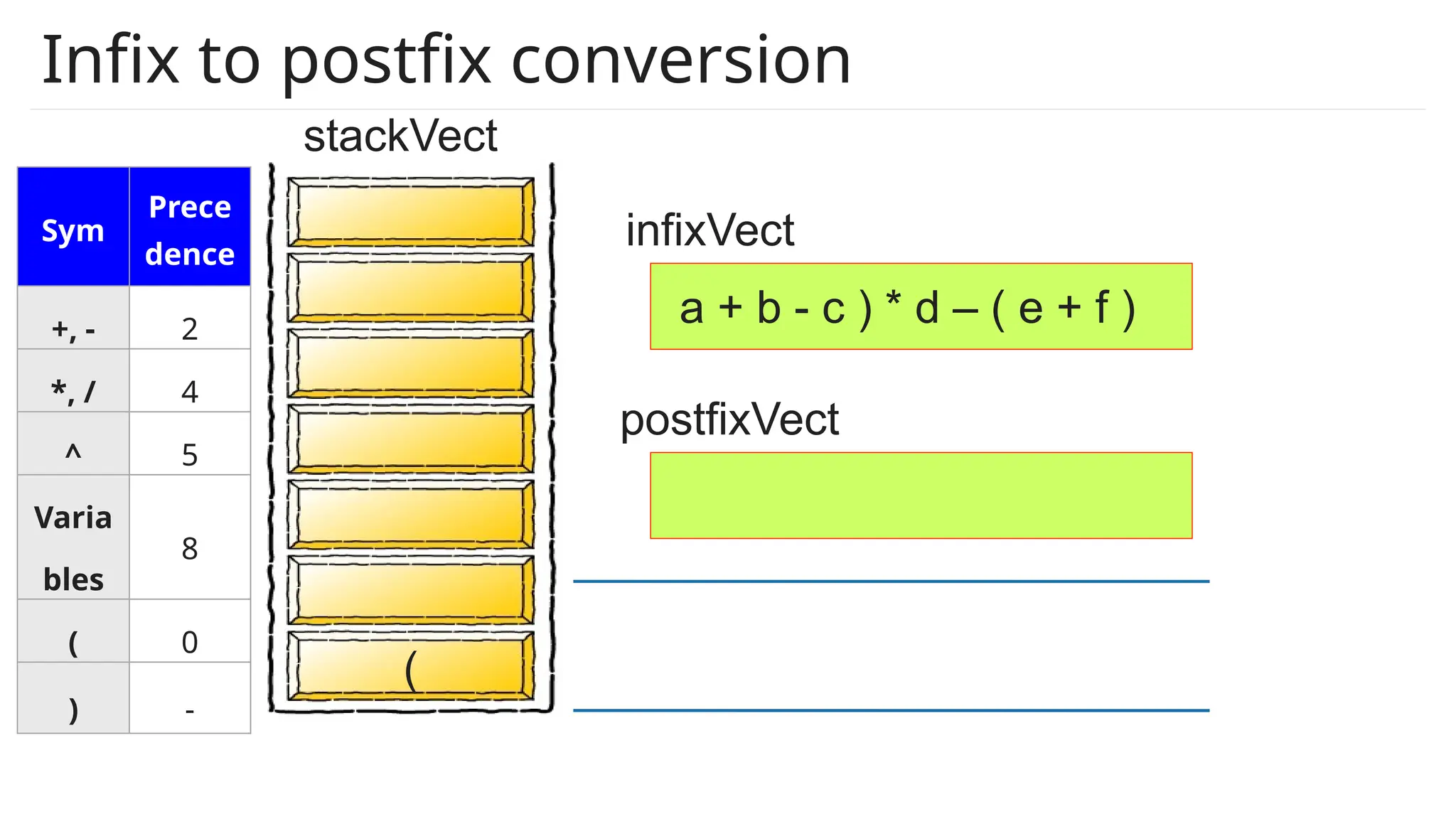

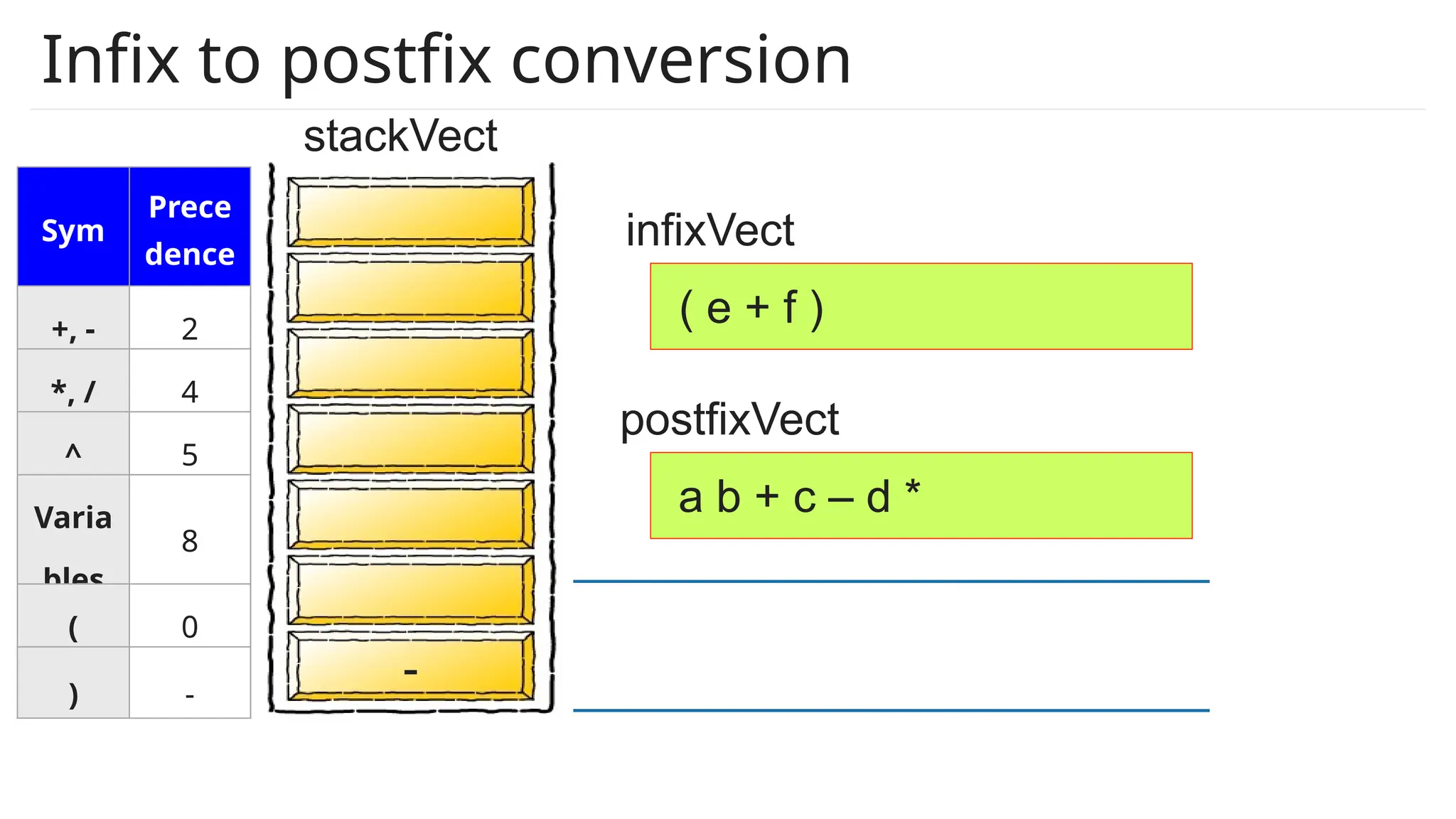

Infix to postfix conversion
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
a + b - c ) * d – ( e + f )
(
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
+ b - c ) * d – ( e + f )
(
a
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
b - c ) * d – ( e + f )
(
a
+
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
- c ) * d – ( e + f )
(
a b
+
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
c ) * d – ( e + f )
(
a b +
-
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
) * d – ( e + f )
(
a b + c
-
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
* d – ( e + f )
a b + c -
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
d – ( e + f )
a b + c -
*
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
– ( e + f )
a b + c - d
*
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
( e + f )
a b + c – d *
-
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
e + f )
a b + c – d *
-
(
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
+ f )
a b + c – d * e
-
(
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
f )
a b + c – d * e
-
(
+
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
)
a b + c – d * e f
-
(
+
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
a b + c – d * e f +
-
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

infixVect
postfixVect
a b + c – d * e f + -
stackVect
Sym
Prece
dence
+, - 2
*, / 4
^ 5
Varia
bles
8
( 0
) -

3 + 4 * 5 / 6

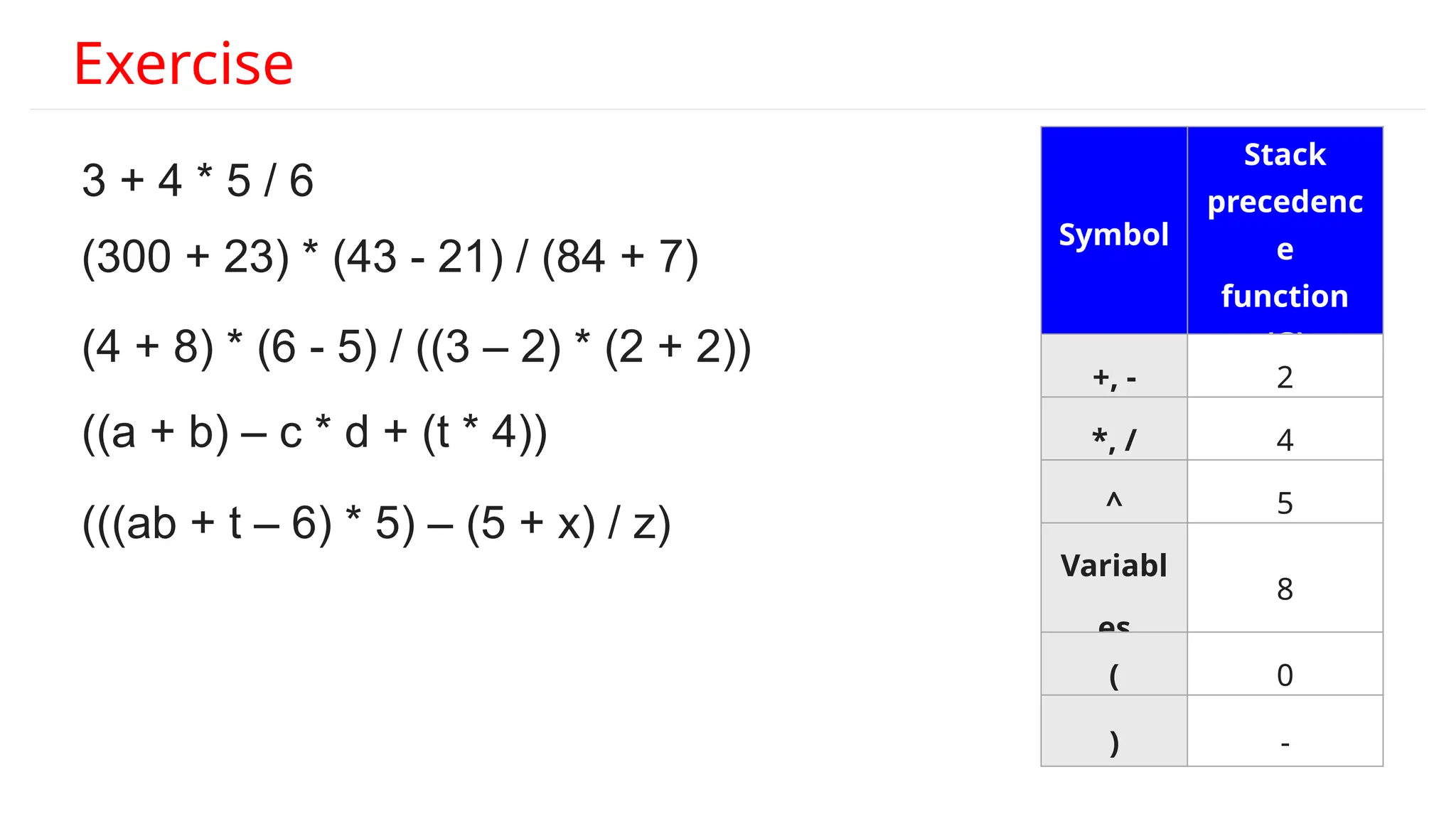

Exercise
(300 + 23) * (43 - 21) / (84 + 7)
(4 + 8) * (6 - 5) / ((3 – 2) * (2 + 2))
((a + b) – c * d + (t * 4))
(((ab + t – 6) * 5) – (5 + x) / z)
Symbol
Stack
precedenc
e
function
(G)
+, - 2
*, / 4
^ 5
Variabl
es
8
( 0
) -

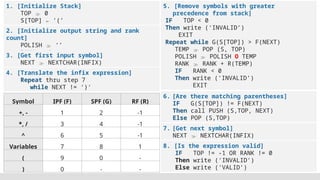

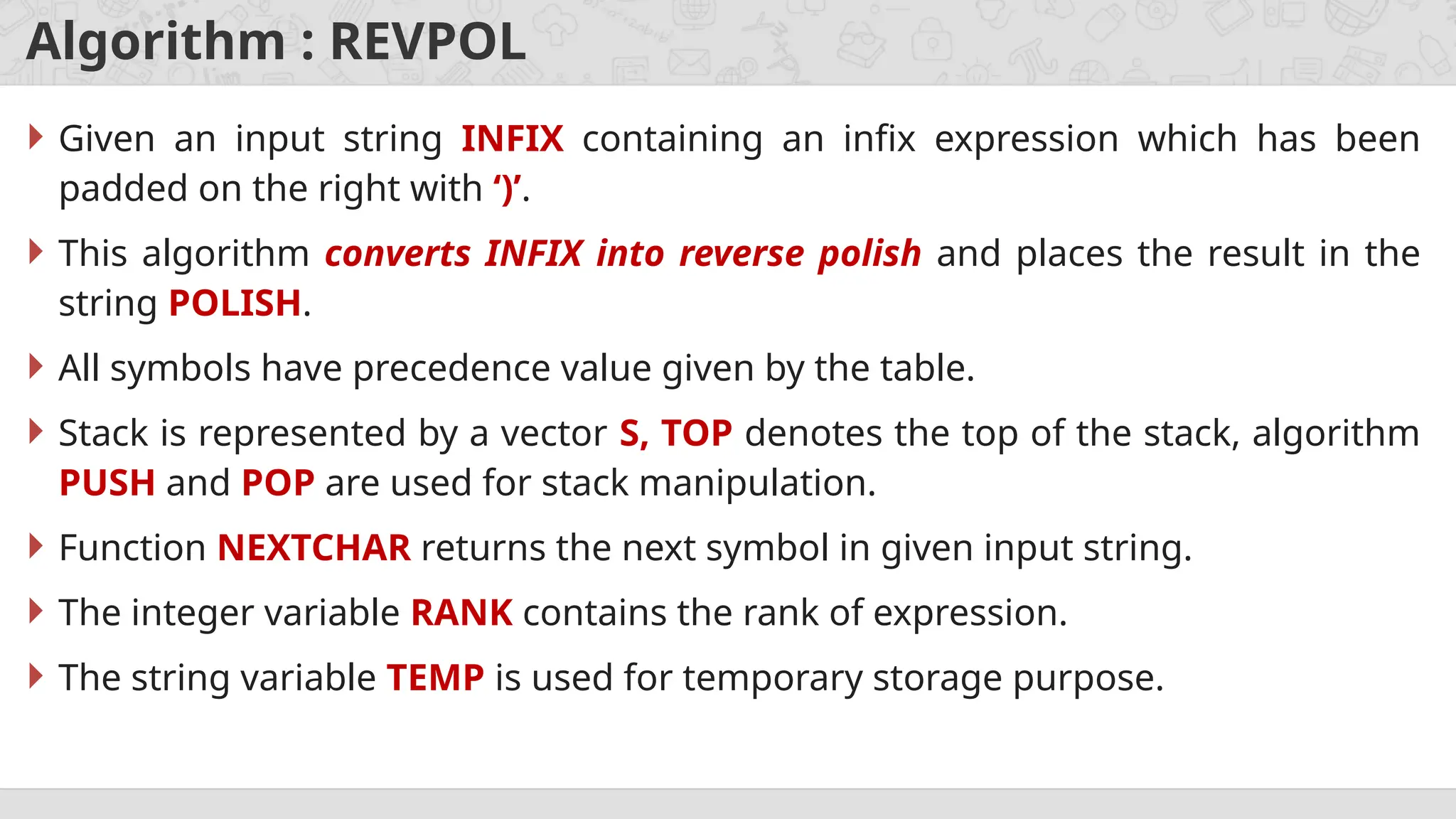

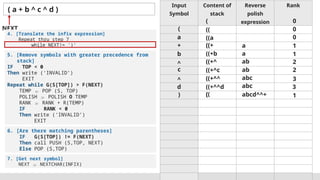

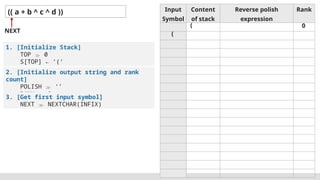

Algorithm : REVPOL
 Given an input string INFIX containing an infix expression which has been
padded on the right with ‘)’.
 This algorithm converts INFIX into reverse polish and places the result in the
string POLISH.
 All symbols have precedence value given by the table.
 Stack is represented by a vector S, TOP denotes the top of the stack, algorithm
PUSH and POP are used for stack manipulation.
 Function NEXTCHAR returns the next symbol in given input string.
 The integer variable RANK contains the rank of expression.
 The string variable TEMP is used for temporary storage purpose.

Input
Symbol
Content
of stack
Reverse polish
expression
Rank
(( a + b ^ c ^ d ))
NEXT
1. [Initialize Stack]
TOP  0
S[TOP] ← ‘(’
(
2. [Initialize output string and rank
count]
POLISH  ‘’
RANK  0
0
3. [Get first input symbol]
NEXT  NEXTCHAR(INFIX)
(

Input
Symbol
Content of
stack
Reverse
polish
expression
Rank
( a + b ^ c ^ d )
NEXT
( 0
(
4. [Translate the infix expression]
Repeat thru step 7
while NEXT!= ‘)‘
5. [Remove symbols with greater precedence from
stack]
IF TOP < 0
Then write (‘INVALID’)
EXIT
Repeat while G(S[TOP]) > F(NEXT)
TEMP  POP (S, TOP)
POLISH  POLISH O TEMP
RANK  RANK + R(TEMP)
IF RANK < 0
EXIT
6. [Are there matching parentheses]
IF G(S[TOP]) != F(NEXT)
Then call PUSH (S,TOP, NEXT)
Else POP (S,TOP)
7. [Get next symbol]
(( 0
a ((a 0
+ (( a 1
((+
b ((+b a 1
^ ((+ ab 2
((+^
c ((+^c ab 2
^ ((+^ abc 3
((+^^
d ((+^^d abc 3
) (( abcd^^+ 1
(

TOP  0
S[TOP] ← ‘(’
2. [Initialize output string and rank
count]
POLISH  ‘’
RANK  0
3. [Get first input symbol]
4. [Translate the infix expression]
Repeat thru step 7
while NEXT != ‘)‘
5. [Remove symbols with greater
precedence from stack]
IF TOP < 0
EXIT
Repeat while G(S[TOP]) > F(NEXT)
TEMP  POP (S, TOP)
POLISH  POLISH O TEMP
RANK  RANK + R(TEMP)
IF RANK < 0
EXIT
6. [Are there matching parentheses]
IF G(S[TOP]) != F(NEXT)
Then call PUSH (S,TOP, NEXT)
Else POP (S,TOP)
7. [Get next symbol]
8. [Is the expression valid]
IF TOP != -1 OR RANK != 0
Then write (‘INVALID‘)
Else write (‘VALID’)
Symbol IPF (F) SPF (G) RF (R)
+, - 1 2 -1
*, / 3 4 -1
^ 6 5 -1
Variables 7 8 1
( 9 0 -
) 0 - -

2

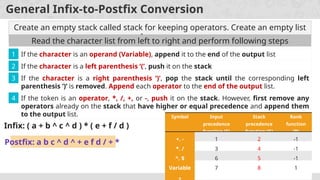

General Infix-to-Postfix Conversion
Create an empty stack called stack for keeping operators. Create an empty list
for output.
Read the character list from left to right and perform following steps
If the character is an operand (Variable), append it to the end of the output list
1
If the character is a left parenthesis ‘(’, push it on the stack
If the character is a right parenthesis ‘)’, pop the stack until the corresponding left
parenthesis ‘)’ is removed. Append each operator to the end of the output list.
3
If the token is an operator, *, /, +, or -, push it on the stack. However, first remove any
operators already on the stack that have higher or equal precedence and append them
to the output list.
4
Infix: ( a + b ^ c ^ d ) * ( e + f / d )
Symbol Input
precedence
function (F)
Stack
precedence
function (G)
Rank
function
(R)
+, - 1 2 -1
*, / 3 4 -1
^, $ 6 5 -1
Variable 7 8 1
Postfix: a b c ^ d ^ + e f d / + *

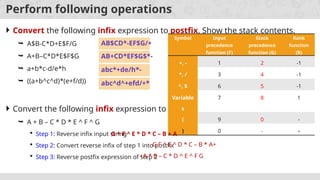

Perform following operations
 Convert the following infix expression to postfix. Show the stack contents.
 A$B-C*D+E$F/G
 A+B–C*D*E$F$G
 a+b*c-d/e*h
 ((a+b^c^d)*(e+f/d))
 Convert the following infix expression to prefix.
 A + B – C * D * E ^ F ^ G
 Step 1: Reverse infix input string
 Step 2: Convert reverse infix of step 1 into postfix
 Step 3: Reverse postfix expression of step 2
Symbol Input
precedence
function (F)
Stack
precedence
function (G)
Rank
function
(R)
+, - 1 2 -1
*, / 3 4 -1
^, $ 6 5 -1
Variable
s
7 8 1
( 9 0 -
) 0 - -
AB$CD*-EF$G/+
AB+CD*EF$G$*-
abc*+de/h*-
abc^d^+efd/+*
G ^ F ^ E * D * C – B + A
G F ^ E ^ D * C – B * A+
+A * B – C * D ^ E ^ F G

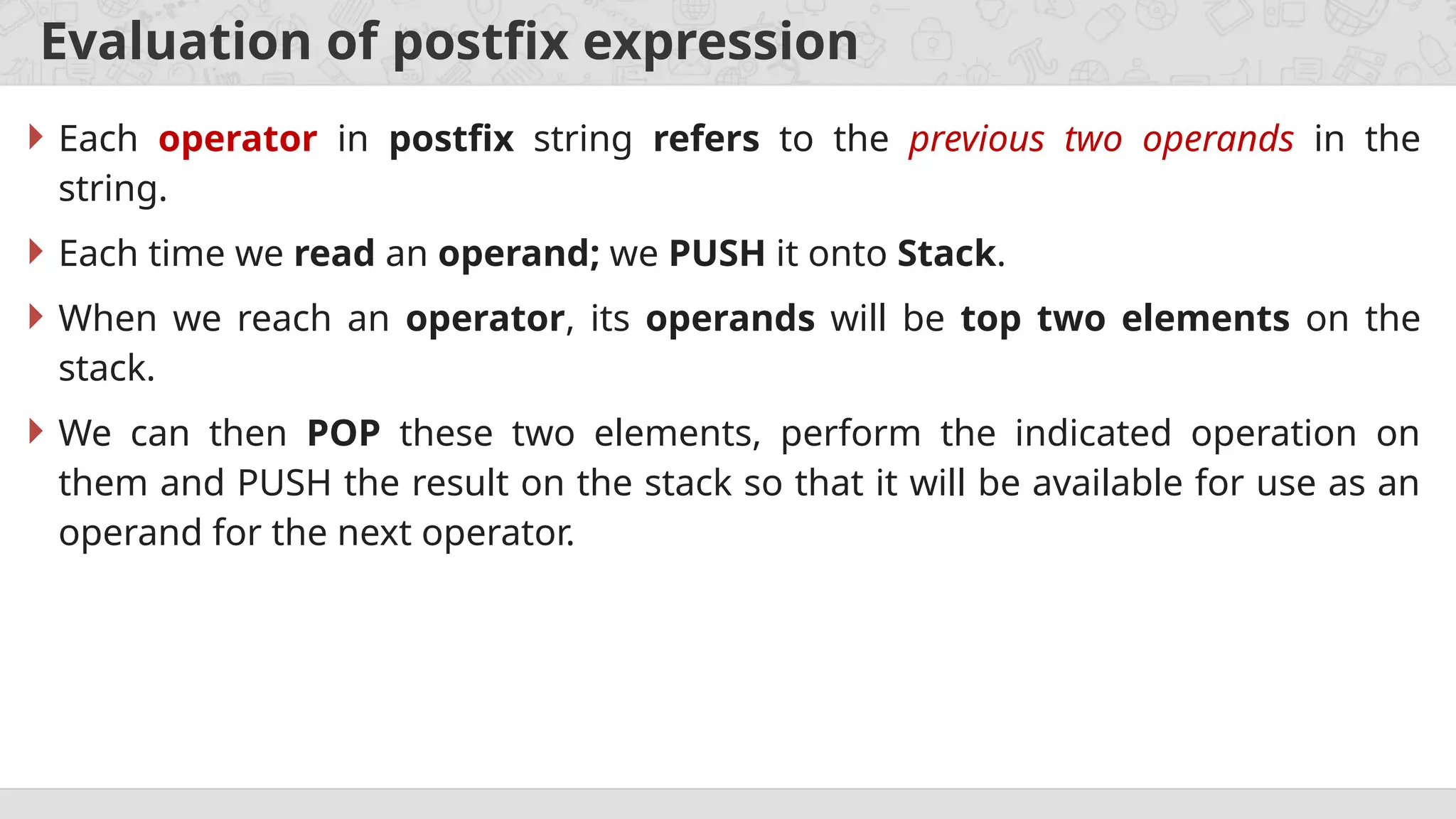

Evaluation of postfix expression
 Each operator in postfix string refers to the previous two operands in the
string.
 Each time we read an operand; we PUSH it onto Stack.
 When we reach an operator, its operands will be top two elements on the
stack.
 We can then POP these two elements, perform the indicated operation on
them and PUSH the result on the stack so that it will be available for use as an
operand for the next operator.

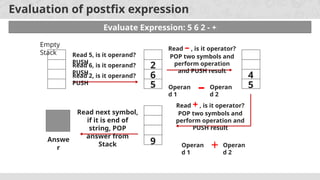

Evaluate Expression: 5 6 2 - +
Empty
Stack Read 5, is it operand?
PUSH
5
Read 6, is it operand?
PUSH
6
Read 2, is it operand?
PUSH
2
Read – , is it operator?
POP two symbols and
perform operation
and PUSH result
Operan
d 1
Operan
d 2
– 5
4
Read + , is it operator?
POP two symbols and
perform operation and
PUSH result
Operan
d 1
Operan
d 2
+
Read next symbol,
if it is end of
string, POP
answer from
Stack
Answe
r
9

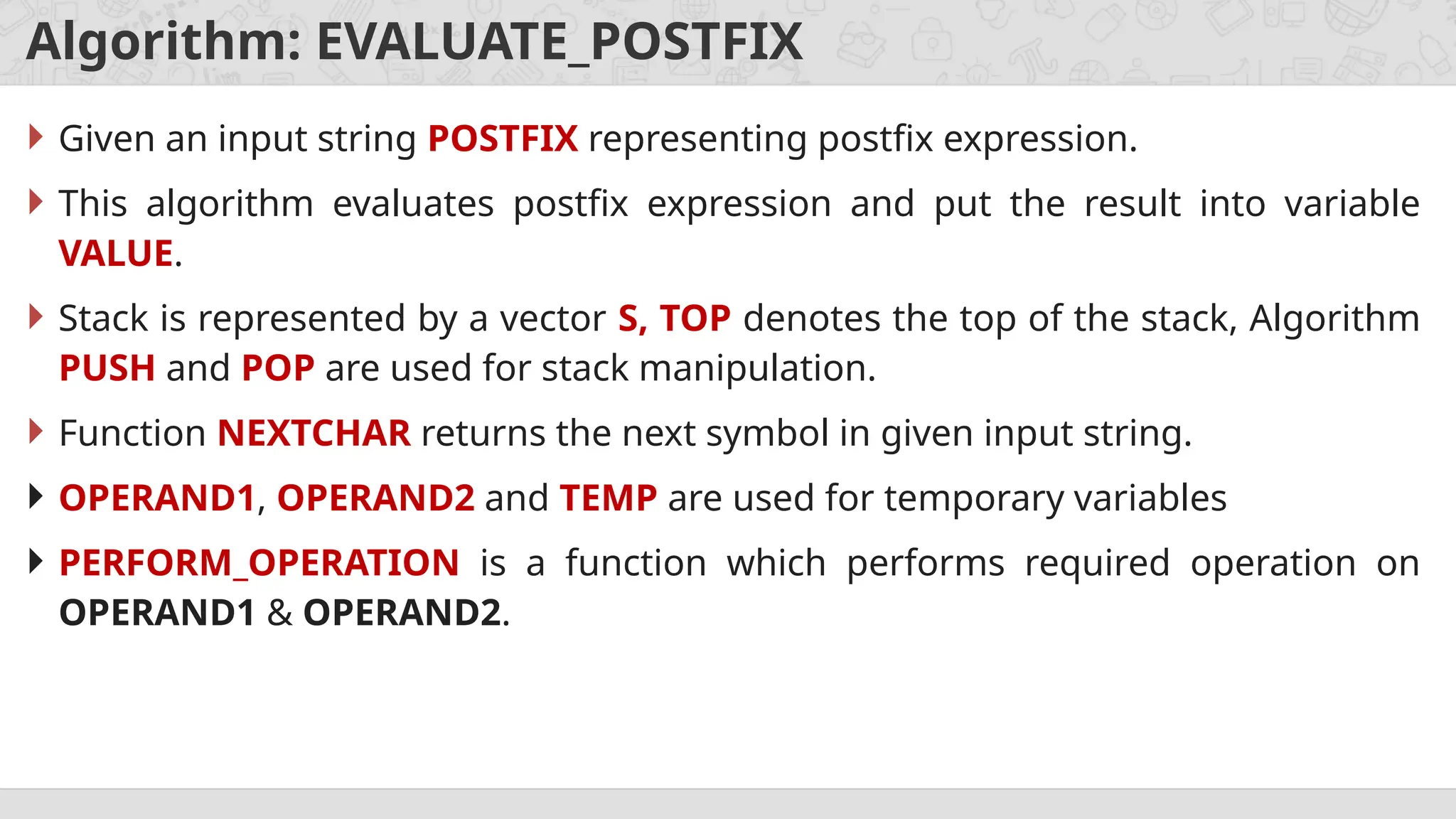

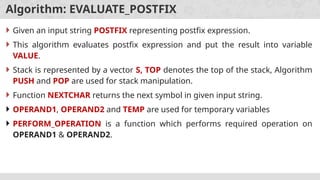

Algorithm: EVALUATE_POSTFIX
 Given an input string POSTFIX representing postfix expression.
 This algorithm evaluates postfix expression and put the result into variable
VALUE.
 Stack is represented by a vector S, TOP denotes the top of the stack, Algorithm
 OPERAND1, OPERAND2 and TEMP are used for temporary variables
 PERFORM_OPERATION is a function which performs required operation on
OPERAND1 & OPERAND2.

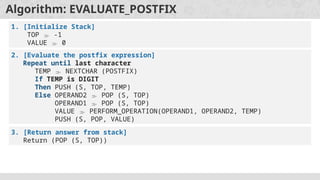

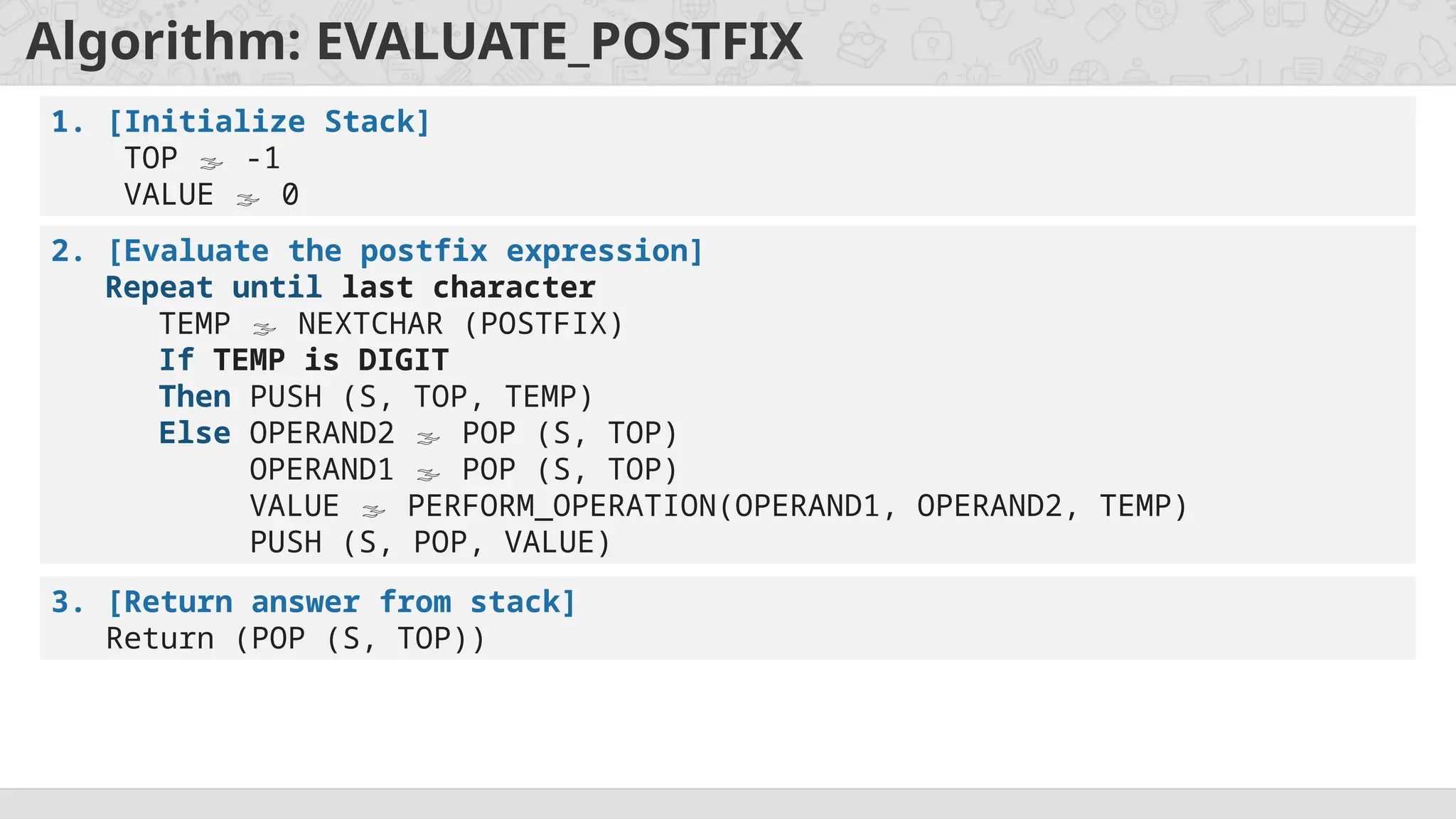

Algorithm: EVALUATE_POSTFIX
TOP  -1
VALUE  0
2. [Evaluate the postfix expression]
Repeat until last character
TEMP  NEXTCHAR (POSTFIX)
If TEMP is DIGIT
Then PUSH (S, TOP, TEMP)
Else OPERAND2  POP (S, TOP)
OPERAND1  POP (S, TOP)
VALUE  PERFORM_OPERATION(OPERAND1, OPERAND2, TEMP)
PUSH (S, POP, VALUE)
3. [Return answer from stack]
Return (POP (S, TOP))

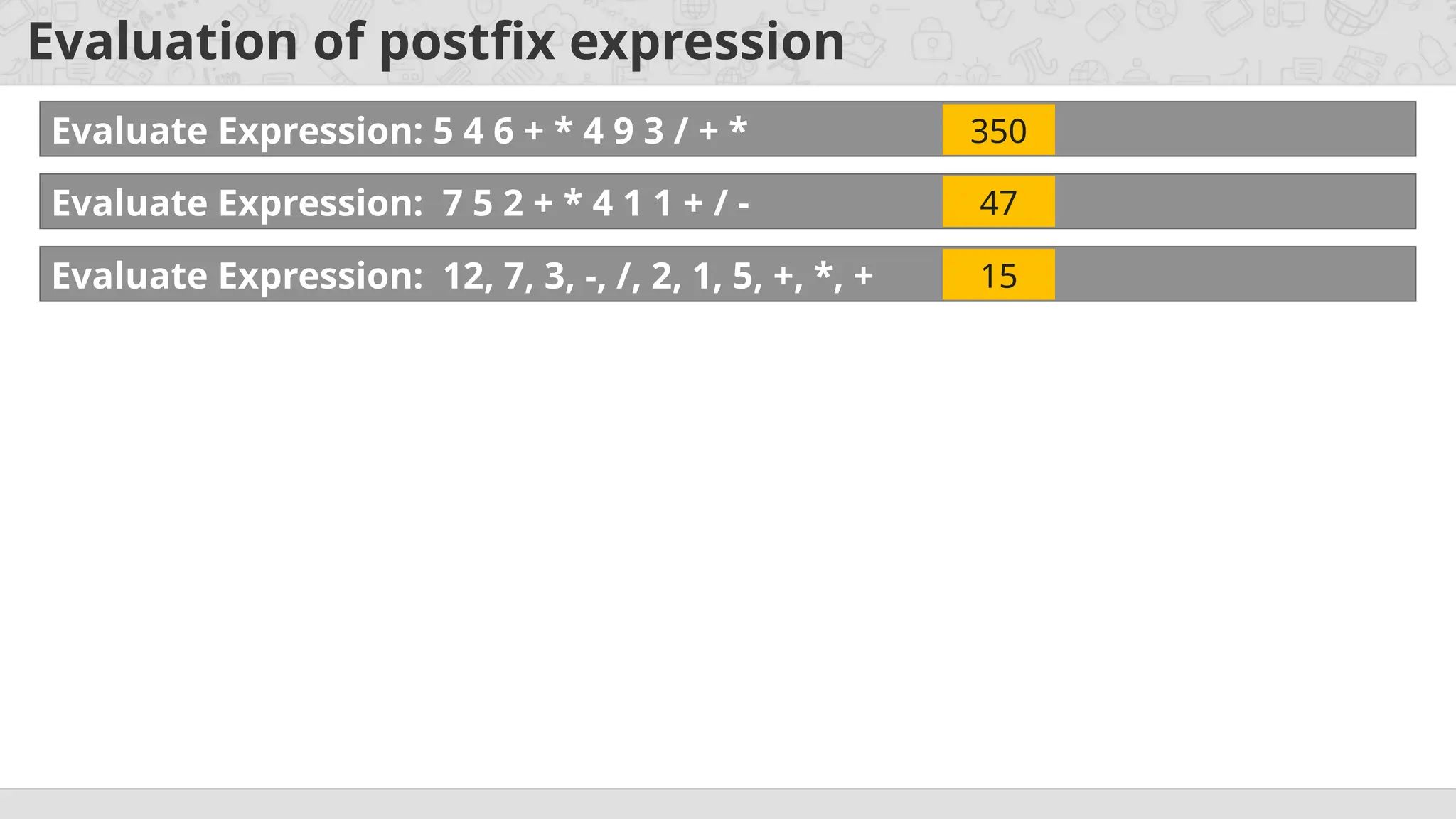

Evaluate Expression: 5 4 6 + * 4 9 3 / + *
Evaluate Expression: 7 5 2 + * 4 1 1 + / -
Evaluate Expression: 12, 7, 3, -, /, 2, 1, 5, +, *, +
350
47
15

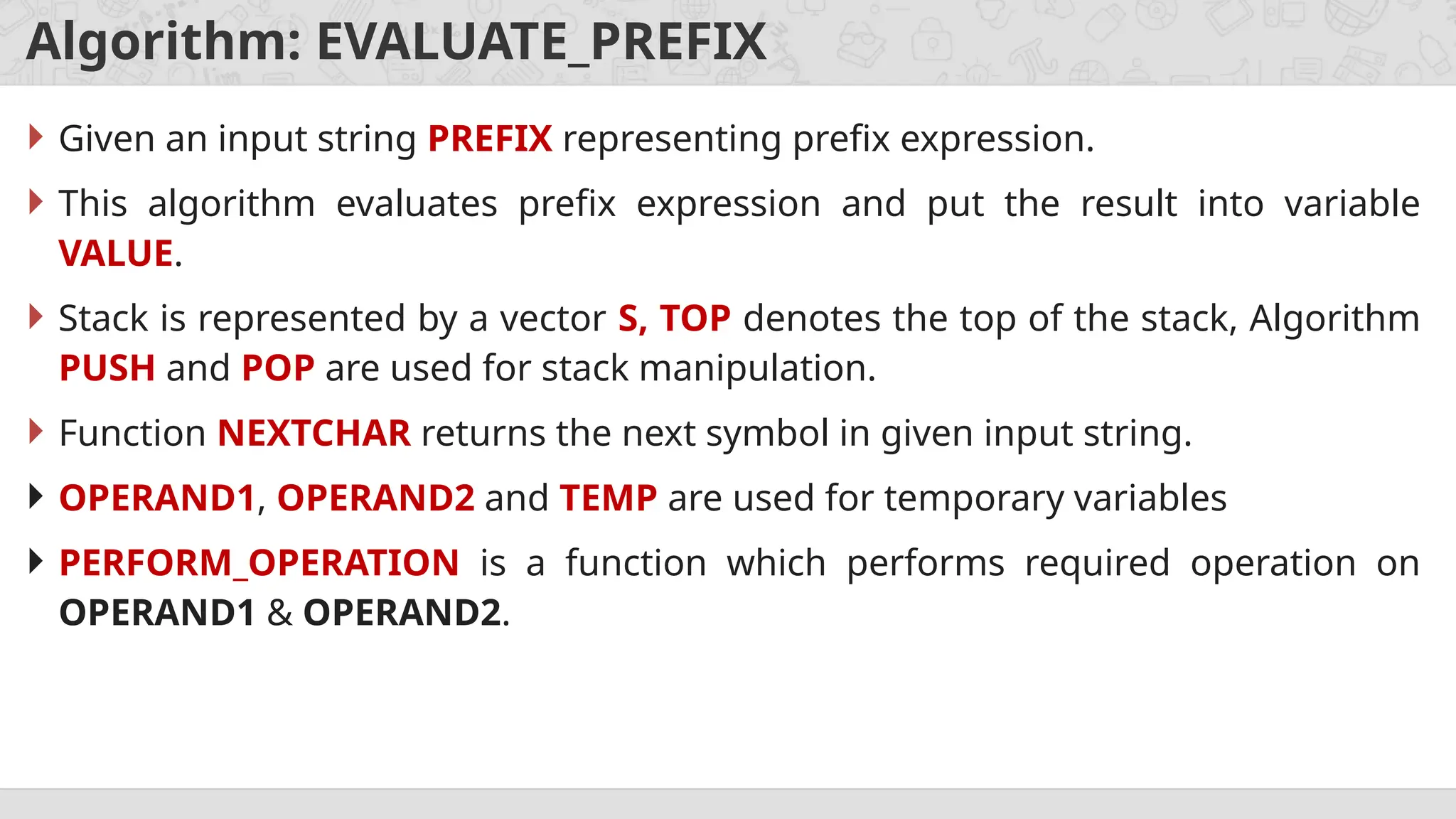

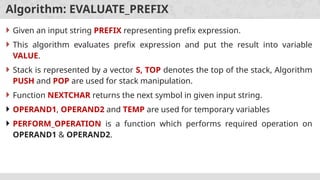

Algorithm: EVALUATE_PREFIX
 Given an input string PREFIX representing prefix expression.
 This algorithm evaluates prefix expression and put the result into variable
VALUE.
 Stack is represented by a vector S, TOP denotes the top of the stack, Algorithm
 OPERAND1, OPERAND2 and TEMP are used for temporary variables
 PERFORM_OPERATION is a function which performs required operation on
OPERAND1 & OPERAND2.

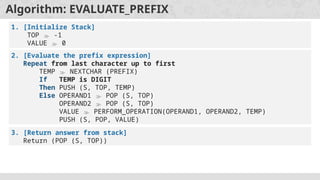

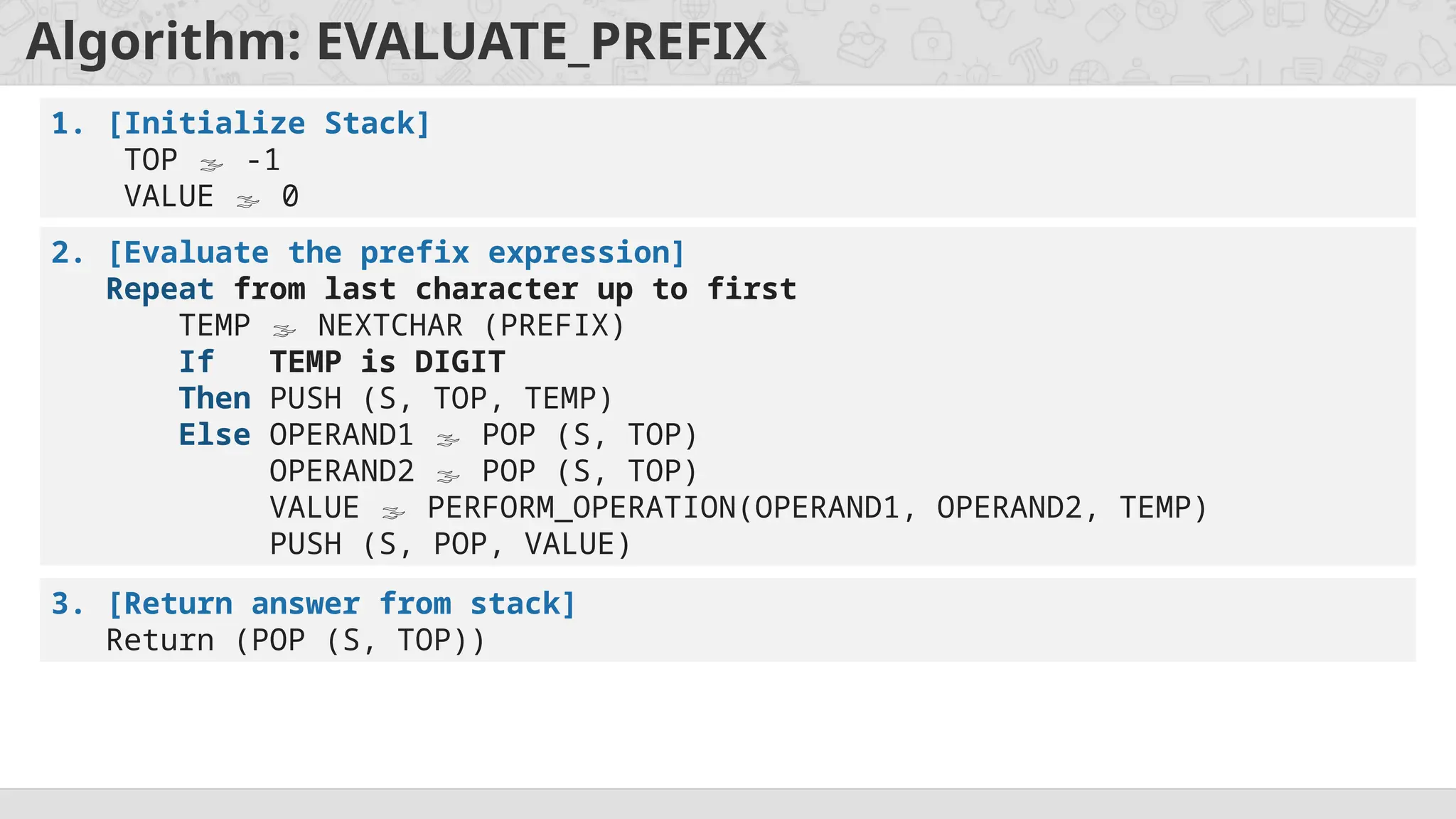

Algorithm: EVALUATE_PREFIX
TOP  -1
VALUE  0
2. [Evaluate the prefix expression]
Repeat from last character up to first
TEMP  NEXTCHAR (PREFIX)
If TEMP is DIGIT
Then PUSH (S, TOP, TEMP)
Else OPERAND1  POP (S, TOP)
OPERAND2  POP (S, TOP)
VALUE  PERFORM_OPERATION(OPERAND1, OPERAND2, TEMP)
PUSH (S, POP, VALUE)
3. [Return answer from stack]
Return (POP (S, TOP))

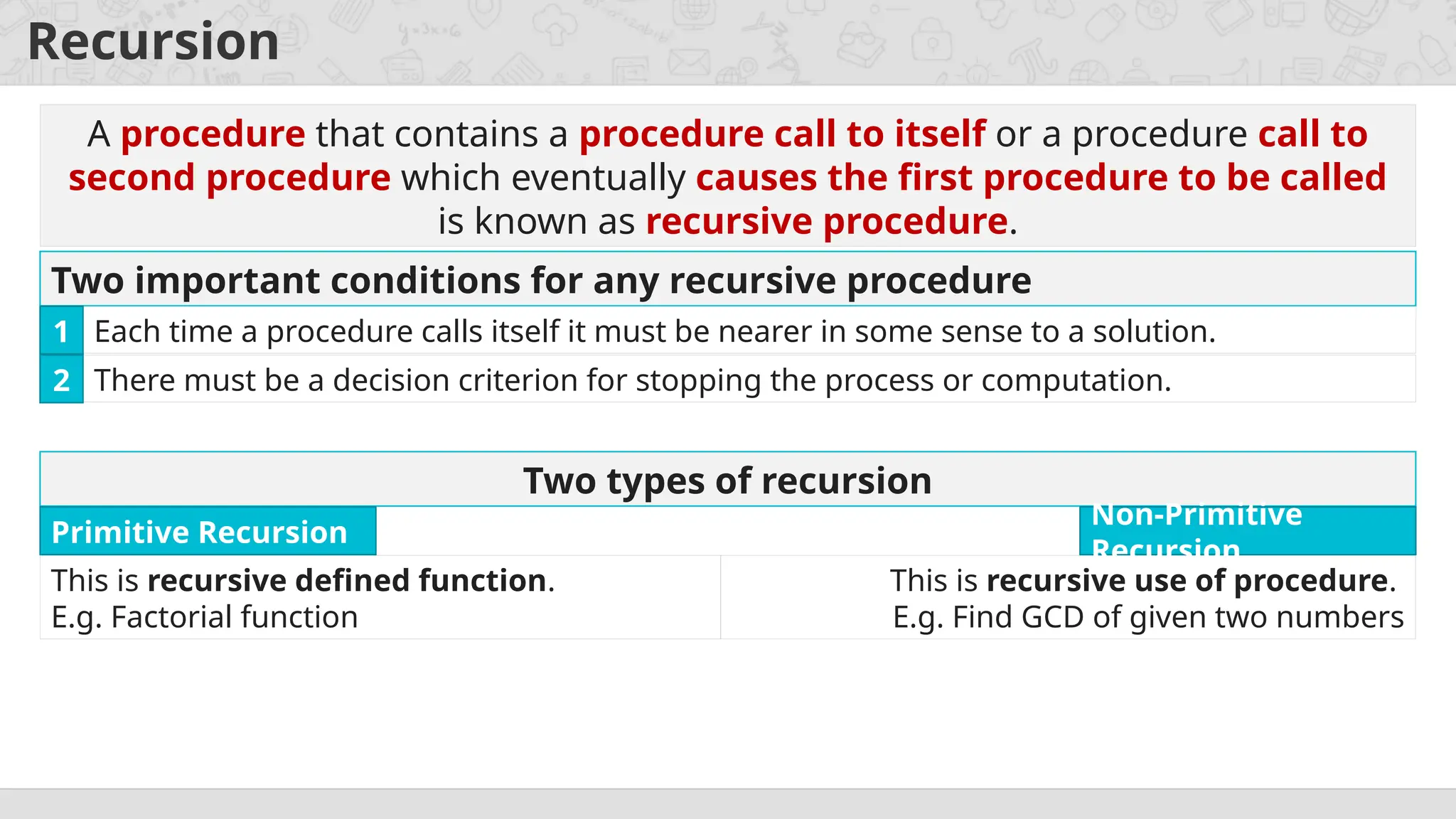

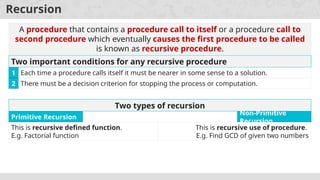

Recursion
A procedure that contains a procedure call to itself or a procedure call to
second procedure which eventually causes the first procedure to be called
is known as recursive procedure.
Two important conditions for any recursive procedure
Each time a procedure calls itself it must be nearer in some sense to a solution.
1
There must be a decision criterion for stopping the process or computation.
2
Two types of recursion
This is recursive defined function.
E.g. Factorial function
Primitive Recursion
This is recursive use of procedure.
E.g. Find GCD of given two numbers
Non-Primitive
Recursion

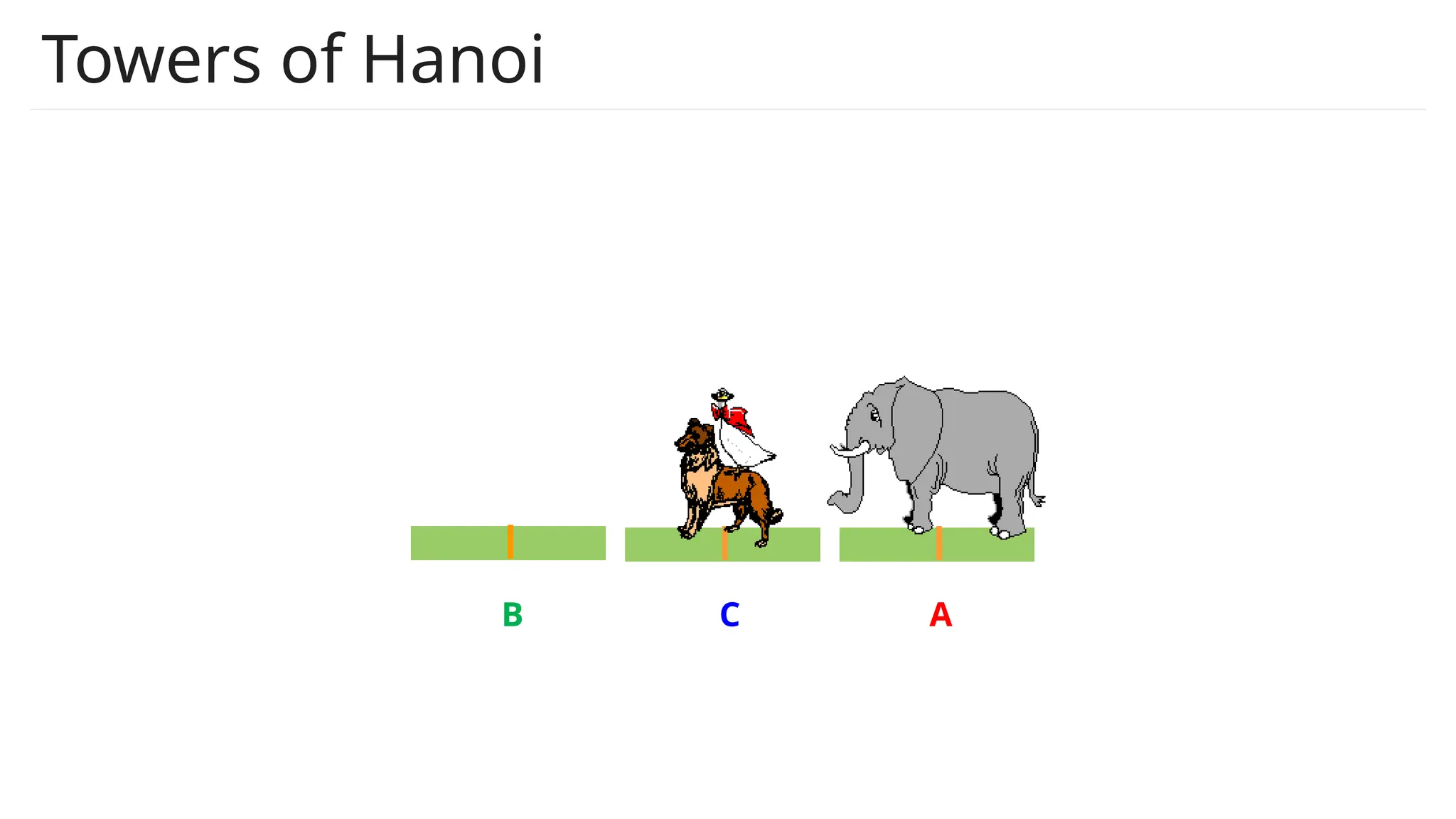

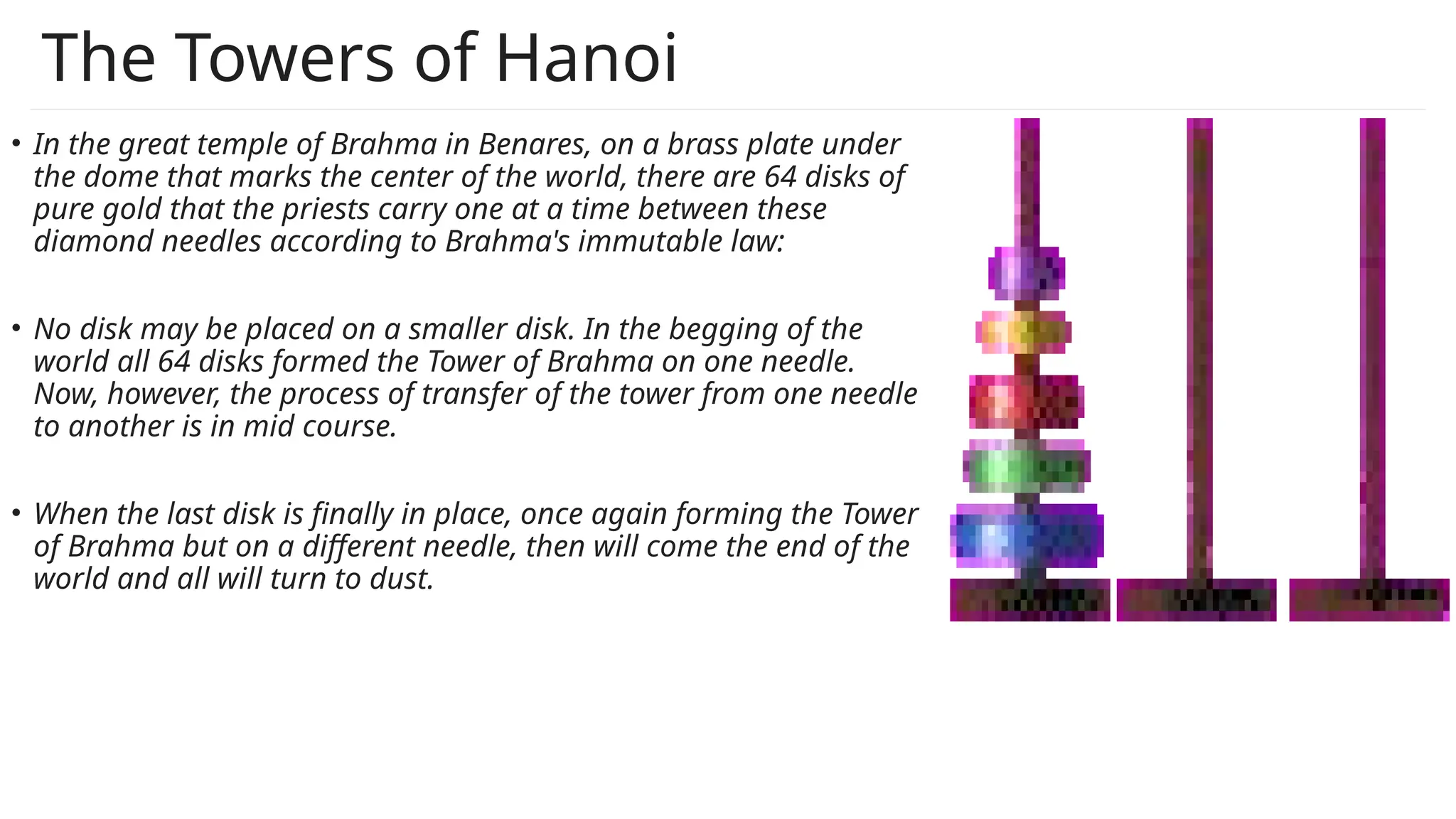

The Towers of Hanoi
• In the great temple of Brahma in Benares, on a brass plate under
the dome that marks the center of the world, there are 64 disks of
pure gold that the priests carry one at a time between these
diamond needles according to Brahma's immutable law:
• No disk may be placed on a smaller disk. In the begging of the
world all 64 disks formed the Tower of Brahma on one needle.
Now, however, the process of transfer of the tower from one needle
to another is in mid course.
• When the last disk is finally in place, once again forming the Tower
of Brahma but on a different needle, then will come the end of the
world and all will turn to dust.

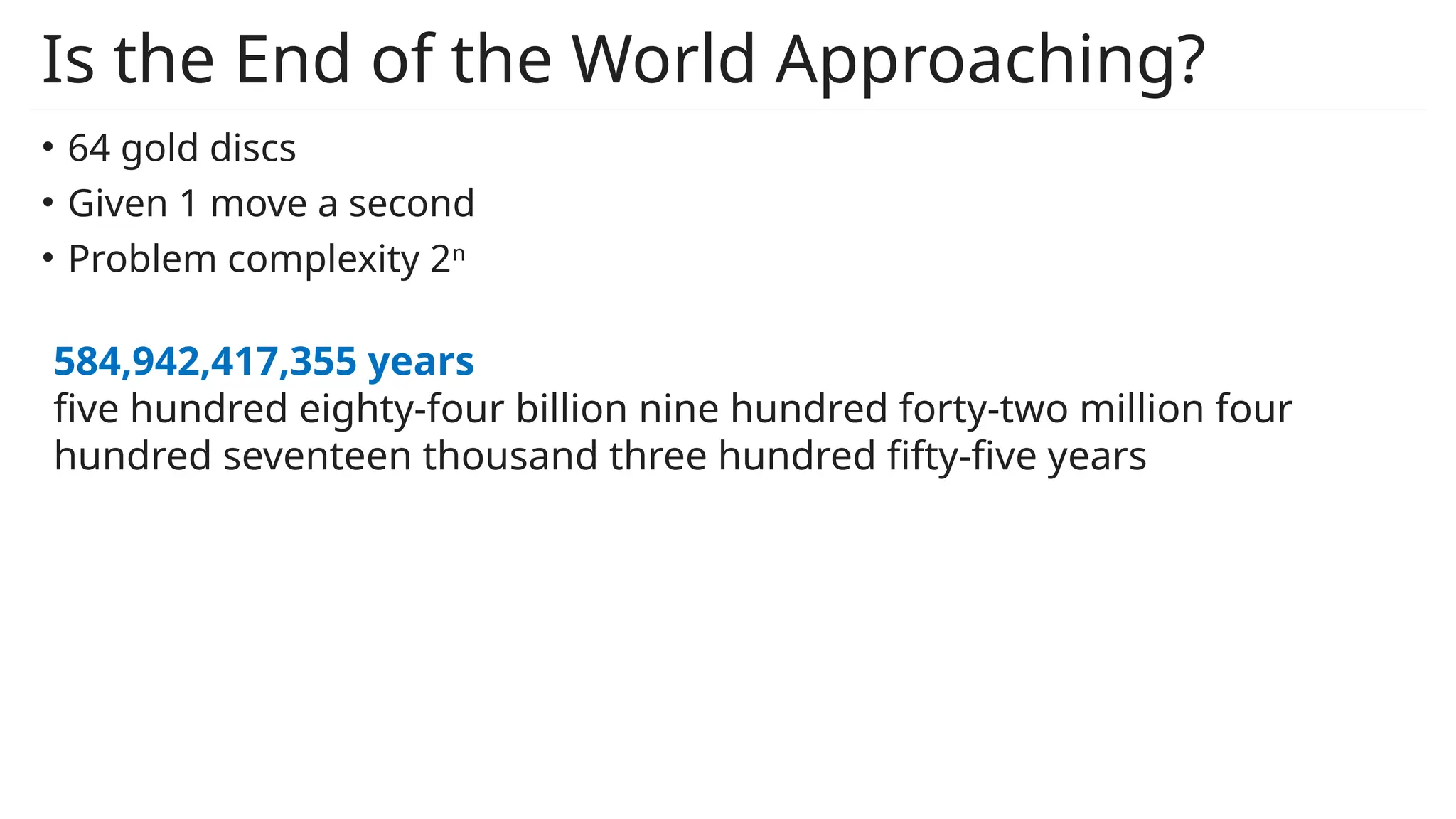

Is the End of the World Approaching?
• 64 gold discs
• Given 1 move a second
• Problem complexity 2n
584,942,417,355 years
five hundred eighty-four billion nine hundred forty-two million four
hundred seventeen thousand three hundred fifty-five years

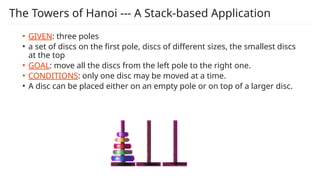

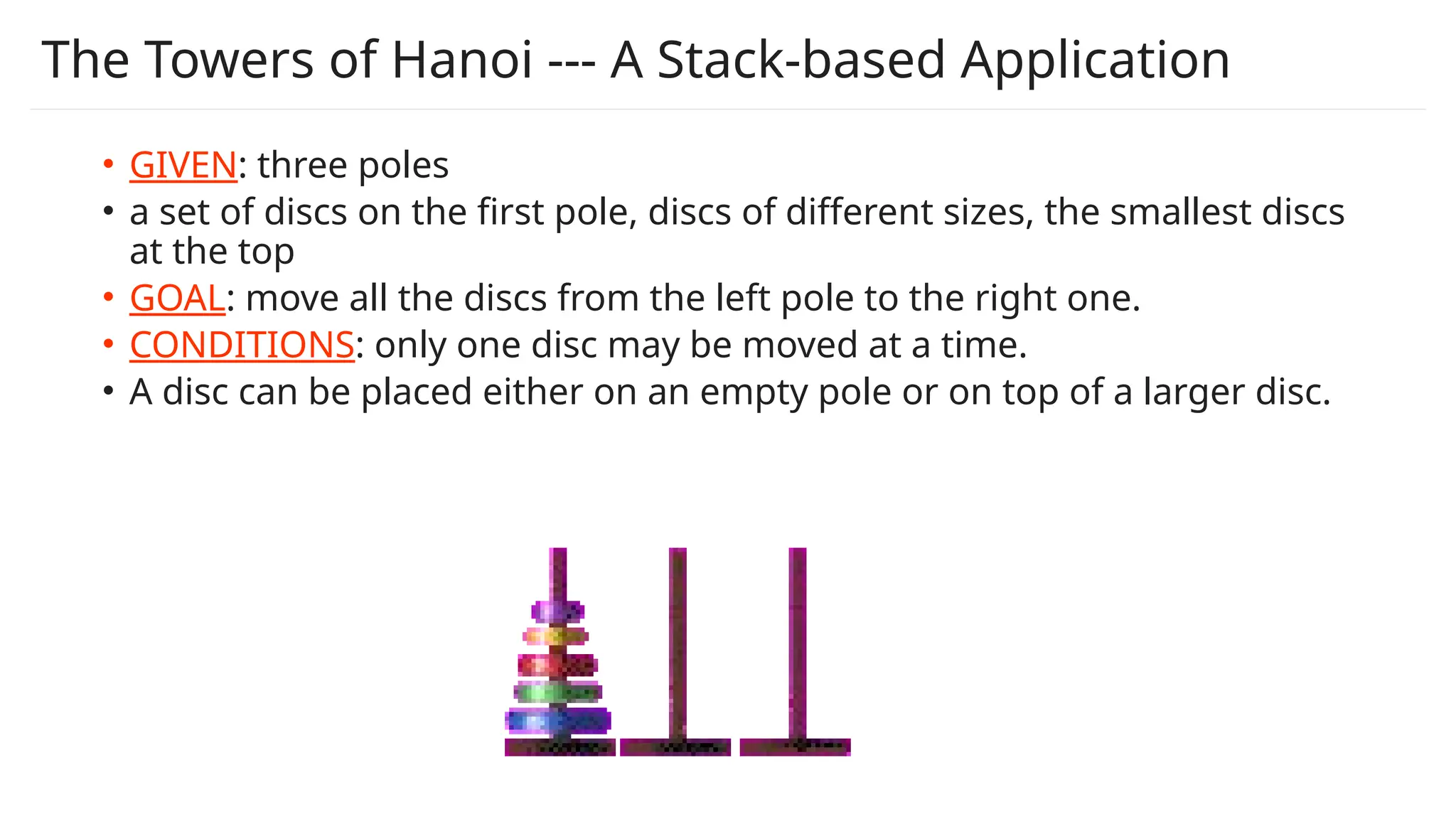

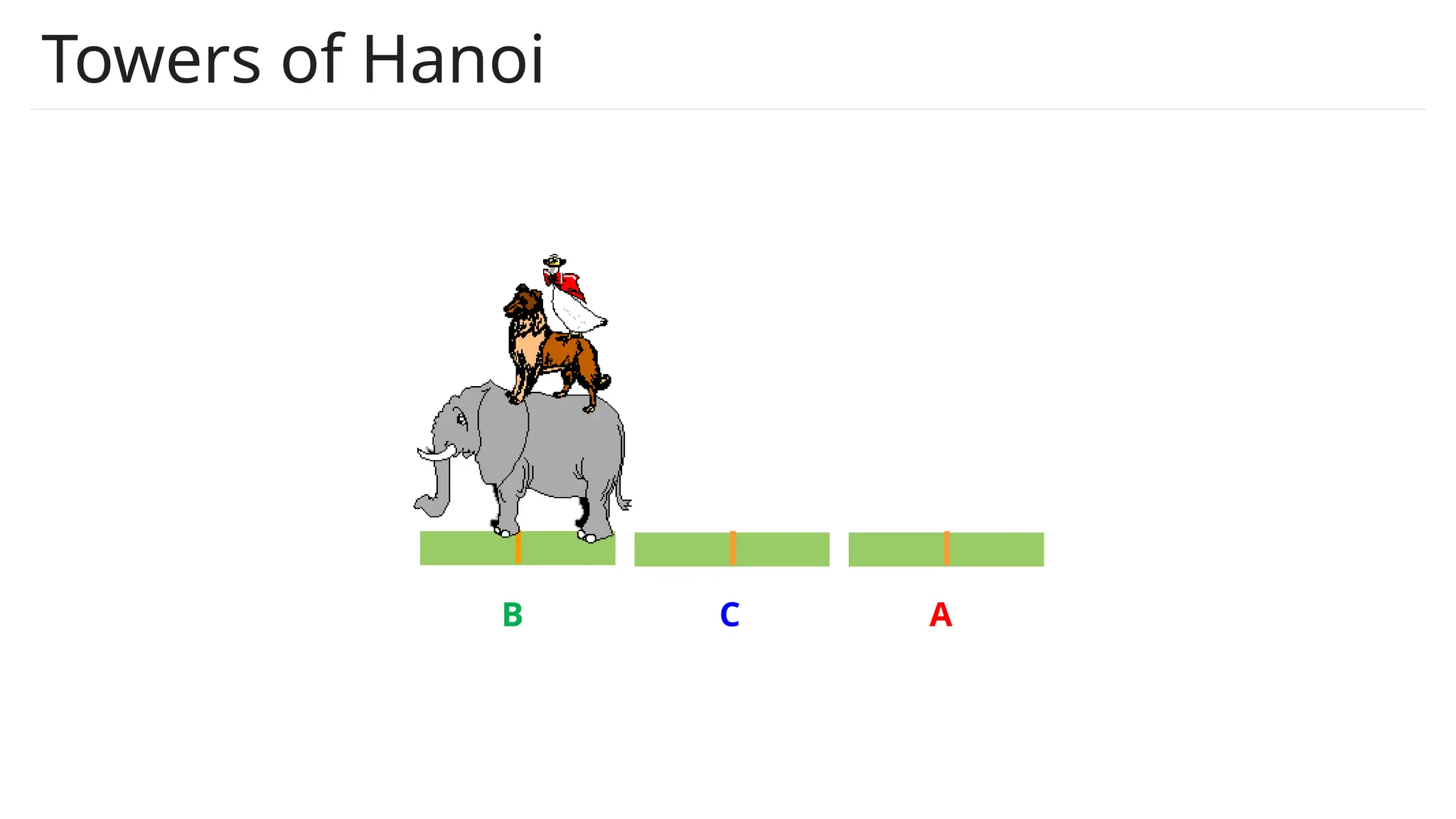

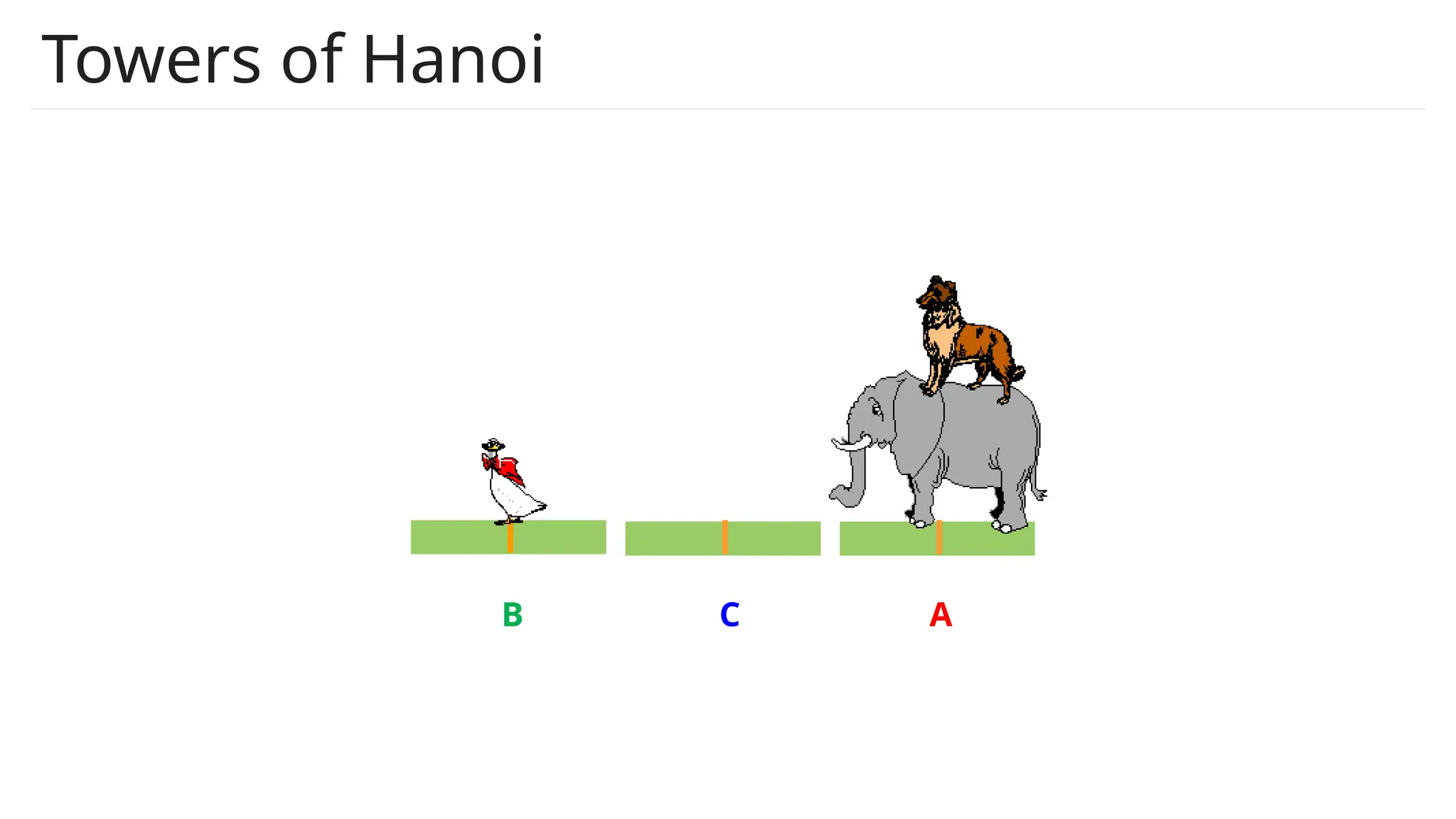

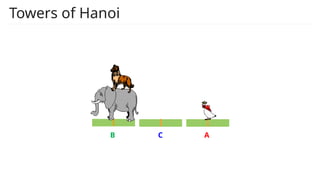

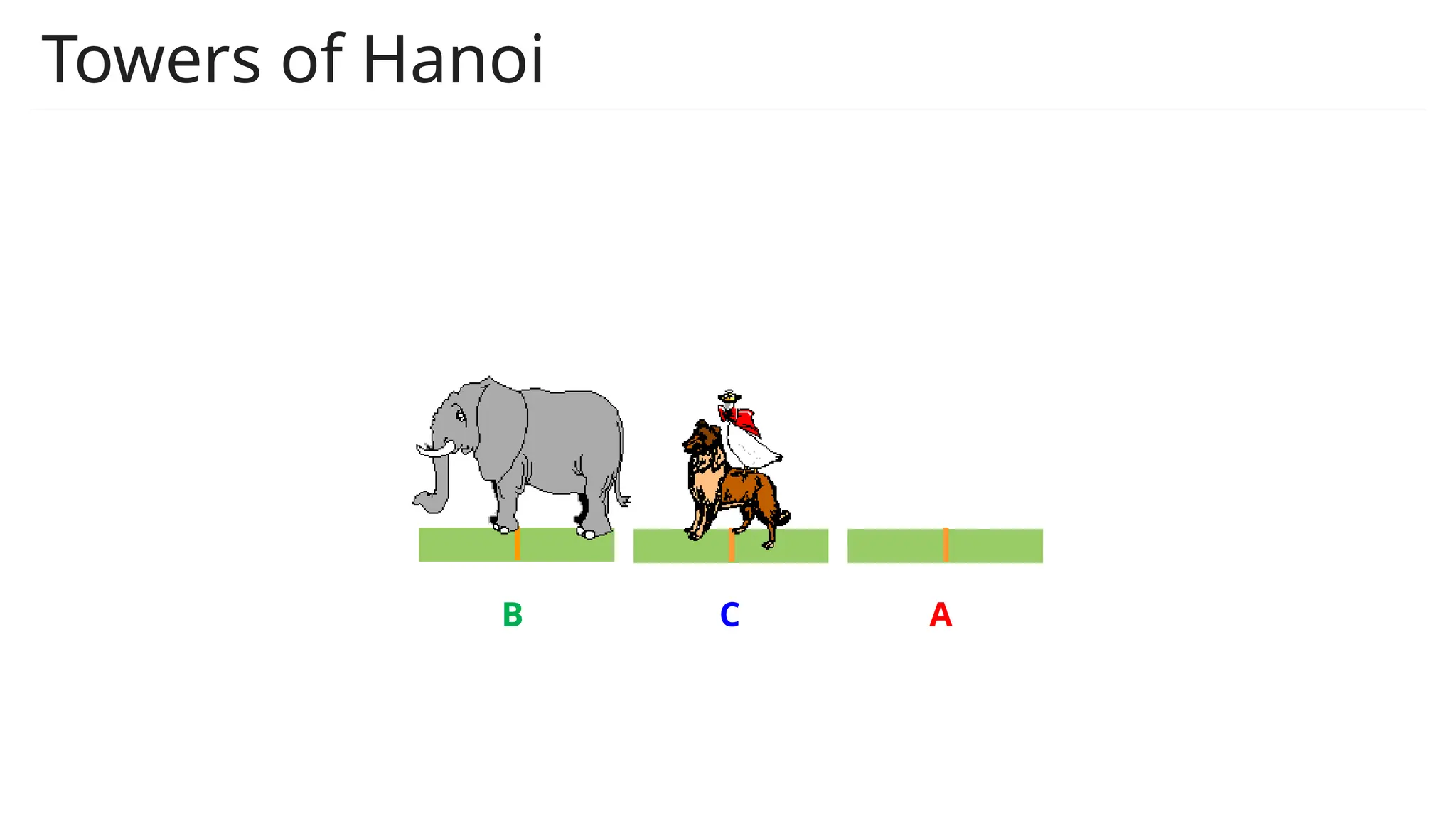

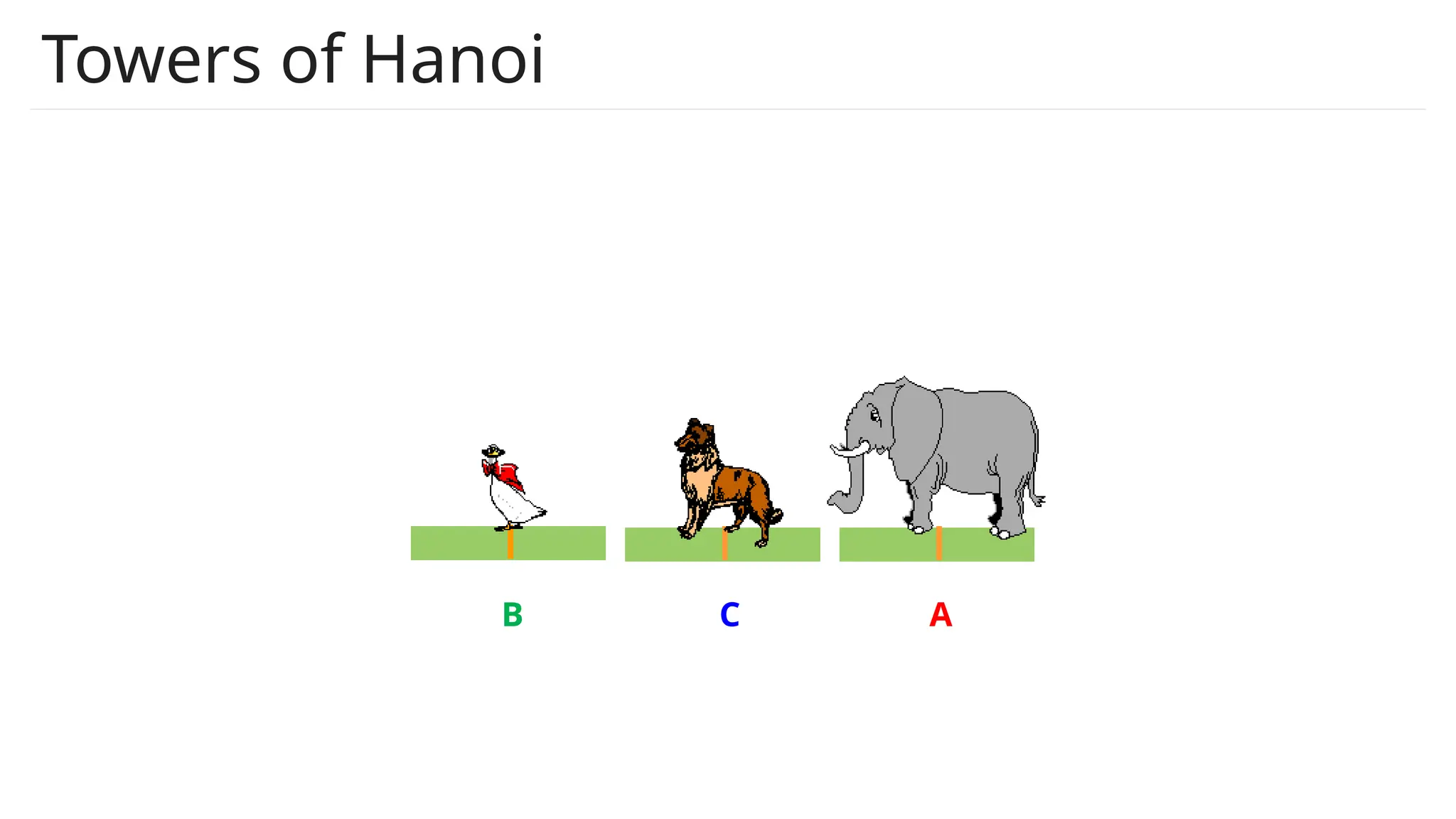

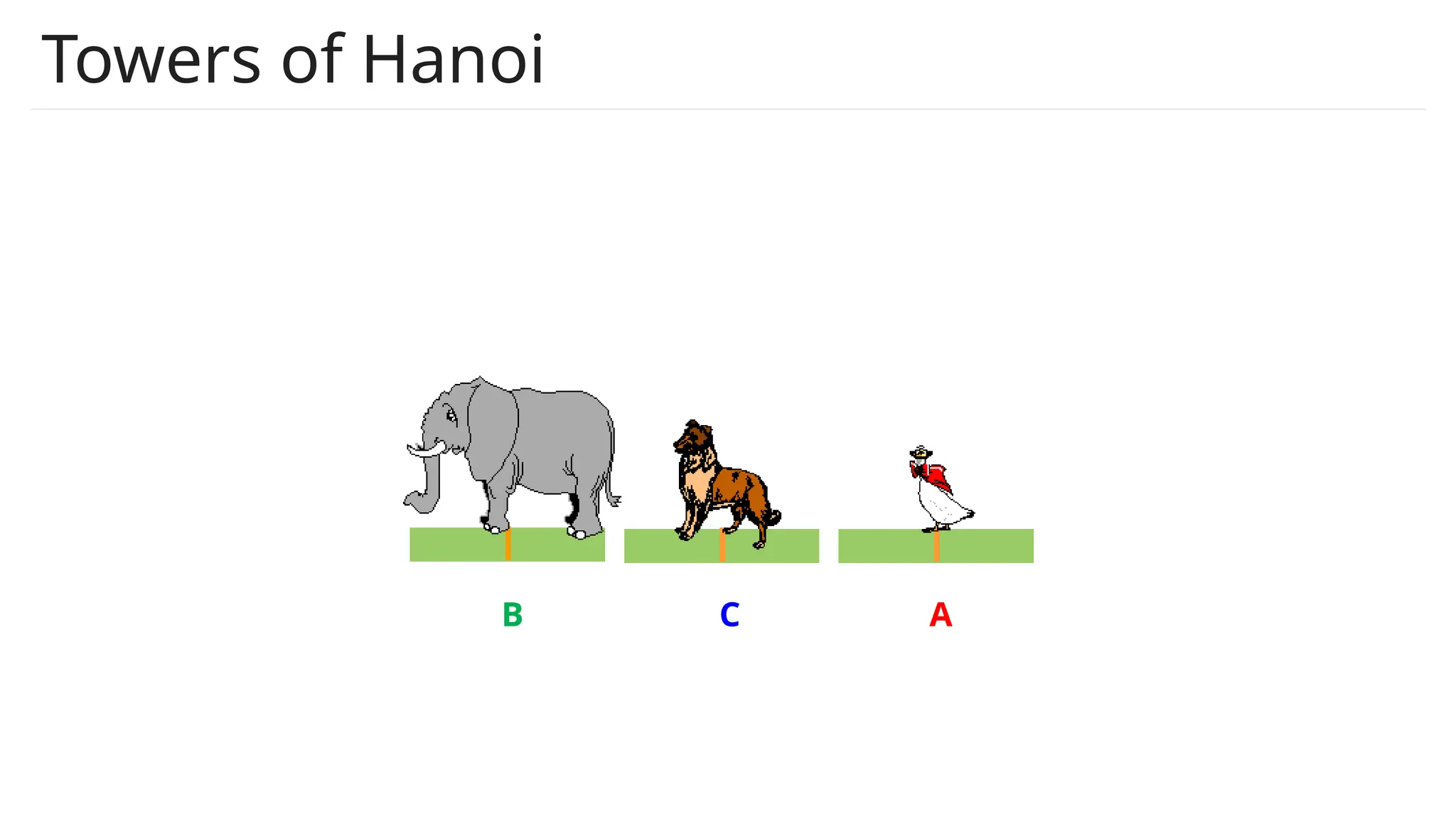

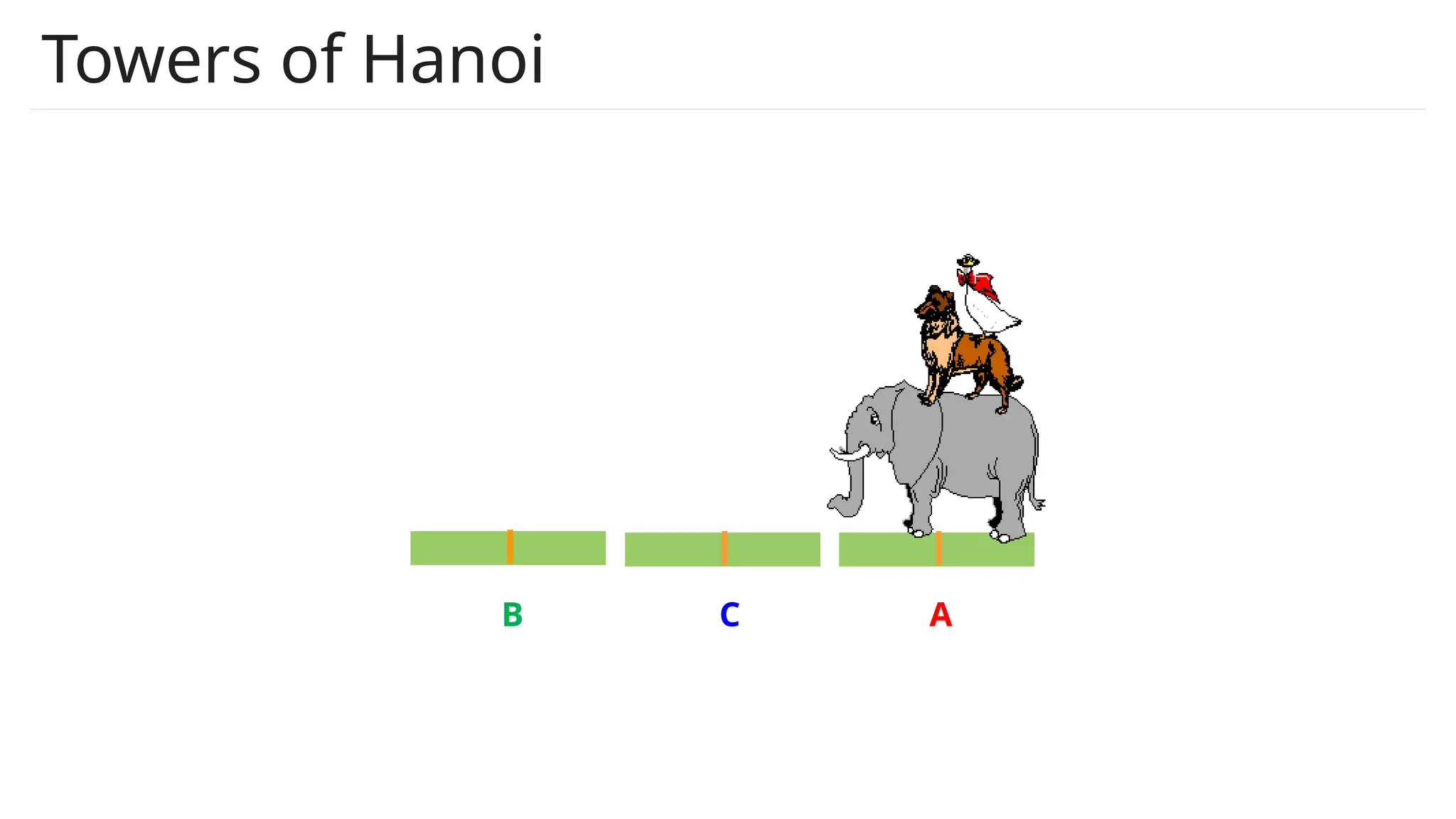

The Towers of Hanoi --- A Stack-based Application
• GIVEN: three poles
• a set of discs on the first pole, discs of different sizes, the smallest discs
at the top
• GOAL: move all the discs from the left pole to the right one.
• CONDITIONS: only one disc may be moved at a time.
• A disc can be placed either on an empty pole or on top of a larger disc.

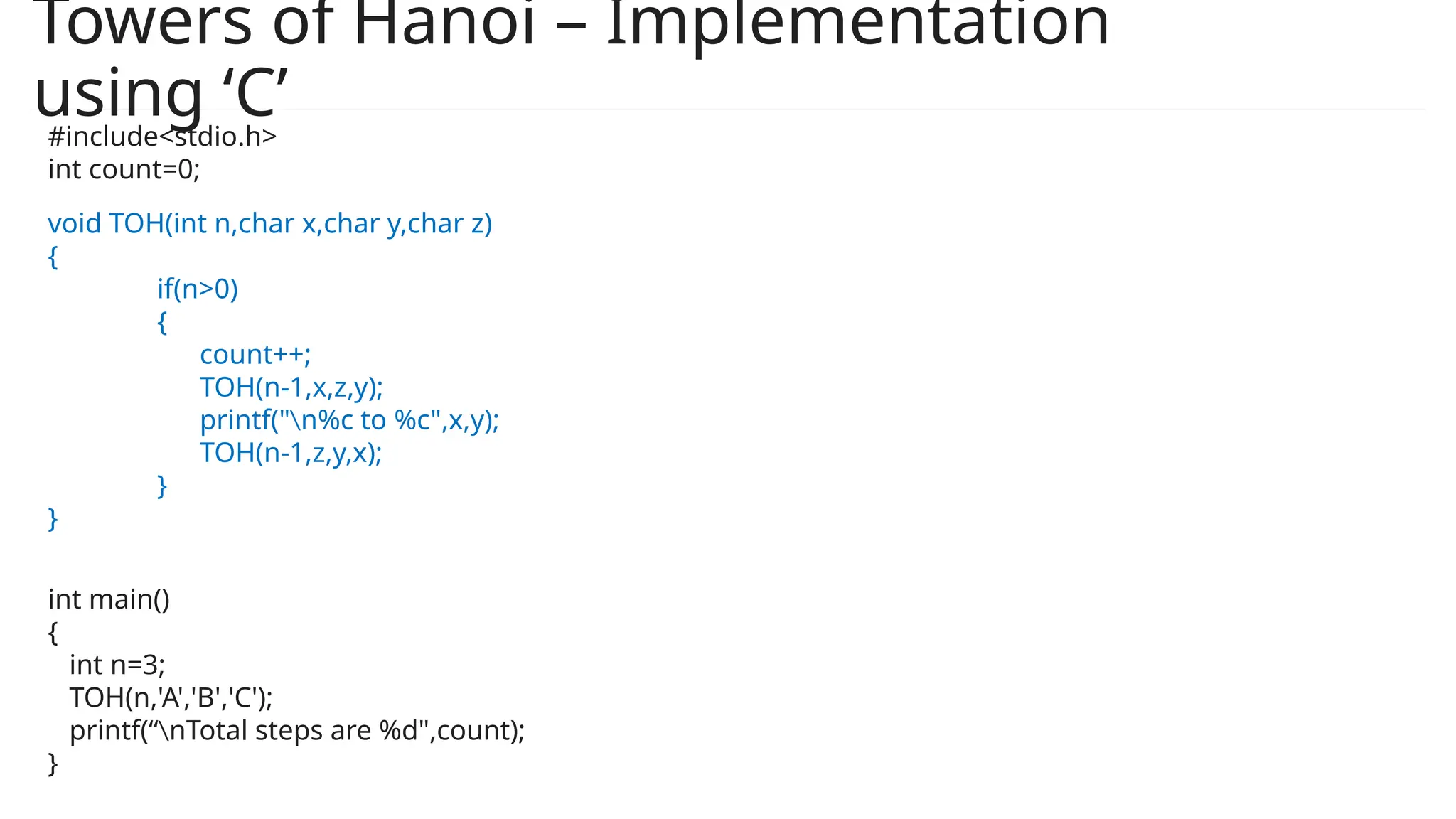

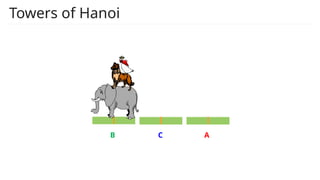

Towers of Hanoi – Implementation
using ‘C’
void TOH(int n,char x,char y,char z)
{
if(n>0)
{
count++;
TOH(n-1,x,z,y);
printf("n%c to %c",x,y);
TOH(n-1,z,y,x);
}
}
int main()
{
int n=3;
TOH(n,'A','B','C');
printf(“nTotal steps are %d",count);
}
#include<stdio.h>
int count=0;

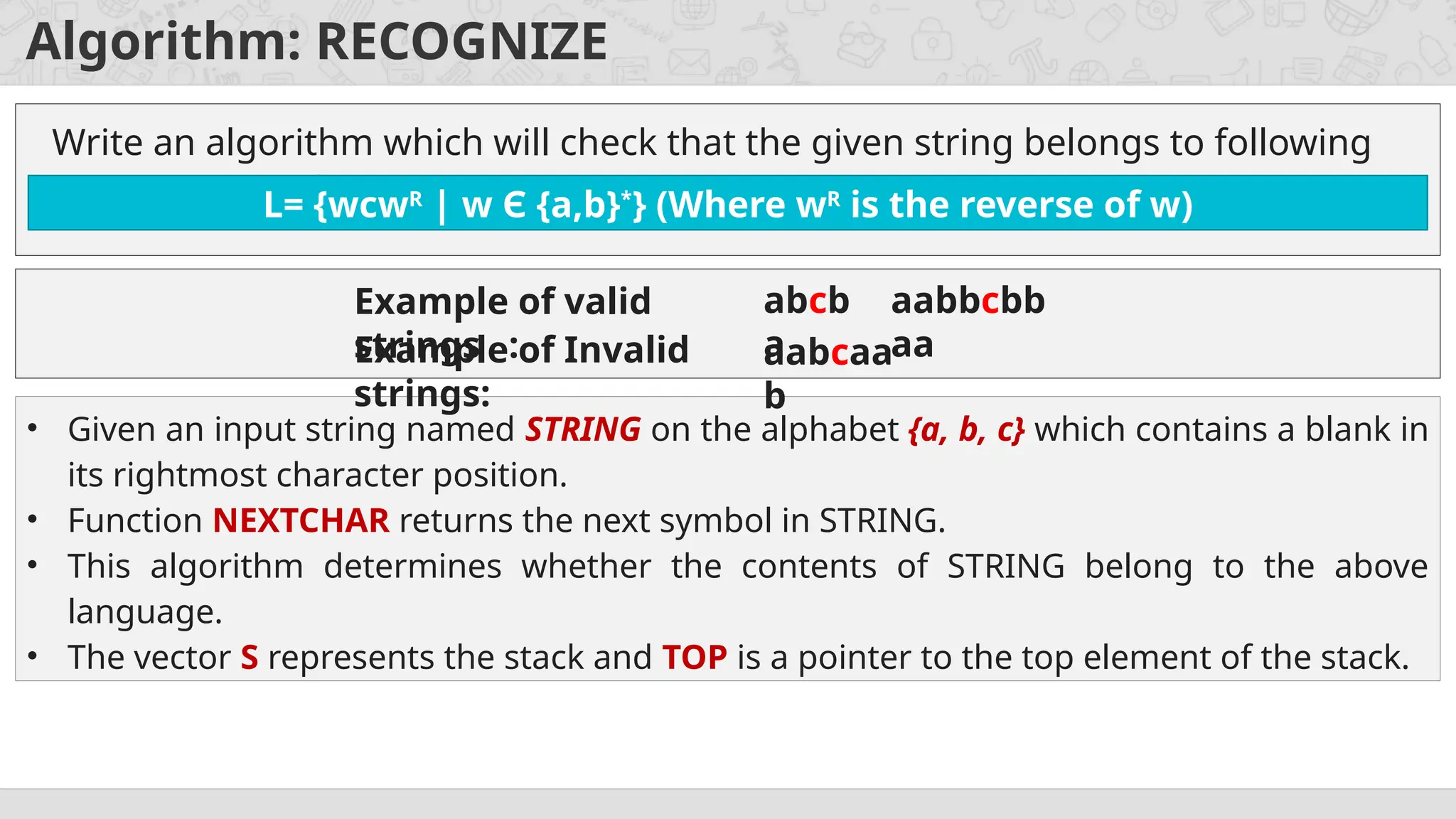

Algorithm: RECOGNIZE
Write an algorithm which will check that the given string belongs to following
grammar or not.
L= {wcwR
| w Є {a,b}*
} (Where wR
is the reverse of w)
• Given an input string named STRING on the alphabet {a, b, c} which contains a blank in
its rightmost character position.
• Function NEXTCHAR returns the next symbol in STRING.
• This algorithm determines whether the contents of STRING belong to the above
language.
• The vector S represents the stack and TOP is a pointer to the top element of the stack.
Example of valid
strings :
abcb
a
aabbcbb
aa
Example of Invalid
strings:
aabcaa
b

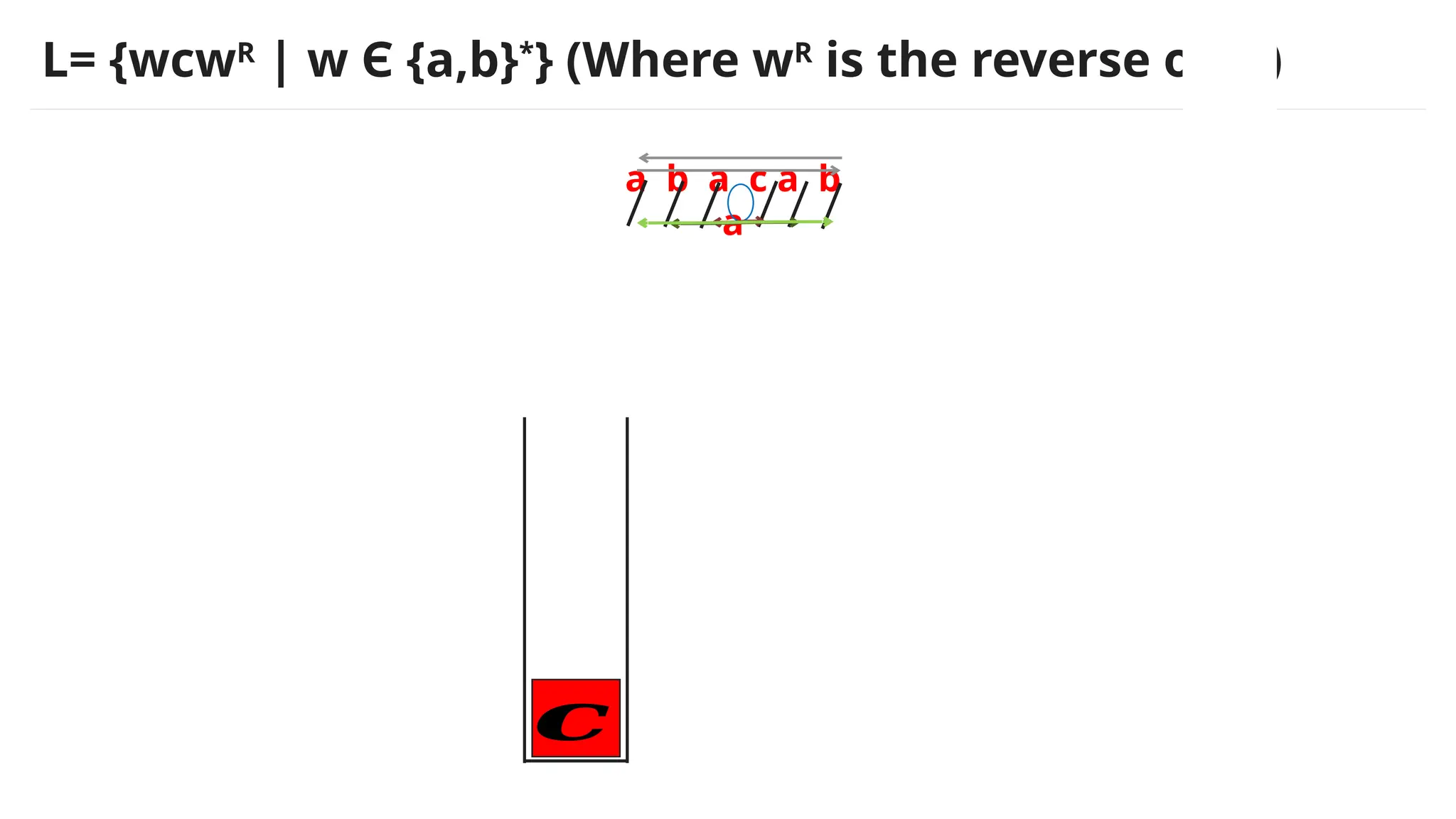

L= {wcwR
| w Є {a,b}*
} (Where wR
is the reverse of w)
a b a c a b
a
𝒄
𝒂
𝒃
𝒂
𝒂
𝒃
𝒂

Input String: a b c
b a □
Charact
er
Scanne
d
Stack
Content
c

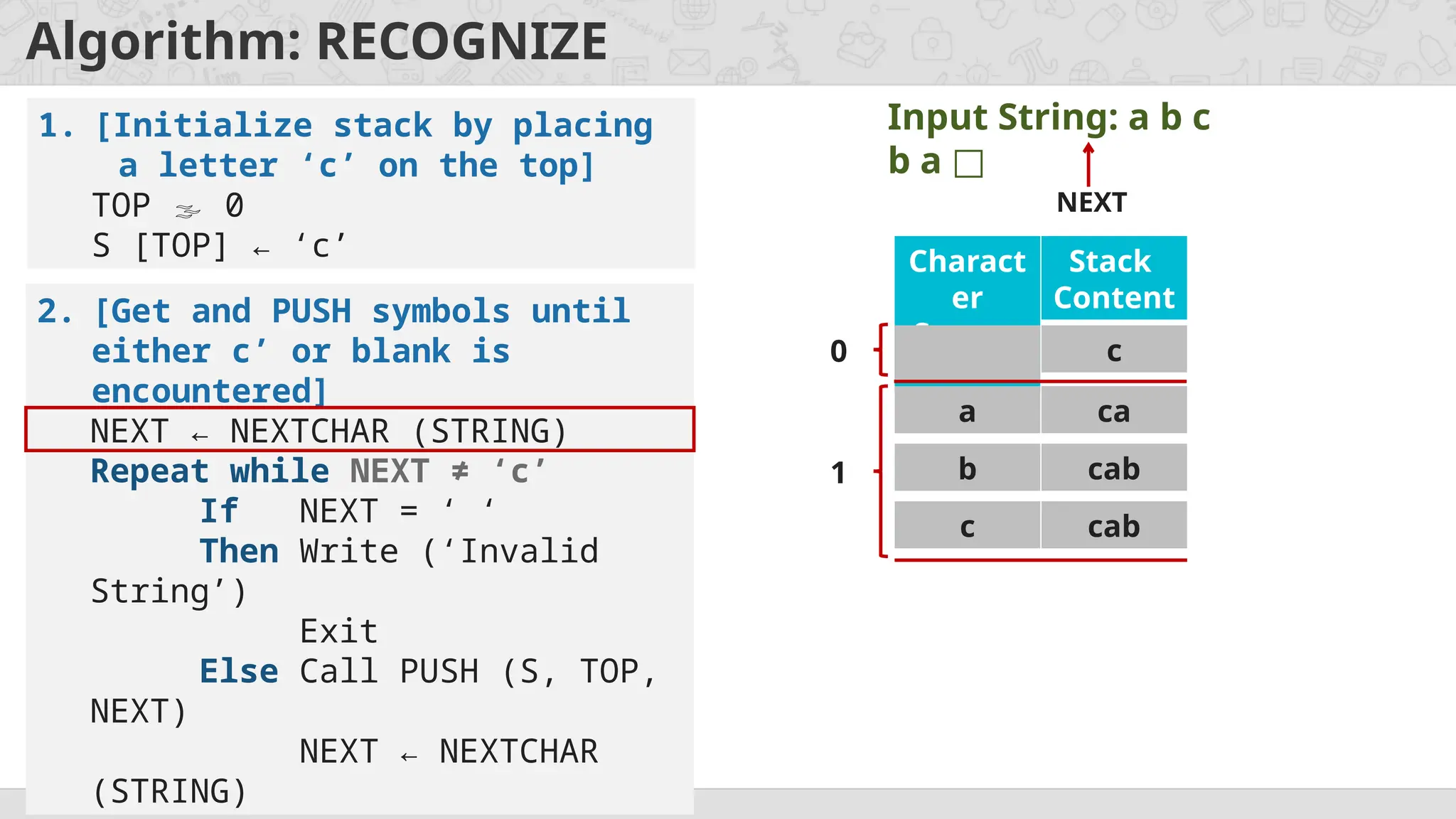

1. [Initialize stack by placing
a letter ‘c’ on the top]
TOP  0
S [TOP] ← ‘c’
0
2. [Get and PUSH symbols until
either c’ or blank is
encountered]
NEXT ← NEXTCHAR (STRING)
Repeat while NEXT ≠ ‘c’
If NEXT = ‘ ‘
Then Write (‘Invalid
String’)
Exit
Else Call PUSH (S, TOP,
NEXT)
NEXT ← NEXTCHAR
(STRING)
a ca
b cab
c cab
NEXT
1

b ca
a c

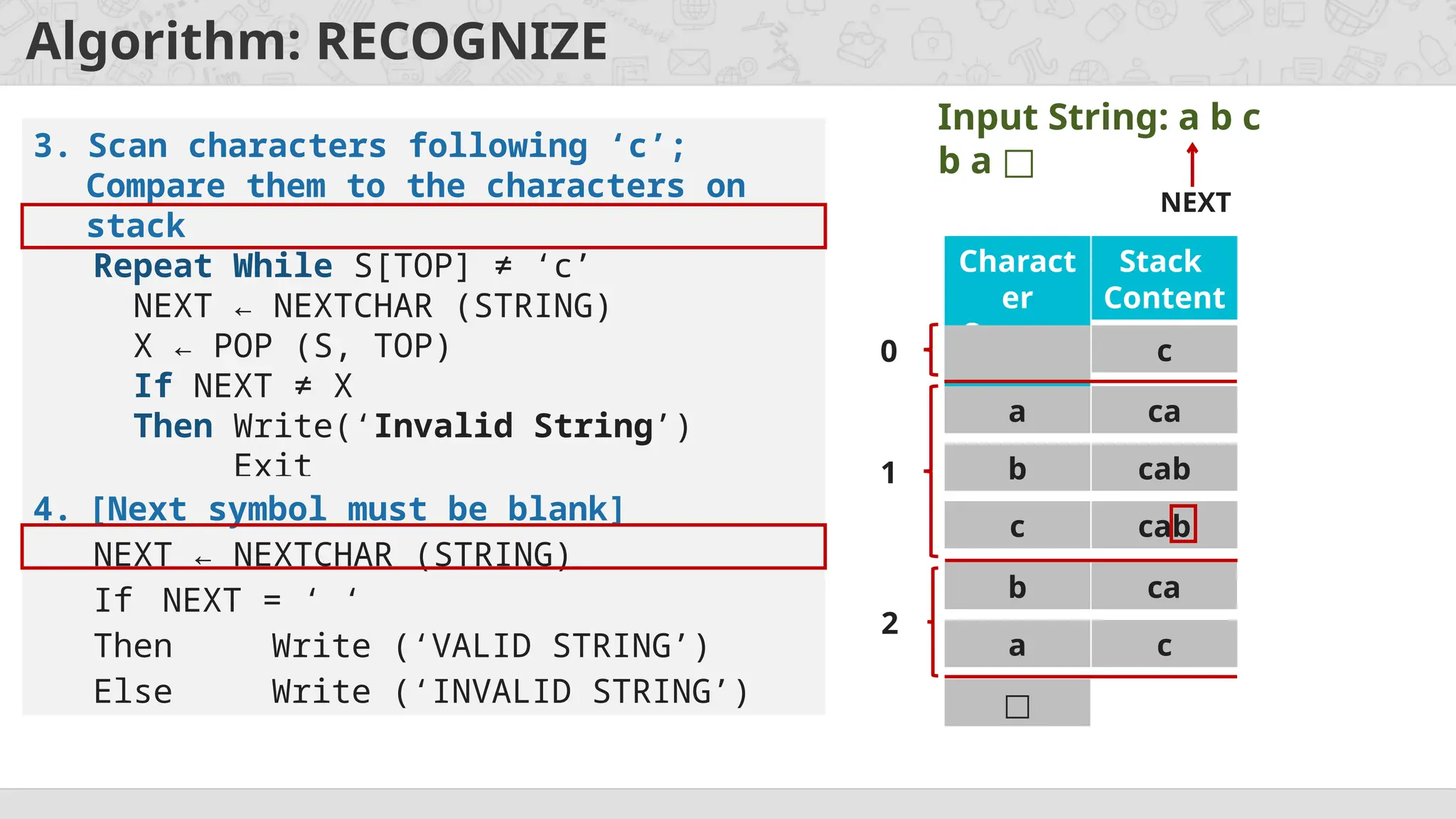

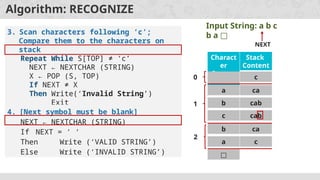

3. Scan characters following ‘c’;
Compare them to the characters on
stack
Repeat While S[TOP] ≠ ‘c’
X ← POP (S, TOP)
If NEXT ≠ X
Then Write(‘Invalid String’)
Exit
2
Charact
er
Scanne
d
Stack
Content
c
0
a ca
b cab
c cab
1
Input String: a b c
b a □
NEXT
4. [Next symbol must be blank]
If NEXT = ‘ ‘
Then Write (‘VALID STRING’)
Else Write (‘INVALID STRING’) □

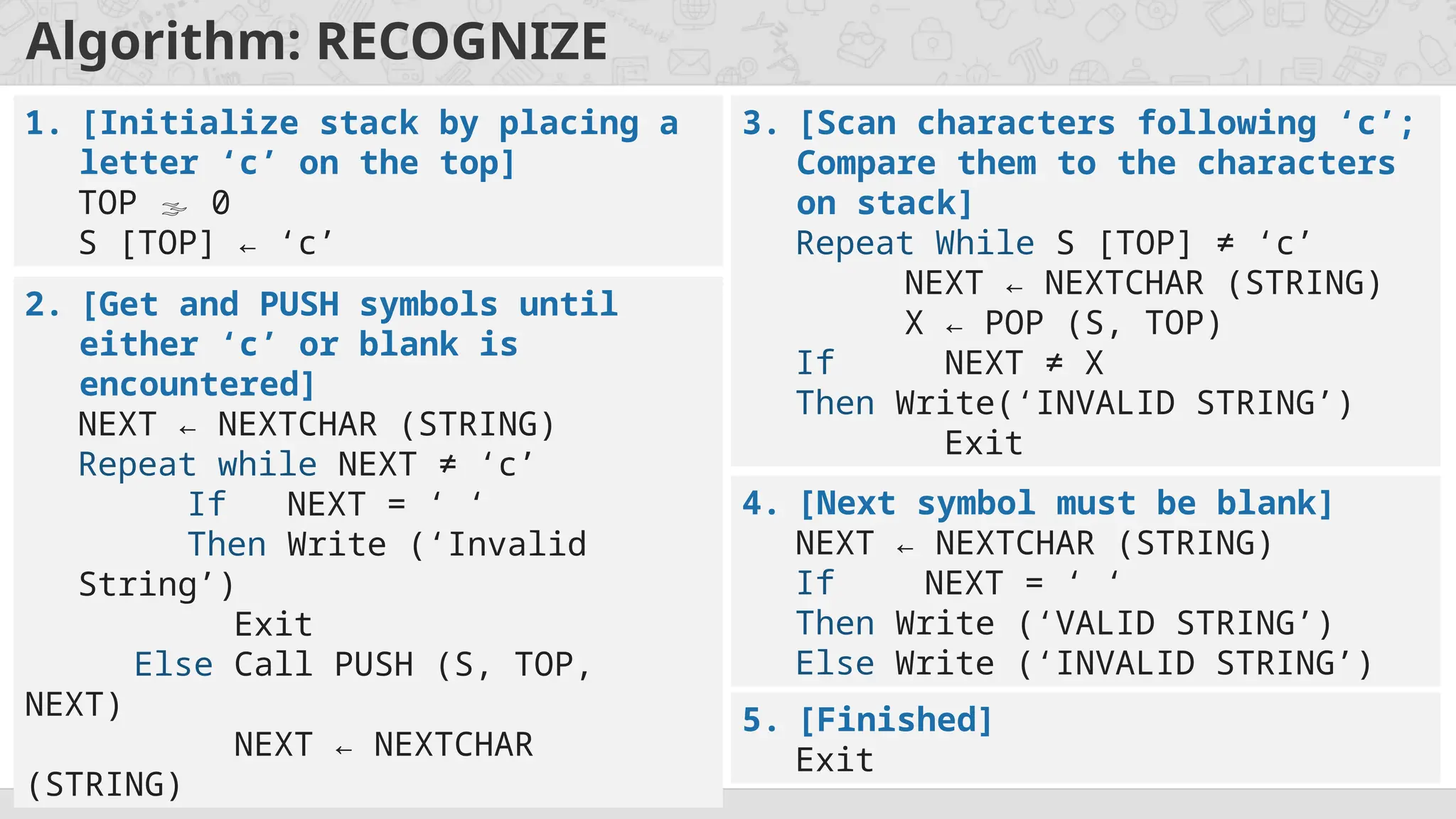

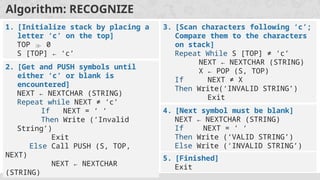

1. [Initialize stack by placing a
letter ‘c’ on the top]
TOP  0
S [TOP] ← ‘c’
2. [Get and PUSH symbols until
either ‘c’ or blank is
encountered]
Repeat while NEXT ≠ ‘c’
If NEXT = ‘ ‘
Then Write (‘Invalid
String’)
Exit
Else Call PUSH (S, TOP,
NEXT)
NEXT ← NEXTCHAR
(STRING)
3. [Scan characters following ‘c’;
Compare them to the characters
on stack]
Repeat While S [TOP] ≠ ‘c’
X ← POP (S, TOP)
If NEXT ≠ X
Then Write(‘INVALID STRING’)
Exit
4. [Next symbol must be blank]
If NEXT = ‘ ‘
Then Write (‘VALID STRING’)
Else Write (‘INVALID STRING’)
5. [Finished]
Exit

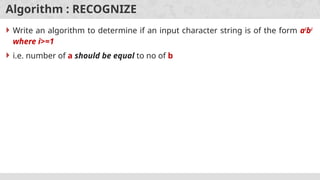

Algorithm : RECOGNIZE

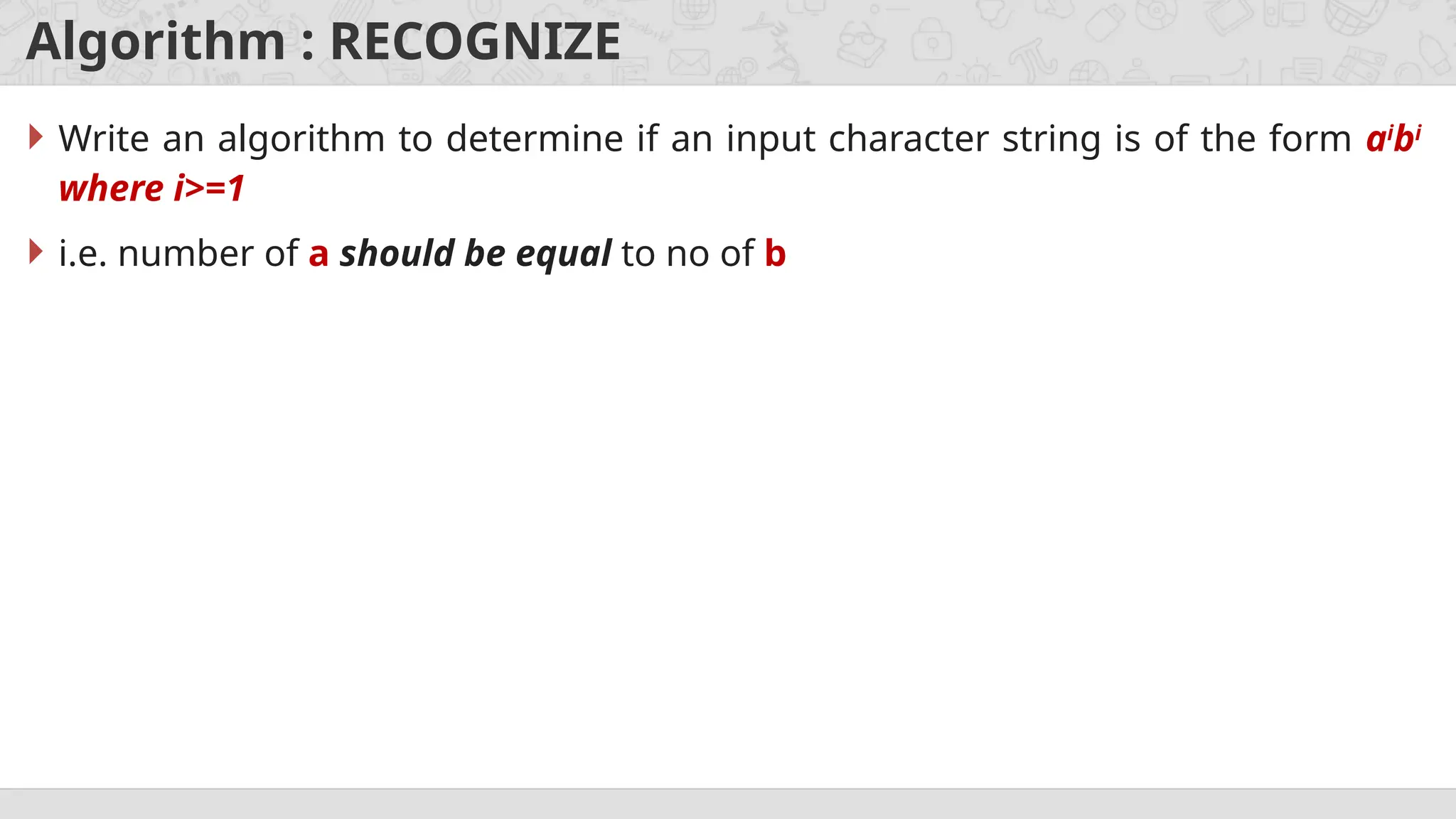

 Write an algorithm to determine if an input character string is of the form ai
bi
where i>=1
 i.e. number of a should be equal to no of b

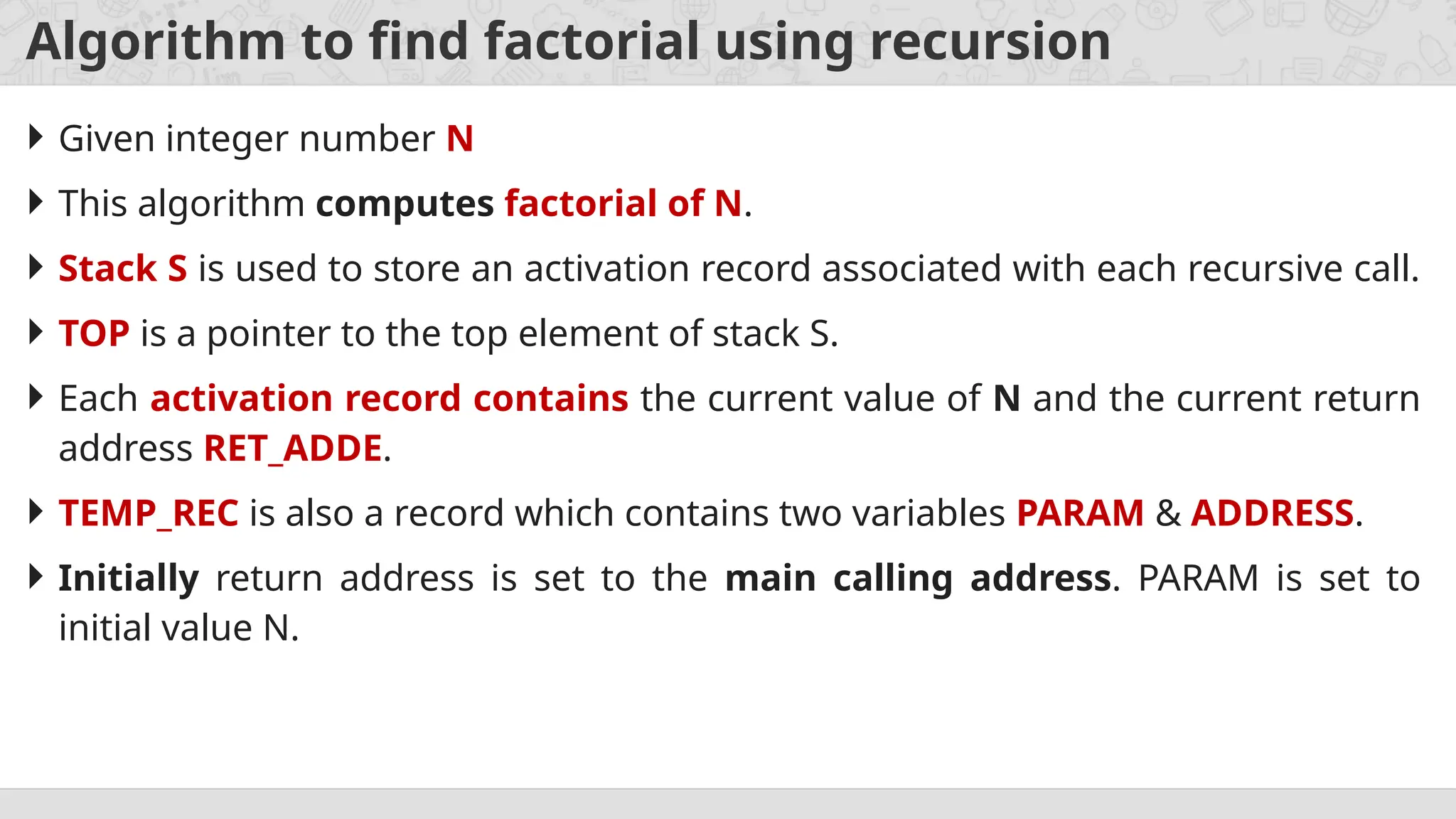

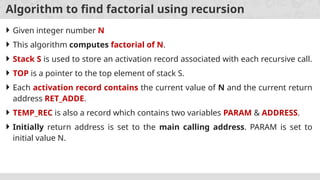

Algorithm to find factorial using recursion
 Given integer number N
 This algorithm computes factorial of N.
 Stack S is used to store an activation record associated with each recursive call.
 TOP is a pointer to the top element of stack S.
 Each activation record contains the current value of N and the current return
address RET_ADDE.
 TEMP_REC is also a record which contains two variables PARAM & ADDRESS.
 Initially return address is set to the main calling address. PARAM is set to
initial value N.

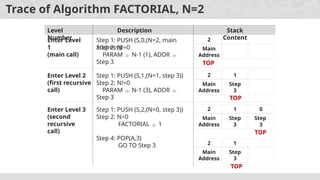

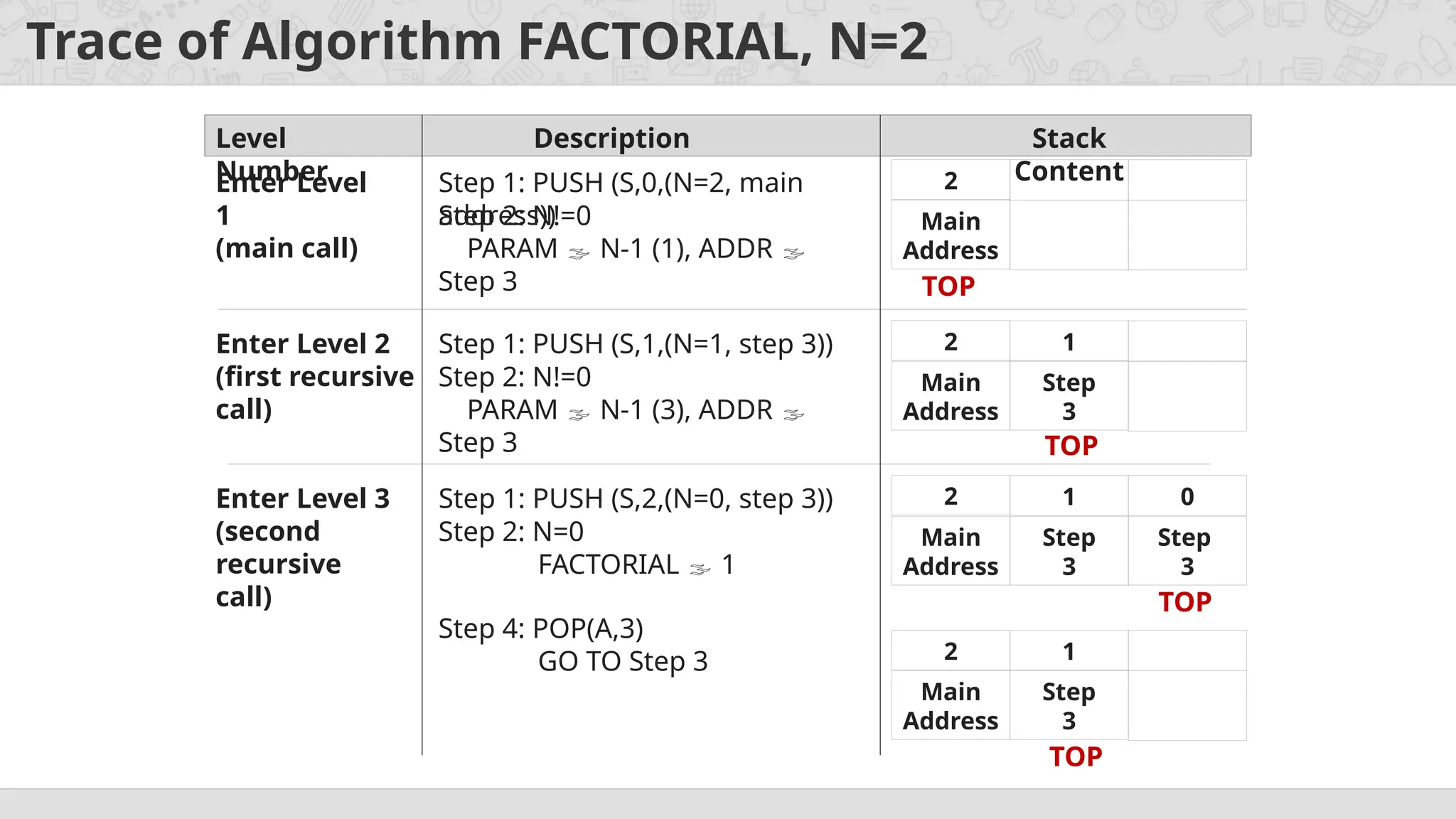

Trace of Algorithm FACTORIAL, N=2
Enter Level
1
(main call)
Step 1: PUSH (S,0,(N=2, main
address))
Step 2: N!=0
PARAM  N-1 (1), ADDR 
Step 3
2
Main
Address
TOP
Enter Level 2
(first recursive
call)
Step 1: PUSH (S,1,(N=1, step 3))
Step 2: N!=0
PARAM  N-1 (3), ADDR 
Step 3
2
Main
Address
1
Step
3
TOP
Enter Level 3
(second
recursive
call)
Step 1: PUSH (S,2,(N=0, step 3))
Step 2: N=0
FACTORIAL  1
2
Main
Address
1
Step
3
0
Step
3
TOP
Step 4: POP(A,3)
GO TO Step 3 2
Main
Address
1
Step
3
TOP
Level
Number
Description Stack
Content

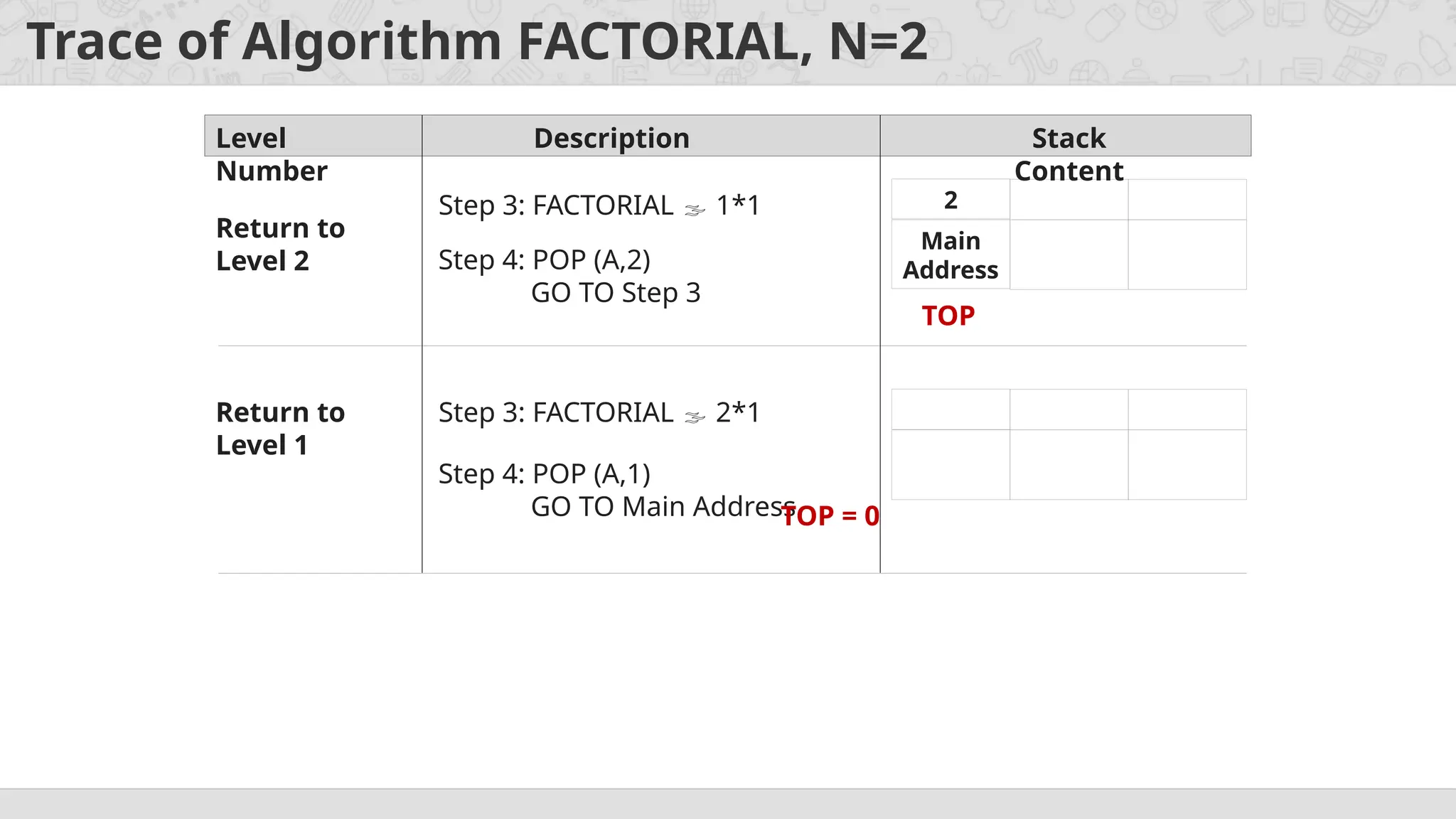

Trace of Algorithm FACTORIAL, N=2
Return to
Level 2
Step 3: FACTORIAL  1*1
Step 4: POP (A,2)
GO TO Step 3
2
Main
Address
TOP
Return to
Level 1
Step 3: FACTORIAL  2*1
Step 4: POP (A,1)
GO TO Main Address
TOP = 0
Level
Number
Description Stack
Content

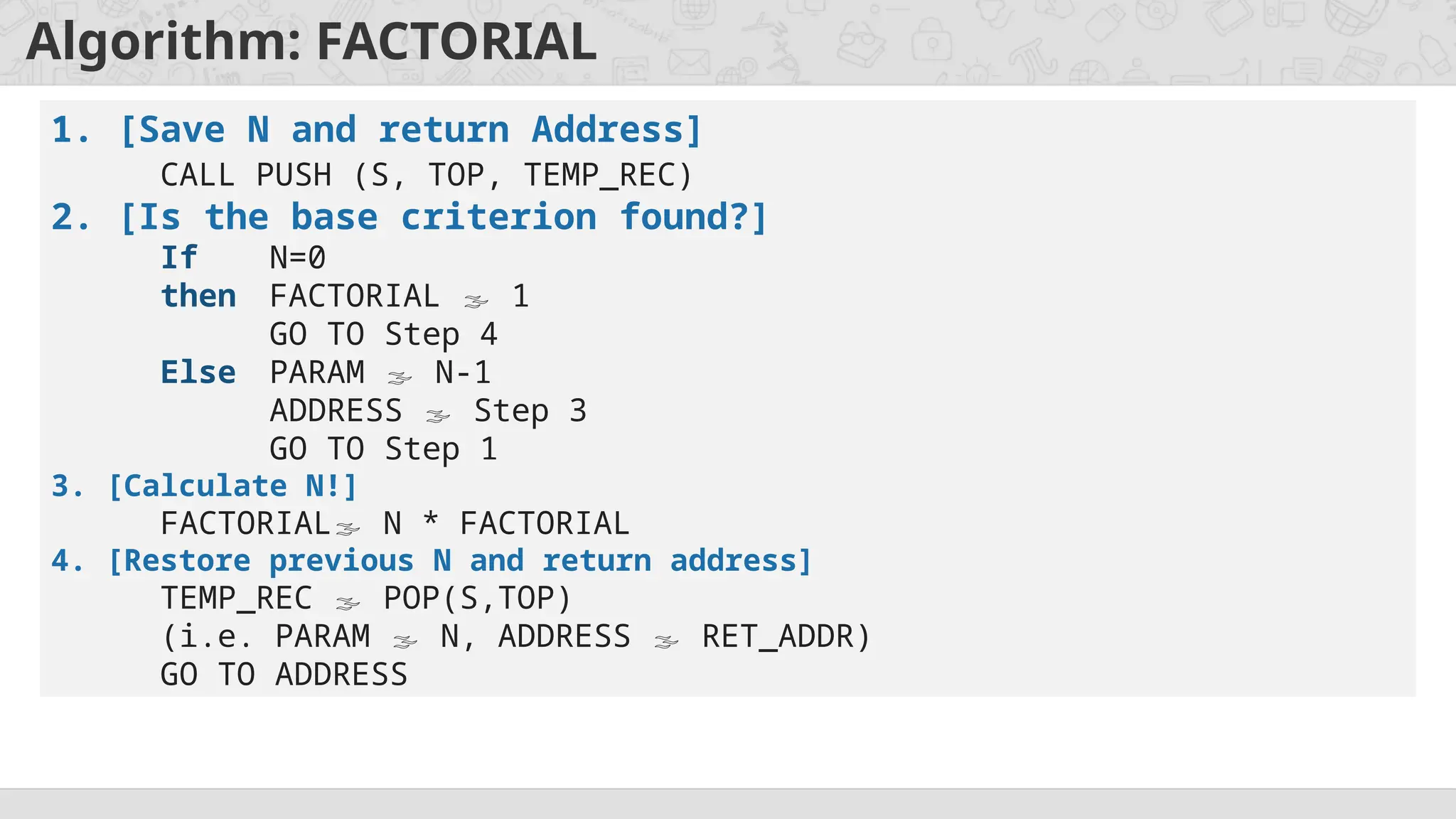

Algorithm: FACTORIAL
1. [Save N and return Address]
CALL PUSH (S, TOP, TEMP_REC)
2. [Is the base criterion found?]
If N=0
then FACTORIAL  1
GO TO Step 4
Else PARAM  N-1
ADDRESS  Step 3
GO TO Step 1
3. [Calculate N!]
FACTORIAL N * FACTORIAL
4. [Restore previous N and return address]
TEMP_REC  POP(S,TOP)
(i.e. PARAM  N, ADDRESS  RET_ADDR)
GO TO ADDRESS

Stack Data Structure Intro and Explanation

More Related Content

Similar to Stack Data Structure Intro and Explanation

More from RitikaLohiya2

Recently uploaded

Stack Data Structure Intro and Explanation
