Story about module management with angular.js

A Story about AngularJS
modularization development
Munich Meetup #4

Johannes Weber
me@jowe.cc
@jowe
Developer at
David Amend
David.Amend@it-amend.de
Frontend Architect at

How to handle cross file
dependency management in my angular app ?

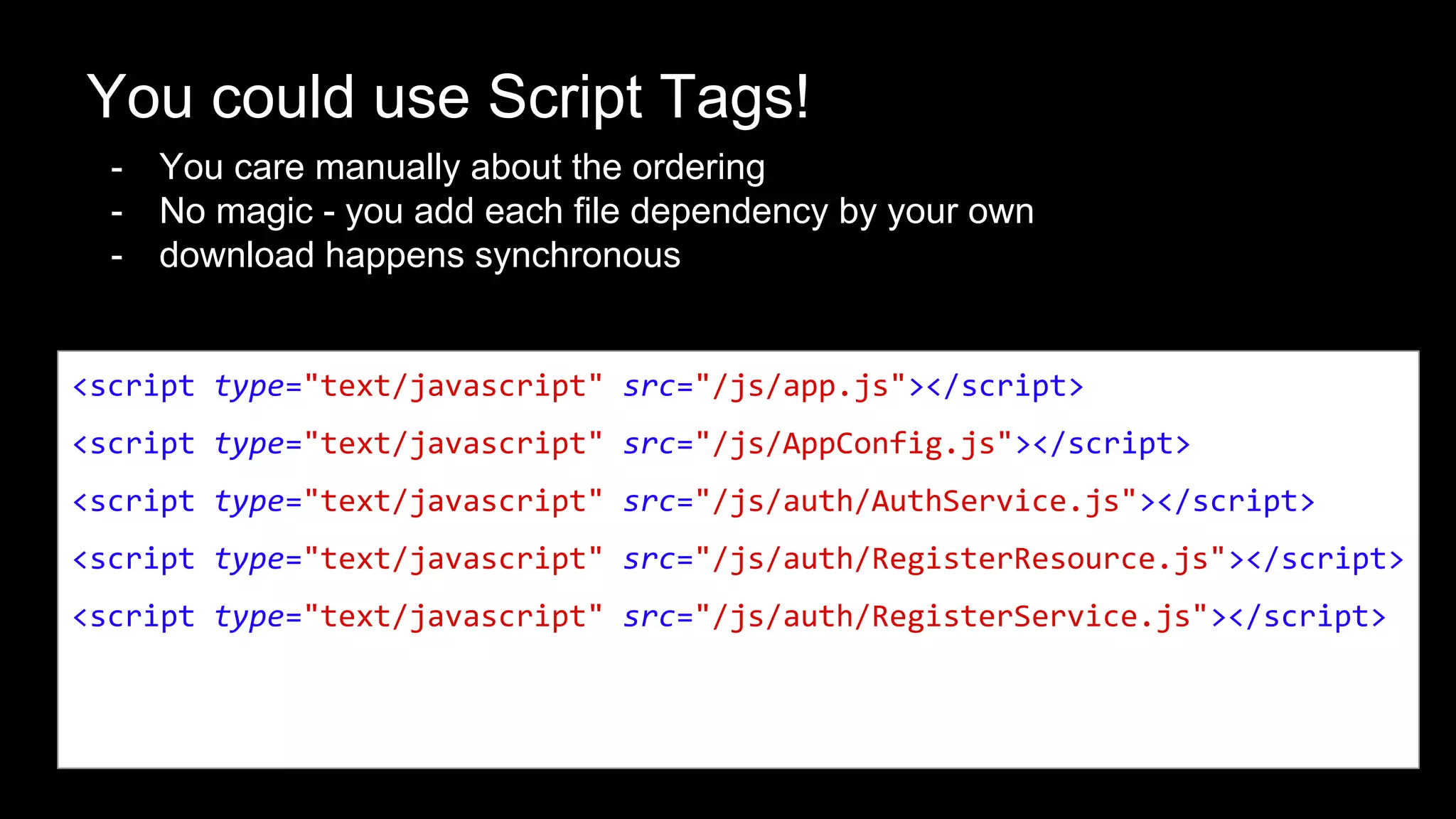

You could use Script Tags!
- You care manually about the ordering
- No magic - you add each file dependency by your own
- download happens synchronous
<script type="text/javascript" src="/js/app.js"></script>
<script type="text/javascript" src="/js/AppConfig.js"></script>
<script type="text/javascript" src="/js/auth/AuthService.js"></script>
<script type="text/javascript" src="/js/auth/RegisterResource.js"></script>
<script type="text/javascript" src="/js/auth/RegisterService.js"></script>

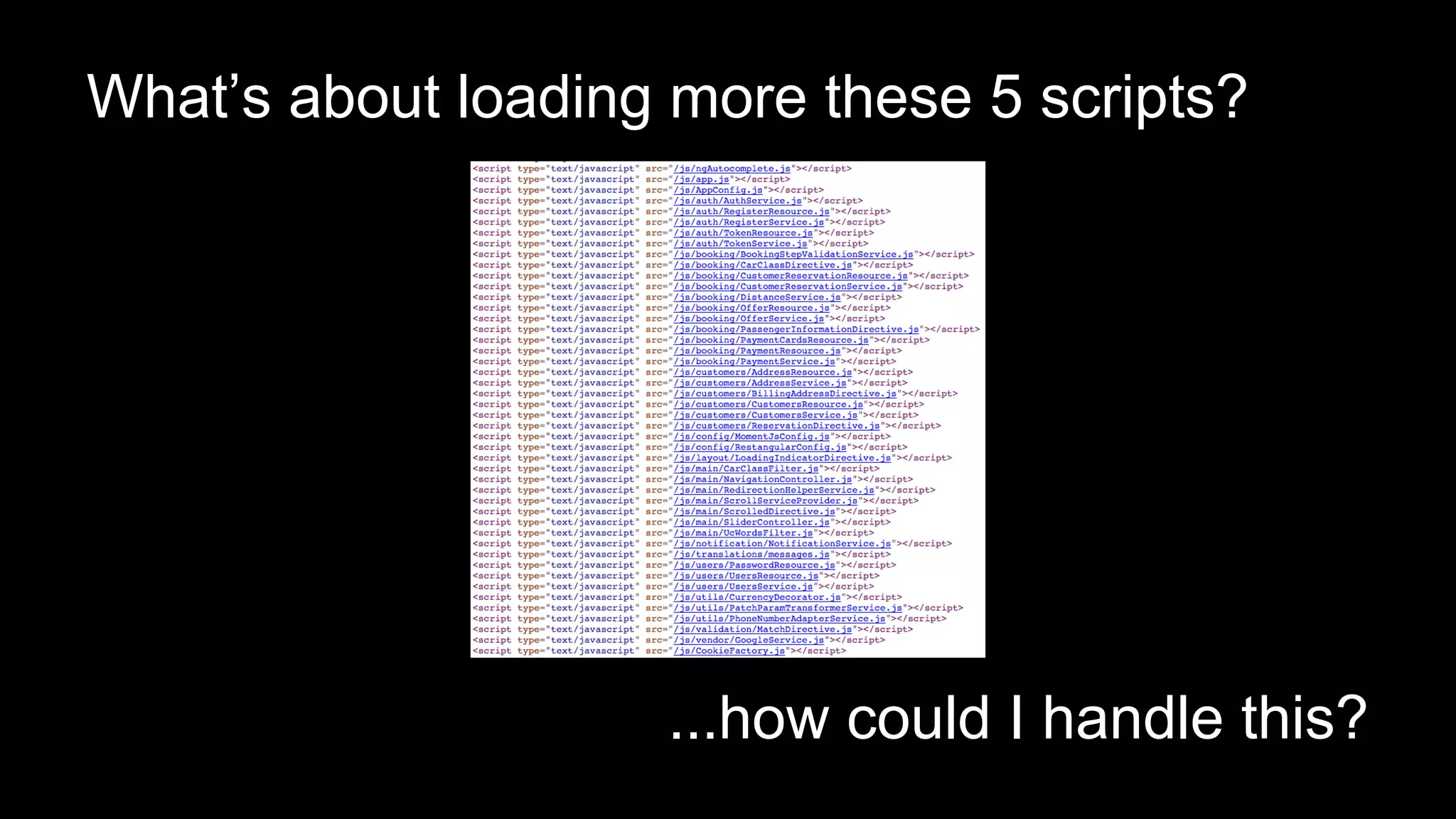

What’s about loading more these 5 scripts?
...how could I handle this?

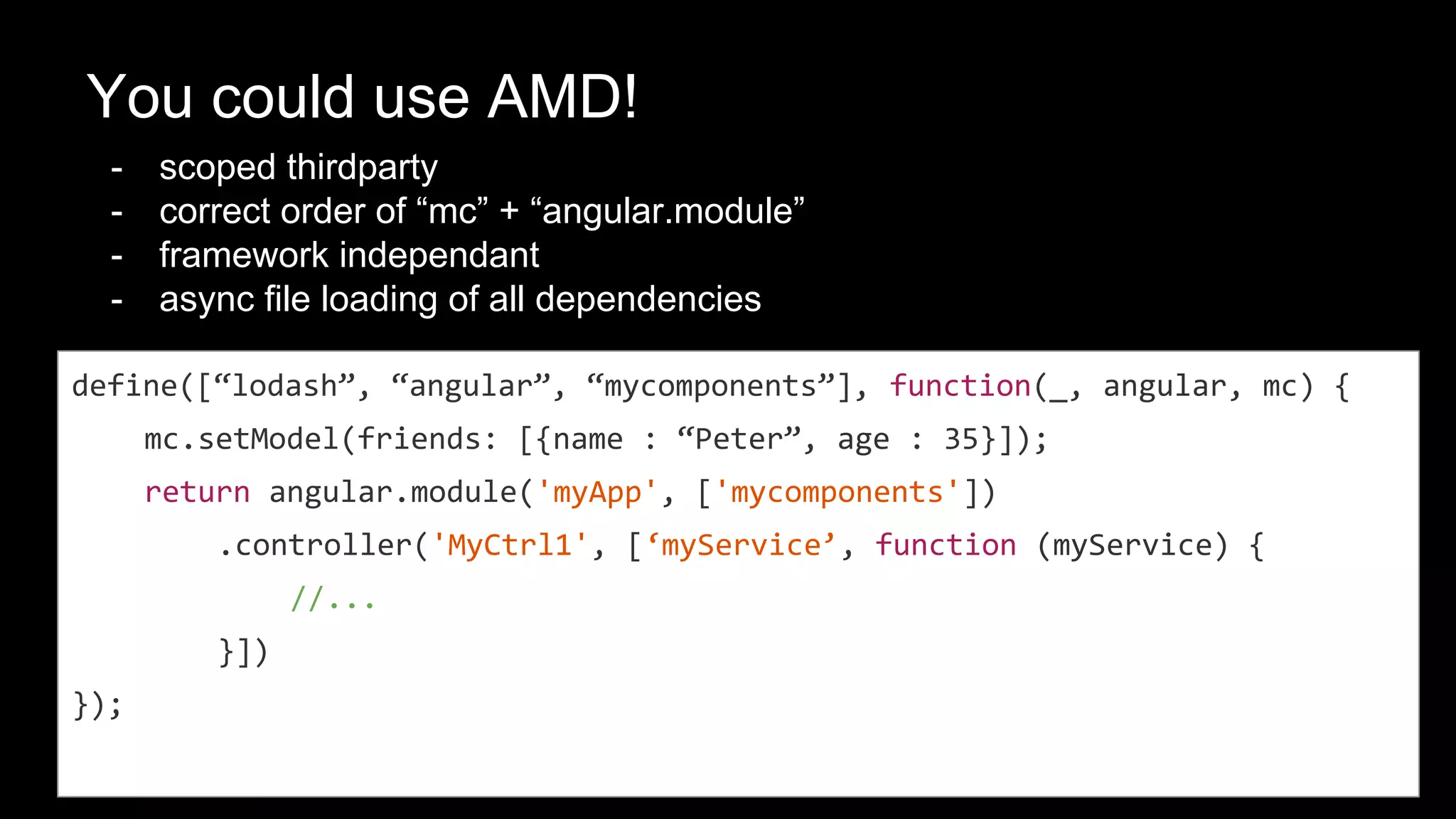

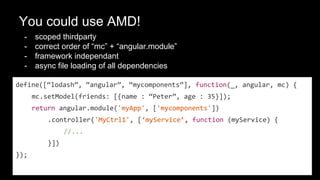

You could use AMD!
- scoped thirdparty
- correct order of “mc” + “angular.module”
- framework independant
- async file loading of all dependencies
define([“lodash”, “angular”, “mycomponents”], function(_, angular, mc) {
mc.setModel(friends: [{name : “Peter”, age : 35}]);
return angular.module('myApp', ['mycomponents'])
.controller('MyCtrl1', [‘myService’, function (myService) {
//...
}])
});

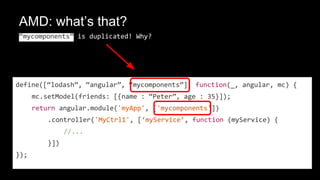

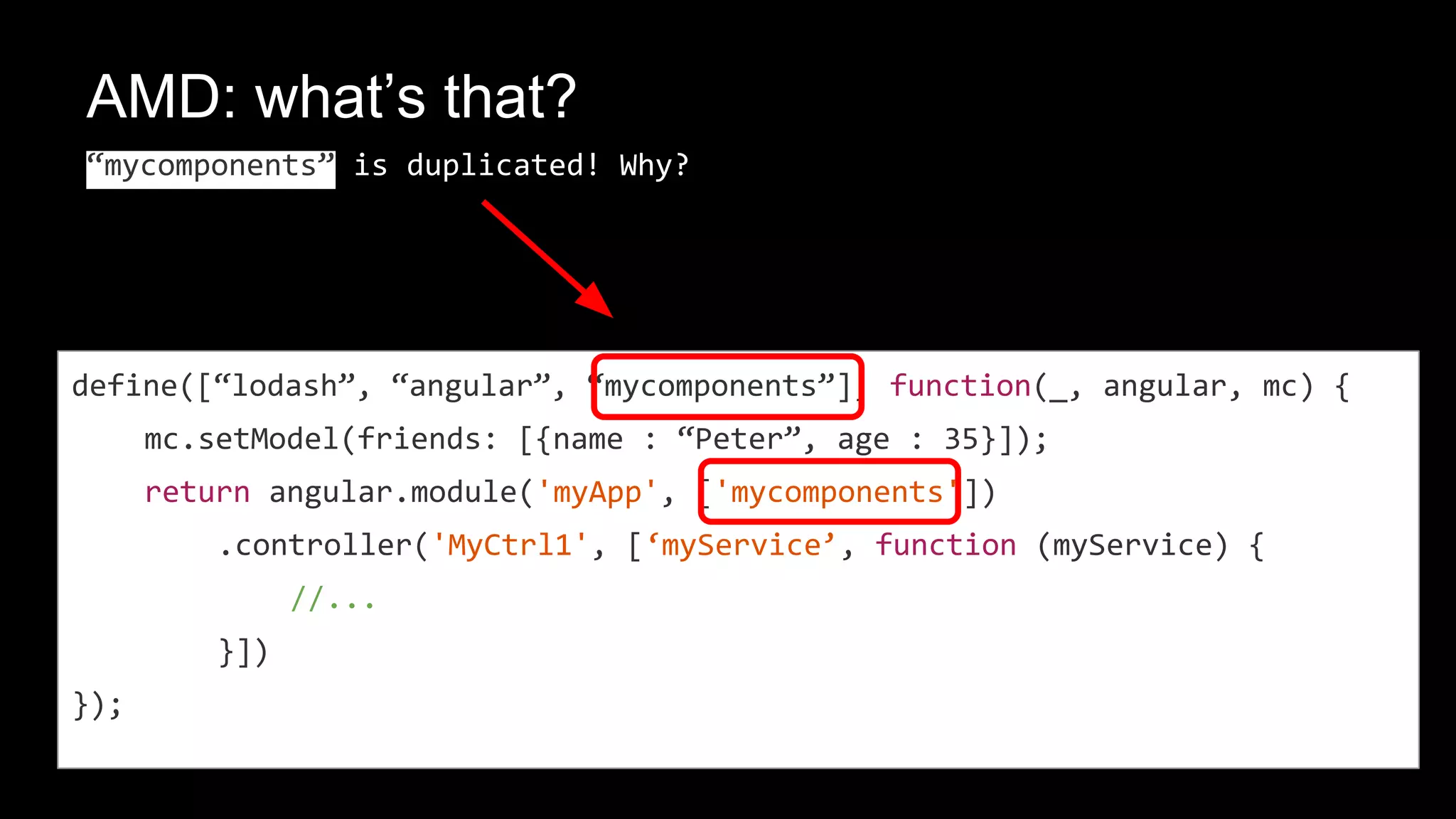

AMD: what’s that?
“mycomponents” is duplicated! Why?
define([“lodash”, “angular”, “mycomponents”], function(_, angular, mc) {
return angular.module('myApp', ['mycomponents'])
//...
}])
});

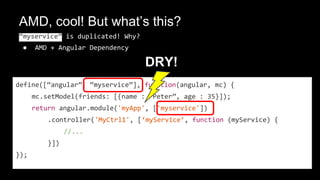

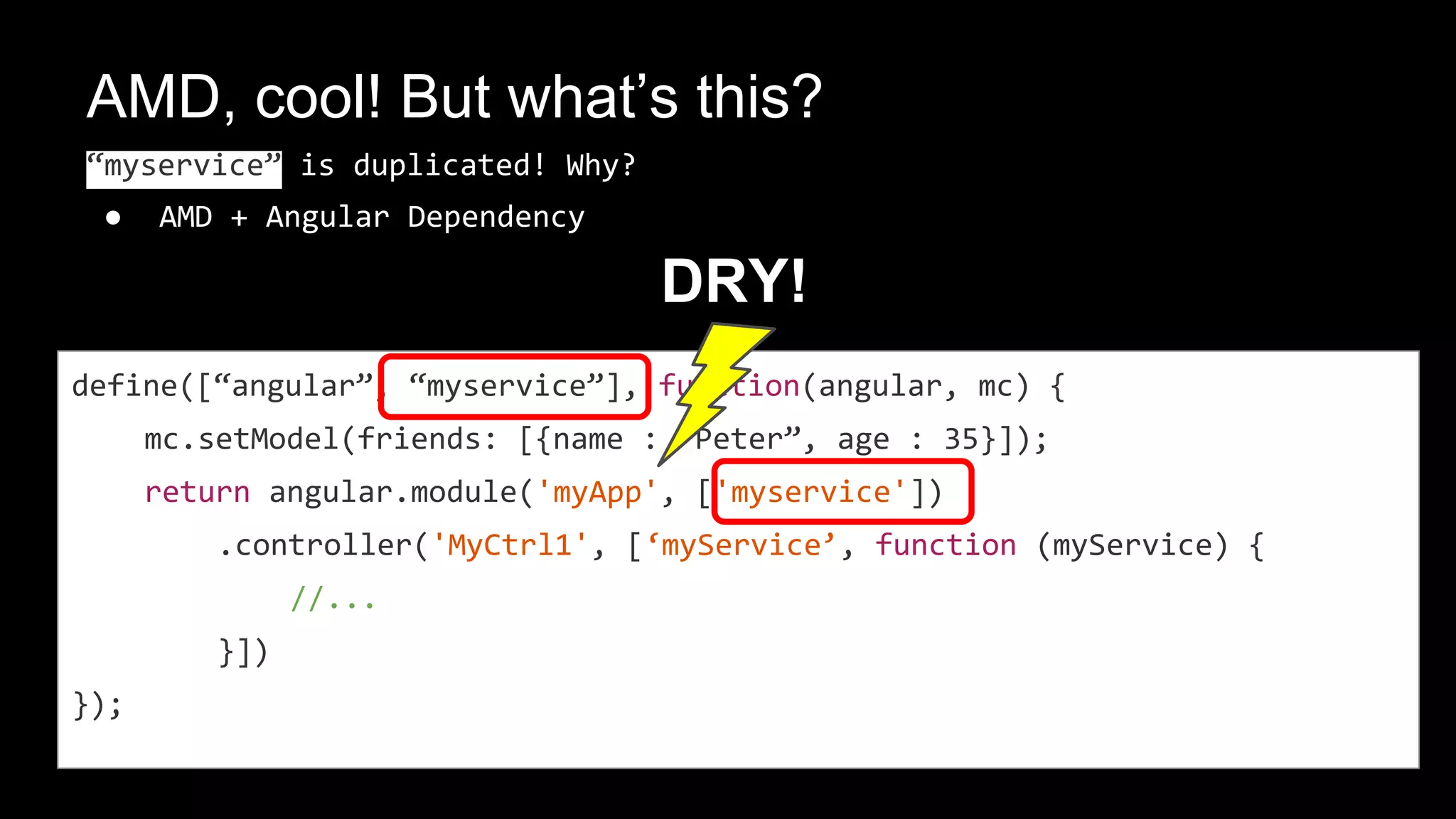

AMD, cool! But what’s this?
“myservice” is duplicated! Why?
● AMD + Angular Dependency
define([“angular”, “myservice”], function(angular, mc) {
return angular.module('myApp', ['myservice'])
//...
}])
});
DRY!

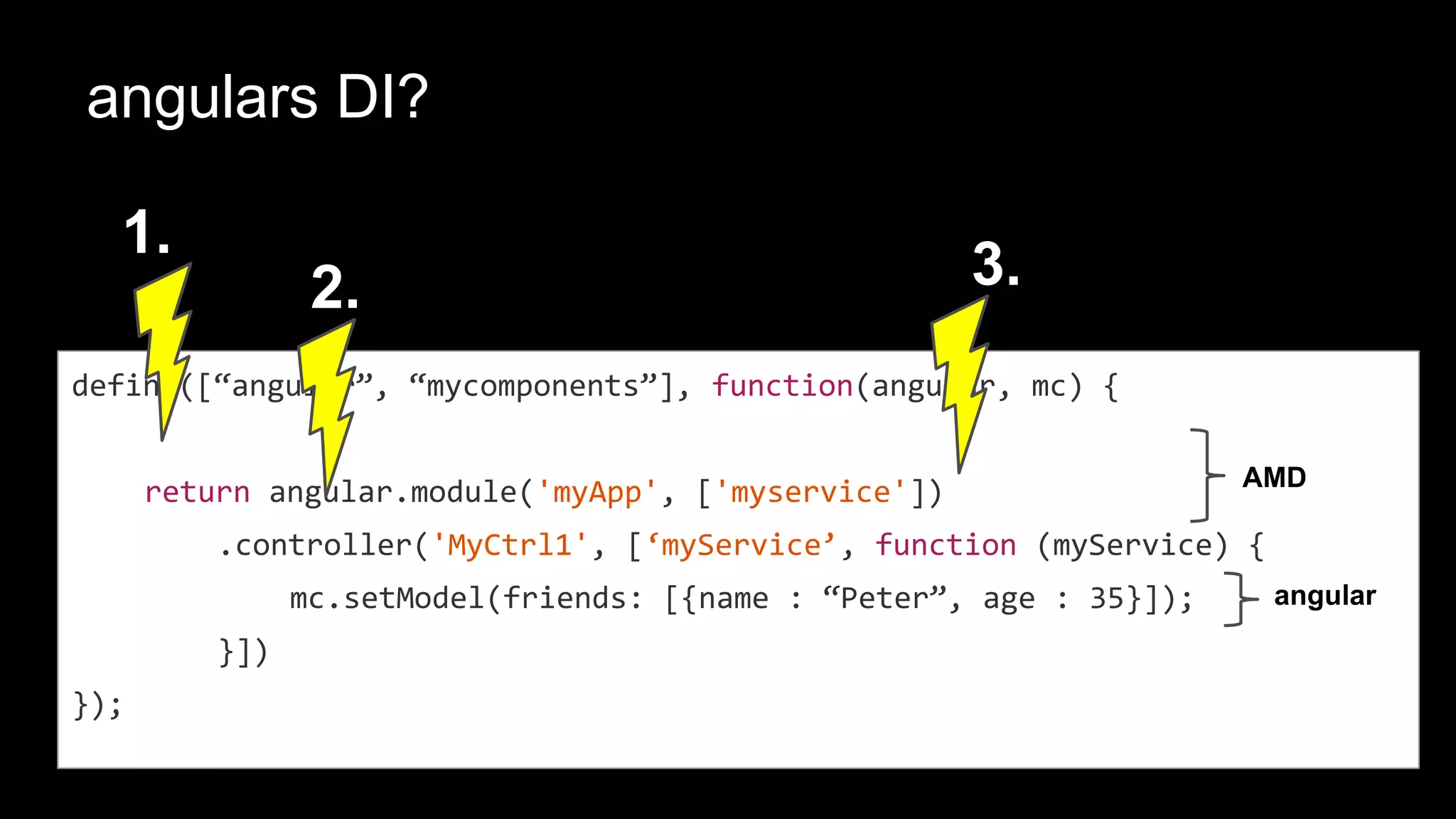

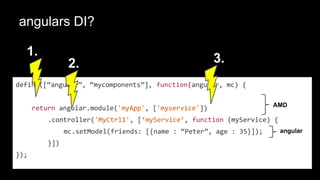

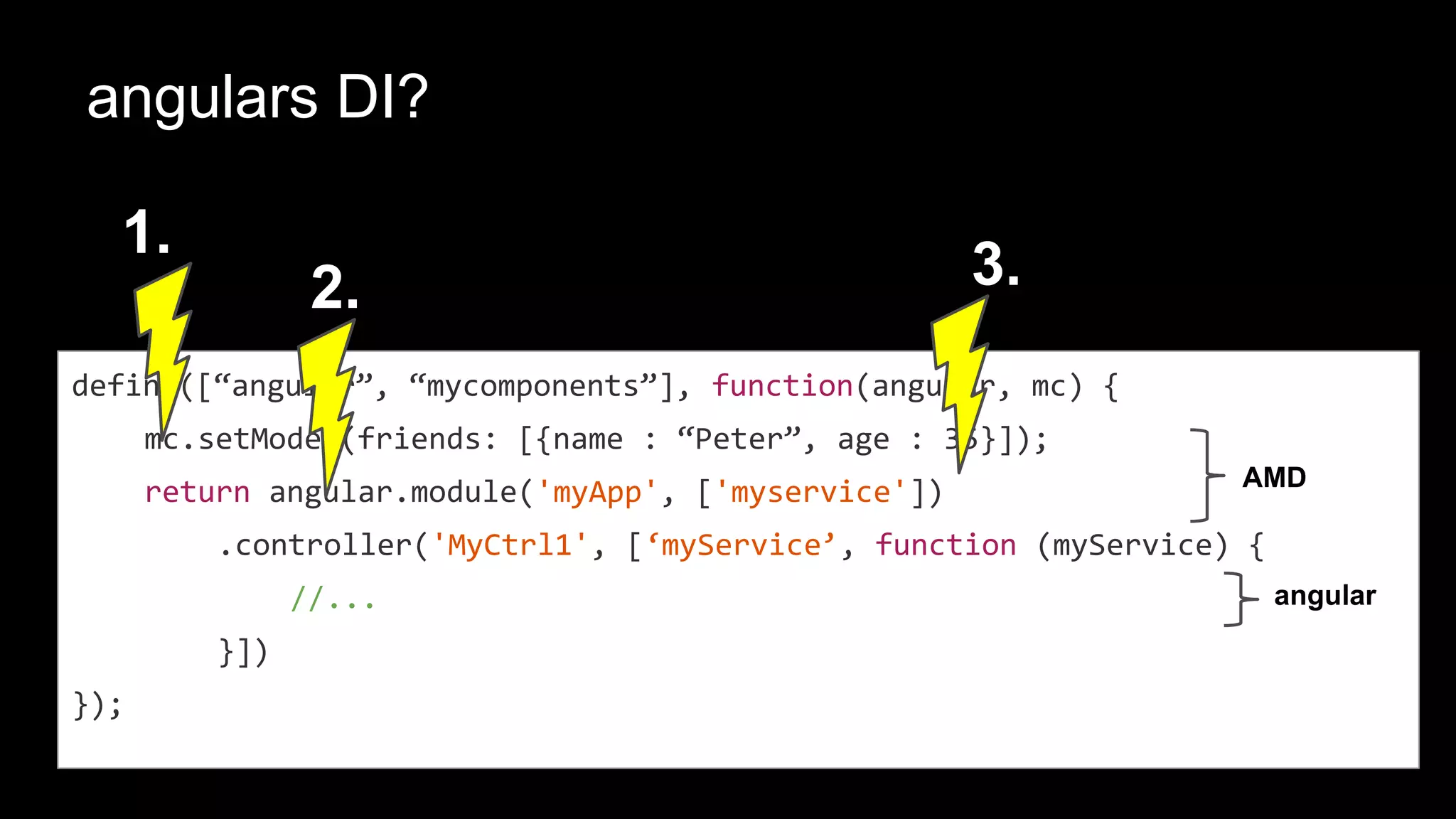

angulars DI?
define([“angular”, “mycomponents”], function(angular, mc) {
//...
}])
});
AMD
angular
1.
2. 3.

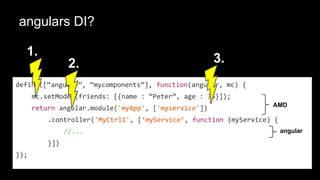

angulars DI?
define([“angular”, “mycomponents”], function(angular, mc) {
}])
});
AMD
angular
1.
2. 3.

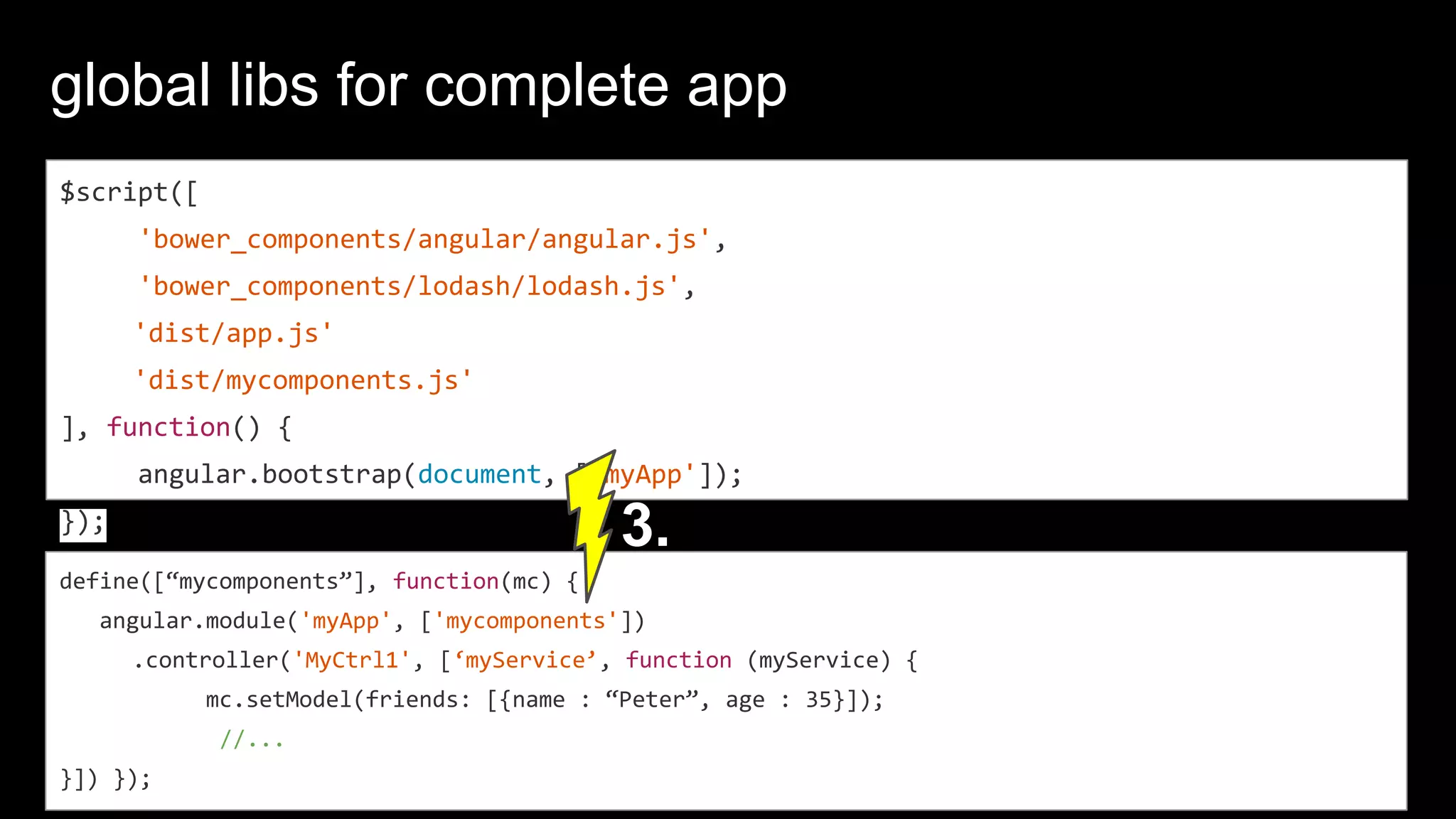

$script([
'bower_components/angular/angular.js',
'bower_components/lodash/lodash.js',
'dist/app.js'
'dist/mycomponents.js'
], function() {
angular.bootstrap(document, ['myApp']);
});
global libs for complete app
define([“mycomponents”], function(mc) {
angular.module('myApp', ['mycomponents'])
//...
}]) });
3.

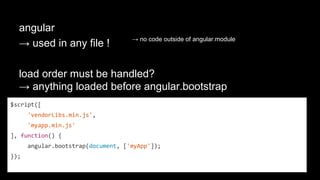

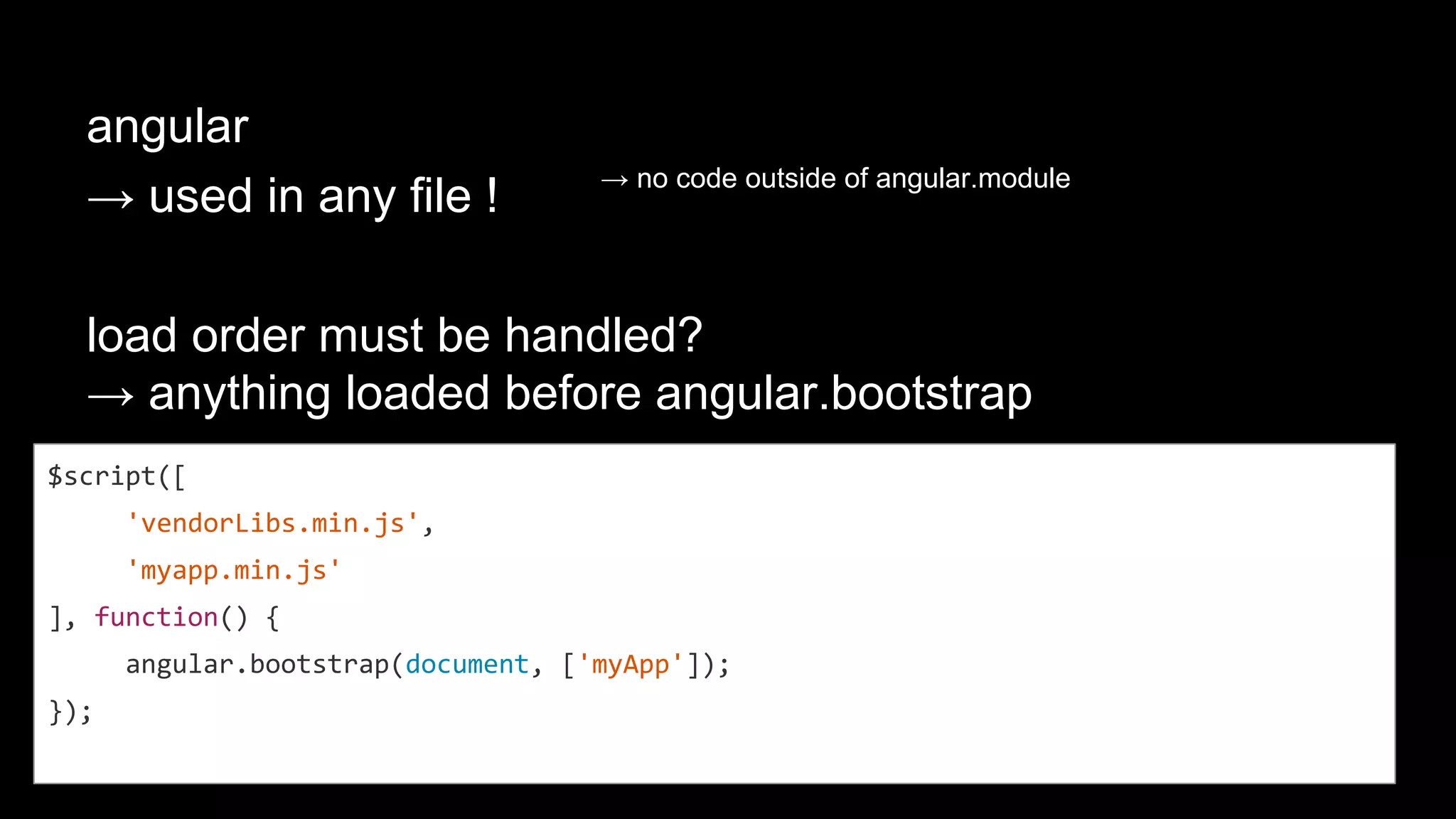

angular
→ used in any file !
load order must be handled?
→ anything loaded before angular.bootstrap
→ no code outside of angular.module
$script([
'vendorLibs.min.js',
'myapp.min.js'
], function() {
});

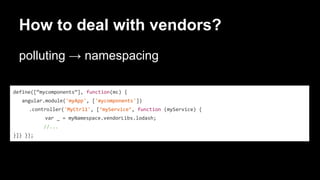

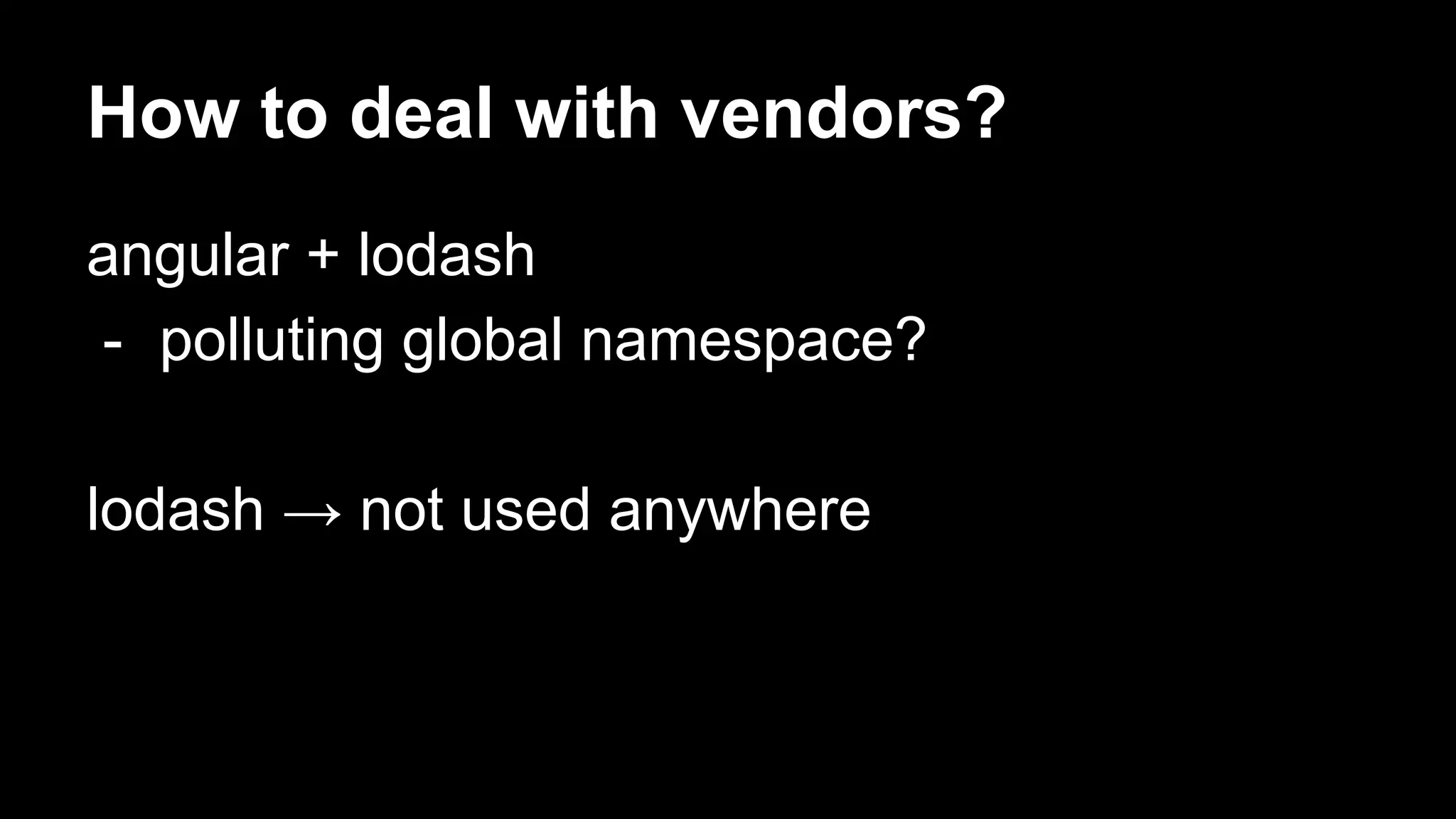

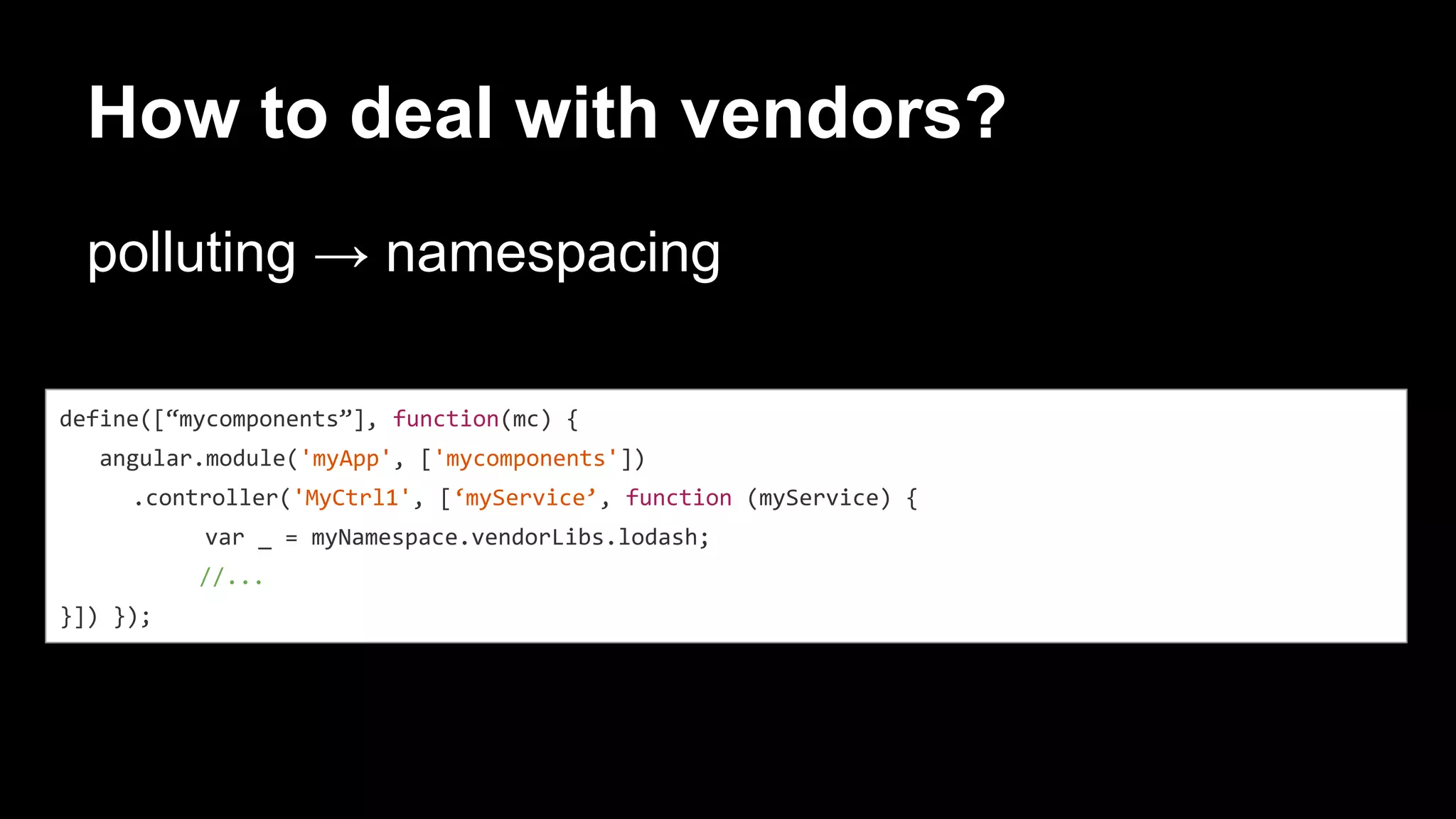

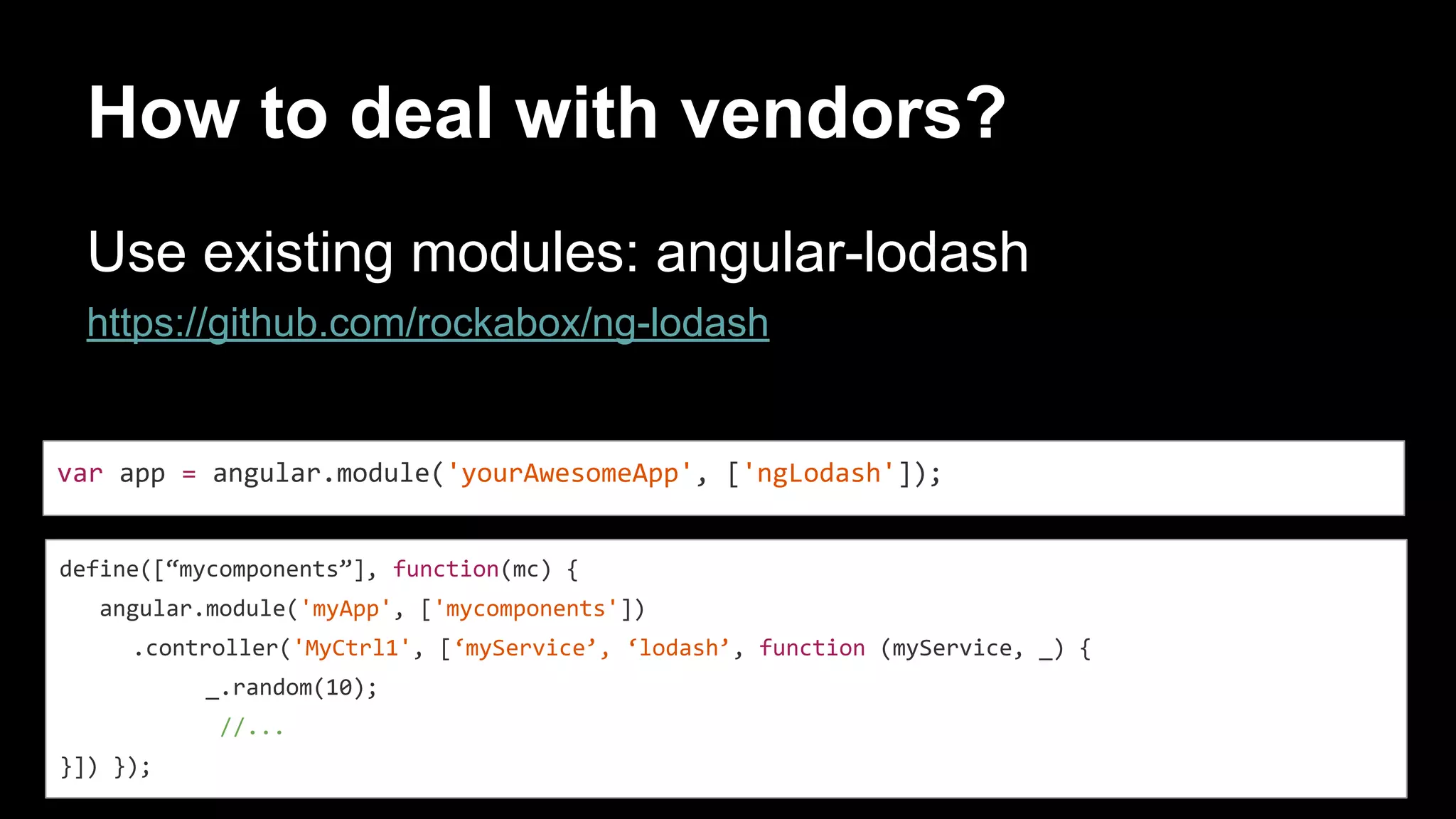

How to deal with vendors?
angular + lodash
- polluting global namespace?
lodash → not used anywhere

var _ = myNamespace.vendorLibs.lodash;
//...
}]) });
polluting → namespacing

Use existing modules: angular-lodash
https://github.com/rockabox/ng-lodash
var app = angular.module('yourAwesomeApp', ['ngLodash']);
.controller('MyCtrl1', [‘myService’, ‘lodash’, function (myService, _) {
_.random(10);
//...
}]) });

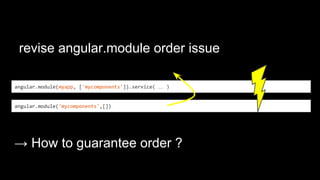

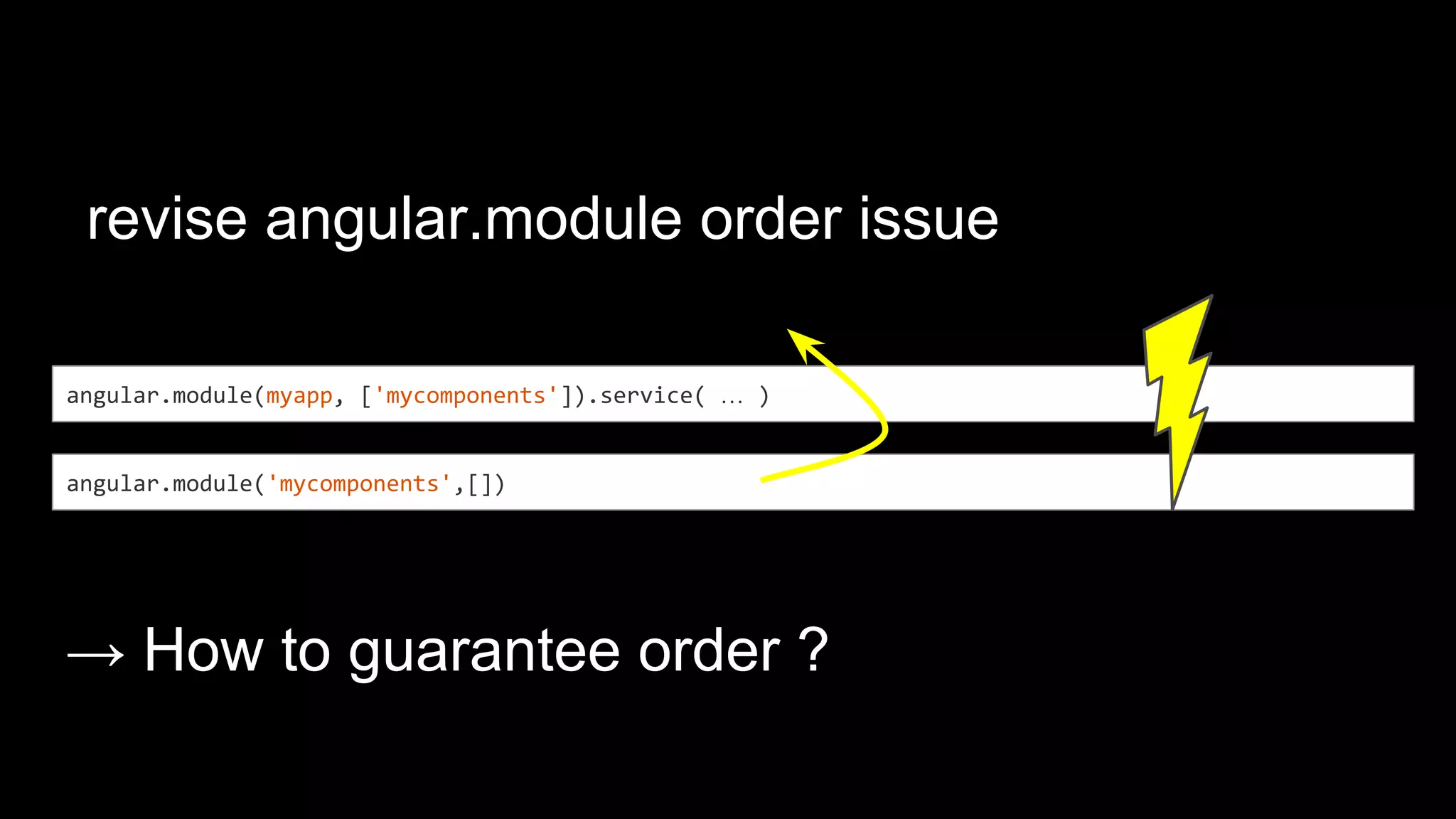

revise angular.module order issue
angular.module('mycomponents',[])
angular.module(myapp, ['mycomponents']).service( … )
→ How to guarantee order ?

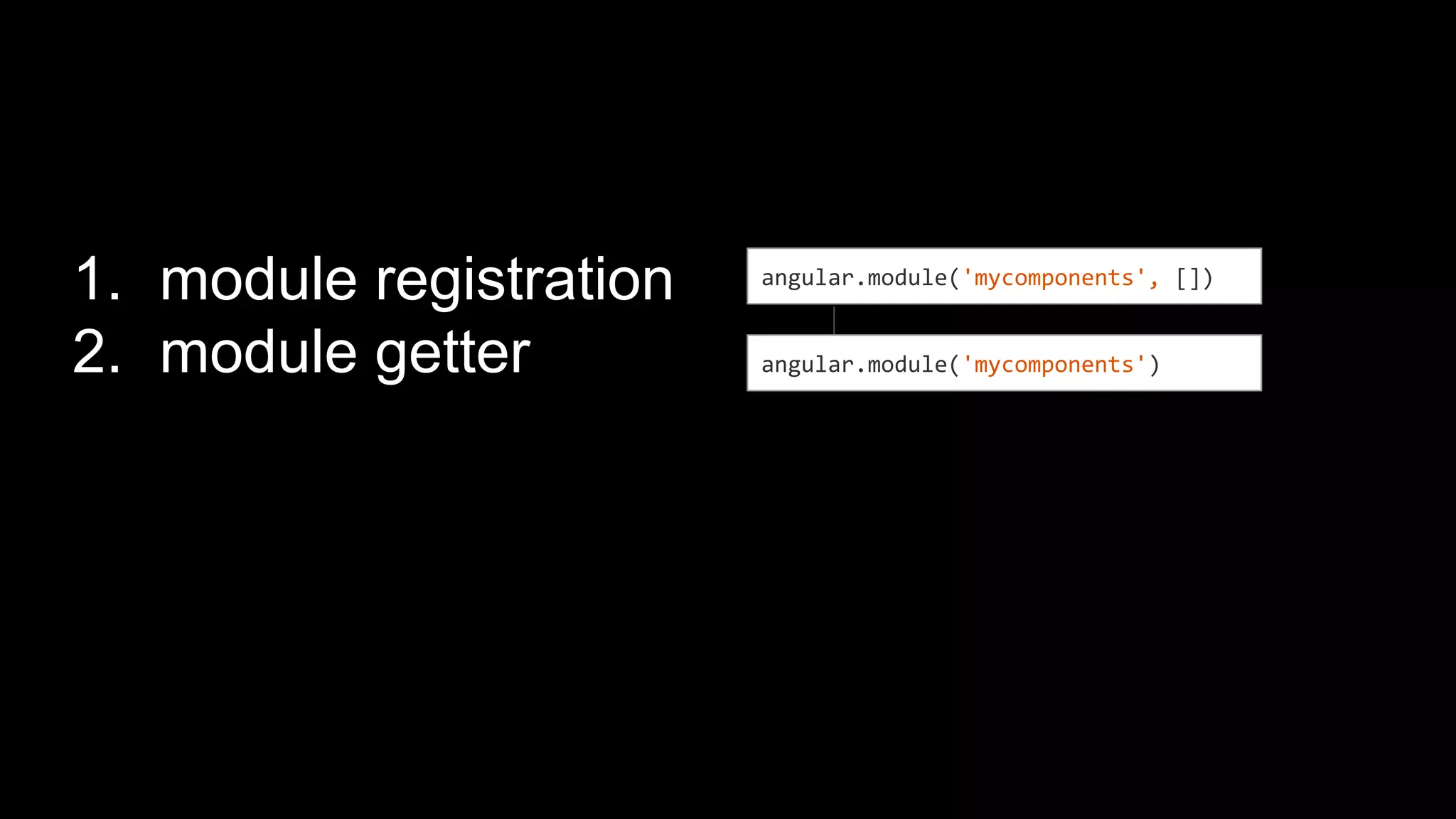

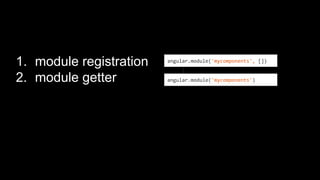

1. module registration
2. module getter

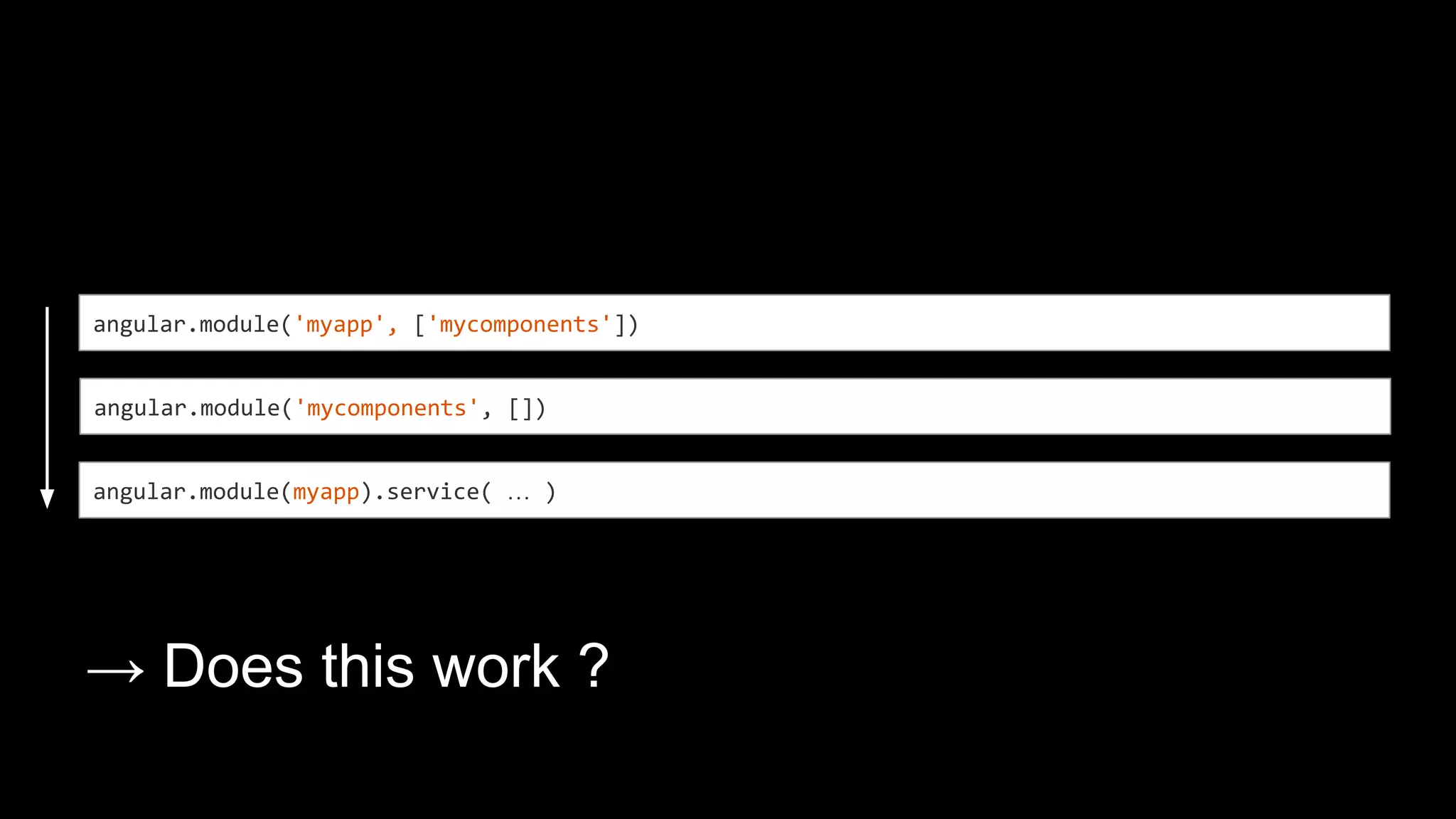

angular.module('mycomponents', [])
angular.module('mycomponents')

angular.module('myapp', ['mycomponents'])
angular.module(myapp).service( … )
→ Does this work ?

...
angular.module(myapp).controller(function(dataService){ … )
angular.module(mycomponent).service(“dataService” )

angular.module(myapp).controller( … )
angular.module(mycomponents).service( … )
angular.module(myapp).service( … )

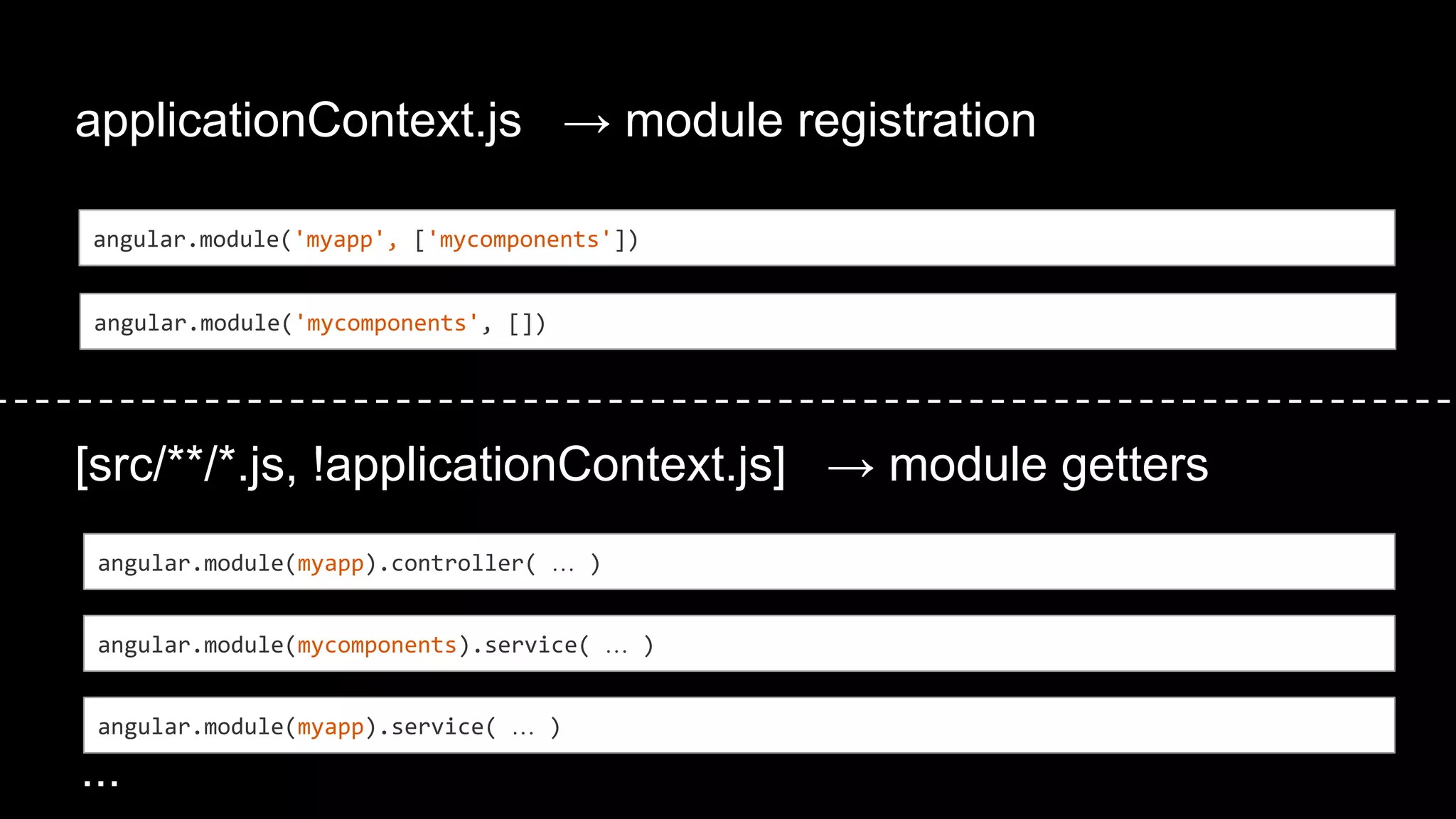

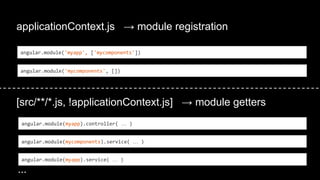

applicationContext.js → module registration
[src/**/*.js, !applicationContext.js] → module getters
...

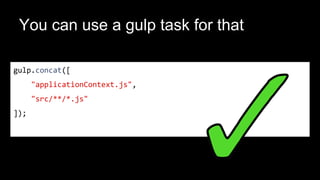

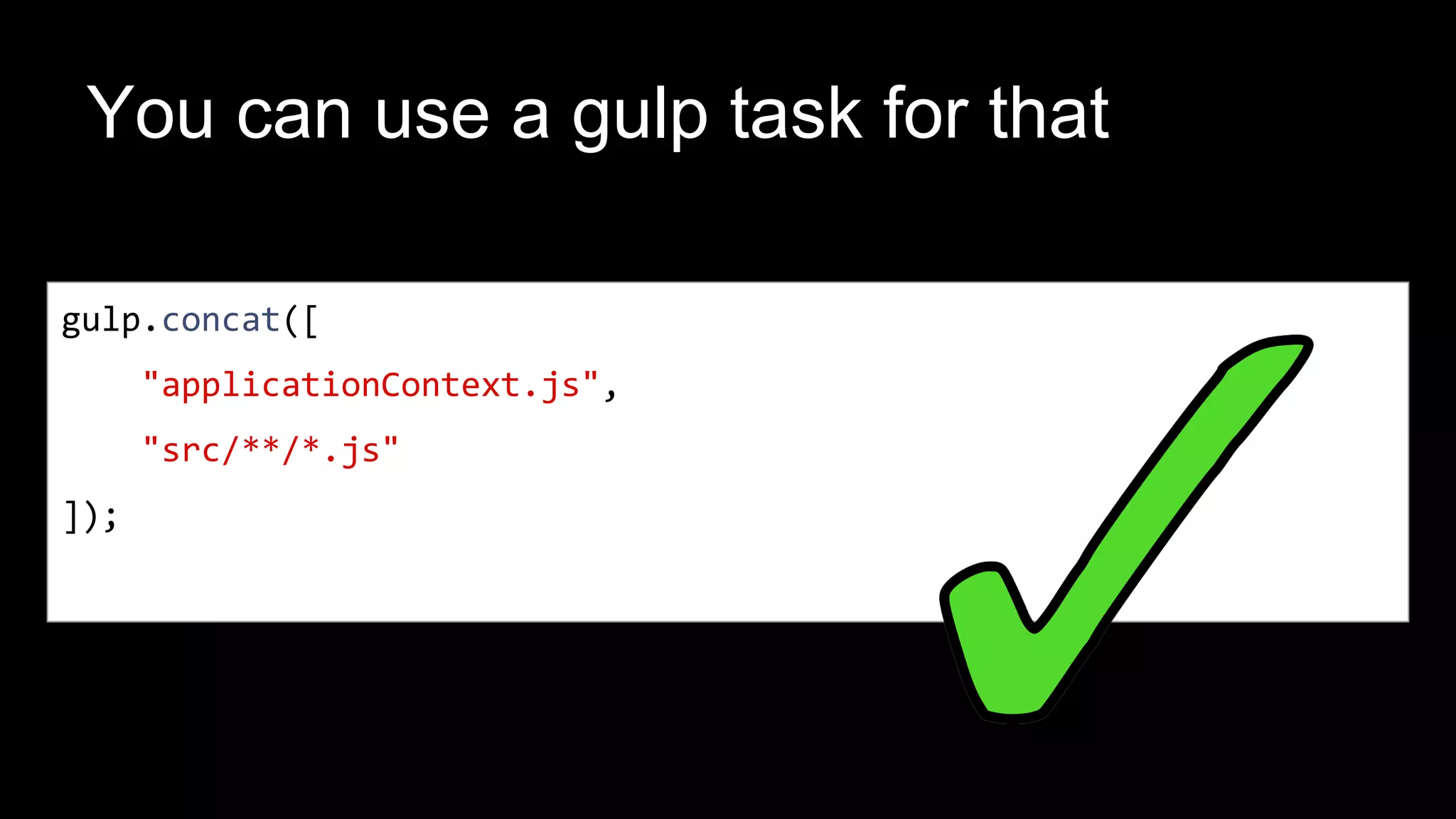

You can use a gulp task for that
gulp.concat([
"applicationContext.js",
"src/**/*.js"
]);

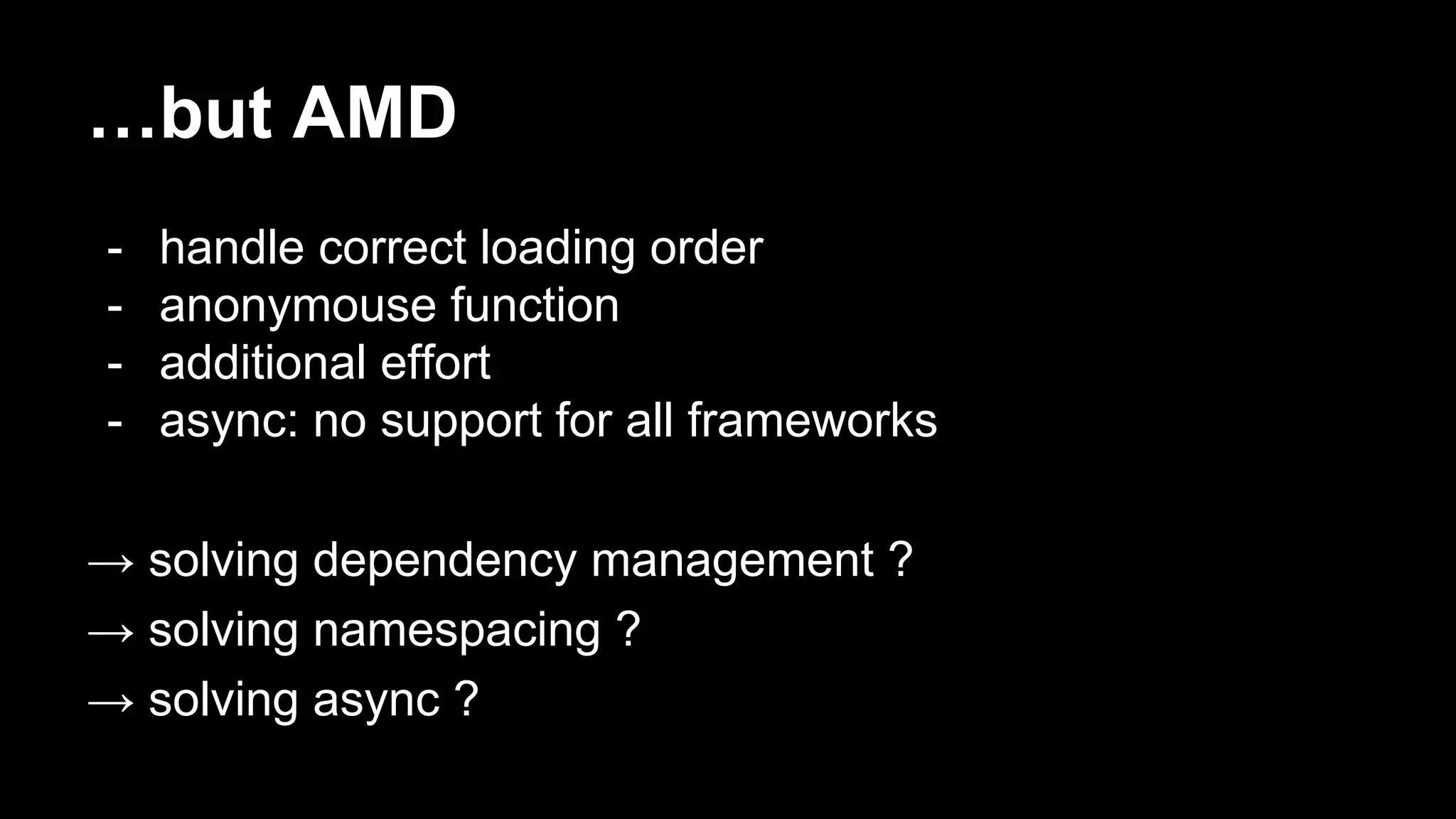

…but AMD
- handle correct loading order
- anonymouse function
- additional effort
- async: no support for all frameworks
→ solving dependency management ?
→ solving namespacing ?
→ solving async ?

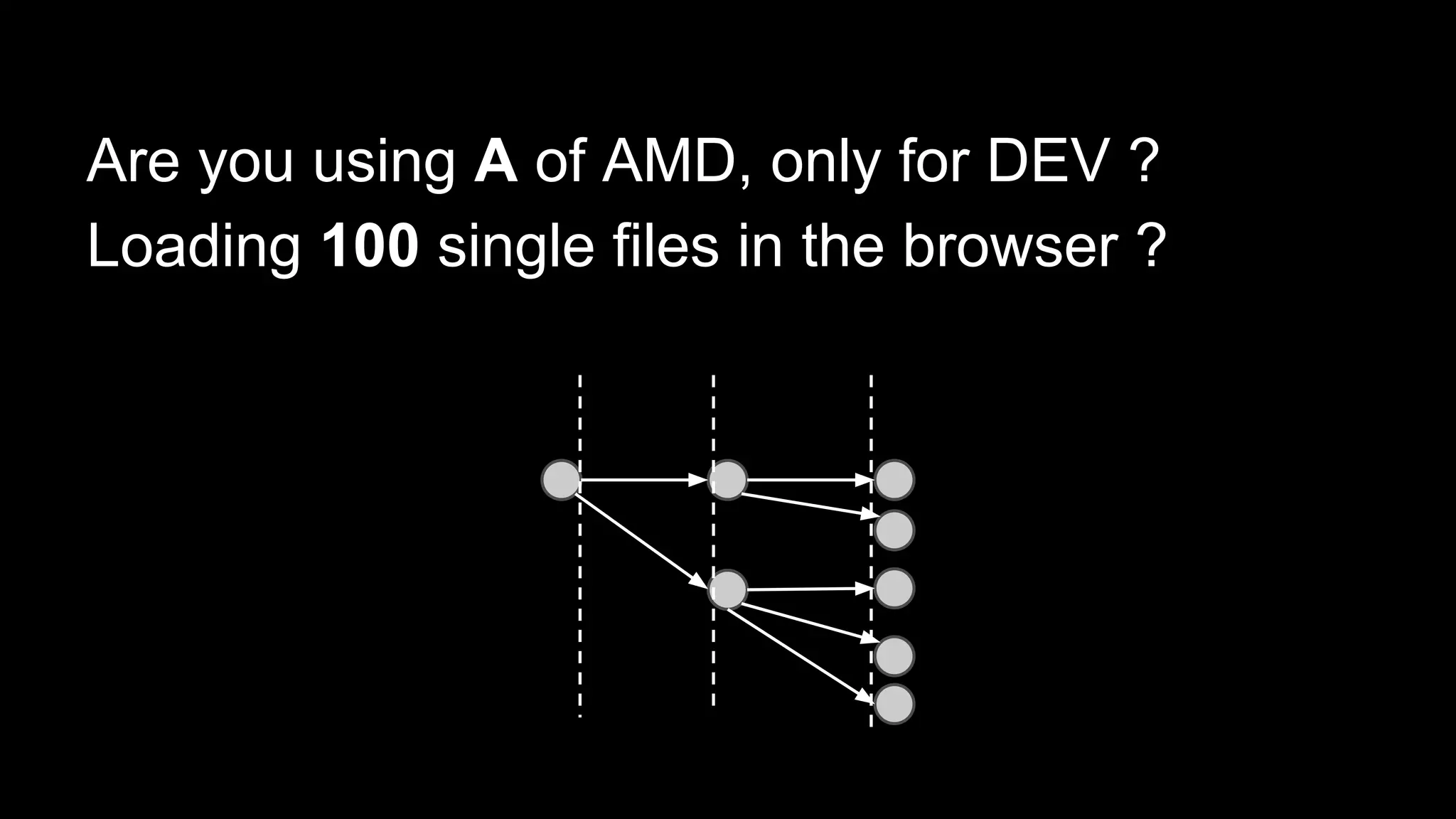

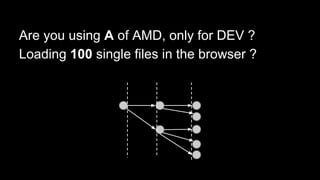

Are you using A of AMD, only for DEV ?
Loading 100 single files in the browser ?

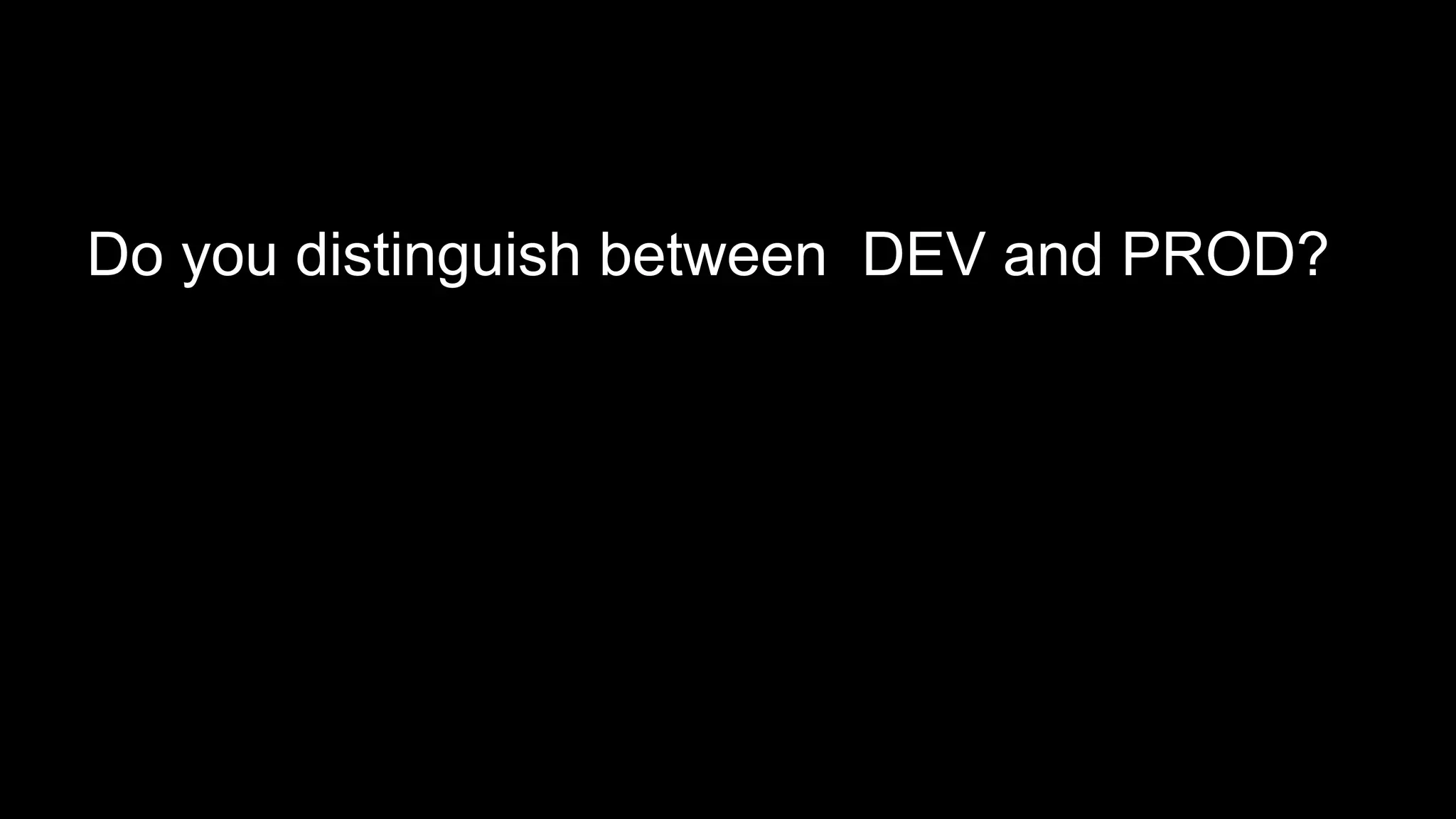

Do you distinguish between DEV and PROD?

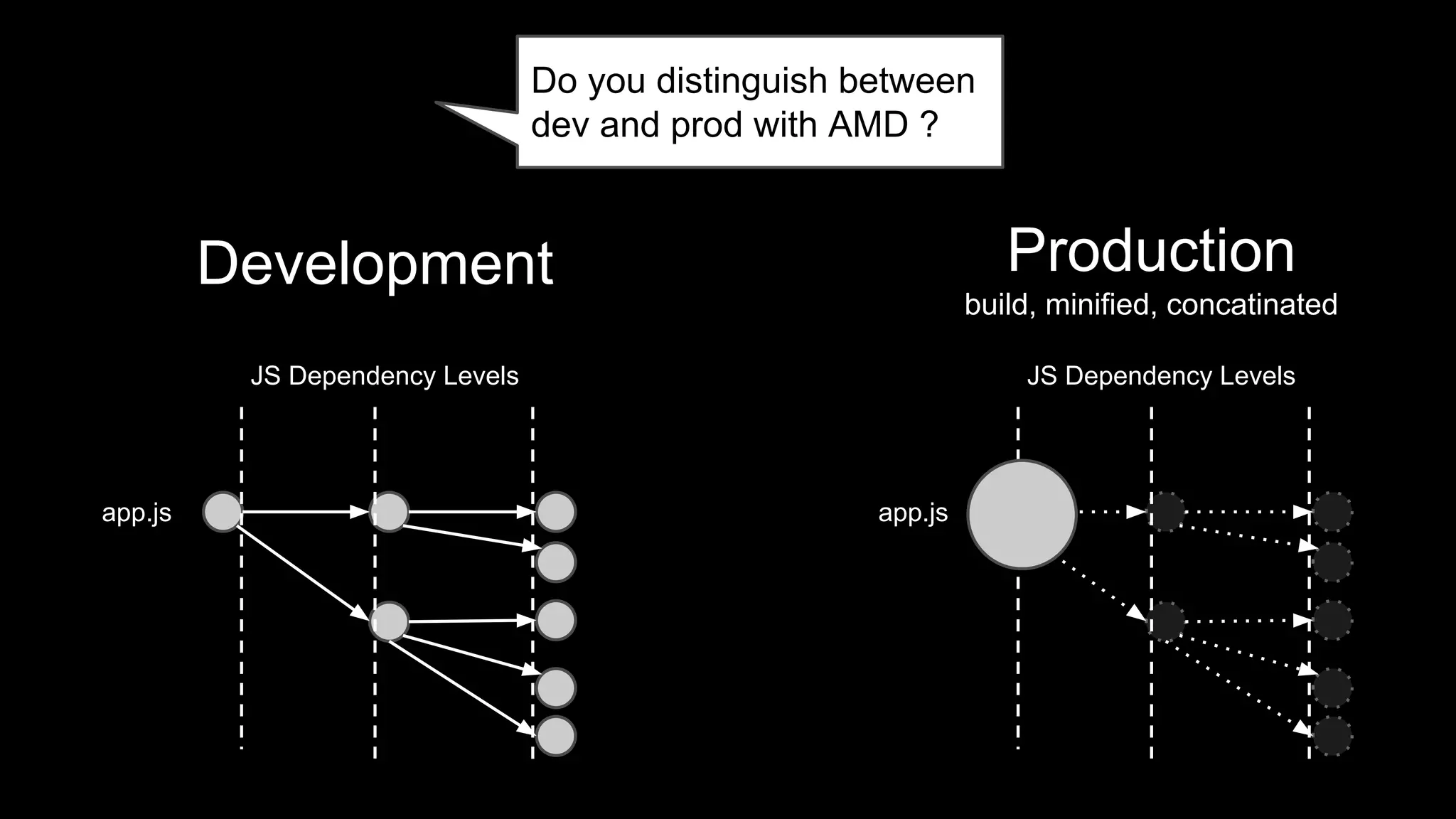

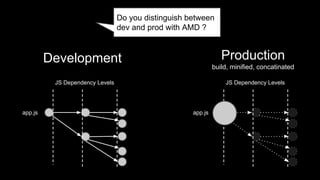

Do you distinguish between
dev and prod with AMD ?
app.js
JS Dependency Levels
app.js
Development Production
build, minified, concatinated

vendorLibs.min.js
Production Production

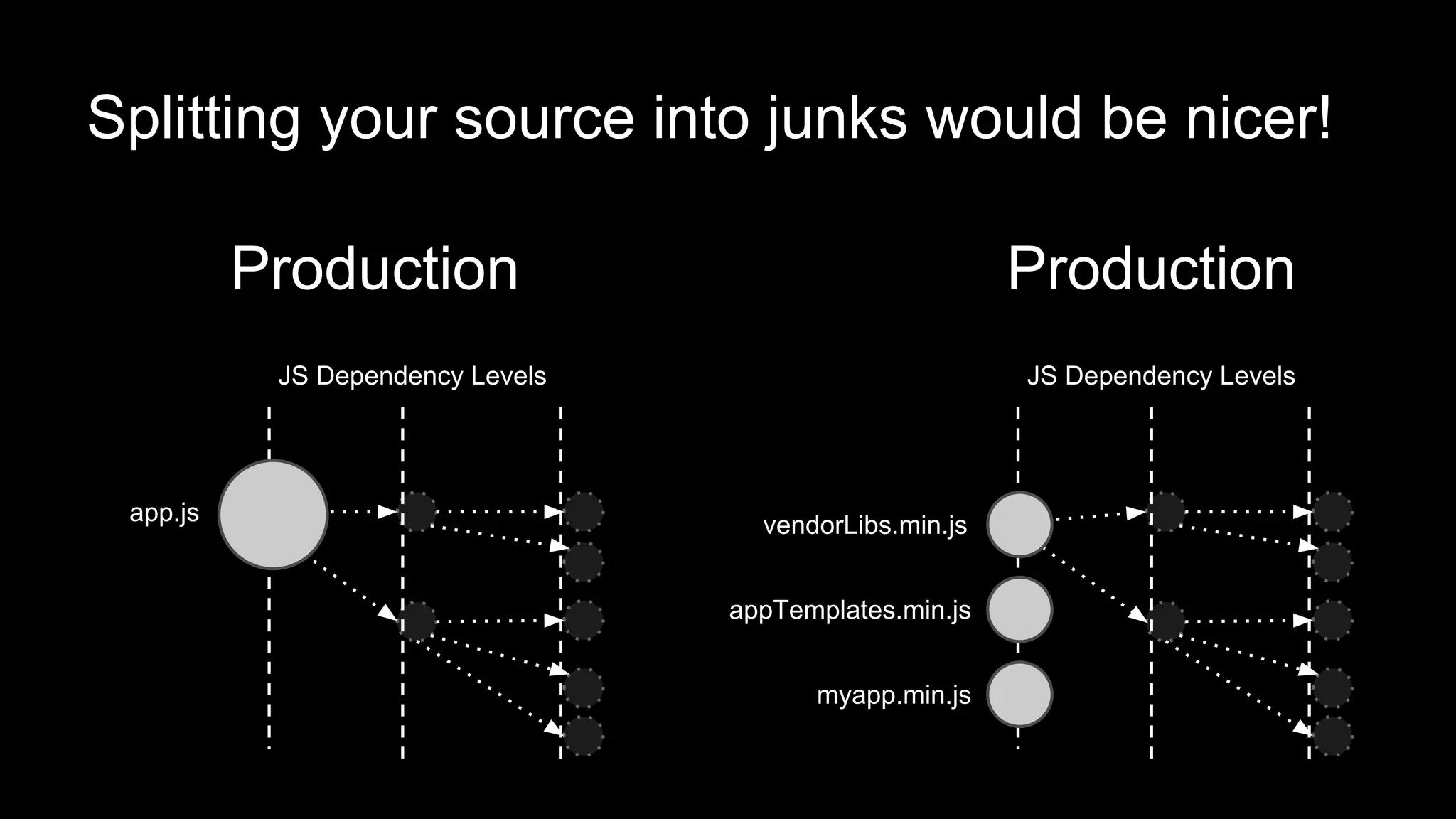

Splitting your source into junks would be nicer!
app.js
appTemplates.min.js
myapp.min.js

$script([
'vendorLibs.min.js',
'vendorLibs2.min.js',
'myapp.min.js'
'mysubapp.min.js'
'mycommonComponents.min.js'
], function() {
});

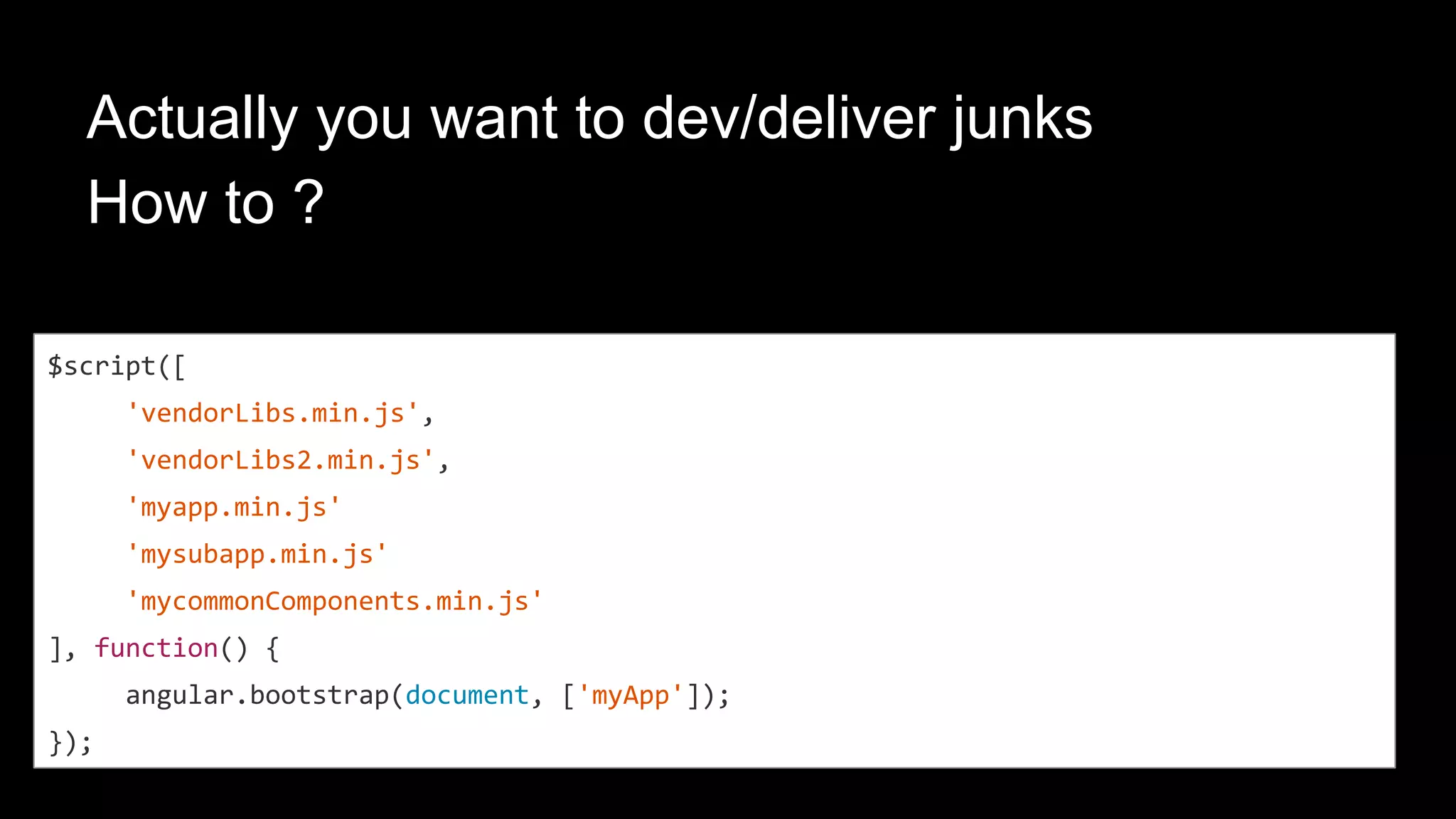

Actually you want to dev/deliver junks
How to ?

$script([
'myapp.min.js',
'mysubapp.min.js',
], function() {
});

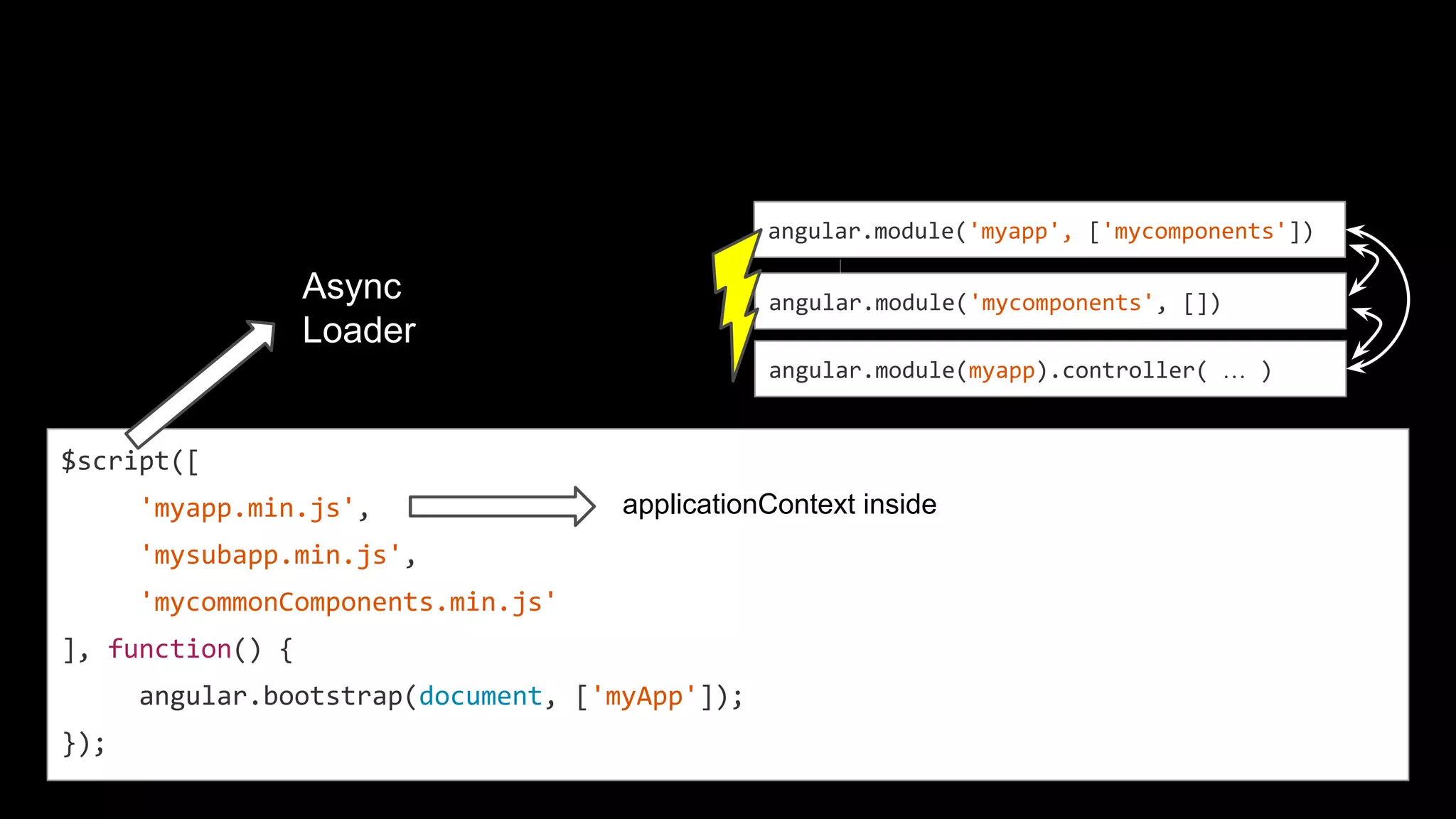

applicationContext inside
Async
Loader

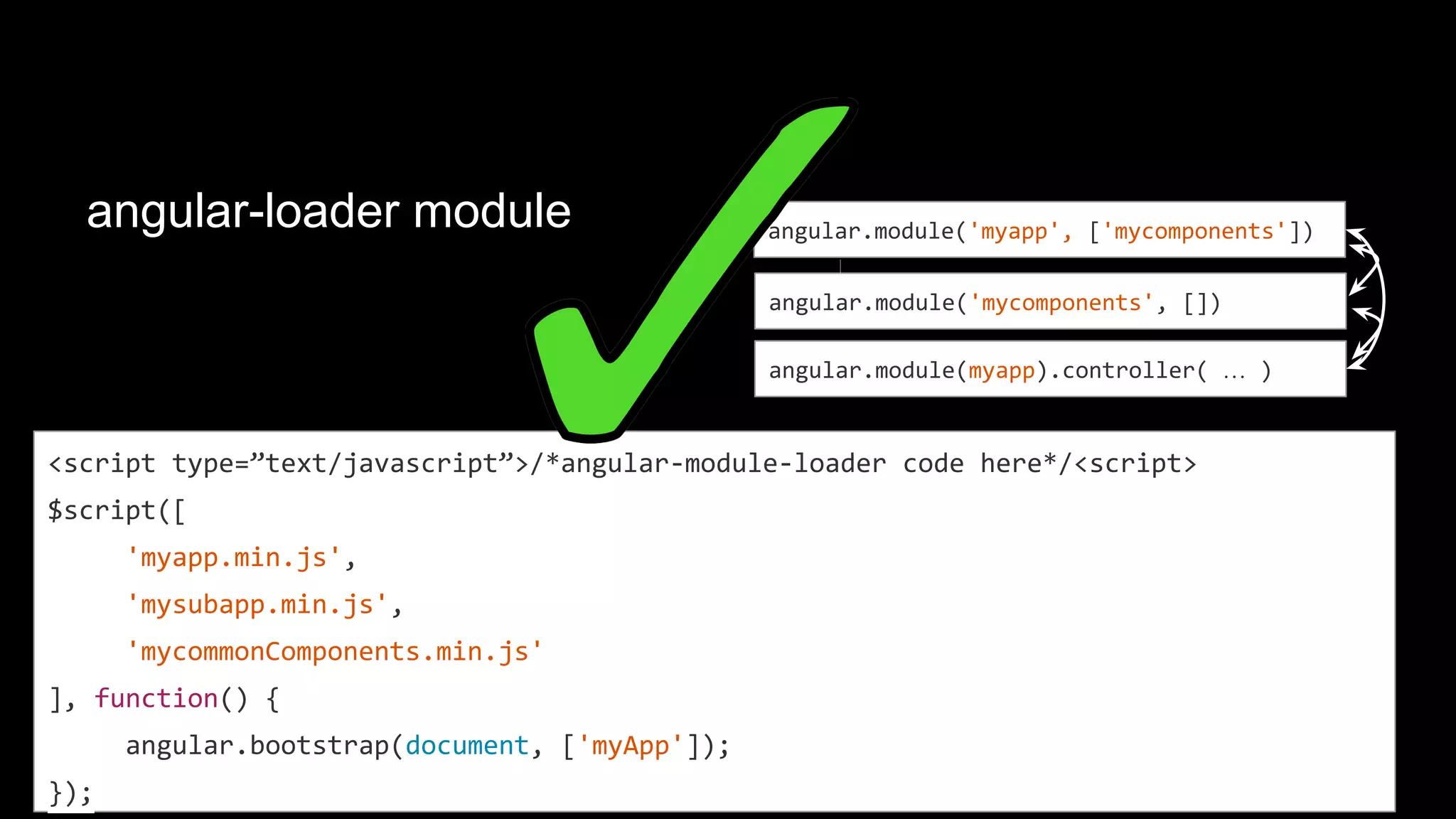

angular-loader module
<script type=”text/javascript”>/*angular-module-loader code here*/<script>
$script([
'myapp.min.js',
'mysubapp.min.js',
], function() {
});

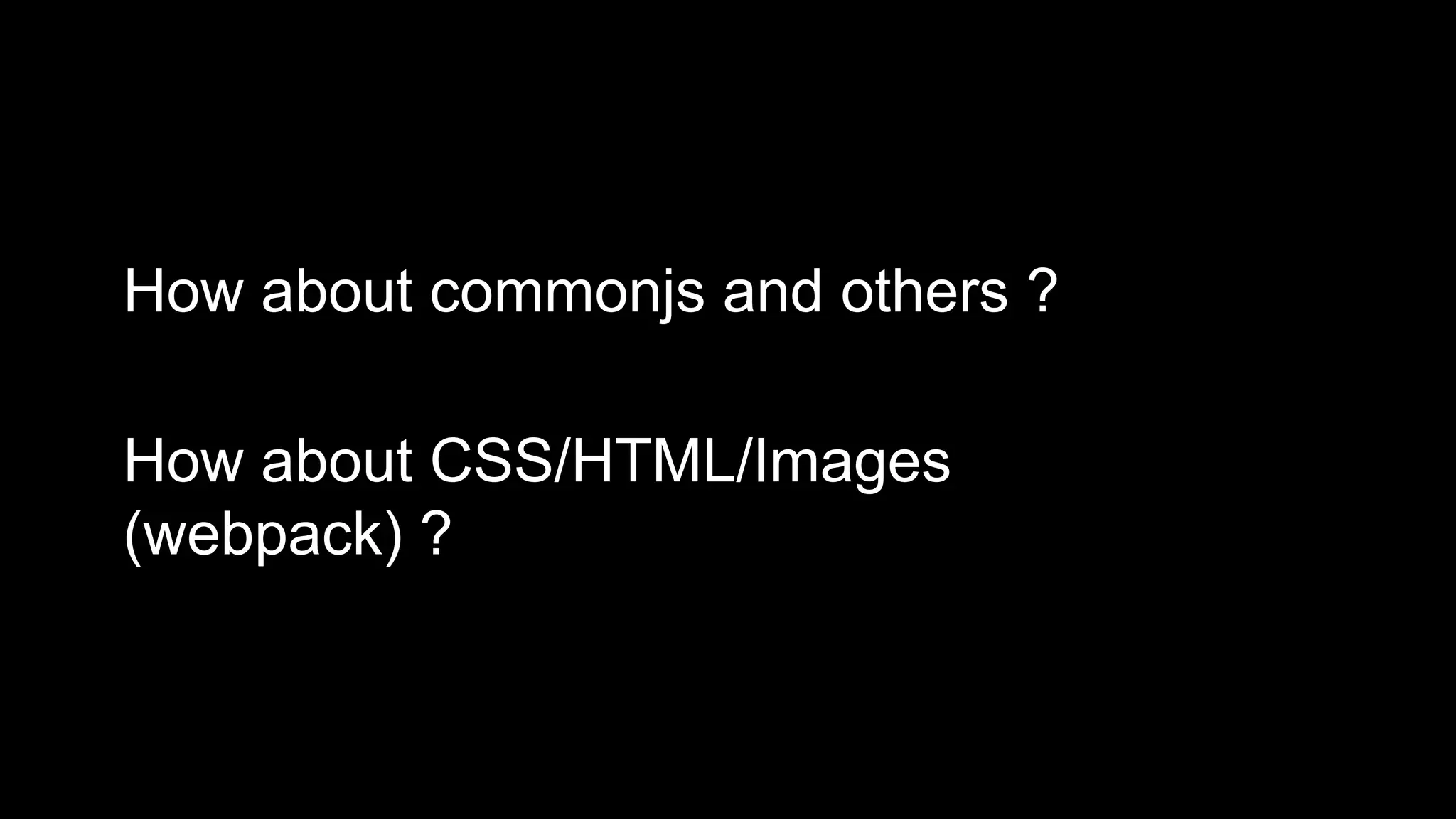

How about commonjs and others ?
How about CSS/HTML/Images
(webpack) ?

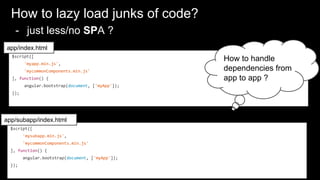

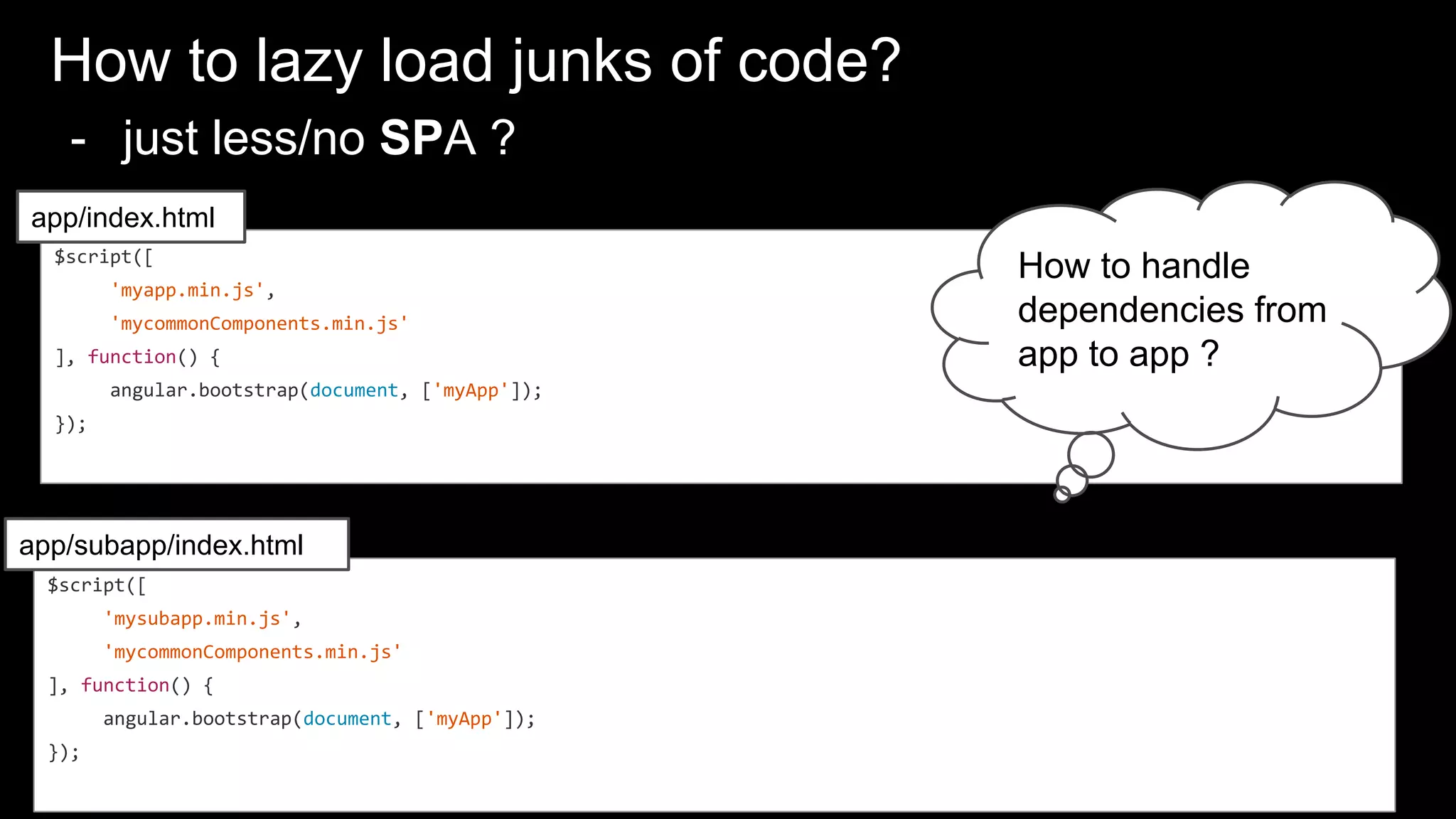

How to lazy load junks of code?
- just less/no SPA ?
$script([
'mysubapp.min.js',
], function() {
});
$script([
'myapp.min.js',
], function() {
});
app/index.html
app/subapp/index.html
How to handle
dependencies from
app to app ?

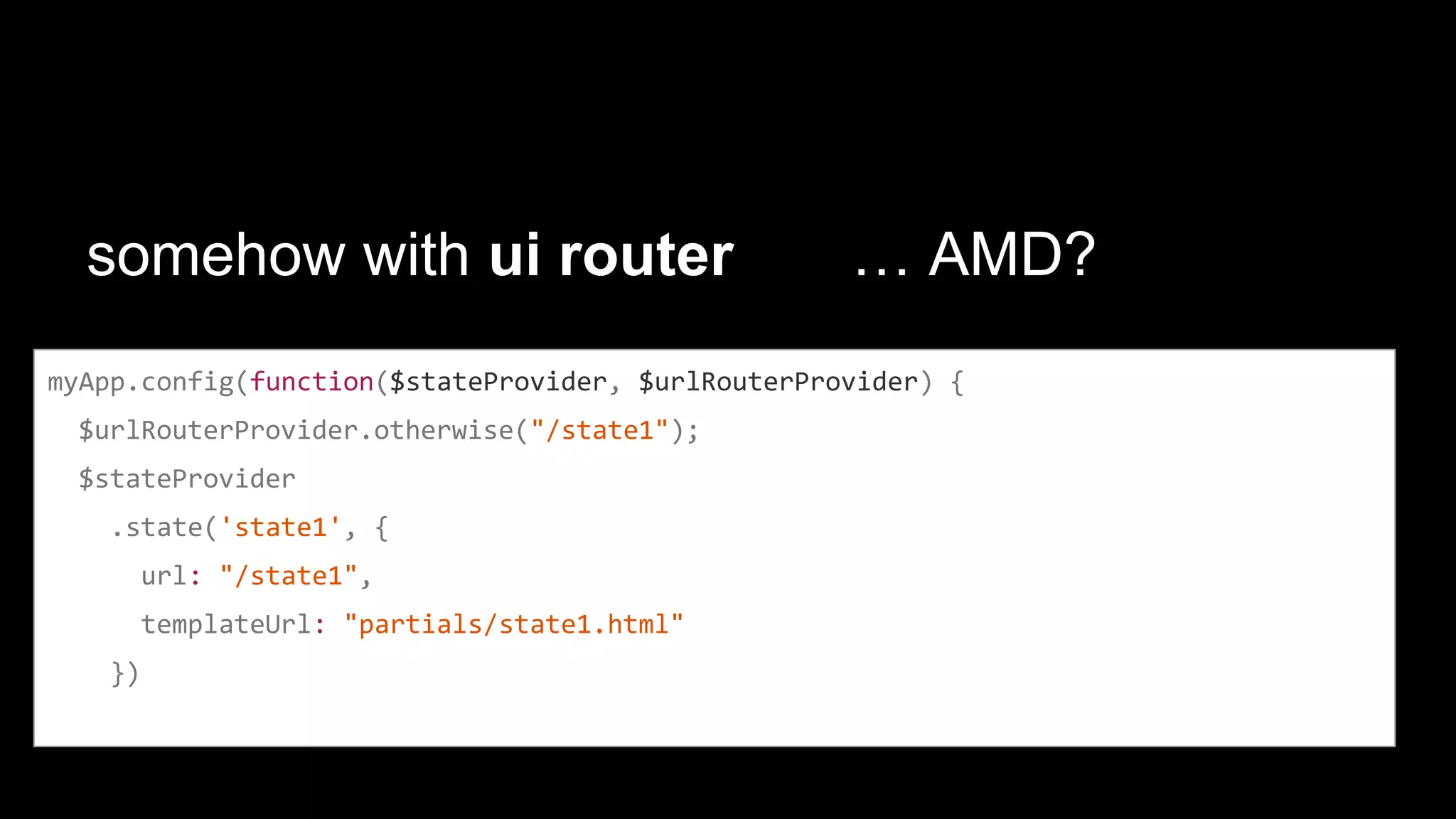

somehow with ui router … AMD?
myApp.config(function($stateProvider, $urlRouterProvider) {
$urlRouterProvider.otherwise("/state1");
$stateProvider
.state('state1', {
url: "/state1",
templateUrl: "partials/state1.html"
})

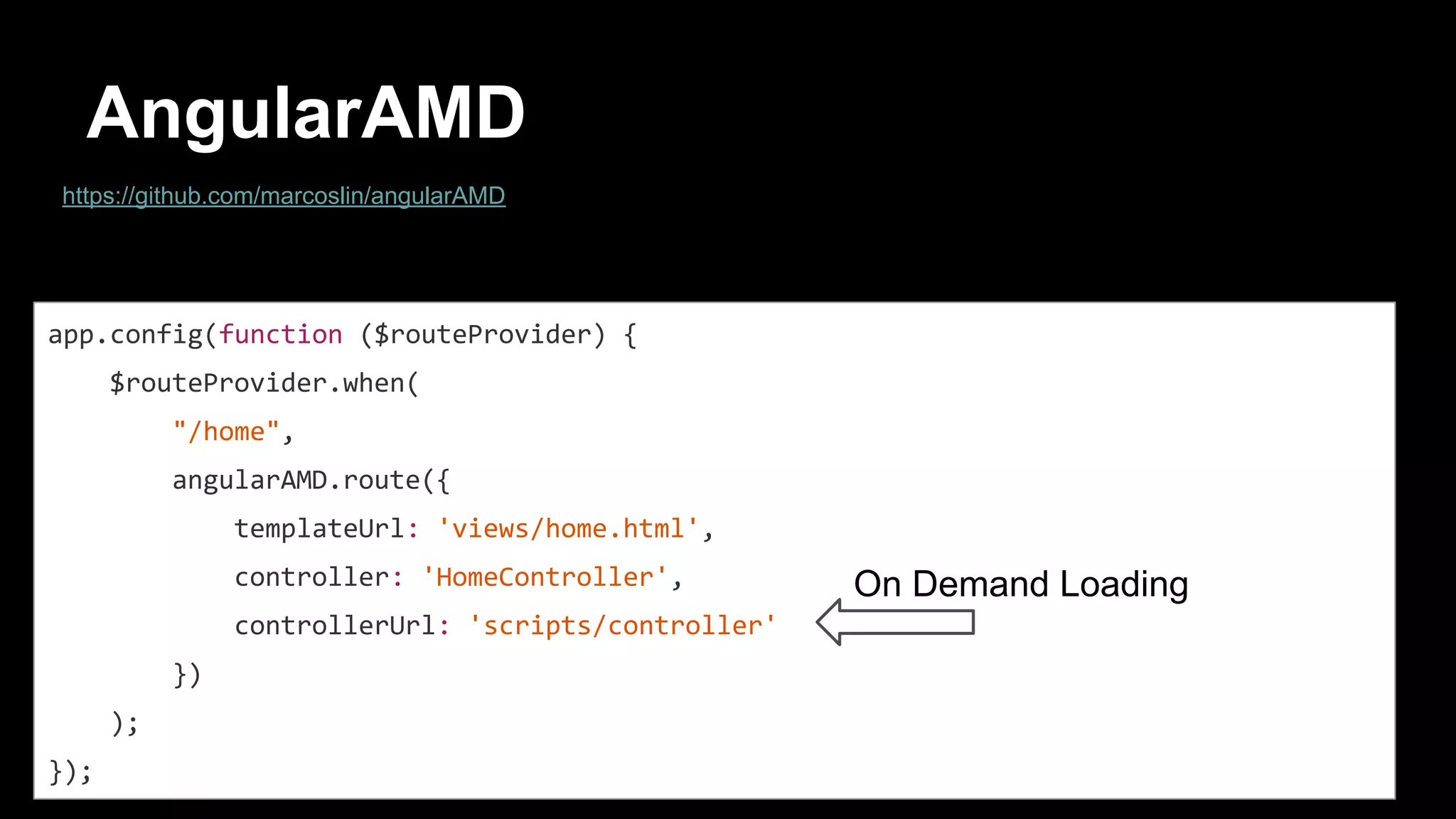

AngularAMD
https://github.com/marcoslin/angularAMD
app.config(function ($routeProvider) {
$routeProvider.when(
"/home",
angularAMD.route({
templateUrl: 'views/home.html',
controller: 'HomeController',
controllerUrl: 'scripts/controller'
})
);
});
On Demand Loading

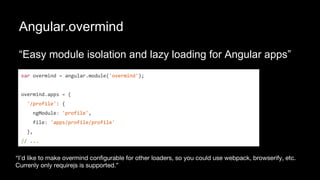

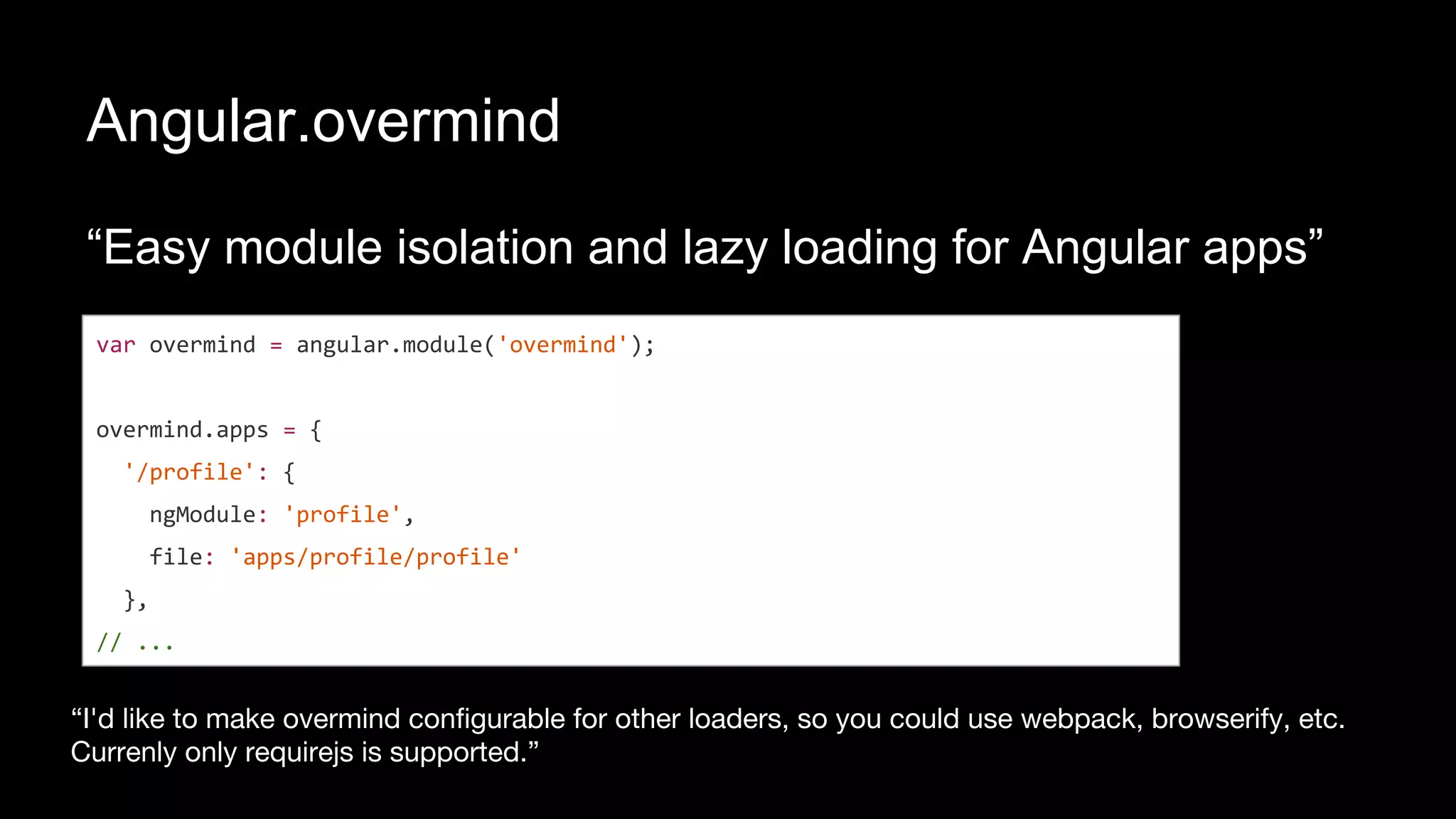

Angular.overmind
“Easy module isolation and lazy loading for Angular apps”
var overmind = angular.module('overmind');
overmind.apps = {
'/profile': {
ngModule: 'profile',
file: 'apps/profile/profile'
},
// ...

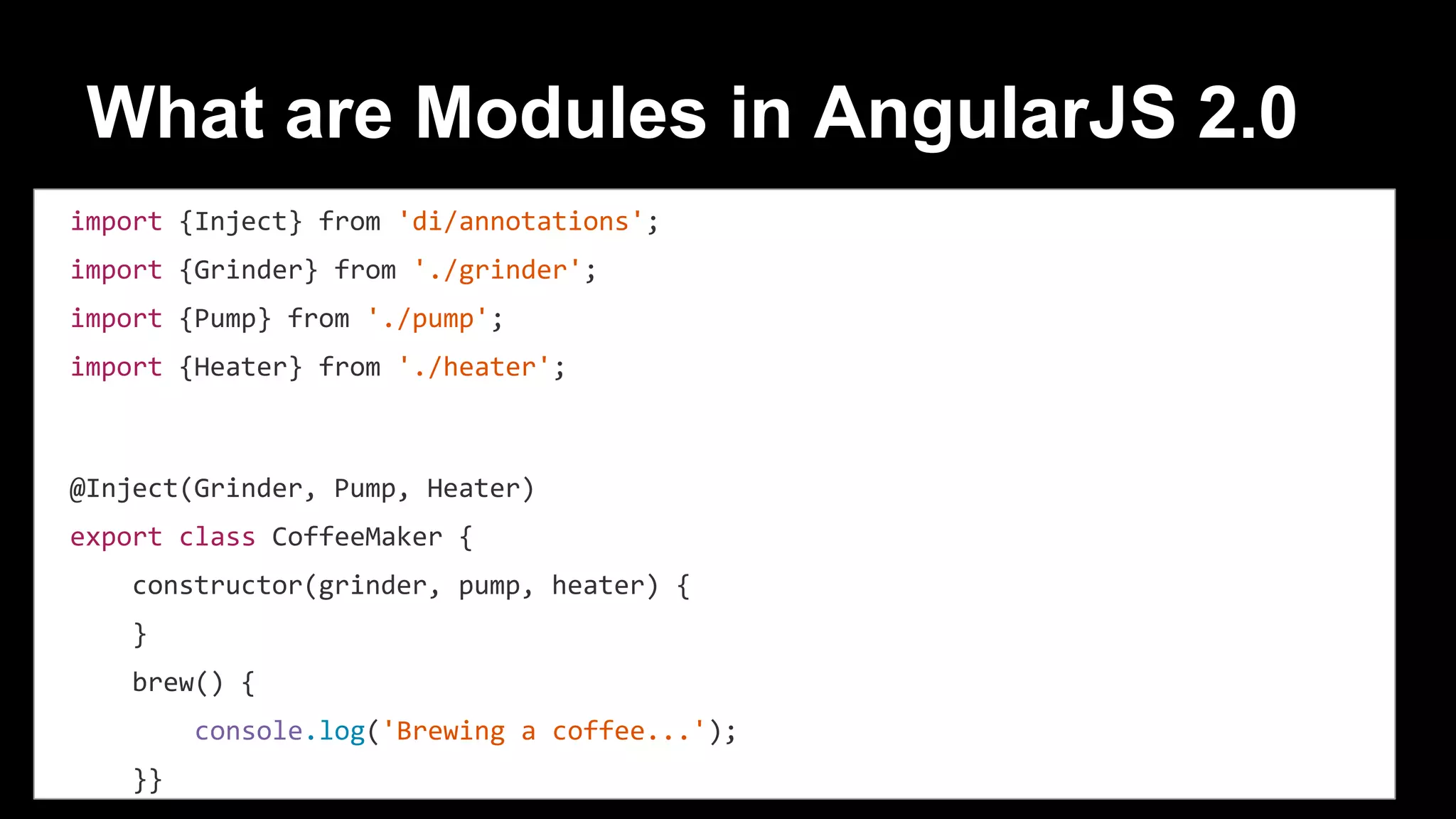

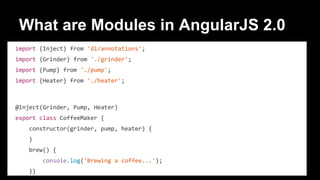

What are Modules in AngularJS 2.0
import {Inject} from 'di/annotations';
import {Grinder} from './grinder';
import {Pump} from './pump';
import {Heater} from './heater';
@Inject(Grinder, Pump, Heater)
export class CoffeeMaker {
constructor(grinder, pump, heater) {
}
brew() {
console.log('Brewing a coffee...');
}}

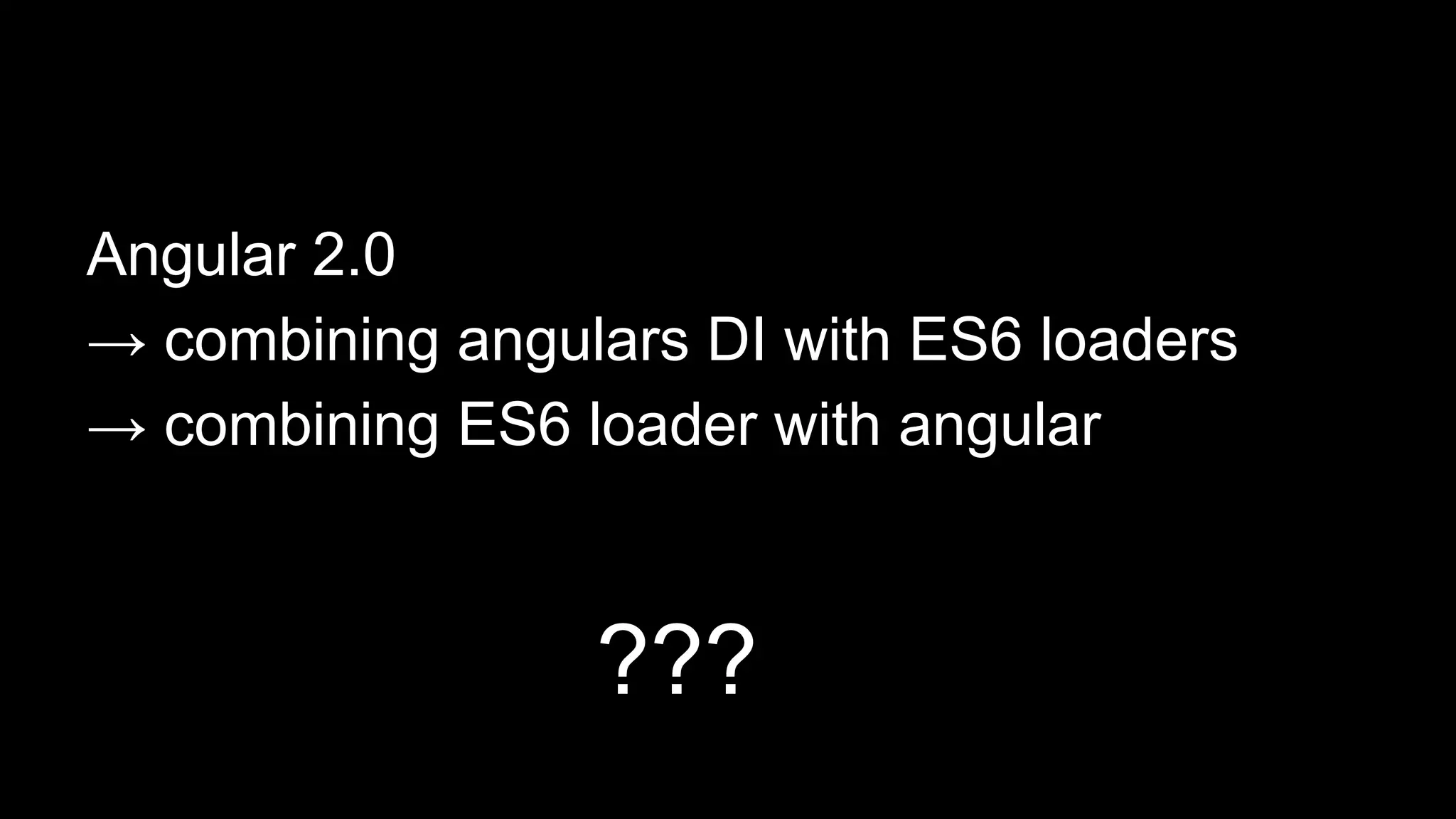

Angular 2.0
→ combining angulars DI with ES6 loaders
→ combining ES6 loader with angular
???

→ which is preferred long time strategy ?
