Styling with CSS

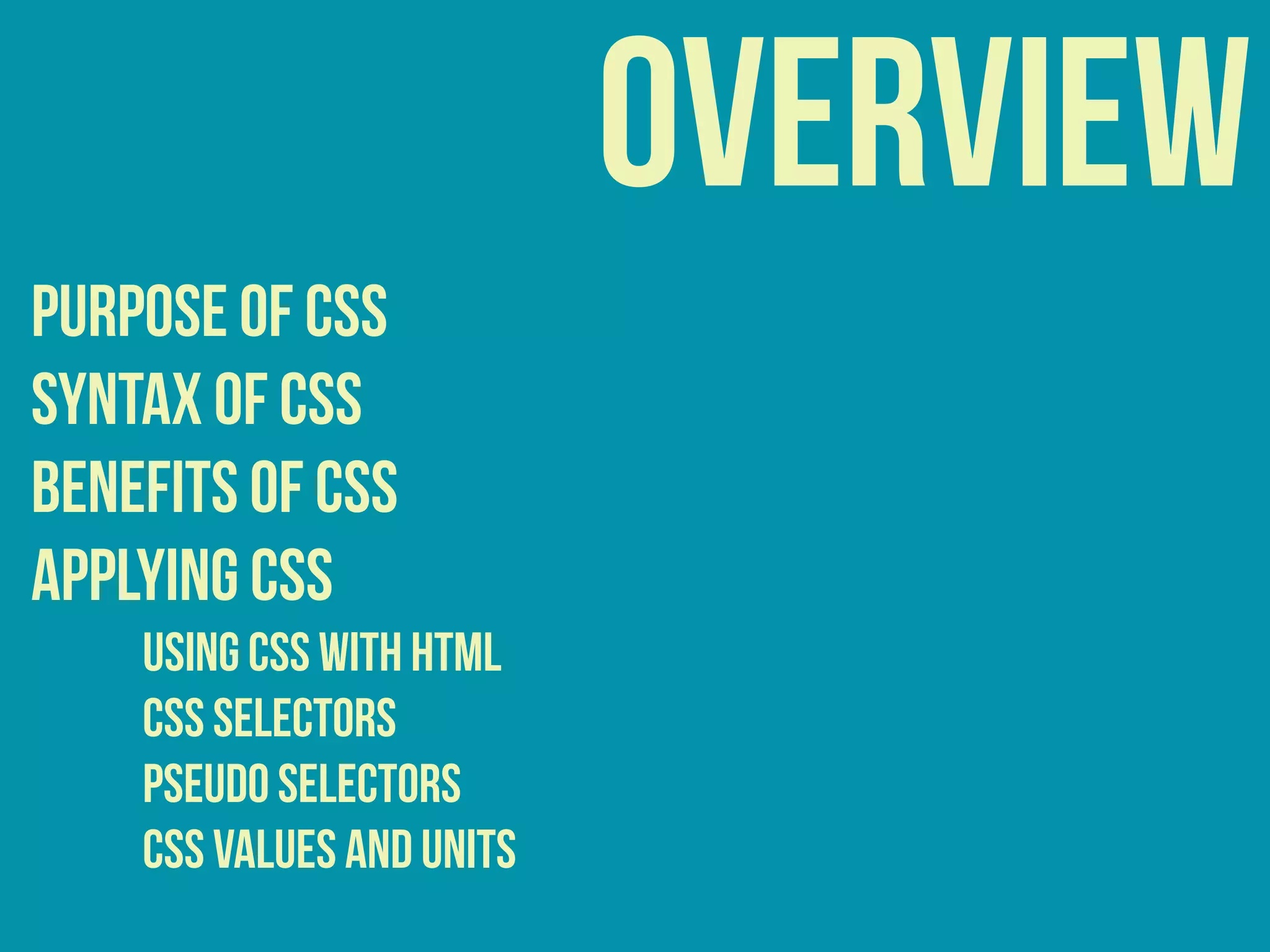

overview
purpose of css
syntax of css
benefits of css
APPLYING CSS
USING CSS WITH HTML

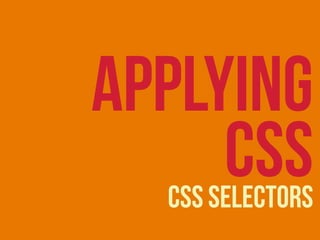

CSS Selectors
Pseudo Selectors
CSS Values and Units

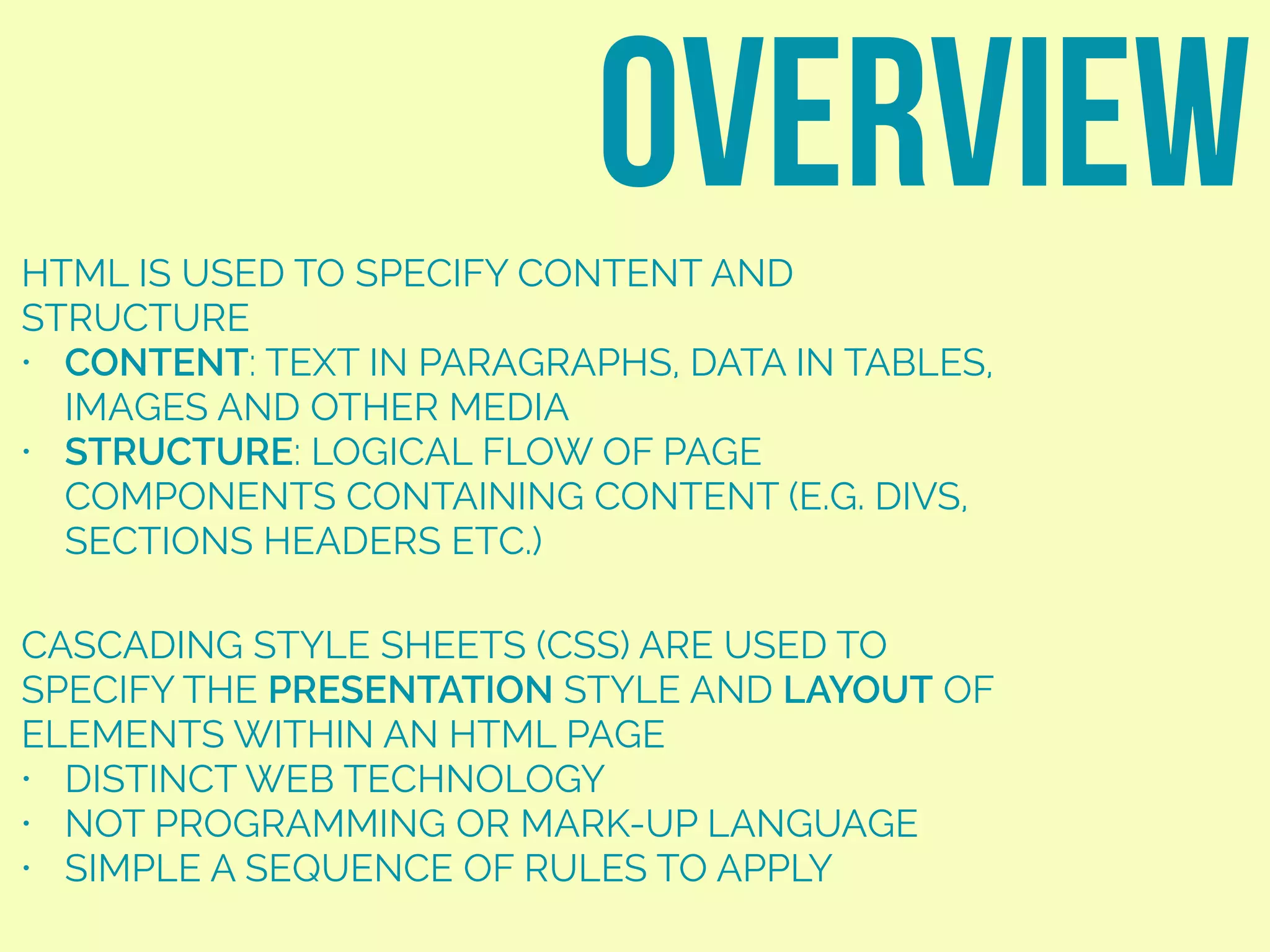

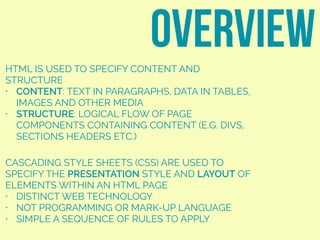

HTML IS USED TO SPECIFY CONTENT AND
STRUCTURE
• CONTENT: TEXT IN PARAGRAPHS, DATA IN TABLES,
IMAGES AND OTHER MEDIA
• STRUCTURE: LOGICAL FLOW OF PAGE
COMPONENTS CONTAINING CONTENT (E.G. DIVS,
SECTIONS HEADERS ETC.)
overview
CASCADING STYLE SHEETS (CSS) ARE USED TO
SPECIFY THE PRESENTATION STYLE AND LAYOUT OF
ELEMENTS WITHIN AN HTML PAGE
• DISTINCT WEB TECHNOLOGY
• NOT PROGRAMMING OR MARK-UP LANGUAGE
• SIMPLE A SEQUENCE OF RULES TO APPLY

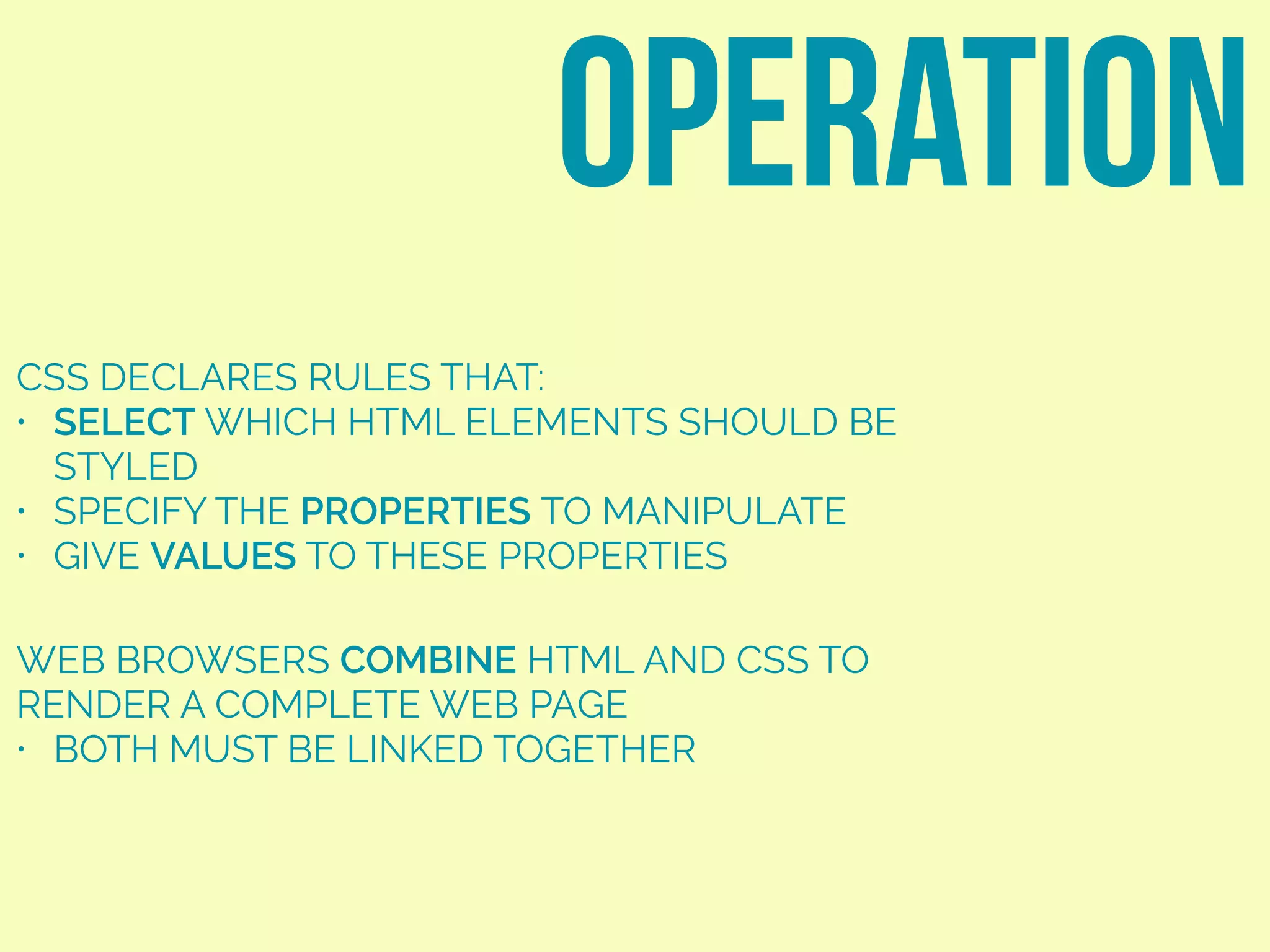

CSS DECLARES RULES THAT:
• SELECT WHICH HTML ELEMENTS SHOULD BE
STYLED
• SPECIFY THE PROPERTIES TO MANIPULATE
• GIVE VALUES TO THESE PROPERTIES

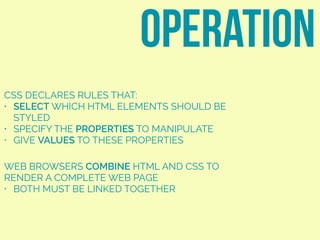

OPERATION
WEB BROWSERS COMBINE HTML AND CSS TO
RENDER A COMPLETE WEB PAGE
• BOTH MUST BE LINKED TOGETHER

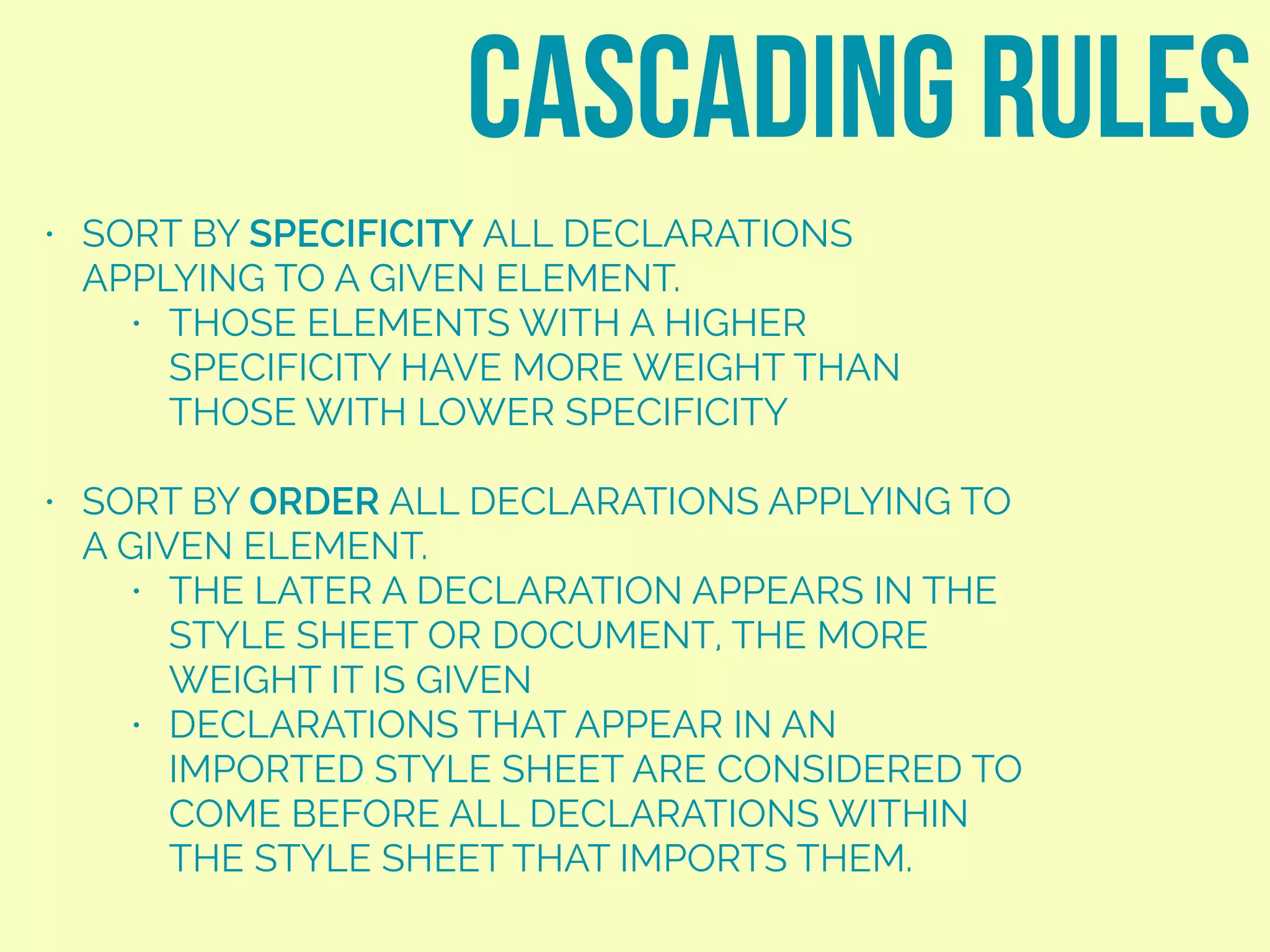

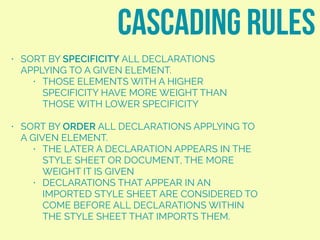

• SORT BY SPECIFICITY ALL DECLARATIONS
APPLYING TO A GIVEN ELEMENT.
• THOSE ELEMENTS WITH A HIGHER
SPECIFICITY HAVE MORE WEIGHT THAN
THOSE WITH LOWER SPECIFICITY
• SORT BY ORDER ALL DECLARATIONS APPLYING TO
A GIVEN ELEMENT.
• THE LATER A DECLARATION APPEARS IN THE
STYLE SHEET OR DOCUMENT, THE MORE
WEIGHT IT IS GIVEN
• DECLARATIONS THAT APPEAR IN AN
IMPORTED STYLE SHEET ARE CONSIDERED TO
COME BEFORE ALL DECLARATIONS WITHIN
THE STYLE SHEET THAT IMPORTS THEM.

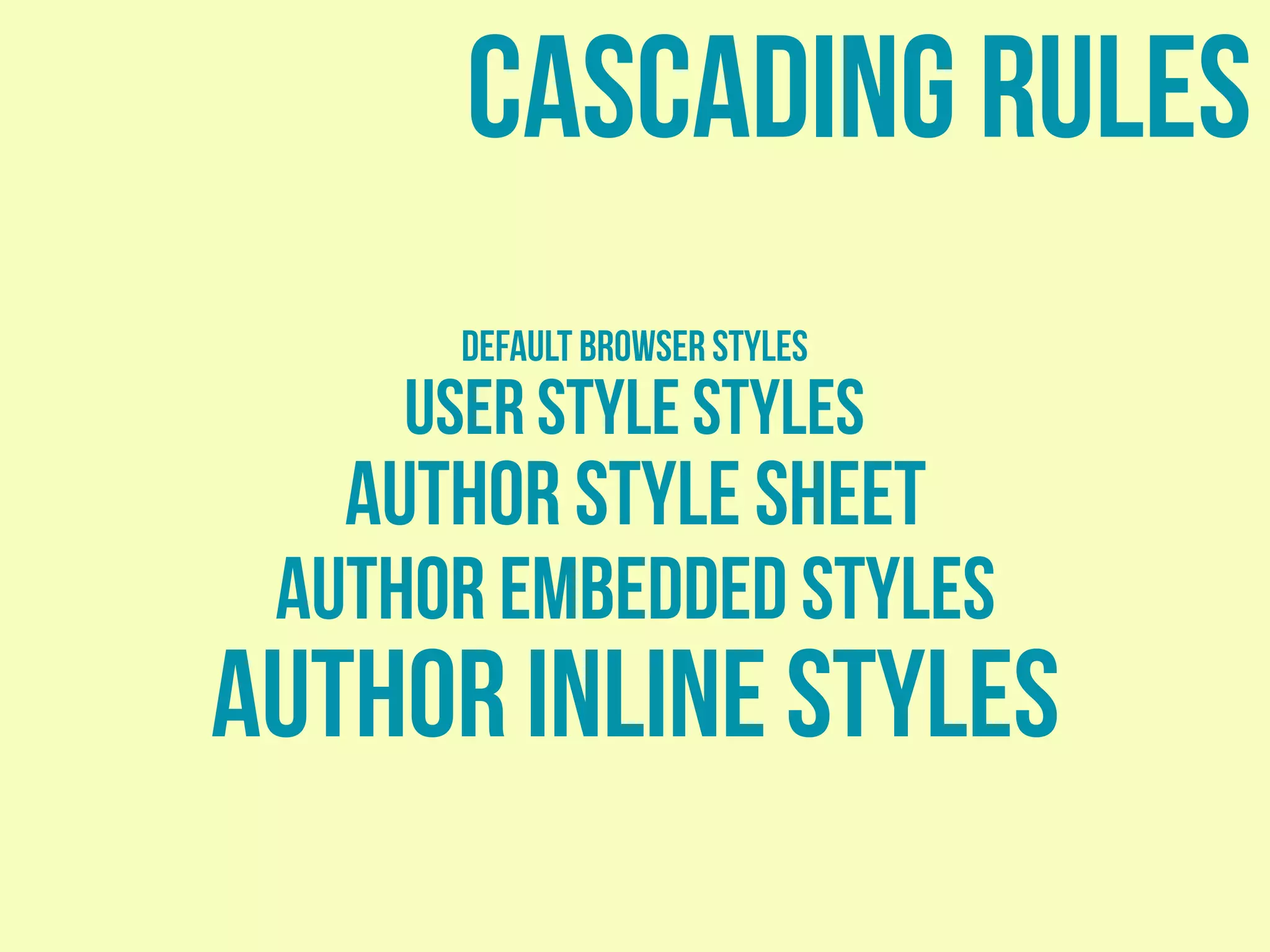

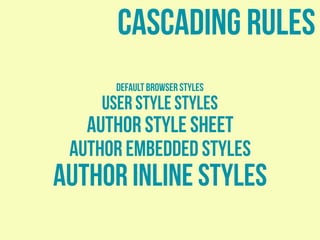

cascading rules

cascading rules
default browser styles
user style styles
author style sheet
Author embedded styles
Author inline styles

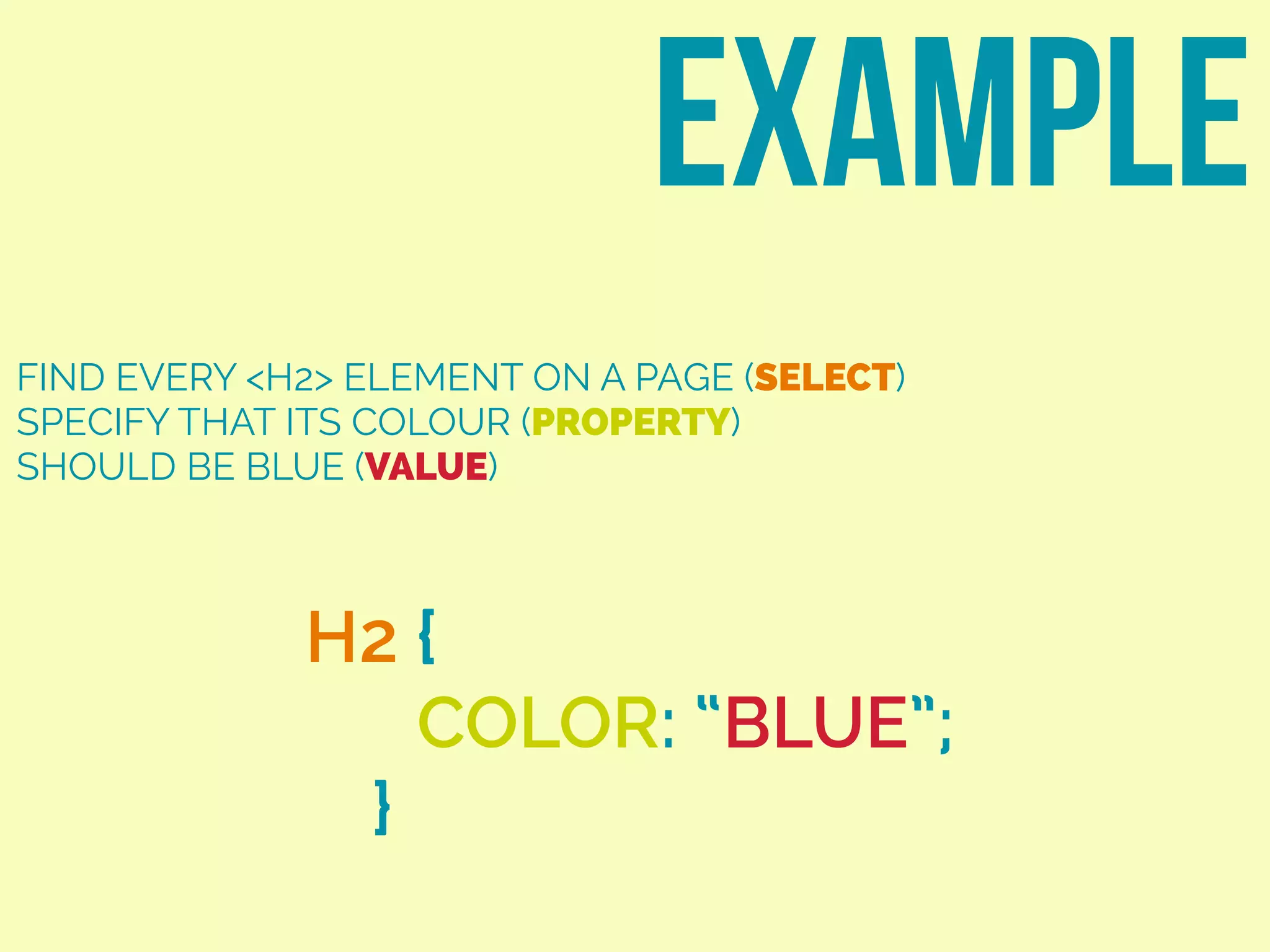

FIND EVERY <H2> ELEMENT ON A PAGE (SELECT)
SPECIFY THAT ITS COLOUR (PROPERTY)
SHOULD BE BLUE (VALUE)
EXAMPLE
H2 {
COLOR: “BLUE”;
}

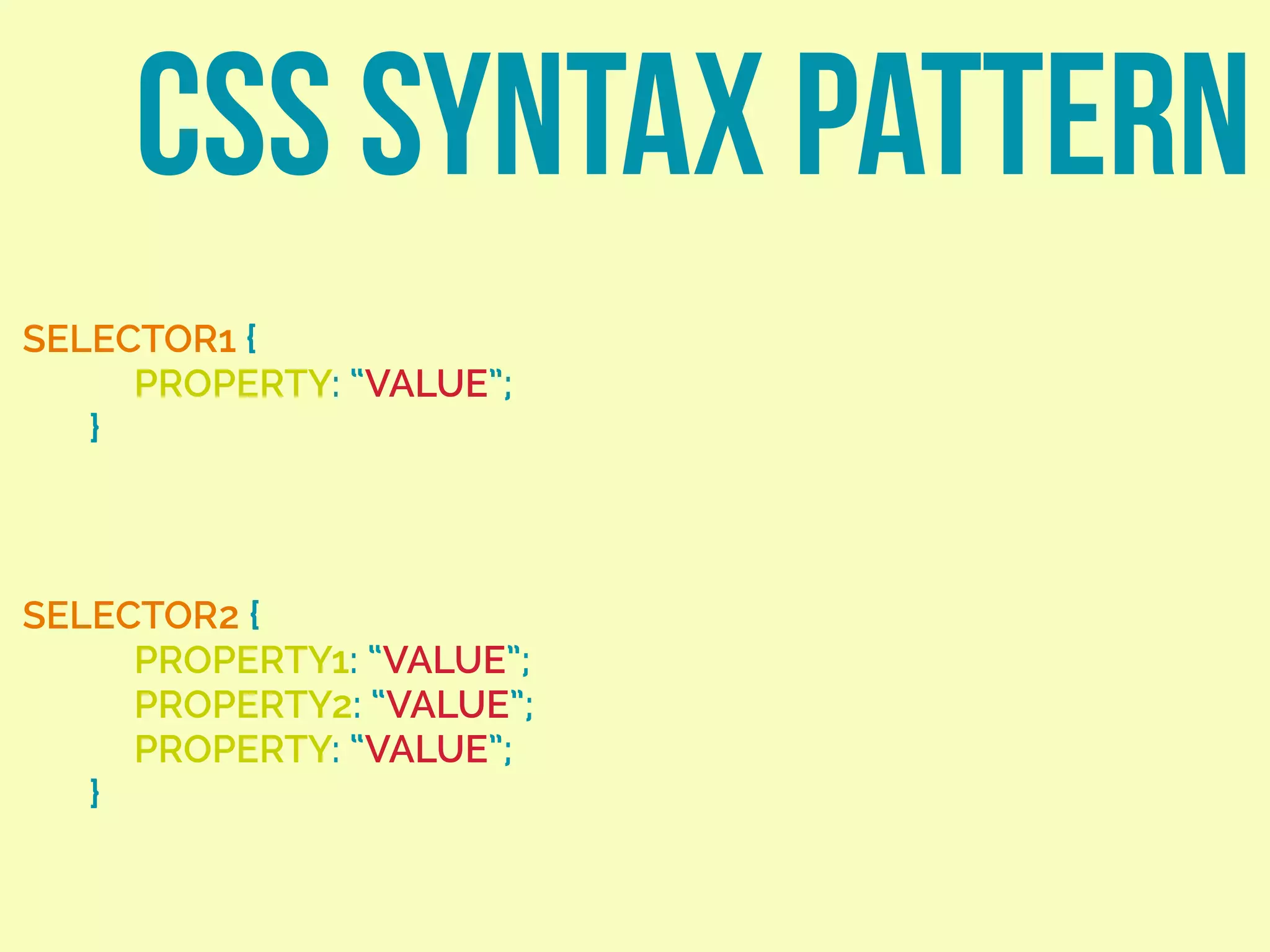

CSS SYNTAX PATTERN
SELECTOR1 {
PROPERTY: “VALUE”;
}
SELECTOR2 {
PROPERTY1: “VALUE”;
}

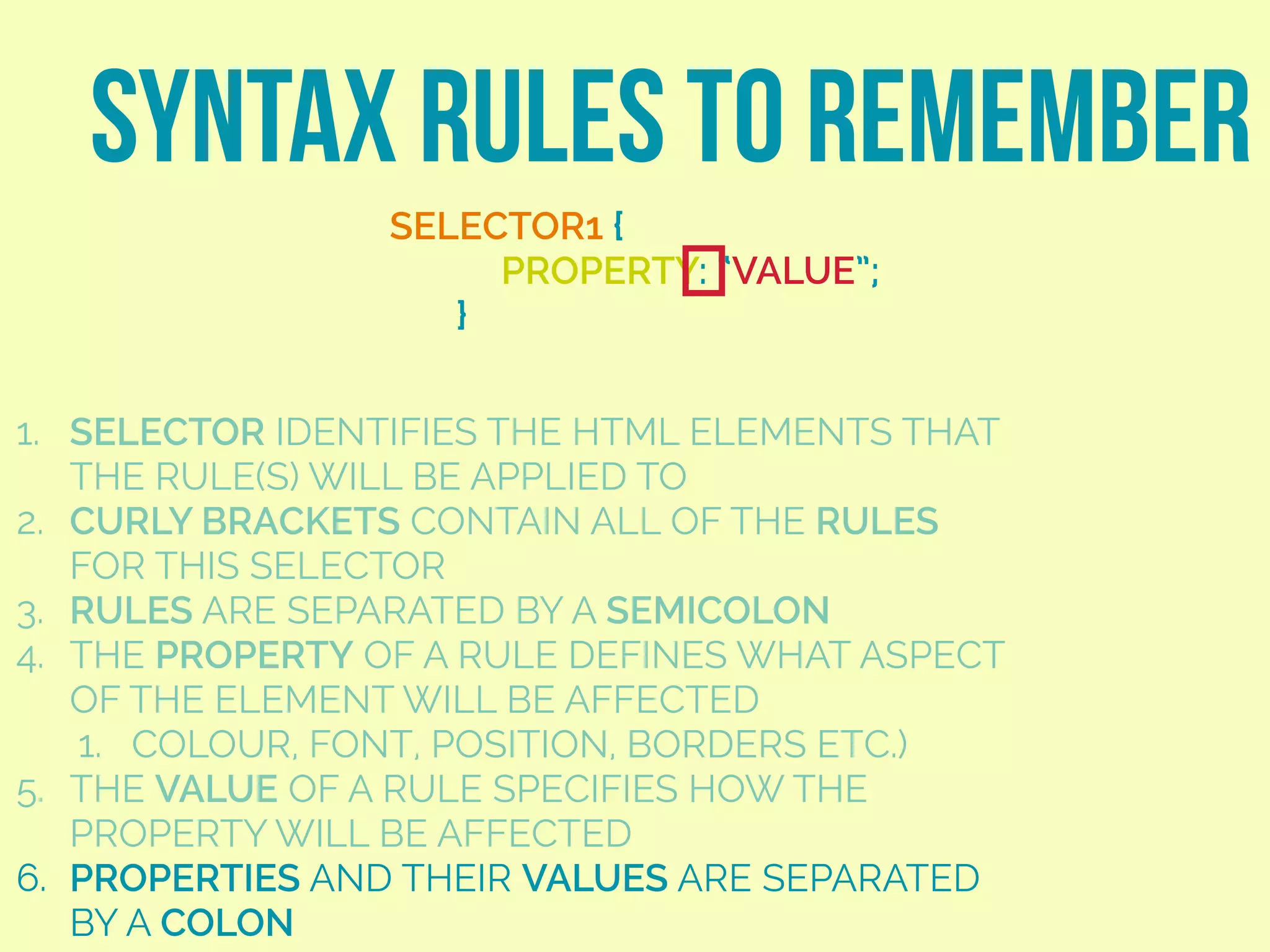

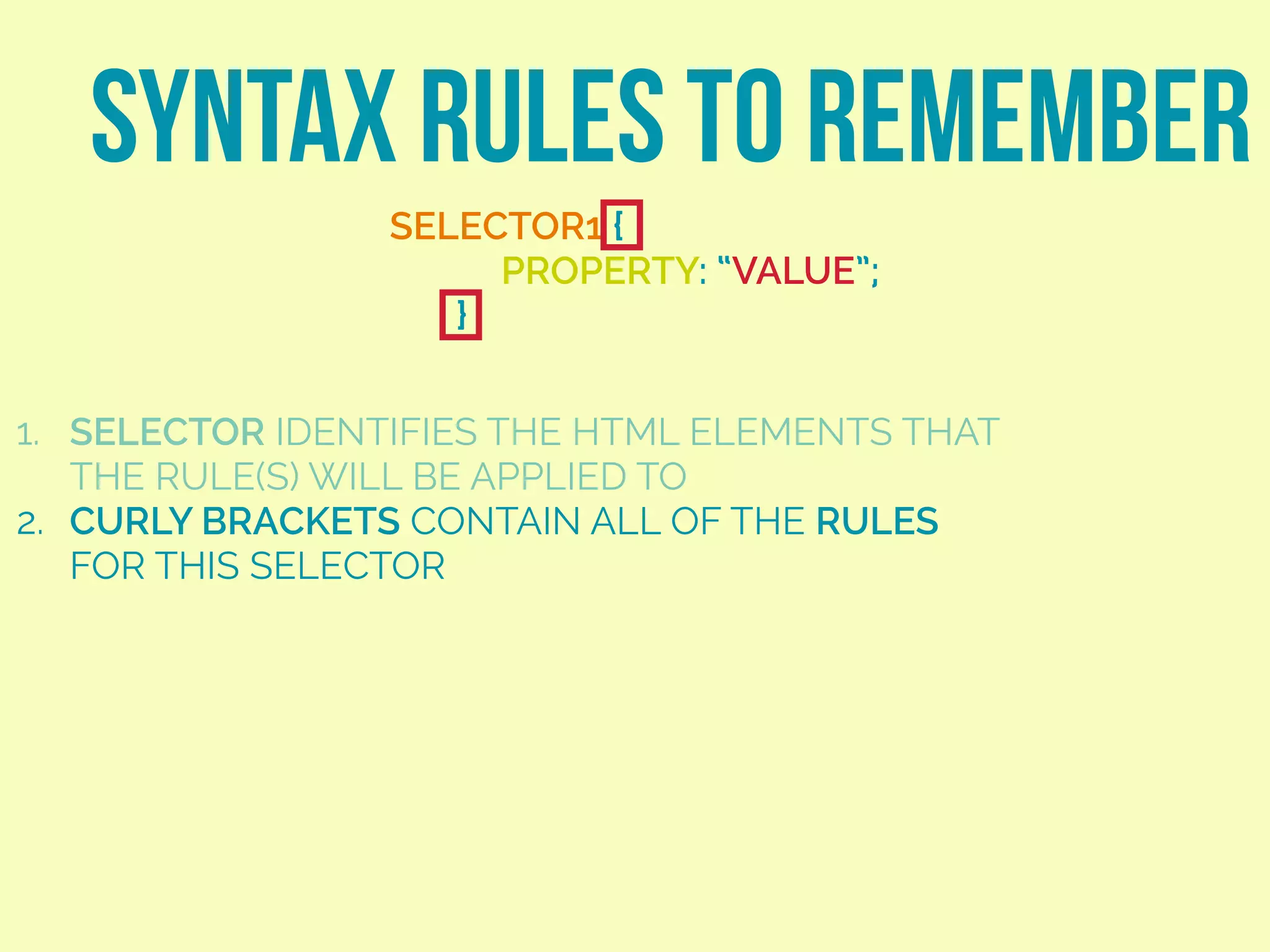

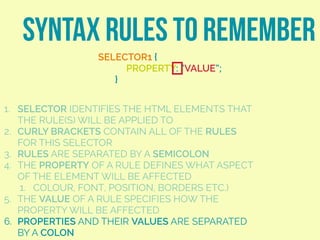

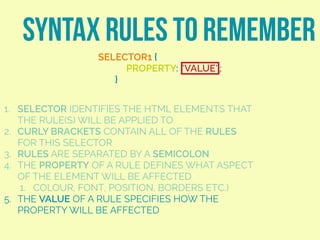

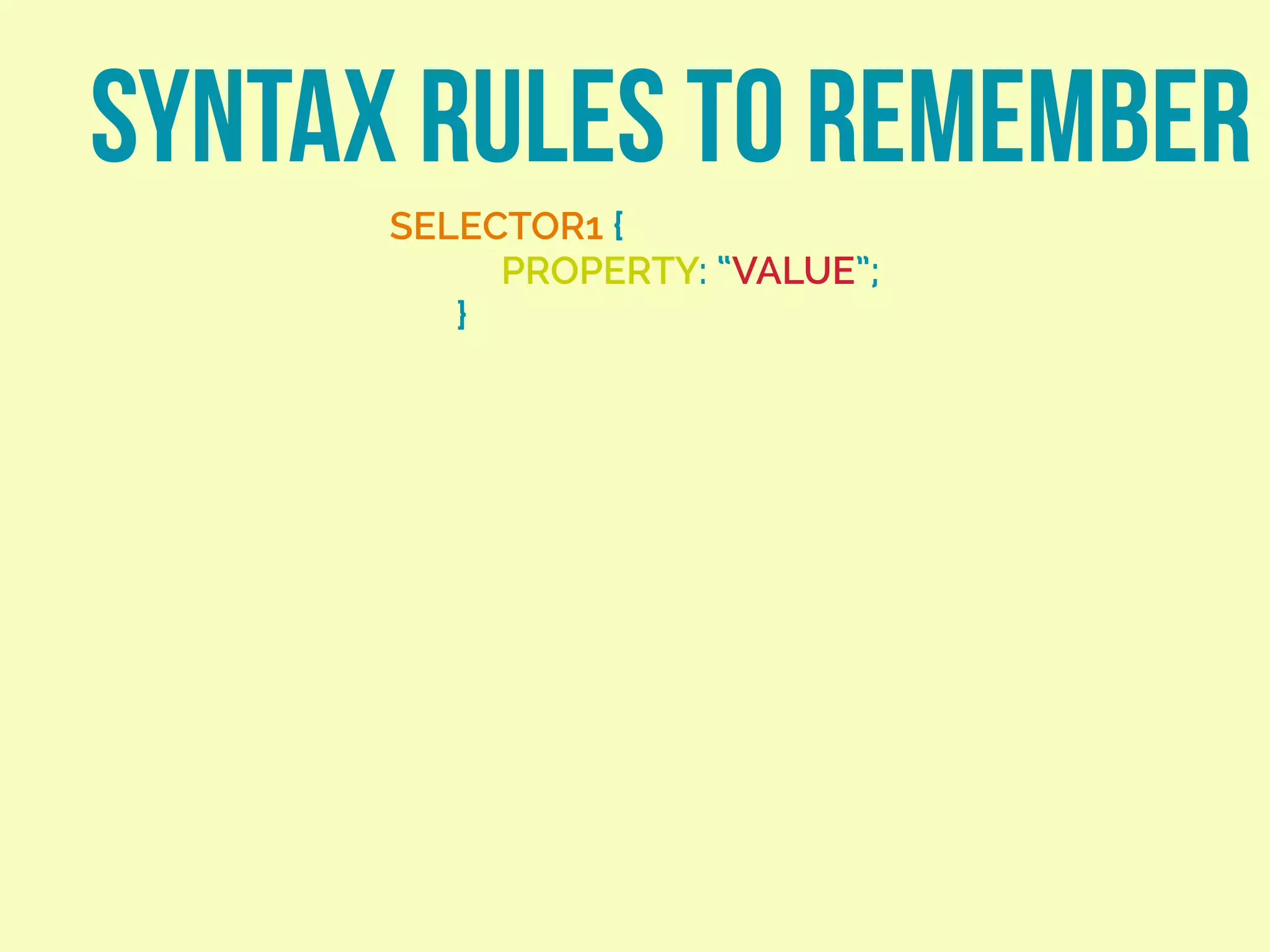

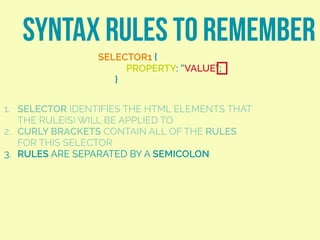

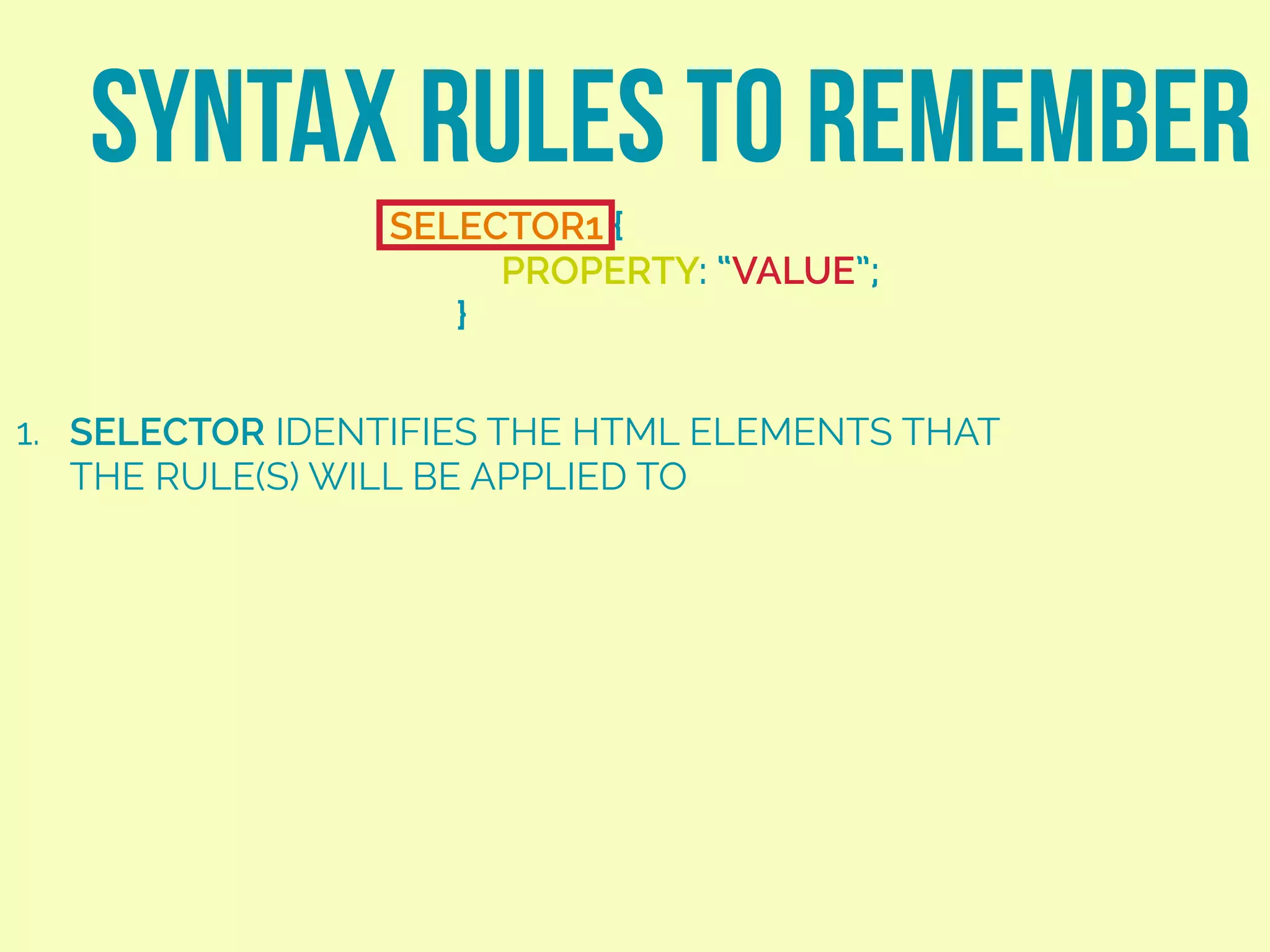

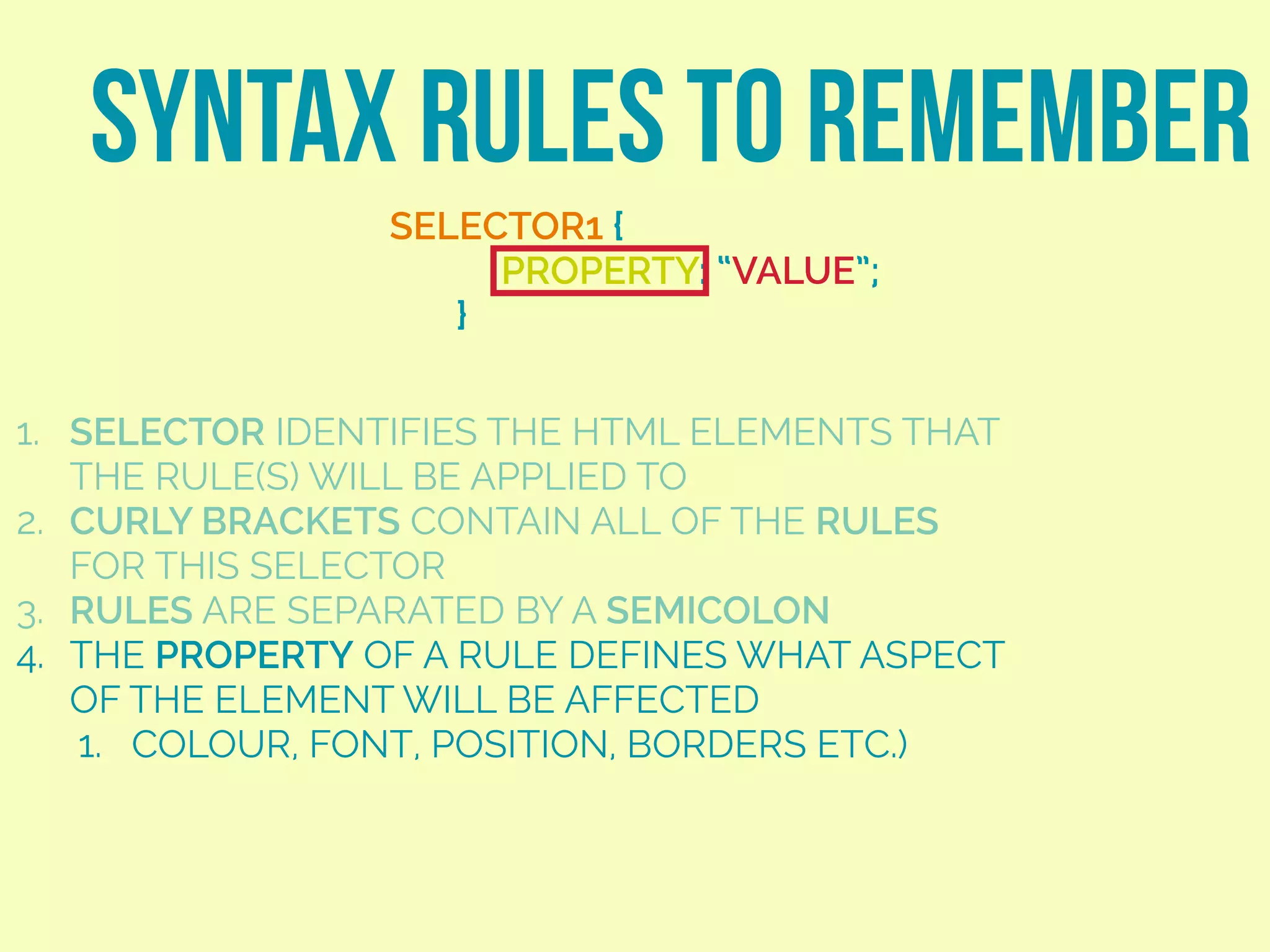

SYNTAX RULES TO REMEMBER

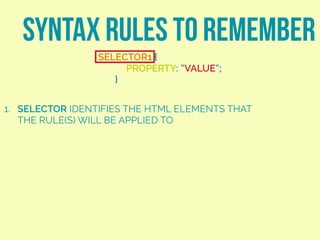

SELECTOR1 {
}

SELECTOR1 {
}
1. SELECTOR IDENTIFIES THE HTML ELEMENTS THAT
THE RULE(S) WILL BE APPLIED TO

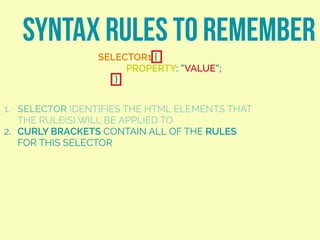

SELECTOR1 {
}
2. CURLY BRACKETS CONTAIN ALL OF THE RULES
FOR THIS SELECTOR

SELECTOR1 {
}
FOR THIS SELECTOR
3. RULES ARE SEPARATED BY A SEMICOLON

SELECTOR1 {
}
FOR THIS SELECTOR
4. THE PROPERTY OF A RULE DEFINES WHAT ASPECT
OF THE ELEMENT WILL BE AFFECTED
1. COLOUR, FONT, POSITION, BORDERS ETC.)

SELECTOR1 {
}
FOR THIS SELECTOR

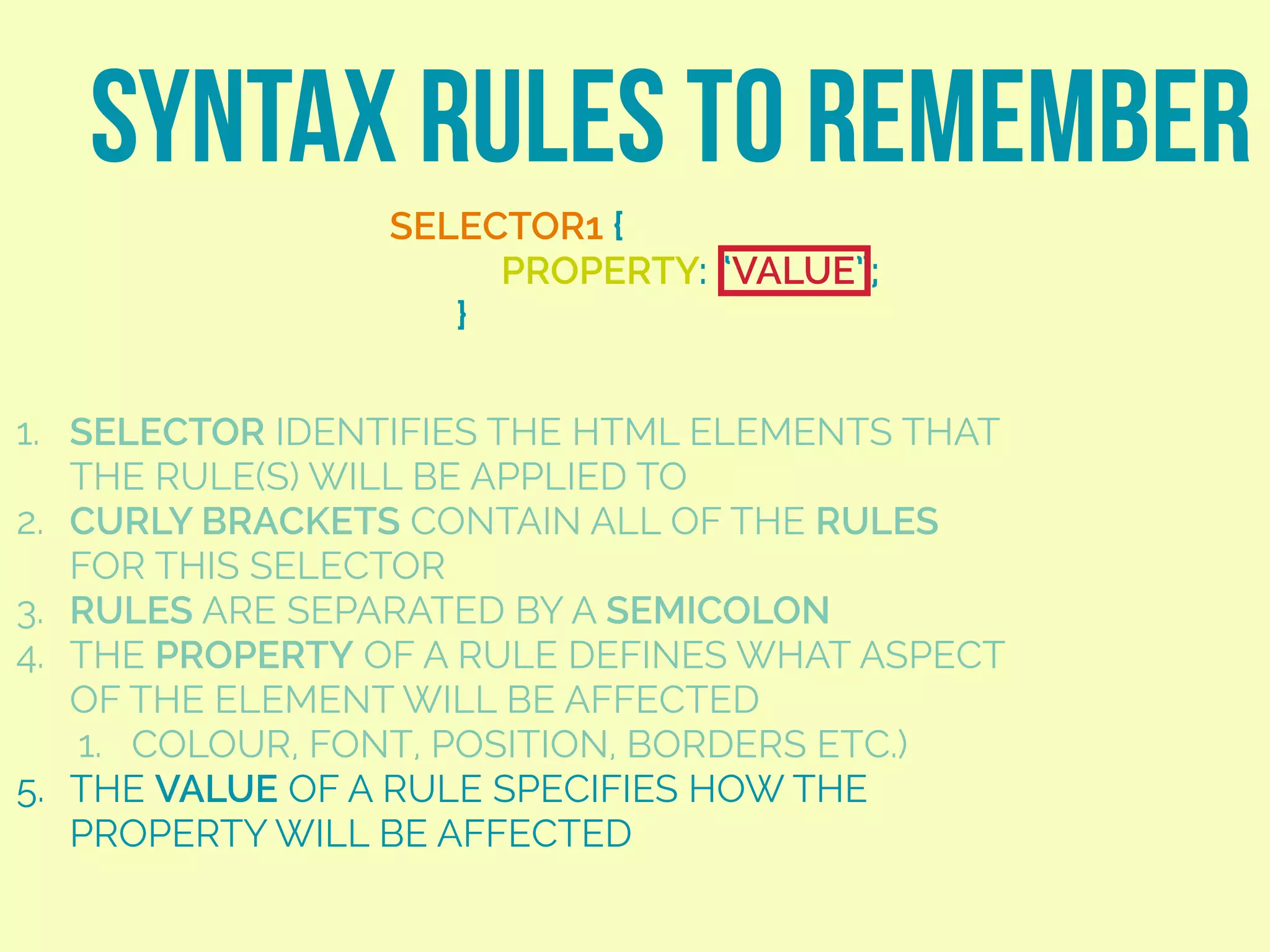

5. THE VALUE OF A RULE SPECIFIES HOW THE
PROPERTY WILL BE AFFECTED

SELECTOR1 {
}
FOR THIS SELECTOR
5. THE VALUE OF A RULE SPECIFIES HOW THE
PROPERTY WILL BE AFFECTED
6. PROPERTIES AND THEIR VALUES ARE SEPARATED
BY A COLON

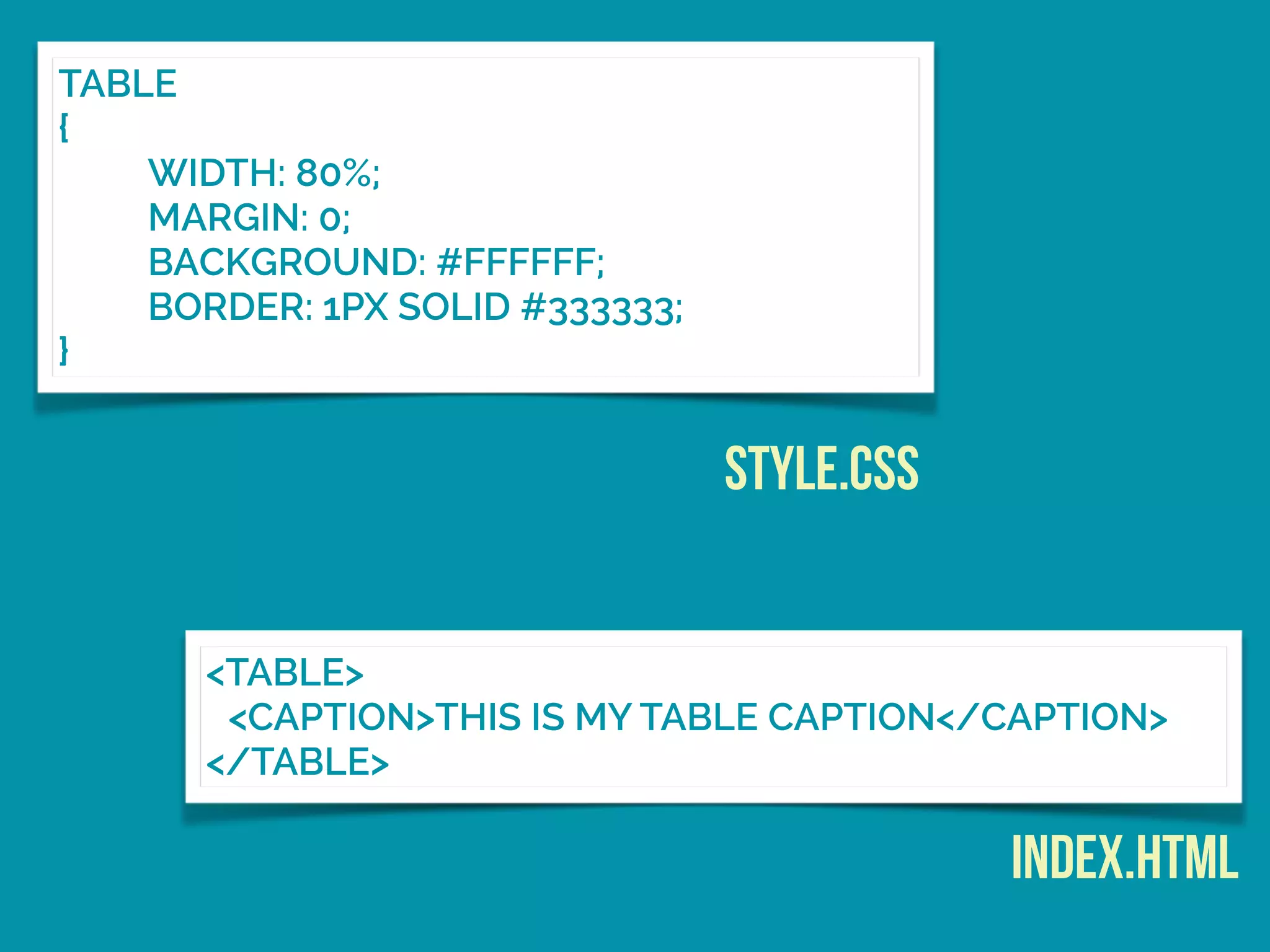

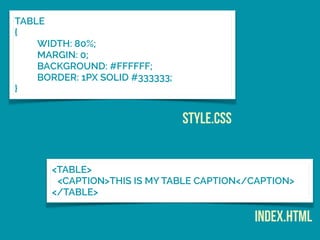

TABLE
{
WIDTH: 80%;
MARGIN: 0;
BACKGROUND: #FFFFFF;
BORDER: 1PX SOLID #333333;
}
STYLE.CSS
<TABLE>
<CAPTION>THIS IS MY TABLE CAPTION</CAPTION>
</TABLE>
INDEX.HTML

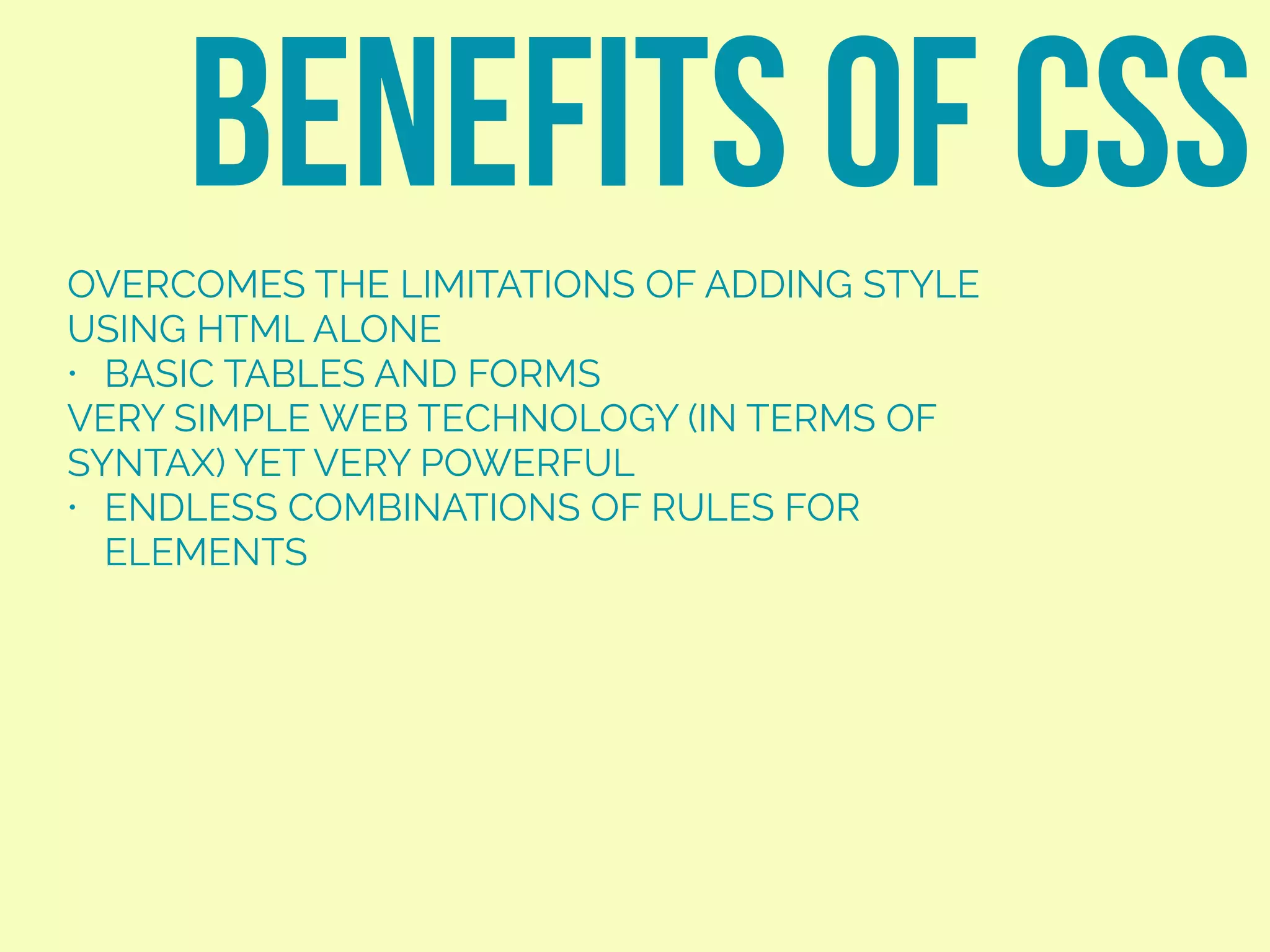

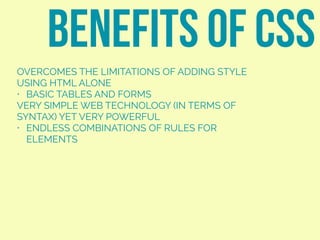

OVERCOMES THE LIMITATIONS OF ADDING STYLE
USING HTML ALONE
• BASIC TABLES AND FORMS
VERY SIMPLE WEB TECHNOLOGY (IN TERMS OF
SYNTAX) YET VERY POWERFUL
• ENDLESS COMBINATIONS OF RULES FOR
ELEMENTS
BENEFITS OF CSS

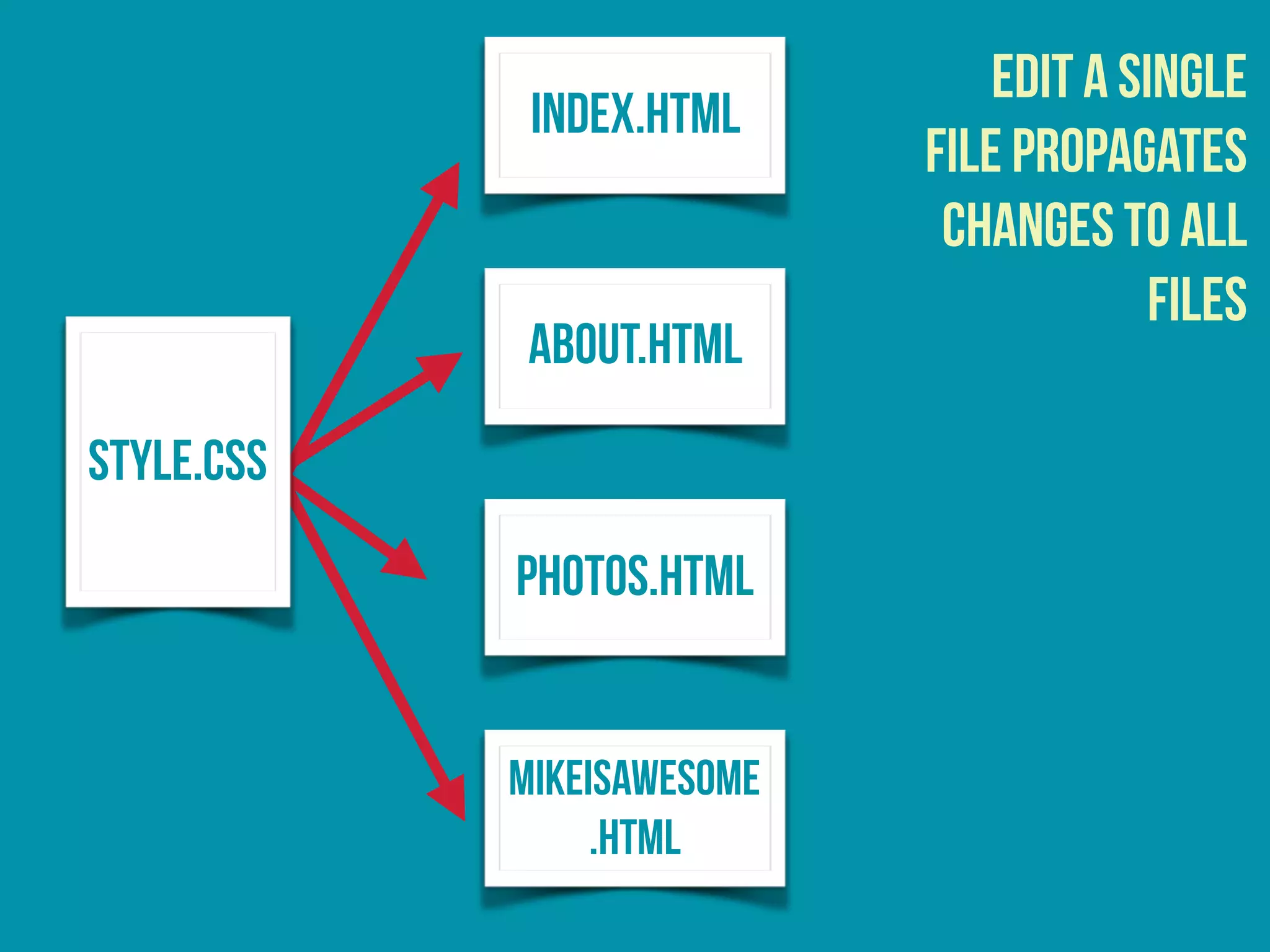

INDEX.HTML
ABOUT.HTML
PHOTOS.HTML
MIKEISAWESOME
.HTML
STYLE.CSS
EDIT A SINGLE
FILE PROPAGATES
CHANGES TO ALL
FILES

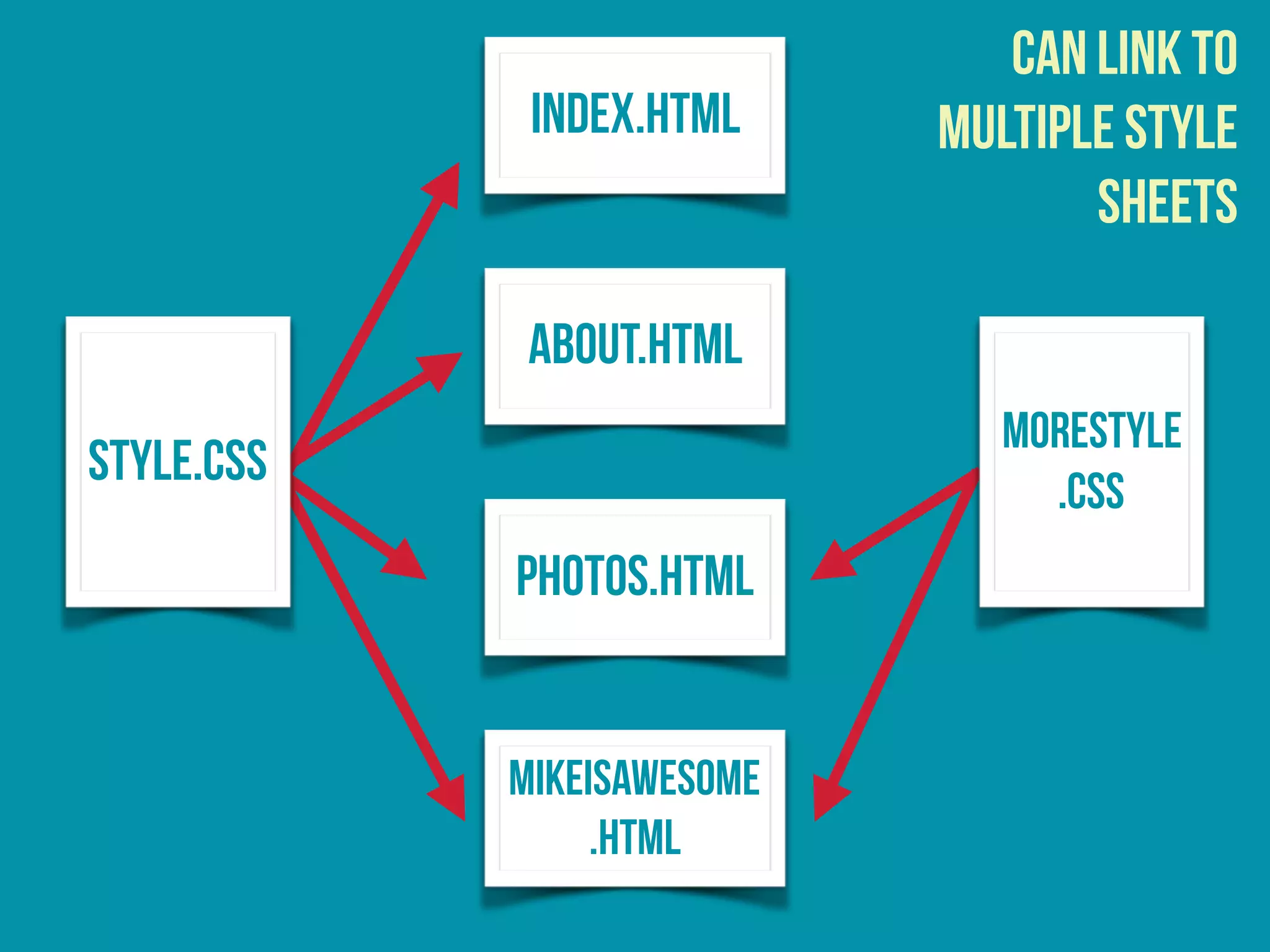

INDEX.HTML
ABOUT.HTML
PHOTOS.HTML
MIKEISAWESOME
.HTML
STYLE.CSS
MORESTYLE
.CSS
CAN LINK TO
MULTIPLE STYLE
SHEETS

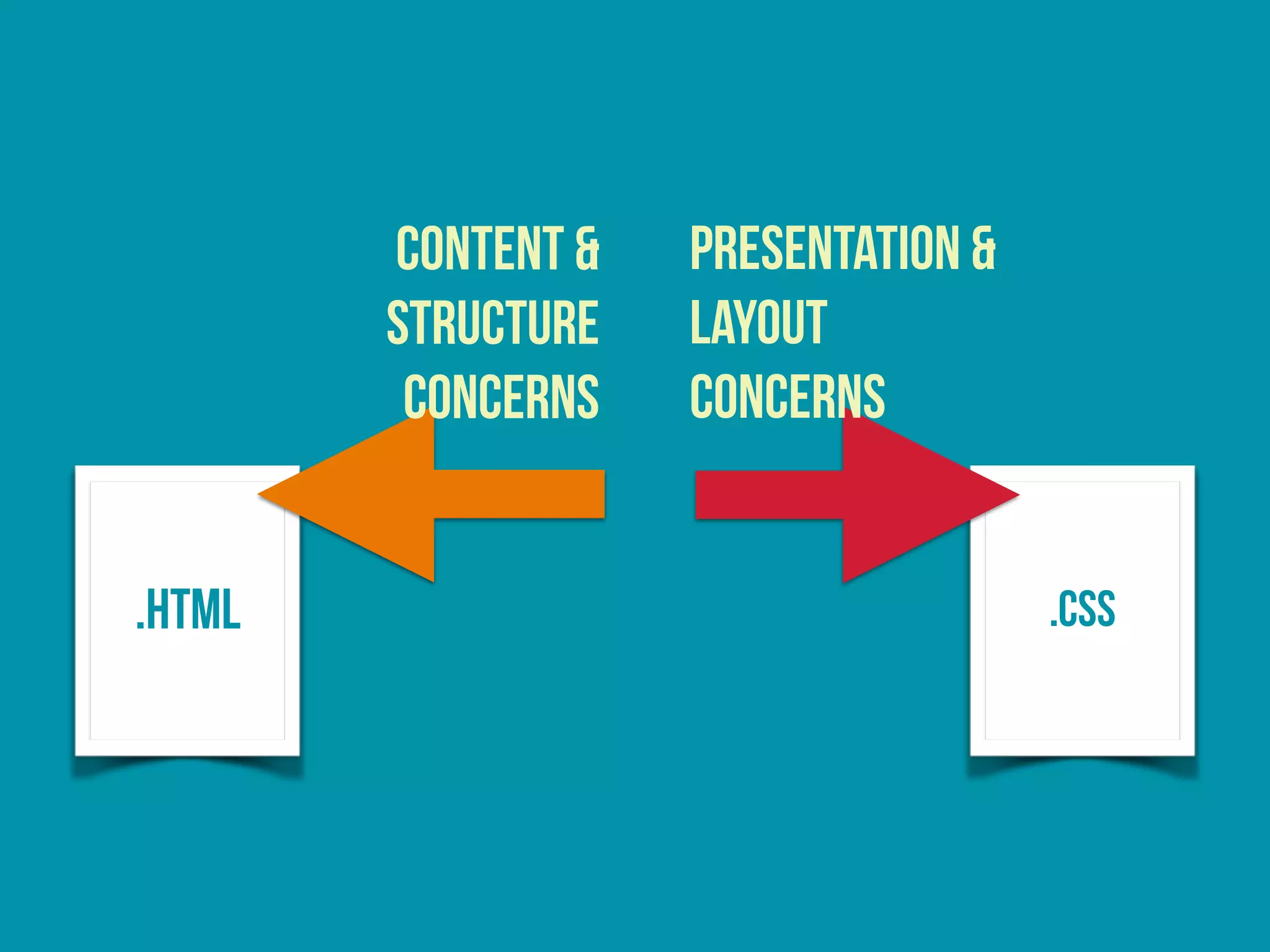

.HTML
CONTENT &
STRUCTURE
CONCERNS
.CSS
PRESENTATION &
LAYOUT
CONCERNS

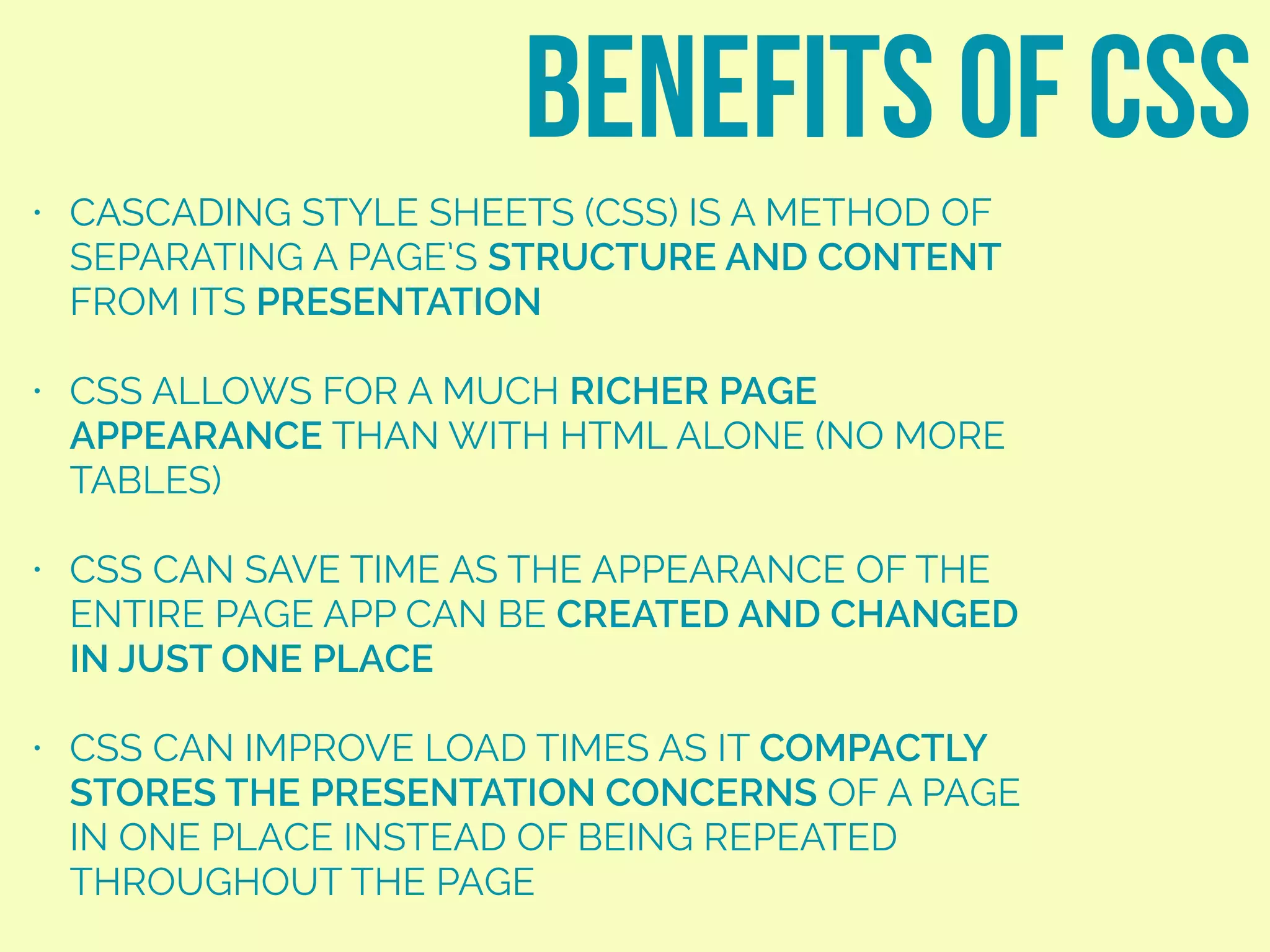

• CASCADING STYLE SHEETS (CSS) IS A METHOD OF
SEPARATING A PAGE’S STRUCTURE AND CONTENT
FROM ITS PRESENTATION
• CSS ALLOWS FOR A MUCH RICHER PAGE
APPEARANCE THAN WITH HTML ALONE (NO MORE
TABLES)
• CSS CAN SAVE TIME AS THE APPEARANCE OF THE
ENTIRE PAGE APP CAN BE CREATED AND CHANGED
IN JUST ONE PLACE
• CSS CAN IMPROVE LOAD TIMES AS IT COMPACTLY
STORES THE PRESENTATION CONCERNS OF A PAGE
IN ONE PLACE INSTEAD OF BEING REPEATED
THROUGHOUT THE PAGE
benefits of css

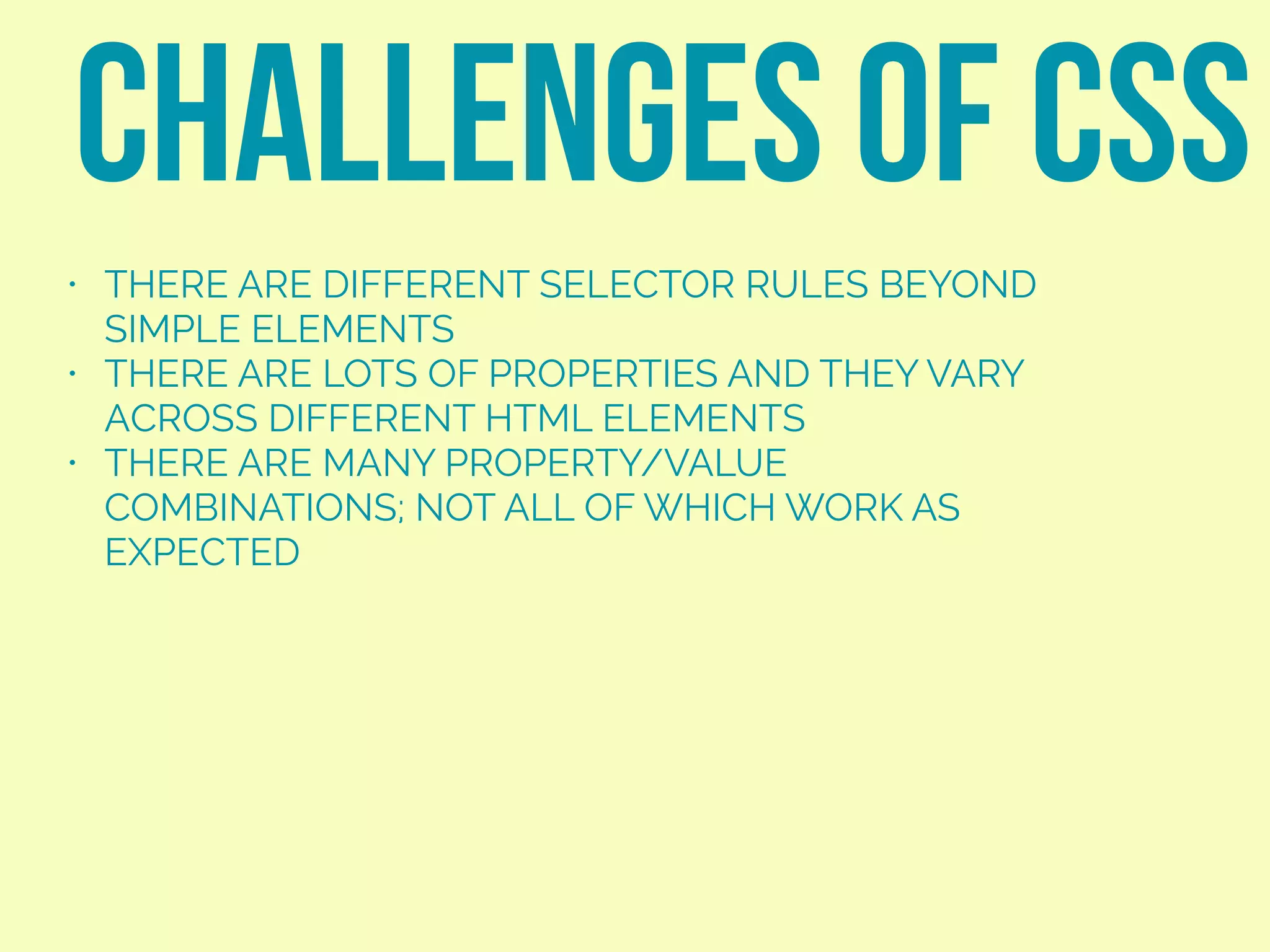

• THERE ARE DIFFERENT SELECTOR RULES BEYOND
SIMPLE ELEMENTS
• THERE ARE LOTS OF PROPERTIES AND THEY VARY
ACROSS DIFFERENT HTML ELEMENTS
• THERE ARE MANY PROPERTY/VALUE
COMBINATIONS; NOT ALL OF WHICH WORK AS
EXPECTED
CHALLENGES OF CSS

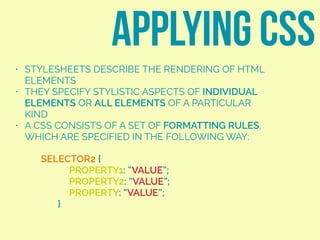

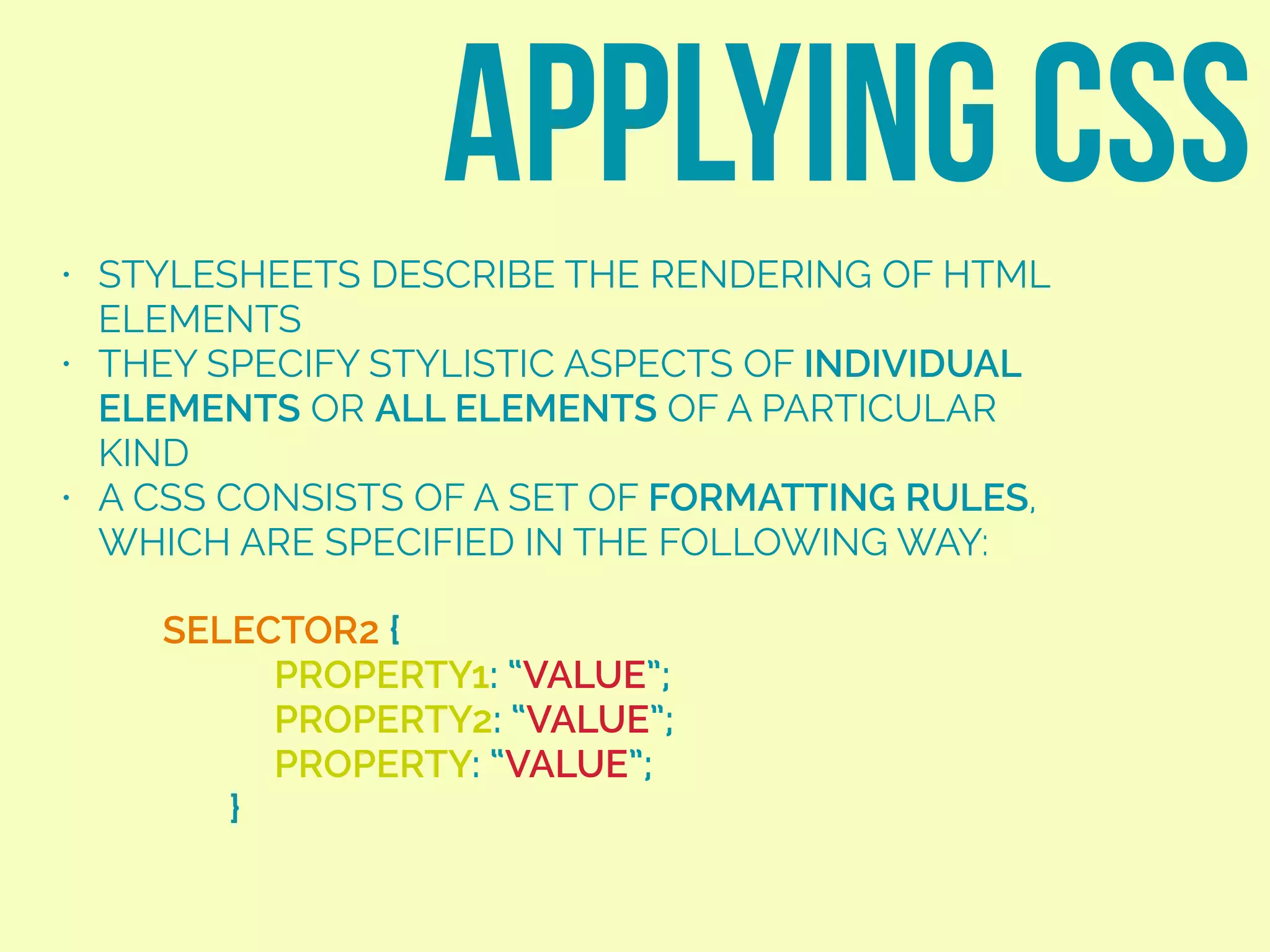

• STYLESHEETS DESCRIBE THE RENDERING OF HTML
ELEMENTS
• THEY SPECIFY STYLISTIC ASPECTS OF INDIVIDUAL
ELEMENTS OR ALL ELEMENTS OF A PARTICULAR
KIND
• A CSS CONSISTS OF A SET OF FORMATTING RULES,
WHICH ARE SPECIFIED IN THE FOLLOWING WAY:
APPLYING CSS
SELECTOR2 {
}

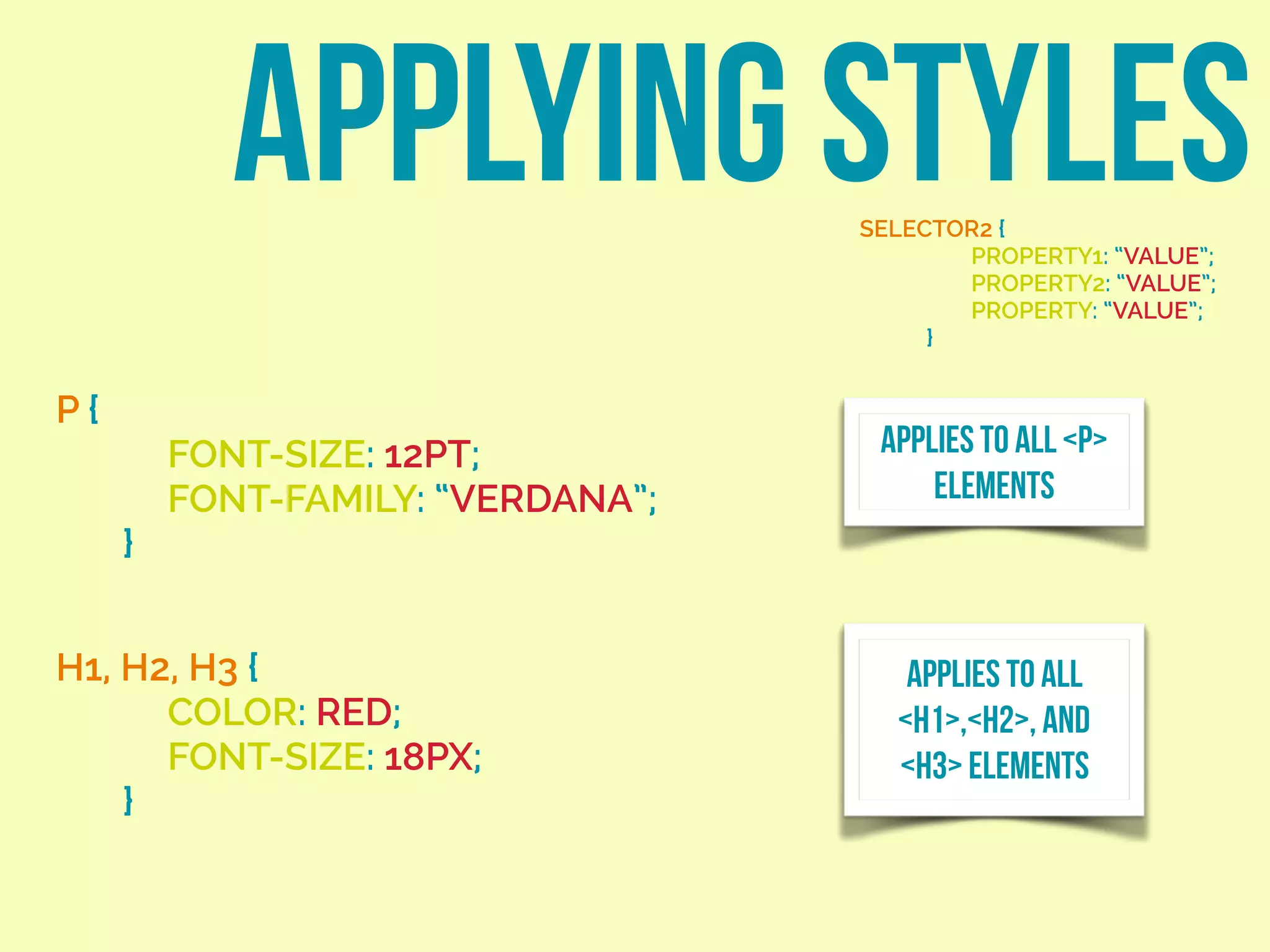

APPLYING STYLESSELECTOR2 {
}
P {
FONT-SIZE: 12PT;
FONT-FAMILY: “VERDANA”;
}
APPLIES TO ALL <P>
ELEMENTS
H1, H2, H3 {
COLOR: RED;
FONT-SIZE: 18PX;
}
APPLIES TO ALL
<H1>,<H2>, AND
<H3> ELEMENTS

}
* {

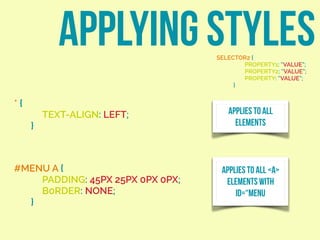

TEXT-ALIGN: LEFT;
}
APPLIES TO ALL
ELEMENTS
#MENU A {
PADDING: 45PX 25PX 0PX 0PX;
B0RDER: NONE;
}
APPLIES TO ALL <A>
ELEMENTS WITH
ID=“MENU

}

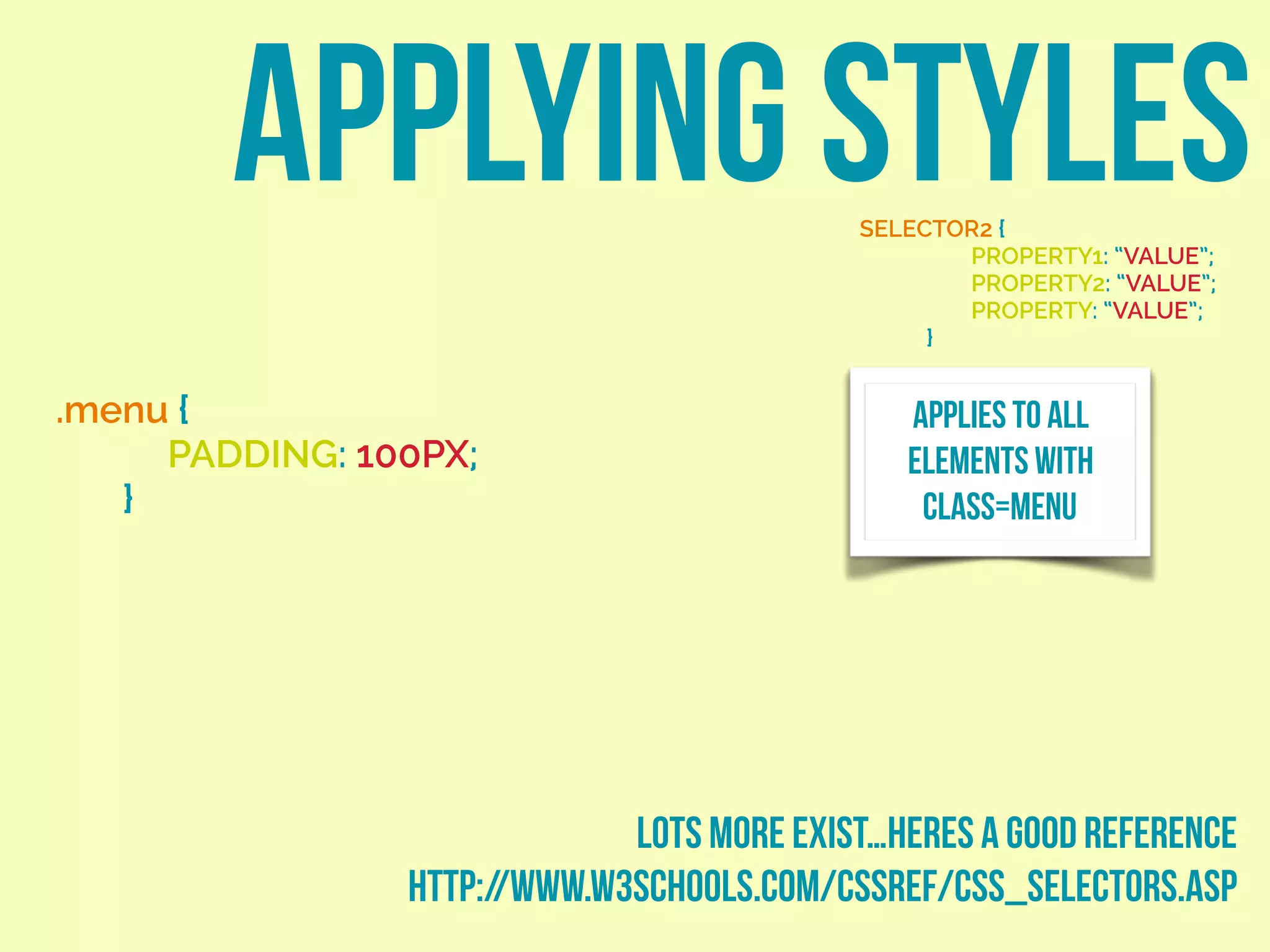

.menu {
PADDING: 100PX;
}
APPLIES TO ALL
ELEMENTS WITH
CLASS=MENU
LOTS MORE EXIST…HERES A GOOD REFERENCE
http://www.w3schools.com/cssref/css_selectors.asp

USING CSS WITH HTML
APPLYING
CSS

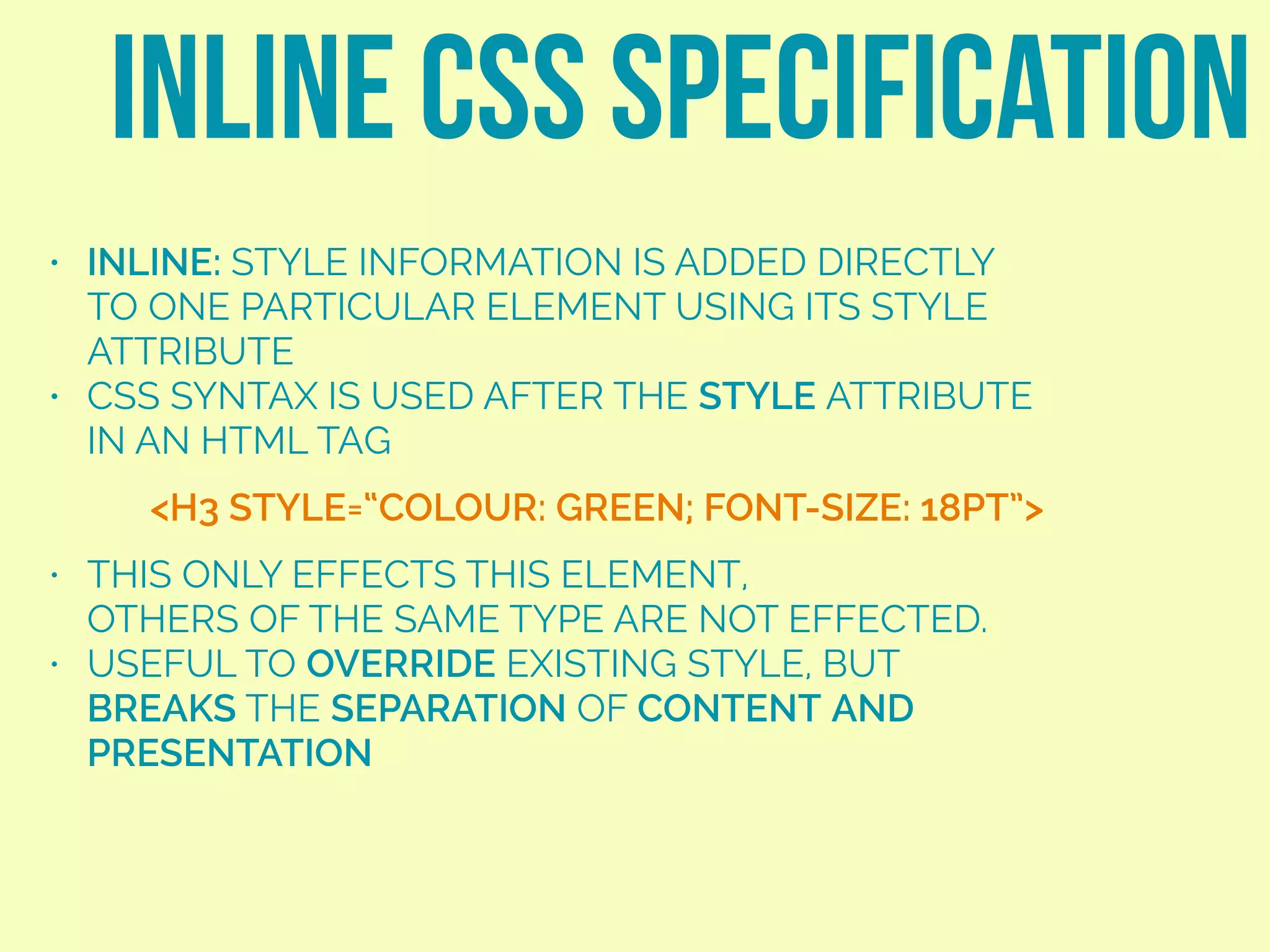

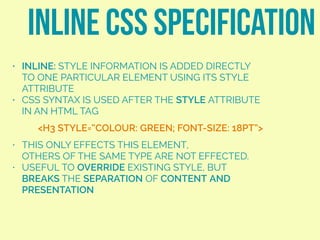

• INLINE: STYLE INFORMATION IS ADDED DIRECTLY
TO ONE PARTICULAR ELEMENT USING ITS STYLE
ATTRIBUTE
• CSS SYNTAX IS USED AFTER THE STYLE ATTRIBUTE
IN AN HTML TAG
• THIS ONLY EFFECTS THIS ELEMENT,  
OTHERS OF THE SAME TYPE ARE NOT EFFECTED.
• USEFUL TO OVERRIDE EXISTING STYLE, BUT
BREAKS THE SEPARATION OF CONTENT AND
PRESENTATION
INLINE CSS SPECIFICATION
<H3 STYLE=“COLOUR: GREEN; FONT-SIZE: 18PT”>

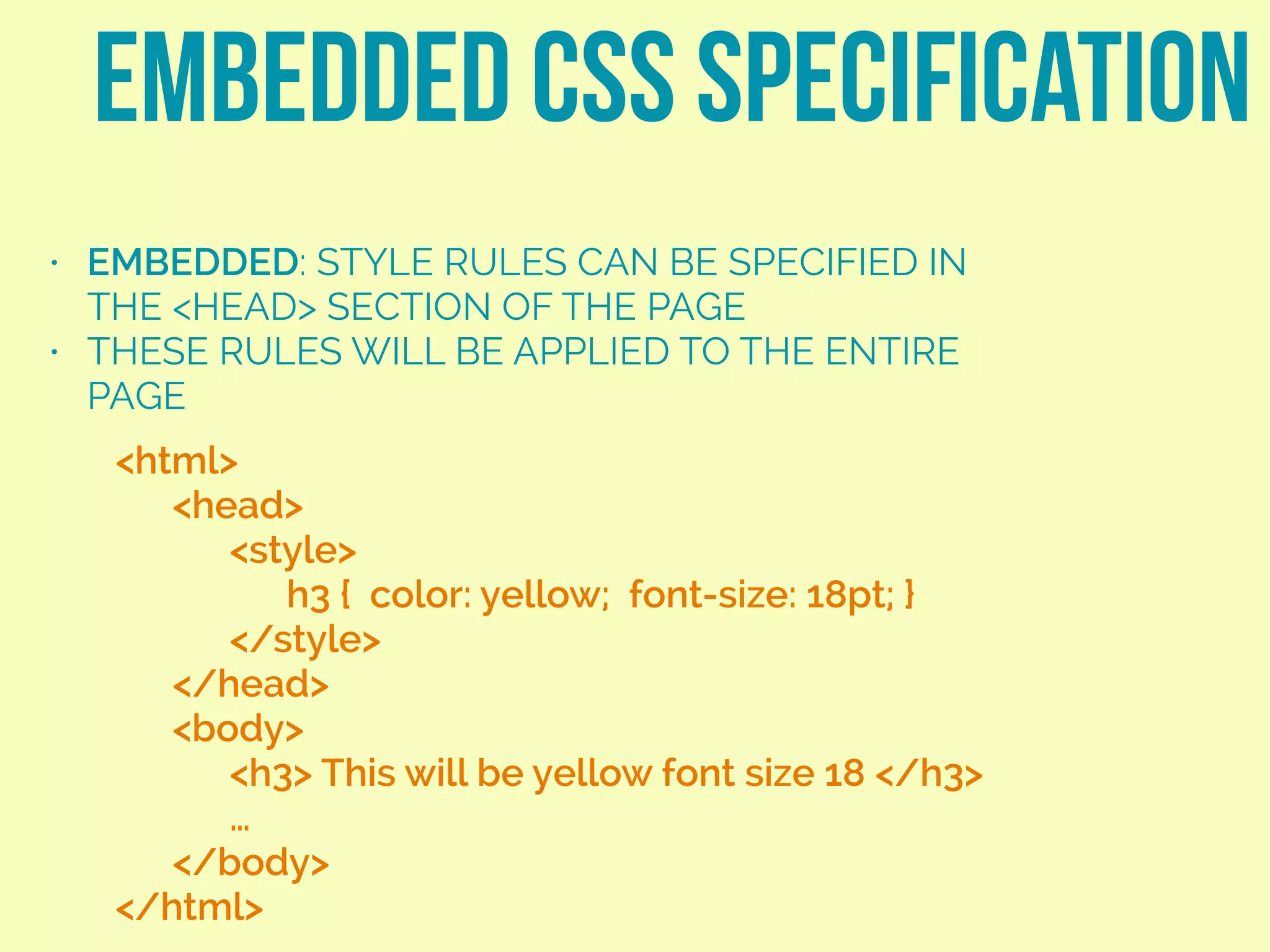

• EMBEDDED: STYLE RULES CAN BE SPECIFIED IN
THE <HEAD> SECTION OF THE PAGE
• THESE RULES WILL BE APPLIED TO THE ENTIRE
PAGE
EMBEDDED CSS SPECIFICATION
<html>
<head>
<style>
h3 { color: yellow; font-size: 18pt; }
</style>
</head>
<body>
<h3> This will be yellow font size 18 </h3>
…
</body>
</html>

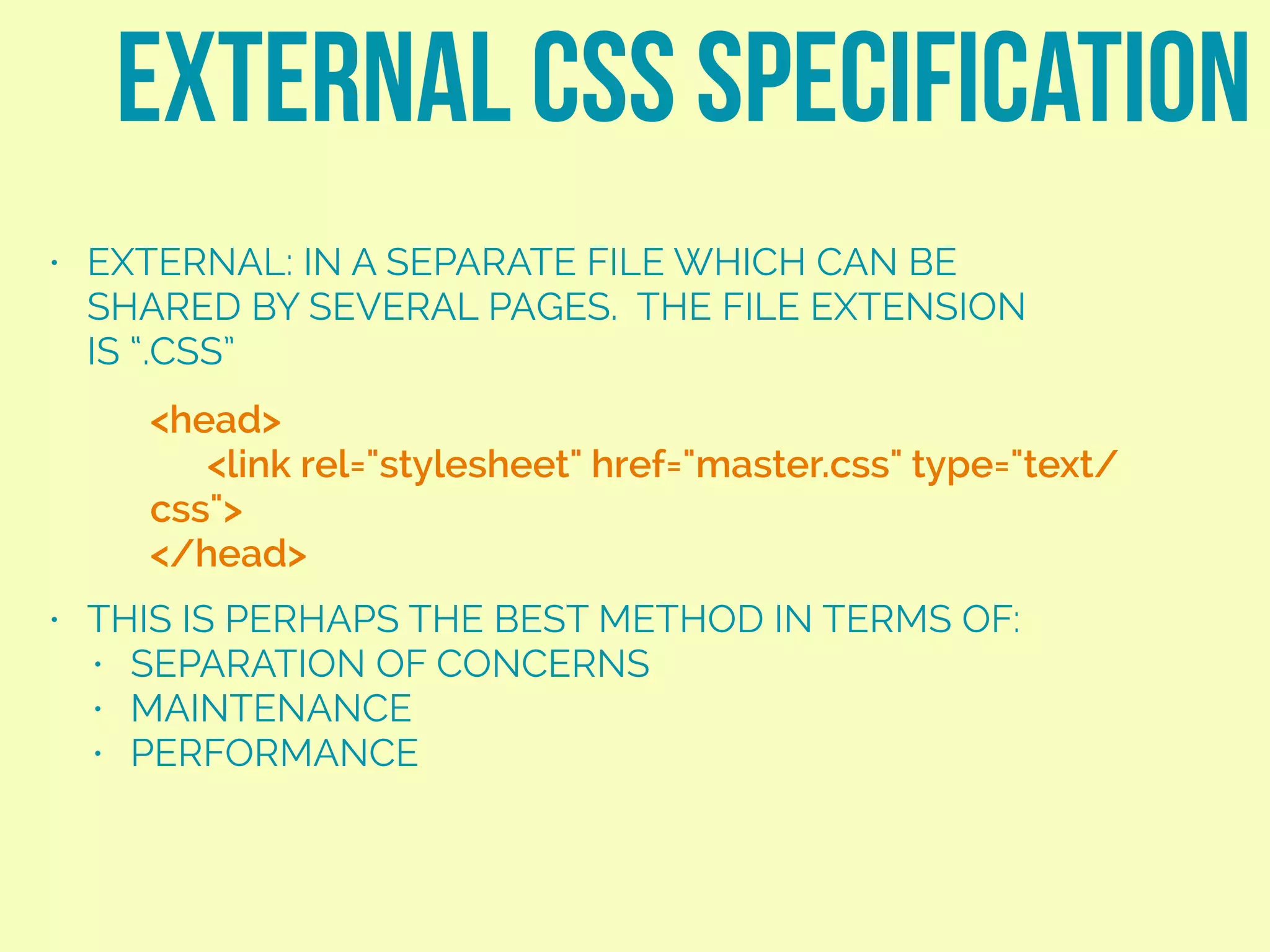

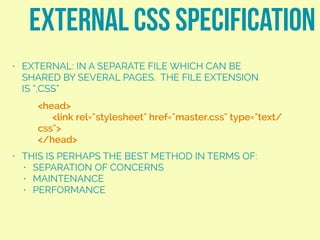

• EXTERNAL: IN A SEPARATE FILE WHICH CAN BE
SHARED BY SEVERAL PAGES. THE FILE EXTENSION
IS “.CSS”
• THIS IS PERHAPS THE BEST METHOD IN TERMS OF:
• SEPARATION OF CONCERNS
• MAINTENANCE
• PERFORMANCE
EXTERNAL CSS SPECIFICATION
<head>
<link rel="stylesheet" href="master.css" type="text/
css">
</head>

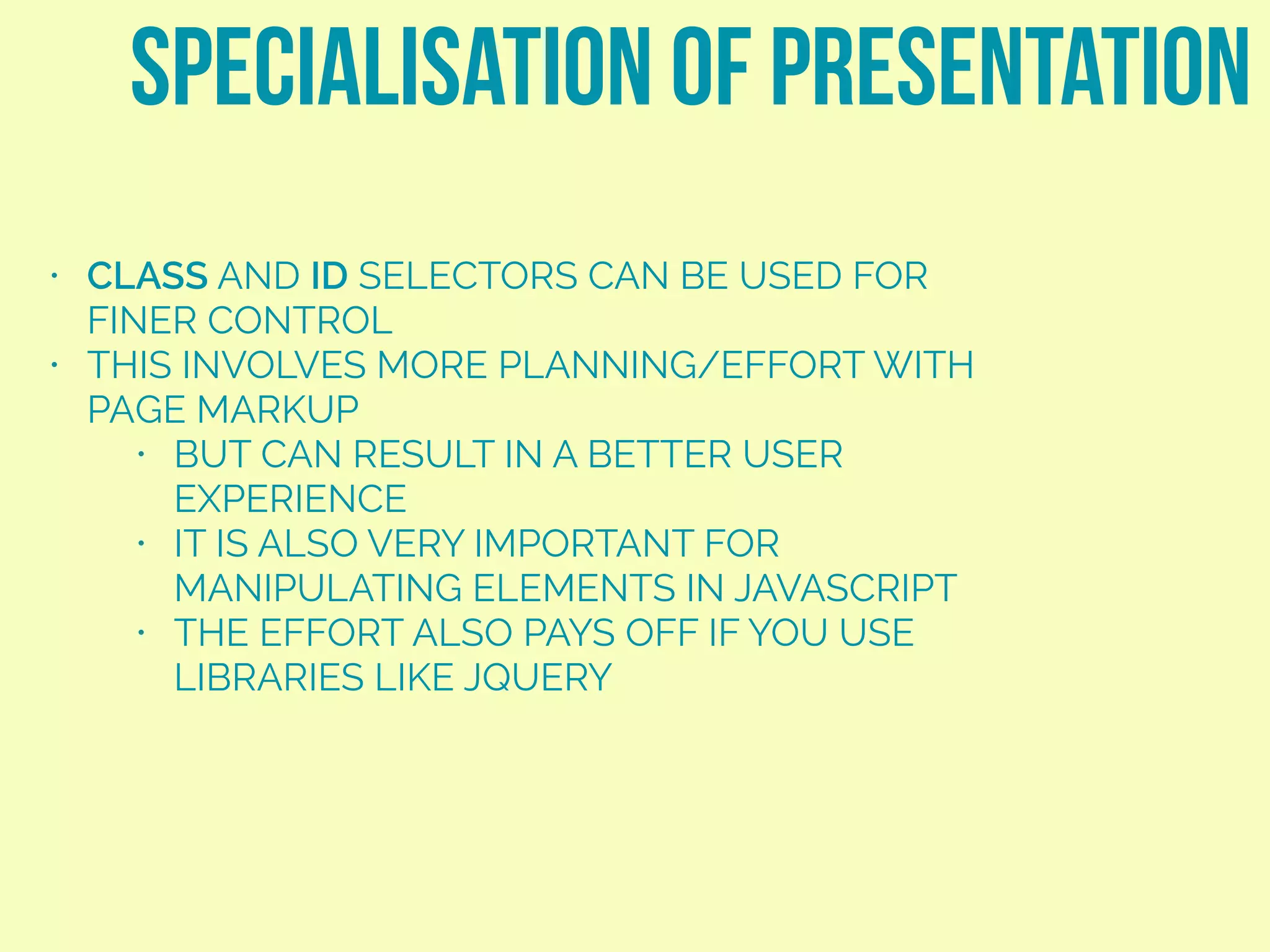

• CLASS AND ID SELECTORS CAN BE USED FOR
FINER CONTROL
• THIS INVOLVES MORE PLANNING/EFFORT WITH
PAGE MARKUP
• BUT CAN RESULT IN A BETTER USER
EXPERIENCE
• IT IS ALSO VERY IMPORTANT FOR
MANIPULATING ELEMENTS IN JAVASCRIPT
• THE EFFORT ALSO PAYS OFF IF YOU USE
LIBRARIES LIKE JQUERY
SPECIALISATION OF PRESENTATION

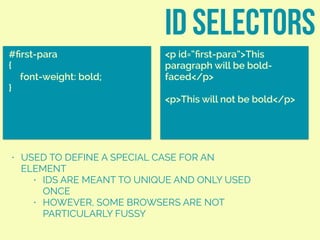

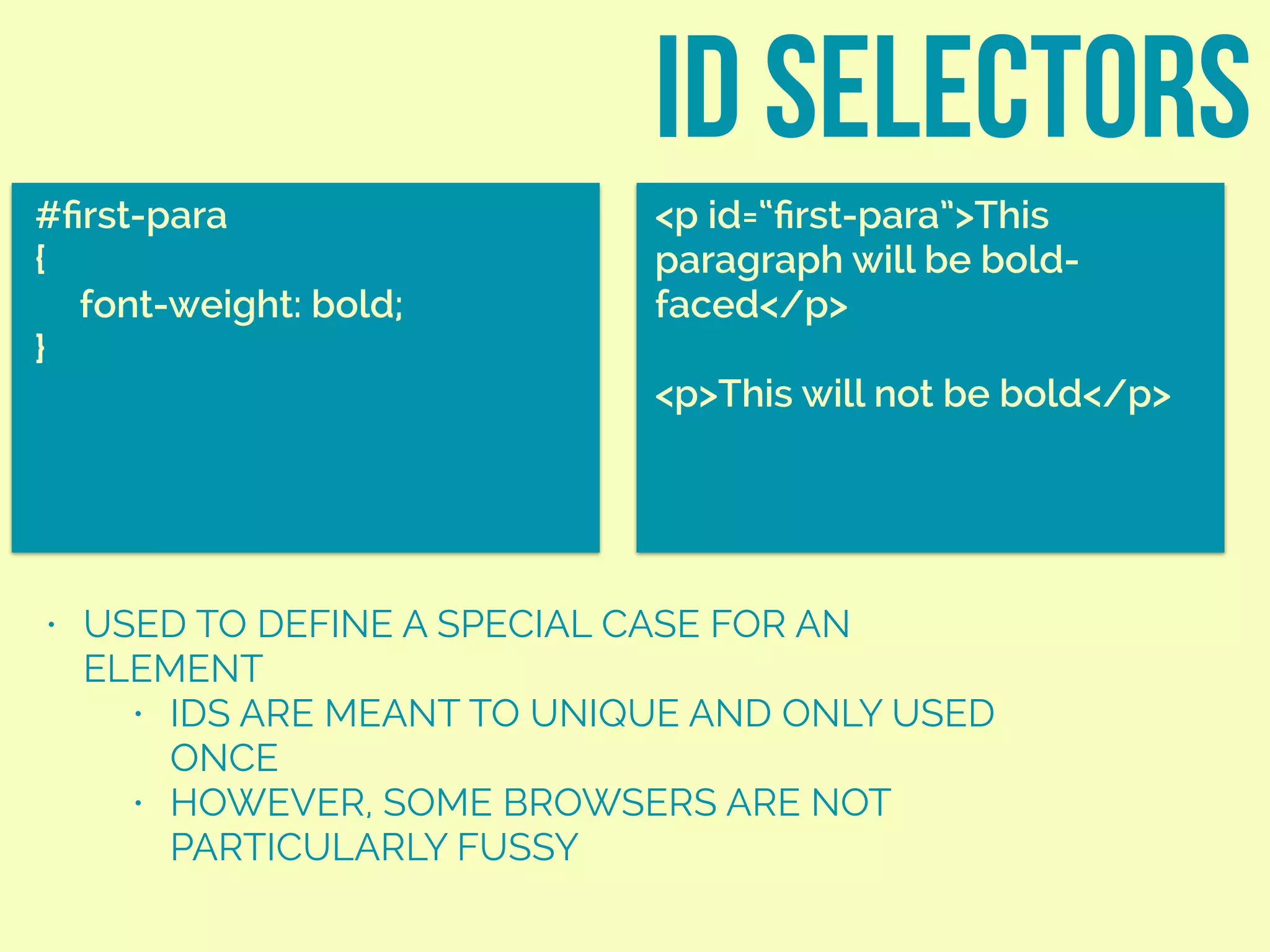

• USED TO DEFINE A SPECIAL CASE FOR AN
ELEMENT
• IDS ARE MEANT TO UNIQUE AND ONLY USED
ONCE
• HOWEVER, SOME BROWSERS ARE NOT
PARTICULARLY FUSSY
ID SELECTORS
#ﬁrst-para
{
font-weight: bold;
}
<p id=“ﬁrst-para”>This
paragraph will be bold-
faced</p>
<p>This will not be bold</p>

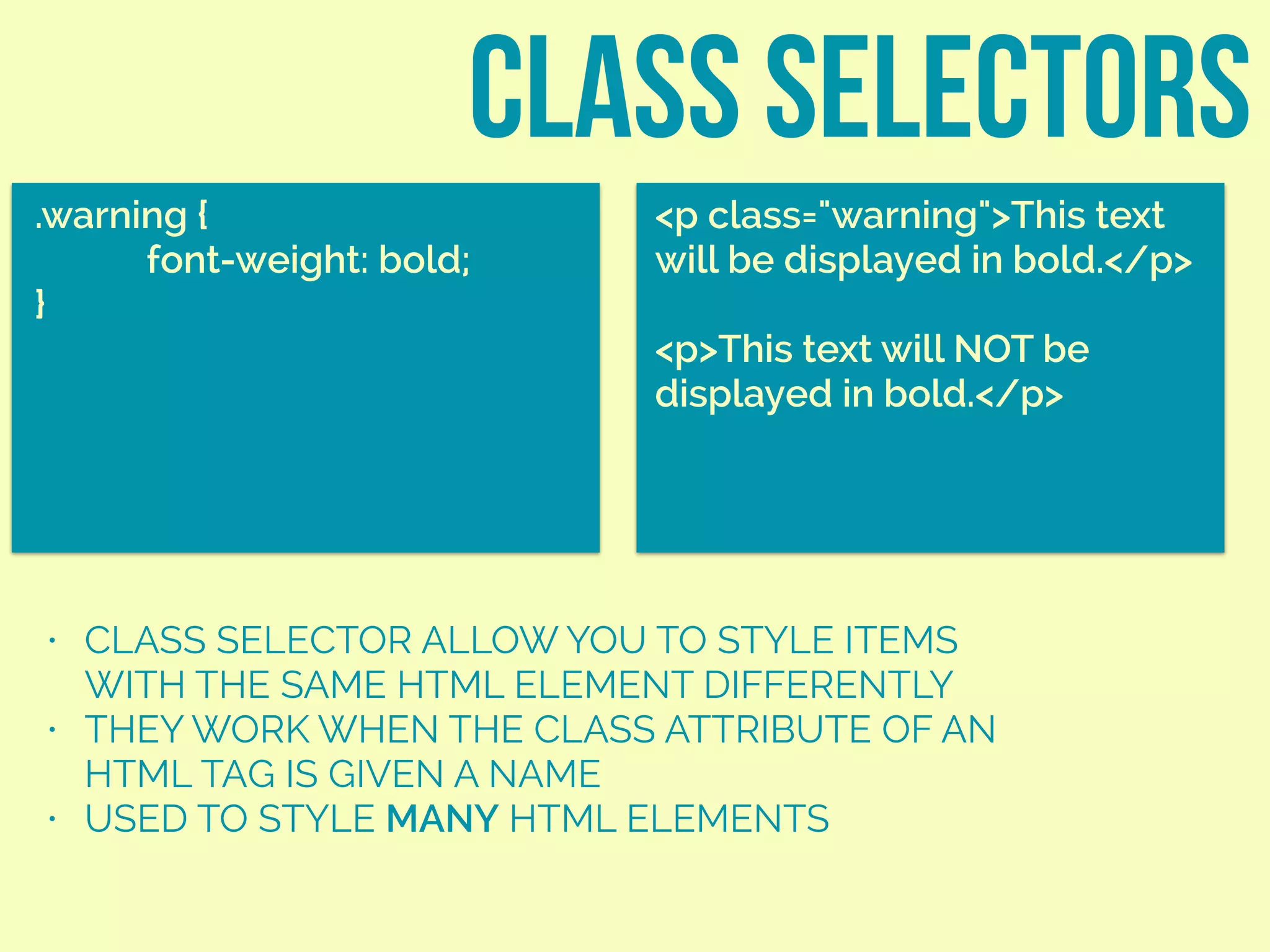

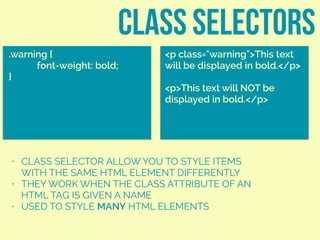

class SELECTORS
.warning {
font-weight: bold;
}
<p class="warning">This text
will be displayed in bold.</p>
<p>This text will NOT be
displayed in bold.</p>
• CLASS SELECTOR ALLOW YOU TO STYLE ITEMS
WITH THE SAME HTML ELEMENT DIFFERENTLY
• THEY WORK WHEN THE CLASS ATTRIBUTE OF AN
HTML TAG IS GIVEN A NAME
• USED TO STYLE MANY HTML ELEMENTS

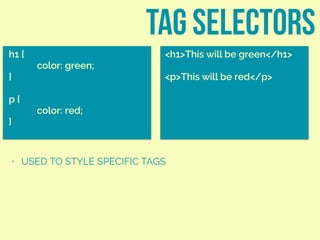

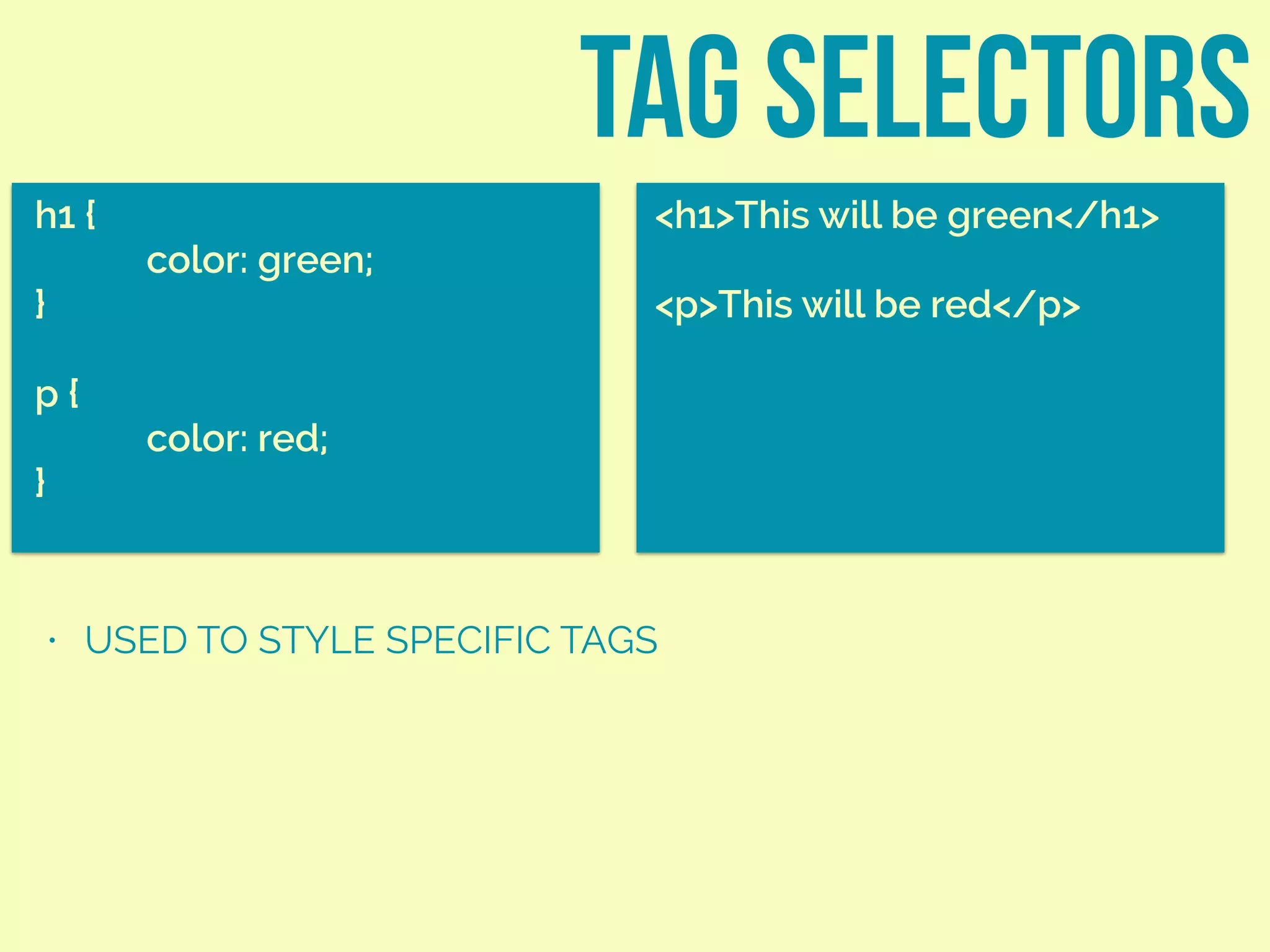

TAG SELECTORS
h1 {
color: green;
}
p {
color: red;
}
<h1>This will be green</h1>
<p>This will be red</p>
• USED TO STYLE SPECIFIC TAGS

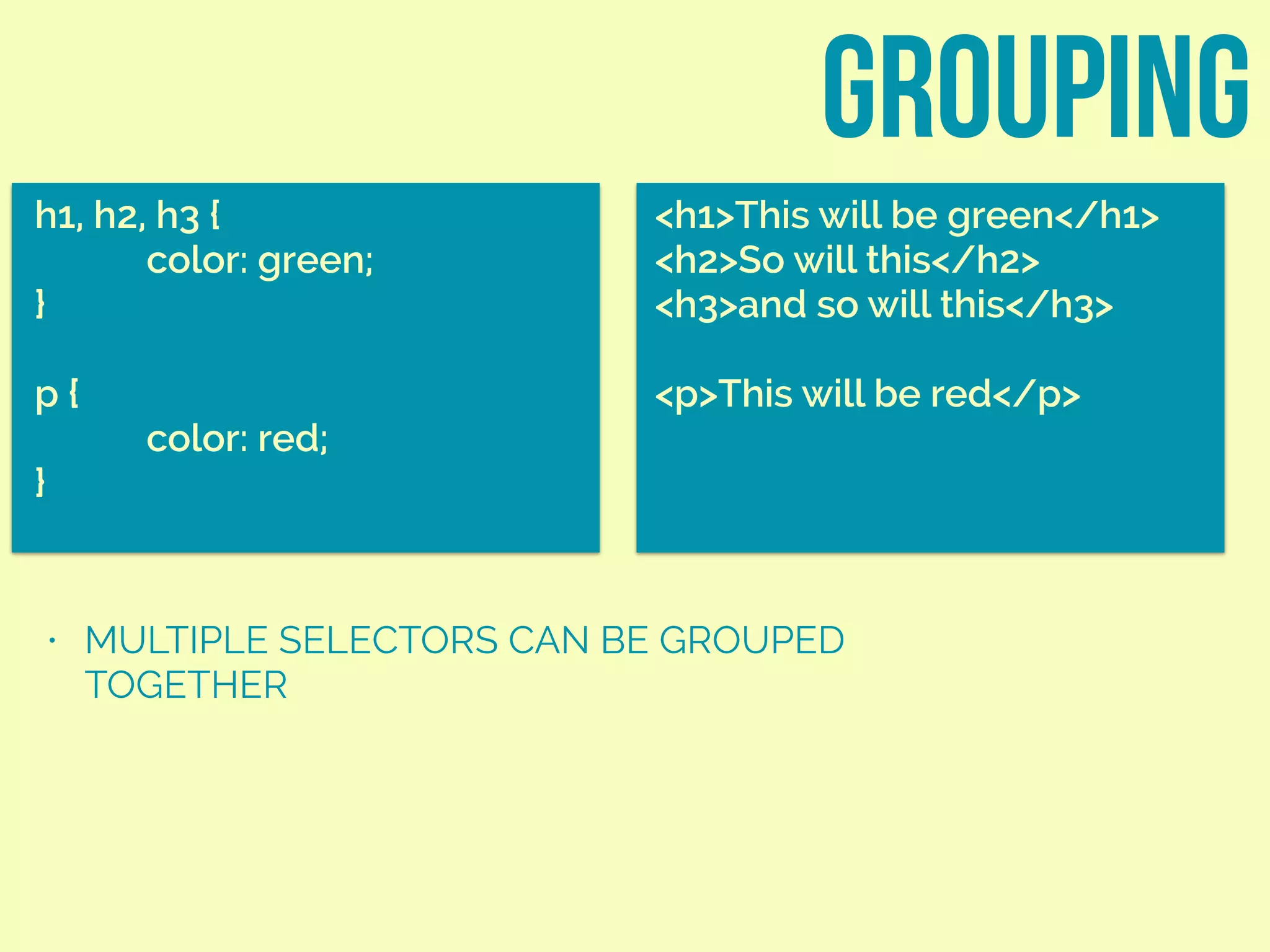

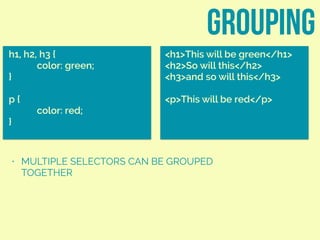

grouping
h1, h2, h3 {
color: green;
}
p {
color: red;
}
<h2>So will this</h2>
<h3>and so will this</h3>
<p>This will be red</p>
• MULTIPLE SELECTORS CAN BE GROUPED
TOGETHER

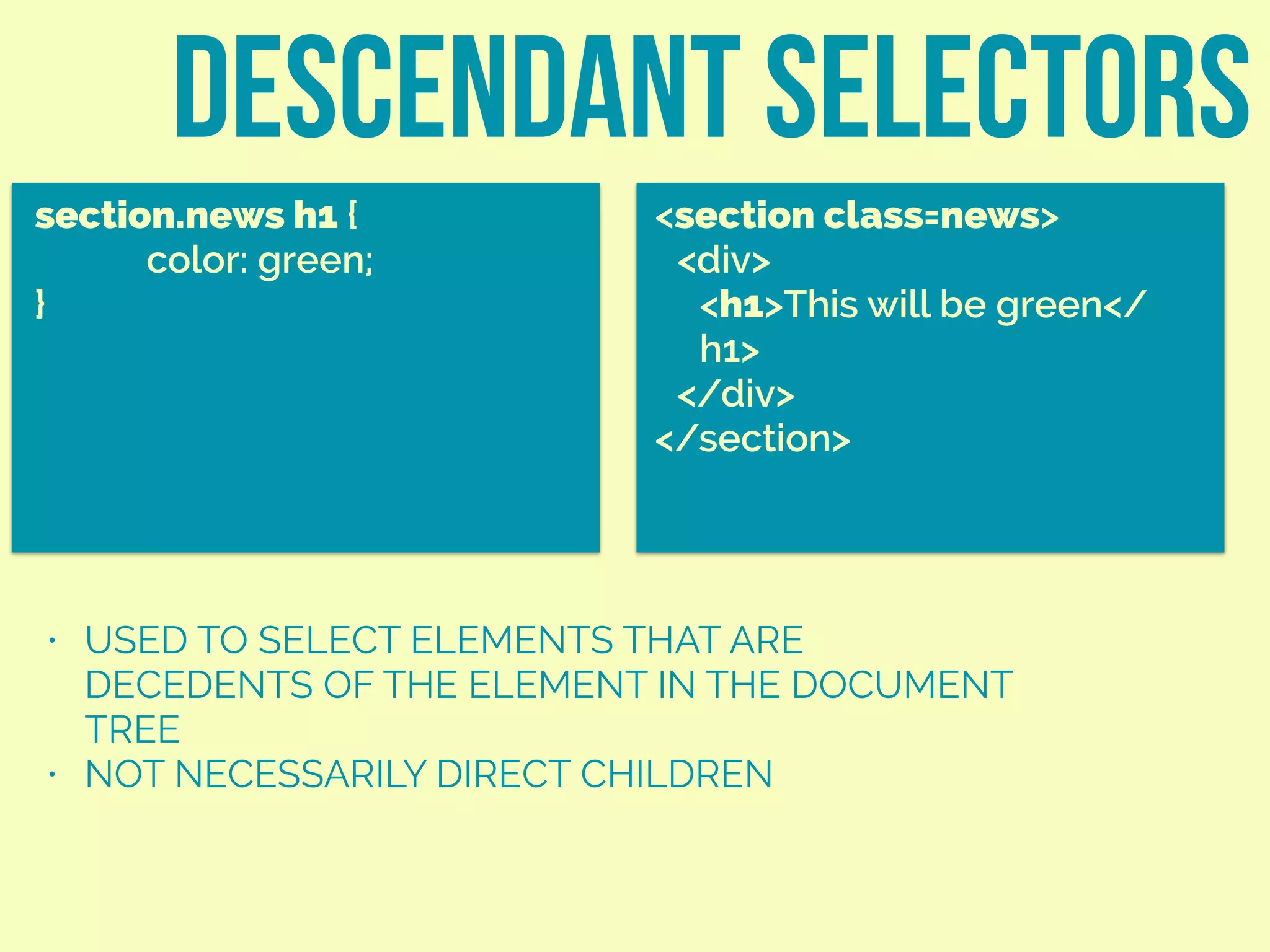

descendant selectors
section.news h1 {
color: green;
}
<section class=news>
<div>
<h1>This will be green</
h1>
</div>
</section>
• USED TO SELECT ELEMENTS THAT ARE
DECEDENTS OF THE ELEMENT IN THE DOCUMENT
TREE
• NOT NECESSARILY DIRECT CHILDREN

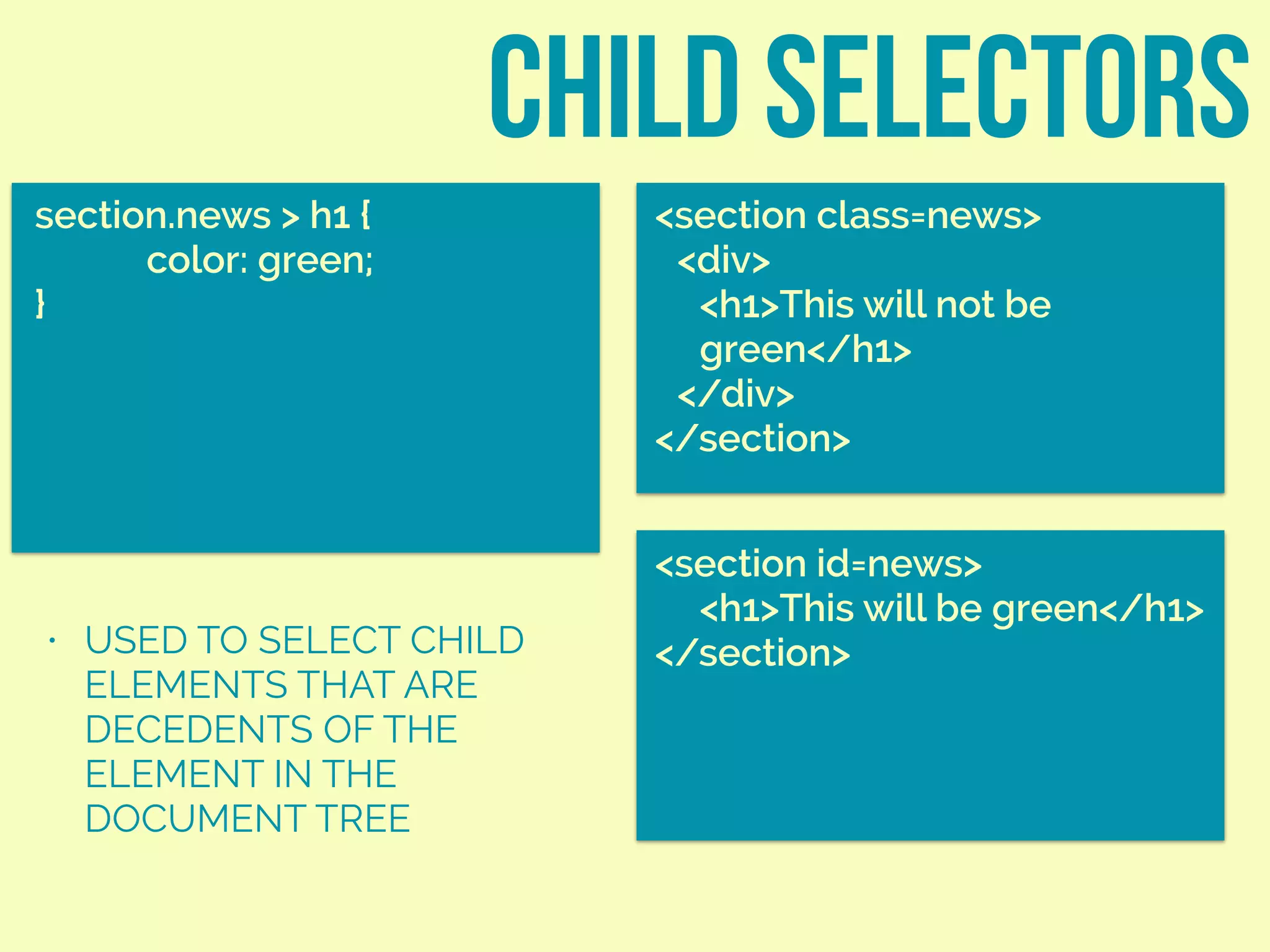

child selectors
section.news > h1 {
color: green;
}
<section class=news>
<div>
<h1>This will not be
green</h1>
</div>
</section>
• USED TO SELECT CHILD
ELEMENTS THAT ARE
DECEDENTS OF THE
ELEMENT IN THE
DOCUMENT TREE
<section id=news>
</section>

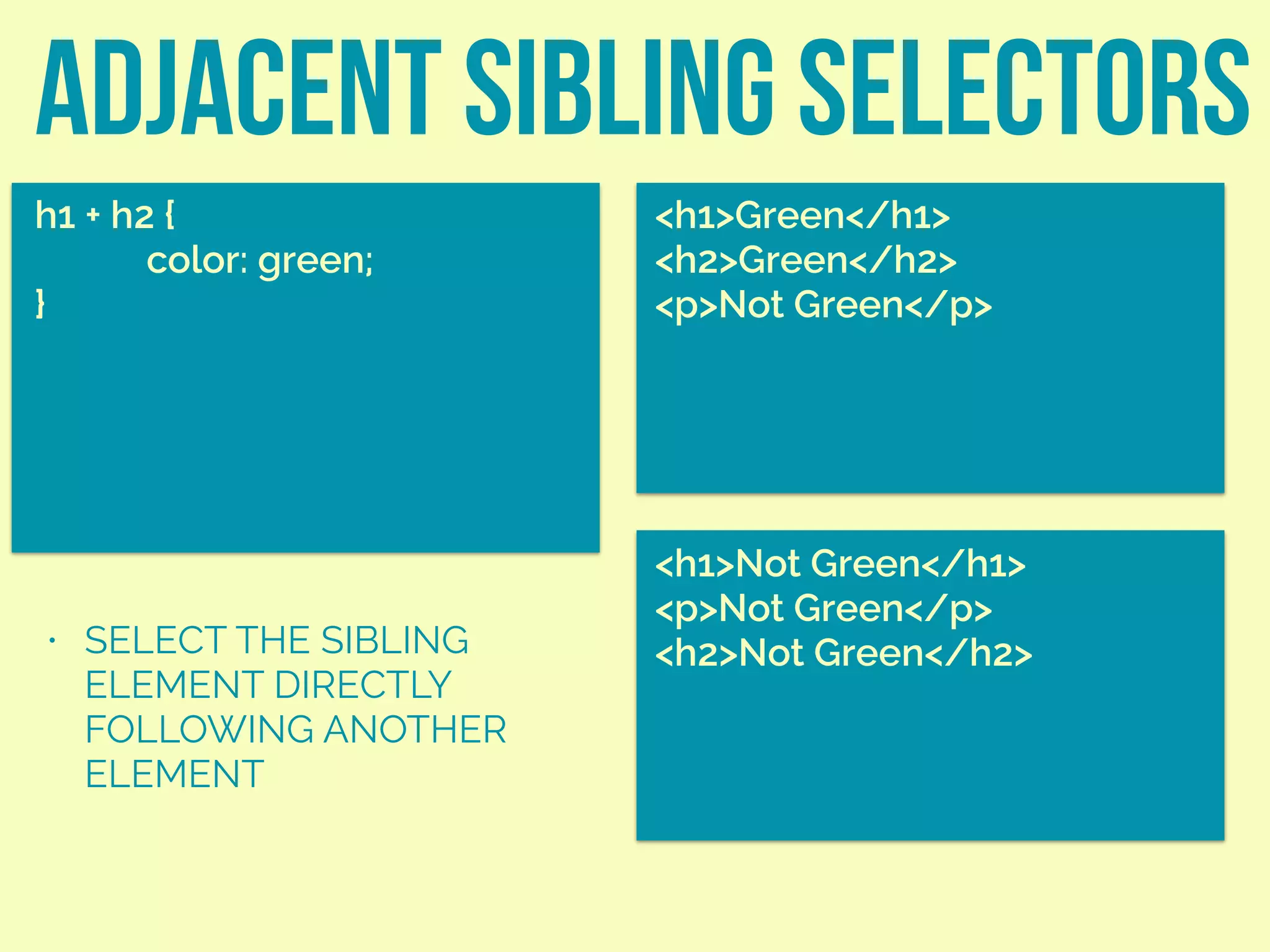

adjacent sibling selectors
h1 + h2 {
color: green;
}
<h1>Green</h1>
<h2>Green</h2>
<p>Not Green</p>
• SELECT THE SIBLING
ELEMENT DIRECTLY
FOLLOWING ANOTHER
ELEMENT
<h1>Not Green</h1>
<p>Not Green</p>
<h2>Not Green</h2>

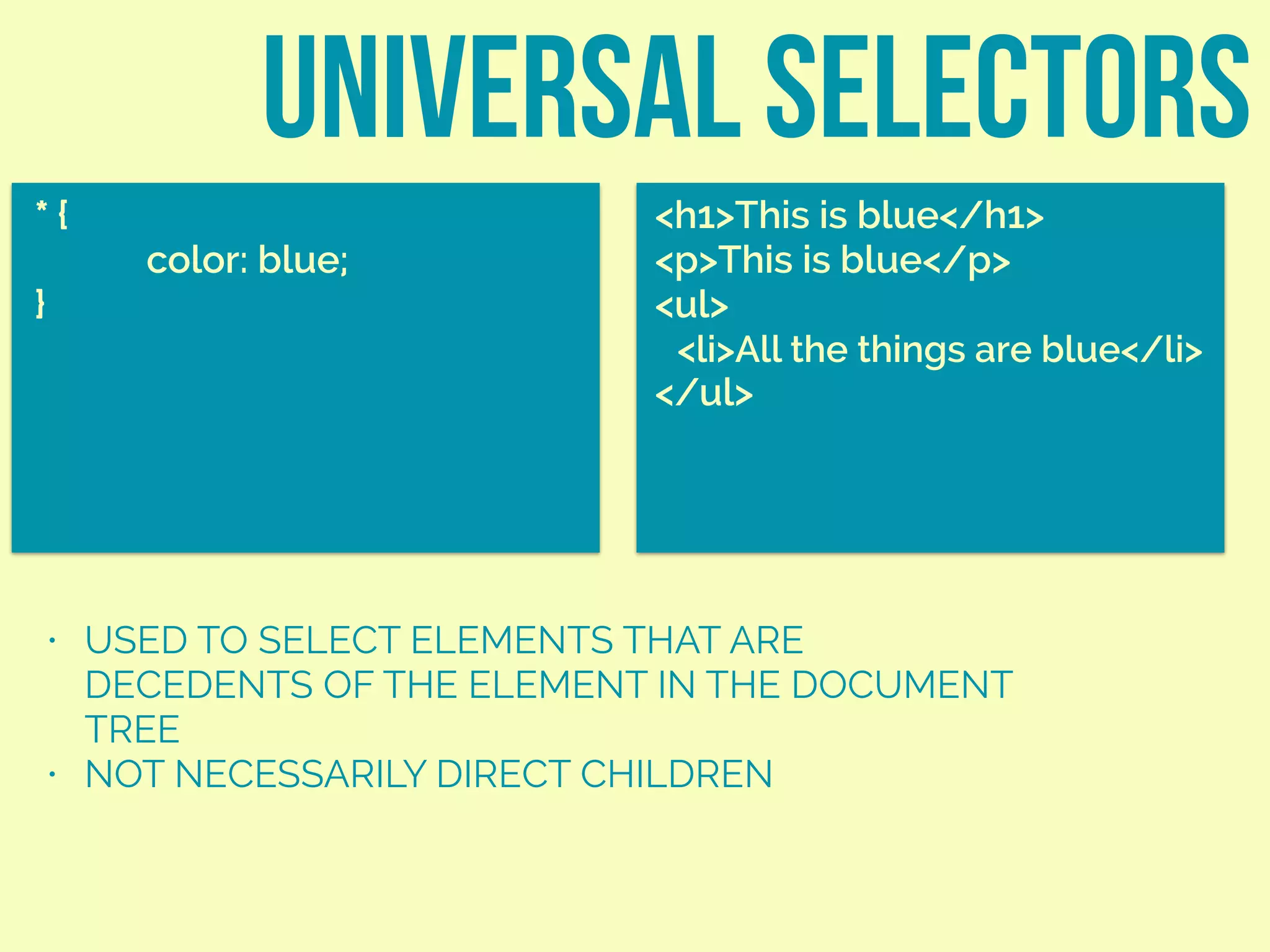

universal selectors
* {
color: blue;
}
<h1>This is blue</h1>
<p>This is blue</p>
<ul>
<li>All the things are blue</li>
</ul>
• USED TO SELECT ELEMENTS THAT ARE
DECEDENTS OF THE ELEMENT IN THE DOCUMENT
TREE
• NOT NECESSARILY DIRECT CHILDREN

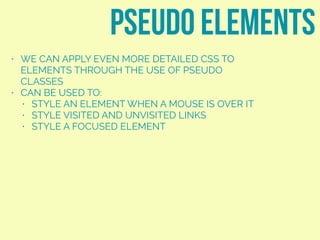

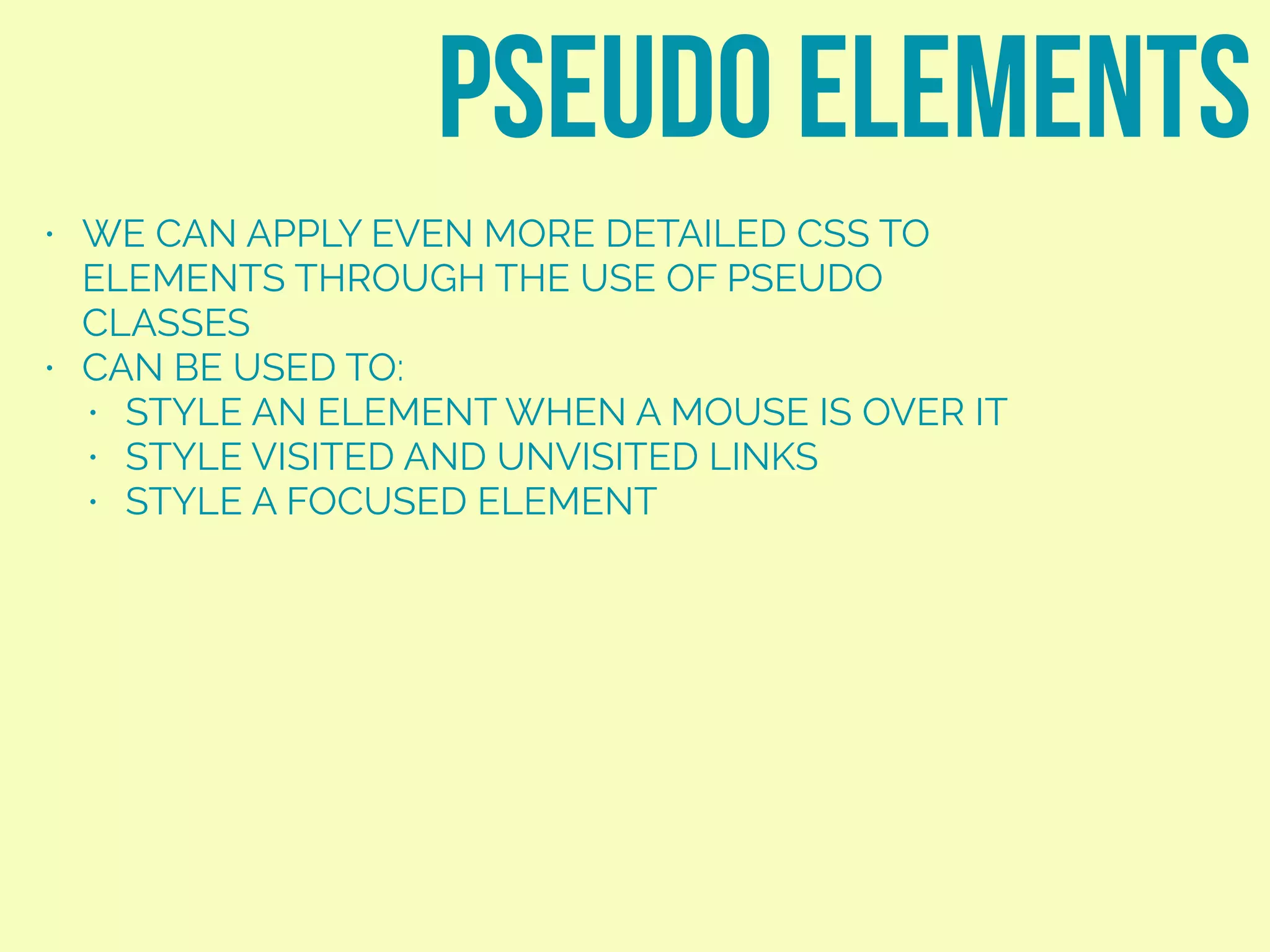

• WE CAN APPLY EVEN MORE DETAILED CSS TO
ELEMENTS THROUGH THE USE OF PSEUDO
CLASSES
• CAN BE USED TO:
• STYLE AN ELEMENT WHEN A MOUSE IS OVER IT
• STYLE VISITED AND UNVISITED LINKS
• STYLE A FOCUSED ELEMENT
pseudo elements

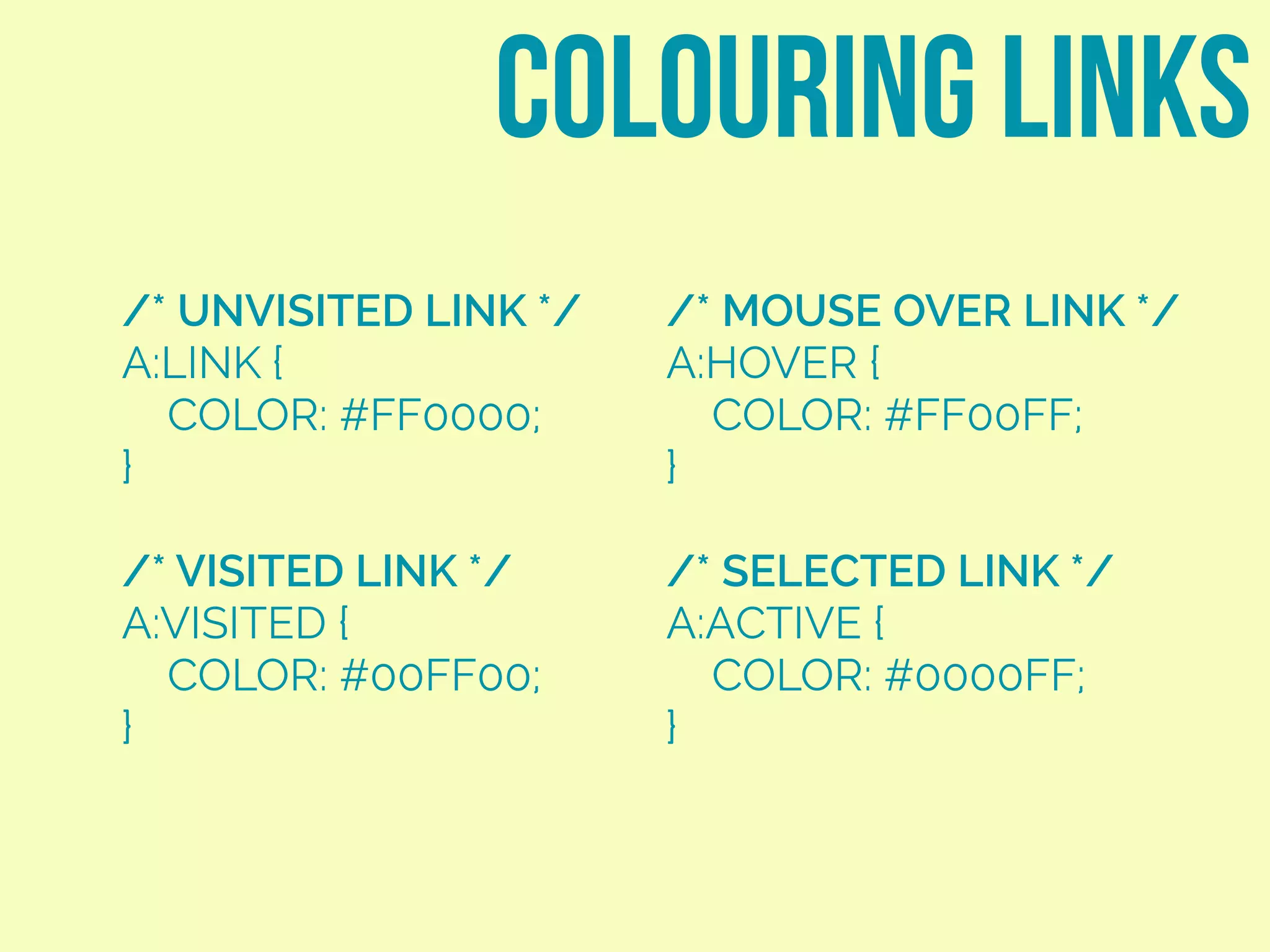

colouring links
/* MOUSE OVER LINK */
A:HOVER {
COLOR: #FF00FF;
}
/* SELECTED LINK */
A:ACTIVE {
COLOR: #0000FF;
}
/* UNVISITED LINK */
A:LINK {
COLOR: #FF0000;
}
/* VISITED LINK */
A:VISITED {
COLOR: #00FF00;
}

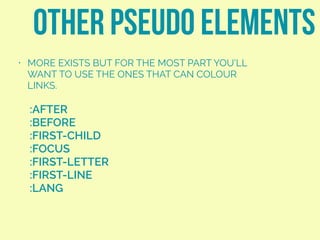

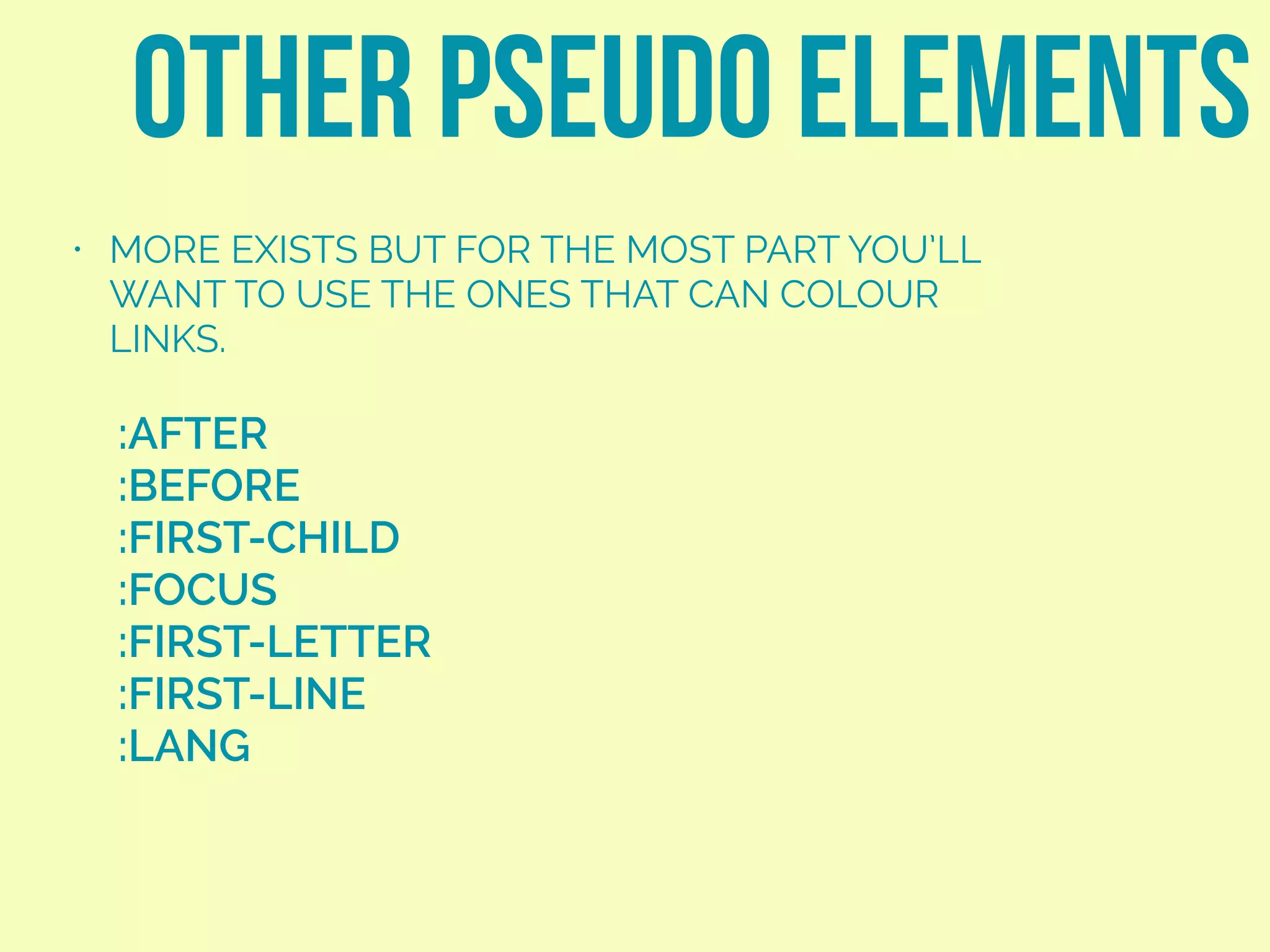

other pseudo elements
:AFTER
:BEFORE
:FIRST-CHILD
:FOCUS
:FIRST-LETTER
:FIRST-LINE
:LANG
• MORE EXISTS BUT FOR THE MOST PART YOU’LL
WANT TO USE THE ONES THAT CAN COLOUR
LINKS.

APPLYING
CSS

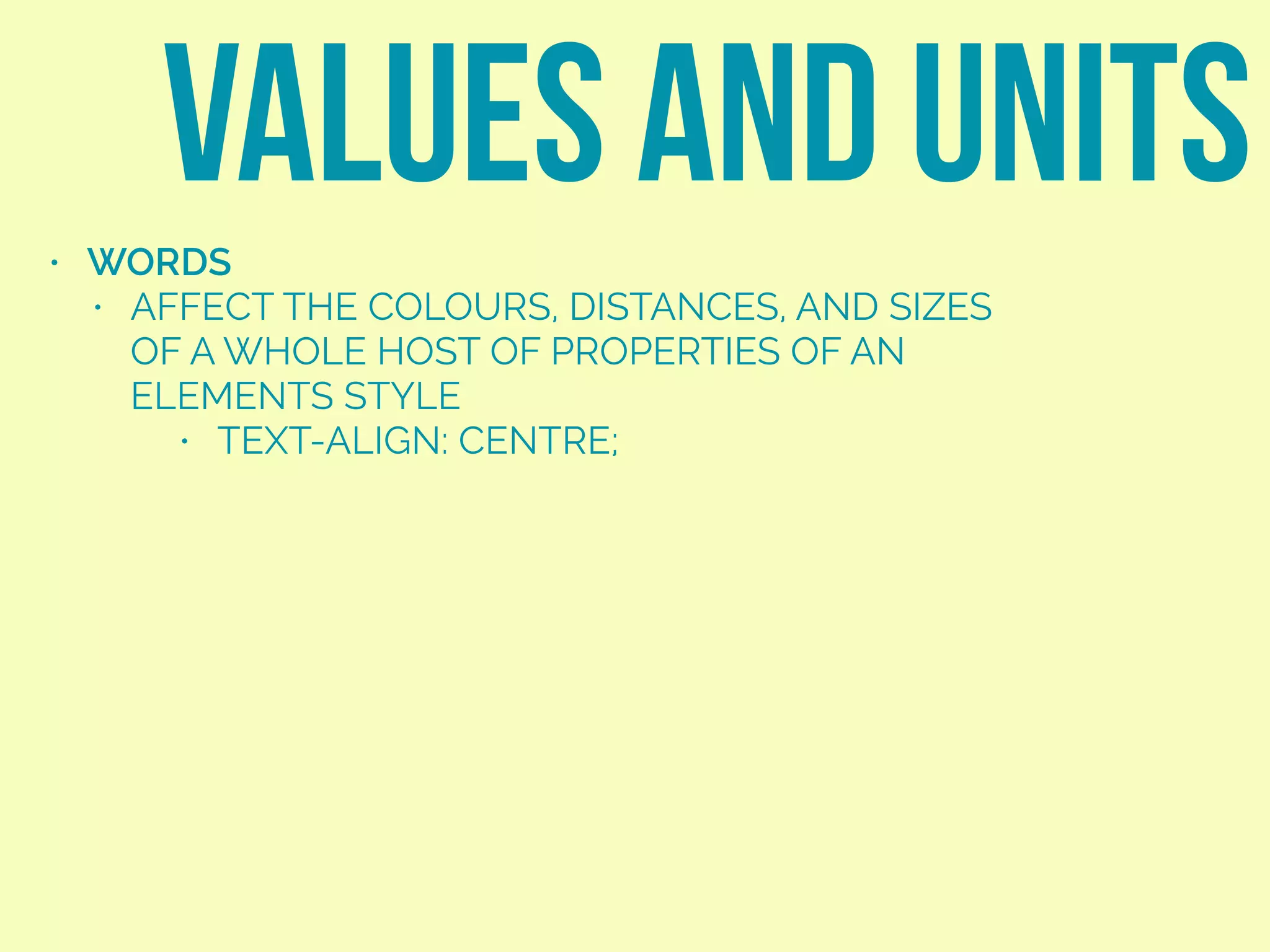

• WORDS
• AFFECT THE COLOURS, DISTANCES, AND SIZES
OF A WHOLE HOST OF PROPERTIES OF AN
ELEMENTS STYLE
• TEXT-ALIGN: CENTRE;

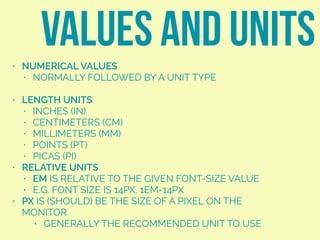

VALUES AND UNITS

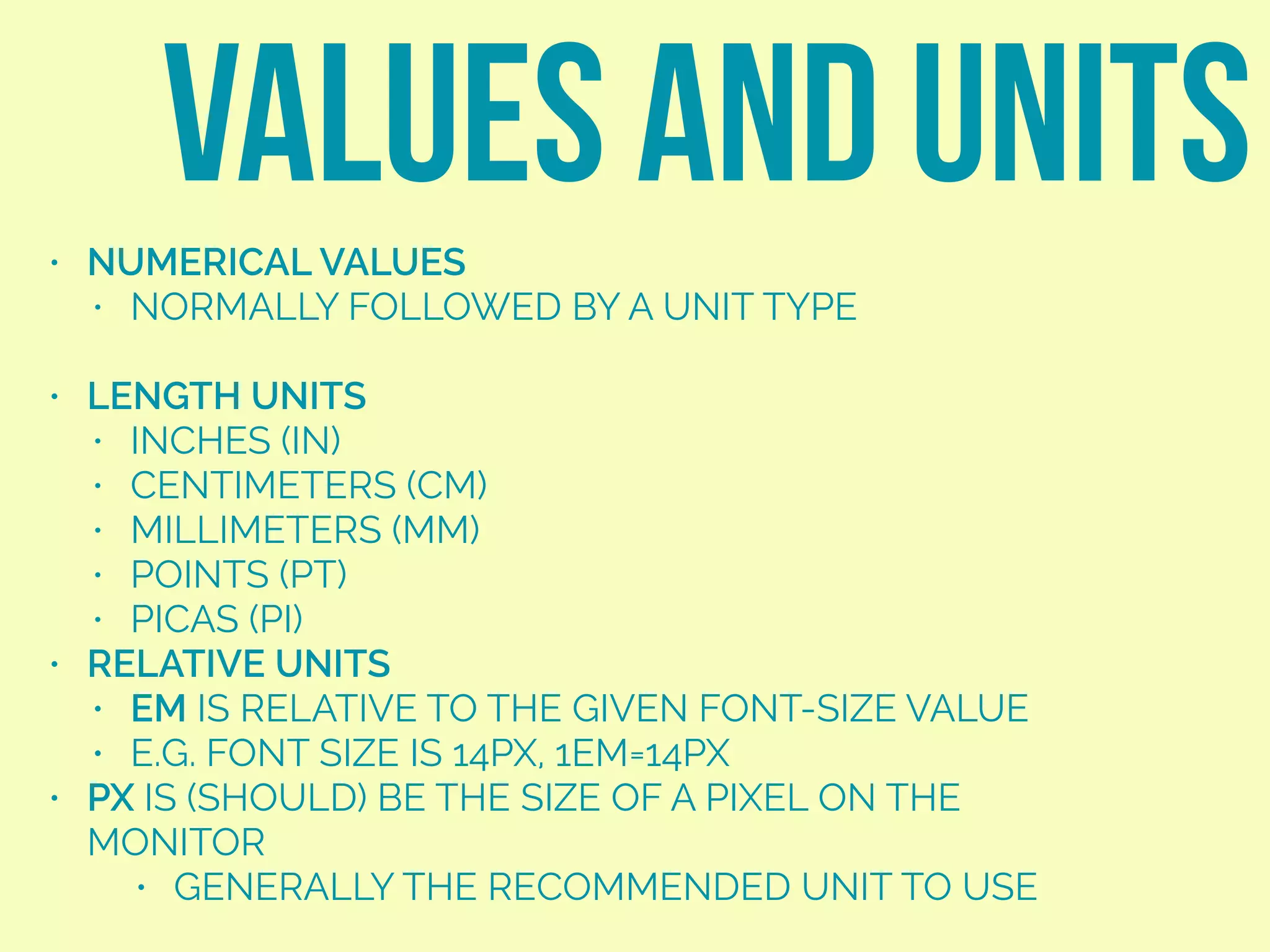

• NUMERICAL VALUES
• NORMALLY FOLLOWED BY A UNIT TYPE
• LENGTH UNITS
• INCHES (IN)
• CENTIMETERS (CM)
• MILLIMETERS (MM)
• POINTS (PT)
• PICAS (PI)
• RELATIVE UNITS
• EM IS RELATIVE TO THE GIVEN FONT-SIZE VALUE
• E.G. FONT SIZE IS 14PX, 1EM=14PX
• PX IS (SHOULD) BE THE SIZE OF A PIXEL ON THE
MONITOR
• GENERALLY THE RECOMMENDED UNIT TO USE
VALUES AND UNITS

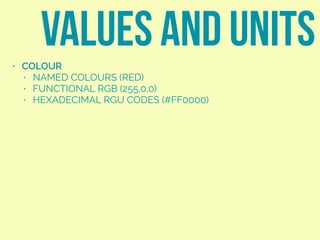

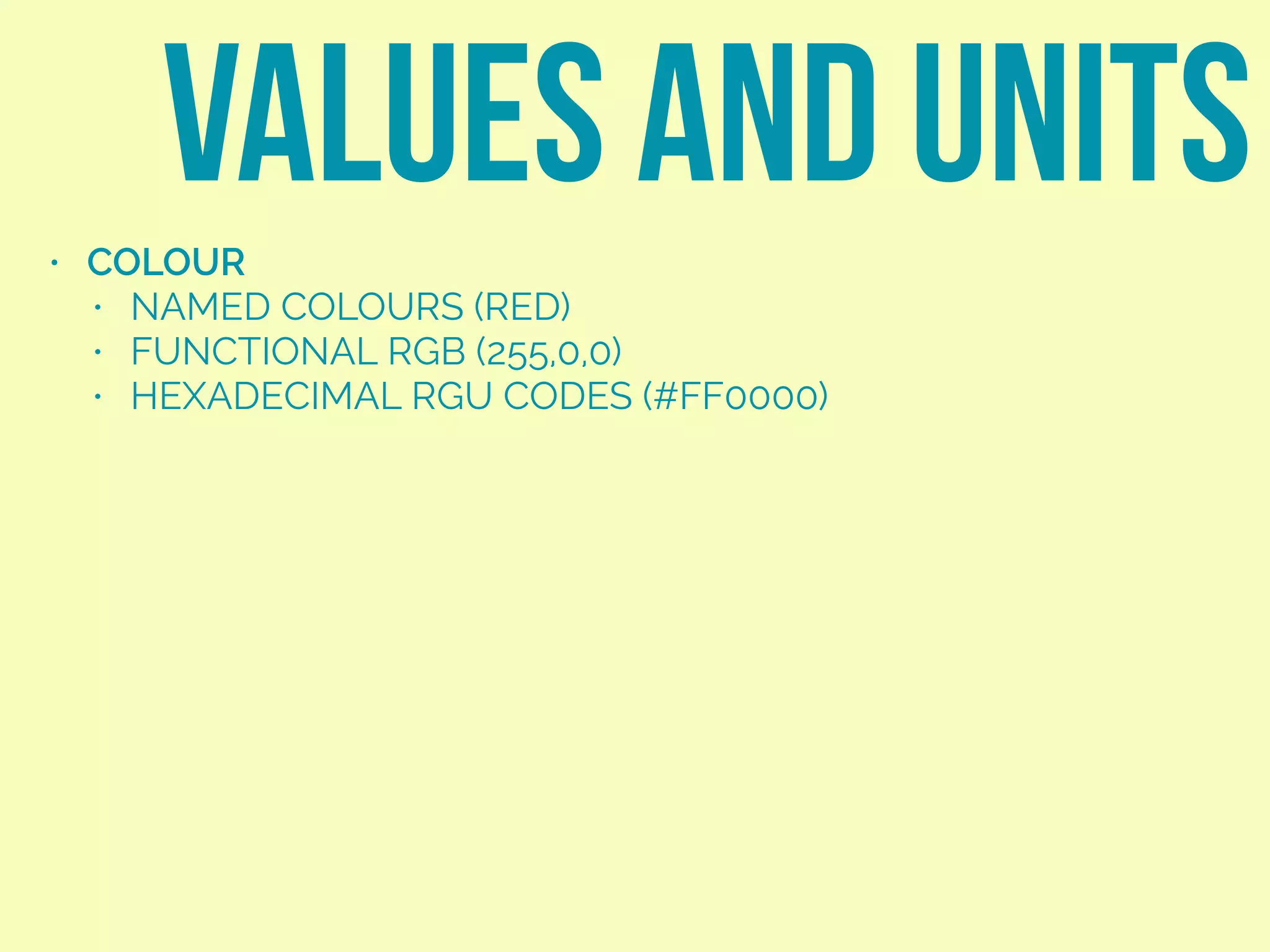

• COLOUR
• NAMED COLOURS (RED)
• FUNCTIONAL RGB (255,0,0)
• HEXADECIMAL RGU CODES (#FF0000)
VALUES AND UNITS

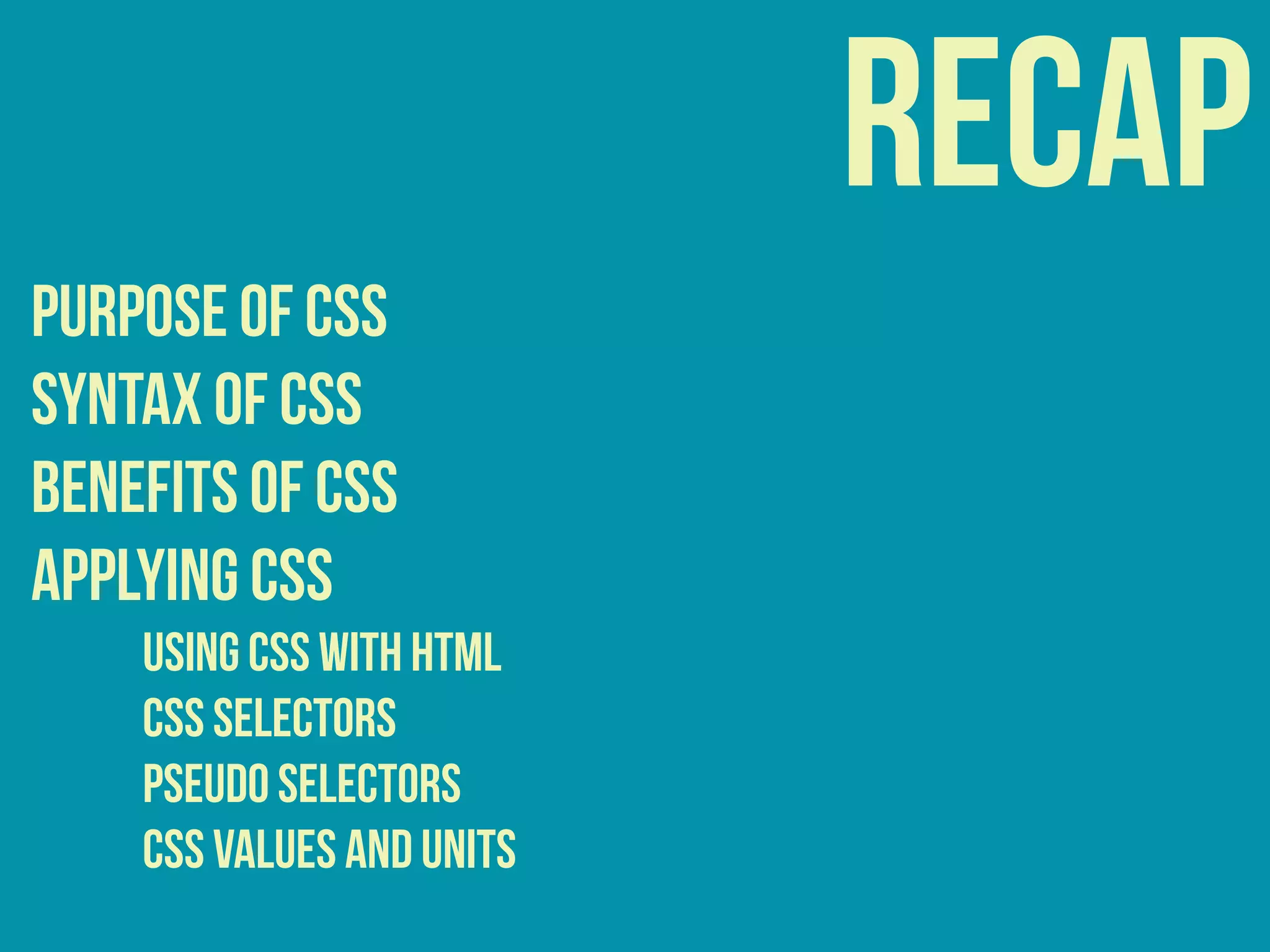

recap
purpose of css
syntax of css
benefits of css
APPLYING CSS
USING CSS WITH HTML
CSS Selectors
Pseudo Selectors

Styling with CSS
