Testing RESTful web services with REST Assured
The document is a workshop guide on testing RESTful web services using the Rest Assured library, covering installation, configuration, and example testing scenarios. It details the advantages of REST over SOAP, tools for testing, authentication methods, and data validation techniques. Additionally, it provides examples and exercises related to using APIs, parameters in requests, performance measurement, and integration into CI/CD processes.
More Related Content
Similar to Testing RESTful web services with REST Assured
Testing RESTful web services with REST Assured

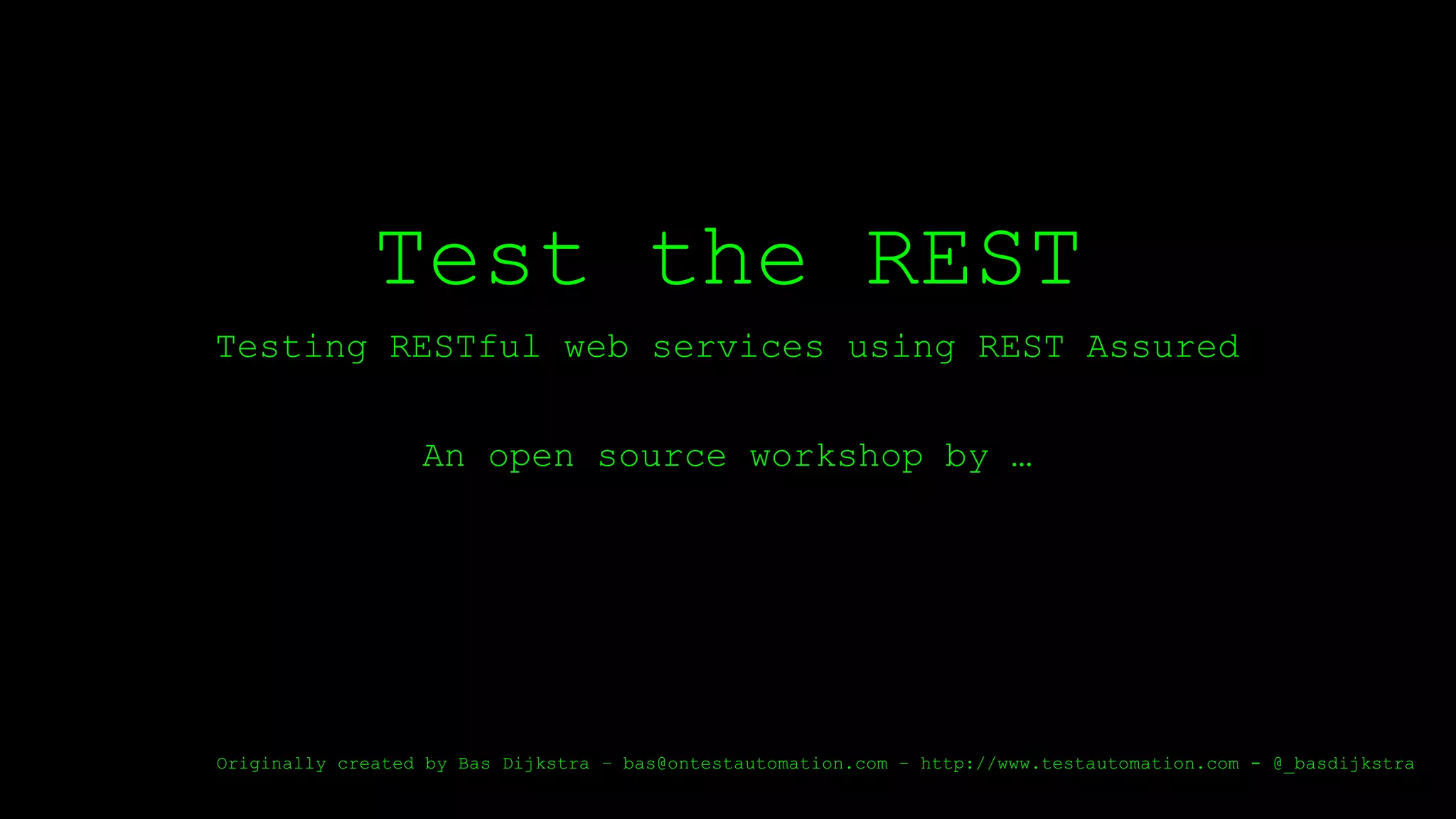

- 1. Test the REST TestingRESTful web services using REST Assured An open source workshop by … Originally created by Bas Dijkstra – bas@ontestautomation.com – http://www.testautomation.com - @_basdijkstra

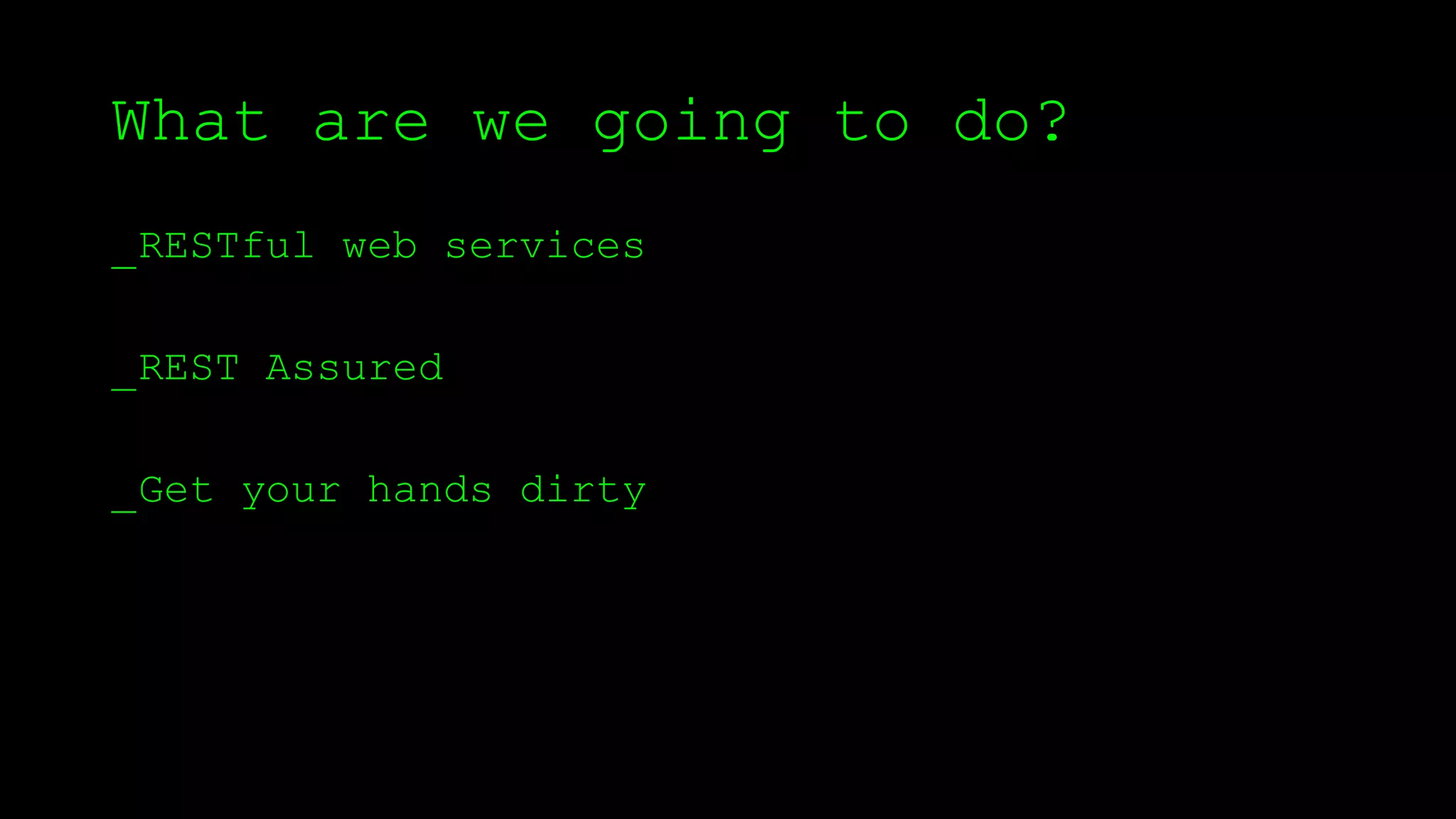

- 2. What are wegoing to do? _RESTful web services _REST Assured _Get your hands dirty

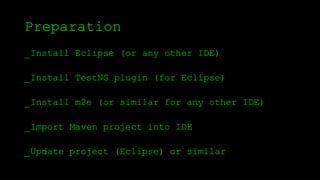

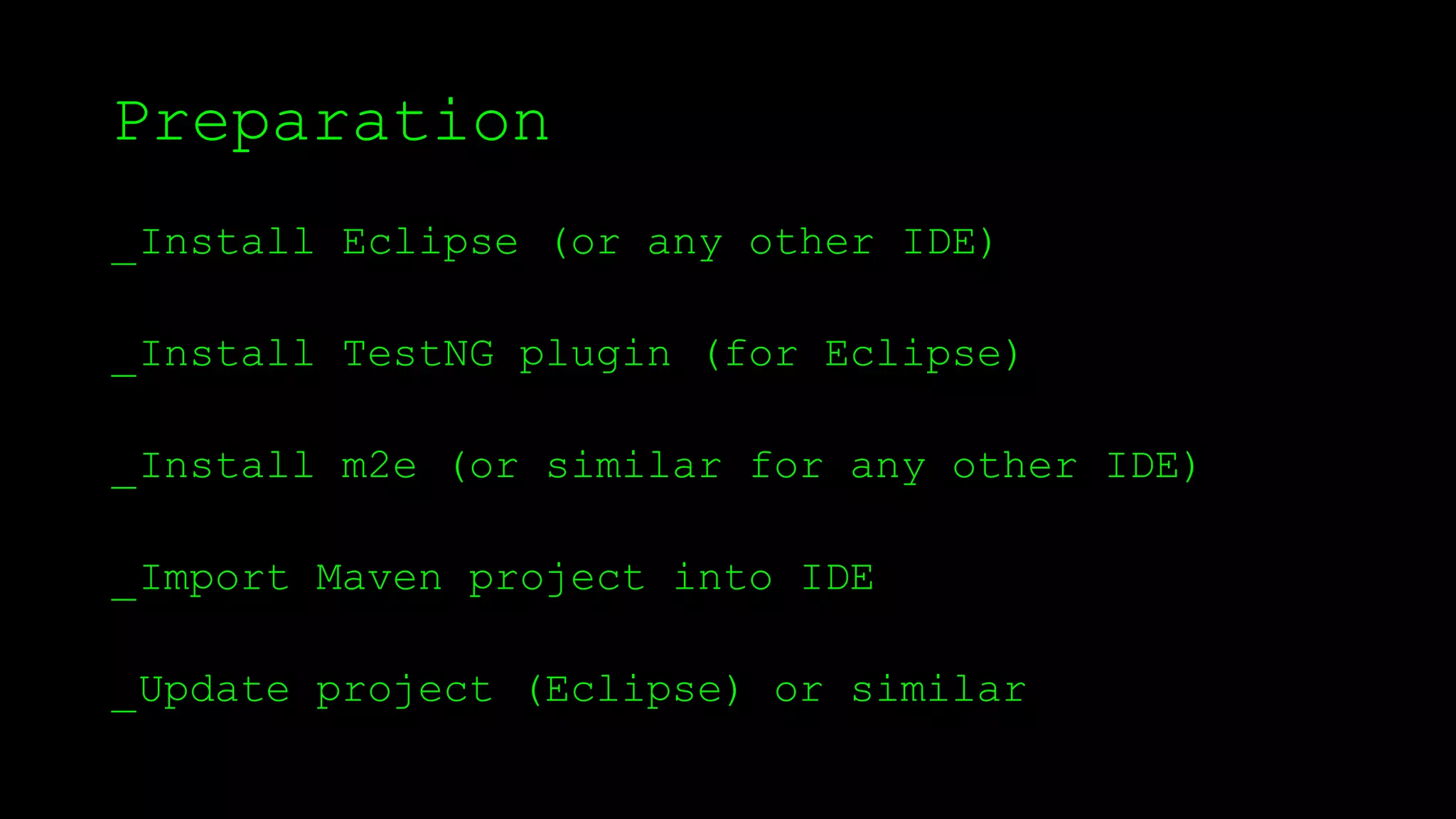

- 3. Preparation _Install Eclipse (orany other IDE) _Install TestNG plugin (for Eclipse) _Install m2e (or similar for any other IDE) _Import Maven project into IDE _Update project (Eclipse) or similar

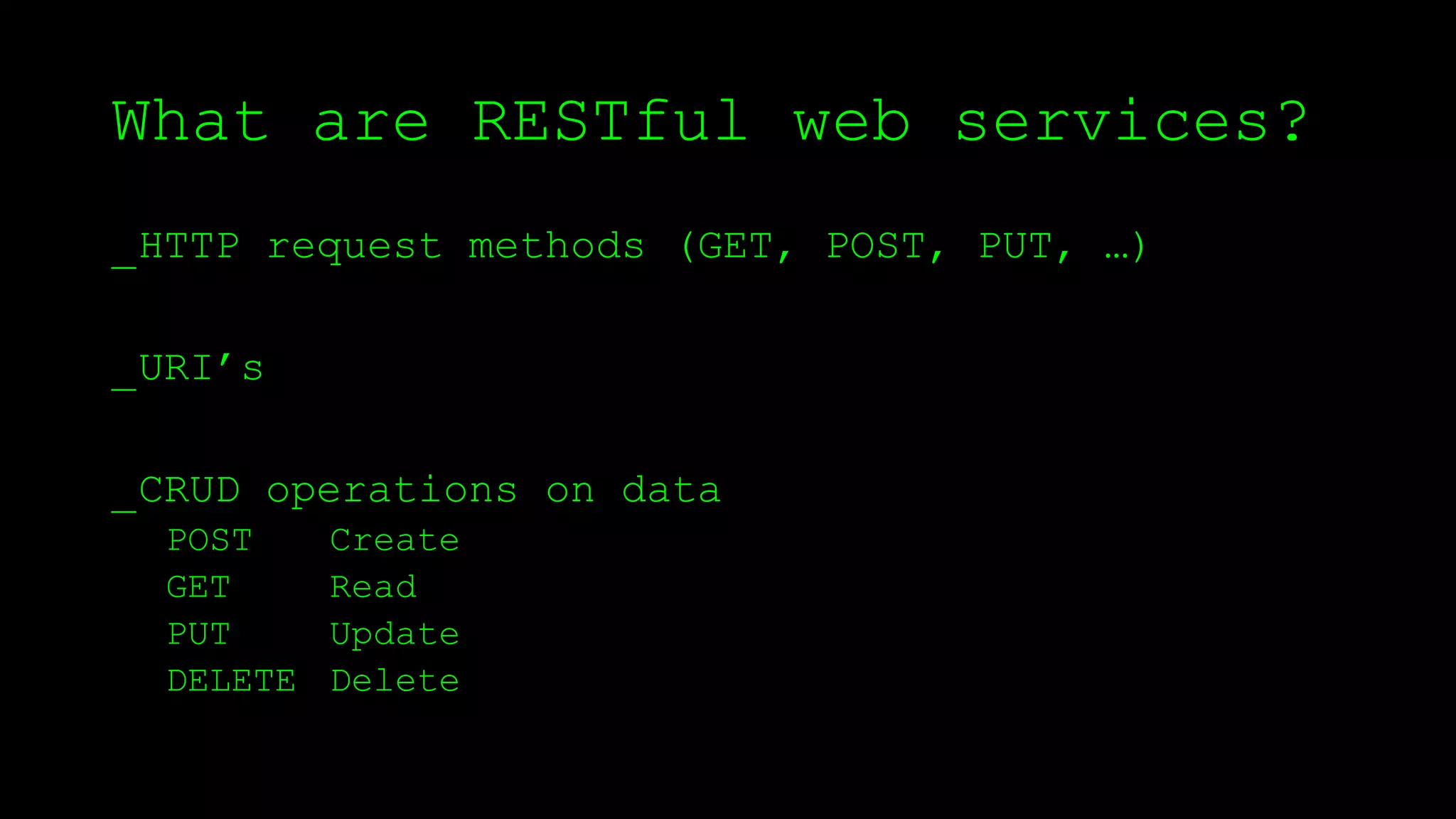

- 4. What are RESTfulweb services? _HTTP request methods (GET, POST, PUT, …) _URI’s _CRUD operations on data POST Create GET Read PUT Update DELETE Delete
- 5.

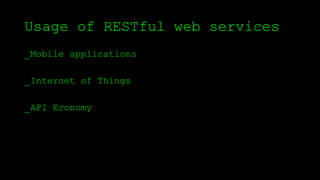

- 6. Usage of RESTfulweb services _Mobile applications _Internet of Things _API Economy

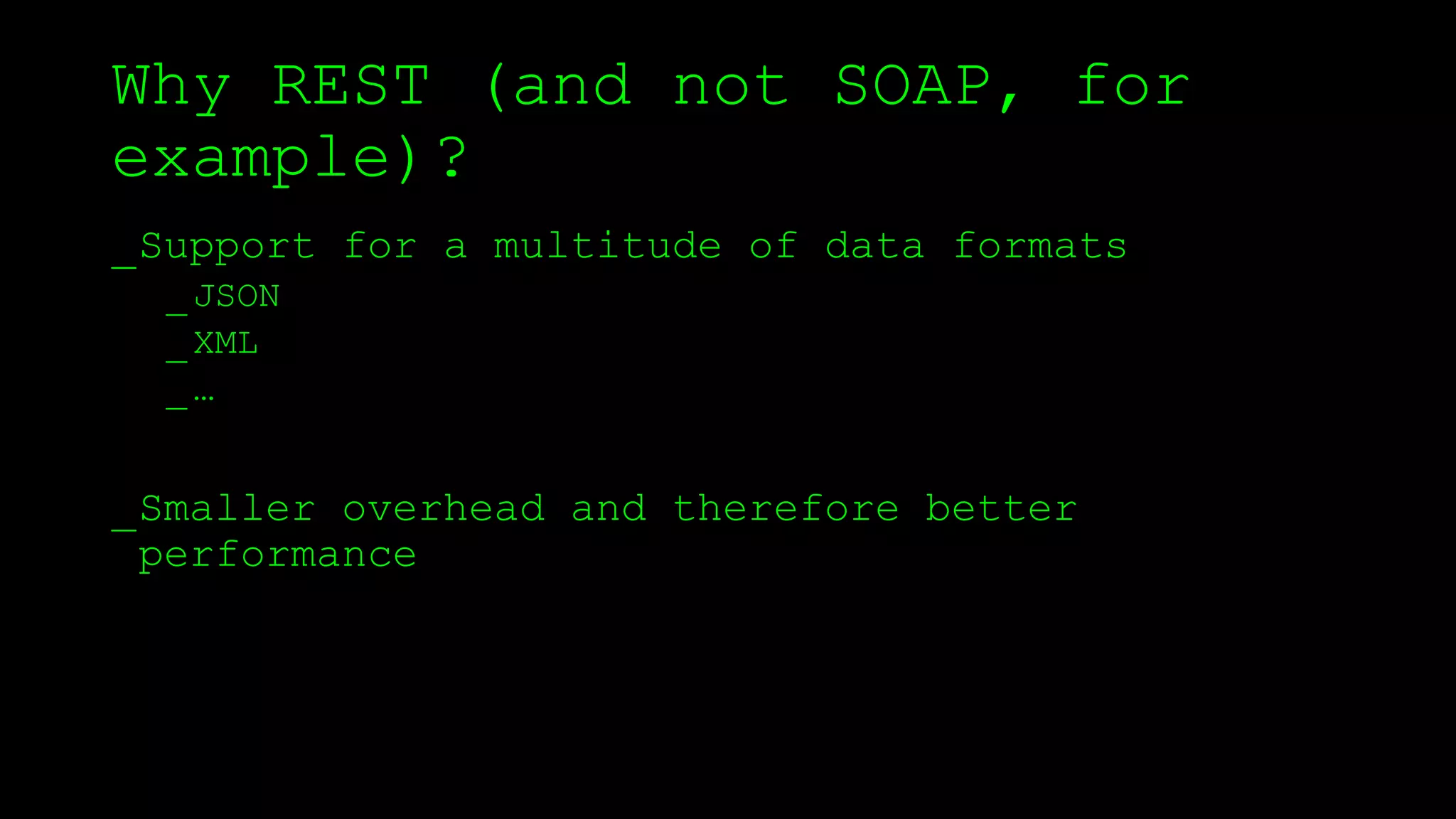

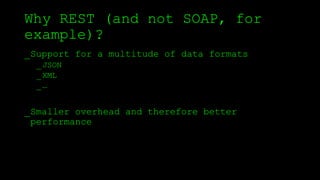

- 7. Why REST (andnot SOAP, for example)? _Support for a multitude of data formats _JSON _XML _… _Smaller overhead and therefore better performance

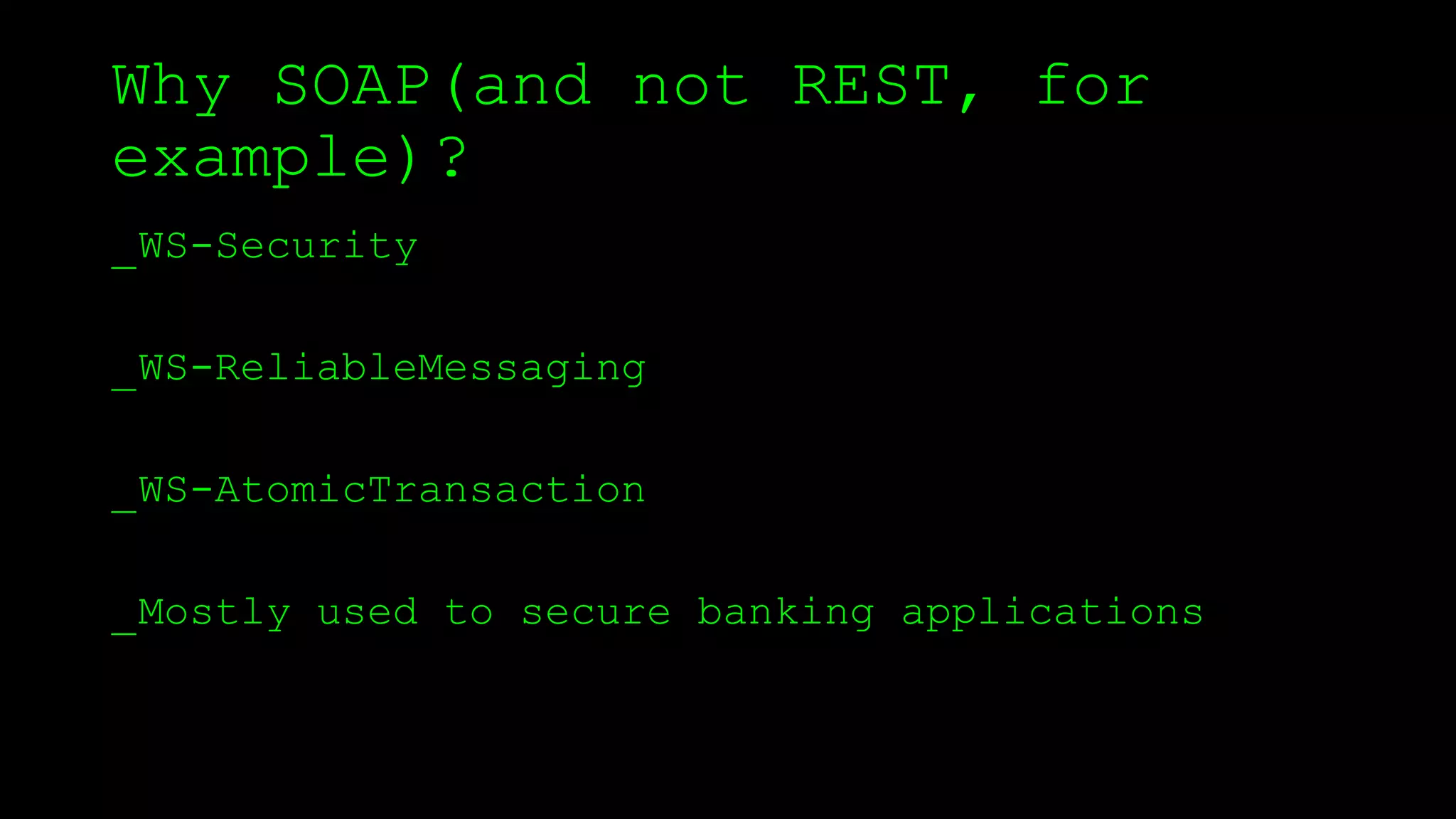

- 8. Why SOAP(and notREST, for example)? _WS-Security _WS-ReliableMessaging _WS-AtomicTransaction _Mostly used to secure banking applications

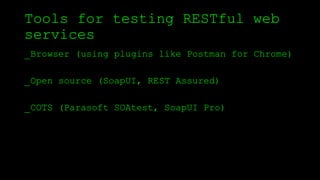

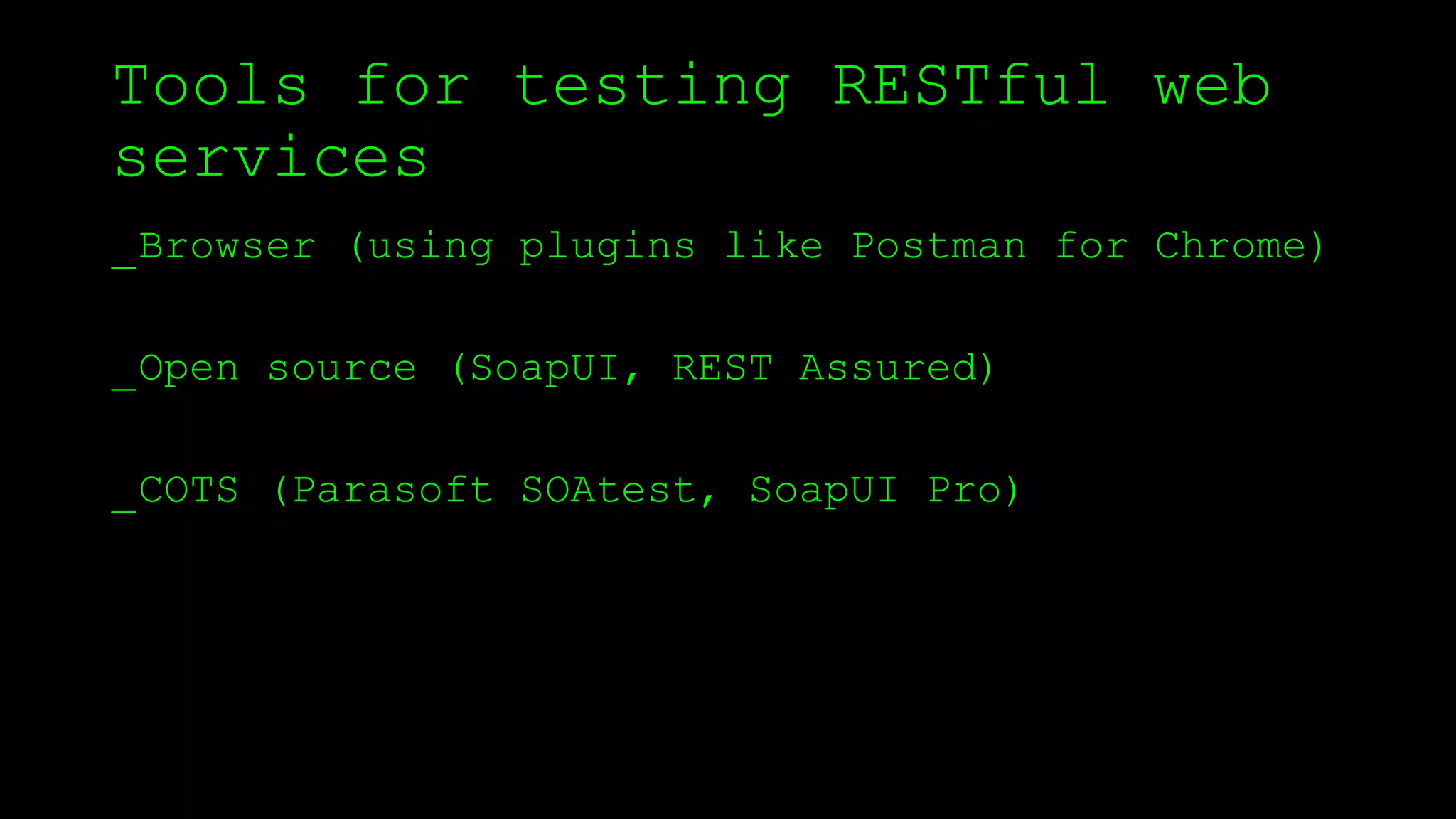

- 9. Tools for testingRESTful web services _Browser (using plugins like Postman for Chrome) _Open source (SoapUI, REST Assured) _COTS (Parasoft SOAtest, SoapUI Pro)

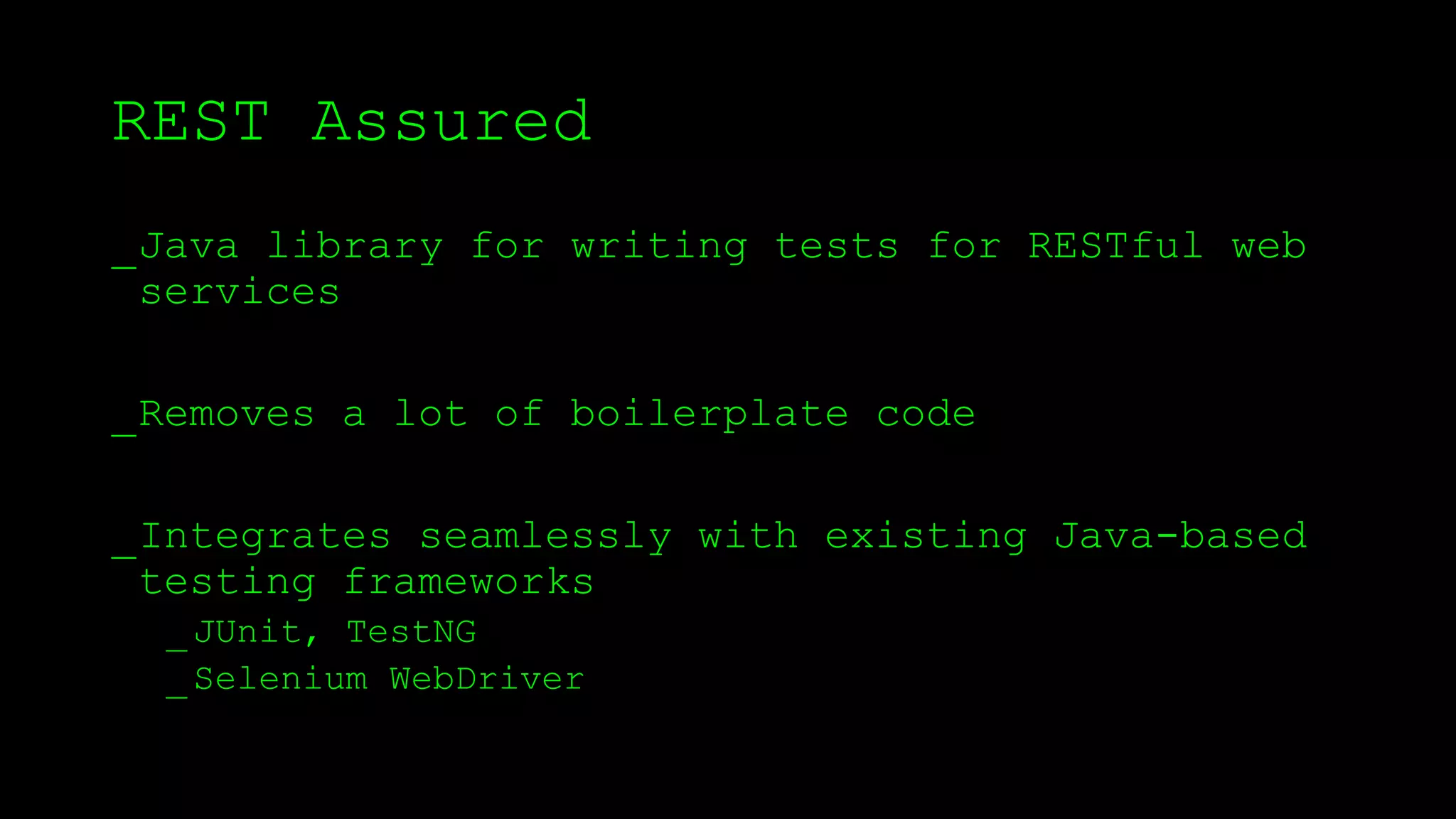

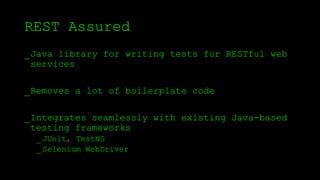

- 10. REST Assured _Java libraryfor writing tests for RESTful web services _Removes a lot of boilerplate code _Integrates seamlessly with existing Java-based testing frameworks _JUnit, TestNG _Selenium WebDriver

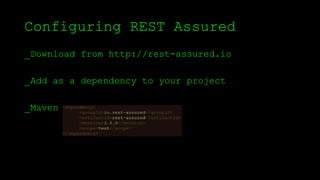

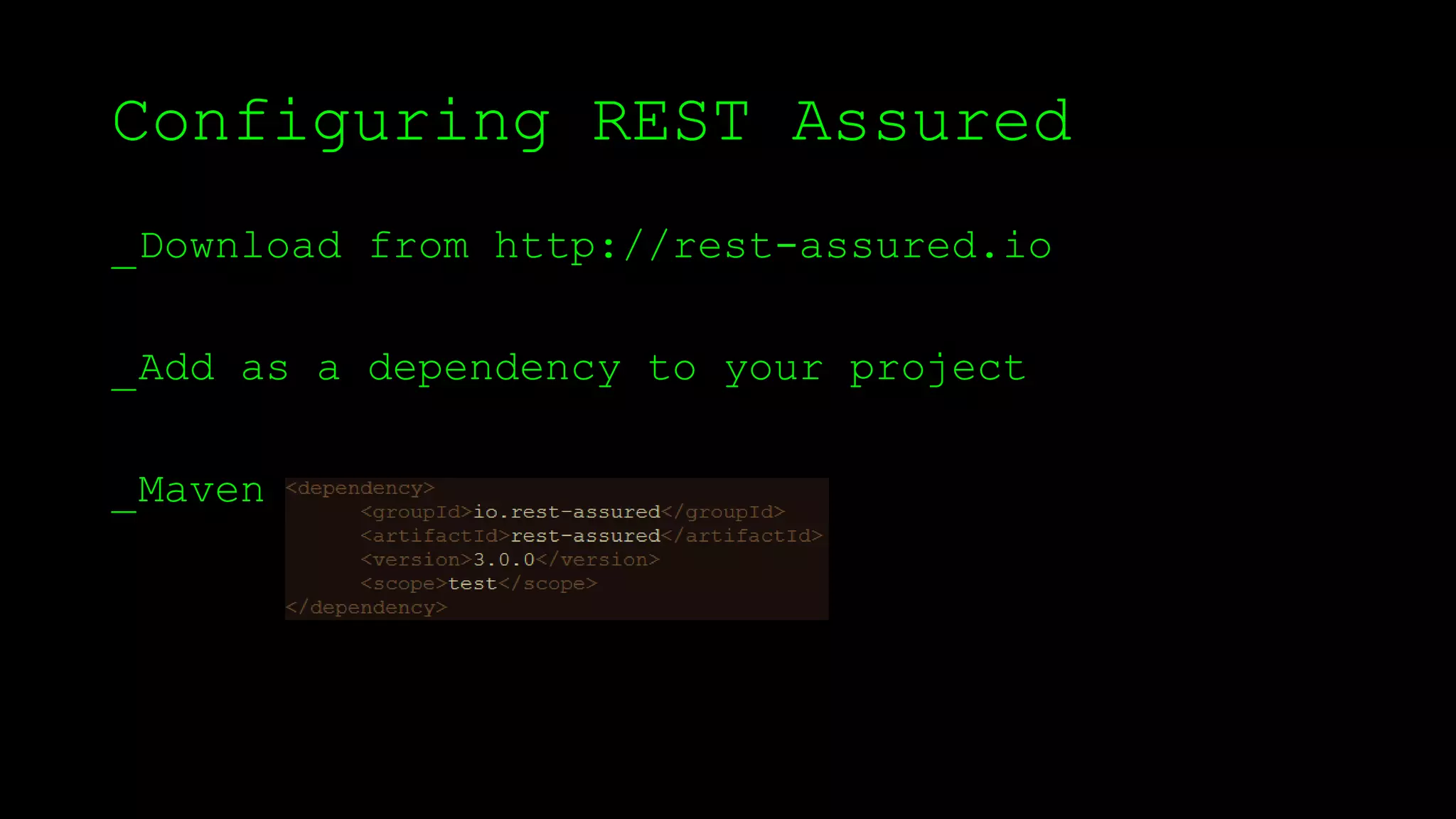

- 11. Configuring REST Assured _Downloadfrom http://rest-assured.io _Add as a dependency to your project _Maven

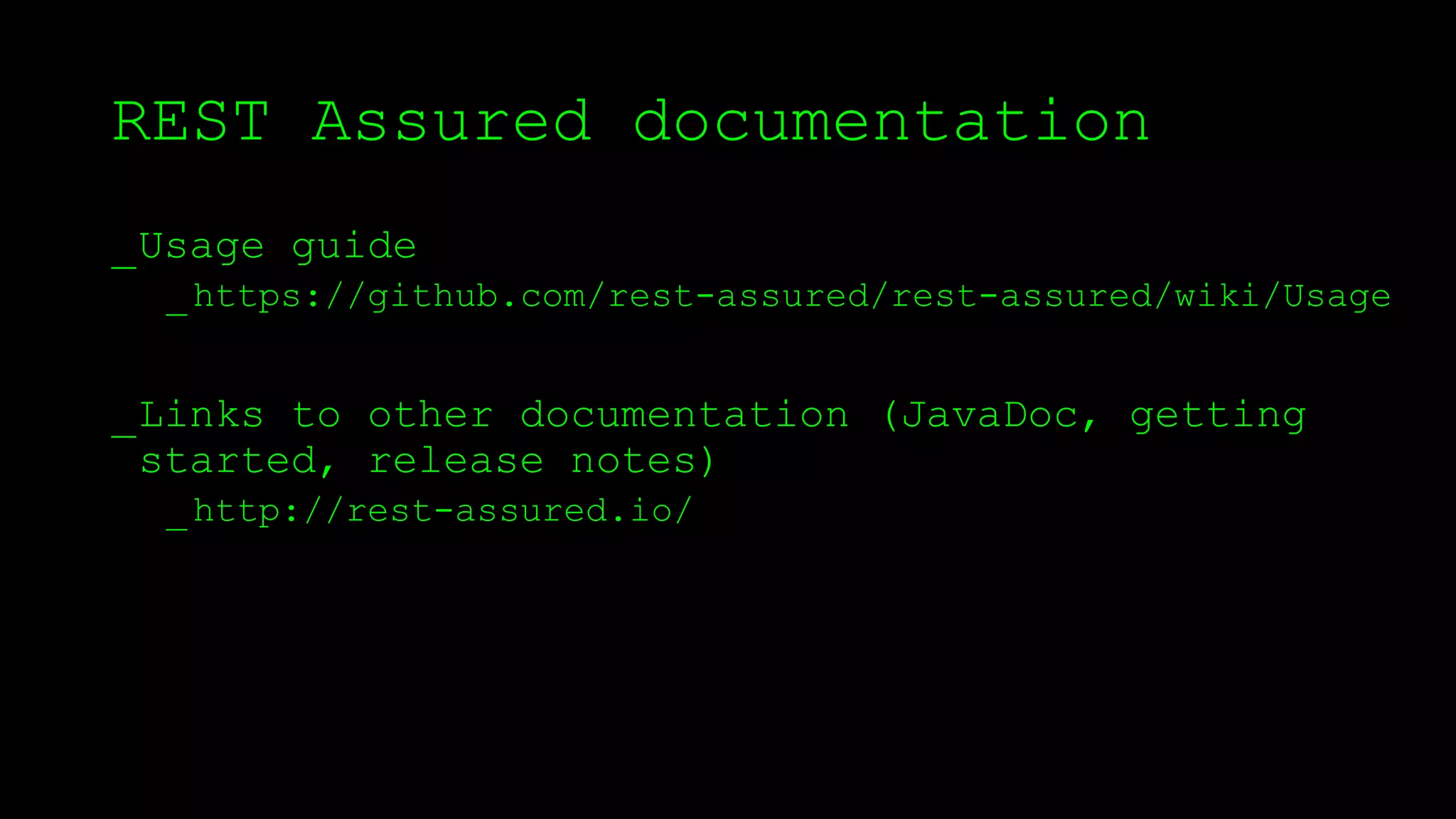

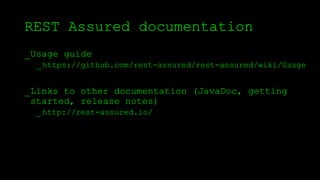

- 12. REST Assured documentation _Usageguide _https://github.com/rest-assured/rest-assured/wiki/Usage _Links to other documentation (JavaDoc, getting started, release notes) _http://rest-assured.io/
- 13.

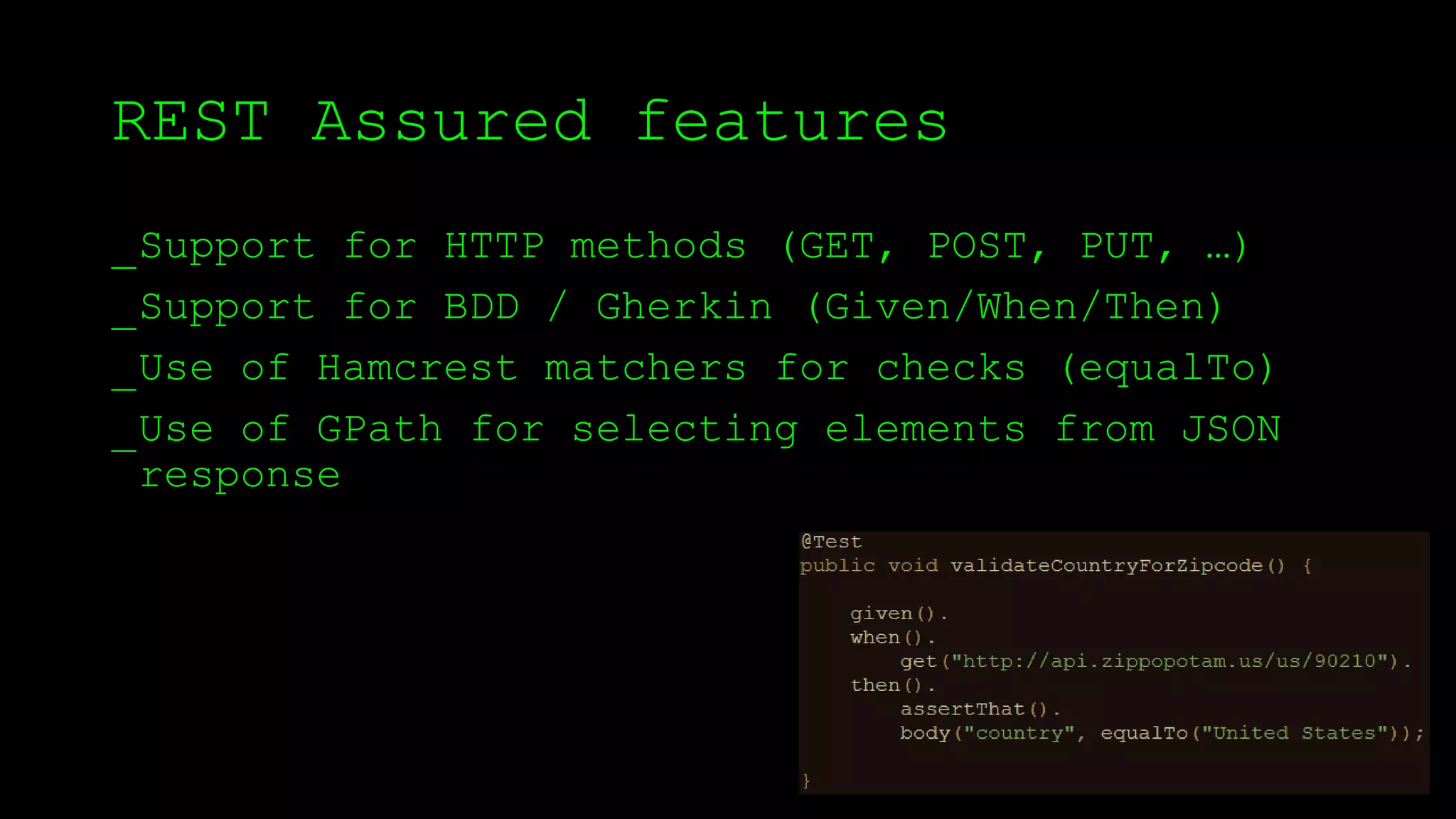

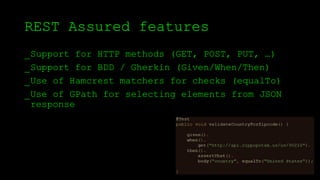

- 14. REST Assured features _Supportfor HTTP methods (GET, POST, PUT, …) _Support for BDD / Gherkin (Given/When/Then) _Use of Hamcrest matchers for checks (equalTo) _Use of GPath for selecting elements from JSON response

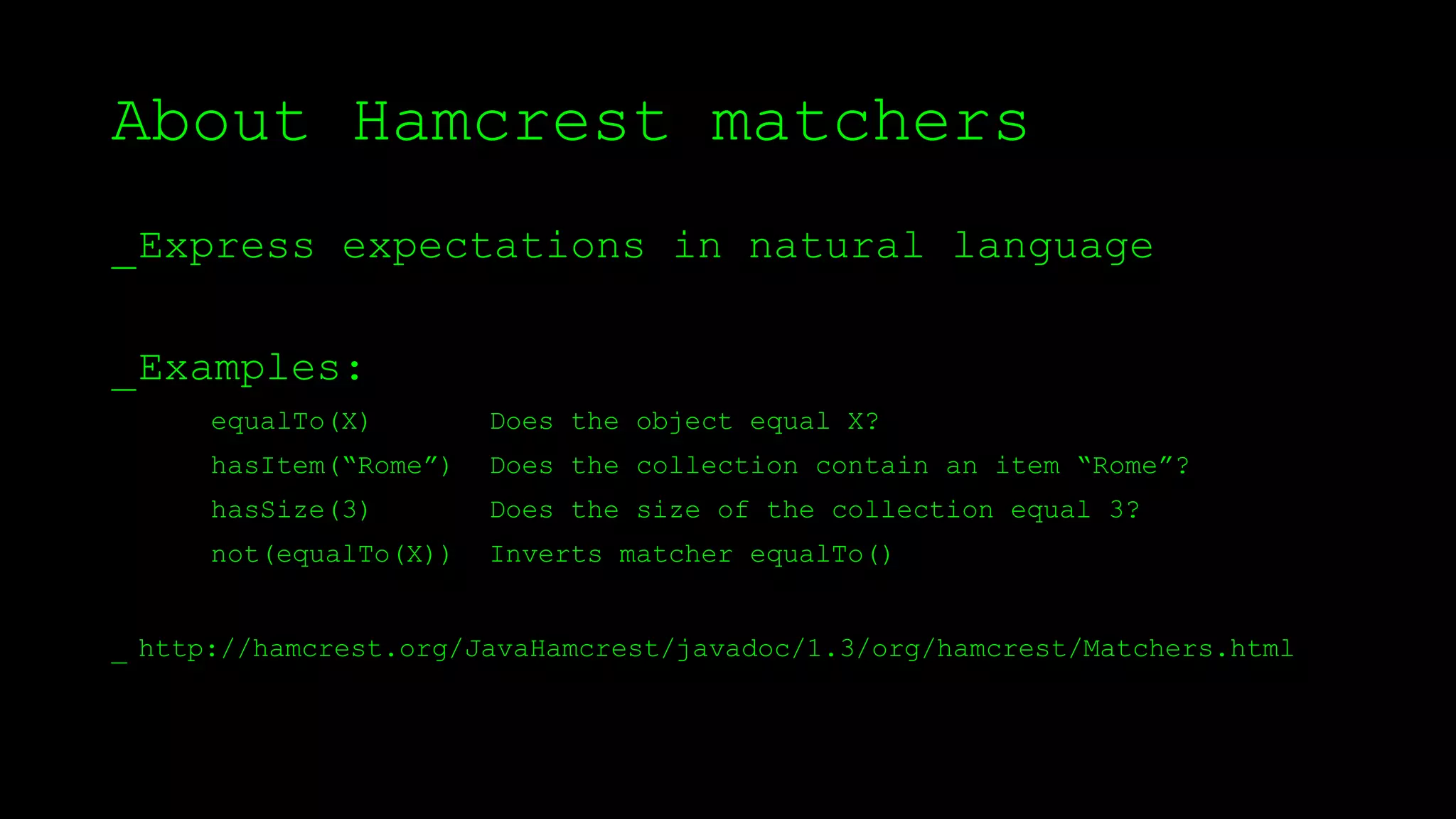

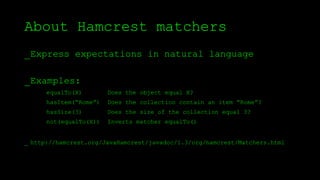

- 15. About Hamcrest matchers _Expressexpectations in natural language _Examples: _ http://hamcrest.org/JavaHamcrest/javadoc/1.3/org/hamcrest/Matchers.html equalTo(X) Does the object equal X? hasItem(“Rome”) Does the collection contain an item “Rome”? hasSize(3) Does the size of the collection equal 3? not(equalTo(X)) Inverts matcher equalTo()

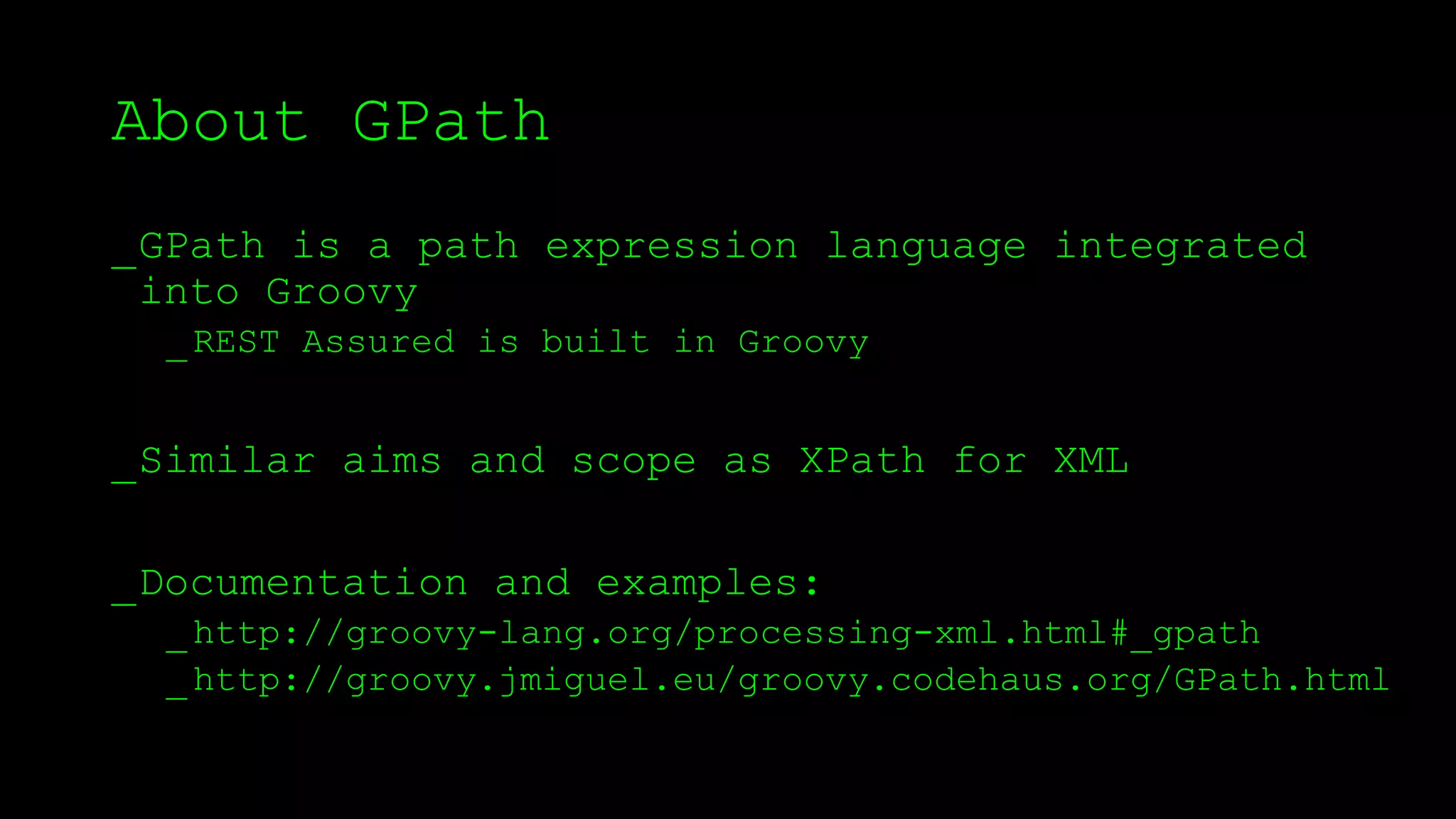

- 16. About GPath _GPath isa path expression language integrated into Groovy _REST Assured is built in Groovy _Similar aims and scope as XPath for XML _Documentation and examples: _http://groovy-lang.org/processing-xml.html#_gpath _http://groovy.jmiguel.eu/groovy.codehaus.org/GPath.html
- 17.

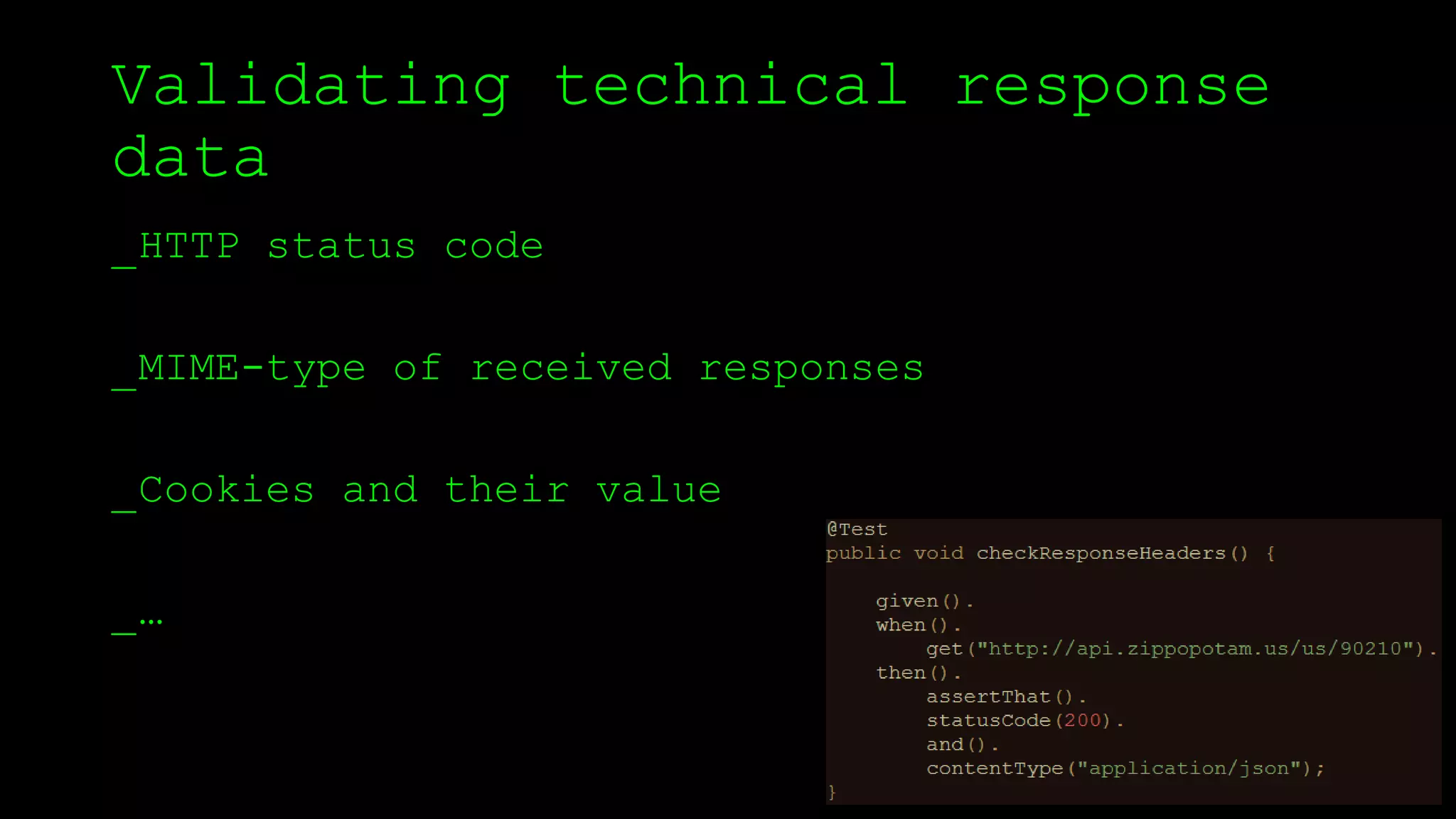

- 18. Validating technical response data _HTTPstatus code _MIME-type of received responses _Cookies and their value _…

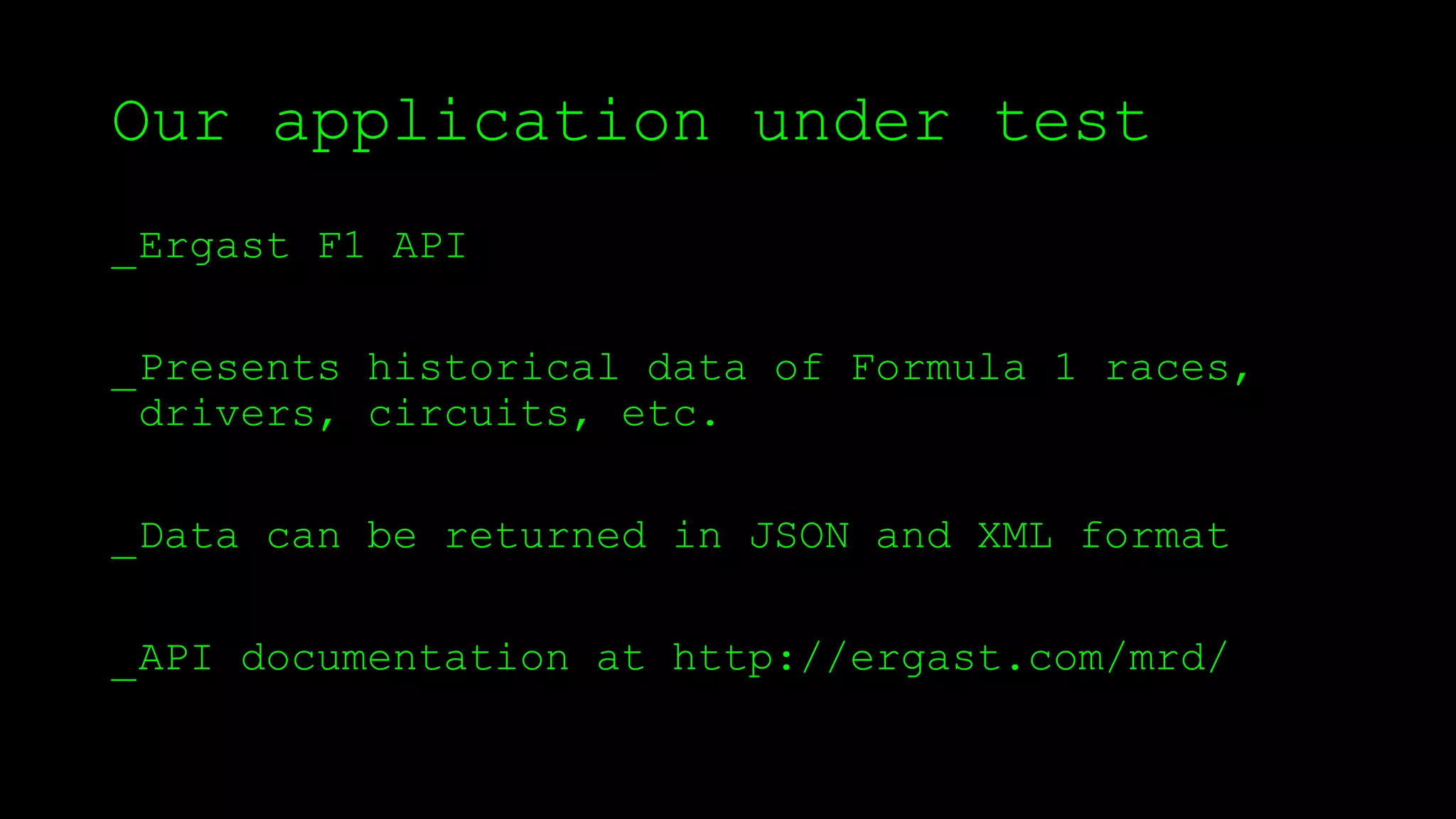

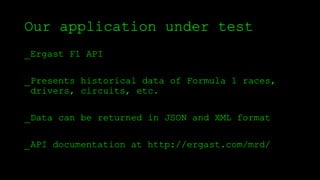

- 19. Our application undertest _Ergast F1 API _Presents historical data of Formula 1 races, drivers, circuits, etc. _Data can be returned in JSON and XML format _API documentation at http://ergast.com/mrd/

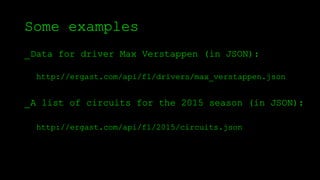

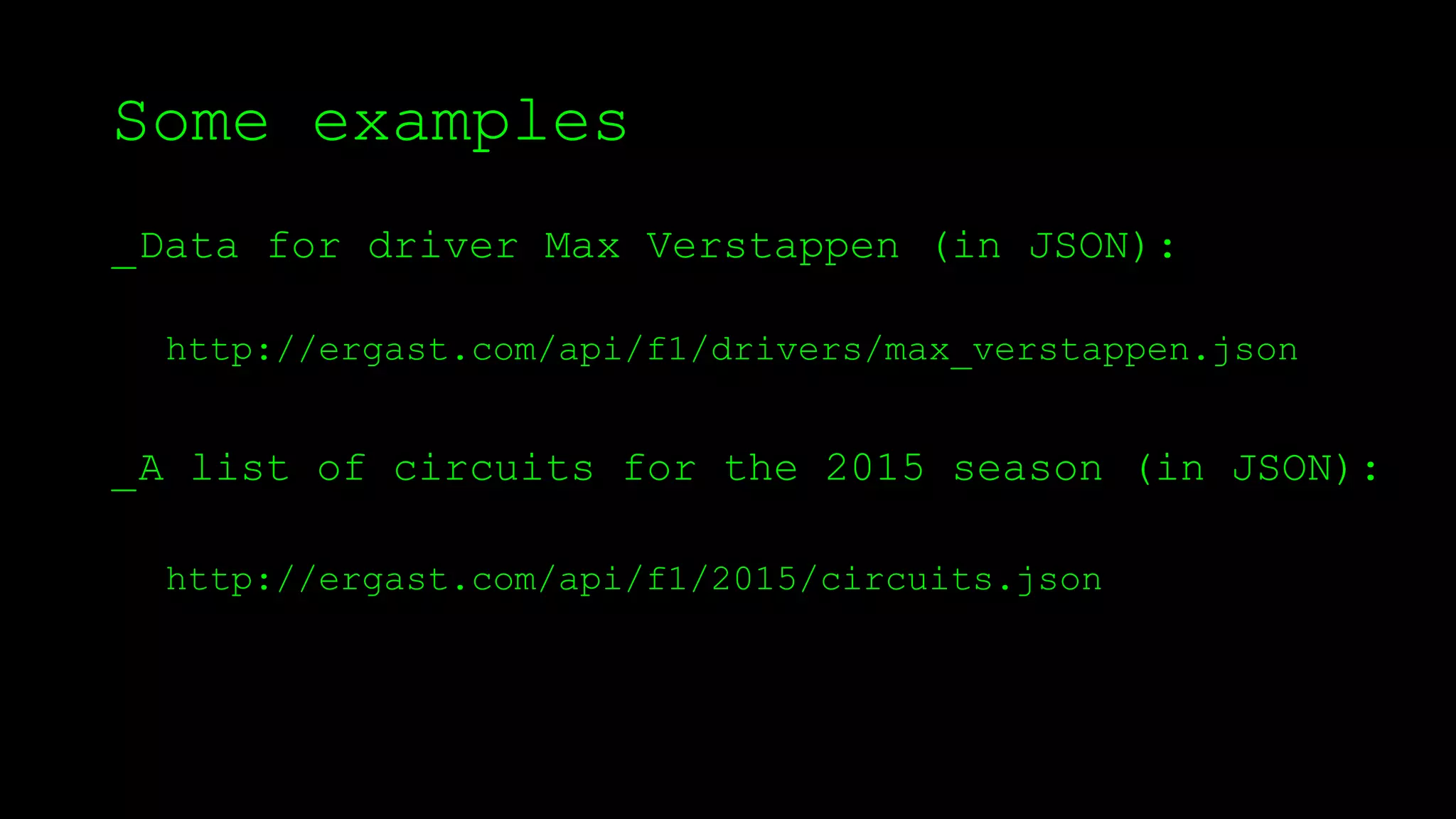

- 20. Some examples _Data fordriver Max Verstappen (in JSON): http://ergast.com/api/f1/drivers/max_verstappen.json _A list of circuits for the 2015 season (in JSON): http://ergast.com/api/f1/2015/circuits.json

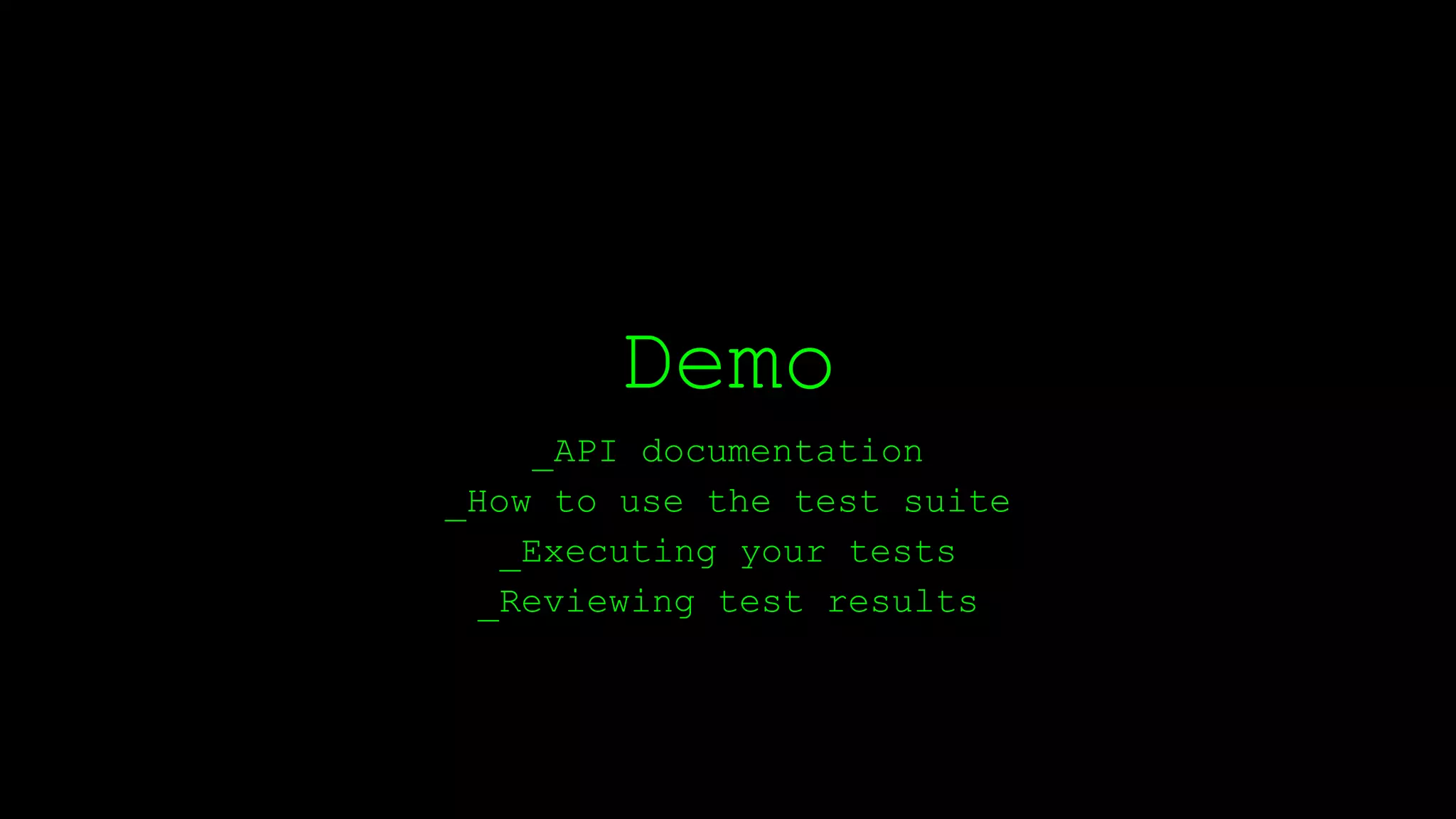

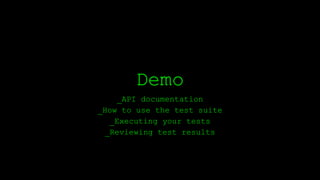

- 21. Demo _API documentation _How touse the test suite _Executing your tests _Reviewing test results

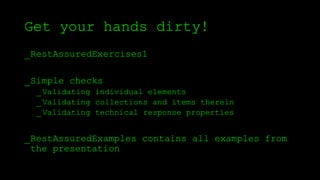

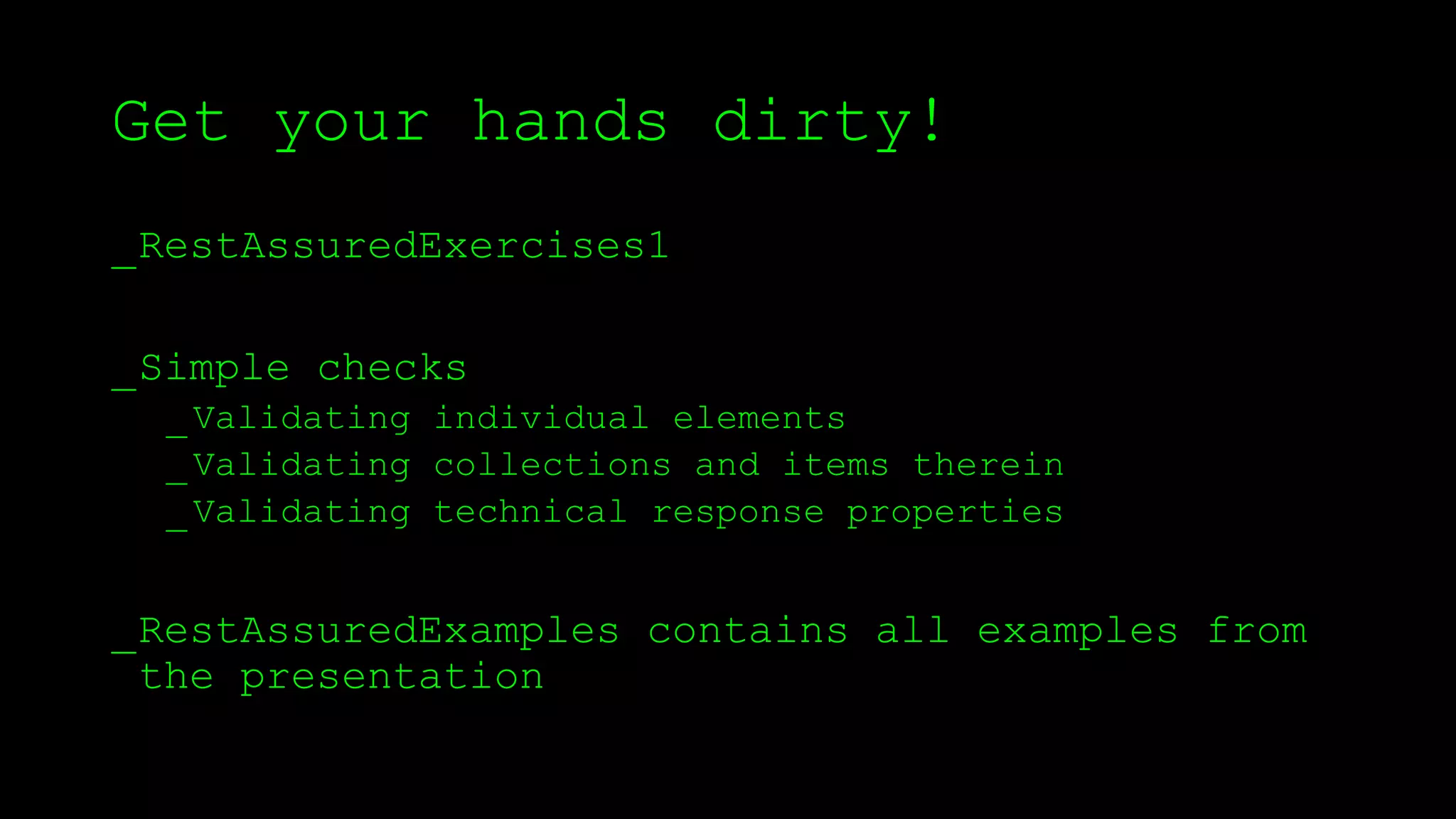

- 22. Get your handsdirty! _RestAssuredExercises1 _Simple checks _Validating individual elements _Validating collections and items therein _Validating technical response properties _RestAssuredExamples contains all examples from the presentation

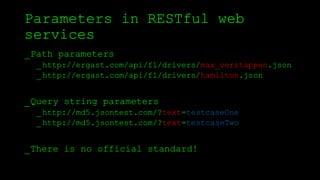

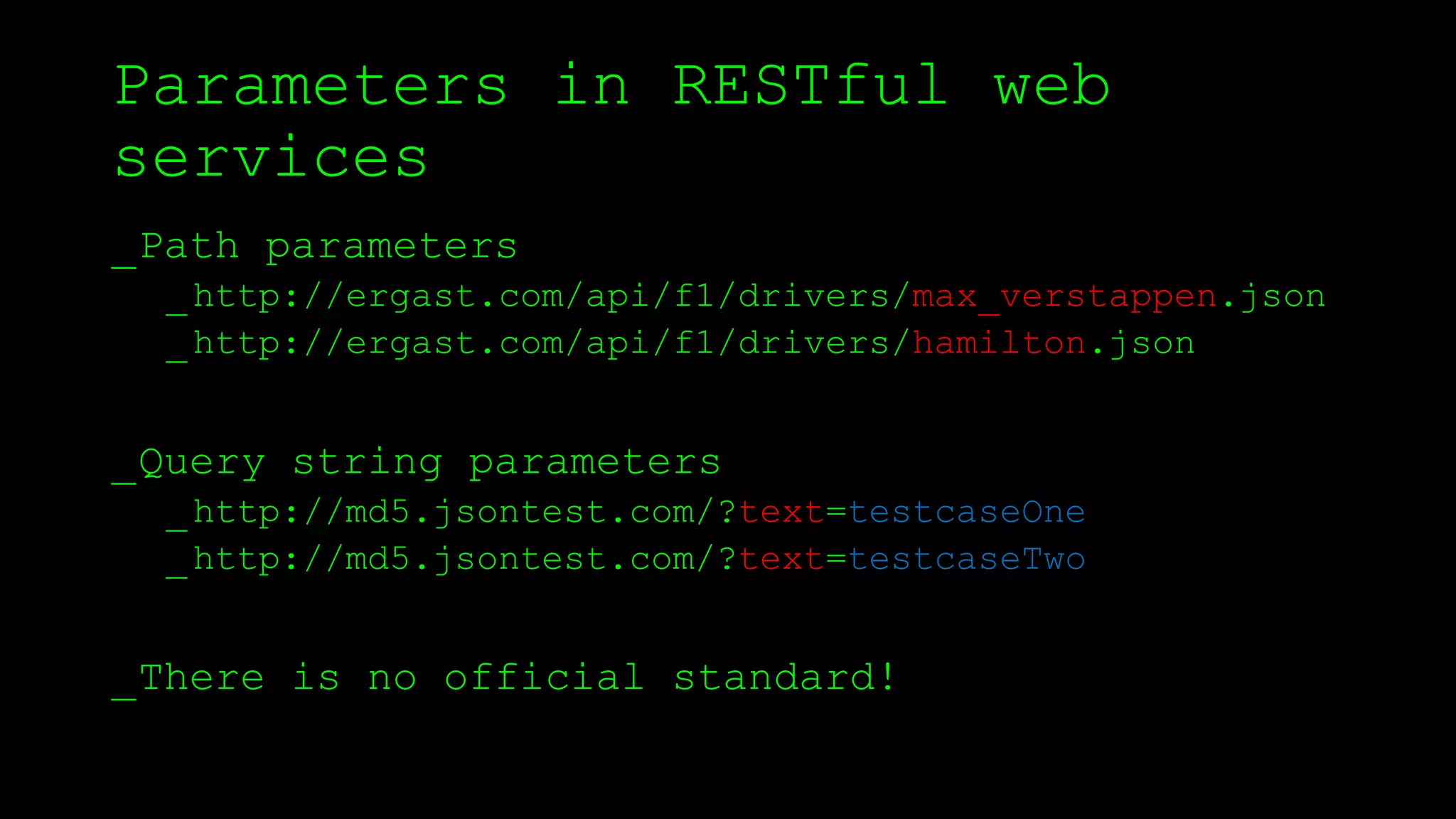

- 23. Parameters in RESTfulweb services _Path parameters _http://ergast.com/api/f1/drivers/max_verstappen.json _http://ergast.com/api/f1/drivers/hamilton.json _Query string parameters _http://md5.jsontest.com/?text=testcaseOne _http://md5.jsontest.com/?text=testcaseTwo _There is no official standard!

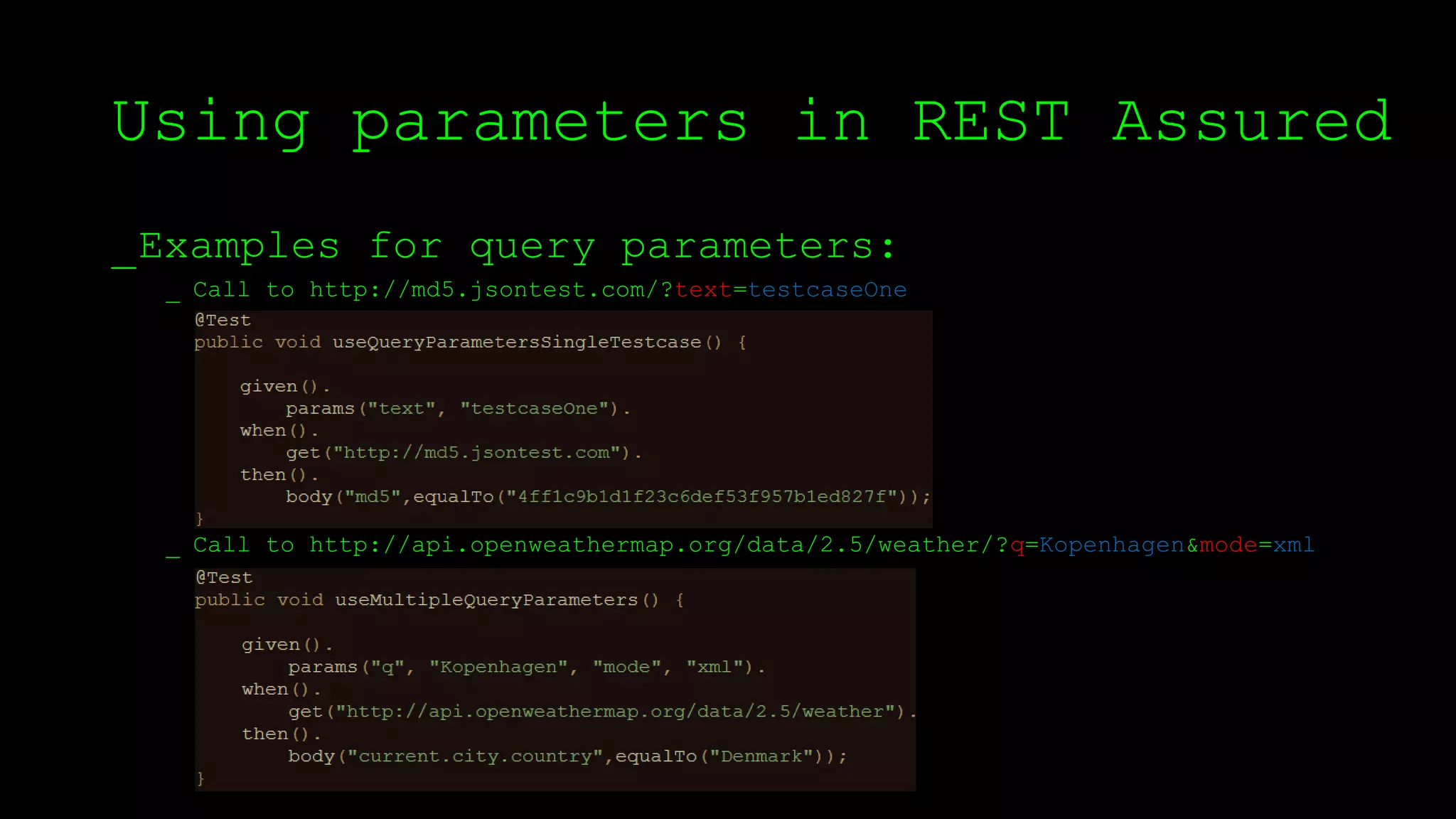

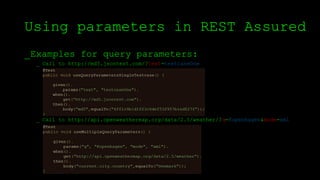

- 24. Using parameters inREST Assured _Examples for query parameters: _ Call to http://md5.jsontest.com/?text=testcaseOne _ Call to http://api.openweathermap.org/data/2.5/weather/?q=Kopenhagen&mode=xml

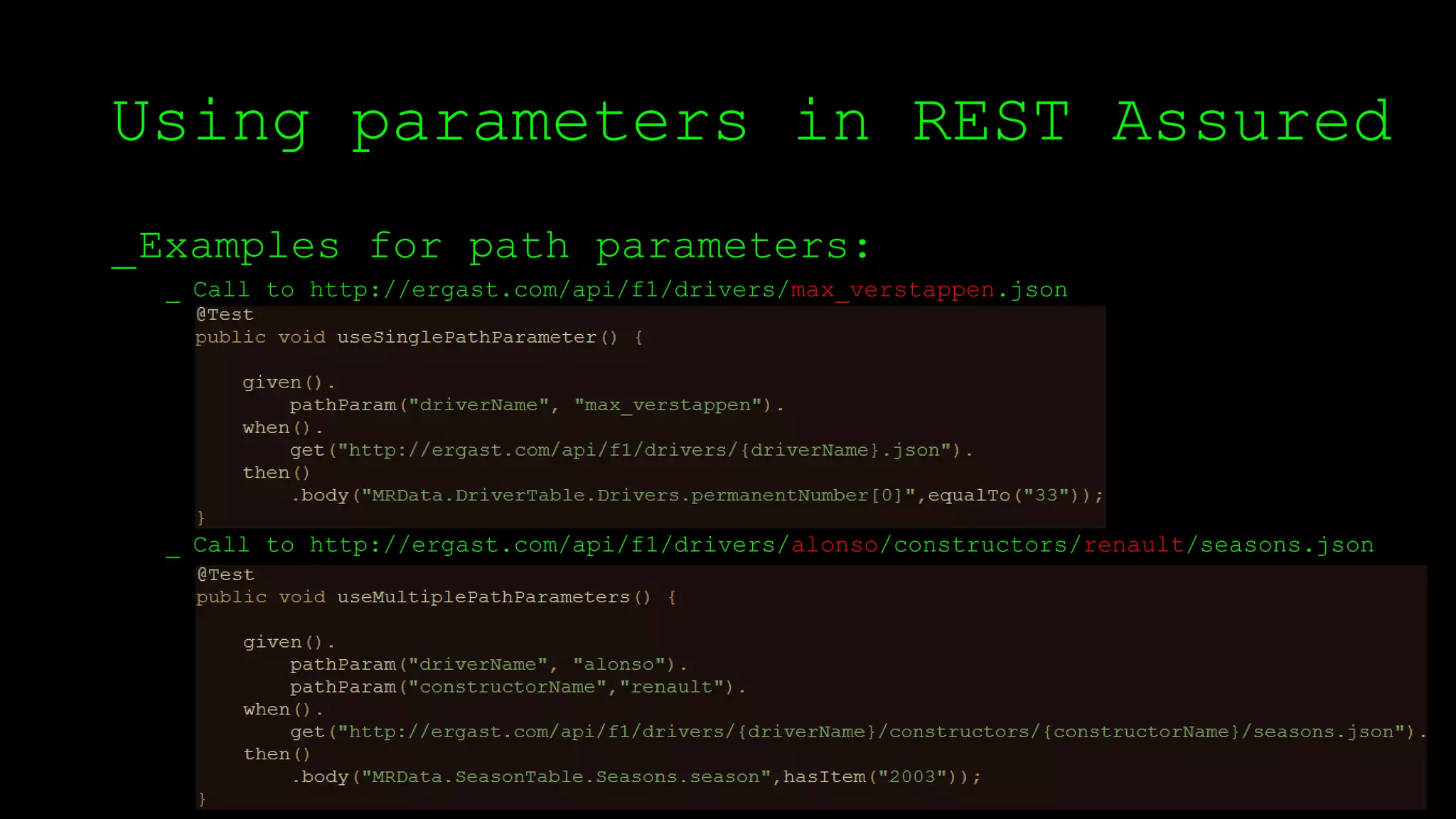

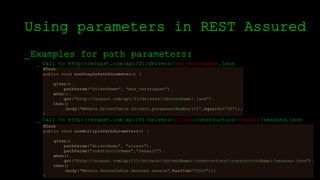

- 25. Using parameters inREST Assured _Examples for path parameters: _ Call to http://ergast.com/api/f1/drivers/max_verstappen.json _ Call to http://ergast.com/api/f1/drivers/alonso/constructors/renault/seasons.json

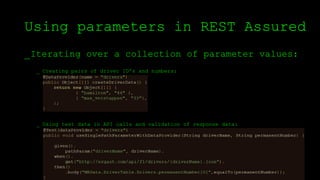

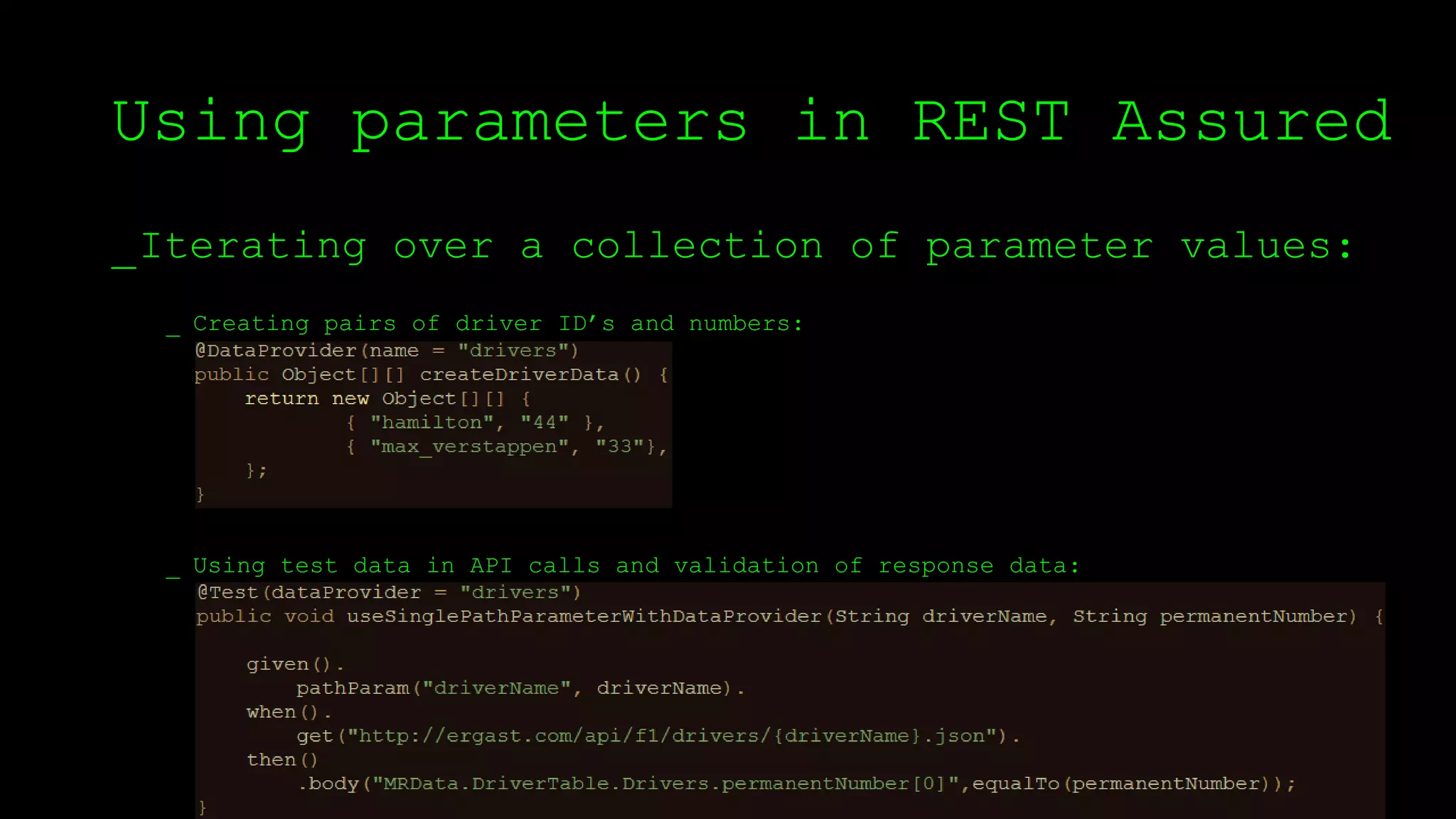

- 26. Using parameters inREST Assured _Iterating over a collection of parameter values: _ Creating pairs of driver ID’s and numbers: _ Using test data in API calls and validation of response data:

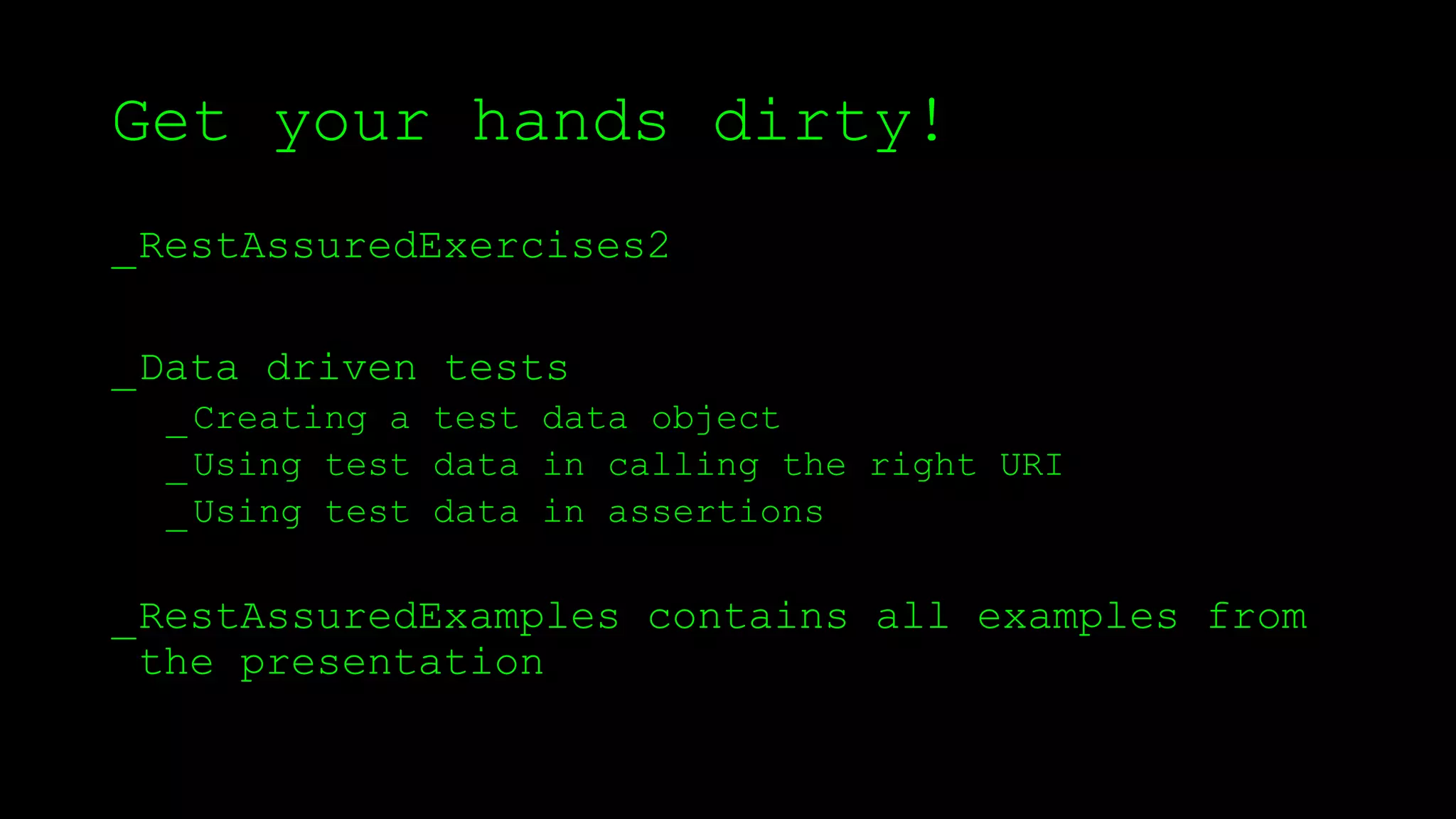

- 27. Get your handsdirty! _RestAssuredExercises2 _Data driven tests _Creating a test data object _Using test data in calling the right URI _Using test data in assertions _RestAssuredExamples contains all examples from the presentation

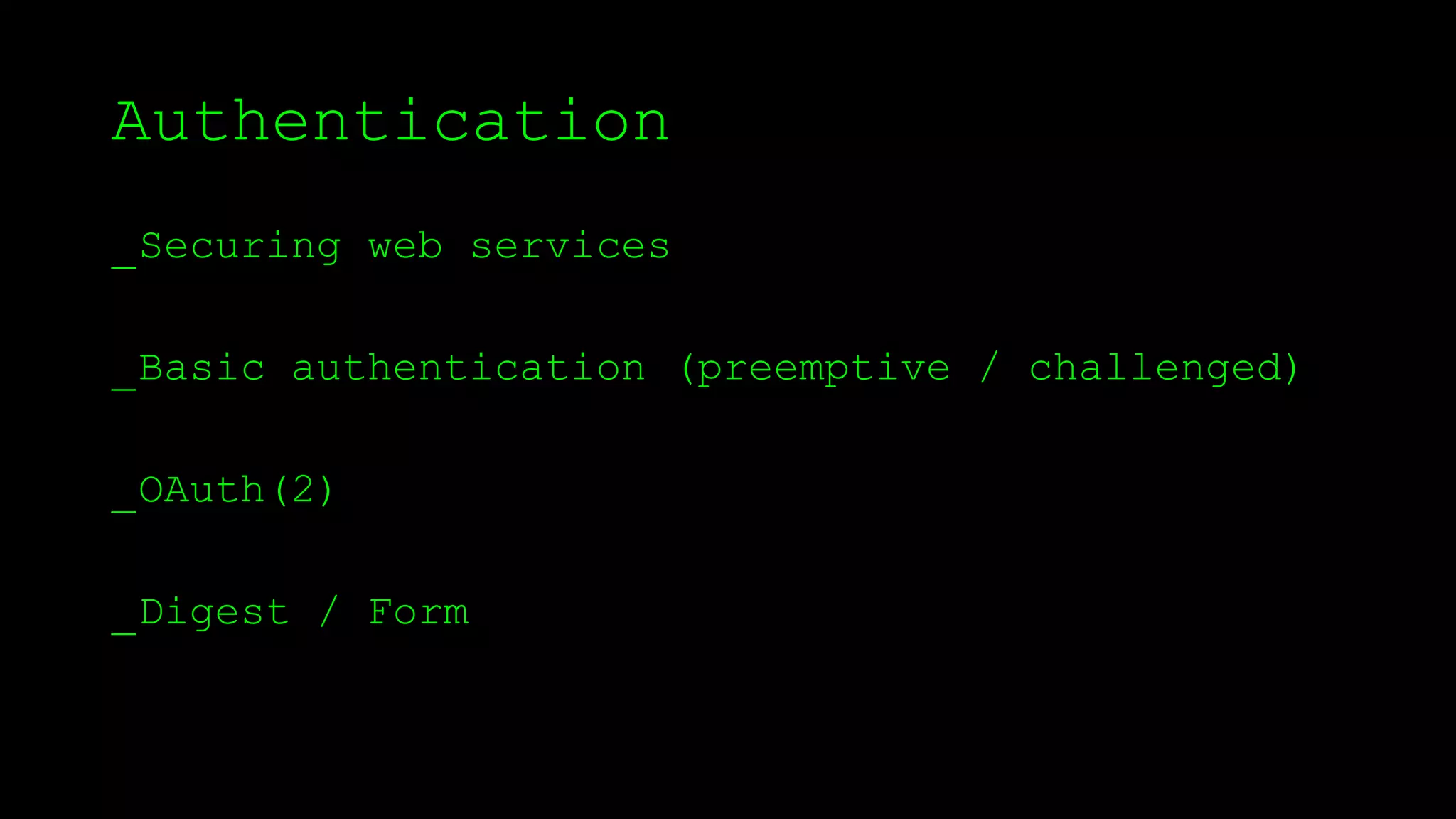

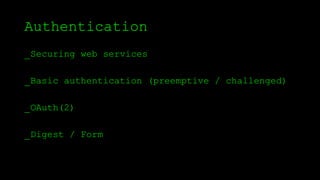

- 28. Authentication _Securing web services _Basicauthentication (preemptive / challenged) _OAuth(2) _Digest / Form

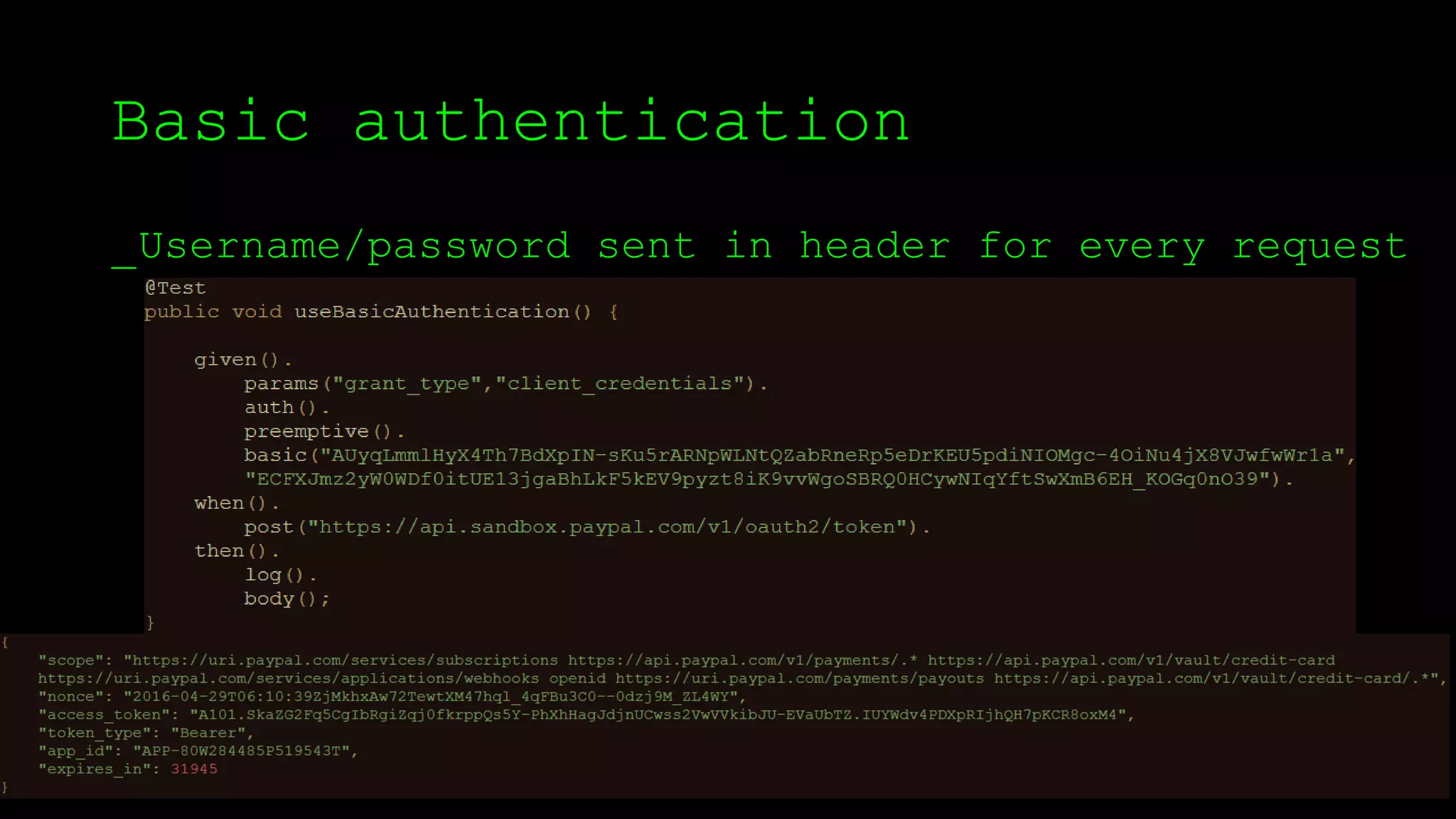

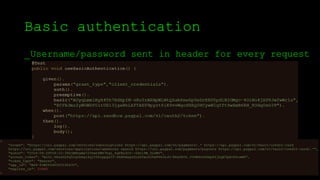

- 29. Basic authentication _Username/password sentin header for every request

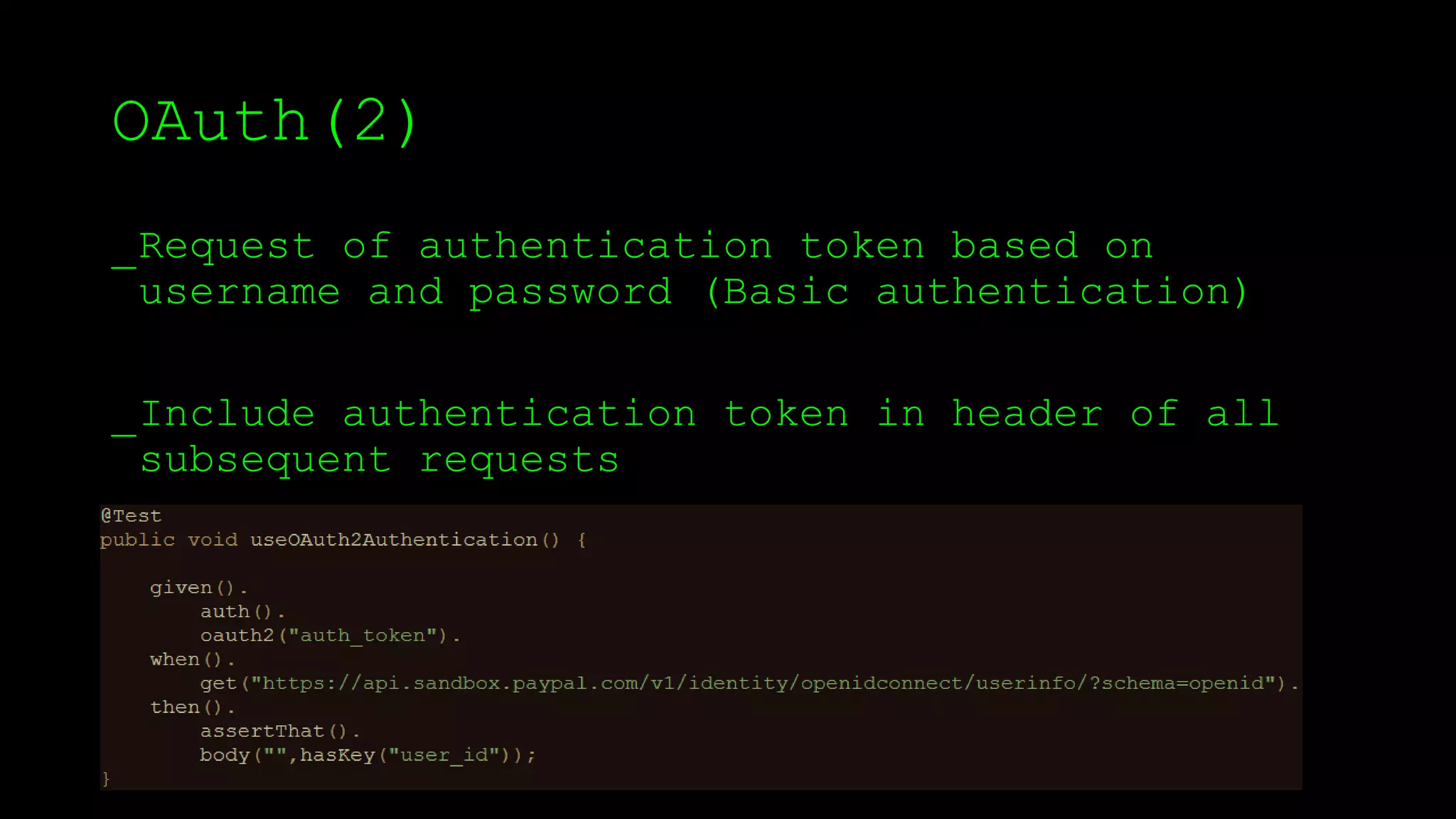

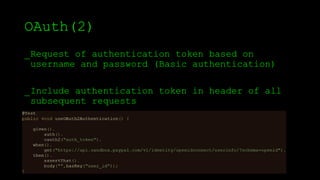

- 30. OAuth(2) _Request of authenticationtoken based on username and password (Basic authentication) _Include authentication token in header of all subsequent requests

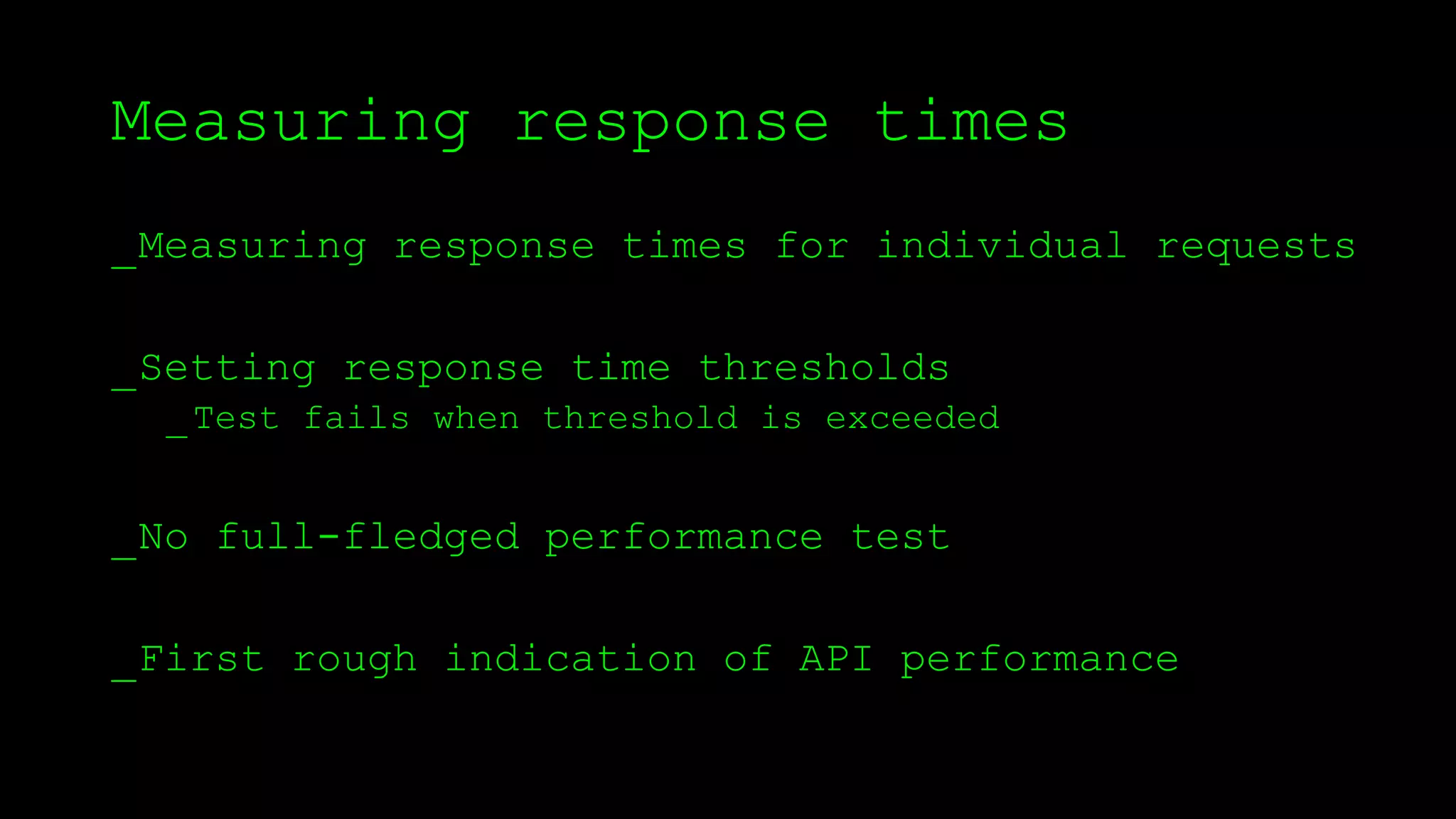

- 31. Measuring response times _Measuringresponse times for individual requests _Setting response time thresholds _Test fails when threshold is exceeded _No full-fledged performance test _First rough indication of API performance

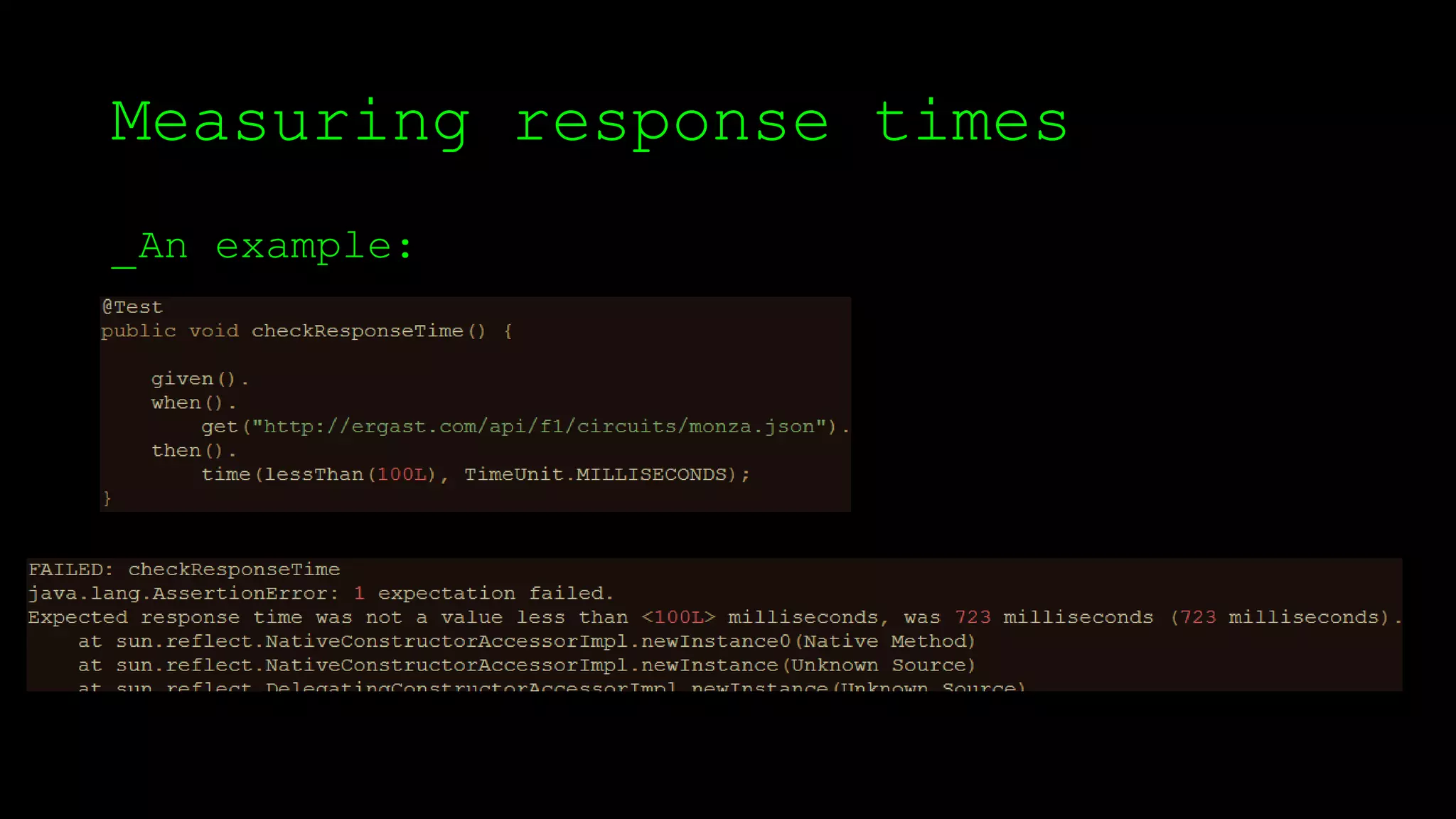

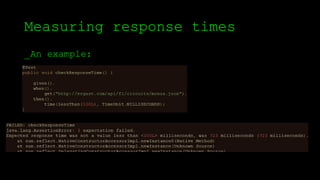

- 32. Measuring response times _Anexample:

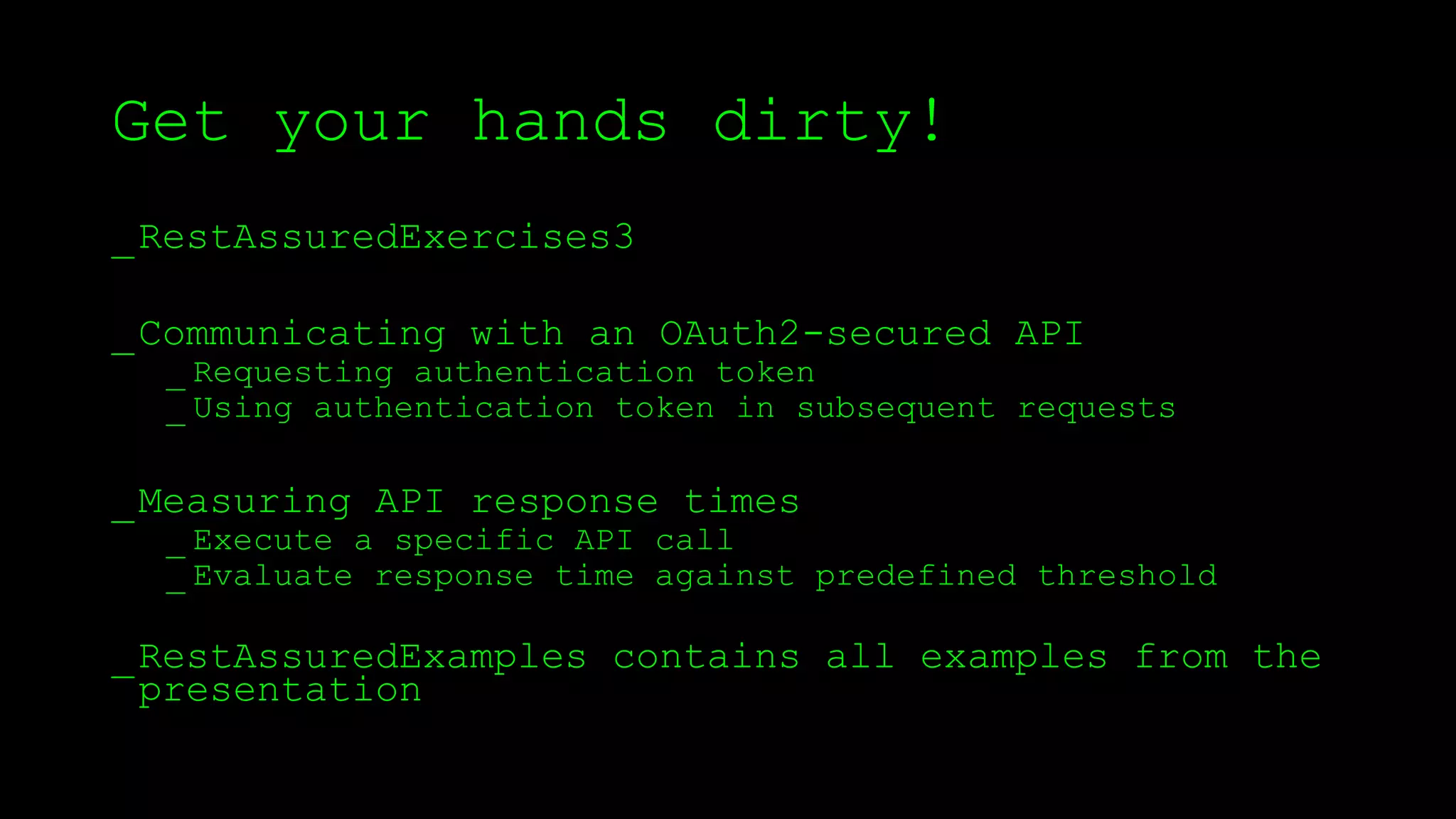

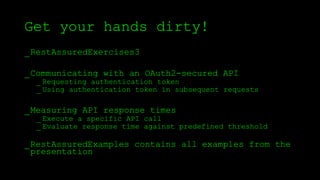

- 33. Get your handsdirty! _RestAssuredExercises3 _Communicating with an OAuth2-secured API _ Requesting authentication token _ Using authentication token in subsequent requests _Measuring API response times _ Execute a specific API call _ Evaluate response time against predefined threshold _RestAssuredExamples contains all examples from the presentation

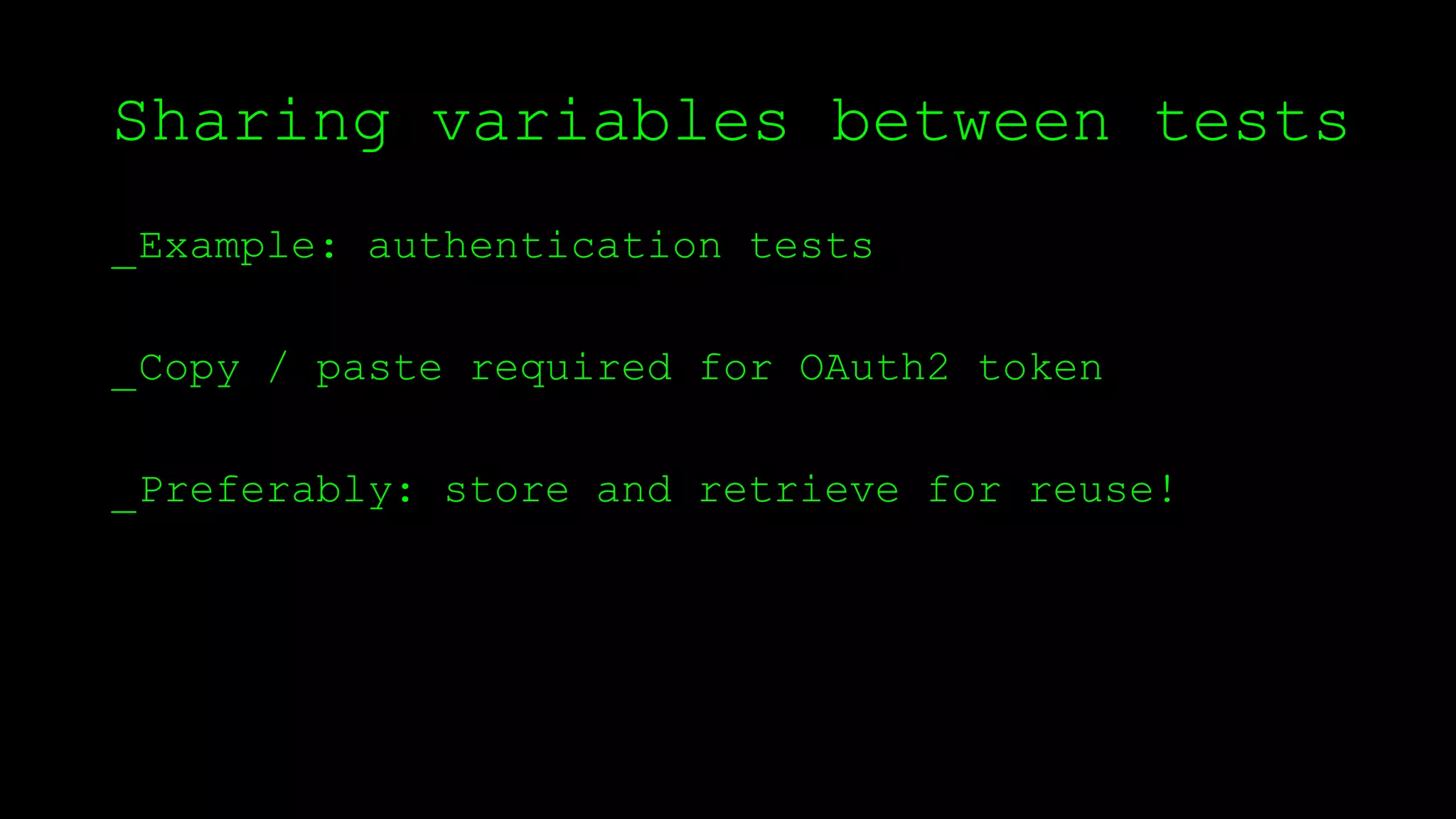

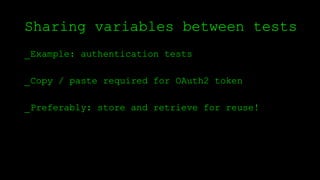

- 34. Sharing variables betweentests _Example: authentication tests _Copy / paste required for OAuth2 token _Preferably: store and retrieve for reuse!

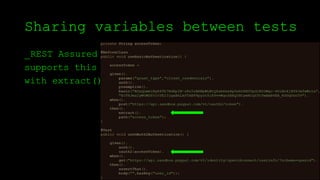

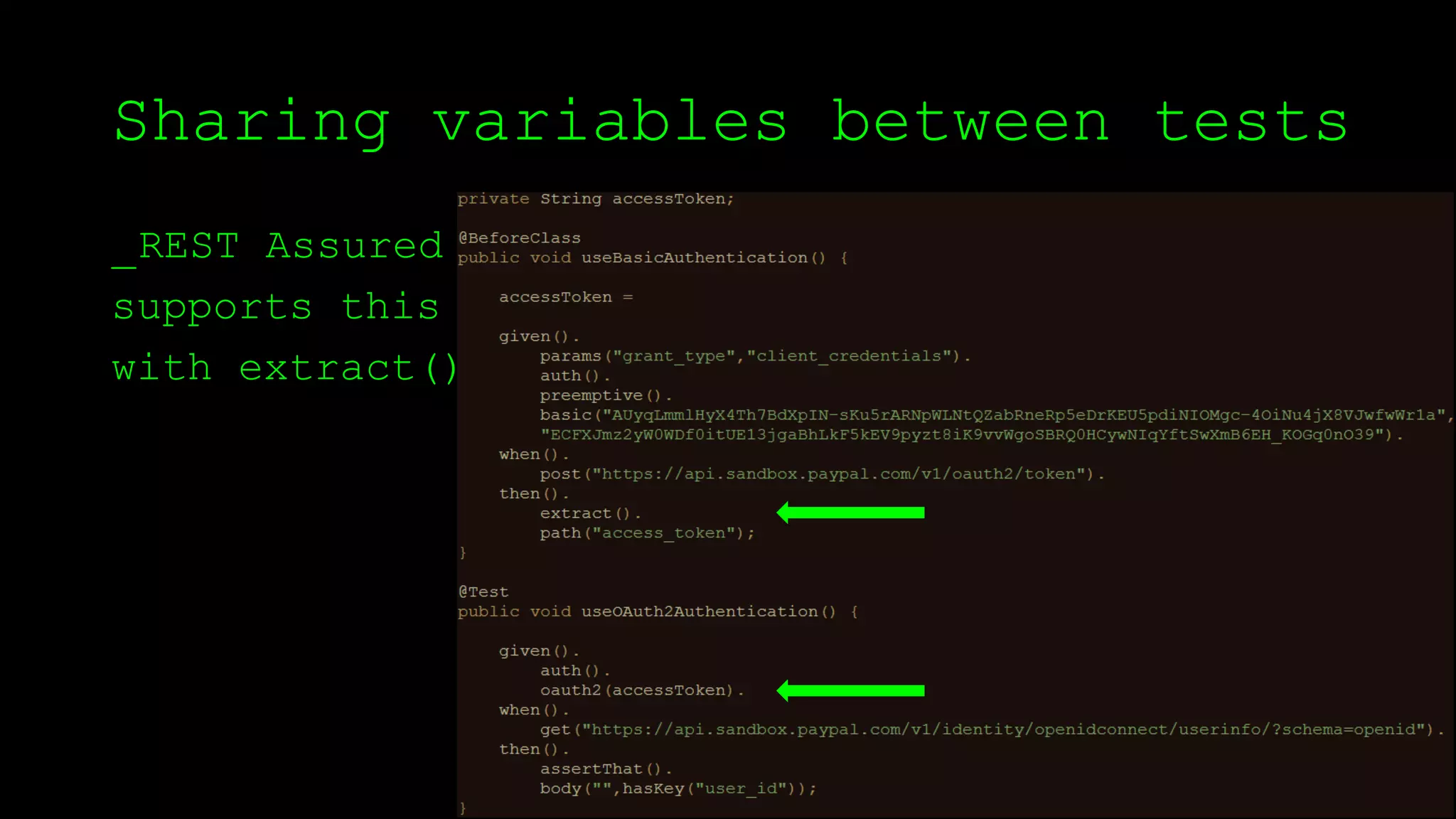

- 35. Sharing variables betweentests _REST Assured supports this with extract()

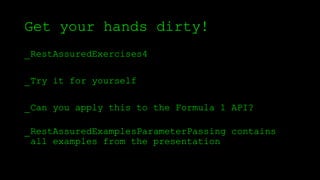

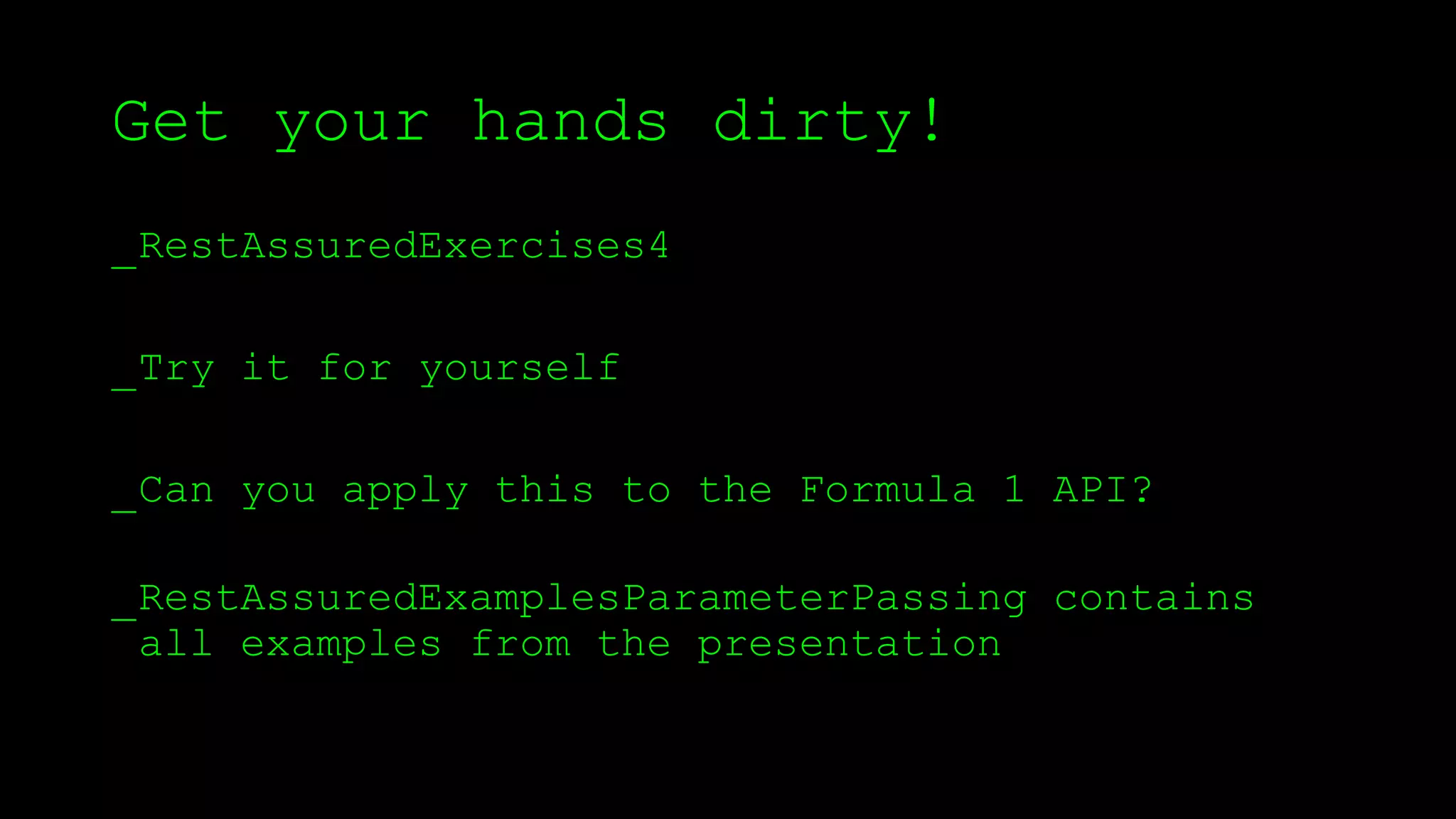

- 36. Get your handsdirty! _RestAssuredExercises4 _Try it for yourself _Can you apply this to the Formula 1 API? _RestAssuredExamplesParameterPassing contains all examples from the presentation

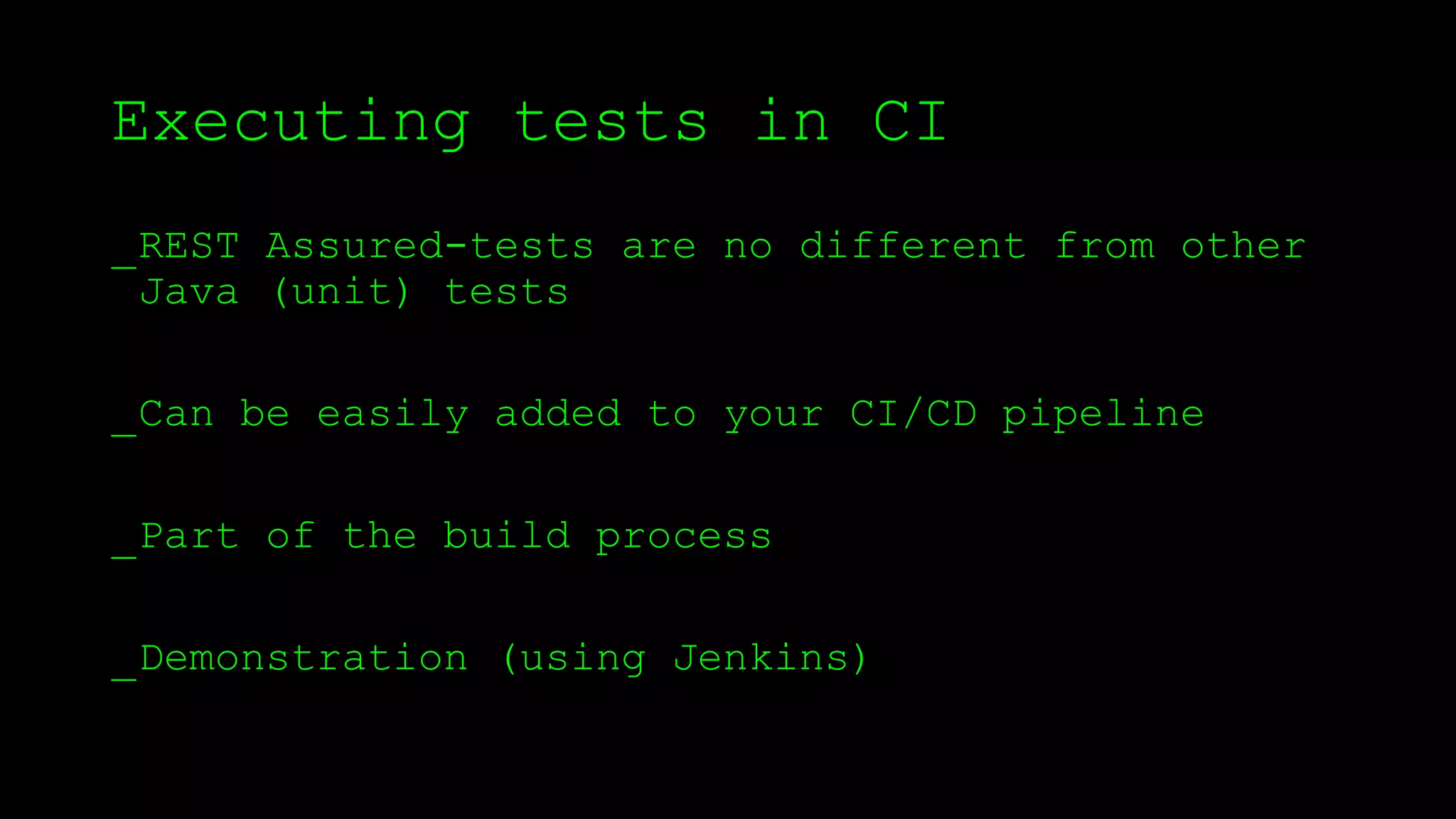

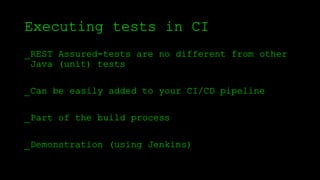

- 37. Executing tests inCI _REST Assured-tests are no different from other Java (unit) tests _Can be easily added to your CI/CD pipeline _Part of the build process _Demonstration (using Jenkins)
- 38.
- 39.
Editor's Notes
- #2 Please replace the … with your own name. I would really like it if you left the bottom line intact though, as a way of thanking me. That’s really all I’m asking for, the rest of the workshop is yours to butcher (erm, improve).
- #3 First: an introduction to RESTful web services, how they work and where they are used Then: an introduction to REST Assured, a Java library that can be used to write tests for RESTful web services But most importantly: you are going to have to do some work yourself! There’s not better way to learn than by doing.
- #4 Depending on the way you deliver this workshop, this sheet can be altered or even removed. When I delivered it, I had participants bring in their own laptop and asked them to follow installation instructions. I only provided them for Eclipse and mentioned that whenever they wanted to use a different IDE, they were allowed to do so. I wanted to keep things simple and therefore did not provide installation instructions for other IDEs.
- #5 Explain the concept of RESTful web services and compare it to your browser retrieving web pages, images, etc. from a web server (or sending data back to it).

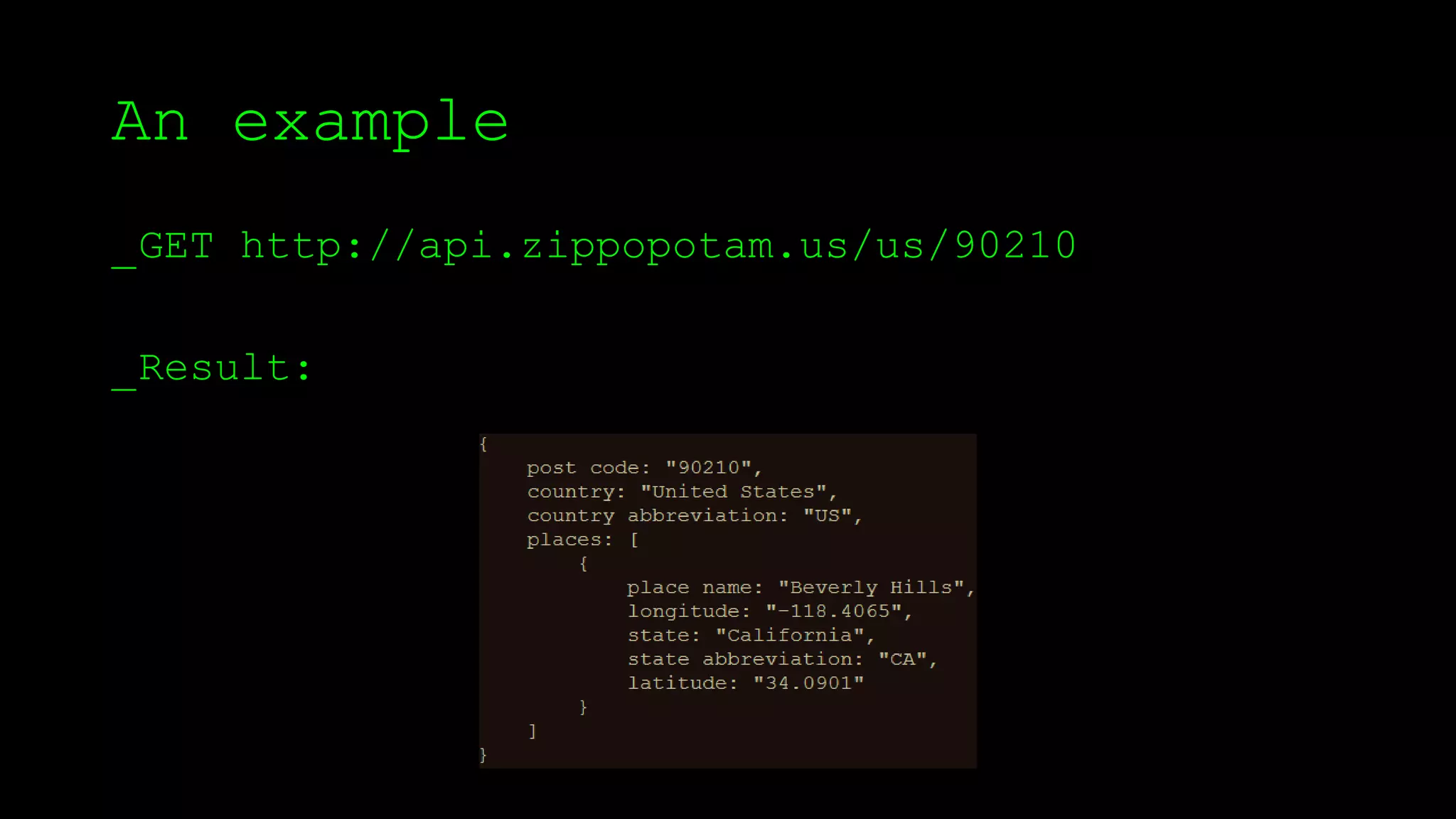

- #6 A simple example. You could also perform this one live to show the participants how easy it is to invoke a RESTful web service using your browser (it really is no different from accessing a regular web page since it’s all done over HTTP)
- #7 Explain where RESTful web services are used. API Economy relates to software development exposing (parts of) their applications to the outside world through APIs, so that other developers can easily integrate their applications with it. For example: Google’s Gmail API, Maps API or the PayPal or LinkedIn APIs.
- #8 Explain the reasons why REST is chosen over SOAP
- #9 There are some cases where using SOAP instead of REST can be useful
- #10 Three levels of tools, ranging from the very simple to the powerful and from the free to the commercial
- #11 Explain what REST Assured is and why it was written Explain how REST Assured can easily be made part of a bigger testing framework covering everything from unit to end-to-end and user interface testing
- #12 Briefly discuss the options available for installing and configuring REST Assured (this should be trivial for anybody with a bit of Java development experience)
- #13 Notes on where to find additional information on REST Assured

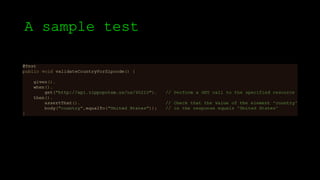

- #14 Demonstrate how easy it is to write a fully functional test on a RESTful web service with REST Assured. This is the only code you need. And it’s readable too!
- #15 Using the example from the previous sheet, introduce some of the basic REST Assured features
- #16 Go into a little more detail with regards to Hamcrest matchers – readable matchers for creating checks
- #17 Go into a little more detail with regards to Gpath for effective selection of elements from XML and JSON responses

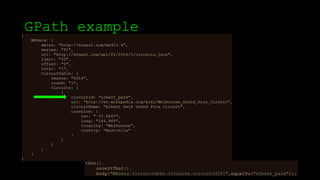

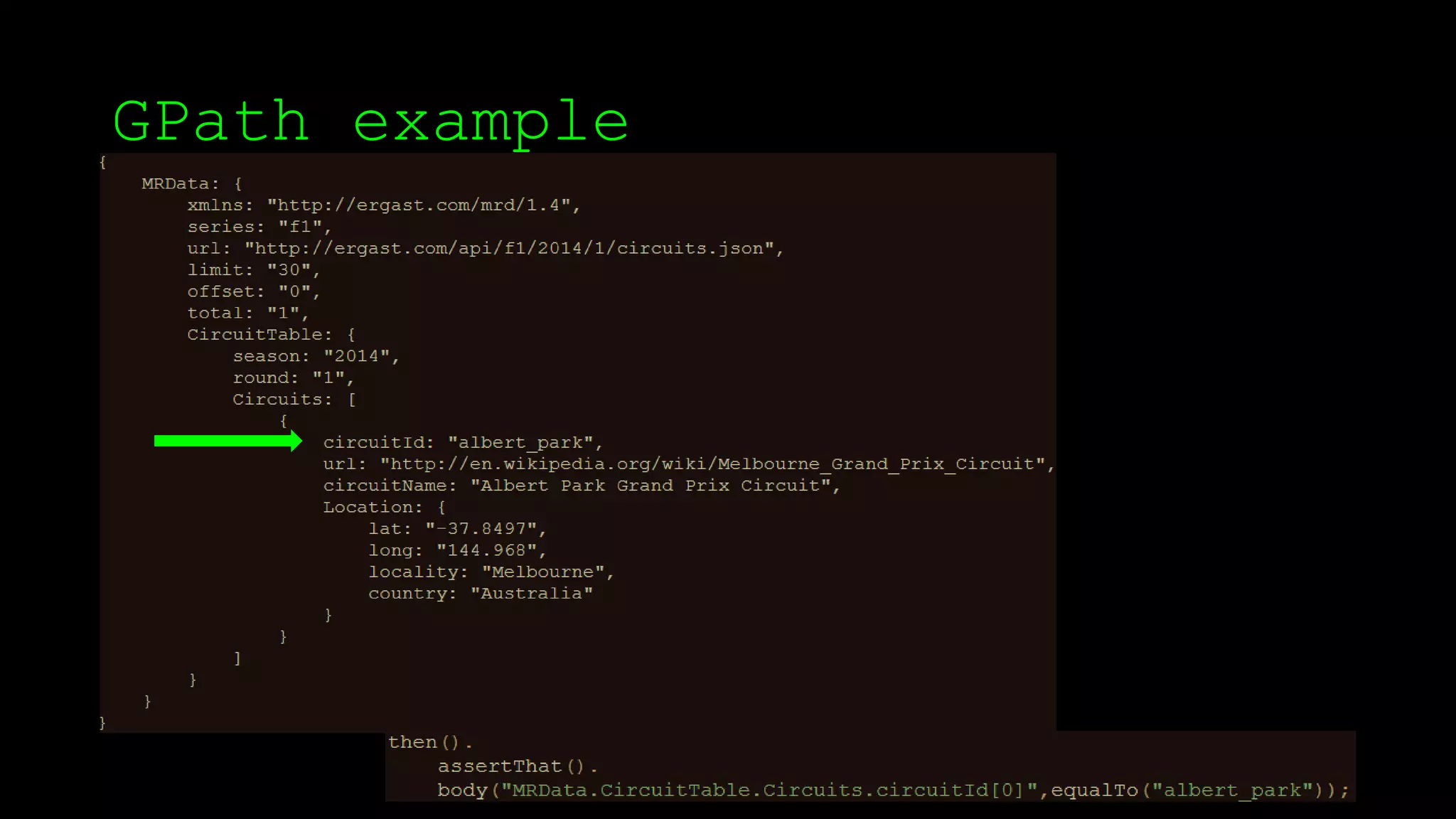

- #18 Example – also explain the [0] needed since we’re dealing with a collection of Circuits here
- #19 Explain how you can not only perform validations on response content, but also on response headers.
- #20 Explain why this API was chosen (simple, lots of features, very ‘real’ data, something lots of people can relate to) Alternatively, you can always use your own API of course!
- #21 Some basic examples on how to retrieve data from the API
- #22 A quick demo before the participants start with the first series of exercises might be helpful to ensure they’ve understood everything so far and are ready to go.
- #23 Speaks for itself, I think.
- #24 Explain the difference between path and query string parameters in RESTful web services
- #25 Explain how you define query string parameters to be used when calling a service in REST Assured (using params() )
- #26 Explain how you define path parameters to be used when calling a service in REST Assured (using pathParam() )
- #27 Explain how to create data driven tests using the TestNG @DataProvider and (path or query string) parameters
- #29 Explain why web services sometimes need to be secured and introduce the different authentication options for RESTful web services
- #30 Explain Basic (username / password) authentication
- #31 Explain Oauth Retrieve access token by calling endpoint (mostly secured using Basic authentication) Include obtained authentication token in the header of all subsequent requests Explain that authentication token is tied to a specific user and that it has an expiration time (after which a new token needs to be requested)
- #32 REST Assured can also measure very basic response times. This is in no way equal to a full-blown performance test, but it can be a rough indication for potential performance issues. For REAL validation of performance requirements, an actual performance test should be set up, using a dedicated performance test tool such as Apache JMeter
- #33 Here’s an example of how to define a response time threshold and the error generated when the actual response time exceeds this threshold
- #35 Refer to the exercise where you needed to manually copy and paste the OAuth authentication token. This is cumbersome, especially when you want to have your tests run unattended (which you want to ;). To be able to do so, you need a way to extract response values from a certain request (in this case the authentication token) and reuse it in subsequent tests.
- #36 Explain the REST Assured extract() feature, which you can use (using GPath) to extract certain values from a response for later reuse.
- #38 The final part of this workshop is used to explain how you can integrate your REST Assured API-level tests in a Continuous Integration setting. For my workshop, I have set up a local Jenkins installation and created a simple job that executed the tests. I then showed the build result and the console output in Jenkins to prove that the tests were indeed executed.
- #39 Any questions?
- #40 Here’s the part where you can shamelessly promote yourself (or give the participants your contact details in case they want more information or have any other questions, of course…). Feel free to replace this with your own contact details, you’re the one delivering the workshop after all!
