Web api
- 1.

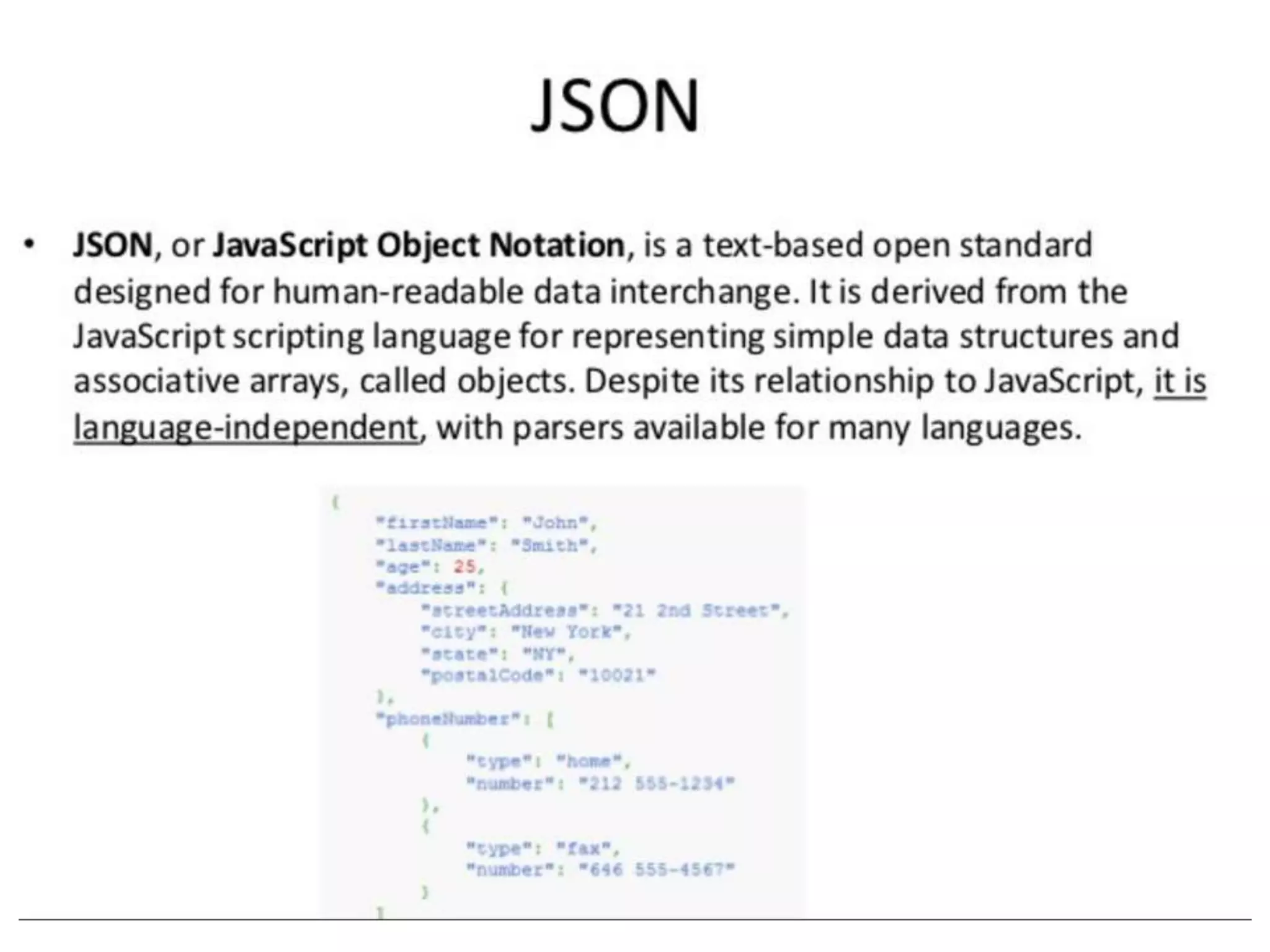

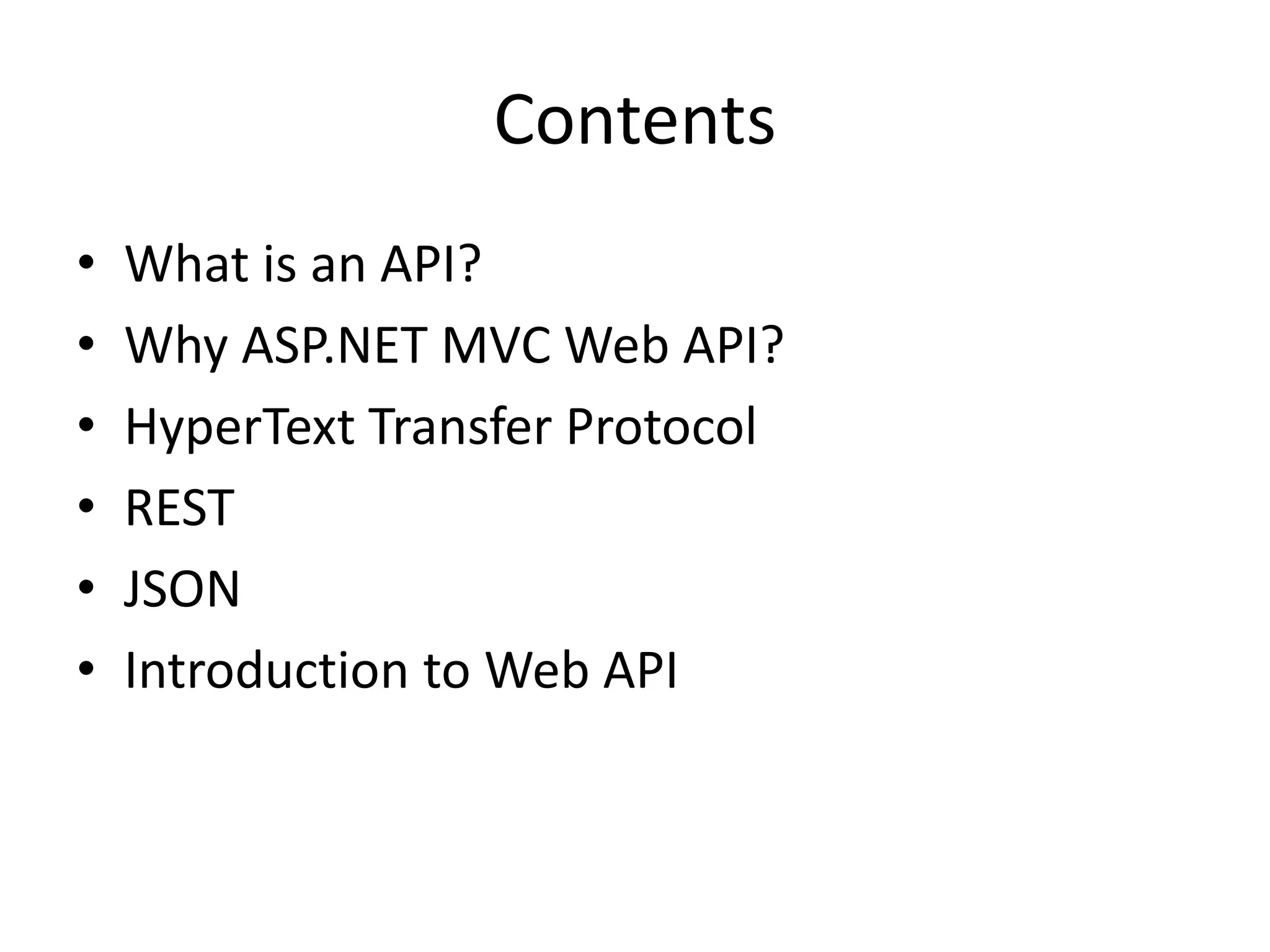

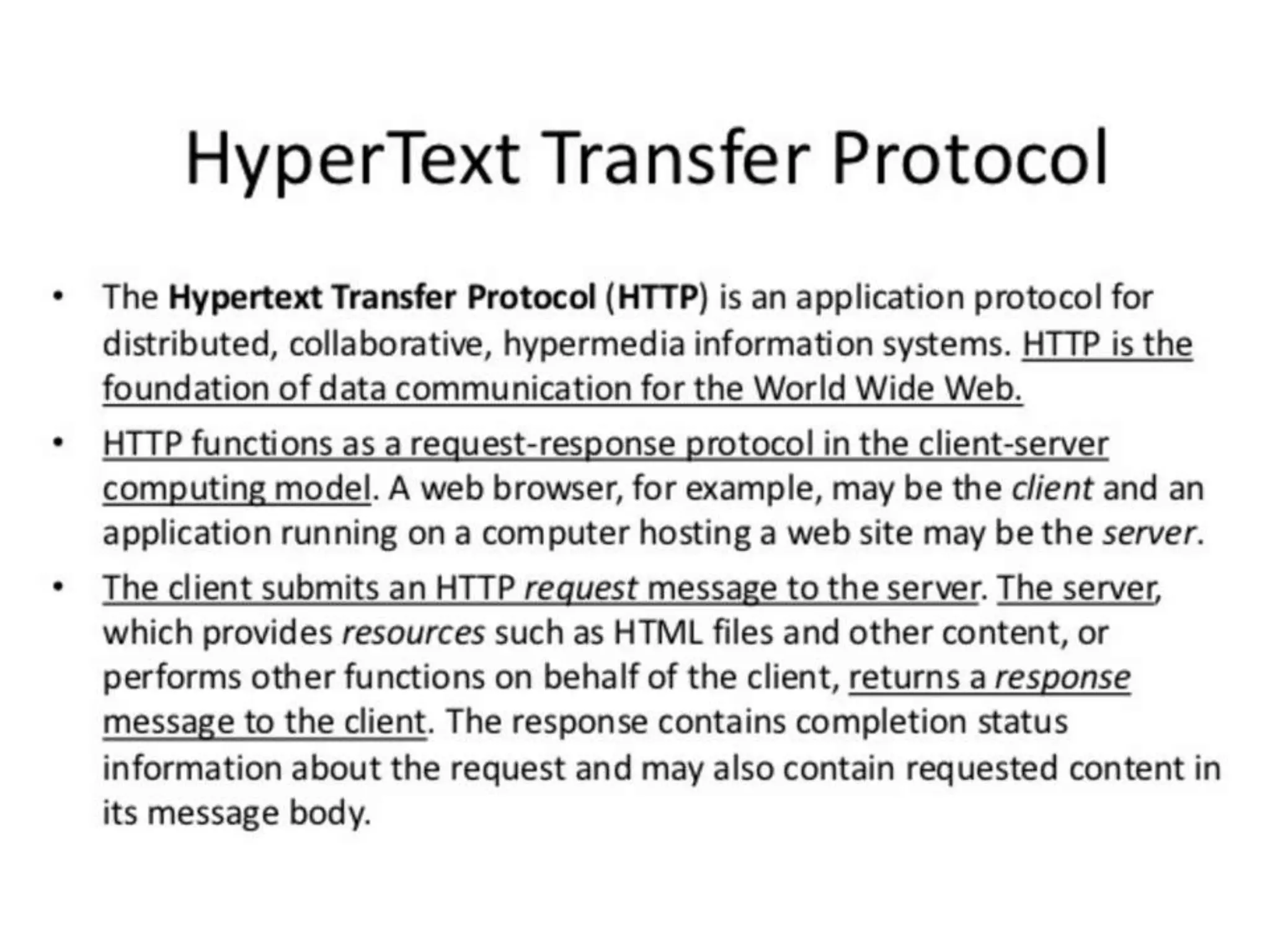

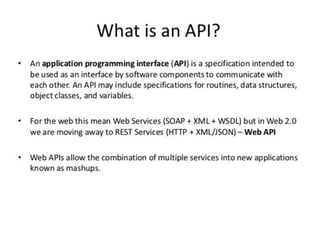

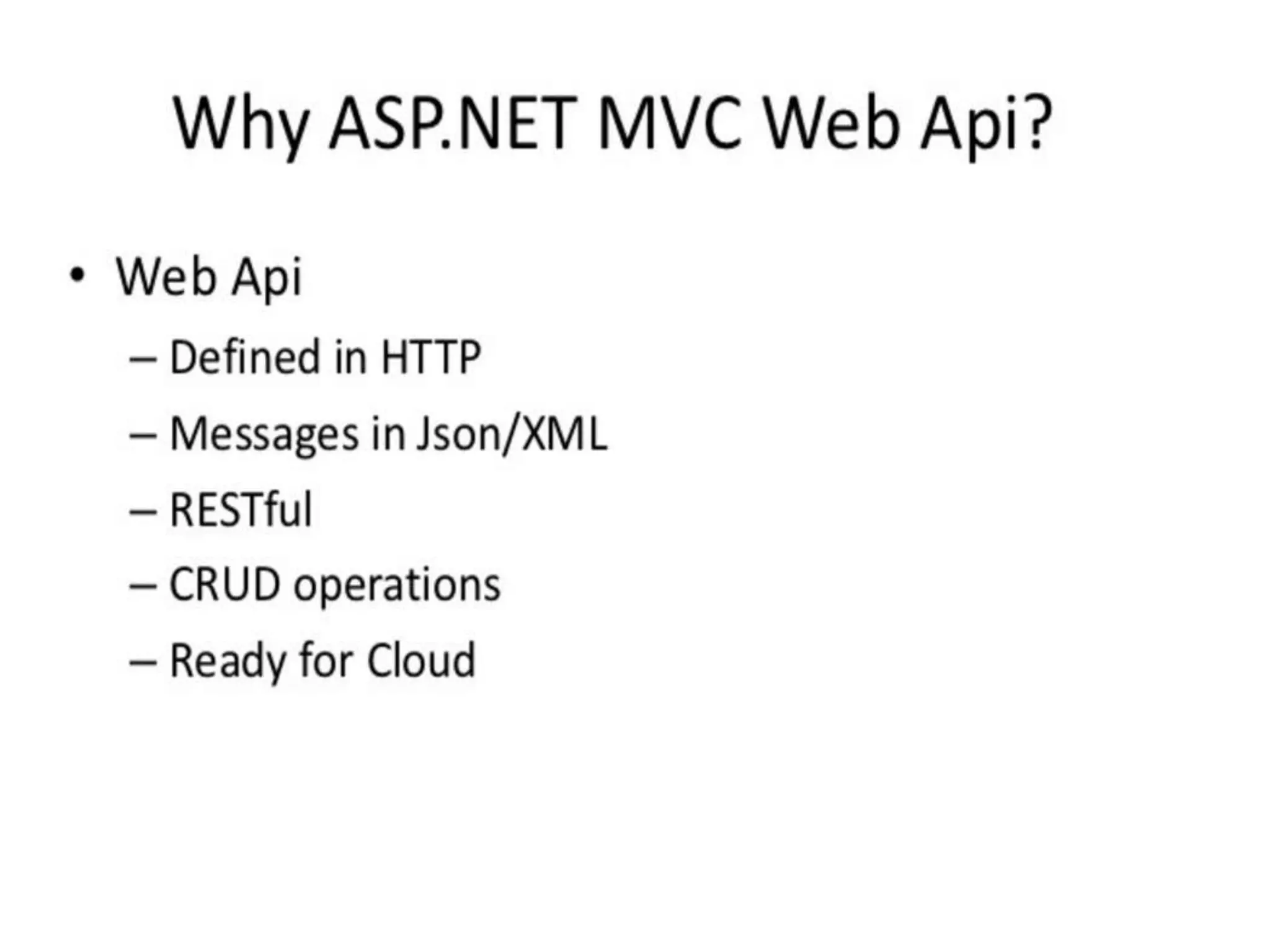

- 2. Contents • What isan API? • Why ASP.NET MVC Web API? • HyperText Transfer Protocol • REST • JSON • Introduction to Web API
- 7.

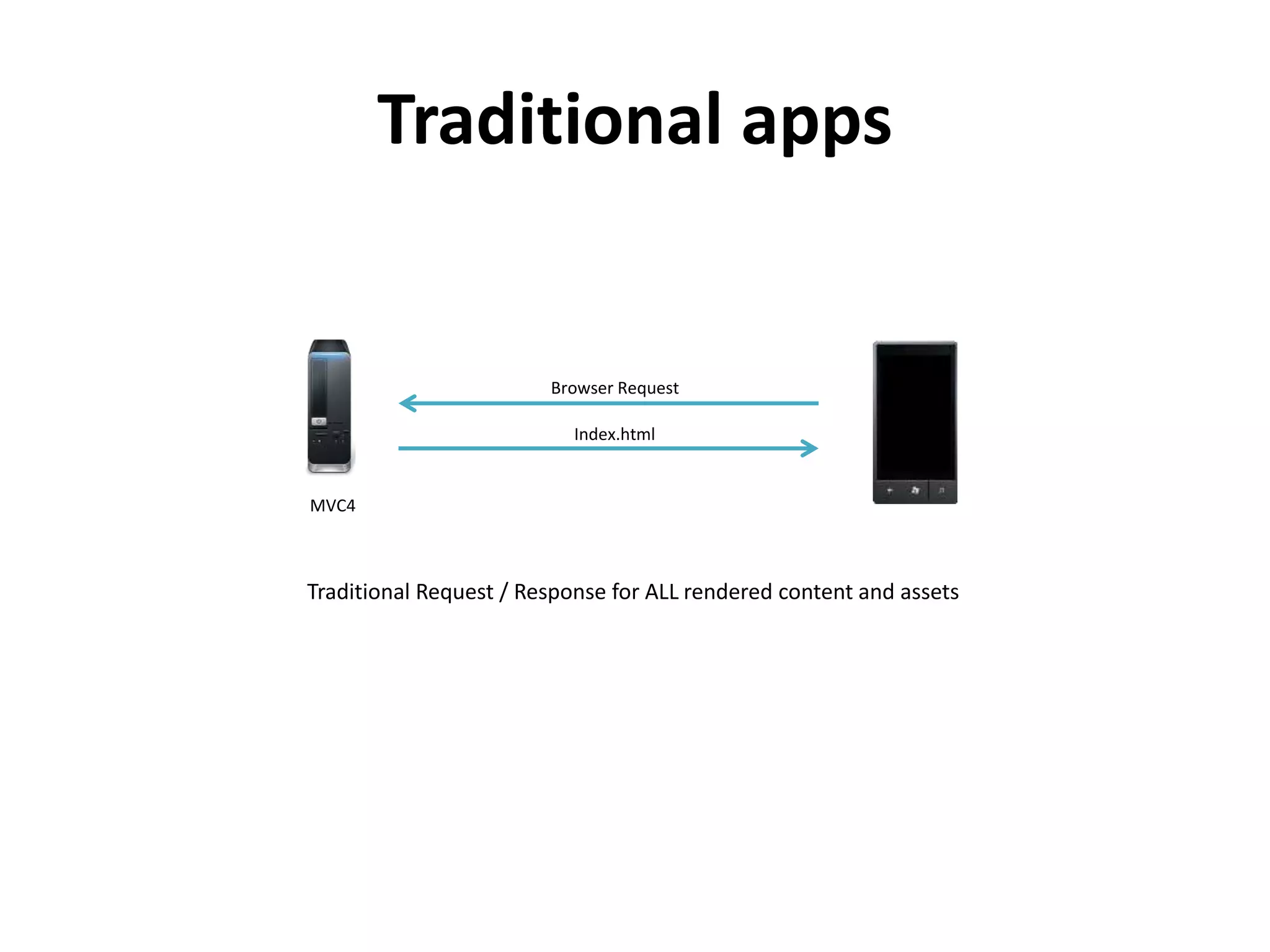

- 11. Traditional apps Browser Request Index.html MVC4 TraditionalRequest / Response for ALL rendered content and assets

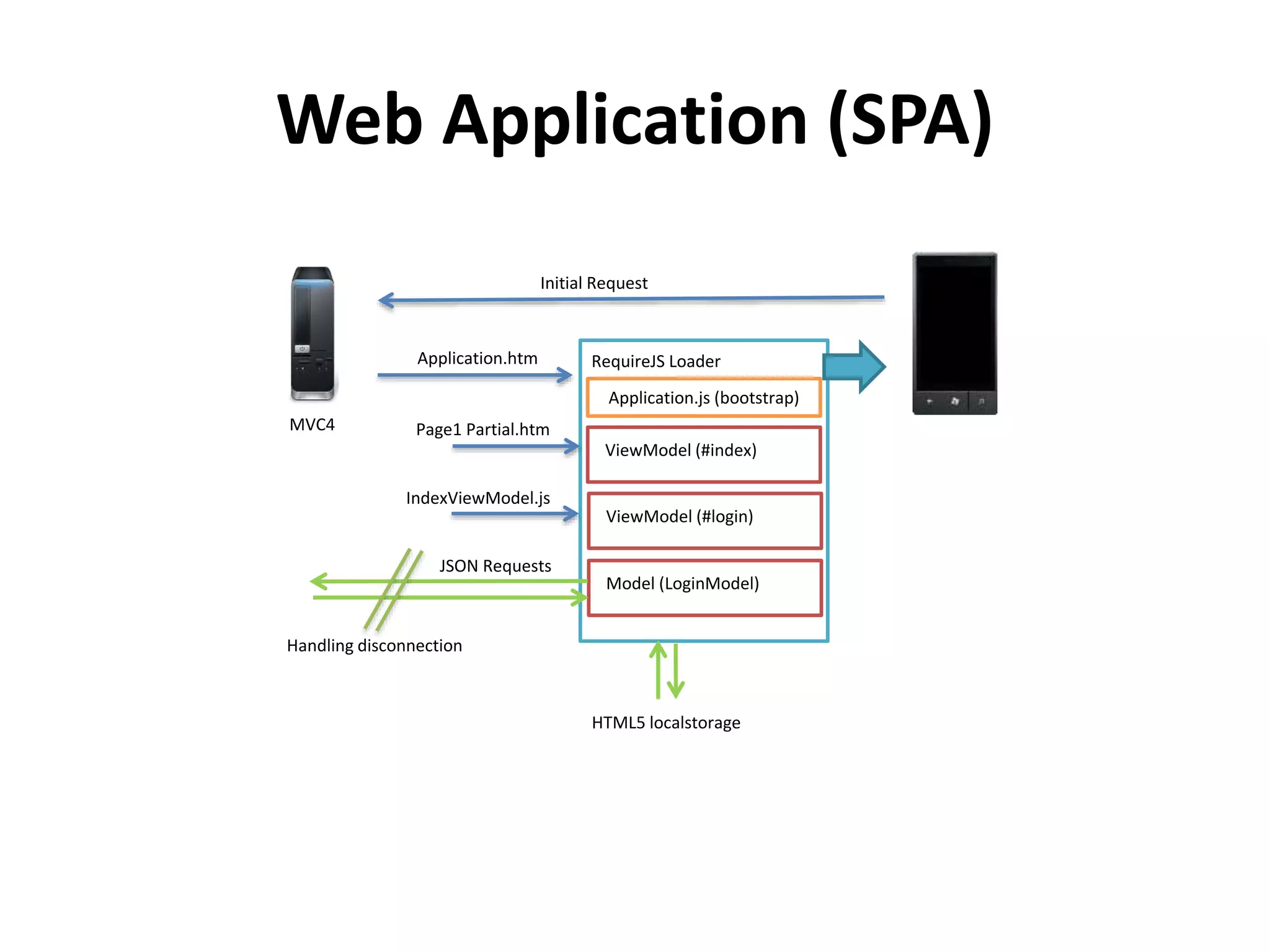

- 12. Web Application (SPA) InitialRequest Application.htm MVC4 RequireJS Loader Page1 Partial.htm IndexViewModel.js Application.js (bootstrap) ViewModel (#index) ViewModel (#login) Model (LoginModel) JSON Requests HTML5 localstorage Handling disconnection

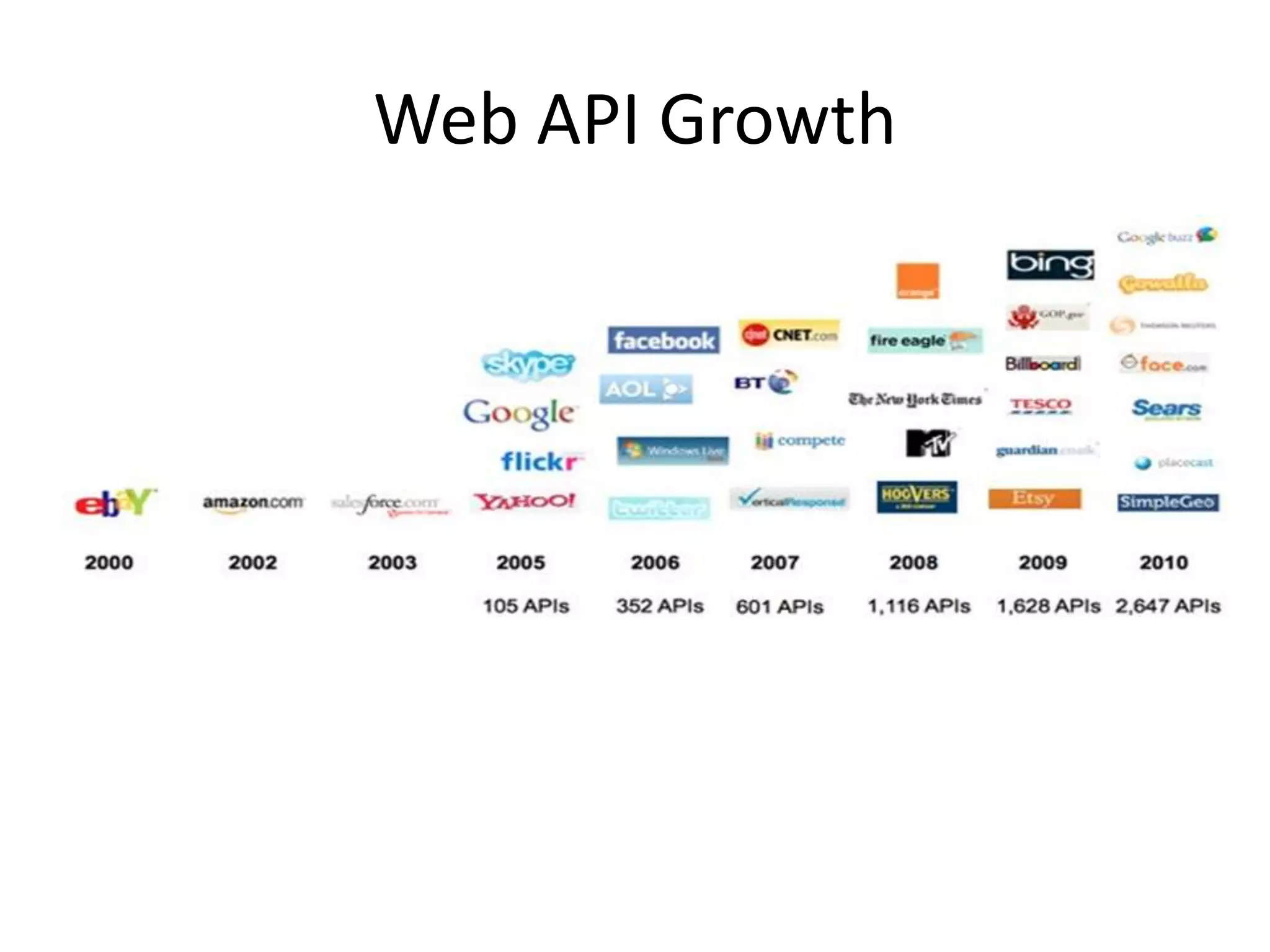

- 13.
- 17. WCF vs. ASP.NETWeb API

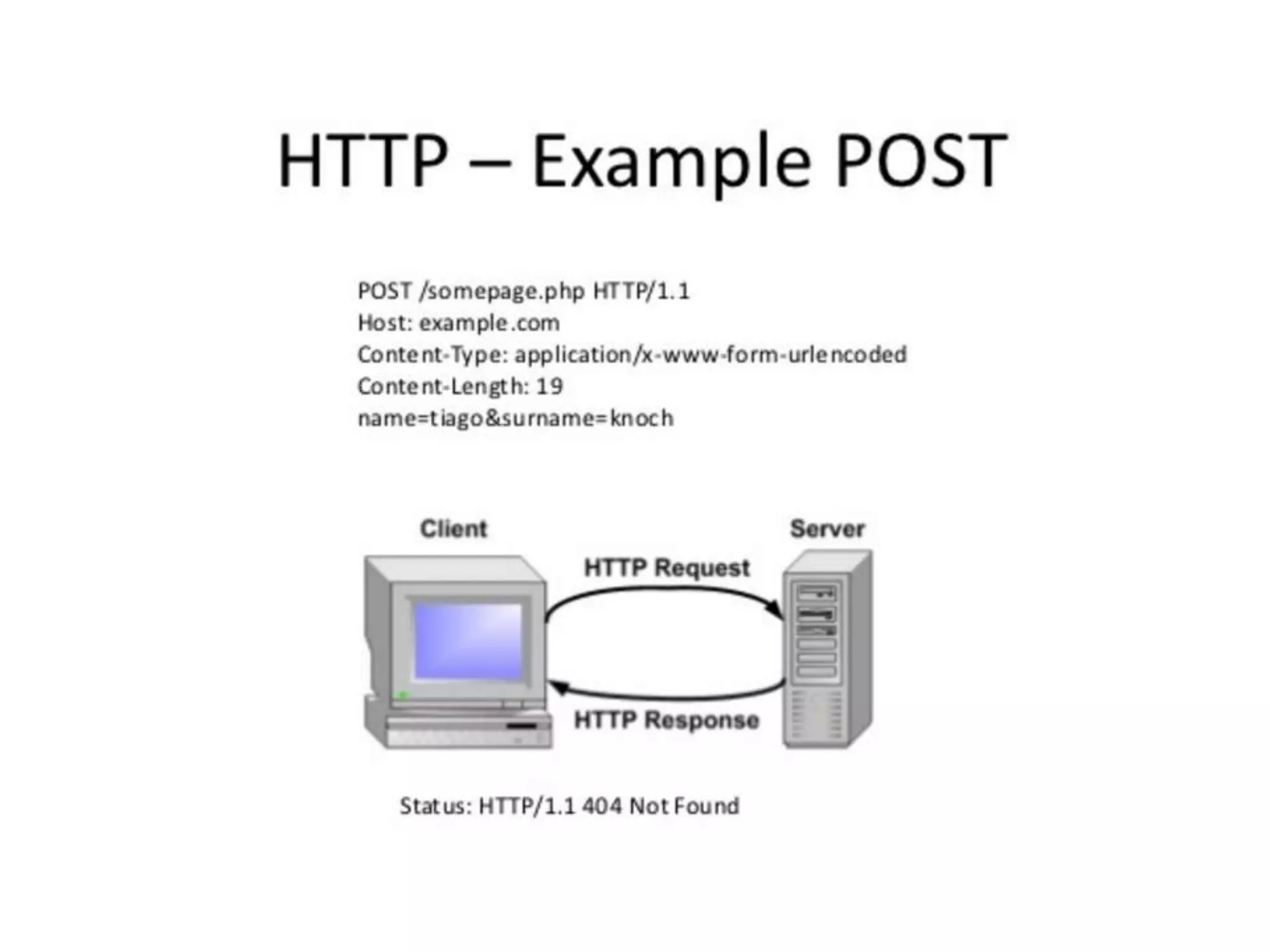

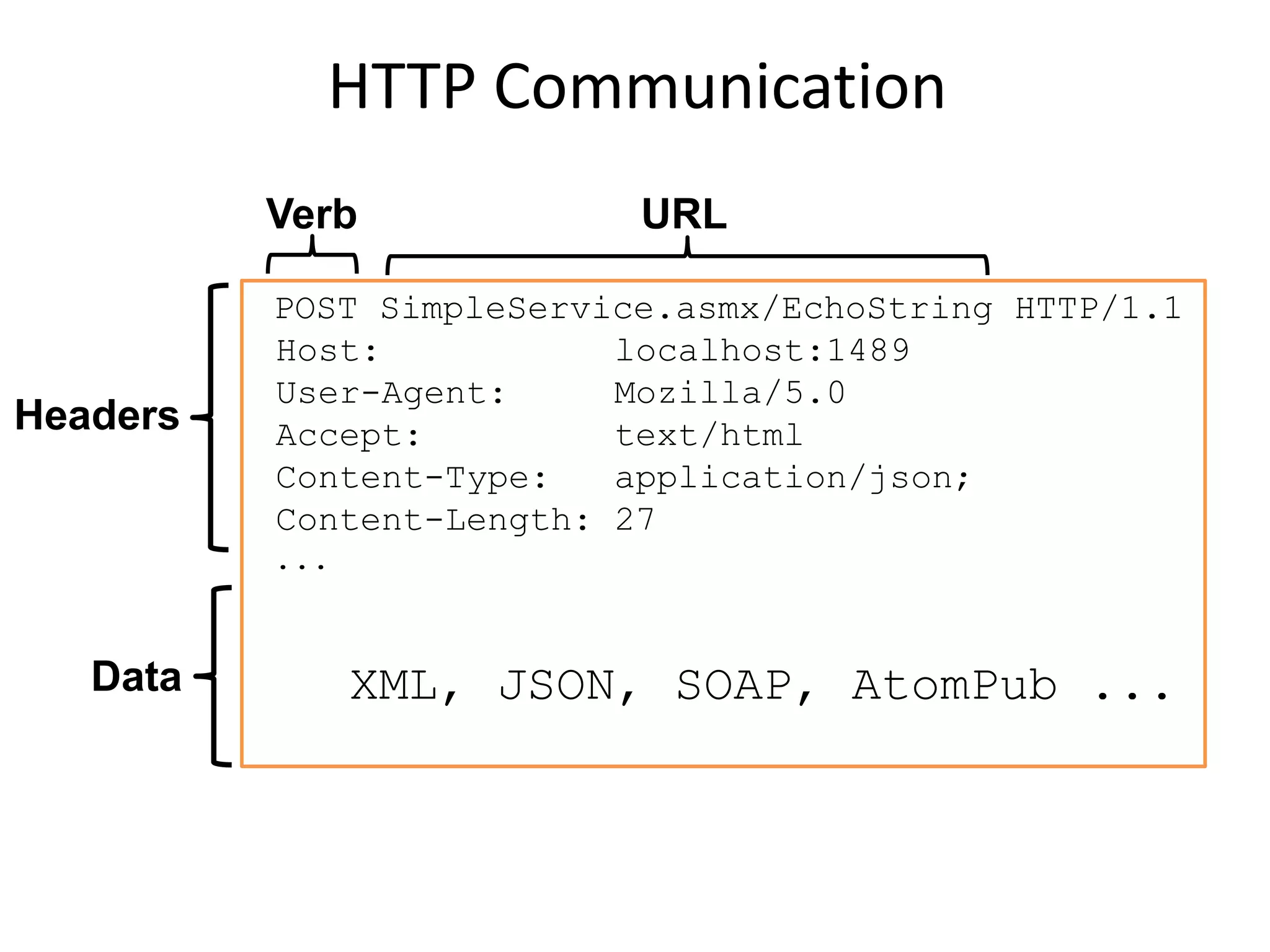

- 18. POST SimpleService.asmx/EchoString HTTP/1.1 Host:localhost:1489 User-Agent: Mozilla/5.0 Accept: text/html Content-Type: application/json; Content-Length: 27 ... XML, JSON, SOAP, AtomPub ... HTTP Communication Headers Data Verb URL

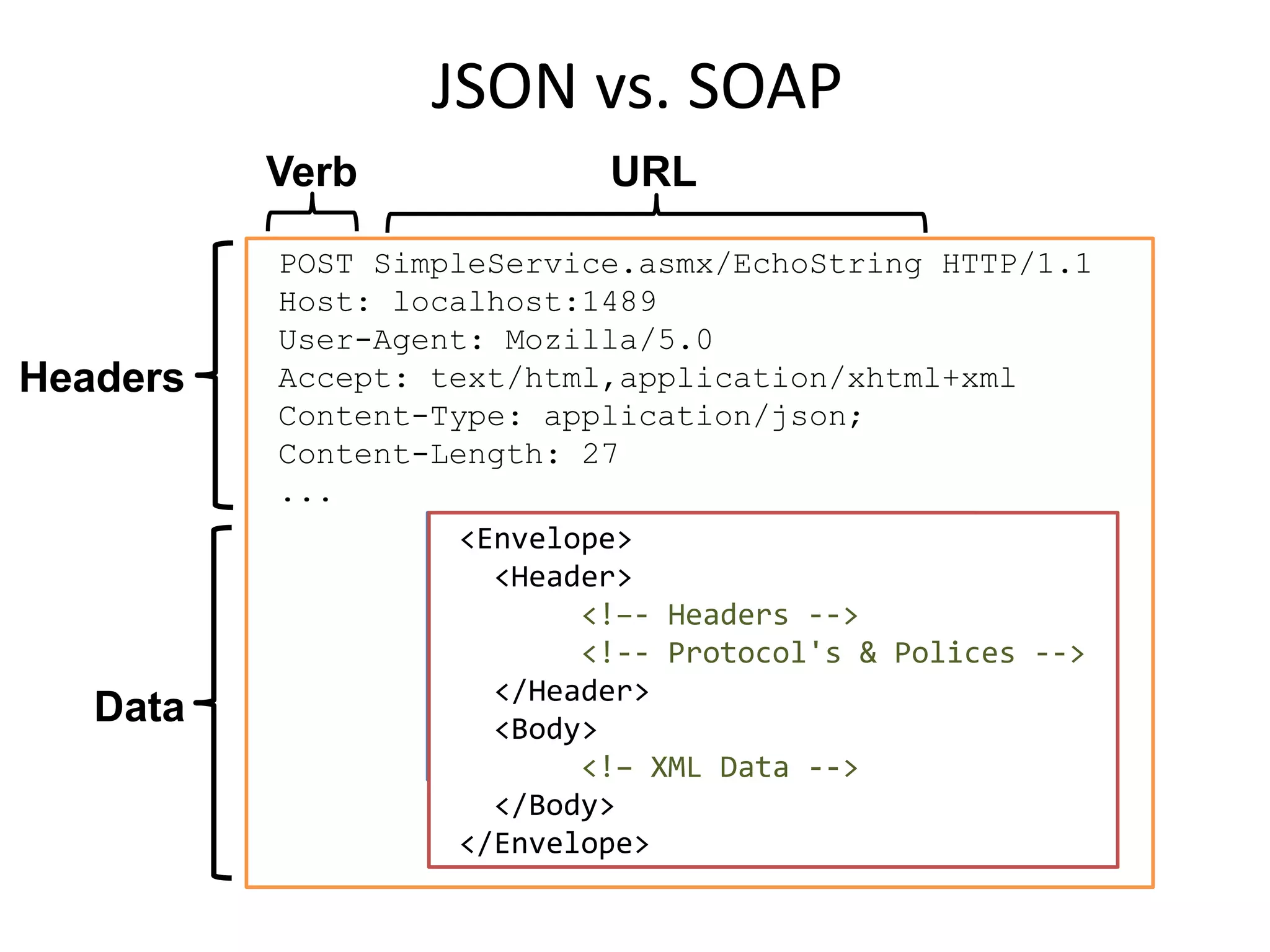

- 19. POST SimpleService.asmx/EchoString HTTP/1.1 Host:localhost:1489 User-Agent: Mozilla/5.0 Accept: text/html,application/xhtml+xml Content-Type: application/json; Content-Length: 27 ... JSON vs. SOAP { "Age":37, "FirstName":"Eyal", "ID":"123", "LastName":"Vardi“ } Headers Data Verb URL <Envelope> <Header> <!–- Headers --> <!-- Protocol's & Polices --> </Header> <Body> <!– XML Data --> </Body> </Envelope>

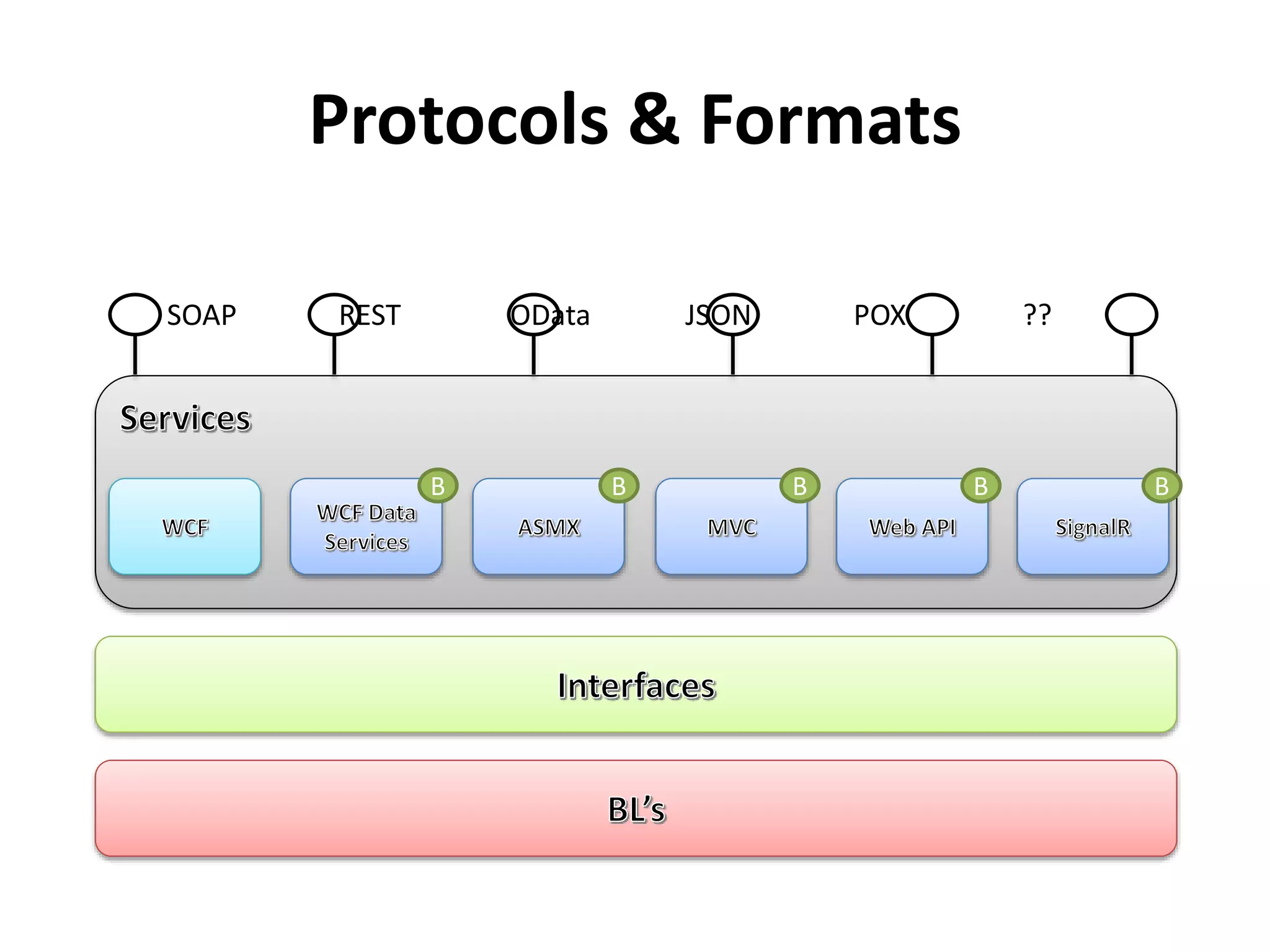

- 20. Protocols & Formats SOAPREST OData JSON POX ??

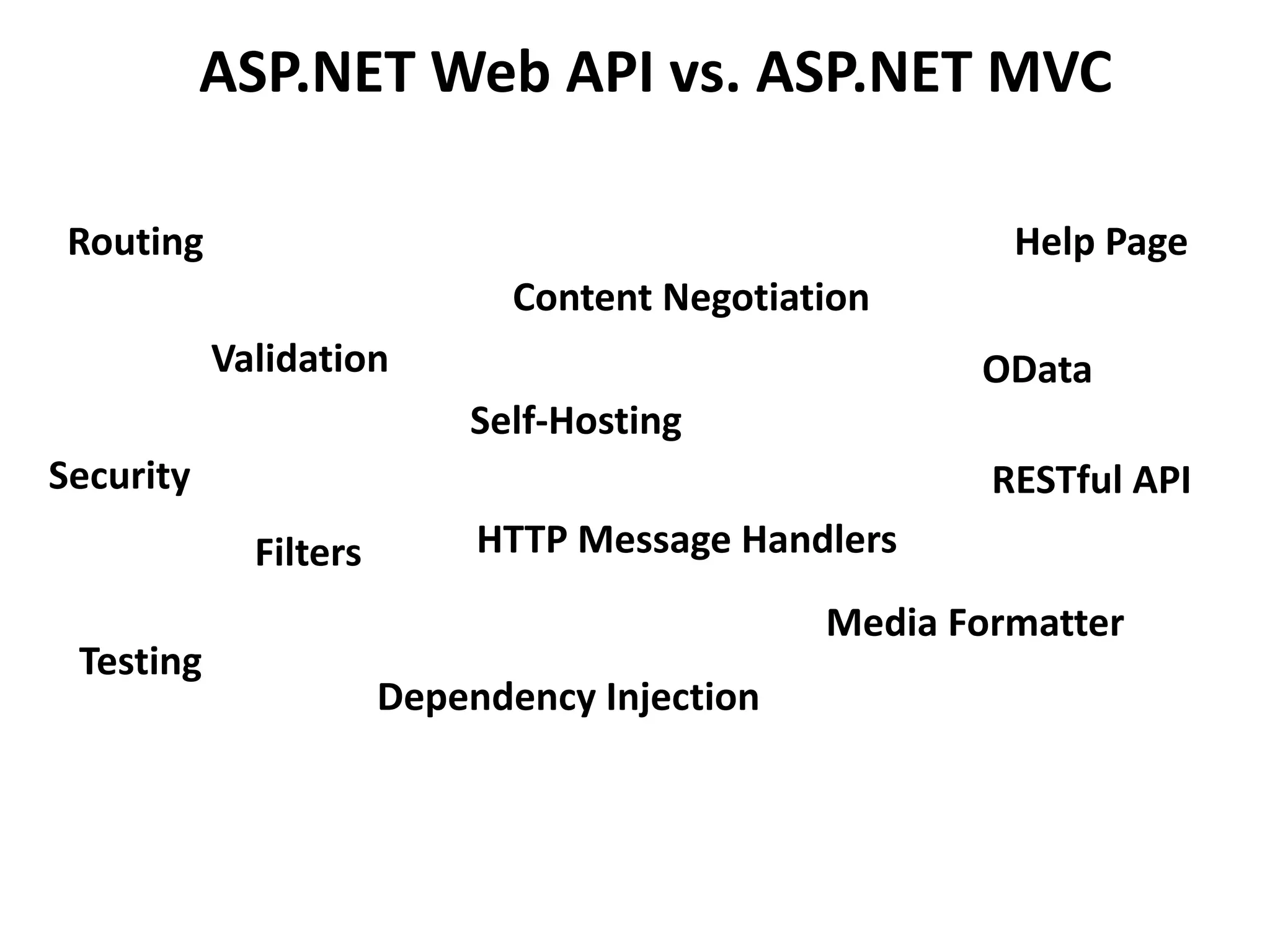

- 21. ASP.NET Web APIvs. ASP.NET MVC Dependency Injection Filters Content Negotiation Testing
- 22.

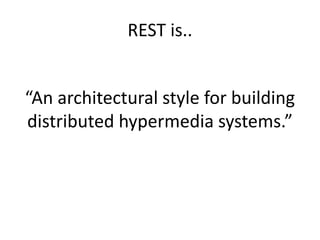

- 23. REST is.. “An architecturalstyle for building distributed hypermedia systems.”

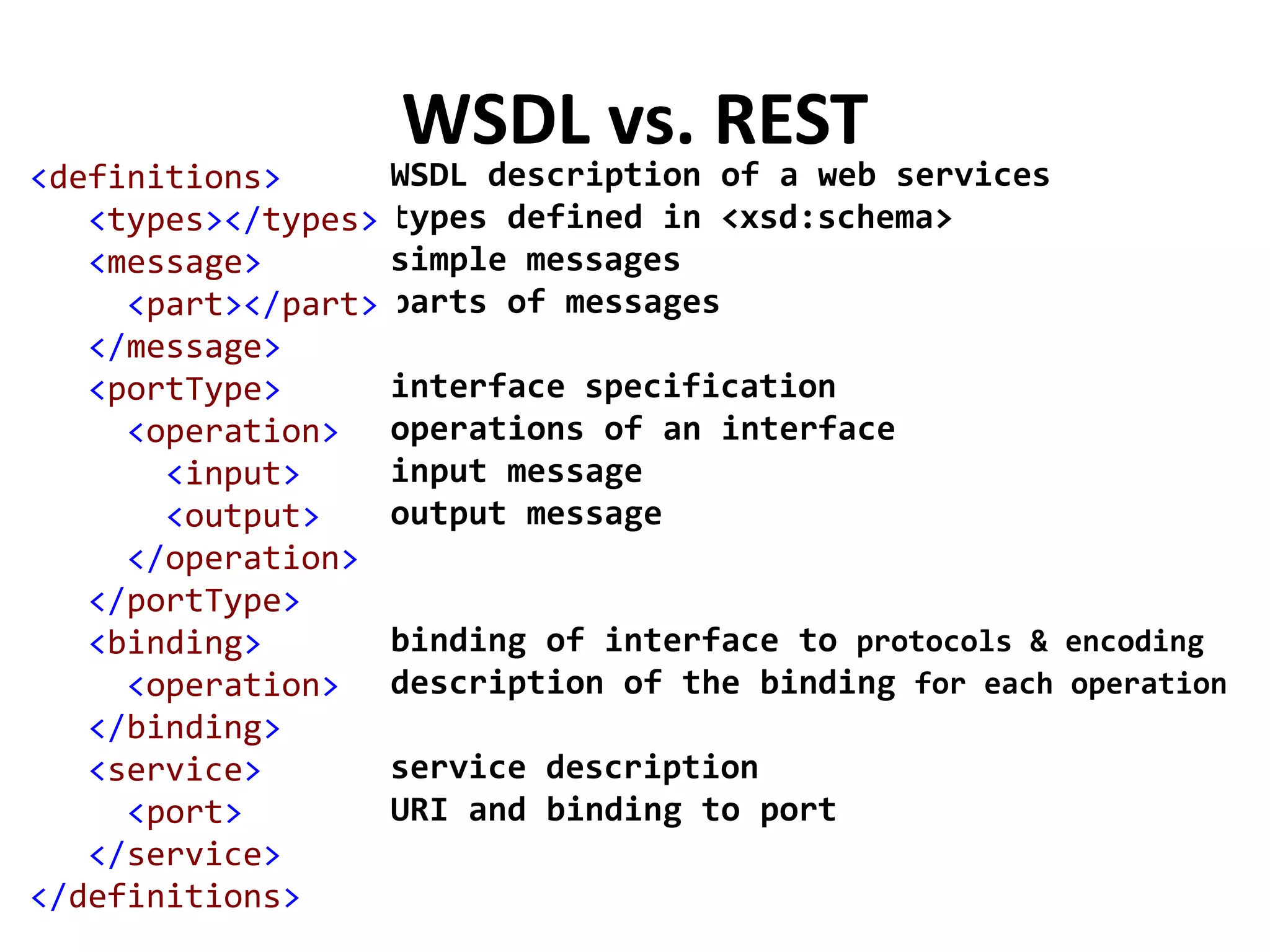

- 24. WSDL vs. REST WSDLdescription of a web services types defined in <xsd:schema> simple messages parts of messages interface specification operations of an interface input message output message binding of interface to protocols & encoding description of the binding for each operation service description URI and binding to port <definitions> <types></types> <message> <part></part> </message> <portType> <operation> <input> <output> </operation> </portType> <binding> <operation> </binding> <service> <port> </service> </definitions>

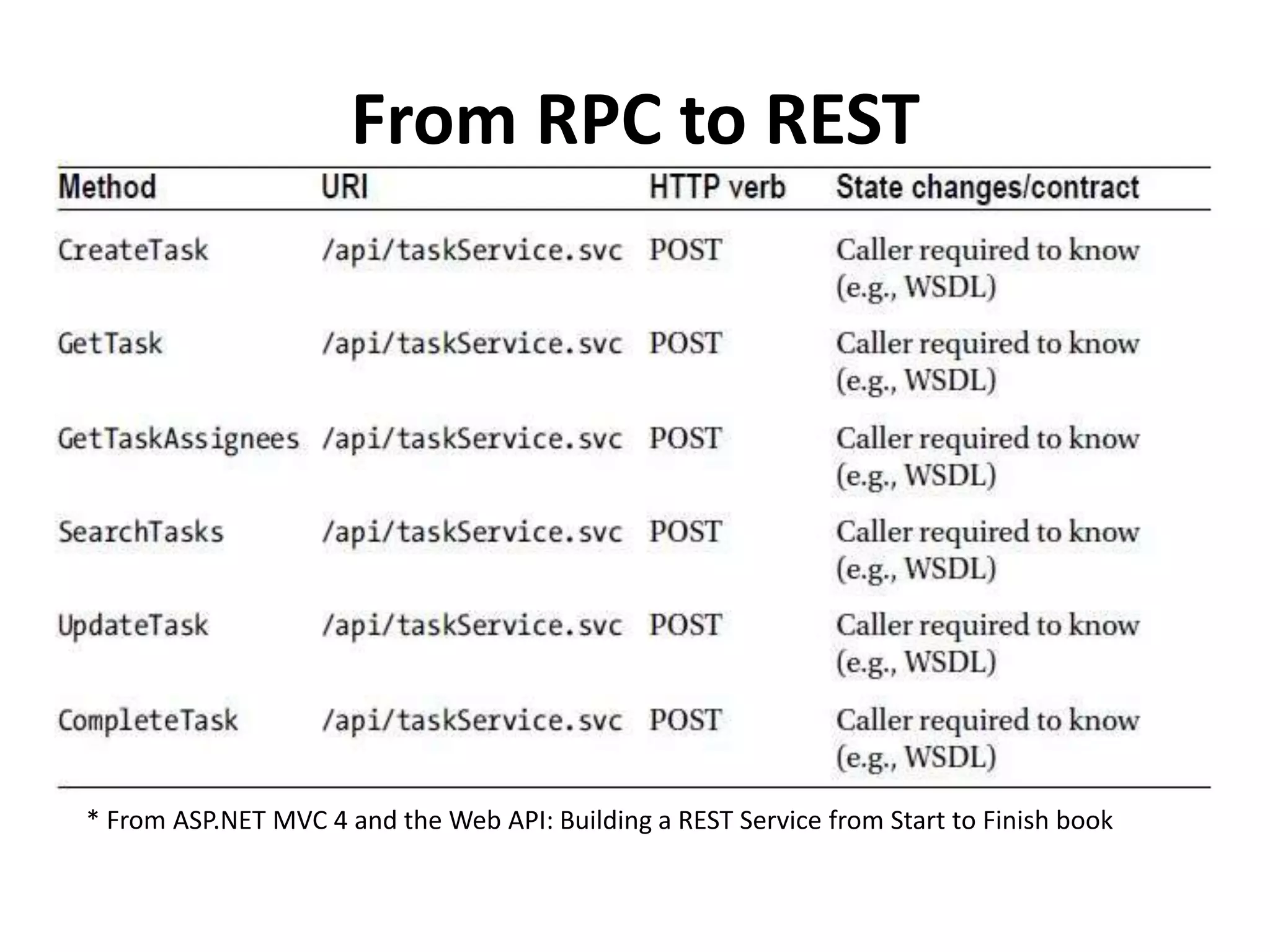

- 25. From RPC toREST ASP.NET MVC 4 and the Web API: Building a REST Service from Start to Finish book

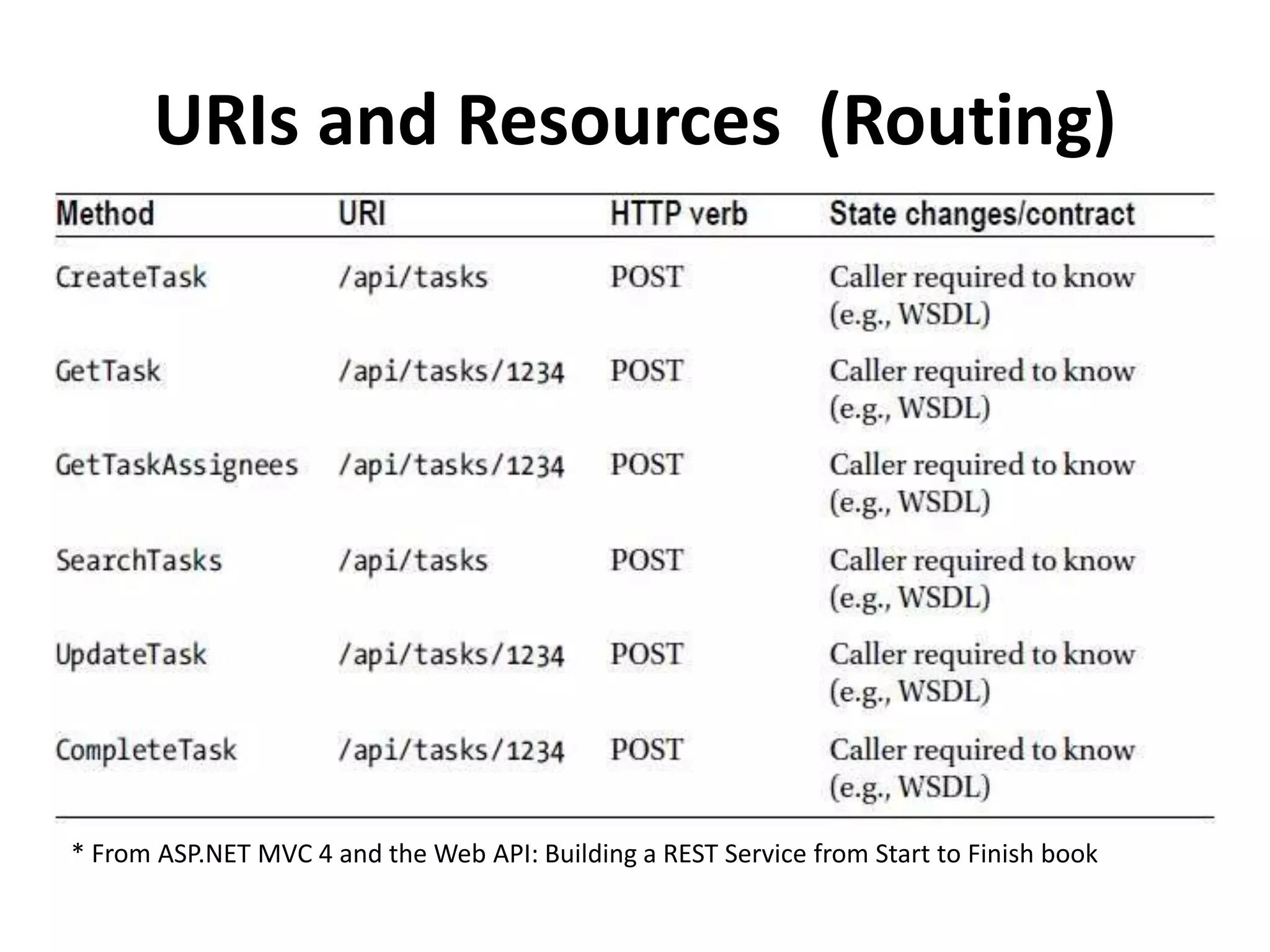

- 26. URIs and Resources(Routing) ASP.NET MVC 4 and the Web API: Building a REST Service from Start to Finish book

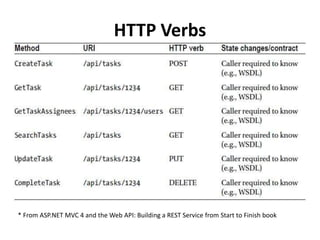

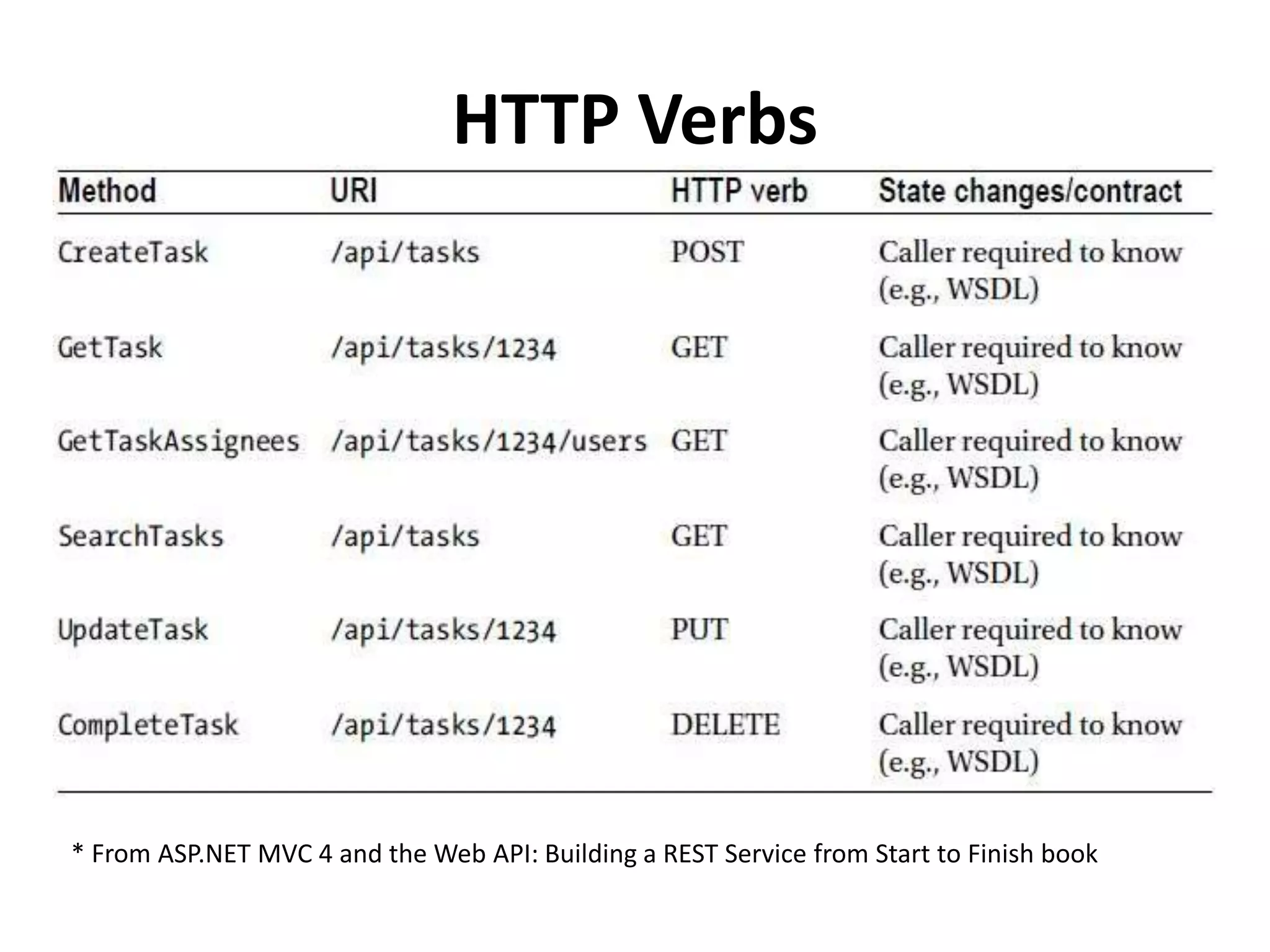

- 27. HTTP Verbs ASP.NET MVC4 and the Web API: Building a REST Service from Start to Finish book

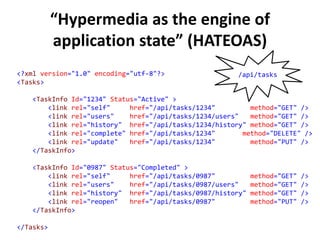

- 28. “Hypermedia as theengine of application state” (HATEOAS) <?xml version="1.0" encoding="utf-8"?> <Tasks> <TaskInfo Id="1234" Status="Active" > <link rel="self" href="/api/tasks/1234" method="GET" /> <link rel="users" href="/api/tasks/1234/users" method="GET" /> <link rel="history" href="/api/tasks/1234/history" method="GET" /> <link rel="complete" href="/api/tasks/1234" method="DELETE" /> <link rel="update" href="/api/tasks/1234" method="PUT" /> </TaskInfo> <TaskInfo Id="0987" Status="Completed" > <link rel="self" href="/api/tasks/0987" method="GET" /> <link rel="users" href="/api/tasks/0987/users" method="GET" /> <link rel="history" href="/api/tasks/0987/history" method="GET" /> <link rel="reopen" href="/api/tasks/0987" method="PUT" /> </TaskInfo> </Tasks> /api/tasks

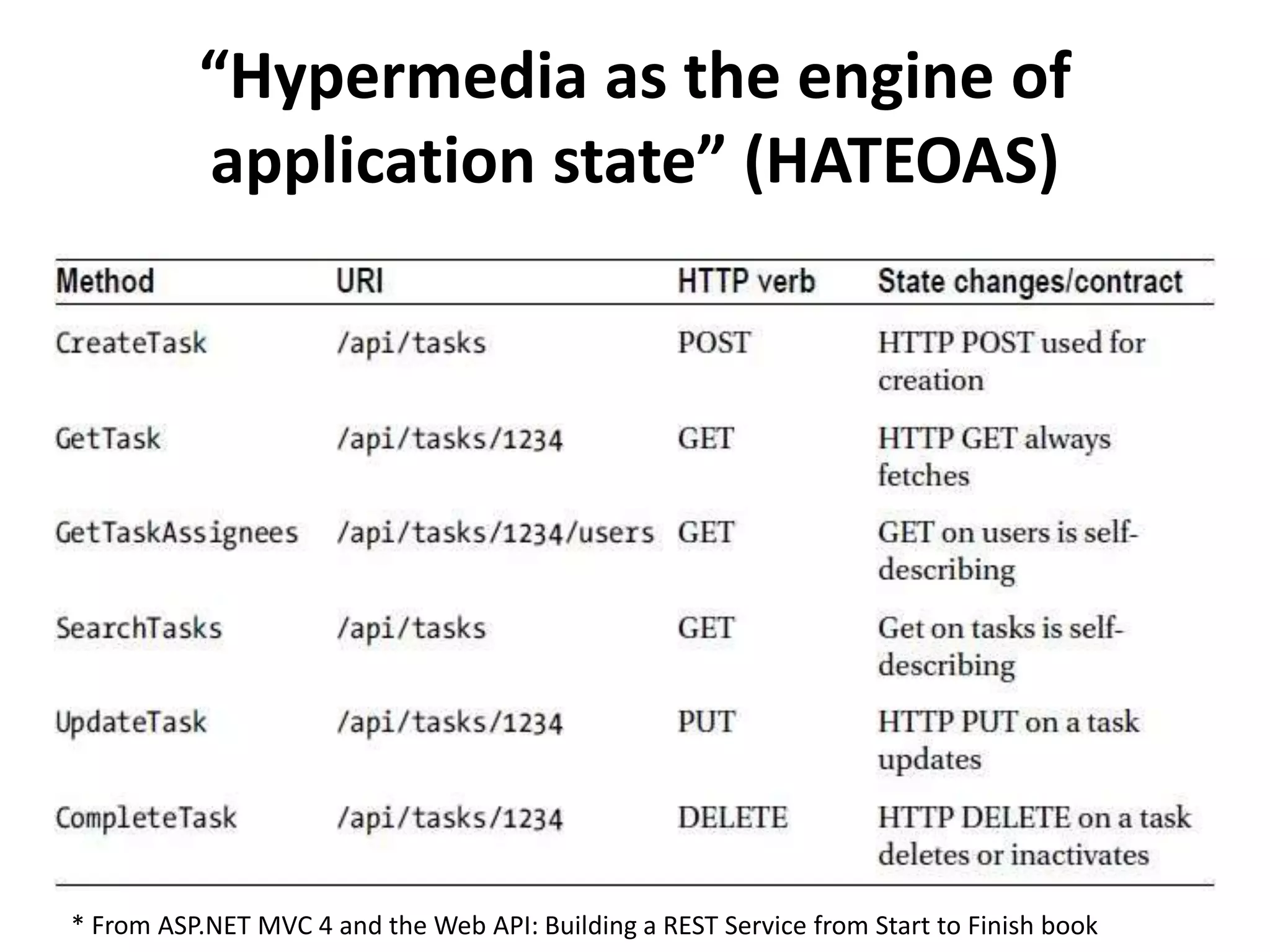

- 29. “Hypermedia as theengine of application state” (HATEOAS) ASP.NET MVC 4 and the Web API: Building a REST Service from Start to Finish book

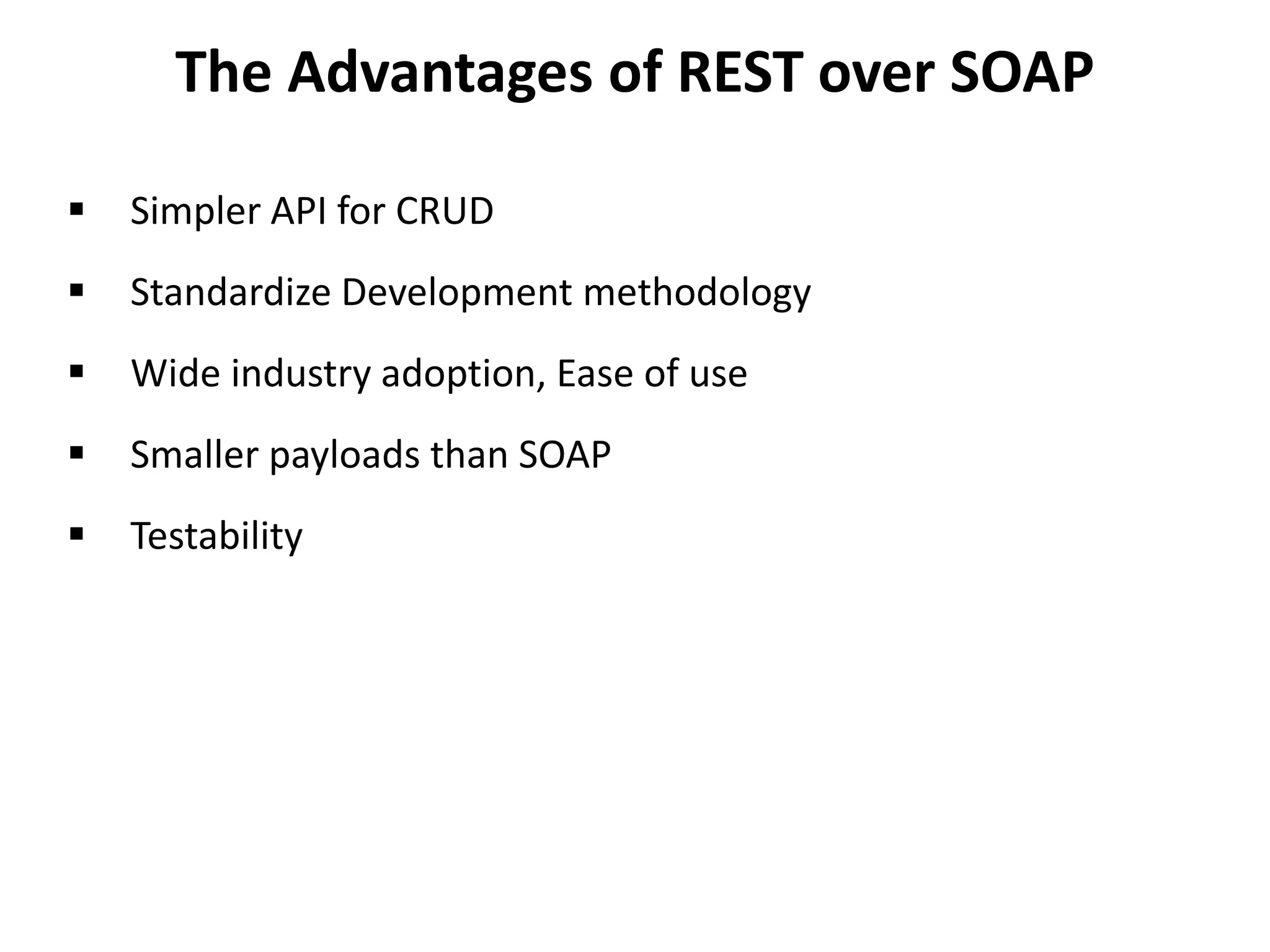

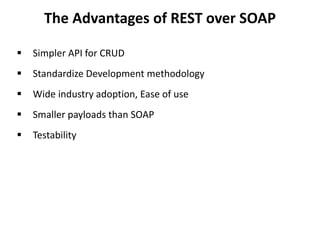

- 30. The Advantages ofREST over SOAP Simpler API for CRUD Standardize Development methodology Wide industry adoption, Ease of use Smaller payloads than SOAP Testability
Editor's Notes

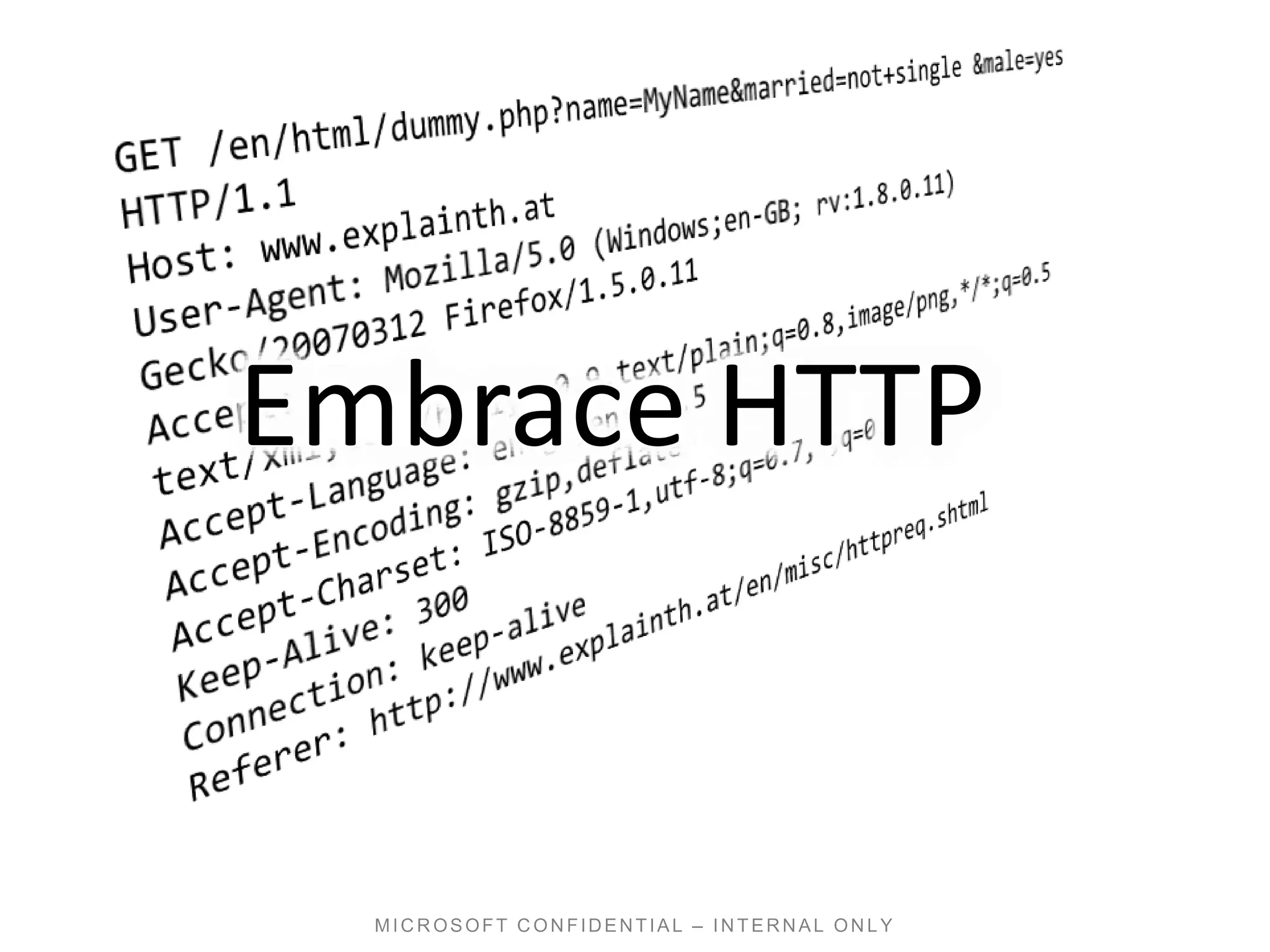

- #23 Use HTTP as an Application Protocol – not a Transport Protocol
