What to consider when monitoring microservices
The document discusses essential considerations for monitoring microservices, covering topics such as monitoring philosophy, metrics, and the challenges of distributed systems. It emphasizes the importance of tracking critical time, queue length, and processing times collectively for comprehensive insights. The content also highlights tools available for monitoring within the NServiceBus framework and encourages audience engagement through a Q&A session.
More Related Content
Similar to What to consider when monitoring microservices
More from Particular Software
What to consider when monitoring microservices
- 1. http://particular.net What to considerwhen monitoring microservices Sean Farmar holds the world record for answering the most NServiceBus questions - even more than Udi. With over 20 years of experience, he specializes in providing simple solutions for complex business requirements using NServiceBus and applying SOA principles inspired by Udi Dahan. As a solution architect with Particular Software, the creators of NServiceBus, Sean provides support, training and consulting for customers using NServiceBus and the Particular Platform. A professional geek, William works for Particular Software writing amazing software like NServiceBus. Passionate about the web and security, he is engaged in a sordid love affair with JavaScript, and spends most of his free time trying to convince others of it's beauty and elegance. When not behind his laptop hacking away, this amateur beer enthusiast can often be found playing boardgames or drinking cold-brew coffee.
- 2. William Brander http://particular.netSean Farmar What to consider when monitoring microservices

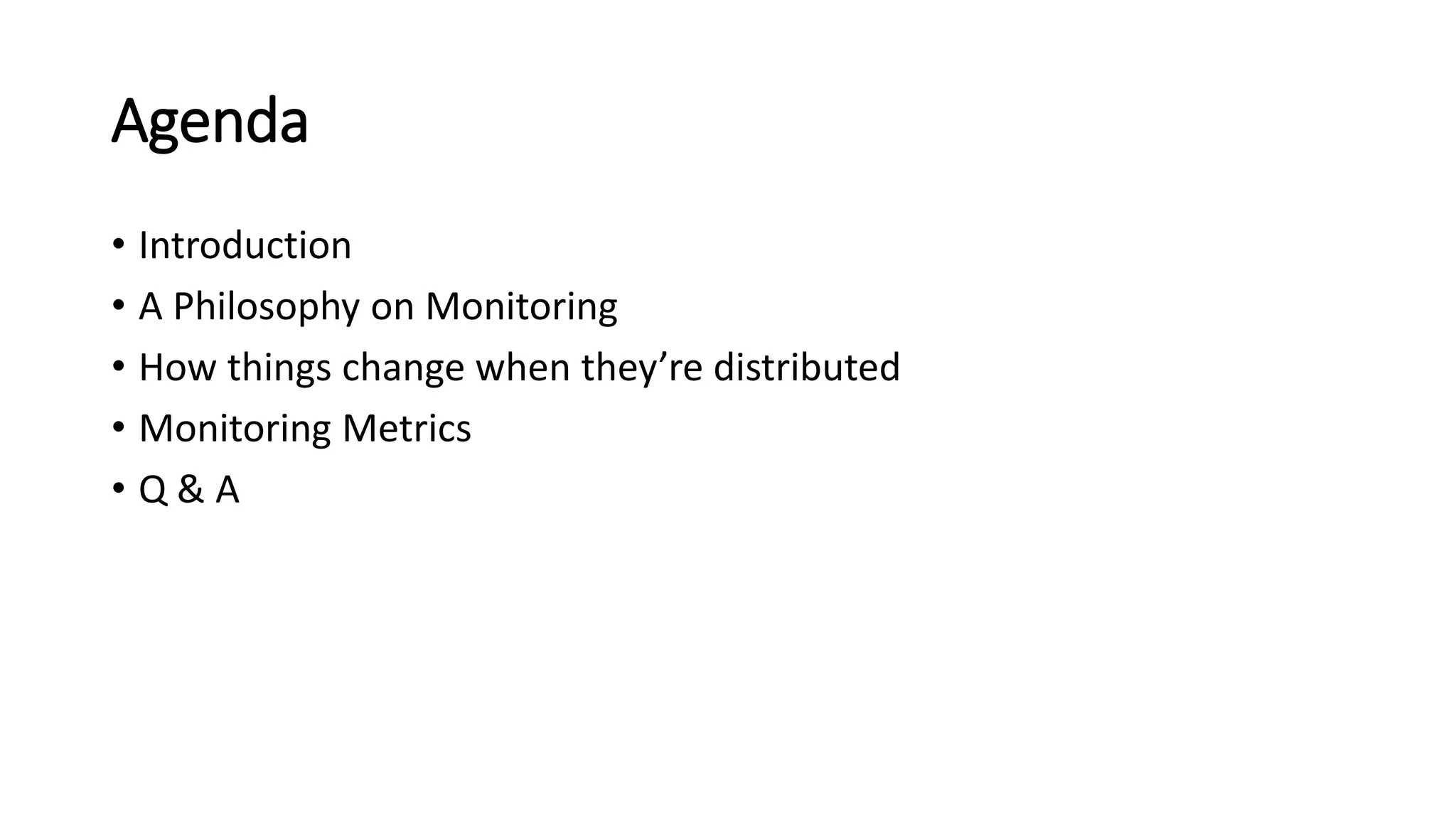

- 3. Agenda • Introduction • APhilosophy on Monitoring • How things change when they’re distributed • Monitoring Metrics • Q & A

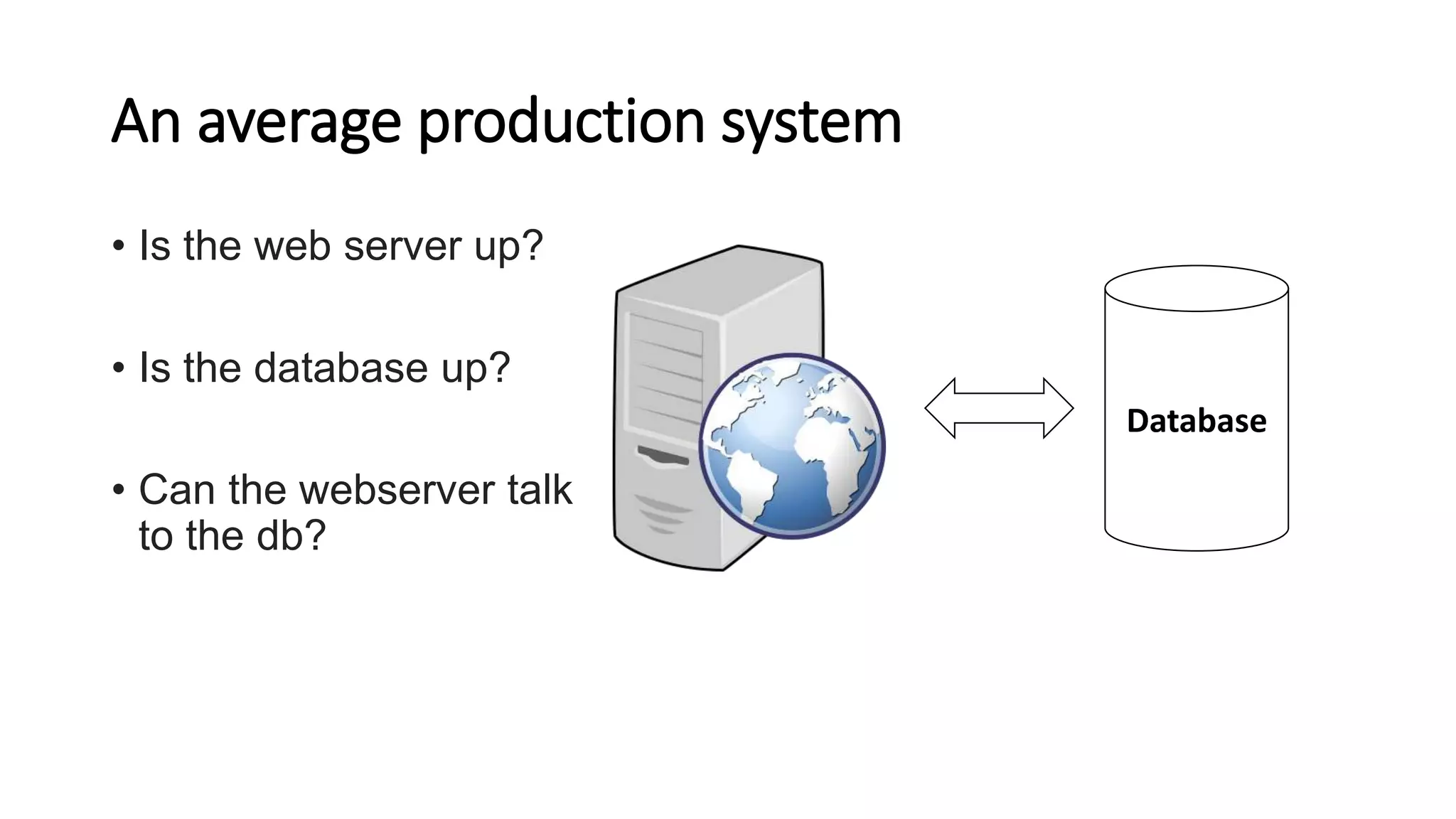

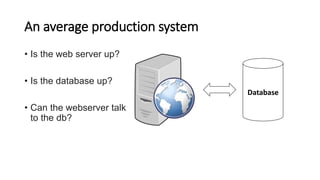

- 4. An average productionsystem Database • Is the web server up? • Is the database up? • Can the webserver talk to the db?

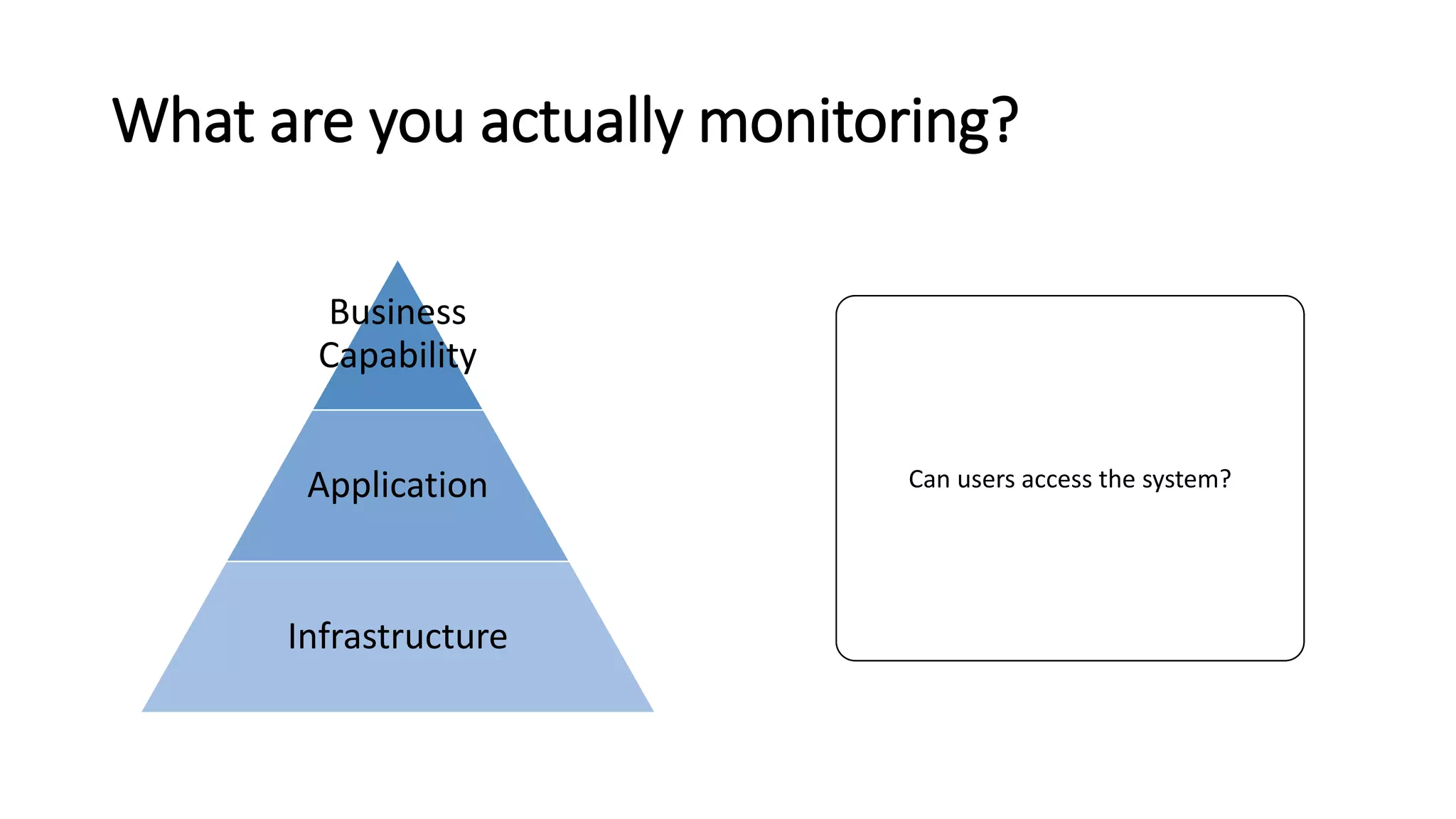

- 5. What are youactually monitoring? Business Capability Application Infrastructure Are my servers running?Is my application process running?Can users access the system?
- 6.

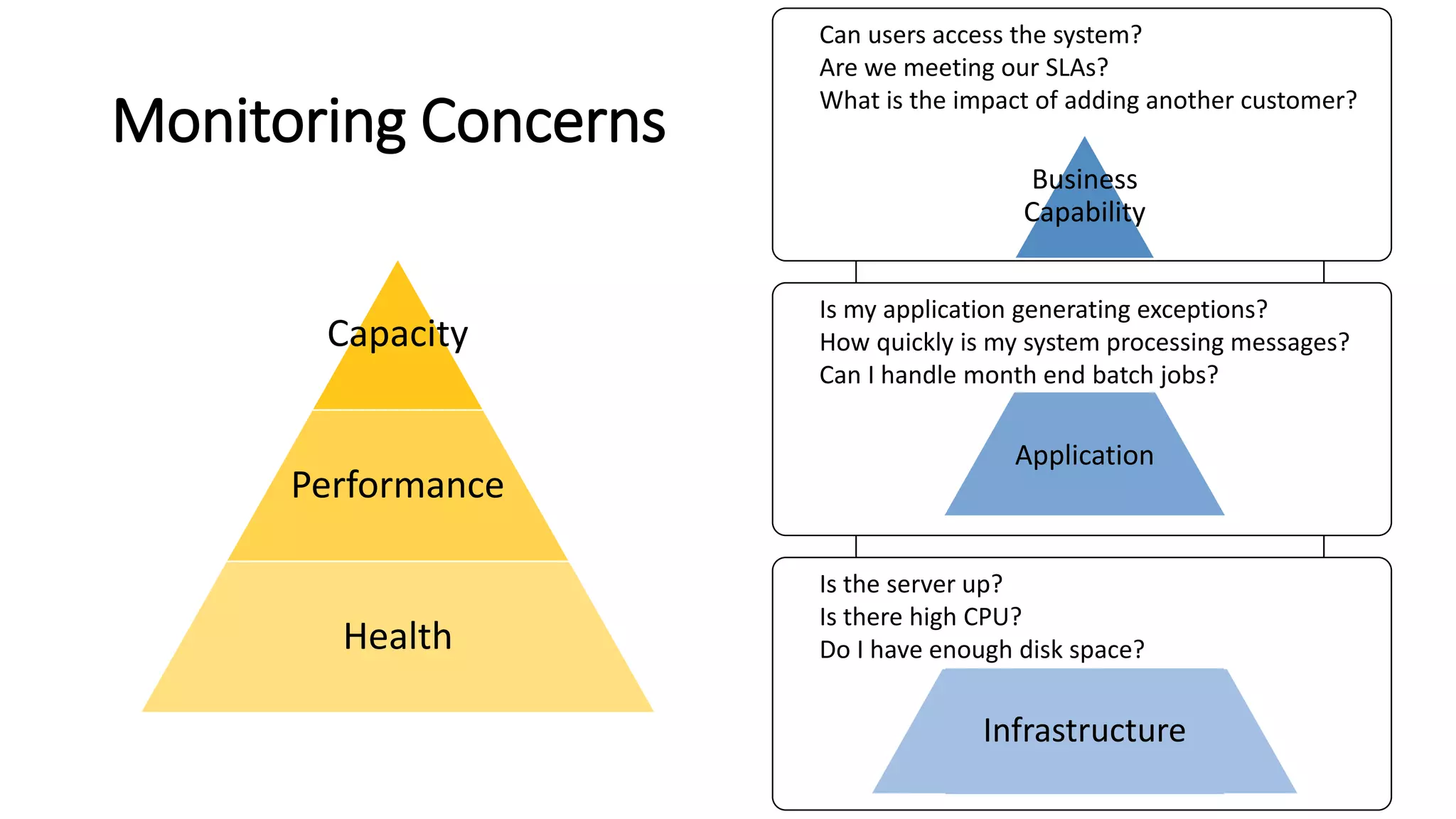

- 7. Monitoring Concerns Capacity Performance Health Is theserver up?Is there high CPU?Do I have enough disk space? Is my application generating exceptions? How quickly is my system processing messages? Can I handle month end batch jobs? Is the server up? Is there high CPU? Do I have enough disk space? Application Infrastructure Can users access the system? Are we meeting our SLAs? What is the impact of adding another customer? Business Capability

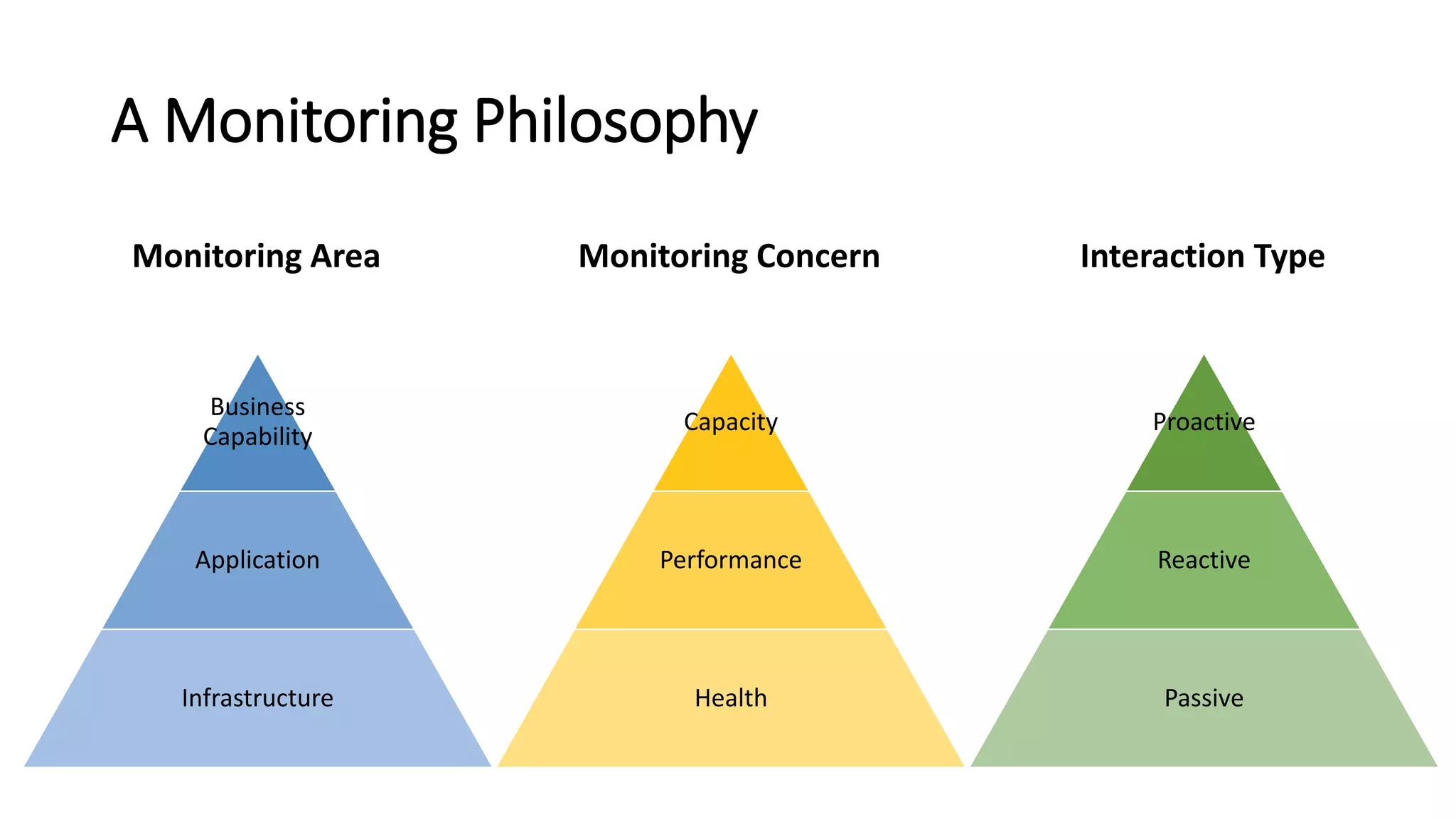

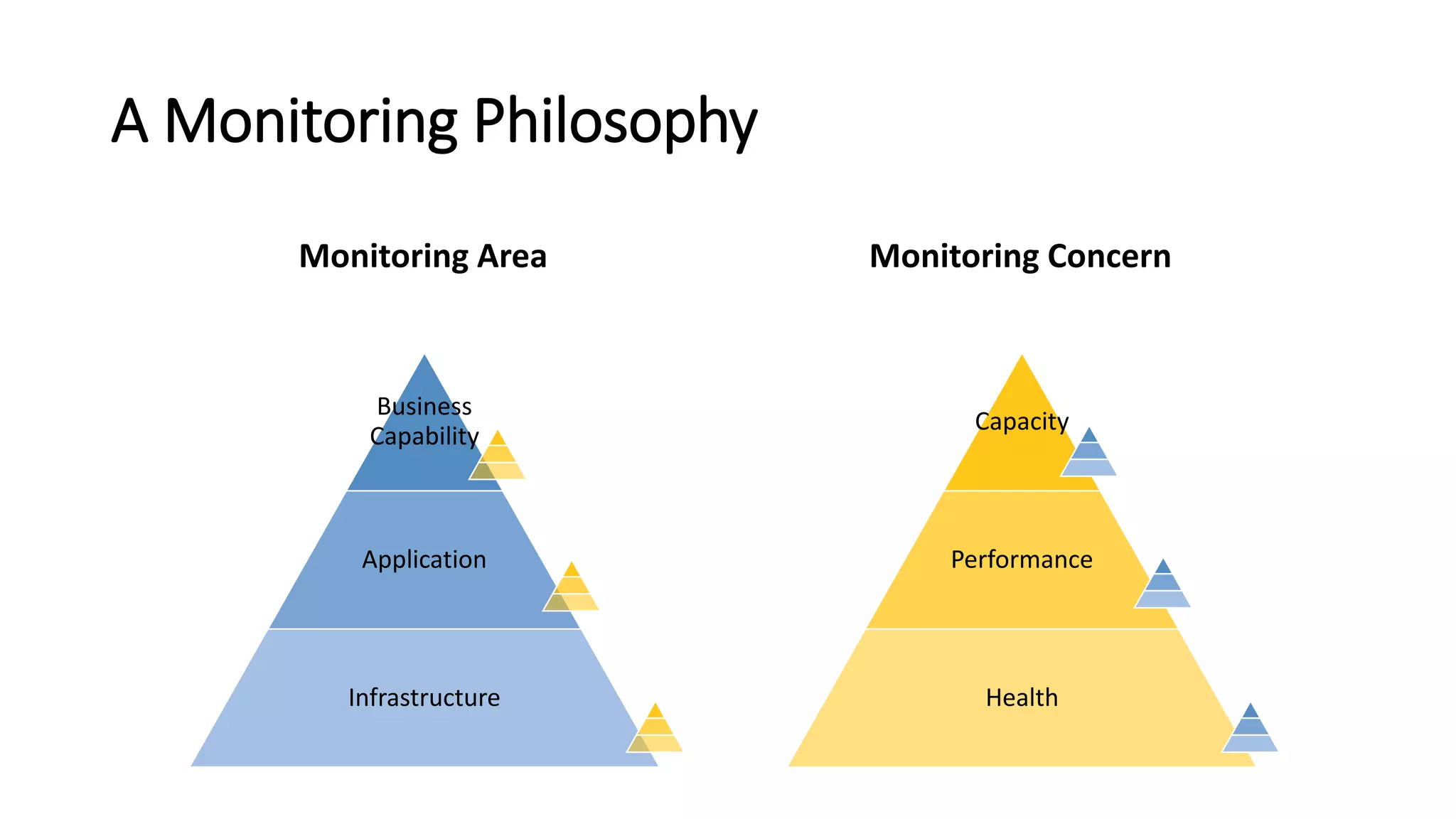

- 8. A Monitoring Philosophy Business Capability Application Infrastructure Capacity Performance Health MonitoringArea Monitoring Concern Proactive Reactive Passive Interaction Type

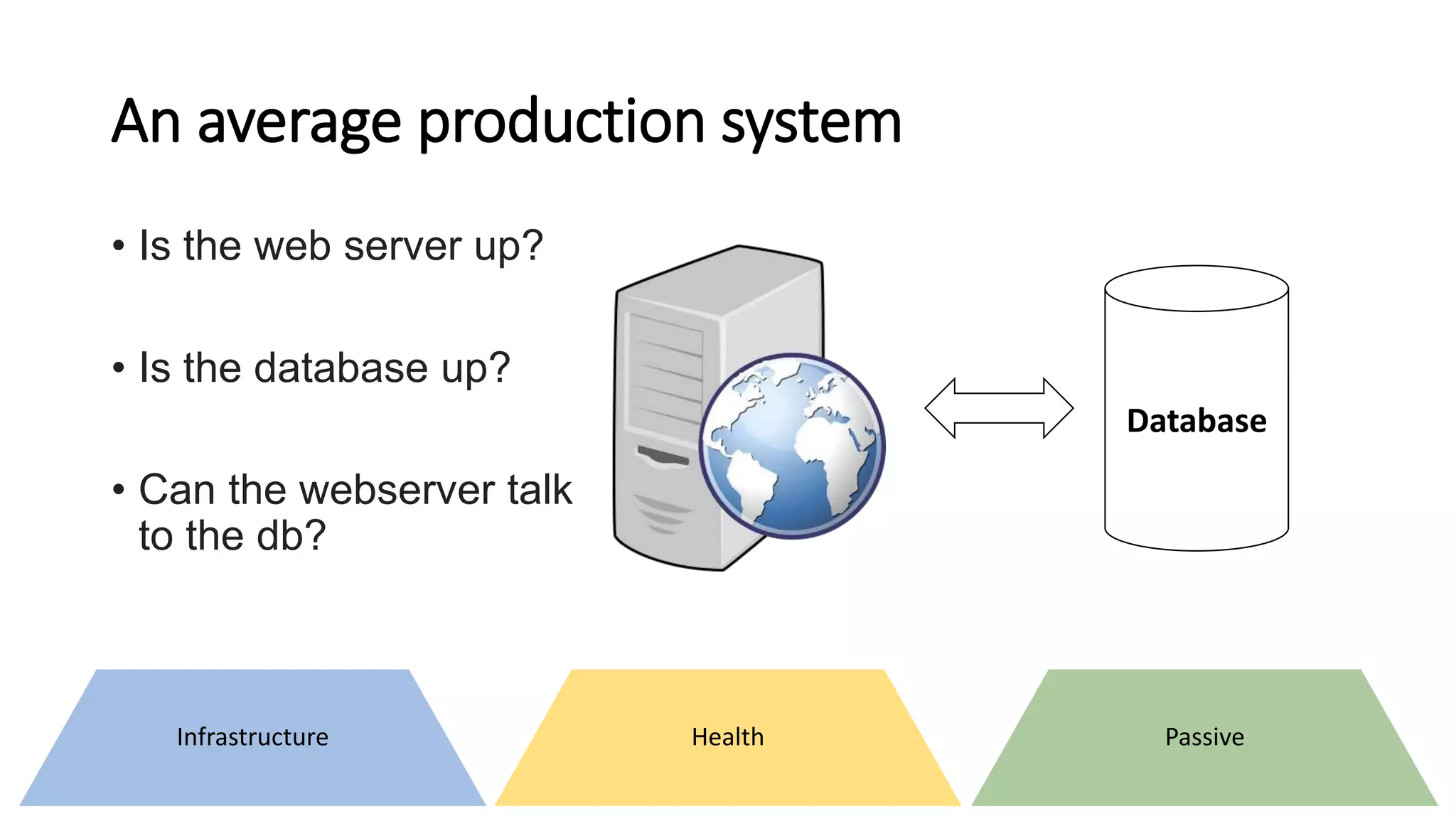

- 9. An average productionsystem Database • Is the web server up? • Is the database up? • Can the webserver talk to the db? Infrastructure PassiveHealth
- 10.
- 11.

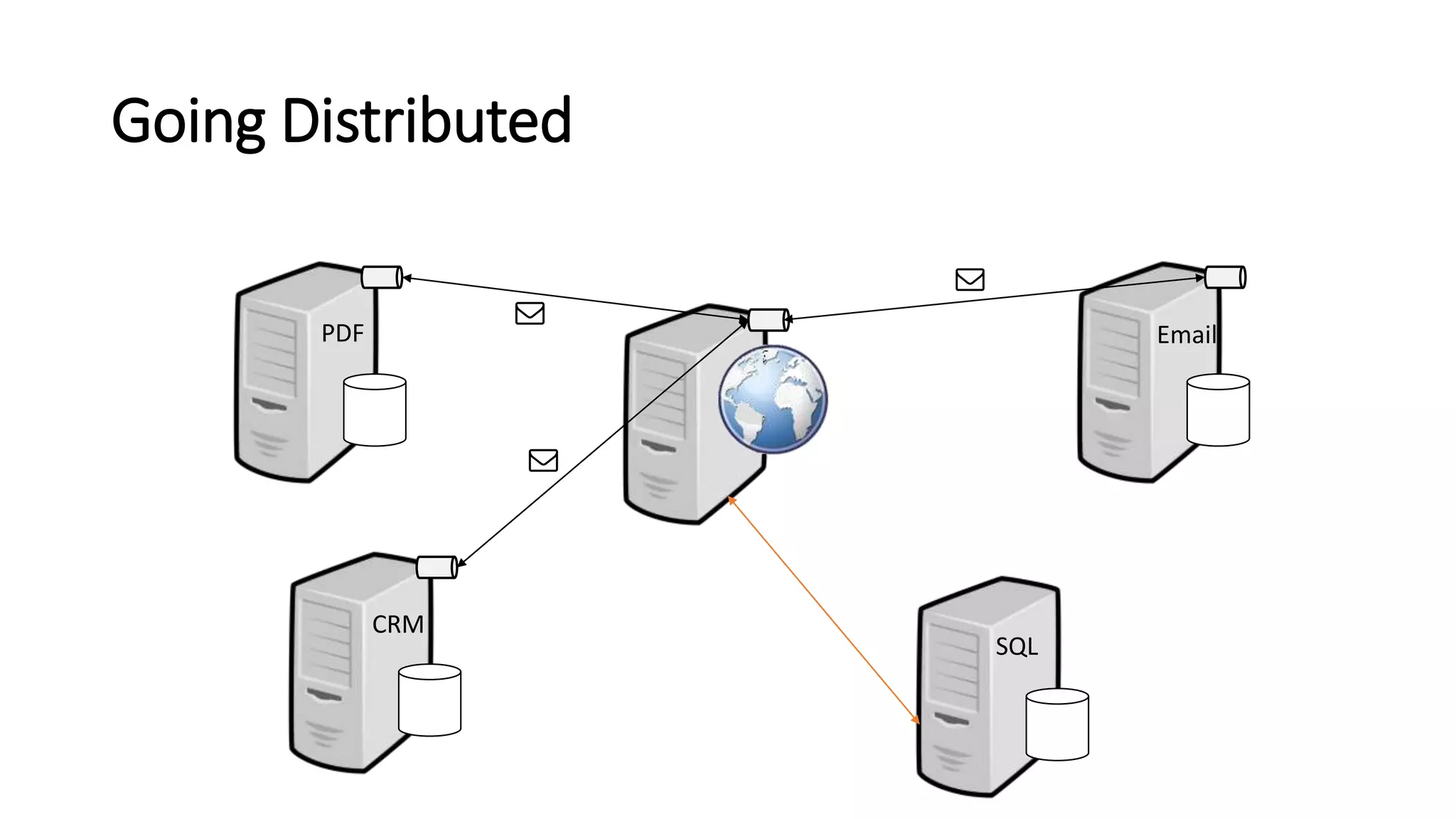

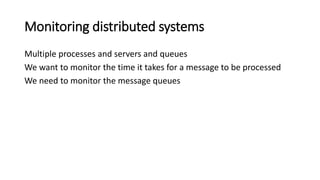

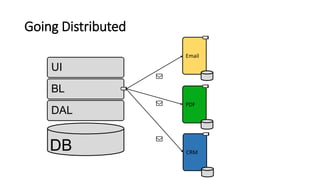

- 12. Monitoring distributed systems Multipleprocesses and servers and queues We want to monitor the time it takes for a message to be processed We need to monitor the message queues

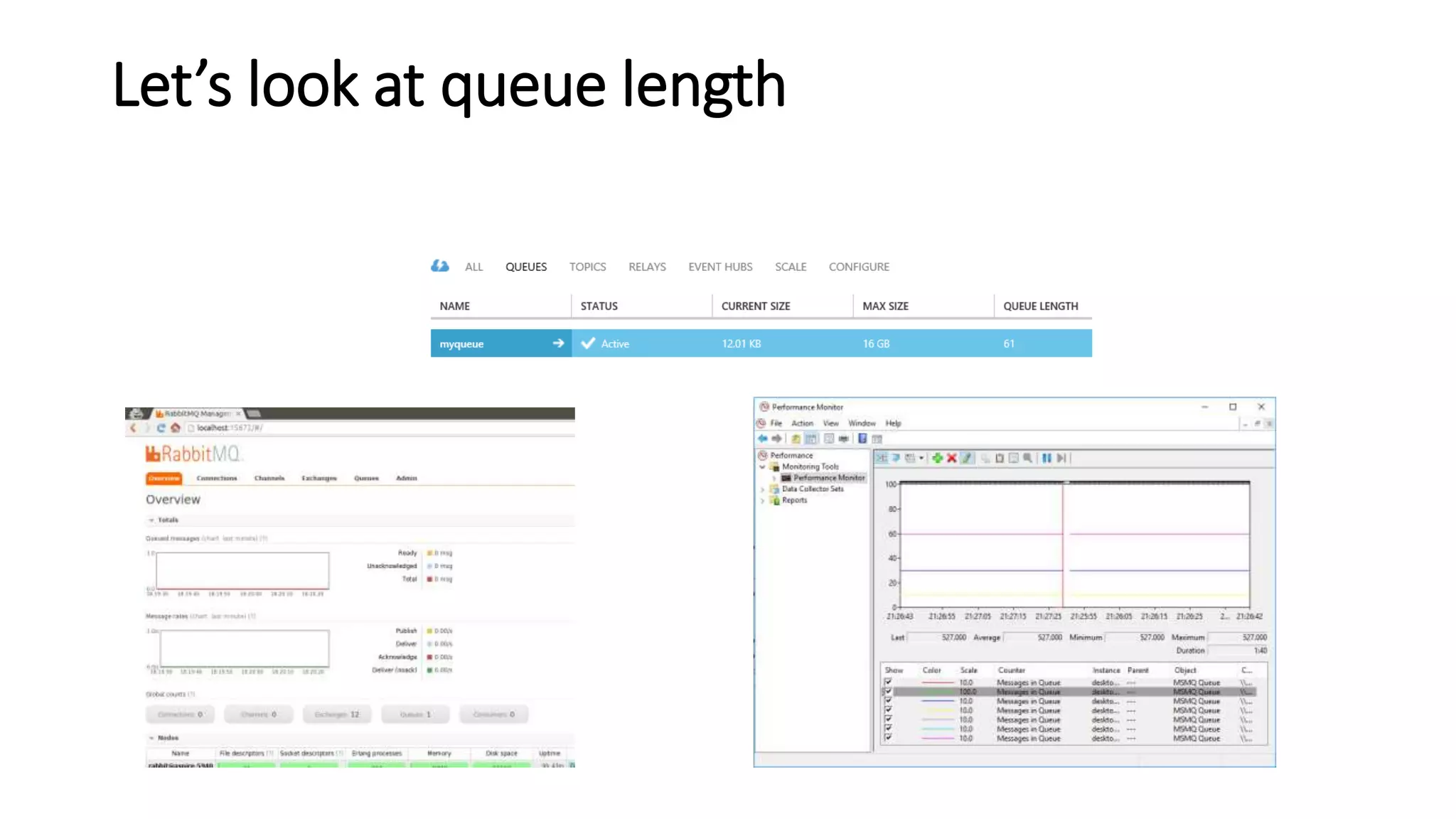

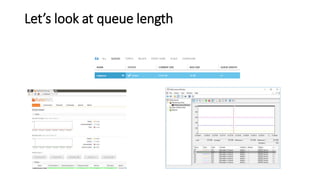

- 13. Let’s look atqueue length

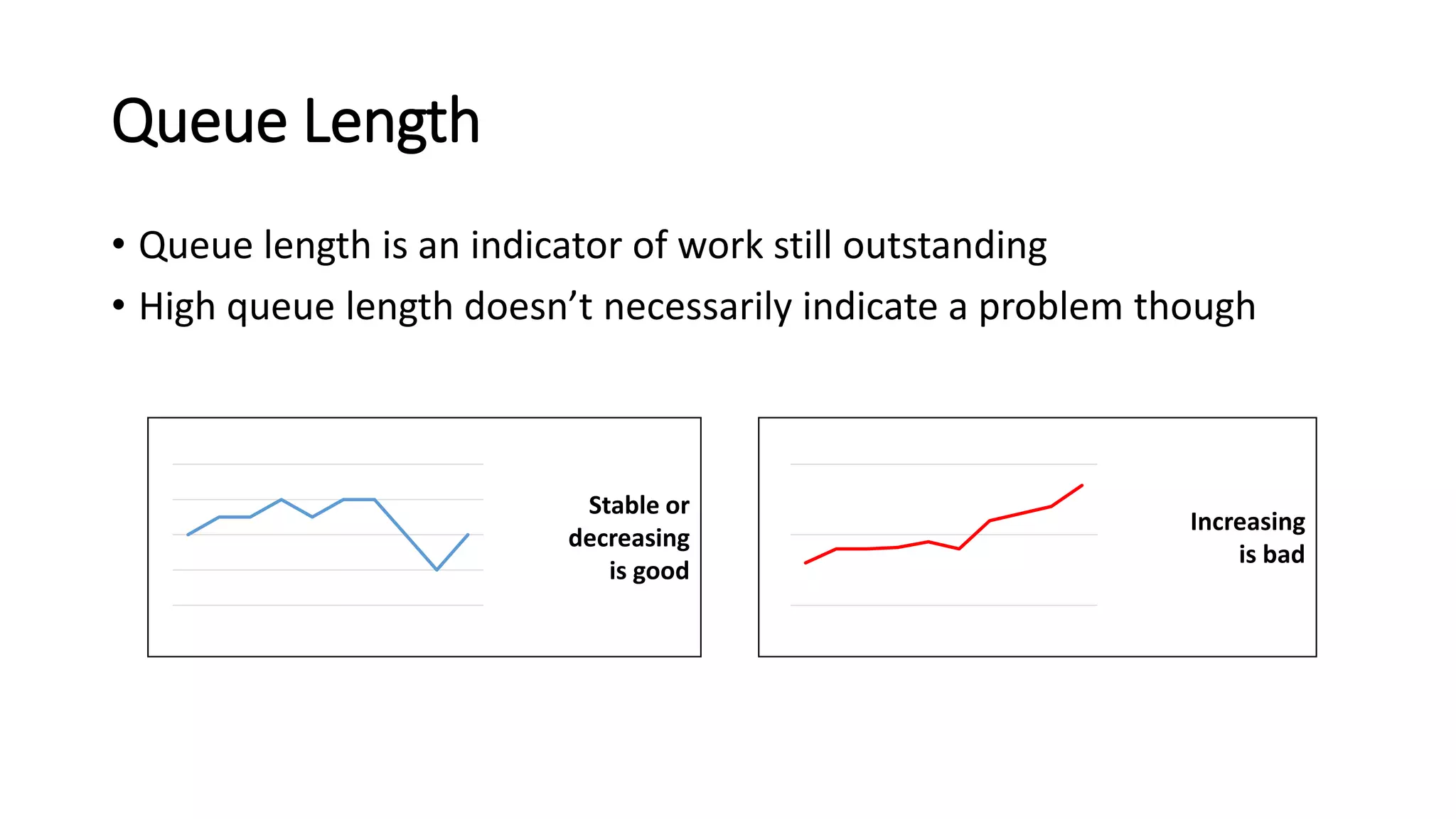

- 14. Queue Length • Queuelength is an indicator of work still outstanding • High queue length doesn’t necessarily indicate a problem though Stable or decreasing is good Increasing is bad
- 15.

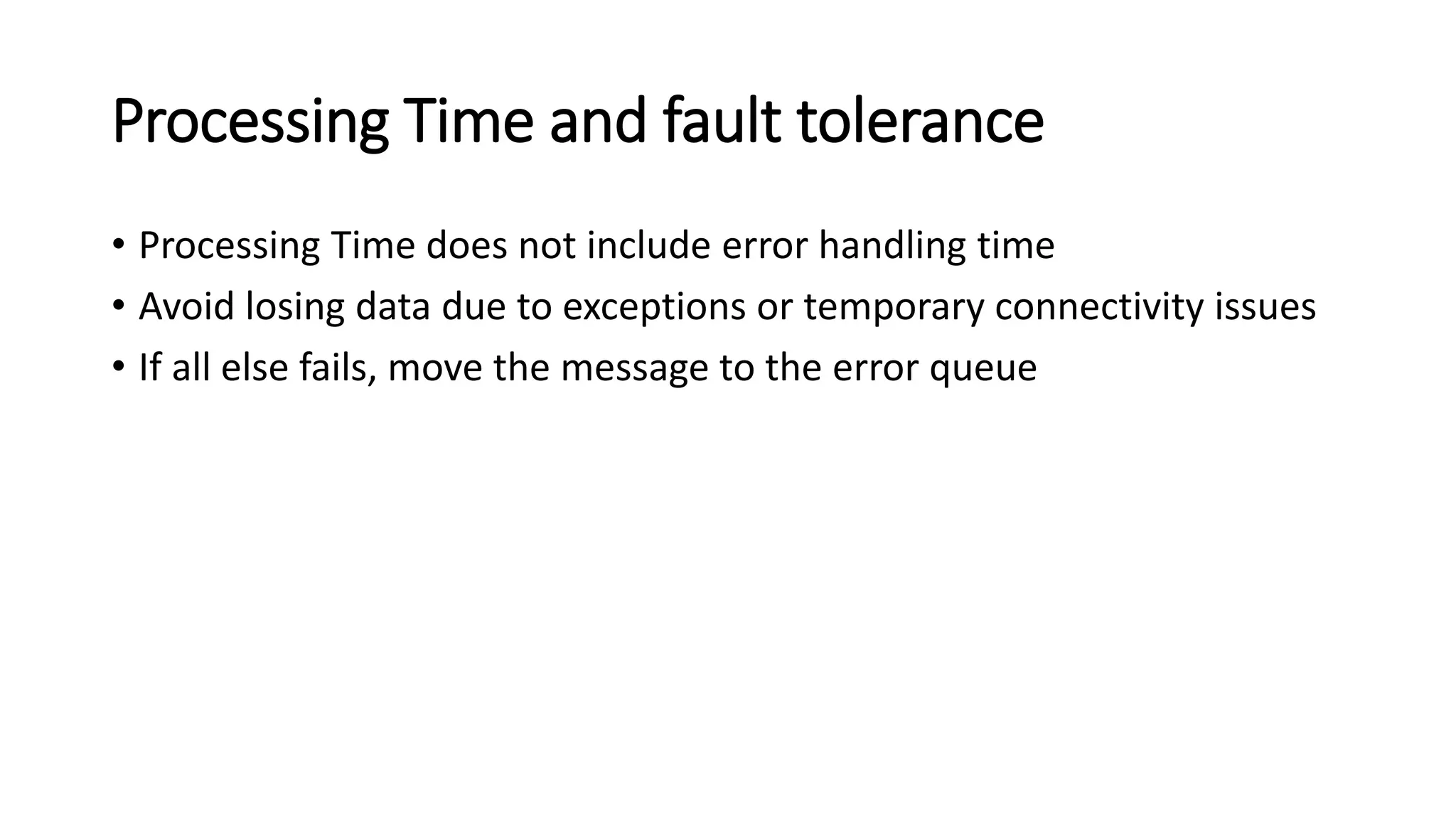

- 16. Processing Time andfault tolerance • Processing Time does not include error handling time • Avoid losing data due to exceptions or temporary connectivity issues • If all else fails, move the message to the error queue

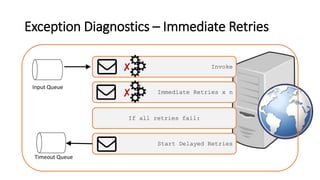

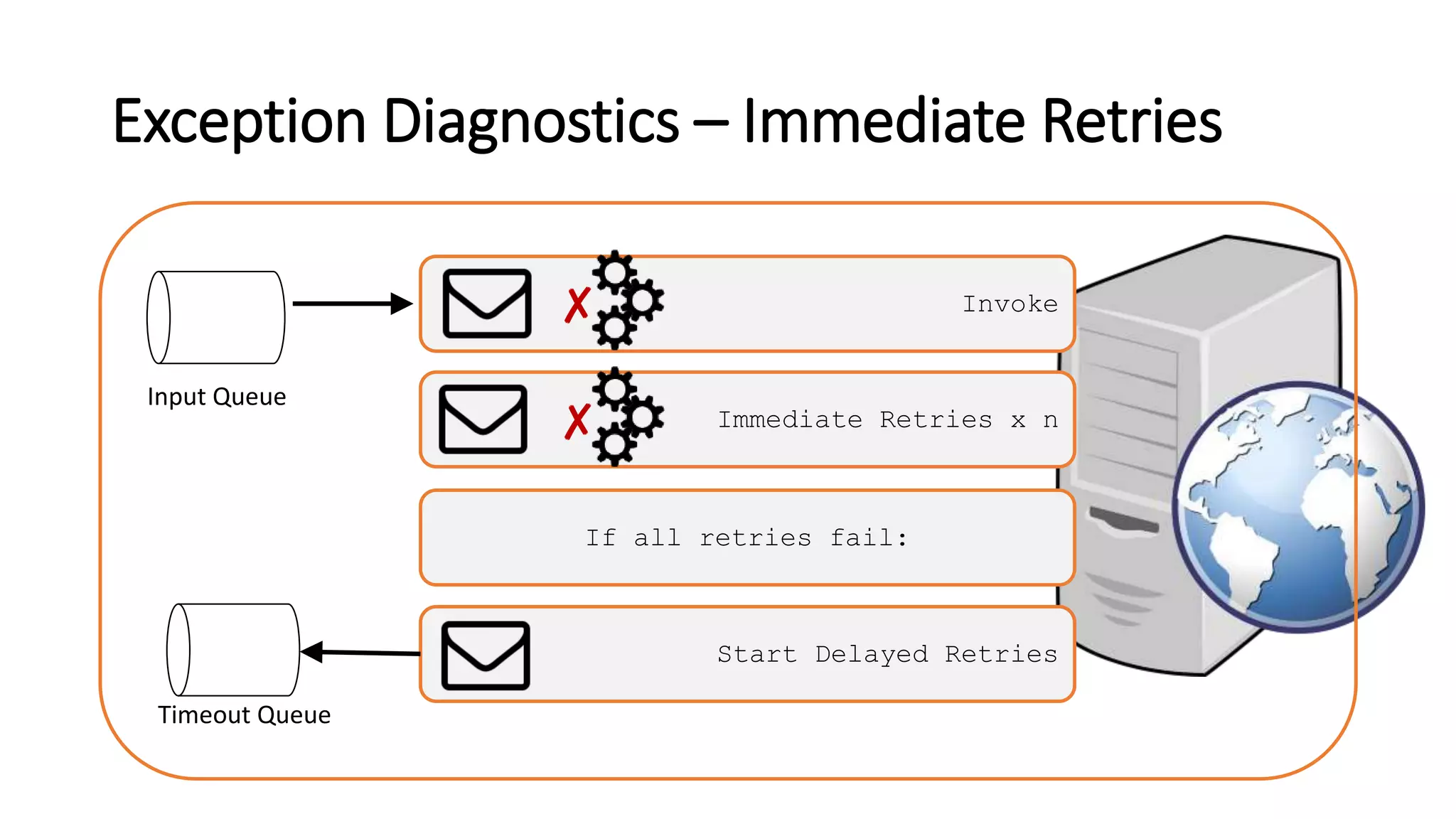

- 17. Invoke Exception Diagnostics –Immediate Retries Input Queue Immediate Retries x n Start Delayed Retries Timeout Queue If all retries fail: ✘ ✘

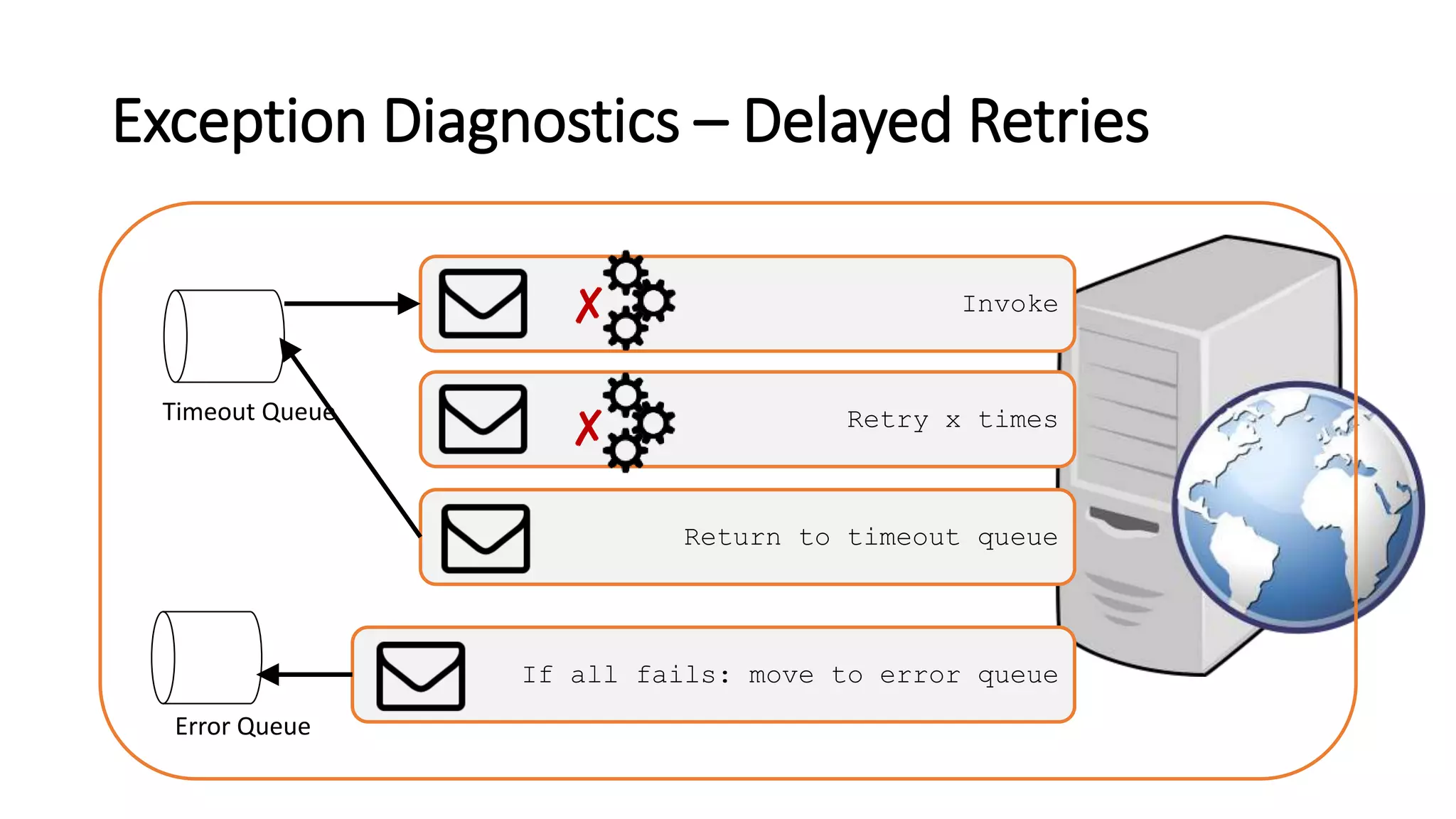

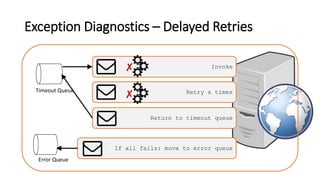

- 18. Exception Diagnostics –Delayed Retries Return to timeout queue Invoke Error Queue Retry x timesTimeout Queue If all fails: move to error queue ✘ ✘

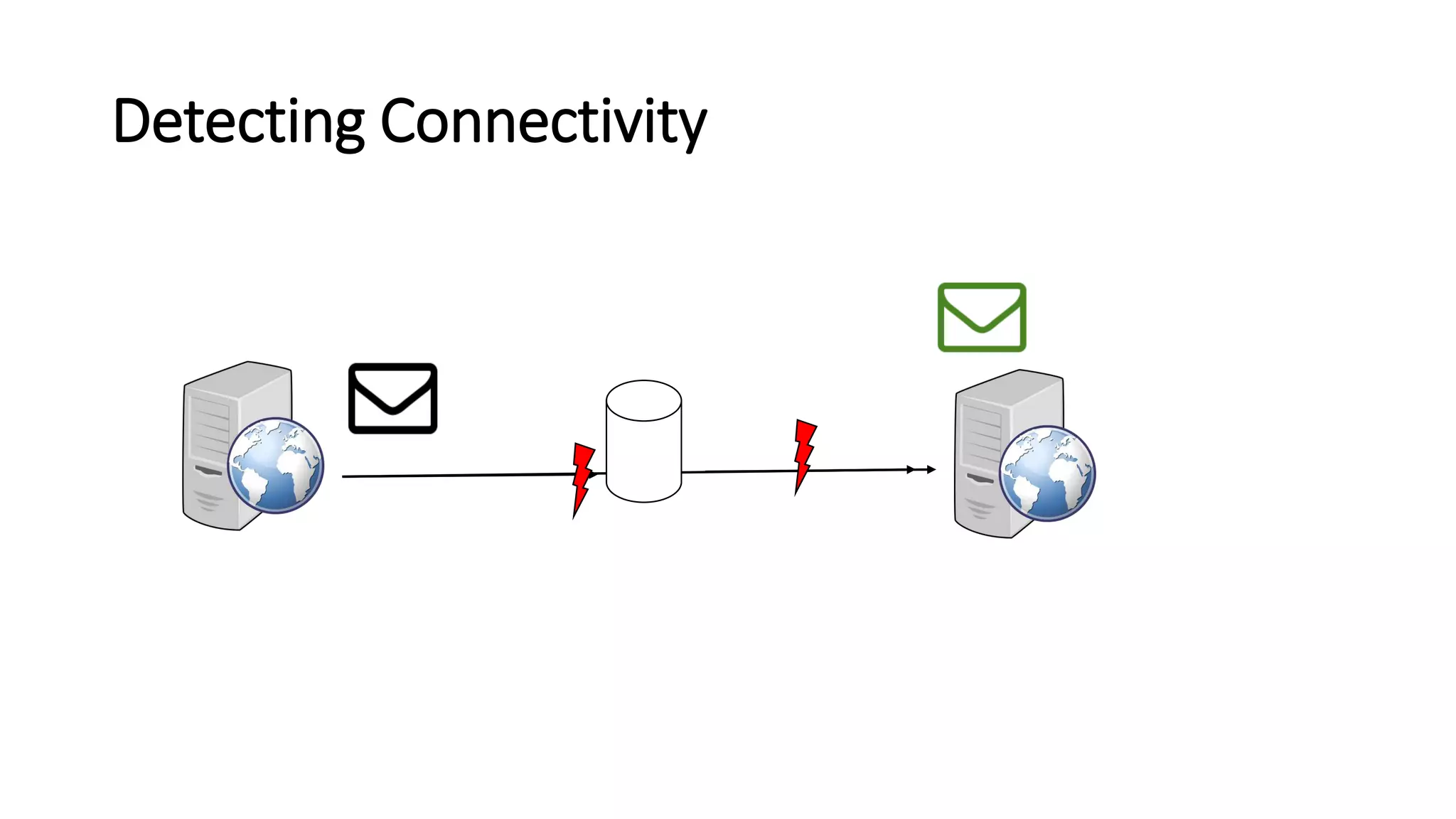

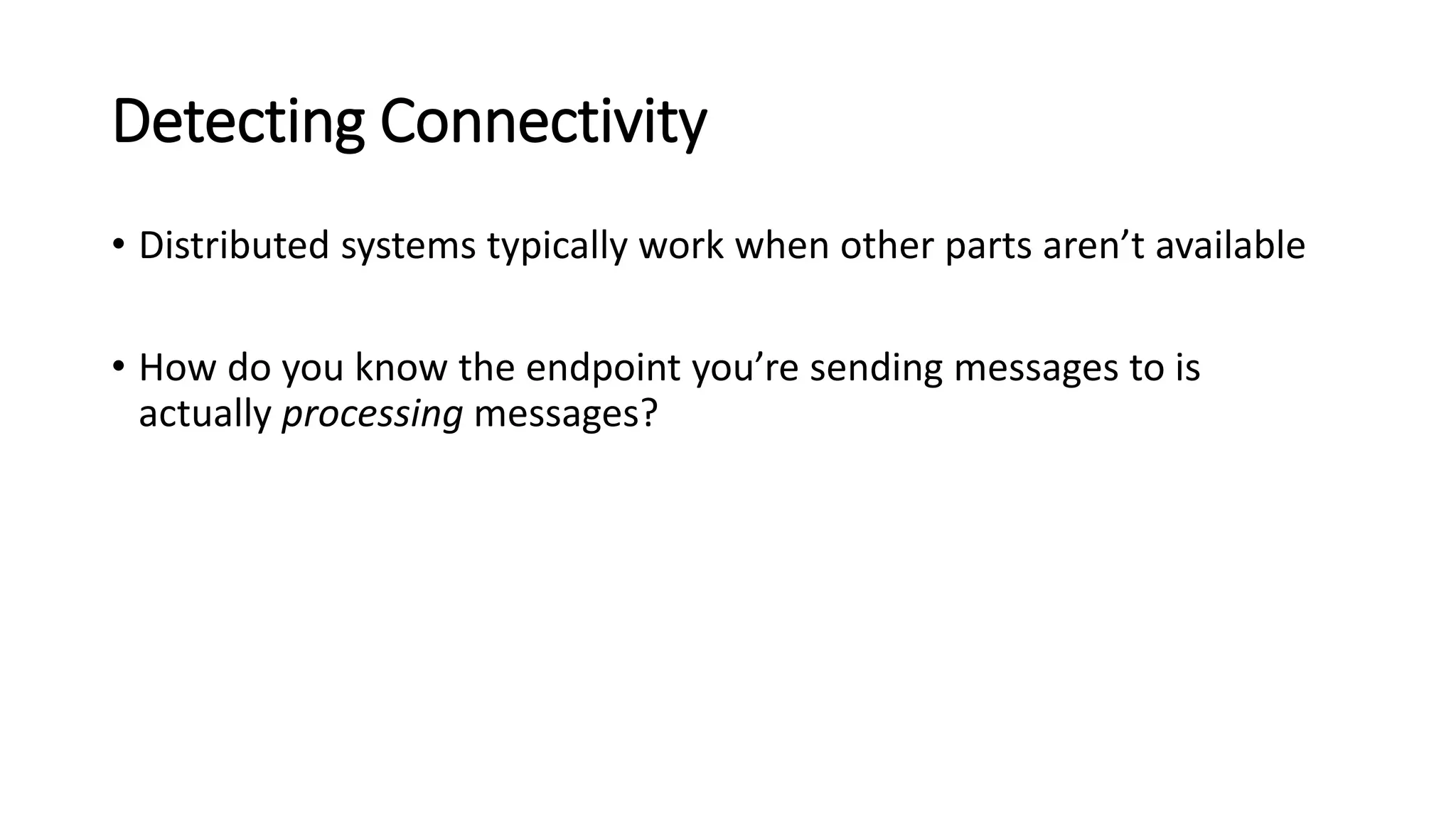

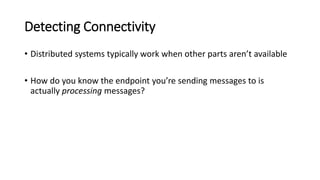

- 19. Detecting Connectivity • Distributedsystems typically work when other parts aren’t available • How do you know the endpoint you’re sending messages to is actually processing messages?
- 20.

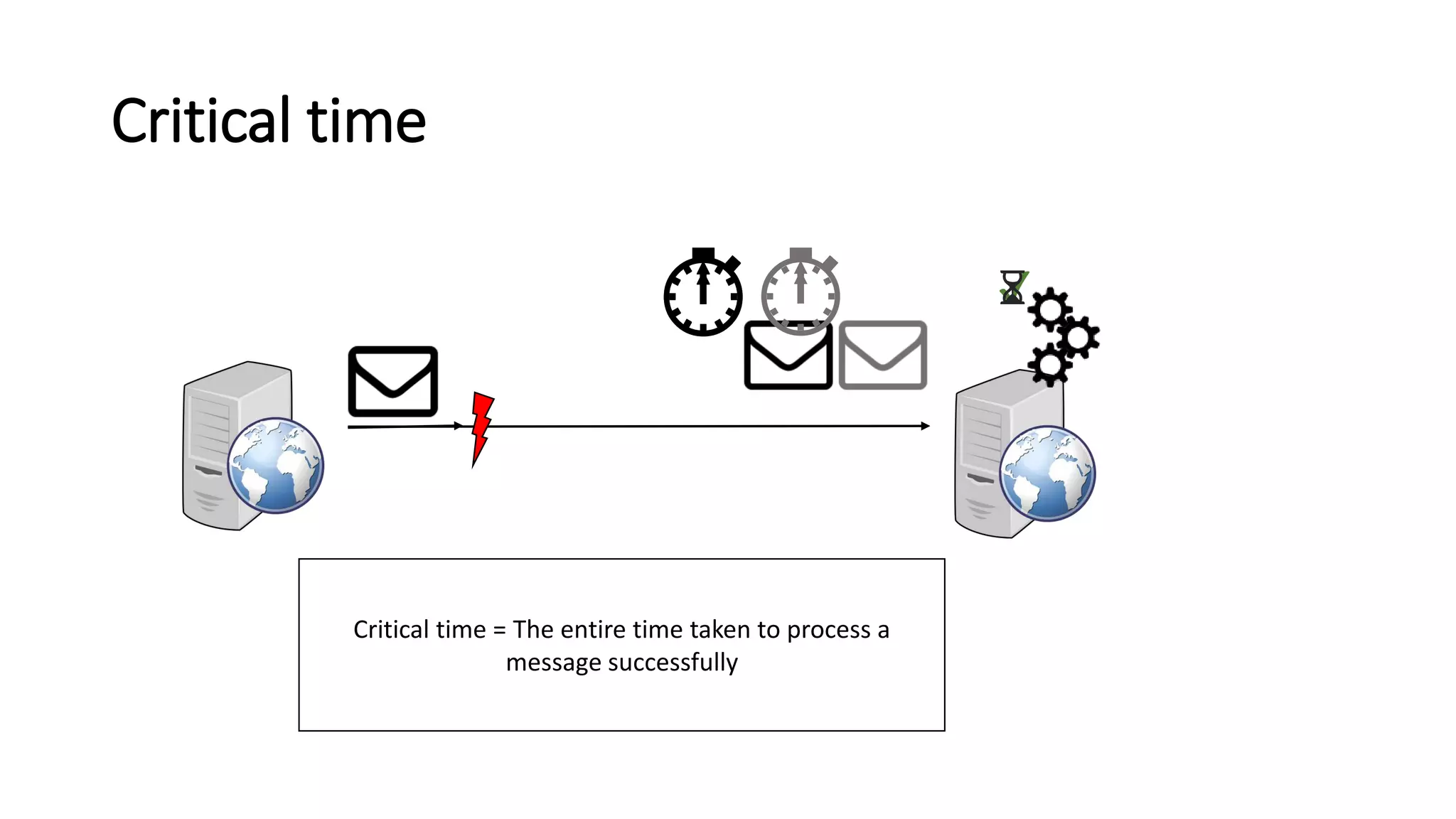

- 21. ✔⌛ ⏱️ Critical time ⏱️ Critical time= The entire time taken to process a message successfully ⏱️

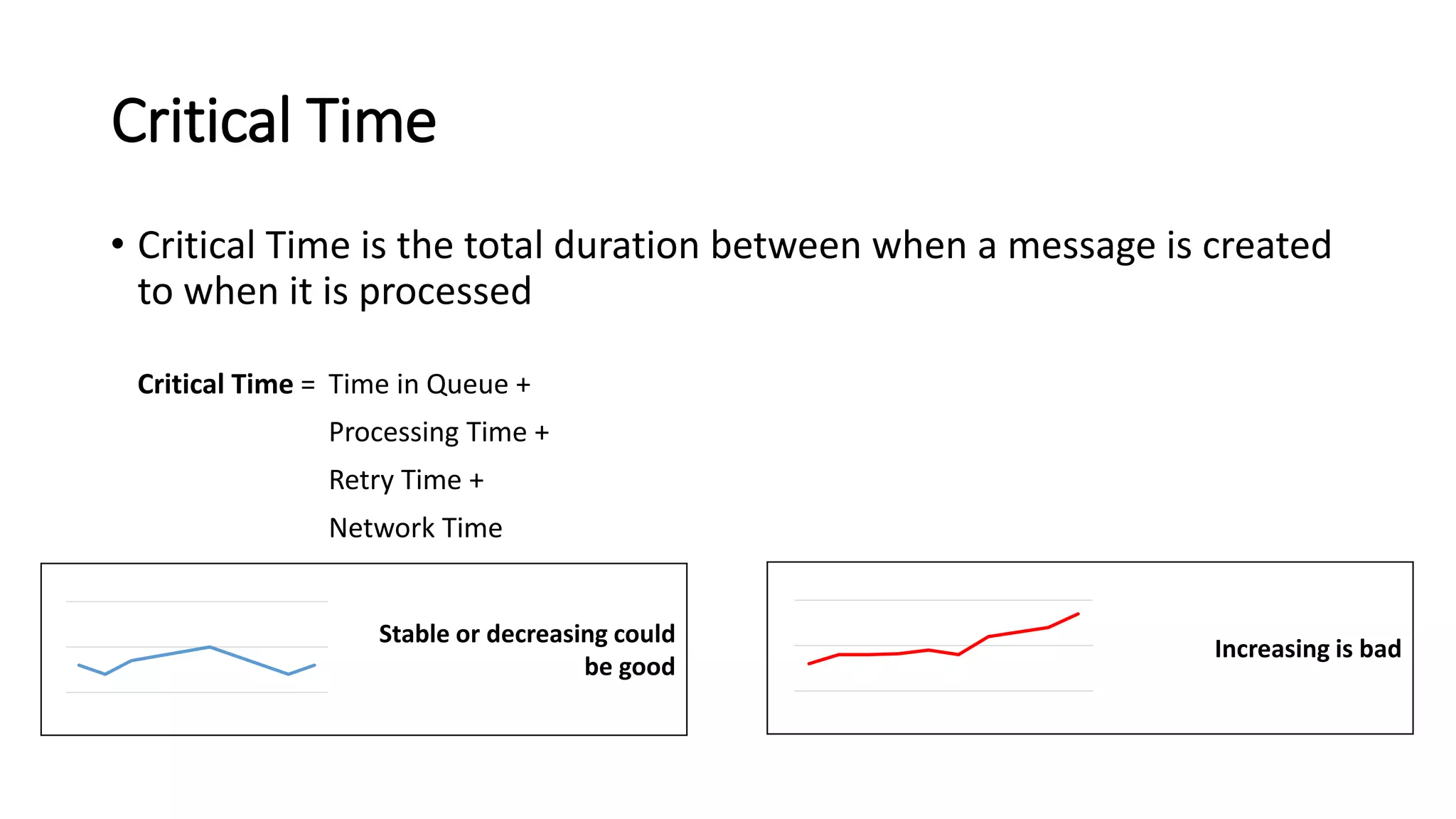

- 22. • Critical Timeis the total duration between when a message is created to when it is processed Critical Time = Time in Queue + Processing Time + Retry Time + Network Time Critical Time Stable or decreasing could be good Increasing is bad

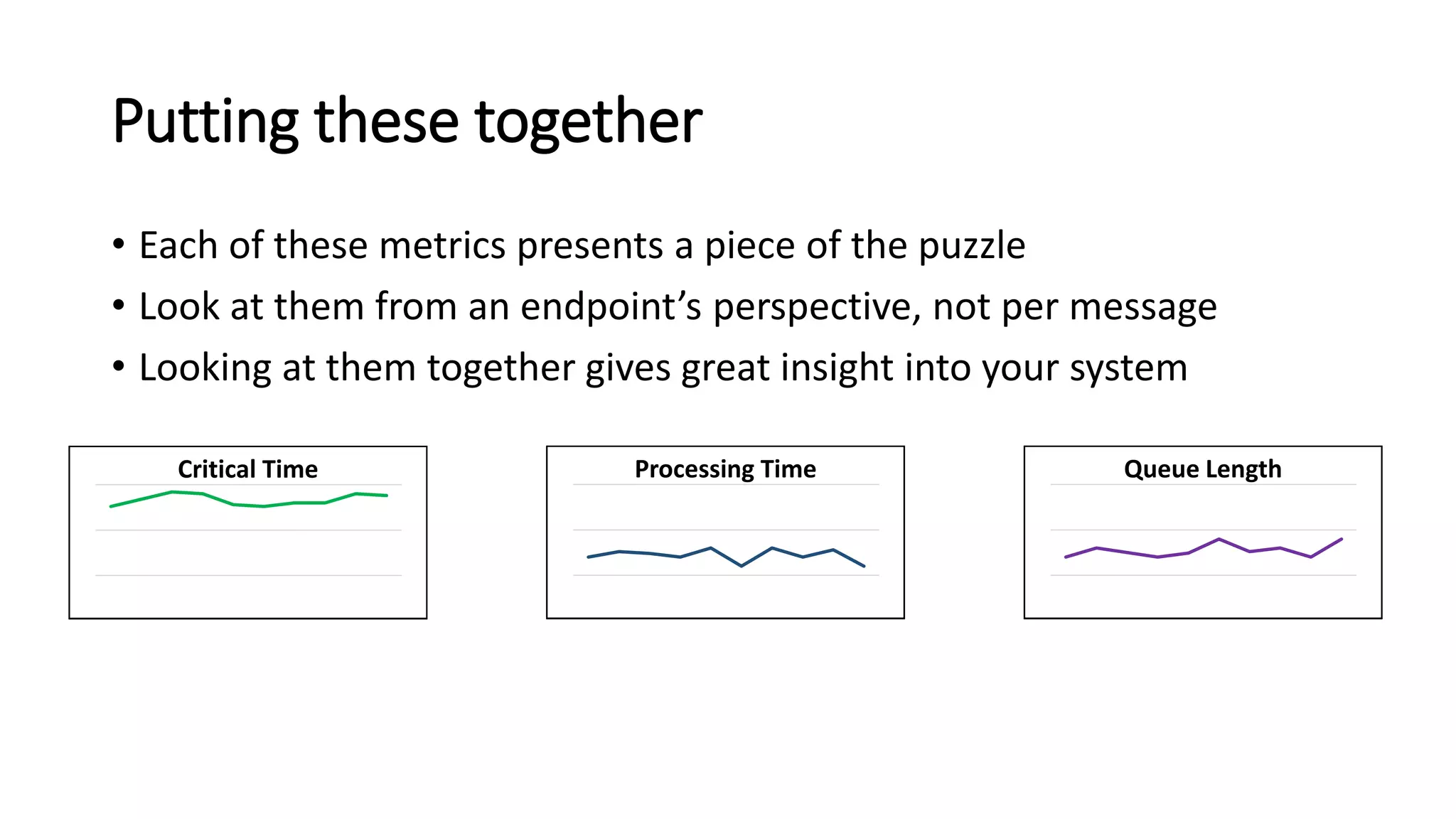

- 23. Putting these together •Each of these metrics presents a piece of the puzzle • Look at them from an endpoint’s perspective, not per message • Looking at them together gives great insight into your system Critical Time Processing Time Queue LengthCritical Time Processing Time Queue LengthCritical Time Processing Time Queue Length

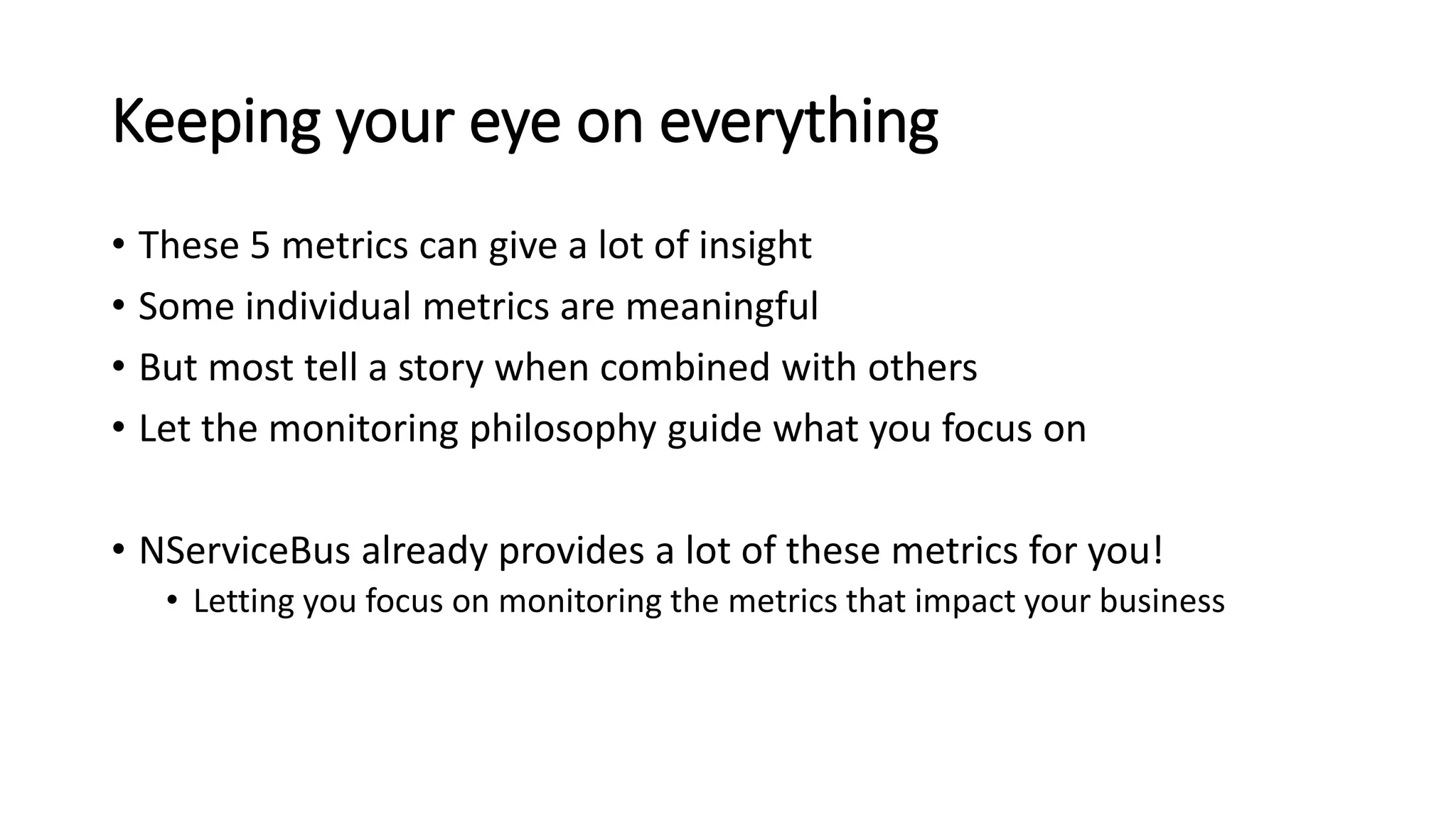

- 24. Keeping your eyeon everything • These 5 metrics can give a lot of insight • Some individual metrics are meaningful • But most tell a story when combined with others • Let the monitoring philosophy guide what you focus on • NServiceBus already provides a lot of these metrics for you! • Letting you focus on monitoring the metrics that impact your business

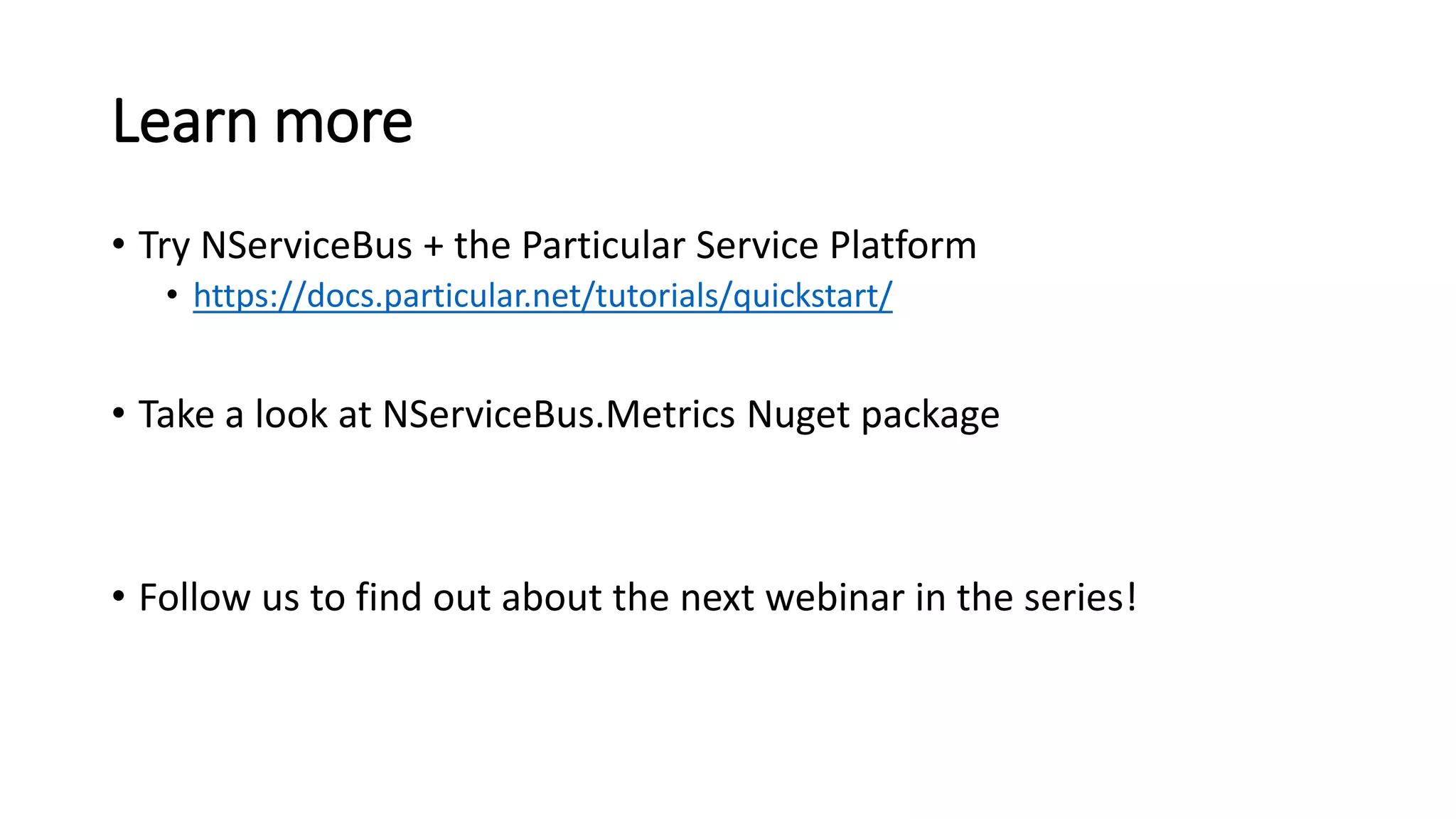

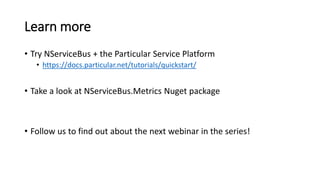

- 25. Learn more • TryNServiceBus + the Particular Service Platform • https://docs.particular.net/tutorials/quickstart/ • Take a look at NServiceBus.Metrics Nuget package • Follow us to find out about the next webinar in the series!
- 26.
- 27. Thank you! @farmar sean.farmar@particular.net @williambzawilliam.brander@particular.net https://www.particular.net
