Uploaded byOdessaJS Conf
Yurii Shevtsov "V8 + libuv = Node.js. Under the hood"
Node.js uses the V8 JavaScript engine and the libuv library. V8 compiles JavaScript to machine code for high performance, while libuv provides asynchronous I/O capabilities. Node.js initializes V8, wraps libuv, and provides a module system to load code, with modules defined as functions that export values. Native modules can extend Node.js using NAN or the newer N-API for direct access to V8 from C/C++ code.
More Related Content
Similar to Yurii Shevtsov "V8 + libuv = Node.js. Under the hood"
Yurii Shevtsov "V8 + libuv = Node.js. Under the hood"
- 1. V8 + libuv= Node.js Under the hood Юрий Шевцов
- 2.

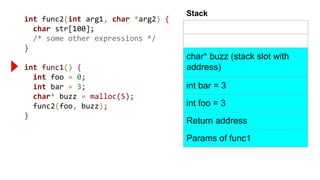

- 3. int func2(int arg1,char *arg2) { char str[100]; /* some other expressions */ } int func1() { int foo = 0; int bar = 3; char* buzz = malloc(5); func2(foo, buzz); } char* buzz (stack slot with address) int bar = 3 int foo = 3 Return address Params of func1 Stack
- 4. int func2(int arg1,char *arg2) { char str[100]; /* some other expressions */ } int func1() { int foo = 0; int bar = 3; char* buzz = malloc(5); func2(foo, buzz); } str[99] str[1] … str[98] str[0]; Return address (line 10) arg2 = buzz arg1 = foo = 3 Data of func1 Stack

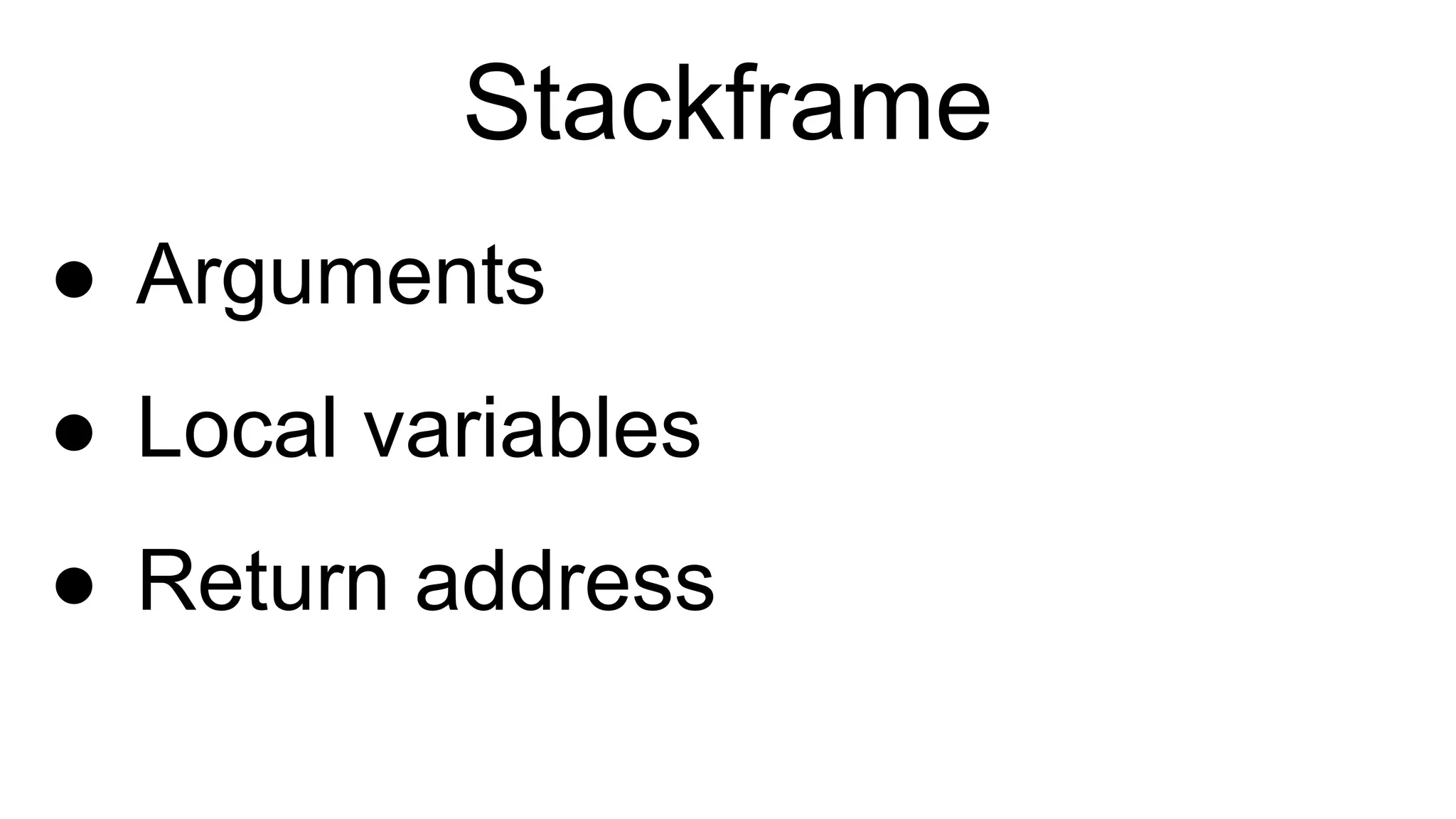

- 5. Stackframe ● Arguments ● Localvariables ● Return address
- 7. Everything is objecton the Heap

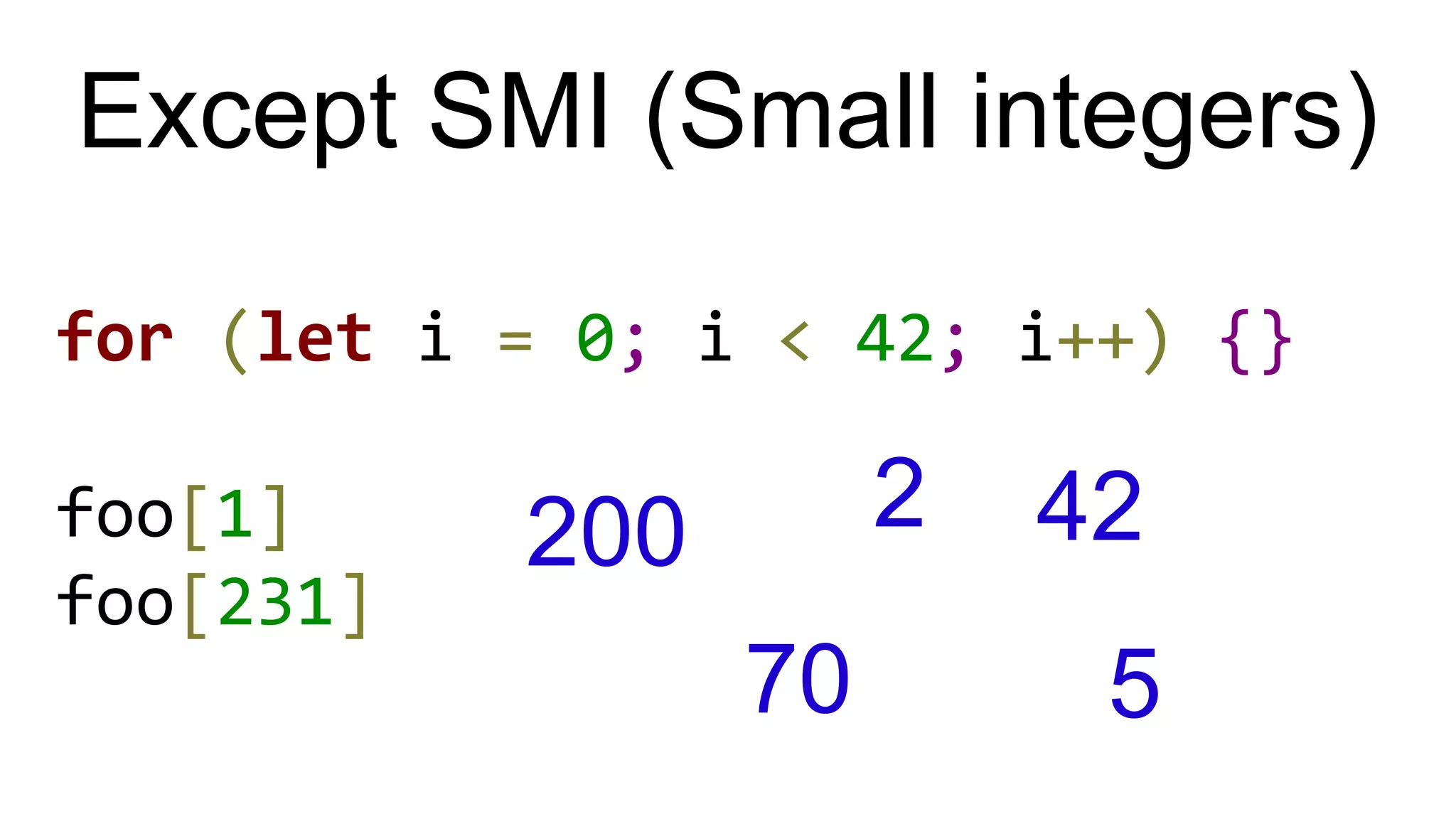

- 8. for (let i= 0; i < 42; i++) {} foo[1] foo[231] Except SMI (Small integers) 2 42 570 200

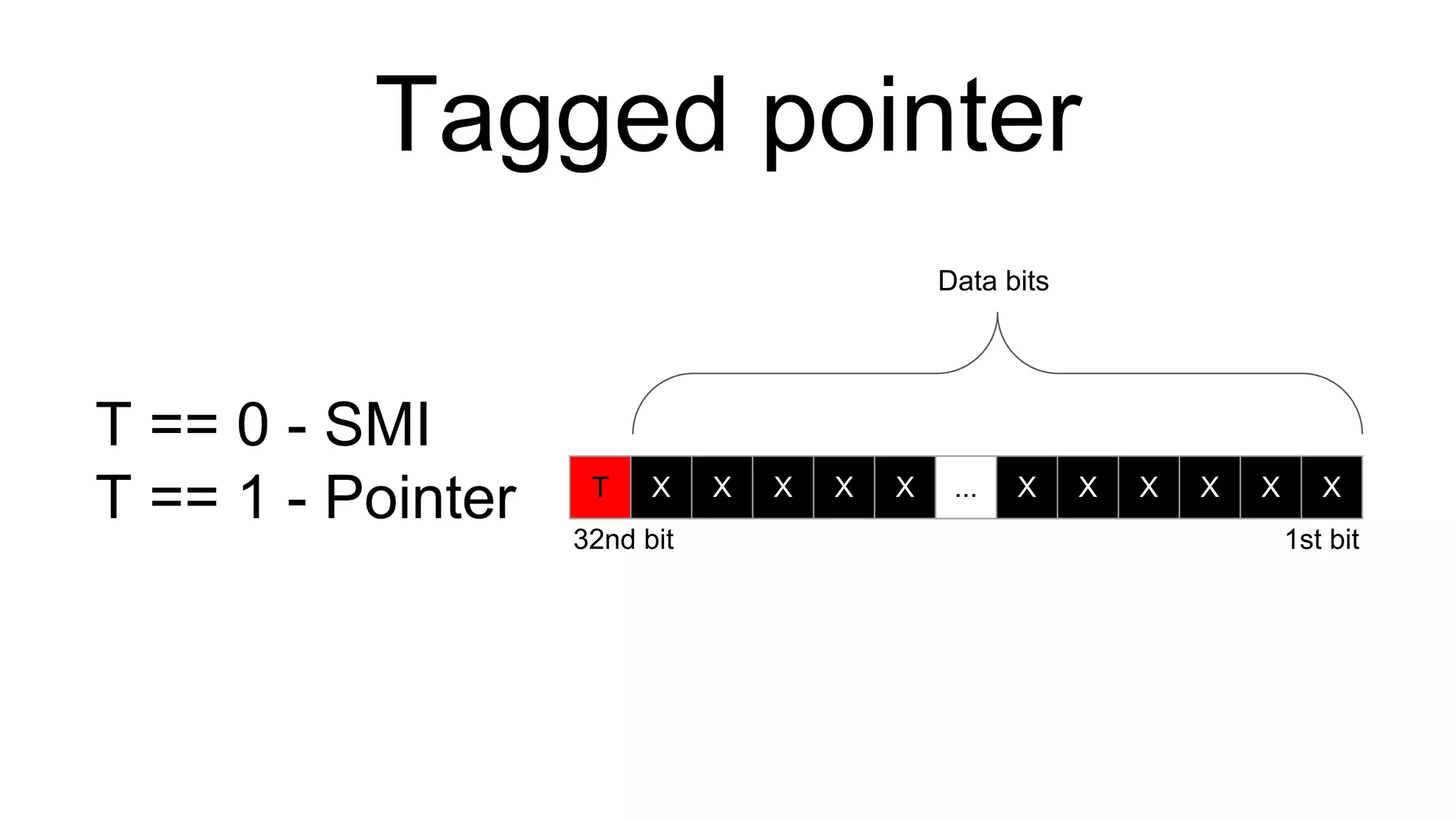

- 9. Tagged pointer 32nd bit1st bit Data bits T == 0 - SMI T == 1 - Pointer T X X X X X ... X X X X X X

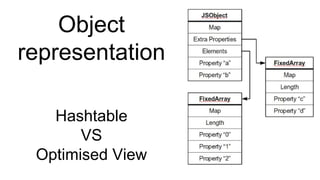

- 10.

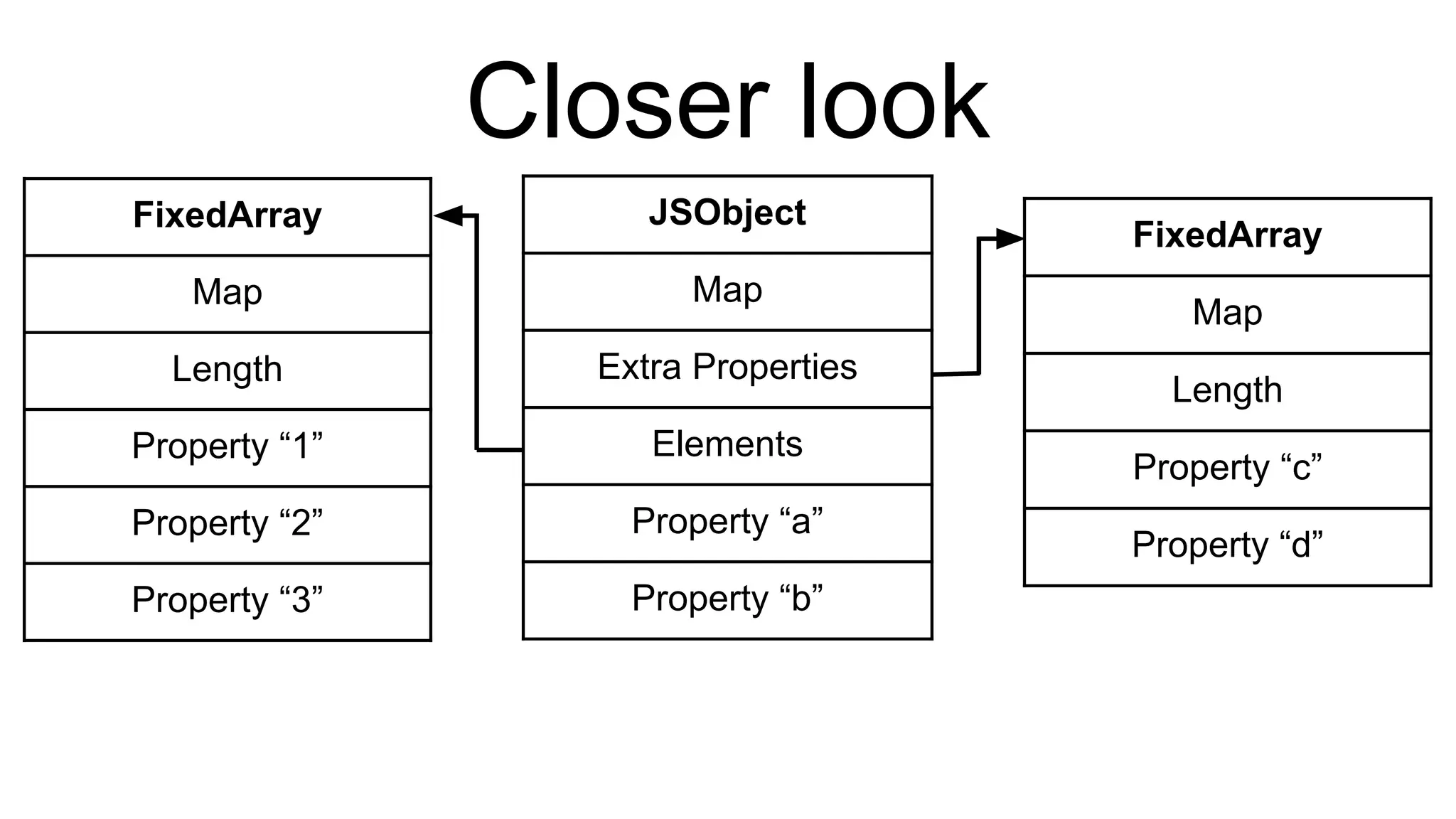

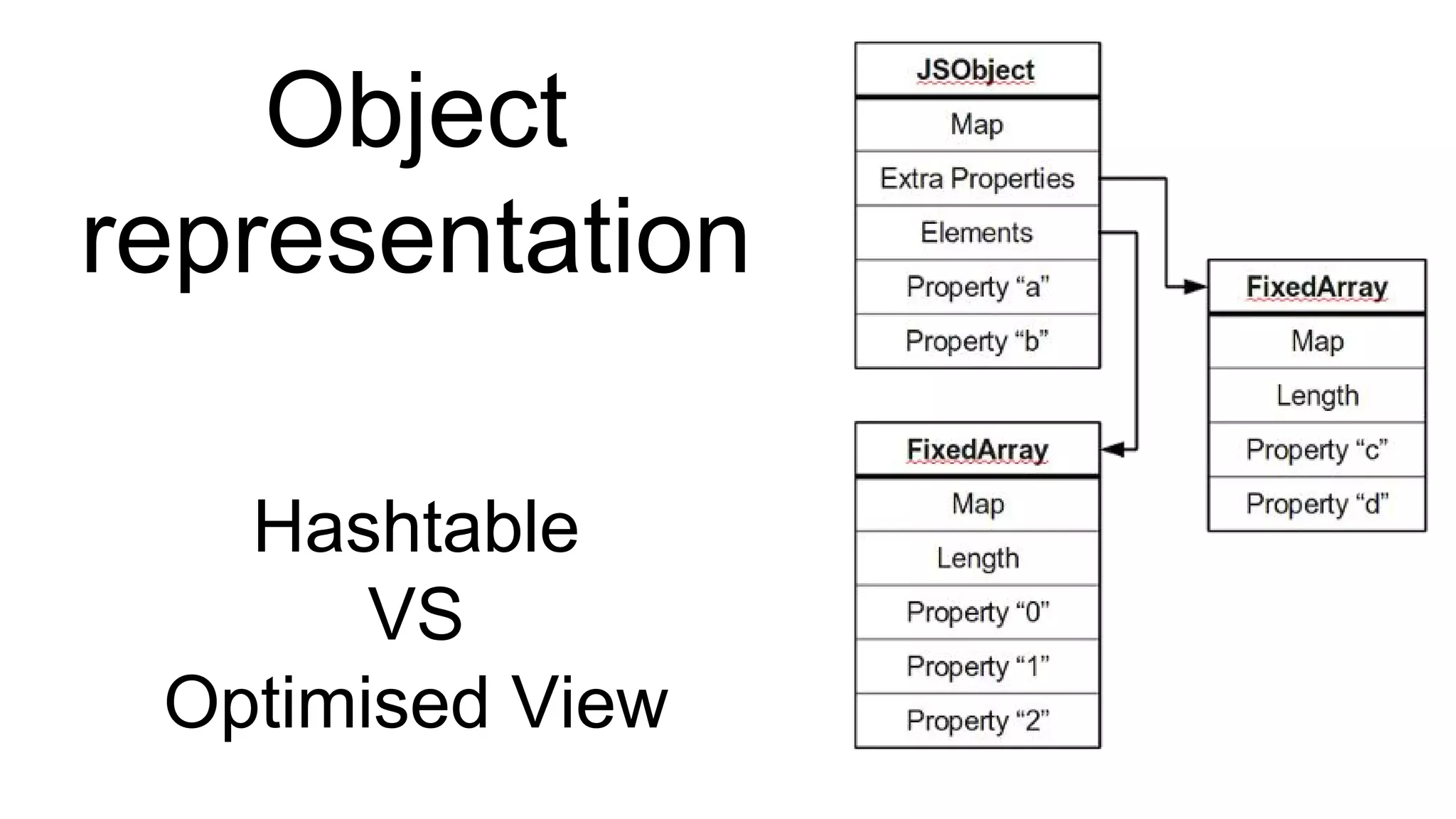

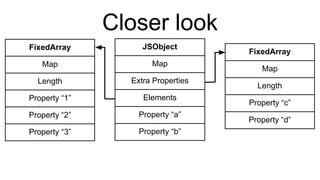

- 11. Closer look JSObject Map Extra Properties Elements Property“a” Property “b” FixedArray Map Length Property “c” Property “d” FixedArray Map Length Property “1” Property “2” Property “3”

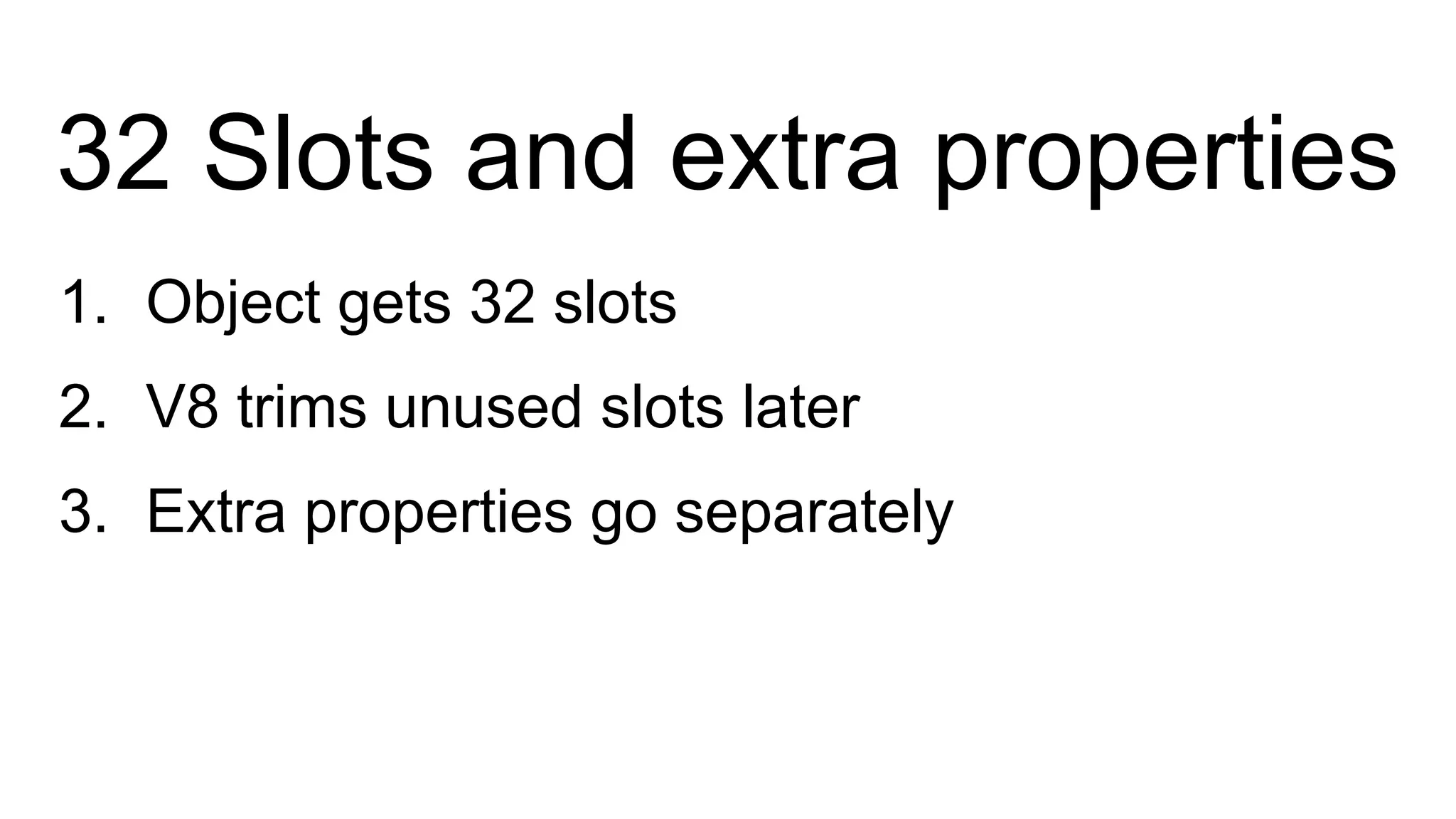

- 12. 32 Slots andextra properties 1. Object gets 32 slots 2. V8 trims unused slots later 3. Extra properties go separately

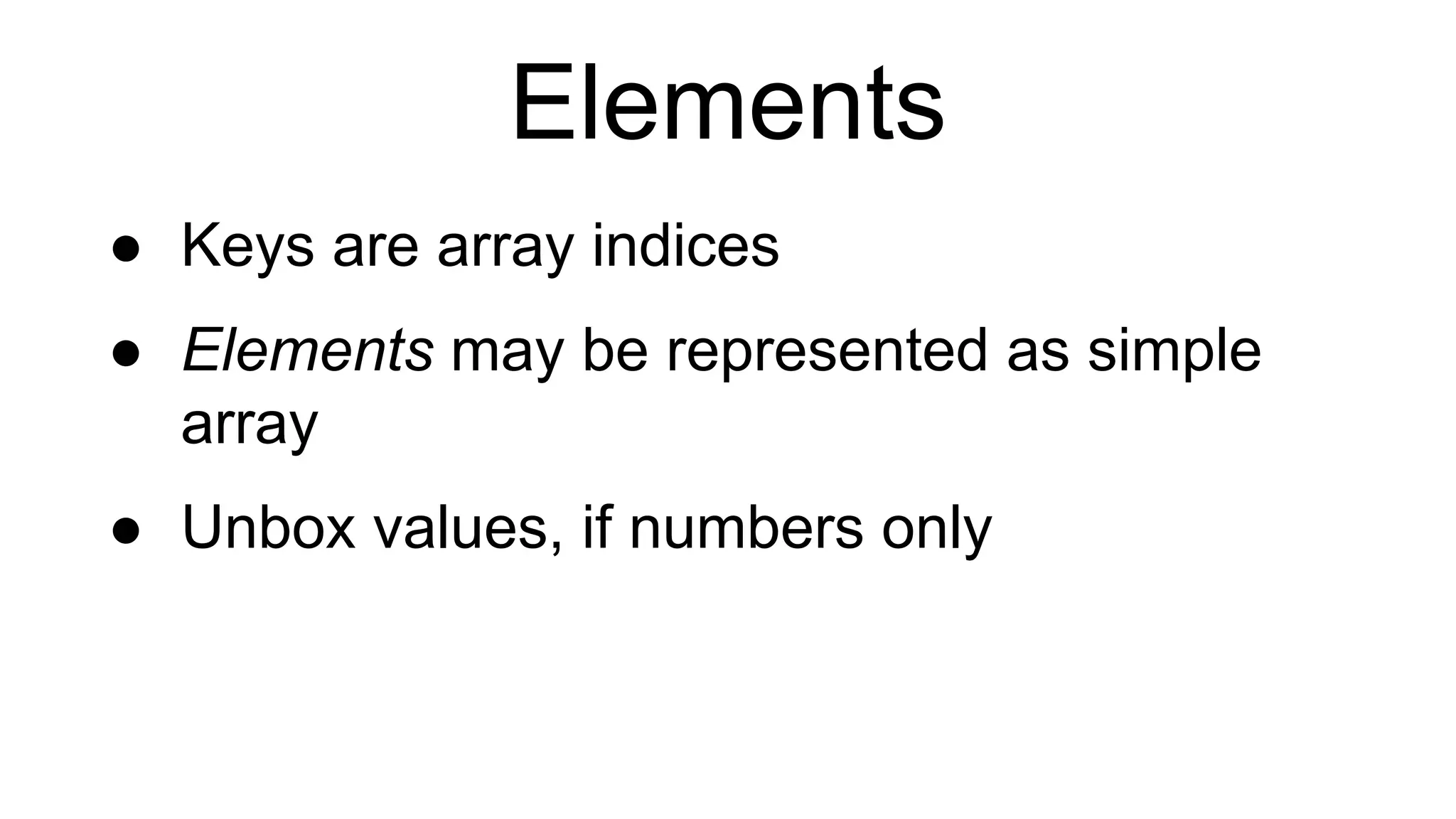

- 13. Elements ● Keys arearray indices ● Elements may be represented as simple array ● Unbox values, if numbers only

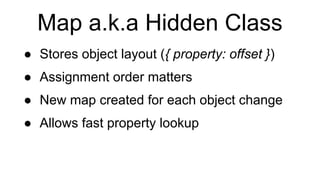

- 14. Map a.k.a HiddenClass ● Stores object layout ({ property: offset }) ● Assignment order matters ● New map created for each object change ● Allows fast property lookup

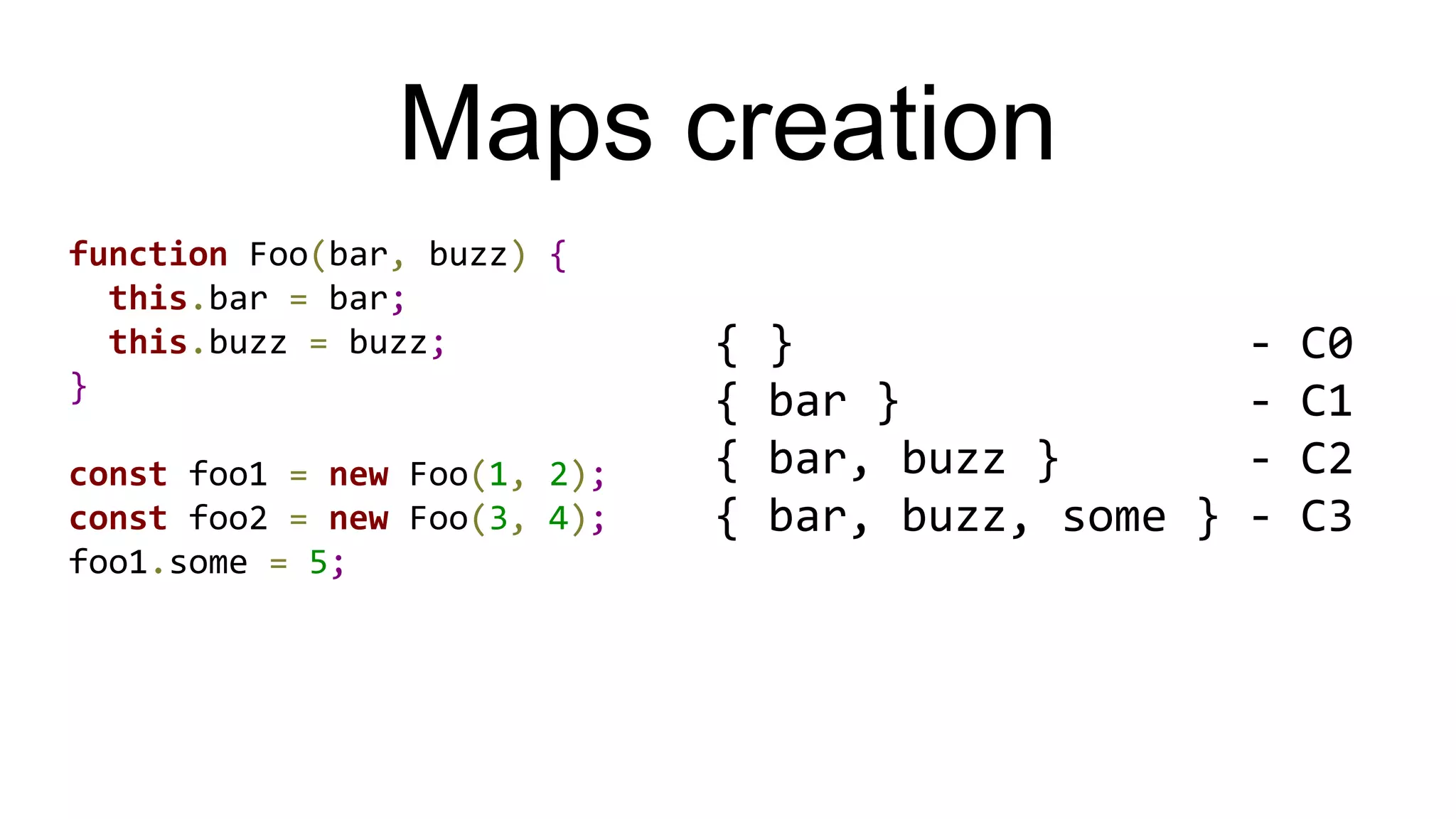

- 15. Maps creation function Foo(bar,buzz) { this.bar = bar; this.buzz = buzz; } const foo1 = new Foo(1, 2); const foo2 = new Foo(3, 4); foo1.some = 5; { } - C0 { bar } - C1 { bar, buzz } - C2 { bar, buzz, some } - C3
- 16.
- 17. Heap Structure New-space Old-spaceAnd more...
- 18. Garbage collection Scavenge |Mark & sweep
- 19.
- 20.

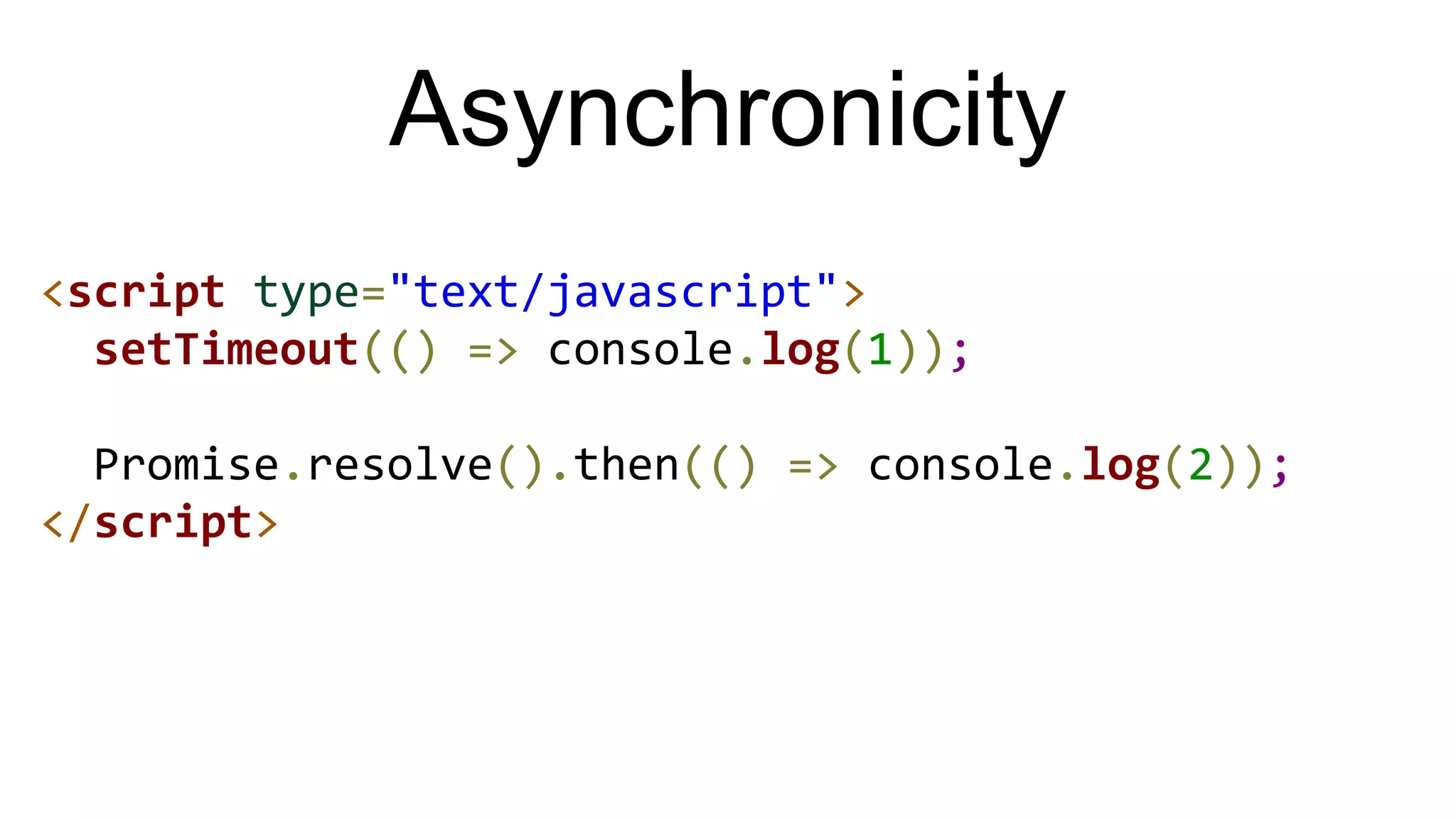

- 22. Asynchronicity <script type="text/javascript"> setTimeout(() =>console.log(1)); Promise.resolve().then(() => console.log(2)); </script>
- 23.

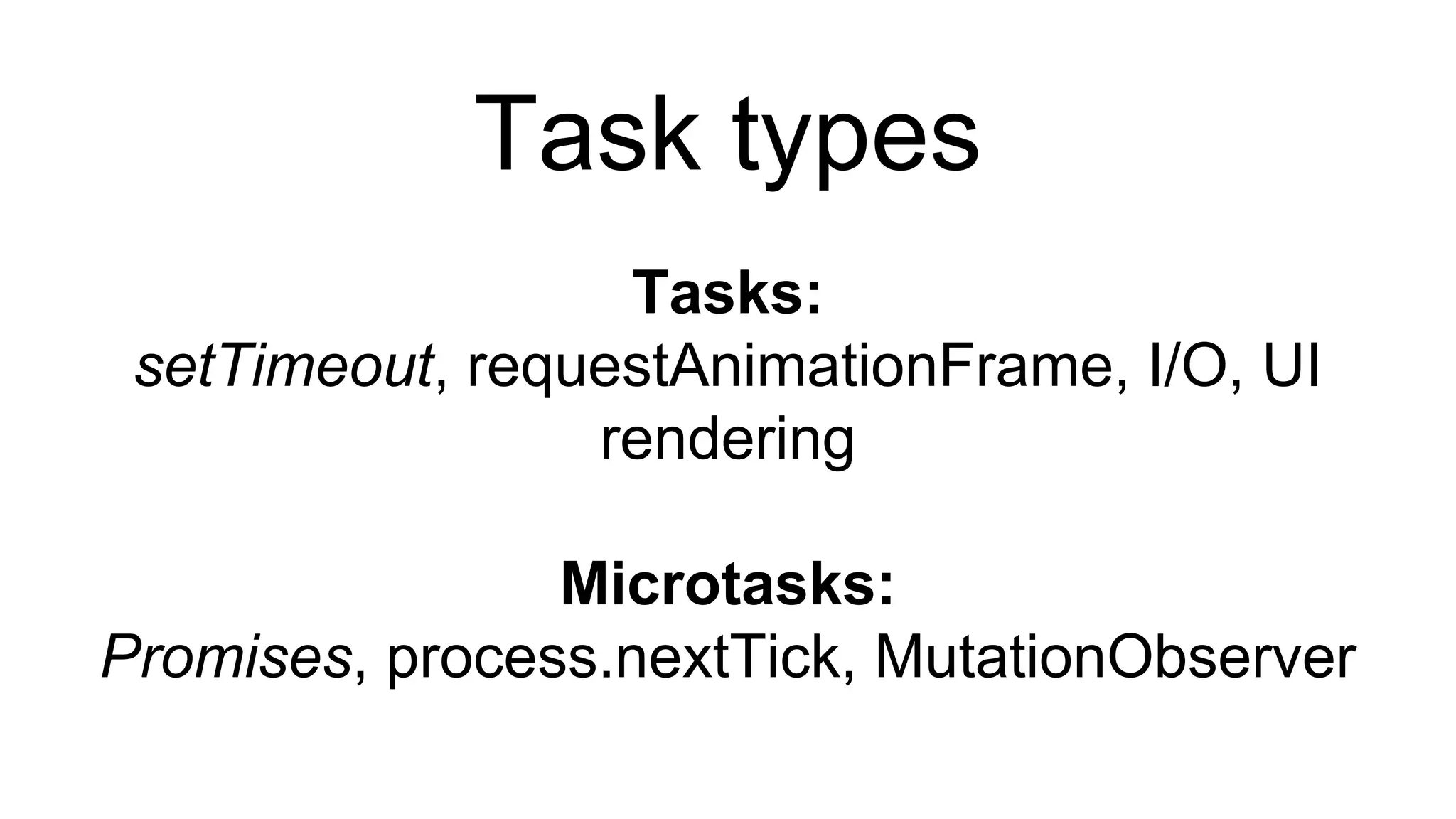

- 24. Task types Tasks: setTimeout, requestAnimationFrame,I/O, UI rendering Microtasks: Promises, process.nextTick, MutationObserver

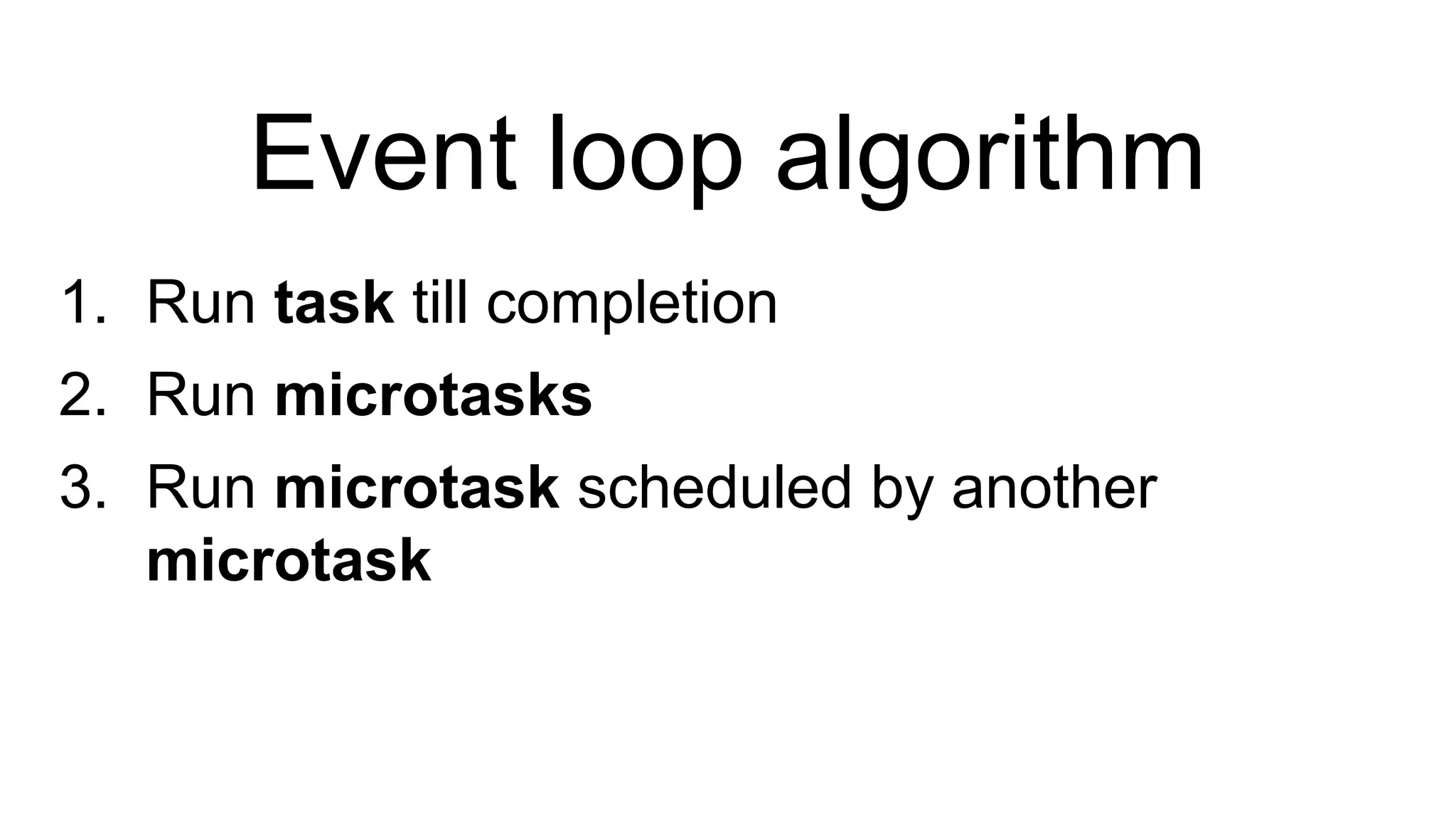

- 25. Event loop algorithm 1.Run task till completion 2. Run microtasks 3. Run microtask scheduled by another microtask

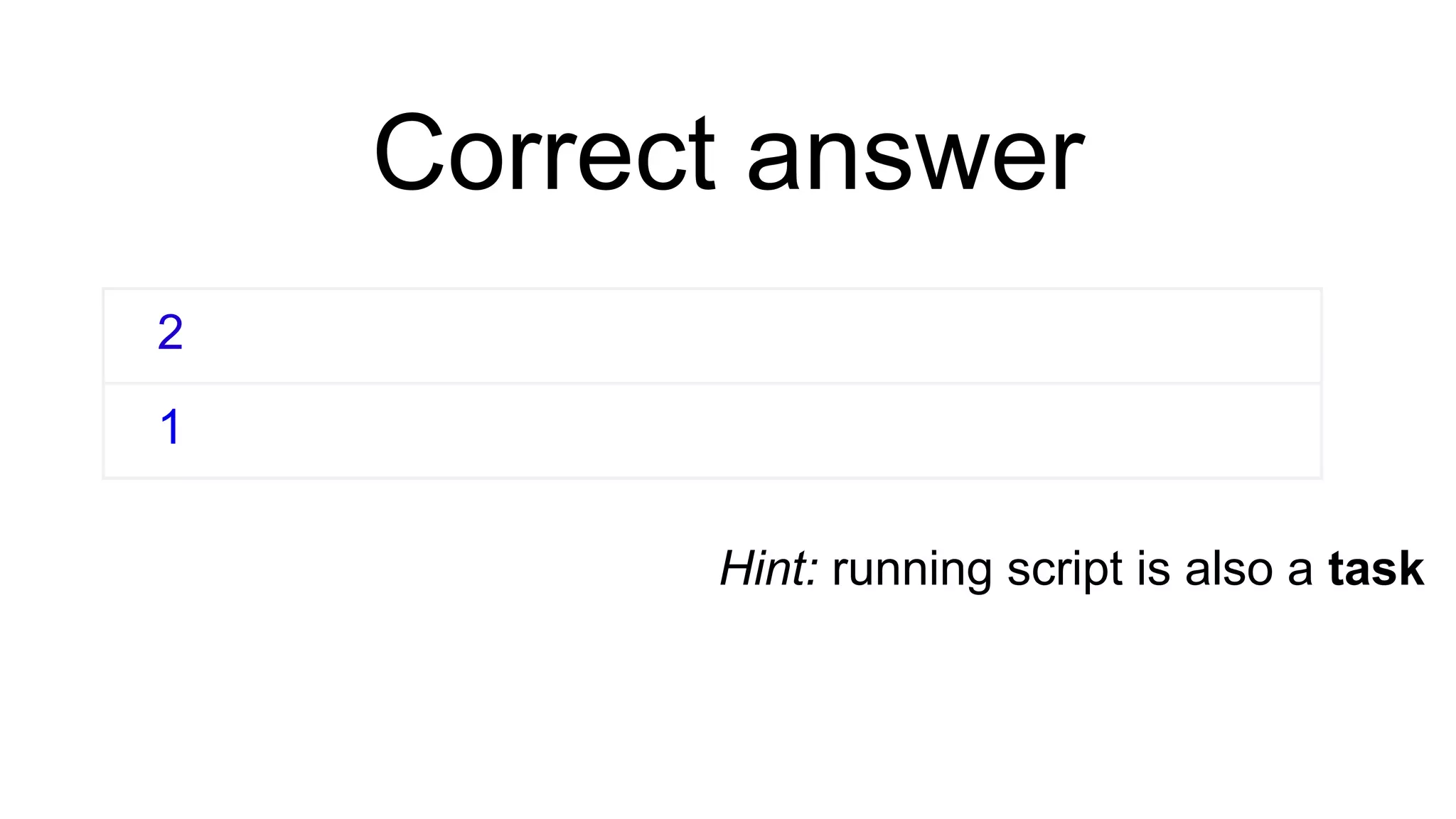

- 26. Correct answer 2 1 Hint: runningscript is also a task

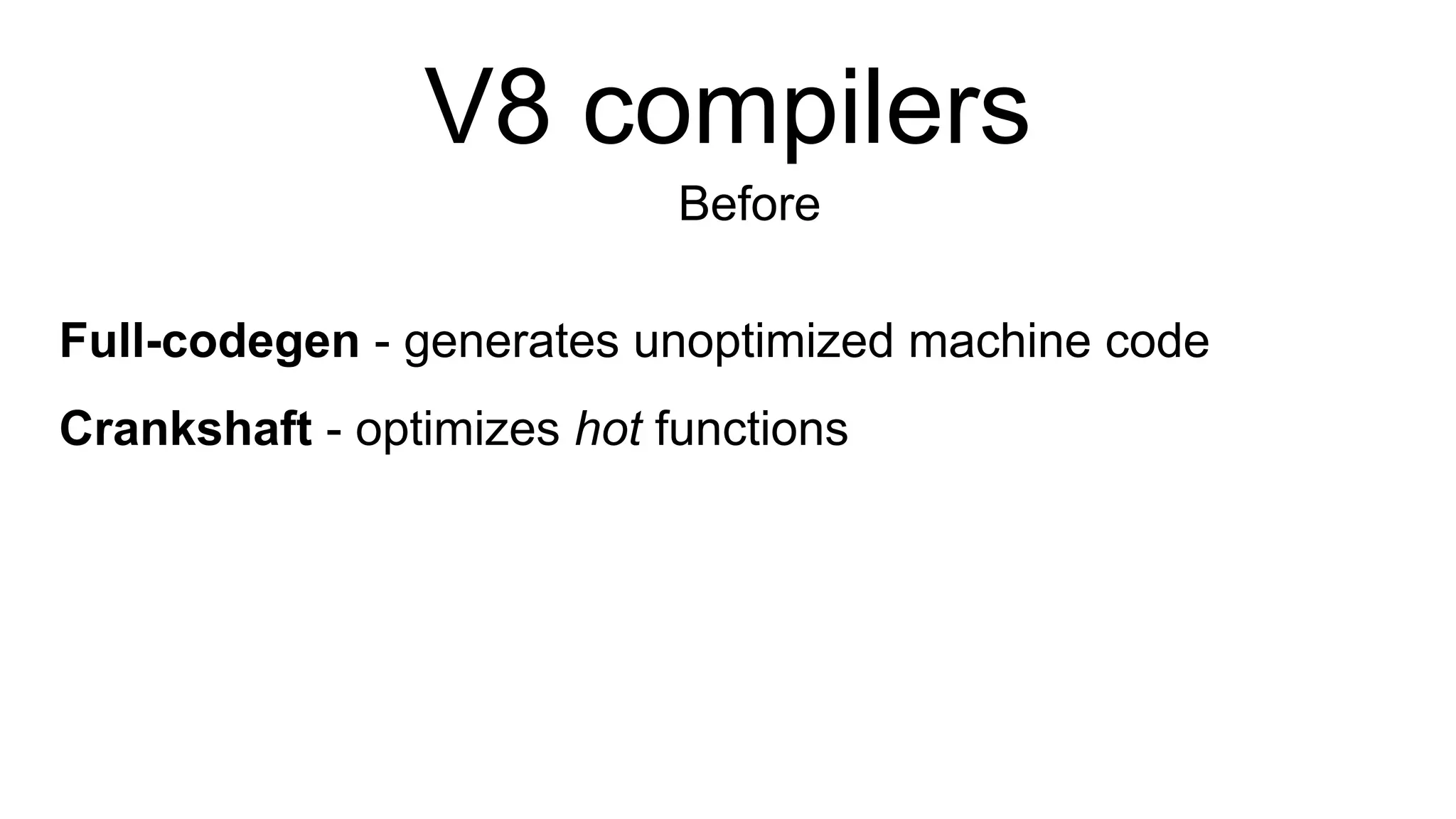

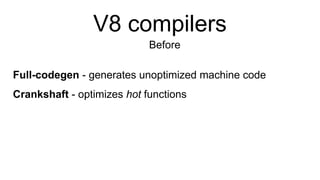

- 27. V8 compilers Before Full-codegen -generates unoptimized machine code Crankshaft - optimizes hot functions

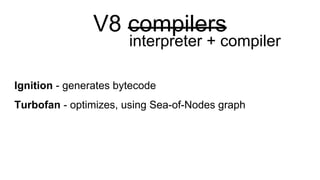

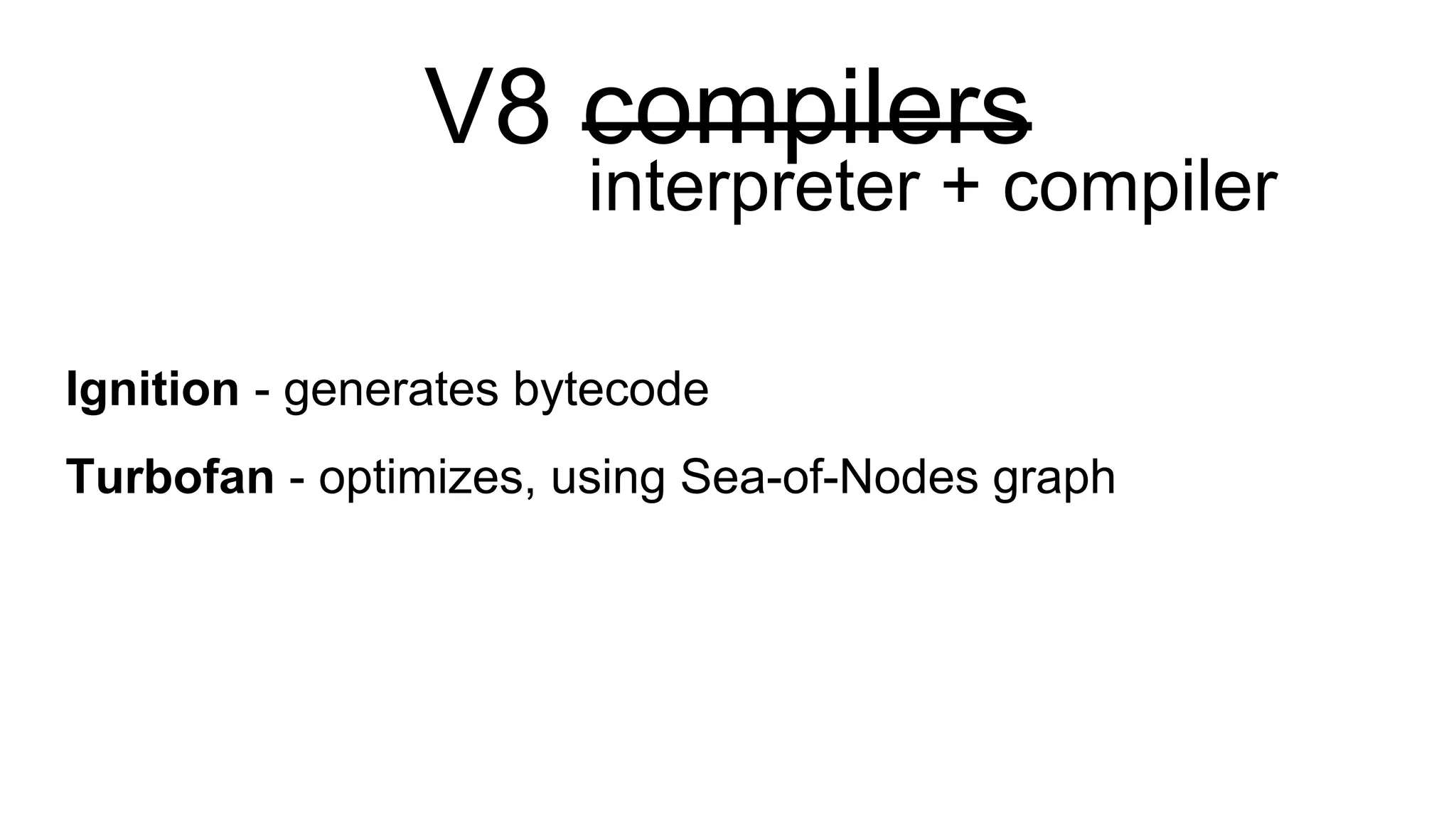

- 28. V8 compilers Ignition -generates bytecode Turbofan - optimizes, using Sea-of-Nodes graph interpreter + compiler

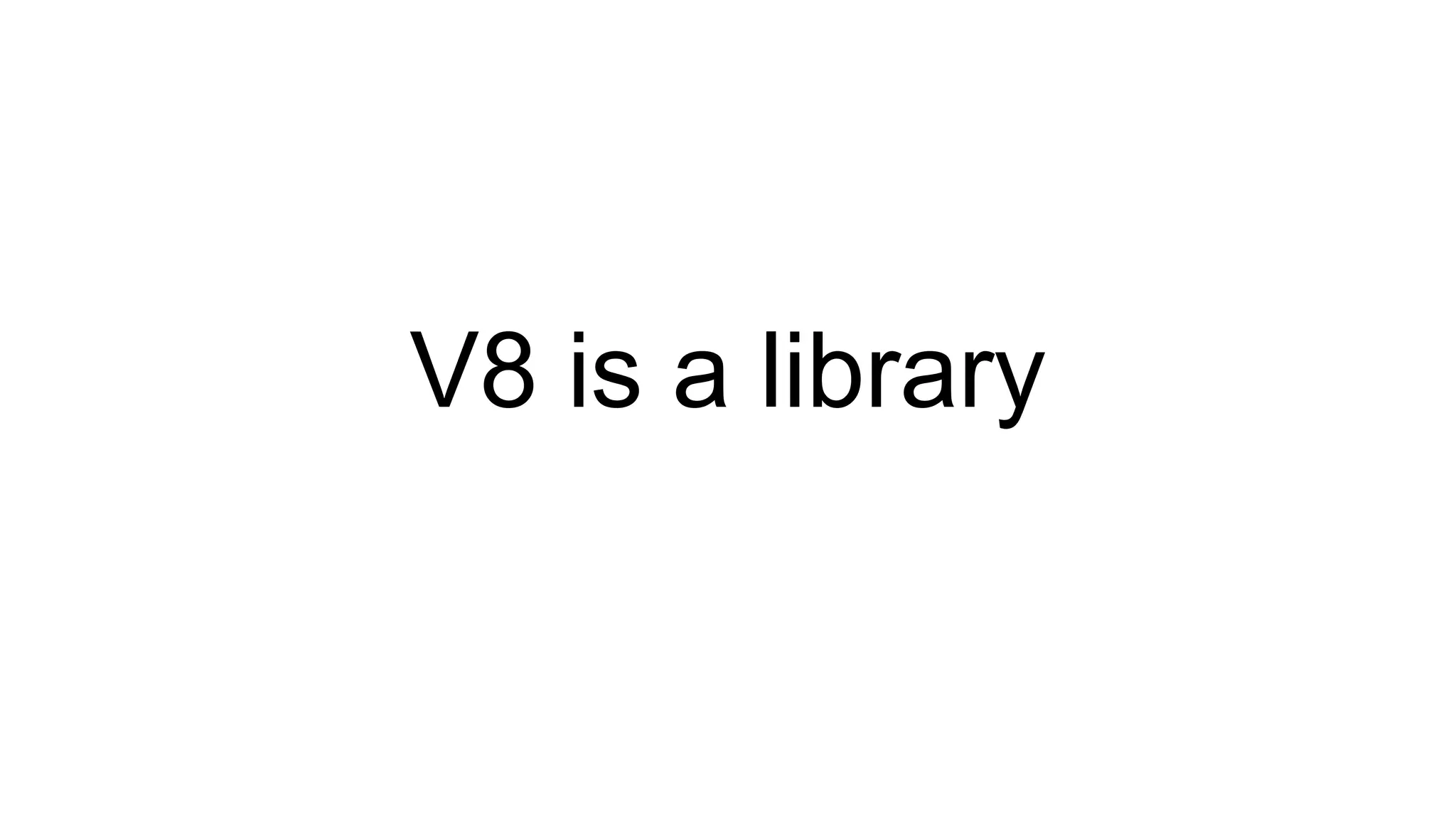

- 29. V8 is alibrary

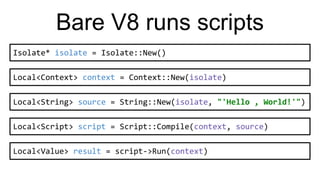

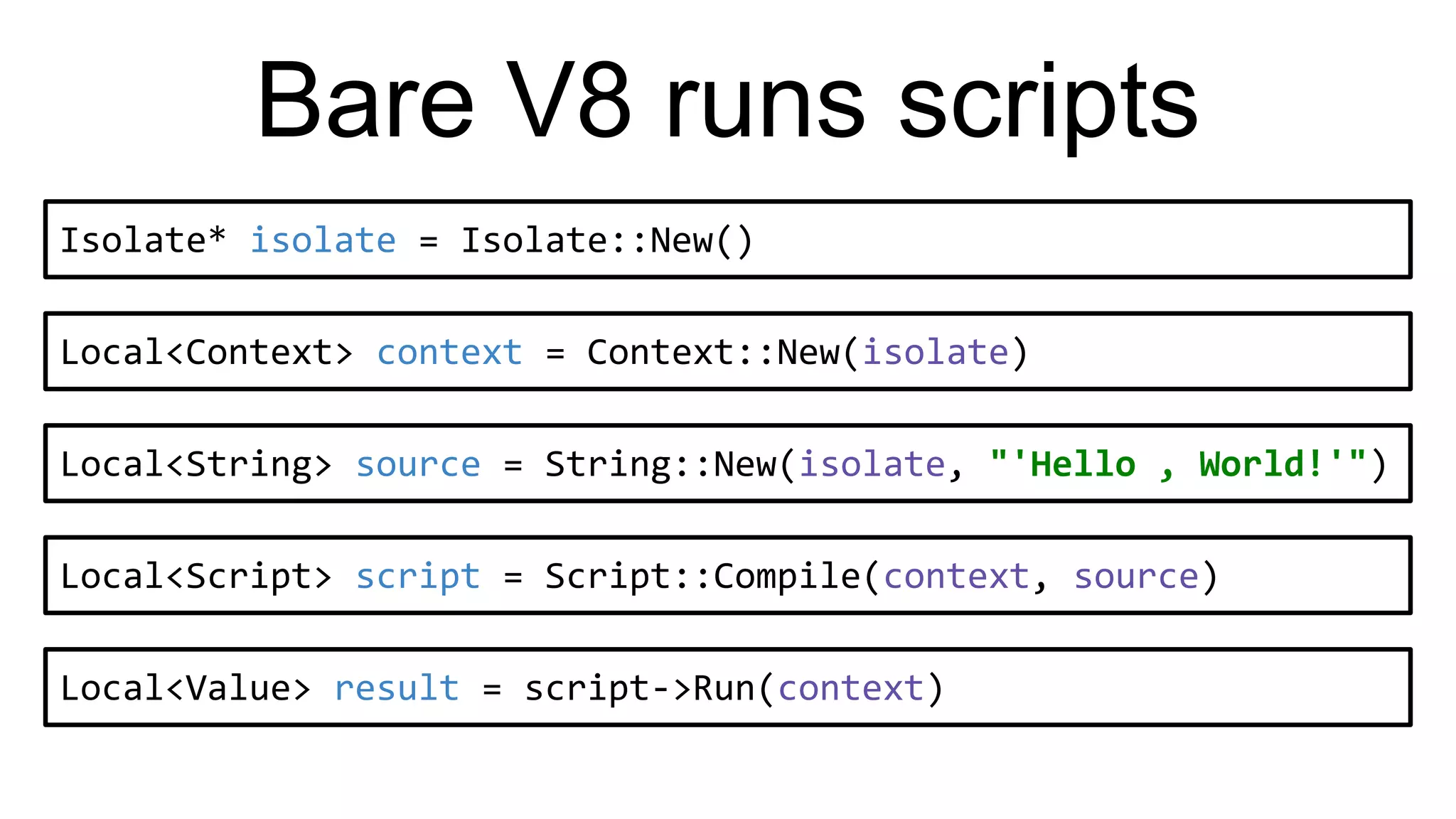

- 30. Bare V8 runsscripts Isolate* isolate = Isolate::New() Local<Context> context = Context::New(isolate) Local<String> source = String::New(isolate, "'Hello , World!'") Local<Script> script = Script::Compile(context, source) Local<Value> result = script->Run(context)

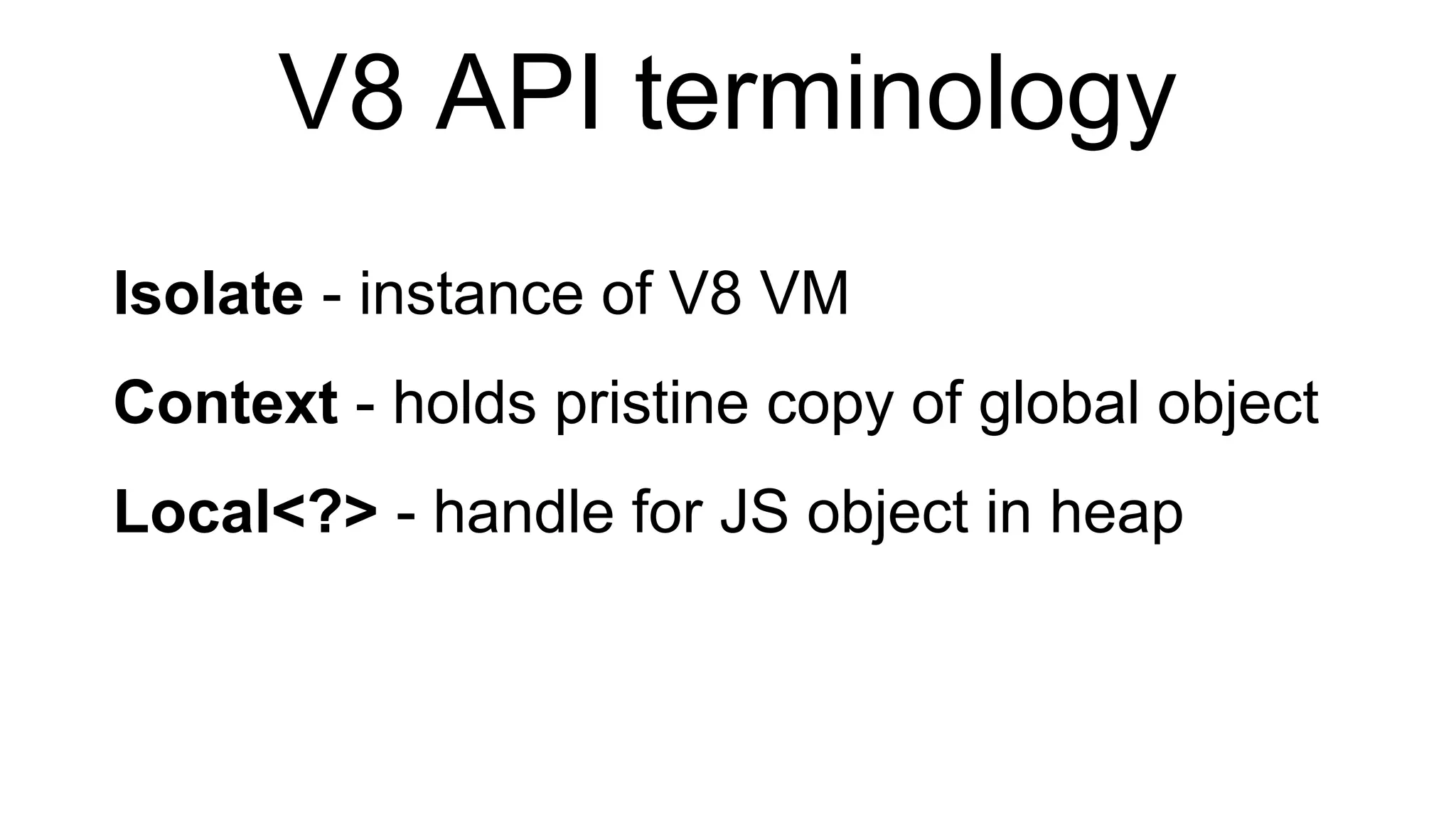

- 31. V8 API terminology Isolate- instance of V8 VM Context - holds pristine copy of global object Local<?> - handle for JS object in heap
- 32.

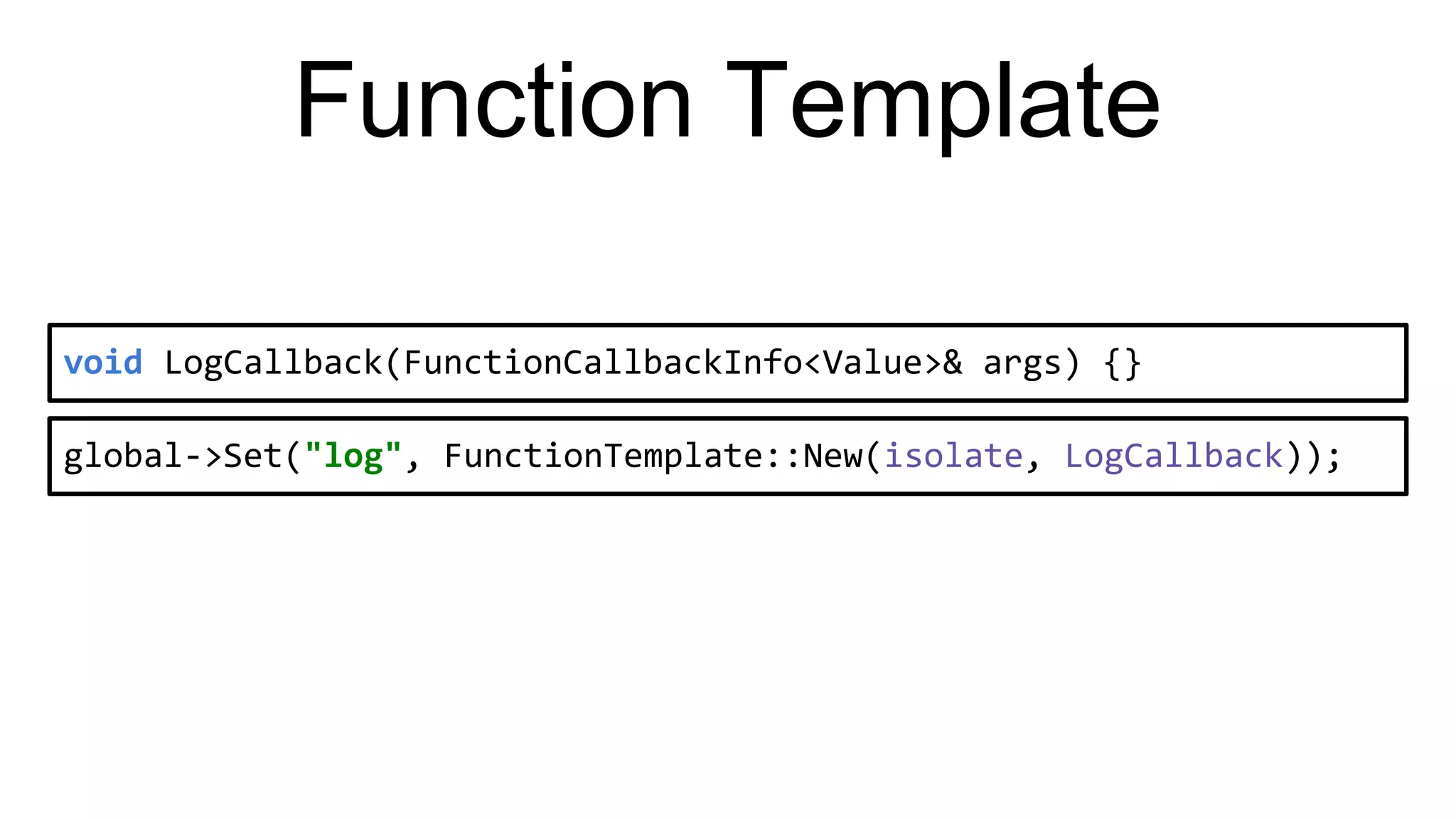

- 33. Function Template void LogCallback(FunctionCallbackInfo<Value>&args) {} global->Set("log", FunctionTemplate::New(isolate, LogCallback));
- 34.

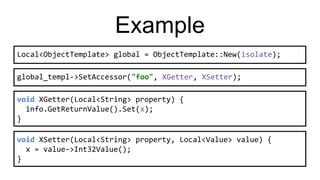

- 35. Example global_templ->SetAccessor("foo", XGetter, XSetter); voidXGetter(Local<String> property) { info.GetReturnValue().Set(x); } void XSetter(Local<String> property, Local<Value> value) { x = value->Int32Value(); } Local<ObjectTemplate> global = ObjectTemplate::New(isolate);

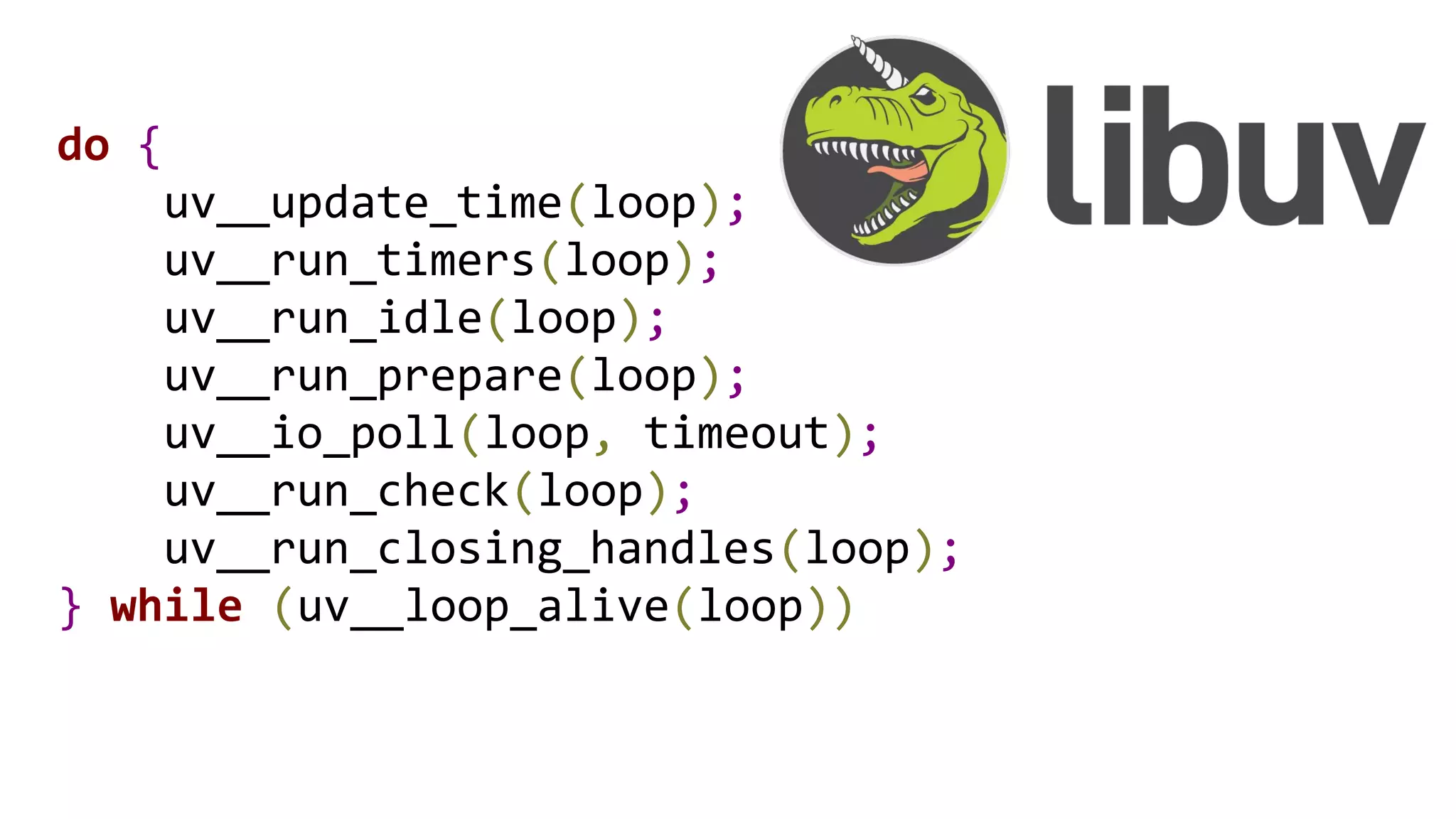

- 37.

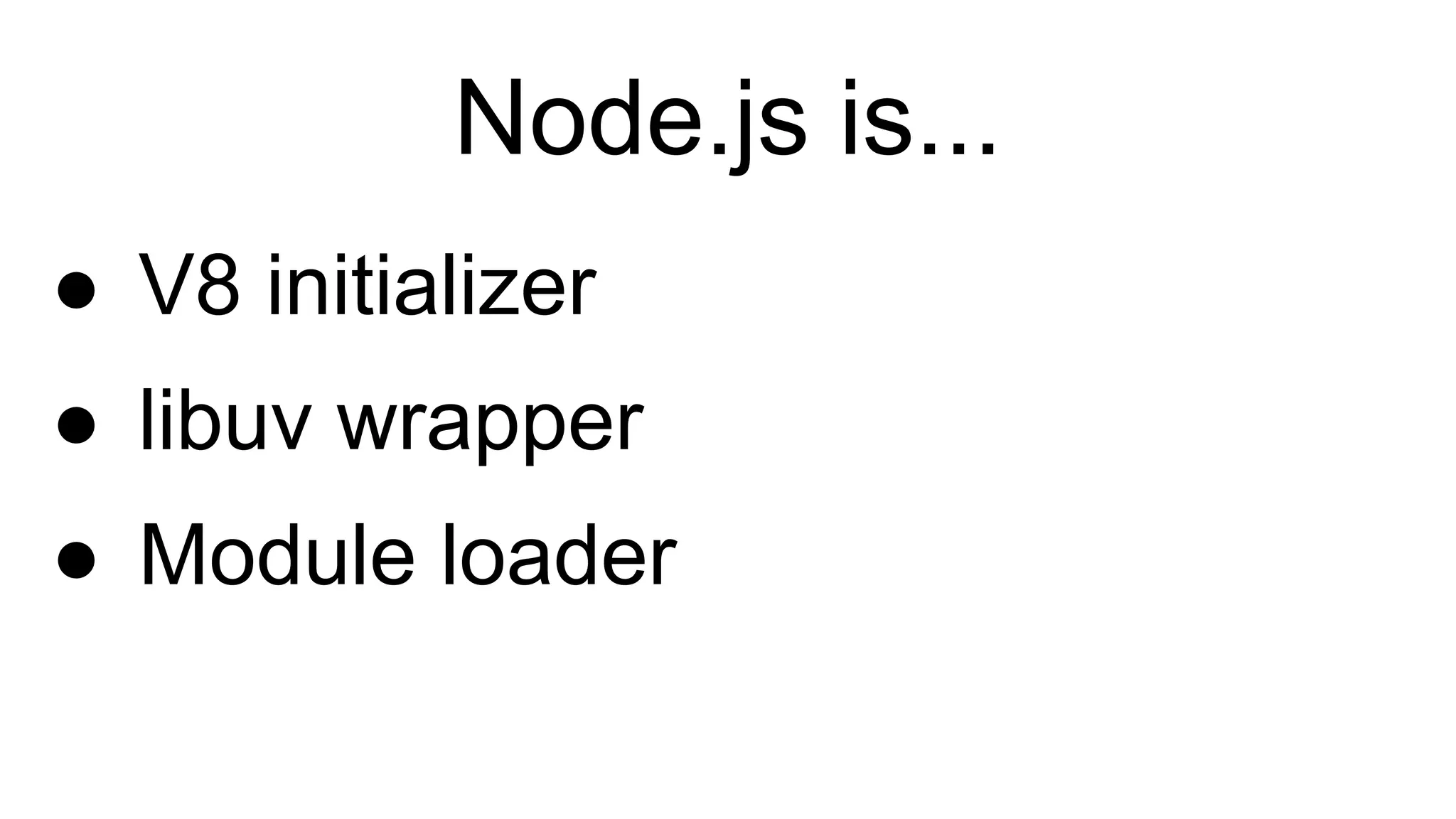

- 40. Node.js is... ● V8initializer ● libuv wrapper ● Module loader

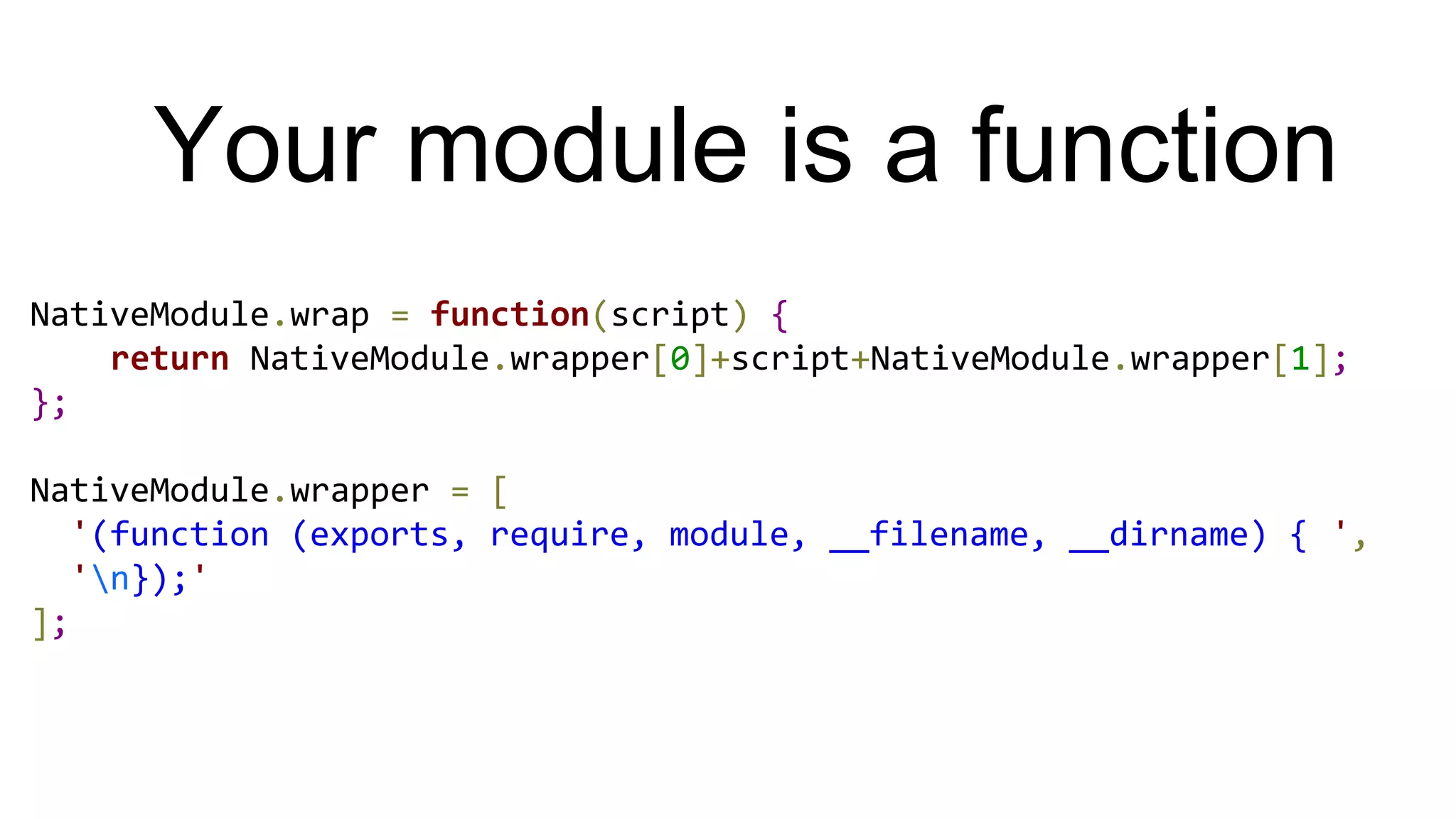

- 41. Your module isa function NativeModule.wrap = function(script) { return NativeModule.wrapper[0]+script+NativeModule.wrapper[1]; }; NativeModule.wrapper = [ '(function (exports, require, module, __filename, __dirname) { ', 'n});' ];
- 42.
- 43.
