A visual introduction to Apache Kafka
- 1. Introducing Apache KafkaÂŽ PaulBrebner Technical Evangelist February 2019

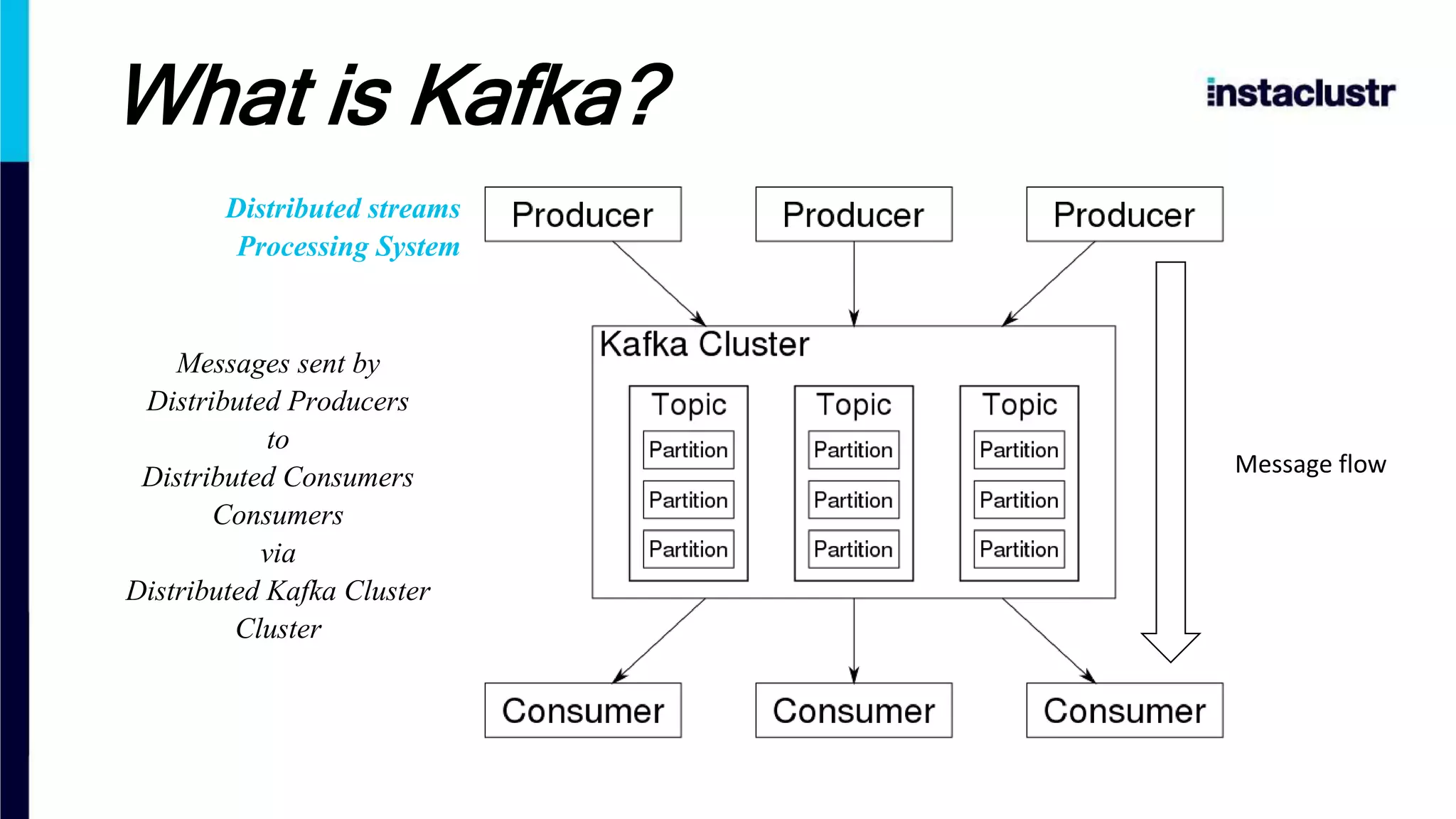

- 2. What is Kafka? Messageflow Distributed streams Processing System Messages sent by Distributed Producers to Distributed Consumers Consumers via Distributed Kafka Cluster Cluster

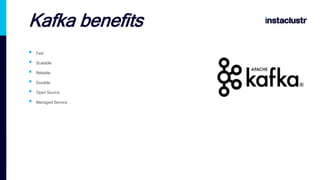

- 3. Kafka Benefits ď§ Fast ď§Scalable ď§ Reliable ď§ Durable ď§ Open Source ď§ Managed Service Kafka benefits
- 4. Kafka Benefits ď§ Fastâ high throughput and low latency ď§ Scalable â horizontally scalable with nodes and partitions ď§ Reliable â distributed and fault tolerant ď§ Durable - zero data loss, messages persisted to disk with immutable log ď§ Open Source â An Apache project ď§ Available as a Managed Service - on multiple cloud platforms Kafka benefits
- 5.

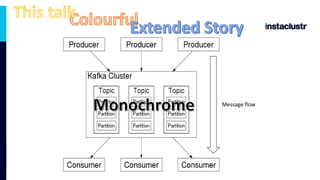

- 6.

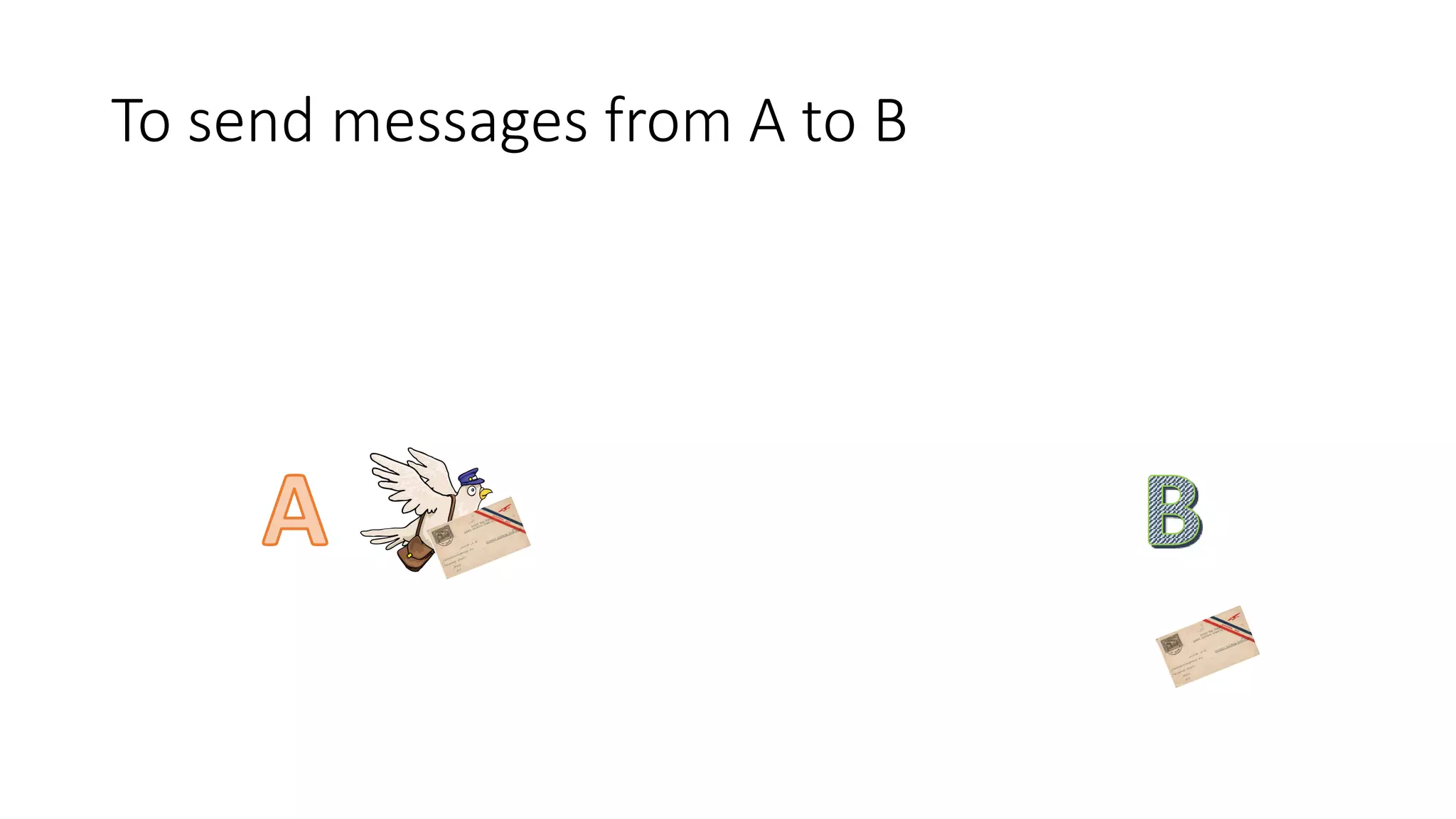

- 8. To send messagesfrom A to B
- 9. âAâ is theProducer â sends a message, to
- 10. âBâ the Consumer(recipient) of the message
- 11. Due to declinein âsnail mailâ direct deliveries
- 12. Due to declinein âsnail mailâ direct deliveries
- 13. Instead ⌠âPosteRestanteâ
- 14. âPoste Restanteâ? ⢠Nota post office in a restaurant ⢠General delivery (in the US) ⢠The mail is delivered to a post office, they hold it for you until you call
- 15. Consumers âpollâ formessages by visiting the Poste Restante counter at the post office
- 16. Kafka topics actlike a Post Office

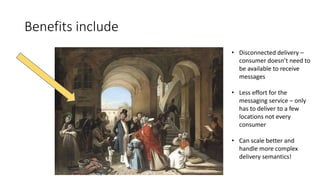

- 17. Benefits include ⢠Disconnecteddelivery â consumer doesnât need to be available to receive messages ⢠Less effort for the messaging service â only has to deliver to a few locations not every consumer ⢠Can scale better and handle more complex delivery semantics!
- 18. Scalability? Many consumersfor a topic?
- 19. A single counterintroduces delays
- 20. More counters increasesconcurrency
- 21. Kafka topics have>= 1 Partitions (âcountersâ) ⢠Partitions increase consumer concurrency ⢠Increase throughput ⢠Reduce latency
- 22. Santa North Pole Whatâs aKafka message? A Record â like a letter
- 23. Santa North PoleTopic Topic isthe destination

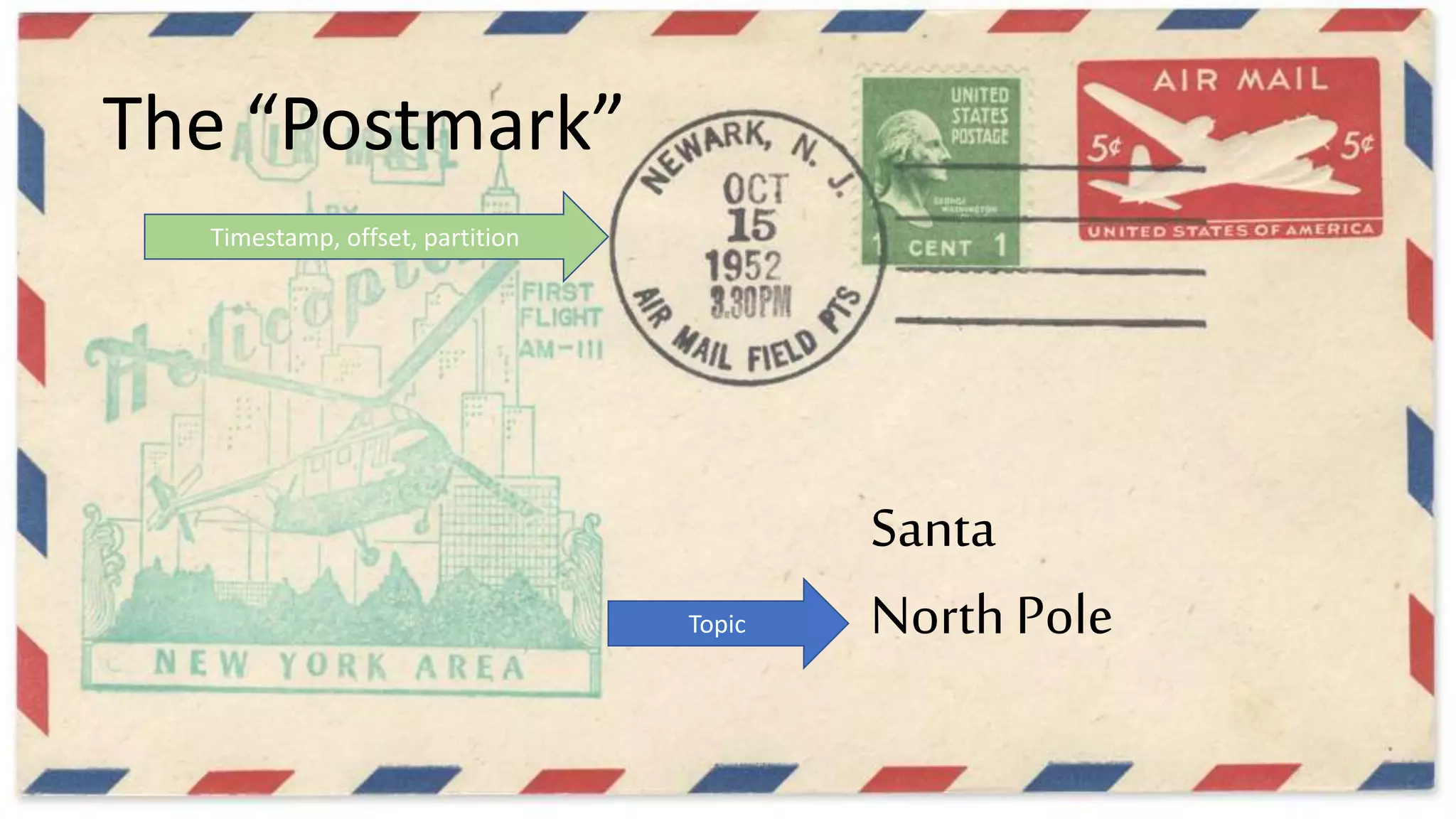

- 24. Santa North PoleTopic Timestamp, offset,partition The âPostmarkâ
- 25. Santa North PoleTopic Timestamp, offset,partition The âPostmarkâ Time semantics are flexible time of event creation, ingestion, or processing.

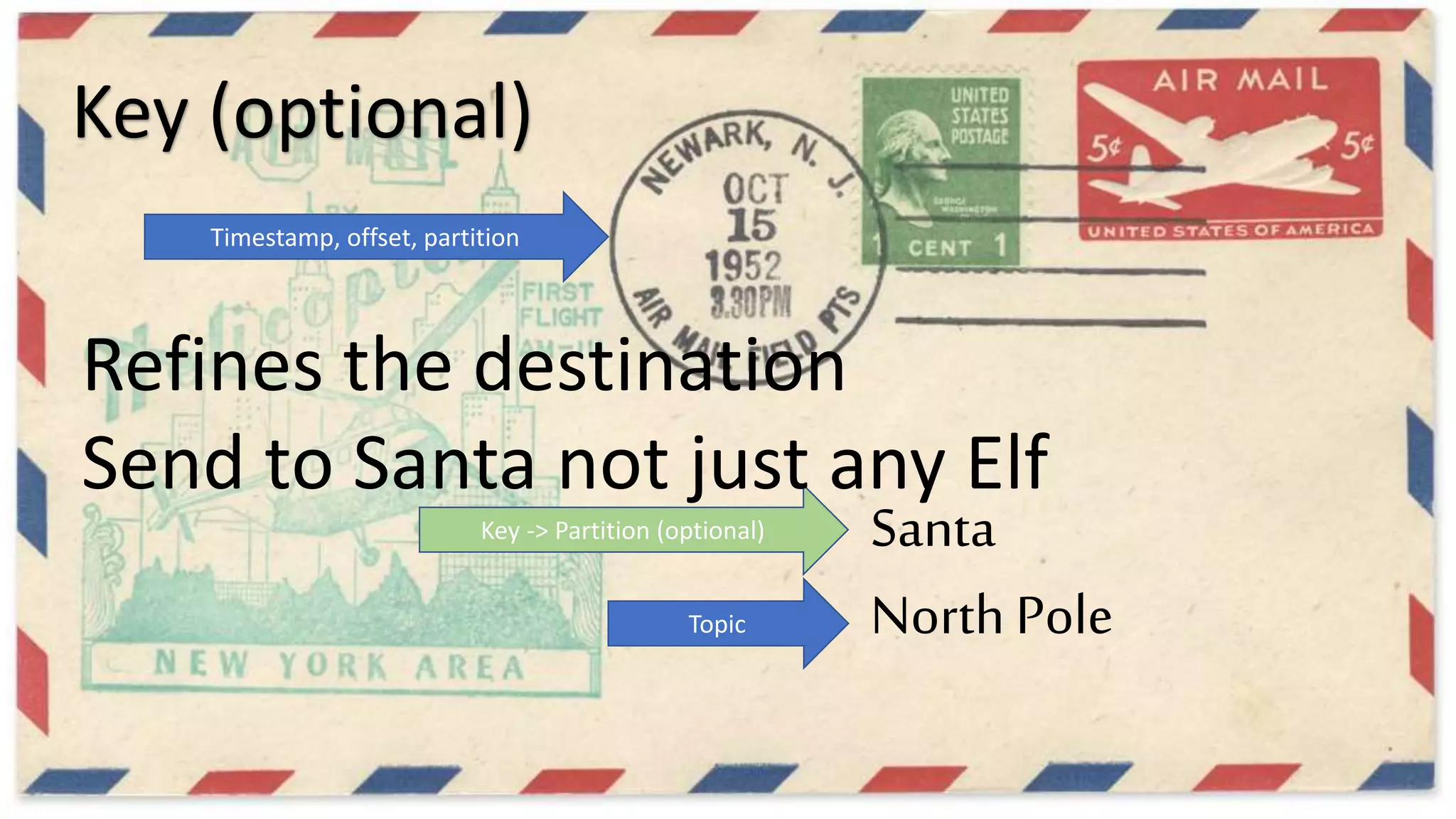

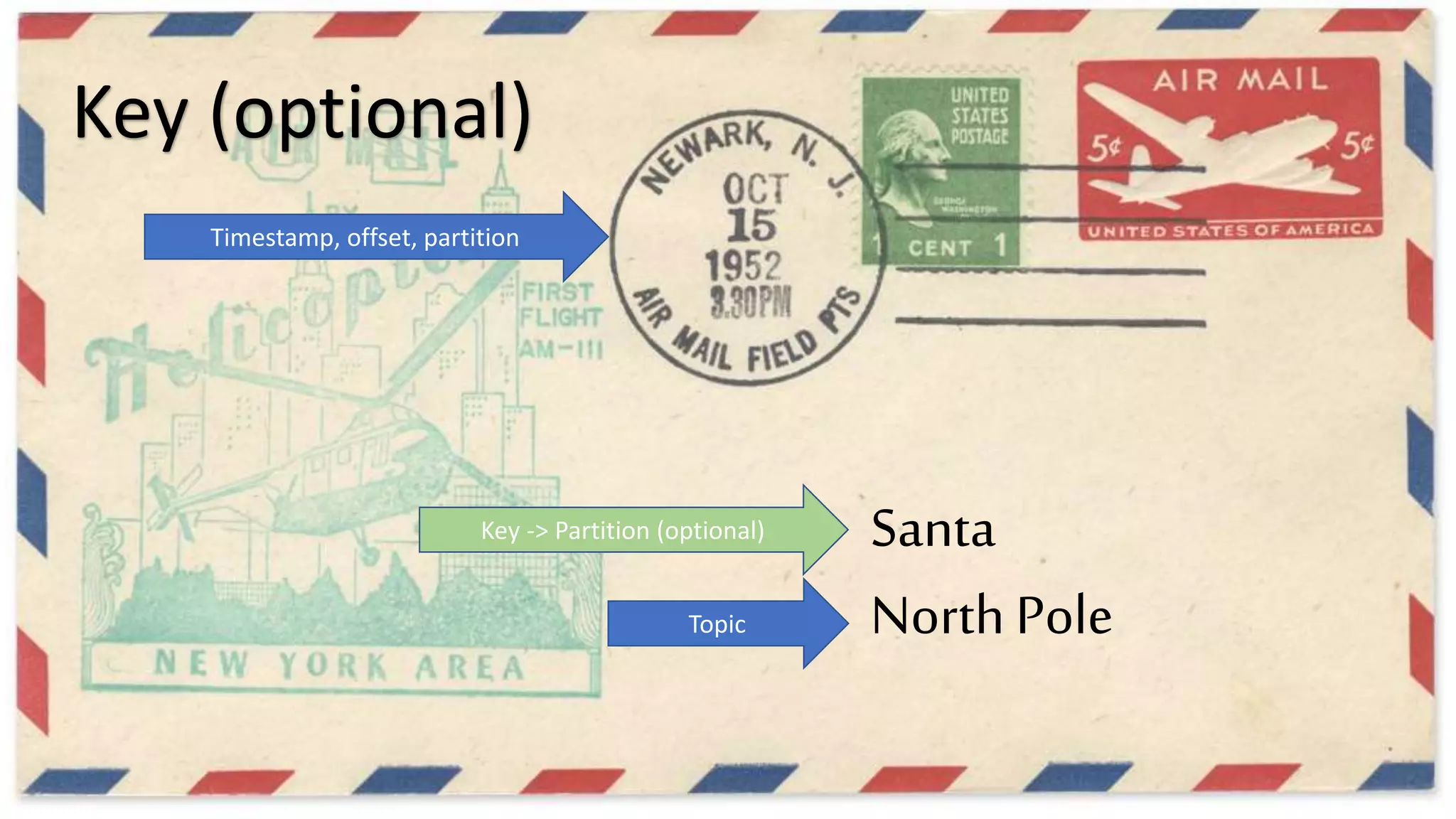

- 26. Santa North PoleTopic Timestamp, offset,partition Key -> Partition (optional) Key (optional)
- 27. Santa North PoleTopic Timestamp, offset,partition Key -> Partition (optional) Key (optional) Refines the destination Send to Santa not just any Elf

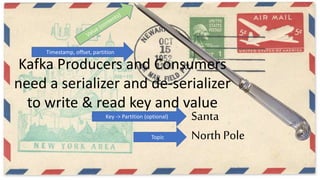

- 28. Santa North PoleTopic Timestamp, offset,partition Key -> Partition (optional) Value is contents (byte array)
- 29. Santa North PoleTopic Timestamp, offset,partition Key -> Partition (optional) Kafka Producers and Consumers need a serializer and de-serializer to write & read key and value
- 30. ⢠Kafka doesnâtlook at the value ⢠Consumer can read value ⢠And try to make sense of the message ⢠What will Santa be delivering?!
- 31. Next⌠Delivery Semantics Do wecare if the message arrives?
- 32. Yes! Guaranteed deliveryis desirable
- 33. But homing pigeonsgot lost or eaten
- 34.
- 35. One pigeon maymake it Eaten Lost

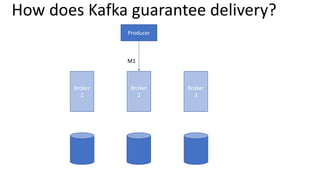

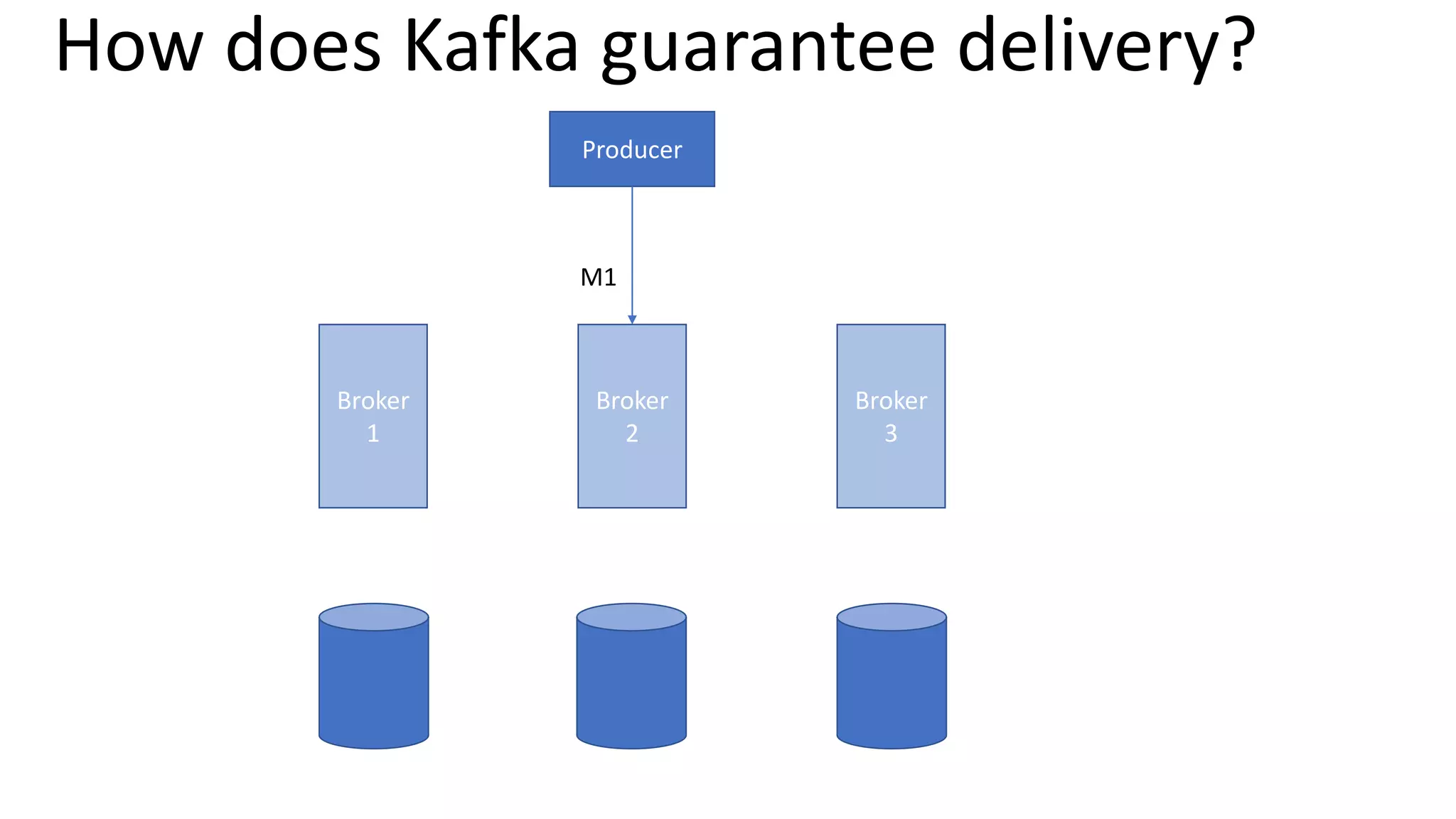

- 36. Producer Broker 1 Broker 2 Broker 3 M1 How does Kafkaguarantee delivery?

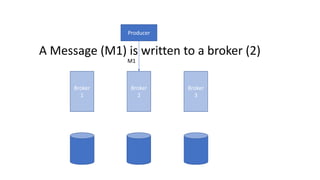

- 37. Producer Broker 1 Broker 2 Broker 3 M1 A Message (M1)is written to a broker (2)

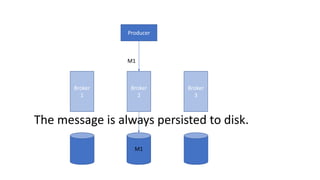

- 38. Producer Broker 1 Broker 2 Broker 3 M1 M1 The message isalways persisted to disk.

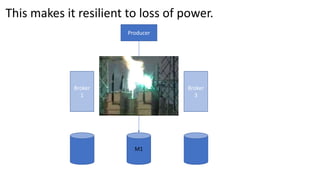

- 39. Producer Broker 1 Broker 2 Broker 3 M1 M1 This makes itresilient to loss of power.

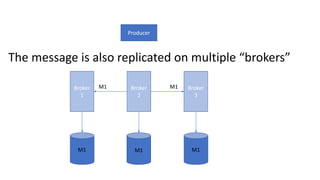

- 40. Producer Broker 1 Broker 2 Broker 3 M1 M1 M1 M1M1 Themessage is also replicated on multiple âbrokersâ

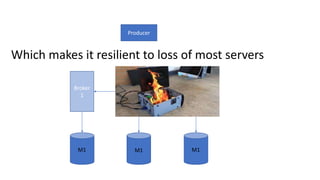

- 41. Producer Broker 1 Broker 2 Broker 3 M1 M1 M1M1 Which makesit resilient to loss of most servers

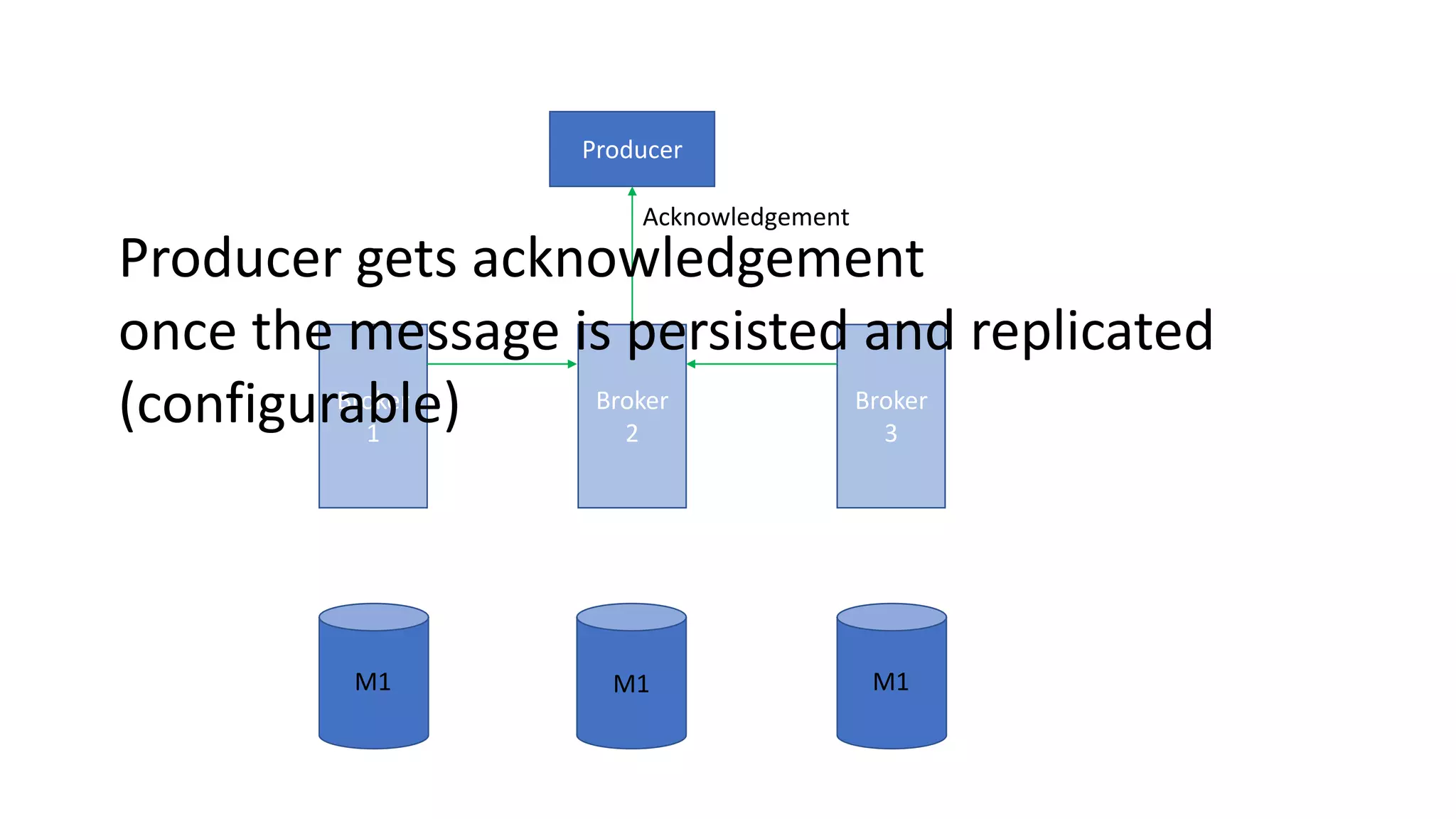

- 42. Producer Broker 1 Broker 2 Broker 3 Acknowledgement M1 M1 M1 Producergets acknowledgement once the message is persisted and replicated (configurable)

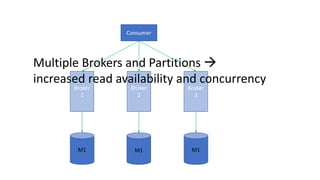

- 43. Consumer Broker 1 Broker 2 Broker 3 M1 M1 M1 MultipleBrokers and Partitions ď increased read availability and concurrency

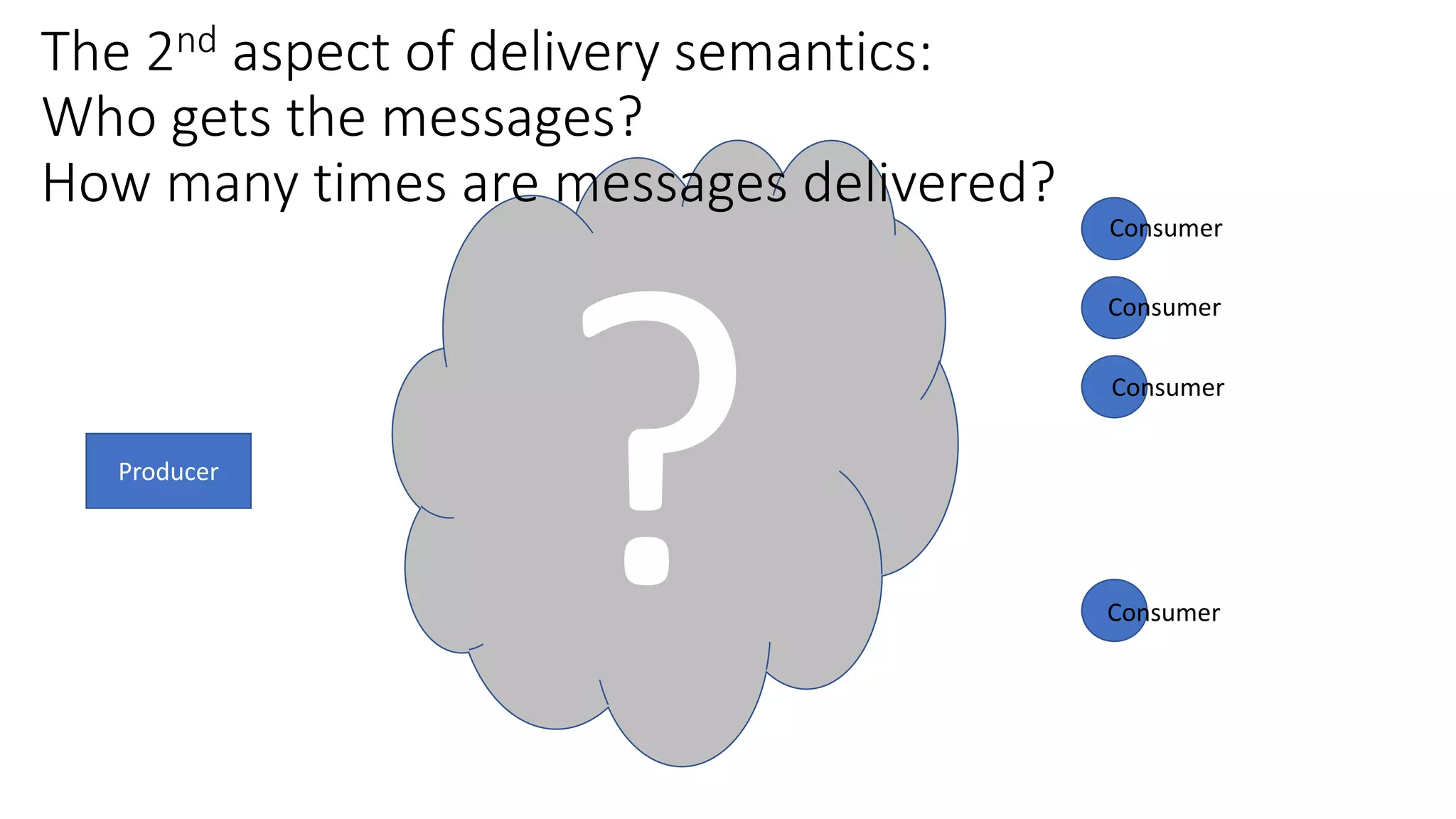

- 44. Producer Consumer Consumer Consumer Consumer The 2nd aspectof delivery semantics: Who gets the messages? How many times are messages delivered?

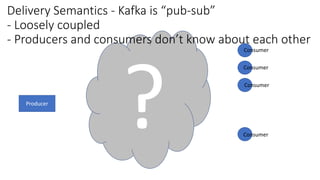

- 45. Producer Consumer Consumer Consumer Consumer Delivery Semantics -Kafka is âpub-subâ - Loosely coupled - Producers and consumers donât know about each other

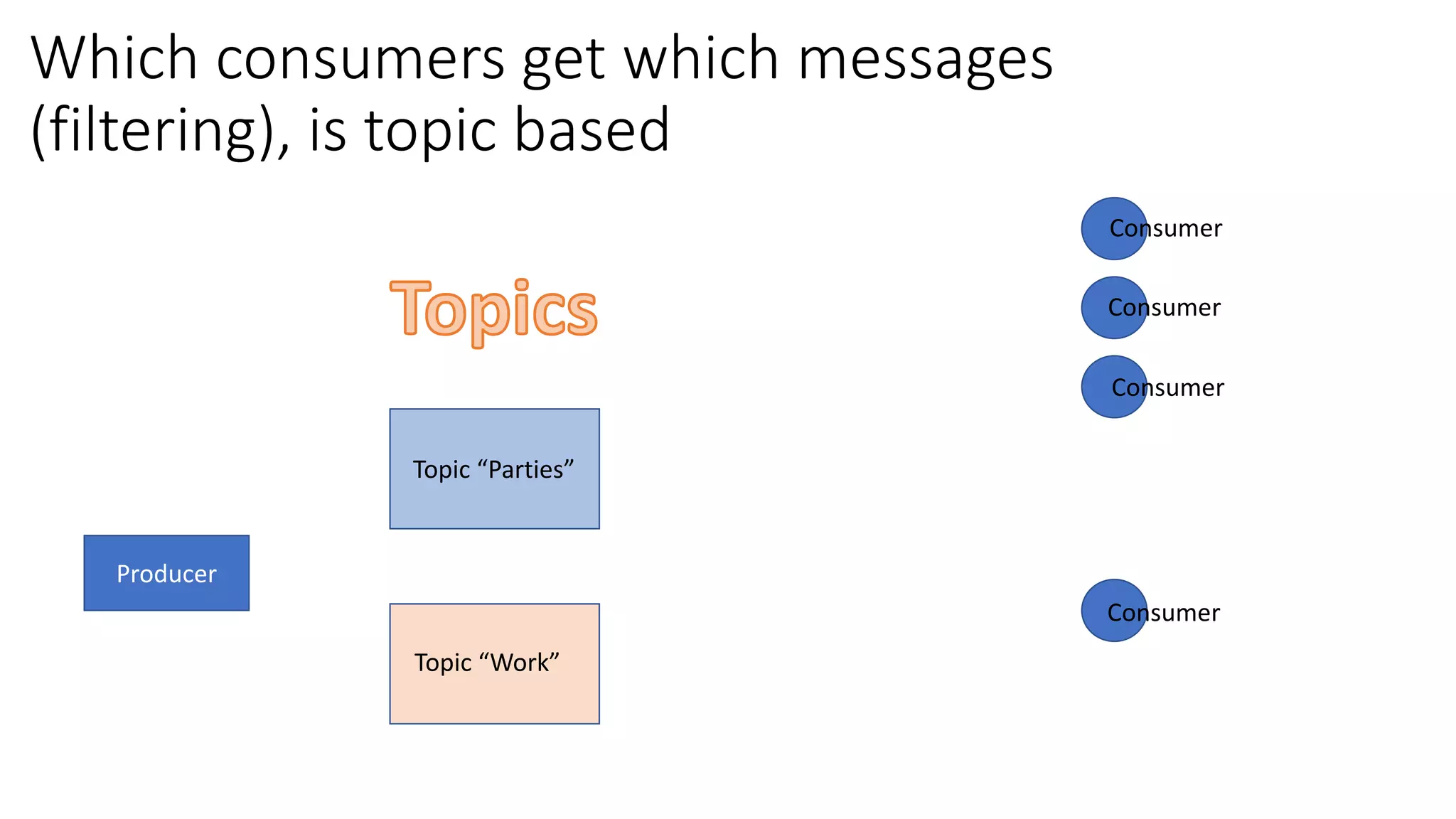

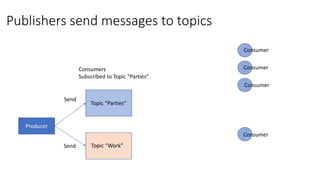

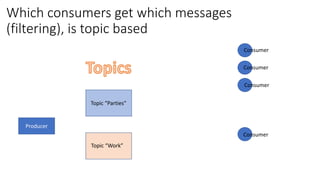

- 46. Producer Topic âPartiesâ Consumer Consumer Consumer Consumer Which consumersget which messages (filtering), is topic based Topic âWorkâ
- 47. Producer Topic âPartiesâ Consumer Consumer Consumer Consumer Topic âWorkâ ConsumersSubscribe to topic âPartiesâ Subscribe

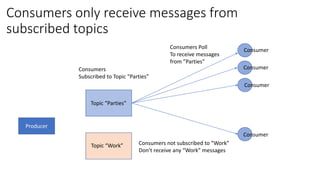

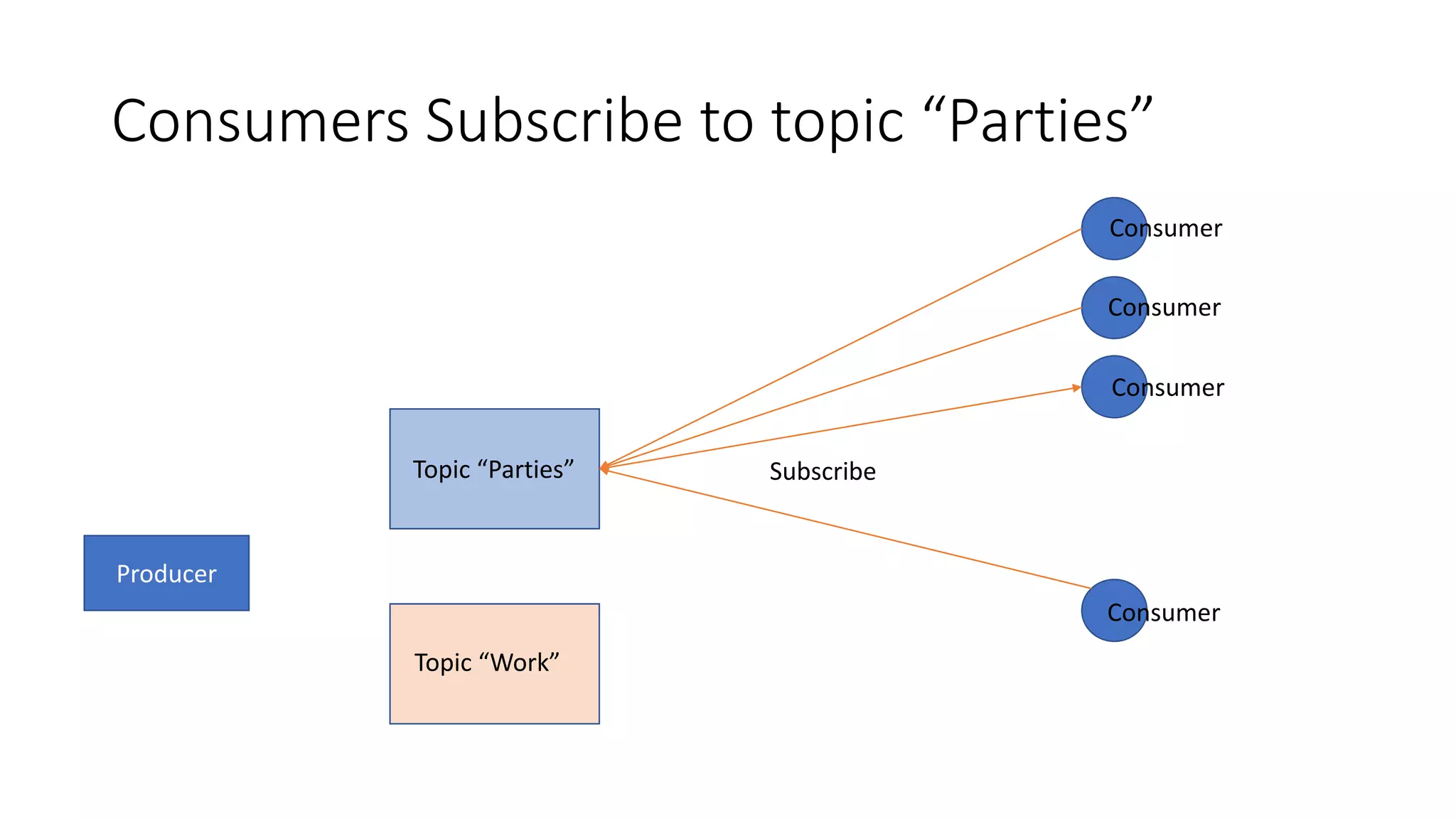

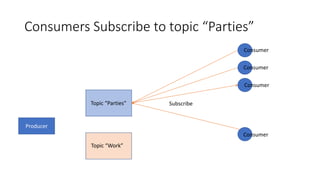

- 48. Producer Topic âPartiesâ Consumer Consumer Consumer Consumers Subscribed toTopic âPartiesâ Consumer Publishers send messages to topics Send Topic âWorkâSend
- 49. Producer Topic âPartiesâ Consumer Consumer Consumer Consumers Subscribed toTopic âPartiesâ Consumer Consumers only receive messages from subscribed topics Consumers Poll To receive messages from âPartiesâ Topic âWorkâ Consumers not subscribed to âWorkâ Donât receive any âWorkâ messages
- 50. Partitions and ConsumerGroups Enable sharing of work across consumers

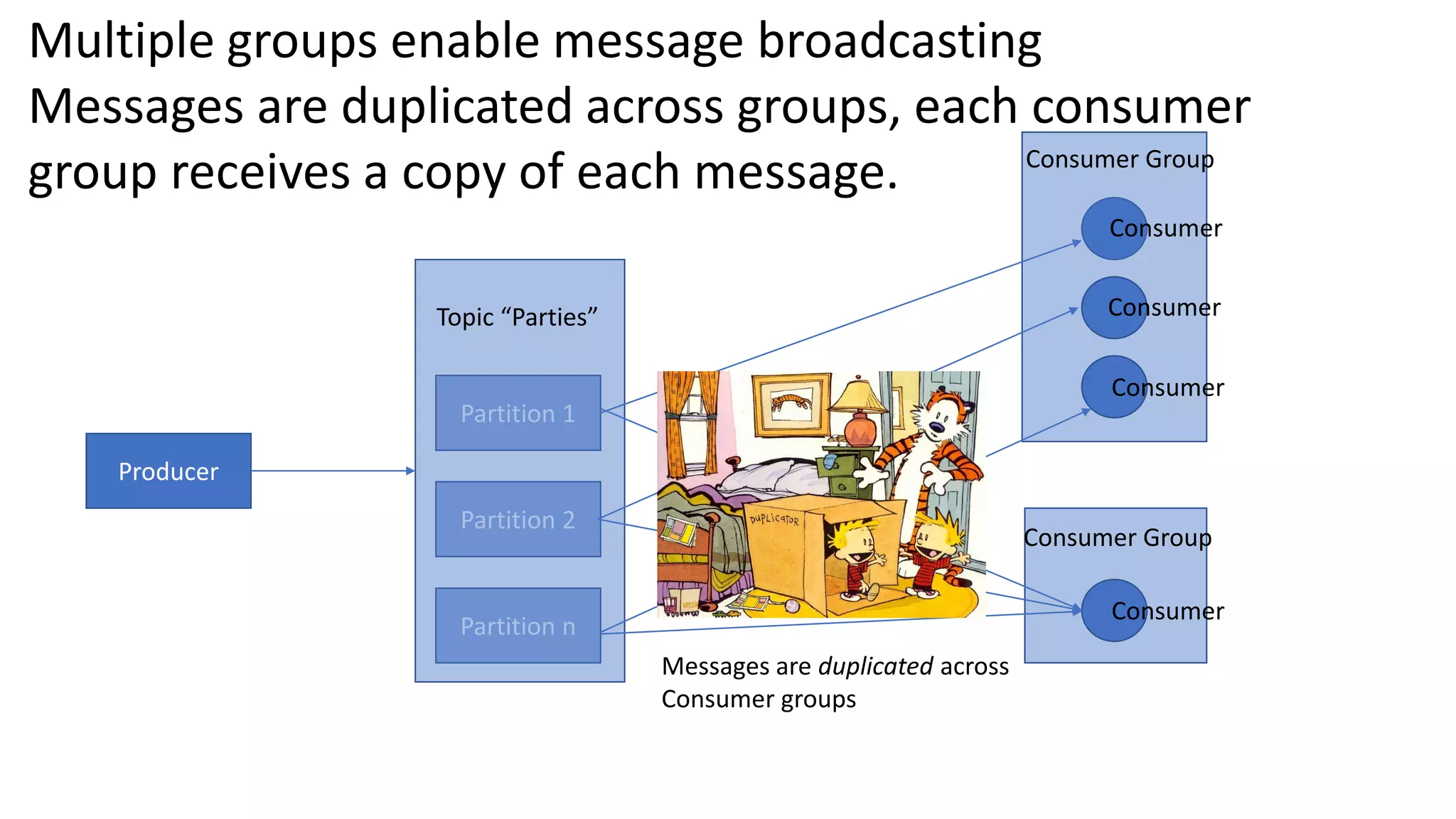

- 51. Duplicate message delivery Eachmessage is delivered to each subscribed consumer group

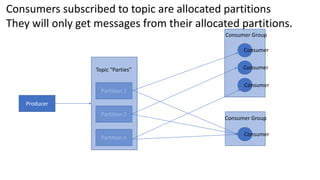

- 52. Producer Partition 1 Partition 2 Partitionn Topic âPartiesâ C1 Consumer Group Consumer Group Consumer Consumer Consumer Consumer Consumers subscribed to topic are allocated partitions They will only get messages from their allocated partitions.

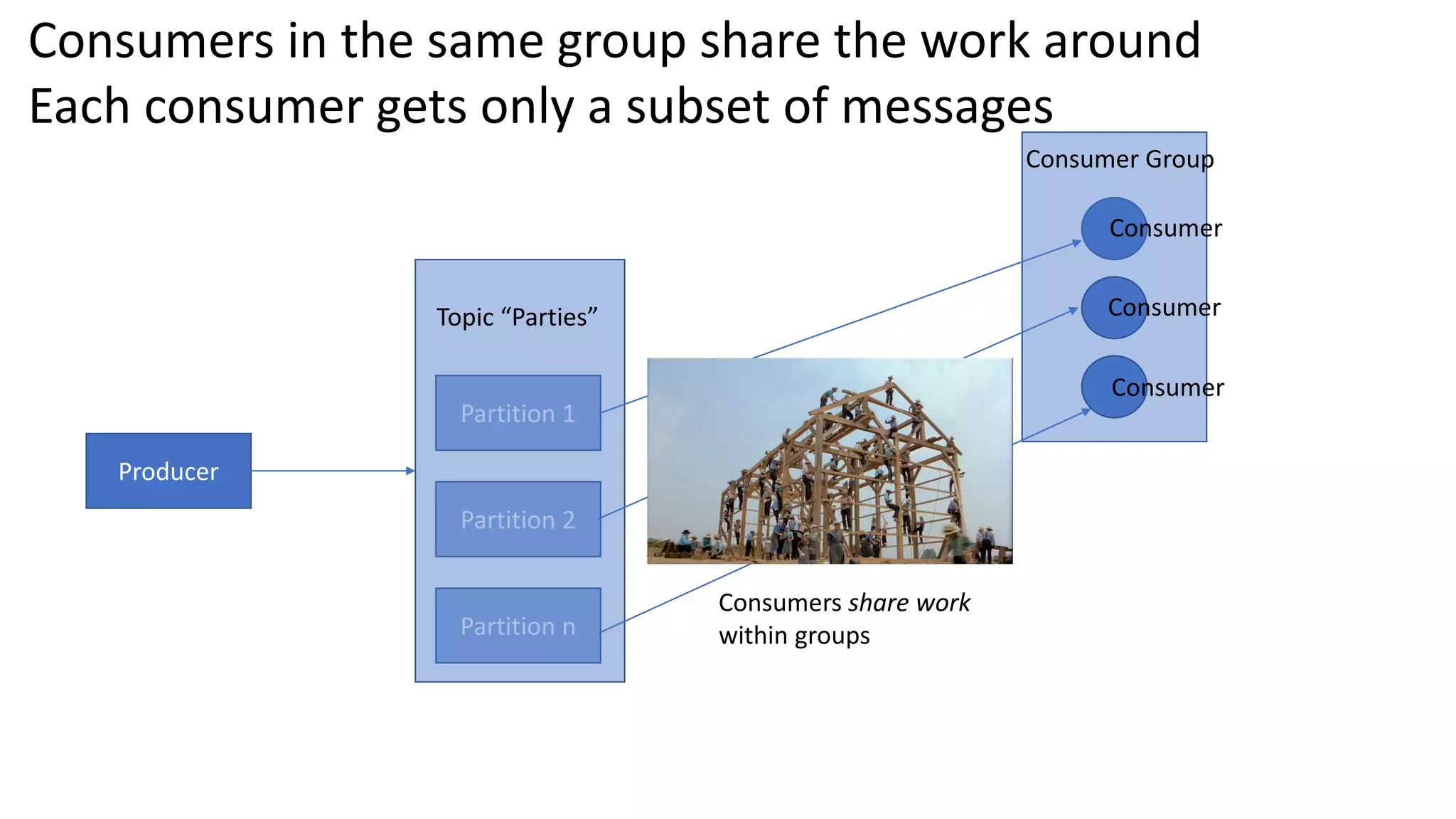

- 53. Producer Partition 1 Partition 2 Partitionn Topic âPartiesâ C1 Consumer Group Consumer Consumer Consumer Consumers share work within groups Consumers in the same group share the work around Each consumer gets only a subset of messages
- 54. Producer Partition 1 Partition 2 Partitionn Topic âPartiesâ C1 Consumer Group Consumer Group Consumer Consumer Consumer Consumer Messages are duplicated across Consumer groups Multiple groups enable message broadcasting Messages are duplicated across groups, each consumer group receives a copy of each message.
- 55. Key Partition based delivery Whichmessages are delivered to which consumers? If a message has a key, then Kafka uses Partition based delivery. Messages with the same key are always sent to the same partition and therefore the same consumer. And the order is guaranteed.
- 56. No Key Round robindelivery If the key is null, then Kafka uses round robin delivery Each message is delivered to the next partition

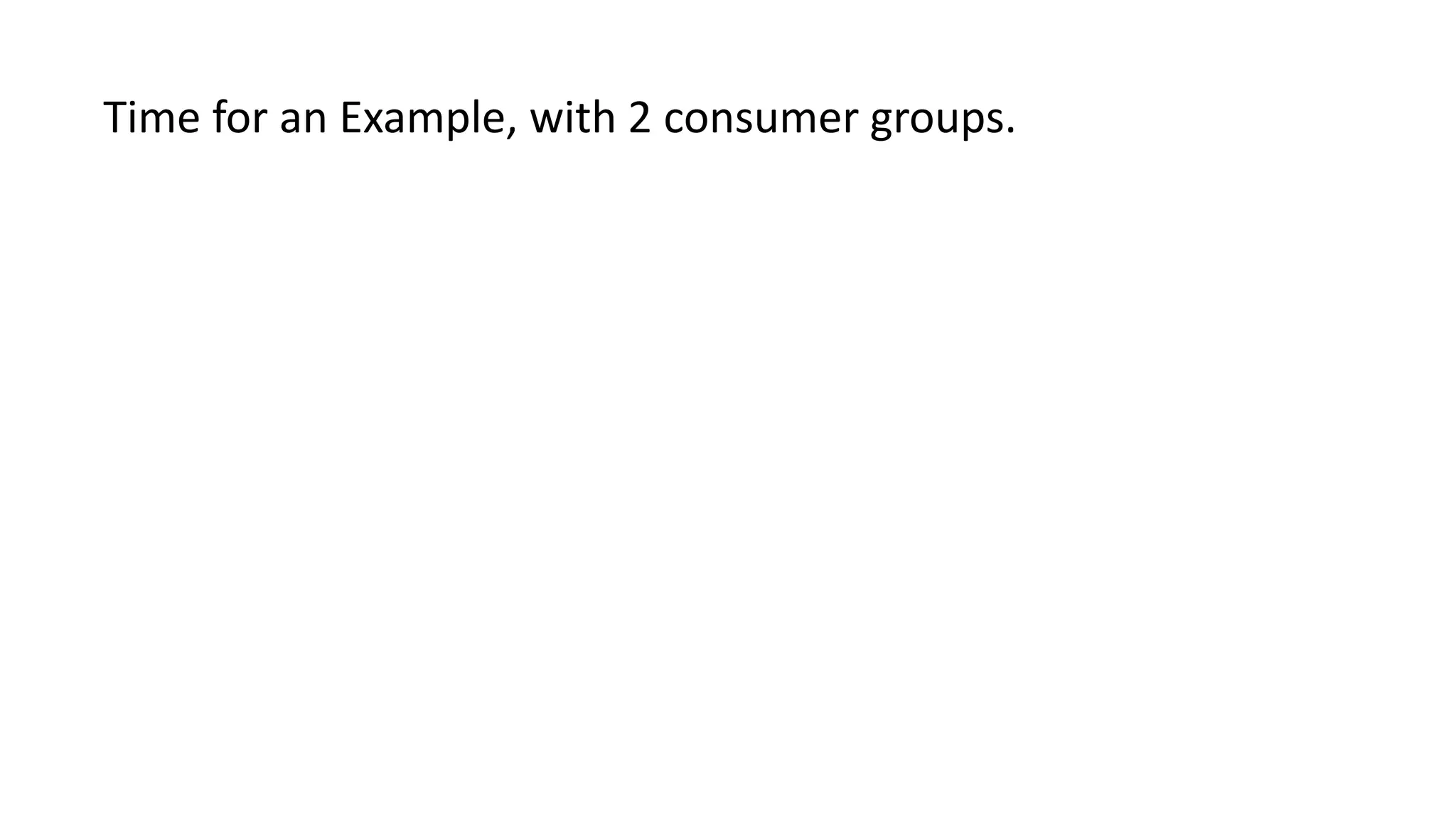

- 57. Time for anExample, with 2 consumer groups.
- 58. Consumer Group =Nerds Multiple consumers
- 59. Consumer Group =Nerds Multiple consumers Consumer Group = Hairy Single consumer

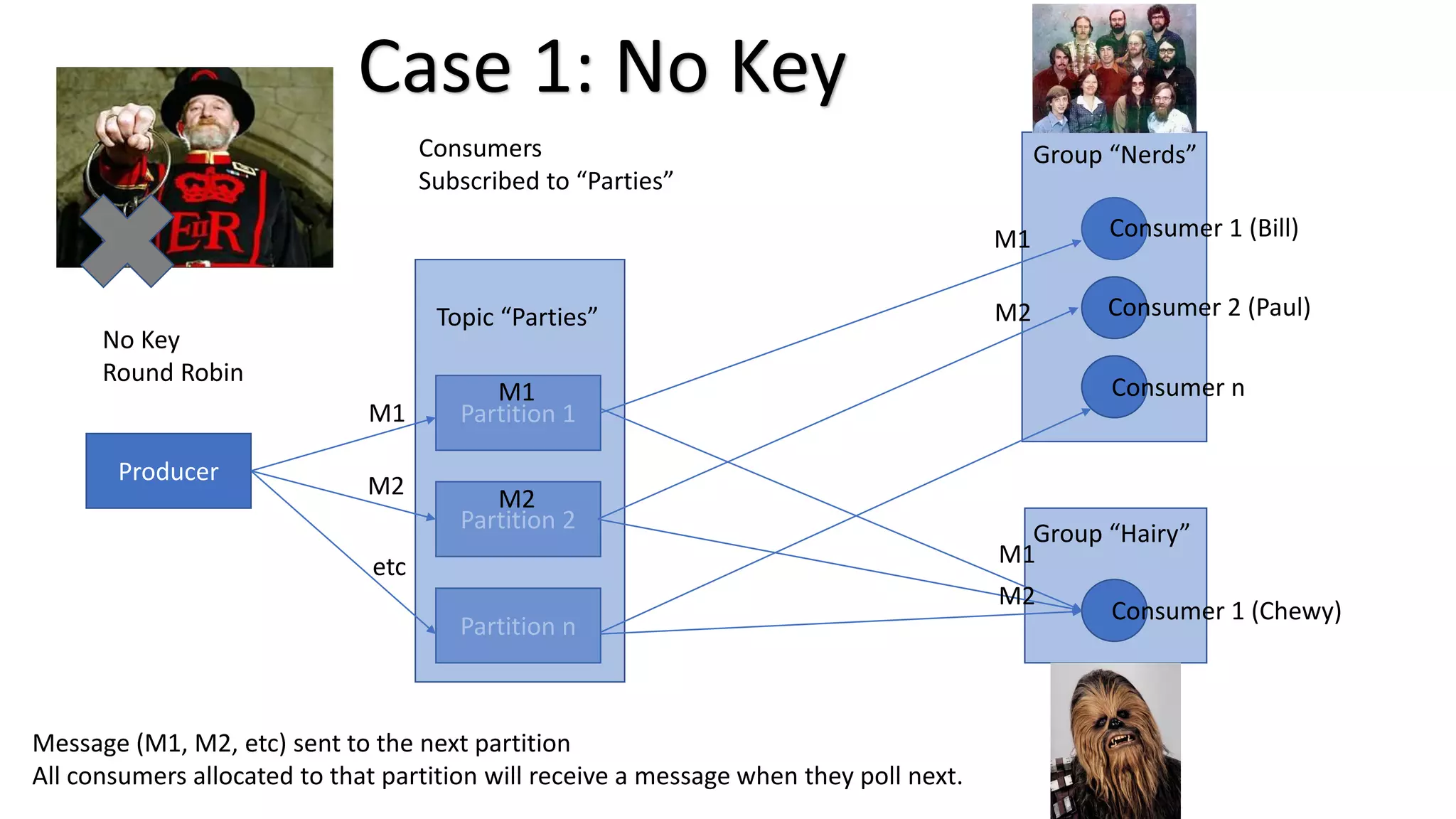

- 60. Producer Partition 1 Partition 2 Partitionn Topic âPartiesâ C1 Group âNerdsâ Group âHairyâ Consumer 1 (Bill) Consumer 2 (Paul) Consumer n Consumer 1 (Chewy) Consumers Subscribed to âPartiesâ No Key Round Robin M1 M2 etc M1 M1 M1 M2 M2 M2 Case 1: No Key Message (M1, M2, etc) sent to the next partition All consumers allocated to that partition will receive a message when they poll next.
- 61. Hereâs what happens(not showing producer or topics, have to imagine them)
- 62. 1. Both Groupssubscribe to Topic âpartiesâ (11 partitions, so 1 consumer per partition). Subscribe to âPartiesâ Subscribe to âPartiesâ
- 63. 1. Both Groupssubscribe to Topic âpartiesâ (11 partitions, so 1 consumer per partition). 2. Producer sends record âCool pool party â Invitationâ <key=null, value=âCool pool party - Invitationâ> to âpartiesâ topic (no key)
- 64. 1. Both Groupssubscribe to Topic âpartiesâ (11 partitions, so 1 consumer per partition). 2. Producer sends record âCool pool party - Invitationâ> to âpartiesâ topic 3. Bill and Chewbacca receive a copy of the invitation and plan to attend
- 65. 4. Producer sendsanother record âCool pool party â Cancelledâ <key=null, value=âCool pool party - Cancelledâ> to âpartiesâ topic
- 66. 4. Producer sendsanother record <key=null, value=âCool pool party - Cancelledâ> to âpartiesâ topic 5. Paul and Chewbacca receive the cancellation. Paul gets the message this time as itâs round robin, ignores it as he didnât get the invitation. Bill wastes his time trying to go to cancelled party. The rest of the gang arenât surprised at not receiving any party invites and stay at home to do some hacking. Chewy is only consumer in his group so gets all messages, plans something fun insteadâŚ

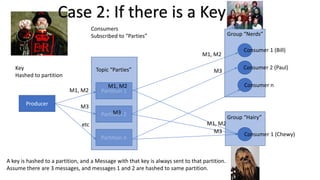

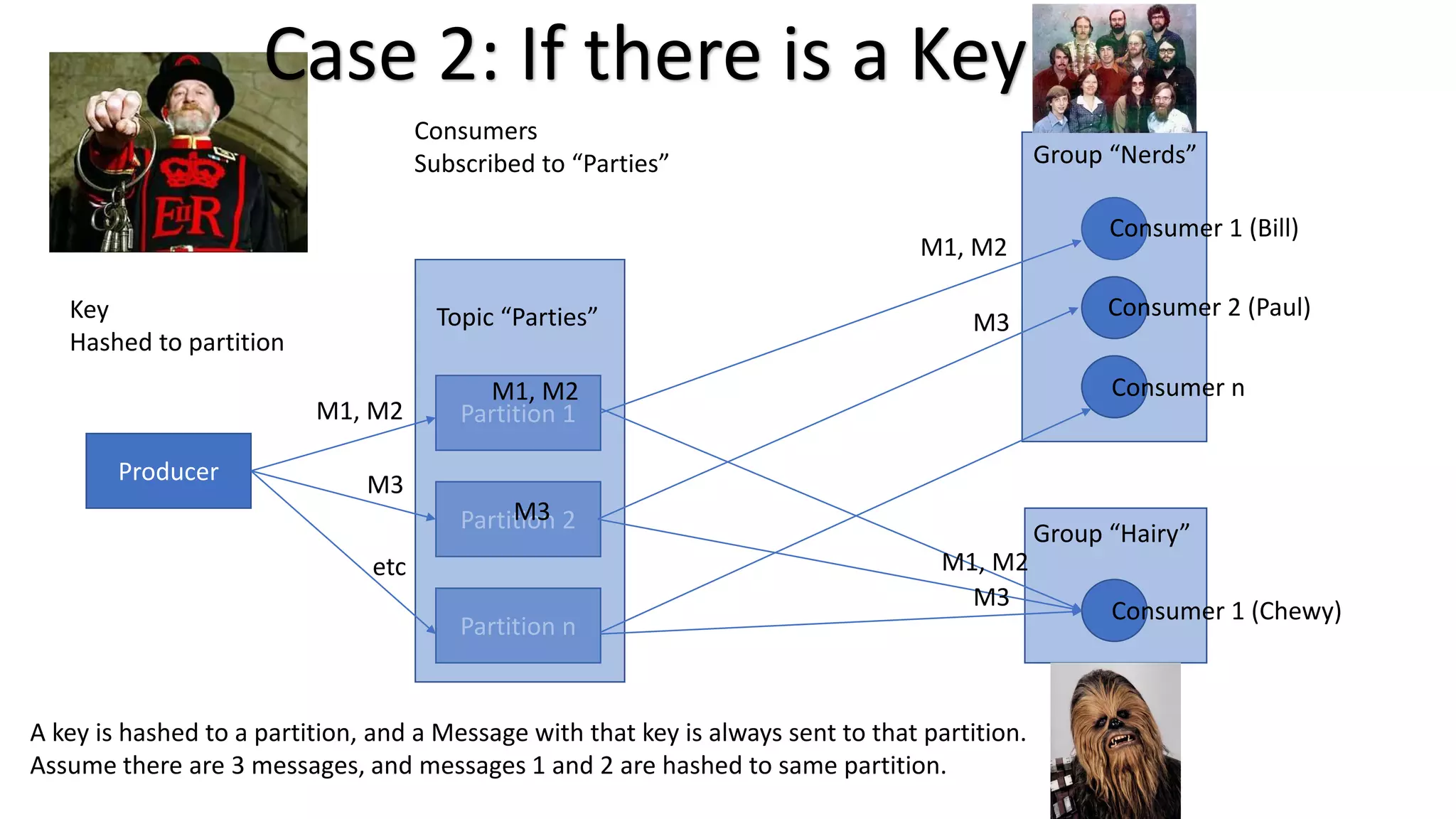

- 68. Producer Partition 1 Partition 2 Partitionn Topic âPartiesâ C1 Group âNerdsâ Group âHairyâ Consumer 1 (Bill) Consumer 2 (Paul) Consumer n Consumer 1 (Chewy) Consumers Subscribed to âPartiesâ Key Hashed to partition M1, M2 etc M1, M2 M1, M2 M1, M2 M3 M3 M3 M3 Case 2: If there is a Key A key is hashed to a partition, and a Message with that key is always sent to that partition. Assume there are 3 messages, and messages 1 and 2 are hashed to same partition.
- 69. Hereâs what happenswith a key: key is âtitleâ of the message (e.g. âCool pool partyâ) Same set up as before: 1. Both Groups subscribe to Topic âpartiesâ (11 partitions).
- 70. 1. Both Groupssubscribe to Topic âpartiesâ (11 partitions). 2. Producer sends record <key=âCool pool partyâ, value=âInvitationâ> to âpartiesâ topic
- 71. 1. Both Groupssubscribe to Topic âpartiesâ (11 partitions). 2. Producer sends record <key=âCool pool partyâ, value=âInvitationâ> to âpartiesâ topic 3. As before Bill and Chewbacca receive a copy of the invitation and plan to attend
- 72. 4. Producer sendsanother record <key=âCool pool partyâ, value=âCancelledâ> to âpartiesâ topic
- 73. 4. Producer sendsanother record <key=âCool pool partyâ, value=âCancelledâ> to âpartiesâ topic 5. Bill and Chewbacca receive the cancellation (same consumers this time, as identical key)
- 74. 6. Producer sendsanother record <key=âHorrible Halloween partyâ, value=âInvitationâ> to âpartiesâ topic
- 75. 6. Producer sendsanother record <key=âHorrible Halloween partyâ, value=âInvitationâ> to âpartiesâ topic 7. Paul and Chewy receive the invitation Paul receives the Halloween invitation as the key is different and the record is sent to the partition that Paul is allocated to Chewy is the only consumer in his group so he gets every record no matter what partition itâs sent to

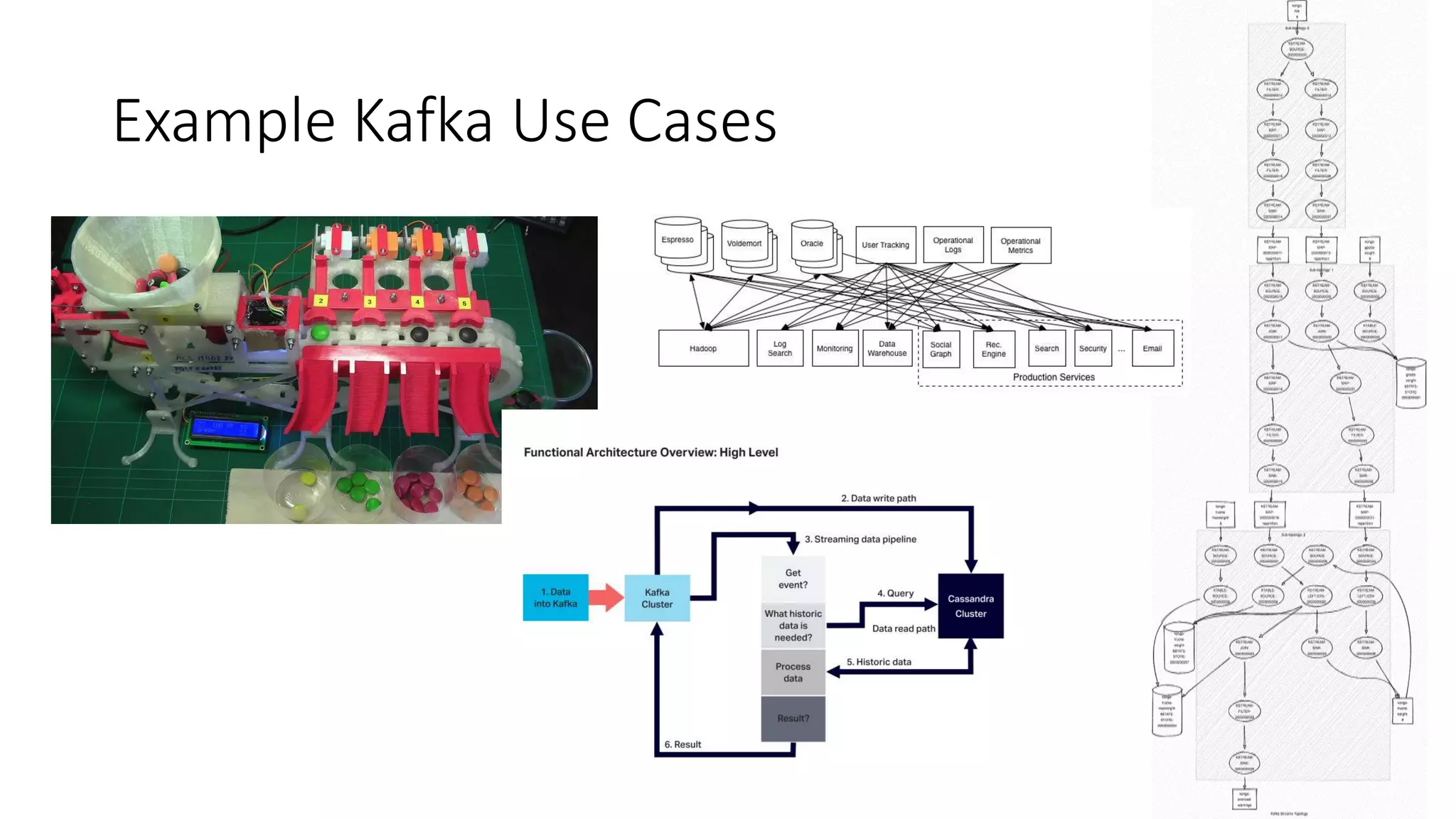

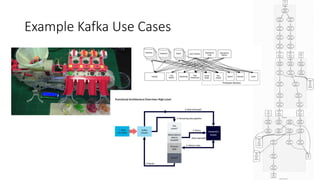

- 78. Example Kafka UseCases

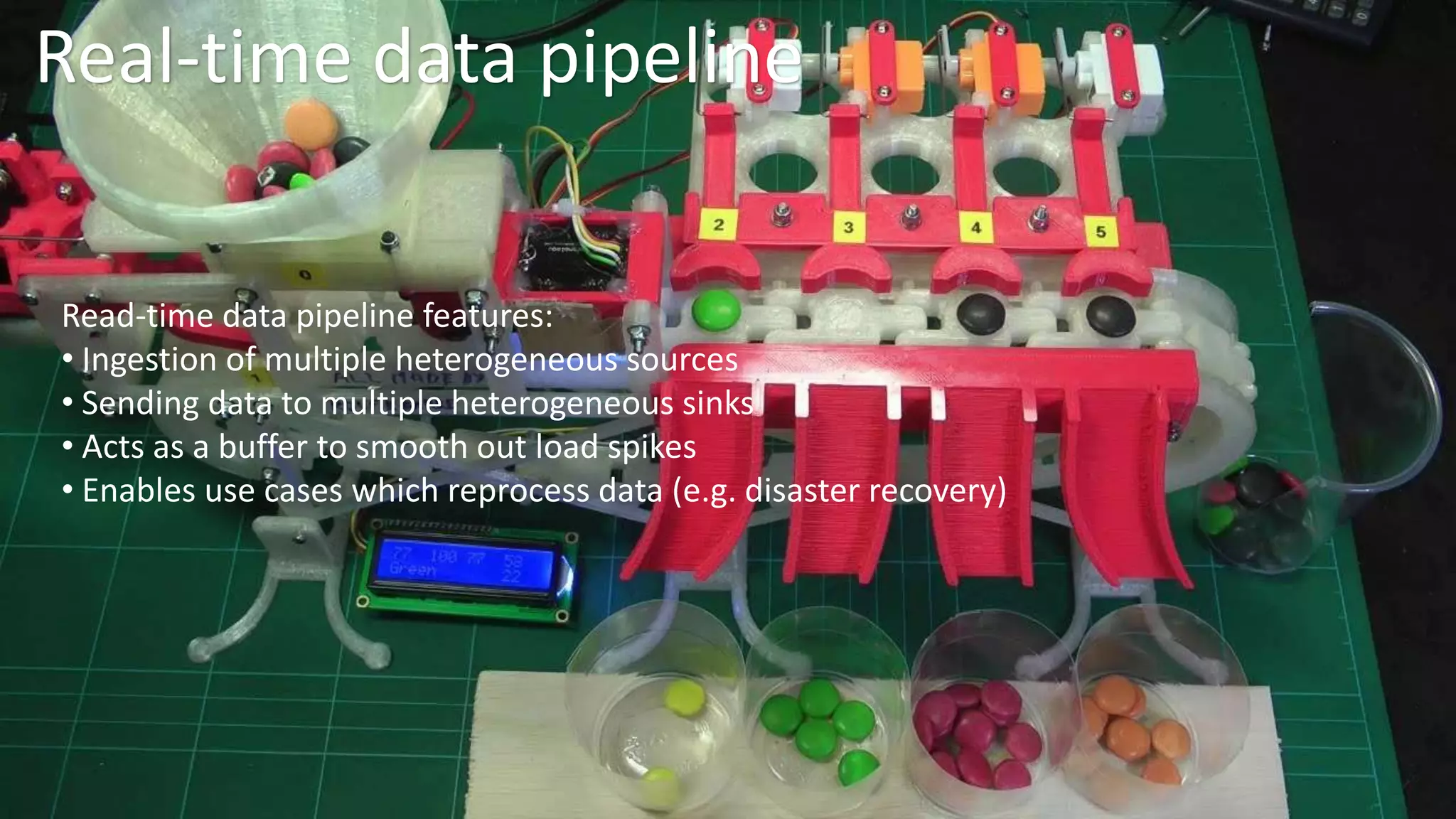

- 79. Real-time data pipeline Read-timedata pipeline features: ⢠Ingestion of multiple heterogeneous sources ⢠Sending data to multiple heterogeneous sinks ⢠Acts as a buffer to smooth out load spikes ⢠Enables use cases which reprocess data (e.g. disaster recovery)

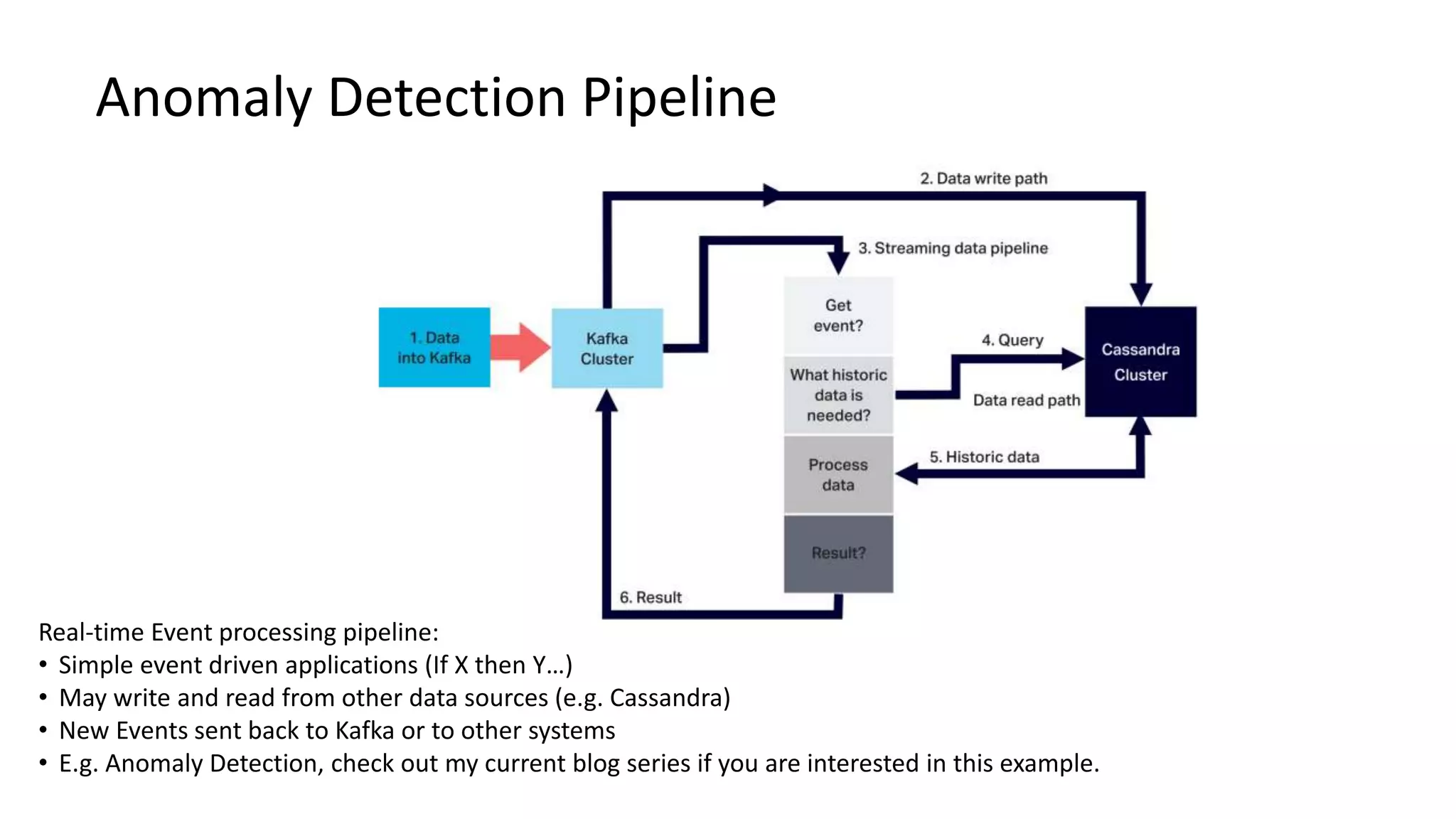

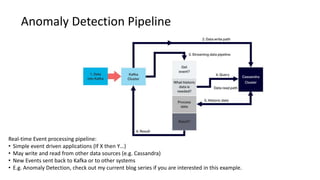

- 80. Anomaly Detection Pipeline Real-timeEvent processing pipeline: ⢠Simple event driven applications (If X then YâŚ) ⢠May write and read from other data sources (e.g. Cassandra) ⢠New Events sent back to Kafka or to other systems ⢠E.g. Anomaly Detection, check out my current blog series if you are interested in this example.

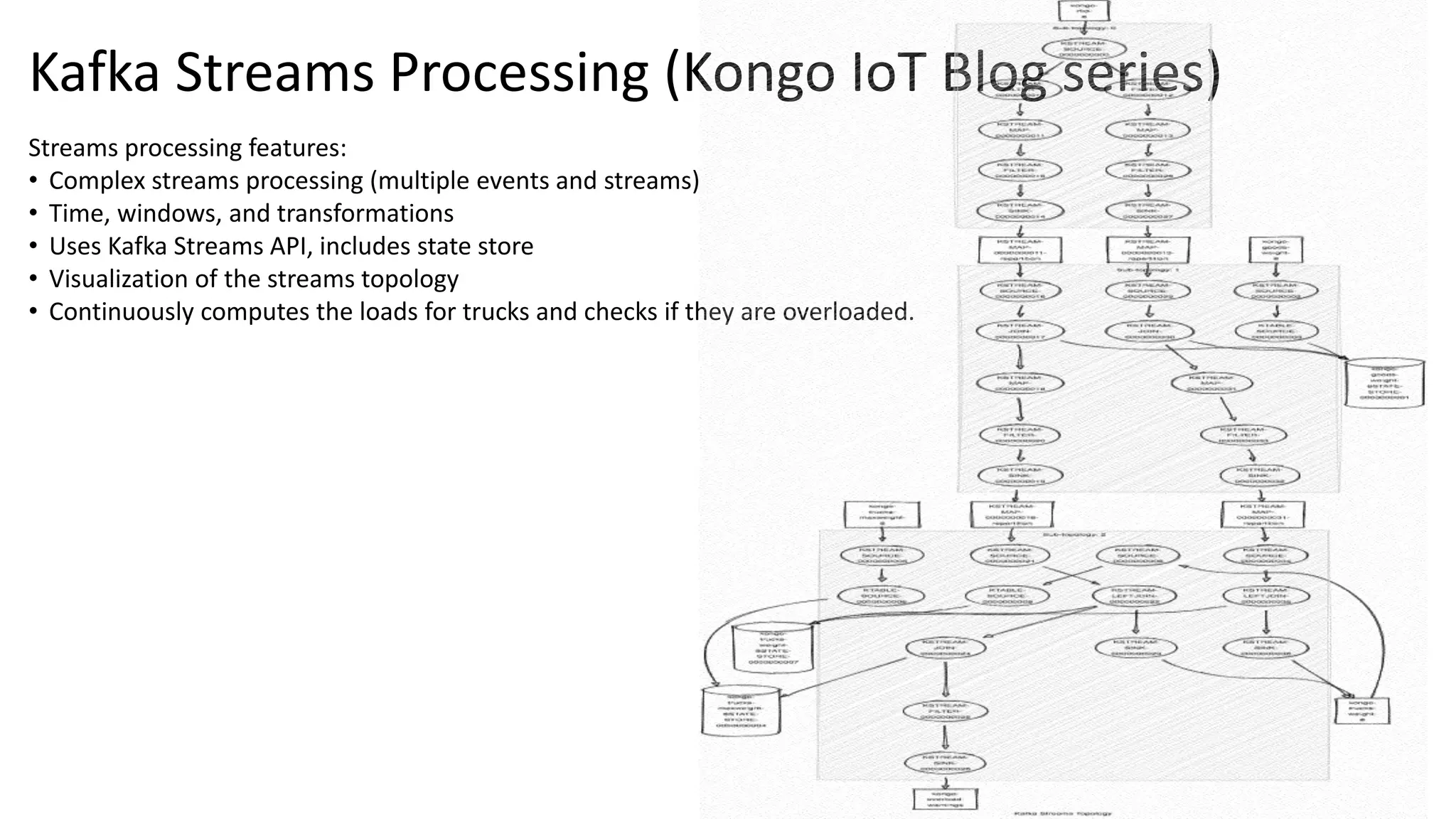

- 81. Kafka Streams Processing(Kongo IoT Blog series) Streams processing features: ⢠Complex streams processing (multiple events and streams) ⢠Time, windows, and transformations ⢠Uses Kafka Streams API, includes state store ⢠Visualization of the streams topology ⢠Continuously computes the loads for trucks and checks if they are overloaded.

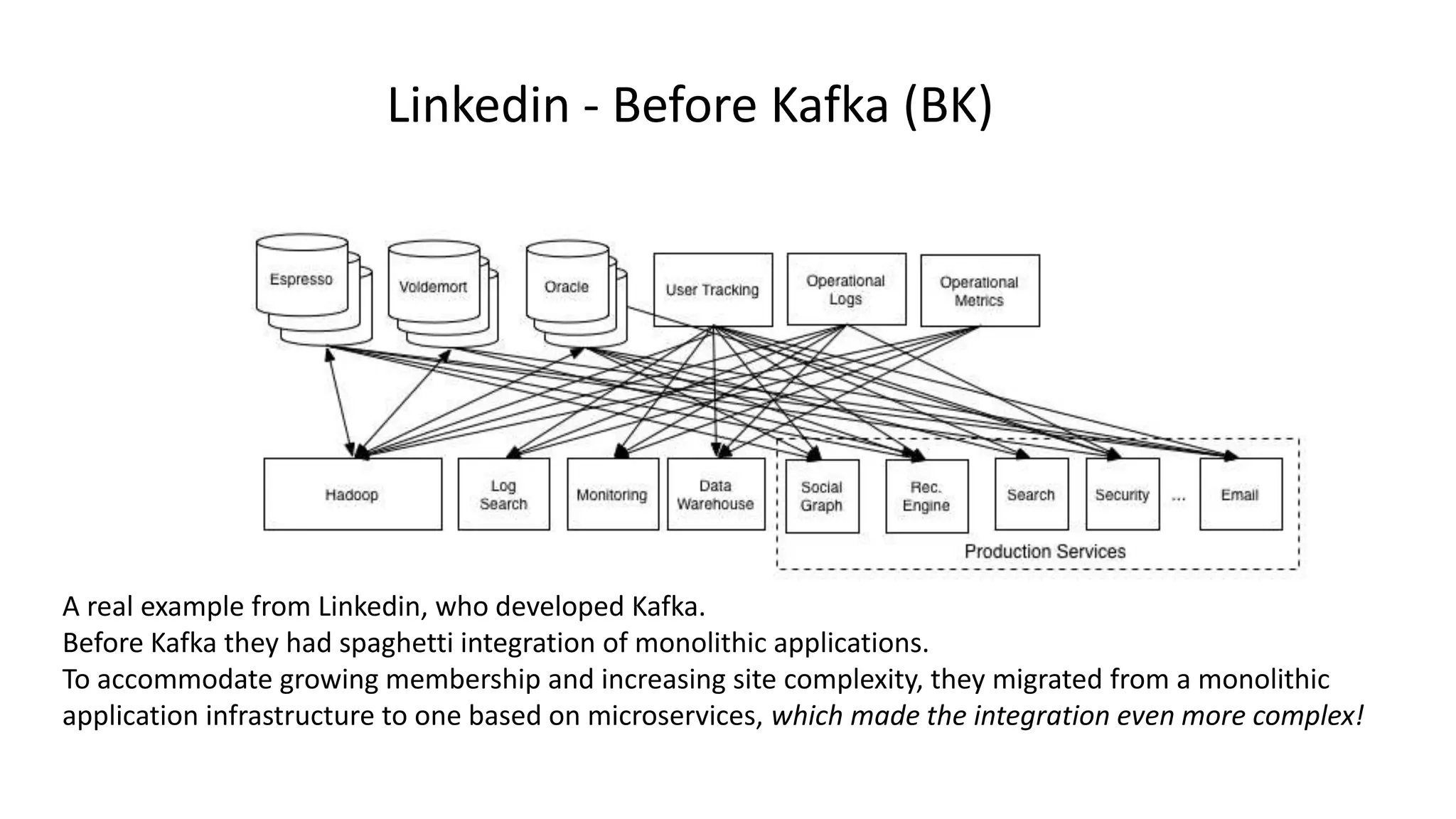

- 82. Linkedin - BeforeKafka (BK) A real example from Linkedin, who developed Kafka. Before Kafka they had spaghetti integration of monolithic applications. To accommodate growing membership and increasing site complexity, they migrated from a monolithic application infrastructure to one based on microservices, which made the integration even more complex!

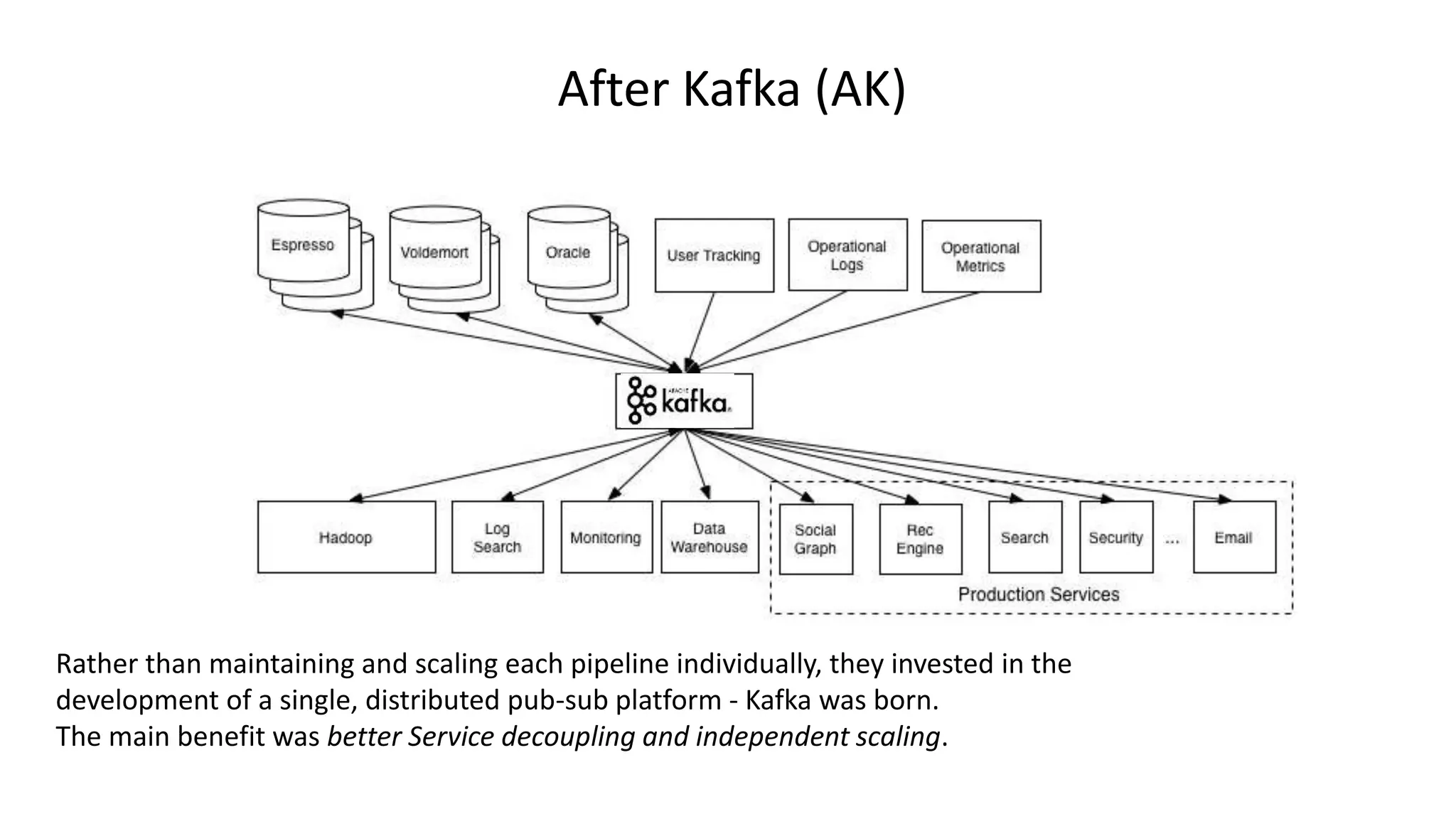

- 83. After Kafka (AK) Ratherthan maintaining and scaling each pipeline individually, they invested in the development of a single, distributed pub-sub platform - Kafka was born. The main benefit was better Service decoupling and independent scaling.

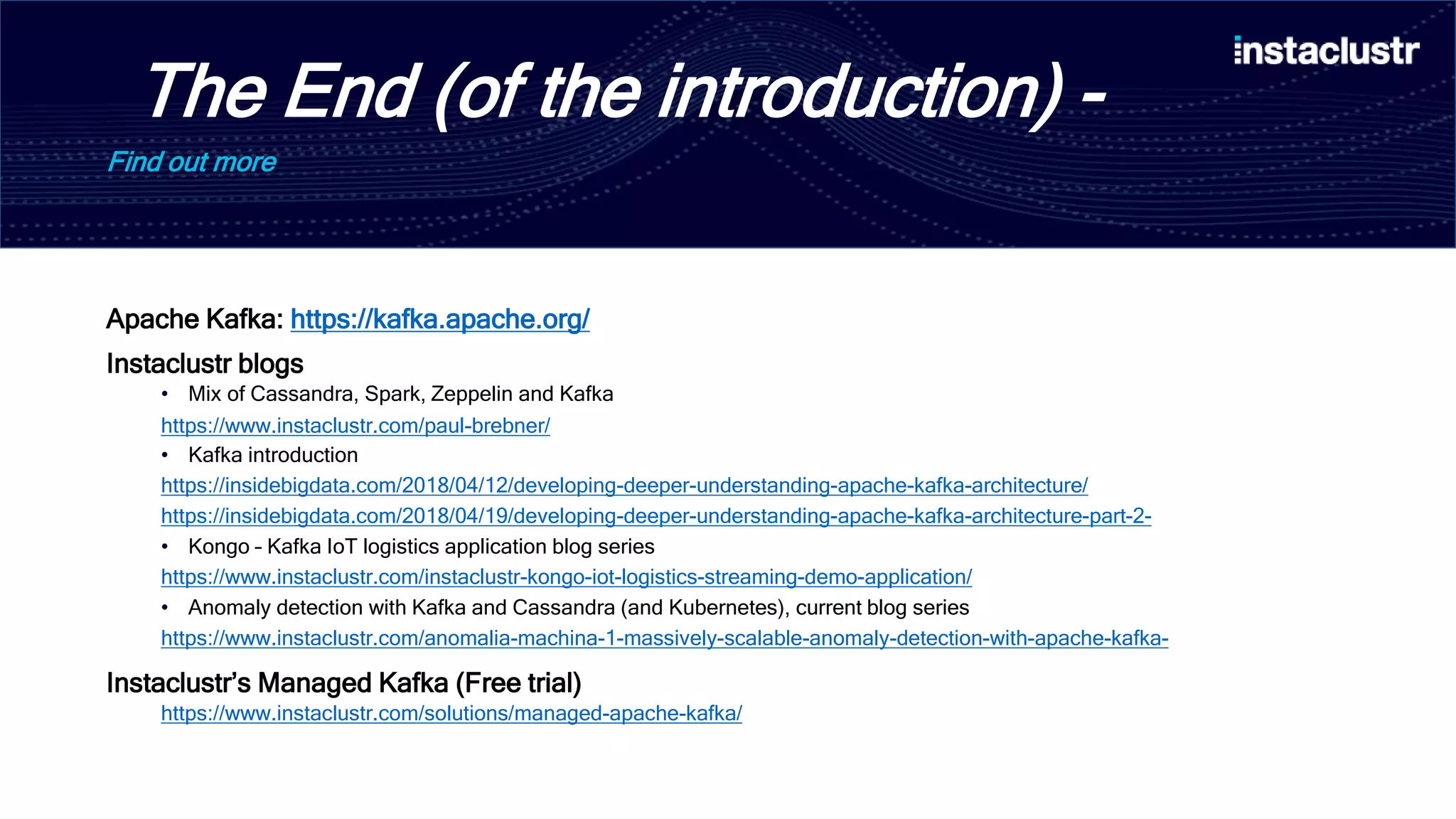

- 84. The End (ofthe introduction) - Find out more Apache Kafka: https://kafka.apache.org/ Instaclustr blogs ⢠Mix of Cassandra, Spark, Zeppelin and Kafka https://www.instaclustr.com/paul-brebner/ ⢠Kafka introduction https://insidebigdata.com/2018/04/12/developing-deeper-understanding-apache-kafka-architecture/ https://insidebigdata.com/2018/04/19/developing-deeper-understanding-apache-kafka-architecture-part-2- ⢠Kongo â Kafka IoT logistics application blog series https://www.instaclustr.com/instaclustr-kongo-iot-logistics-streaming-demo-application/ ⢠Anomaly detection with Kafka and Cassandra (and Kubernetes), current blog series https://www.instaclustr.com/anomalia-machina-1-massively-scalable-anomaly-detection-with-apache-kafka- Instaclustrâs Managed Kafka (Free trial) https://www.instaclustr.com/solutions/managed-apache-kafka/
Editor's Notes
- #3Â What is Kafka? Kafka is a distributed streams processing system, it allows distributed producers to send messages to distributed consumers via a Kafka cluster.
- #4Â Kafka benefits Fast â high throughput and low latency Scalable â horizontally scalable, just add nodes and partitions Reliable â distributed and fault tolerant Zero data loss â messages are persisted to disk with immutable log Open Source â An Apache project Available as a Managed Service - on multiple cloud platforms
- #5Â Kafka benefits Fast â high throughput and low latency Scalable â horizontally scalable, just add nodes and partitions Reliable â distributed and fault tolerant Zero data loss â messages are persisted to disk with immutable log Open Source â An Apache project Available as a Managed Service - on multiple cloud platforms

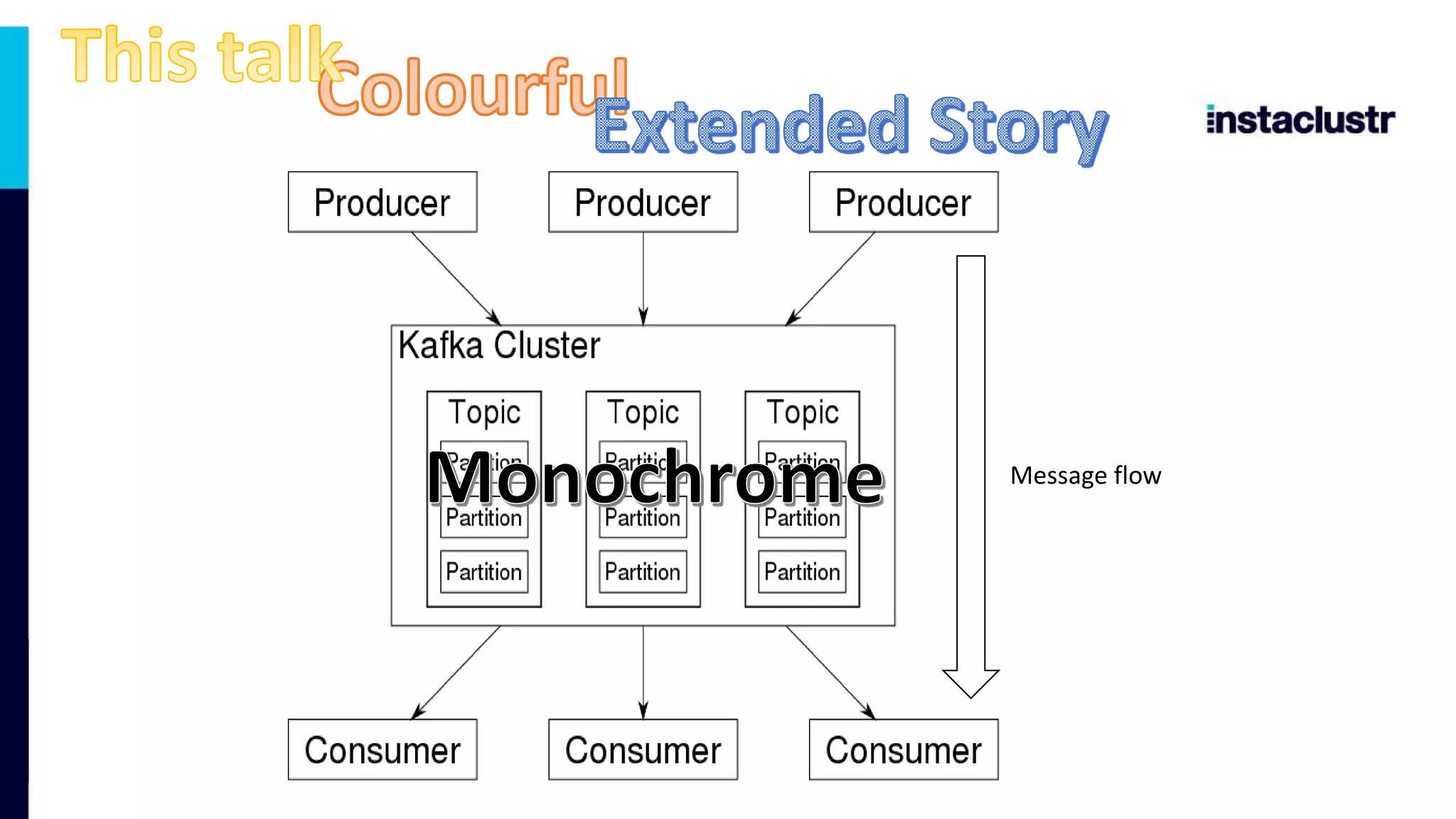

- #6 Back to the intro Kafka overview diagram, itâs a bit monochrome and boring. This talk will be more colourful and itâs going to be an extended storyâŚ
- #7 Back to the intro Kafka overview diagram, itâs a bit monochrome and boring. This talk will be more colourful and itâs going to be an extended storyâŚ

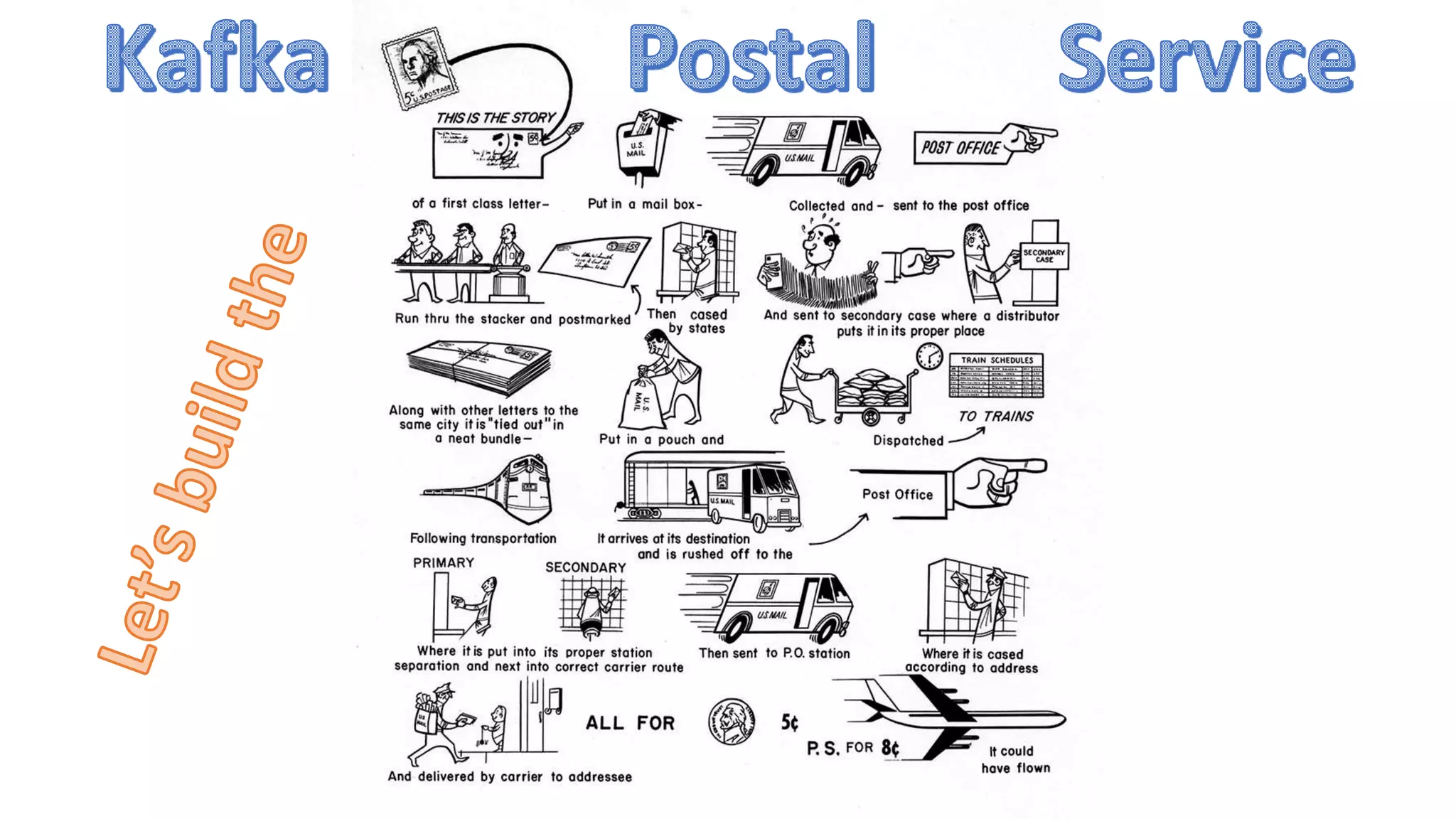

- #8Â Letâs build a modern day fully electronic postal service â the Kafka Postal Service
- #9Â What does a postal service do? It sends messages from A to B (animated with sounds, click!)
- #10 A is a producer, sends a messageâŚ
- #11Â To B, the consumer.
- #12Â Actually, no. Due to the decline in âsnail mailâ volumes, direct deliveries have been cancelled.
- #13Â Actually, no. Due to the decline in âsnail mailâ volumes, direct deliveries have been cancelled.
- #14Â Instead we have âPoste Restanteâ - Not a post office in a restaurant Itâs called general delivery (in the US). The mail is delivered to a post office, and they hold it for you until you call for it.
- #15Â Consumers poll for messages by visiting the counter at the post office.
- #16Â Consumers poll for messages by visiting the counter at the post office.
- #17Â Kafka topics act like a Post Office. What are the benefits? Disconnected delivery â consumer doesnât need to be available to receive messages Less effort for the messaging service â only has to delivery to a few locations not larger number of consumer addresses Can scale better and handle more complex delivery semantics!
- #18Â Kafka topics act like a Post Office. What are the benefits? Disconnected delivery â consumer doesnât need to be available to receive messages Less effort for the messaging service â only has to delivery to a few locations not larger number of consumer addresses Can scale better and handle more complex delivery semantics!
- #19Â First lets see how it scales. What if there are many consumers for a topic?
- #20Â A single counter introduces delays and limits concurrency
- #21Â More counters increases concurrency and can reduce delays
- #22Â Kafka Topics have 1 or more Partitions, partitions function like multiple counters and enable high concurrency.
- #23Â Before looking at delivery semantics what does a message actually look like? In Kafka a message is called a Record and is like a letter.
- #24Â The topic is the destination.
- #25Â The âPostmarkâ includes a timestamp, offset in the topic, and the partition it was sent to. Time semantics are flexible, either the time of event creation, ingestion, or processing.
- #26Â The âPostmarkâ includes a timestamp, offset in the topic, and the partition it was sent to. Time semantics are flexible, either the time of event creation, ingestion, or processing.
- #27Â Thereâs also a thing called a Key, which is is optional. It refines the destination so itâs a bit like the rest of the address. We want this letter sent to Santa not just any Elf.
- #28Â Thereâs also a thing called a Key, which is is optional. It refines the destination so itâs a bit like the rest of the address. We want this letter sent to Santa not just any Elf.
- #29Â The value is the contents (just a byte array). Kafka Producers and consumers need to have a shared serializer and de-serializer for both the key and value.
- #30Â The value is the contents (just a byte array). Kafka Producers and consumers need to have a shared serializer and de-serializer for both the key and value.
- #31 Kafka doesnât look inside the value, but the Producer and Consumer can, and the Consumer can try and make sense of the message⌠I wonder what Santa will be delivering?
- #32Â Next lets look at delivery semantics. For example, do we care if the message actually arrives or not?
- #33Â Yes we do! Guaranteed message delivery is desirable. Homing pigeons got lost or eaten, so need to send the message with multiple pigeons
- #34Â Yes we do! Guaranteed message delivery is desirable. Homing pigeons got lost or eaten, so need to send the message with multiple pigeons
- #35Â Yes we do! Guaranteed message delivery is desirable. Homing pigeons got lost or eaten, so need to send the message with multiple pigeons
- #36Â Yes we do! Guaranteed message delivery is desirable. Homing pigeons got lost or eaten, so need to send the message with multiple pigeons
- #37Â How does Kafka guarantee delivery? A Message (M1) is written to a broker (2)
- #38Â How does Kafka guarantee delivery? A Message (M1) is written to a broker (2)
- #39Â and the message is always persisted to disk.
- #40Â This makes it resilient to loss of power.
- #41Â The message is also replicated on multiple âbrokersâ , 3 is typical
- #42Â And makes it resilient to loss of most servers
- #43Â Finally the producer gets acknowledgement once the message is persisted and replicated (configurable for number, and sync or async) The message is now available from more than one broker in case some fail. This also increases the read concurrency as partitions are spread over multiple brokers.
- #44Â Finally the producer gets acknowledgement once the message is persisted and replicated (configurable for number, and sync or async) The message is now available from more than one broker in case some fail. This also increases the read concurrency as partitions are spread over multiple brokers.
- #45Â Now letâs look at the 2nd aspect of delivery semantics. Who gets the messages and how many times are messages delivered? Kafka is âpub-subâ, Itâs loosely coupled, producers and consumers donât know about each other
- #46Â Now letâs look at the 2nd aspect of delivery semantics. Who gets the messages and how many times are messages delivered? Kafka is âpub-subâ, Itâs loosely coupled, producers and consumers donât know about each other
- #47Â Filtering, or which consumers get which messages, is topic based Publishers send messages to topics Consumers subscribe to topics of interest, e.g. parties. When they poll they only receive messages sent to those topics.
- #48Â Filtering, or which consumers get which messages, is topic based Publishers send messages to topics Consumers subscribe to topics of interest, e.g. parties. When they poll they only receive messages sent to those topics.
- #49Â Filtering, or which consumers get which messages, is topic based Publishers send messages to topics Consumers subscribe to topics of interest, e.g. parties. When they poll they only receive messages sent to those topics.
- #50Â Filtering, or which consumers get which messages, is topic based Publishers send messages to topics Consumers subscribe to topics of interest, e.g. parties. When they poll they only receive messages sent to those topics.
- #51Â Just a few more details and we can see how this works. Partitions and consumer groups enable sharing of work across multiple consumers, the more partitions a topic has the more consumers it supports
- #52Â Kafka supports delivery of the same message to multiple consumers. Kafka doesnât throw messages away immediately they are delivered, so the same message can easily be delivered to multiple consumer groups.
- #53Â Consumers subscribed to âpartiesâ topic are allocated partitions. When they poll they will only get messages from their allocated partitions.
- #54Â This enables consumers in the same group to share the work around. Each consumer gets only a subset of the available messages.
- #55Â Multiple groups enable message broadcasting. Messages are duplicated across groups, as each consumer group receives a copy of each message.
- #56Â Which messages are delivered to which consumers? The final aspect of delivery semantics is to do with message keys. If a message has a key, then Kafka uses Partition based delivery. Messages with the same key are always sent to the same partition and therefore the same consumer. And the order is guaranteed.
- #57Â If the key is null, then Kafka uses round robin delivery. Each message is delivered to the next partition.
- #58Â Letâs look at an example with 2 consumer groups. Nerds, which has multiple consumers, and Hairy which has a single consumer.
- #59Â Letâs look at an example with 2 consumer groups. Nerds, which has multiple consumers, and Hairy which has a single consumer.
- #60Â Letâs look at an example with 2 consumer groups. Nerds, which has multiple consumers, and Hairy which has a single consumer.
- #61Â Looking at the case where thereâs No Key 1st, each message (1, 2, etc) is sent to the next partition, and all consumers allocated to that partition will receive the message when they poll next.
- #62Â Hereâs what actually happens. Weâre not showing the producer or topic for simplicity. Youâll have to imagine them.
- #63Â Both Groups subscribe to Topic âpartiesâ (11 partitions, so 1 consumer per partition).
- #64Â 2 Producer sends record with the value âCool pool party - Invitationâ to âpartiesâ topic (thereâs no key)
- #65Â 3 Bill and Chewbacca receive a copy of the invitation and plan to attend
- #66Â 4. Producer sends another record with the value âCool pool party â Cancelledâ to âpartiesâ topic
- #67Â In the Nerds group, Paul gets the message this time as itâs round robin, and Chewy gets it as heâs the only consumer in his group. Paul ignores it as he didnât get the original invite Bill wastes his time trying to go The rest of the gang arenât surprised at not receiving any invites and stay home to do some hacking Chewy plans something else fun instead...
- #68Â A visit to the hairdressers!
- #69Â How does it work if there is a Key? The key is hashed to a partition, and the Message is sent to that partition. Assume there are 3 messages, and messages 1 and 2 are hashed to same partition.
- #70Â Hereâs what happens with a key, assuming that the key is the âtitleâ of the message (âCool pool partyâ) As before Both Groups subscribe to Topic âpartiesâ (11 partitions). Producer sends record <key=âCool pool partyâ, value=âInvitationâ> to âpartiesâ topic
- #71Â Hereâs what happens with a key, assuming that the key is the âtitleâ of the message (âCool pool partyâ) As before Both Groups subscribe to Topic âpartiesâ (11 partitions). Producer sends record <key=âCool pool partyâ, value=âInvitationâ> to âpartiesâ topic
- #72Â As before, Bill and Chewbacca receive a copy of the invitation and plan to attend
- #73Â 4. Producer sends another record with the same key but a cancellation value to âpartiesâ topic
- #74Â This time, Bill and Chewbacca receive the cancellation (the same consumers as the key is identical)
- #75Â Producer sends out another invitation to a Halloween party. The key is different this time.
- #76Â Paul receives the Halloween invitation as the key is different and the record is sent to the partition that Paul is allocated Chewy is the only consumer in his group so he gets every record no matter what partition itâs sent to
- #77Â This time Chewy gets dressed up and goes to the party.
- #78Â Who did you imagine was producing the invitations? Maybe this fellow.
- #80Â Hereâs a UML-like diagram with the main Kafka components. Weâve introduced Producers, Topics, Partitions, Consumer Groups and Consumes today. Thereâs a lot more to explore, including how Kafka provides replication, and the Connect and Streaming APIs.
- #81Â To finish up here are three important use cases for Kafka
- #82Â The Real-time Data pipeline features Ingestion of multiple heterogeneous sources Sending data to multiple heterogeneous sinks Acts as a buffer to smooth out load spikes Enables use cases which reprocess data (e.g. disaster recovery)
- #83 Real-time Event processing features: Simple event driven applications (If X then YâŚ) May write and read from other data sources (e.g. Cassandra) New Events sent back to Kafka or to other systems E.g. Anomaly Detection, check out my current blog series if you are interested in this example.
- #84Â Streams processing features: Complex streams processing (multiple events and streams) Time, windows, and transformations Streams API, includes state store This a visualization of the streams topology from the streams processing pipeline from my previous blog series, Kongo, a Kafka IoT logistics application. It continuously computes the loads for trucks and checks if they are overloaded.
- #85 Hereâs a real example from Linkedin, who developed Kafka. Before Kafka they had spaghetti integration of monolithic applications. To accommodate growing membership and increasing site complexity, they migrated from a monolithic application infrastructure to one based on microservices, which made the integration even more complex.
- #86Â After Kafka Rather than maintaining and scaling each pipeline individually, they invested in the development of a single, distributed pub-sub platform. Thus, Kafka was born. This main benefit was better Service decoupling and independent scaling.
