Apache Kafka
- 1.

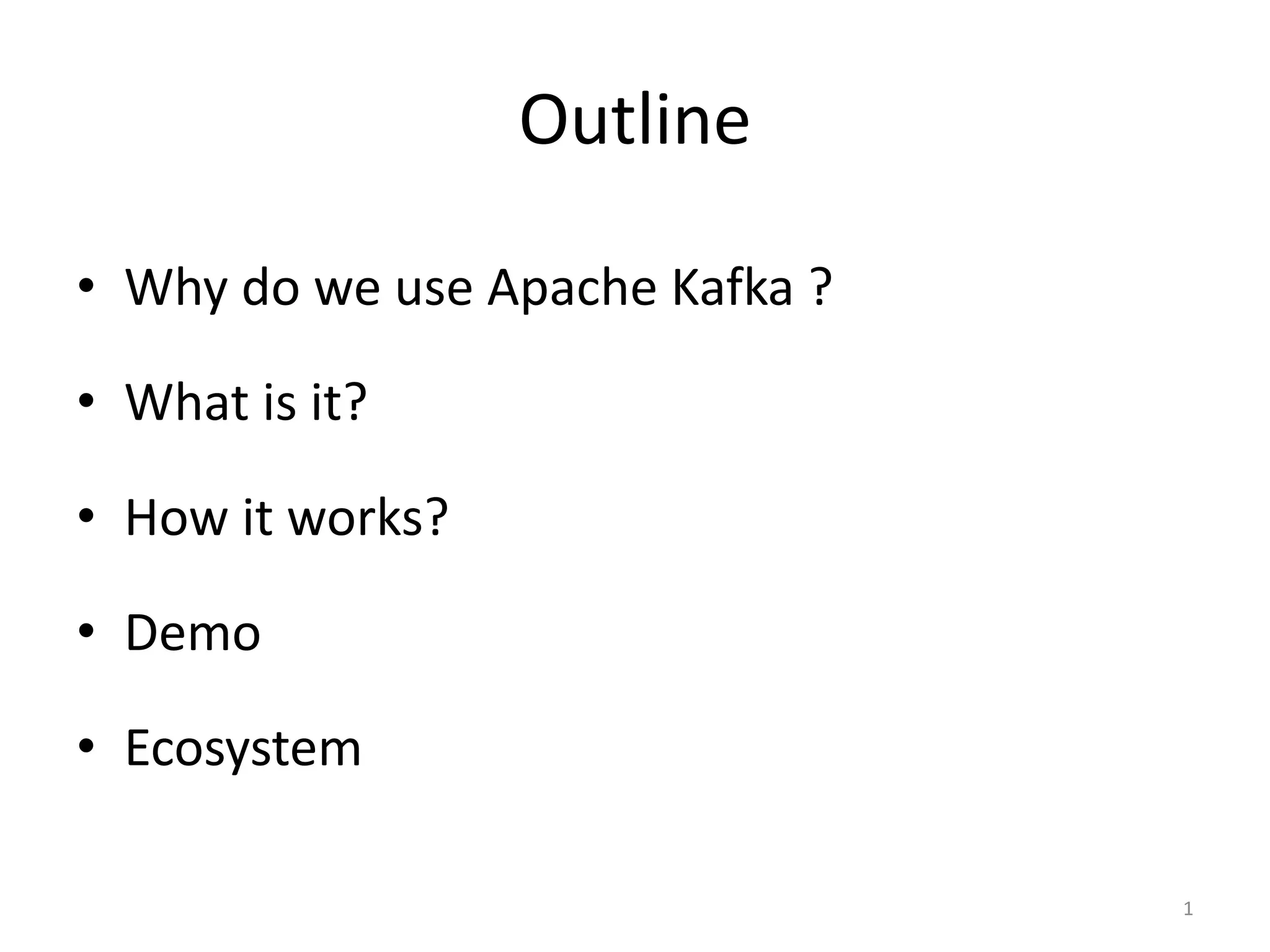

- 2. Outline • Why dowe use Apache Kafka ? • What is it? • How it works? • Demo • Ecosystem 1

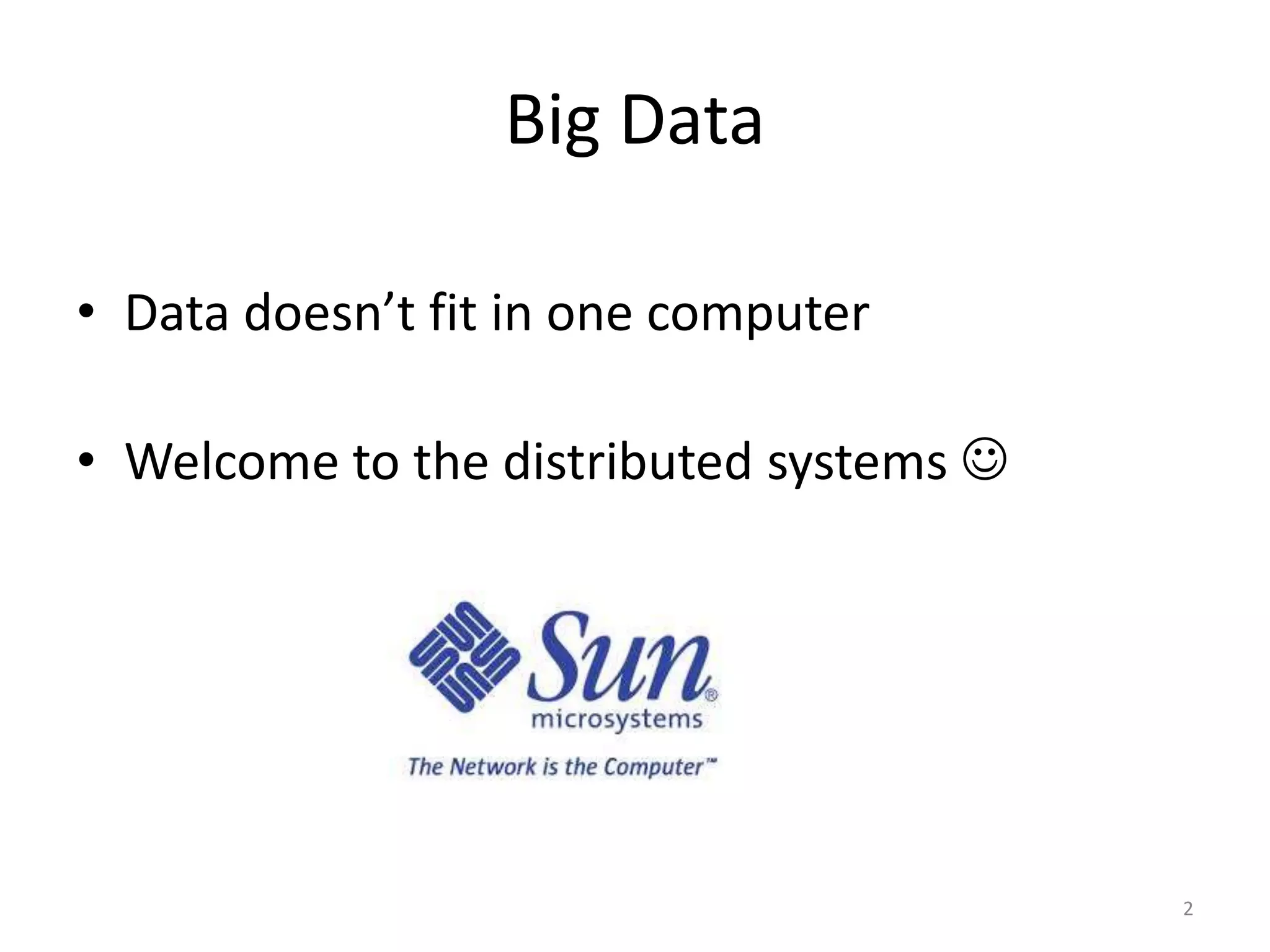

- 3. Big Data • Datadoesn’t fit in one computer • Welcome to the distributed systems 2

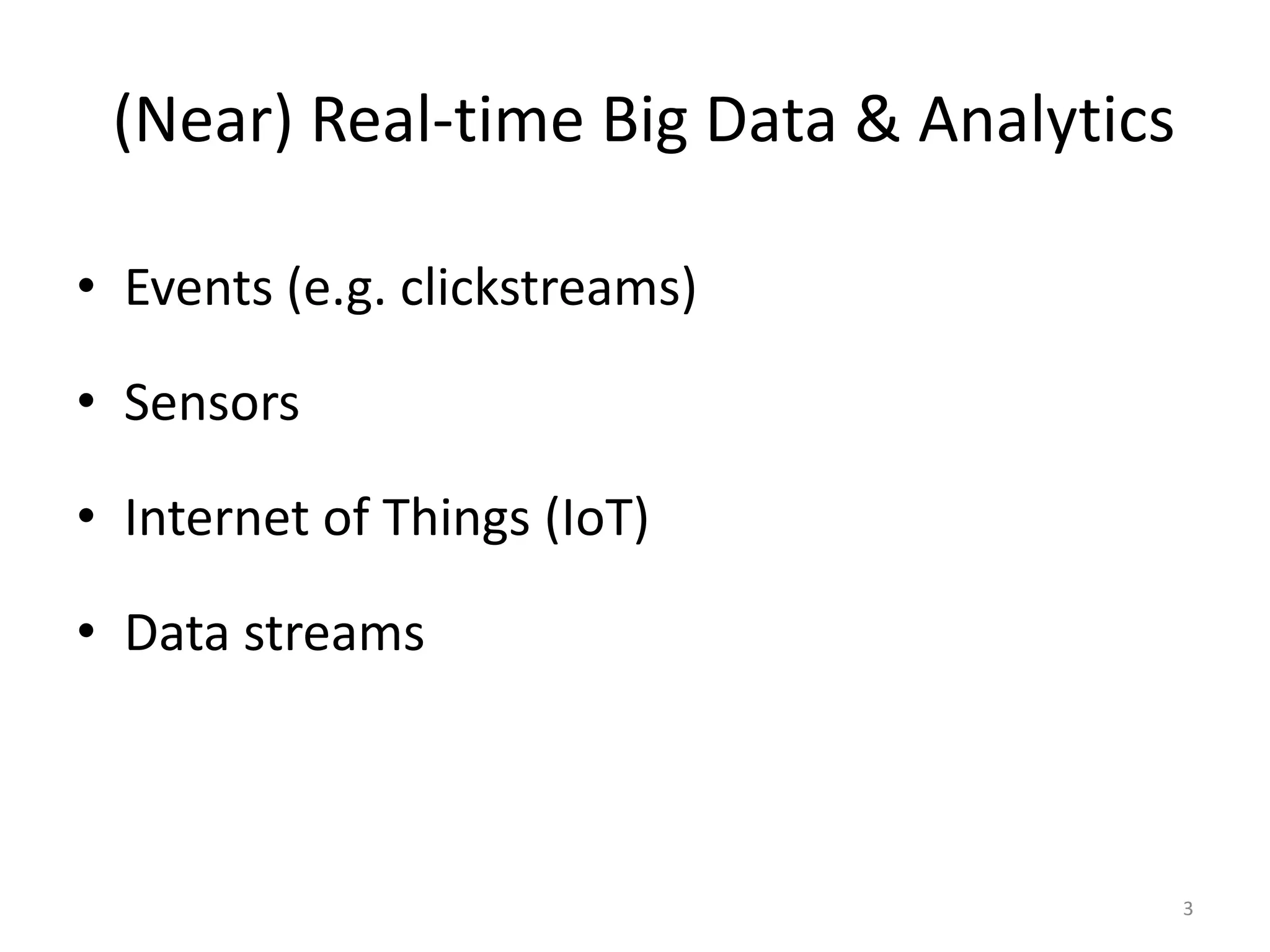

- 4. (Near) Real-time BigData & Analytics • Events (e.g. clickstreams) • Sensors • Internet of Things (IoT) • Data streams 3
- 5.

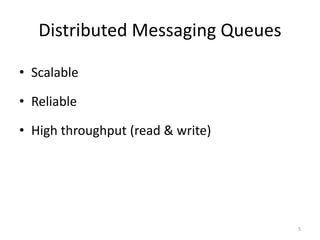

- 6. Distributed Messaging Queues •Scalable • Reliable • High throughput (read & write) 5

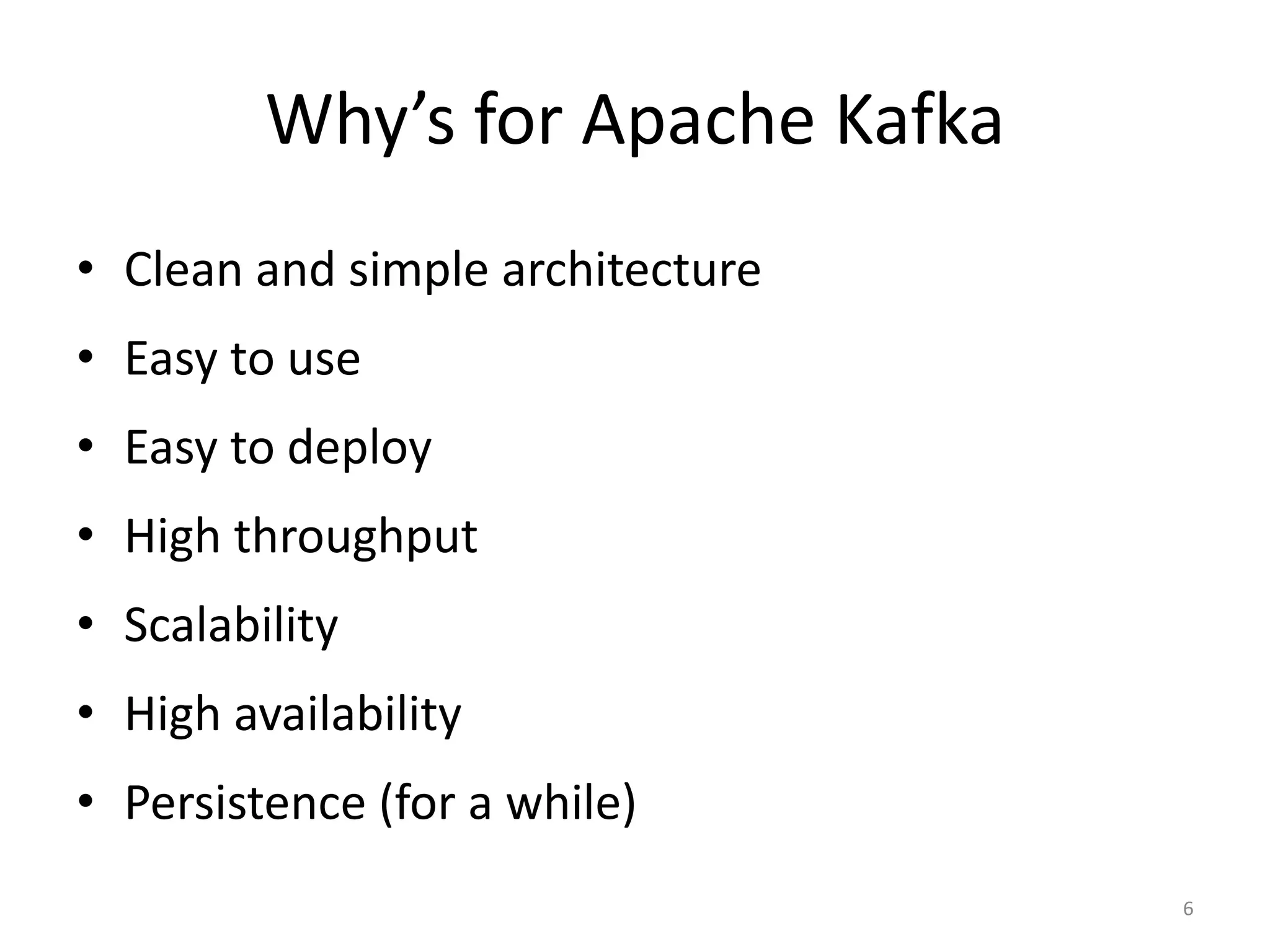

- 7. Why’s for ApacheKafka • Clean and simple architecture • Easy to use • Easy to deploy • High throughput • Scalability • High availability • Persistence (for a while) 6

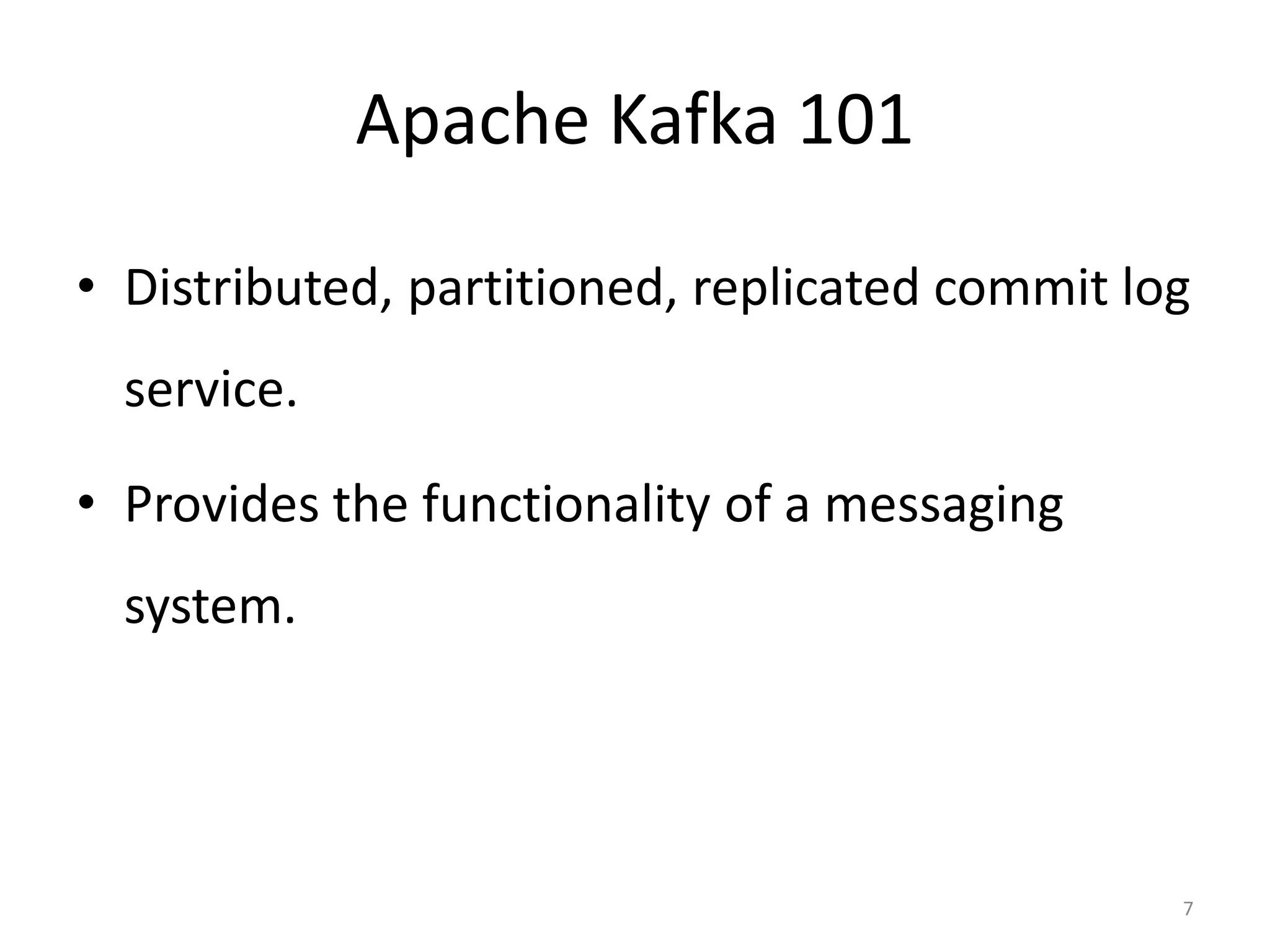

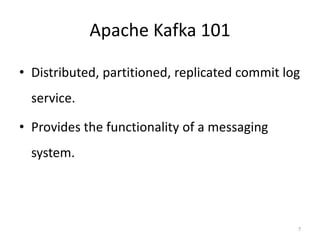

- 8. Apache Kafka 101 •Distributed, partitioned, replicated commit log service. • Provides the functionality of a messaging system. 7

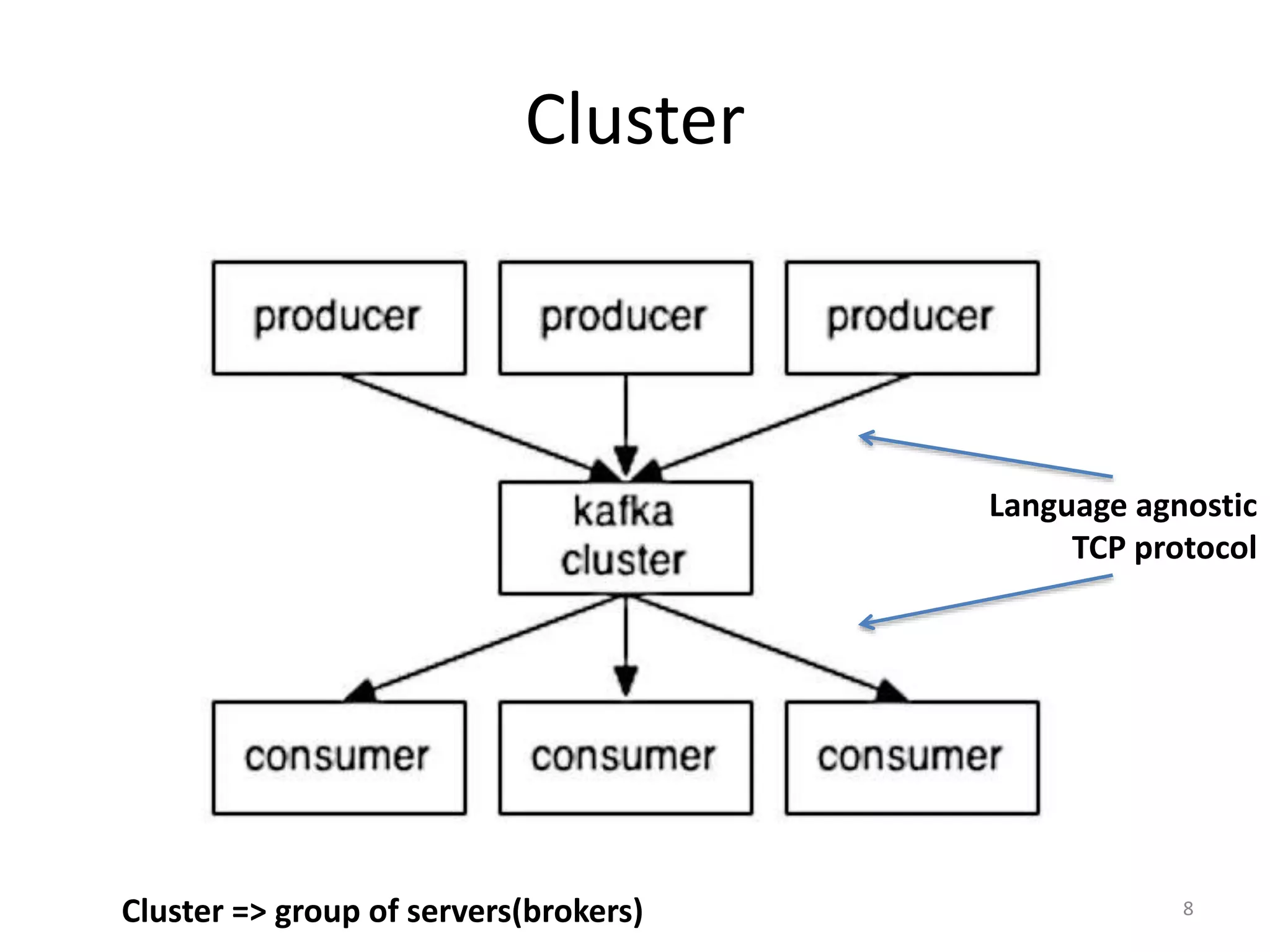

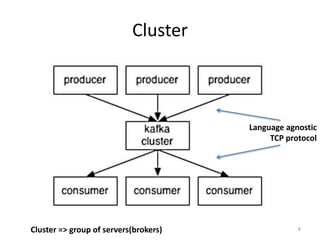

- 9. Cluster 8 Language agnostic TCP protocol Cluster=> group of servers(brokers)

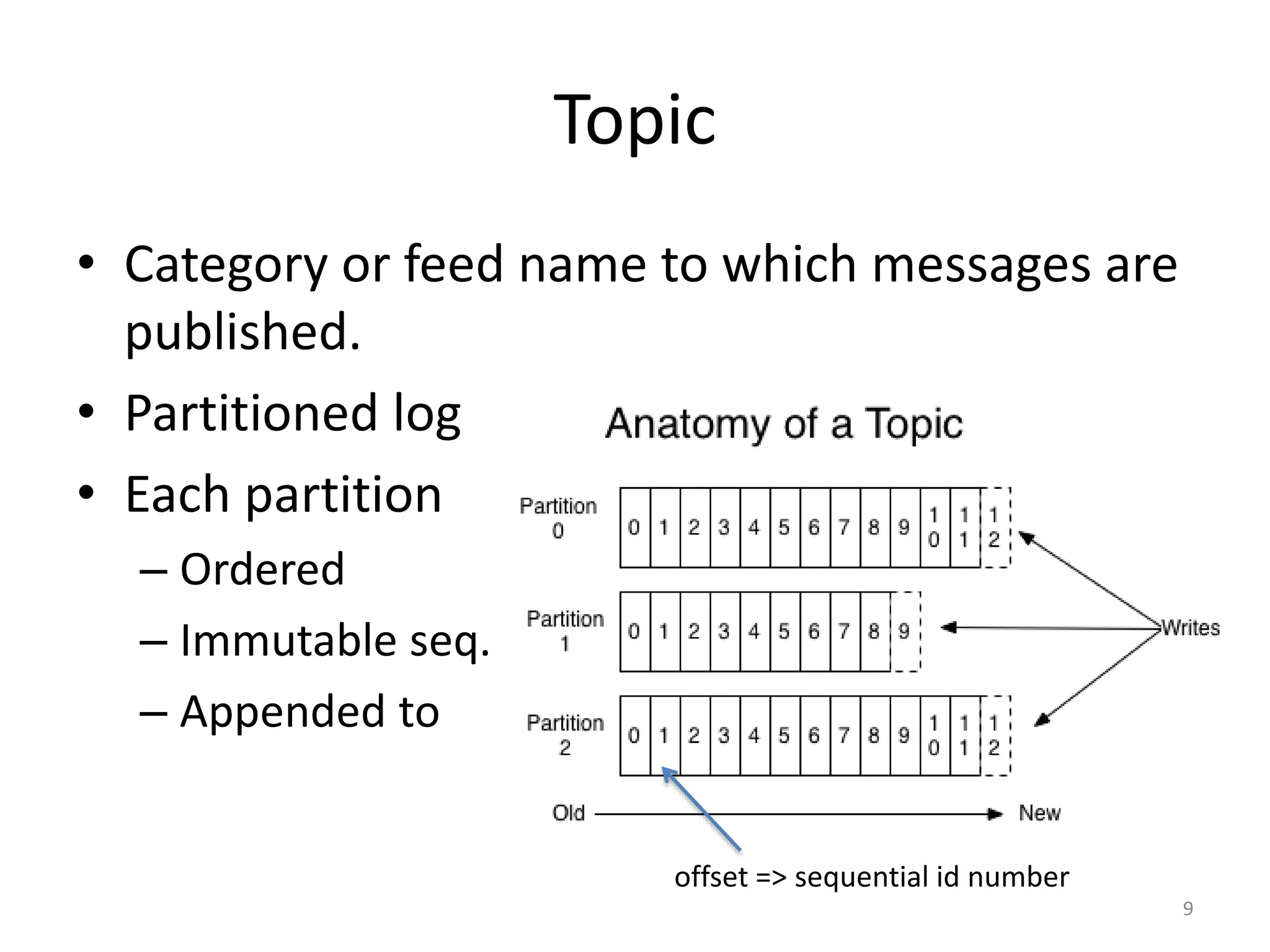

- 10. Topic 9 • Category orfeed name to which messages are published. • Partitioned log • Each partition – Ordered – Immutable seq. – Appended to offset => sequential id number

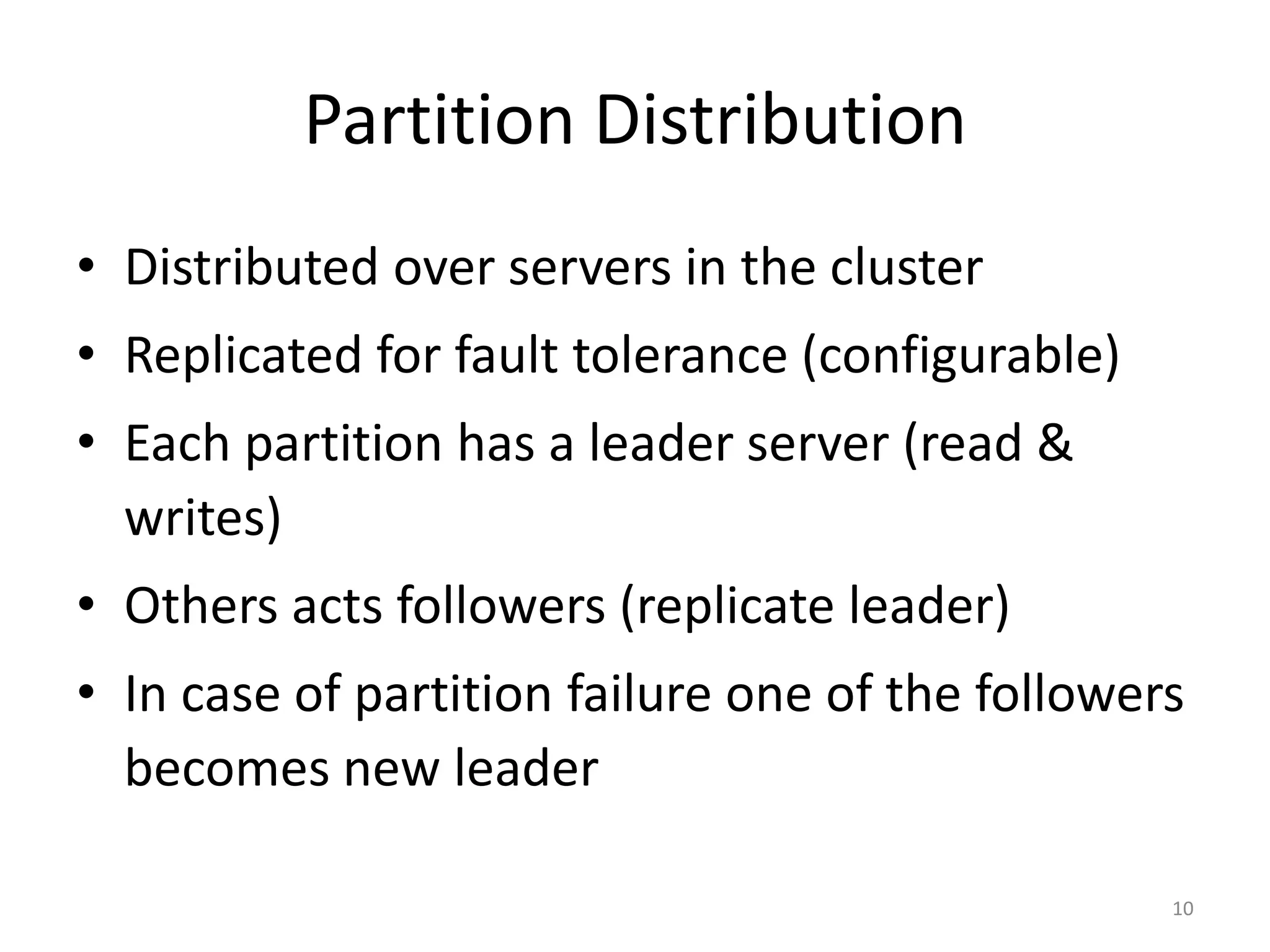

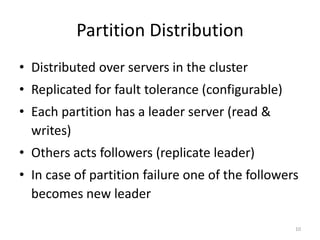

- 11. Partition Distribution • Distributedover servers in the cluster • Replicated for fault tolerance (configurable) • Each partition has a leader server (read & writes) • Others acts followers (replicate leader) • In case of partition failure one of the followers becomes new leader 10

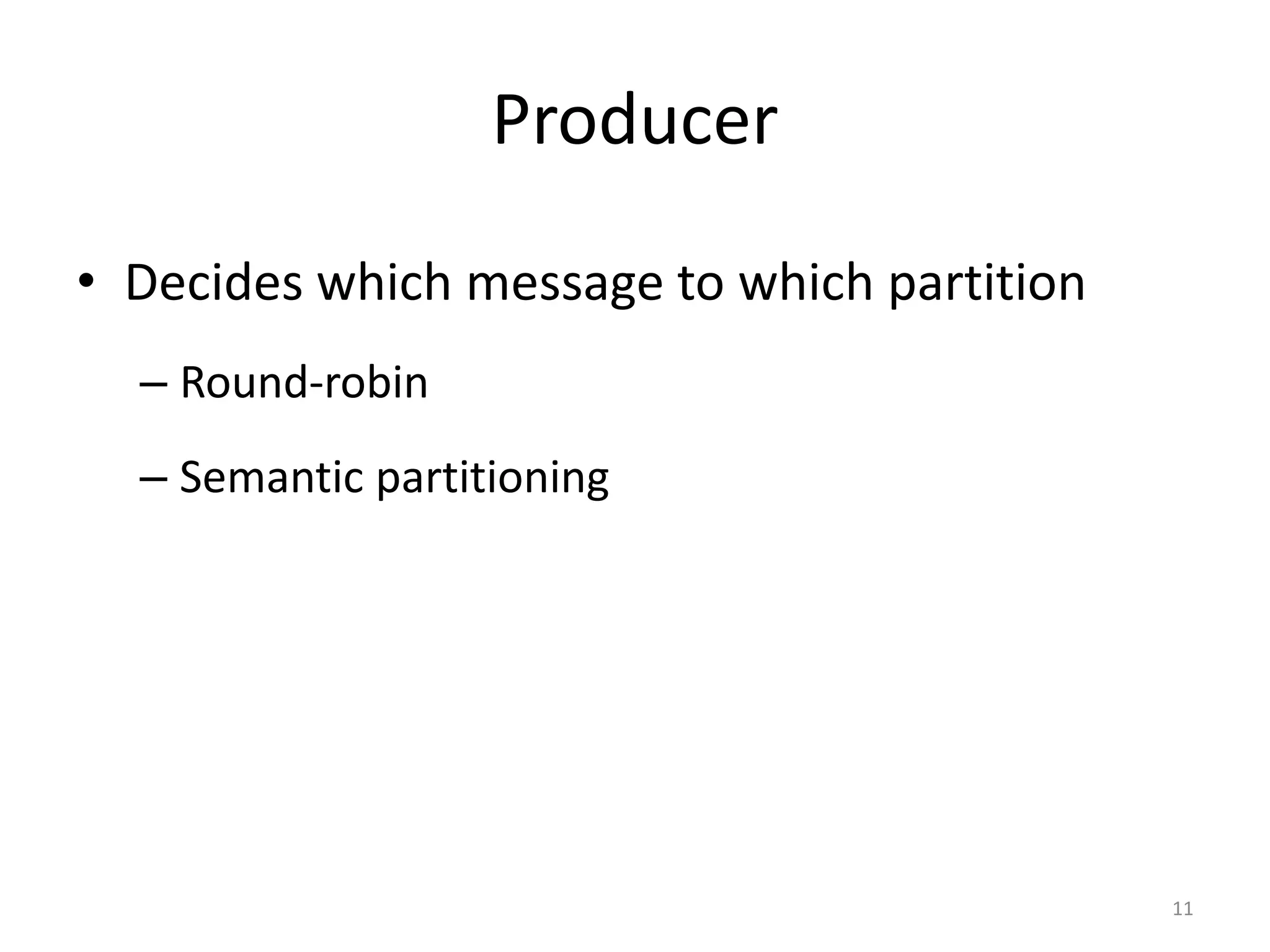

- 12. Producer • Decides whichmessage to which partition – Round-robin – Semantic partitioning 11

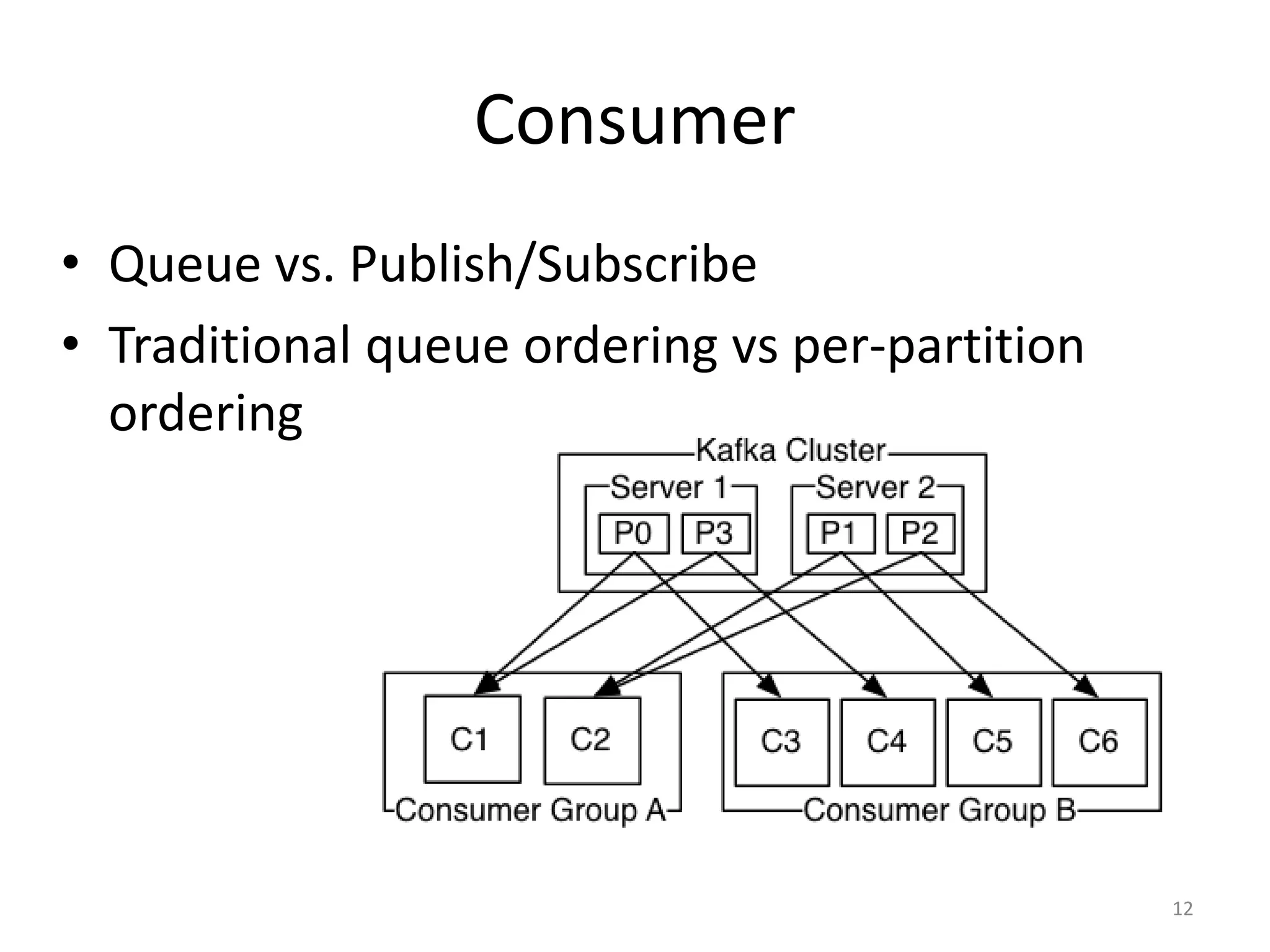

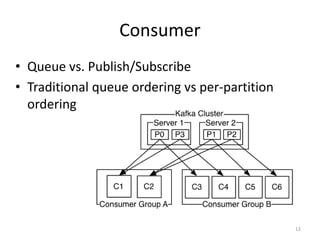

- 13. Consumer • Queue vs.Publish/Subscribe • Traditional queue ordering vs per-partition ordering 12

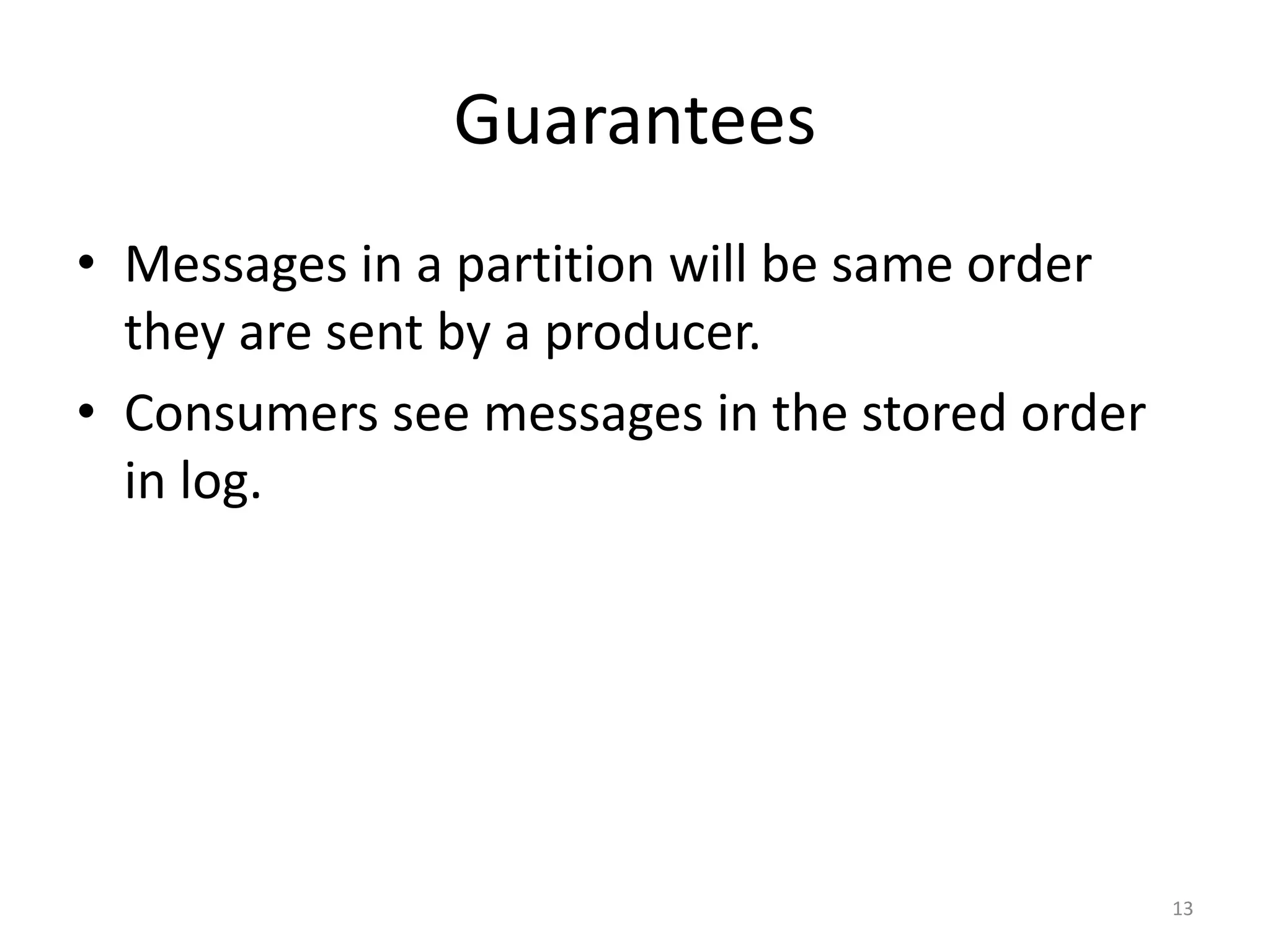

- 14. Guarantees • Messages ina partition will be same order they are sent by a producer. • Consumers see messages in the stored order in log. 13

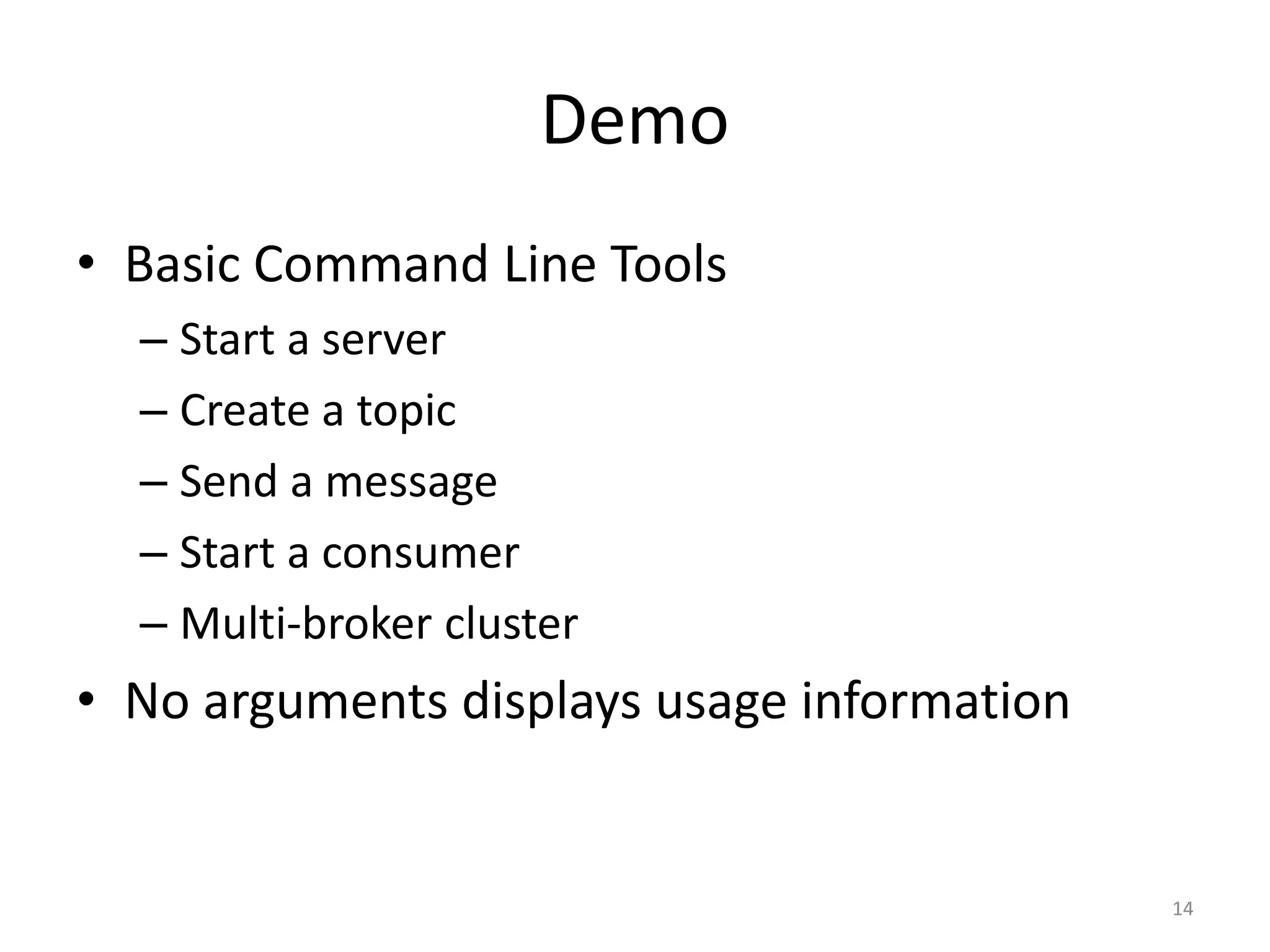

- 15. Demo • Basic CommandLine Tools – Start a server – Create a topic – Send a message – Start a consumer – Multi-broker cluster • No arguments displays usage information 14

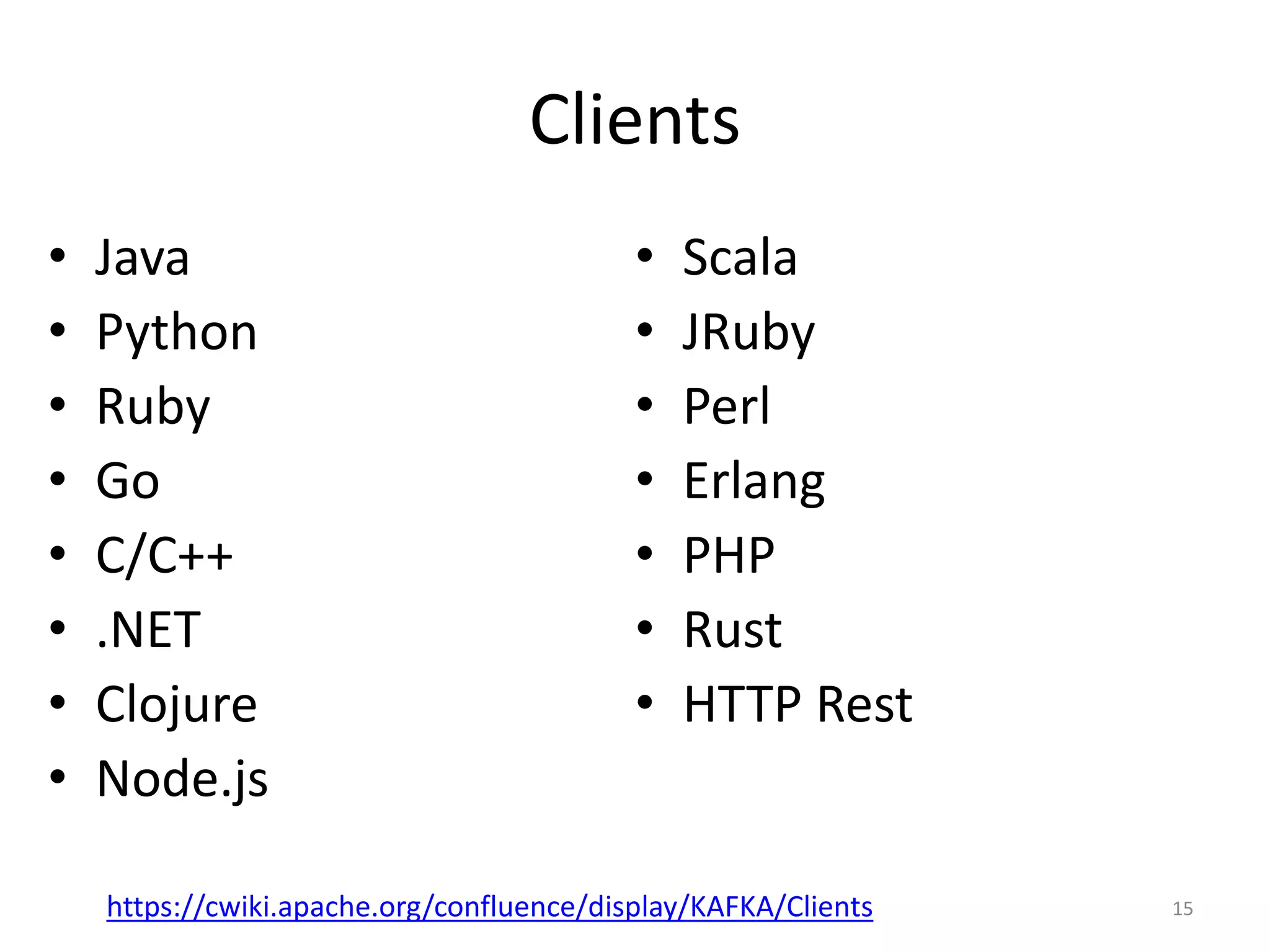

- 16. Clients • Java • Python •Ruby • Go • C/C++ • .NET • Clojure • Node.js • Scala • JRuby • Perl • Erlang • PHP • Rust • HTTP Rest 15https://cwiki.apache.org/confluence/display/KAFKA/Clients

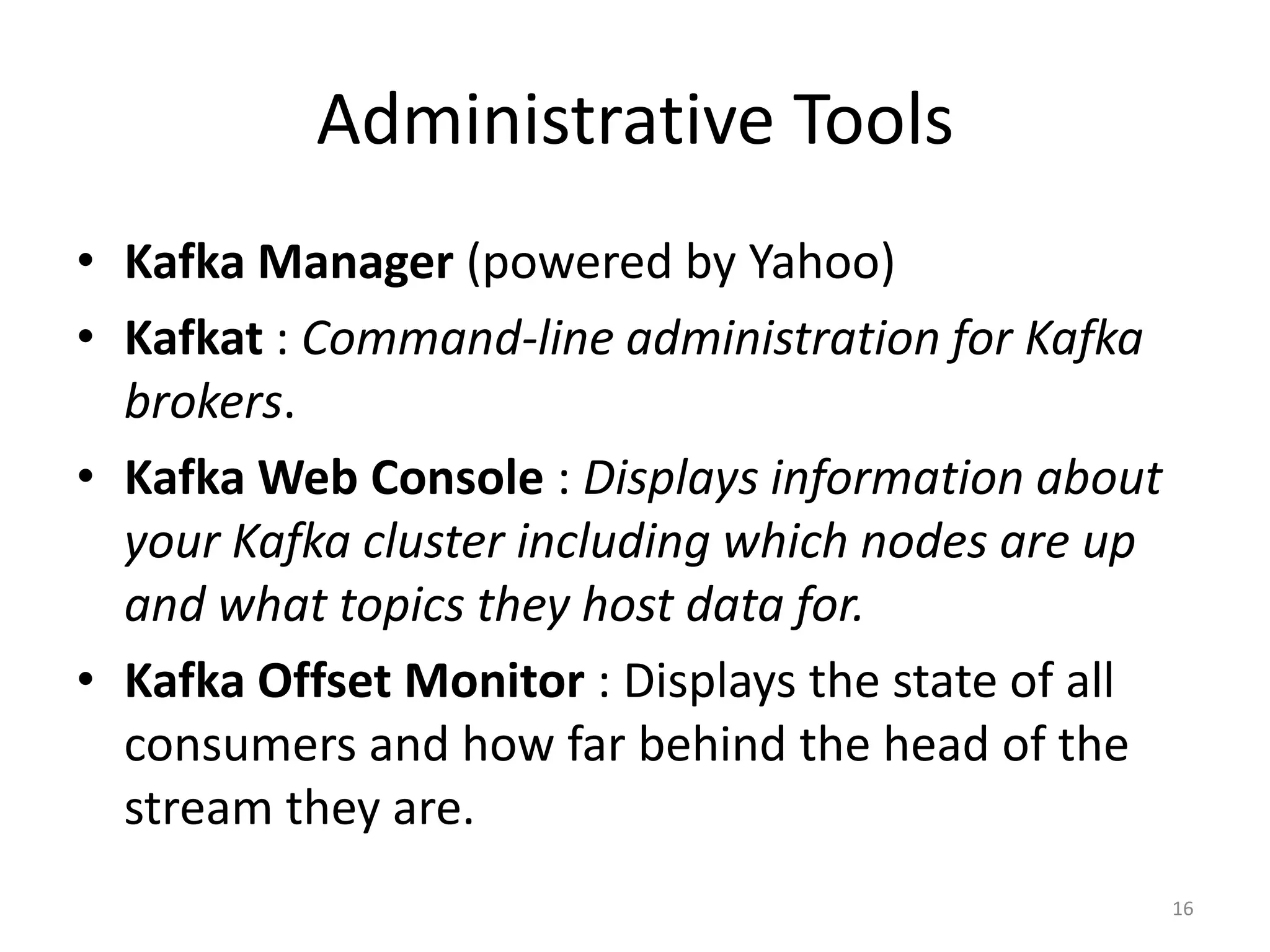

- 17. Administrative Tools • KafkaManager (powered by Yahoo) • Kafkat : Command-line administration for Kafka brokers. • Kafka Web Console : Displays information about your Kafka cluster including which nodes are up and what topics they host data for. • Kafka Offset Monitor : Displays the state of all consumers and how far behind the head of the stream they are. 16

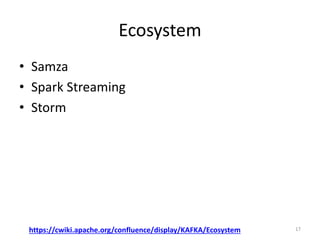

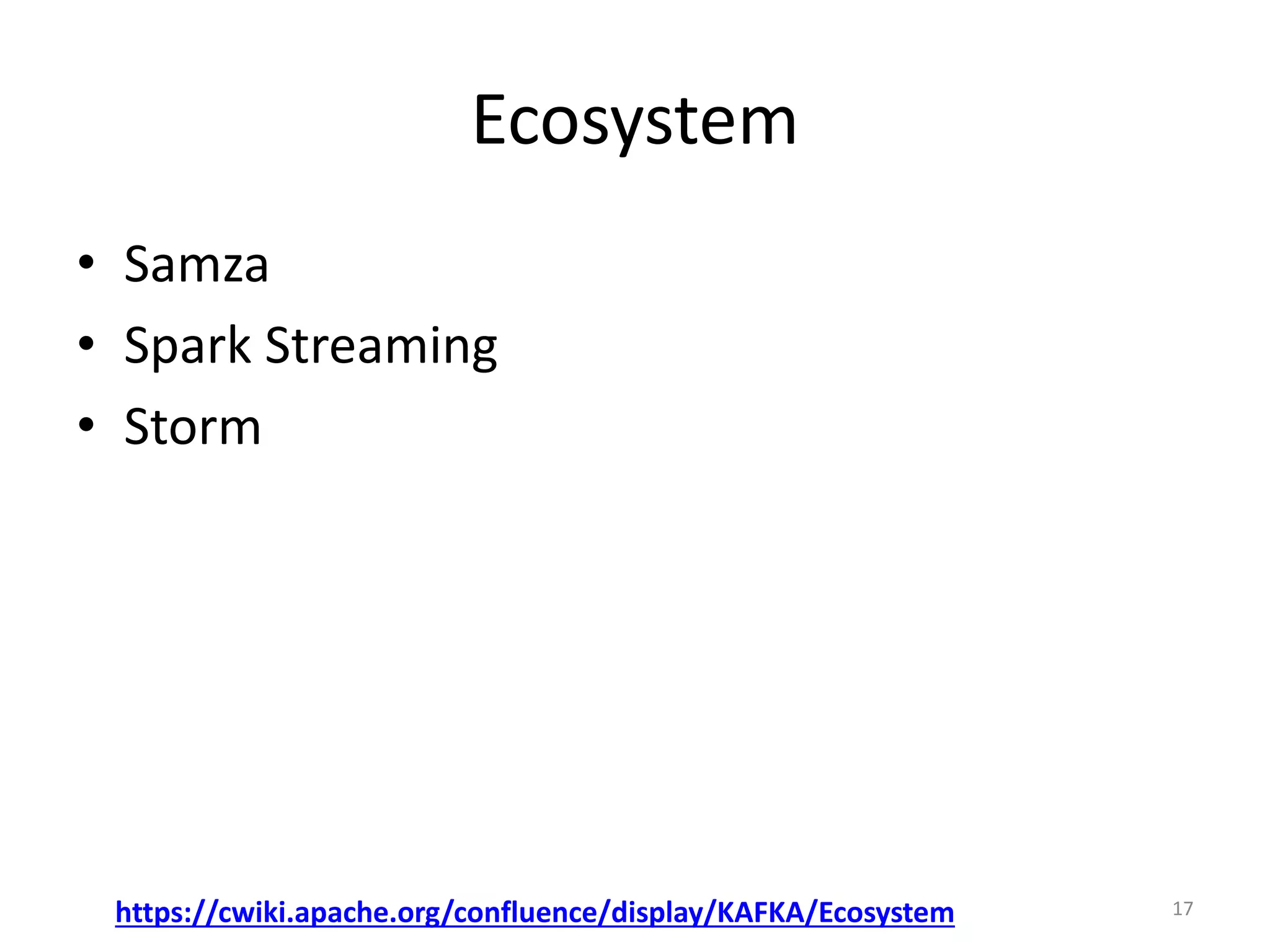

- 18. Ecosystem • Samza • SparkStreaming • Storm 17https://cwiki.apache.org/confluence/display/KAFKA/Ecosystem

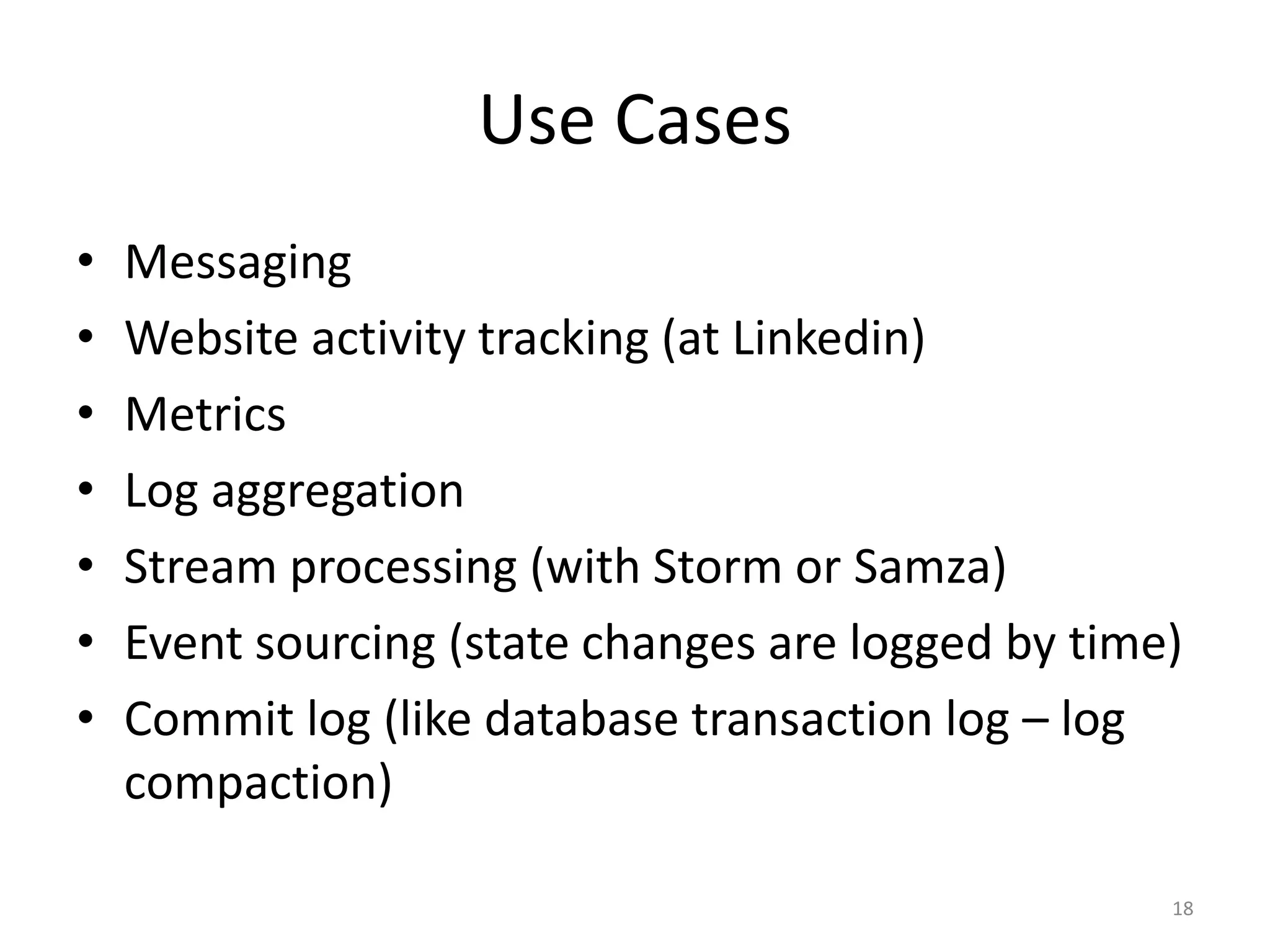

- 19. Use Cases • Messaging •Website activity tracking (at Linkedin) • Metrics • Log aggregation • Stream processing (with Storm or Samza) • Event sourcing (state changes are logged by time) • Commit log (like database transaction log – log compaction) 18

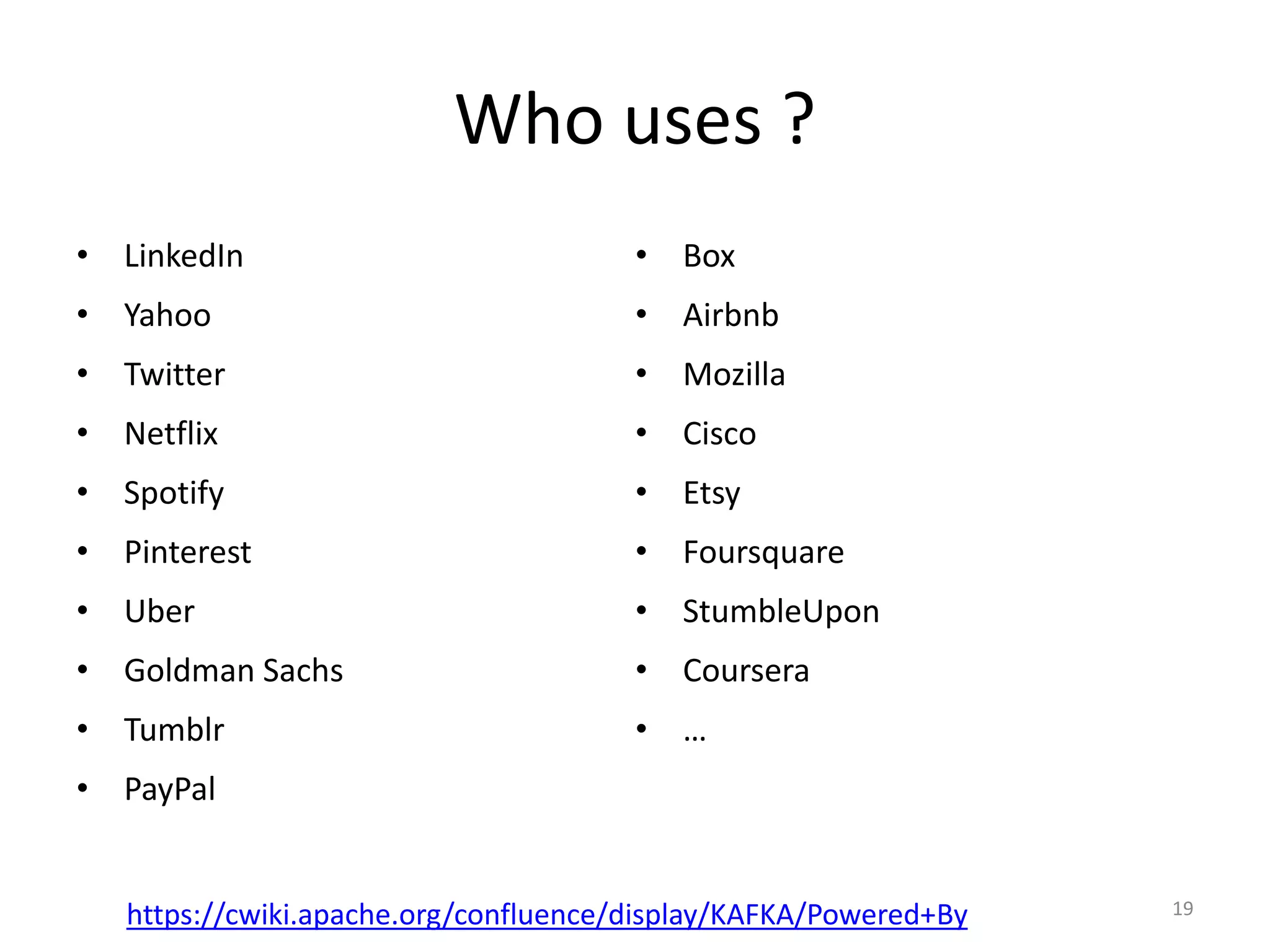

- 20. Who uses ? •LinkedIn • Yahoo • Twitter • Netflix • Spotify • Pinterest • Uber • Goldman Sachs • Tumblr • PayPal • Box • Airbnb • Mozilla • Cisco • Etsy • Foursquare • StumbleUpon • Coursera • … 19https://cwiki.apache.org/confluence/display/KAFKA/Powered+By

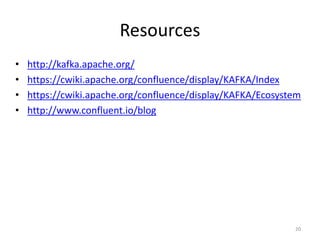

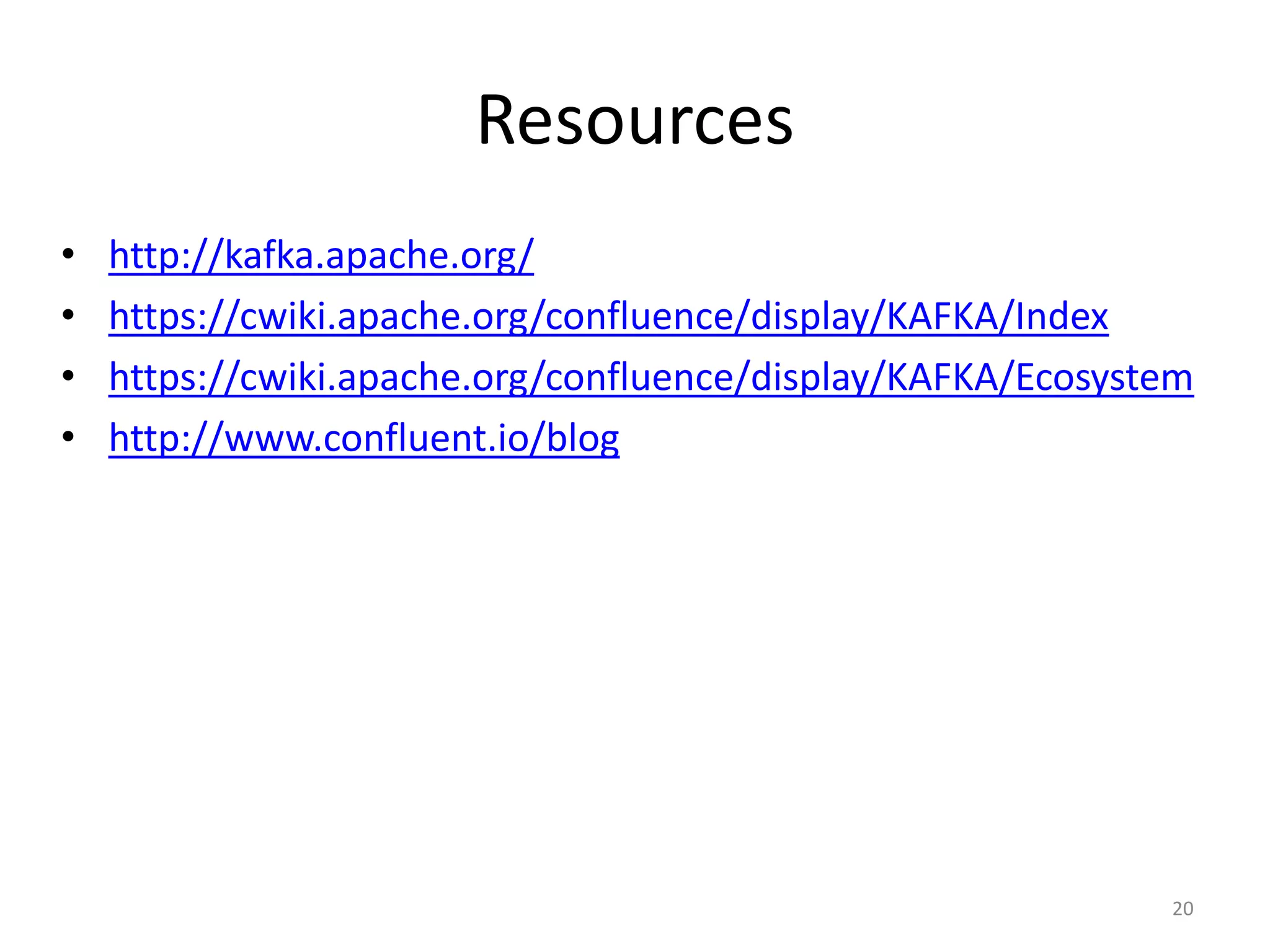

- 21. Resources • http://kafka.apache.org/ • https://cwiki.apache.org/confluence/display/KAFKA/Index •https://cwiki.apache.org/confluence/display/KAFKA/Ecosystem • http://www.confluent.io/blog 20
- 22.

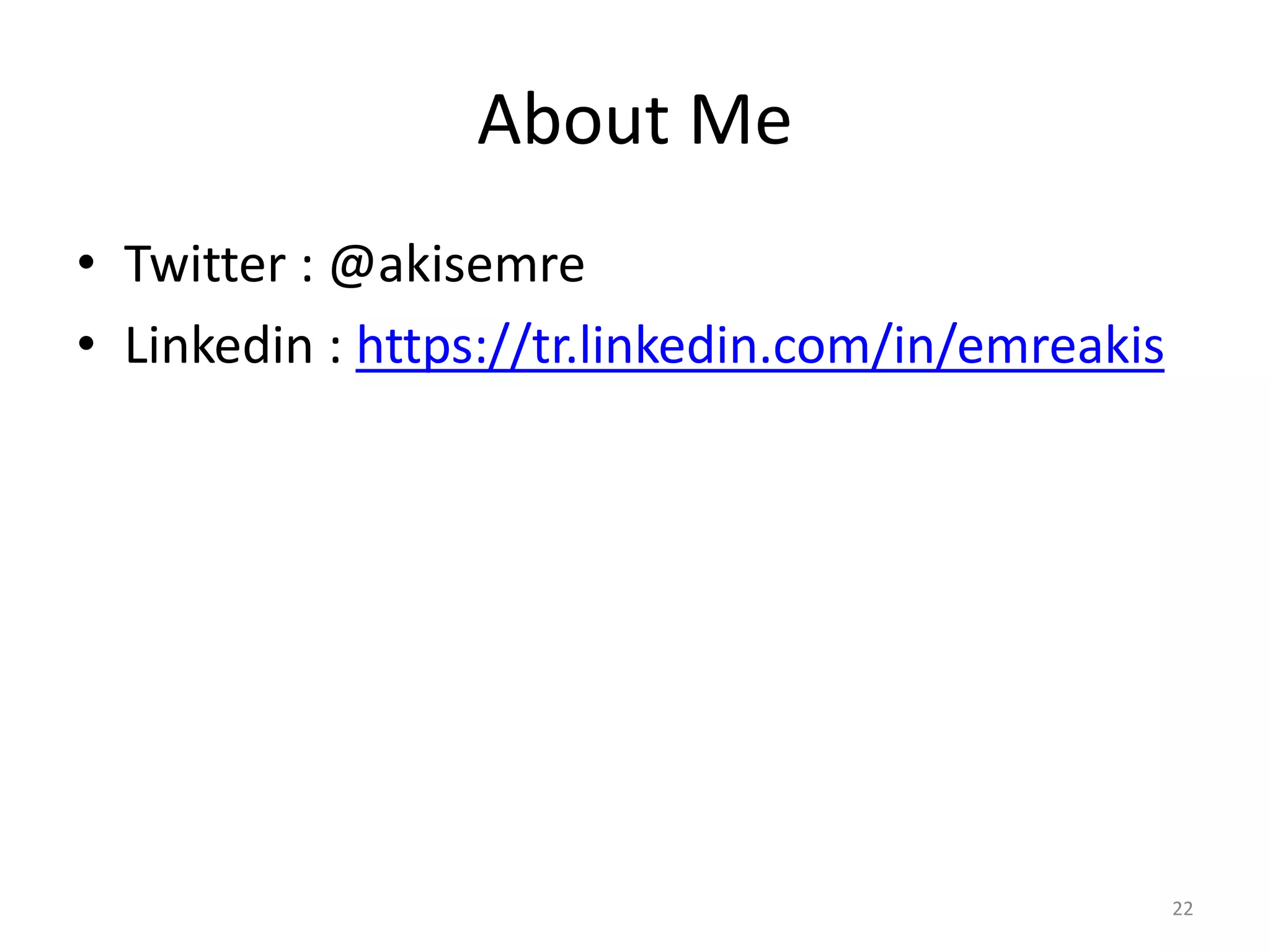

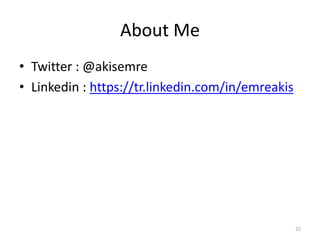

- 23. About Me • Twitter: @akisemre • Linkedin : https://tr.linkedin.com/in/emreakis 22
Editor's Notes
- #11 With Partitions Scalabilitiy and parallelism
