Android data binding

Android data binding
The rules of the game have changed

20 yrs tinkering with computers
A lot of time on software localization
On Android since 2010 (Cupcake)
Mobile R+D Lead at Worldine Iberia
Android GDE (Google Developer Expert)
I love making UI
Proud parent of a 8 years old OS fan
@sergiandreplace
sergiandreplace.com
sergi.Martinez[at]gmail.com
About me – Sergi Martínez

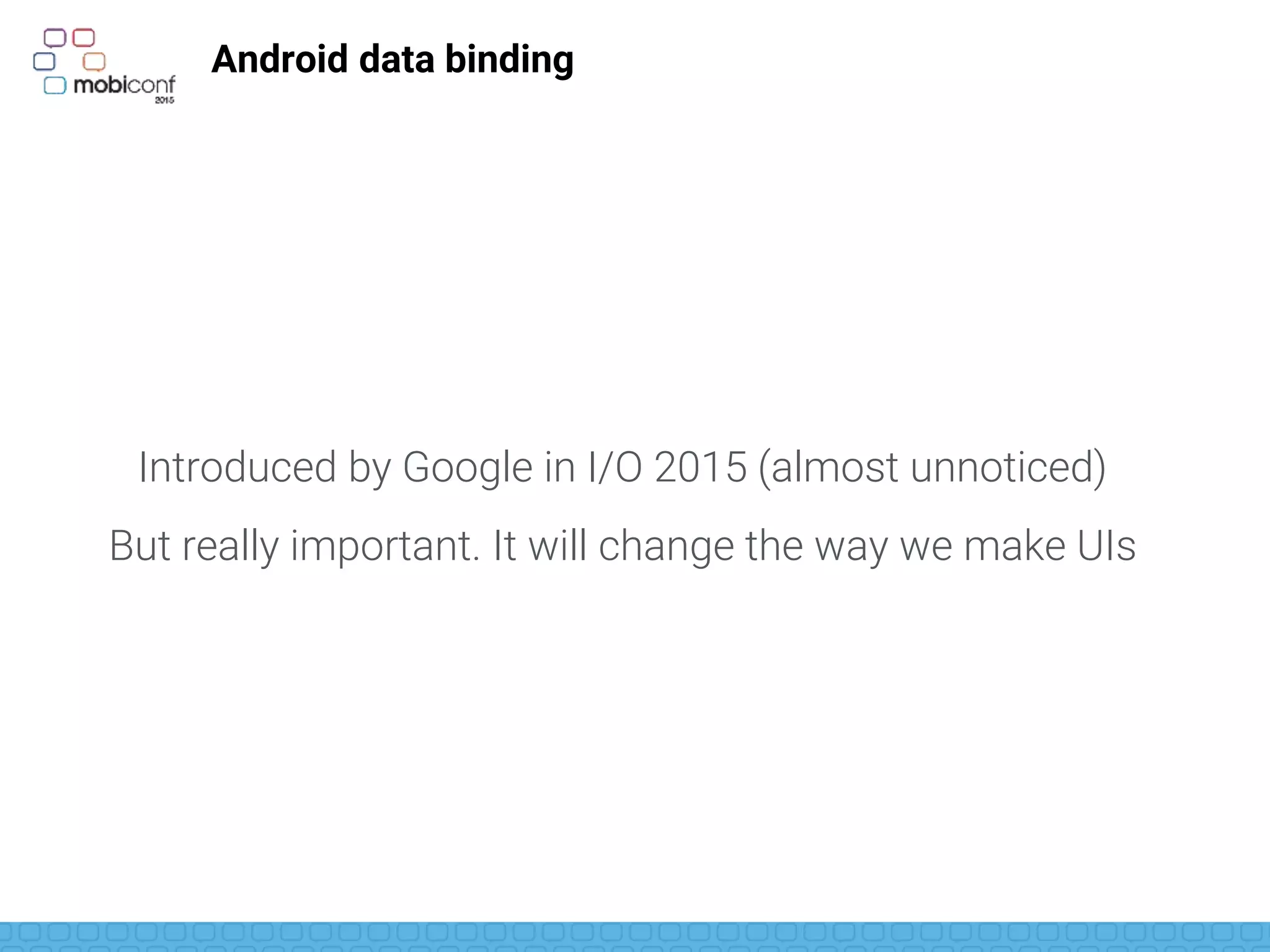

Android data binding
Introduced by Google in I/O 2015 (almost unnoticed)
But really important. It will change the way we make UIs

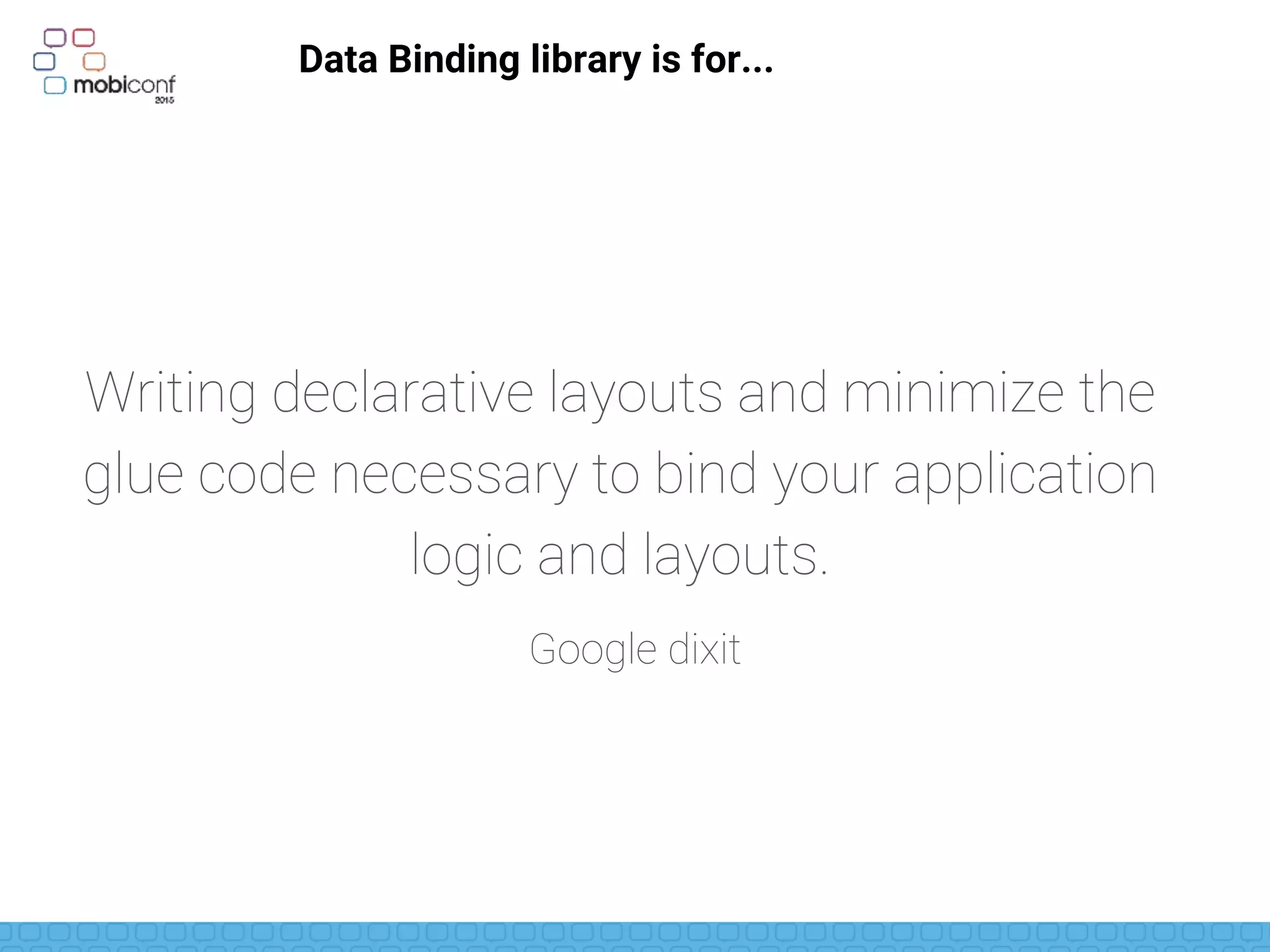

Google dixit
Writing declarative layouts and minimize the
glue code necessary to bind your application
logic and layouts.
Data Binding library is for...

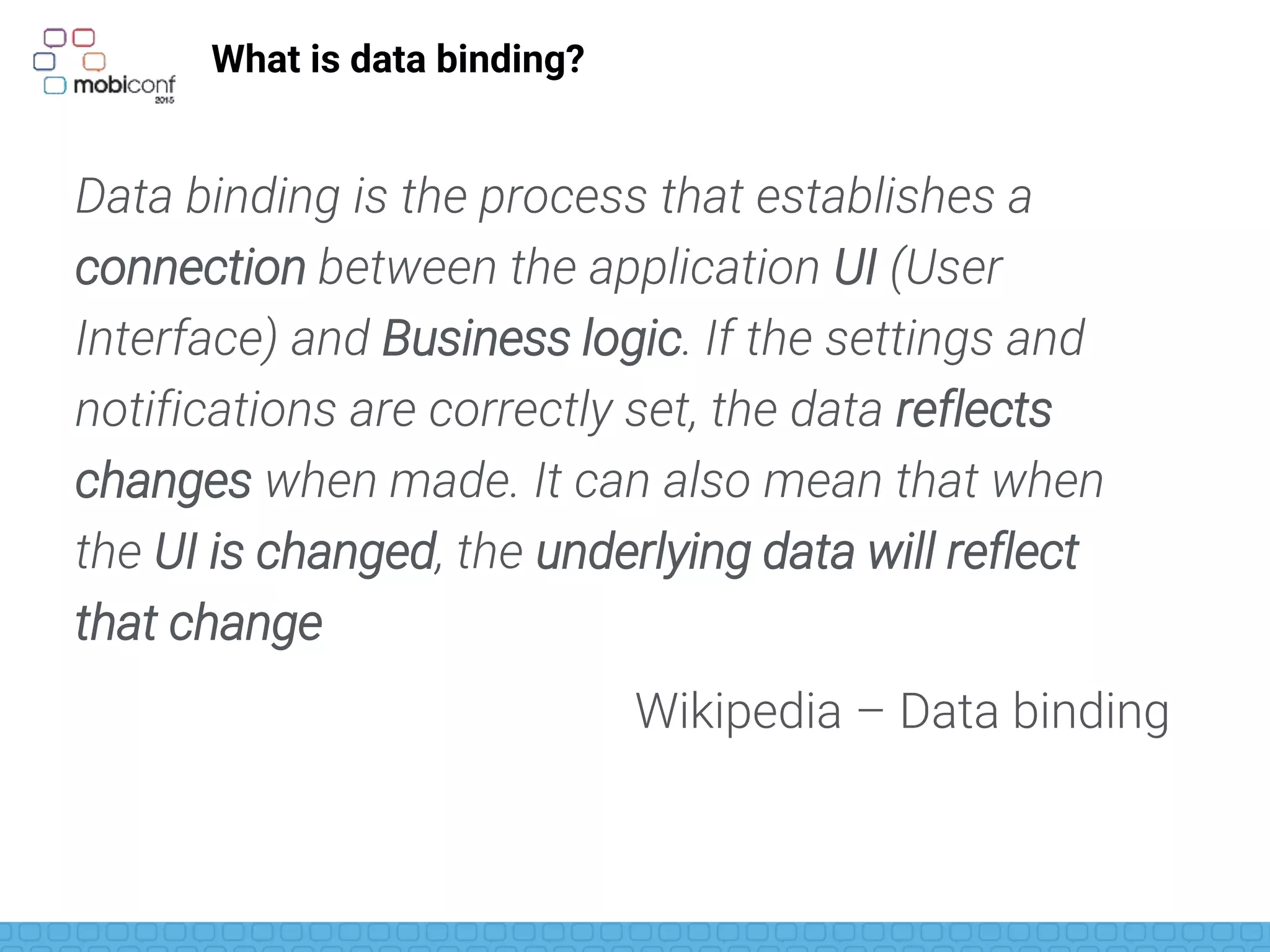

What is data binding?
Data binding is the process that establishes a
connection between the application UI (User
Interface) and Business logic. If the settings and
notifications are correctly set, the data reflects
changes when made. It can also mean that when
the UI is changed, the underlying data will reflect
that change
Wikipedia – Data binding

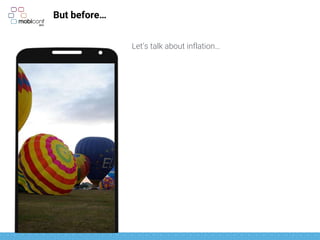

But before…
Let’s talk about inflation…

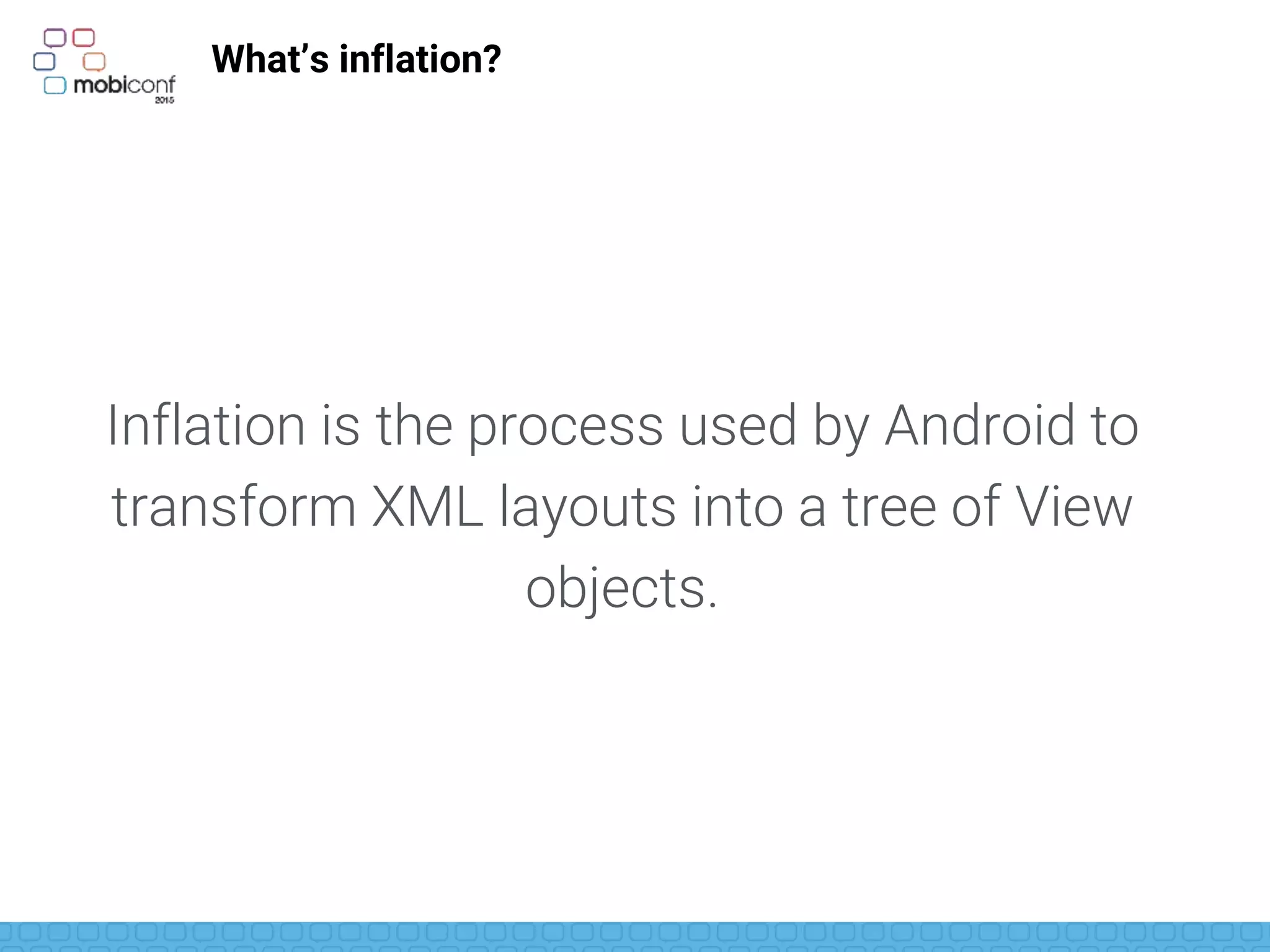

What’s inflation?
Inflation is the process used by Android to
transform XML layouts into a tree of View
objects.

z

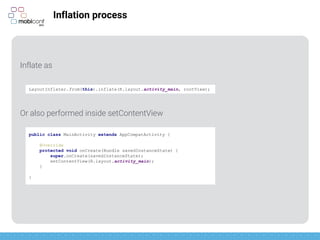

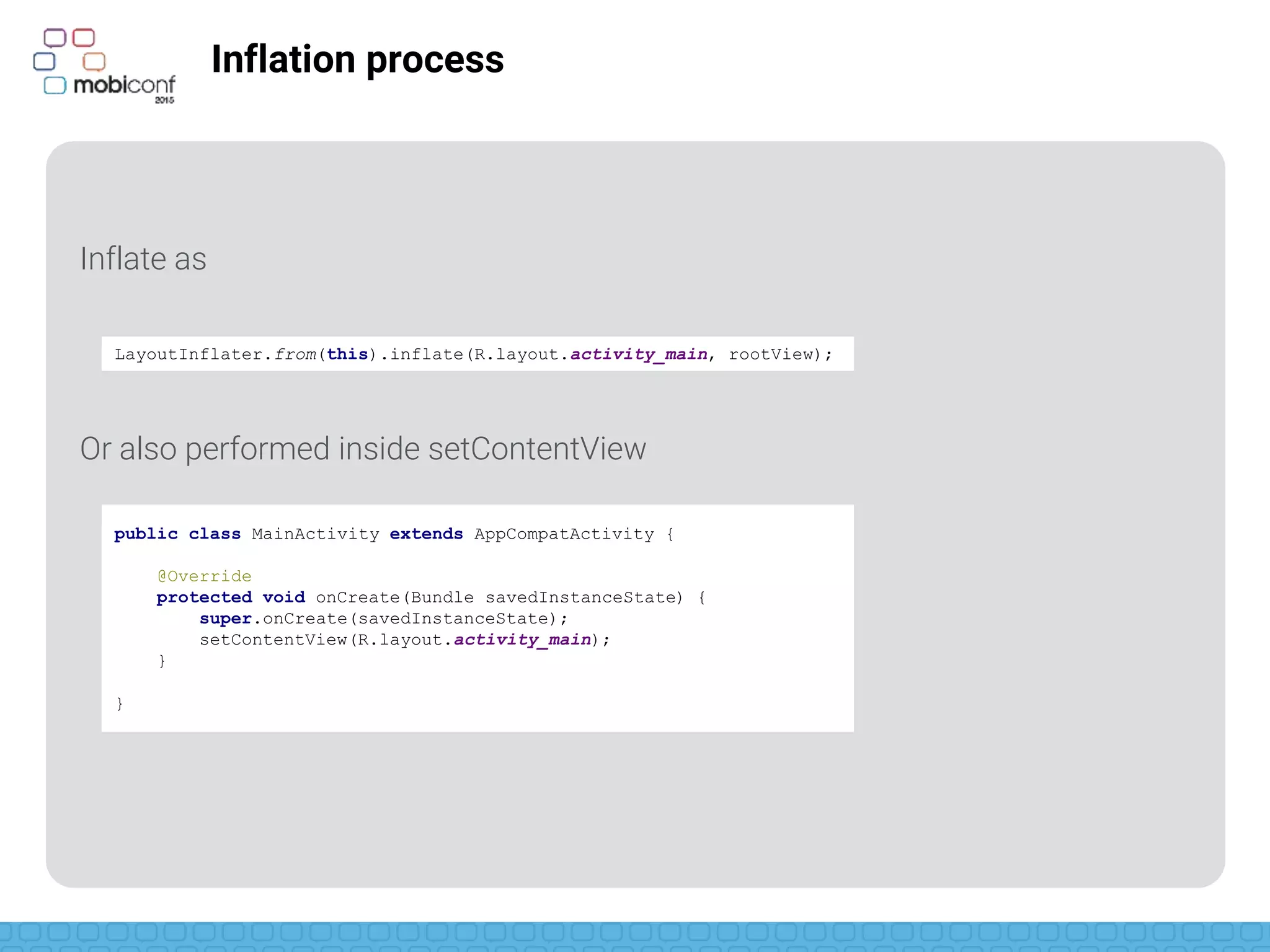

Inflation process
Inflate as
Or also performed inside setContentView
LayoutInflater.from(this).inflate(R.layout.activity_main, rootView);
public class MainActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
}
}

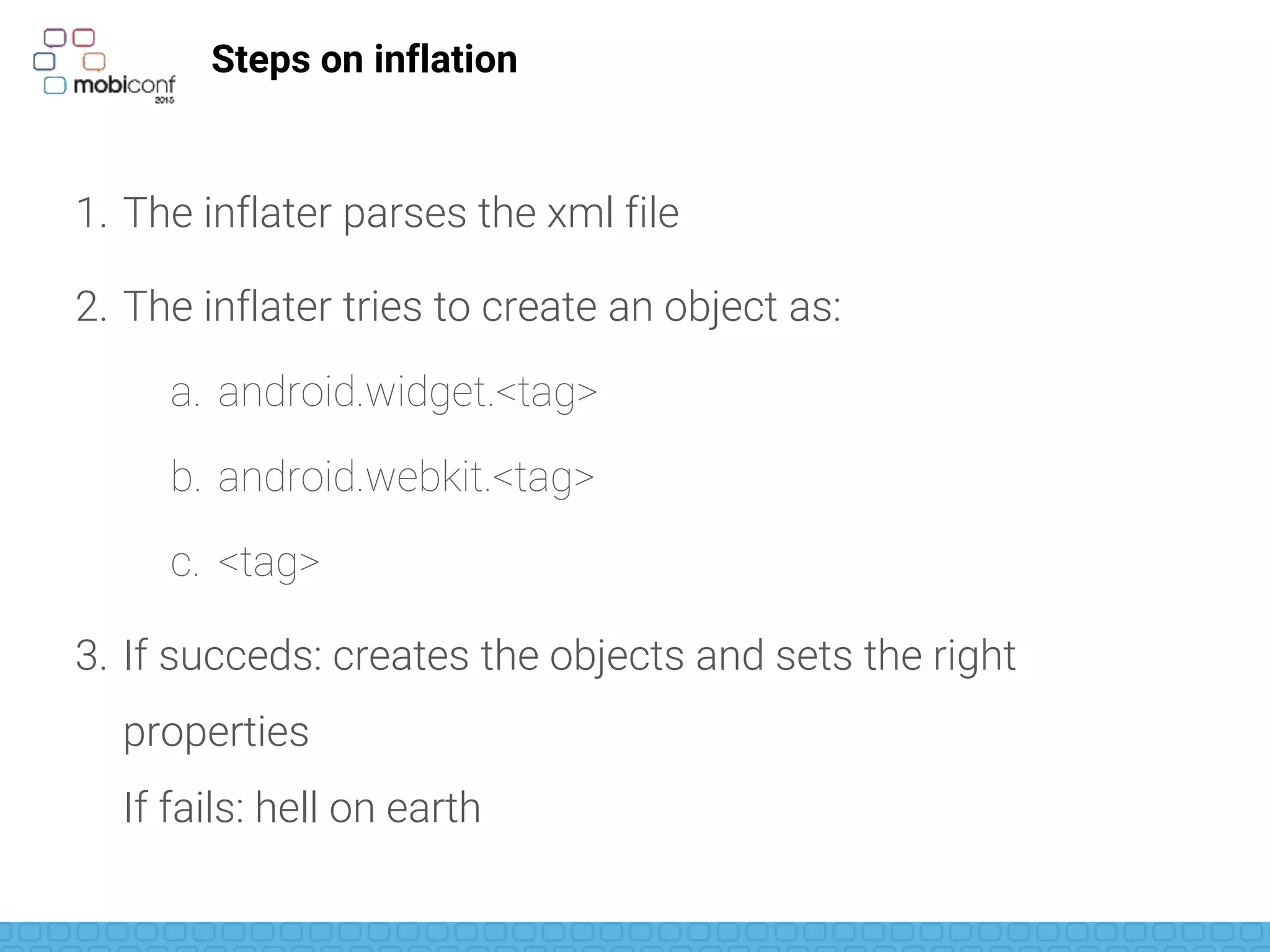

Steps on inflation
1. The inflater parses the xml file
2. The inflater tries to create an object as:
a. android.widget.<tag>
b. android.webkit.<tag>
c. <tag>
3. If succeds: creates the objects and sets the right
properties
If fails: hell on earth

z

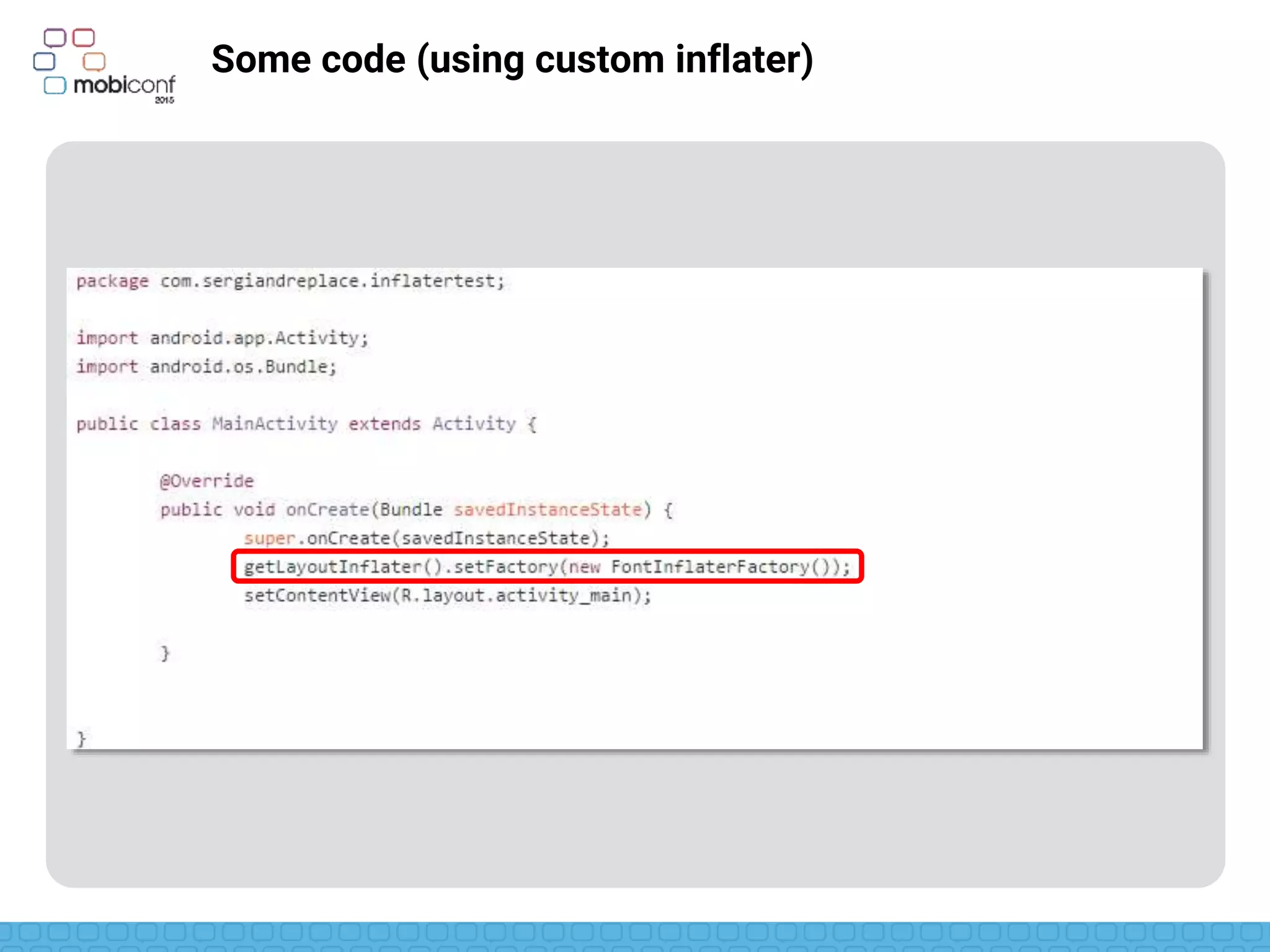

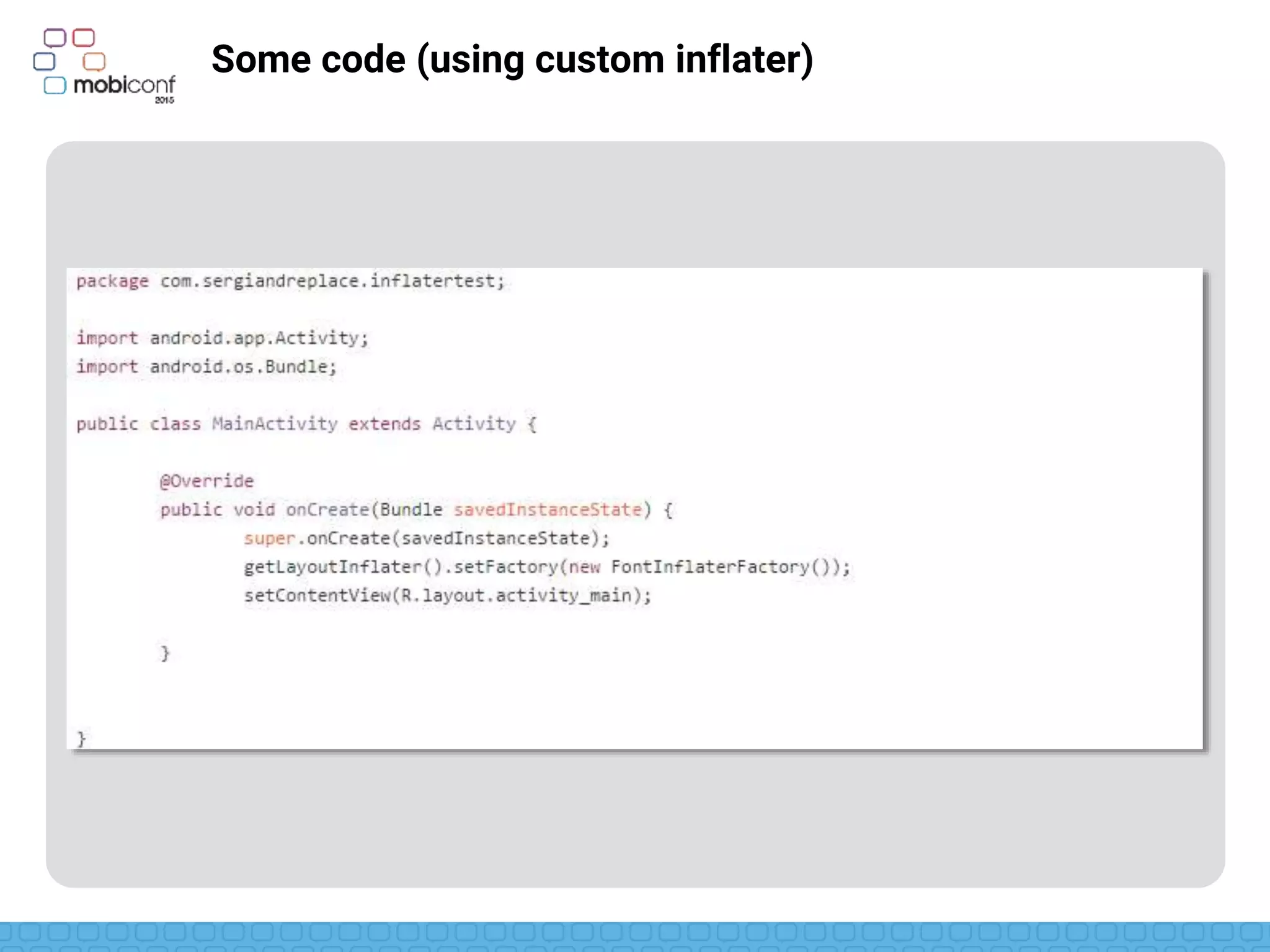

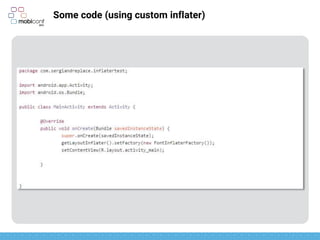

Some code (using custom inflater)
New inflater defined as InflaterFactory

z

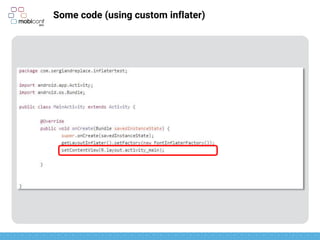

Some code (using custom inflater)
Once we set a new InflatorFactory, we are ready for inflation

z

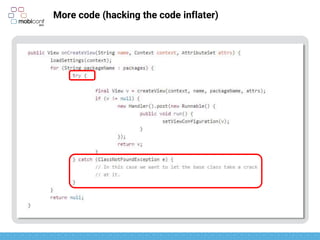

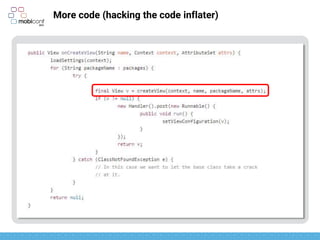

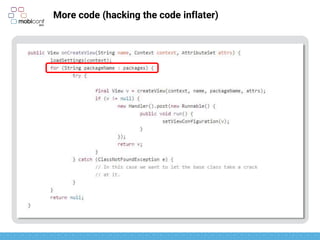

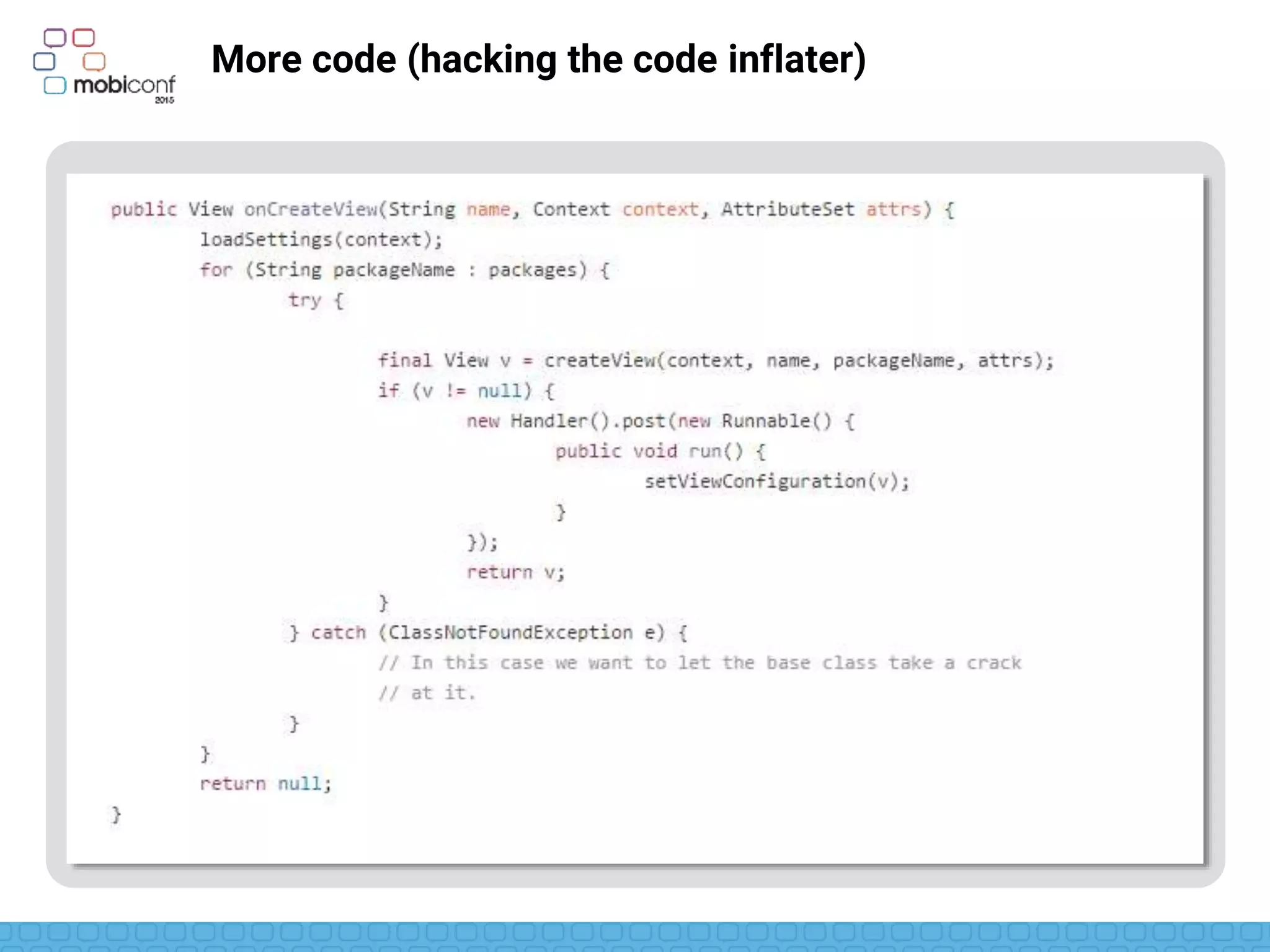

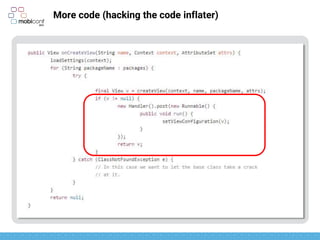

More code (hacking the code inflater)

z
More code (hacking the code inflater)
Custom code

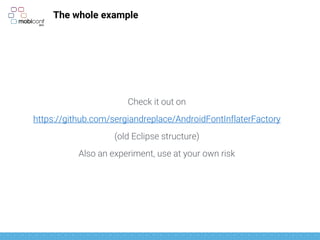

The whole example
Check it out on
https://github.com/sergiandreplace/AndroidFontInflaterFactory
(old Eclipse structure)
Also an experiment, use at your own risk

And now…
Let’s start with data binding…
…but…

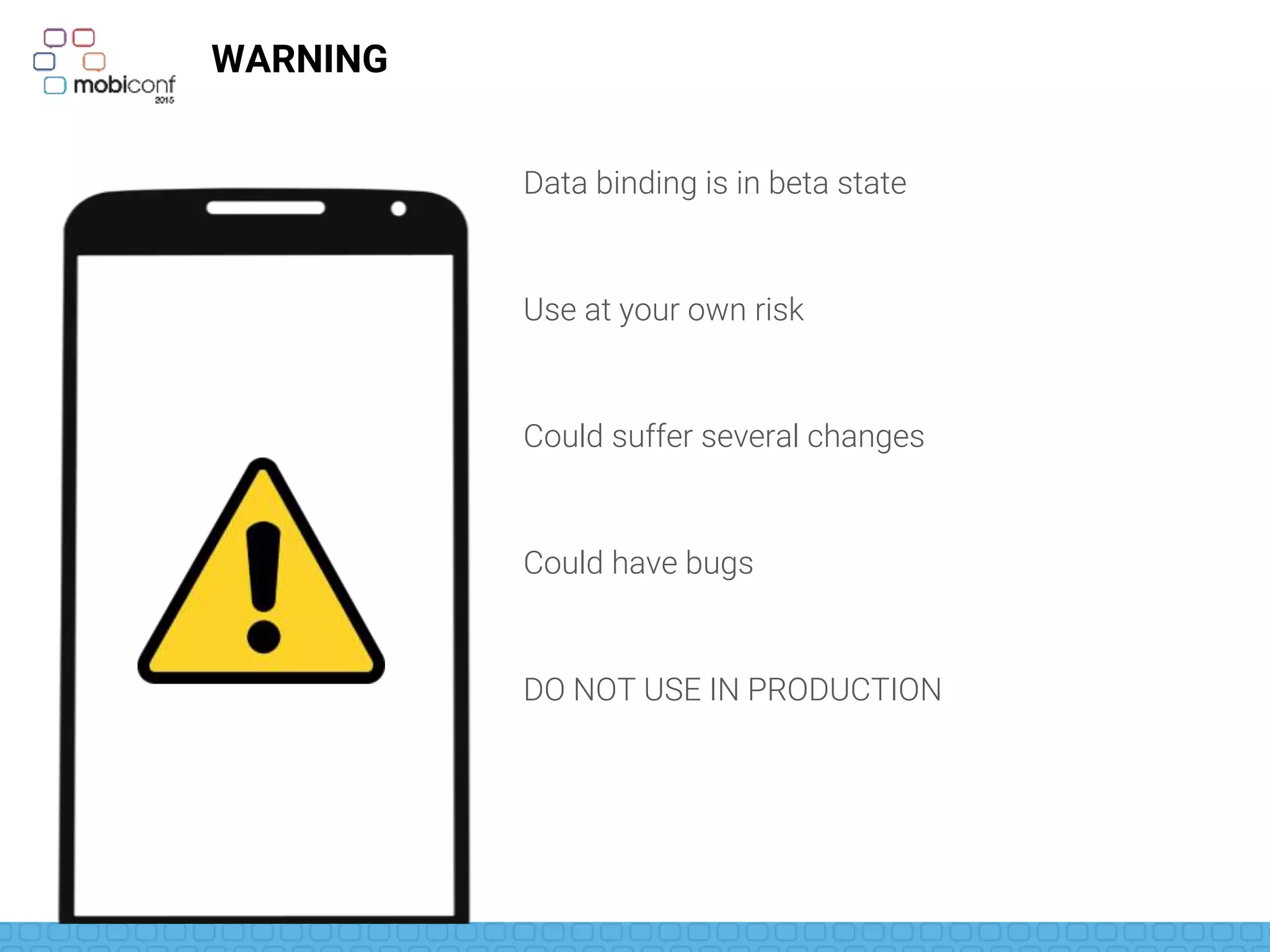

WARNING
Data binding is in beta state
Use at your own risk
Could suffer several changes
Could have bugs
DO NOT USE IN PRODUCTION

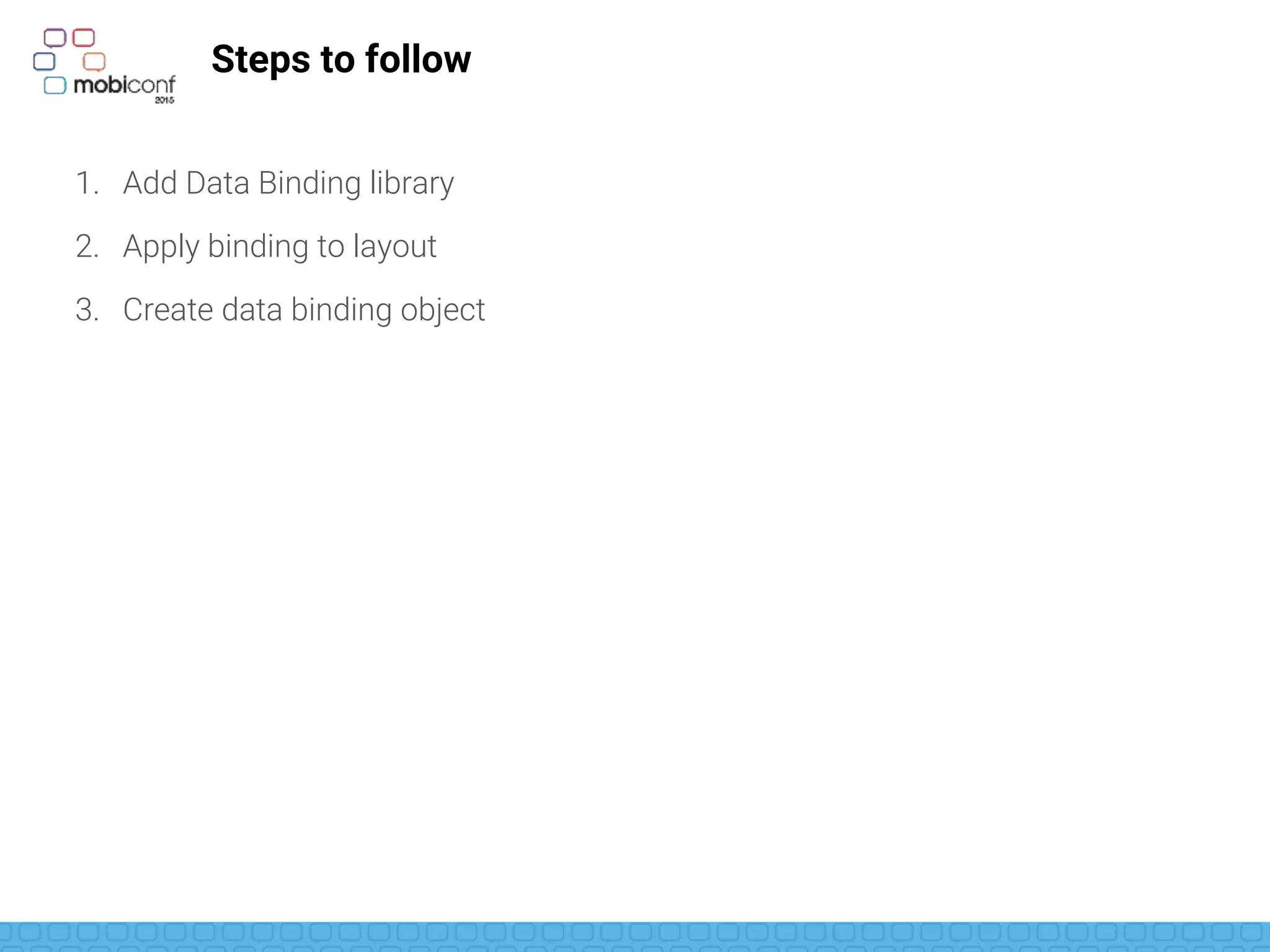

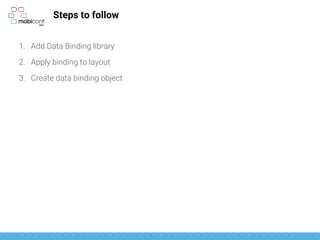

Steps to follow
1. Add Data Binding library
2. Apply binding to layout
3. Create data binding object
4. Do the binding

z

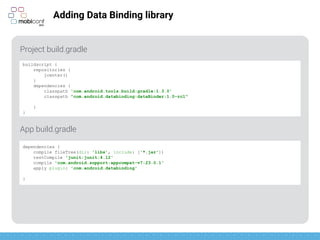

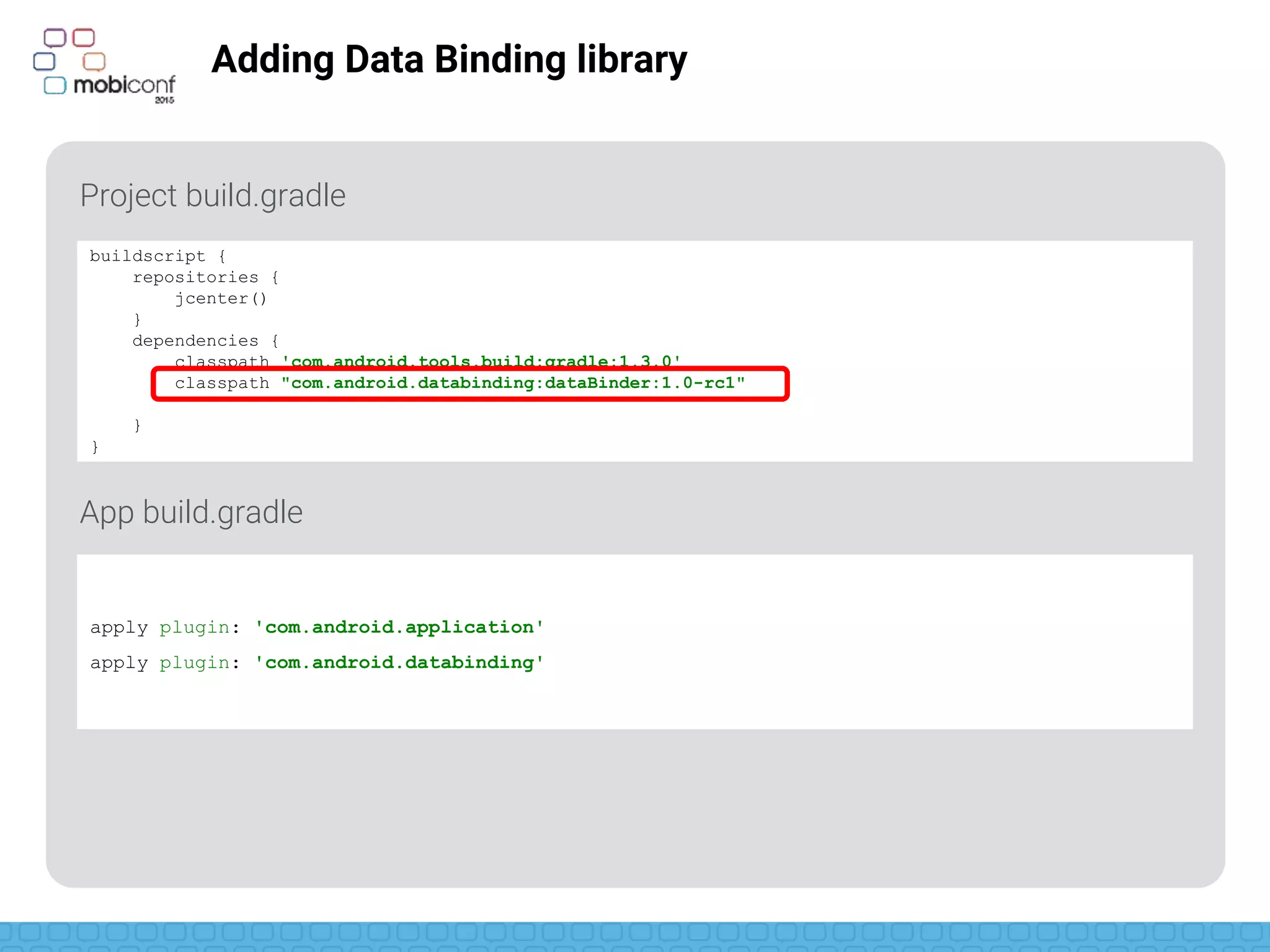

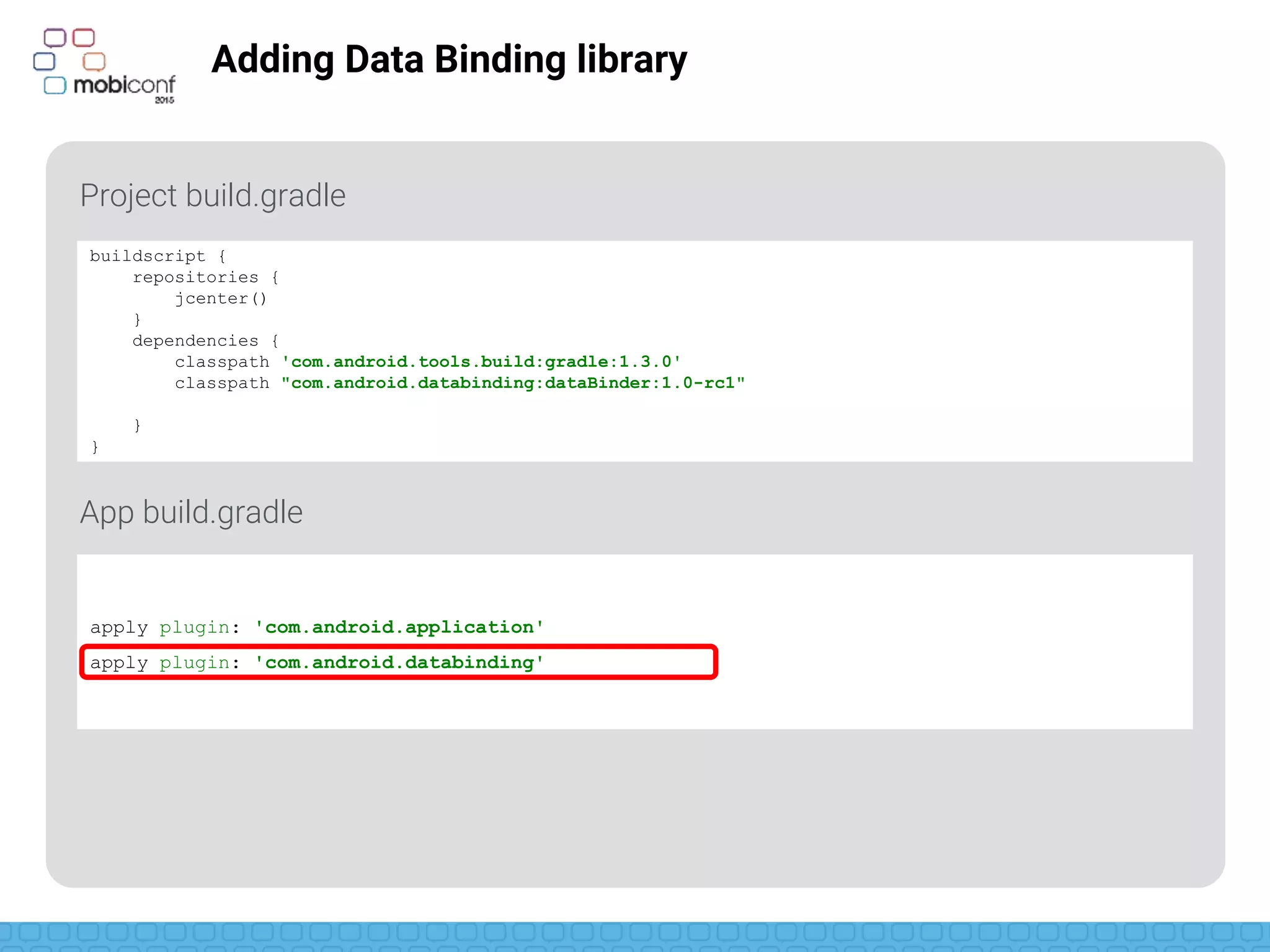

Adding Data Binding library
Project build.gradle
App build.gradle
buildscript {
repositories {
jcenter()
}
dependencies {
classpath 'com.android.tools.build:gradle:1.3.0'
classpath "com.android.databinding:dataBinder:1.0-rc1"
}
}
apply plugin: 'com.android.application'
apply plugin: 'com.android.databinding'

z
App build.gradle
buildscript {
repositories {
jcenter()
}
dependencies {
}
}

z

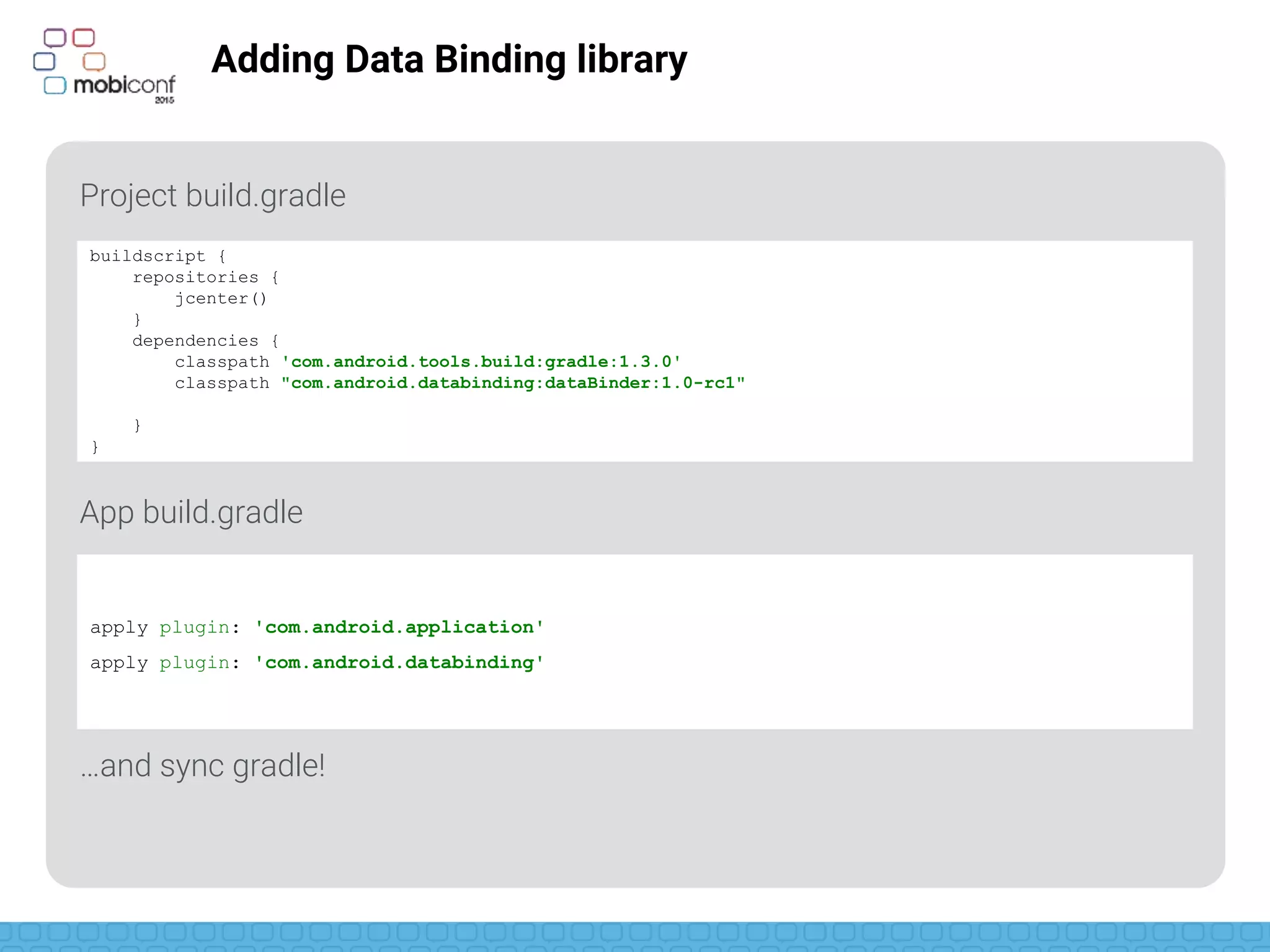

App build.gradle
…and sync gradle!
buildscript {
repositories {
jcenter()
}
dependencies {
}
}

z

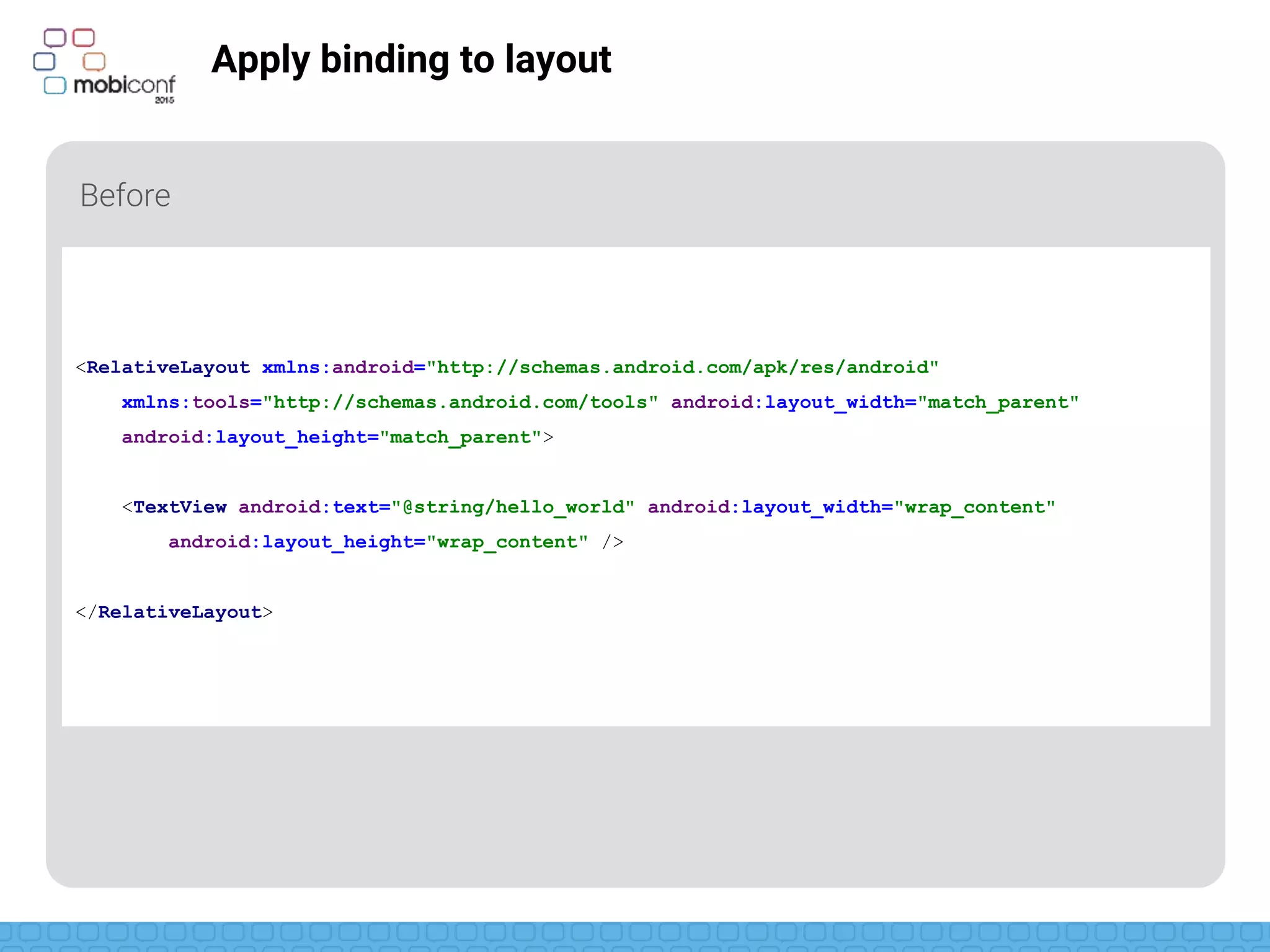

Apply binding to layout
Before
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView android:text="@string/hello_world" android:layout_width="wrap_content"
android:layout_height="wrap_content" />
</RelativeLayout>

z

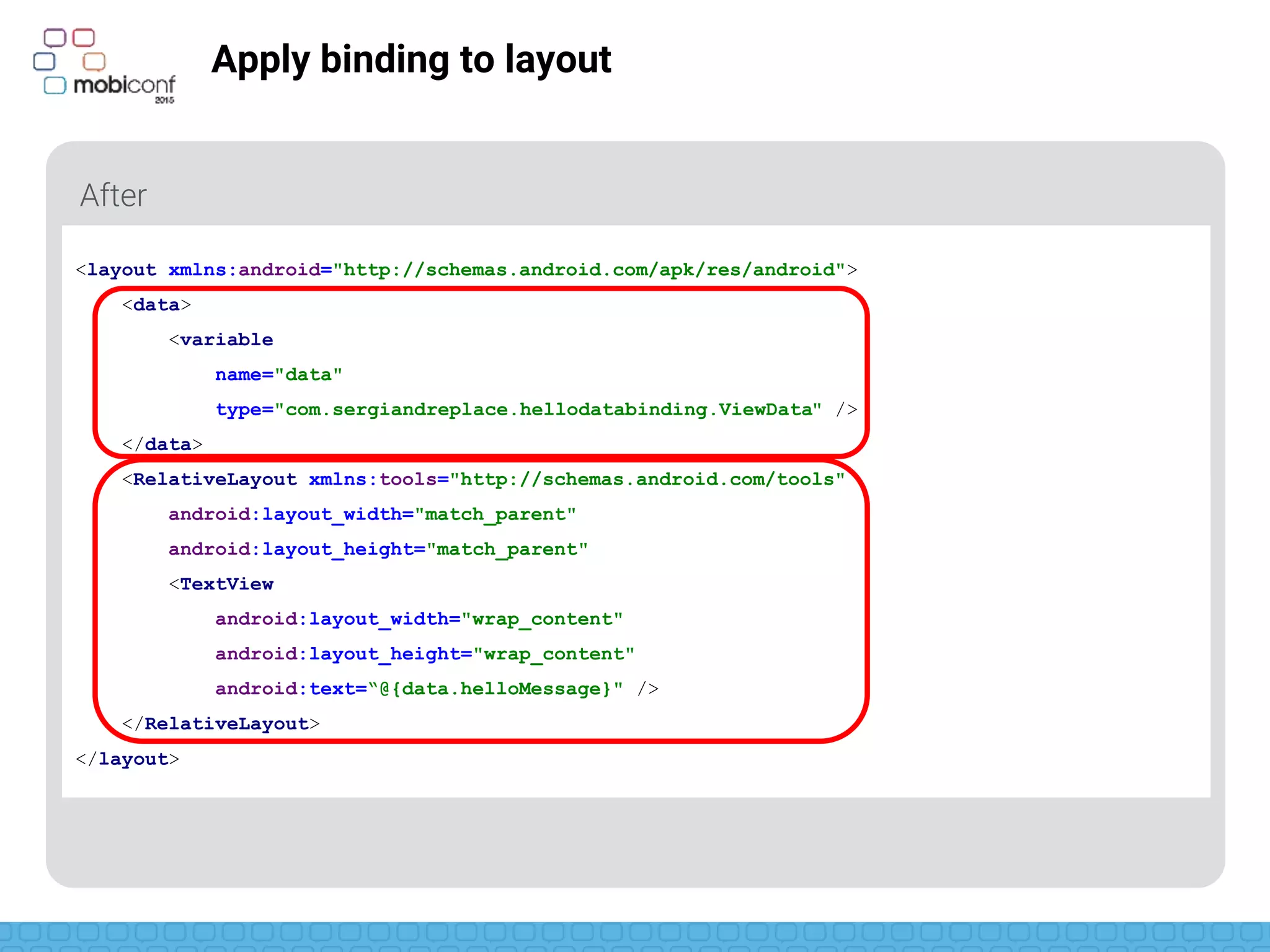

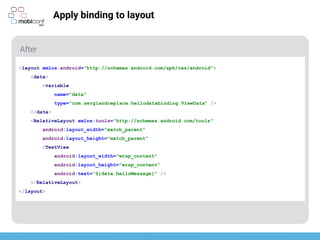

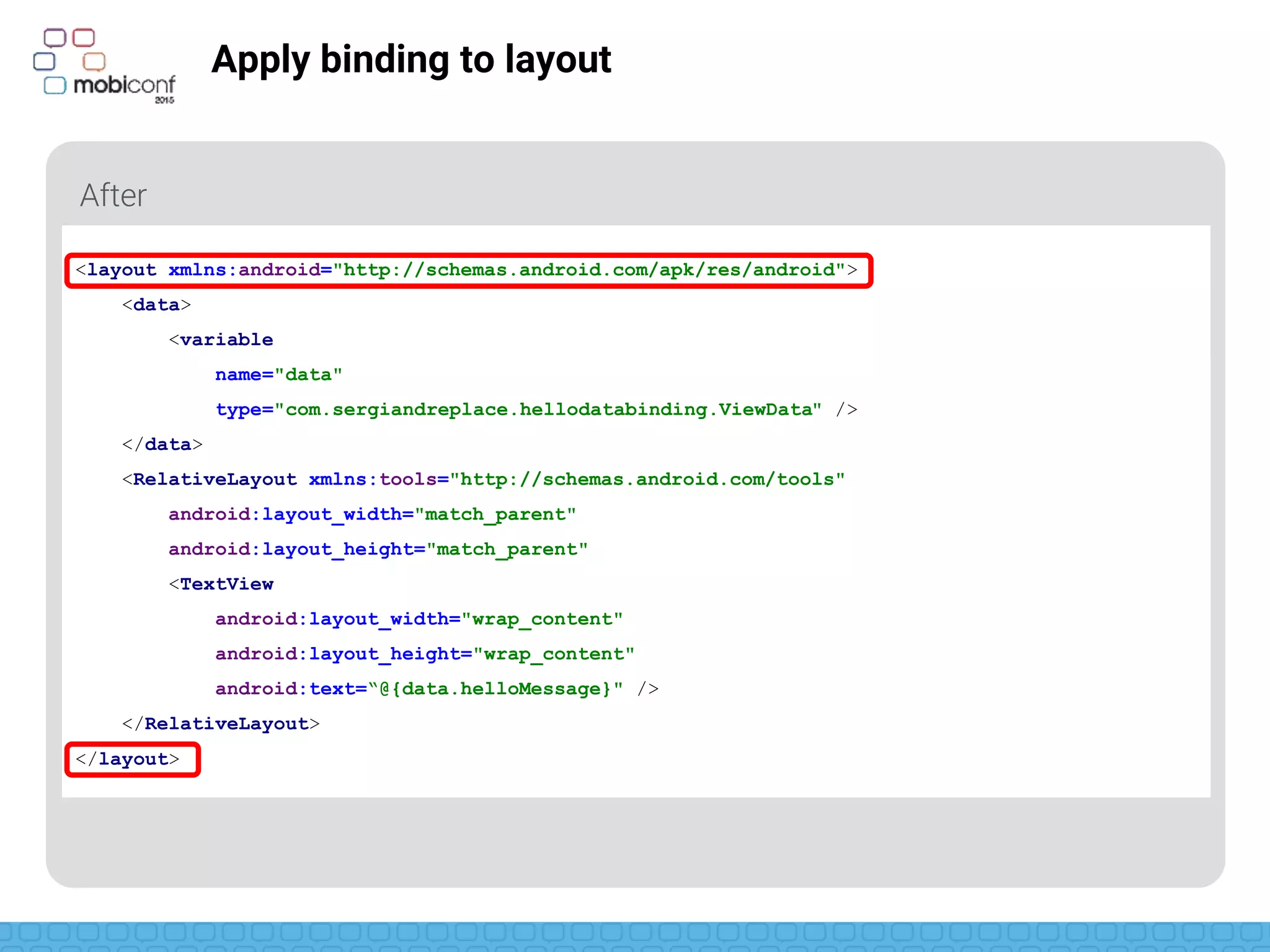

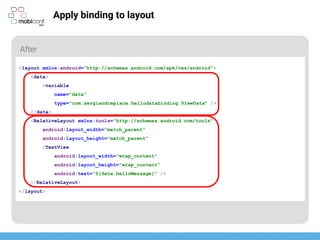

After
<layout xmlns:android="http://schemas.android.com/apk/res/android">
<data>
<variable
name="data"
type="com.sergiandreplace.hellodatabinding.ViewData" />
</data>
<RelativeLayout xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text=“@{data.helloMessage}" />
</RelativeLayout>
</layout>

z

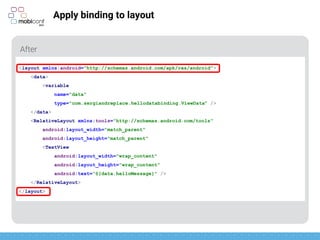

New root tag <layout>
<data>
<variable
name="data"
</data>
<TextView
</RelativeLayout>
</layout>

z
Two parts: data and layout itself
<data>
<variable
name="data"
</data>
<TextView
</RelativeLayout>
</layout>

z

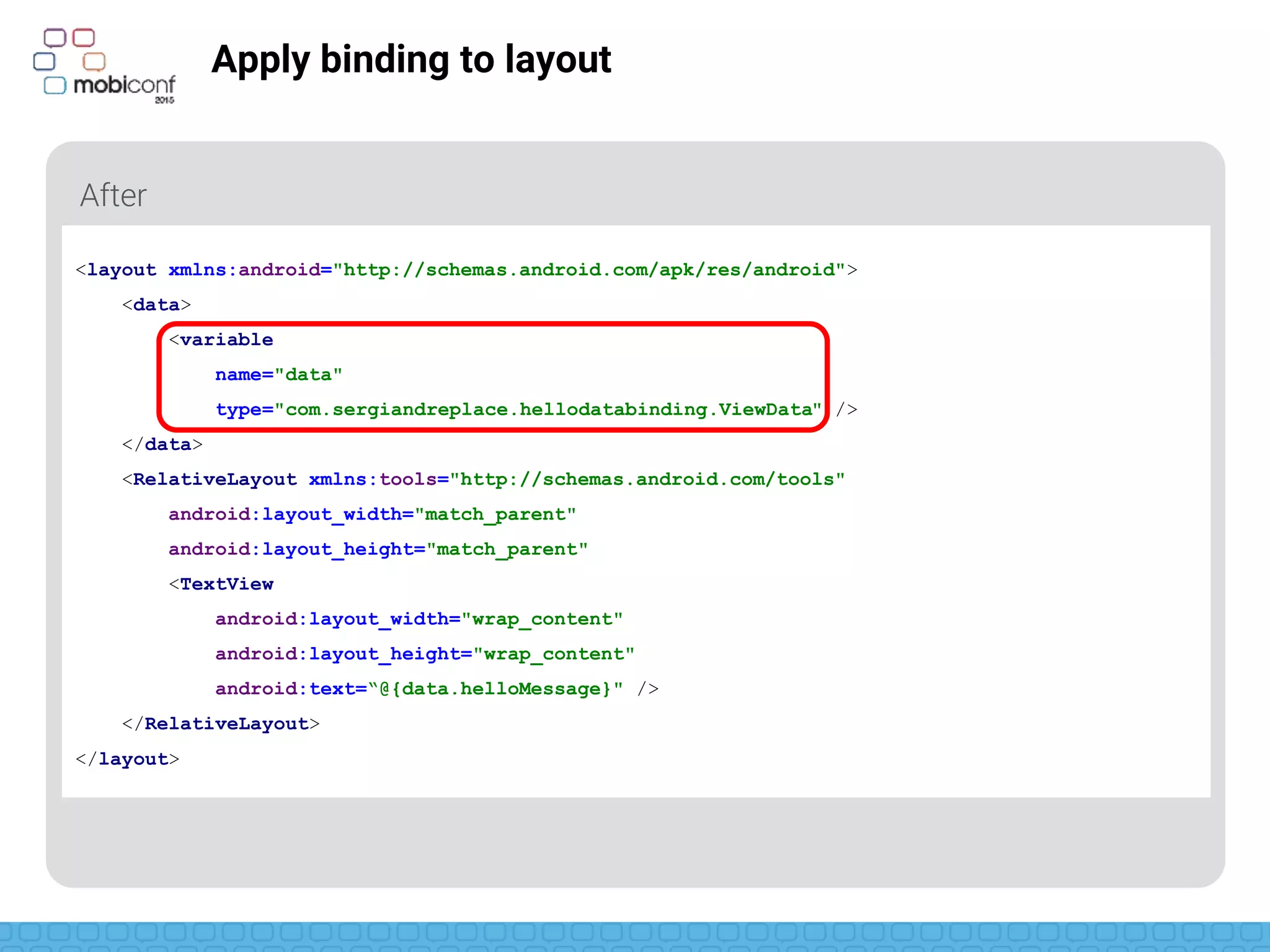

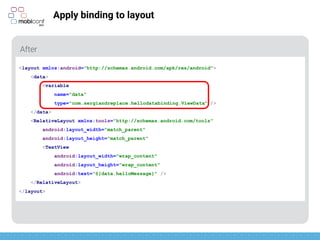

Name of object to be injected and type of the object
<data>
<variable
name="data"
</data>
<TextView
</RelativeLayout>
</layout>

z

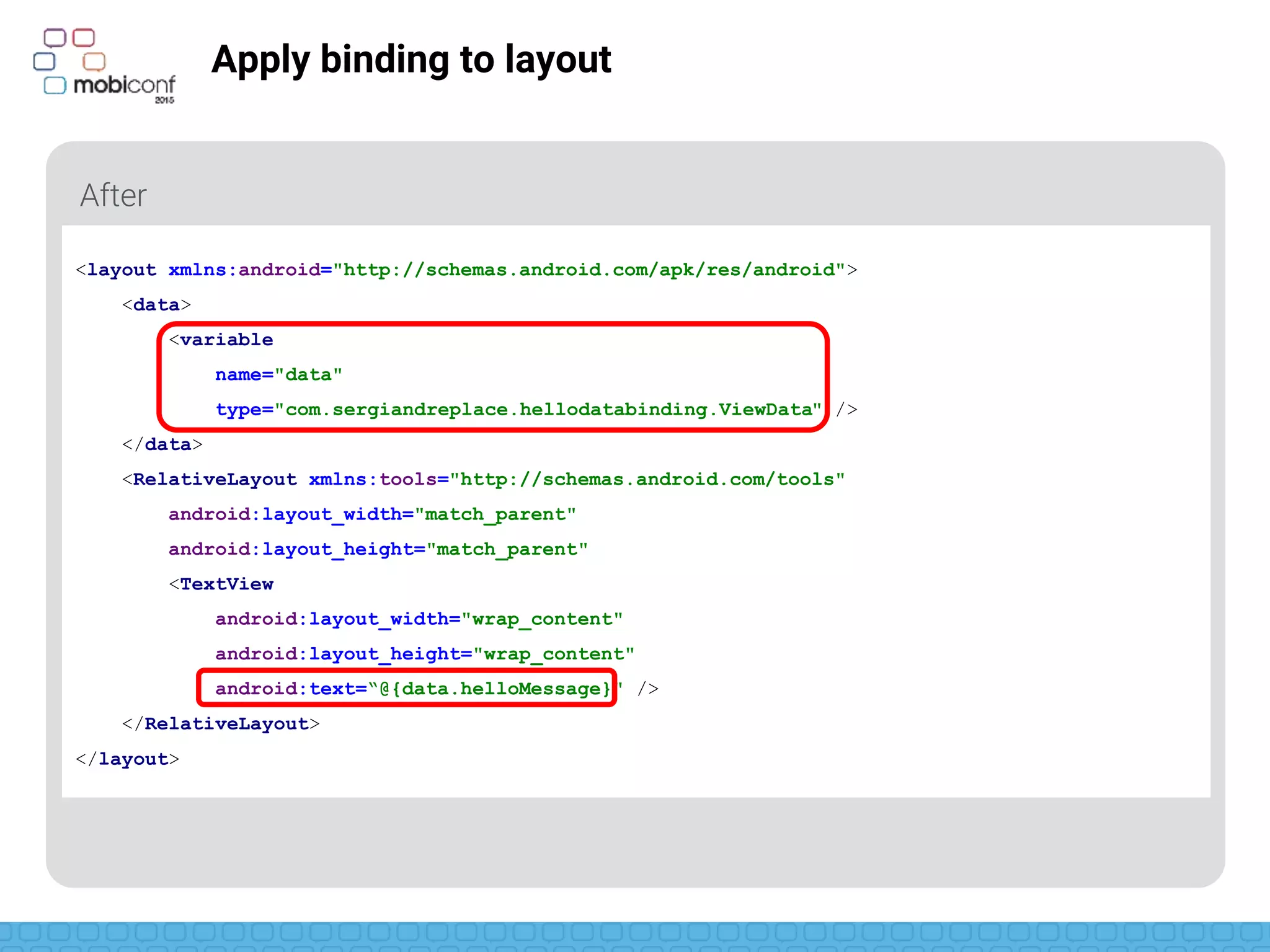

Binded property of the object
<data>
<variable
name="data"
</data>
<TextView
</RelativeLayout>
</layout>

z

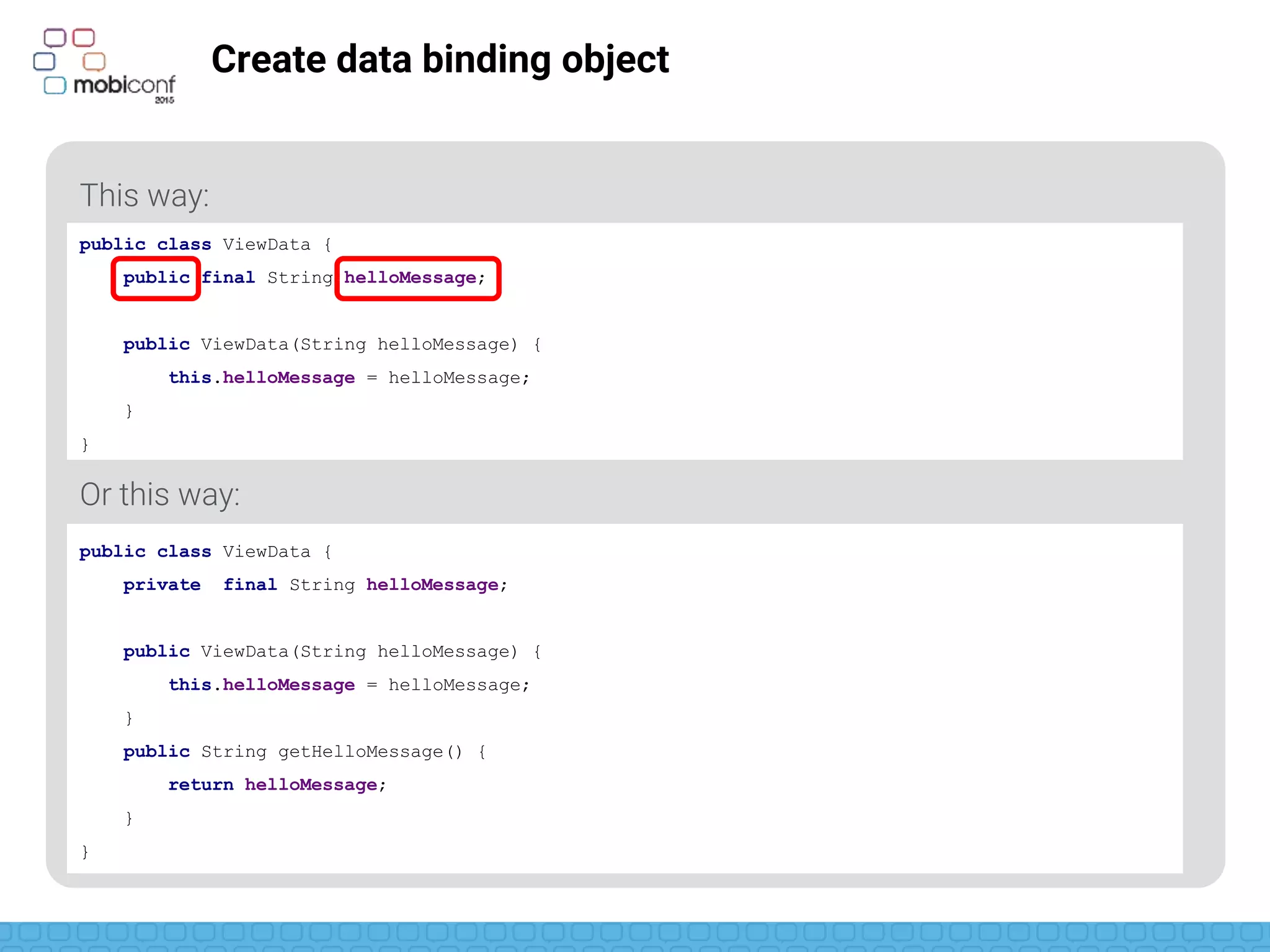

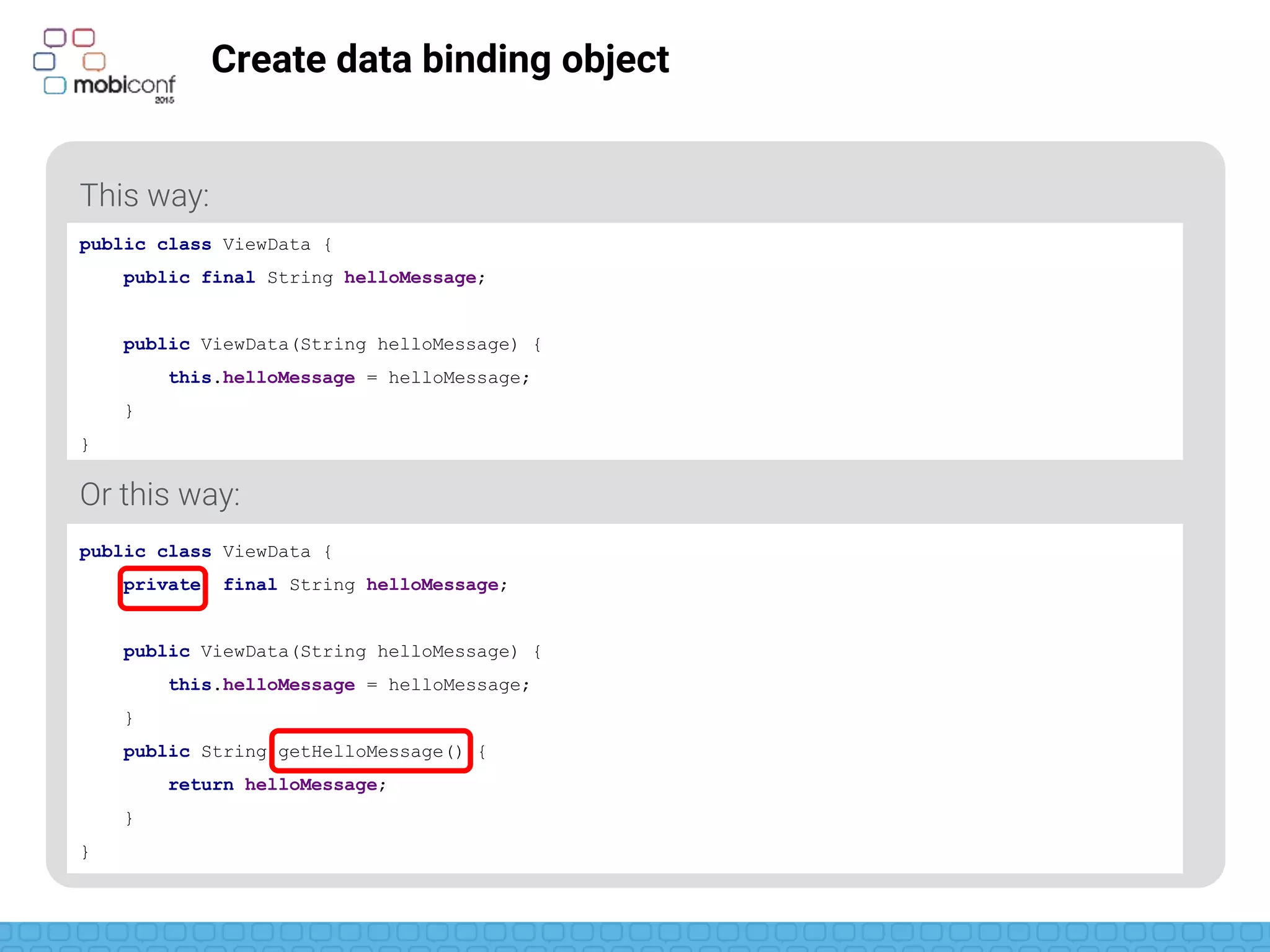

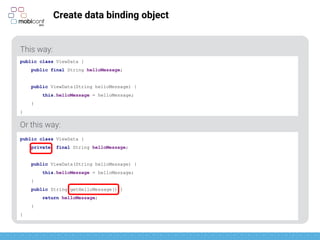

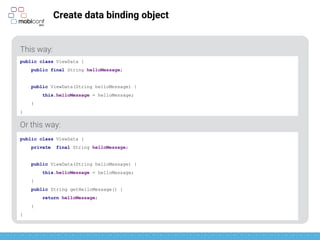

Create data binding object
This way:
Or this way:
public class ViewData {
public final String helloMessage;
public ViewData(String helloMessage) {
this.helloMessage = helloMessage;
}
}
public class ViewData {
private final String helloMessage;
public ViewData(String helloMessage) {
this.helloMessage = helloMessage;
}
public String getHelloMessage() {
return helloMessage;
}
}

z

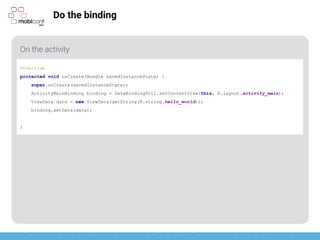

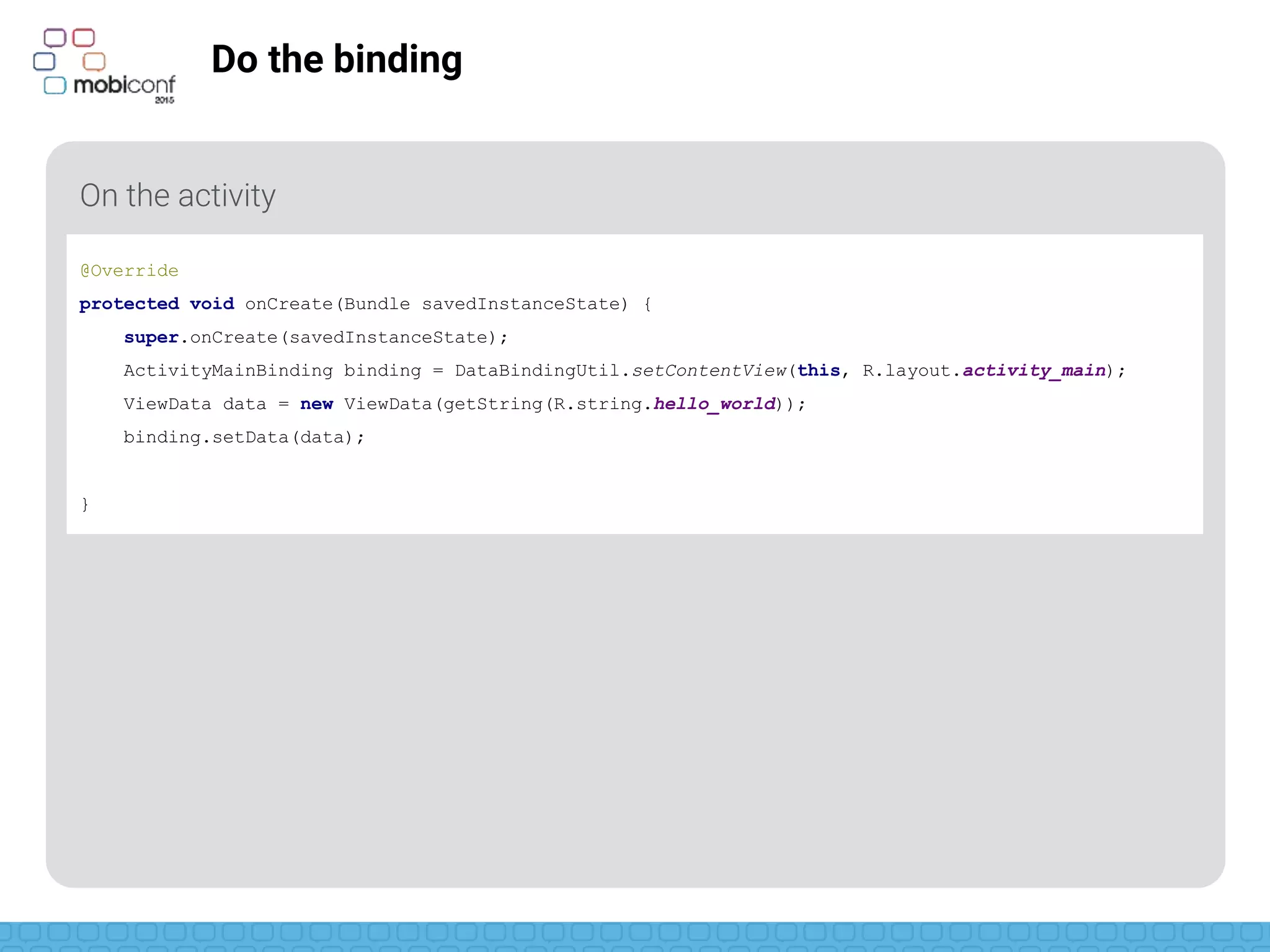

Do the binding
On the activity
@Override
ActivityMainBinding binding = DataBindingUtil.setContentView(this, R.layout.activity_main);
ViewData data = new ViewData(getString(R.string.hello_world));
binding.setData(data);
}

z

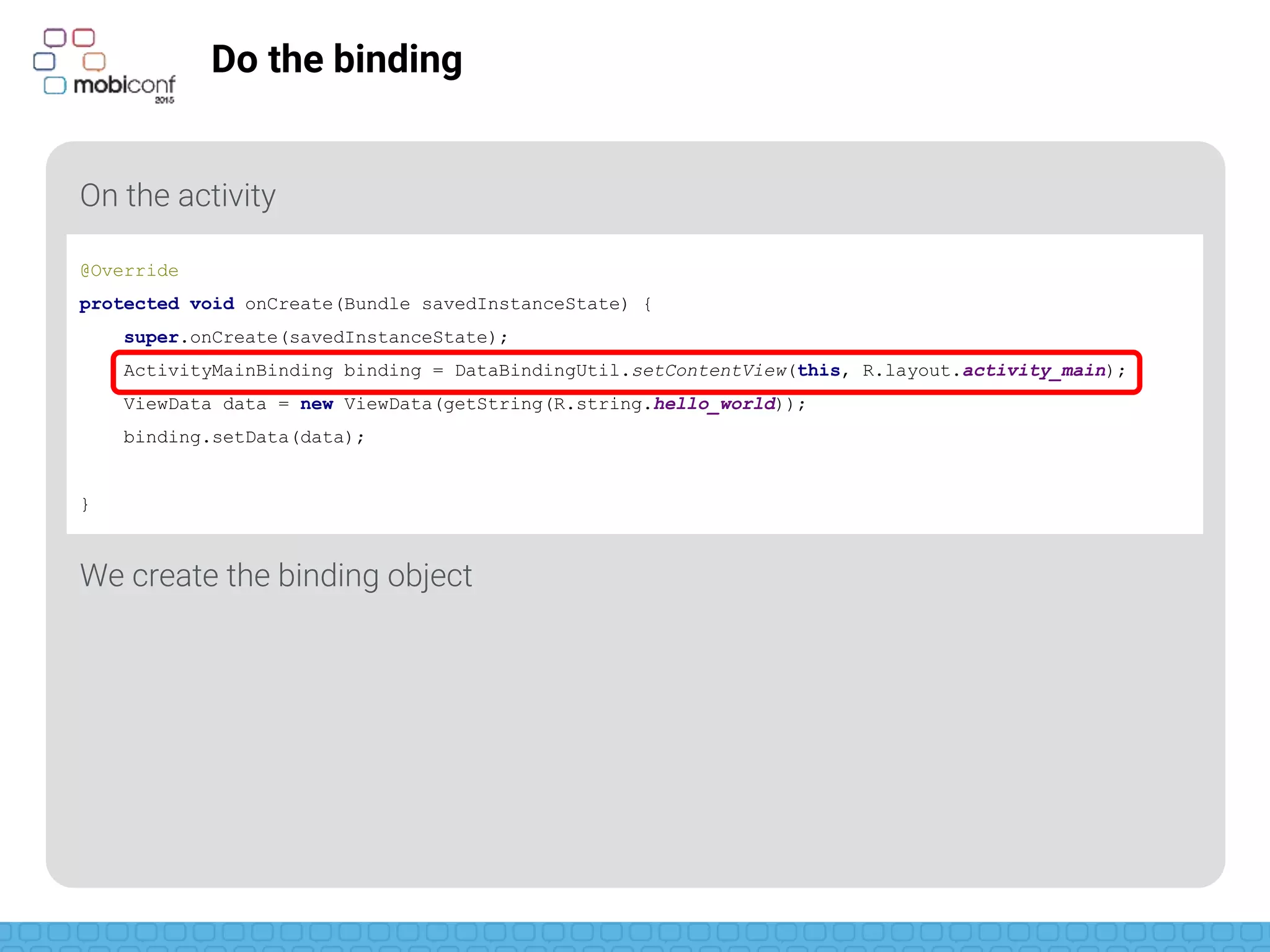

Do the binding
On the activity
We create the binding object
@Override
}

z

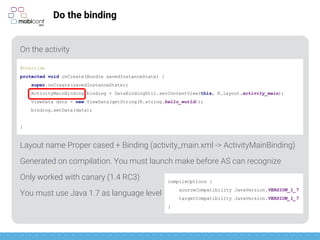

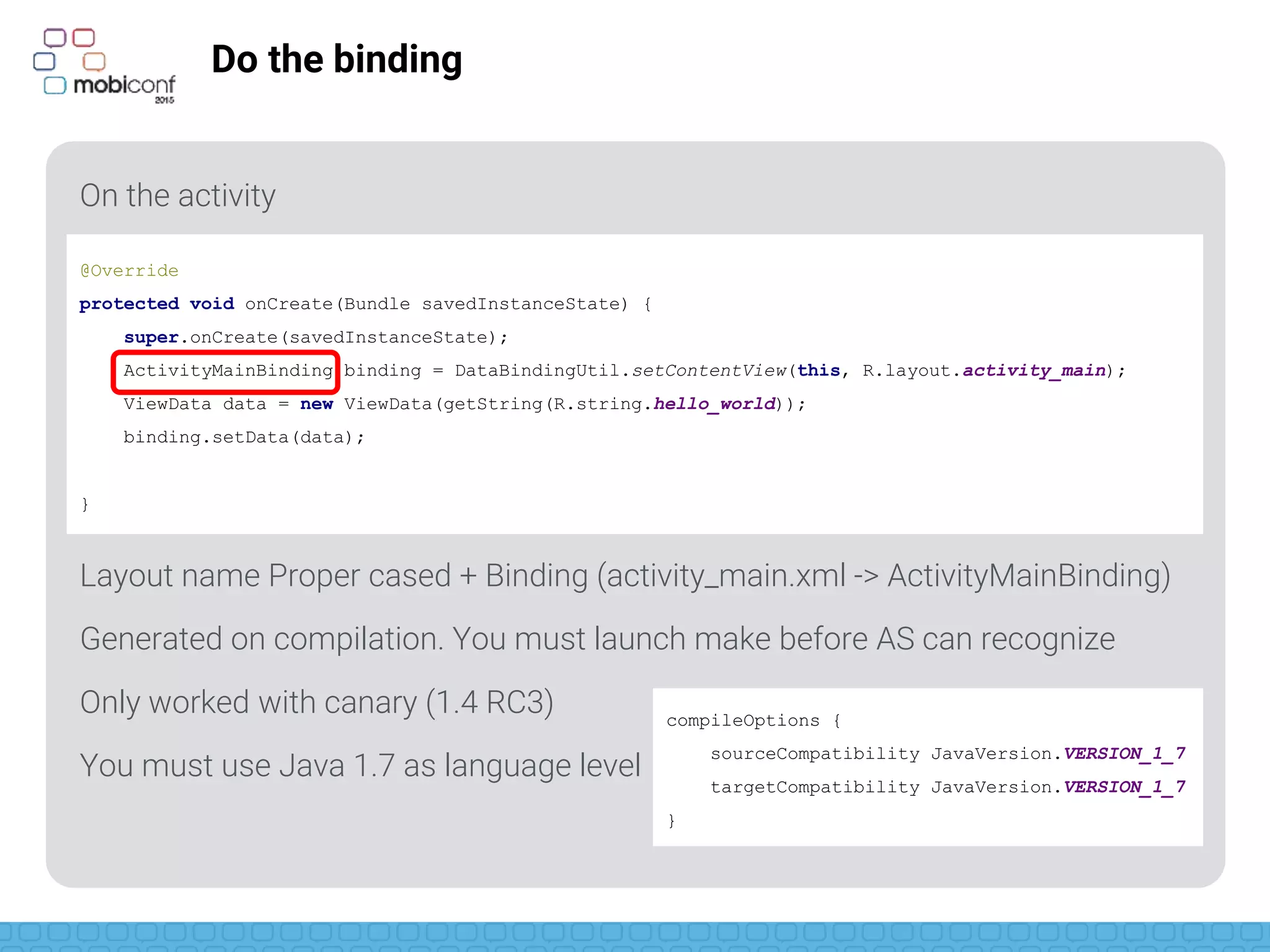

Do the binding
On the activity
Layout name Proper cased + Binding (activity_main.xml -> ActivityMainBinding)
Generated on compilation. You must launch make before AS can recognize
Only worked with canary (1.4 RC3)
1.4 published yesterday (it should work)
You must use Java 1.7 as language level
@Override
}
compileOptions {
sourceCompatibility JavaVersion.VERSION_1_7
targetCompatibility JavaVersion.VERSION_1_7
}

z

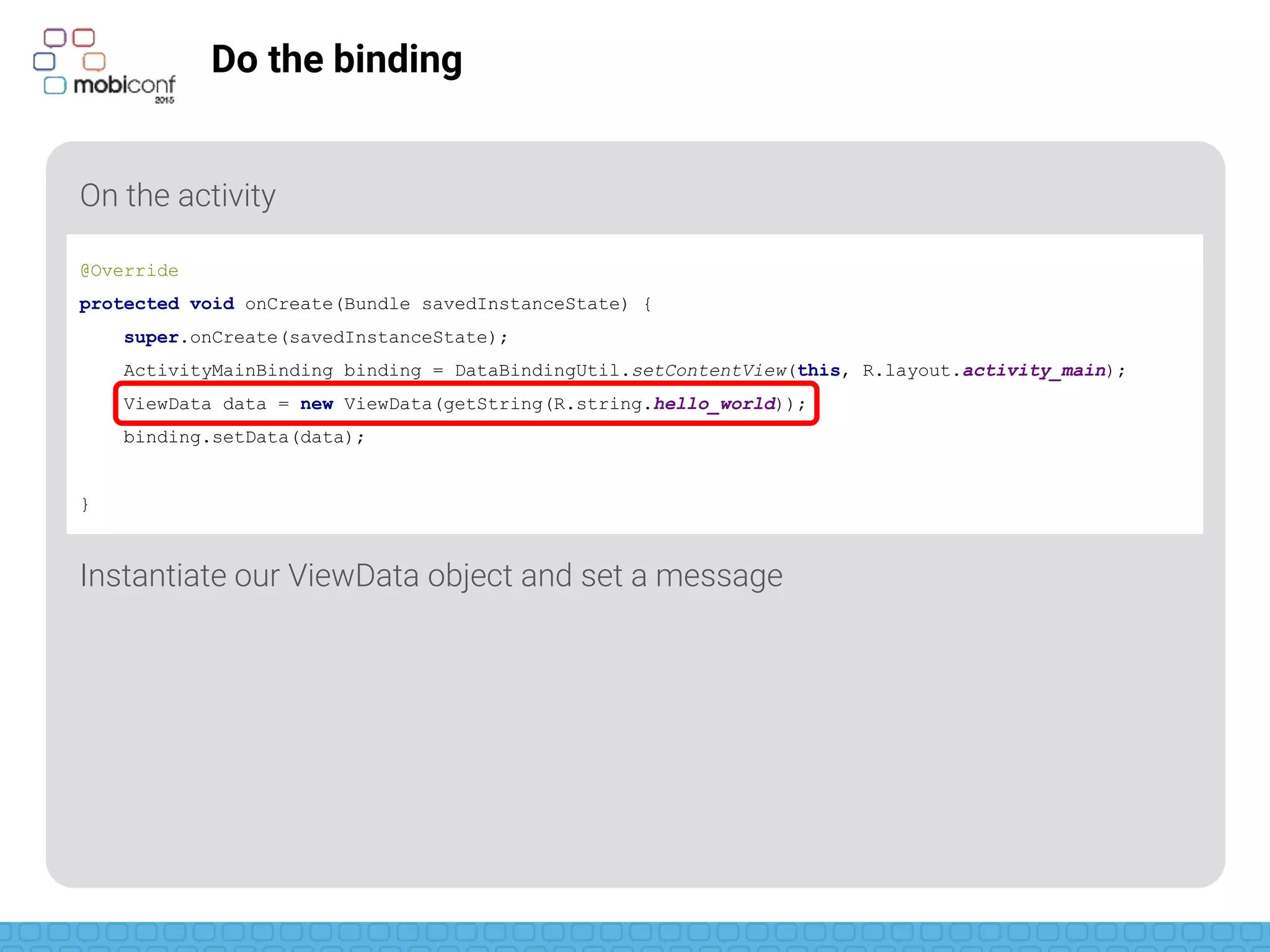

Do the binding
On the activity
Instantiate our ViewData object and set a message
@Override
}

z

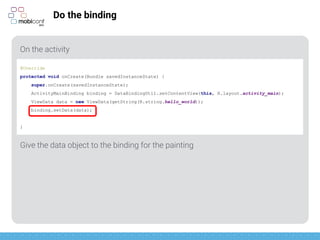

Do the binding
On the activity
Give the data object to the binding for the painting
@Override
}

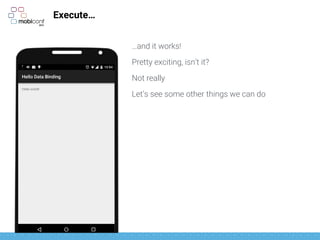

Execute…
…and it works!
Pretty exciting, isn’t it?
Not really
Let’s see some other things we can do

z

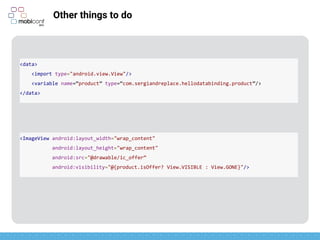

Other things to do
<ImageView android:layout_width="wrap_content"
android:src="@drawable/ic_offer”
android:visibility="@{product.isOffer? View.VISIBLE : View.GONE}"/>
<data>
<import type="android.view.View"/>
<variable name=“product” type=“com.sergiandreplace.hellodatabinding.product”/>
</data>

z

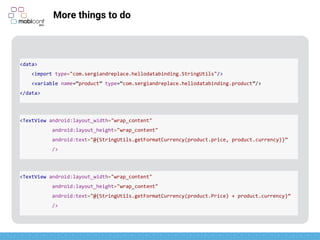

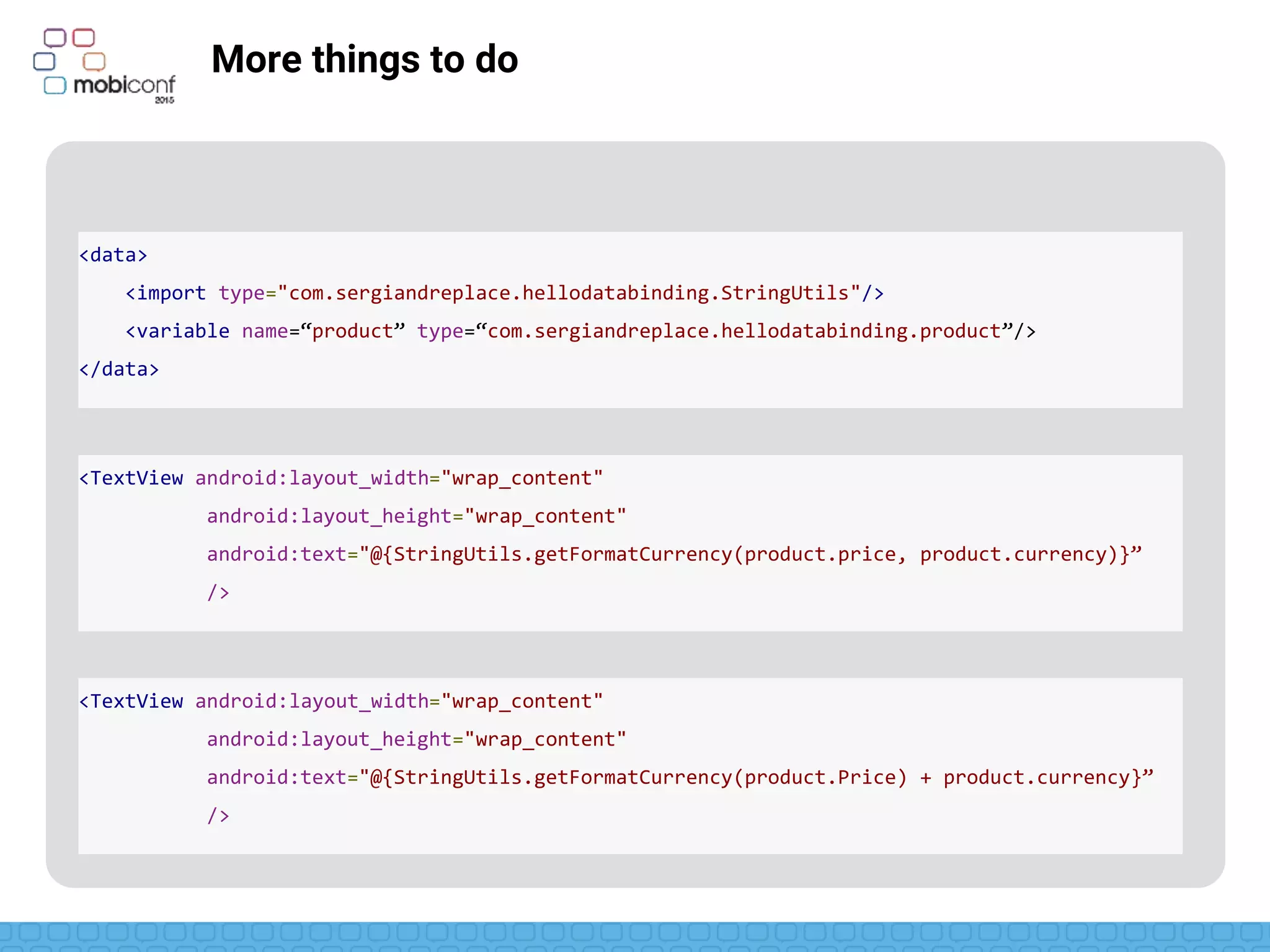

More things to do
<TextView android:layout_width="wrap_content"
android:text="@{StringUtils.getFormatCurrency(product.price, product.currency)}”
/>
<data>
<import type="com.sergiandreplace.hellodatabinding.StringUtils"/>
<variable name=“product” type=“com.sergiandreplace.hellodatabinding.product”/>
</data>
android:text="@{StringUtils.getFormatCurrency(product.Price) + product.currency}”
/>

z

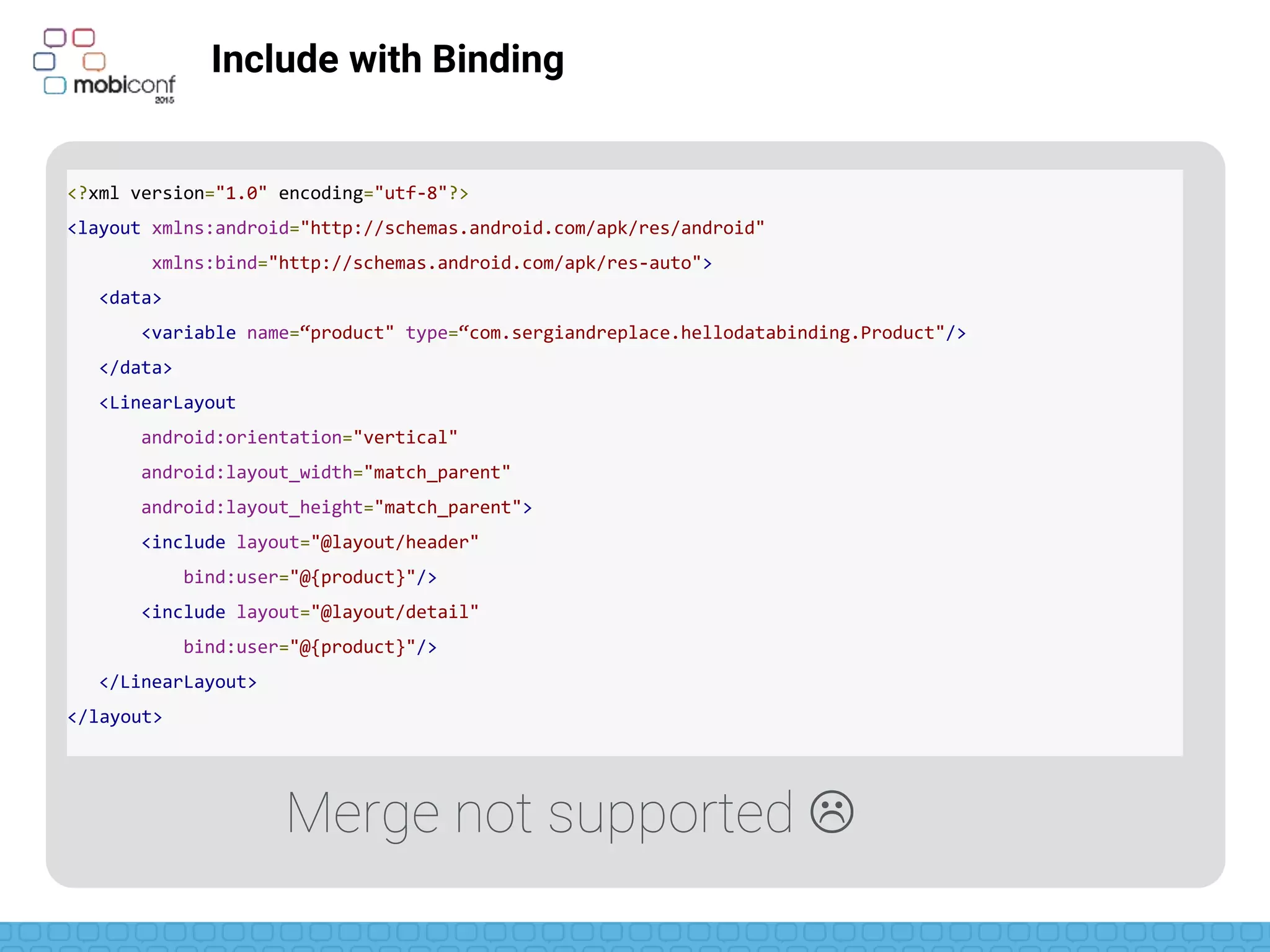

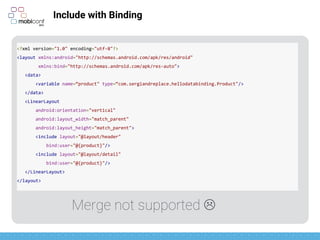

Include with Binding
<?xml version="1.0" encoding="utf-8"?>
<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:bind="http://schemas.android.com/apk/res-auto">
<data>
<variable name=“product" type=“com.sergiandreplace.hellodatabinding.Product"/>
</data>
<LinearLayout
android:orientation="vertical"
android:layout_height="match_parent">
<include layout="@layout/header"
bind:product="@{product}"/>
<include layout="@layout/detail"
bind:product="@{product}"/>
</LinearLayout>
</layout>
Merge not supported 

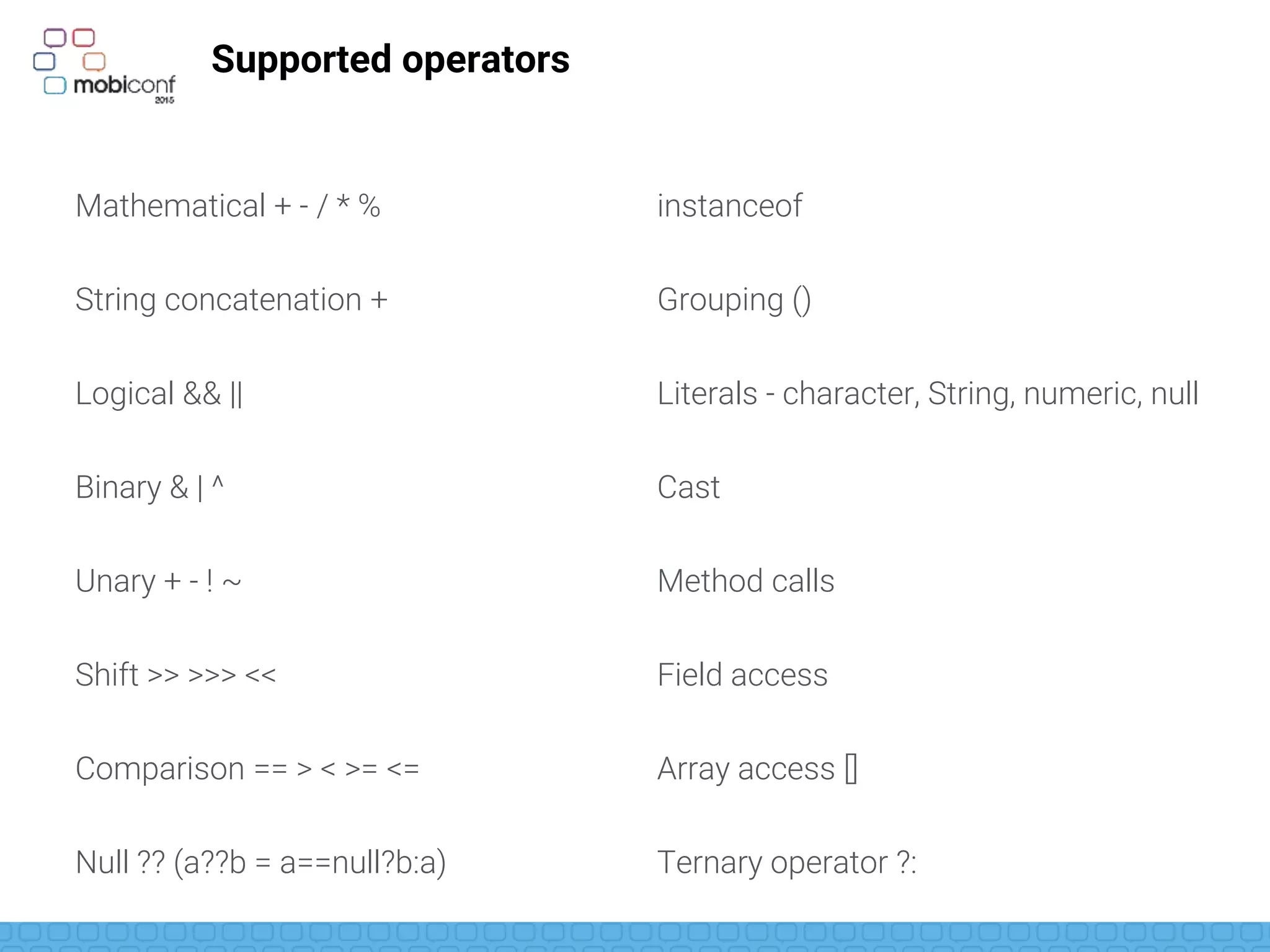

Supported operators
Mathematical + - / * %
String concatenation +
Logical && ||
Binary & | ^
Unary + - ! ~
Shift >> >>> <<
Comparison == > < >= <=
Null ?? (a??b = a==null?b:a)
instanceof
Grouping ()
Literals - character, String, numeric, null
Cast
Method calls
Field access
Array access []
Ternary operator ?:

z

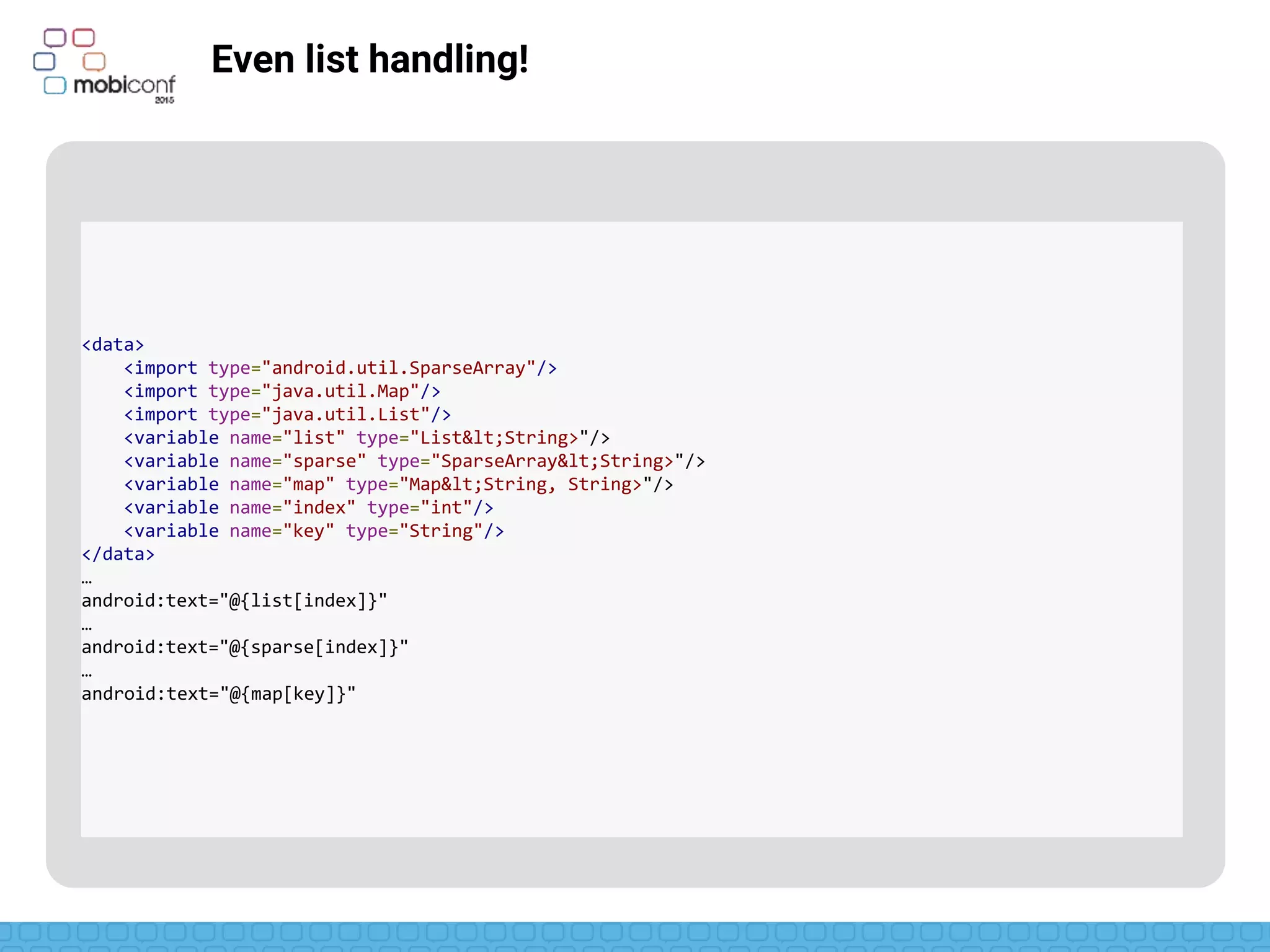

Even list handling!
<data>
<import type="android.util.SparseArray"/>
<import type="java.util.Map"/>
<import type="java.util.List"/>
<variable name="list" type="List<String>"/>
<variable name="sparse" type="SparseArray<String>"/>
<variable name="map" type="Map<String, String>"/>
<variable name="index" type="int"/>
<variable name="key" type="String"/>
</data>
…
android:text="@{list[index]}"
…
android:text="@{sparse[index]}"
…
android:text="@{map[key]}"

z

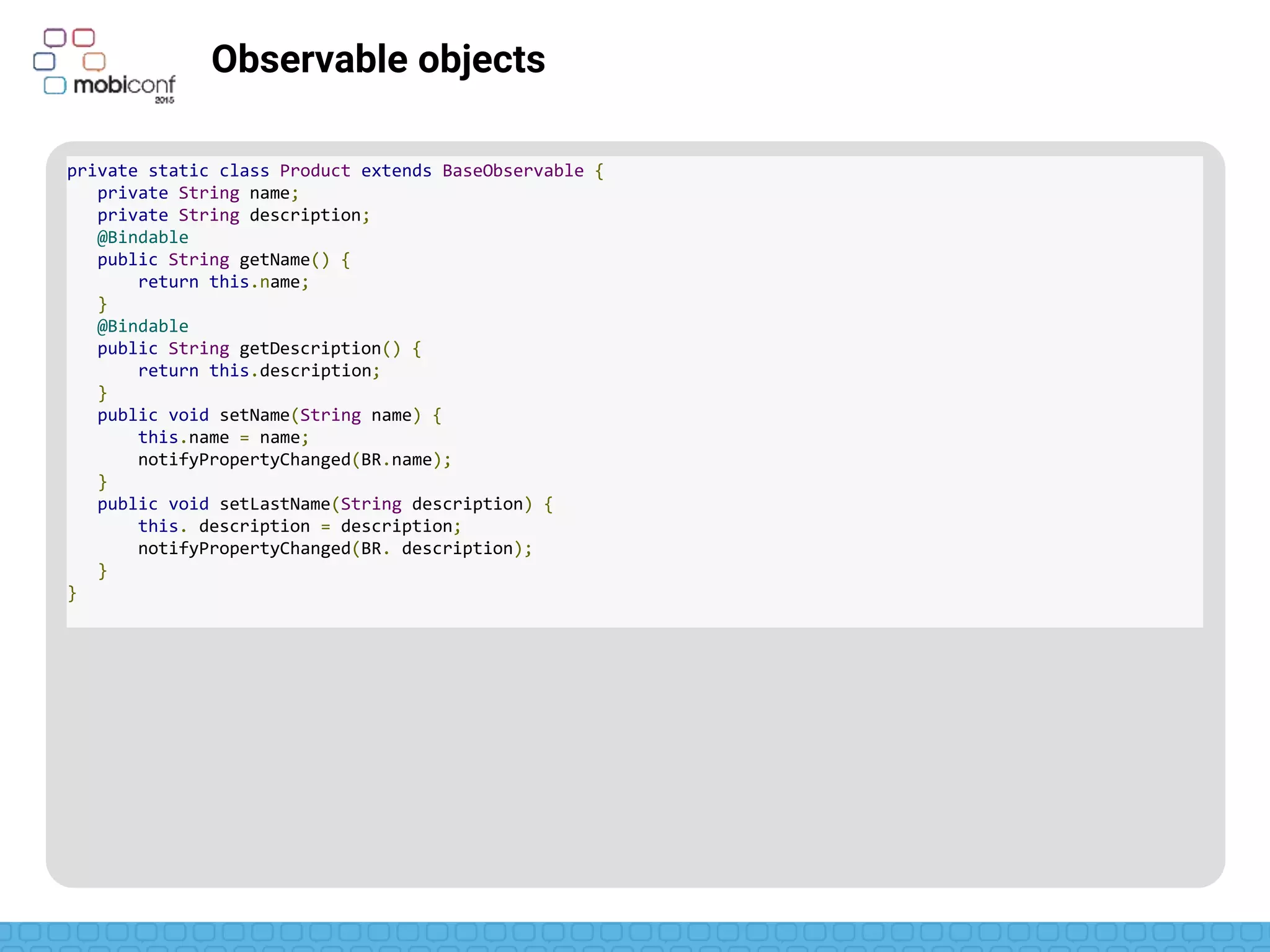

Observable objects
private static class Product extends BaseObservable {
private String name;
private String description;
@Bindable
public String getName() {
return this.name;
}
@Bindable
public String getDescription() {
return this.description;
}
public void setName(String name) {
this.name = name;
notifyPropertyChanged(BR.name);
}
public void setLastName(String description) {
this. description = description;
notifyPropertyChanged(BR. description);
}
}

z

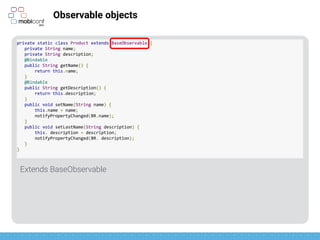

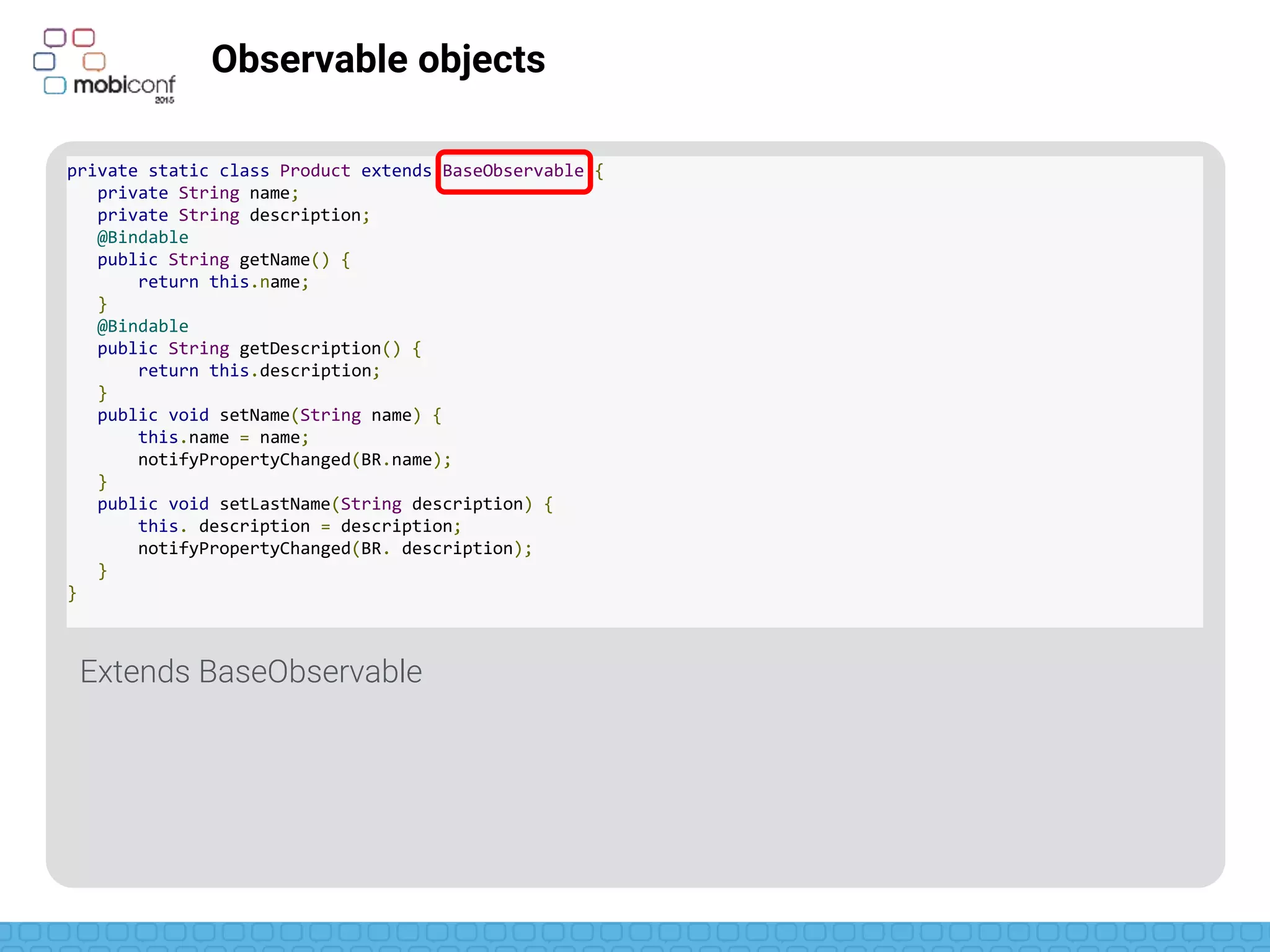

Observable objects
Extends BaseObservable
@Bindable
return this.name;
}
@Bindable
}
this.name = name;
}
}
}

z

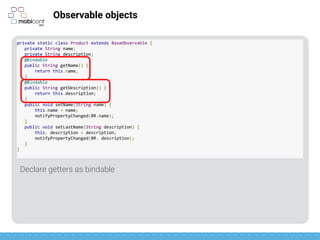

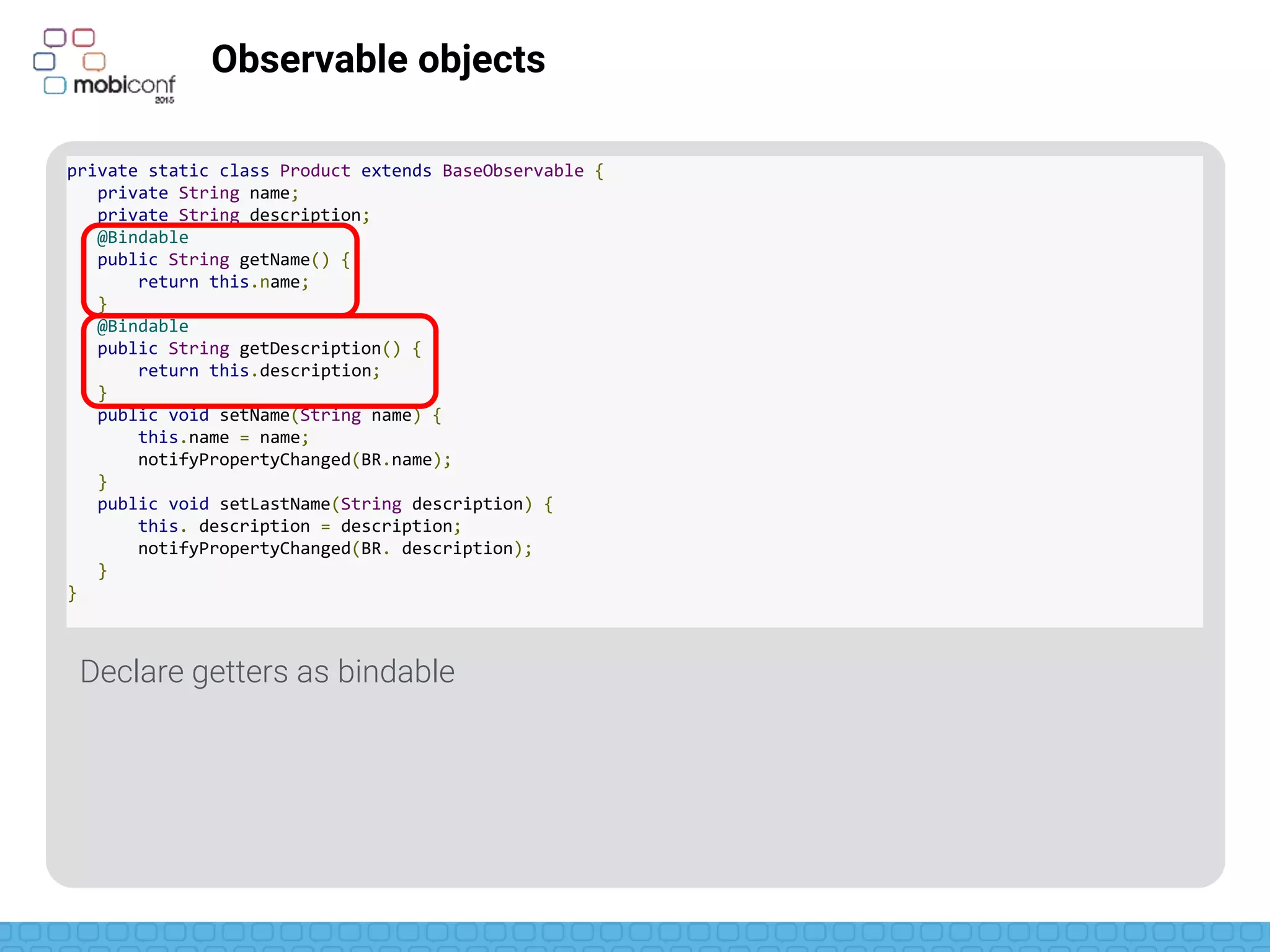

Observable objects
Declare getters as bindable
@Bindable
return this.name;
}
@Bindable
}
this.name = name;
}
}
}

z

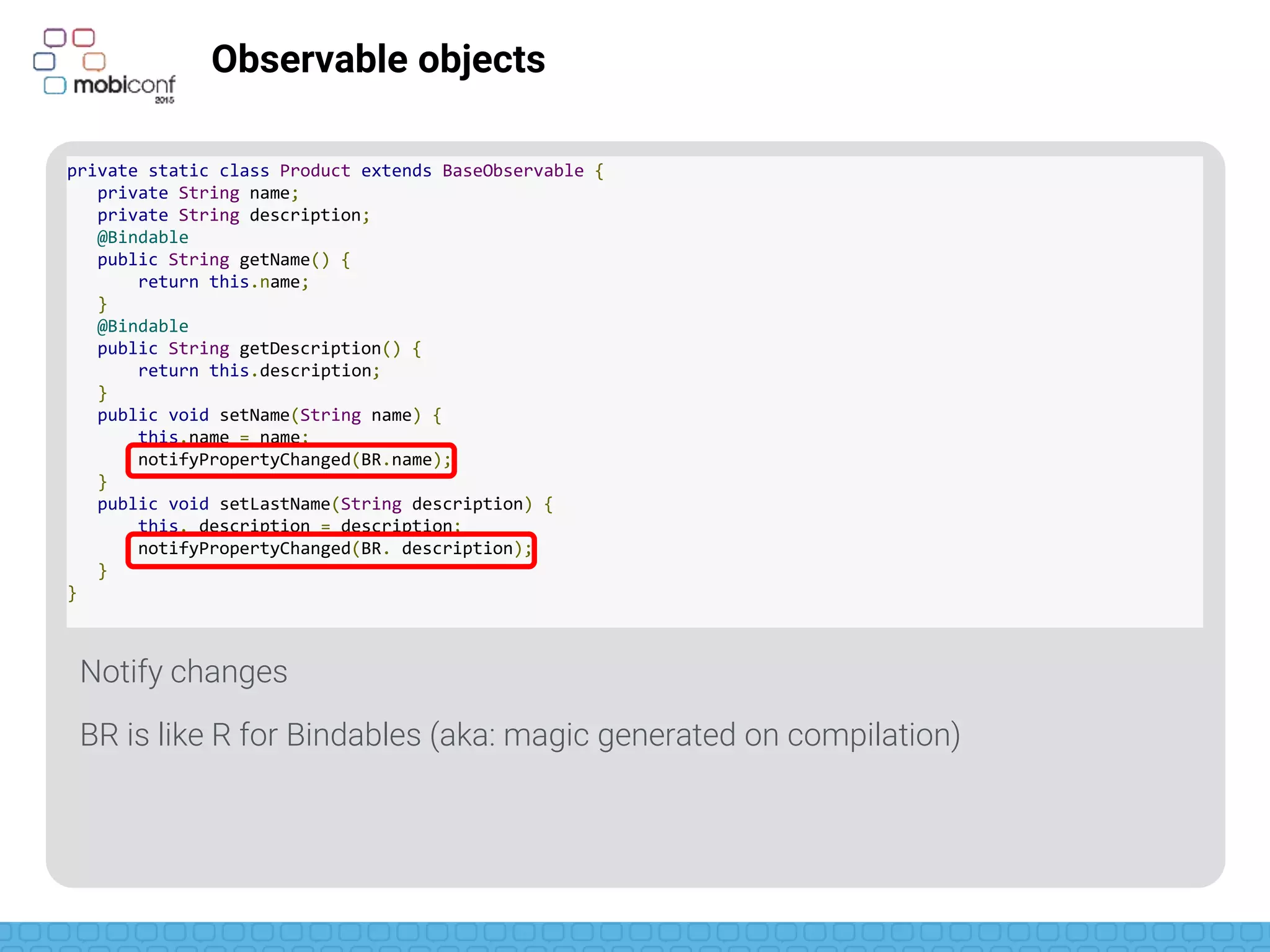

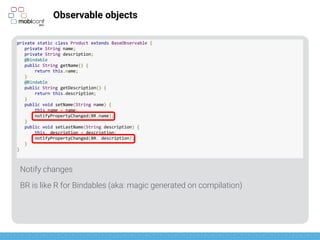

Observable objects
Notify changes
BR is like R for Bindables (aka: magic generated on compilation)
@Bindable
return this.name;
}
@Bindable
}
this.name = name;
}
notifyPropertyChanged(BR.description);
}
}

z

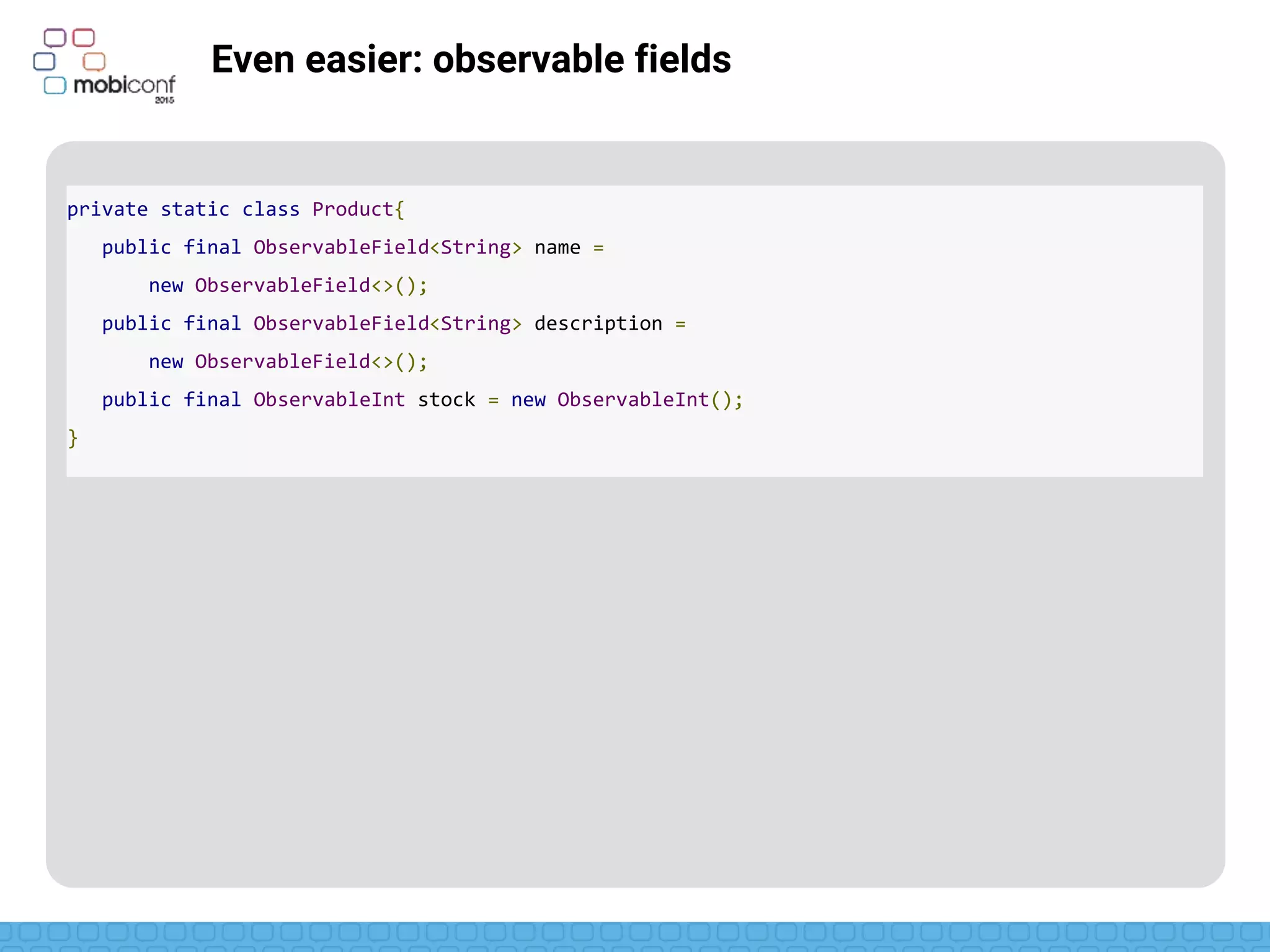

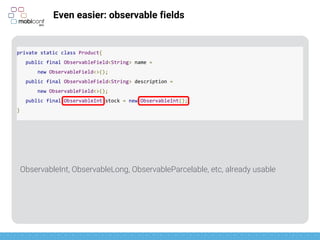

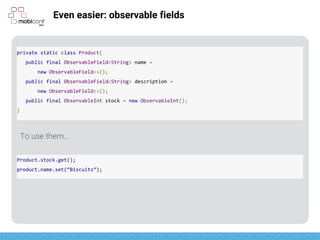

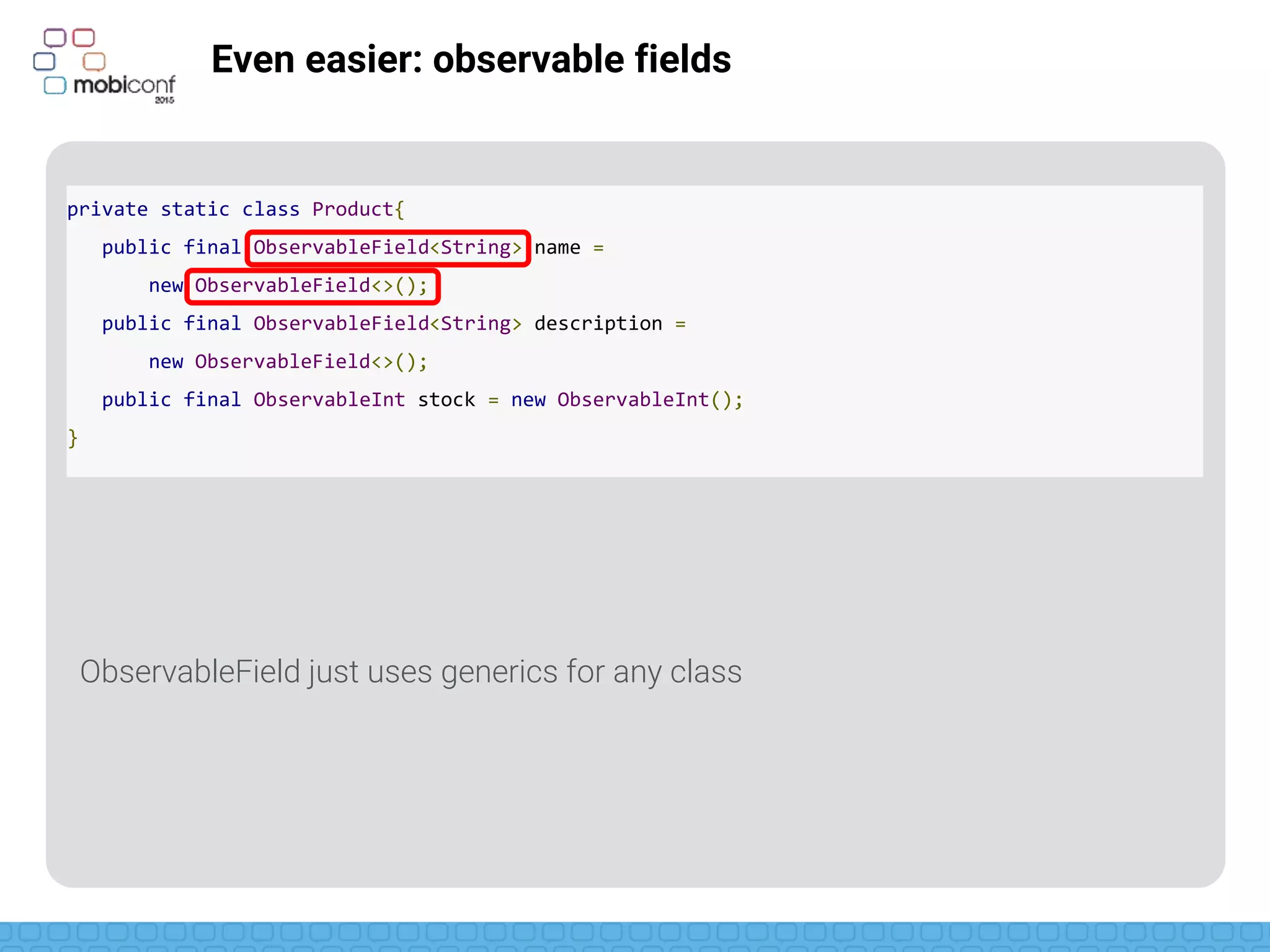

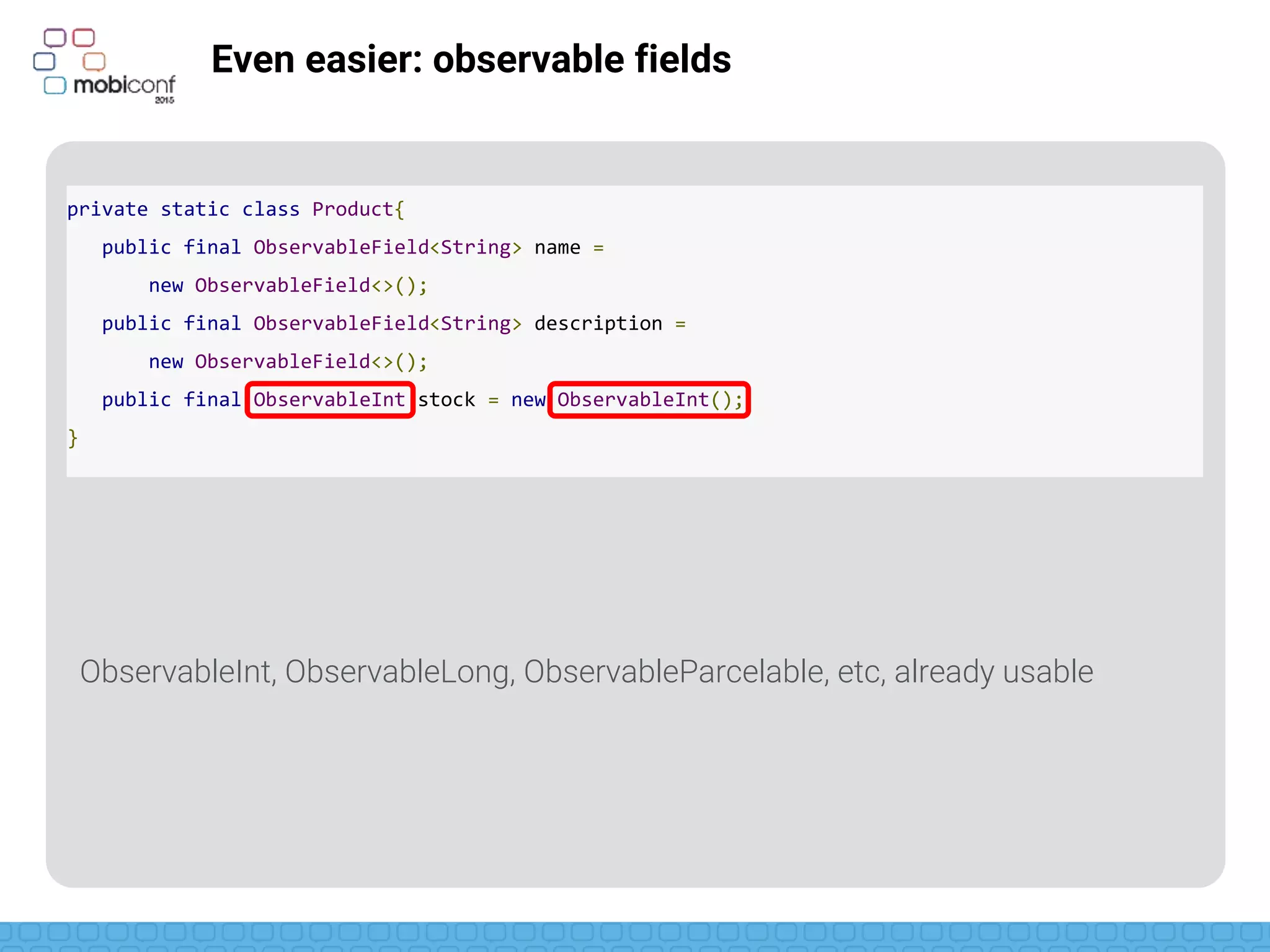

Even easier: observable fields
private static class Product{
public final ObservableField<String> name =
new ObservableField<>();
public final ObservableField<String> description =
public final ObservableInt stock = new ObservableInt();
}

z
ObservableField just uses generics for any class
}

z
ObservableInt, ObservableLong, ObservableParcelable, etc, already usable
}

z

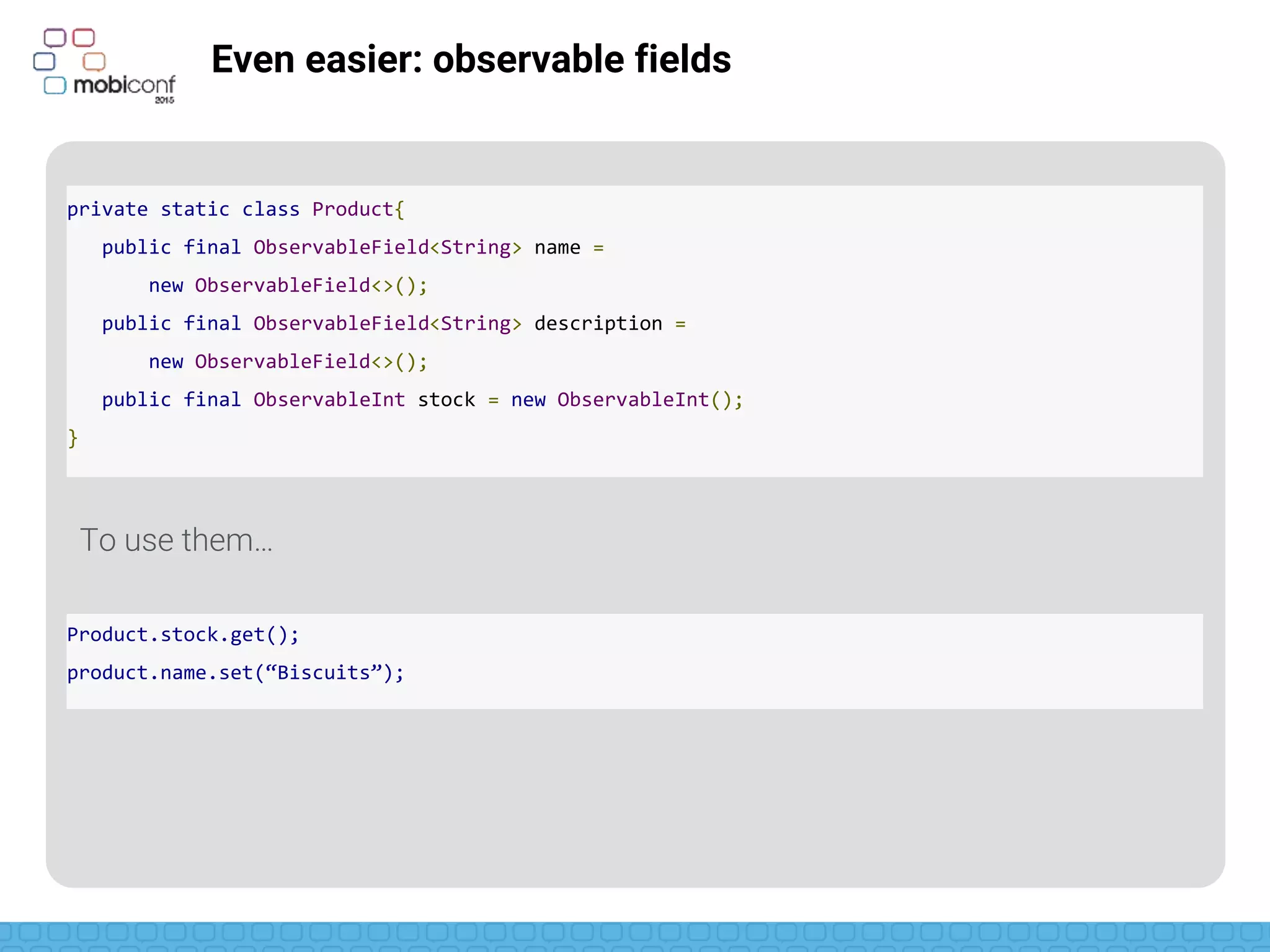

To use them…
}
Product.stock.get();
product.name.set(“Biscuits”);

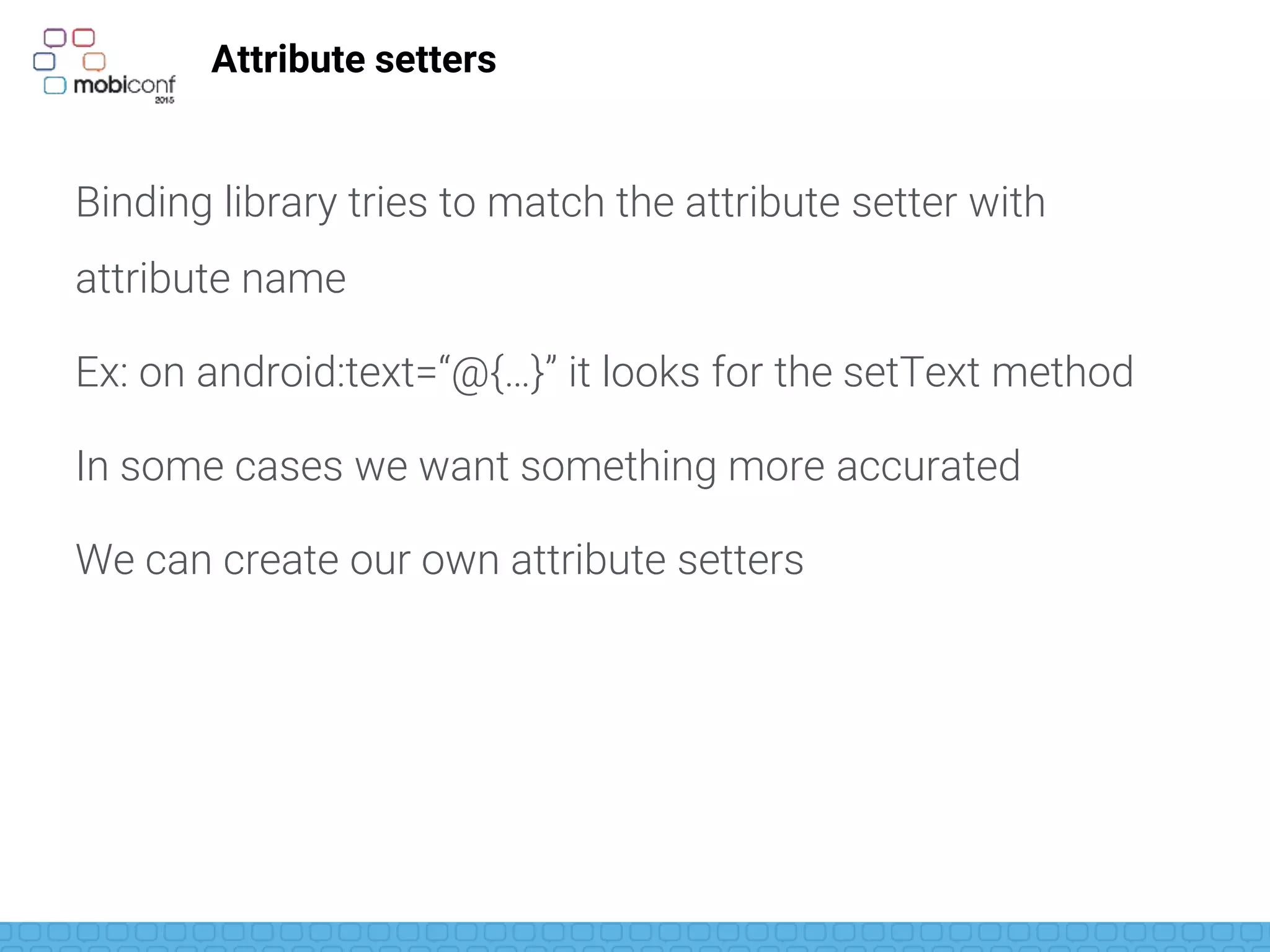

Attribute setters
Binding library tries to match the attribute setter with
attribute name
Ex: on android:text=“@{…}” it looks for the setText method
In some cases we want something more accurated
We can create our own attribute setters

z

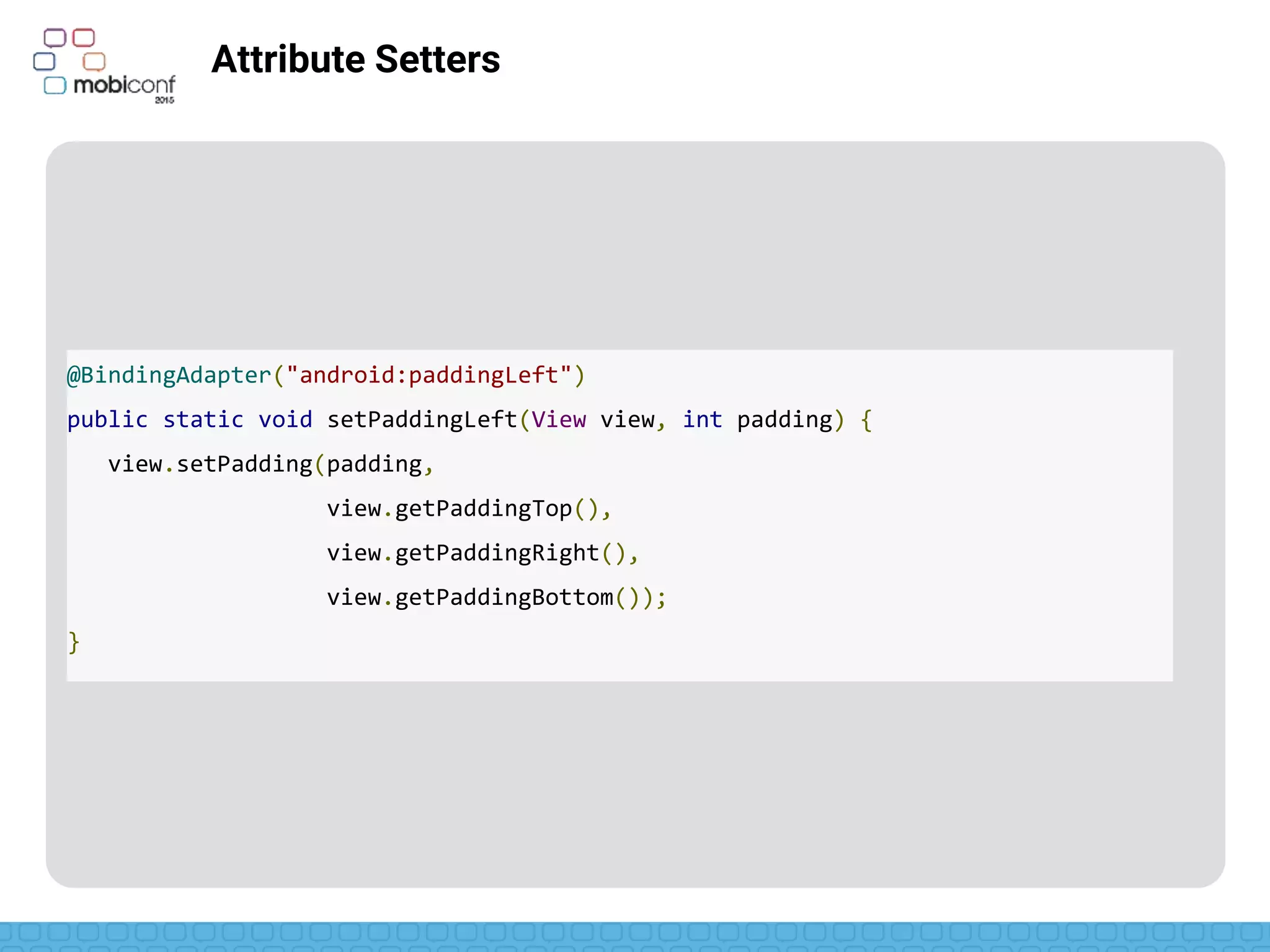

Attribute Setters
@BindingAdapter("android:paddingLeft")
public static void setPaddingLeft(View view, int padding) {
view.setPadding(padding,
view.getPaddingTop(),
view.getPaddingRight(),
view.getPaddingBottom());
}

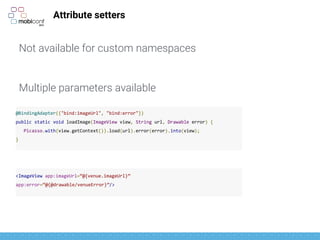

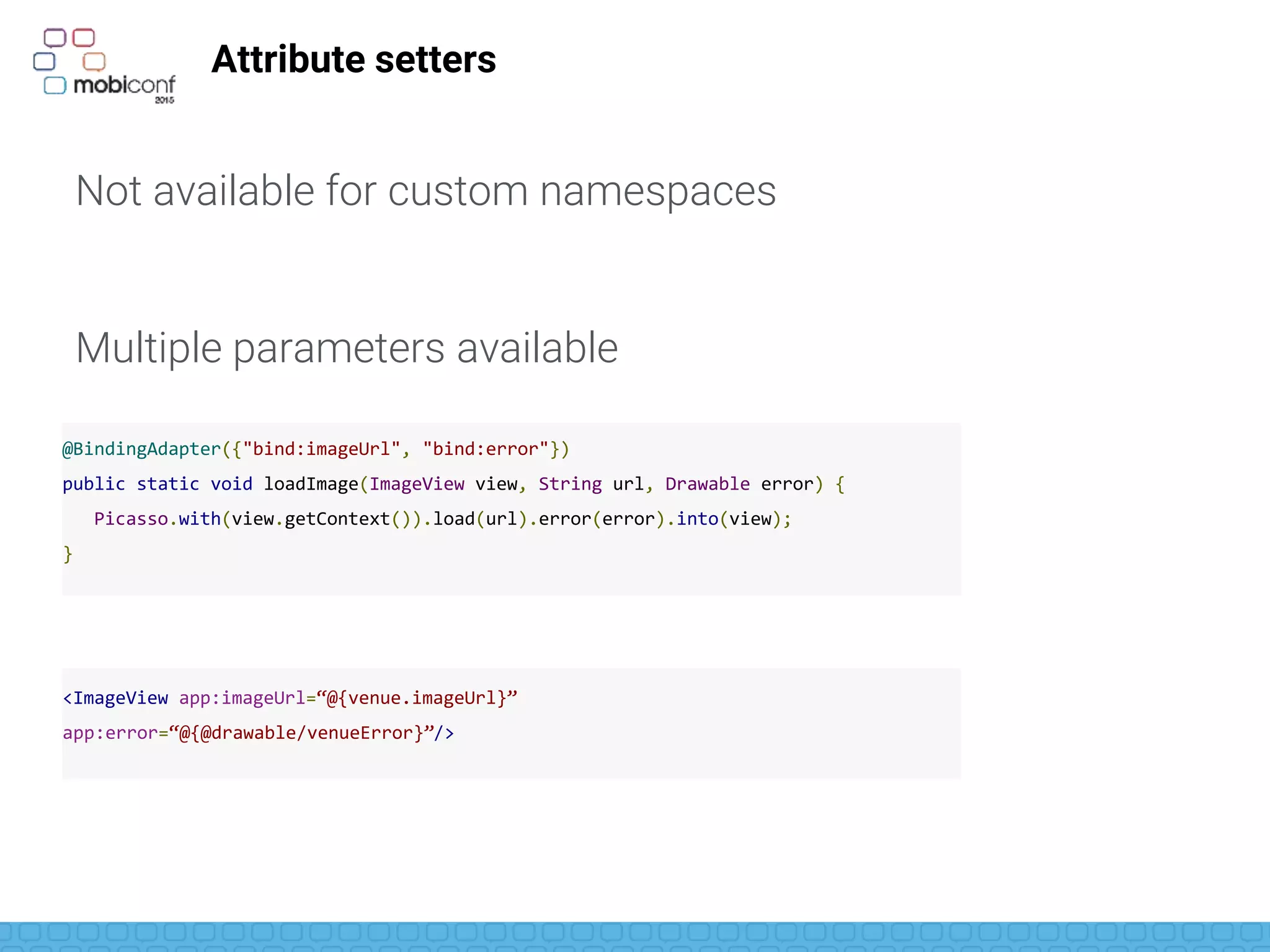

Attribute setters
Not available for custom namespaces
Multiple parameters available
@BindingAdapter({"bind:imageUrl", "bind:error"})
public static void loadImage(ImageView view, String url, Drawable error) {
Picasso.with(view.getContext()).load(url).error(error).into(view);
}
<ImageView app:imageUrl=“@{venue.imageUrl}”
app:error=“@{@drawable/venueError}”/>

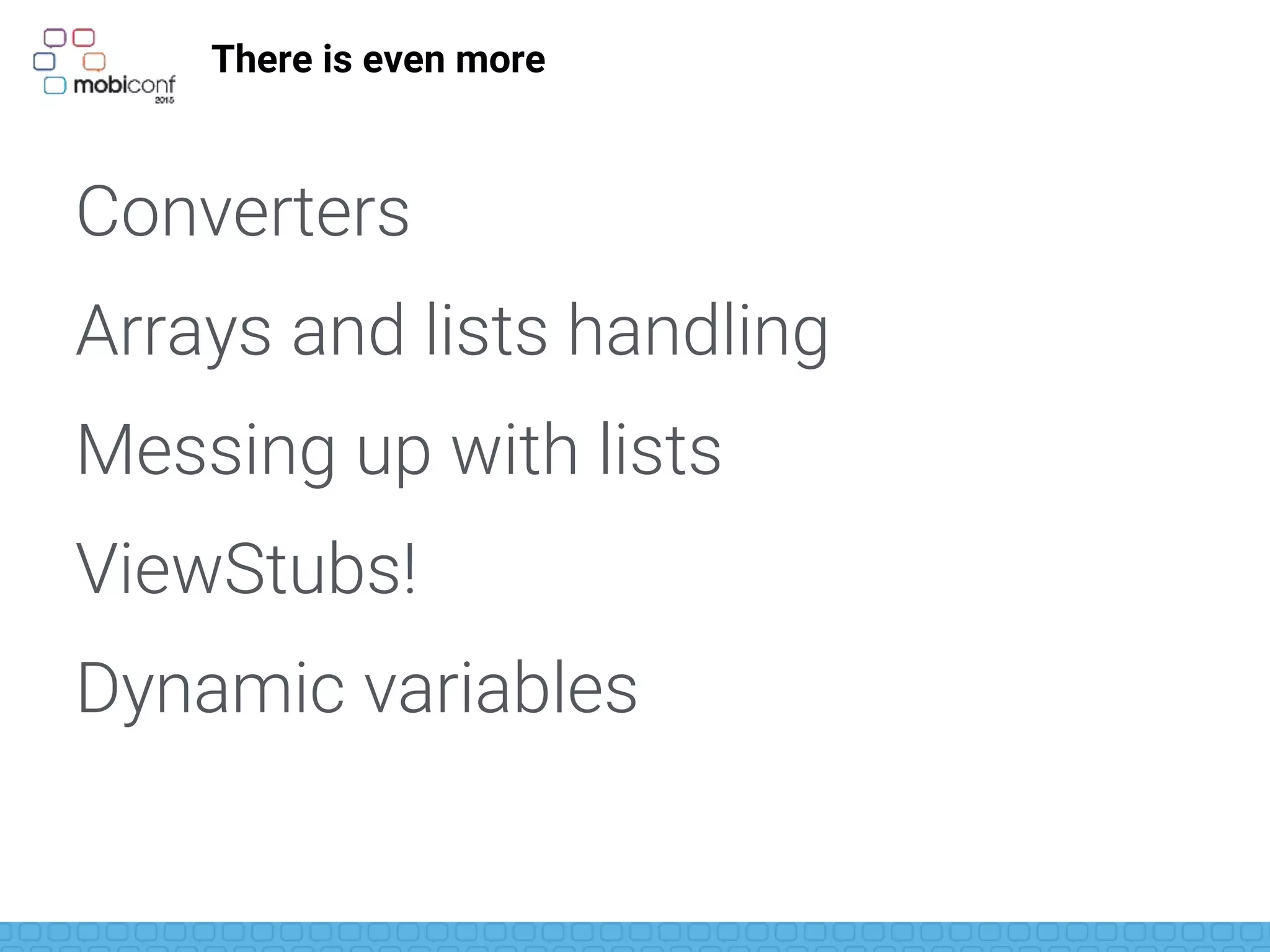

There is even more
Converters
Arrays and lists handling
Messing up with lists
ViewStubs!
Dynamic variables

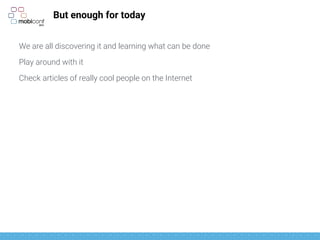

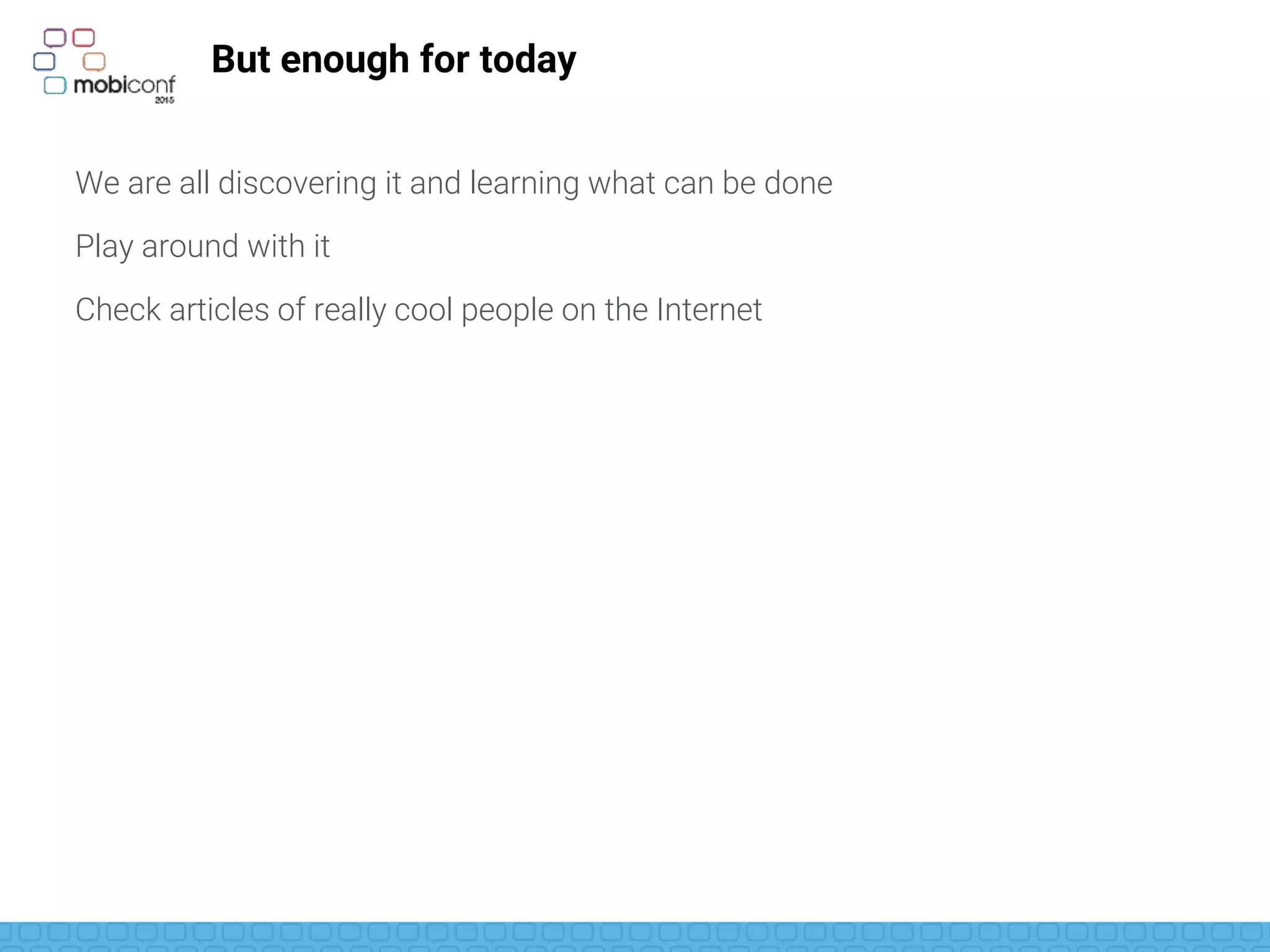

But enough for today
We are all discovering it and learning what can be done
Play around with it
Check articles of really cool people on the Internet

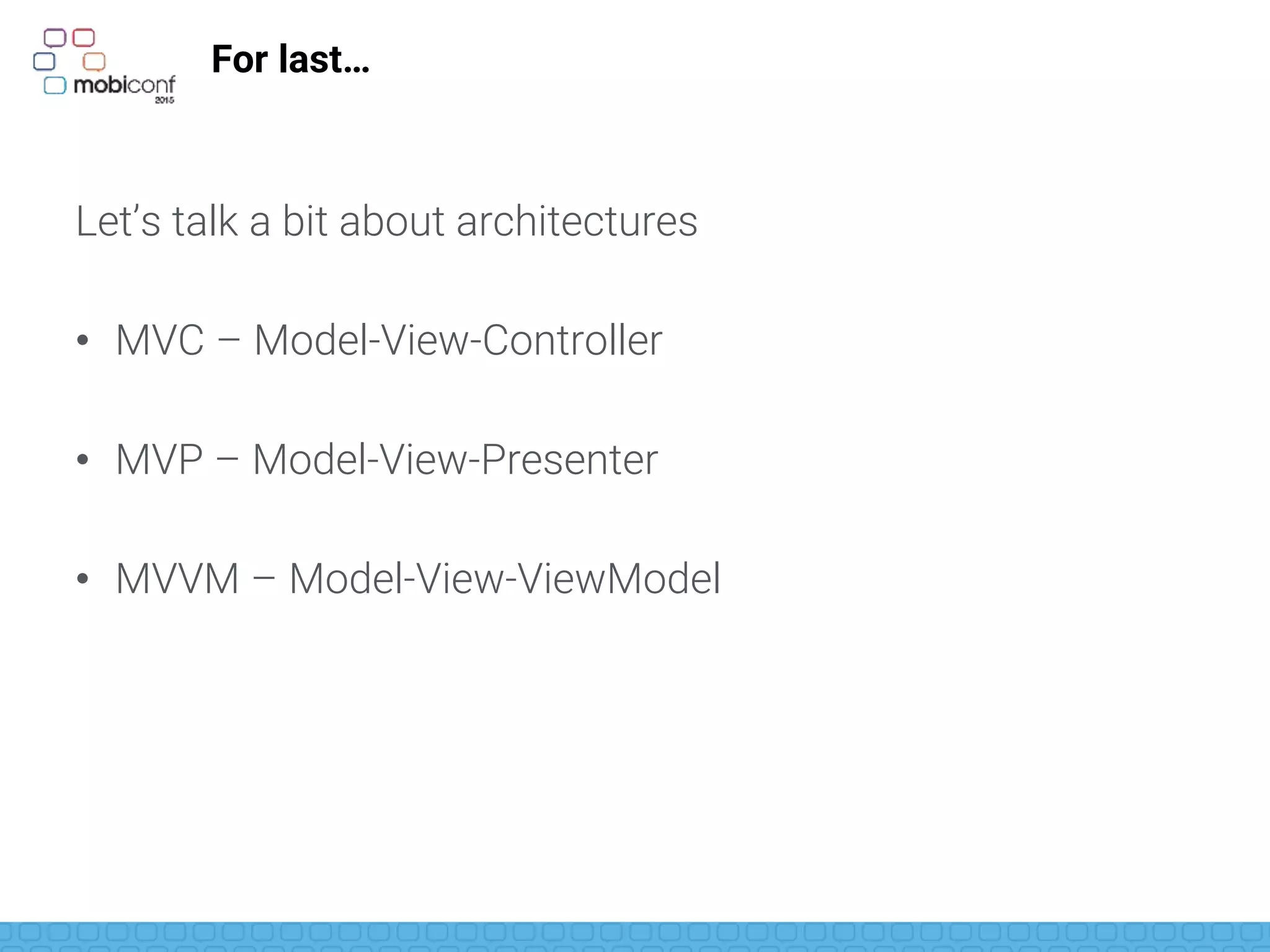

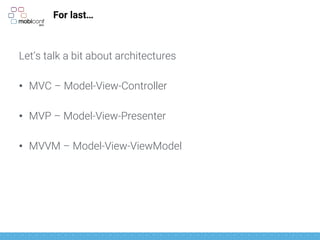

For last…
Let’s talk a bit about architectures
• MVC – Model-View-Controller
• MVP – Model-View-Presenter
• MVVM – Model-View-ViewModel

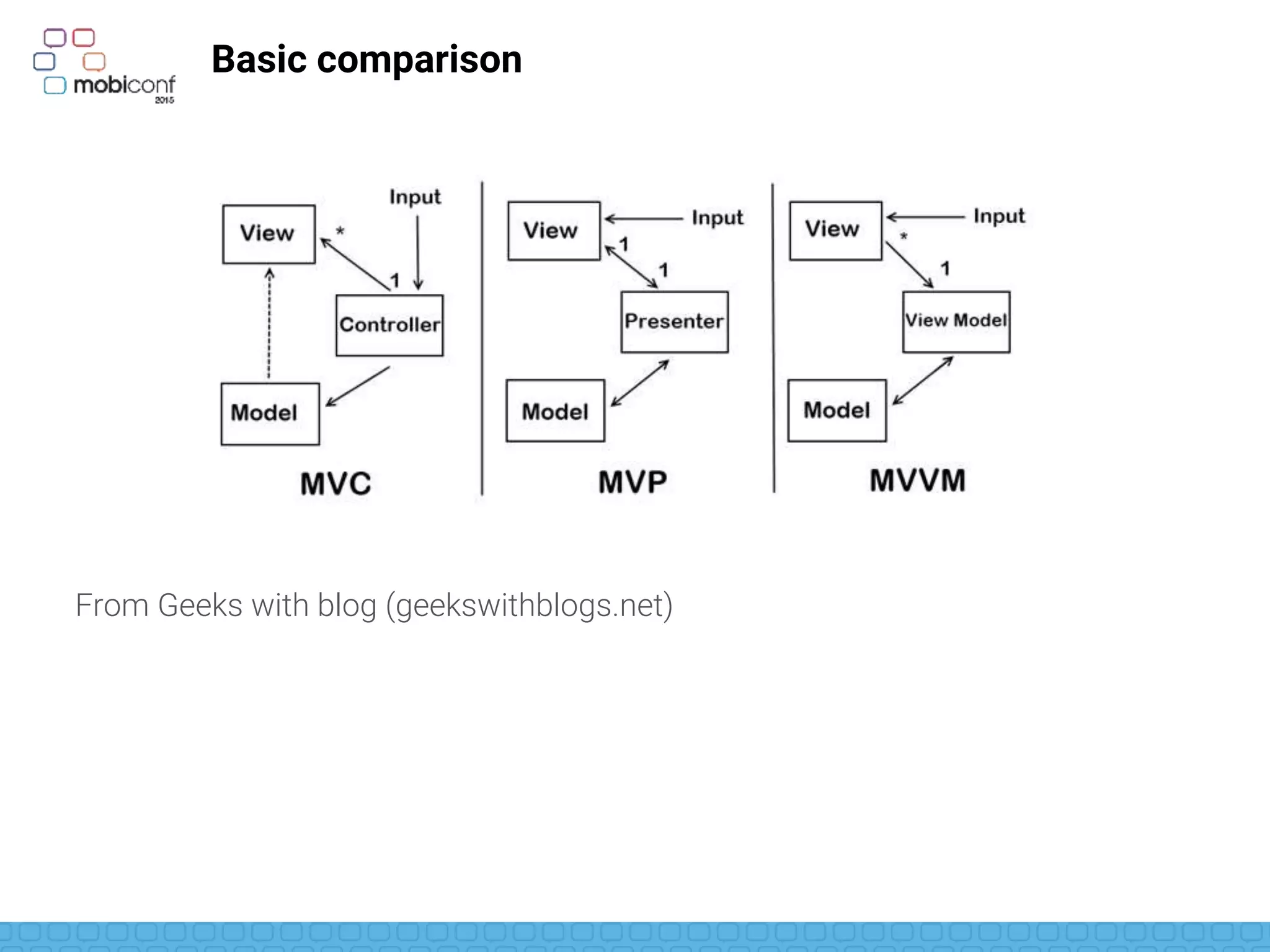

Basic comparison
From Geeks with blog (geekswithblogs.net)

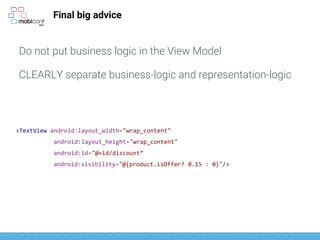

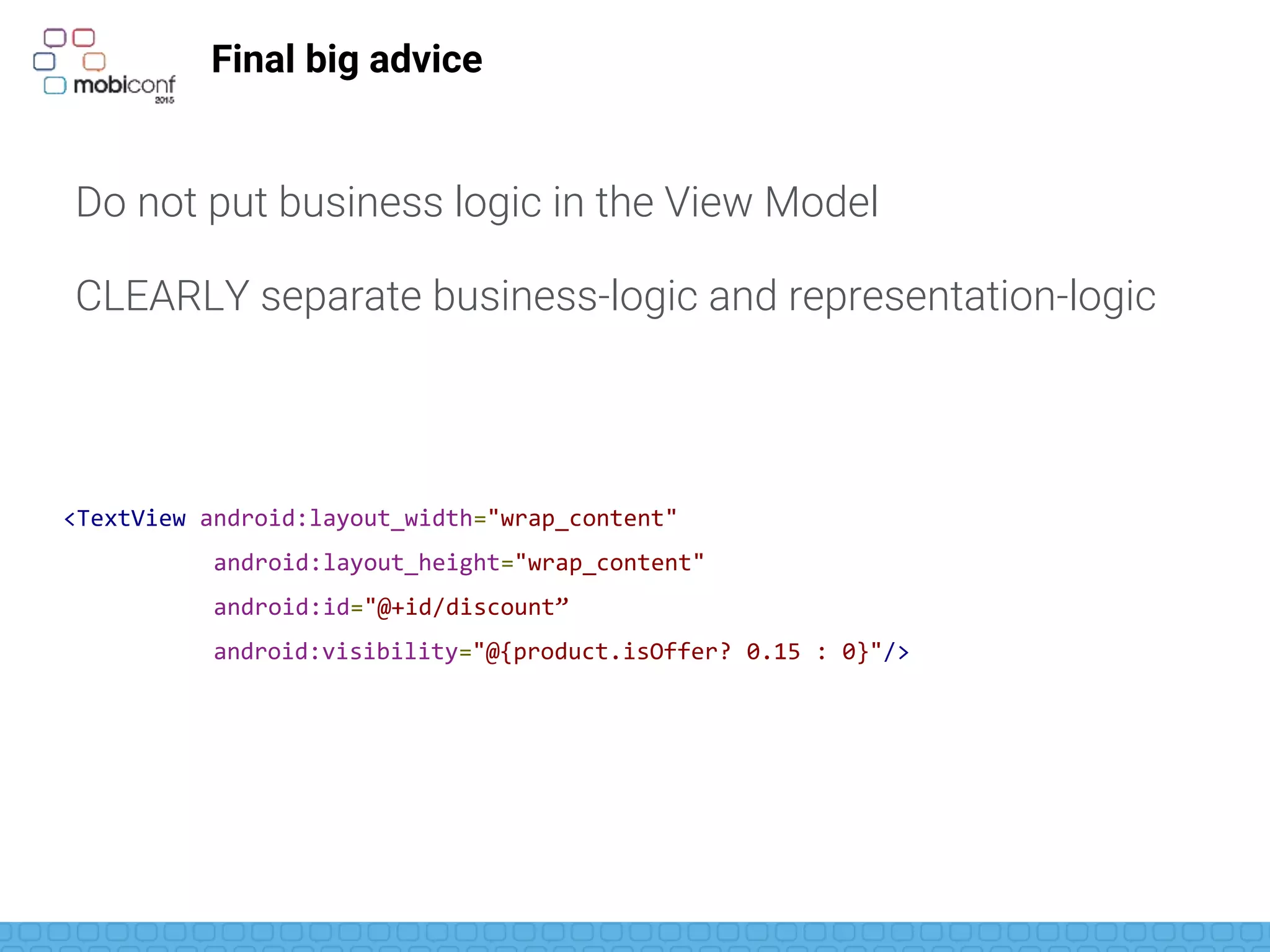

Final big advice
Do not put business logic in the View Model
CLEARLY separate business-logic and representation-logic
android:id="@+id/discount”
android:visibility="@{product.isOffer? 0.15 : 0}"/>

20 yrs tinkering with computers
A lot of time on software localization
On Android since 2010 (Cupcake)
Mobile R+D Lead at Worldine Iberia
Android GDE (Google Developer
Expert)
I love making UI
Proud parent of a 8 years old OS fan
@sergiandreplace
sergiandreplace.com
sergi.Martinez[at]gmail.com
About me – Sergi Martínez

Android data binding

In this document

More Related Content

What's hot

Viewers also liked

Similar to Android data binding

More from Sergi Martínez

Recently uploaded

Android data binding
