Angular Intermediate

Who we are
Daniele Bertella
@_denb
Gianfranco Garipoli
@gianfra__
LinkMe SRL
@LinkMeSRL

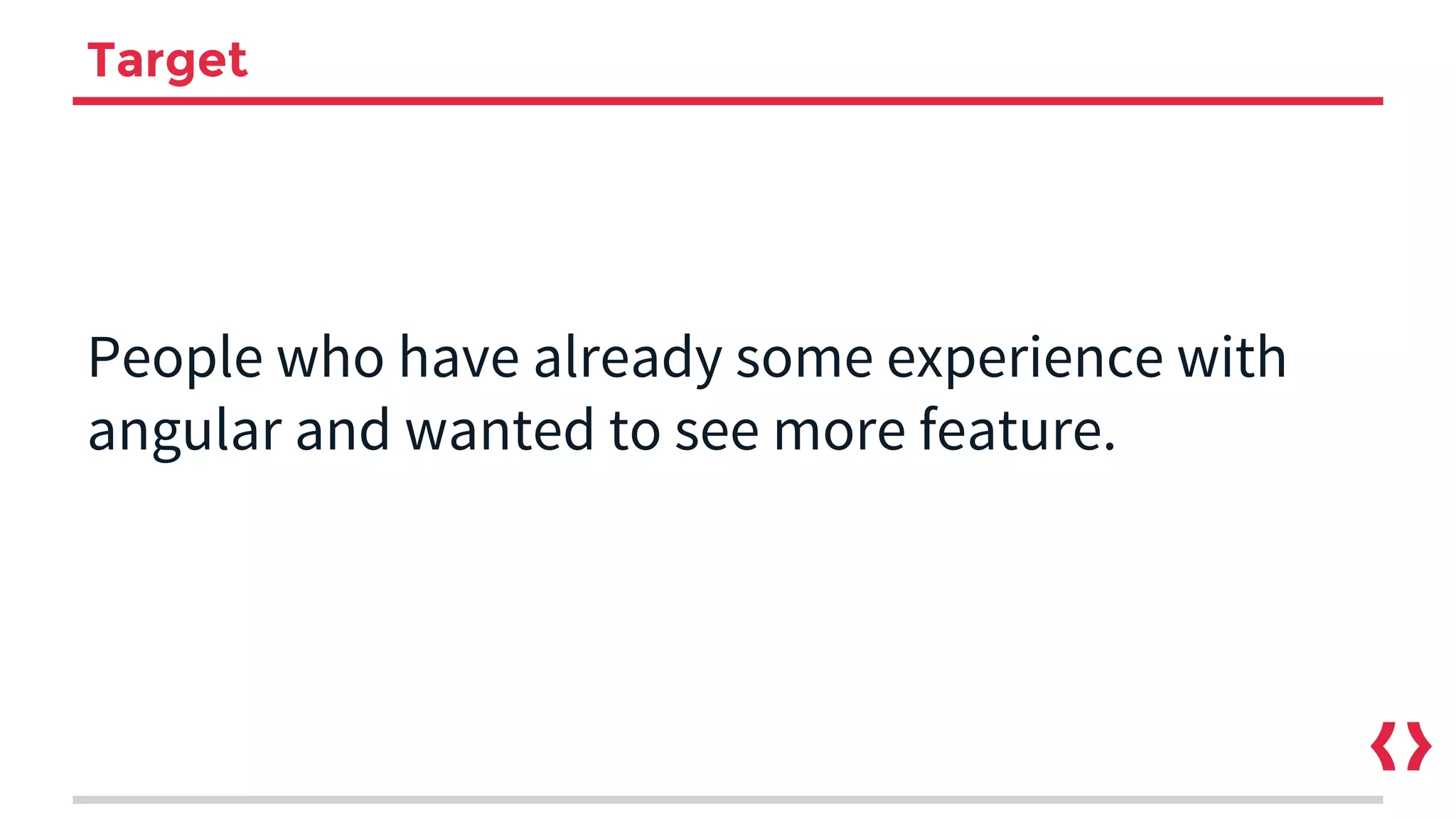

Target
People who have already some experience with
angular and wanted to see more feature.

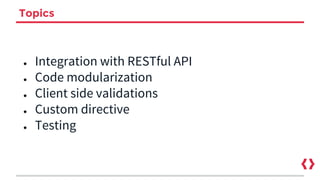

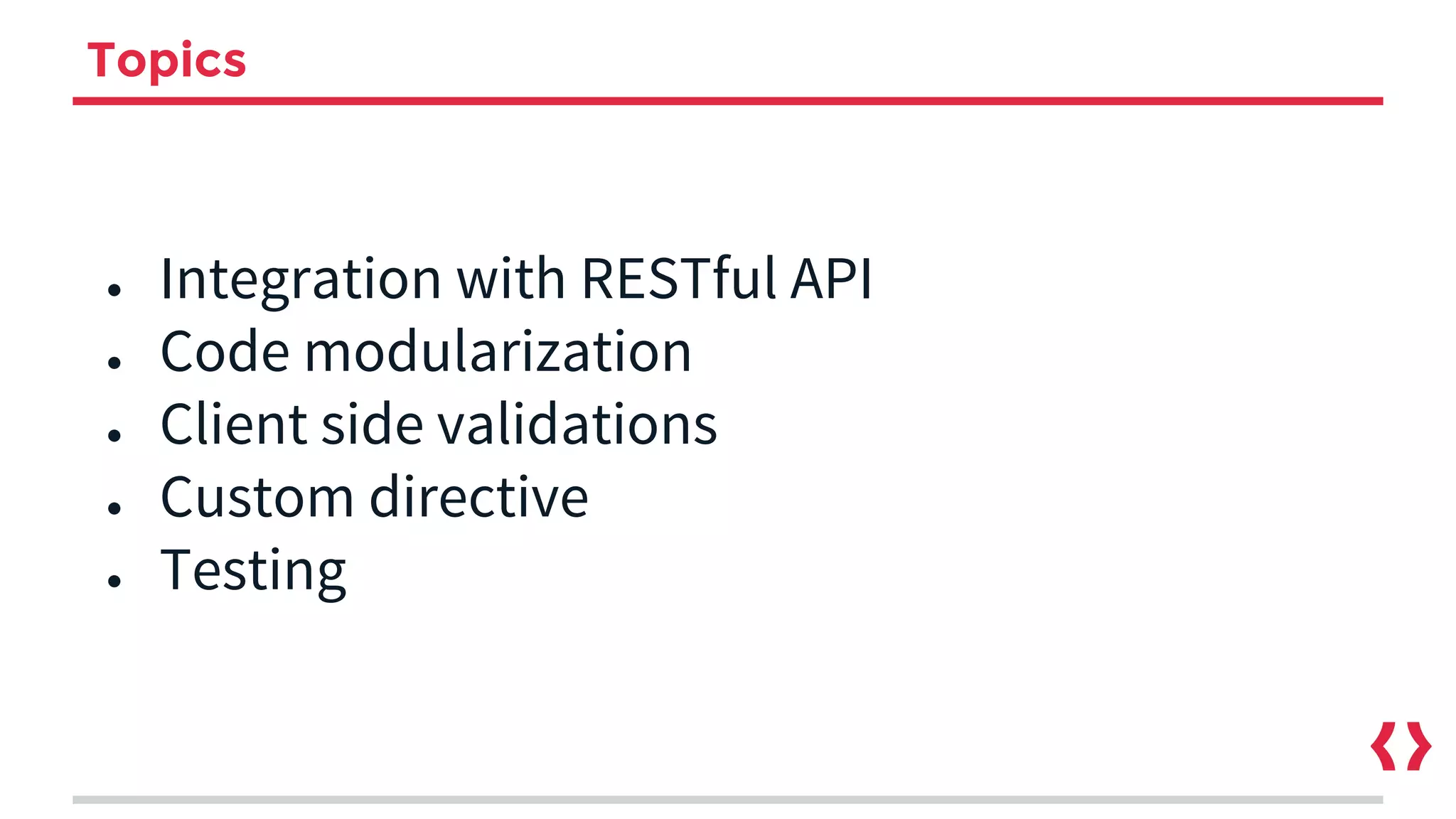

Topics
● Integration with RESTful API
● Code modularization
● Client side validations
● Custom directive
● Testing

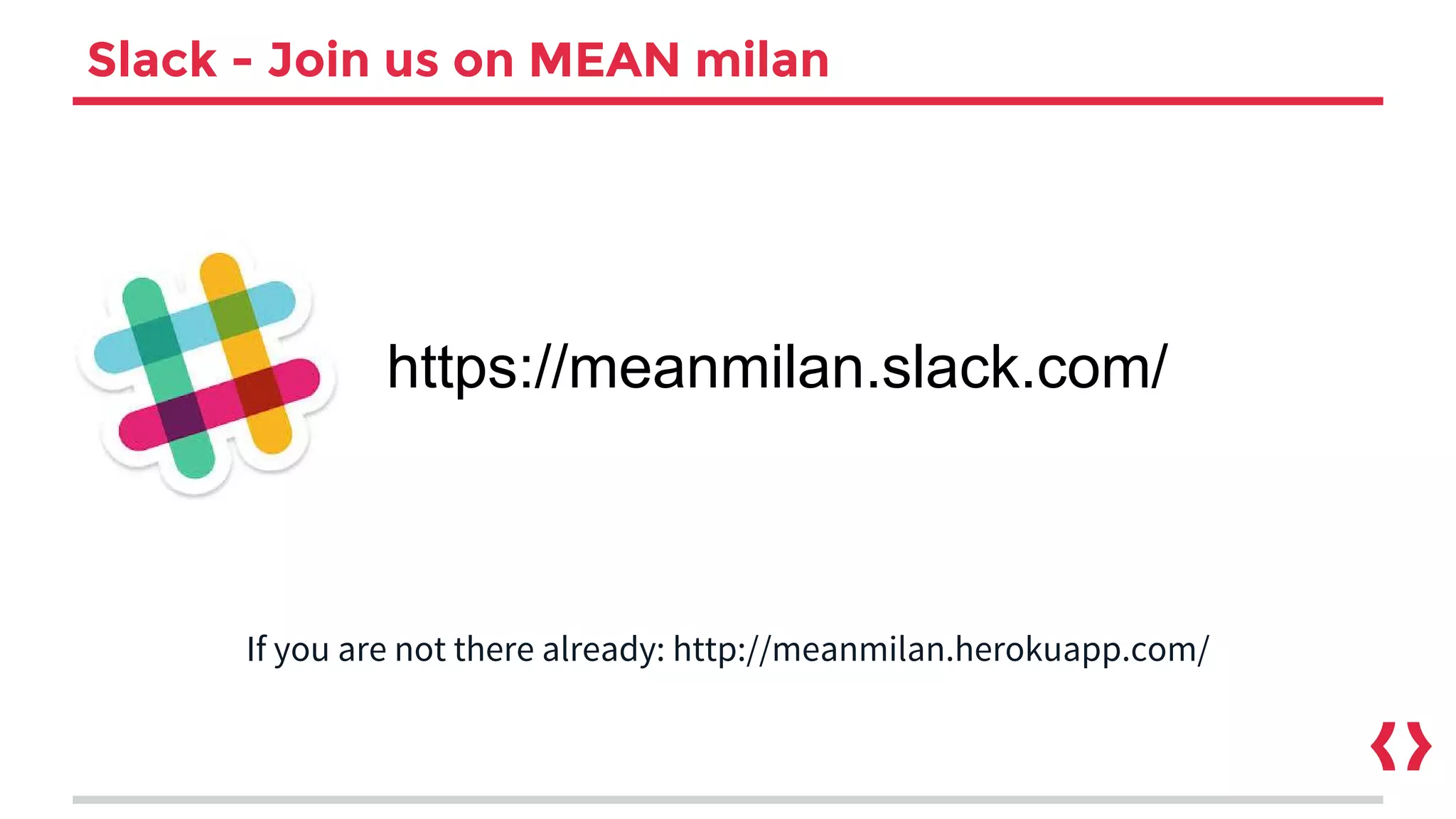

Slack - Join us on MEAN milan
If you are not there already: http://meanmilan.herokuapp.com/
https://meanmilan.slack.com/

Ninja time!
https://github.com/linkmesrl/ngIntermediate

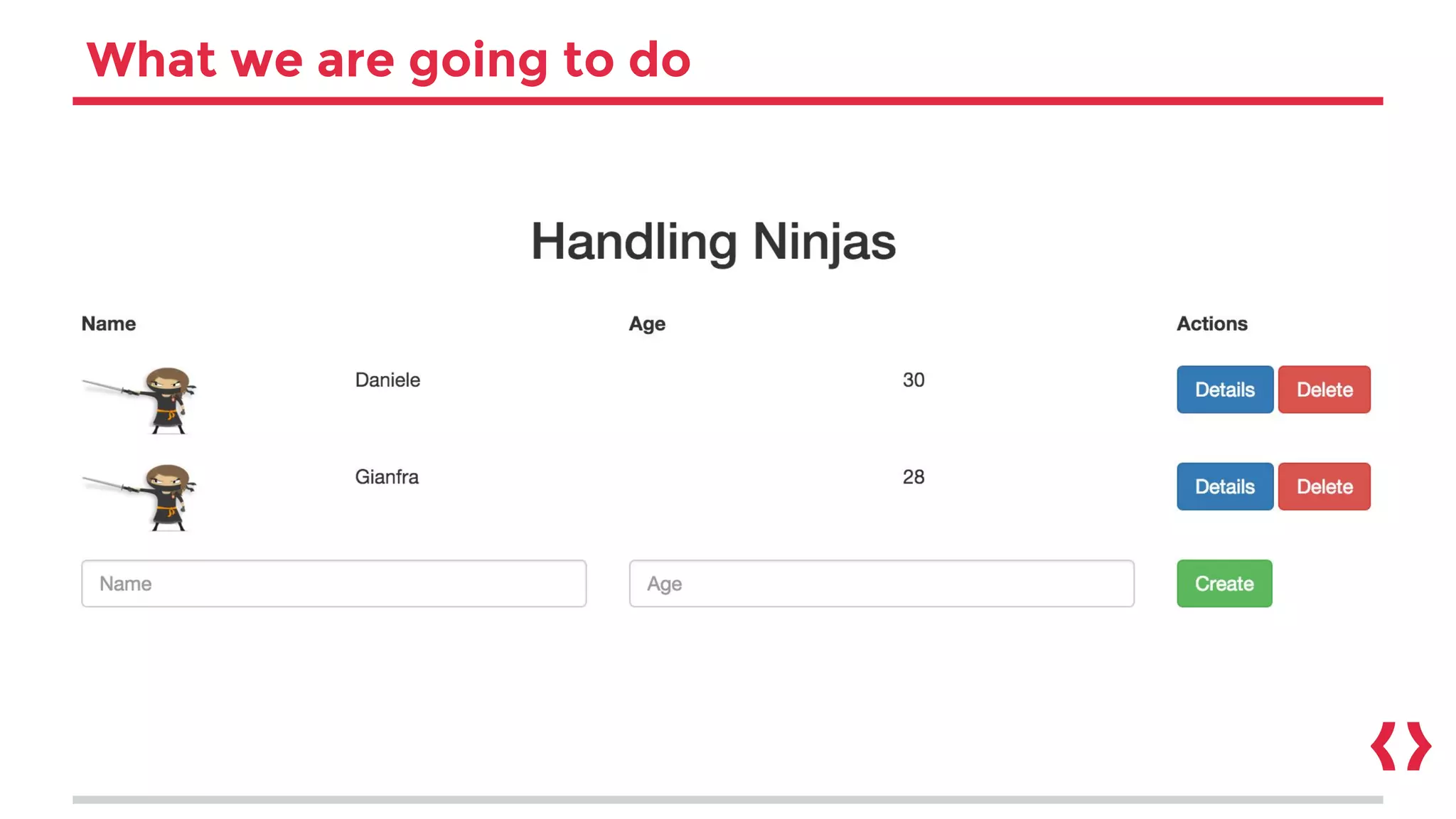

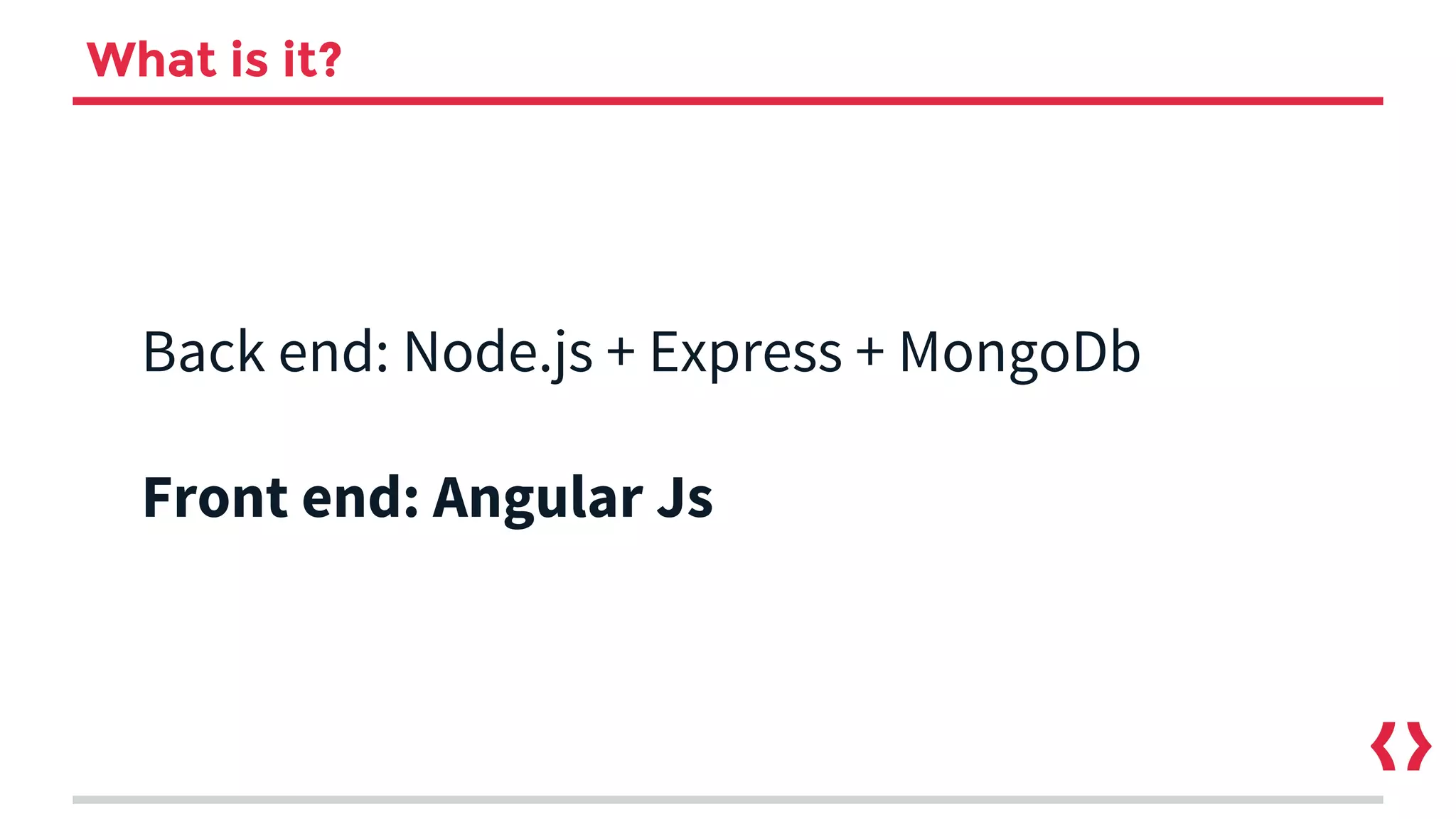

What is it?
Back end: Node.js + Express + MongoDb
Front end: Angular Js

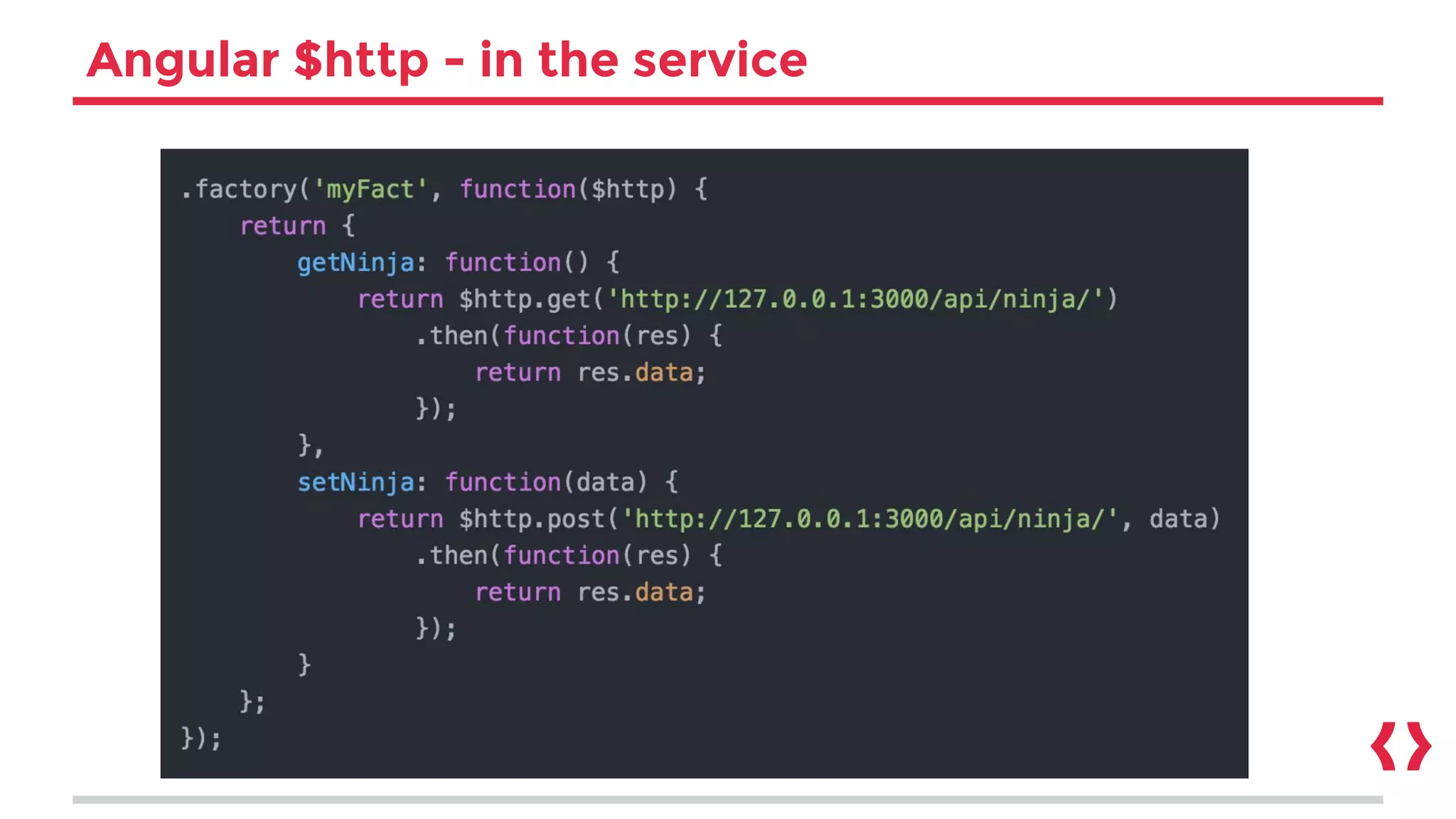

Angular $http - in the service

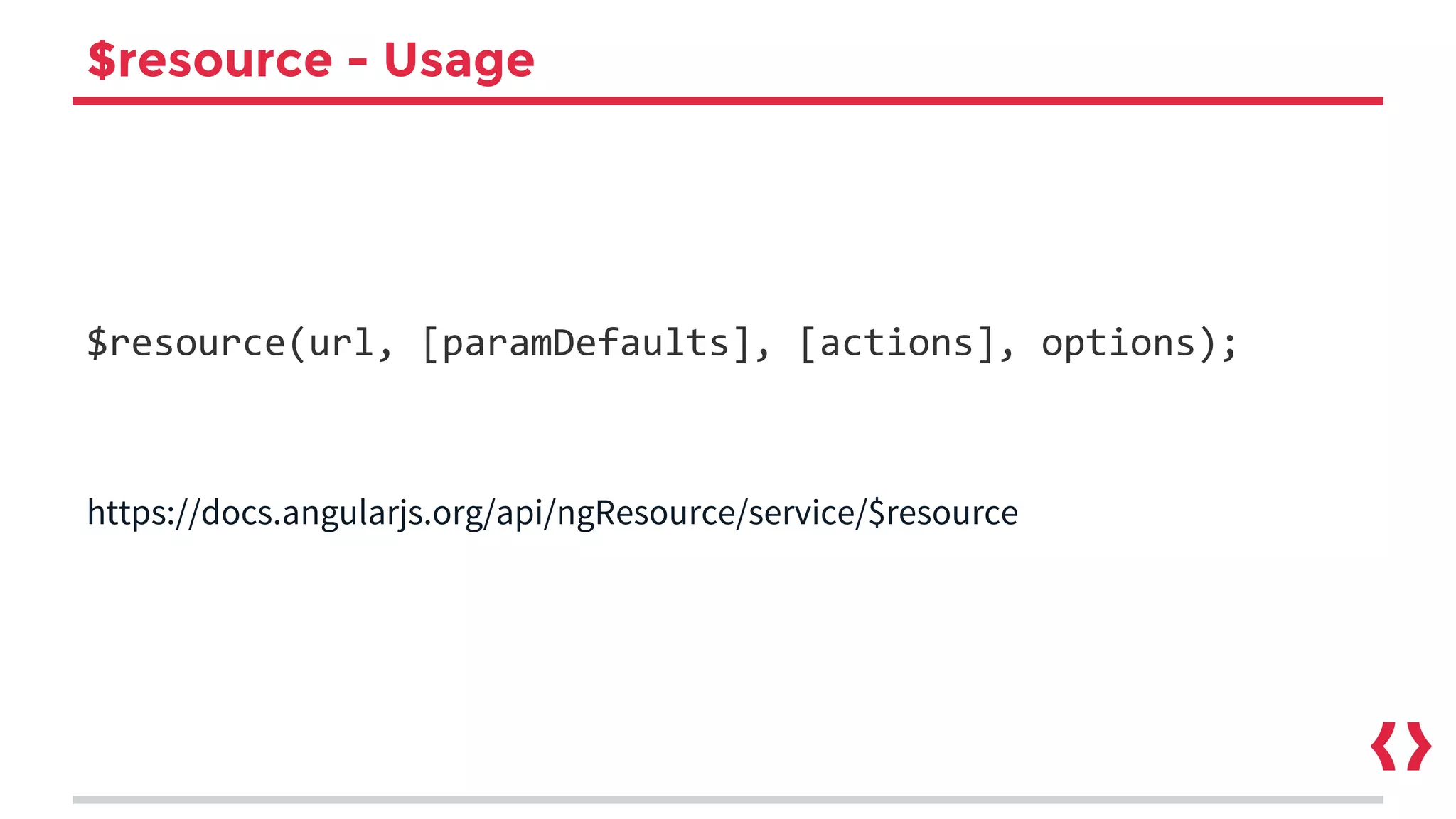

$resource - Usage
$resource(url, [paramDefaults], [actions], options);
https://docs.angularjs.org/api/ngResource/service/$resource

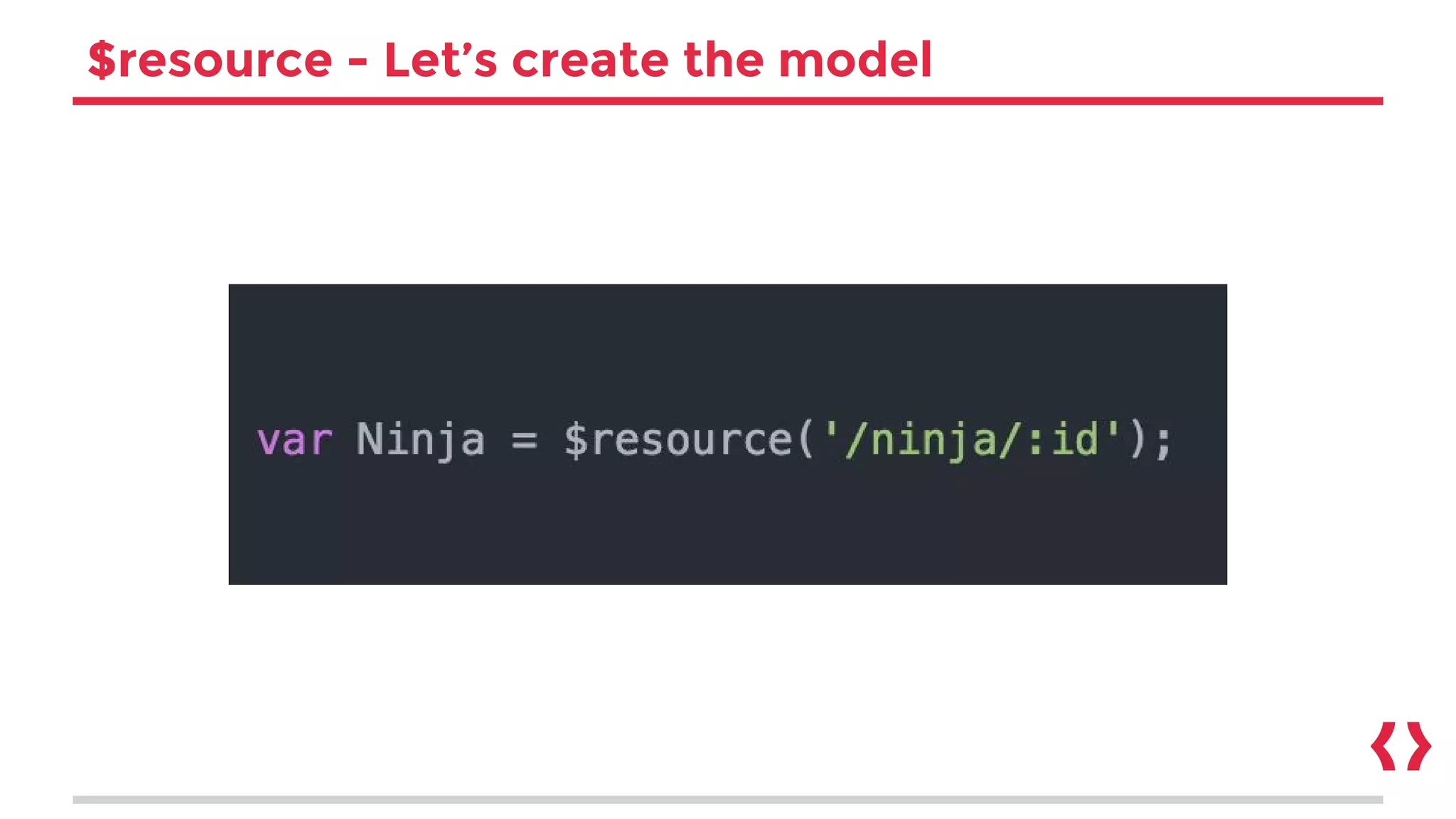

$resource - Let’s create the model

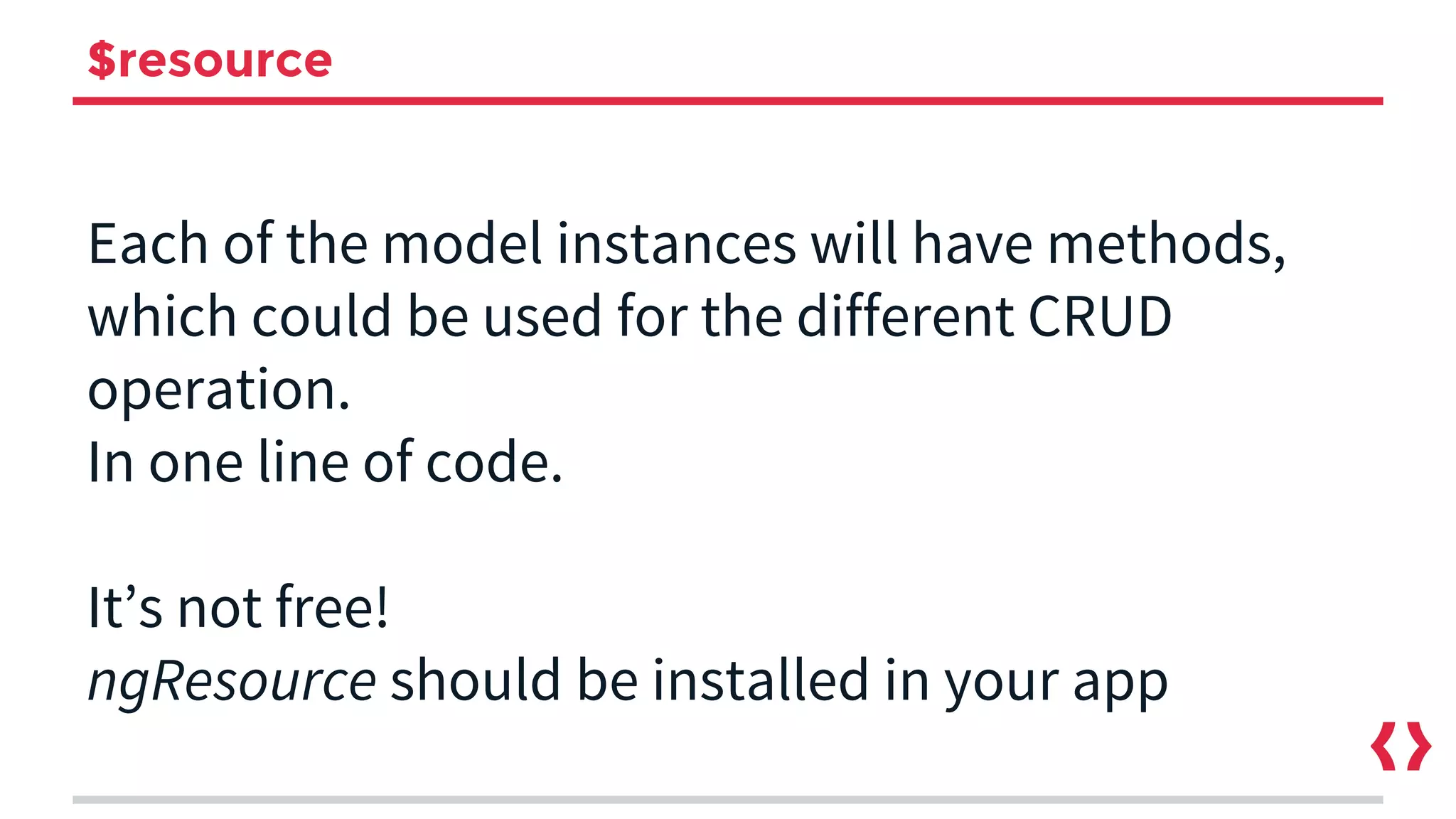

$resource
Each of the model instances will have methods,
which could be used for the different CRUD
operation.
In one line of code.
It’s not free!
ngResource should be installed in your app

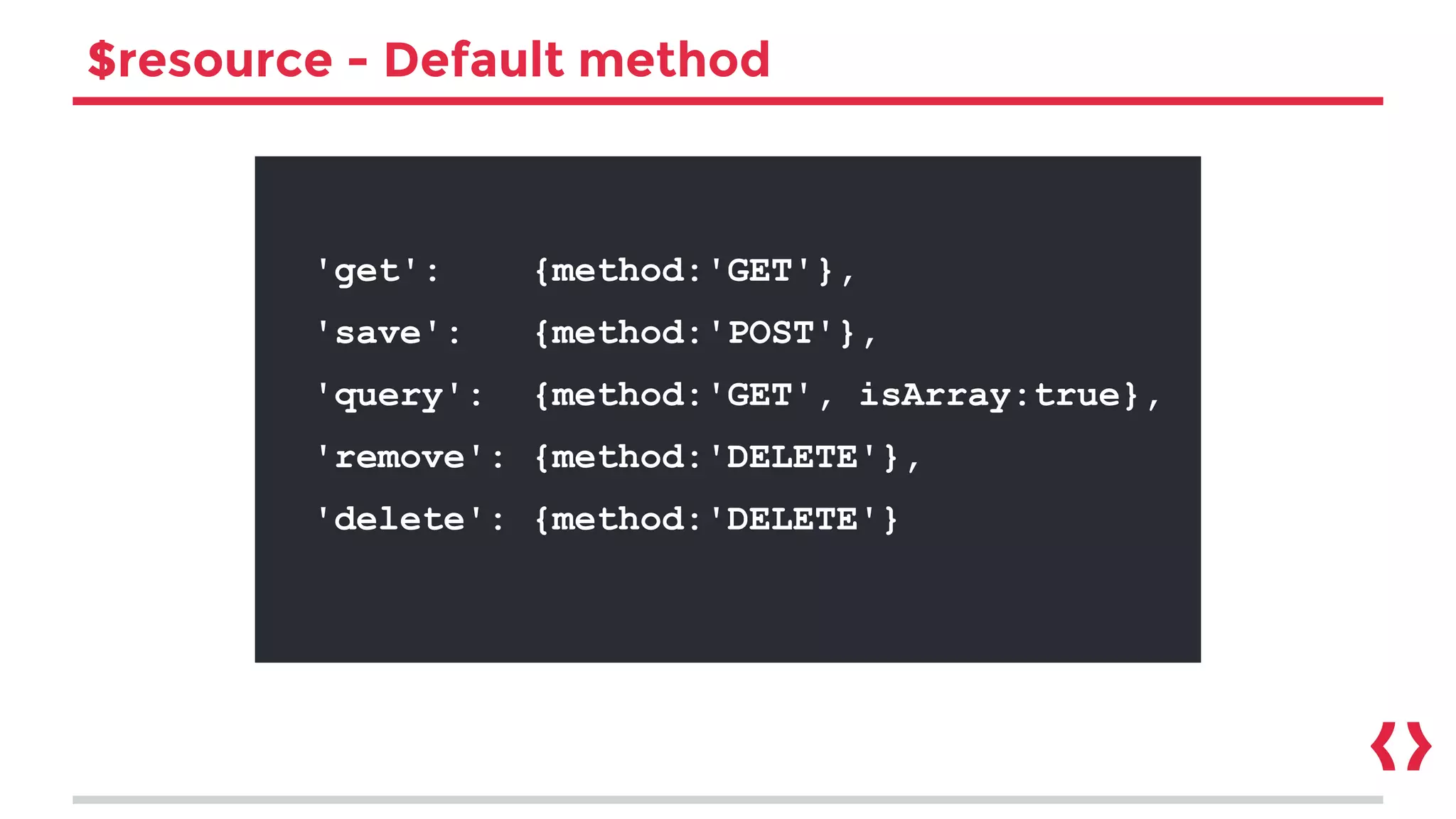

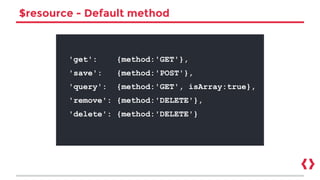

$resource - Default method
'get': {method:'GET'},
'save': {method:'POST'},
'query': {method:'GET', isArray:true},
'remove': {method:'DELETE'},
'delete': {method:'DELETE'}

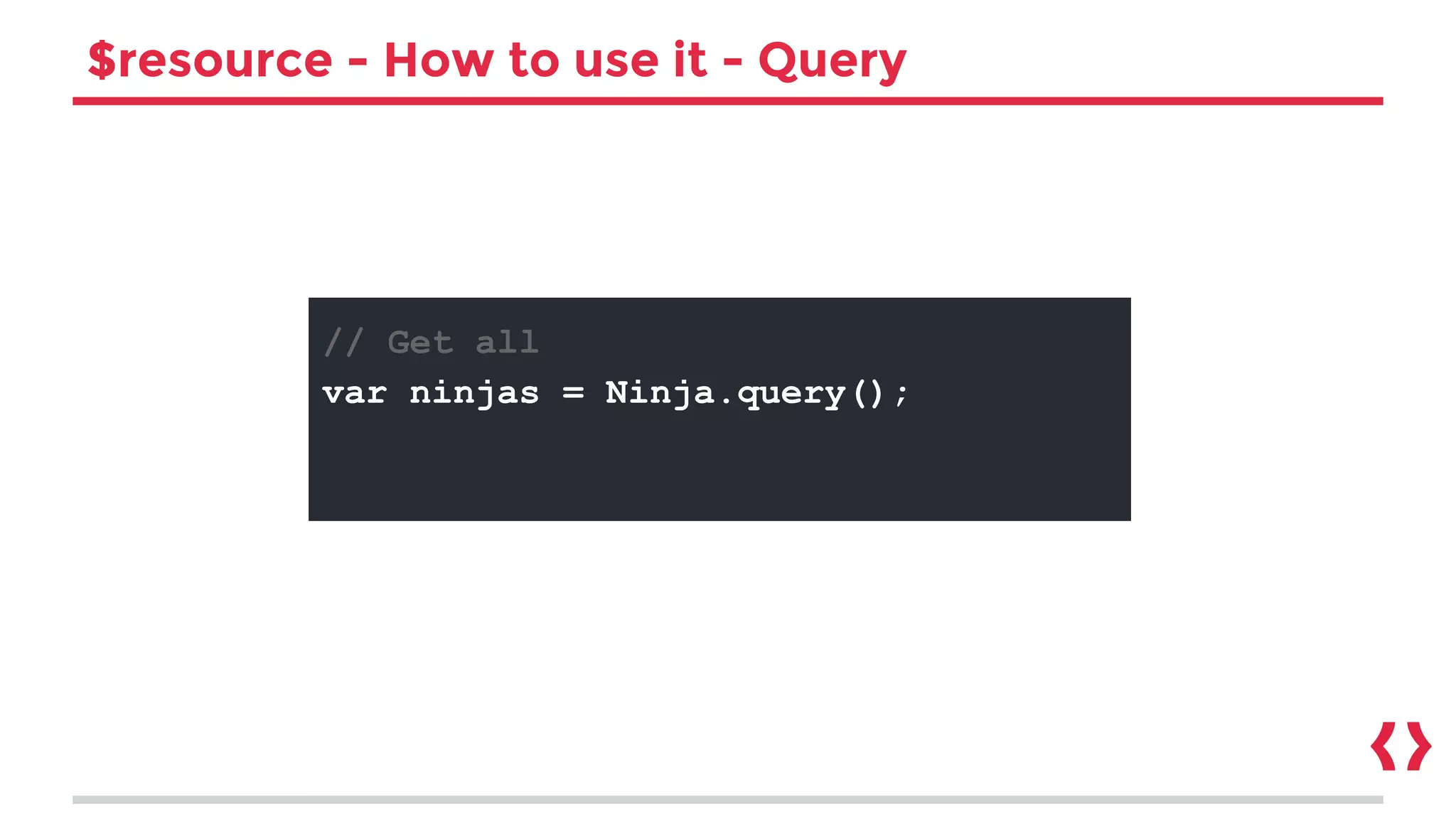

$resource - How to use it - Query
// Get all
var ninjas = Ninja.query();

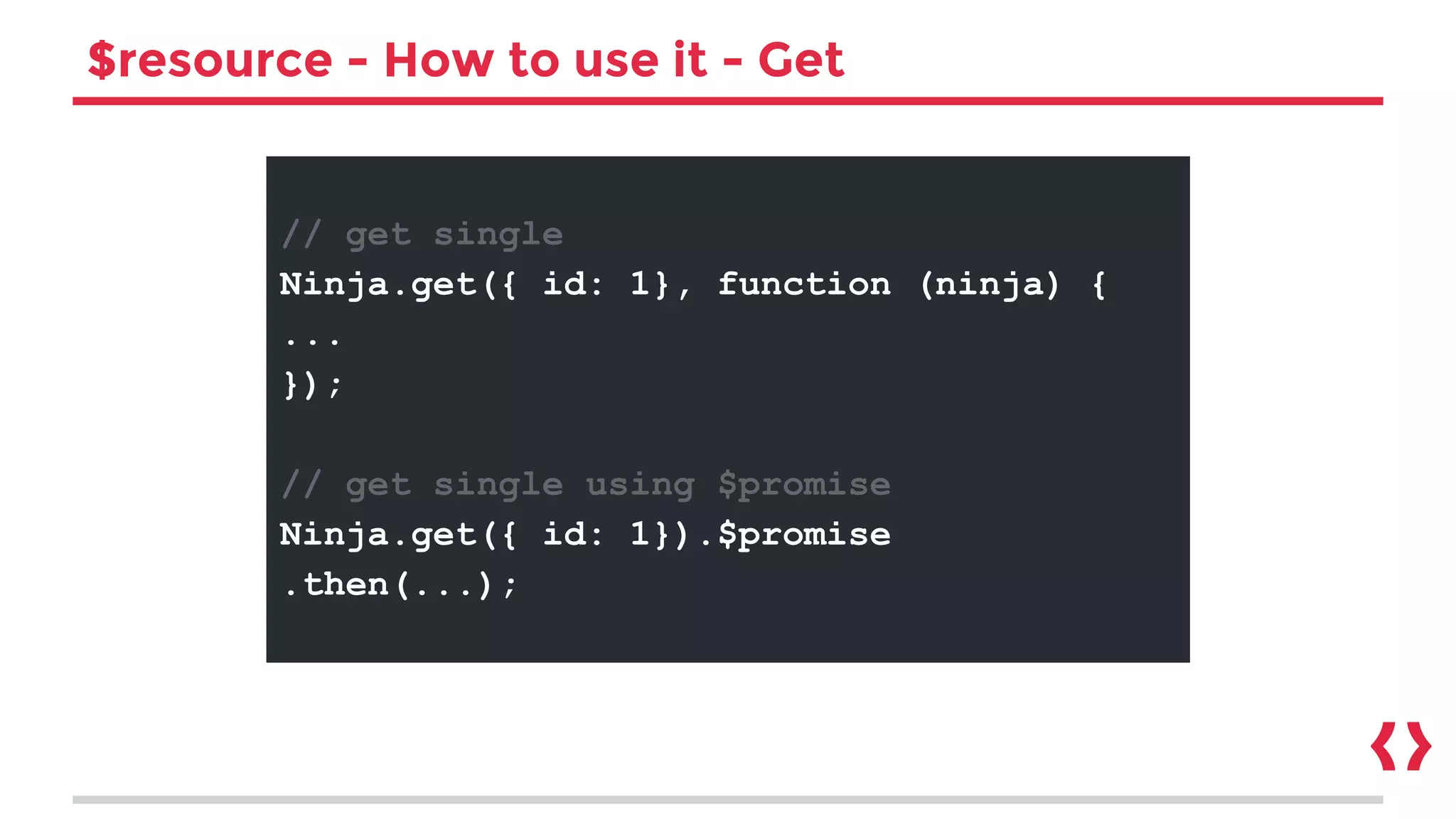

$resource - How to use it - Get
// get single
Ninja.get({ id: 1}, function (ninja) {
...
});
// get single using $promise
Ninja.get({ id: 1}).$promise
.then(...);

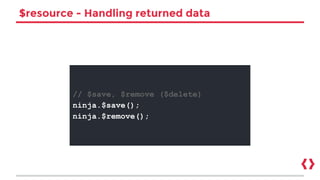

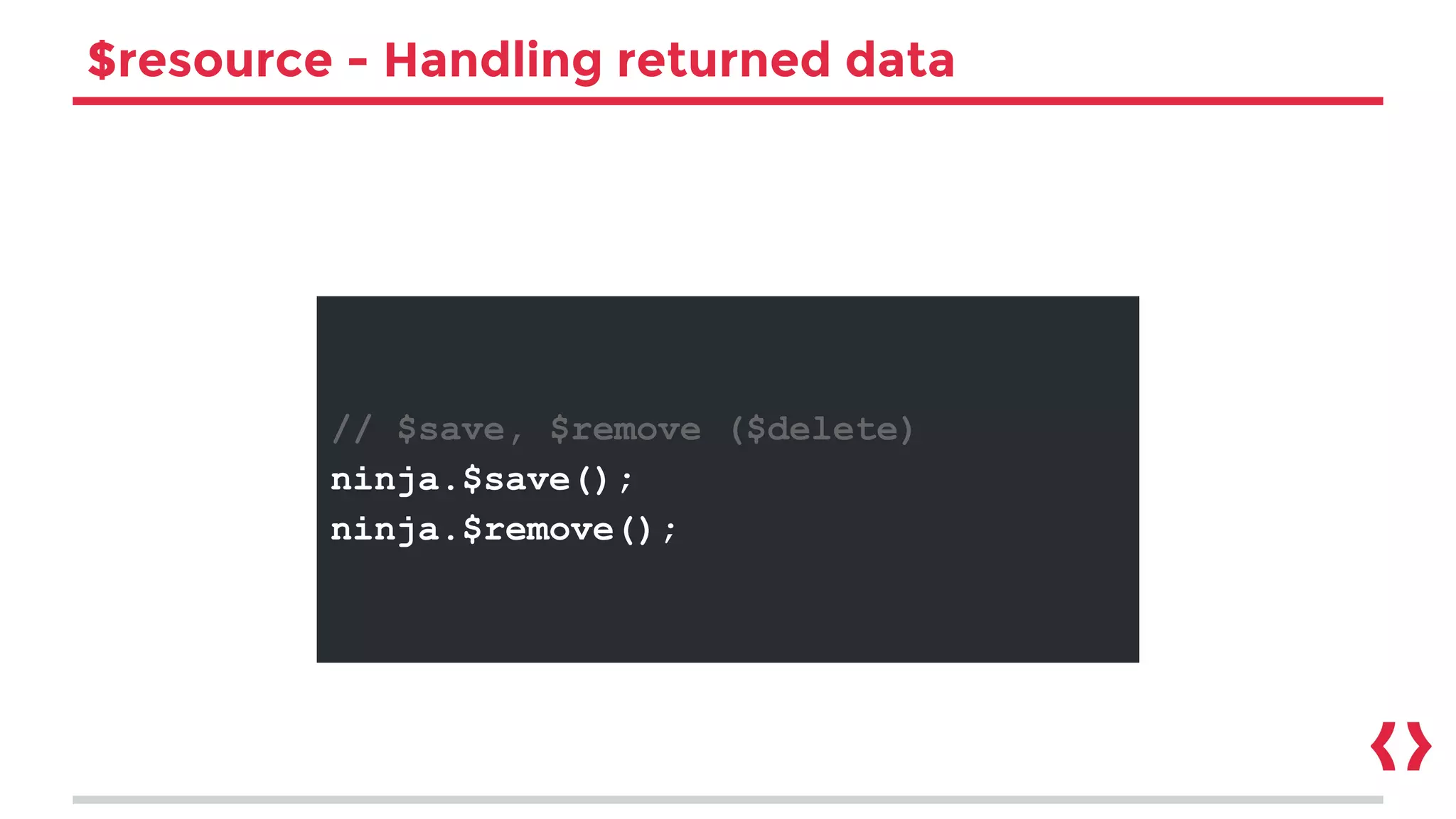

$resource - Handling returned data
// $save, $remove ($delete)
ninja.$save();
ninja.$remove();

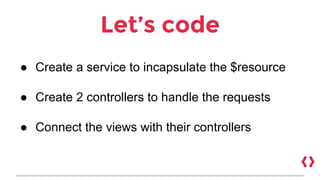

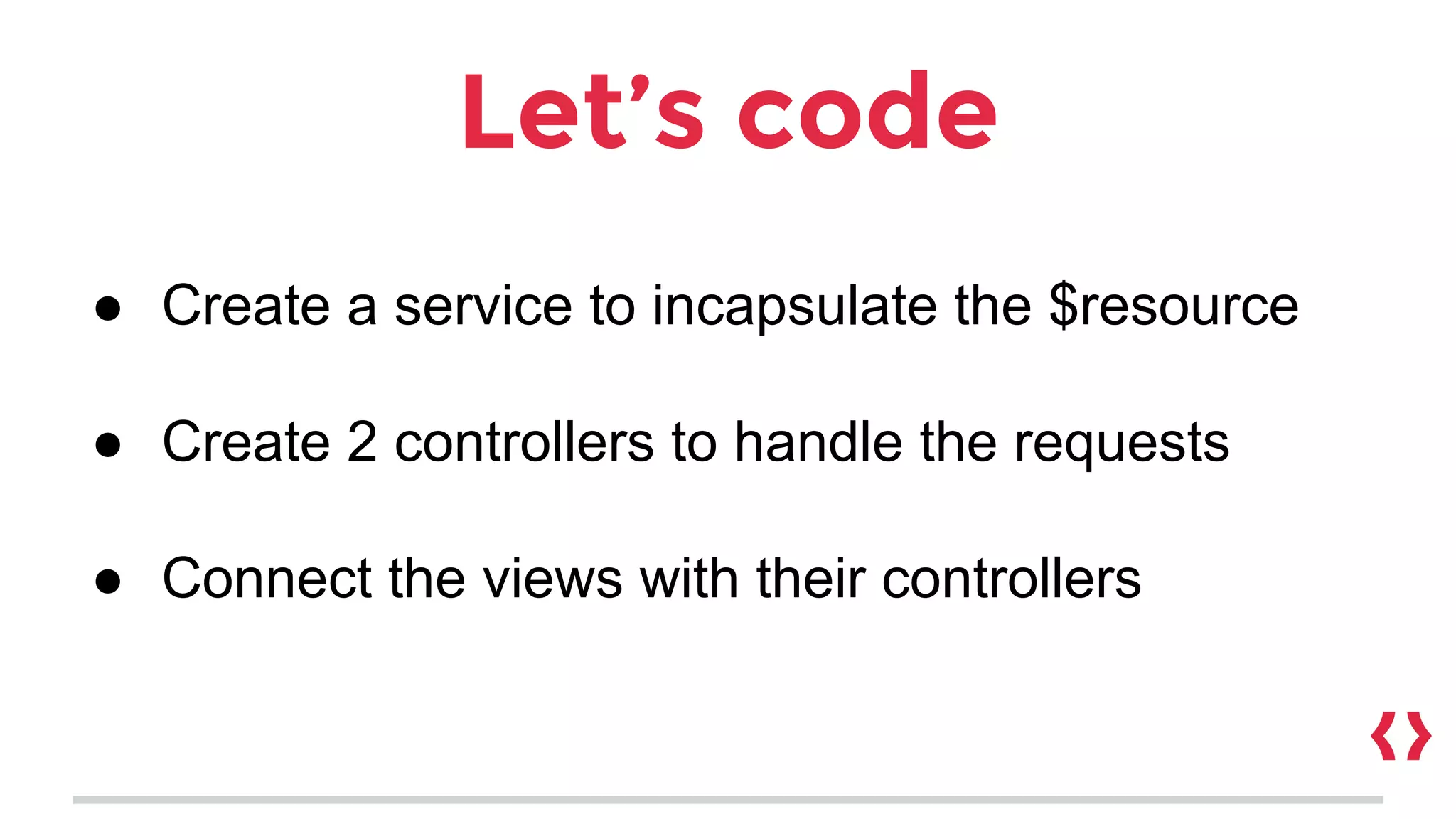

Let’s code
● Create a service to incapsulate the $resource
● Create 2 controllers to handle the requests
● Connect the views with their controllers

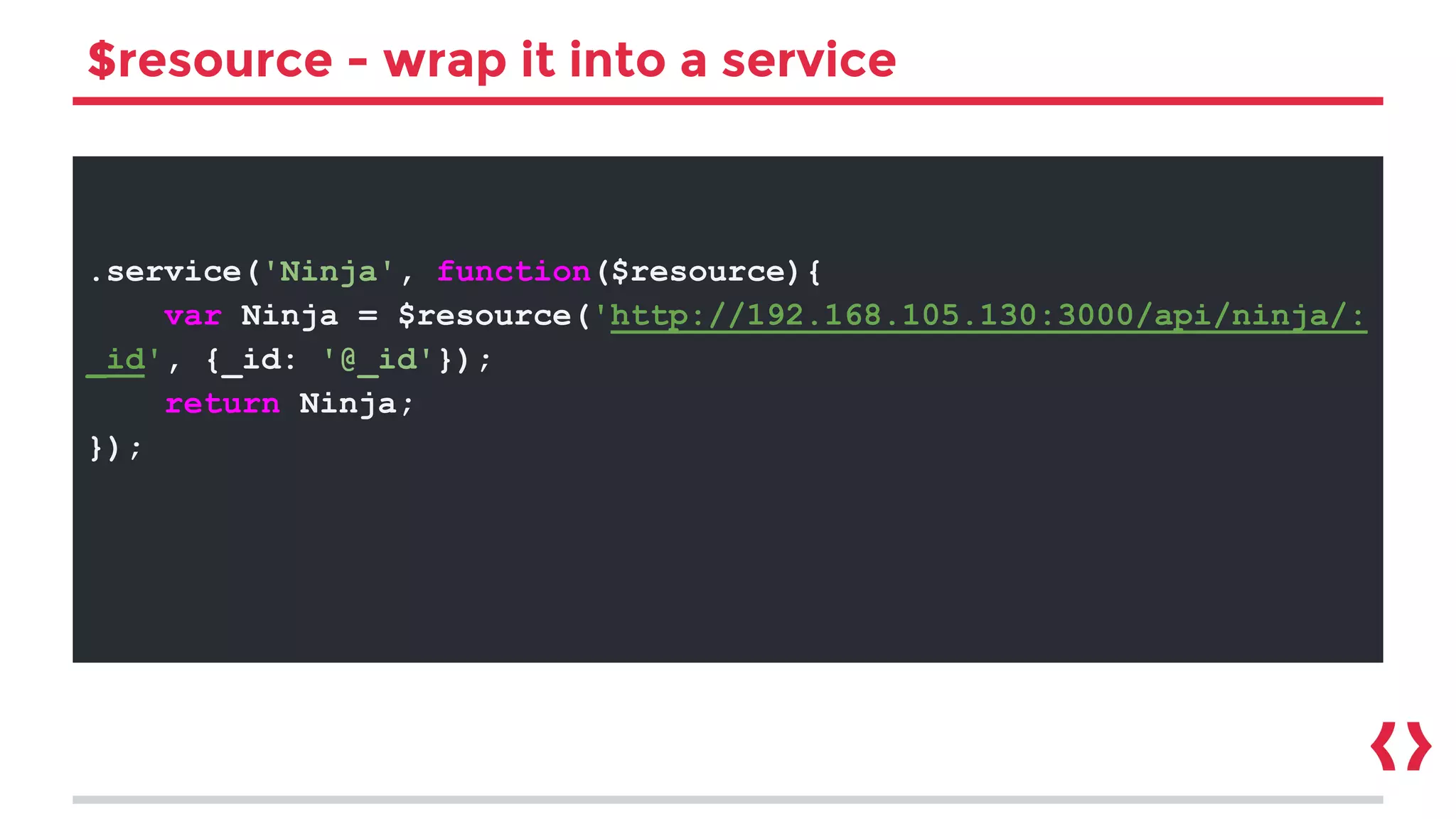

$resource - wrap it into a service
.service('Ninja', function($resource){
var Ninja = $resource('http://192.168.105.130:3000/api/ninja/:
_id', {_id: '@_id'});
return Ninja;
});

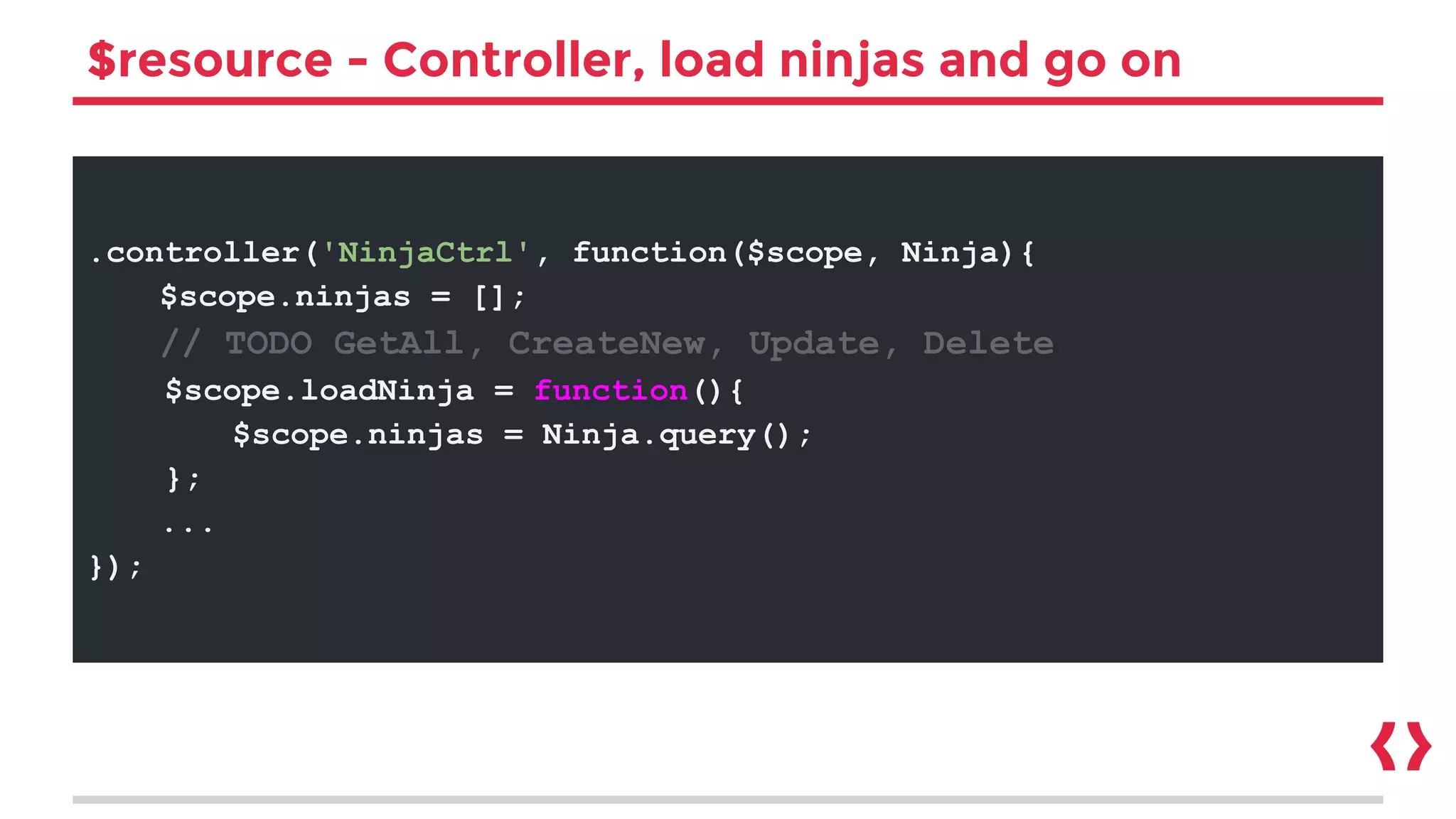

$resource - Controller, load ninjas and go on
.controller('NinjaCtrl', function($scope, Ninja){
$scope.ninjas = [];
// TODO GetAll, CreateNew, Update, Delete
$scope.loadNinja = function(){
$scope.ninjas = Ninja.query();
};
...
});

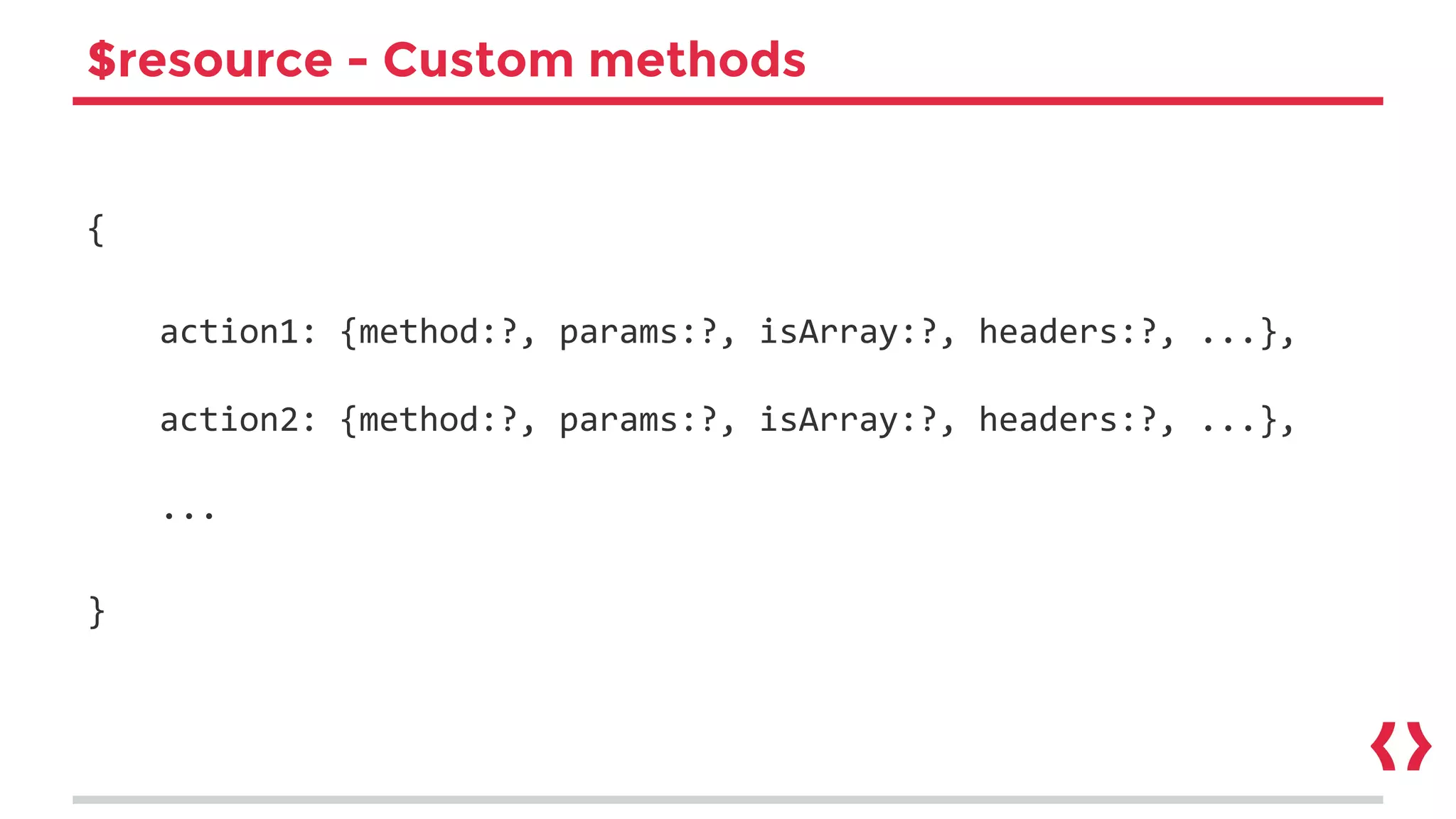

$resource - Custom methods
{
action1: {method:?, params:?, isArray:?, headers:?, ...},
action2: {method:?, params:?, isArray:?, headers:?, ...},
...
}

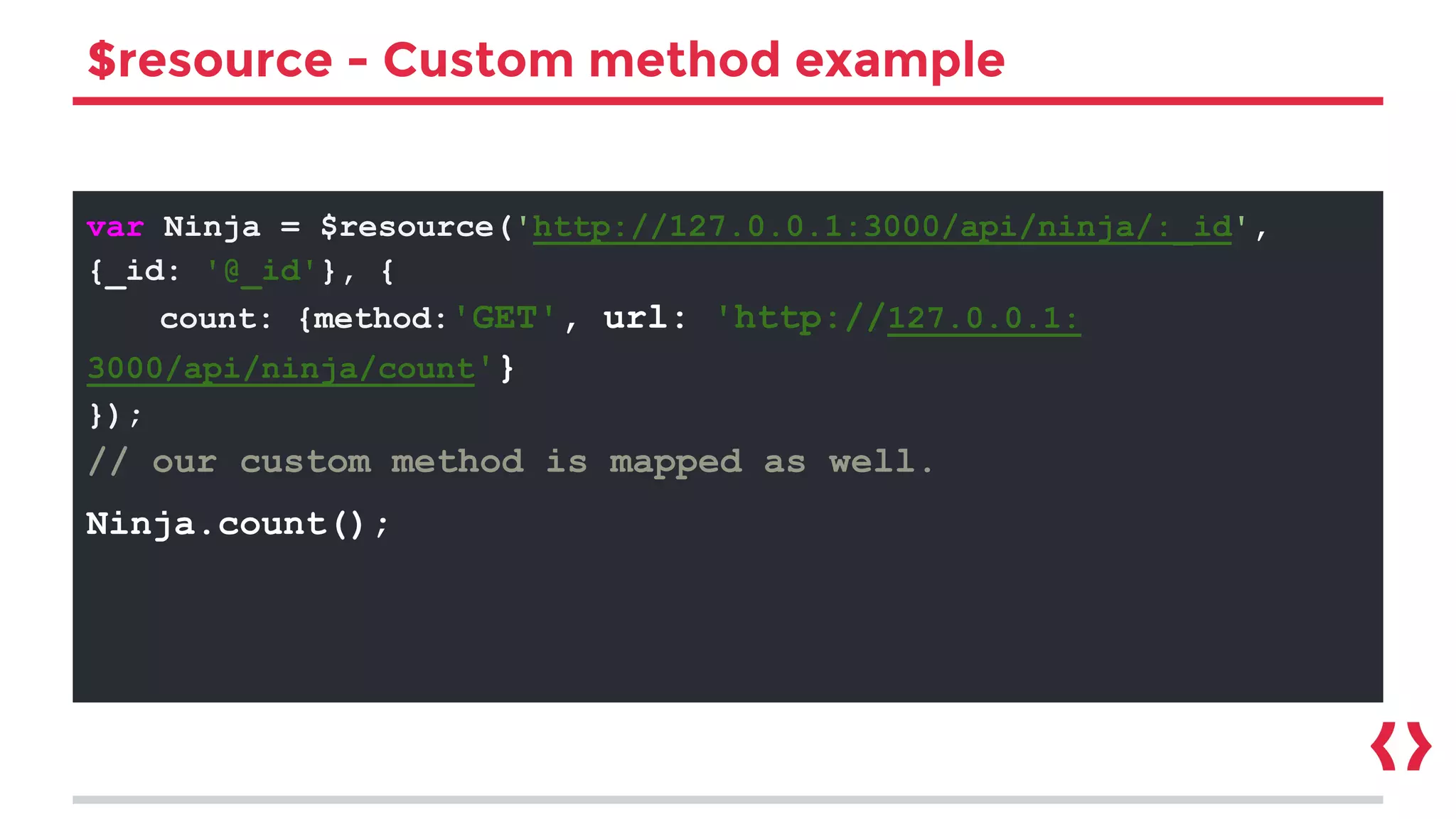

$resource - Custom method example
var Ninja = $resource('http://127.0.0.1:3000/api/ninja/:_id',
{_id: '@_id'}, {
count: {method:'GET', url: 'http://127.0.0.1:
3000/api/ninja/count'}
});
// our custom method is mapped as well.
Ninja.count();

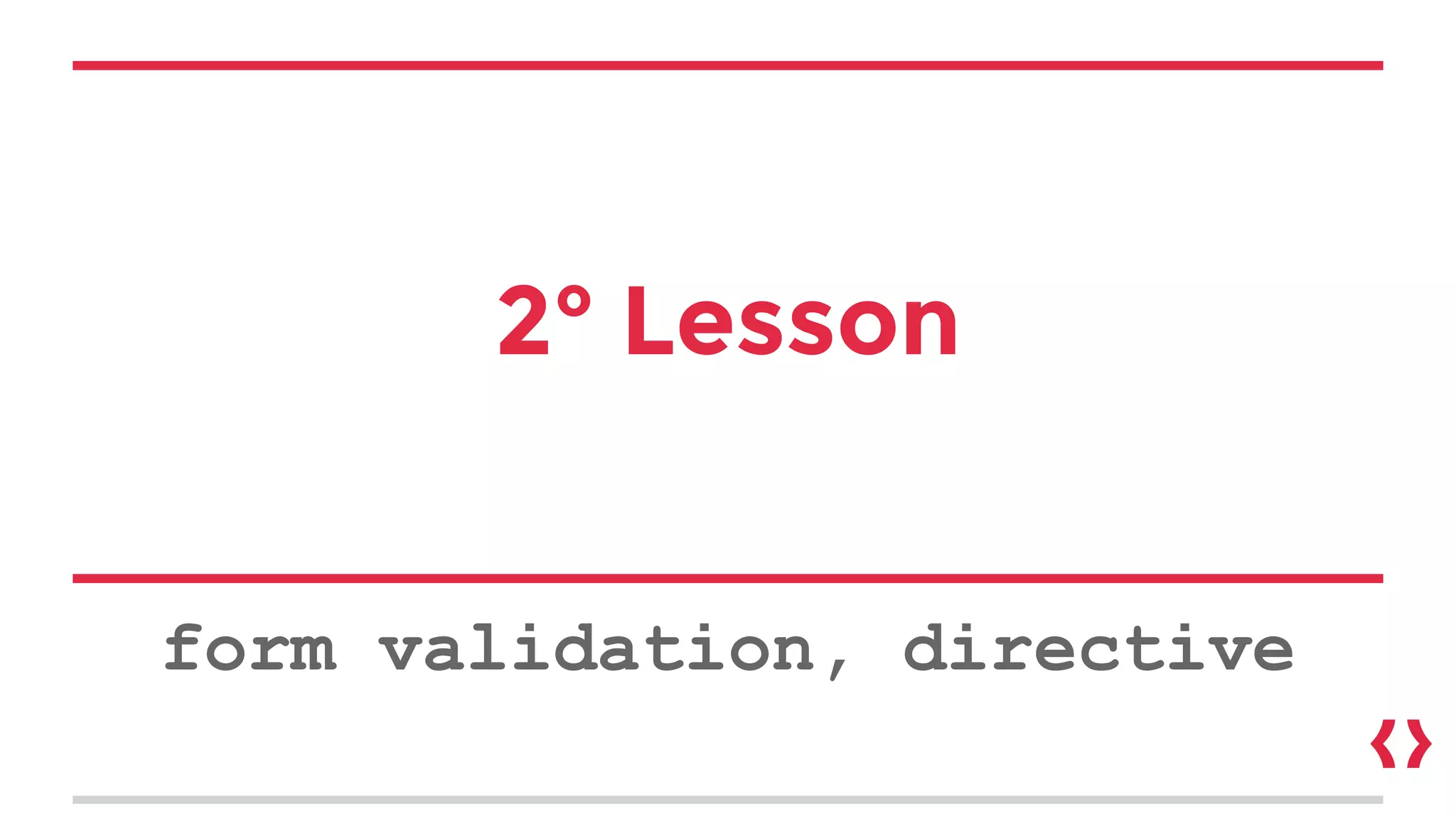

2° Lesson
form validation, directive

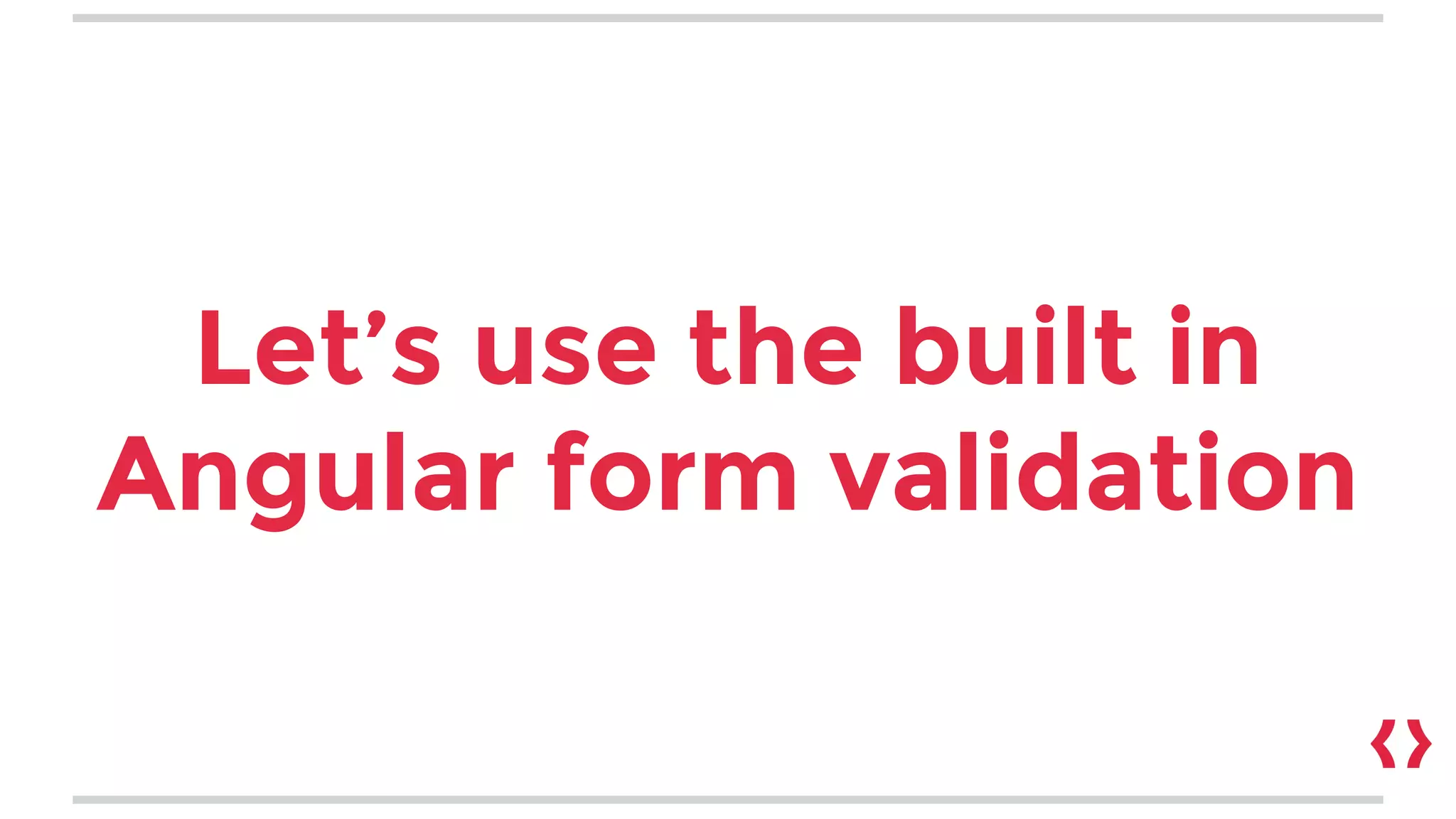

Let’s use the built in
Angular form validation

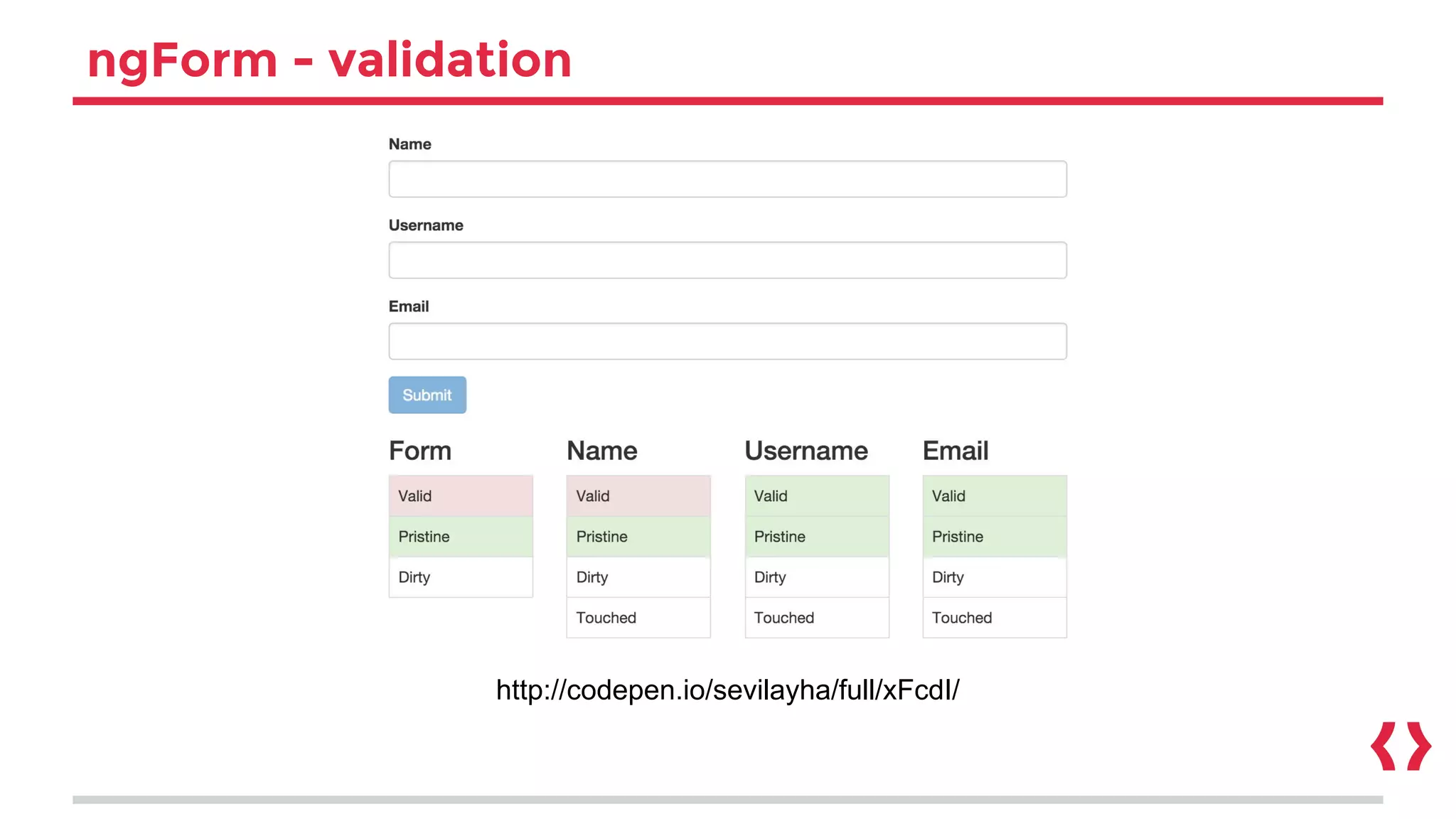

ngForm - validation
http://codepen.io/sevilayha/full/xFcdI/

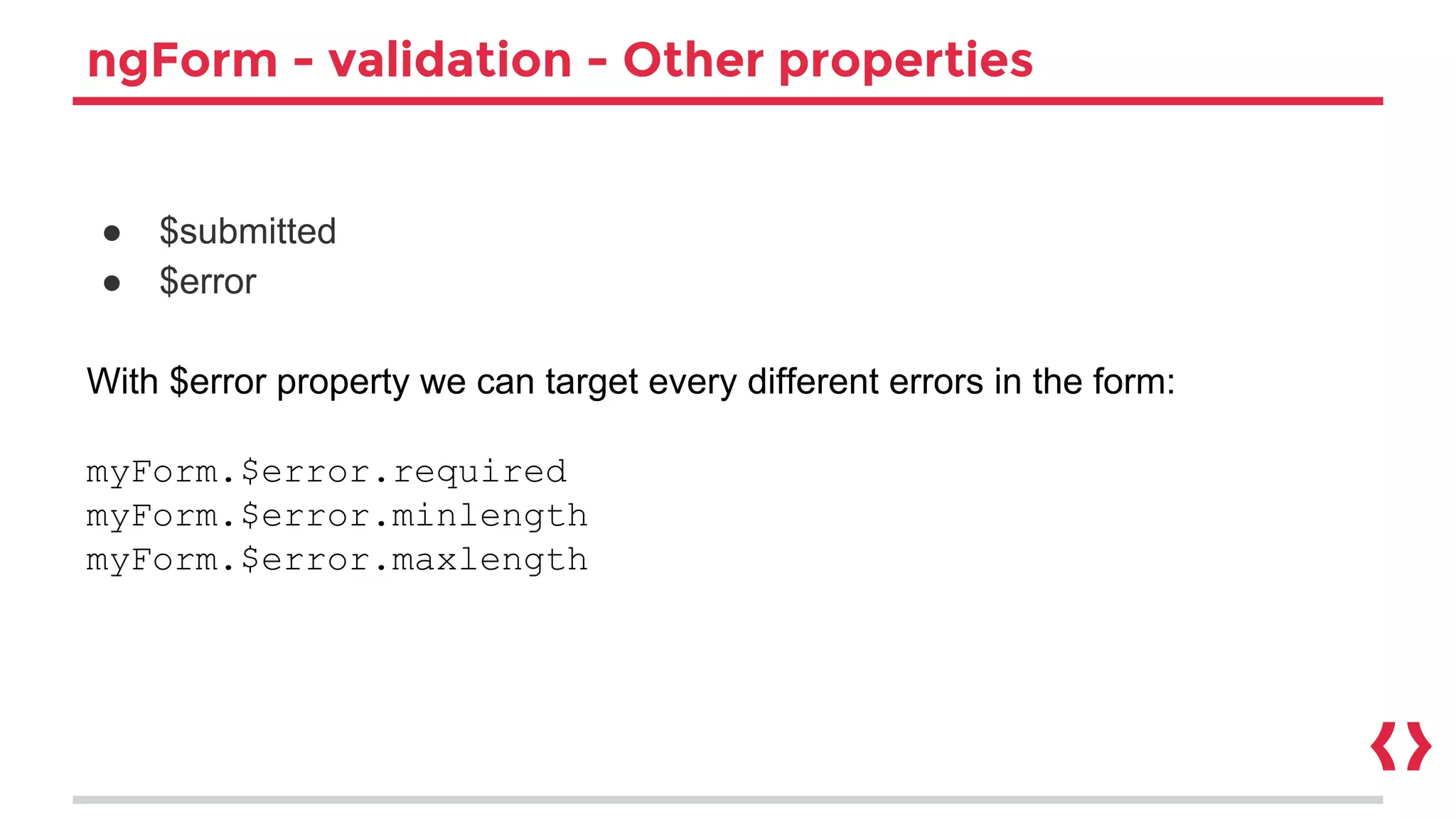

ngForm - validation - Other properties
● $submitted
● $error
With $error property we can target every different errors in the form:
myForm.$error.required
myForm.$error.minlength
myForm.$error.maxlength

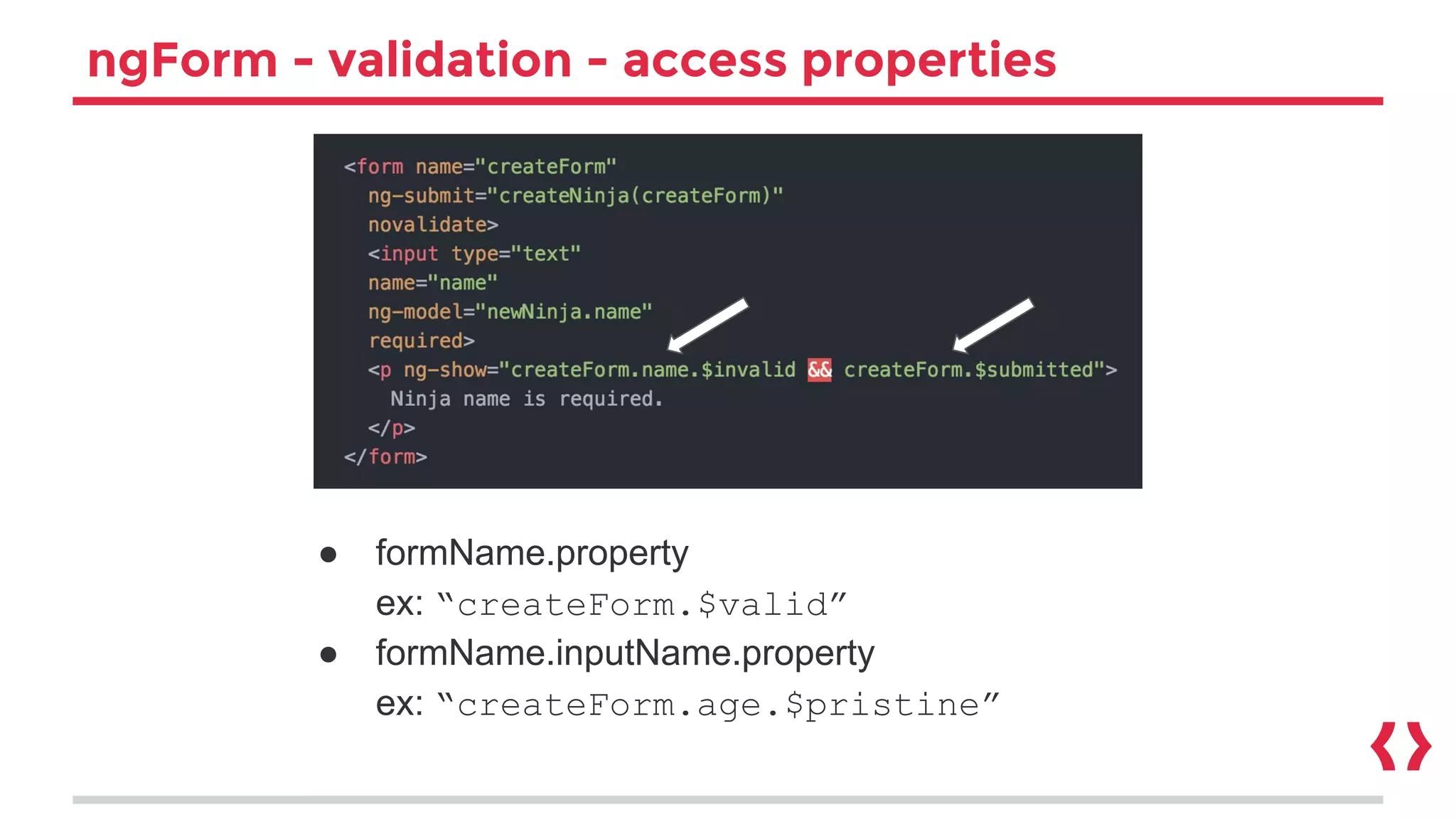

ngForm - validation - access properties
● formName.property
ex: “createForm.$valid”
● formName.inputName.property
ex: “createForm.age.$pristine”

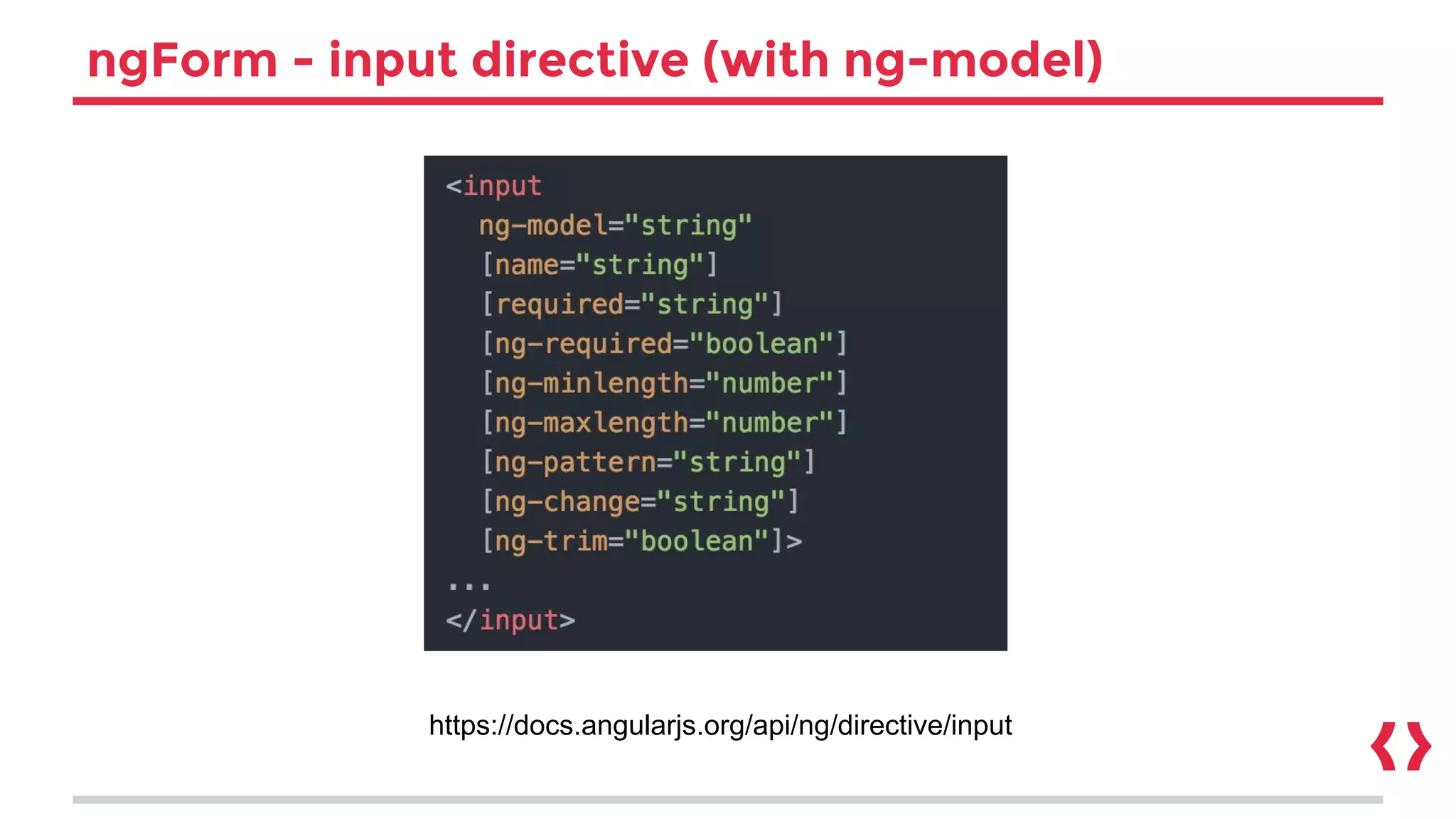

ngForm - input directive (with ng-model)
https://docs.angularjs.org/api/ng/directive/input

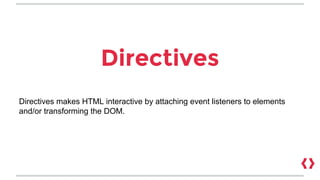

Directives
Directives makes HTML interactive by attaching event listeners to elements
and/or transforming the DOM.

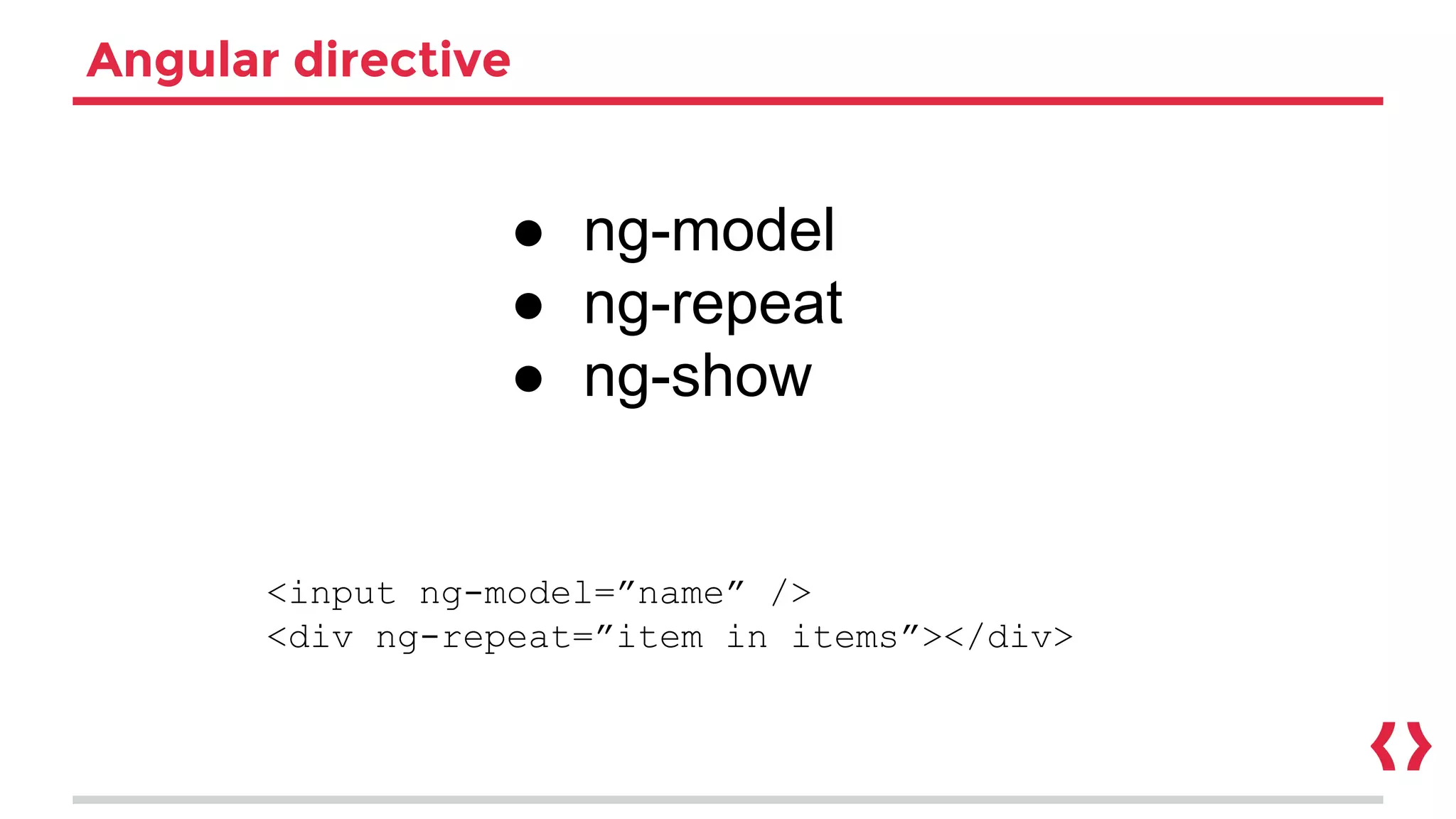

Angular directive
● ng-model
● ng-repeat
● ng-show
<input ng-model=”name” />
<div ng-repeat=”item in items”></div>

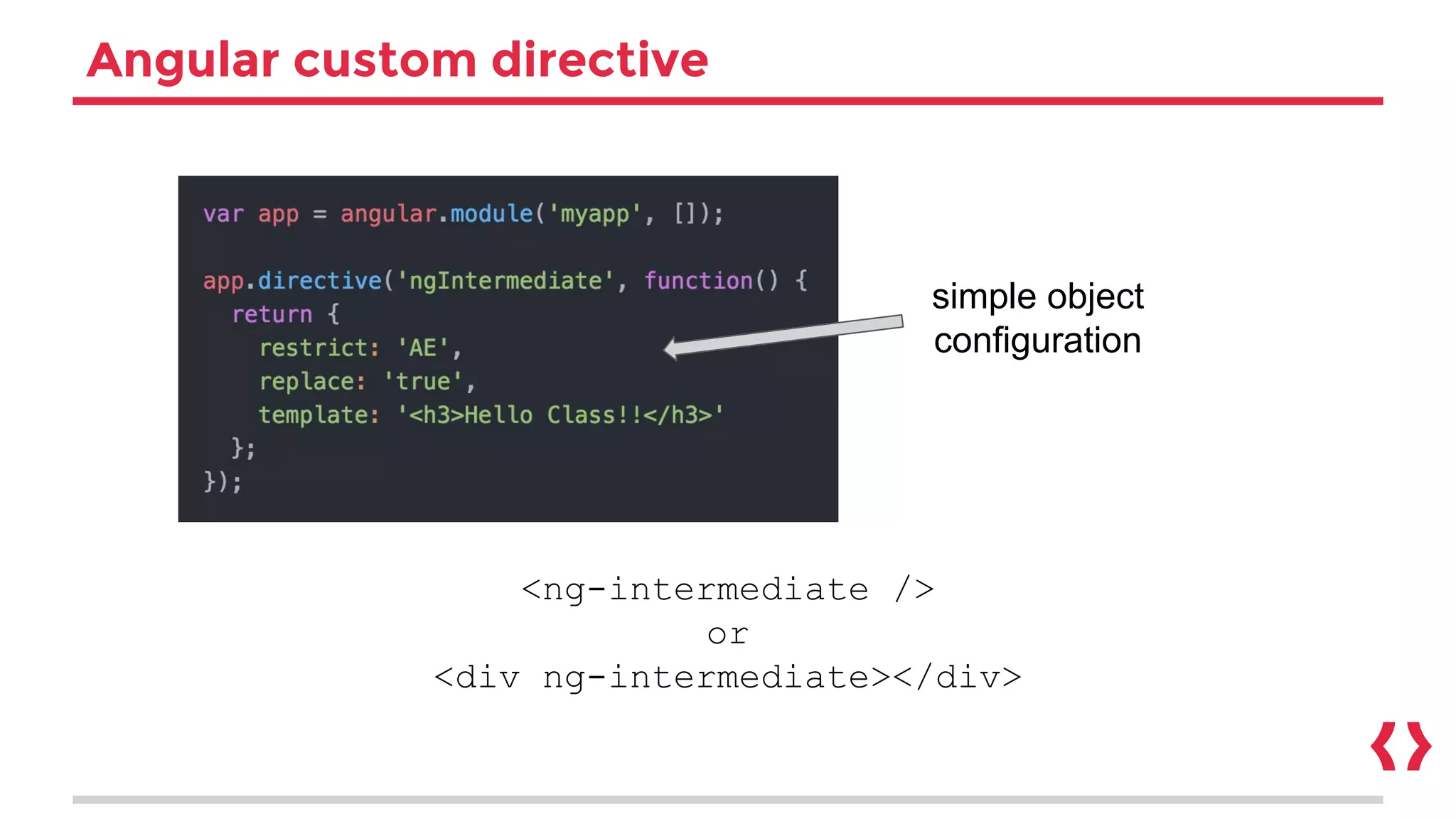

Angular custom directive
<ng-intermediate />
or
<div ng-intermediate></div>
simple object
configuration

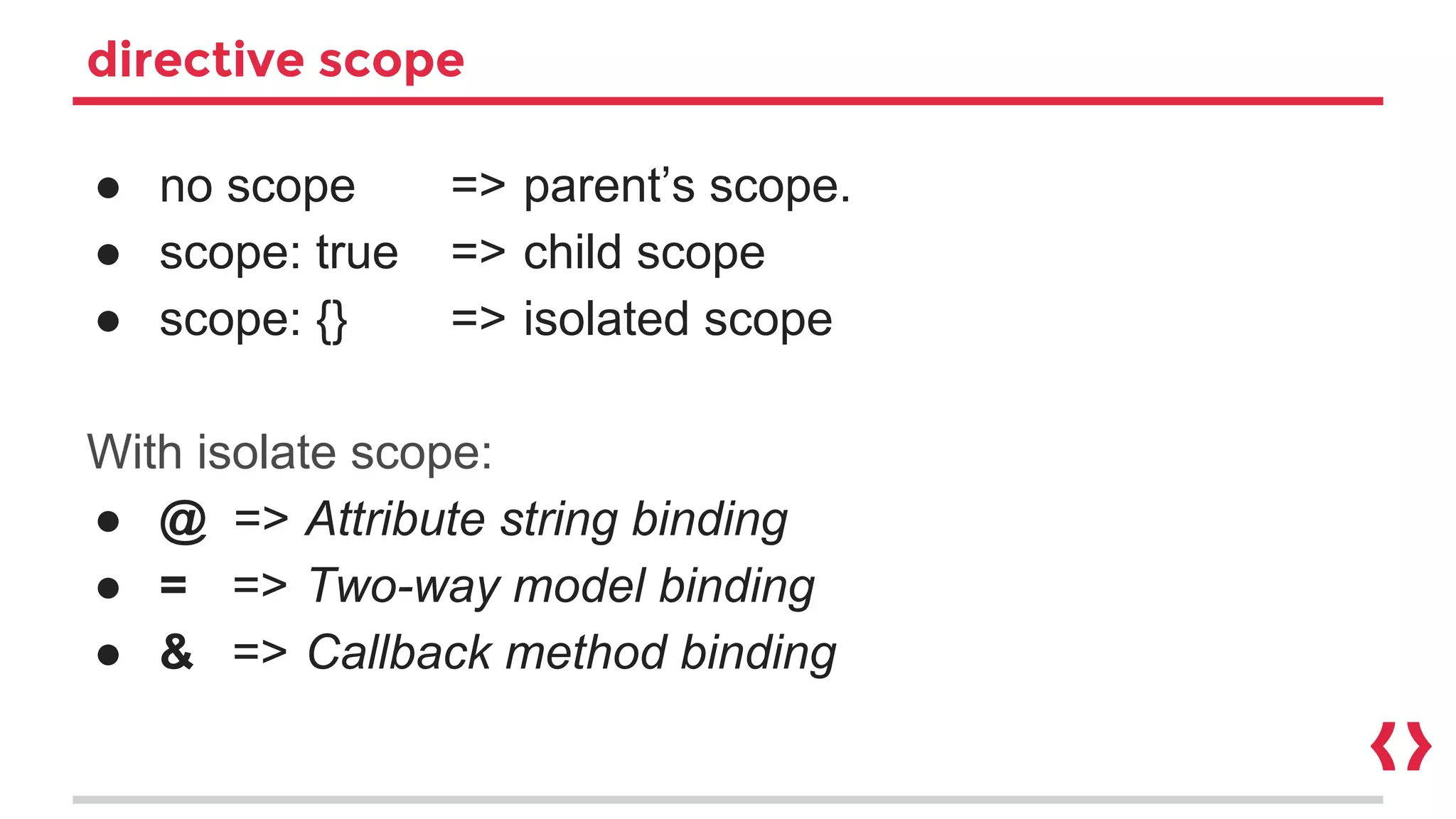

● no scope => parent’s scope.
● scope: true => child scope
● scope: {} => isolated scope
With isolate scope:
● @ => Attribute string binding
● = => Two-way model binding
● & => Callback method binding
directive scope

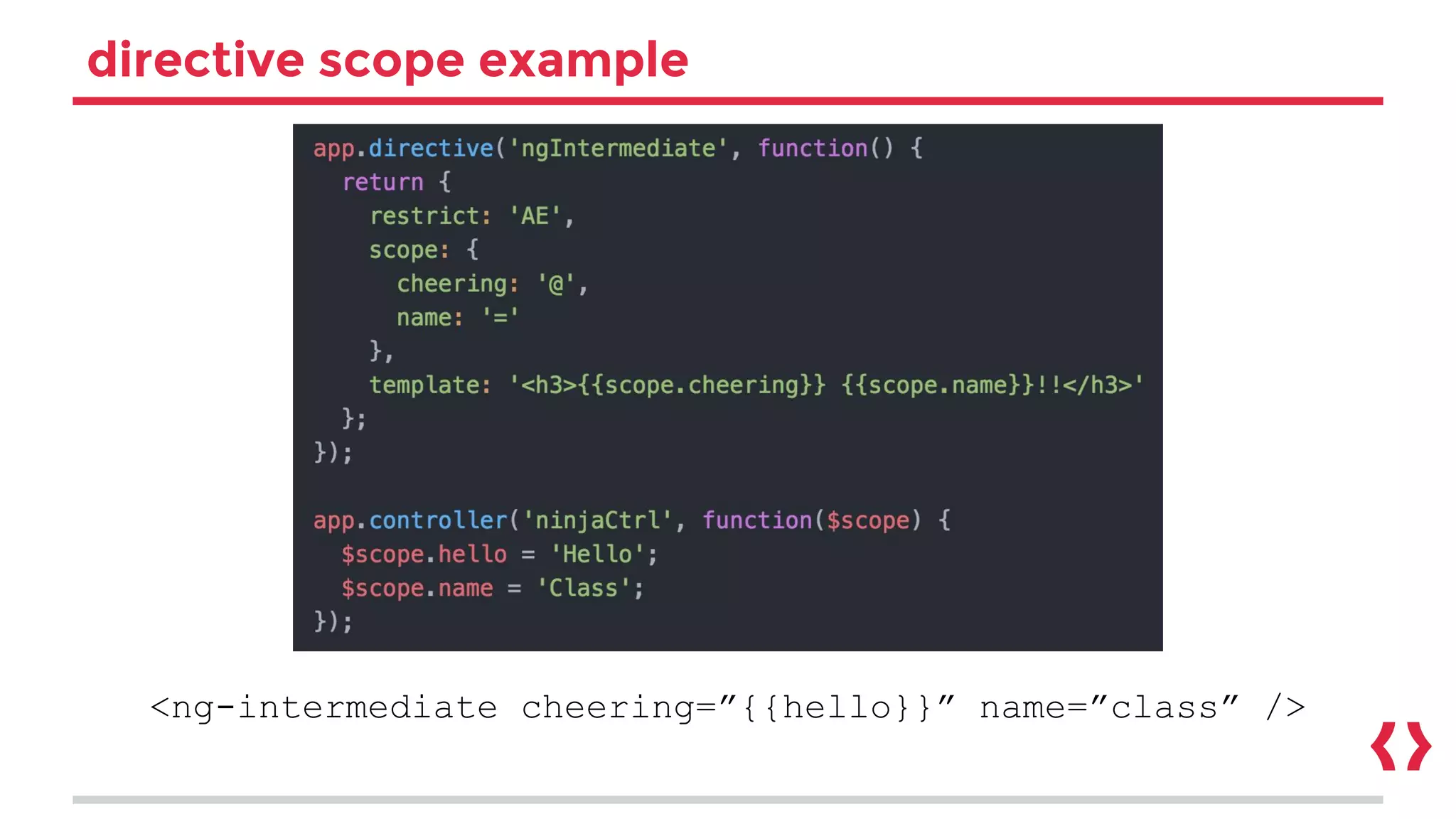

directive scope example
<ng-intermediate cheering=”{{hello}}” name=”class” />

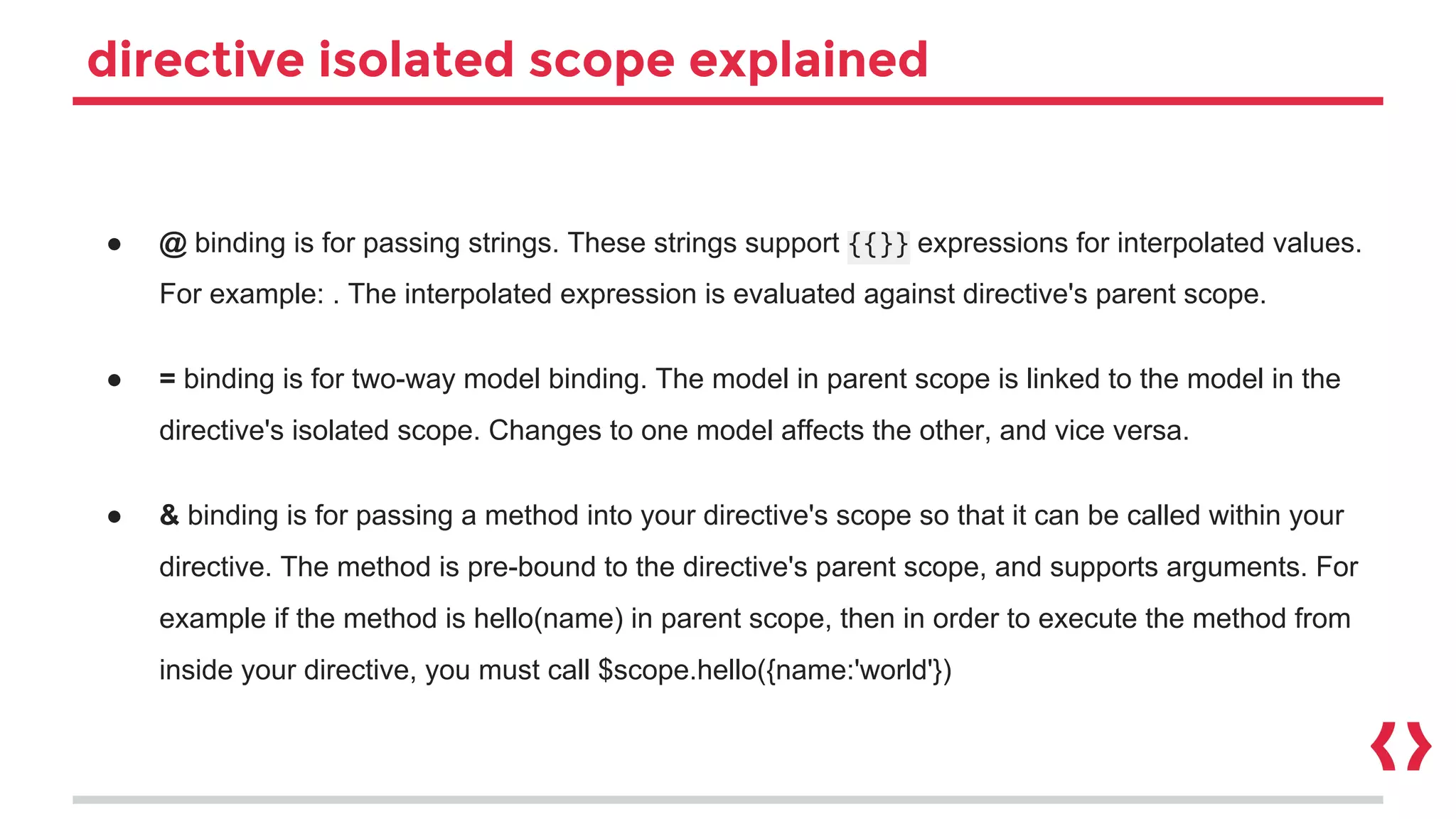

directive isolated scope explained
● @ binding is for passing strings. These strings support {{}} expressions for interpolated values.
For example: . The interpolated expression is evaluated against directive's parent scope.
● = binding is for two-way model binding. The model in parent scope is linked to the model in the
directive's isolated scope. Changes to one model affects the other, and vice versa.
● & binding is for passing a method into your directive's scope so that it can be called within your
directive. The method is pre-bound to the directive's parent scope, and supports arguments. For
example if the method is hello(name) in parent scope, then in order to execute the method from
inside your directive, you must call $scope.hello({name:'world'})

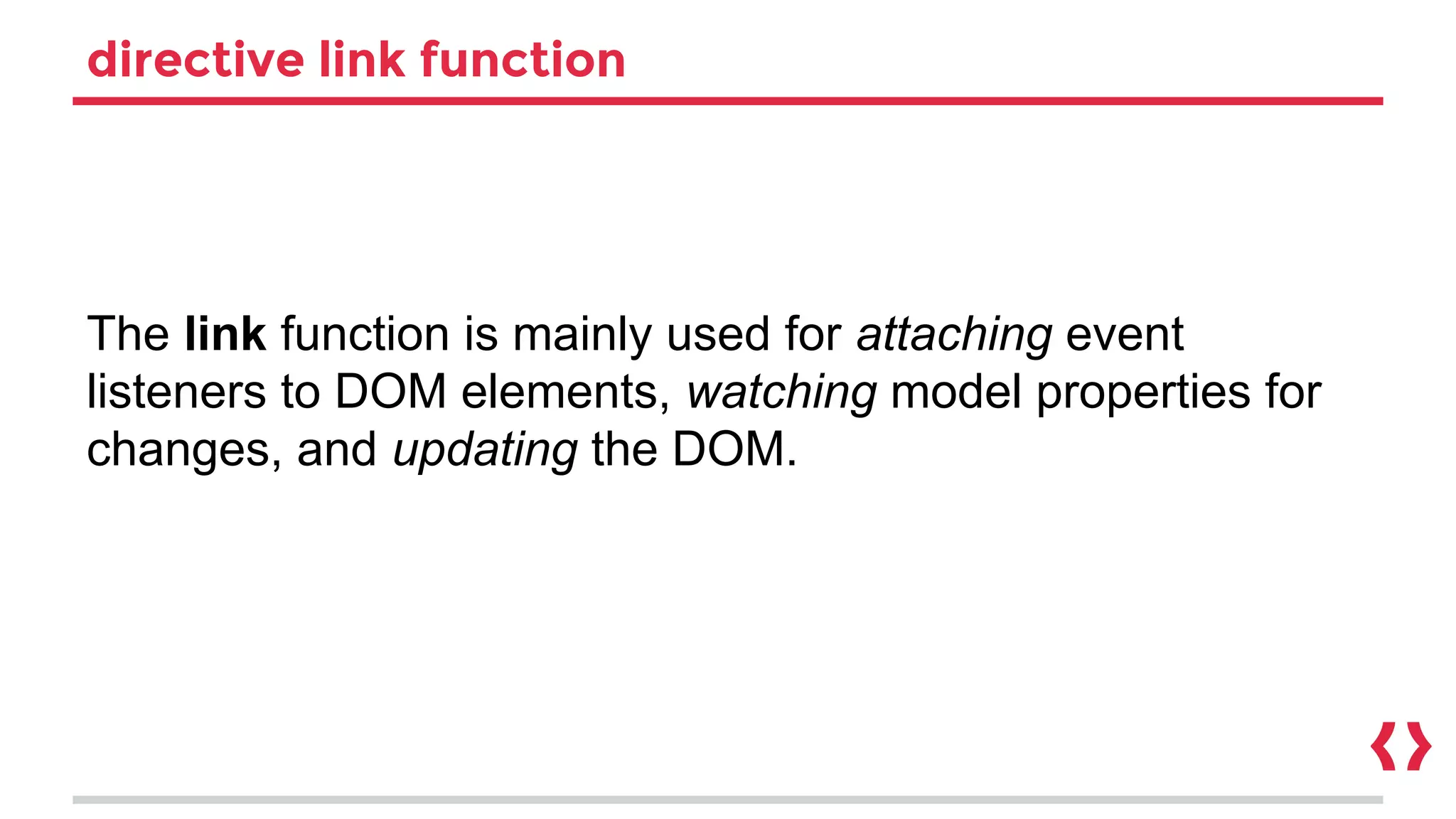

directive link function
The link function is mainly used for attaching event
listeners to DOM elements, watching model properties for
changes, and updating the DOM.

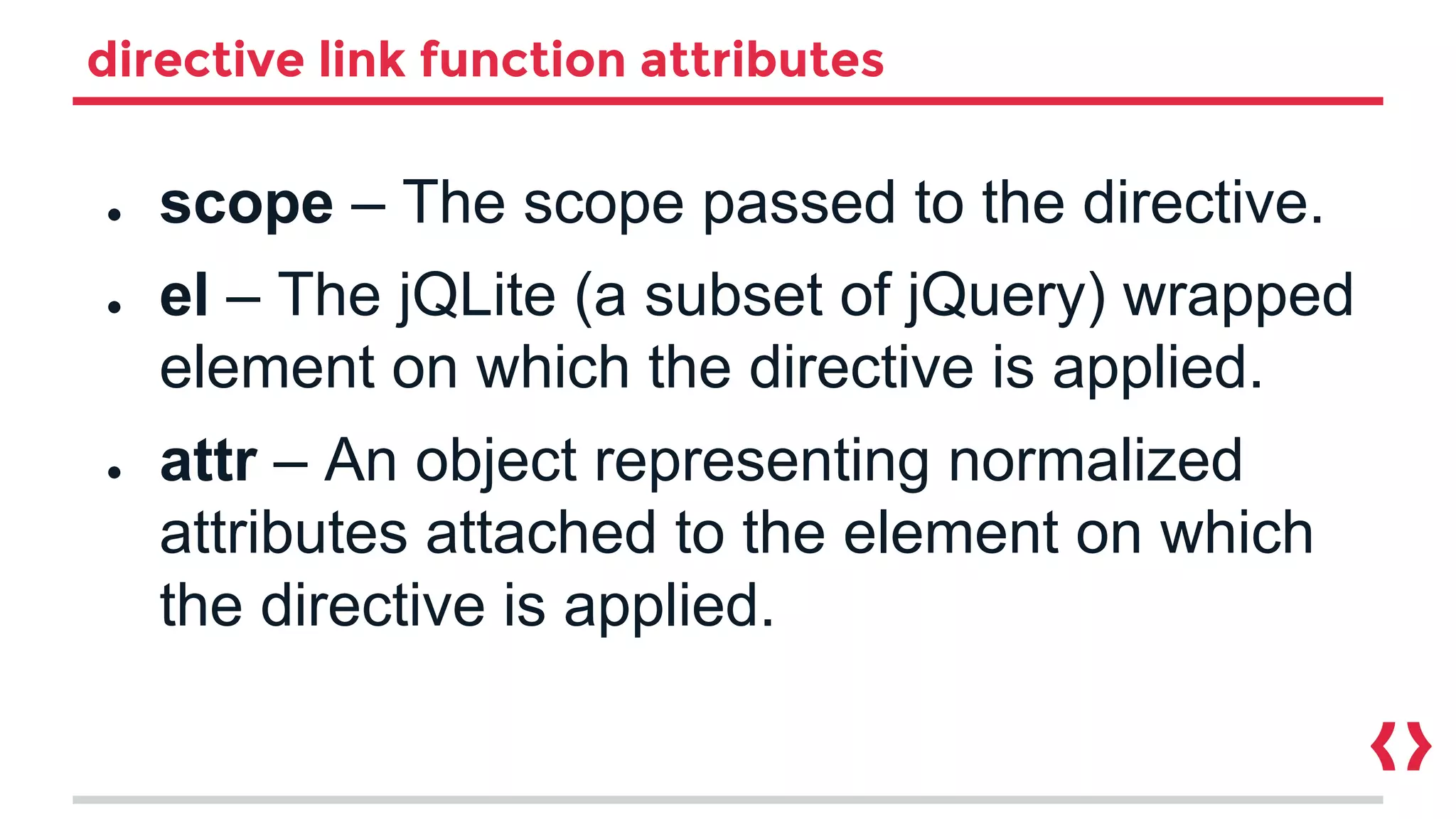

directive link function attributes
● scope – The scope passed to the directive.
● el – The jQLite (a subset of jQuery) wrapped
element on which the directive is applied.
● attr – An object representing normalized
attributes attached to the element on which
the directive is applied.

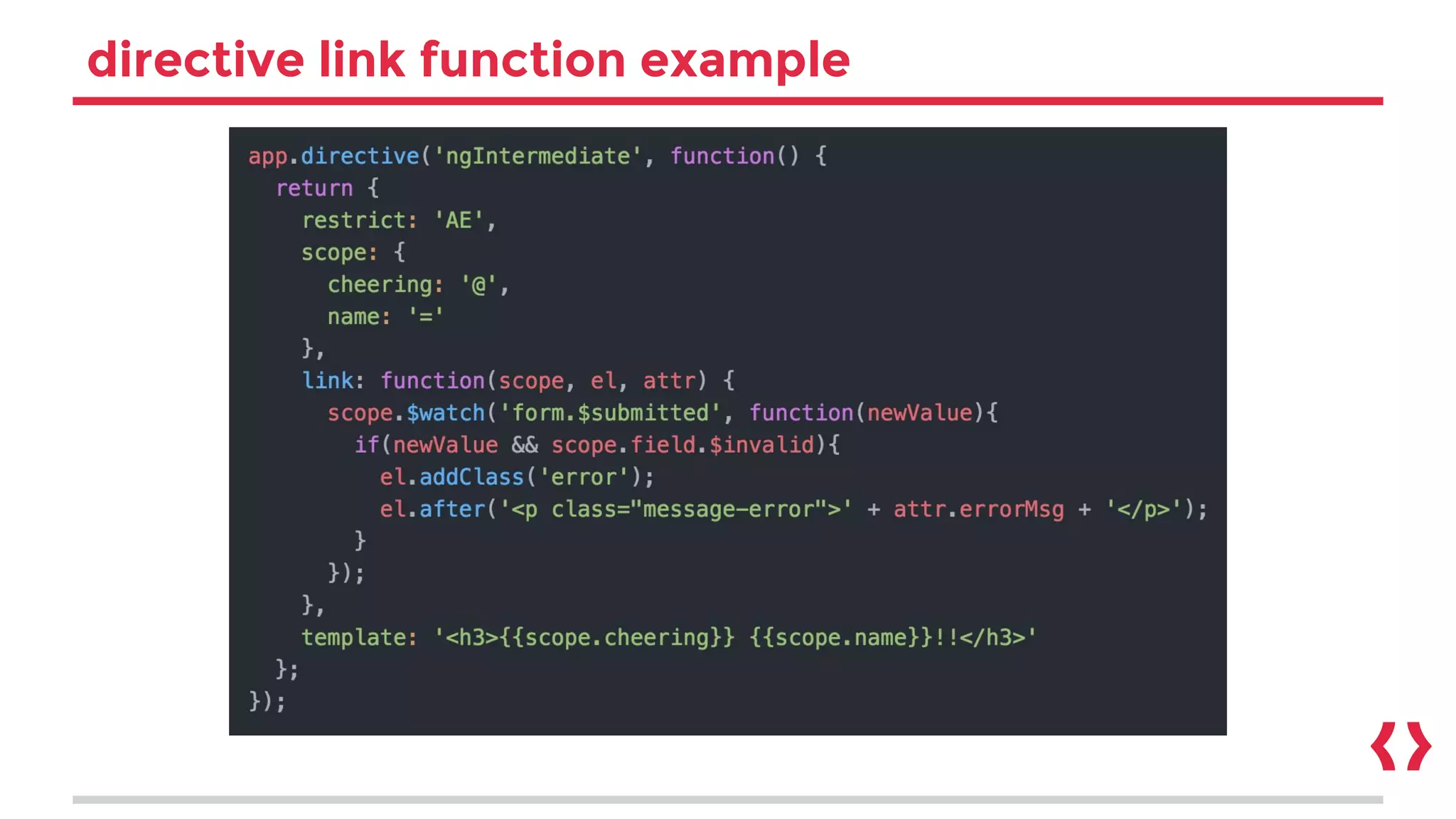

directive link function example

Directive Definition Object
● https://docs.angularjs.
org/api/ng/service/$compile
● https://docs.angularjs.
org/guide/directive

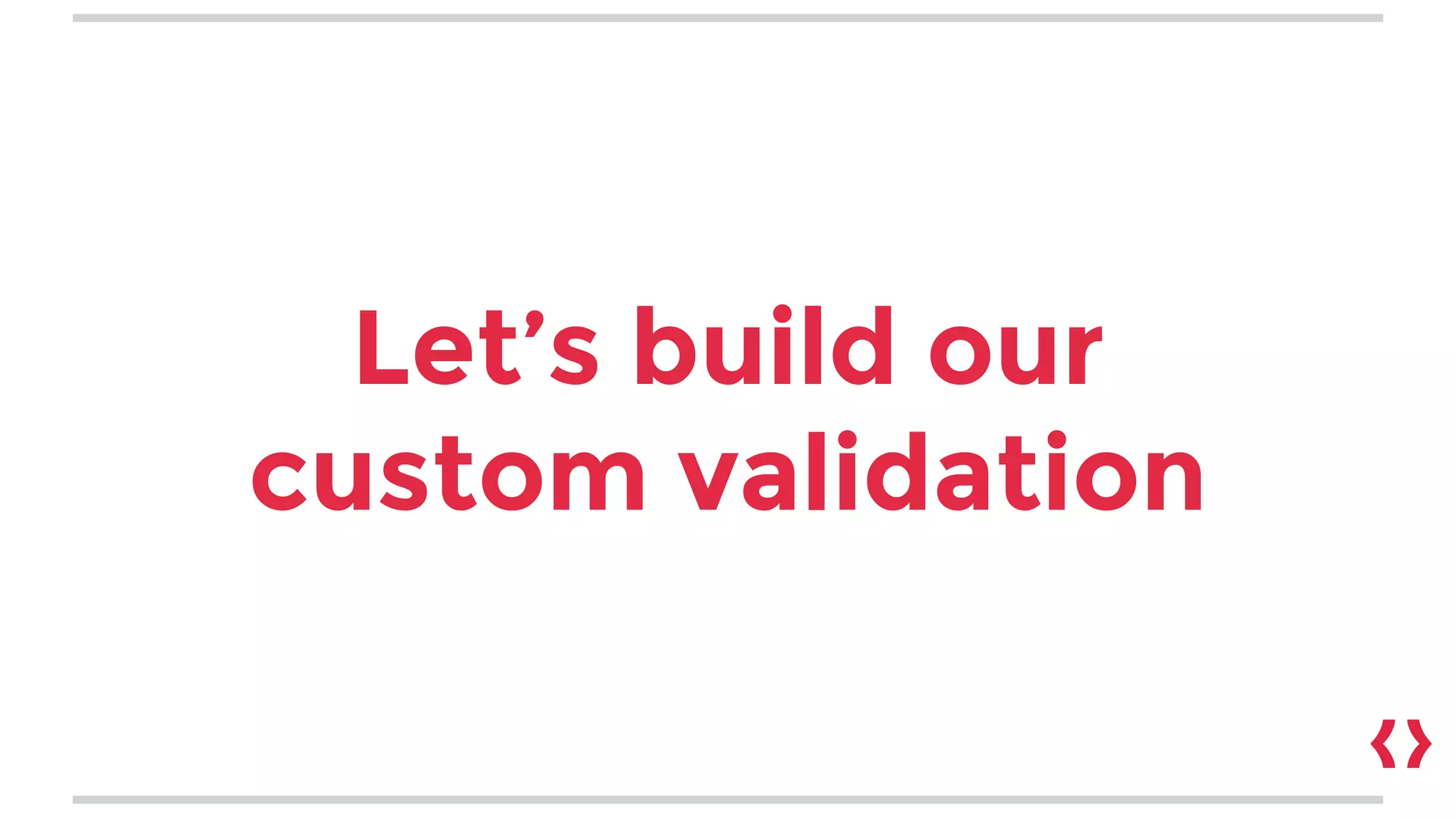

Let’s build our
custom validation

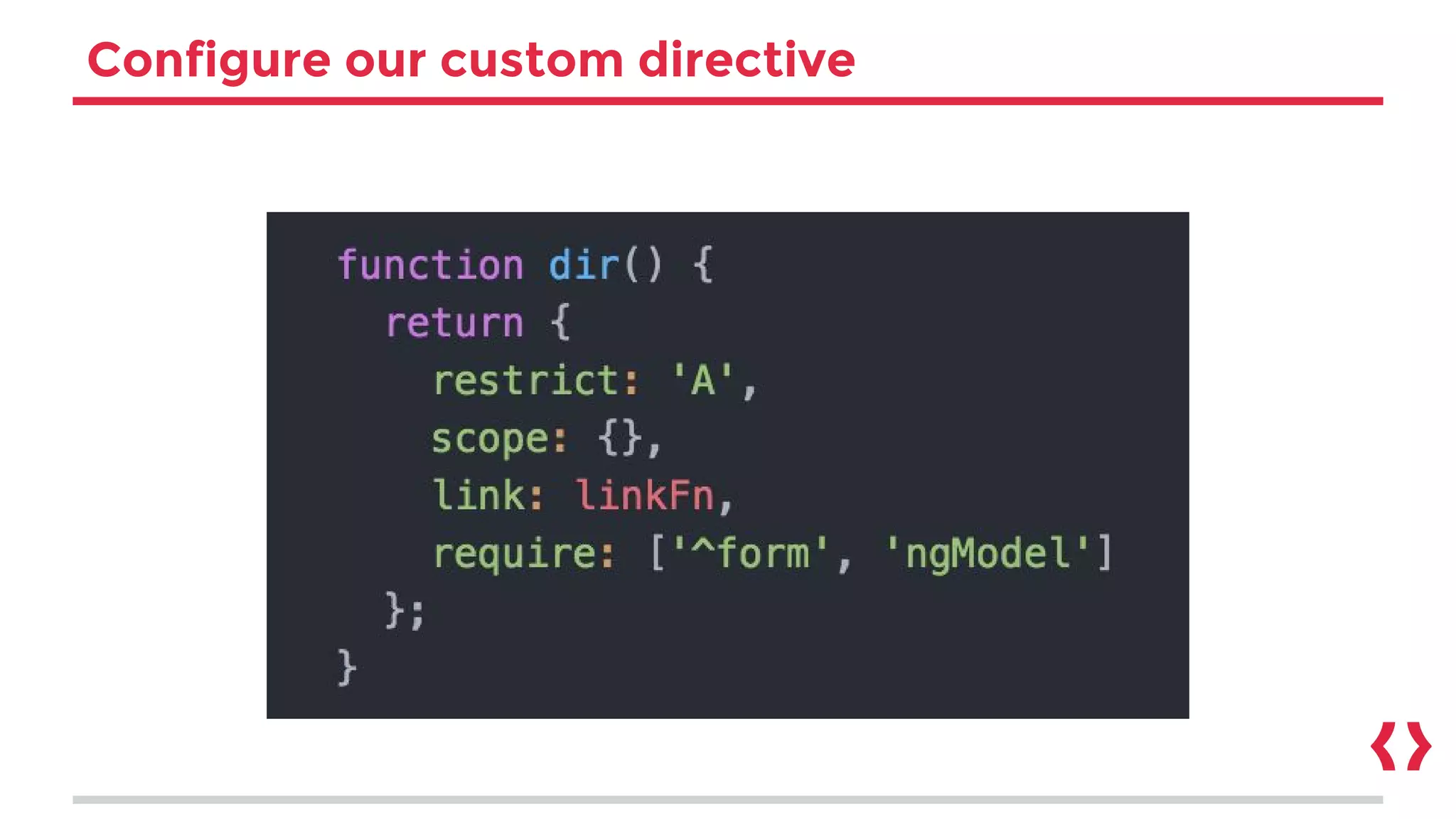

Configure our custom directive

3° Lesson
Modularization
Path to Angular 2

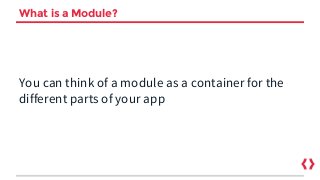

What is a Module?
You can think of a module as a container for the
different parts of your app

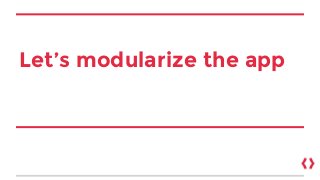

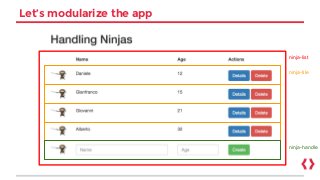

Let’s modularize the app
ninja-list
ninja-tile
ninja-handle

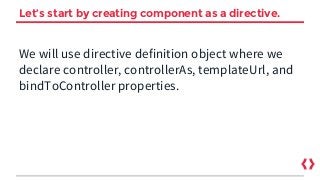

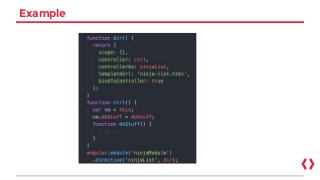

Let’s start by creating component as a directive.
We will use directive definition object where we
declare controller, controllerAs, templateUrl, and
bindToController properties.

Directive Definition Object
https://docs.angularjs.org/guide/directive

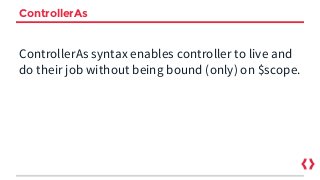

ControllerAs
ControllerAs syntax enables controller to live and
do their job without being bound (only) on $scope.

bindToController (new in Angular 1.3.X)
When used, properties from isolated scope will be
automatically bound to controller’s this.

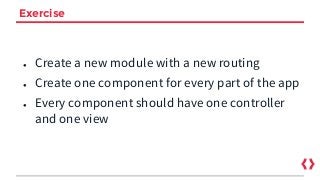

● Create a new module with a new routing
● Create one component for every part of the app
● Every component should have one controller
and one view
Exercise

What tests are?
Automated software testing
is a process in which software tools
execute pre-scripted tests
on a software application
before it is released into production.

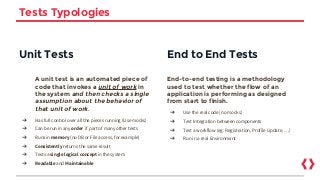

Tests Typologies
Unit Tests
A unit test is an automated piece of
code that invokes a unit of work in
the system and then checks a single
assumption about the behavior of
that unit of work.
➔ Has full control over all the pieces running (Use mocks)
➔ Can be run in any order if part of many other tests
➔ Runs in memory (no DB or File access, for example)
➔ Consistently returns the same result
➔ Tests a single logical concept in the system
➔ Readable and Maintainable
End to End Tests
End-to-end testing is a methodology
used to test whether the flow of an
application is performing as designed
from start to finish.
➔ Use the real code (no mocks)
➔ Test Integration between components
➔ Test a workflow (eg: Registration, Profile Update, …)
➔ Run in a real Environment

What to be tested?
Unit Tests
➔ Complex Algorithm
➔ Shared Functions
➔ Core Functions
E2E Tests
➔ Complex Workflows
➔ Business Value
➔ Smoke Test

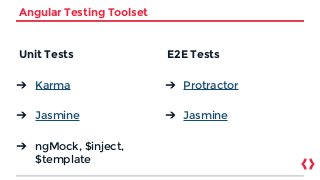

Angular Testing Toolset
Unit Tests
➔ Karma
➔ Jasmine
➔ ngMock, $inject,
$template
E2E Tests
➔ Protractor
➔ Jasmine

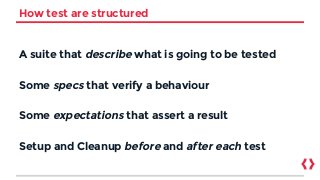

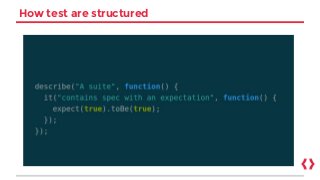

How test are structured
A suite that describe what is going to be tested
Some specs that verify a behaviour
Some expectations that assert a result
Setup and Cleanup before and after each test

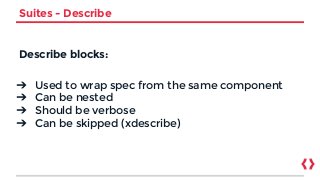

Suites - Describe
Describe blocks:
➔ Used to wrap spec from the same component
➔ Can be nested
➔ Should be verbose
➔ Can be skipped (xdescribe)

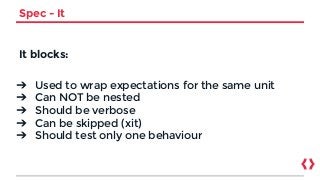

Spec - It
It blocks:
➔ Used to wrap expectations for the same unit
➔ Can NOT be nested
➔ Should be verbose
➔ Can be skipped (xit)
➔ Should test only one behaviour

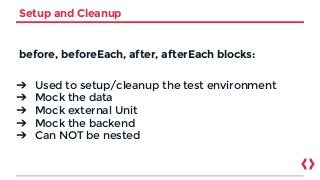

Setup and Cleanup
before, beforeEach, after, afterEach blocks:
➔ Used to setup/cleanup the test environment
➔ Mock the data
➔ Mock external Unit
➔ Mock the backend
➔ Can NOT be nested

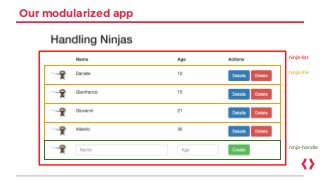

Our modularized app
ninja-list
ninja-tile
ninja-handle

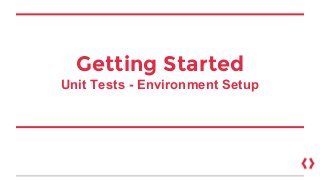

Getting Started
Unit Tests - Environment Setup

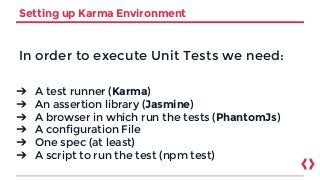

Setting up Karma Environment
In order to execute Unit Tests we need:
➔ A test runner (Karma)
➔ An assertion library (Jasmine)
➔ A browser in which run the tests (PhantomJs)
➔ A configuration File
➔ One spec (at least)
➔ A script to run the test (npm test)

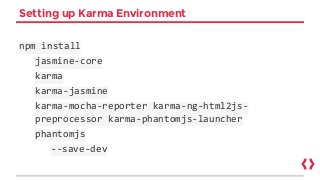

Setting up Karma Environment
npm install
jasmine-core
karma
karma-jasmine
karma-mocha-reporter karma-ng-html2js-
preprocessor karma-phantomjs-launcher
phantomjs
--save-dev

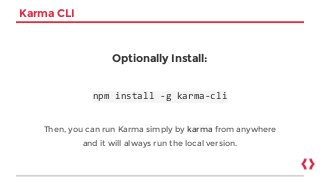

Karma CLI
Optionally Install:
npm install -g karma-cli
Then, you can run Karma simply by karma from anywhere
and it will always run the local version.

Karma Configuration File
By default the configuration file is called:
karma.conf.js
http://karma-runner.github.io/0.8/config/configuration-file.html
karma init is an helper to generate this file

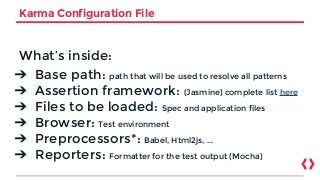

Karma Configuration File
What’s inside:
➔ Base path: path that will be used to resolve all patterns
➔ Assertion framework: (Jasmine) complete list here
➔ Files to be loaded: Spec and application files
➔ Browser: Test environment
➔ Preprocessors*: Babel, Html2js, ...
➔ Reporters: Formatter for the test output (Mocha)

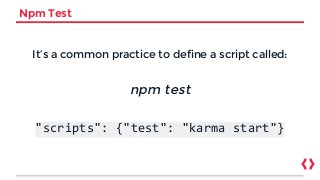

Npm Test
It’s a common practice to define a script called:
npm test
"scripts": {"test": "karma start"}

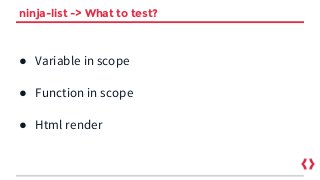

ninja-list -> What to test?
● Variable in scope
● Function in scope
● Html render

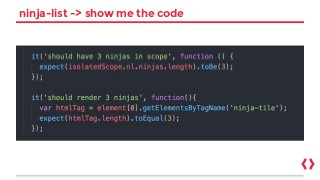

ninja-list -> show me the code

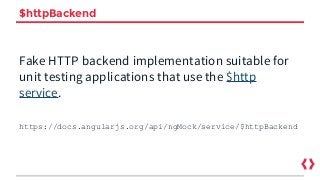

$httpBackend
Fake HTTP backend implementation suitable for
unit testing applications that use the $http
service.
https://docs.angularjs.org/api/ngMock/service/$httpBackend

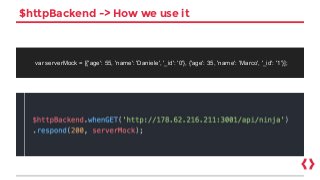

$httpBackend -> How we use it
var serverMock = [{'age': 55, 'name': 'Daniele', '_id': '0'}, {'age': 35, 'name': 'Marco', '_id': '1'}];

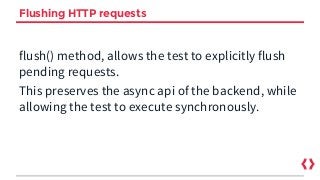

Flushing HTTP requests
flush() method, allows the test to explicitly flush
pending requests.
This preserves the async api of the backend, while
allowing the test to execute synchronously.

Thanks
Daniele Bertella
@_denb
Gianfranco Garipoli
@gianfra__
LinkMe SRL
@LinkMeSRL

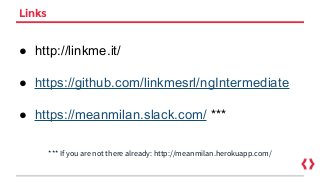

Links
*** If you are not there already: http://meanmilan.herokuapp.com/
● http://linkme.it/
● https://github.com/linkmesrl/ngIntermediate
● https://meanmilan.slack.com/ ***
