Chapter 2 : Theory of programming languages

Principals Of Programming
Languages
MS. LARAIB SAEED
Department of Computer Science
COMSATS University Islamabad
Wah Campus
1

2

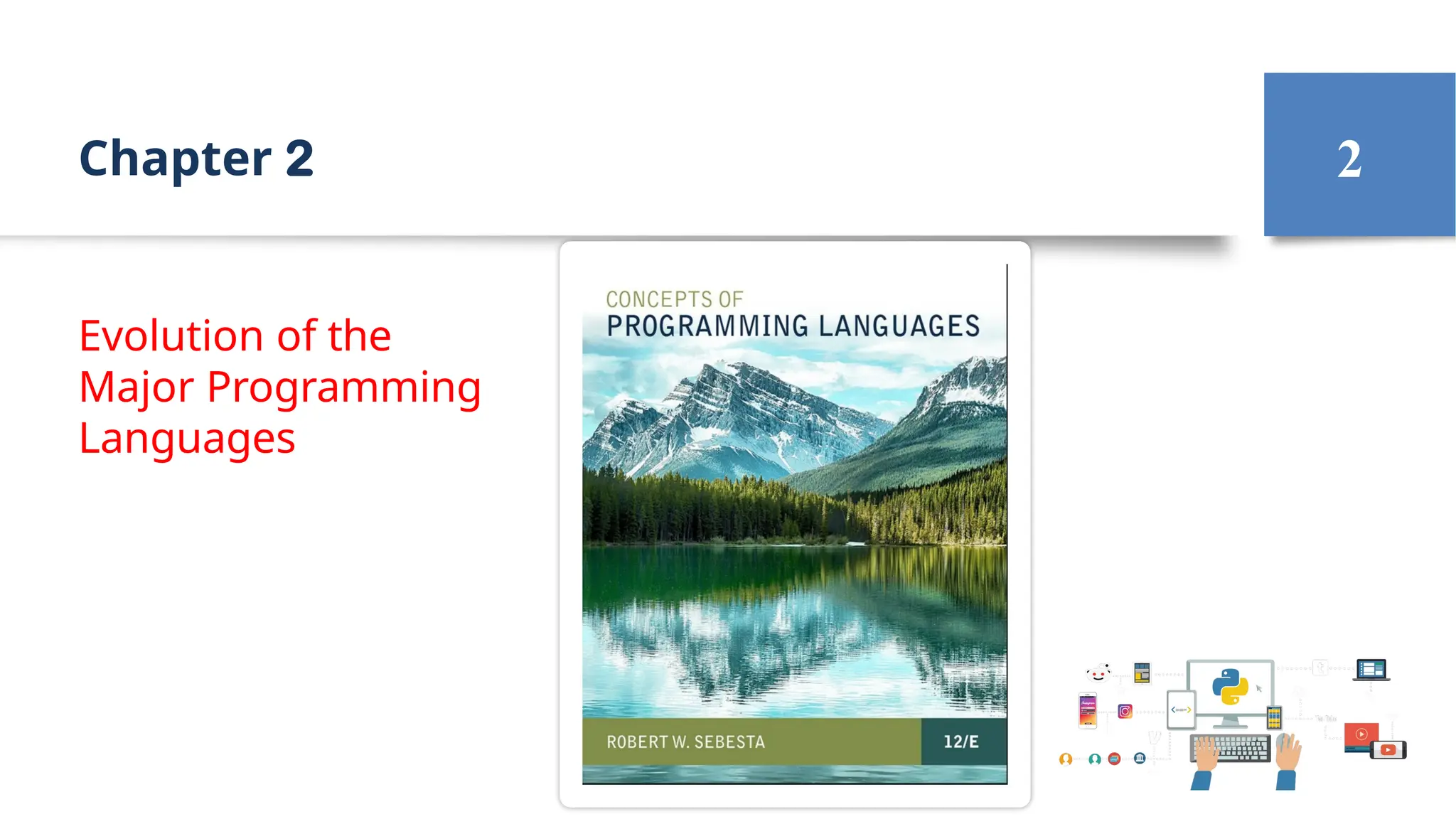

Chapter 2
Evolution of the
Major Programming
Languages

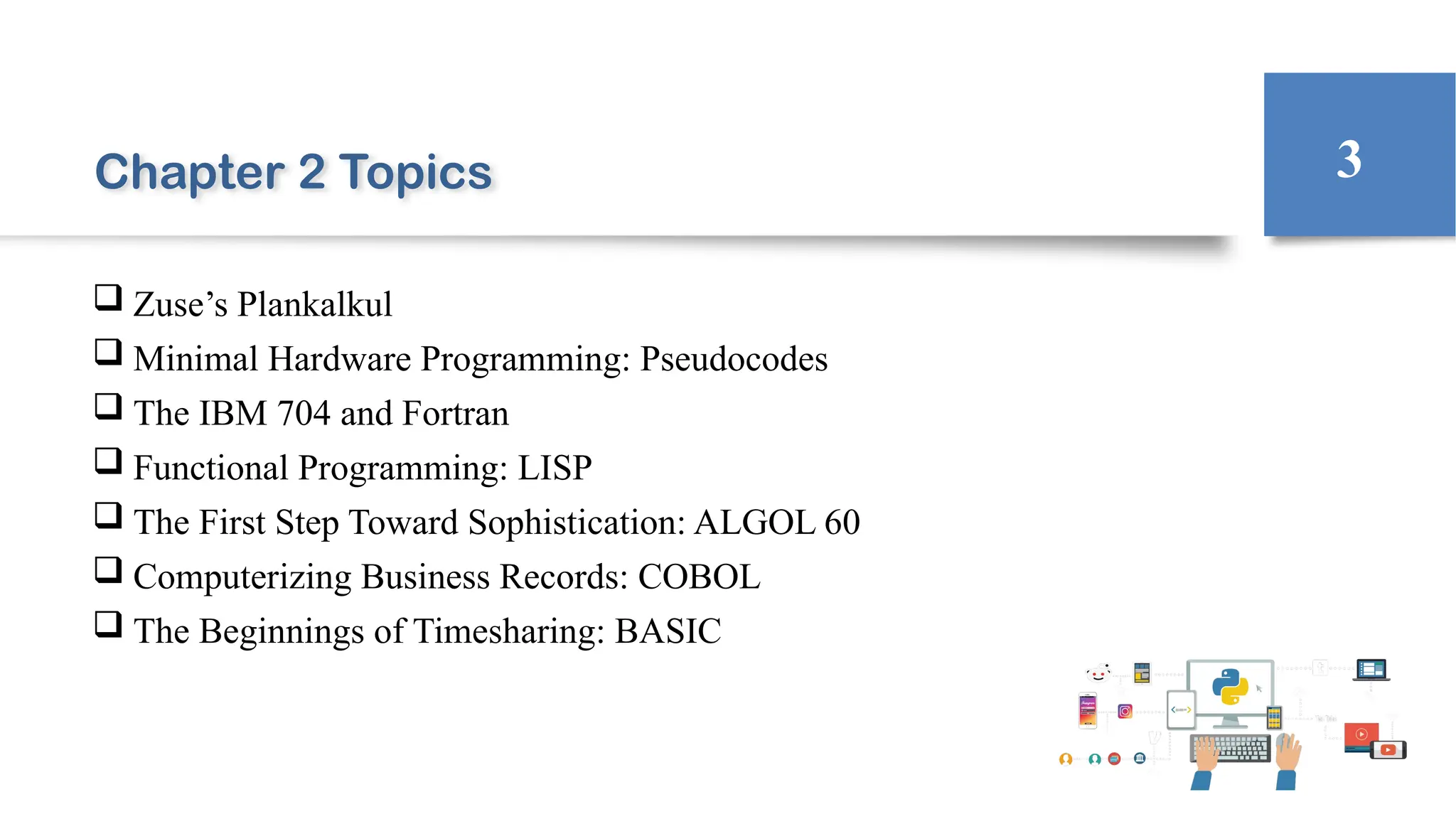

Chapter 2 Topics
 Zuse’s Plankalkul
 Minimal Hardware Programming: Pseudocodes
 The IBM 704 and Fortran
 Functional Programming: LISP
 The First Step Toward Sophistication: ALGOL 60
 Computerizing Business Records: COBOL
 The Beginnings of Timesharing: BASIC
3

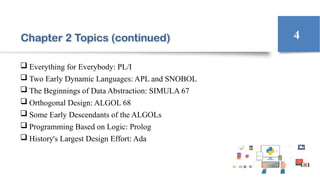

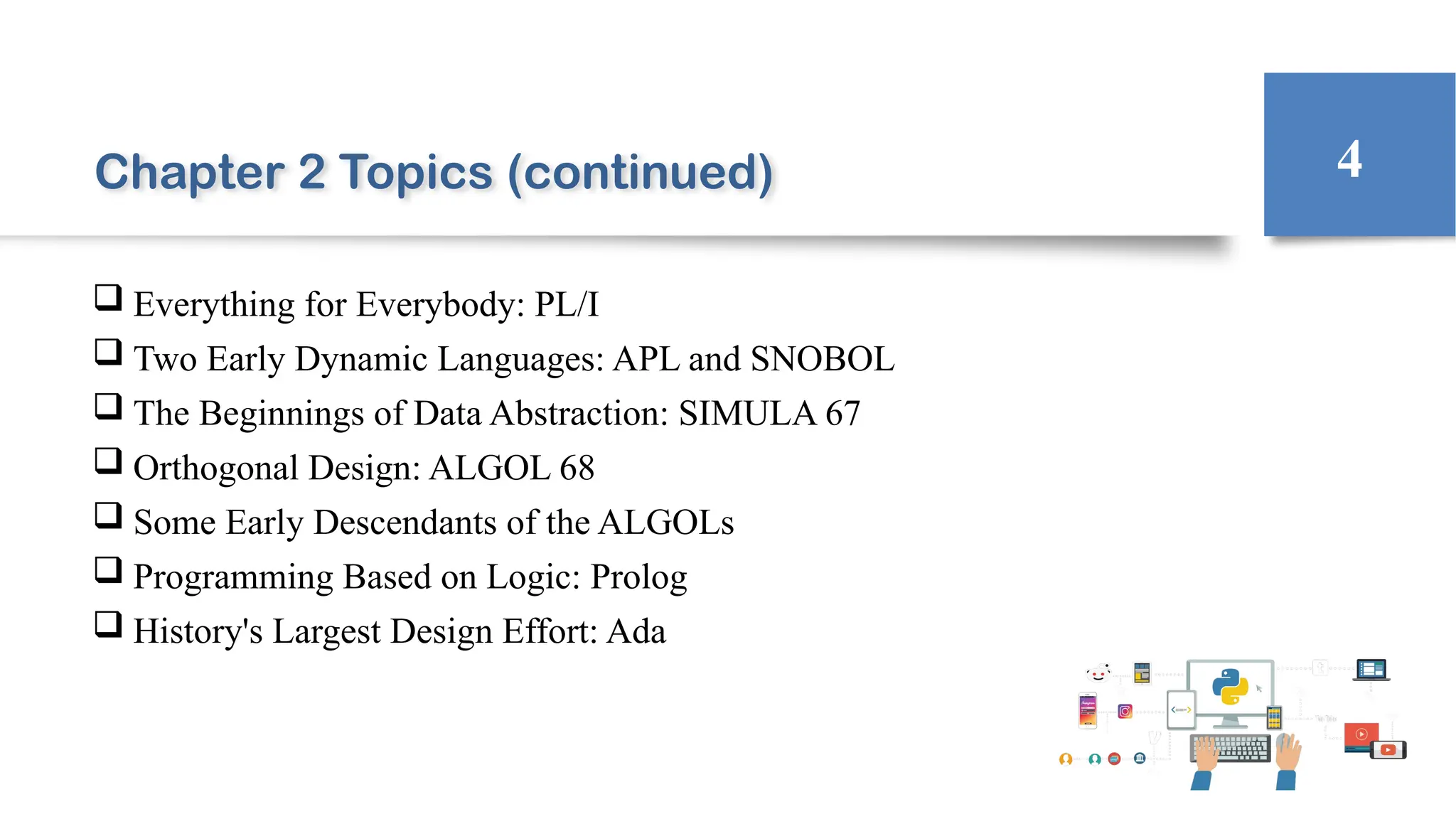

Chapter 2 Topics (continued)
 Everything for Everybody: PL/I
 Two Early Dynamic Languages: APL and SNOBOL
 The Beginnings of Data Abstraction: SIMULA 67

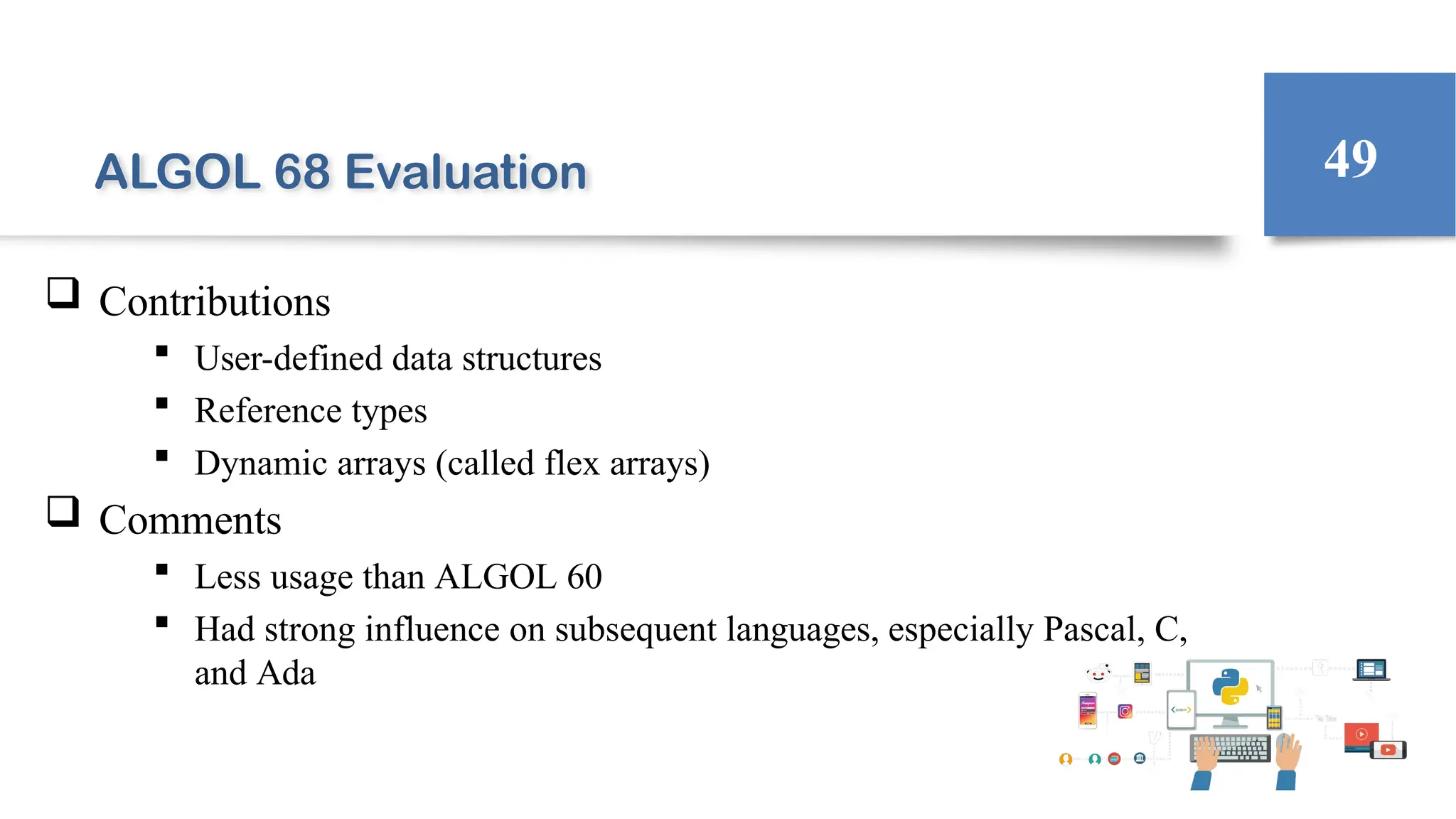

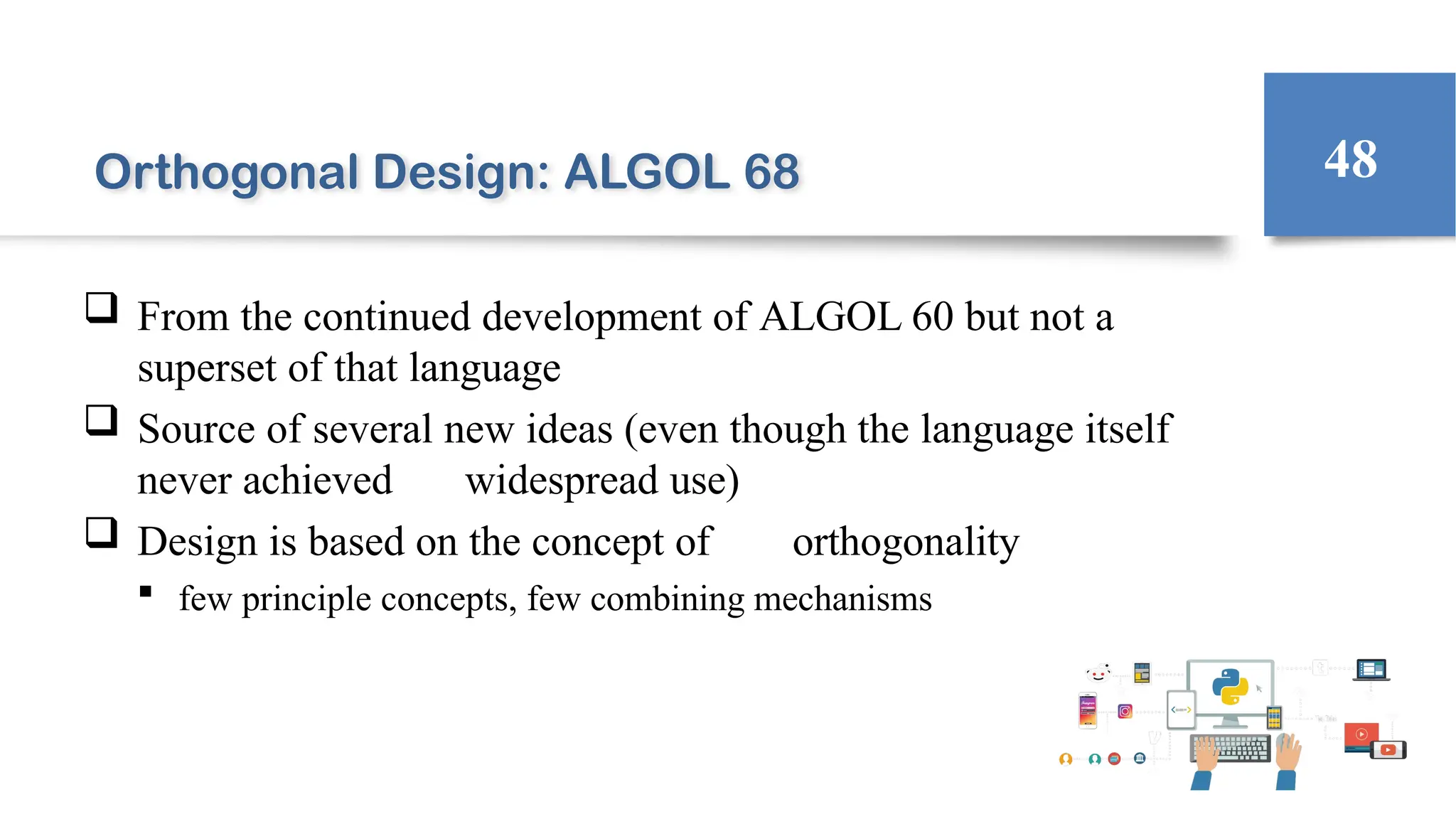

 Orthogonal Design: ALGOL 68

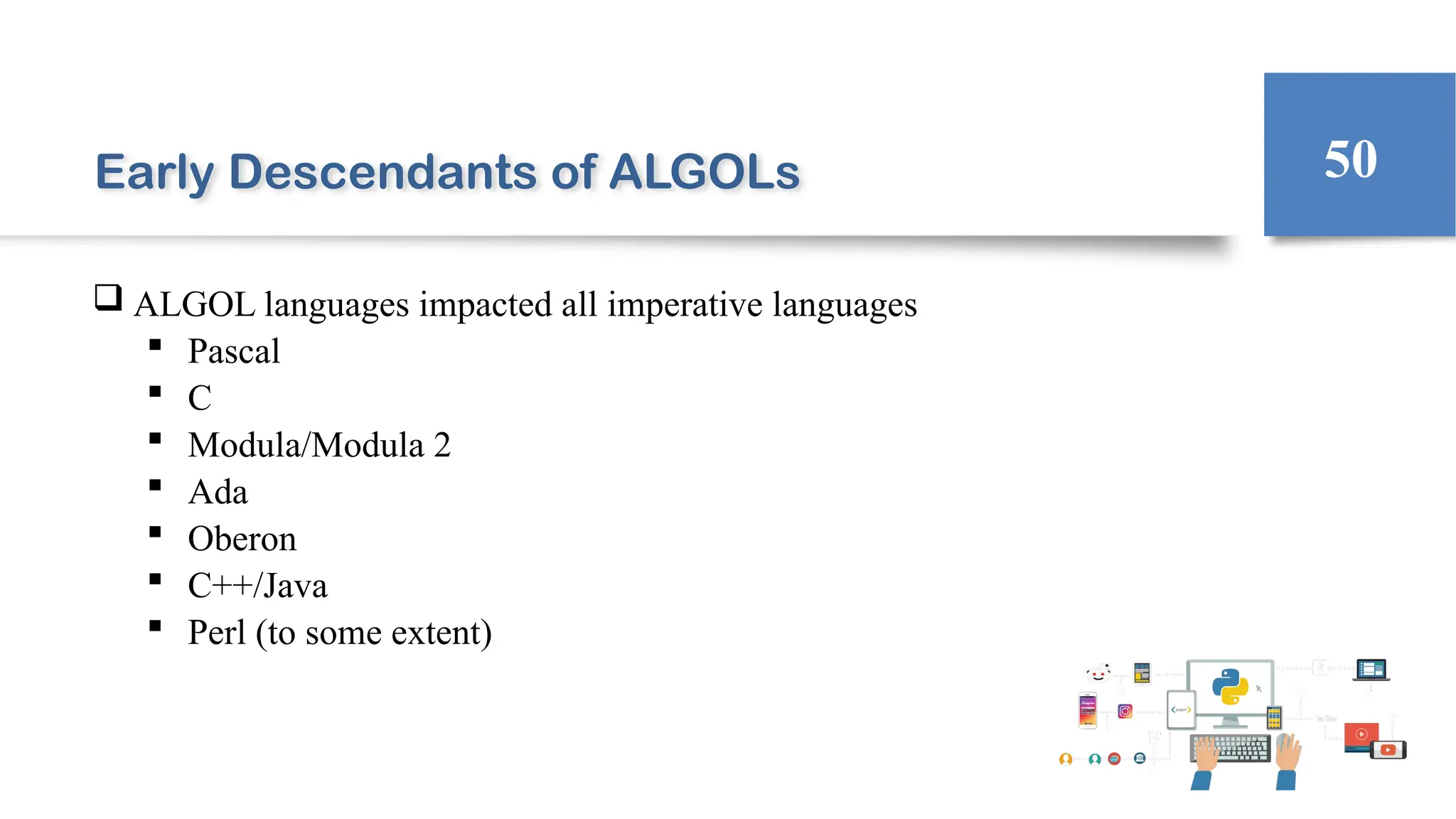

 Some Early Descendants of the ALGOLs
 Programming Based on Logic: Prolog

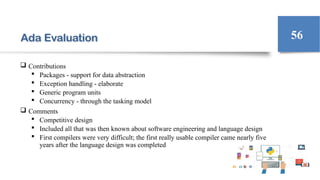

 History's Largest Design Effort: Ada
4

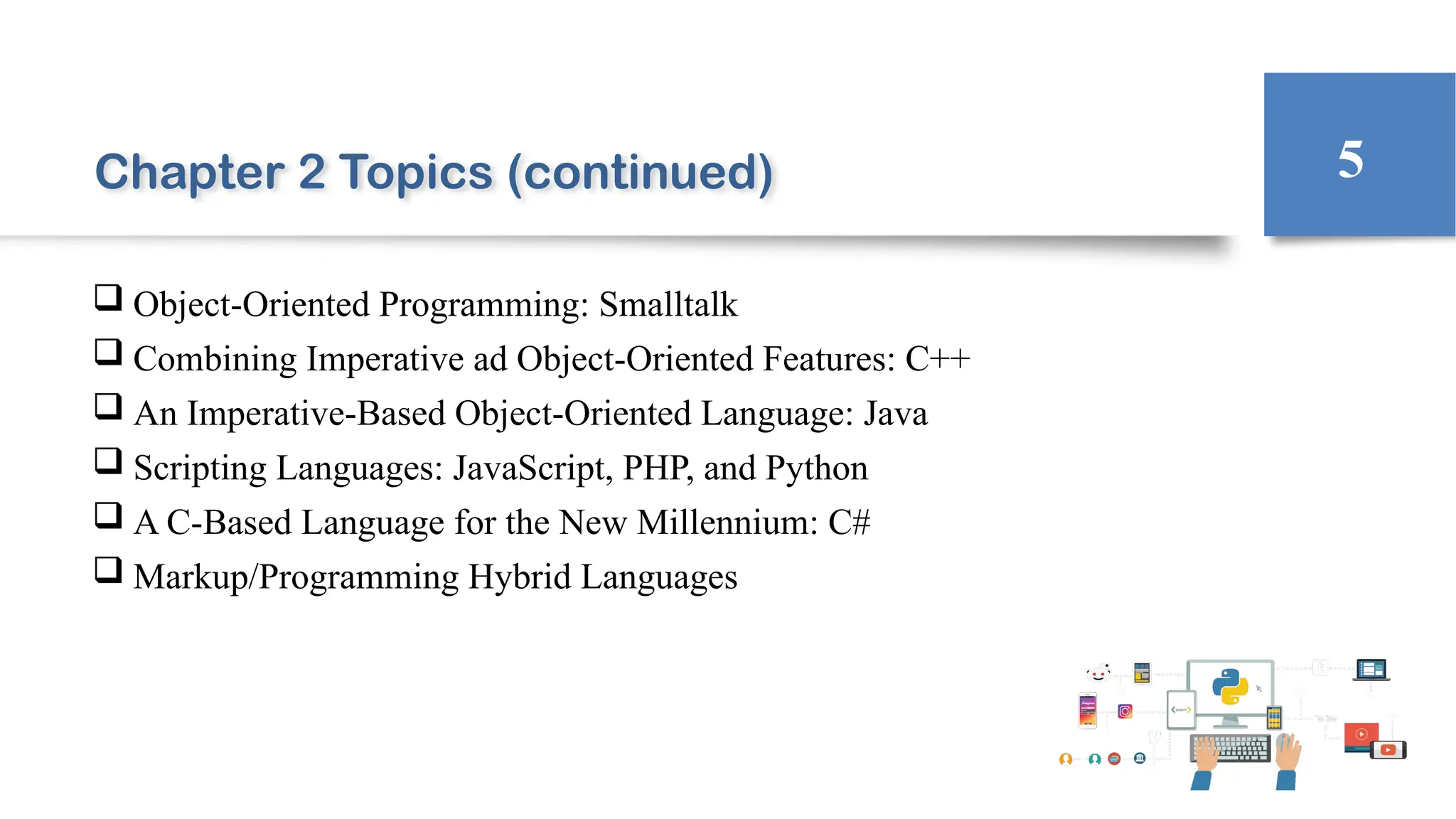

Chapter 2 Topics (continued)
 Object-Oriented Programming: Smalltalk
 Combining Imperative ad Object-Oriented Features: C++
 An Imperative-Based Object-Oriented Language: Java
 Scripting Languages: JavaScript, PHP, and Python
 A C-Based Language for the New Millennium: C#
 Markup/Programming Hybrid Languages
5

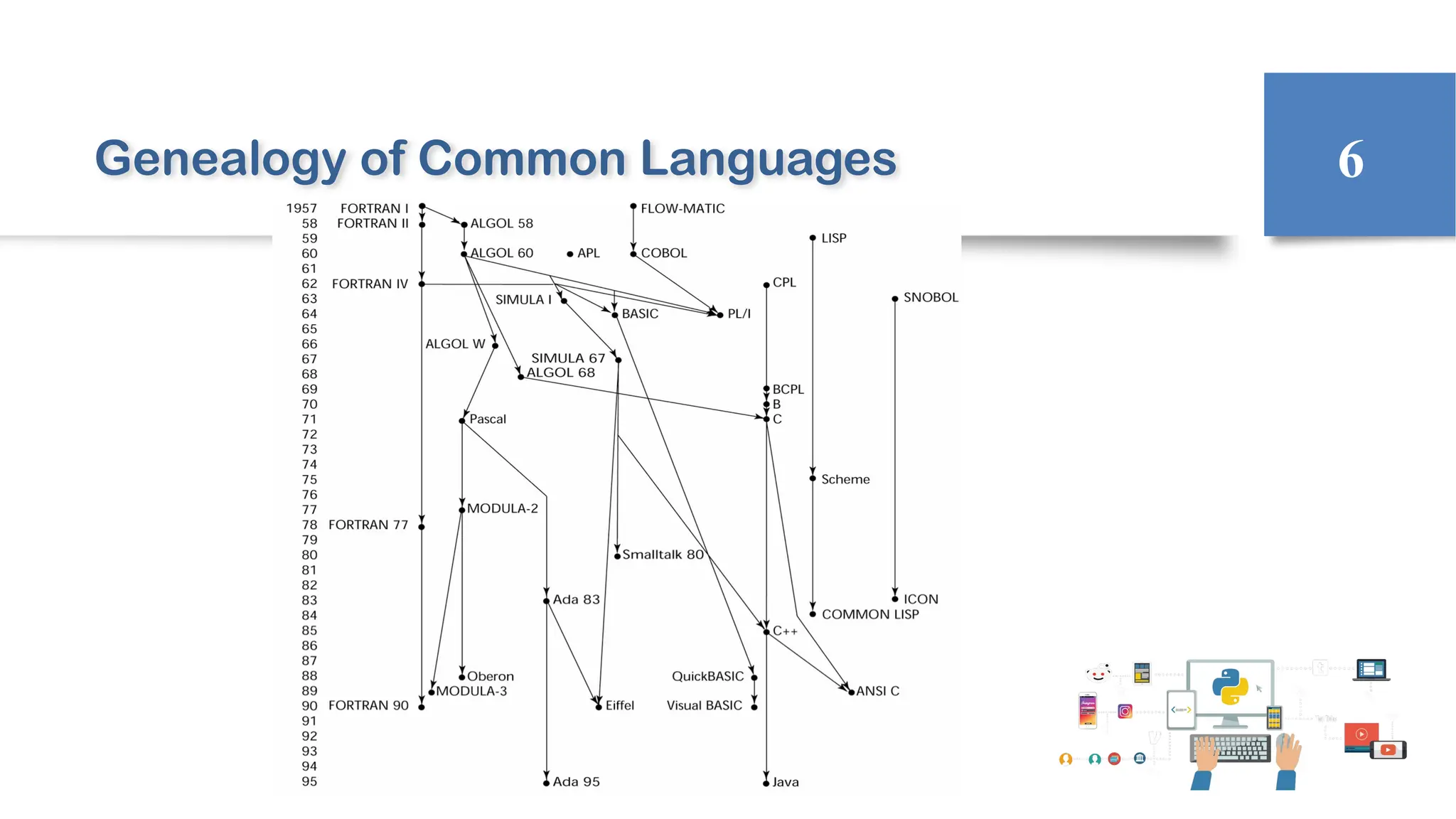

Genealogy of Common Languages 6

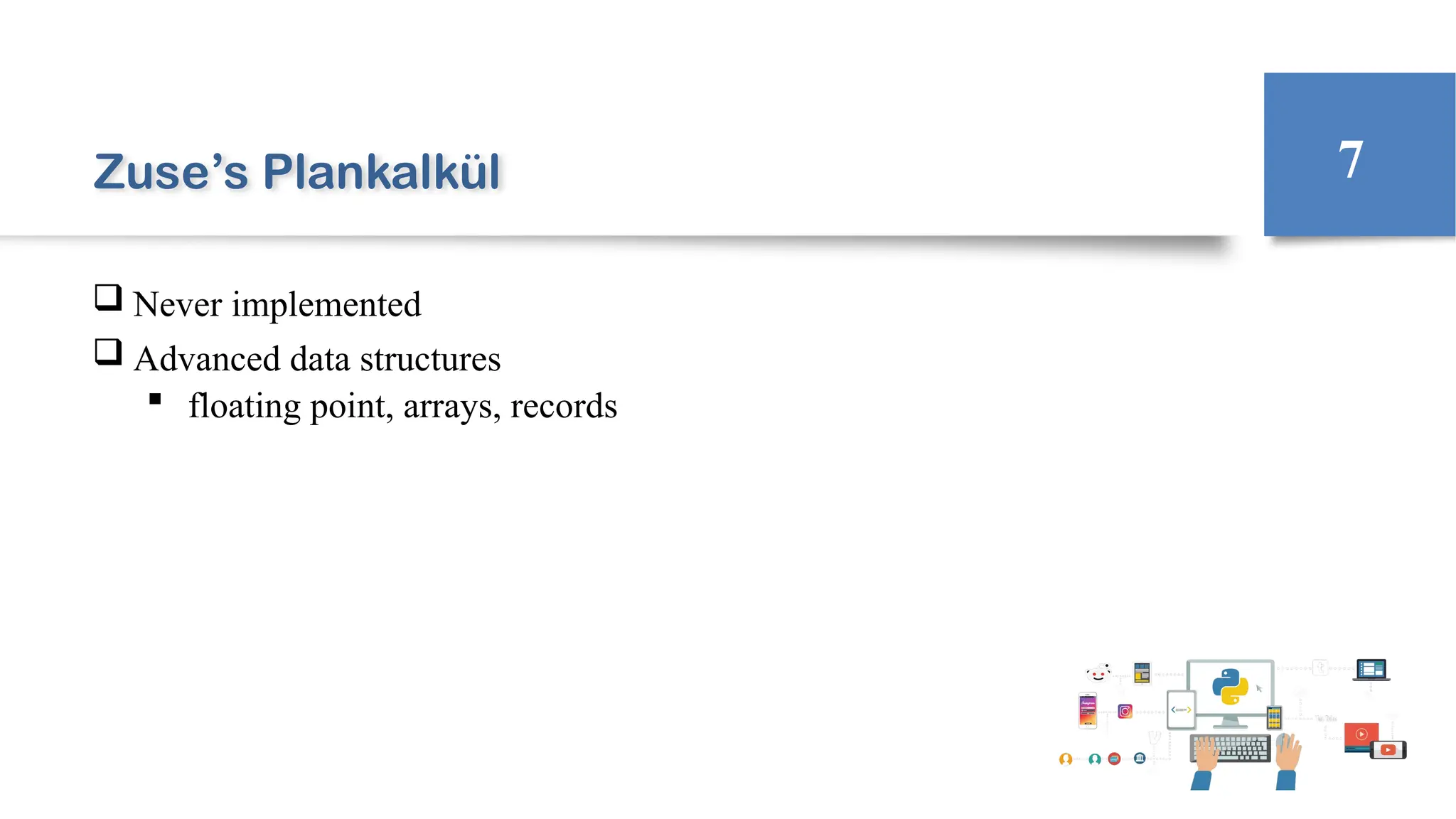

Zuse’s Plankalkül
 Never implemented
 Advanced data structures
 floating point, arrays, records
7

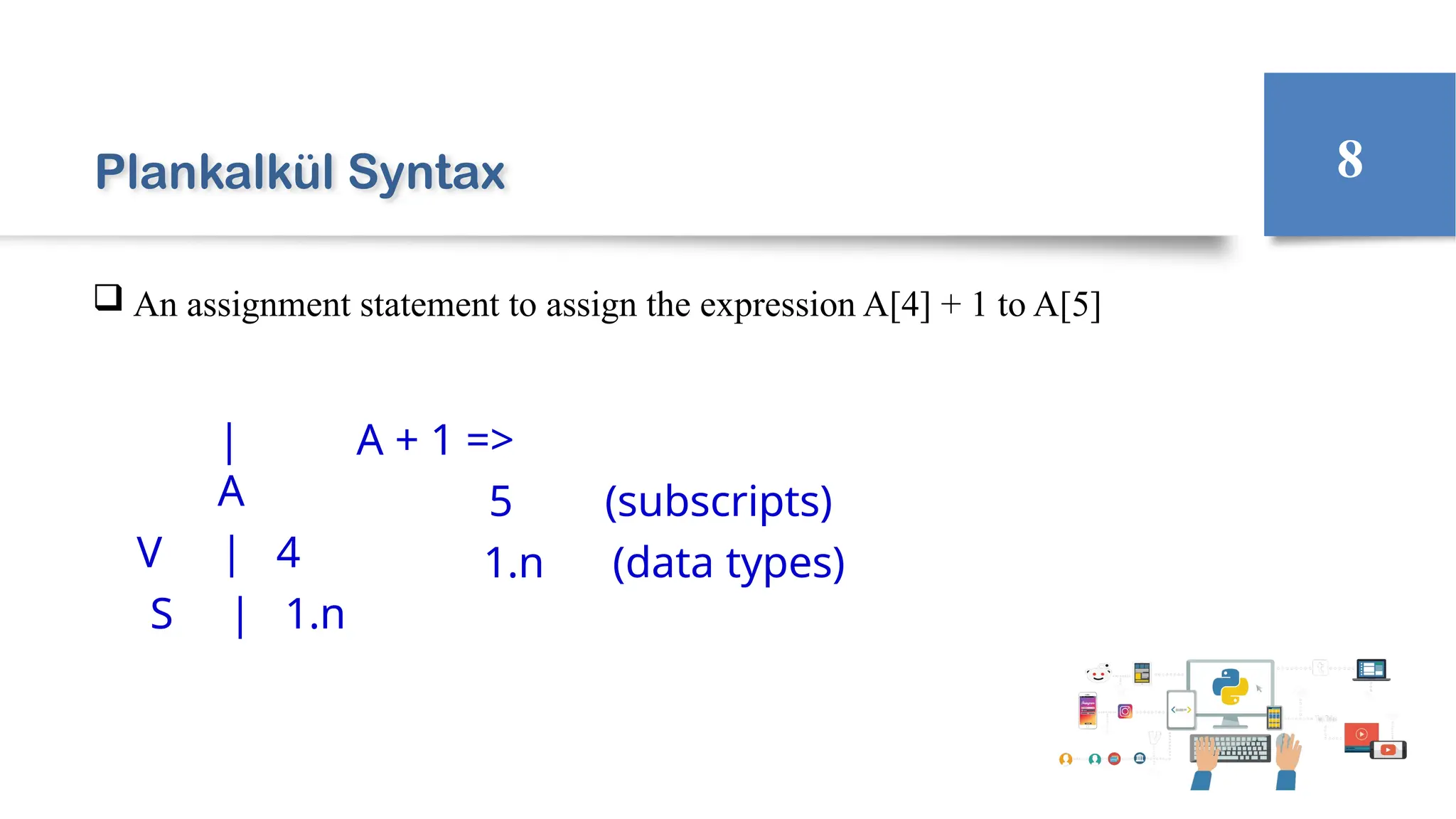

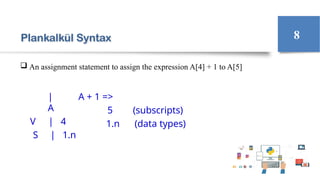

Plankalkül Syntax
 An assignment statement to assign the expression A[4] + 1 to A[5]
| A + 1 =>
A
V | 4
S | 1.n
5
1.n
(subscripts)
(data types)
8

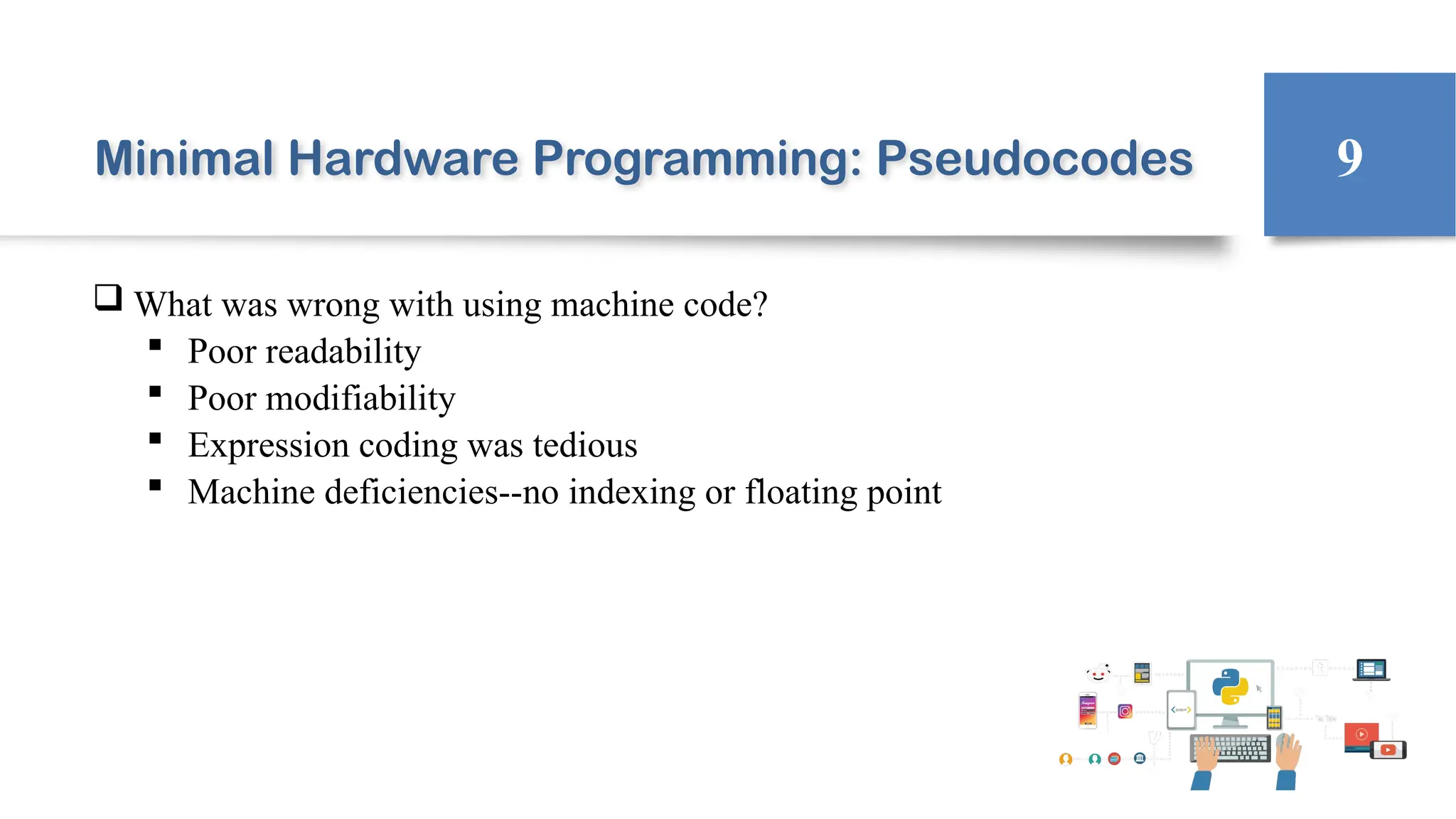

Minimal Hardware Programming: Pseudocodes
 What was wrong with using machine code?
 Poor readability
 Poor modifiability
 Expression coding was tedious
 Machine deficiencies--no indexing or floating point
9

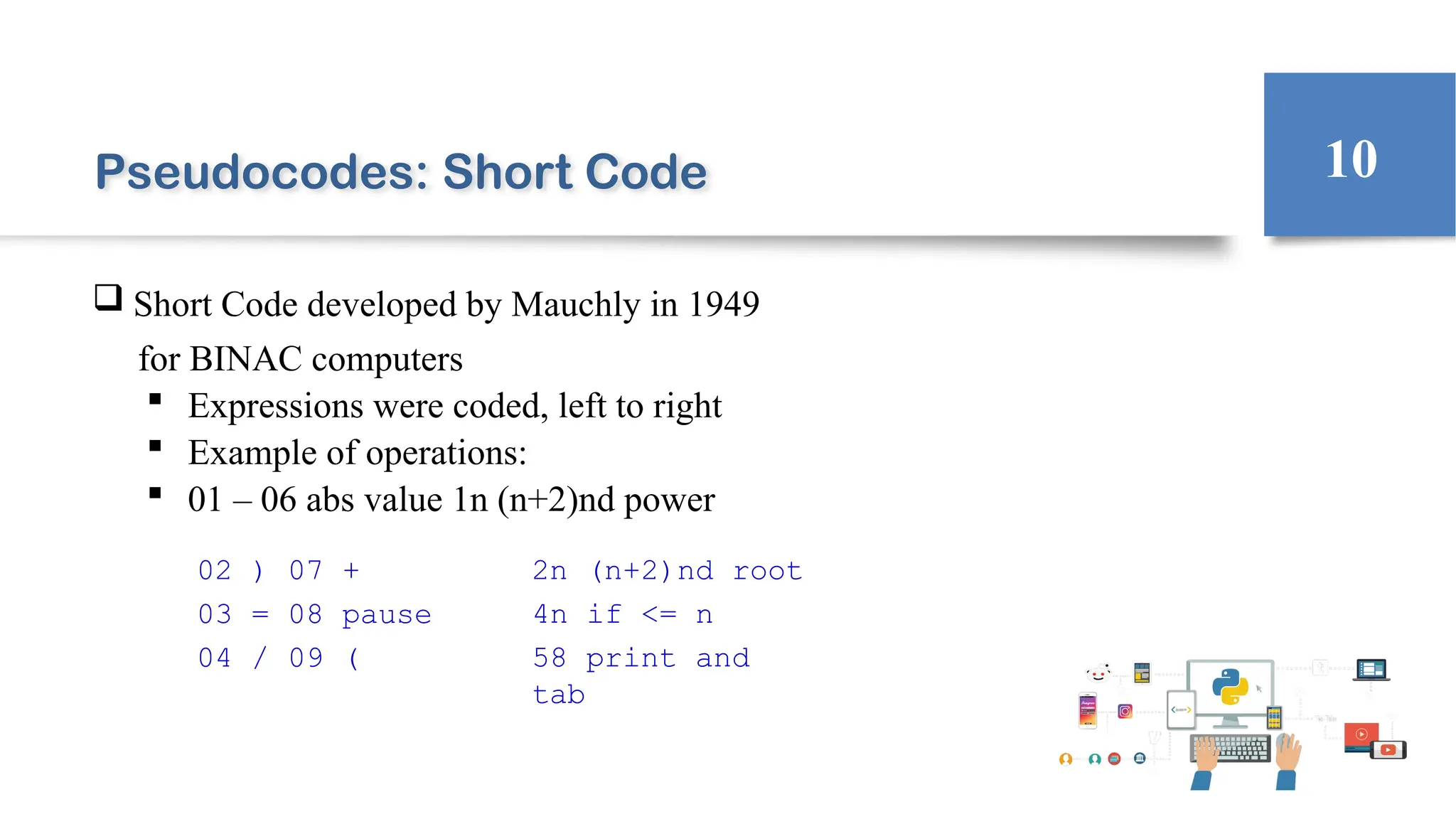

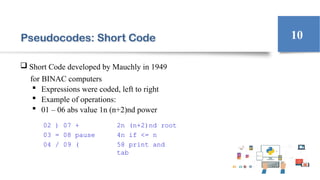

Pseudocodes: Short Code
 Short Code developed by Mauchly in 1949
for BINAC computers
 Expressions were coded, left to right
 Example of operations:
 01 – 06 abs value 1n (n+2)nd power
10
02 ) 07 +
03 = 08 pause
04 / 09 (
2n (n+2)nd root
4n if <= n
58 print and
tab

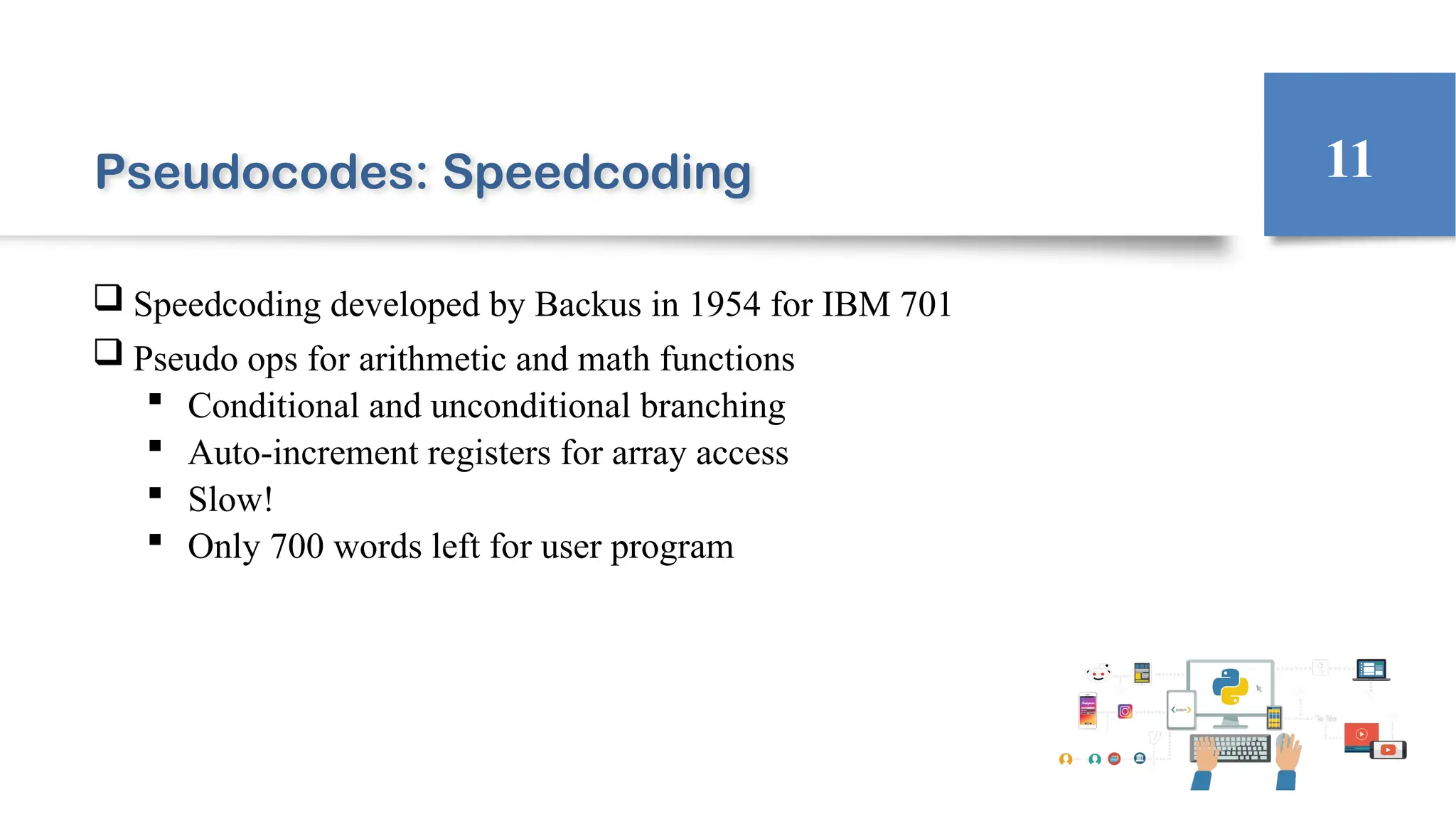

Pseudocodes: Speedcoding
 Speedcoding developed by Backus in 1954 for IBM 701
 Pseudo ops for arithmetic and math functions
 Conditional and unconditional branching
 Auto-increment registers for array access
 Slow!
 Only 700 words left for user program
11

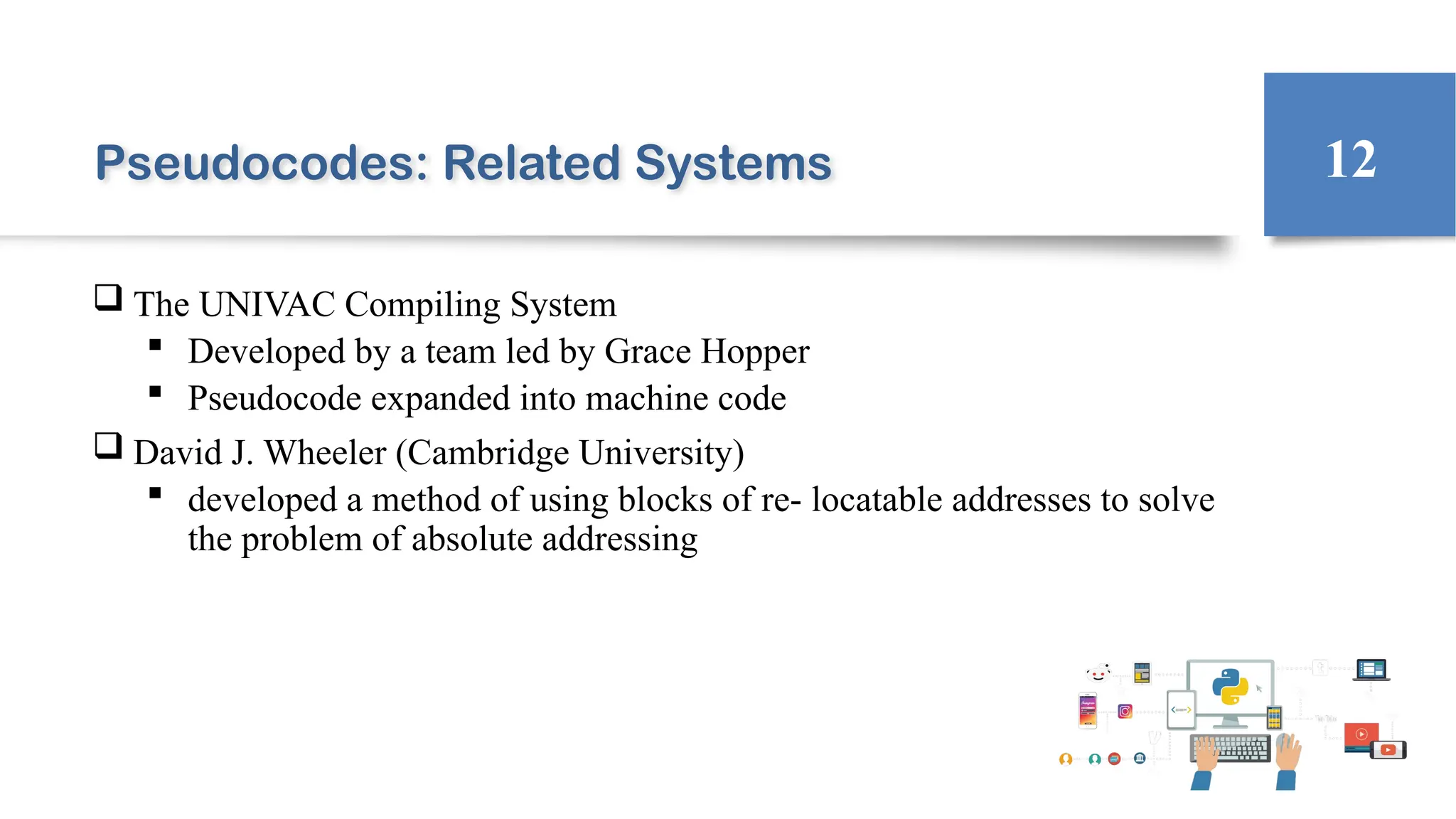

Pseudocodes: Related Systems
 The UNIVAC Compiling System
 Developed by a team led by Grace Hopper
 Pseudocode expanded into machine code
 David J. Wheeler (Cambridge University)
 developed a method of using blocks of re- locatable addresses to solve
the problem of absolute addressing
12

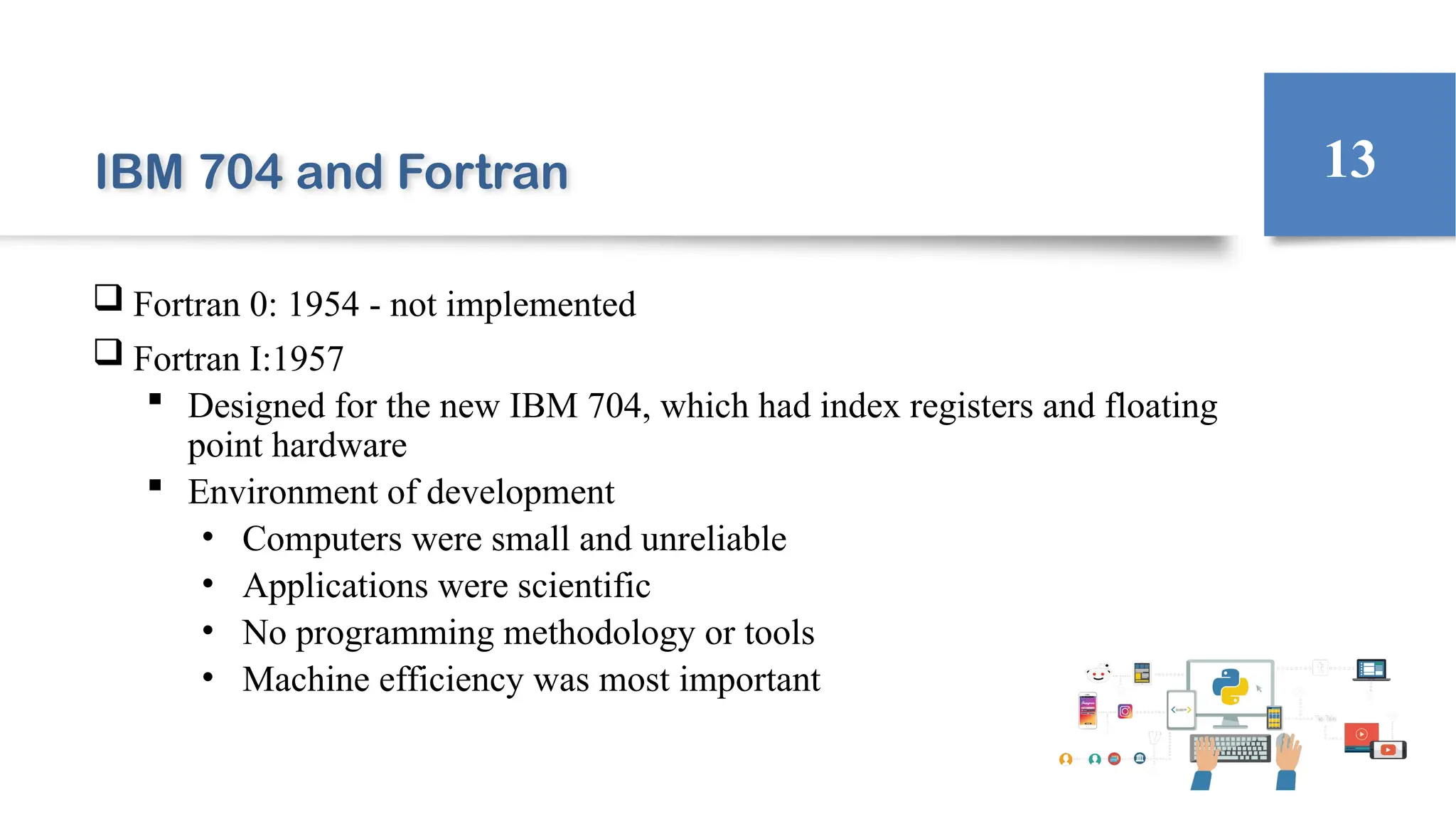

IBM 704 and Fortran
 Fortran 0: 1954 - not implemented
 Fortran I:1957
 Designed for the new IBM 704, which had index registers and floating
point hardware
 Environment of development
• Computers were small and unreliable
• Applications were scientific
• No programming methodology or tools
• Machine efficiency was most important
13

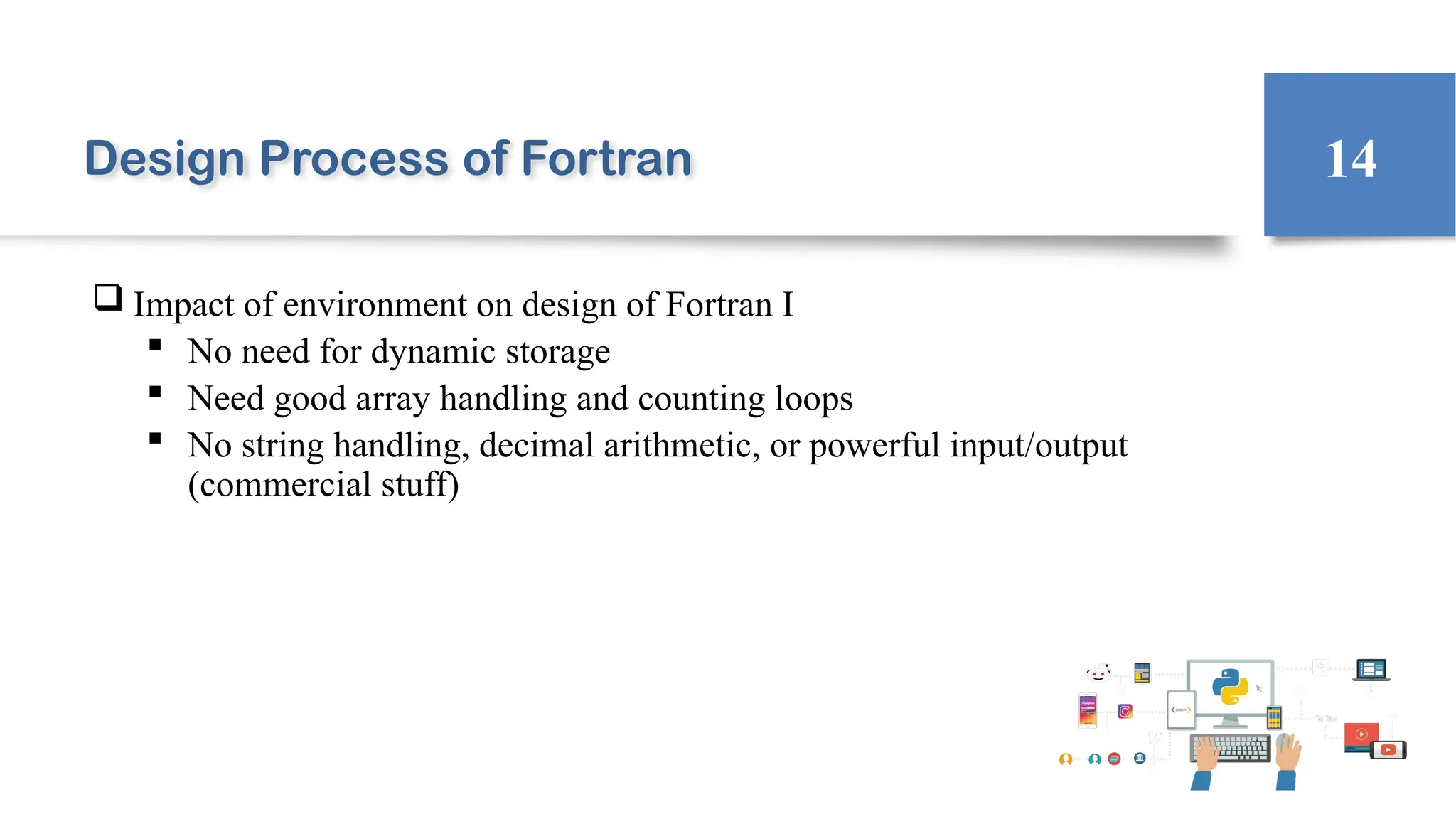

Design Process of Fortran
 Impact of environment on design of Fortran I
 No need for dynamic storage
 Need good array handling and counting loops
 No string handling, decimal arithmetic, or powerful input/output
(commercial stuff)
14

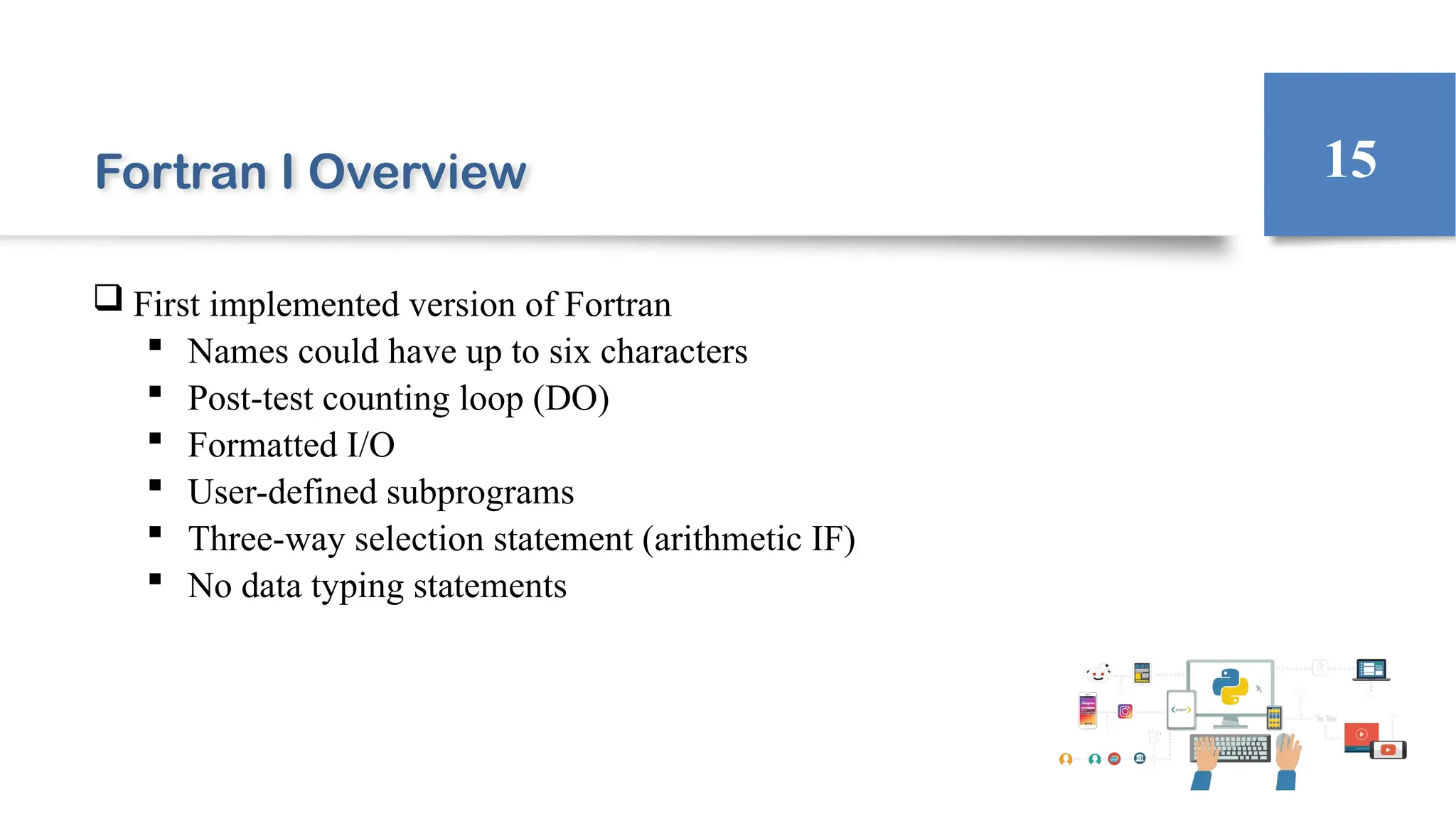

Fortran I Overview
 First implemented version of Fortran
 Names could have up to six characters
 Post-test counting loop (DO)
 Formatted I/O
 User-defined subprograms
 Three-way selection statement (arithmetic IF)
 No data typing statements
15

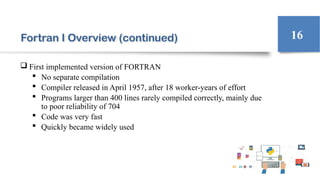

Fortran I Overview (continued)
 First implemented version of FORTRAN
 No separate compilation
 Compiler released in April 1957, after 18 worker-years of effort
 Programs larger than 400 lines rarely compiled correctly, mainly due
to poor reliability of 704
 Code was very fast
 Quickly became widely used
16

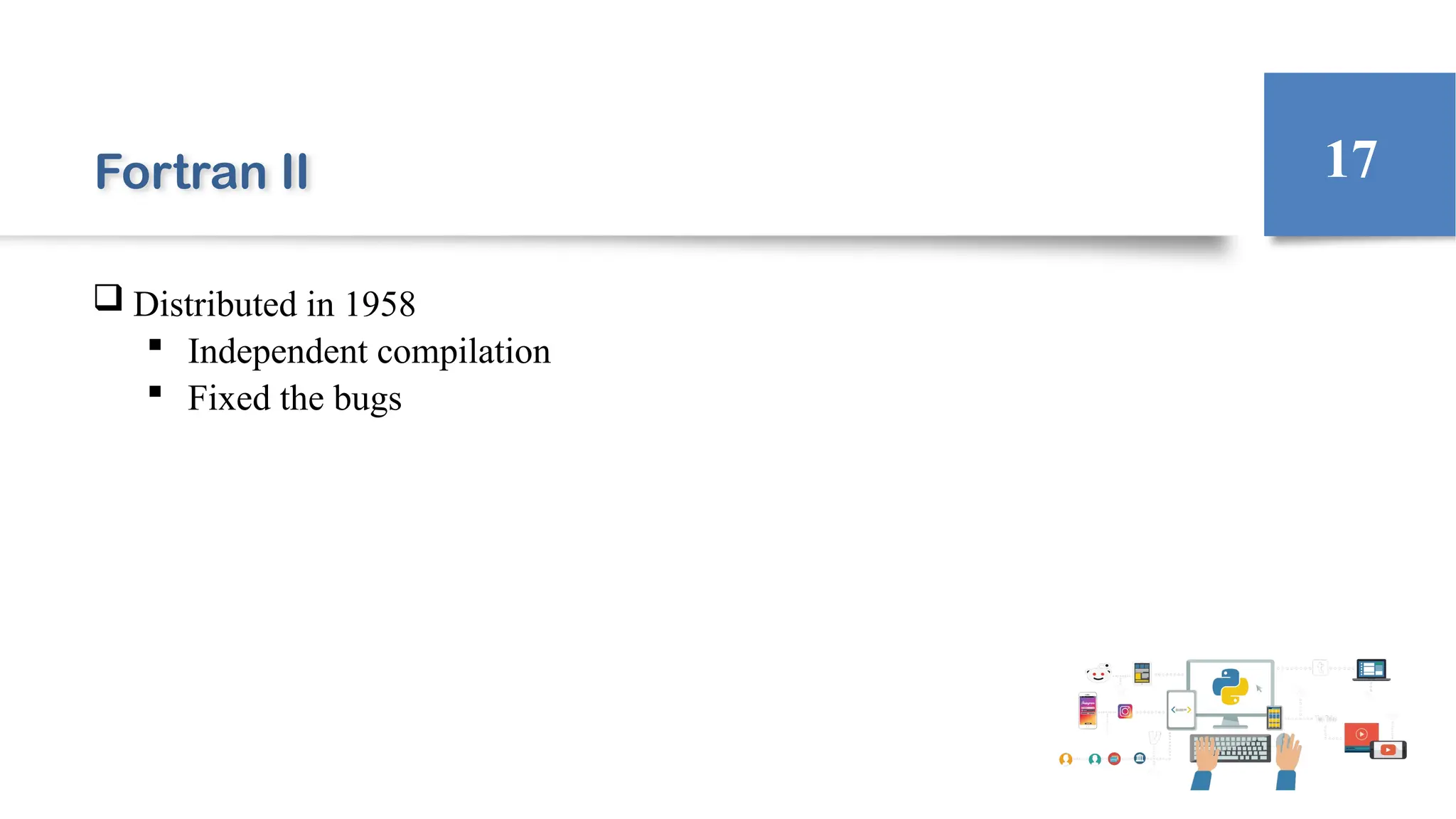

Fortran II
 Distributed in 1958
 Independent compilation
 Fixed the bugs
17

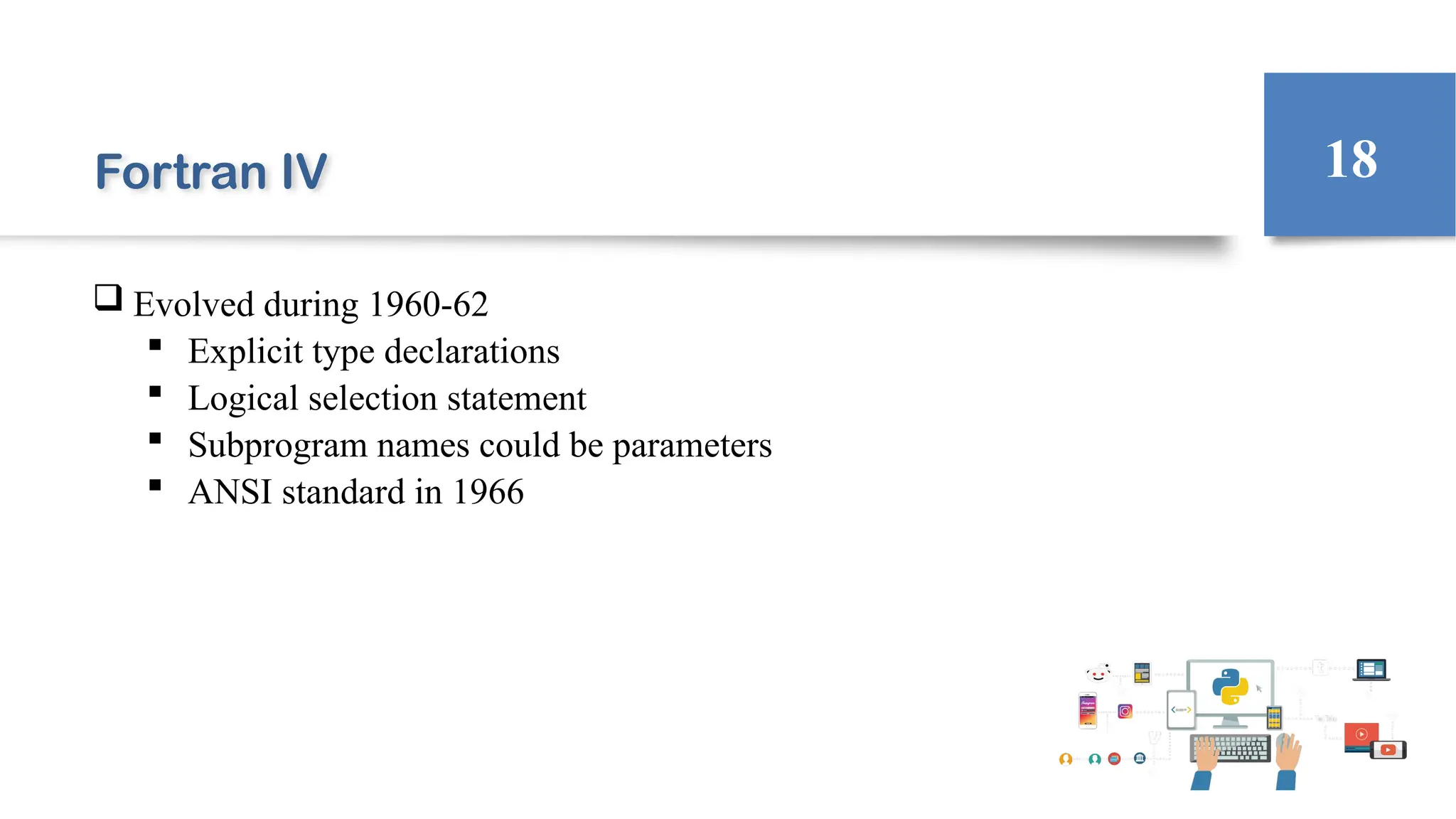

Fortran IV
 Evolved during 1960-62
 Explicit type declarations
 Logical selection statement
 Subprogram names could be parameters
 ANSI standard in 1966
18

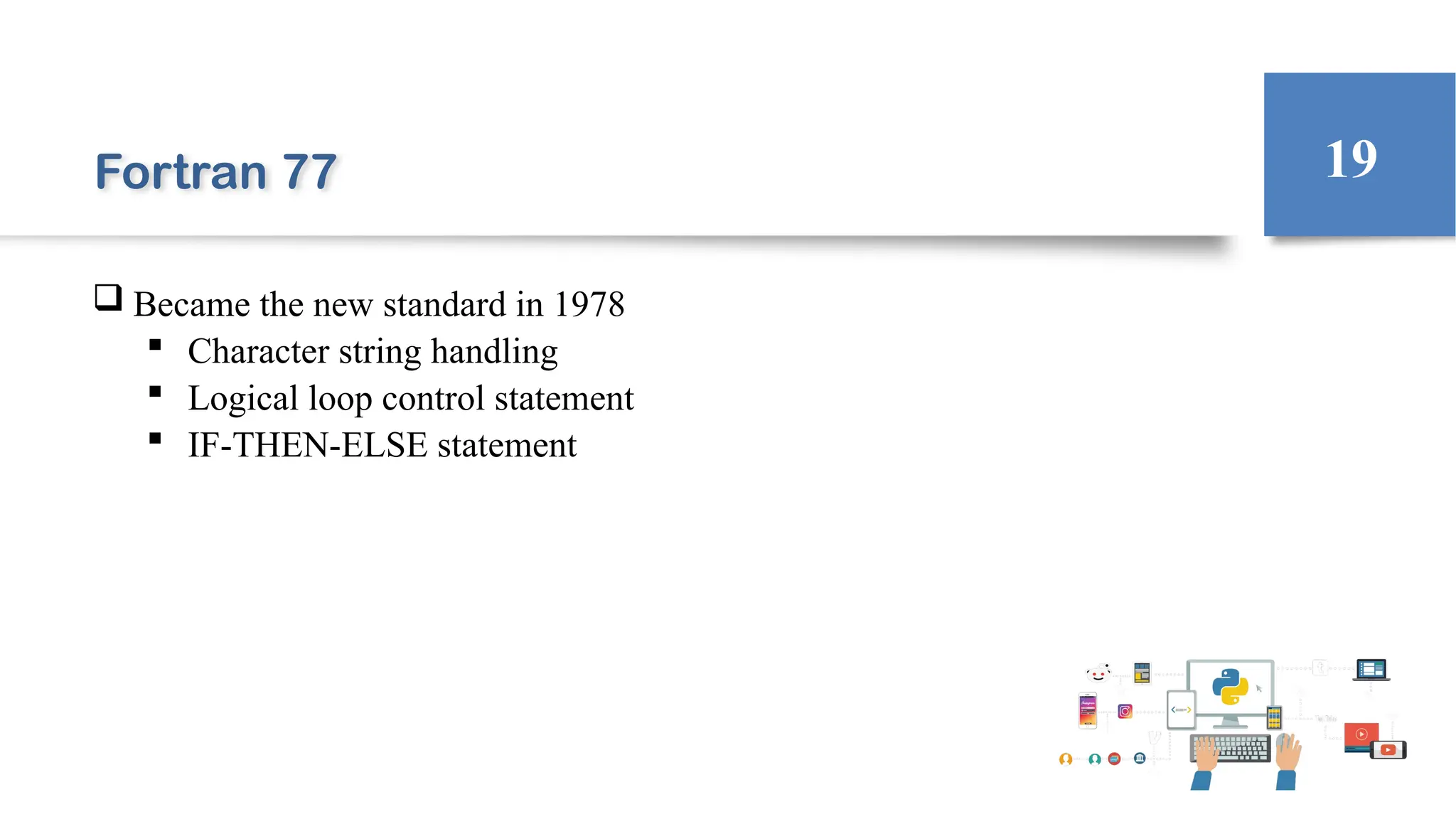

Fortran 77
 Became the new standard in 1978
 Character string handling
 Logical loop control statement
 IF-THEN-ELSE statement
19

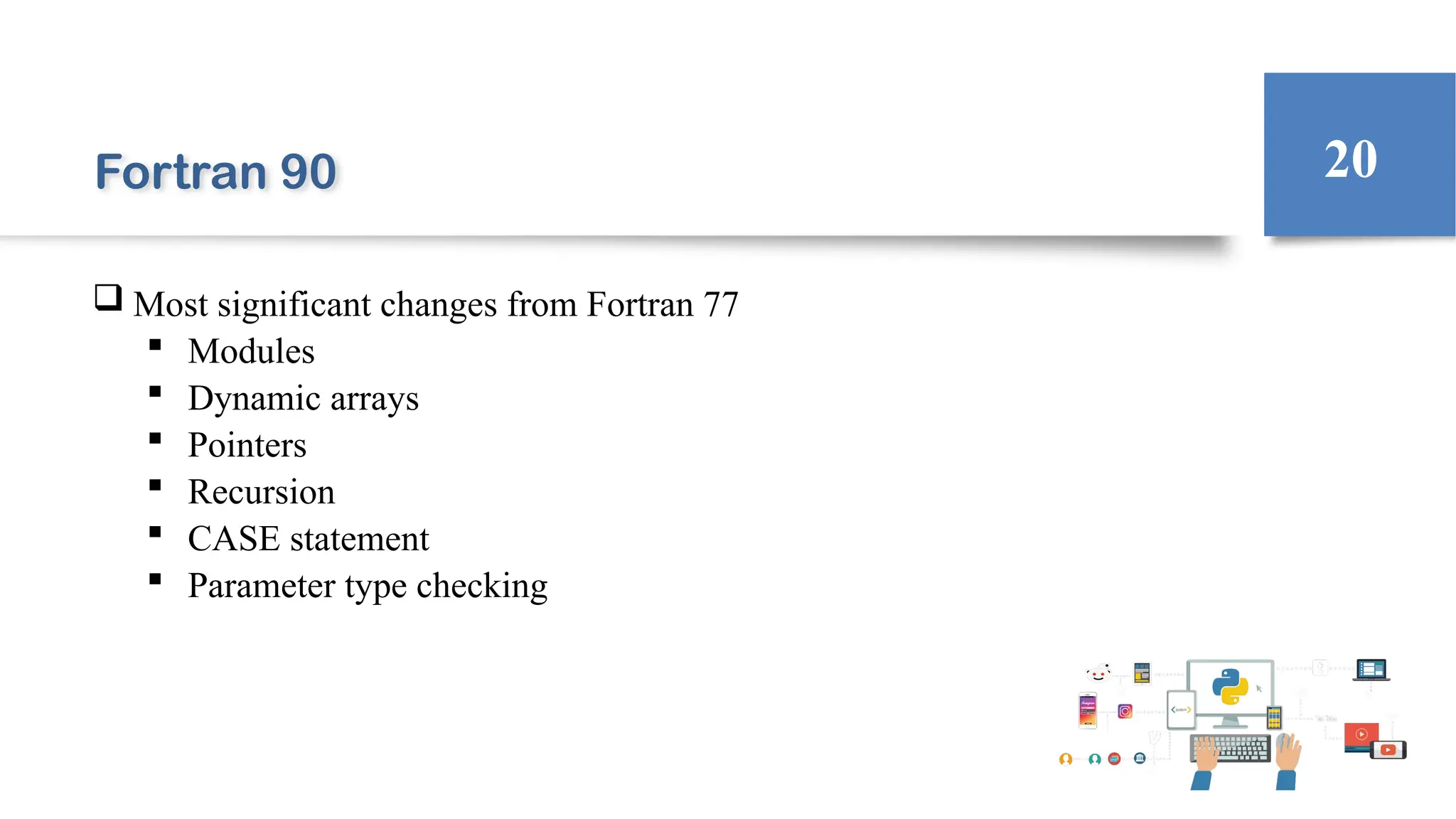

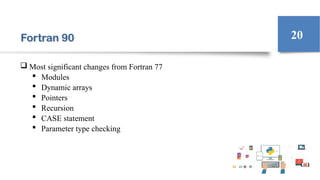

Fortran 90
 Most significant changes from Fortran 77
 Modules
 Dynamic arrays
 Pointers
 Recursion
 CASE statement
 Parameter type checking
20

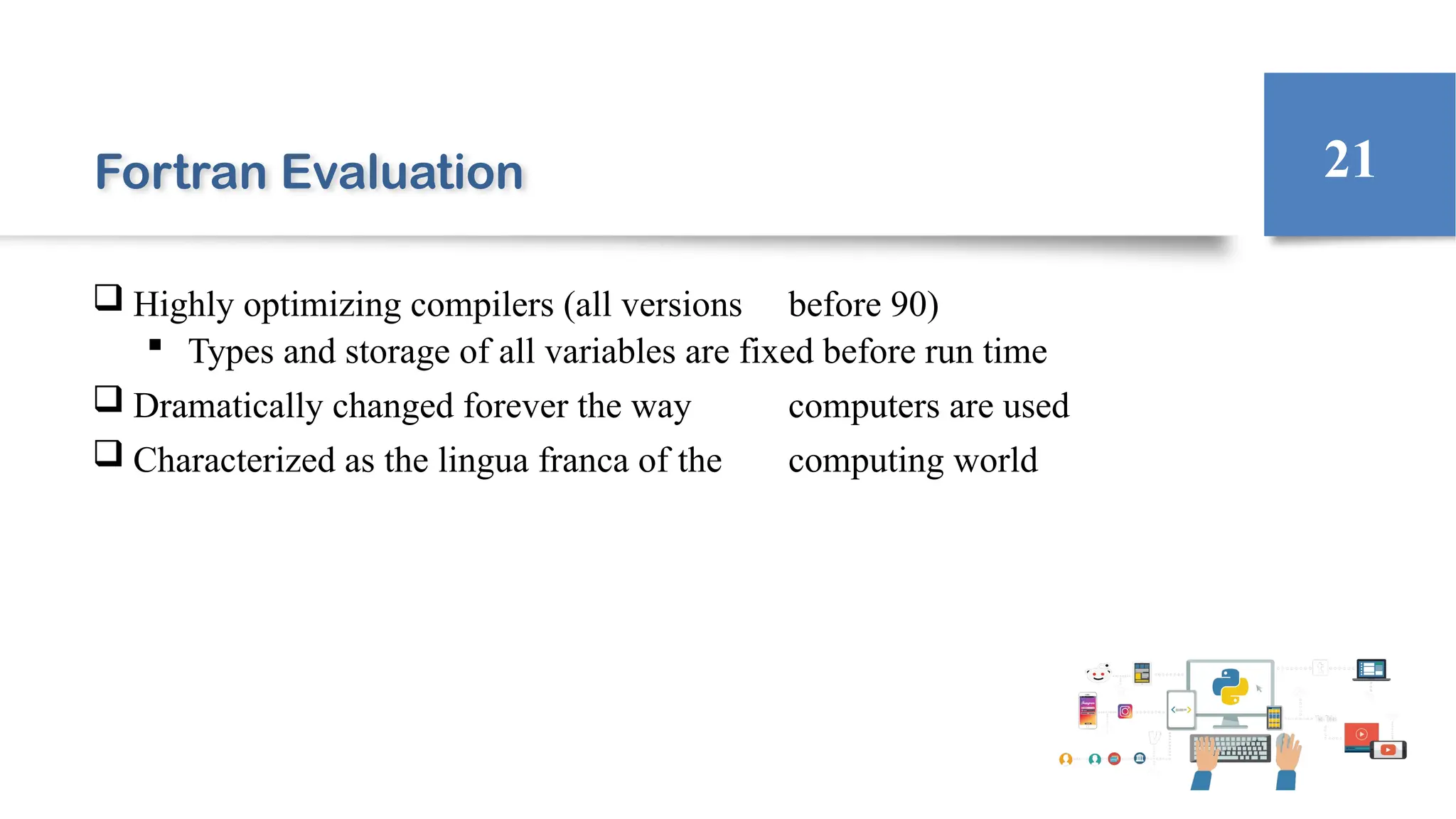

Fortran Evaluation
 Highly optimizing compilers (all versions before 90)
 Types and storage of all variables are fixed before run time
 Dramatically changed forever the way computers are used
 Characterized as the lingua franca of the computing world
21

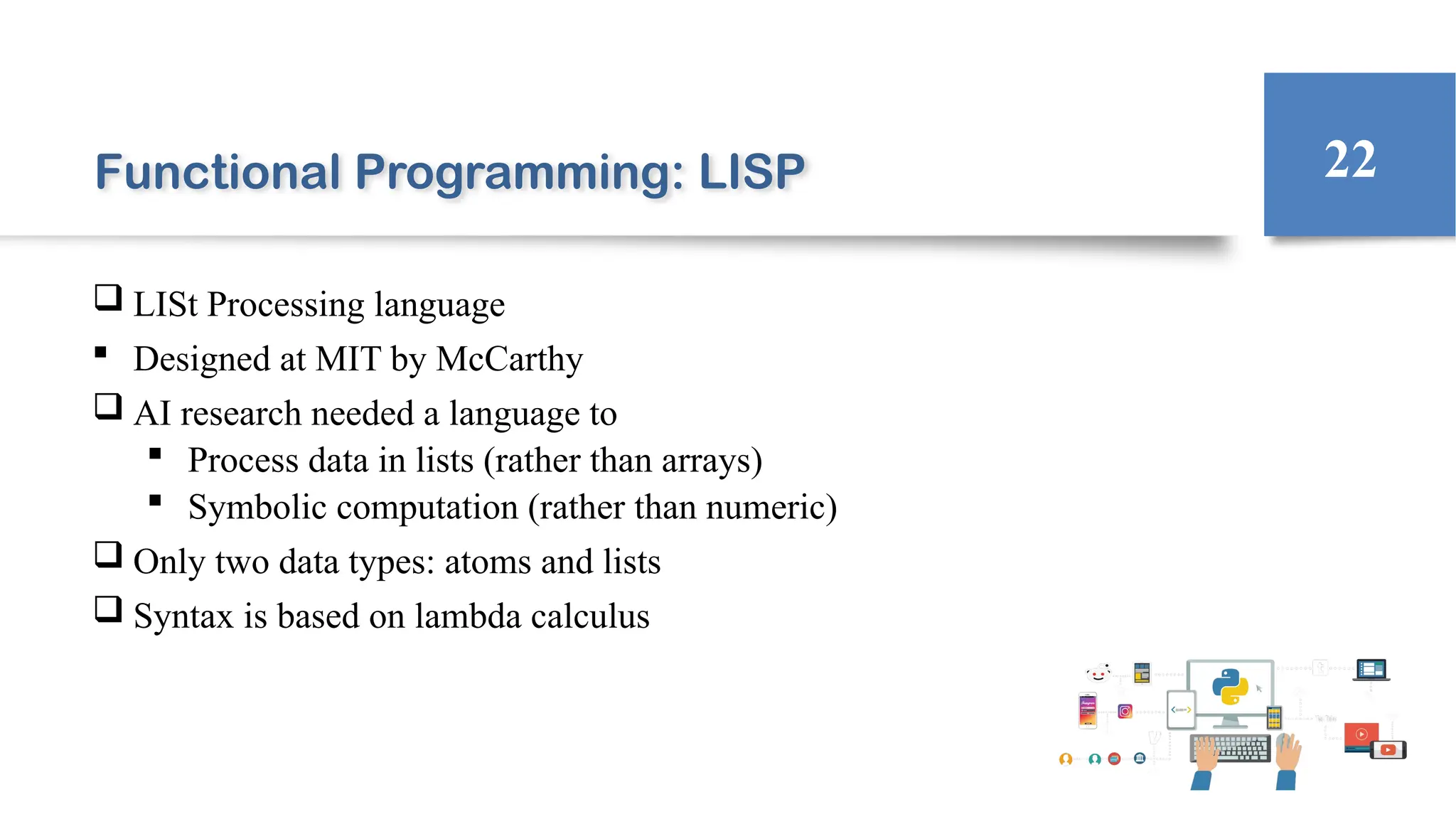

Functional Programming: LISP
 LISt Processing language
 Designed at MIT by McCarthy
 AI research needed a language to
 Process data in lists (rather than arrays)
 Symbolic computation (rather than numeric)
 Only two data types: atoms and lists
 Syntax is based on lambda calculus
22

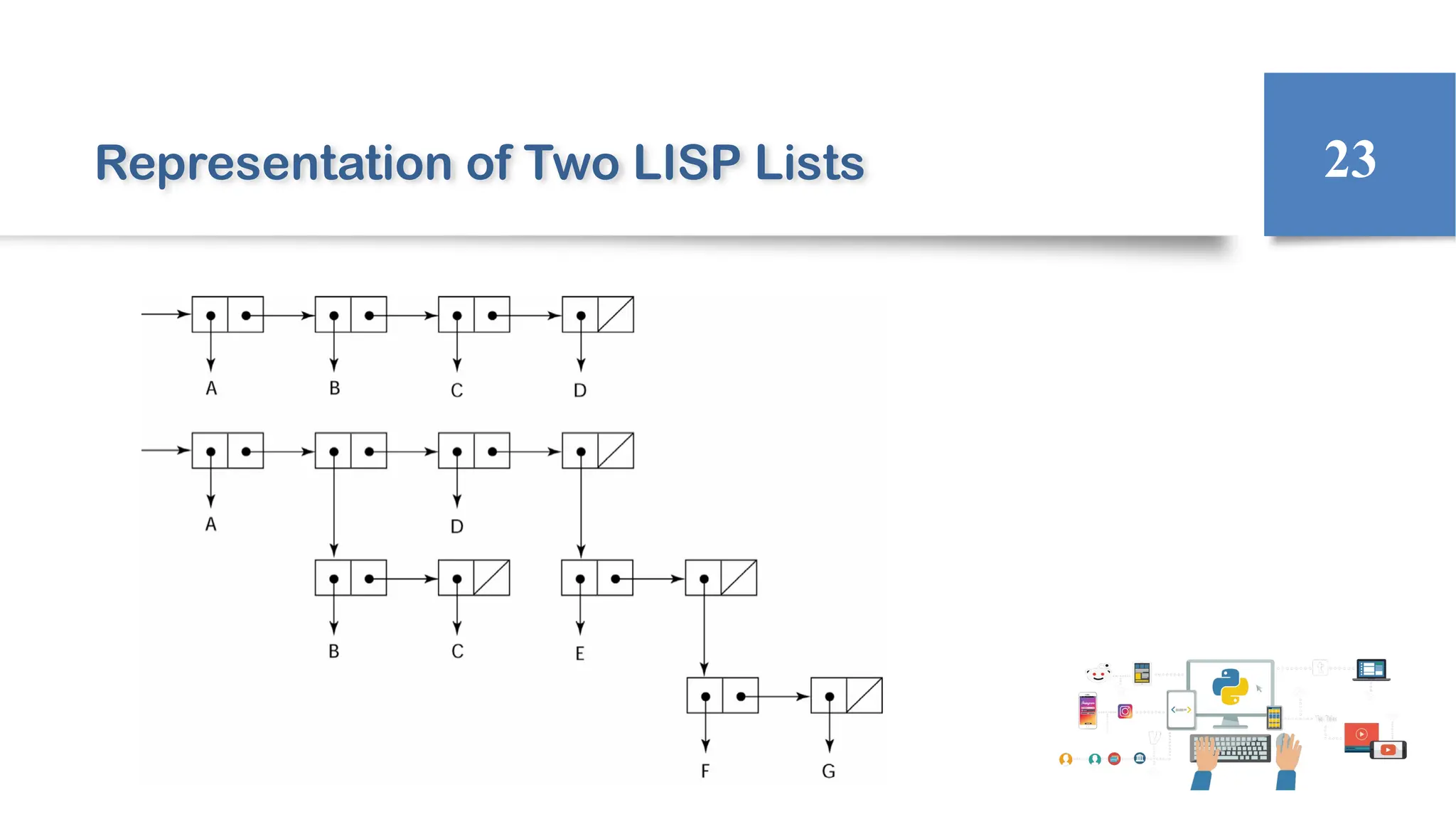

Representation of Two LISP Lists 23

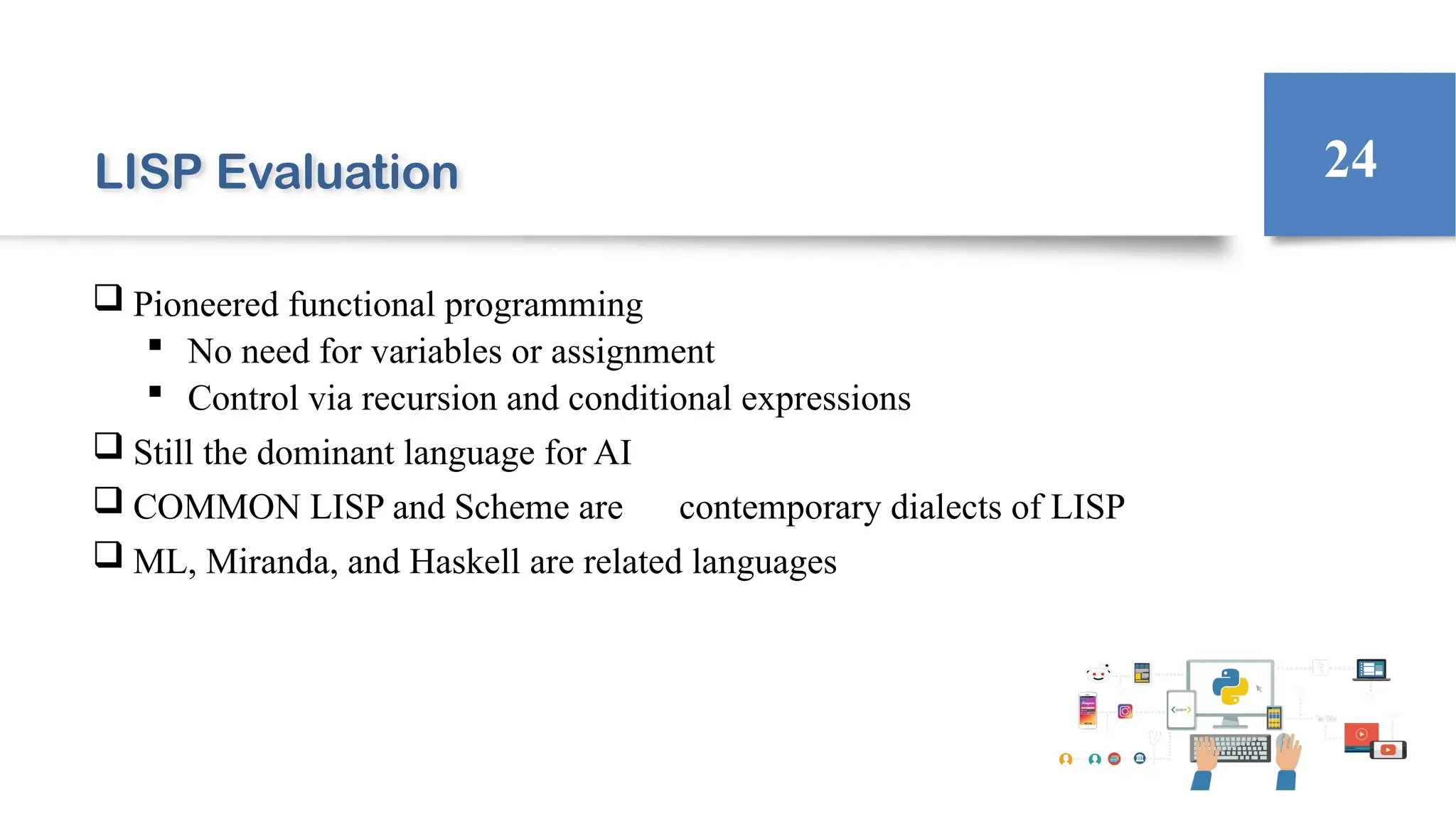

LISP Evaluation
 Pioneered functional programming
 No need for variables or assignment
 Control via recursion and conditional expressions
 Still the dominant language for AI
 COMMON LISP and Scheme are contemporary dialects of LISP
 ML, Miranda, and Haskell are related languages
24

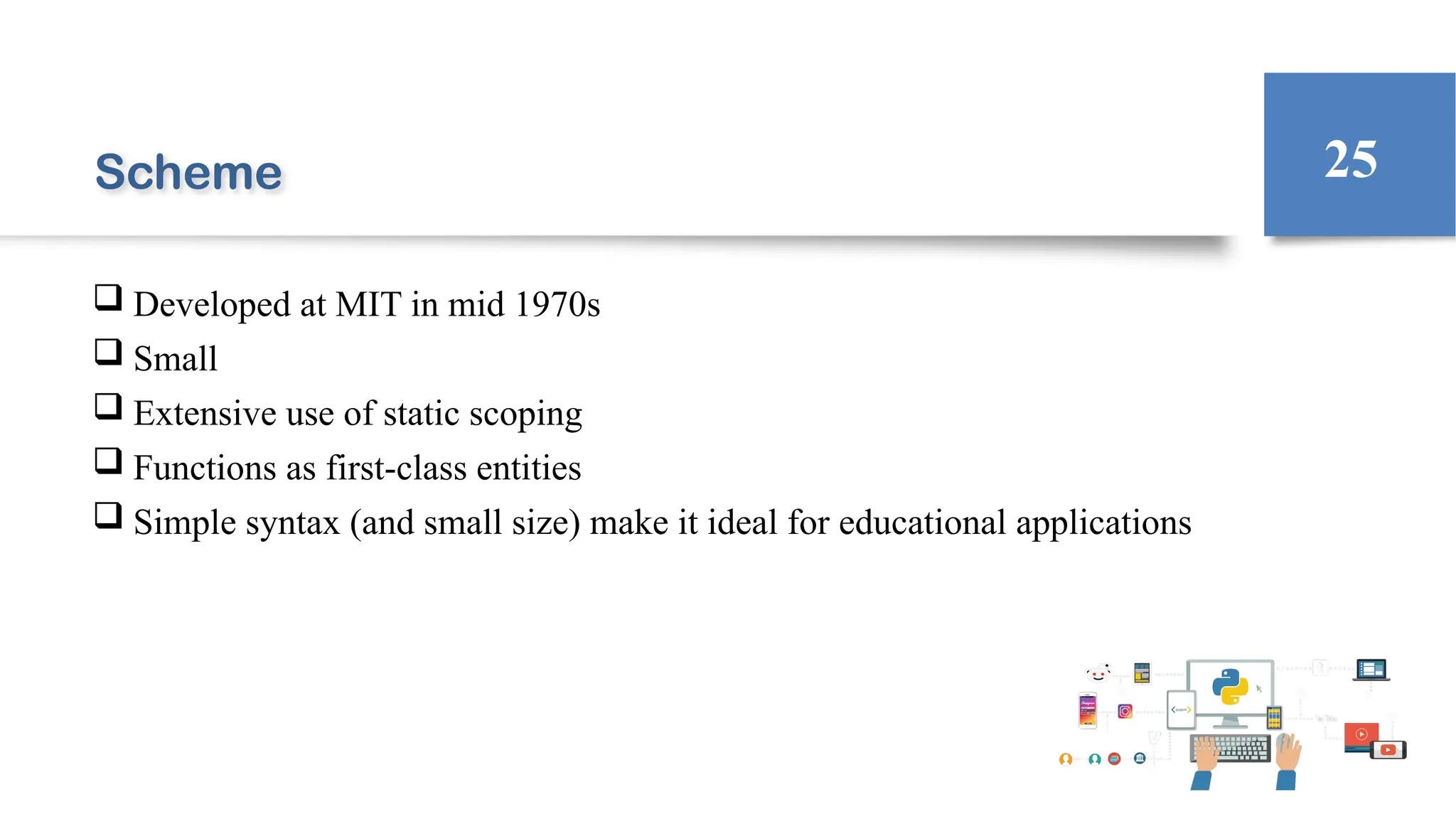

Scheme
 Developed at MIT in mid 1970s
 Small
 Extensive use of static scoping
 Functions as first-class entities
 Simple syntax (and small size) make it ideal for educational applications
25

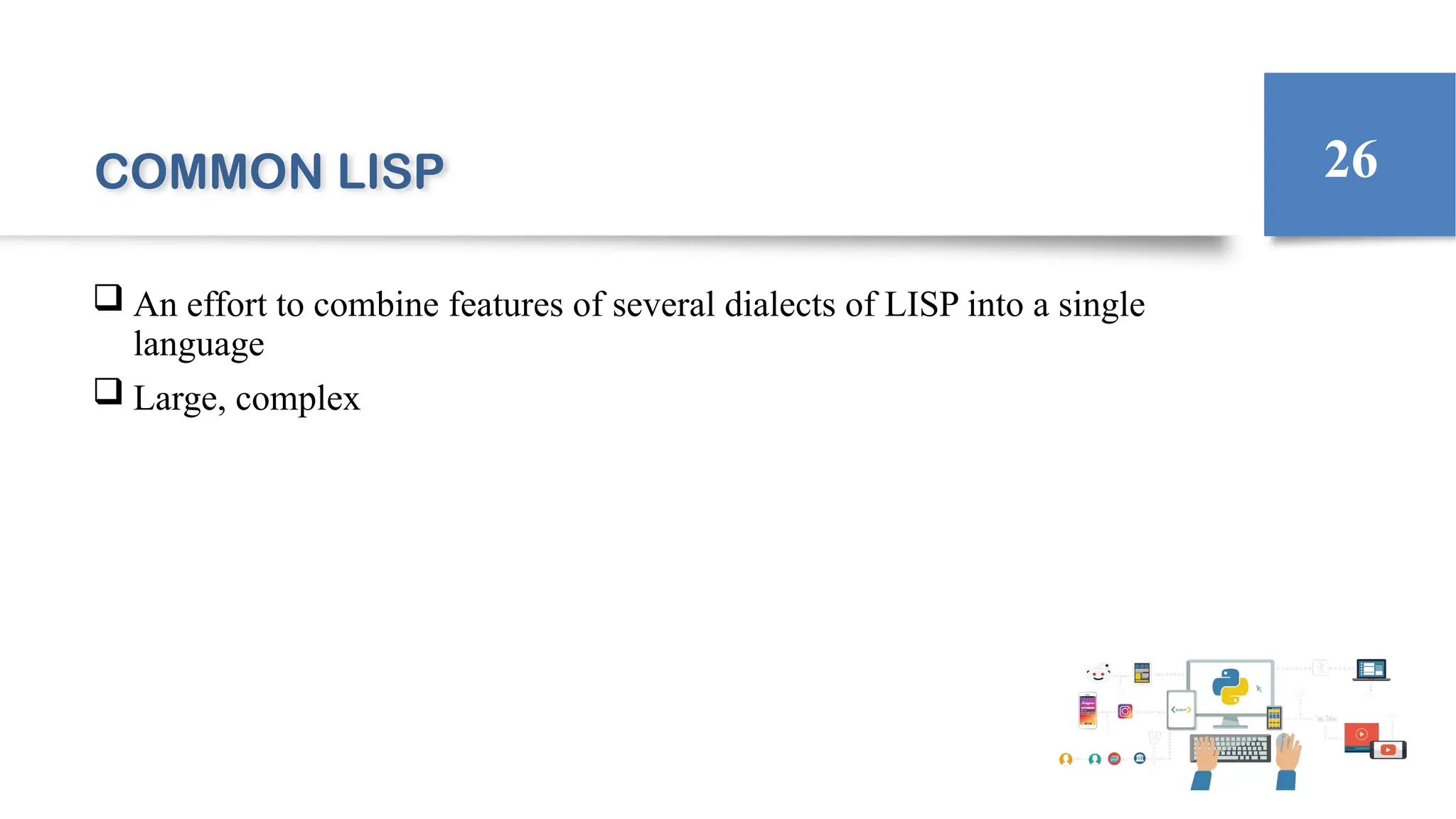

COMMON LISP
 An effort to combine features of several dialects of LISP into a single
language
 Large, complex
26

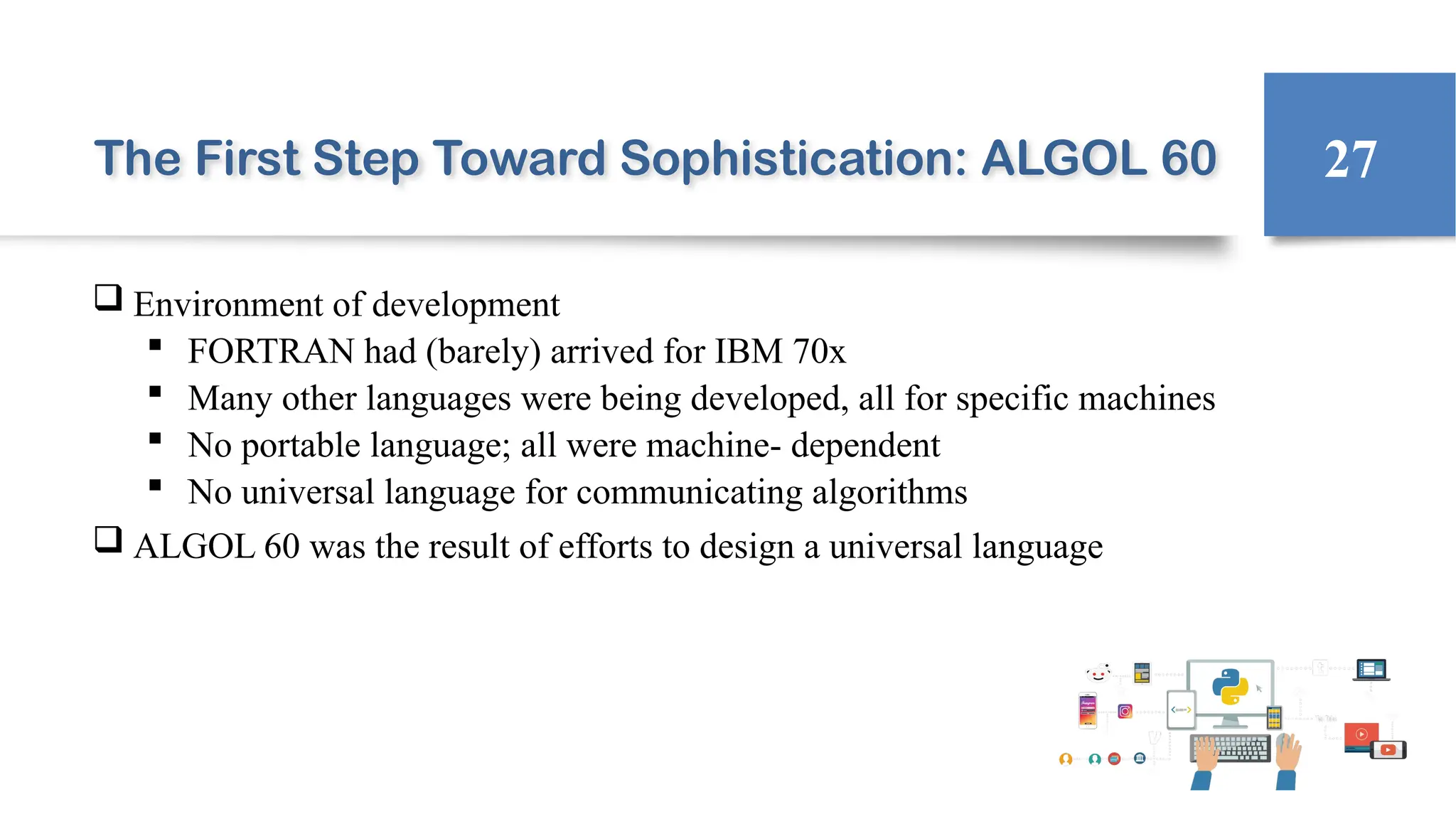

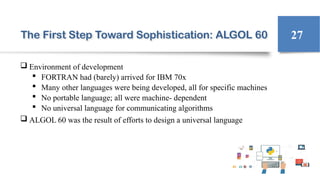

The First Step Toward Sophistication: ALGOL 60
 Environment of development
 FORTRAN had (barely) arrived for IBM 70x
 Many other languages were being developed, all for specific machines
 No portable language; all were machine- dependent
 No universal language for communicating algorithms
 ALGOL 60 was the result of efforts to design a universal language
27

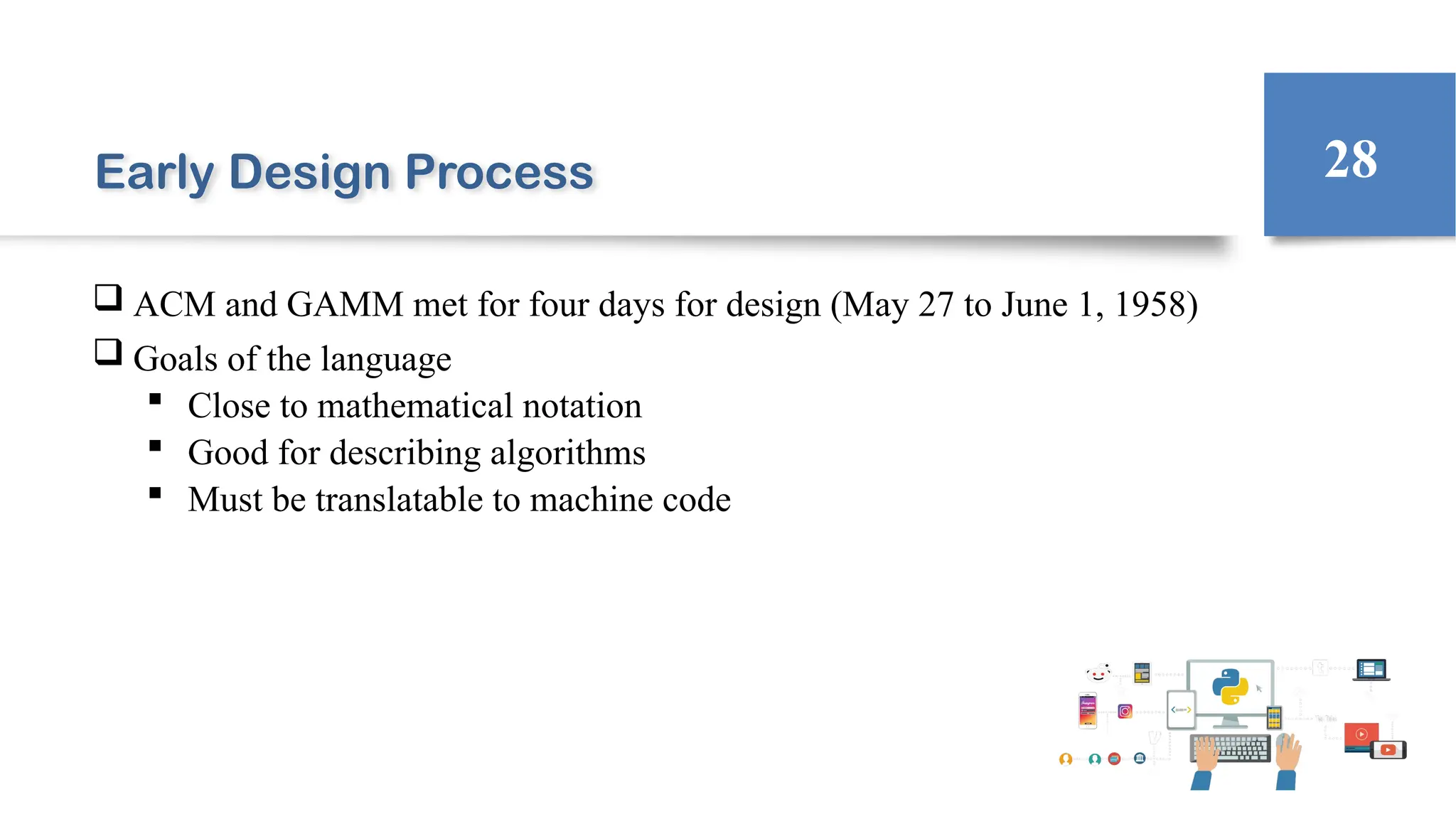

Early Design Process
 ACM and GAMM met for four days for design (May 27 to June 1, 1958)
 Goals of the language
 Close to mathematical notation
 Good for describing algorithms
 Must be translatable to machine code
28

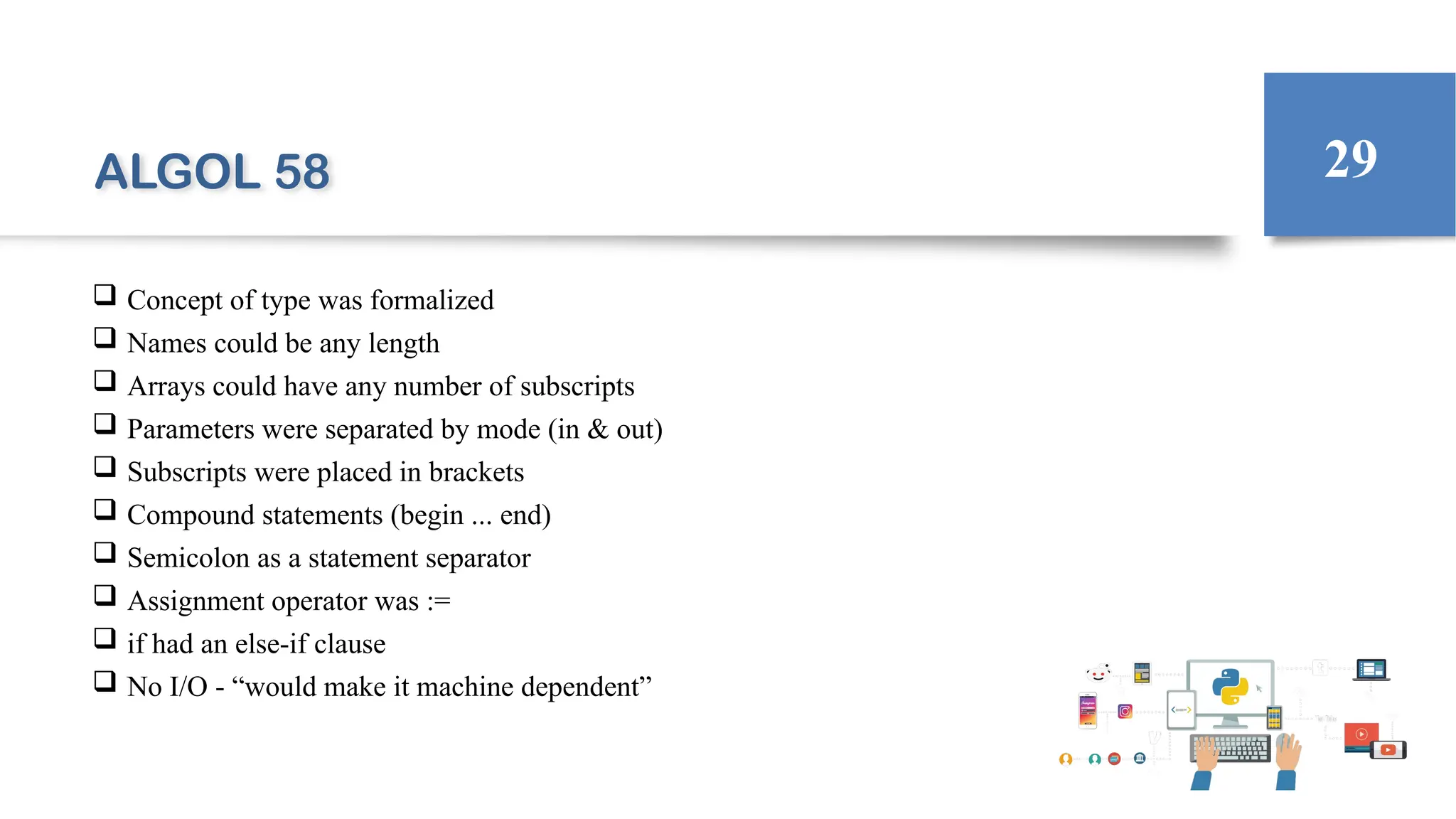

ALGOL 58
 Concept of type was formalized
 Names could be any length
 Arrays could have any number of subscripts
 Parameters were separated by mode (in & out)
 Subscripts were placed in brackets
 Compound statements (begin ... end)
 Semicolon as a statement separator
 Assignment operator was :=
 if had an else-if clause
 No I/O - “would make it machine dependent”
29

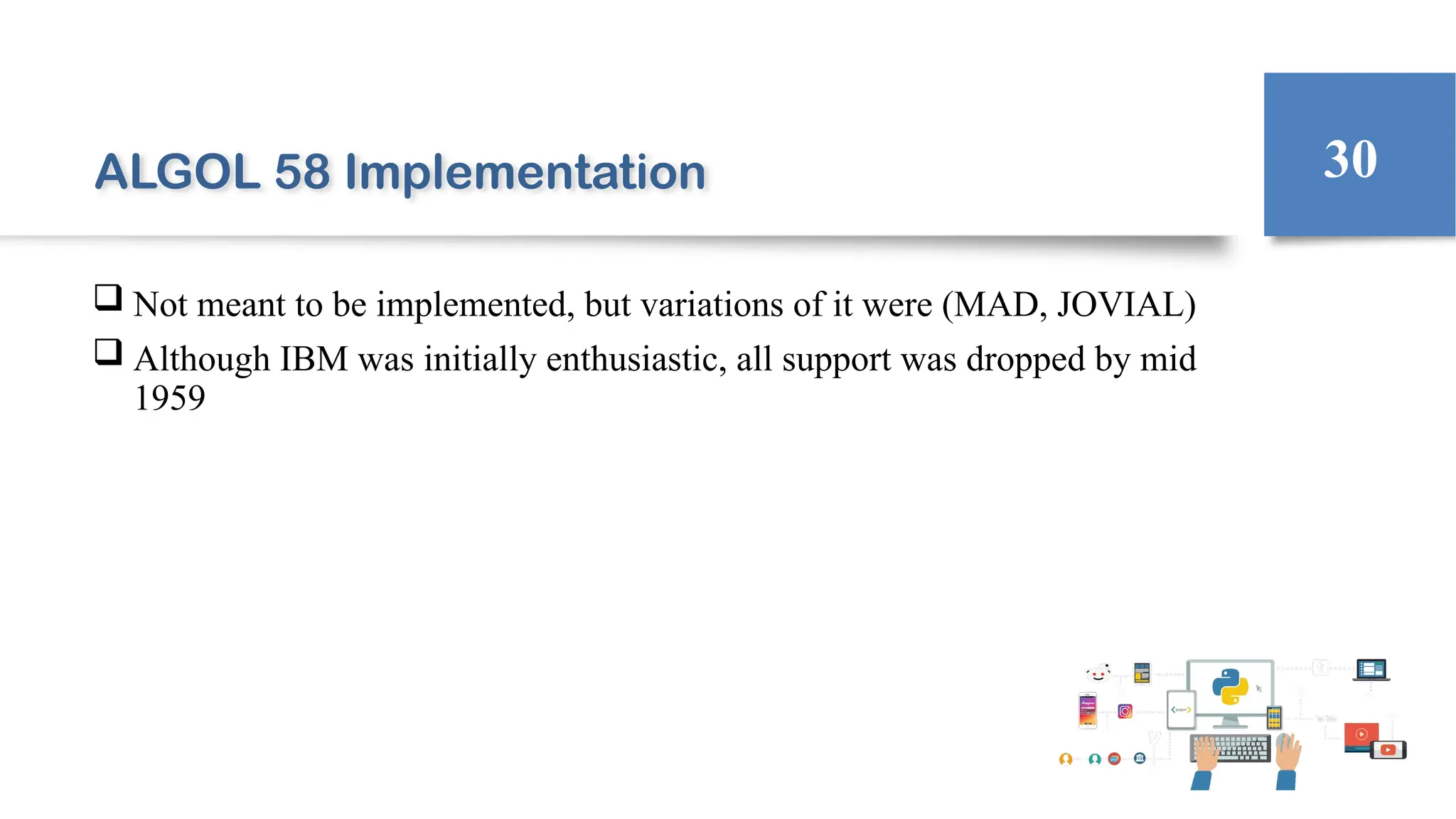

ALGOL 58 Implementation
 Not meant to be implemented, but variations of it were (MAD, JOVIAL)
 Although IBM was initially enthusiastic, all support was dropped by mid
1959
30

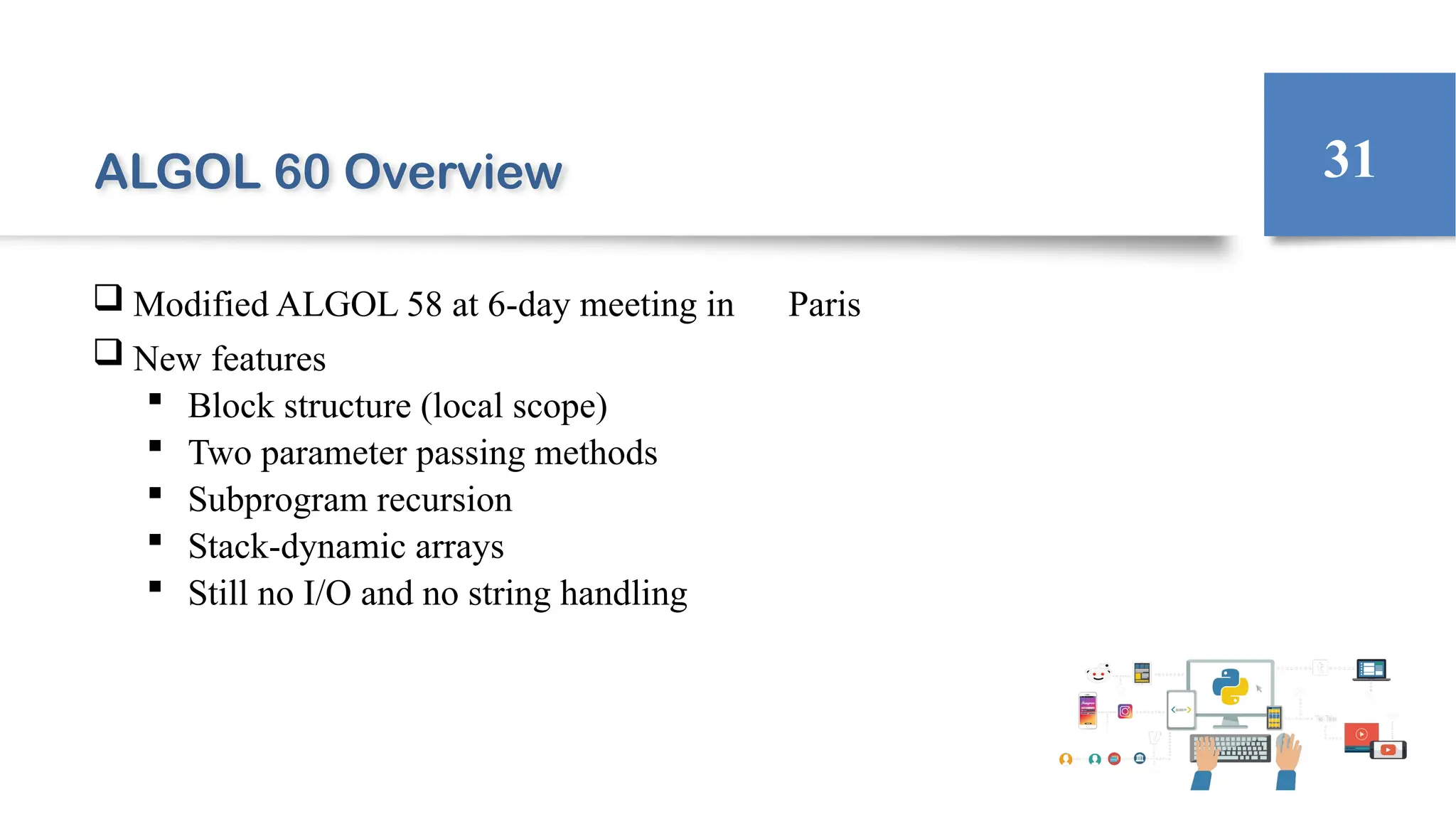

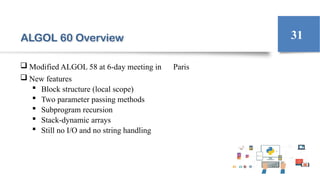

ALGOL 60 Overview
 Modified ALGOL 58 at 6-day meeting in Paris
 New features
 Block structure (local scope)
 Two parameter passing methods
 Subprogram recursion
 Stack-dynamic arrays
 Still no I/O and no string handling
31

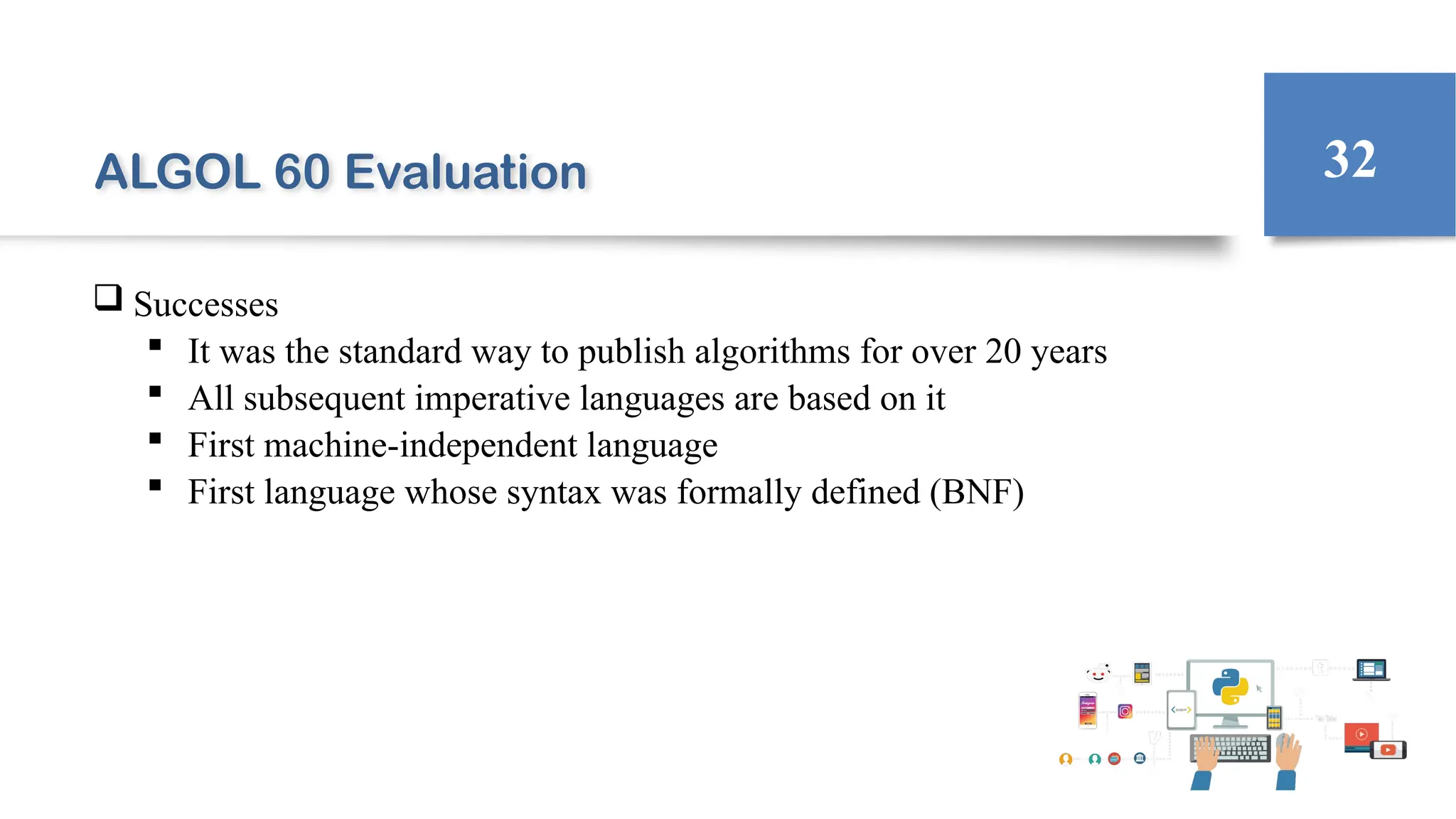

ALGOL 60 Evaluation
 Successes
 It was the standard way to publish algorithms for over 20 years
 All subsequent imperative languages are based on it
 First machine-independent language
 First language whose syntax was formally defined (BNF)
32

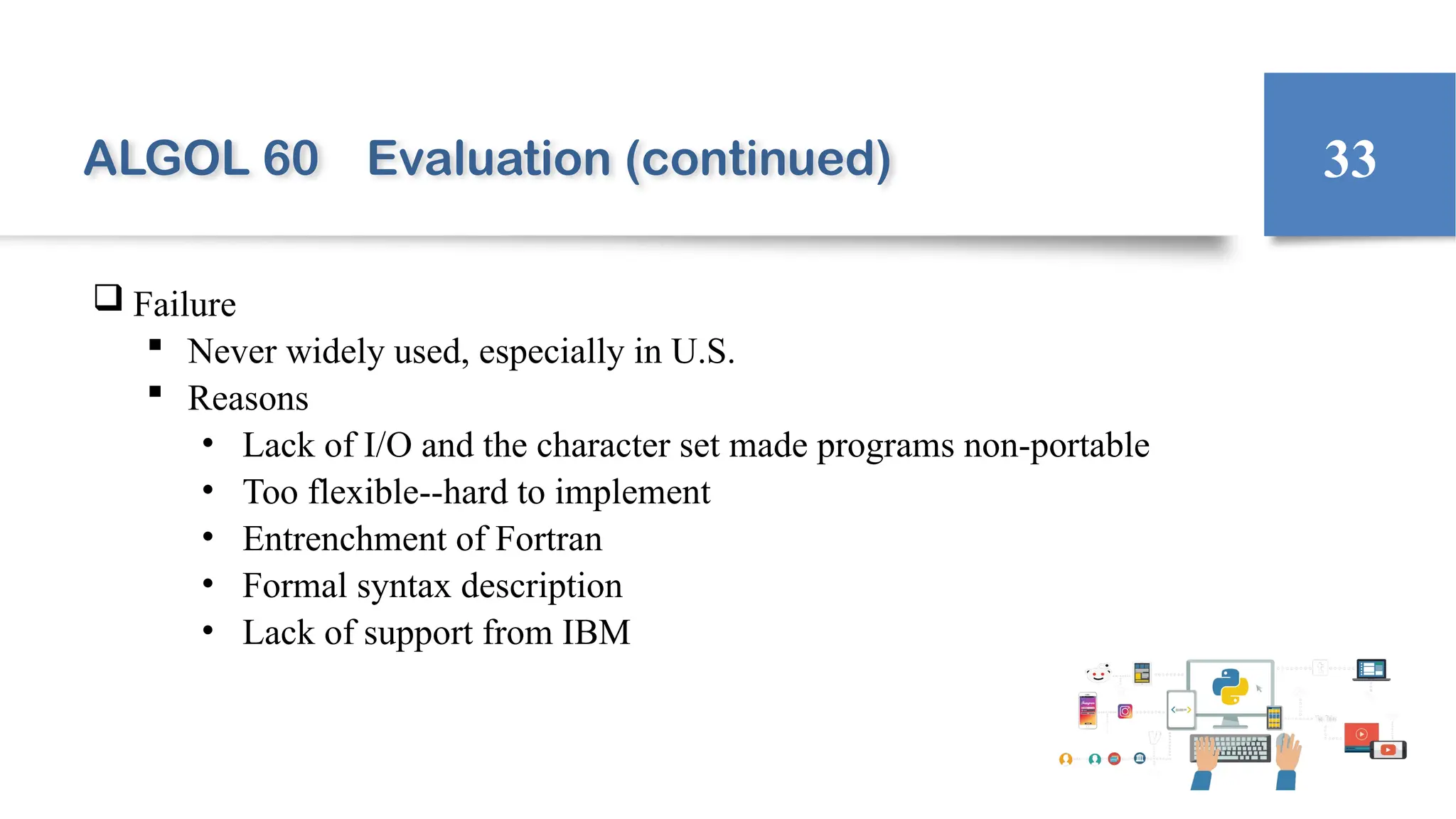

ALGOL 60 Evaluation (continued)
 Failure
 Never widely used, especially in U.S.
 Reasons
• Lack of I/O and the character set made programs non-portable
• Too flexible--hard to implement
• Entrenchment of Fortran
• Formal syntax description
• Lack of support from IBM
33

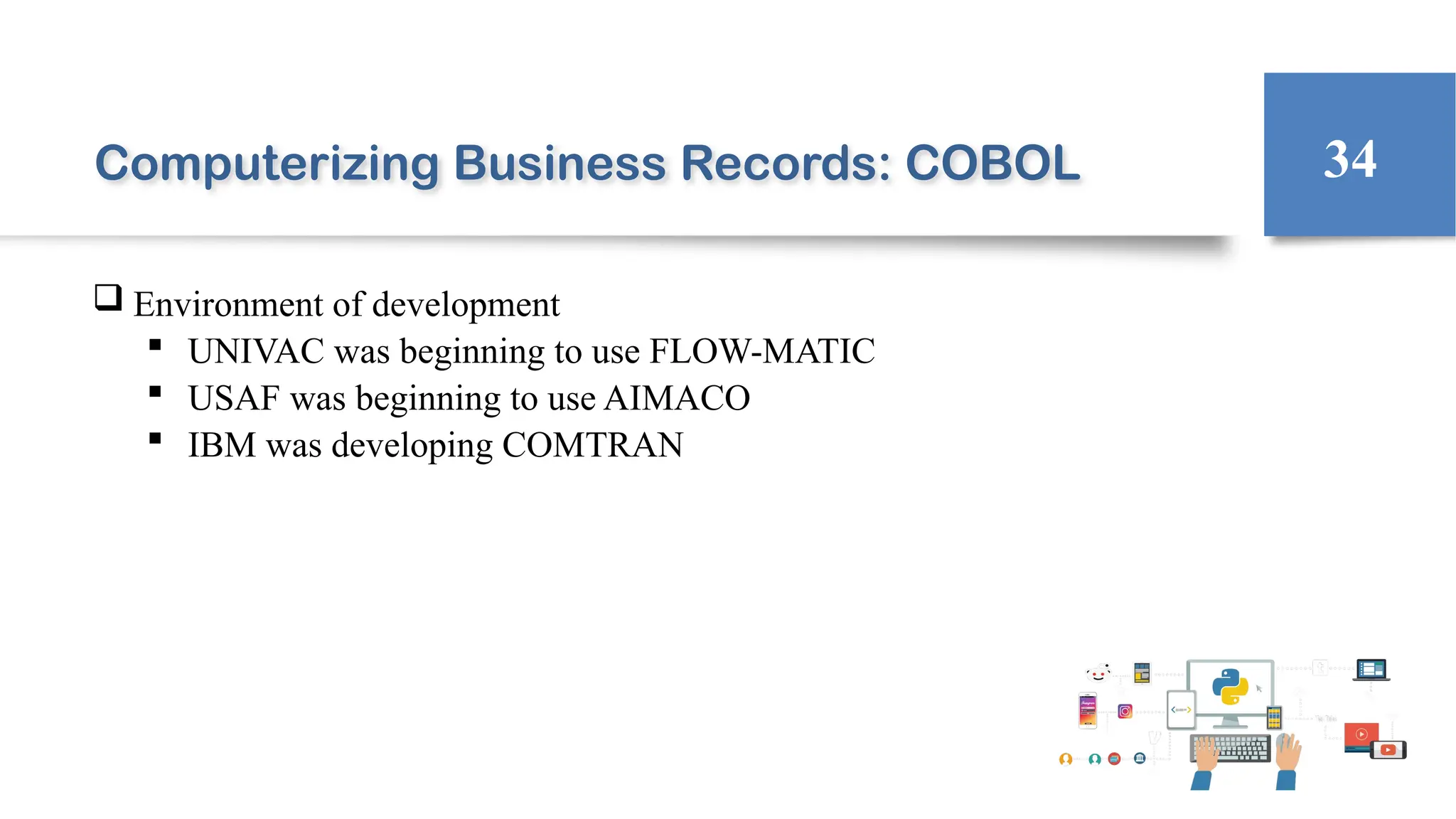

Computerizing Business Records: COBOL
 Environment of development
 UNIVAC was beginning to use FLOW-MATIC
 USAF was beginning to use AIMACO
 IBM was developing COMTRAN
34

COBOL Historical Background
 Based on FLOW-MATIC
 FLOW-MATIC features
 Names up to 12 characters, with embedded hyphens
 English names for arithmetic operators (no arithmetic expressions)
 Data and code were completely separate
 Verbs were first word in every statement
35

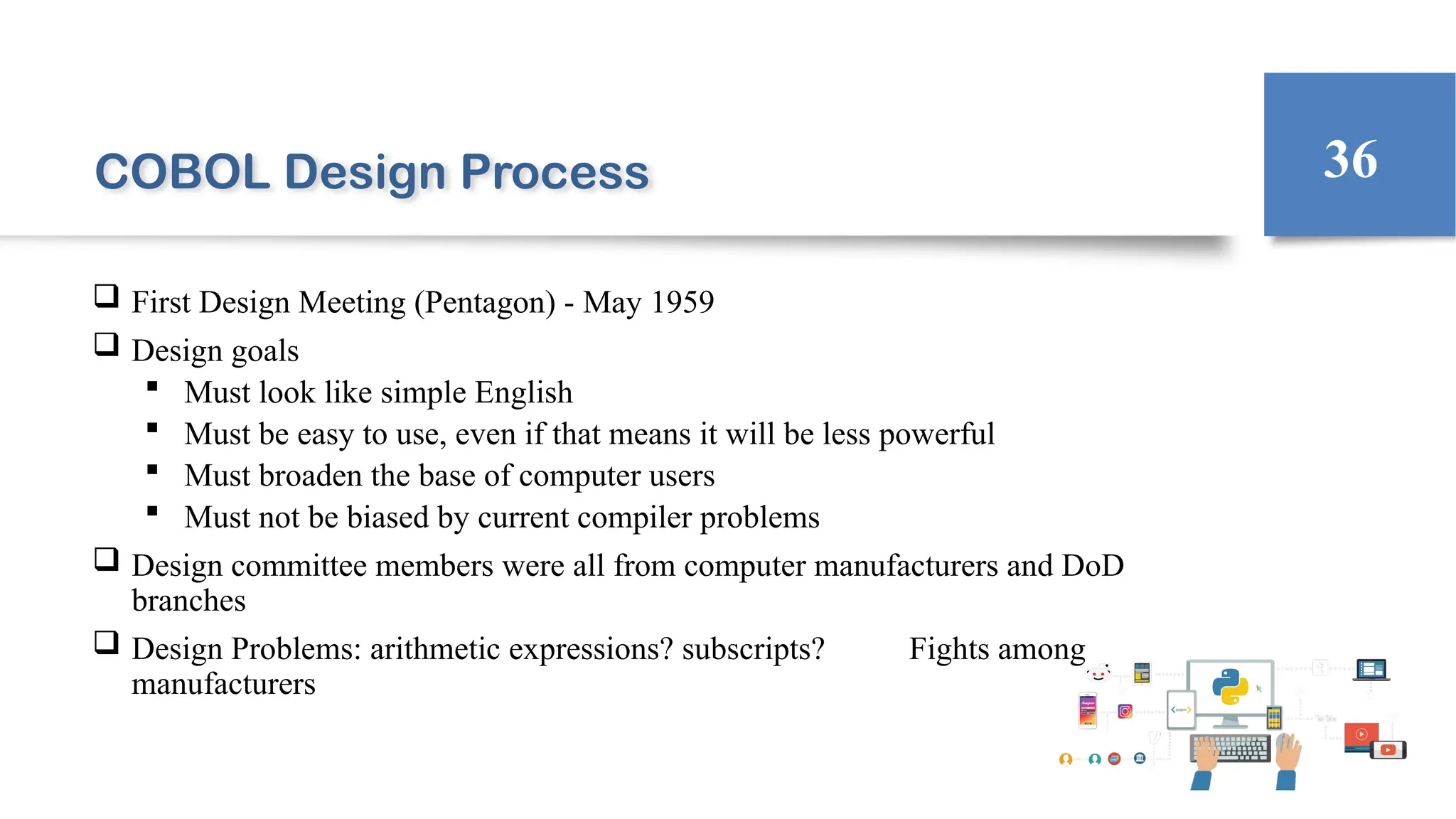

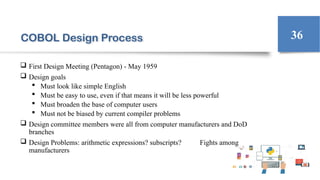

COBOL Design Process
 First Design Meeting (Pentagon) - May 1959
 Design goals
 Must look like simple English
 Must be easy to use, even if that means it will be less powerful
 Must broaden the base of computer users
 Must not be biased by current compiler problems
 Design committee members were all from computer manufacturers and DoD
branches
 Design Problems: arithmetic expressions? subscripts? Fights among
manufacturers
36

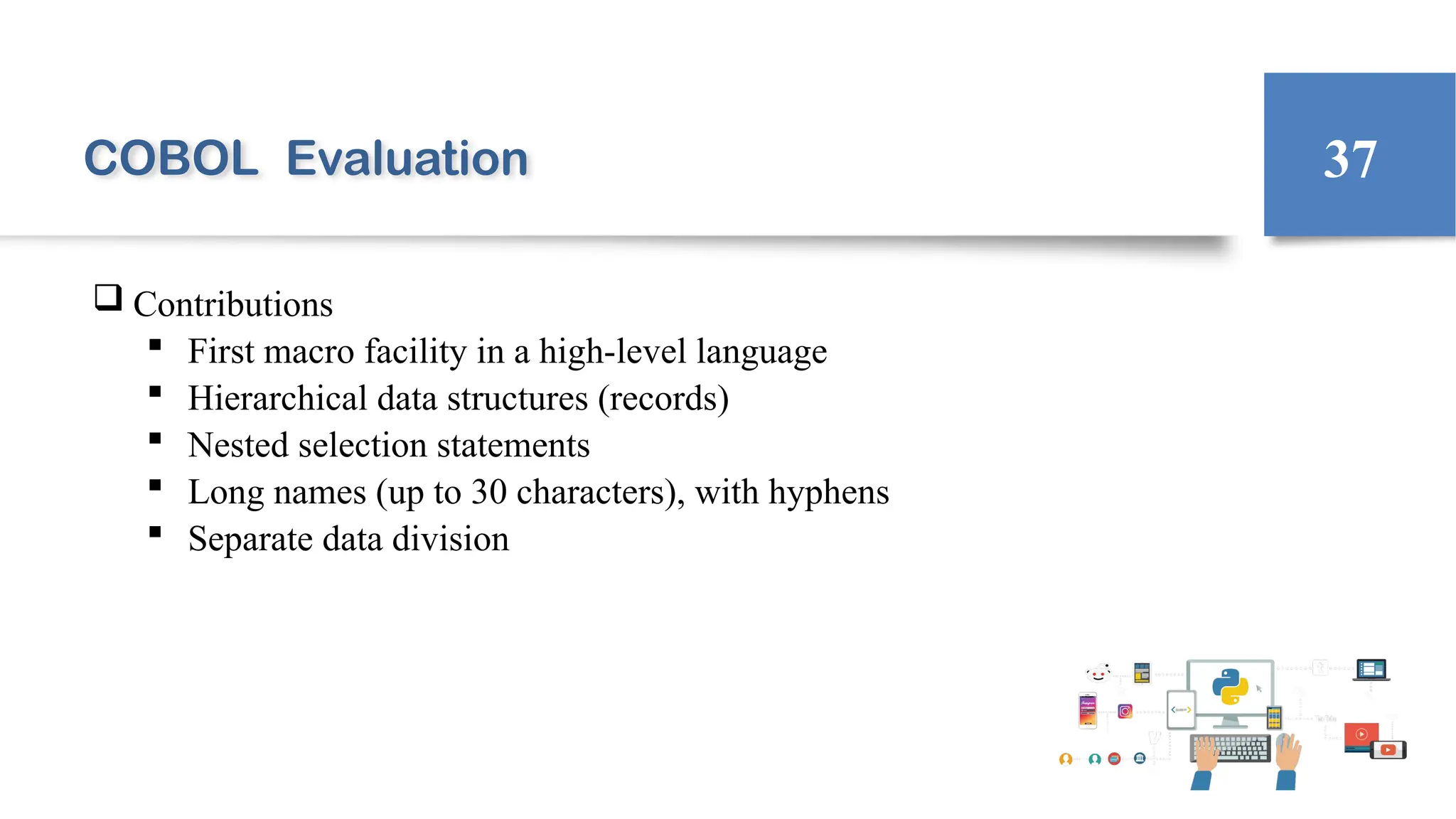

COBOL Evaluation
 Contributions
 First macro facility in a high-level language
 Hierarchical data structures (records)
 Nested selection statements
 Long names (up to 30 characters), with hyphens
 Separate data division
37

COBOL: DoD Influence
 First language required by DoD
 would have failed without DoD
 Still the most widely used business applications language
38

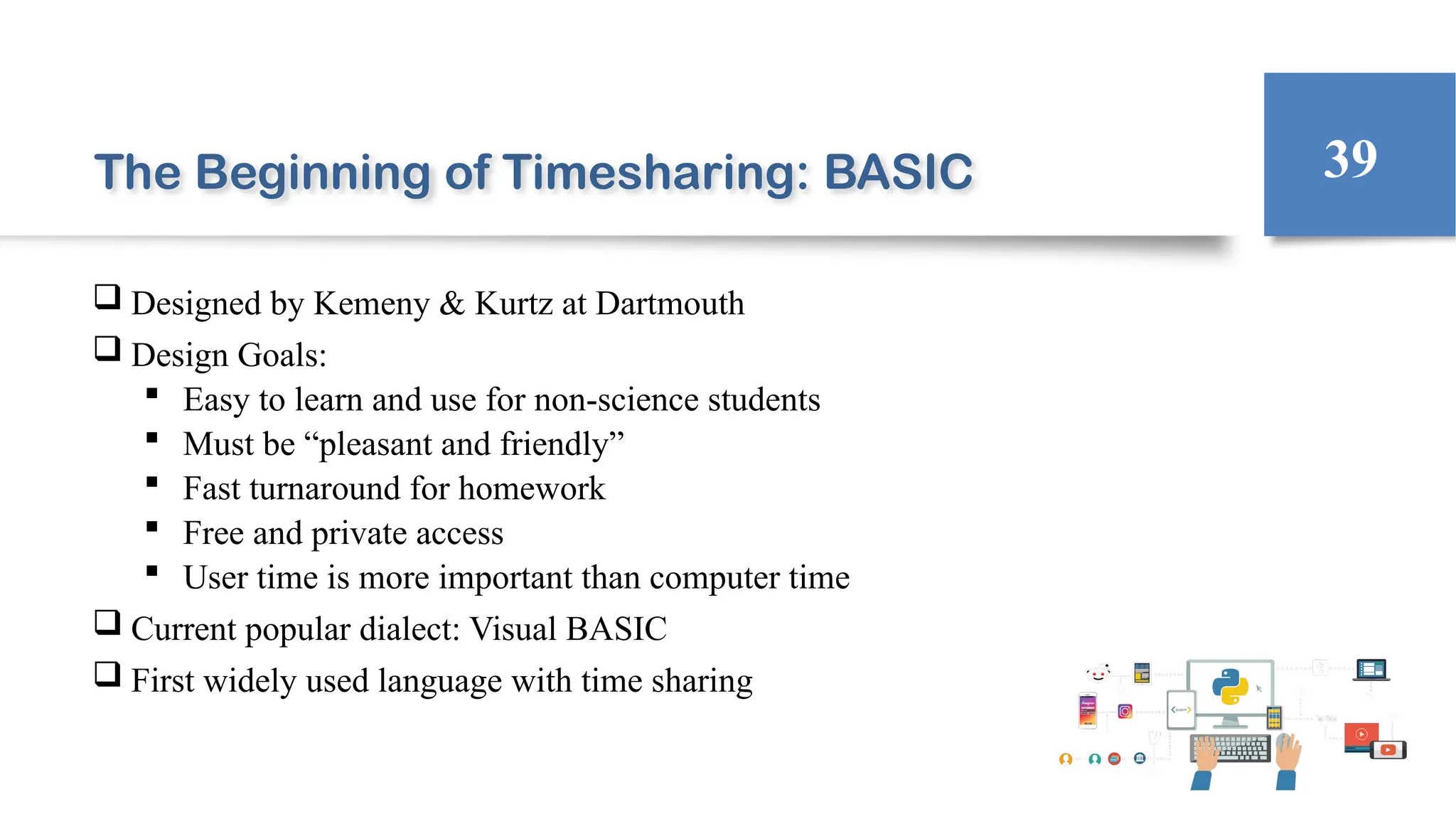

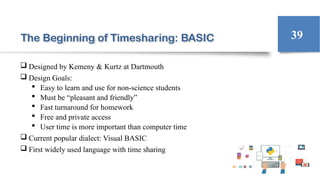

The Beginning of Timesharing: BASIC
 Designed by Kemeny & Kurtz at Dartmouth
 Design Goals:
 Easy to learn and use for non-science students
 Must be “pleasant and friendly”
 Fast turnaround for homework
 Free and private access
 User time is more important than computer time
 Current popular dialect: Visual BASIC
 First widely used language with time sharing
39

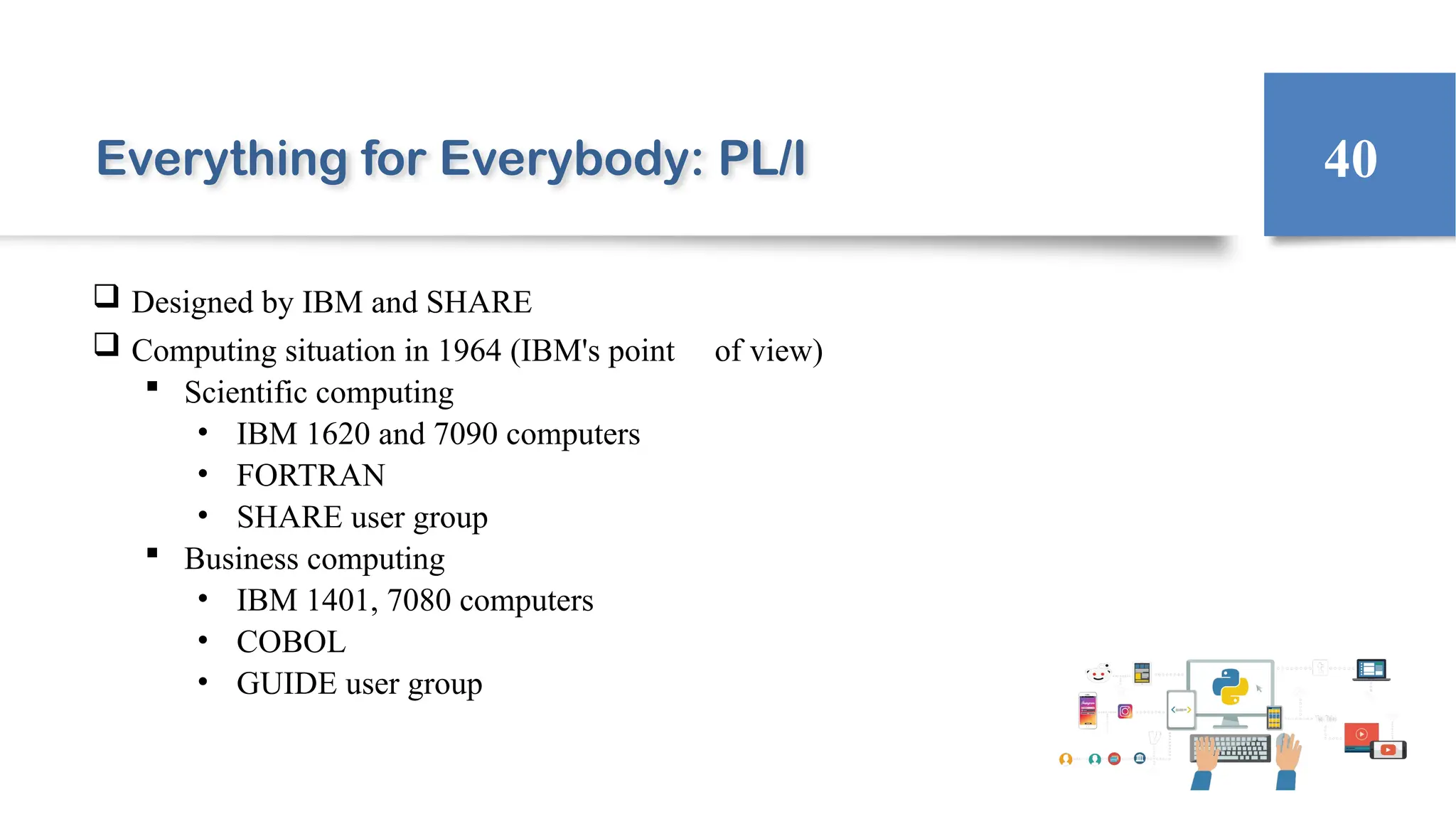

Everything for Everybody: PL/I
 Designed by IBM and SHARE
 Computing situation in 1964 (IBM's point of view)
 Scientific computing
• IBM 1620 and 7090 computers
• FORTRAN
• SHARE user group
 Business computing
• IBM 1401, 7080 computers
• COBOL
• GUIDE user group
40

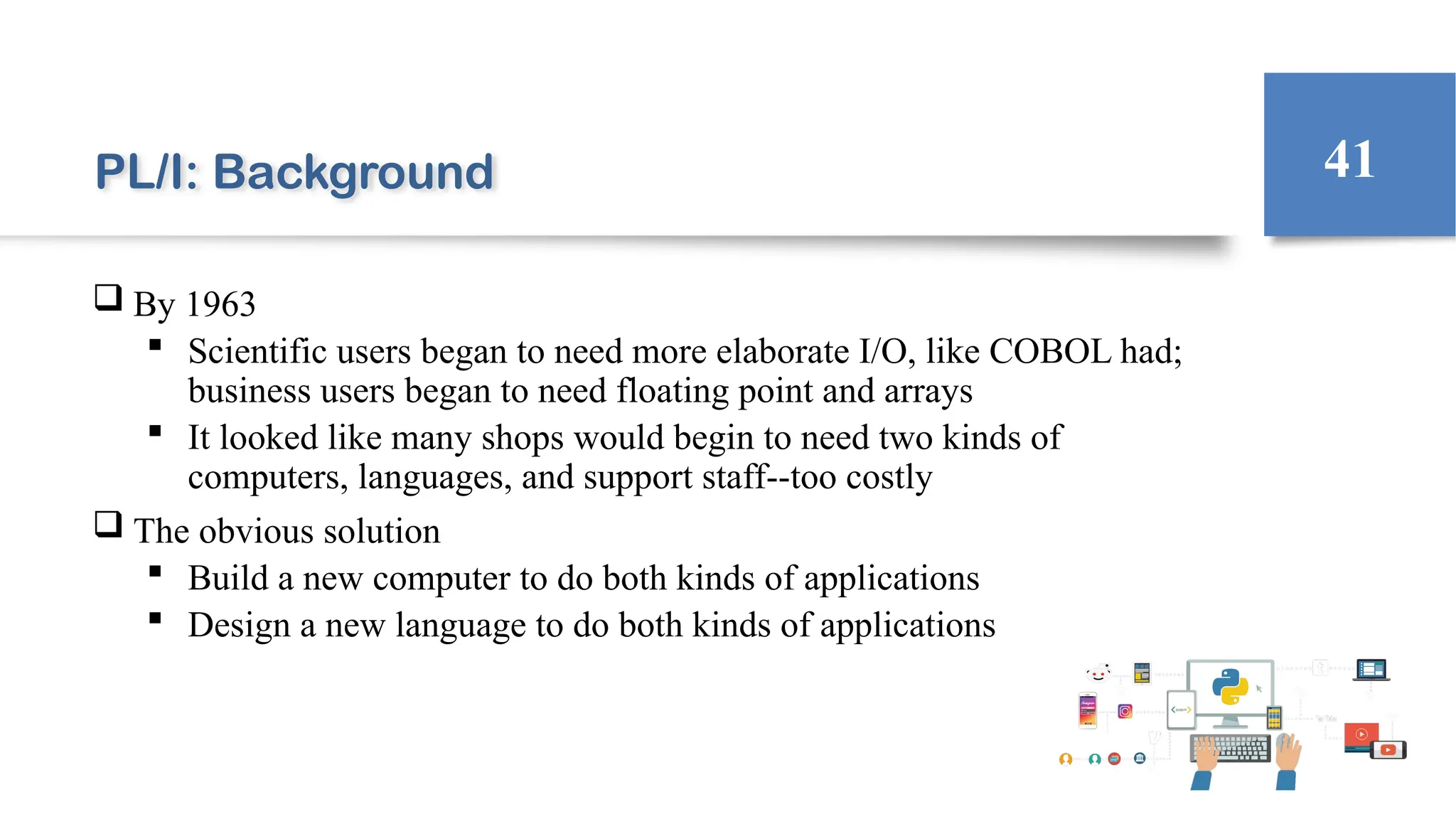

PL/I: Background
 By 1963
 Scientific users began to need more elaborate I/O, like COBOL had;
business users began to need floating point and arrays
 It looked like many shops would begin to need two kinds of
computers, languages, and support staff--too costly
 The obvious solution
 Build a new computer to do both kinds of applications
 Design a new language to do both kinds of applications
41

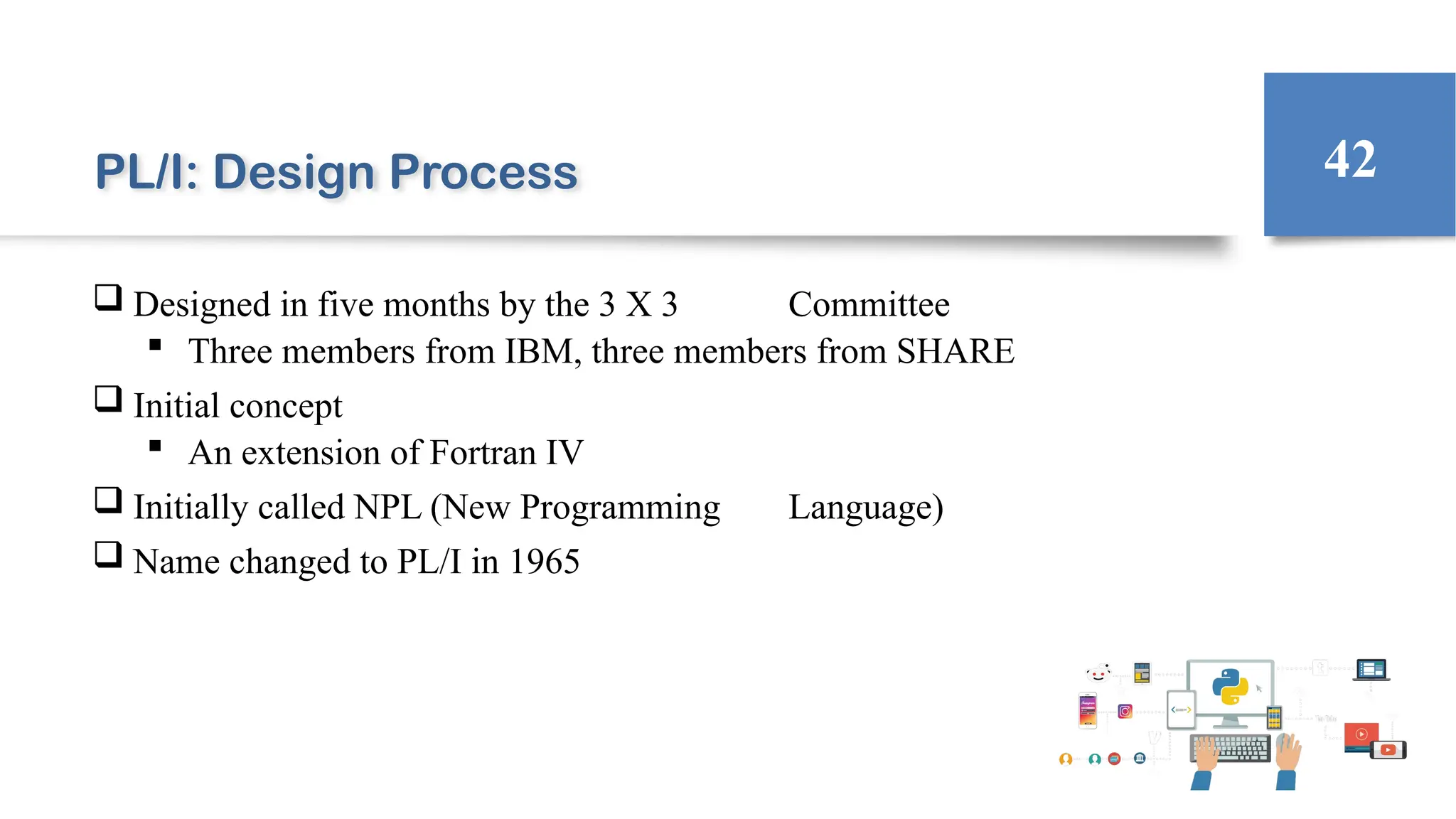

PL/I: Design Process
 Designed in five months by the 3 X 3 Committee
 Three members from IBM, three members from SHARE
 Initial concept
 An extension of Fortran IV
 Initially called NPL (New Programming Language)
 Name changed to PL/I in 1965
42

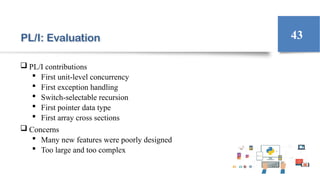

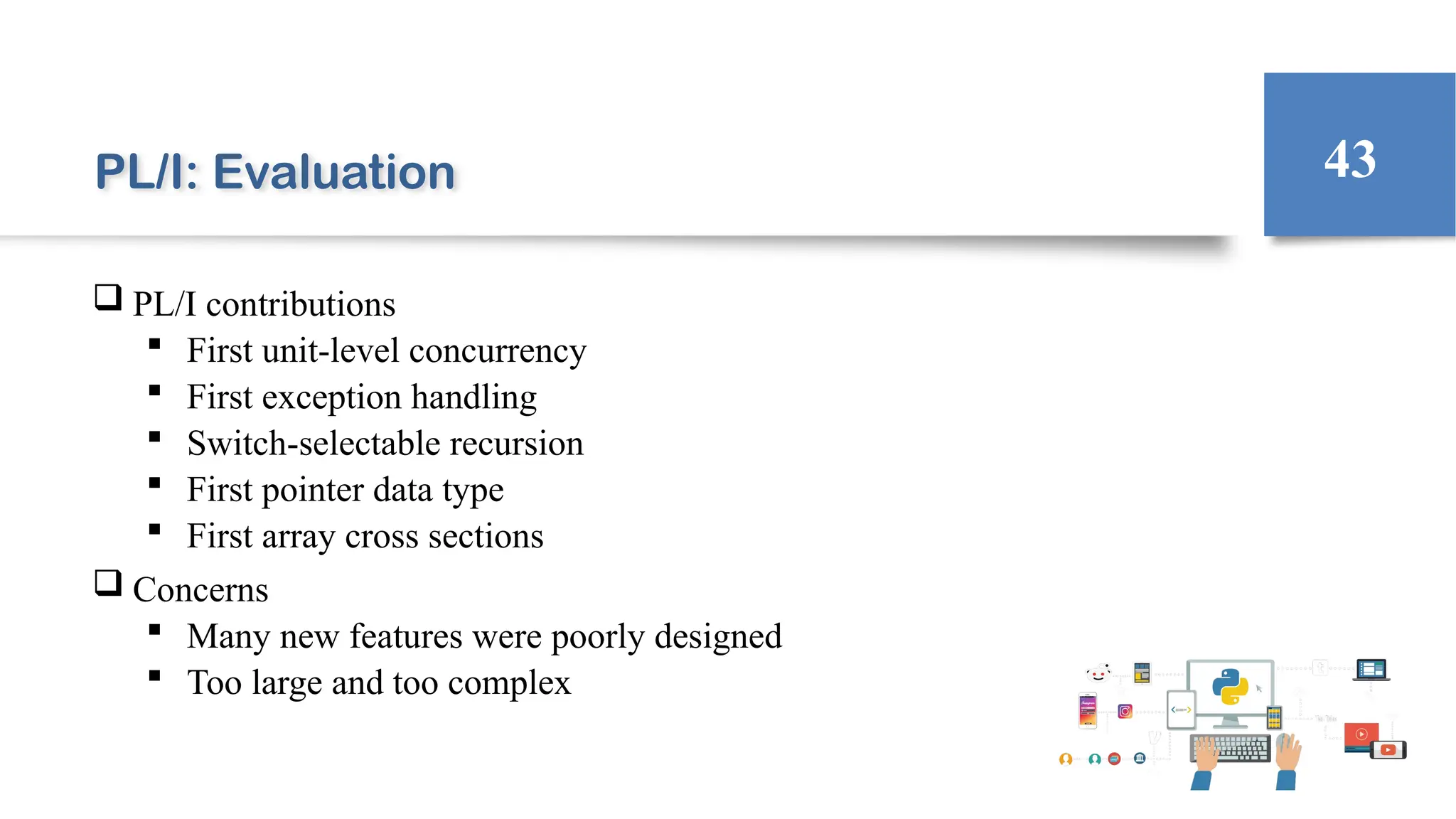

PL/I: Evaluation
 PL/I contributions
 First unit-level concurrency
 First exception handling
 Switch-selectable recursion
 First pointer data type
 First array cross sections
 Concerns
 Many new features were poorly designed
 Too large and too complex
43

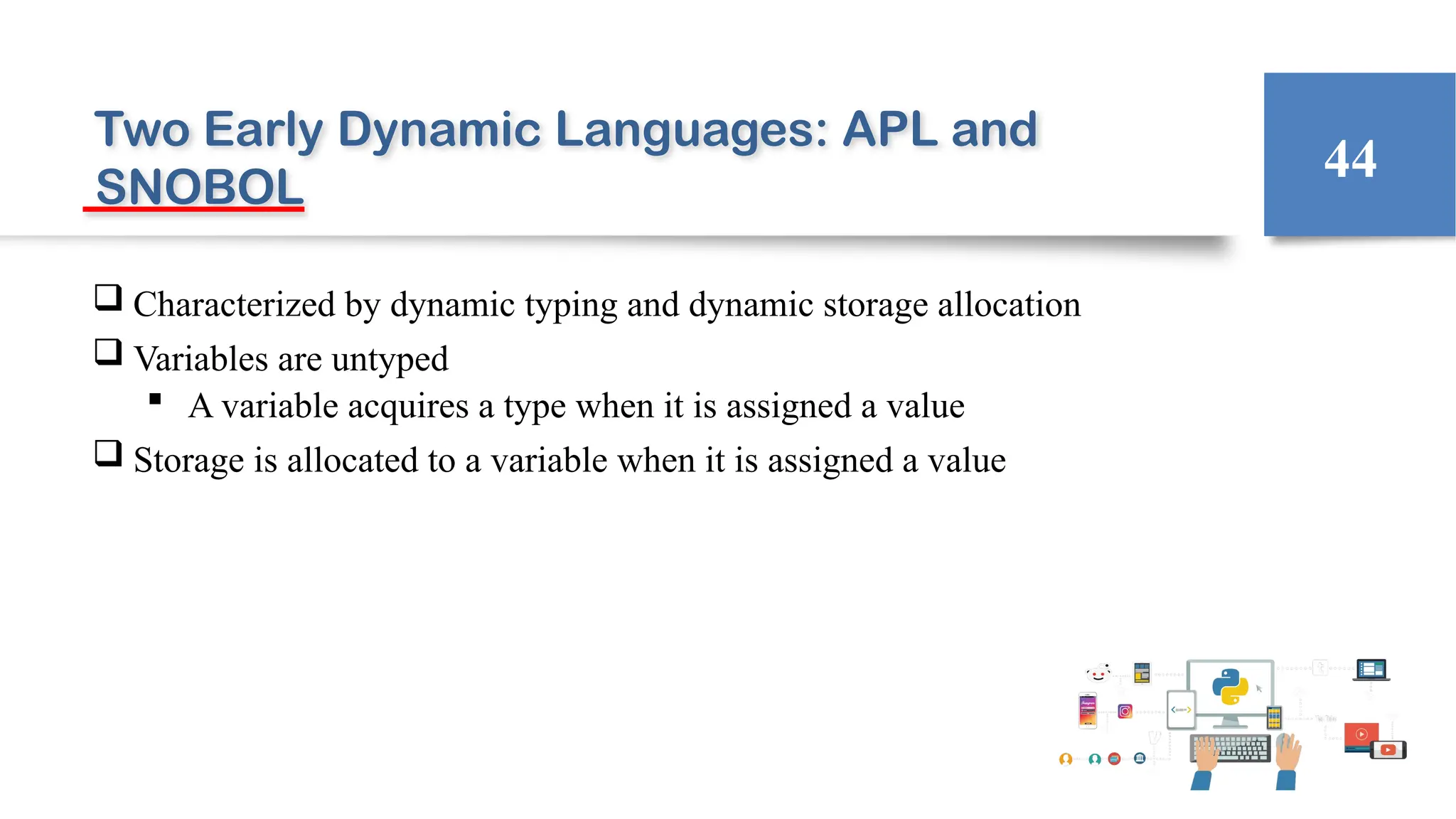

Two Early Dynamic Languages: APL and
SNOBOL
 Characterized by dynamic typing and dynamic storage allocation
 Variables are untyped
 A variable acquires a type when it is assigned a value
 Storage is allocated to a variable when it is assigned a value
44

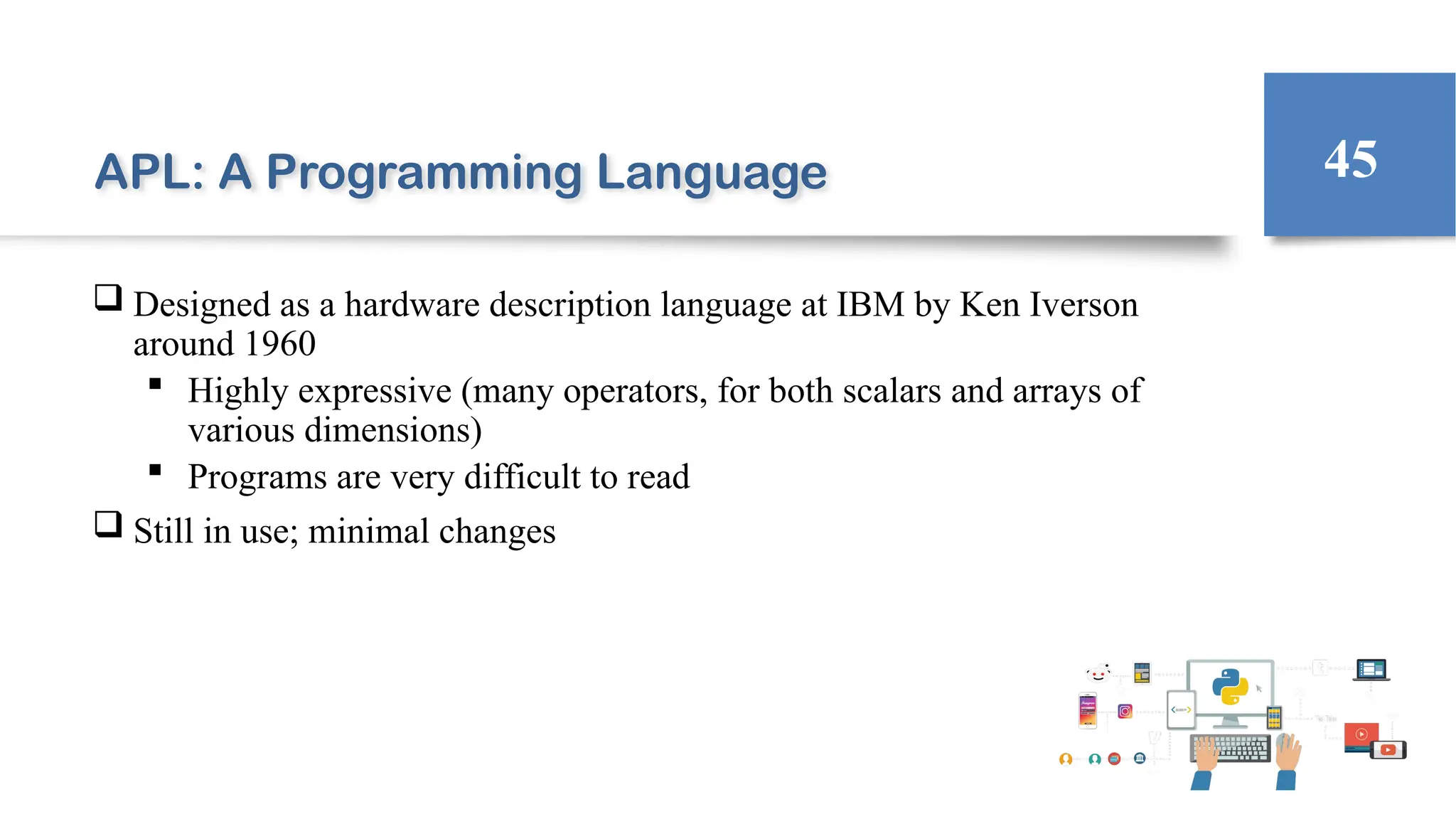

APL: A Programming Language
 Designed as a hardware description language at IBM by Ken Iverson
around 1960
 Highly expressive (many operators, for both scalars and arrays of
various dimensions)
 Programs are very difficult to read
 Still in use; minimal changes
45

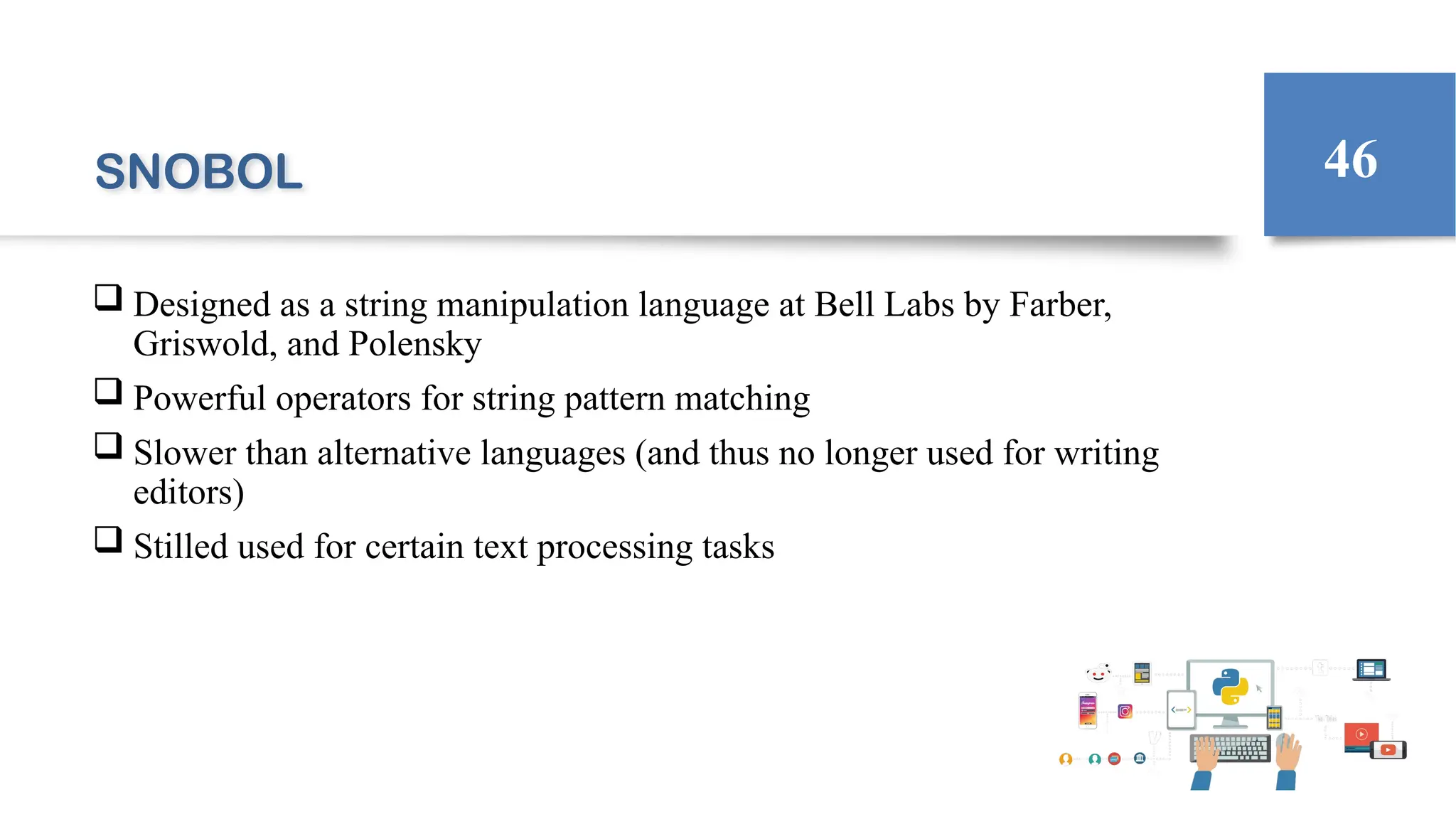

SNOBOL
 Designed as a string manipulation language at Bell Labs by Farber,
Griswold, and Polensky
 Powerful operators for string pattern matching
 Slower than alternative languages (and thus no longer used for writing
editors)
 Stilled used for certain text processing tasks
46

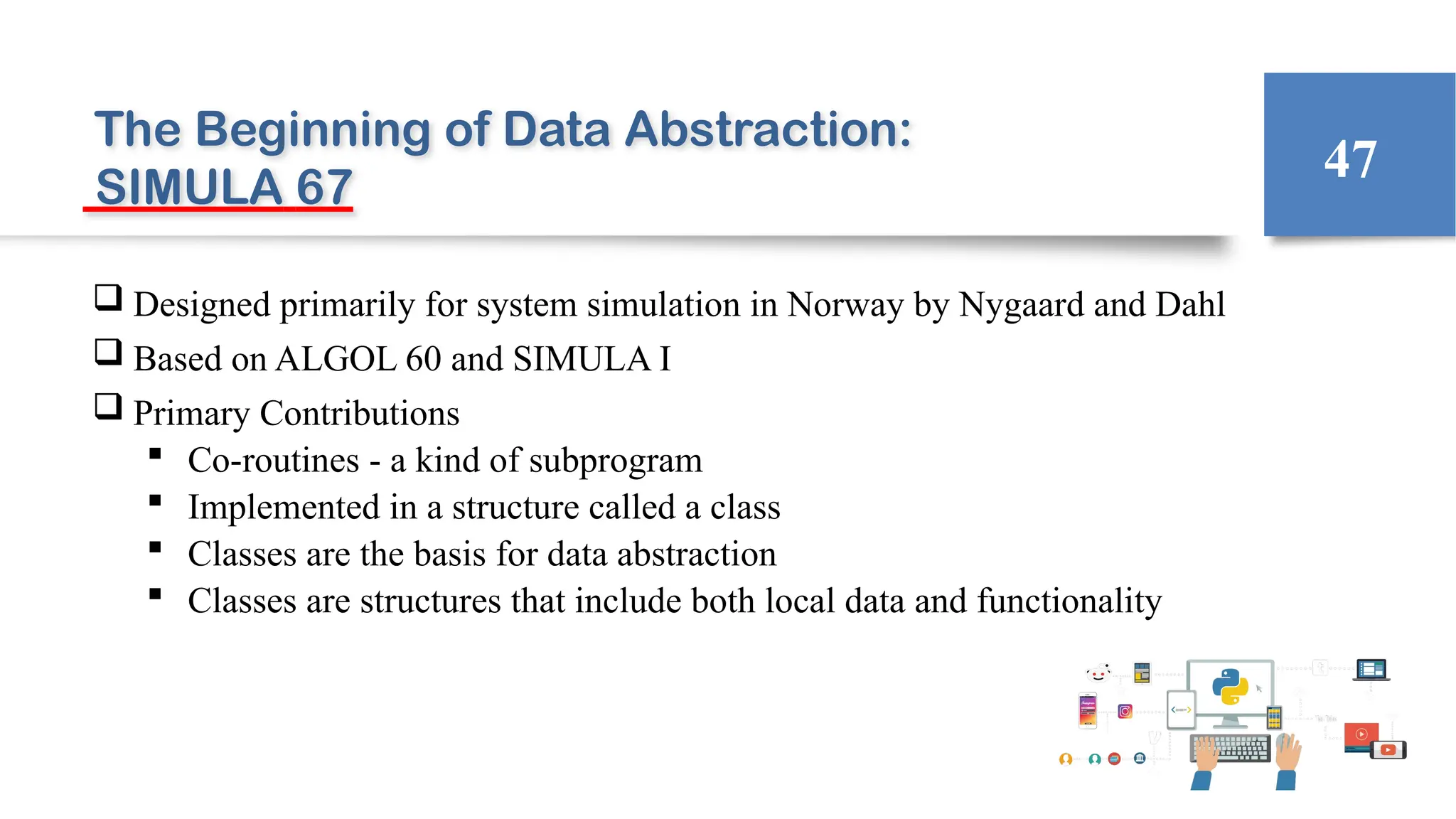

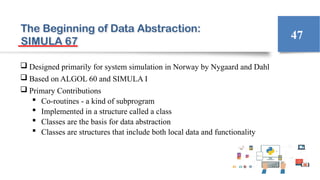

The Beginning of Data Abstraction:
SIMULA 67
 Designed primarily for system simulation in Norway by Nygaard and Dahl
 Based on ALGOL 60 and SIMULA I
 Primary Contributions
 Co-routines - a kind of subprogram
 Implemented in a structure called a class
 Classes are the basis for data abstraction
 Classes are structures that include both local data and functionality
47

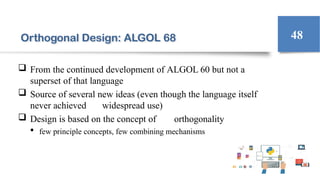

Orthogonal Design: ALGOL 68
 From the continued development of ALGOL 60 but not a
superset of that language
 Source of several new ideas (even though the language itself
never achieved widespread use)
 Design is based on the concept of orthogonality
 few principle concepts, few combining mechanisms
48

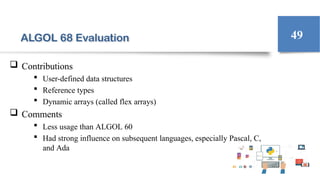

ALGOL 68 Evaluation
 Contributions
 User-defined data structures
 Reference types
 Dynamic arrays (called flex arrays)
 Comments
 Less usage than ALGOL 60
 Had strong influence on subsequent languages, especially Pascal, C,
and Ada
49

Early Descendants of ALGOLs
 ALGOL languages impacted all imperative languages
 Pascal
 C
 Modula/Modula 2
 Ada
 Oberon
 C++/Java
 Perl (to some extent)
50

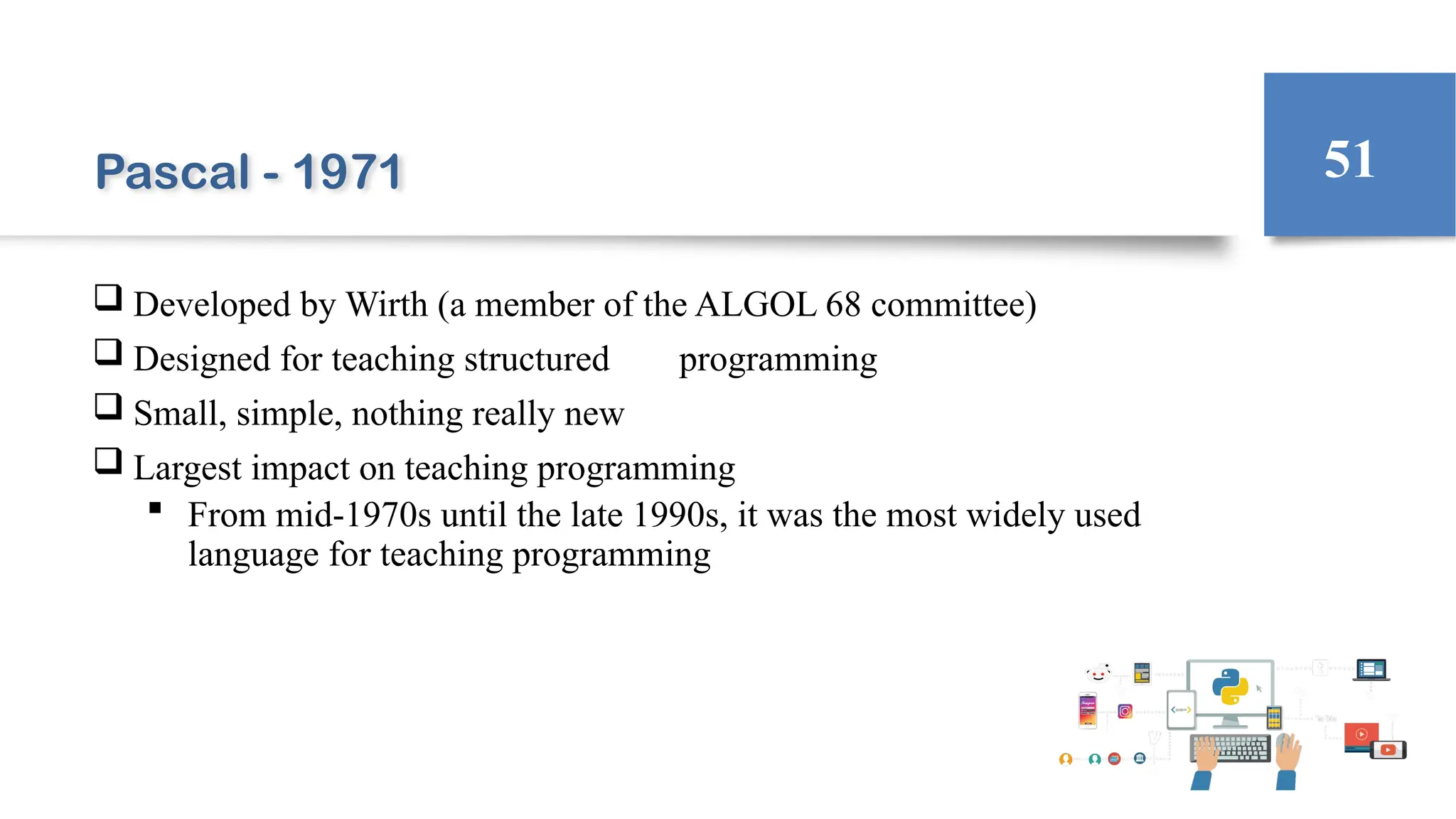

Pascal - 1971
 Developed by Wirth (a member of the ALGOL 68 committee)
 Designed for teaching structured programming
 Small, simple, nothing really new
 Largest impact on teaching programming
 From mid-1970s until the late 1990s, it was the most widely used
language for teaching programming
51

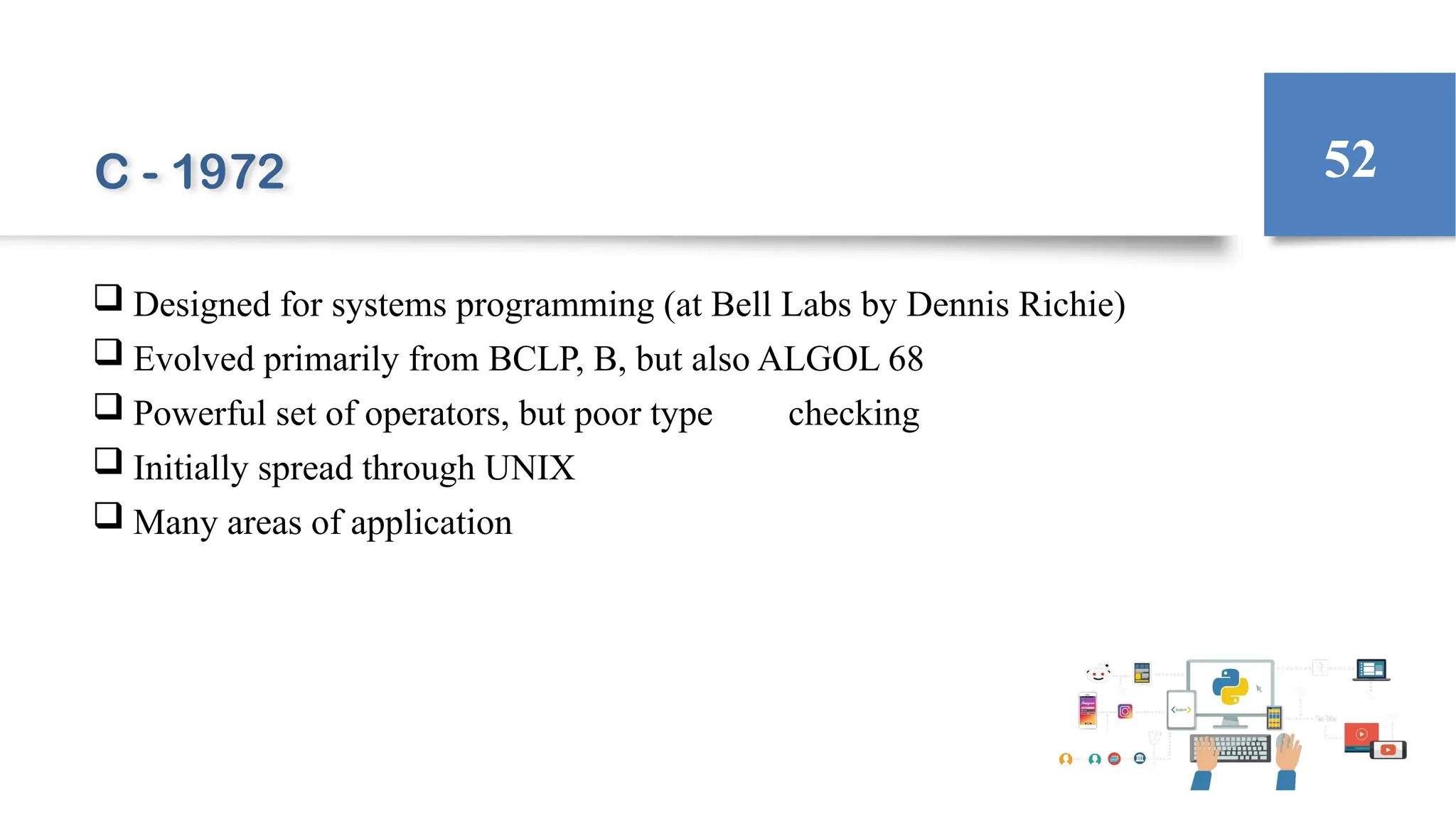

C - 1972
 Designed for systems programming (at Bell Labs by Dennis Richie)
 Evolved primarily from BCLP, B, but also ALGOL 68
 Powerful set of operators, but poor type checking
 Initially spread through UNIX
 Many areas of application
52

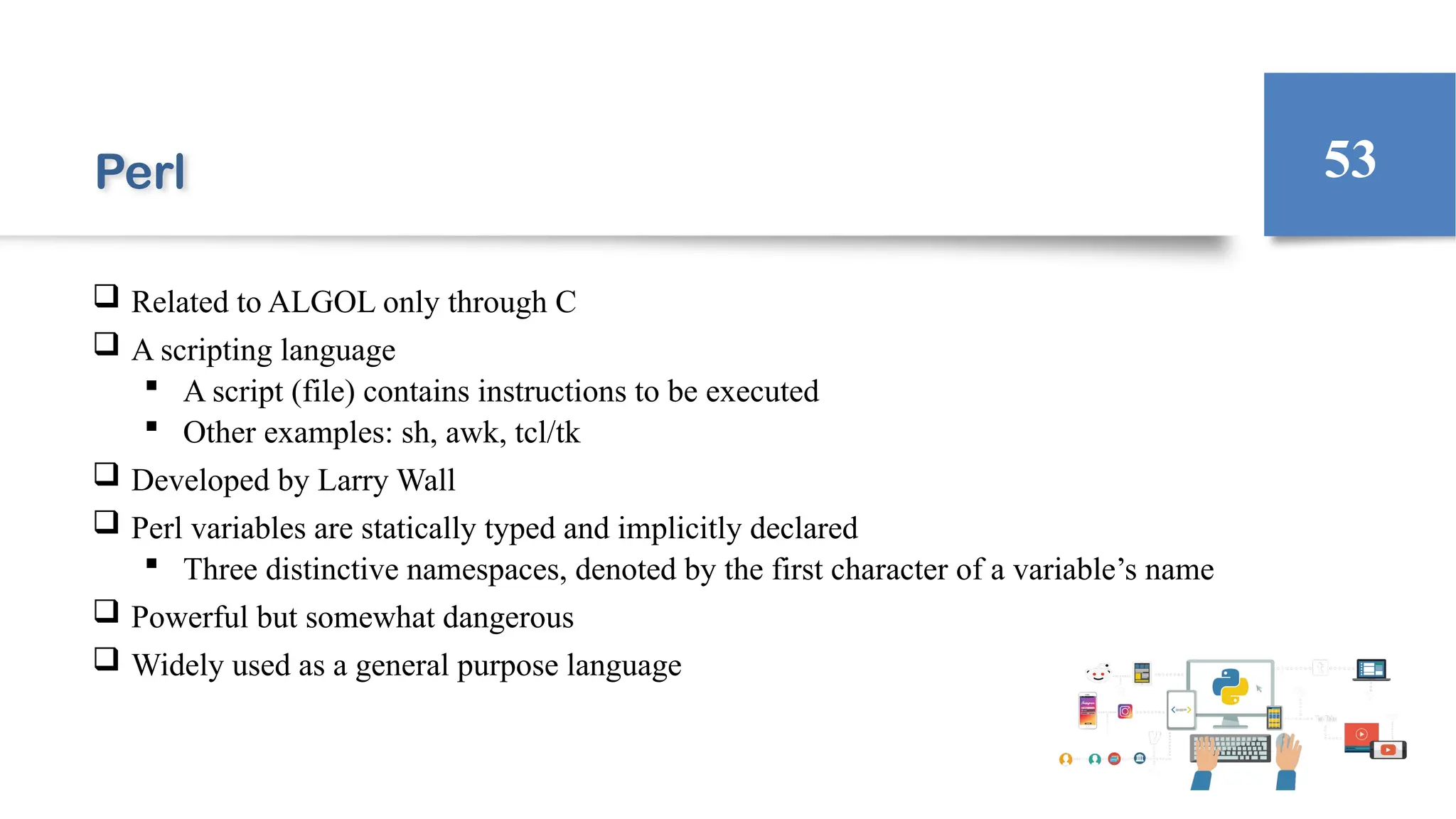

Perl
 Related to ALGOL only through C
 A scripting language
 A script (file) contains instructions to be executed
 Other examples: sh, awk, tcl/tk
 Developed by Larry Wall
 Perl variables are statically typed and implicitly declared
 Three distinctive namespaces, denoted by the first character of a variable’s name
 Powerful but somewhat dangerous
 Widely used as a general purpose language
53

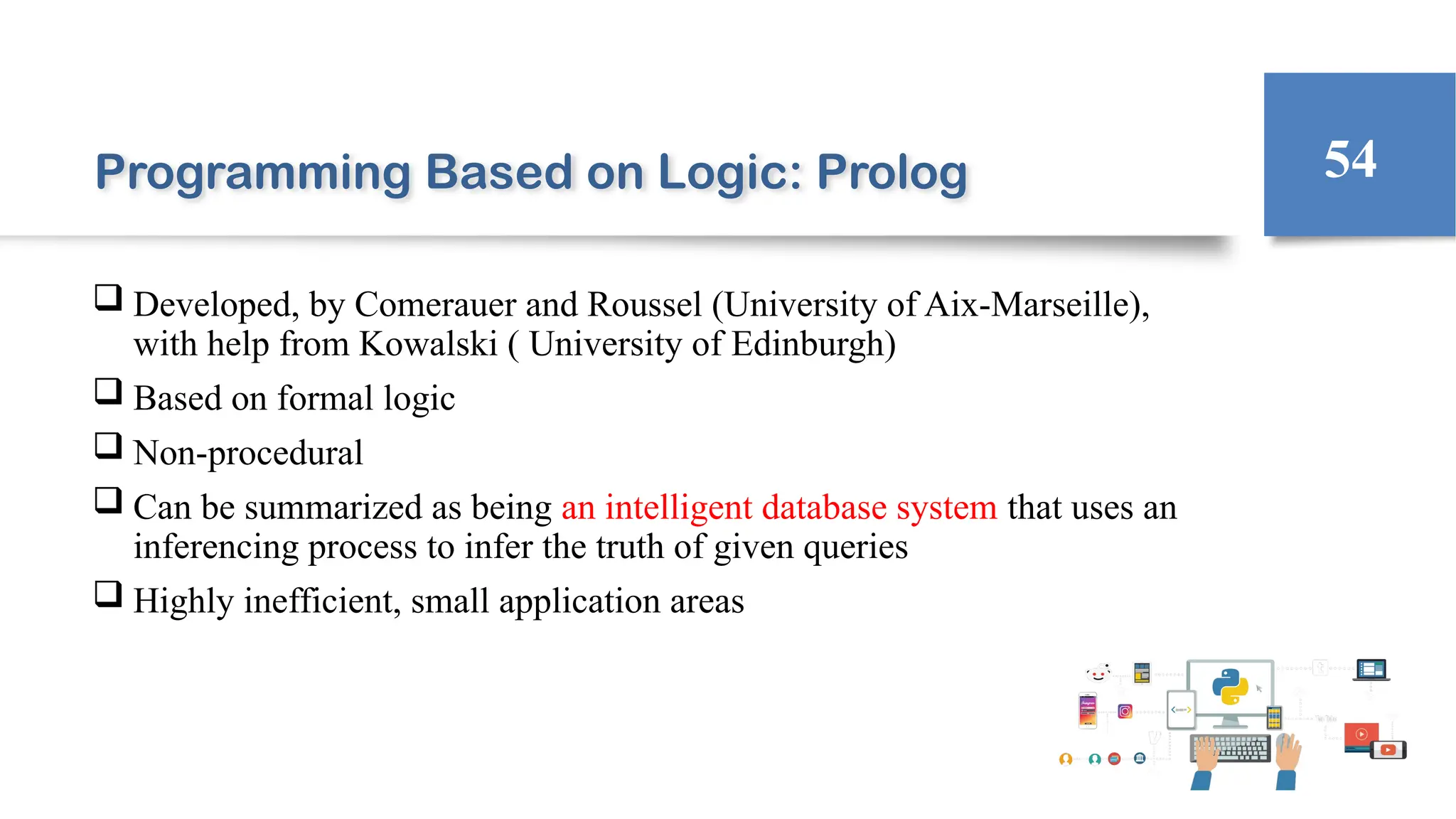

Programming Based on Logic: Prolog
 Developed, by Comerauer and Roussel (University of Aix-Marseille),
with help from Kowalski ( University of Edinburgh)
 Based on formal logic
 Non-procedural
 Can be summarized as being an intelligent database system that uses an
inferencing process to infer the truth of given queries
 Highly inefficient, small application areas
54

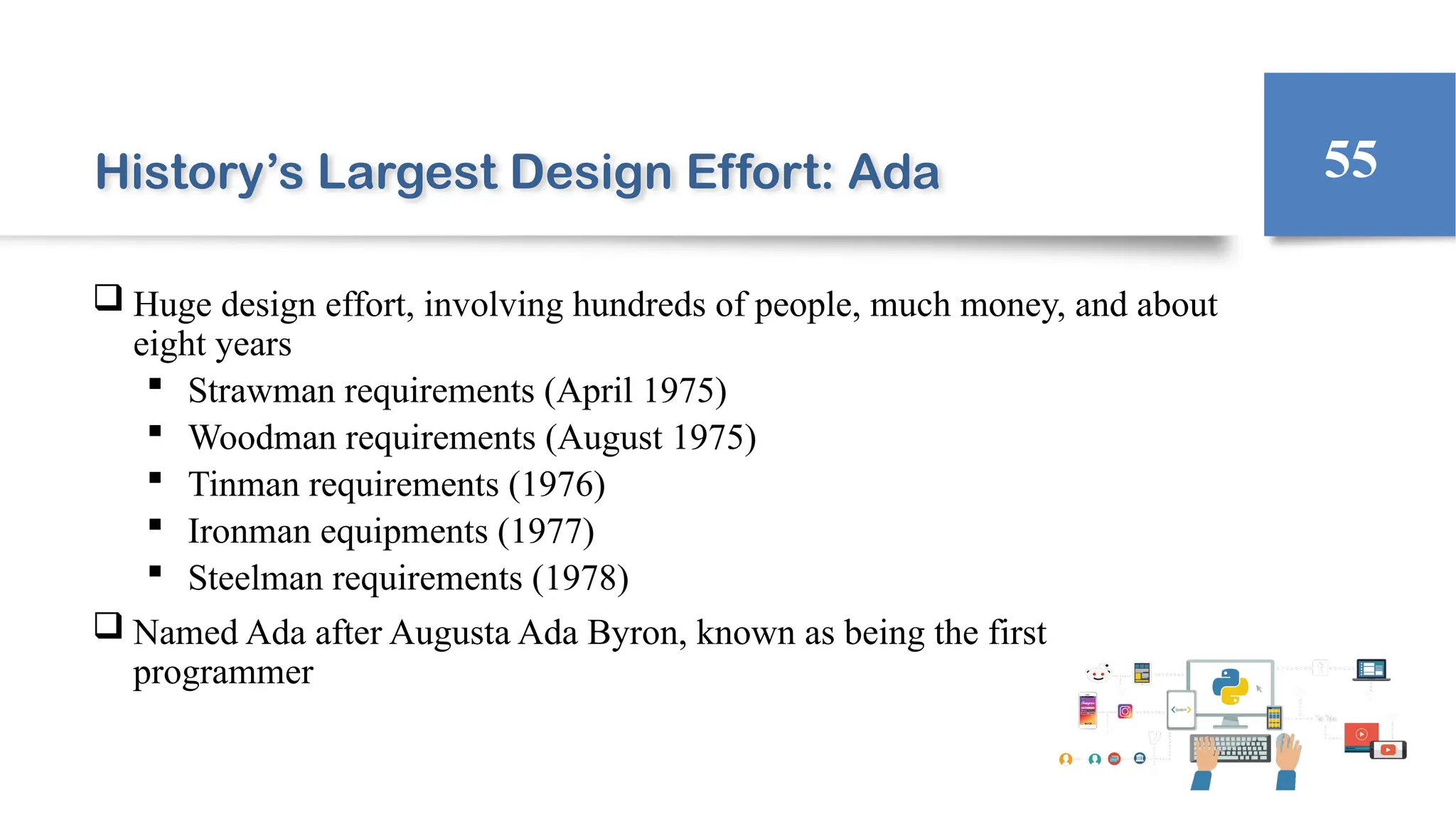

History’s Largest Design Effort: Ada
 Huge design effort, involving hundreds of people, much money, and about
eight years
 Strawman requirements (April 1975)
 Woodman requirements (August 1975)
 Tinman requirements (1976)
 Ironman equipments (1977)
 Steelman requirements (1978)
 Named Ada after Augusta Ada Byron, known as being the first
programmer
55

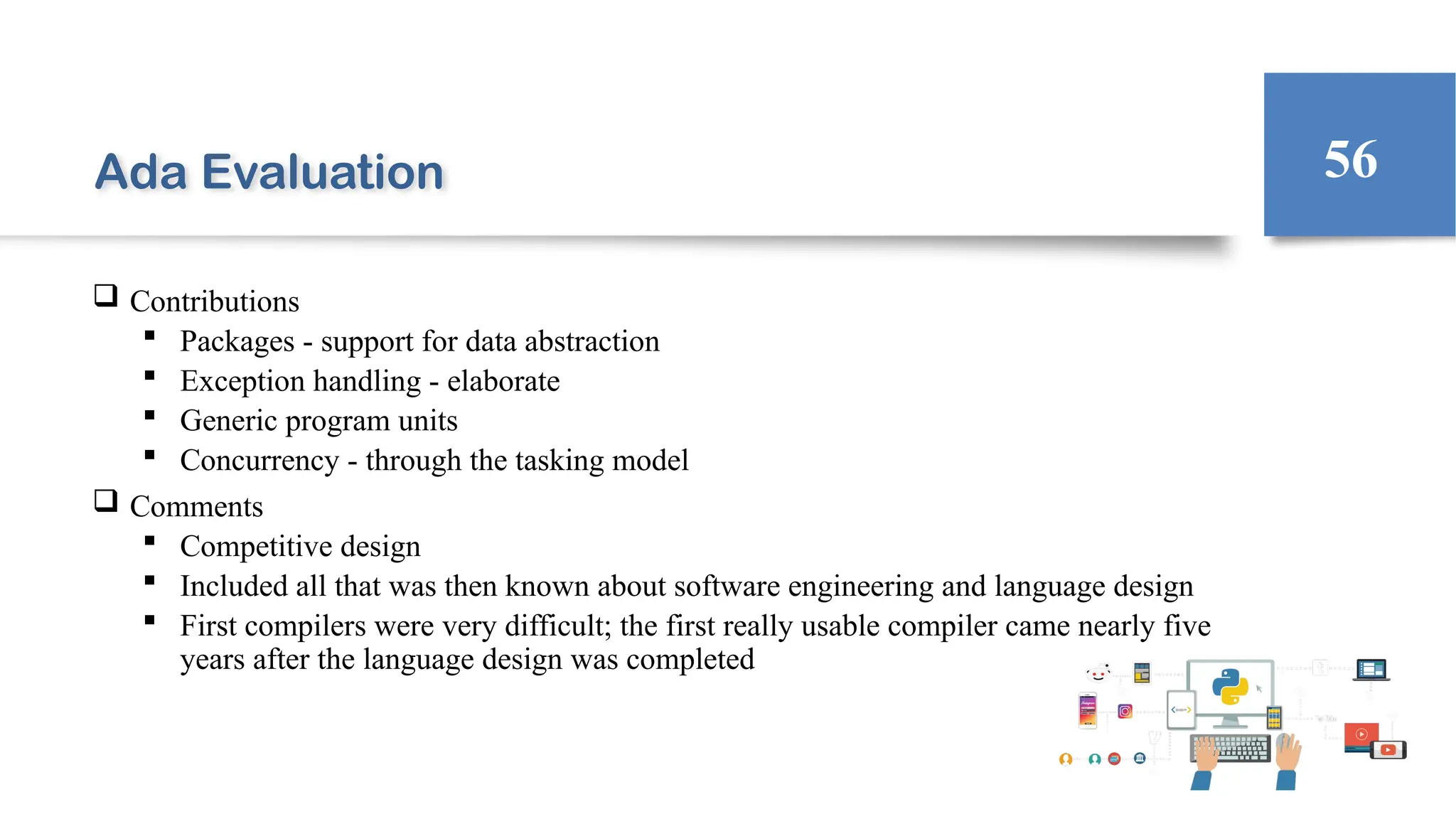

Ada Evaluation
 Contributions
 Packages - support for data abstraction
 Exception handling - elaborate
 Generic program units
 Concurrency - through the tasking model
 Comments
 Competitive design
 Included all that was then known about software engineering and language design
 First compilers were very difficult; the first really usable compiler came nearly five
years after the language design was completed
56

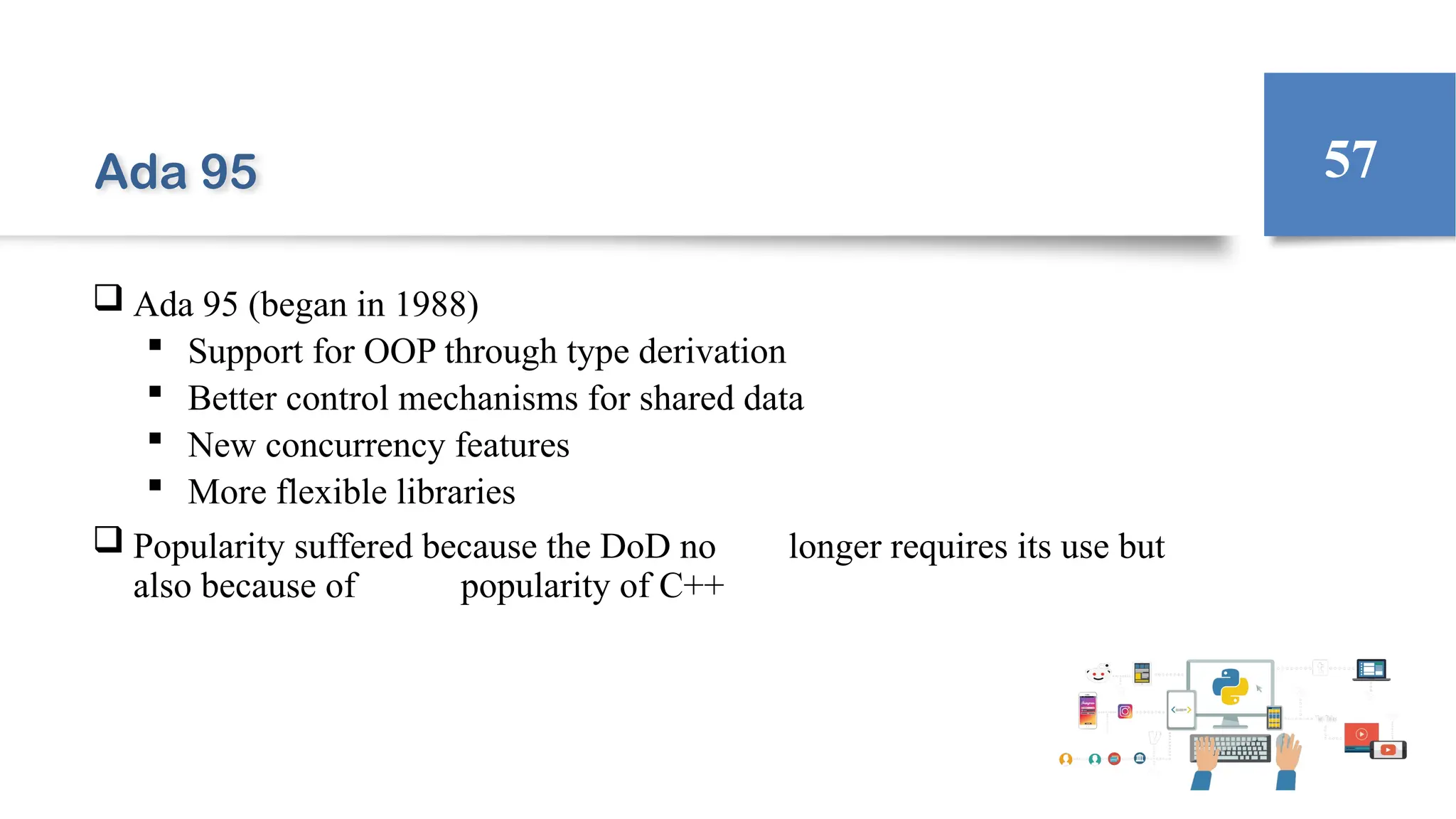

Ada 95
 Ada 95 (began in 1988)
 Support for OOP through type derivation
 Better control mechanisms for shared data
 New concurrency features
 More flexible libraries
 Popularity suffered because the DoD no longer requires its use but
also because of popularity of C++
57

Object-Oriented Programming: Smalltalk
 Developed at Xerox PARC, initially by Alan Kay, later by Adele
Goldberg
 First full implementation of an object- oriented language (data
abstraction, inheritance, and dynamic type binding)
 Pioneered the graphical user interface design
 Promoted OOP
58

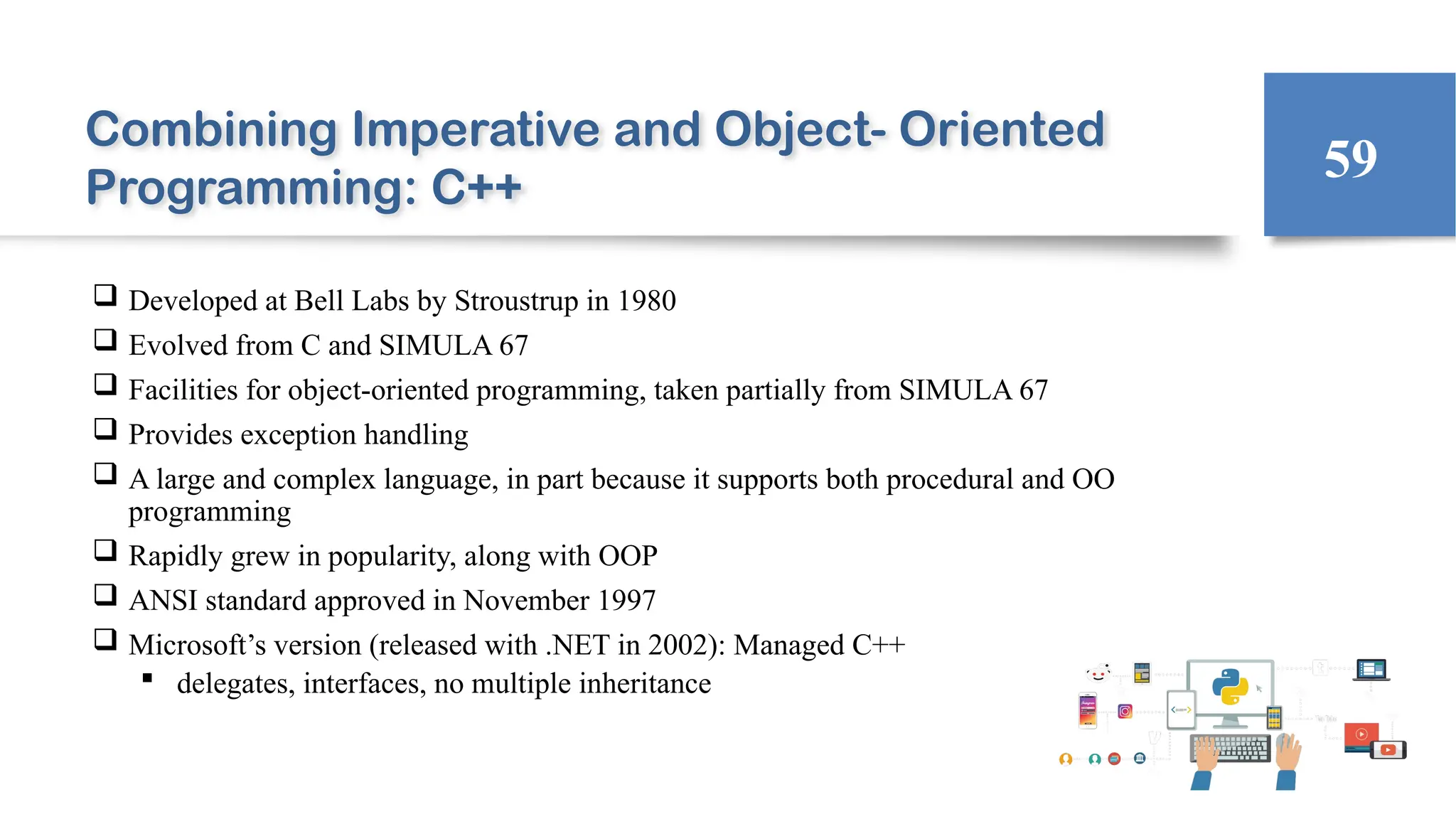

Combining Imperative and Object- Oriented
Programming: C++
 Developed at Bell Labs by Stroustrup in 1980
 Evolved from C and SIMULA 67
 Facilities for object-oriented programming, taken partially from SIMULA 67
 Provides exception handling
 A large and complex language, in part because it supports both procedural and OO
programming
 Rapidly grew in popularity, along with OOP
 ANSI standard approved in November 1997
 Microsoft’s version (released with .NET in 2002): Managed C++
 delegates, interfaces, no multiple inheritance
59

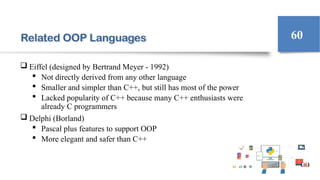

Related OOP Languages
 Eiffel (designed by Bertrand Meyer - 1992)
 Not directly derived from any other language
 Smaller and simpler than C++, but still has most of the power
 Lacked popularity of C++ because many C++ enthusiasts were
already C programmers
 Delphi (Borland)
 Pascal plus features to support OOP
 More elegant and safer than C++
60

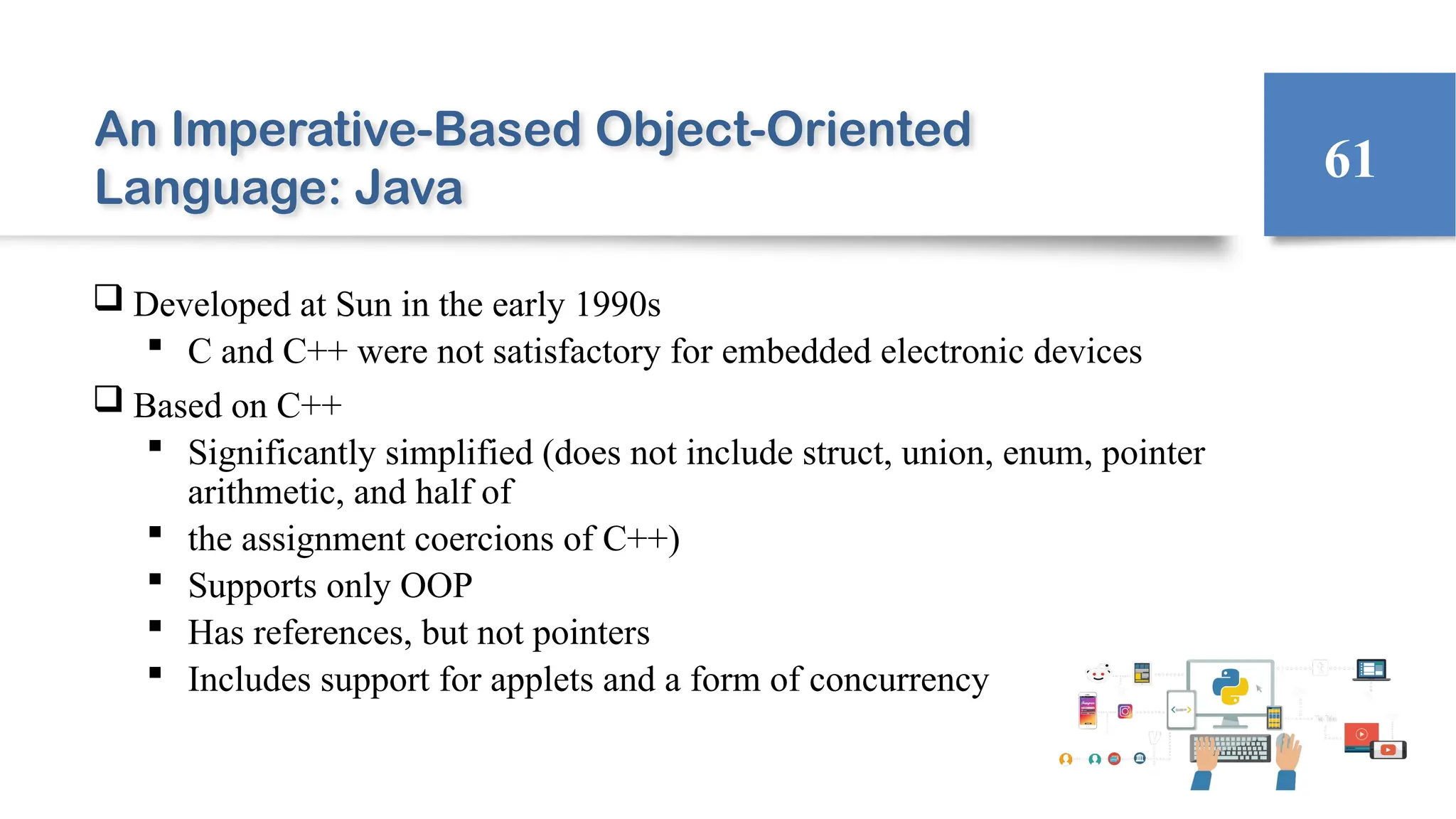

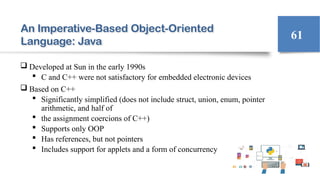

An Imperative-Based Object-Oriented
Language: Java
 Developed at Sun in the early 1990s
 C and C++ were not satisfactory for embedded electronic devices
 Based on C++
 Significantly simplified (does not include struct, union, enum, pointer
arithmetic, and half of
 the assignment coercions of C++)
 Supports only OOP
 Has references, but not pointers
 Includes support for applets and a form of concurrency
61

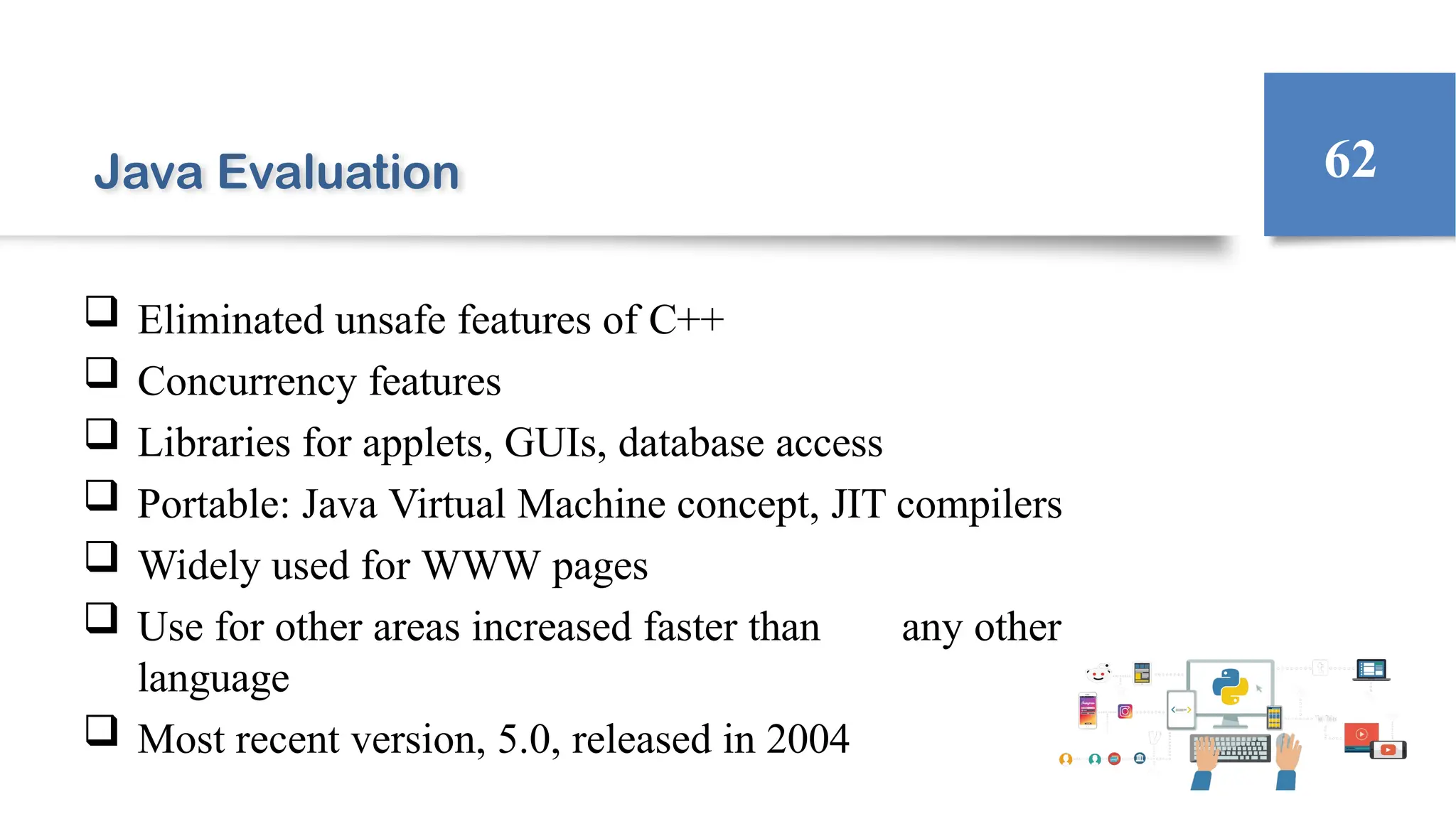

Java Evaluation
 Eliminated unsafe features of C++
 Concurrency features
 Libraries for applets, GUIs, database access
 Portable: Java Virtual Machine concept, JIT compilers
 Widely used for WWW pages
 Use for other areas increased faster than any other
language
 Most recent version, 5.0, released in 2004
62

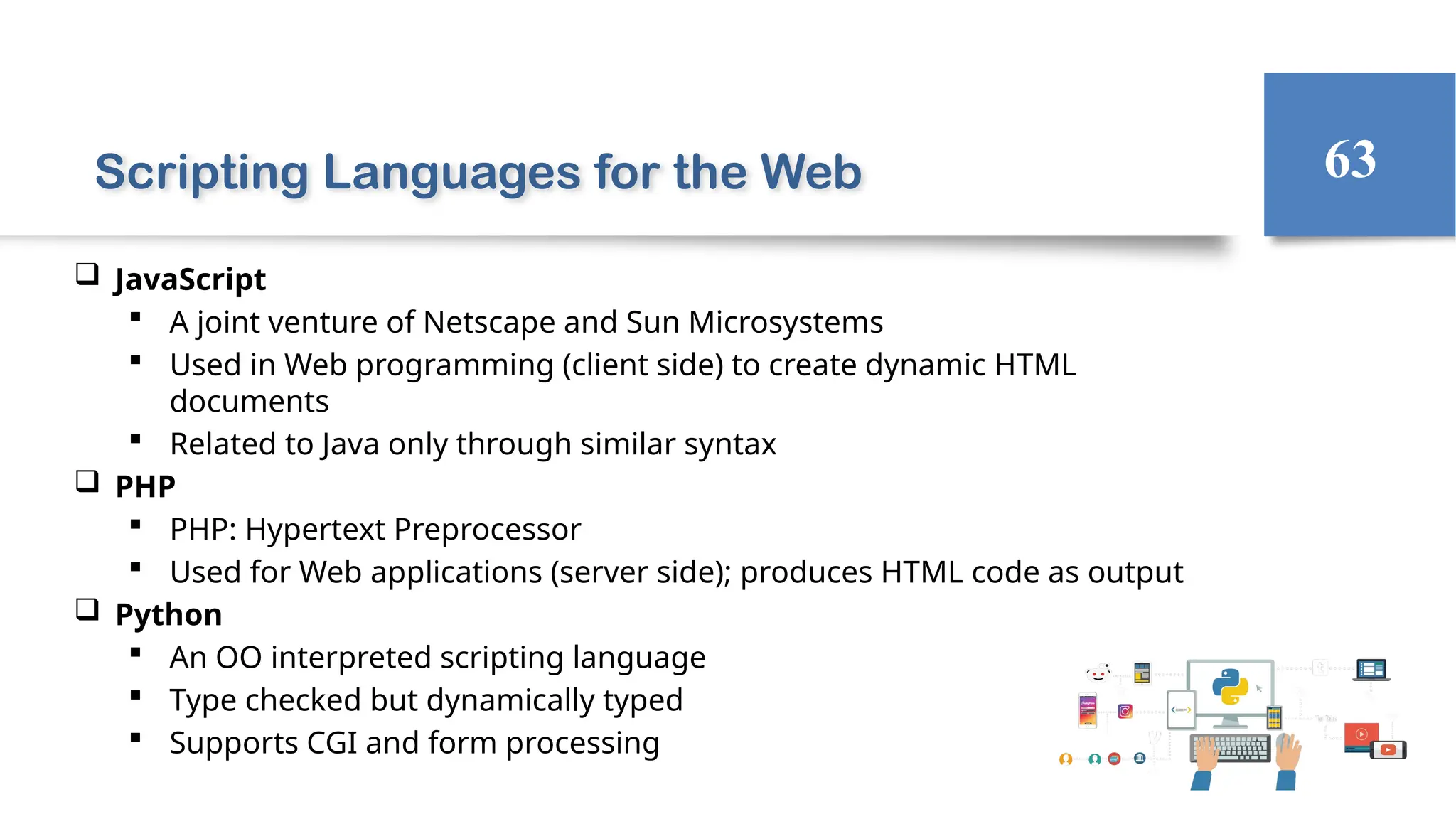

Scripting Languages for the Web
 JavaScript
 A joint venture of Netscape and Sun Microsystems
 Used in Web programming (client side) to create dynamic HTML
documents
 Related to Java only through similar syntax
 PHP
 PHP: Hypertext Preprocessor
 Used for Web applications (server side); produces HTML code as output
 Python
 An OO interpreted scripting language
 Type checked but dynamically typed
 Supports CGI and form processing
63

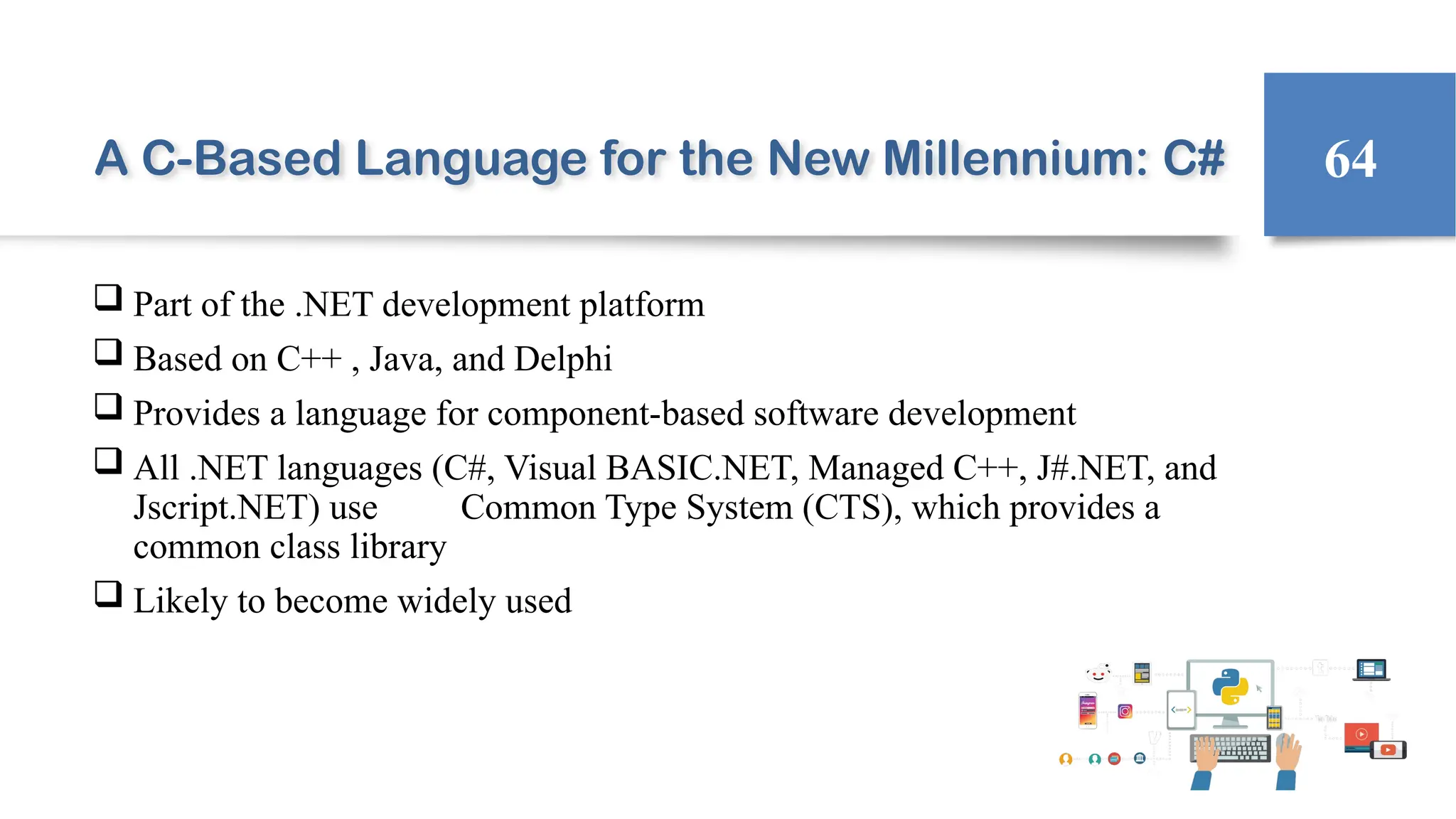

A C-Based Language for the New Millennium: C#
 Part of the .NET development platform
 Based on C++ , Java, and Delphi
 Provides a language for component-based software development
 All .NET languages (C#, Visual BASIC.NET, Managed C++, J#.NET, and
Jscript.NET) use Common Type System (CTS), which provides a
common class library
 Likely to become widely used
64

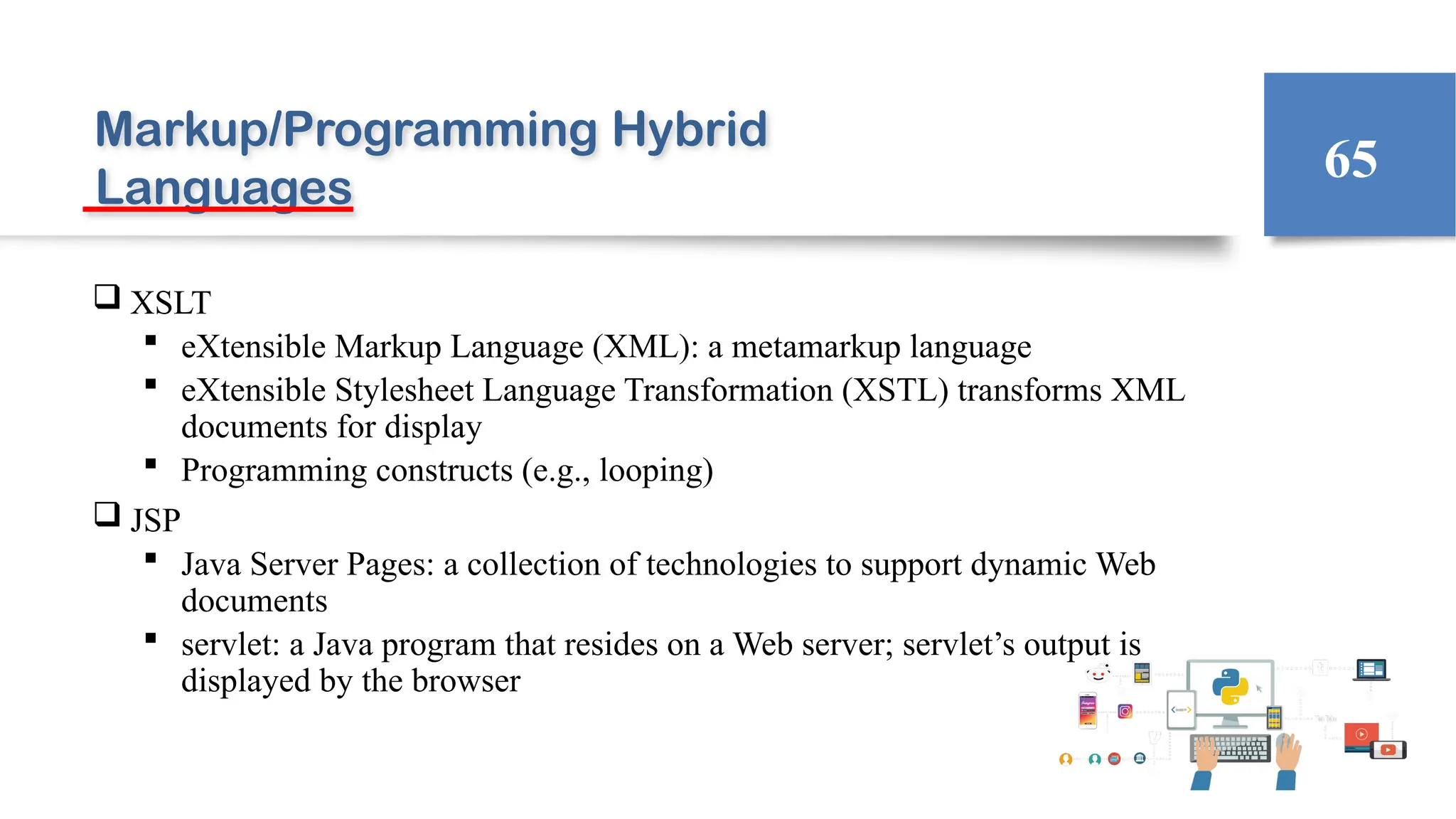

Markup/Programming Hybrid
Languages
 XSLT
 eXtensible Markup Language (XML): a metamarkup language
 eXtensible Stylesheet Language Transformation (XSTL) transforms XML
documents for display
 Programming constructs (e.g., looping)
 JSP
 Java Server Pages: a collection of technologies to support dynamic Web
documents
 servlet: a Java program that resides on a Web server; servlet’s output is
displayed by the browser
65

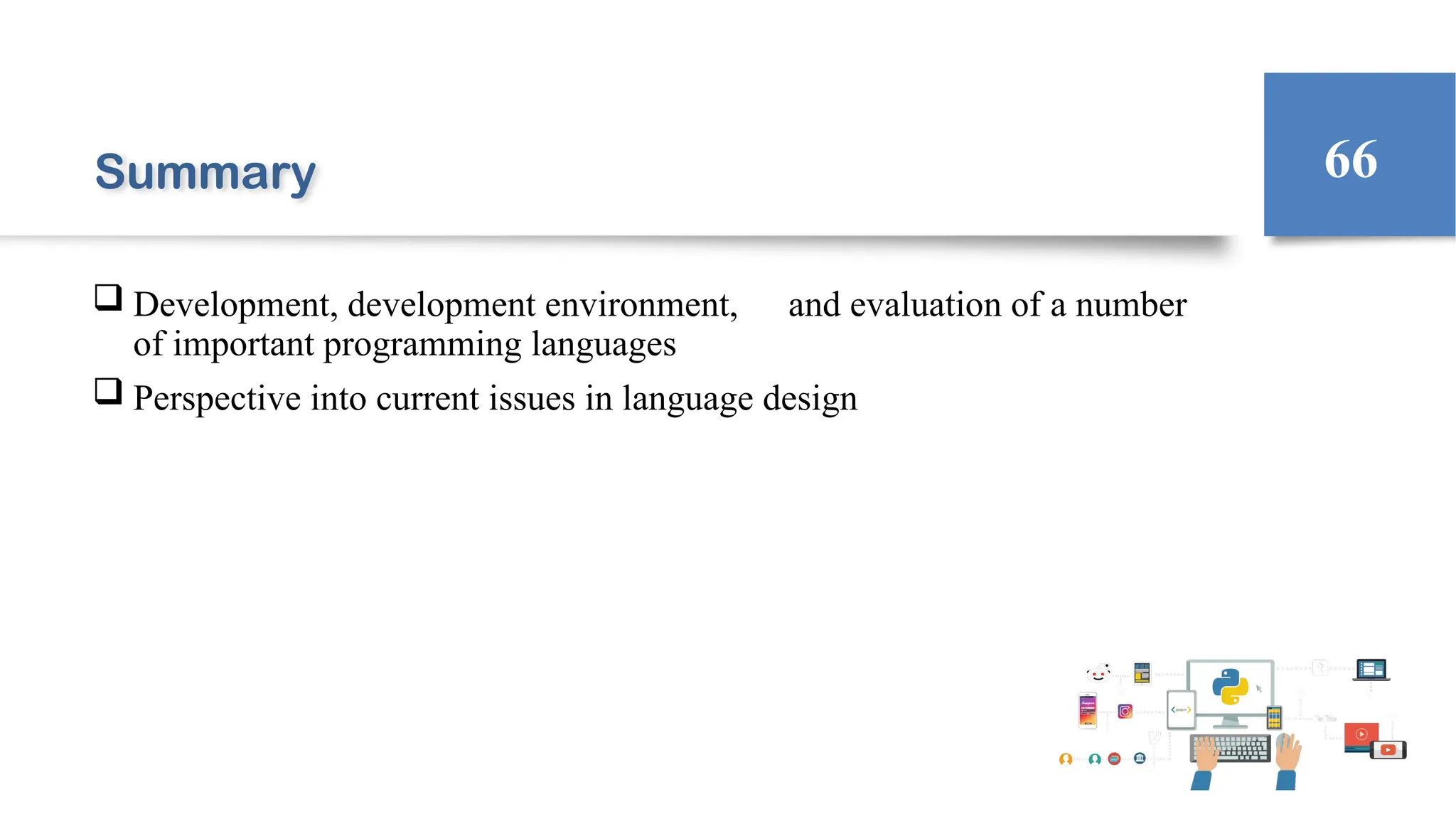

Summary
 Development, development environment, and evaluation of a number
of important programming languages
 Perspective into current issues in language design
66

Chapter 2 : Theory of programming languages

More Related Content

Similar to Chapter 2 : Theory of programming languages

Recently uploaded

Chapter 2 : Theory of programming languages
