  DATA STRUCTURES, ADTS UNIT– I By Otemo Vincent
• 2.

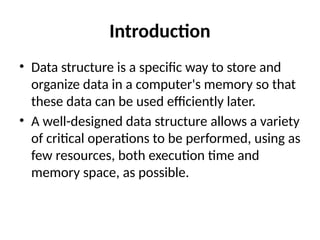

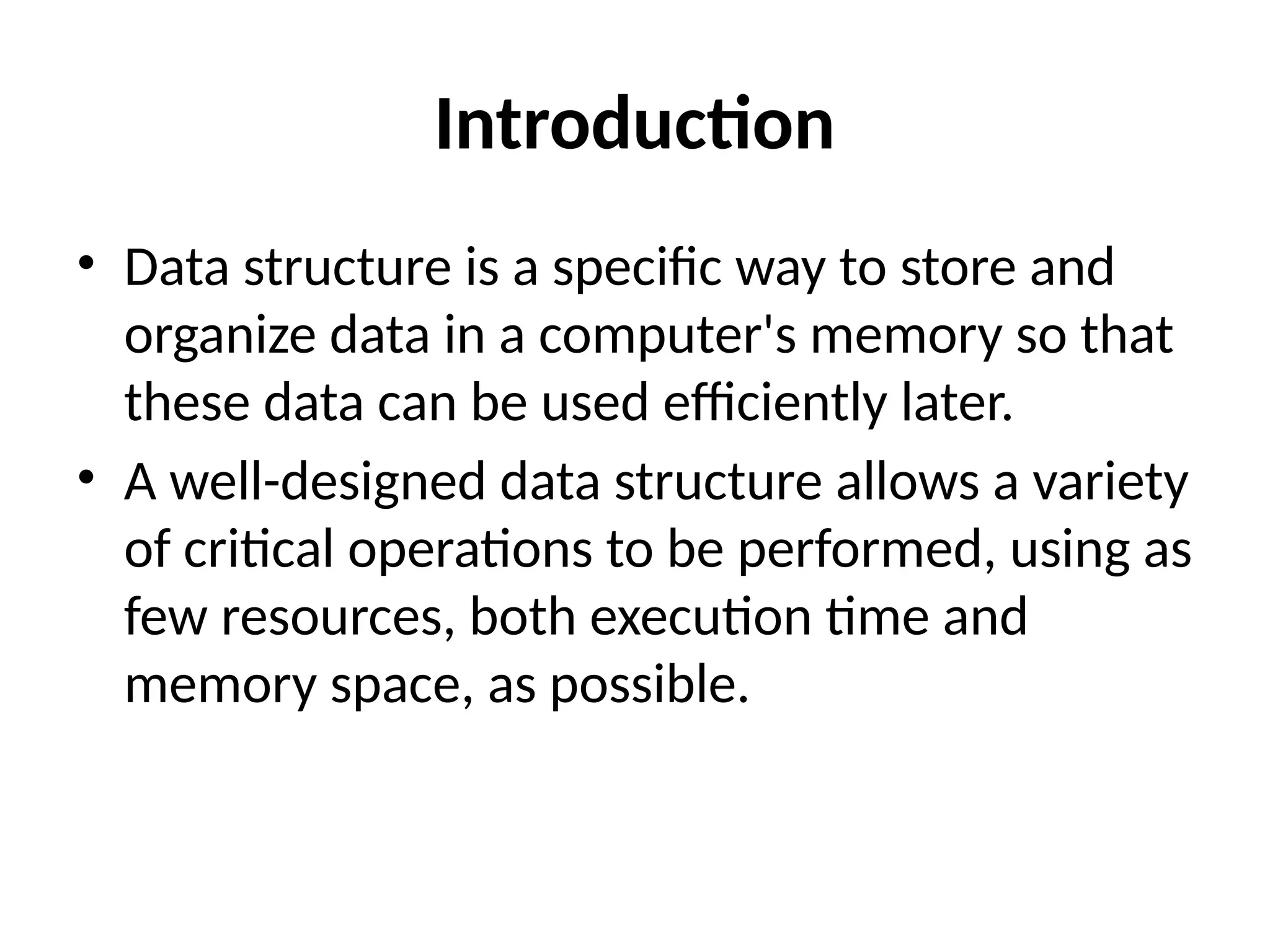

  Introduction • Data structureis a specific way to store and organize data in a computer's memory so that these data can be used efficiently later. • A well-designed data structure allows a variety of critical operations to be performed, using as few resources, both execution time and memory space, as possible.
• 3.

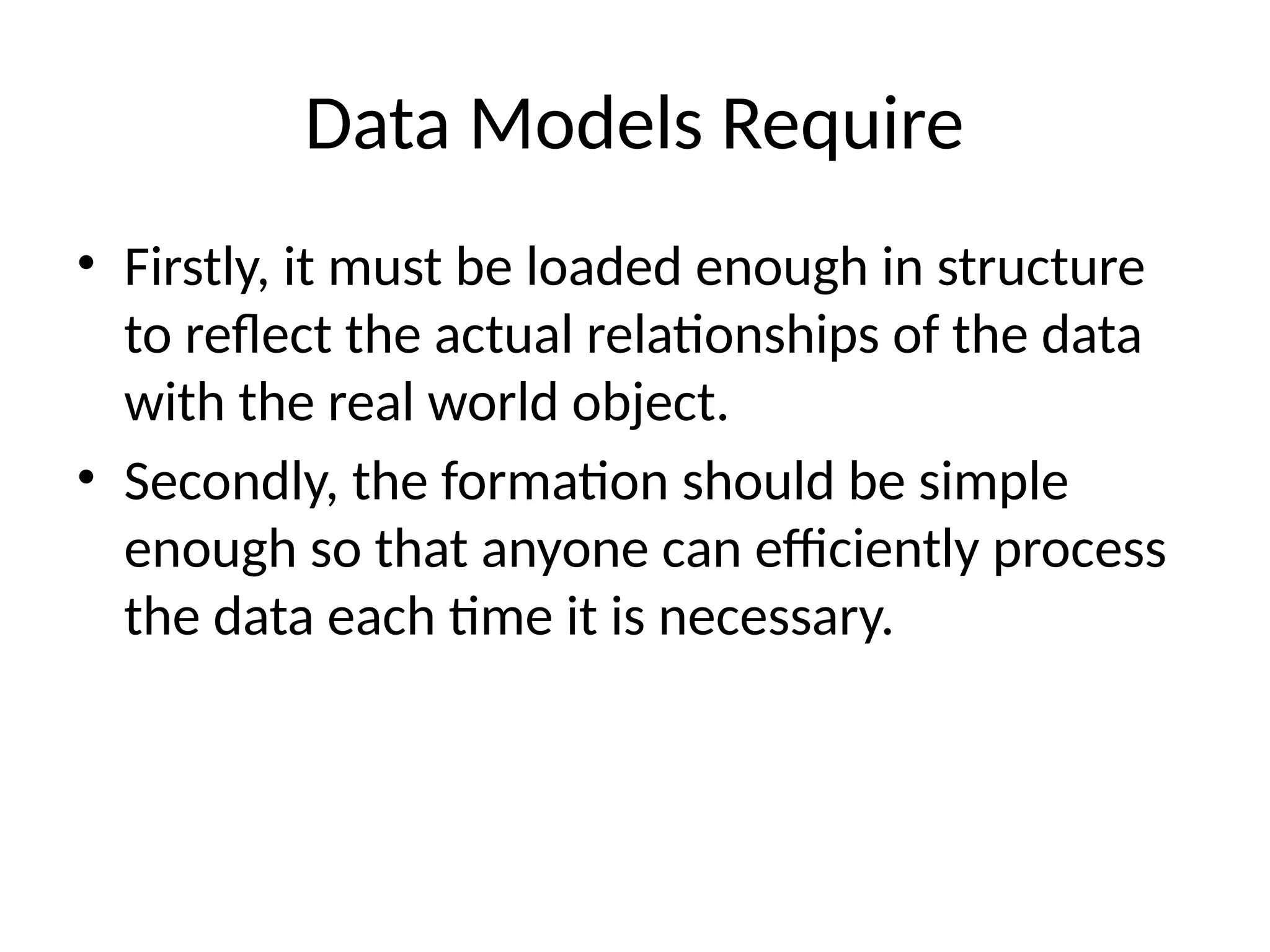

  Data Models Require •Firstly, it must be loaded enough in structure to reflect the actual relationships of the data with the real world object. • Secondly, the formation should be simple enough so that anyone can efficiently process the data each time it is necessary.
• 4.

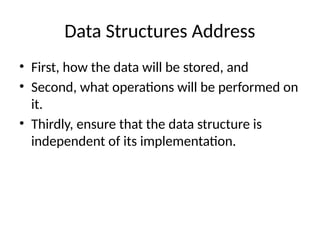

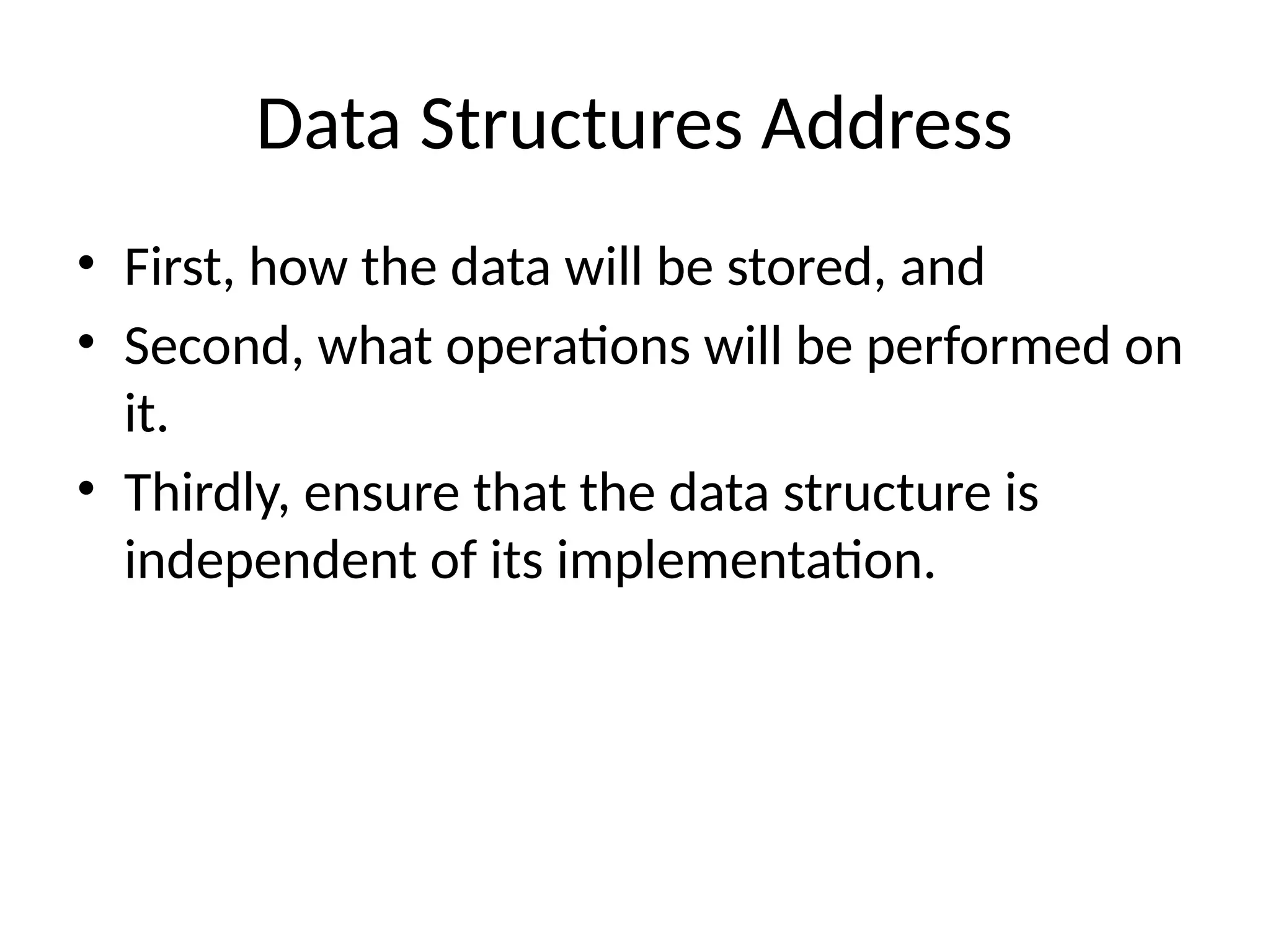

  Data Structures Address •First, how the data will be stored, and • Second, what operations will be performed on it. • Thirdly, ensure that the data structure is independent of its implementation.
• 5.

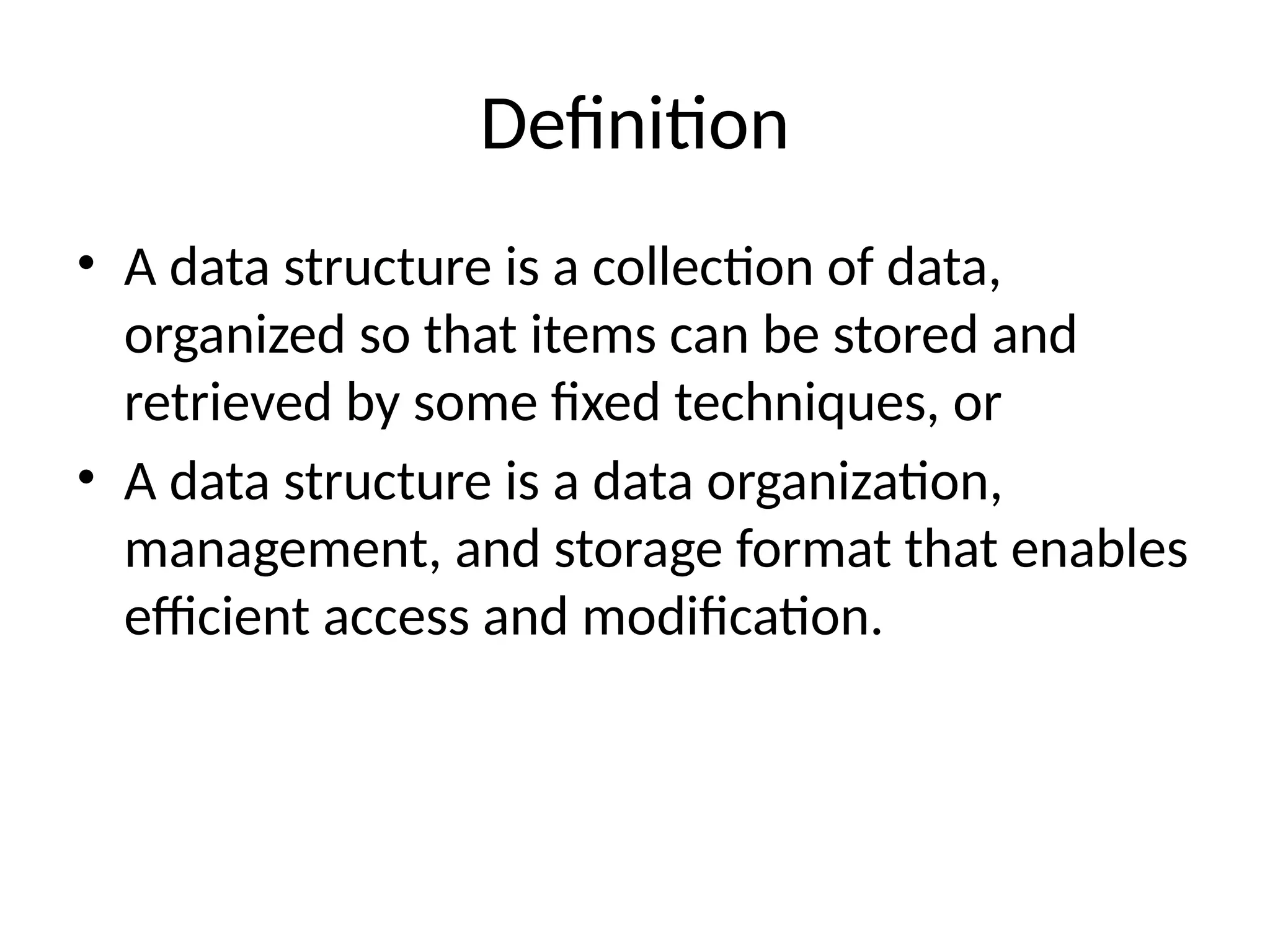

  Definition • A datastructure is a collection of data, organized so that items can be stored and retrieved by some fixed techniques, or • A data structure is a data organization, management, and storage format that enables efficient access and modification.
• 6.

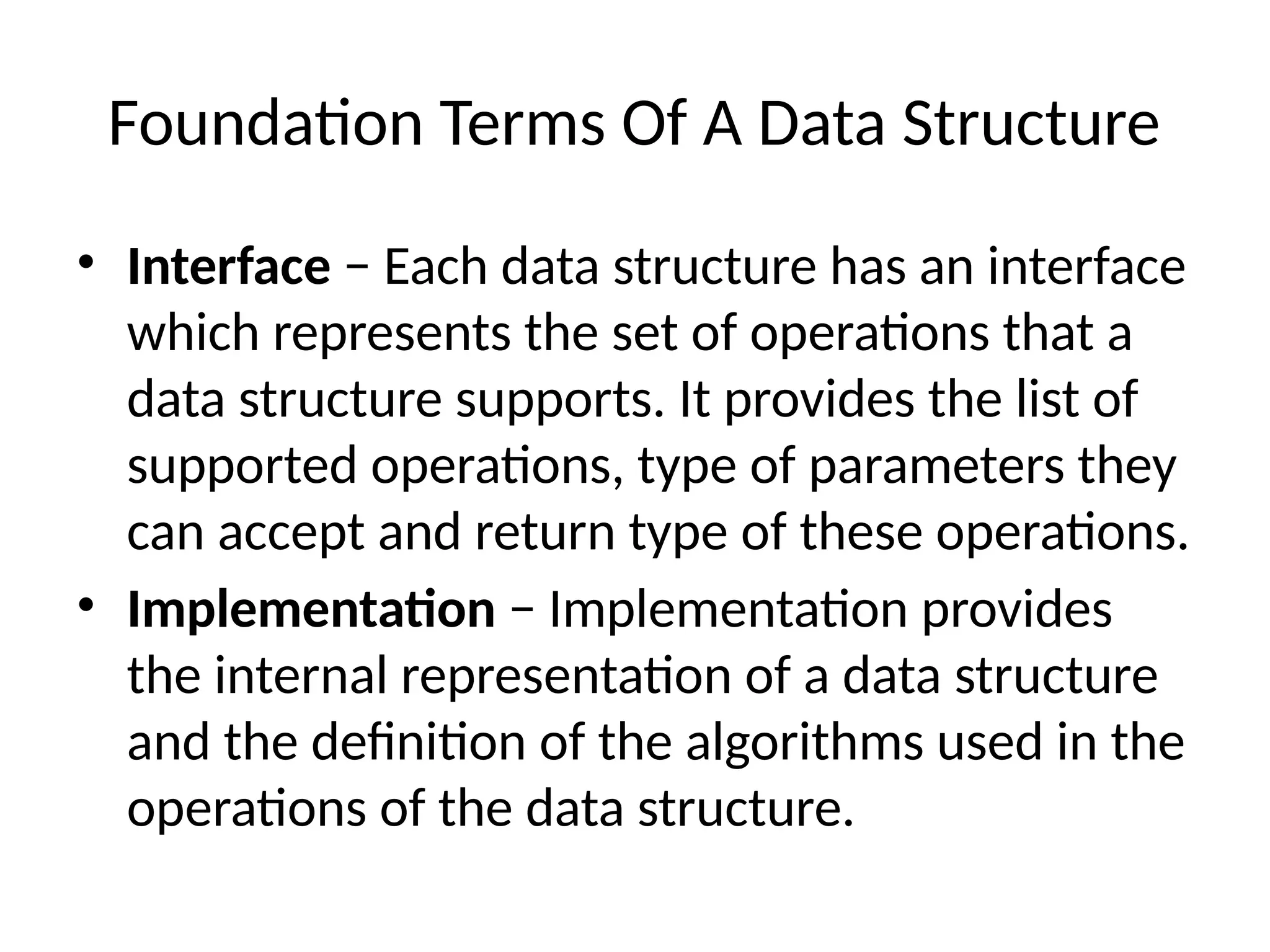

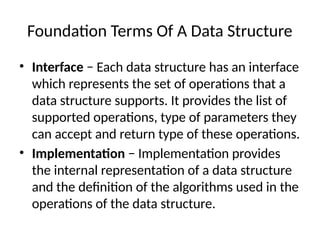

  Foundation Terms OfA Data Structure • Interface − Each data structure has an interface which represents the set of operations that a data structure supports. It provides the list of supported operations, type of parameters they can accept and return type of these operations. • Implementation − Implementation provides the internal representation of a data structure and the definition of the algorithms used in the operations of the data structure.
• 7.

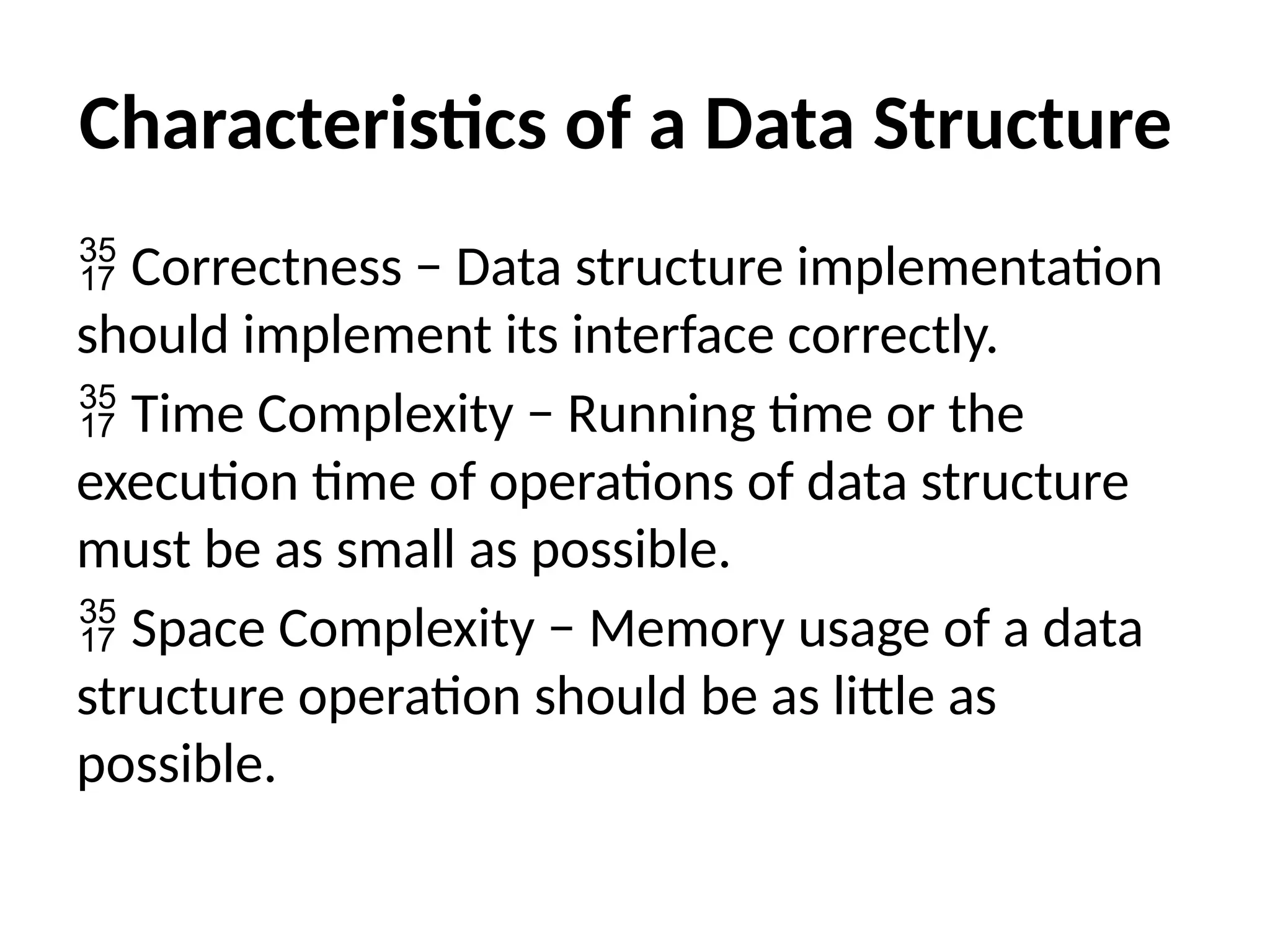

  Characteristics of aData Structure  Correctness − Data structure implementation should implement its interface correctly.  Time Complexity − Running time or the execution time of operations of data structure must be as small as possible.  Space Complexity − Memory usage of a data structure operation should be as little as possible.
• 8.

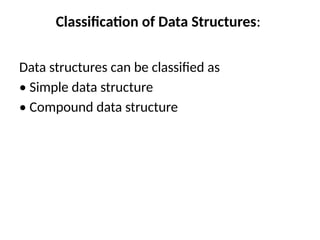

  Classification of DataStructures: Data structures can be classified as • Simple data structure • Compound data structure
• 9.
  Simple Data Structure: •Simple data structure can be constructed with the help of primitive data structure. • A primitive data type is built into a language, for example; • integer, • real, • character, • and Boolean.
• 10.

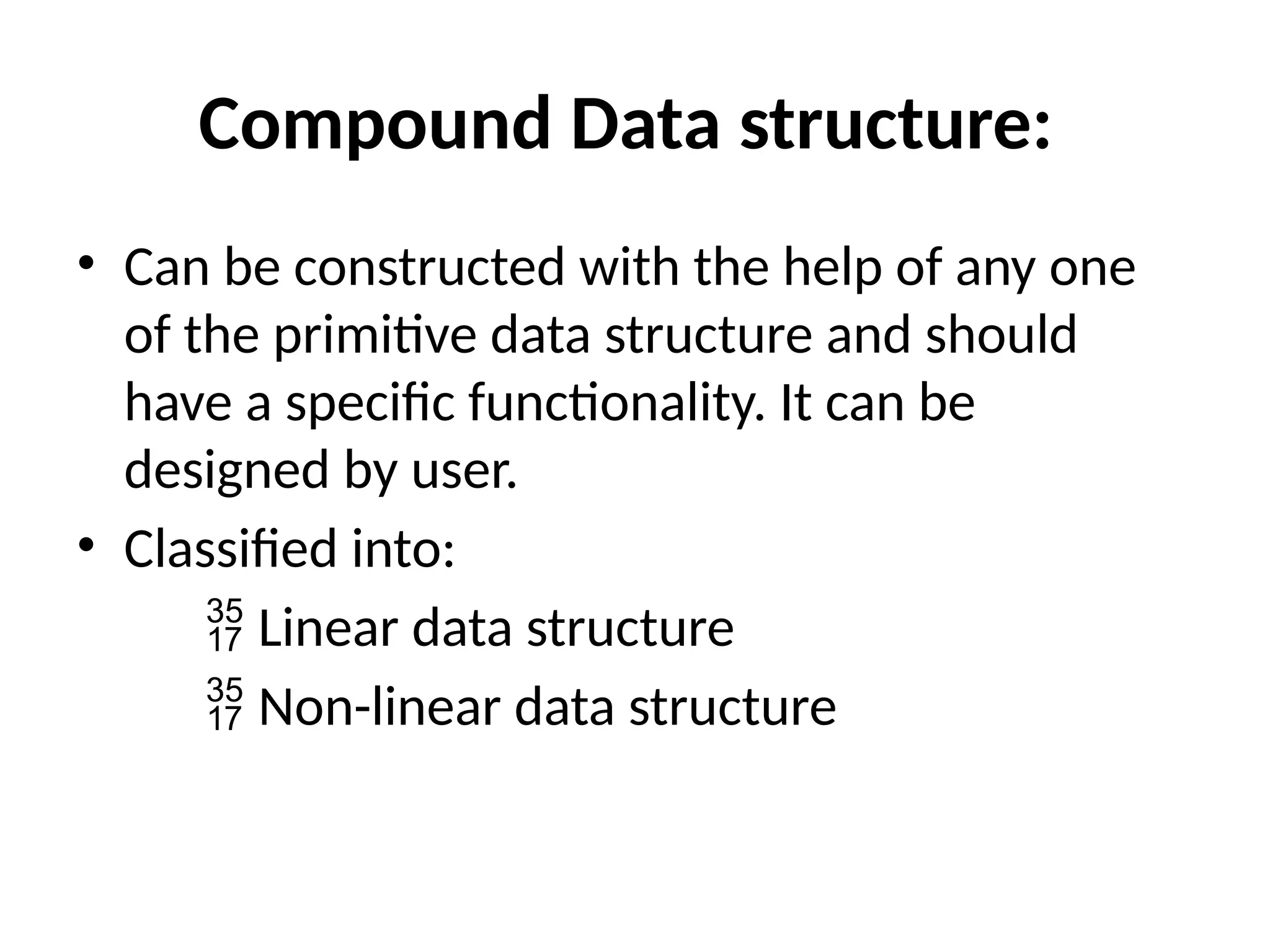

  Compound Data structure: •Can be constructed with the help of any one of the primitive data structure and should have a specific functionality. It can be designed by user. • Classified into:  Linear data structure  Non-linear data structure
• 11.

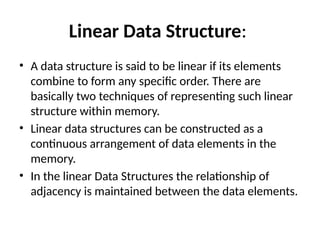

  Linear Data Structure: •A data structure is said to be linear if its elements combine to form any specific order. There are basically two techniques of representing such linear structure within memory. • Linear data structures can be constructed as a continuous arrangement of data elements in the memory. • In the linear Data Structures the relationship of adjacency is maintained between the data elements.
• 12.

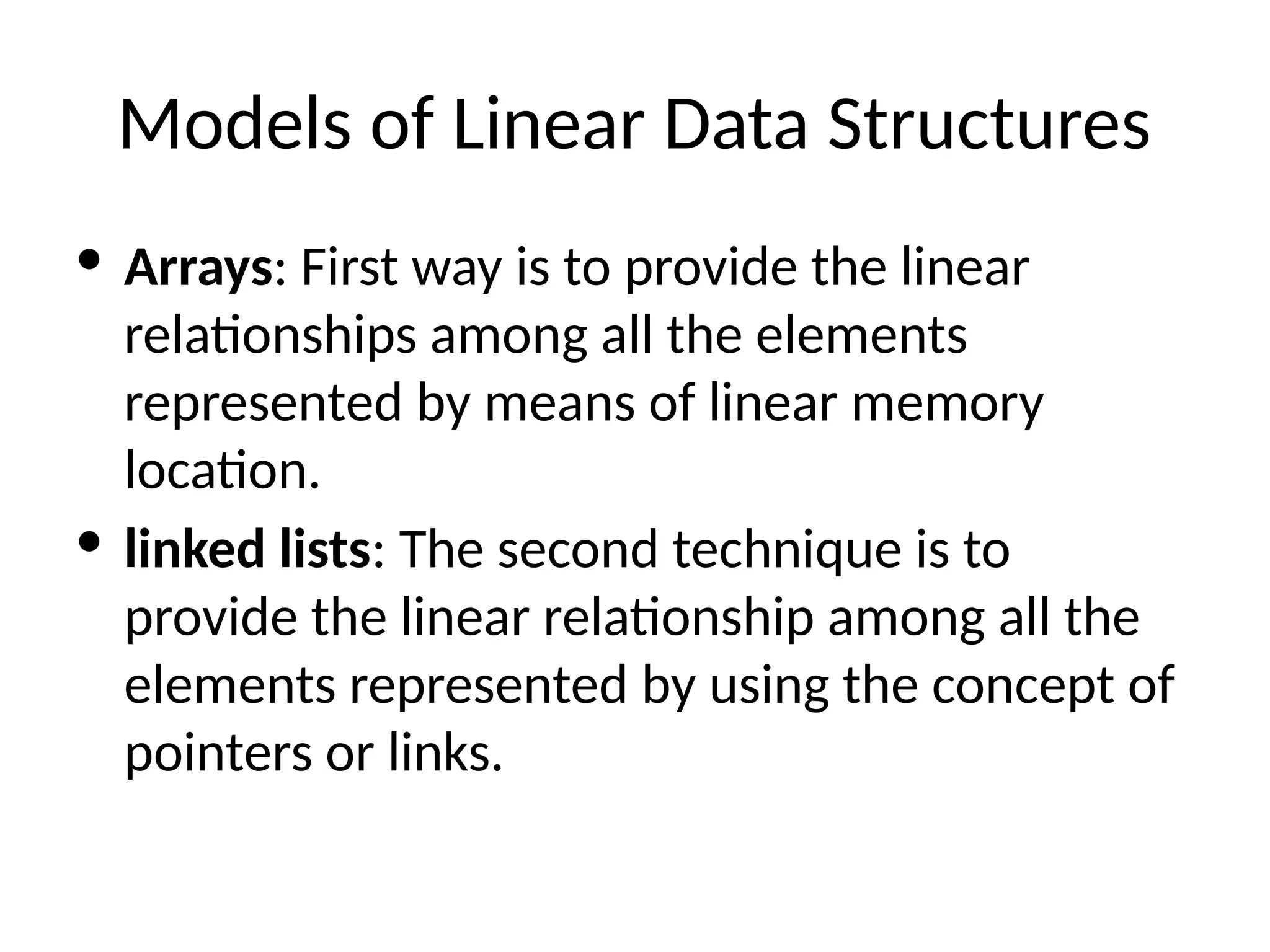

  Models of LinearData Structures · Arrays: First way is to provide the linear relationships among all the elements represented by means of linear memory location. · linked lists: The second technique is to provide the linear relationship among all the elements represented by using the concept of pointers or links.
• 13.

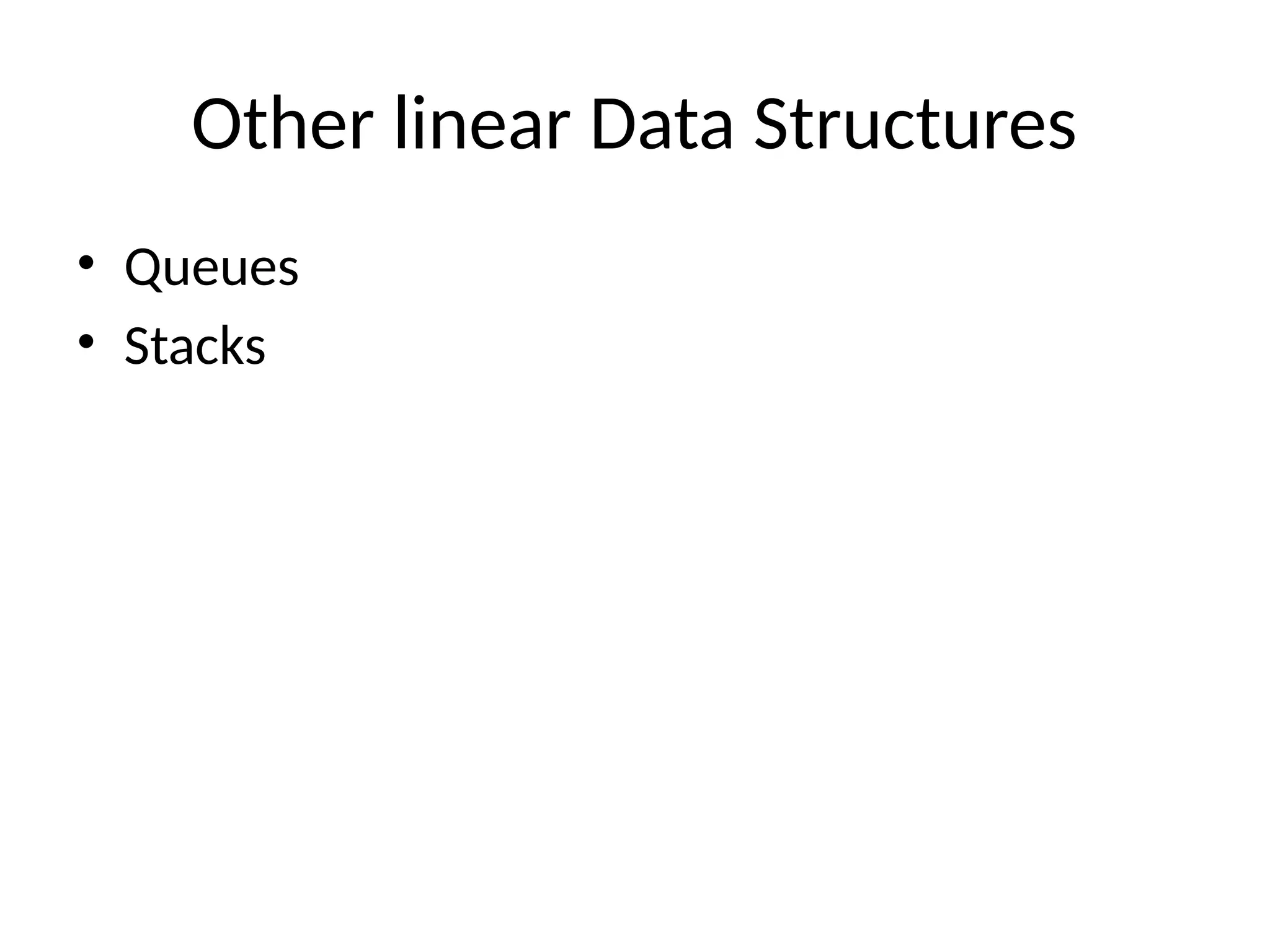

  Other linear DataStructures • Queues • Stacks
• 14.

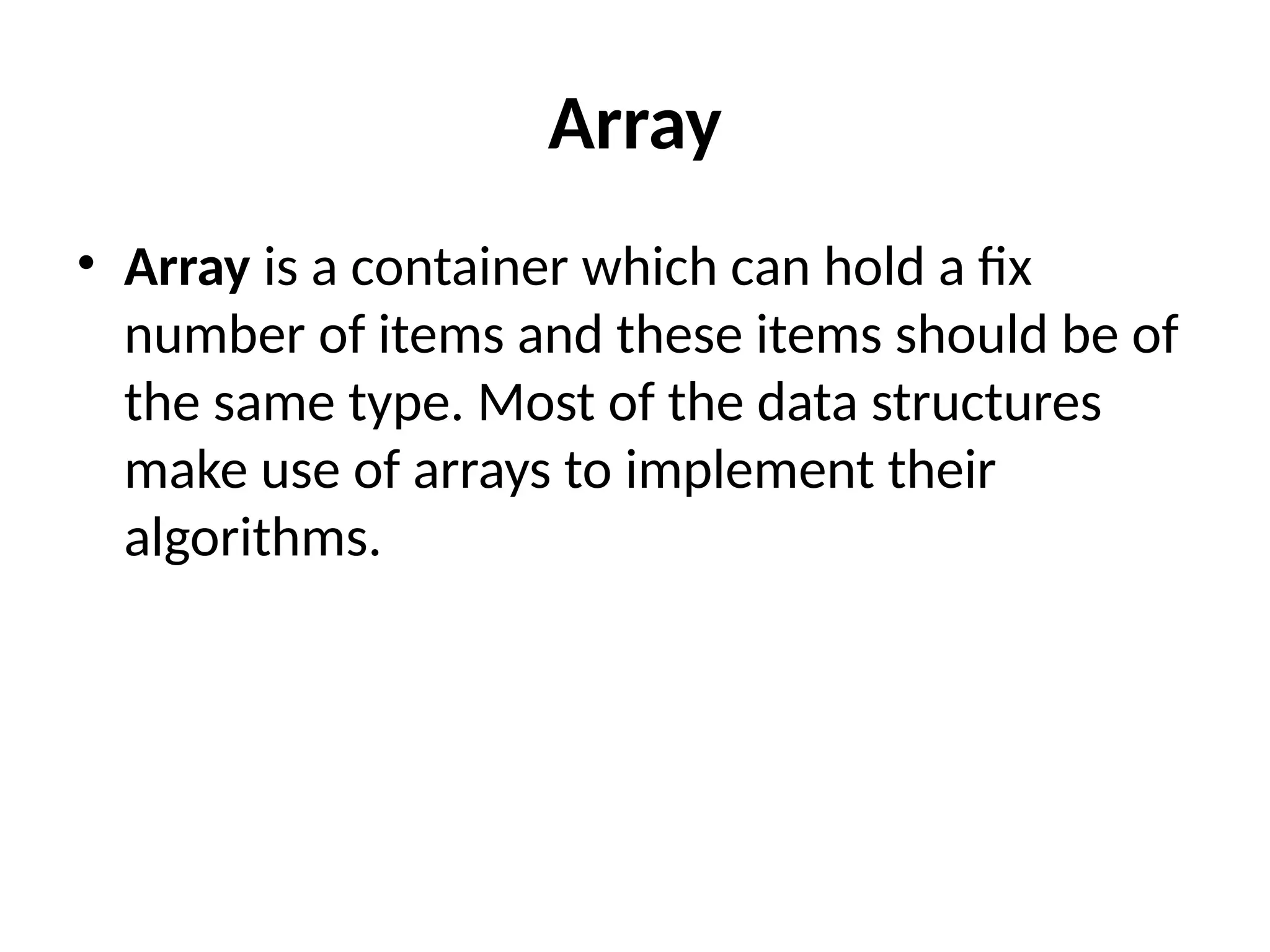

  Array • Array isa container which can hold a fix number of items and these items should be of the same type. Most of the data structures make use of arrays to implement their algorithms.
• 15.

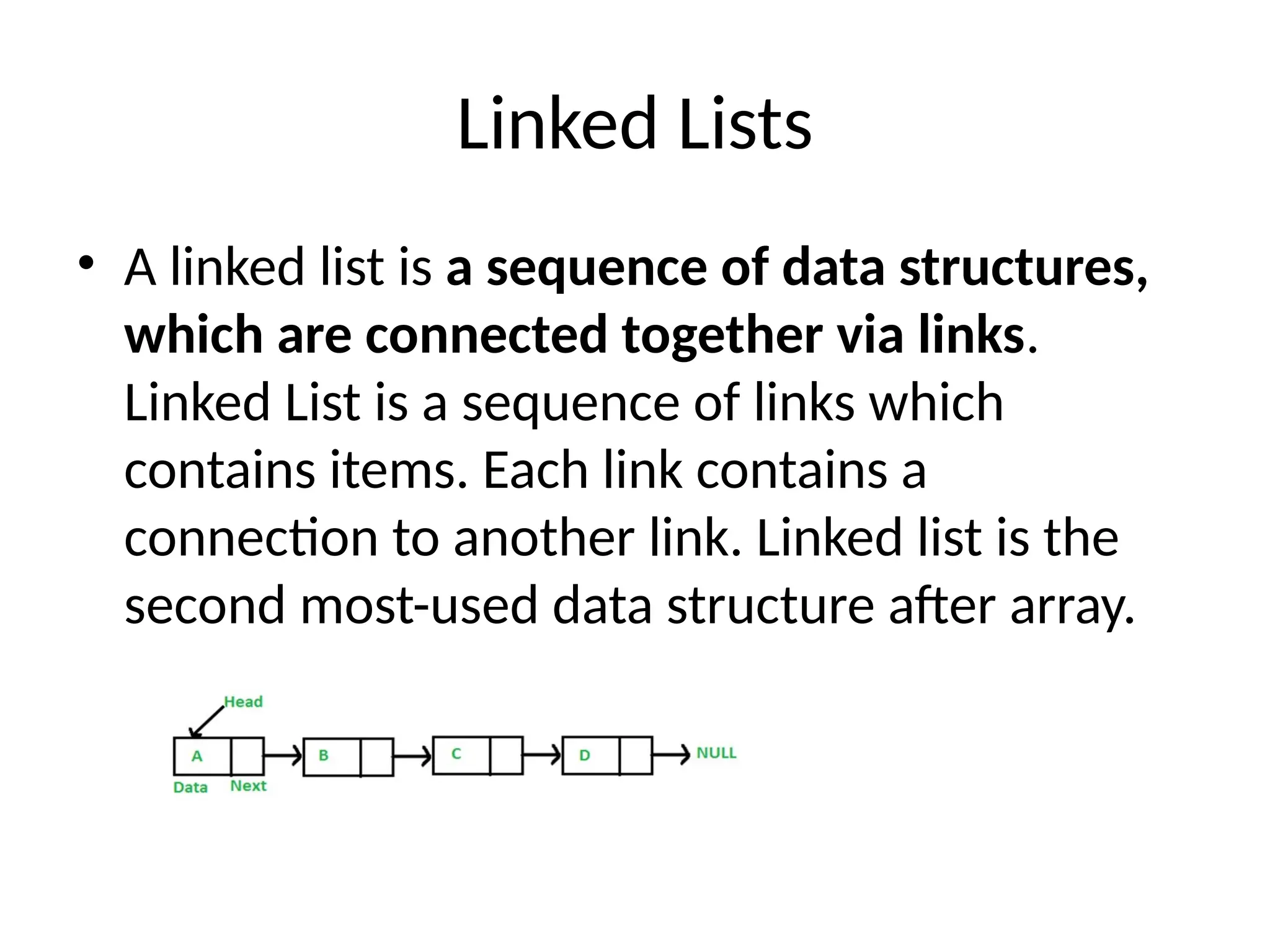

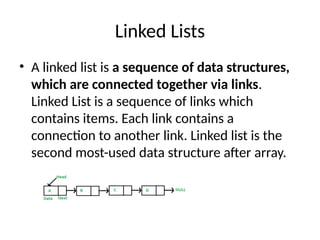

  Linked Lists • Alinked list is a sequence of data structures, which are connected together via links. Linked List is a sequence of links which contains items. Each link contains a connection to another link. Linked list is the second most-used data structure after array.
• 16.

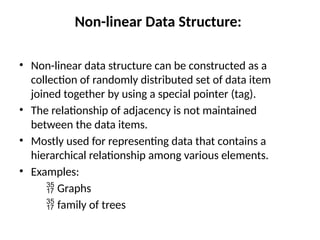

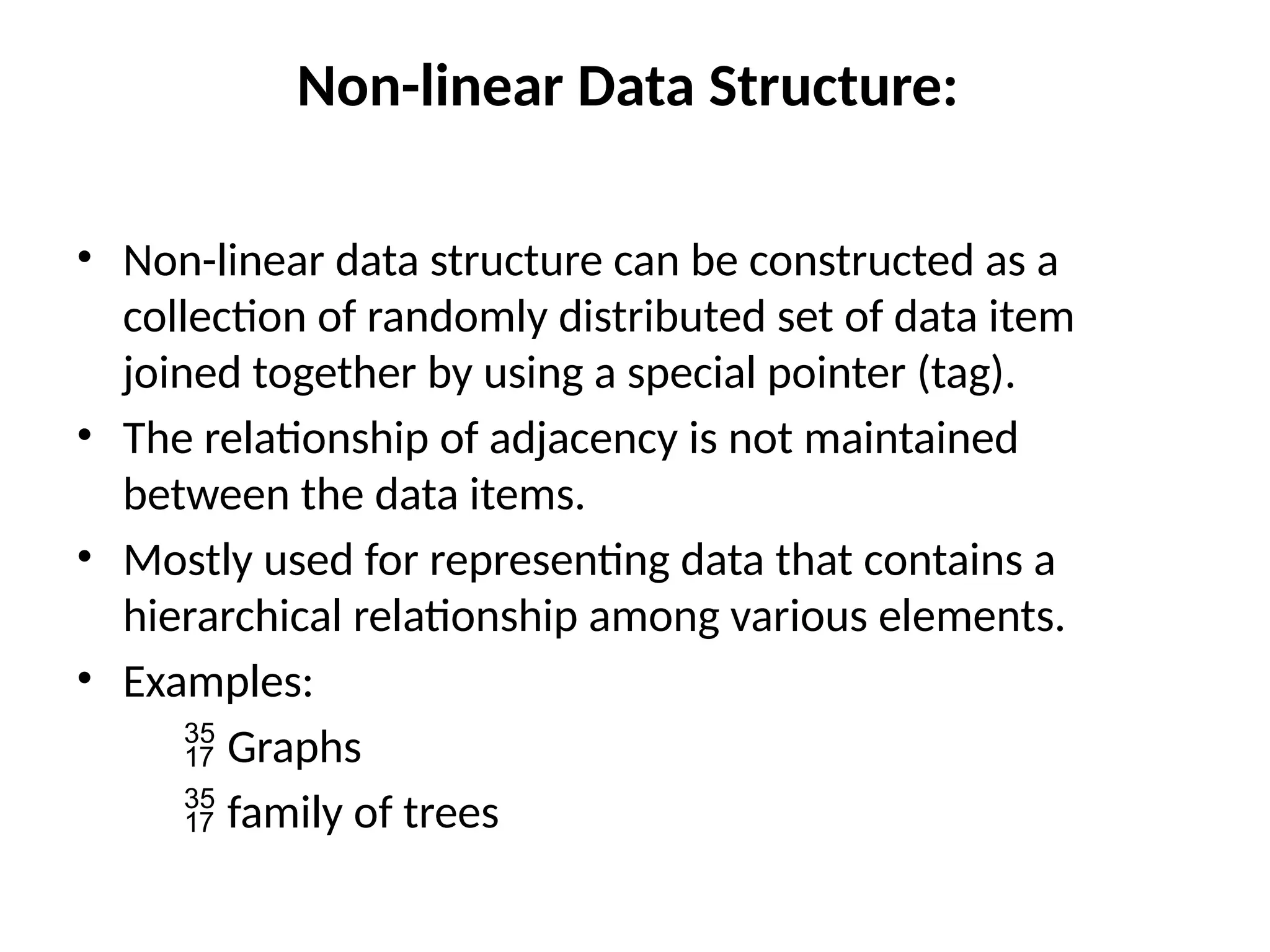

  Non-linear Data Structure: •Non-linear data structure can be constructed as a collection of randomly distributed set of data item joined together by using a special pointer (tag). • The relationship of adjacency is not maintained between the data items. • Mostly used for representing data that contains a hierarchical relationship among various elements. • Examples:  Graphs  family of trees
• 17.

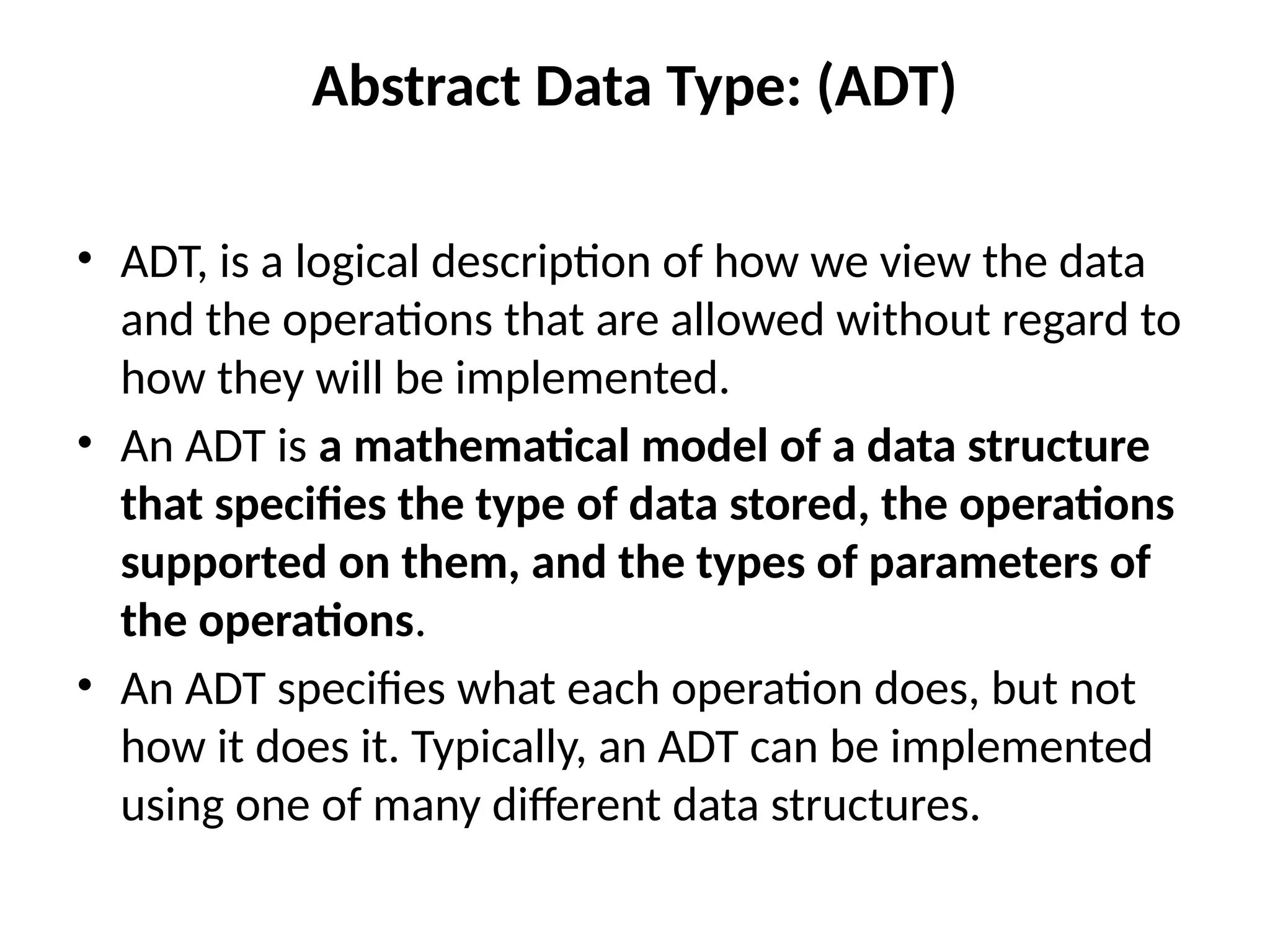

  Abstract Data Type:(ADT) • ADT, is a logical description of how we view the data and the operations that are allowed without regard to how they will be implemented. • An ADT is a mathematical model of a data structure that specifies the type of data stored, the operations supported on them, and the types of parameters of the operations. • An ADT specifies what each operation does, but not how it does it. Typically, an ADT can be implemented using one of many different data structures.
• 18.

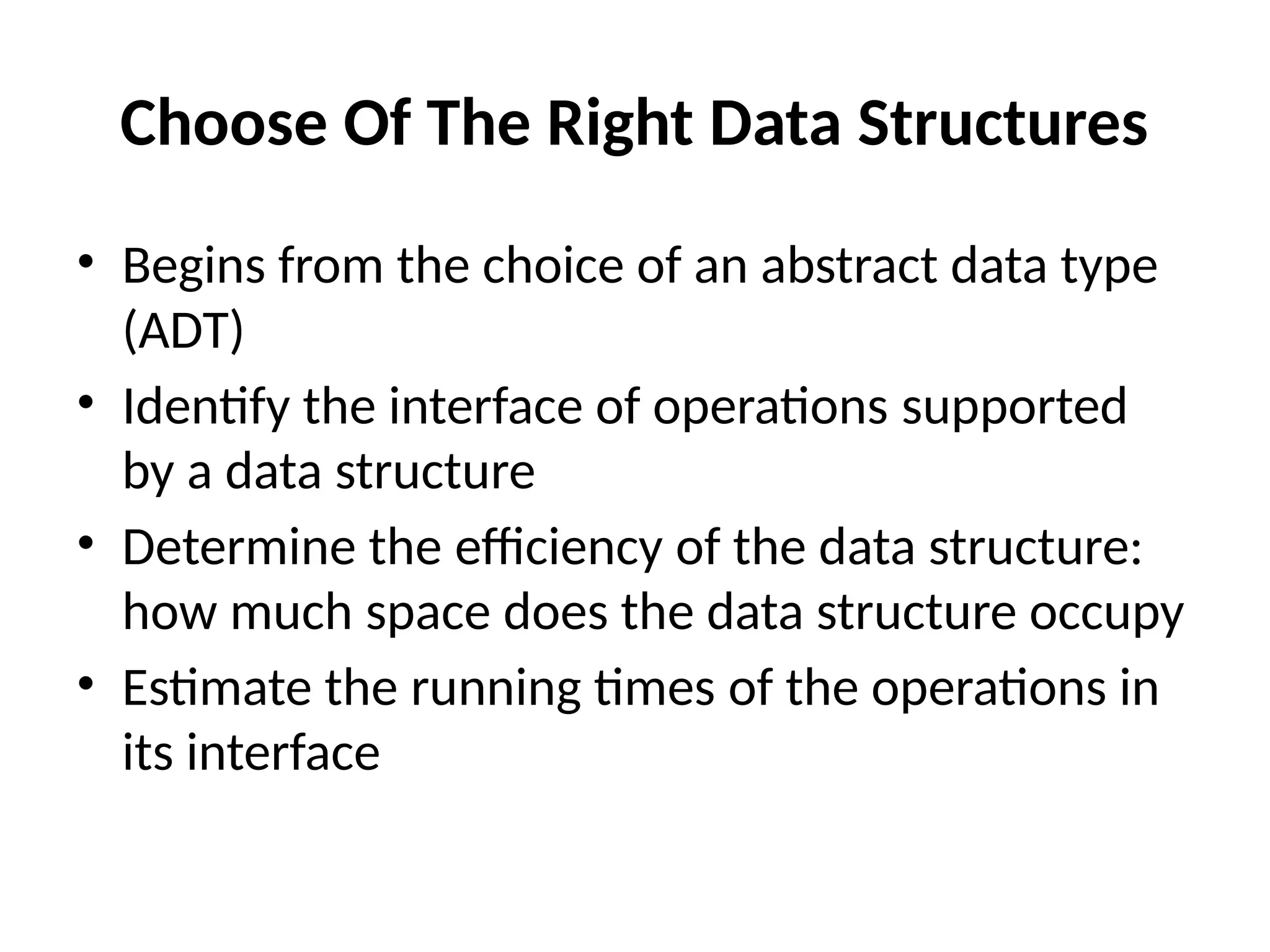

  Choose Of TheRight Data Structures • Begins from the choice of an abstract data type (ADT) • Identify the interface of operations supported by a data structure • Determine the efficiency of the data structure: how much space does the data structure occupy • Estimate the running times of the operations in its interface
• 19.

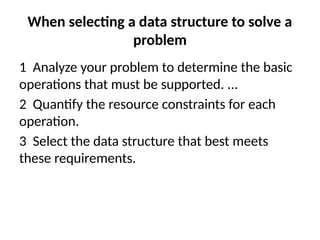

  When selecting adata structure to solve a problem 1 Analyze your problem to determine the basic operations that must be supported. ... 2 Quantify the resource constraints for each operation. 3 Select the data structure that best meets these requirements.
• 20.

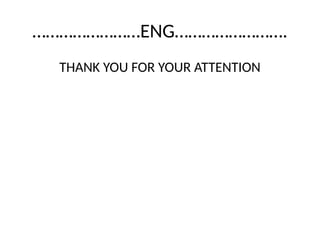

  ……………………ENG……………………. THANK YOU FORYOUR ATTENTION
