- 1. Distributed tracing inpractice Ivo Mägi, CEO & product manager @ Plumbr September 2019

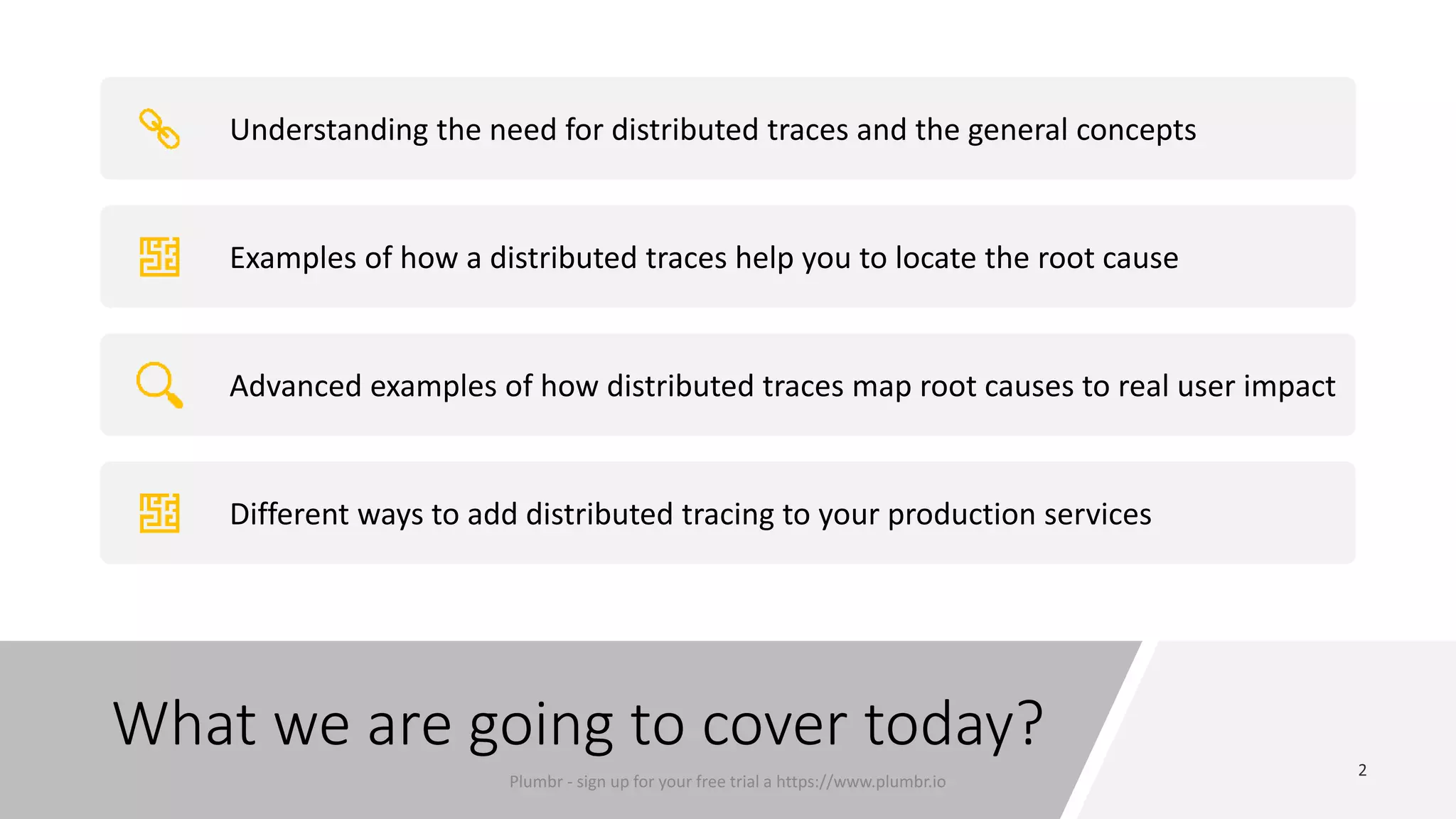

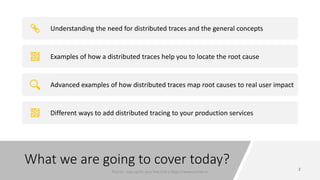

- 2. What we aregoing to cover today? Understanding the need for distributed traces and the general concepts Examples of how a distributed traces help you to locate the root cause Advanced examples of how distributed traces map root causes to real user impact Different ways to add distributed tracing to your production services Plumbr - sign up for your free trial a https://www.plumbr.io

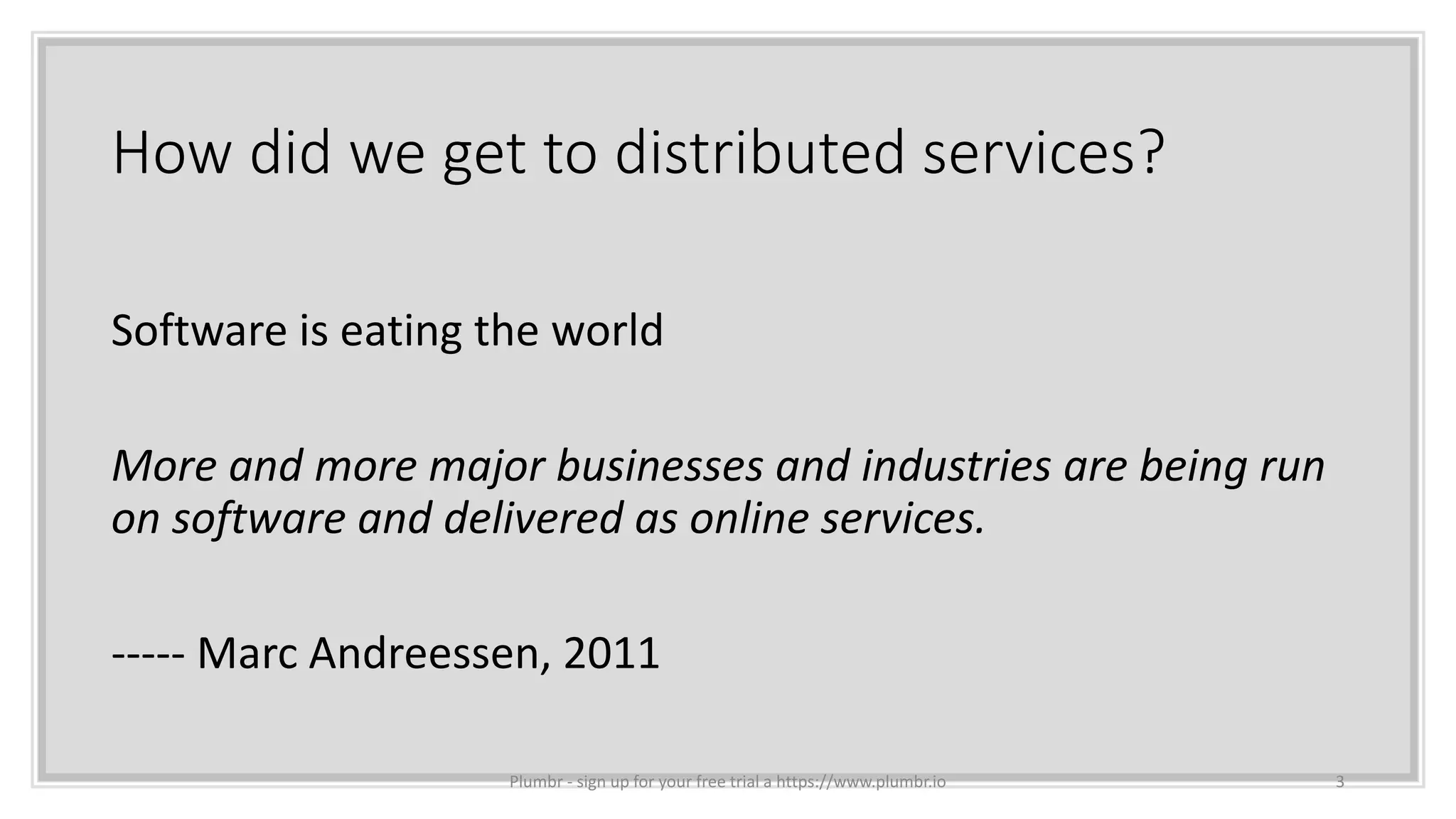

- 3. How did weget to distributed services? Software is eating the world More and more major businesses and industries are being run on software and delivered as online services. ----- Marc Andreessen, 2011 Plumbr - sign up for your free trial a https://www.plumbr.io 3

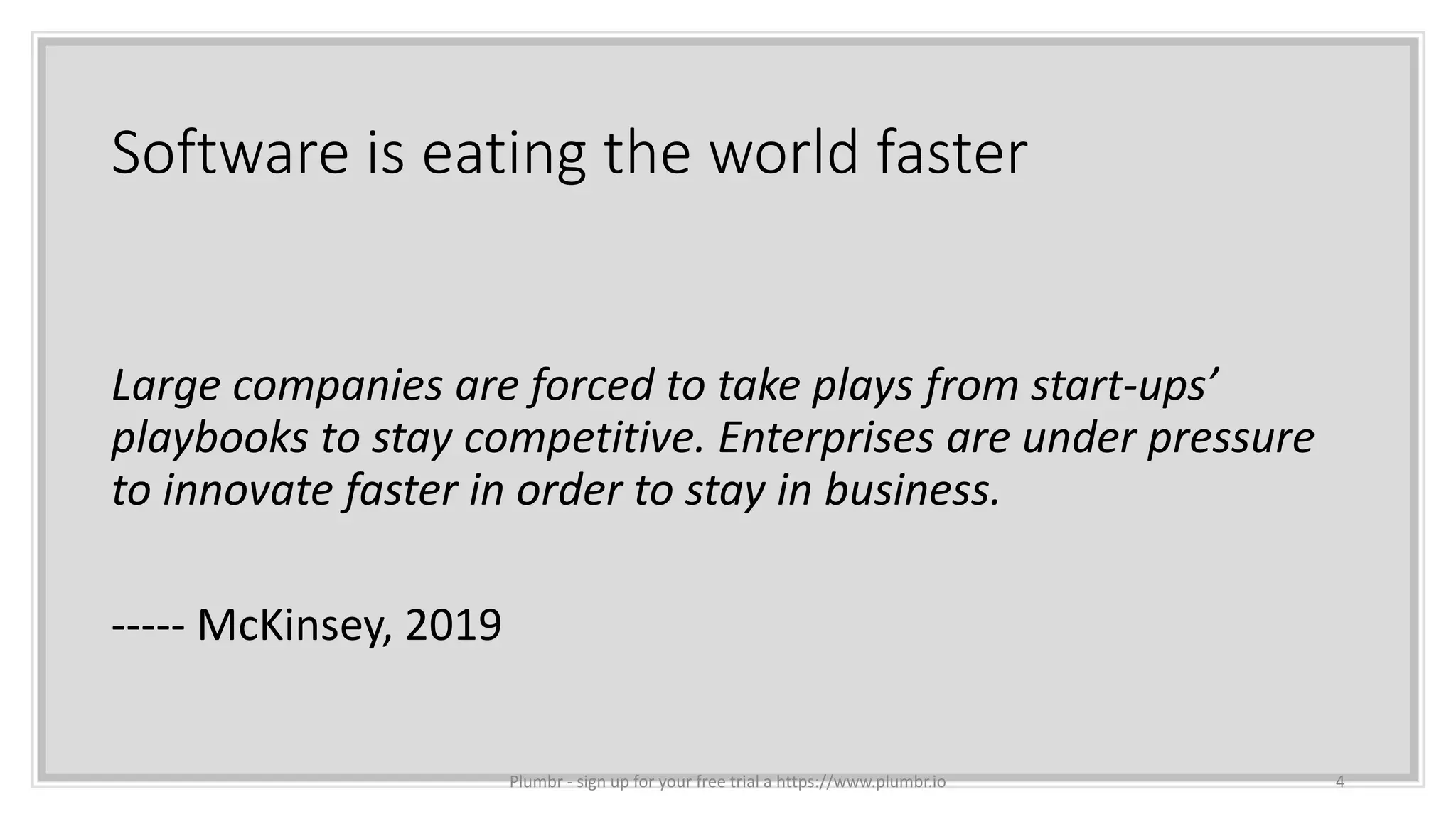

- 4. Software is eatingthe world faster Large companies are forced to take plays from start-ups’ playbooks to stay competitive. Enterprises are under pressure to innovate faster in order to stay in business. ----- McKinsey, 2019 Plumbr - sign up for your free trial a https://www.plumbr.io 4

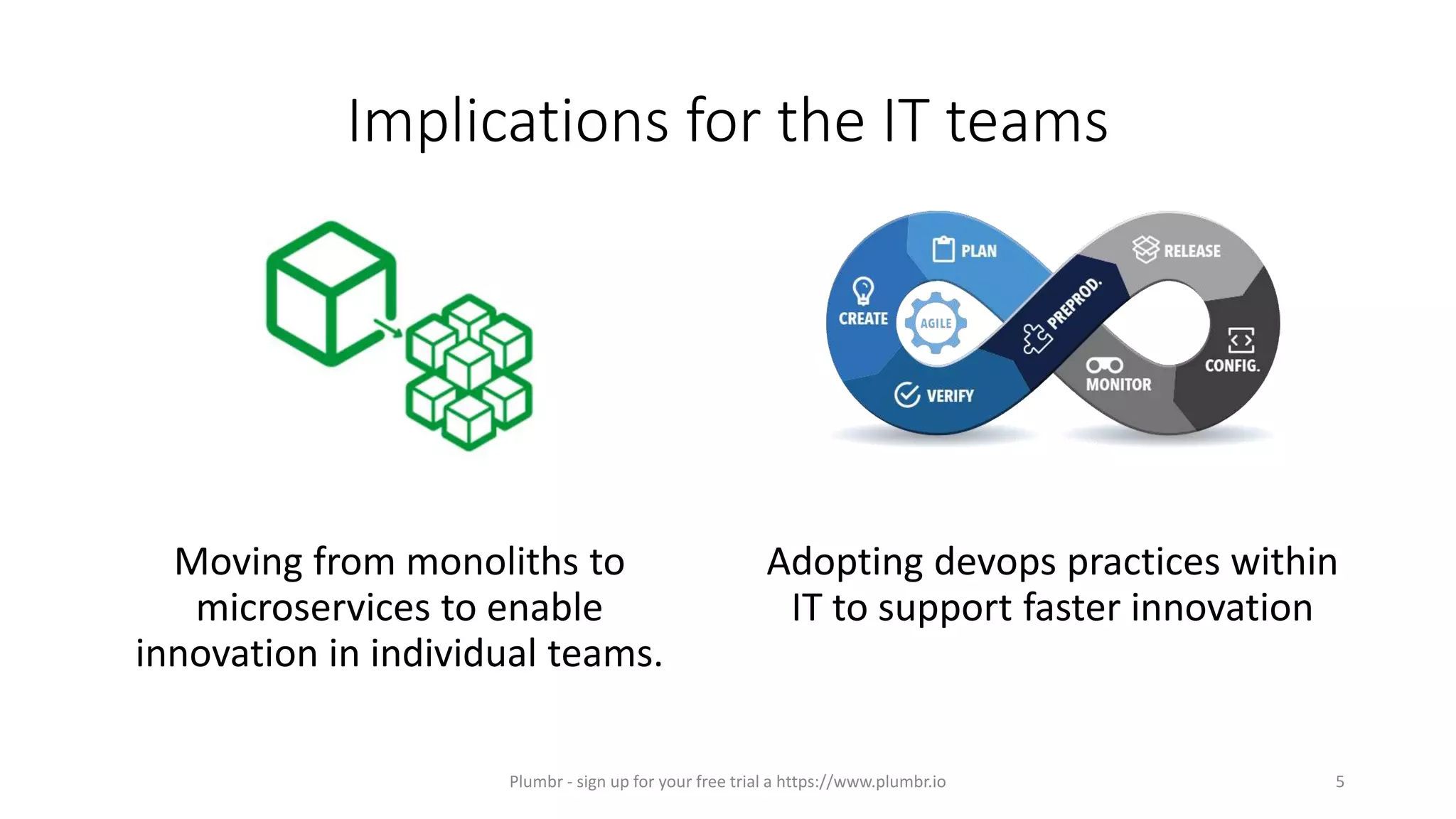

- 5. Implications for theIT teams Moving from monoliths to microservices to enable innovation in individual teams. Adopting devops practices within IT to support faster innovation Plumbr - sign up for your free trial a https://www.plumbr.io 5

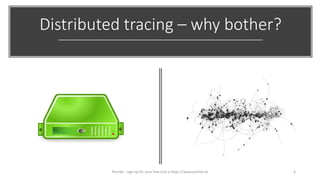

- 6. Distributed tracing –why bother? Plumbr - sign up for your free trial a https://www.plumbr.io 6

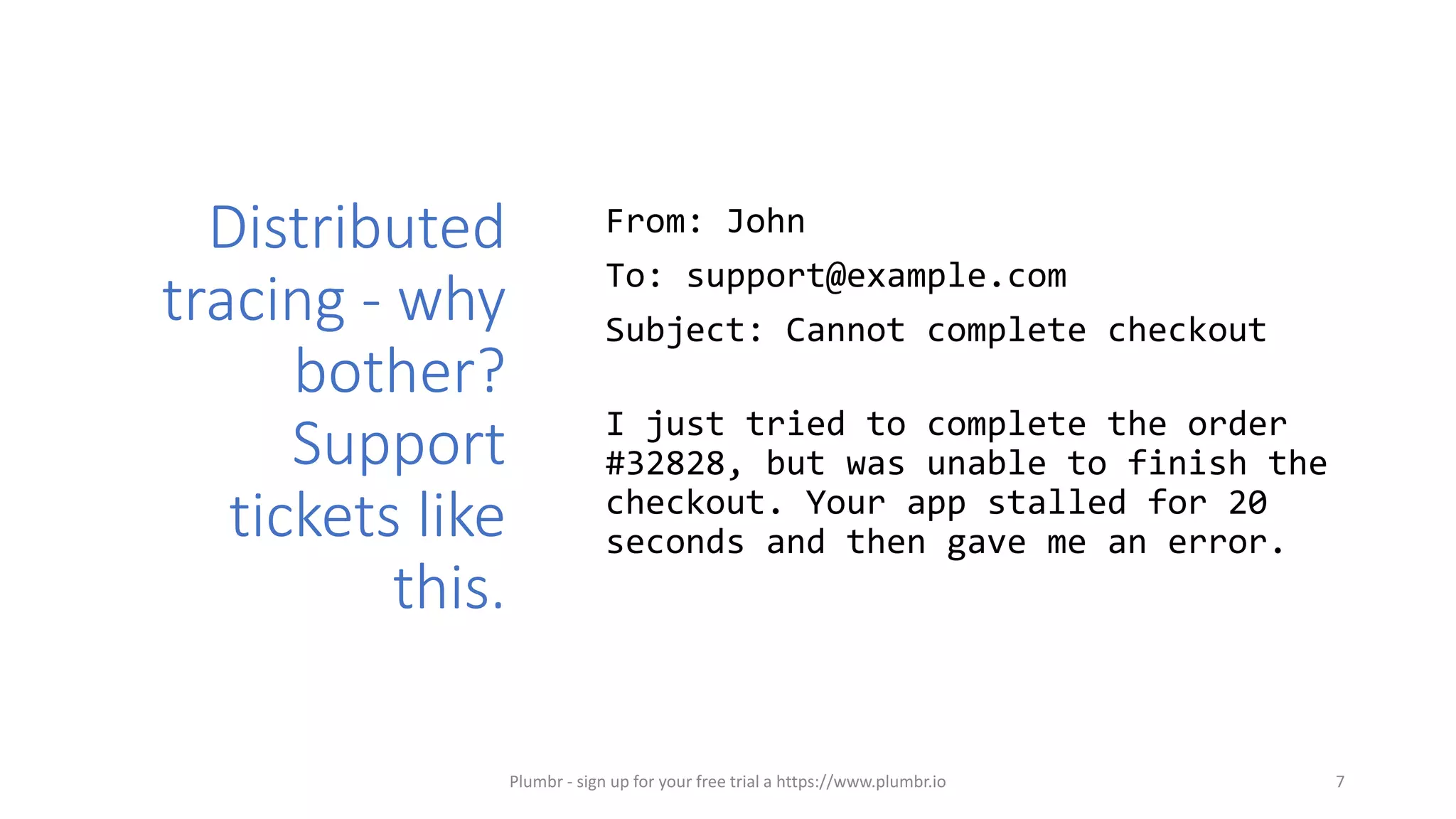

- 7. Distributed tracing - why bother? Support ticketslike this. From: John To: support@example.com Subject: Cannot complete checkout I just tried to complete the order #32828, but was unable to finish the checkout. Your app stalled for 20 seconds and then gave me an error. 7Plumbr - sign up for your free trial a https://www.plumbr.io

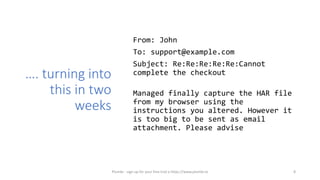

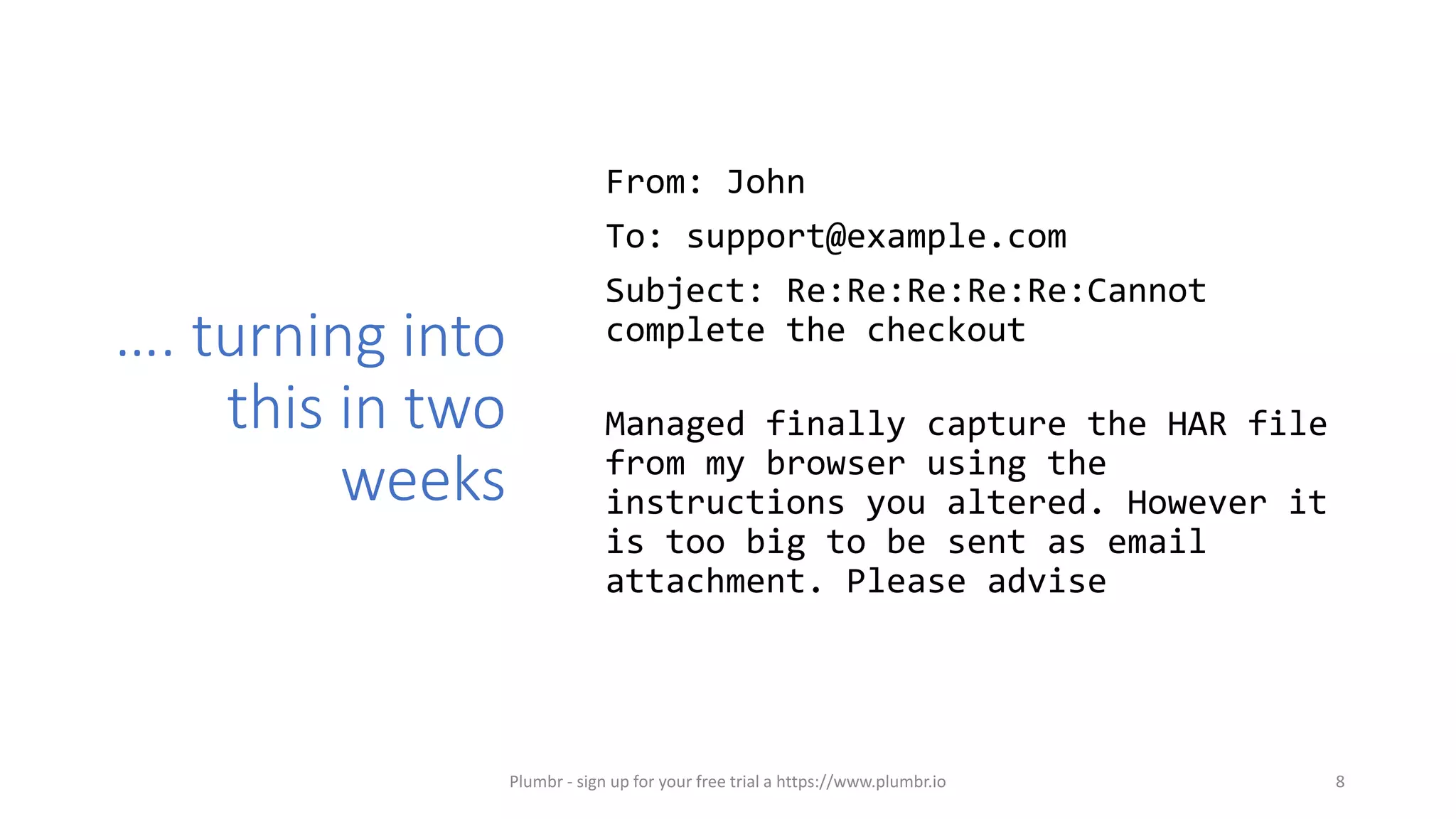

- 8. …. turning into thisin two weeks From: John To: support@example.com Subject: Re:Re:Re:Re:Re:Cannot complete the checkout Managed finally capture the HAR file from my browser using the instructions you altered. However it is too big to be sent as email attachment. Please advise 8Plumbr - sign up for your free trial a https://www.plumbr.io

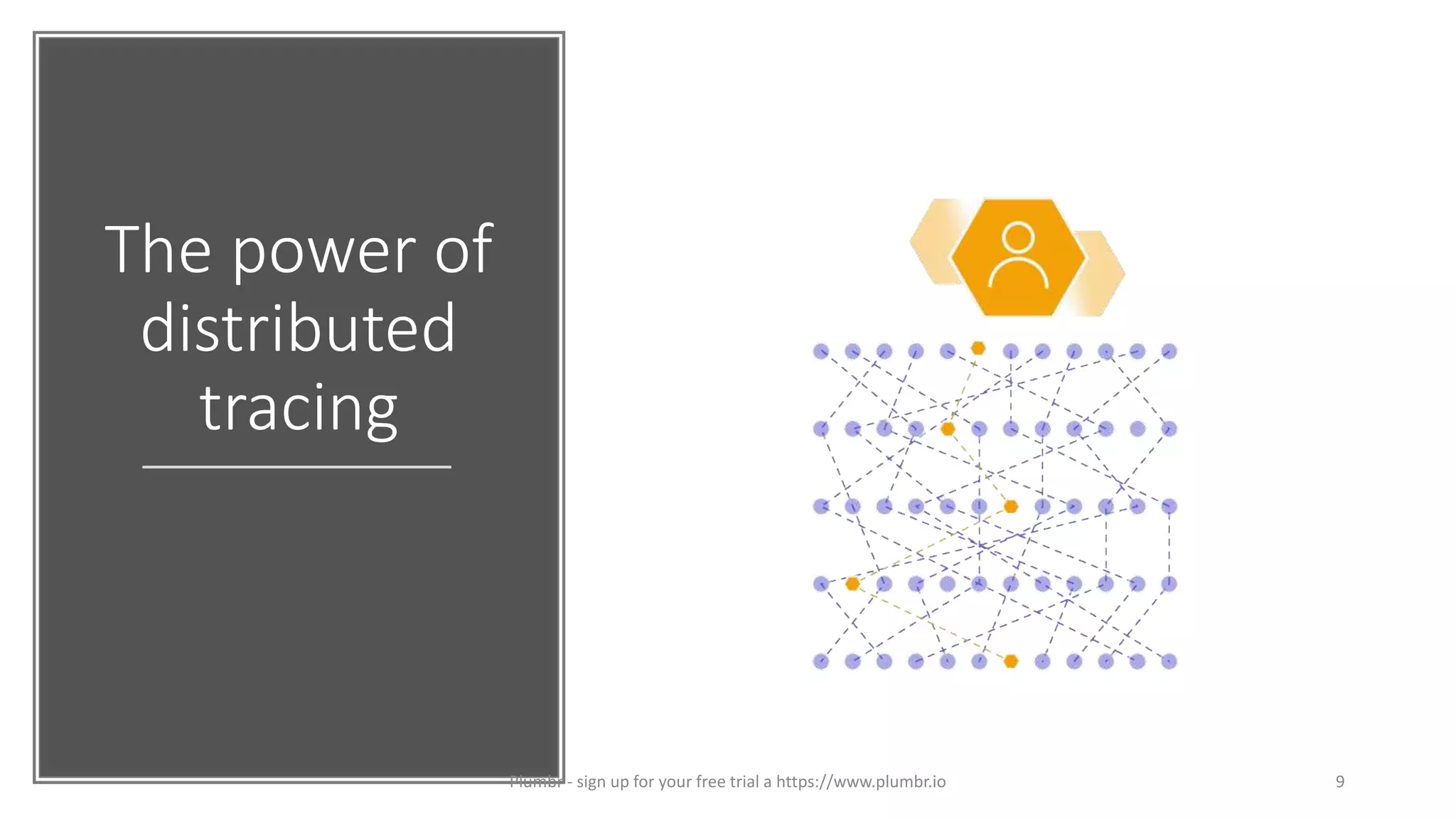

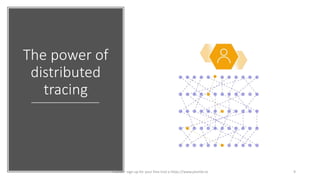

- 9. The power of distributed tracing 9Plumbr- sign up for your free trial a https://www.plumbr.io

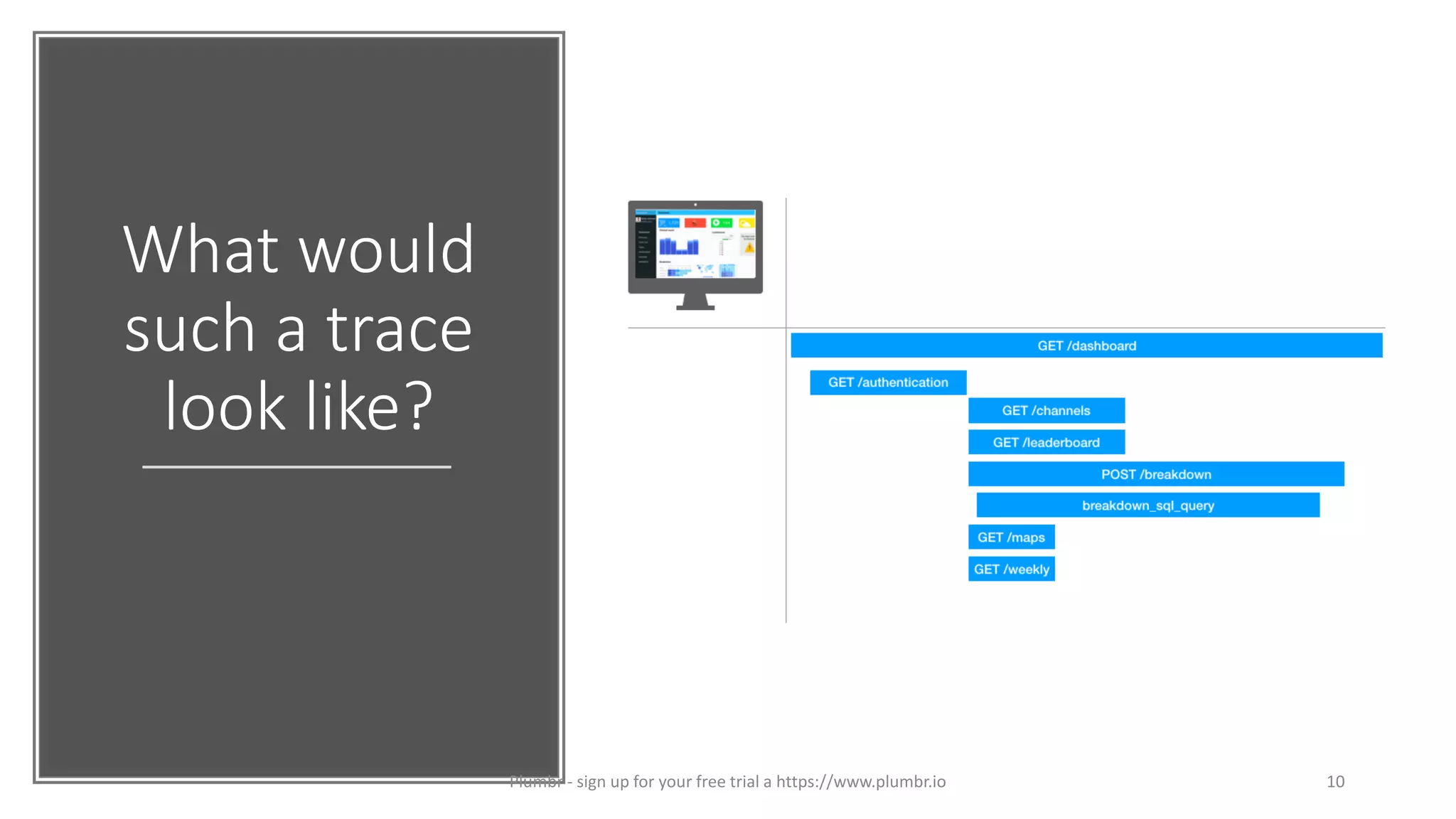

- 10. What would such atrace look like? 10Plumbr - sign up for your free trial a https://www.plumbr.io

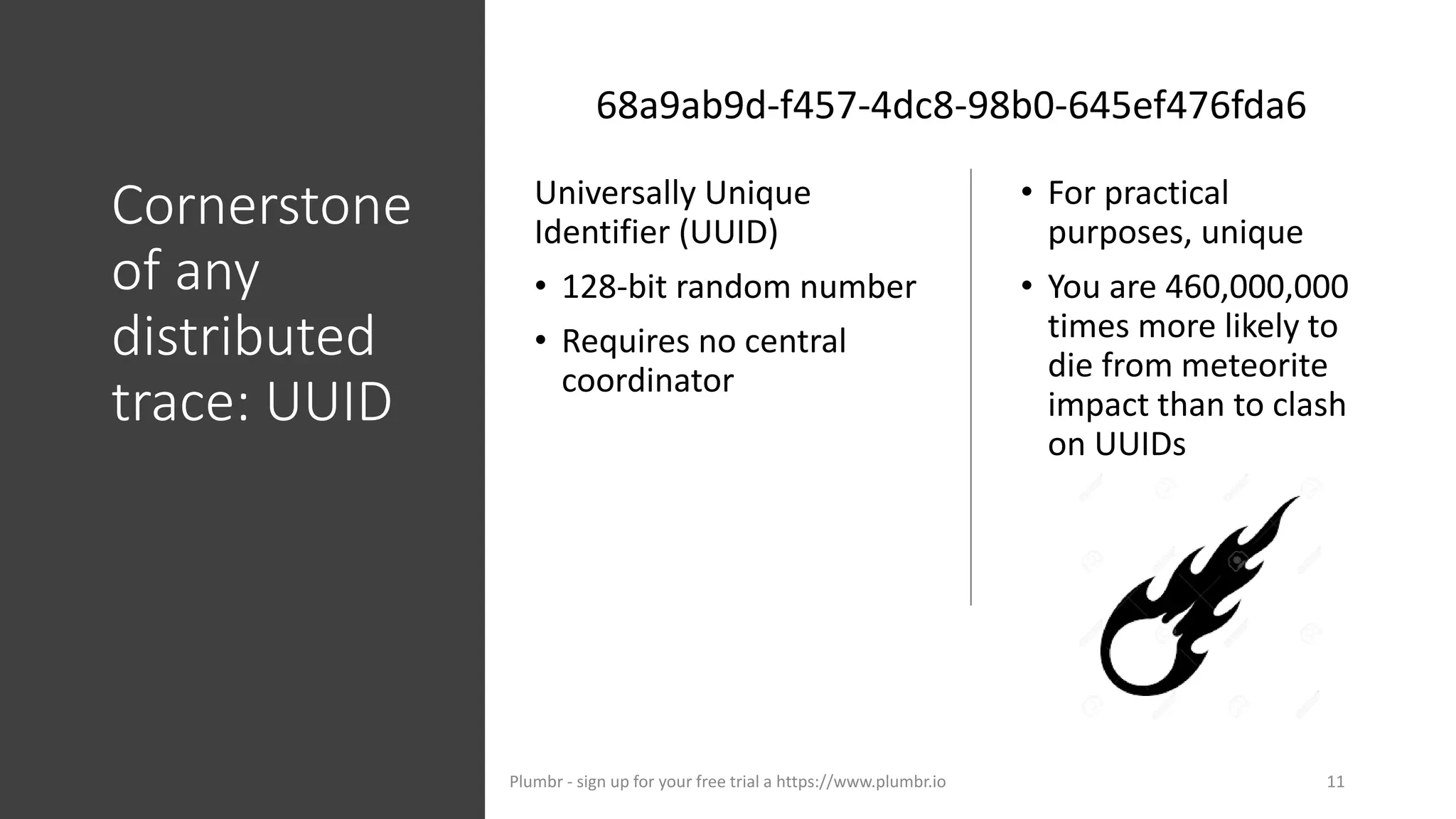

- 11. Cornerstone of any distributed trace: UUID UniversallyUnique Identifier (UUID) • 128-bit random number • Requires no central coordinator • For practical purposes, unique • You are 460,000,000 times more likely to die from meteorite impact than to clash on UUIDs 11 68a9ab9d-f457-4dc8-98b0-645ef476fda6 Plumbr - sign up for your free trial a https://www.plumbr.io

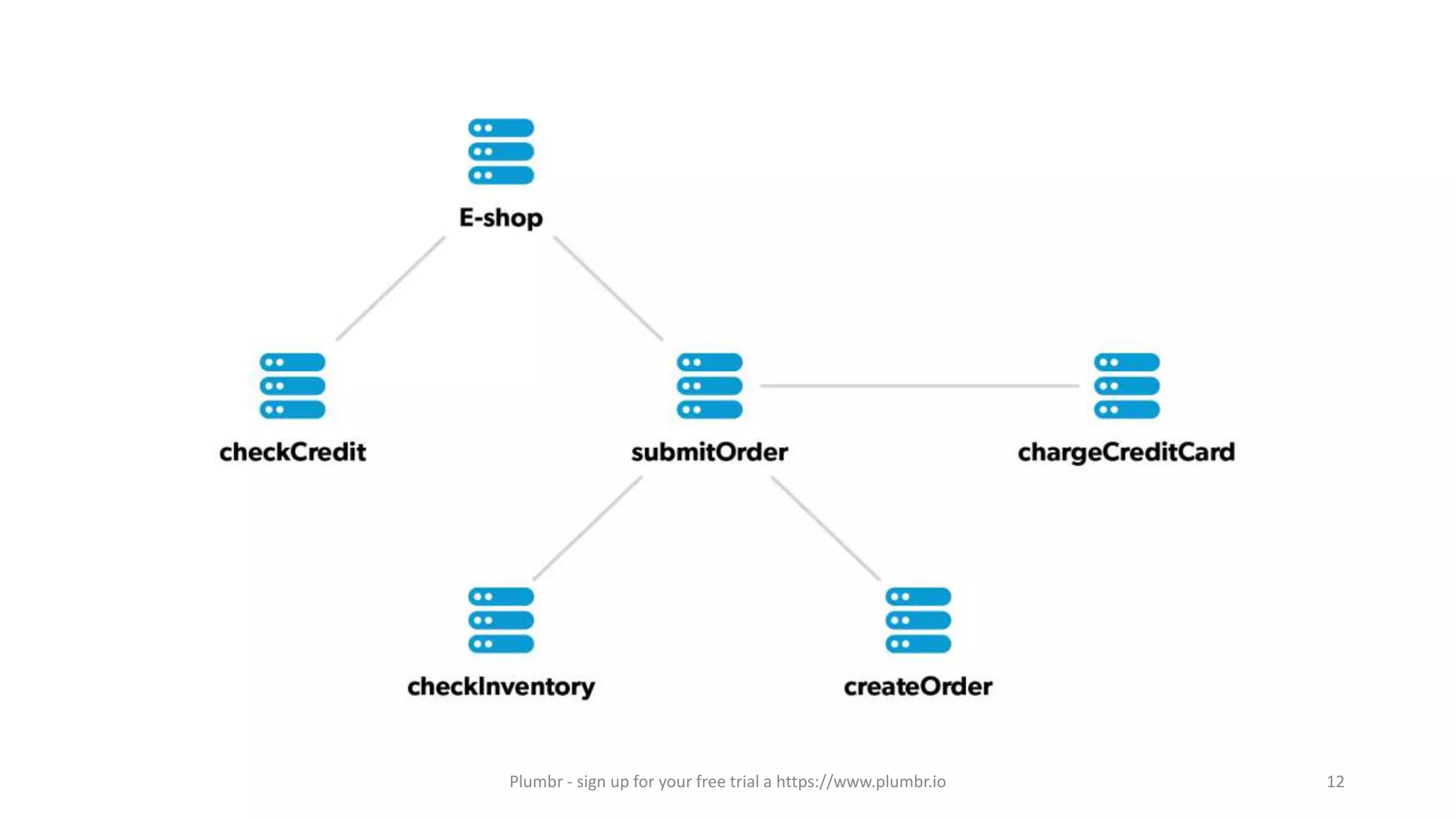

- 12. Plumbr - signup for your free trial a https://www.plumbr.io 12

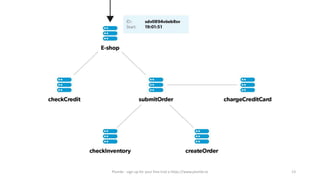

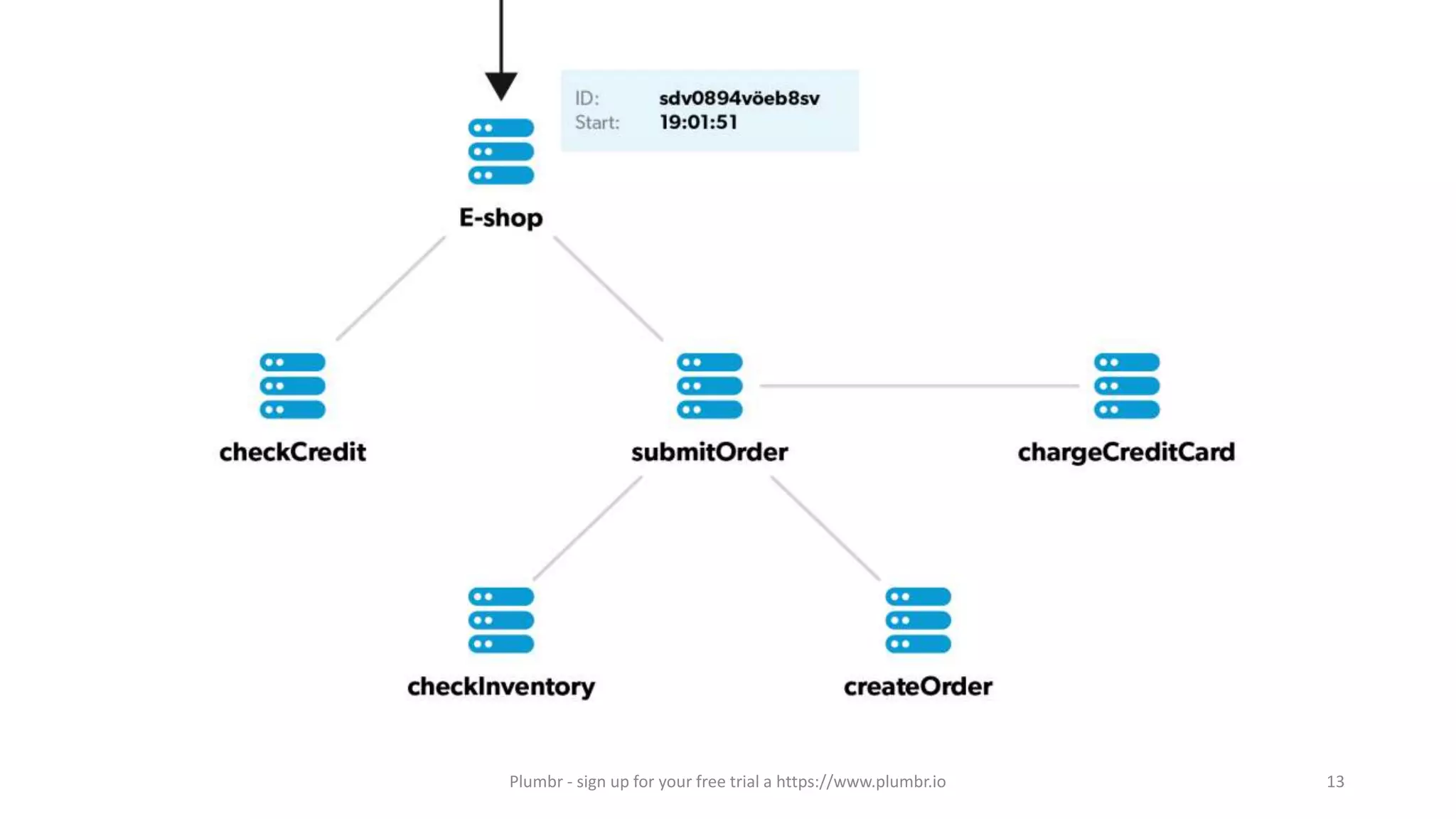

- 13. Plumbr - signup for your free trial a https://www.plumbr.io 13

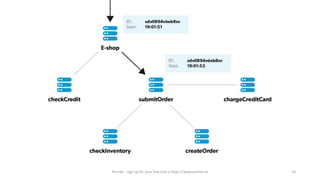

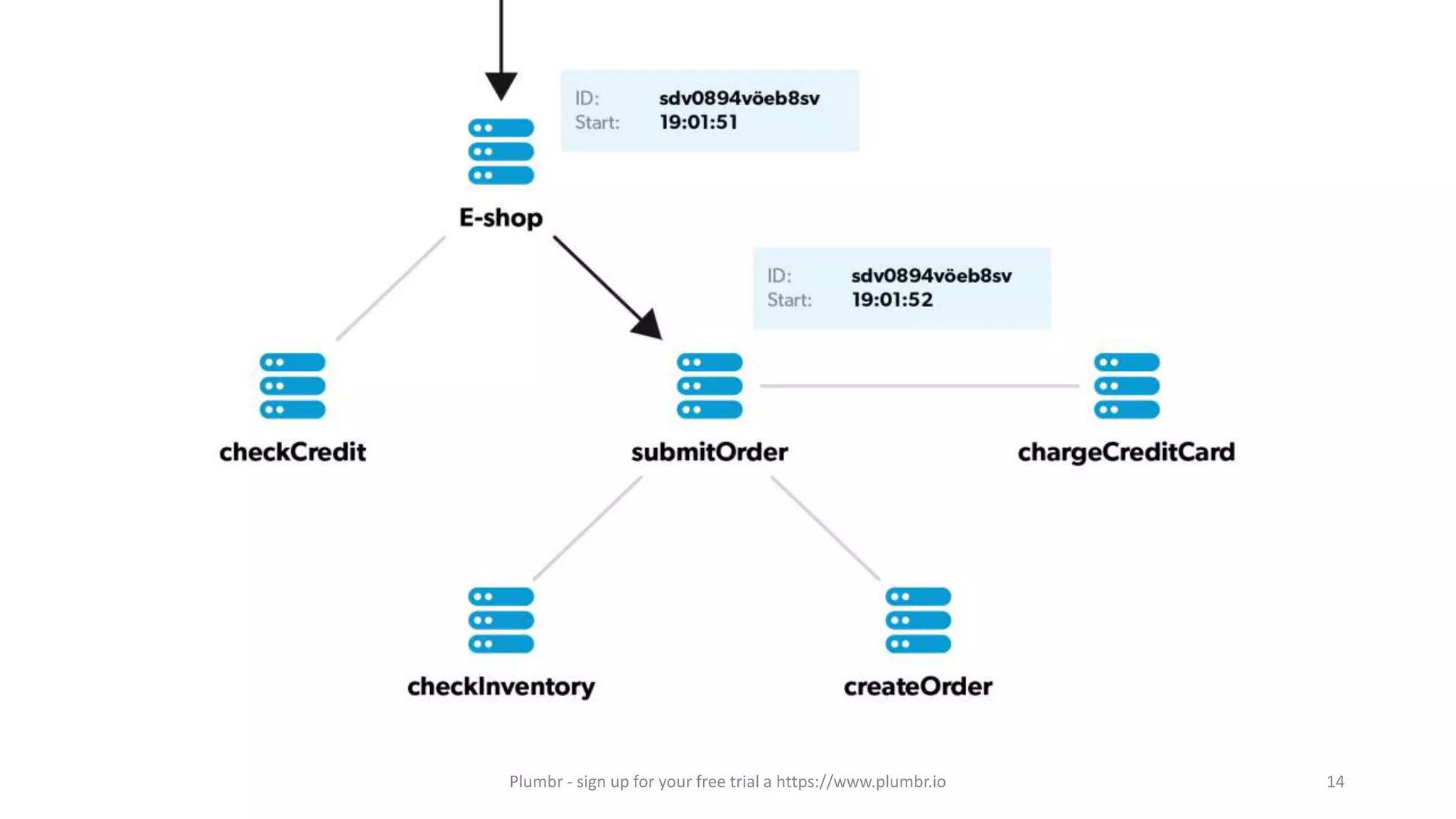

- 14. Plumbr - signup for your free trial a https://www.plumbr.io 14

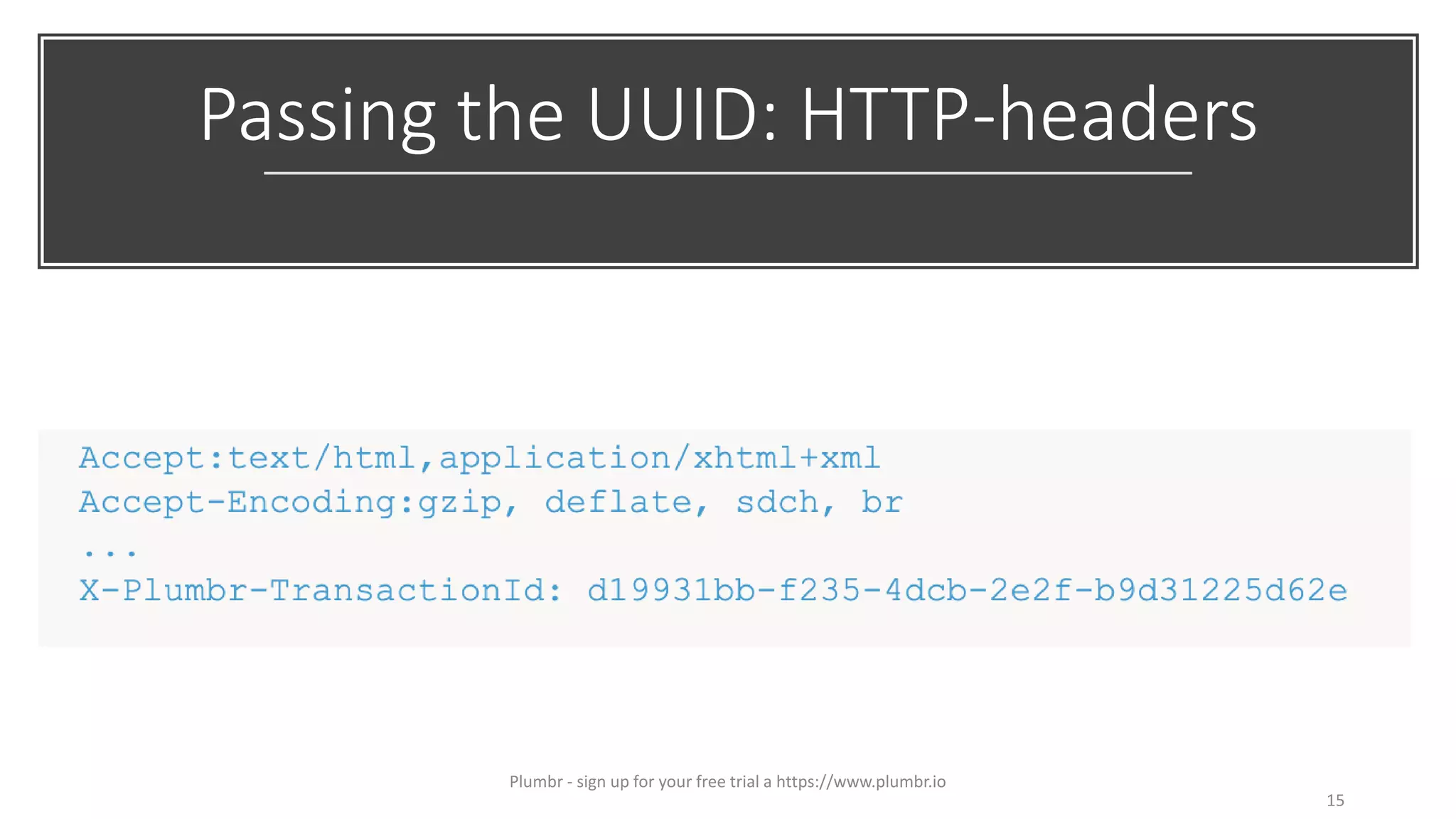

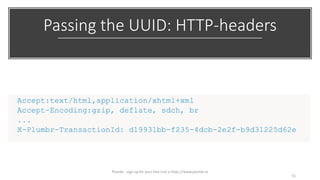

- 15. Passing the UUID:HTTP-headers 15 Plumbr - sign up for your free trial a https://www.plumbr.io
- 16. Plumbr - signup for your free trial a https://www.plumbr.io 16
- 17. Plumbr - signup for your free trial a https://www.plumbr.io 17

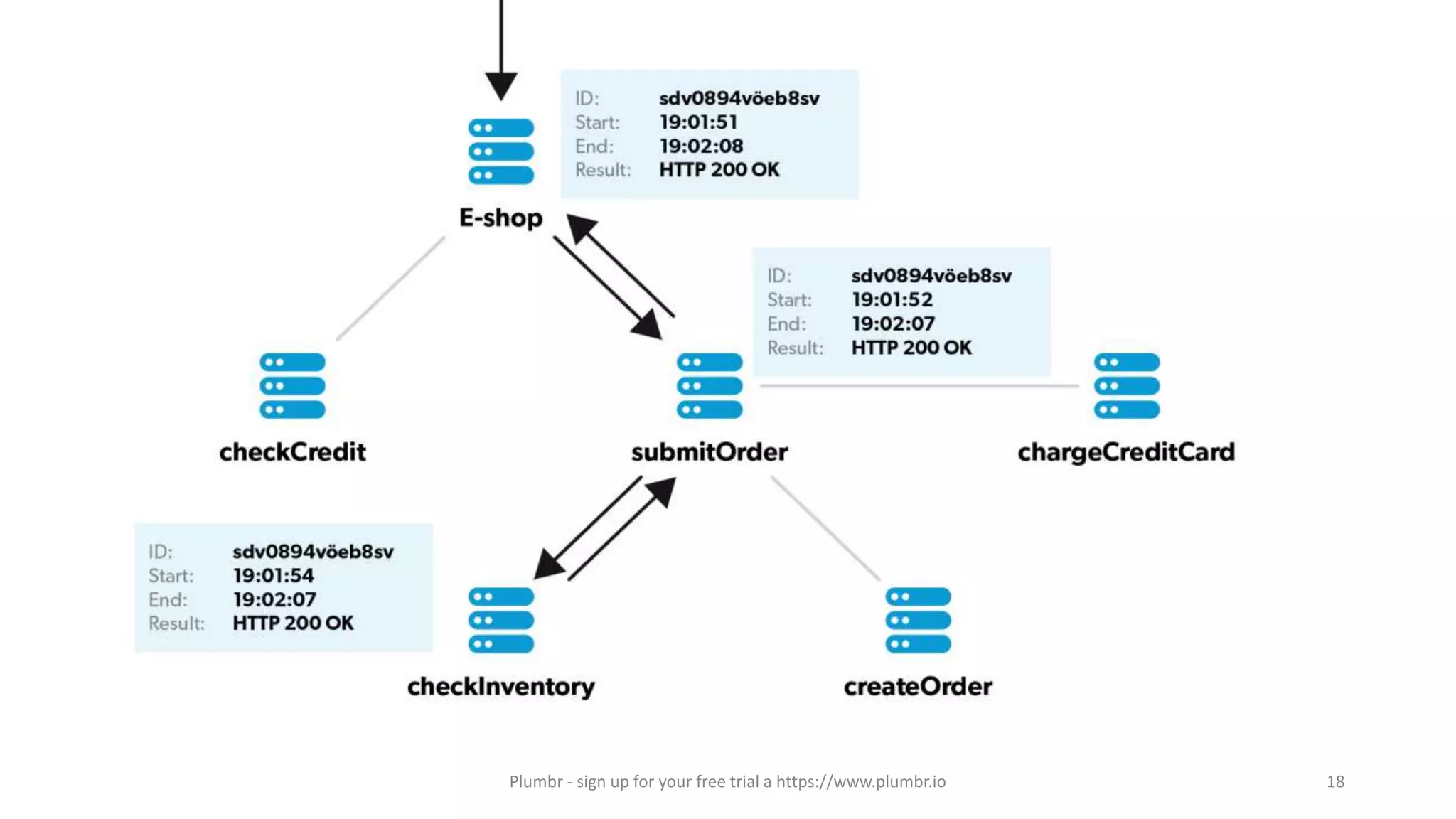

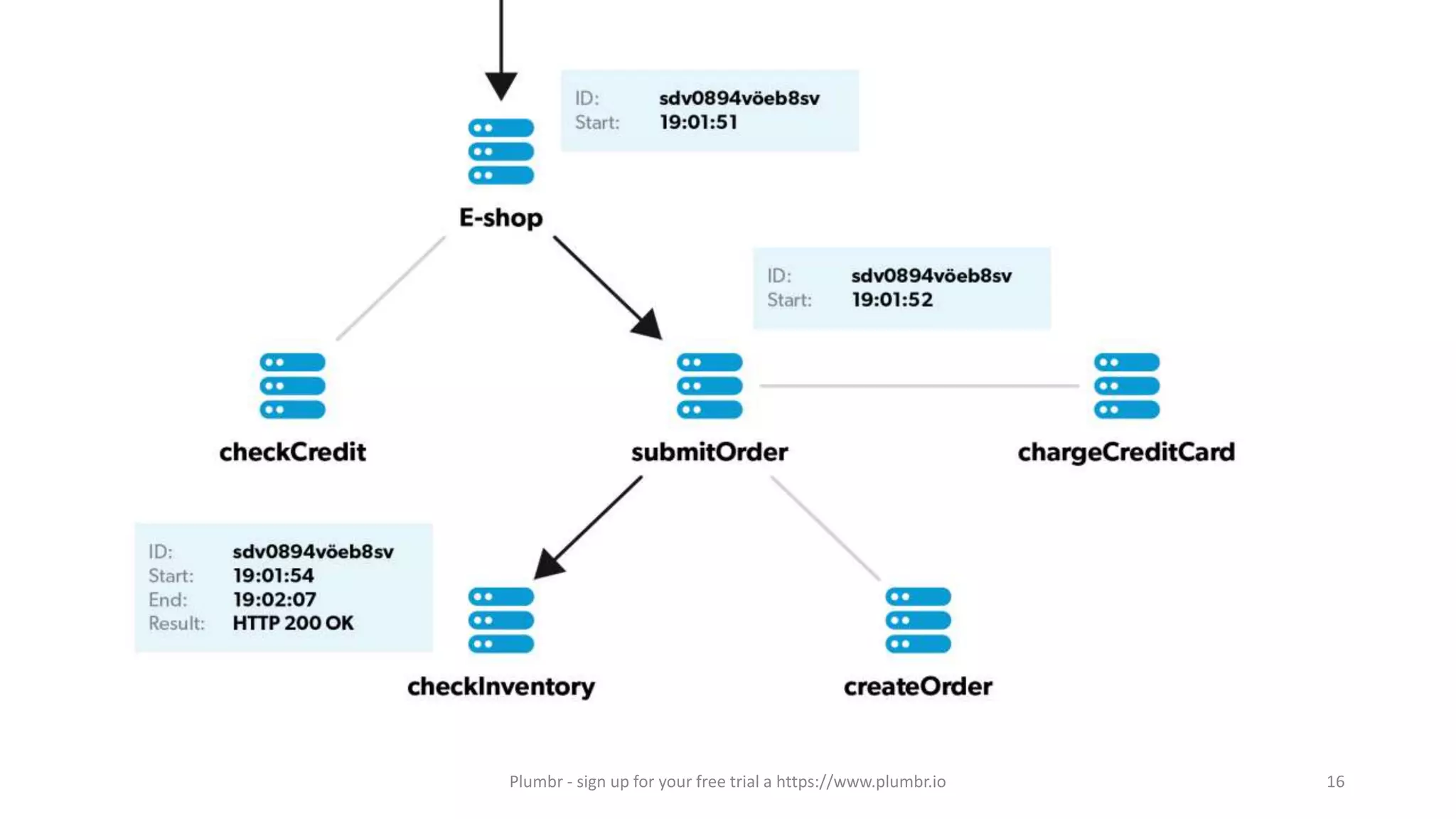

- 18. Plumbr - signup for your free trial a https://www.plumbr.io 18

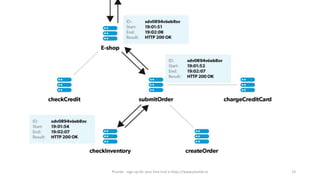

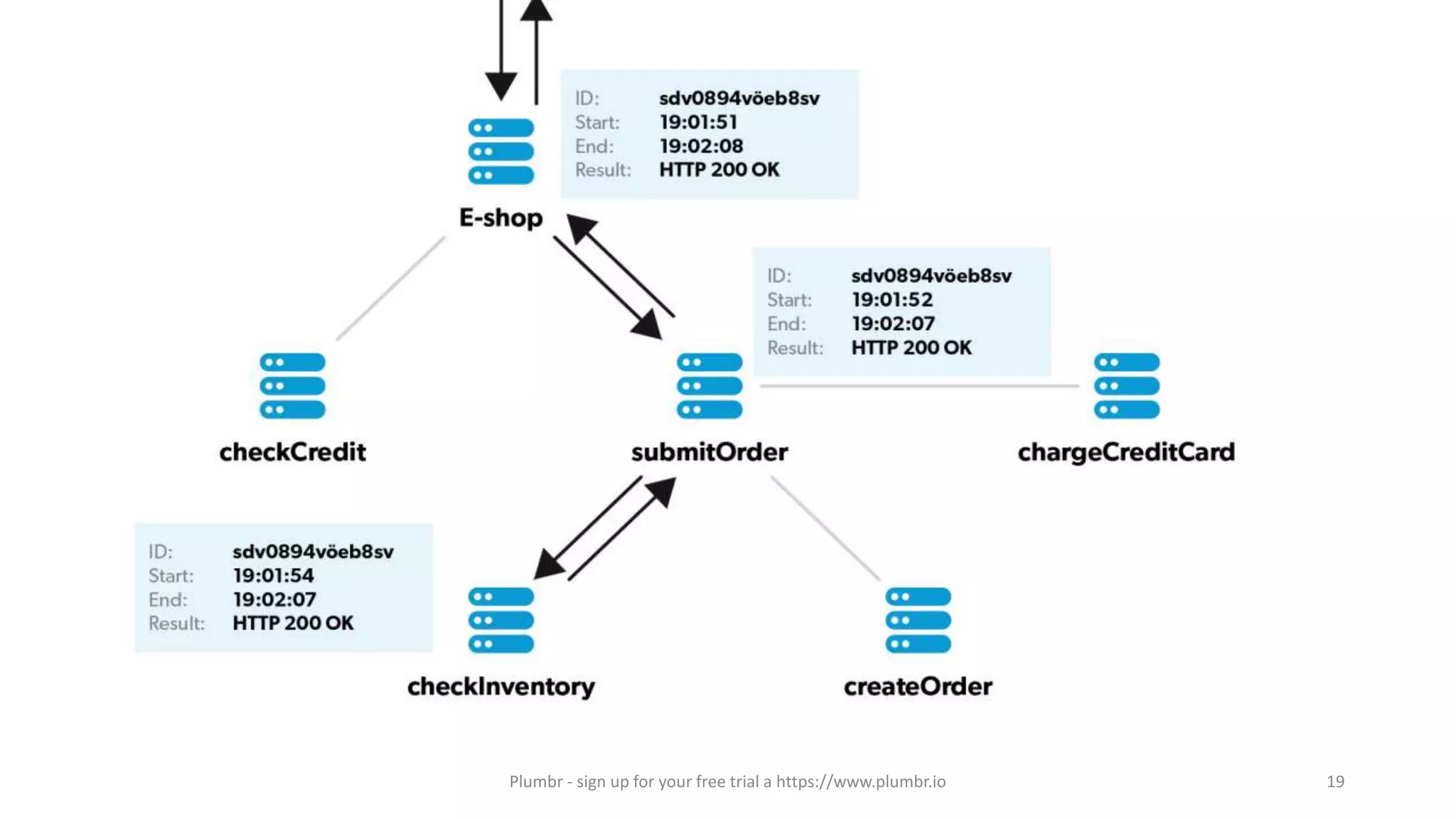

- 19. Plumbr - signup for your free trial a https://www.plumbr.io 19

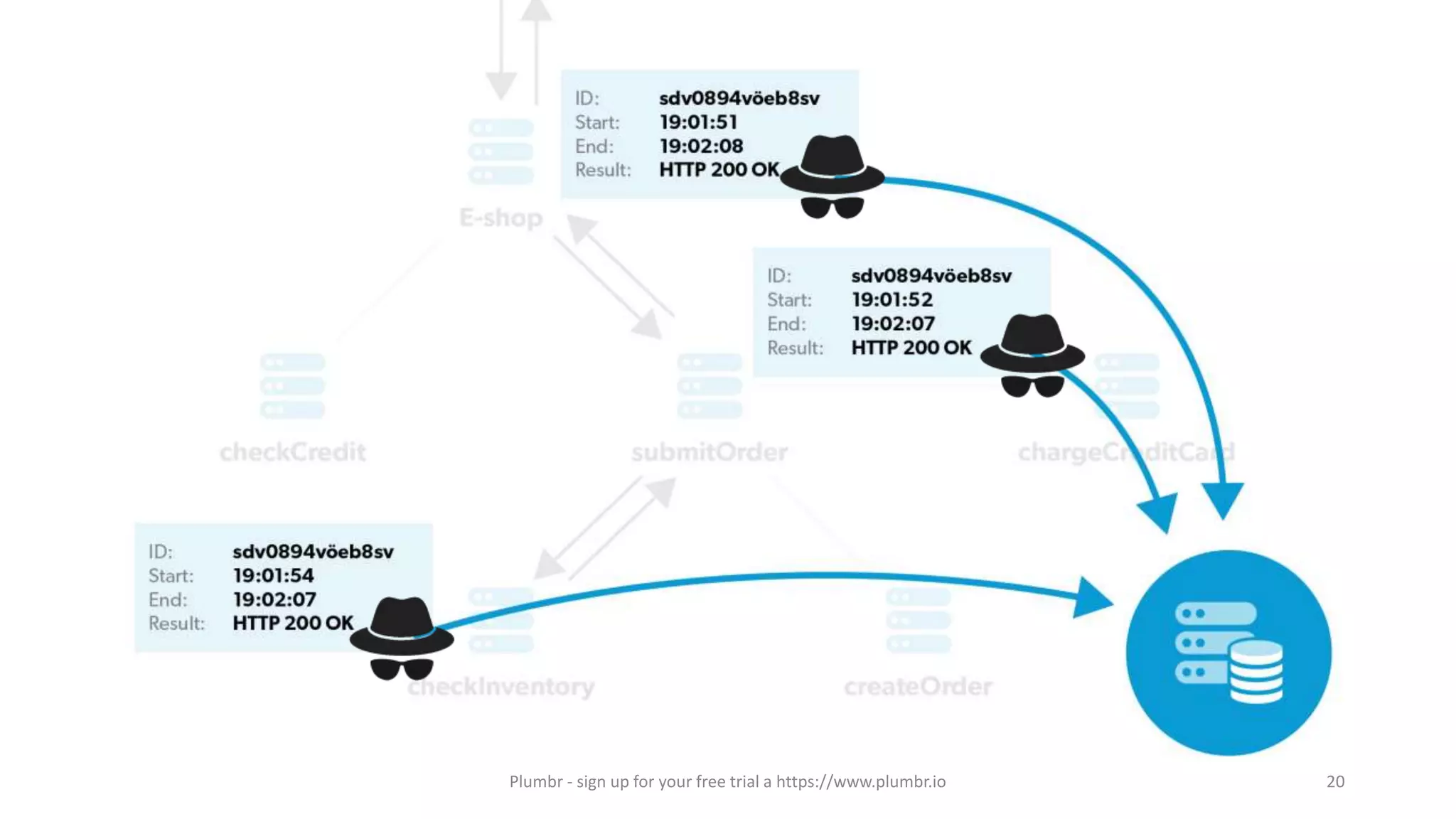

- 20. Plumbr - signup for your free trial a https://www.plumbr.io 20

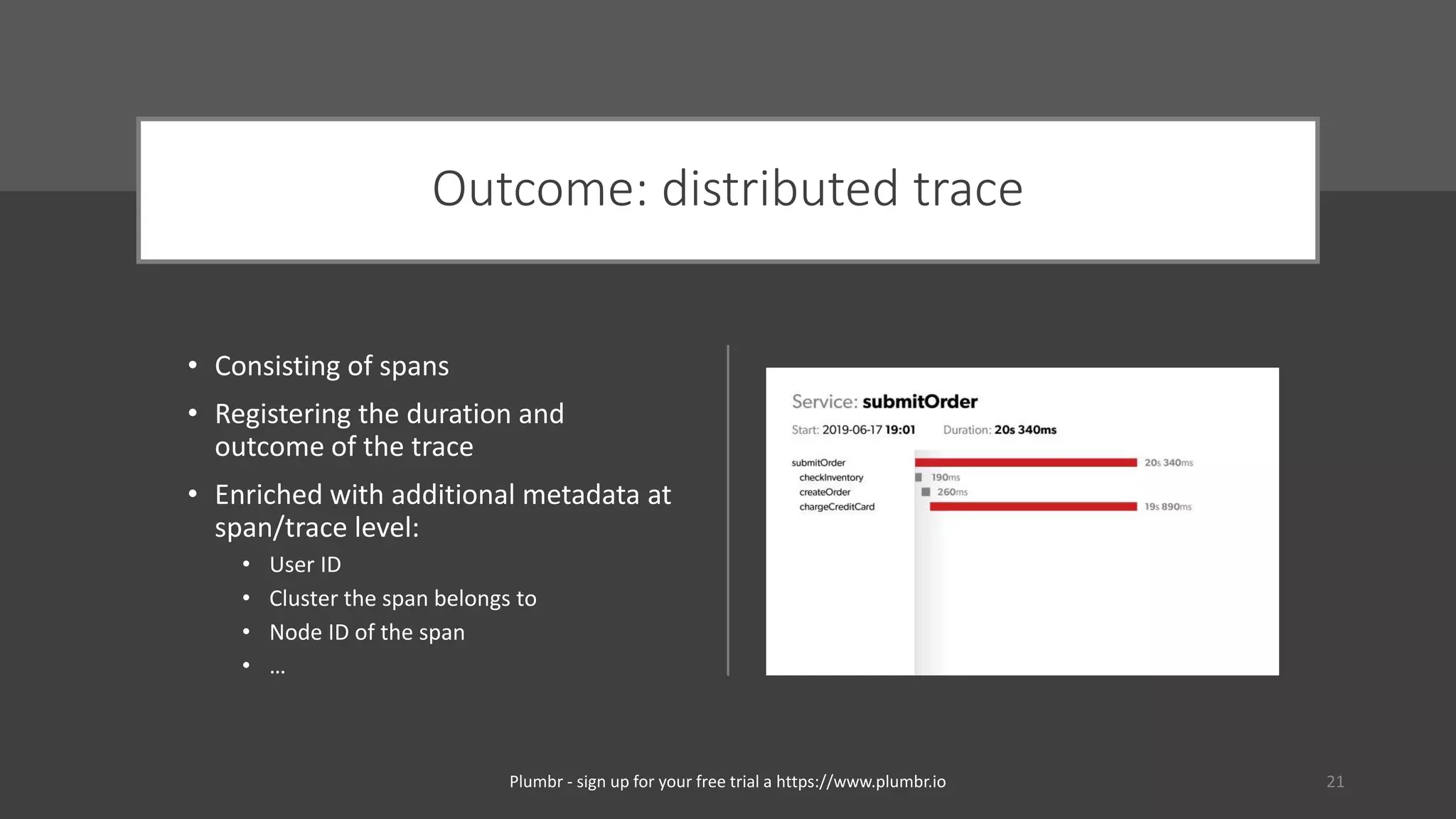

- 21. Outcome: distributed trace •Consisting of spans • Registering the duration and outcome of the trace • Enriched with additional metadata at span/trace level: • User ID • Cluster the span belongs to • Node ID of the span • … 21Plumbr - sign up for your free trial a https://www.plumbr.io

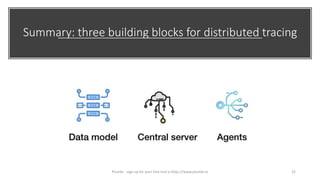

- 22. Summary: three buildingblocks for distributed tracing 22Plumbr - sign up for your free trial a https://www.plumbr.io

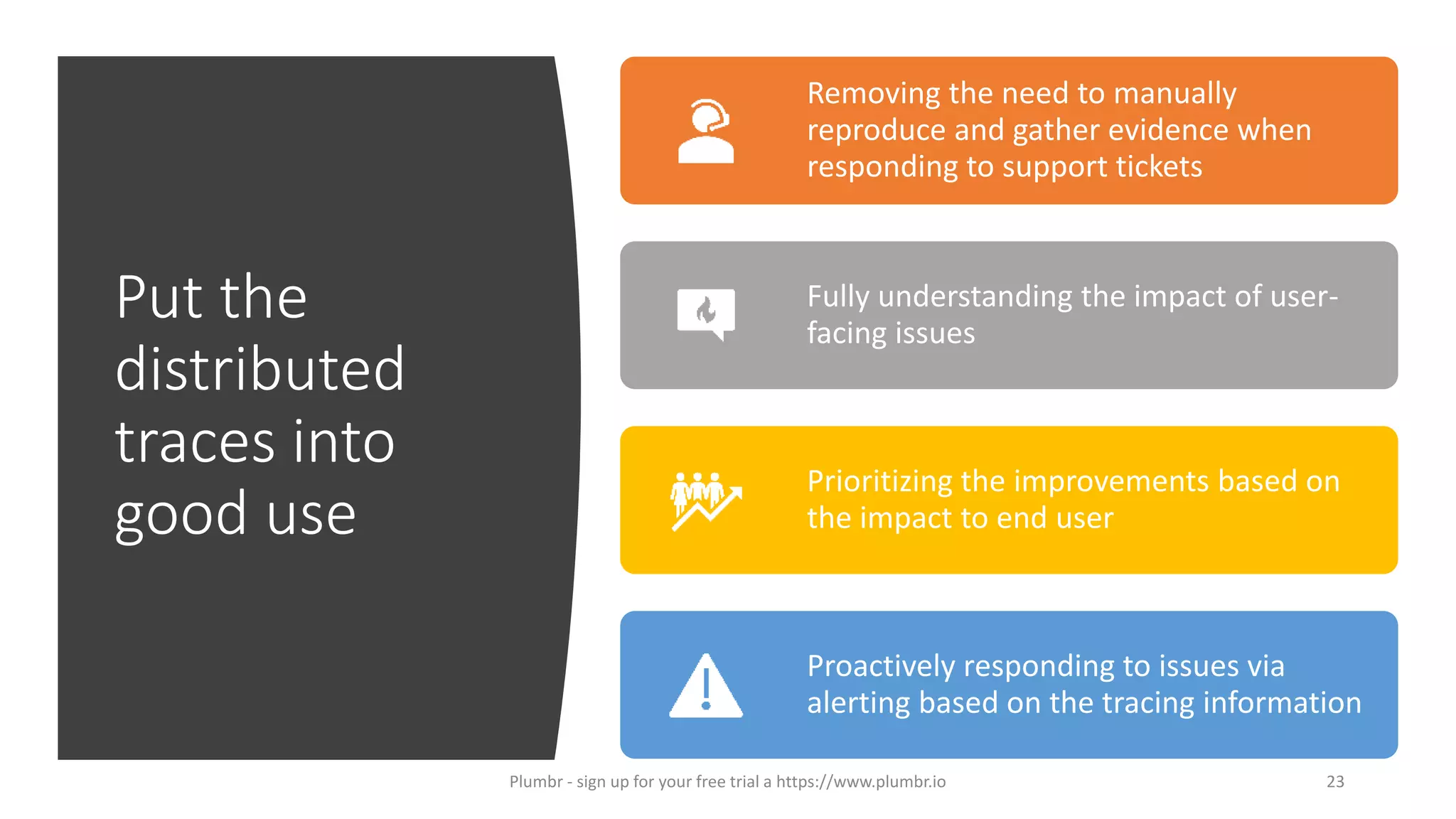

- 23. Put the distributed traces into gooduse Removing the need to manually reproduce and gather evidence when responding to support tickets Fully understanding the impact of user- facing issues Prioritizing the improvements based on the impact to end user Proactively responding to issues via alerting based on the tracing information 23Plumbr - sign up for your free trial a https://www.plumbr.io

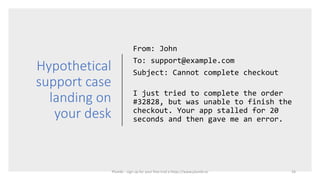

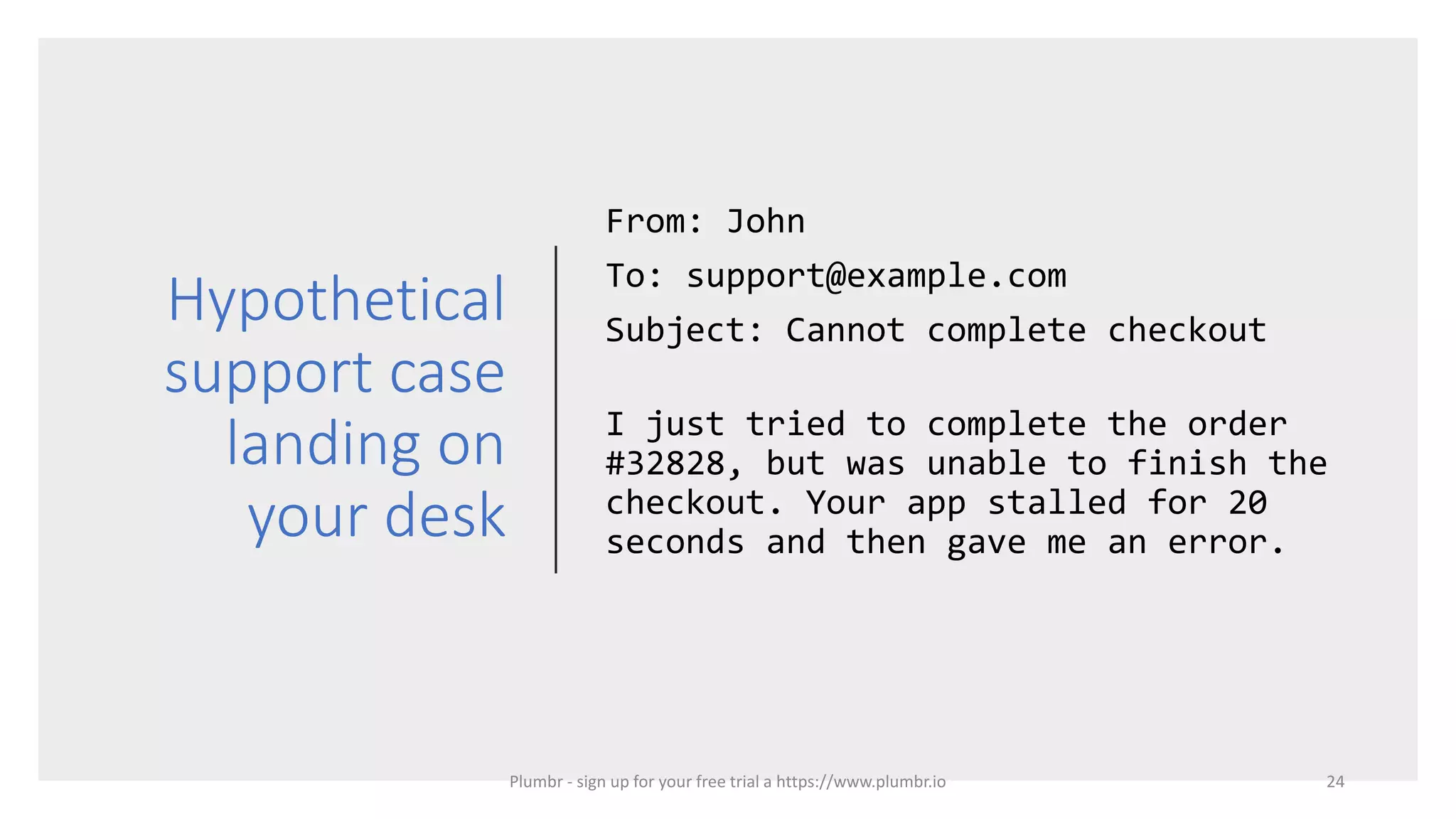

- 24. Hypothetical support case landing on yourdesk From: John To: support@example.com Subject: Cannot complete checkout I just tried to complete the order #32828, but was unable to finish the checkout. Your app stalled for 20 seconds and then gave me an error. 24Plumbr - sign up for your free trial a https://www.plumbr.io

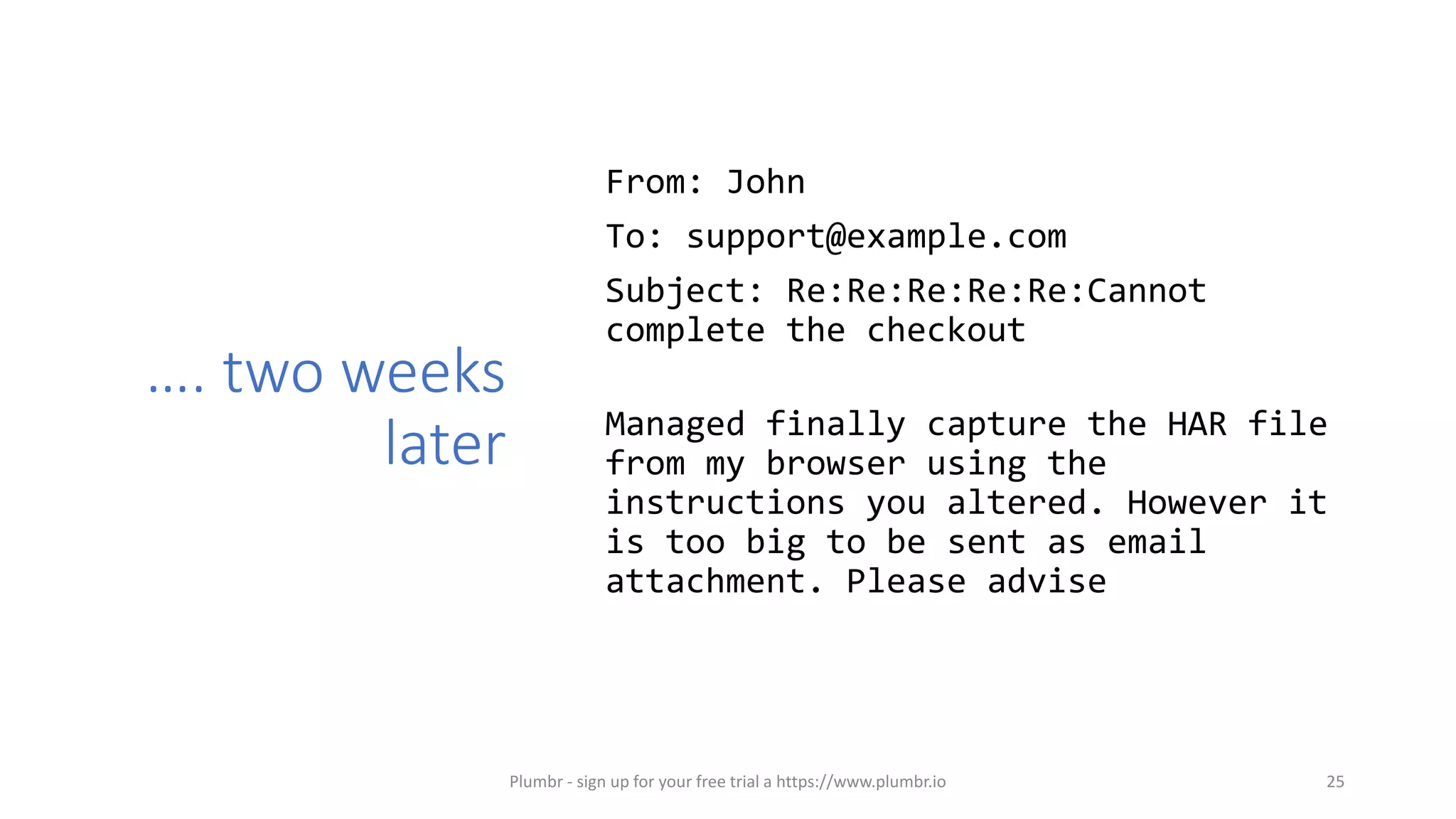

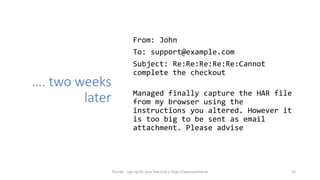

- 25. …. two weeks later From:John To: support@example.com Subject: Re:Re:Re:Re:Re:Cannot complete the checkout Managed finally capture the HAR file from my browser using the instructions you altered. However it is too big to be sent as email attachment. Please advise 25Plumbr - sign up for your free trial a https://www.plumbr.io
- 26. What happened duringthe two weeks? 26Plumbr - sign up for your free trial a https://www.plumbr.io

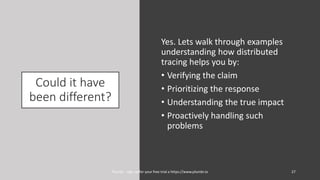

- 27. Could it have beendifferent? Yes. Lets walk through examples understanding how distributed tracing helps you by: • Verifying the claim • Prioritizing the response • Understanding the true impact • Proactively handling such problems 27Plumbr - sign up for your free trial a https://www.plumbr.io

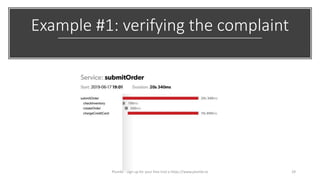

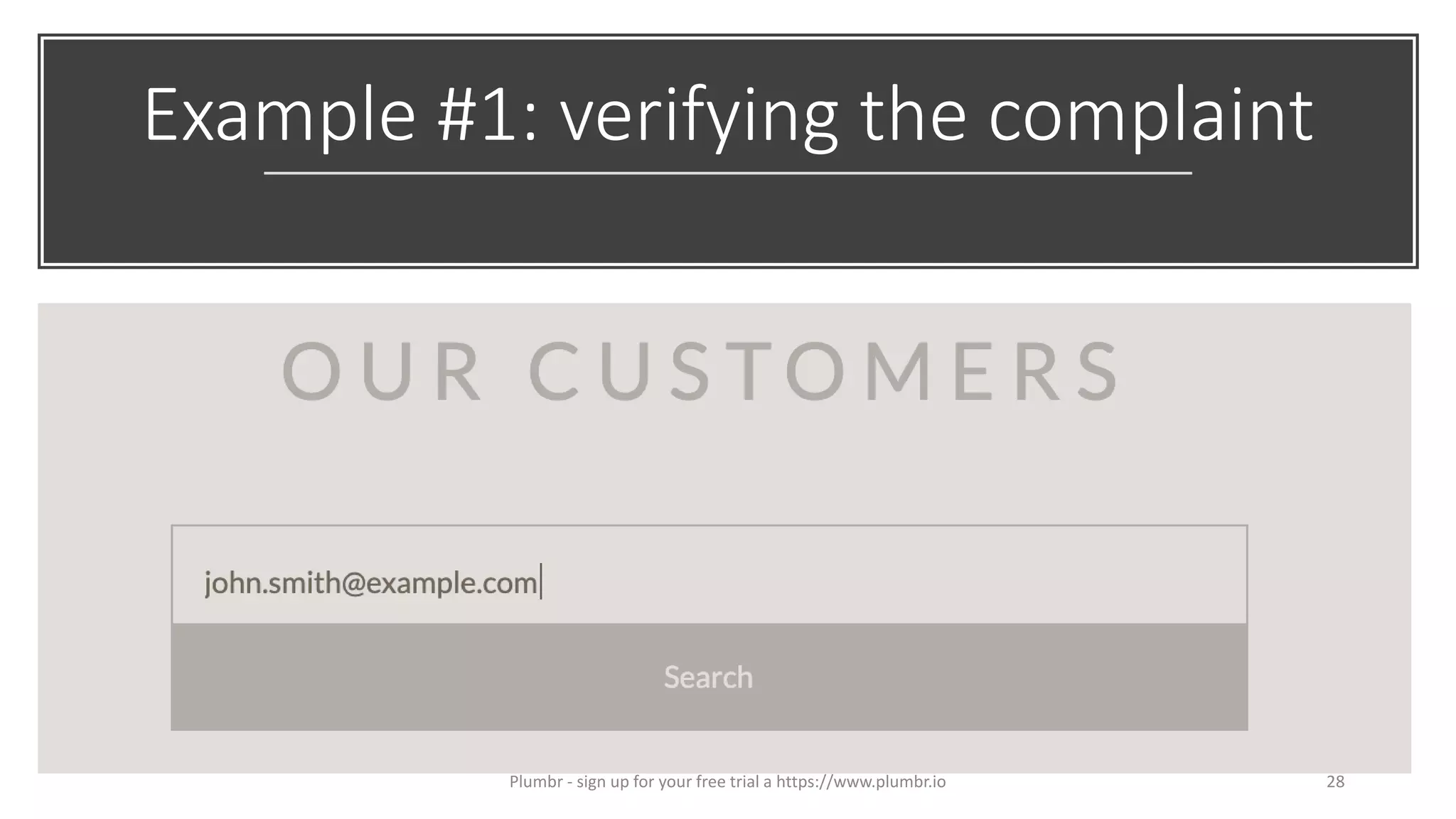

- 28. Example #1: verifyingthe complaint 28Plumbr - sign up for your free trial a https://www.plumbr.io
- 29. Example #1: verifyingthe complaint 29Plumbr - sign up for your free trial a https://www.plumbr.io

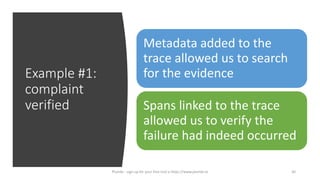

- 30. Example #1: complaint verified Metadata addedto the trace allowed us to search for the evidence Spans linked to the trace allowed us to verify the failure had indeed occurred 30Plumbr - sign up for your free trial a https://www.plumbr.io

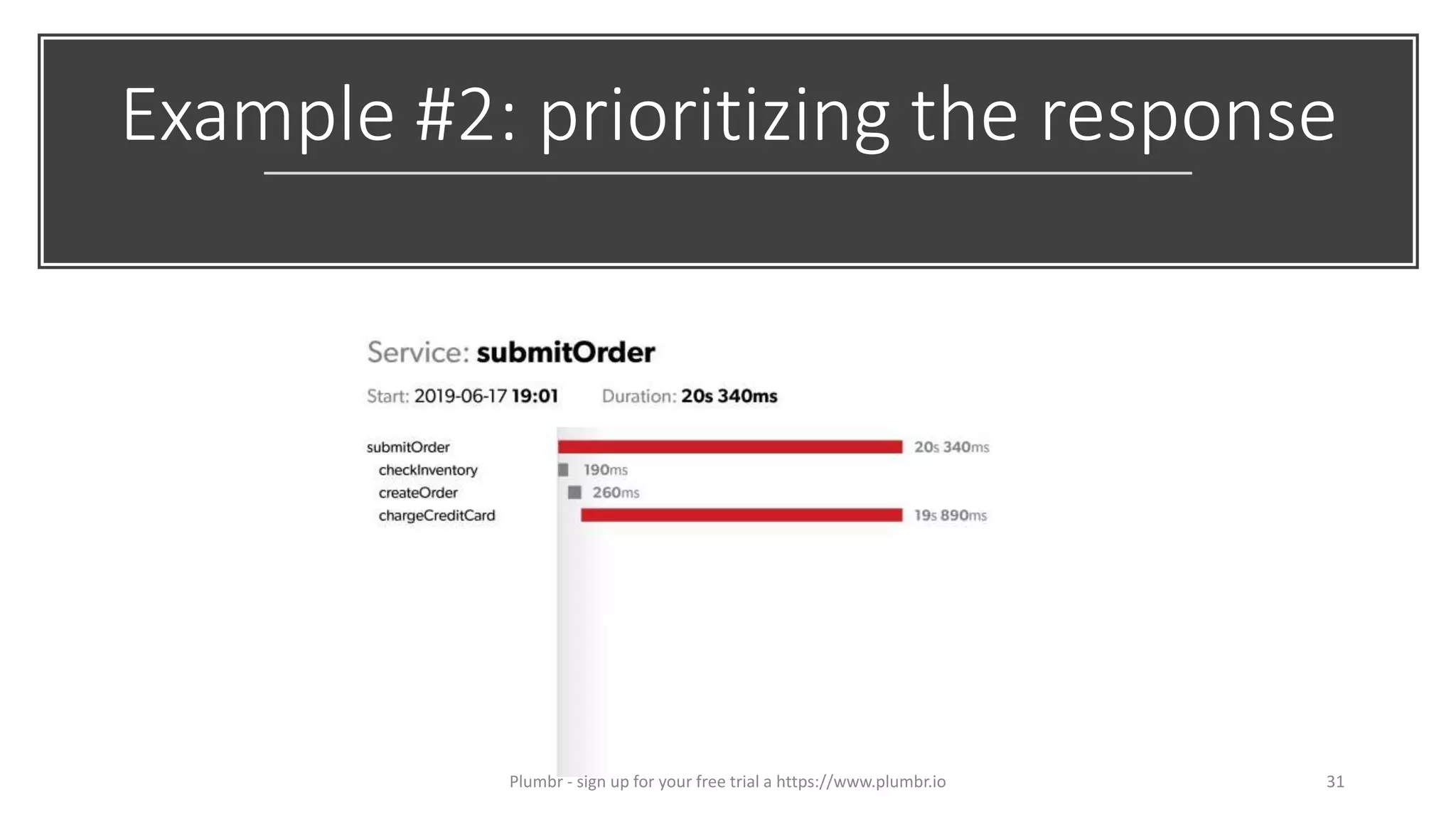

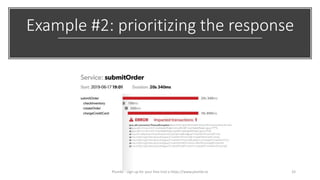

- 31. Example #2: prioritizingthe response 31Plumbr - sign up for your free trial a https://www.plumbr.io
- 32. Example #2: prioritizingthe response 32Plumbr - sign up for your free trial a https://www.plumbr.io

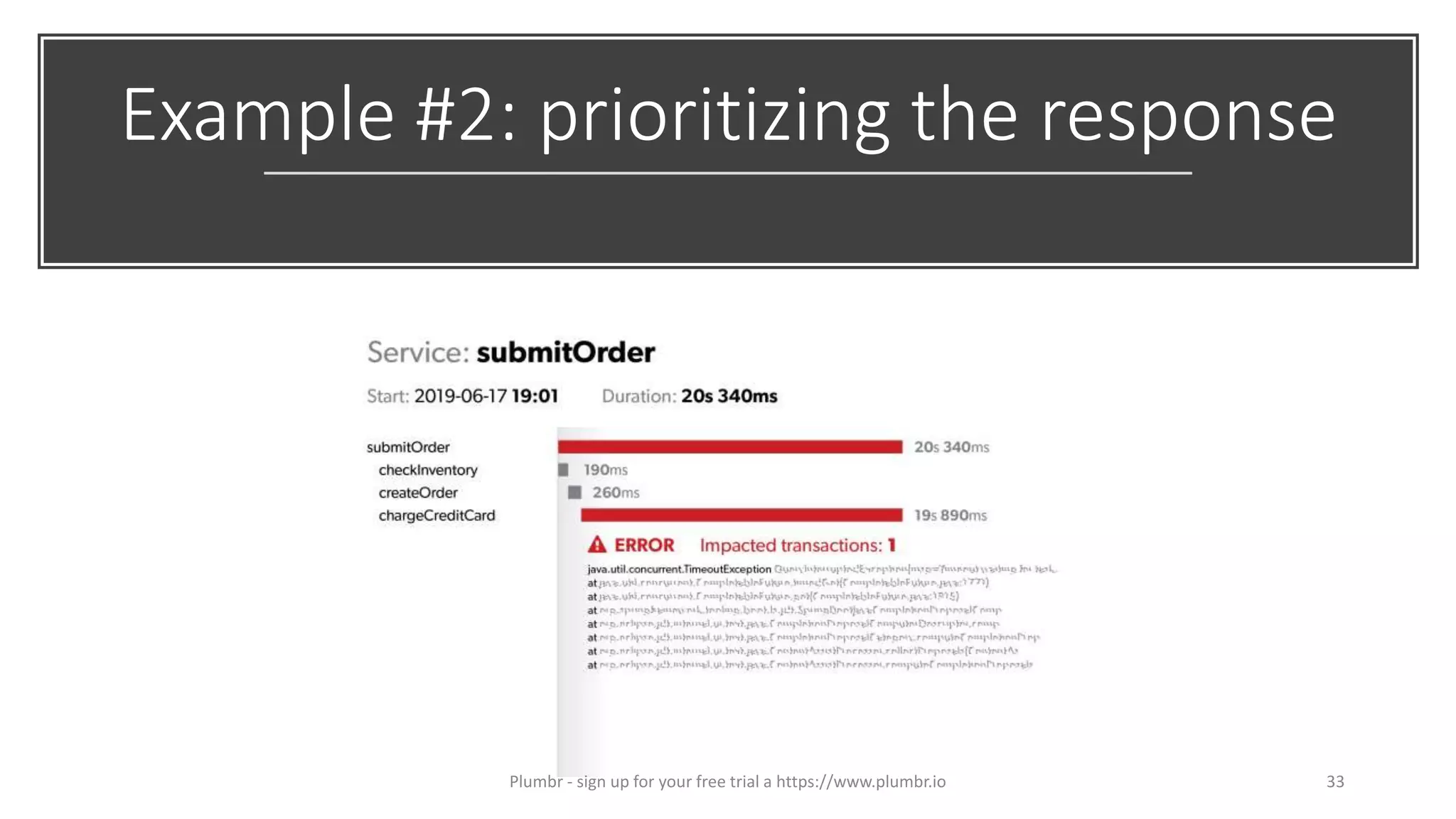

- 33. Example #2: prioritizingthe response 33Plumbr - sign up for your free trial a https://www.plumbr.io

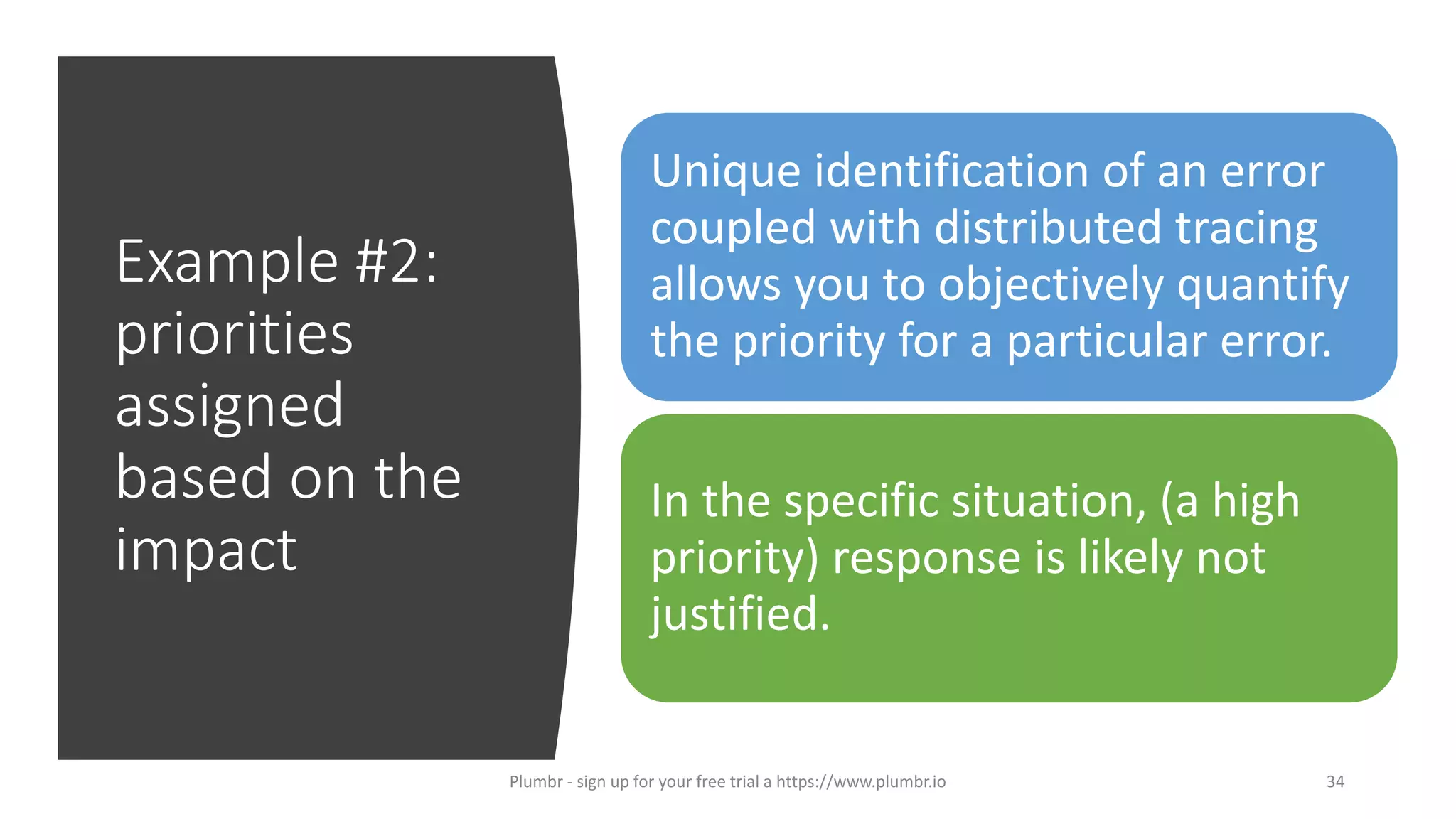

- 34. Example #2: priorities assigned based onthe impact Unique identification of an error coupled with distributed tracing allows you to objectively quantify the priority for a particular error. In the specific situation, (a high priority) response is likely not justified. 34Plumbr - sign up for your free trial a https://www.plumbr.io

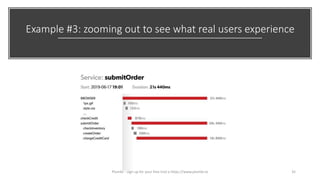

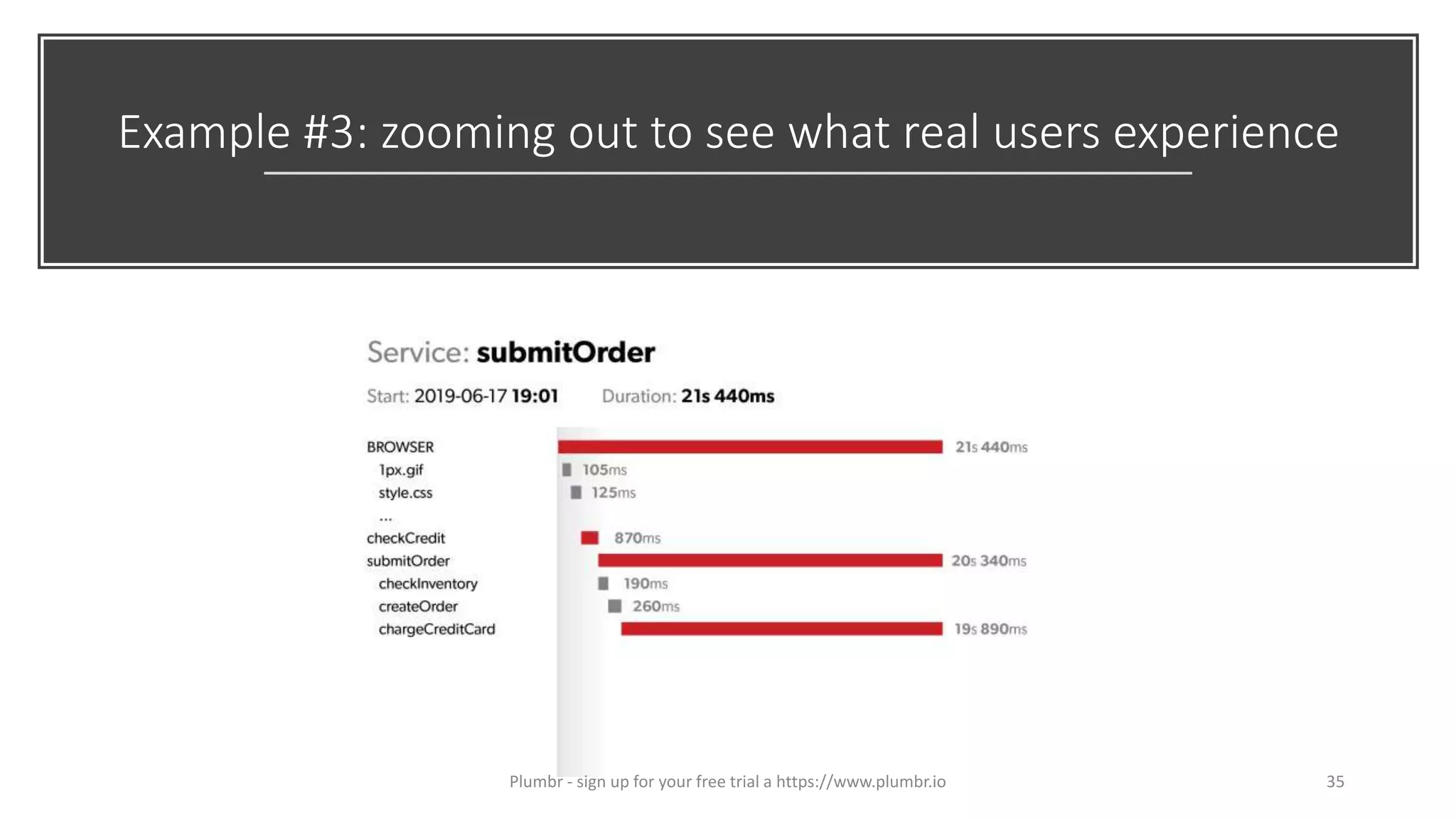

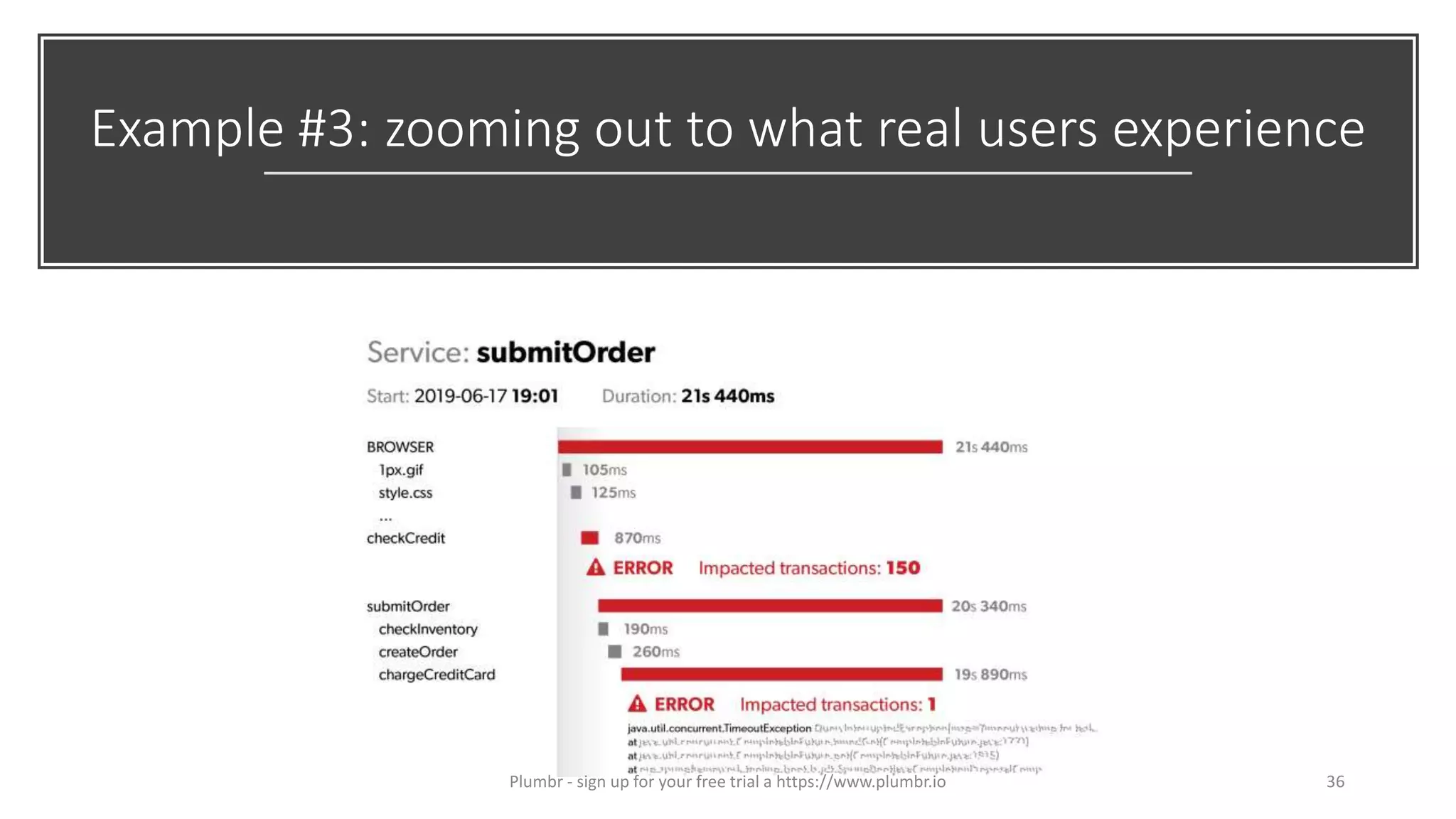

- 35. Example #3: zoomingout to see what real users experience 35Plumbr - sign up for your free trial a https://www.plumbr.io
- 36. Example #3: zoomingout to what real users experience 36Plumbr - sign up for your free trial a https://www.plumbr.io

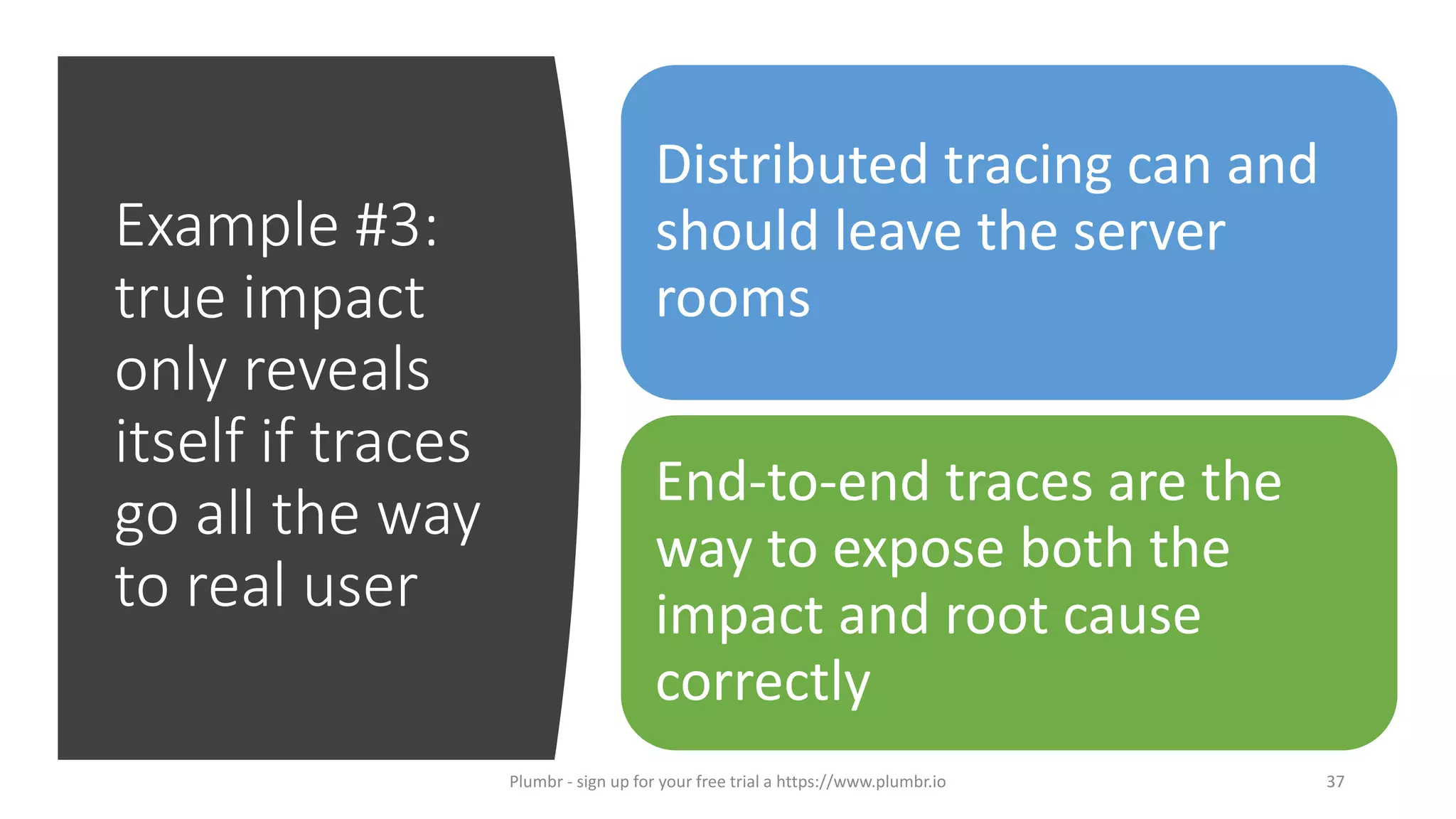

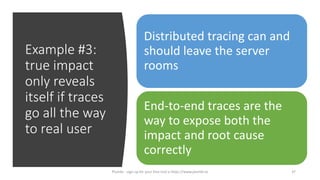

- 37. Example #3: true impact onlyreveals itself if traces go all the way to real user Distributed tracing can and should leave the server rooms End-to-end traces are the way to expose both the impact and root cause correctly 37Plumbr - sign up for your free trial a https://www.plumbr.io

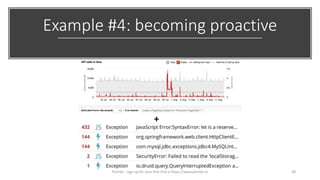

- 38. Example #4: becomingproactive + 38Plumbr - sign up for your free trial a https://www.plumbr.io

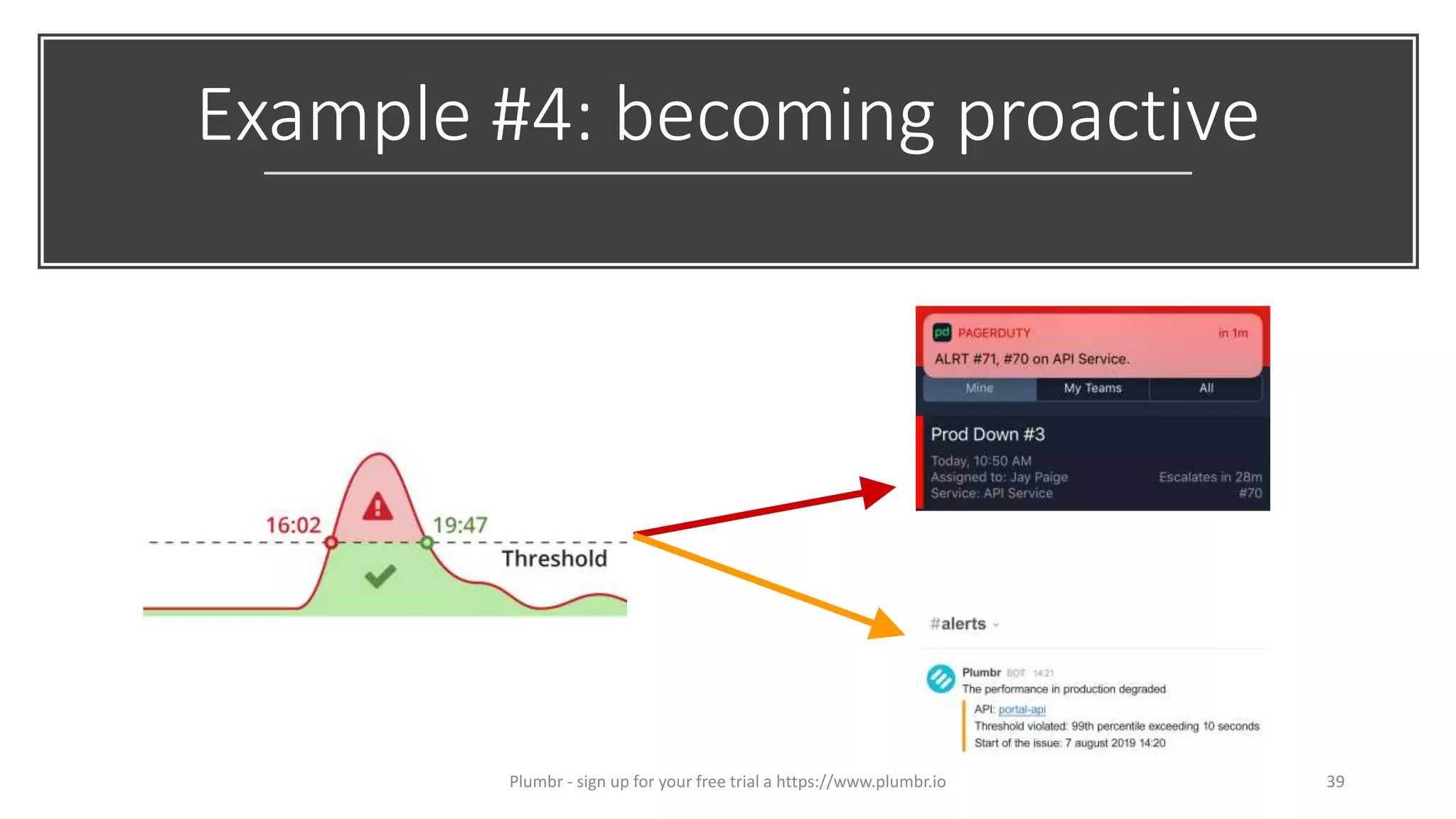

- 39. Example #4: becomingproactive 39Plumbr - sign up for your free trial a https://www.plumbr.io

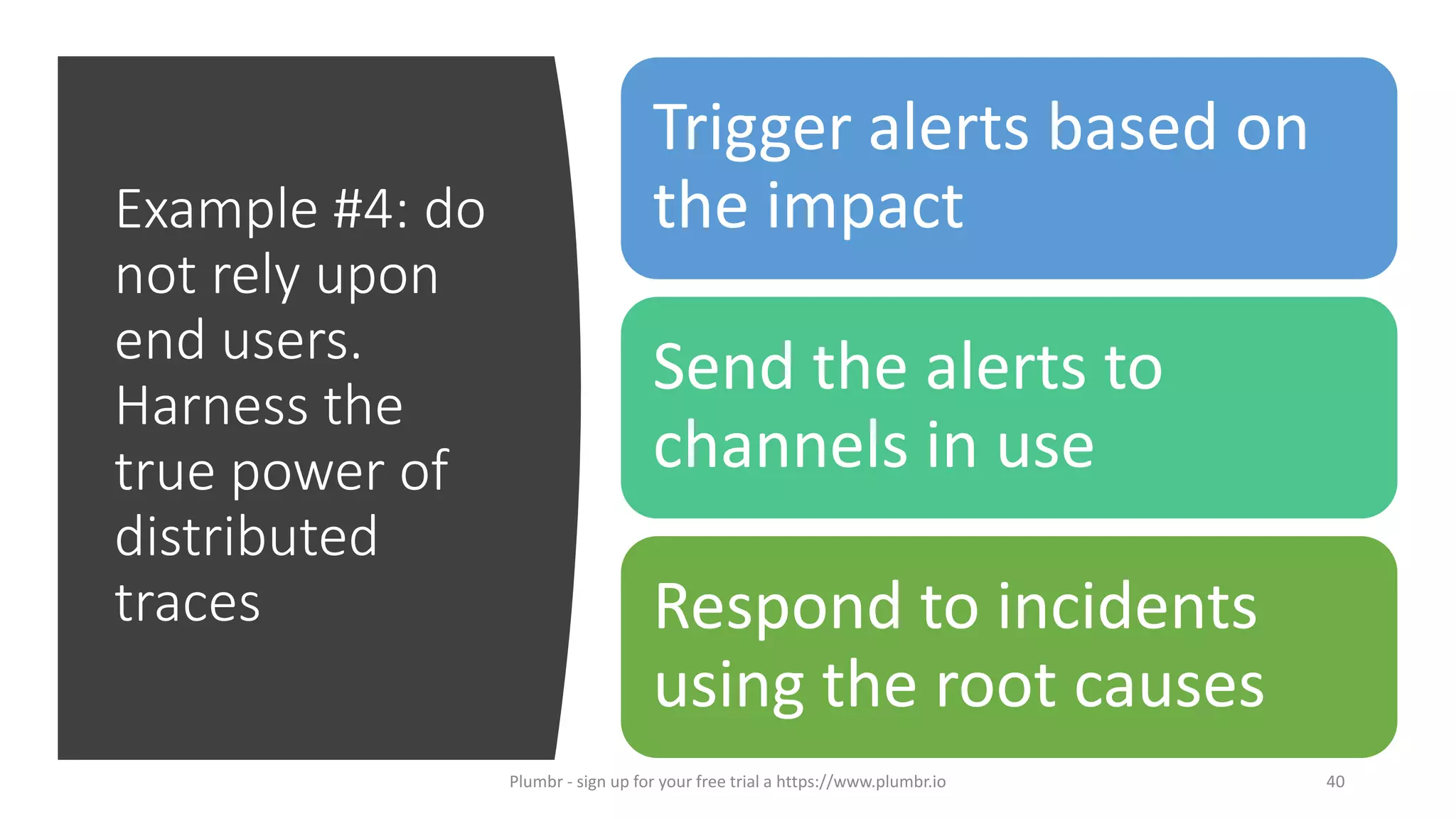

- 40. Example #4: do notrely upon end users. Harness the true power of distributed traces Trigger alerts based on the impact Send the alerts to channels in use Respond to incidents using the root causes 40Plumbr - sign up for your free trial a https://www.plumbr.io
- 41. Adopting distributed tracing: differentsolutions available 41Plumbr - sign up for your free trial a https://www.plumbr.io

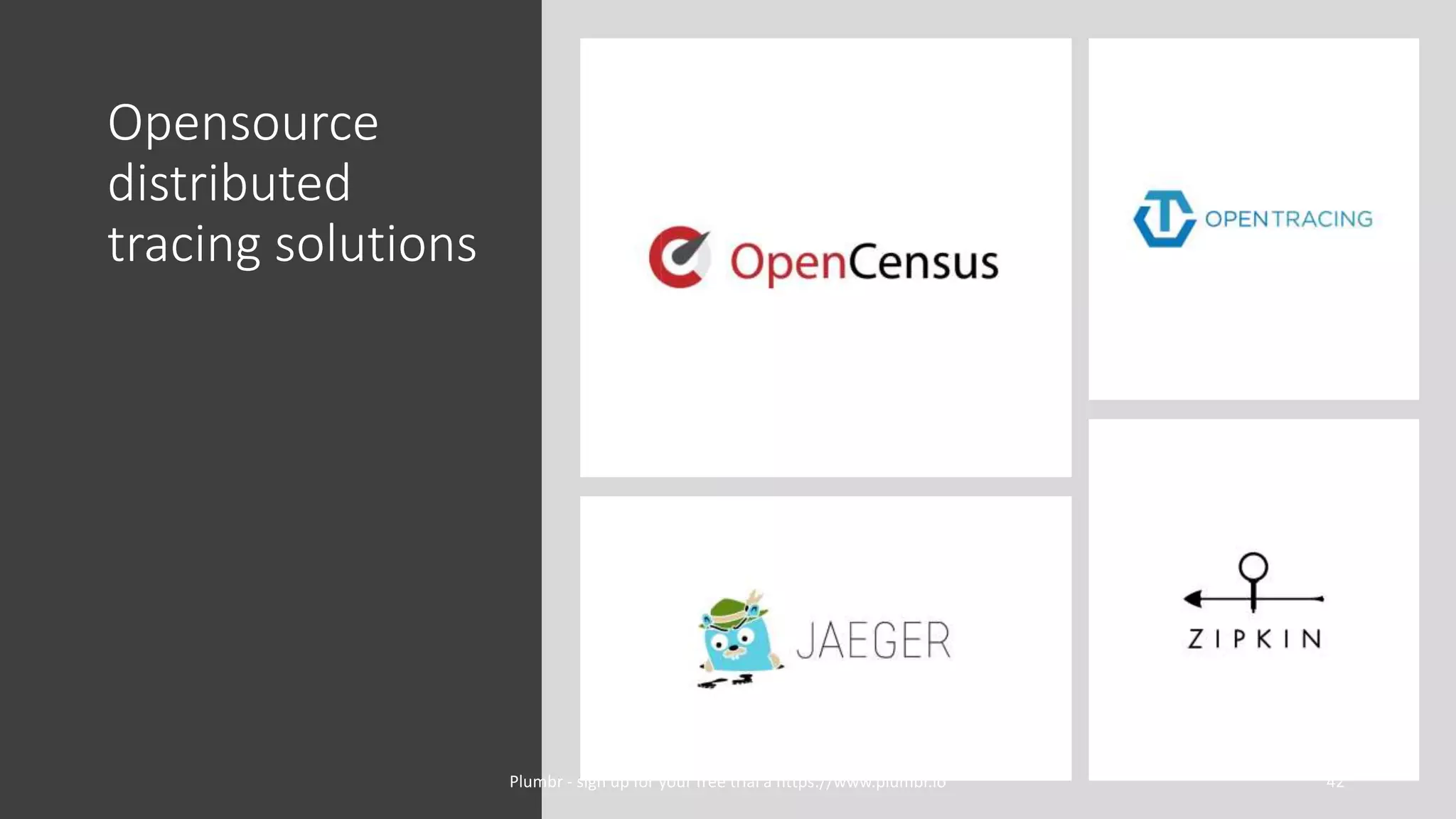

- 42. Opensource distributed tracing solutions 42Plumbr -sign up for your free trial a https://www.plumbr.io

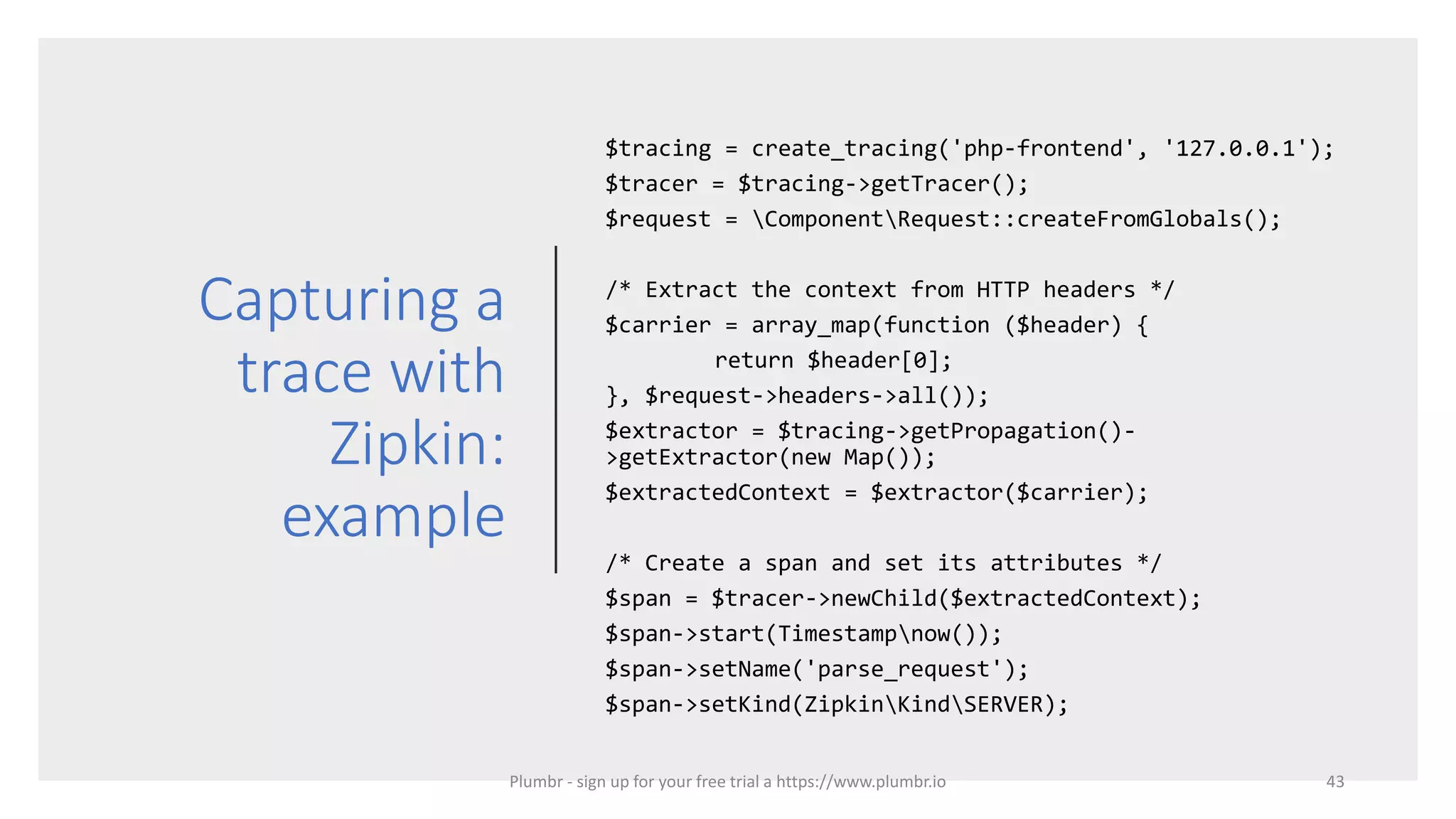

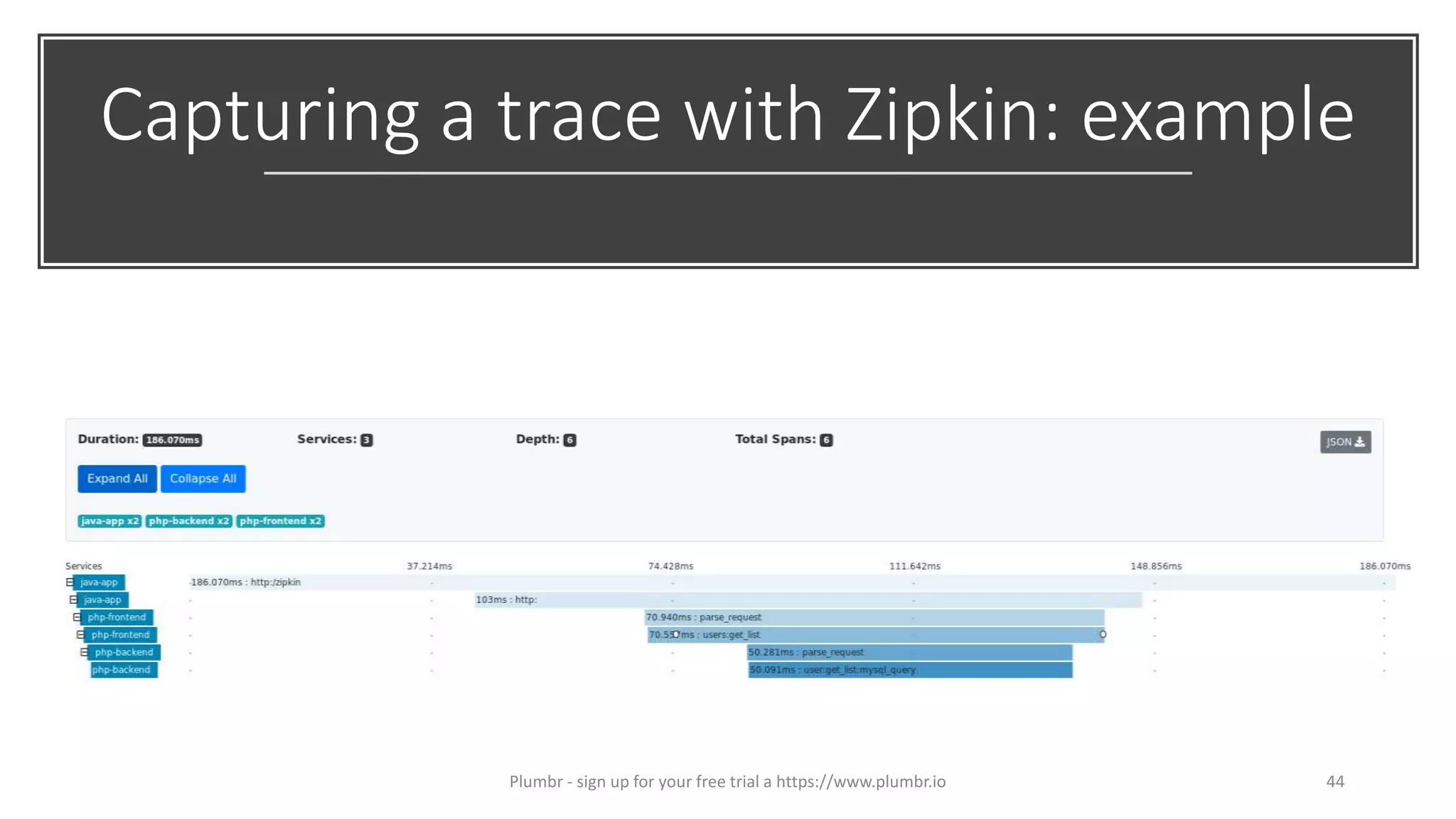

- 43. Capturing a trace with Zipkin: example $tracing= create_tracing('php-frontend', '127.0.0.1'); $tracer = $tracing->getTracer(); $request = ComponentRequest::createFromGlobals(); /* Extract the context from HTTP headers */ $carrier = array_map(function ($header) { return $header[0]; }, $request->headers->all()); $extractor = $tracing->getPropagation()- >getExtractor(new Map()); $extractedContext = $extractor($carrier); /* Create a span and set its attributes */ $span = $tracer->newChild($extractedContext); $span->start(Timestampnow()); $span->setName('parse_request'); $span->setKind(ZipkinKindSERVER); 43Plumbr - sign up for your free trial a https://www.plumbr.io
- 44. Capturing a tracewith Zipkin: example 44Plumbr - sign up for your free trial a https://www.plumbr.io

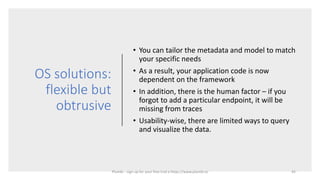

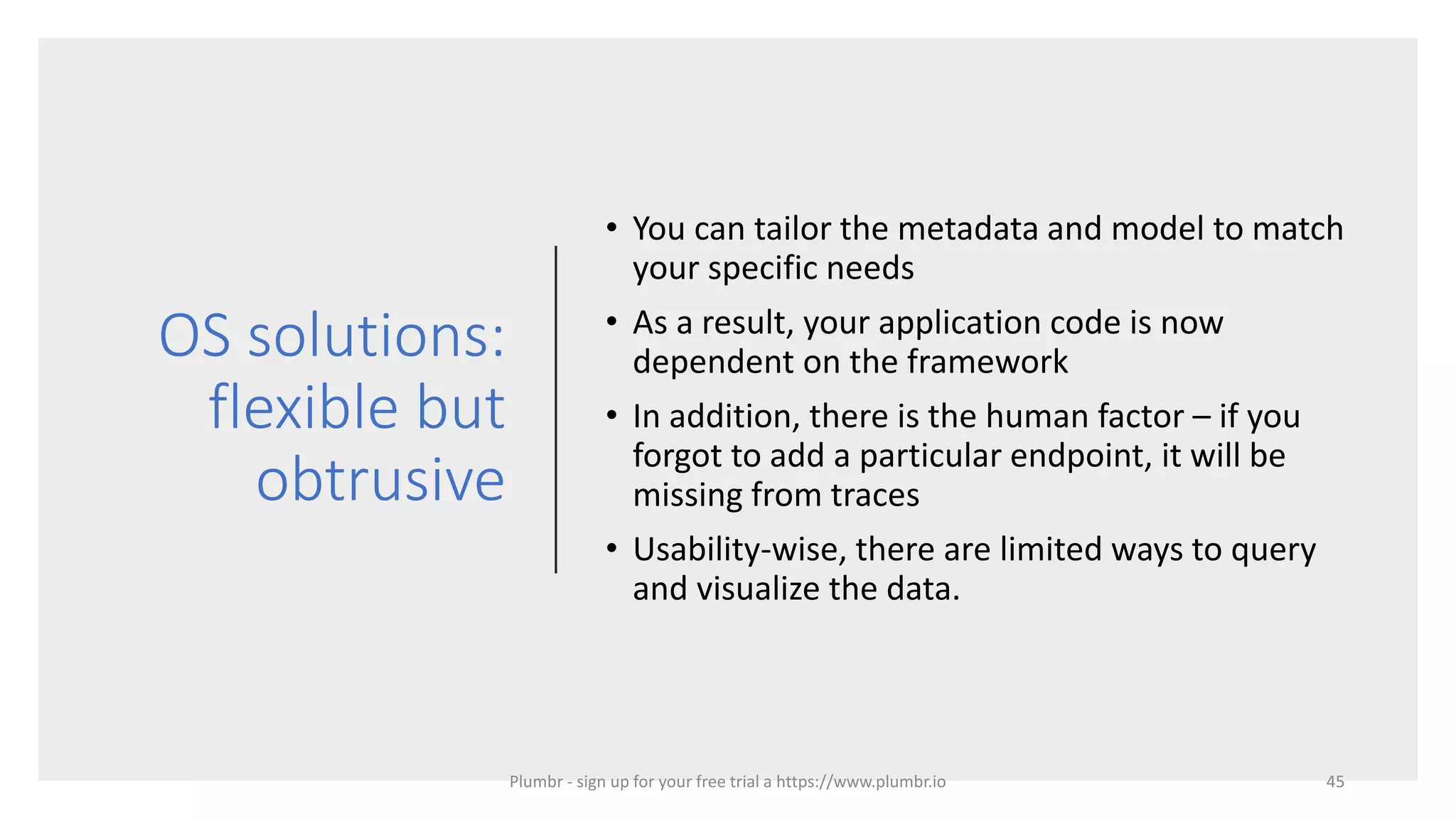

- 45. OS solutions: flexible but obtrusive •You can tailor the metadata and model to match your specific needs • As a result, your application code is now dependent on the framework • In addition, there is the human factor – if you forgot to add a particular endpoint, it will be missing from traces • Usability-wise, there are limited ways to query and visualize the data. 45Plumbr - sign up for your free trial a https://www.plumbr.io
- 46. Commercial distributed tracingsolutions 46Plumbr - sign up for your free trial a https://www.plumbr.io

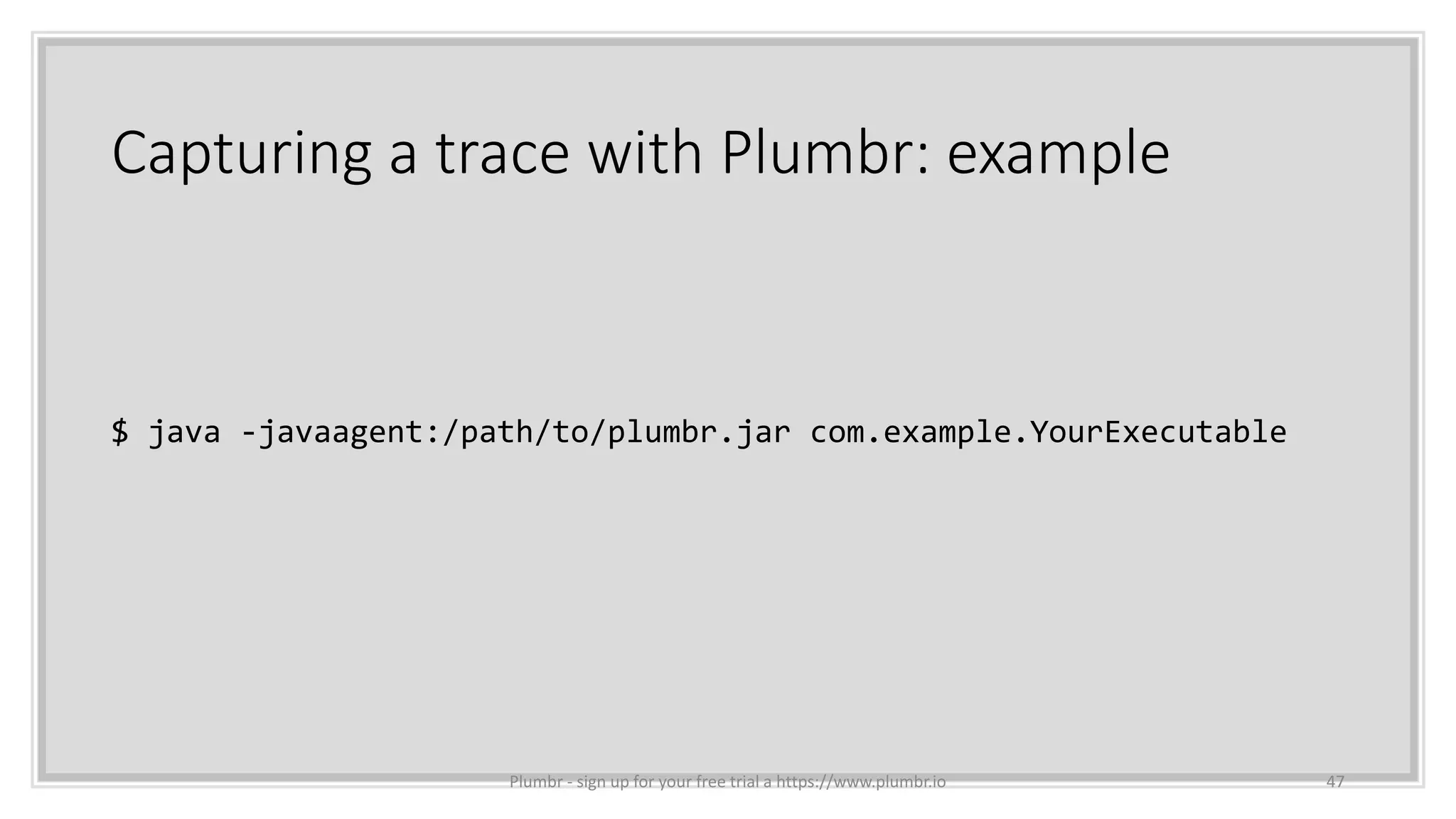

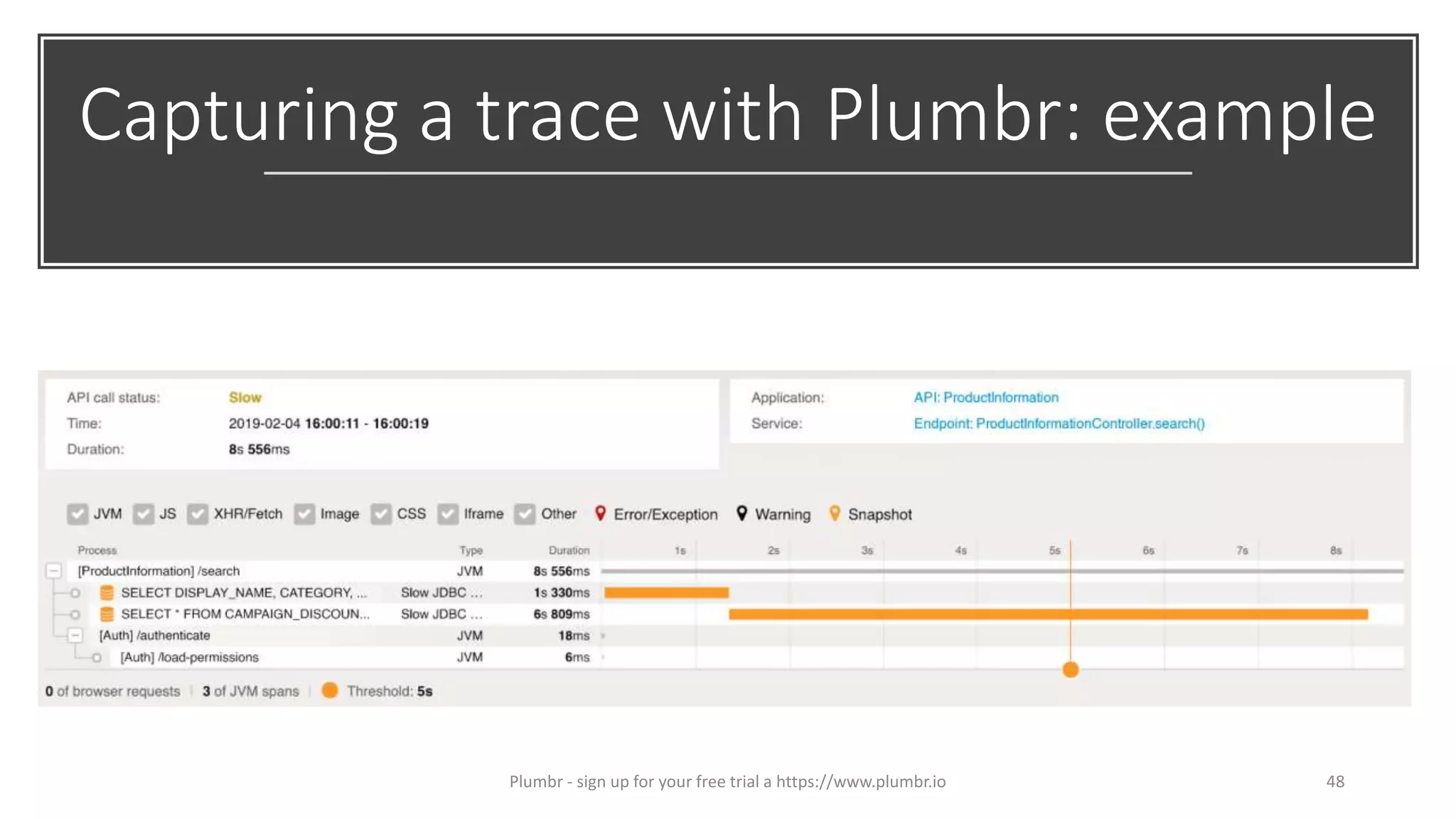

- 47. Capturing a tracewith Plumbr: example $ java -javaagent:/path/to/plumbr.jar com.example.YourExecutable 47Plumbr - sign up for your free trial a https://www.plumbr.io
- 48. Capturing a tracewith Plumbr: example 48Plumbr - sign up for your free trial a https://www.plumbr.io

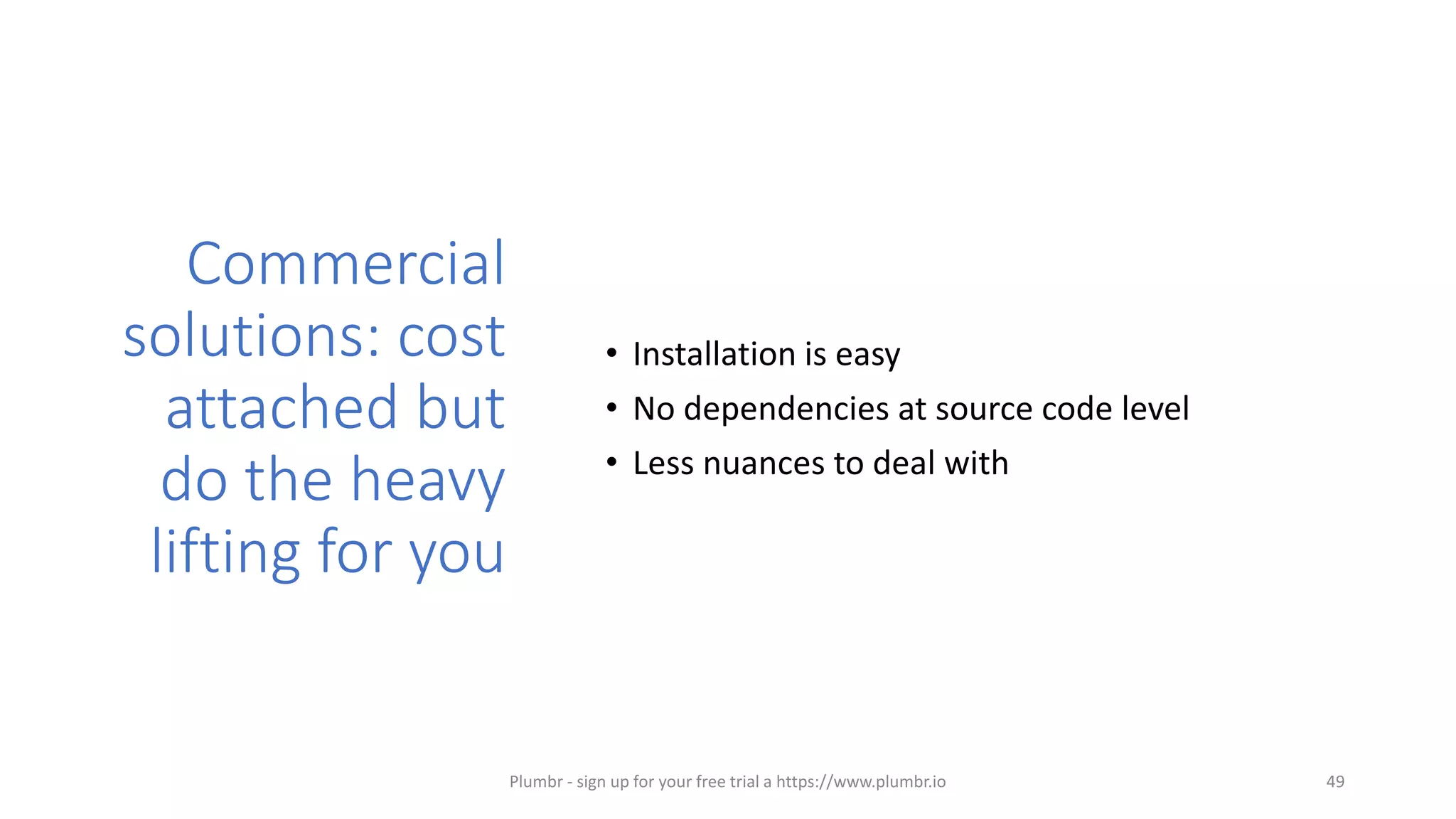

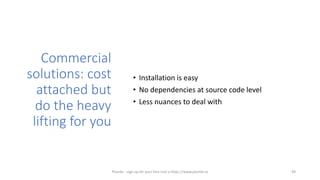

- 49. Commercial solutions: cost attached but dothe heavy lifting for you • Installation is easy • No dependencies at source code level • Less nuances to deal with 49Plumbr - sign up for your free trial a https://www.plumbr.io
- 50. Tying it together You nowunderstand how distributed tracing works You got a sneak peek into how different OS and commercial vendors can help you to capture the distributed traces You are equipped with examples how hard questions can be coupled with simple answers thanks to the distributed tracing helping you 50Plumbr - sign up for your free trial a https://www.plumbr.io

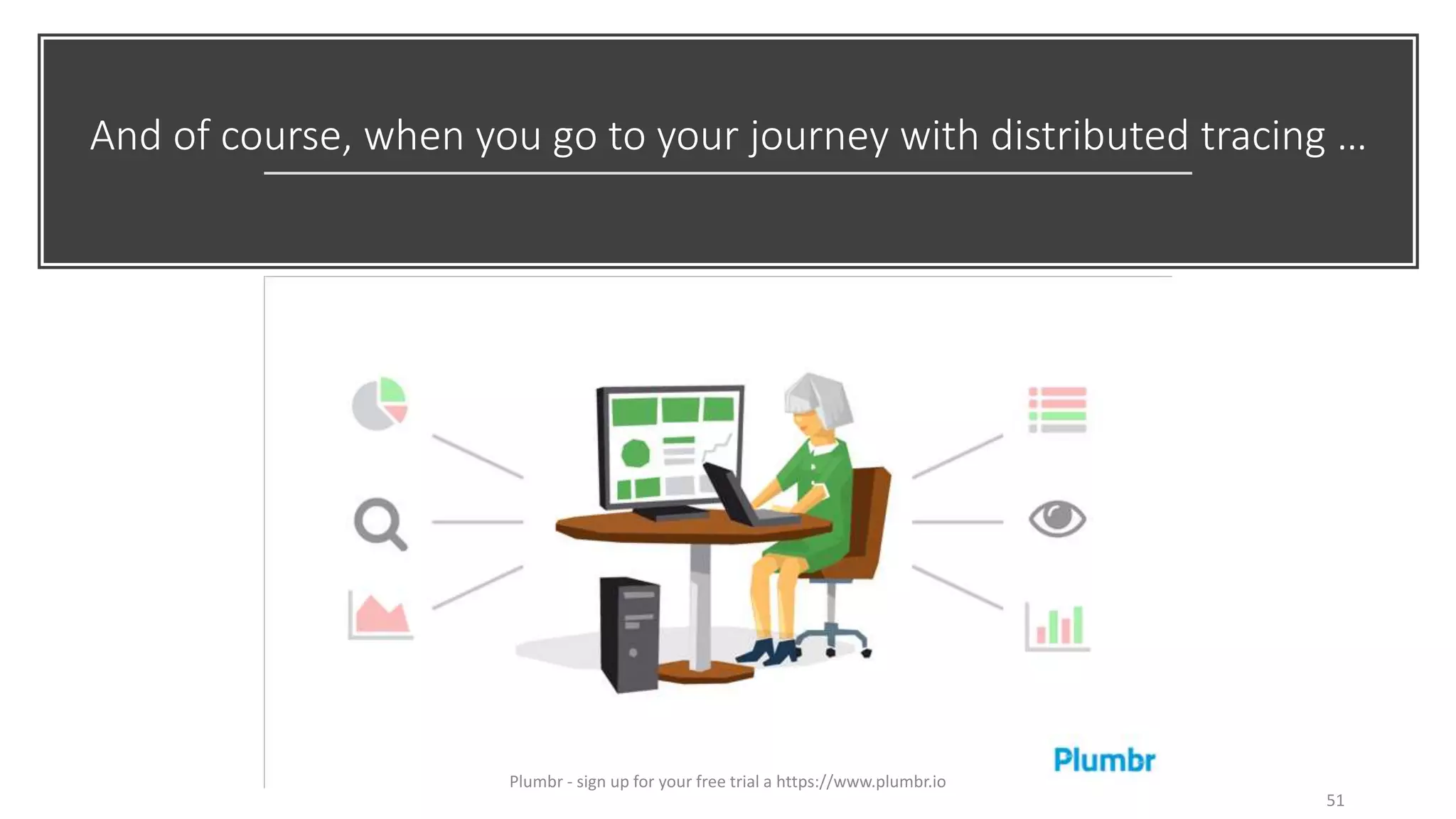

- 51. And of course,when you go to your journey with distributed tracing … 51 Plumbr - sign up for your free trial a https://www.plumbr.io

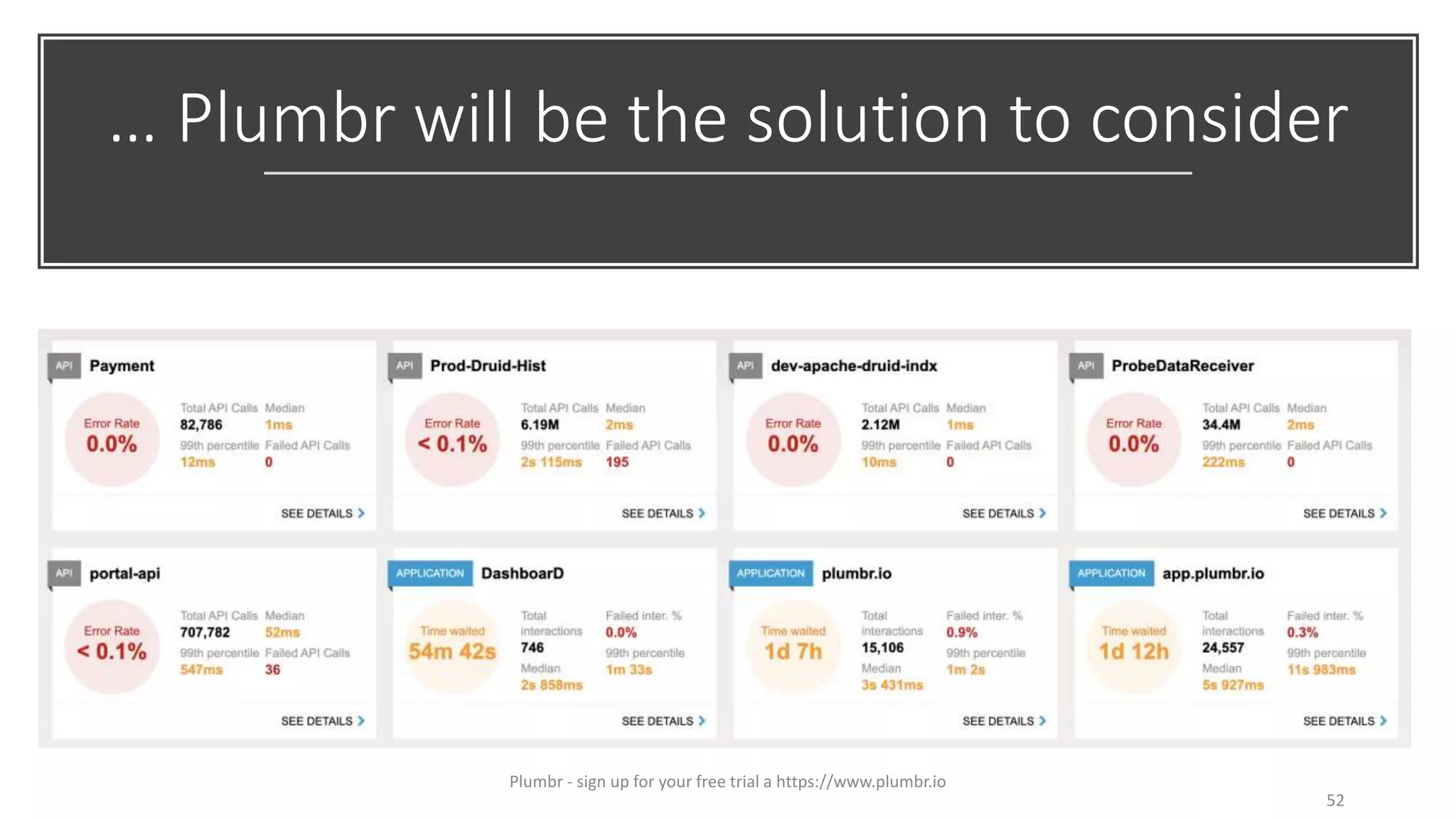

- 52. … Plumbr willbe the solution to consider 52 Plumbr - sign up for your free trial a https://www.plumbr.io

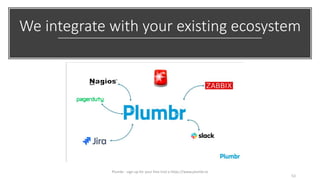

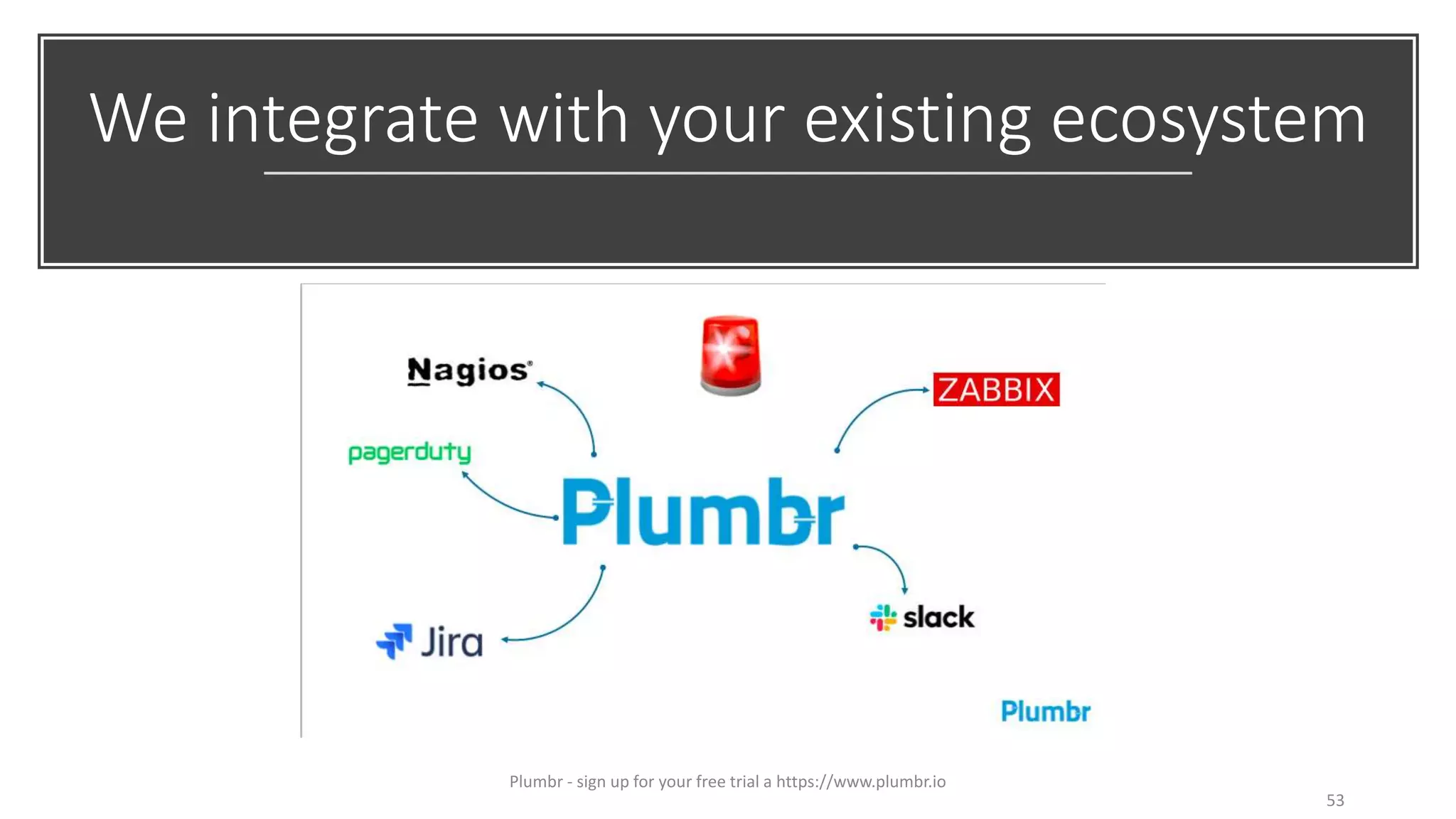

- 53. We integrate withyour existing ecosystem 53 Plumbr - sign up for your free trial a https://www.plumbr.io

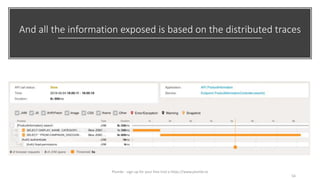

- 54. And all theinformation exposed is based on the distributed traces 54 Plumbr - sign up for your free trial a https://www.plumbr.io

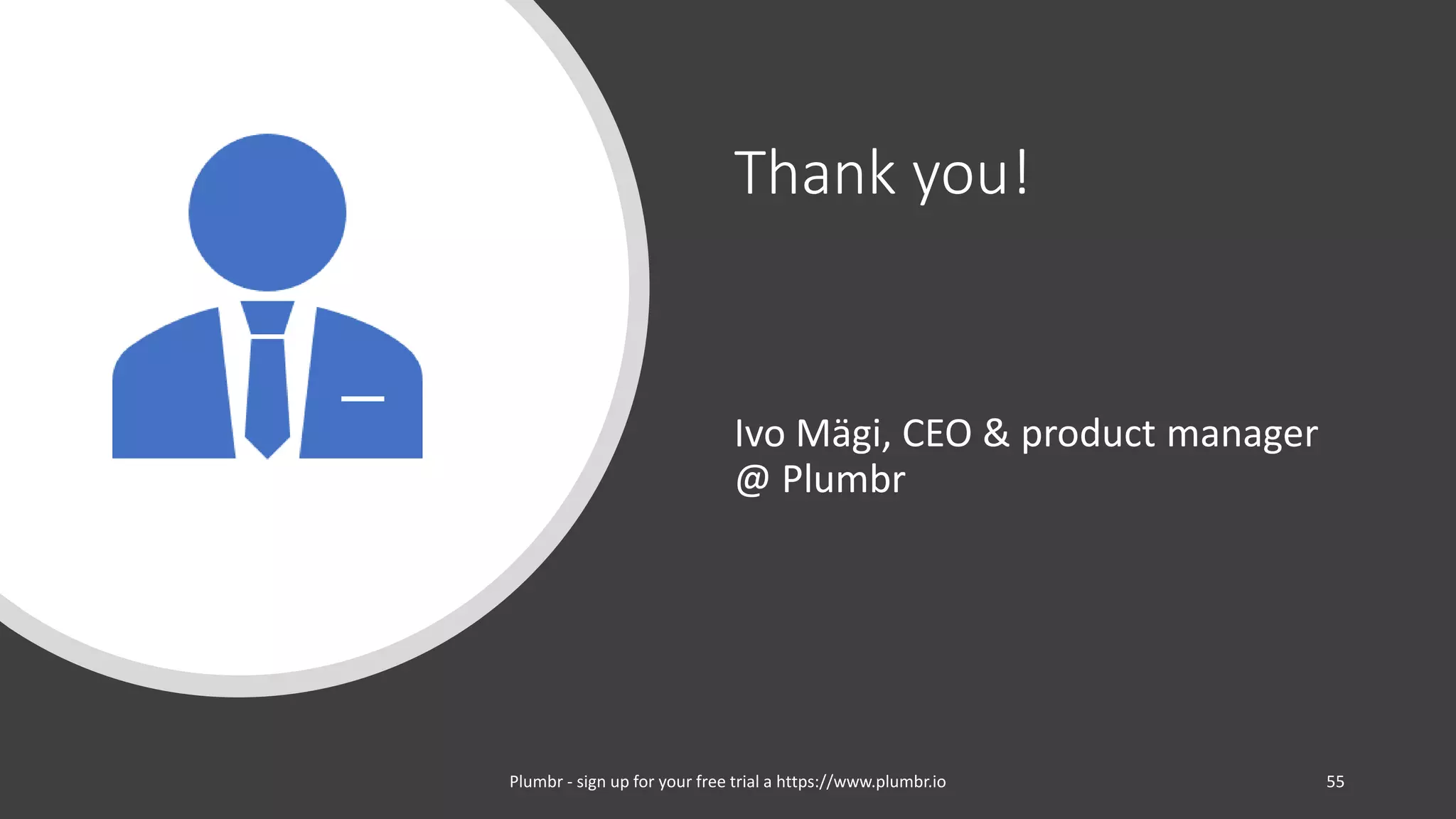

- 55. Thank you! Ivo Mägi,CEO & product manager @ Plumbr 55Plumbr - sign up for your free trial a https://www.plumbr.io
