  Hands-On Hadoop TutorialChris Sosa Wolfgang Richter May 23, 2008
• 2.

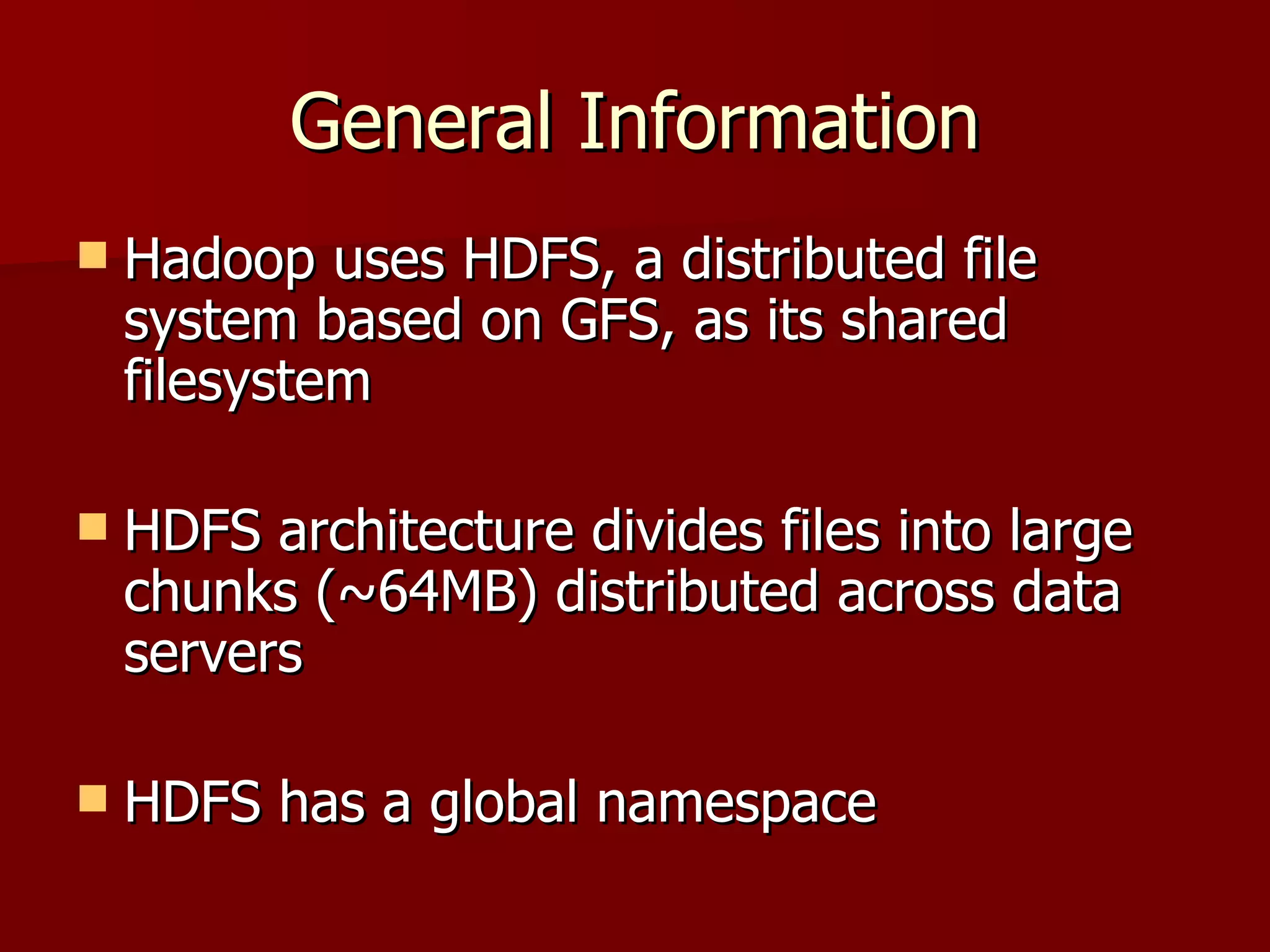

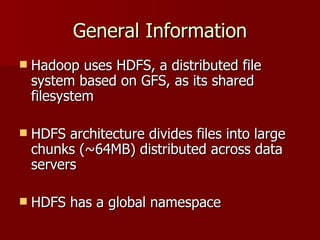

  General Information Hadoopuses HDFS, a distributed file system based on GFS, as its shared filesystem HDFS architecture divides files into large chunks (~64MB) distributed across data servers HDFS has a global namespace
• 3.

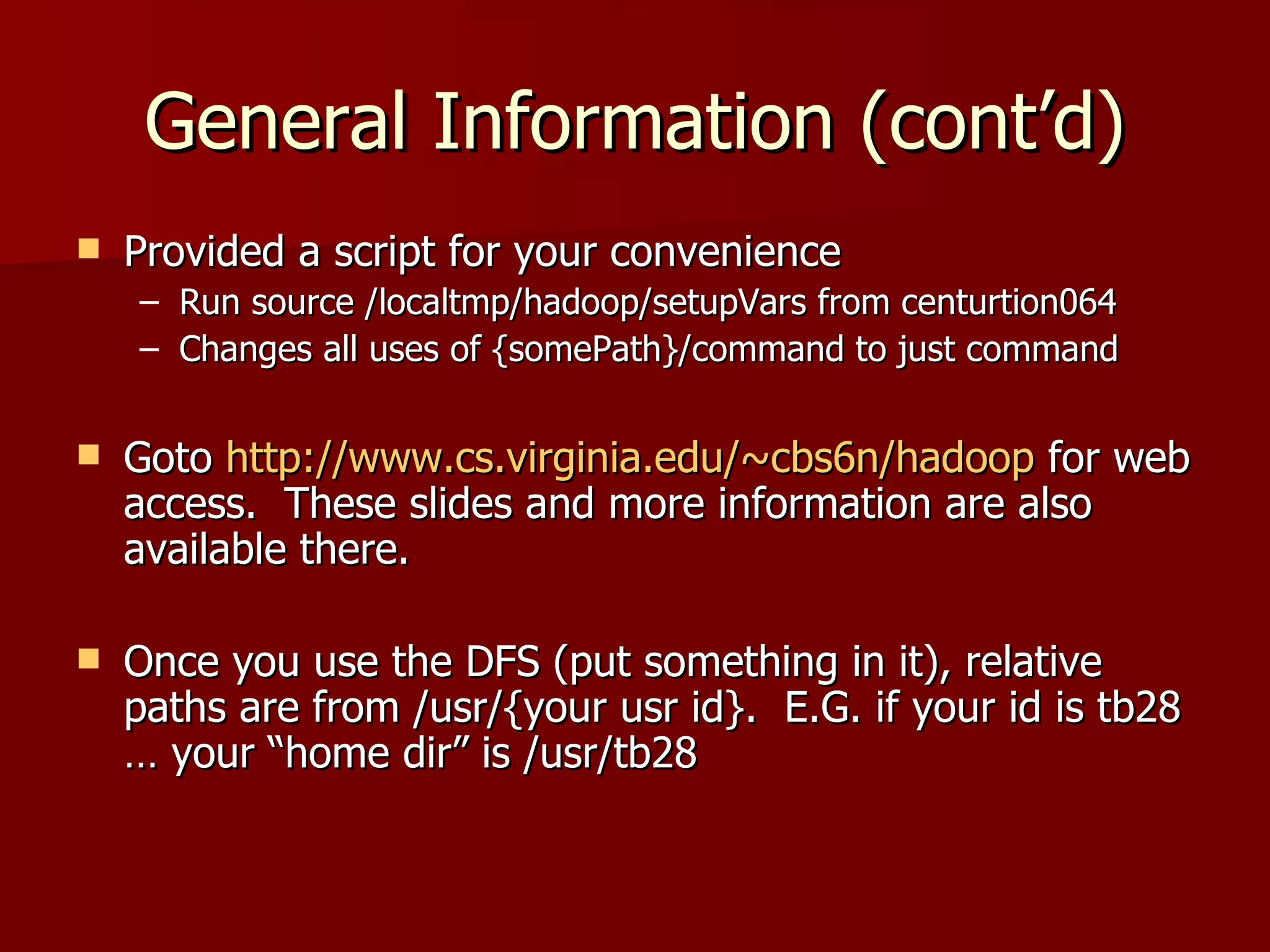

  General Information (cont’d)Provided a script for your convenience Run source /localtmp/hadoop/setupVars from centurtion064 Changes all uses of {somePath}/command to just command Goto http://www.cs.virginia.edu/~cbs6n/hadoop for web access. These slides and more information are also available there. Once you use the DFS (put something in it), relative paths are from /usr/{your usr id}. E.G. if your id is tb28 … your “home dir” is /usr/tb28
• 4.

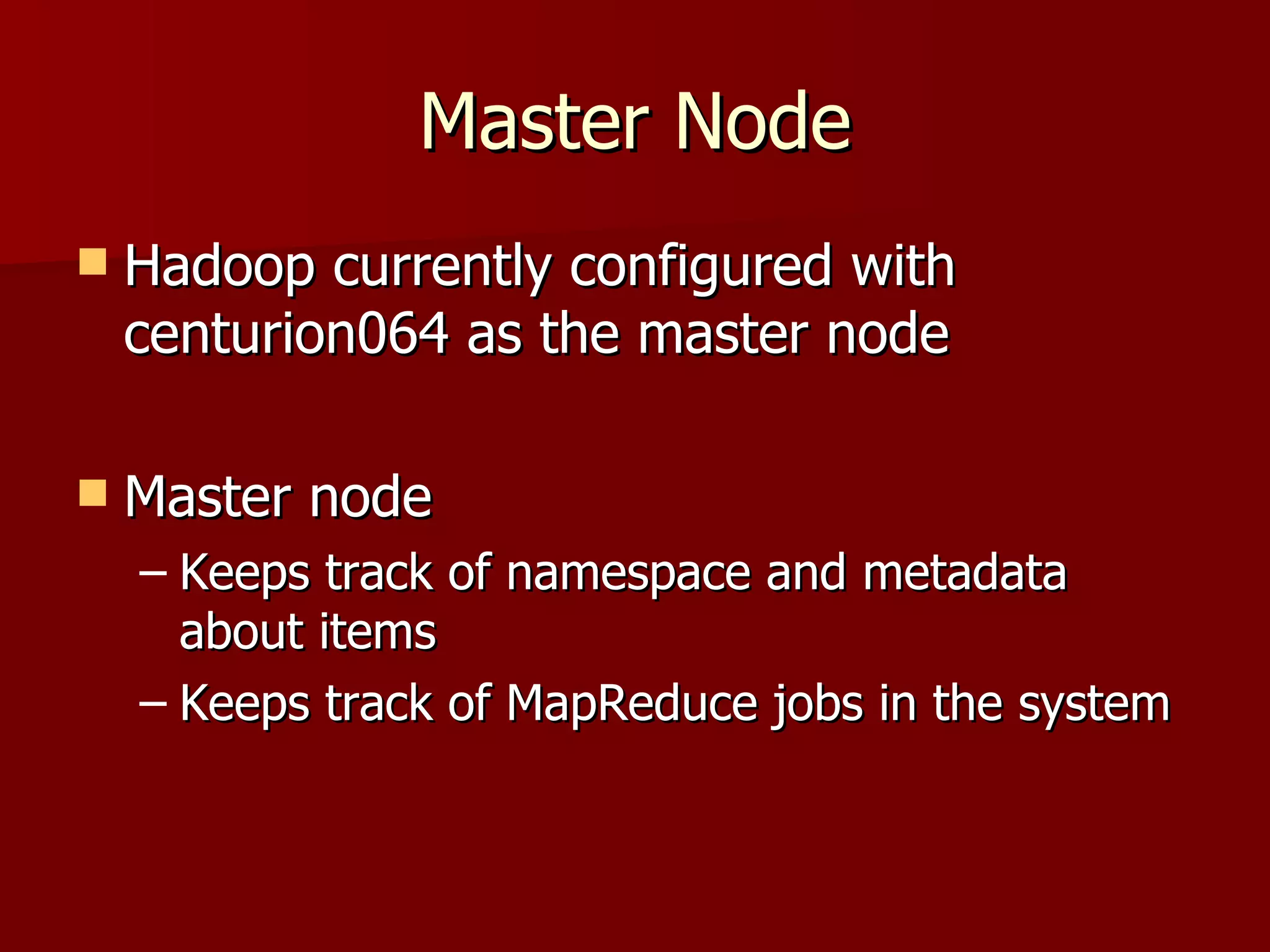

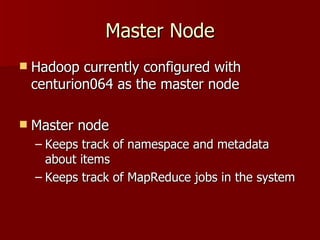

  Master Node Hadoopcurrently configured with centurion064 as the master node Master node Keeps track of namespace and metadata about items Keeps track of MapReduce jobs in the system
• 5.

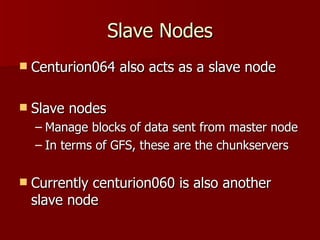

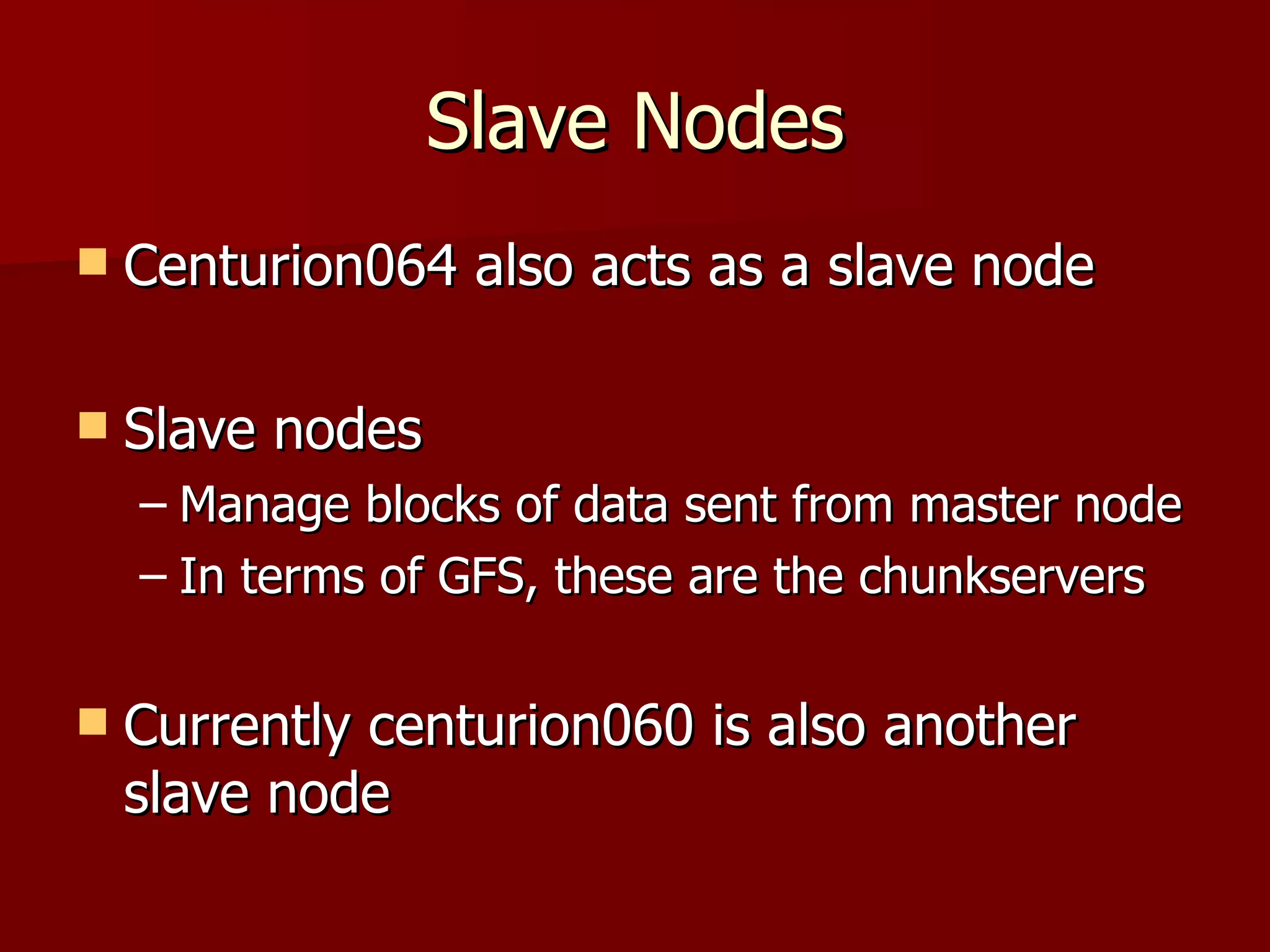

  Slave Nodes Centurion064also acts as a slave node Slave nodes Manage blocks of data sent from master node In terms of GFS, these are the chunkservers Currently centurion060 is also another slave node
• 6.

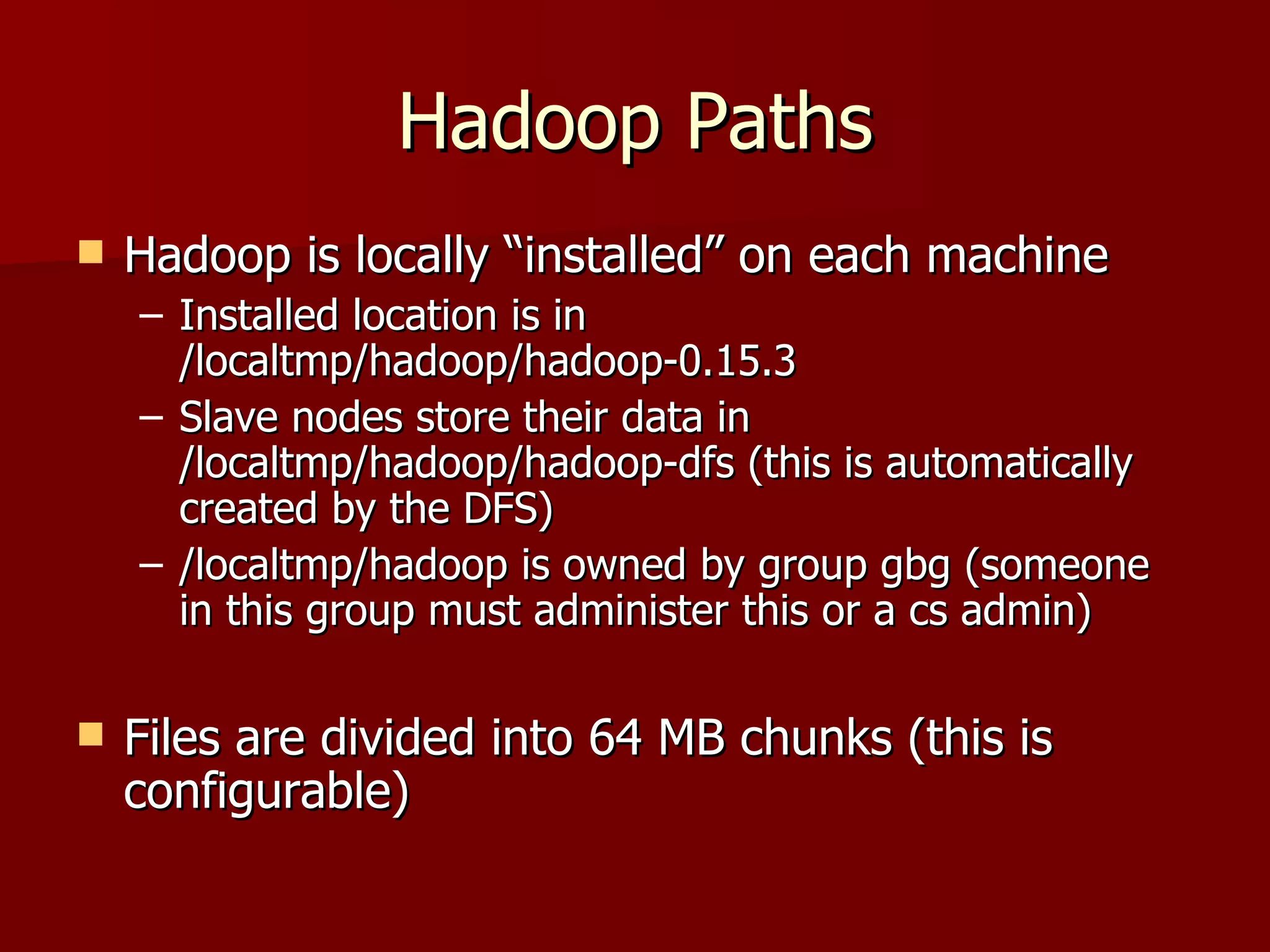

  Hadoop Paths Hadoopis locally “installed” on each machine Installed location is in /localtmp/hadoop/hadoop-0.15.3 Slave nodes store their data in /localtmp/hadoop/hadoop-dfs (this is automatically created by the DFS) /localtmp/hadoop is owned by group gbg (someone in this group must administer this or a cs admin) Files are divided into 64 MB chunks (this is configurable)
• 7.

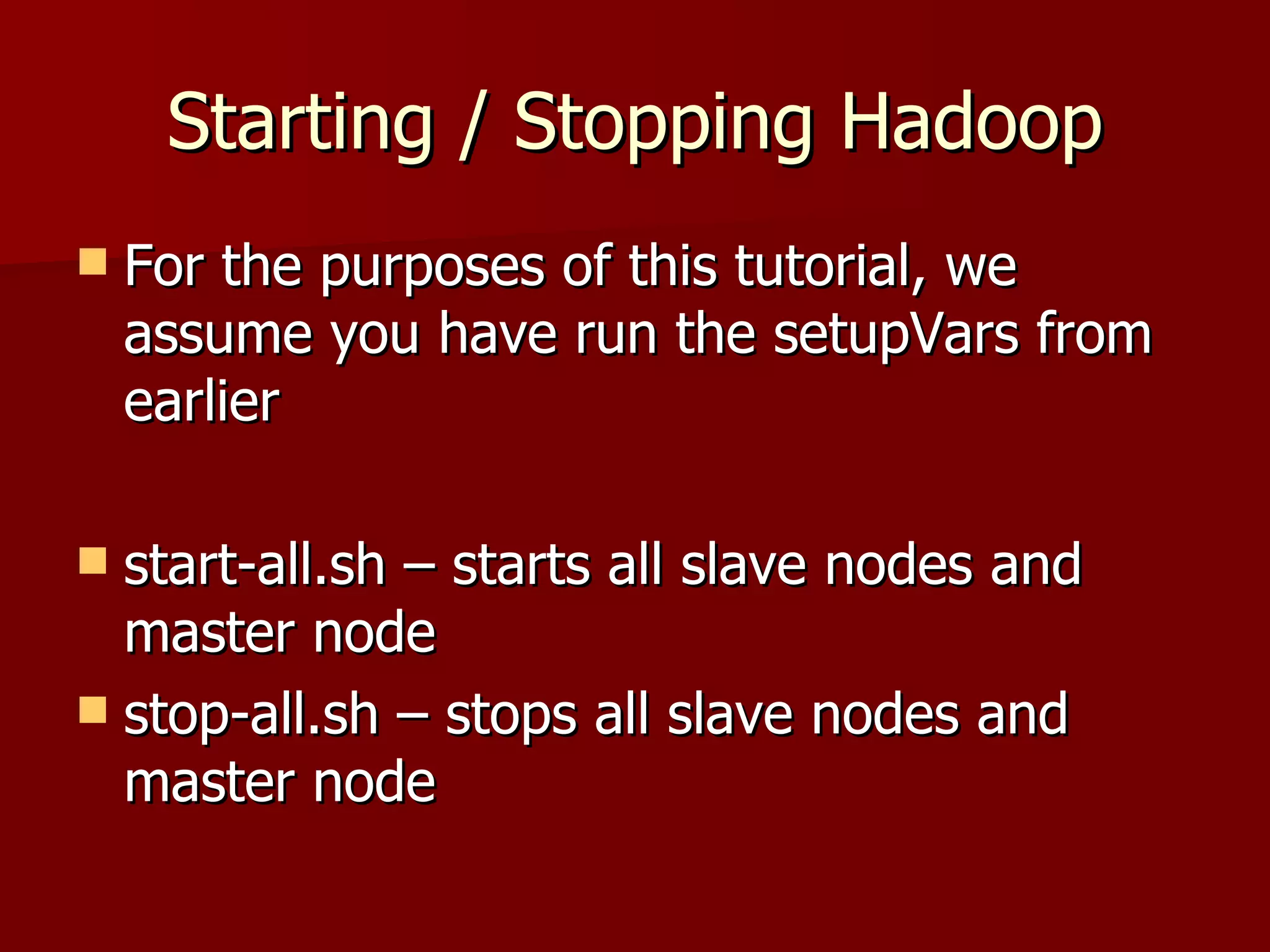

  Starting / StoppingHadoop For the purposes of this tutorial, we assume you have run the setupVars from earlier start-all.sh – starts all slave nodes and master node stop-all.sh – stops all slave nodes and master node
• 8.

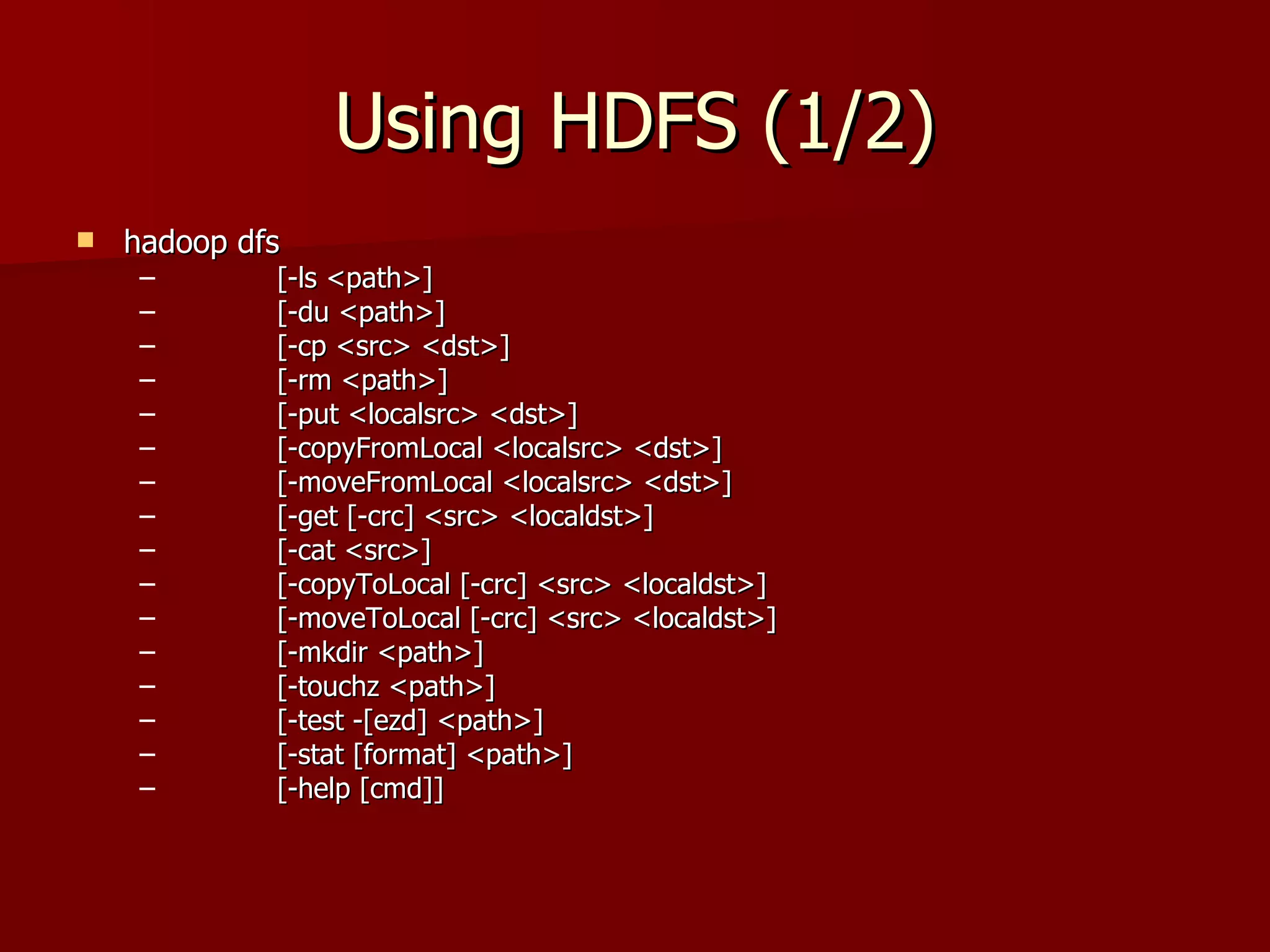

  Using HDFS (1/2)hadoop dfs [-ls <path>] [-du <path>] [-cp <src> <dst>] [-rm <path>] [-put <localsrc> <dst>] [-copyFromLocal <localsrc> <dst>] [-moveFromLocal <localsrc> <dst>] [-get [-crc] <src> <localdst>] [-cat <src>] [-copyToLocal [-crc] <src> <localdst>] [-moveToLocal [-crc] <src> <localdst>] [-mkdir <path>] [-touchz <path>] [-test -[ezd] <path>] [-stat [format] <path>] [-help [cmd]]
• 9.

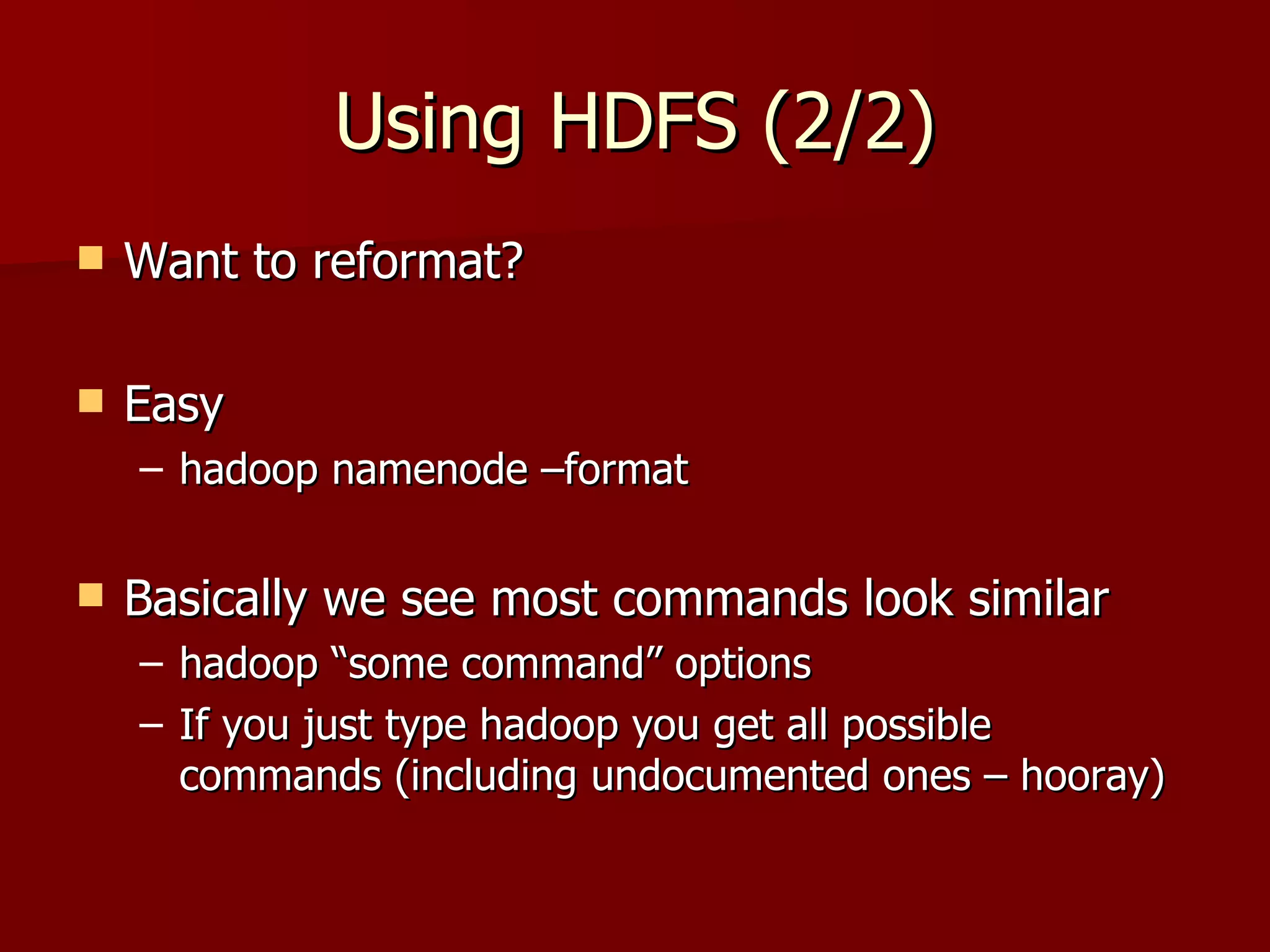

  Using HDFS (2/2)Want to reformat? Easy hadoop namenode –format Basically we see most commands look similar hadoop “some command” options If you just type hadoop you get all possible commands (including undocumented ones – hooray)
• 10.

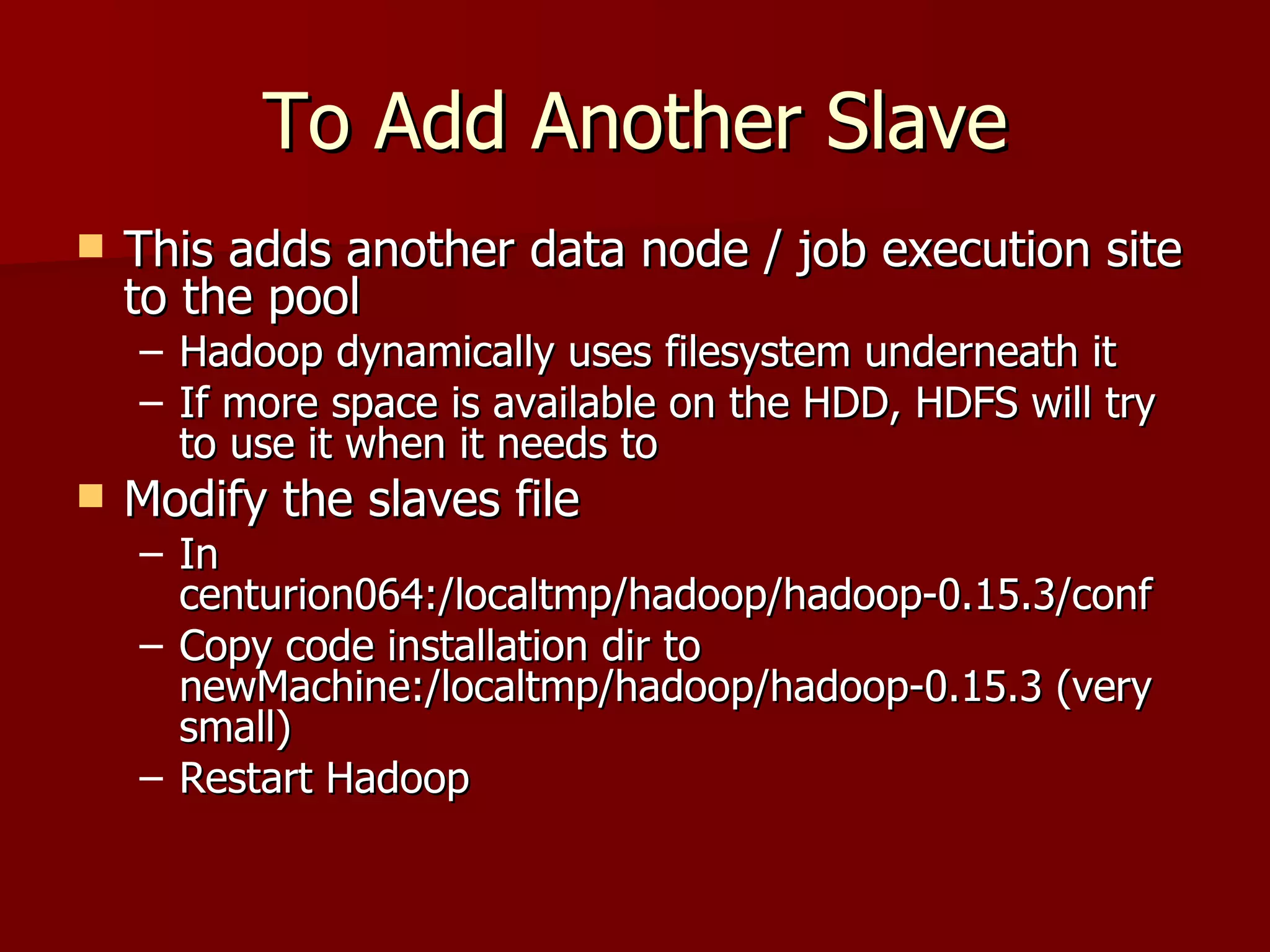

  To Add AnotherSlave This adds another data node / job execution site to the pool Hadoop dynamically uses filesystem underneath it If more space is available on the HDD, HDFS will try to use it when it needs to Modify the slaves file In centurion064:/localtmp/hadoop/hadoop-0.15.3/conf Copy code installation dir to newMachine:/localtmp/hadoop/hadoop-0.15.3 (very small) Restart Hadoop
• 11.

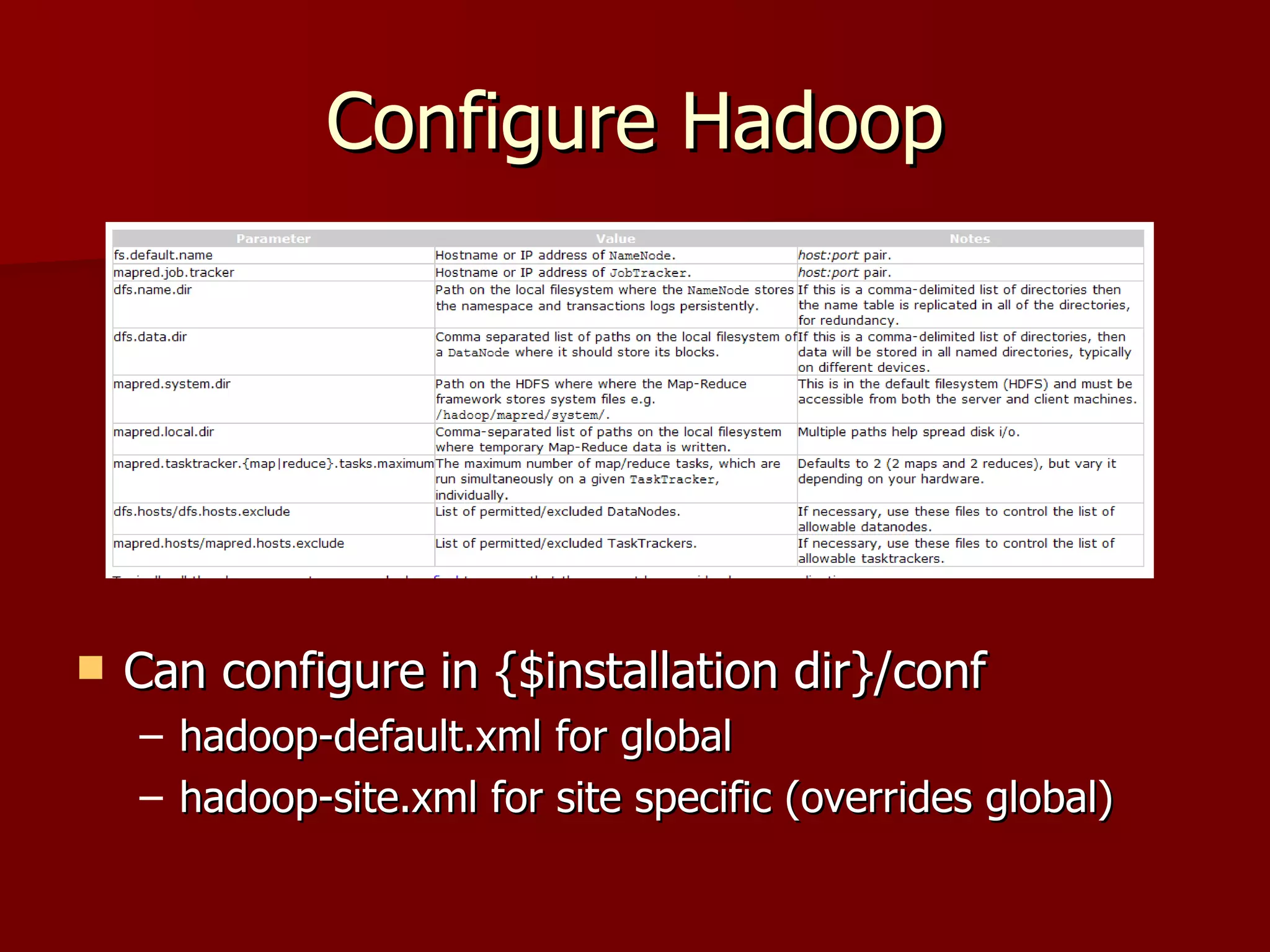

  Configure Hadoop Canconfigure in {$installation dir}/conf hadoop-default.xml for global hadoop-site.xml for site specific (overrides global)
• 12.
  That’s it forConfiguration!
• 13.

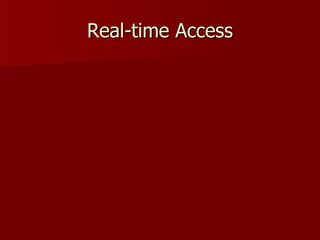

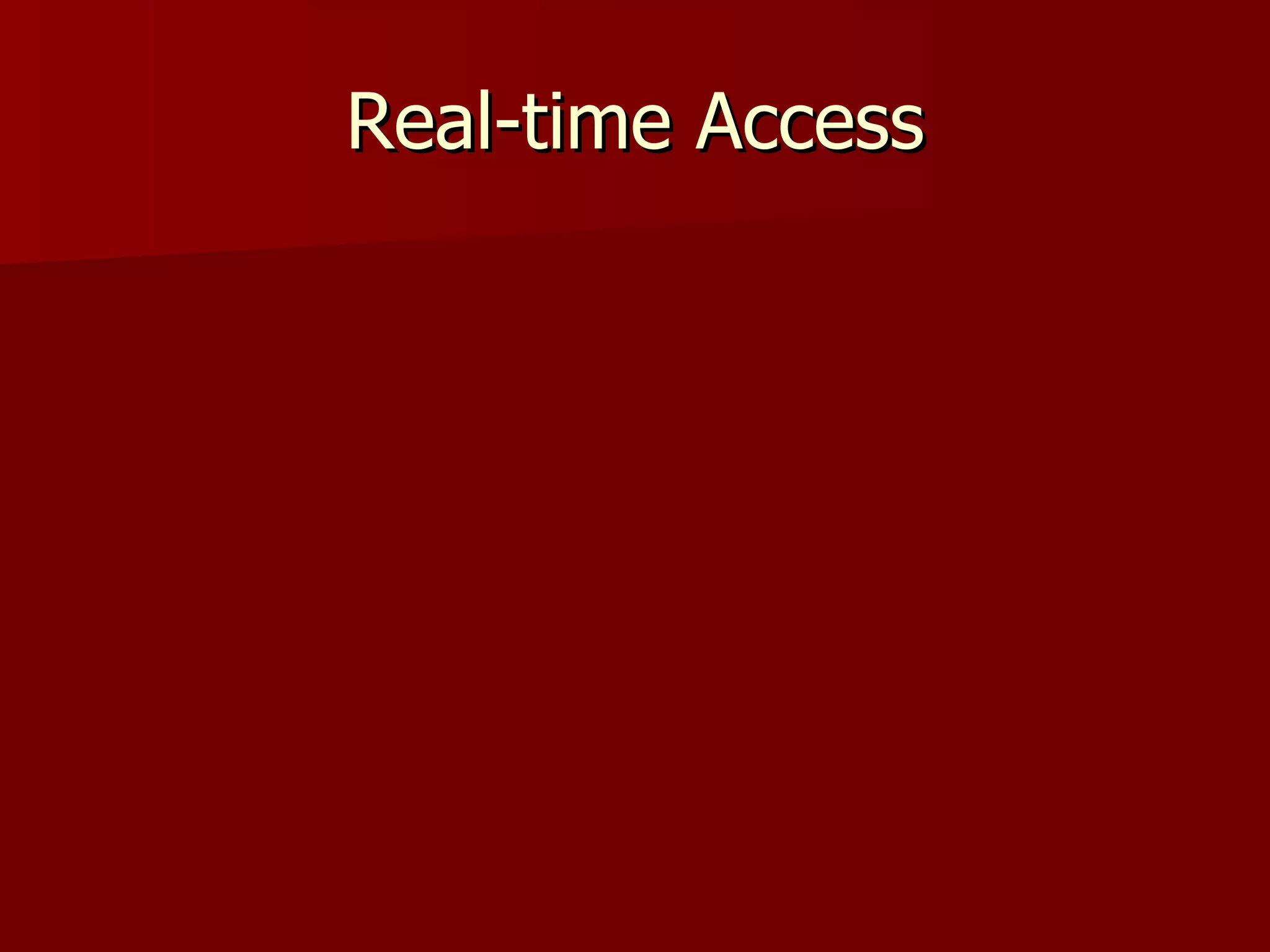

  Real-time Access
