Homework Assignment 1
ICT:5102, Data Structure & Algorithm

Md.Dedarul Hasan
PGD in IT, Registration No: 0417311011
Session: April,2017

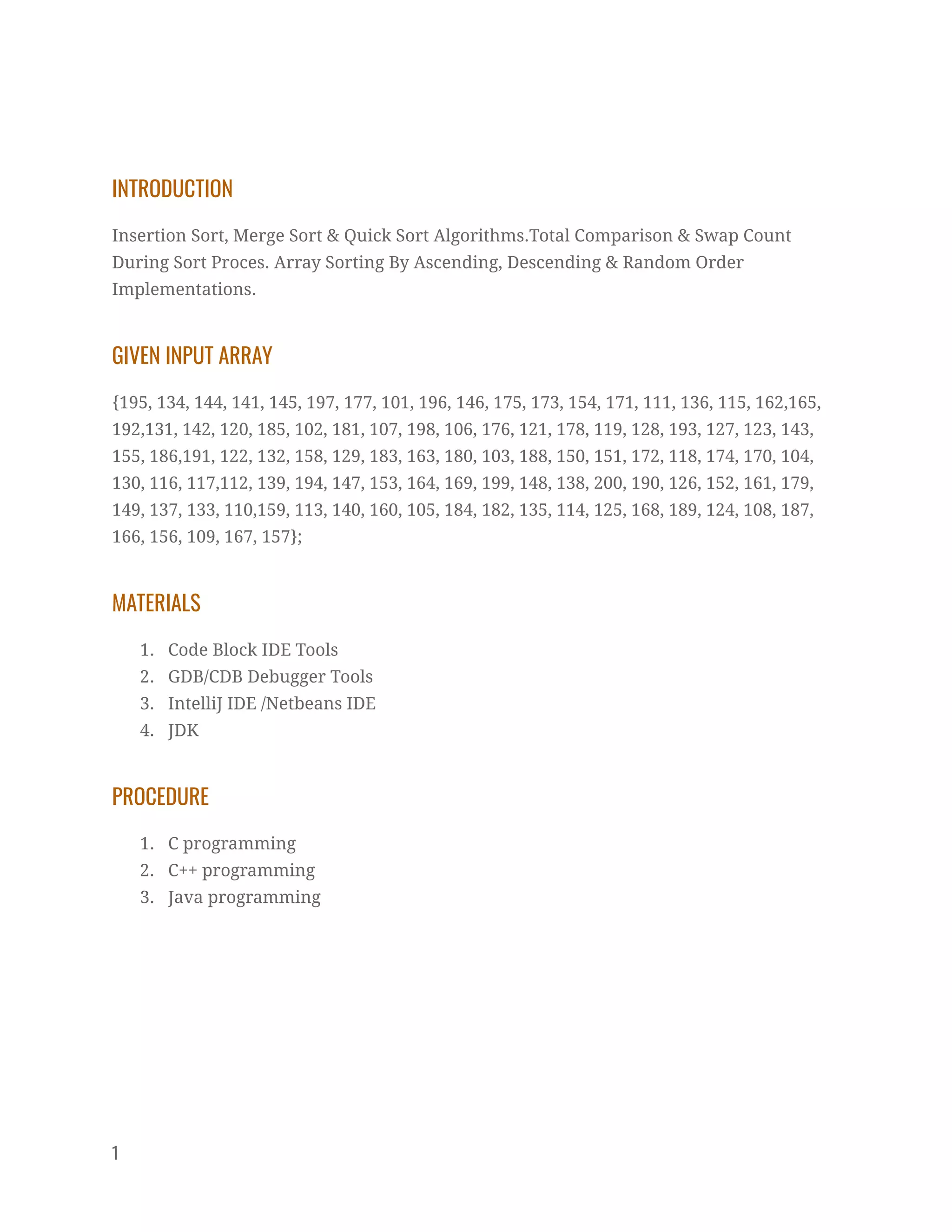

INTRODUCTION
Insertion Sort, Merge Sort & Quick Sort Algorithms.Total Comparison & Swap Count
During Sort Proces. Array Sorting By Ascending, Descending & Random Order
Implementations.
GIVEN INPUT ARRAY
{195, 134, 144, 141, 145, 197, 177, 101, 196, 146, 175, 173, 154, 171, 111, 136, 115, 162,165,
192,131, 142, 120, 185, 102, 181, 107, 198, 106, 176, 121, 178, 119, 128, 193, 127, 123, 143,
155, 186,191, 122, 132, 158, 129, 183, 163, 180, 103, 188, 150, 151, 172, 118, 174, 170, 104,
130, 116, 117,112, 139, 194, 147, 153, 164, 169, 199, 148, 138, 200, 190, 126, 152, 161, 179,
149, 137, 133, 110,159, 113, 140, 160, 105, 184, 182, 135, 114, 125, 168, 189, 124, 108, 187,
166, 156, 109, 167, 157};
MATERIALS
1. Code Block IDE Tools
2. GDB/CDB Debugger Tools
3. IntelliJ IDE /Netbeans IDE
4. JDK
PROCEDURE
1. C programming
2. C++ programming
3. Java programming

1

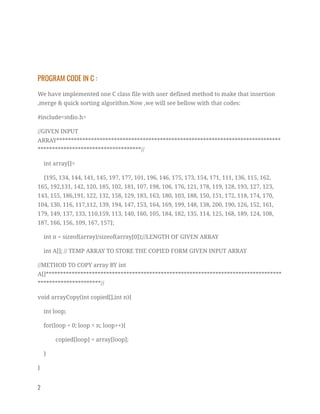

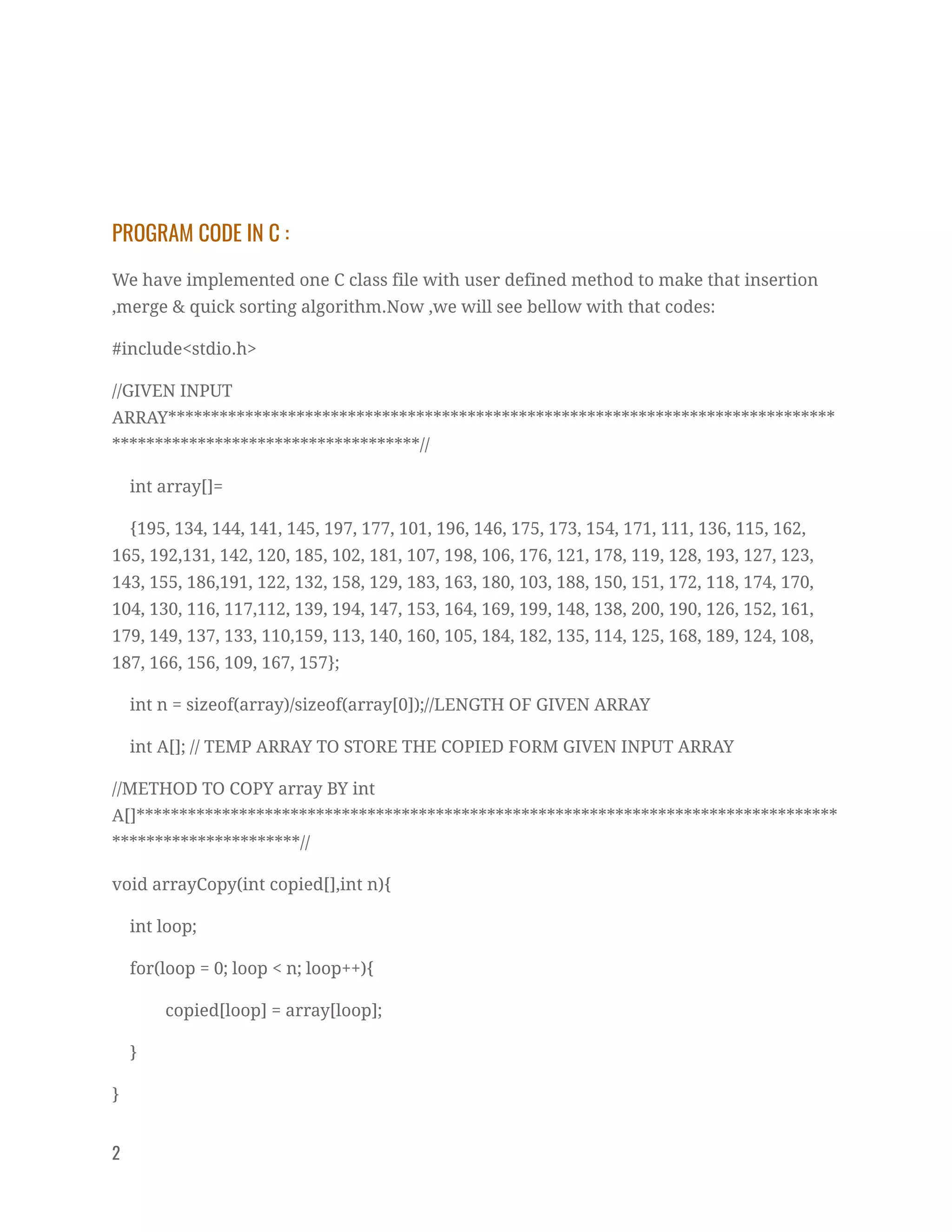

PROGRAM CODE IN C :
We have implemented one C class file with user defined method to make that insertion
,merge & quick sorting algorithm.Now ,we will see bellow with that codes:
#include<stdio.h>
//GIVEN INPUT
ARRAY******************************************************************************
************************************//
int array[]=
{195, 134, 144, 141, 145, 197, 177, 101, 196, 146, 175, 173, 154, 171, 111, 136, 115, 162,
165, 192,131, 142, 120, 185, 102, 181, 107, 198, 106, 176, 121, 178, 119, 128, 193, 127, 123,
143, 155, 186,191, 122, 132, 158, 129, 183, 163, 180, 103, 188, 150, 151, 172, 118, 174, 170,
104, 130, 116, 117,112, 139, 194, 147, 153, 164, 169, 199, 148, 138, 200, 190, 126, 152, 161,
179, 149, 137, 133, 110,159, 113, 140, 160, 105, 184, 182, 135, 114, 125, 168, 189, 124, 108,
187, 166, 156, 109, 167, 157};
int n = sizeof(array)/sizeof(array[0]);//LENGTH OF GIVEN ARRAY
int A[]; // TEMP ARRAY TO STORE THE COPIED FORM GIVEN INPUT ARRAY
//METHOD TO COPY array BY int
A[]**********************************************************************************
**********************//
void arrayCopy(int copied[],int n){
int loop;
for(loop = 0; loop < n; loop++){
copied[loop] = array[loop];
}
}
2

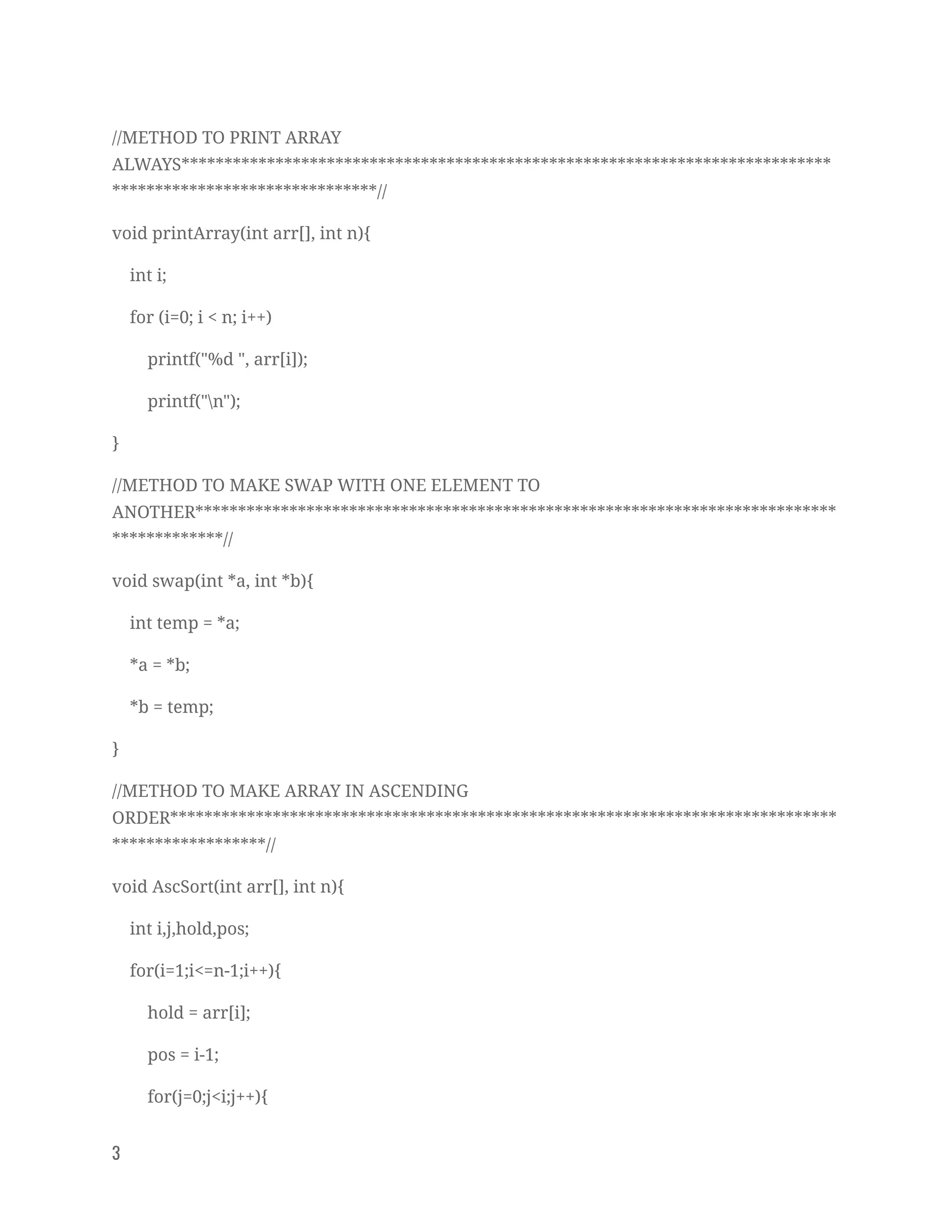

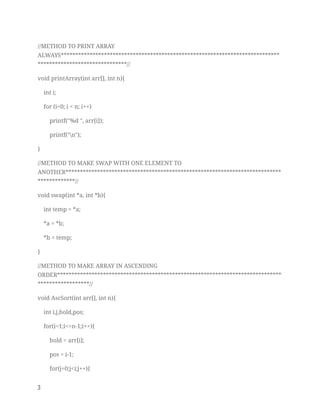

//METHOD TO PRINT ARRAY
ALWAYS****************************************************************************
*******************************//
void printArray(int arr[], int n){
int i;
for (i=0; i < n; i++)
printf("%d ", arr[i]);
printf("n");
}
//METHOD TO MAKE SWAP WITH ONE ELEMENT TO
ANOTHER***************************************************************************
*************//
void swap(int *a, int *b){
int temp = *a;
*a = *b;
*b = temp;
}
//METHOD TO MAKE ARRAY IN ASCENDING
ORDER******************************************************************************
******************//
void AscSort(int arr[], int n){
int i,j,hold,pos;
for(i=1;i<=n-1;i++){
hold = arr[i];
pos = i-1;
for(j=0;j<i;j++){
3

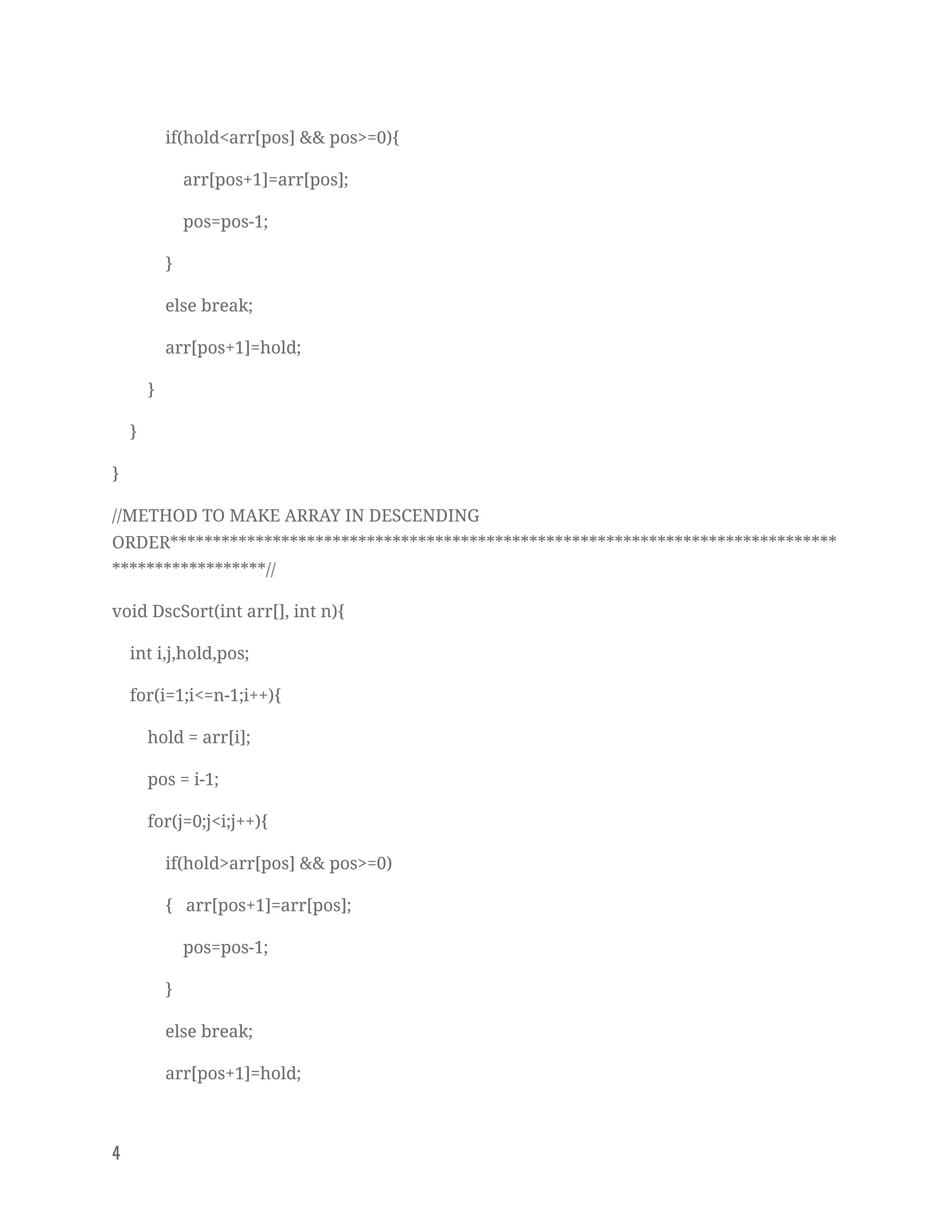

if(hold<arr[pos] && pos>=0){
arr[pos+1]=arr[pos];
pos=pos-1;
}
else break;
arr[pos+1]=hold;
}
}
}
//METHOD TO MAKE ARRAY IN DESCENDING
ORDER******************************************************************************
******************//
void DscSort(int arr[], int n){
int i,j,hold,pos;
for(i=1;i<=n-1;i++){
hold = arr[i];
pos = i-1;
for(j=0;j<i;j++){
if(hold>arr[pos] && pos>=0)
{ arr[pos+1]=arr[pos];
pos=pos-1;
}
else break;
arr[pos+1]=hold;
4

}
}
}

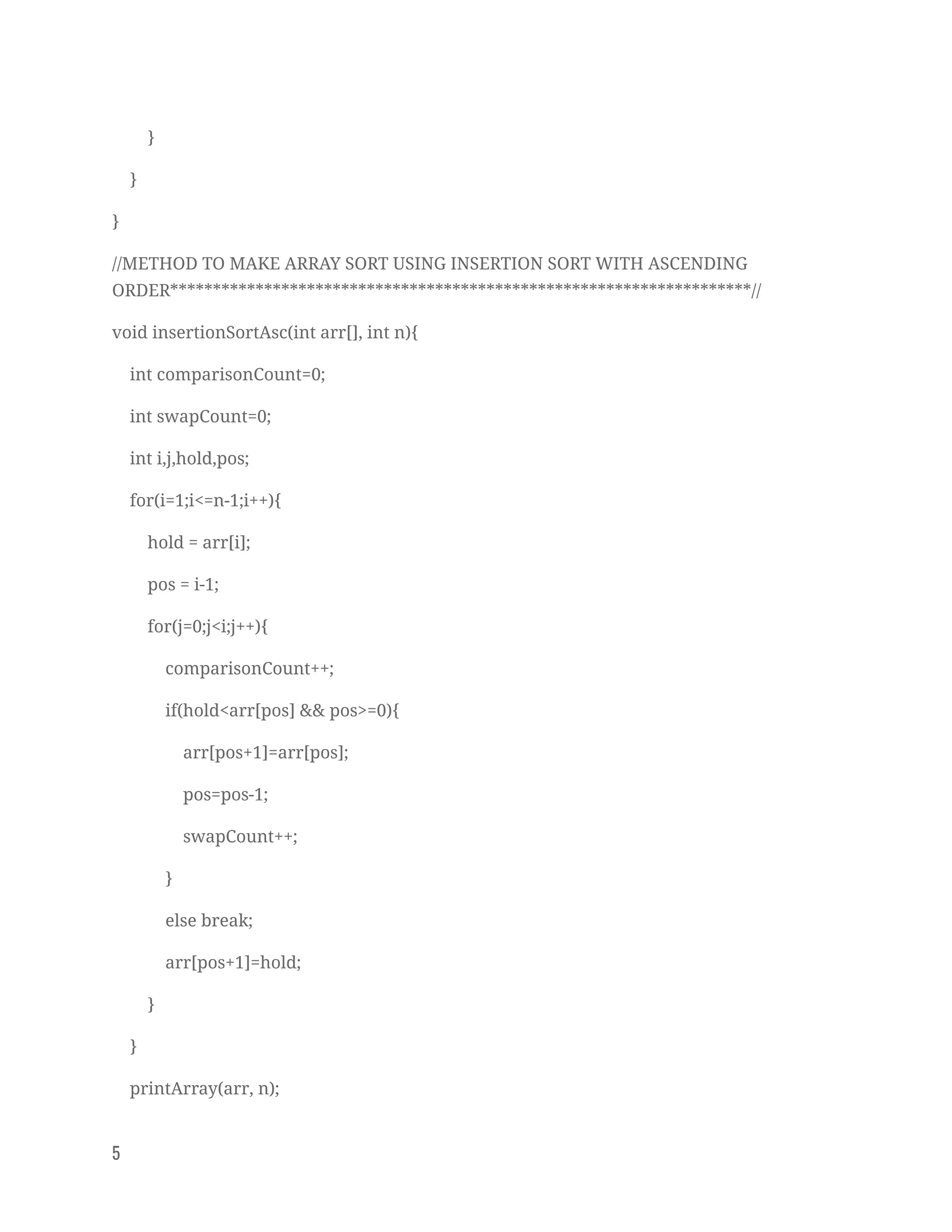

//METHOD TO MAKE ARRAY SORT USING INSERTION SORT WITH ASCENDING
ORDER********************************************************************//
void insertionSortAsc(int arr[], int n){
int comparisonCount=0;
int swapCount=0;
int i,j,hold,pos;
for(i=1;i<=n-1;i++){
hold = arr[i];
pos = i-1;
for(j=0;j<i;j++){
comparisonCount++;
if(hold<arr[pos] && pos>=0){
pos=pos-1;
swapCount++;
}
else break;
arr[pos+1]=hold;
}
}
printArray(arr, n);
5

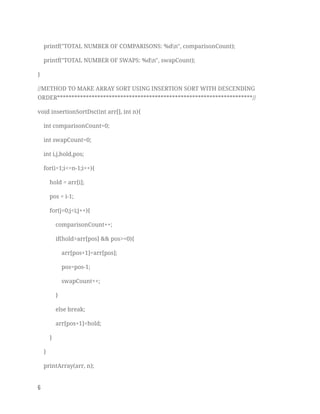

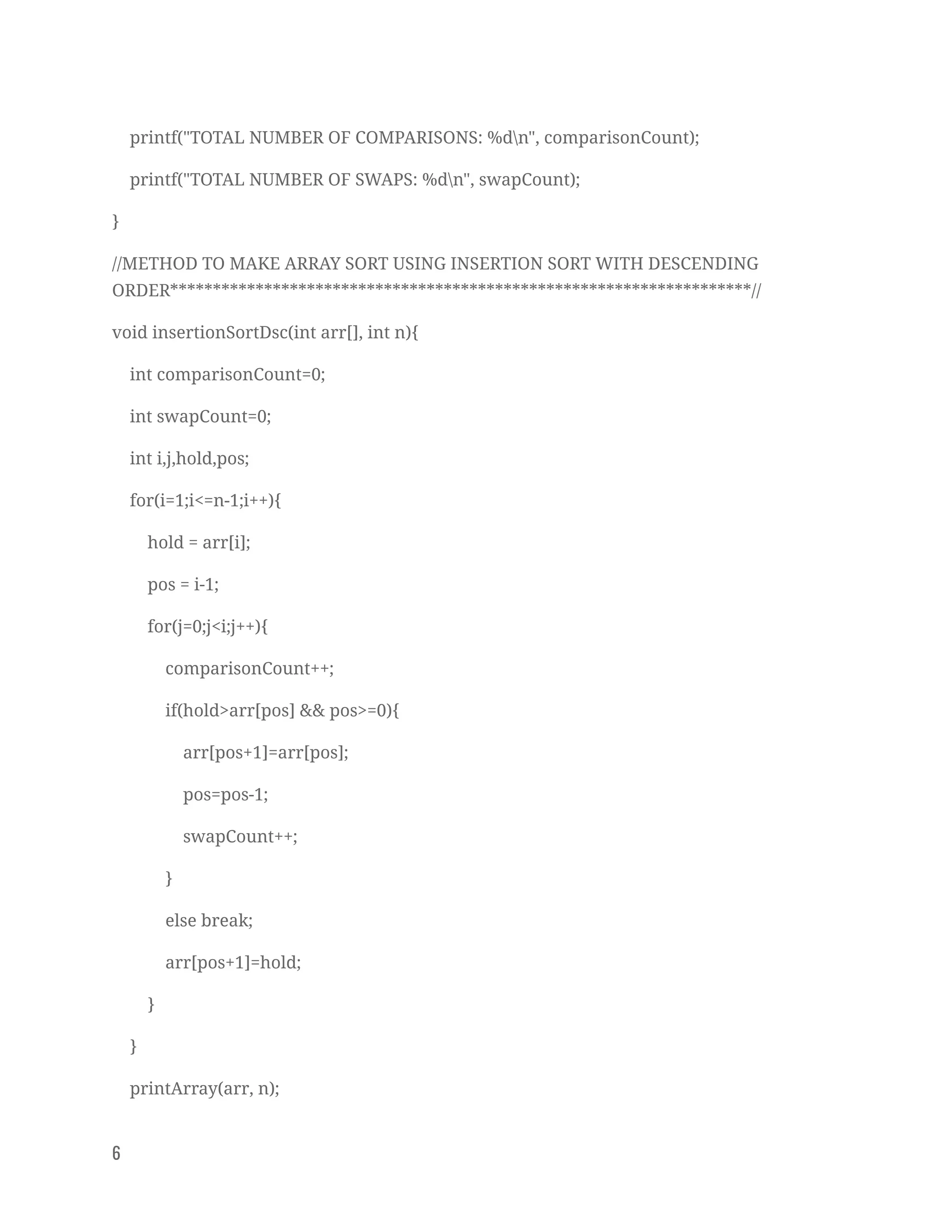

printf("TOTAL NUMBER OF COMPARISONS: %dn", comparisonCount);
printf("TOTAL NUMBER OF SWAPS: %dn", swapCount);
}
//METHOD TO MAKE ARRAY SORT USING INSERTION SORT WITH DESCENDING
ORDER********************************************************************//
void insertionSortDsc(int arr[], int n){
int swapCount=0;
int i,j,hold,pos;
for(i=1;i<=n-1;i++){
hold = arr[i];
pos = i-1;
for(j=0;j<i;j++){
comparisonCount++;
if(hold>arr[pos] && pos>=0){
pos=pos-1;
swapCount++;
}
else break;
arr[pos+1]=hold;
}
}
printArray(arr, n);
6

}
//METHOD TO MAKE ARRAY SORT USING MERGE SORT WITH ASCENDING
ORDER************************************************************************//
void mergeSortAsc(int arr[],int n){
int swapCount=0;
//METHOD TO MAKE ARRAY SORT USING MERGE
SORT********************************************************************************
*************//
void merge(int arr[], int l, int m, int r){
int i, j, k;
int n1 = m - l + 1;// TEMP LEFT ARRAY SIZE
int n2 = r - m;// TEMP RIGHT ARRAY SIZE
int L[n1], R[n2];/* CREATE TEMP ARRAYS */
for (i = 0; i < n1; i++) /* COPY DATA TO TEMP ARRAYS L[] */
L[i] = arr[l + i];
for (j = 0; j < n2; j++) /* COPY DATA TO TEMP ARRAYS R[]*/
R[j] = arr[m + 1+ j];
i = 0;
j = 0;
k = l;
while (i < n1 && j < n2){
comparisonCount++;
7

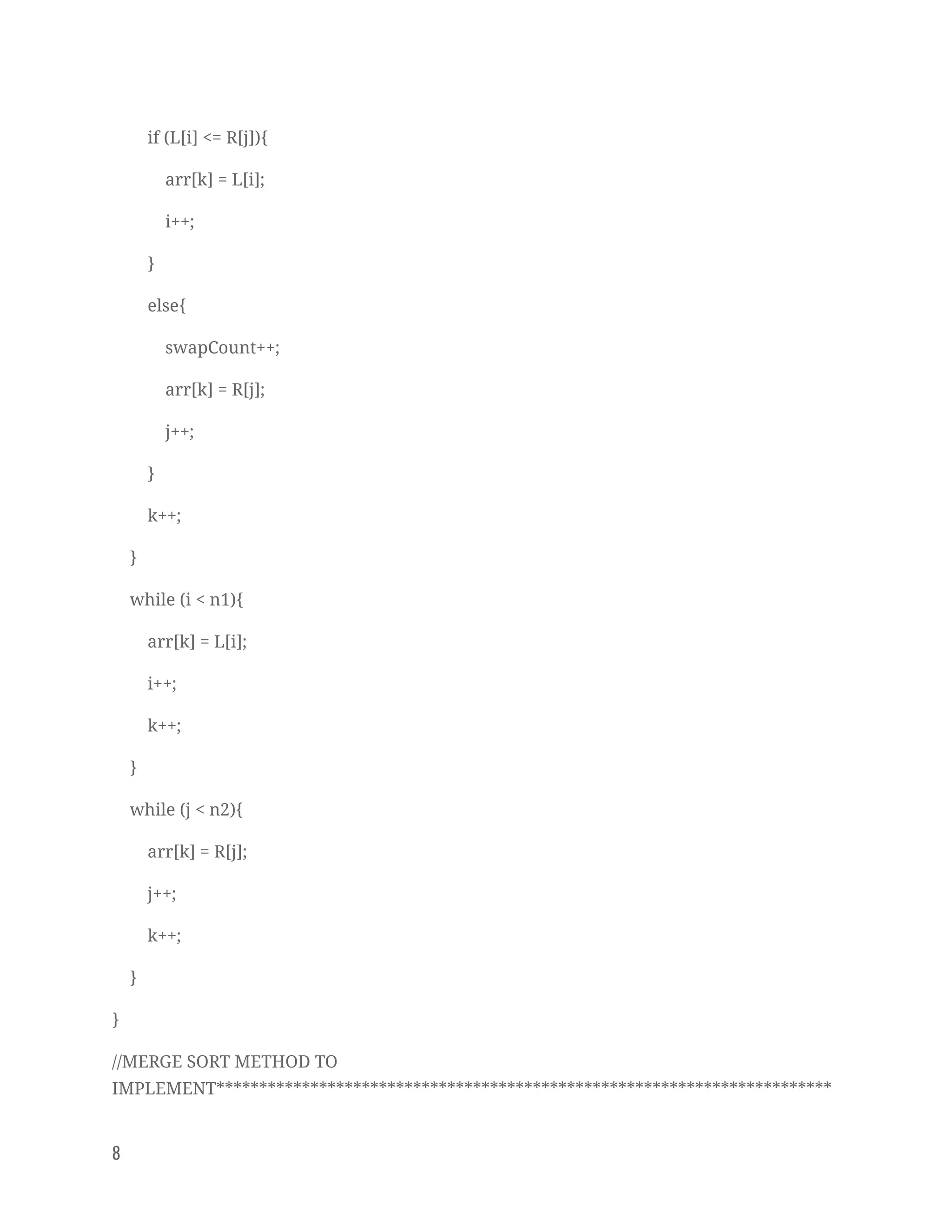

if (L[i] <= R[j]){
arr[k] = L[i];
i++;
}
else{
swapCount++;
arr[k] = R[j];
j++;
}
k++;
}
while (i < n1){
arr[k] = L[i];
i++;
k++;
}
while (j < n2){
arr[k] = R[j];
j++;
k++;
}
}
//MERGE SORT METHOD TO
IMPLEMENT************************************************************************
8

*************************//

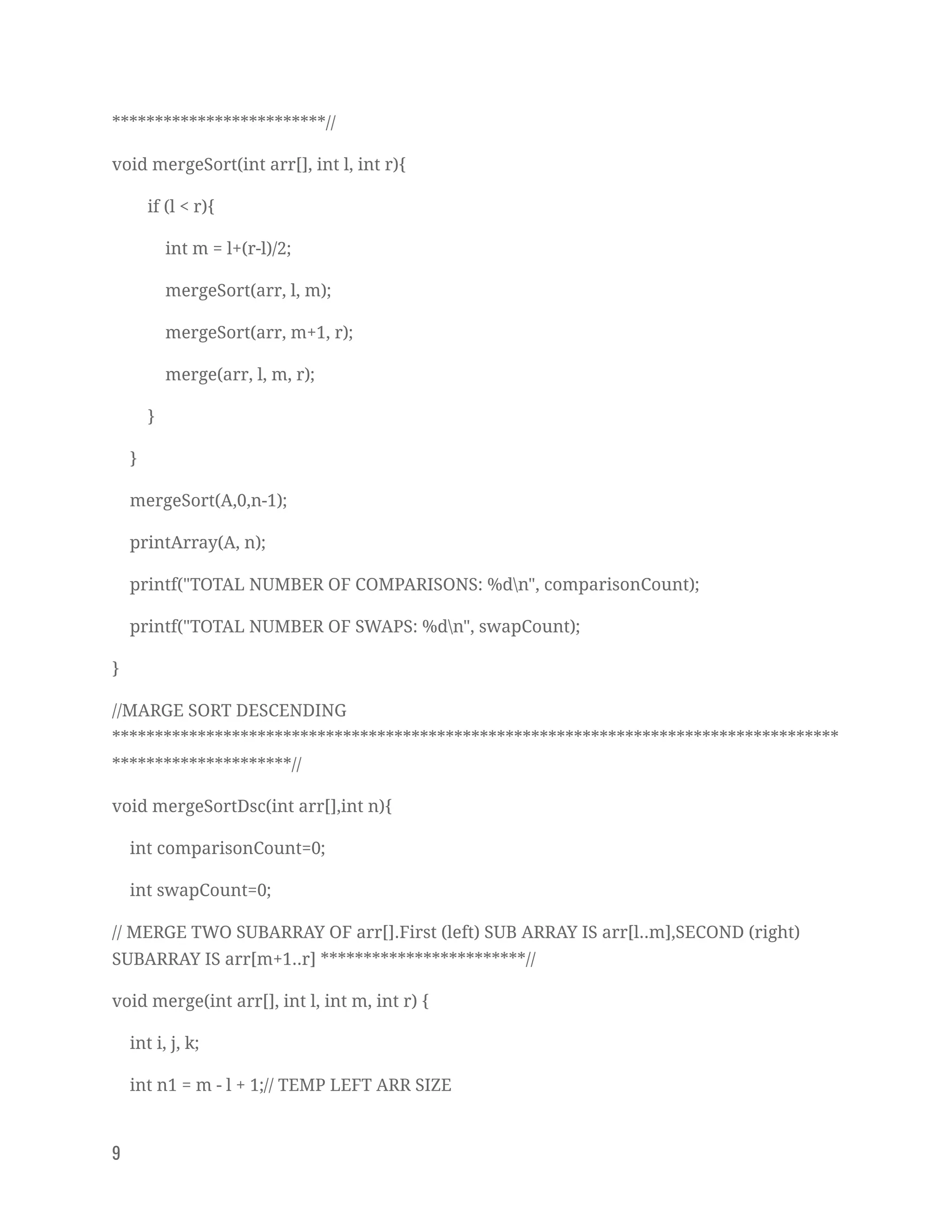

void mergeSort(int arr[], int l, int r){
if (l < r){
int m = l+(r-l)/2;
mergeSort(arr, l, m);
mergeSort(arr, m+1, r);
merge(arr, l, m, r);
}
}
mergeSort(A,0,n-1);
printArray(A, n);
}
//MARGE SORT DESCENDING
*************************************************************************************
*********************//
void mergeSortDsc(int arr[],int n){
int swapCount=0;
// MERGE TWO SUBARRAY OF arr[].First (left) SUB ARRAY IS arr[l..m],SECOND (right)
SUBARRAY IS arr[m+1..r] ************************//
void merge(int arr[], int l, int m, int r) {
int i, j, k;
int n1 = m - l + 1;// TEMP LEFT ARR SIZE
9

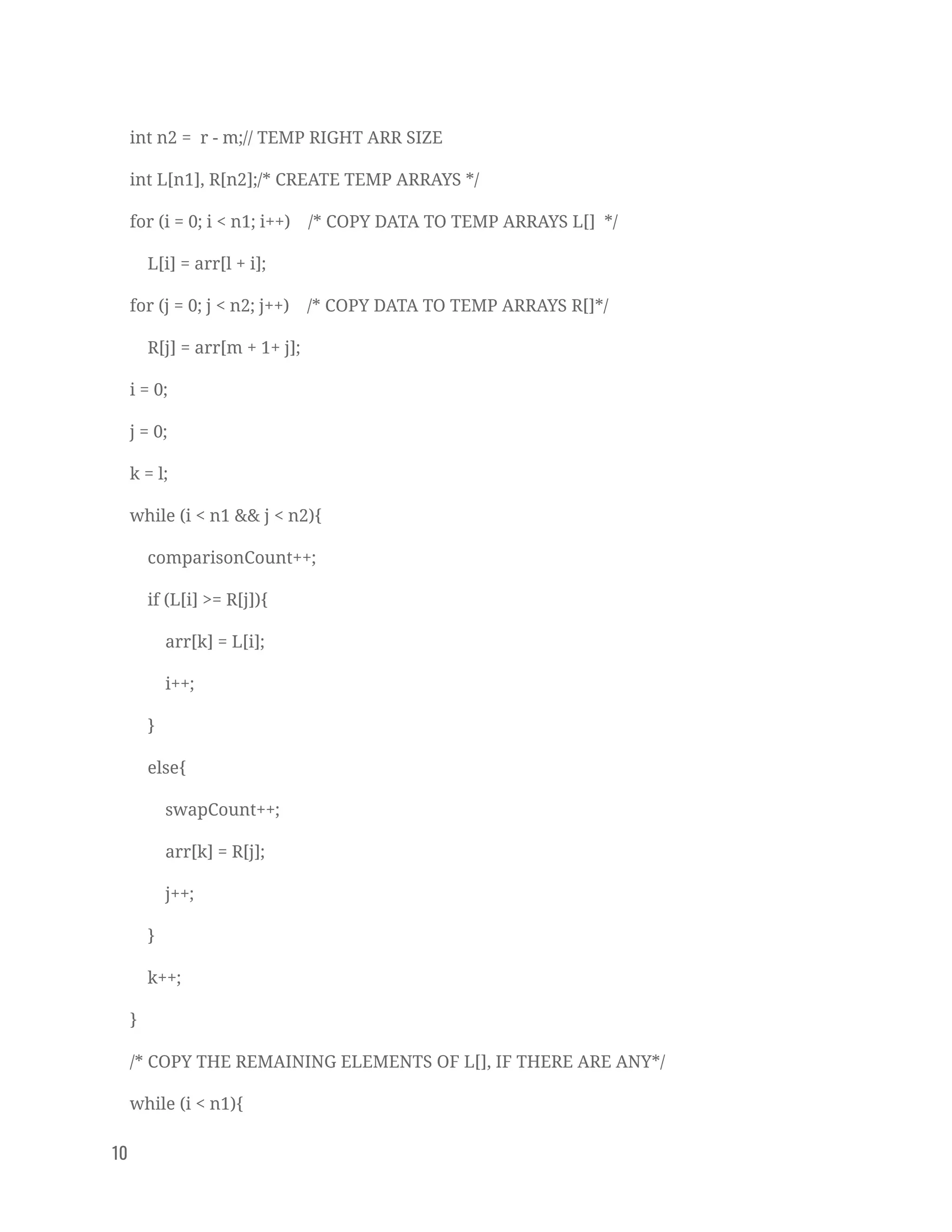

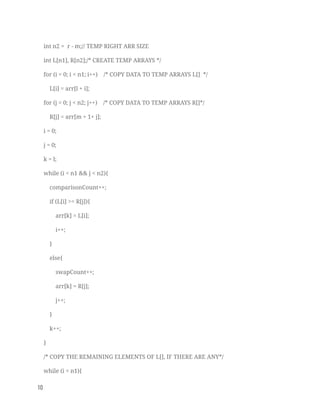

int n2 = r - m;// TEMP RIGHT ARR SIZE
int L[n1], R[n2];/* CREATE TEMP ARRAYS */
for (i = 0; i < n1; i++) /* COPY DATA TO TEMP ARRAYS L[] */
L[i] = arr[l + i];
for (j = 0; j < n2; j++) /* COPY DATA TO TEMP ARRAYS R[]*/
R[j] = arr[m + 1+ j];
i = 0;
j = 0;
k = l;
while (i < n1 && j < n2){
comparisonCount++;
if (L[i] >= R[j]){
arr[k] = L[i];
i++;
}
else{
swapCount++;
arr[k] = R[j];
j++;
}
k++;
}
/* COPY THE REMAINING ELEMENTS OF L[], IF THERE ARE ANY*/
while (i < n1){
10

arr[k] = L[i];
i++;
k++;
}
/* COPY THE REMAINING ELEMENTS OF R[], IF THERE ARE ANY */
while (j < n2){
arr[k] = R[j];
j++;
k++;
}
}
//MERGE SORT
ARRAY******************************************************************************
*********************************//
void mergeSort(int arr[], int l, int r){
if (l < r){
int m = l+(r-l)/2;
mergeSort(arr, l, m);
mergeSort(arr, m+1, r);
merge(arr, l, m, r);
}
}
mergeSort(A,0,n-1);
printArray(A, n);
11

}

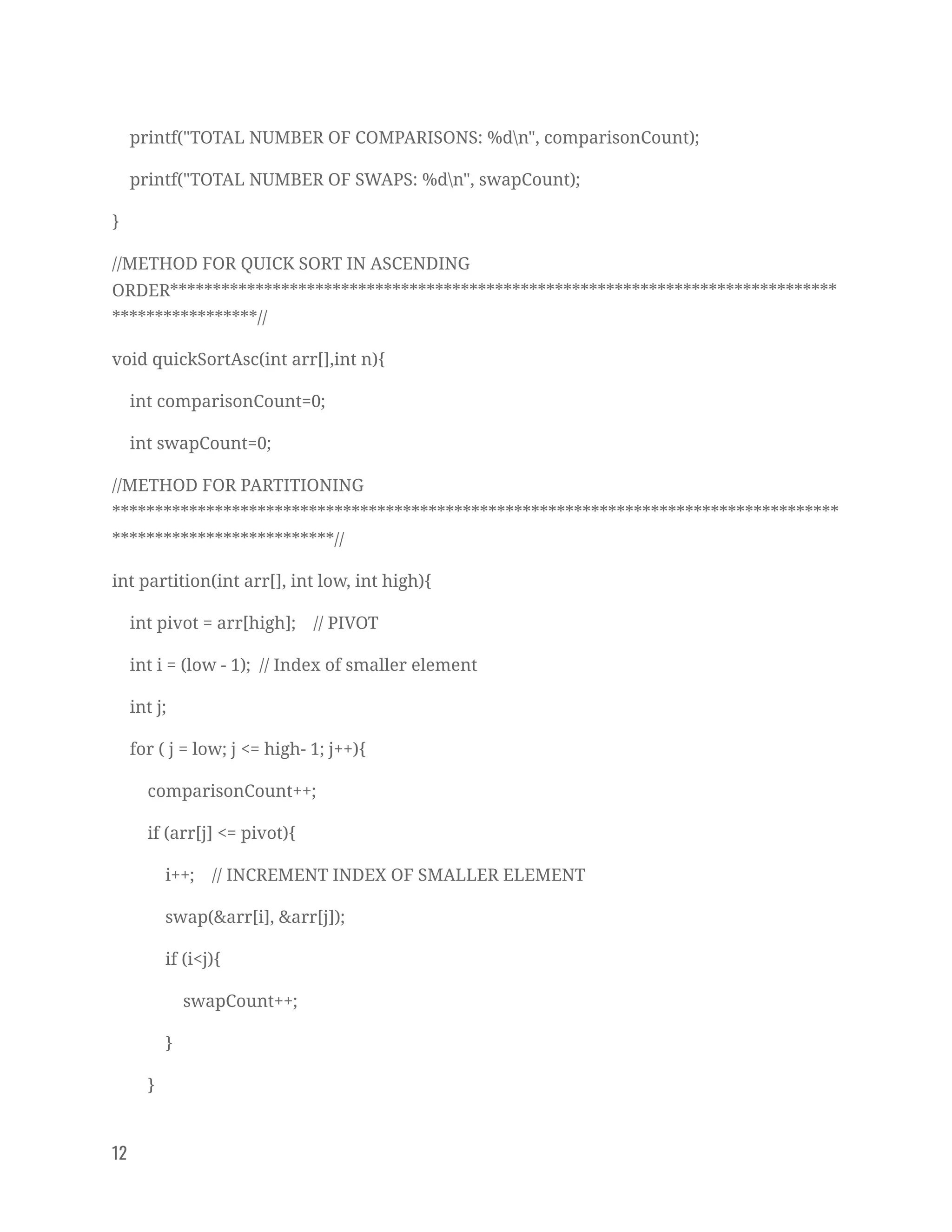

//METHOD FOR QUICK SORT IN ASCENDING
ORDER******************************************************************************
*****************//
void quickSortAsc(int arr[],int n){
int swapCount=0;
//METHOD FOR PARTITIONING
*************************************************************************************
**************************//
int partition(int arr[], int low, int high){
int pivot = arr[high]; // PIVOT
int i = (low - 1); // Index of smaller element
int j;
for ( j = low; j <= high- 1; j++){
comparisonCount++;
if (arr[j] <= pivot){
i++; // INCREMENT INDEX OF SMALLER ELEMENT
swap(&arr[i], &arr[j]);
if (i<j){
swapCount++;
}
}
12

}

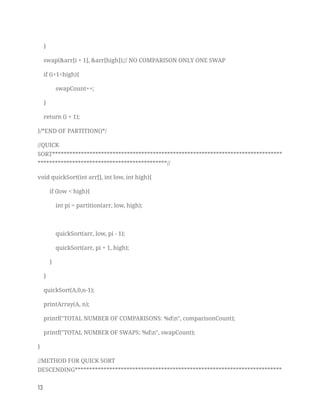

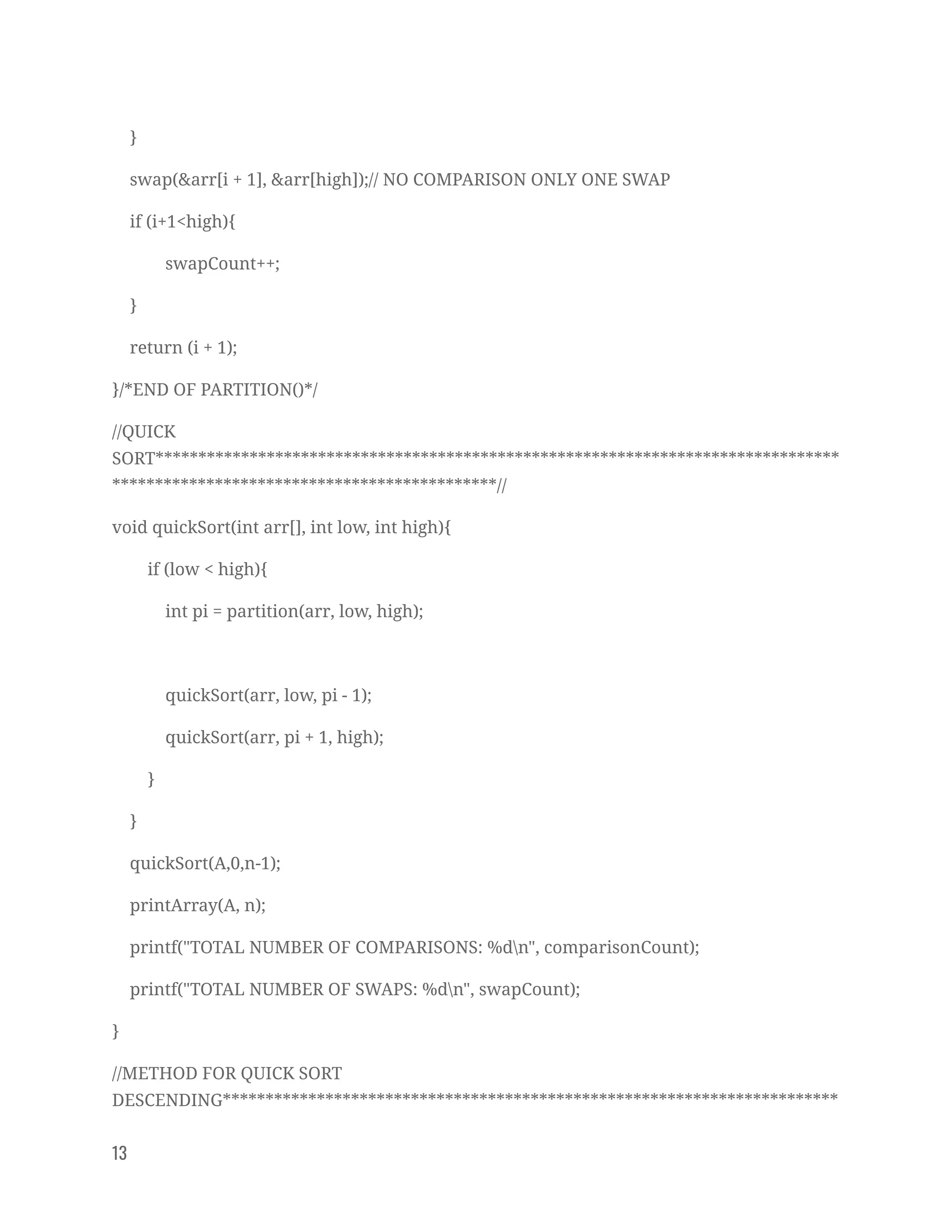

swap(&arr[i + 1], &arr[high]);// NO COMPARISON ONLY ONE SWAP
if (i+1<high){
swapCount++;
}
return (i + 1);
}/*END OF PARTITION()*/
//QUICK
SORT********************************************************************************
*********************************************//
void quickSort(int arr[], int low, int high){
if (low < high){
int pi = partition(arr, low, high);

quickSort(arr, low, pi - 1);
quickSort(arr, pi + 1, high);
}
}
quickSort(A,0,n-1);
printArray(A, n);
}
//METHOD FOR QUICK SORT
DESCENDING************************************************************************
13

*******************************//

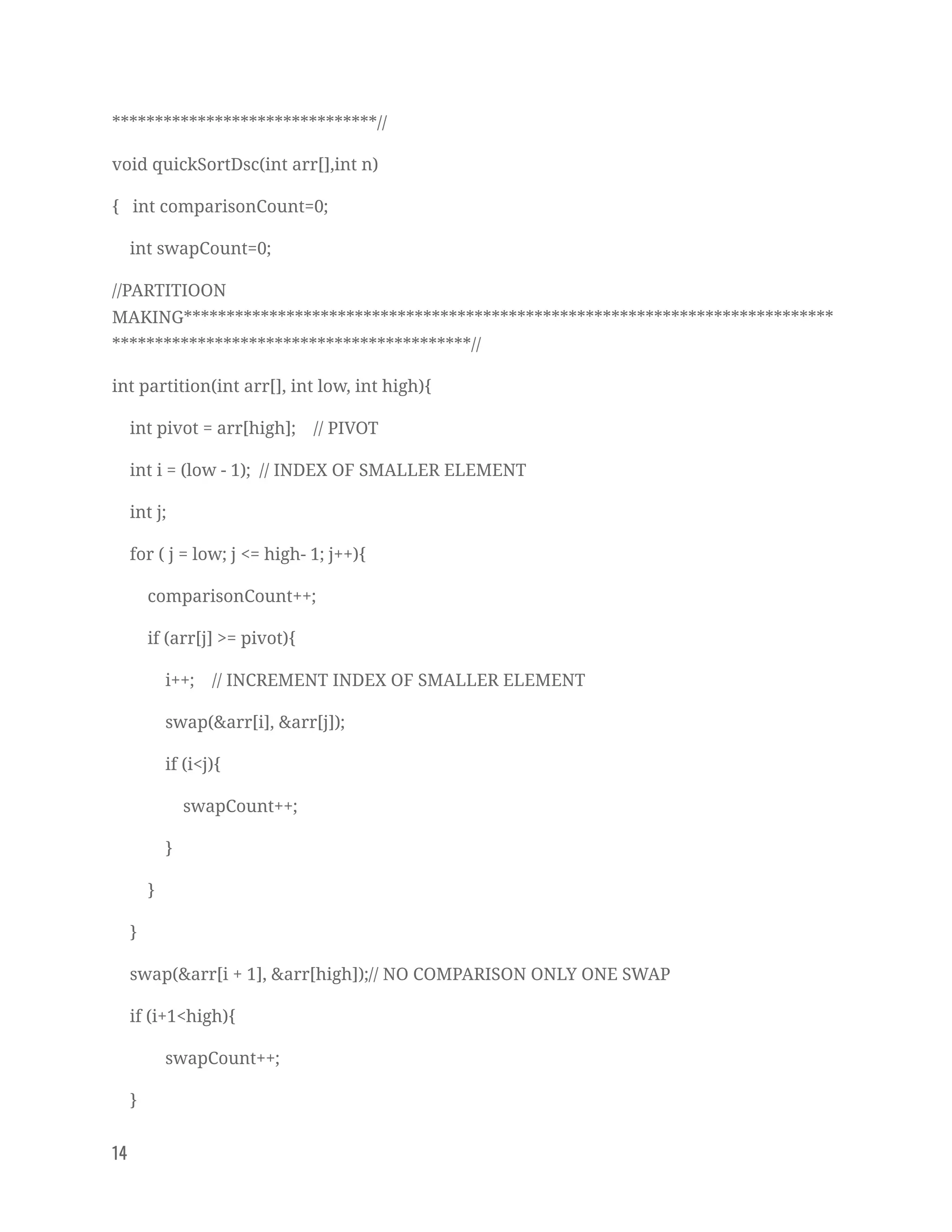

void quickSortDsc(int arr[],int n)
{ int comparisonCount=0;
int swapCount=0;
//PARTITIOON
MAKING****************************************************************************
******************************************//
int partition(int arr[], int low, int high){
int pivot = arr[high]; // PIVOT
int i = (low - 1); // INDEX OF SMALLER ELEMENT
int j;
for ( j = low; j <= high- 1; j++){
comparisonCount++;
if (arr[j] >= pivot){
i++; // INCREMENT INDEX OF SMALLER ELEMENT
if (i<j){
swapCount++;
}
}
}
swap(&arr[i + 1], &arr[high]);// NO COMPARISON ONLY ONE SWAP
if (i+1<high){
swapCount++;
}
14

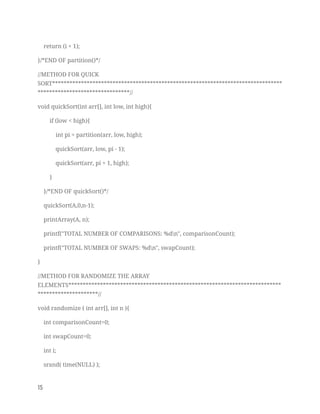

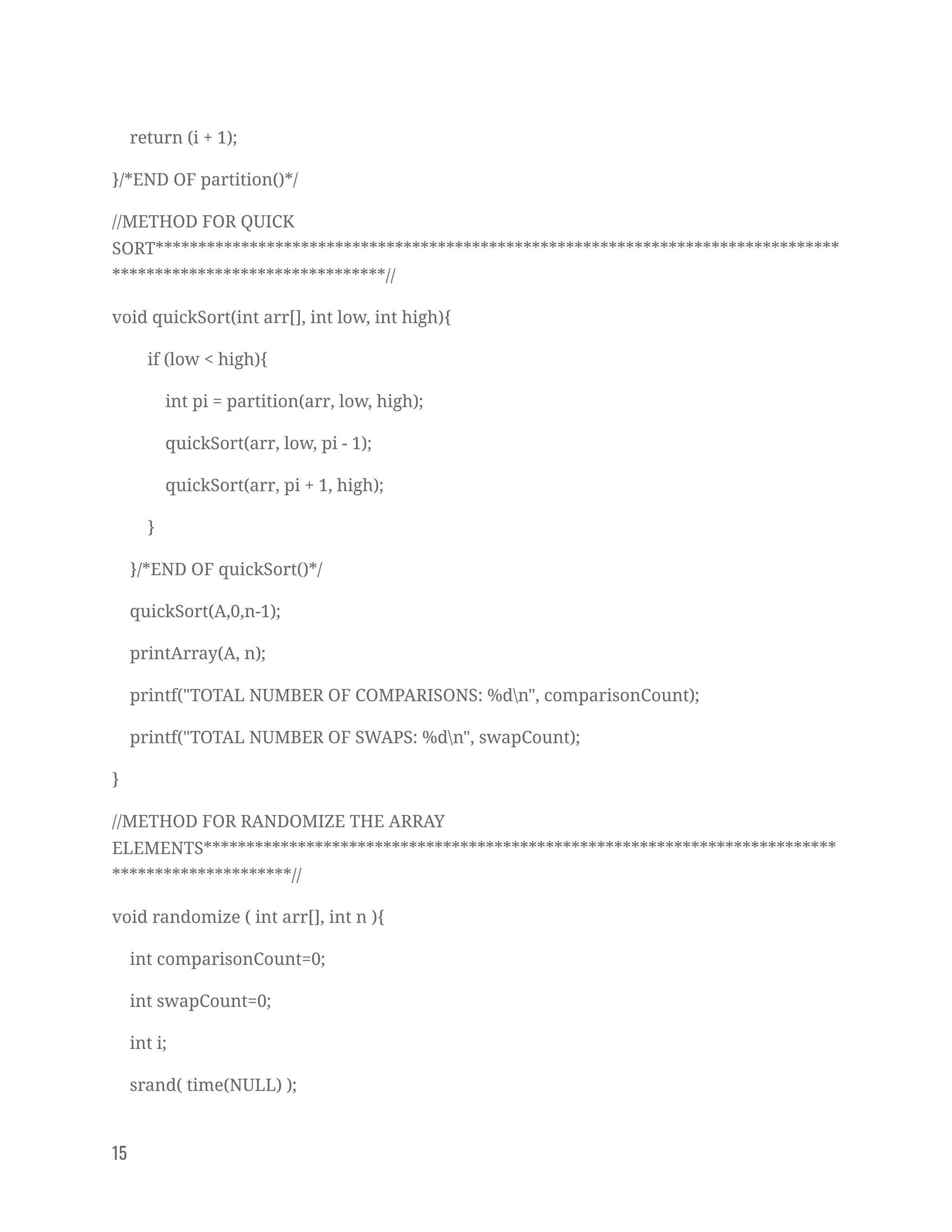

return (i + 1);
}/*END OF partition()*/
//METHOD FOR QUICK
SORT********************************************************************************
********************************//
void quickSort(int arr[], int low, int high){
if (low < high){
int pi = partition(arr, low, high);
quickSort(arr, low, pi - 1);
quickSort(arr, pi + 1, high);
}
}/*END OF quickSort()*/
quickSort(A,0,n-1);
printArray(A, n);
}
//METHOD FOR RANDOMIZE THE ARRAY
ELEMENTS**************************************************************************
*********************//
void randomize ( int arr[], int n ){
int swapCount=0;
int i;
srand( time(NULL) );
15

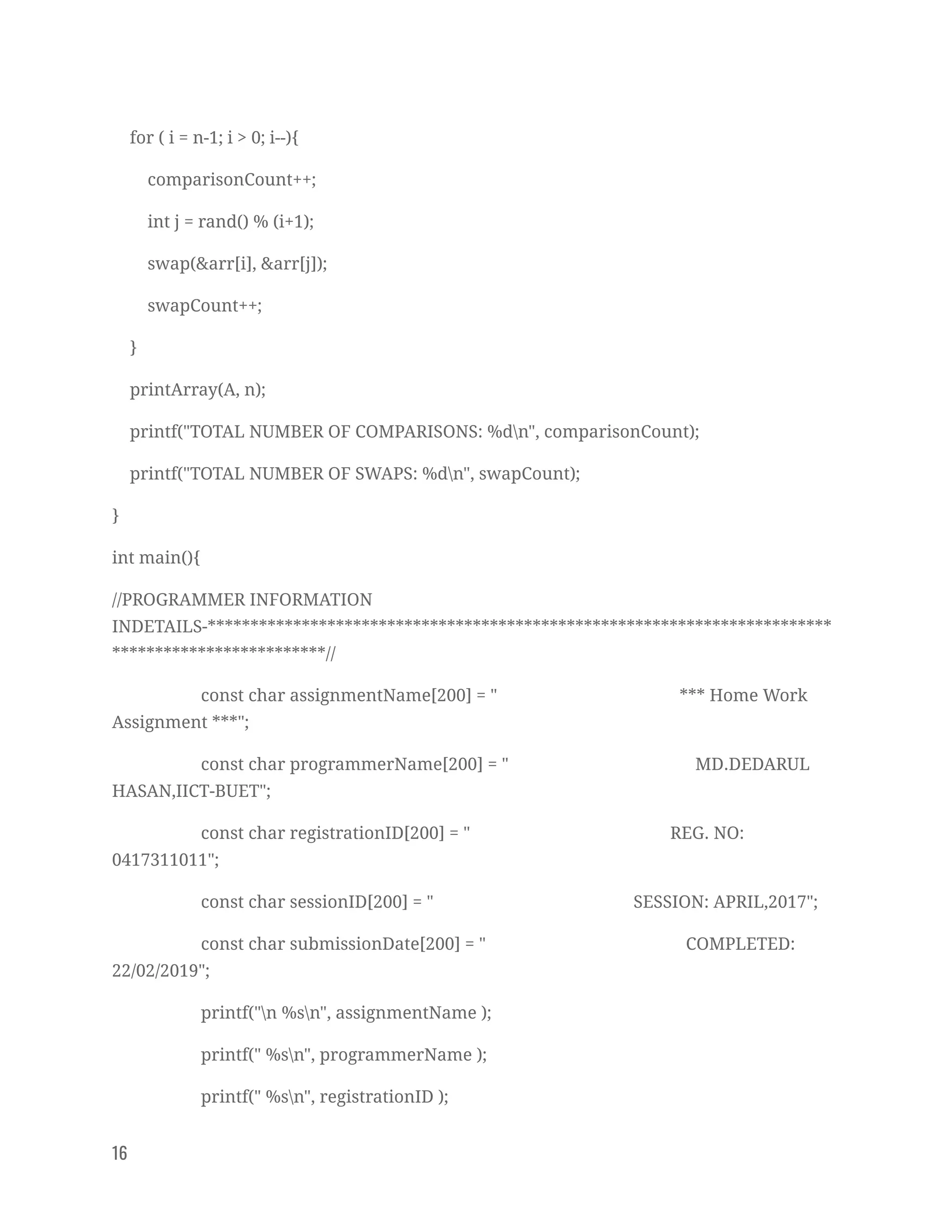

for ( i = n-1; i > 0; i--){
comparisonCount++;
int j = rand() % (i+1);
swapCount++;
}
printArray(A, n);
}
int main(){
//PROGRAMMER INFORMATION
INDETAILS-*************************************************************************
*************************//
const char assignmentName[200] = " *** Home Work
Assignment ***";
const char programmerName[200] = " MD.DEDARUL
HASAN,IICT-BUET";
const char registrationID[200] = " REG. NO:
0417311011";
const char sessionID[200] = " SESSION: APRIL,2017";
const char submissionDate[200] = " COMPLETED:
22/02/2019";
printf("n %sn", assignmentName );
printf(" %sn", programmerName );
printf(" %sn", registrationID );
16

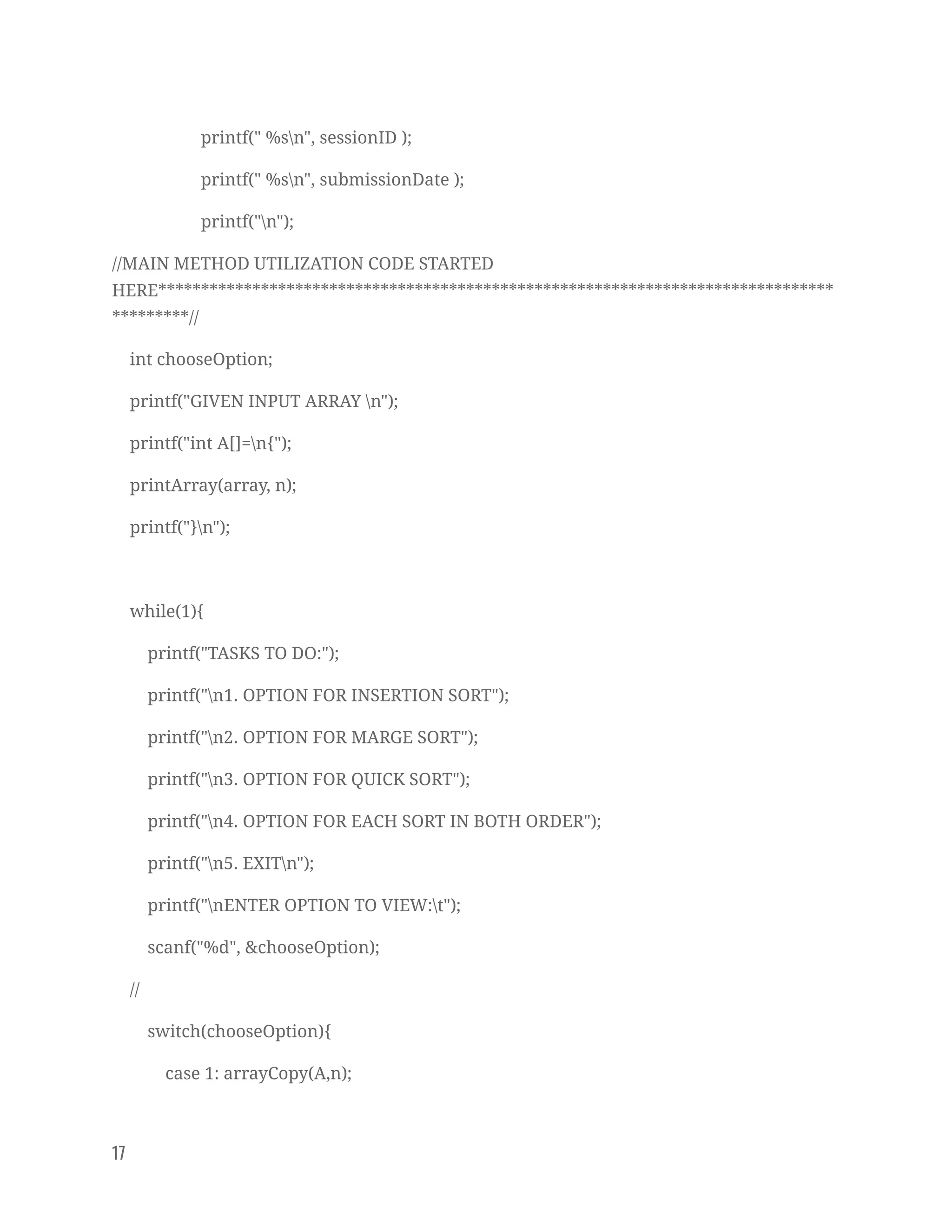

printf(" %sn", sessionID );
printf(" %sn", submissionDate );
printf("n");
//MAIN METHOD UTILIZATION CODE STARTED
HERE*******************************************************************************
*********//
int chooseOption;
printf("GIVEN INPUT ARRAY n");
printf("int A[]=n{");
printArray(array, n);
printf("}n");

while(1){
printf("TASKS TO DO:");
printf("n1. OPTION FOR INSERTION SORT");
printf("n2. OPTION FOR MARGE SORT");
printf("n3. OPTION FOR QUICK SORT");
printf("n4. OPTION FOR EACH SORT IN BOTH ORDER");
printf("n5. EXITn");
printf("nENTER OPTION TO VIEW:t");
scanf("%d", &chooseOption);
//
switch(chooseOption){
case 1: arrayCopy(A,n);
17

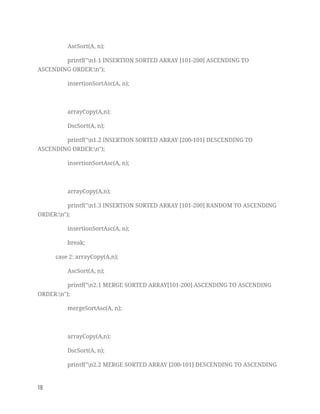

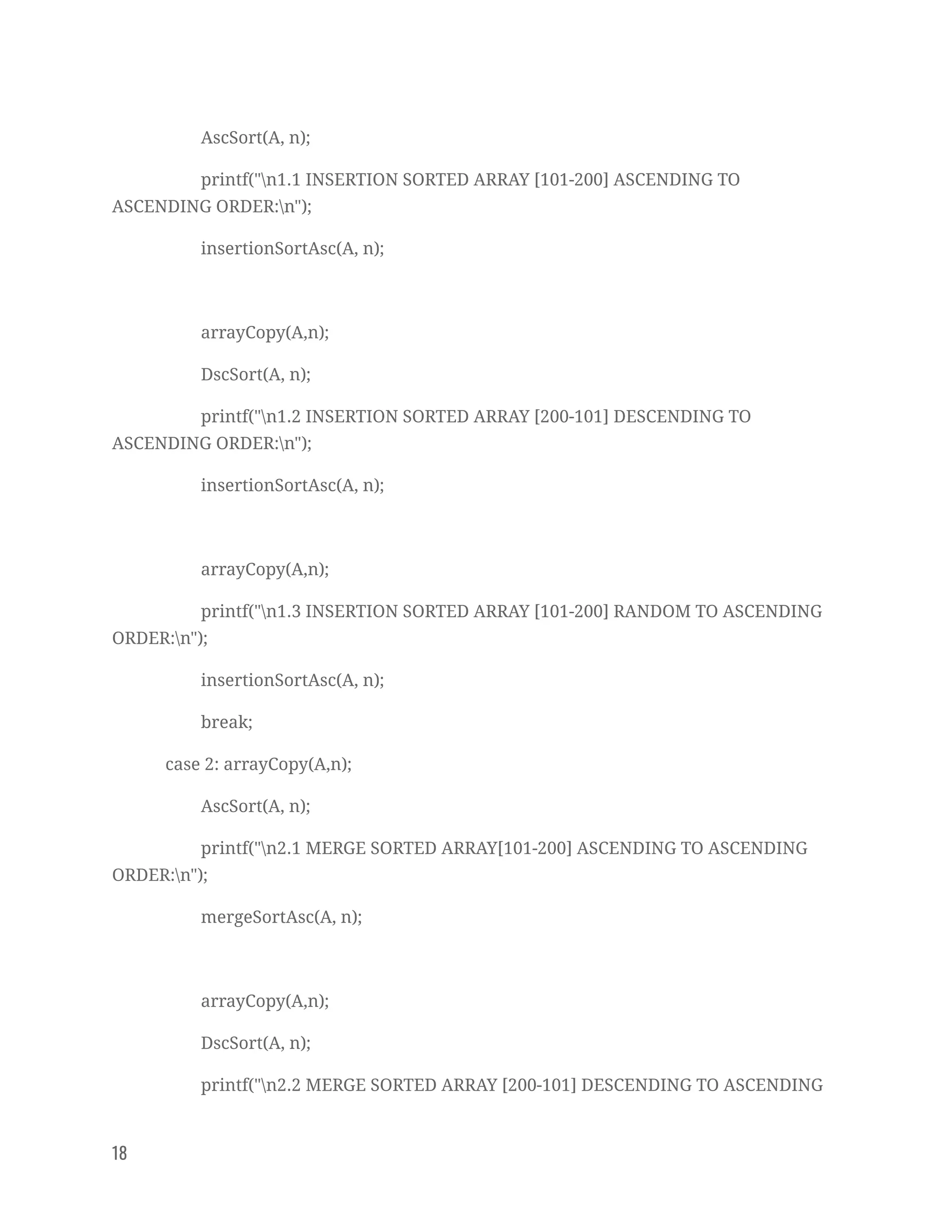

AscSort(A, n);
printf("n1.1 INSERTION SORTED ARRAY [101-200] ASCENDING TO
ASCENDING ORDER:n");
insertionSortAsc(A, n);

arrayCopy(A,n);
DscSort(A, n);
printf("n1.2 INSERTION SORTED ARRAY [200-101] DESCENDING TO
ASCENDING ORDER:n");

arrayCopy(A,n);
printf("n1.3 INSERTION SORTED ARRAY [101-200] RANDOM TO ASCENDING
ORDER:n");
break;
AscSort(A, n);
printf("n2.1 MERGE SORTED ARRAY[101-200] ASCENDING TO ASCENDING
ORDER:n");
mergeSortAsc(A, n);

arrayCopy(A,n);
DscSort(A, n);
printf("n2.2 MERGE SORTED ARRAY [200-101] DESCENDING TO ASCENDING
18

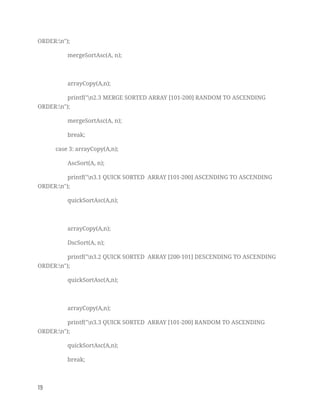

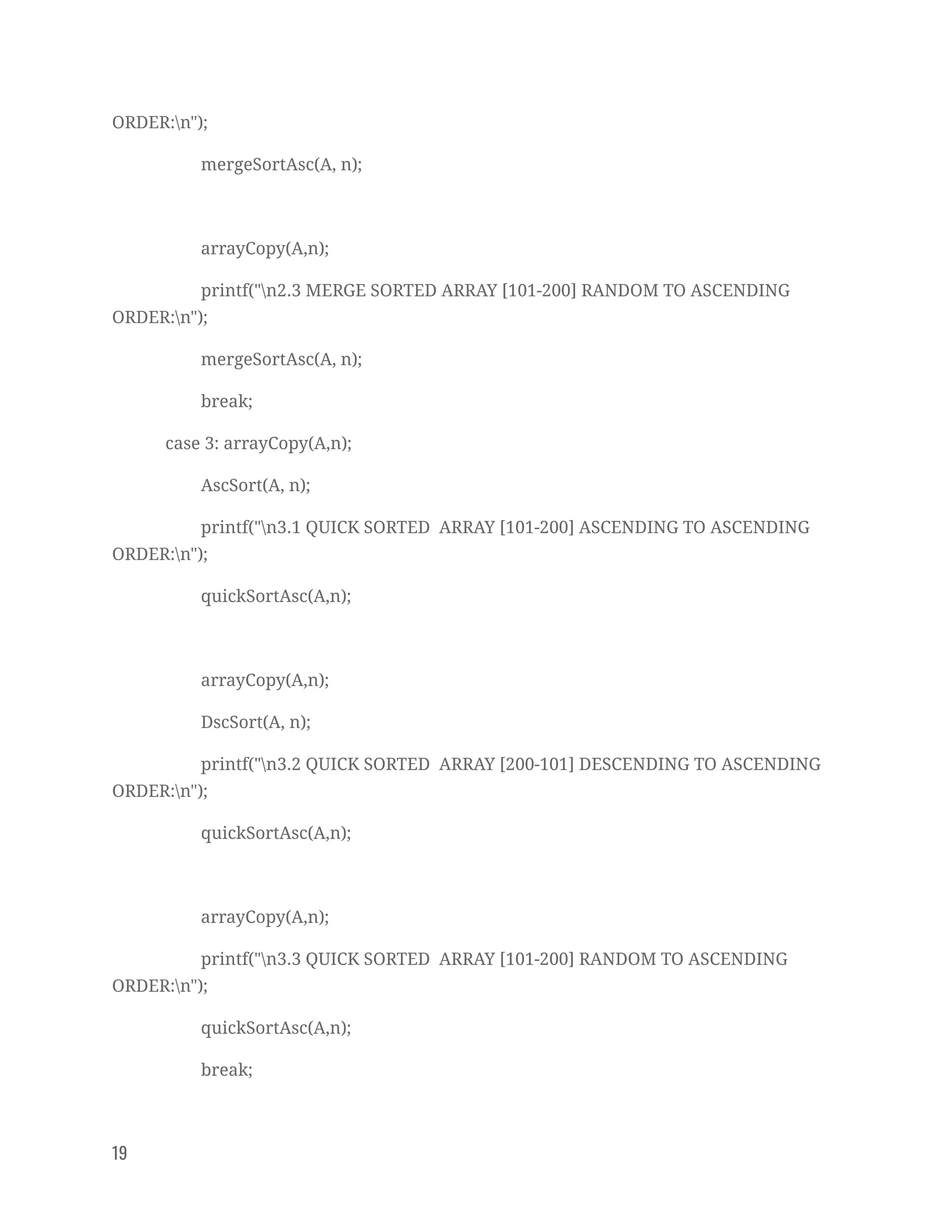

ORDER:n");
mergeSortAsc(A, n);

arrayCopy(A,n);
printf("n2.3 MERGE SORTED ARRAY [101-200] RANDOM TO ASCENDING
ORDER:n");
mergeSortAsc(A, n);
break;
AscSort(A, n);
printf("n3.1 QUICK SORTED ARRAY [101-200] ASCENDING TO ASCENDING
ORDER:n");
quickSortAsc(A,n);

arrayCopy(A,n);
DscSort(A, n);
printf("n3.2 QUICK SORTED ARRAY [200-101] DESCENDING TO ASCENDING
ORDER:n");
quickSortAsc(A,n);

arrayCopy(A,n);
printf("n3.3 QUICK SORTED ARRAY [101-200] RANDOM TO ASCENDING
ORDER:n");
quickSortAsc(A,n);
break;
19

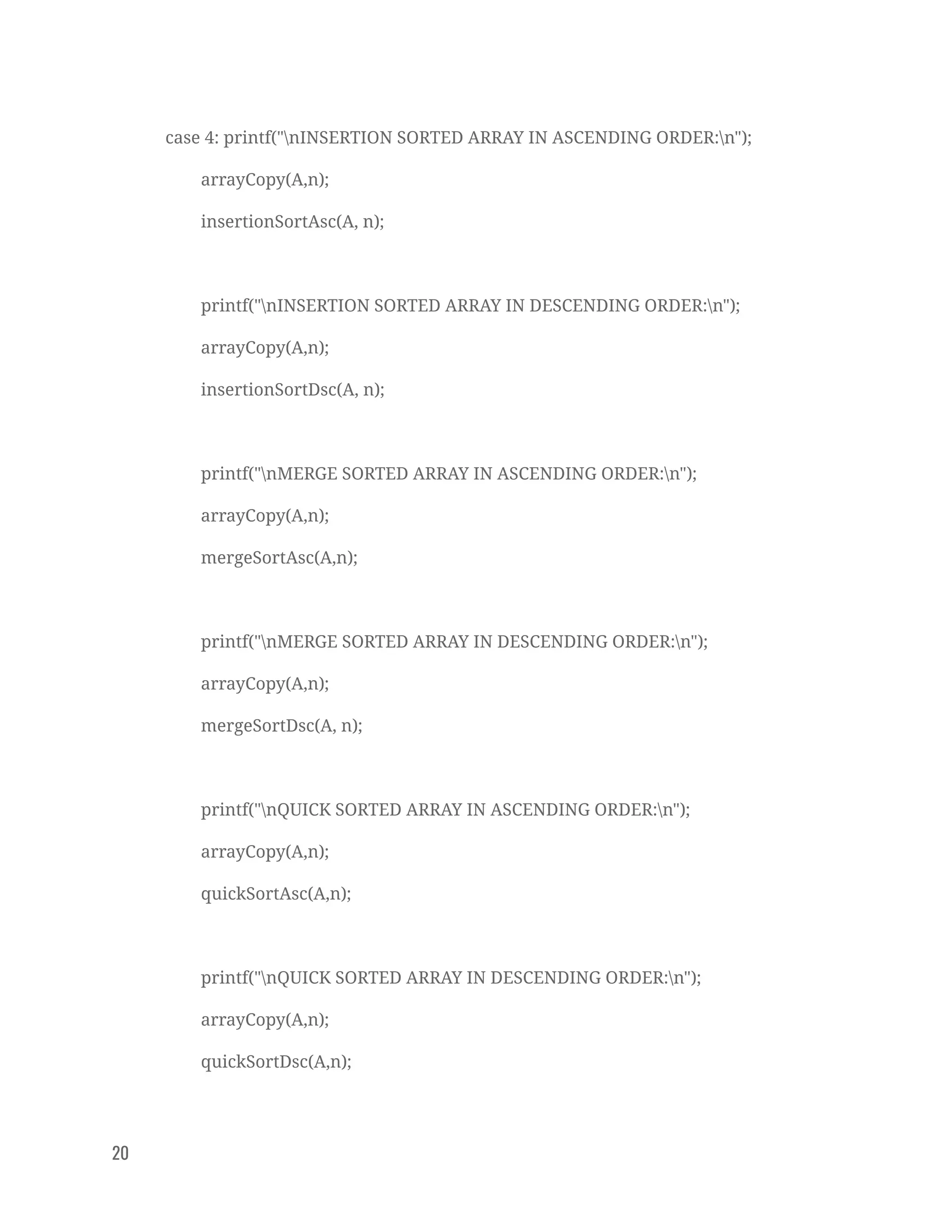

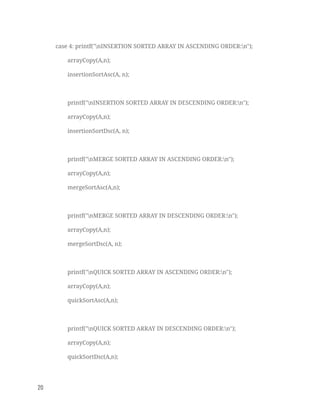

case 4: printf("nINSERTION SORTED ARRAY IN ASCENDING ORDER:n");
arrayCopy(A,n);

printf("nINSERTION SORTED ARRAY IN DESCENDING ORDER:n");
arrayCopy(A,n);
insertionSortDsc(A, n);

printf("nMERGE SORTED ARRAY IN ASCENDING ORDER:n");
arrayCopy(A,n);
mergeSortAsc(A,n);

printf("nMERGE SORTED ARRAY IN DESCENDING ORDER:n");
arrayCopy(A,n);
mergeSortDsc(A, n);

printf("nQUICK SORTED ARRAY IN ASCENDING ORDER:n");
arrayCopy(A,n);
quickSortAsc(A,n);

printf("nQUICK SORTED ARRAY IN DESCENDING ORDER:n");
arrayCopy(A,n);
quickSortDsc(A,n);

20

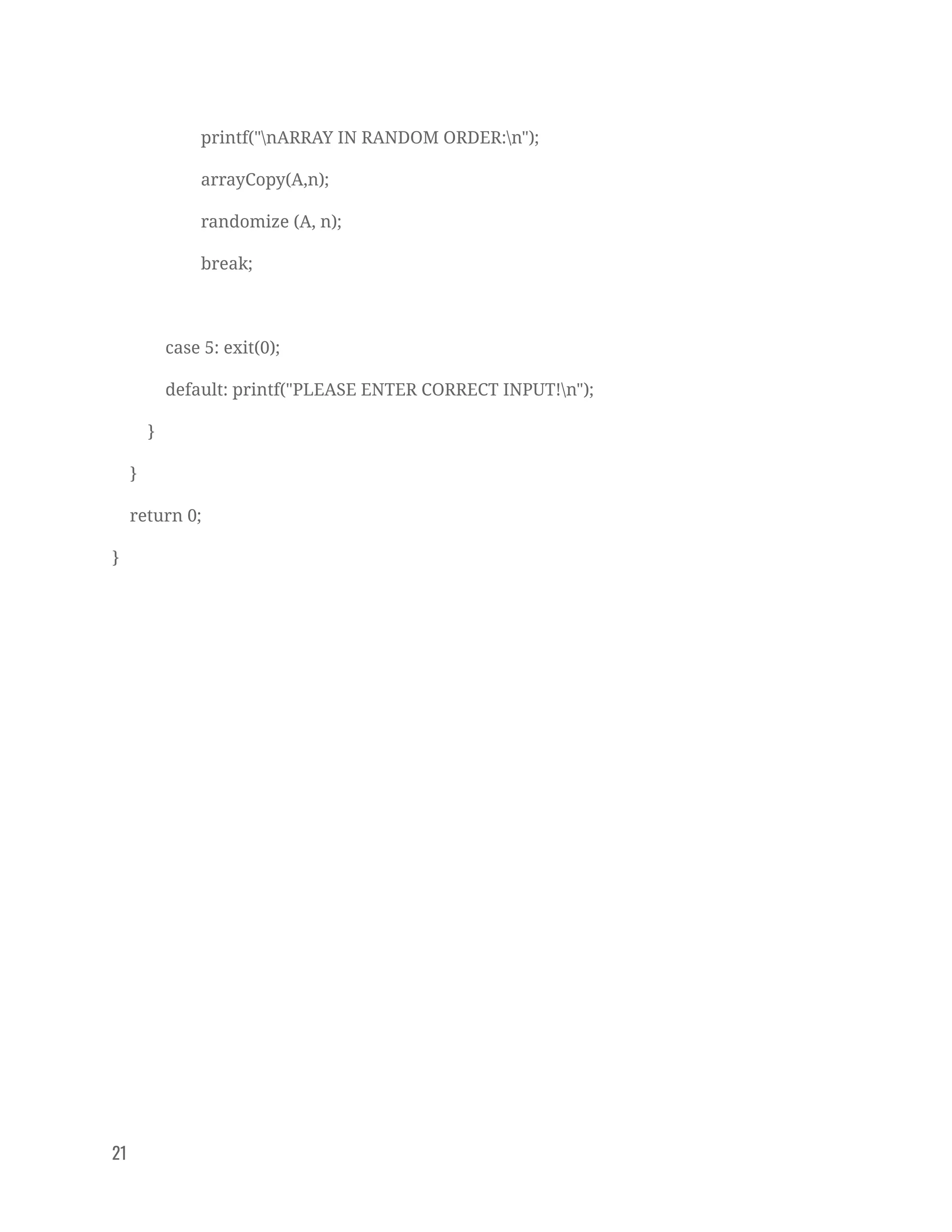

printf("nARRAY IN RANDOM ORDER:n");
arrayCopy(A,n);
randomize (A, n);
break;

case 5: exit(0);
default: printf("PLEASE ENTER CORRECT INPUT!n");
}
}
return 0;
}

21

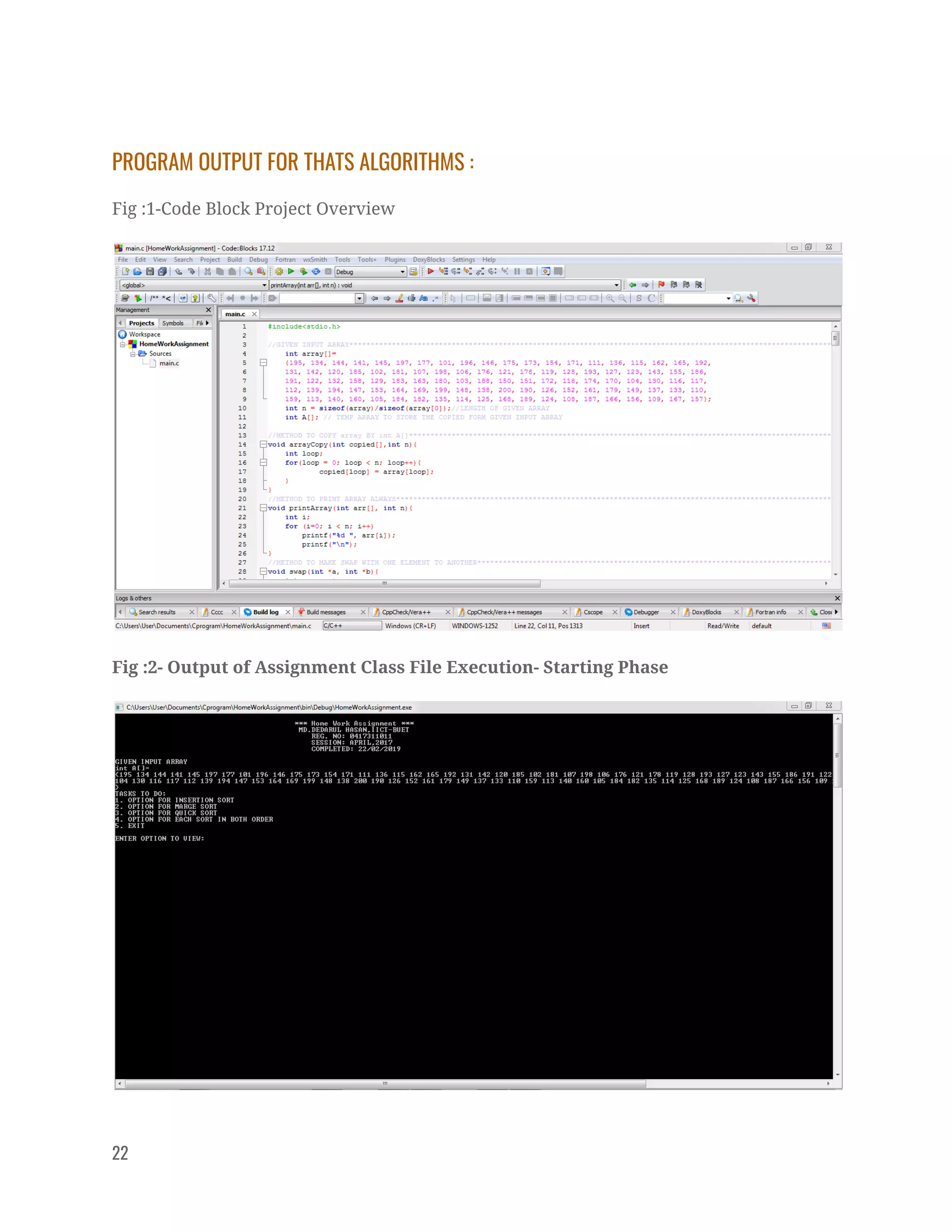

PROGRAM OUTPUT FOR THATS ALGORITHMS :
Fig :1-Code Block Project Overview

Fig :2- Output of Assignment Class File Execution- Starting Phase

22

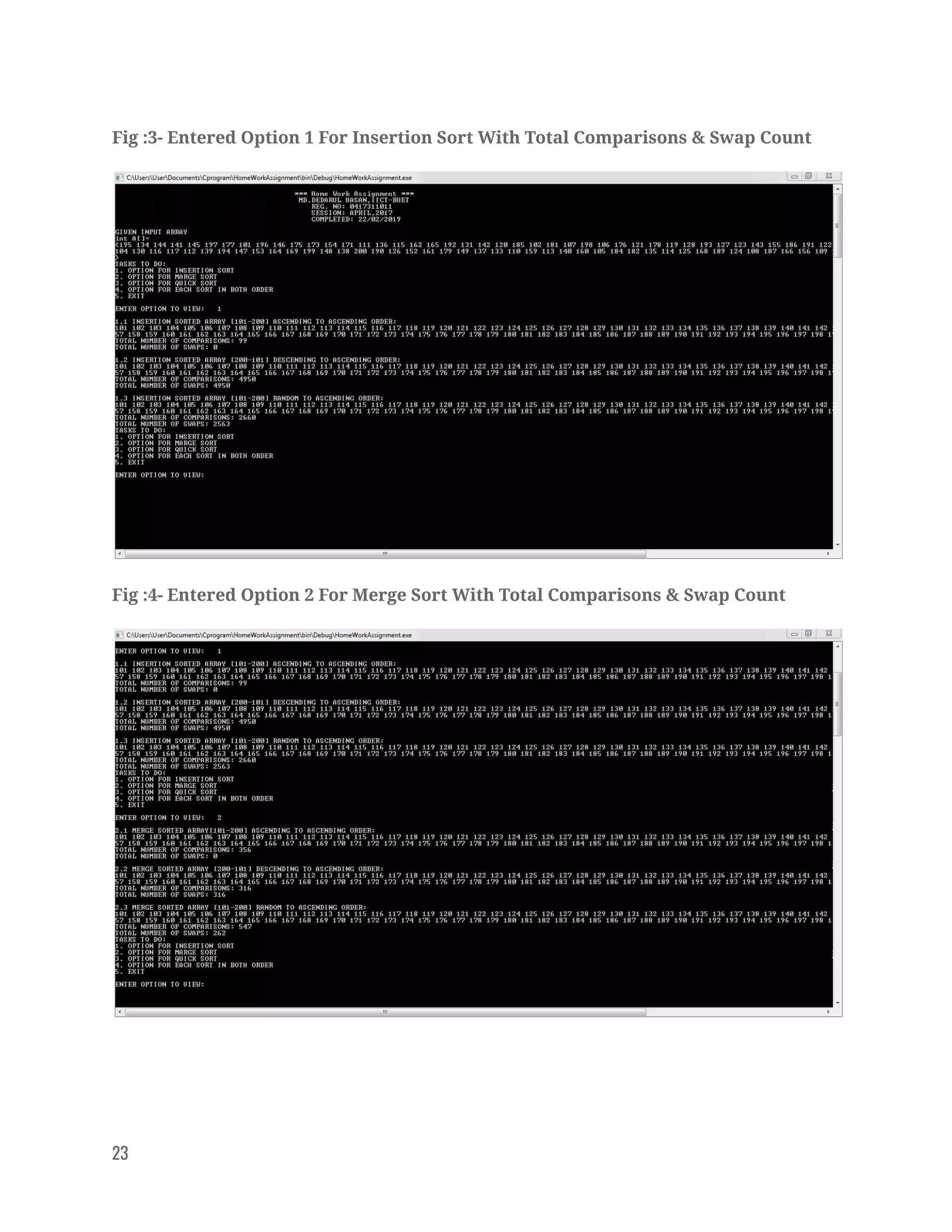

Fig :3- Entered Option 1 For Insertion Sort With Total Comparisons & Swap Count

Fig :4- Entered Option 2 For Merge Sort With Total Comparisons & Swap Count

23

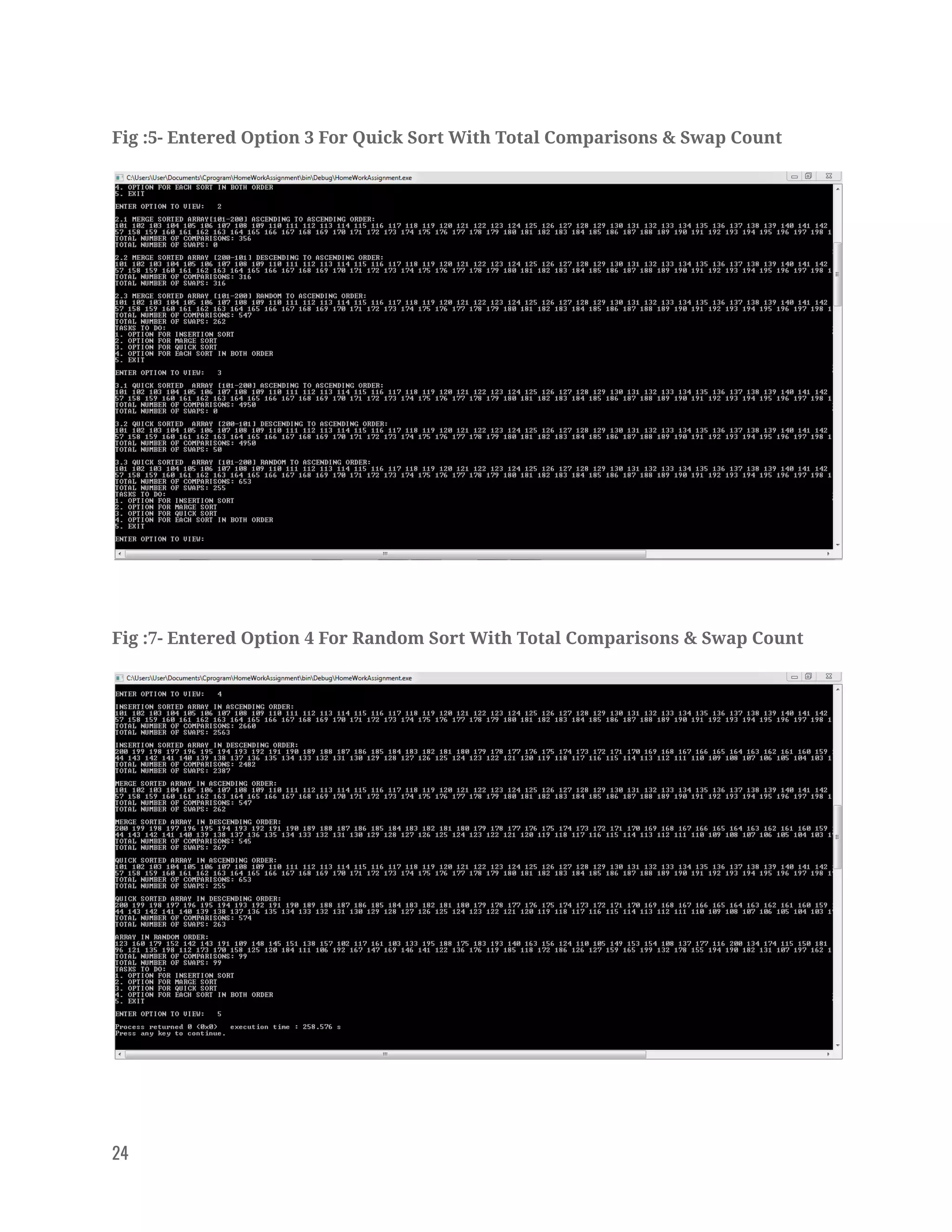

Fig :5- Entered Option 3 For Quick Sort With Total Comparisons & Swap Count

Fig :7- Entered Option 4 For Random Sort With Total Comparisons & Swap Count

24

OUTPUT DATA REPORT FOR TOTAL COMPARISONS & SWAPS COUNT:
ALGORITHM NO OF COMPARISONS NO OF SWAPS
Insertion Sort
Merge Sort
Quick Sort

RESULTS
We have used C programming language for that assignment completions. Which has
given the ultimate result for Insertion Sort, Merge Sort & Quick Sort using their algorithm
& pseudo codes. After that we have sorted the given input array [101-200] in Ascending
,Descending & also Randomize options too.
CONCLUSION

1. Insert sort is more efficient than bubble sort and selection sort.In this algo we
divide the entire array into parts; the sorted array and the unsorted array.With
every iteration we have to place the first element of the unsorted array in the
correct position of the sorted array and increase the sorted list by one.
Time Complexity:
when elements are sorted there are no swaps and the correct position of the
element in the sorted list is the current index itself.The time complexity is : O(n)
25

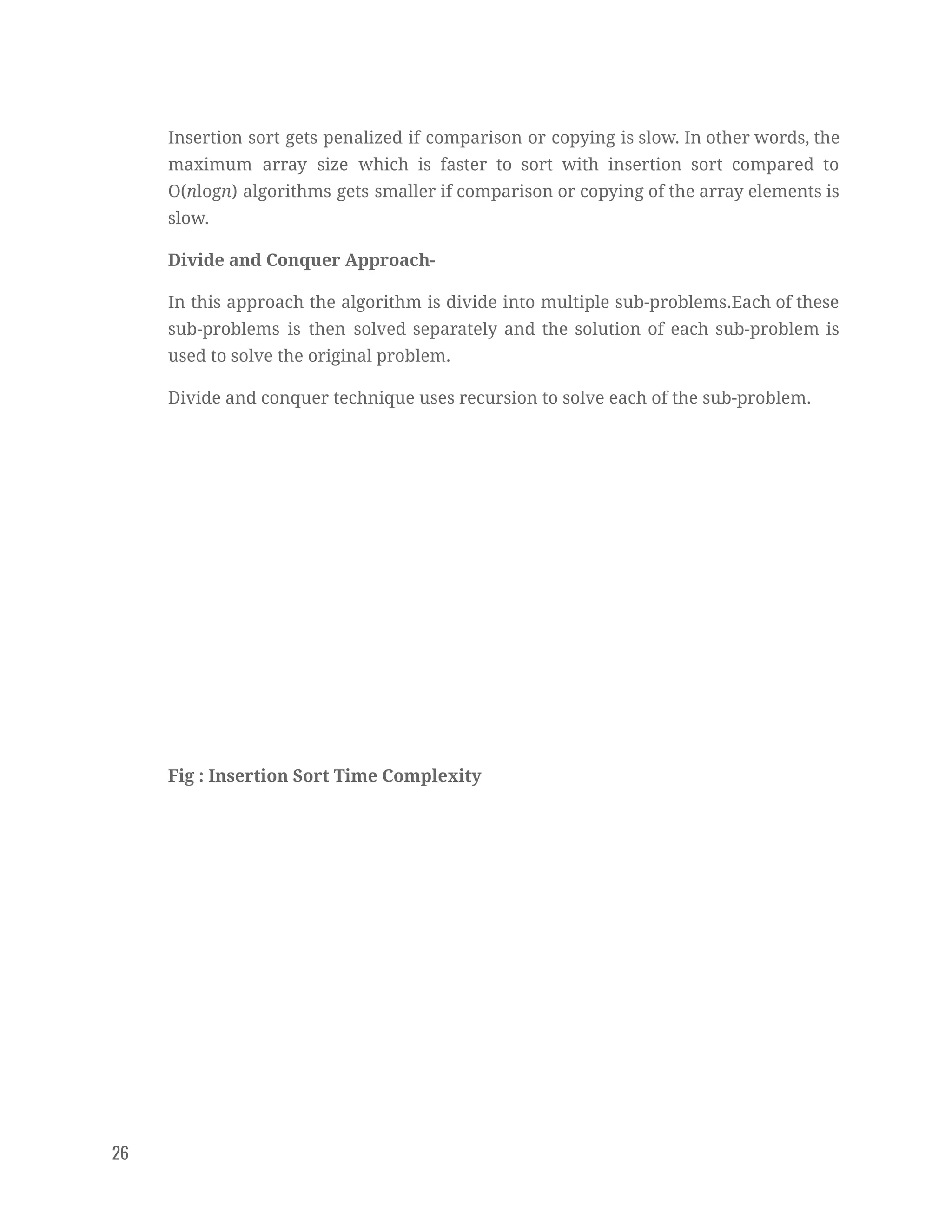

Insertion sort gets penalized if comparison or copying is slow. In other words, the
maximum array size which is faster to sort with insertion sort compared to
O(nlogn) algorithms gets smaller if comparison or copying of the array elements is
slow.
Divide and Conquer Approach-
In this approach the algorithm is divide into multiple sub-problems.Each of these
sub-problems is then solved separately and the solution of each sub-problem is
used to solve the original problem.
Divide and conquer technique uses recursion to solve each of the sub-problem.

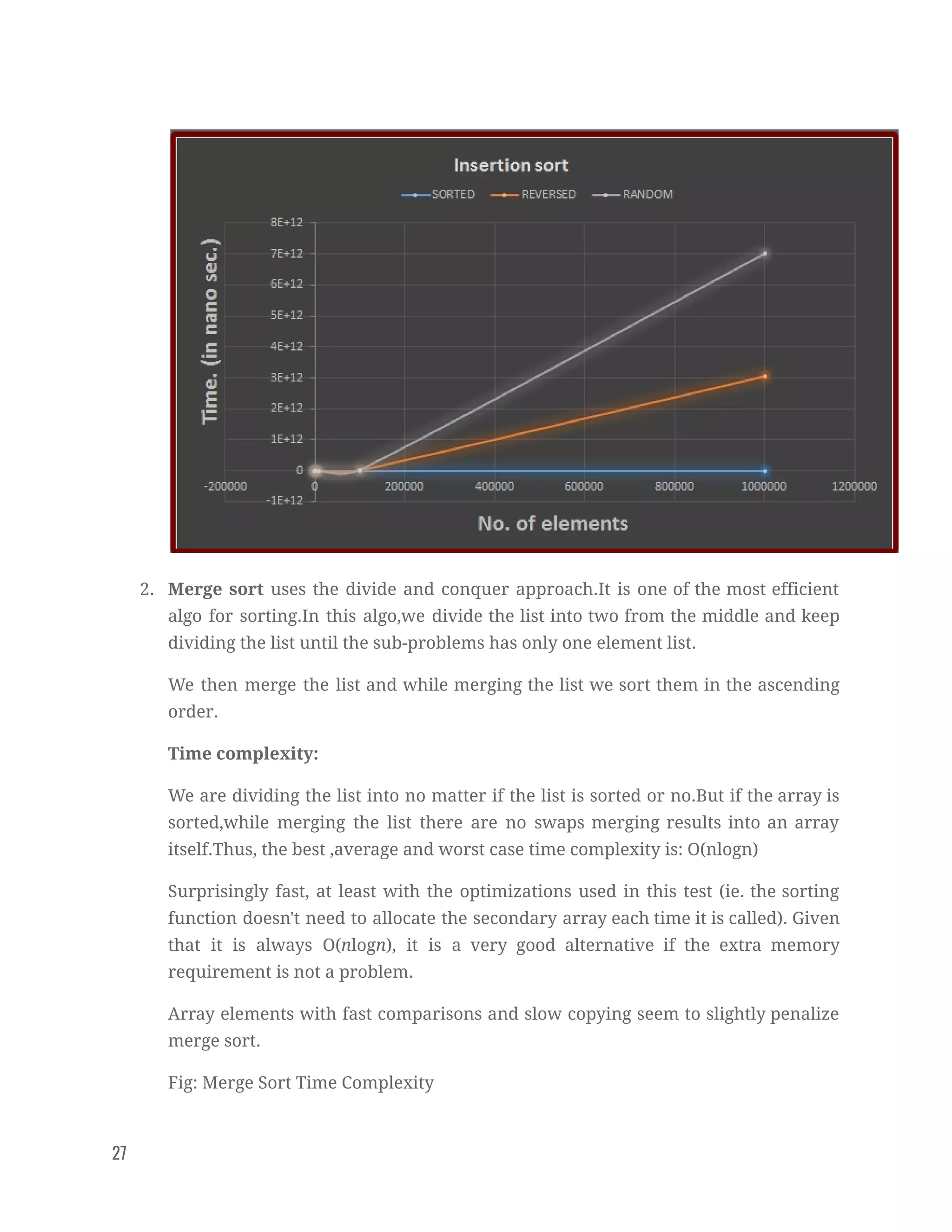

Fig : Insertion Sort Time Complexity
26

2. Merge sort uses the divide and conquer approach.It is one of the most efficient
algo for sorting.In this algo,we divide the list into two from the middle and keep
dividing the list until the sub-problems has only one element list.
We then merge the list and while merging the list we sort them in the ascending
order.
Time complexity:
We are dividing the list into no matter if the list is sorted or no.But if the array is
sorted,while merging the list there are no swaps merging results into an array
itself.Thus, the best ,average and worst case time complexity is: O(nlogn)
Surprisingly fast, at least with the optimizations used in this test (ie. the sorting
function doesn't need to allocate the secondary array each time it is called). Given
that it is always O(nlogn), it is a very good alternative if the extra memory
requirement is not a problem.
Array elements with fast comparisons and slow copying seem to slightly penalize
merge sort.

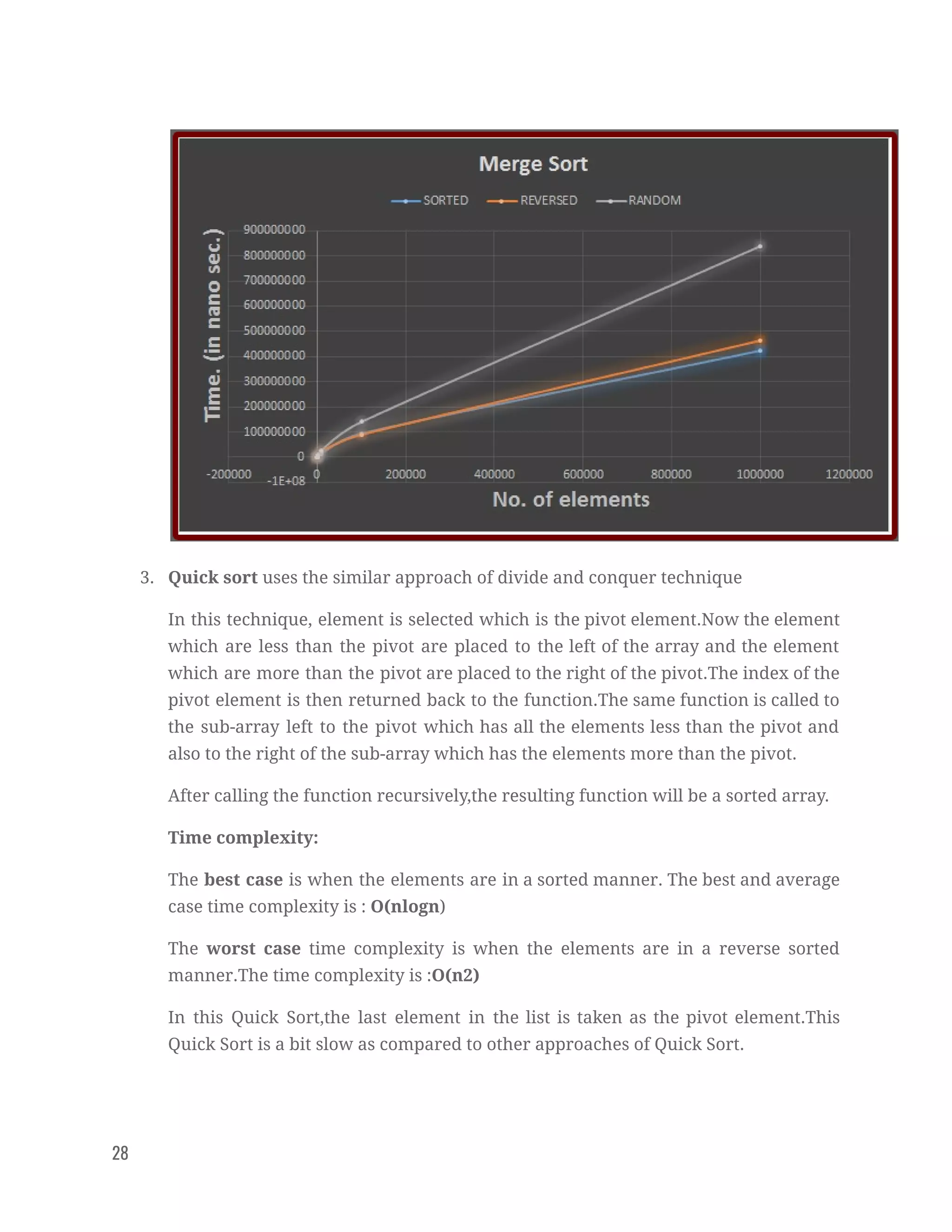

Fig: Merge Sort Time Complexity
27

3. Quick sort uses the similar approach of divide and conquer technique
In this technique, element is selected which is the pivot element.Now the element
which are less than the pivot are placed to the left of the array and the element
which are more than the pivot are placed to the right of the pivot.The index of the
pivot element is then returned back to the function.The same function is called to
the sub-array left to the pivot which has all the elements less than the pivot and
also to the right of the sub-array which has the elements more than the pivot.
After calling the function recursively,the resulting function will be a sorted array.
Time complexity:
The best case is when the elements are in a sorted manner. The best and average
case time complexity is : O(nlogn)
The worst case time complexity is when the elements are in a reverse sorted
manner.The time complexity is :O(n2)
In this Quick Sort,the last element in the list is taken as the pivot element.This
Quick Sort is a bit slow as compared to other approaches of Quick Sort.

28

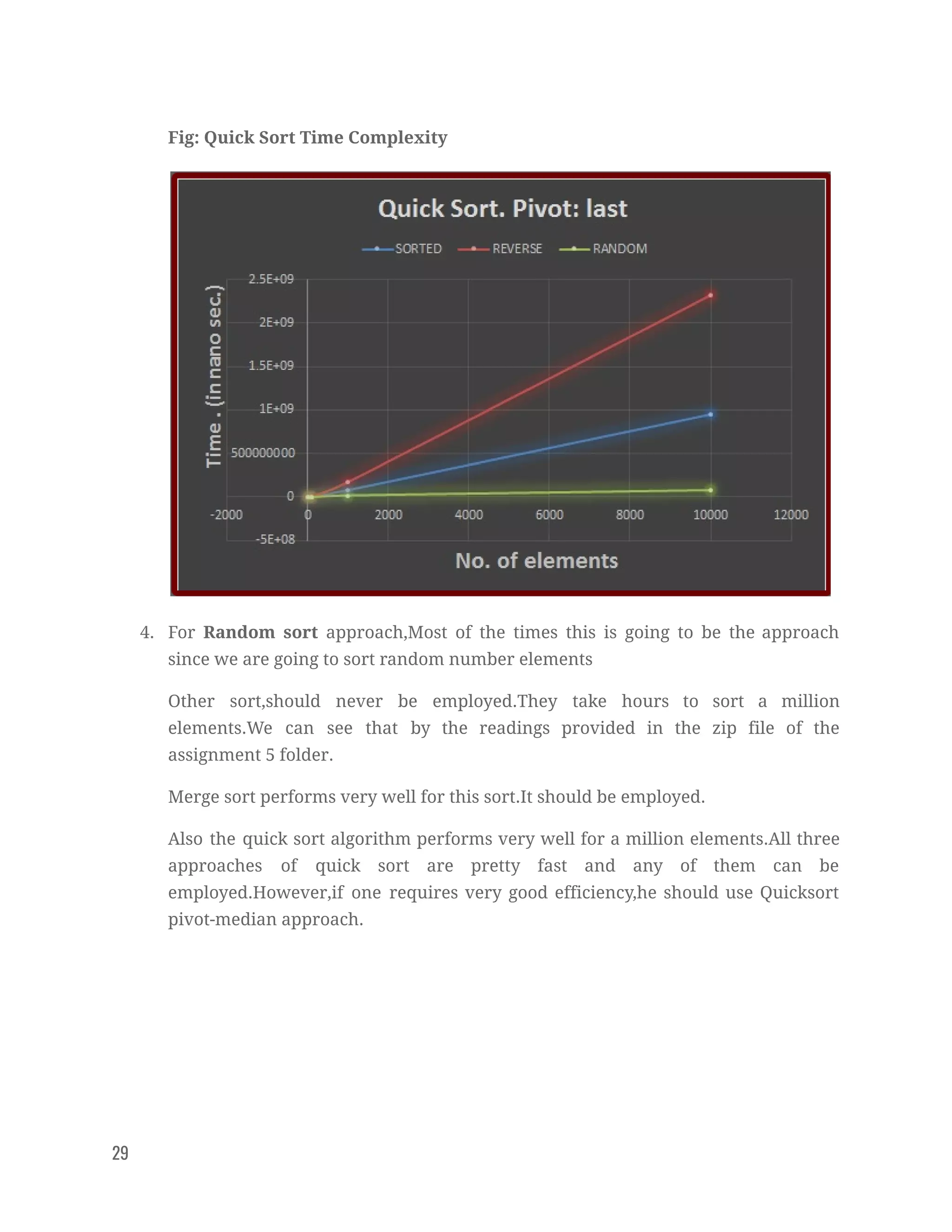

Fig: Quick Sort Time Complexity

4. For Random sort approach,Most of the times this is going to be the approach
since we are going to sort random number elements
Other sort,should never be employed.They take hours to sort a million
elements.We can see that by the readings provided in the zip file of the
assignment 5 folder.
Merge sort performs very well for this sort.It should be employed.
Also the quick sort algorithm performs very well for a million elements.All three
approaches of quick sort are pretty fast and any of them can be
employed.However,if one requires very good efficiency,he should use Quicksort
pivot-median approach.

29

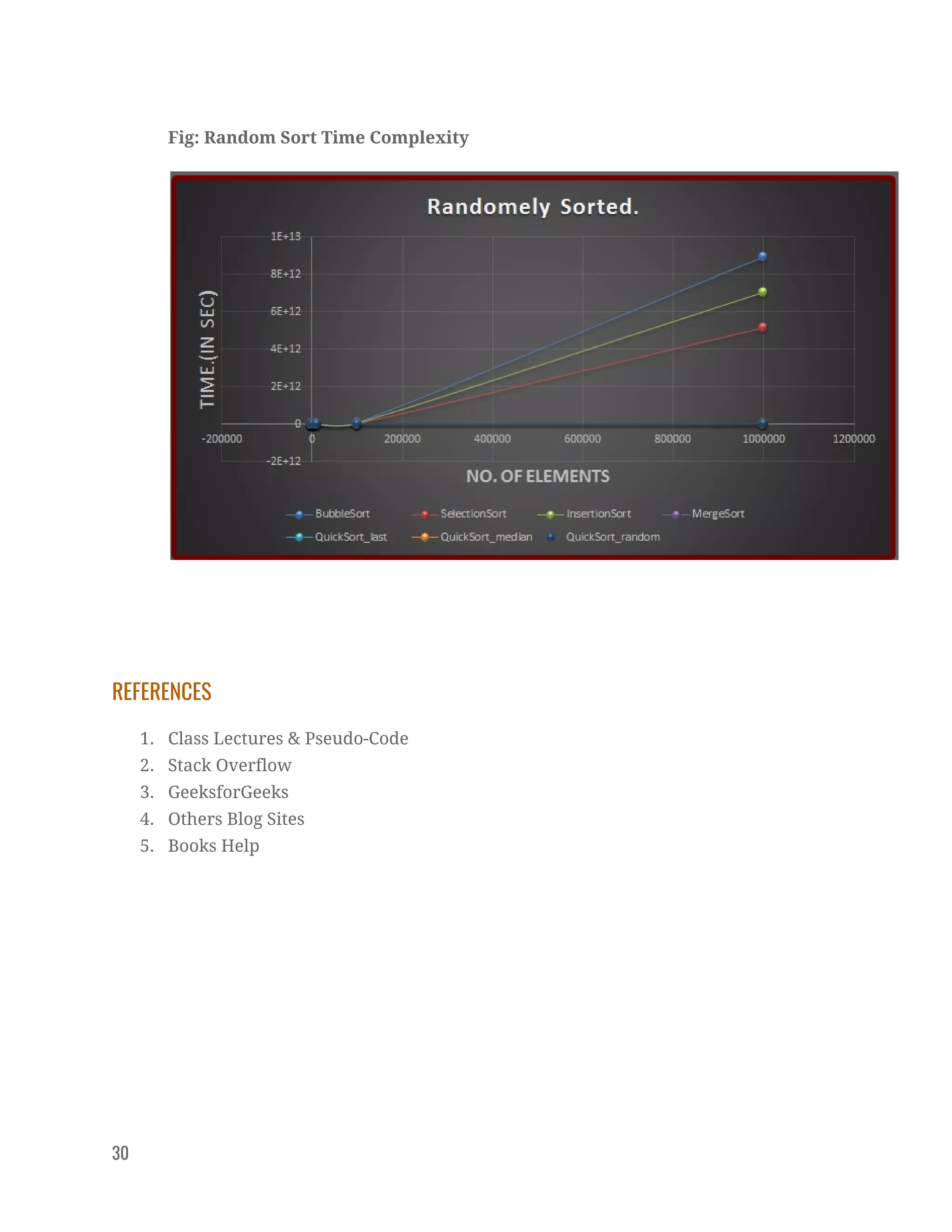

Fig: Random Sort Time Complexity

REFERENCES
1. Class Lectures & Pseudo-Code
2. Stack Overflow
3. GeeksforGeeks
4. Others Blog Sites
5. Books Help
30

Home workassignment01 google docs

More Related Content

Similar to Home workassignment01 google docs

More from LITS IT Ltd,LASRC.SPACE,SAWDAGOR BD,FREELANCE BD,iREV,BD LAW ACADEMY,SMART AVI,HEA,HFSAC LTD.

Recently uploaded

Home workassignment01 google docs
