Introduction to HTML and HTTP web designing

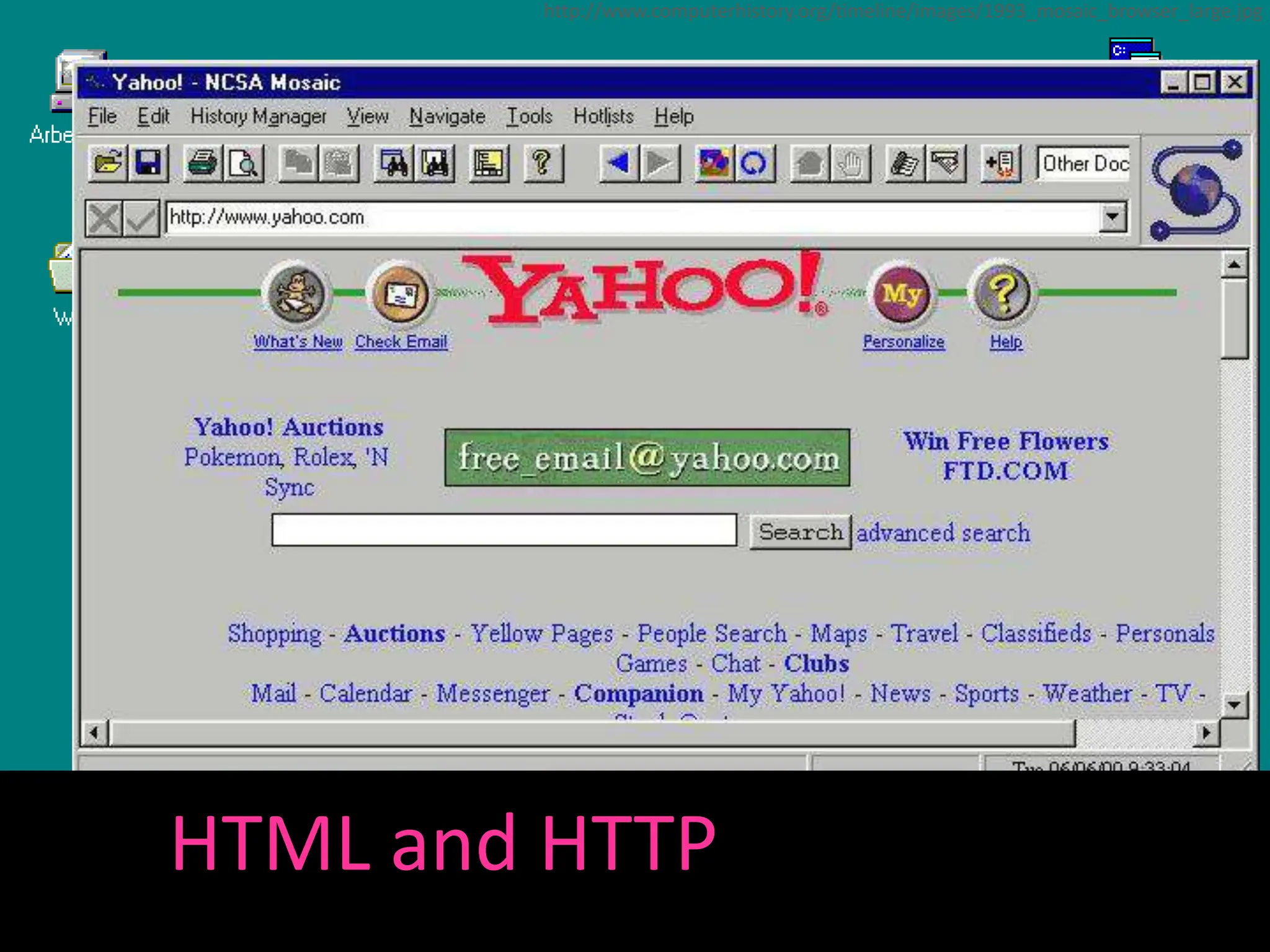

HTML and HTTP
http://www.computerhistory.org/timeline/images/1993_mosaic_browser_large.jpg

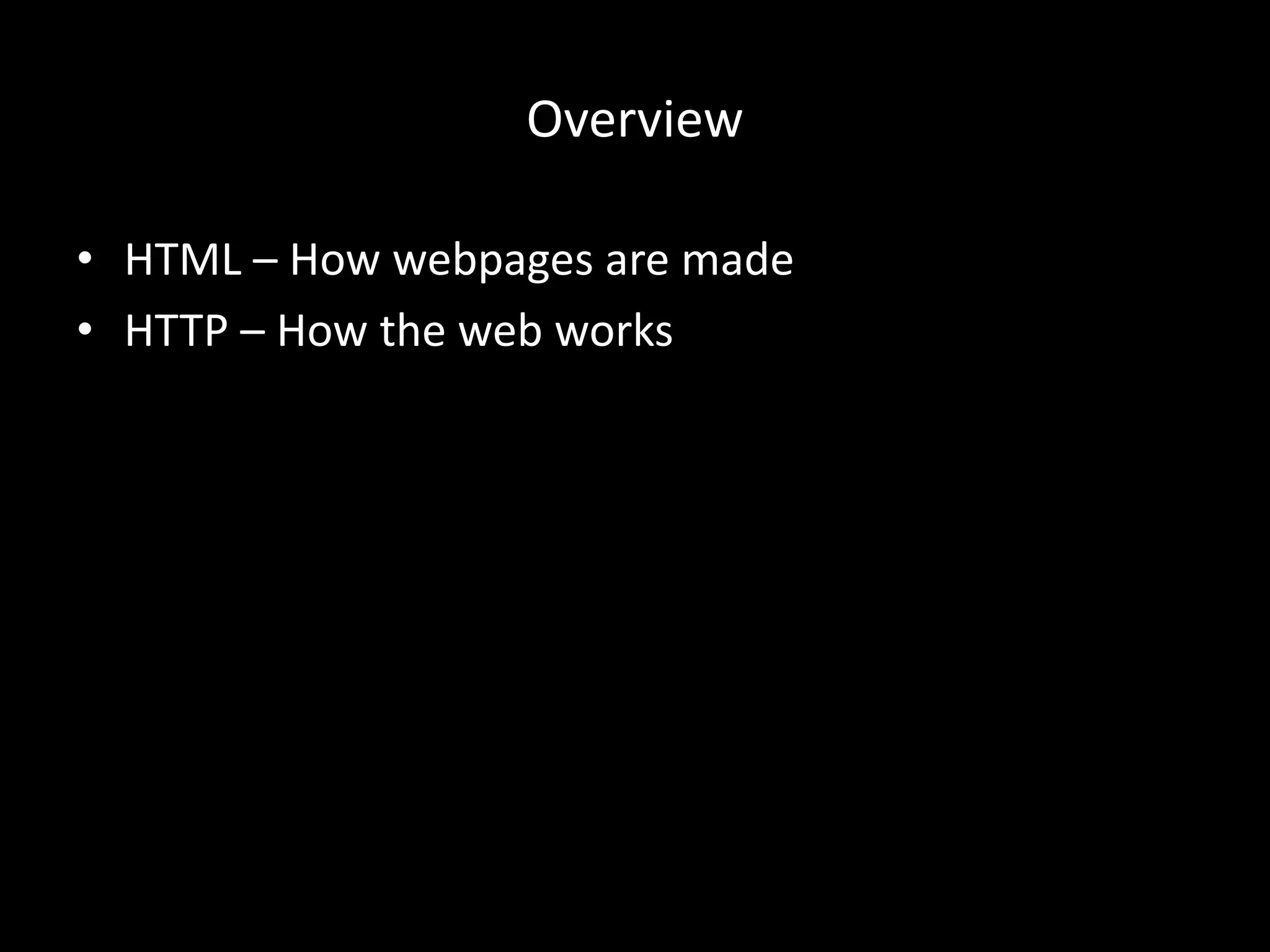

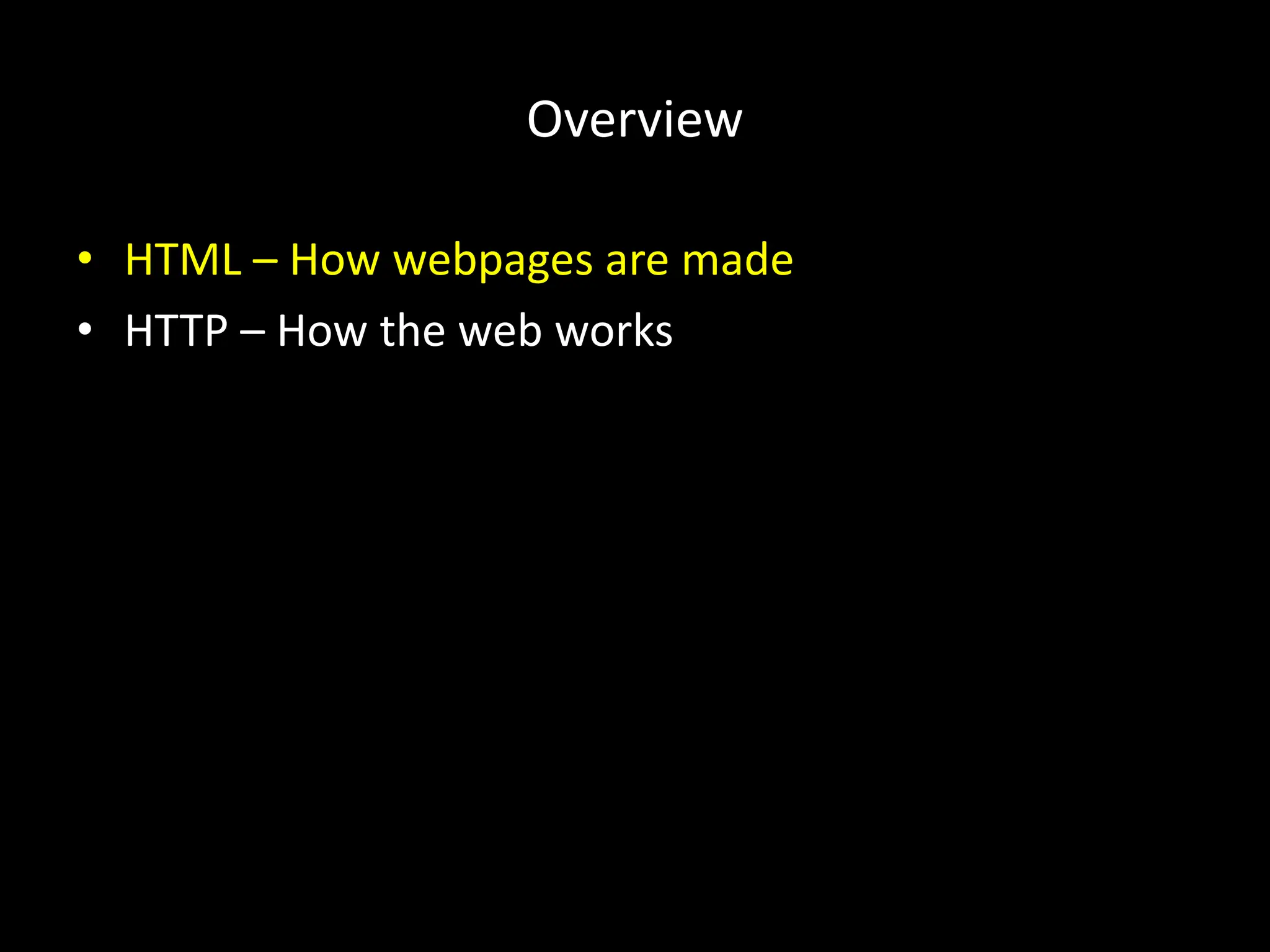

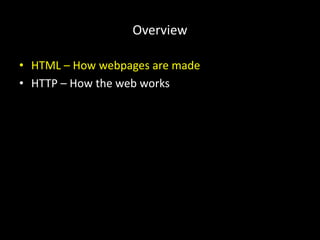

Overview
• HTML – How webpages are made
• HTTP – How the web works

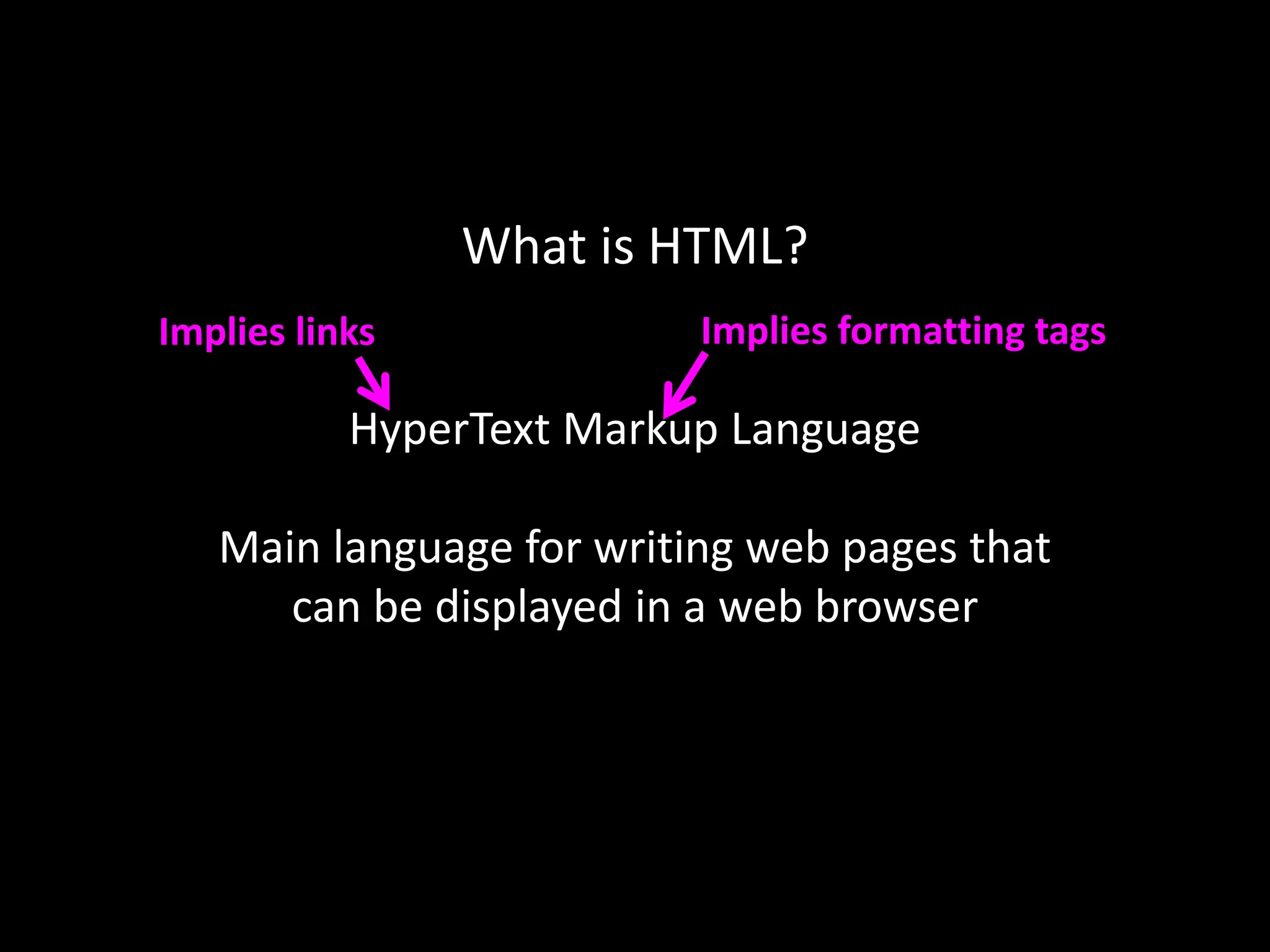

What is HTML?
HyperText Markup Language
Main language for writing web pages that
can be displayed in a web browser
Implies links Implies formatting tags

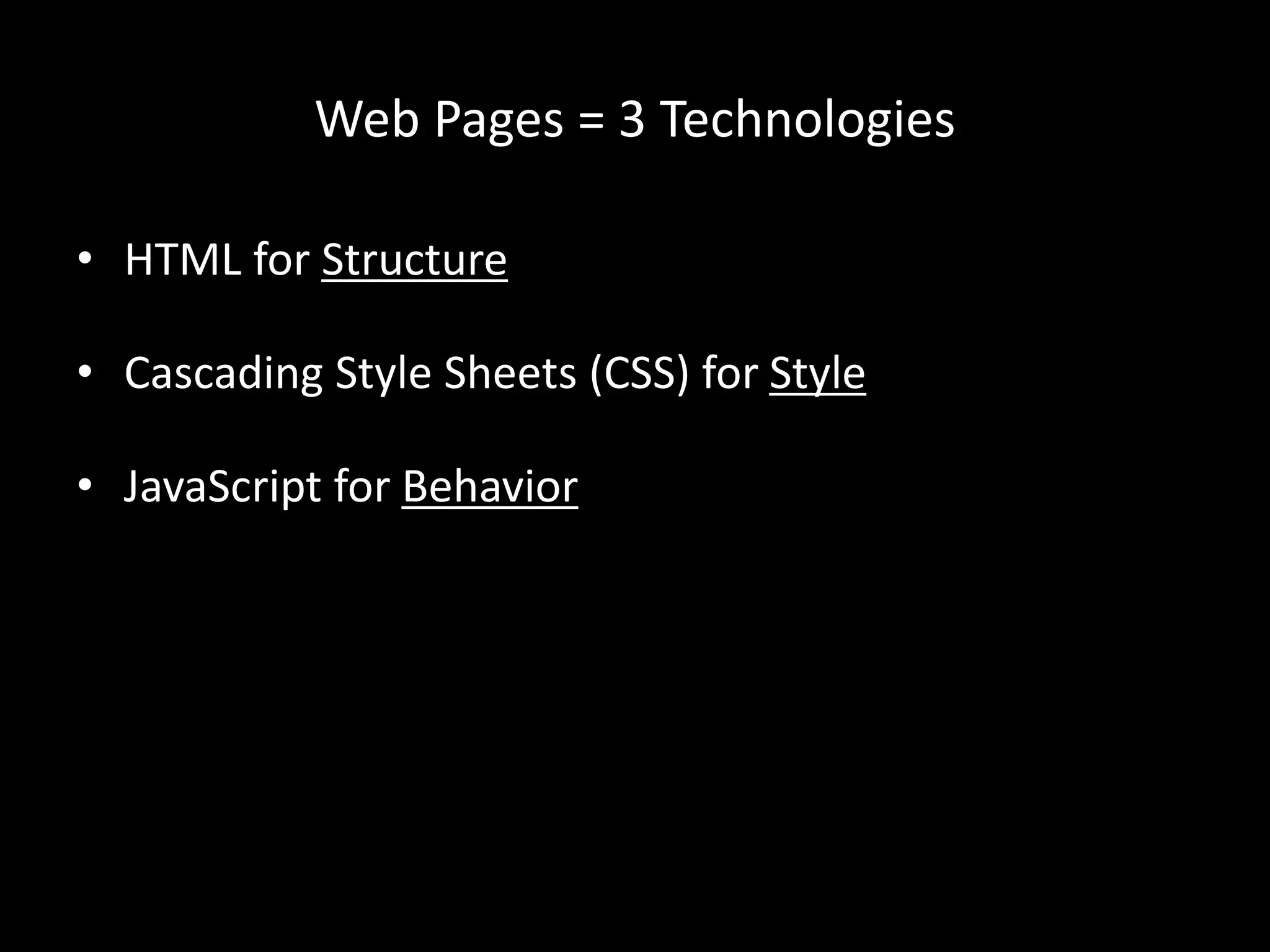

Web Pages = 3 Technologies
• HTML for Structure
• Cascading Style Sheets (CSS) for Style
• JavaScript for Behavior

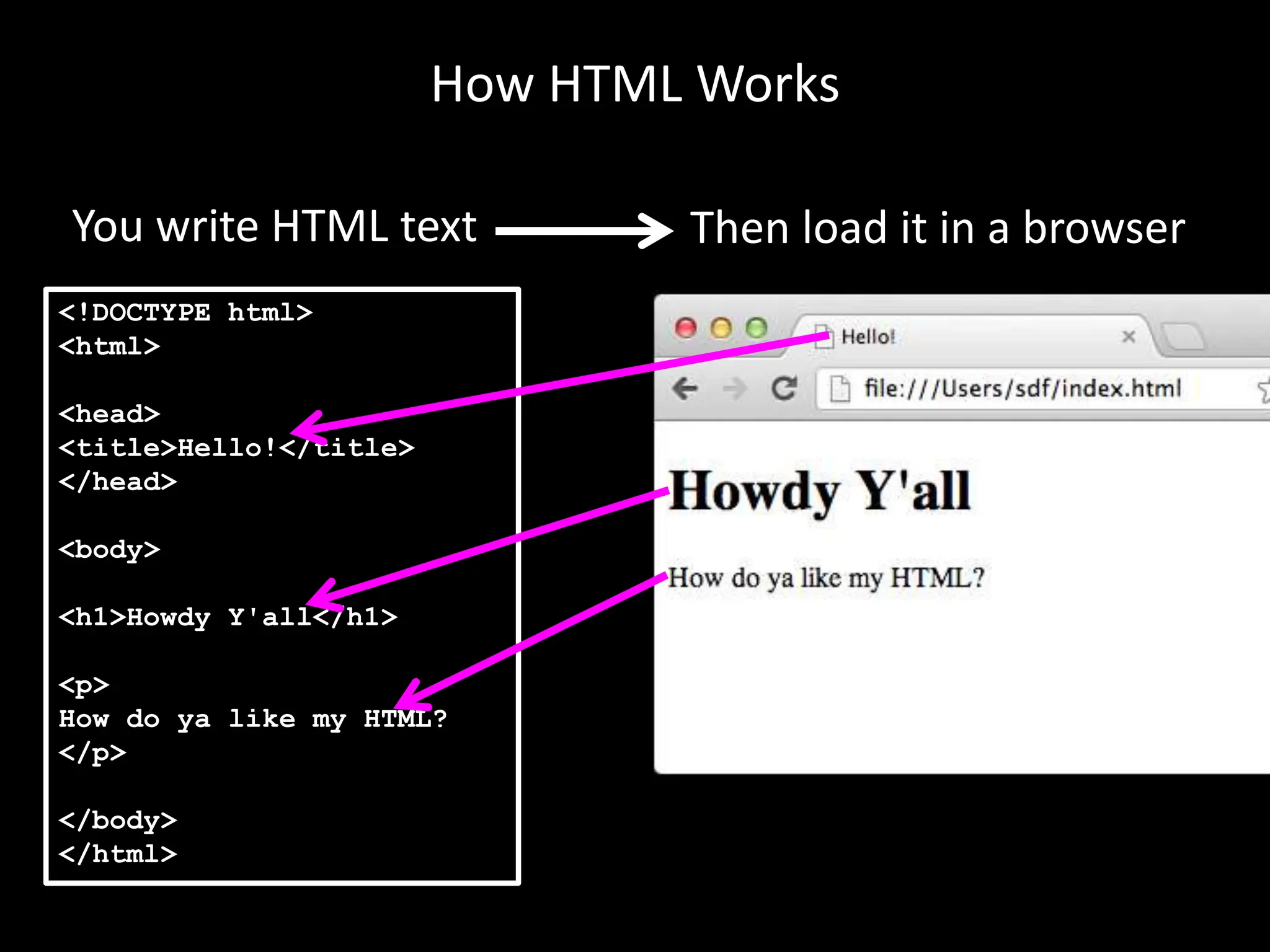

How HTML Works
<!DOCTYPE html>
<html>
<head>
<title>Hello!</title>
</head>
<body>
<h1>Howdy Y'all</h1>
<p>
How do ya like my HTML?
</p>
</body>
</html>
You write HTML text Then load it in a browser

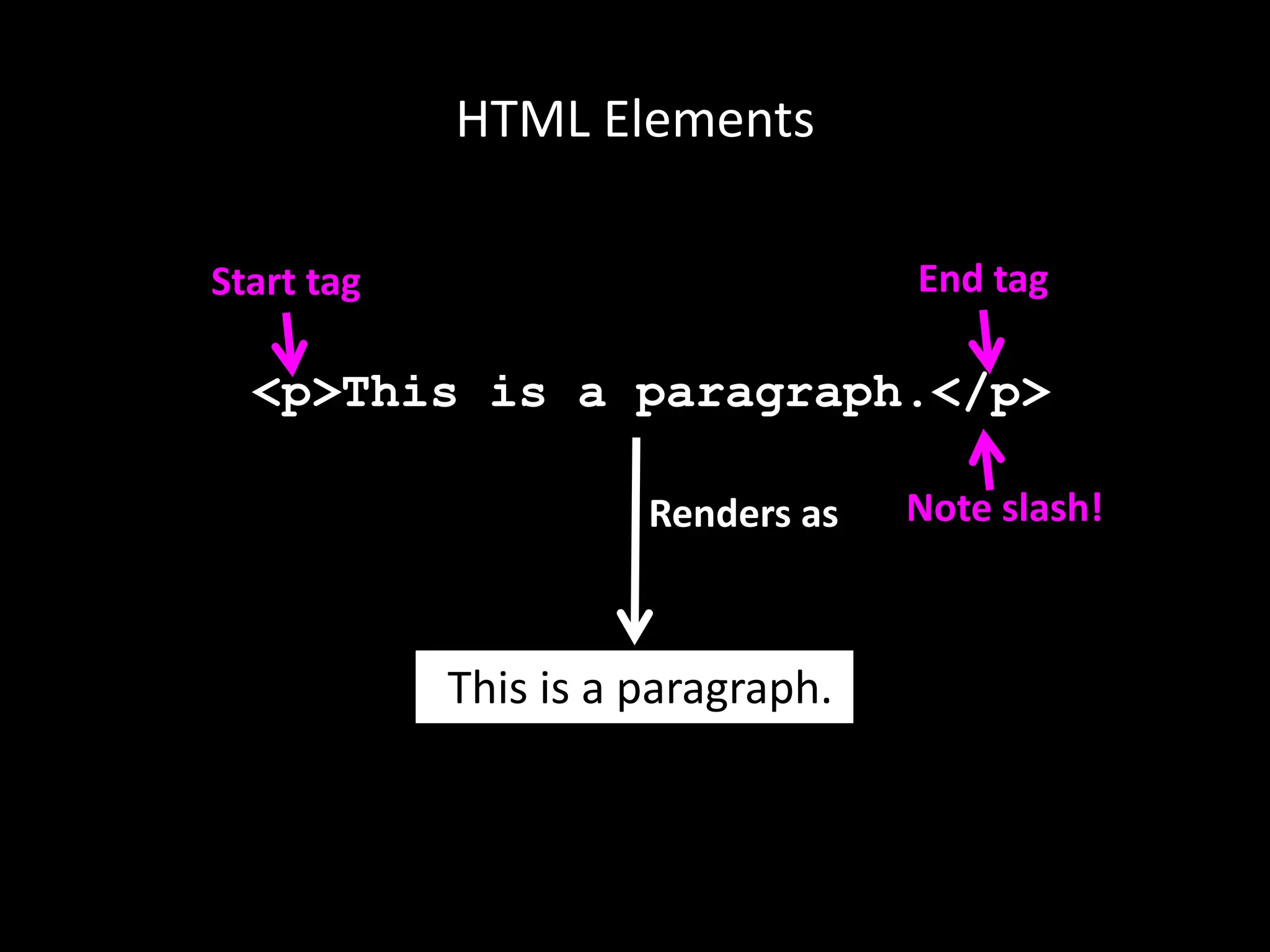

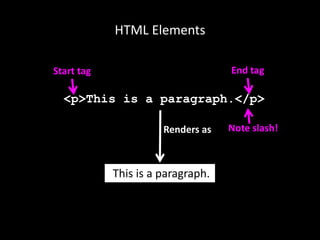

HTML Elements
<p>This is a paragraph.</p>
Start tag End tag
Note slash!
This is a paragraph.
Renders as

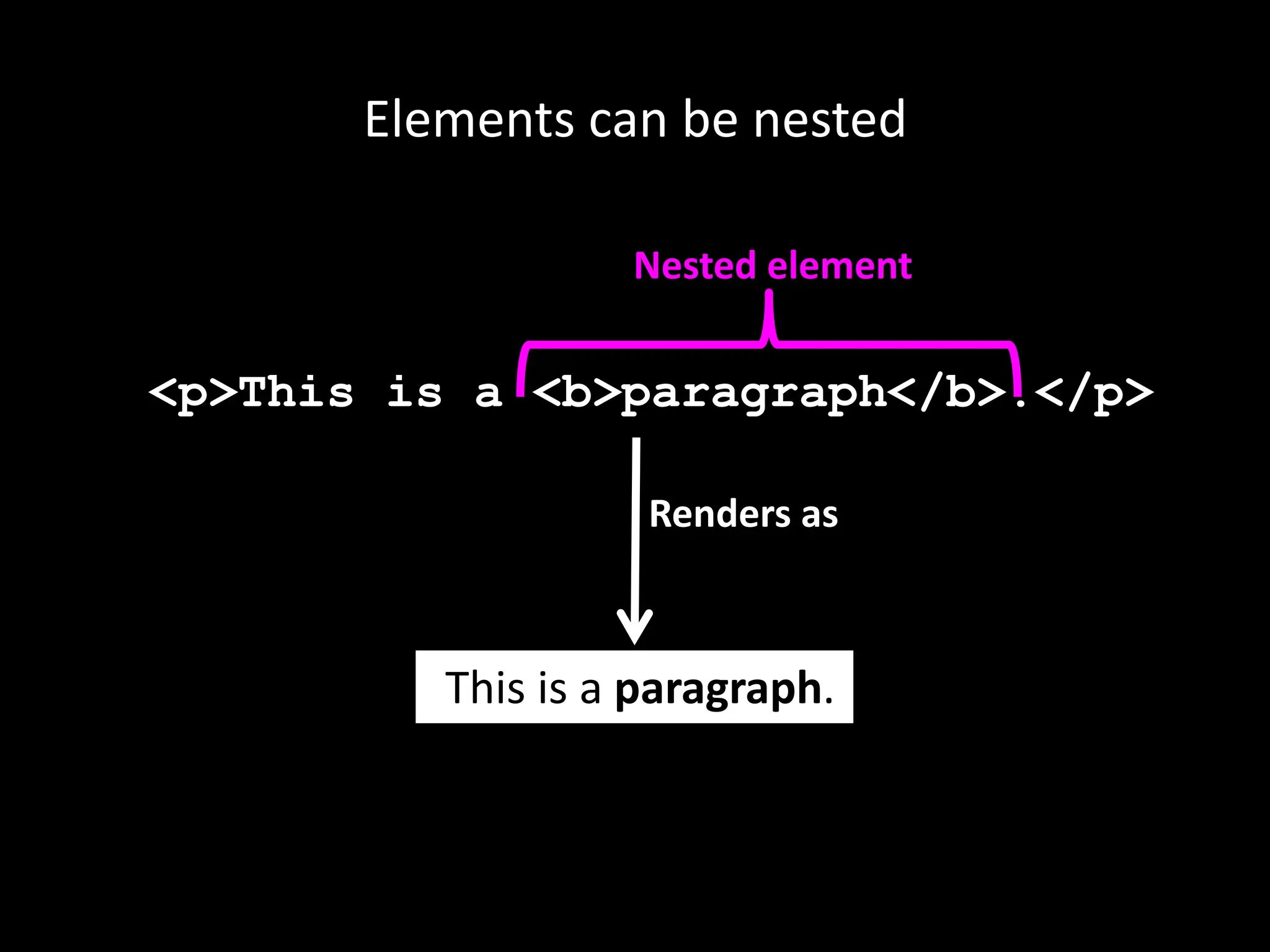

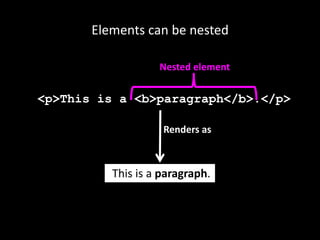

Elements can be nested
<p>This is a <b>paragraph</b>.</p>
This is a paragraph.
Renders as
Nested element

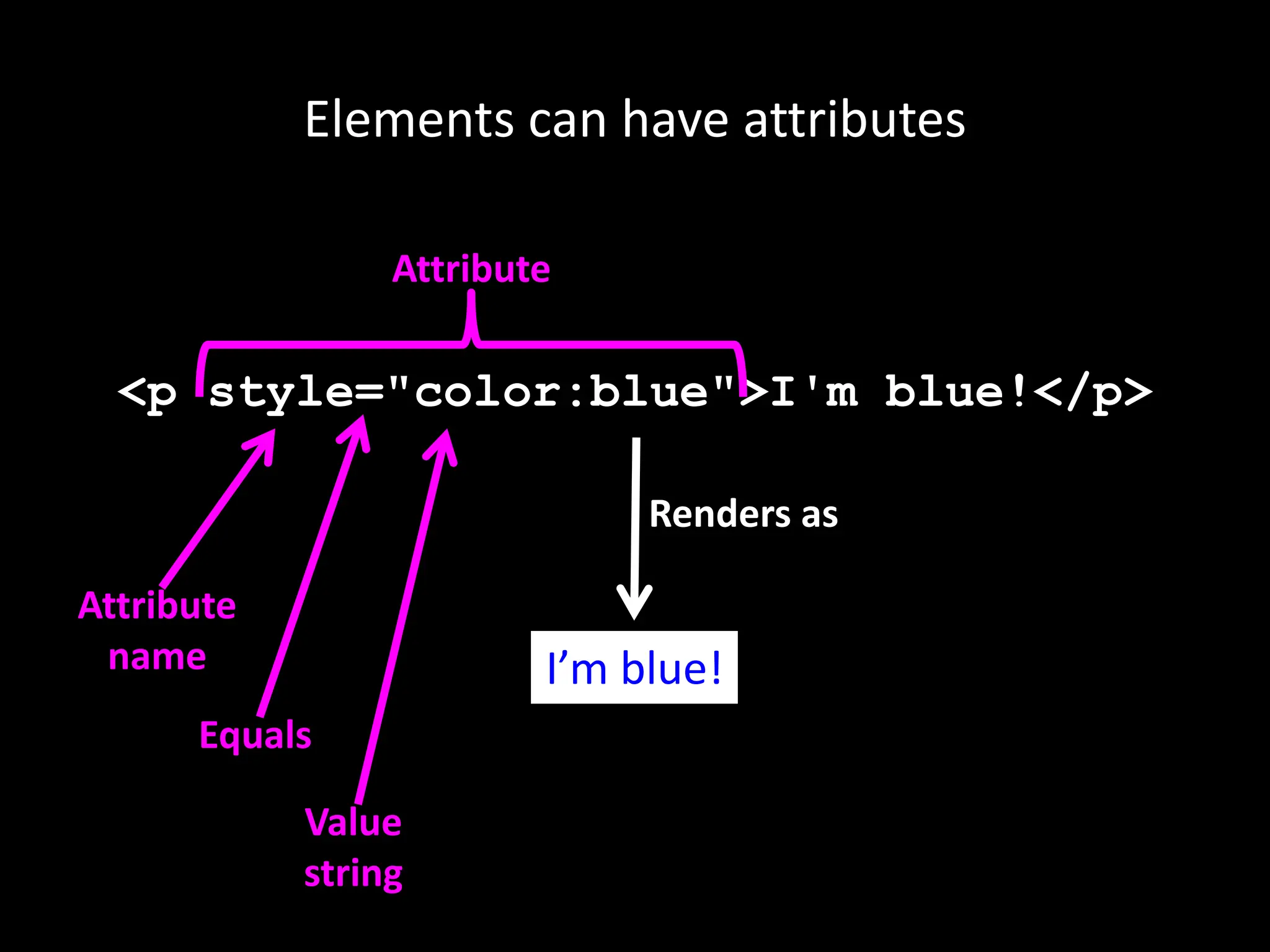

Elements can have attributes
<p style="color:blue">I'm blue!</p>
I’m blue!
Renders as
Attribute
Attribute
name
Equals
Value
string

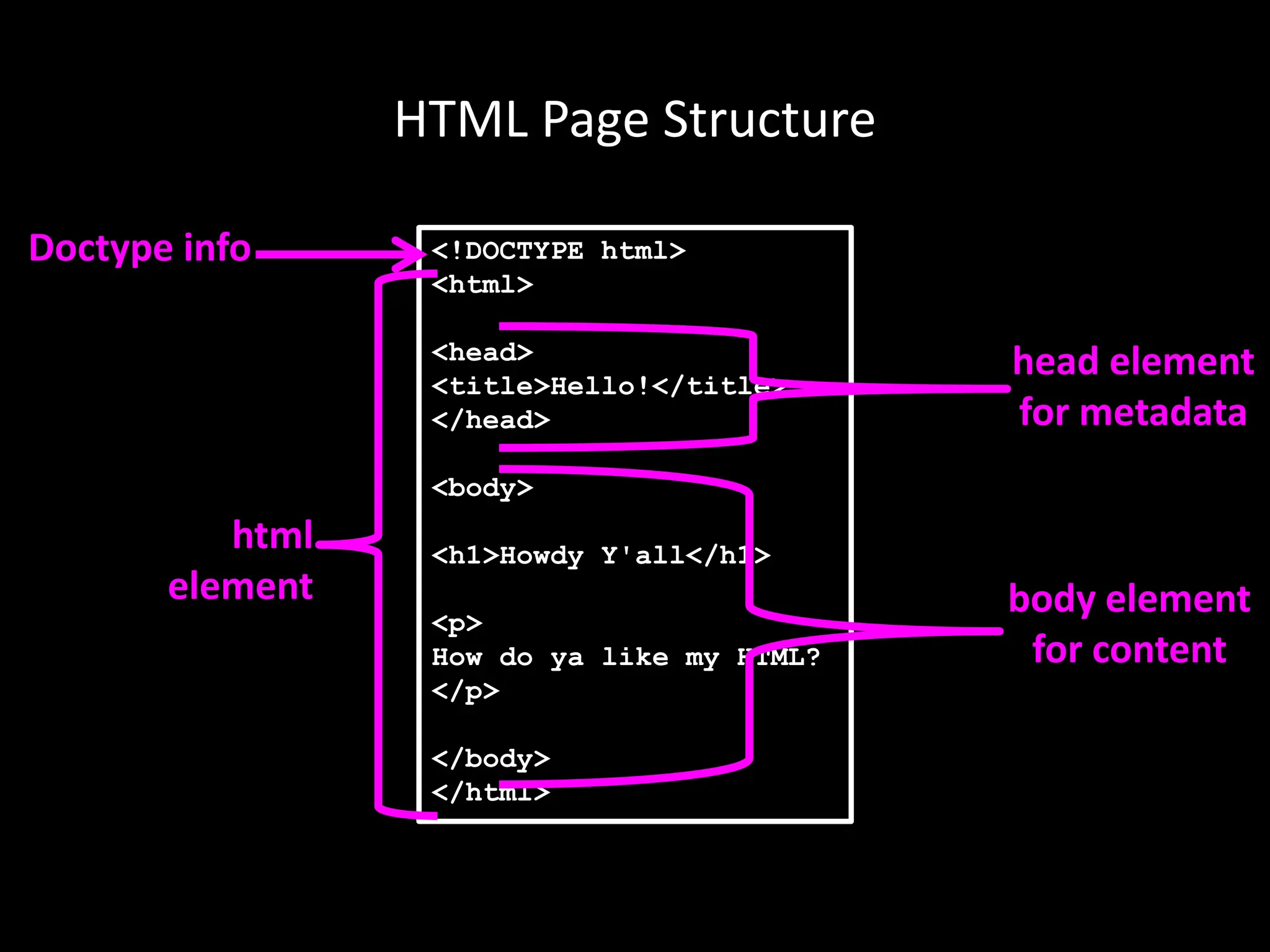

HTML Page Structure
<!DOCTYPE html>
<html>
<head>
<title>Hello!</title>
</head>
<body>
<h1>Howdy Y'all</h1>
<p>
How do ya like my HTML?
</p>
</body>
</html>
Doctype info
html
element
head element
for metadata
body element
for content

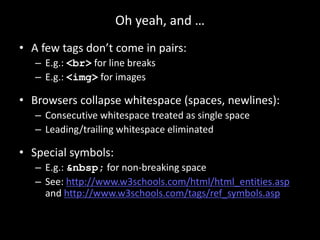

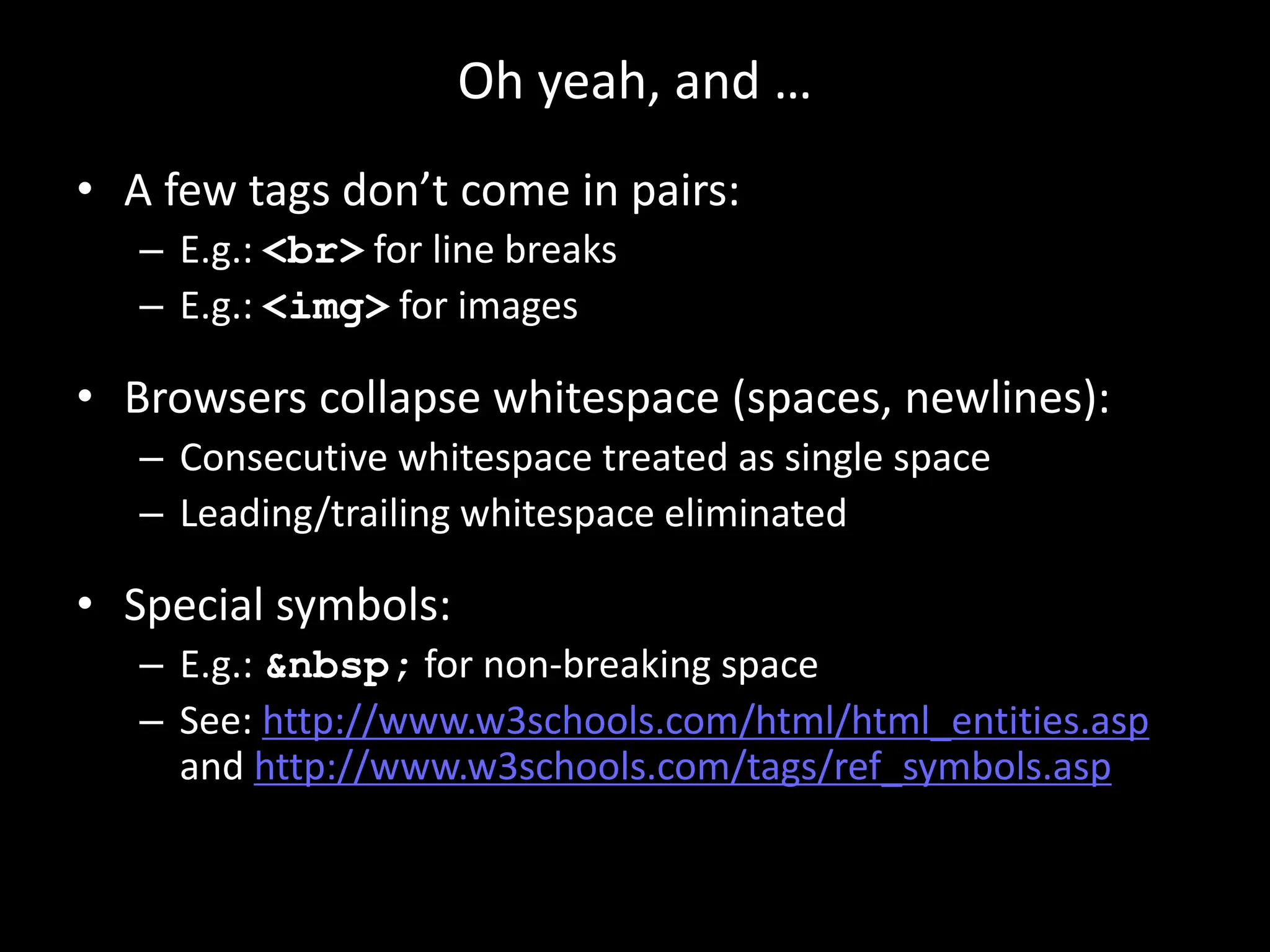

Oh yeah, and …
• A few tags don’t come in pairs:
– E.g.: <br> for line breaks
– E.g.: <img> for images
• Browsers collapse whitespace (spaces, newlines):
– Consecutive whitespace treated as single space
– Leading/trailing whitespace eliminated
• Special symbols:
– E.g.:   for non-breaking space
– See: http://www.w3schools.com/html/html_entities.asp
and http://www.w3schools.com/tags/ref_symbols.asp

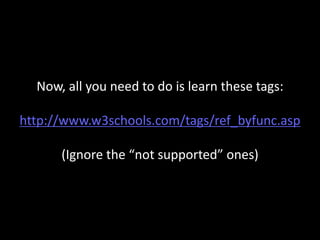

Now, all you need to do is learn these tags:
http://www.w3schools.com/tags/ref_byfunc.asp
(Ignore the “not supported” ones)

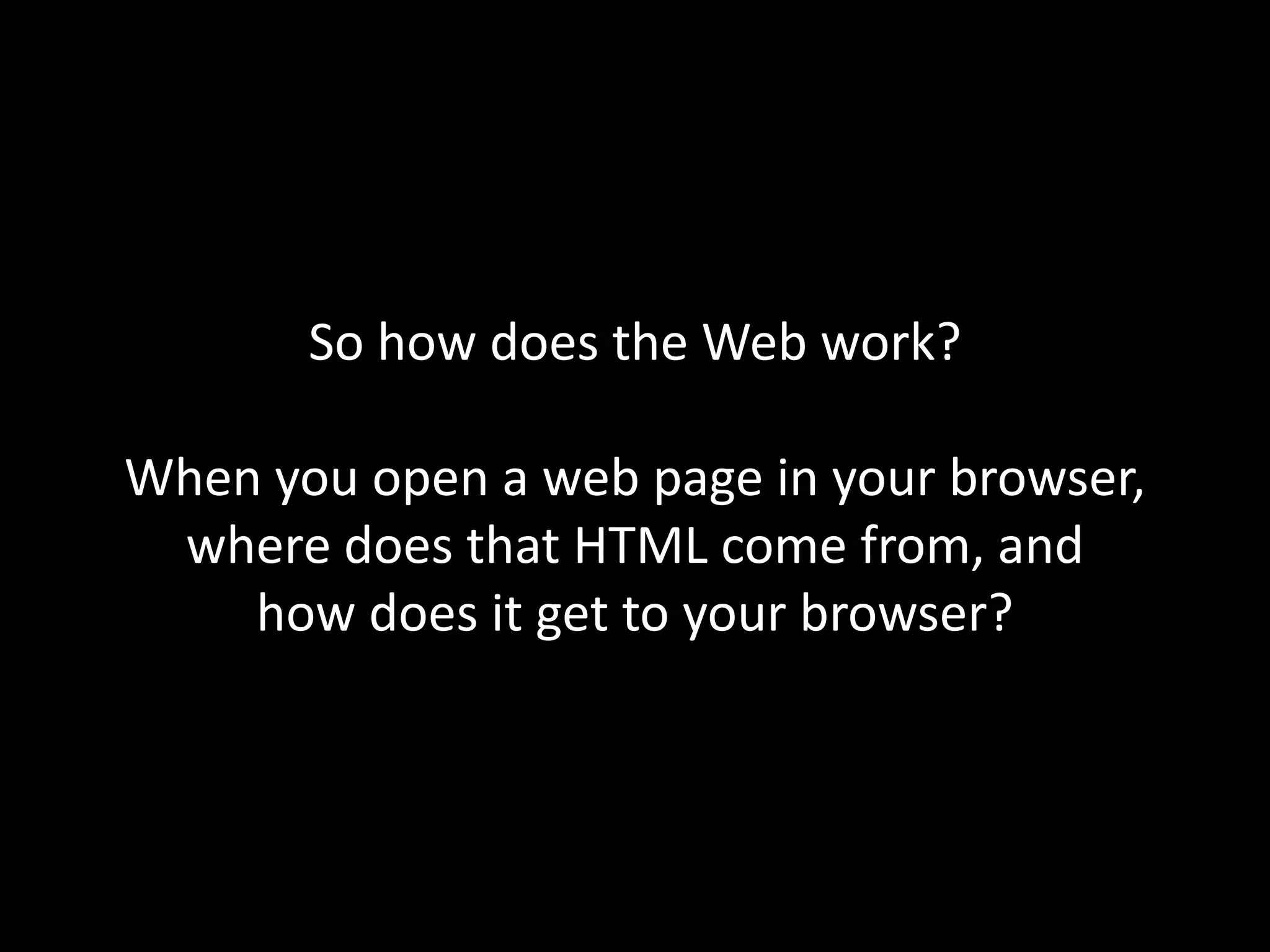

So how does the Web work?
When you open a web page in your browser,
where does that HTML come from, and
how does it get to your browser?

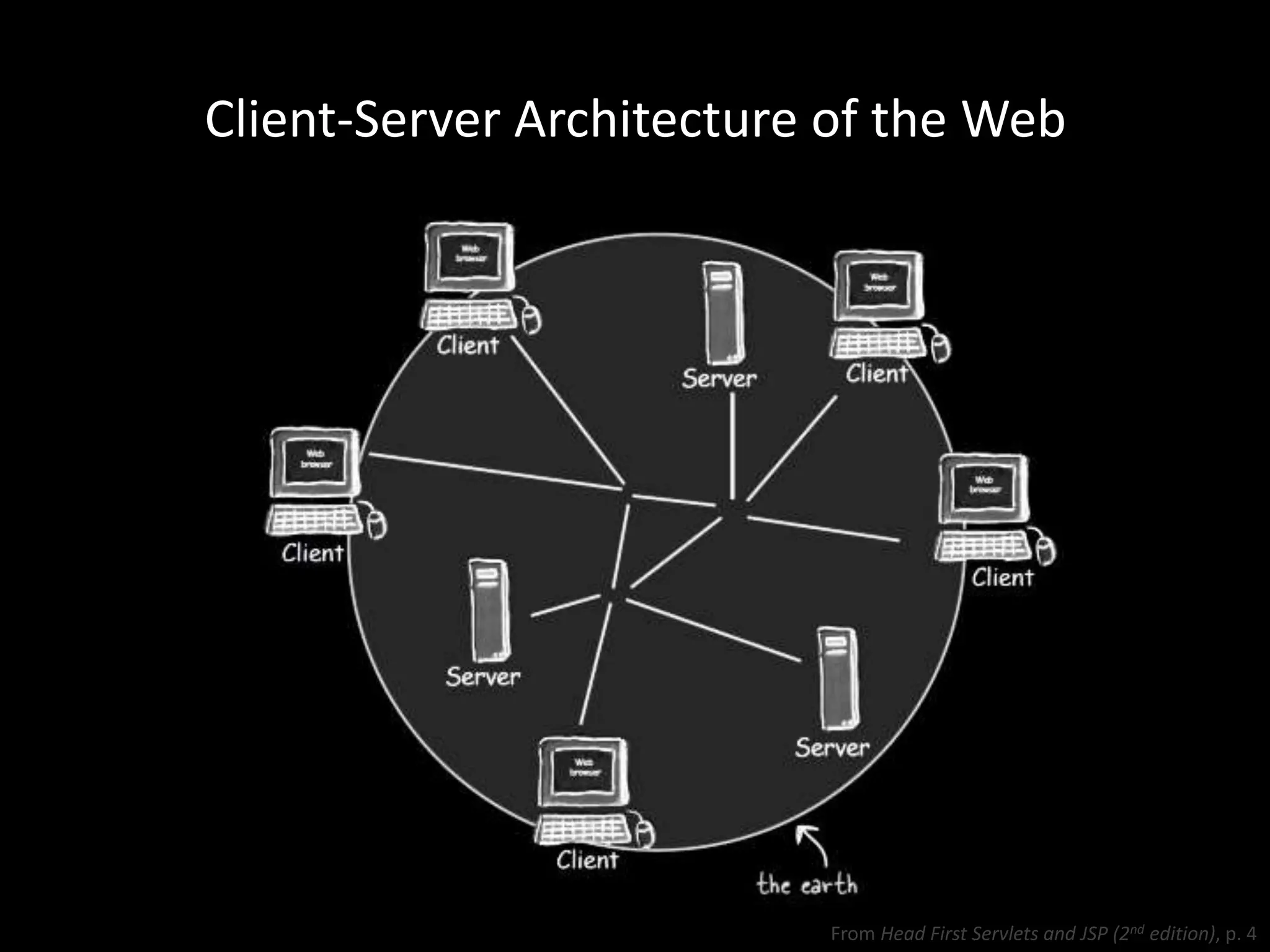

Client-Server Architecture of the Web
Head First Servlets and JSP (2nd edition), p. 3
From Head First Servlets and JSP (2nd edition), p. 4

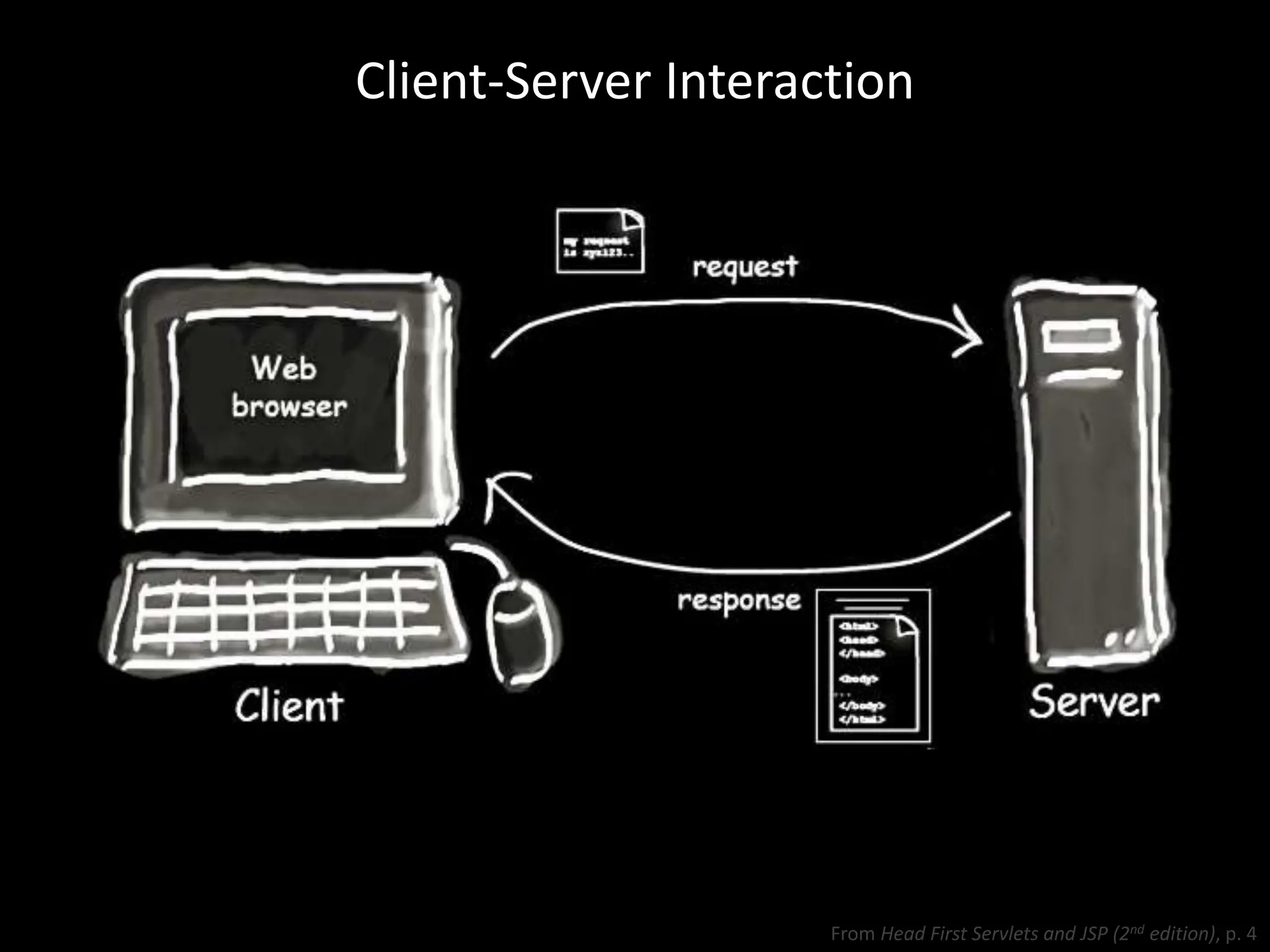

Client-Server Interaction
From Head First Servlets and JSP (2nd edition), p. 4

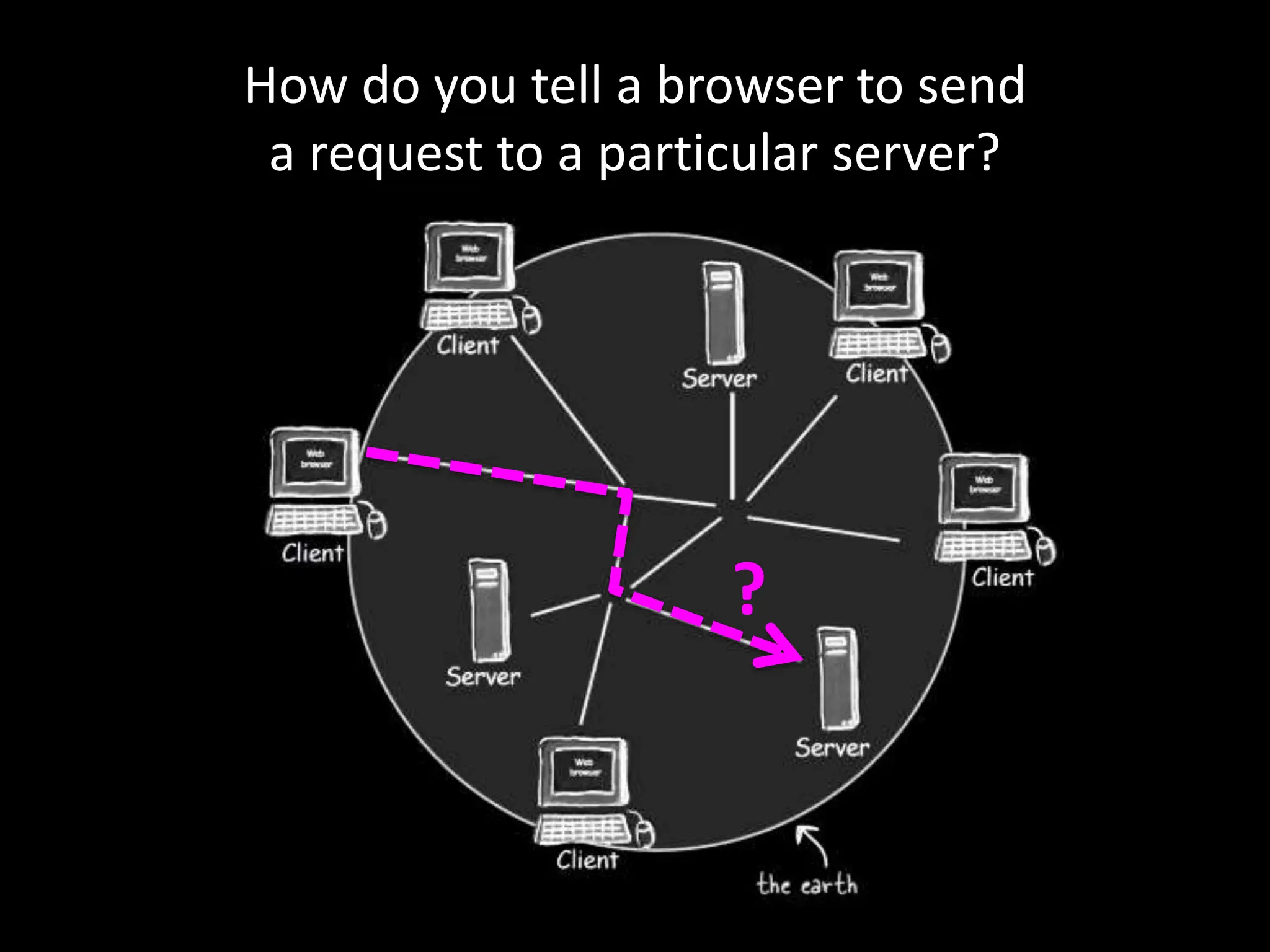

How do you tell a browser to send
a request to a particular server?
?

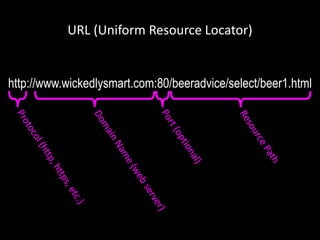

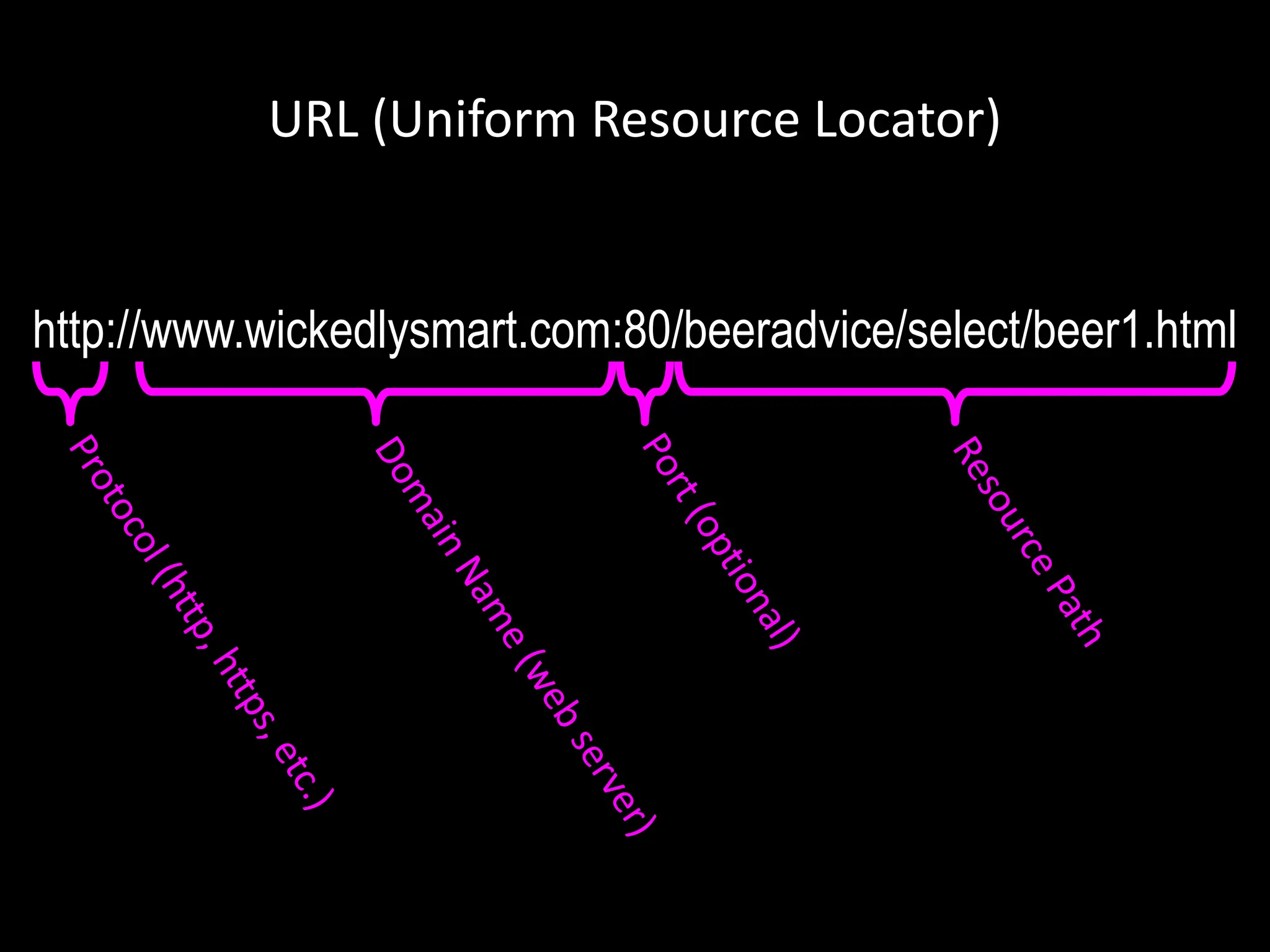

URL (Uniform Resource Locator)
http://www.wickedlysmart.com:80/beeradvice/select/beer1.html

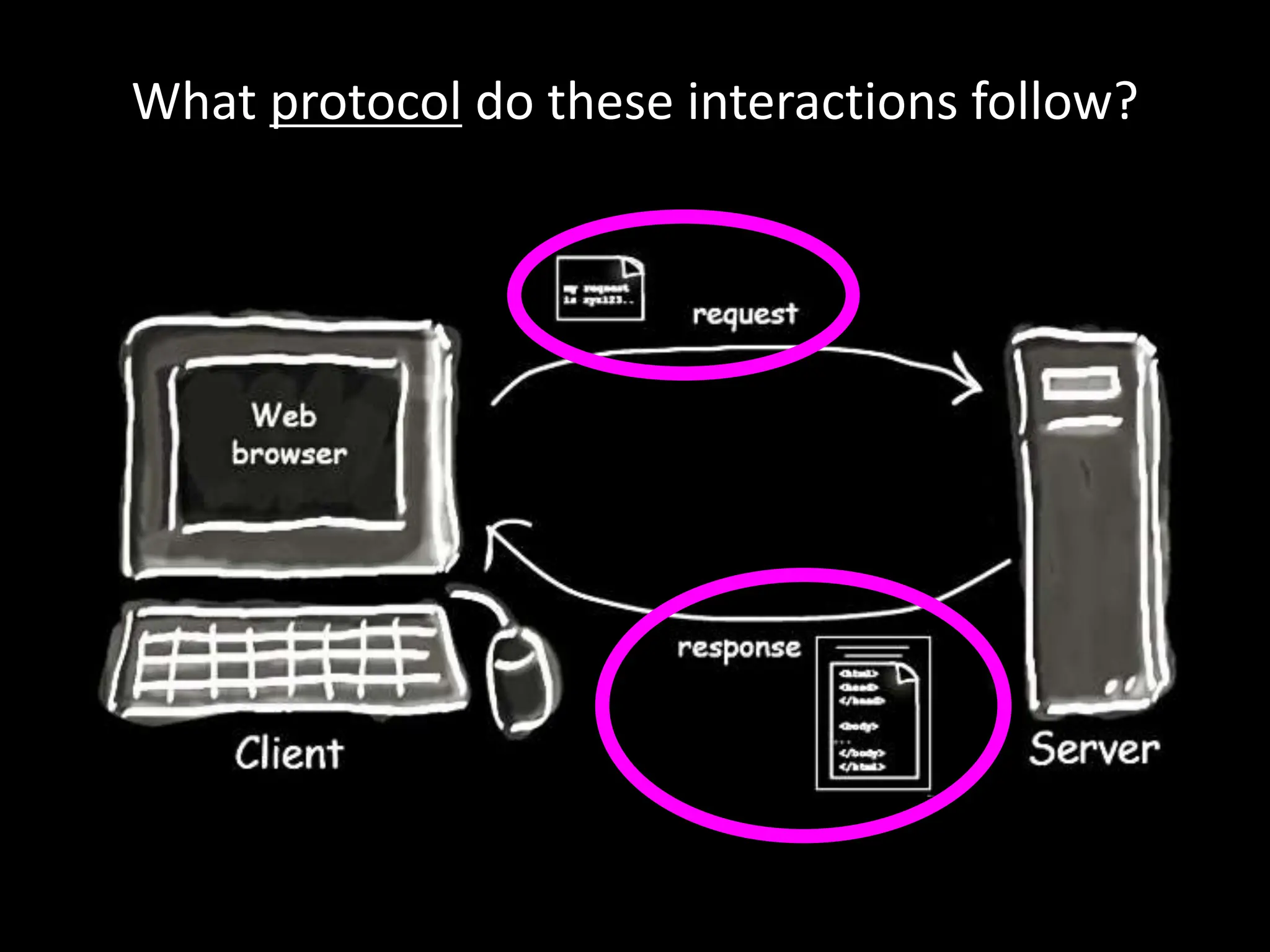

What protocol do these interactions follow?

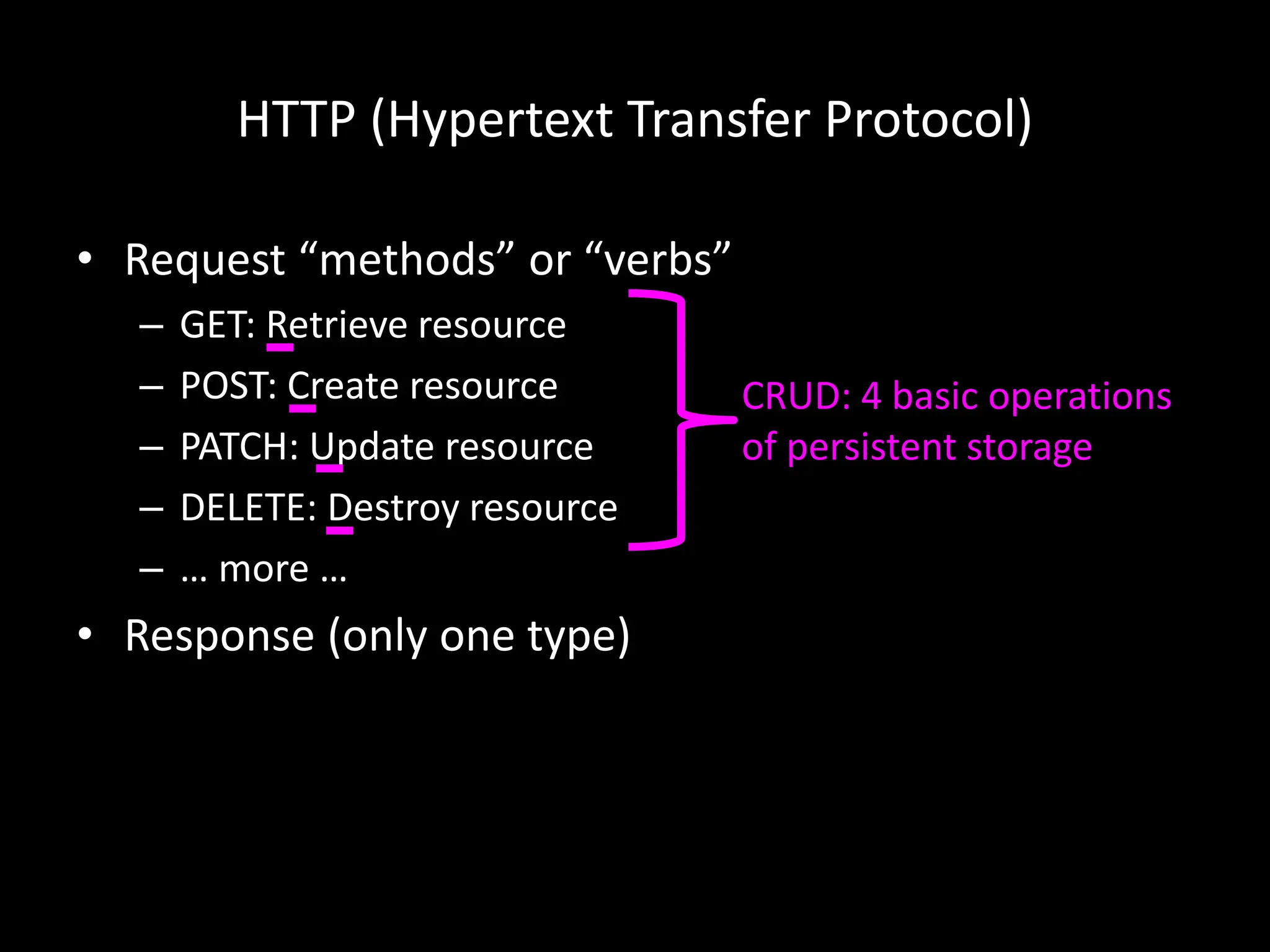

HTTP (Hypertext Transfer Protocol)
• Request “methods” or “verbs”
– GET: Retrieve resource
– POST: Create resource
– PATCH: Update resource
– DELETE: Destroy resource
– … more …
• Response (only one type)
CRUD: 4 basic operations
of persistent storage

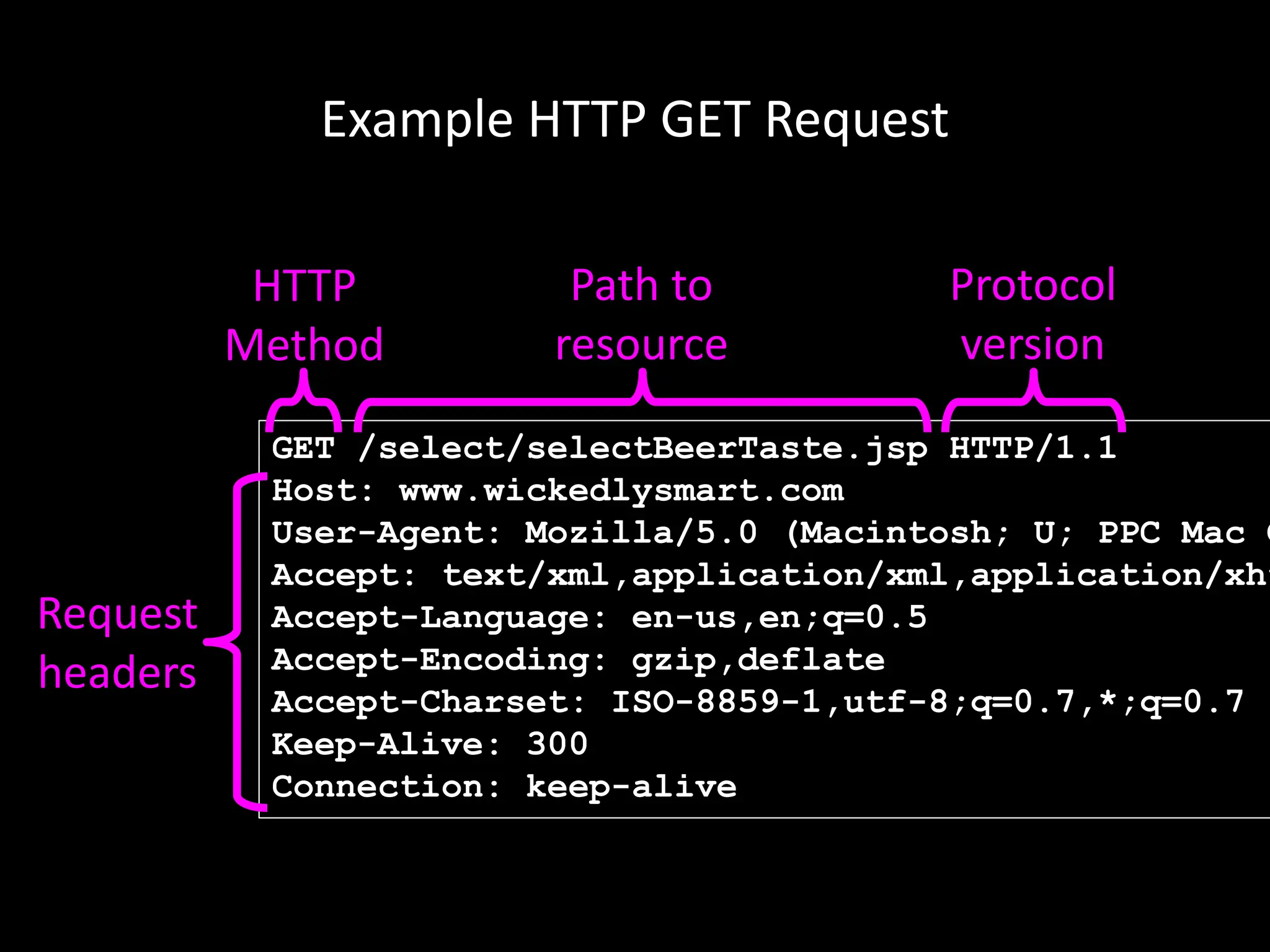

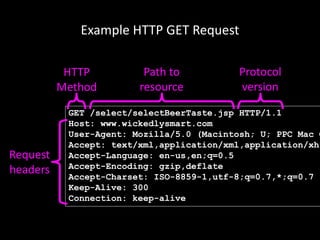

Example HTTP GET Request
GET /select/selectBeerTaste.jsp HTTP/1.1
Host: www.wickedlysmart.com
User-Agent: Mozilla/5.0 (Macintosh; U; PPC Mac O
Accept: text/xml,application/xml,application/xht
Accept-Language: en-us,en;q=0.5
Accept-Encoding: gzip,deflate
Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.7
Keep-Alive: 300
Connection: keep-alive
HTTP
Method
Path to
resource
Protocol
version
Request
headers

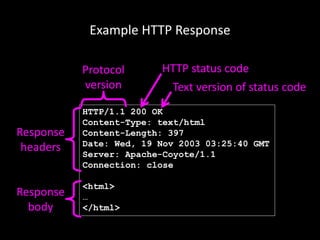

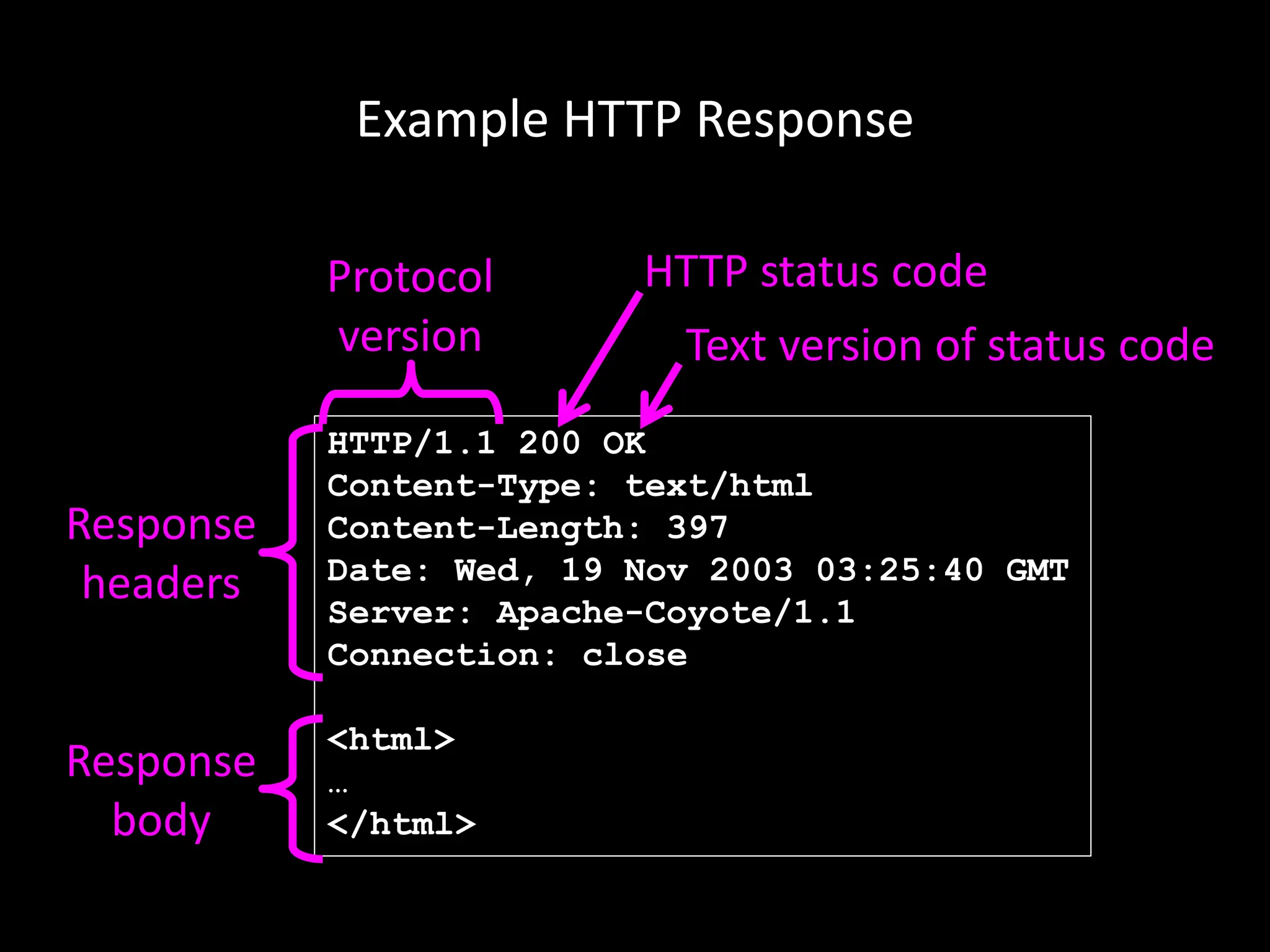

Example HTTP Response
HTTP/1.1 200 OK
Content-Type: text/html
Content-Length: 397
Date: Wed, 19 Nov 2003 03:25:40 GMT
Server: Apache-Coyote/1.1
Connection: close
<html>
…
</html>
HTTP status code
Protocol
version
Response
headers
Response
body
Text version of status code

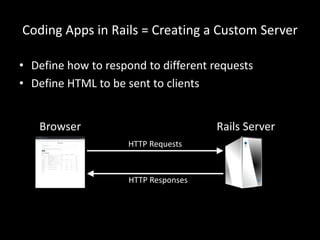

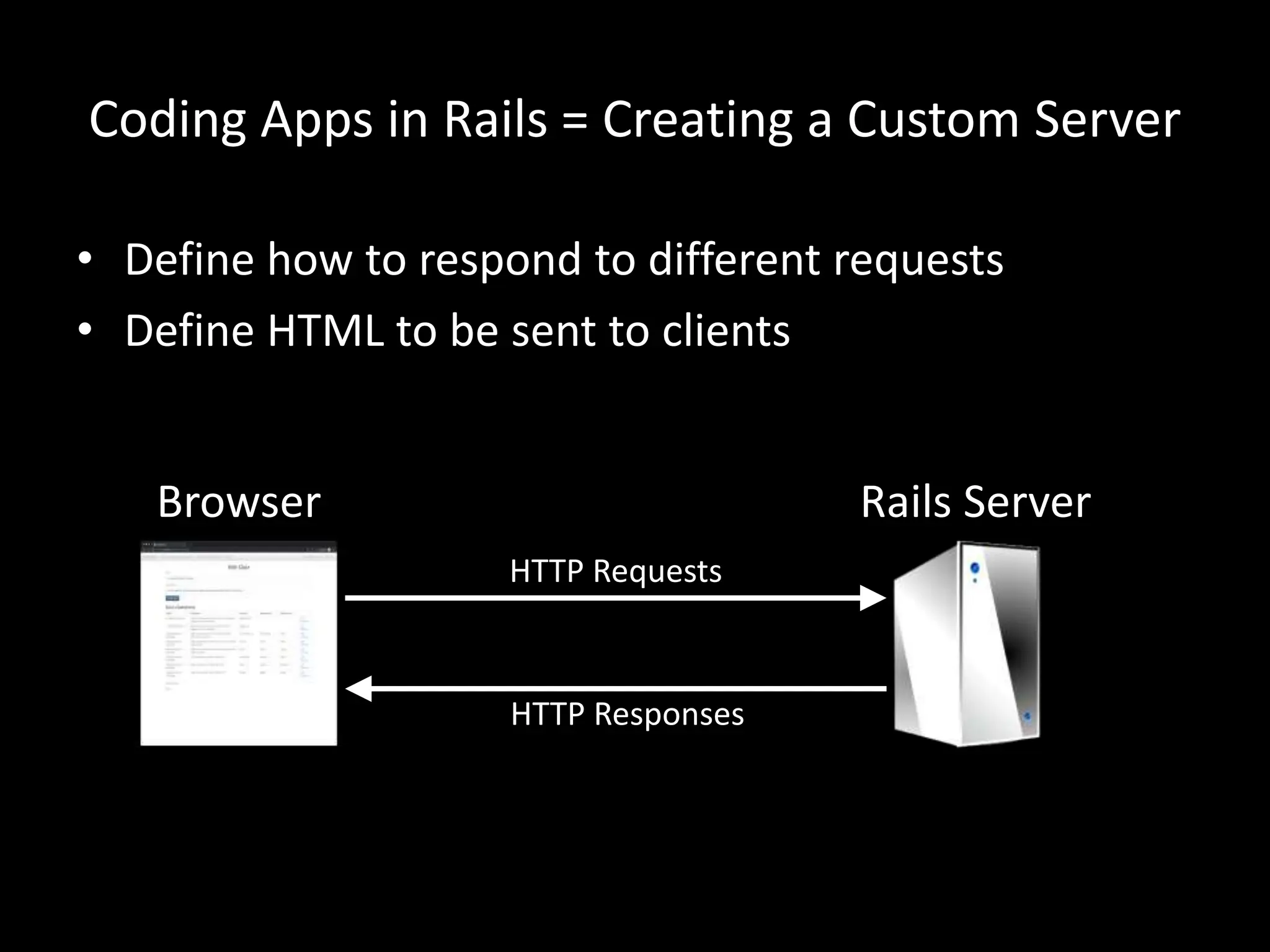

Coding Apps in Rails = Creating a Custom Server
• Define how to respond to different requests
• Define HTML to be sent to clients
Rails Server
HTTP Requests
HTTP Responses
Browser

Summary
• How to code HTML
• How HTTP and the Web works
http://flic.kr/p/aCLor3
