RxJs - demystified
Christoffer Noring
@chris_noring
Lodash for async

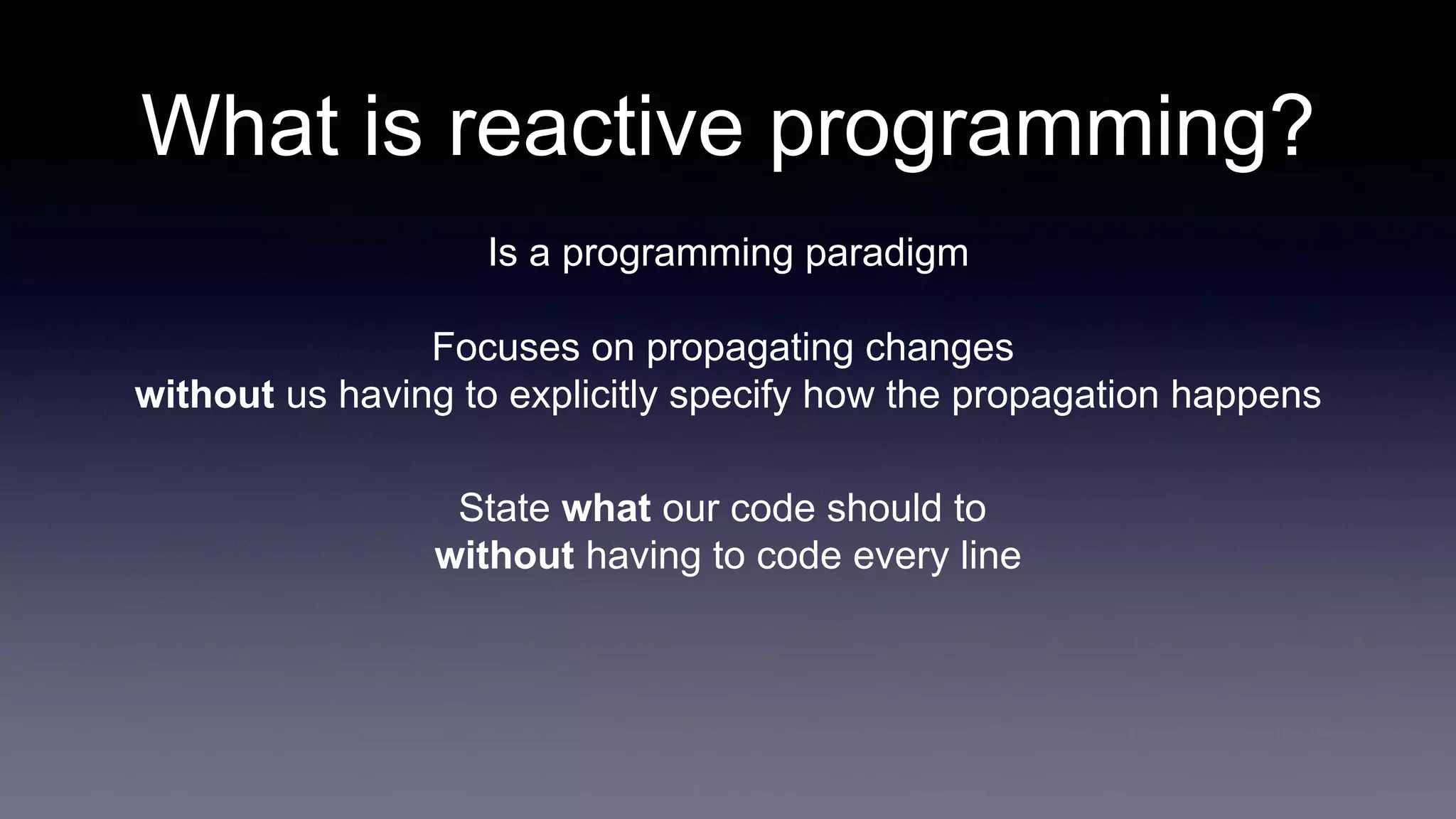

What is reactive programming?
Is a programming paradigm
Focuses on propagating changes
without us having to explicitly specify how the propagation happens
State what our code should to
without having to code every line

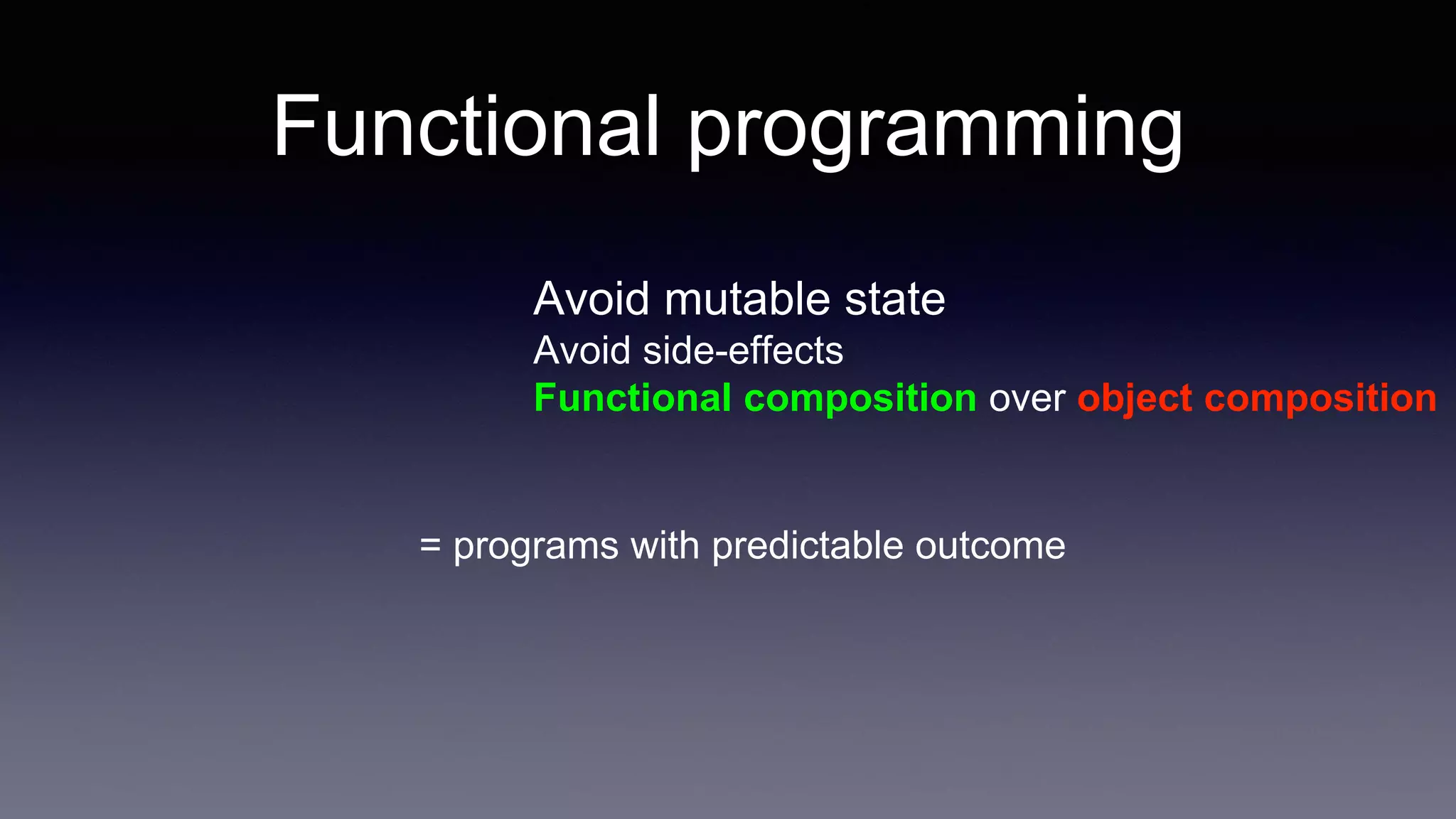

Functional programming
Avoid mutable state
Avoid side-effects
Functional composition over object composition
= programs with predictable outcome

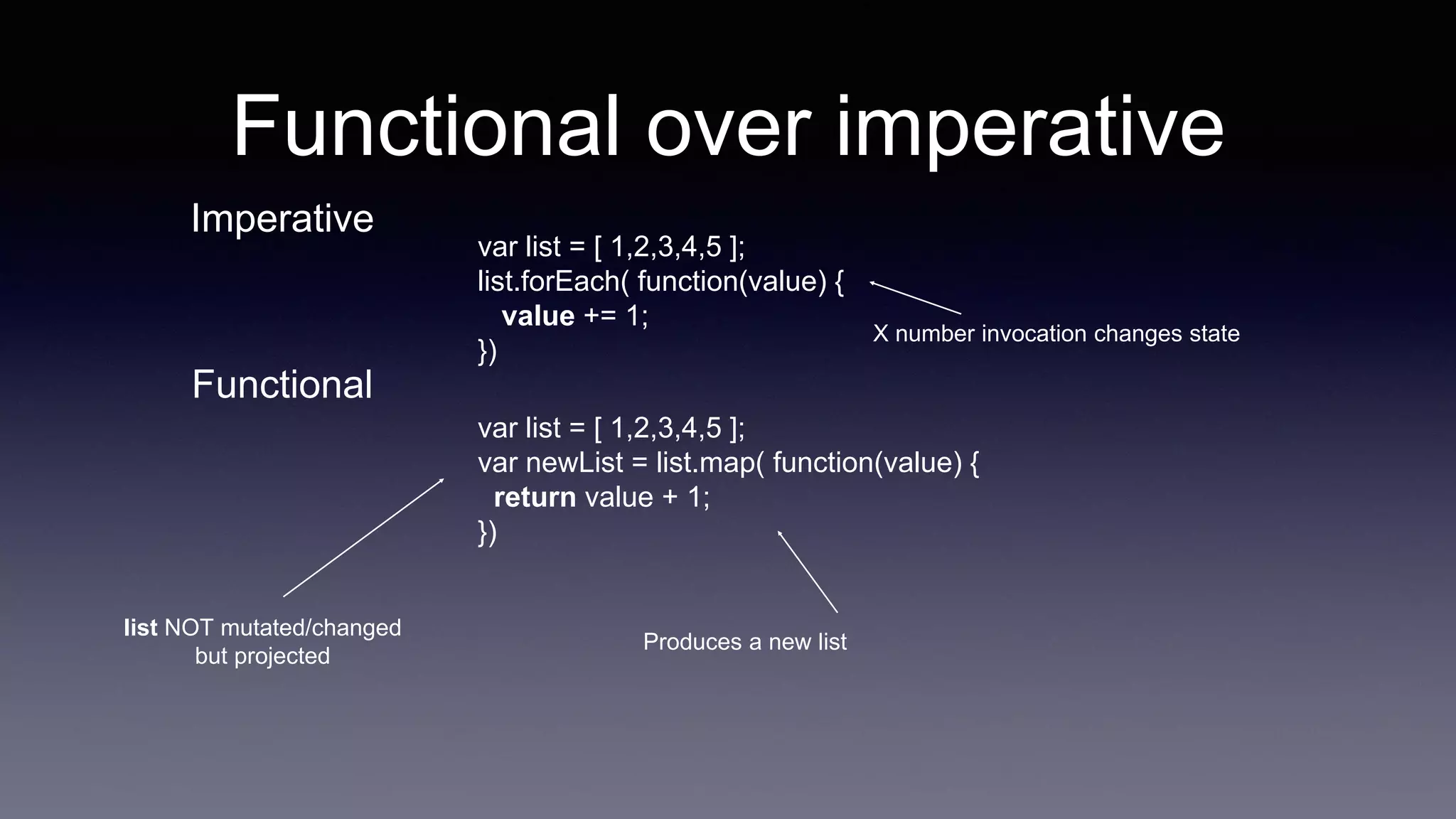

Functional over imperative
var list = [ 1,2,3,4,5 ];
var newList = list.map( function(value) {
return value + 1;
})
Produces a new list
list NOT mutated/changed
but projected
Functional
Imperative
var list = [ 1,2,3,4,5 ];
list.forEach( function(value) {
value += 1;
})
X number invocation changes state

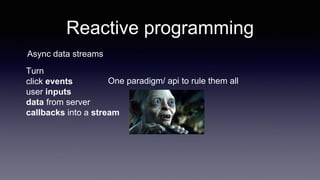

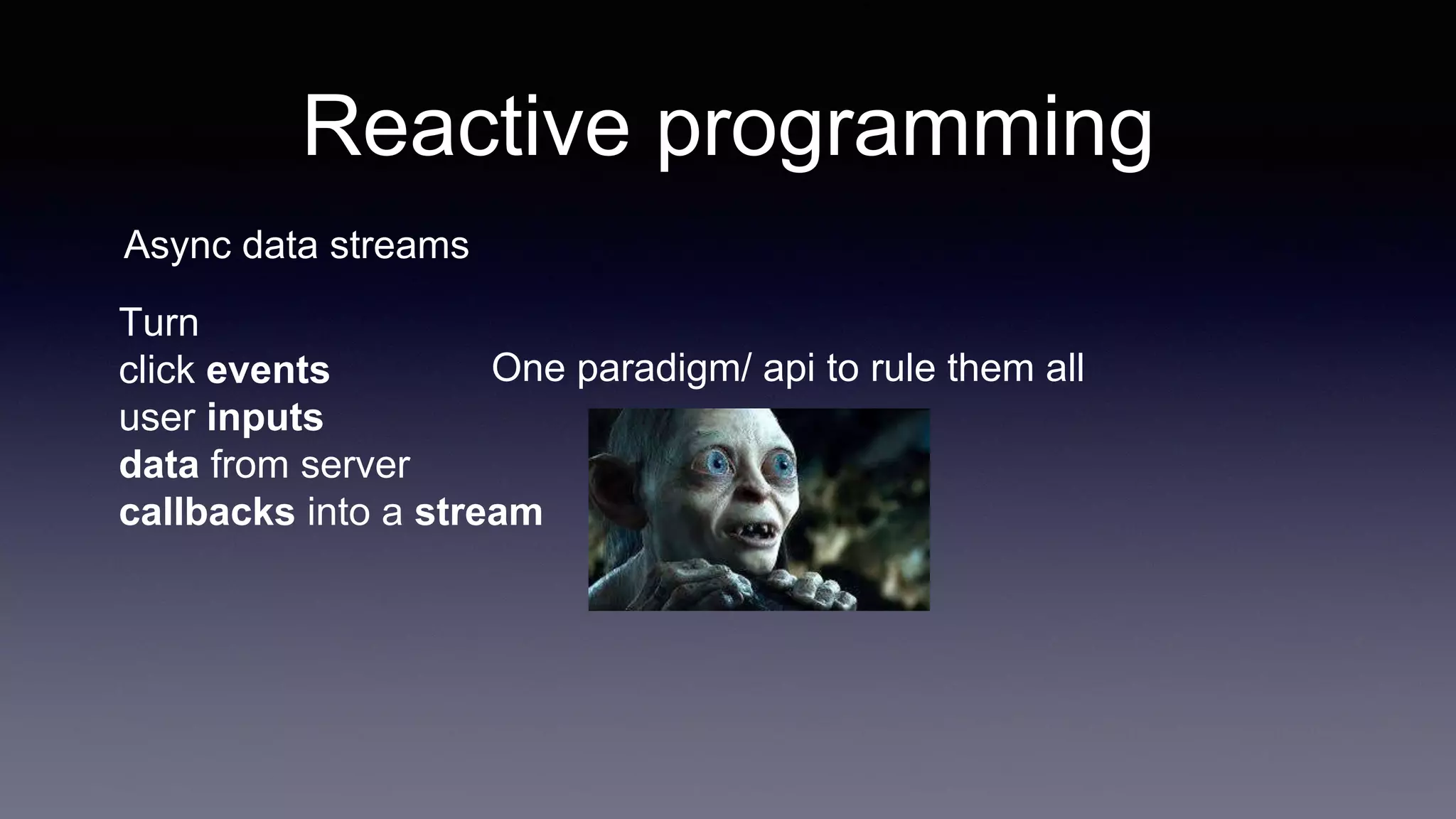

Reactive programming
Async data streams
Turn
click events
user inputs
data from server
callbacks into a stream
One paradigm/ api to rule them all

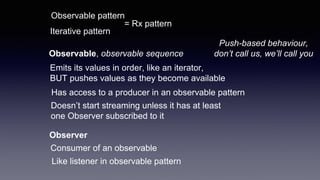

Observable pattern
Iterative pattern
Observer
Observable, observable sequence
= Rx pattern
Emits its values in order, like an iterator,
BUT pushes values as they become available
Has access to a producer in an observable pattern
Push-based behaviour,
don’t call us, we’ll call you
Consumer of an observable
Like listener in observable pattern
Doesn’t start streaming unless it has at least
one Observer subscribed to it

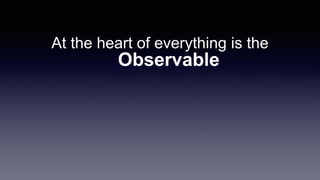

At the heart of everything is the
Observable

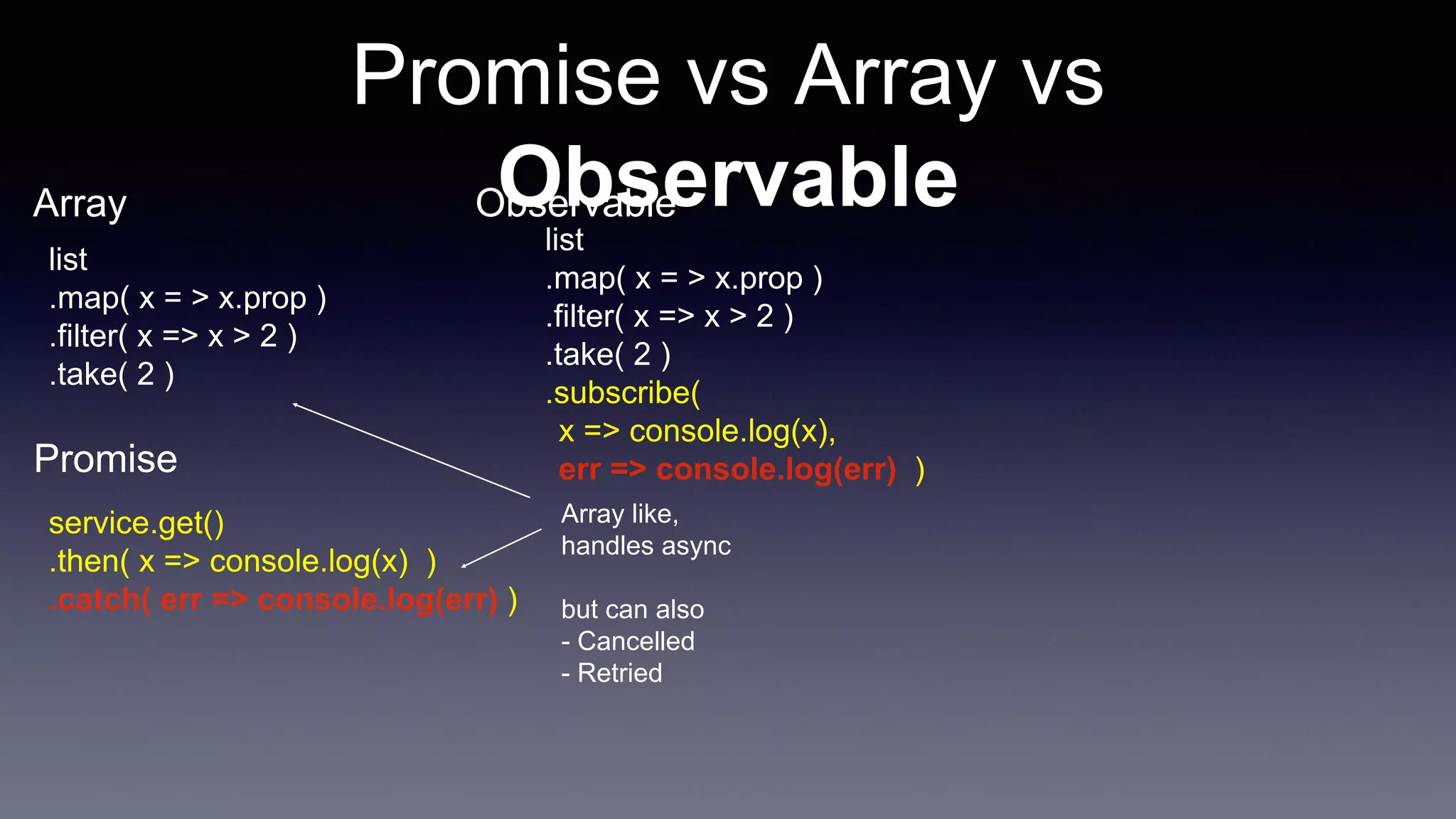

Promise vs Array vs
Observable
list
.map( x = > x.prop )
.filter( x => x > 2 )
.take( 2 )
list
.map( x = > x.prop )
.filter( x => x > 2 )
.take( 2 )
.subscribe(
x => console.log(x),
)
Array Observable
Promise
service.get()
.then( x => console.log(x) )
)
Array like,
handles async
but can also
- Cancelled
- Retried

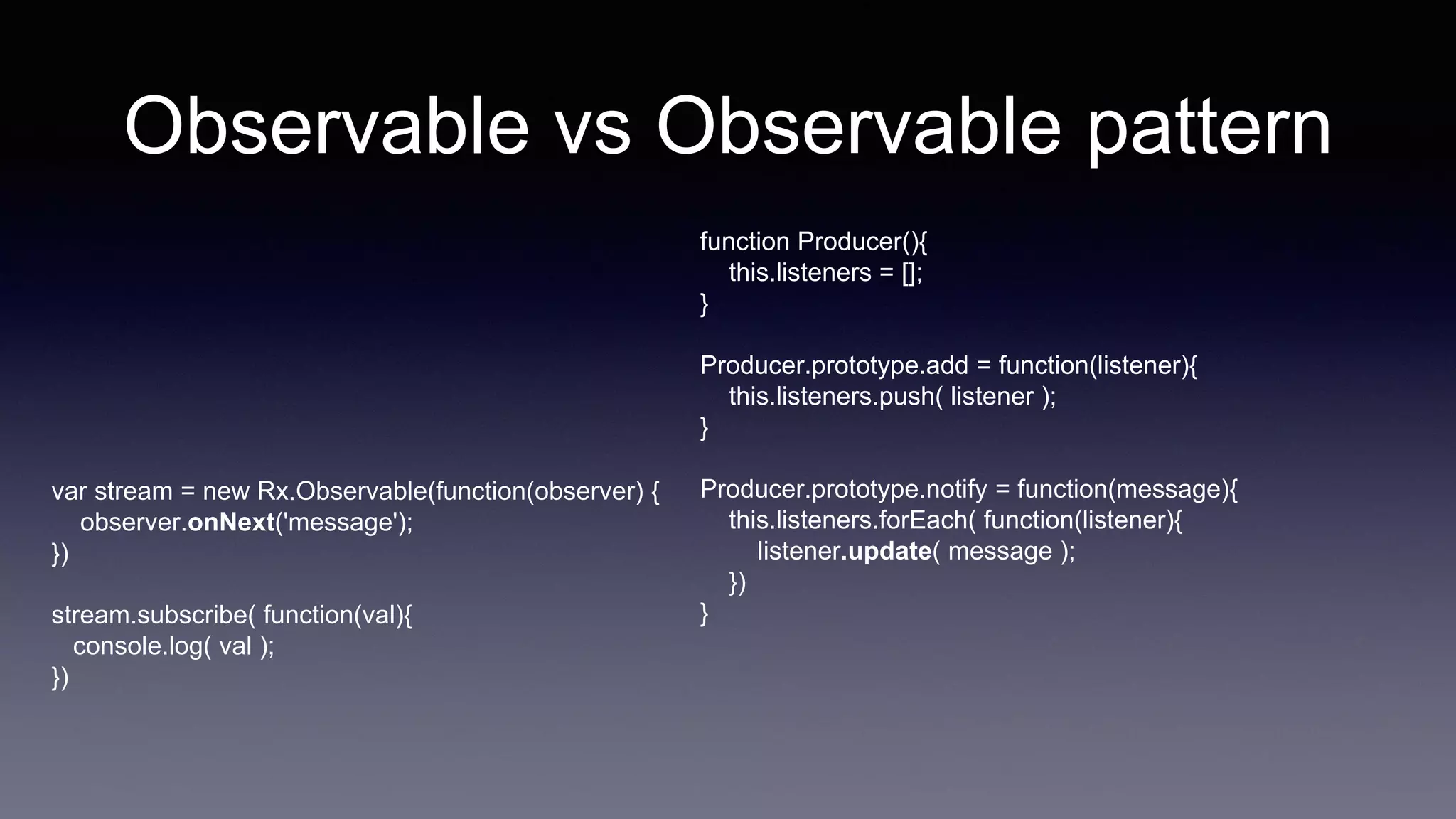

Observable vs Observable pattern
function Producer(){
this.listeners = [];
}
Producer.prototype.add = function(listener){
this.listeners.push( listener );
}
Producer.prototype.notify = function(message){
this.listeners.forEach( function(listener){
listener.update( message );
})
}
var stream = new Rx.Observable(function(observer) {
observer.onNext('message');
})
stream.subscribe( function(val){
console.log( val );
})

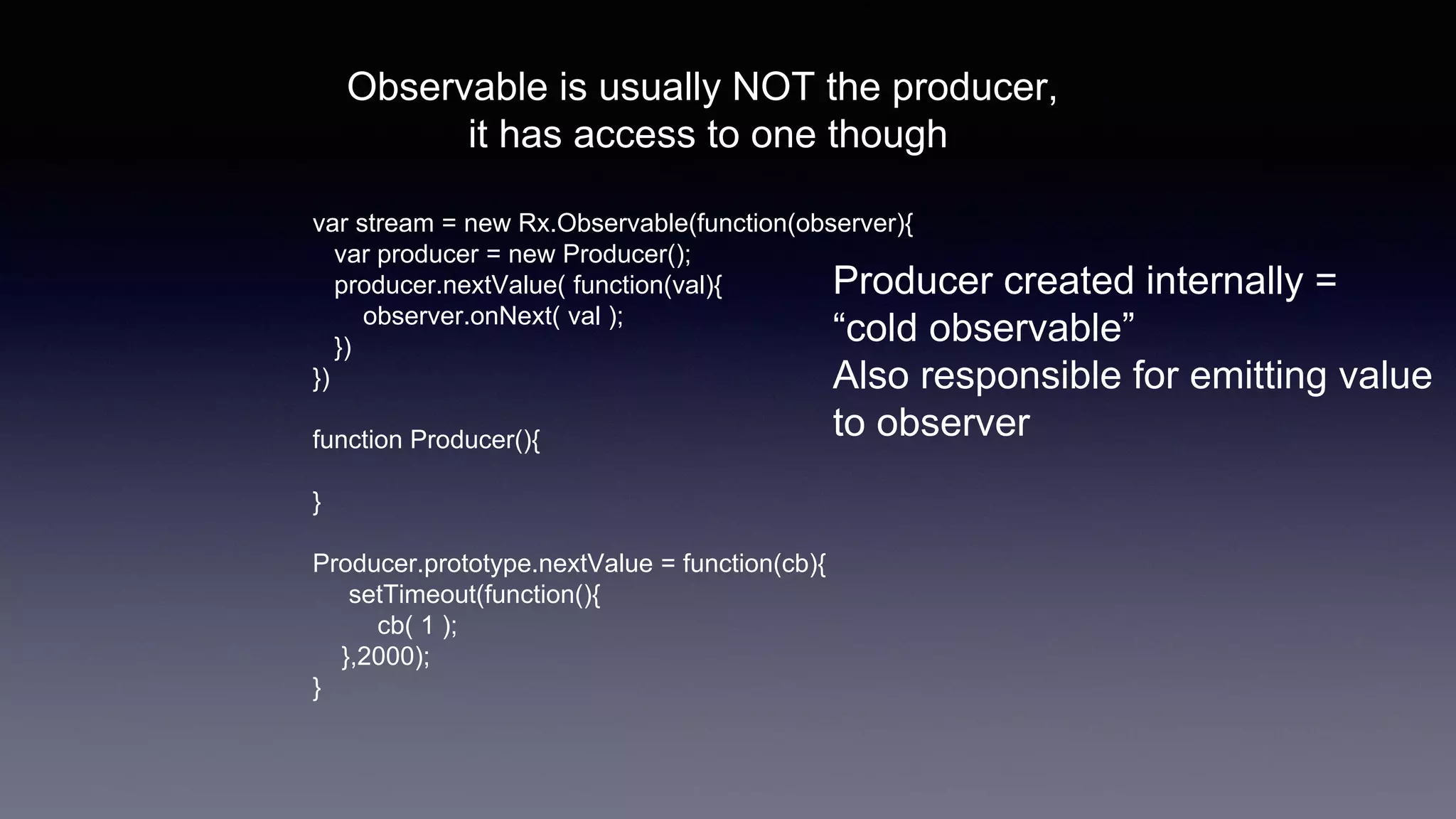

Observable is usually NOT the producer,
it has access to one though
var stream = new Rx.Observable(function(observer){
var producer = new Producer();
producer.nextValue( function(val){
observer.onNext( val );
})
})
}
Producer.prototype.nextValue = function(cb){
setTimeout(function(){
cb( 1 );
},2000);
}
Producer created internally =
“cold observable”
Also responsible for emitting value
to observer

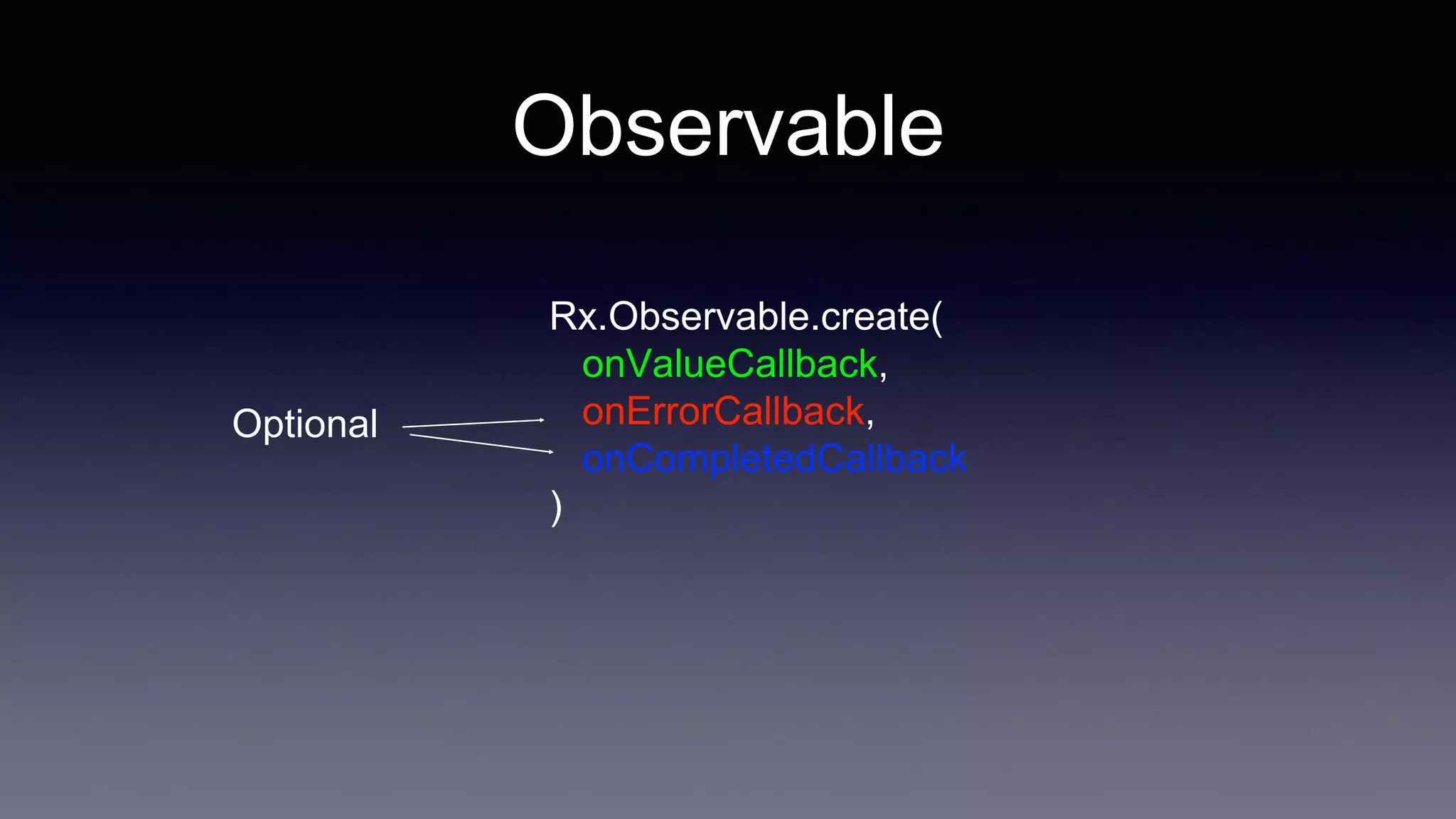

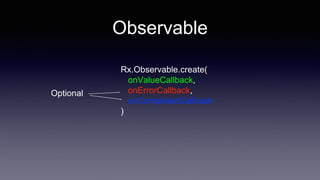

Observable
Rx.Observable.create(
onValueCallback,
onErrorCallback,
onCompletedCallback
)
Optional

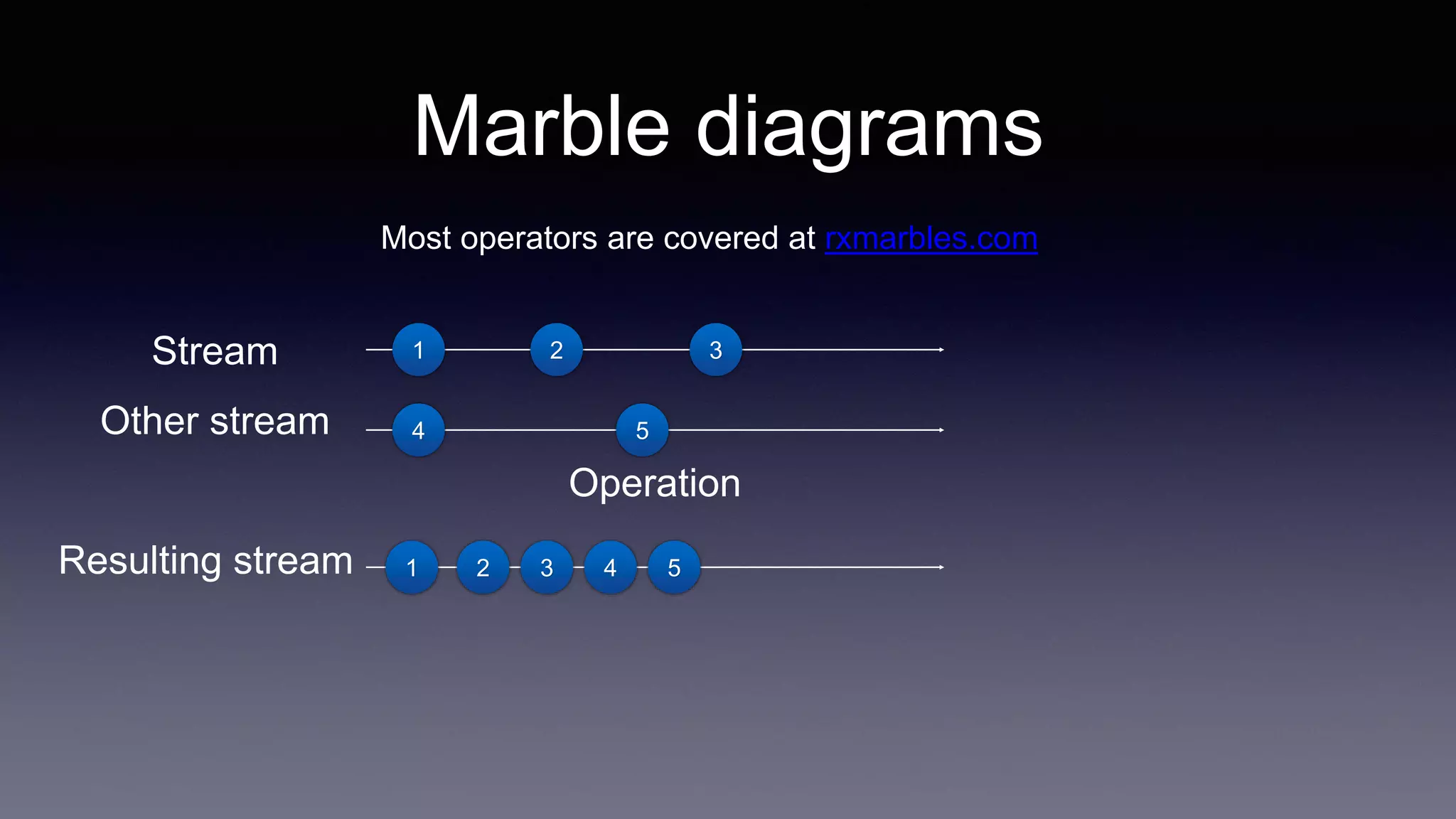

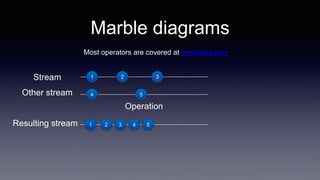

Marble diagrams
Operation
Stream
Other stream
Resulting stream
1 2 3
4 5
1 2 3 4 5
Most operators are covered at rxmarbles.com

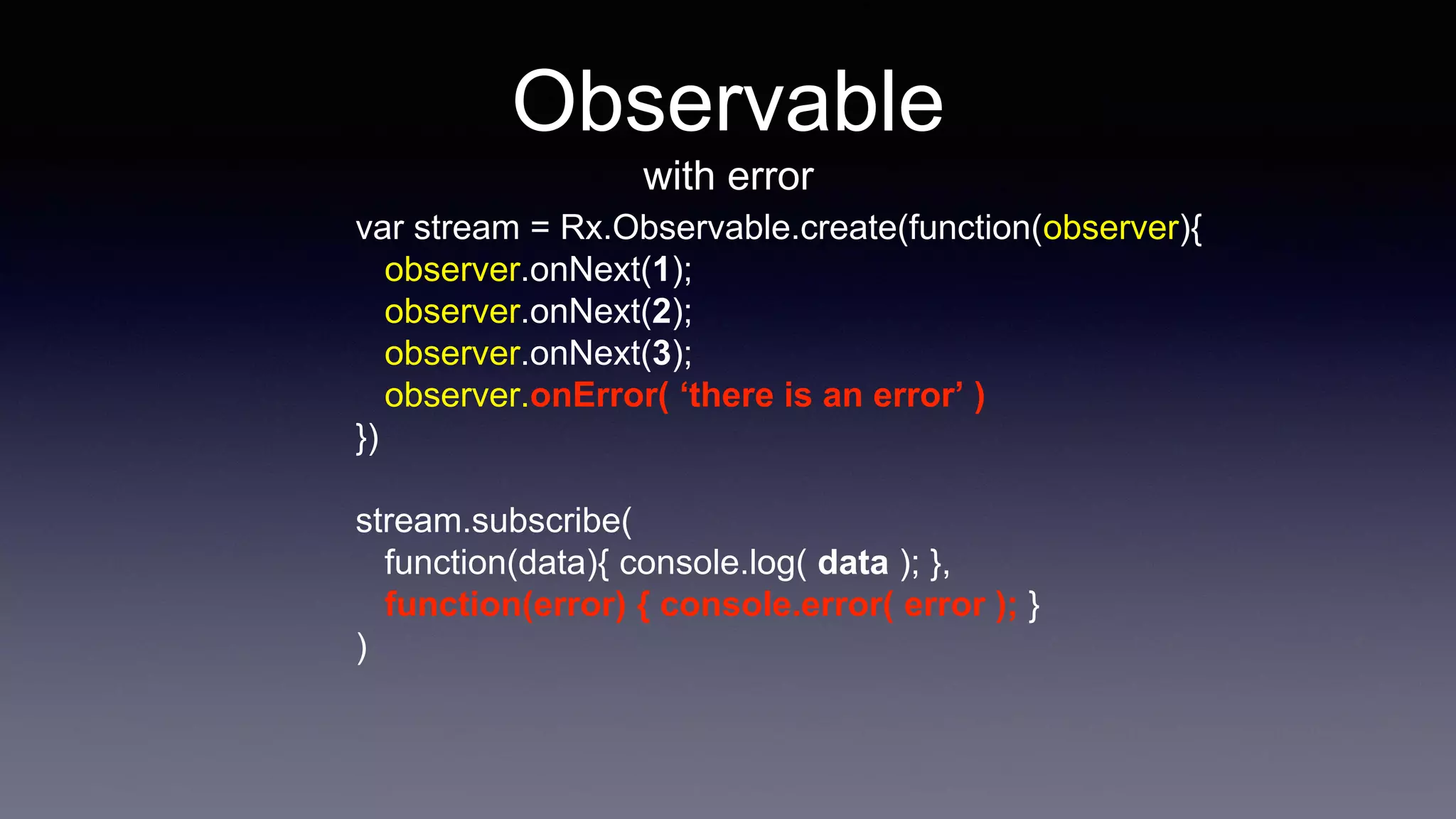

Observable
with error
var stream = Rx.Observable.create(function(observer){
observer.onNext(1);
observer.onNext(2);
observer.onNext(3);
observer.onError( ‘there is an error’ )
})
stream.subscribe(
function(data){ console.log( data ); },
function(error) { console.error( error ); }
)

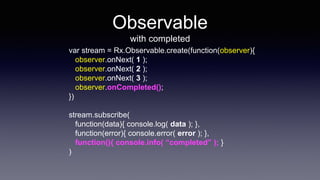

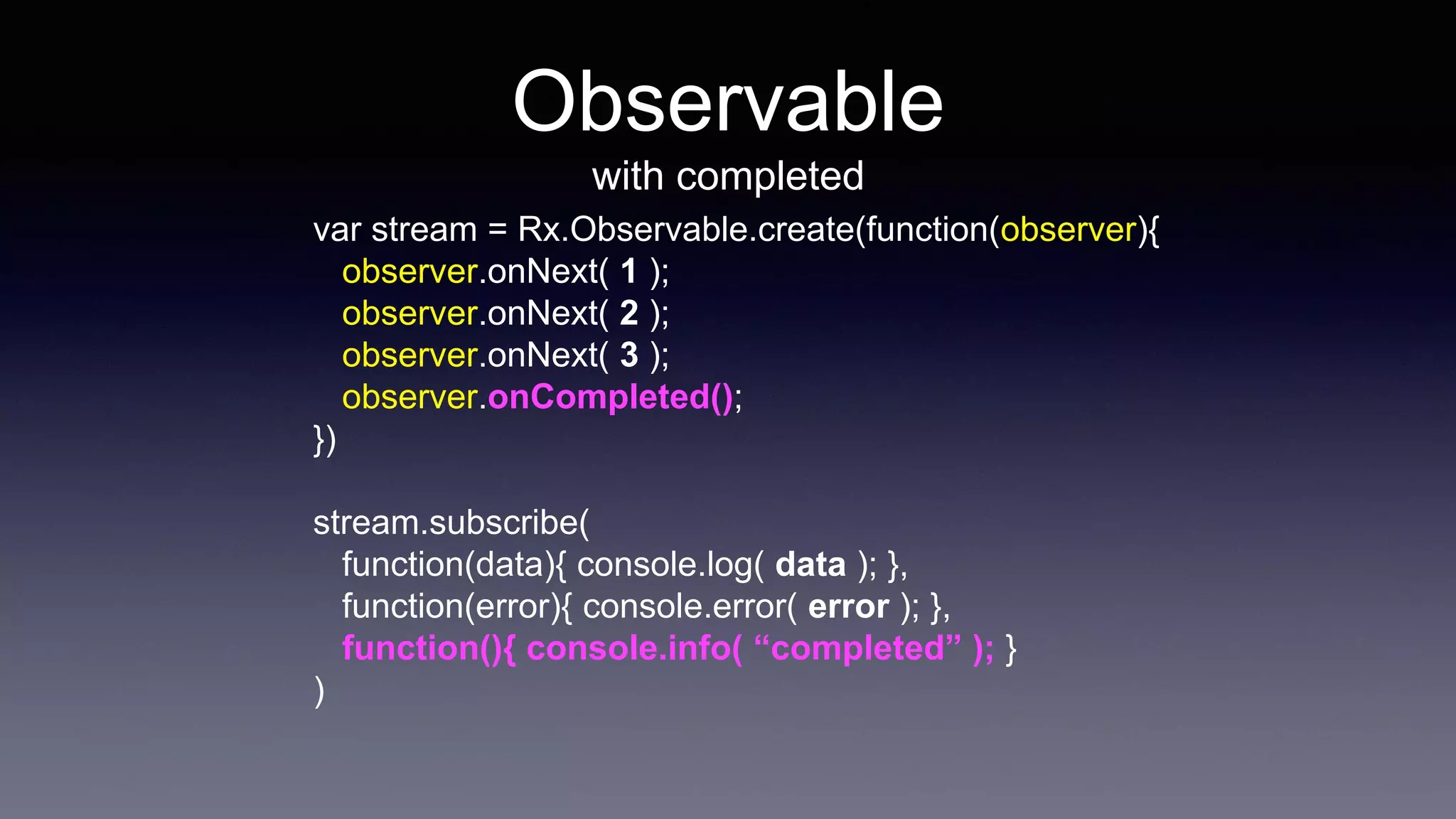

Observable
with completed
observer.onNext( 1 );
observer.onCompleted();
})
stream.subscribe(
function(data){ console.log( data ); },
function(error){ console.error( error ); },
function(){ console.info( “completed” ); }
)

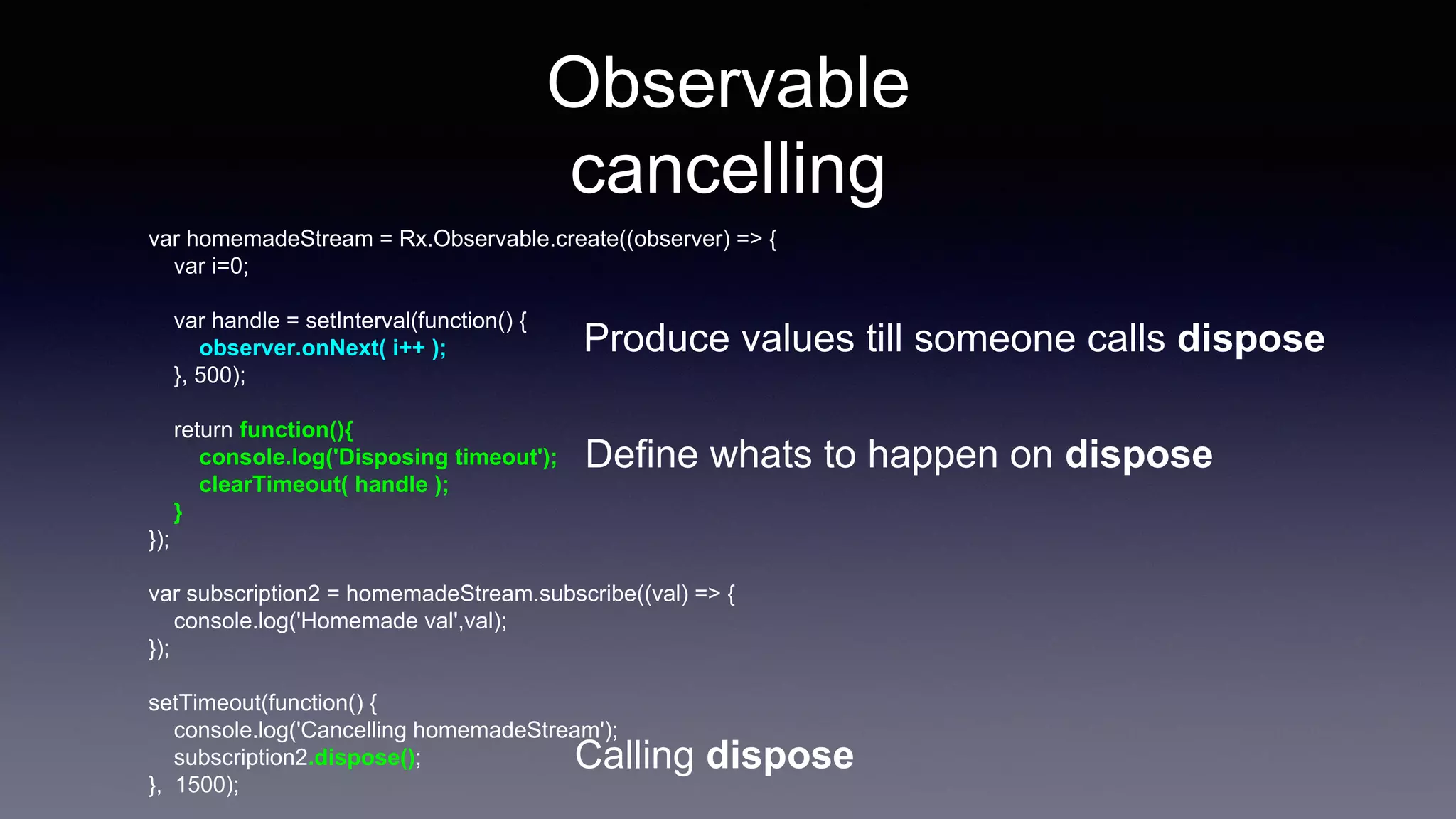

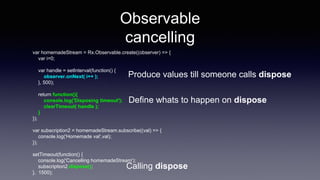

Observable
cancelling
var homemadeStream = Rx.Observable.create((observer) => {
var i=0;
var handle = setInterval(function() {
observer.onNext( i++ );
}, 500);
return function(){
console.log('Disposing timeout');
clearTimeout( handle );
}
});
var subscription2 = homemadeStream.subscribe((val) => {
console.log('Homemade val',val);
});
setTimeout(function() {
console.log('Cancelling homemadeStream');
subscription2.dispose();
}, 1500);
Define whats to happen on dispose
Calling dispose
Produce values till someone calls dispose

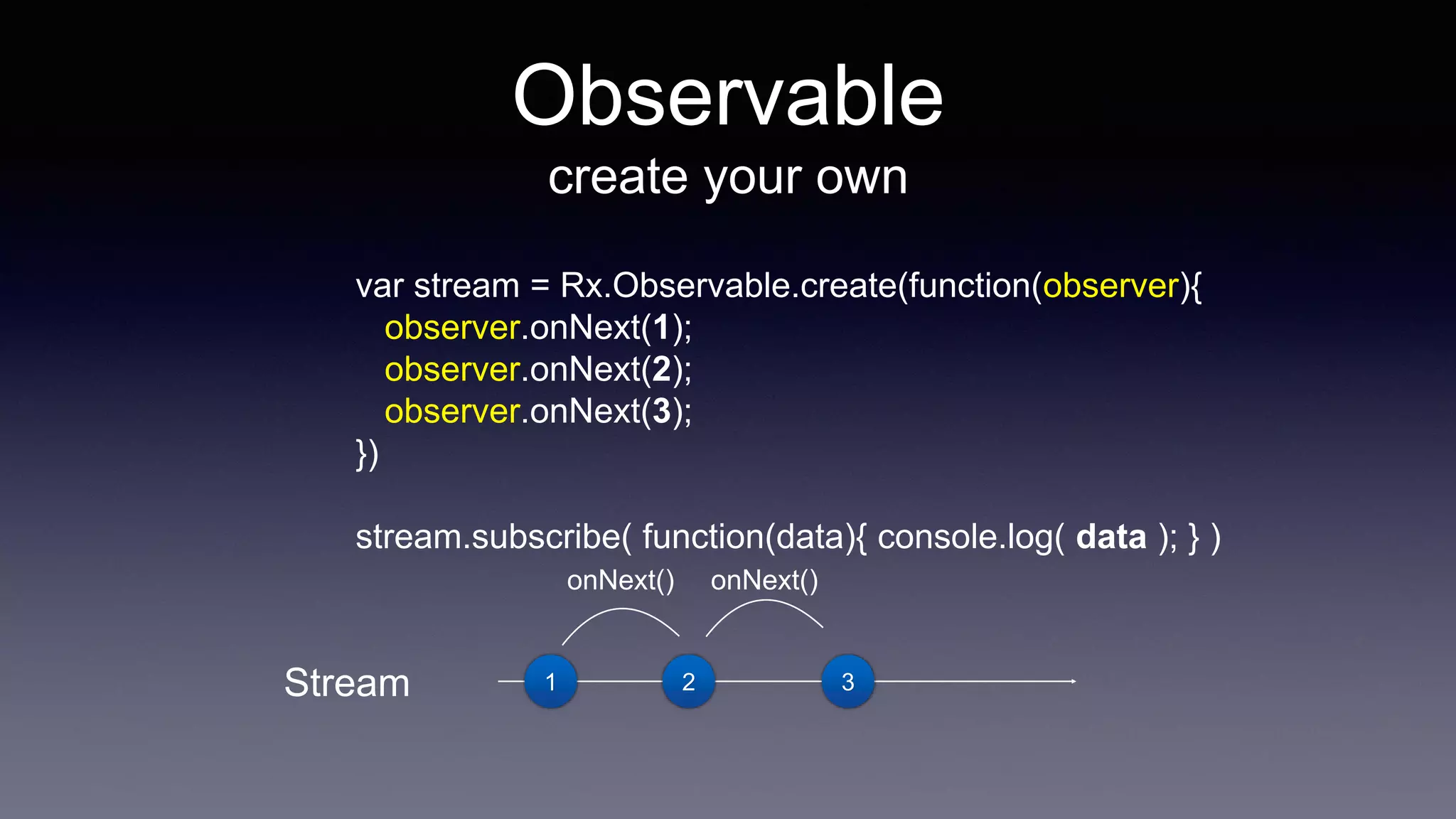

Observable
create your own
observer.onNext(1);
observer.onNext(2);
observer.onNext(3);
})
stream.subscribe( function(data){ console.log( data ); } )
Stream 1 2 3
onNext() onNext()

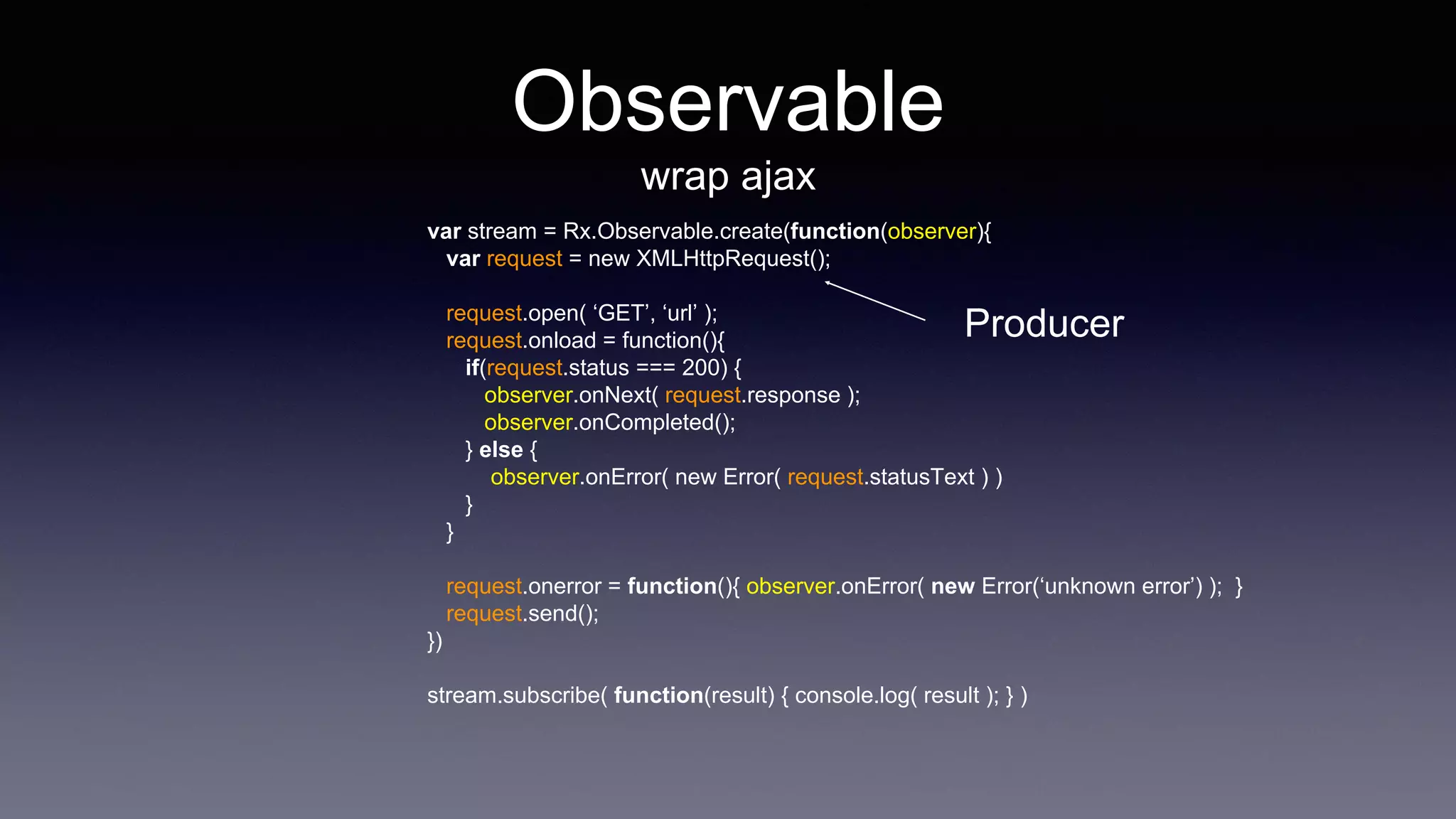

Observable
wrap ajax
var request = new XMLHttpRequest();
request.open( ‘GET’, ‘url’ );
request.onload = function(){
if(request.status === 200) {
observer.onNext( request.response );
} else {
observer.onError( new Error( request.statusText ) )
}
}
request.onerror = function(){ observer.onError( new Error(‘unknown error’) ); }
request.send();
})
stream.subscribe( function(result) { console.log( result ); } )
Producer

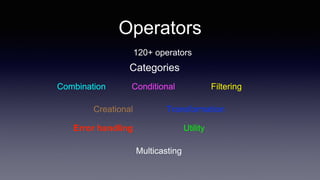

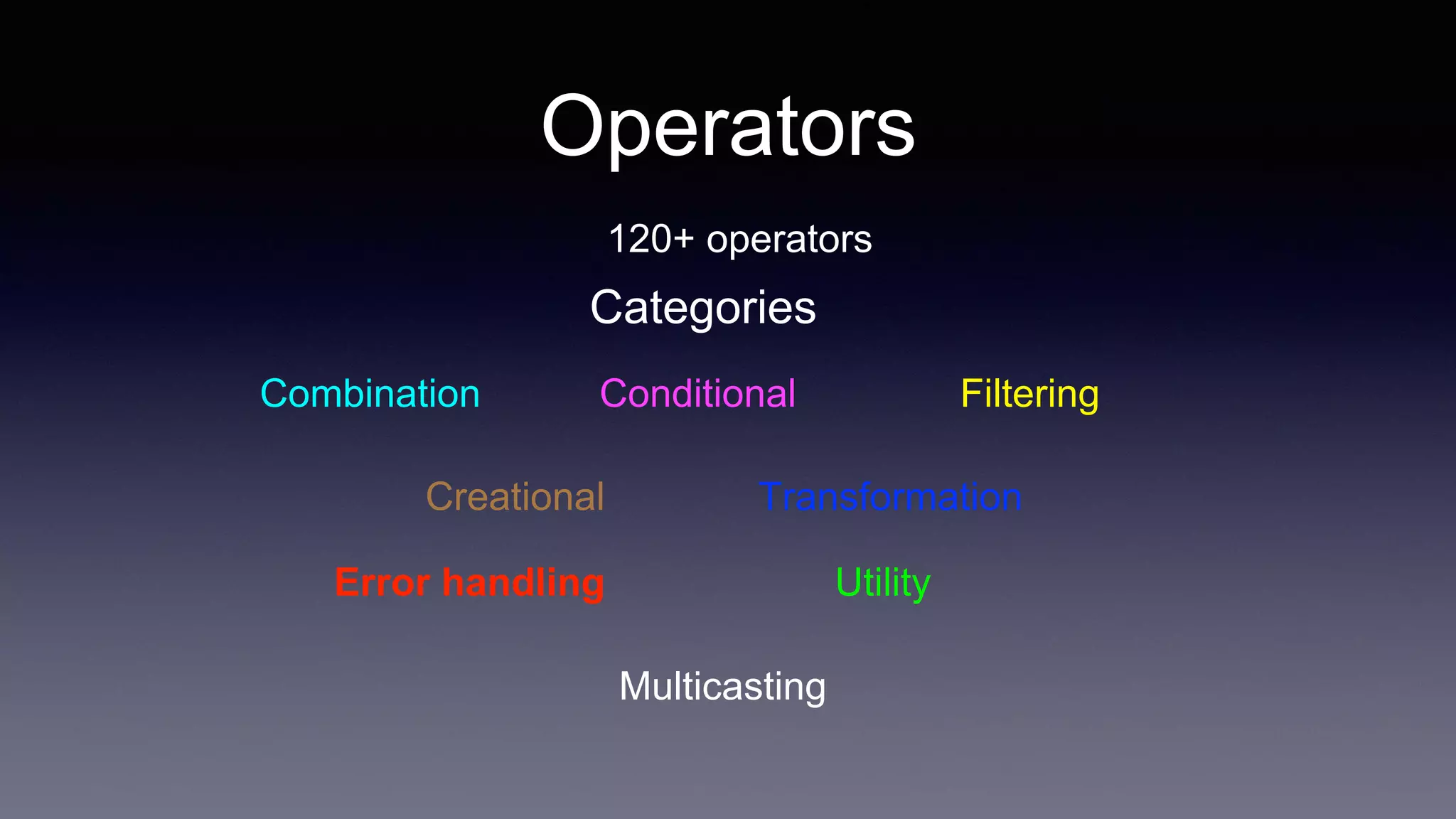

Operators
120+ operators
Combination Conditional
Creational
Error handling
Multicasting
Filtering
Transformation
Utility
Categories

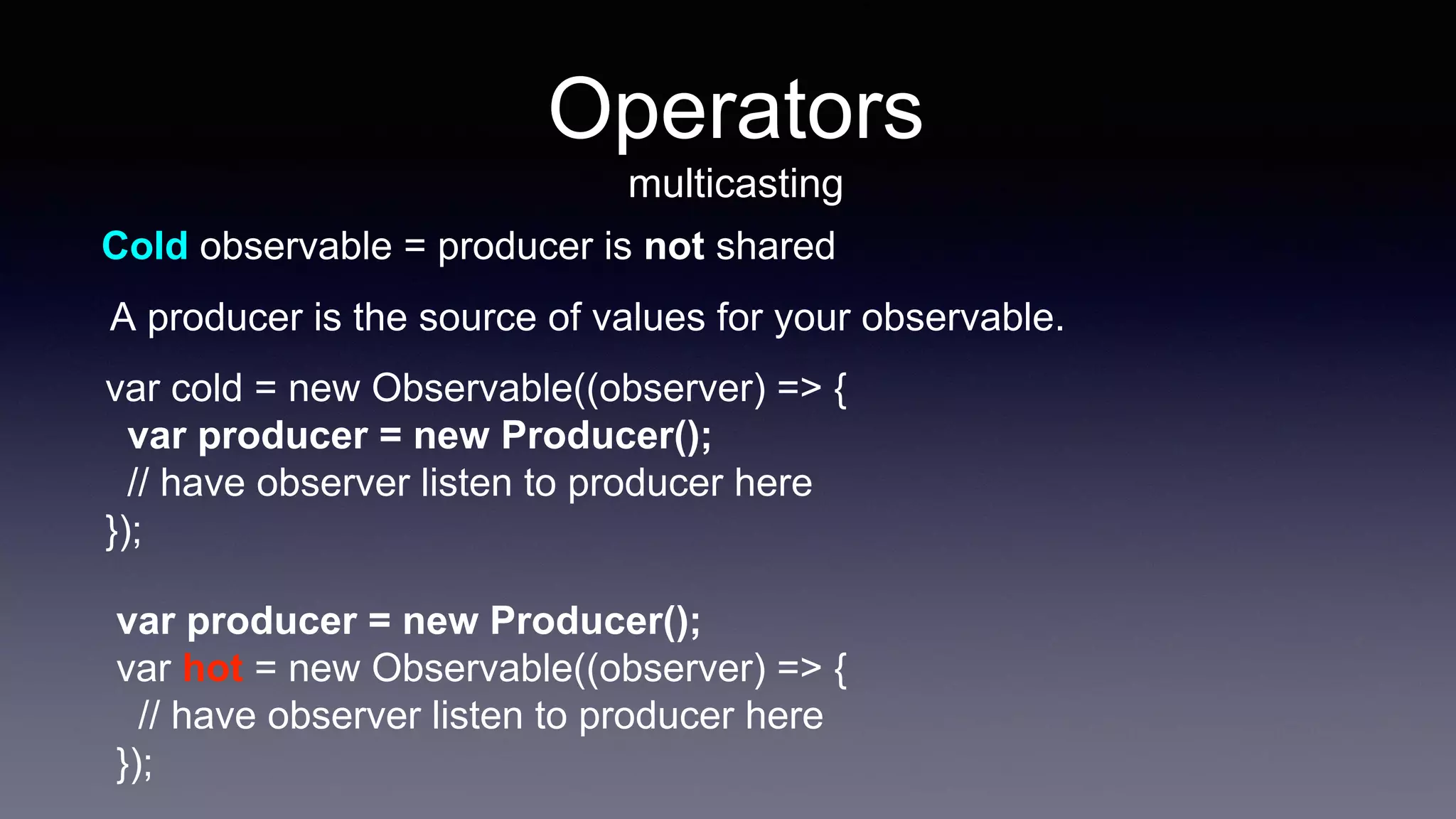

Cold observable = producer is not shared
var cold = new Observable((observer) => {
// have observer listen to producer here
});
var hot = new Observable((observer) => {
// have observer listen to producer here
});
A producer is the source of values for your observable.

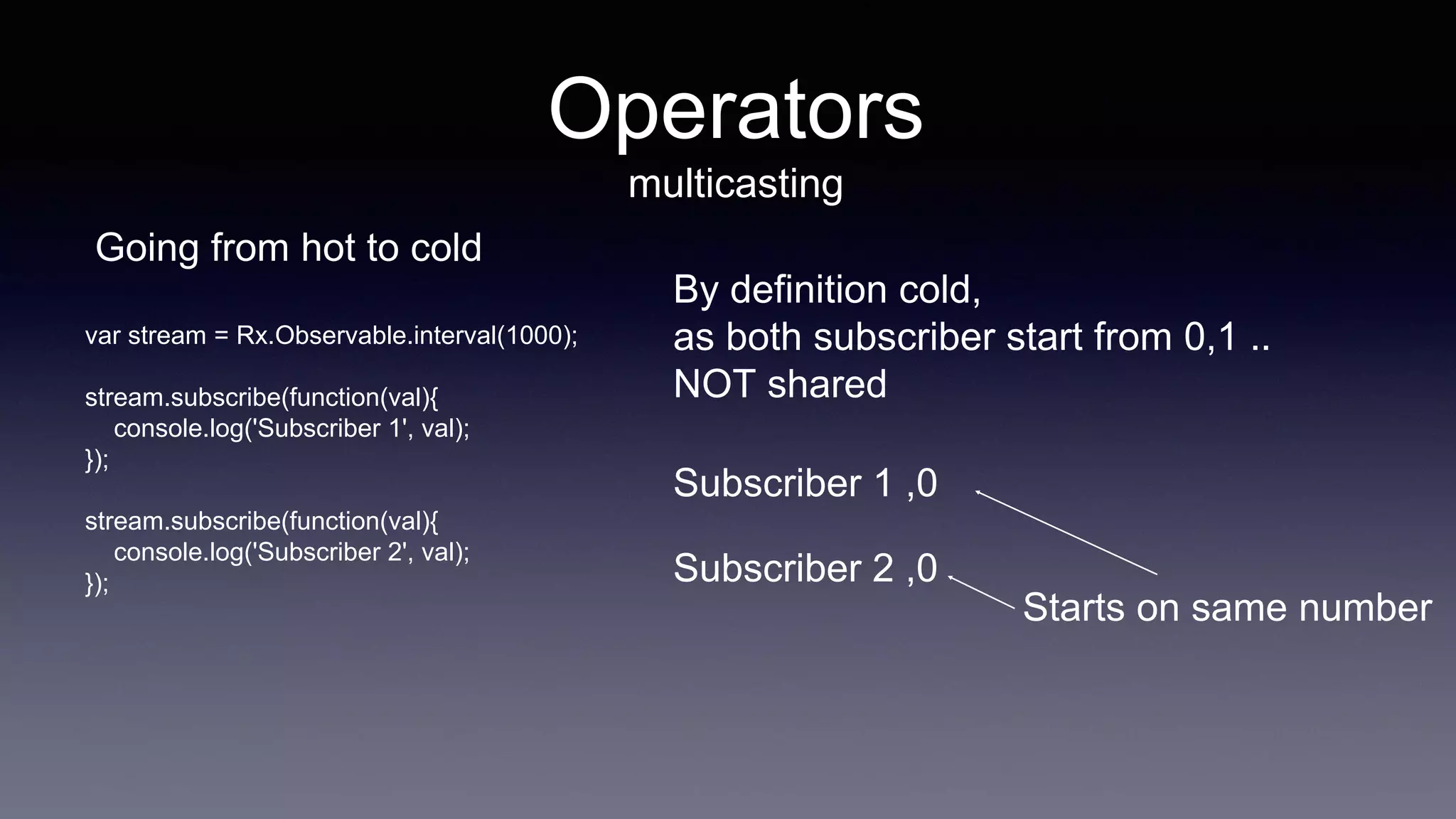

Operators
multicasting

Going from hot to cold
Operators
multicasting
var stream = Rx.Observable.interval(1000);
stream.subscribe(function(val){
console.log('Subscriber 1', val);
});
});
By definition cold,
as both subscriber start from 0,1 ..
NOT shared
Subscriber 1 ,0
Subscriber 2 ,0
Starts on same number

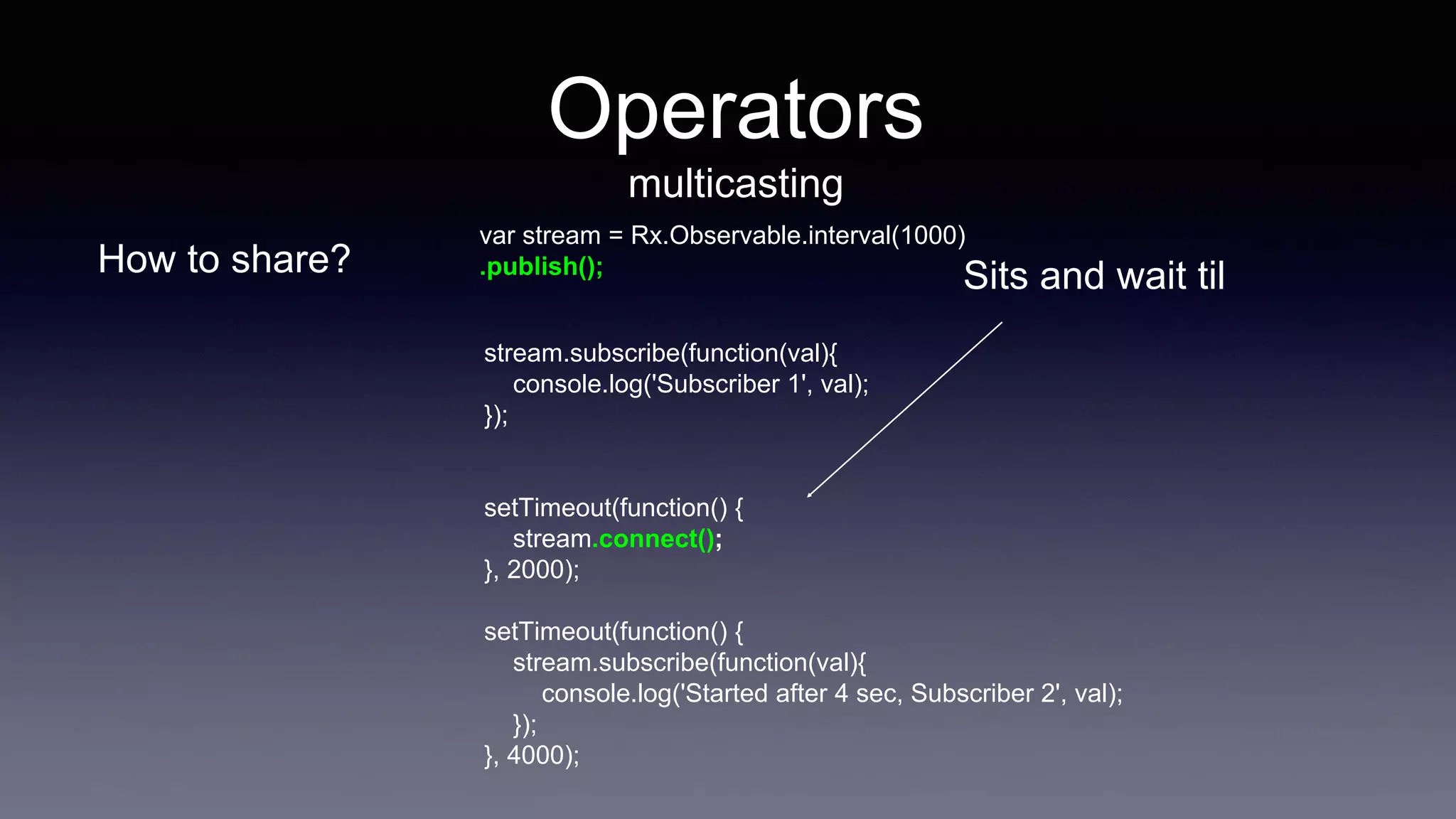

Operators
multicasting
How to share?
});
stream.connect();
}, 2000);
console.log('Started after 4 sec, Subscriber 2', val);
});
}, 4000);
var stream = Rx.Observable.interval(1000)
.publish();
Sits and wait til

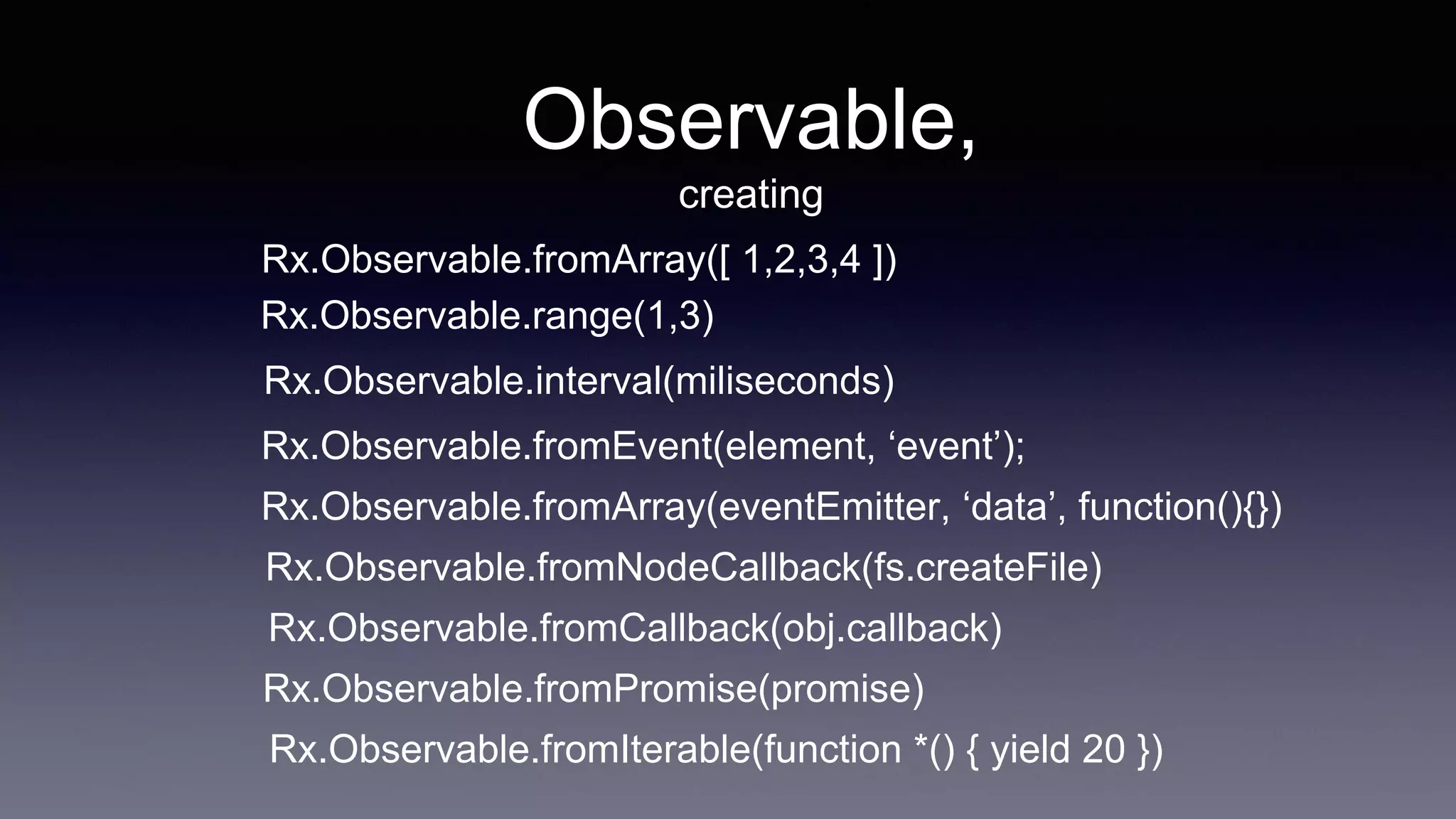

Observable,
creating
Rx.Observable.fromArray([ 1,2,3,4 ])
Rx.Observable.fromEvent(element, ‘event’);
Rx.Observable.fromArray(eventEmitter, ‘data’, function(){})
Rx.Observable.fromNodeCallback(fs.createFile)
Rx.Observable.fromCallback(obj.callback)
Rx.Observable.fromPromise(promise)
Rx.Observable.fromIterable(function *() { yield 20 })
Rx.Observable.range(1,3)
Rx.Observable.interval(miliseconds)

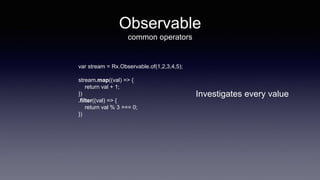

Observable
common operators
var stream = Rx.Observable.of(1,2,3,4,5);
stream.map((val) => {
return val + 1;
})
.filter((val) => {
return val % 3 === 0;
})
Investigates every value

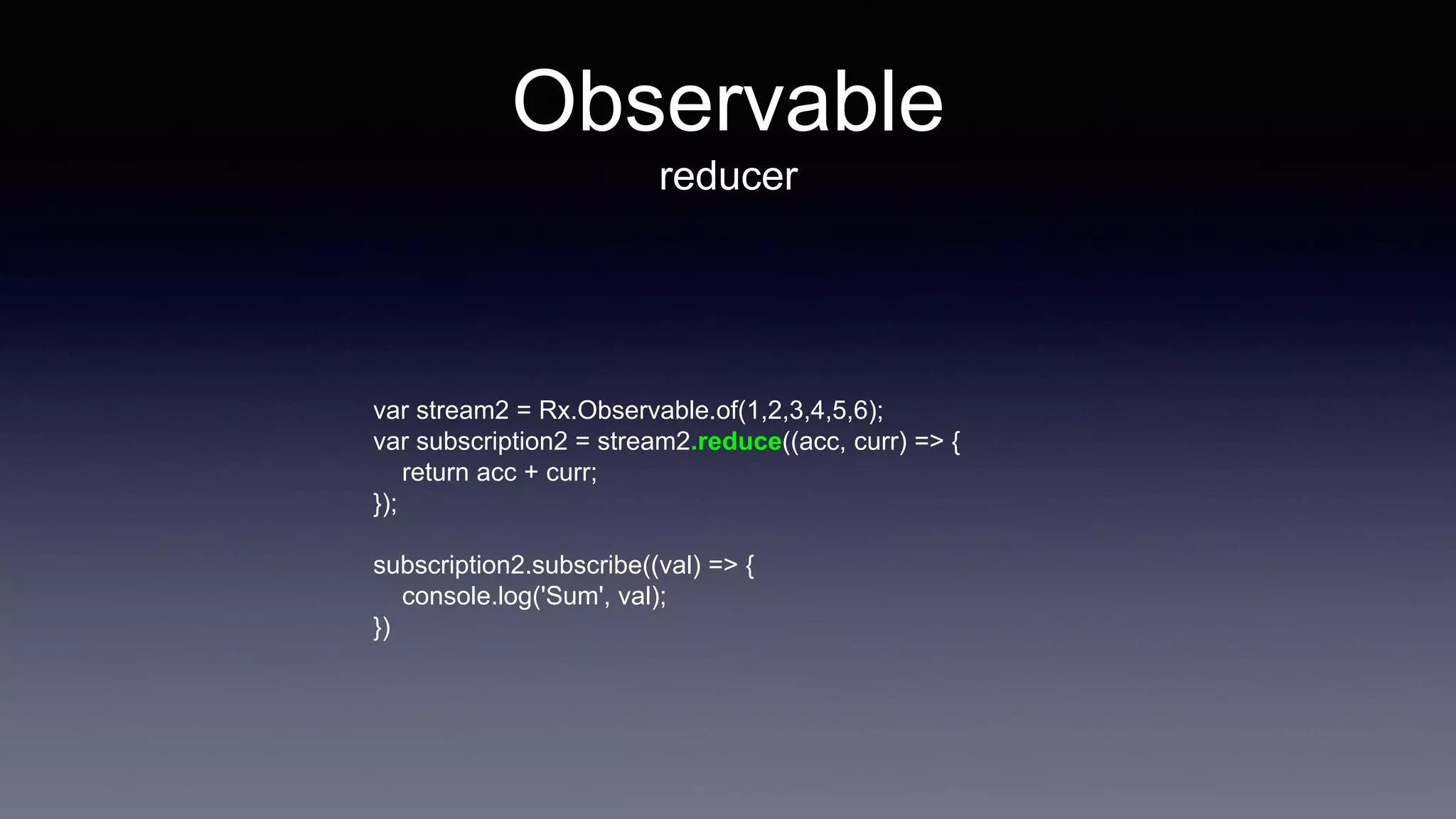

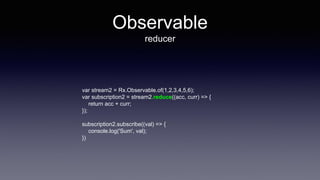

Observable
reducer
var stream2 = Rx.Observable.of(1,2,3,4,5,6);
var subscription2 = stream2.reduce((acc, curr) => {
return acc + curr;
});
subscription2.subscribe((val) => {
console.log('Sum', val);
})

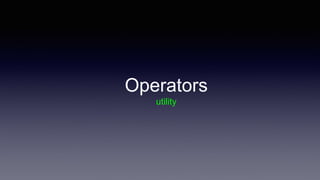

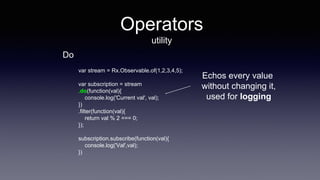

Operators
utility
var subscription = stream
.do(function(val){
console.log('Current val', val);
})
.filter(function(val){
});
subscription.subscribe(function(val){
console.log('Val',val);
})
Echos every value
without changing it,
used for logging
Do

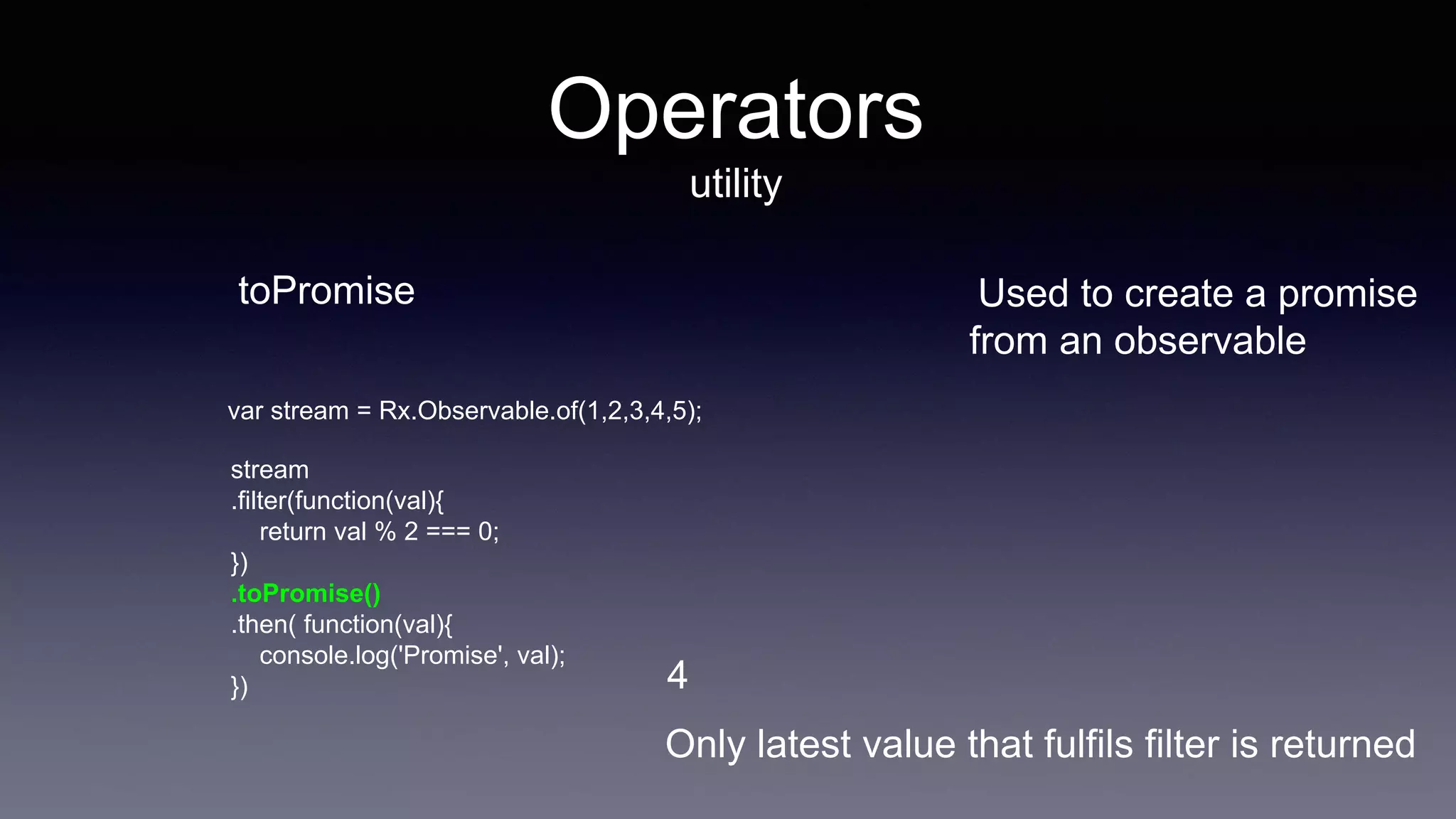

Operators
utility
toPromise Used to create a promise
from an observable
stream
})
.toPromise()
.then( function(val){
console.log('Promise', val);
}) 4
Only latest value that fulfils filter is returned

Operators
utility

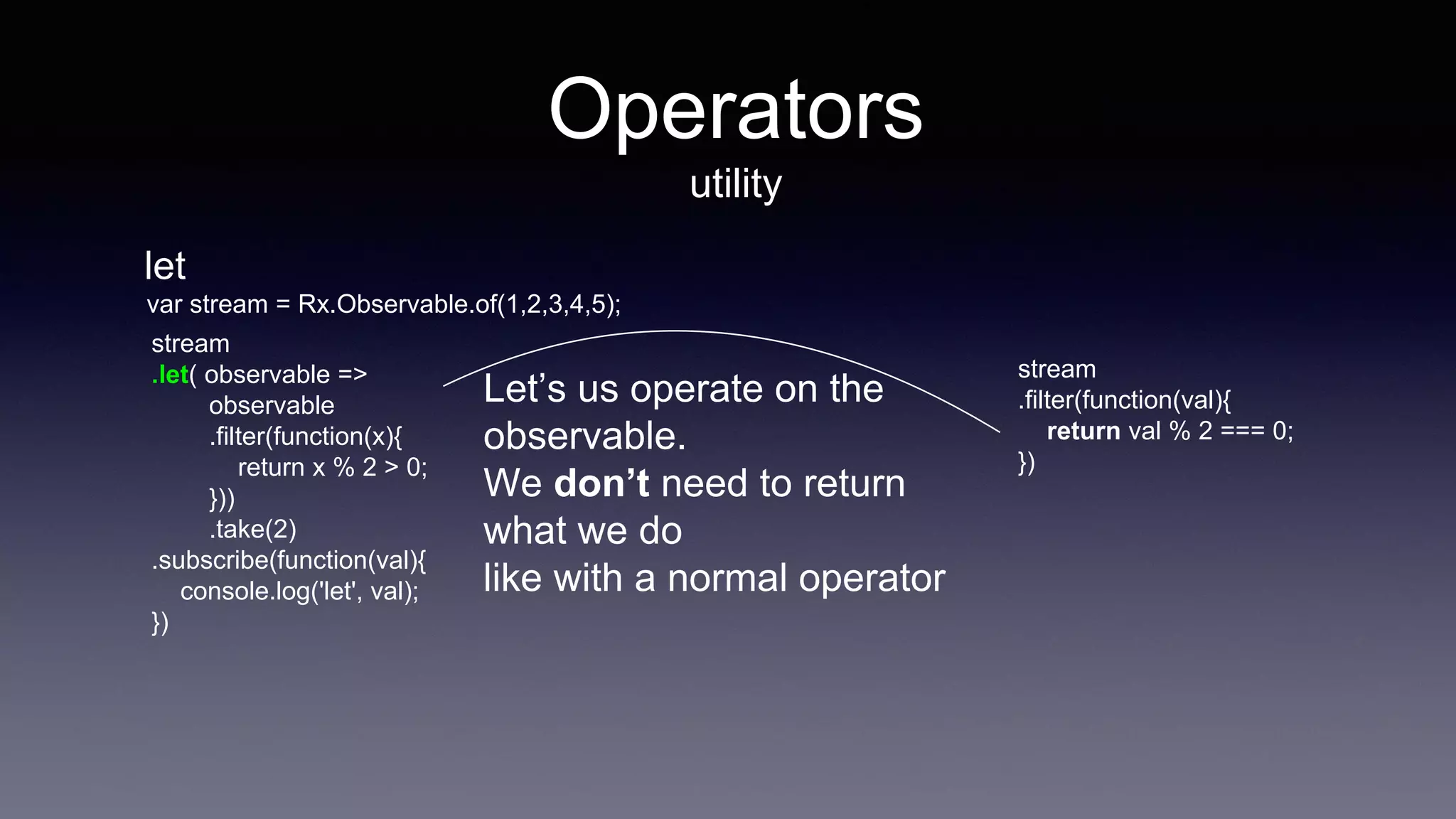

let
stream
.let( observable =>
observable
.filter(function(x){
return x % 2 > 0;
}))
.take(2)
.subscribe(function(val){
console.log('let', val);
})
Let’s us operate on the
observable.
We don’t need to return
what we do
like with a normal operator
stream
})

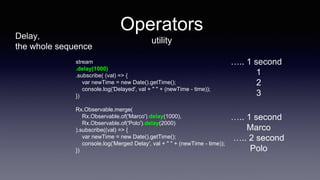

Operators
utilityDelay,
the whole sequence
stream
.delay(1000)
.subscribe( (val) => {
var newTime = new Date().getTime();
console.log('Delayed', val + " " + (newTime - time));
})
Rx.Observable.merge(
Rx.Observable.of('Marco').delay(1000),
Rx.Observable.of('Polo').delay(2000)
).subscribe((val) => {
var newTime = new Date().getTime();
console.log('Merged Delay', val + " " + (newTime - time));
})
….. 1 second
1
2
3
….. 1 second
Marco
….. 2 second
Polo

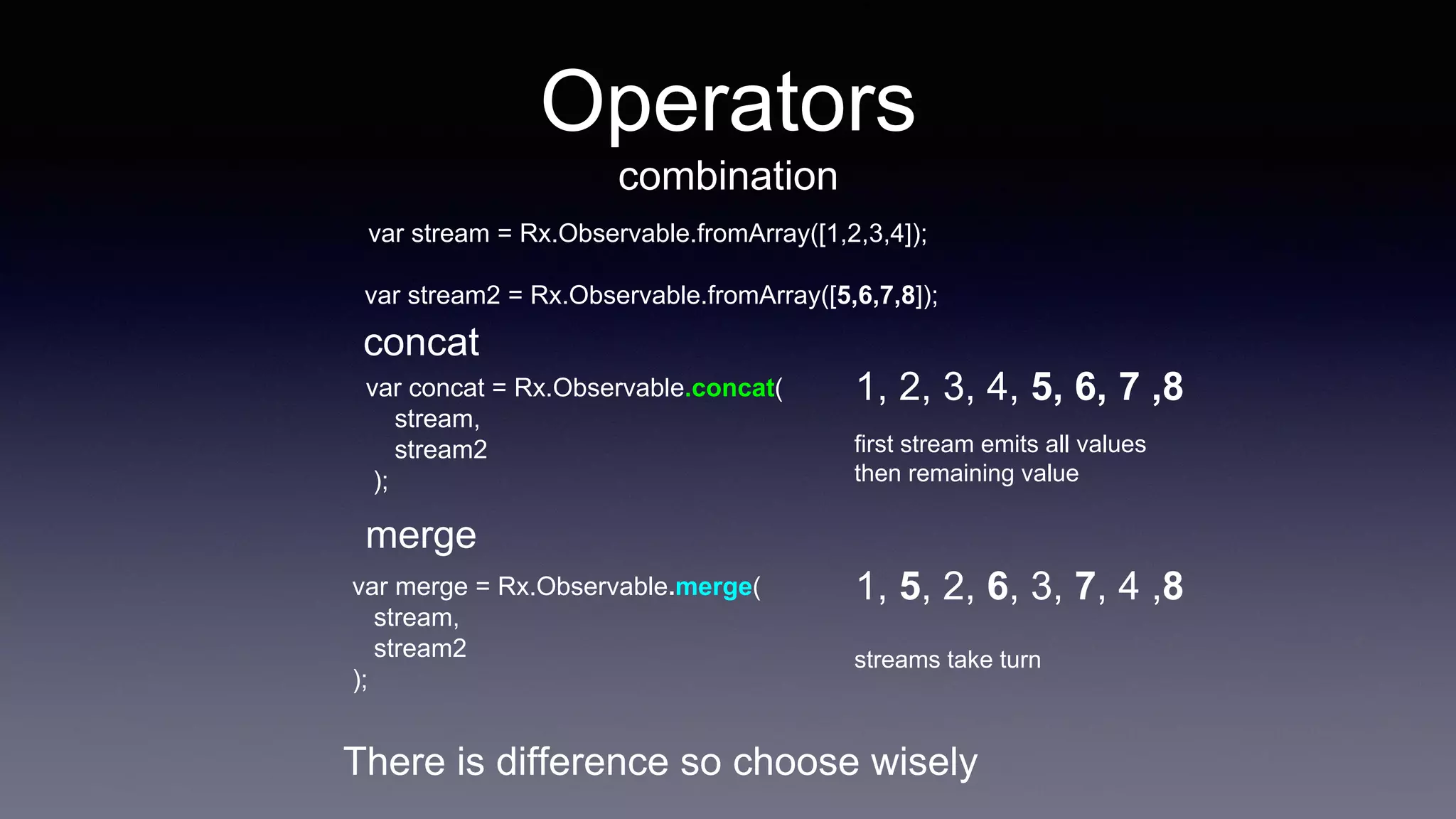

Operators
combination
concat
merge
var concat = Rx.Observable.concat(
stream,
stream2
);
var stream = Rx.Observable.fromArray([1,2,3,4]);
var stream2 = Rx.Observable.fromArray([5,6,7,8]);
1, 2, 3, 4, 5, 6, 7 ,8
var merge = Rx.Observable.merge(
stream,
stream2
);
1, 5, 2, 6, 3, 7, 4 ,8
first stream emits all values
then remaining value
streams take turn
There is difference so choose wisely

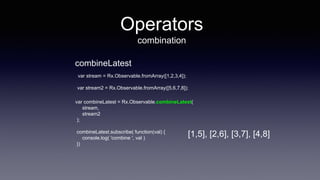

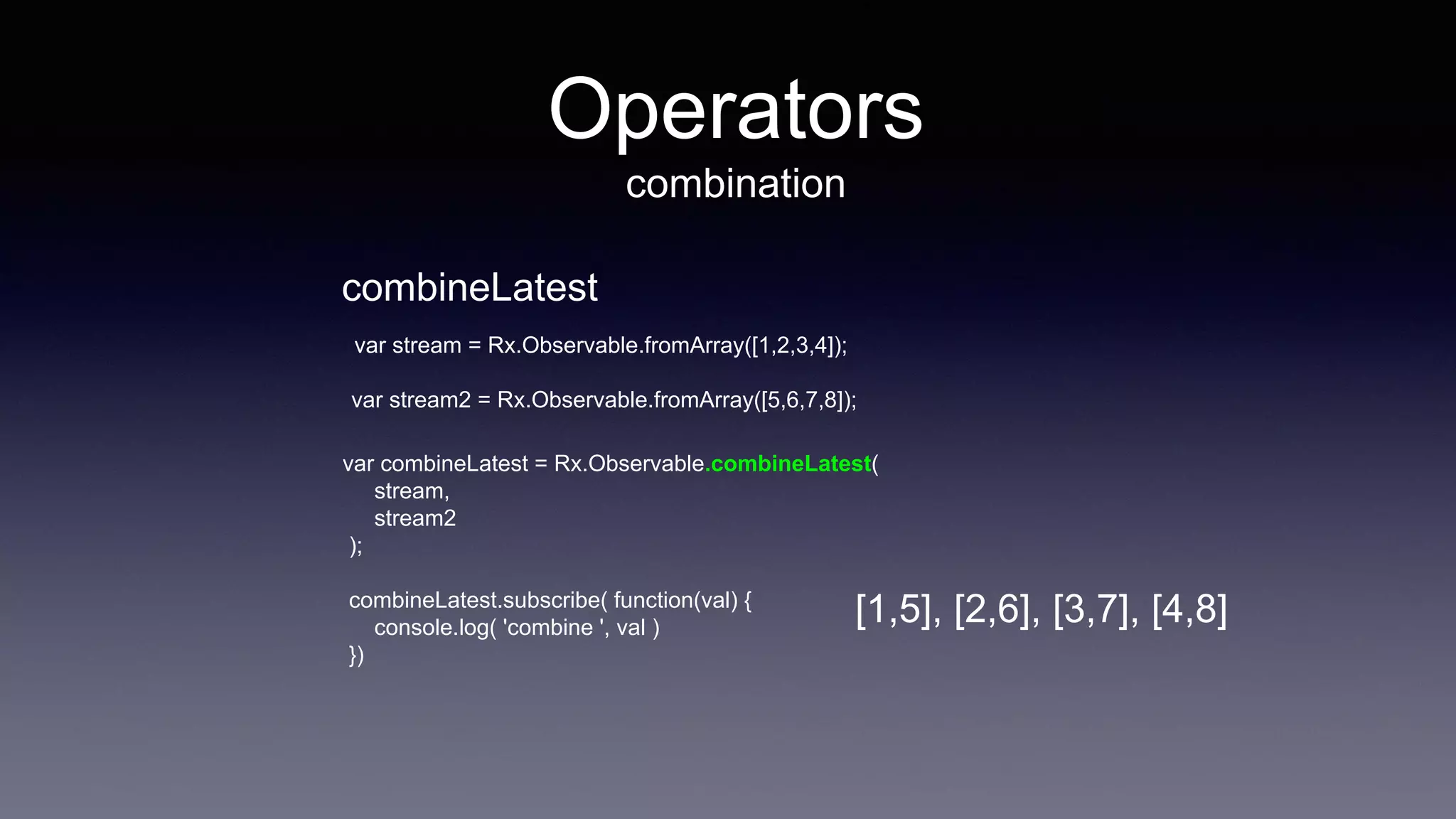

Operators
combination
var stream = Rx.Observable.fromArray([1,2,3,4]);
var stream2 = Rx.Observable.fromArray([5,6,7,8]);
var combineLatest = Rx.Observable.combineLatest(
stream,
stream2
);
combineLatest.subscribe( function(val) {
console.log( 'combine ', val )
})
combineLatest
[1,5], [2,6], [3,7], [4,8]

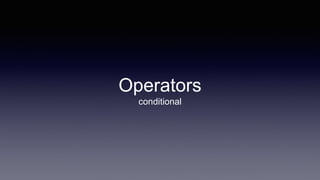

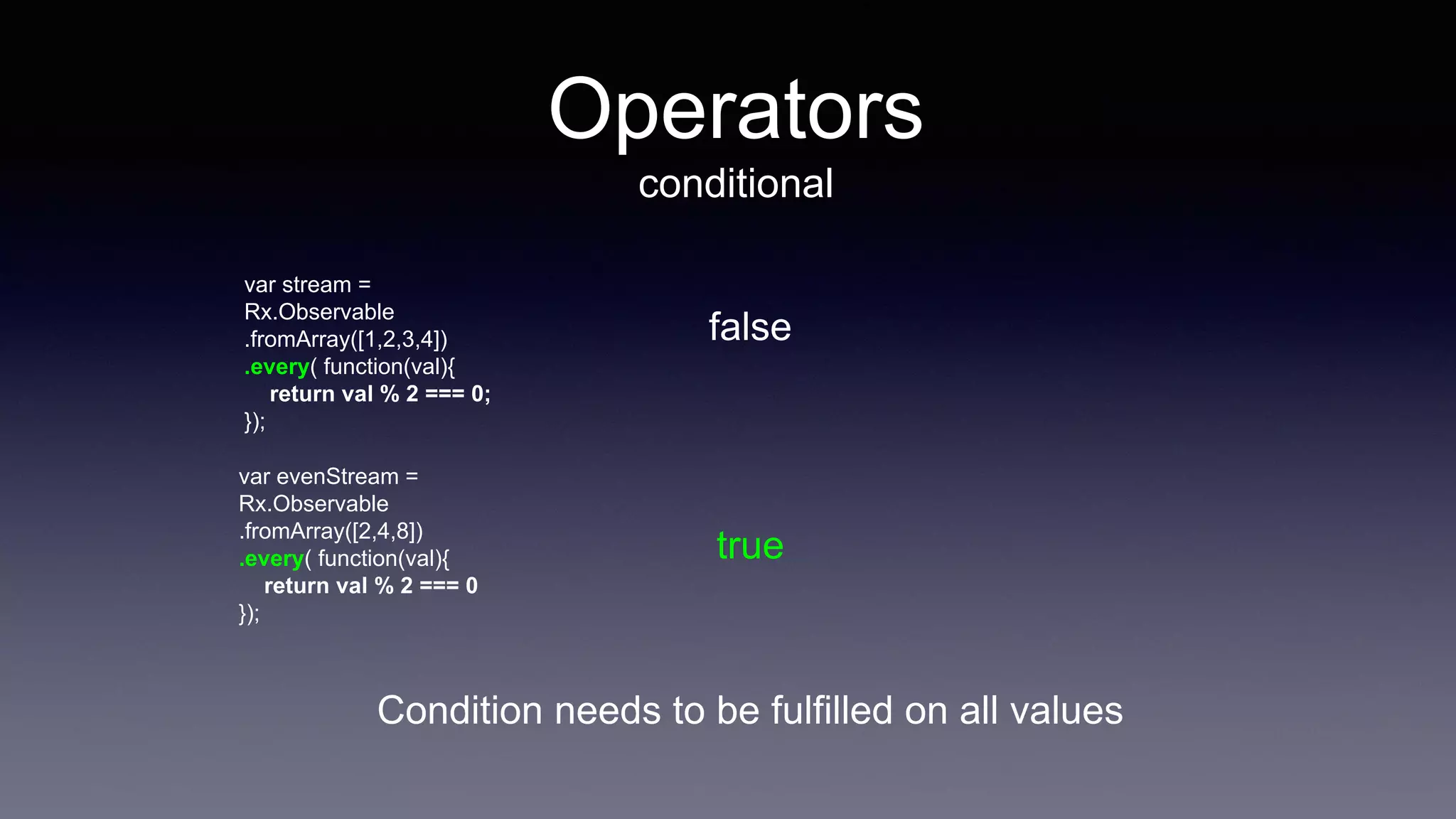

Operators
conditional
var stream =
Rx.Observable
.fromArray([1,2,3,4])
.every( function(val){
});
false
var evenStream =
Rx.Observable
.fromArray([2,4,8])
.every( function(val){
return val % 2 === 0
});
true
Condition needs to be fulfilled on all values

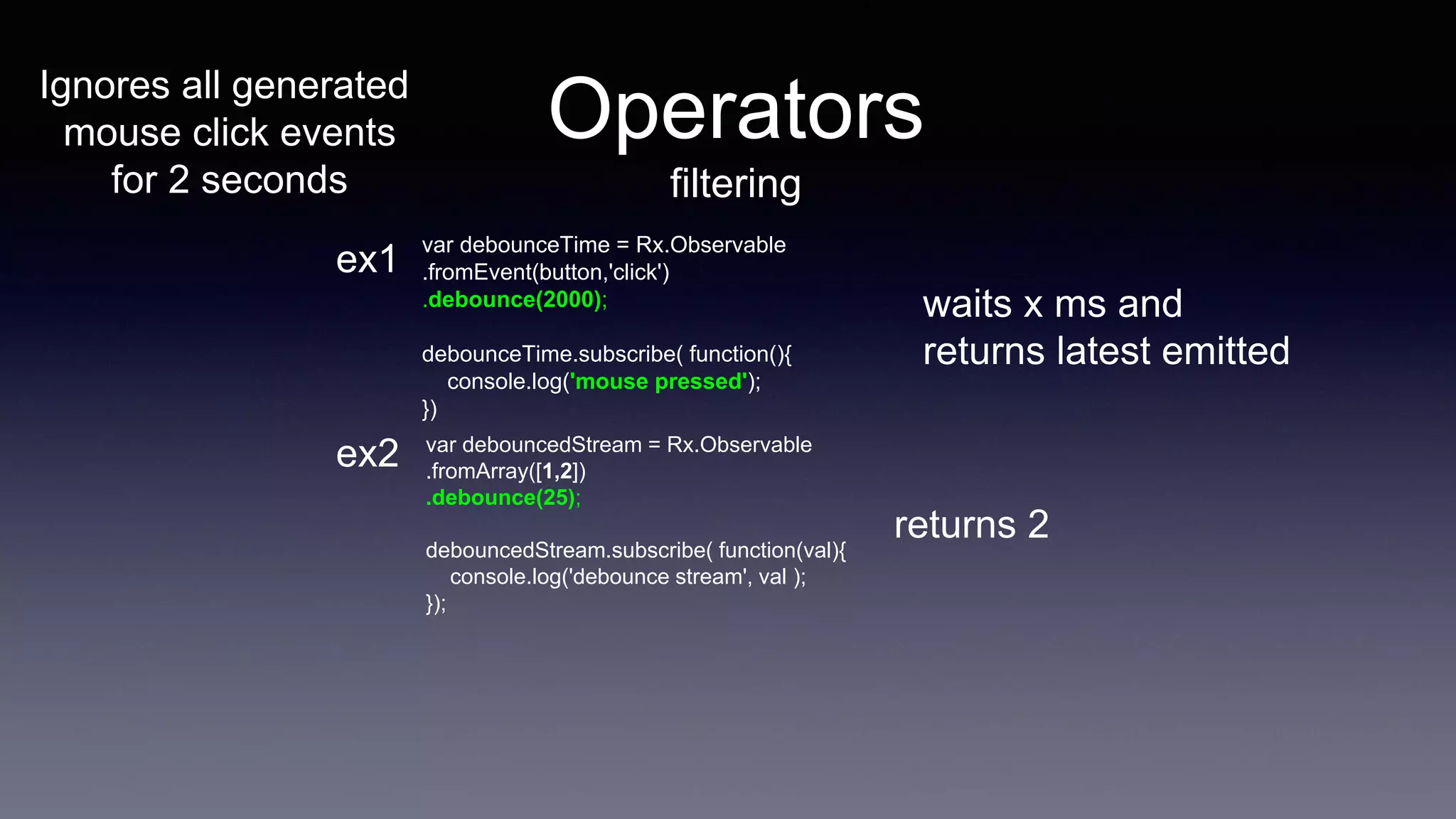

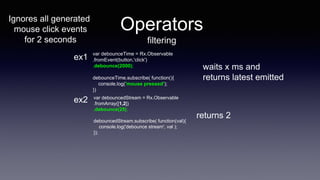

Operators
filtering
var debounceTime = Rx.Observable
.fromEvent(button,'click')
.debounce(2000);
debounceTime.subscribe( function(){
console.log('mouse pressed');
})
waits x ms and
returns latest emitted
var debouncedStream = Rx.Observable
.fromArray([1,2])
.debounce(25);
debouncedStream.subscribe( function(val){
console.log('debounce stream', val );
});
returns 2
ex1
ex2
Ignores all generated
mouse click events
for 2 seconds

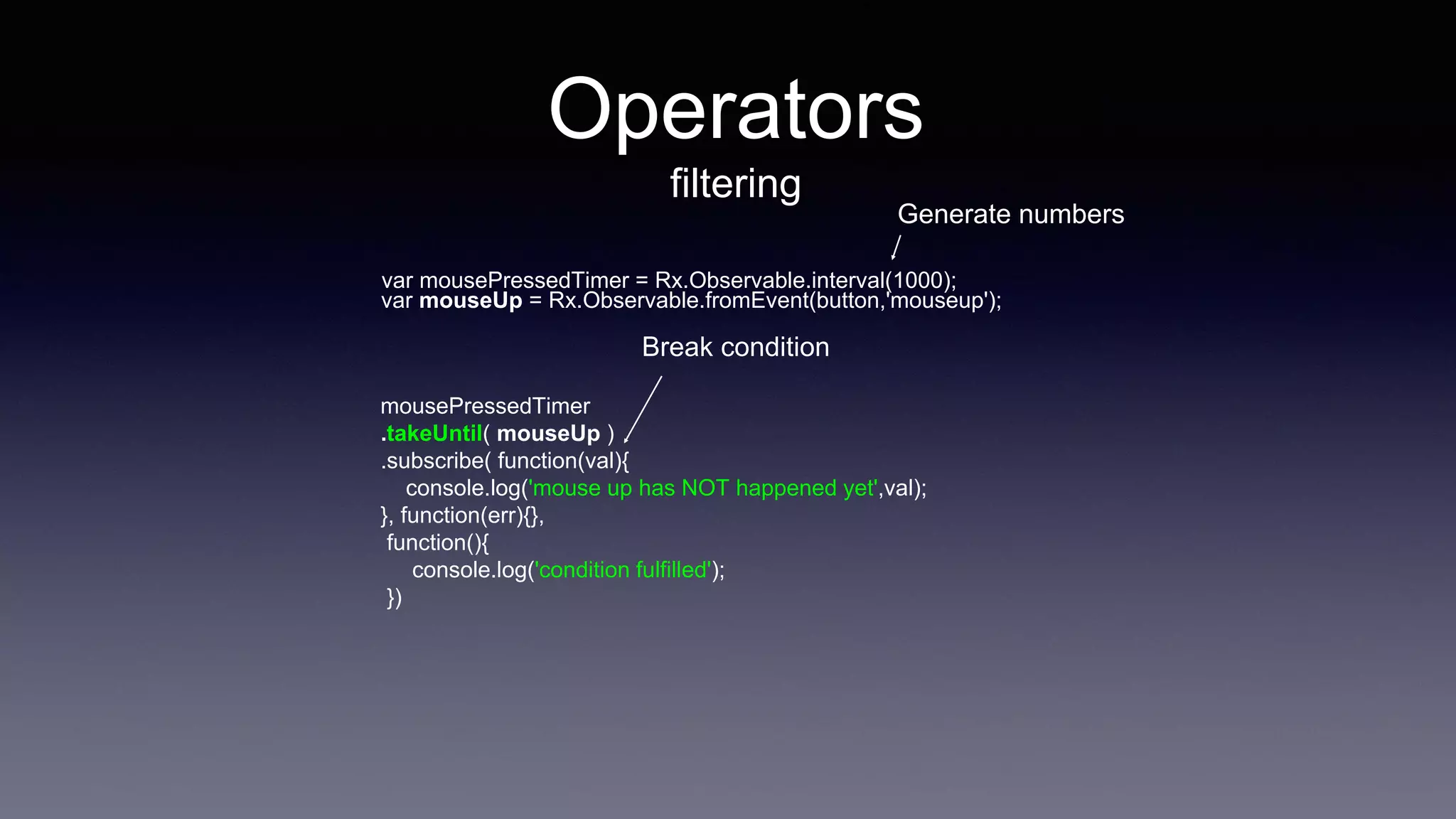

Operators
filtering
var mousePressedTimer = Rx.Observable.interval(1000);
mousePressedTimer
.takeUntil( mouseUp )
.subscribe( function(val){
console.log('mouse up has NOT happened yet',val);
}, function(err){},
function(){
console.log('condition fulfilled');
})
var mouseUp = Rx.Observable.fromEvent(button,'mouseup');
Break condition
Generate numbers

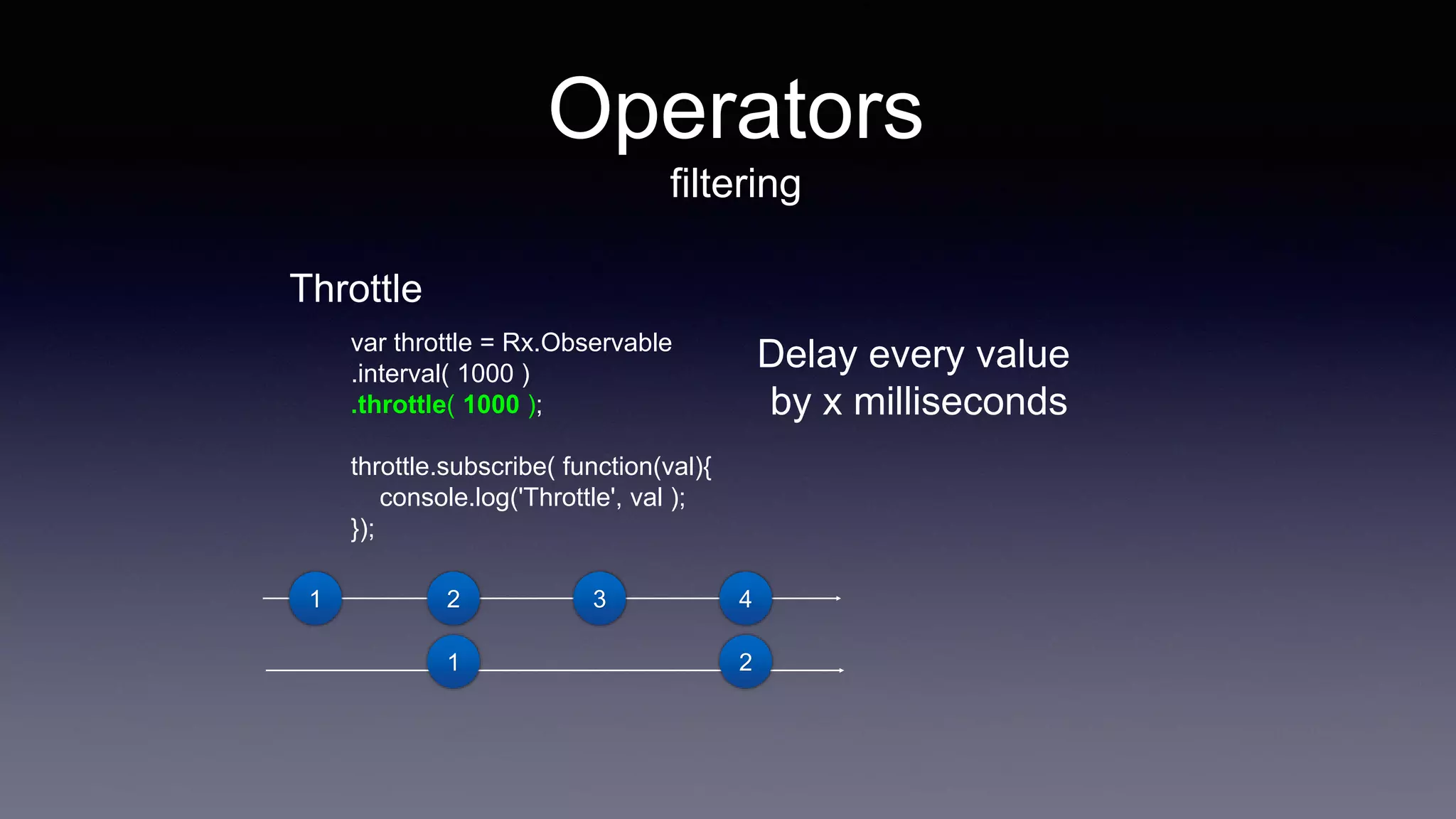

var throttle = Rx.Observable
.interval( 1000 )
.throttle( 1000 );
throttle.subscribe( function(val){
console.log('Throttle', val );
});
Operators
filtering
Delay every value
by x milliseconds
Throttle
1 2 3 4
1 2

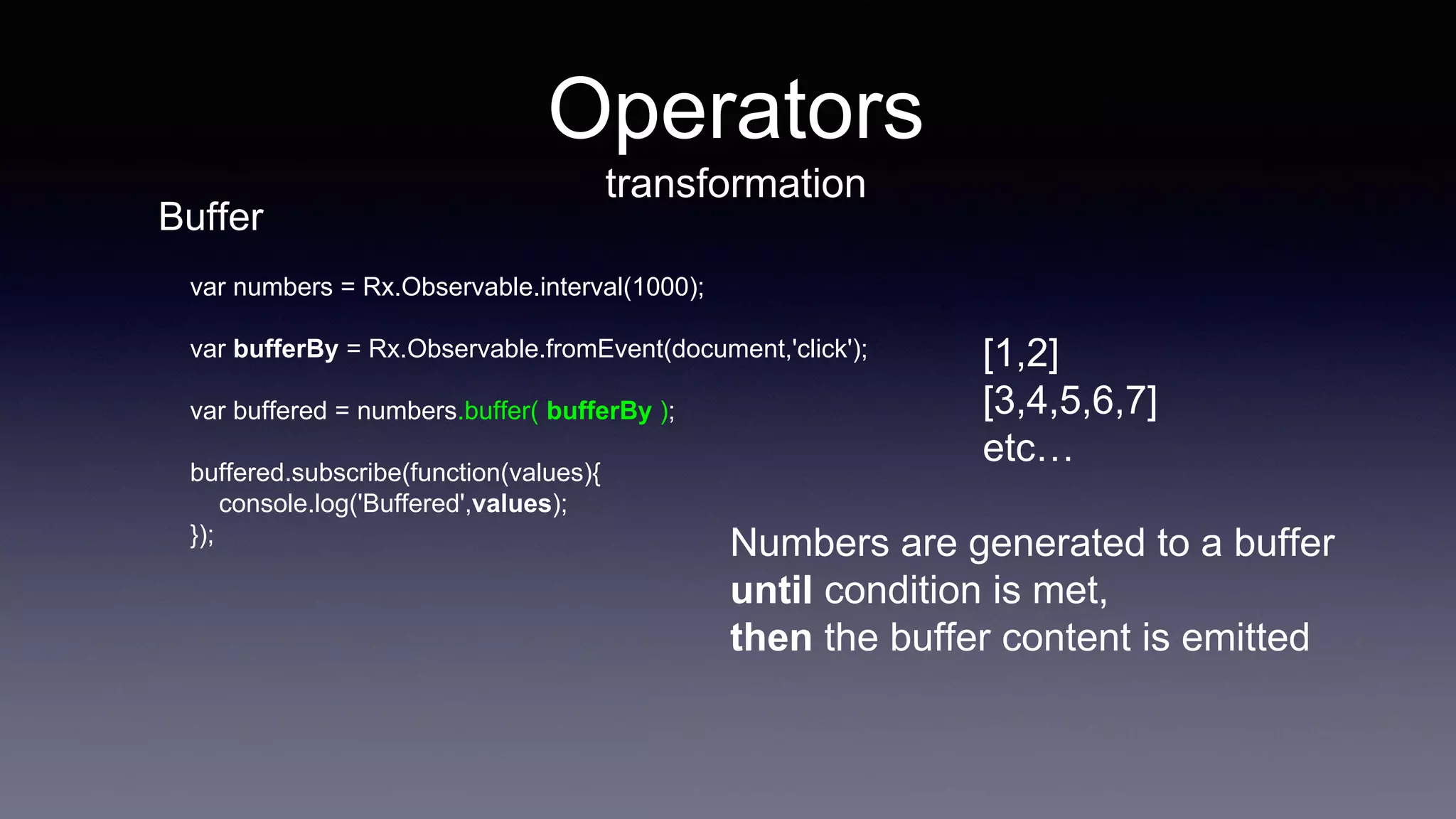

Operators
transformation
var numbers = Rx.Observable.interval(1000);
var bufferBy = Rx.Observable.fromEvent(document,'click');
var buffered = numbers.buffer( bufferBy );
buffered.subscribe(function(values){
console.log('Buffered',values);
});
[1,2]
[3,4,5,6,7]
etc…
Numbers are generated to a buffer
until condition is met,
then the buffer content is emitted
Buffer

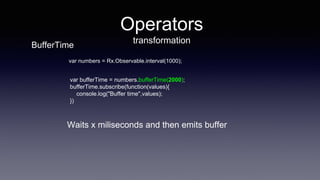

Operators
transformation

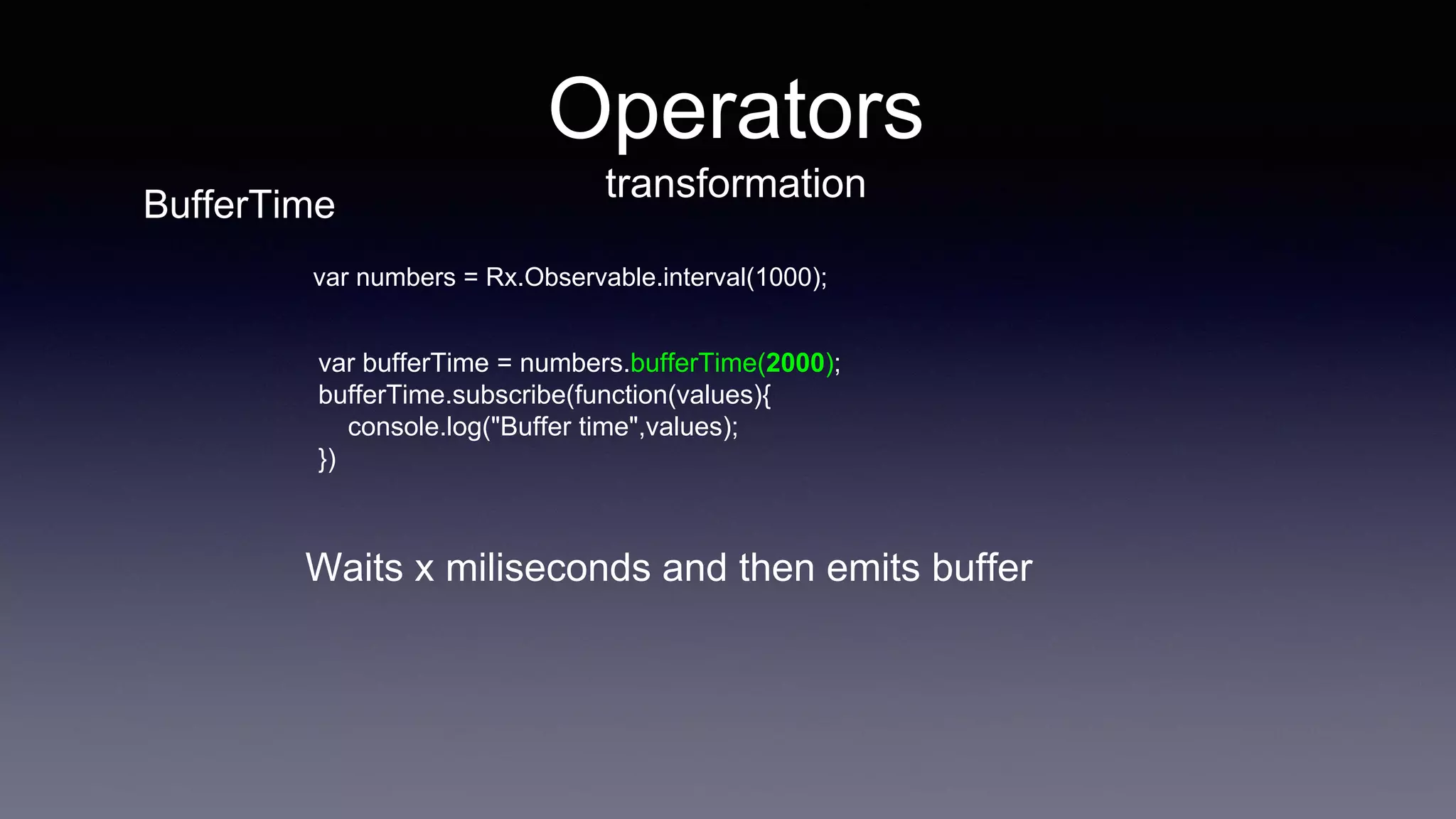

var bufferTime = numbers.bufferTime(2000);
bufferTime.subscribe(function(values){
console.log("Buffer time",values);
})
var numbers = Rx.Observable.interval(1000);
Waits x miliseconds and then emits buffer
BufferTime

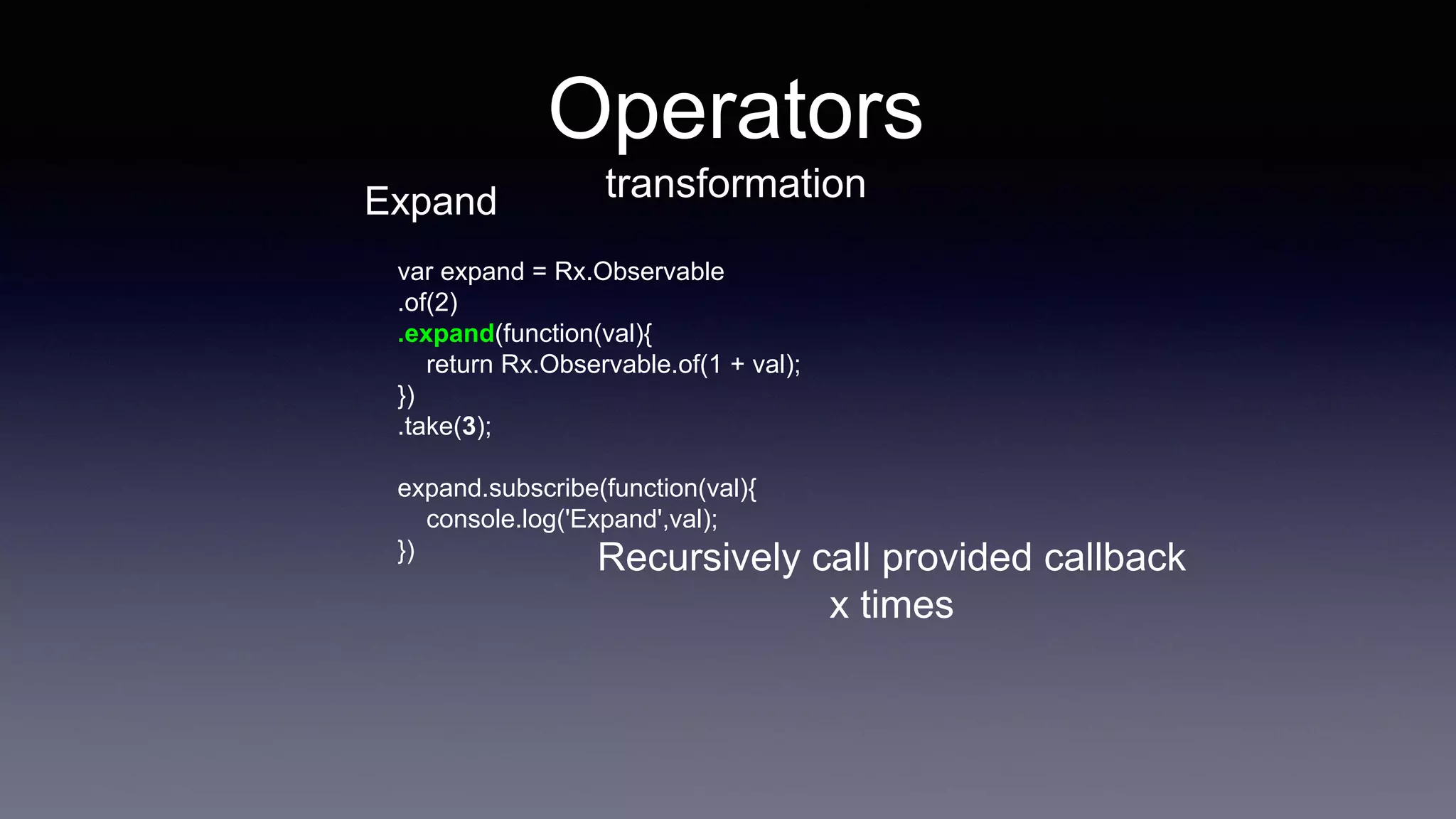

var expand = Rx.Observable
.of(2)
.expand(function(val){
return Rx.Observable.of(1 + val);
})
.take(3);
expand.subscribe(function(val){
console.log('Expand',val);
})
Operators
transformationExpand
Recursively call provided callback
x times

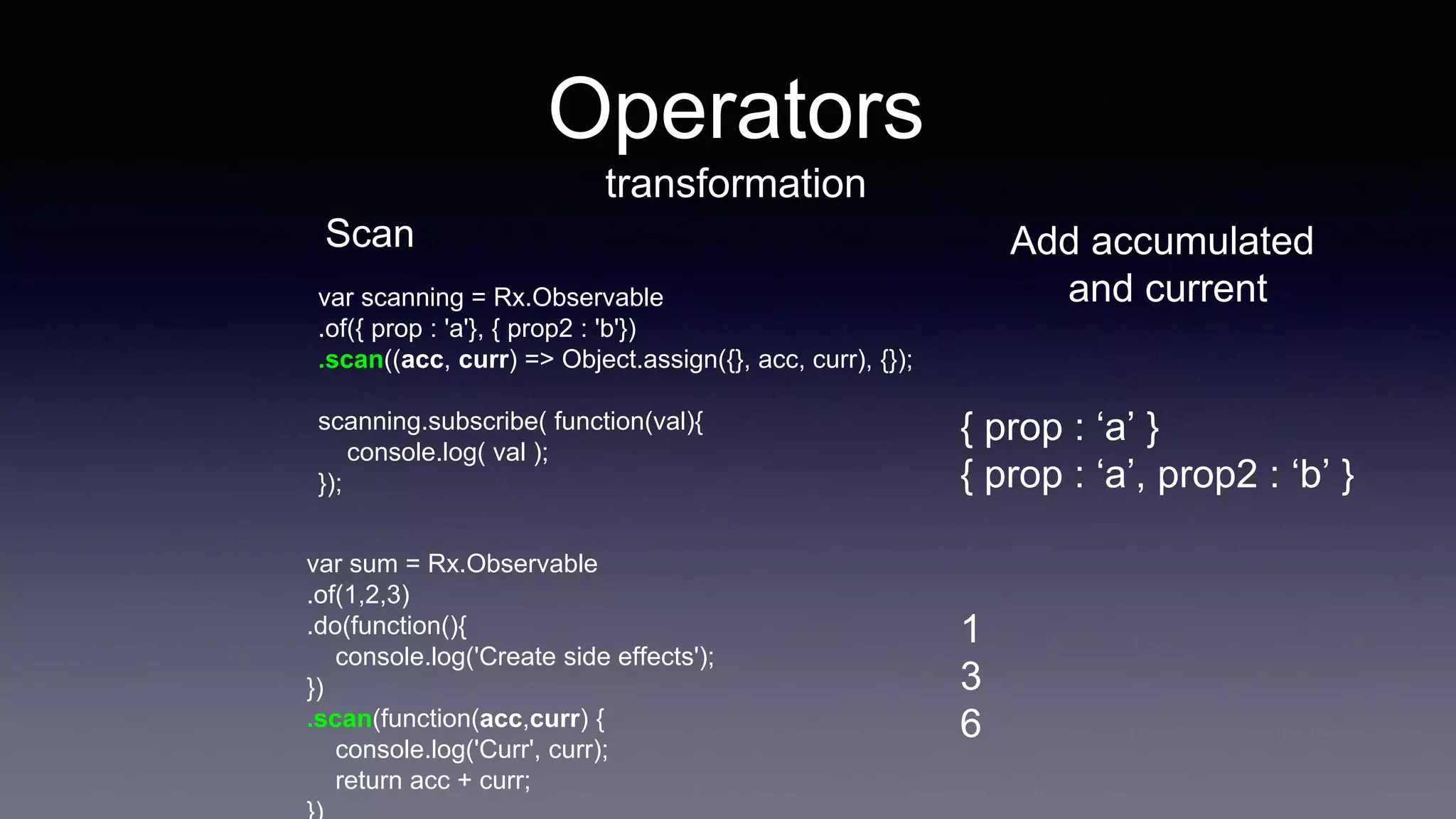

Operators
transformation
Scan
var scanning = Rx.Observable
.of({ prop : 'a'}, { prop2 : 'b'})
.scan((acc, curr) => Object.assign({}, acc, curr), {});
scanning.subscribe( function(val){
console.log( val );
});
Add accumulated
and current
var sum = Rx.Observable
.of(1,2,3)
.do(function(){
console.log('Create side effects');
})
.scan(function(acc,curr) {
console.log('Curr', curr);
return acc + curr;
{ prop : ‘a’ }
{ prop : ‘a’, prop2 : ‘b’ }
1
3
6

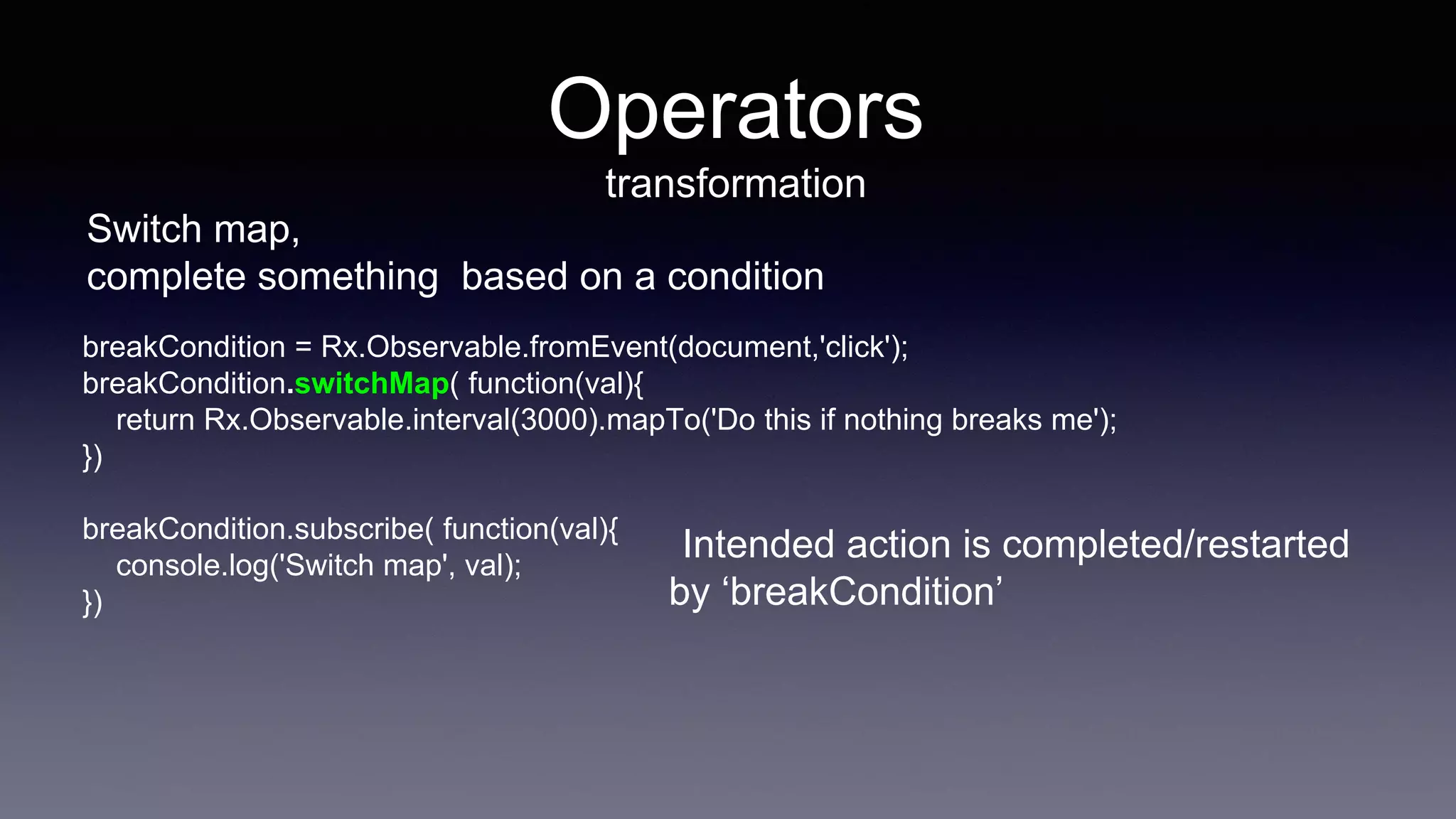

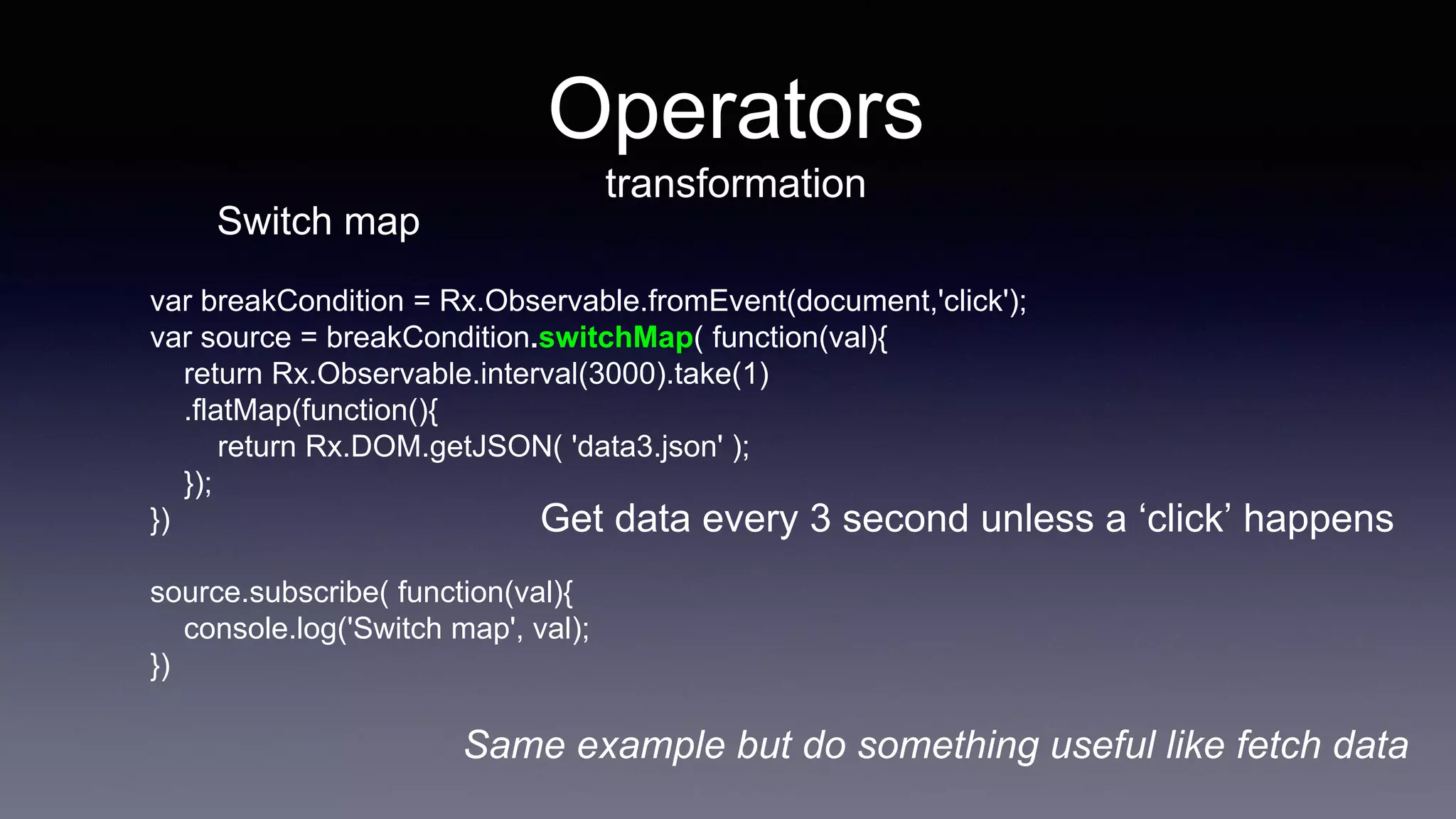

Operators
transformation
Switch map,
complete something based on a condition
breakCondition = Rx.Observable.fromEvent(document,'click');
breakCondition.switchMap( function(val){
return Rx.Observable.interval(3000).mapTo('Do this if nothing breaks me');
})
breakCondition.subscribe( function(val){
console.log('Switch map', val);
})
Intended action is completed/restarted
by ‘breakCondition’

Operators
transformation
var breakCondition = Rx.Observable.fromEvent(document,'click');
var source = breakCondition.switchMap( function(val){
return Rx.Observable.interval(3000).take(1)
.flatMap(function(){
return Rx.DOM.getJSON( 'data3.json' );
});
})
source.subscribe( function(val){
console.log('Switch map', val);
})
Get data every 3 second unless a ‘click’ happens
Switch map
Same example but do something useful like fetch data

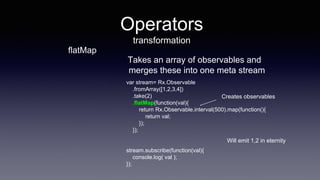

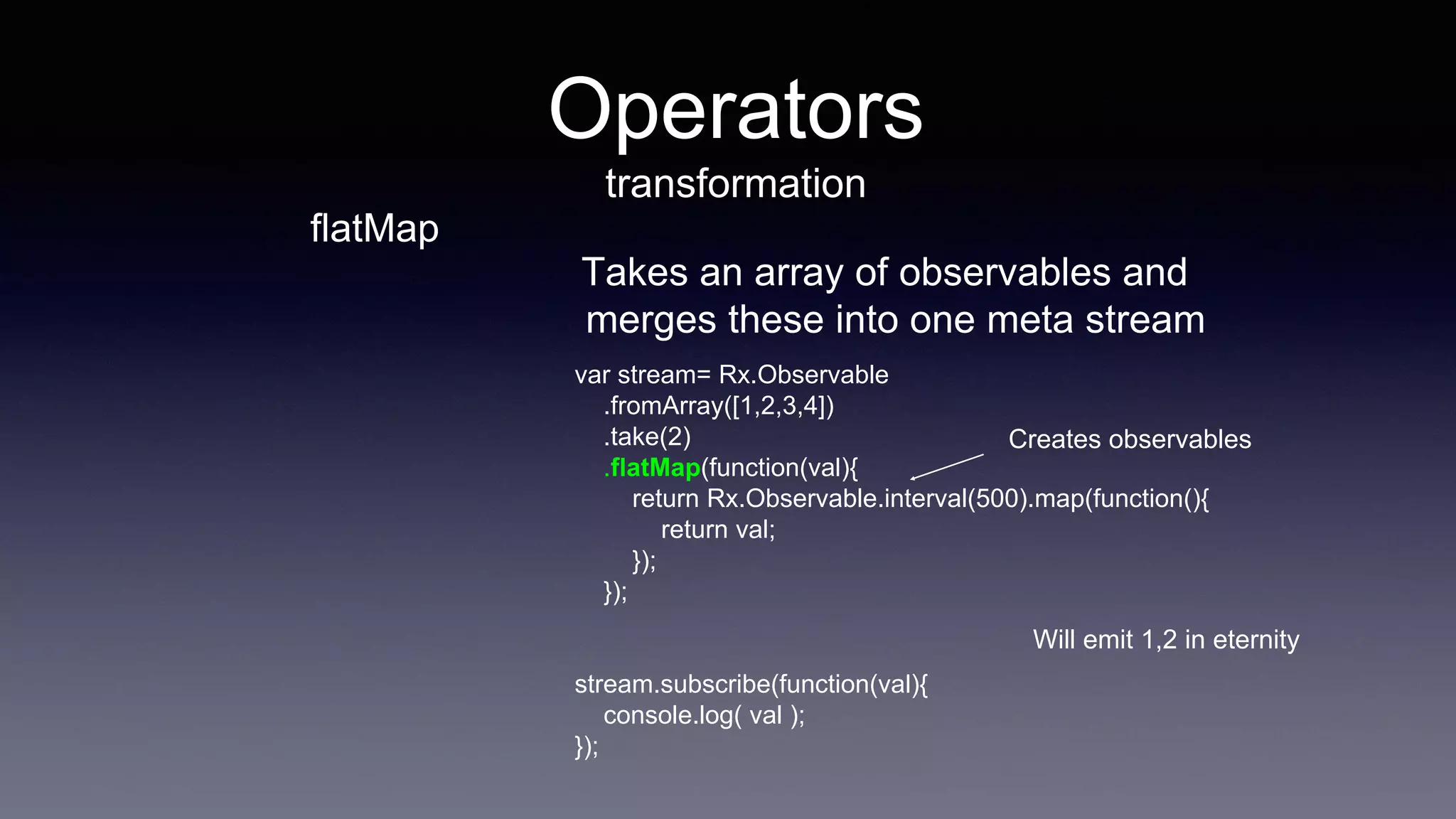

flatMap
Takes an array of observables and
merges these into one meta stream
var stream= Rx.Observable
.fromArray([1,2,3,4])
.take(2)
.flatMap(function(val){
return Rx.Observable.interval(500).map(function(){
return val;
});
});
console.log( val );
});
Creates observables
Will emit 1,2 in eternity
Operators
transformation

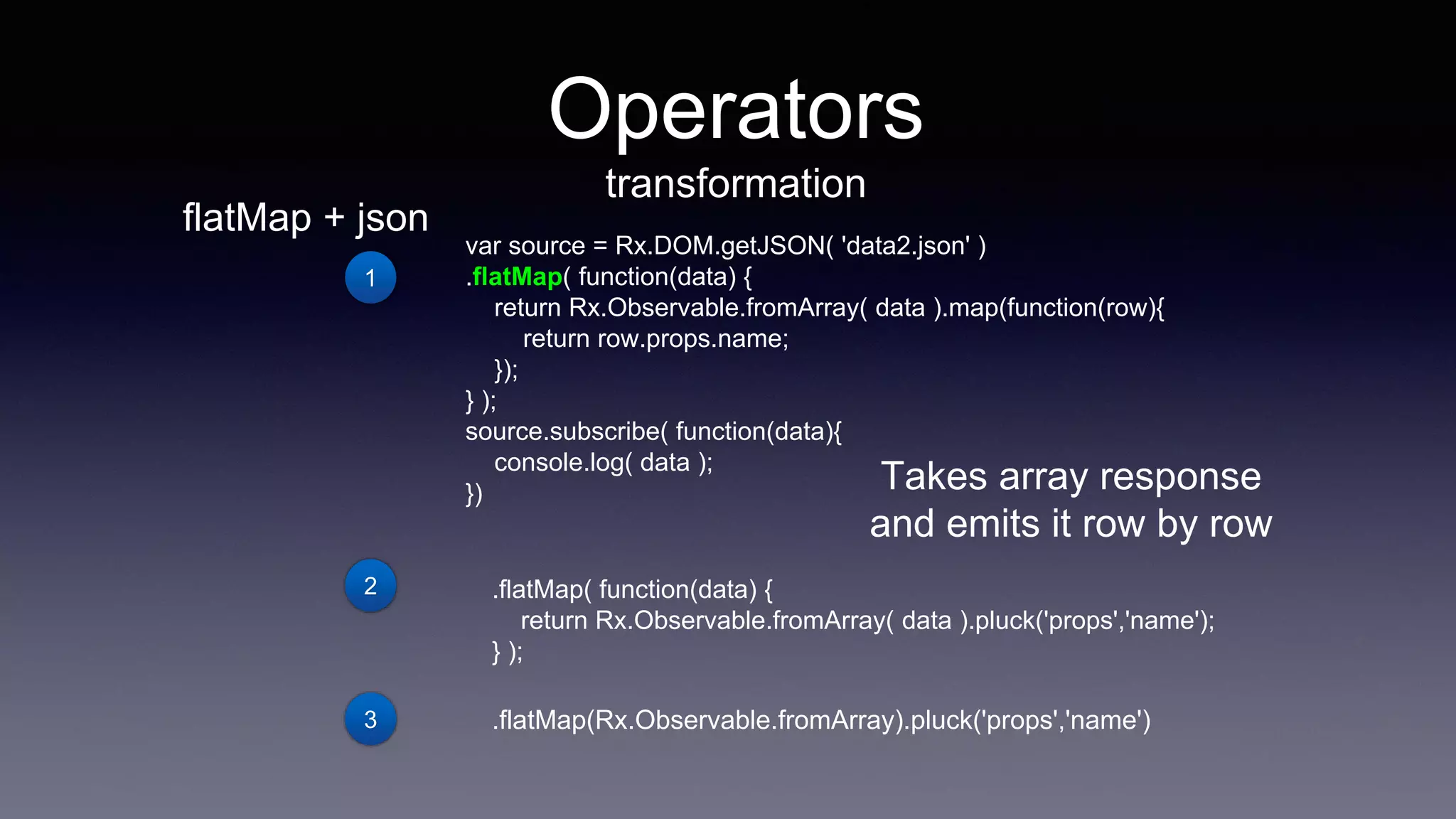

flatMap + json
var source = Rx.DOM.getJSON( 'data2.json' )
.flatMap( function(data) {
return Rx.Observable.fromArray( data ).map(function(row){
return row.props.name;
});
} );
source.subscribe( function(data){
console.log( data );
}) Takes array response
and emits it row by row
.flatMap( function(data) {
return Rx.Observable.fromArray( data ).pluck('props','name');
} );
.flatMap(Rx.Observable.fromArray).pluck('props','name')
Operators
transformation
1
2
3

Excellent to use when coming from
one stream to another
Operators
transformation

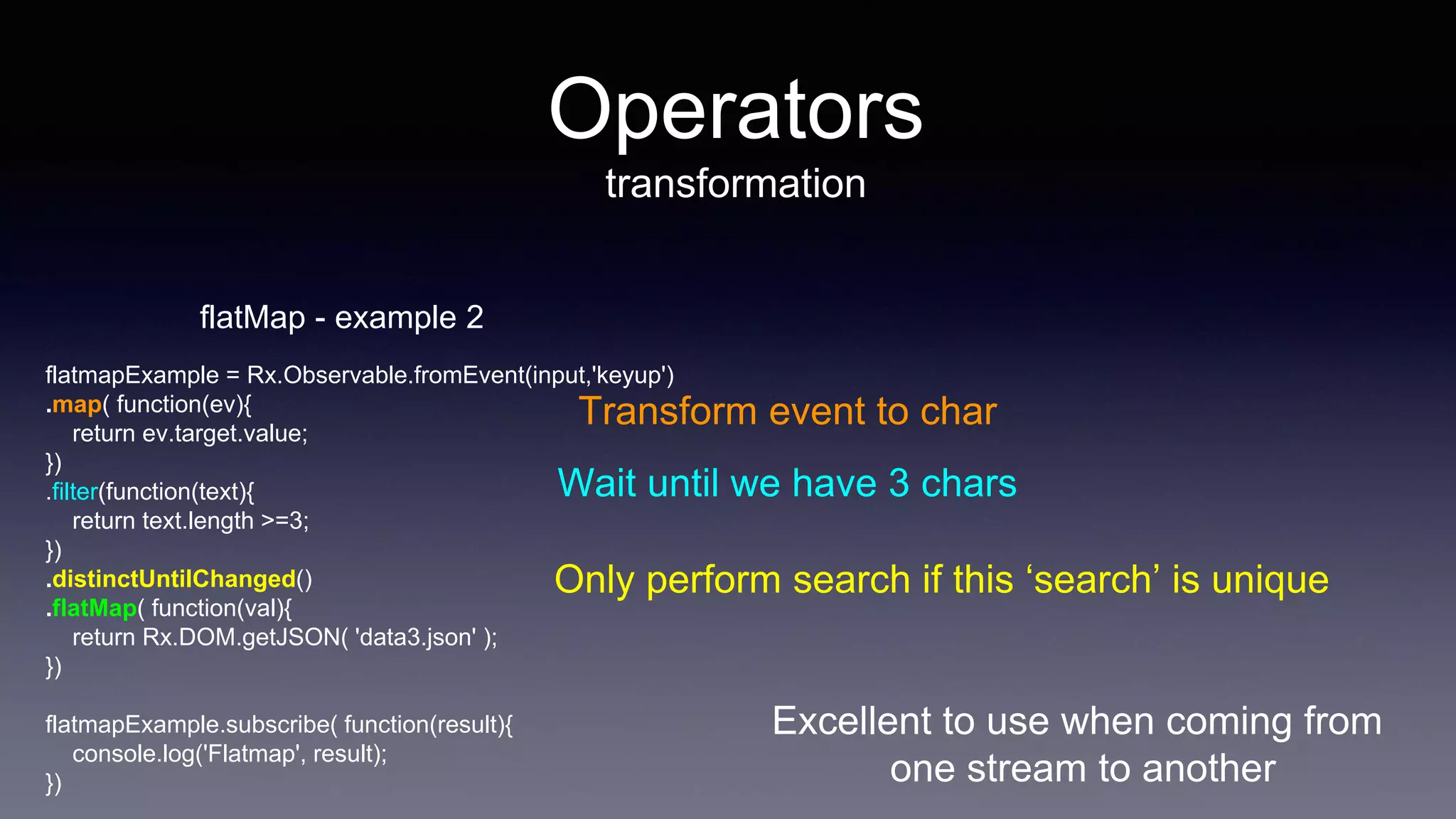

flatMap - example 2
flatmapExample = Rx.Observable.fromEvent(input,'keyup')
.map( function(ev){
return ev.target.value;
})
.filter(function(text){
return text.length >=3;
})
.distinctUntilChanged()
.flatMap( function(val){
return Rx.DOM.getJSON( 'data3.json' );
})
flatmapExample.subscribe( function(result){
console.log('Flatmap', result);
})
Transform event to char
Wait until we have 3 chars
Only perform search if this ‘search’ is unique

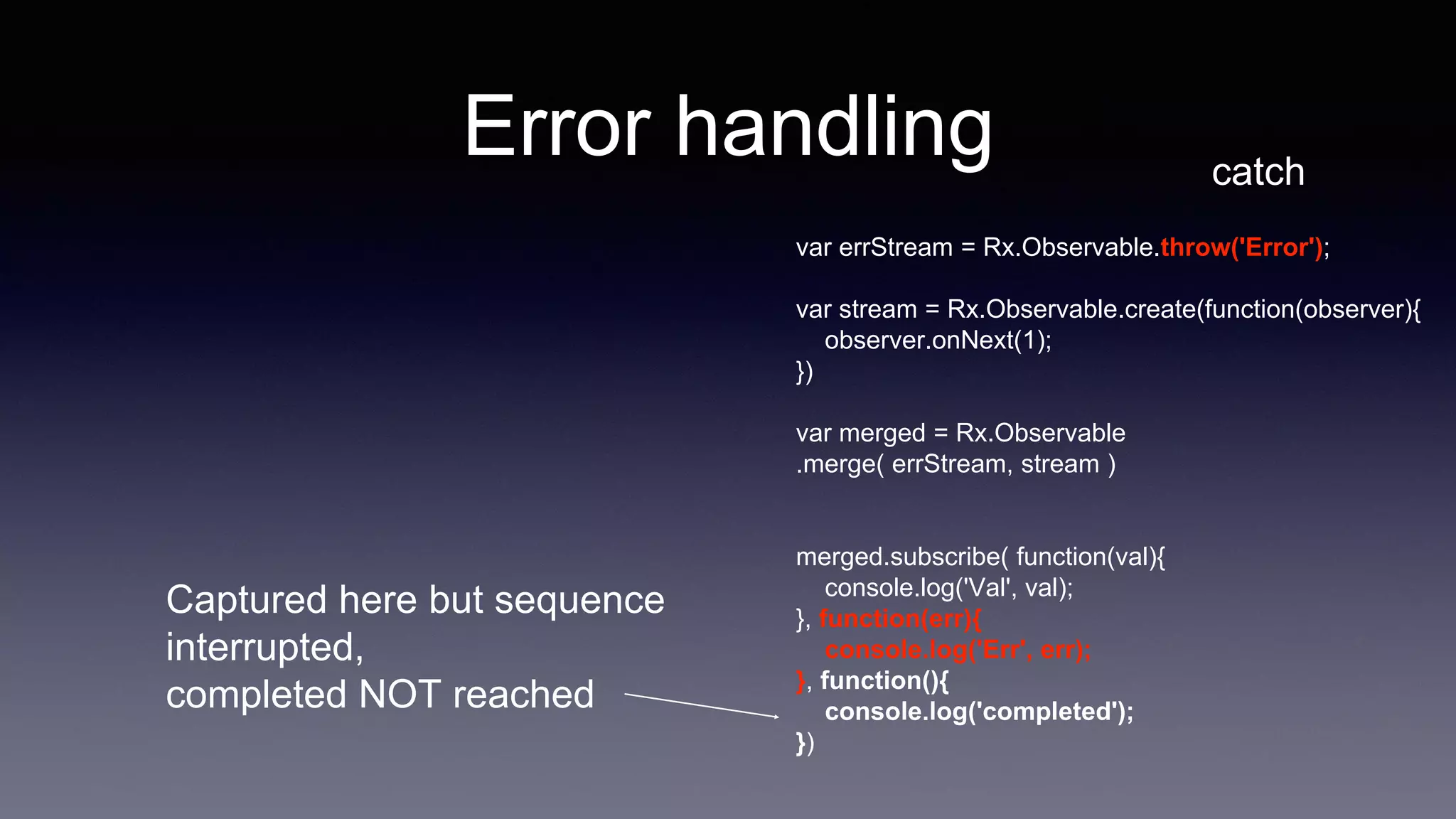

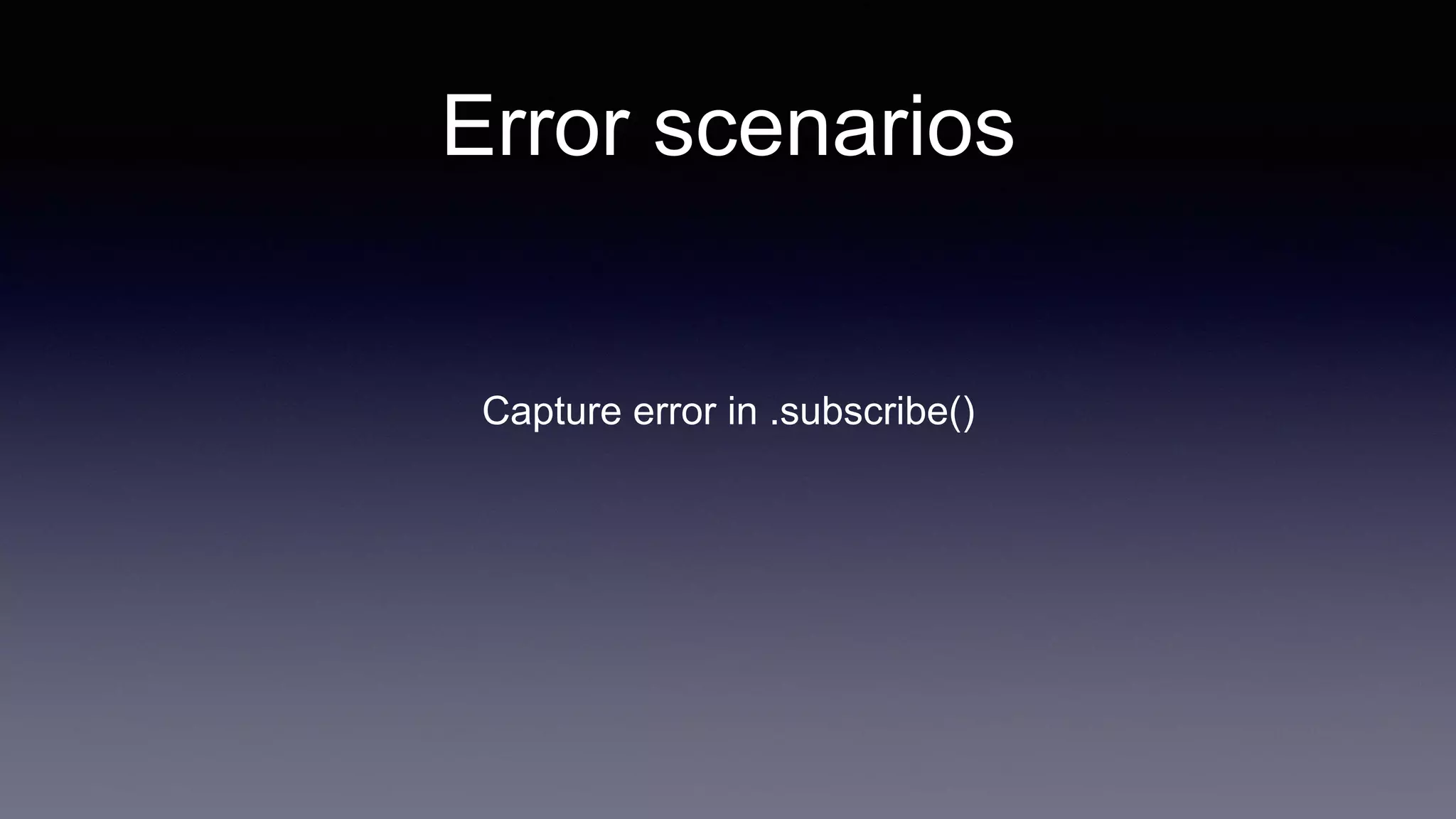

Error scenarios
Capture error in .subscribe()

Error handling catch
var errStream = Rx.Observable.throw('Error');
observer.onNext(1);
})
var merged = Rx.Observable
.merge( errStream, stream )
merged.subscribe( function(val){
console.log('Val', val);
}, function(err){
console.log('Err', err);
}, function(){
console.log('completed');
})
Captured here but sequence
interrupted,
completed NOT reached

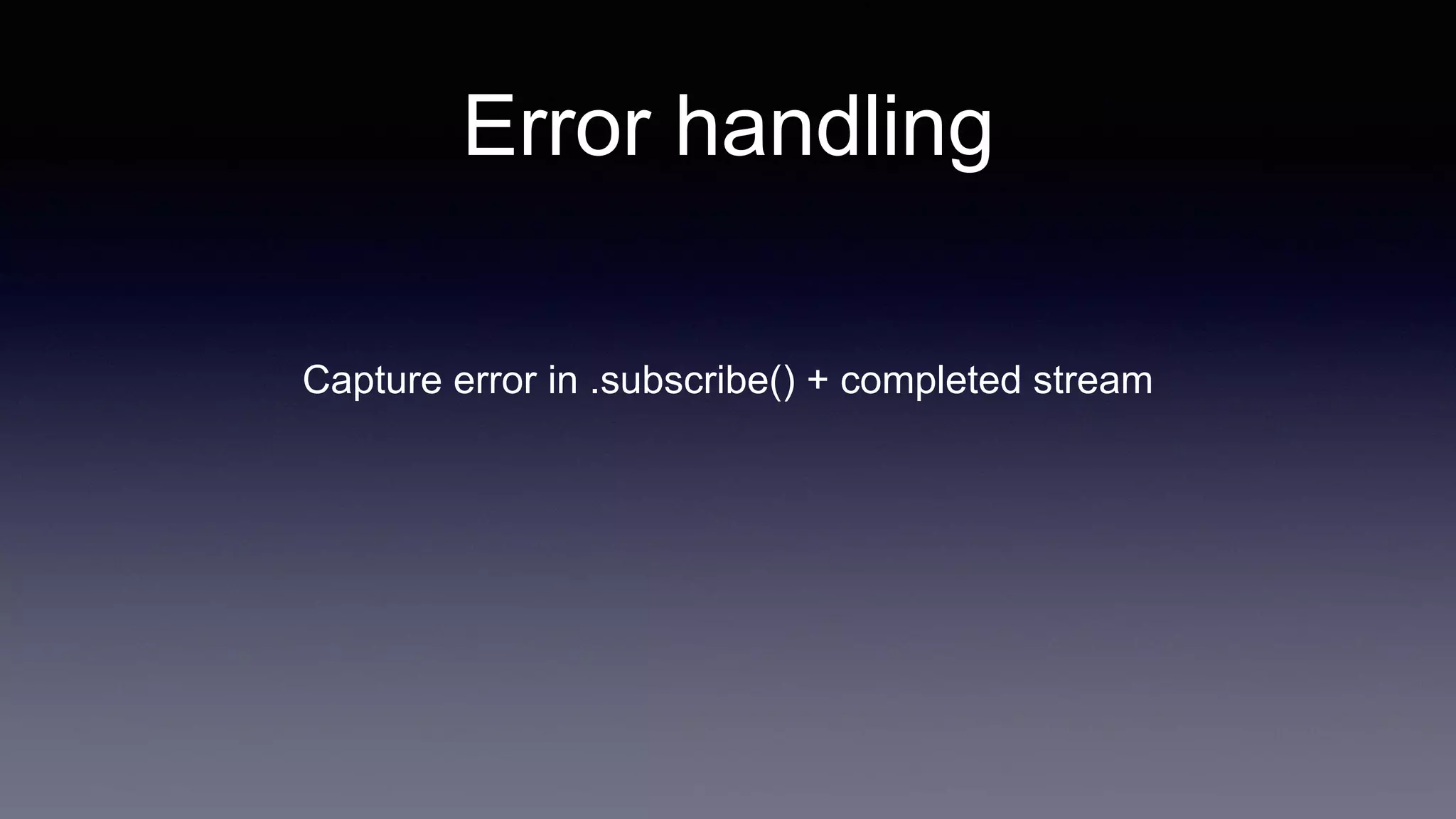

Capture error in .subscribe() + completed stream

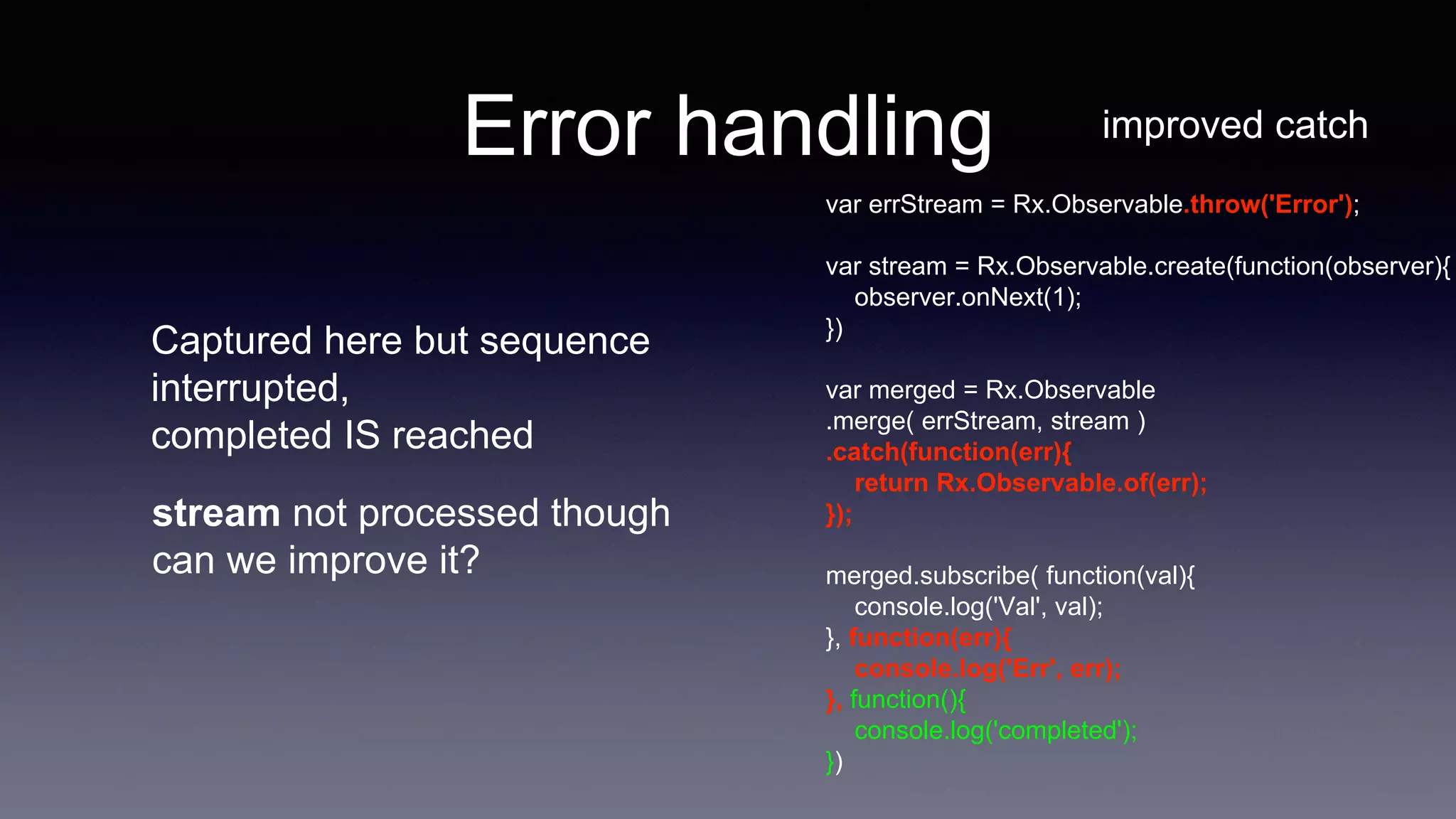

Error handling

Error handling improved catch
var errStream = Rx.Observable.throw('Error');
observer.onNext(1);
})
.merge( errStream, stream )
.catch(function(err){
return Rx.Observable.of(err);
});
}, function(err){
}, function(){
})
Captured here but sequence
interrupted,
completed IS reached
stream not processed though
can we improve it?

Wrap error stream before merging with other streams
so we don’t kill other valid streams

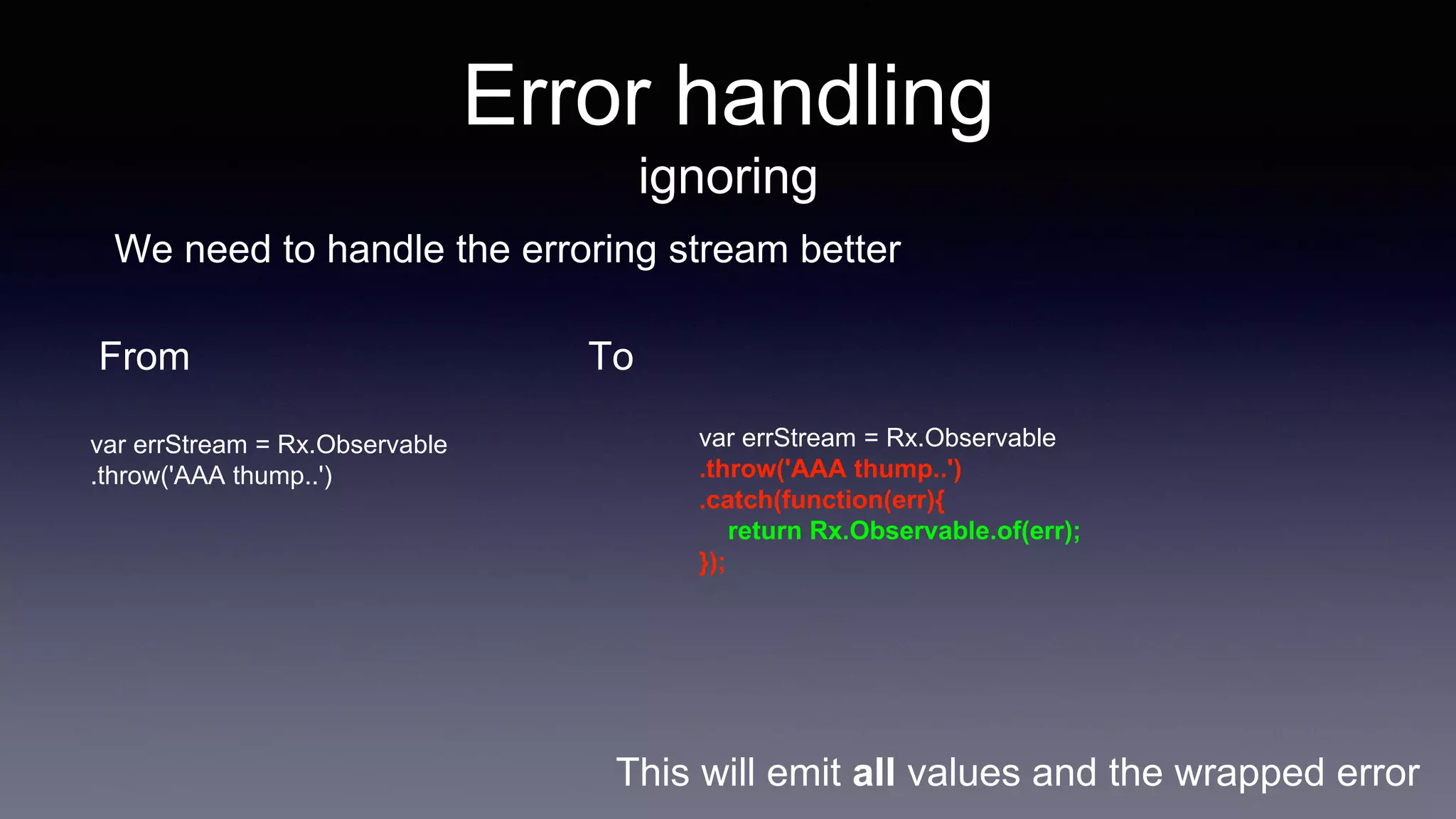

Error handling

Error handling
ignoring
We need to handle the erroring stream better
From
var errStream = Rx.Observable
.throw('AAA thump..')
To
.throw('AAA thump..')
.catch(function(err){
return Rx.Observable.of(err);
});
This will emit all values and the wrapped error

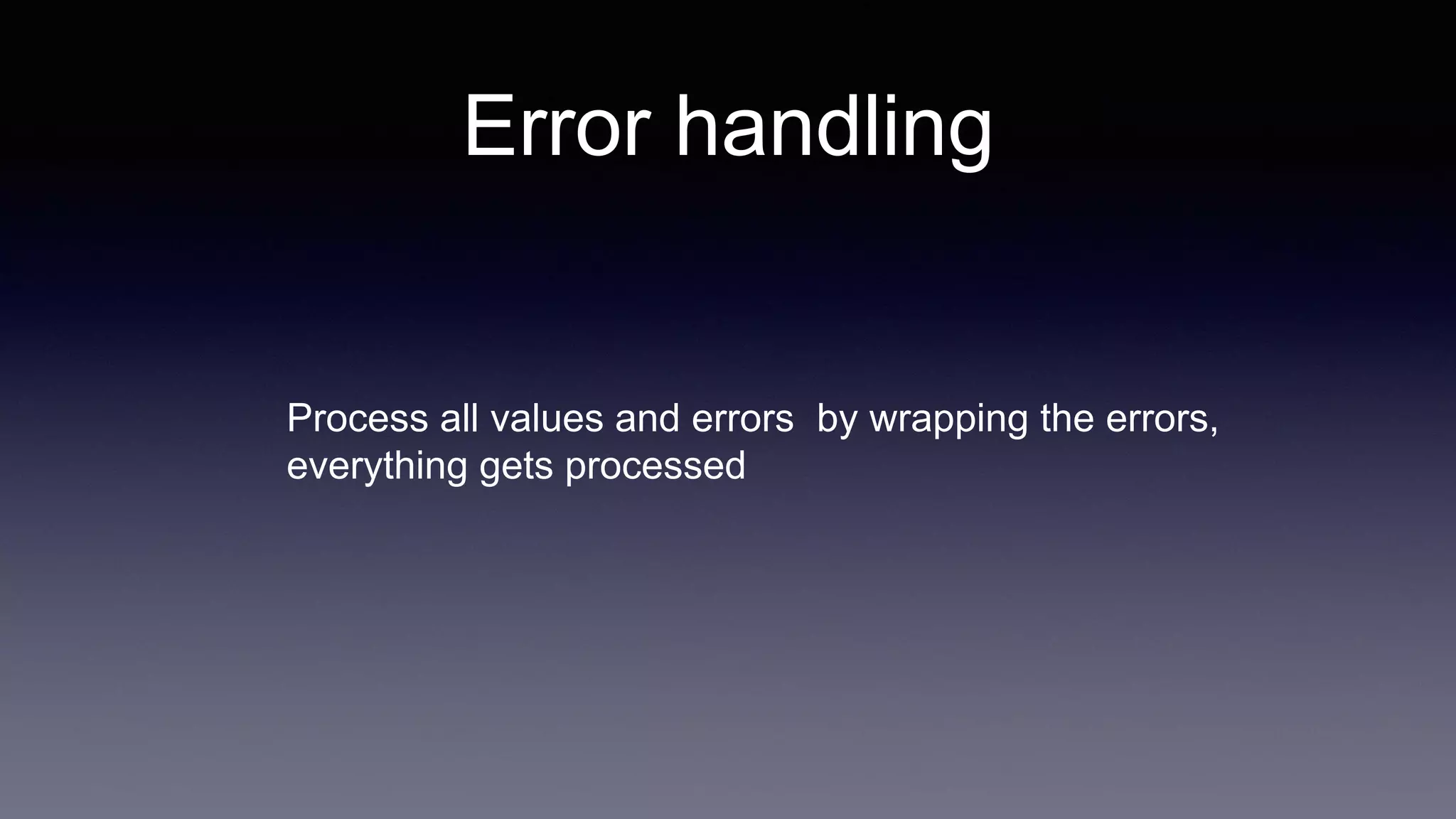

Process all values and errors by wrapping the errors,
everything gets processed

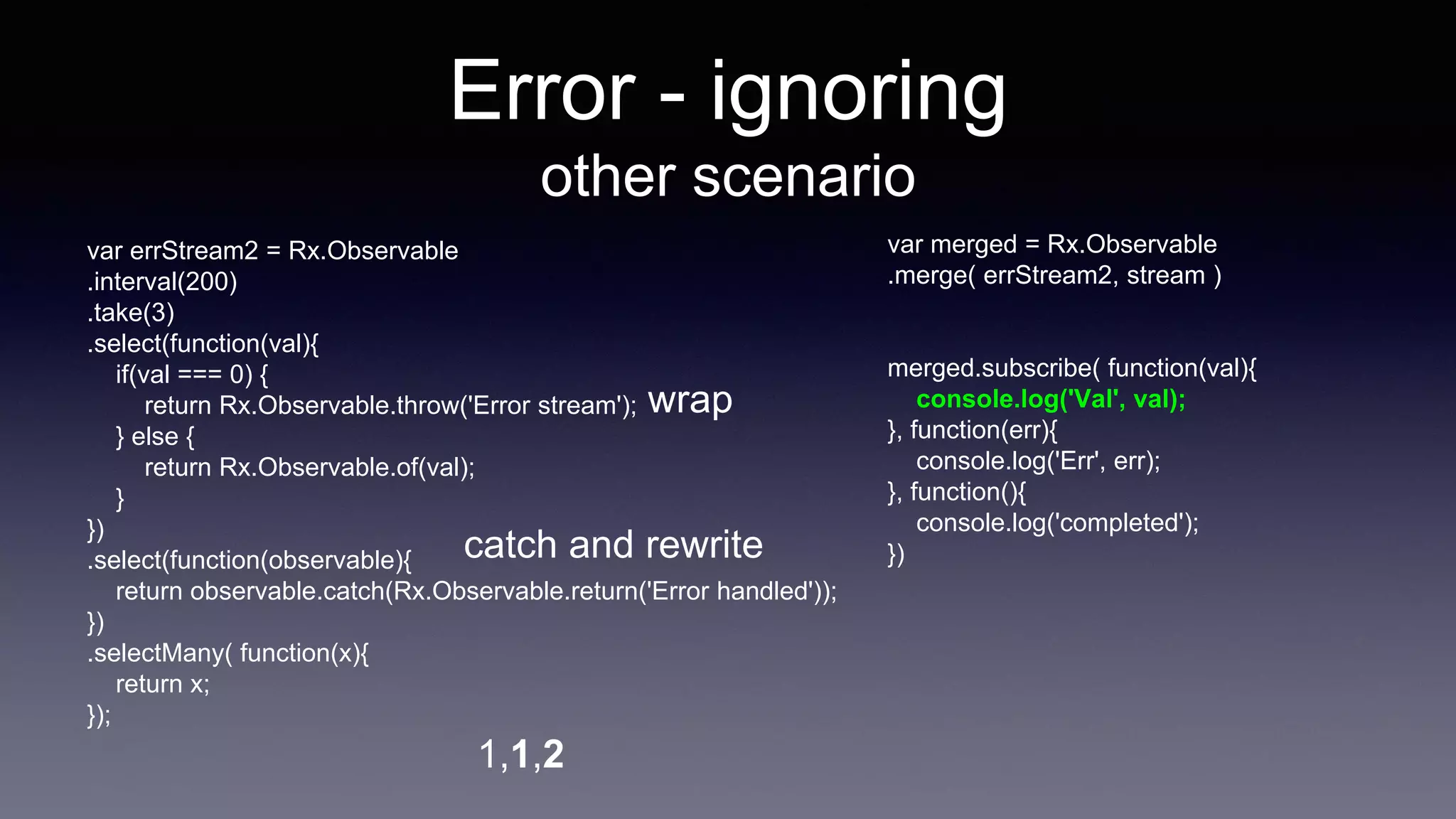

Error handling

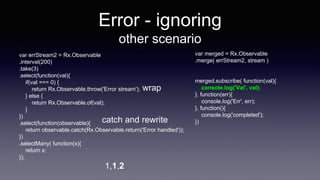

Error - ignoring
other scenario
.merge( errStream2, stream )
}, function(err){
}, function(){
})
1,1,2
var errStream2 = Rx.Observable
.interval(200)
.take(3)
.select(function(val){
if(val === 0) {
return Rx.Observable.throw('Error stream');
} else {
return Rx.Observable.of(val);
}
})
.select(function(observable){
return observable.catch(Rx.Observable.return('Error handled'));
})
.selectMany( function(x){
return x;
});
wrap
catch and rewrite

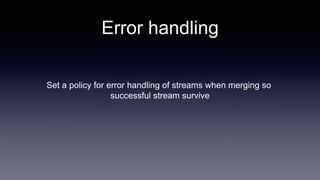

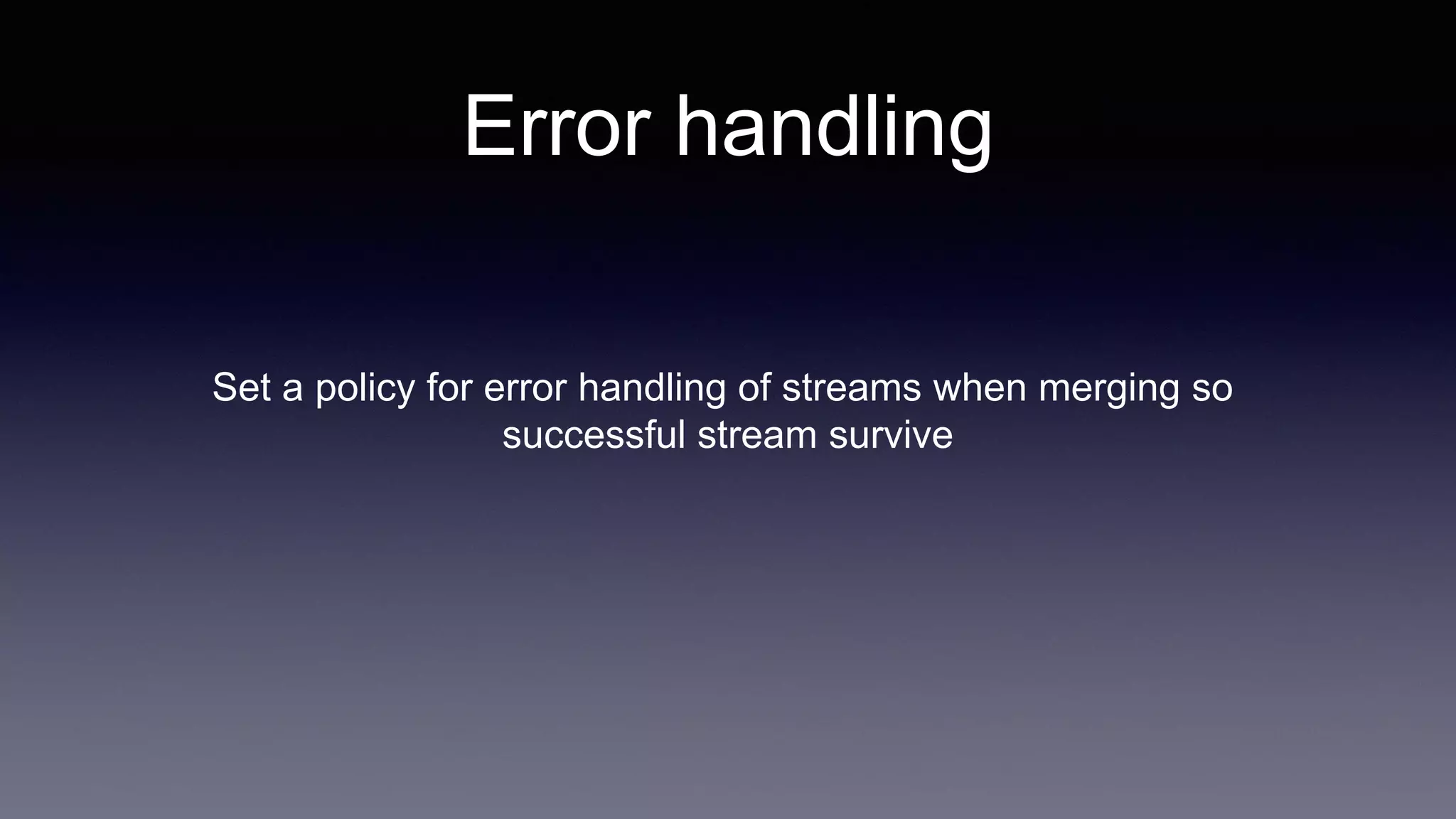

Set a policy for error handling of streams when merging so
successful stream survive

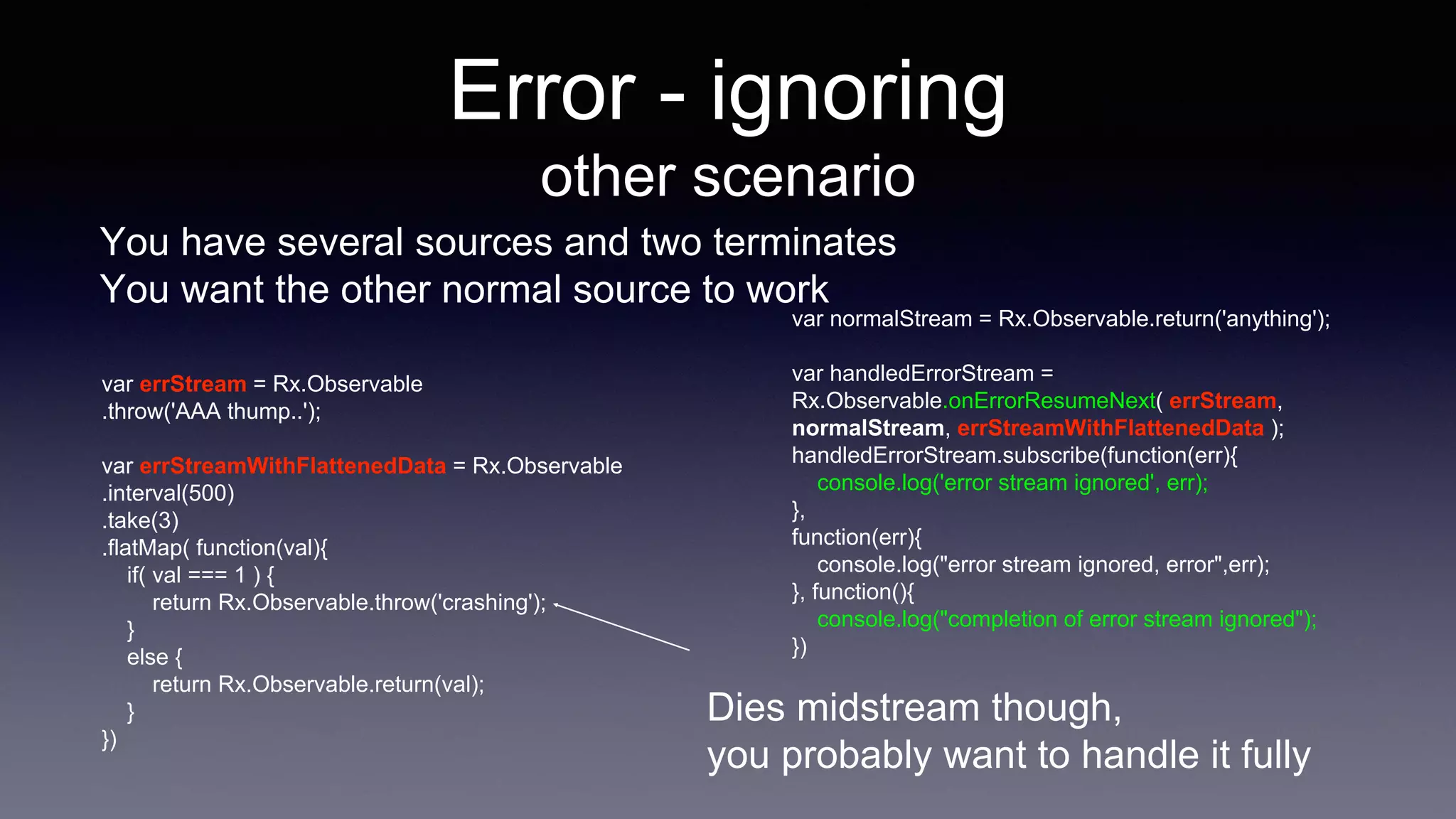

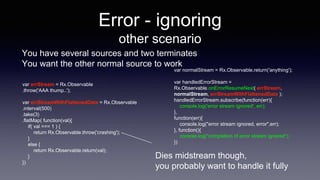

Error handling

Error - ignoring
other scenario
You have several sources and two terminates
You want the other normal source to work
.throw('AAA thump..');
var errStreamWithFlattenedData = Rx.Observable
.interval(500)
.take(3)
.flatMap( function(val){
if( val === 1 ) {
return Rx.Observable.throw('crashing');
}
else {
return Rx.Observable.return(val);
}
})
var normalStream = Rx.Observable.return('anything');
var handledErrorStream =
Rx.Observable.onErrorResumeNext( errStream,
normalStream, errStreamWithFlattenedData );
handledErrorStream.subscribe(function(err){
console.log('error stream ignored', err);
},
function(err){
console.log("error stream ignored, error",err);
}, function(){
console.log("completion of error stream ignored");
})
Dies midstream though,
you probably want to handle it fully

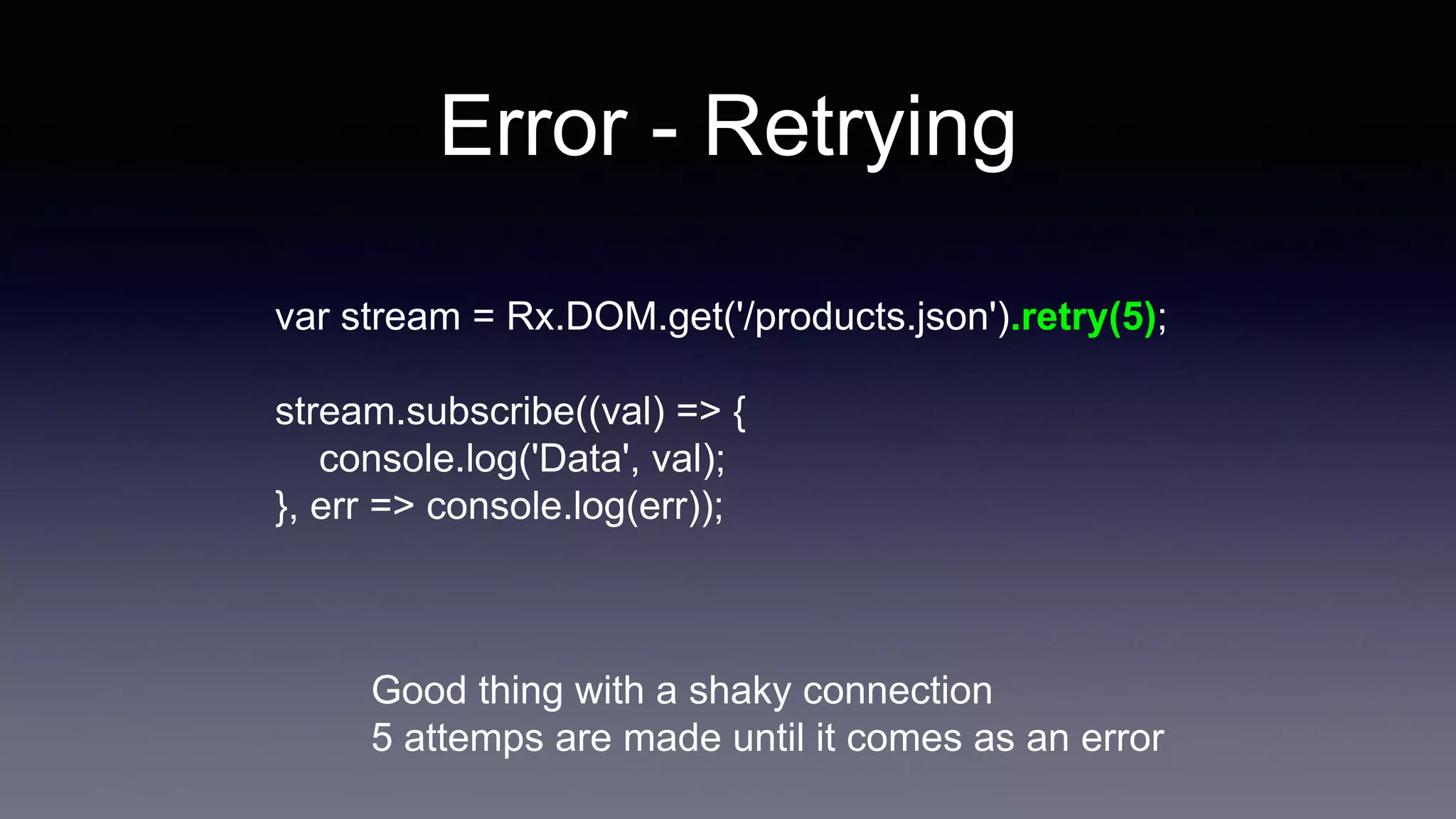

Error - Retrying
var stream = Rx.DOM.get('/products.json').retry(5);
stream.subscribe((val) => {
console.log('Data', val);
}, err => console.log(err));
Good thing with a shaky connection
5 attemps are made until it comes as an error

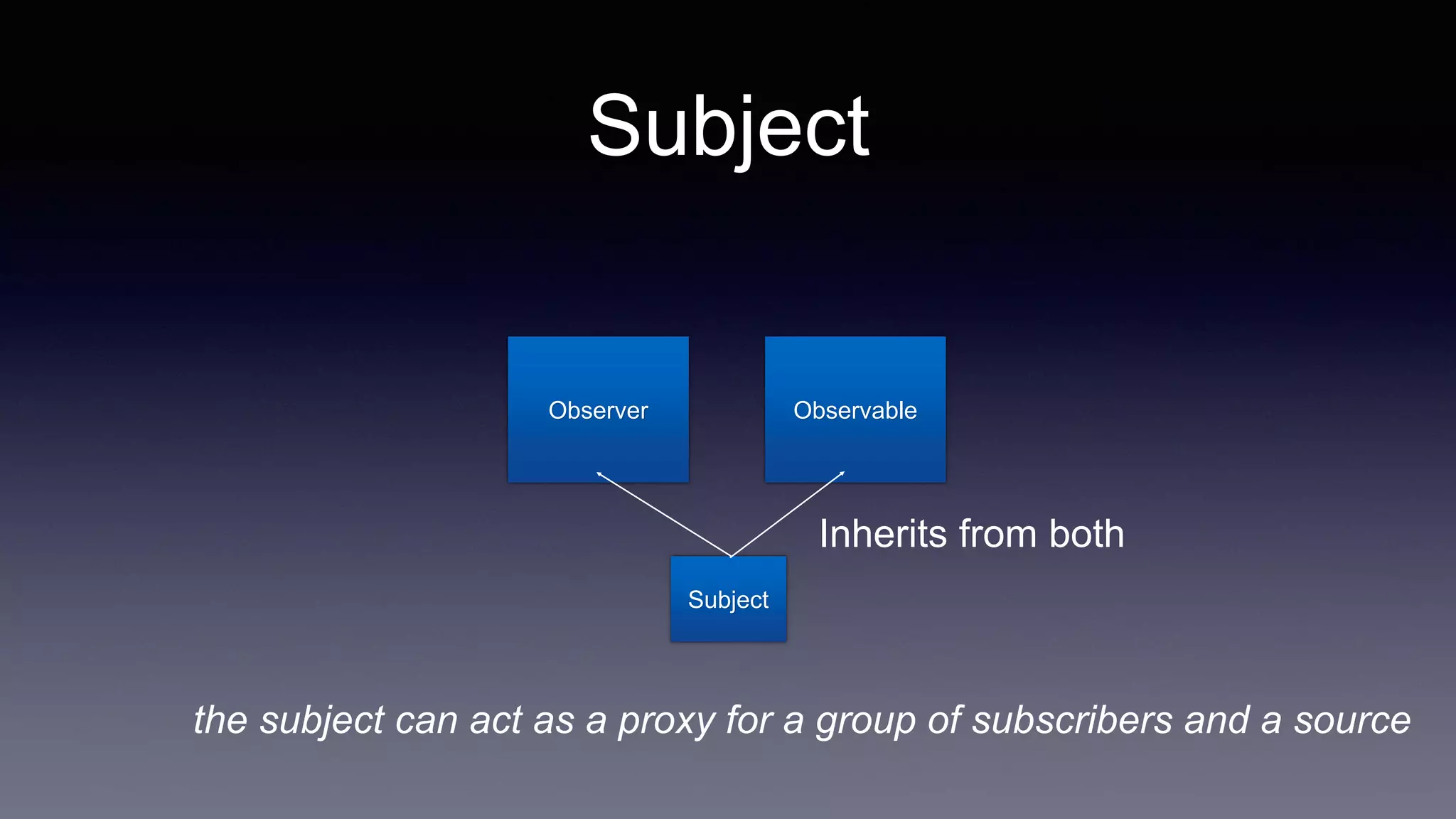

Subject
Observer Observable
Subject
Inherits from both
the subject can act as a proxy for a group of subscribers and a source

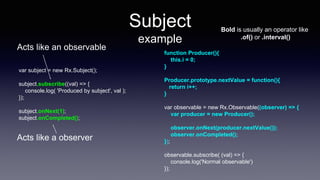

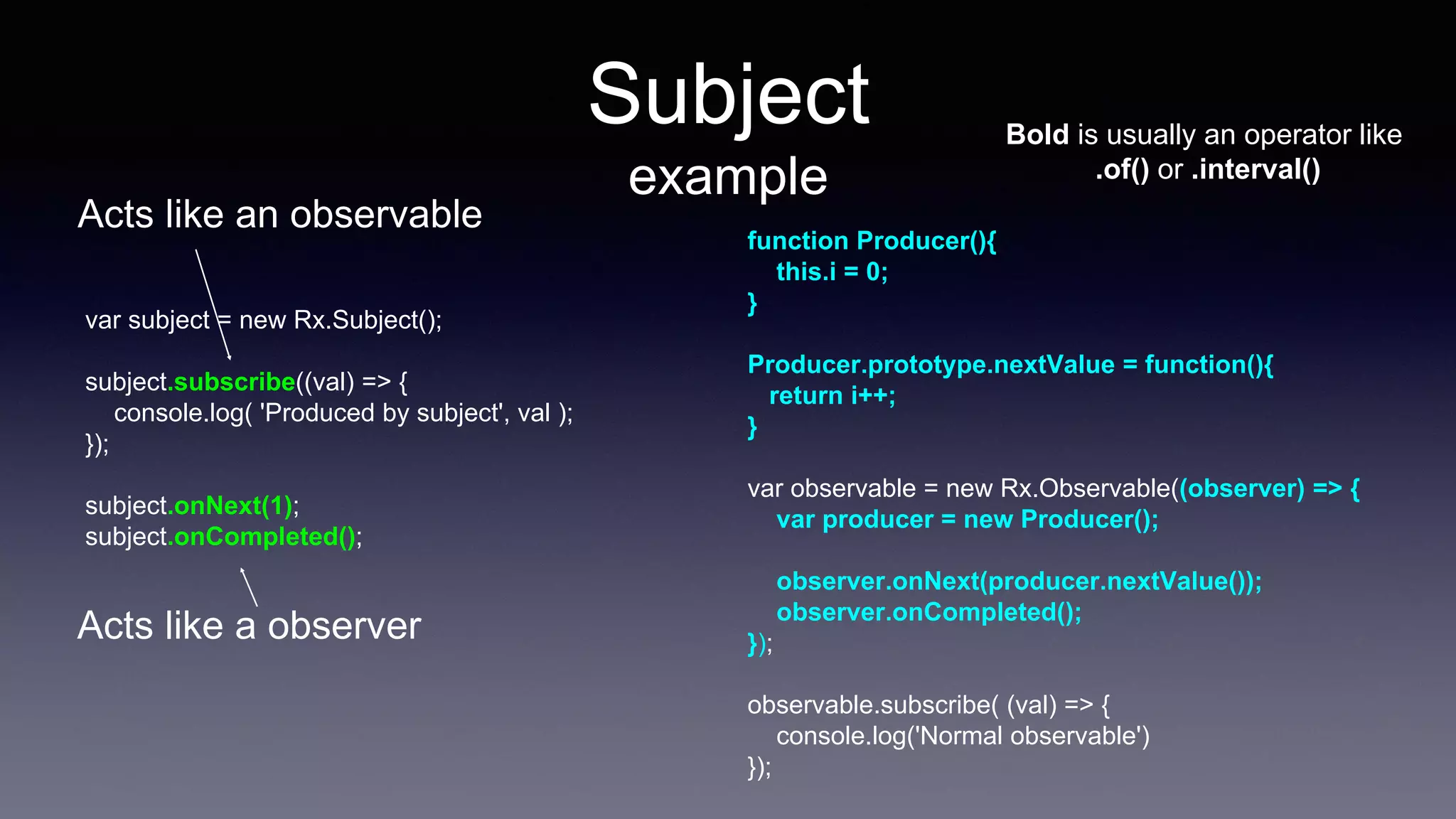

Subject
example
var subject = new Rx.Subject();
subject.subscribe((val) => {
console.log( 'Produced by subject', val );
});
subject.onNext(1);
subject.onCompleted();
this.i = 0;
}
Producer.prototype.nextValue = function(){
return i++;
}
var observable = new Rx.Observable((observer) => {
observer.onNext(producer.nextValue());
});
observable.subscribe( (val) => {
console.log('Normal observable')
});
Bold is usually an operator like
.of() or .interval()
Acts like a observer
Acts like an observable

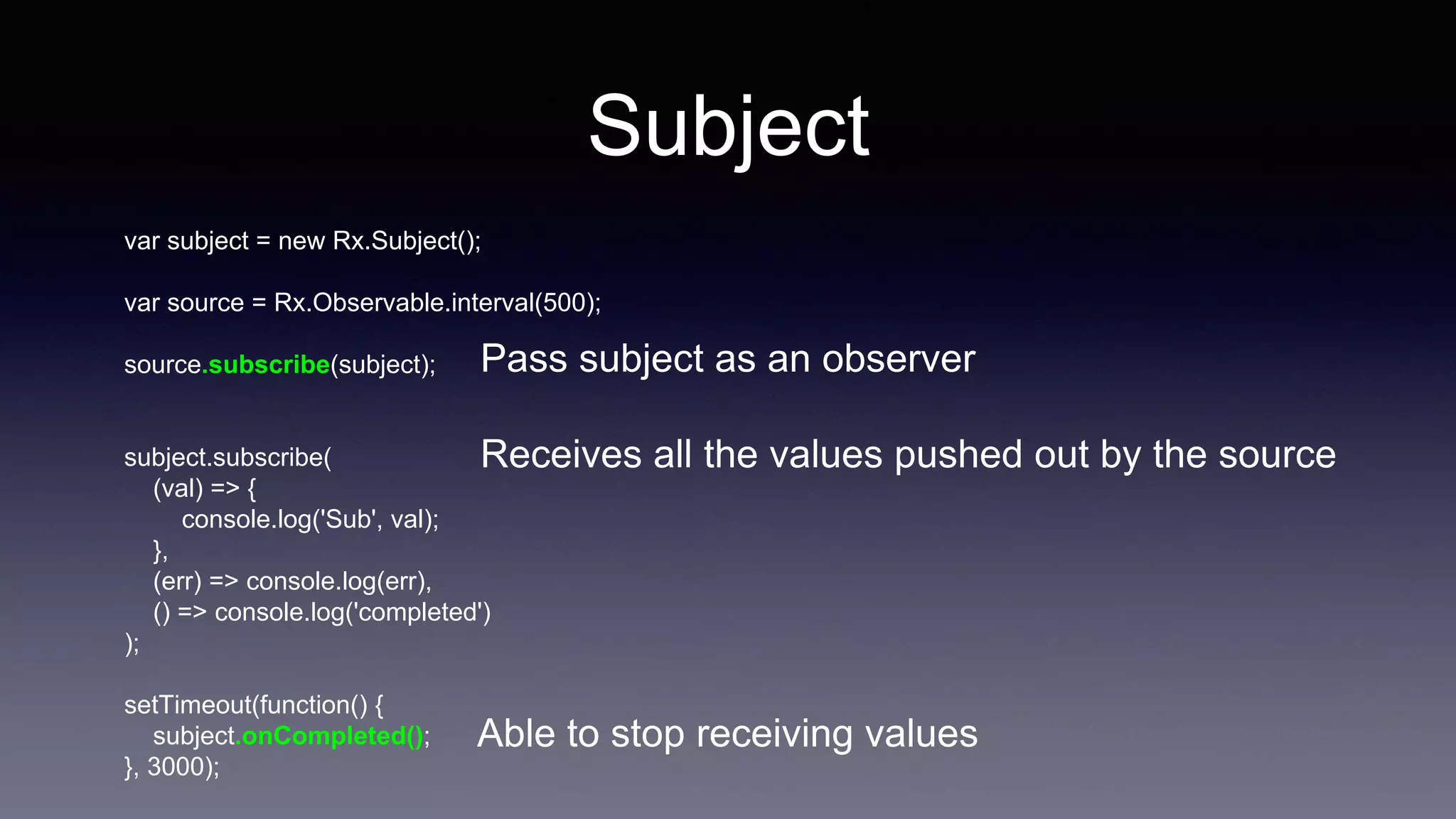

Subject
var source = Rx.Observable.interval(500);
source.subscribe(subject);
subject.subscribe(
(val) => {
console.log('Sub', val);
},
(err) => console.log(err),
() => console.log('completed')
);
}, 3000);
Pass subject as an observer
Receives all the values pushed out by the source
Able to stop receiving values

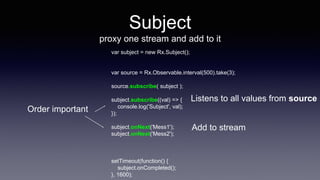

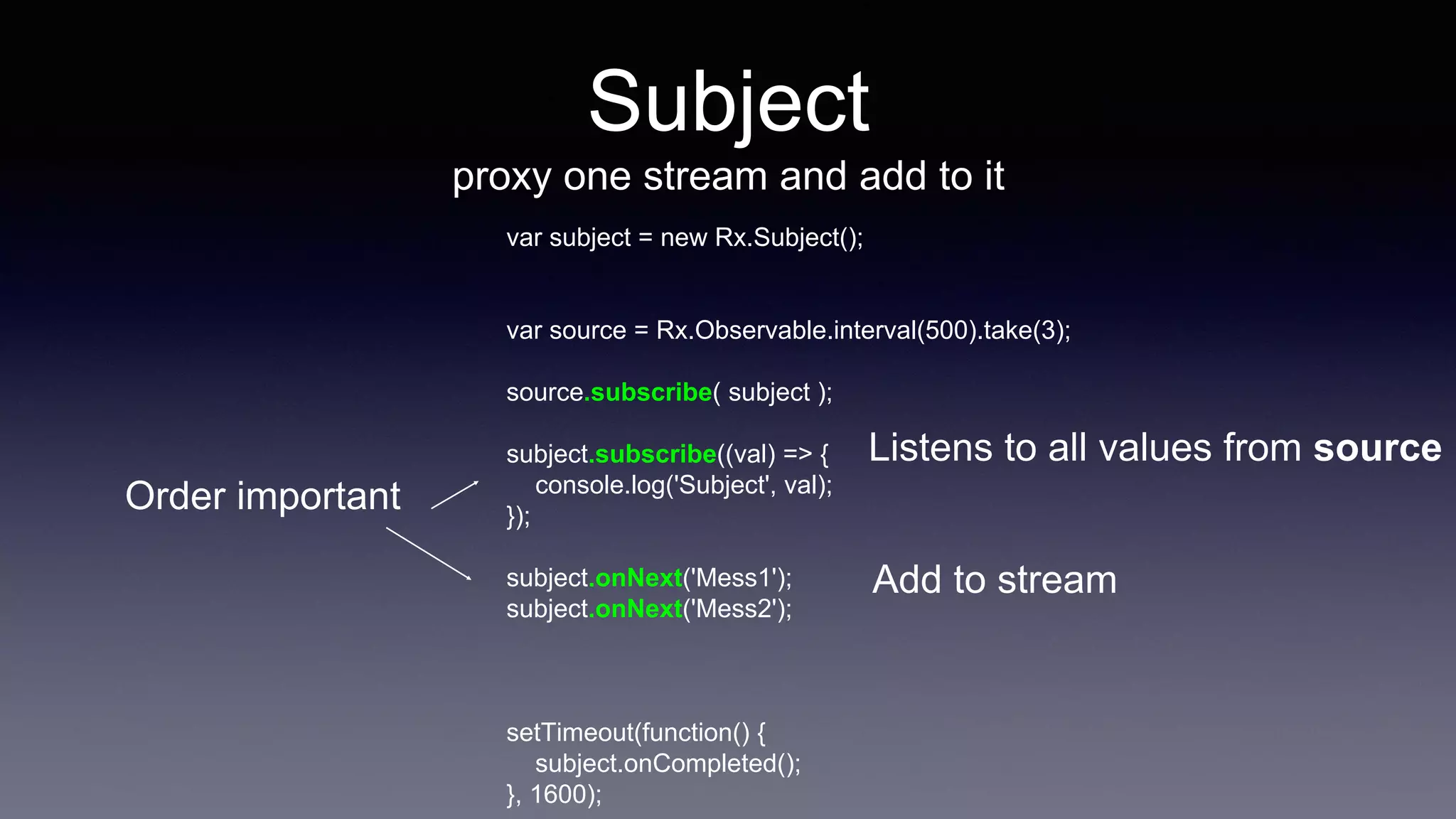

Subject
proxy one stream and add to it
var source = Rx.Observable.interval(500).take(3);
source.subscribe( subject );
console.log('Subject', val);
});
subject.onNext('Mess1');
subject.onNext('Mess2');
}, 1600);
Listens to all values from source
Add to stream
Order important

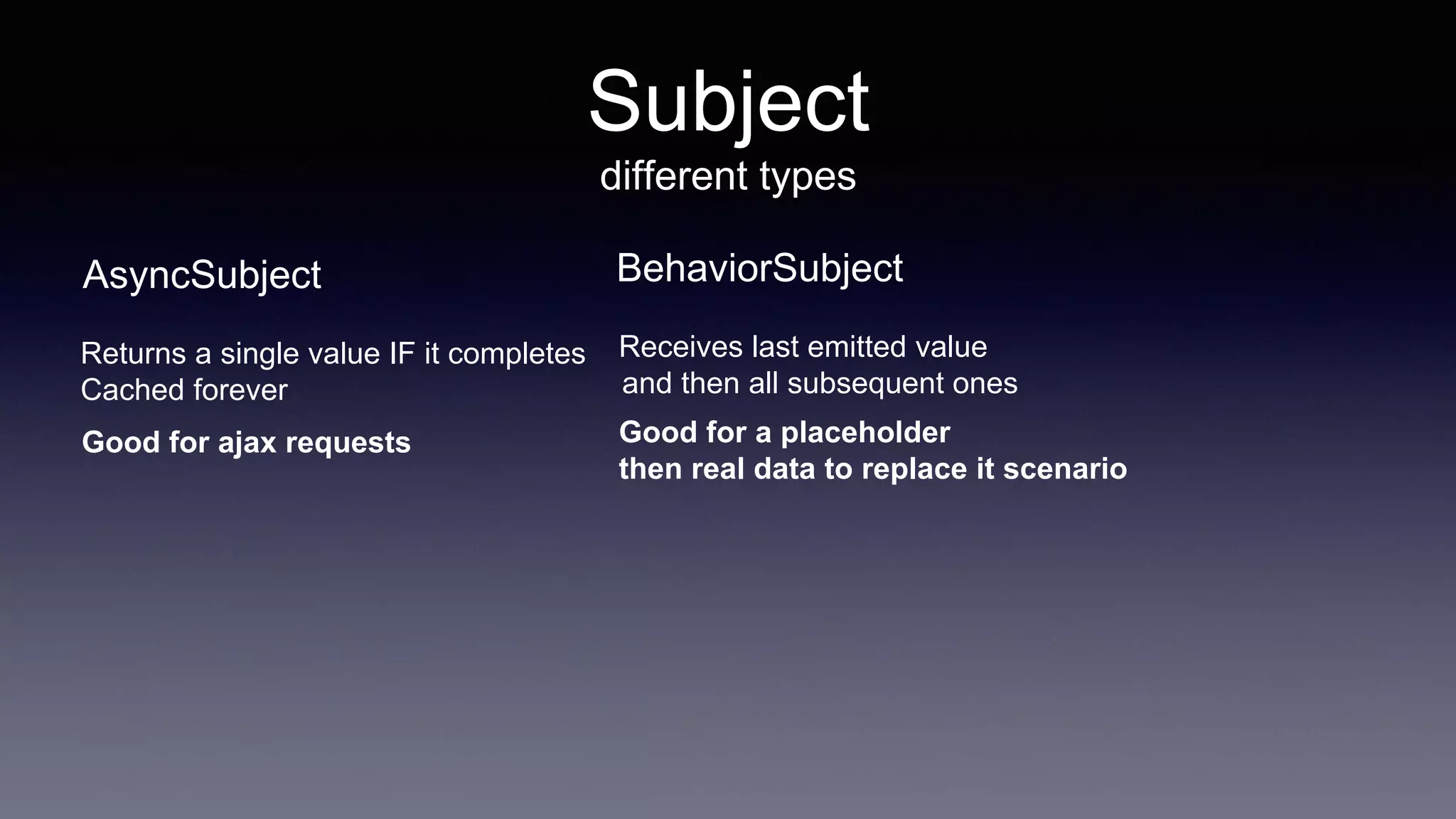

Subject
different types
AsyncSubject
Returns a single value IF it completes
Cached forever
Good for ajax requests
BehaviorSubject
Receives last emitted value
and then all subsequent ones
Good for a placeholder
then real data to replace it scenario

var subject = Rx.ReplaySubject();
subject.onNext(1);
subject.subscribe((val) = > {
console.log('Replay', val);
})
subject.onNext(2);
subject.onNext(3);
var subject = Rx.Subject();
subject.onNext(1);
subject.subscribe((val) = > {
console.log('Replay', val);
})
subject.onNext(2);
subject.onNext(3);

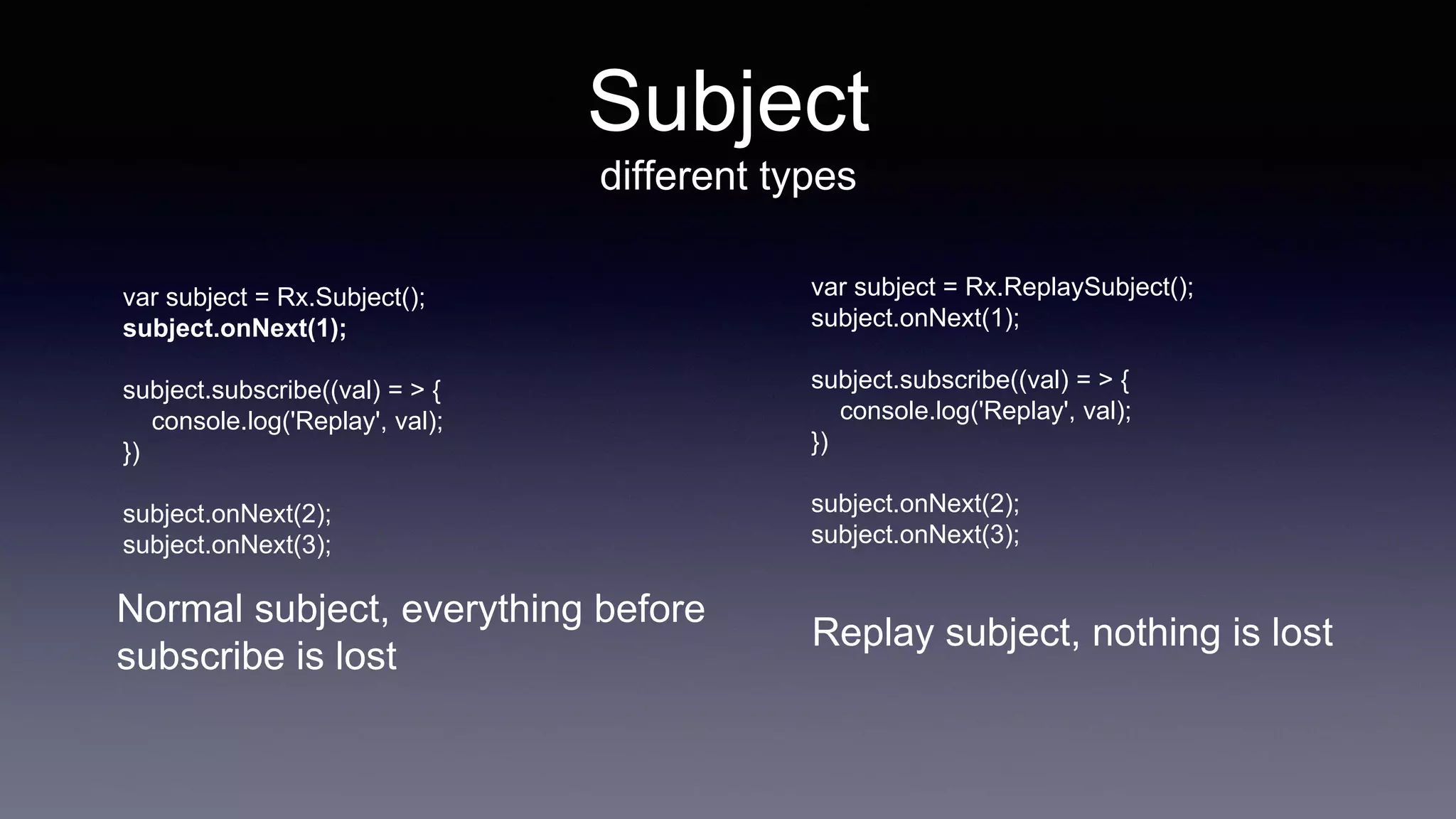

Subject
different types
Normal subject, everything before
subscribe is lost
Replay subject, nothing is lost

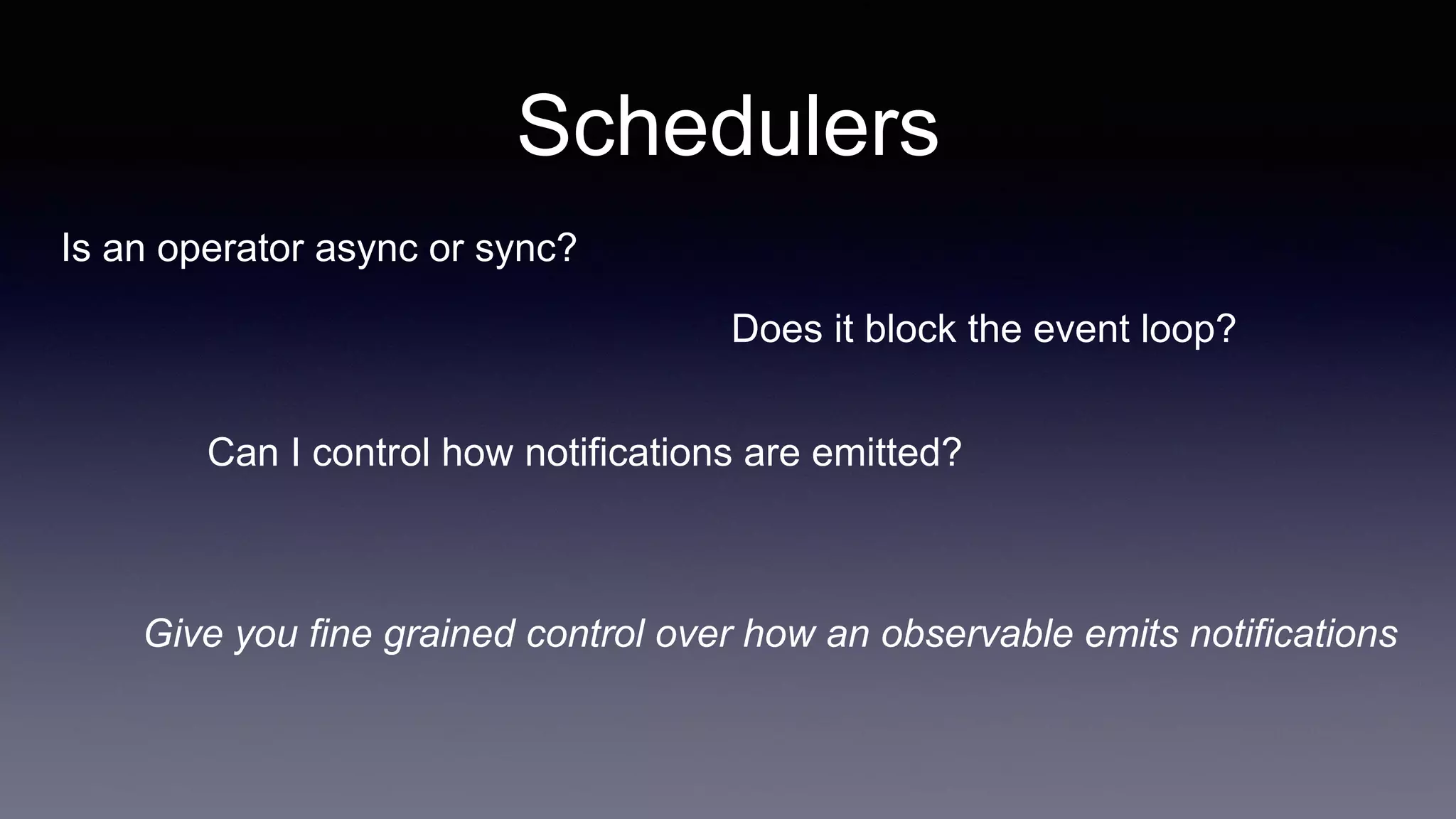

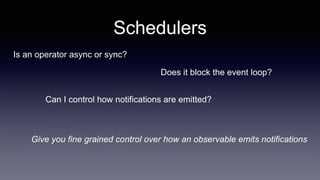

Schedulers
Is an operator async or sync?
Give you fine grained control over how an observable emits notifications
Does it block the event loop?
Can I control how notifications are emitted?

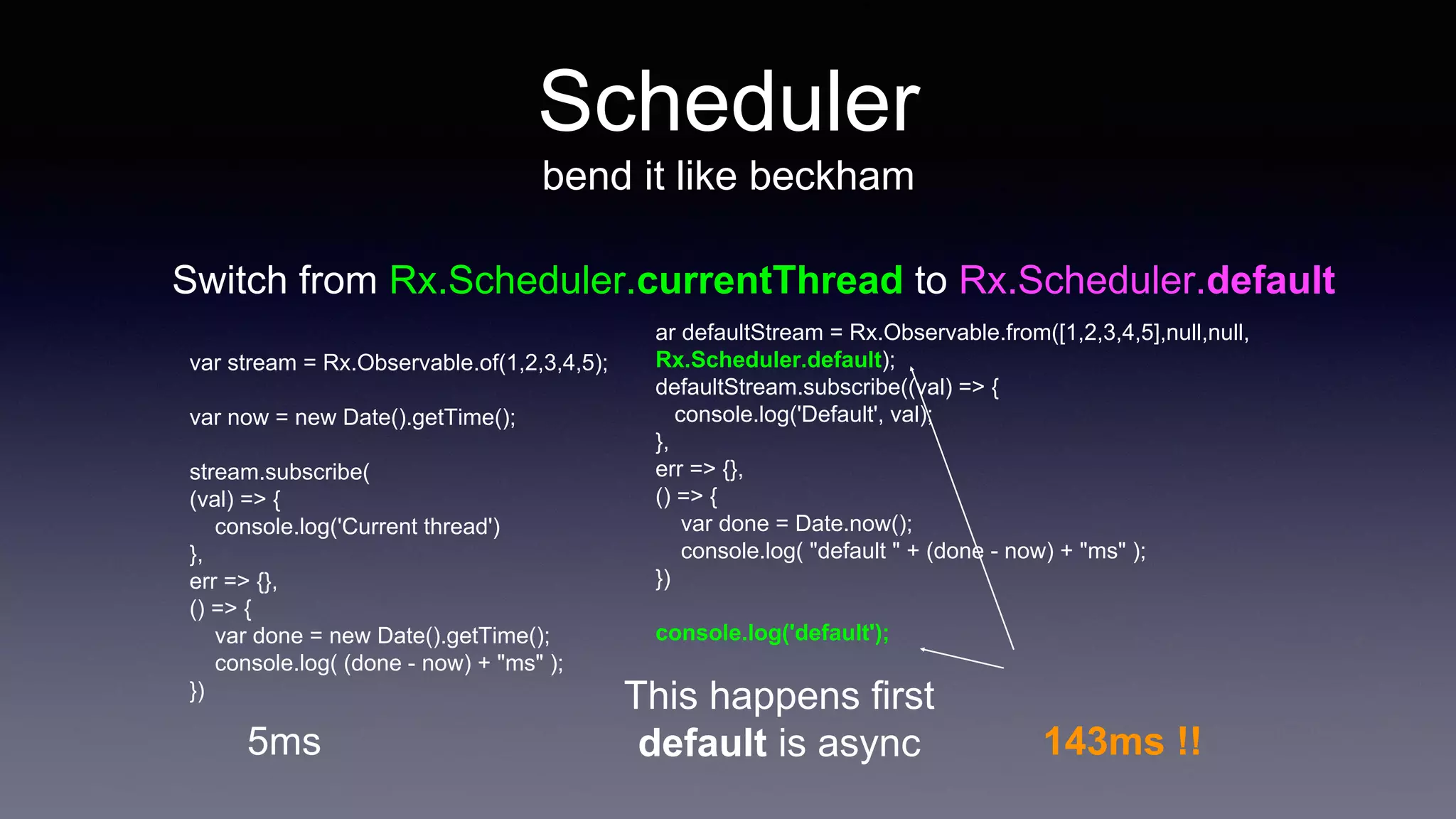

Scheduler
bend it like beckham
Switch from Rx.Scheduler.currentThread to Rx.Scheduler.default
var now = new Date().getTime();
stream.subscribe(
(val) => {
console.log('Current thread')
},
err => {},
() => {
var done = new Date().getTime();
console.log( (done - now) + "ms" );
})
5ms
ar defaultStream = Rx.Observable.from([1,2,3,4,5],null,null,
Rx.Scheduler.default);
defaultStream.subscribe((val) => {
console.log('Default', val);
},
err => {},
() => {
var done = Date.now();
console.log( "default " + (done - now) + "ms" );
})
console.log('default');
This happens first
default is async 143ms !!

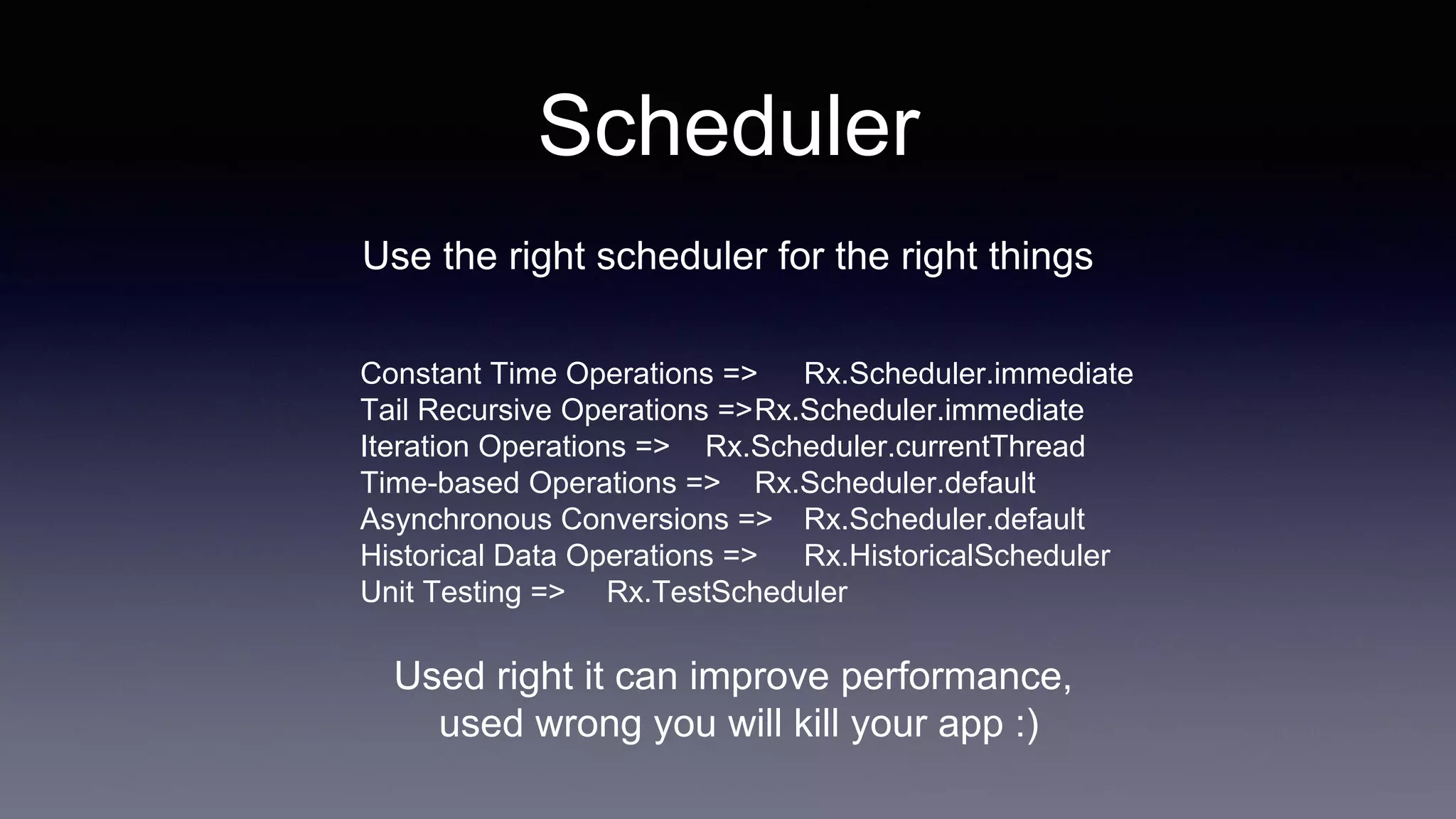

Scheduler
Use the right scheduler for the right things
Constant Time Operations => Rx.Scheduler.immediate
Tail Recursive Operations =>Rx.Scheduler.immediate
Iteration Operations => Rx.Scheduler.currentThread
Time-based Operations => Rx.Scheduler.default
Asynchronous Conversions => Rx.Scheduler.default
Historical Data Operations => Rx.HistoricalScheduler
Unit Testing => Rx.TestScheduler
Used right it can improve performance,
used wrong you will kill your app :)

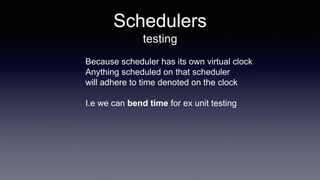

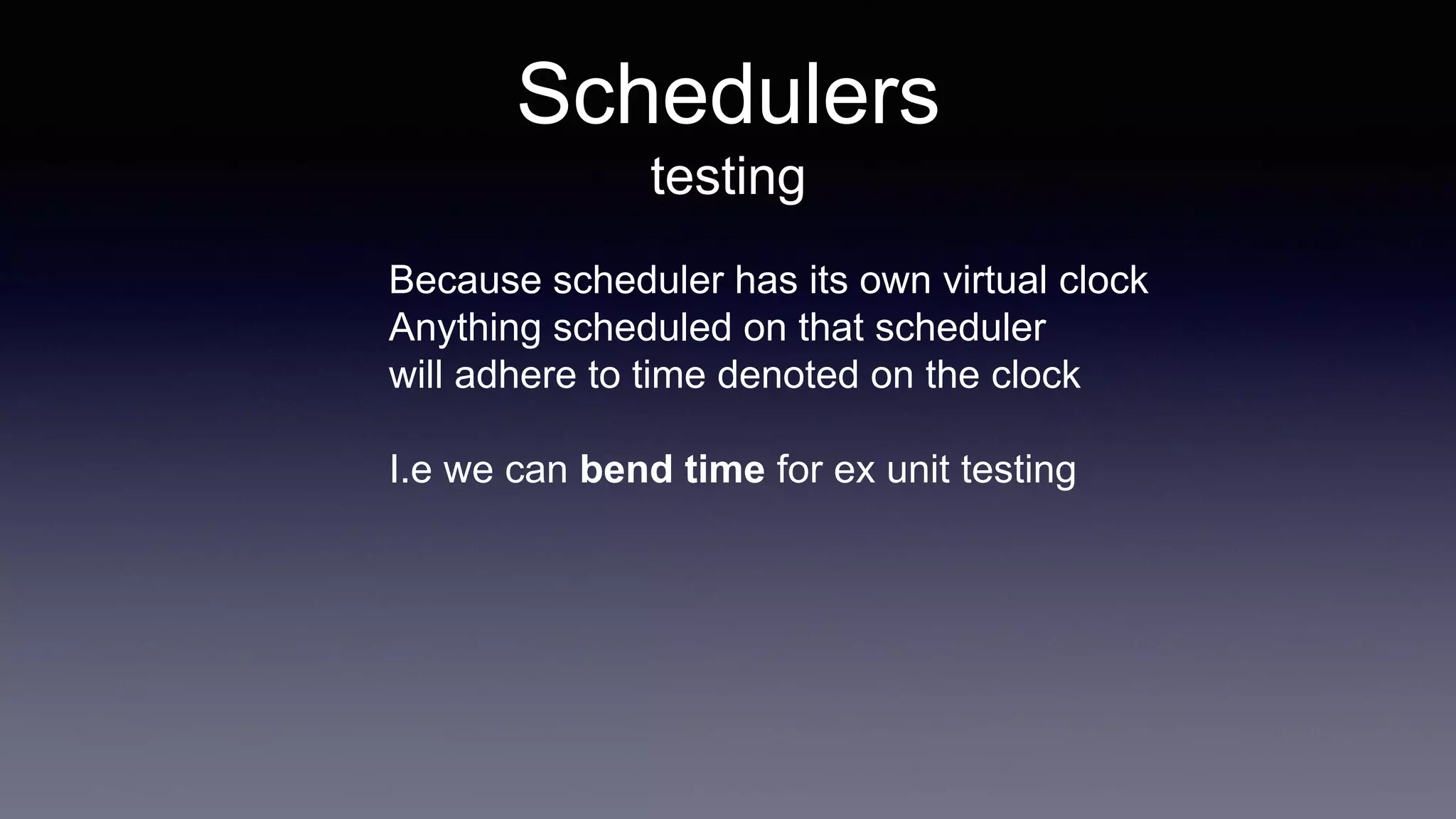

Schedulers
testing
Because scheduler has its own virtual clock
Anything scheduled on that scheduler
will adhere to time denoted on the clock
I.e we can bend time for ex unit testing

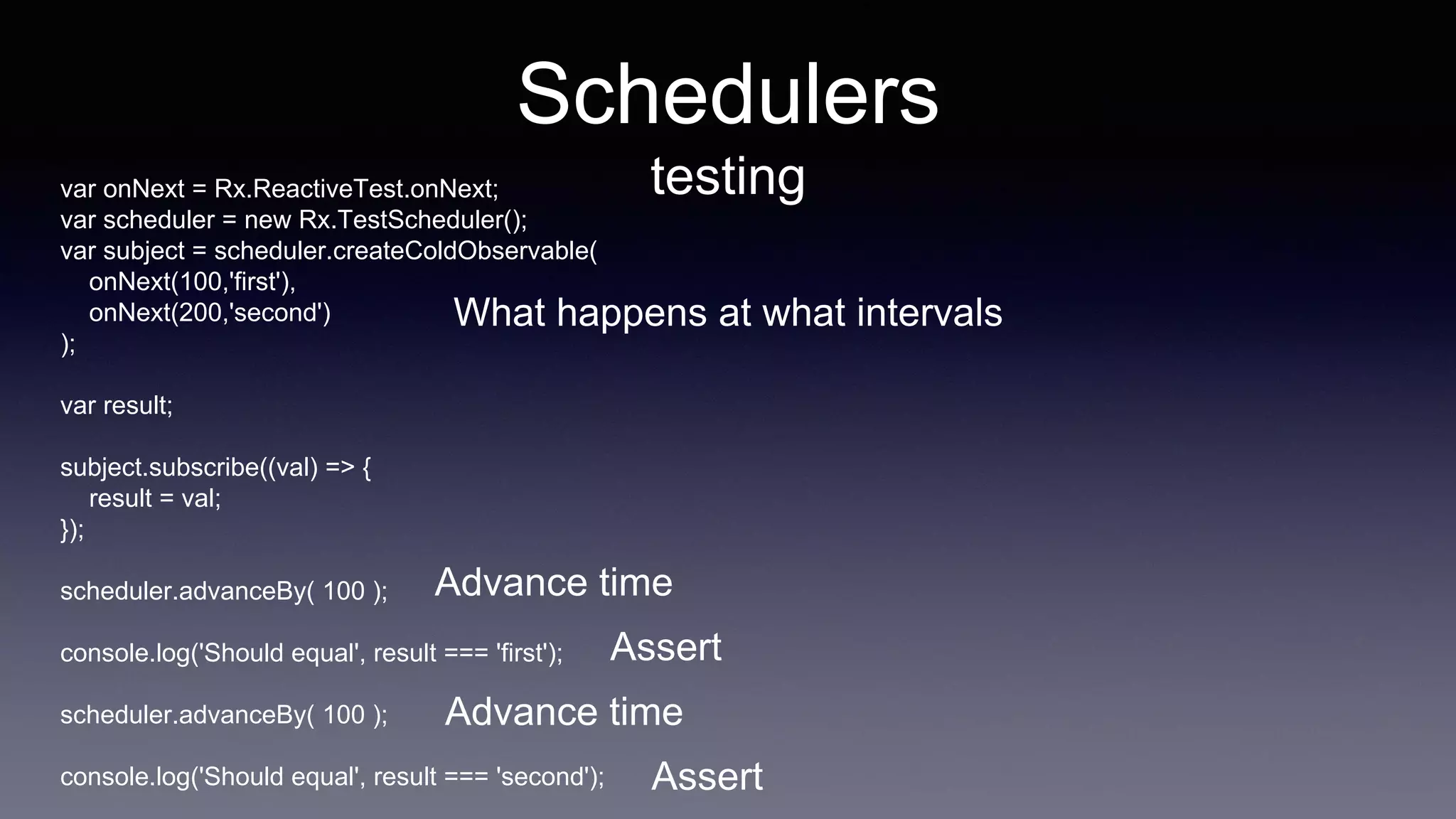

Schedulers
testingvar onNext = Rx.ReactiveTest.onNext;
var scheduler = new Rx.TestScheduler();
var subject = scheduler.createColdObservable(
onNext(100,'first'),
onNext(200,'second')
);
var result;
result = val;
});
scheduler.advanceBy( 100 );
console.log('Should equal', result === 'first');
scheduler.advanceBy( 100 );
console.log('Should equal', result === 'second');
What happens at what intervals
Advance time
Assert
Advance time
Assert

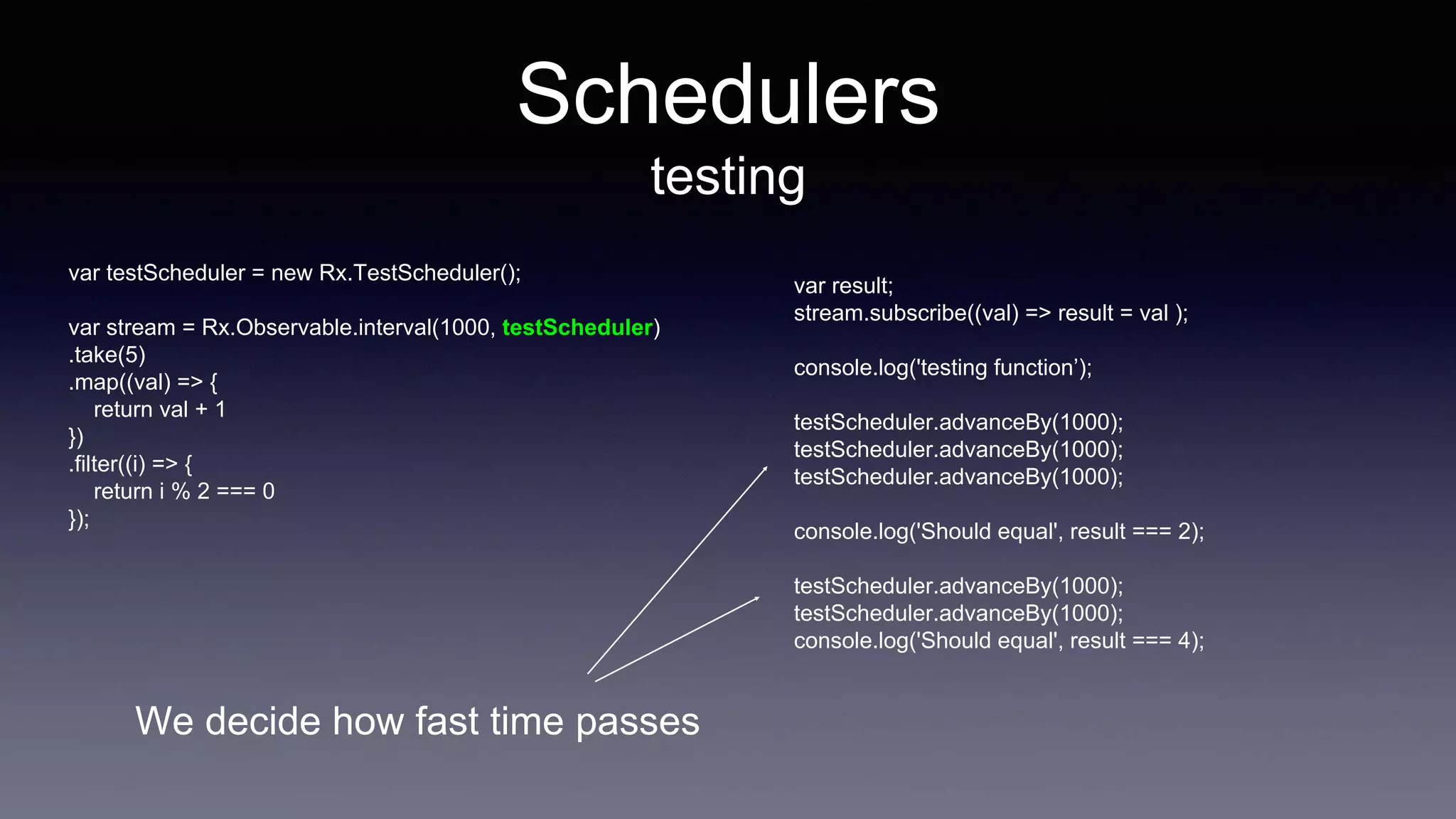

Schedulers
testing
var testScheduler = new Rx.TestScheduler();
var stream = Rx.Observable.interval(1000, testScheduler)
.take(5)
.map((val) => {
return val + 1
})
.filter((i) => {
return i % 2 === 0
});
var result;
stream.subscribe((val) => result = val );
console.log('testing function’);
testScheduler.advanceBy(1000);
console.log('Should equal', result === 2);
console.log('Should equal', result === 4);
We decide how fast time passes

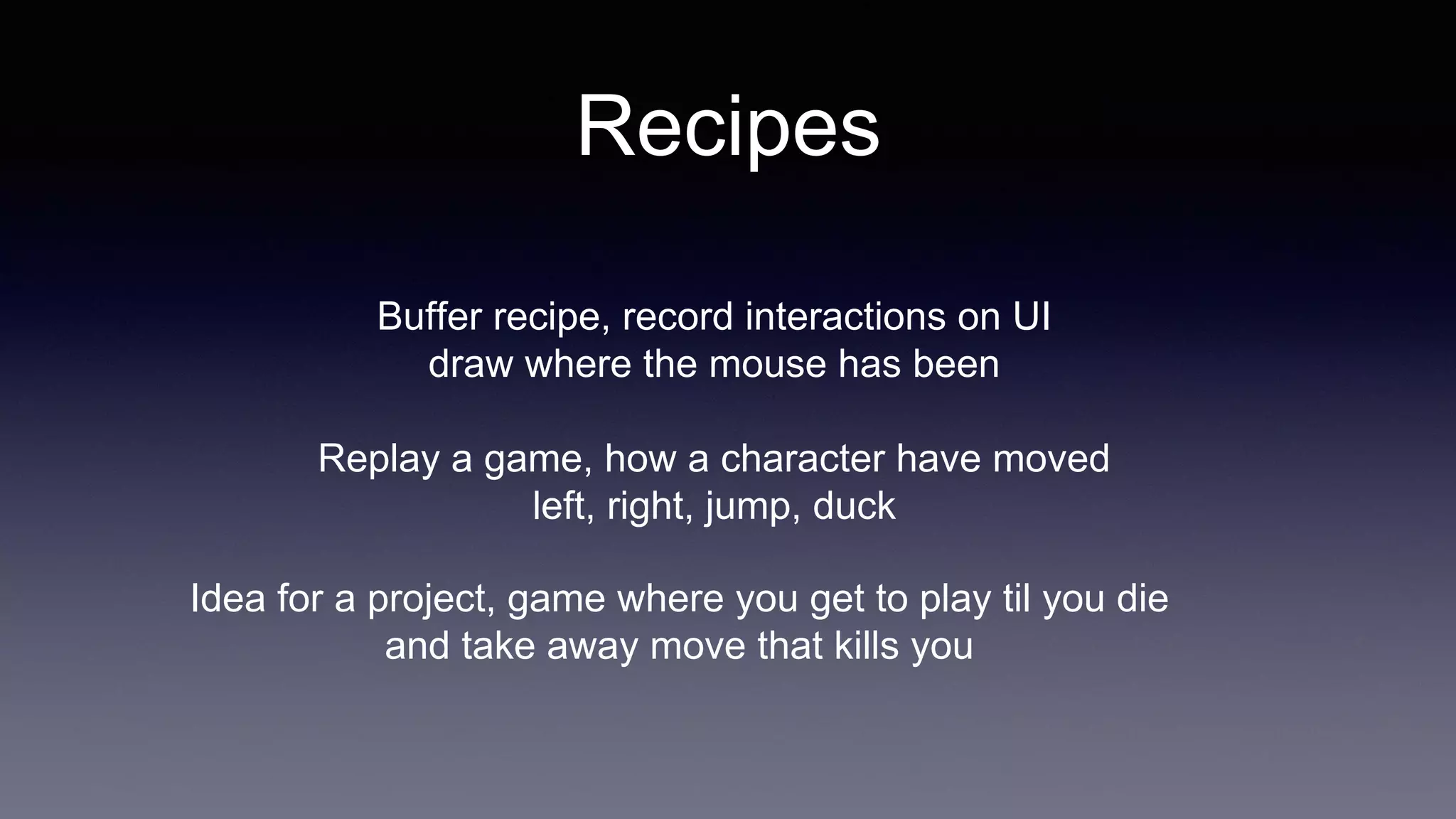

Recipes
Buffer recipe, record interactions on UI
draw where the mouse has been
Replay a game, how a character have moved
left, right, jump, duck
Idea for a project, game where you get to play til you die
and take away move that kills you

Further reading
https://xgrommx.github.io/rx-book
http://www.learnrxjs.io/

Rxjs ppt

More Related Content

What's hot

Similar to Rxjs ppt

More from Christoffer Noring

Recently uploaded

In this document

Rxjs ppt
