Java EE 7 Recipes for Concurrency - JavaOne 2014
Josh Juneau presented on using the Concurrency Utilities in Java EE 7 to resolve real world concurrency scenarios in an application called AcmeWorld. The utilities provide standard managed concurrent resources like managed executor services, scheduled executor services, managed threads and context services. Example problems demonstrated how to execute long-running tasks asynchronously, schedule periodic tasks, propagate contexts between threads and monitor asynchronous task lifecycles. The presentation provided code examples and instructions for interacting with the managed concurrent resources in Java EE 7 application servers.
More Related Content
![[Final] ReactJS presentation](https://cdn.slidesharecdn.com/ss_thumbnails/65cfd4f9-740f-4f41-b769-b496b6e60802-170119143904-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Similar to Java EE 7 Recipes for Concurrency - JavaOne 2014
![Java one 2015 [con3339]](https://cdn.slidesharecdn.com/ss_thumbnails/javaone2015con33391018-151028223420-lva1-app6892-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
![Top 50 java ee 7 best practices [con5669]](https://cdn.slidesharecdn.com/ss_thumbnails/top50javaee7bestpracticescon5669-160927041126-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Java EE 7 Recipes for Concurrency - JavaOne 2014
- 1. Java EE 7Recipes for Concurrency Presented By: Josh Juneau Author and Application Developer

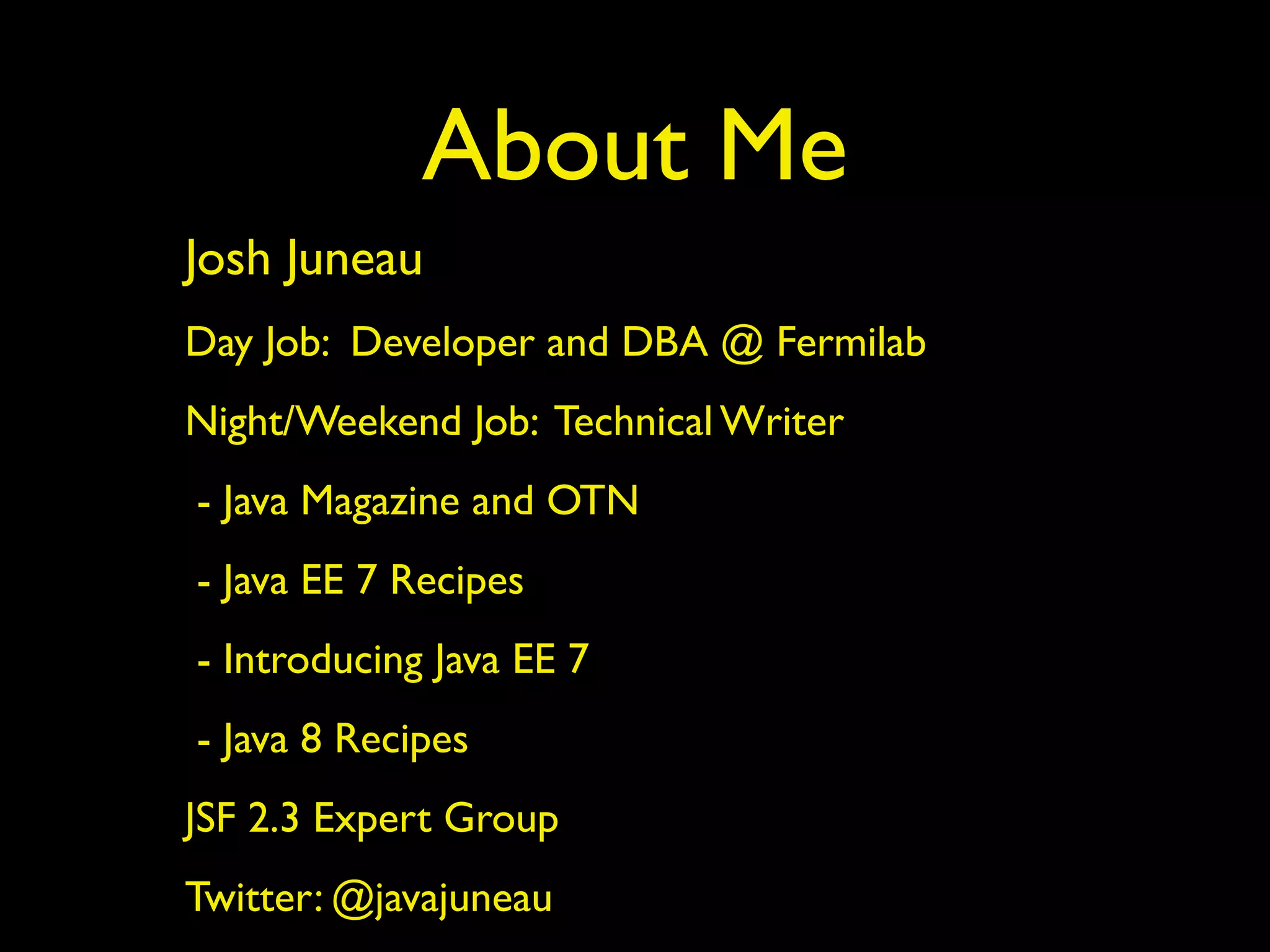

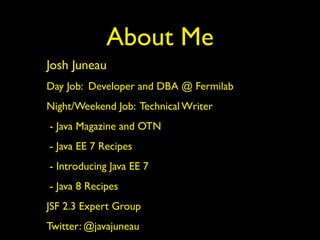

- 2. About Me JoshJuneau Day Job: Developer and DBA @ Fermilab Night/Weekend Job: Technical Writer - Java Magazine and OTN - Java EE 7 Recipes - Introducing Java EE 7 - Java 8 Recipes JSF 2.3 Expert Group Twitter: @javajuneau

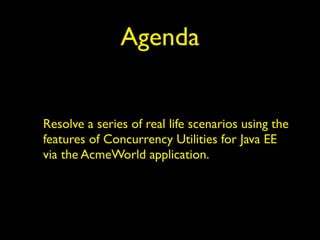

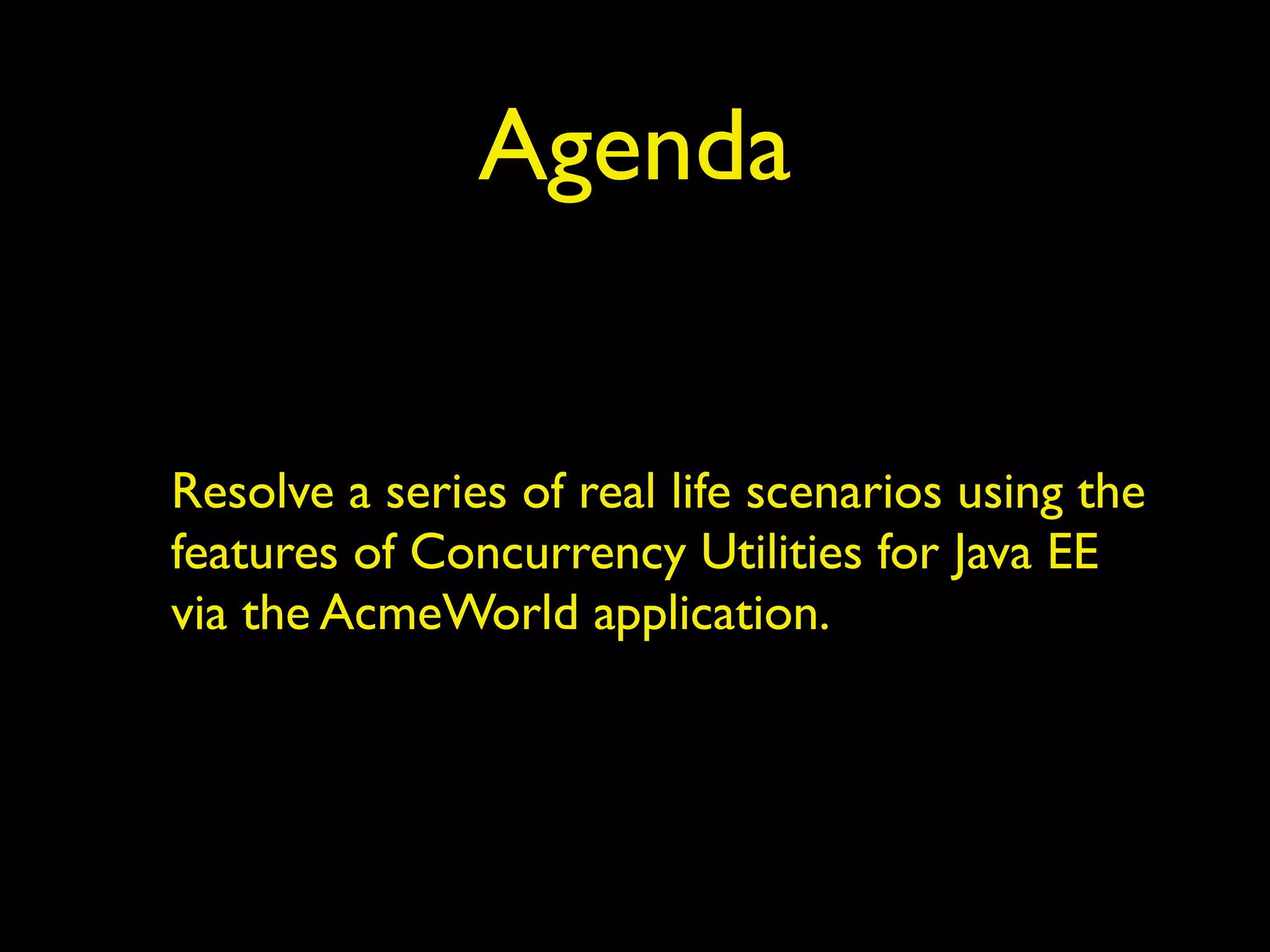

- 3. Agenda Resolve aseries of real life scenarios using the features of Concurrency Utilities for Java EE via the AcmeWorld application.
- 4. Java EE 7Increases Productivity and Introduces Standards

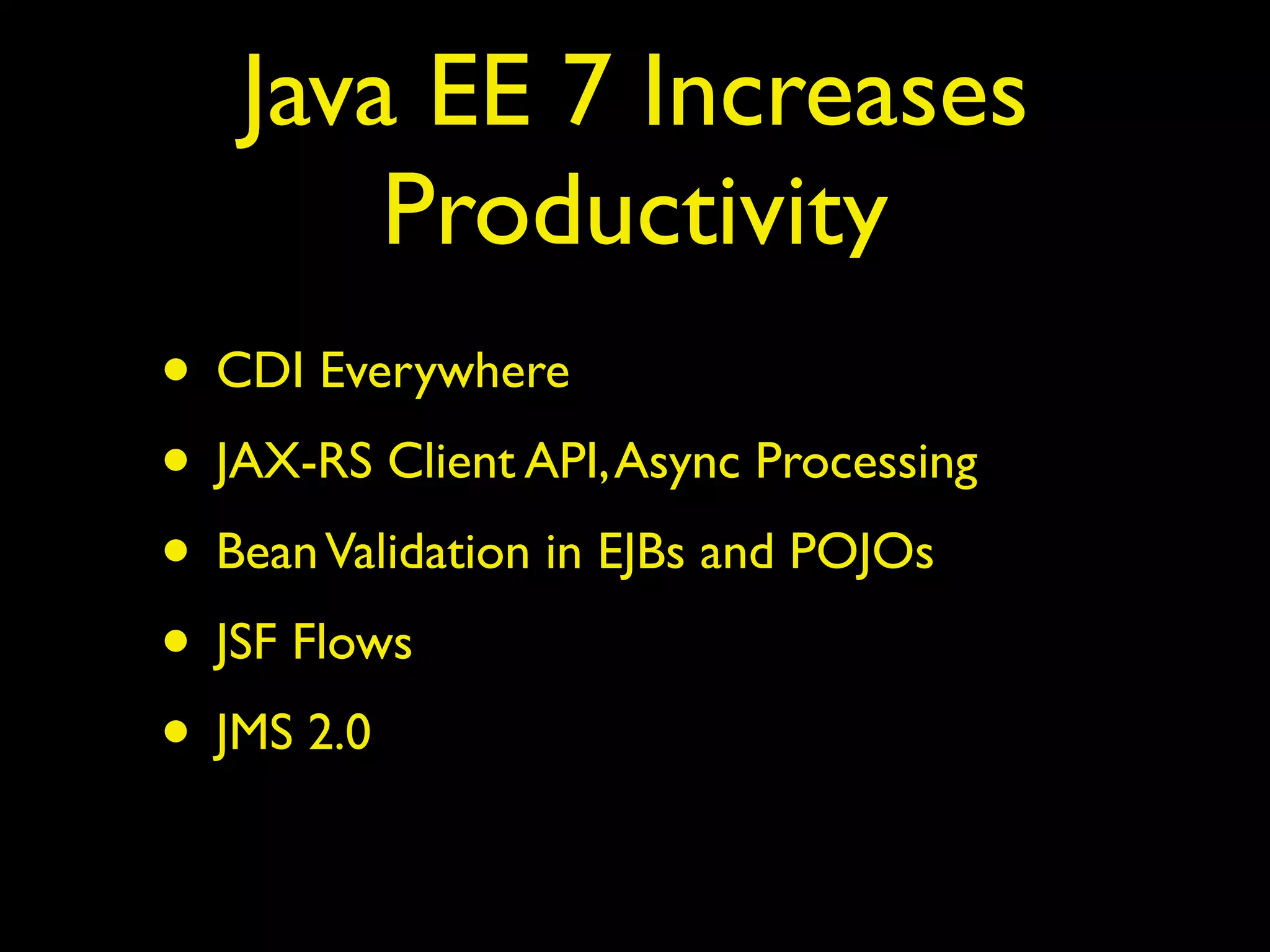

- 5. Java EE 7Increases Productivity • CDI Everywhere • JAX-RS Client API, Async Processing • Bean Validation in EJBs and POJOs • JSF Flows • JMS 2.0

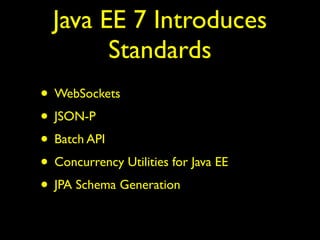

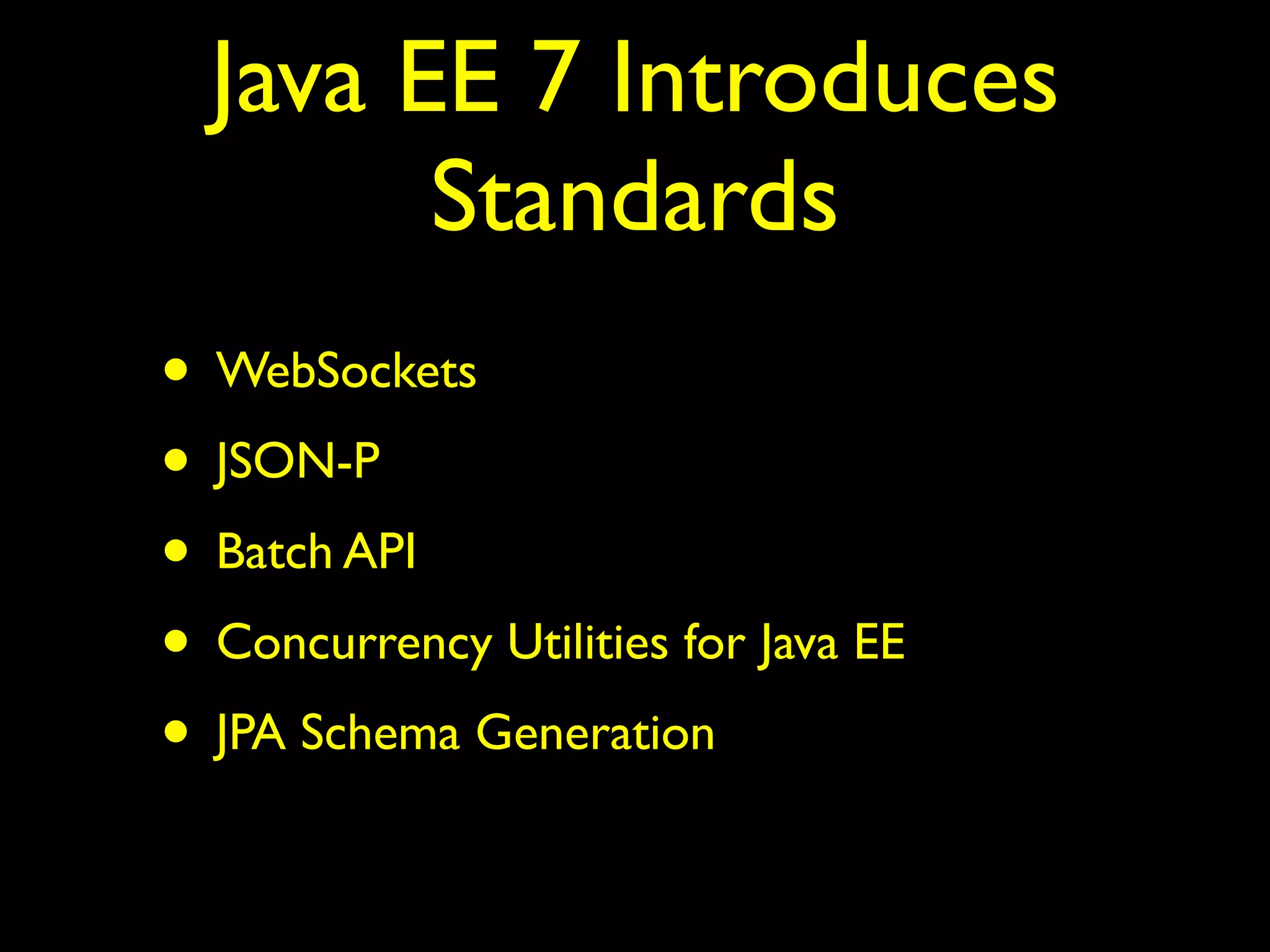

- 6. Java EE 7Introduces Standards • WebSockets • JSON-P • Batch API • Concurrency Utilities for Java EE • JPA Schema Generation

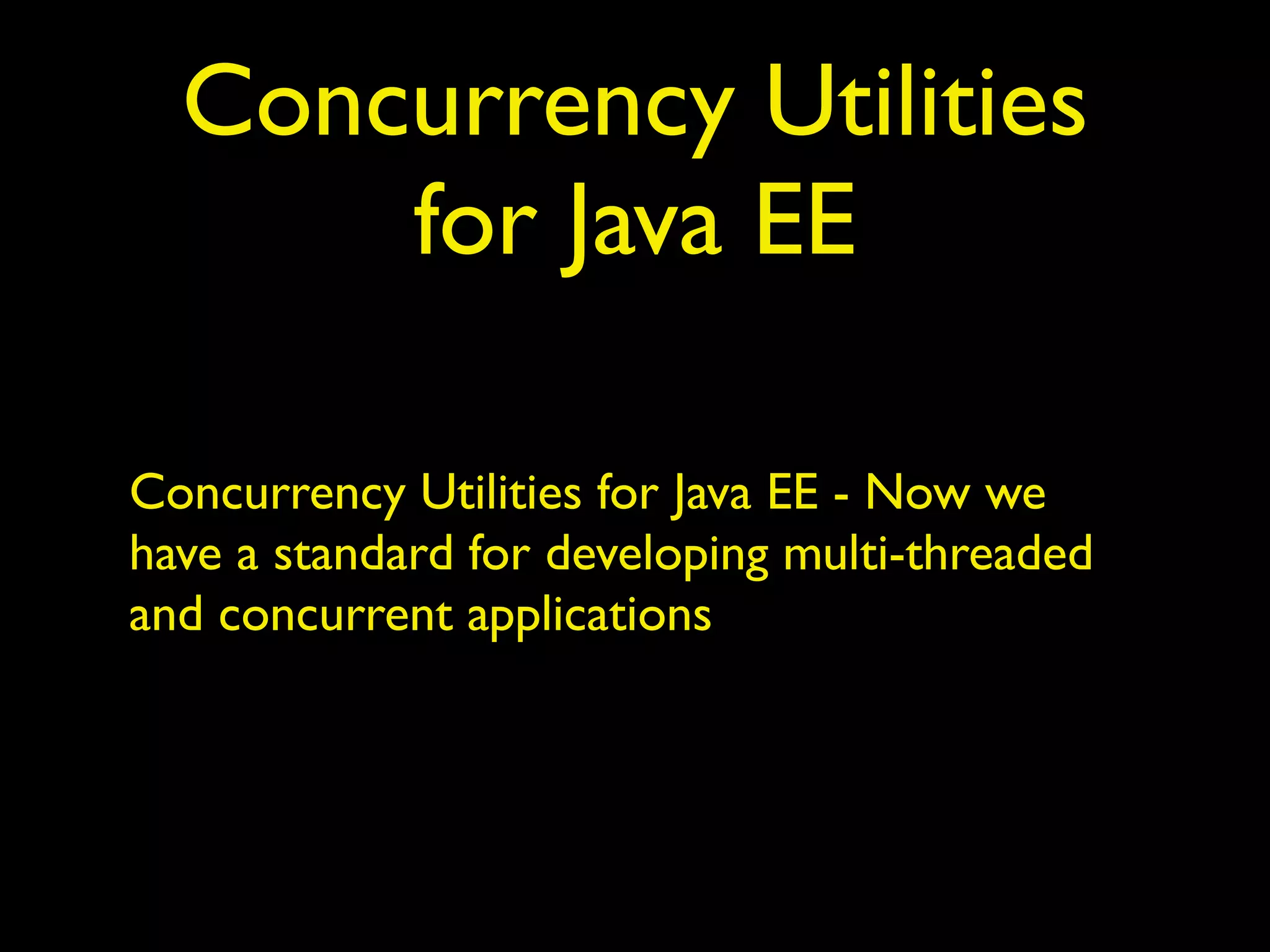

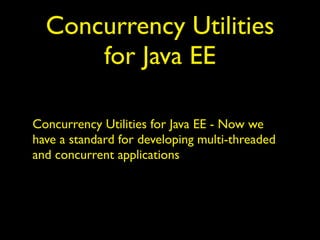

- 7. Concurrency Utilities forJava EE Concurrency Utilities for Java EE - Now we have a standard for developing multi-threaded and concurrent applications
- 8.

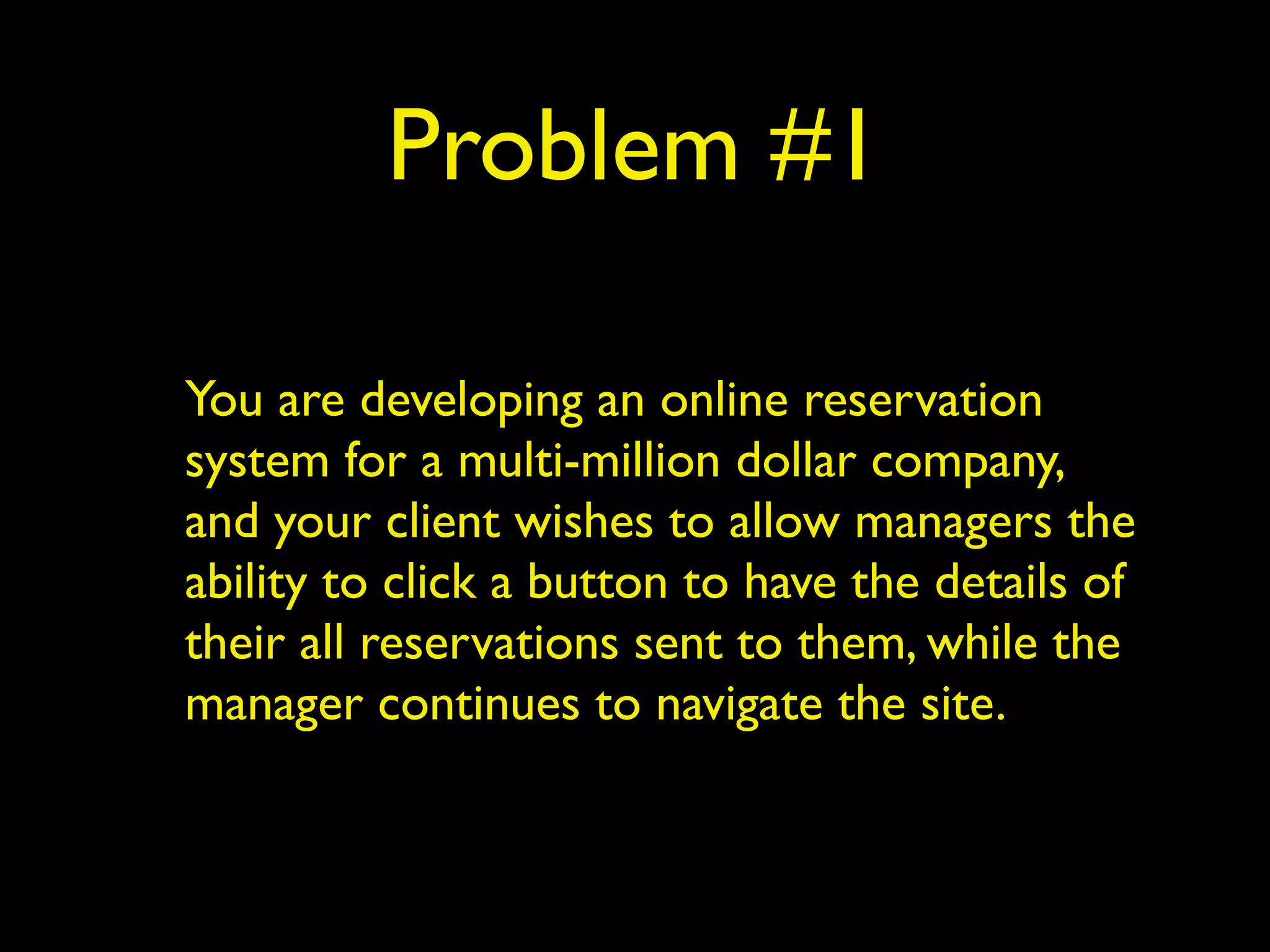

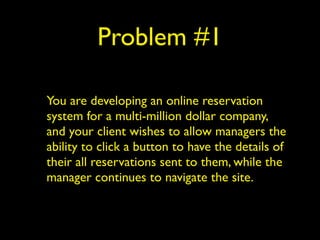

- 9. Problem #1 Youare developing an online reservation system for a multi-million dollar company, and your client wishes to allow managers the ability to click a button to have the details of their all reservations sent to them, while the manager continues to navigate the site.

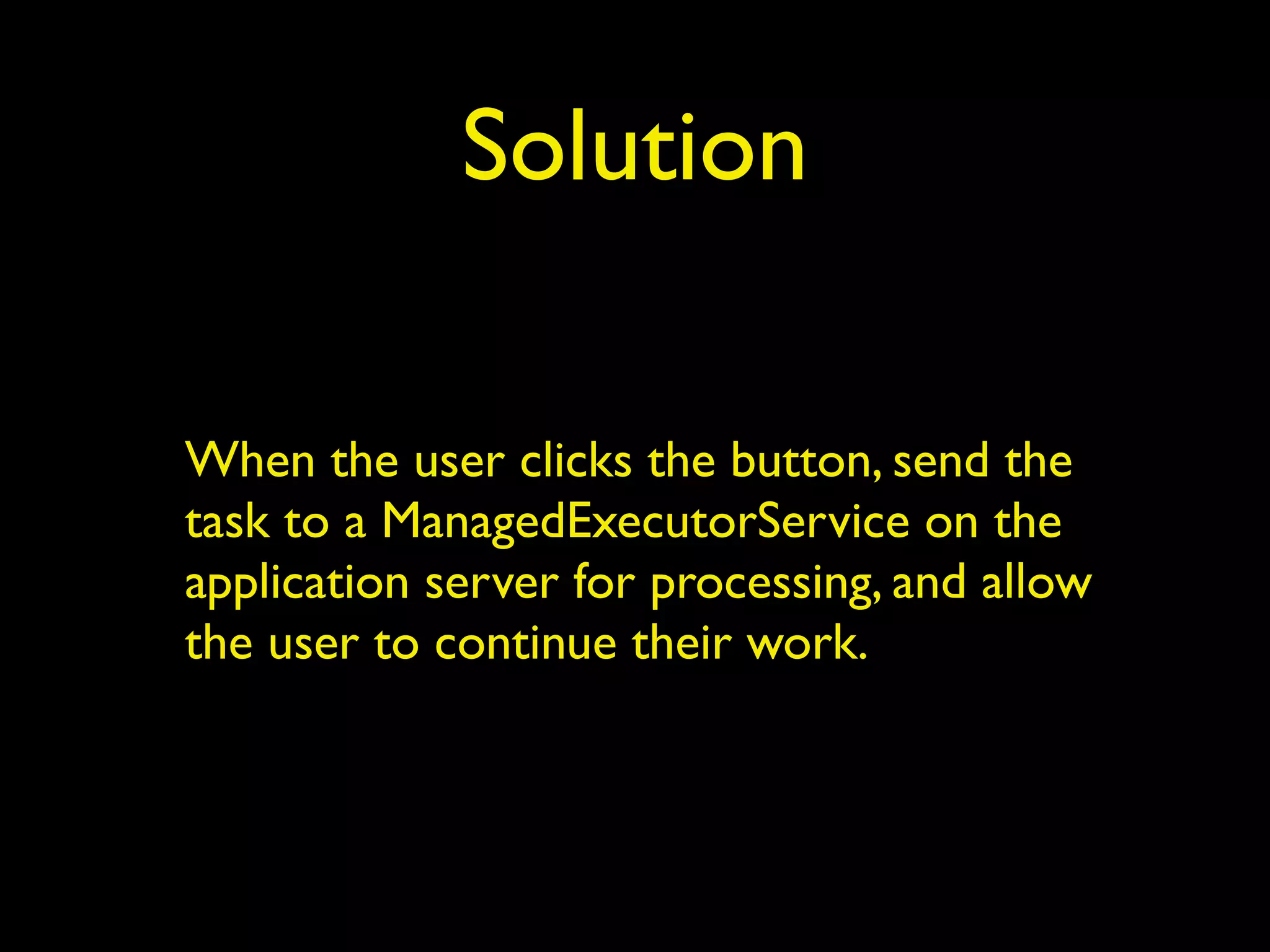

- 10. Solution When theuser clicks the button, send the task to a ManagedExecutorService on the application server for processing, and allow the user to continue their work.

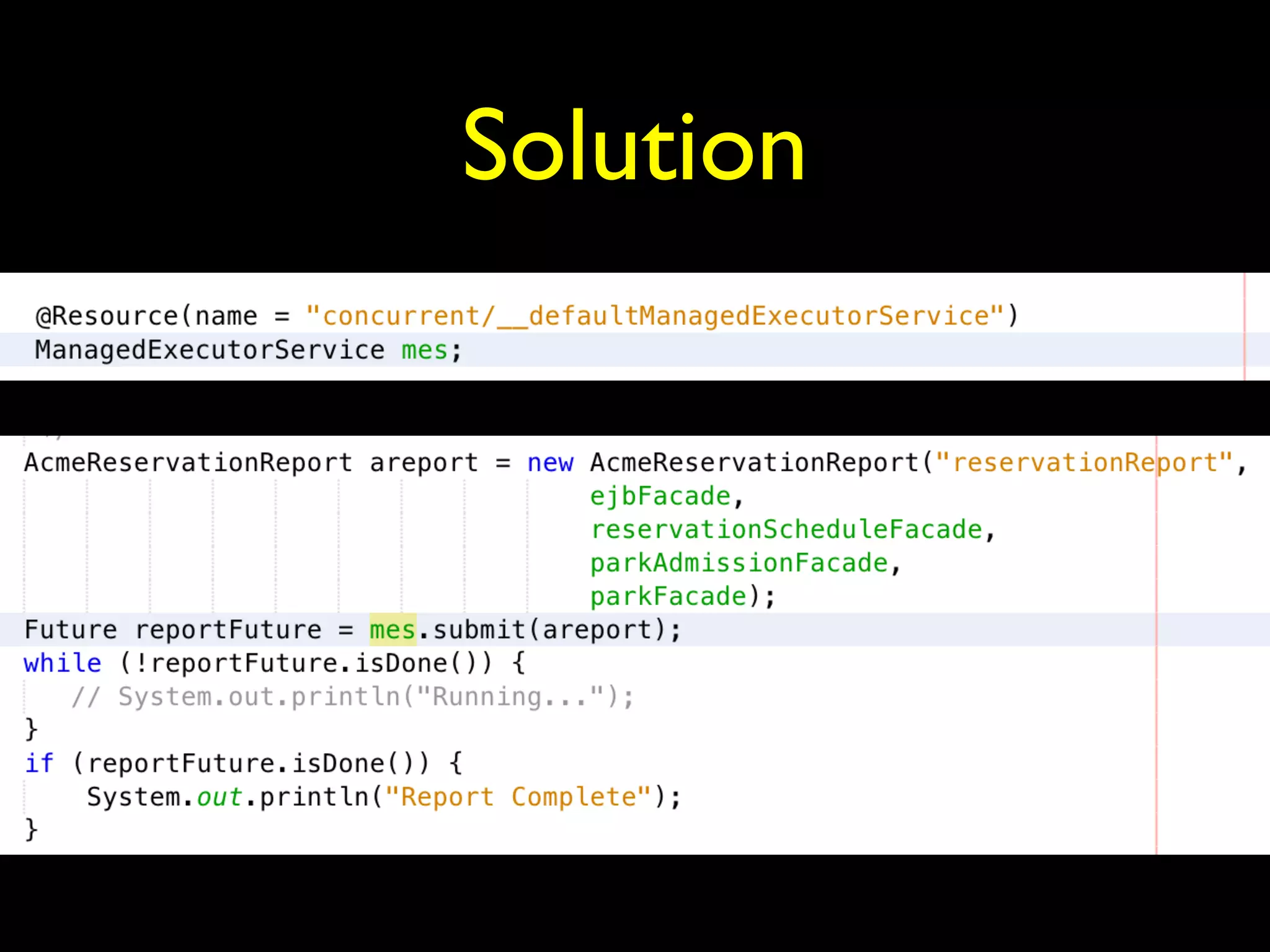

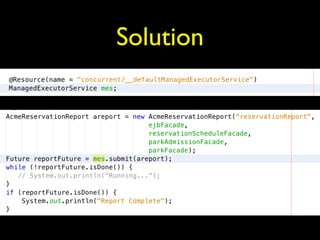

- 11.

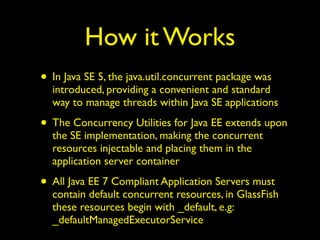

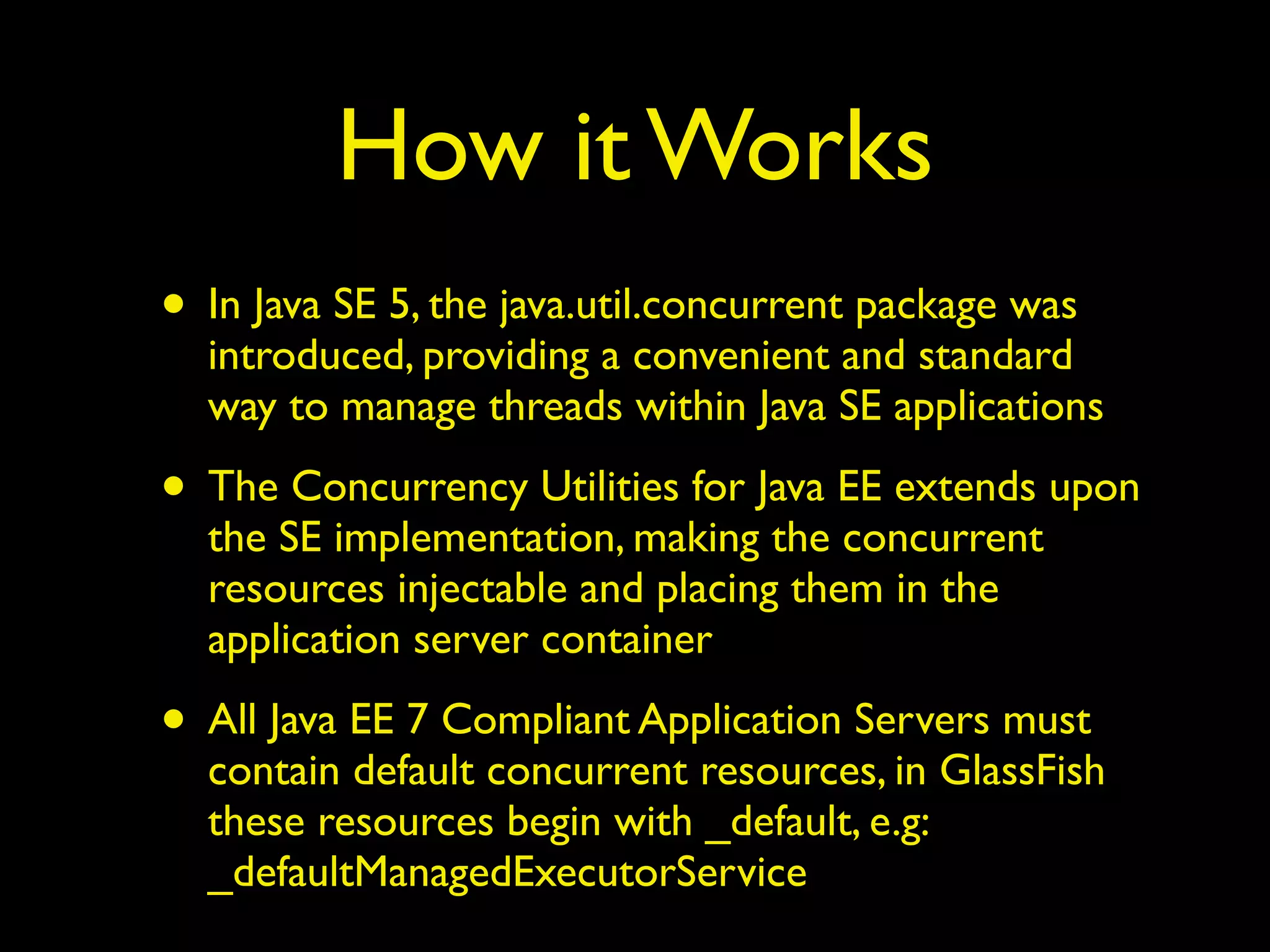

- 12. How it Works • In Java SE 5, the java.util.concurrent package was introduced, providing a convenient and standard way to manage threads within Java SE applications • The Concurrency Utilities for Java EE extends upon the SE implementation, making the concurrent resources injectable and placing them in the application server container • All Java EE 7 Compliant Application Servers must contain default concurrent resources, in GlassFish these resources begin with _default, e.g: _defaultManagedExecutorService

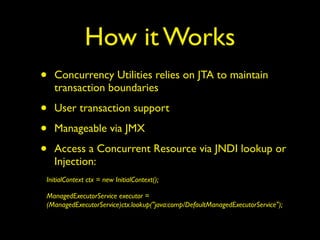

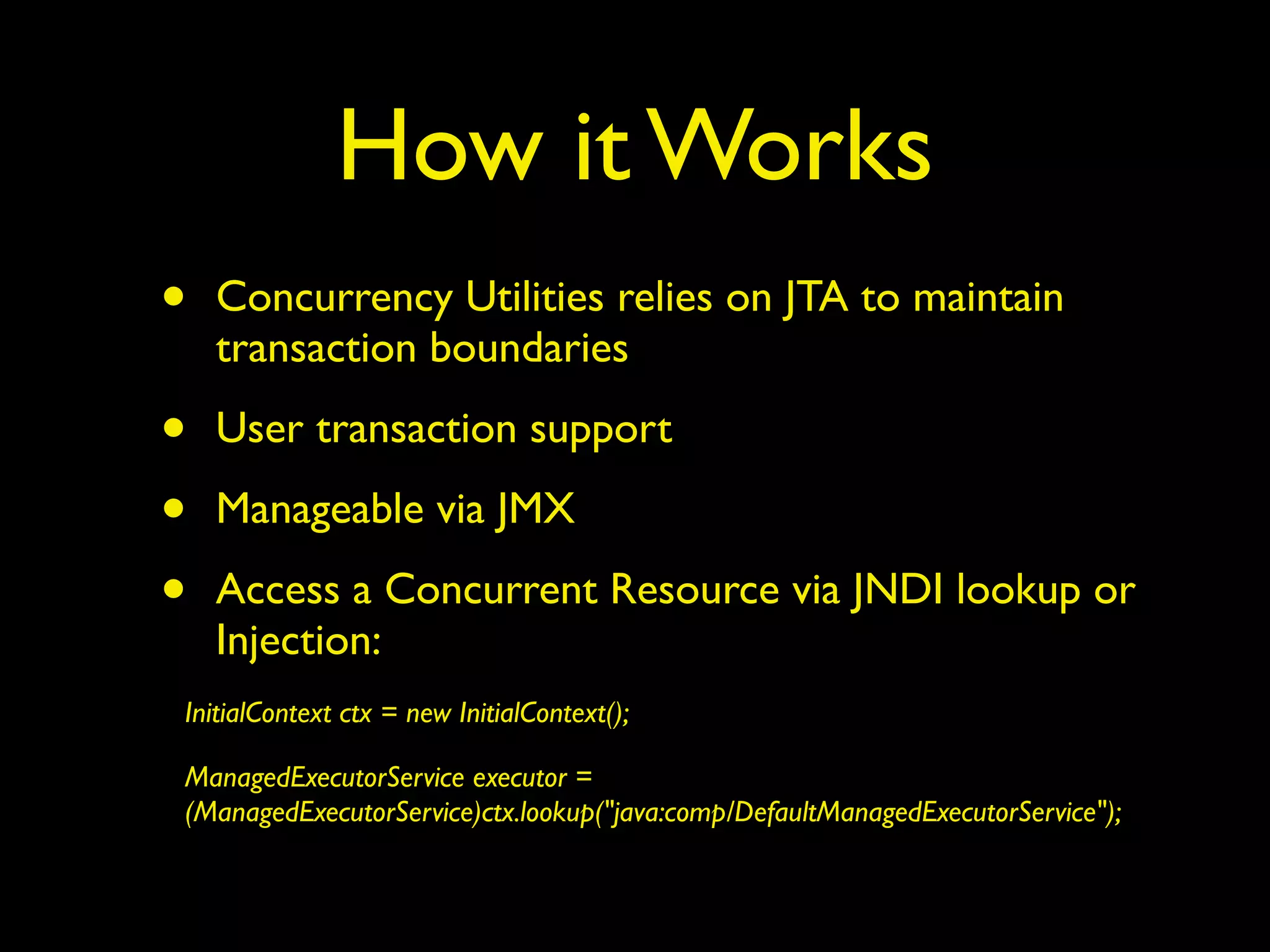

- 13. How it Works • Concurrency Utilities relies on JTA to maintain transaction boundaries • User transaction support • Manageable via JMX • Access a Concurrent Resource via JNDI lookup or Injection: InitialContext ctx = new InitialContext(); ManagedExecutorService executor = (ManagedExecutorService)ctx.lookup("java:comp/DefaultManagedExecutorService");

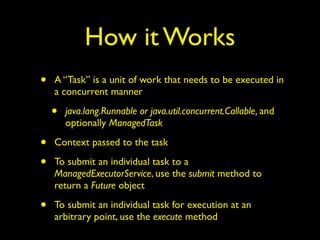

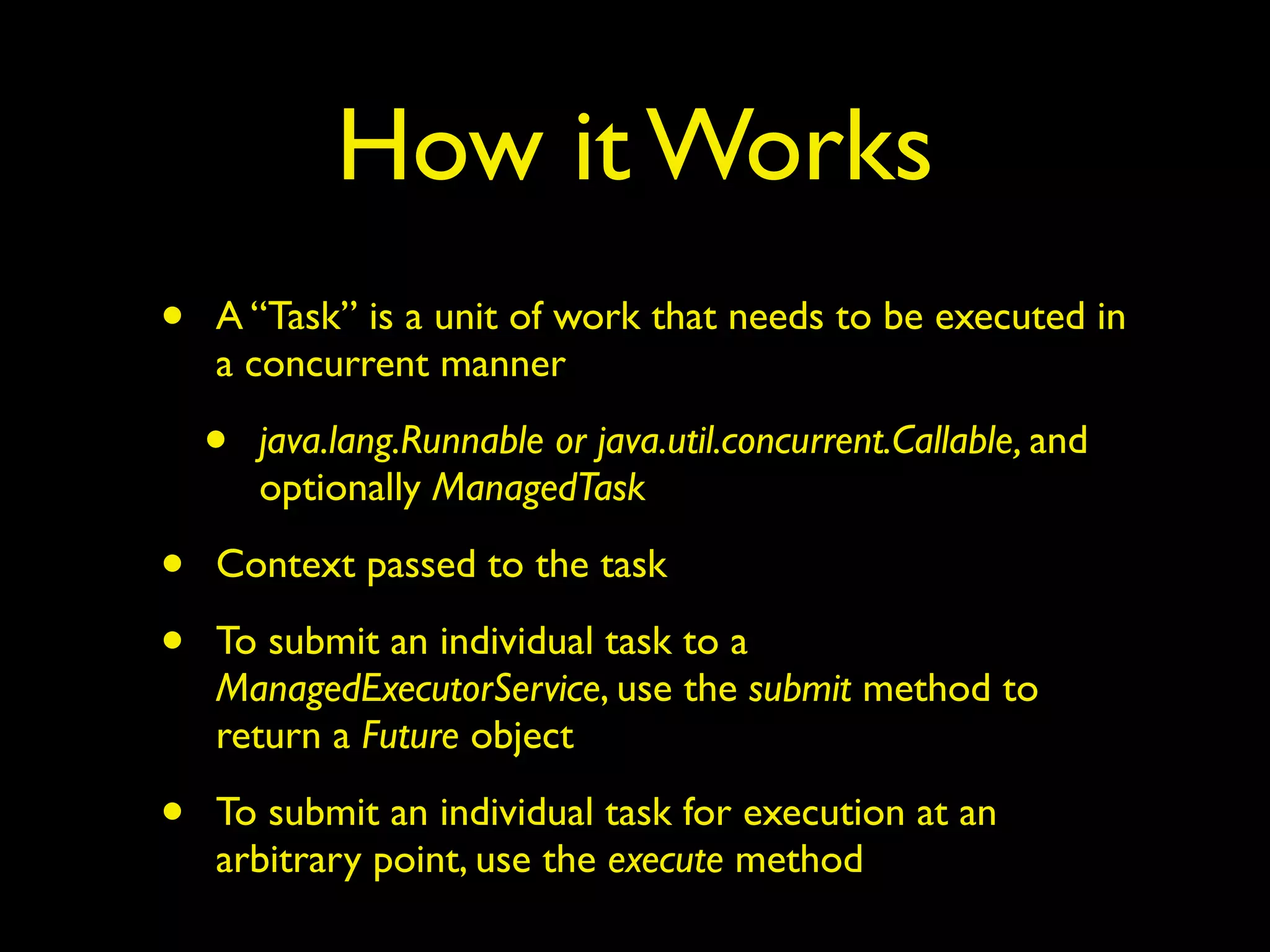

- 14. How it Works • A “Task” is a unit of work that needs to be executed in a concurrent manner • java.lang.Runnable or java.util.concurrent.Callable, and optionally ManagedTask • Context passed to the task • To submit an individual task to a ManagedExecutorService, use the submit method to return a Future object • To submit an individual task for execution at an arbitrary point, use the execute method

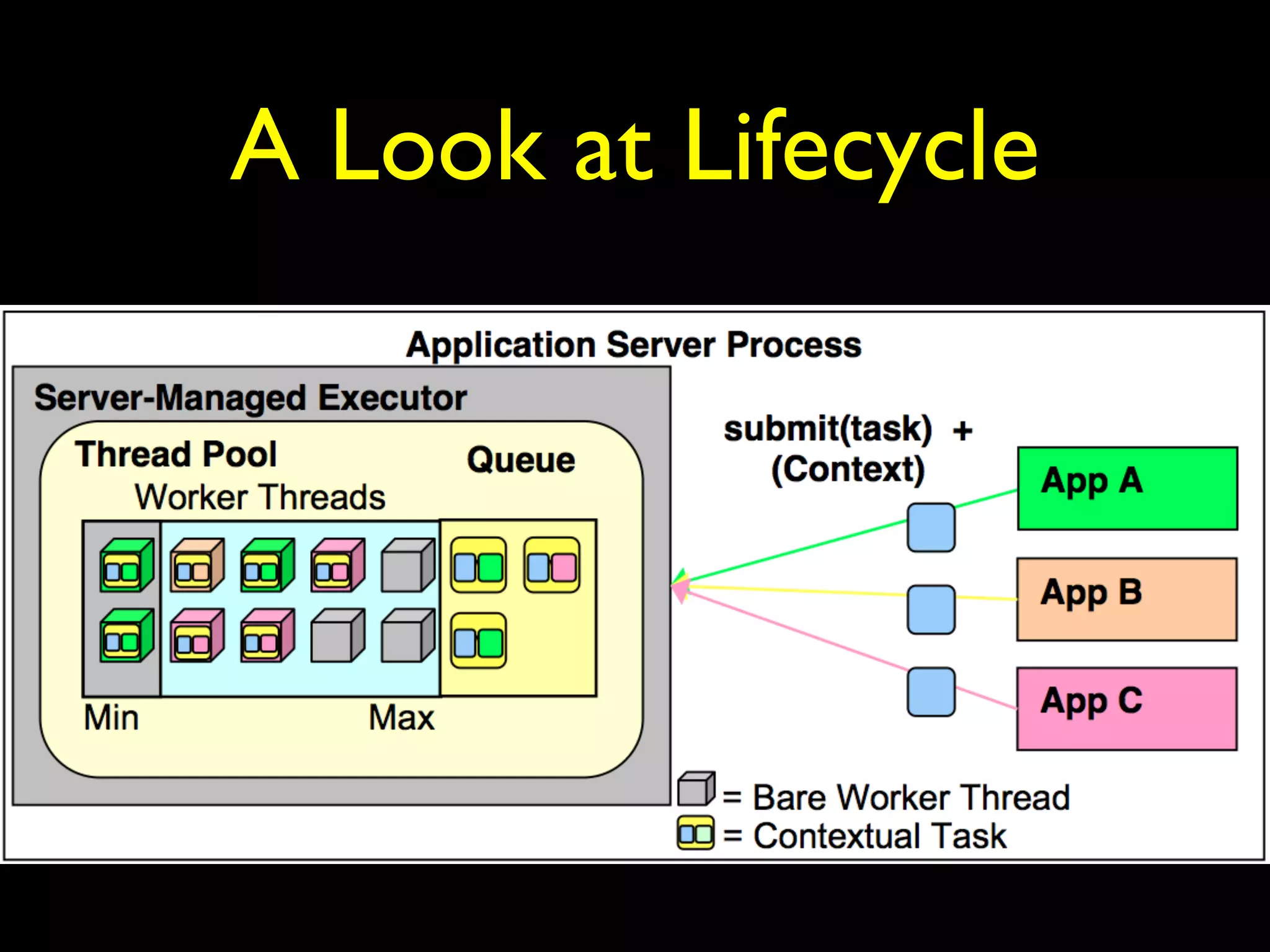

- 15. A Look atLifecycle

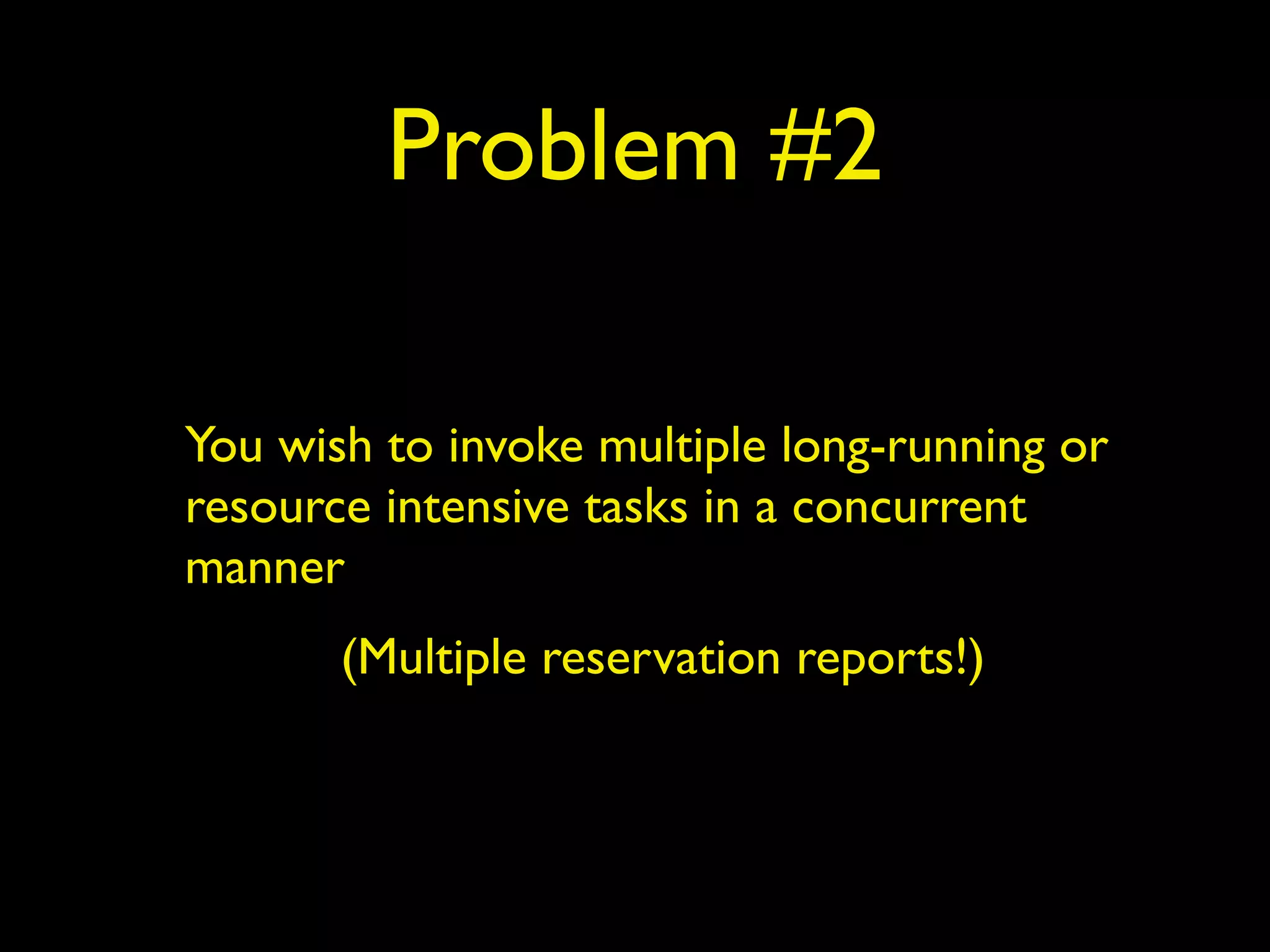

- 16. Problem #2 Youwish to invoke multiple long-running or resource intensive tasks in a concurrent manner (Multiple reservation reports!)

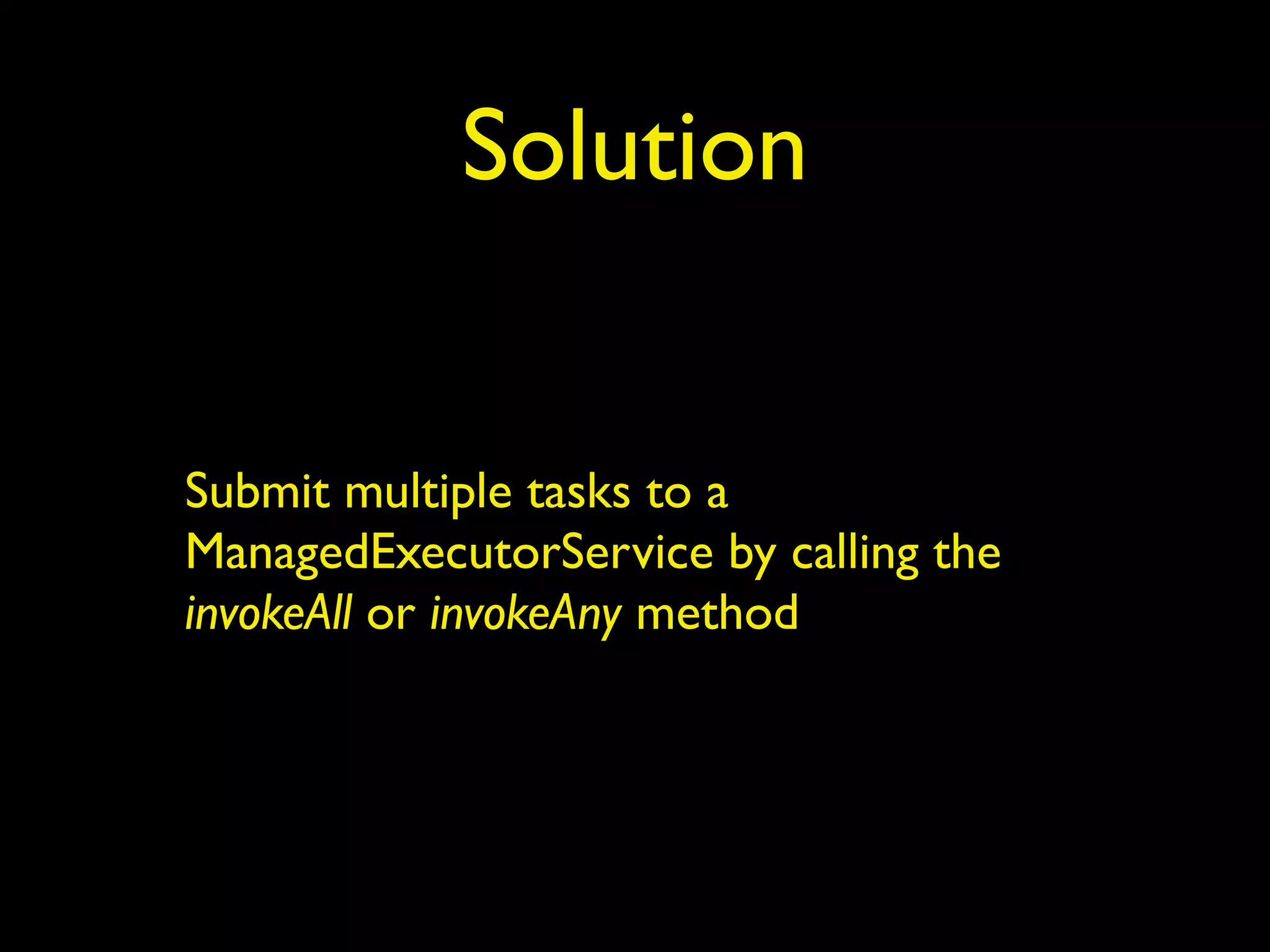

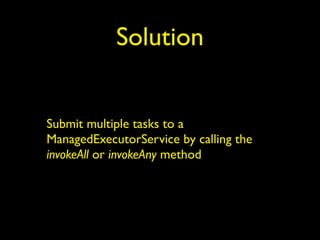

- 17. Solution Submit multipletasks to a ManagedExecutorService by calling the invokeAll or invokeAny method
- 18.

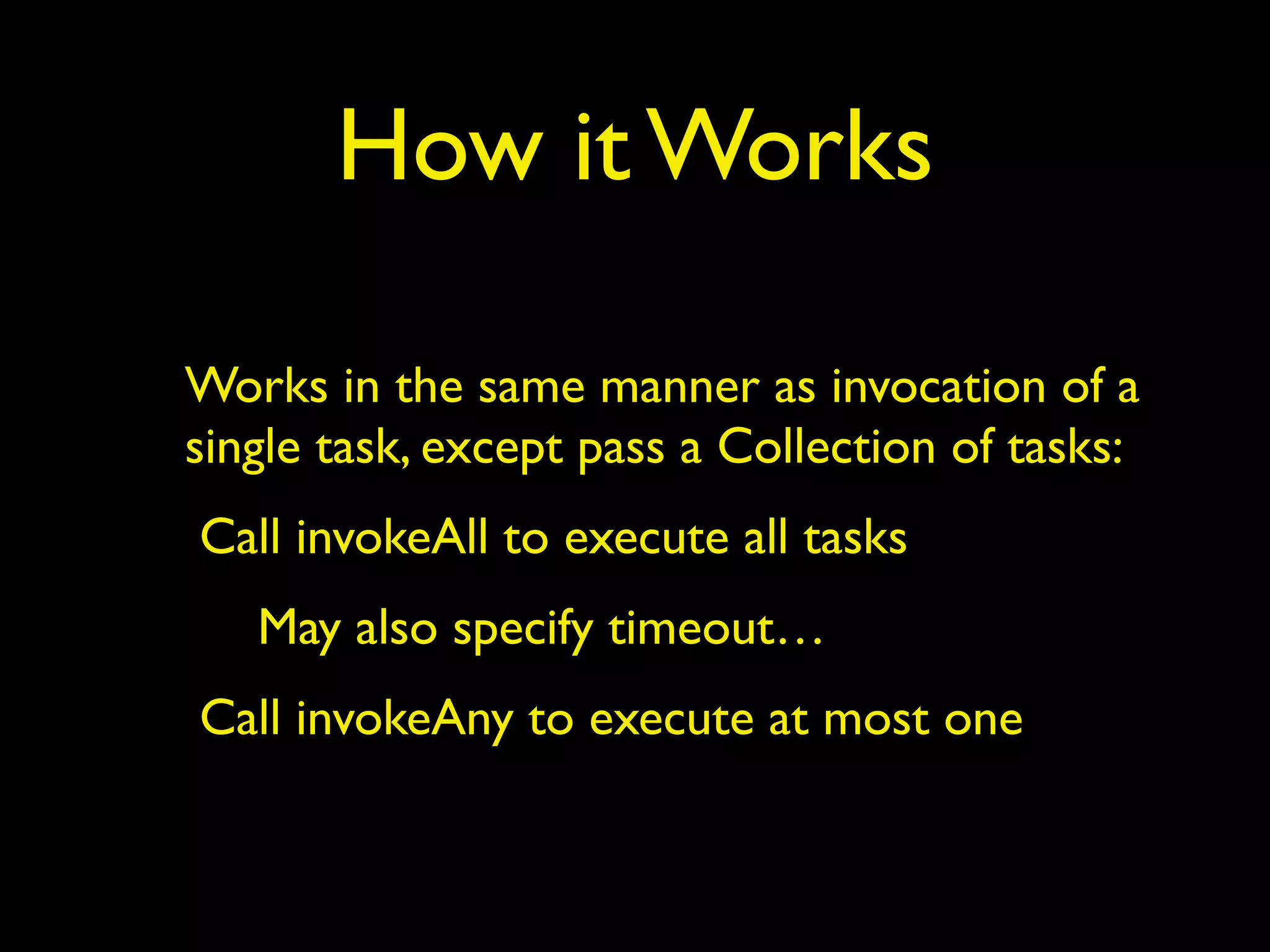

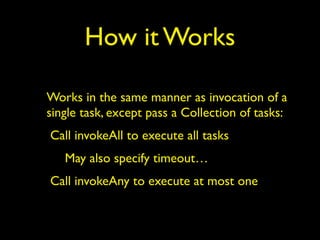

- 19. How it Works Works in the same manner as invocation of a single task, except pass a Collection of tasks: Call invokeAll to execute all tasks May also specify timeout… Call invokeAny to execute at most one

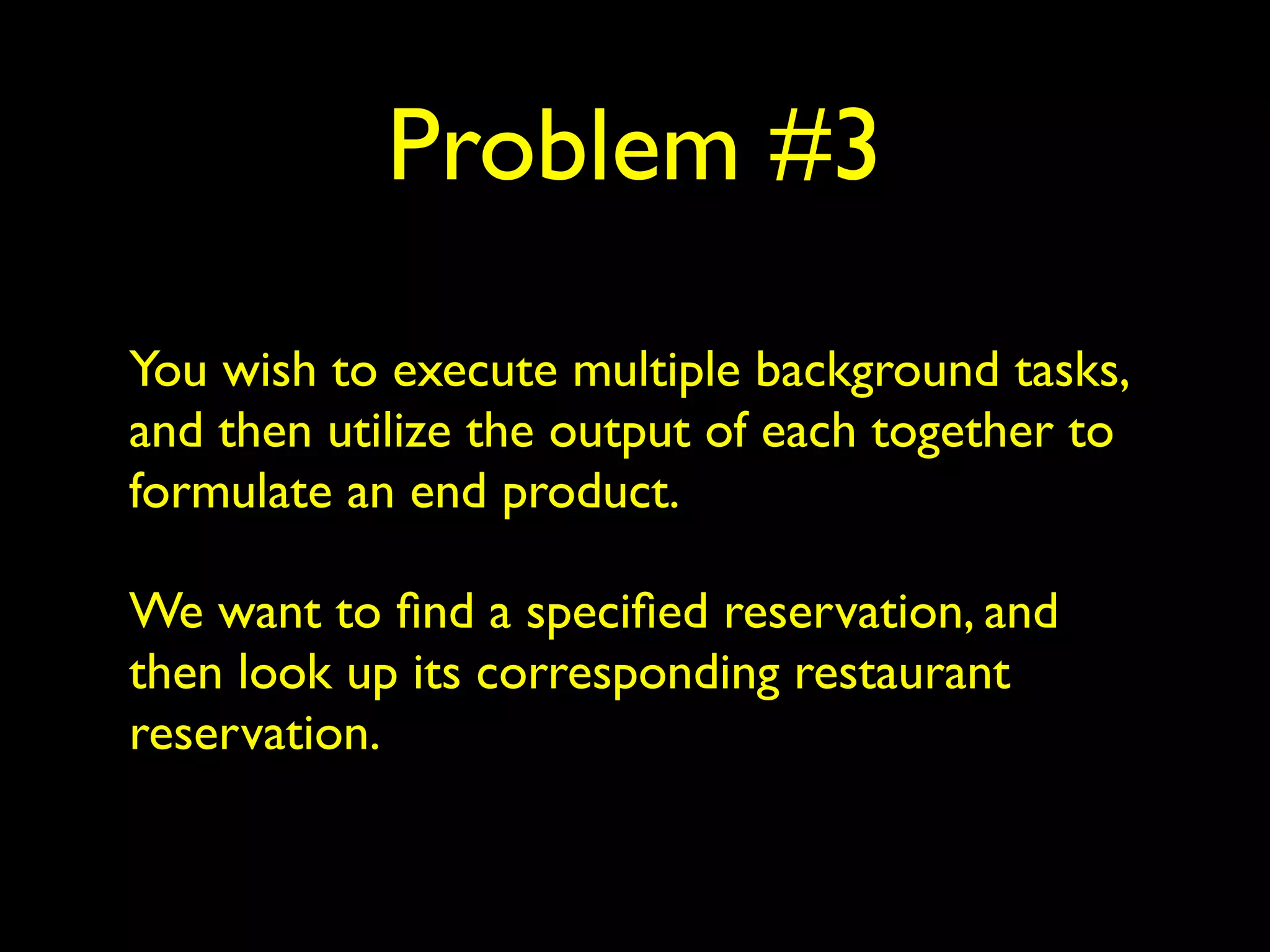

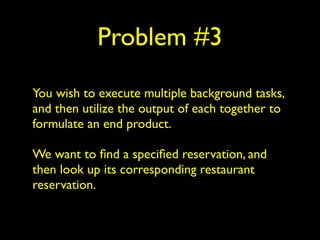

- 20. Problem #3 Youwish to execute multiple background tasks, and then utilize the output of each together to formulate an end product. We want to find a specified reservation, and then look up its corresponding restaurant reservation.

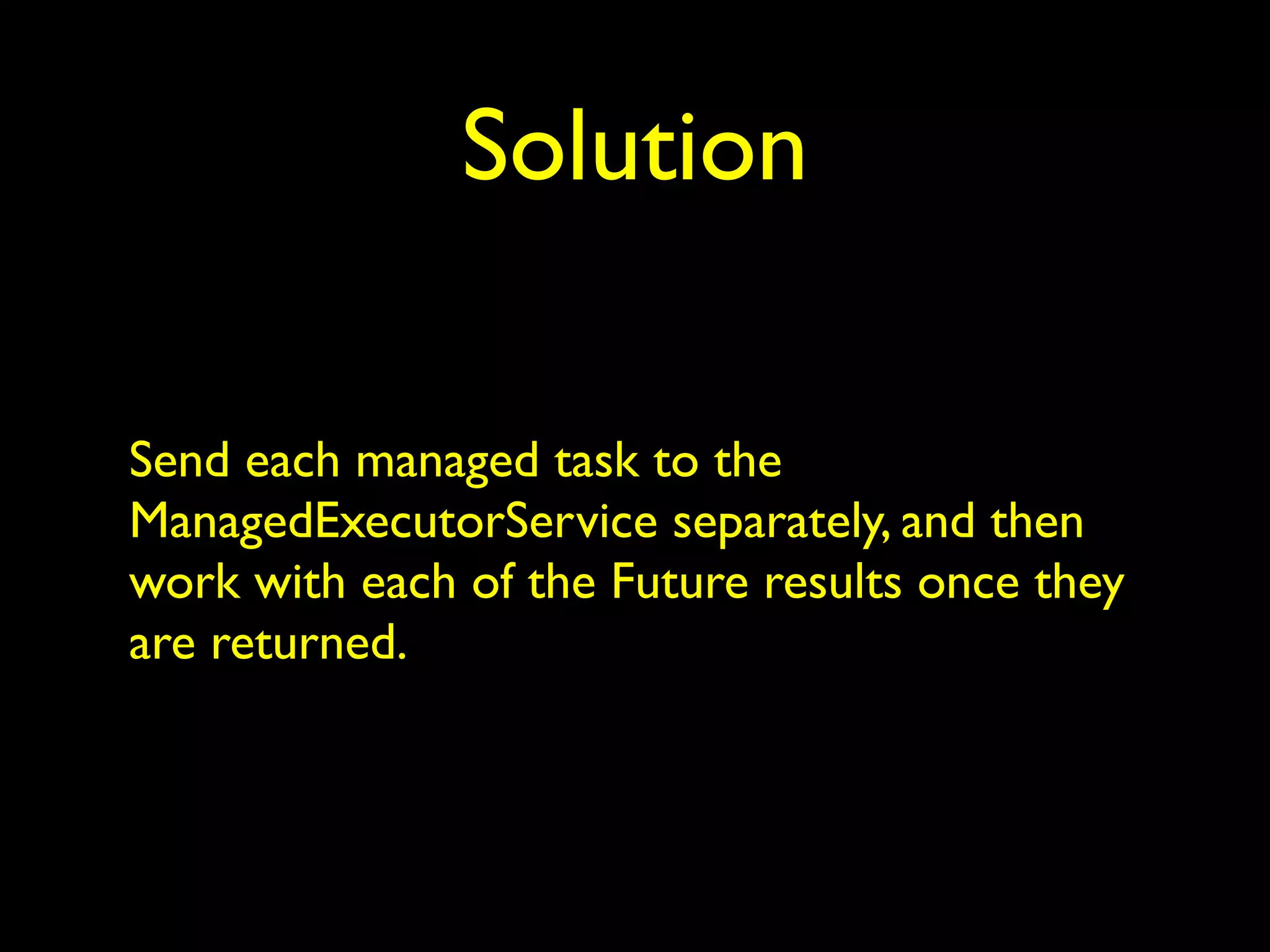

- 21. Solution Send eachmanaged task to the ManagedExecutorService separately, and then work with each of the Future results once they are returned.

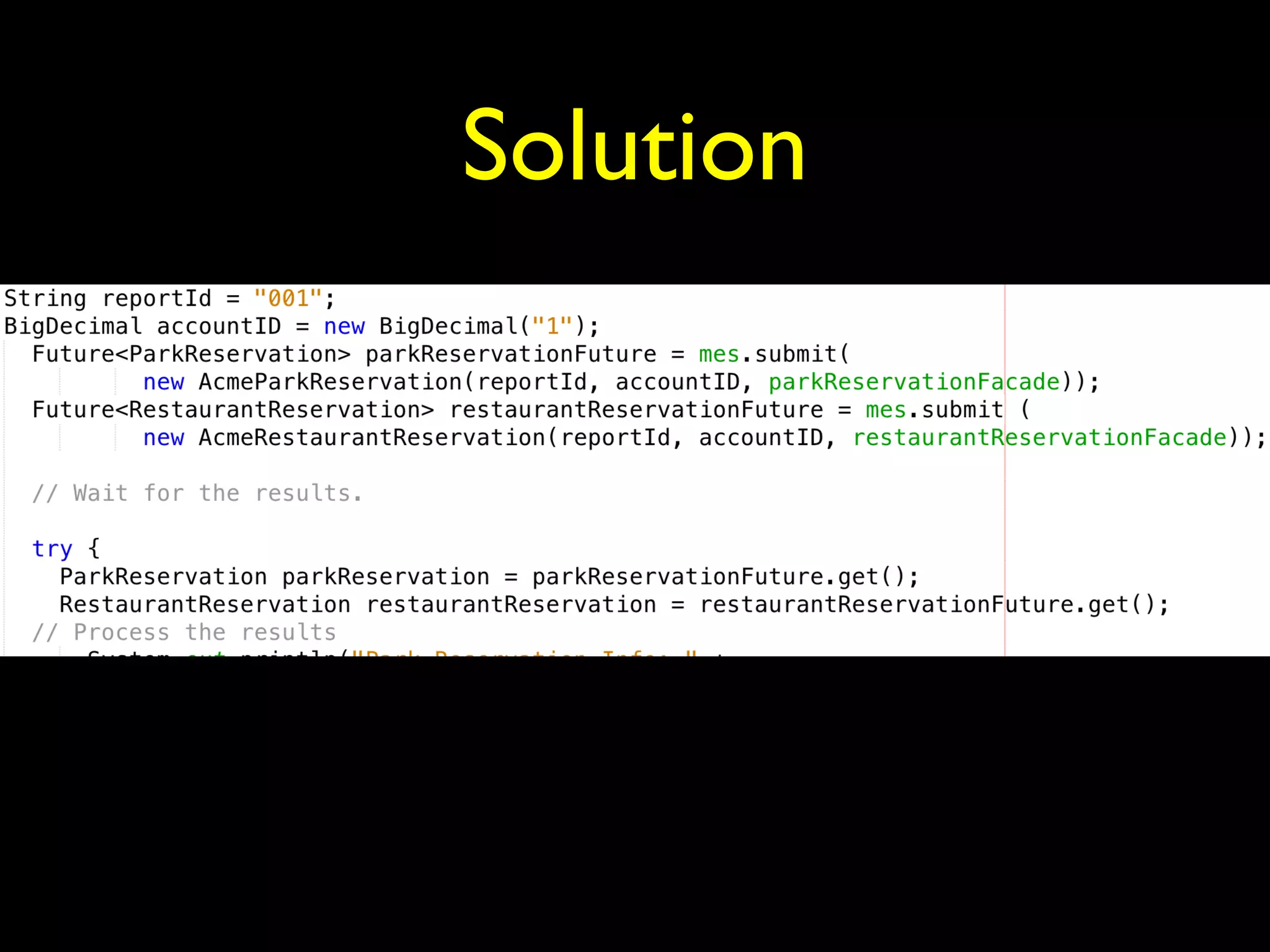

- 22.

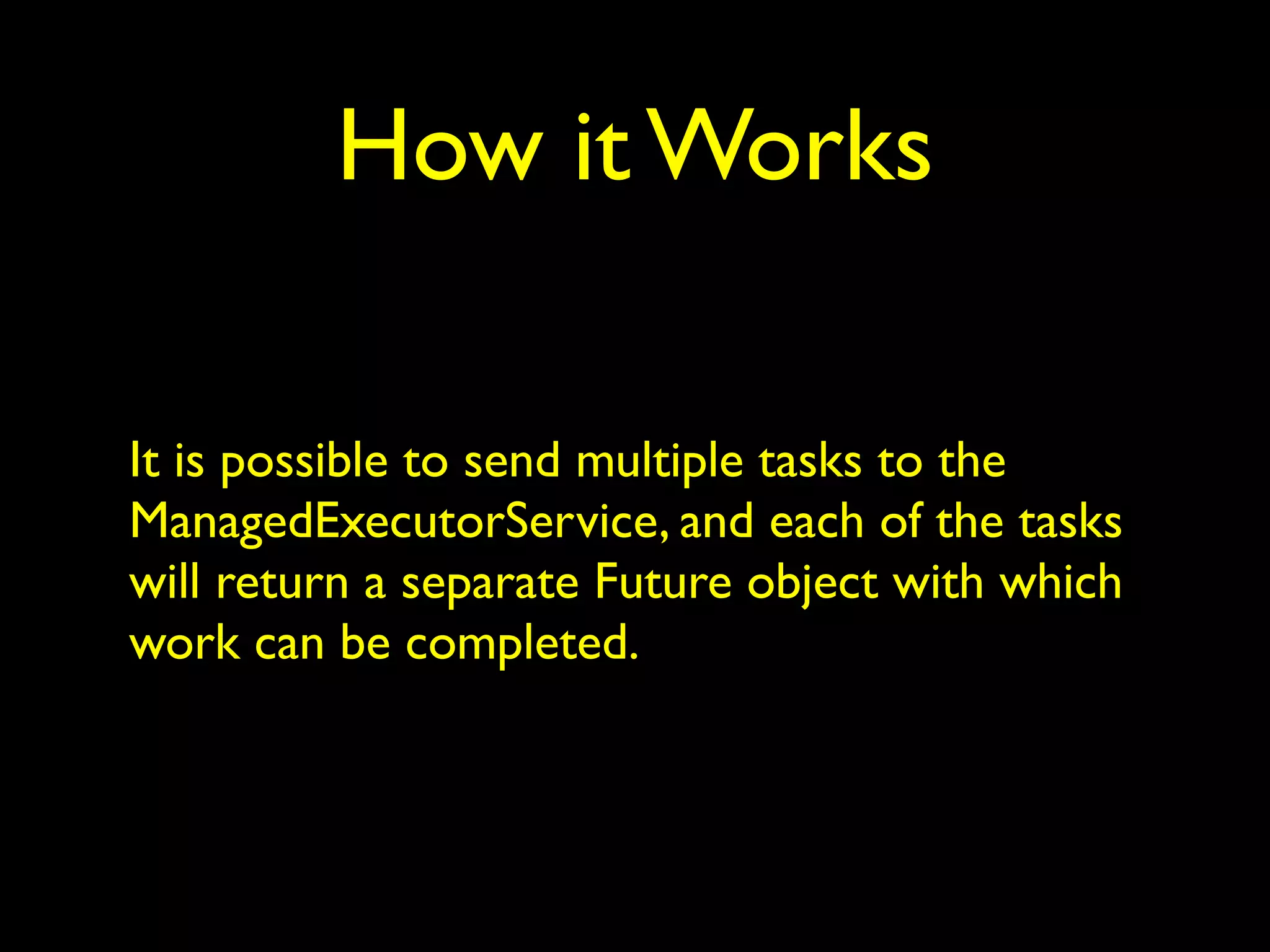

- 23. How it Works It is possible to send multiple tasks to the ManagedExecutorService, and each of the tasks will return a separate Future object with which work can be completed.

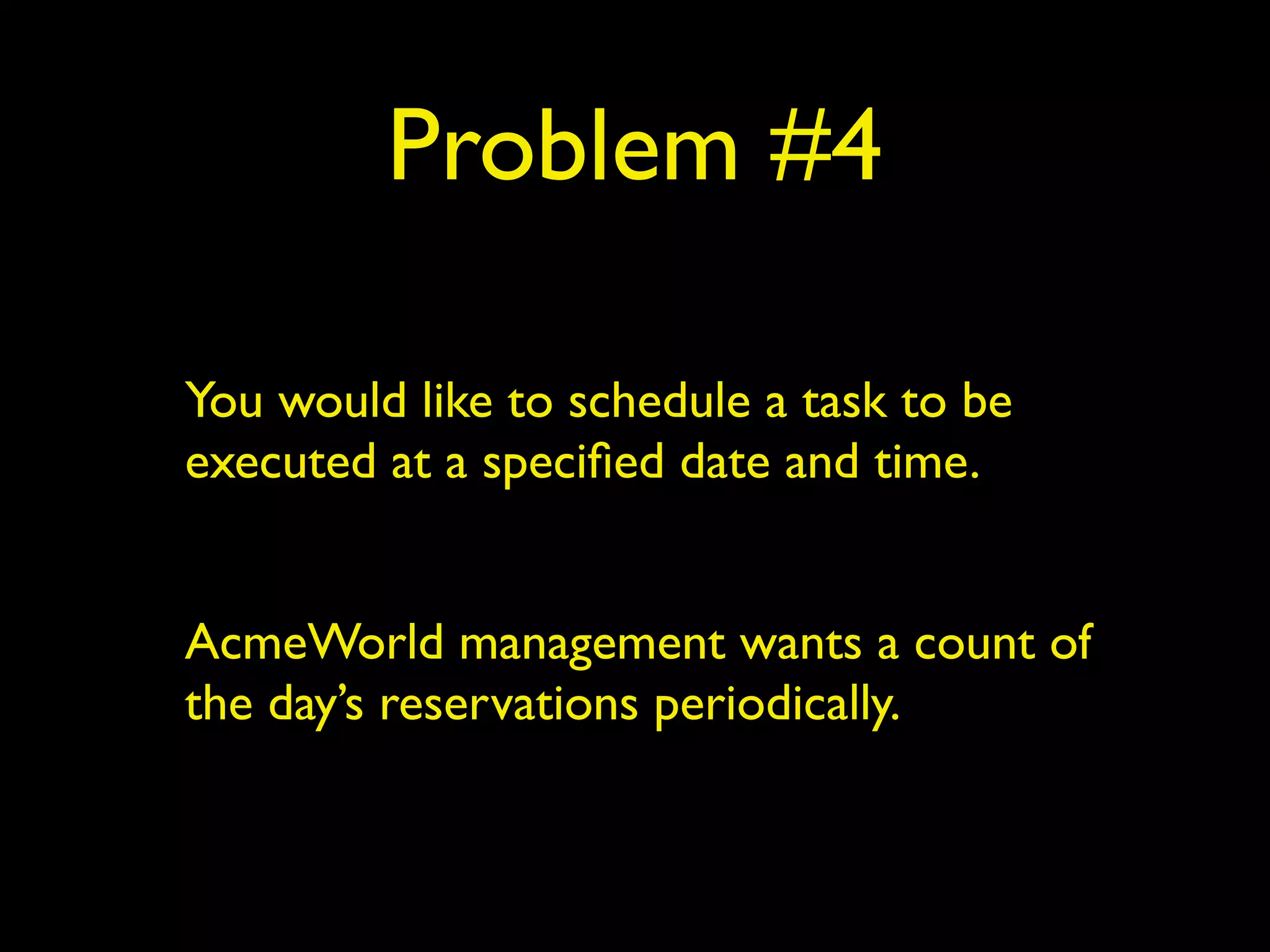

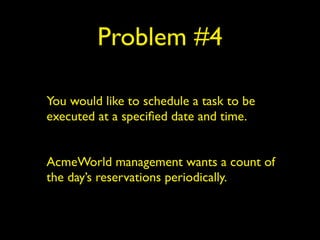

- 24. Problem #4 Youwould like to schedule a task to be executed at a specified date and time. ! AcmeWorld management wants a count of the day’s reservations periodically.

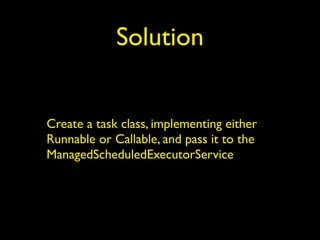

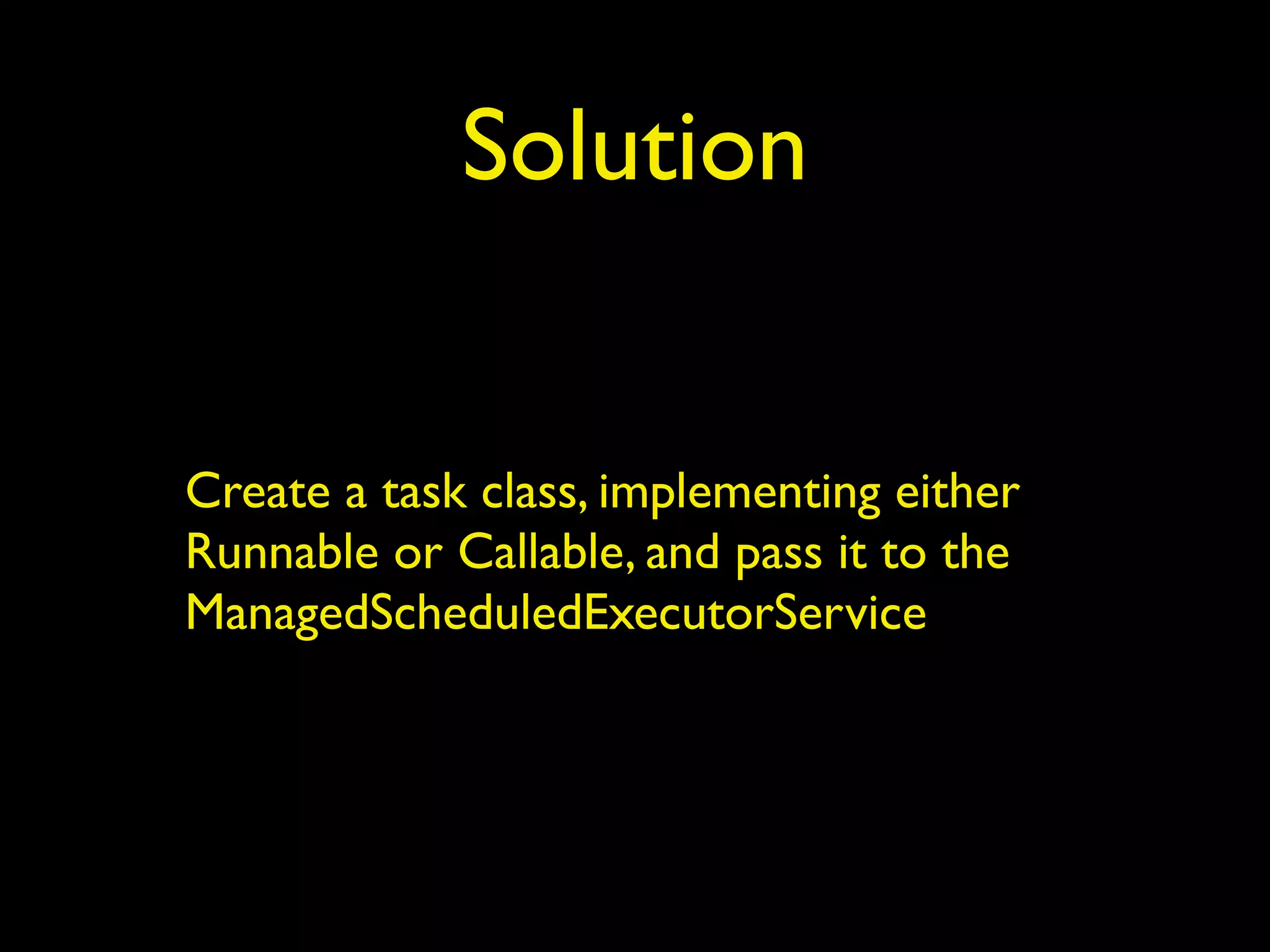

- 25. Solution Create atask class, implementing either Runnable or Callable, and pass it to the ManagedScheduledExecutorService

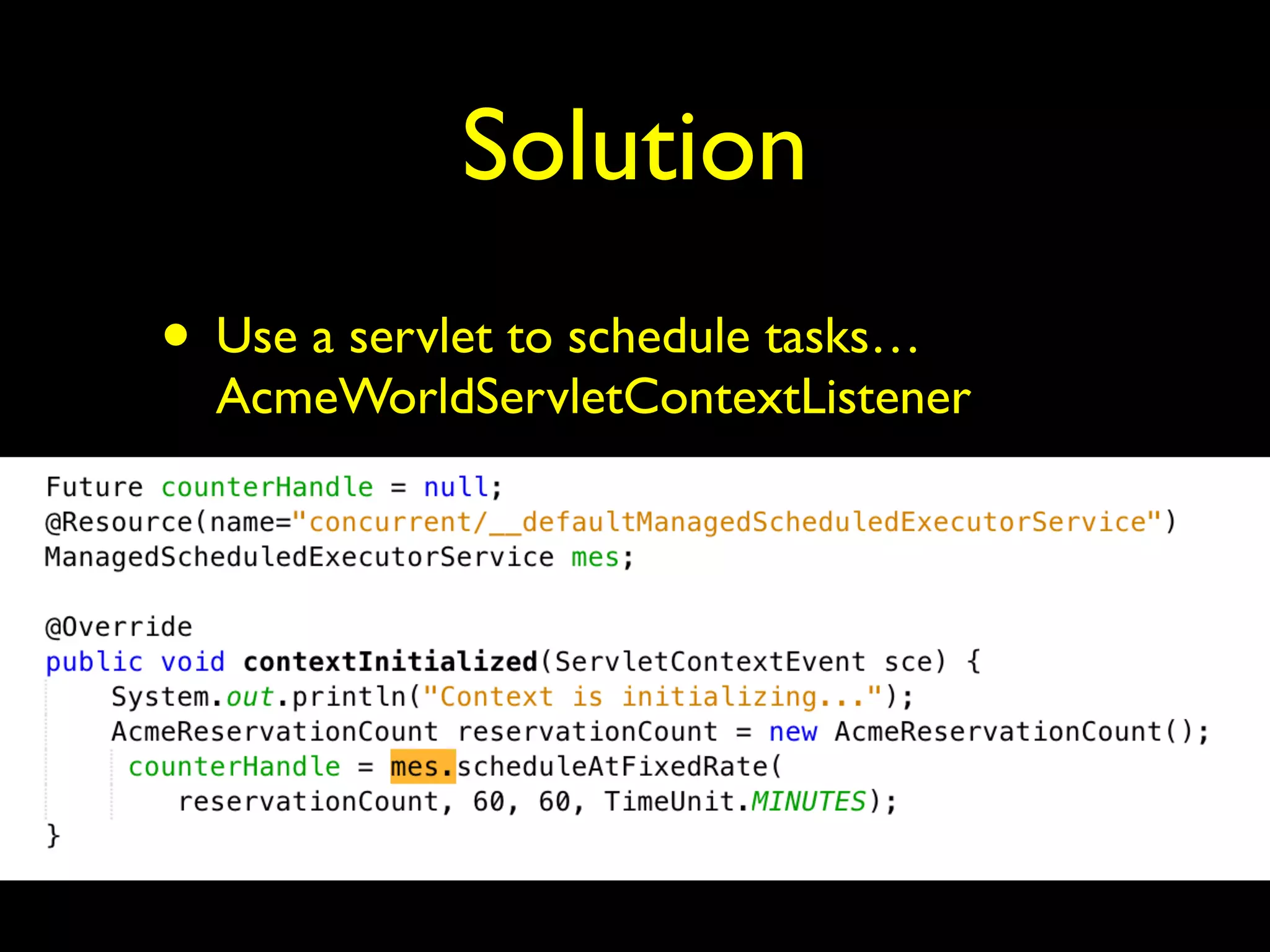

- 26. Solution • Usea servlet to schedule tasks… AcmeWorldServletContextListener

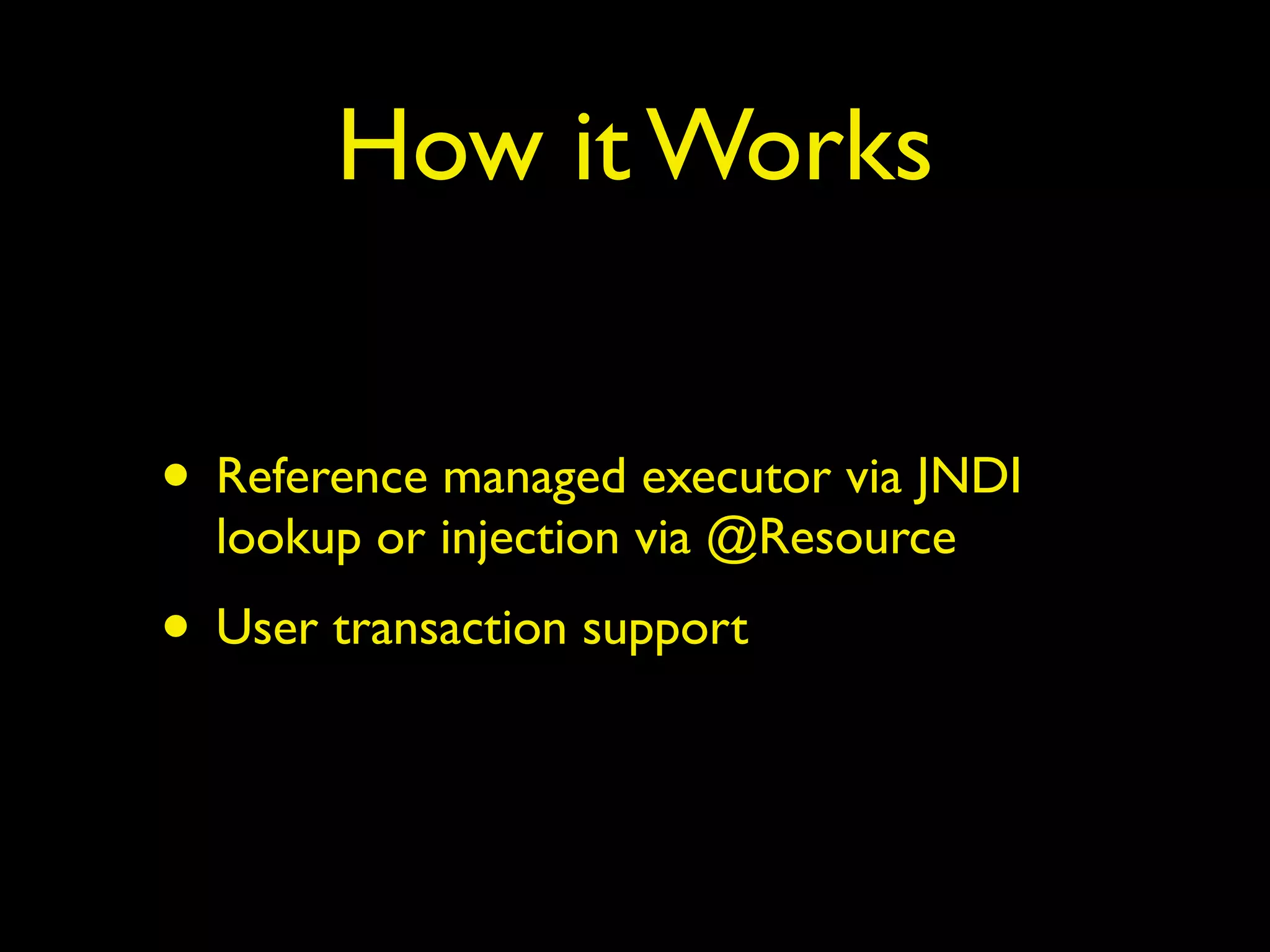

- 27. How it Works • Reference managed executor via JNDI lookup or injection via @Resource • User transaction support

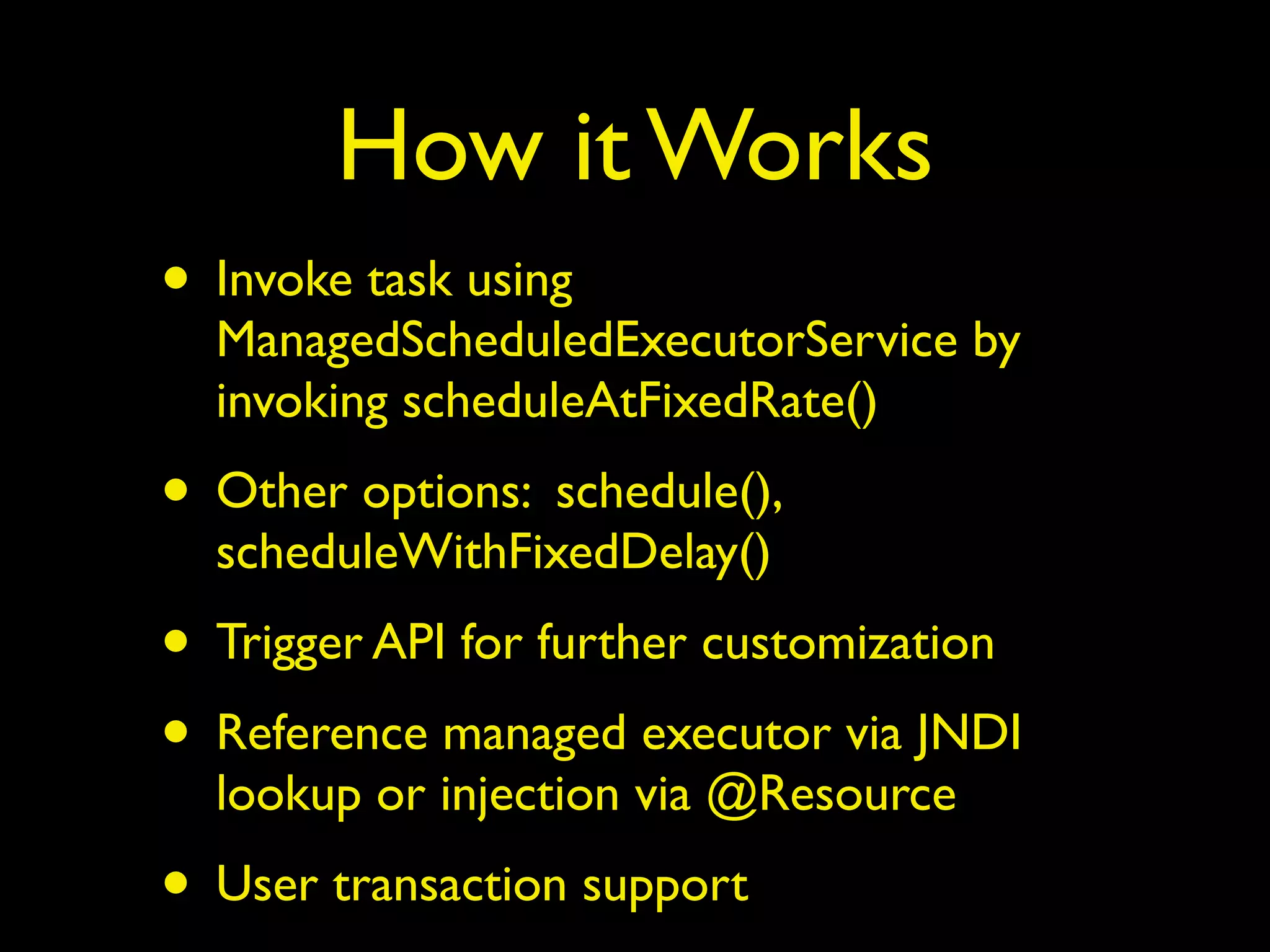

- 28. How it Works • Invoke task using ManagedScheduledExecutorService by invoking scheduleAtFixedRate() • Other options: schedule(), scheduleWithFixedDelay() • Trigger API for further customization • Reference managed executor via JNDI lookup or injection via @Resource • User transaction support

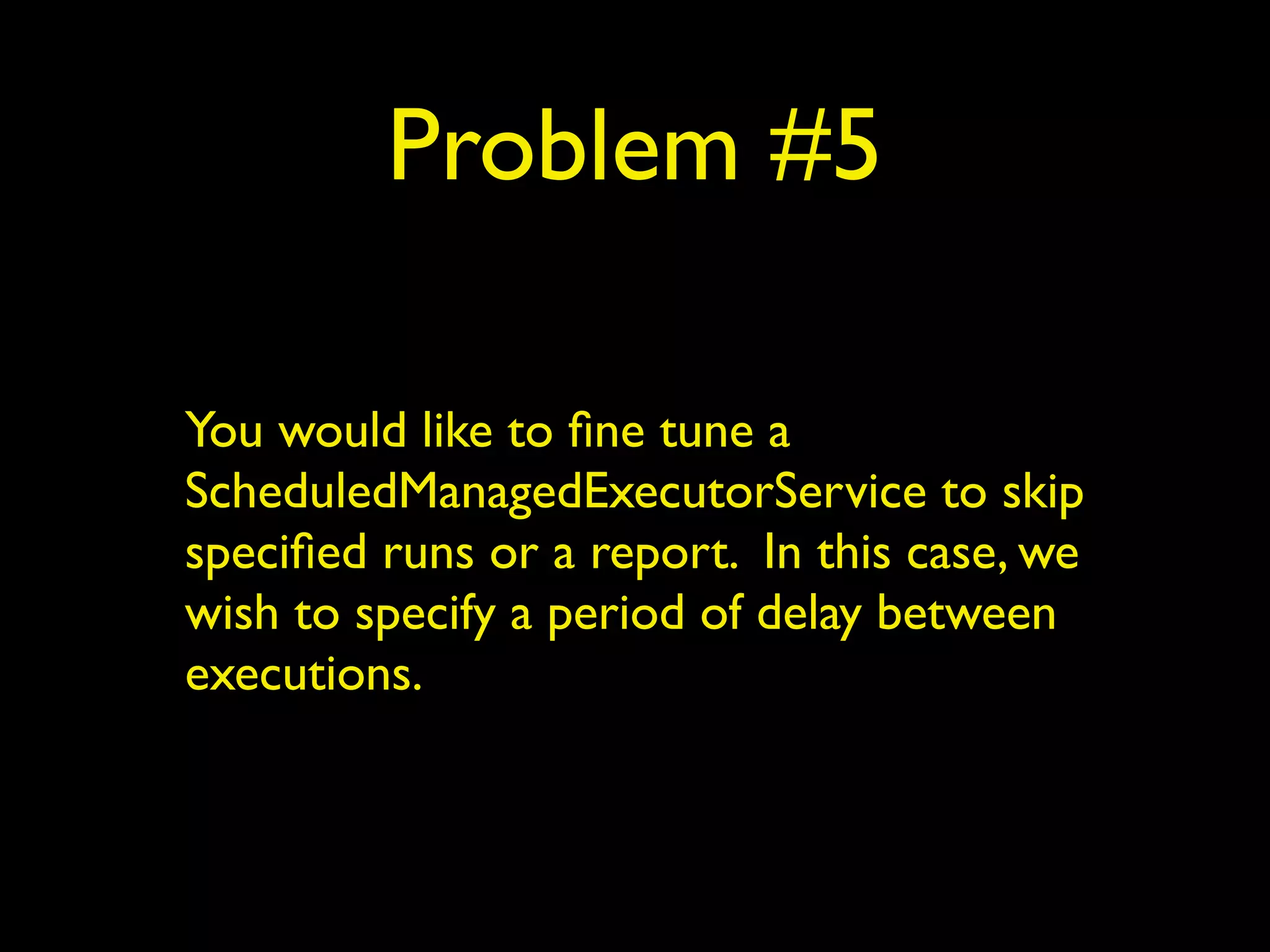

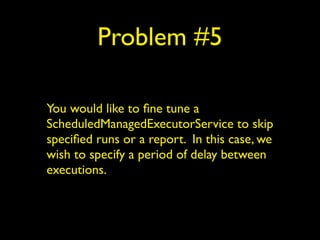

- 29. Problem #5 Youwould like to fine tune a ScheduledManagedExecutorService to skip specified runs or a report. In this case, we wish to specify a period of delay between executions.

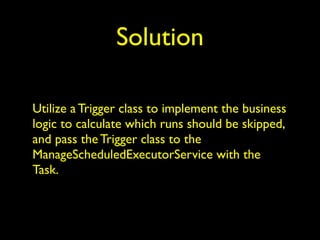

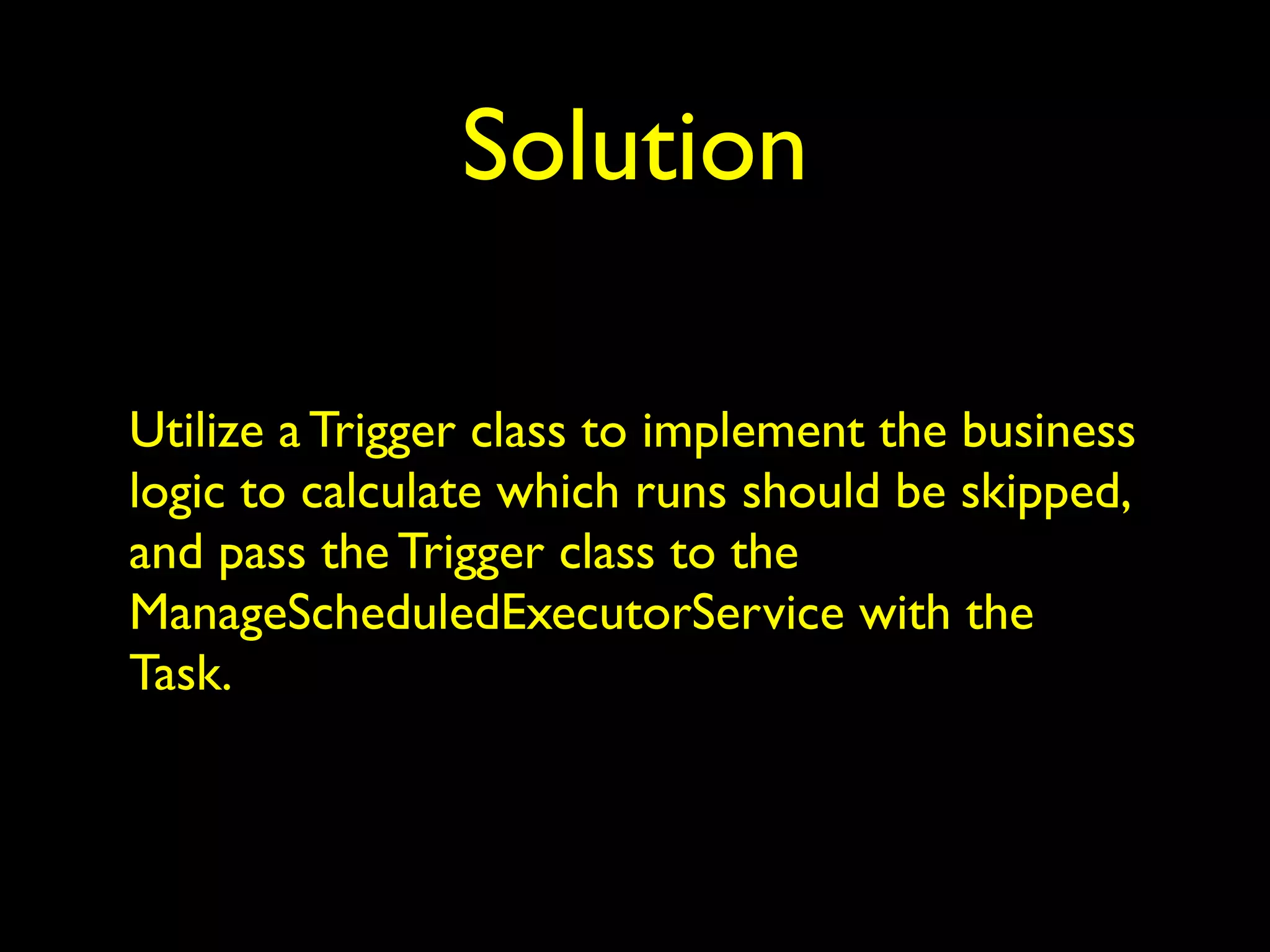

- 30. Solution Utilize aTrigger class to implement the business logic to calculate which runs should be skipped, and pass the Trigger class to the ManageScheduledExecutorService with the Task.

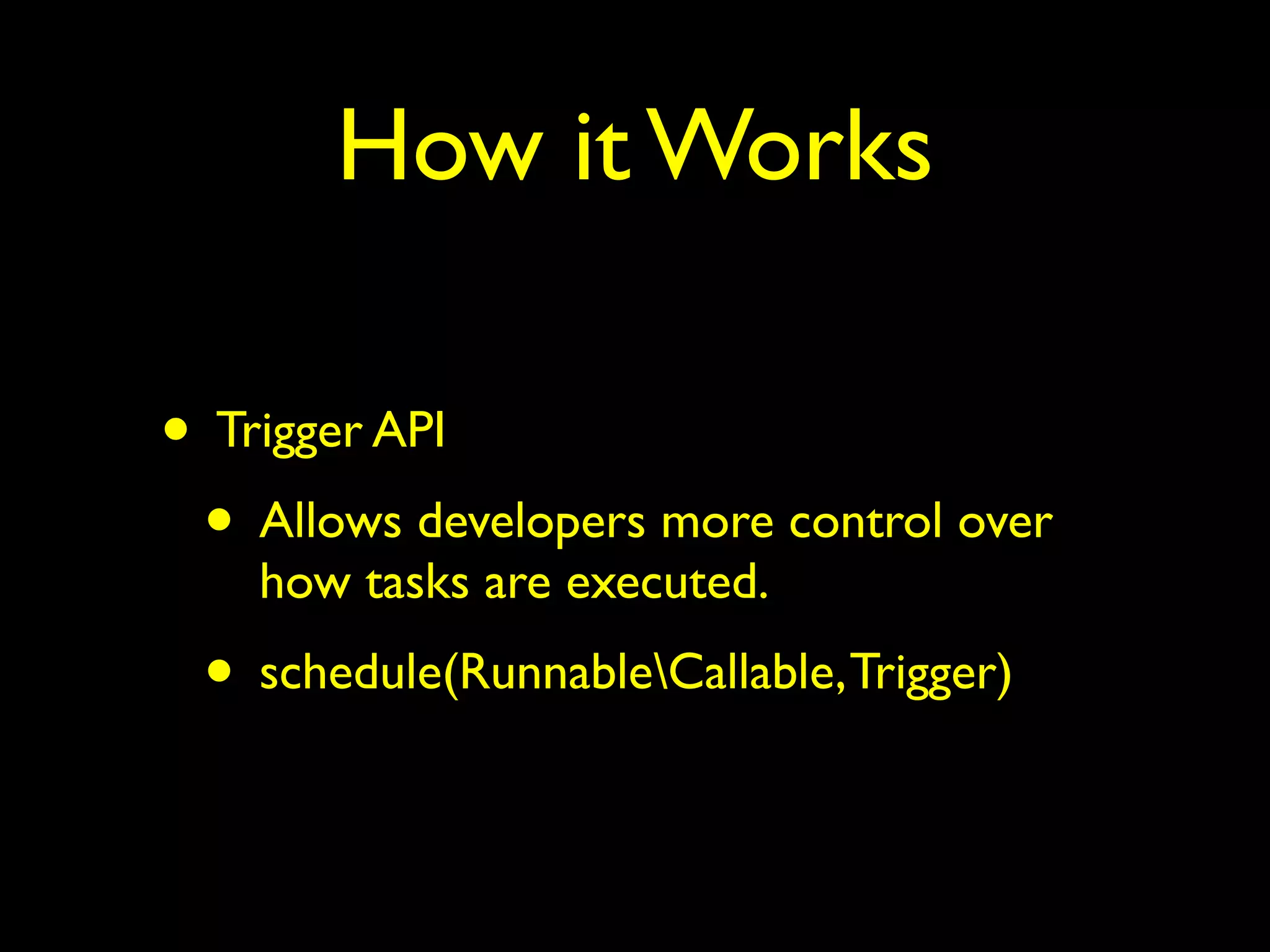

- 31. How it Works • Trigger API • Allows developers more control over how tasks are executed. • schedule(RunnableCallable, Trigger)

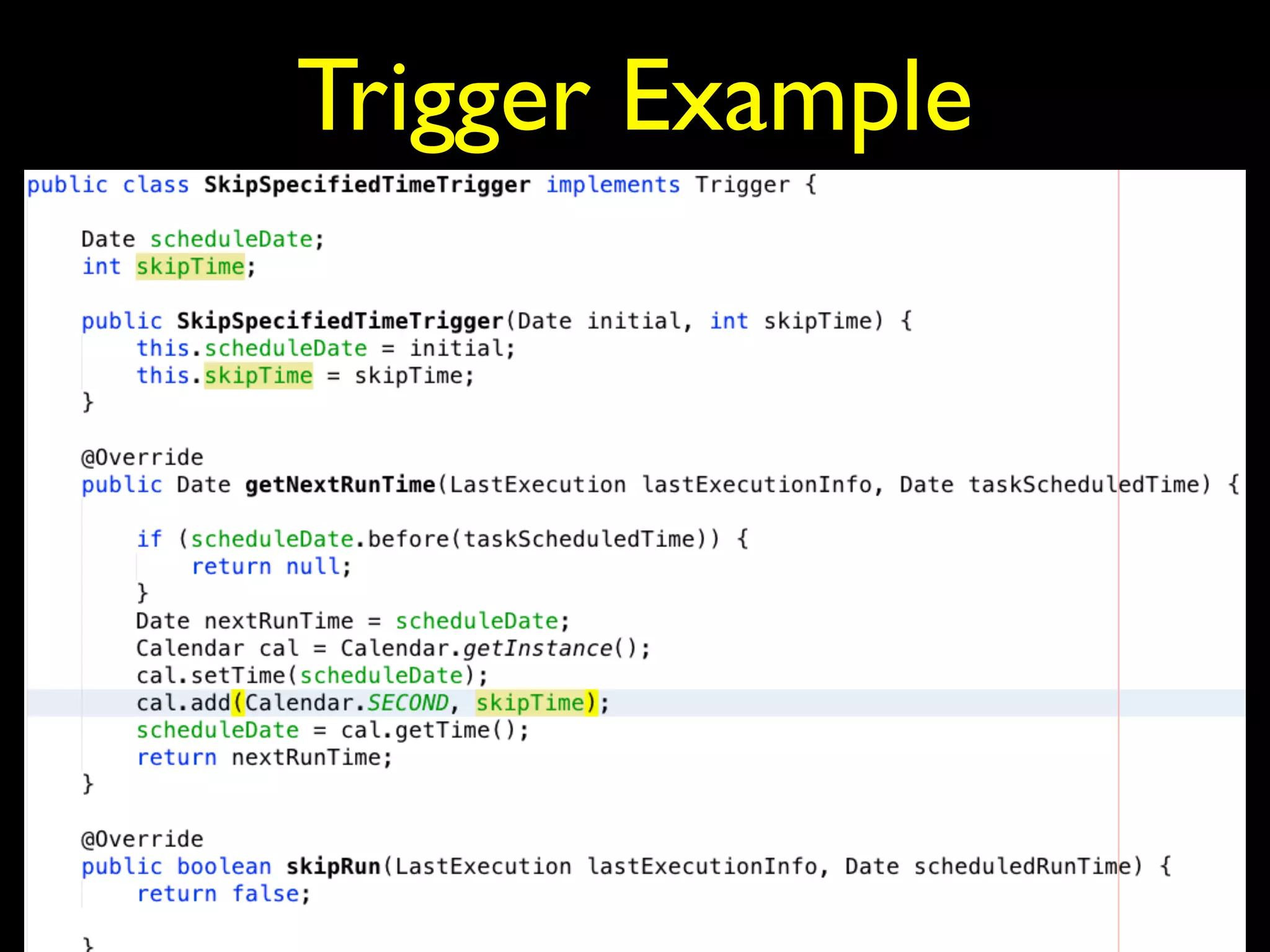

- 32.

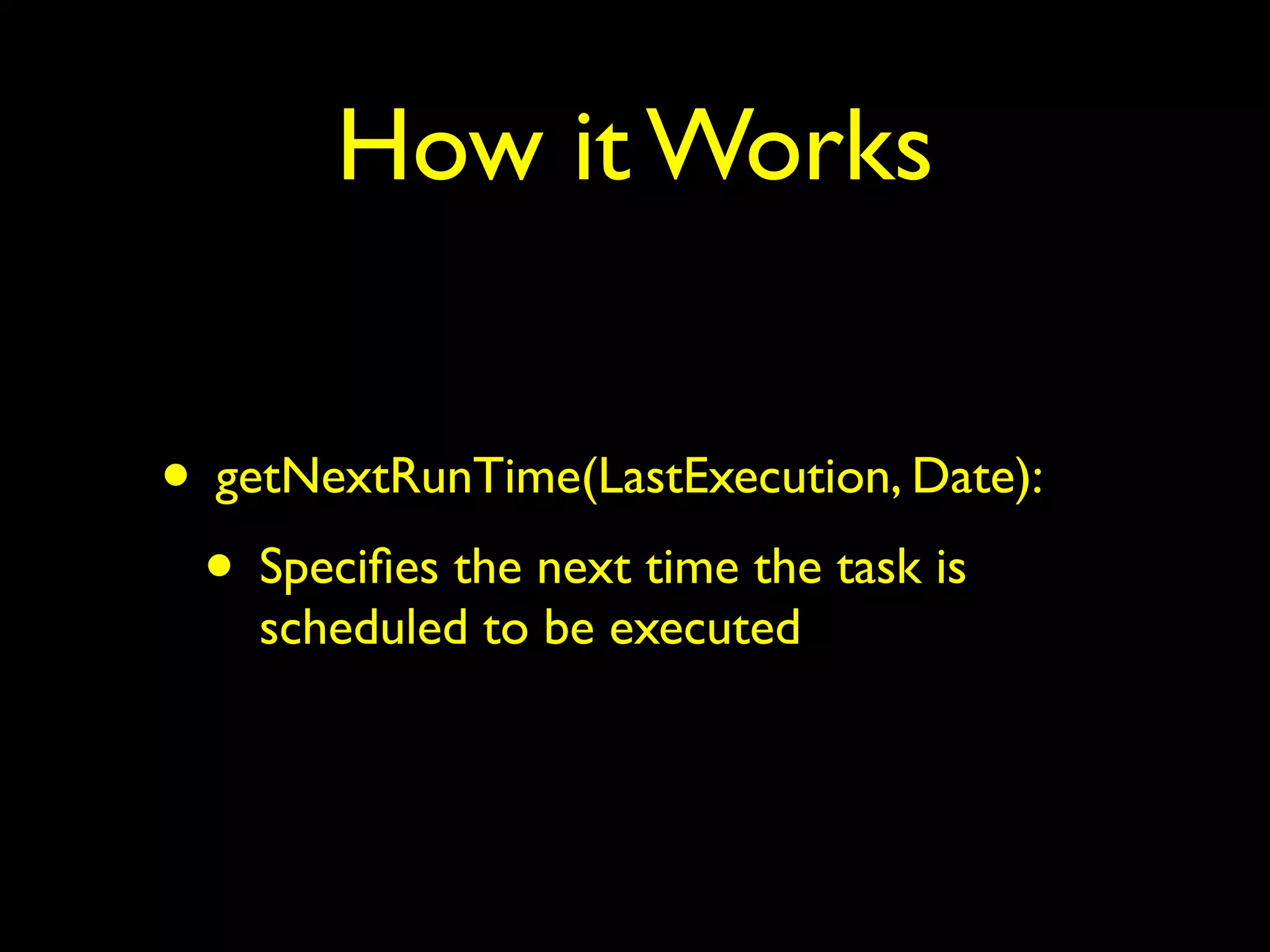

- 33. How it Works • getNextRunTime(LastExecution, Date): • Specifies the next time the task is scheduled to be executed

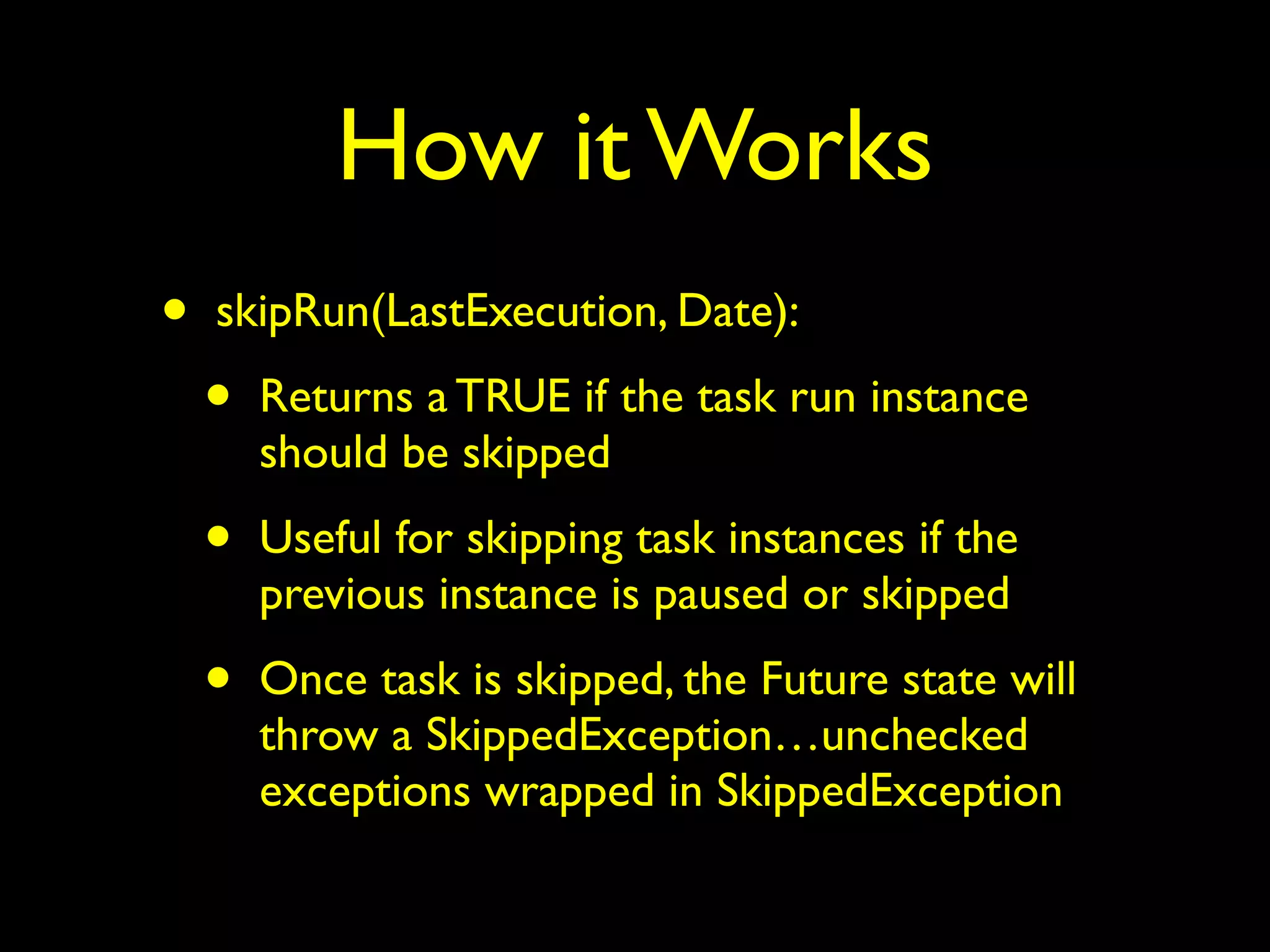

- 34. How it Works • skipRun(LastExecution, Date): • Returns a TRUE if the task run instance should be skipped • Useful for skipping task instances if the previous instance is paused or skipped • Once task is skipped, the Future state will throw a SkippedException…unchecked exceptions wrapped in SkippedException
- 35. Another Visual of Managed Resources

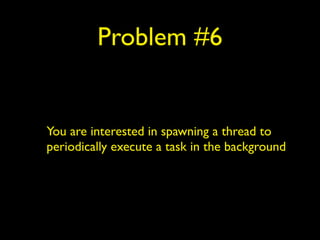

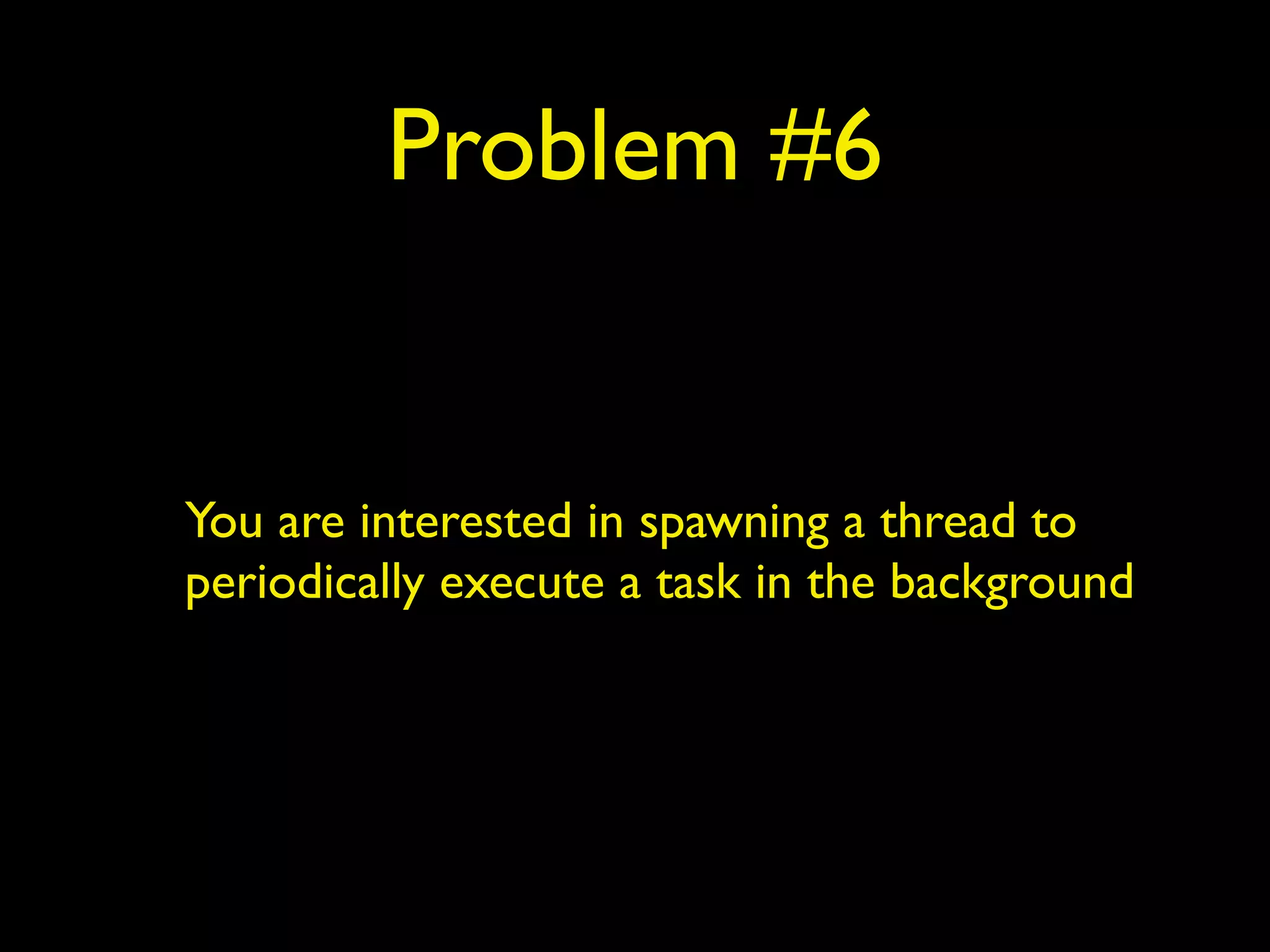

- 36. Problem #6 Youare interested in spawning a thread to periodically execute a task in the background

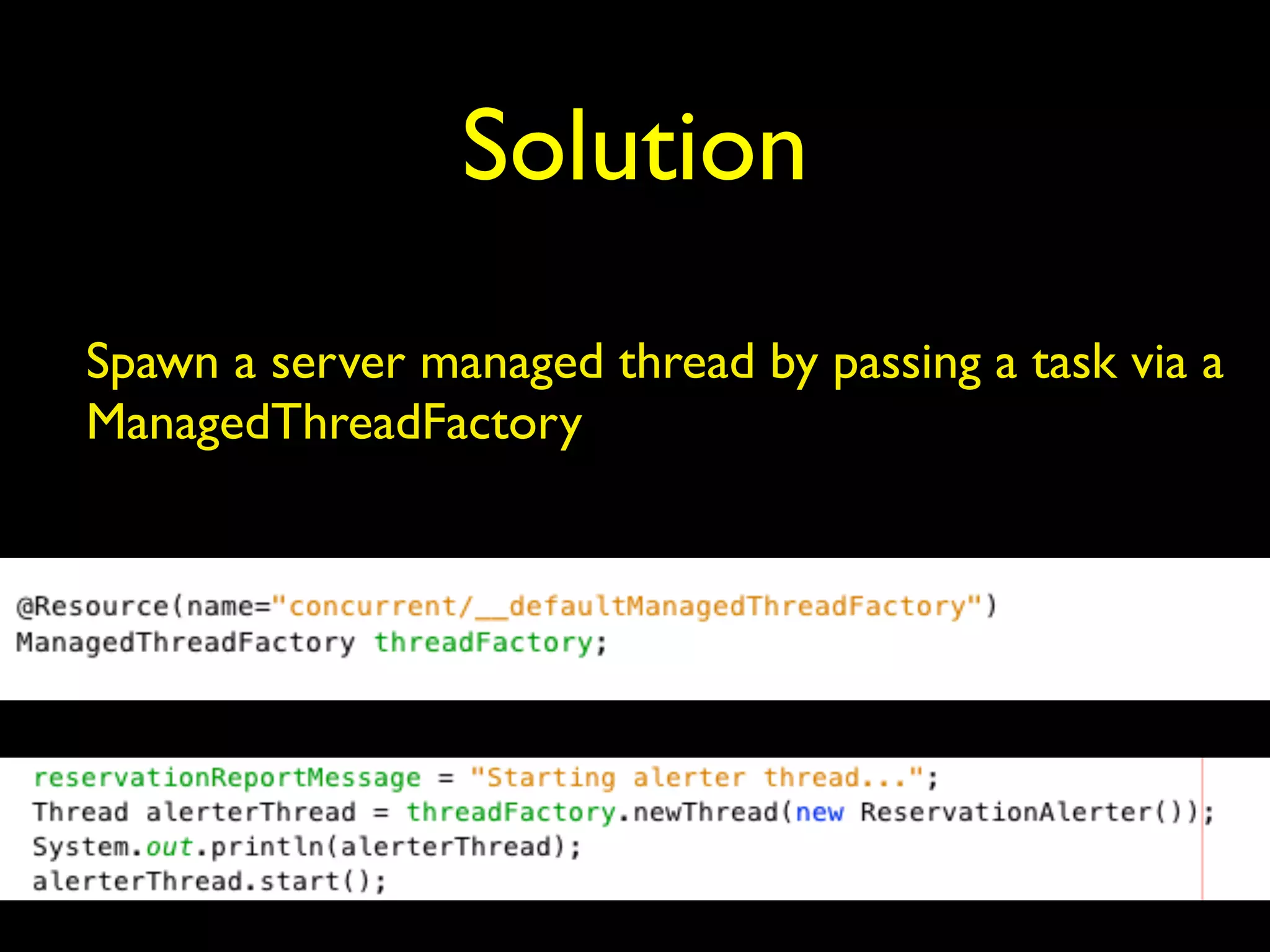

- 37. Solution Spawn aserver managed thread by passing a task via a ManagedThreadFactory

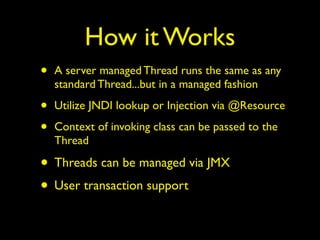

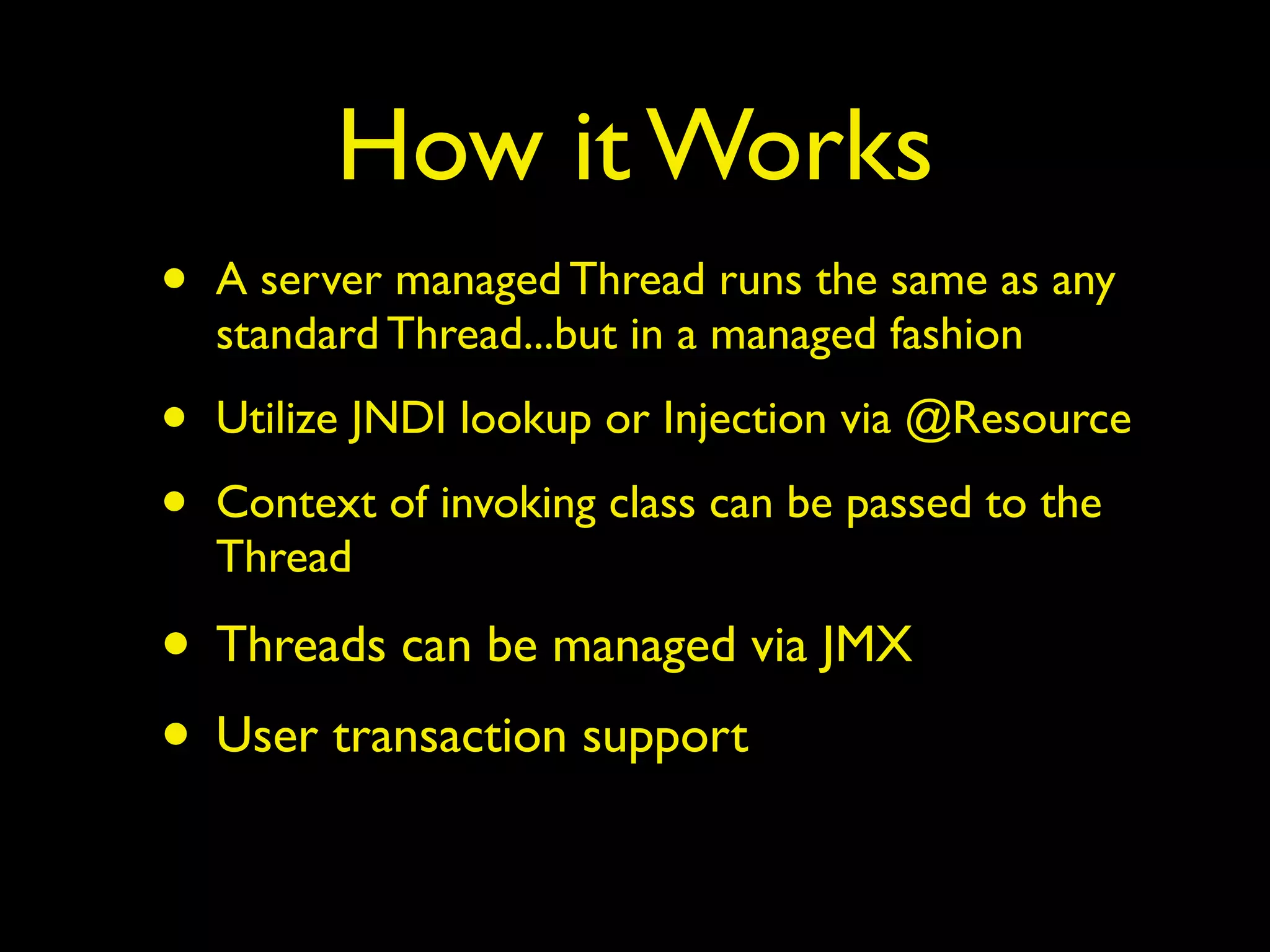

- 38. How it Works • A server managed Thread runs the same as any standard Thread...but in a managed fashion • Utilize JNDI lookup or Injection via @Resource • Context of invoking class can be passed to the Thread • Threads can be managed via JMX • User transaction support

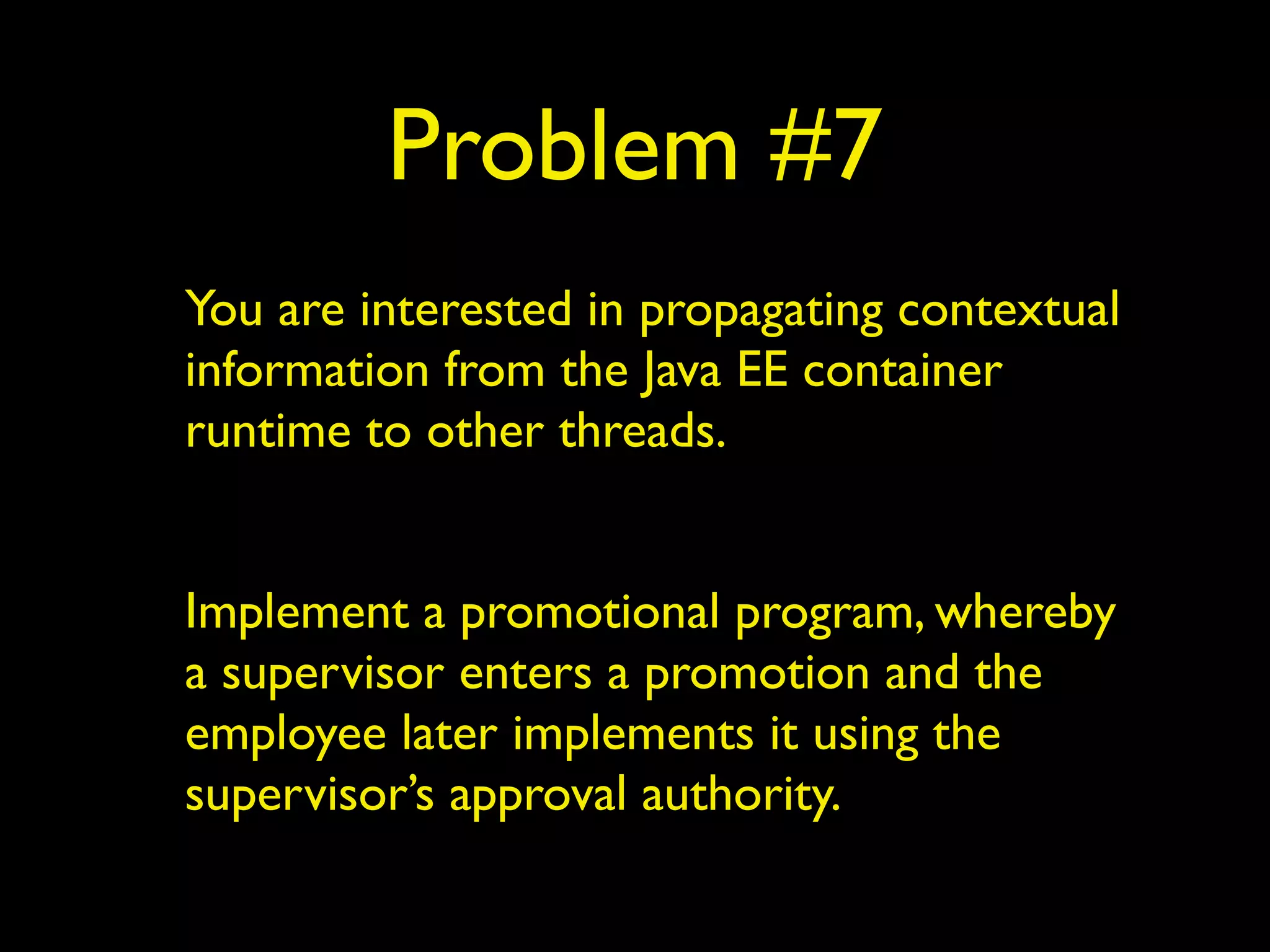

- 39. Problem #7 Youare interested in propagating contextual information from the Java EE container runtime to other threads. ! Implement a promotional program, whereby a supervisor enters a promotion and the employee later implements it using the supervisor’s approval authority.

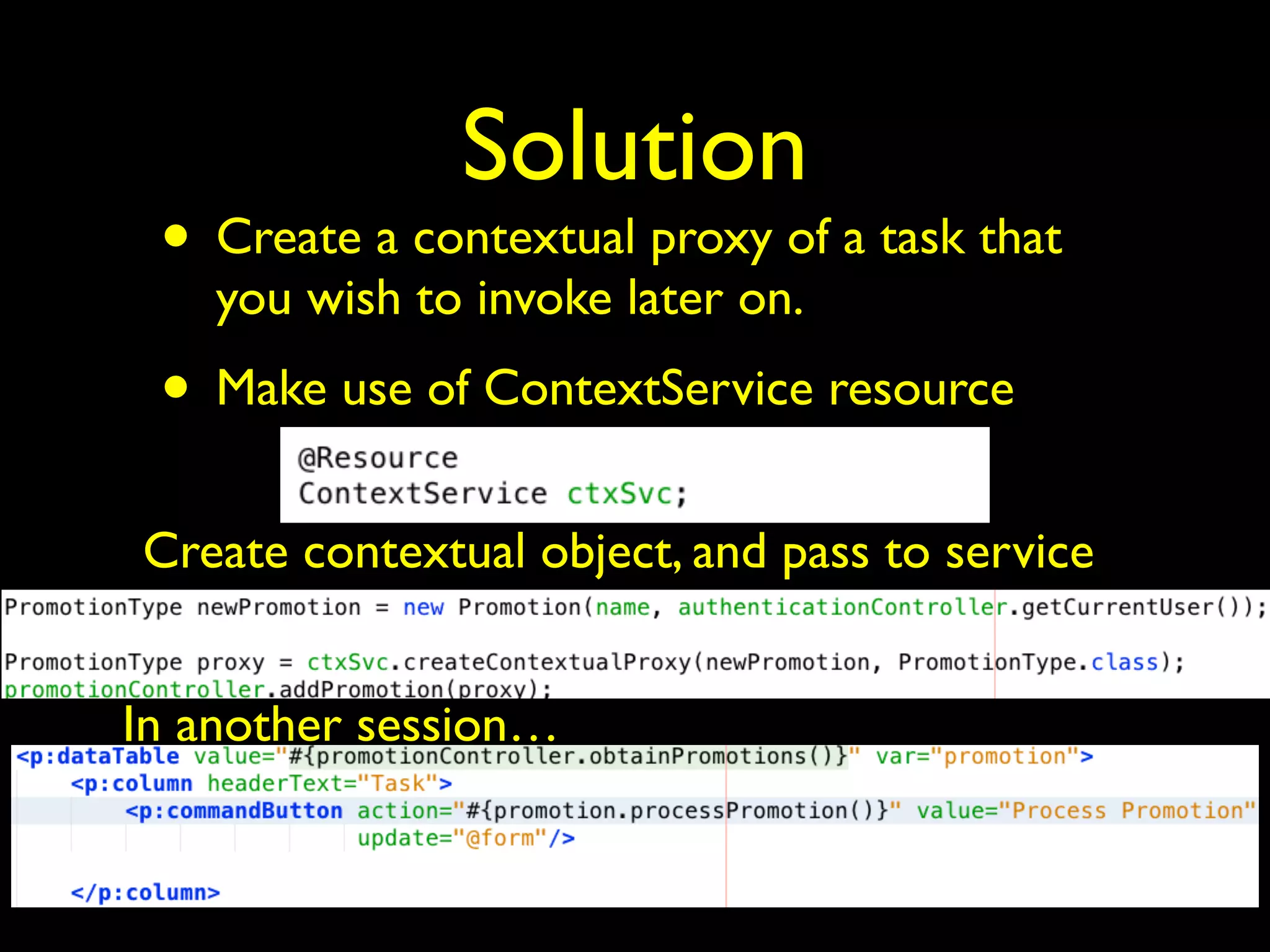

- 40. Solution • Createa contextual proxy of a task that you wish to invoke later on. • Make use of ContextService resource Create contextual object, and pass to service In another session…

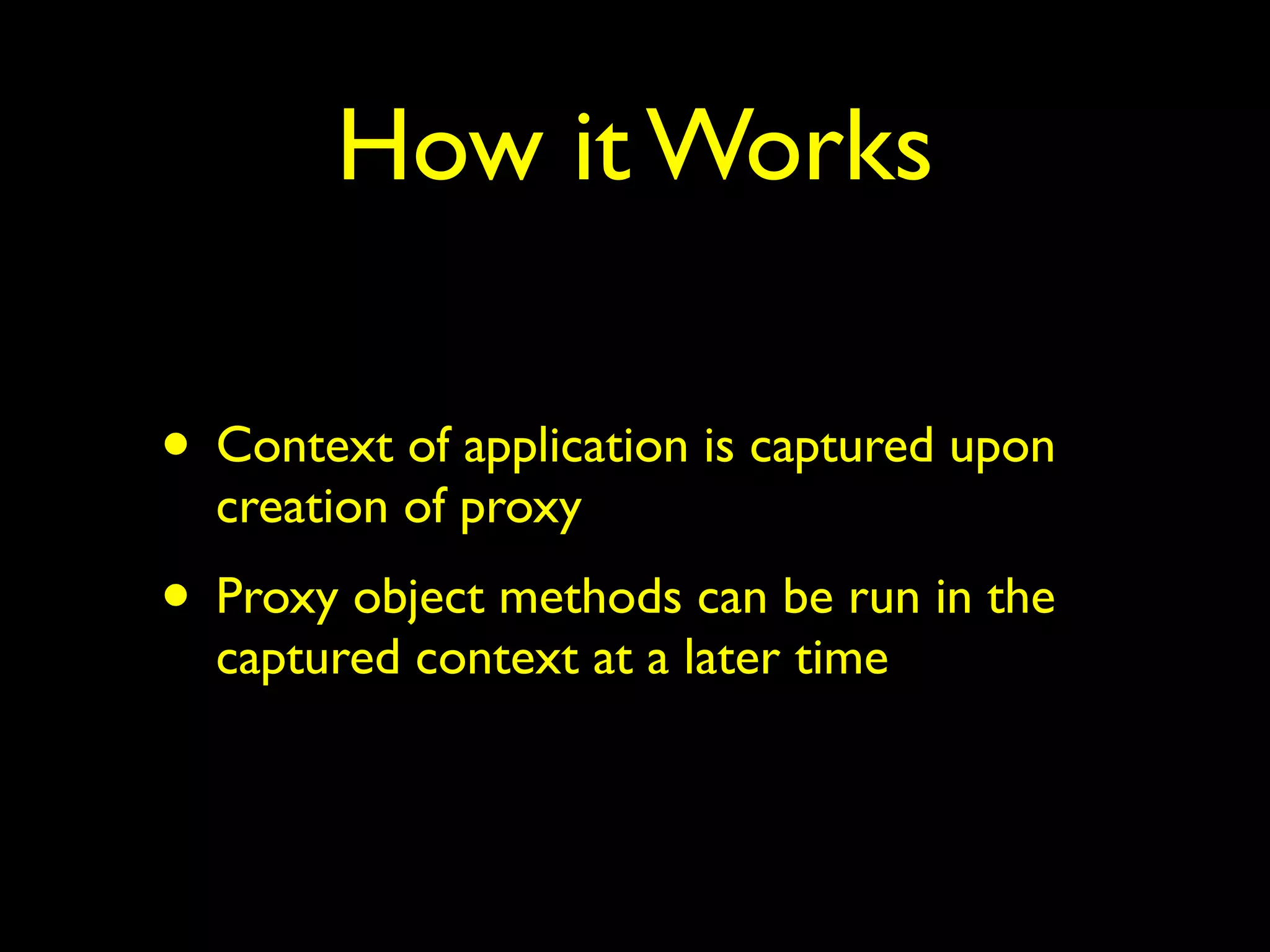

- 41. How it Works • Context of application is captured upon creation of proxy • Proxy object methods can be run in the captured context at a later time

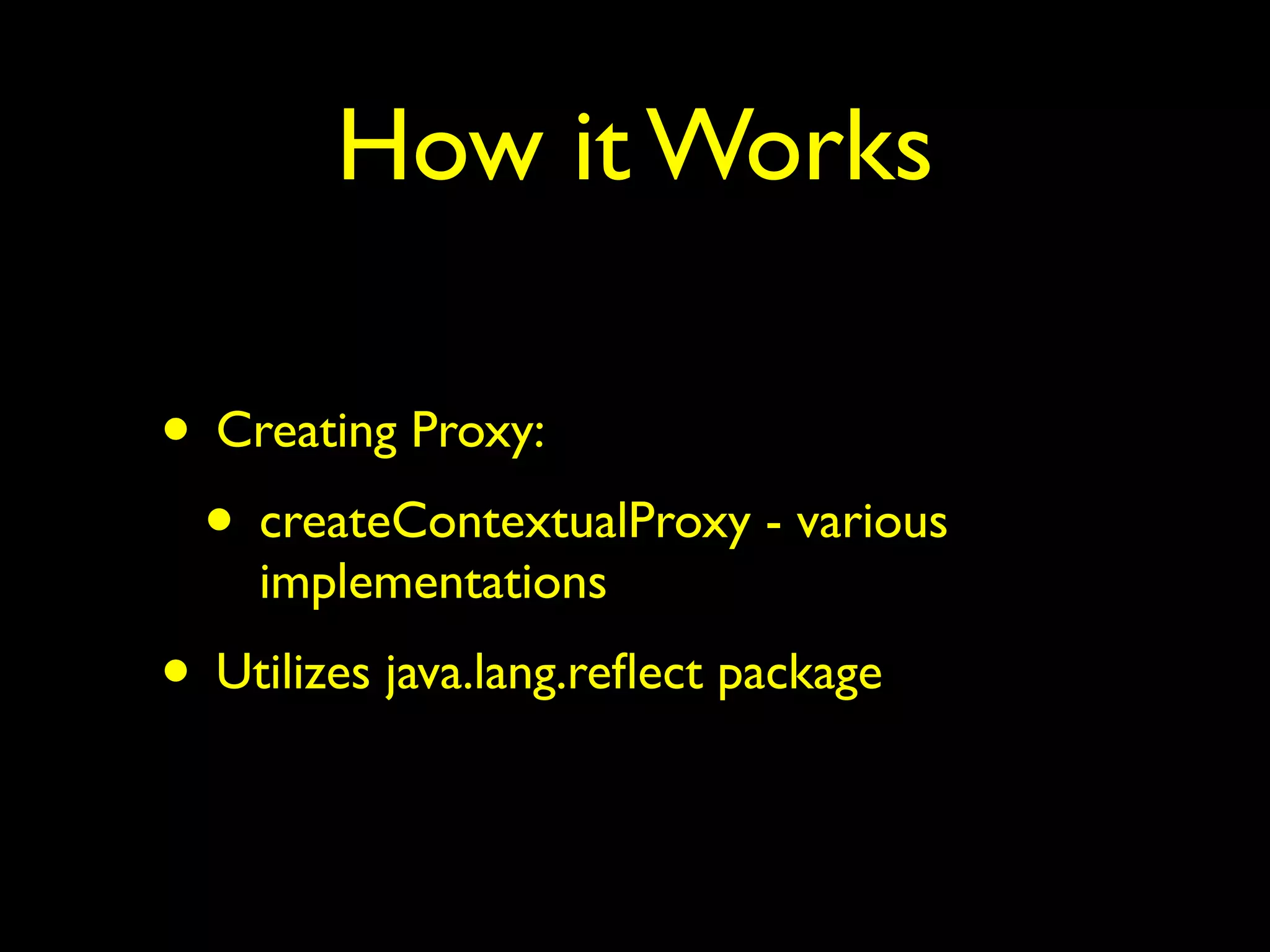

- 42. How it Works • Creating Proxy: • createContextualProxy - various implementations • Utilizes java.lang.reflect package

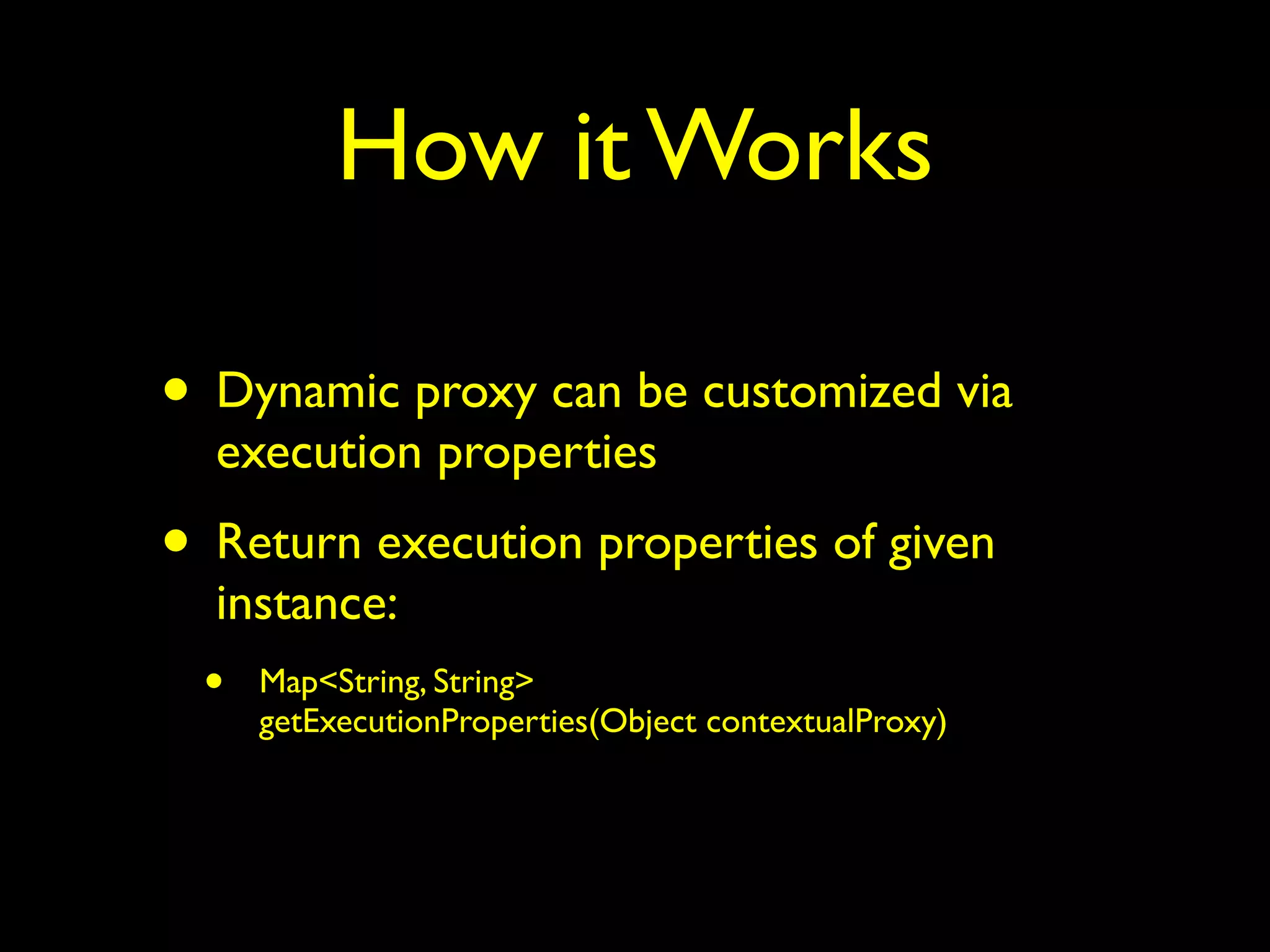

- 43. How it Works • Dynamic proxy can be customized via execution properties • Return execution properties of given instance: • Map<String, String> getExecutionProperties(Object contextualProxy)

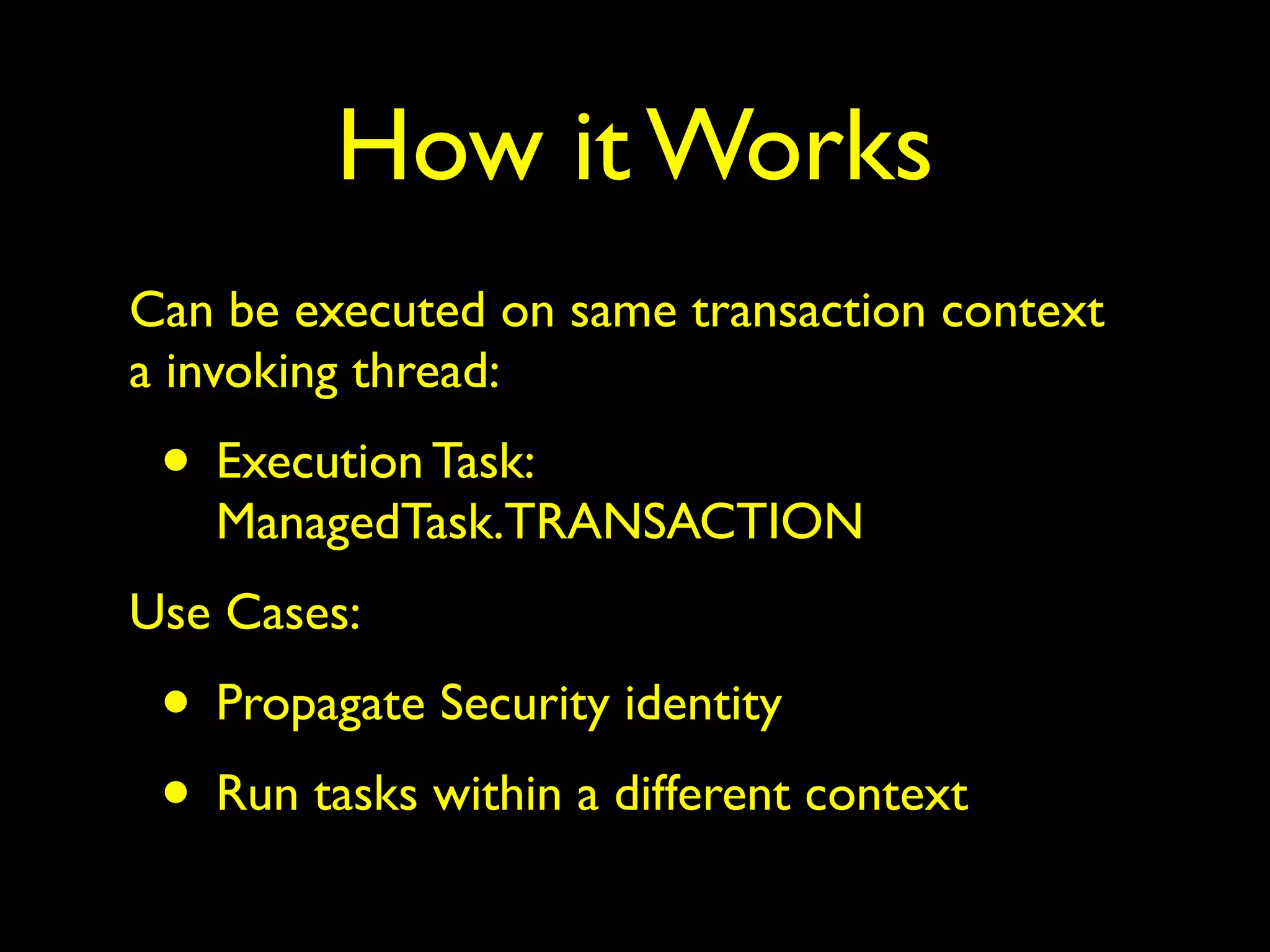

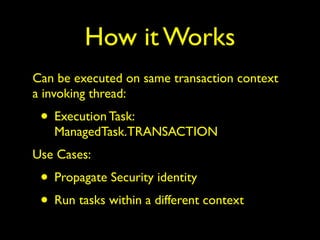

- 44. How it Works Can be executed on same transaction context a invoking thread: • Execution Task: ManagedTask.TRANSACTION Use Cases: • Propagate Security identity • Run tasks within a different context

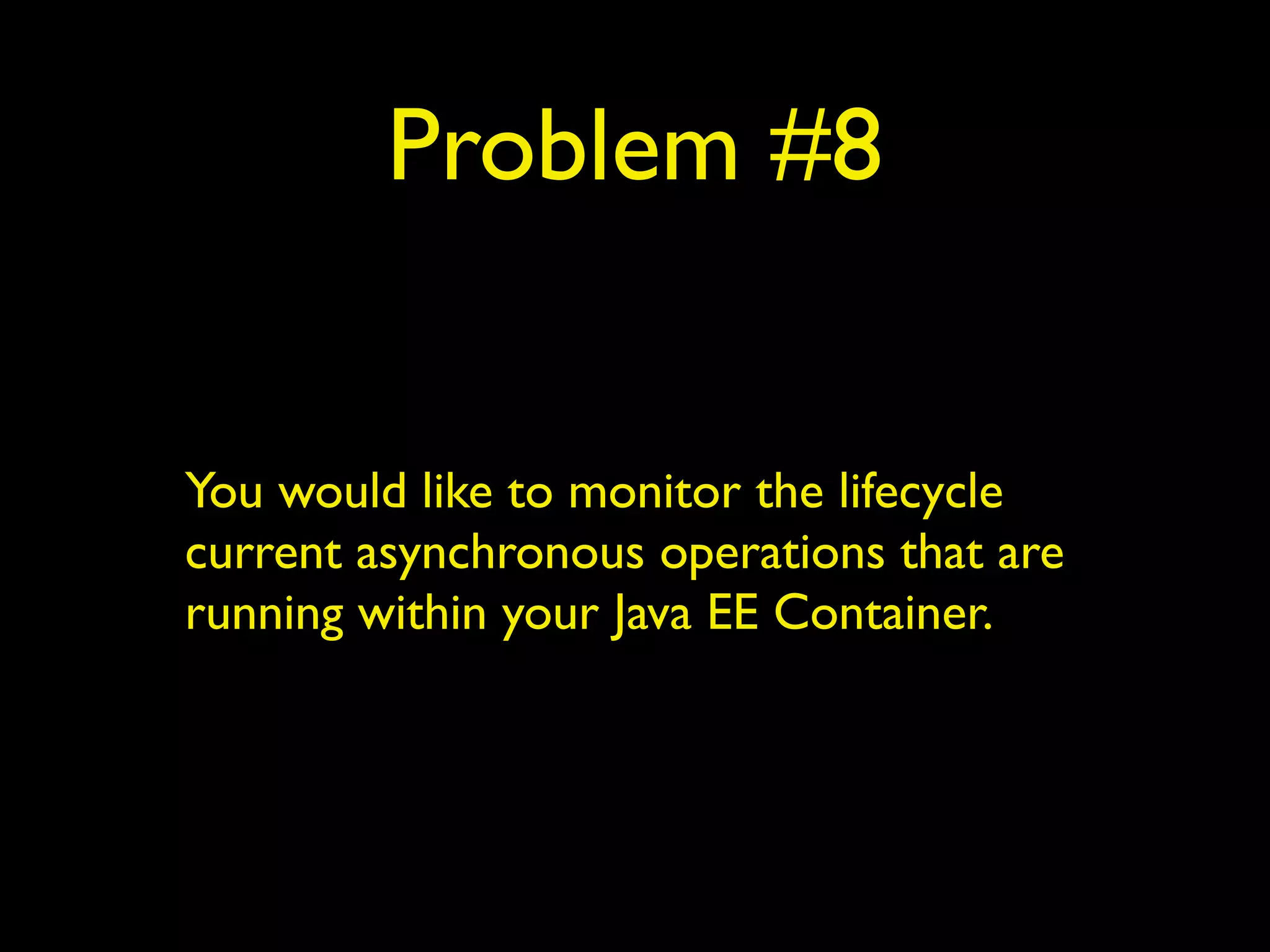

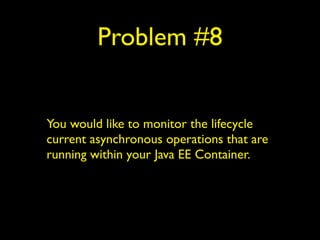

- 45. Problem #8 Youwould like to monitor the lifecycle current asynchronous operations that are running within your Java EE Container.

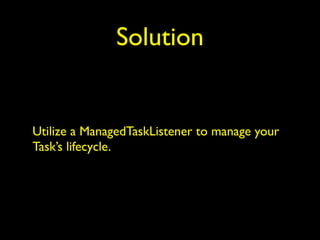

- 46. Solution Utilize aManagedTaskListener to manage your Task’s lifecycle.

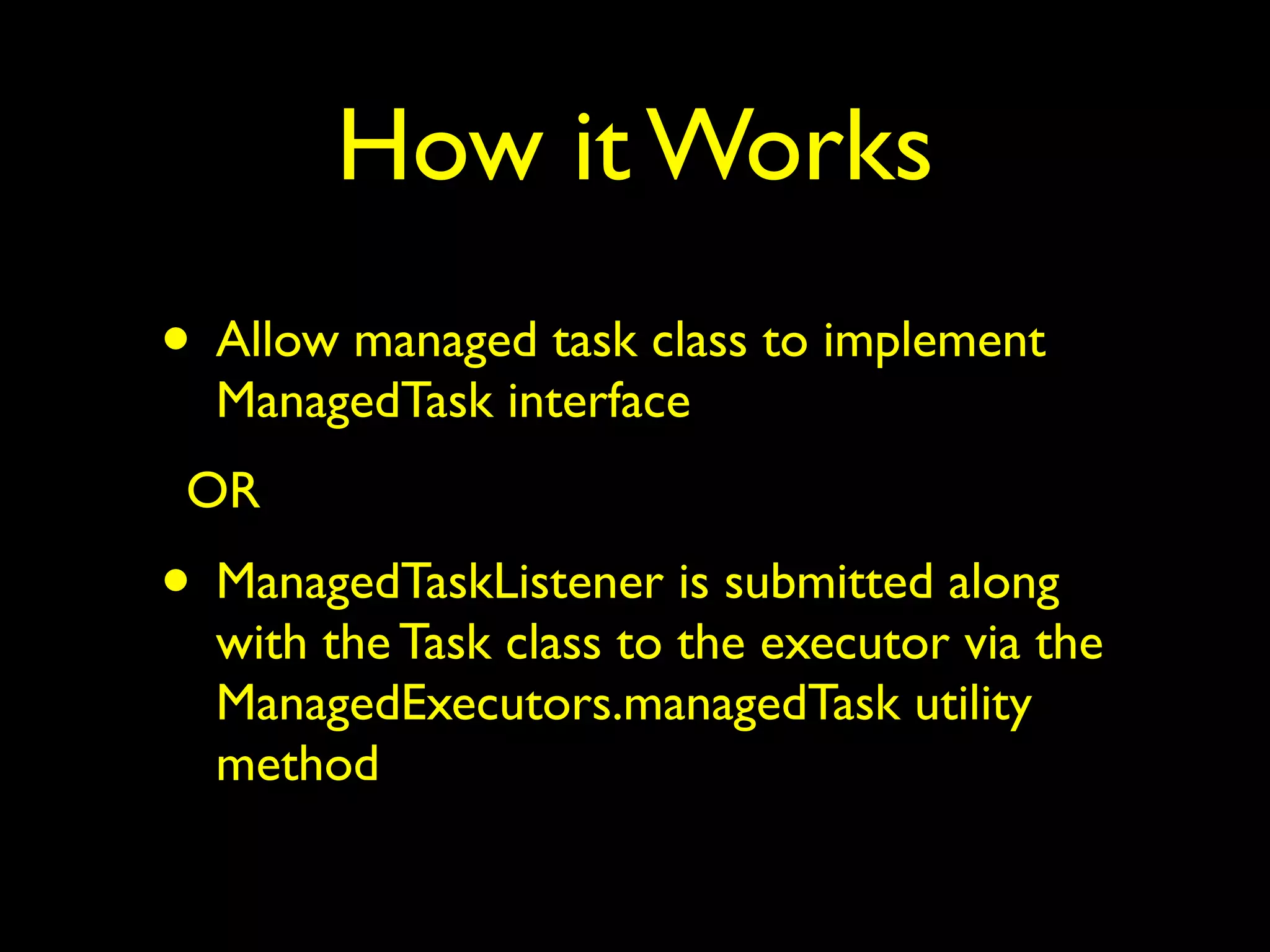

- 47. How it Works • Allow managed task class to implement ManagedTask interface OR • ManagedTaskListener is submitted along with the Task class to the executor via the ManagedExecutors.managedTask utility method

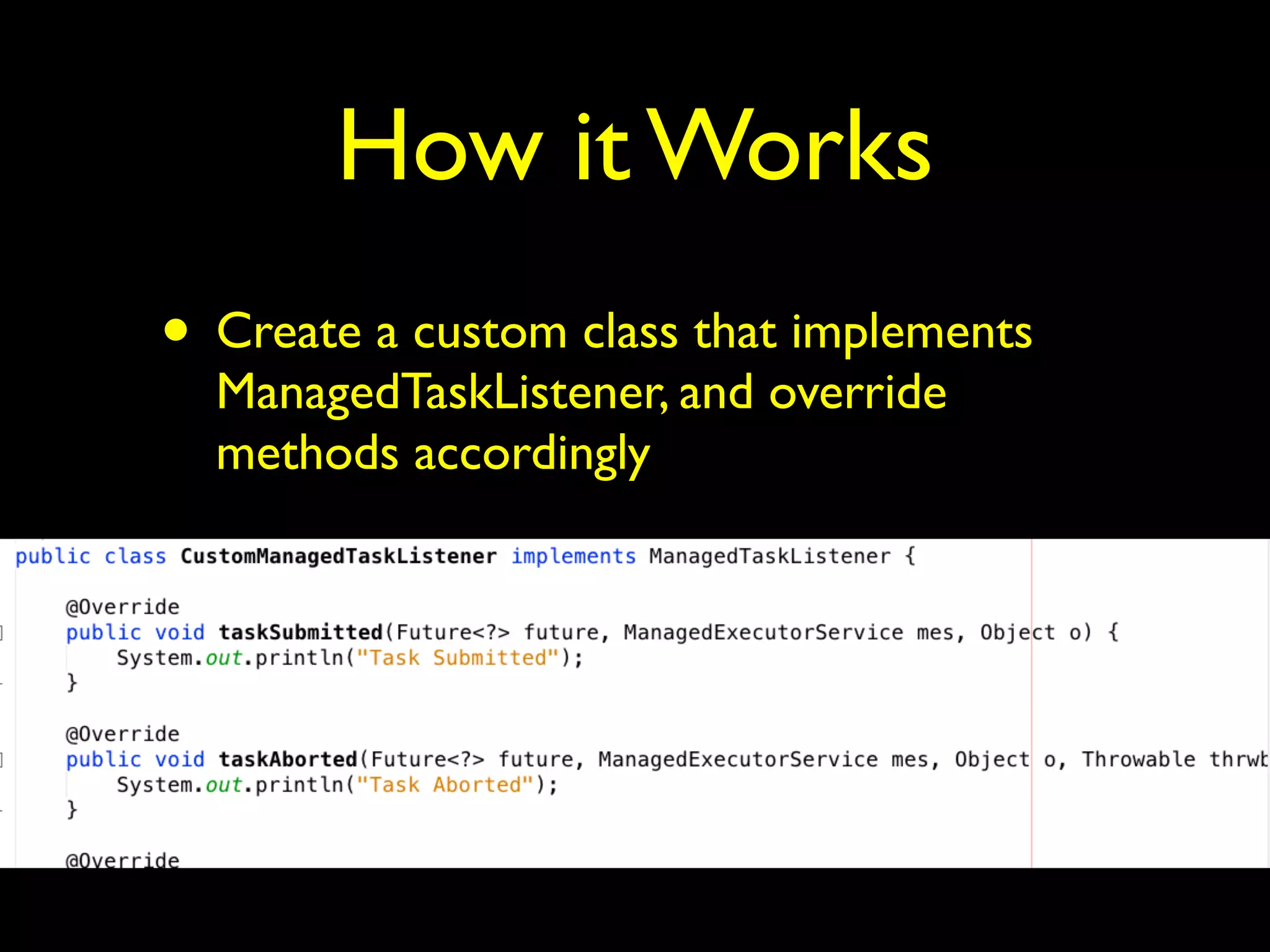

- 48. How it Works • Create a custom class that implements ManagedTaskListener, and override methods accordingly

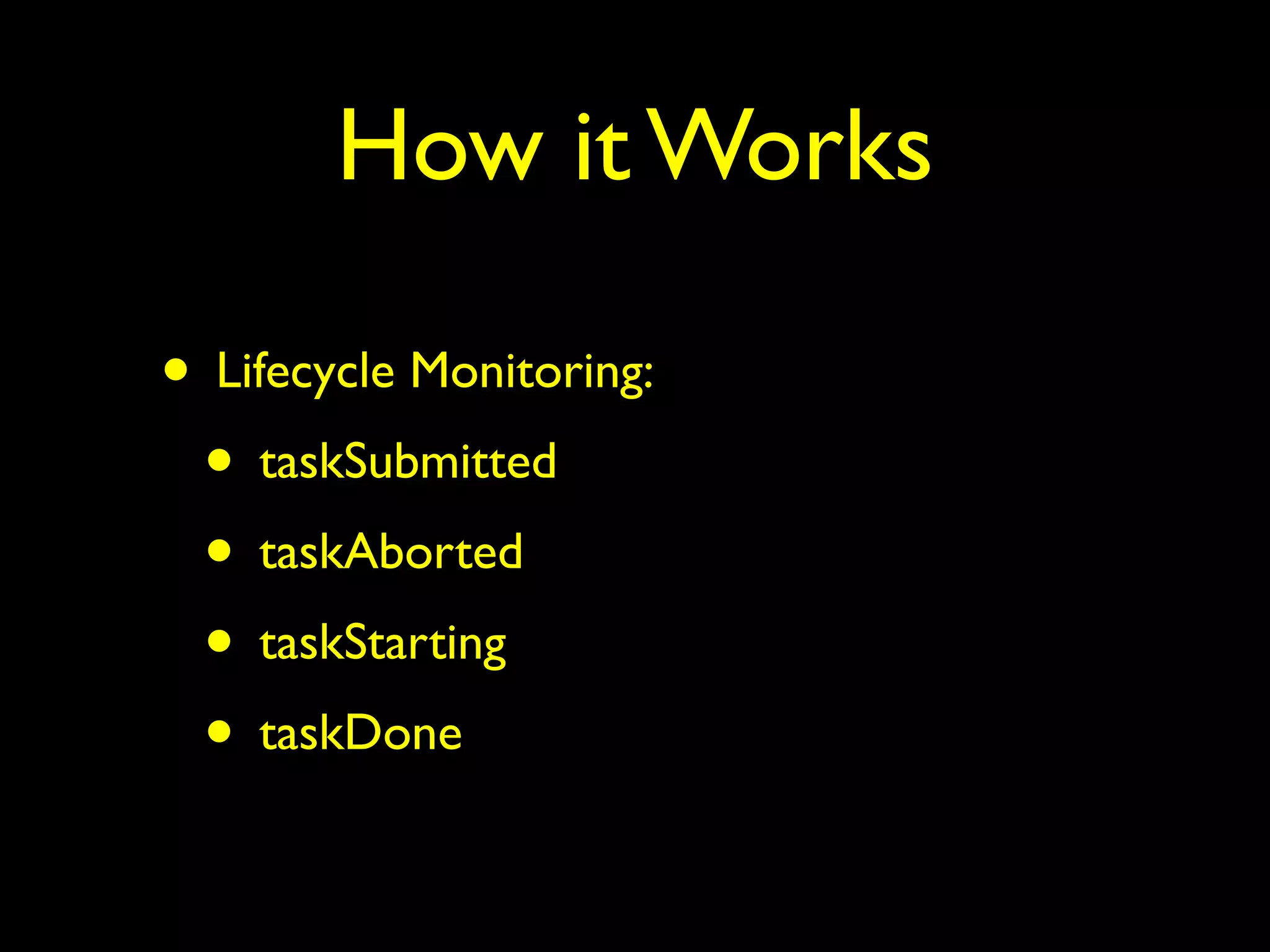

- 49. How it Works • Lifecycle Monitoring: • taskSubmitted • taskAborted • taskStarting • taskDone

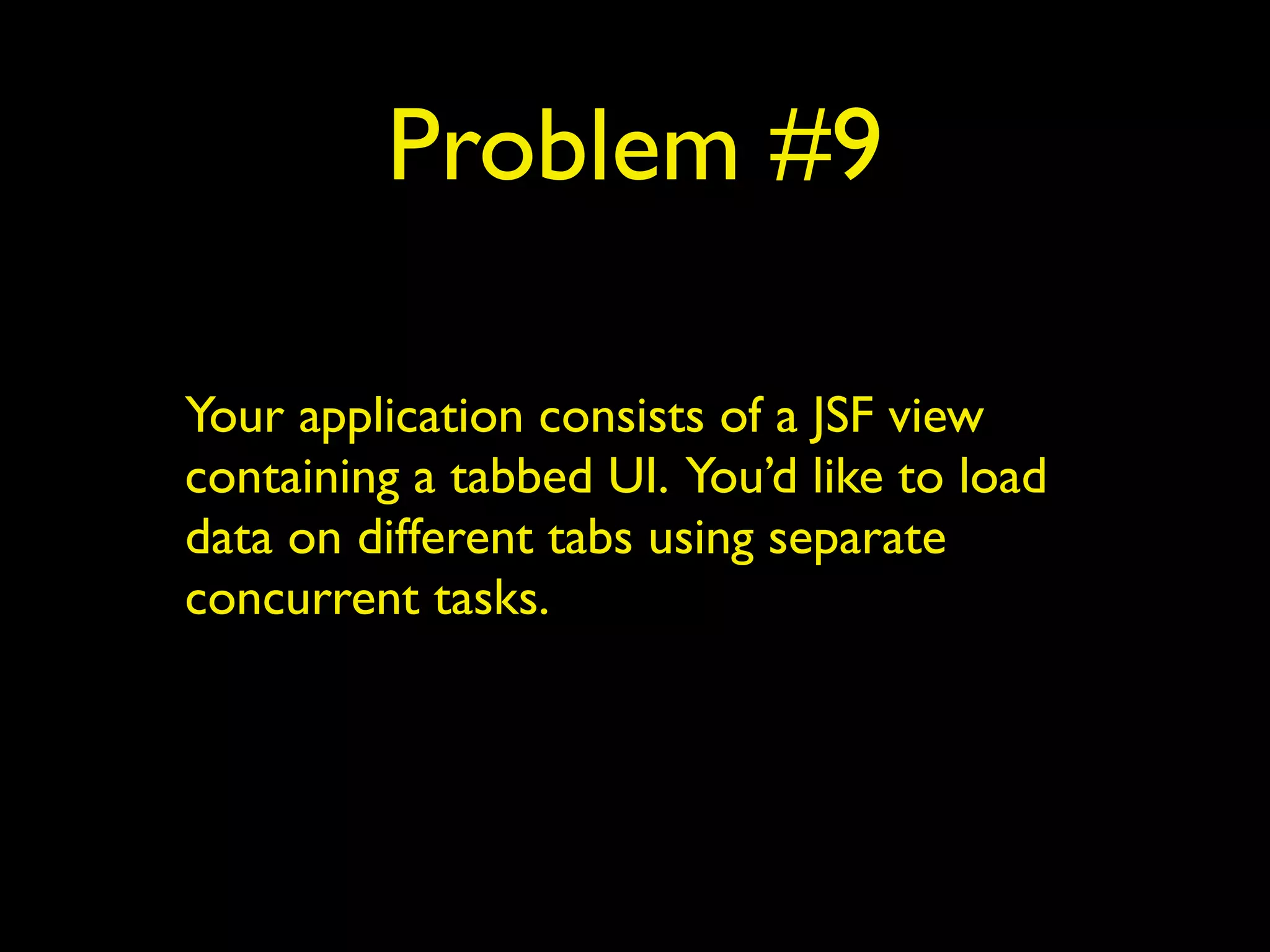

- 50. Problem #9 Yourapplication consists of a JSF view containing a tabbed UI. You’d like to load data on different tabs using separate concurrent tasks.

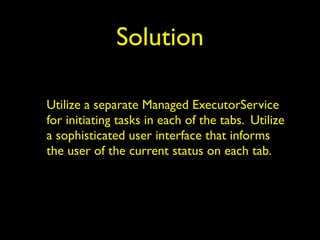

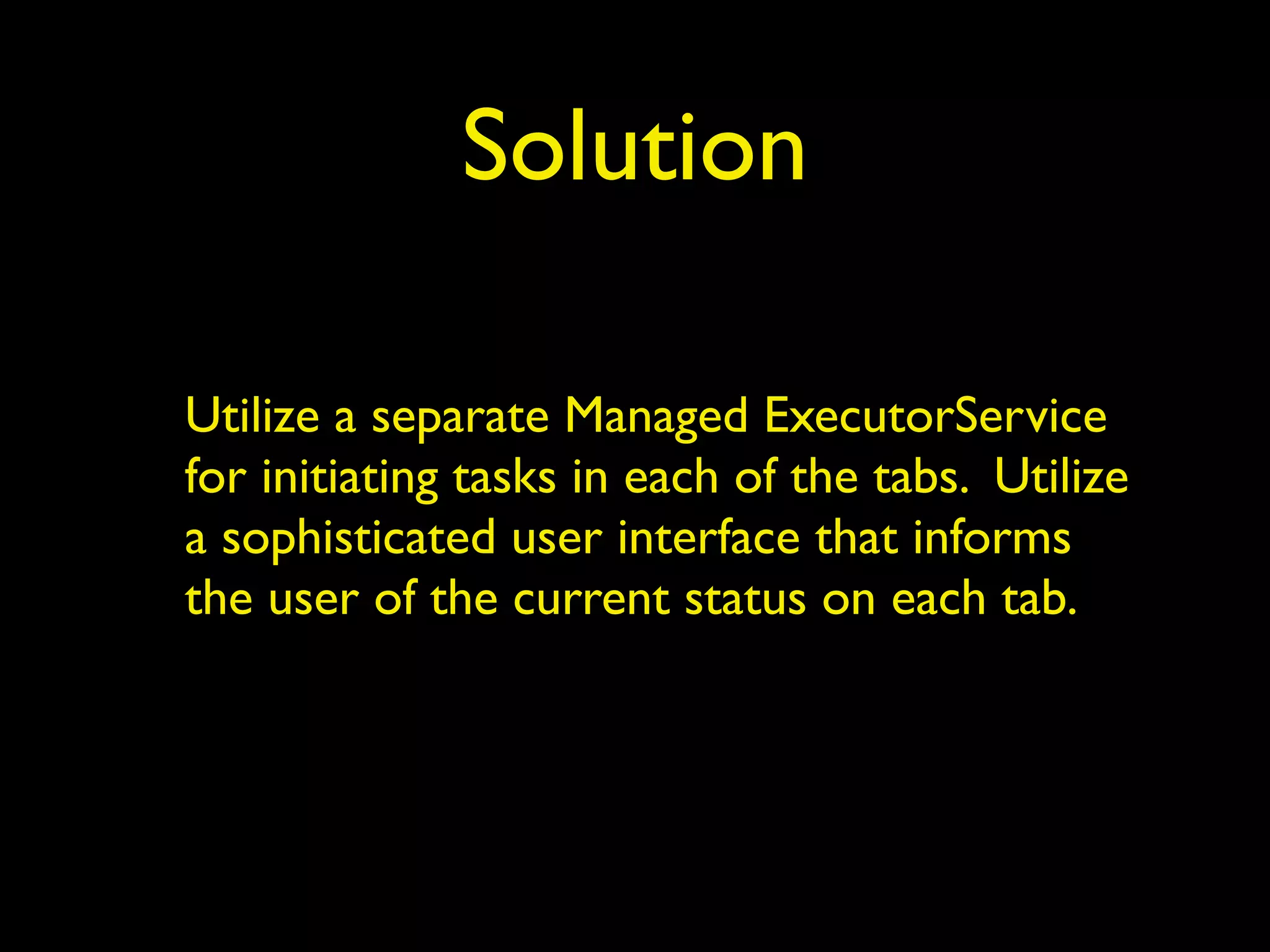

- 51. Solution Utilize aseparate Managed ExecutorService for initiating tasks in each of the tabs. Utilize a sophisticated user interface that informs the user of the current status on each tab.

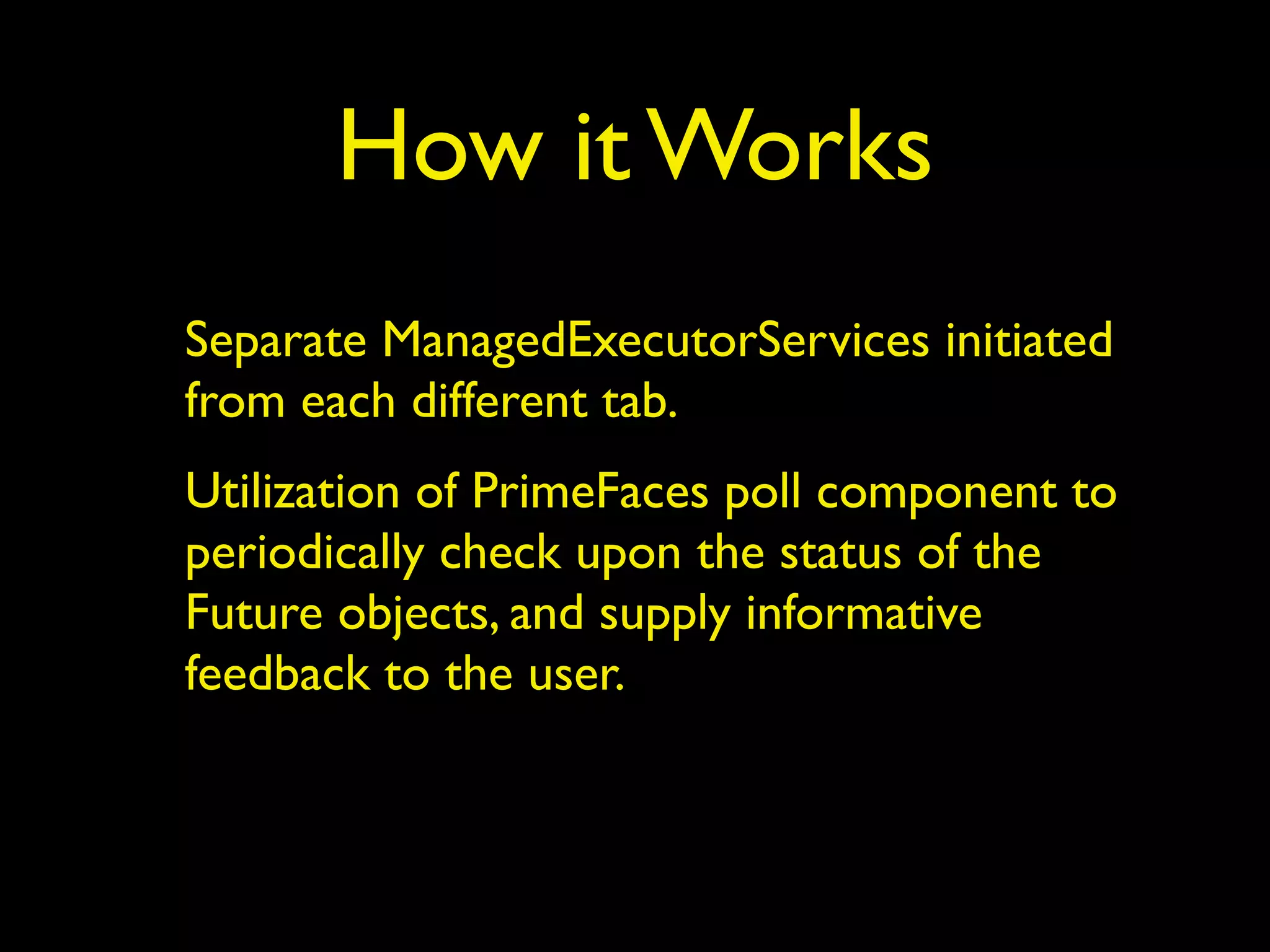

- 52. How it Works Separate ManagedExecutorServices initiated from each different tab. Utilization of PrimeFaces poll component to periodically check upon the status of the Future objects, and supply informative feedback to the user.

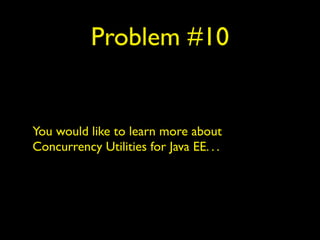

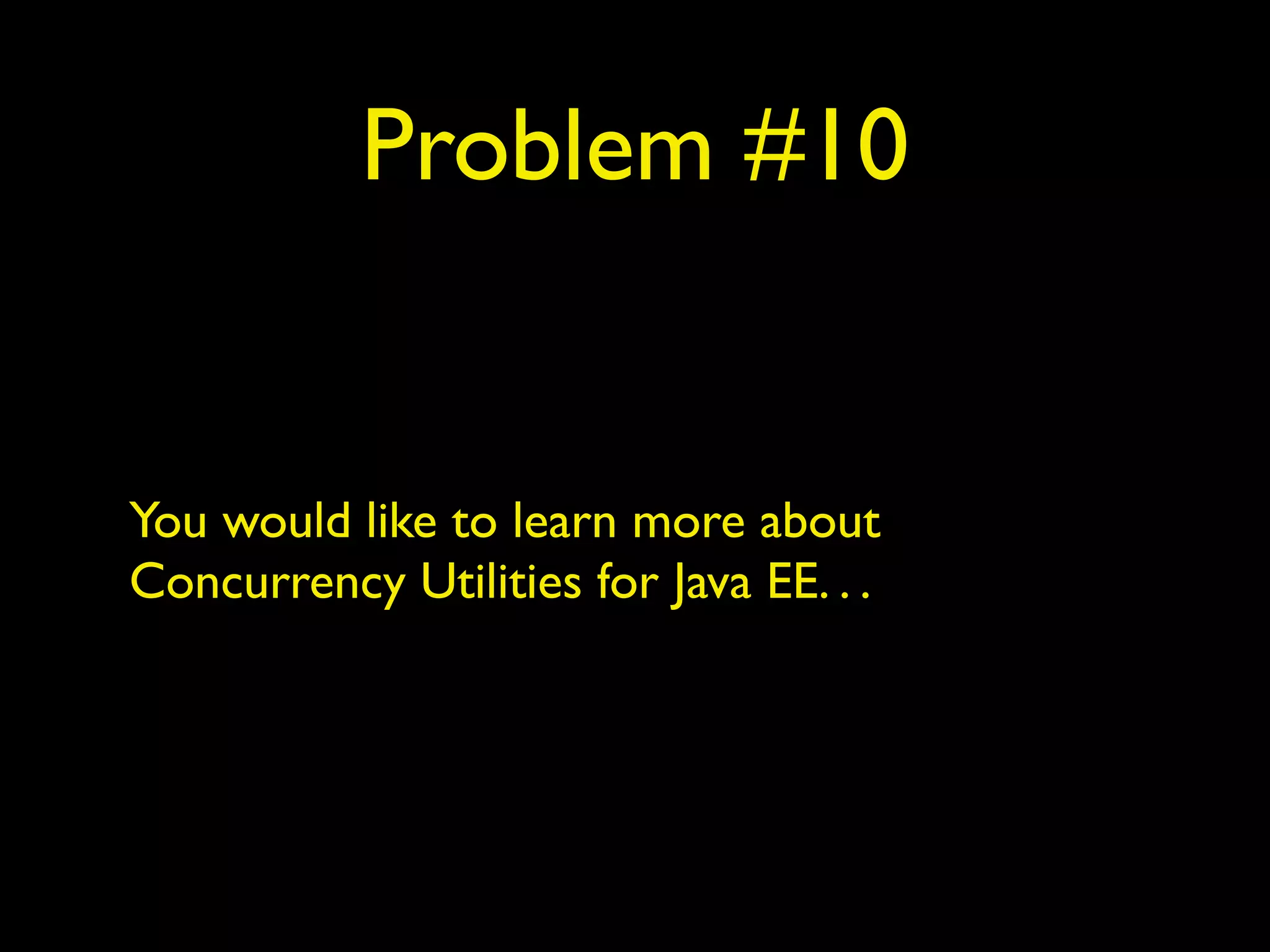

- 53. Problem #10 Youwould like to learn more about Concurrency Utilities for Java EE. . .
- 54. Learn More CodeExamples: https://github.com/juneau001/AcmeWorld Contact on Twitter: @javajuneau

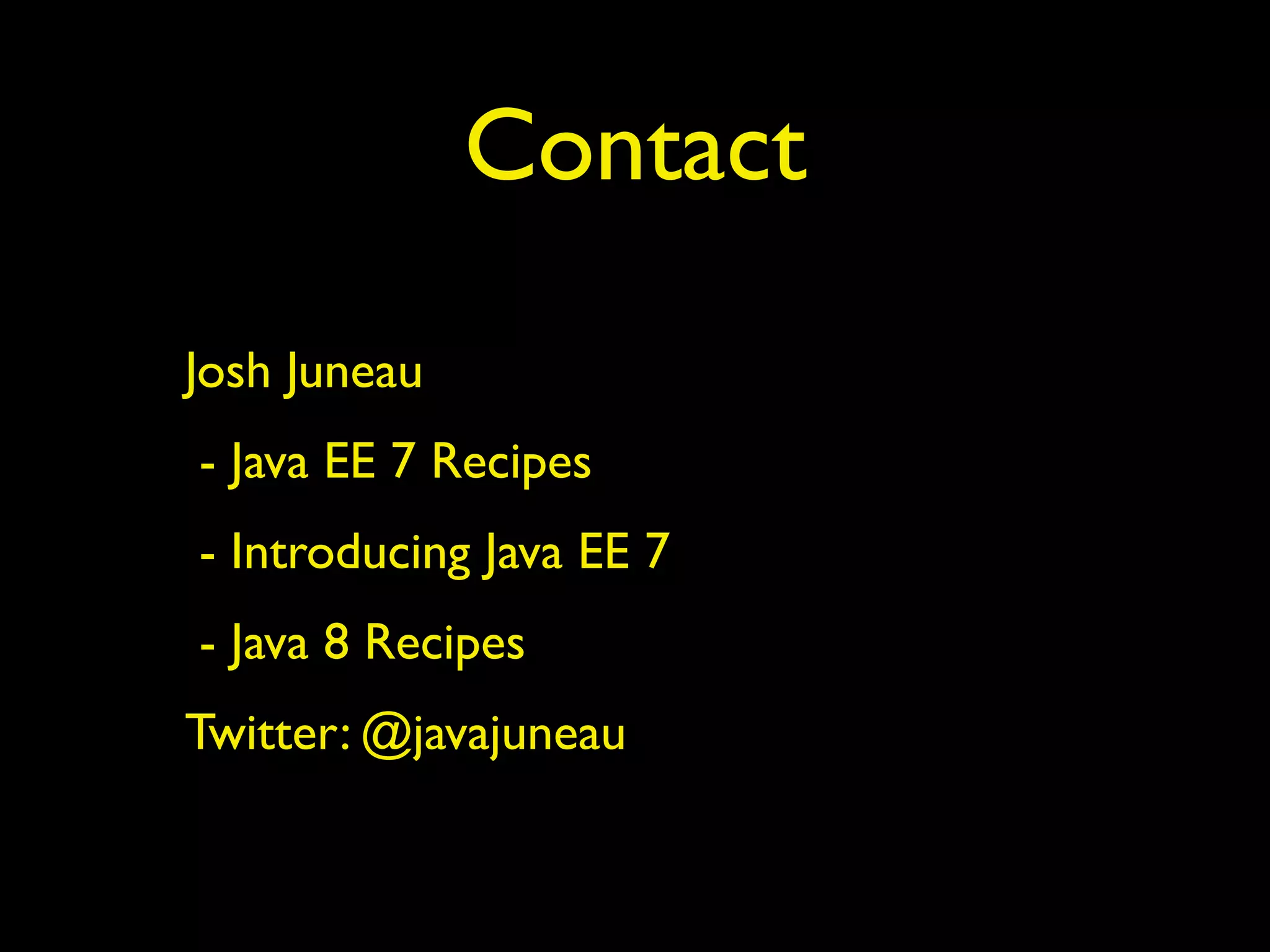

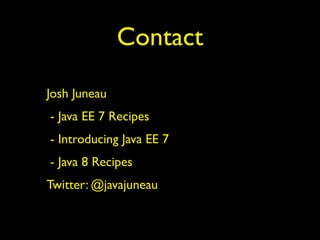

- 55. Contact Josh Juneau - Java EE 7 Recipes - Introducing Java EE 7 - Java 8 Recipes Twitter: @javajuneau
