LEC-2 ALGORITHMS EFFICIENCY &
COMPLEXITY

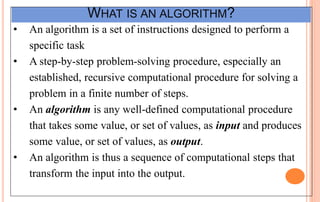

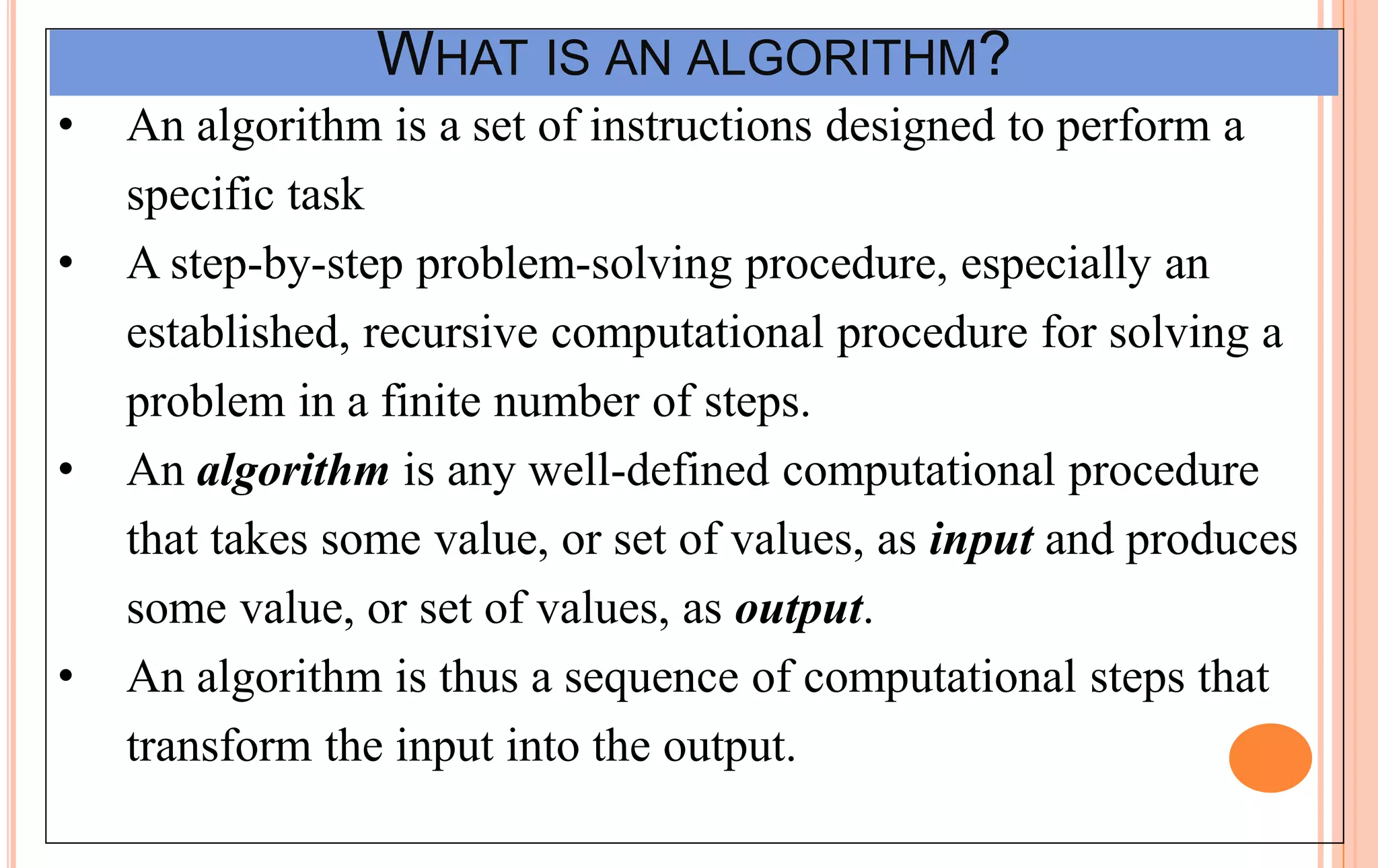

WHAT IS AN ALGORITHM?
• An algorithm is a set of instructions designed to perform a
specific task
• A step-by-step problem-solving procedure, especially an
established, recursive computational procedure for solving a
problem in a finite number of steps.
• An algorithm is any well-defined computational procedure
that takes some value, or set of values, as input and produces
some value, or set of values, as output.
• An algorithm is thus a sequence of computational steps that
transform the input into the output.

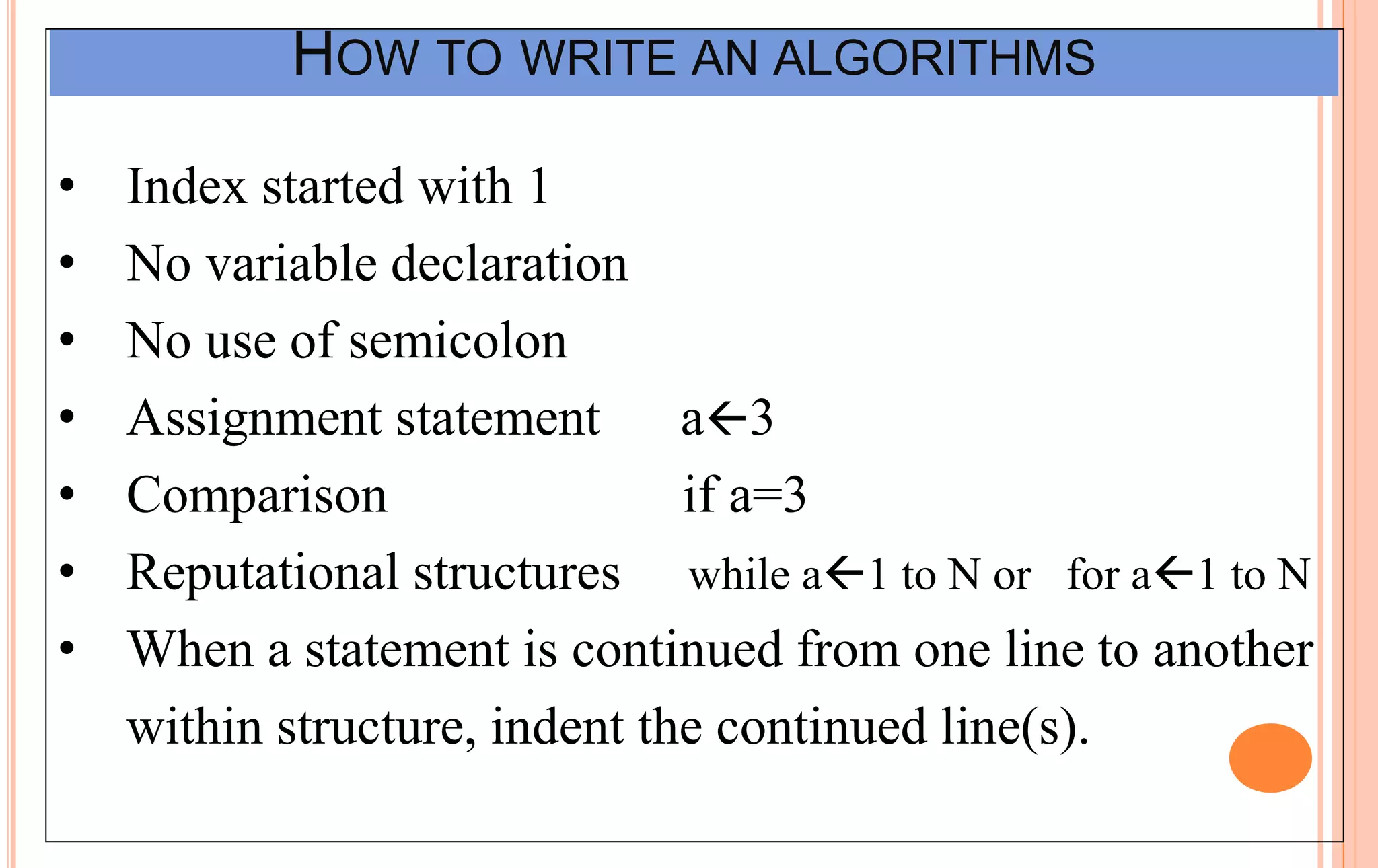

HOW TO WRITE AN ALGORITHMS
• Index started with 1
• No variable declaration
• No use of semicolon
• Assignment statement a3
• Comparison if a=3
• Reputational structures while a1 to N or for a1 to N
• When a statement is continued from one line to another
within structure, indent the continued line(s).

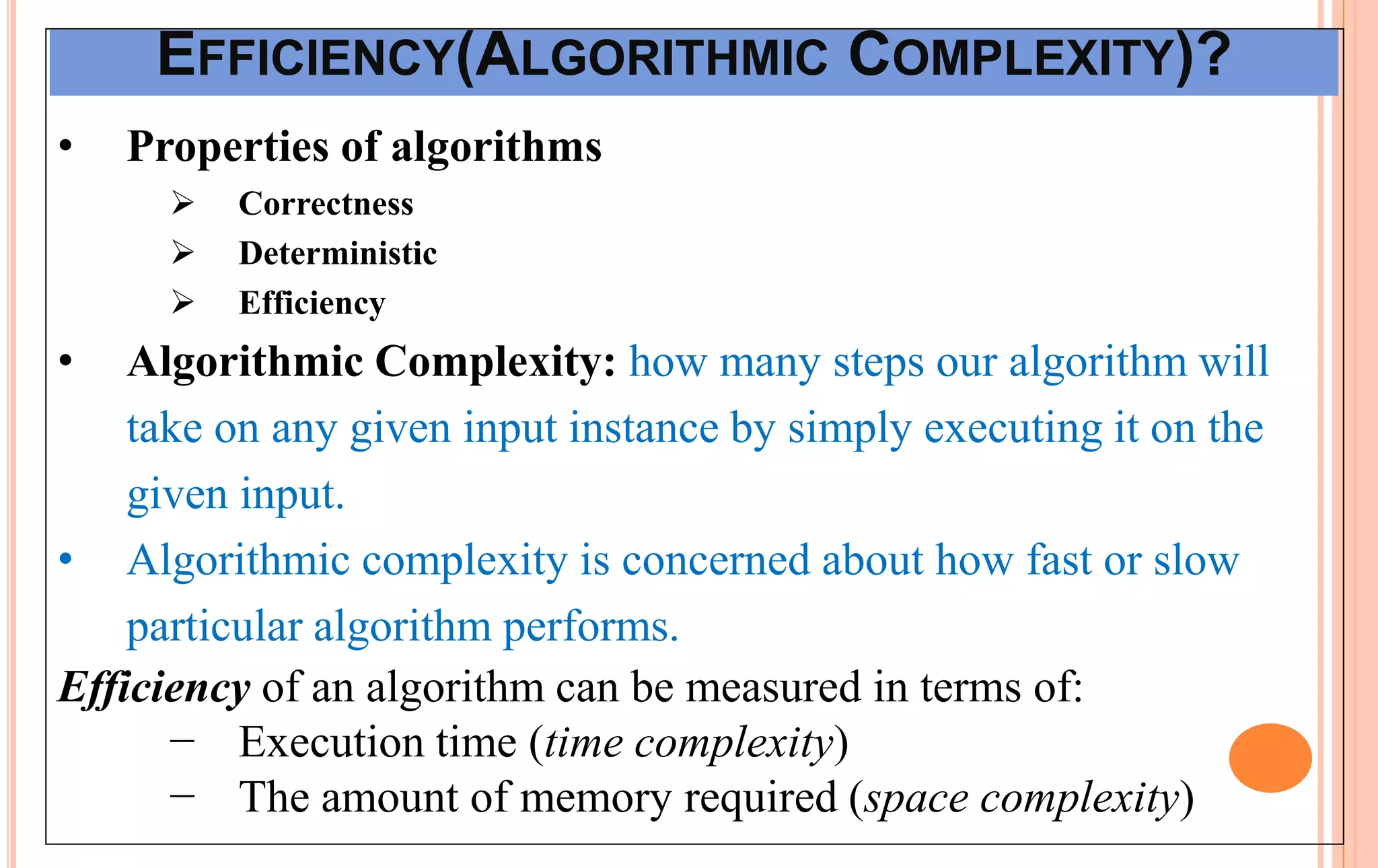

EFFICIENCY(ALGORITHMIC COMPLEXITY)?
• Properties of algorithms
 Correctness
 Deterministic
 Efficiency
• Algorithmic Complexity: how many steps our algorithm will
take on any given input instance by simply executing it on the
given input.
• Algorithmic complexity is concerned about how fast or slow
particular algorithm performs.
Efficiency of an algorithm can be measured in terms of:
− Execution time (time complexity)
− The amount of memory required (space complexity)

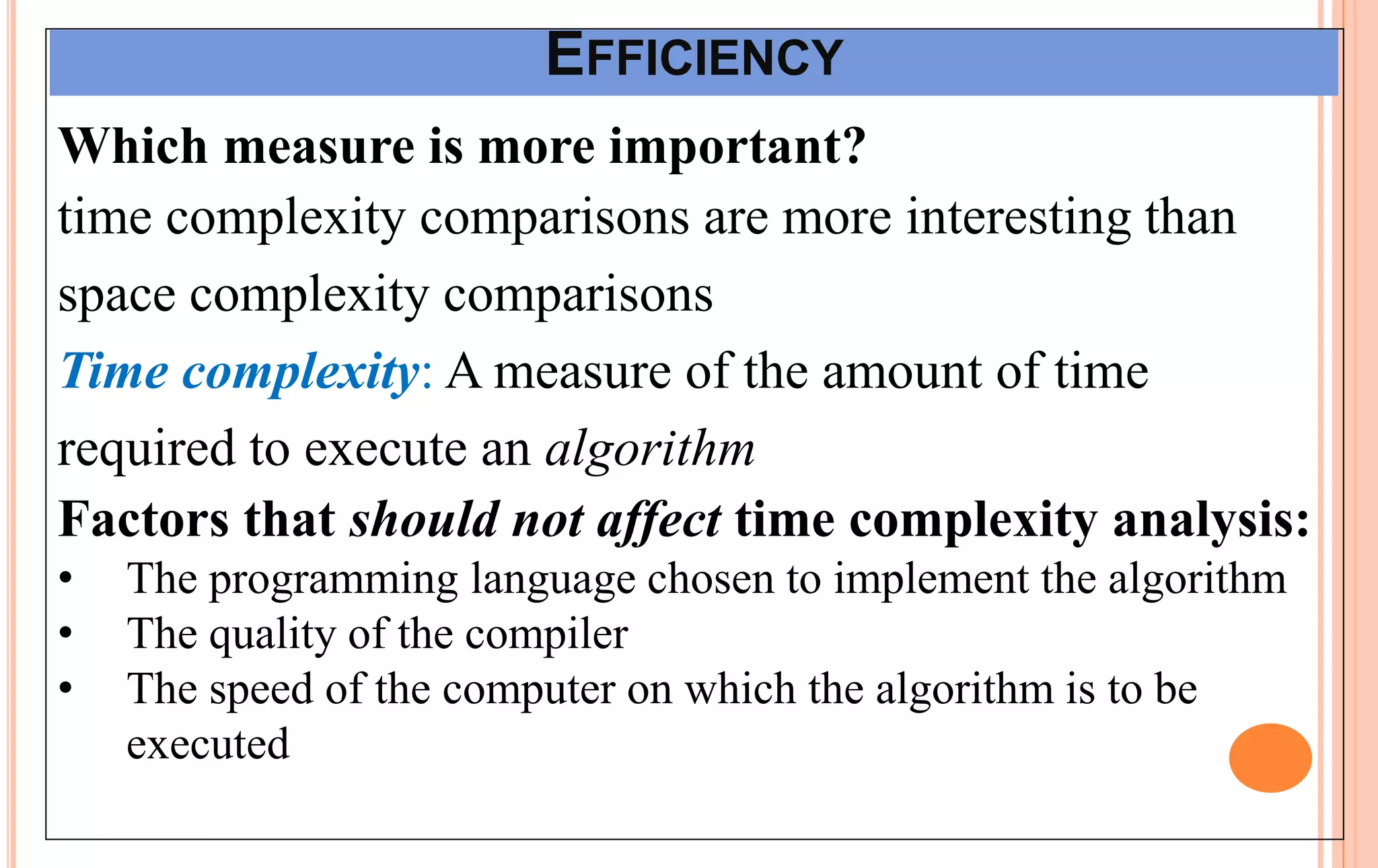

EFFICIENCY
Which measure is more important?
time complexity comparisons are more interesting than
space complexity comparisons
Time complexity: A measure of the amount of time
required to execute an algorithm
Factors that should not affect time complexity analysis:
• The programming language chosen to implement the algorithm
• The quality of the compiler
• The speed of the computer on which the algorithm is to be
executed

(TIME) EFFICIENCY OF AN ALGORITHM
worst case efficiency
is the maximum number of steps that an algorithm can take for any
collection of data values.
Best case efficiency
is the minimum number of steps that an algorithm can take any
collection of data values.
Average case efficiency
the efficiency averaged on all possible inputs
Example:
Consider: Search for an element in a list
• Best case search when item at beginning
• Worst case when item at end
• Average case somewhere between
If the input has size n, efficiency will be a function of n

MEASURING EFFICIENCY
Simplified analysis can be based on:
• Number of arithmetic operations performed
• Number of comparisons made
• Number of times through a critical loop
• Number of array elements accessed
• etc
Three algorithms for computing the sum 1 + 2 + . . . + n for an integer n > 0

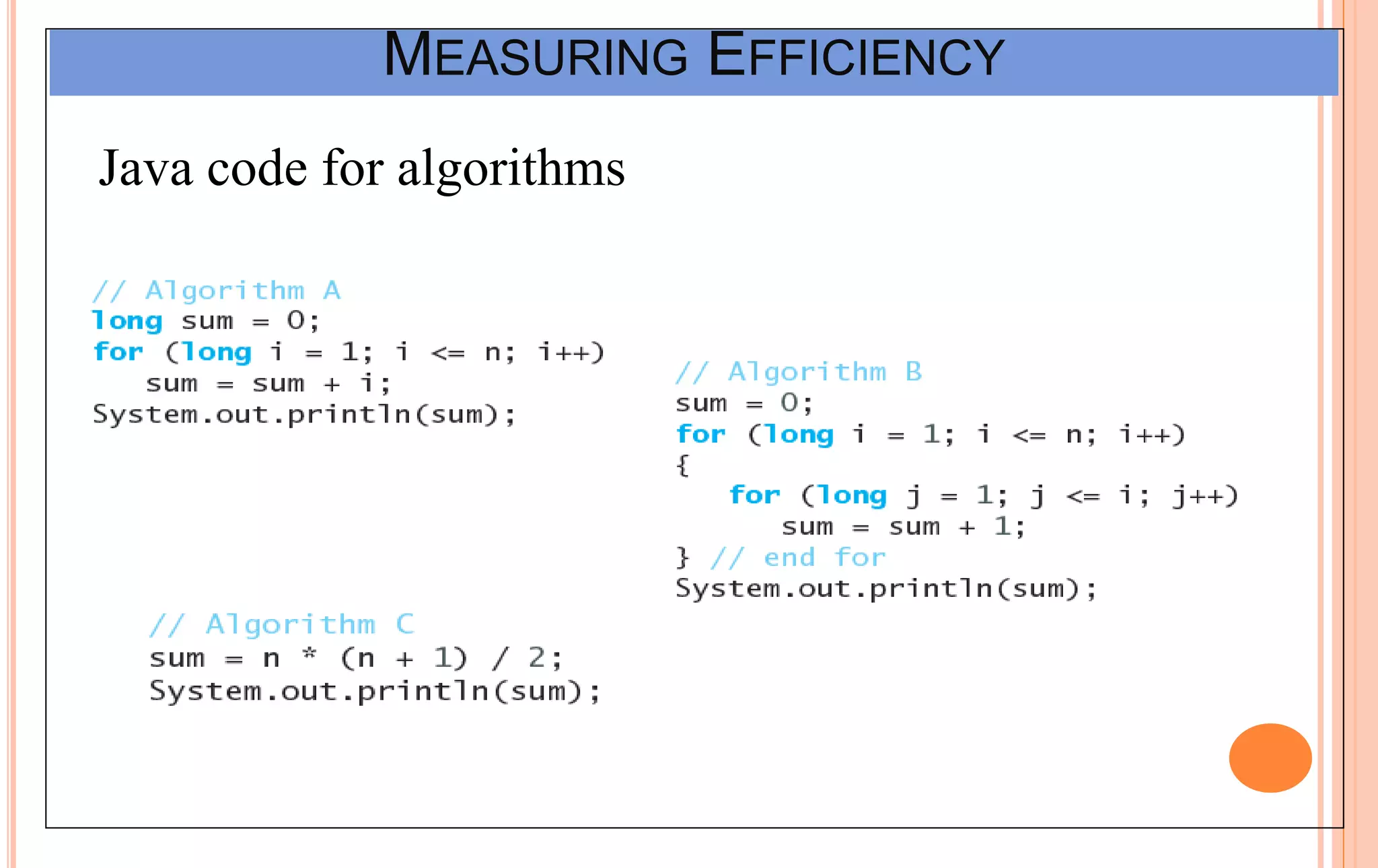

Java code for algorithms

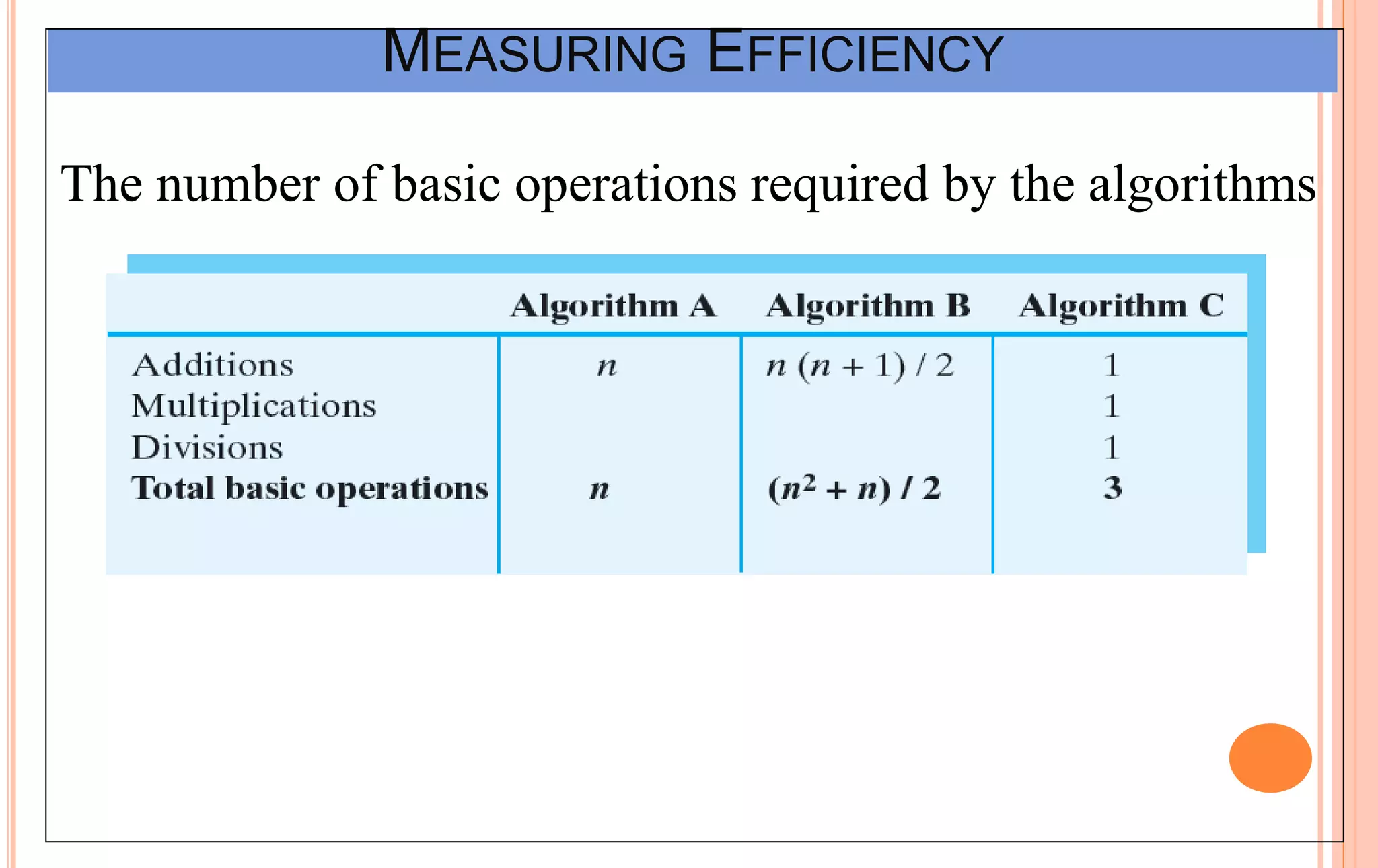

The number of basic operations required by the algorithms

ANALYSIS OF SUM (2)
// Input: int A[N], array of N integers
// Output: Sum of all numbers in array A
int Sum(int A[], int N)
{
int s=0;
for (int i=0; i< N; i++ )
{
s = s + A[i];
}
return s;
}
1
2
3
4
5
6
7
8
1,2,8: Once time
3,4,5,6,7: Once per each iteration
of for loop, N iteration
Total: 5N + 3
The complexity function of the
algorithm is : f(N) = 5N +3
A Simple Example

Asymptotic Notation
− The notations we use to describe the asymptotic running time of an
algorithm are defined in terms of functions whose domains are the set
of natural numbers N = {0, 1, 2, …}. Such notations are convenient
for describing the worst-case running-time function T (n), which
usually is defined only on integer input sizes.
− We will use asymptotic notation primarily to describe the running
times of algorithms
order of growth
− Running time of an algorithm increases with the size of the input in the
limit as the size of the input increases without bound
Growth of function
− Means if we increase the number of inputs(values of n) the function
growth speedily.

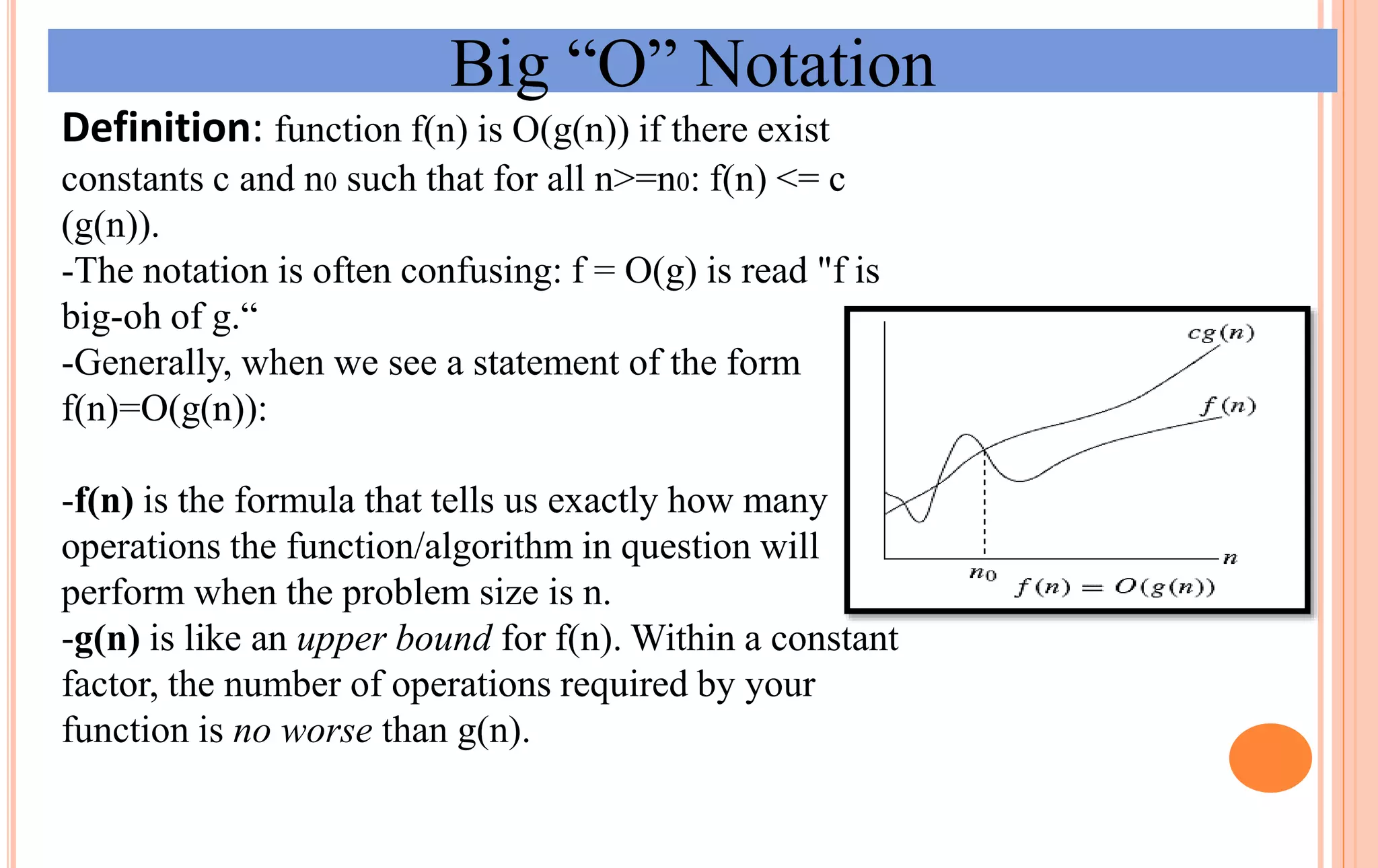

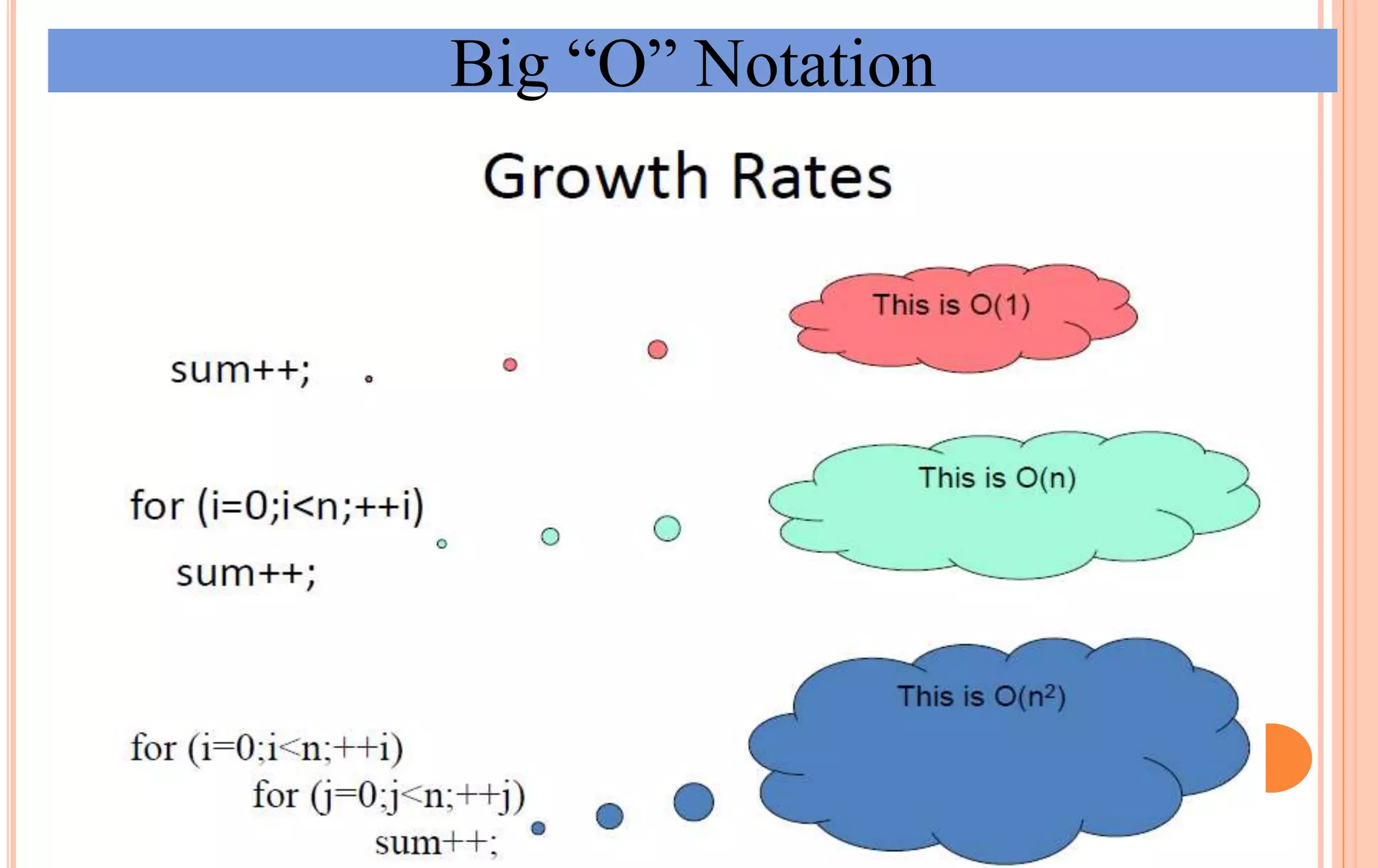

Big “O” Notation
Definition: function f(n) is O(g(n)) if there exist
constants c and n0 such that for all n>=n0: f(n) <= c
(g(n)).
-The notation is often confusing: f = O(g) is read "f is
big-oh of g.“
-Generally, when we see a statement of the form
f(n)=O(g(n)):
-f(n) is the formula that tells us exactly how many
operations the function/algorithm in question will
perform when the problem size is n.
-g(n) is like an upper bound for f(n). Within a constant
factor, the number of operations required by your
function is no worse than g(n).

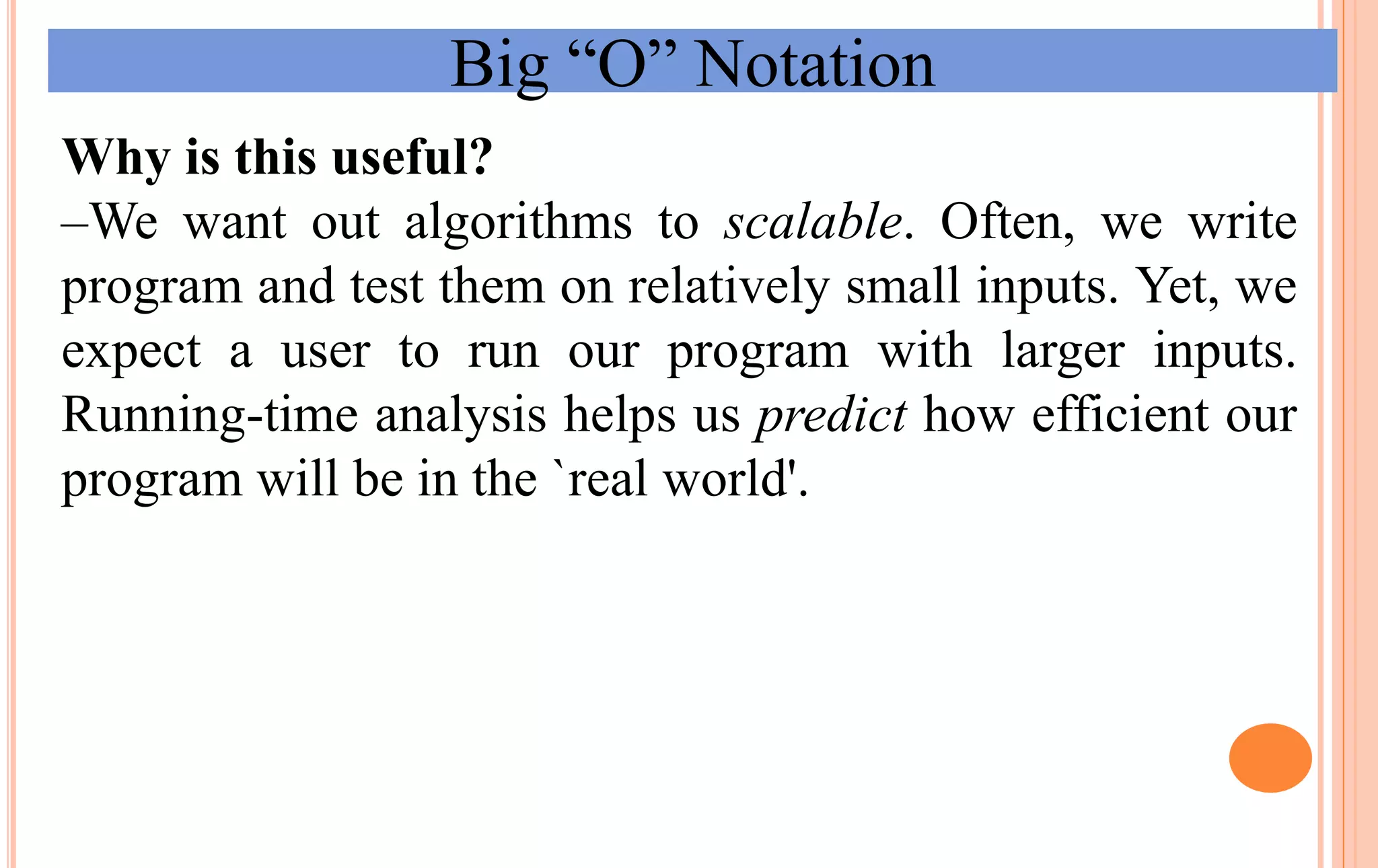

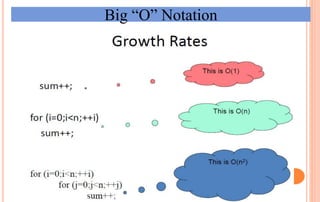

Big “O” Notation
Why is this useful?
–We want out algorithms to scalable. Often, we write
program and test them on relatively small inputs. Yet, we
expect a user to run our program with larger inputs.
Running-time analysis helps us predict how efficient our
program will be in the `real world'.

Big “Ω” Notation
Definition: function f(n) is Ω (g(n)) if there exist constants c
and n0 such that for all n>=n0: f(n) >= c (g(n)).
-The notation is often confusing: f = Ω (g) is read "f is big-omega
of g.“
-Generally, when we see a statement of the form f(n)= Ω (g(n)):
