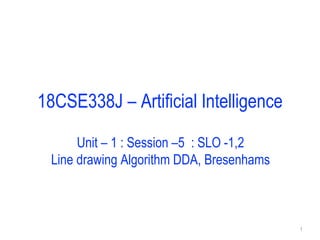

  18CSE338J – ArtificialIntelligence Unit – 1 : Session –5 : SLO -1,2 Line drawing Algorithm DDA, Bresenhams 1
• 2.
  DDA Line drawingalgorithm • The steps involved in DDA line generation algorithm are: • Input the two endpoints of the line segment, (x1,y1) and (x2,y2). • Calculate the difference between the x-coordinates and y-coordinates of the endpoints as dx and dy respectively. • Calculate the slope of the line as m = dy/dx. • Set the initial point of the line as (x1,y1). • Loop through the x-coordinates of the line, incrementing by one each time, and calculate the corresponding y-coordinate using the equation y = y1 + m(x – x1). • Plot the pixel at the calculated (x,y) coordinate. • Repeat steps 5 and 6 until the endpoint (x2,y2) is reached. • DDA algorithm is relatively easy to implement and is computationally efficient, making it suitable for real-time applications. However, it has some limitations, such as the inability to handle vertical lines and the need for floating-point arithmetic, which can be slow on some systems. Nonetheless, it remains a popular choice for generating lines in computer graphics. • 2
• 3.

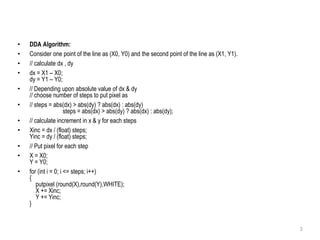

  • DDA Algorithm: •Consider one point of the line as (X0, Y0) and the second point of the line as (X1, Y1). • // calculate dx , dy • dx = X1 – X0; dy = Y1 – Y0; • // Depending upon absolute value of dx & dy // choose number of steps to put pixel as • // steps = abs(dx) > abs(dy) ? abs(dx) : abs(dy) steps = abs(dx) > abs(dy) ? abs(dx) : abs(dy); • // calculate increment in x & y for each steps • Xinc = dx / (float) steps; Yinc = dy / (float) steps; • // Put pixel for each step • X = X0; Y = Y0; • for (int i = 0; i <= steps; i++) { putpixel (round(X),round(Y),WHITE); X += Xinc; Y += Yinc; } 3
• 4.
  • Advantages ofDDA Algorithm: • It is a simple and easy-to-implement algorithm. • It avoids using multiple operations which have high time complexities. • It is faster than the direct use of the line equation because it does not use any floating point multiplication and it calculates points on the line. • Disadvantages of DDA Algorithm: • It deals with the rounding off operation and floating point arithmetic so it has high time complexity. • As it is orientation-dependent, so it has poor endpoint accuracy. • Due to the limited precision in the floating point representation, it produces a cumulative error. 4
• 5.

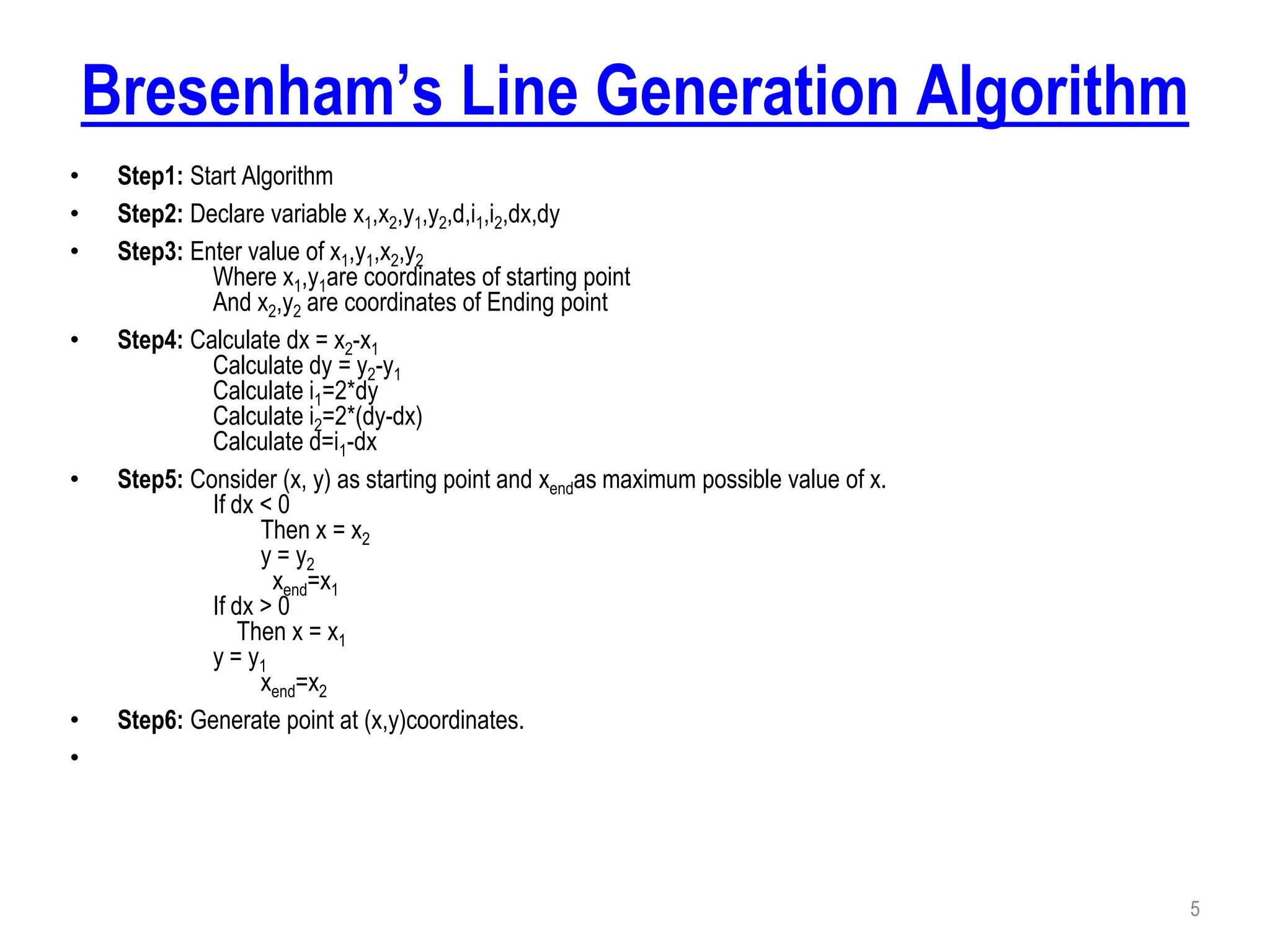

  Bresenham’s Line GenerationAlgorithm • Step1: Start Algorithm • Step2: Declare variable x1,x2,y1,y2,d,i1,i2,dx,dy • Step3: Enter value of x1,y1,x2,y2 Where x1,y1are coordinates of starting point And x2,y2 are coordinates of Ending point • Step4: Calculate dx = x2-x1 Calculate dy = y2-y1 Calculate i1=2*dy Calculate i2=2*(dy-dx) Calculate d=i1-dx • Step5: Consider (x, y) as starting point and xendas maximum possible value of x. If dx < 0 Then x = x2 y = y2 xend=x1 If dx > 0 Then x = x1 y = y1 xend=x2 • Step6: Generate point at (x,y)coordinates. • 5
• 6.

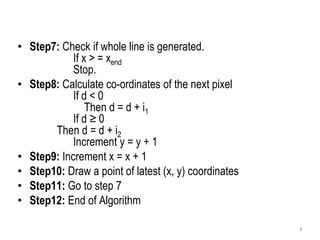

  • Step7: Checkif whole line is generated. If x > = xend Stop. • Step8: Calculate co-ordinates of the next pixel If d < 0 Then d = d + i1 If d ≥ 0 Then d = d + i2 Increment y = y + 1 • Step9: Increment x = x + 1 • Step10: Draw a point of latest (x, y) coordinates • Step11: Go to step 7 • Step12: End of Algorithm 6
