Downloaded 111 times
![{
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’,
location:
[45.123,47.232],
cars: [
{ model: ‘Bentley’,
year: 1973,
value: 100000, … },
{ model: ‘Rolls Royce’,
year: 1965,
value: 330000, … }
]
}
Data Models: Relational to Document
Relational MongoDB](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/85/Migrating-from-RDBMS-to-MongoDB-16-320.jpg)
![18
RDBMS
Document Model Benefits
MongoDB
{
_id : ObjectId("4c4ba5e5e8aabf3"),
employee_name: "Dunham, Justin",
department : "Marketing",
title : "Product Manager, Web",
report_up: "Neray, Graham",
pay_band: “C",
benefits : [
{ type : "Health",
plan : "PPO Plus" },
{ type : "Dental",
plan : "Standard" }
]
}](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/85/Migrating-from-RDBMS-to-MongoDB-18-320.jpg)
![19

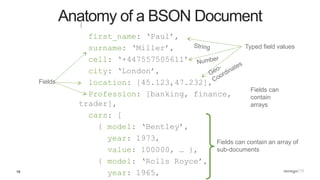

Anatomy of a BSON Document{
first_name: ‘Paul’,
surname: ‘Miller’,
cell: ‘+447557505611’
city: ‘London’,
location: [45.123,47.232],
Profession: [banking, finance,
trader],
cars: [
{ model: ‘Bentley’,
year: 1973,
value: 100000, … },
{ model: ‘Rolls Royce’,
year: 1965,
Fields can contain an array of
sub-documents
Fields
Typed field values
Fields can
contain
arrays](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/85/Migrating-from-RDBMS-to-MongoDB-19-320.jpg)
![Document Model Benefits
Agility and flexibility
• Data model supports business
change
• Rapidly iterate to meet new
requirements
Intuitive, natural data representation
• Eliminates ORM layer
• Developers are more productive
Reduces the need for joins, disk seeks
• Programming is more simple
{
_id :
ObjectId("4c4ba5e5e8aabf3"),
employee_name: "Dunham,
Justin",
department : "Marketing",
title : "Product Manager,
Web",
report_up: "Neray, Graham",
pay_band: “C",
benefits : [
{ type : "Health",
plan : "PPO Plus"
},
{ type : "Dental",
plan : "Standard"
}
]
}](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/85/Migrating-from-RDBMS-to-MongoDB-20-320.jpg)
![{
first_name: ‘Paul’,
surname: ‘Miller’,
city: ‘London’,
location:
[45.123,47.232],
cars: [
{ model: ‘Bentley’,
year: 1973,
value: 100000, … },
{ model: ‘Rolls Royce’,
year: 1965,
value: 330000, … }
]
}

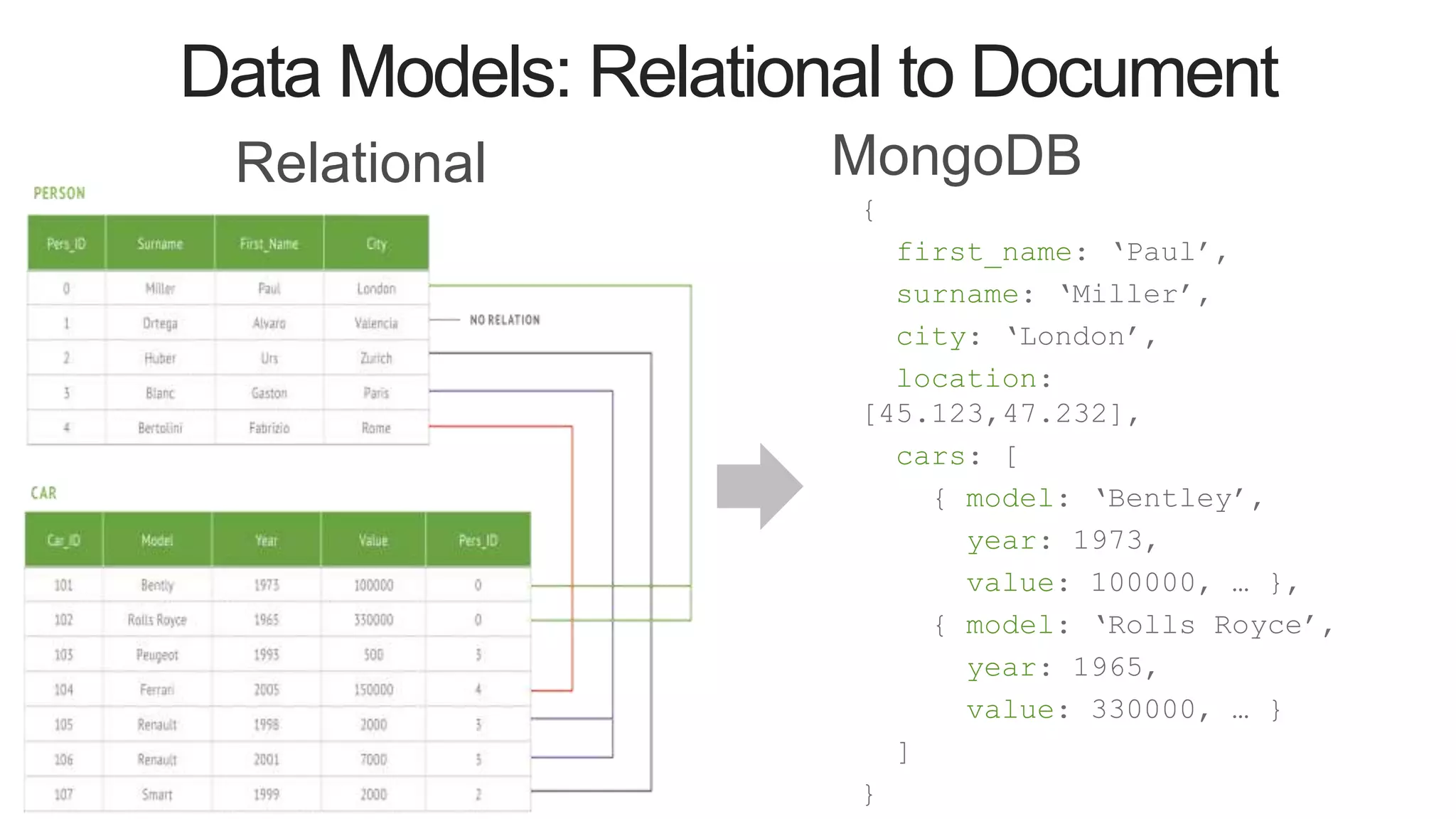

Data Models: Relational to Document
Relational MongoDB](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/75/Migrating-from-RDBMS-to-MongoDB-16-2048.jpg)
![18
RDBMS
Document Model Benefits
MongoDB
{
_id : ObjectId("4c4ba5e5e8aabf3"),
employee_name: "Dunham, Justin",
department : "Marketing",
title : "Product Manager, Web",
report_up: "Neray, Graham",
pay_band: “C",
benefits : [
{ type : "Health",
plan : "PPO Plus" },
{ type : "Dental",
plan : "Standard" }
]
}](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/75/Migrating-from-RDBMS-to-MongoDB-18-2048.jpg)
![19
Anatomy of a BSON Document{
first_name: ‘Paul’,
surname: ‘Miller’,
cell: ‘+447557505611’
city: ‘London’,
location: [45.123,47.232],
Profession: [banking, finance,
trader],
cars: [
{ model: ‘Bentley’,
year: 1973,
value: 100000, … },
{ model: ‘Rolls Royce’,
year: 1965,
Fields can contain an array of
sub-documents
Fields
Typed field values
Fields can
contain
arrays](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/75/Migrating-from-RDBMS-to-MongoDB-19-2048.jpg)

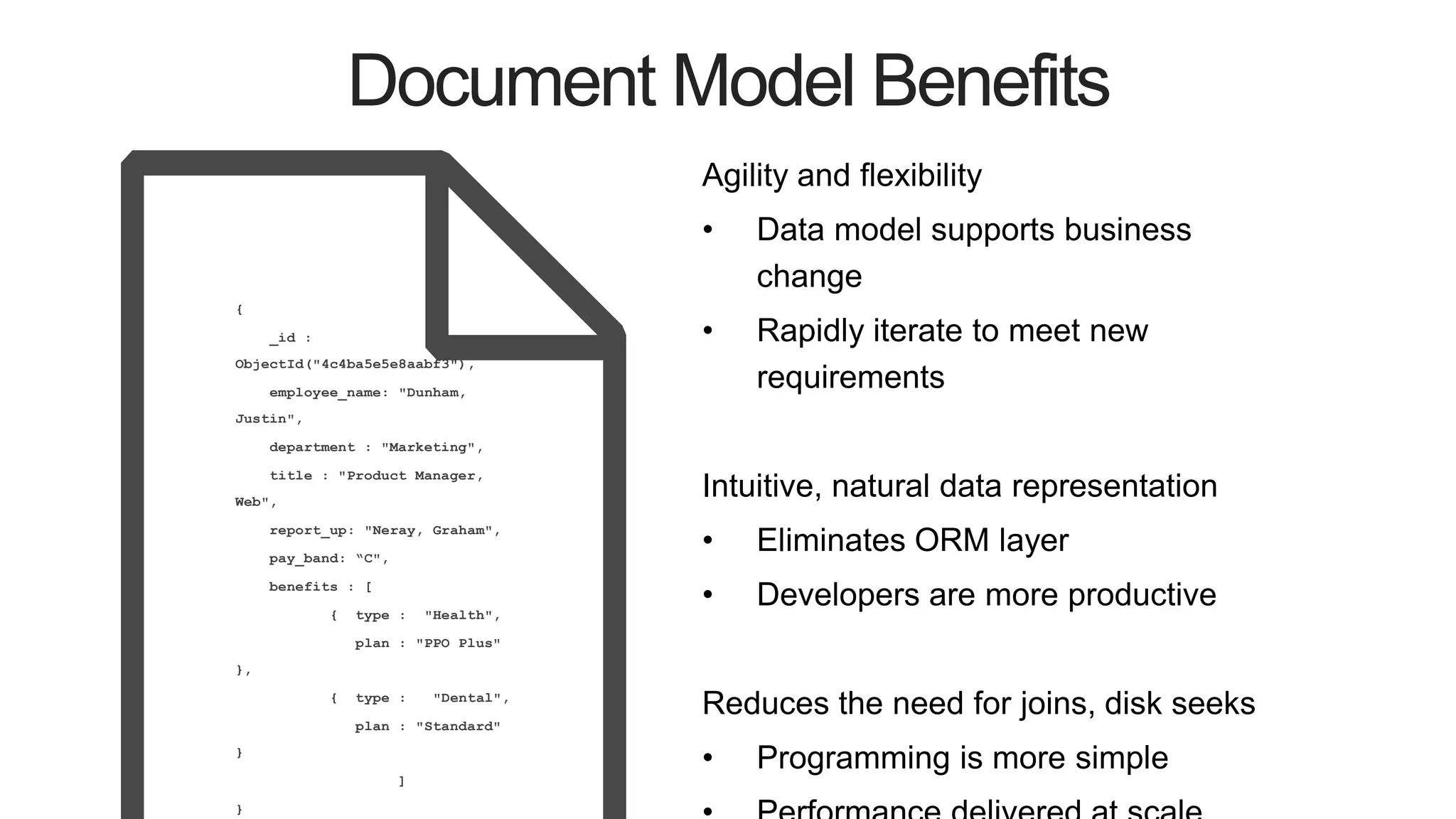

![Document Model Benefits
Agility and flexibility
• Data model supports business
change
• Rapidly iterate to meet new
requirements
Intuitive, natural data representation
• Eliminates ORM layer
• Developers are more productive
Reduces the need for joins, disk seeks
• Programming is more simple
{
_id :
ObjectId("4c4ba5e5e8aabf3"),
employee_name: "Dunham,
Justin",
department : "Marketing",
title : "Product Manager,
Web",
report_up: "Neray, Graham",
pay_band: “C",
benefits : [
{ type : "Health",
plan : "PPO Plus"
},
{ type : "Dental",
plan : "Standard"
}
]
}](https://image.slidesharecdn.com/rdbmstomongodbfinal-160413164232/75/Migrating-from-RDBMS-to-MongoDB-20-2048.jpg)
Uploaded byMongoDB
Migrating from RDBMS to MongoDB
The document outlines best practices for migrating from relational databases (RDBMS) to MongoDB, addressing challenges, schema design, and integration strategies. It emphasizes MongoDB's flexibility, scalability, and performance advantages, while providing guidance on data modeling, migration steps, and application integration. Additionally, it highlights the importance of data governance and operational considerations in successful migrations.
More Related Content
Similar to Migrating from RDBMS to MongoDB
![MongoDB .local San Francisco 2020: Powering the new age data demands [Infosys]](https://cdn.slidesharecdn.com/ss_thumbnails/315pminfosysfinalsfoversionvocalpart1-200120221508-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
![UiPath Automation Suite Installation (Hands-On) [2/3]](https://cdn.slidesharecdn.com/ss_thumbnails/automationsuitecommunitysession2-251015095633-a6d862f1-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Migrating from RDBMS to MongoDB
- 1. RDBMS to MongoDB MigrationBest Practices Mrinal Sarkar Solutions Architect mrinal.sarkar@mongodb.com

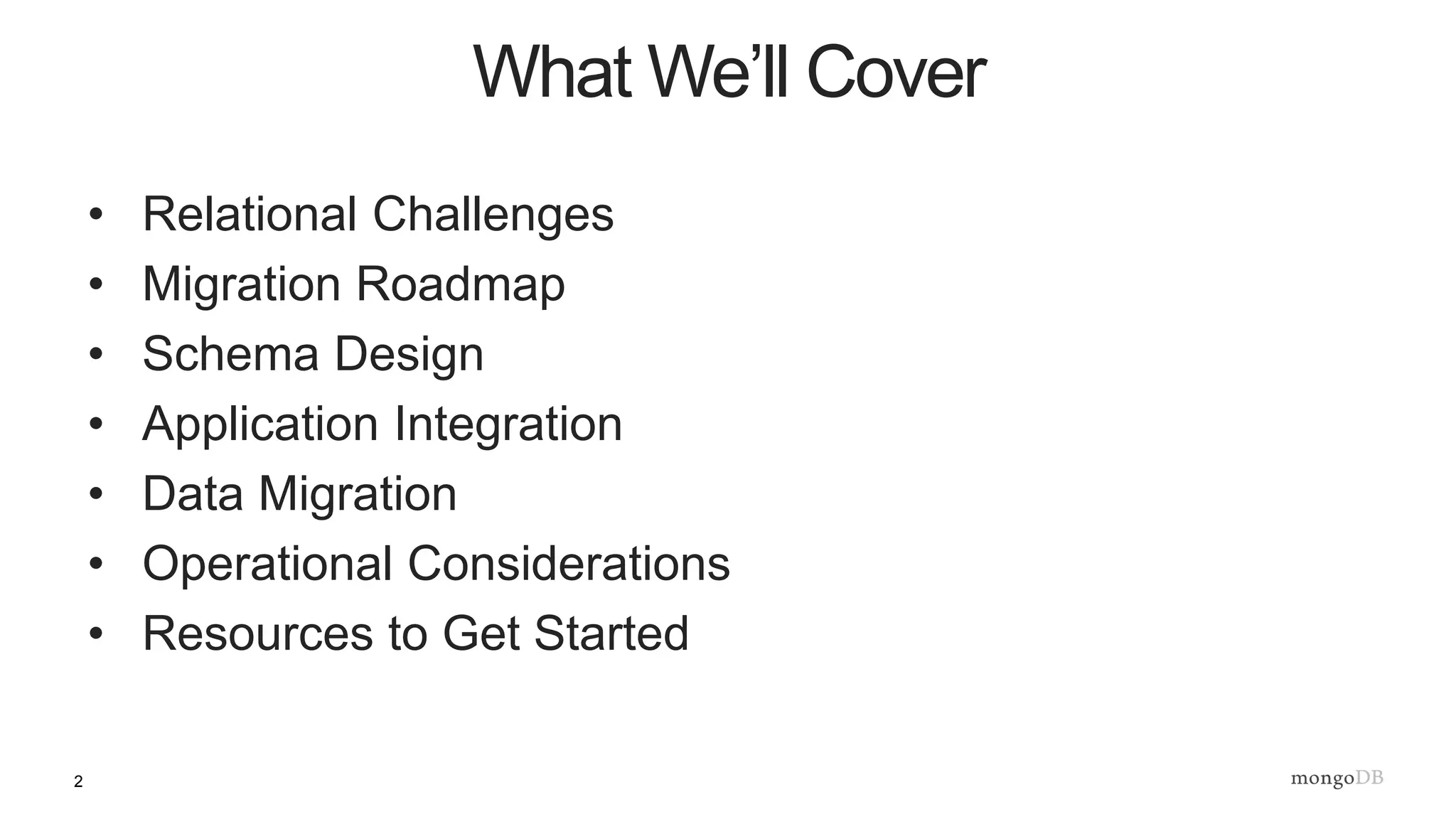

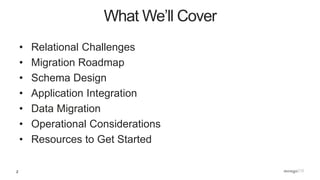

- 2. 2 • Relational Challenges •Migration Roadmap • Schema Design • Application Integration • Data Migration • Operational Considerations • Resources to Get Started What We’ll Cover
- 3.

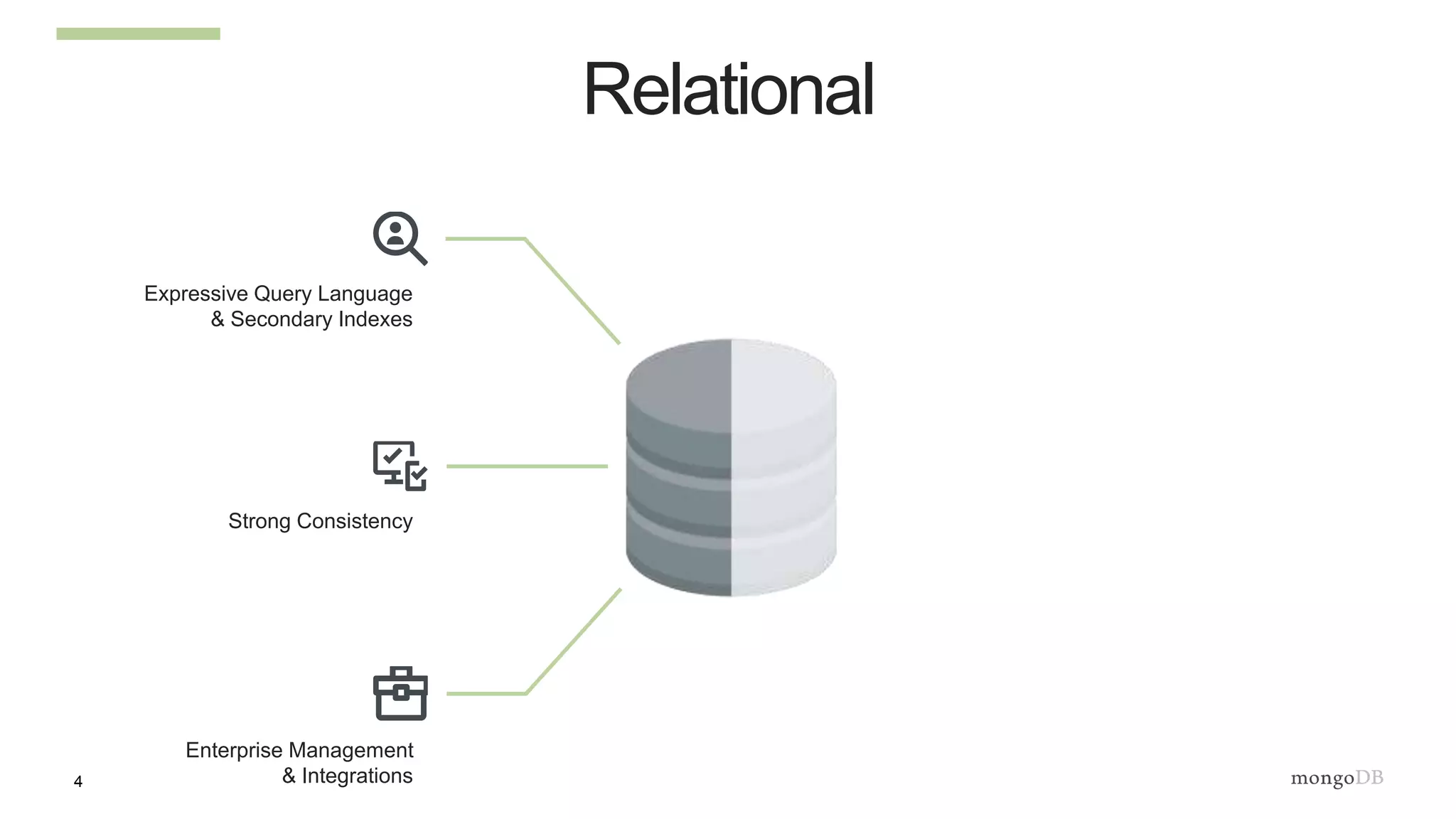

- 4. 4 Relational Expressive Query Language &Secondary Indexes Strong Consistency Enterprise Management & Integrations

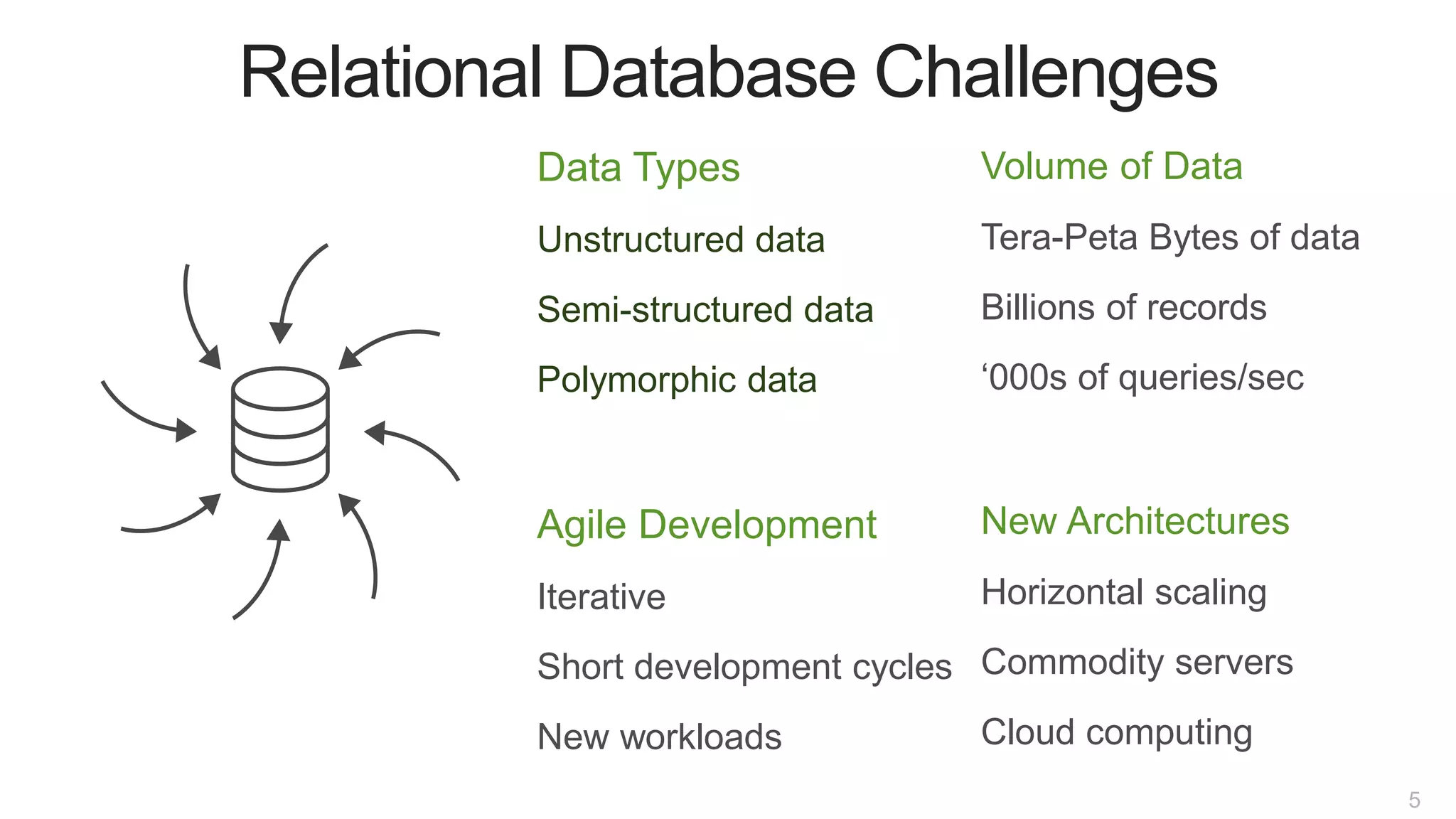

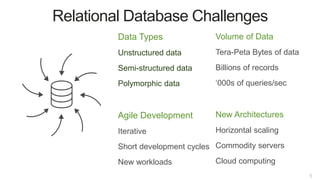

- 5. 5 Relational Database Challenges DataTypes Unstructured data Semi-structured data Polymorphic data Agile Development Iterative Short development cycles New workloads Volume of Data Tera-Peta Bytes of data Billions of records ‘000s of queries/sec New Architectures Horizontal scaling Commodity servers Cloud computing

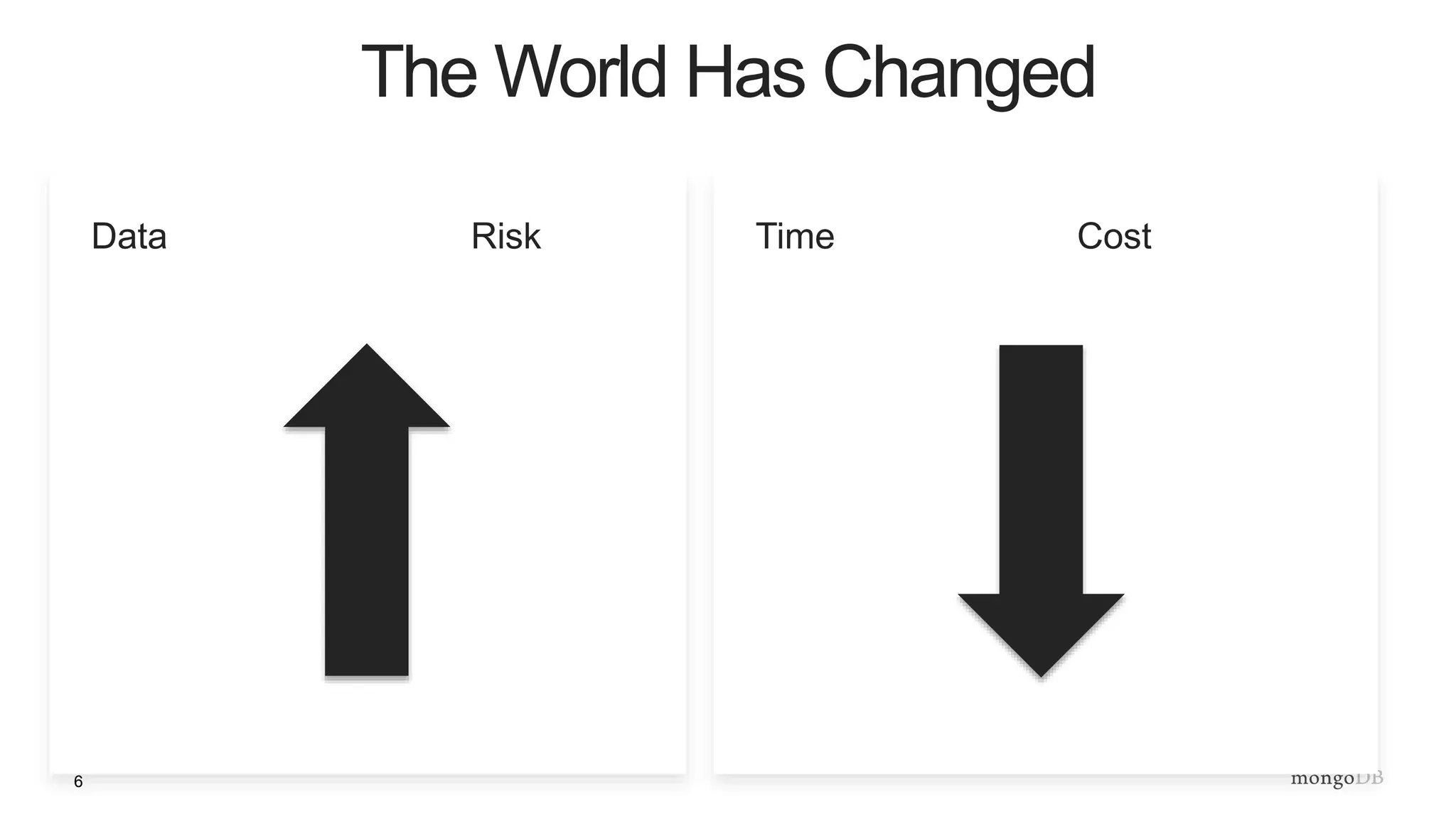

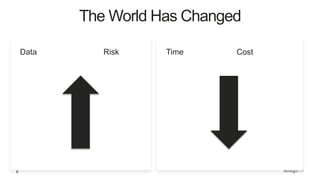

- 6. 6 The World HasChanged Data Risk Time Cost

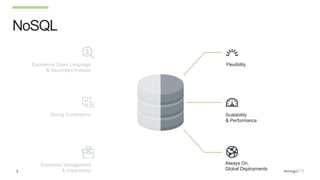

- 7. 7 NoSQL Scalability & Performance Always On, GlobalDeployments FlexibilityExpressive Query Language & Secondary Indexes Strong Consistency Enterprise Management & Integrations

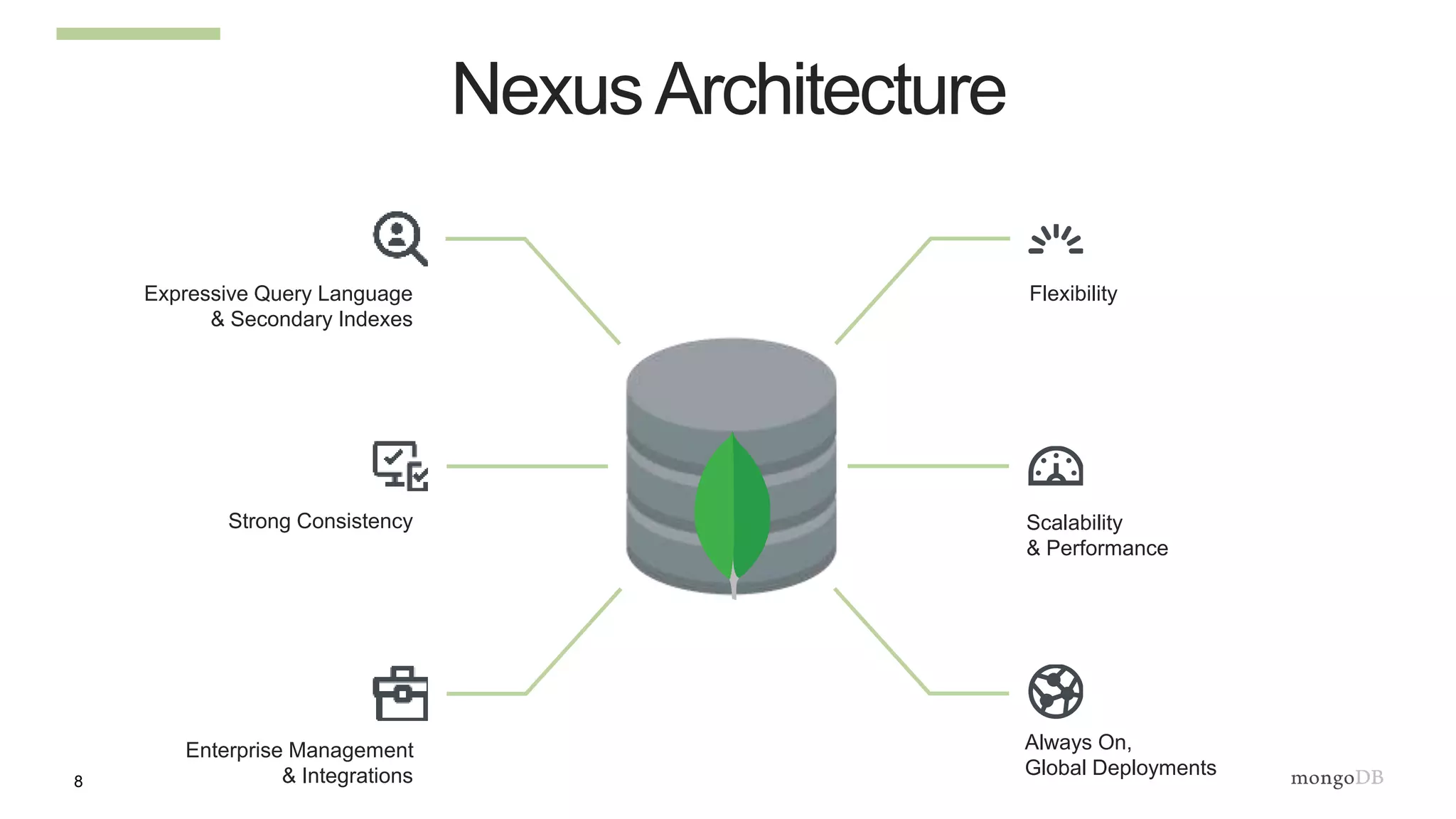

- 8. 8 NexusArchitecture Scalability & Performance Always On, GlobalDeployments FlexibilityExpressive Query Language & Secondary Indexes Strong Consistency Enterprise Management & Integrations
- 9.

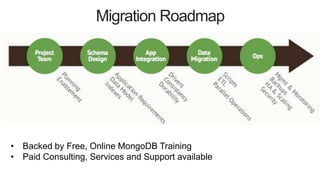

- 10. Migration Roadmap • Backedby Free, Online MongoDB Training • Paid Consulting, Services and Support available
- 11.

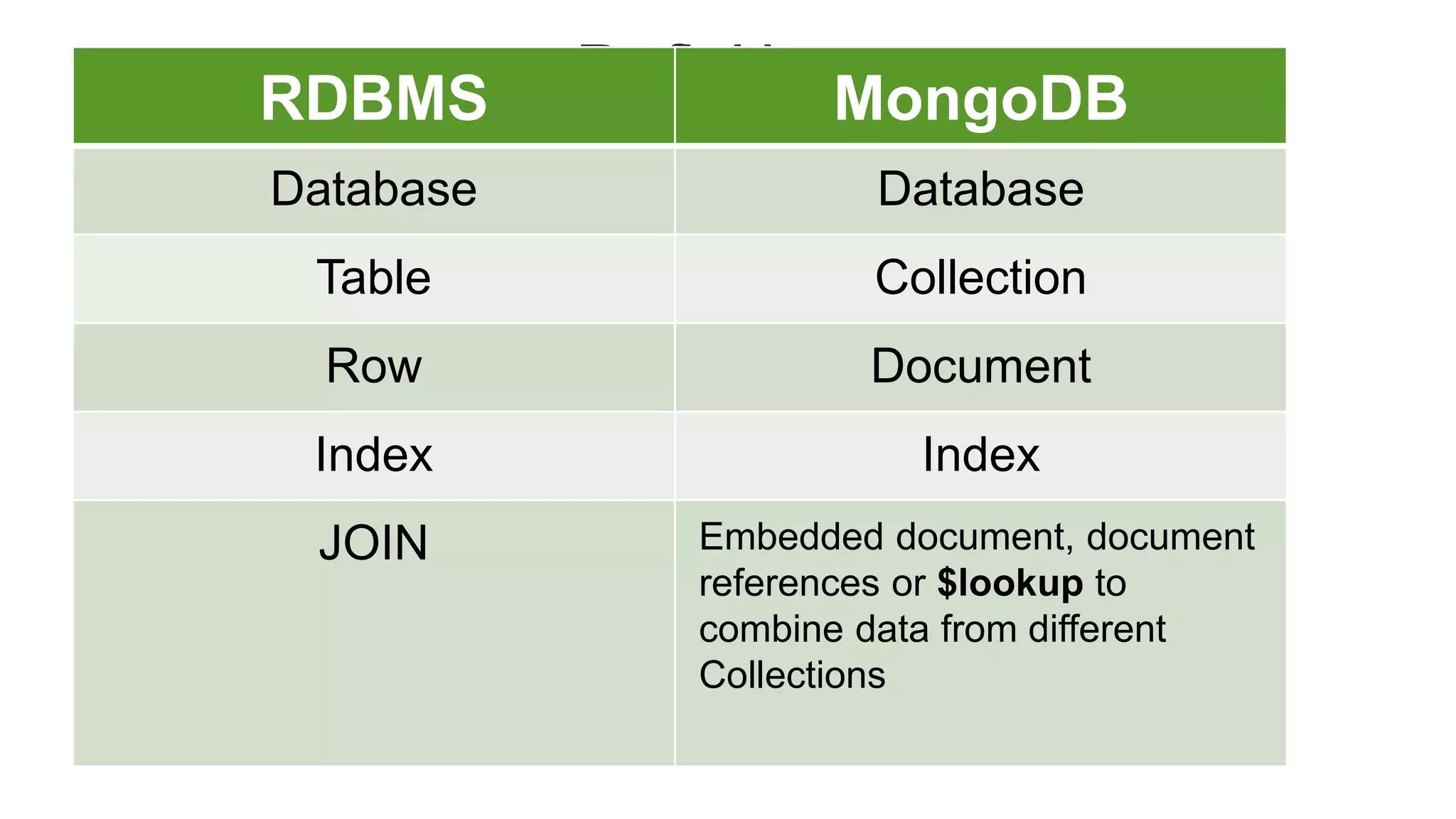

- 12. DefinitionsRDBMS MongoDB Database Database TableCollection Row Document Index Index JOIN Embedded document, document references or $lookup to combine data from different Collections

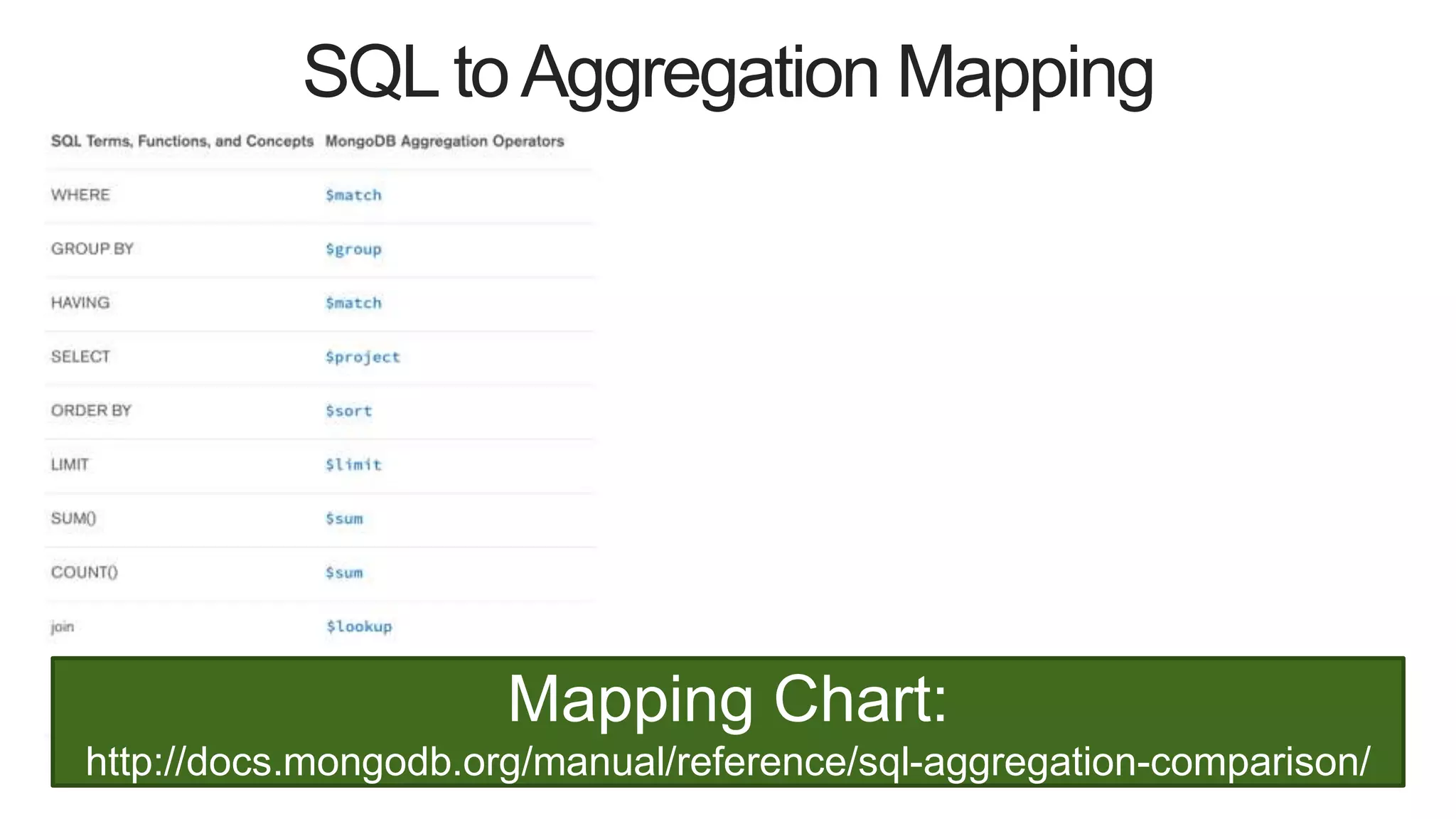

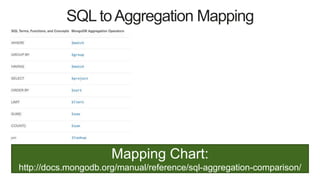

- 13. SQL toAggregation Mapping MappingChart: http://docs.mongodb.org/manual/reference/sql-aggregation-comparison/

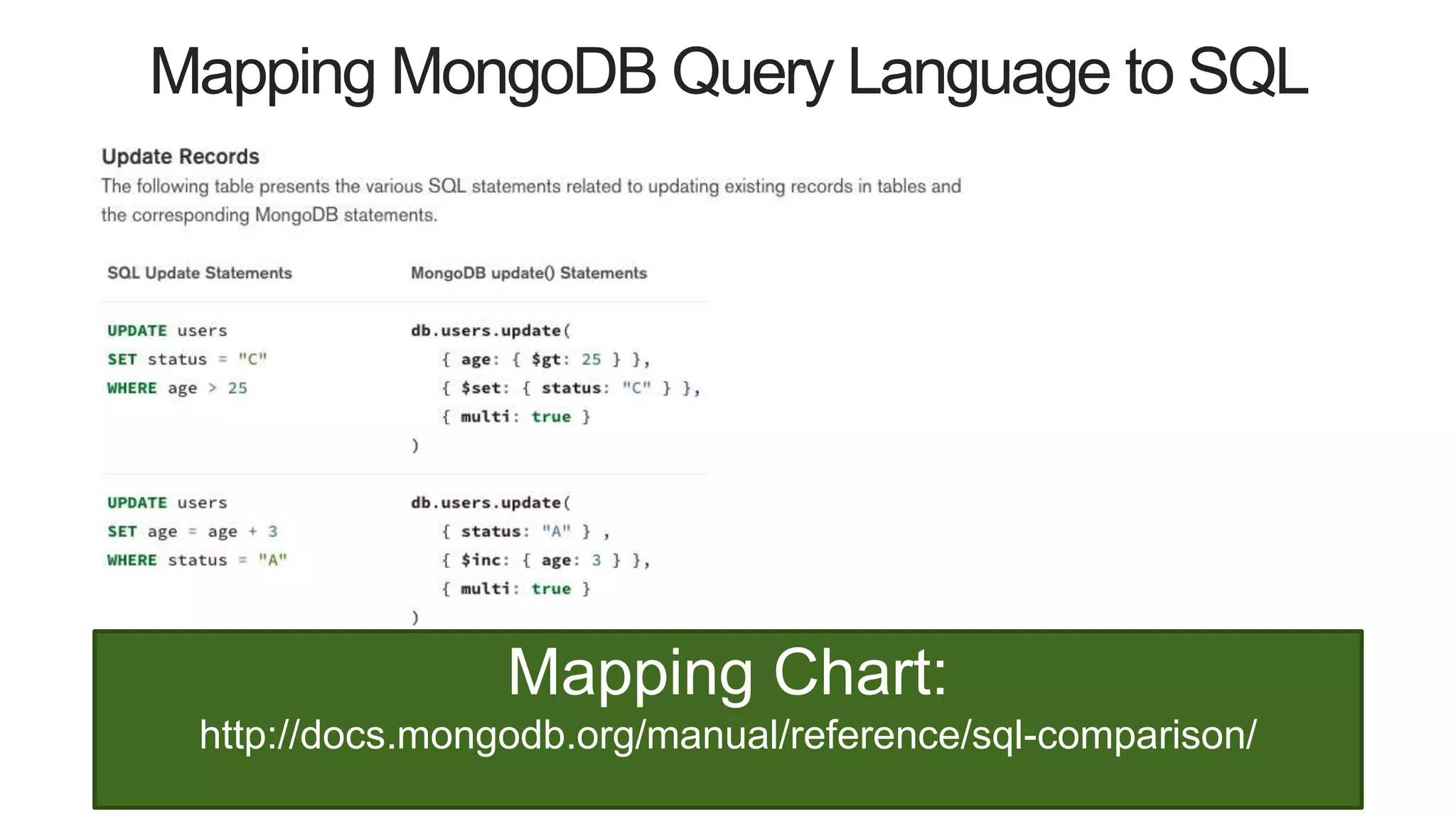

- 14. Mapping MongoDB QueryLanguage to SQL Mapping Chart: http://docs.mongodb.org/manual/reference/sql-comparison/

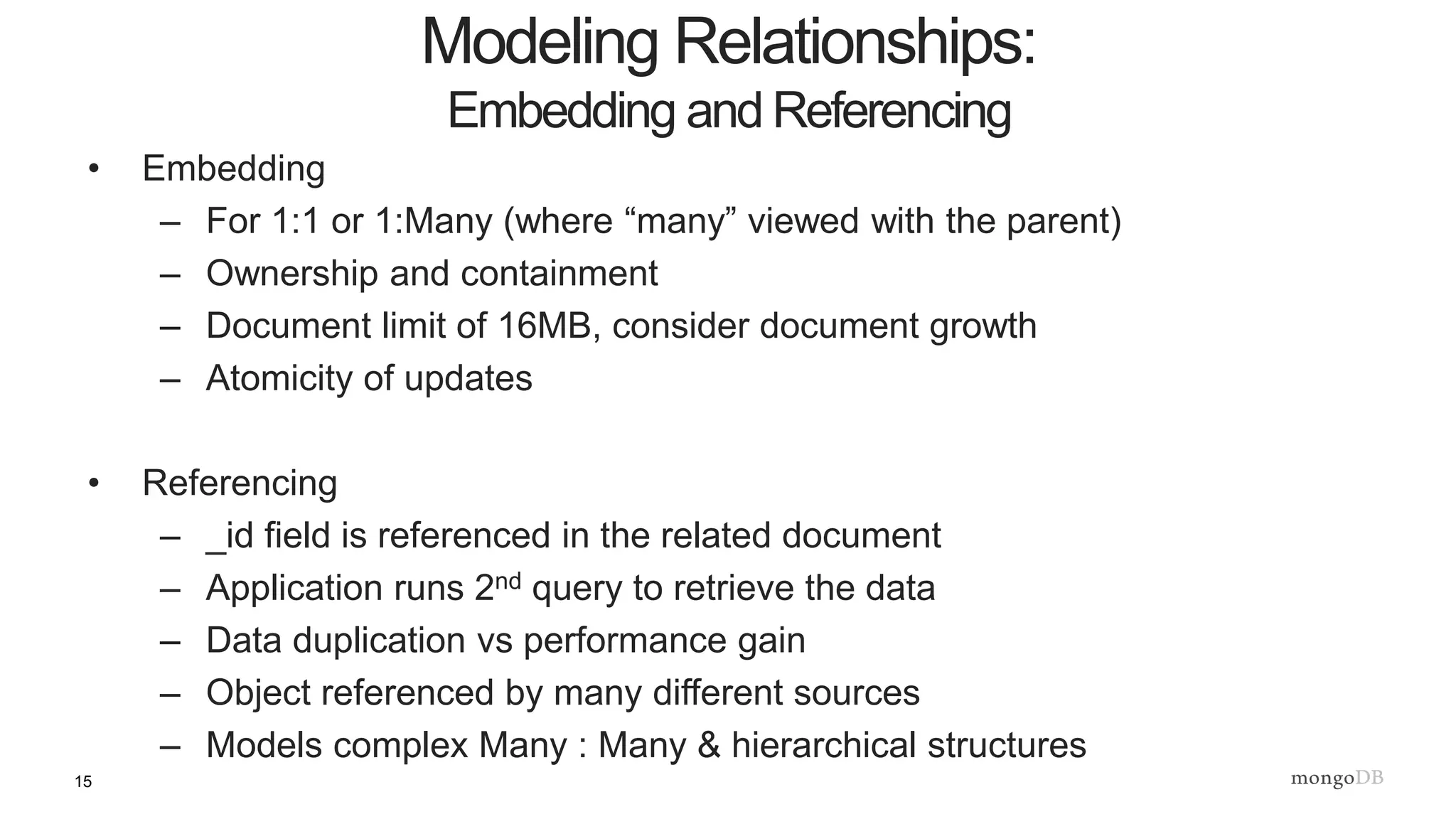

- 15. 15 • Embedding – For1:1 or 1:Many (where “many” viewed with the parent) – Ownership and containment – Document limit of 16MB, consider document growth – Atomicity of updates • Referencing – _id field is referenced in the related document – Application runs 2nd query to retrieve the data – Data duplication vs performance gain – Object referenced by many different sources – Models complex Many : Many & hierarchical structures Modeling Relationships: Embedding and Referencing
- 16. { first_name: ‘Paul’, surname: ‘Miller’, city:‘London’, location: [45.123,47.232], cars: [ { model: ‘Bentley’, year: 1973, value: 100000, … }, { model: ‘Rolls Royce’, year: 1965, value: 330000, … } ] } Data Models: Relational to Document Relational MongoDB
- 17.

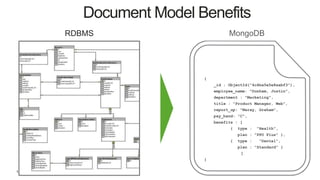

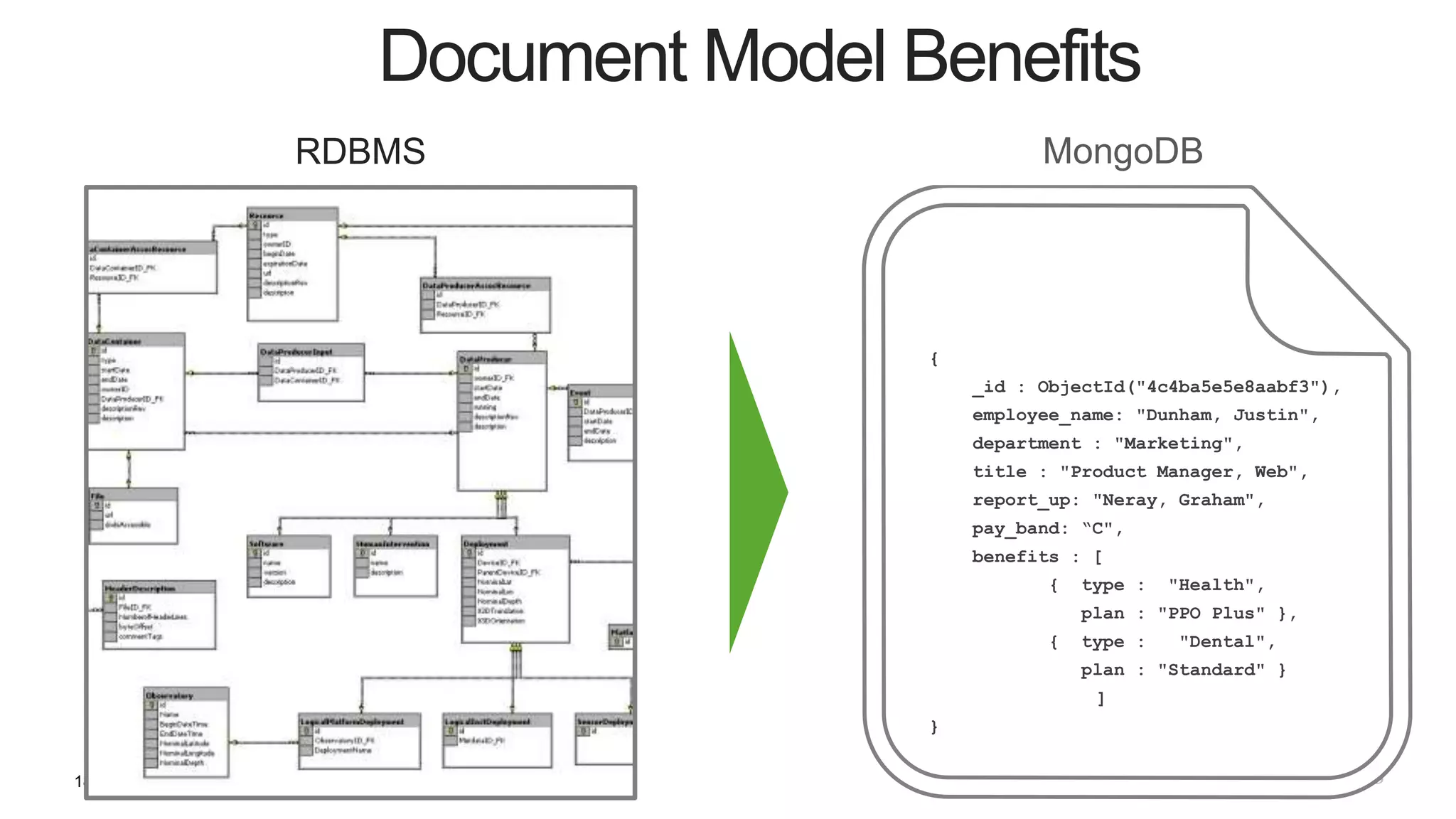

- 18. 18 RDBMS Document Model Benefits MongoDB { _id: ObjectId("4c4ba5e5e8aabf3"), employee_name: "Dunham, Justin", department : "Marketing", title : "Product Manager, Web", report_up: "Neray, Graham", pay_band: “C", benefits : [ { type : "Health", plan : "PPO Plus" }, { type : "Dental", plan : "Standard" } ] }
- 19. 19 Anatomy of aBSON Document{ first_name: ‘Paul’, surname: ‘Miller’, cell: ‘+447557505611’ city: ‘London’, location: [45.123,47.232], Profession: [banking, finance, trader], cars: [ { model: ‘Bentley’, year: 1973, value: 100000, … }, { model: ‘Rolls Royce’, year: 1965, Fields can contain an array of sub-documents Fields Typed field values Fields can contain arrays
- 20. Document Model Benefits Agilityand flexibility • Data model supports business change • Rapidly iterate to meet new requirements Intuitive, natural data representation • Eliminates ORM layer • Developers are more productive Reduces the need for joins, disk seeks • Programming is more simple { _id : ObjectId("4c4ba5e5e8aabf3"), employee_name: "Dunham, Justin", department : "Marketing", title : "Product Manager, Web", report_up: "Neray, Graham", pay_band: “C", benefits : [ { type : "Health", plan : "PPO Plus" }, { type : "Dental", plan : "Standard" } ] }

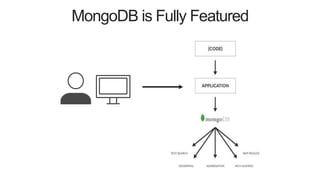

- 21. MongoDB is FullyFeatured

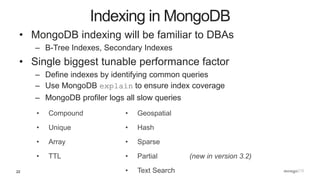

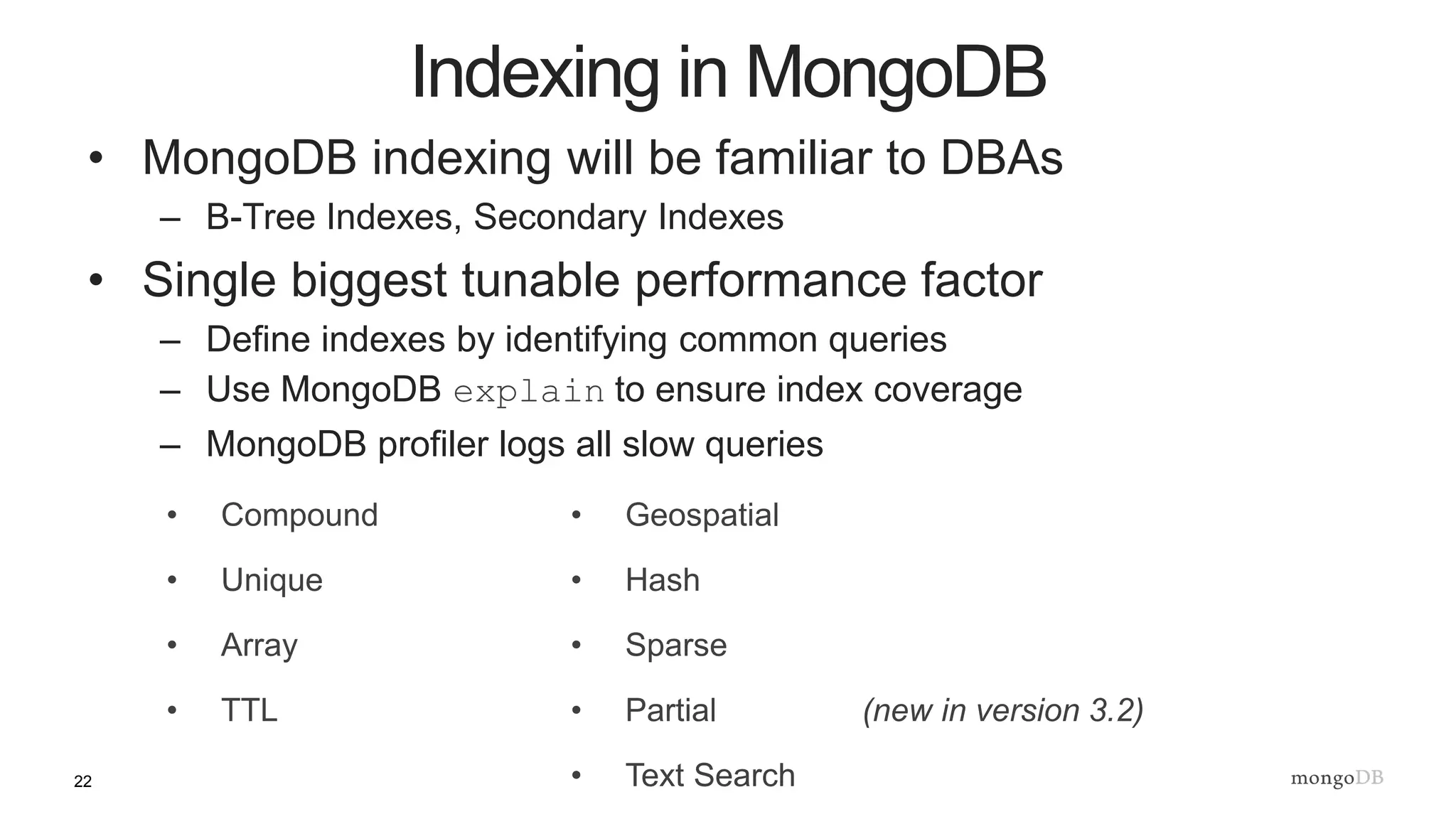

- 22. 22 • MongoDB indexingwill be familiar to DBAs – B-Tree Indexes, Secondary Indexes • Single biggest tunable performance factor – Define indexes by identifying common queries – Use MongoDB explain to ensure index coverage – MongoDB profiler logs all slow queries Indexing in MongoDB • Compound • Unique • Array • TTL • Geospatial • Hash • Sparse • Partial (new in version 3.2) • Text Search
- 23.
- 24.

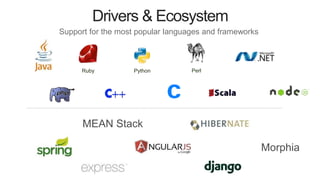

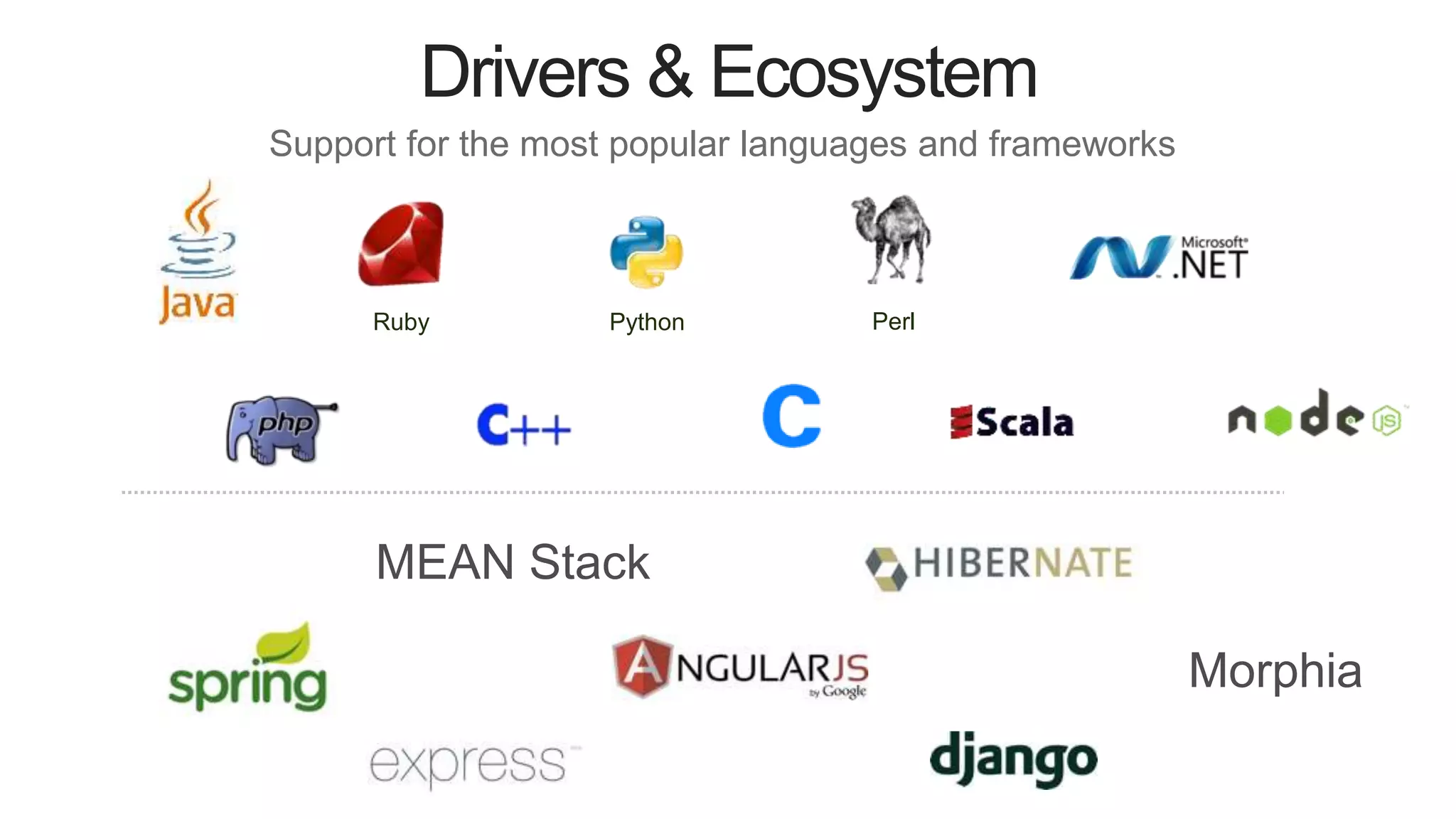

- 25. Drivers & Ecosystem Morphia MEANStack Python PerlRuby Support for the most popular languages and frameworks

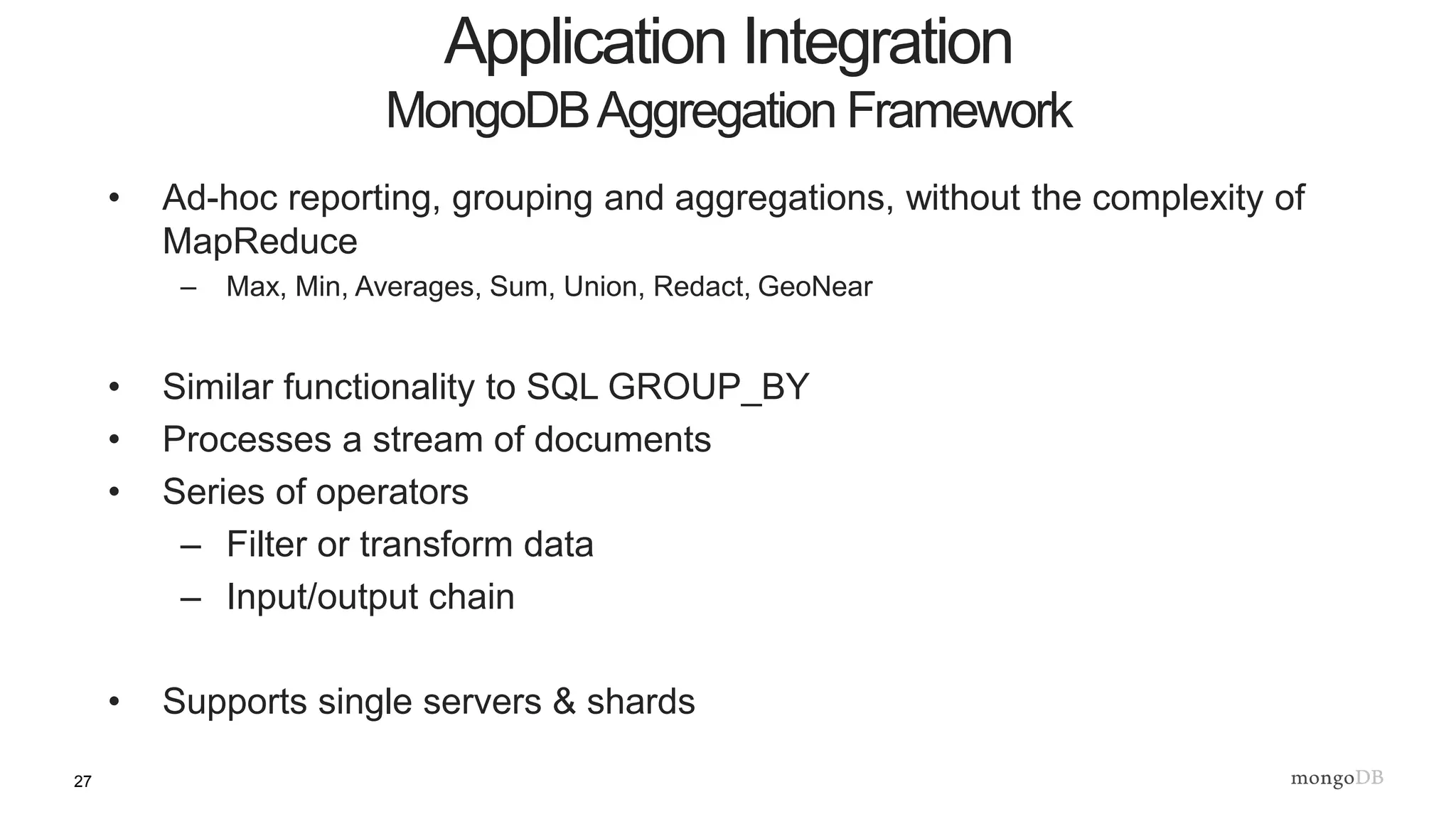

- 26. 27 • Ad-hoc reporting,grouping and aggregations, without the complexity of MapReduce – Max, Min, Averages, Sum, Union, Redact, GeoNear • Similar functionality to SQL GROUP_BY • Processes a stream of documents • Series of operators – Filter or transform data – Input/output chain • Supports single servers & shards Application Integration MongoDBAggregation Framework

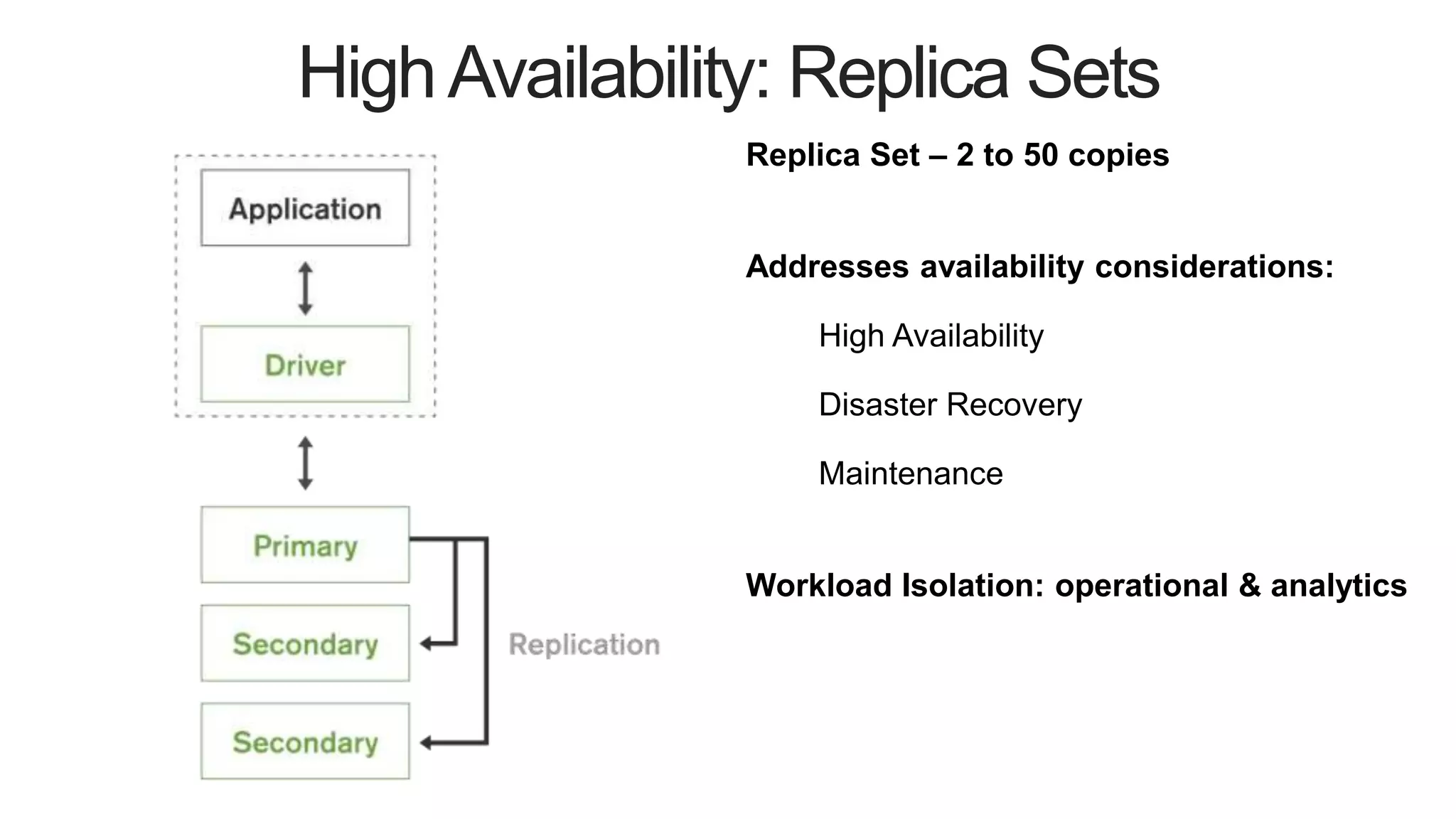

- 27. HighAvailability: Replica Sets ReplicaSet – 2 to 50 copies Addresses availability considerations: High Availability Disaster Recovery Maintenance Workload Isolation: operational & analytics

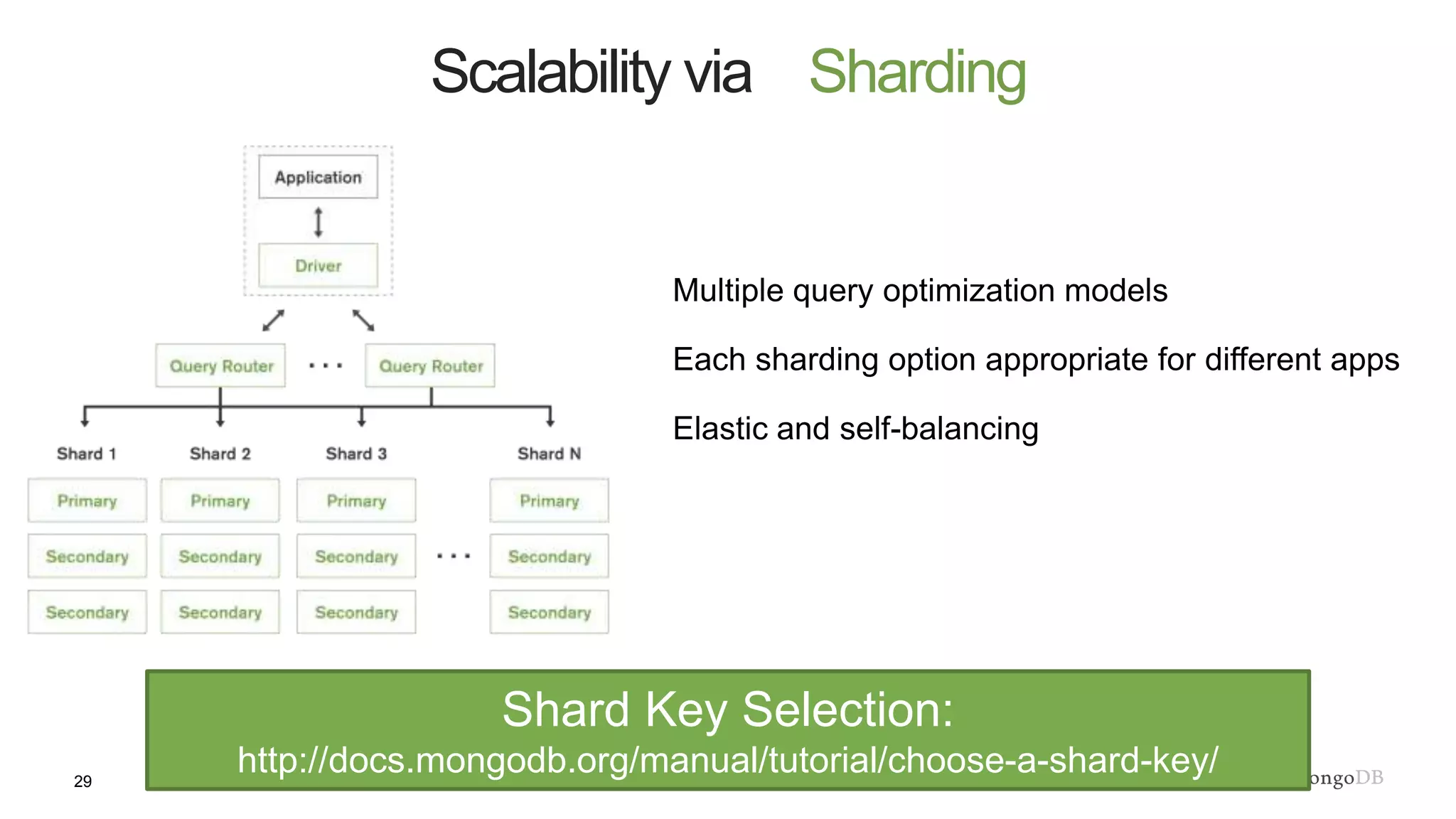

- 28. 29 Scalability via Sharding Multiplequery optimization models Each sharding option appropriate for different apps Elastic and self-balancing Shard Key Selection: http://docs.mongodb.org/manual/tutorial/choose-a-shard-key/
- 29.

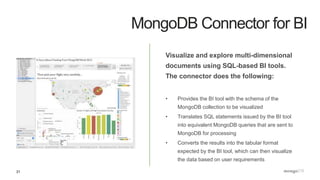

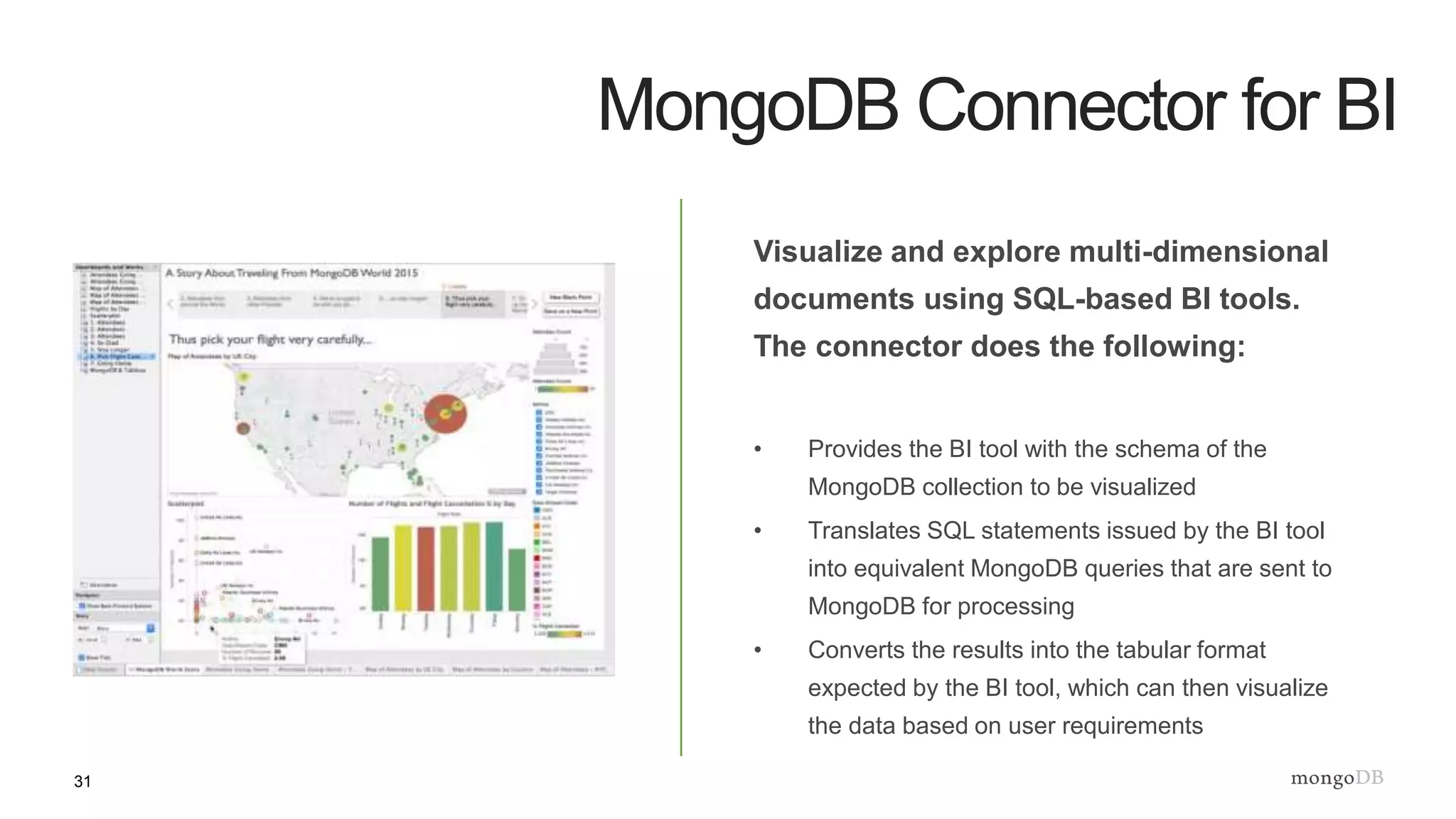

- 30. 31 MongoDB Connector forBI Visualize and explore multi-dimensional documents using SQL-based BI tools. The connector does the following: • Provides the BI tool with the schema of the MongoDB collection to be visualized • Translates SQL statements issued by the BI tool into equivalent MongoDB queries that are sent to MongoDB for processing • Converts the results into the tabular format expected by the BI tool, which can then visualize the data based on user requirements
- 31.

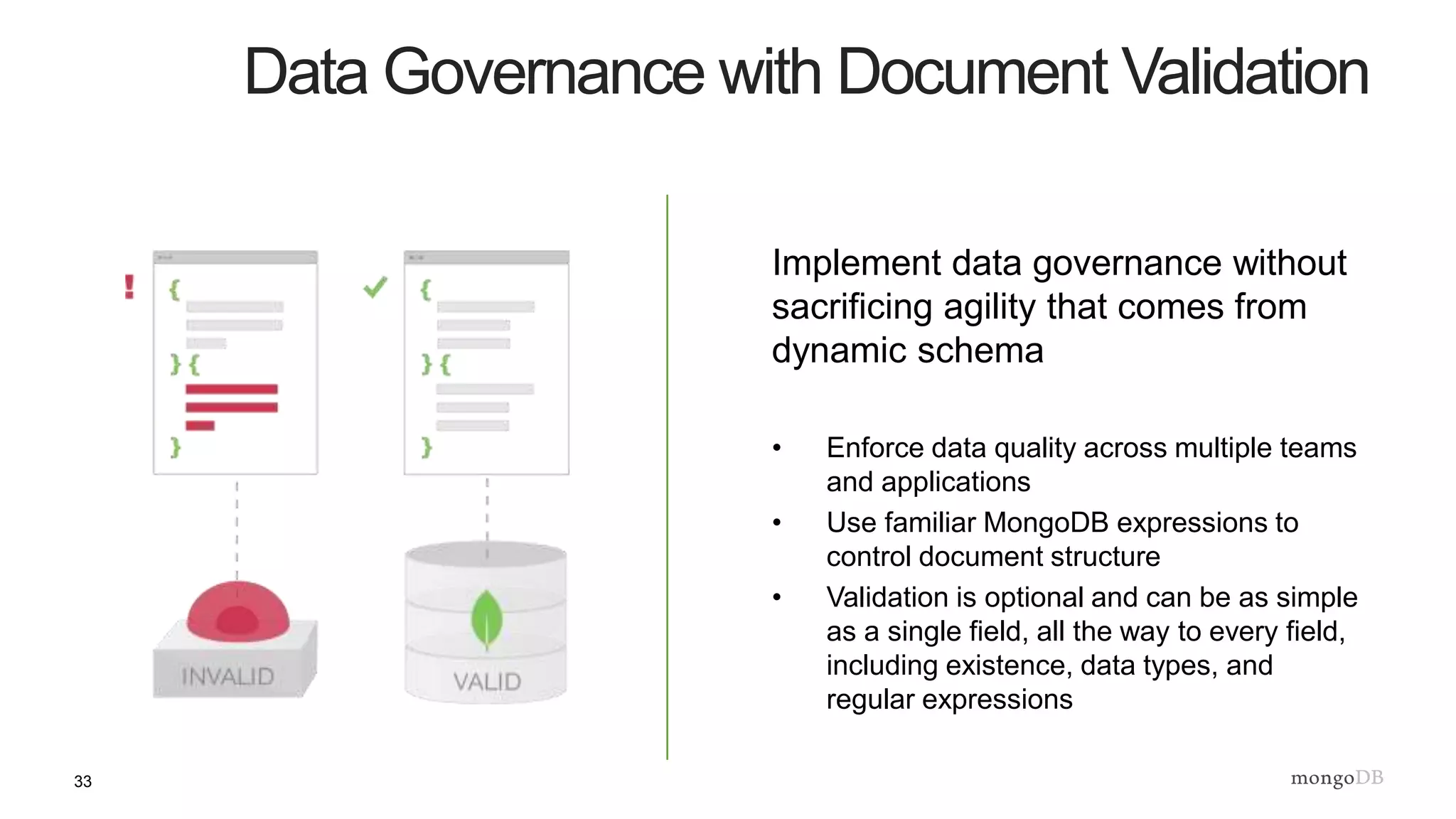

- 32. 33 Data Governance withDocument Validation Implement data governance without sacrificing agility that comes from dynamic schema • Enforce data quality across multiple teams and applications • Use familiar MongoDB expressions to control document structure • Validation is optional and can be as simple as a single field, all the way to every field, including existence, data types, and regular expressions

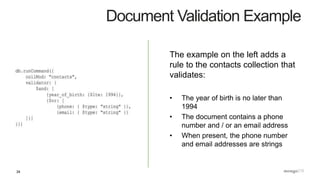

- 33. 34 Document Validation Example Theexample on the left adds a rule to the contacts collection that validates: • The year of birth is no later than 1994 • The document contains a phone number and / or an email address • When present, the phone number and email addresses are strings

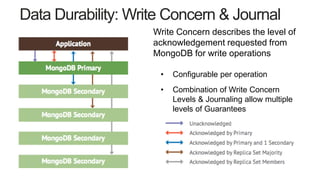

- 34. Data Durability: WriteConcern & Journal • Configurable per operation • Combination of Write Concern Levels & Journaling allow multiple levels of Guarantees Write Concern describes the level of acknowledgement requested from MongoDB for write operations
- 35.
- 36.
- 37.

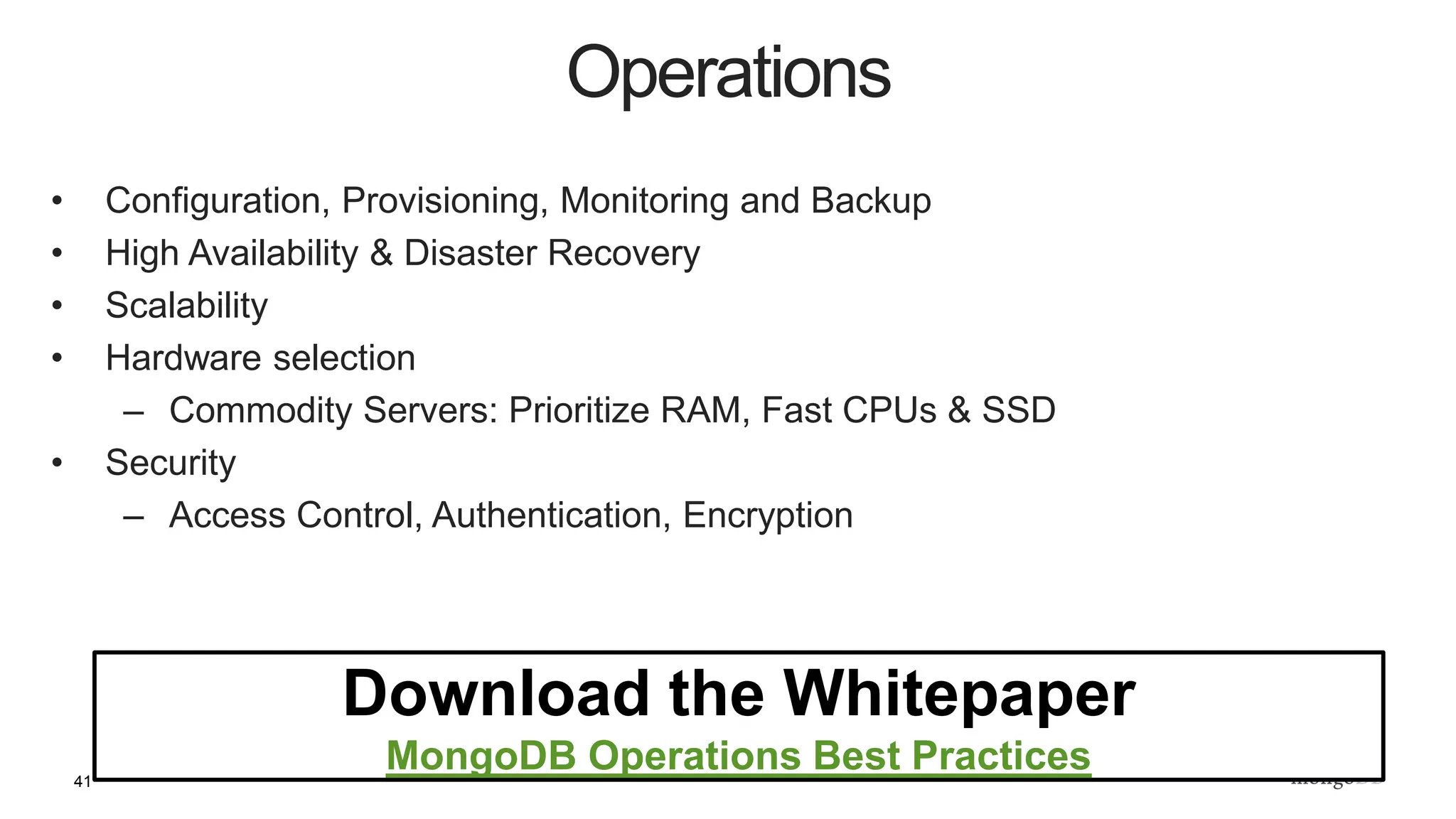

- 38. 41 • Configuration, Provisioning,Monitoring and Backup • High Availability & Disaster Recovery • Scalability • Hardware selection – Commodity Servers: Prioritize RAM, Fast CPUs & SSD • Security – Access Control, Authentication, Encryption Operations Download the Whitepaper MongoDB Operations Best Practices

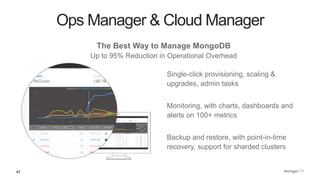

- 39. 42 Ops Manager &Cloud Manager Single-click provisioning, scaling & upgrades, admin tasks Monitoring, with charts, dashboards and alerts on 100+ metrics Backup and restore, with point-in-time recovery, support for sharded clusters The Best Way to Manage MongoDB Up to 95% Reduction in Operational Overhead

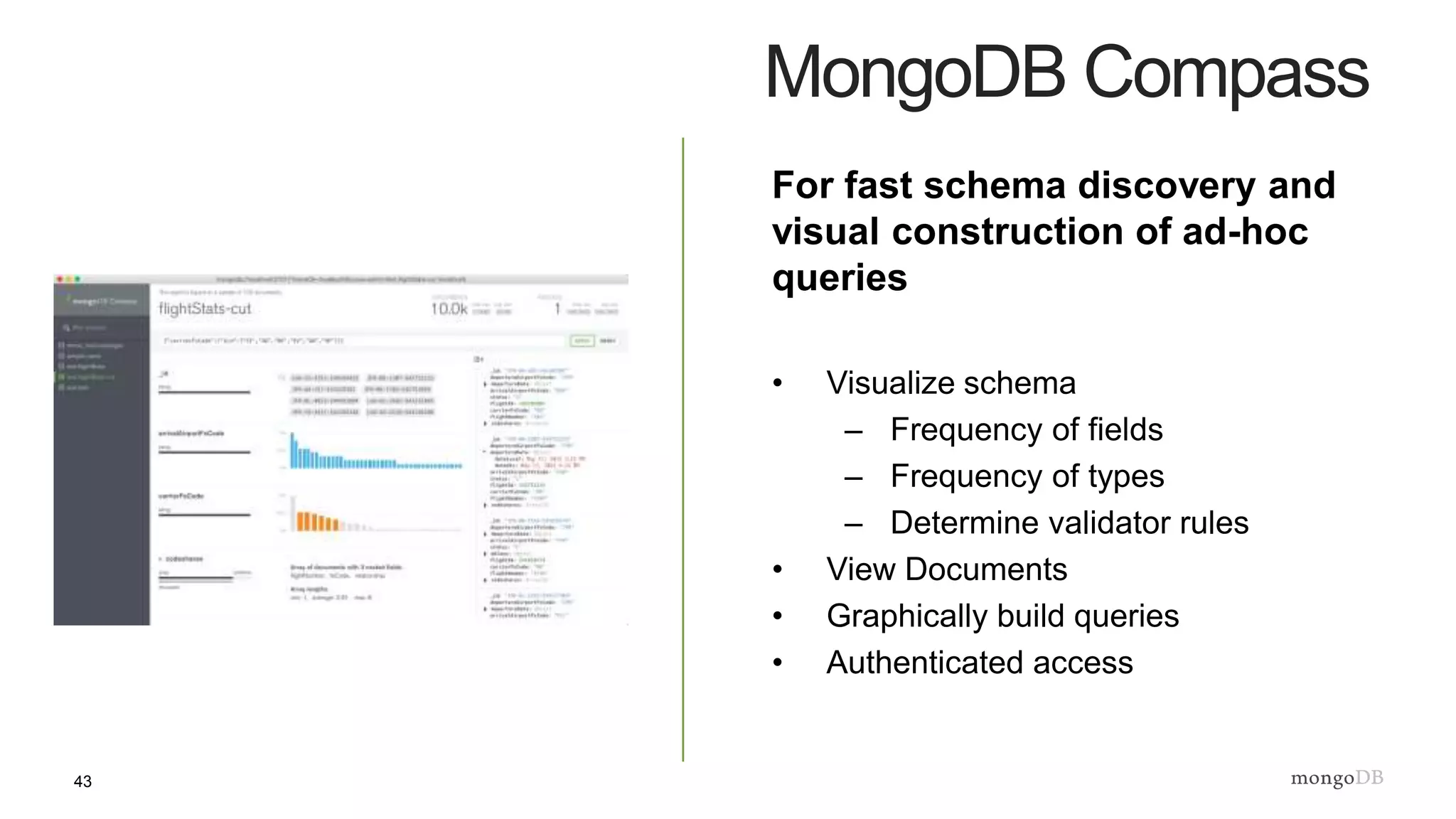

- 40. 43 MongoDB Compass For fastschema discovery and visual construction of ad-hoc queries • Visualize schema – Frequency of fields – Frequency of types – Determine validator rules • View Documents • Graphically build queries • Authenticated access

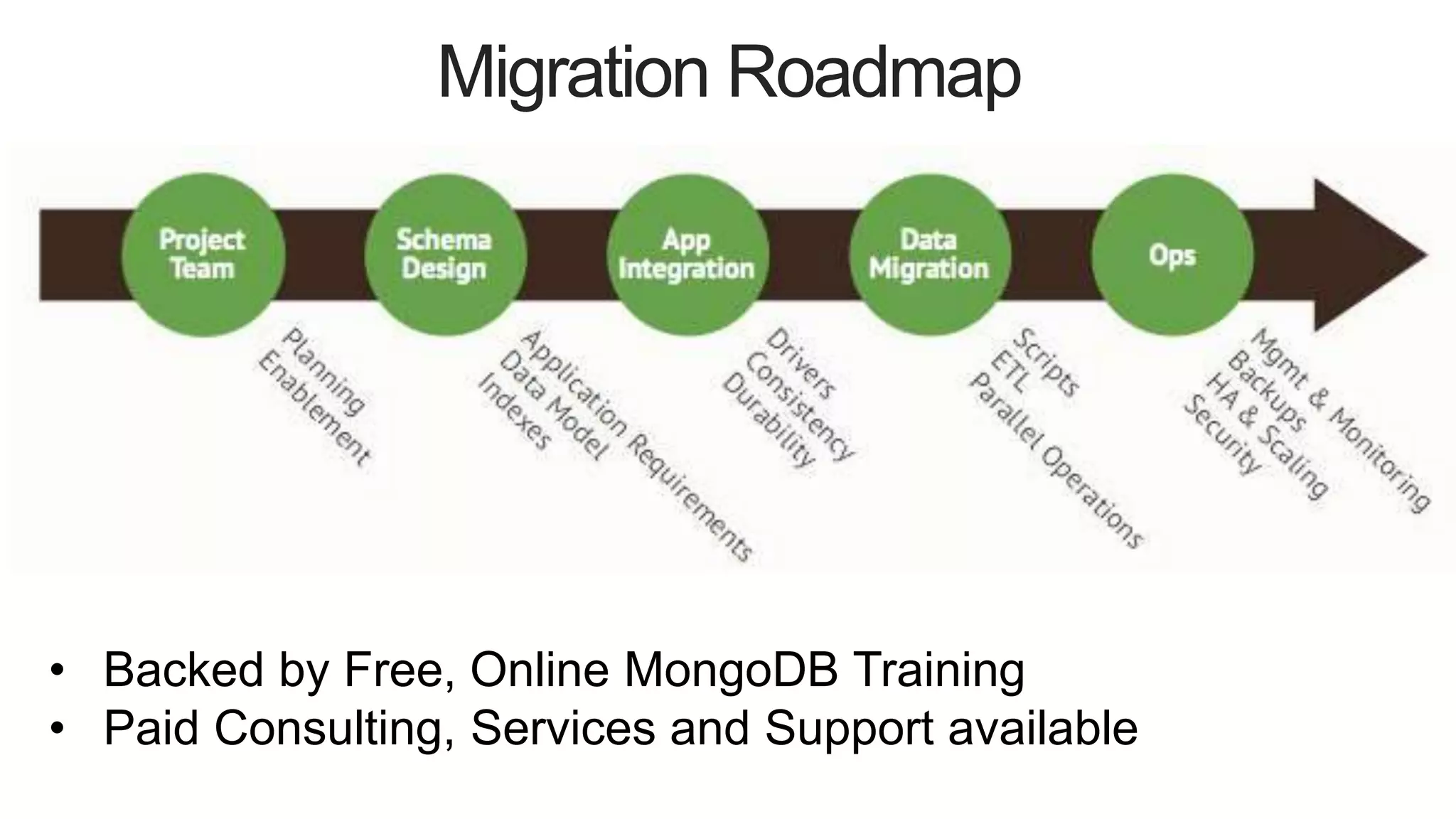

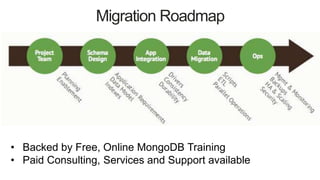

- 41. Migration Roadmap • Backedby Free, Online MongoDB Training • Paid Consulting, Services and Support available
- 42.

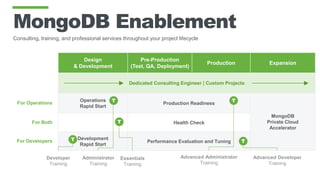

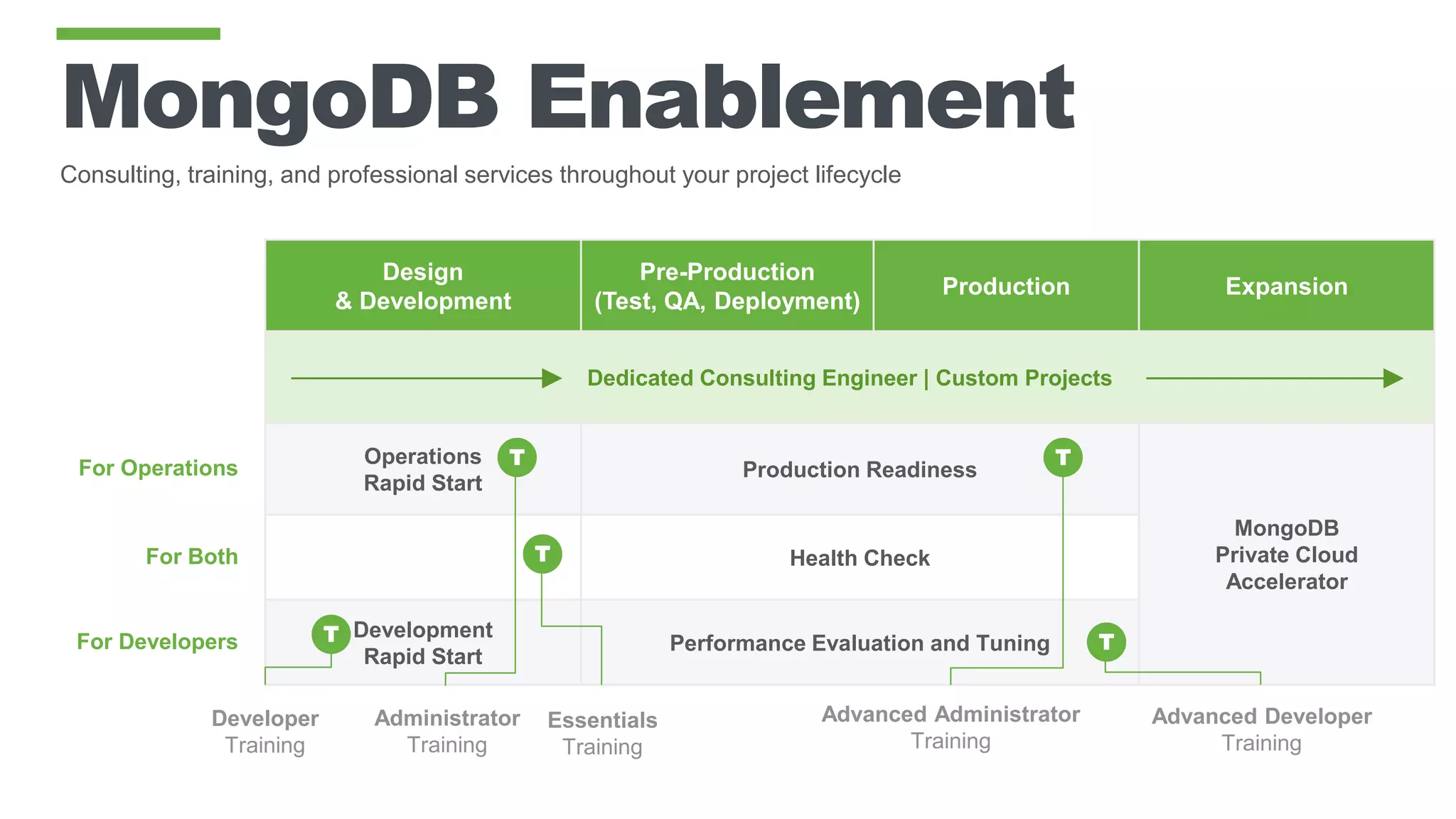

- 43. MongoDB Enablement Consulting, training,and professional services throughout your project lifecycle For Operations For Developers Design & Development Pre-Production (Test, QA, Deployment) Production Expansion Dedicated Consulting Engineer | Custom Projects Operations Rapid Start Production Readiness MongoDB Private Cloud Accelerator Health Check Development Rapid Start Performance Evaluation and Tuning For Both T Developer Training T Essentials Training T Administrator Training T Advanced Developer Training T Advanced Administrator Training

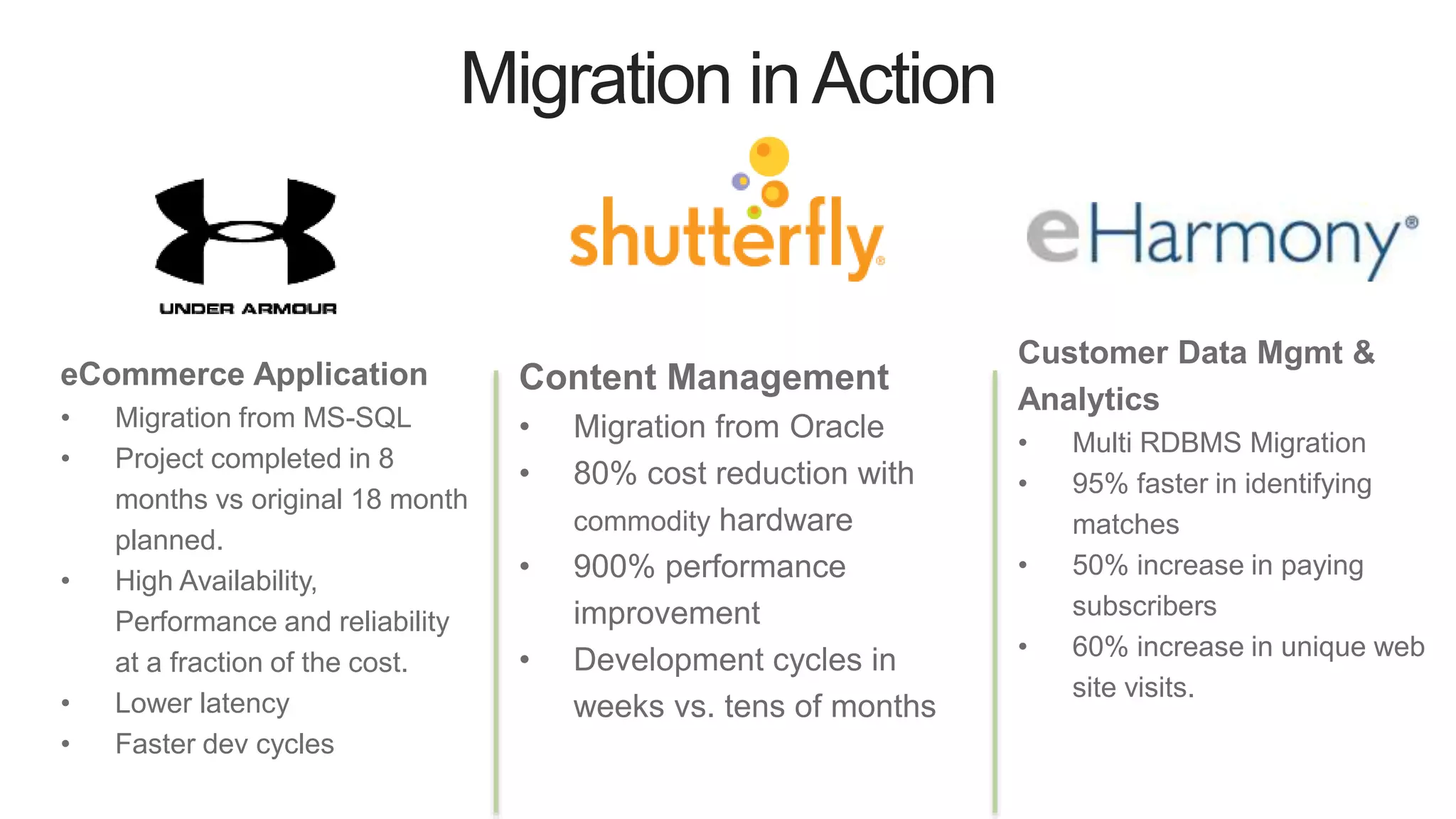

- 44. Migration inAction eCommerce Application •Migration from MS-SQL • Project completed in 8 months vs original 18 month planned. • High Availability, Performance and reliability at a fraction of the cost. • Lower latency • Faster dev cycles Content Management • Migration from Oracle • 80% cost reduction with commodity hardware • 900% performance improvement • Development cycles in weeks vs. tens of months Customer Data Mgmt & Analytics • Multi RDBMS Migration • 95% faster in identifying matches • 50% increase in paying subscribers • 60% increase in unique web site visits.

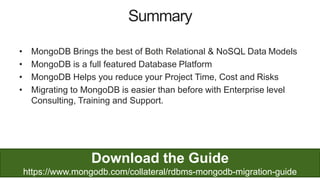

- 45. 48 • MongoDB Bringsthe best of Both Relational & NoSQL Data Models • MongoDB is a full featured Database Platform • MongoDB Helps you reduce your Project Time, Cost and Risks • Migrating to MongoDB is easier than before with Enterprise level Consulting, Training and Support. Summary Download the Guide https://www.mongodb.com/collateral/rdbms-mongodb-migration-guide
