Oracle adapters
for Ruby ORMs
Raimonds Simanovskis

   TietoEnator Alise




   @rsim     github.com/rsim
What is
 Ruby
  on
Rails?

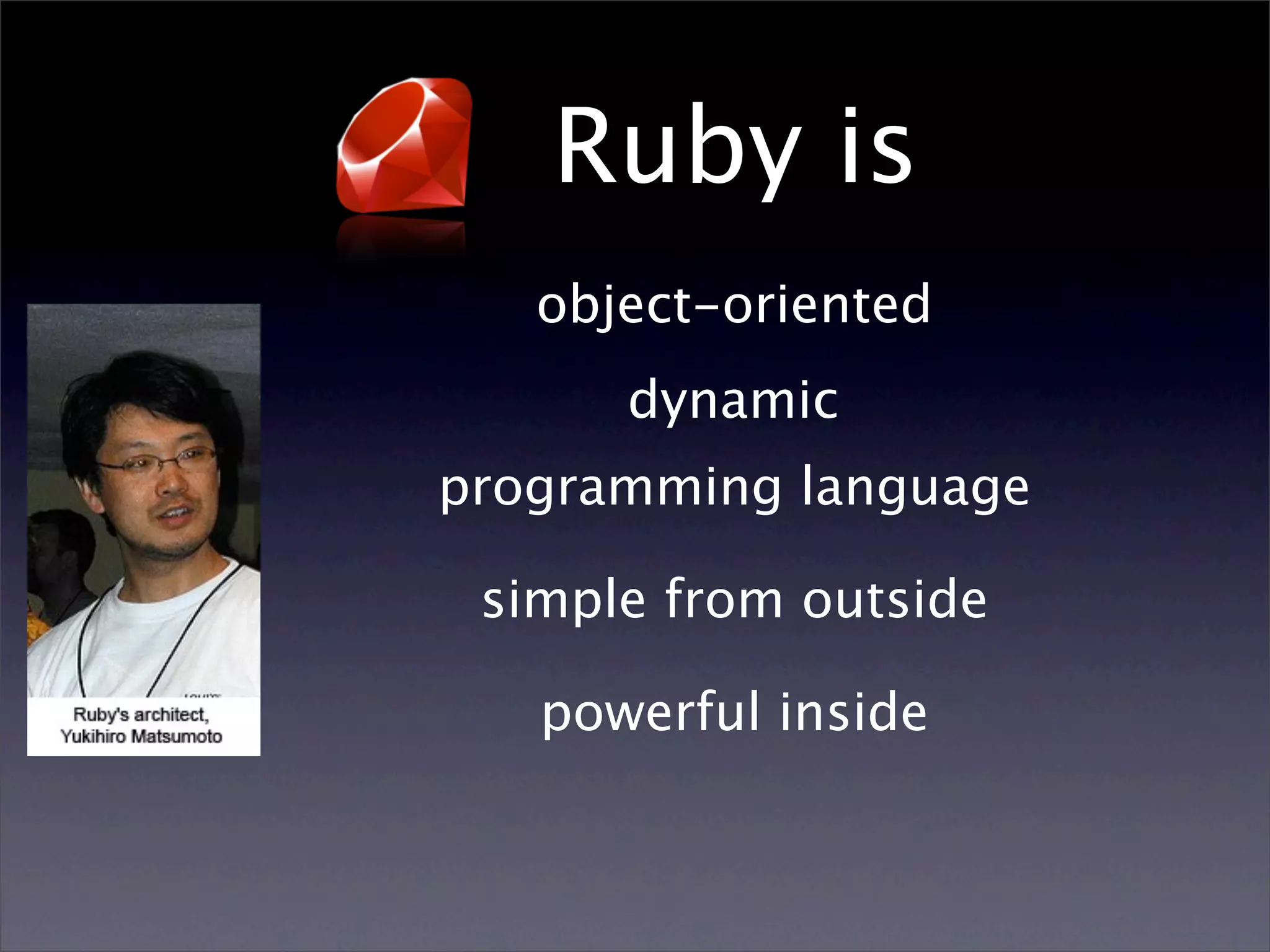

Ruby is
   object-oriented
      dynamic
programming language

 simple from outside

   powerful inside

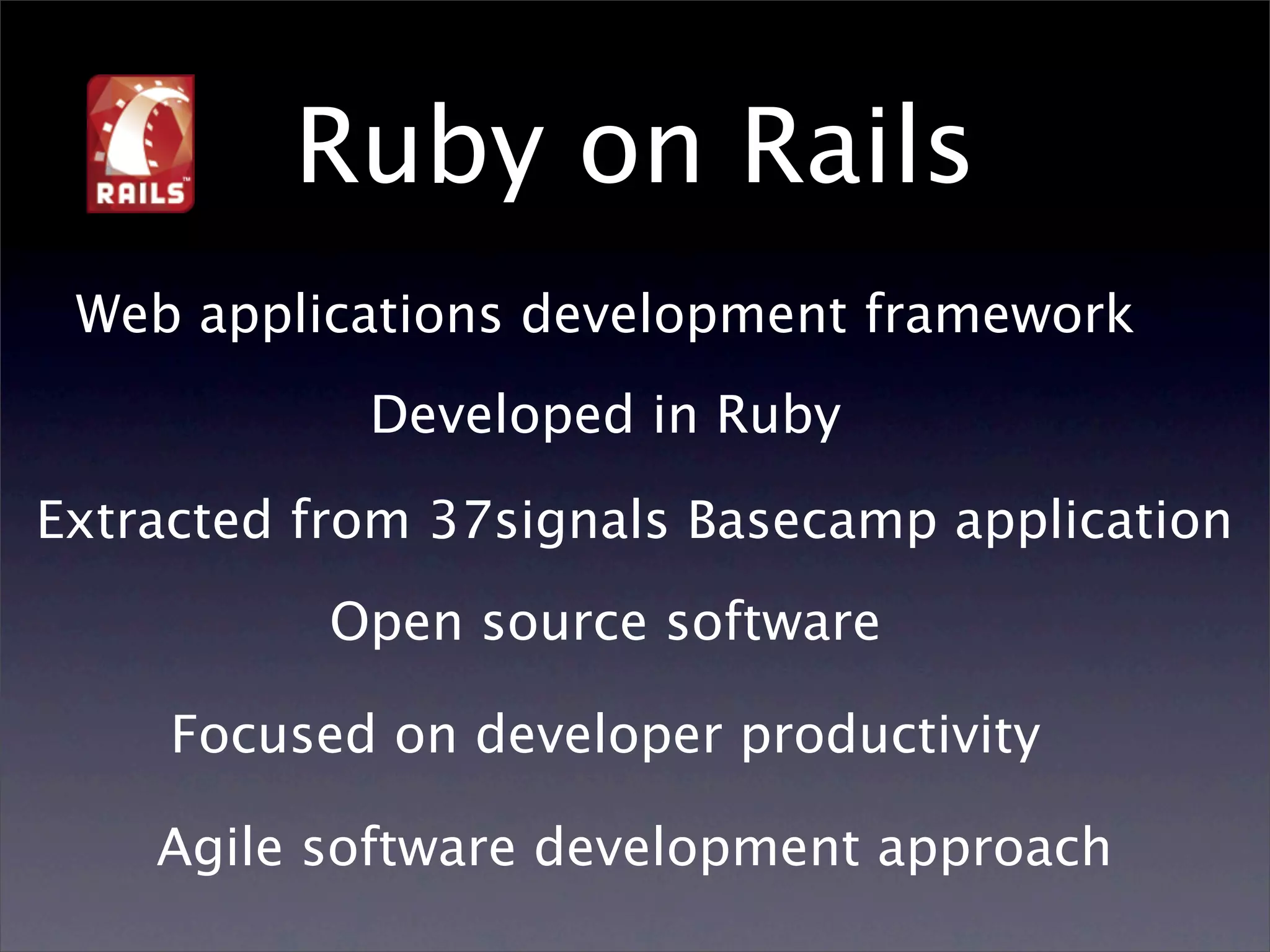

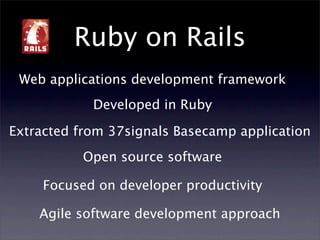

Ruby on Rails
 Web applications development framework
            Developed in Ruby

Extracted from 37signals Basecamp application
           Open source software

     Focused on developer productivity

    Agile software development approach

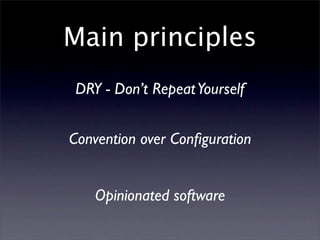

Main principles
 DRY - Don’t Repeat Yourself


Convention over Configuration


    Opinionated software

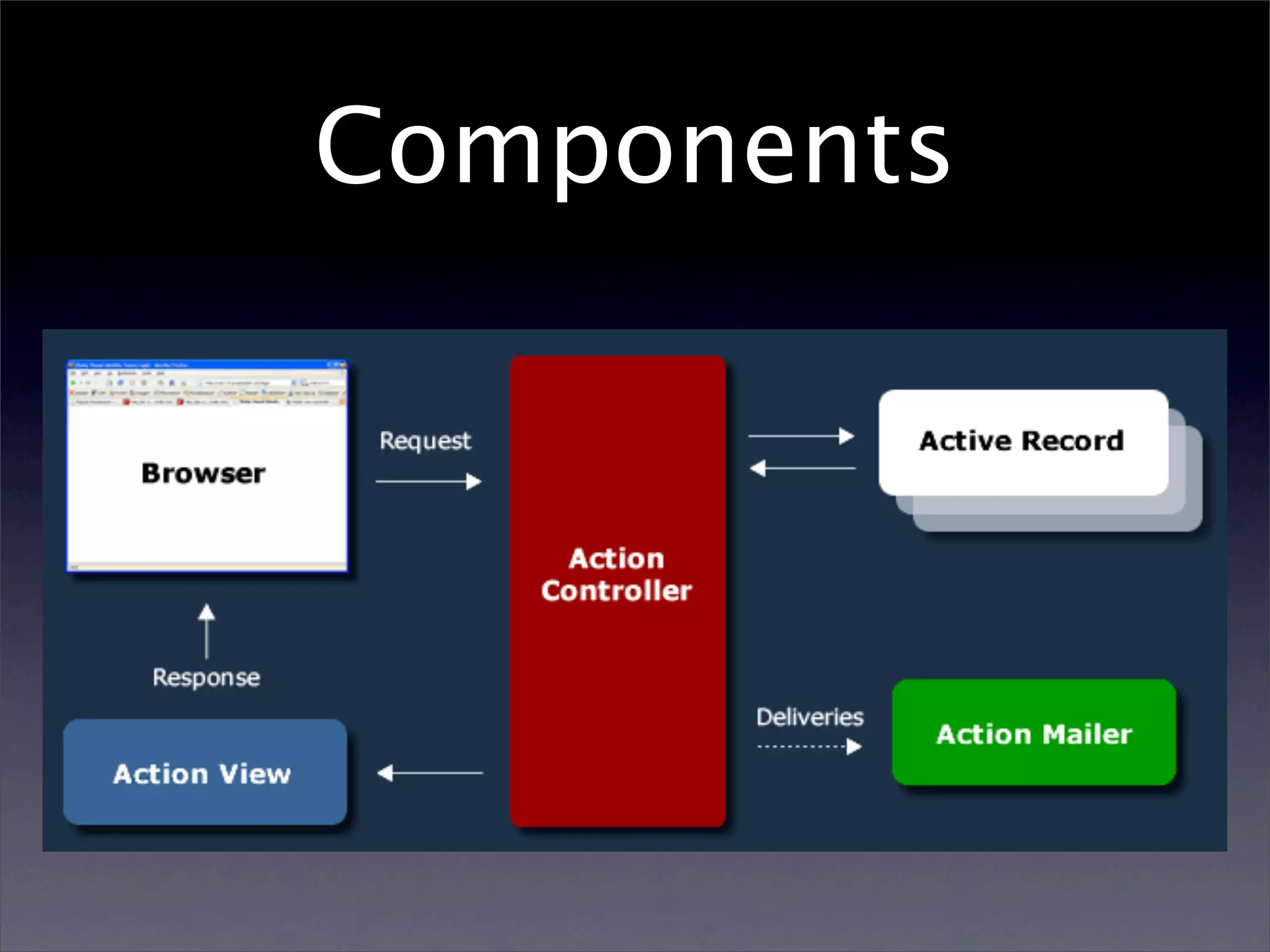

Components

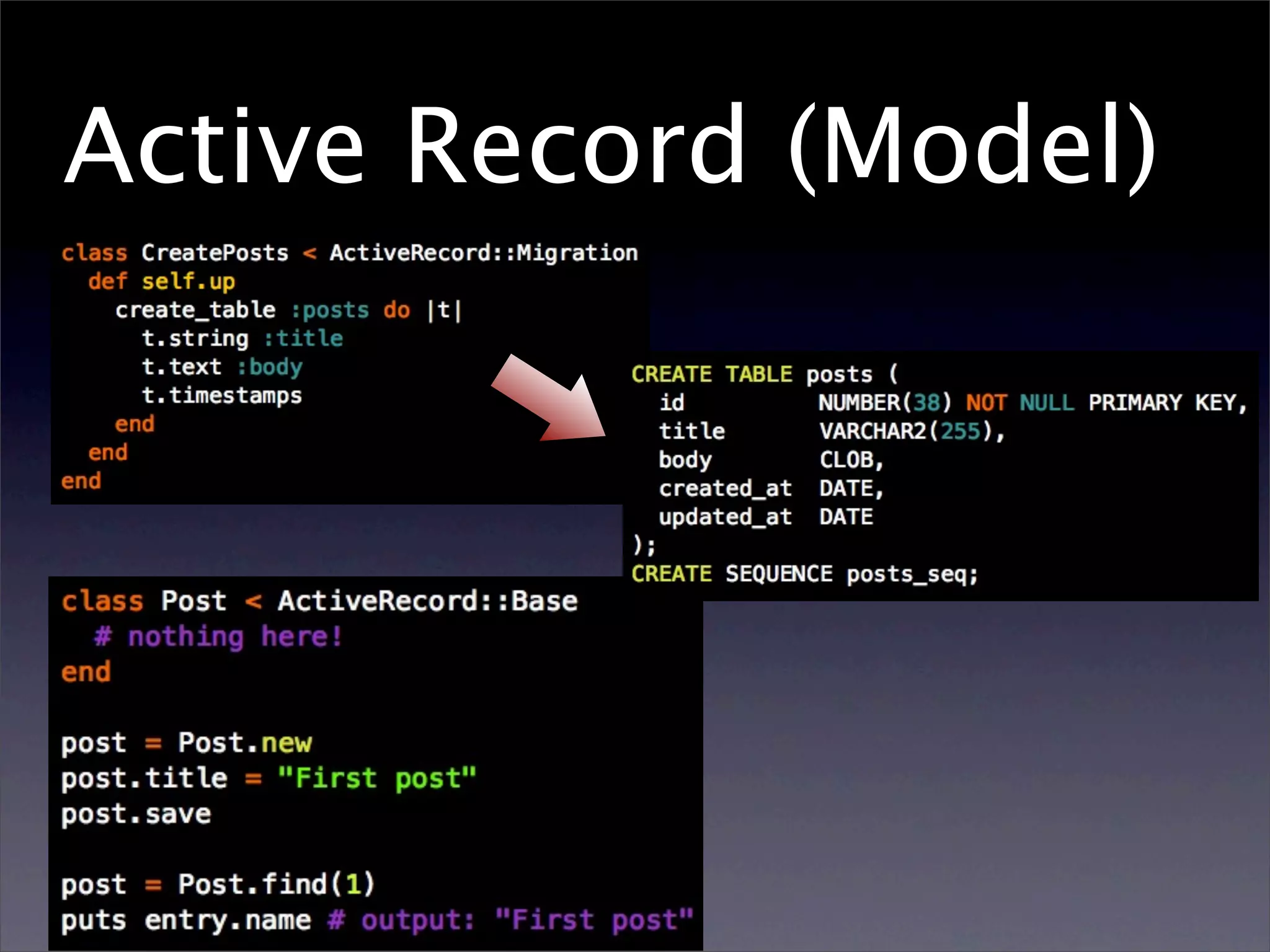

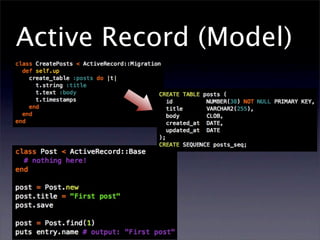

Active Record (Model)

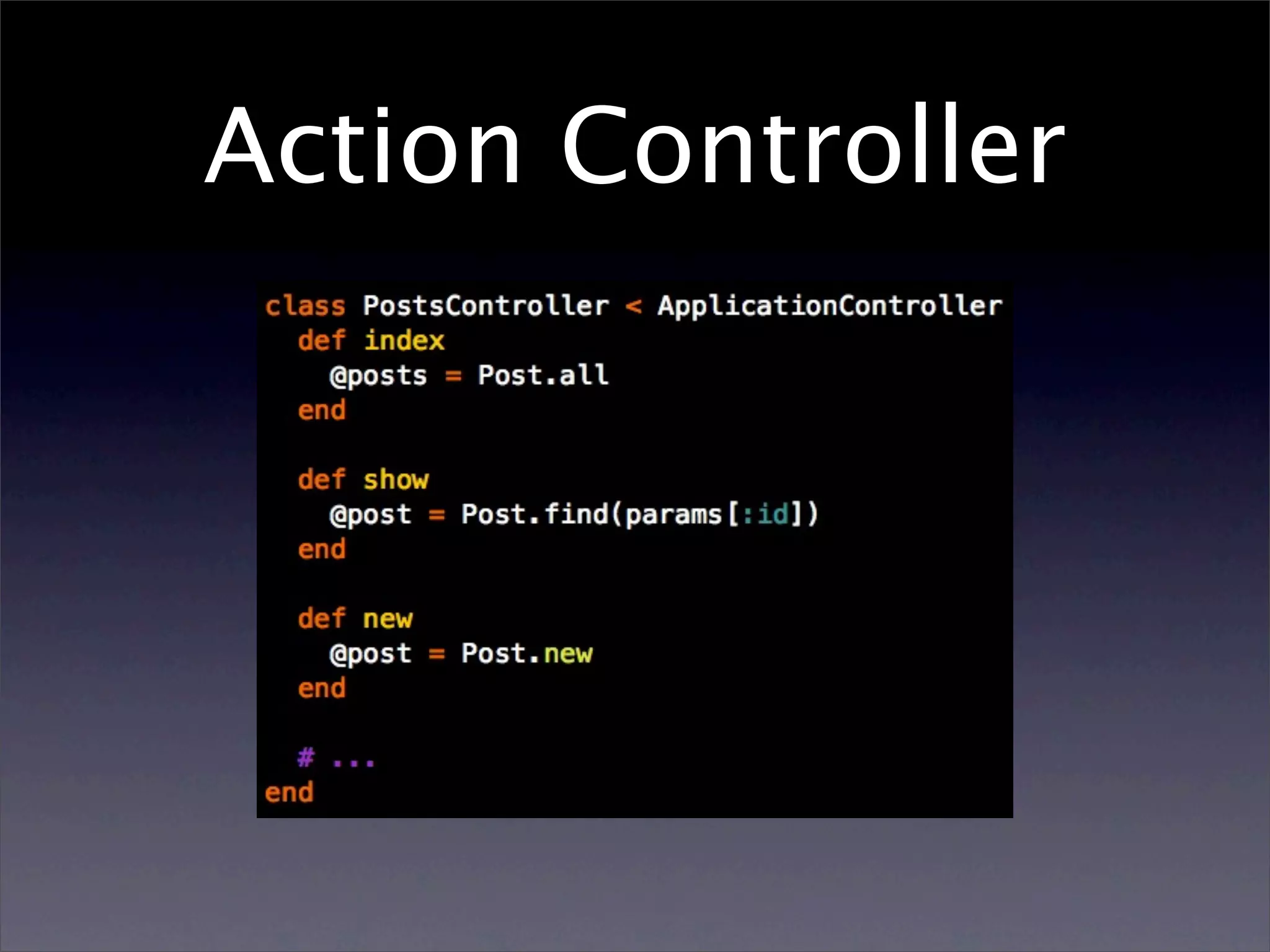

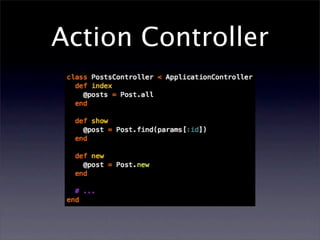

Action Controller

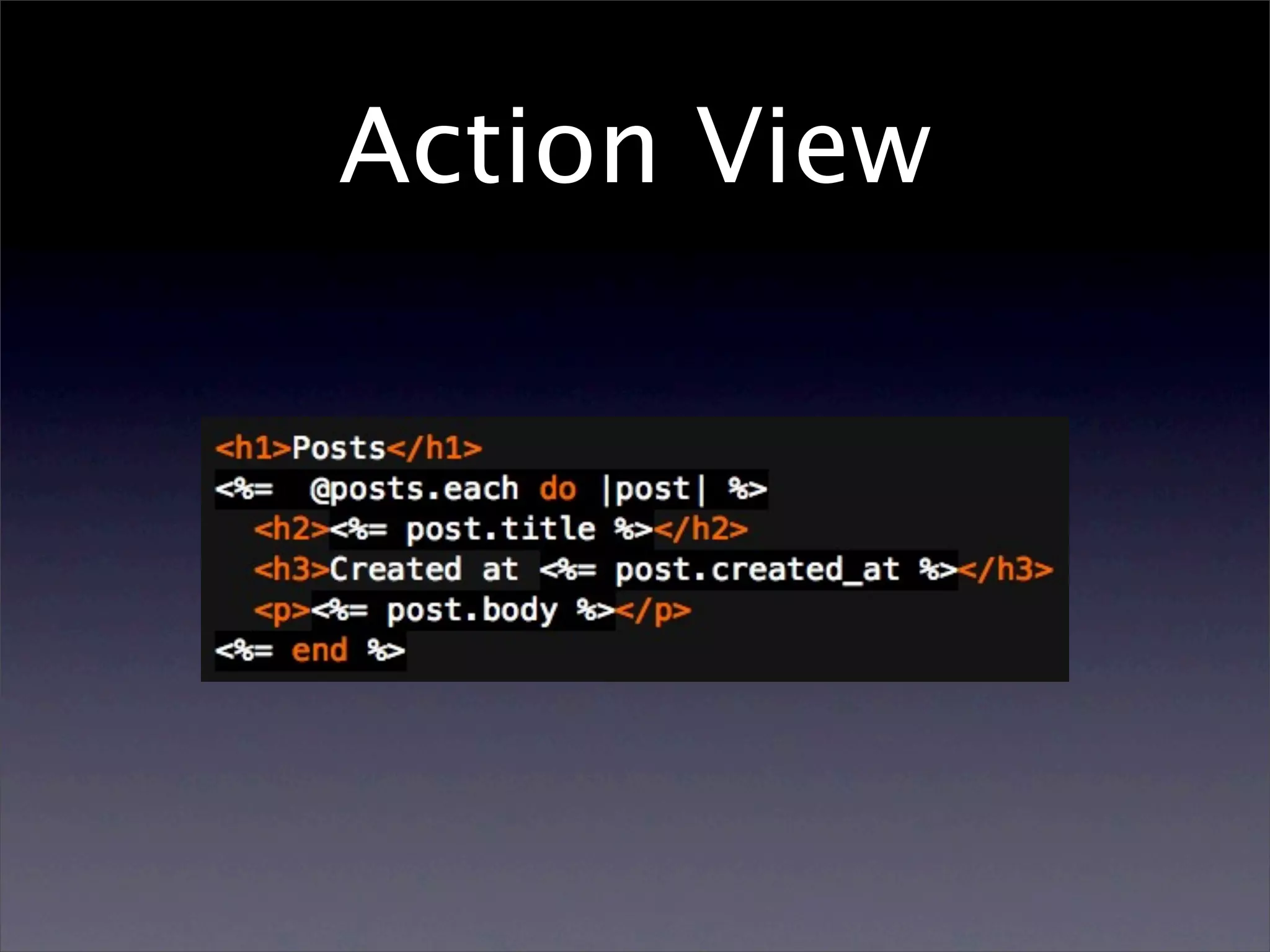

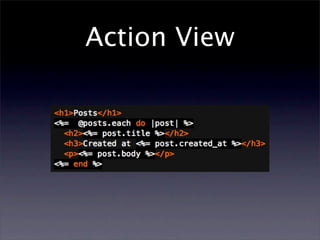

Action View

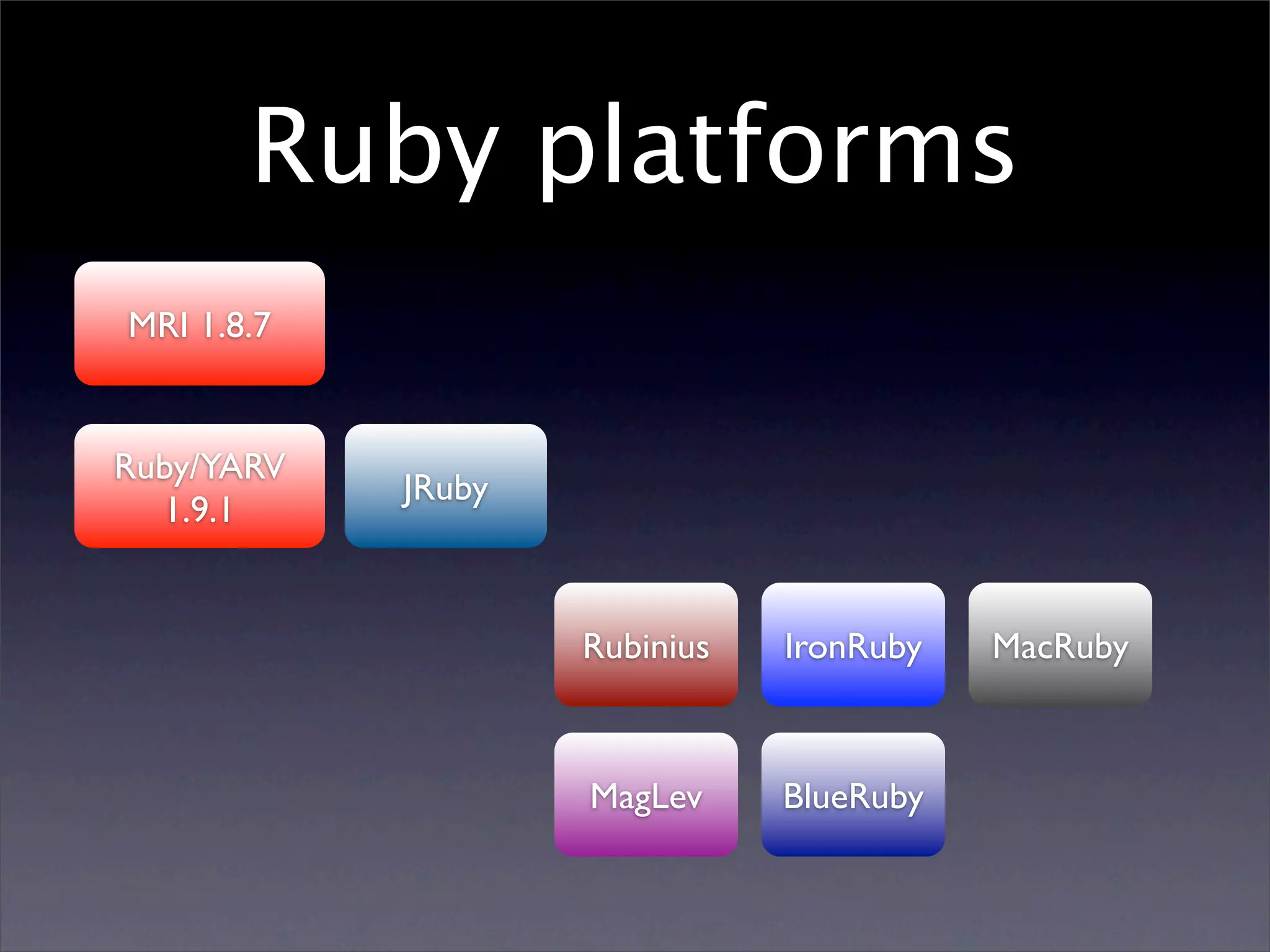

Ruby platforms
MRI 1.8.7


Ruby/YARV
            JRuby
  1.9.1


                    Rubinius   IronRuby   MacRuby



                    MagLev     BlueRuby

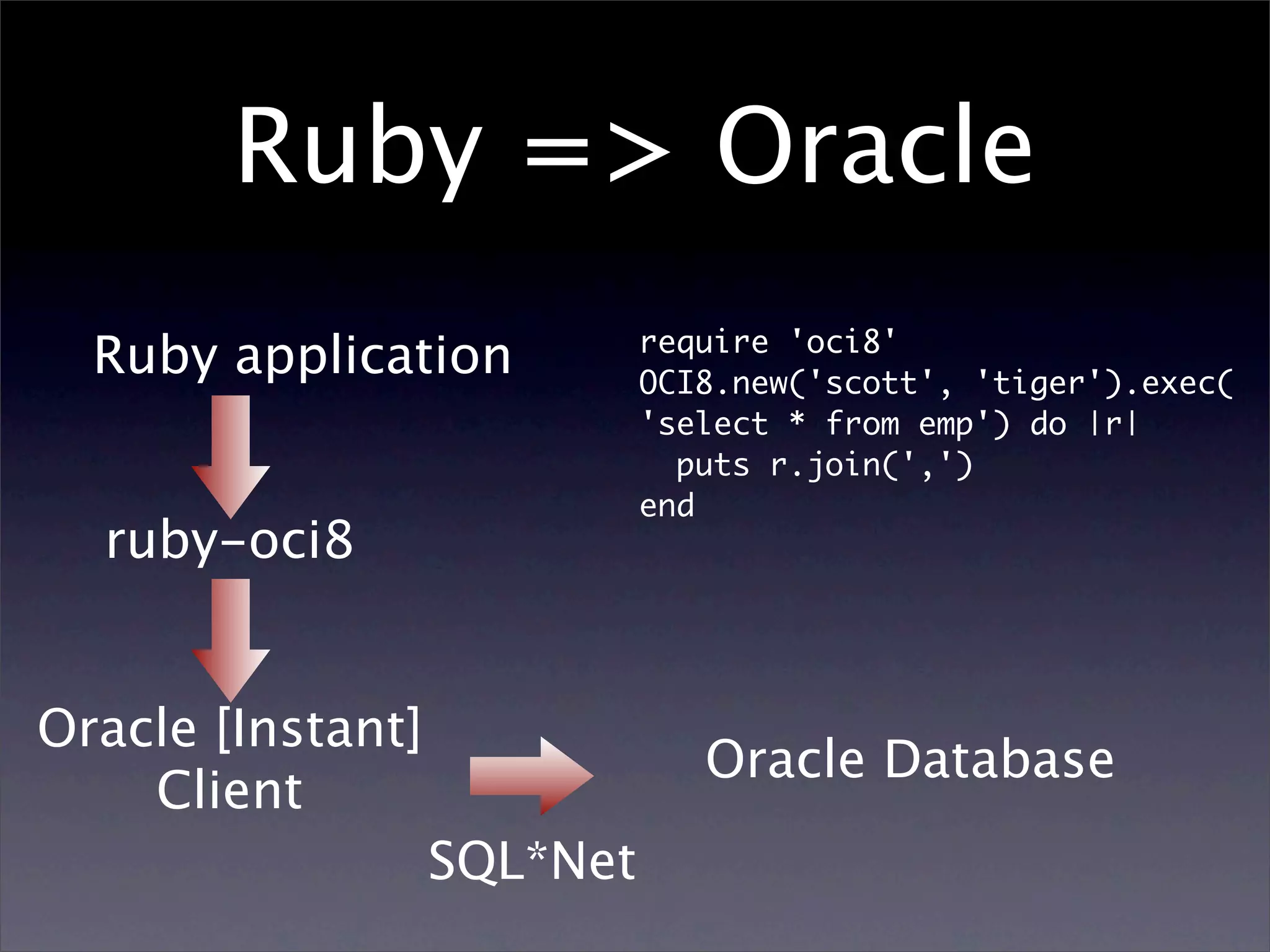

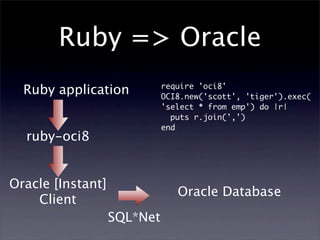

Ruby => Oracle
                             require 'oci8'
  Ruby application           OCI8.new('scott', 'tiger').exec(
                             'select * from emp') do |r|
                               puts r.join(',')
                             end
  ruby-oci8


Oracle [Instant]
                                Oracle Database
    Client
                   SQL*Net

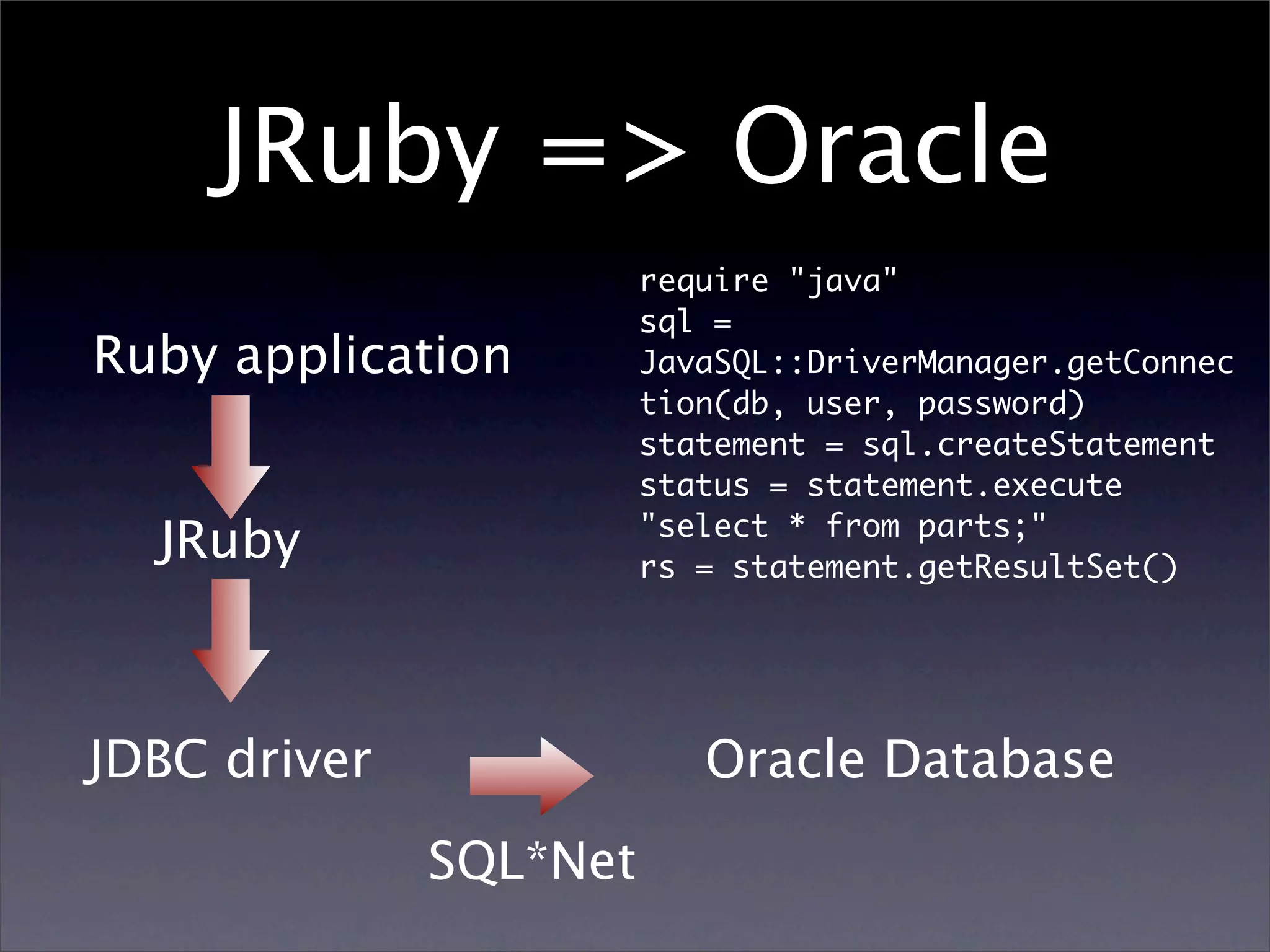

JRuby => Oracle
                        require "java"
                        sql =
Ruby application        JavaSQL::DriverManager.getConnec
                        tion(db, user, password)
                        statement = sql.createStatement
                        status = statement.execute
                        "select * from parts;"
  JRuby                 rs = statement.getResultSet()




JDBC driver                Oracle Database
              SQL*Net
ActiveRecord
Oracle Enhanced
    Adapter

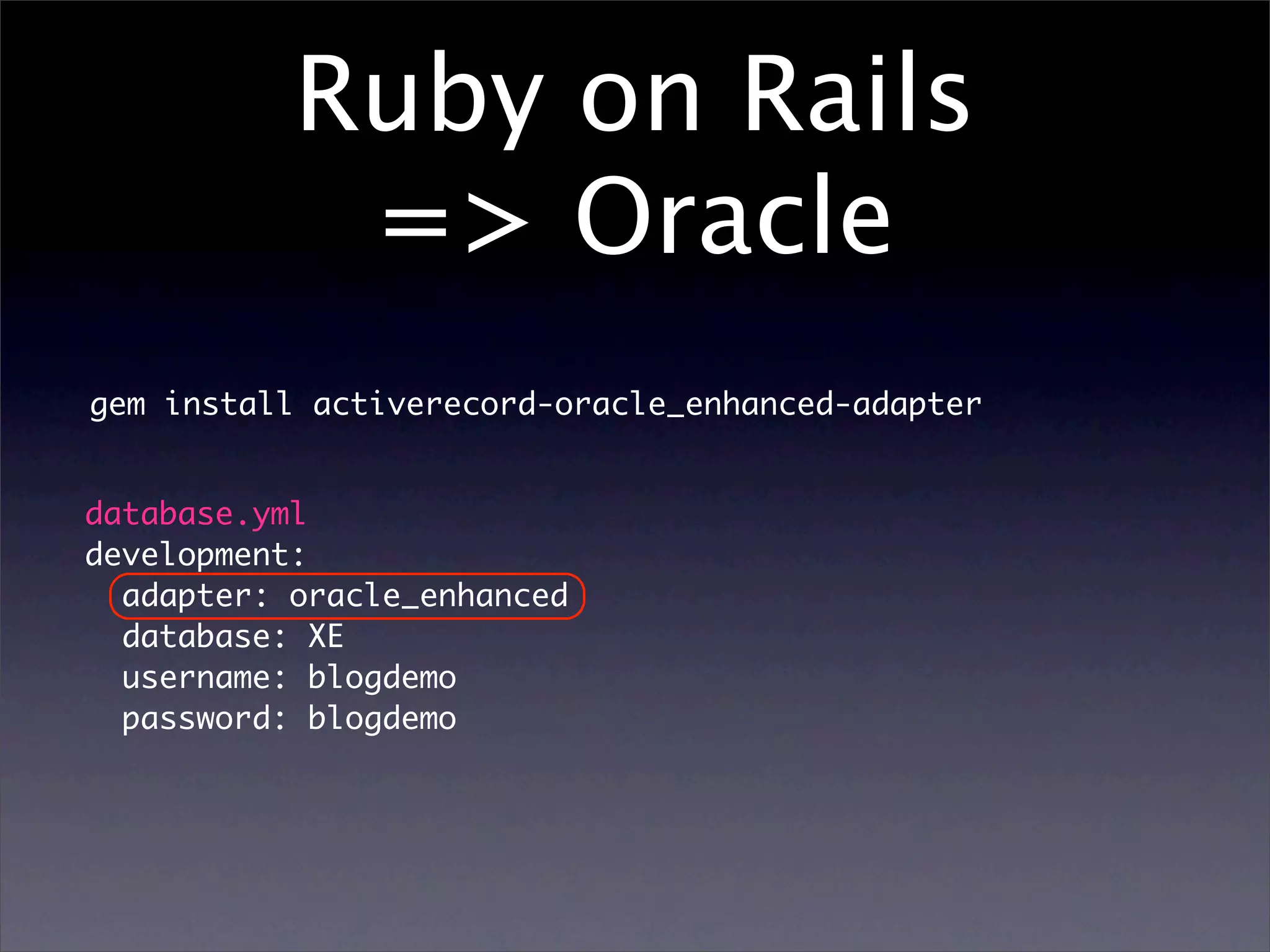

Ruby on Rails
            => Oracle
gem install activerecord-oracle_enhanced-adapter


database.yml
development:
  adapter: oracle_enhanced
  database: XE
  username: blogdemo
  password: blogdemo

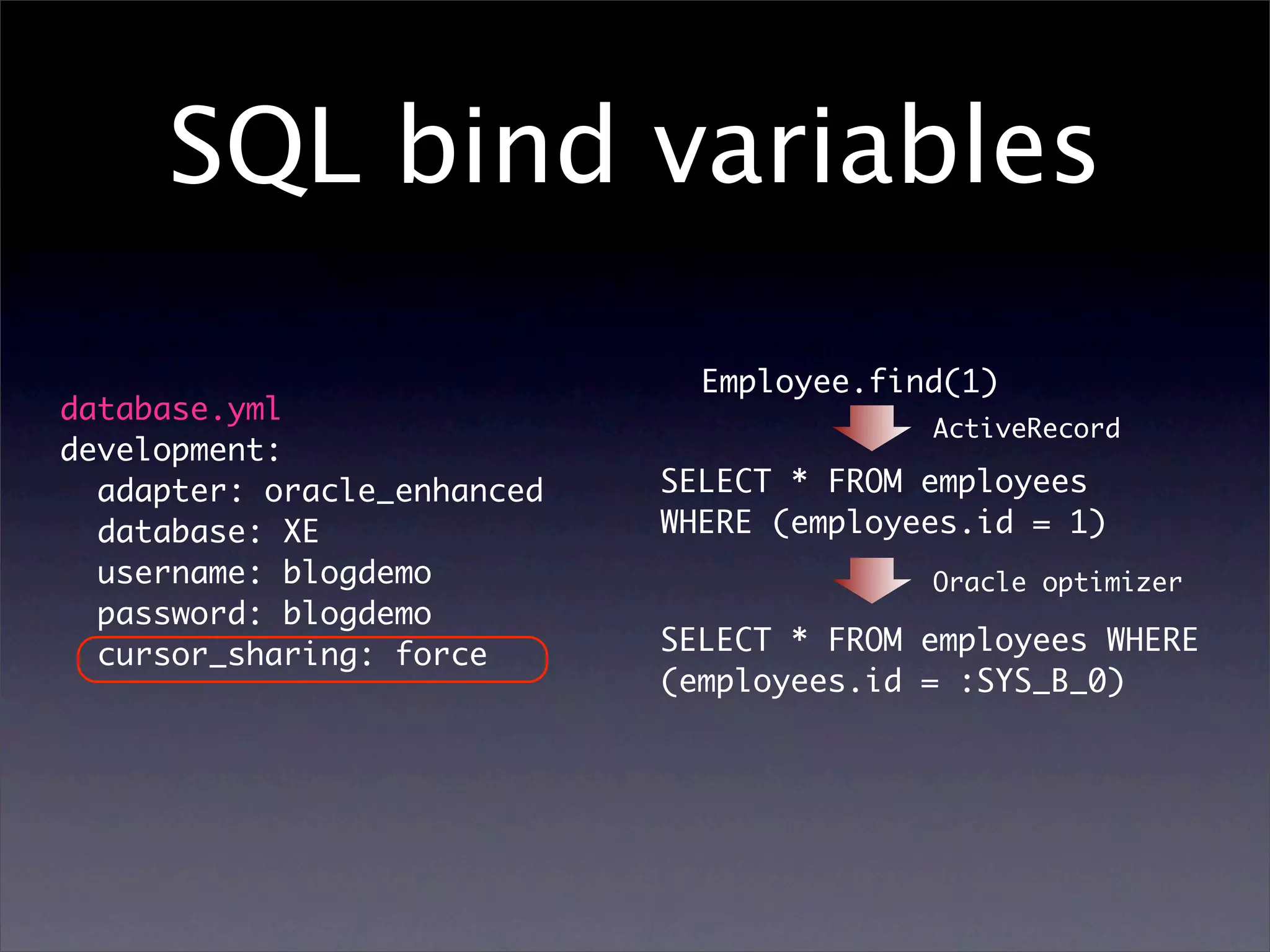

SQL bind variables

                               Employee.find(1)
database.yml
                                           ActiveRecord
development:
  adapter: oracle_enhanced   SELECT * FROM employees
  database: XE               WHERE (employees.id = 1)
  username: blogdemo                       Oracle optimizer
  password: blogdemo
  cursor_sharing: force      SELECT * FROM employees WHERE
                             (employees.id = :SYS_B_0)

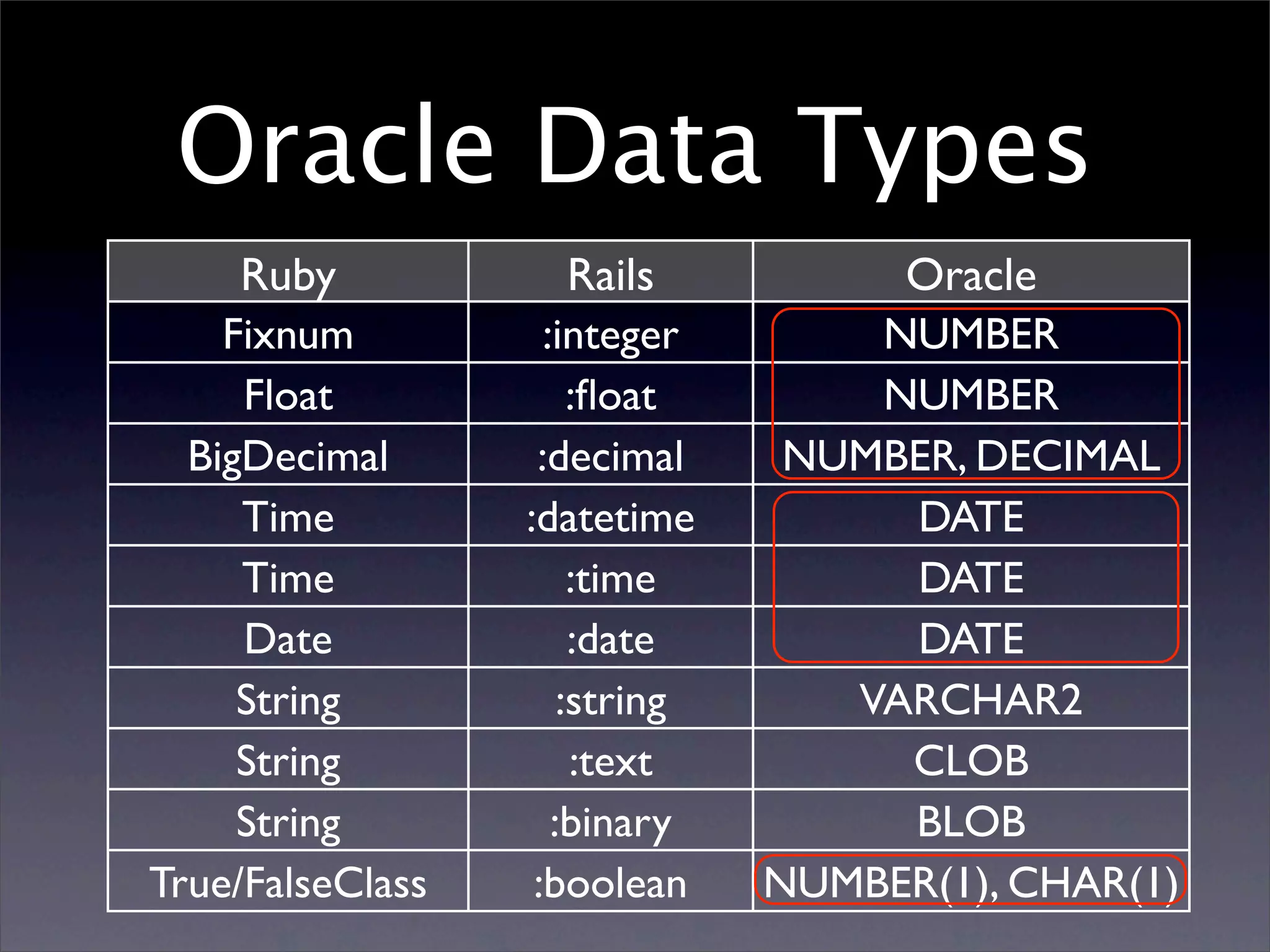

Oracle Data Types
    Ruby            Rails             Oracle
    Fixnum          :integer        NUMBER
     Float             :float        NUMBER
  BigDecimal       :decimal      NUMBER, DECIMAL
     Time         :datetime          DATE
     Time              :time         DATE
     Date              :date         DATE
     String           :string      VARCHAR2
     String            :text         CLOB
     String          :binary         BLOB
True/FalseClass    :boolean     NUMBER(1), CHAR(1)

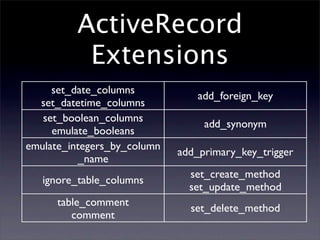

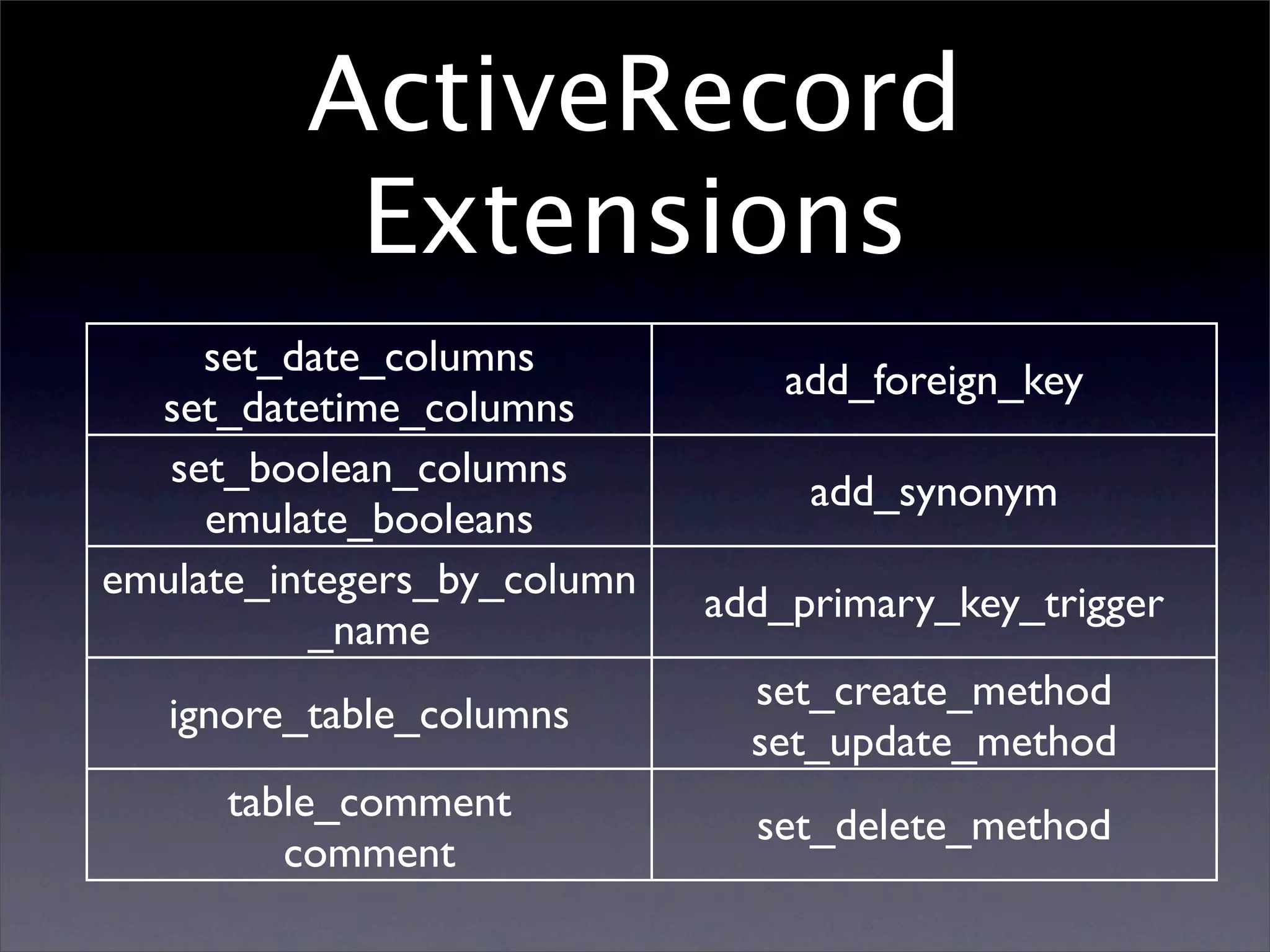

ActiveRecord
          Extensions
     set_date_columns
                                 add_foreign_key
  set_datetime_columns
   set_boolean_columns
                                  add_synonym
     emulate_booleans
emulate_integers_by_column
                             add_primary_key_trigger
          _name
                               set_create_method
   ignore_table_columns
                               set_update_method
      table_comment
                               set_delete_method
         comment

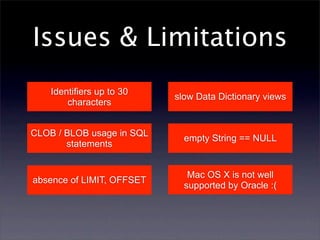

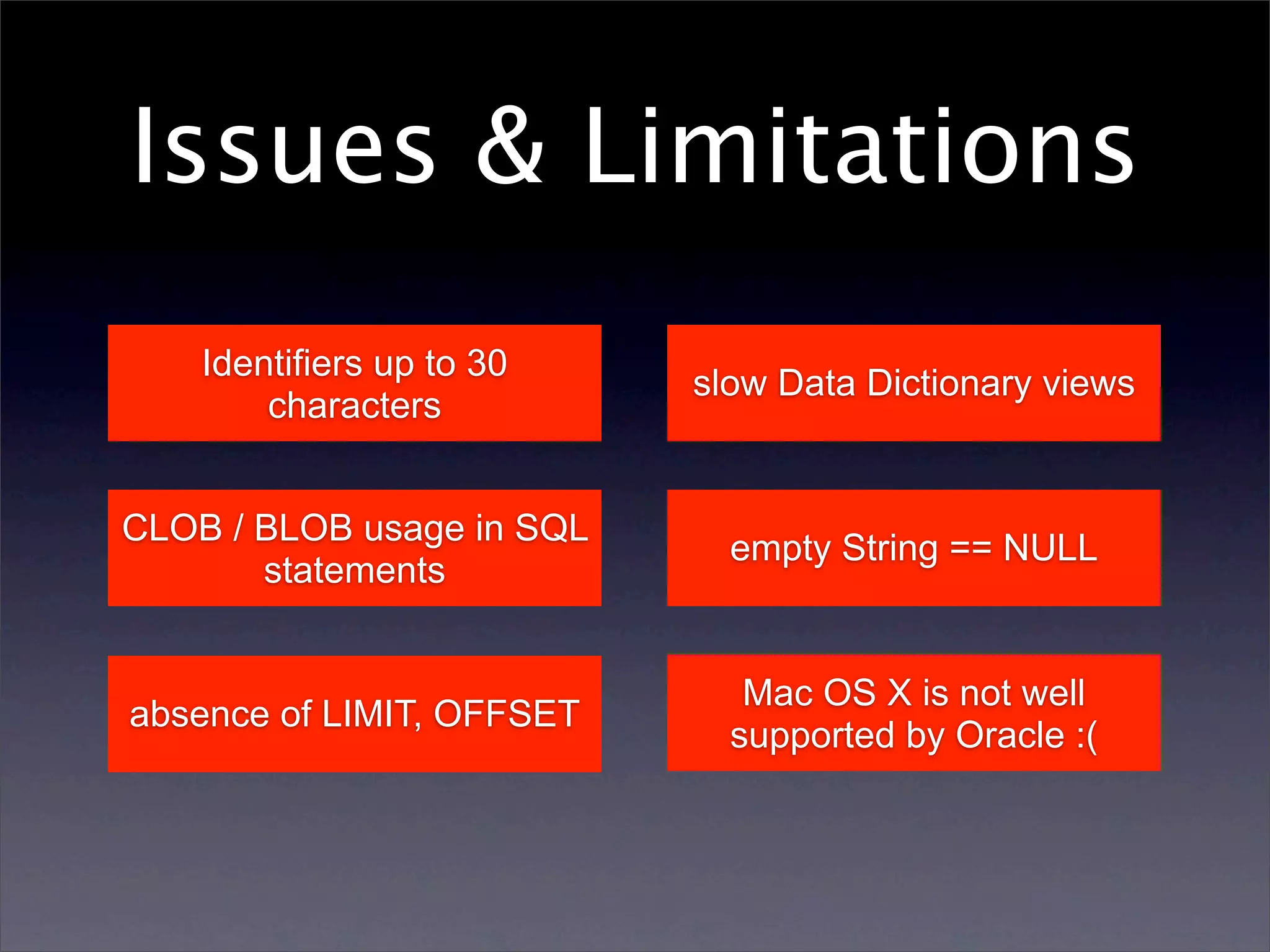

Issues & Limitations
    Identifiers up to 30
                           slow Data Dictionary views
        characters


CLOB / BLOB usage in SQL
                             empty String == NULL
       statements


                              Mac OS X is not well
absence of LIMIT, OFFSET
                             supported by Oracle :(

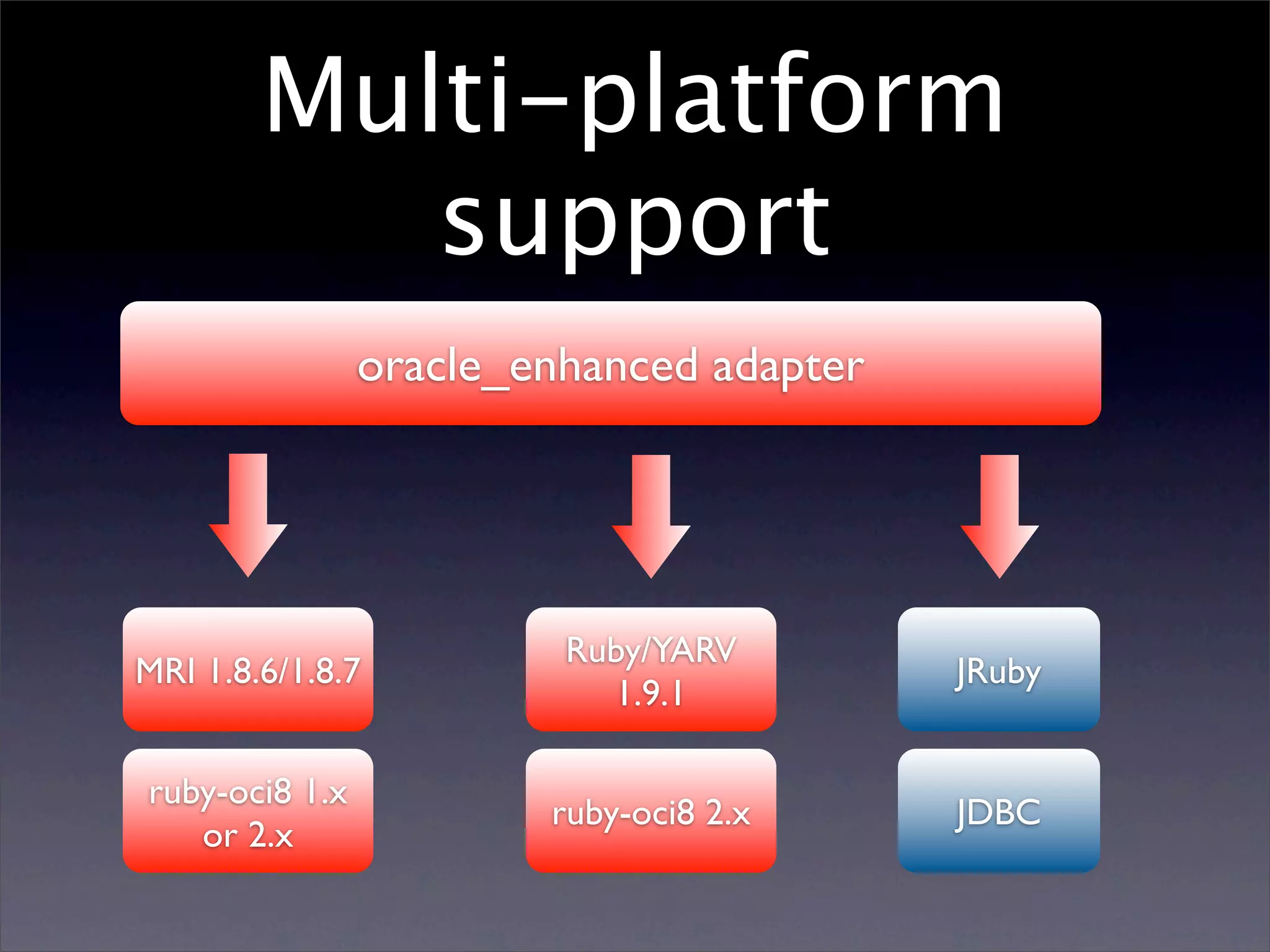

Multi-platform
           support
                oracle_enhanced adapter




                         Ruby/YARV
MRI 1.8.6/1.8.7                           JRuby
                           1.9.1

ruby-oci8 1.x
                        ruby-oci8 2.x     JDBC
   or 2.x

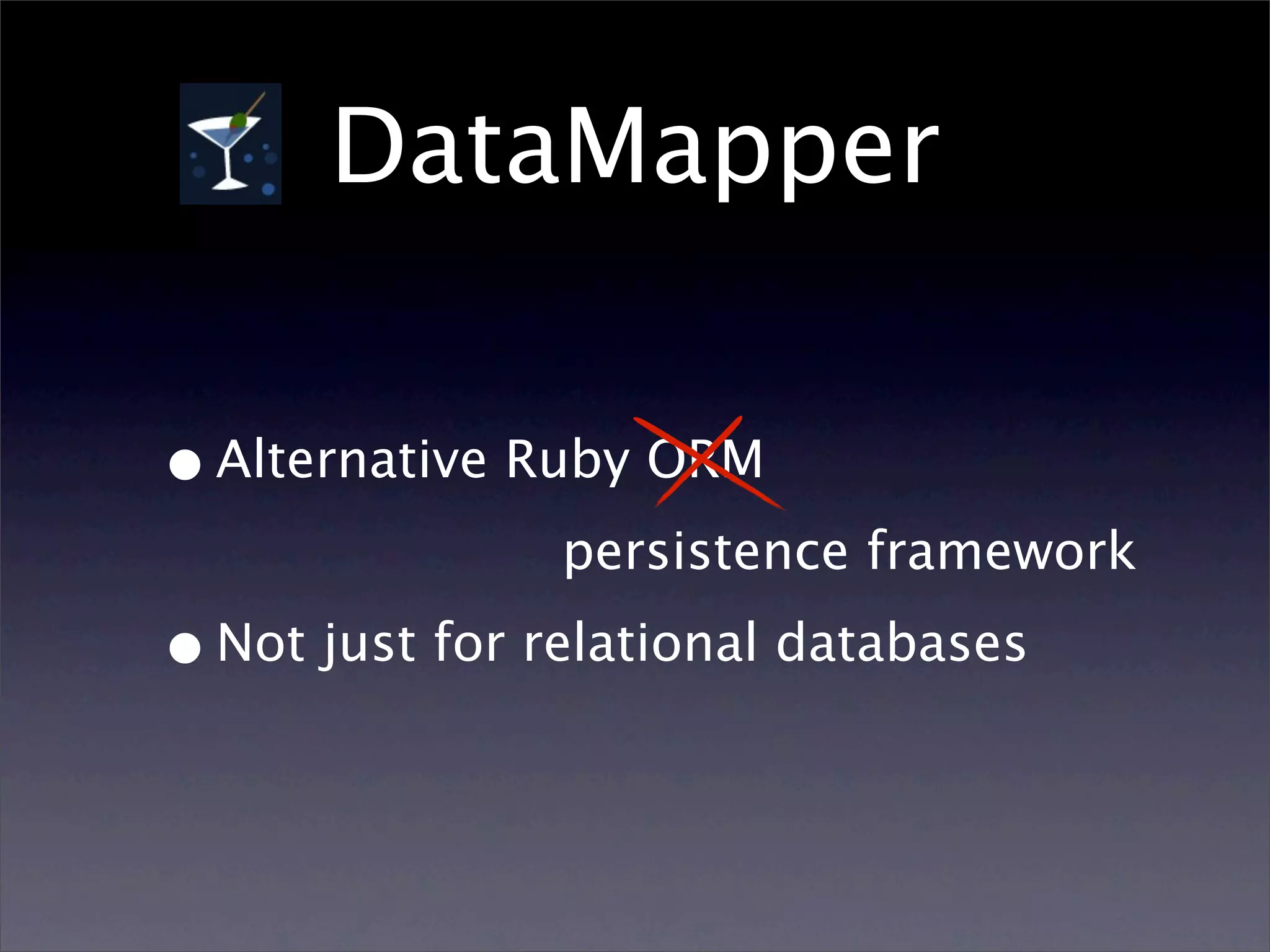

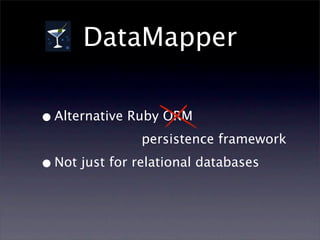

DataMapper

• Alternative Ruby ORM
                persistence framework

• Not just for relational databases

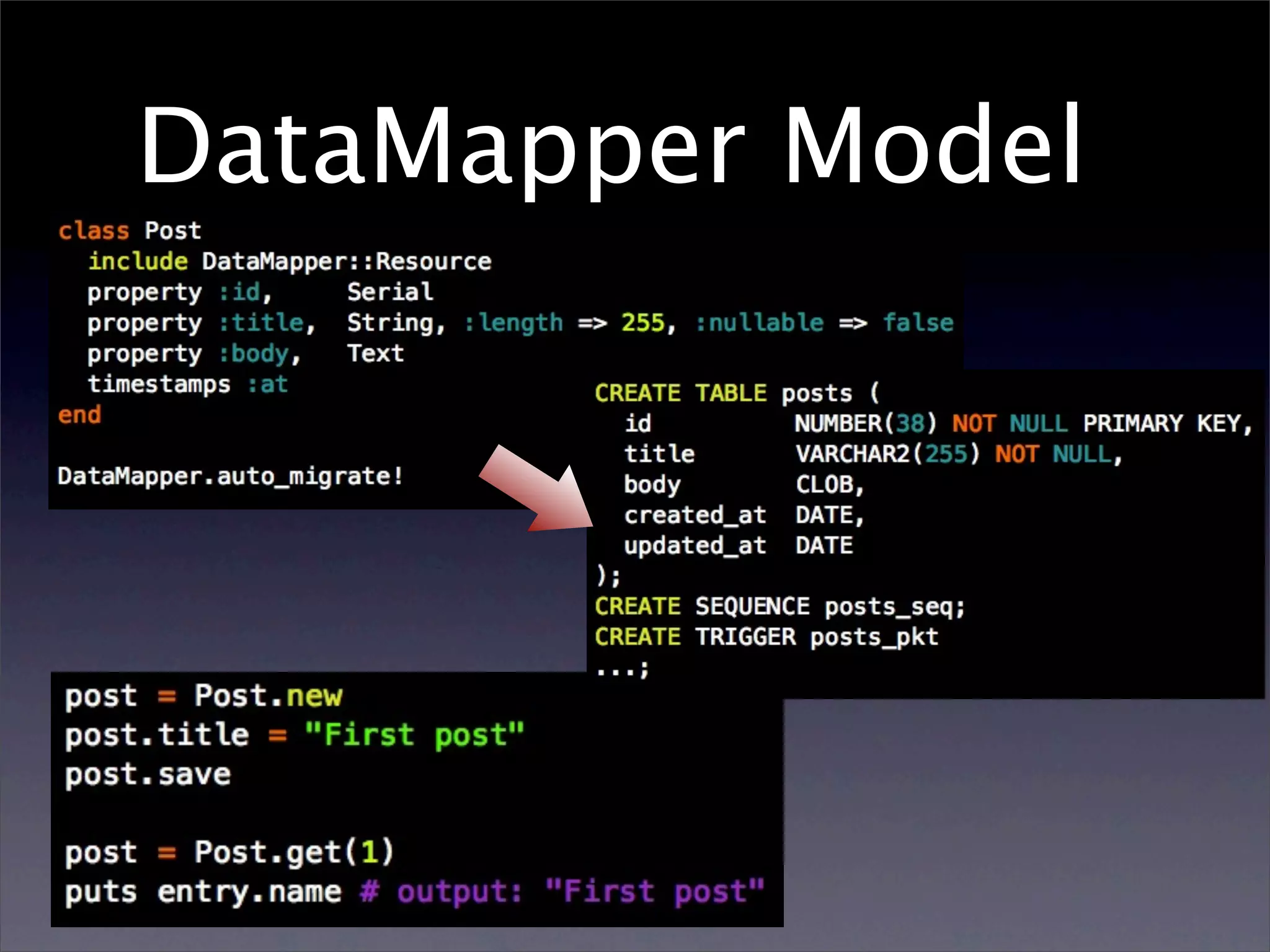

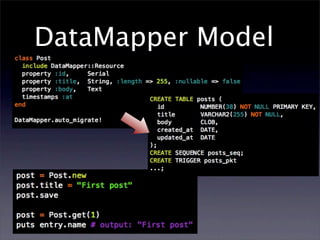

DataMapper Model

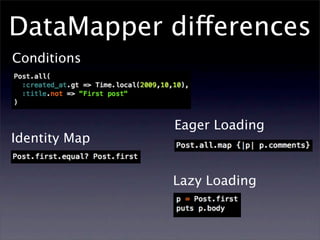

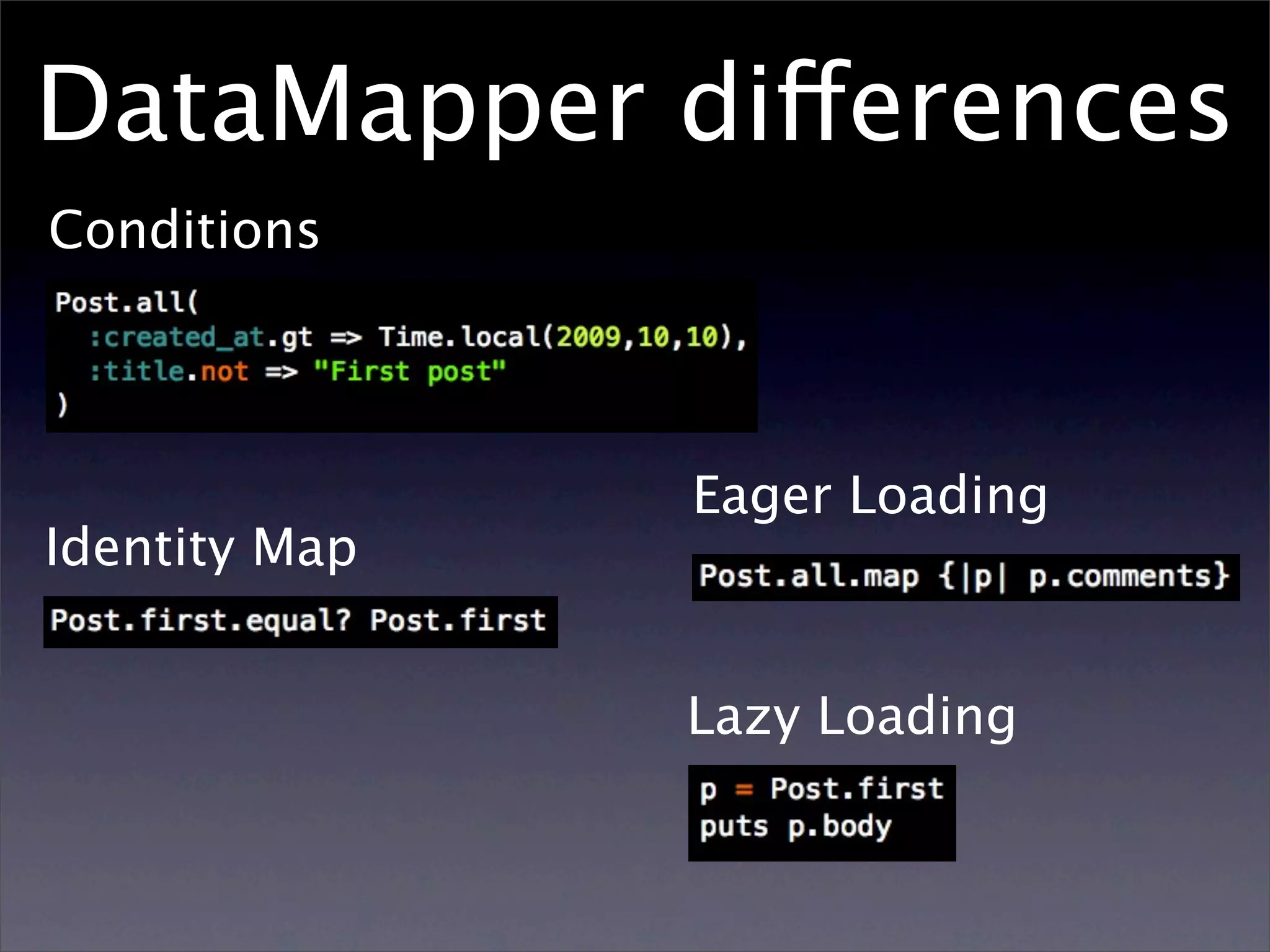

DataMapper differences
Conditions




               Eager Loading
Identity Map


               Lazy Loading

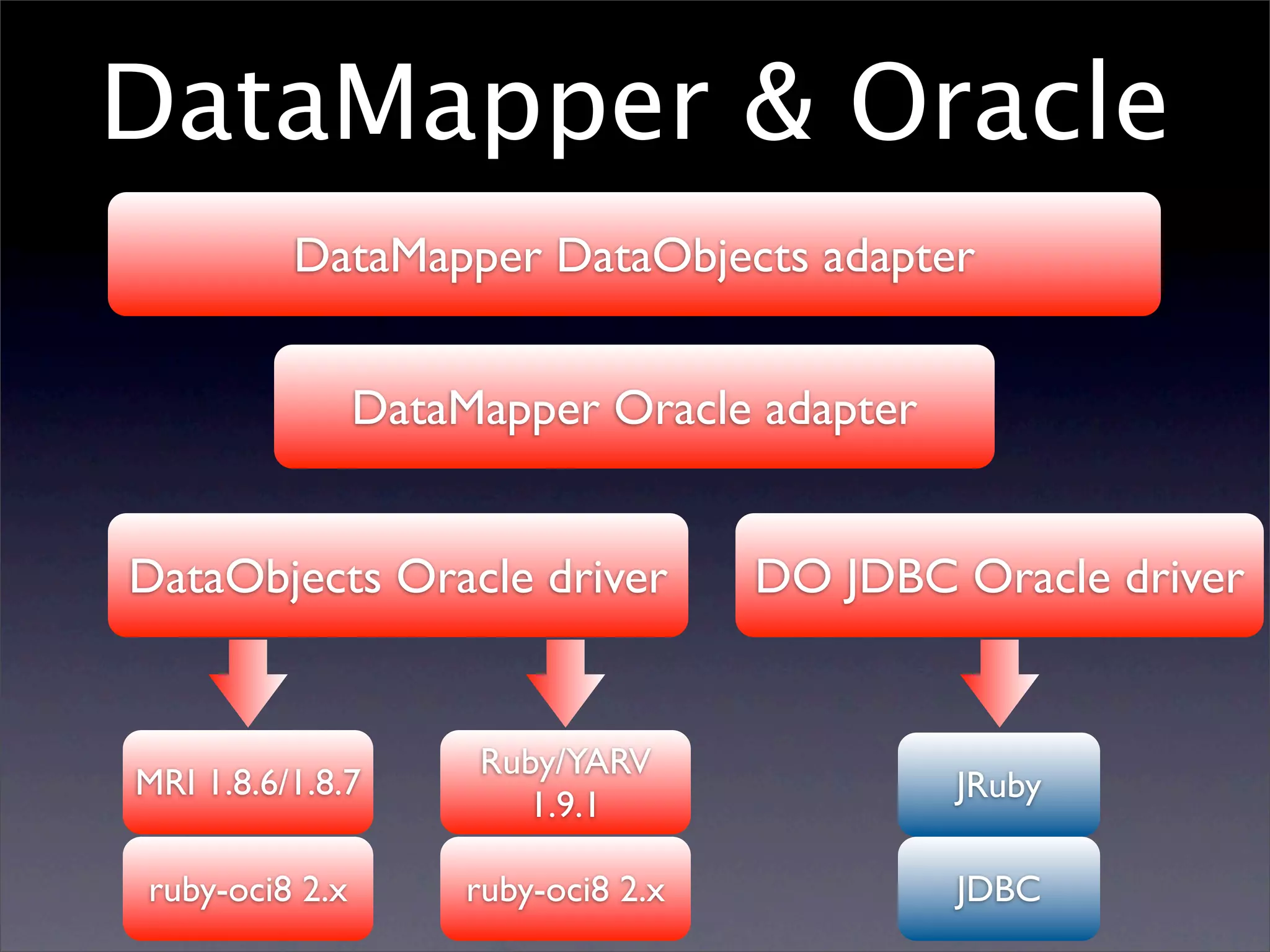

DataMapper & Oracle
          DataMapper DataObjects adapter


                DataMapper Oracle adapter


DataObjects Oracle driver            DO JDBC Oracle driver


                     Ruby/YARV
MRI 1.8.6/1.8.7                              JRuby
                       1.9.1

ruby-oci8 2.x        ruby-oci8 2.x           JDBC

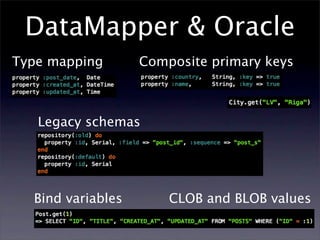

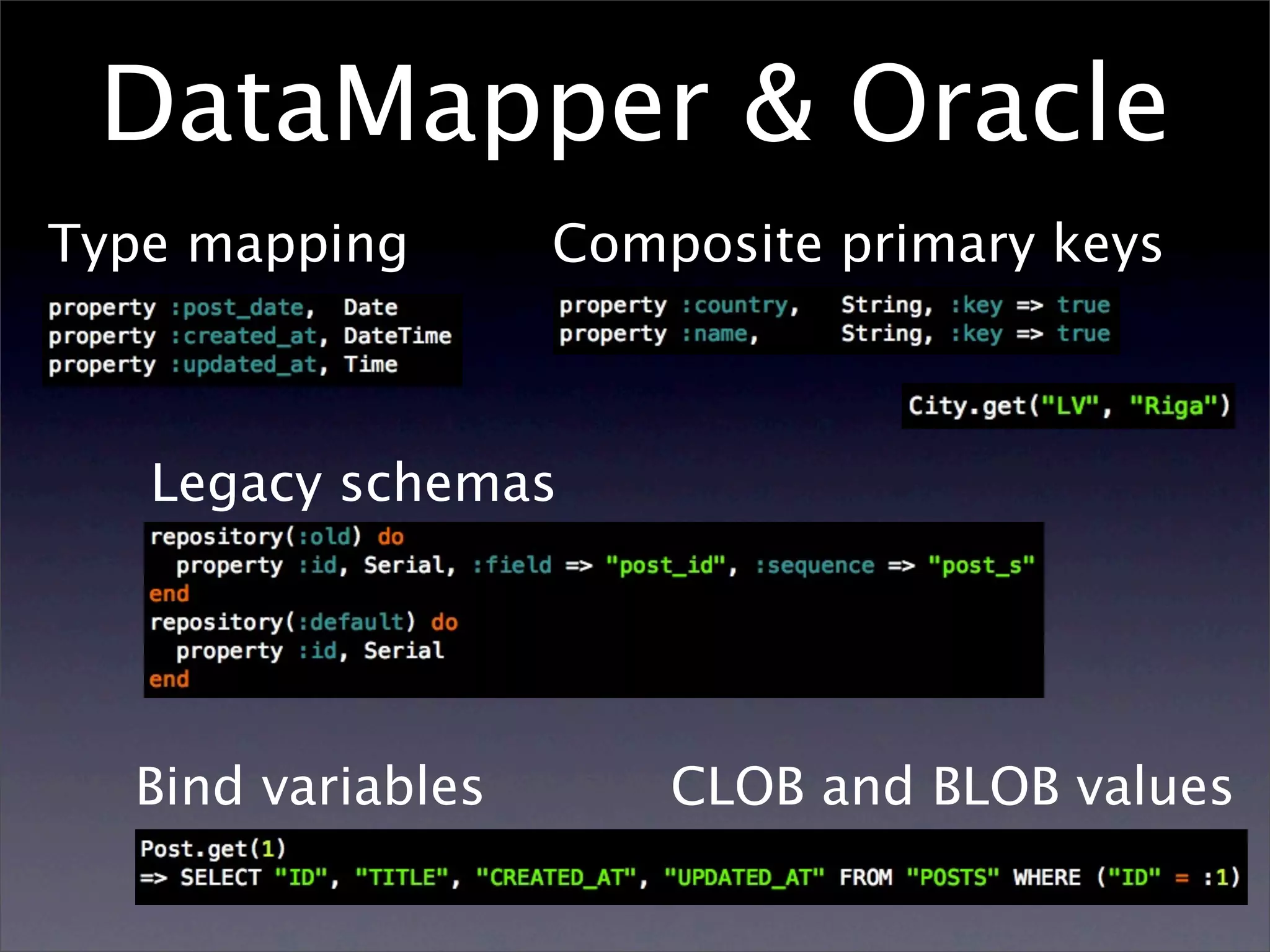

DataMapper & Oracle
Type mapping       Composite primary keys



   Legacy schemas




  Bind variables       CLOB and BLOB values

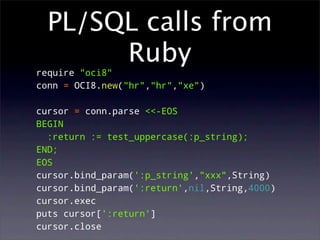

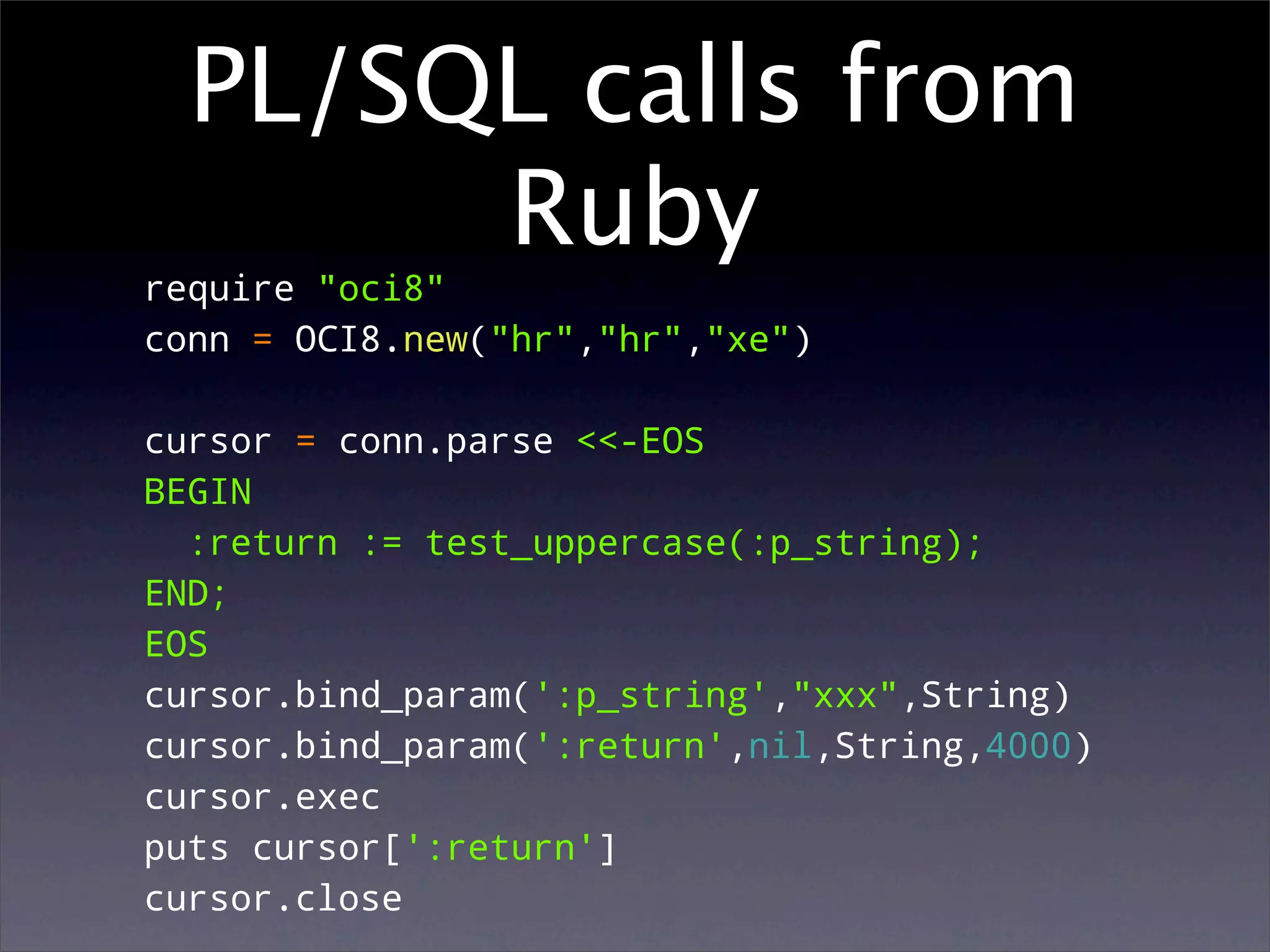

PL/SQL calls from
       Ruby
require "oci8"
conn = OCI8.new("hr","hr","xe")

cursor = conn.parse <<-EOS
BEGIN
  :return := test_uppercase(:p_string);
END;
EOS
cursor.bind_param(':p_string',"xxx",String)
cursor.bind_param(':return',nil,String,4000)
cursor.exec
puts cursor[':return']
cursor.close

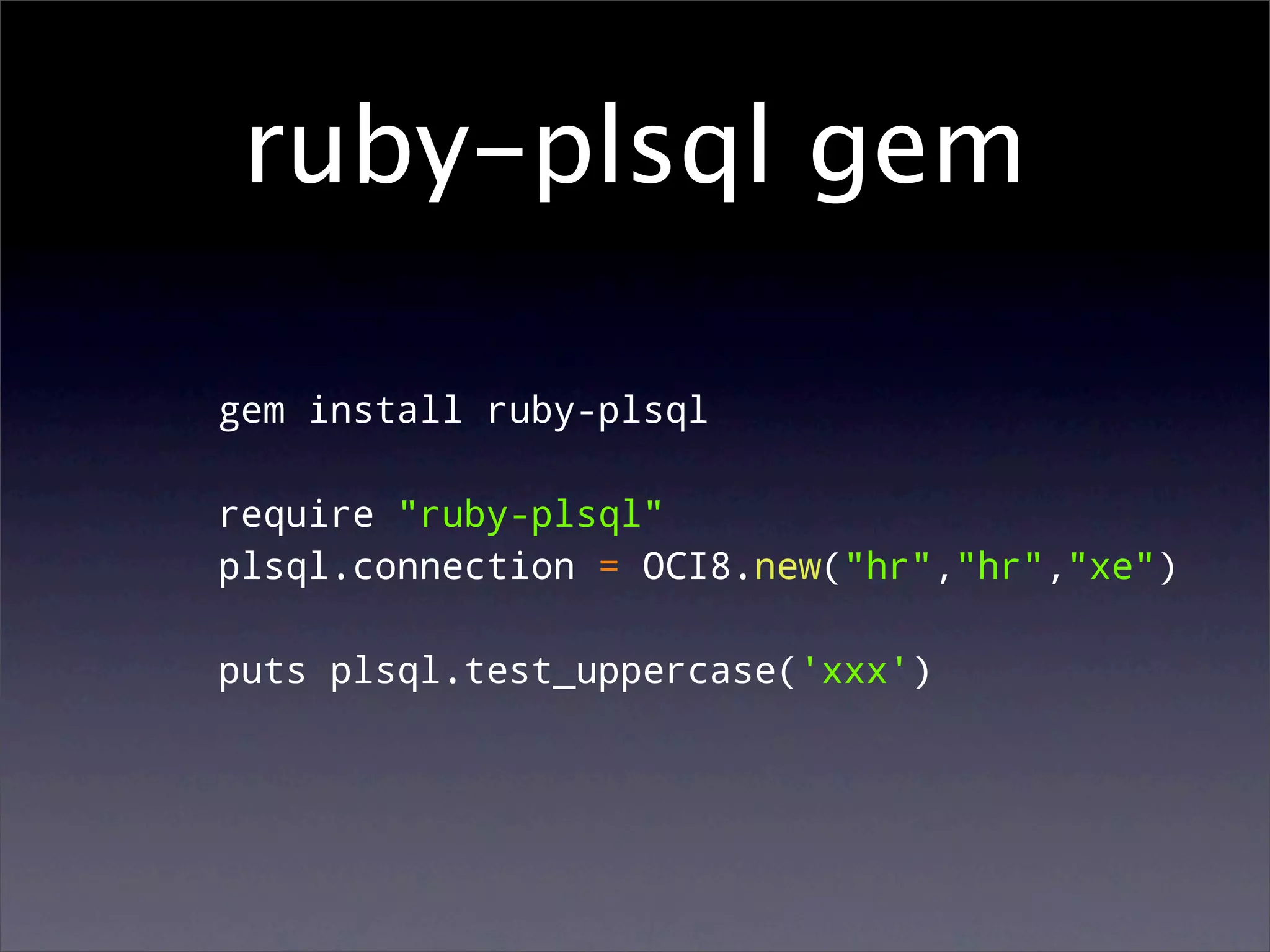

ruby-plsql gem

gem install ruby-plsql

require "ruby-plsql"
plsql.connection = OCI8.new("hr","hr","xe")

puts plsql.test_uppercase('xxx')

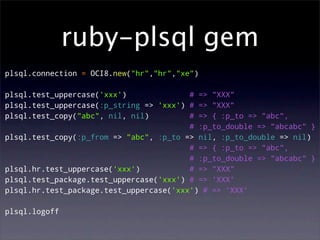

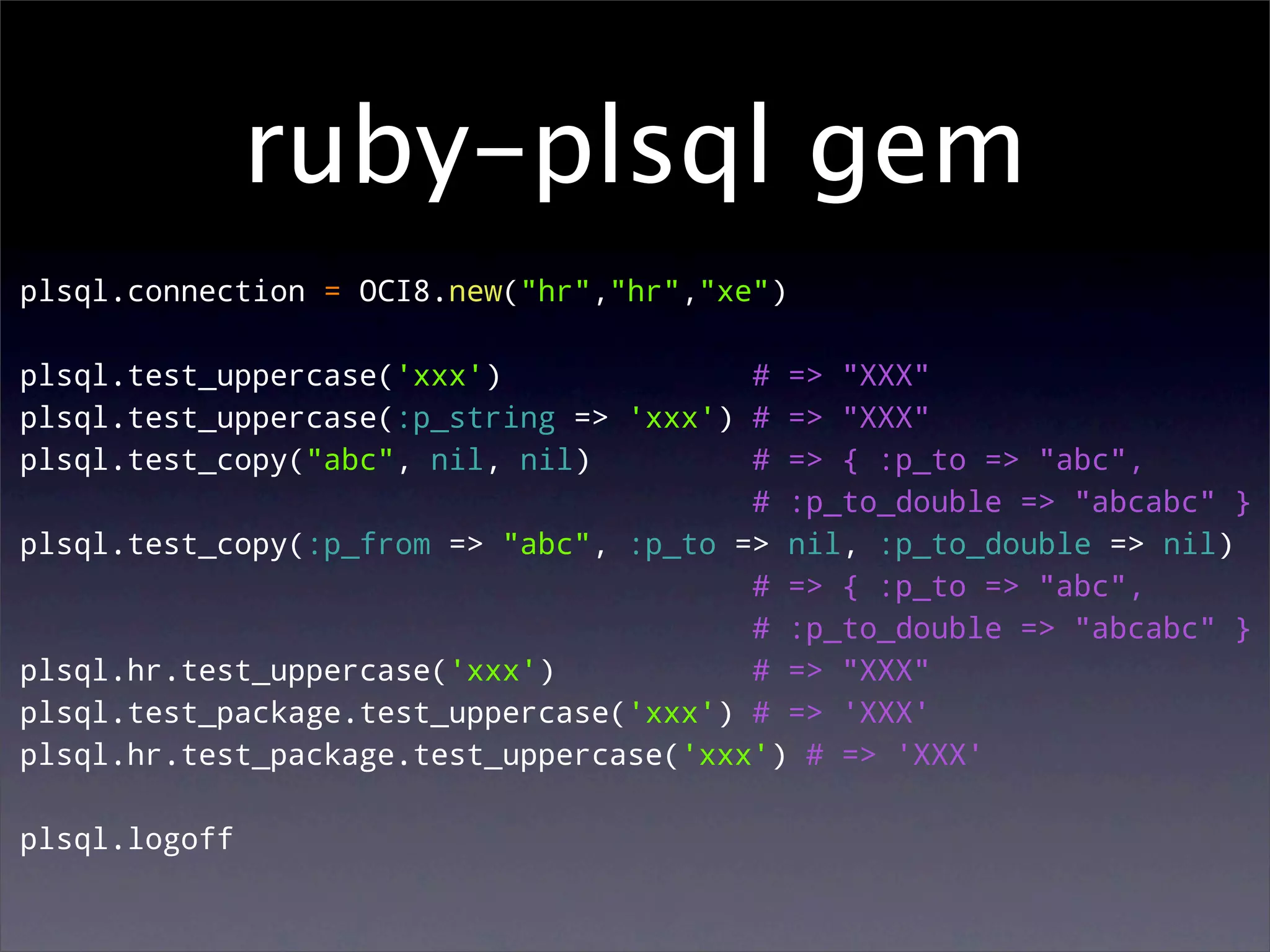

ruby-plsql gem
plsql.connection = OCI8.new("hr","hr","xe")

plsql.test_uppercase('xxx')              # => "XXX"
plsql.test_uppercase(:p_string => 'xxx') # => "XXX"
plsql.test_copy("abc", nil, nil)         # => { :p_to => "abc",
                                         # :p_to_double => "abcabc" }
plsql.test_copy(:p_from => "abc", :p_to => nil, :p_to_double => nil)
                                         # => { :p_to => "abc",
                                         # :p_to_double => "abcabc" }
plsql.hr.test_uppercase('xxx')           # => "XXX"
plsql.test_package.test_uppercase('xxx') # => 'XXX'
plsql.hr.test_package.test_uppercase('xxx') # => 'XXX'

plsql.logoff

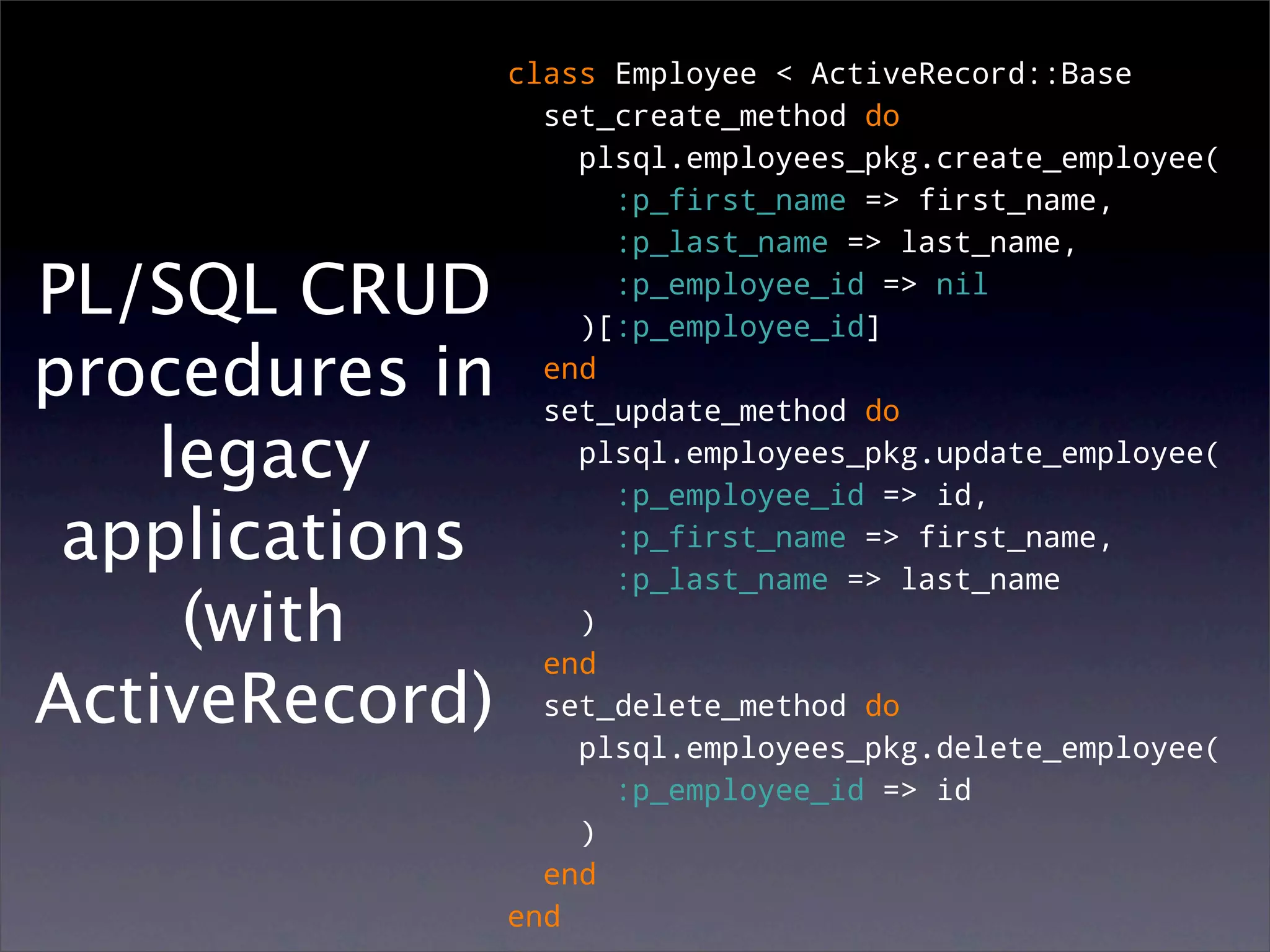

class Employee < ActiveRecord::Base
                  set_create_method do
                    plsql.employees_pkg.create_employee(
                      :p_first_name => first_name,
                      :p_last_name => last_name,

PL/SQL CRUD           :p_employee_id => nil
                    )[:p_employee_id]
procedures in     end
                  set_update_method do
    legacy          plsql.employees_pkg.update_employee(
                      :p_employee_id => id,
 applications         :p_first_name => first_name,
                      :p_last_name => last_name
     (with          )
                  end
ActiveRecord)     set_delete_method do
                    plsql.employees_pkg.delete_employee(
                      :p_employee_id => id
                    )
                  end
                end

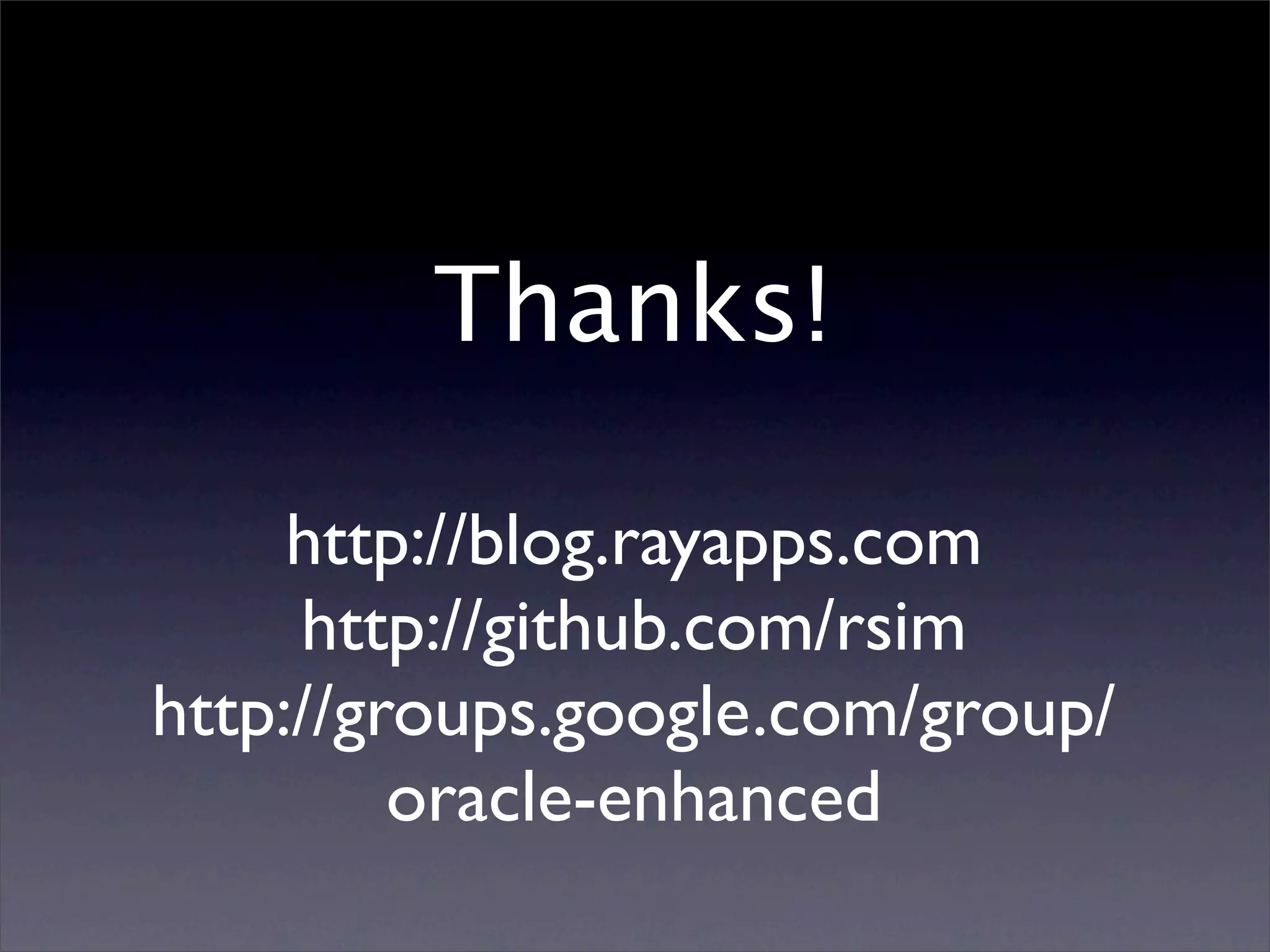

Thanks!

     http://blog.rayapps.com
     http://github.com/rsim
http://groups.google.com/group/
         oracle-enhanced
