Practical QML - Key Navigation, Dynamic Language and Theme Change

Practical QML
Burkhard Stubert
Chief Engineer, Embedded Use
www.embeddeduse.com

Contents

 Key Navigation
 Dynamic Language Change
 Themes

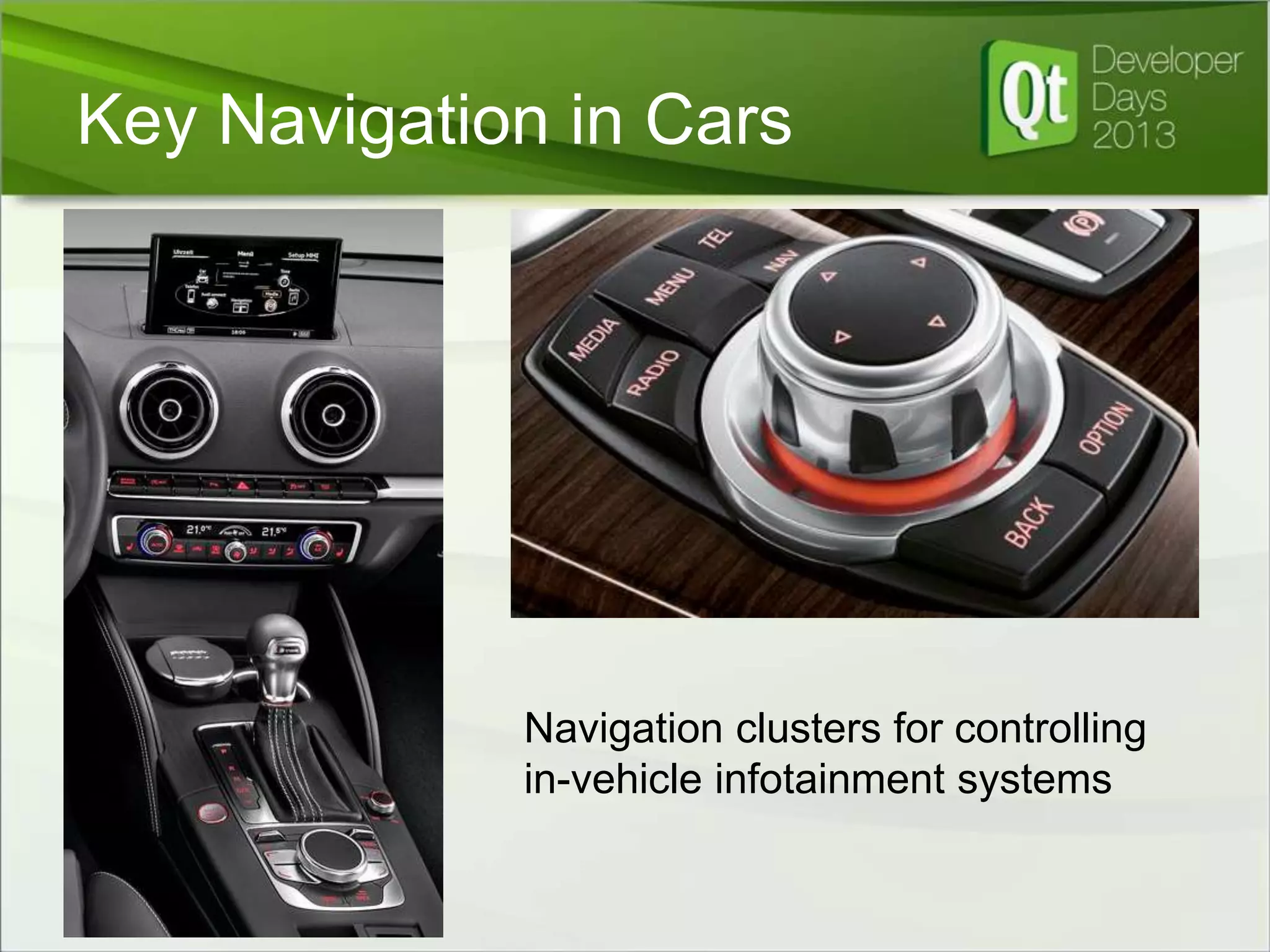

Key Navigation in Cars

Navigation clusters for controlling
in-vehicle infotainment systems

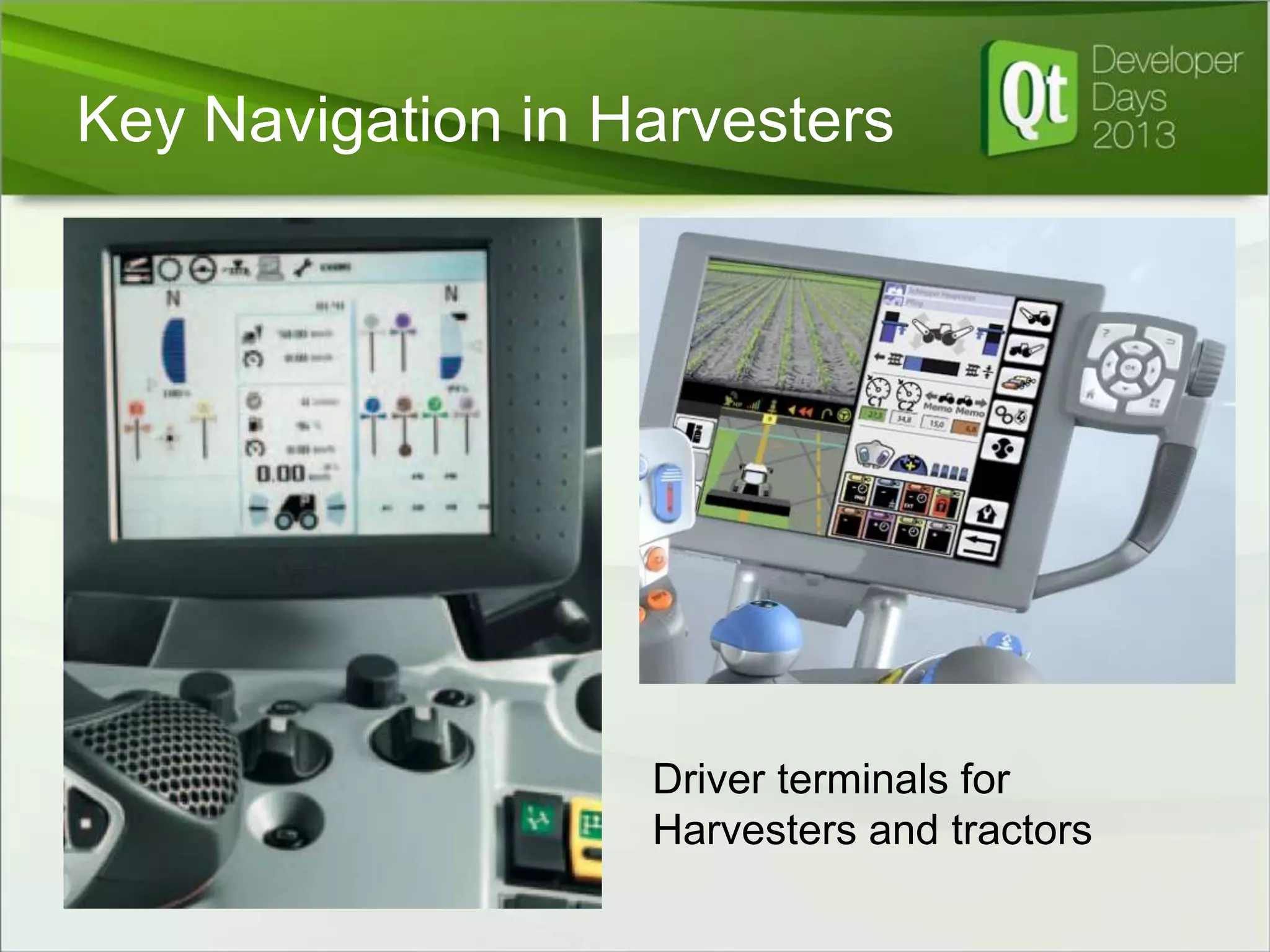

Key Navigation in Harvesters

Driver terminals for
Harvesters and tractors

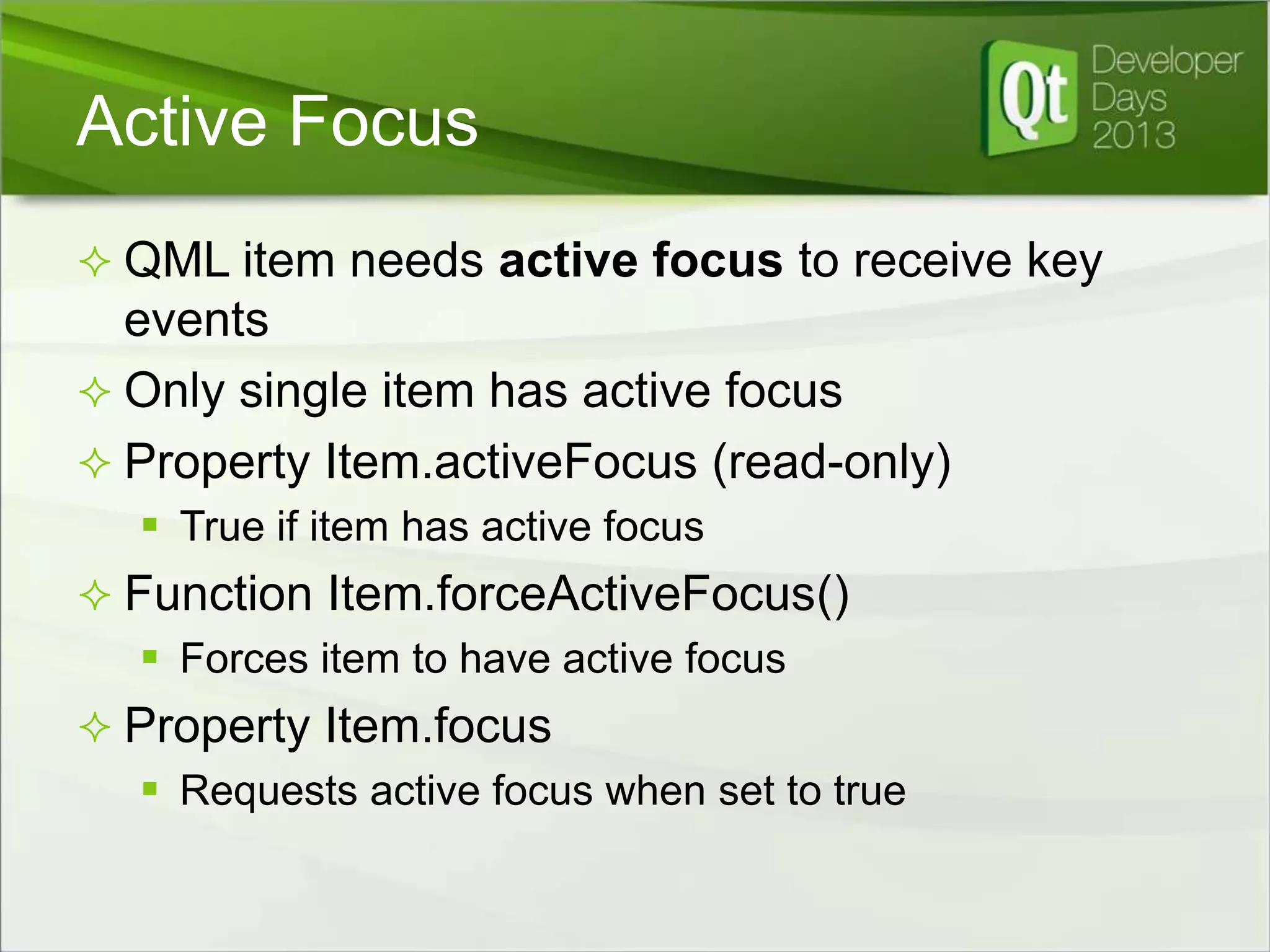

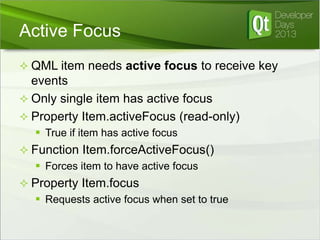

Active Focus
 QML item needs active focus to receive key

events
 Only single item has active focus
 Property Item.activeFocus (read-only)
 True if item has active focus
 Function Item.forceActiveFocus()
 Forces item to have active focus
 Property Item.focus
 Requests active focus when set to true

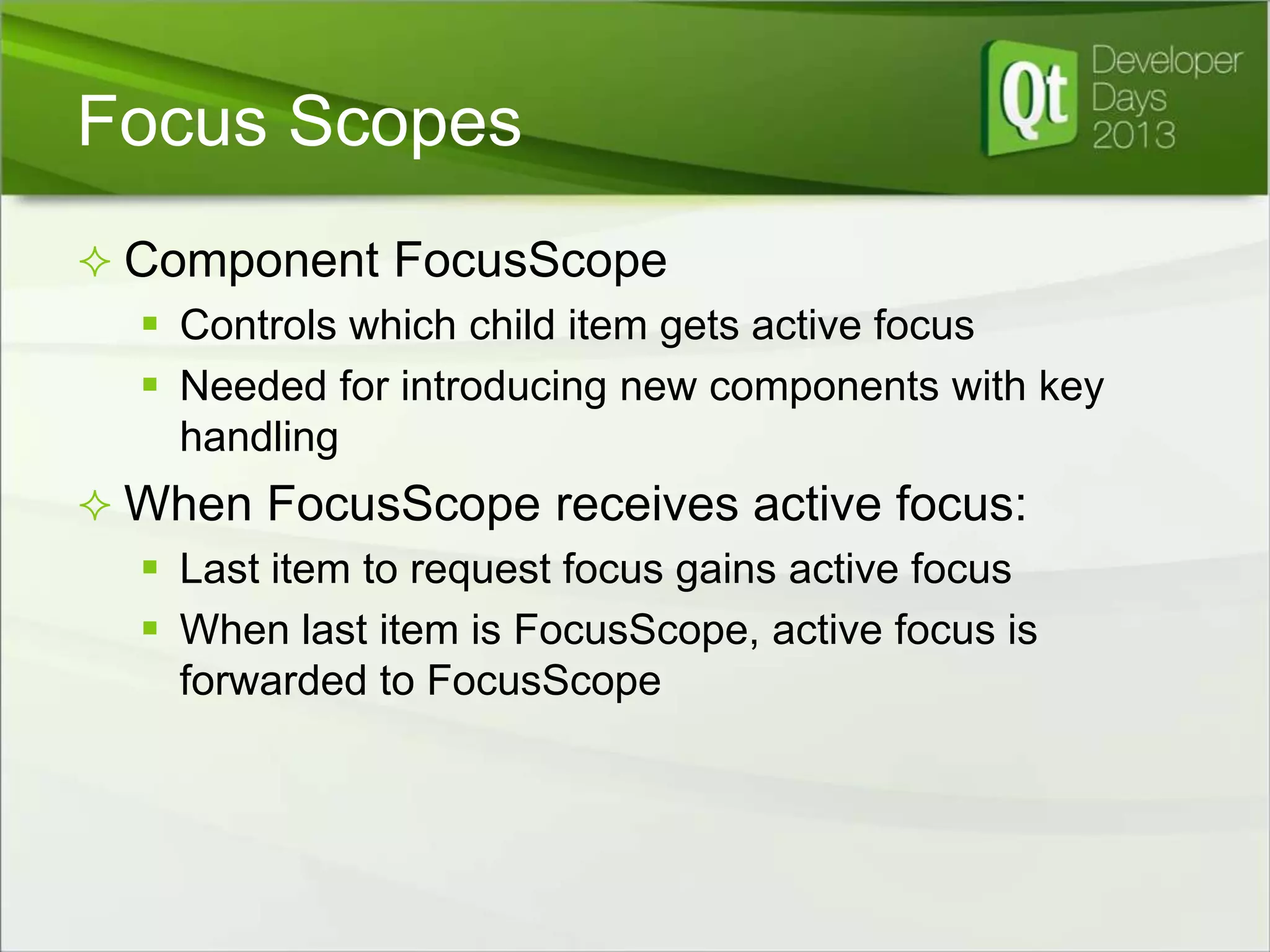

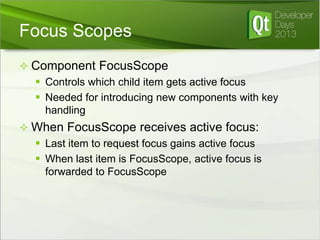

Focus Scopes
 Component FocusScope
 Controls which child item gets active focus
 Needed for introducing new components with key
handling
 When FocusScope receives active focus:
 Last item to request focus gains active focus
 When last item is FocusScope, active focus is
forwarded to FocusScope

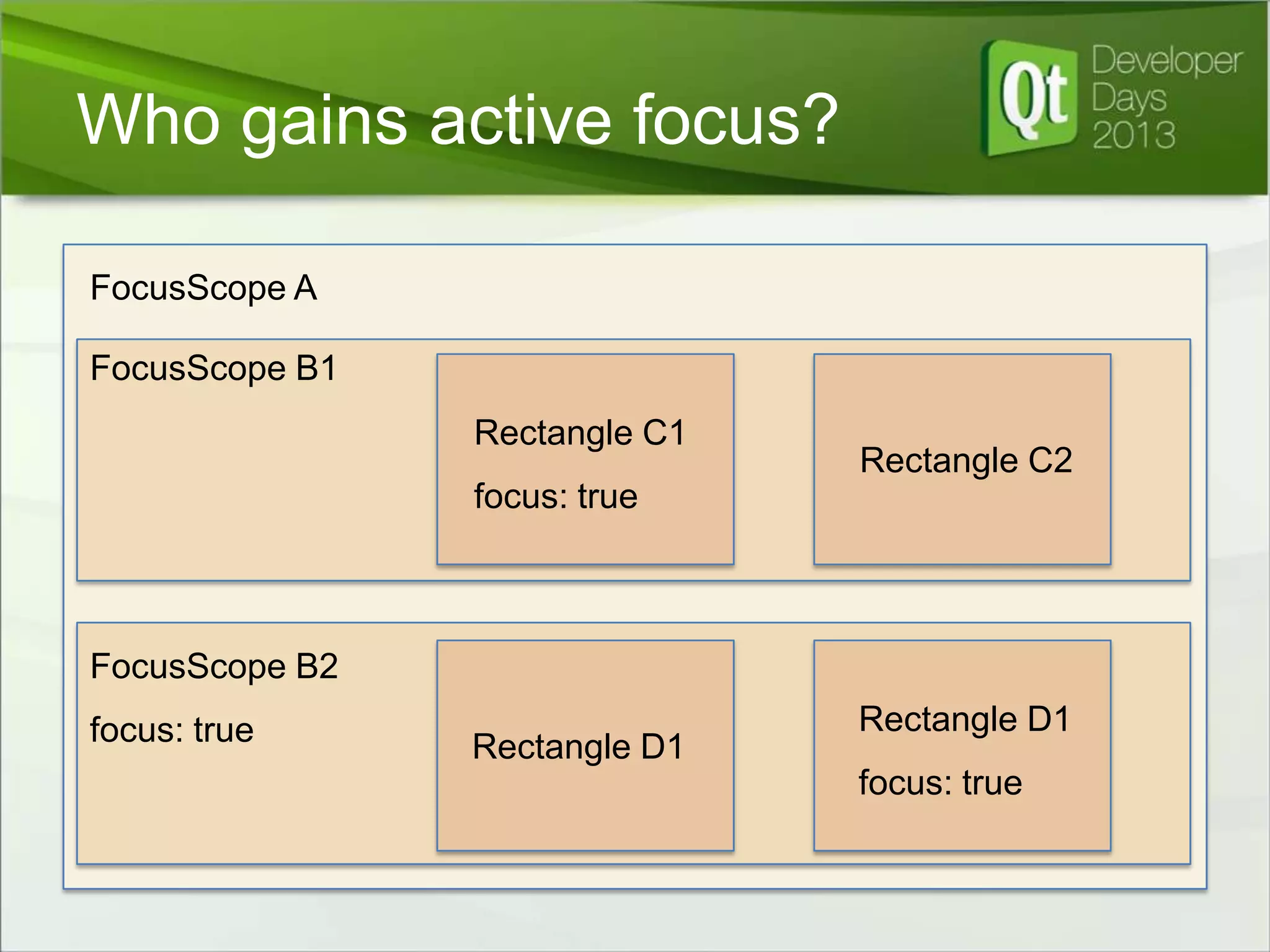

Who gains active focus?
FocusScope A
FocusScope B1
Rectangle C1

Rectangle C2

focus: true

FocusScope B2

focus: true

Rectangle D1

Rectangle D1
focus: true

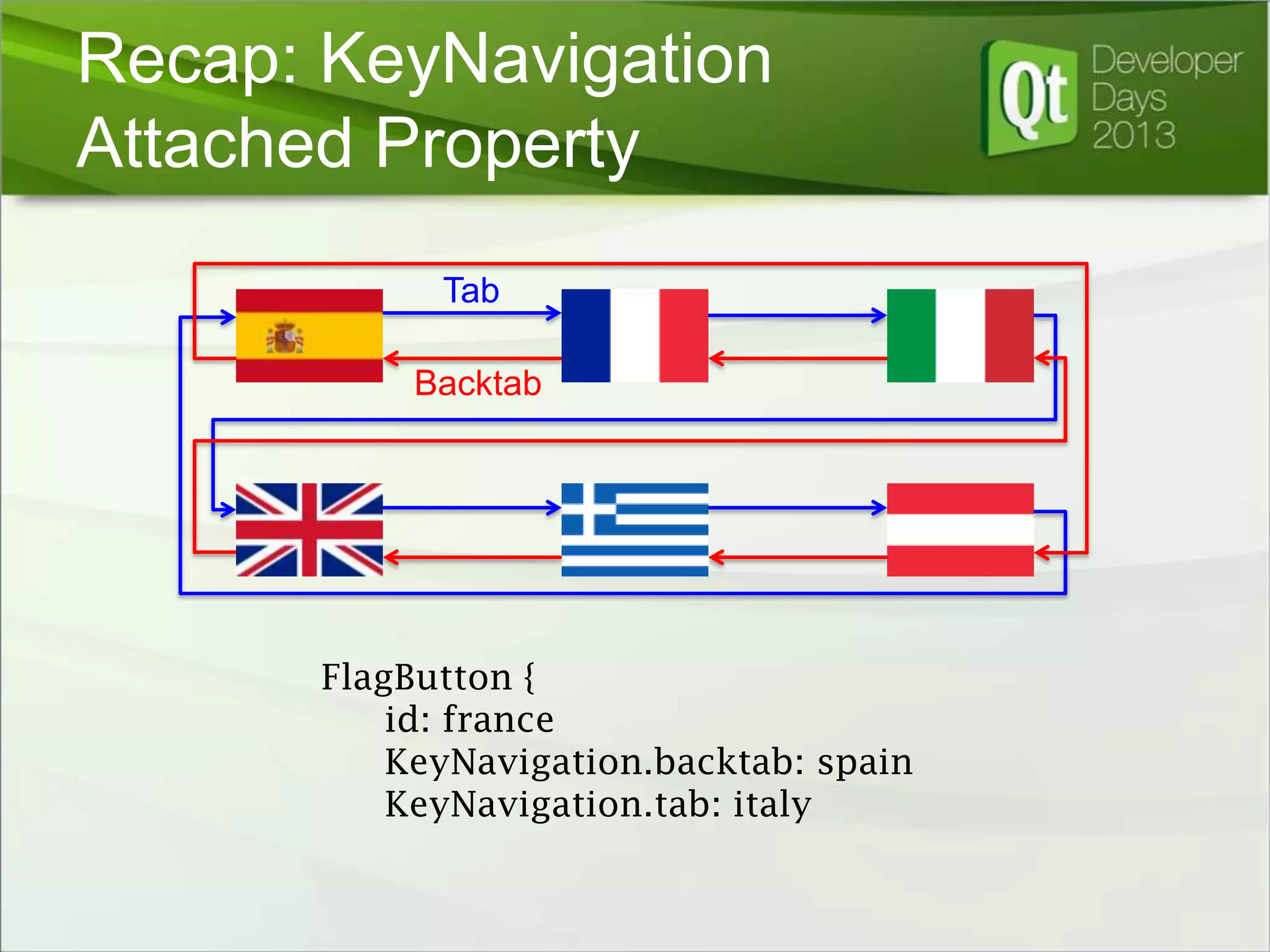

Recap: KeyNavigation
Attached Property
Tab
Backtab

FlagButton {
id: france
KeyNavigation.backtab: spain
KeyNavigation.tab: italy

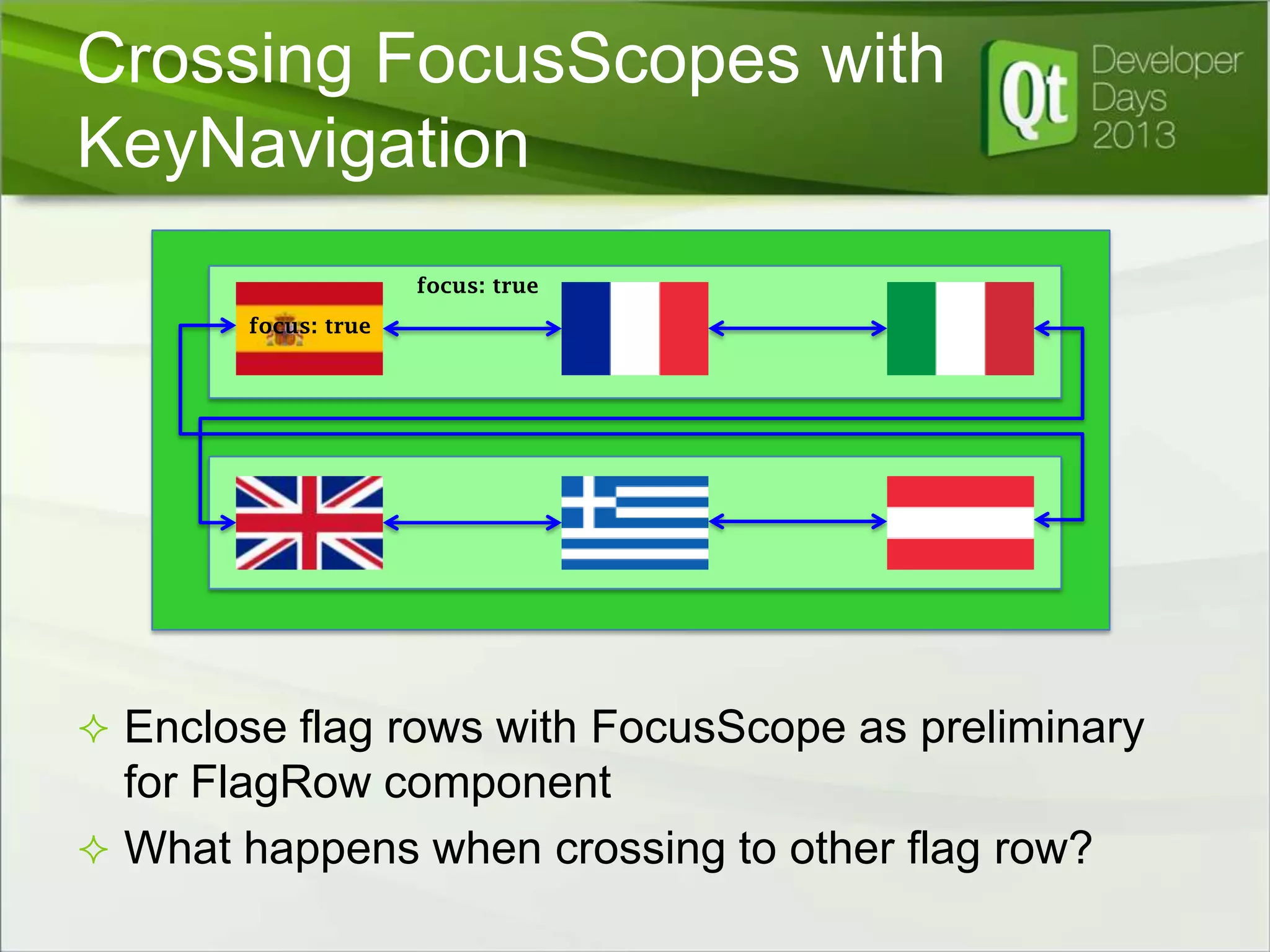

Crossing FocusScopes with
KeyNavigation
focus: true
focus: true

 Enclose flag rows with FocusScope as preliminary

for FlagRow component
 What happens when crossing to other flag row?

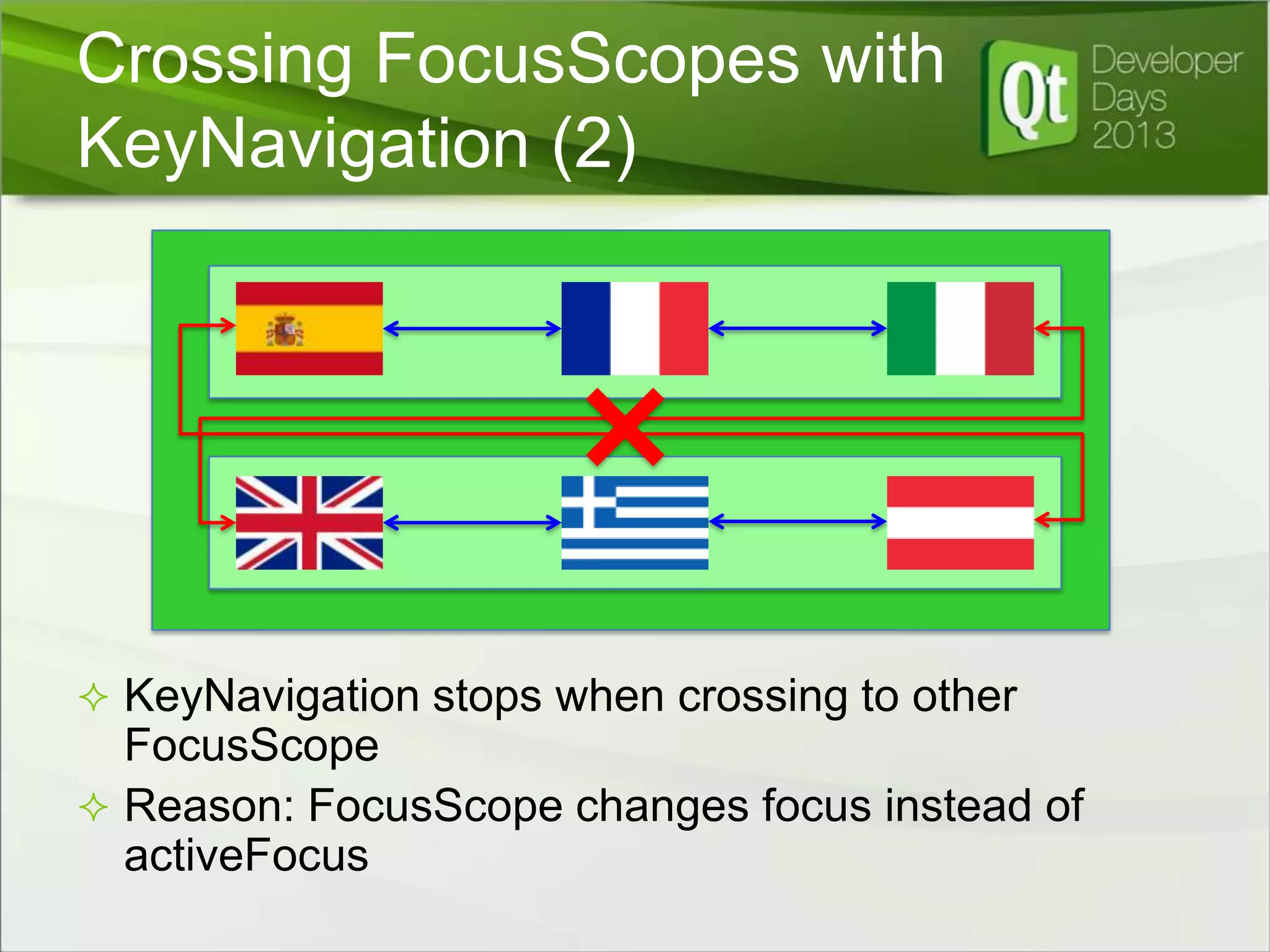

Crossing FocusScopes with
KeyNavigation (2)

 KeyNavigation stops when crossing to other

FocusScope
 Reason: FocusScope changes focus instead of
activeFocus

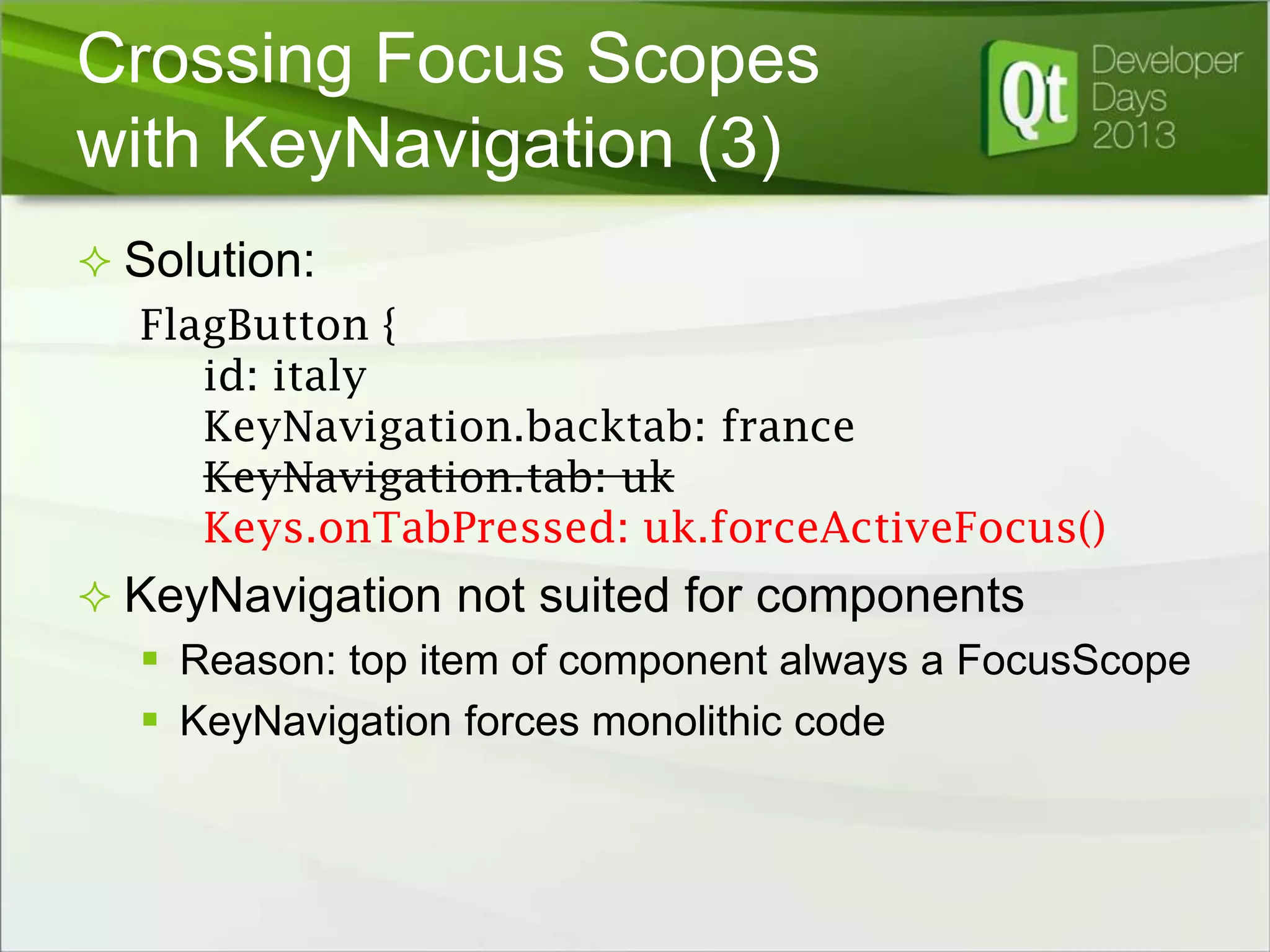

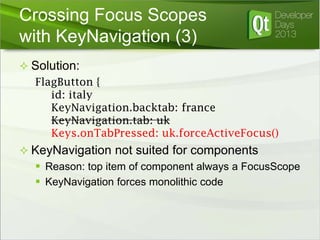

Crossing Focus Scopes
with KeyNavigation (3)
 Solution:

FlagButton {
id: italy
KeyNavigation.backtab: france
KeyNavigation.tab: uk
Keys.onTabPressed: uk.forceActiveFocus()
 KeyNavigation not suited for components
 Reason: top item of component always a FocusScope
 KeyNavigation forces monolithic code

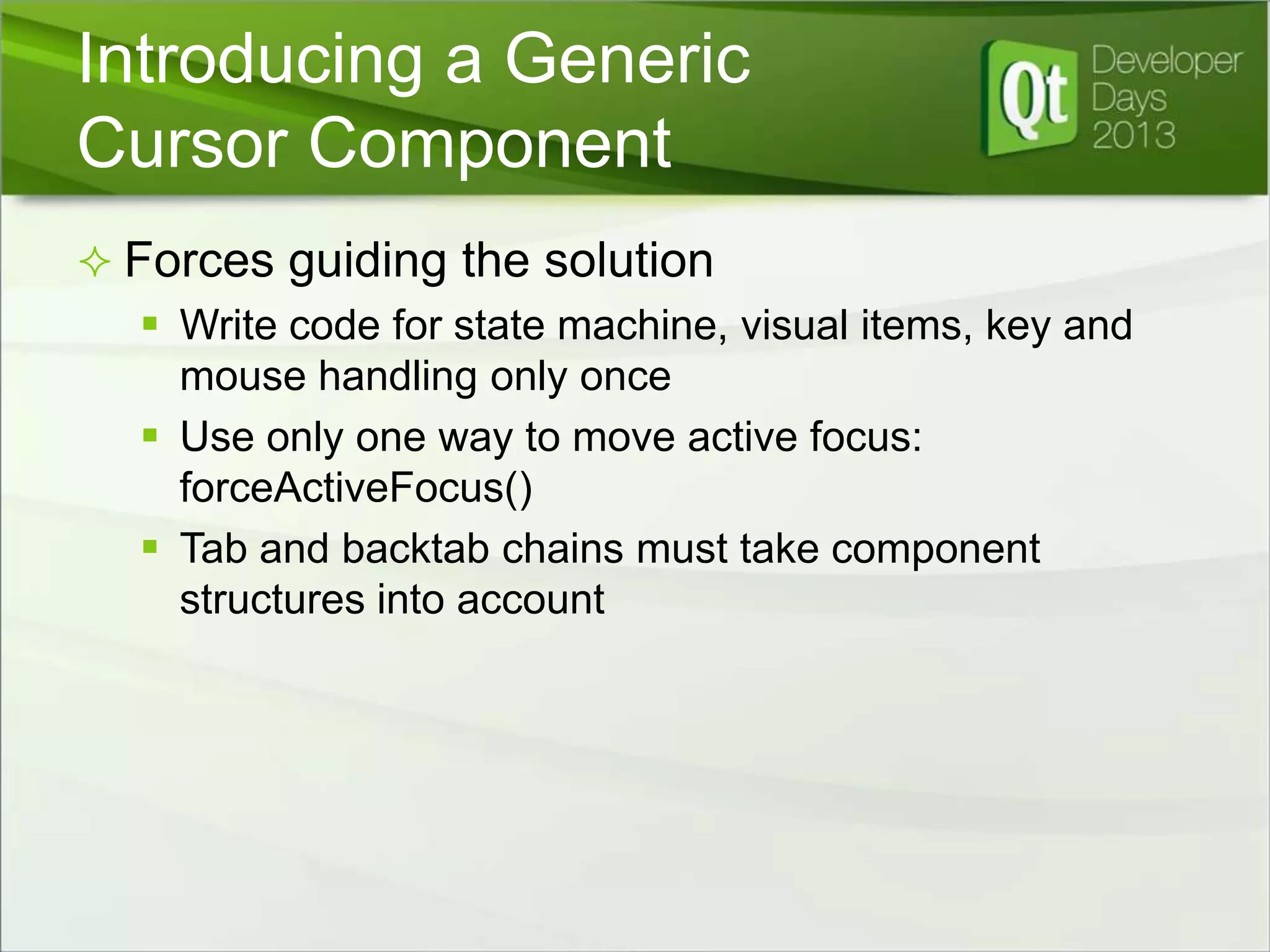

Introducing a Generic
Cursor Component
 Forces guiding the solution
 Write code for state machine, visual items, key and
mouse handling only once
 Use only one way to move active focus:
forceActiveFocus()
 Tab and backtab chains must take component
structures into account

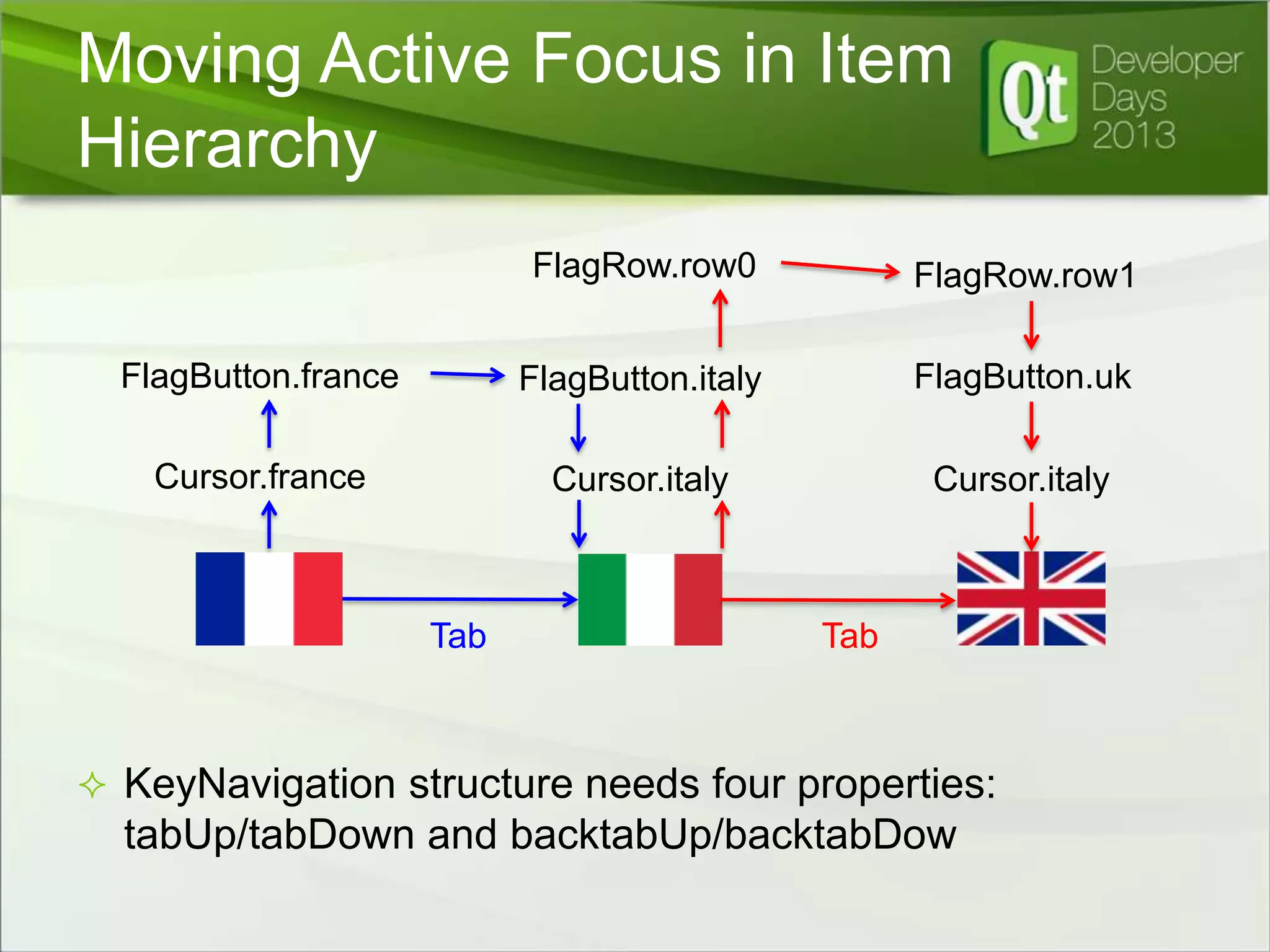

Moving Active Focus in Item
Hierarchy
FlagRow.row0

FlagRow.row1

FlagButton.france

FlagButton.italy

FlagButton.uk

Cursor.france

Cursor.italy

Cursor.italy

Tab

Tab

 KeyNavigation structure needs four properties:

tabUp/tabDown and backtabUp/backtabDow

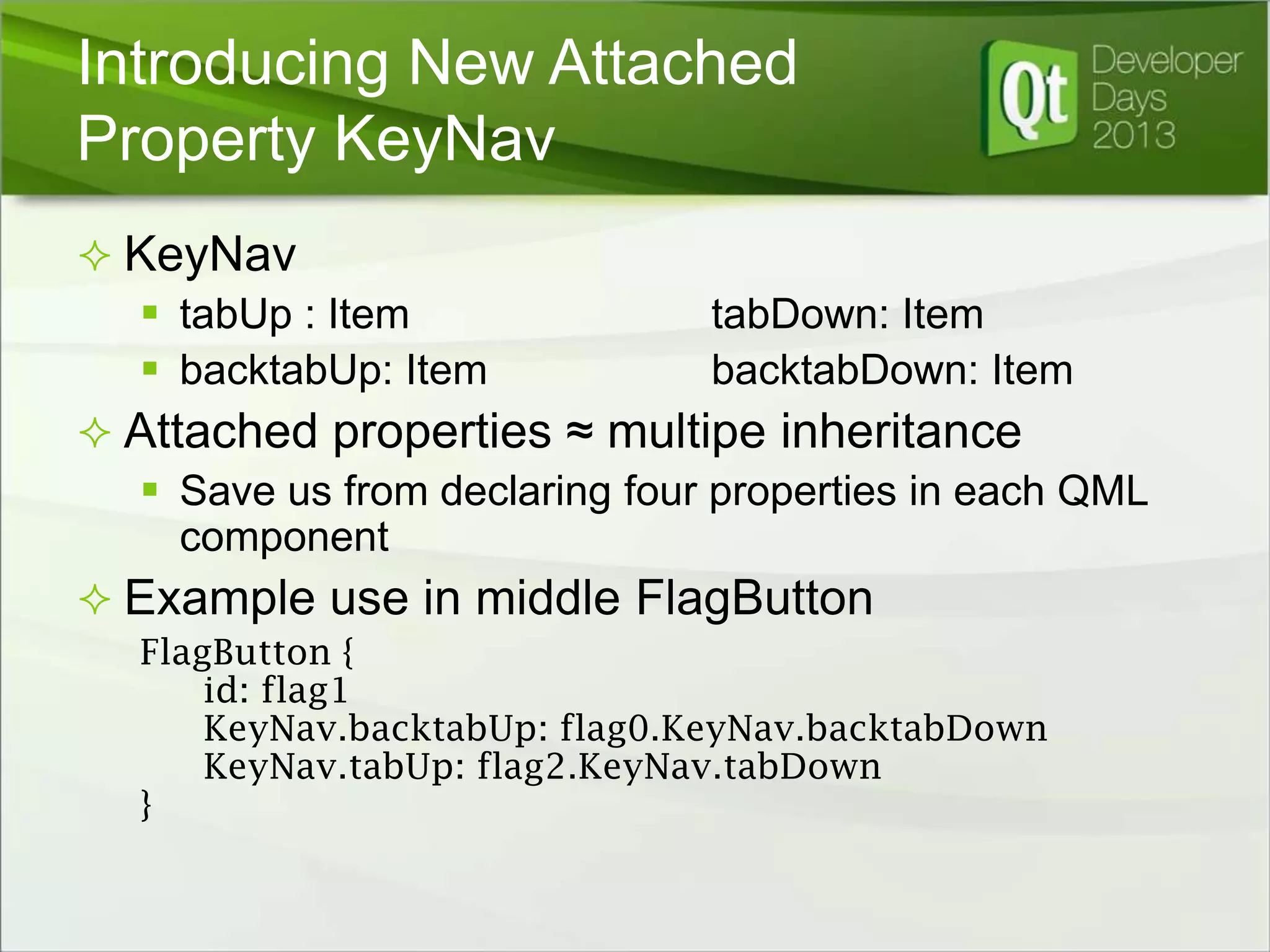

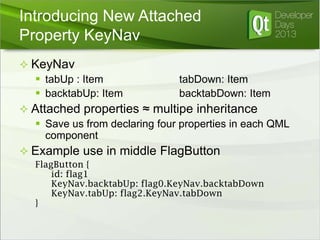

Introducing New Attached
Property KeyNav
 KeyNav
 tabUp : Item
 backtabUp: Item

tabDown: Item
backtabDown: Item

 Attached properties ≈ multipe inheritance
 Save us from declaring four properties in each QML
component
 Example use in middle FlagButton
FlagButton {
id: flag1
KeyNav.backtabUp: flag0.KeyNav.backtabDown
KeyNav.tabUp: flag2.KeyNav.tabDown
}

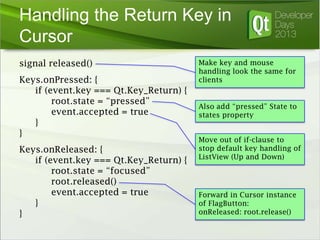

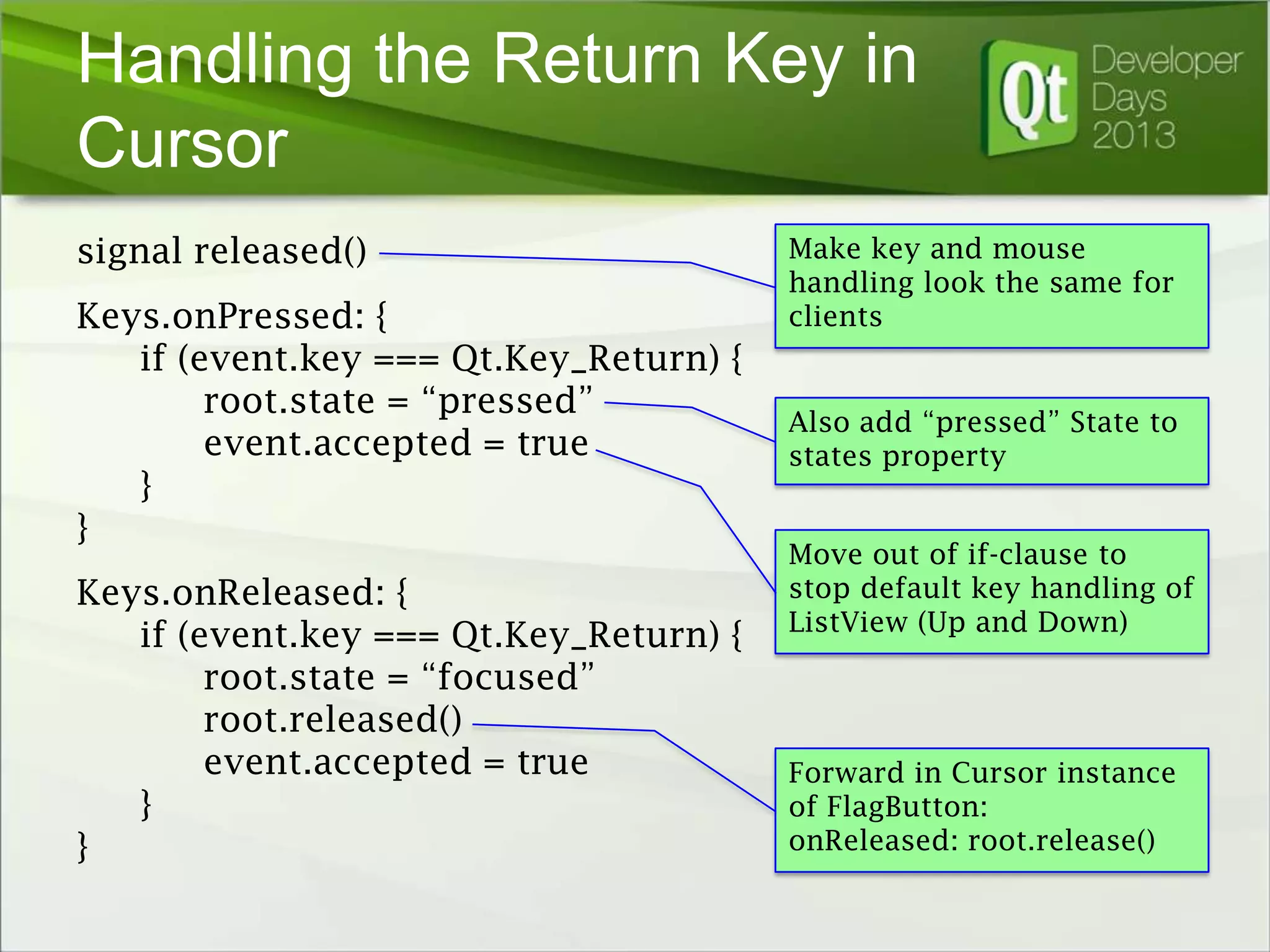

Handling the Return Key in
Cursor
signal released()
Keys.onPressed: {
if (event.key === Qt.Key_Return) {
root.state = “pressed”
event.accepted = true
}
}
Keys.onReleased: {
if (event.key === Qt.Key_Return) {
root.state = “focused”
root.released()
event.accepted = true
}
}

Make key and mouse
handling look the same for
clients

Also add “pressed” State to
states property
Move out of if-clause to
stop default key handling of
ListView (Up and Down)

Forward in Cursor instance
of FlagButton:
onReleased: root.release()

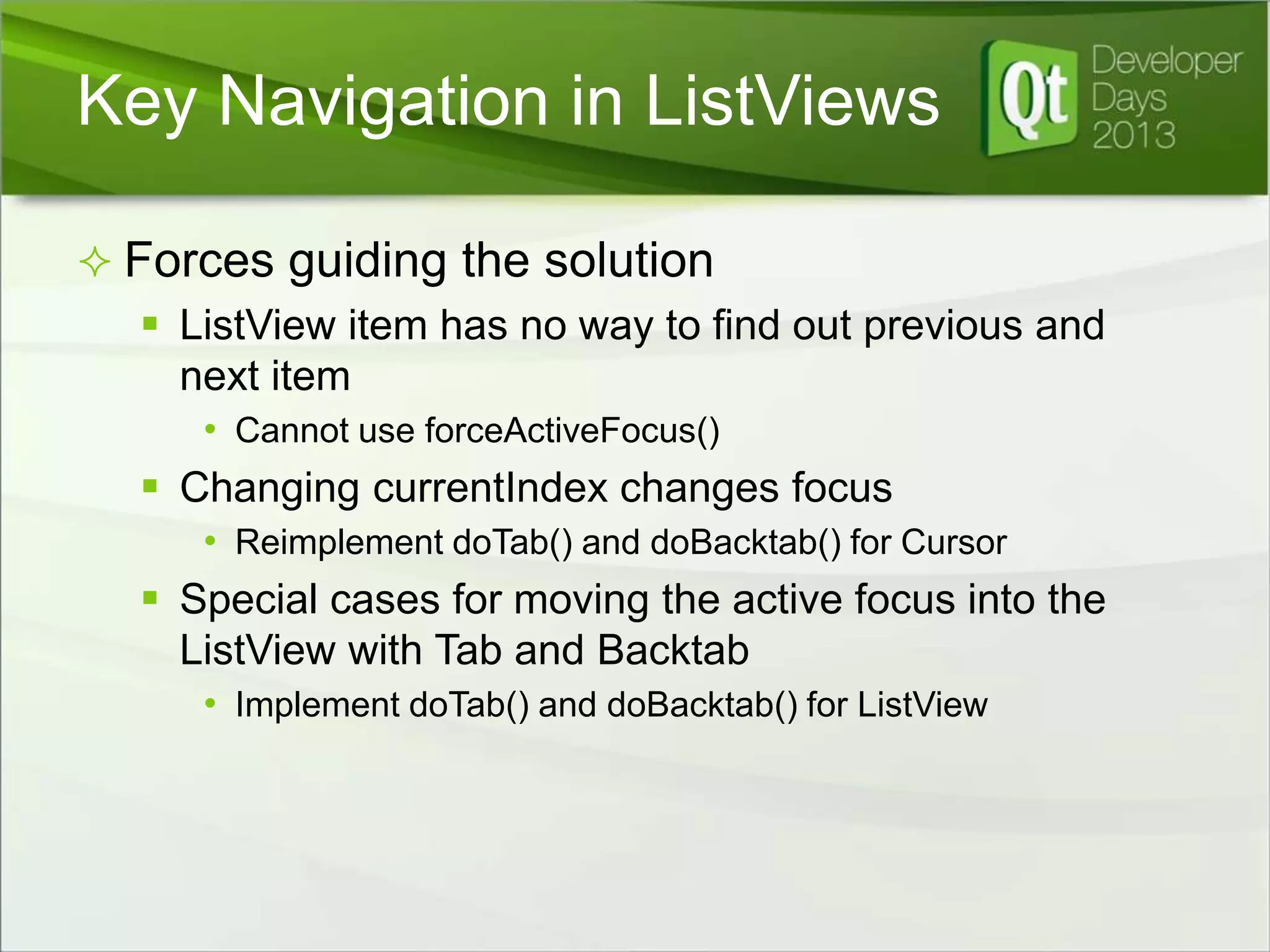

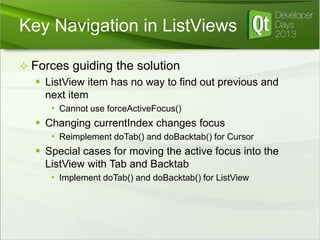

Key Navigation in ListViews
 Forces guiding the solution
 ListView item has no way to find out previous and
next item
• Cannot use forceActiveFocus()

 Changing currentIndex changes focus
• Reimplement doTab() and doBacktab() for Cursor

 Special cases for moving the active focus into the
ListView with Tab and Backtab
• Implement doTab() and doBacktab() for ListView

(2)

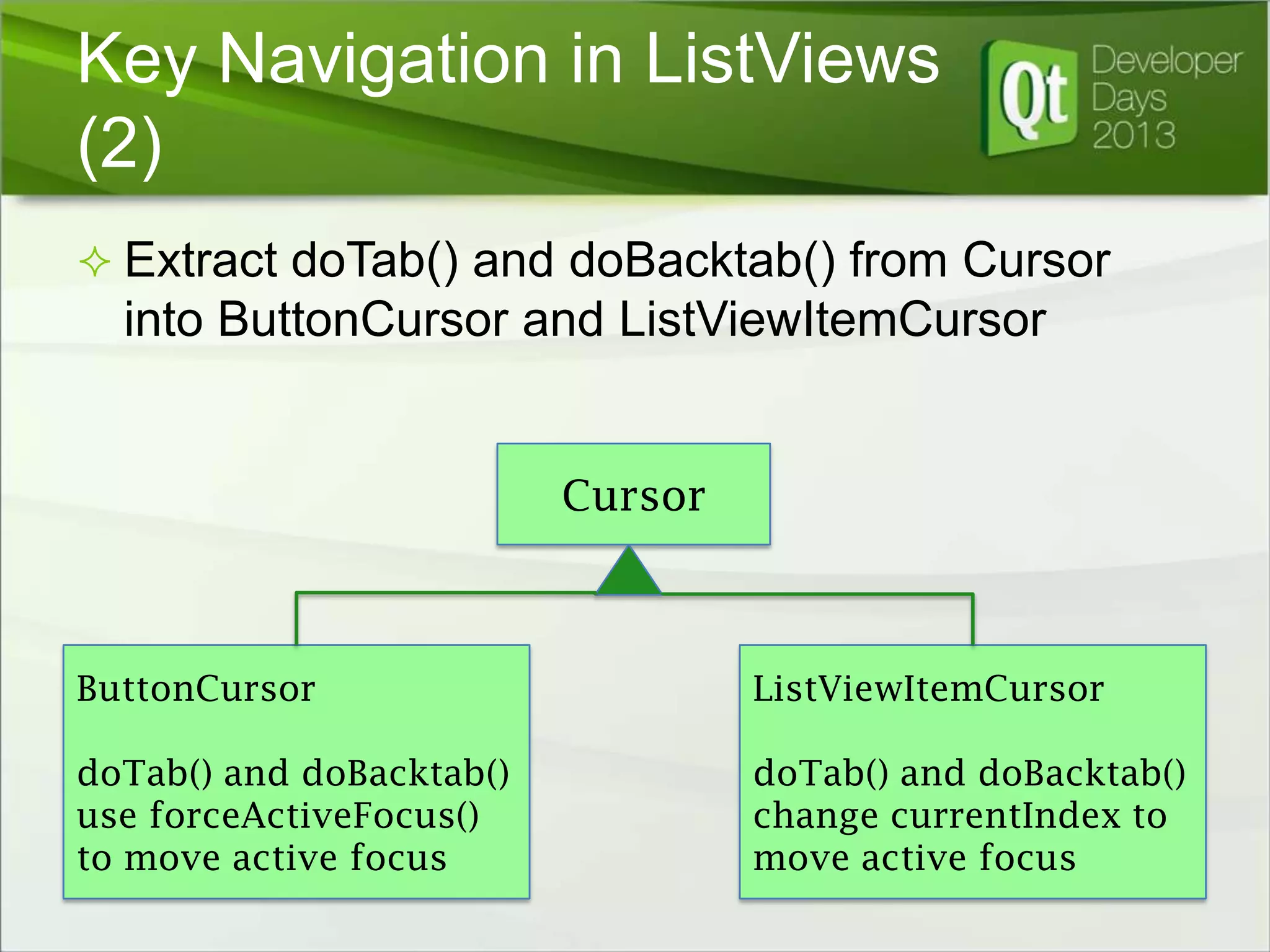

 Extract doTab() and doBacktab() from Cursor

into ButtonCursor and ListViewItemCursor

Cursor

ButtonCursor

ListViewItemCursor

doTab() and doBacktab()
use forceActiveFocus()
to move active focus

doTab() and doBacktab()
change currentIndex to
move active focus

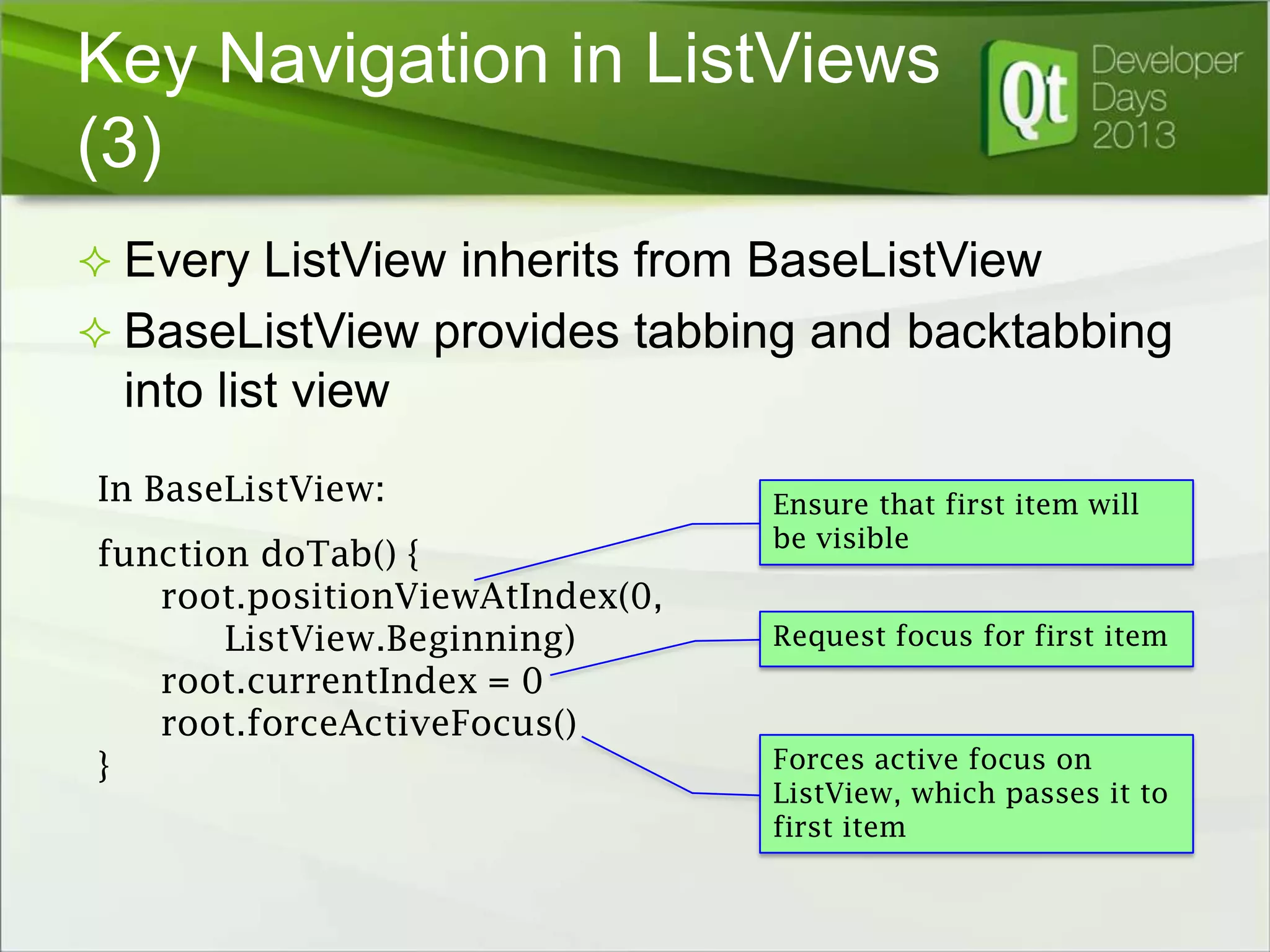

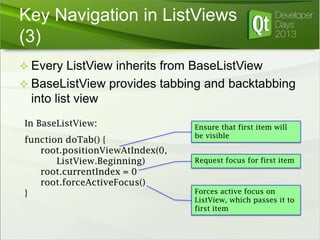

(3)
 Every ListView inherits from BaseListView

 BaseListView provides tabbing and backtabbing

into list view
In BaseListView:
function doTab() {
root.positionViewAtIndex(0,
ListView.Beginning)
root.currentIndex = 0
root.forceActiveFocus()
}

Ensure that first item will
be visible
Request focus for first item

Forces active focus on
ListView, which passes it to
first item

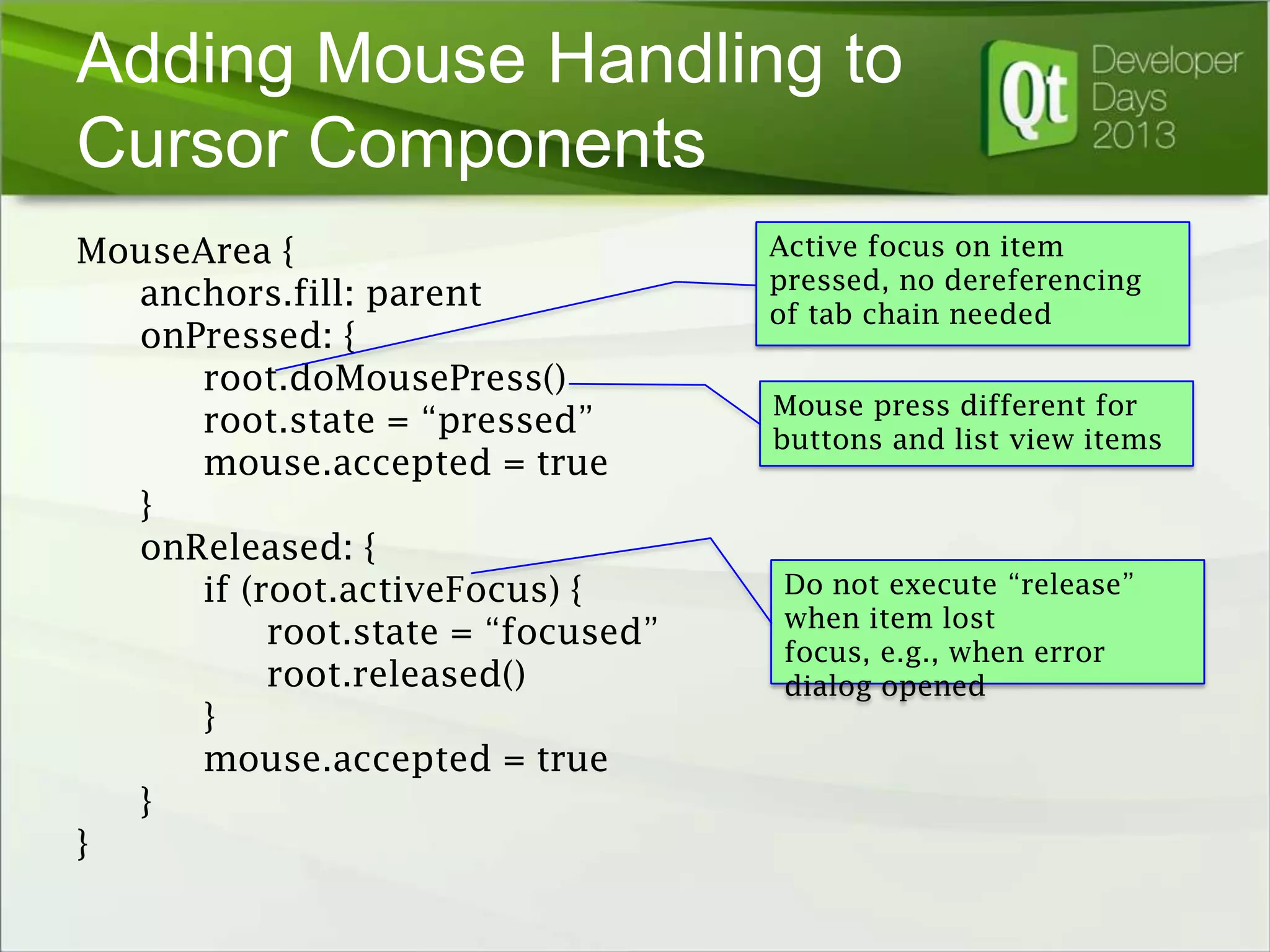

Adding Mouse Handling to
Cursor Components
MouseArea {
anchors.fill: parent
onPressed: {
root.doMousePress()
root.state = “pressed”
mouse.accepted = true
}
onReleased: {
if (root.activeFocus) {
root.state = “focused”
root.released()
}
mouse.accepted = true
}
}

Active focus on item
pressed, no dereferencing
of tab chain needed
Mouse press different for
buttons and list view items

Do not execute “release”
when item lost
focus, e.g., when error
dialog opened

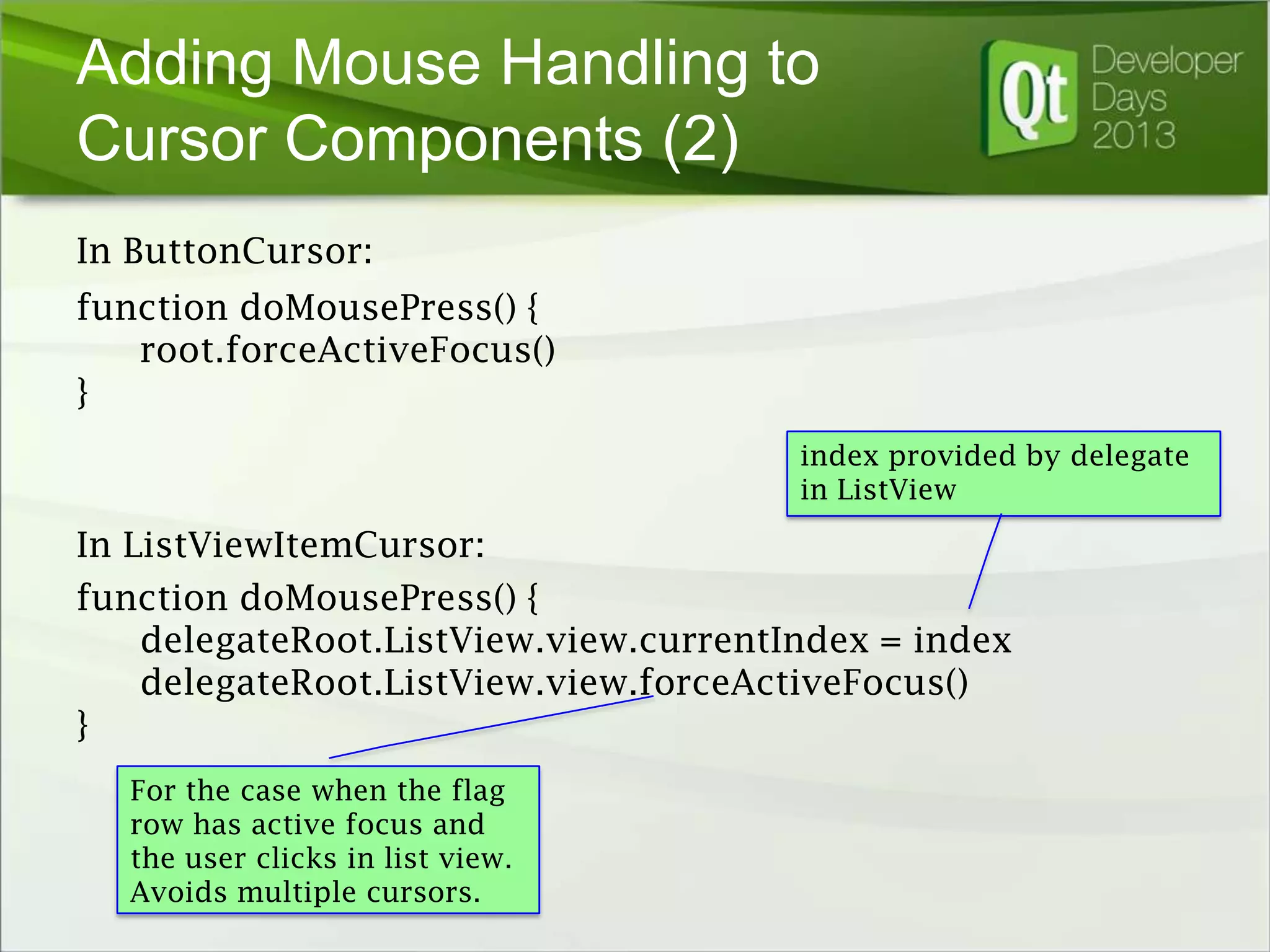

Adding Mouse Handling to
Cursor Components (2)
In ButtonCursor:
function doMousePress() {
root.forceActiveFocus()
}
index provided by delegate
in ListView

In ListViewItemCursor:
function doMousePress() {
delegateRoot.ListView.view.currentIndex = index
delegateRoot.ListView.view.forceActiveFocus()
}
For the case when the flag
row has active focus and
the user clicks in list view.
Avoids multiple cursors.

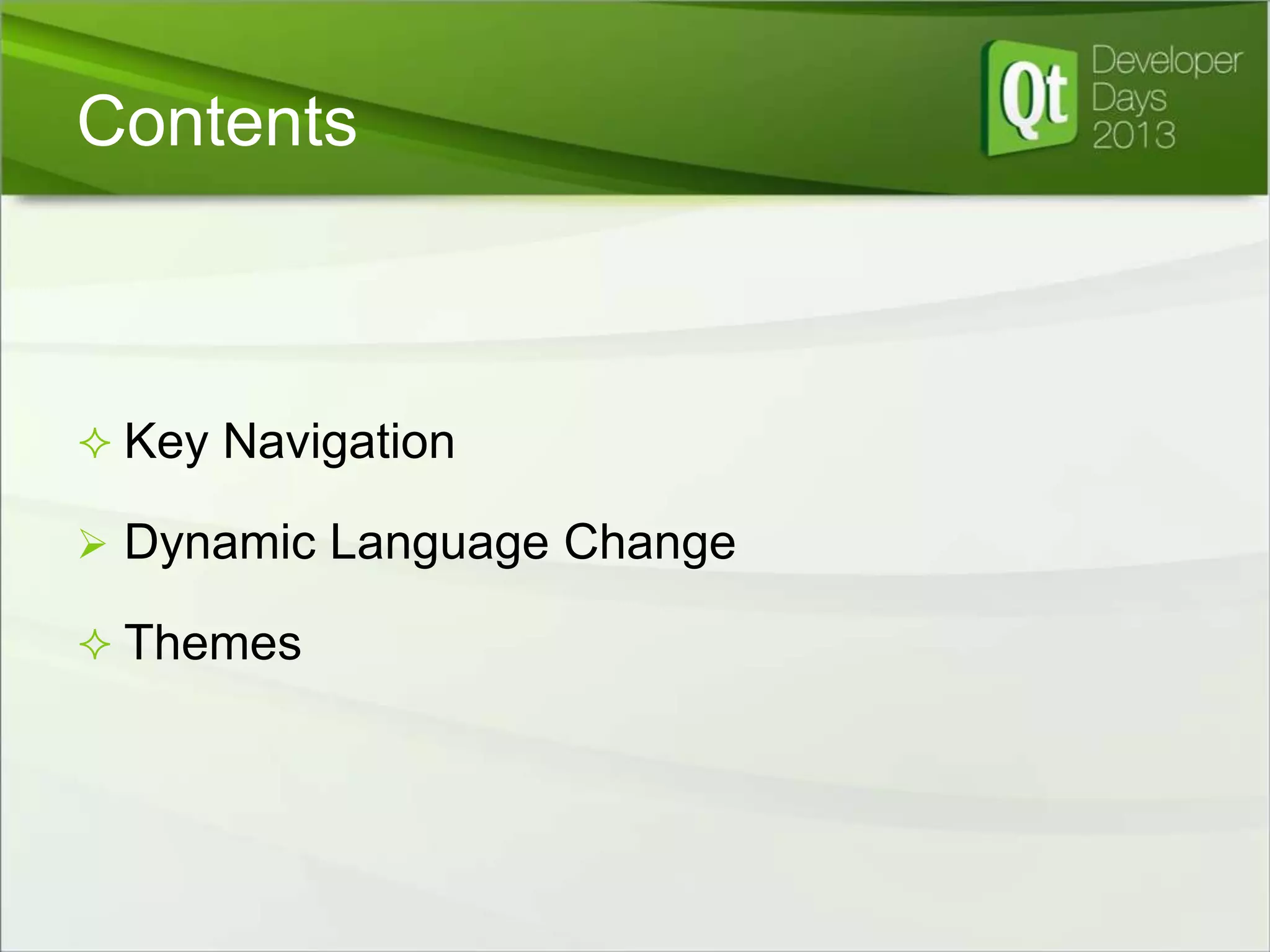

Contents

 Key Navigation
 Dynamic Language Change
 Themes

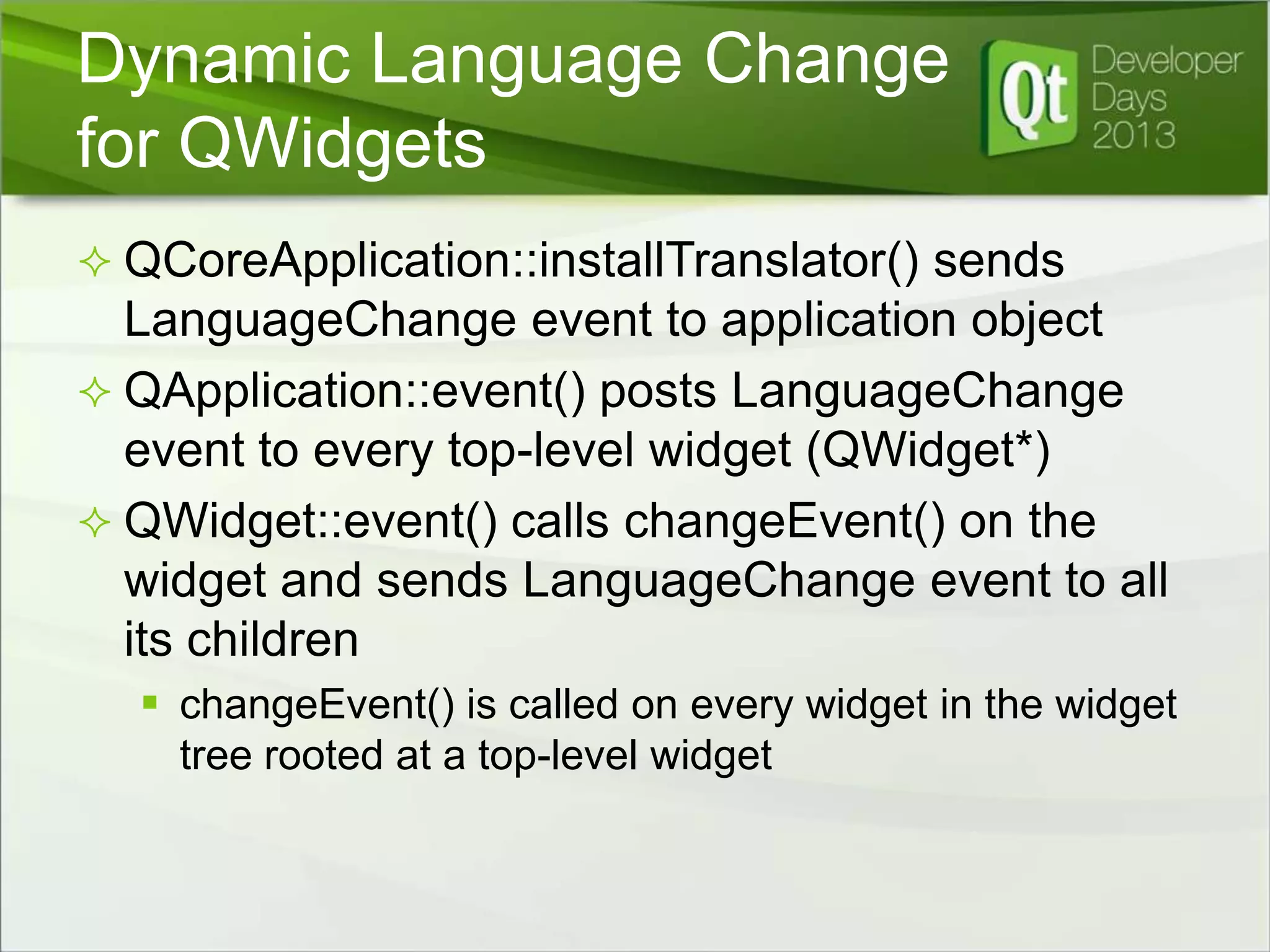

Dynamic Language Change
for QWidgets
 QCoreApplication::installTranslator() sends

LanguageChange event to application object
 QApplication::event() posts LanguageChange
event to every top-level widget (QWidget*)
 QWidget::event() calls changeEvent() on the
widget and sends LanguageChange event to all
its children
 changeEvent() is called on every widget in the widget
tree rooted at a top-level widget

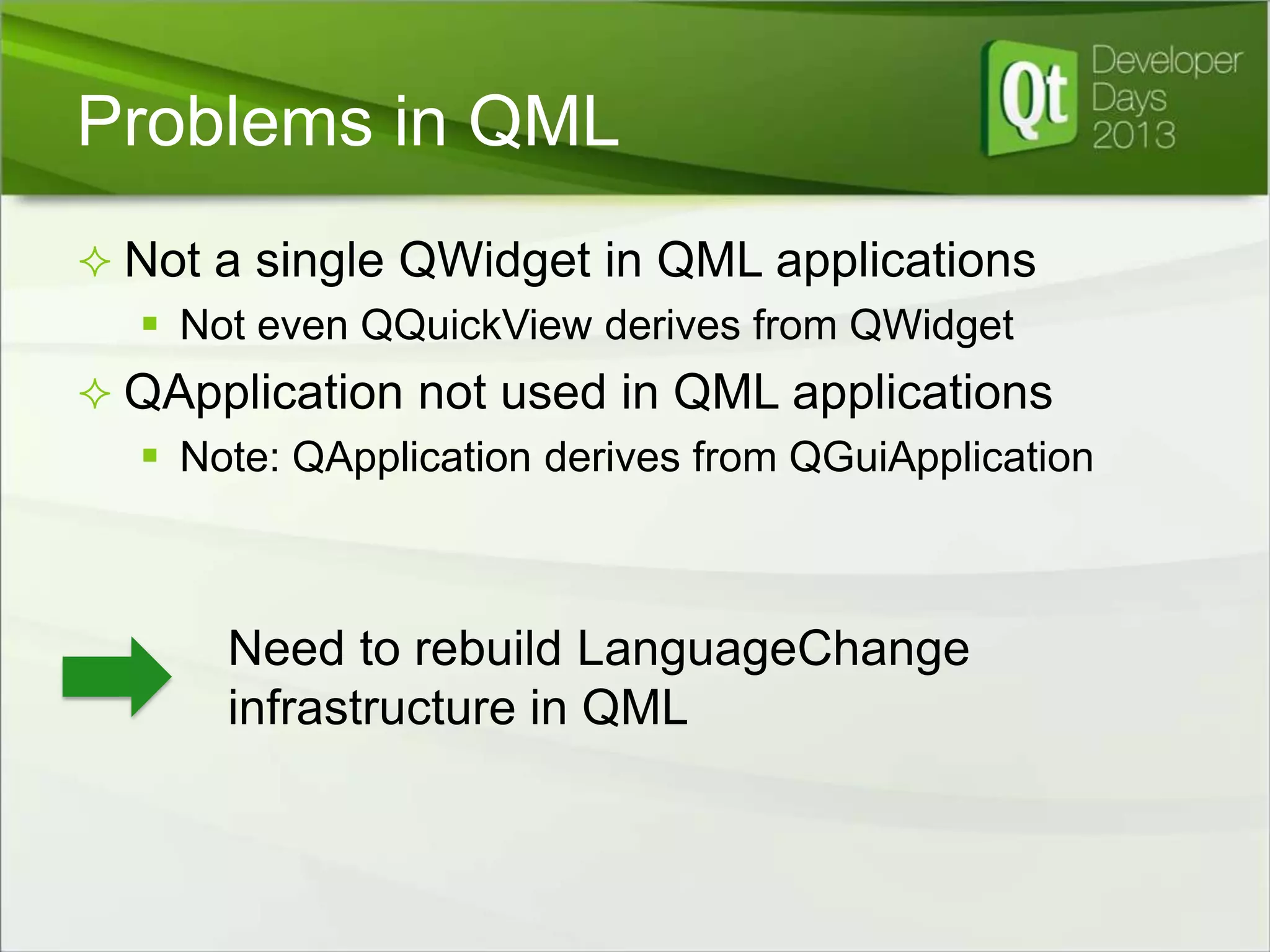

Problems in QML
 Not a single QWidget in QML applications
 Not even QQuickView derives from QWidget
 QApplication not used in QML applications
 Note: QApplication derives from QGuiApplication

Need to rebuild LanguageChange
infrastructure in QML

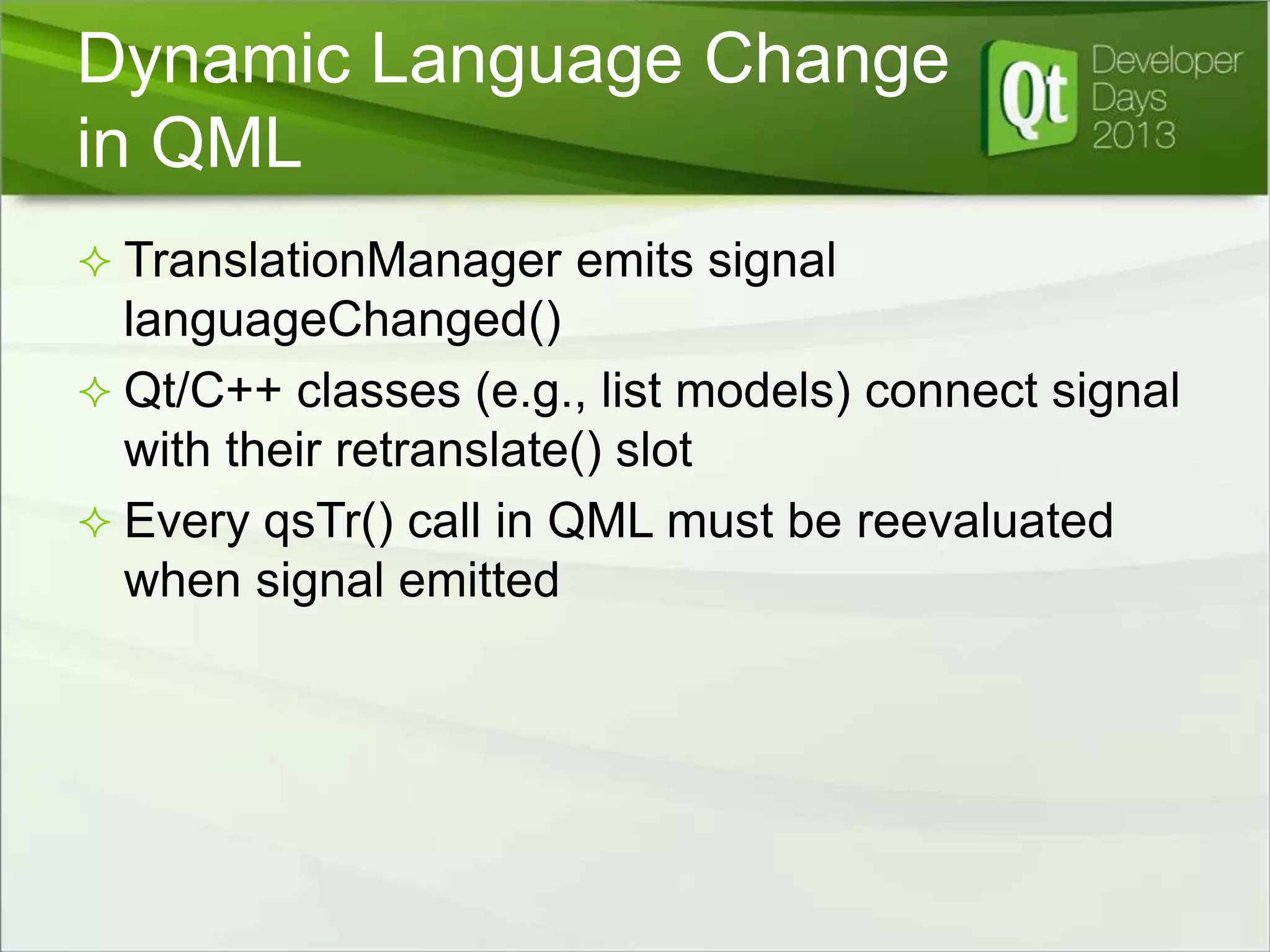

Dynamic Language Change
in QML
 TranslationManager emits signal

languageChanged()
 Qt/C++ classes (e.g., list models) connect signal
with their retranslate() slot
 Every qsTr() call in QML must be reevaluated
when signal emitted

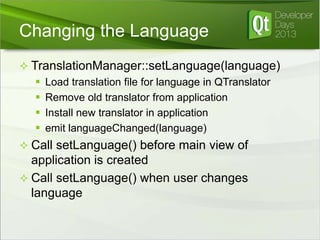

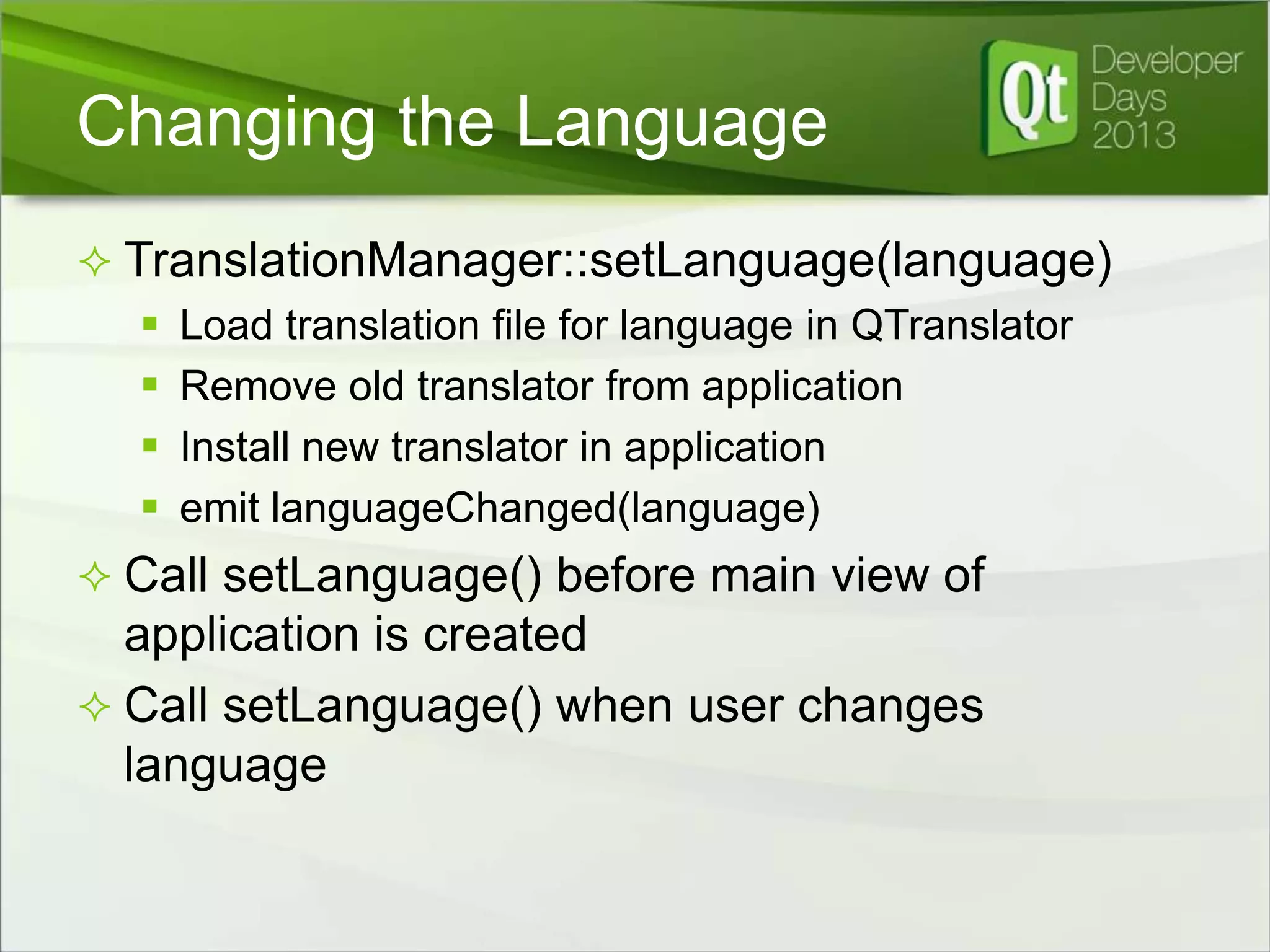

Changing the Language
 TranslationManager::setLanguage(language)
 Load translation file for language in QTranslator
 Remove old translator from application
 Install new translator in application
 emit languageChanged(language)

 Call setLanguage() before main view of

application is created
 Call setLanguage() when user changes
language

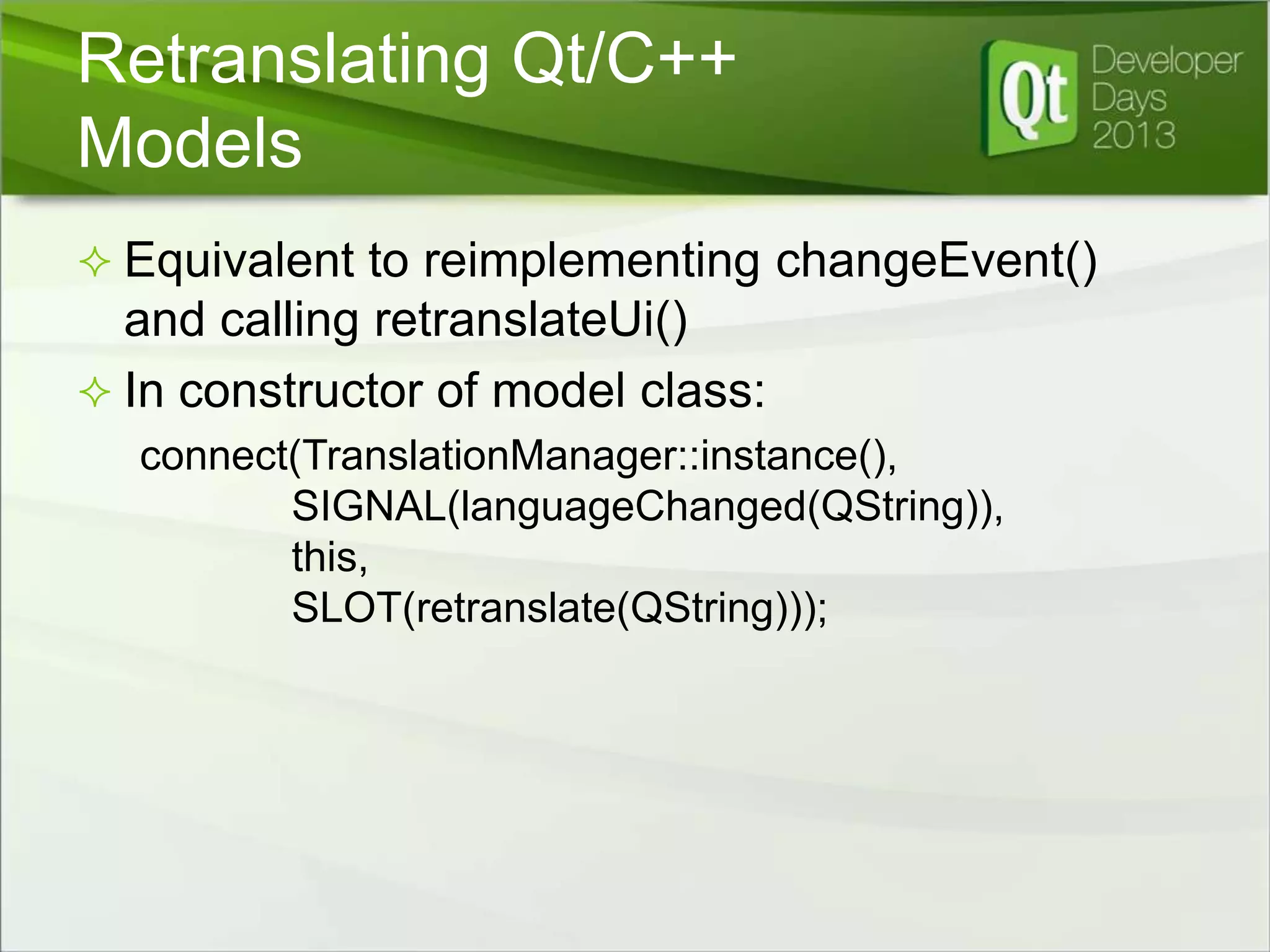

Retranslating Qt/C++
Models
 Equivalent to reimplementing changeEvent()

and calling retranslateUi()
 In constructor of model class:
connect(TranslationManager::instance(),
SIGNAL(languageChanged(QString)),
this,
SLOT(retranslate(QString)));

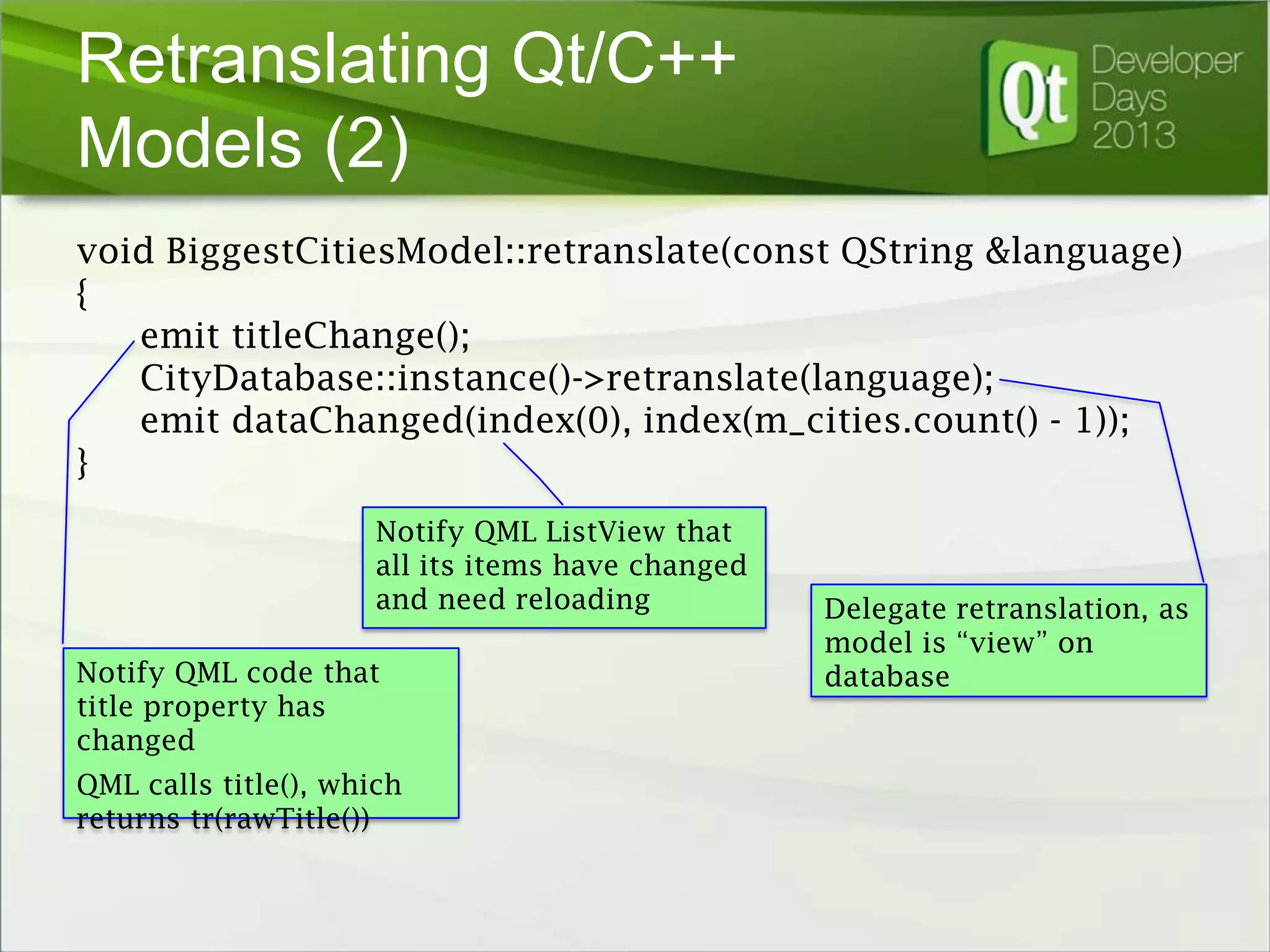

Models (2)
void BiggestCitiesModel::retranslate(const QString &language)
{
emit titleChange();
CityDatabase::instance()->retranslate(language);
emit dataChanged(index(0), index(m_cities.count() - 1));
}
Notify QML ListView that
all its items have changed
and need reloading
Notify QML code that
title property has
changed
QML calls title(), which
returns tr(rawTitle())

Delegate retranslation, as
model is “view” on
database

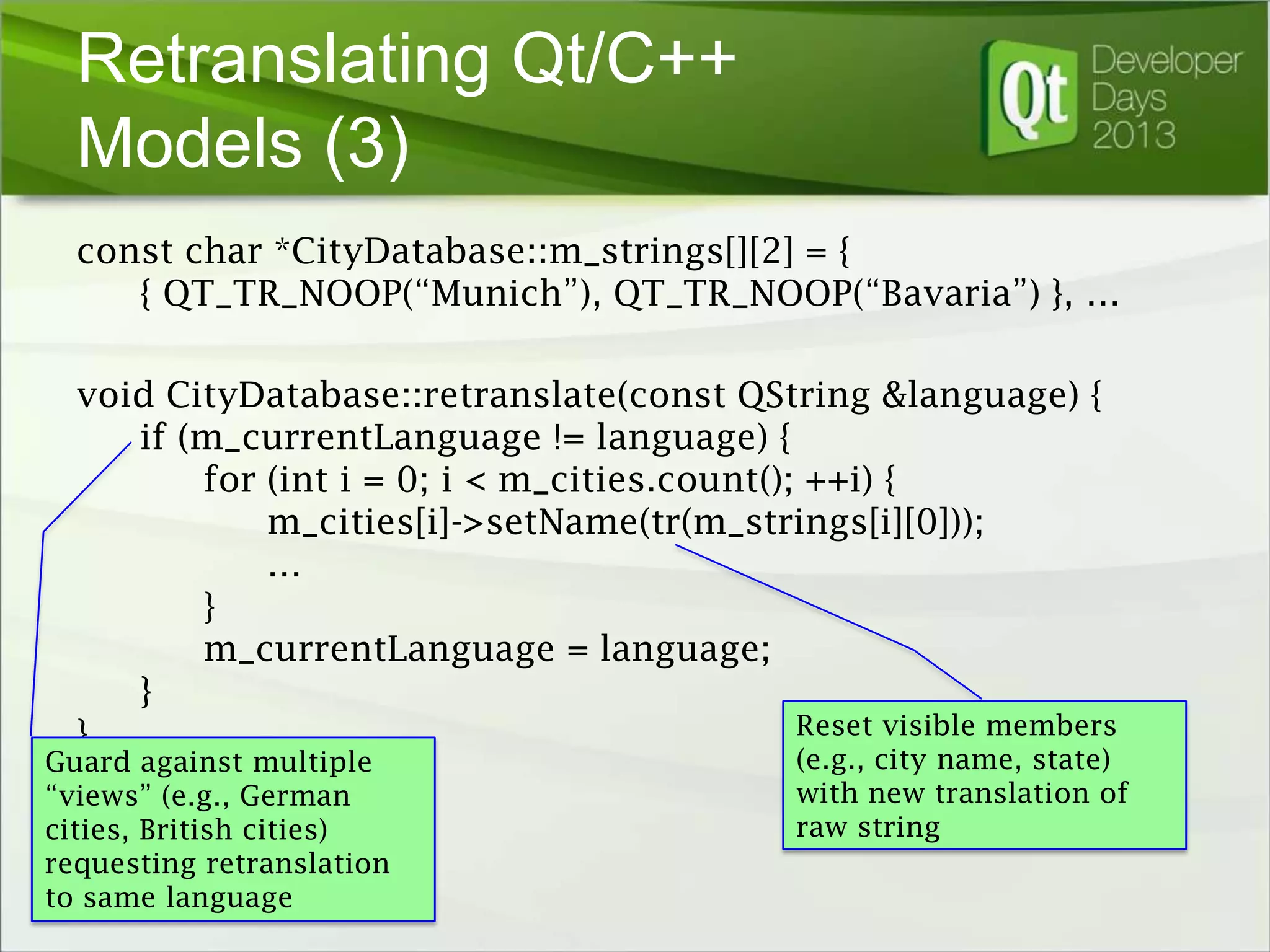

Models (3)
const char *CityDatabase::m_strings[][2] = {
{ QT_TR_NOOP(“Munich”), QT_TR_NOOP(“Bavaria”) }, …
void CityDatabase::retranslate(const QString &language) {
if (m_currentLanguage != language) {
for (int i = 0; i < m_cities.count(); ++i) {
m_cities[i]->setName(tr(m_strings[i][0]));
…
}
m_currentLanguage = language;
}
Reset visible members
}

Guard against multiple
“views” (e.g., German
cities, British cities)
requesting retranslation
to same language

(e.g., city name, state)
with new translation of
raw string

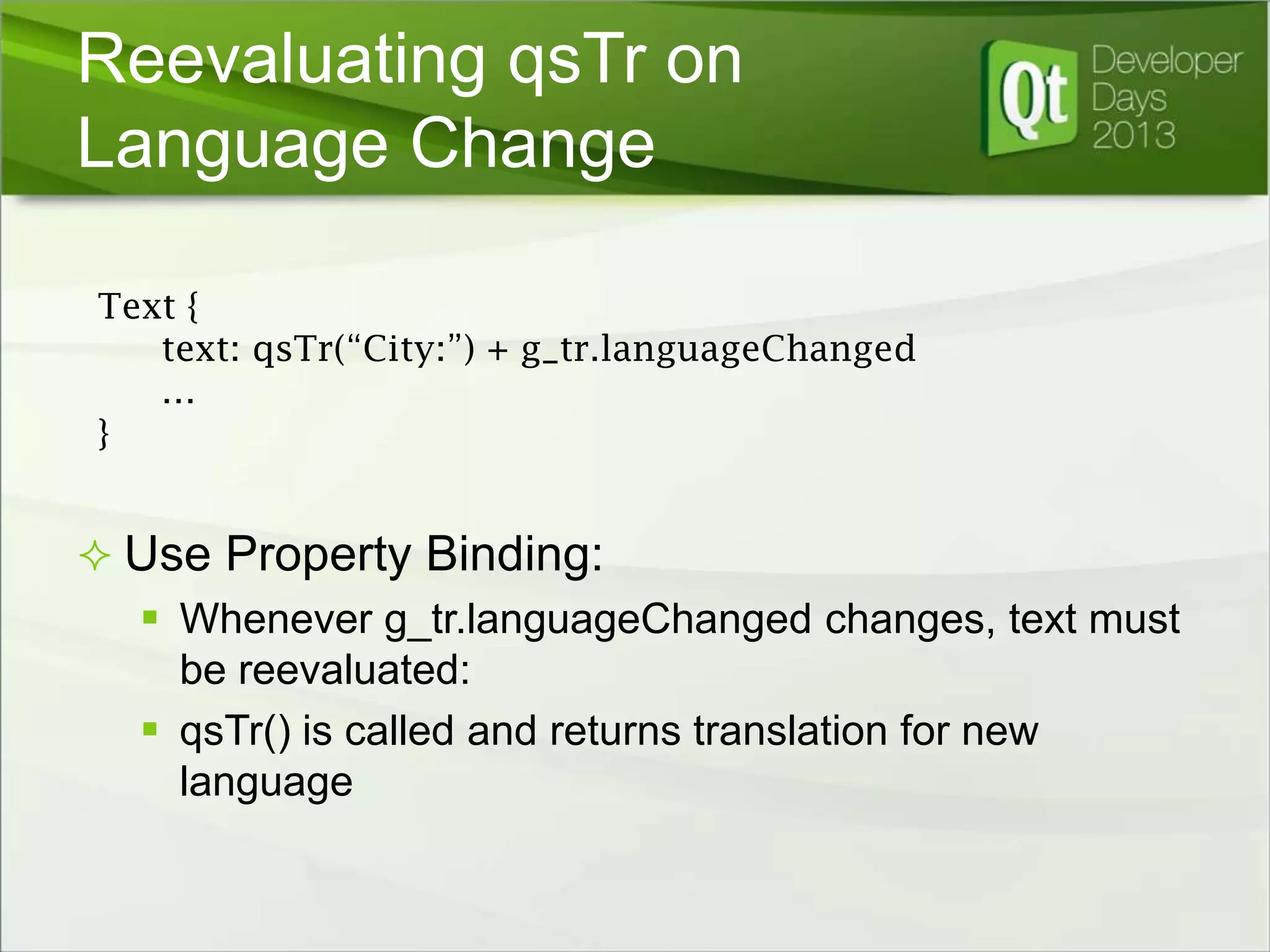

Reevaluating qsTr on
Language Change
Text {
text: qsTr(“City:”) + g_tr.languageChanged
…
}

 Use Property Binding:
 Whenever g_tr.languageChanged changes, text must
be reevaluated:
 qsTr() is called and returns translation for new
language

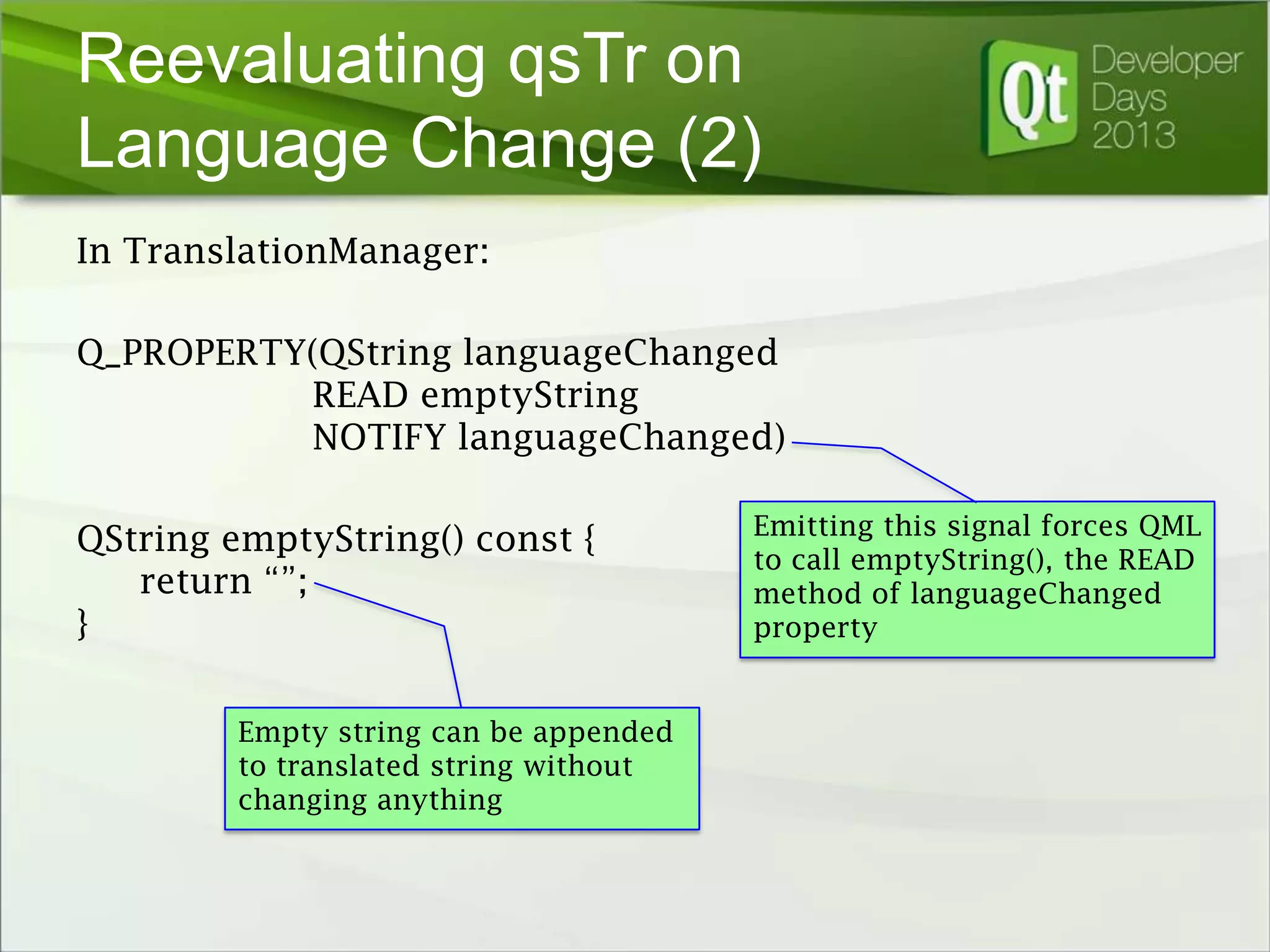

Language Change (2)
In TranslationManager:
Q_PROPERTY(QString languageChanged
READ emptyString
NOTIFY languageChanged)

QString emptyString() const {
return “”;
}
Empty string can be appended
to translated string without
changing anything

Emitting this signal forces QML
to call emptyString(), the READ
method of languageChanged
property

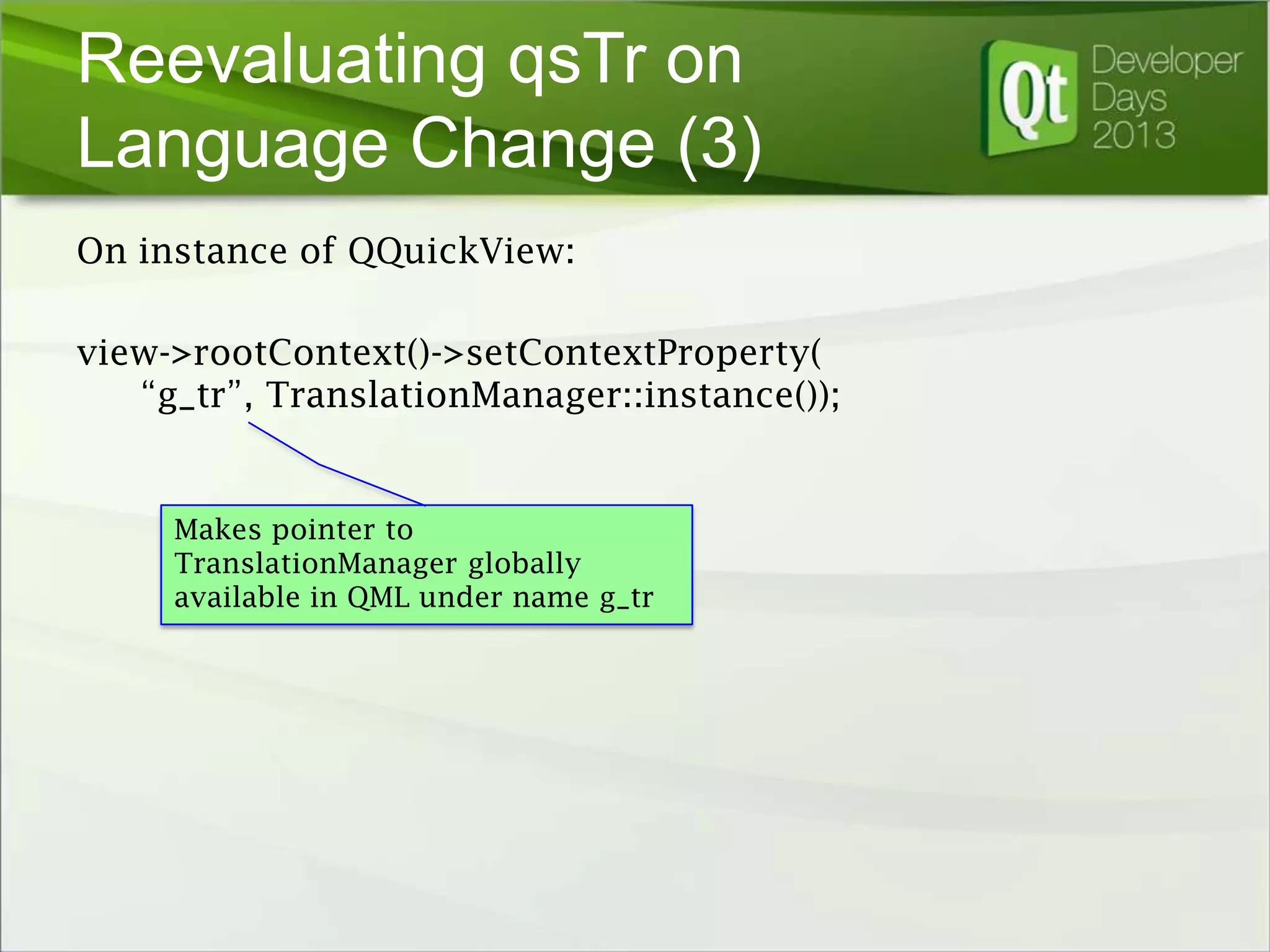

Language Change (3)
On instance of QQuickView:
view->rootContext()->setContextProperty(
“g_tr”, TranslationManager::instance());

Makes pointer to
TranslationManager globally
available in QML under name g_tr

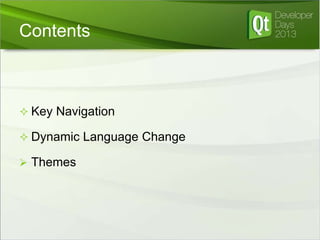

Contents

 Key Navigation
 Dynamic Language Change
 Themes

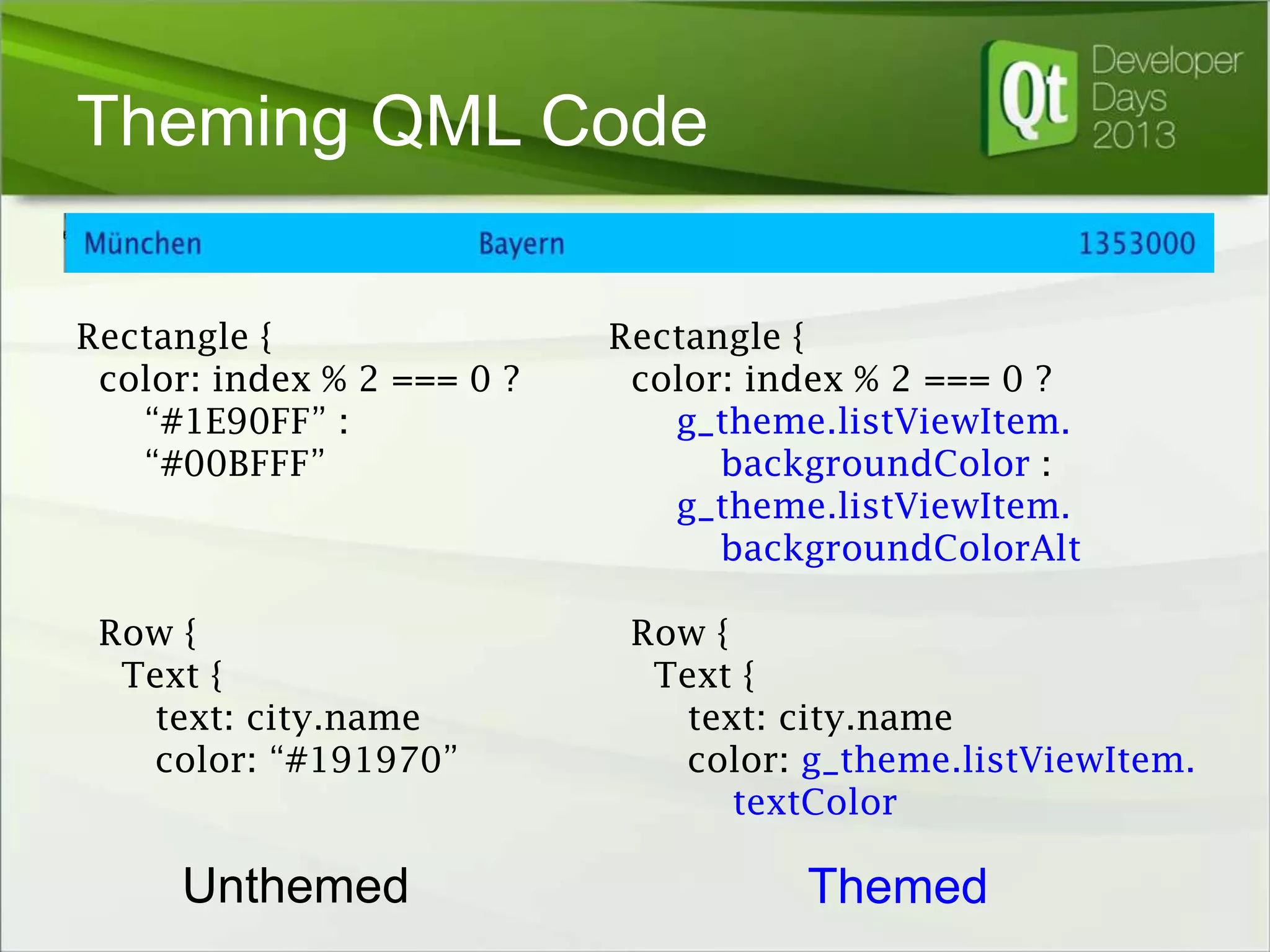

Theming QML Code
Rectangle {
color: index % 2 === 0 ?
“#1E90FF” :
“#00BFFF”

Row {
Text {
text: city.name
color: “#191970”

Unthemed

Rectangle {
color: index % 2 === 0 ?
g_theme.listViewItem.
backgroundColor :
g_theme.listViewItem.
backgroundColorAlt
Row {
Text {
text: city.name
color: g_theme.listViewItem.
textColor

Themed

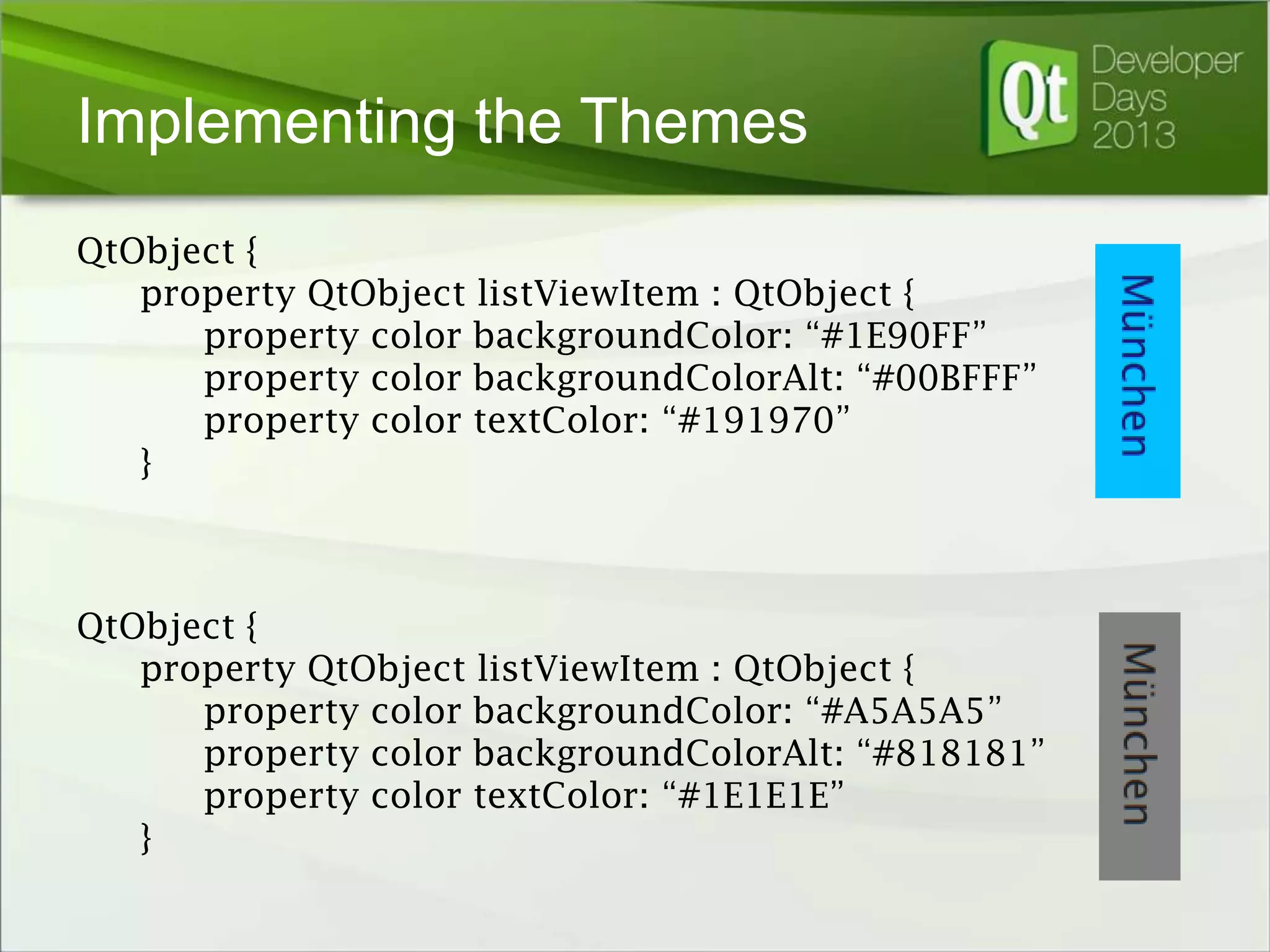

Implementing the Themes
QtObject {
property QtObject listViewItem : QtObject {
property color backgroundColor: “#1E90FF”
property color backgroundColorAlt: “#00BFFF”
property color textColor: “#191970”
}

QtObject {
property QtObject listViewItem : QtObject {
property color backgroundColor: “#A5A5A5”
property color backgroundColorAlt: “#818181”
property color textColor: “#1E1E1E”
}

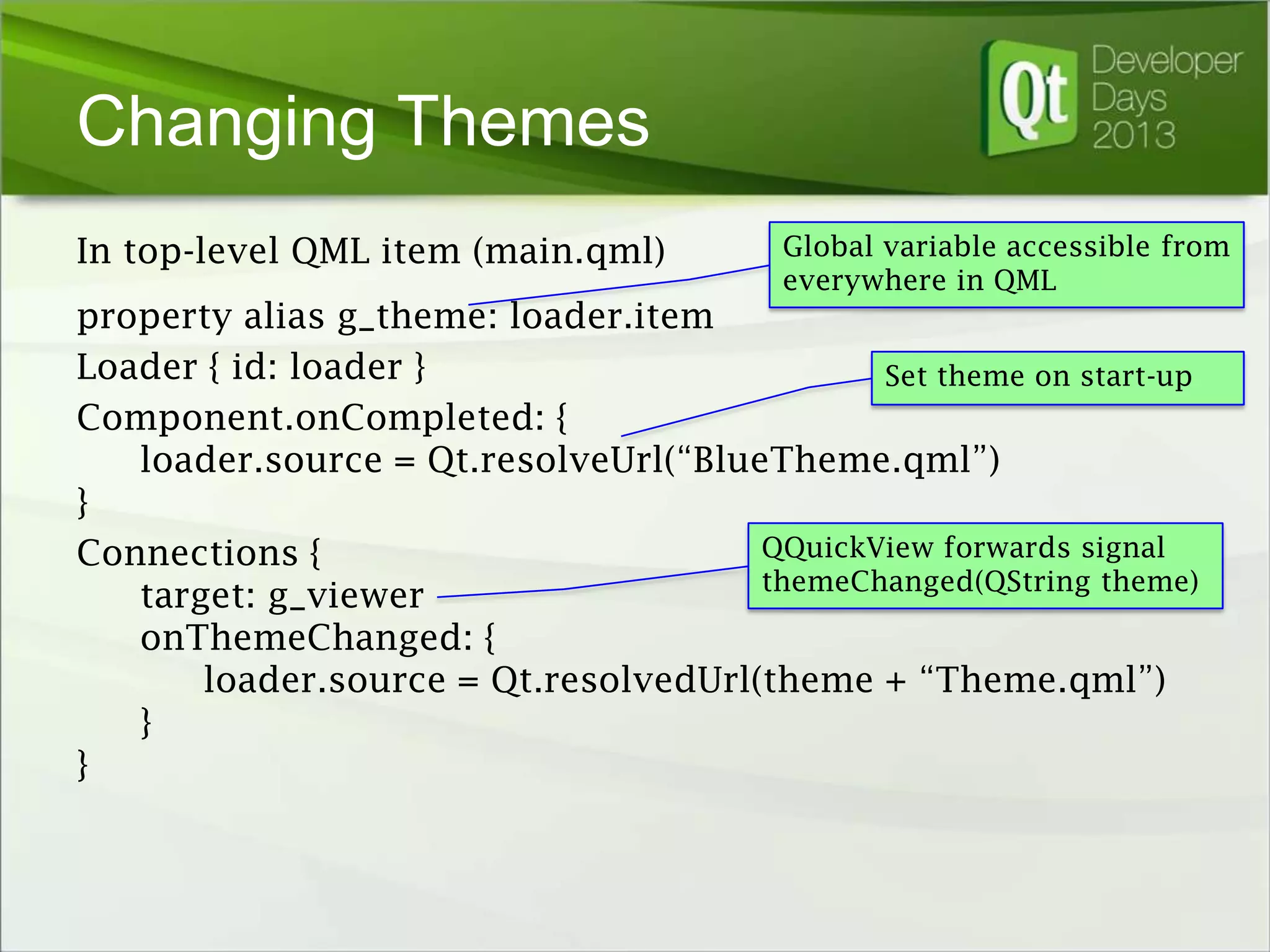

Changing Themes
In top-level QML item (main.qml)

Global variable accessible from
everywhere in QML

property alias g_theme: loader.item
Loader { id: loader }
Set theme on start-up
Component.onCompleted: {
loader.source = Qt.resolveUrl(“BlueTheme.qml”)
}
QQuickView forwards signal
Connections {
themeChanged(QString theme)
target: g_viewer
onThemeChanged: {
loader.source = Qt.resolvedUrl(theme + “Theme.qml”)
}
}
