Best Practices in Qt Quick/QML - Part 3

© Integrated Computer Solutions, Inc. All Rights Reserved
Best Practices in Qt
Quick/QML Part 3
Justin Noel
Senior Consulting Engineer
ICS, Inc.

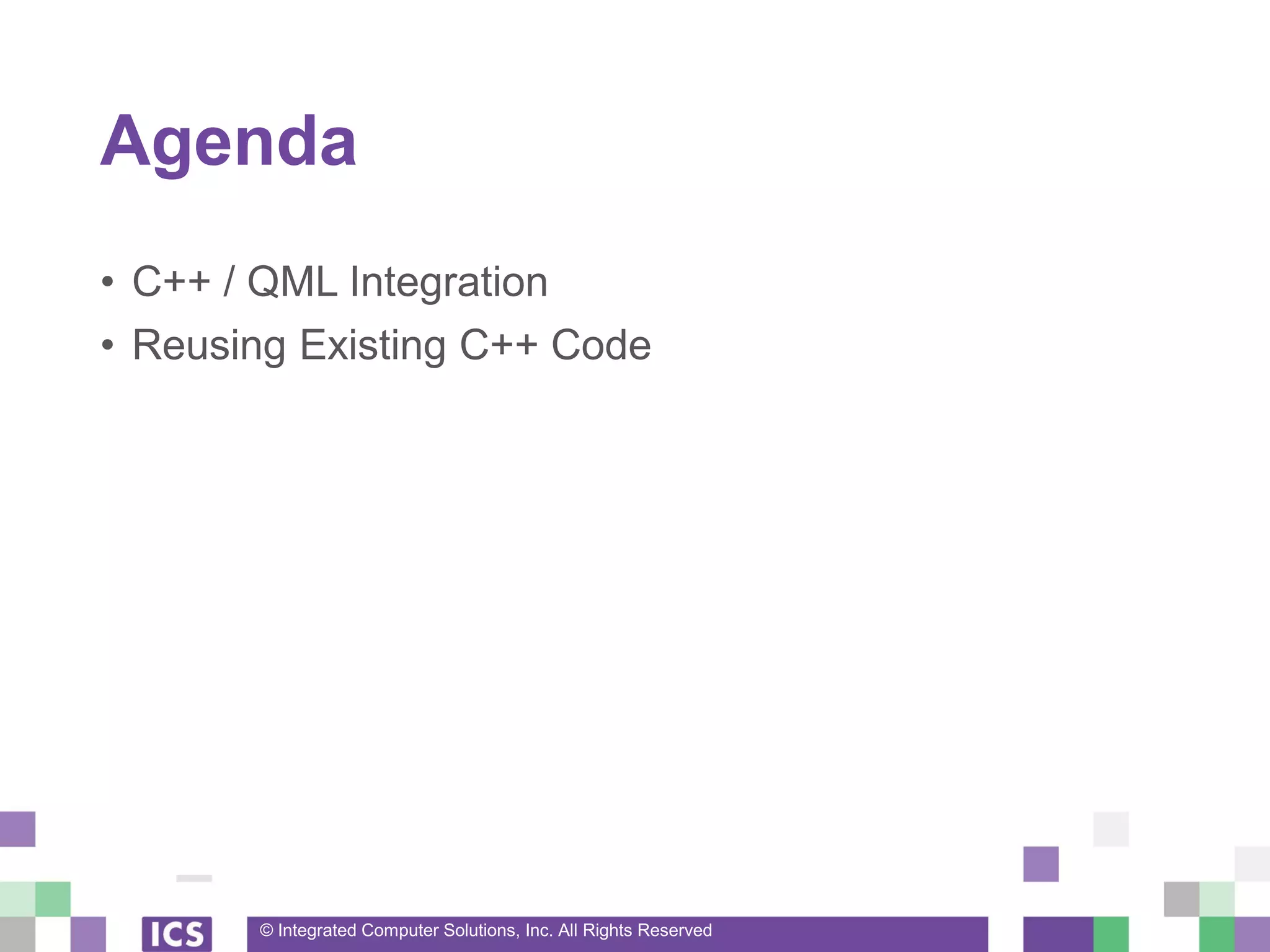

Agenda
• C++ / QML Integration
• Reusing Existing C++ Code

Using C++ and QML

Drive QML with C++

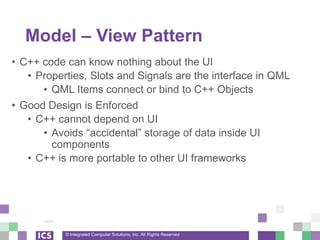

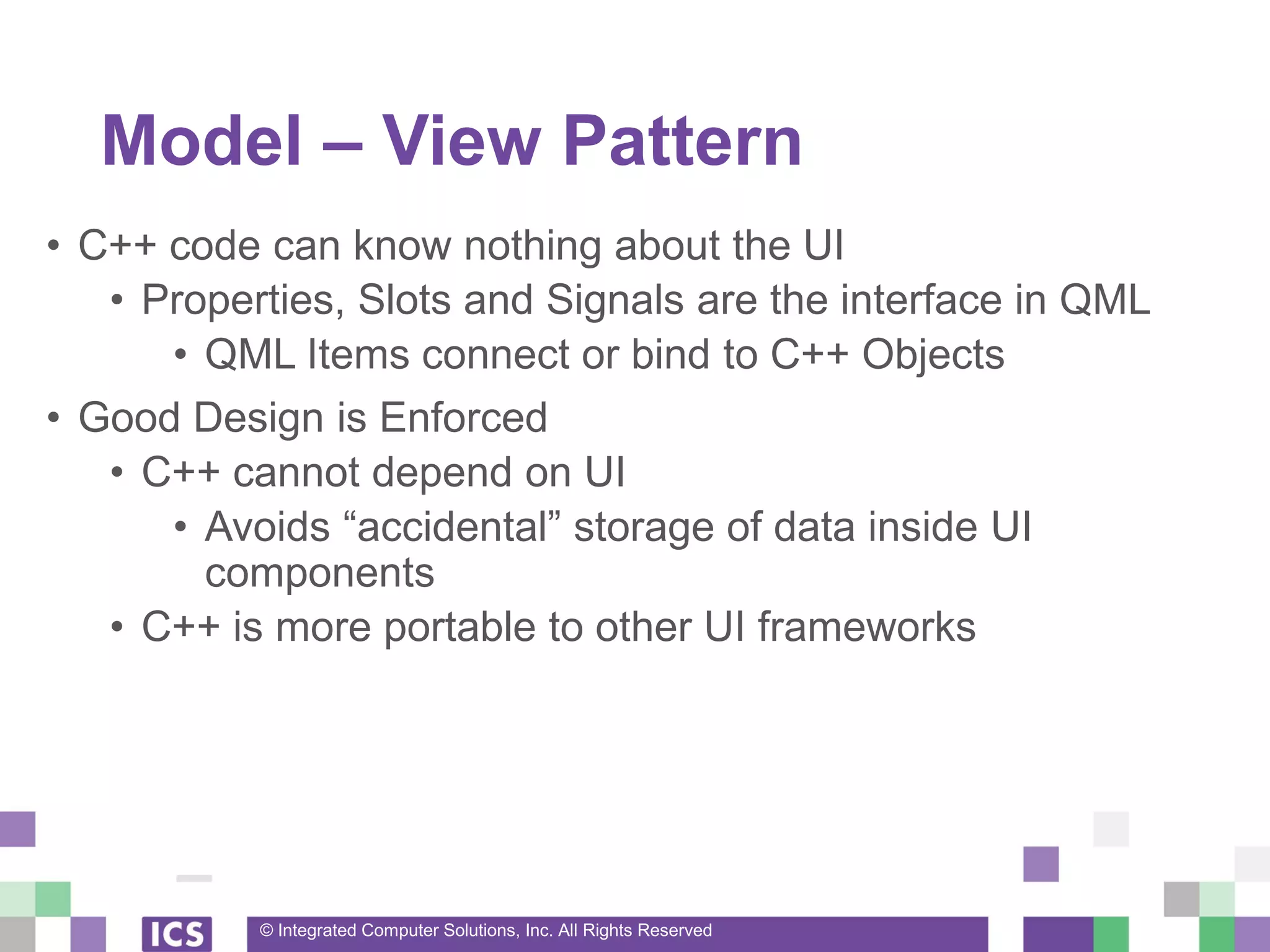

Model – View Pattern
• C++ code can know nothing about the UI
• Properties, Slots and Signals are the interface in QML
• QML Items connect or bind to C++ Objects
• Good Design is Enforced
• C++ cannot depend on UI
• Avoids “accidental” storage of data inside UI
components
• C++ is more portable to other UI frameworks

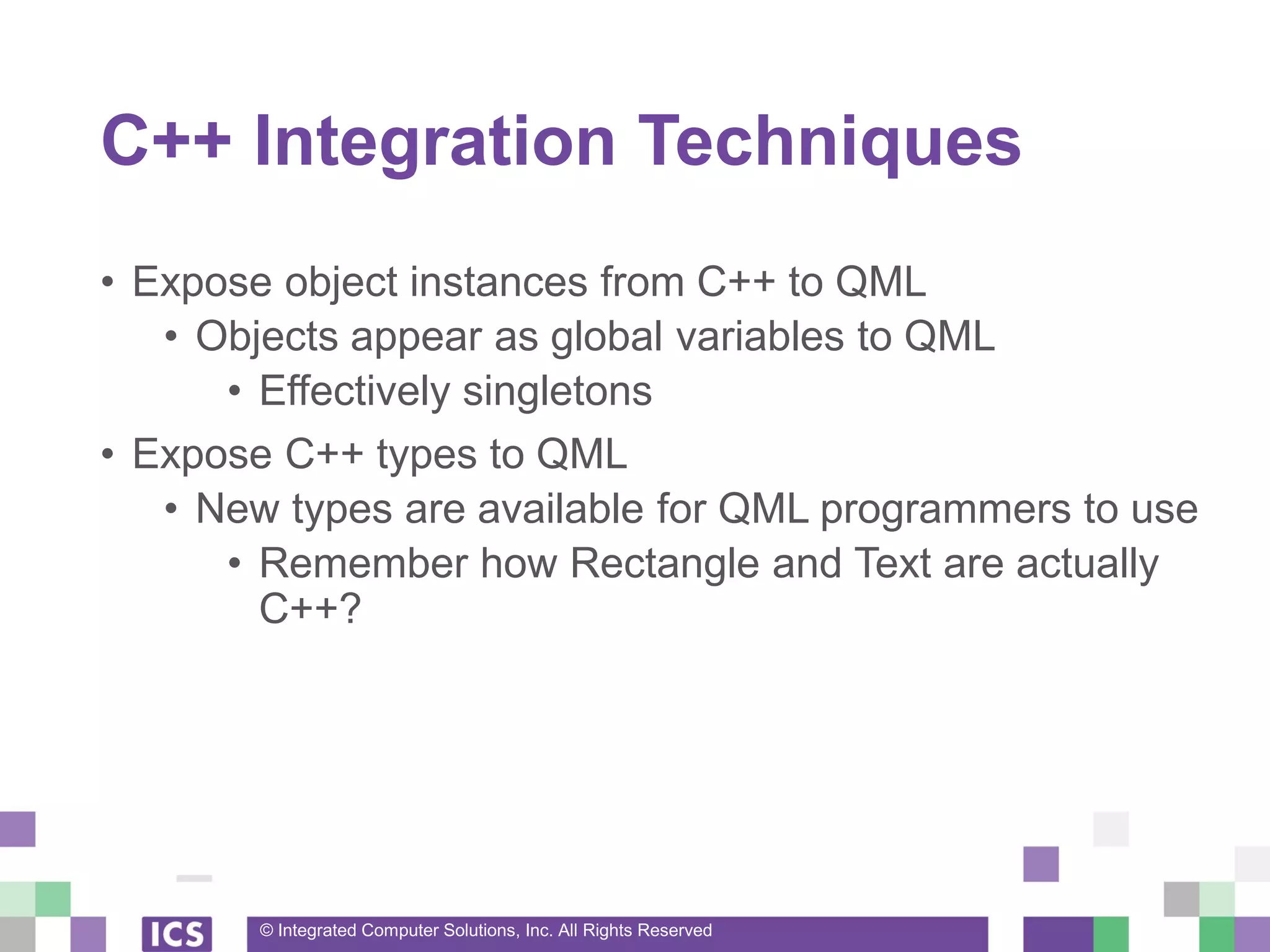

C++ Integration Techniques
• Expose object instances from C++ to QML
• Objects appear as global variables to QML
• Effectively singletons
• Expose C++ types to QML
• New types are available for QML programmers to use
• Remember how Rectangle and Text are actually
C++?

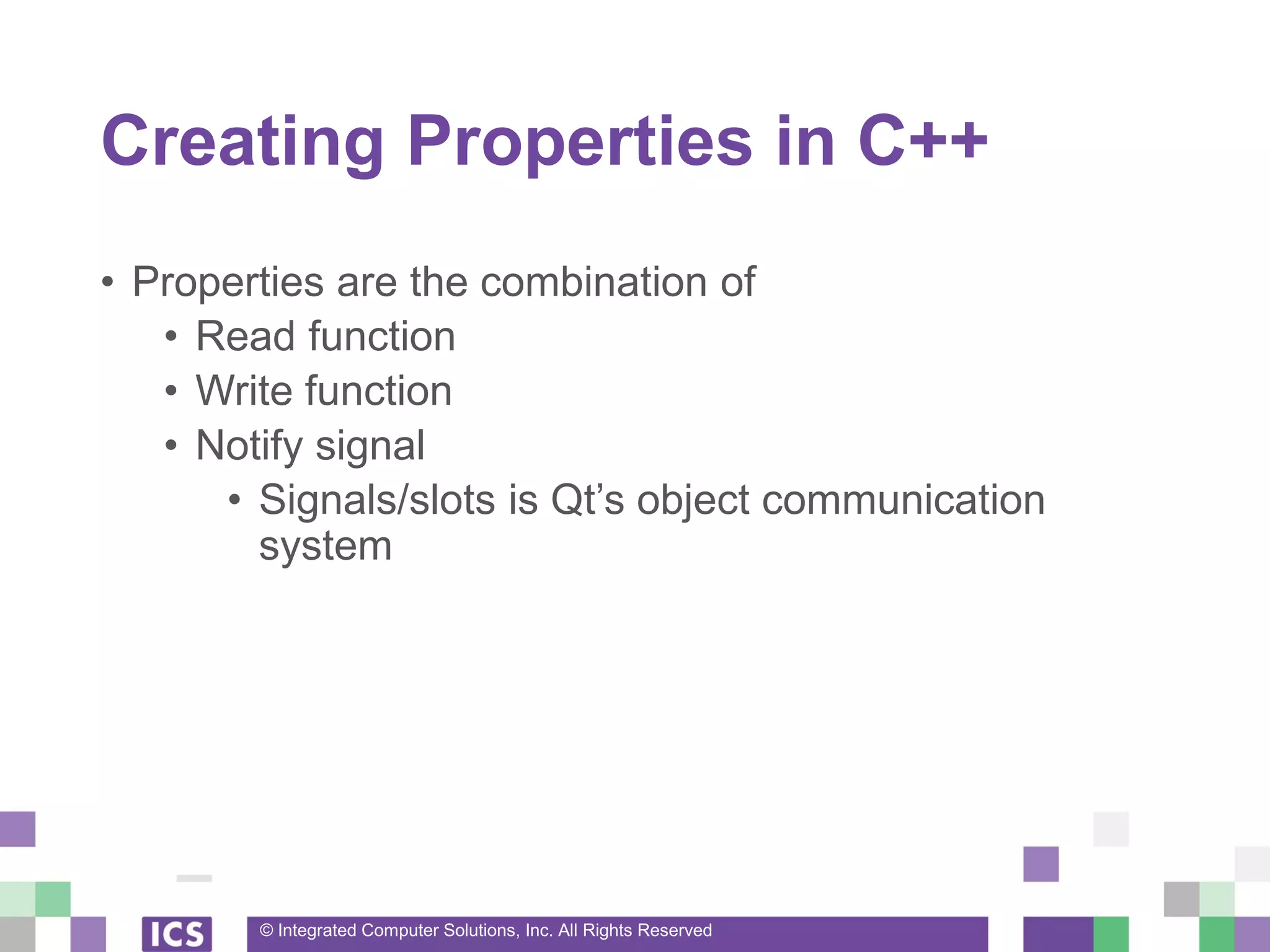

Creating Properties in C++
• Properties are the combination of
• Read function
• Write function
• Notify signal
• Signals/slots is Qt’s object communication
system

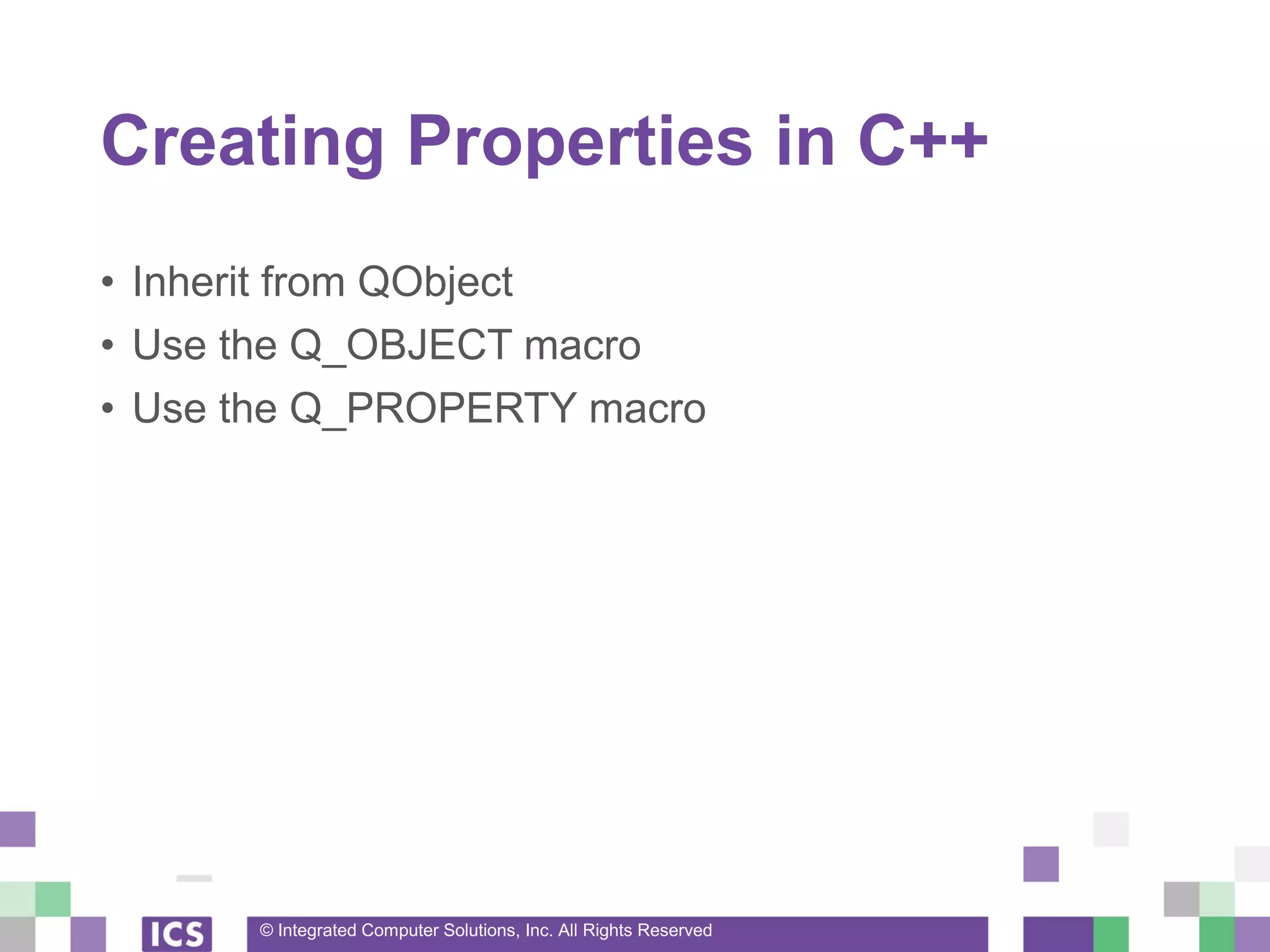

Creating Properties in C++
• Inherit from QObject
• Use the Q_OBJECT macro
• Use the Q_PROPERTY macro

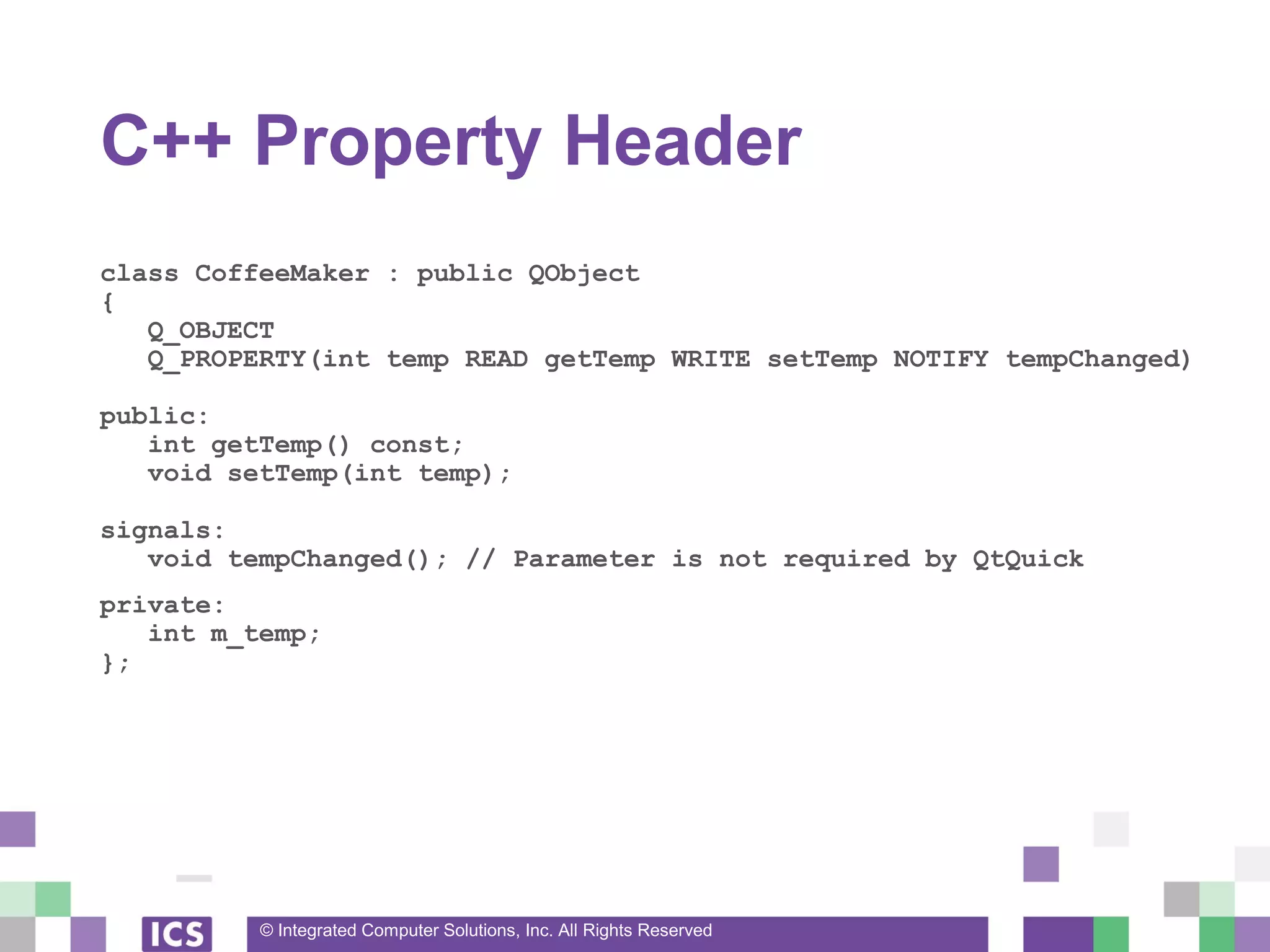

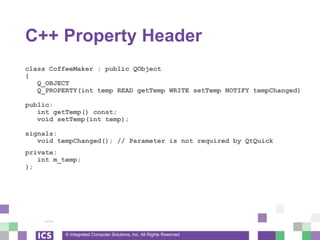

C++ Property Header
class CoffeeMaker : public QObject
{
Q_OBJECT
Q_PROPERTY(int temp READ getTemp WRITE setTemp NOTIFY tempChanged)
public:
int getTemp() const;
void setTemp(int temp);
signals:
void tempChanged(); // Parameter is not required by QtQuick
private:
int m_temp;
};

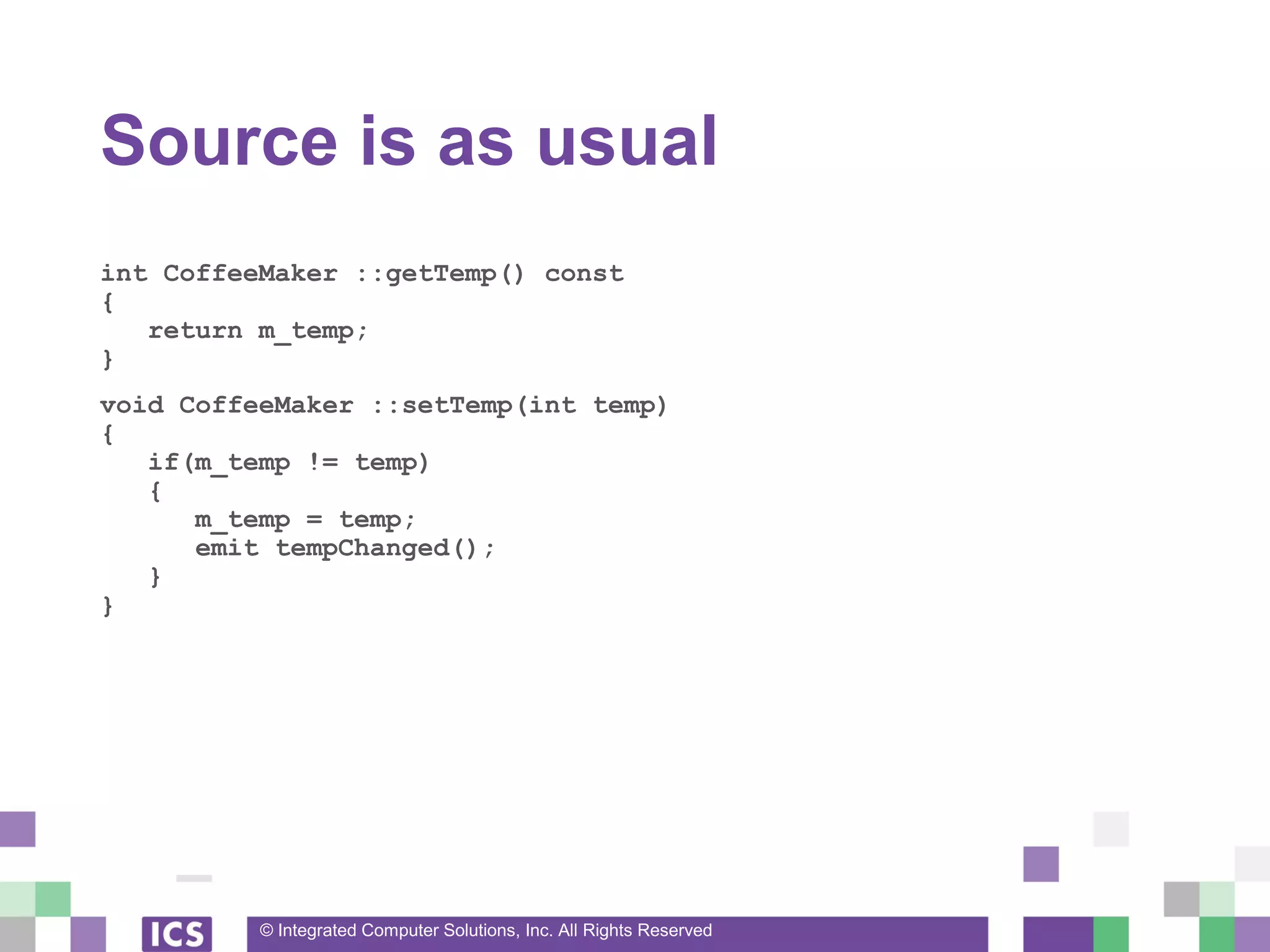

Source is as usual
int CoffeeMaker ::getTemp() const
{
return m_temp;
}
void CoffeeMaker ::setTemp(int temp)
{
if(m_temp != temp)
{
m_temp = temp;
emit tempChanged();
}
}

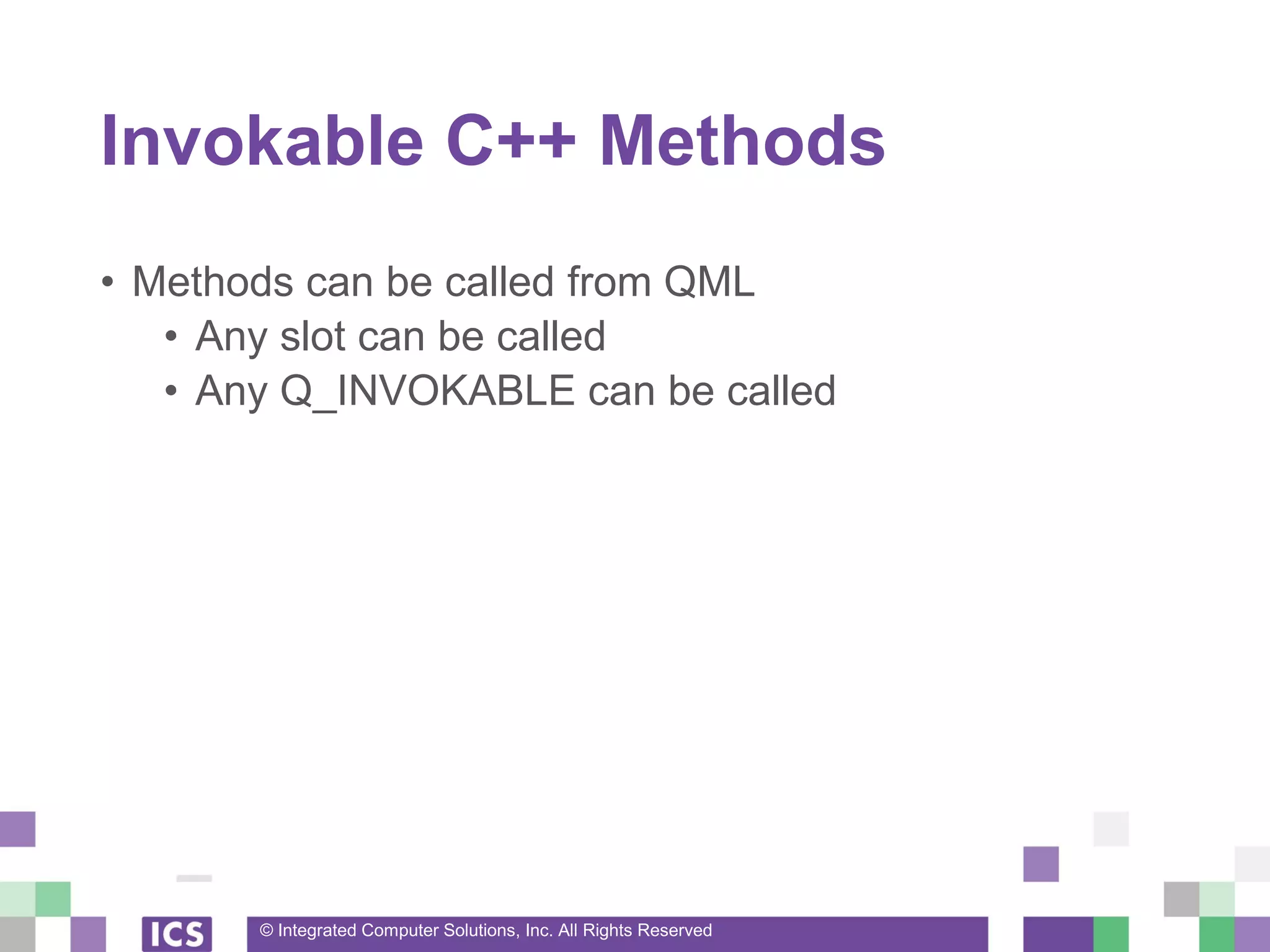

Invokable C++ Methods
• Methods can be called from QML
• Any slot can be called
• Any Q_INVOKABLE can be called

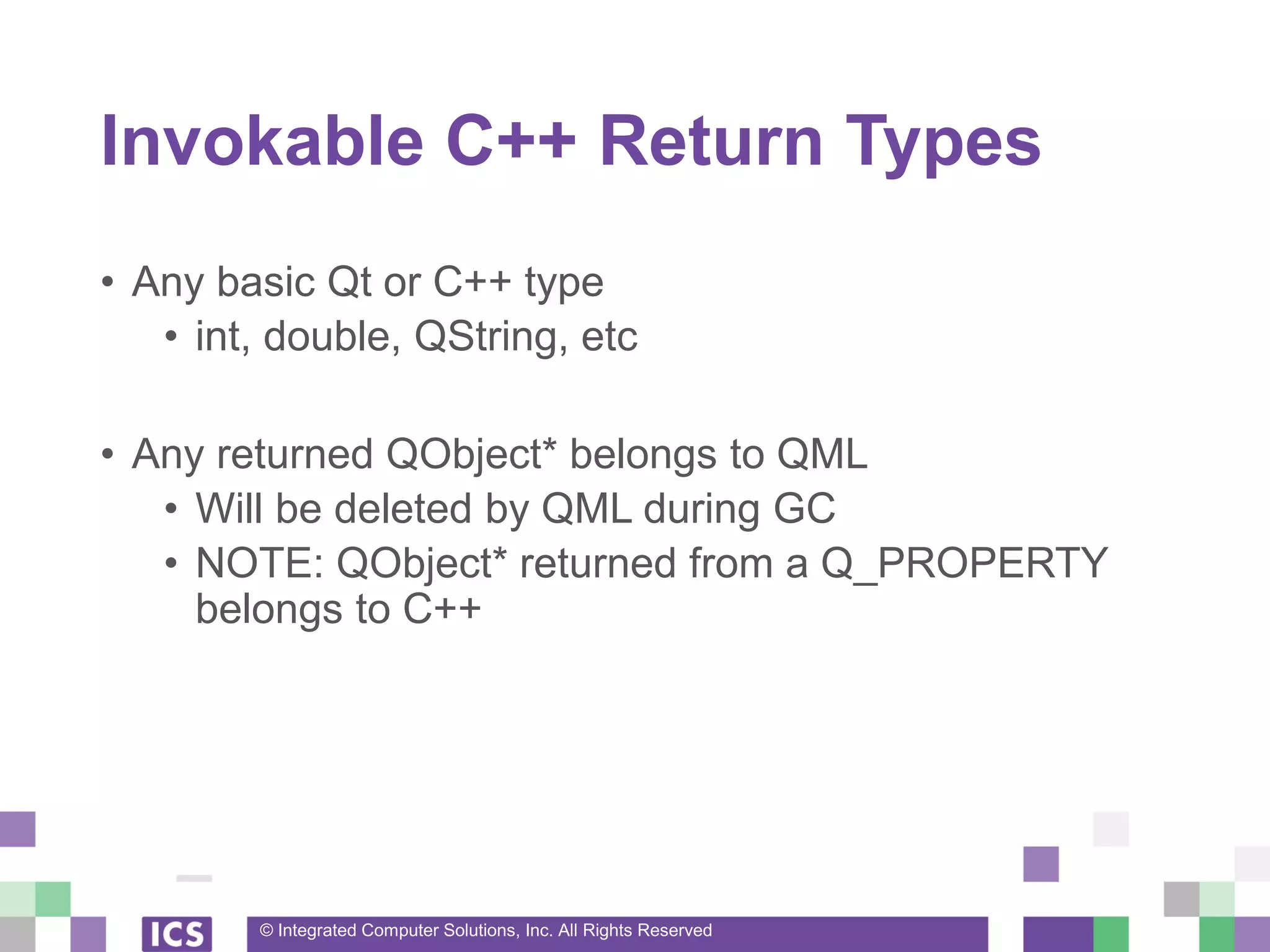

Invokable C++ Return Types
• Any basic Qt or C++ type
• int, double, QString, etc
• Any returned QObject* belongs to QML
• Will be deleted by QML during GC
• NOTE: QObject* returned from a Q_PROPERTY
belongs to C++

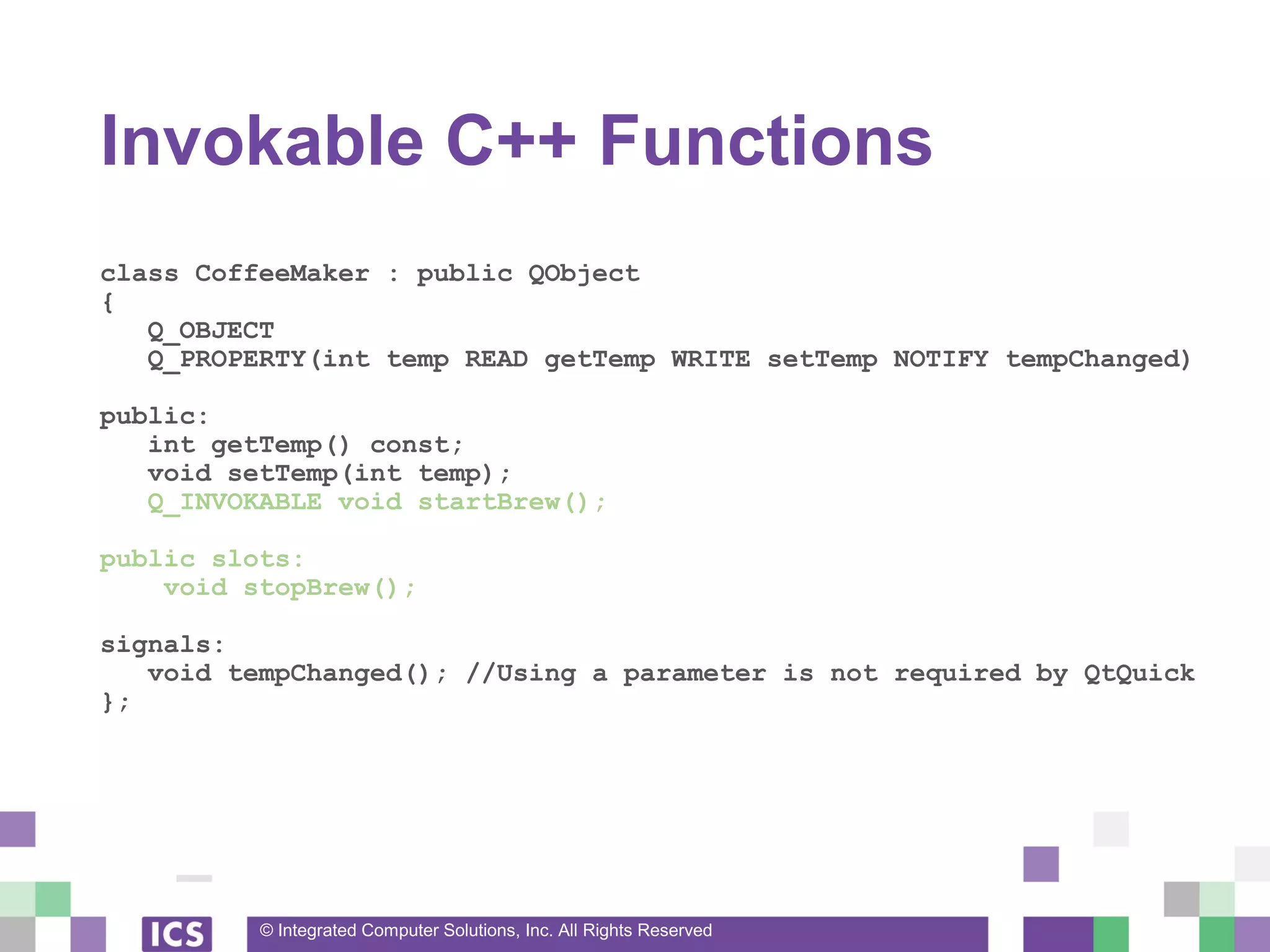

Invokable C++ Functions
{
Q_OBJECT
public:
Q_INVOKABLE void startBrew();
public slots:
void stopBrew();
signals:
void tempChanged(); //Using a parameter is not required by QtQuick
};

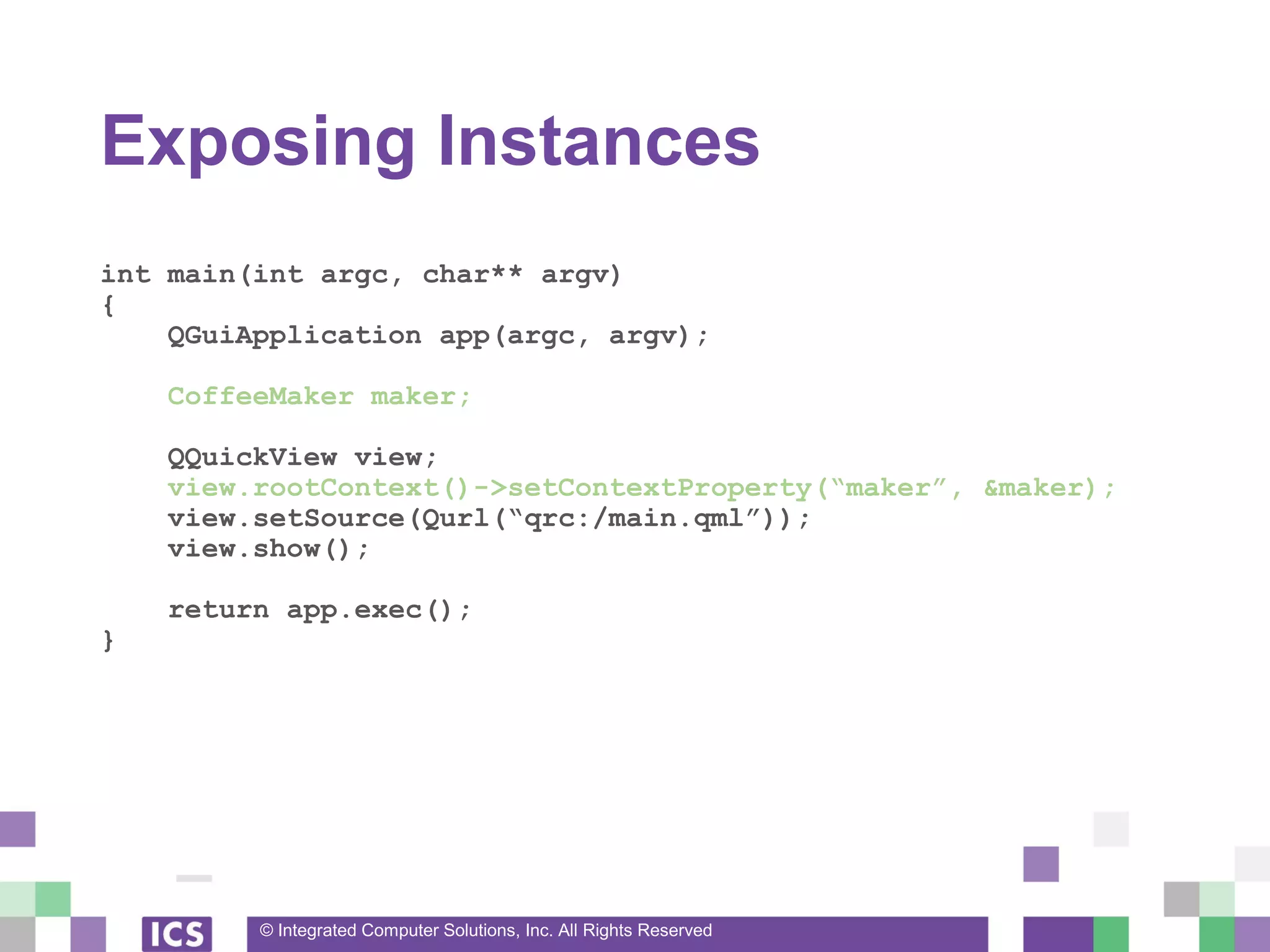

Exposing Instances
int main(int argc, char** argv)
{
QGuiApplication app(argc, argv);
CoffeeMaker maker;
QQuickView view;
view.rootContext()->setContextProperty(“maker”, &maker);
view.setSource(Qurl(“qrc:/main.qml”));
view.show();
return app.exec();
}

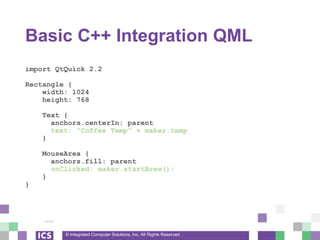

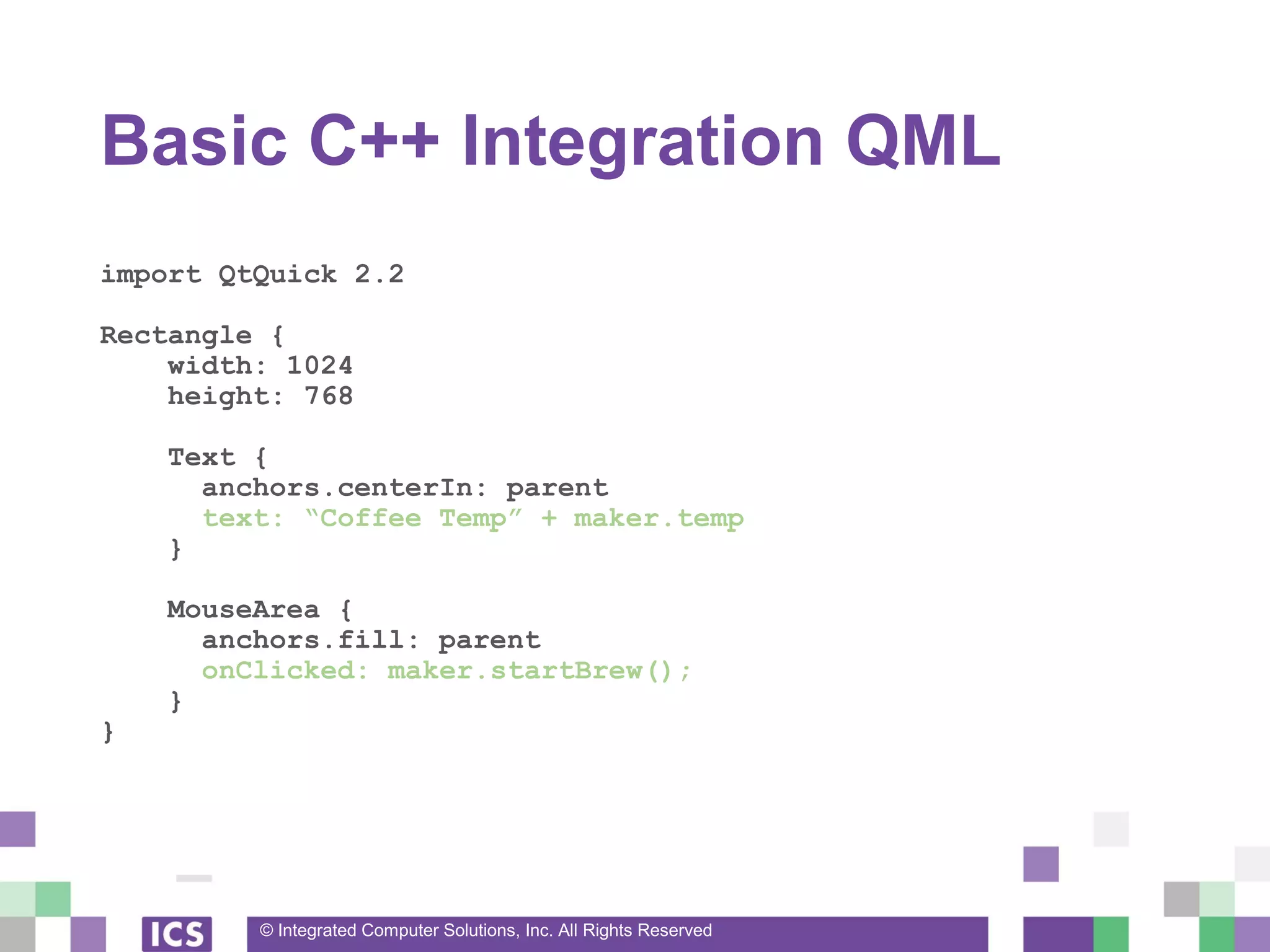

Basic C++ Integration QML
import QtQuick 2.2
Rectangle {
width: 1024
height: 768
Text {
anchors.centerIn: parent
text: “Coffee Temp” + maker.temp
}
MouseArea {
anchors.fill: parent
onClicked: maker.startBrew();
}
}

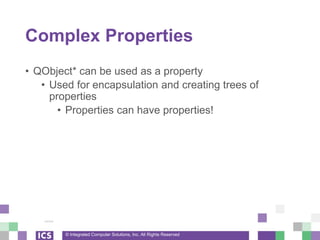

Complex Properties
• QObject* can be used as a property
• Used for encapsulation and creating trees of
properties
• Properties can have properties!

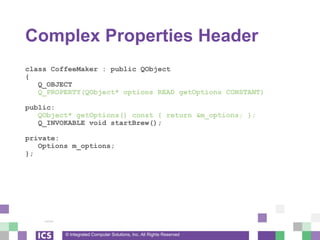

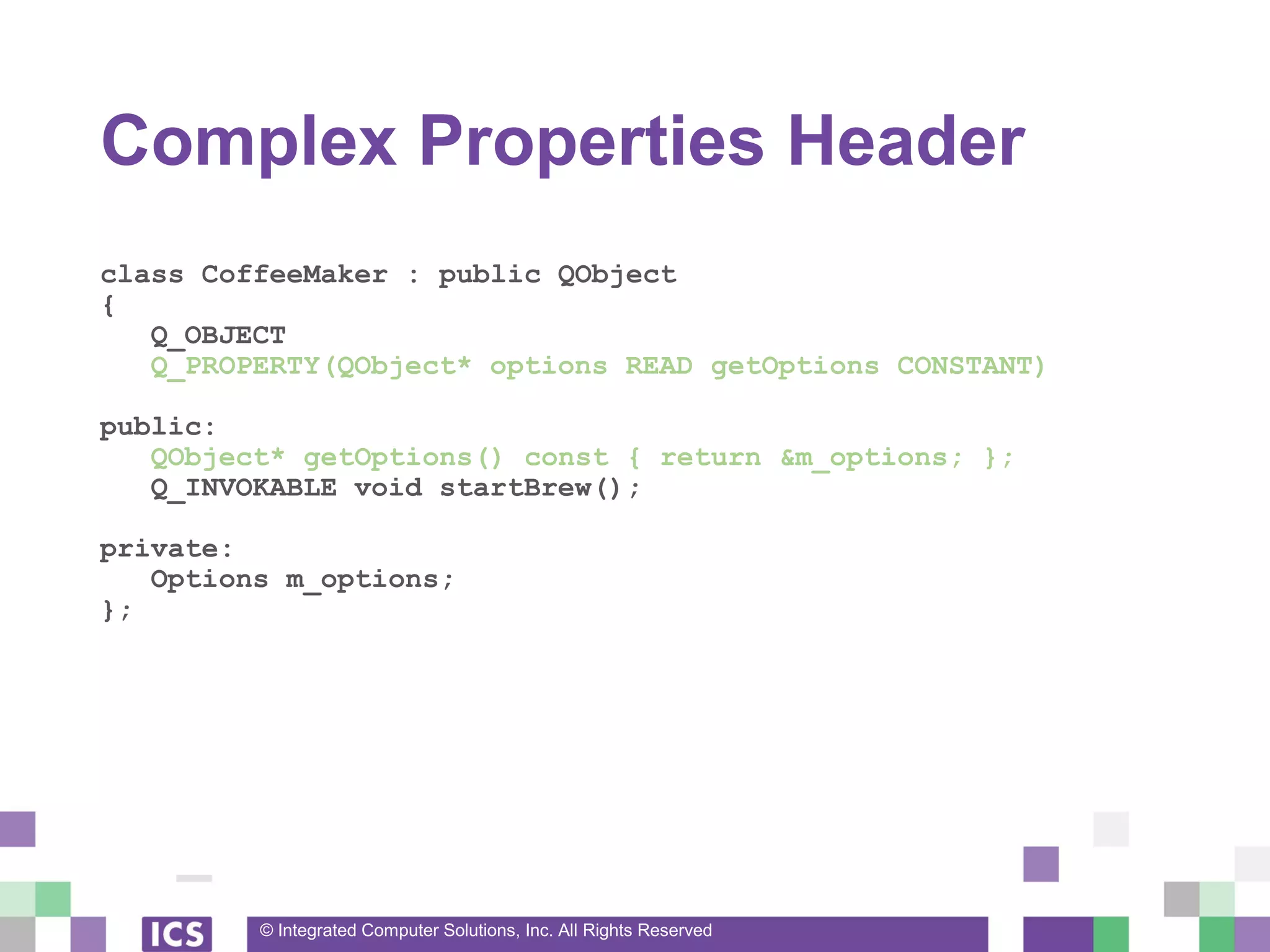

Complex Properties Header
{
Q_OBJECT
Q_PROPERTY(QObject* options READ getOptions CONSTANT)
public:
QObject* getOptions() const { return &m_options; };
Q_INVOKABLE void startBrew();
private:
Options m_options;
};

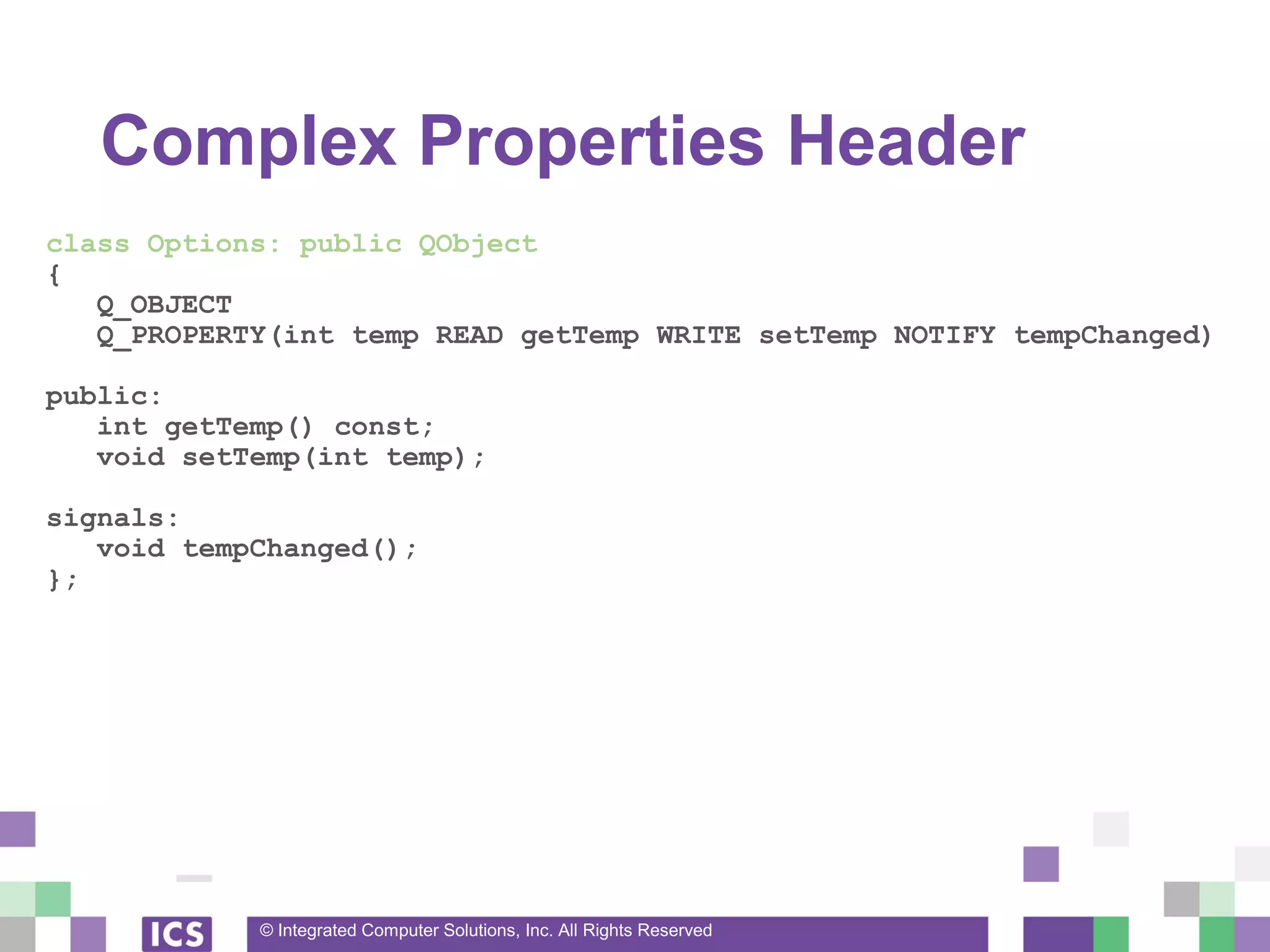

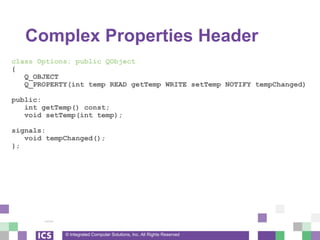

Complex Properties Header
class Options: public QObject
{
Q_OBJECT
public:
signals:
void tempChanged();
};

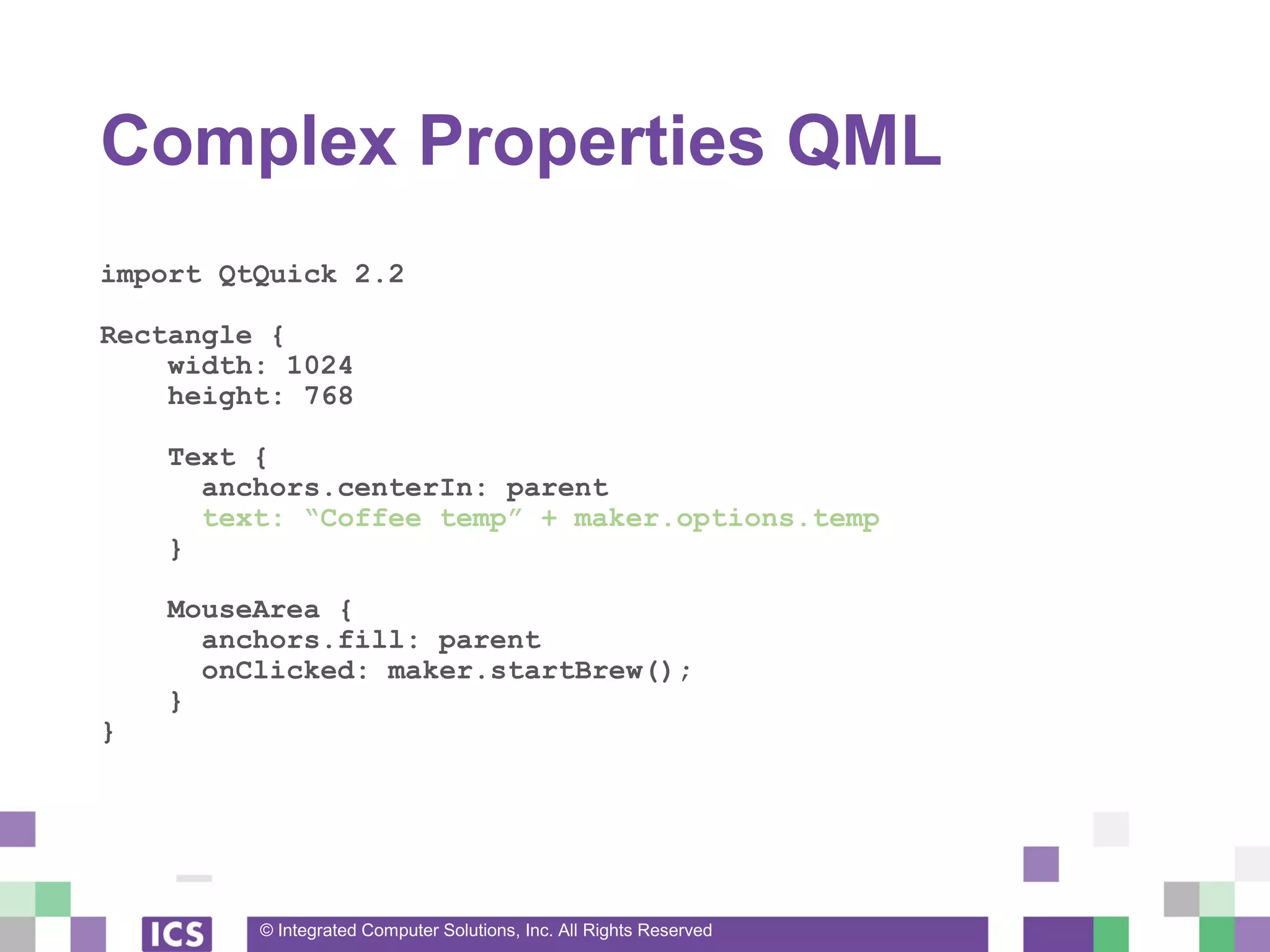

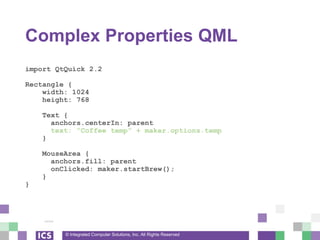

Complex Properties QML
import QtQuick 2.2
Rectangle {
width: 1024
height: 768
Text {
text: “Coffee temp” + maker.options.temp
}
MouseArea {
onClicked: maker.startBrew();
}
}

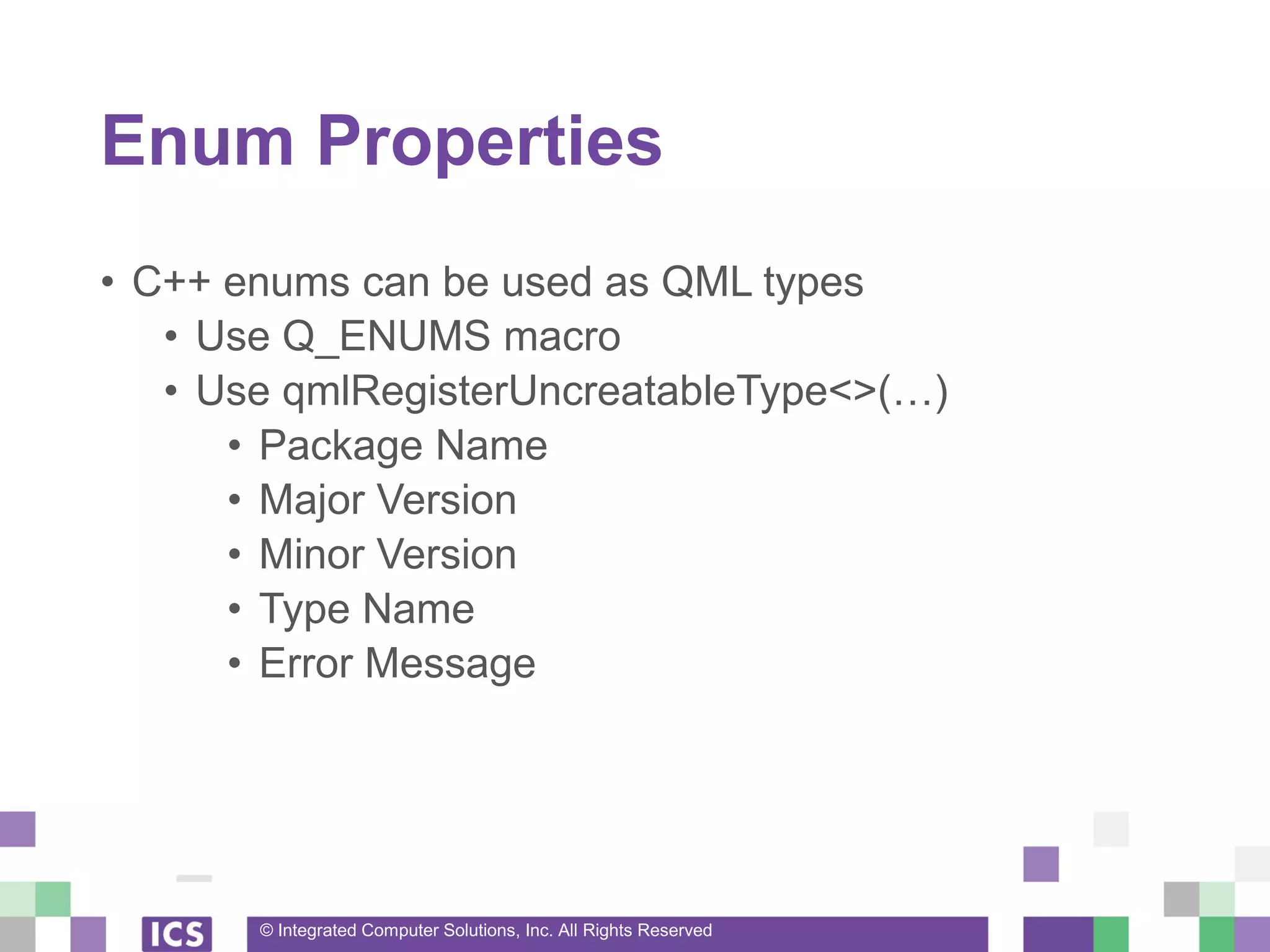

Enum Properties
• C++ enums can be used as QML types
• Use Q_ENUMS macro
• Use qmlRegisterUncreatableType<>(…)
• Package Name
• Major Version
• Minor Version
• Type Name
• Error Message

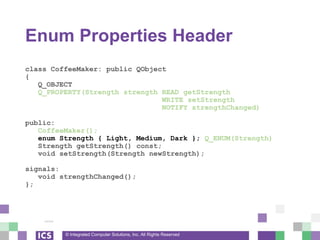

Enum Properties Header
class CoffeeMaker: public QObject
{
Q_OBJECT
Q_PROPERTY(Strength strength READ getStrength
WRITE setStrength
NOTIFY strengthChanged)
public:
CoffeeMaker();
enum Strength { Light, Medium, Dark }; Q_ENUM(Strength)
Strength getStrength() const;
void setStrength(Strength newStrength);
signals:
void strengthChanged();
};

Enum Properties Source
CoffeeMaker::CoffeeMaker()
{
qmlRegisterUncreatableType<CoffeeMaker>(“MrCoffee”,
1, 0,
“CoffeeMaker”,
“Do not instance.”);
}

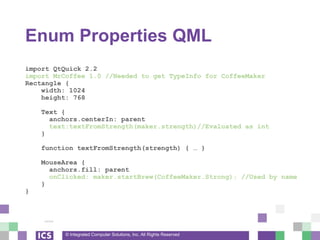

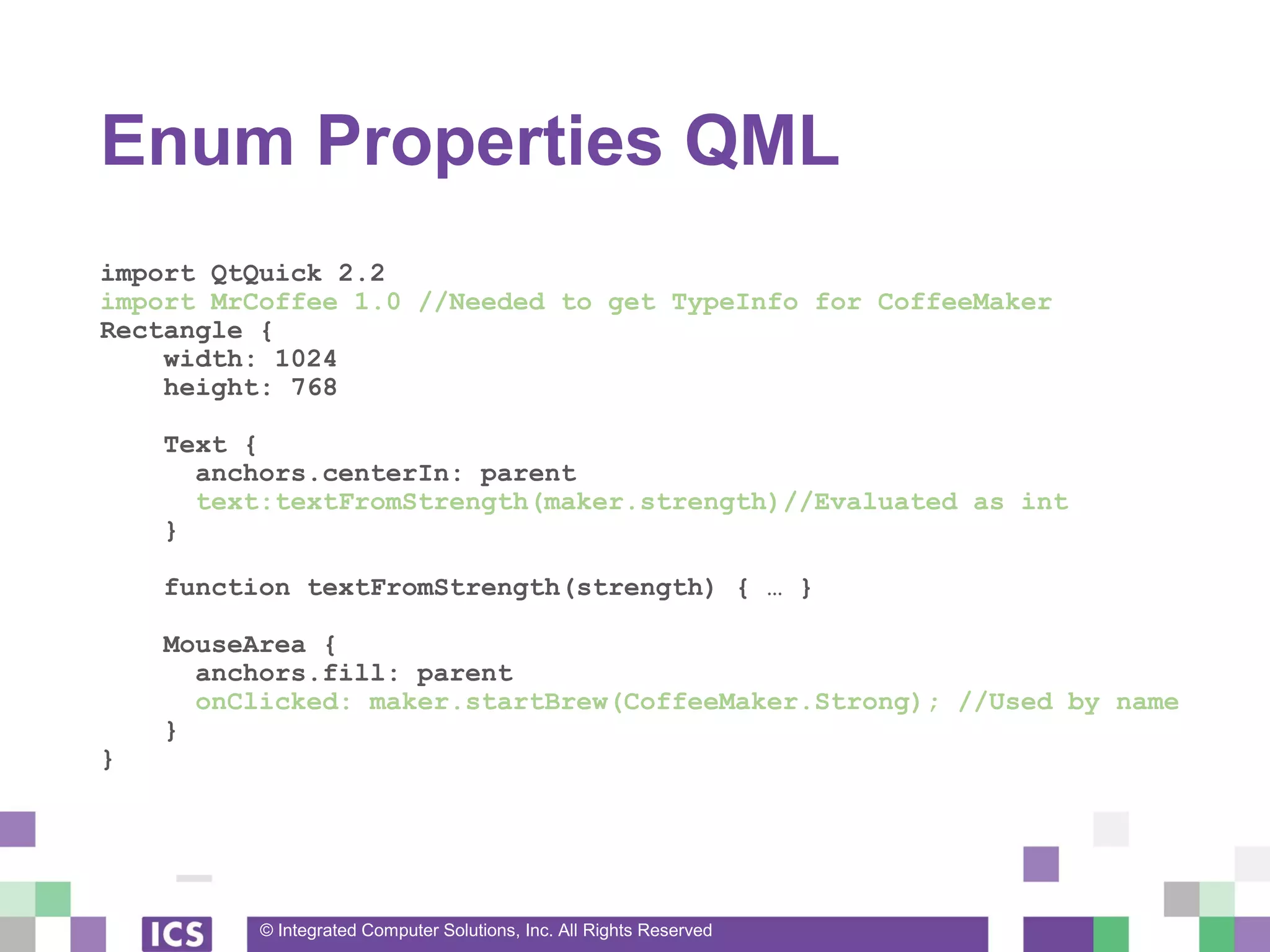

Enum Properties QML
import QtQuick 2.2
import MrCoffee 1.0 //Needed to get TypeInfo for CoffeeMaker
Rectangle {
width: 1024
height: 768
Text {
text:textFromStrength(maker.strength)//Evaluated as int
}
function textFromStrength(strength) { … }
MouseArea {
onClicked: maker.startBrew(CoffeeMaker.Strong); //Used by name
}
}

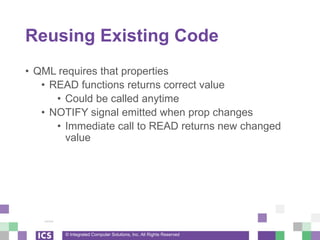

Reusing Existing Code
• QML requires that properties
• READ functions returns correct value
• Could be called anytime
• NOTIFY signal emitted when prop changes
• Immediate call to READ returns new changed
value

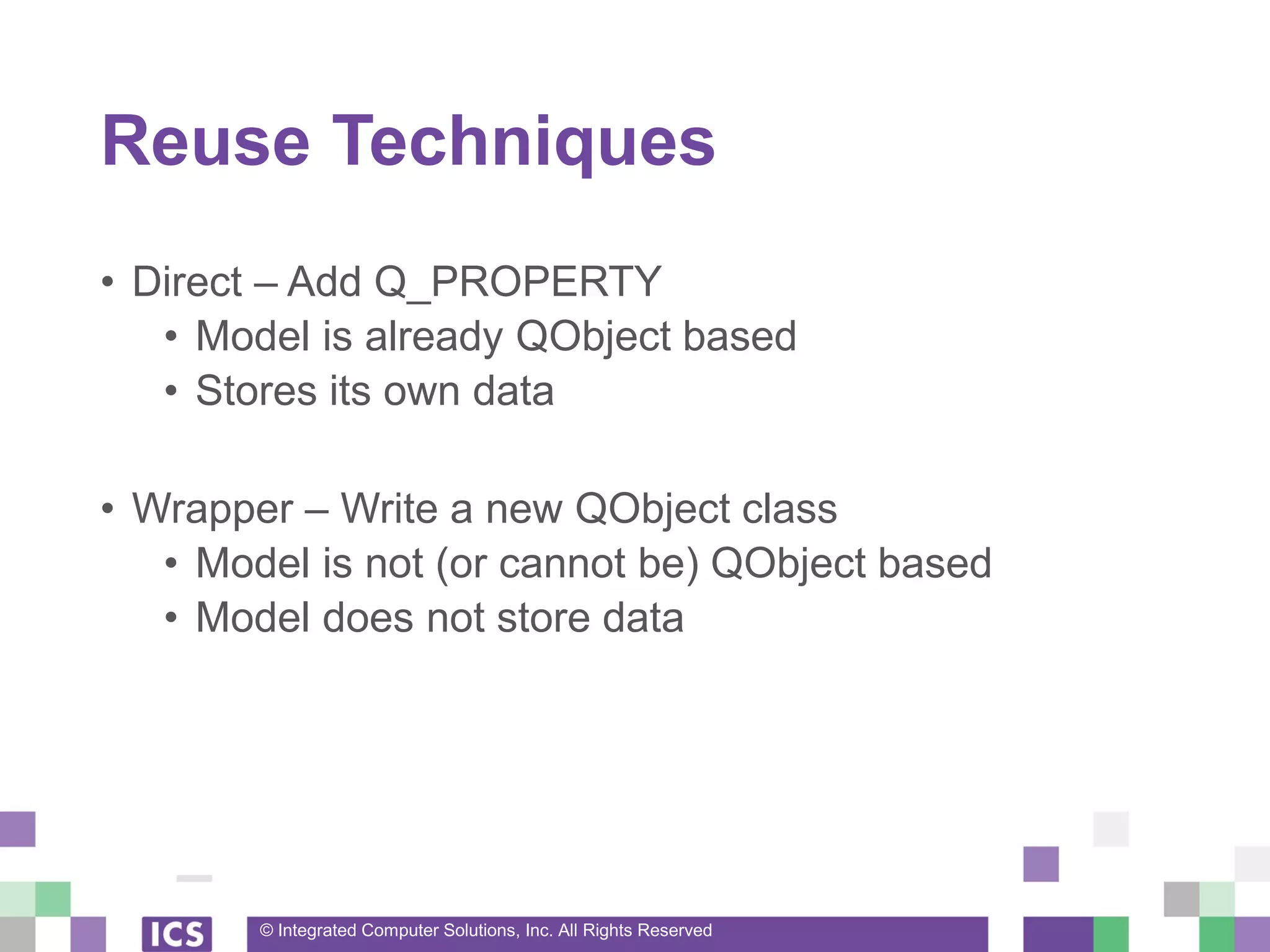

Reuse Techniques
• Direct – Add Q_PROPERTY
• Model is already QObject based
• Stores its own data
• Wrapper – Write a new QObject class
• Model is not (or cannot be) QObject based
• Model does not store data

Direct Reuse Technique
• Use Q_PROPERTY with existing
• READ function
• WRITE function (optional)
• NOTIFY signal
• Use Q_INVOKABLE on existing methods
• Functions you want callable from the UI

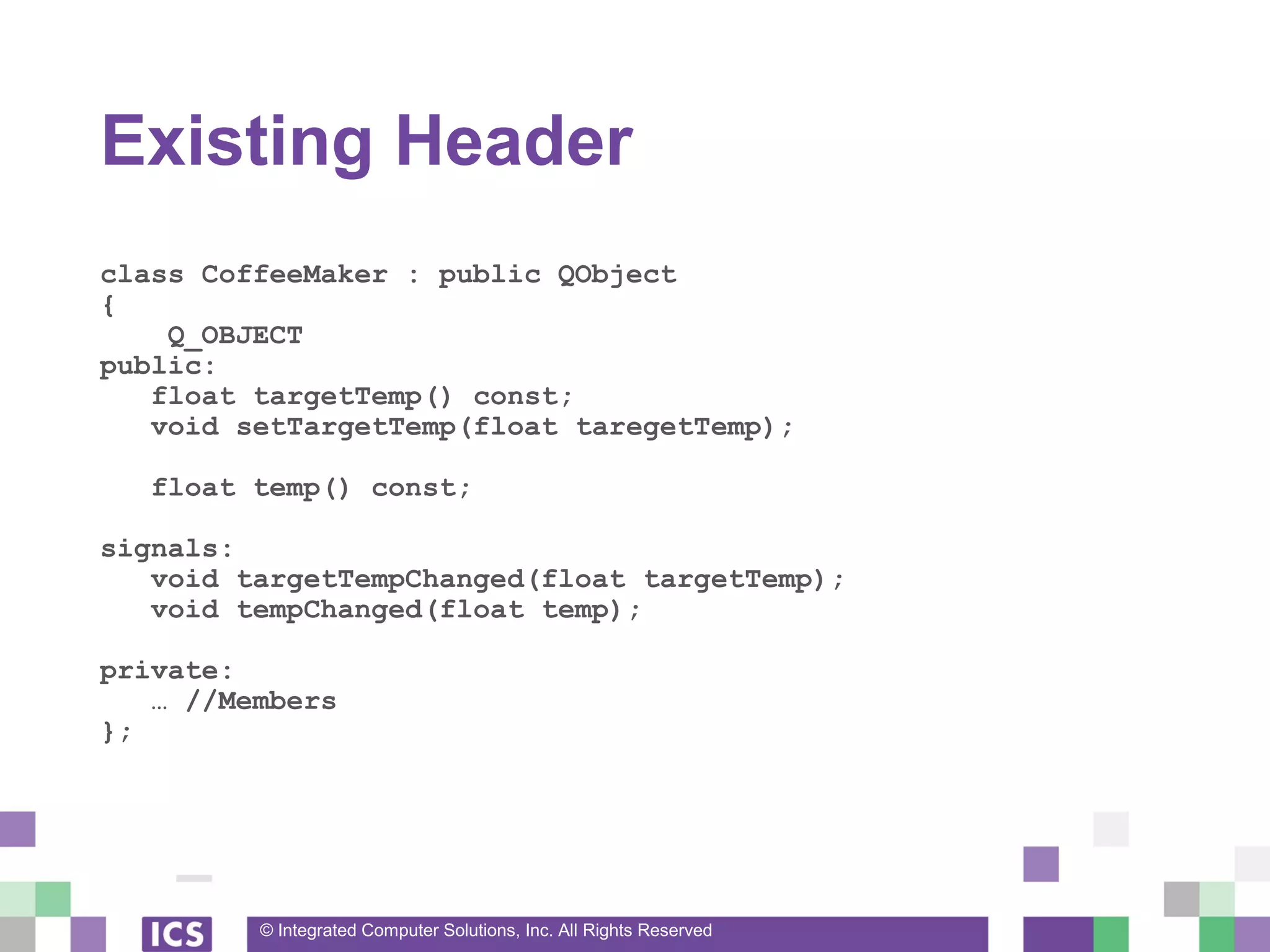

Existing Header
{
Q_OBJECT
public:
float targetTemp() const;
void setTargetTemp(float taregetTemp);
float temp() const;
signals:
void targetTempChanged(float targetTemp);
void tempChanged(float temp);
private:
… //Members
};

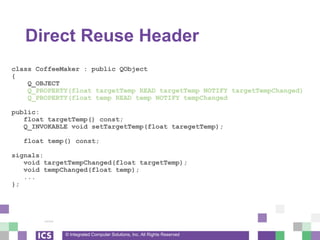

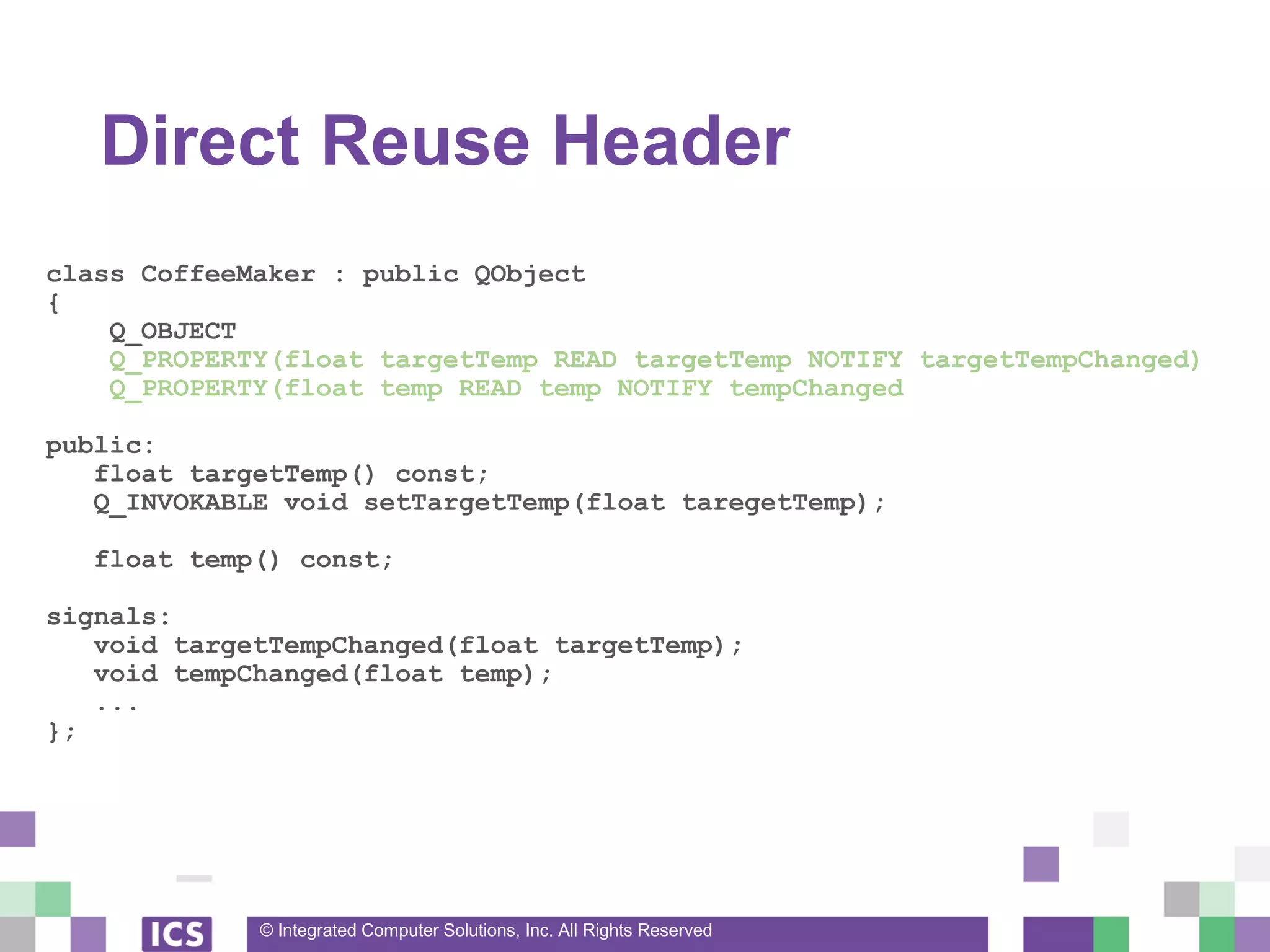

Direct Reuse Header
{
Q_OBJECT
Q_PROPERTY(float targetTemp READ targetTemp NOTIFY targetTempChanged)
Q_PROPERTY(float temp READ temp NOTIFY tempChanged
public:
float targetTemp() const;
Q_INVOKABLE void setTargetTemp(float taregetTemp);
float temp() const;
signals:
void targetTempChanged(float targetTemp);
void tempChanged(float temp);
...
};

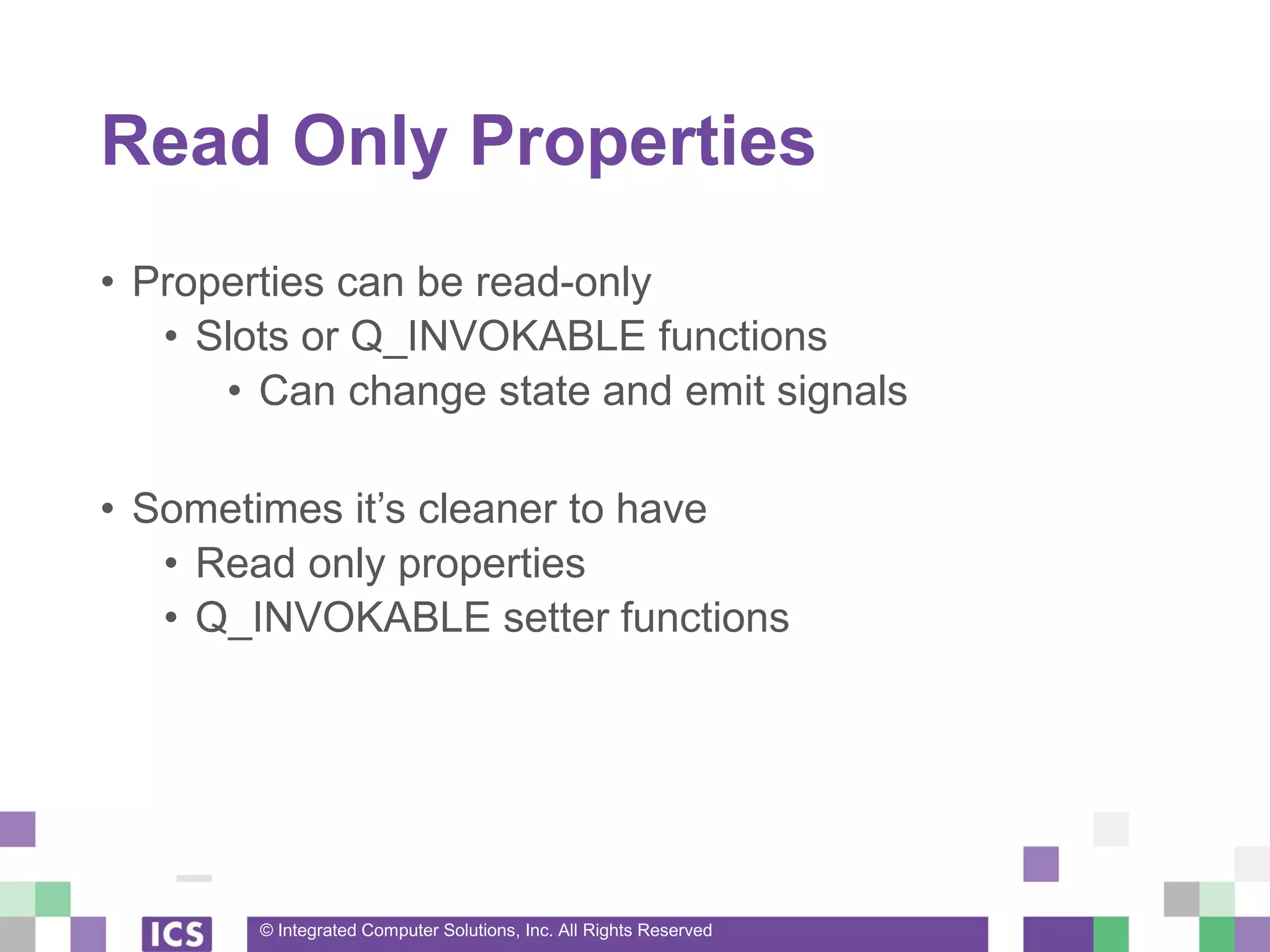

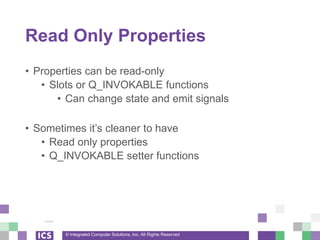

Read Only Properties
• Properties can be read-only
• Slots or Q_INVOKABLE functions
• Can change state and emit signals
• Sometimes it’s cleaner to have
• Read only properties
• Q_INVOKABLE setter functions

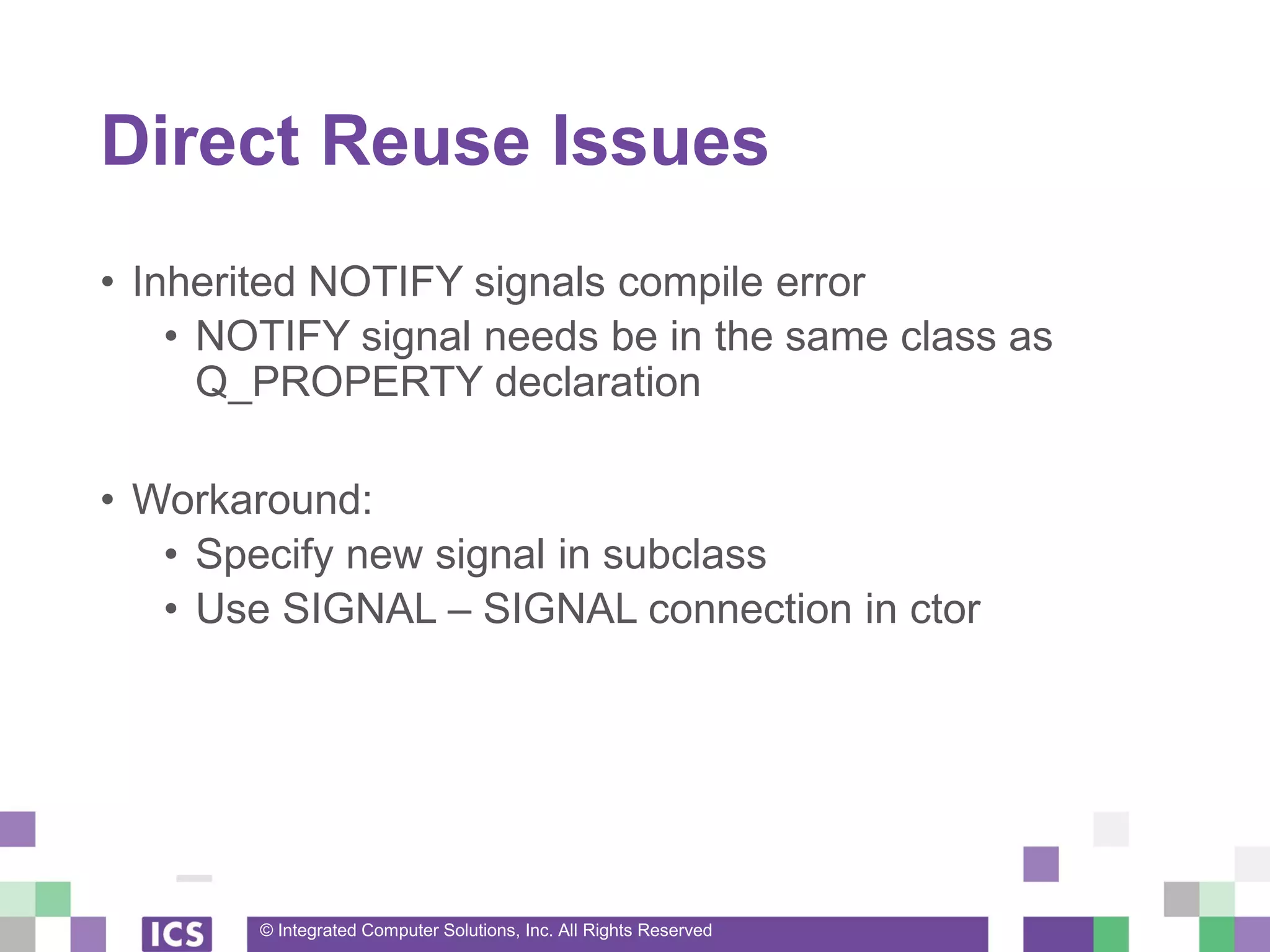

Direct Reuse Issues
• Inherited NOTIFY signals compile error
• NOTIFY signal needs be in the same class as
Q_PROPERTY declaration
• Workaround:
• Specify new signal in subclass
• Use SIGNAL – SIGNAL connection in ctor

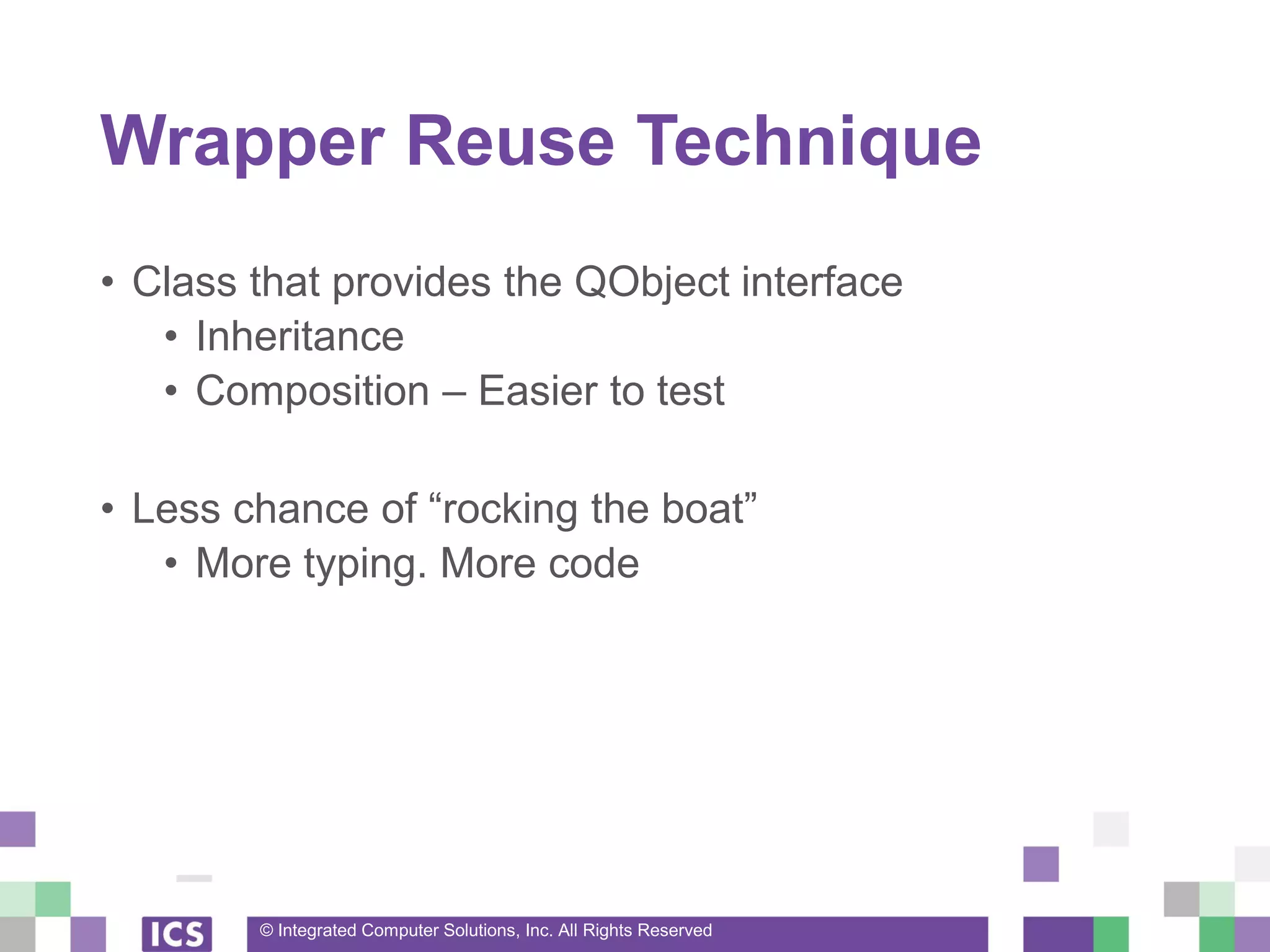

Wrapper Reuse Technique
• Class that provides the QObject interface
• Inheritance
• Composition – Easier to test
• Less chance of “rocking the boat”
• More typing. More code

Wrappers fix a lot of issues
• Class is template based
• Can’t directly inherit Qobject
• Class does not use signals
• Uses some other callback mechanism
• Class does not follow get/set/notify pattern
• Wrapper can implement local data cache

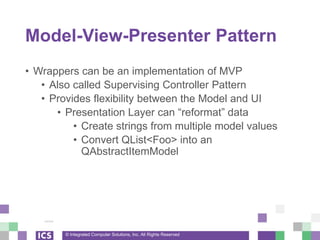

Model-View-Presenter Pattern
• Wrappers can be an implementation of MVP
• Also called Supervising Controller Pattern
• Provides flexibility between the Model and UI
• Presentation Layer can “reformat” data
• Create strings from multiple model values
• Convert QList<Foo> into an
QAbstractItemModel

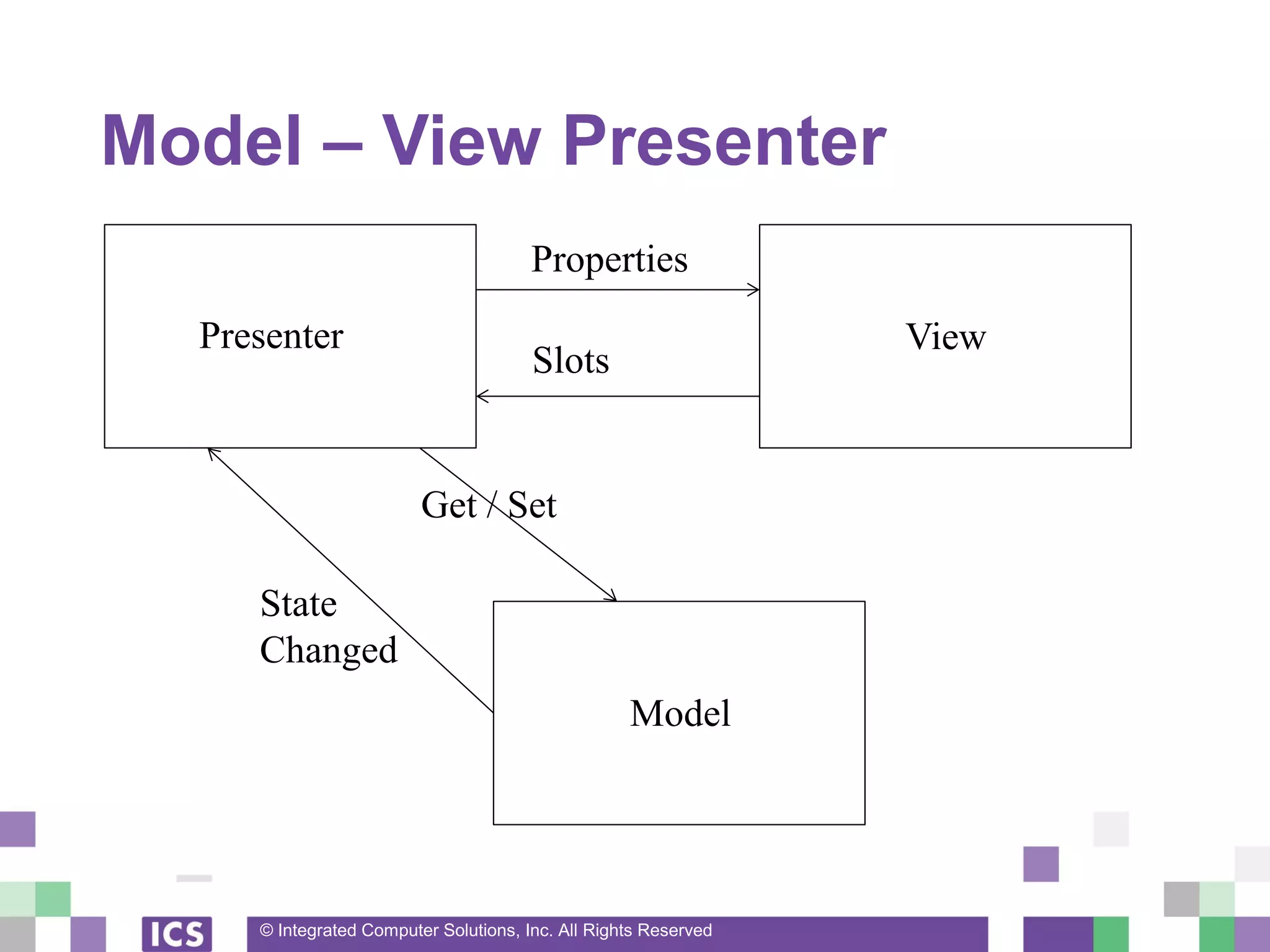

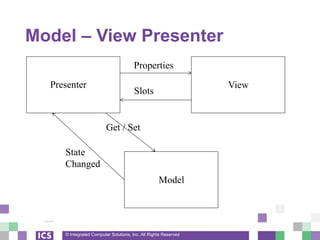

Model – View Presenter
View
Model
Presenter
Slots
Properties
State
Changed
Get / Set

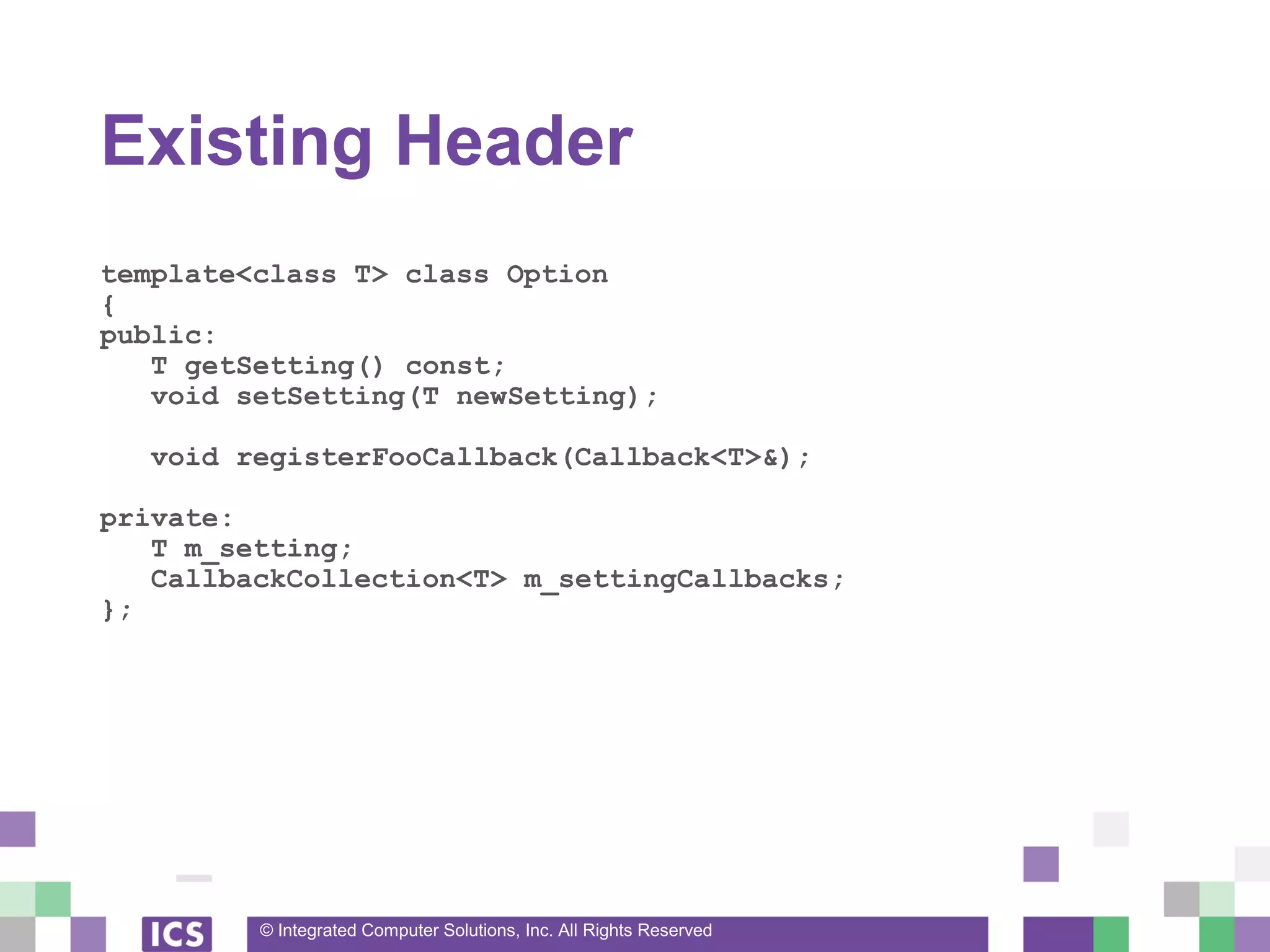

Existing Header
template<class T> class Option
{
public:
T getSetting() const;
void setSetting(T newSetting);
void registerFooCallback(Callback<T>&);
private:
T m_setting;
CallbackCollection<T> m_settingCallbacks;
};

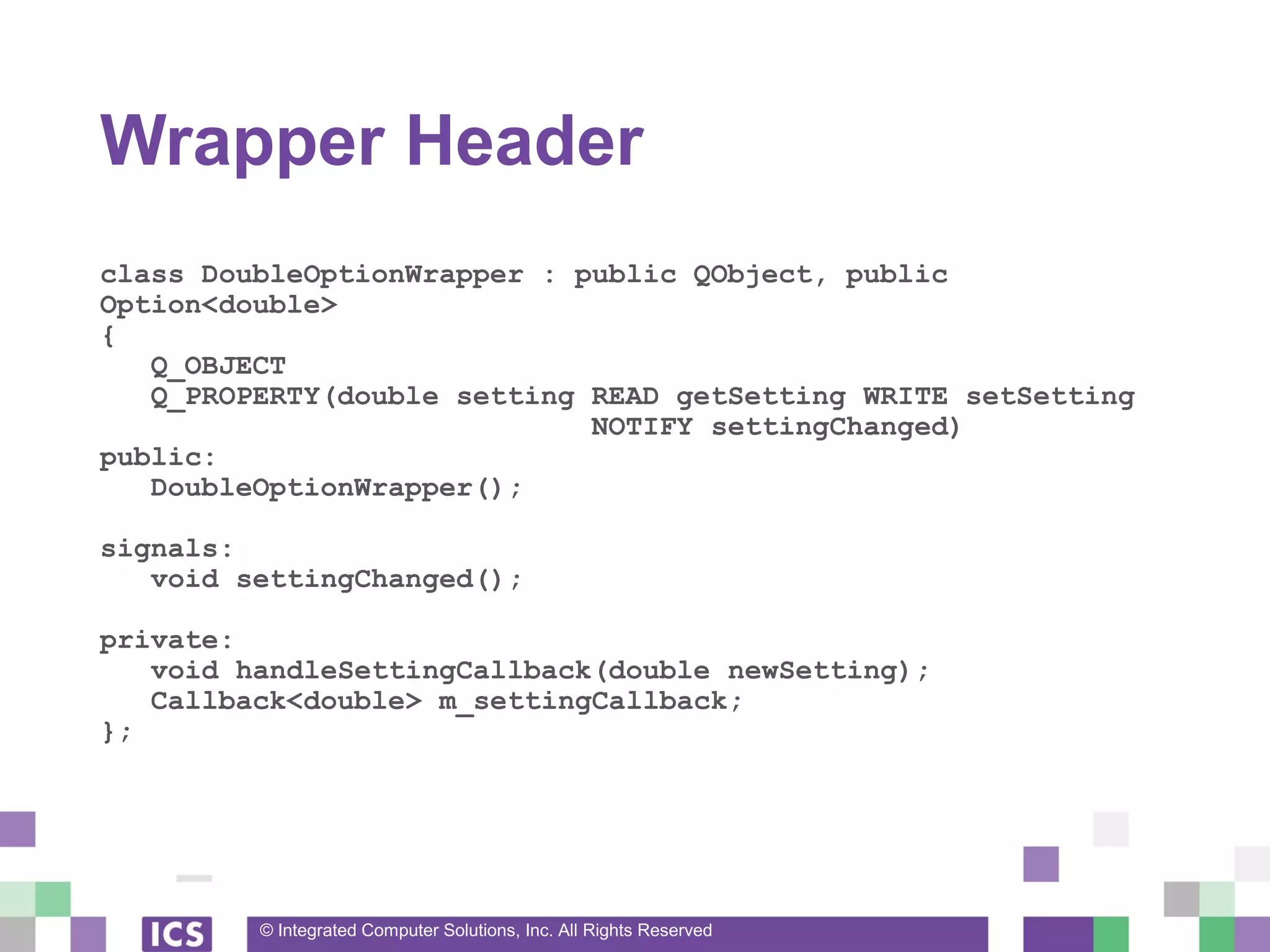

Wrapper Header
class DoubleOptionWrapper : public QObject, public
Option<double>
{
Q_OBJECT
Q_PROPERTY(double setting READ getSetting WRITE setSetting
NOTIFY settingChanged)
public:
DoubleOptionWrapper();
signals:
void settingChanged();
private:
void handleSettingCallback(double newSetting);
Callback<double> m_settingCallback;
};

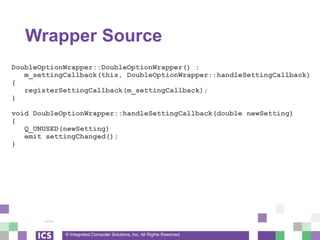

Wrapper Source
DoubleOptionWrapper::DoubleOptionWrapper() :
m_settingCallback(this, DoubleOptionWrapper::handleSettingCallback)
{
registerSettingCallback(m_settingCallback);
}
void DoubleOptionWrapper::handleSettingCallback(double newSetting)
{
Q_UNUSED(newSetting)
emit settingChanged();
}

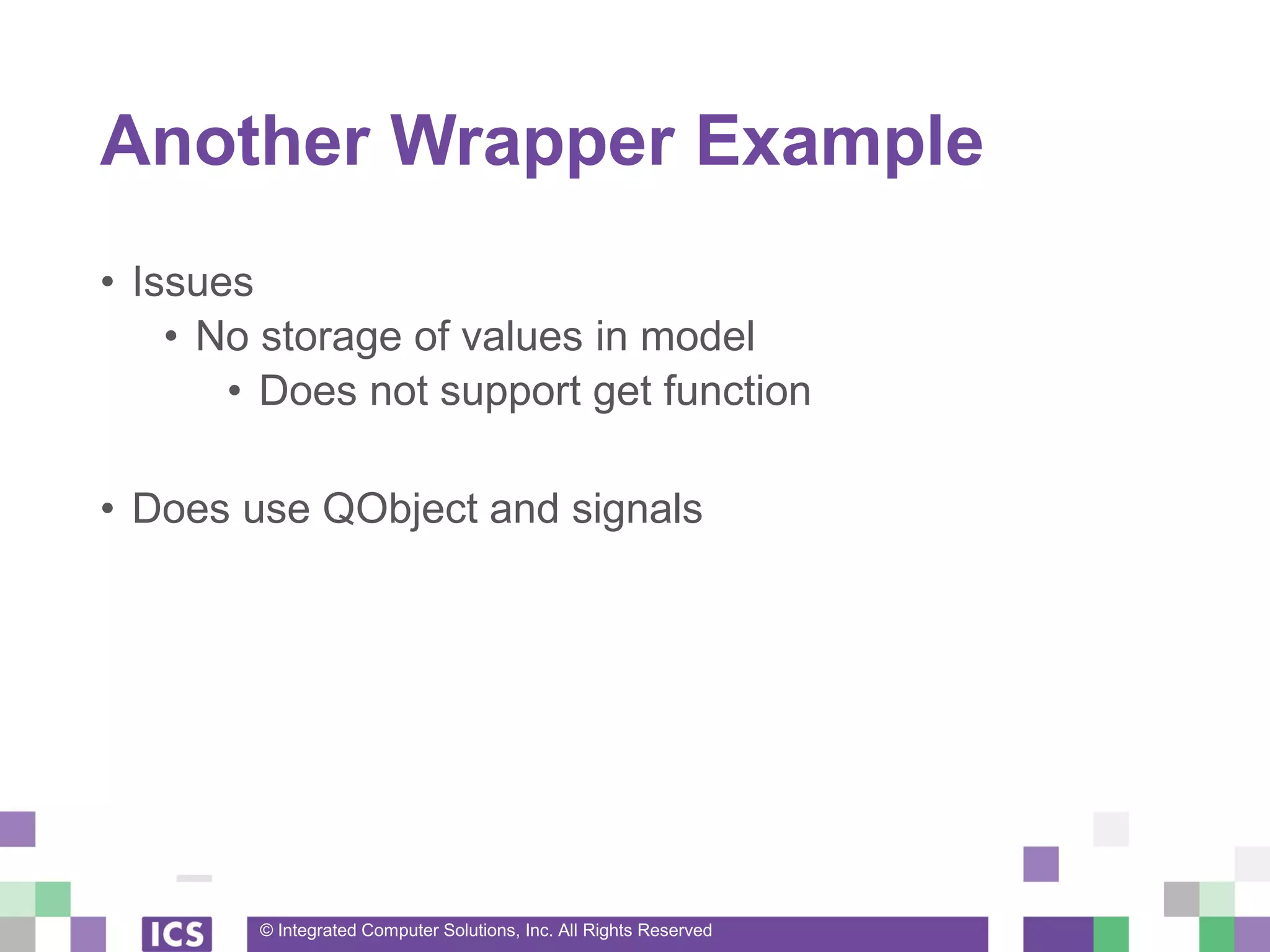

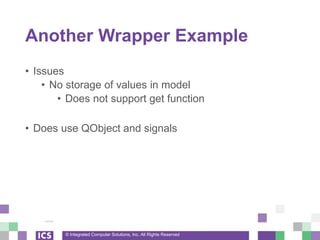

Another Wrapper Example
• Issues
• No storage of values in model
• Does not support get function
• Does use QObject and signals

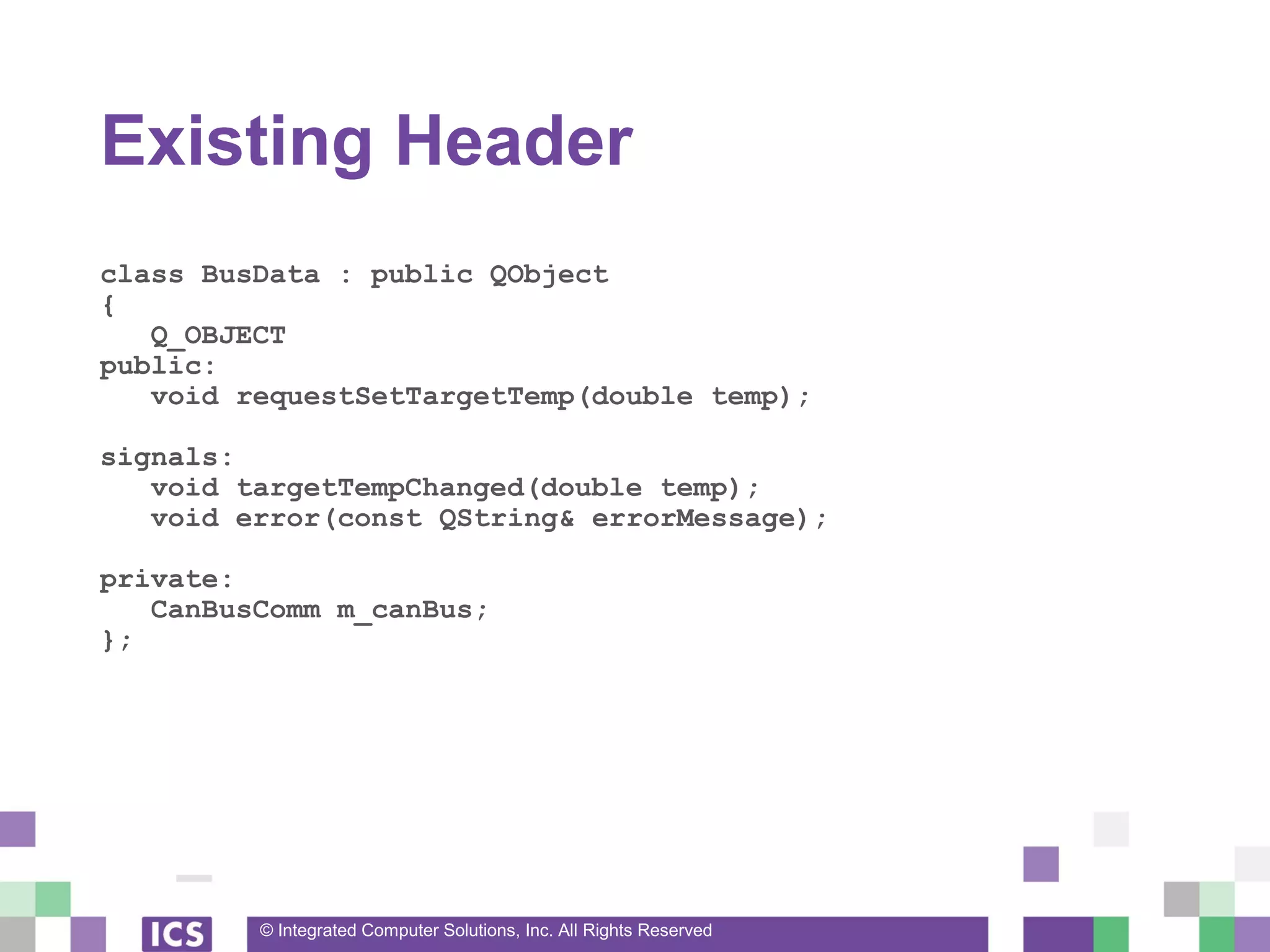

Existing Header
class BusData : public QObject
{
Q_OBJECT
public:
void requestSetTargetTemp(double temp);
signals:
void targetTempChanged(double temp);
void error(const QString& errorMessage);
private:
CanBusComm m_canBus;
};

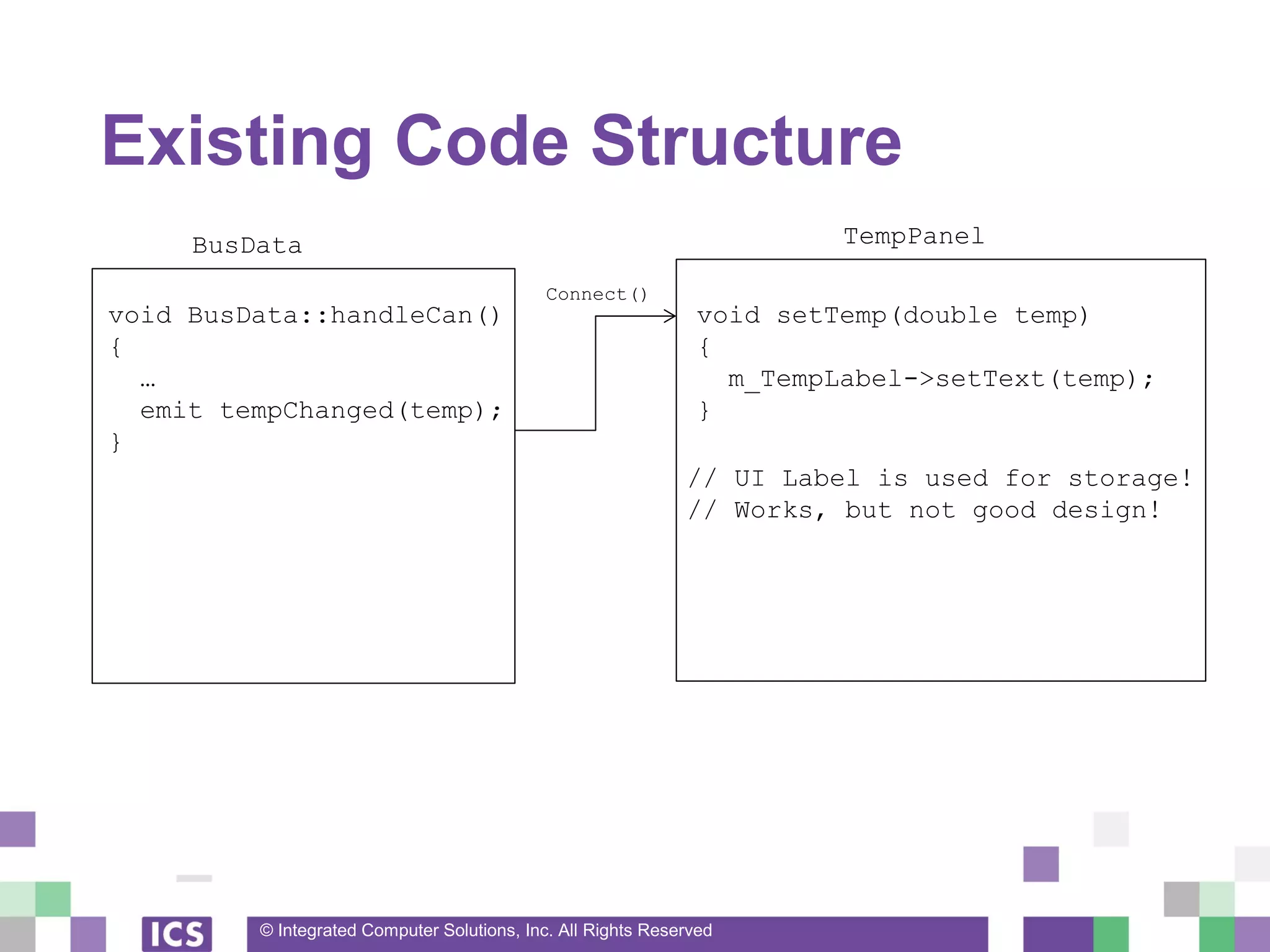

Existing Code Structure
BusData TempPanel
void BusData::handleCan()
{
…
emit tempChanged(temp);
}
void setTemp(double temp)
{
m_TempLabel->setText(temp);
}
// UI Label is used for storage!
// Works, but not good design!
Connect()

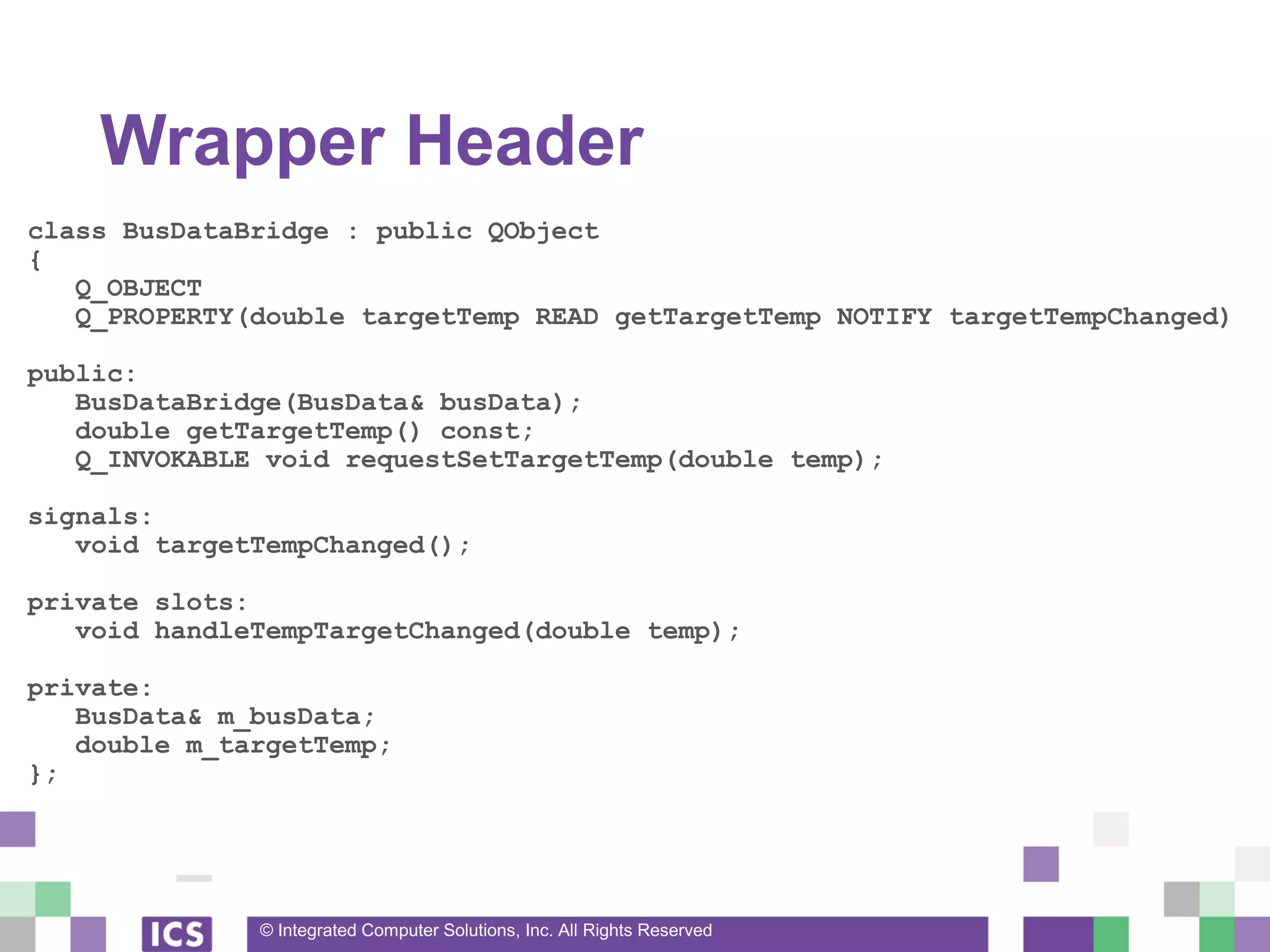

Wrapper Header
class BusDataBridge : public QObject
{
Q_OBJECT
Q_PROPERTY(double targetTemp READ getTargetTemp NOTIFY targetTempChanged)
public:
BusDataBridge(BusData& busData);
double getTargetTemp() const;
Q_INVOKABLE void requestSetTargetTemp(double temp);
signals:
void targetTempChanged();
private slots:
void handleTempTargetChanged(double temp);
private:
BusData& m_busData;
double m_targetTemp;
};

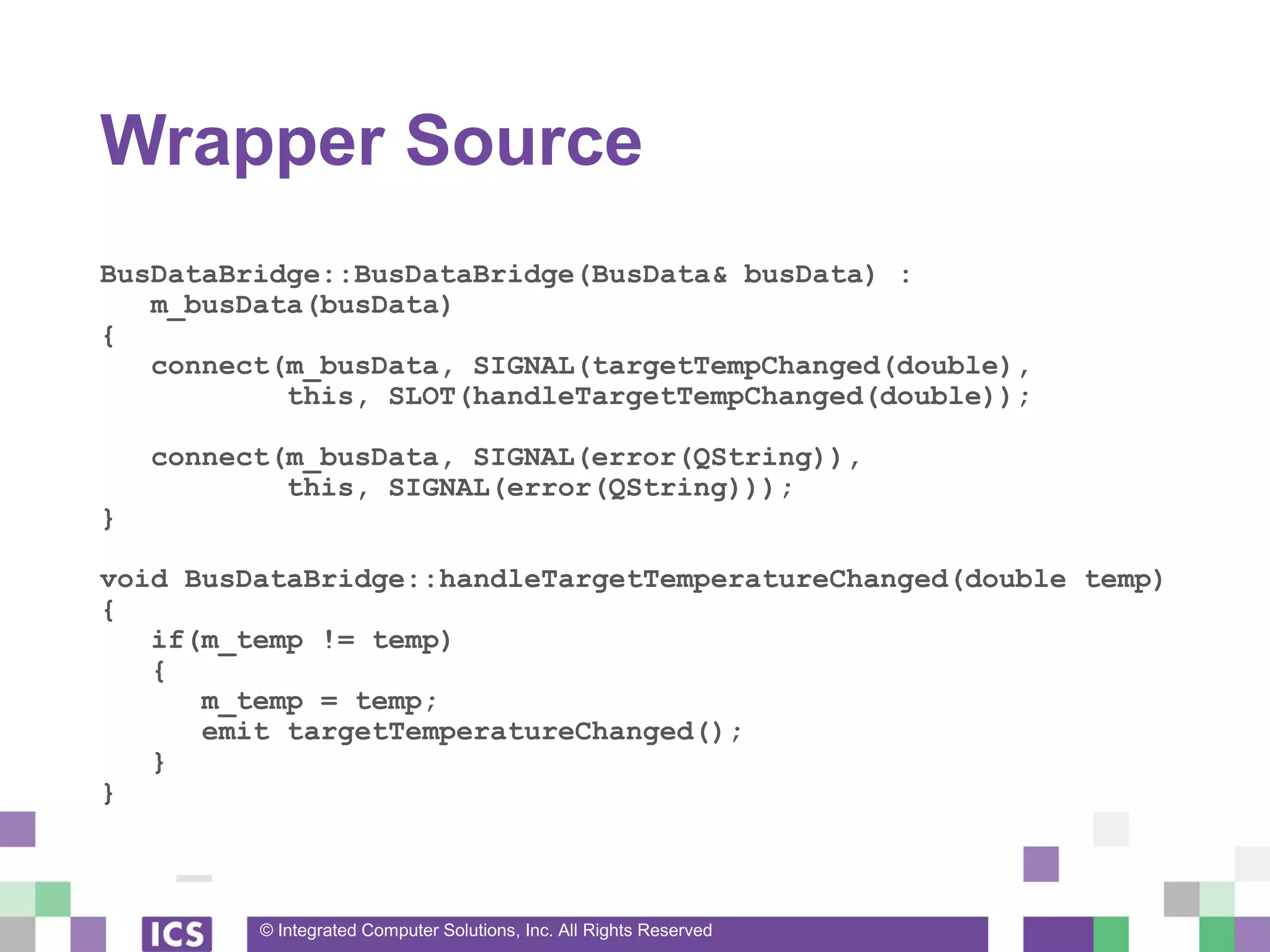

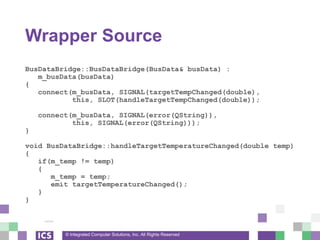

Wrapper Source
BusDataBridge::BusDataBridge(BusData& busData) :
m_busData(busData)
{
connect(m_busData, SIGNAL(targetTempChanged(double),
this, SLOT(handleTargetTempChanged(double));
connect(m_busData, SIGNAL(error(QString)),
this, SIGNAL(error(QString)));
}
void BusDataBridge::handleTargetTemperatureChanged(double temp)
{
if(m_temp != temp)
{
m_temp = temp;
emit targetTemperatureChanged();
}
}

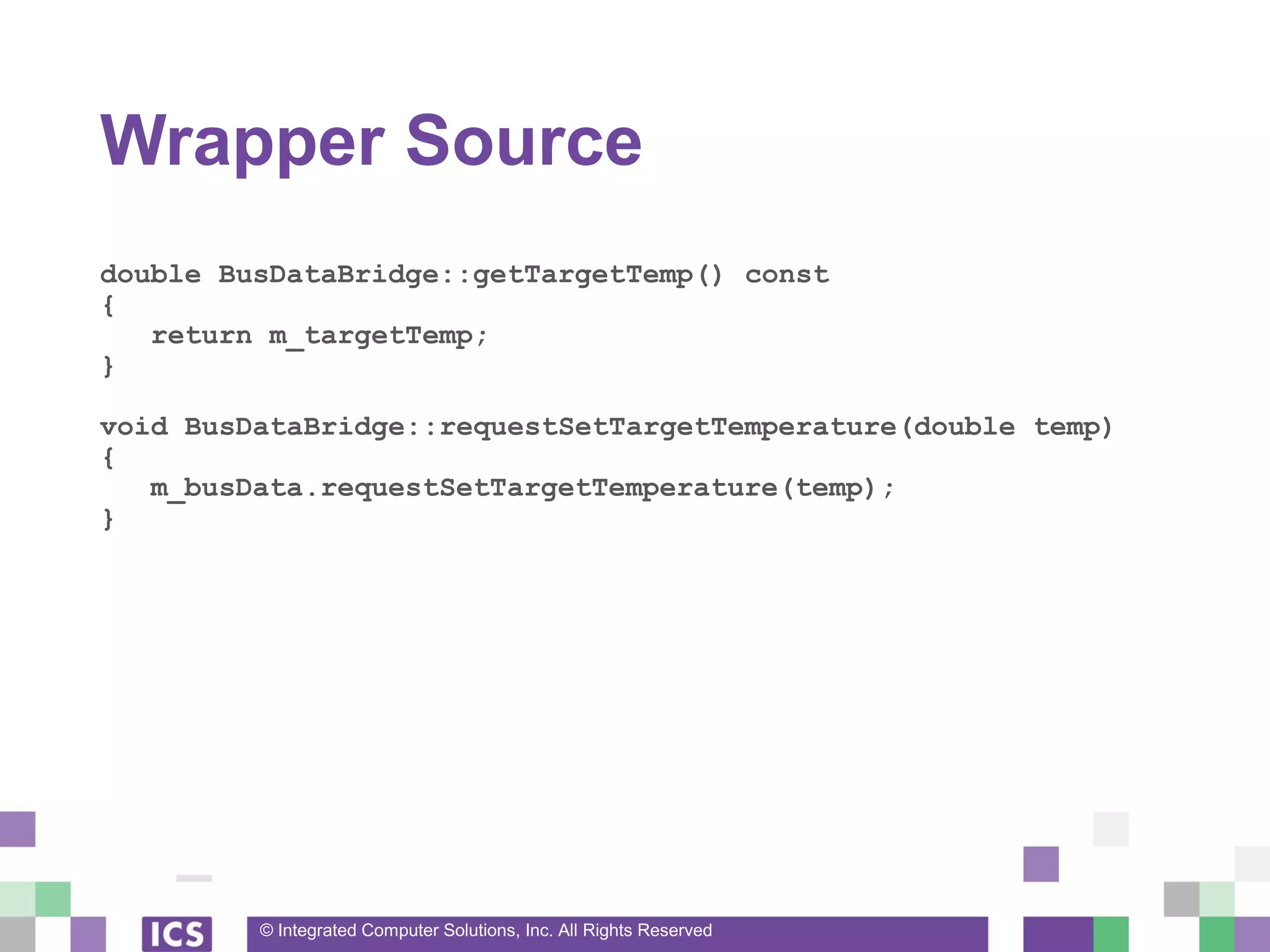

Wrapper Source
double BusDataBridge::getTargetTemp() const
{
return m_targetTemp;
}
void BusDataBridge::requestSetTargetTemperature(double temp)
{
m_busData.requestSetTargetTemperature(temp);
}

Threading Considerations
• BusData example can be useful pattern
• If BusData reads data on another thread
• Sig/Slot connections work across threads
• Qt will dispatch an async event automatically
• Automatic Copy/Lock of data across threads
• Storing data in Bridge object (on GUI thread).
• Good! Avoids locking on read

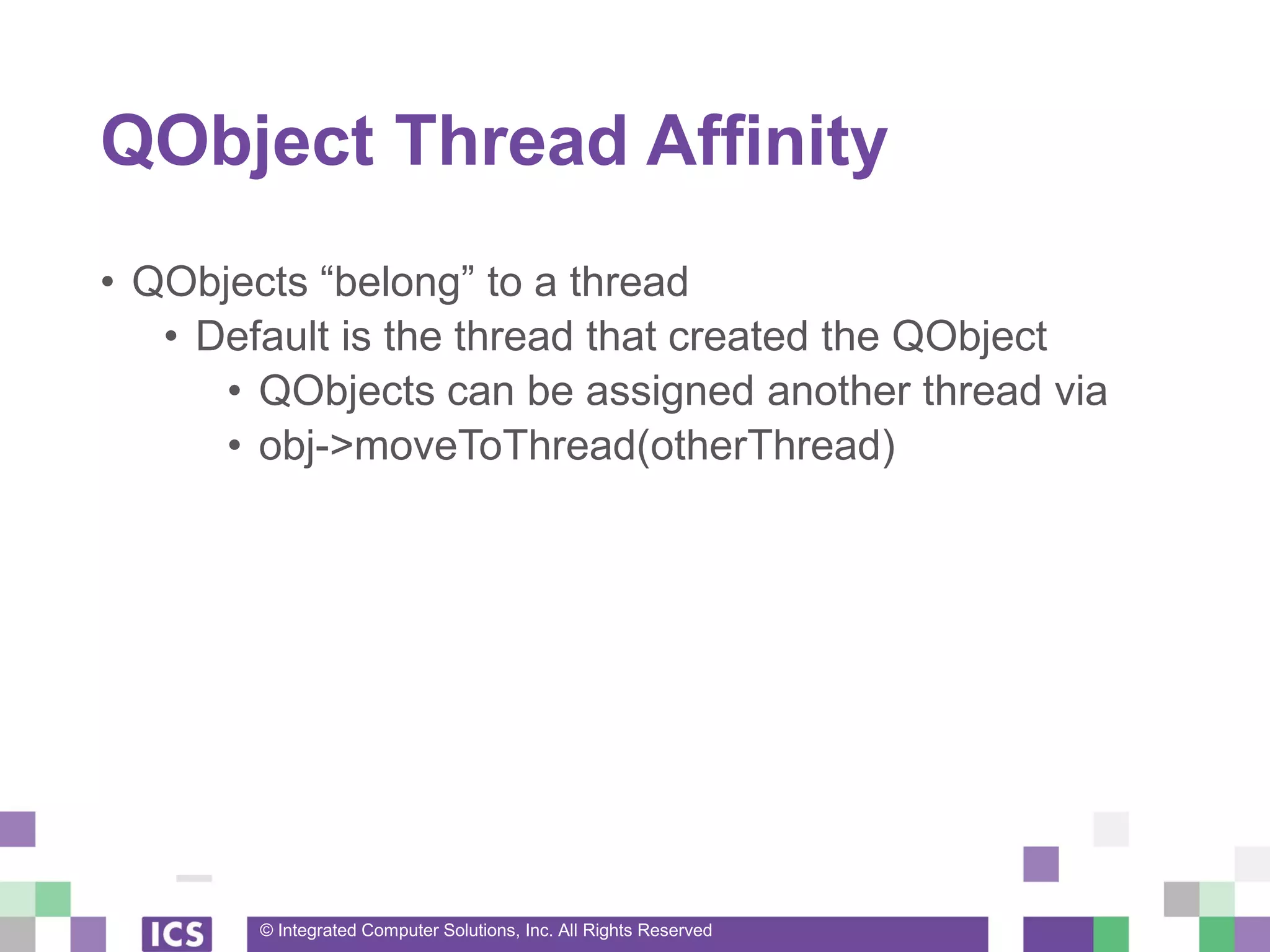

QObject Thread Affinity
• QObjects “belong” to a thread
• Default is the thread that created the QObject
• QObjects can be assigned another thread via
• obj->moveToThread(otherThread)

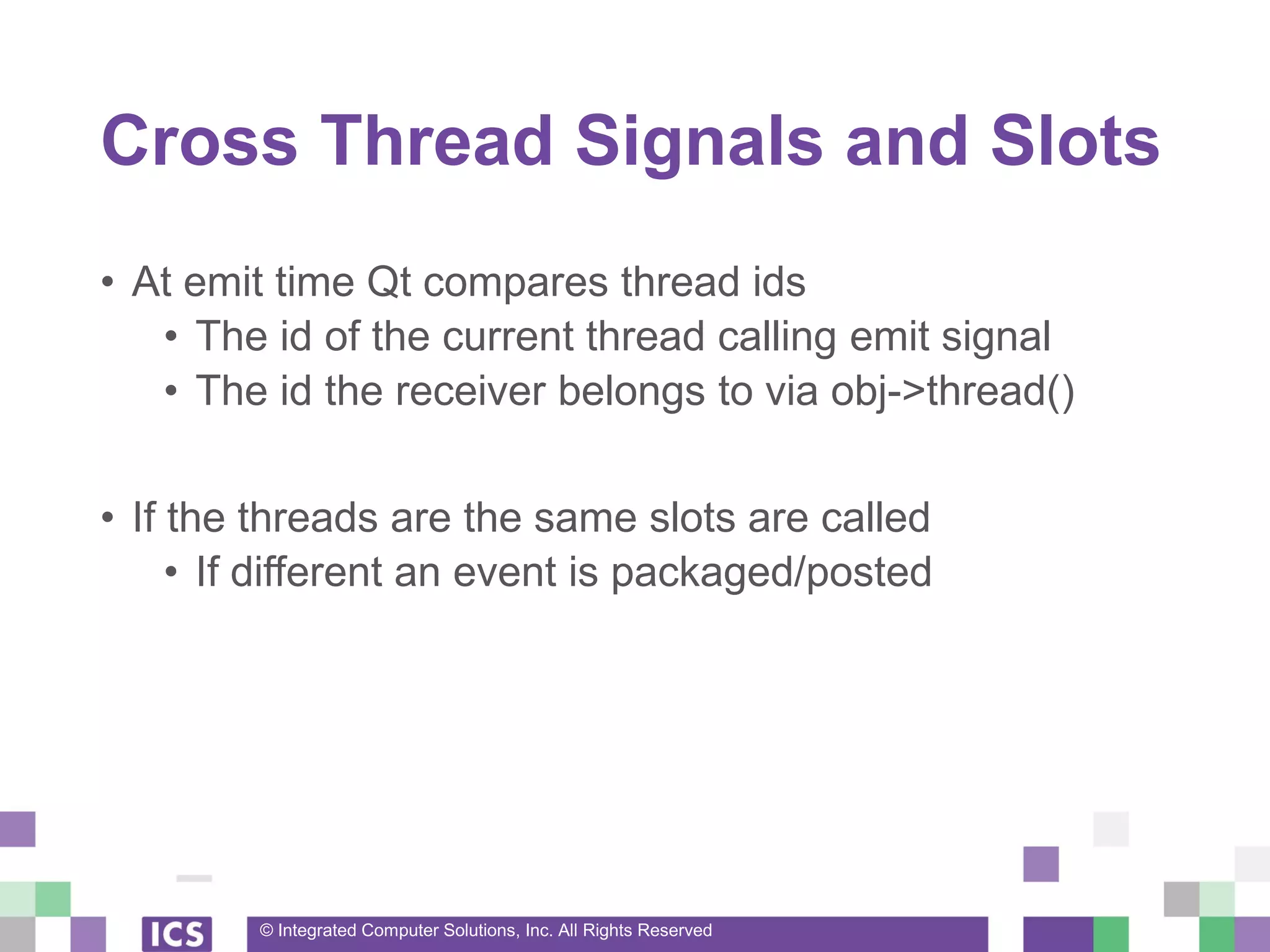

Cross Thread Signals and Slots
• At emit time Qt compares thread ids
• The id of the current thread calling emit signal
• The id the receiver belongs to via obj->thread()
• If the threads are the same slots are called
• If different an event is packaged/posted

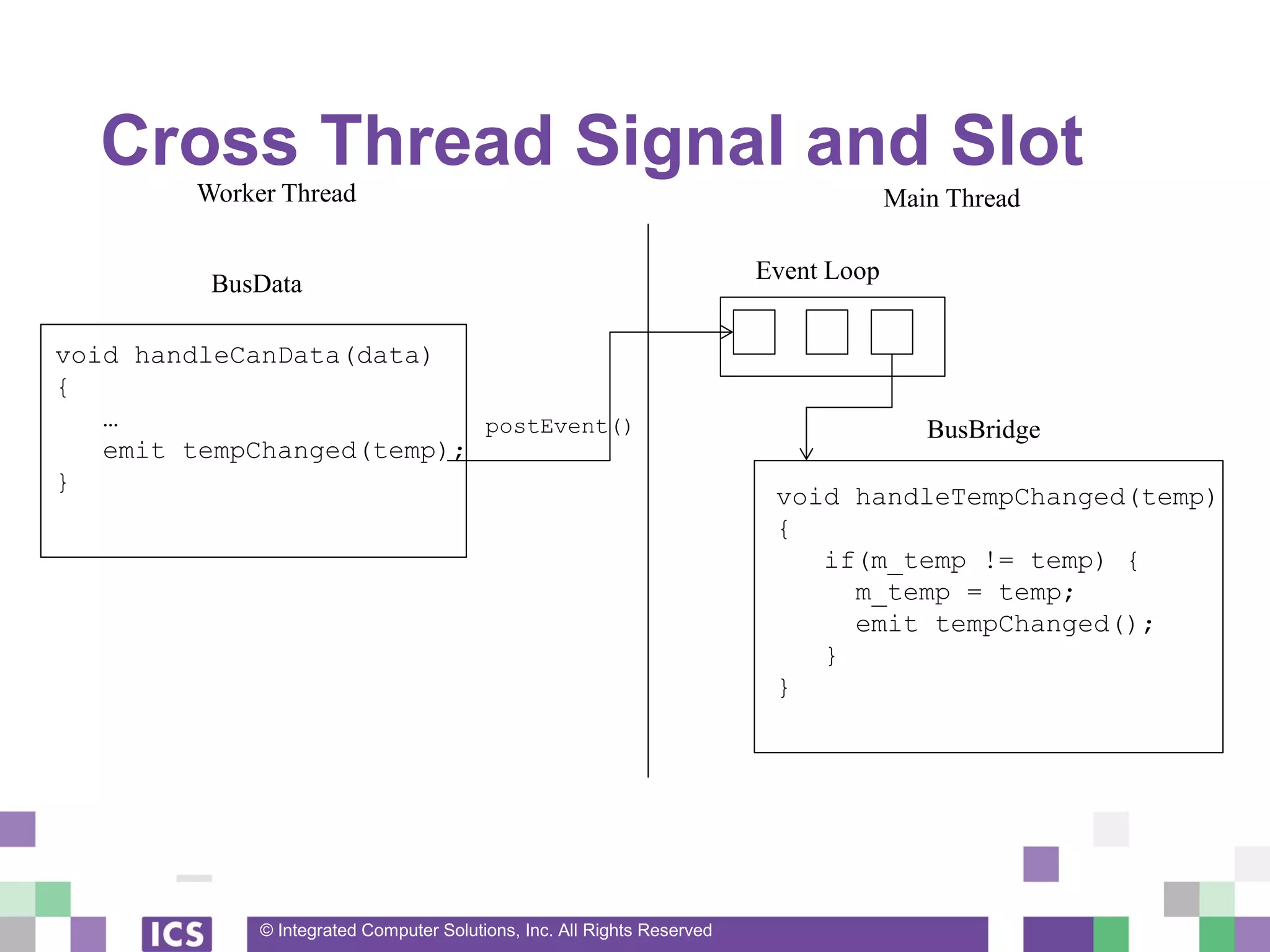

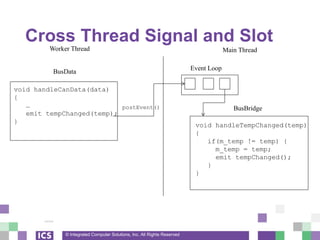

Cross Thread Signal and Slot
BusBridge
void handleCanData(data)
{
…
emit tempChanged(temp);
}
void handleTempChanged(temp)
{
if(m_temp != temp) {
m_temp = temp;
emit tempChanged();
}
}
BusData
Worker Thread Main Thread
Event Loop
postEvent()

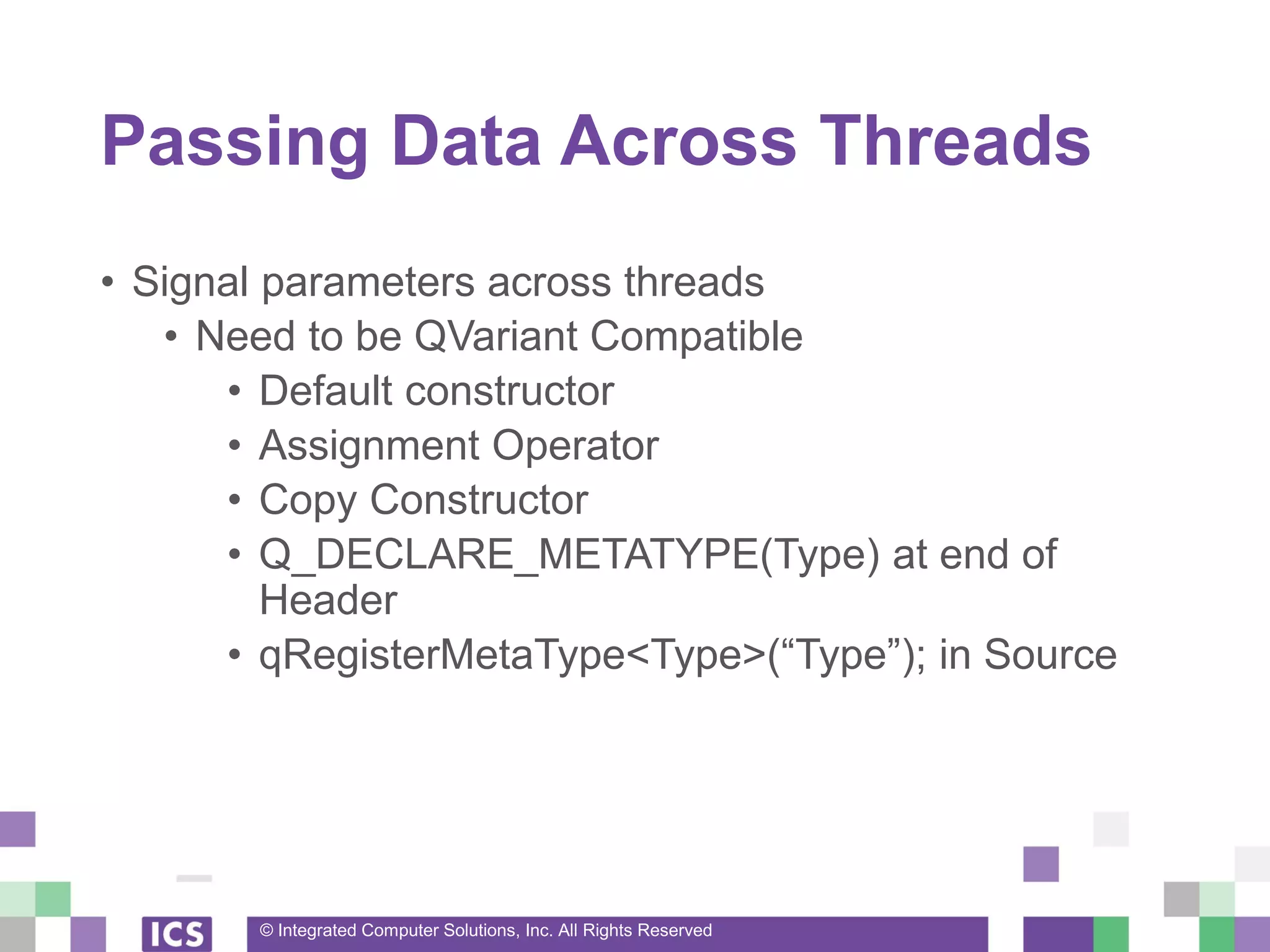

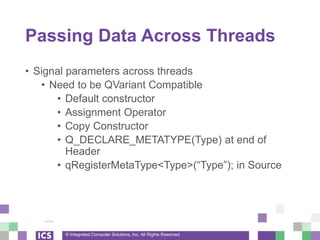

Passing Data Across Threads
• Signal parameters across threads
• Need to be QVariant Compatible
• Default constructor
• Assignment Operator
• Copy Constructor
• Q_DECLARE_METATYPE(Type) at end of
Header
• qRegisterMetaType<Type>(“Type”); in Source

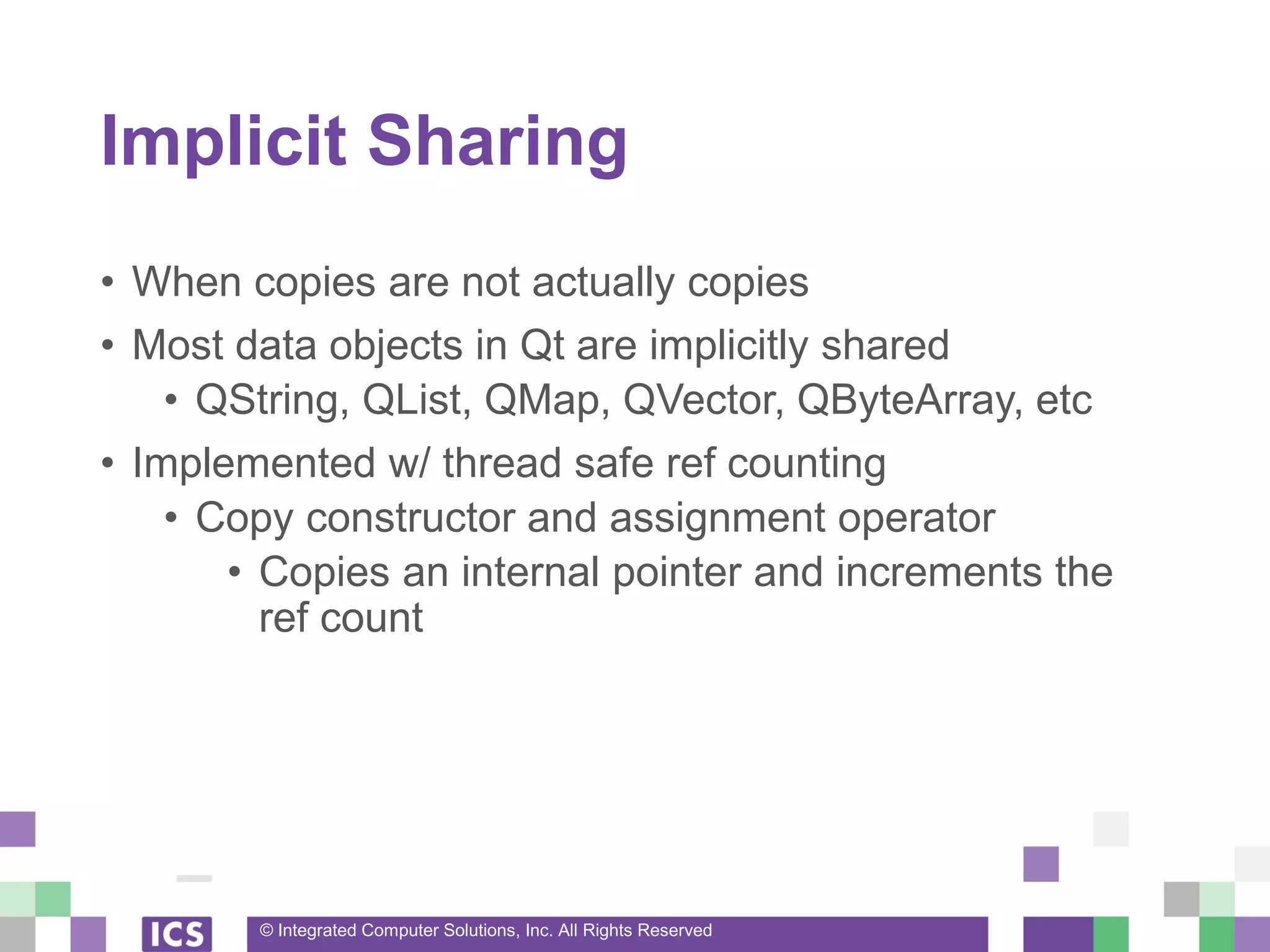

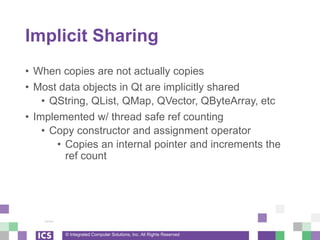

Implicit Sharing
• When copies are not actually copies
• Most data objects in Qt are implicitly shared
• QString, QList, QMap, QVector, QByteArray, etc
• Implemented w/ thread safe ref counting
• Copy constructor and assignment operator
• Copies an internal pointer and increments the
ref count

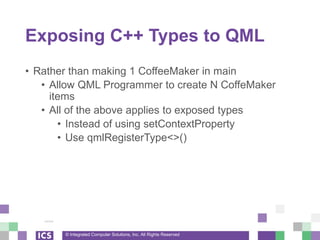

Exposing C++ Types to QML
• Rather than making 1 CoffeeMaker in main
• Allow QML Programmer to create N CoffeMaker
items
• All of the above applies to exposed types
• Instead of using setContextProperty
• Use qmlRegisterType<>()

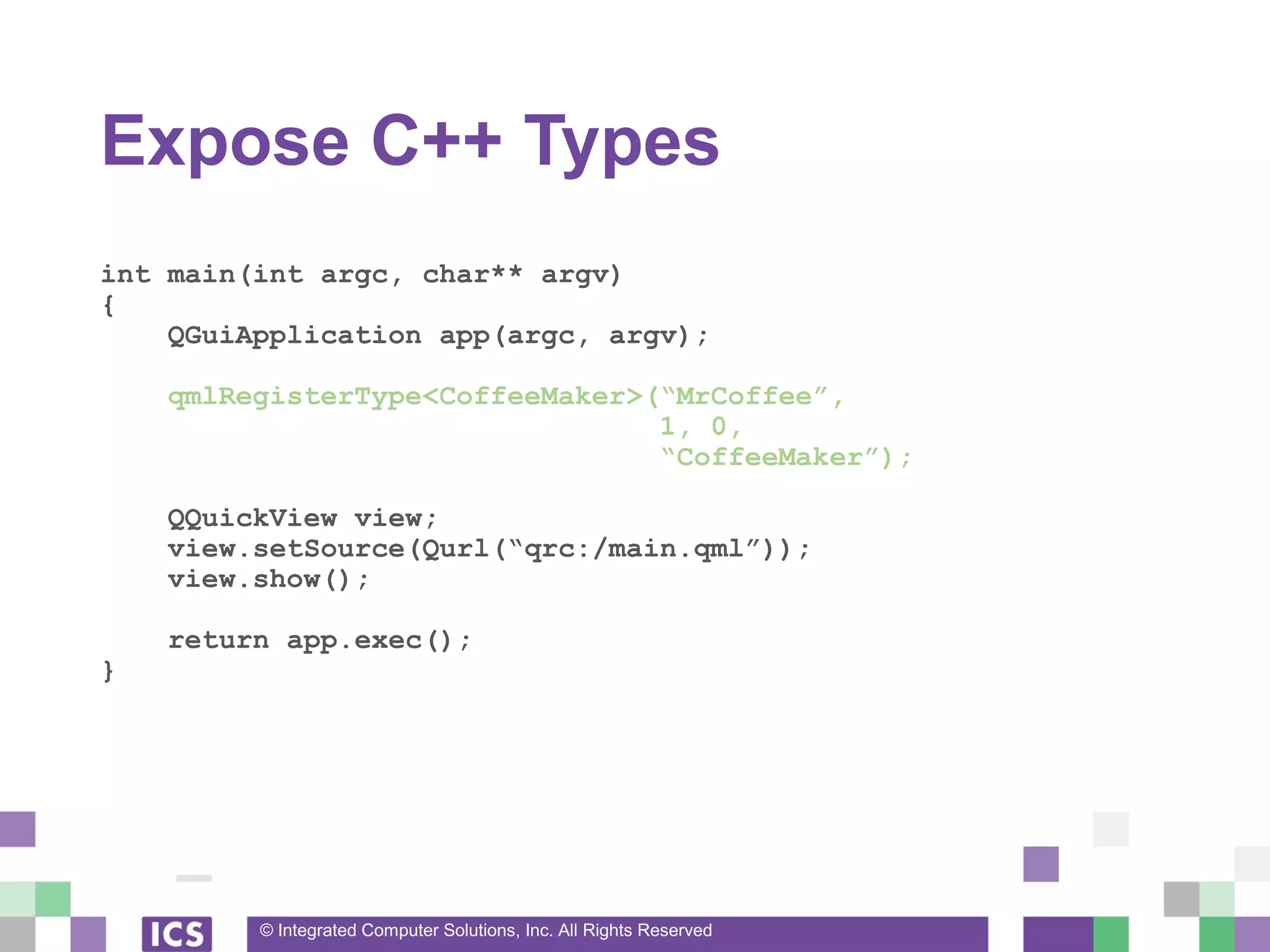

Expose C++ Types
int main(int argc, char** argv)
{
QGuiApplication app(argc, argv);
qmlRegisterType<CoffeeMaker>(“MrCoffee”,
1, 0,
“CoffeeMaker”);
QQuickView view;
view.setSource(Qurl(“qrc:/main.qml”));
view.show();
return app.exec();
}

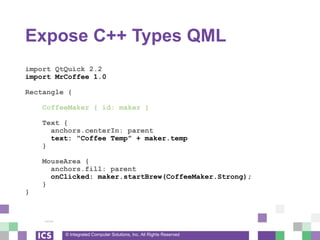

Expose C++ Types QML
import QtQuick 2.2
import MrCoffee 1.0
Rectangle {
CoffeeMaker { id: maker }
Text {
text: “Coffee Temp” + maker.temp
}
MouseArea {
onClicked: maker.startBrew(CoffeeMaker.Strong);
}
}

Thank You!
Justin Noel
Senior Consulting Engineer
ICS, Inc.

Best Practices in Qt Quick/QML - Part 3

In this document

More Related Content

What's hot

Similar to Best Practices in Qt Quick/QML - Part 3

More from ICS

Recently uploaded

Best Practices in Qt Quick/QML - Part 3
