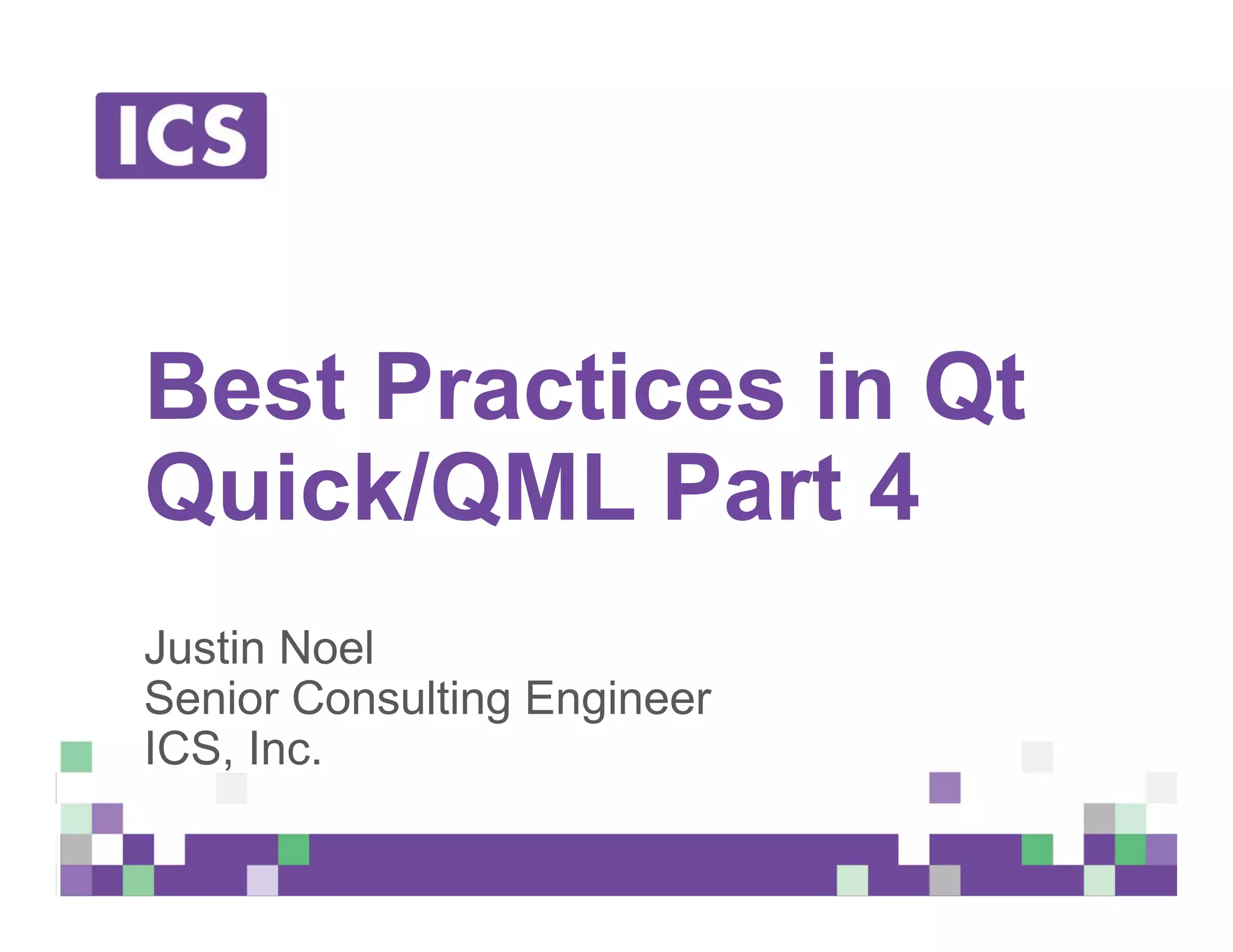

Best Practices in Qt Quick/QML - Part 4

© Integrated Computer Solutions, Inc. All Rights Reserved
Best Practices in Qt
Quick/QML Part 4
Justin Noel
Senior Consulting Engineer
ICS, Inc.

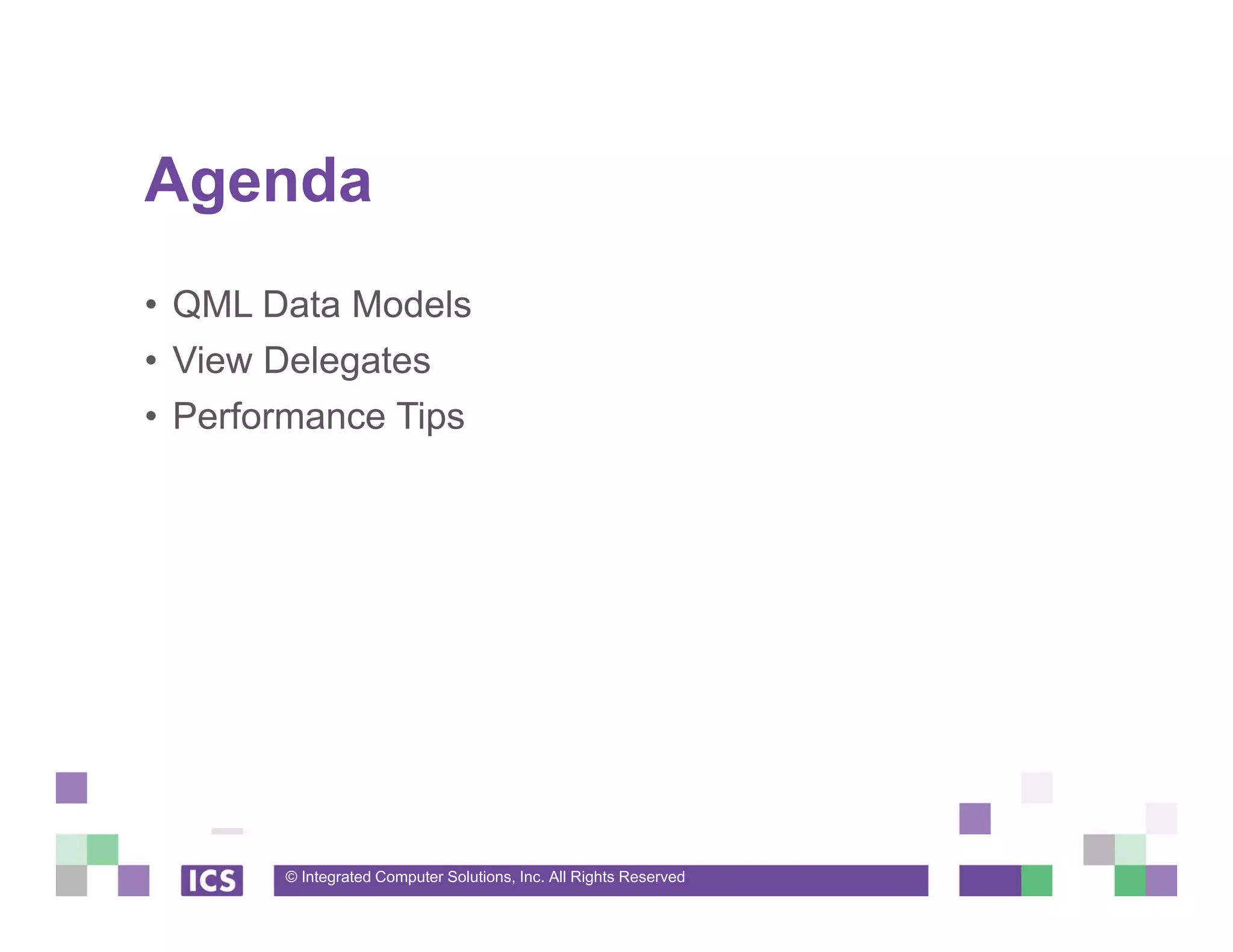

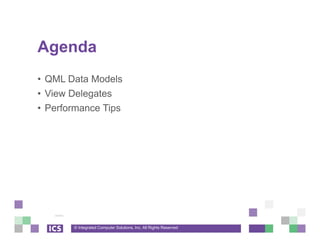

Agenda
• QML Data Models
• View Delegates
• Performance Tips

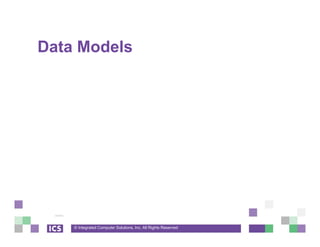

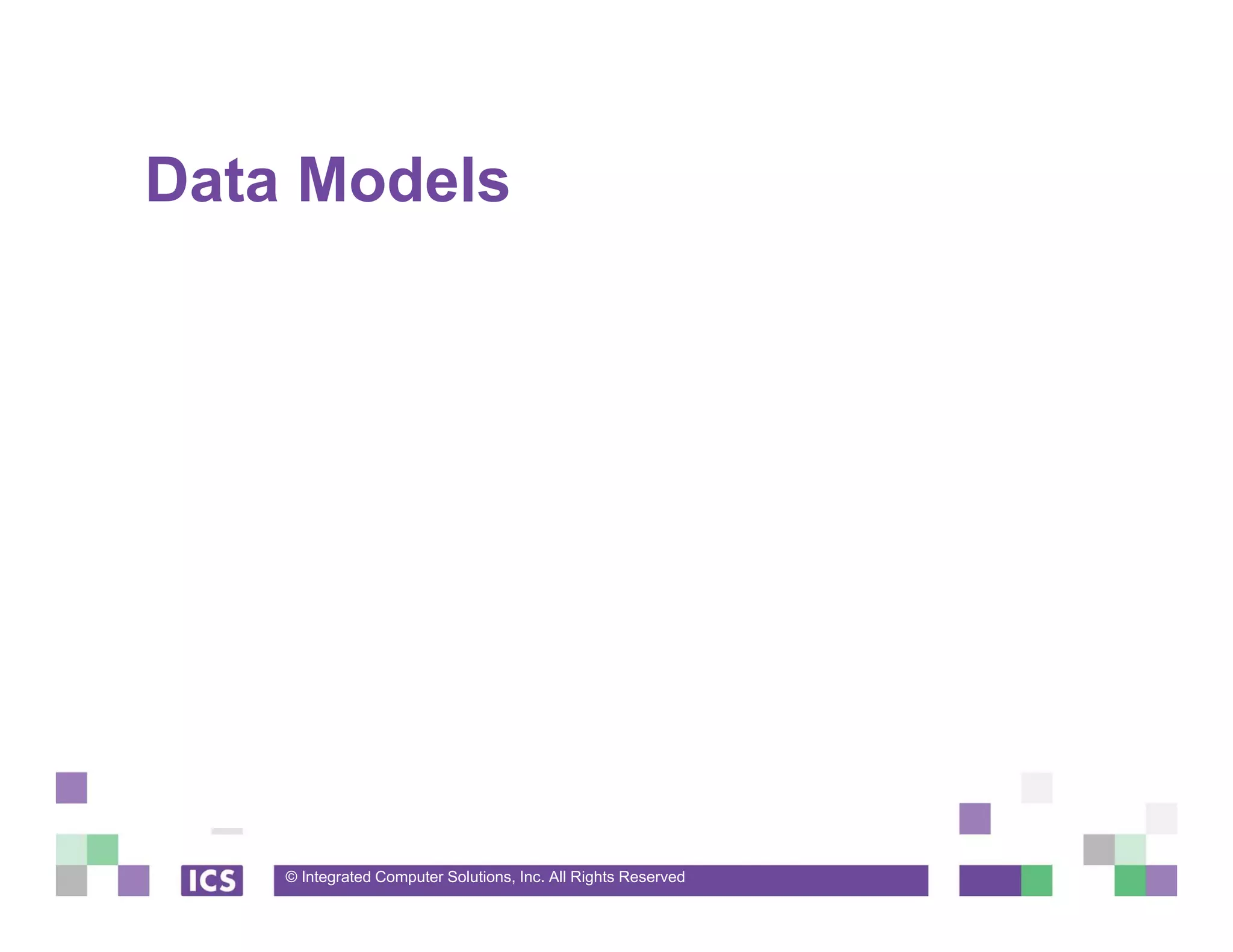

Data Models

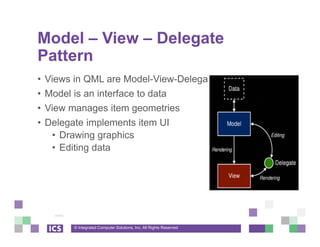

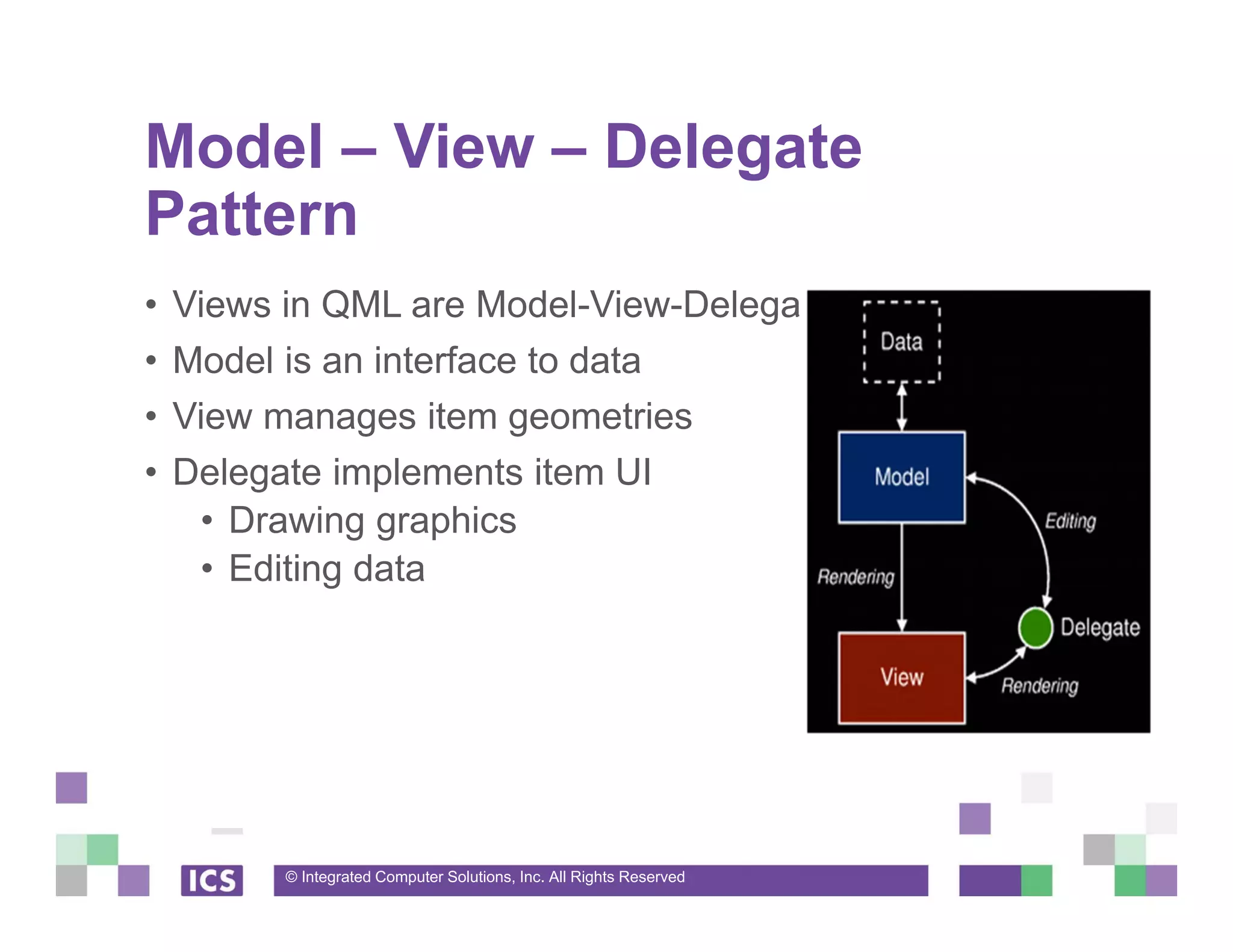

Model – View – Delegate
Pattern
• Views in QML are Model-View-Delegate
• Model is an interface to data
• View manages item geometries
• Delegate implements item UI
• Drawing graphics
• Editing data

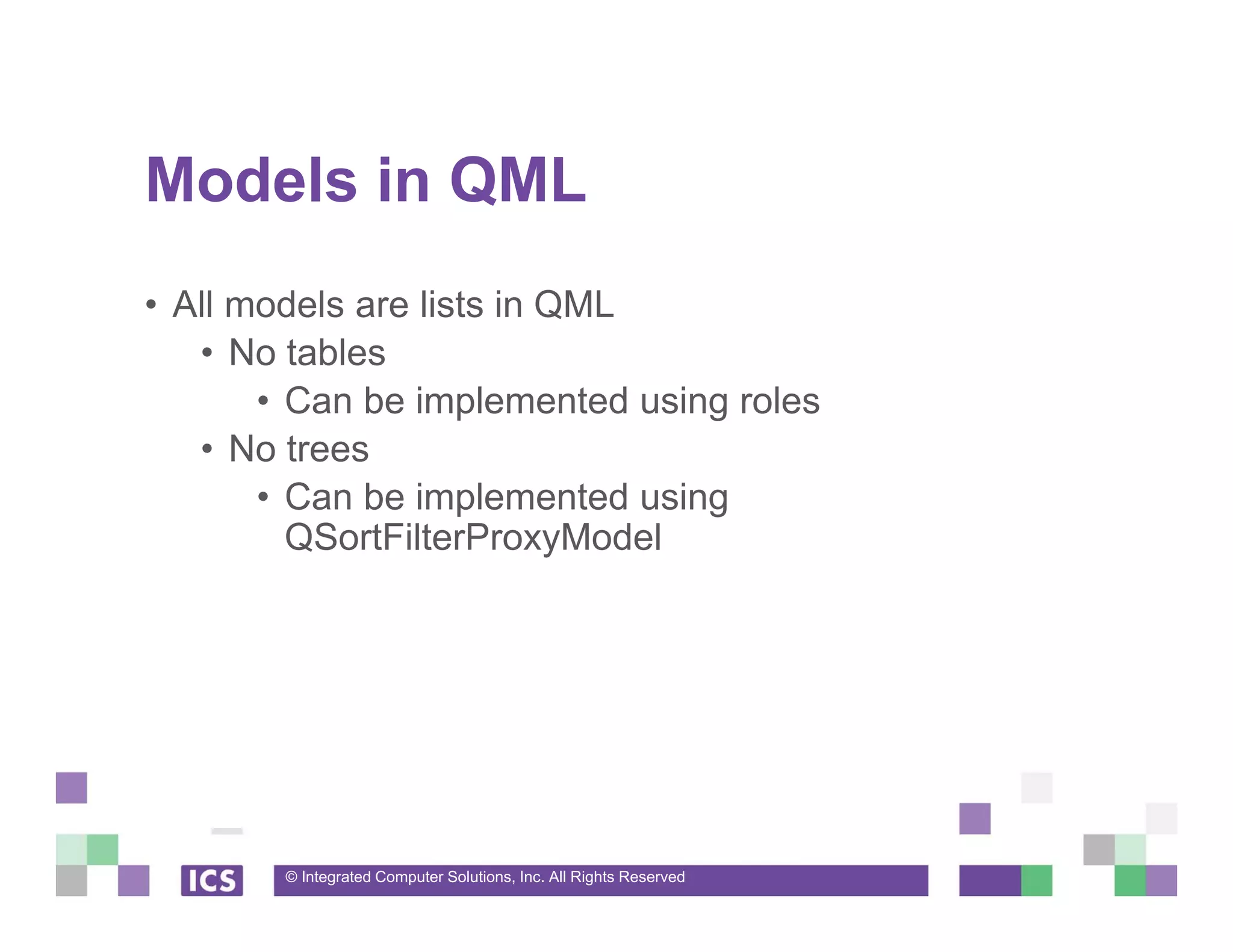

Models in QML
• All models are lists in QML
• No tables
• Can be implemented using roles
• No trees
• Can be implemented using
QSortFilterProxyModel

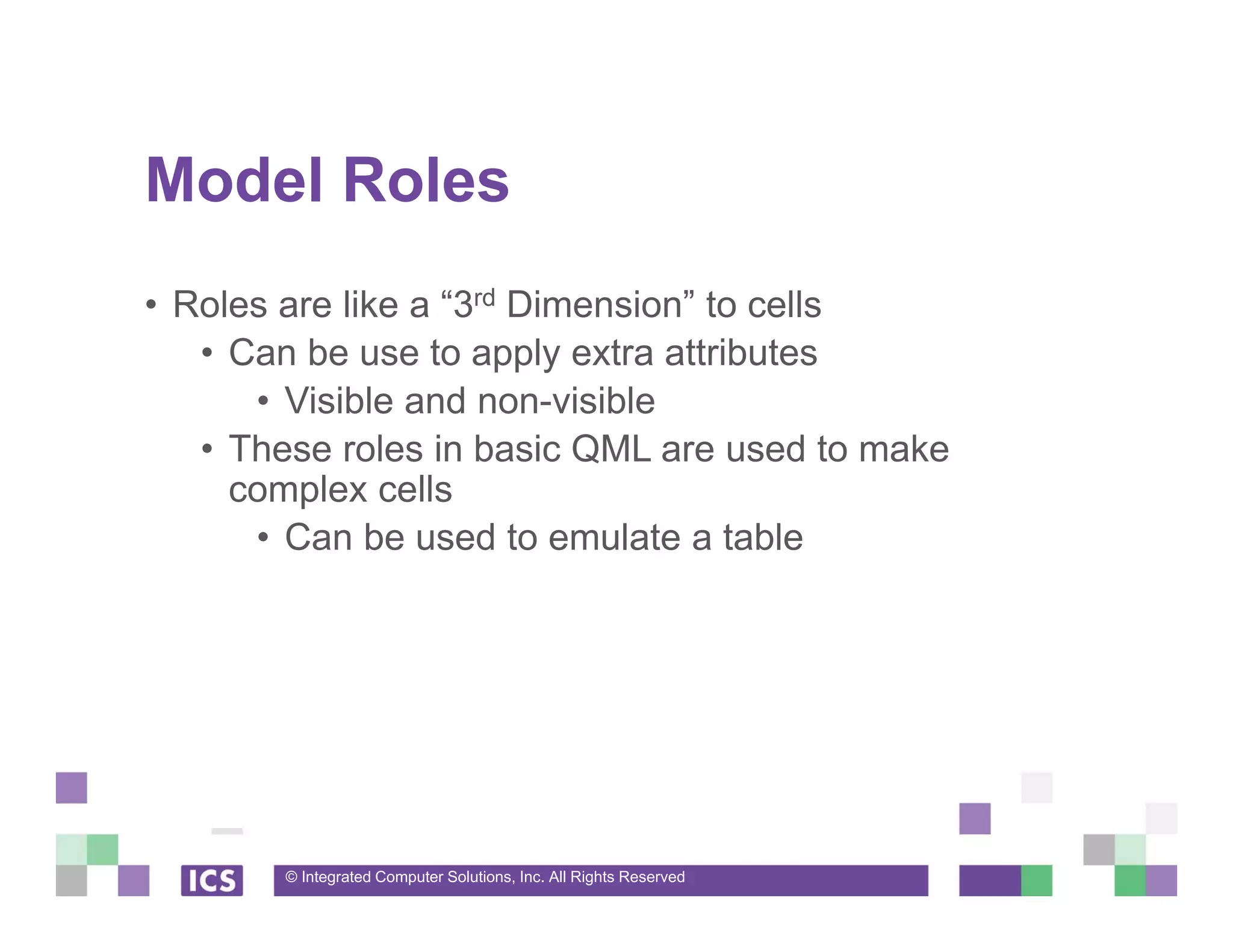

Model Roles
• Roles are like a “3rd Dimension” to cells
• Can be use to apply extra attributes
• Visible and non-visible
• These roles in basic QML are used to make
complex cells
• Can be used to emulate a table

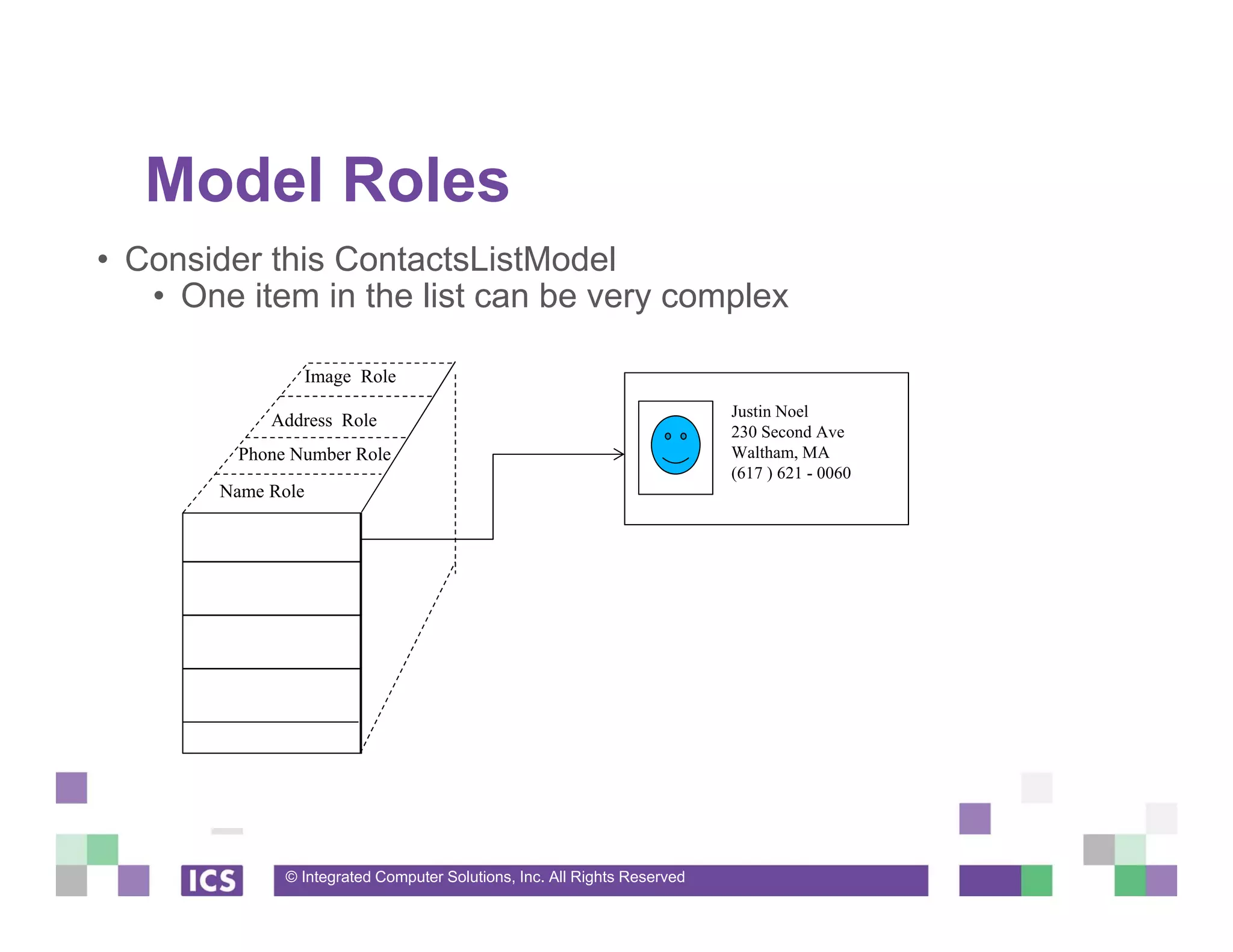

Model Roles

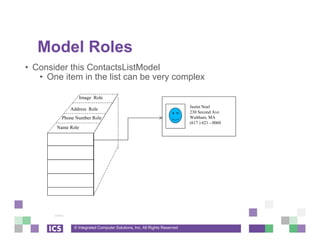

• Consider this ContactsListModel
• One item in the list can be very complex
Name Role
Phone Number Role
Address Role
Image Role
Justin Noel
230 Second Ave
Waltham, MA
(617 ) 621 - 0060

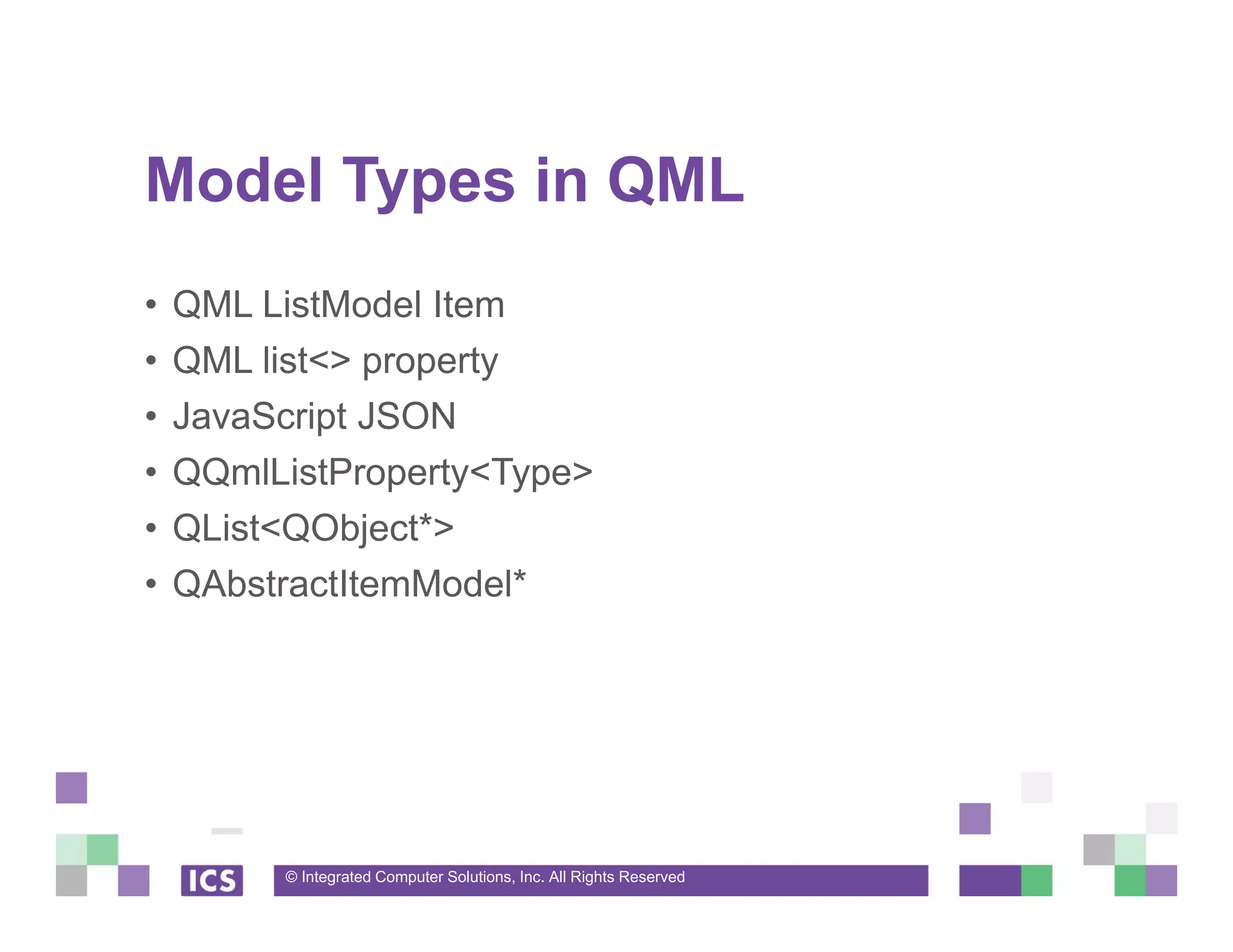

Model Types in QML
• QML ListModel Item
• QML list<> property
• JavaScript JSON
• QQmlListProperty<Type>
• QList<QObject*>
• QAbstractItemModel*

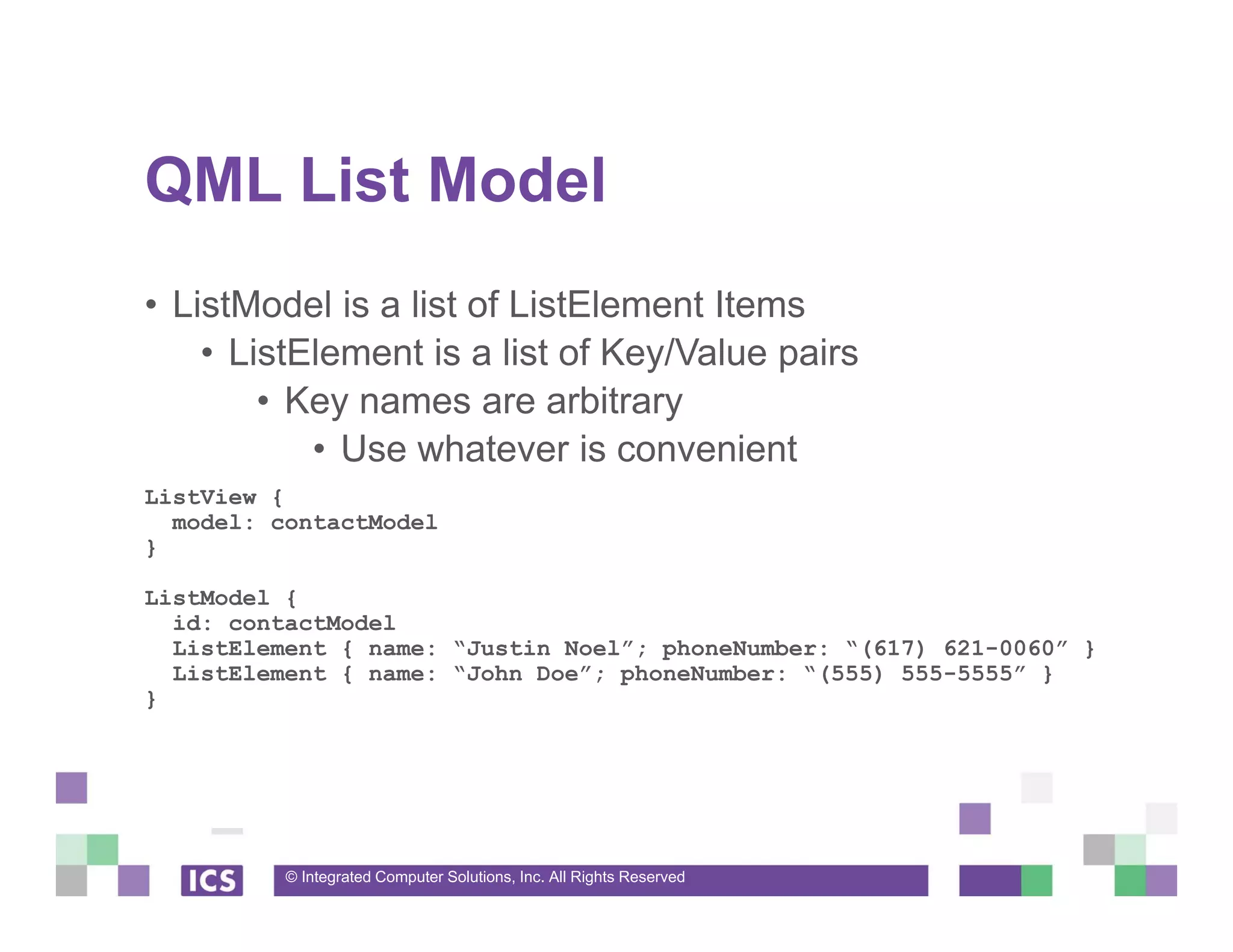

QML List Model
• ListModel is a list of ListElement Items
• ListElement is a list of Key/Value pairs
• Key names are arbitrary
• Use whatever is convenient
ListView {
model: contactModel
}
ListModel {
id: contactModel
ListElement { name: “Justin Noel”; phoneNumber: “(617) 621-0060” }
ListElement { name: “John Doe”; phoneNumber: “(555) 555-5555” }
}

Delegates
• Roles appear as attached properties in a Delegate
ListView {
model: contactModel
delegate: Rectangle {
Column {
Text { text: name }
Text { text: phoneNumber }
}
}
ListModel {
id: contactModel
ListElement { name: “Justin Noel”; phoneNumber: “(617) 621-0060” }
ListElement { name: “John Doe”; phoneNumber: “(555) 555-5555” }
}

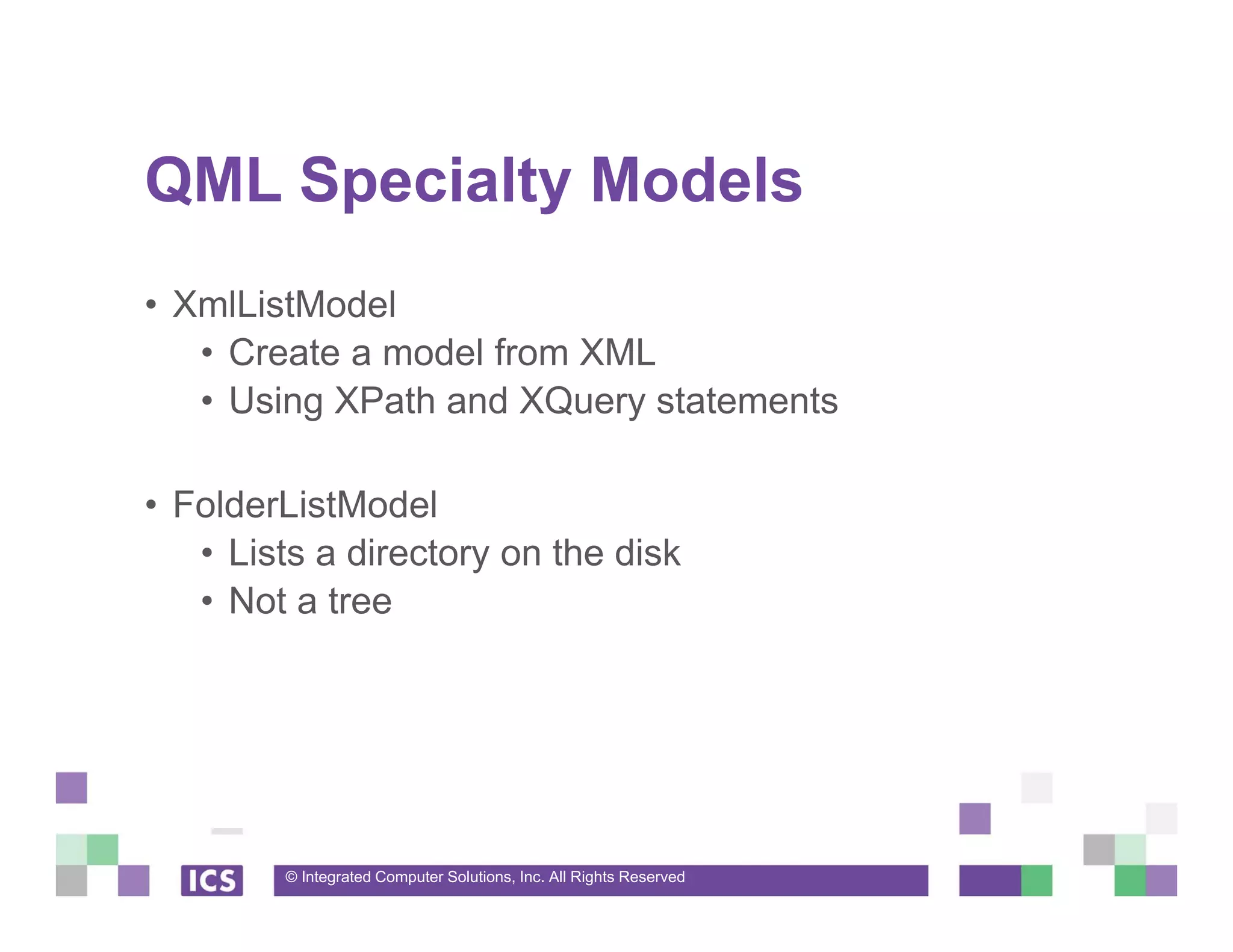

QML Specialty Models
• XmlListModel
• Create a model from XML
• Using XPath and XQuery statements
• FolderListModel
• Lists a directory on the disk
• Not a tree

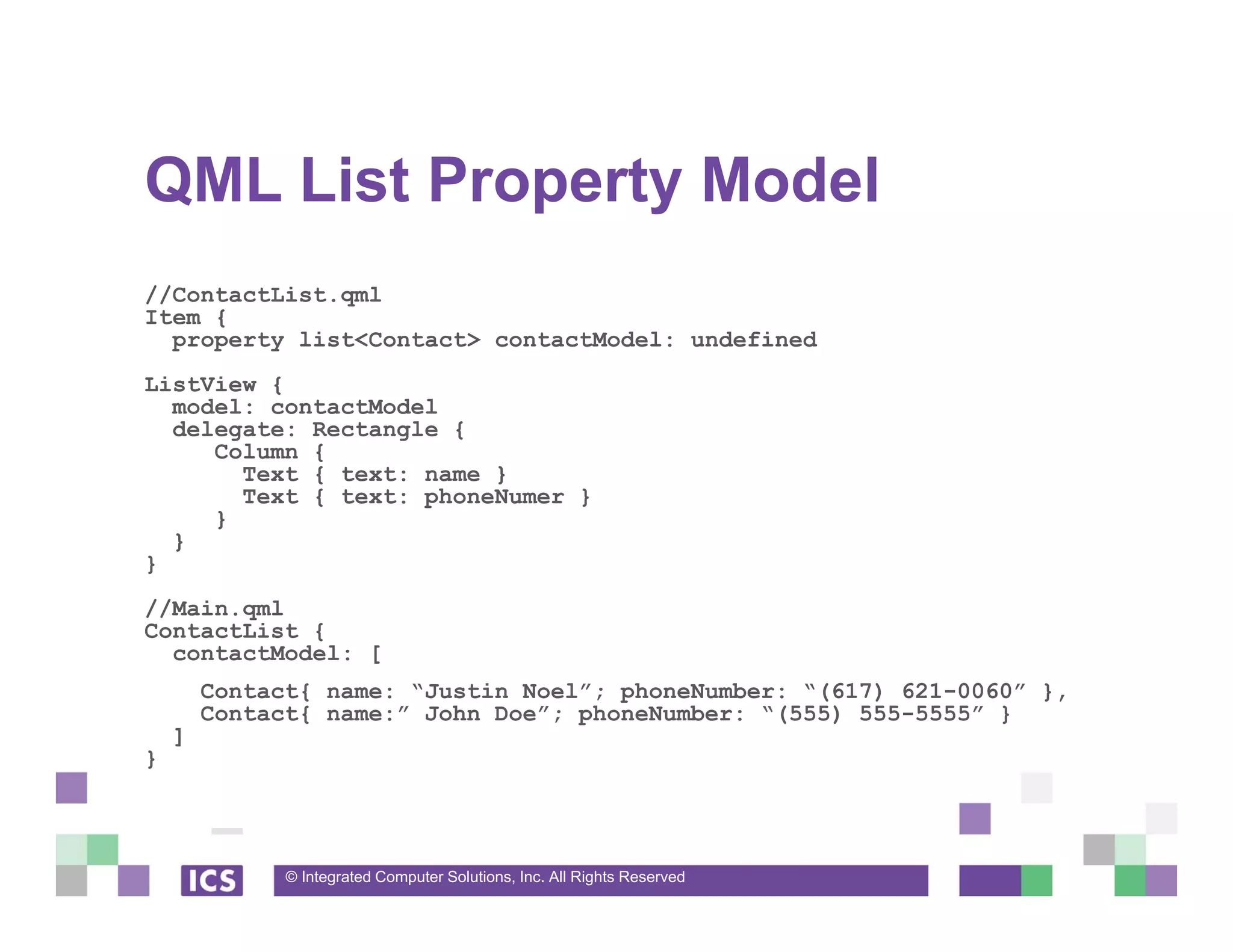

QML List Property Model
//ContactList.qml
Item {
property list<Contact> contactModel: undefined
ListView {
model: contactModel
Column {
Text { text: name }
Text { text: phoneNumer }
}
}
}
//Main.qml
ContactList {
contactModel: [
Contact{ name: “Justin Noel”; phoneNumber: “(617) 621-0060” },
Contact{ name:” John Doe”; phoneNumber: “(555) 555-5555” }
]
}

JSON Model
Item {
property var json: [
{ name:”Justin Noel” phoneNumber:”(617) 621-0060” },
{ name:” John Doe” phoneNumber “(555) 555-5555” }
]
ListView {
model: json
Column {
Text { text: name }
Text { text: phoneNumer }
}
}
}

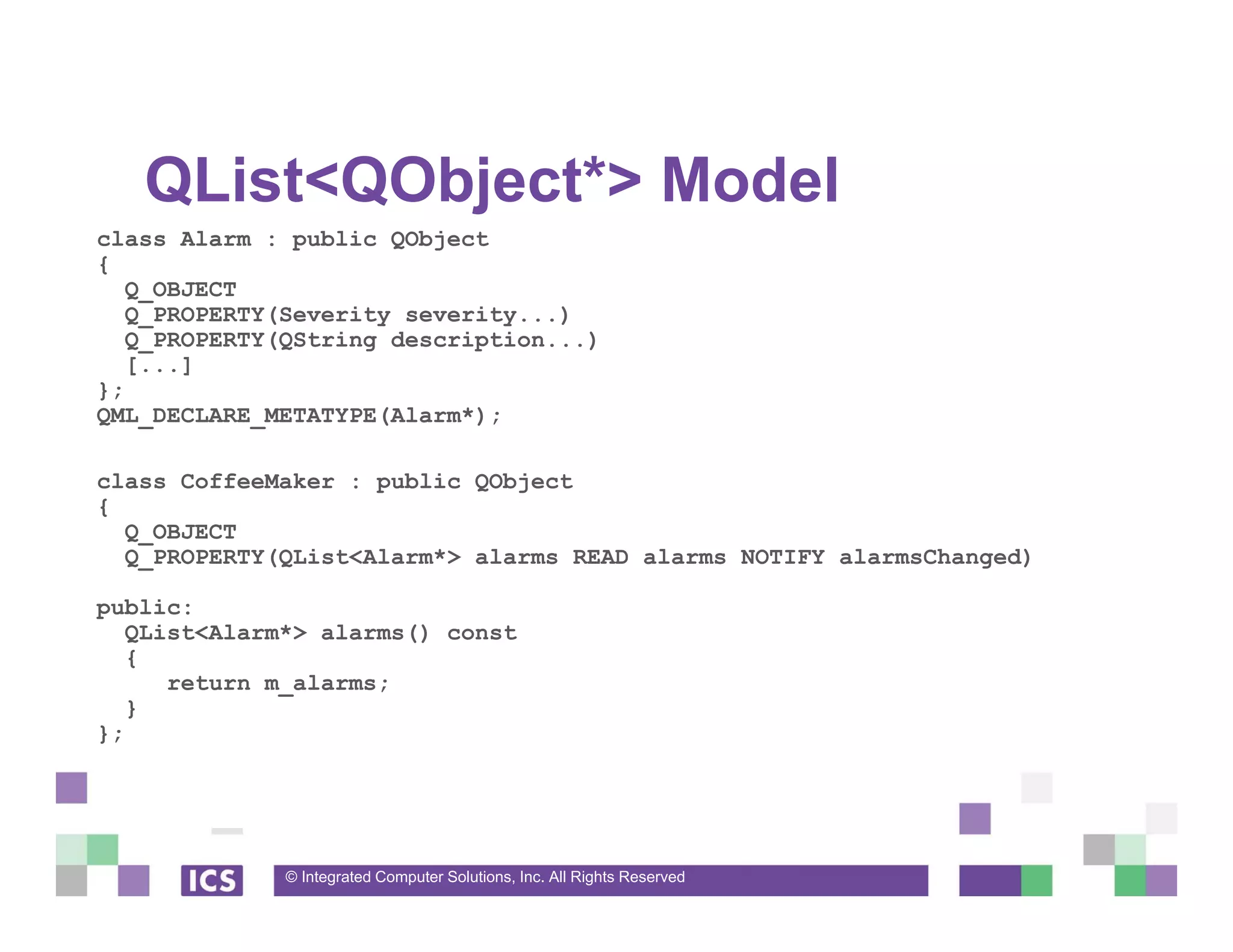

QList<QObject*> Model
class Alarm : public QObject
{
Q_OBJECT
Q_PROPERTY(Severity severity...)
Q_PROPERTY(QString description...)
[...]
};
QML_DECLARE_METATYPE(Alarm*);
class CoffeeMaker : public QObject
{
Q_OBJECT
Q_PROPERTY(QList<Alarm*> alarms READ alarms NOTIFY alarmsChanged)
public:
QList<Alarm*> alarms() const
{
return m_alarms;
}
};

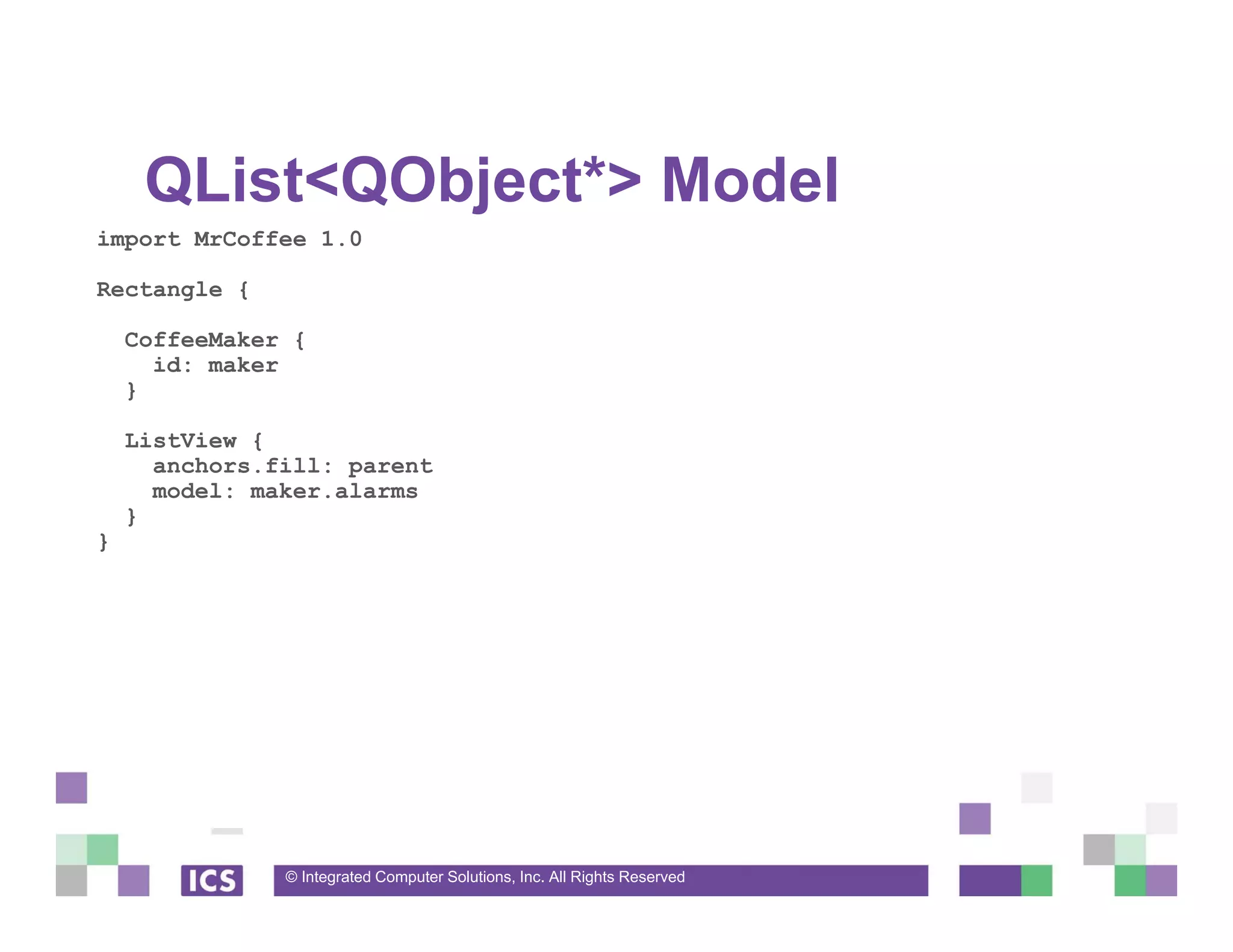

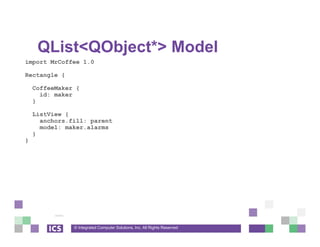

QList<QObject*> Model
import MrCoffee 1.0
Rectangle {
CoffeeMaker {
id: maker
}
ListView {
anchors.fill: parent
model: maker.alarms
}
}

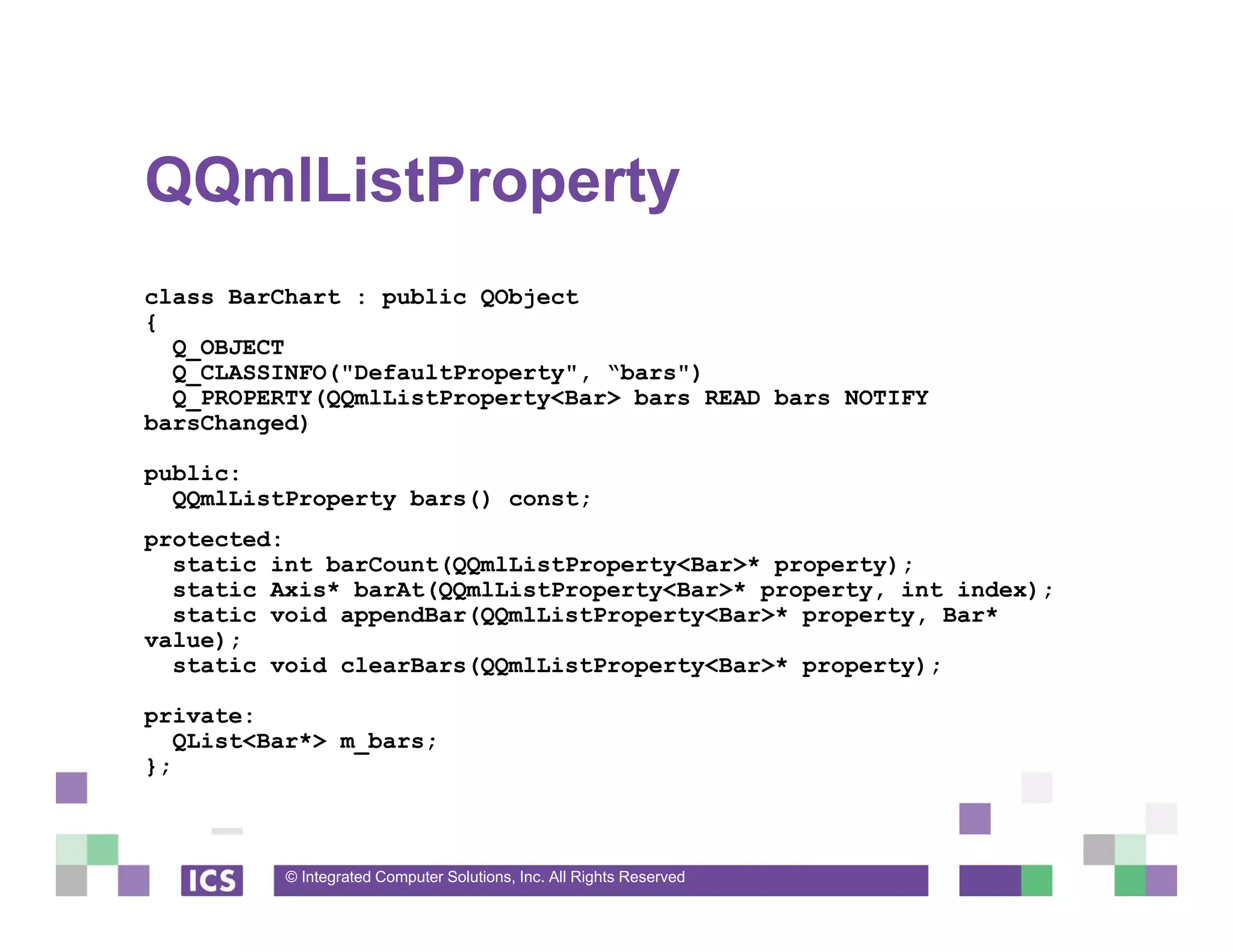

QQmlListProperty
class BarChart : public QObject
{
Q_OBJECT
Q_CLASSINFO("DefaultProperty", “bars")
Q_PROPERTY(QQmlListProperty<Bar> bars READ bars NOTIFY
barsChanged)
public:
QQmlListProperty bars() const;
protected:
static int barCount(QQmlListProperty<Bar>* property);
static Axis* barAt(QQmlListProperty<Bar>* property, int index);
static void appendBar(QQmlListProperty<Bar>* property, Bar*
value);
static void clearBars(QQmlListProperty<Bar>* property);
private:
QList<Bar*> m_bars;
};

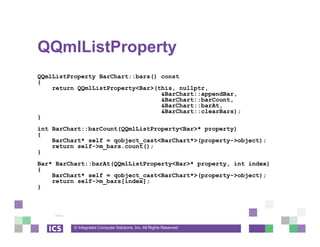

QQmlListProperty
QQmlListProperty BarChart::bars() const
{
return QQmlListProperty<Bar>(this, nullptr,
&BarChart::appendBar,
&BarChart::barCount,
&BarChart::barAt,
&BarChart::clearBars);
}
int BarChart::barCount(QQmlListProperty<Bar>* property)
{
BarChart* self = qobject_cast<BarChart*>(property->object);
return self->m_bars.count();
}
Bar* BarChart::barAt(QQmlListProperty<Bar>* property, int index)
{
return self->m_bars[index];
}

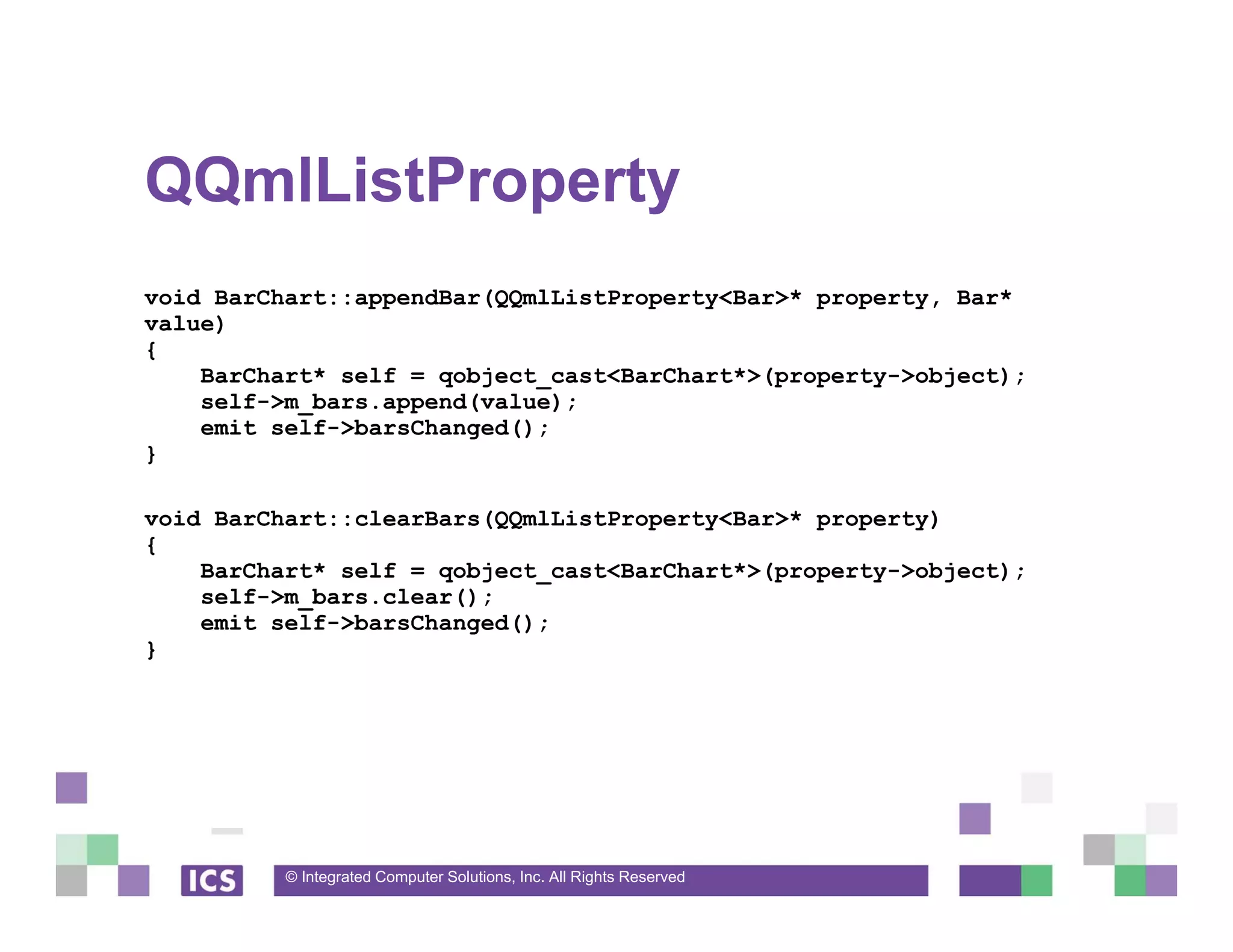

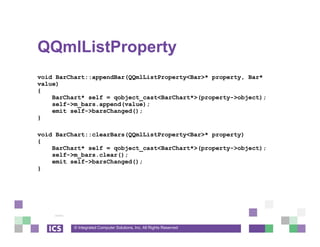

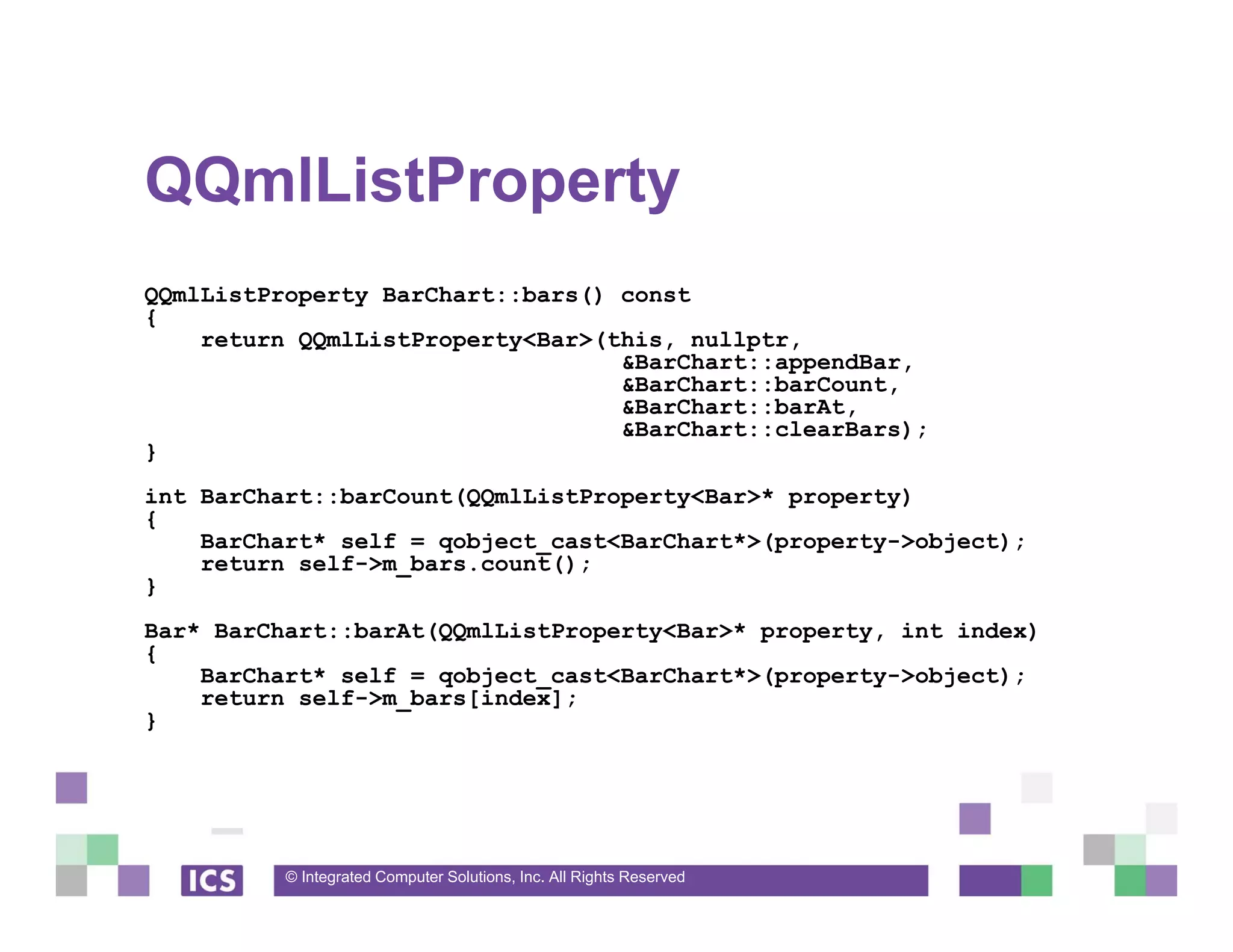

QQmlListProperty
void BarChart::appendBar(QQmlListProperty<Bar>* property, Bar*
value)
{
self->m_bars.append(value);
emit self->barsChanged();
}
void BarChart::clearBars(QQmlListProperty<Bar>* property)
{
self->m_bars.clear();
emit self->barsChanged();
}

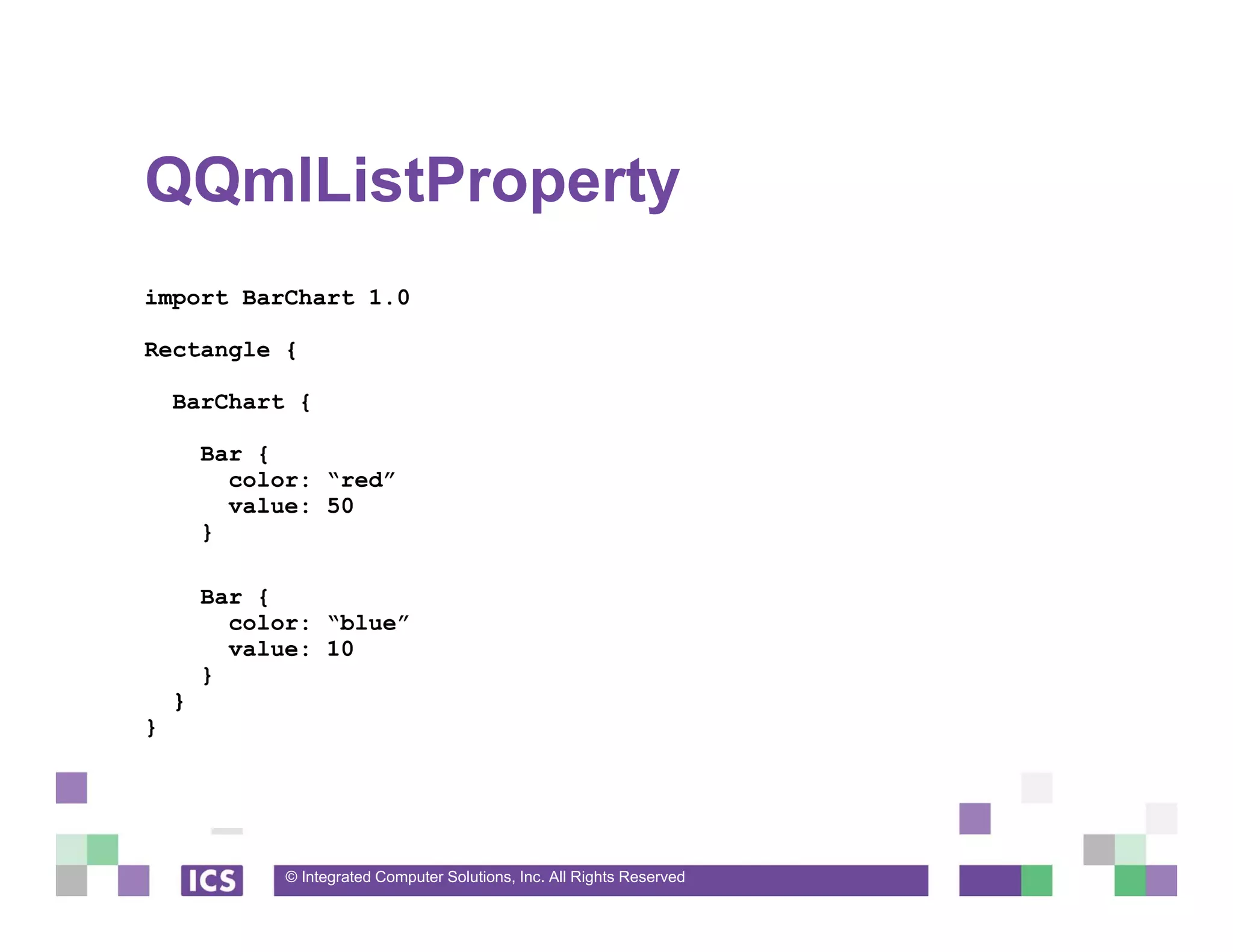

QQmlListProperty
import BarChart 1.0
Rectangle {
BarChart {
Bar {
color: “red”
value: 50
}
Bar {
color: “blue”
value: 10
}
}
}

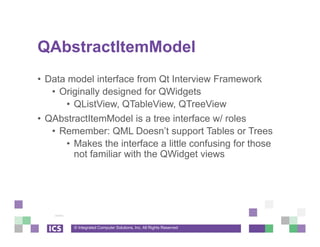

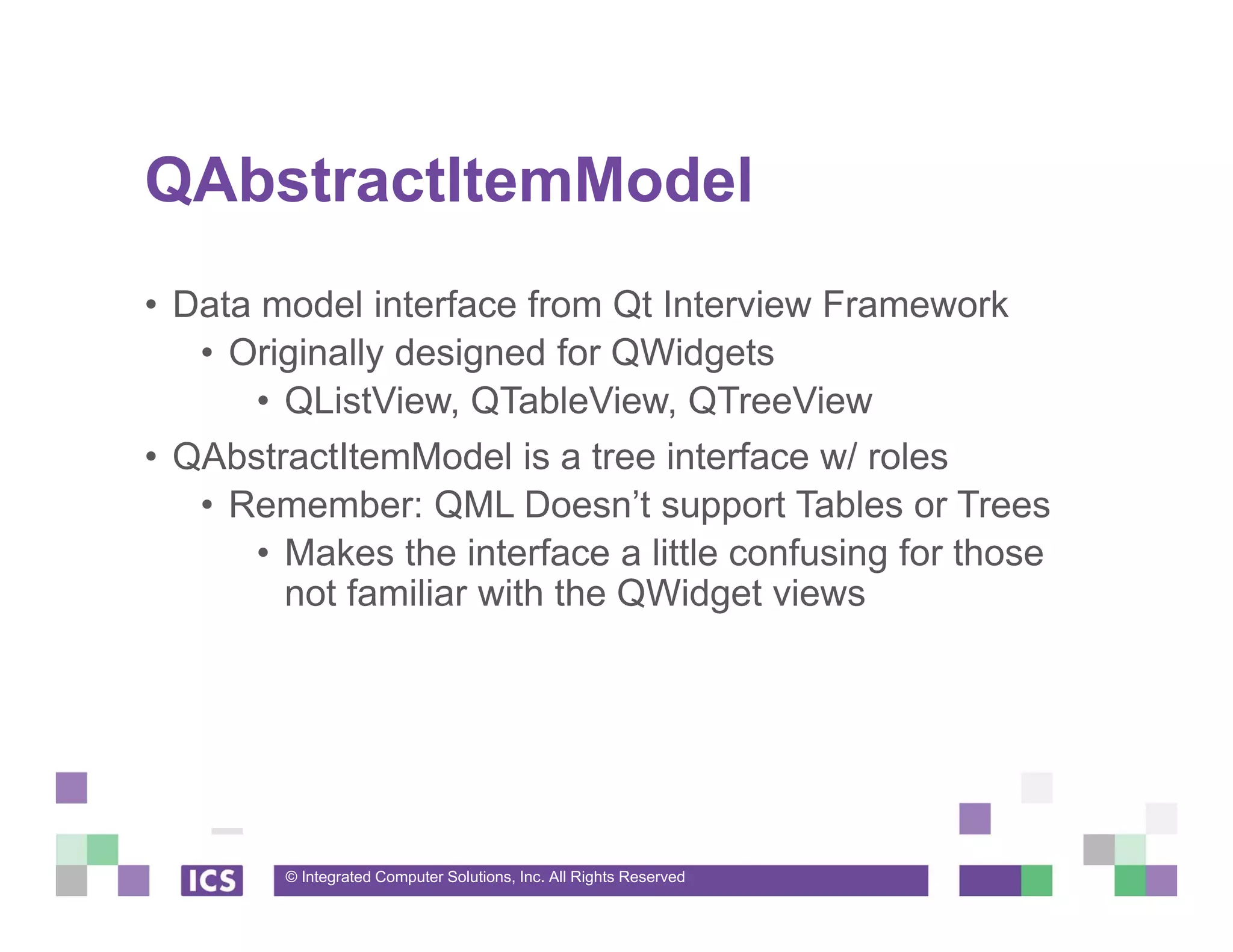

QAbstractItemModel
• Data model interface from Qt Interview Framework
• Originally designed for QWidgets
• QListView, QTableView, QTreeView
• QAbstractItemModel is a tree interface w/ roles
• Remember: QML Doesn’t support Tables or Trees
• Makes the interface a little confusing for those
not familiar with the QWidget views

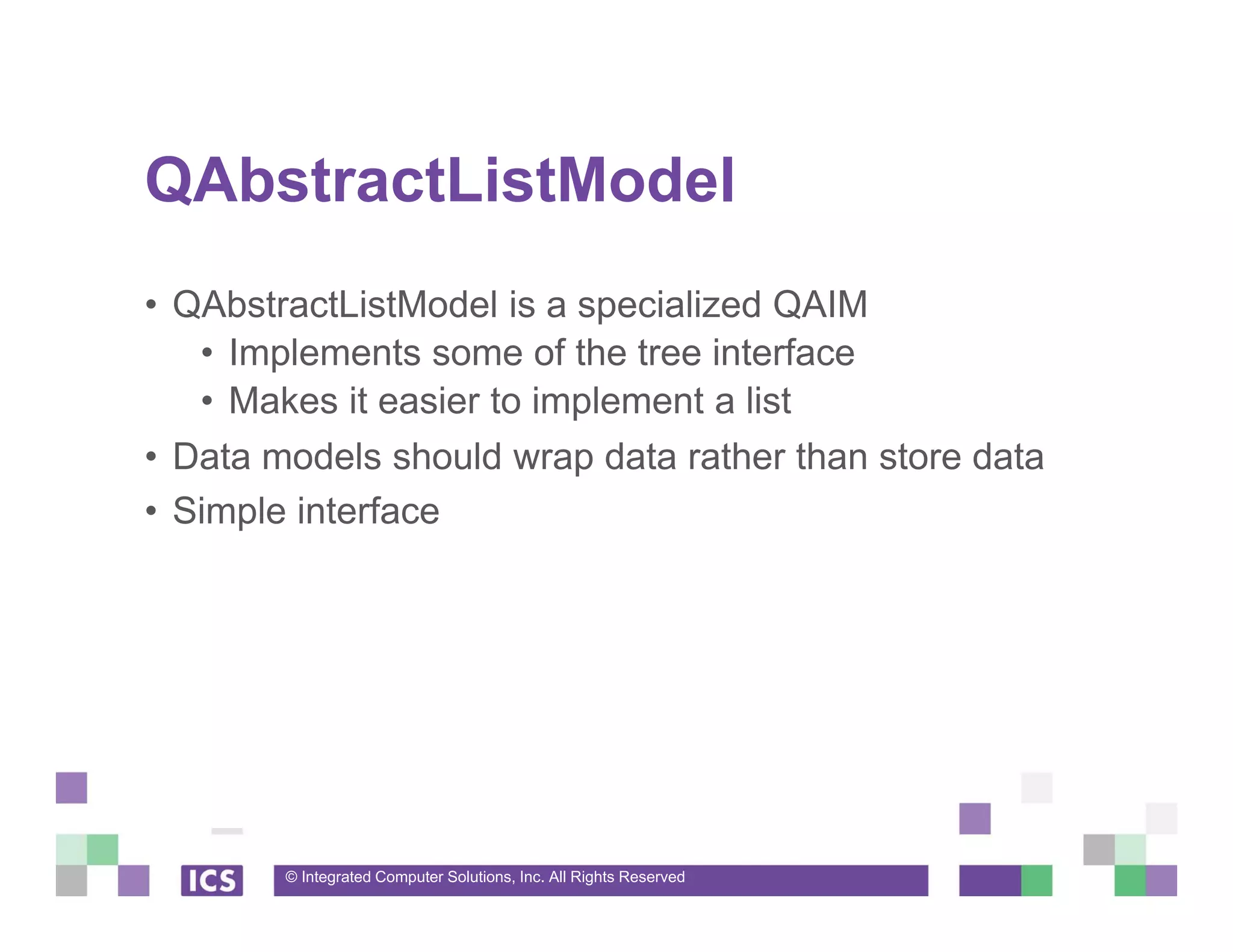

QAbstractListModel
• QAbstractListModel is a specialized QAIM
• Implements some of the tree interface
• Makes it easier to implement a list
• Data models should wrap data rather than store data
• Simple interface

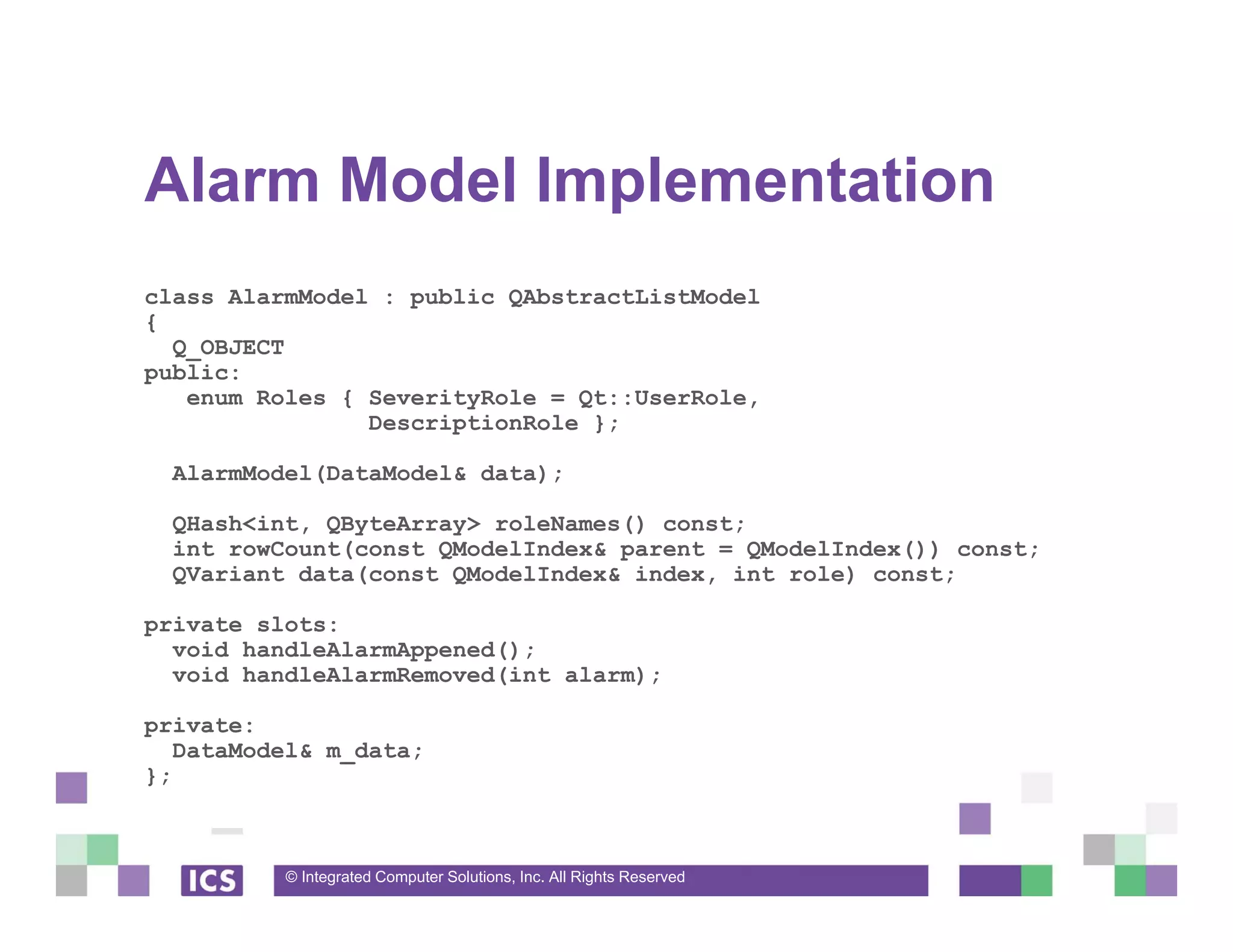

Alarm Model Implementation
class AlarmModel : public QAbstractListModel
{
Q_OBJECT
public:
enum Roles { SeverityRole = Qt::UserRole,
DescriptionRole };
AlarmModel(DataModel& data);
QHash<int, QByteArray> roleNames() const;
int rowCount(const QModelIndex& parent = QModelIndex()) const;
QVariant data(const QModelIndex& index, int role) const;
private slots:
void handleAlarmAppened();
void handleAlarmRemoved(int alarm);
private:
DataModel& m_data;
};

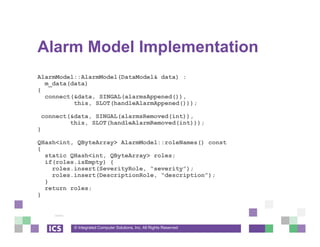

AlarmModel::AlarmModel(DataModel& data) :
m_data(data)
{
connect(&data, SINGAL(alarmsAppened()),
this, SLOT(handleAlarmAppened()));
connect(&data, SINGAL(alarmsRemoved(int)),
this, SLOT(handleAlarmRemoved(int)));
}

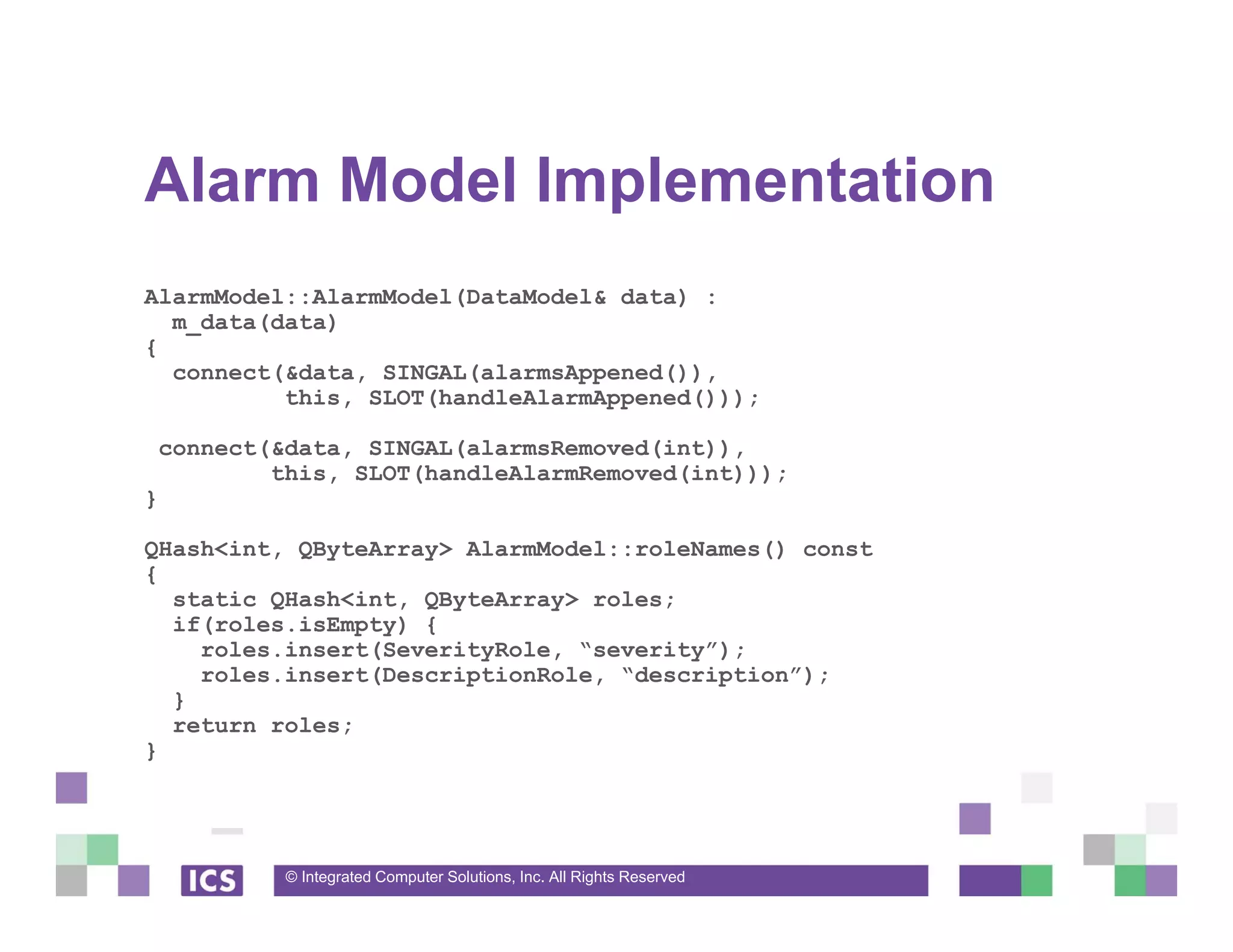

QHash<int, QByteArray> AlarmModel::roleNames() const
{
static QHash<int, QByteArray> roles;
if(roles.isEmpty) {
roles.insert(SeverityRole, “severity”);
roles.insert(DescriptionRole, “description”);
}
return roles;
}

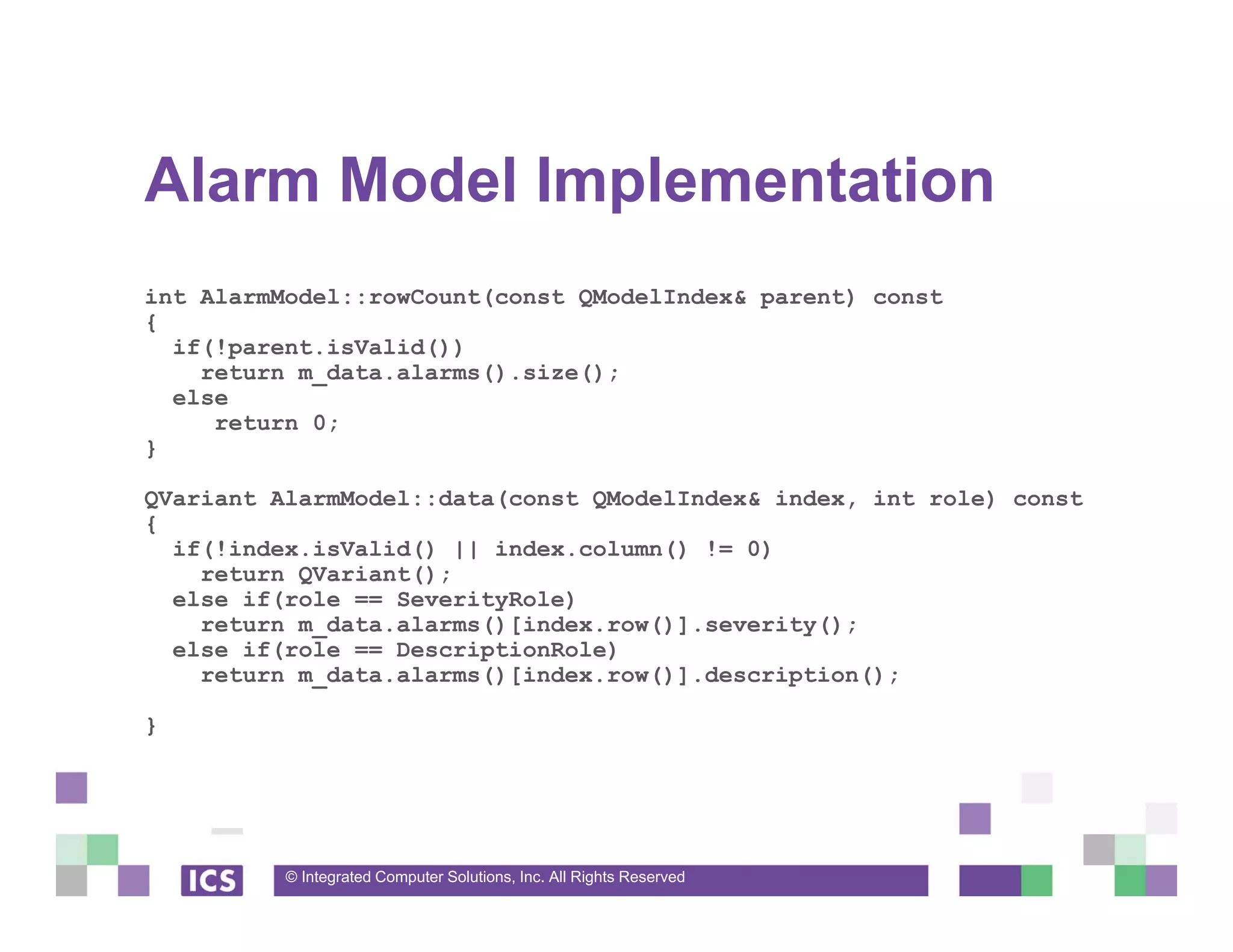

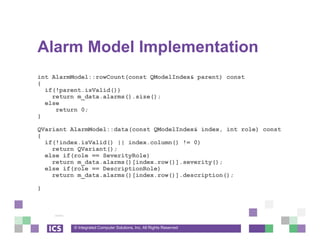

int AlarmModel::rowCount(const QModelIndex& parent) const
{
if(!parent.isValid())
return m_data.alarms().size();
else
return 0;
}
QVariant AlarmModel::data(const QModelIndex& index, int role) const
{
if(!index.isValid() || index.column() != 0)
return QVariant();
else if(role == SeverityRole)
return m_data.alarms()[index.row()].severity();
else if(role == DescriptionRole)
return m_data.alarms()[index.row()].description();
}

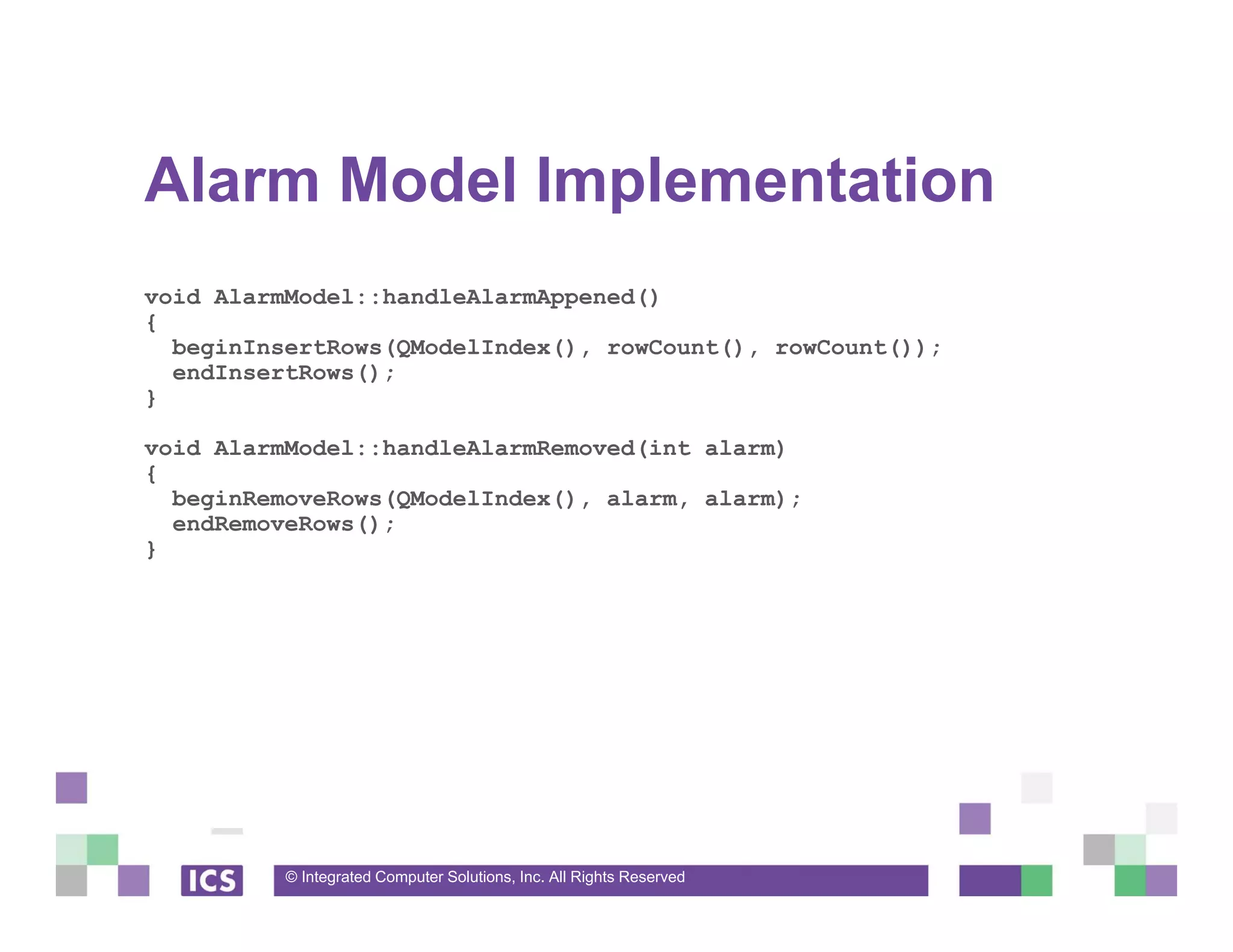

void AlarmModel::handleAlarmAppened()
{
beginInsertRows(QModelIndex(), rowCount(), rowCount());
endInsertRows();
}
void AlarmModel::handleAlarmRemoved(int alarm)
{
beginRemoveRows(QModelIndex(), alarm, alarm);
endRemoveRows();
}

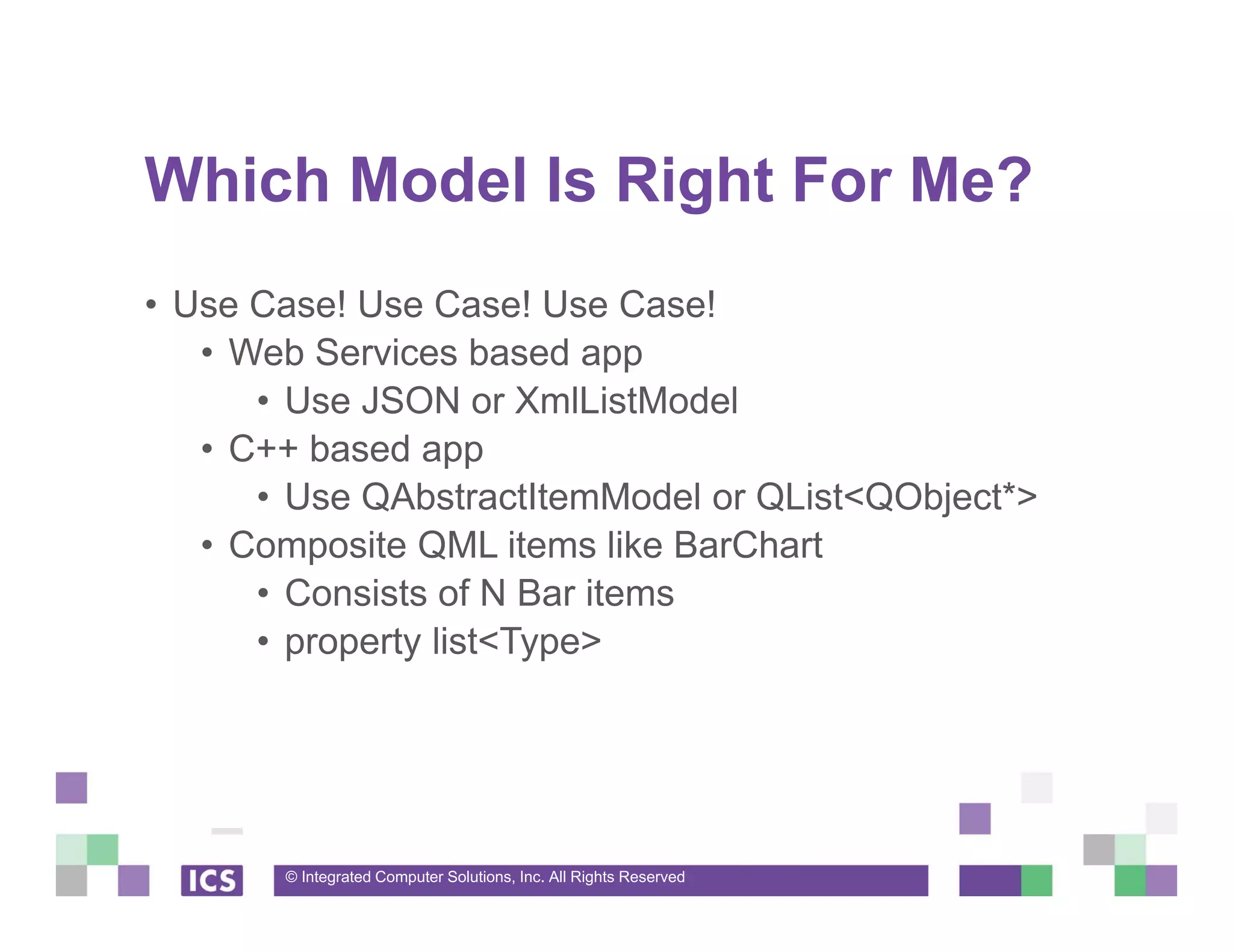

Which Model Is Right For Me?
• Use Case! Use Case! Use Case!
• Web Services based app
• Use JSON or XmlListModel
• C++ based app
• Use QAbstractItemModel or QList<QObject*>
• Composite QML items like BarChart
• Consists of N Bar items
• property list<Type>

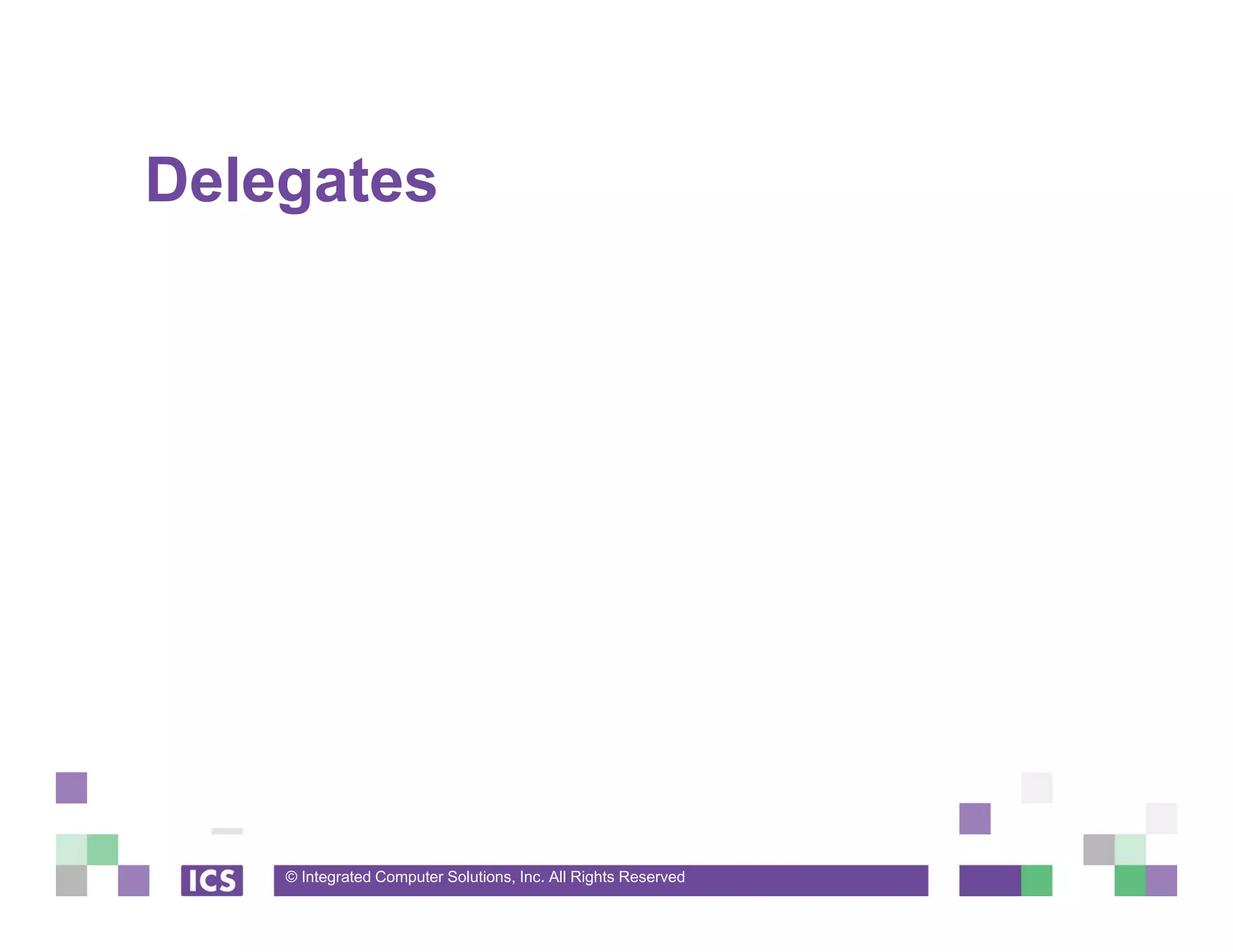

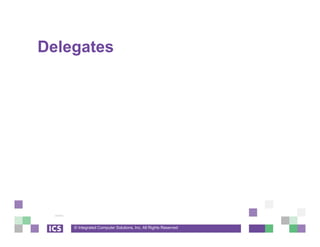

Delegates

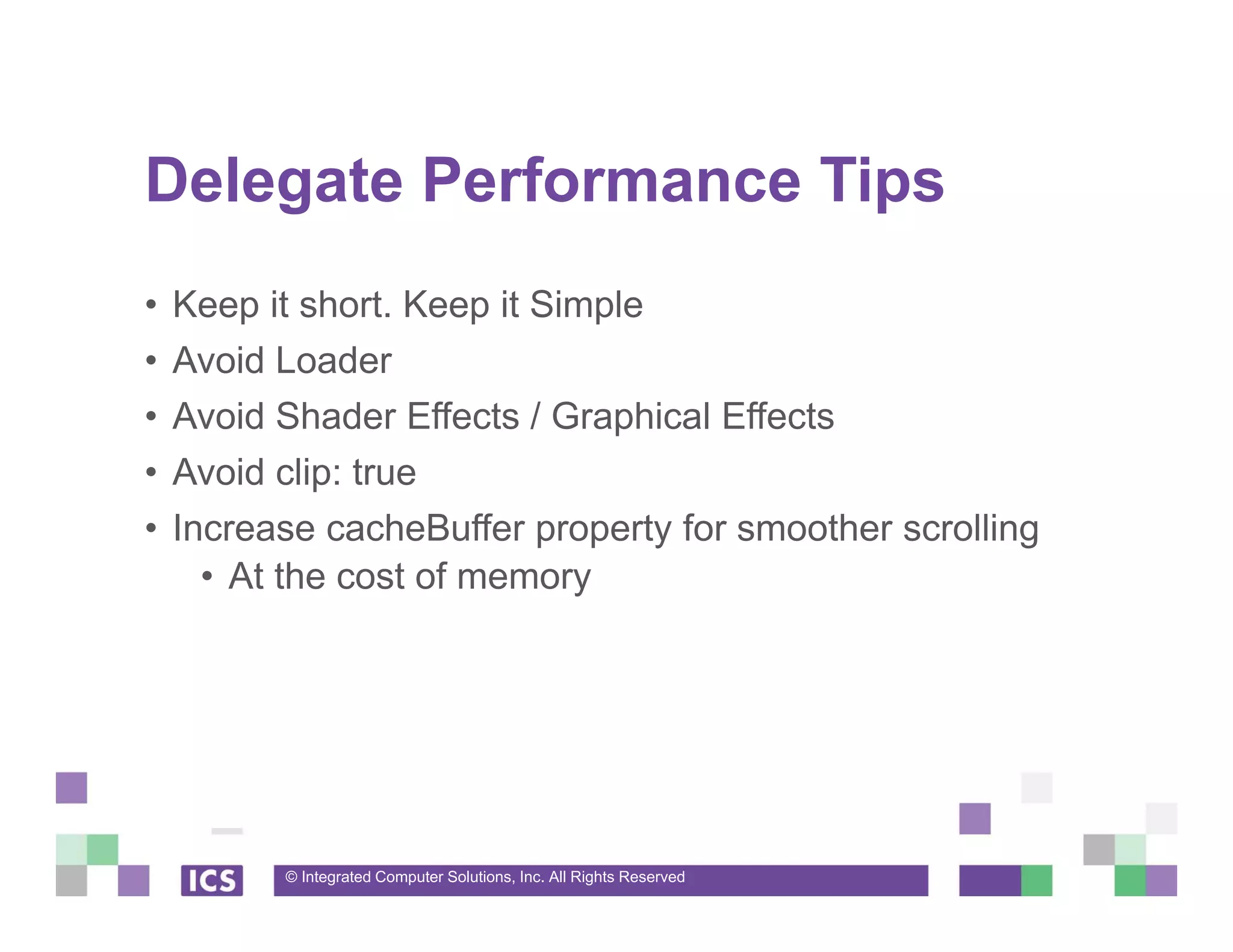

Delegate Performance Tips
• Keep it short. Keep it Simple
• Avoid Loader
• Avoid Shader Effects / Graphical Effects
• Avoid clip: true
• Increase cacheBuffer property for smoother scrolling
• At the cost of memory

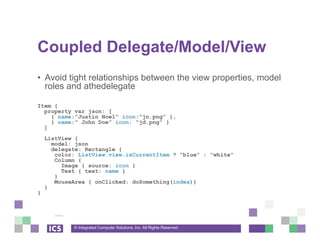

Coupled Delegate/Model/View
• Avoid tight relationships between the view properties, model
roles and athedelegate
Item {
{ name:”Justin Noel” icon:”jn.png” },
{ name:” John Doe” icon: “jd.png” }
]
ListView {
model: json
color: ListView.view.isCurrentItem ? “blue” : “white”
Column {
Image { source: icon }
Text { text: name }
}
MouseArea { onClicked: doSomething(index)}
}
}

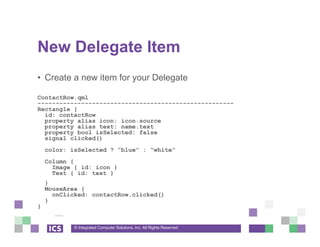

New Delegate Item
• Create a new item for your Delegate
ContactRow.qml
------------------------------------------------------
Rectangle {
id: contactRow
property alias icon: icon.source
property alias text: name.text
property bool isSelected: false
signal clicked()
color: isSelected ? “blue” : “white”
Column {
Image { id: icon }
Text { id: text }
}
MouseArea {
onClicked: contactRow.clicked()
}
}

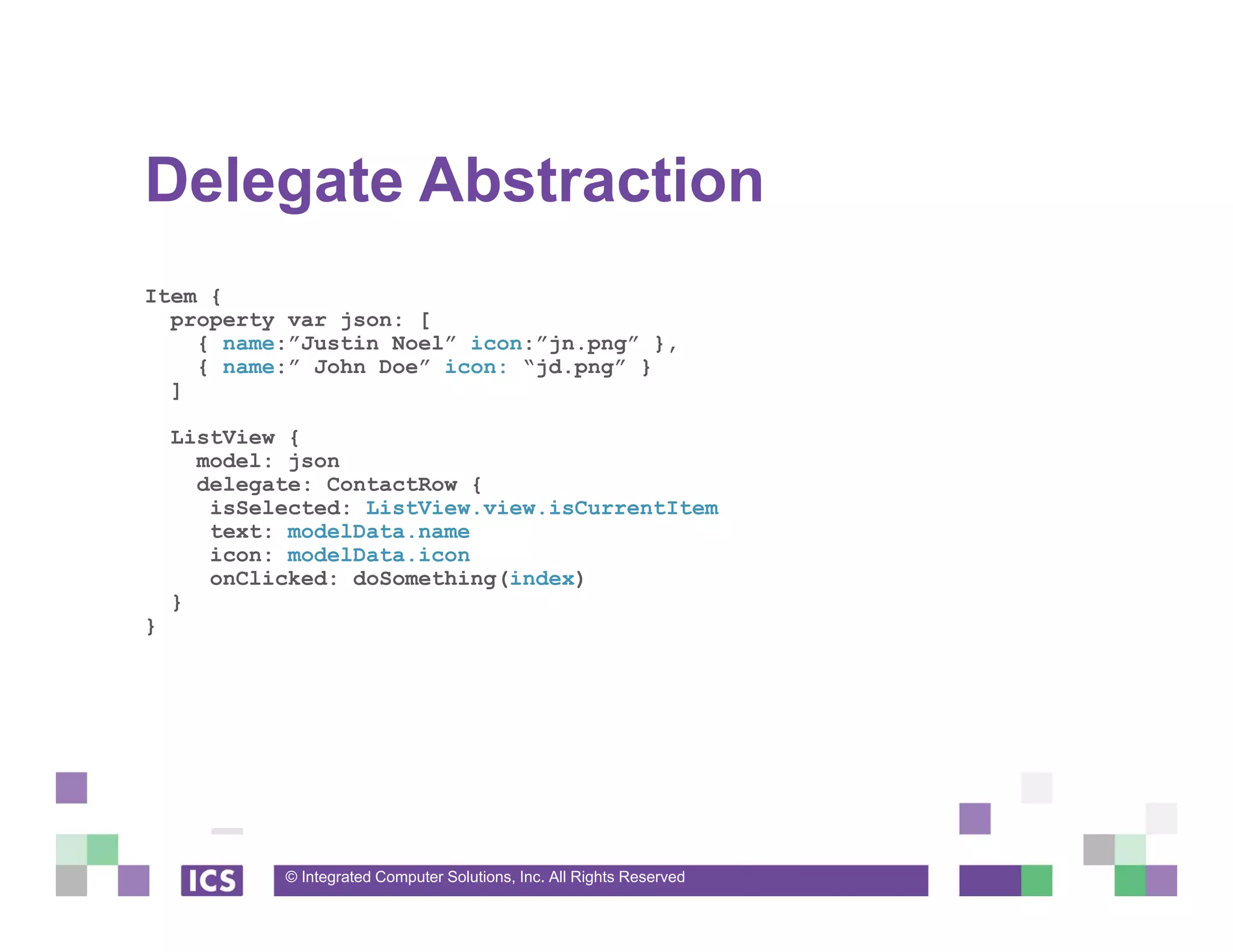

Delegate Abstraction
Item {
{ name:”Justin Noel” icon:”jn.png” },
{ name:” John Doe” icon: “jd.png” }
]
ListView {
model: json
delegate: ContactRow {
isSelected: ListView.view.isCurrentItem
text: modelData.name
icon: modelData.icon
onClicked: doSomething(index)
}
}

Performance Tips

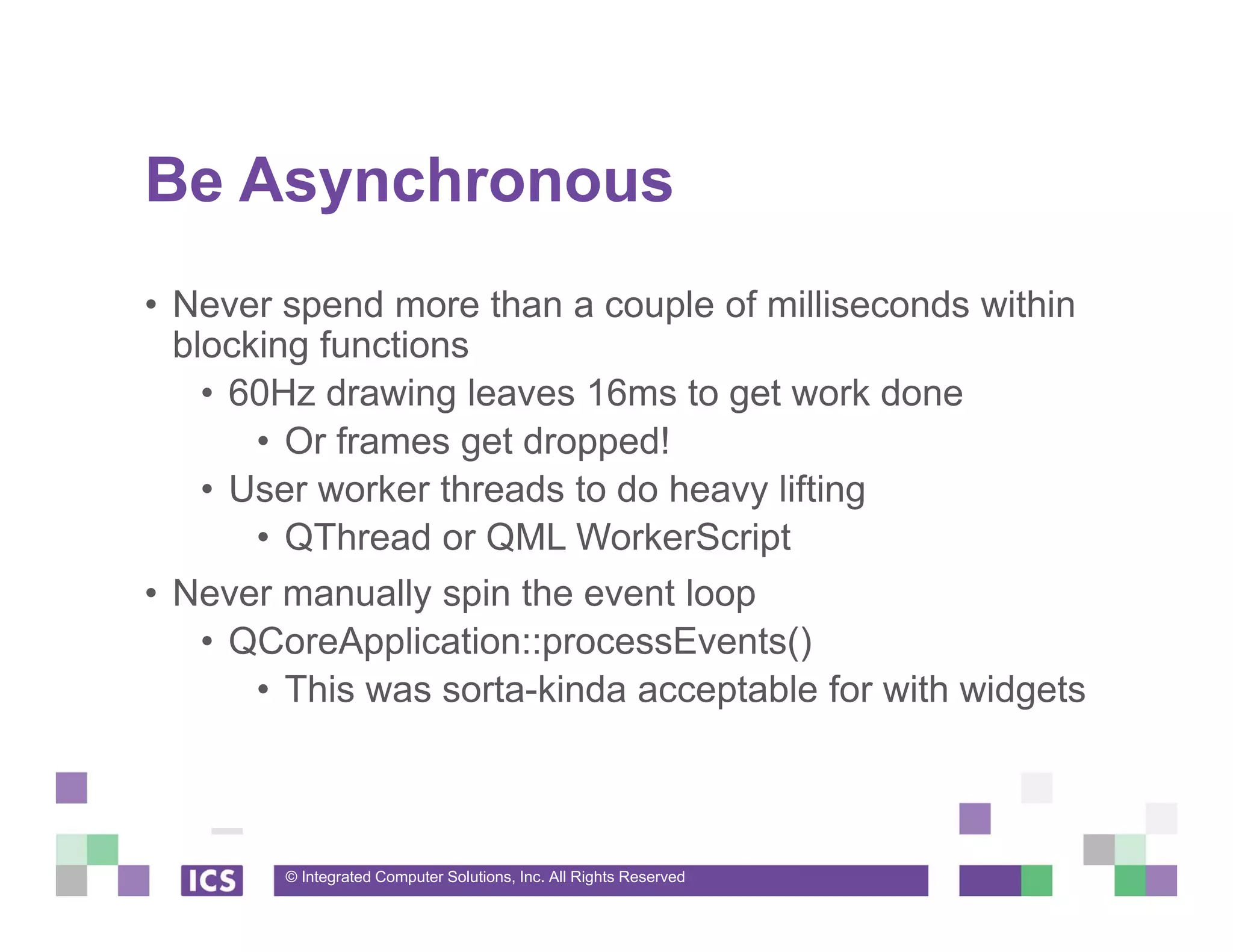

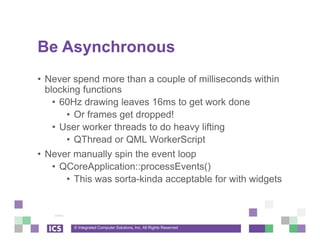

Be Asynchronous
• Never spend more than a couple of milliseconds within
blocking functions
• 60Hz drawing leaves 16ms to get work done
• Or frames get dropped!
• User worker threads to do heavy lifting
• QThread or QML WorkerScript
• Never manually spin the event loop
• QCoreApplication::processEvents()
• This was sorta-kinda acceptable for with widgets

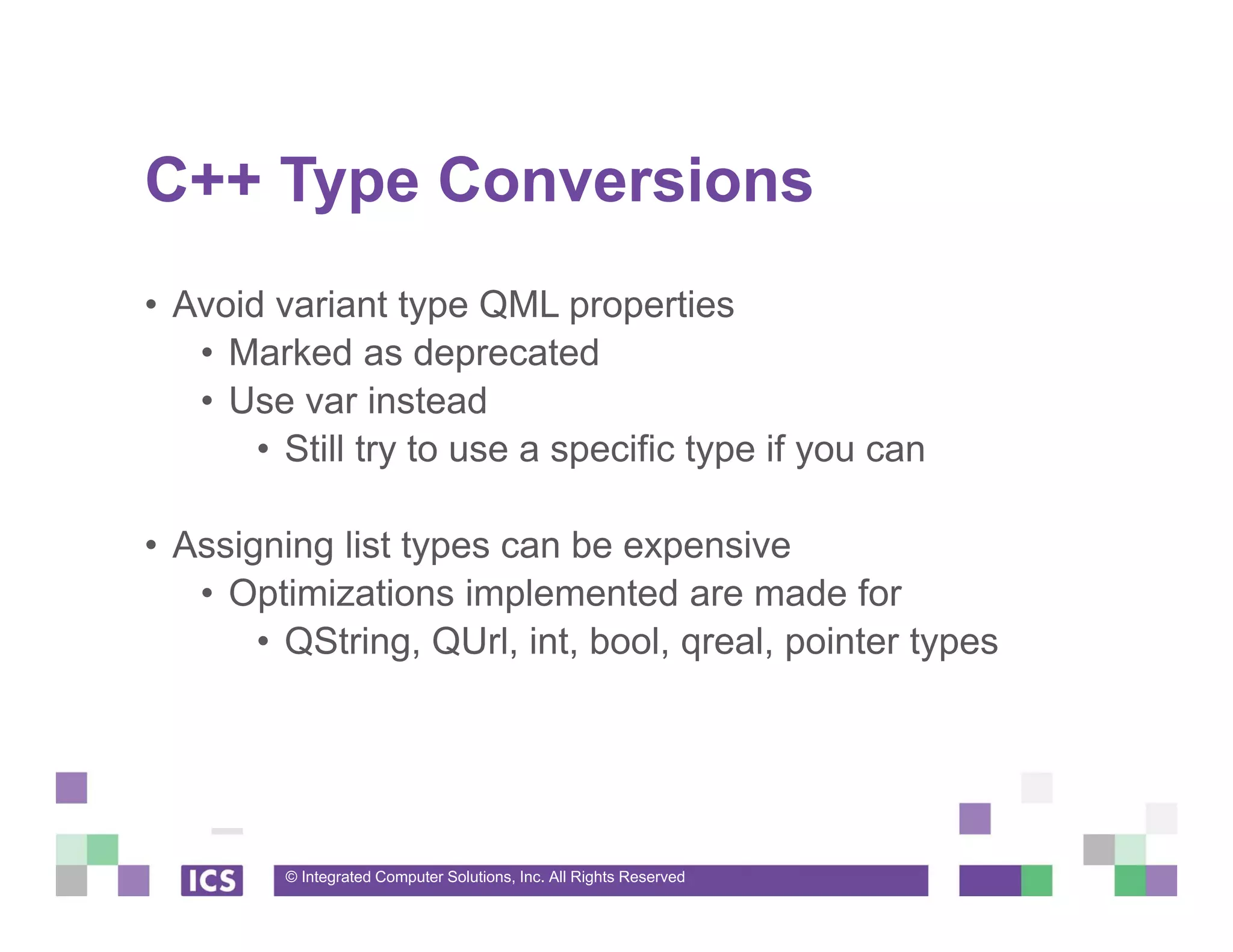

C++ Type Conversions
• Avoid variant type QML properties
• Marked as deprecated
• Use var instead
• Still try to use a specific type if you can
• Assigning list types can be expensive
• Optimizations implemented are made for
• QString, QUrl, int, bool, qreal, pointer types

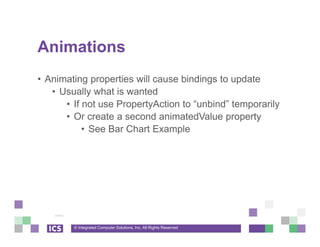

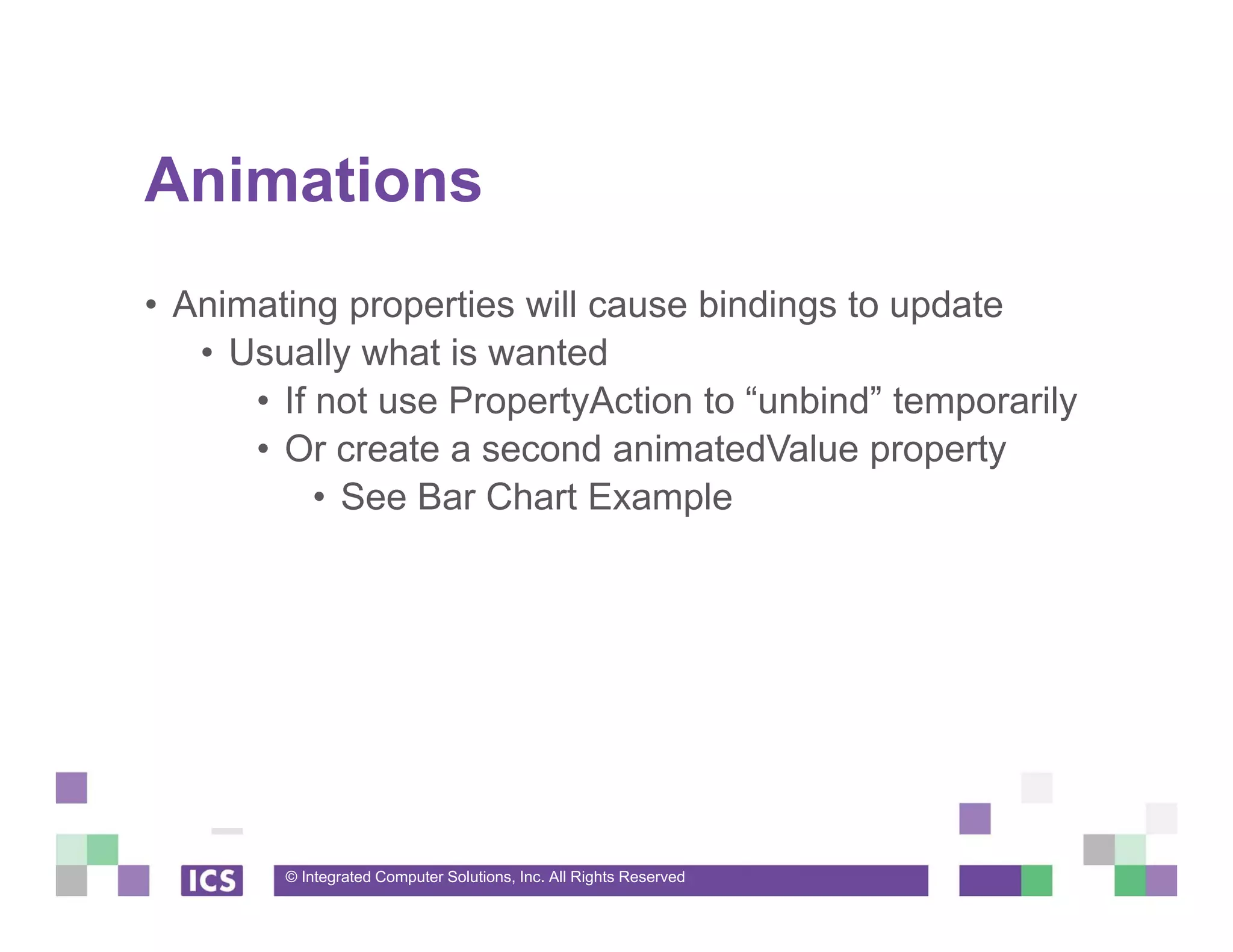

Animations
• Animating properties will cause bindings to update
• Usually what is wanted
• If not use PropertyAction to “unbind” temporarily
• Or create a second animatedValue property
• See Bar Chart Example

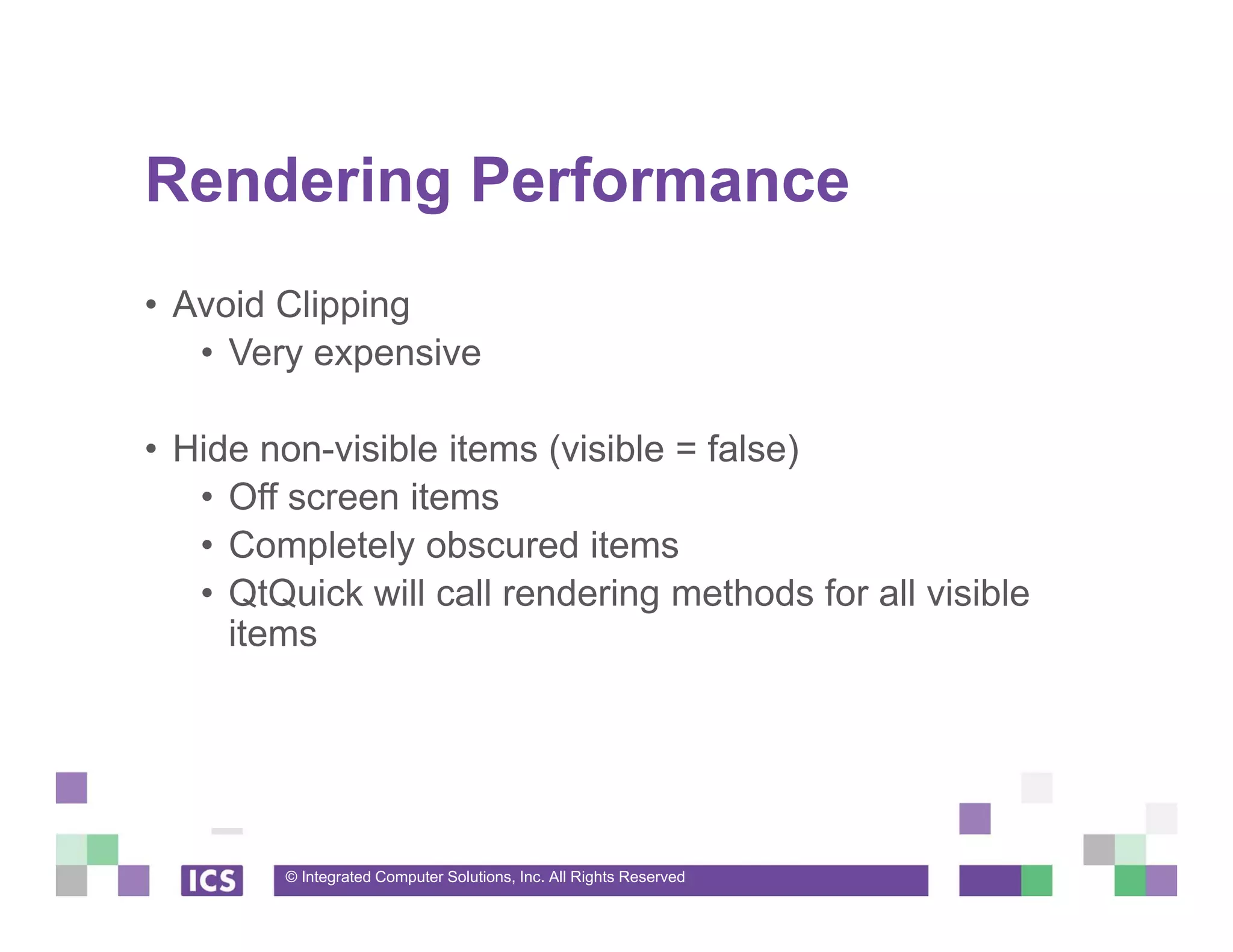

Rendering Performance
• Avoid Clipping
• Very expensive
• Hide non-visible items (visible = false)
• Off screen items
• Completely obscured items
• QtQuick will call rendering methods for all visible
items

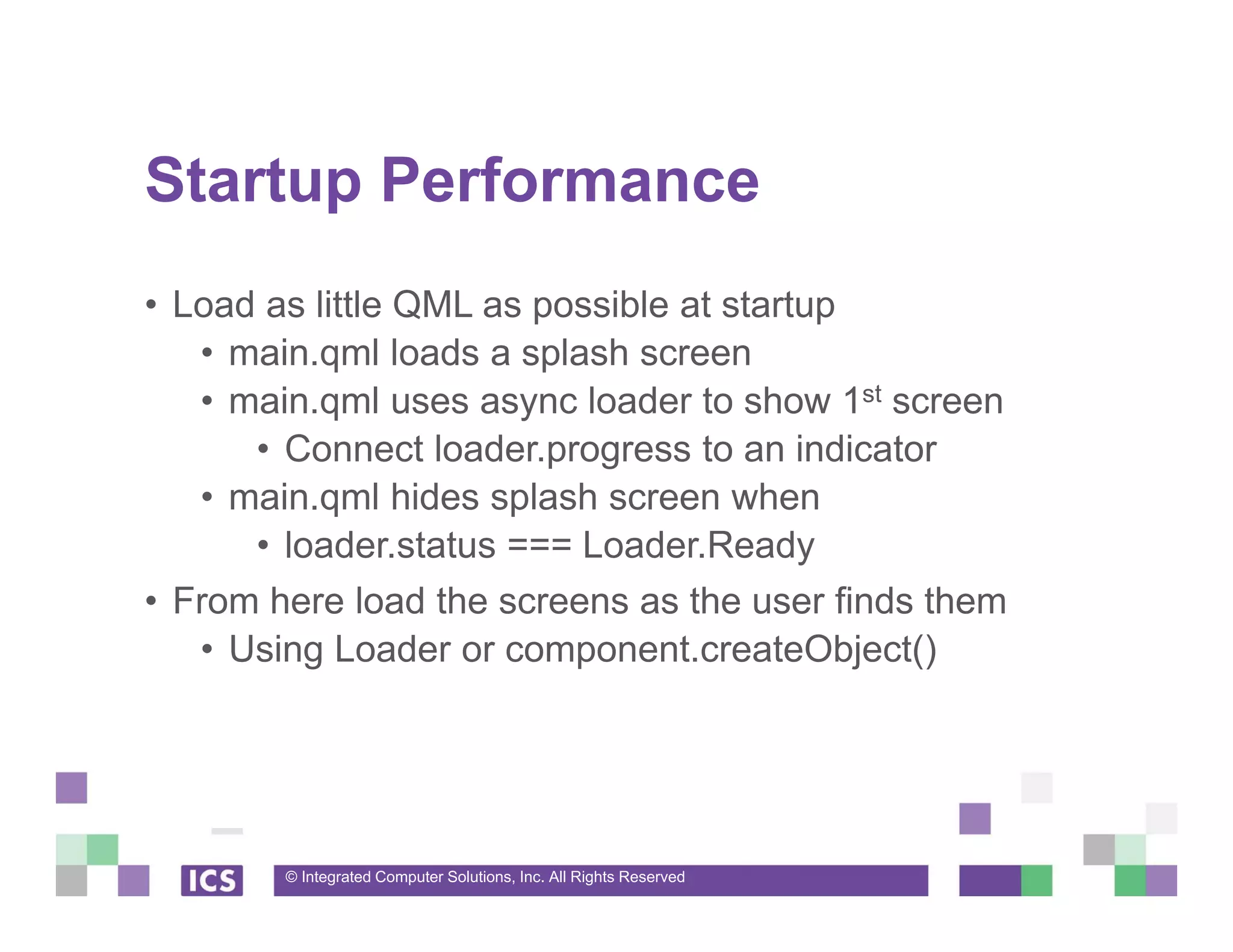

Startup Performance
• Load as little QML as possible at startup
• main.qml loads a splash screen
• main.qml uses async loader to show 1st screen
• Connect loader.progress to an indicator
• main.qml hides splash screen when
• loader.status === Loader.Ready
• From here load the screens as the user finds them
• Using Loader or component.createObject()

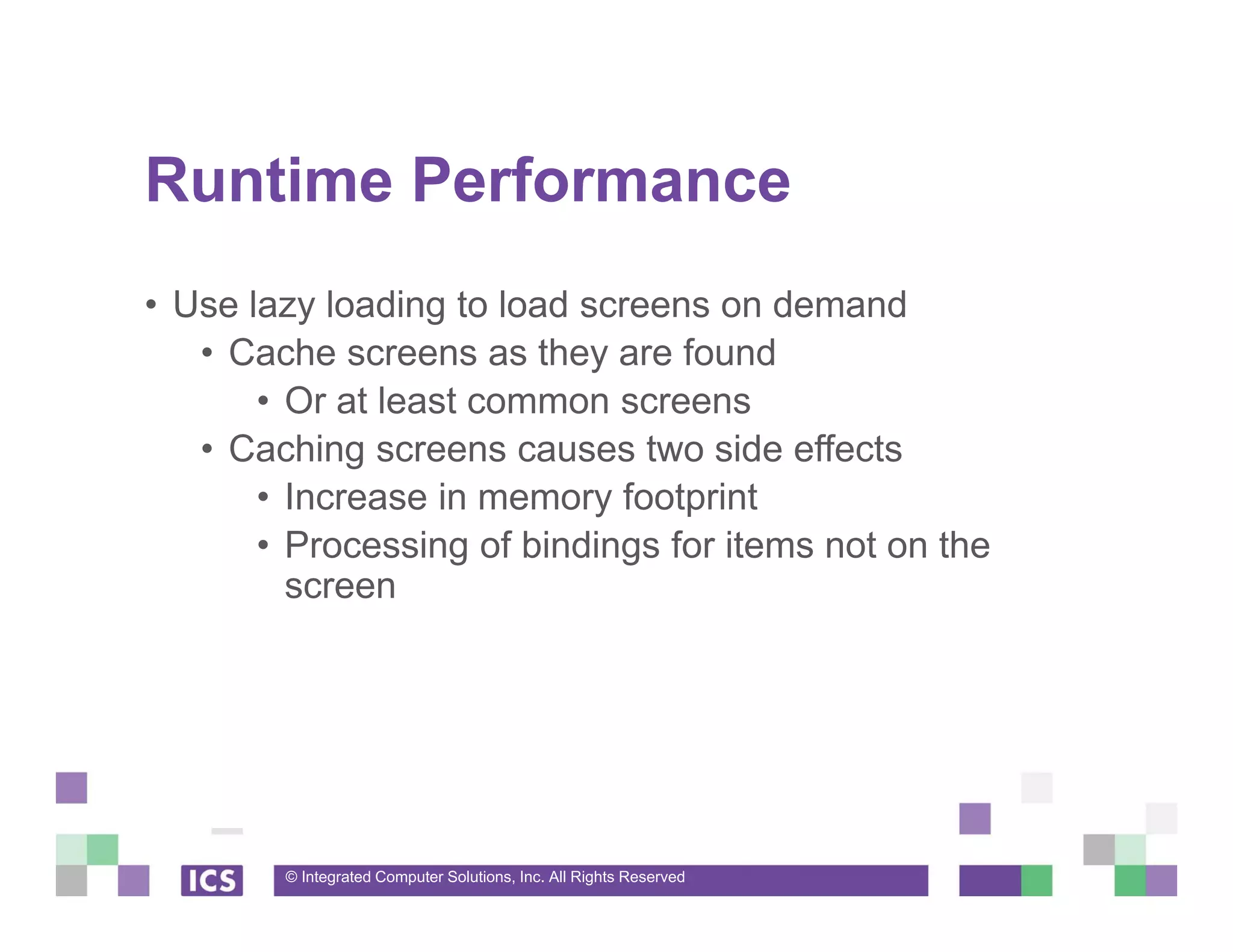

Runtime Performance
• Use lazy loading to load screens on demand
• Cache screens as they are found
• Or at least common screens
• Caching screens causes two side effects
• Increase in memory footprint
• Processing of bindings for items not on the
screen

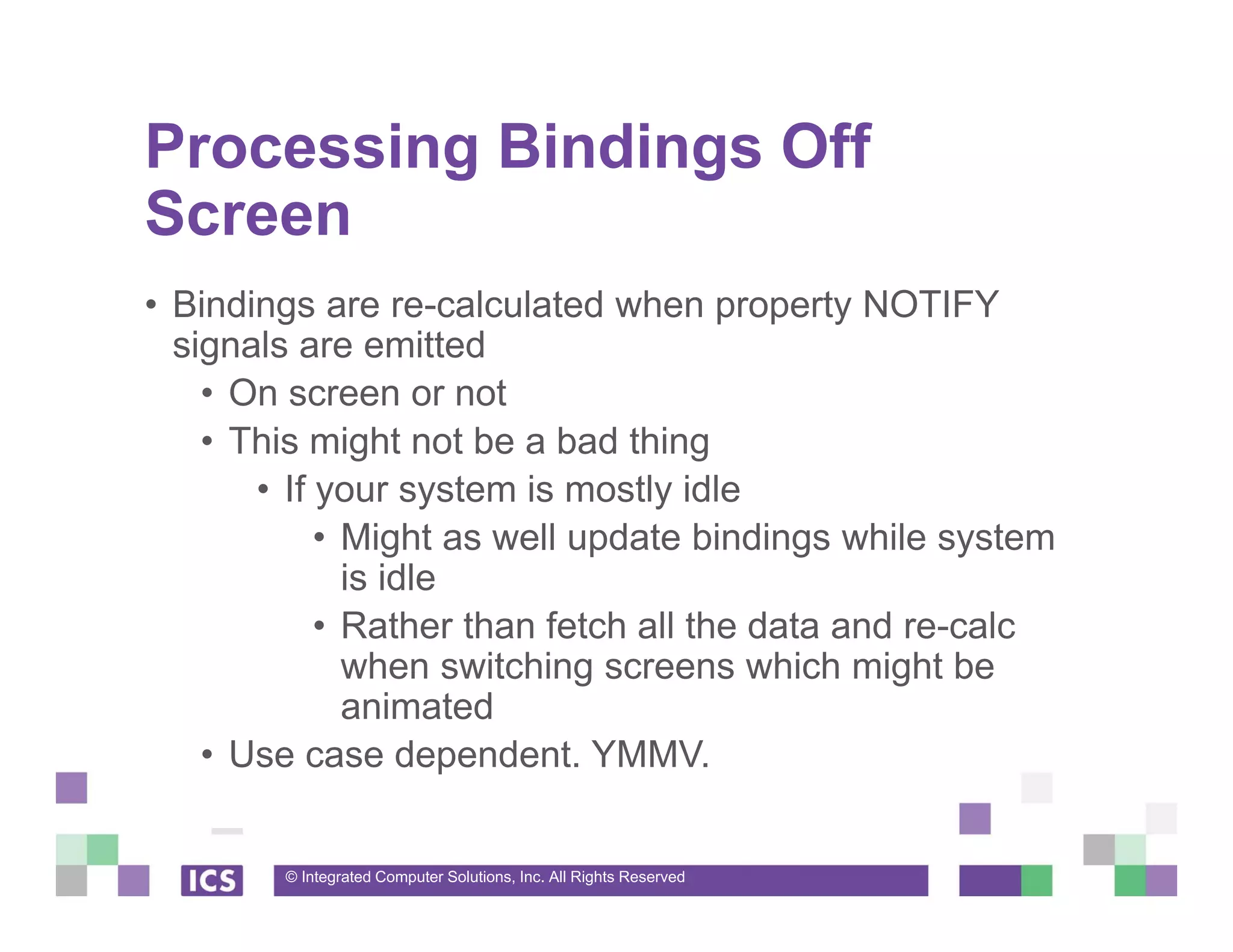

Processing Bindings Off
Screen
• Bindings are re-calculated when property NOTIFY
signals are emitted
• On screen or not
• This might not be a bad thing
• If your system is mostly idle
• Might as well update bindings while system
is idle
• Rather than fetch all the data and re-calc
when switching screens which might be
animated
• Use case dependent. YMMV.

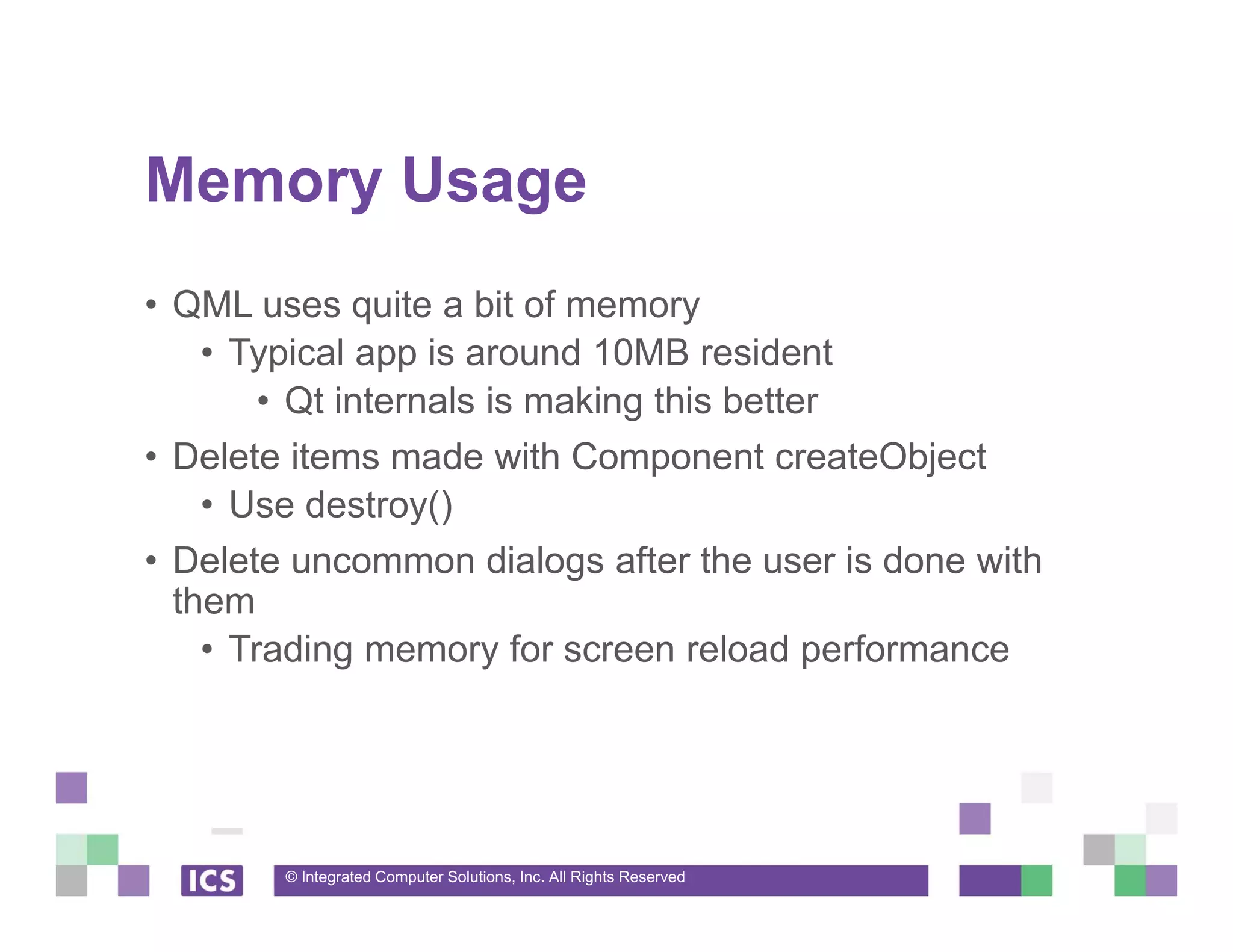

Memory Usage
• QML uses quite a bit of memory
• Typical app is around 10MB resident
• Qt internals is making this better
• Delete items made with Component createObject
• Use destroy()
• Delete uncommon dialogs after the user is done with
them
• Trading memory for screen reload performance

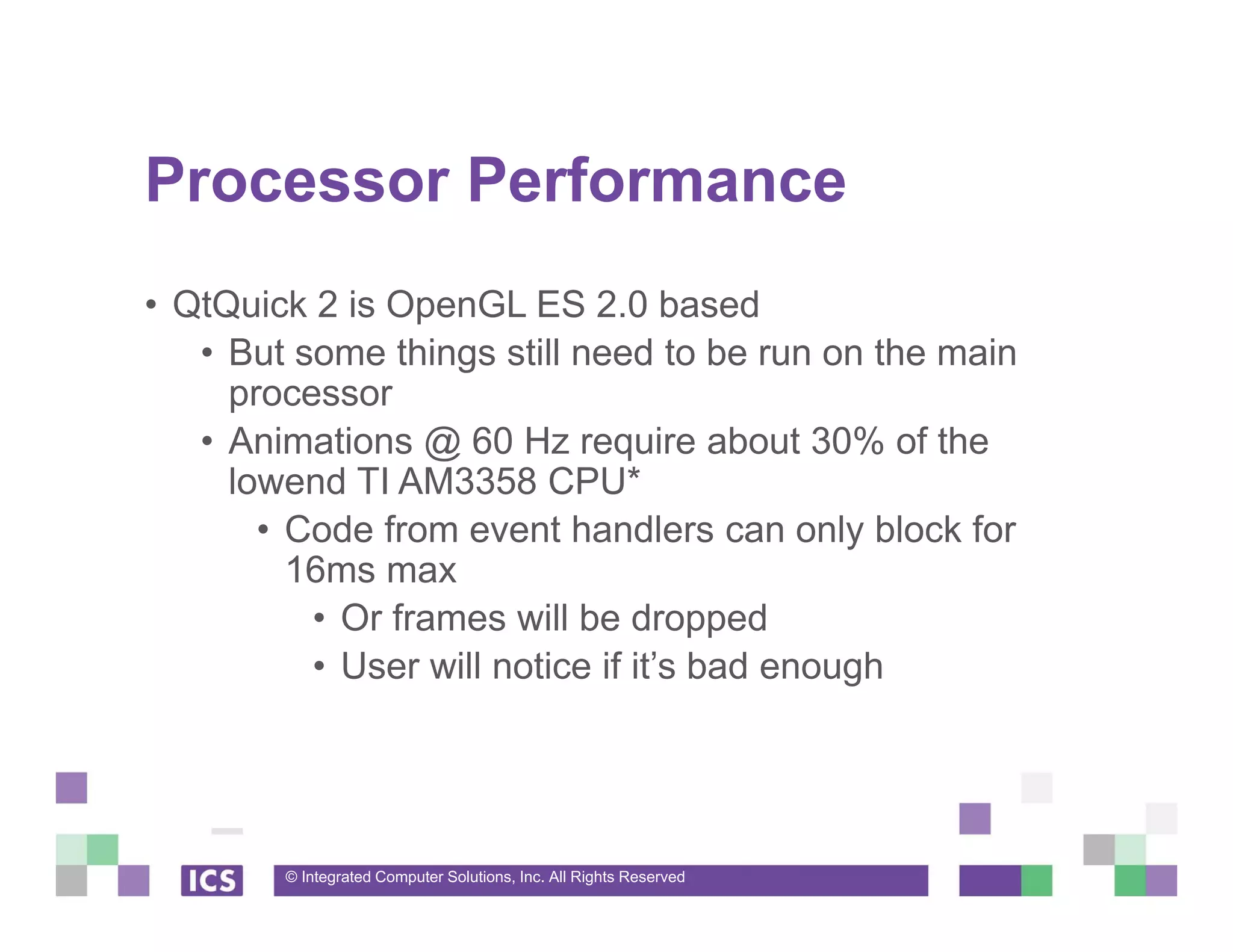

Processor Performance
• QtQuick 2 is OpenGL ES 2.0 based
• But some things still need to be run on the main
processor
• Animations @ 60 Hz require about 30% of the
lowend TI AM3358 CPU*
• Code from event handlers can only block for
16ms max
• Or frames will be dropped
• User will notice if it’s bad enough

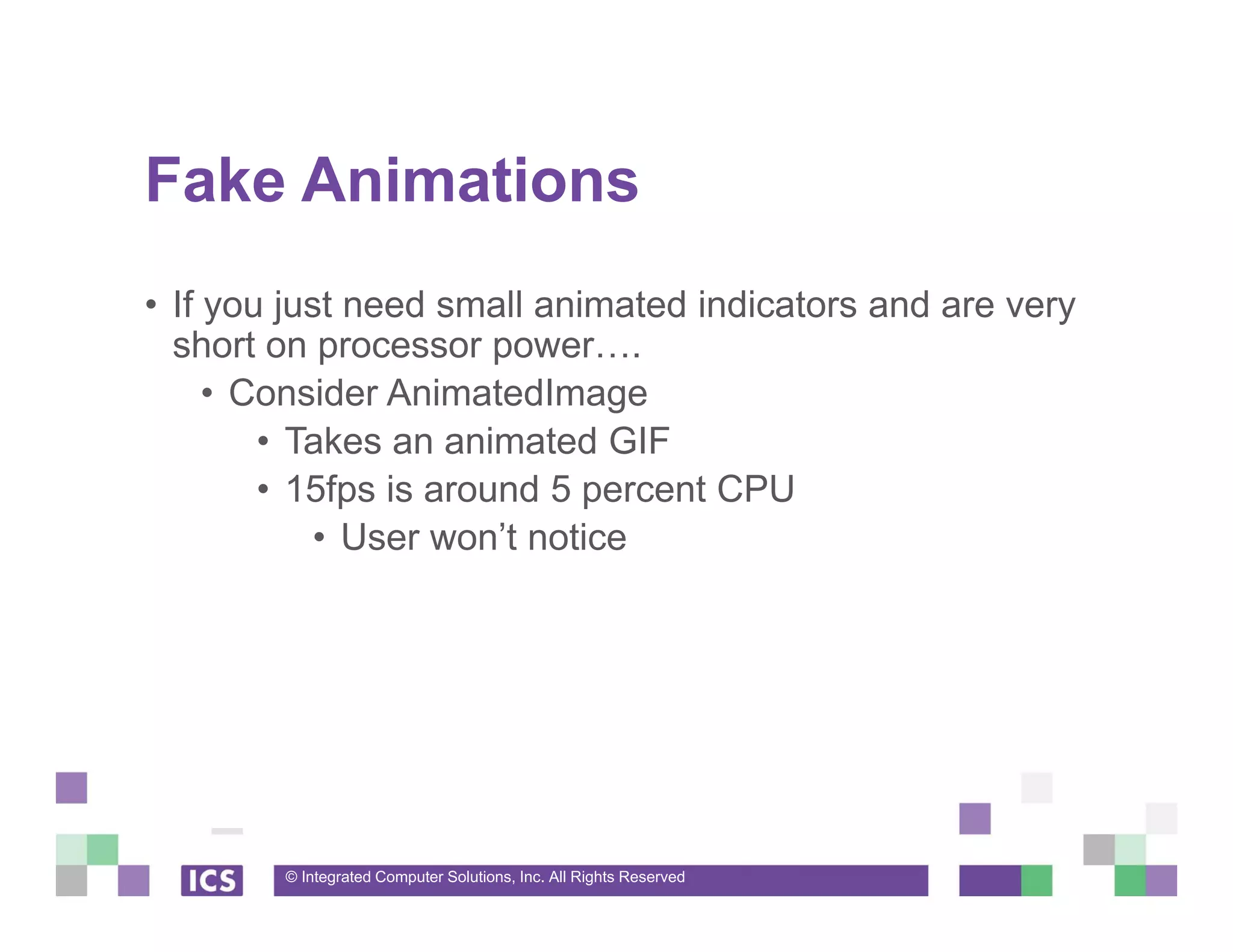

Fake Animations
• If you just need small animated indicators and are very
short on processor power….
• Consider AnimatedImage
• Takes an animated GIF
• 15fps is around 5 percent CPU
• User won’t notice

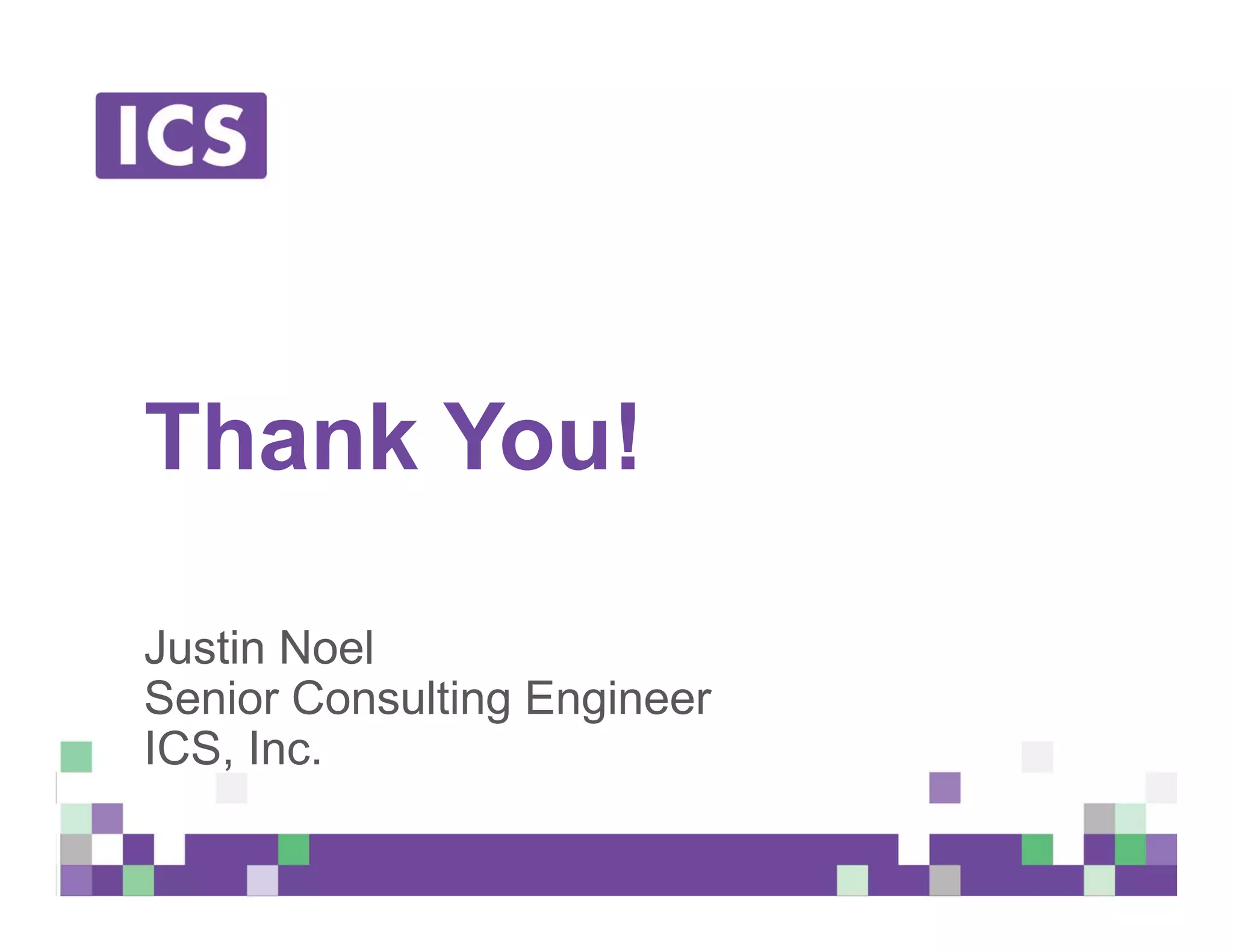

Thank You!
Justin Noel
Senior Consulting Engineer
ICS, Inc.

Best Practices in Qt Quick/QML - Part 4

In this document

More Related Content

What's hot

Similar to Best Practices in Qt Quick/QML - Part 4

More from ICS

Recently uploaded

Best Practices in Qt Quick/QML - Part 4
