Run Code, Not Servers: AWS Lambda

The document discusses serverless computing, focusing on AWS Lambda and its functions, benefits, and limitations. It covers the transition from monolithic architecture to serverless, detailing the lifecycle of serverless applications, including deployment processes and error handling. Additional topics include monitoring tools, integrations with other services, and future expectations for improvements in serverless technologies.

sponsored by & RUN CODE, NOT SERVERS: AWS LAMBDA Özgür Çiçek - ozgur@opsgenie.com, @csozgur
 Senior Software Engineer @ OpsGenie

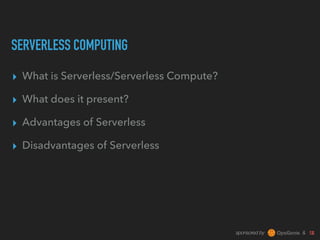

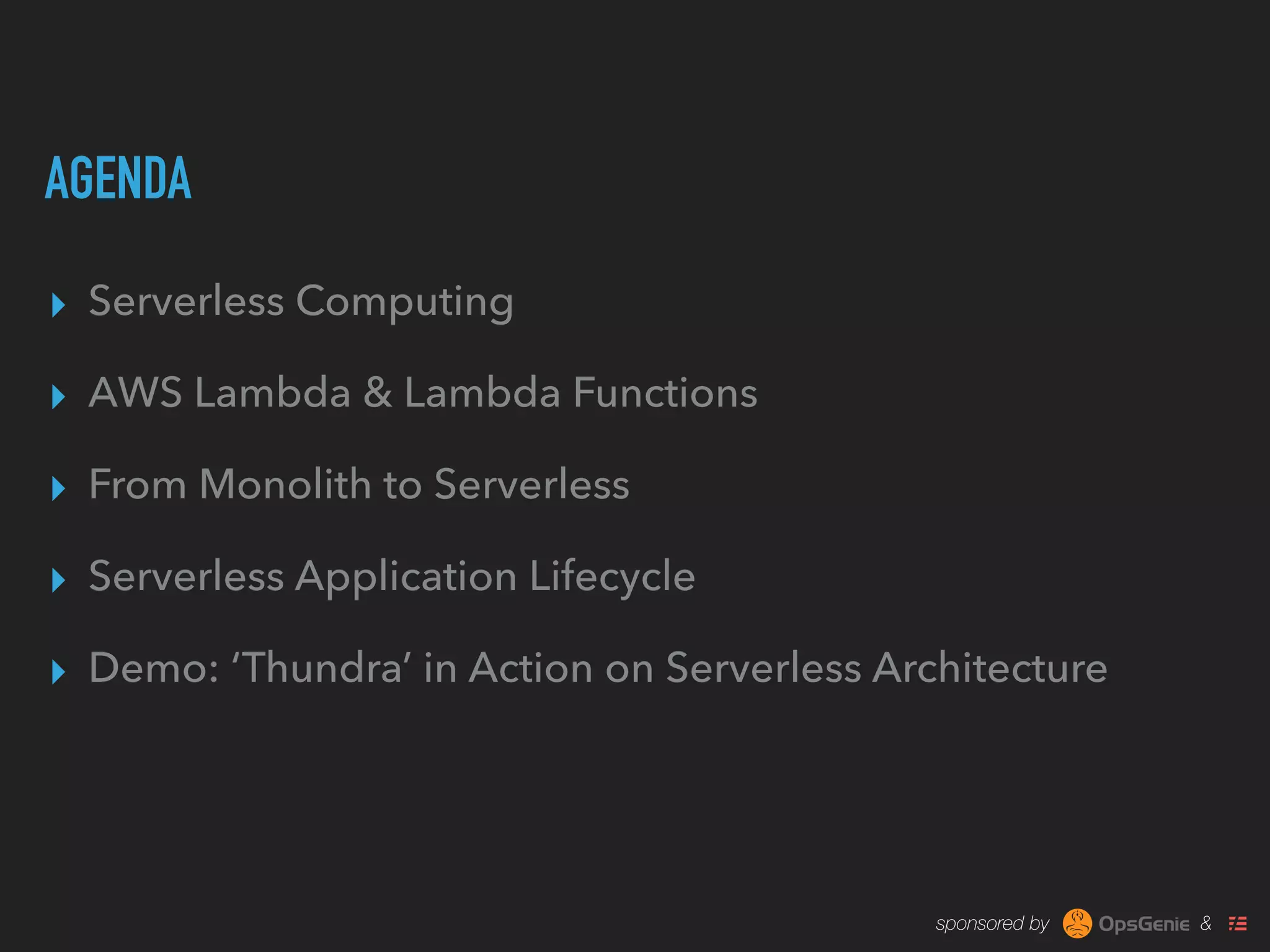

sponsored by & AGENDA ▸ Serverless Computing ▸ AWS Lambda & Lambda Functions ▸ From Monolith to Serverless ▸ Serverless Application Lifecycle ▸ Demo: ‘Thundra’ in Action on Serverless Architecture

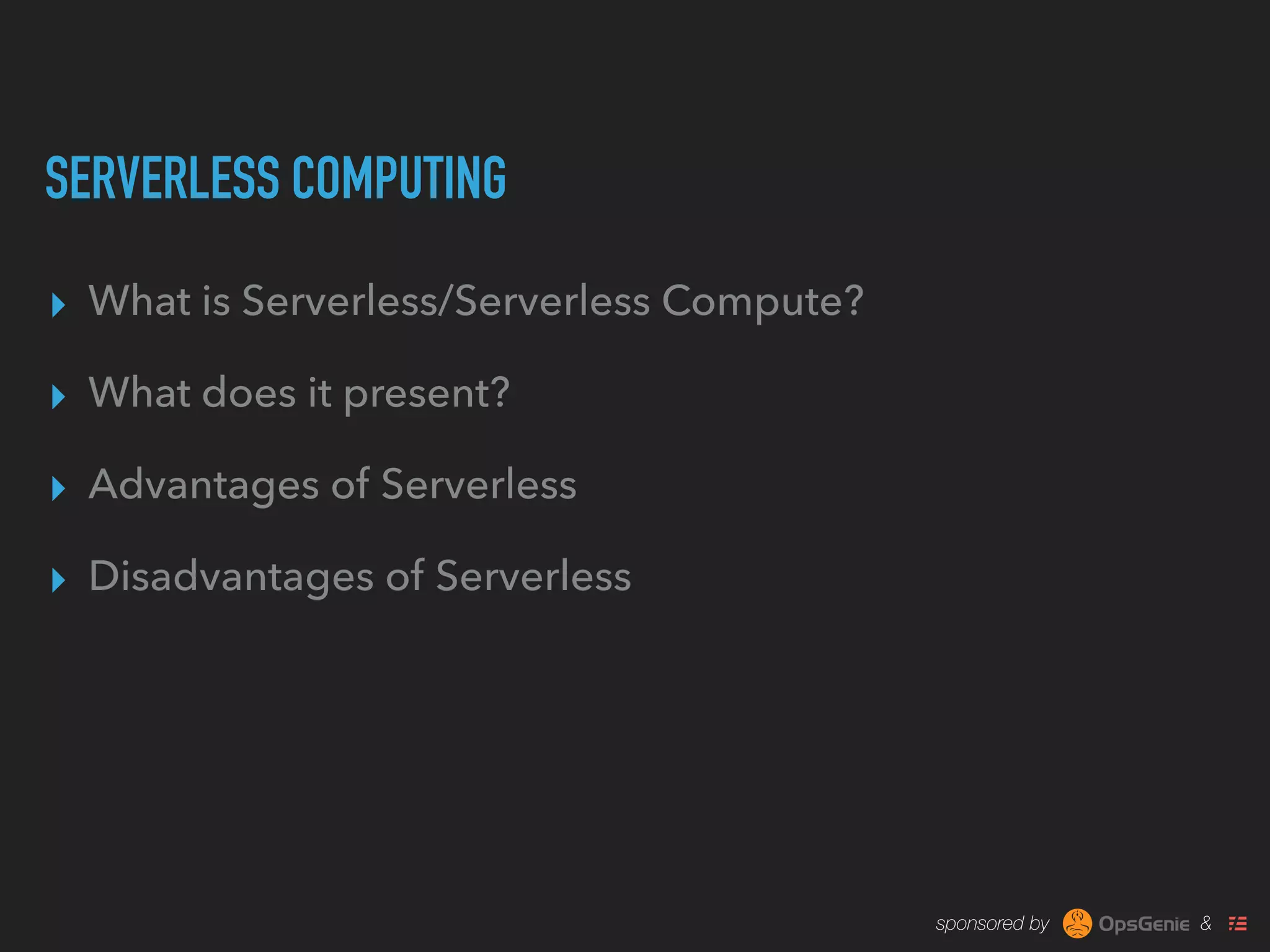

sponsored by & SERVERLESS COMPUTING ▸ What is Serverless/Serverless Compute? ▸ What does it present? ▸ Advantages of Serverless ▸ Disadvantages of Serverless

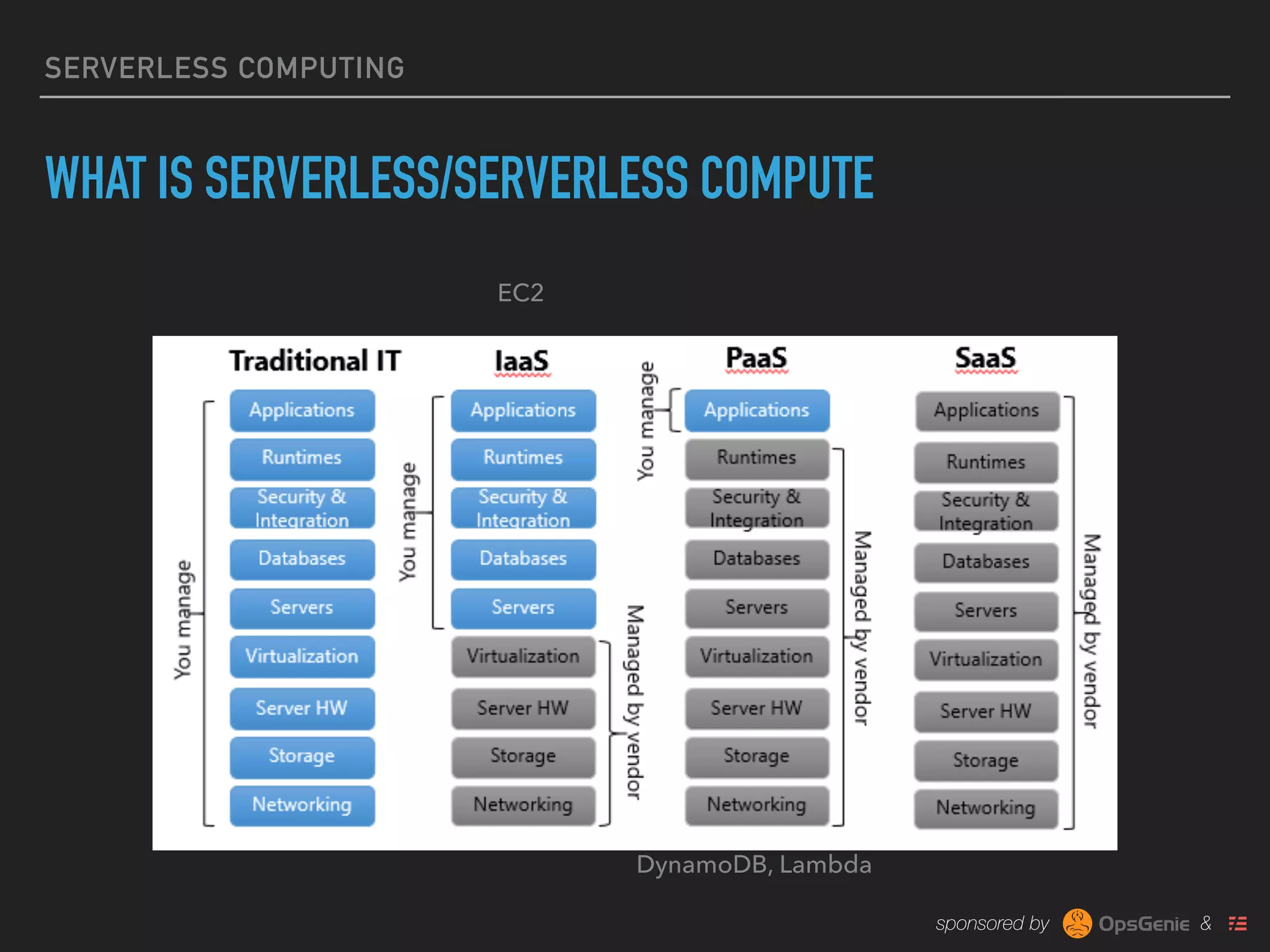

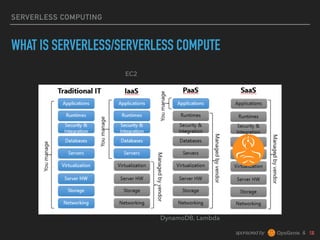

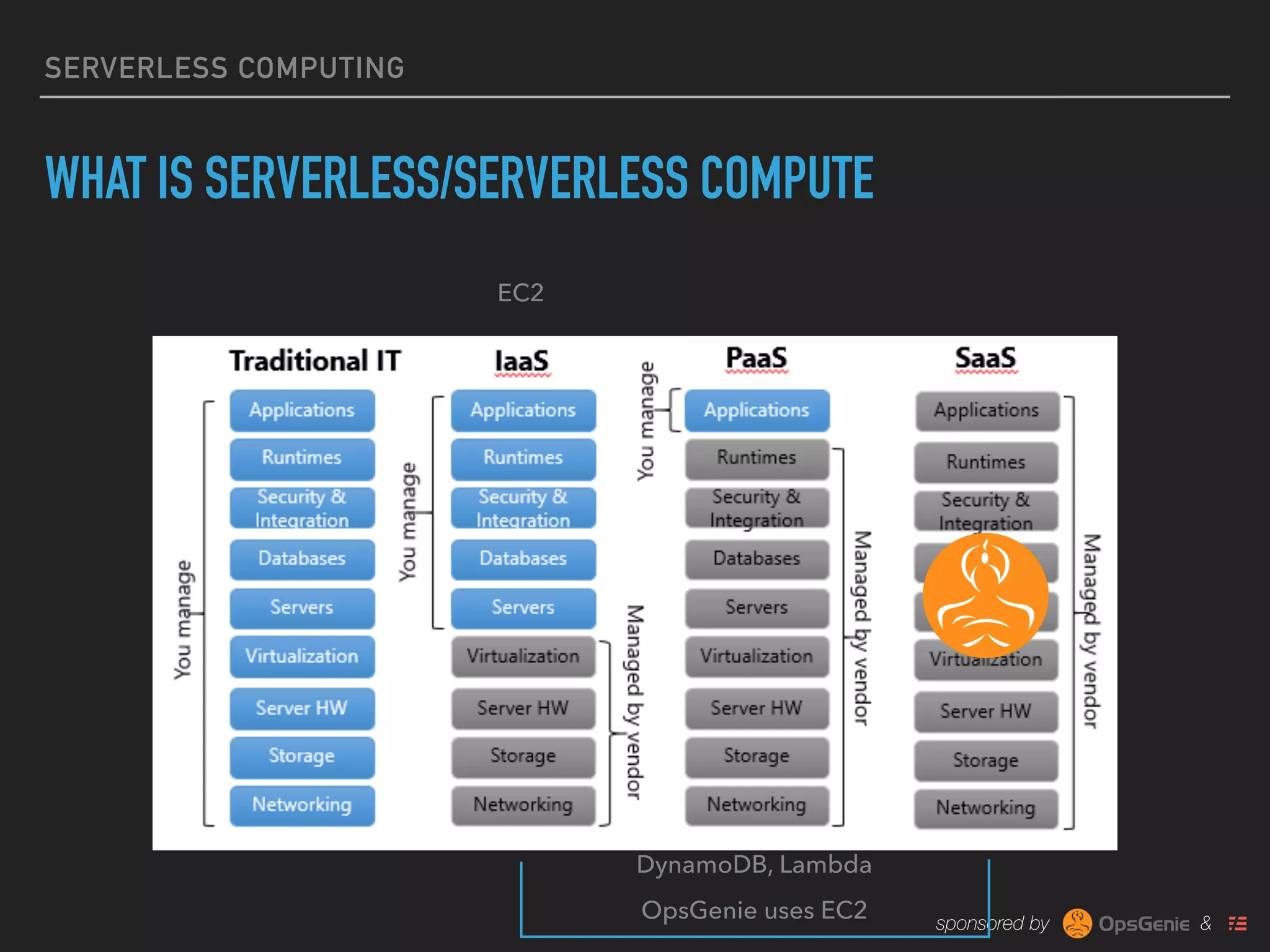

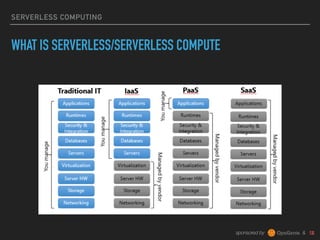

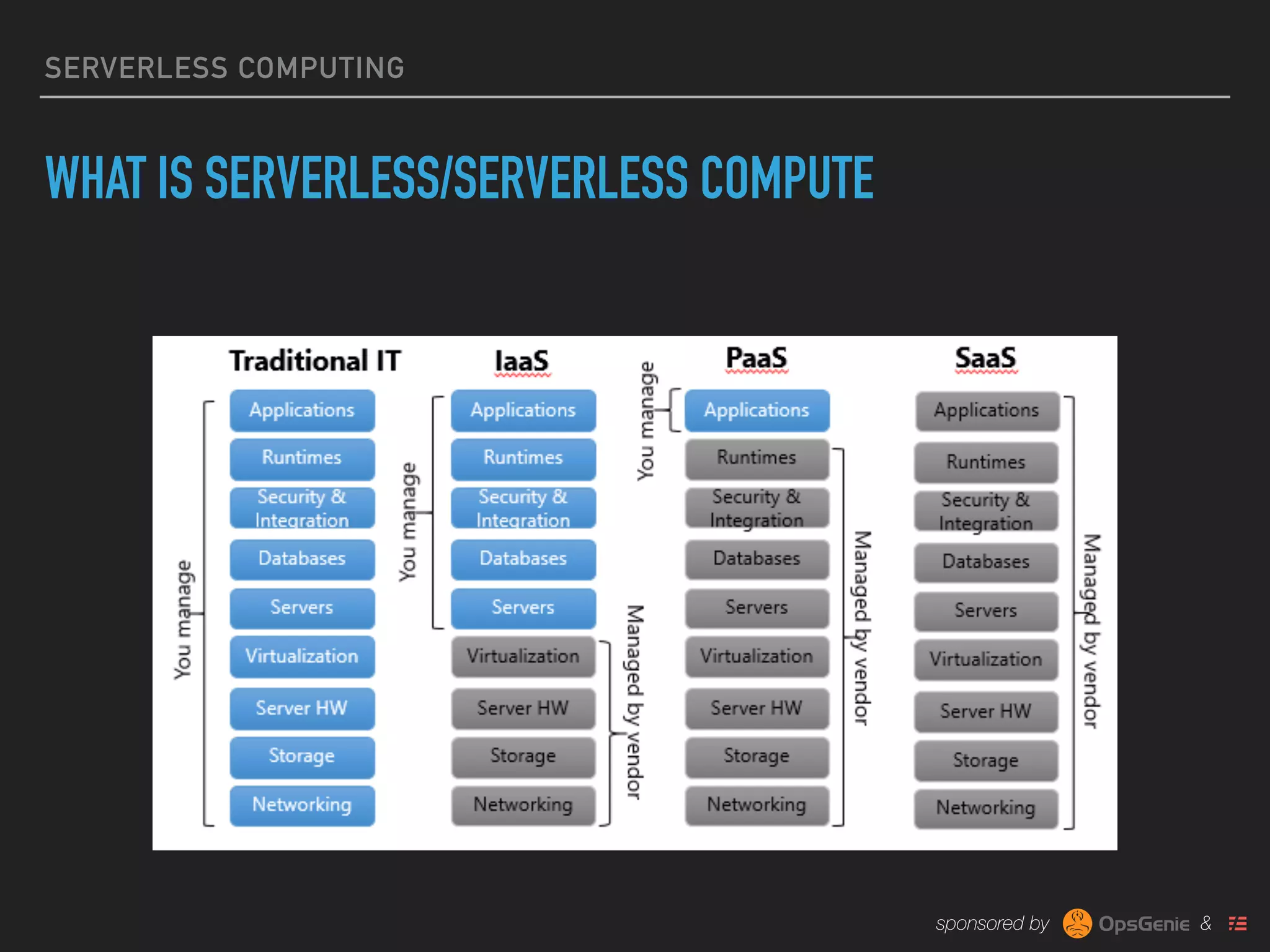

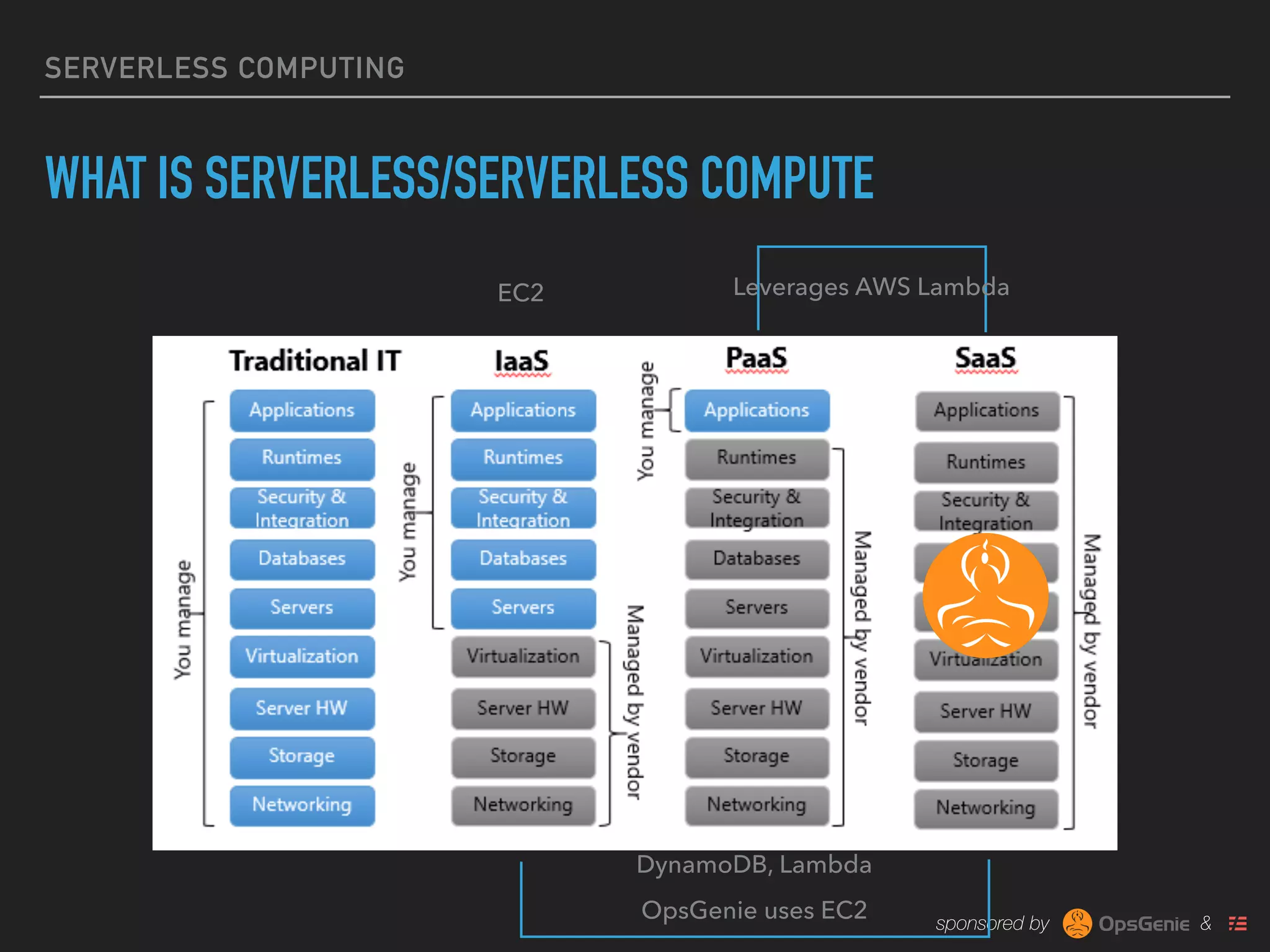

sponsored by & SERVERLESS COMPUTING WHAT IS SERVERLESS/SERVERLESS COMPUTE
sponsored by & SERVERLESS COMPUTING WHAT IS SERVERLESS/SERVERLESS COMPUTE EC2
sponsored by & SERVERLESS COMPUTING WHAT IS SERVERLESS/SERVERLESS COMPUTE EC2 DynamoDB, Lambda
sponsored by & SERVERLESS COMPUTING WHAT IS SERVERLESS/SERVERLESS COMPUTE EC2 DynamoDB, Lambda
sponsored by & SERVERLESS COMPUTING WHAT IS SERVERLESS/SERVERLESS COMPUTE OpsGenie uses EC2 EC2 DynamoDB, Lambda
sponsored by & SERVERLESS COMPUTING WHAT IS SERVERLESS/SERVERLESS COMPUTE Leverages AWS Lambda OpsGenie uses EC2 EC2 DynamoDB, Lambda
sponsored by & “IF YOUR PAAS CAN EFFICIENTLY START INSTANCES IN 20 MS THAT RUN FOR HALF A SECOND, THEN CALL IT SERVERLESS.” Adrian Cockcroft, VP Cloud Architecture Strategy at AWS SERVERLESS COMPUTING

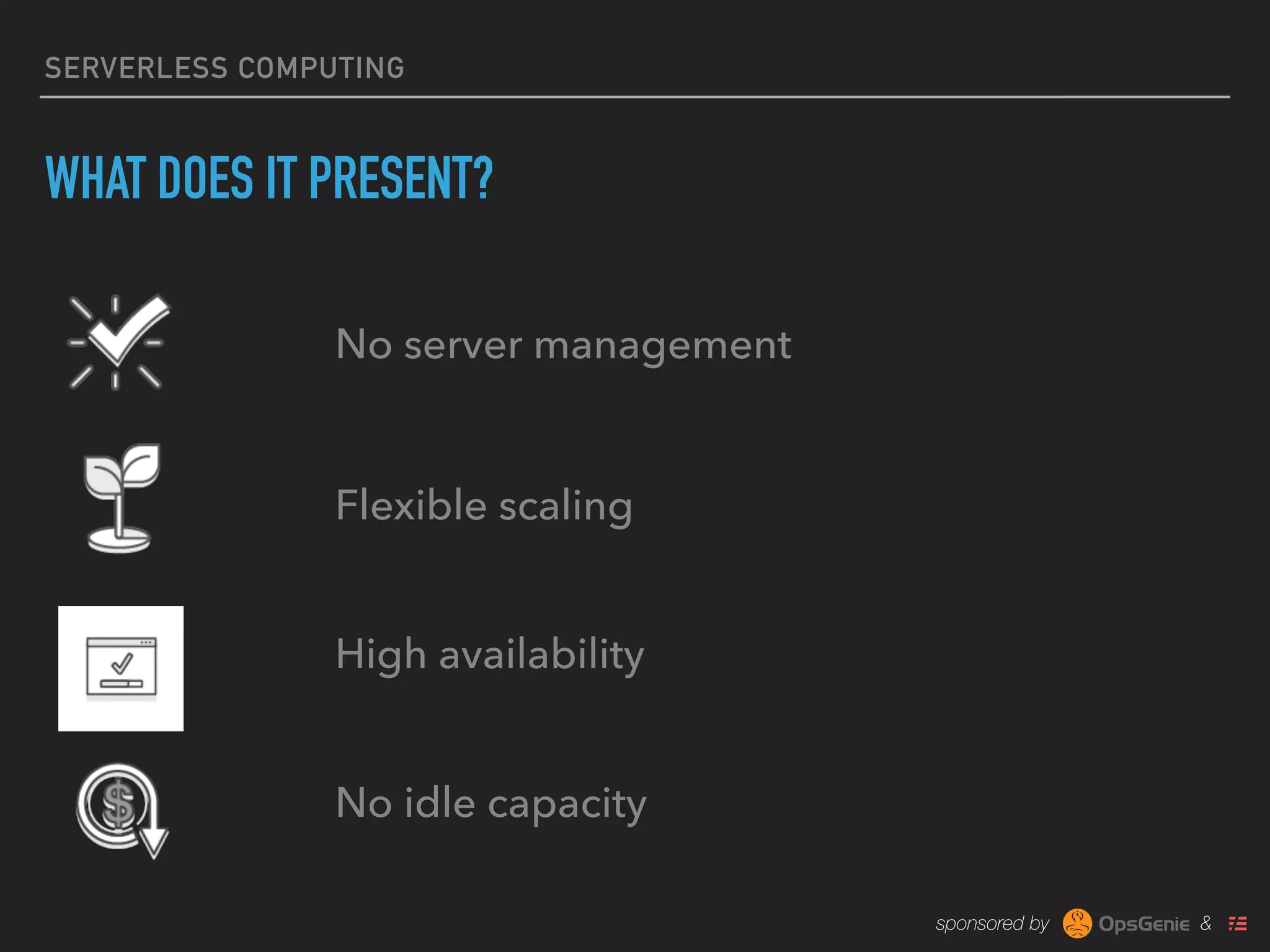

sponsored by & SERVERLESS COMPUTING WHAT DOES IT PRESENT? No server management Flexible scaling High availability No idle capacity

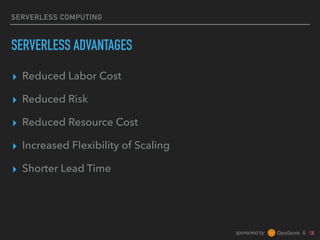

sponsored by & SERVERLESS COMPUTING SERVERLESS ADVANTAGES ▸ Reduced Labor Cost ▸ Reduced Risk ▸ Reduced Resource Cost ▸ Increased Flexibility of Scaling ▸ Shorter Lead Time

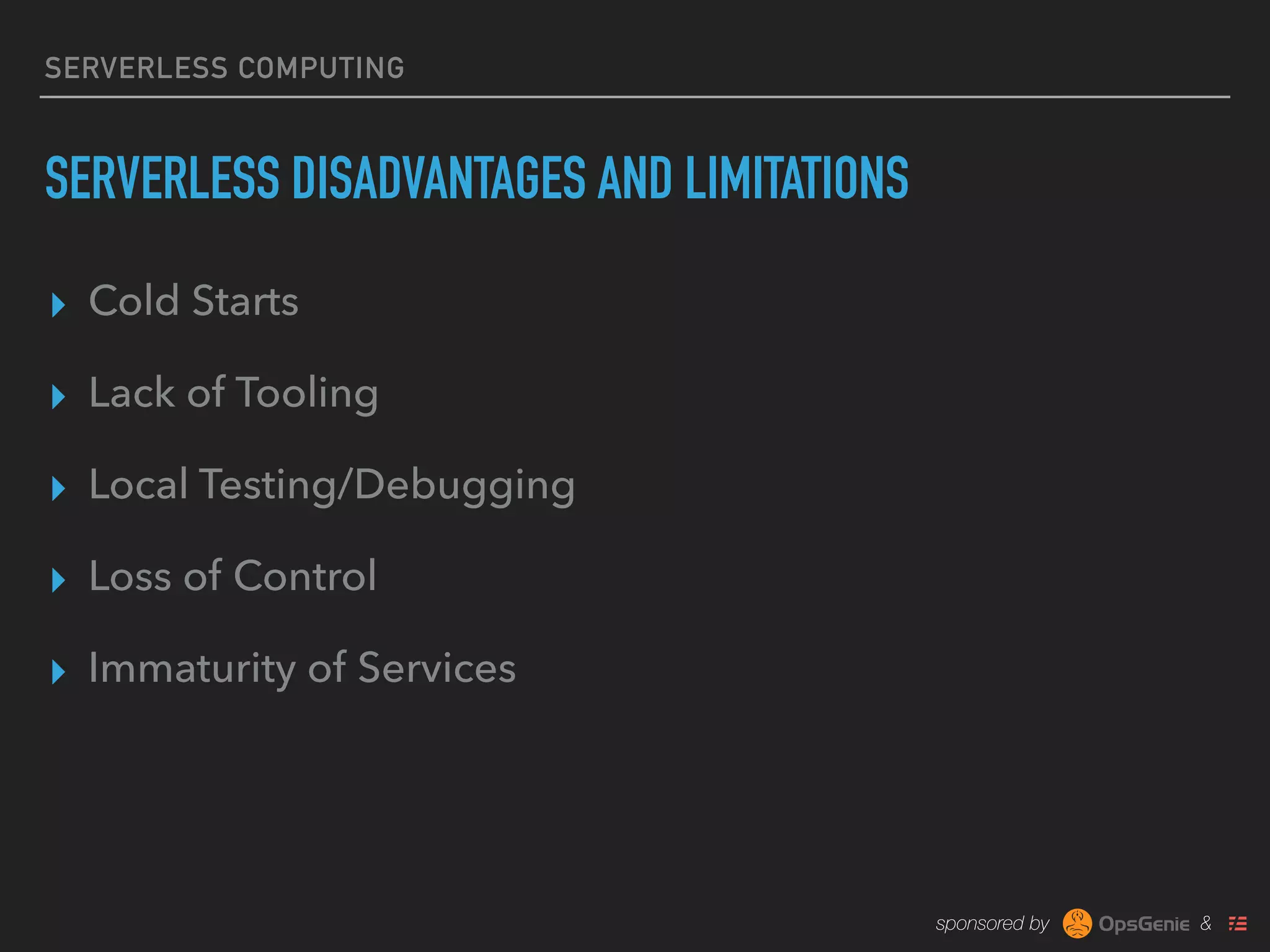

sponsored by & SERVERLESS COMPUTING SERVERLESS DISADVANTAGES AND LIMITATIONS ▸ Cold Starts ▸ Lack of Tooling ▸ Local Testing/Debugging ▸ Loss of Control ▸ Immaturity of Services

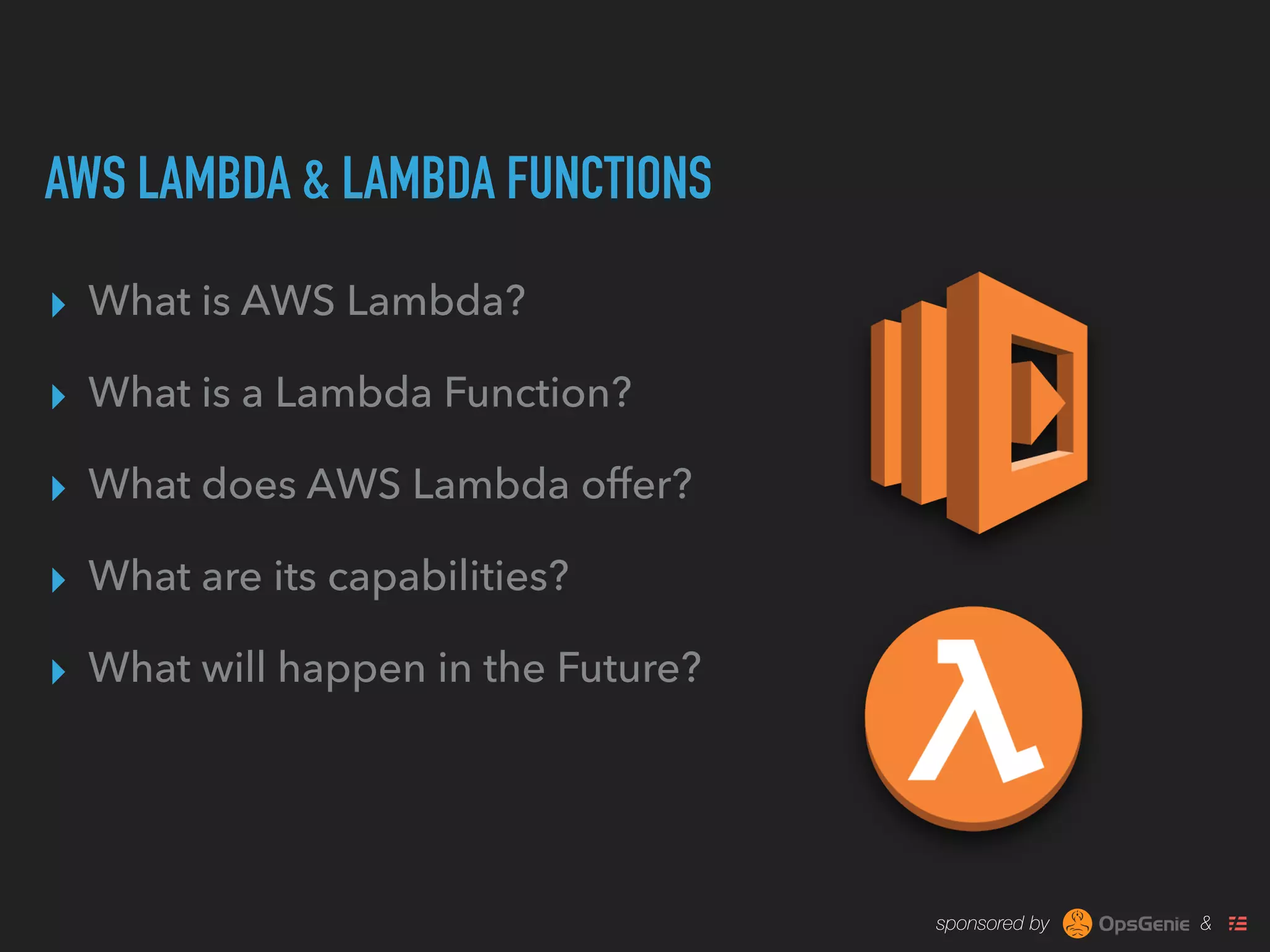

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS ▸ What is AWS Lambda? ▸ What is a Lambda Function? ▸ What does AWS Lambda offer? ▸ What are its capabilities? ▸ What will happen in the Future?

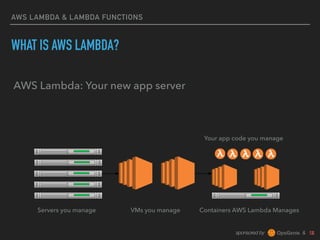

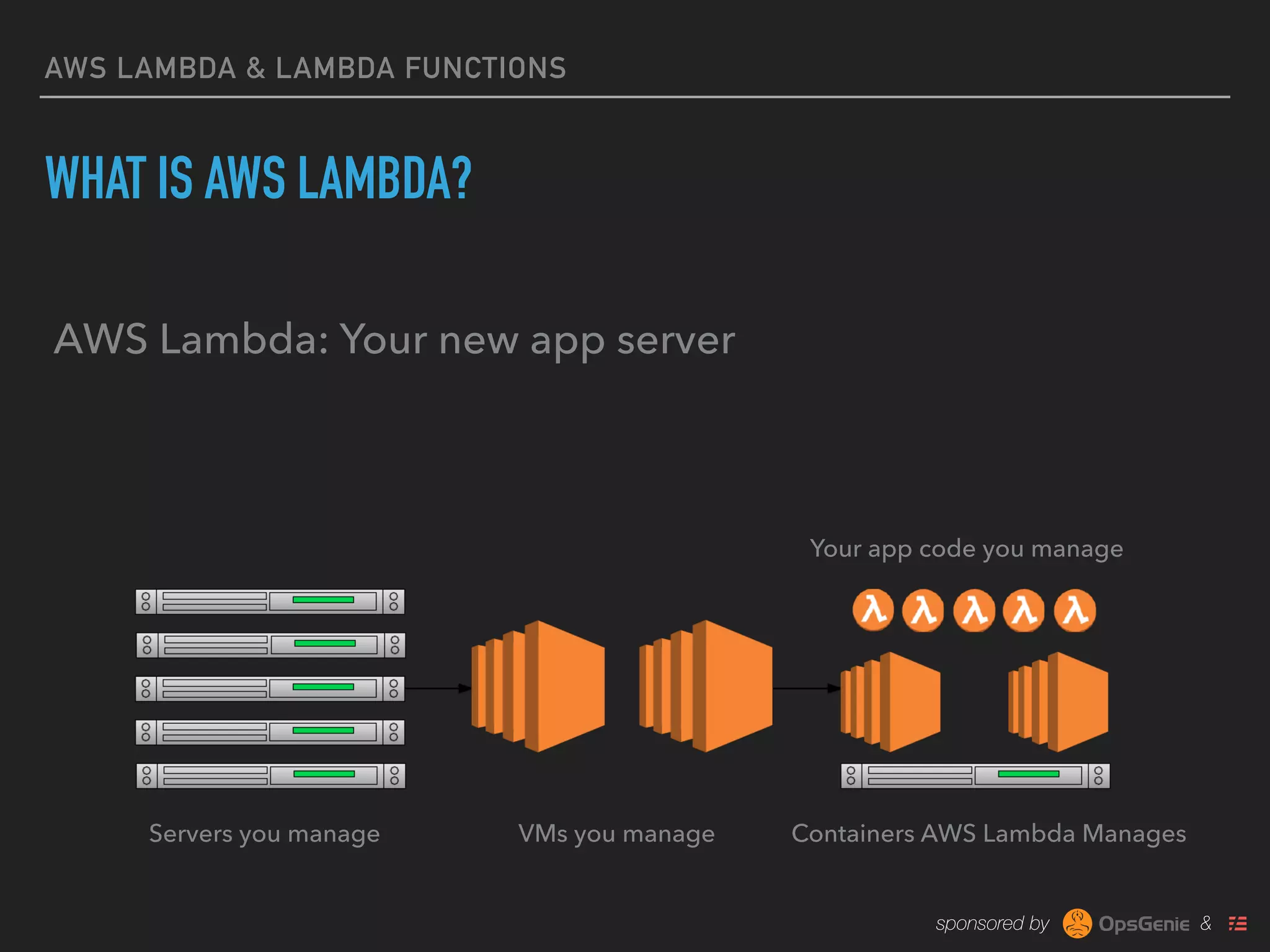

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS WHAT IS AWS LAMBDA? AWS Lambda: Your new app server Servers you manage VMs you manage Your app code you manage Containers AWS Lambda Manages

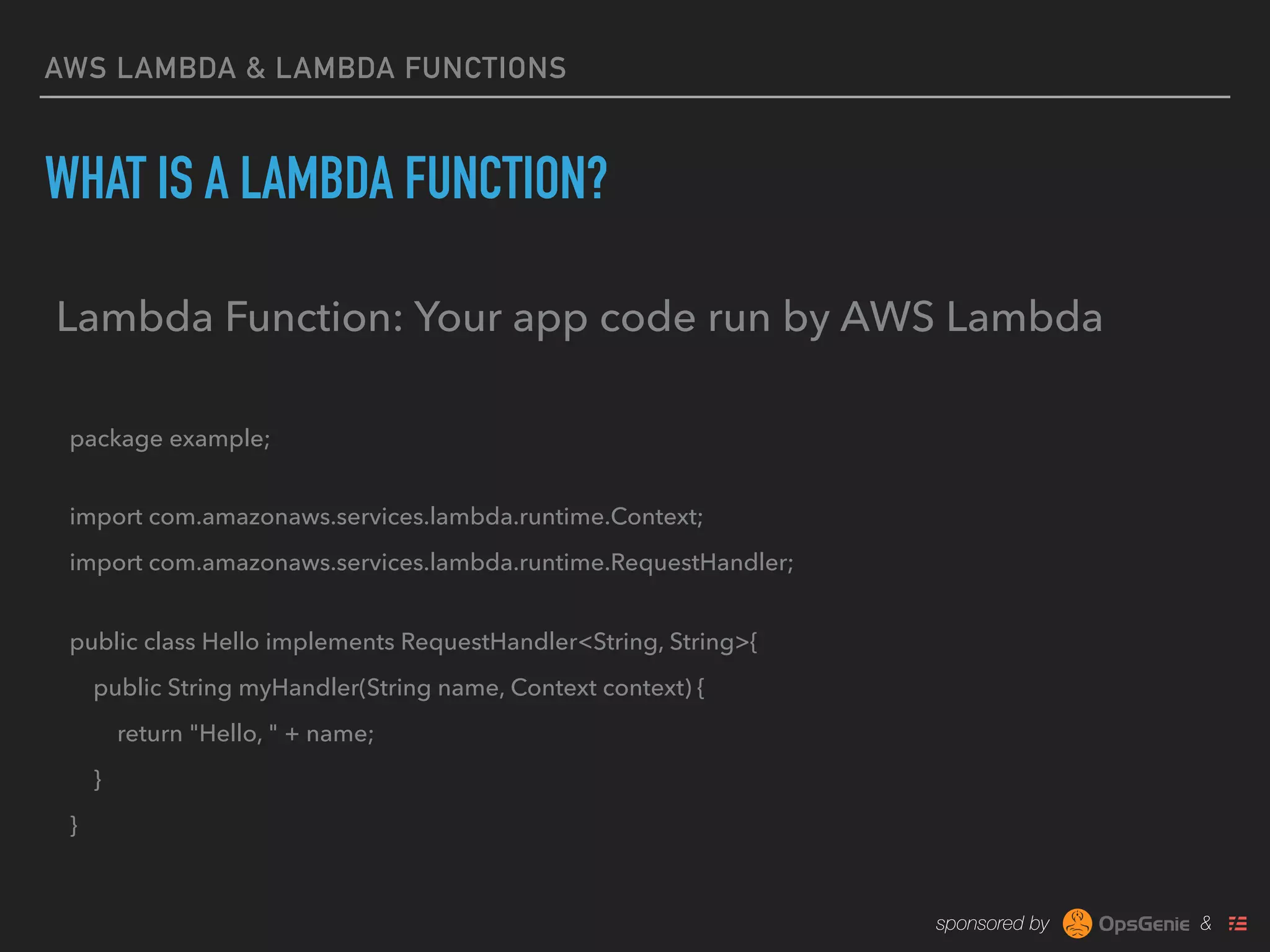

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS WHAT IS A LAMBDA FUNCTION? Lambda Function: Your app code run by AWS Lambda package example;
 import com.amazonaws.services.lambda.runtime.Context; import com.amazonaws.services.lambda.runtime.RequestHandler;
 public class Hello implements RequestHandler<String, String>{ public String myHandler(String name, Context context) { return "Hello, " + name; } }

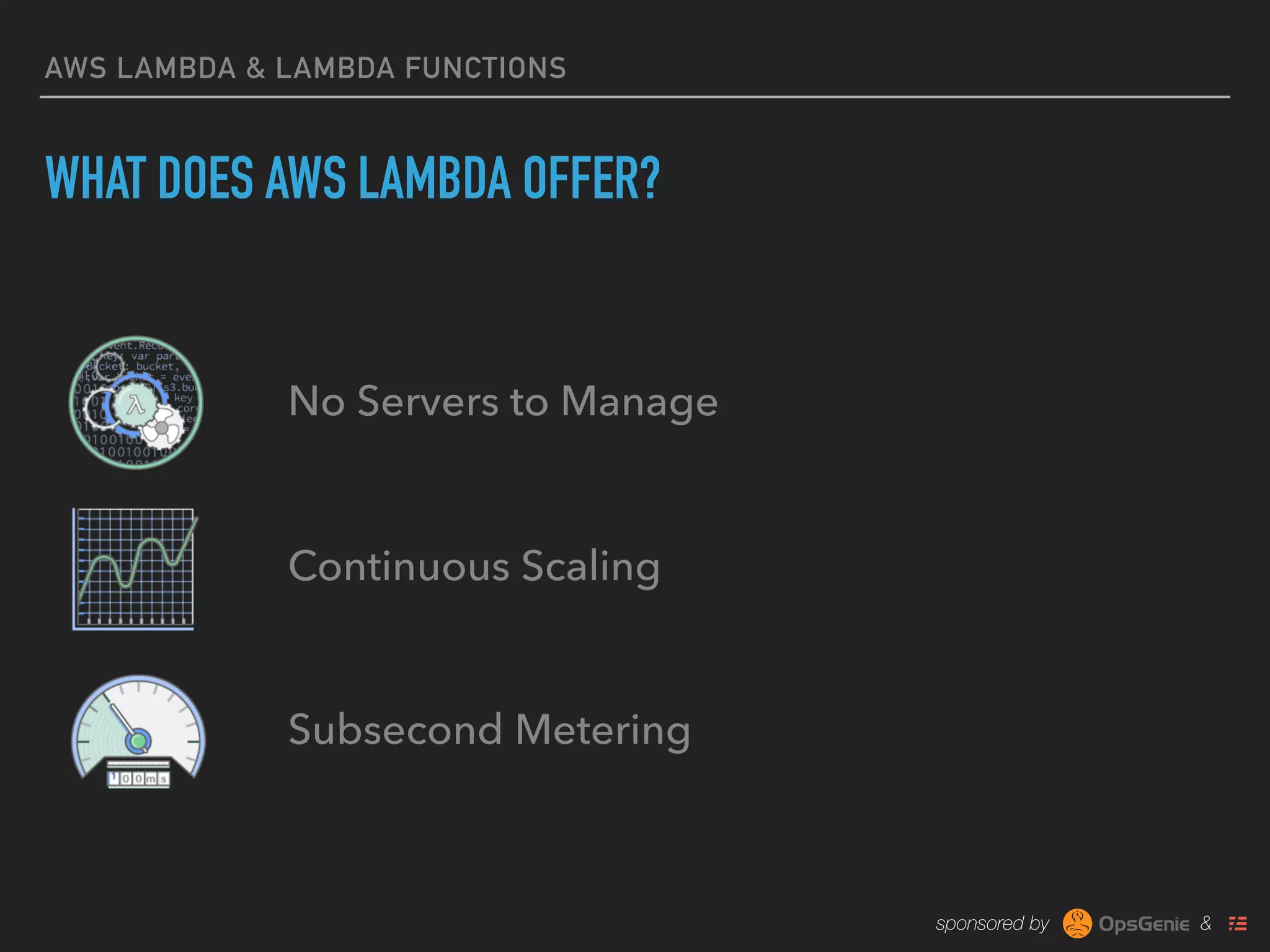

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS WHAT DOES AWS LAMBDA OFFER? No Servers to Manage Continuous Scaling Subsecond Metering

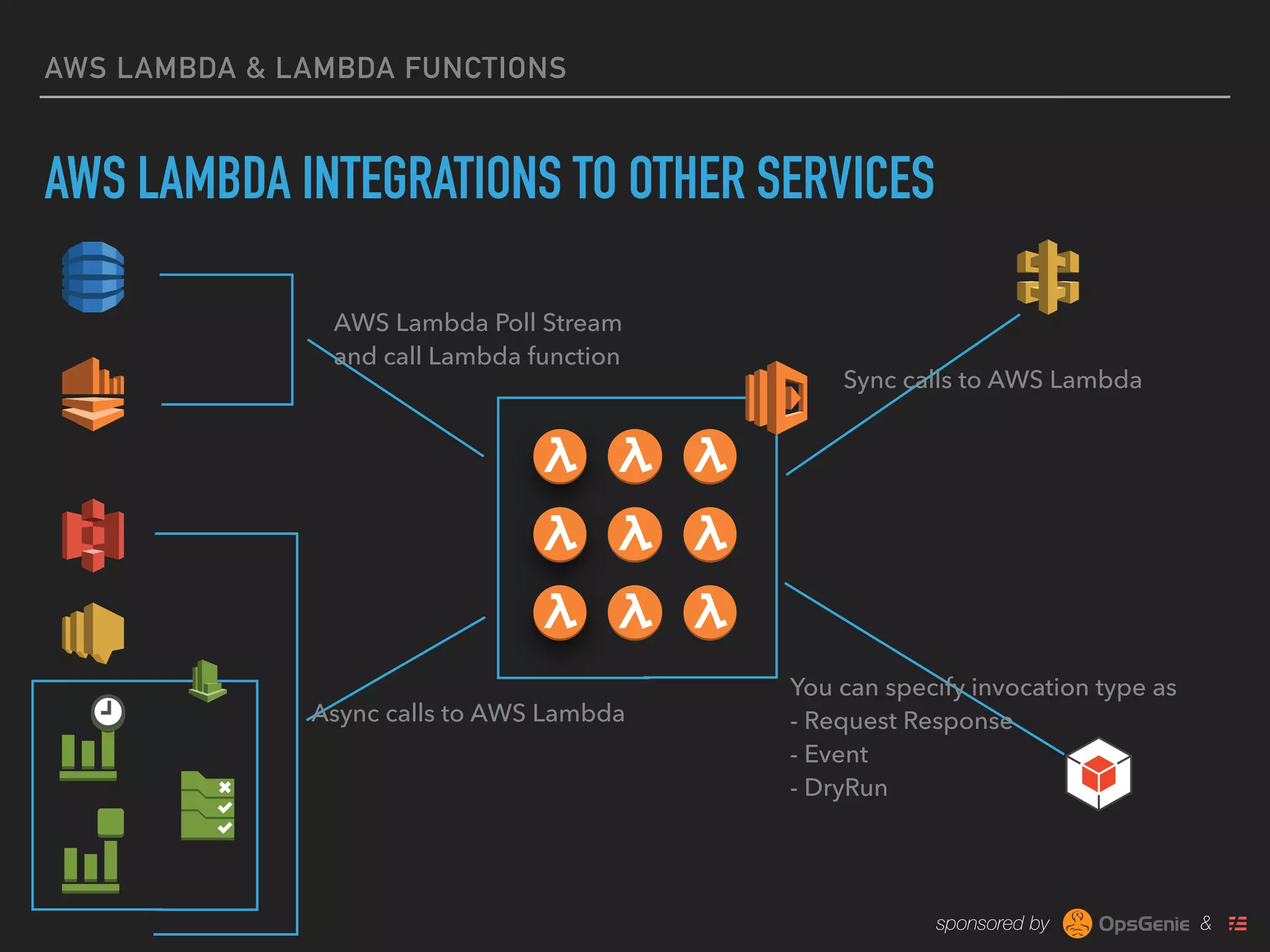

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS AWS LAMBDA INTEGRATIONS TO OTHER SERVICES AWS Lambda Poll Stream
 and call Lambda function Sync calls to AWS Lambda You can specify invocation type as
 - Request Response
 - Event
 - DryRun Async calls to AWS Lambda

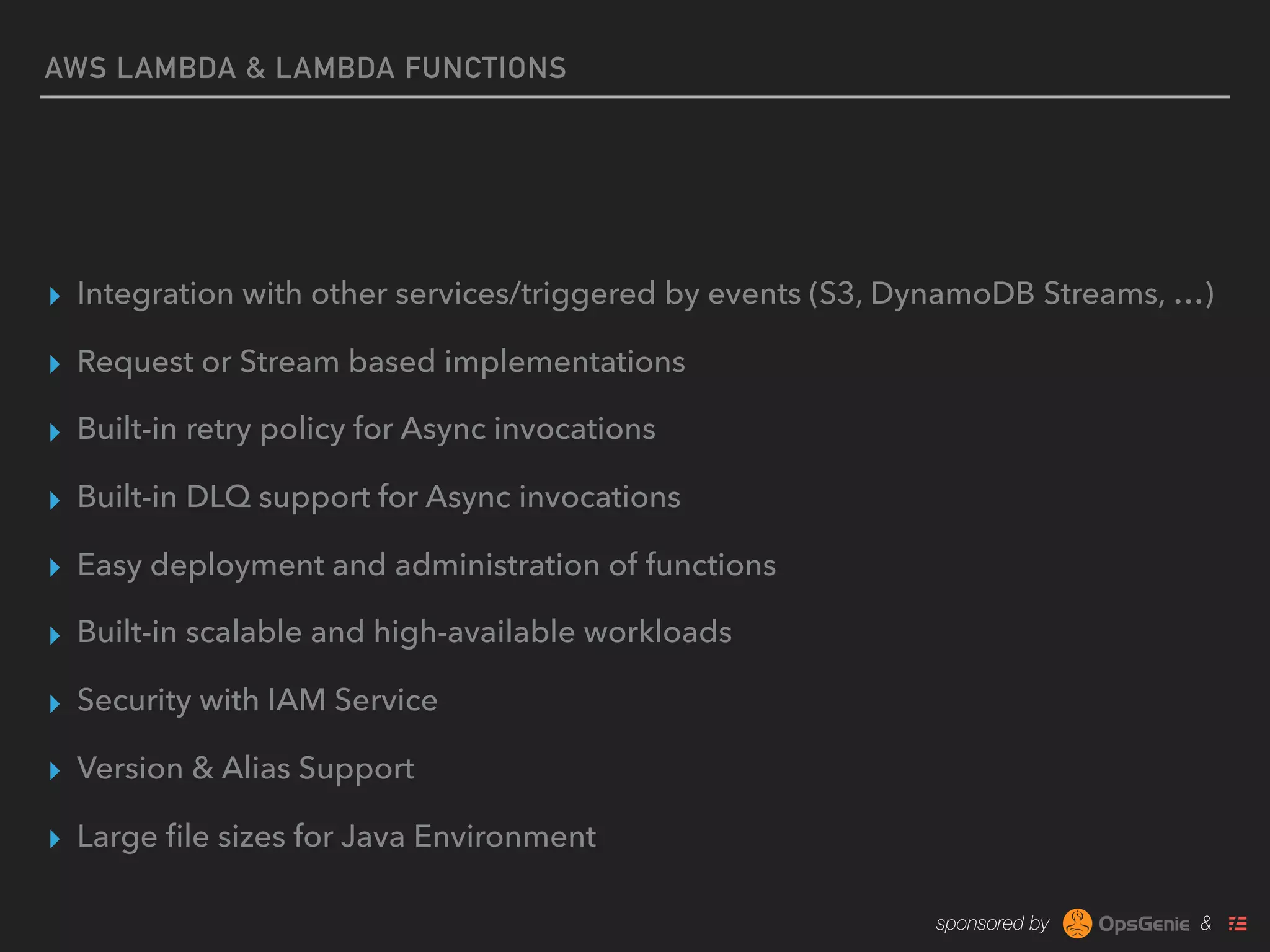

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS ▸ Integration with other services/triggered by events (S3, DynamoDB Streams, …) ▸ Request or Stream based implementations ▸ Built-in retry policy for Async invocations ▸ Built-in DLQ support for Async invocations ▸ Easy deployment and administration of functions ▸ Built-in scalable and high-available workloads ▸ Security with IAM Service ▸ Version & Alias Support ▸ Large file sizes for Java Environment

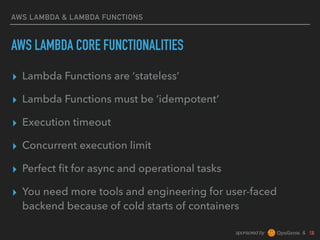

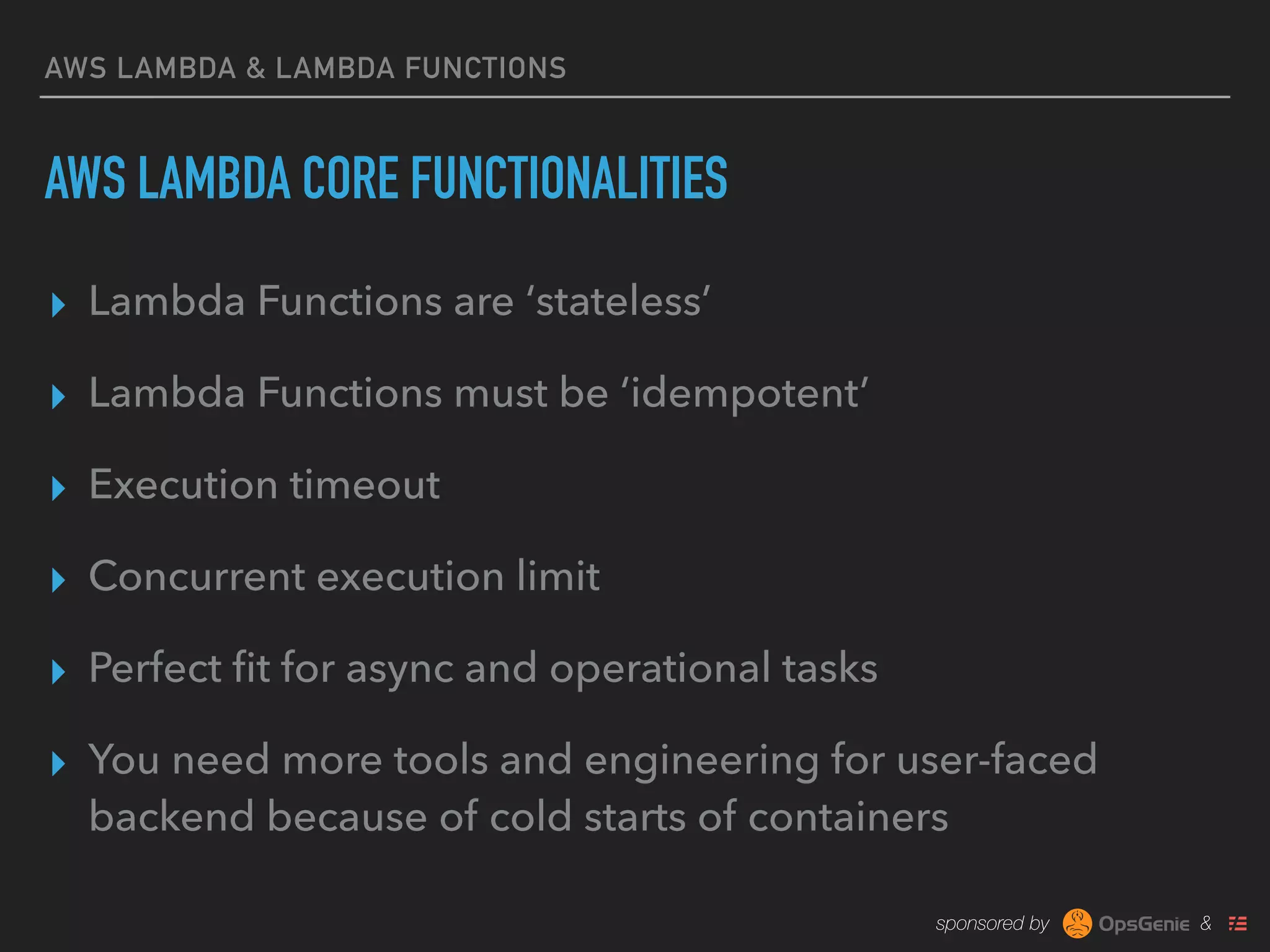

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS AWS LAMBDA CORE FUNCTIONALITIES ▸ Lambda Functions are ‘stateless’ ▸ Lambda Functions must be ‘idempotent’ ▸ Execution timeout ▸ Concurrent execution limit ▸ Perfect fit for async and operational tasks ▸ You need more tools and engineering for user-faced backend because of cold starts of containers

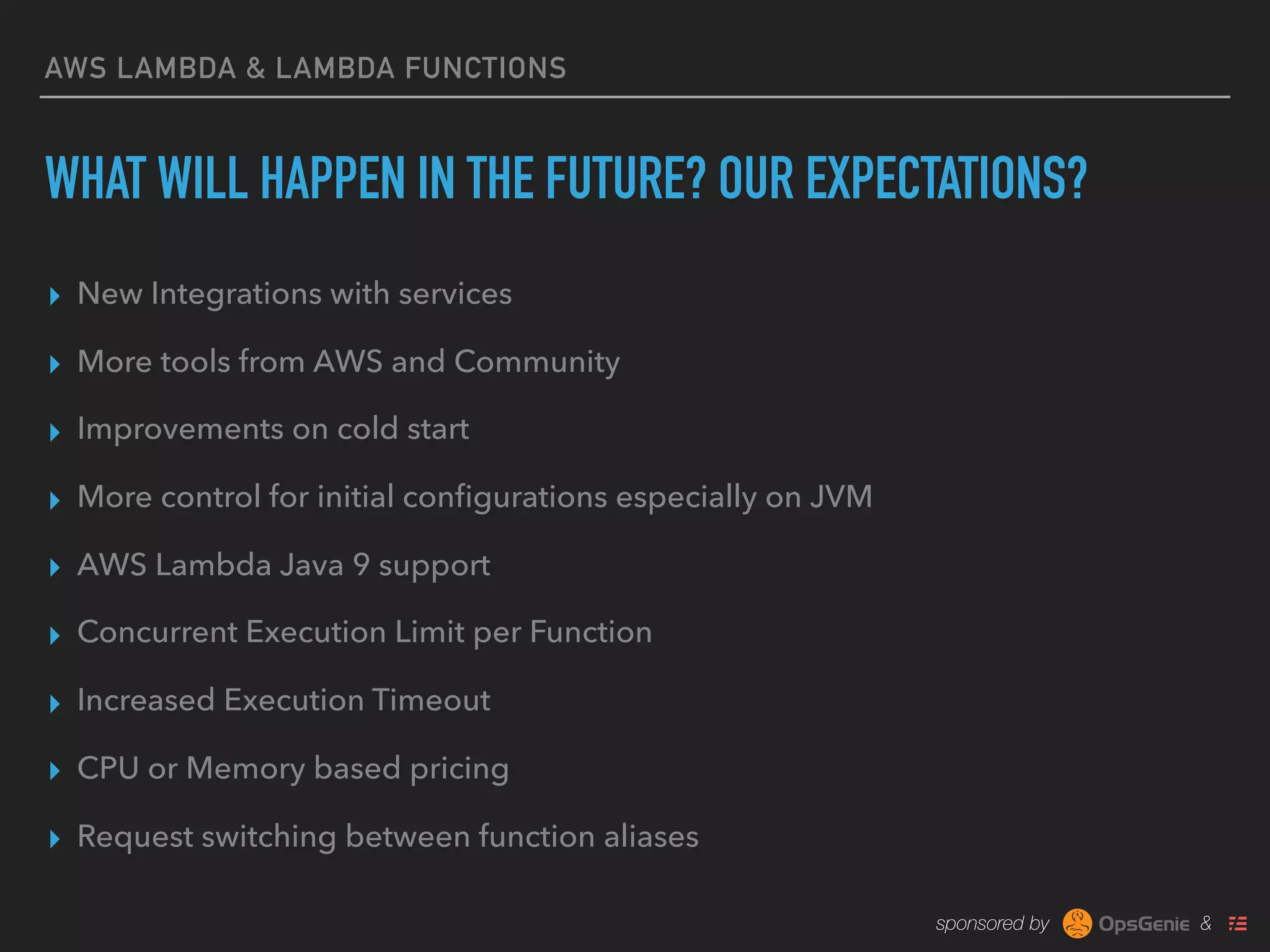

sponsored by & AWS LAMBDA & LAMBDA FUNCTIONS WHAT WILL HAPPEN IN THE FUTURE? OUR EXPECTATIONS? ▸ New Integrations with services ▸ More tools from AWS and Community ▸ Improvements on cold start ▸ More control for initial configurations especially on JVM ▸ AWS Lambda Java 9 support ▸ Concurrent Execution Limit per Function ▸ Increased Execution Timeout ▸ CPU or Memory based pricing ▸ Request switching between function aliases

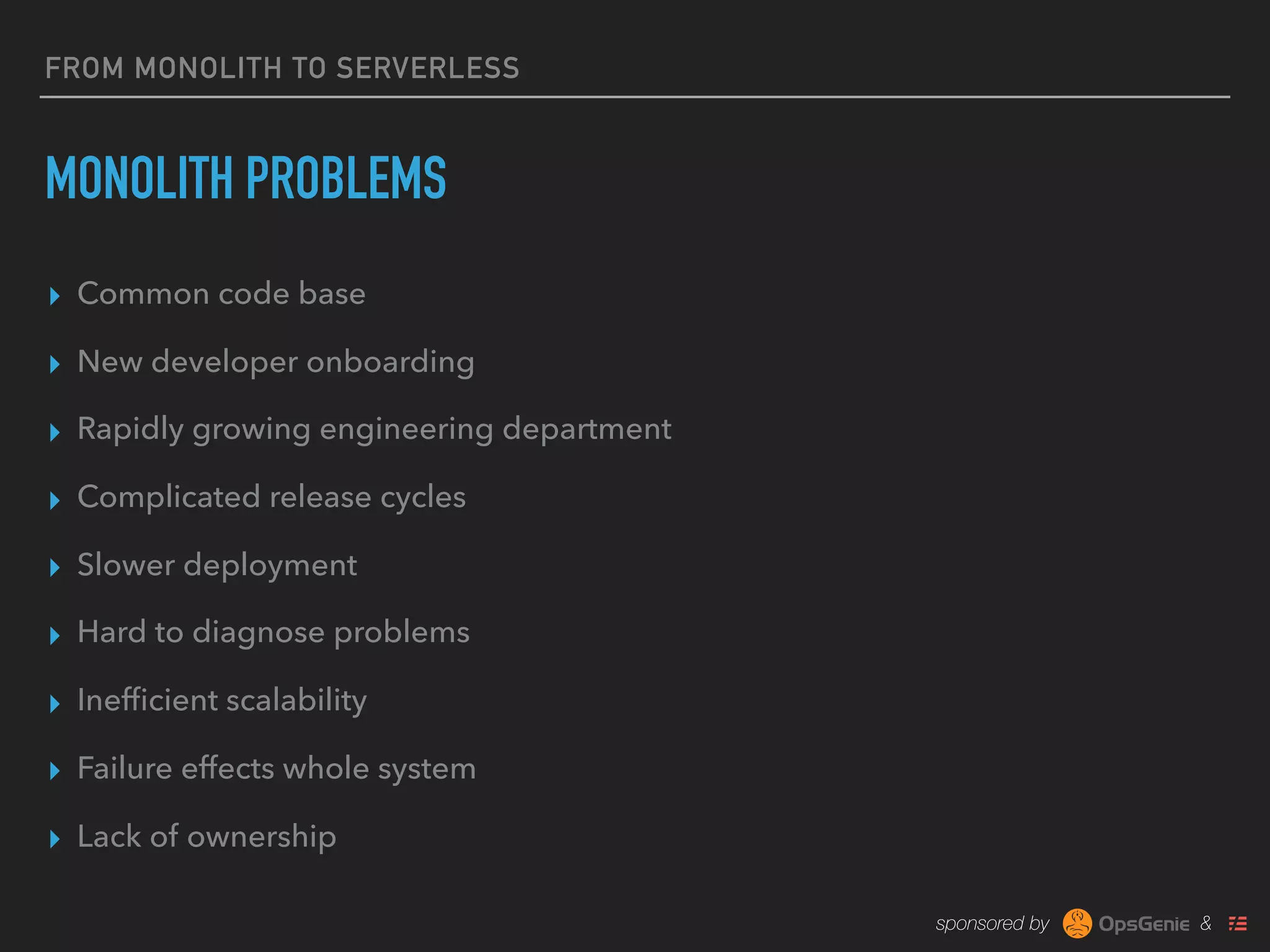

sponsored by & FROM MONOLITH TO SERVERLESS MONOLITH PROBLEMS ▸ Common code base ▸ New developer onboarding ▸ Rapidly growing engineering department ▸ Complicated release cycles ▸ Slower deployment ▸ Hard to diagnose problems ▸ Inefficient scalability ▸ Failure effects whole system ▸ Lack of ownership

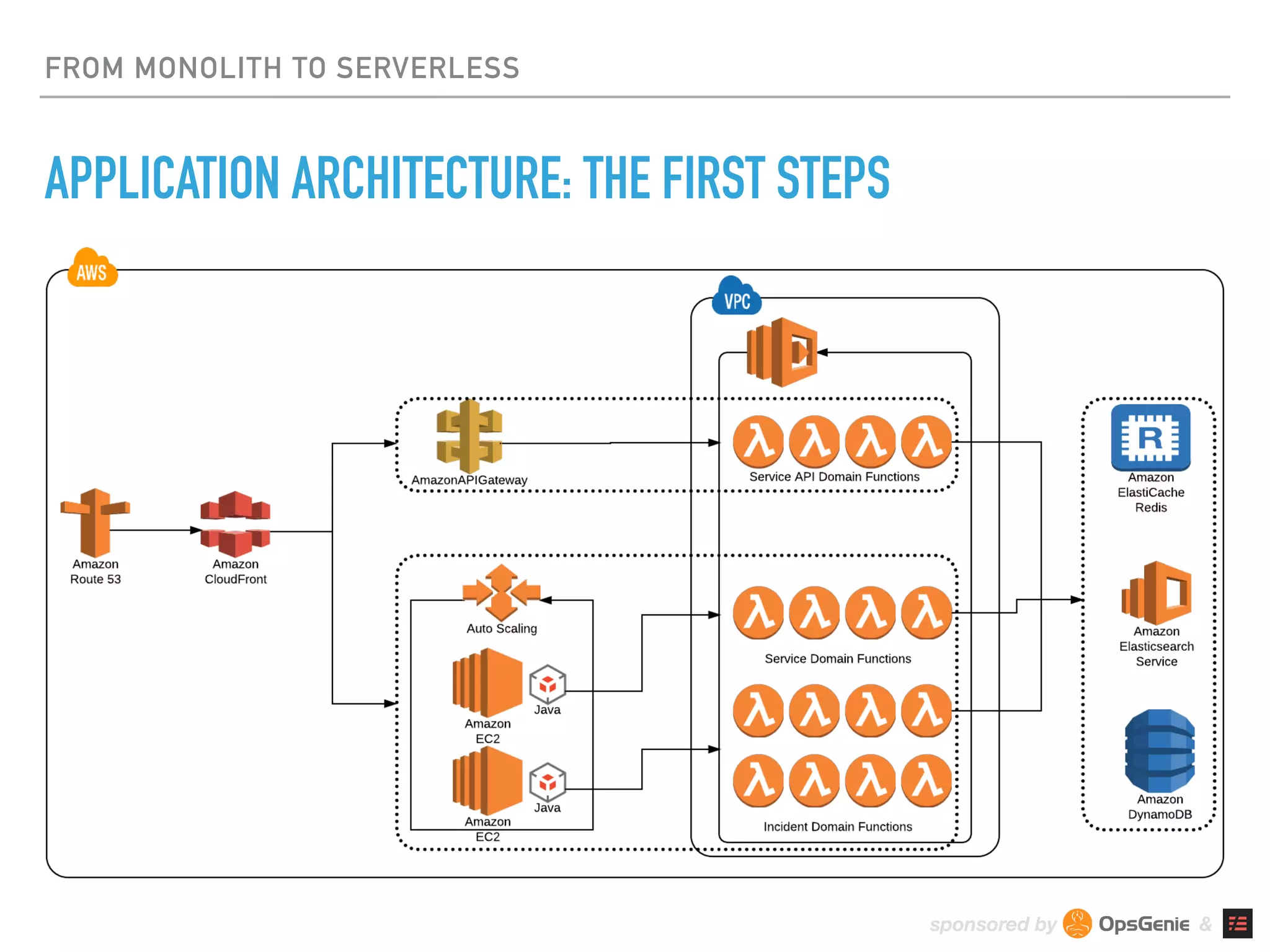

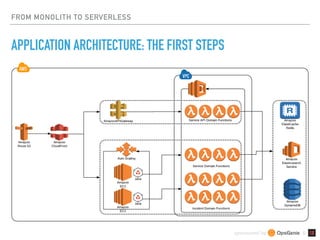

sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION ARCHITECTURE: THE FIRST STEPS

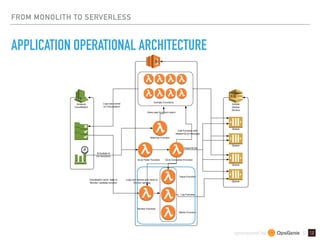

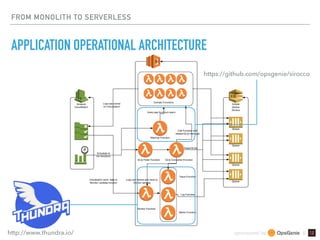

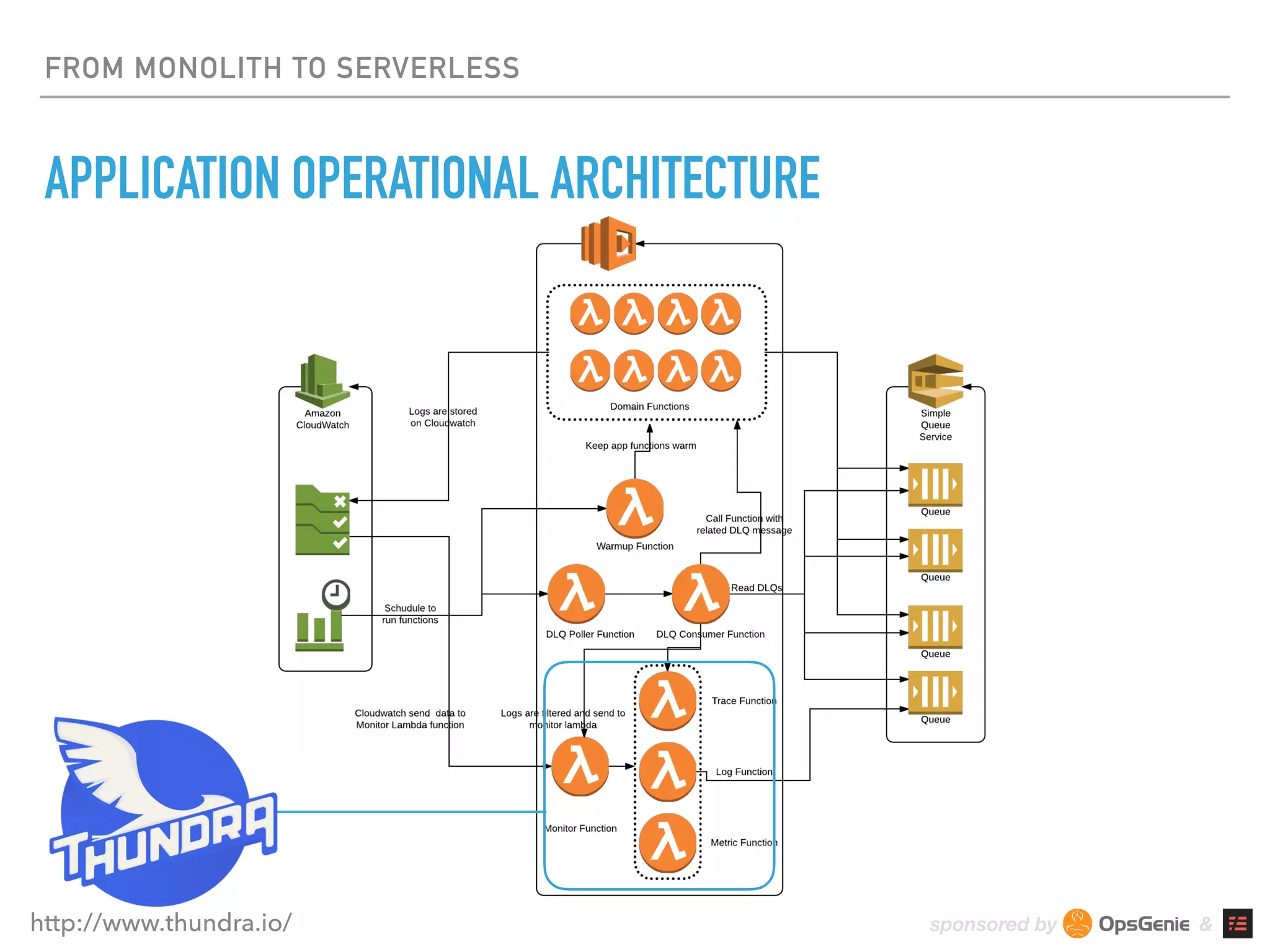

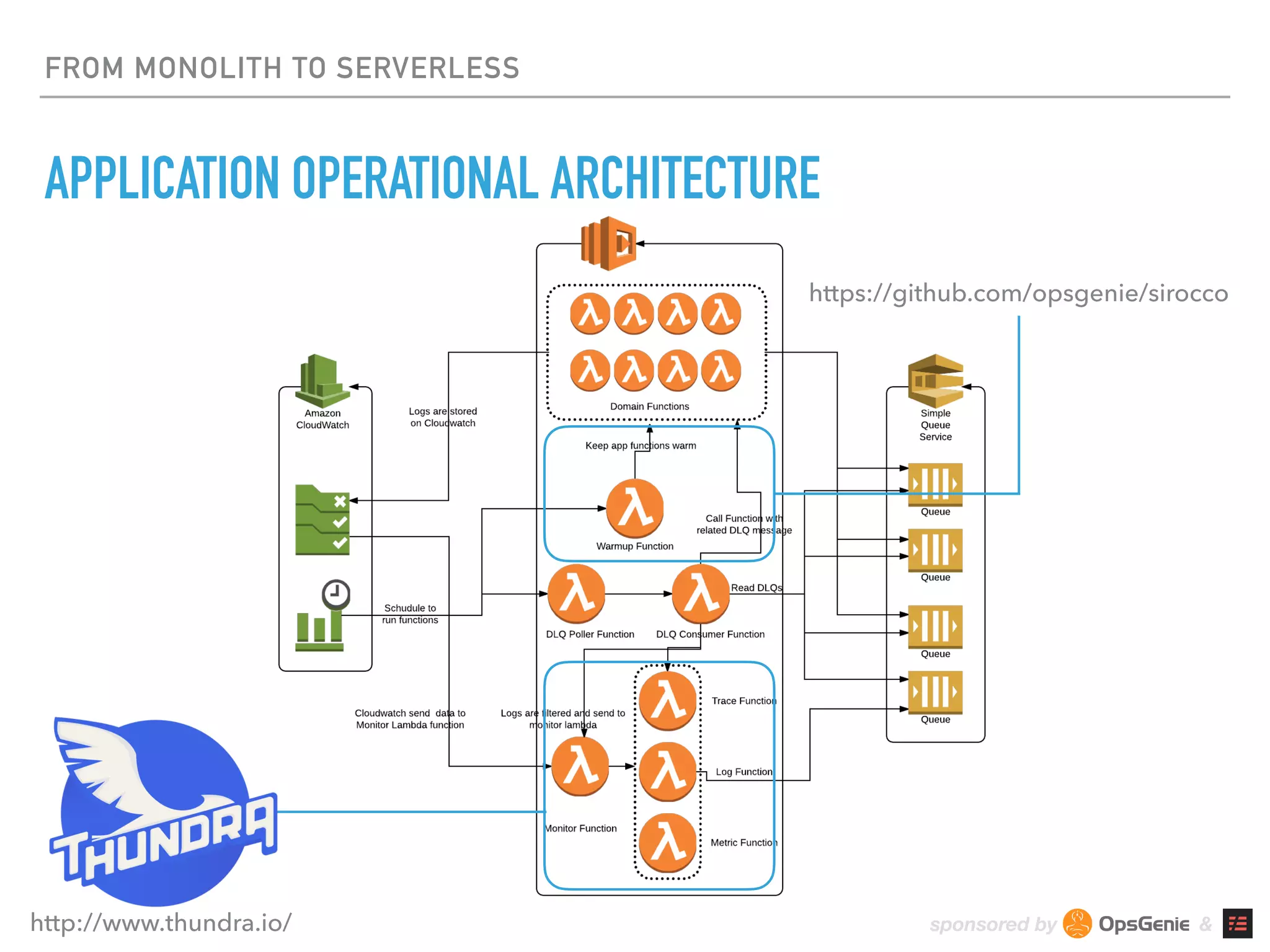

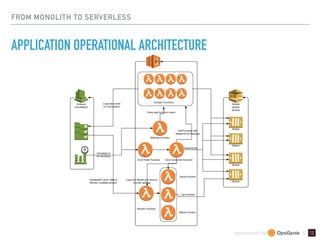

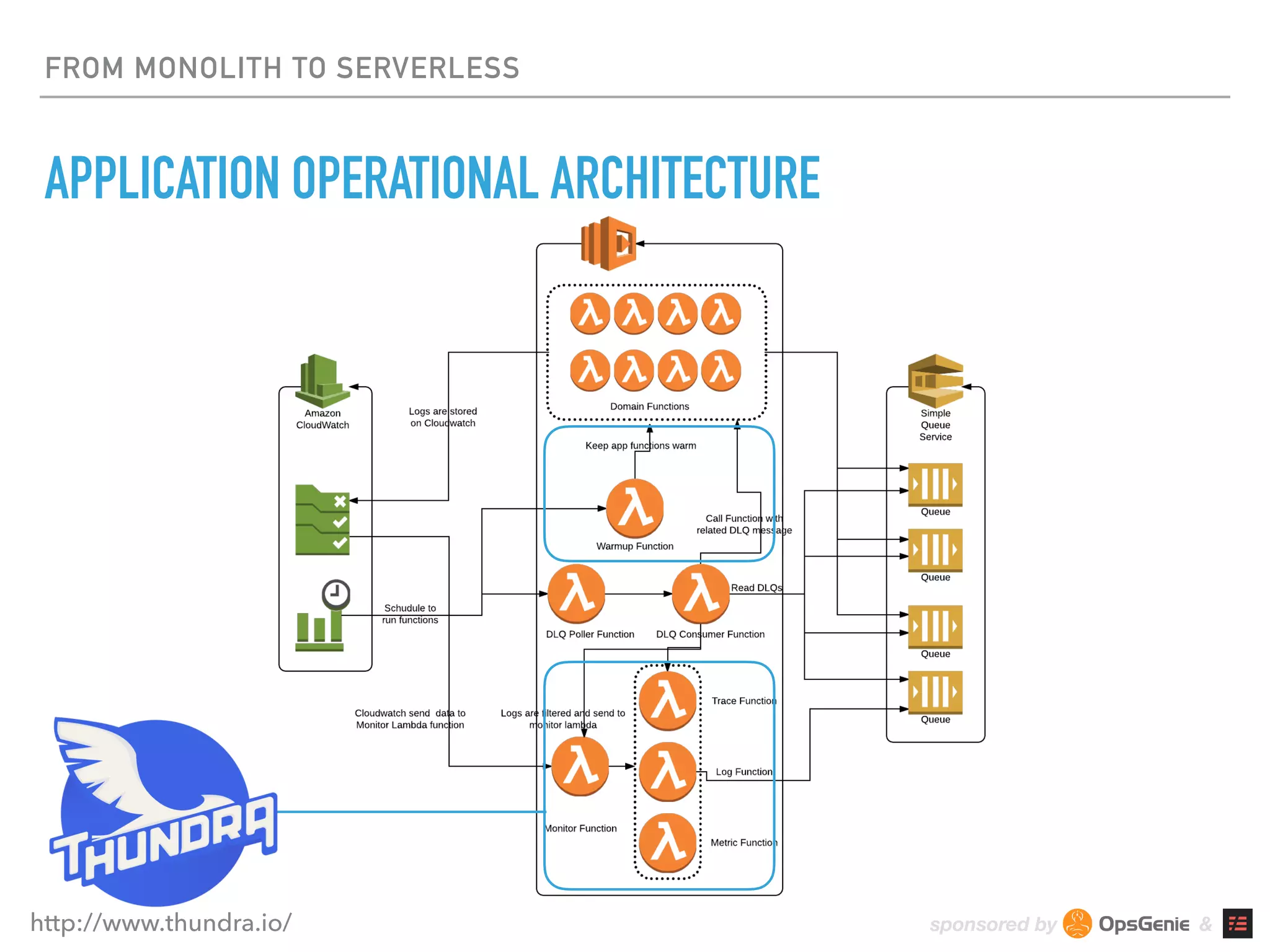

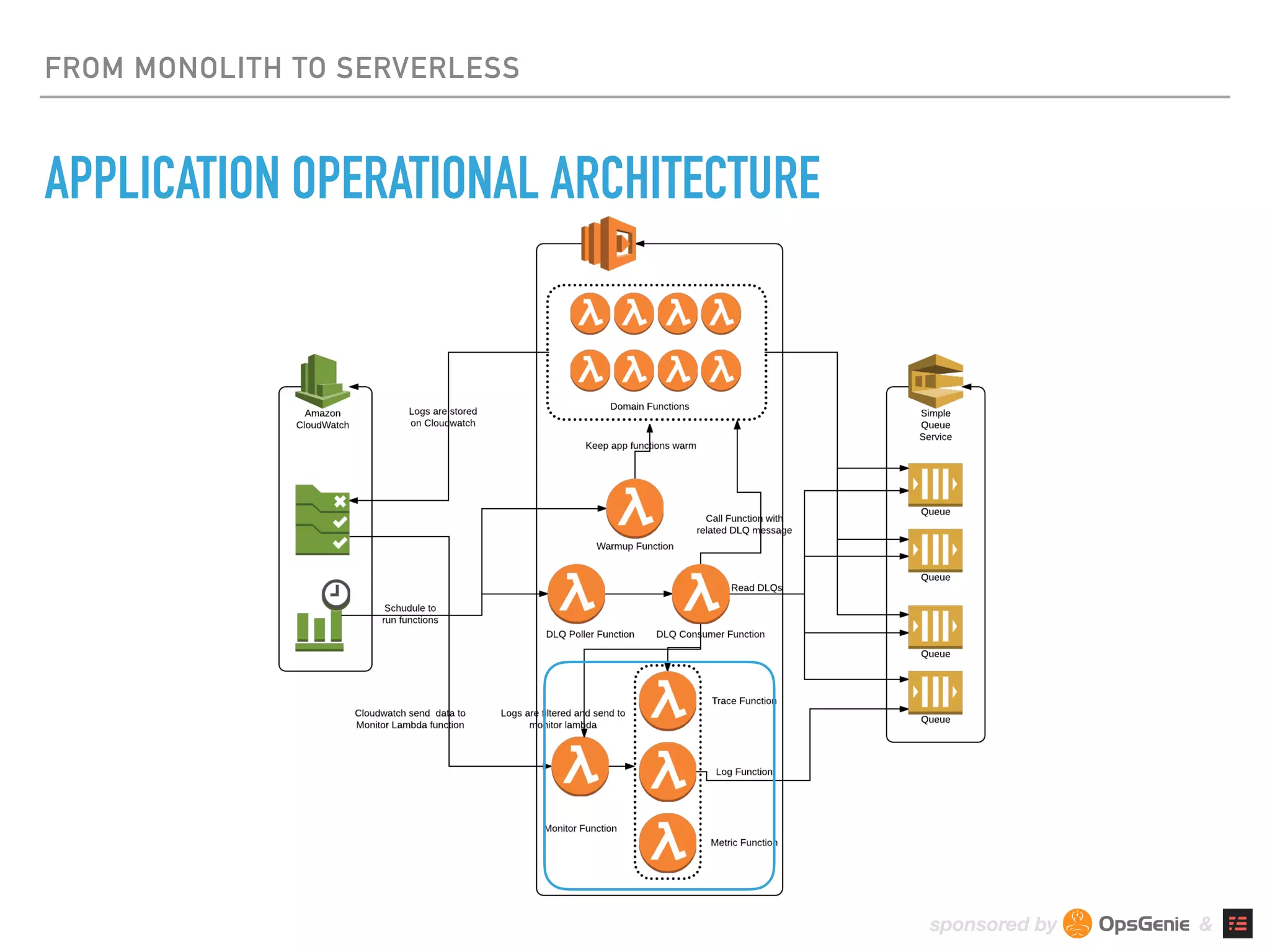

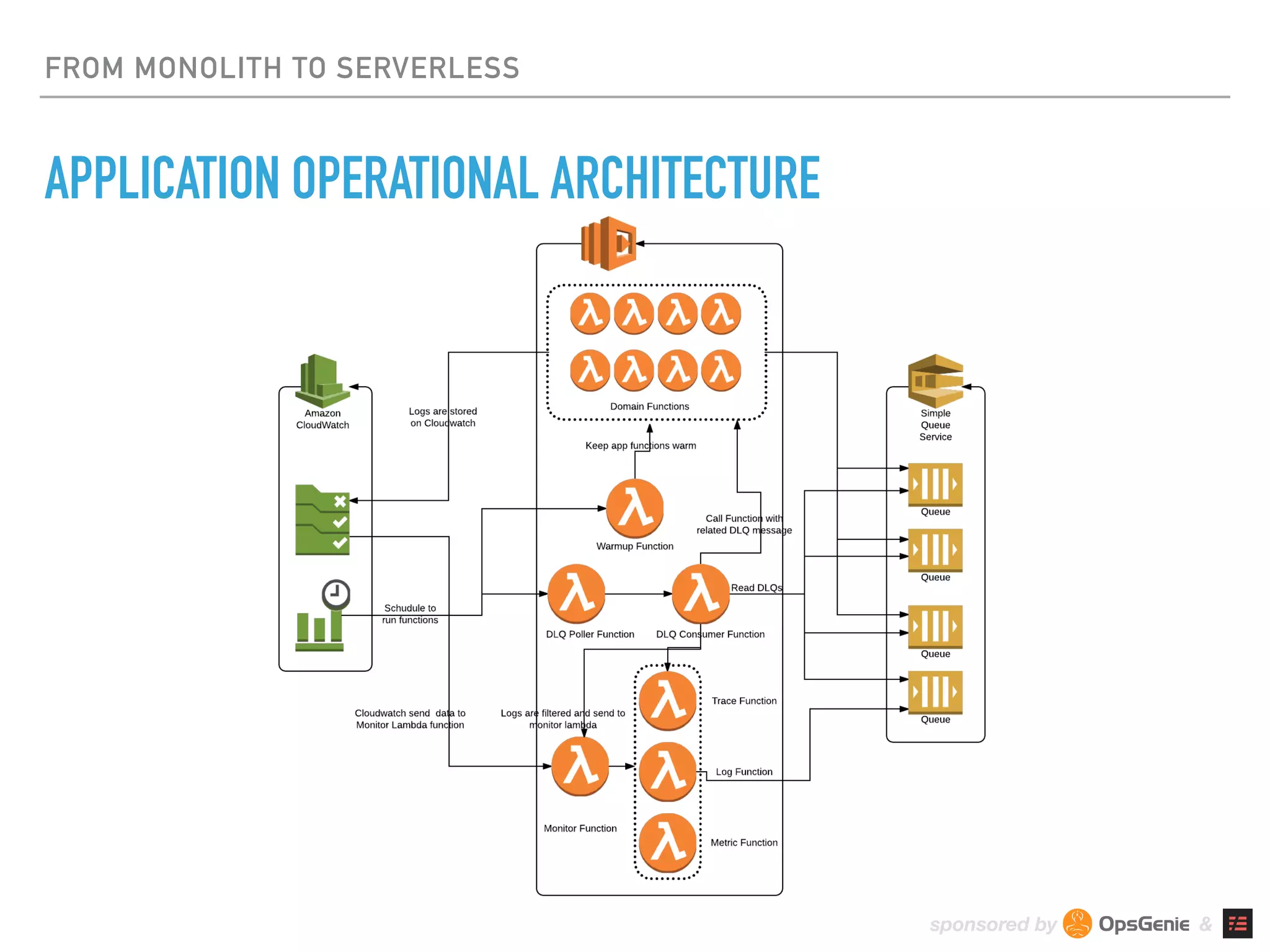

sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION OPERATIONAL ARCHITECTURE
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION OPERATIONAL ARCHITECTURE
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION OPERATIONAL ARCHITECTURE http://www.thundra.io/
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION OPERATIONAL ARCHITECTURE http://www.thundra.io/
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION OPERATIONAL ARCHITECTURE http://www.thundra.io/ https://github.com/opsgenie/sirocco
sponsored by & FROM MONOLITH TO SERVERLESS THUNDRA: FULL OBSERVABILITY FOR AWS LAMBDA ▸ INSTRUMENT ▸ PROFILE ▸ ZERO OVERHEAD JVM based monitoring framework with trace (has instrumentation and profiling extensions), metric and log supports HTTP://WWW.THUNDRA.IO/

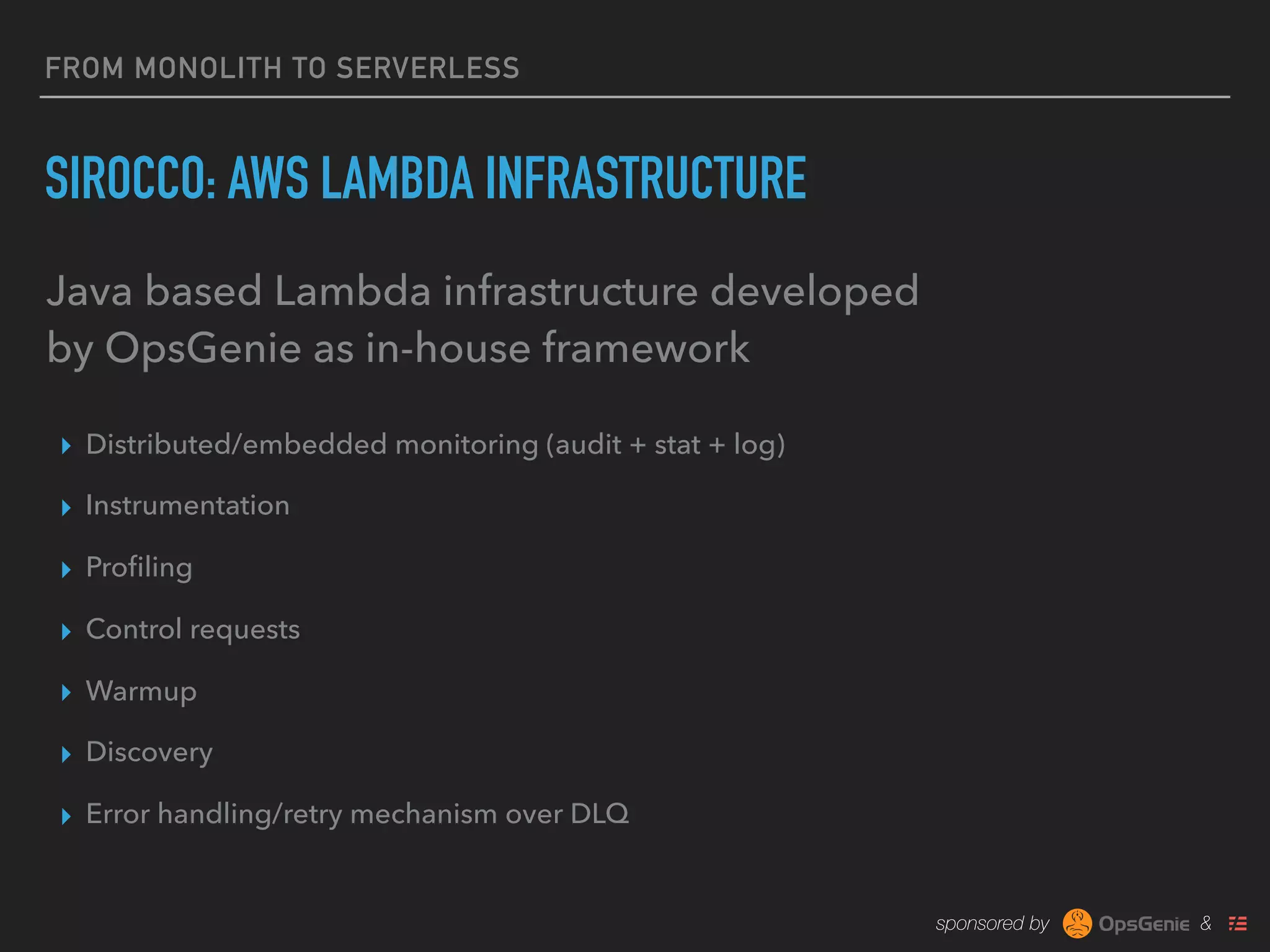

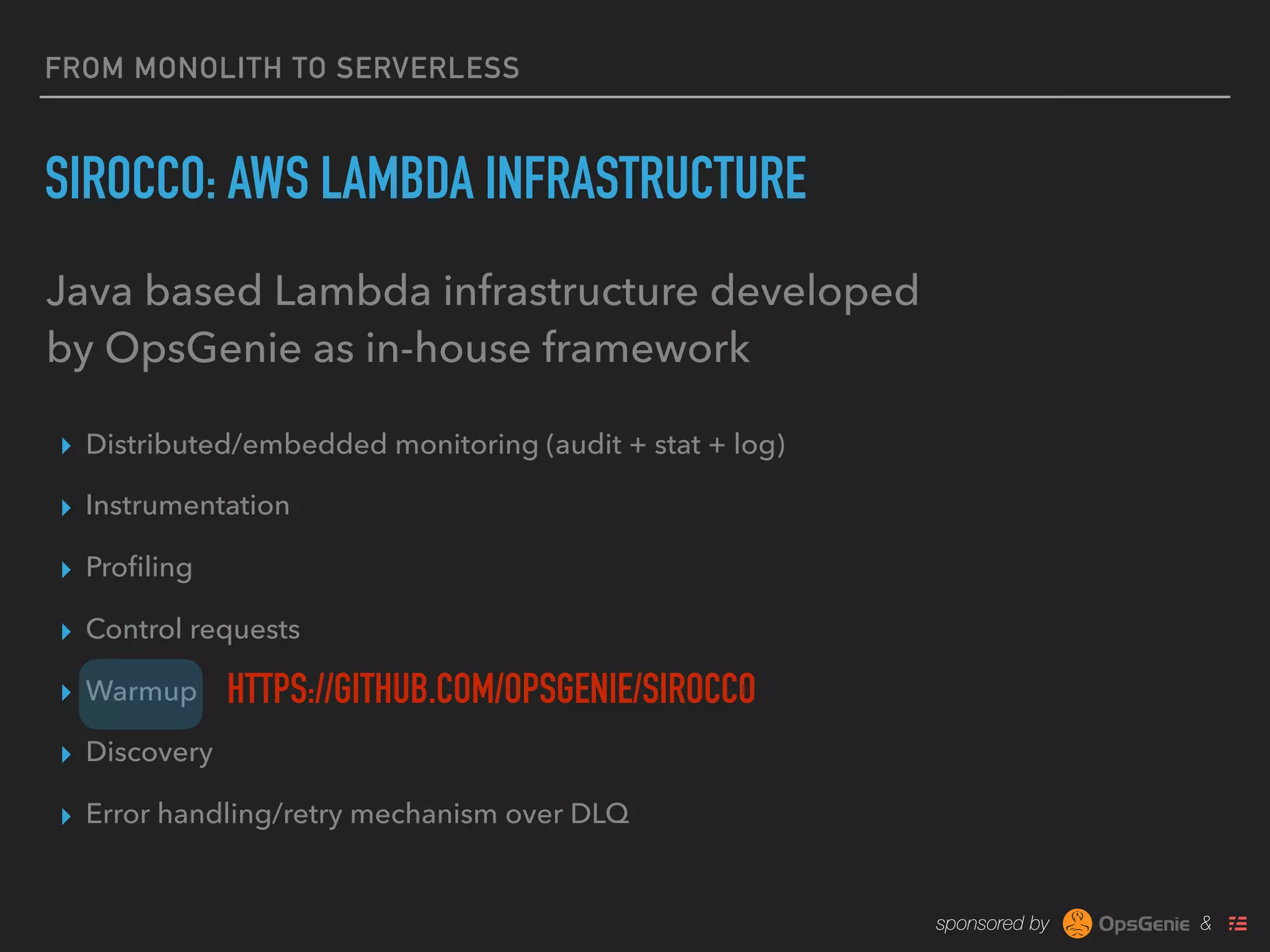

sponsored by & FROM MONOLITH TO SERVERLESS SIROCCO: AWS LAMBDA INFRASTRUCTURE ▸ Distributed/embedded monitoring (audit + stat + log) ▸ Instrumentation ▸ Profiling ▸ Control requests ▸ Warmup ▸ Discovery ▸ Error handling/retry mechanism over DLQ Java based Lambda infrastructure developed by OpsGenie as in-house framework
sponsored by & FROM MONOLITH TO SERVERLESS SIROCCO: AWS LAMBDA INFRASTRUCTURE ▸ Distributed/embedded monitoring (audit + stat + log) ▸ Instrumentation ▸ Profiling ▸ Control requests ▸ Warmup ▸ Discovery ▸ Error handling/retry mechanism over DLQ Java based Lambda infrastructure developed by OpsGenie as in-house framework HTTPS://GITHUB.COM/OPSGENIE/SIROCCO

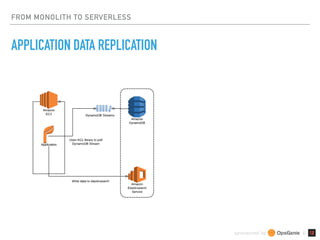

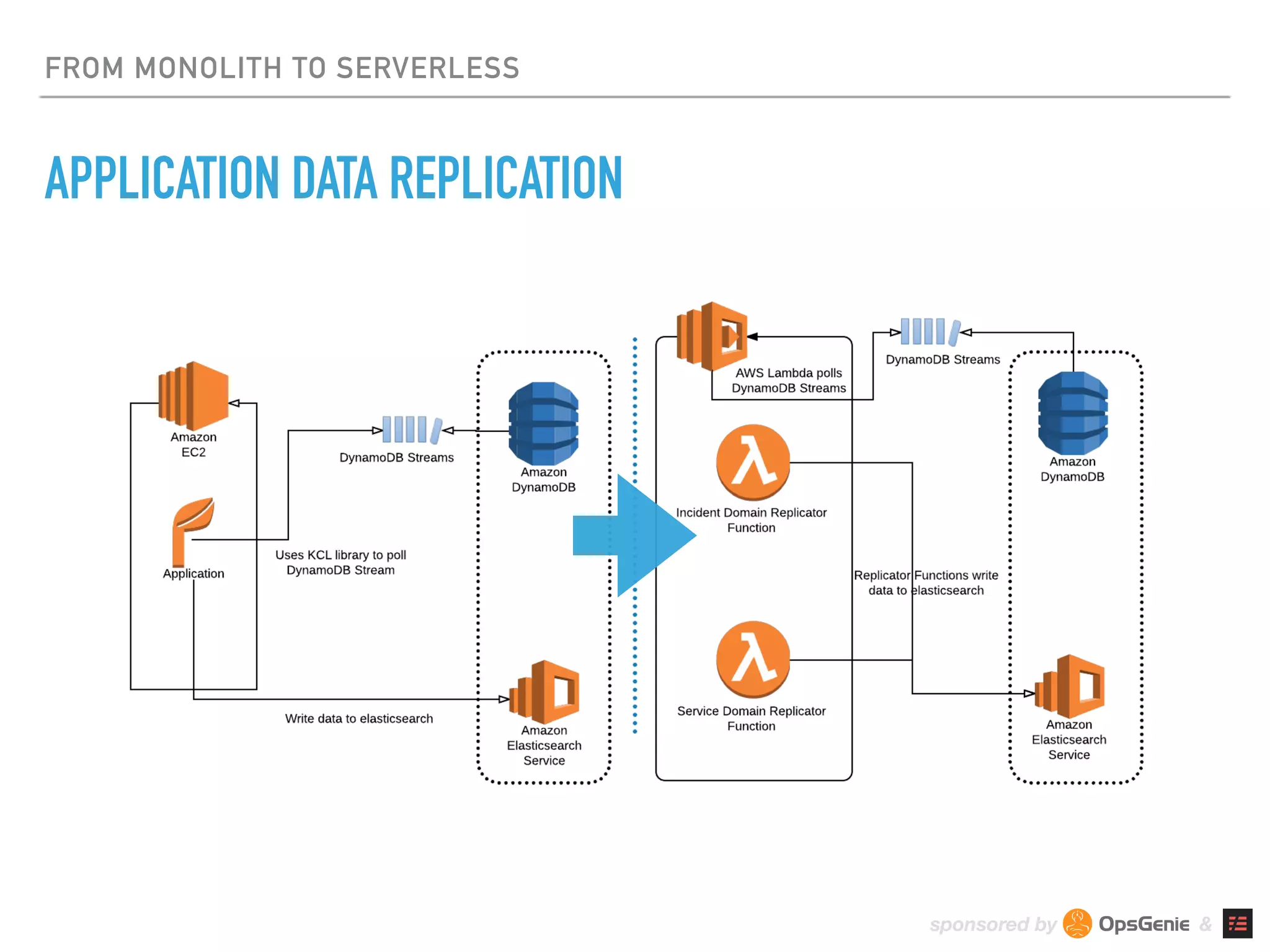

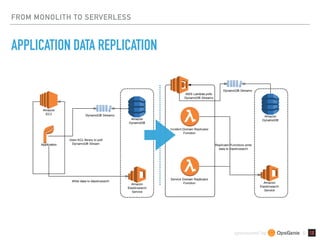

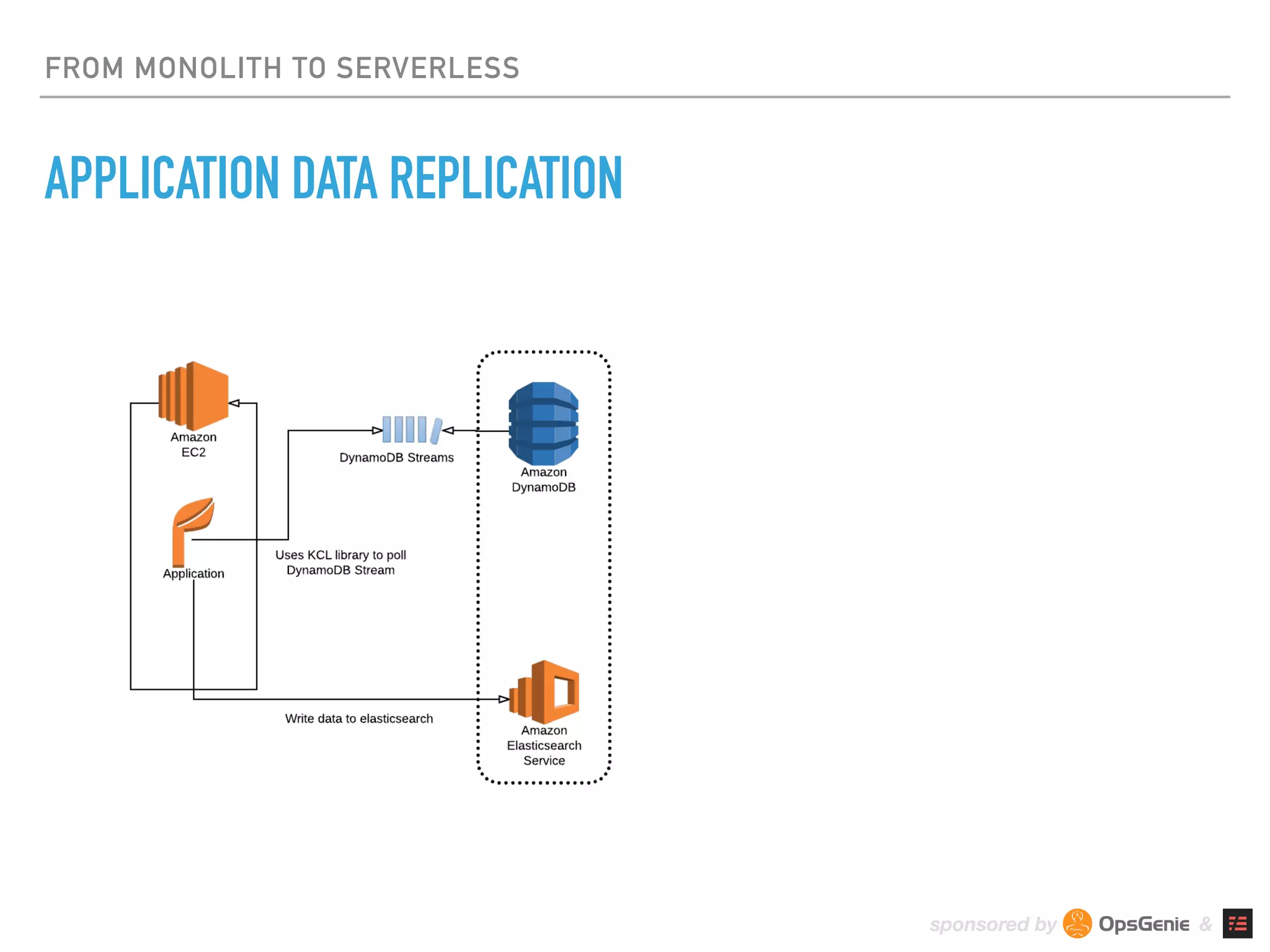

sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION DATA REPLICATION
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION DATA REPLICATION

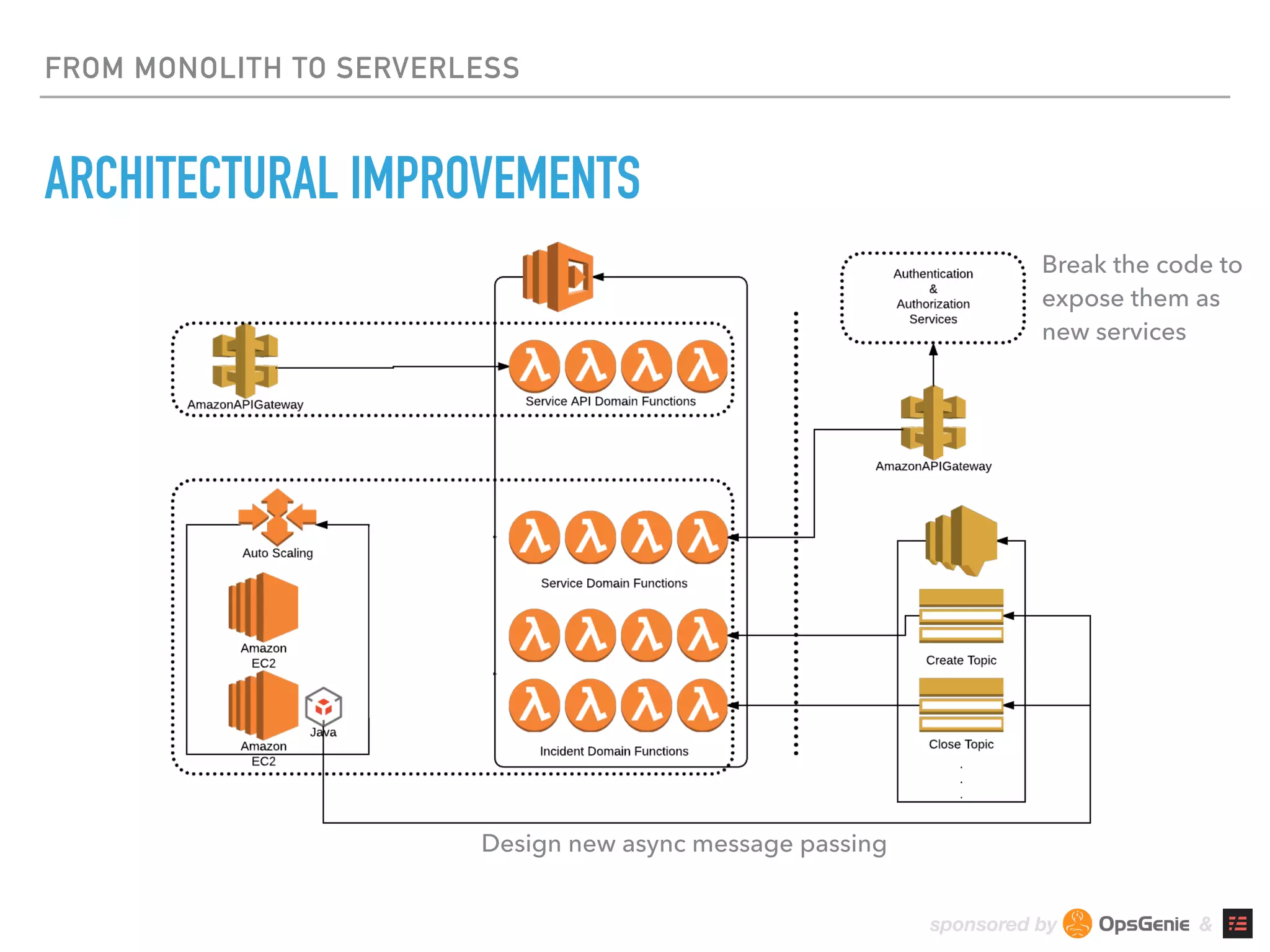

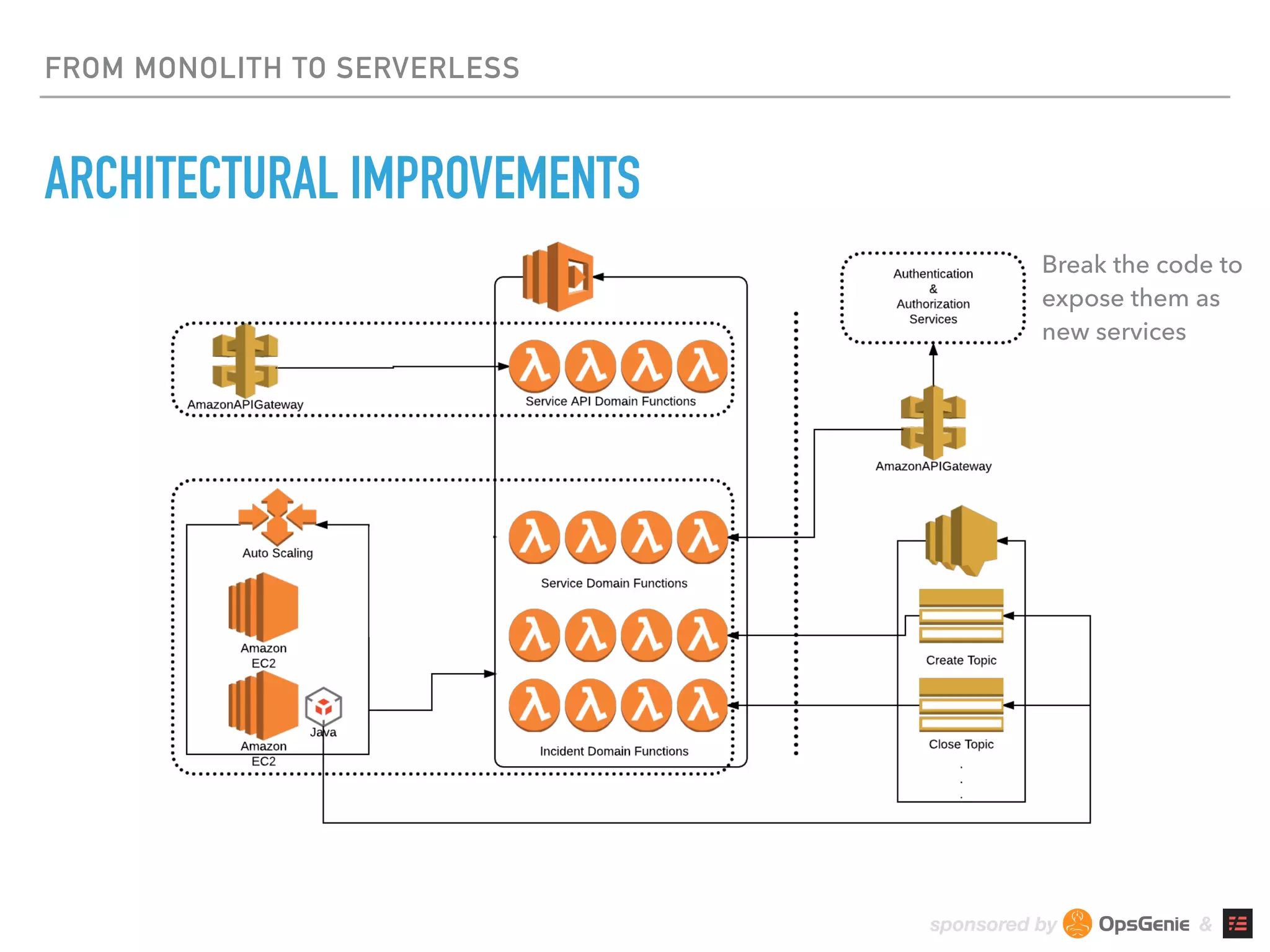

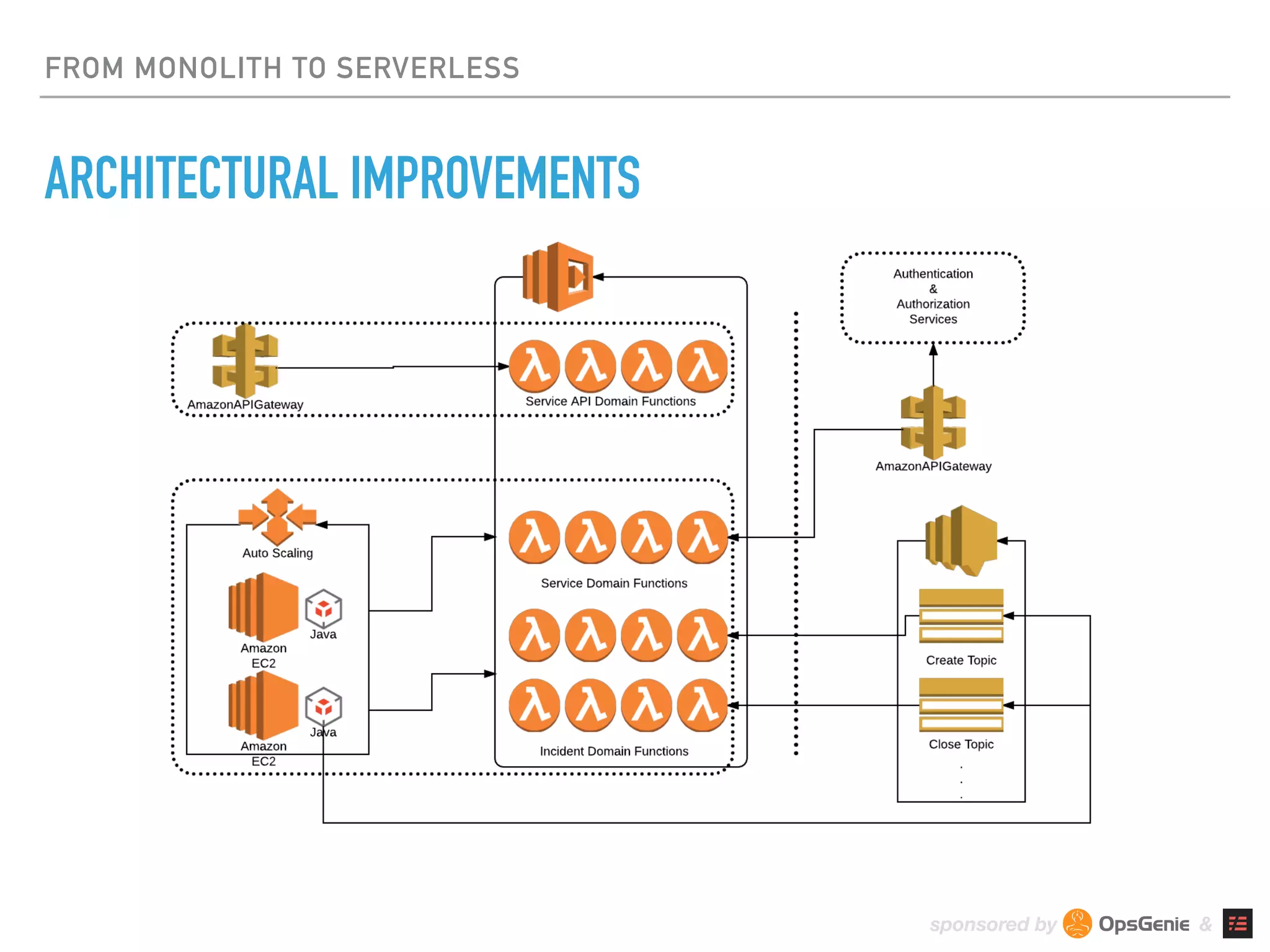

sponsored by & FROM MONOLITH TO SERVERLESS ARCHITECTURAL IMPROVEMENTS
sponsored by & FROM MONOLITH TO SERVERLESS ARCHITECTURAL IMPROVEMENTS Break the code to expose them as new services
sponsored by & FROM MONOLITH TO SERVERLESS ARCHITECTURAL IMPROVEMENTS Design new async message passing Break the code to expose them as new services

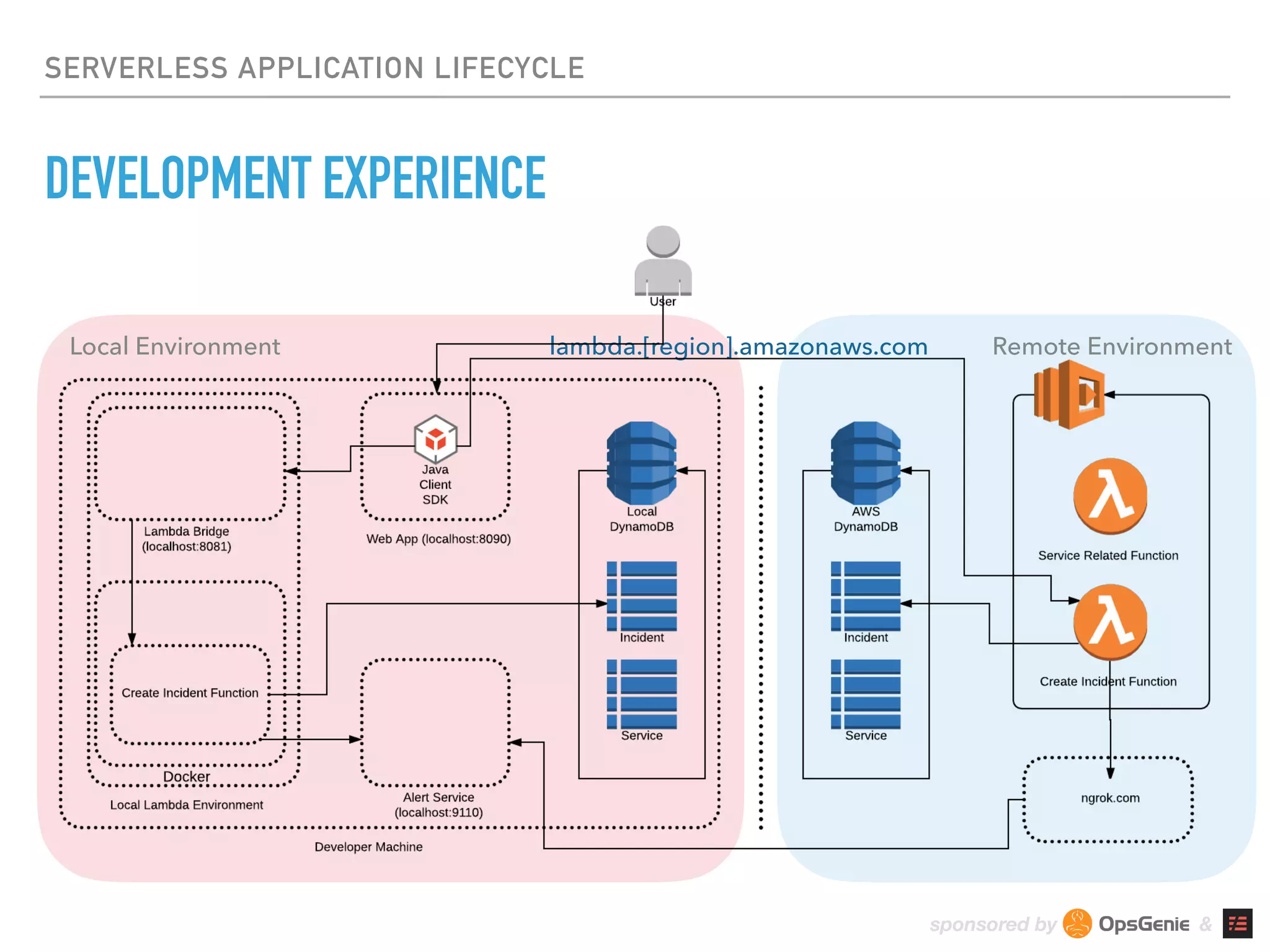

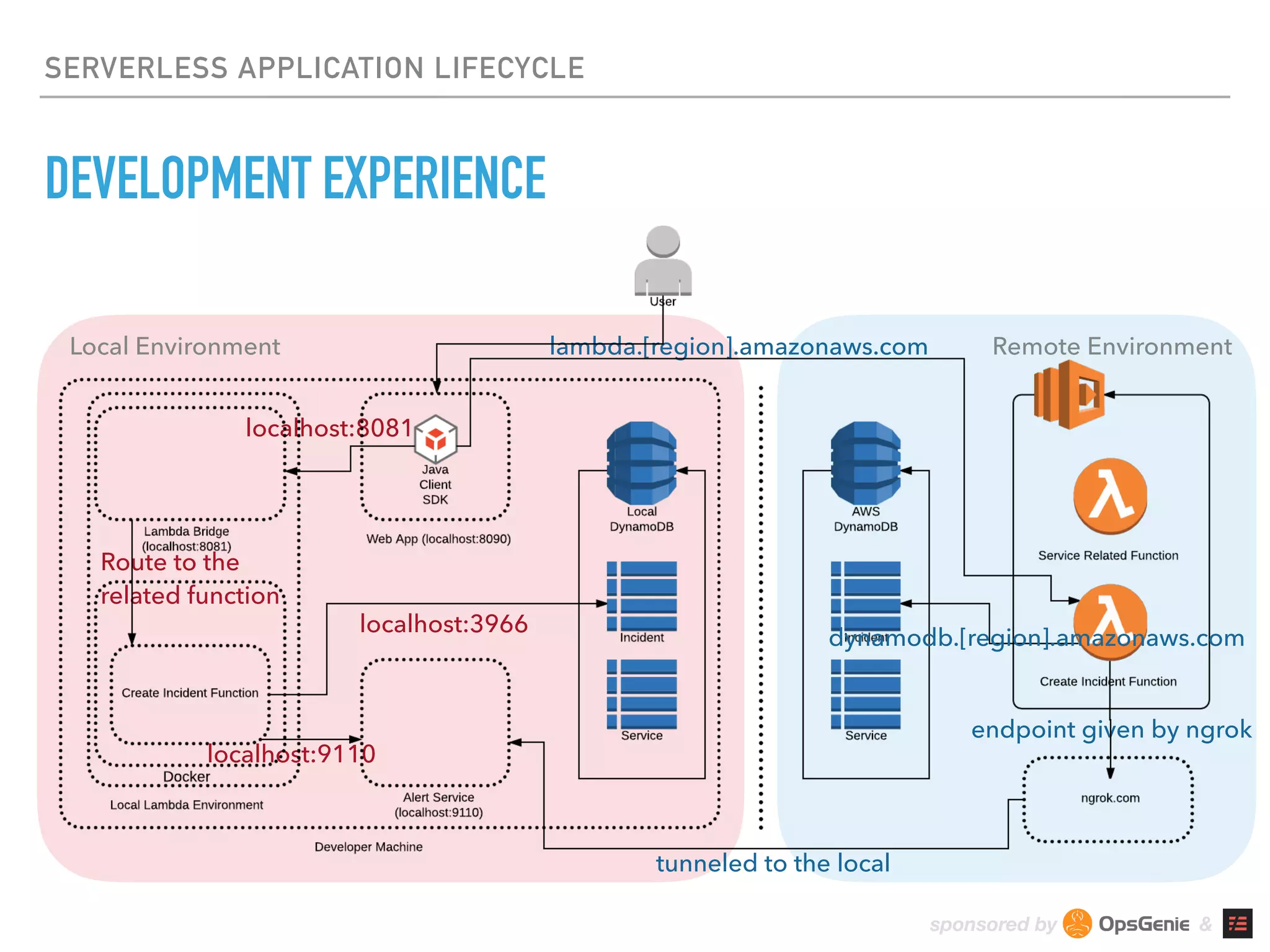

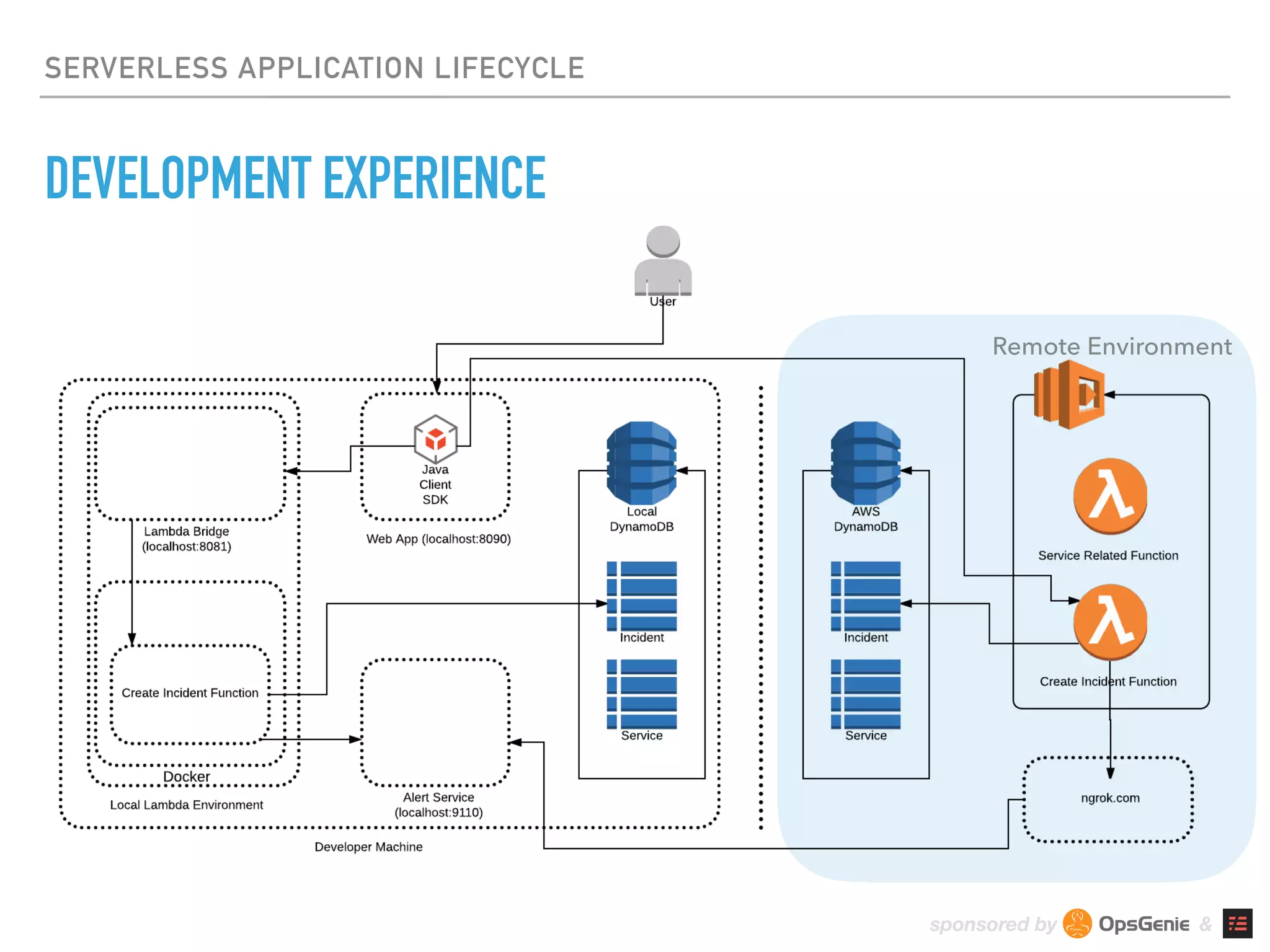

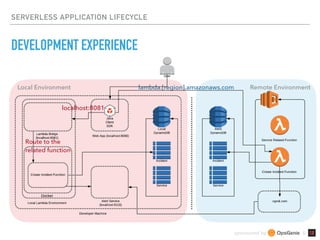

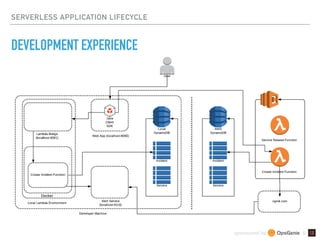

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE Remote Environment
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE Local Environment Remote Environment
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE lambda.[region].amazonaws.comLocal Environment Remote Environment

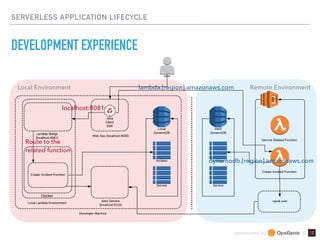

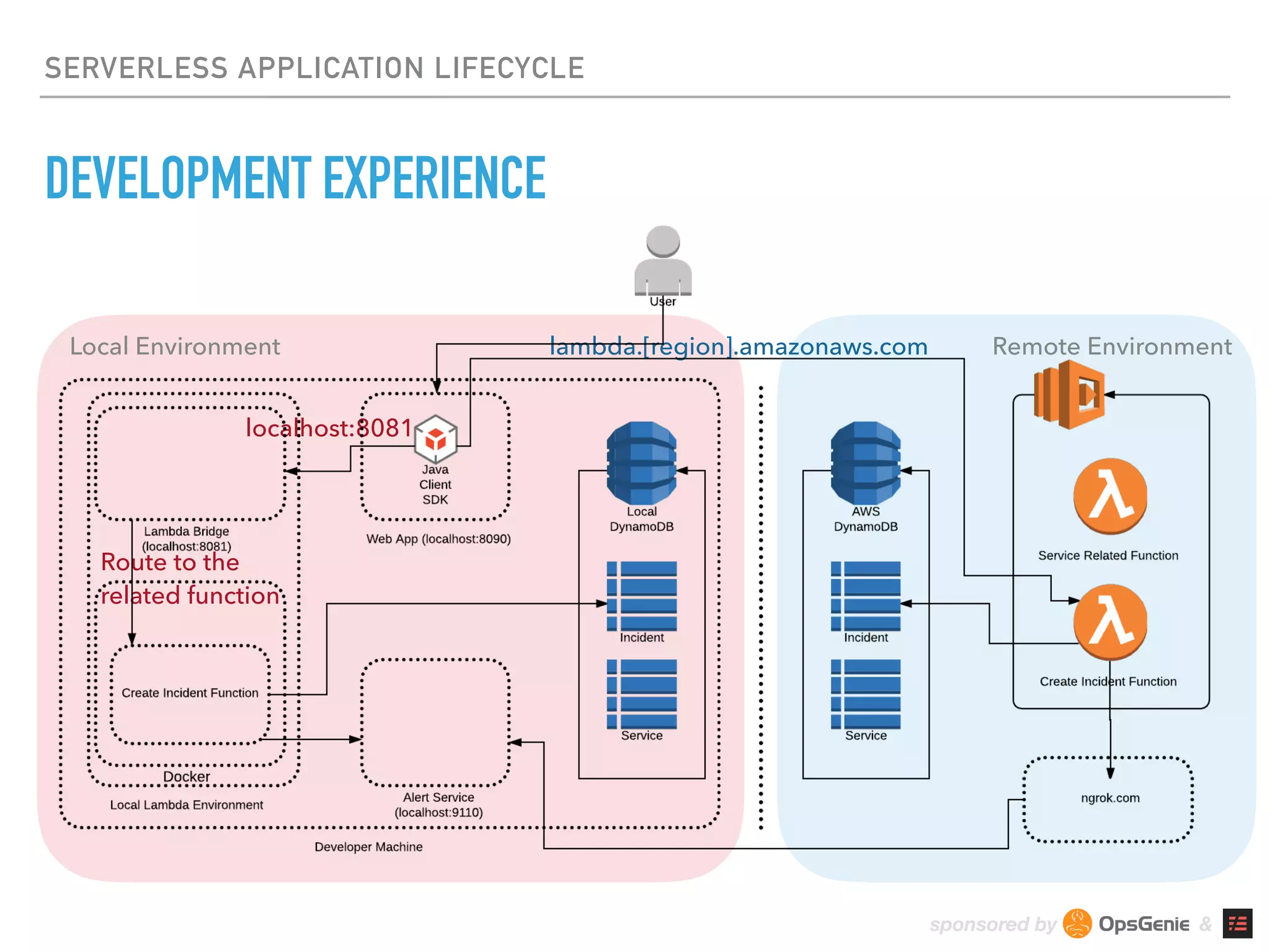

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE lambda.[region].amazonaws.com localhost:8081 Local Environment Remote Environment Route to the
 related function

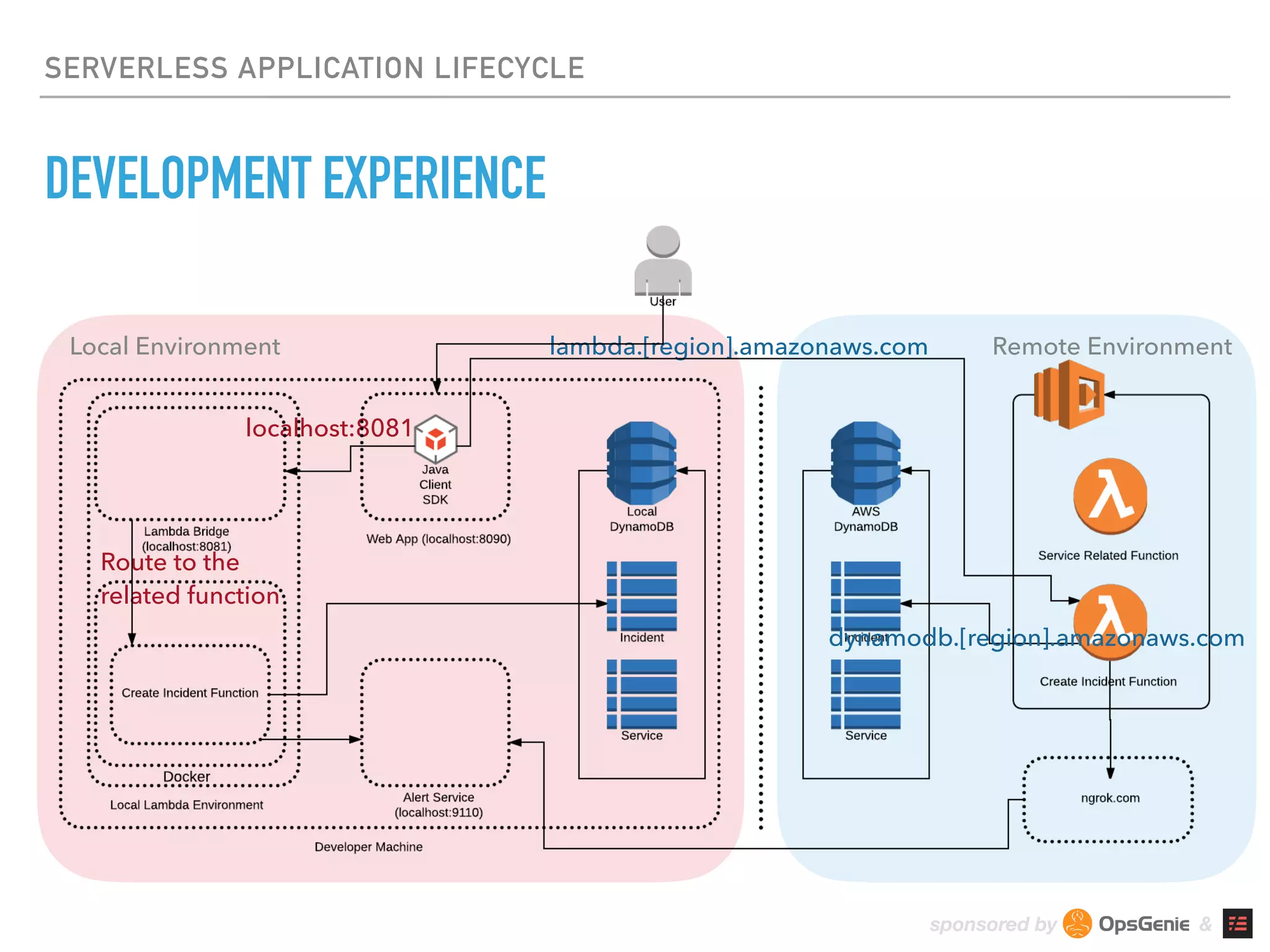

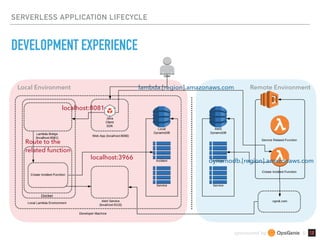

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE lambda.[region].amazonaws.com localhost:8081 Local Environment Remote Environment Route to the
 related function dynamodb.[region].amazonaws.com
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE lambda.[region].amazonaws.com localhost:8081 Local Environment Remote Environment Route to the
 related function localhost:3966 dynamodb.[region].amazonaws.com

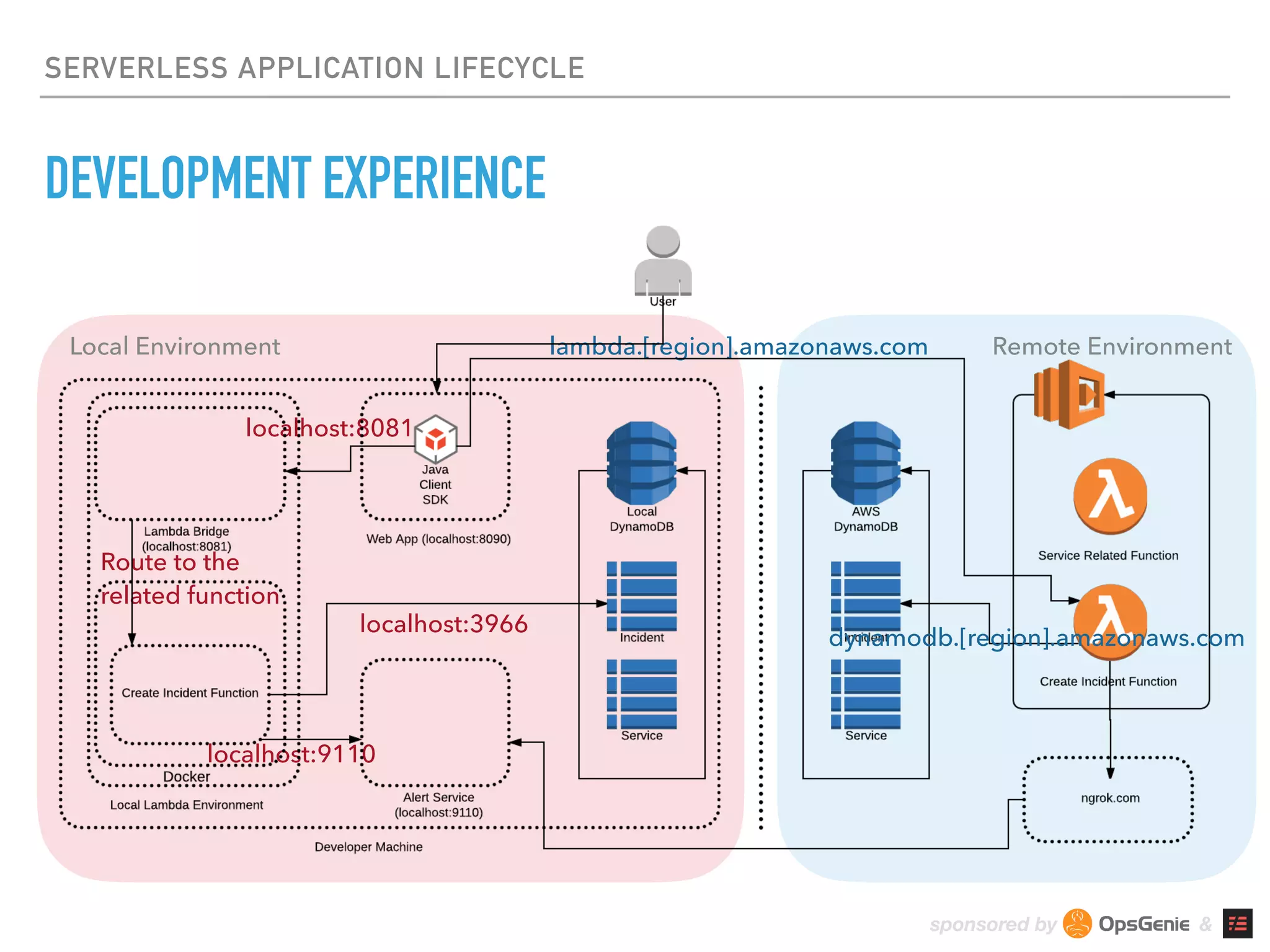

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE lambda.[region].amazonaws.com localhost:8081 Local Environment Remote Environment Route to the
 related function localhost:9110 localhost:3966 dynamodb.[region].amazonaws.com
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT EXPERIENCE lambda.[region].amazonaws.com localhost:8081 Local Environment Remote Environment Route to the
 related function localhost:9110 endpoint given by ngrok localhost:3966 dynamodb.[region].amazonaws.com tunneled to the local
sponsored by & “IT'S NOT DONE UNTIL IT SHIPS.” Steve Jobs, Co-founder, Chairman, and CEO of Apple Inc. SERVERLESS APPLICATION LIFECYCLE

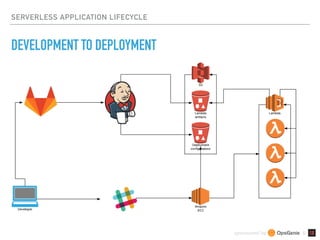

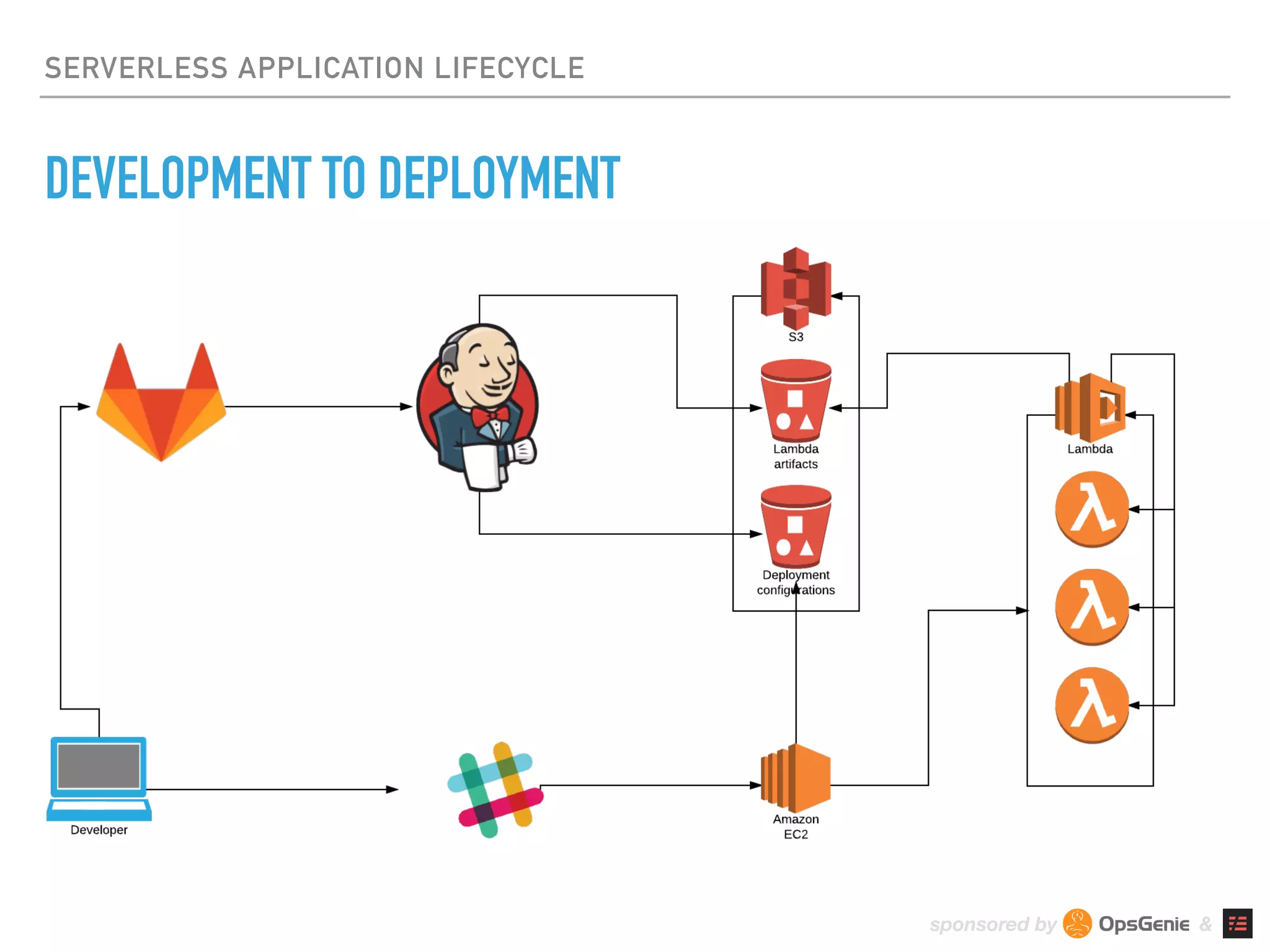

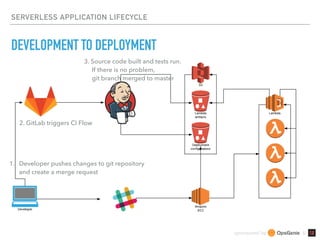

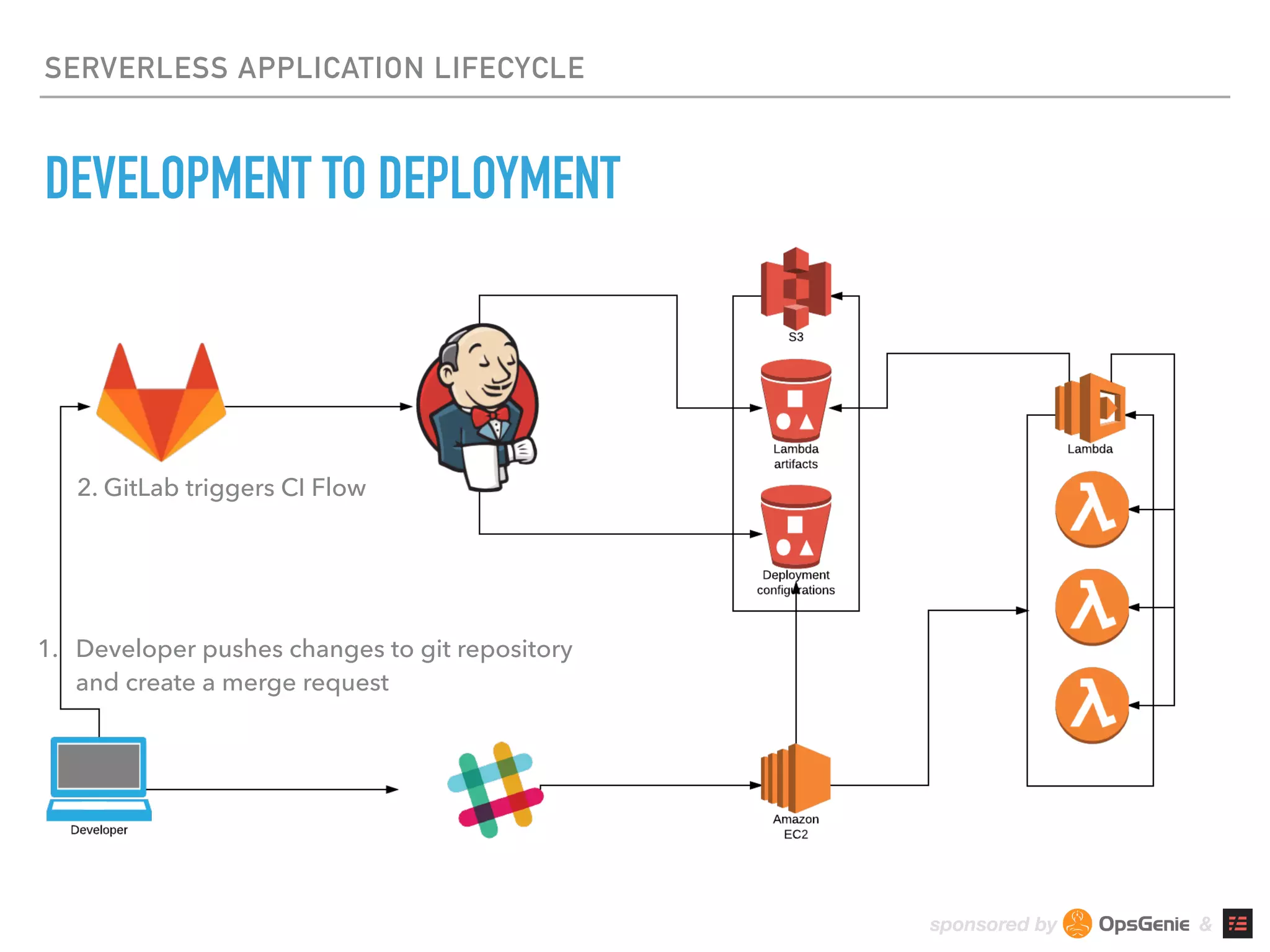

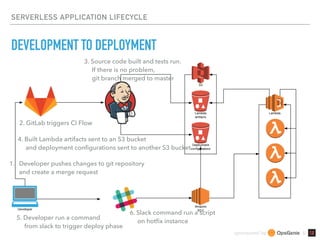

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow

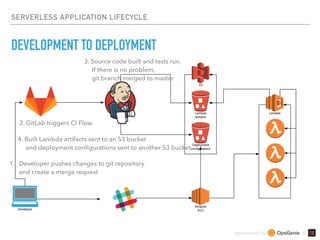

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow 3. Source code built and tests run.
 If there is no problem,
 git branch merged to master

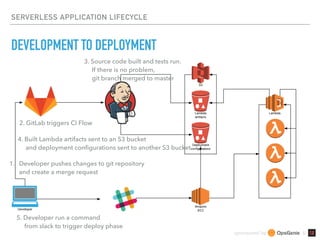

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow 3. Source code built and tests run.
 If there is no problem,
 git branch merged to master 4. Built Lambda artifacts sent to an S3 bucket
 and deployment configurations sent to another S3 bucket

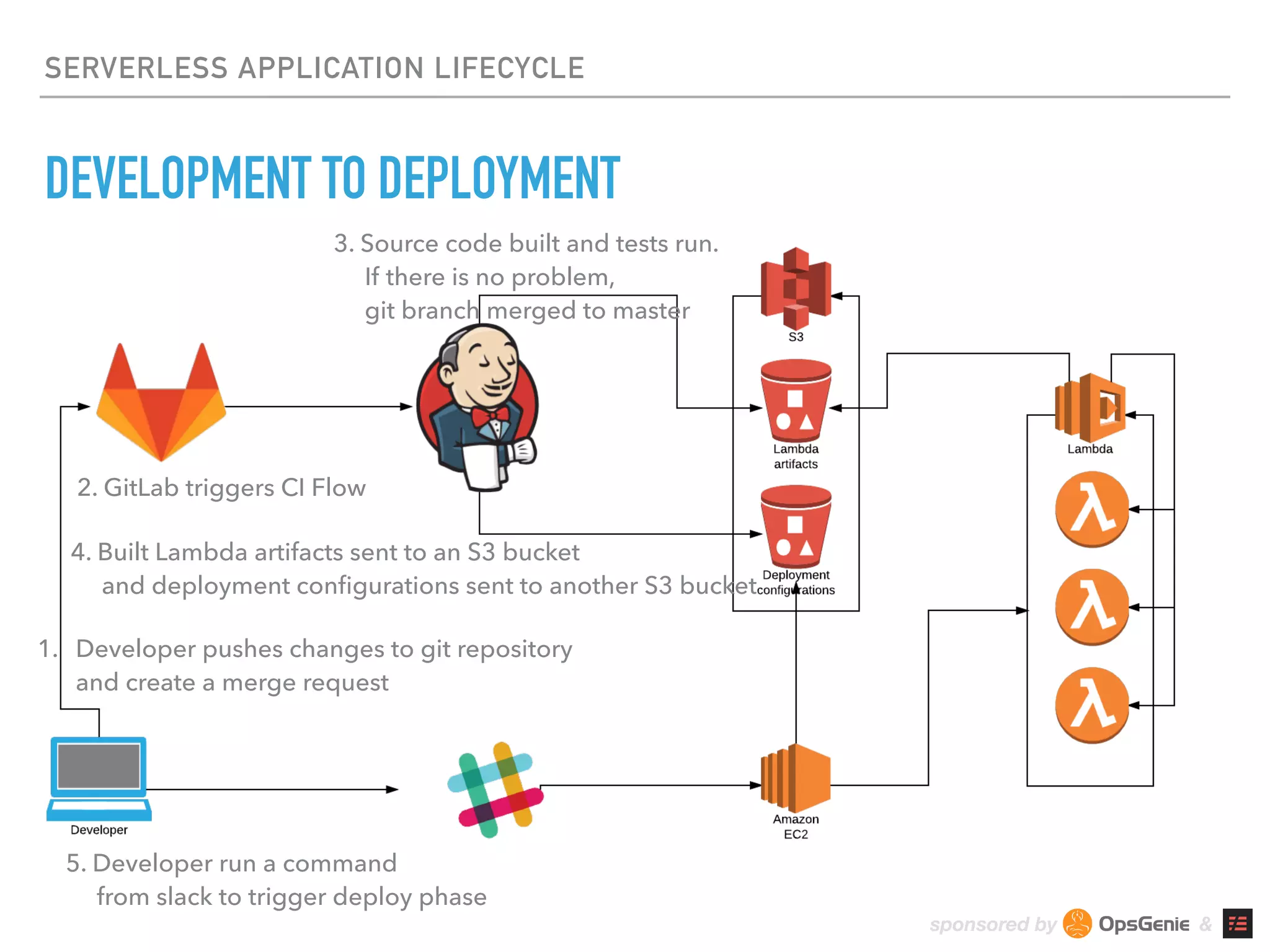

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow 3. Source code built and tests run.
 If there is no problem,
 git branch merged to master 4. Built Lambda artifacts sent to an S3 bucket
 and deployment configurations sent to another S3 bucket 5. Developer run a command
 from slack to trigger deploy phase

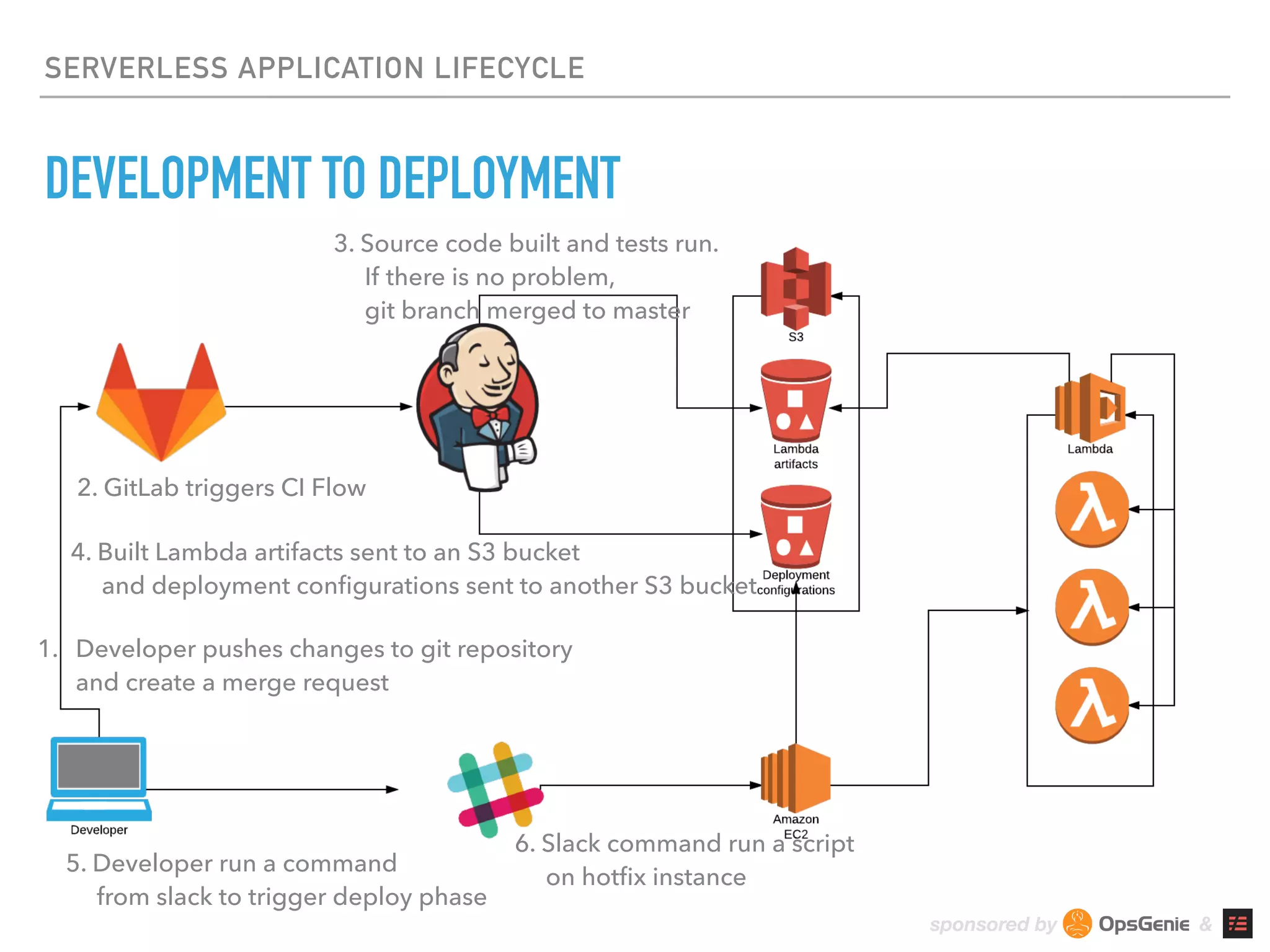

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow 3. Source code built and tests run.
 If there is no problem,
 git branch merged to master 4. Built Lambda artifacts sent to an S3 bucket
 and deployment configurations sent to another S3 bucket 5. Developer run a command
 from slack to trigger deploy phase 6. Slack command run a script
 on hotfix instance
sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow 3. Source code built and tests run.
 If there is no problem,
 git branch merged to master 4. Built Lambda artifacts sent to an S3 bucket
 and deployment configurations sent to another S3 bucket 5. Developer run a command
 from slack to trigger deploy phase 6. Slack command run a script
 on hotfix instance 7. Download
 deployment configuration

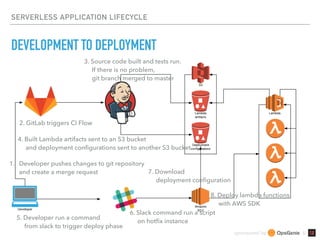

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow 3. Source code built and tests run.
 If there is no problem,
 git branch merged to master 4. Built Lambda artifacts sent to an S3 bucket
 and deployment configurations sent to another S3 bucket 5. Developer run a command
 from slack to trigger deploy phase 6. Slack command run a script
 on hotfix instance 7. Download
 deployment configuration 8. Deploy lambda functions
 with AWS SDK

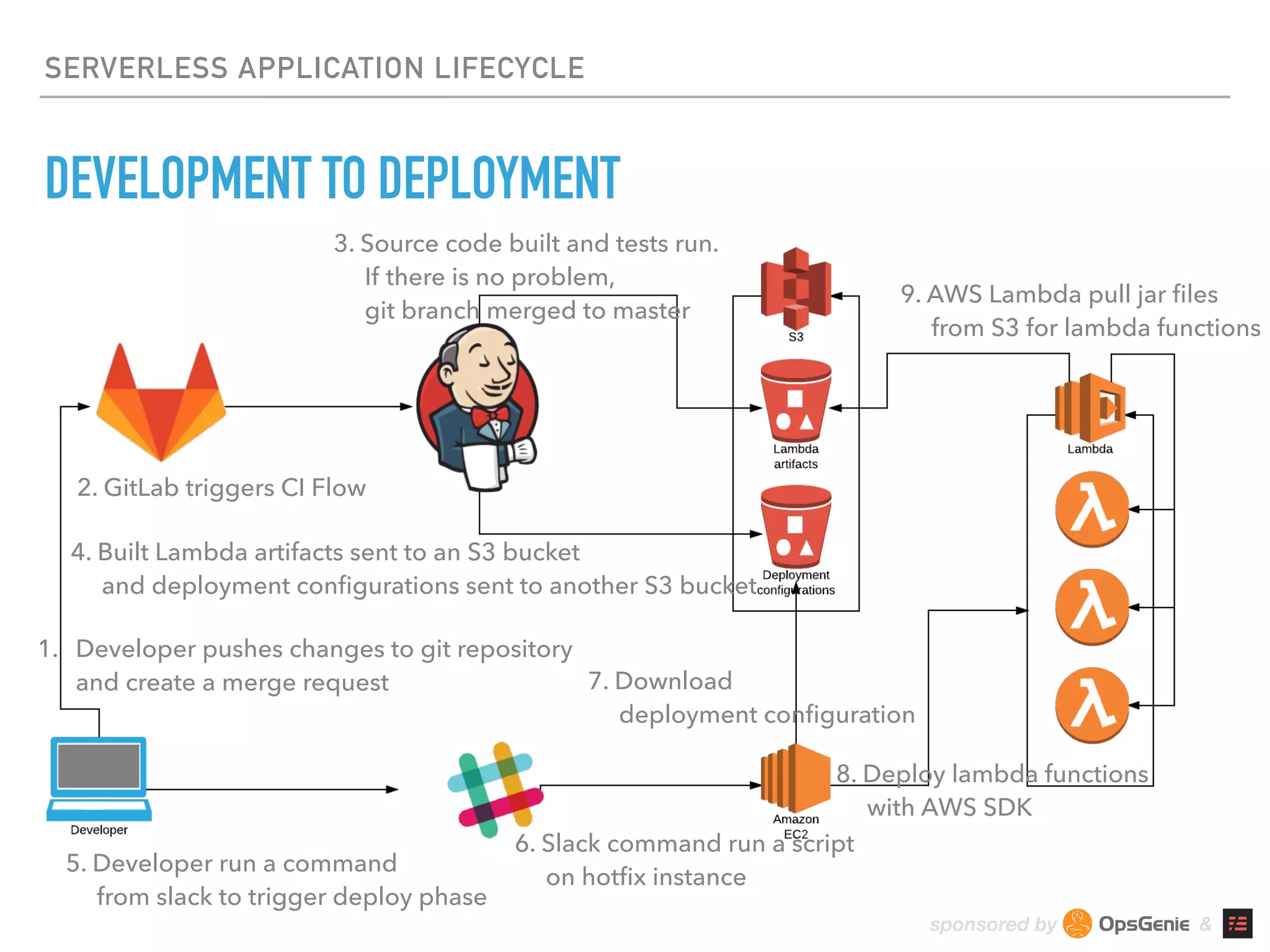

sponsored by & SERVERLESS APPLICATION LIFECYCLE DEVELOPMENT TO DEPLOYMENT 1. Developer pushes changes to git repository
 and create a merge request 2. GitLab triggers CI Flow 3. Source code built and tests run.
 If there is no problem,
 git branch merged to master 4. Built Lambda artifacts sent to an S3 bucket
 and deployment configurations sent to another S3 bucket 5. Developer run a command
 from slack to trigger deploy phase 6. Slack command run a script
 on hotfix instance 7. Download
 deployment configuration 8. Deploy lambda functions
 with AWS SDK 9. AWS Lambda pull jar files
 from S3 for lambda functions

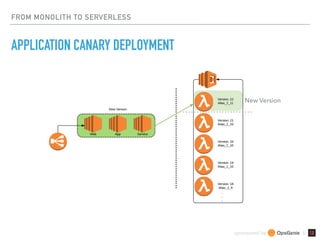

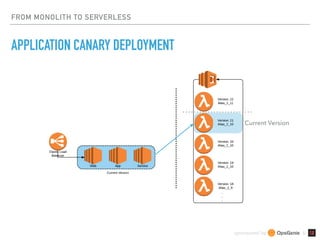

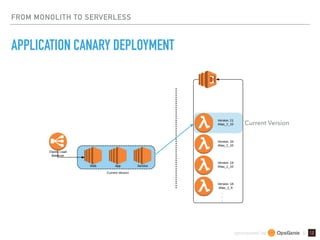

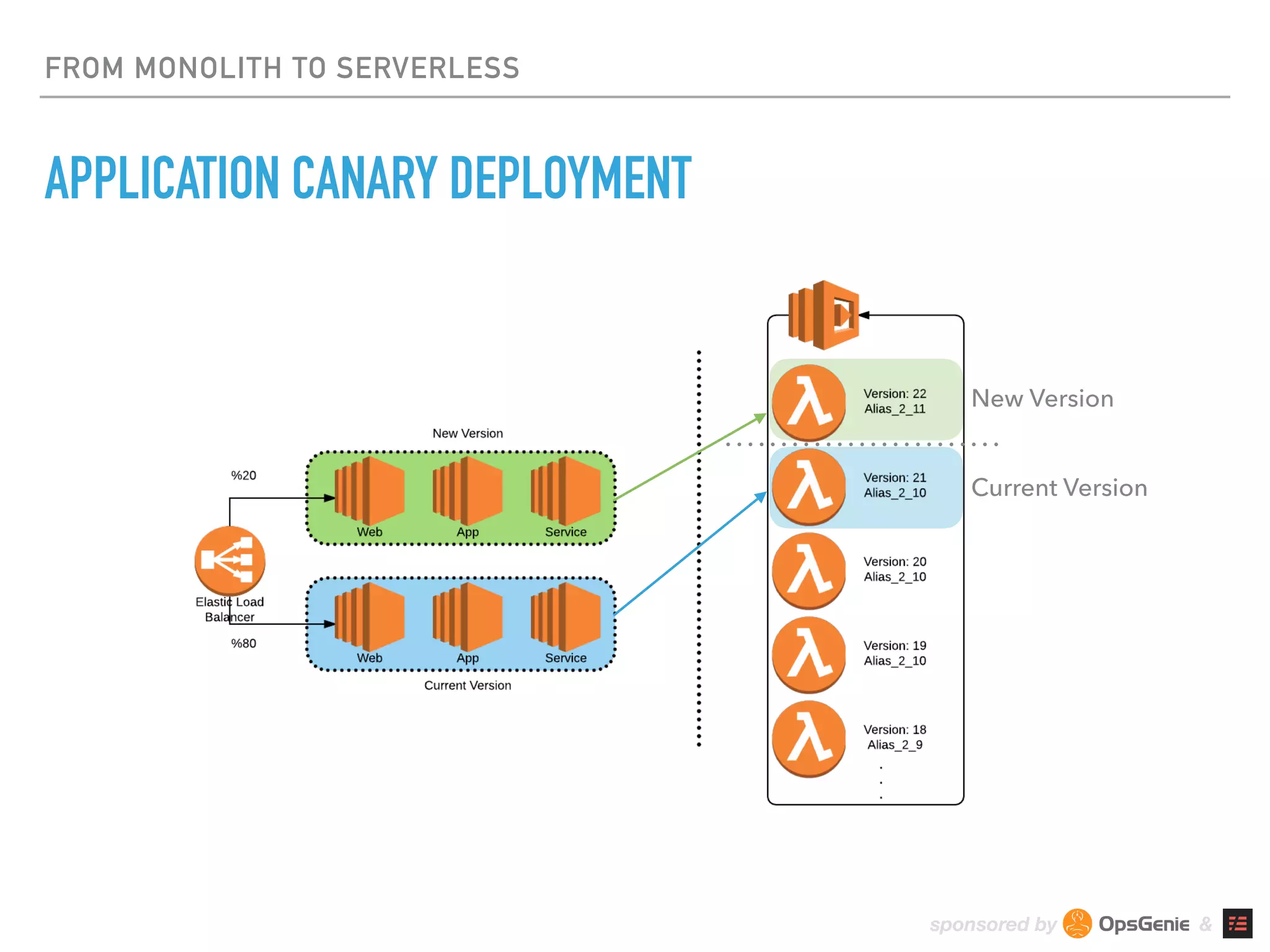

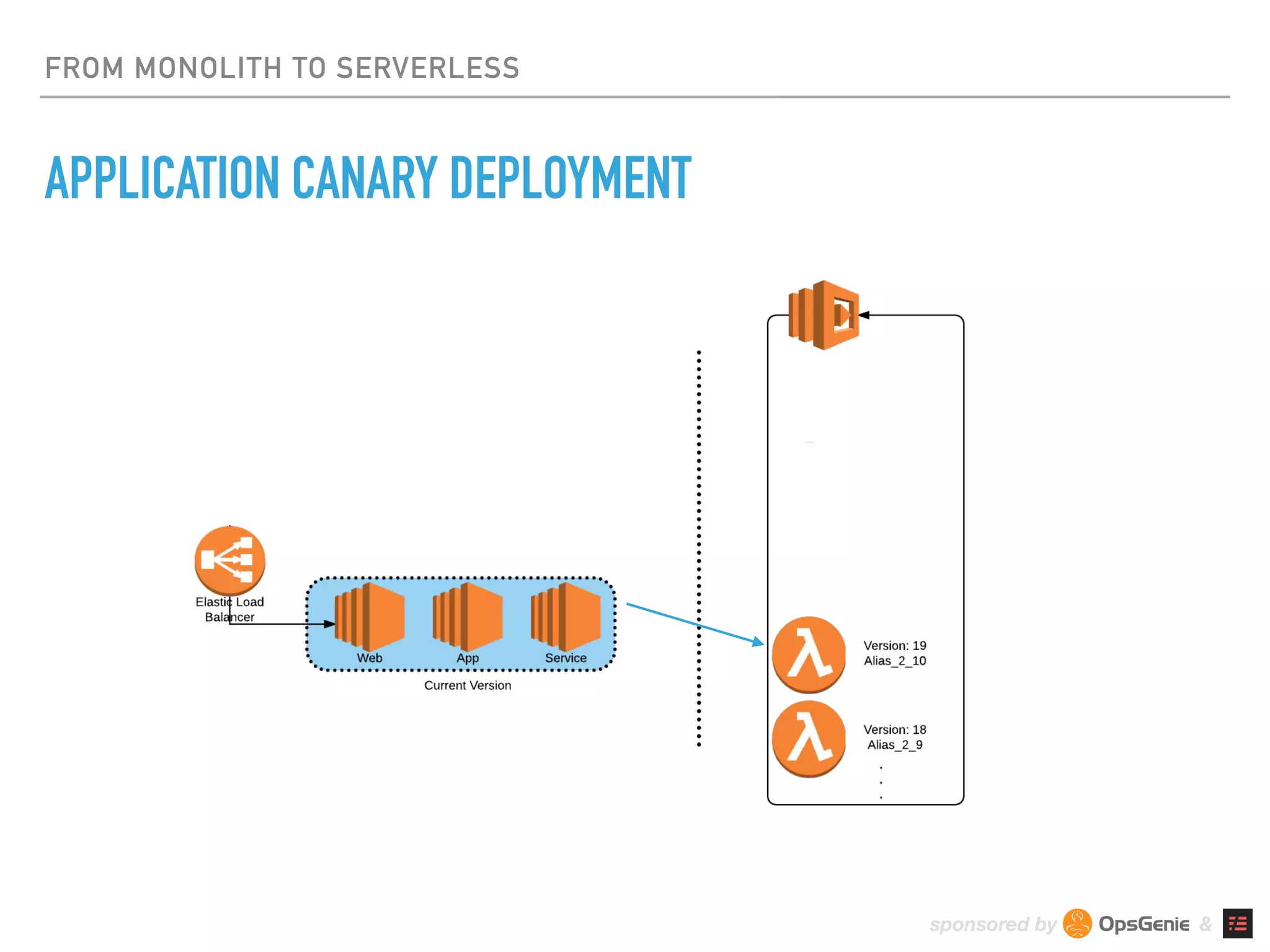

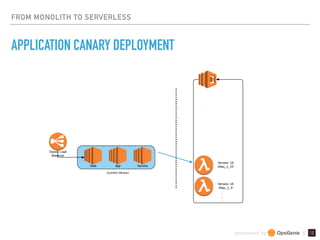

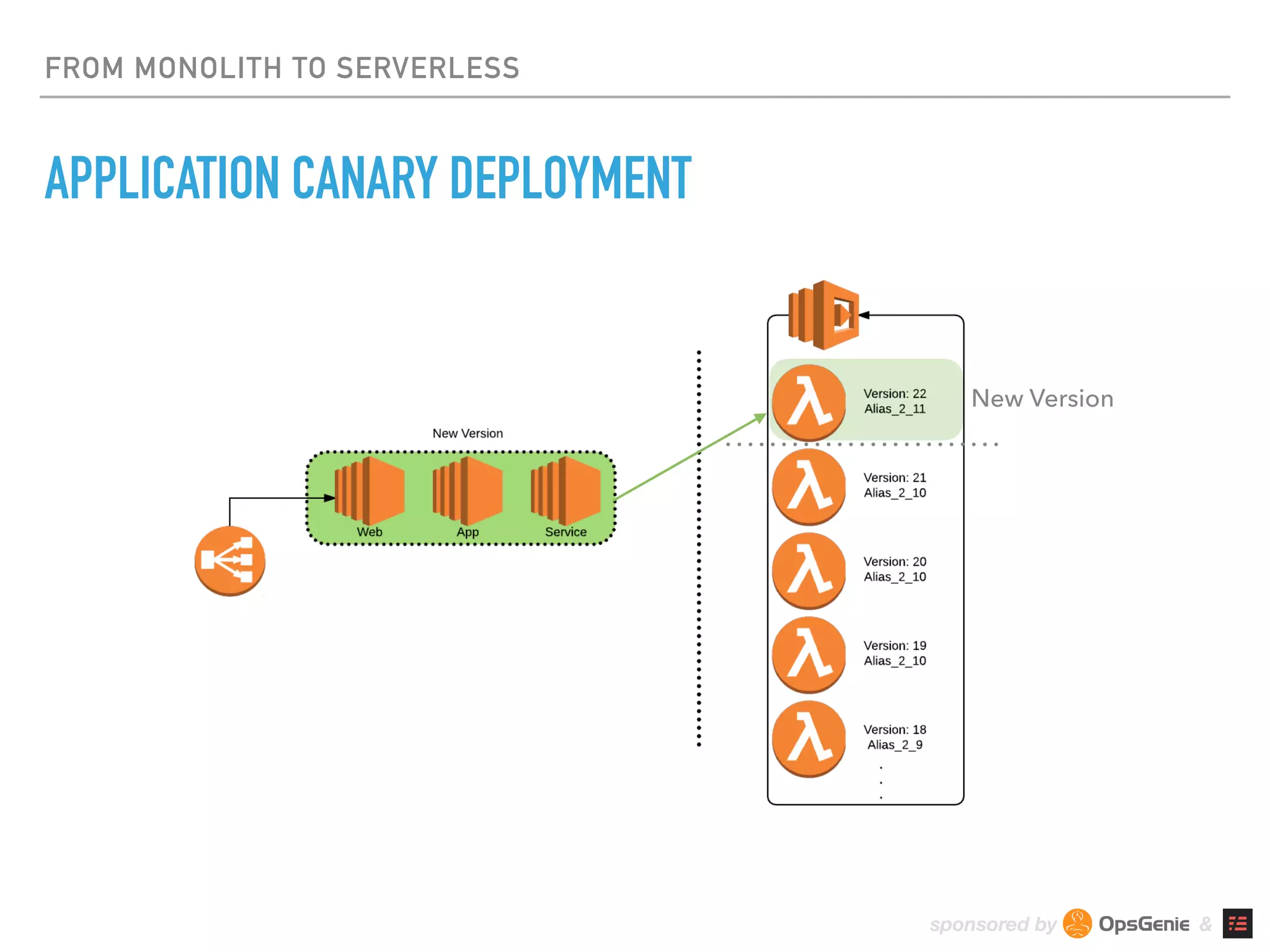

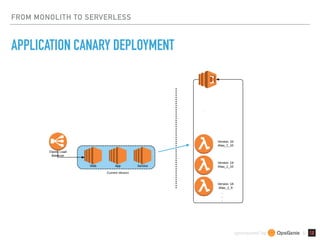

sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION CANARY DEPLOYMENT §
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION CANARY DEPLOYMENT §
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION CANARY DEPLOYMENT Current Version §
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION CANARY DEPLOYMENT Current Version §
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION CANARY DEPLOYMENT New Version Current Version
sponsored by & FROM MONOLITH TO SERVERLESS APPLICATION CANARY DEPLOYMENT New Version

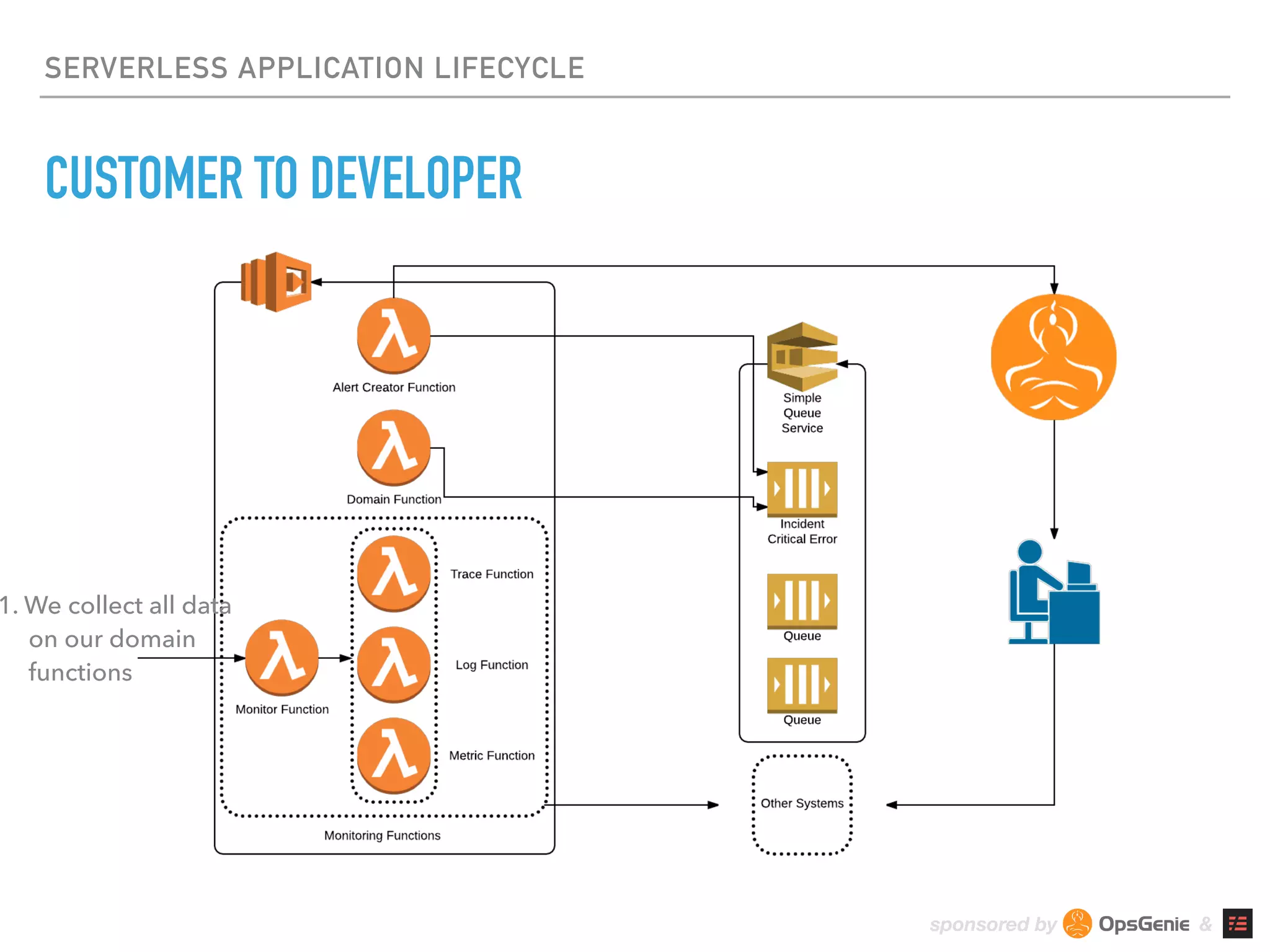

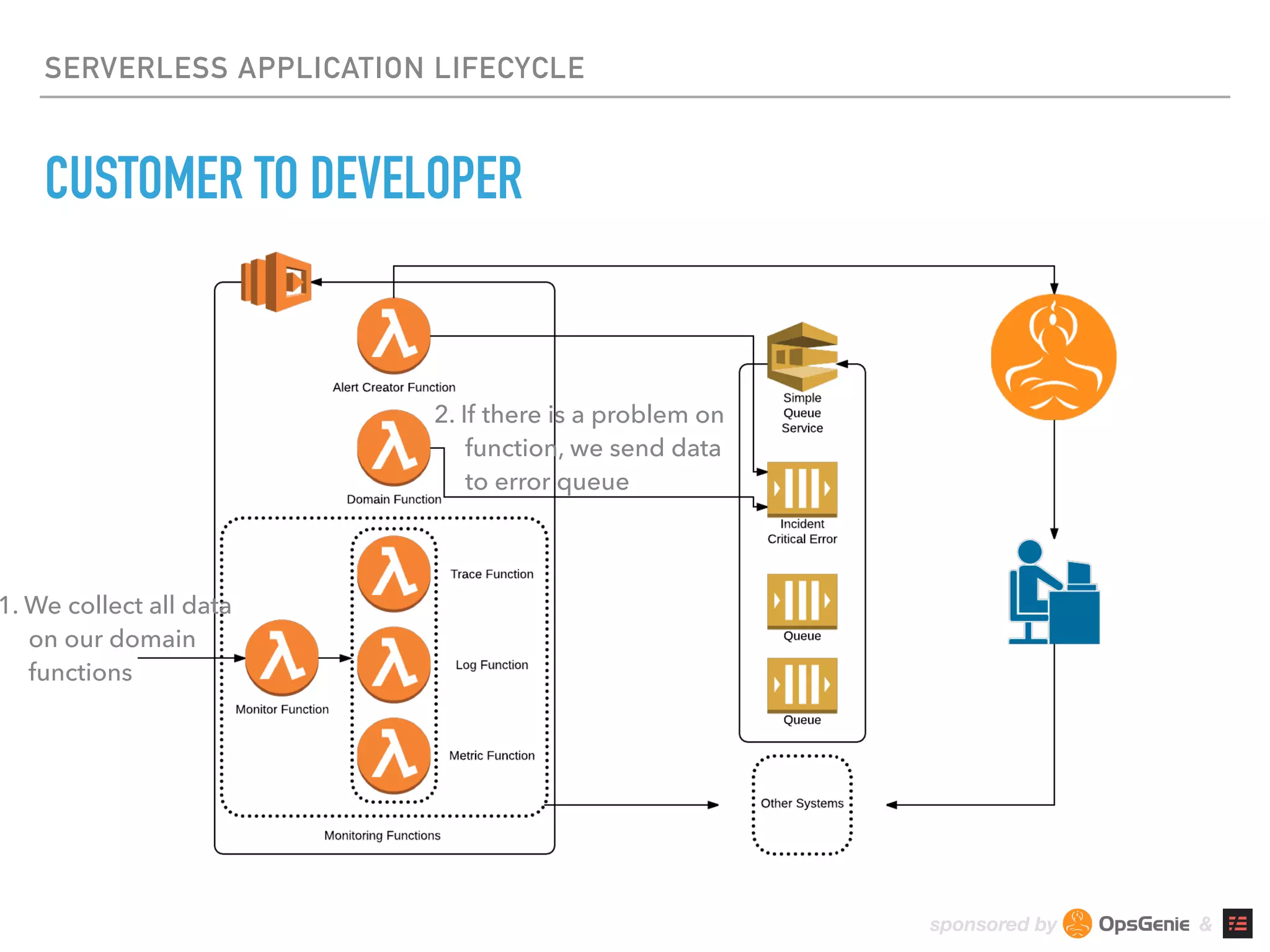

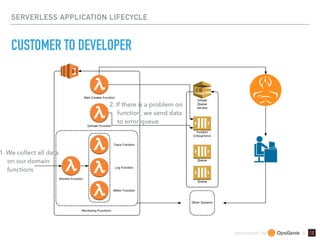

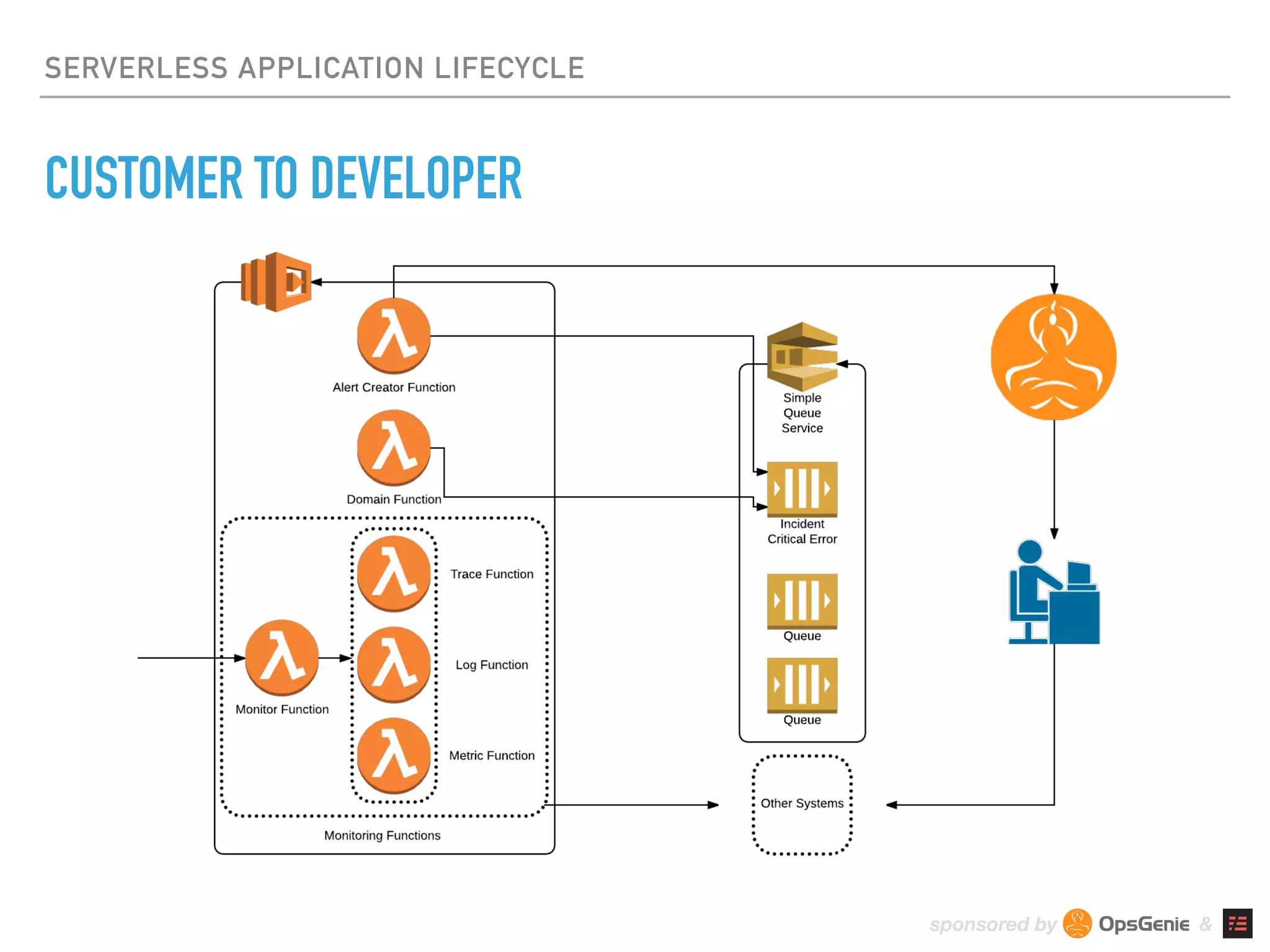

sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER

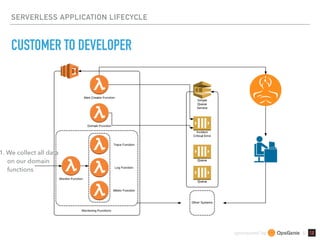

sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER 1. We collect all data
 on our domain
 functions
sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER 1. We collect all data
 on our domain
 functions 2. If there is a problem on
 function, we send data
 to error queue

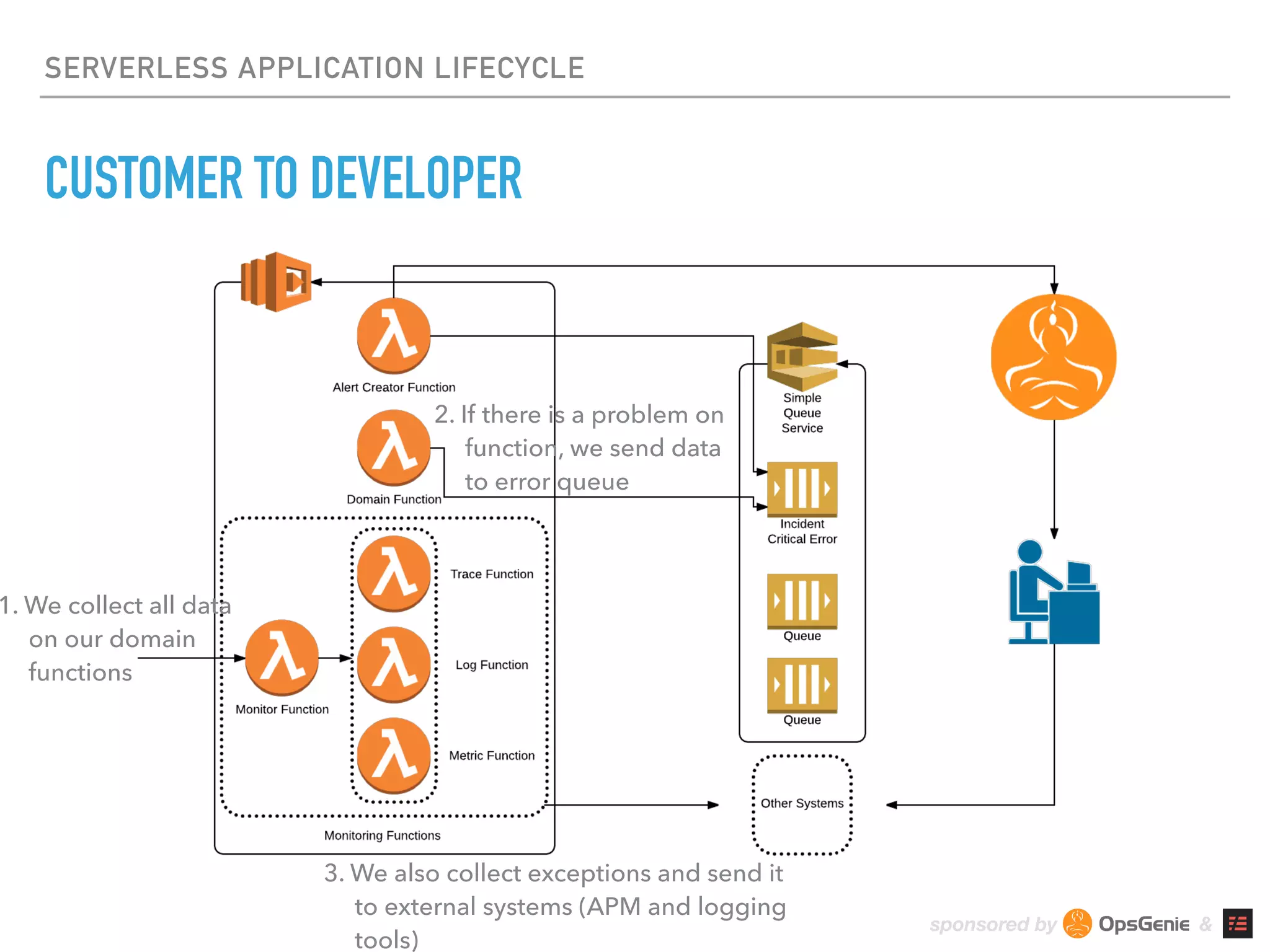

sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER 3. We also collect exceptions and send it
 to external systems (APM and logging
 tools) 1. We collect all data
 on our domain
 functions 2. If there is a problem on
 function, we send data
 to error queue
sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER 3. We also collect exceptions and send it
 to external systems (APM and logging
 tools) 1. We collect all data
 on our domain
 functions 2. If there is a problem on
 function, we send data
 to error queue 4. There is a function which
 polls error queue
sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER 3. We also collect exceptions and send it
 to external systems (APM and logging
 tools) 1. We collect all data
 on our domain
 functions 2. If there is a problem on
 function, we send data
 to error queue 4. There is a function which
 polls error queue 5. If there is an error on queue, create an alert on OpsGenie
sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER 3. We also collect exceptions and send it
 to external systems (APM and logging
 tools) 1. We collect all data
 on our domain
 functions 2. If there is a problem on
 function, we send data
 to error queue 4. There is a function which
 polls error queue 5. If there is an error on queue, create an alert on OpsGenie 6. OpsGenie notify us

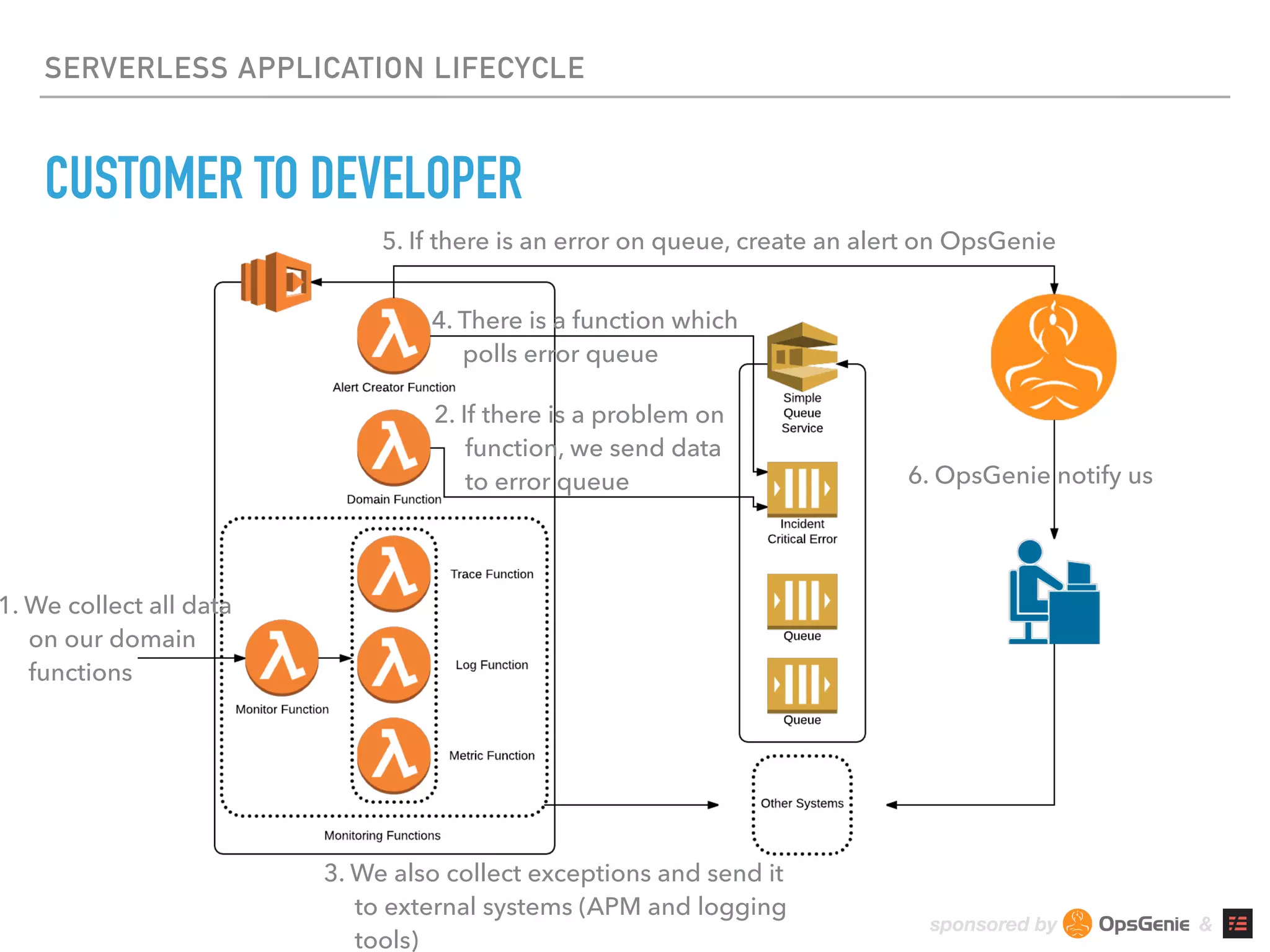

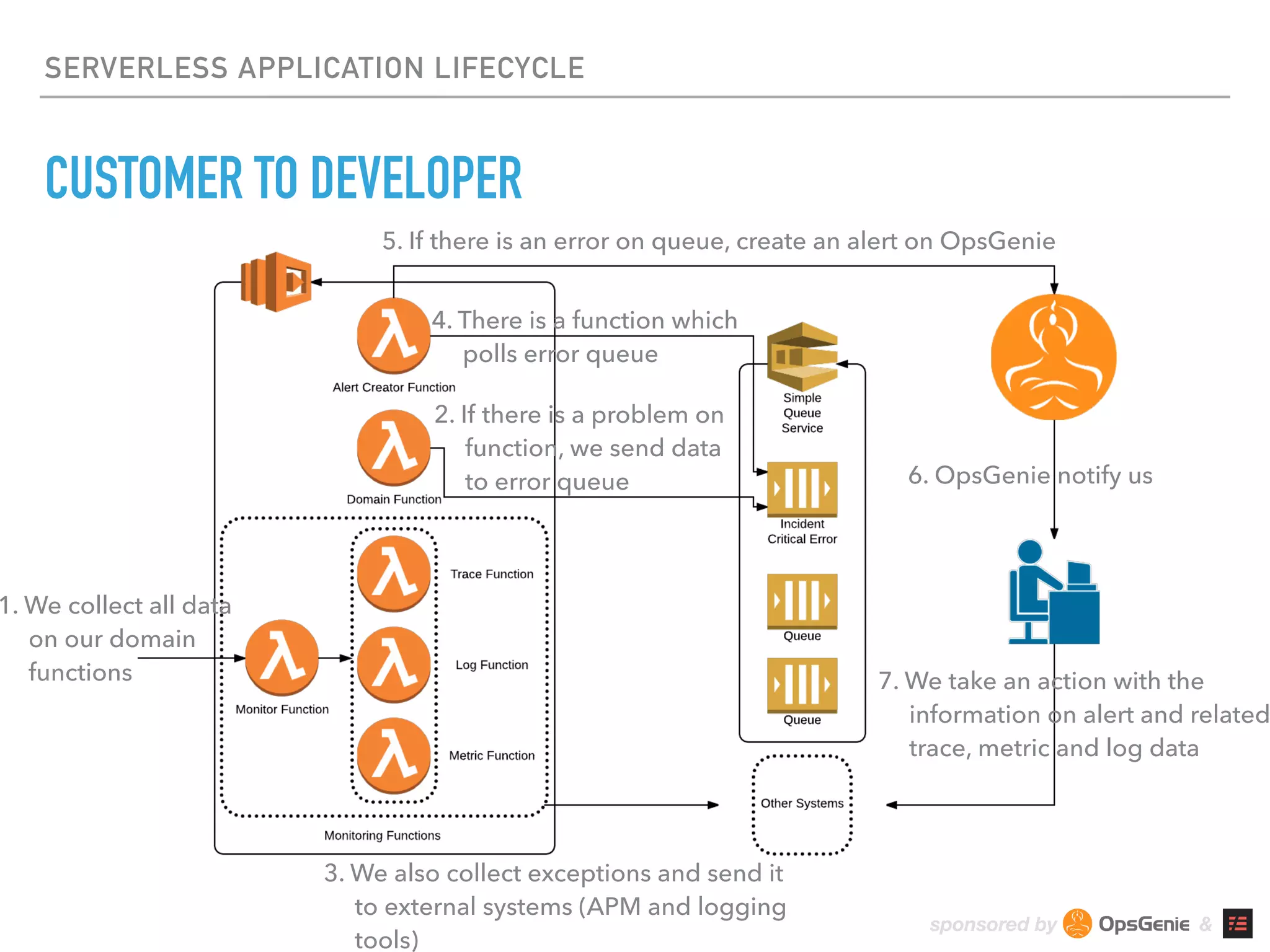

sponsored by & SERVERLESS APPLICATION LIFECYCLE CUSTOMER TO DEVELOPER 3. We also collect exceptions and send it
 to external systems (APM and logging
 tools) 1. We collect all data
 on our domain
 functions 2. If there is a problem on
 function, we send data
 to error queue 4. There is a function which
 polls error queue 5. If there is an error on queue, create an alert on OpsGenie 6. OpsGenie notify us 7. We take an action with the
 information on alert and related trace, metric and log data

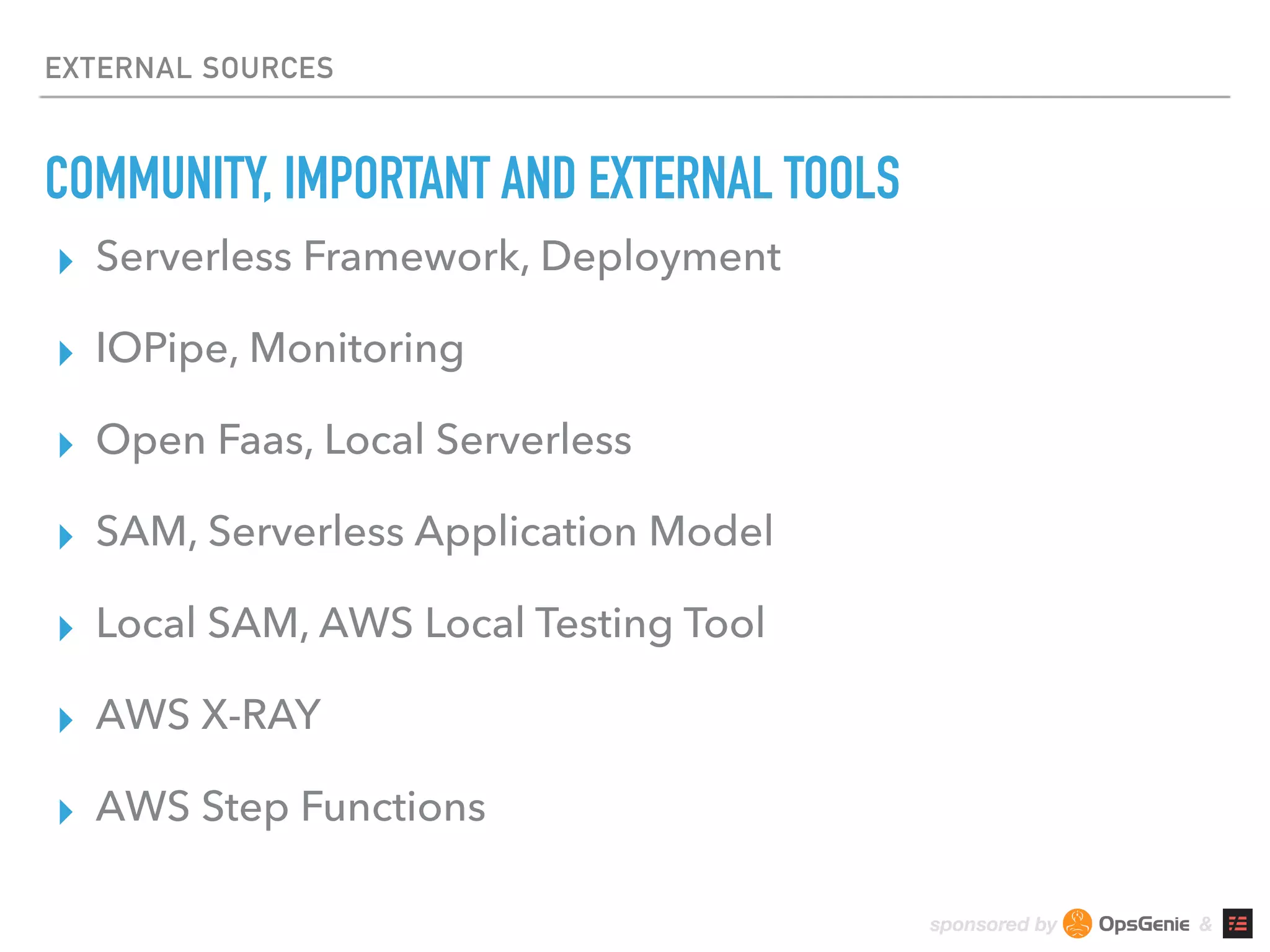

sponsored by & EXTERNAL SOURCES COMMUNITY, IMPORTANT AND EXTERNAL TOOLS ▸ Serverless Framework, Deployment ▸ IOPipe, Monitoring ▸ Open Faas, Local Serverless ▸ SAM, Serverless Application Model ▸ Local SAM, AWS Local Testing Tool ▸ AWS X-RAY ▸ AWS Step Functions
sponsored by & “TALK IS CHEAP. SHOW ME THE CODE.” Linus Torvalds, the Founder and Coordinator of Linux LIVE DEMO: THUNDRA IN ACTION

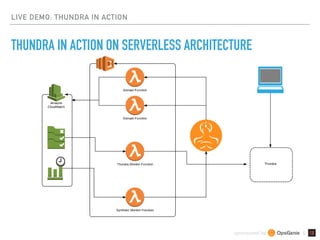

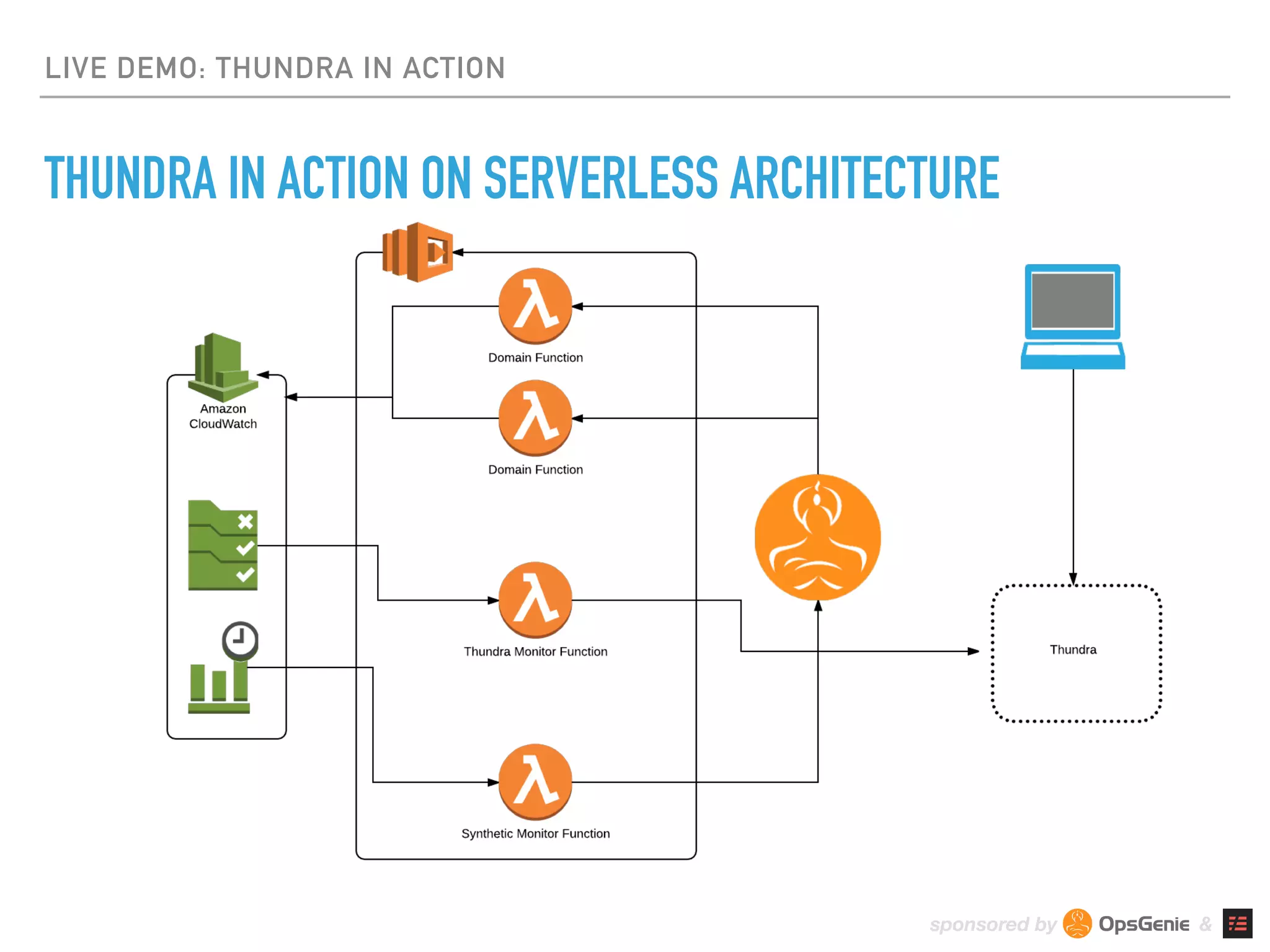

sponsored by & LIVE DEMO: THUNDRA IN ACTION THUNDRA IN ACTION ON SERVERLESS ARCHITECTURE
sponsored by & Thank You &
