Splay Tree Algorithm
- 1. Splay Tree Algorithm By SATHISHKUMARG (sathishsak111@gmail.com)

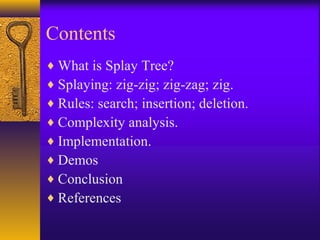

- 2. Contents ♦ What isSplay Tree? ♦ Splaying: zig-zig; zig-zag; zig. ♦ Rules: search; insertion; deletion. ♦ Complexity analysis. ♦ Implementation. ♦ Demos ♦ Conclusion ♦ References

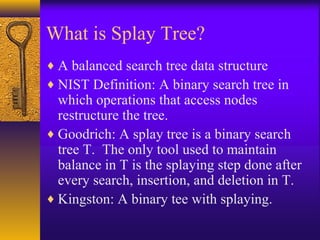

- 3. What is SplayTree? ♦ A balanced search tree data structure ♦ NIST Definition: A binary search tree in which operations that access nodes restructure the tree. ♦ Goodrich: A splay tree is a binary search tree T. The only tool used to maintain balance in T is the splaying step done after every search, insertion, and deletion in T. ♦ Kingston: A binary tee with splaying.

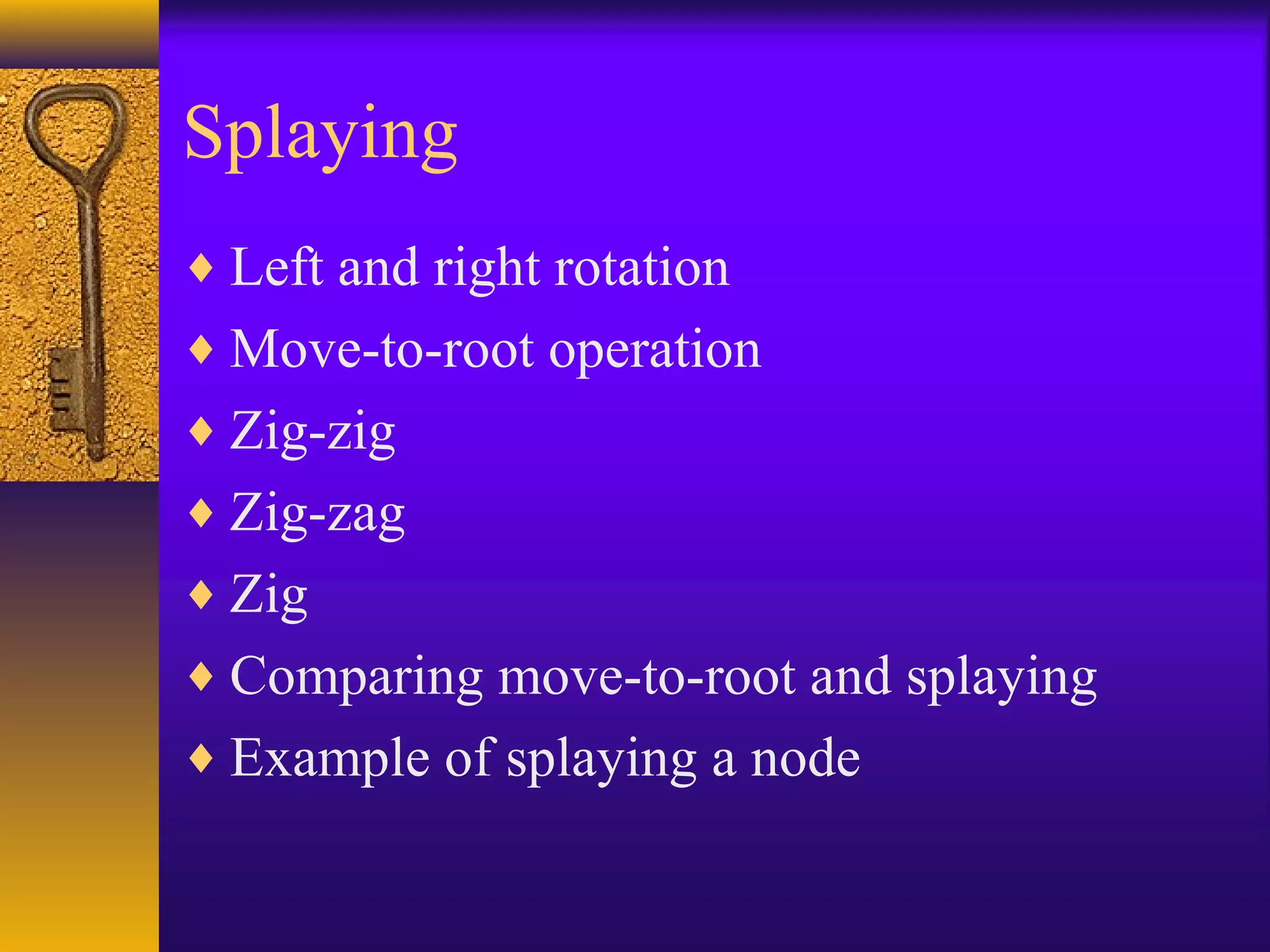

- 4. Splaying ♦ Left andright rotation ♦ Move-to-root operation ♦ Zig-zig ♦ Zig-zag ♦ Zig ♦ Comparing move-to-root and splaying ♦ Example of splaying a node

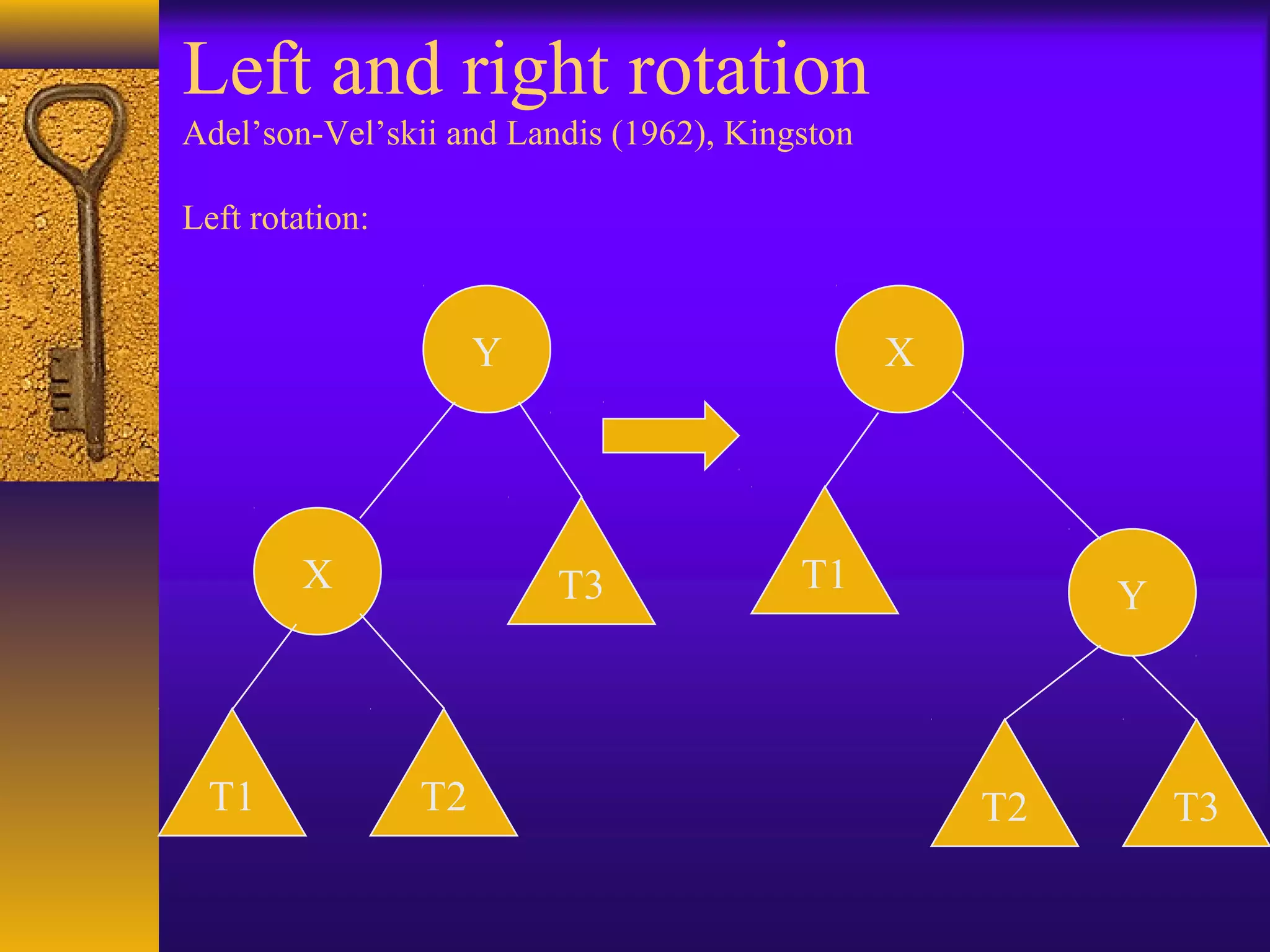

- 5. Left and rightrotation Adel’son-Vel’skii and Landis (1962), Kingston Left rotation: Y X X Y T1 T2 T3 T3T2 T1

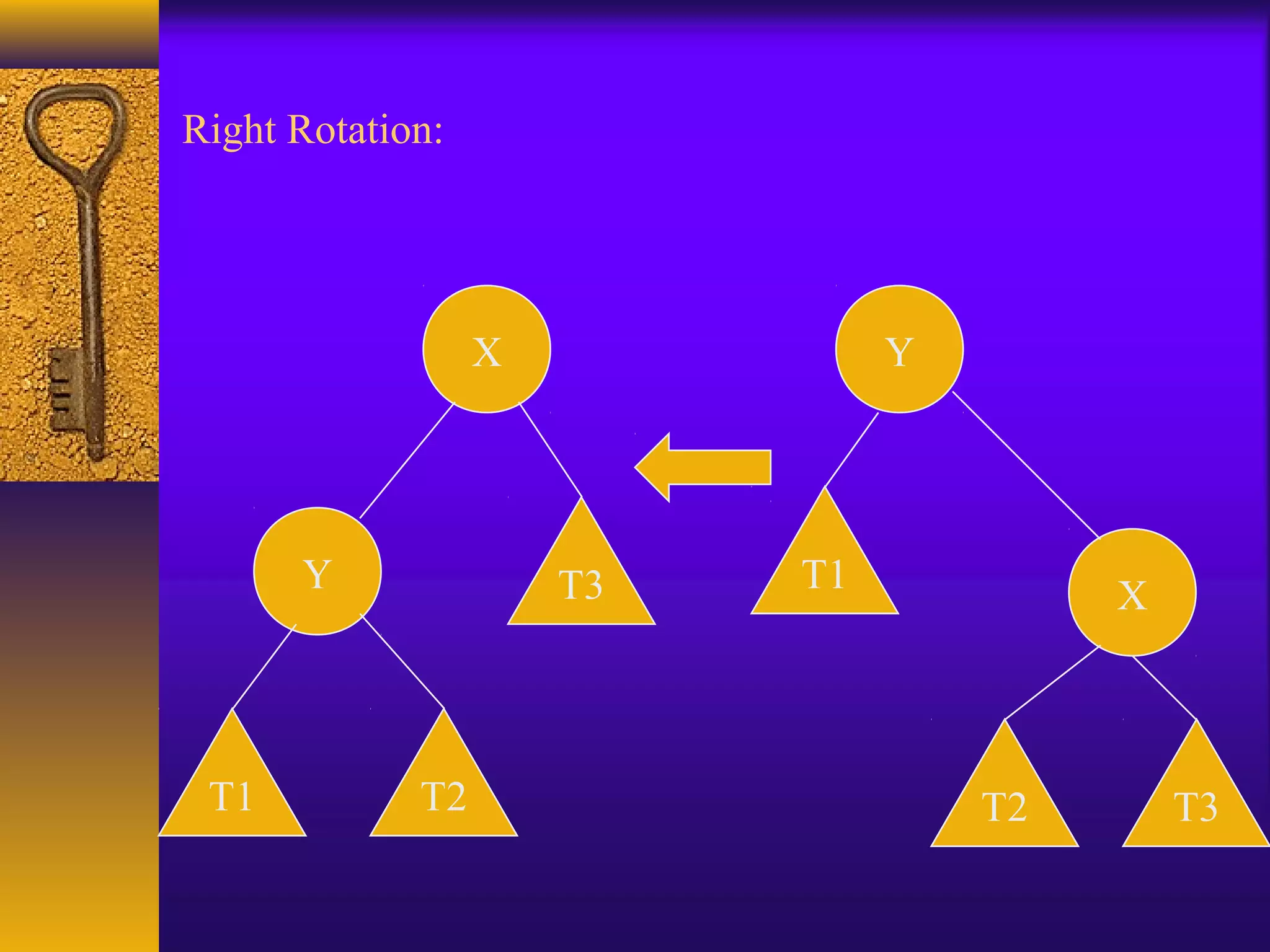

- 6.

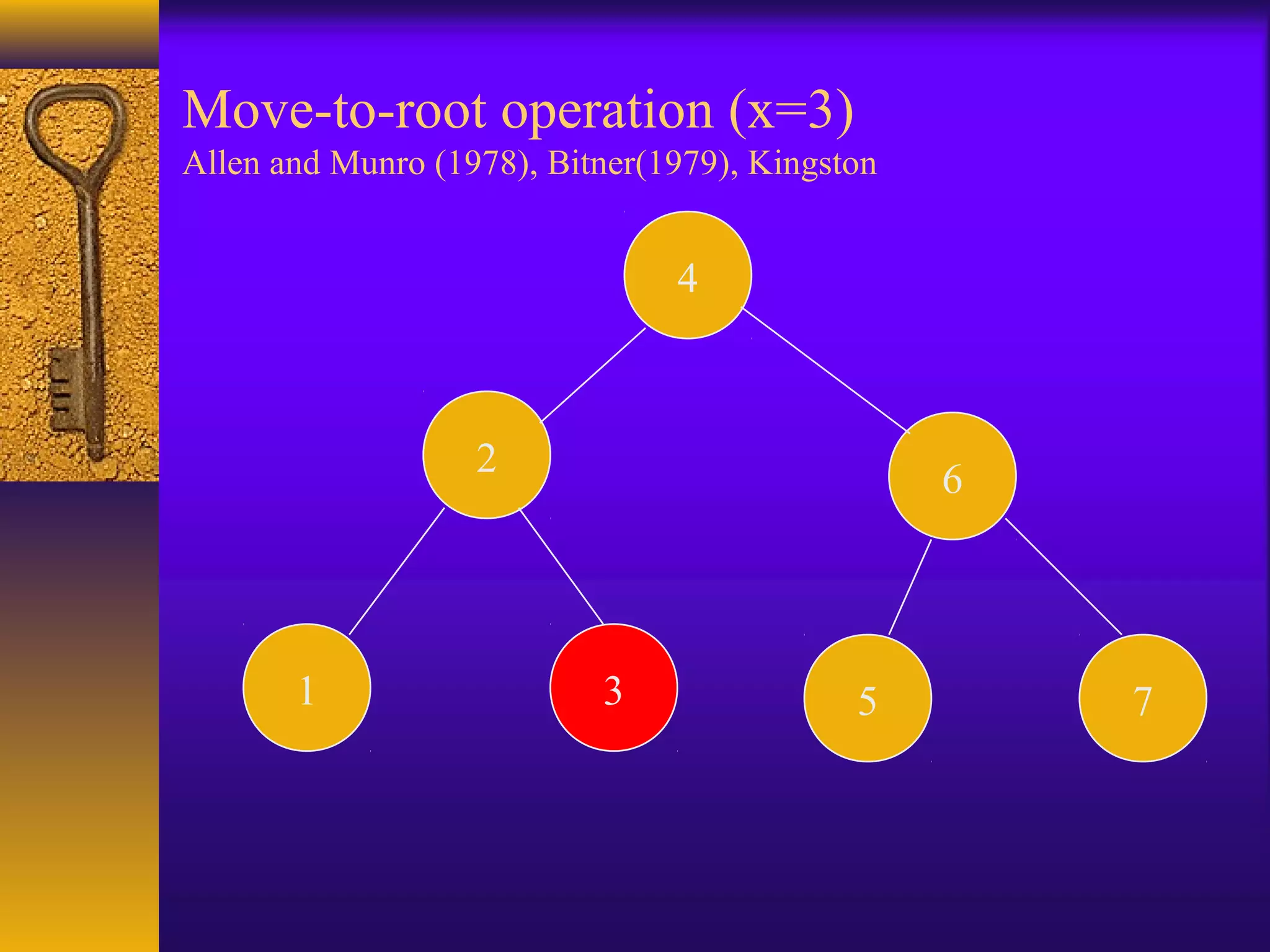

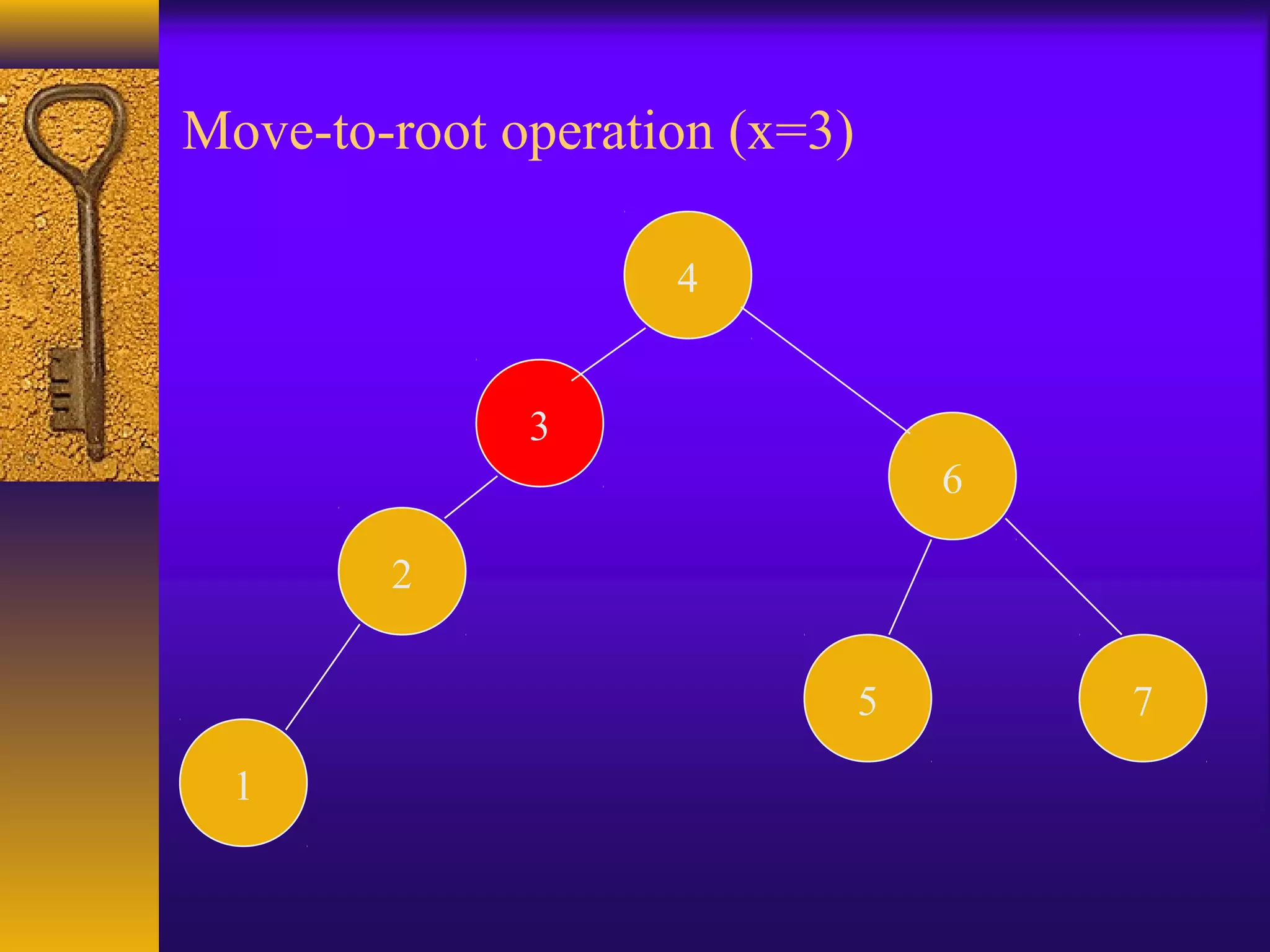

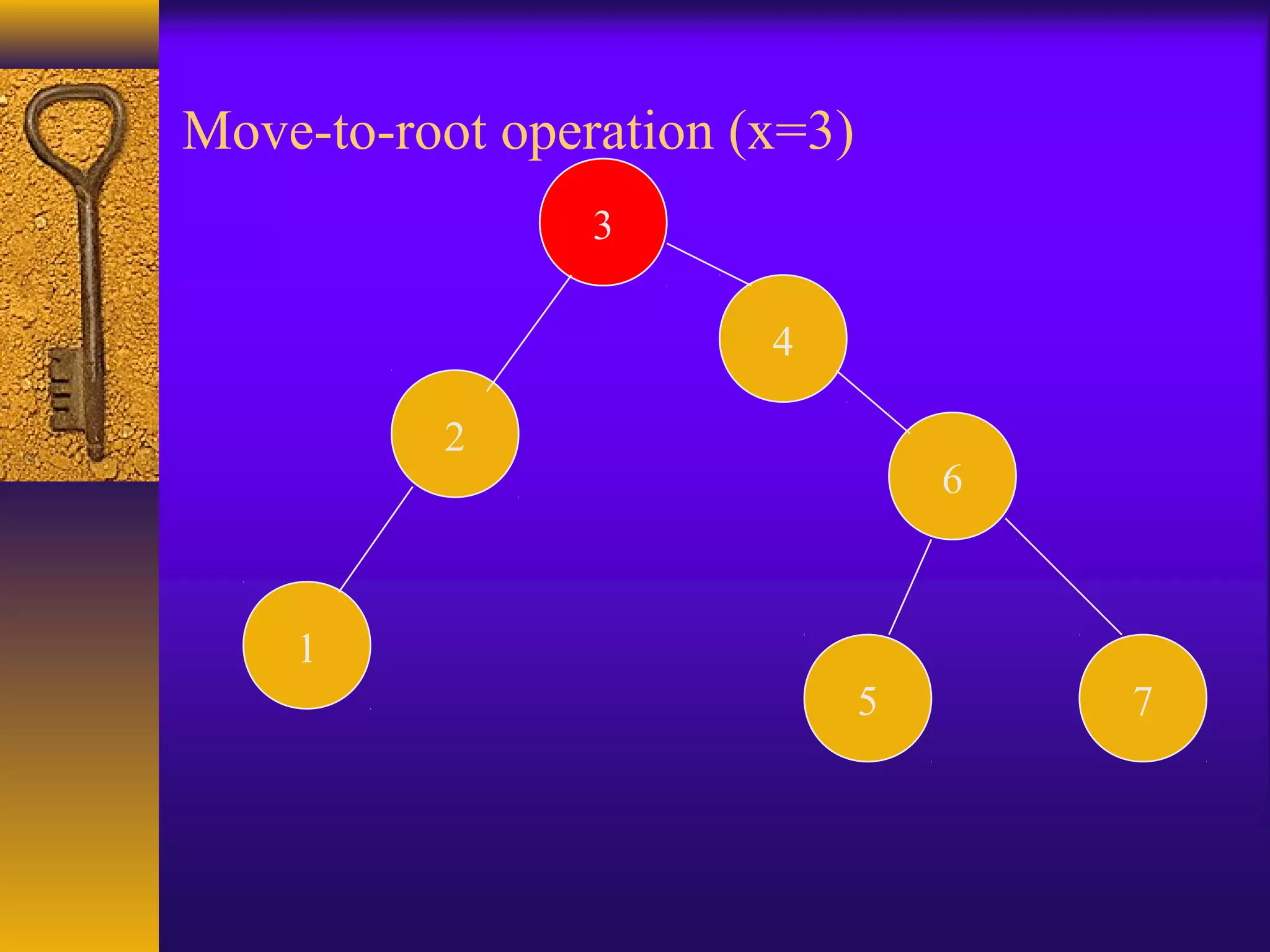

- 7. Move-to-root operation (x=3) Allenand Munro (1978), Bitner(1979), Kingston 2 4 6 1 3 5 7
- 8.
- 9.

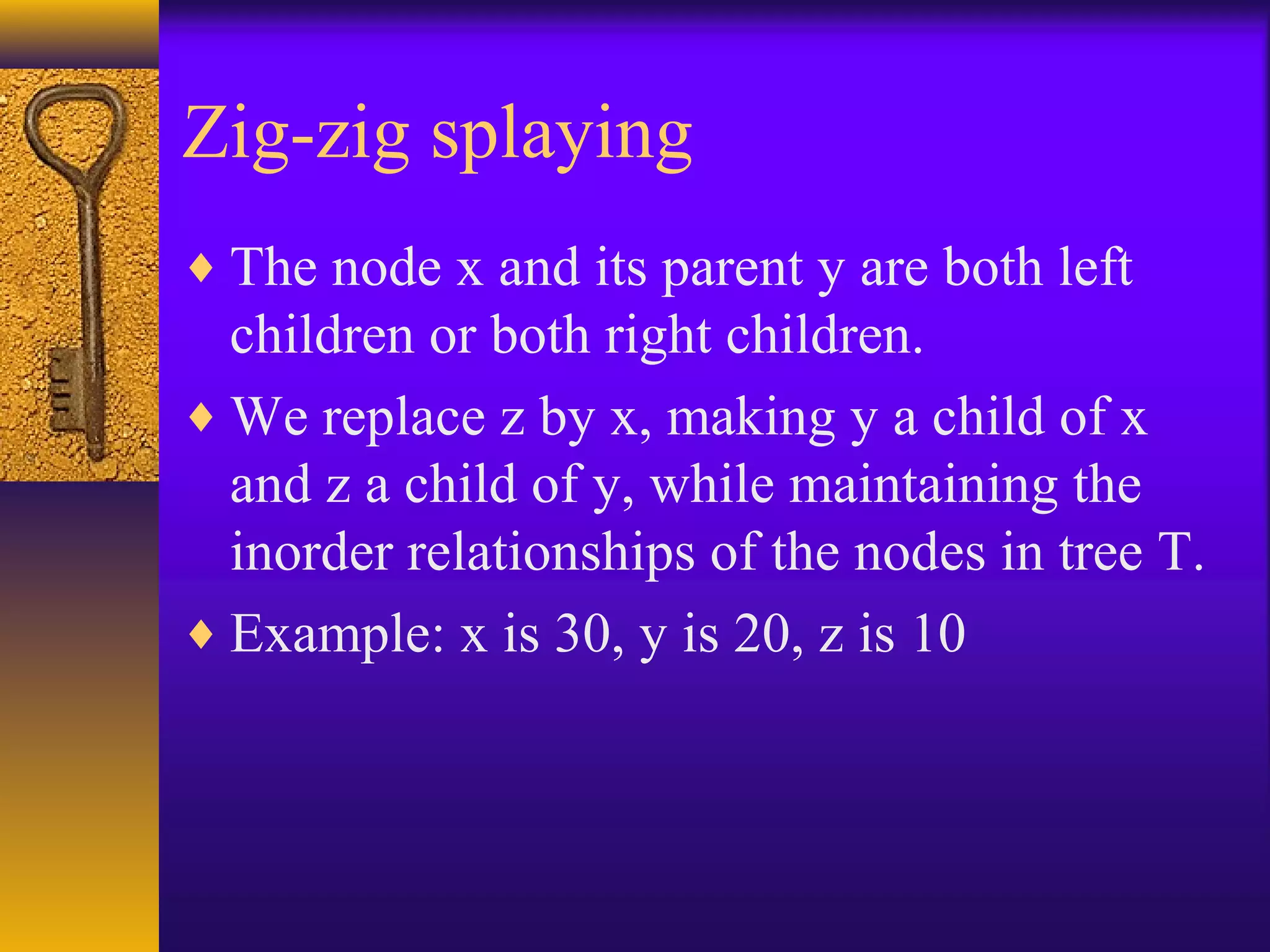

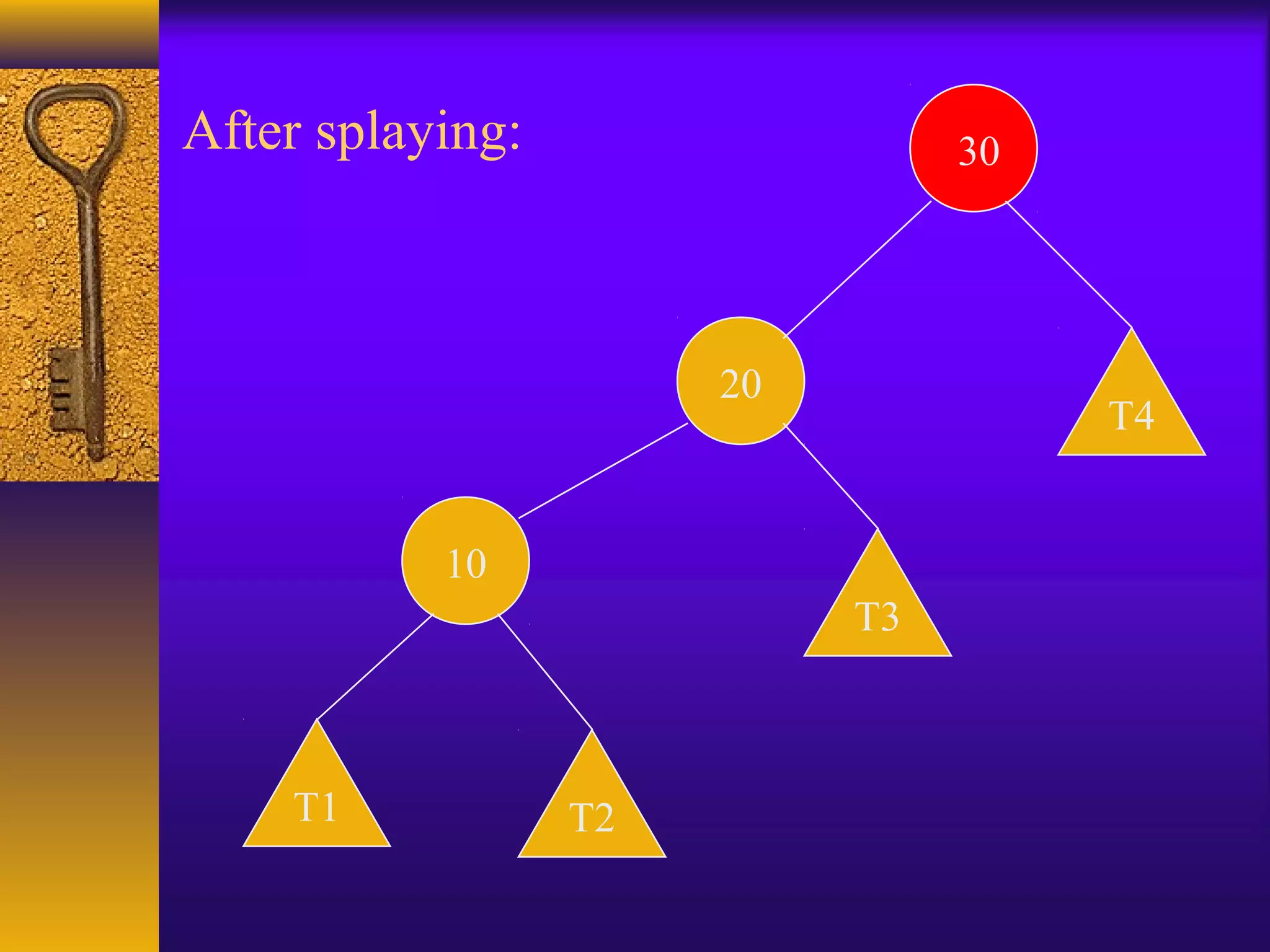

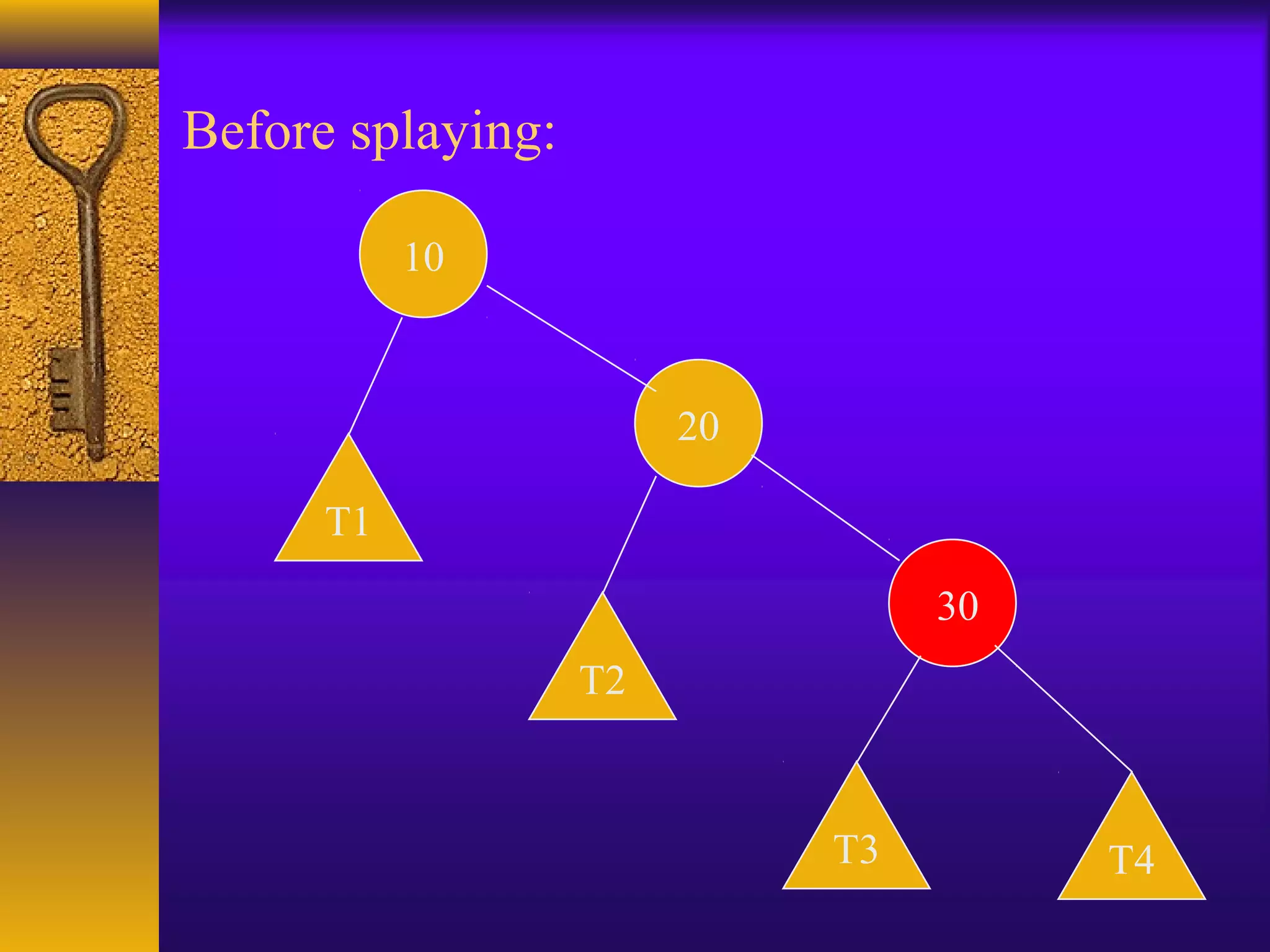

- 10. Zig-zig splaying ♦ Thenode x and its parent y are both left children or both right children. ♦ We replace z by x, making y a child of x and z a child of y, while maintaining the inorder relationships of the nodes in tree T. ♦ Example: x is 30, y is 20, z is 10
- 11.
- 12.

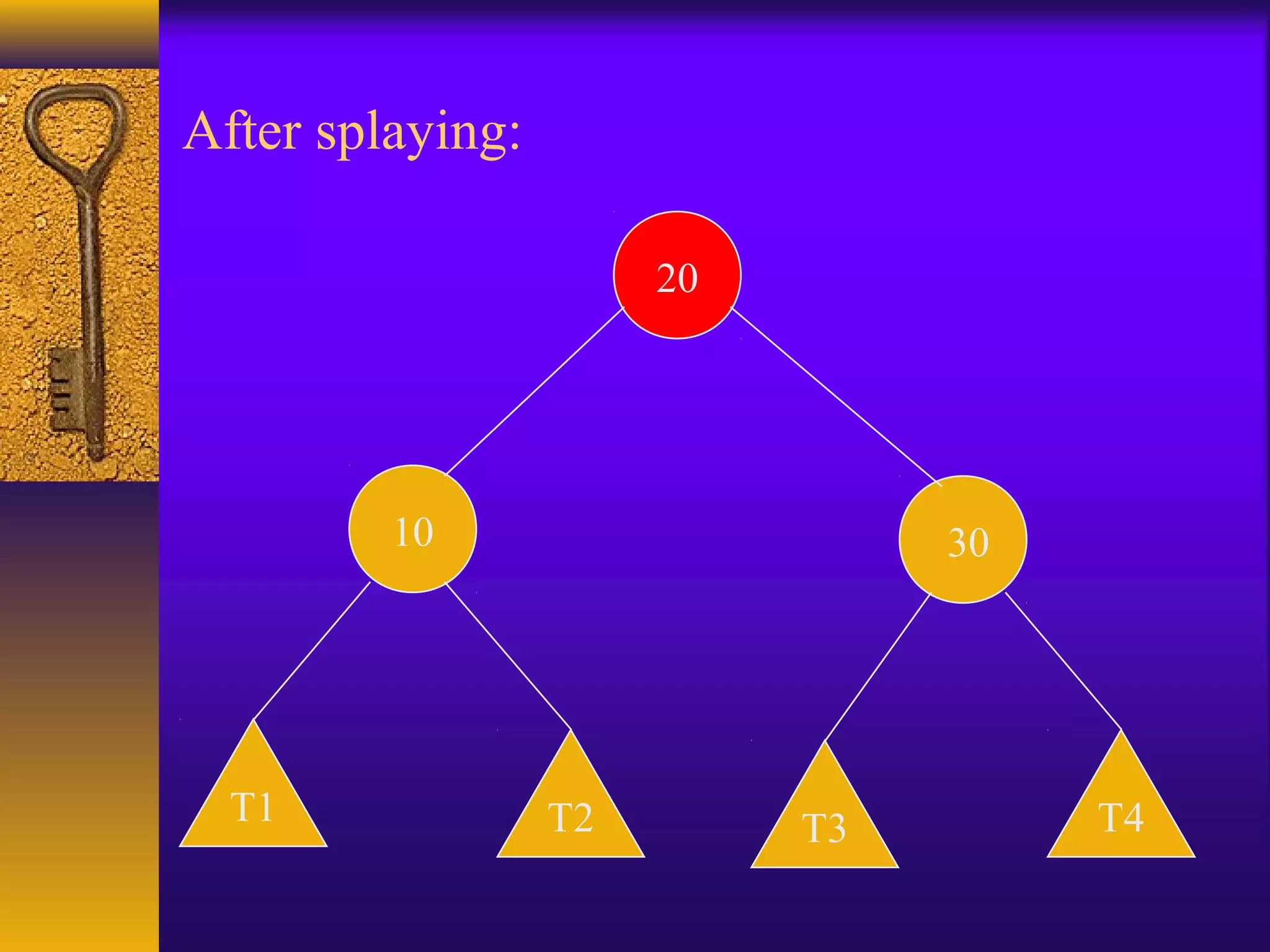

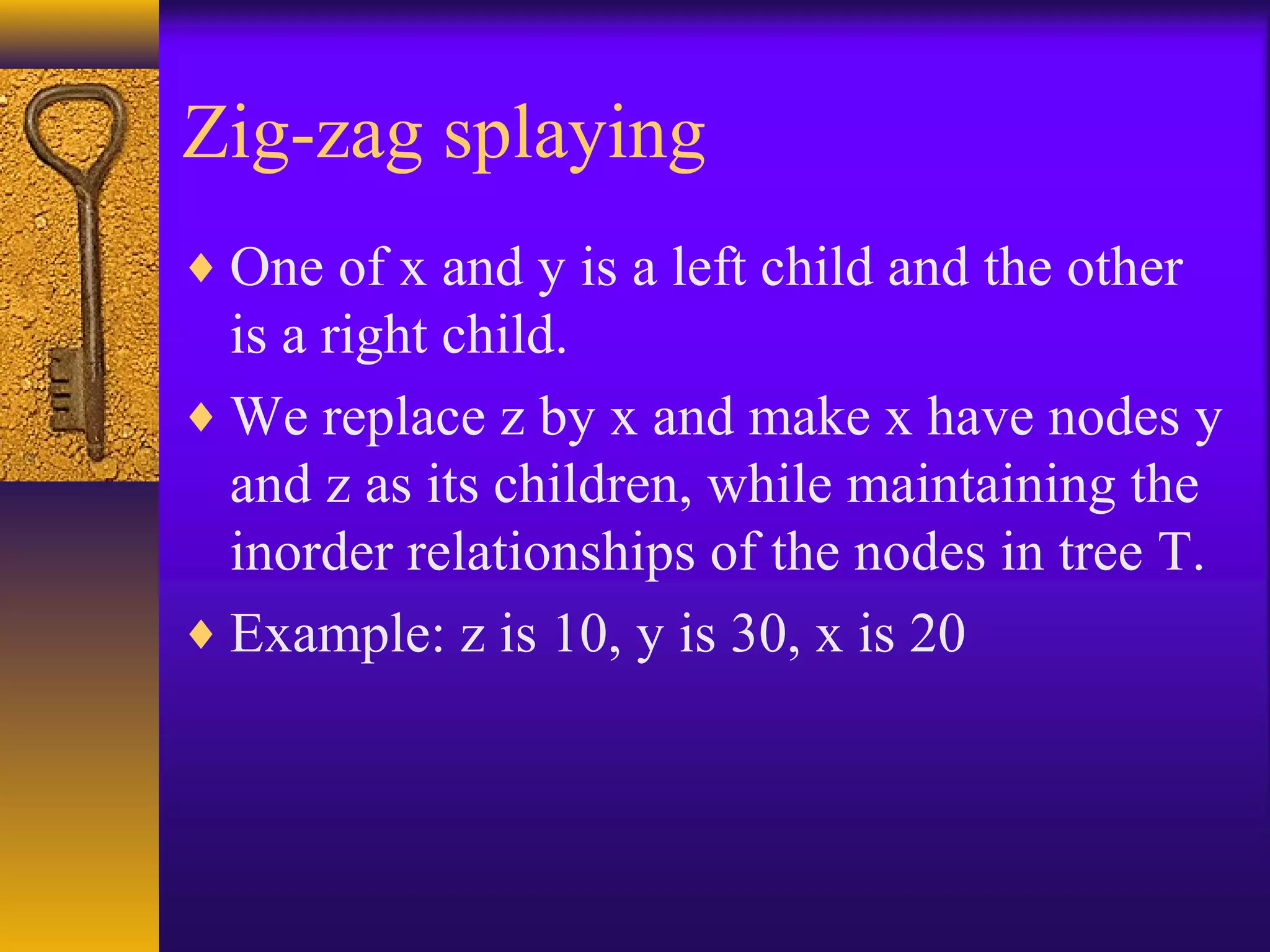

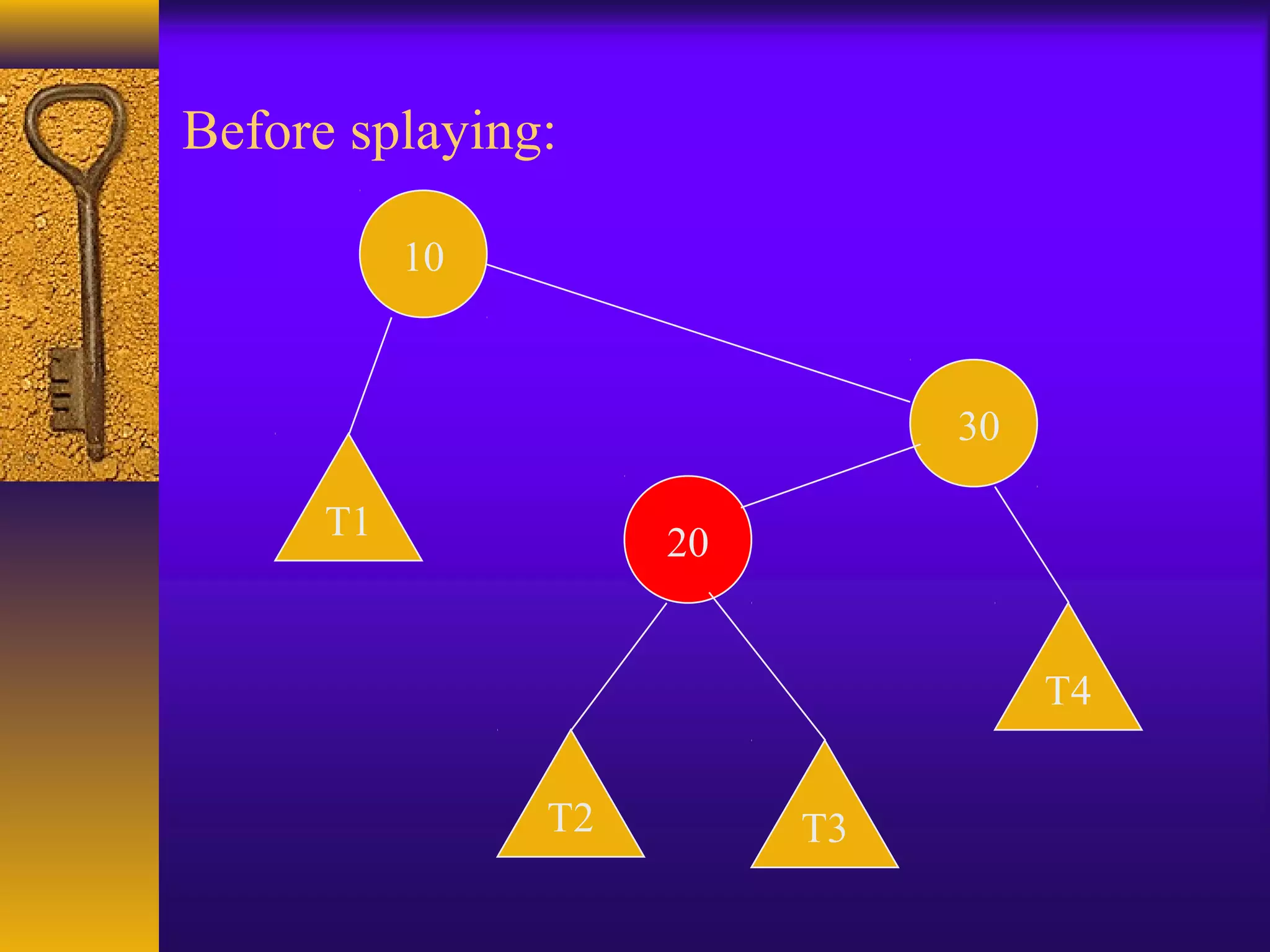

- 13. Zig-zag splaying ♦ Oneof x and y is a left child and the other is a right child. ♦ We replace z by x and make x have nodes y and z as its children, while maintaining the inorder relationships of the nodes in tree T. ♦ Example: z is 10, y is 30, x is 20
- 14.
- 15.

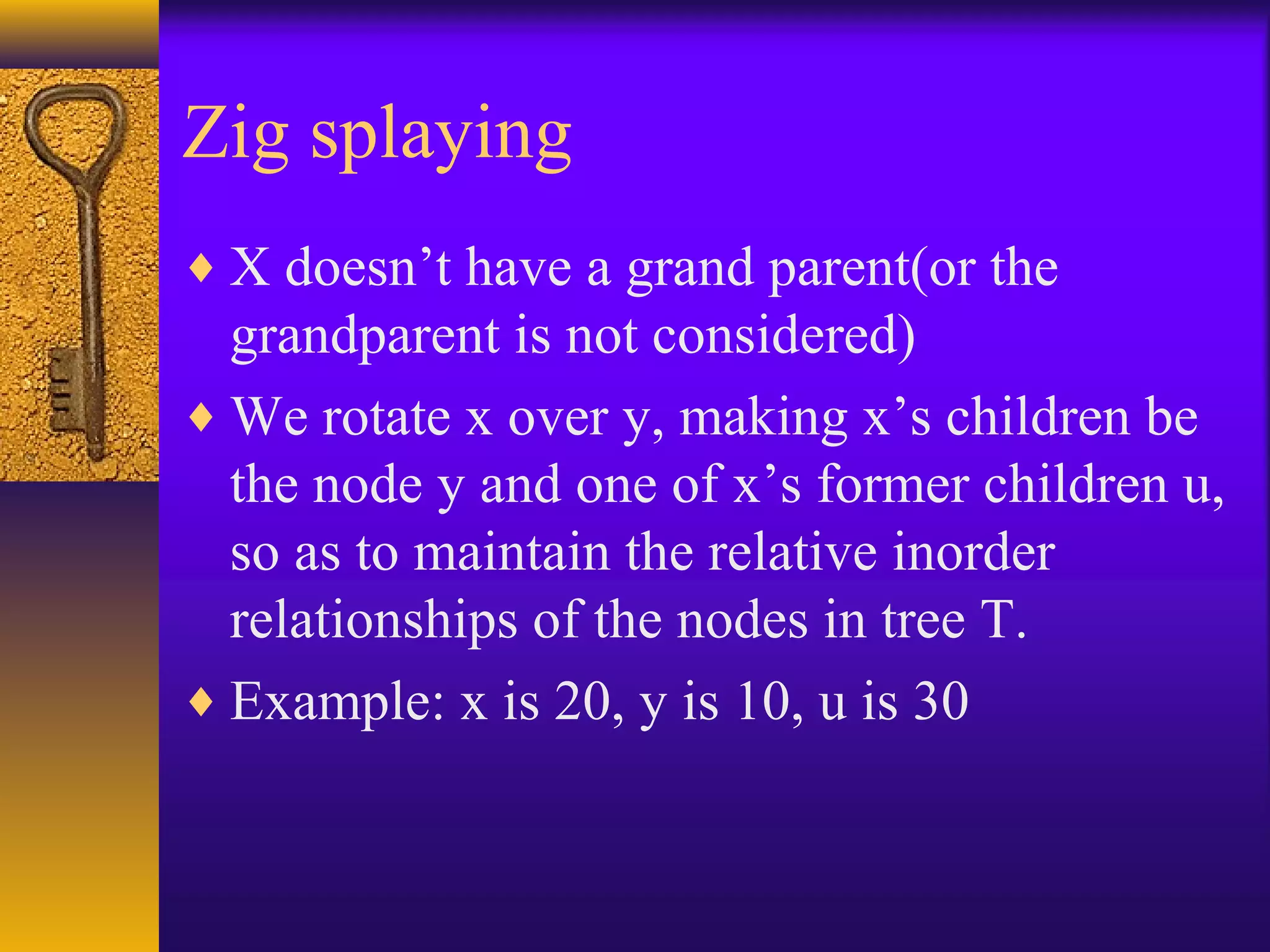

- 16. Zig splaying ♦ Xdoesn’t have a grand parent(or the grandparent is not considered) ♦ We rotate x over y, making x’s children be the node y and one of x’s former children u, so as to maintain the relative inorder relationships of the nodes in tree T. ♦ Example: x is 20, y is 10, u is 30
- 17.
- 18.

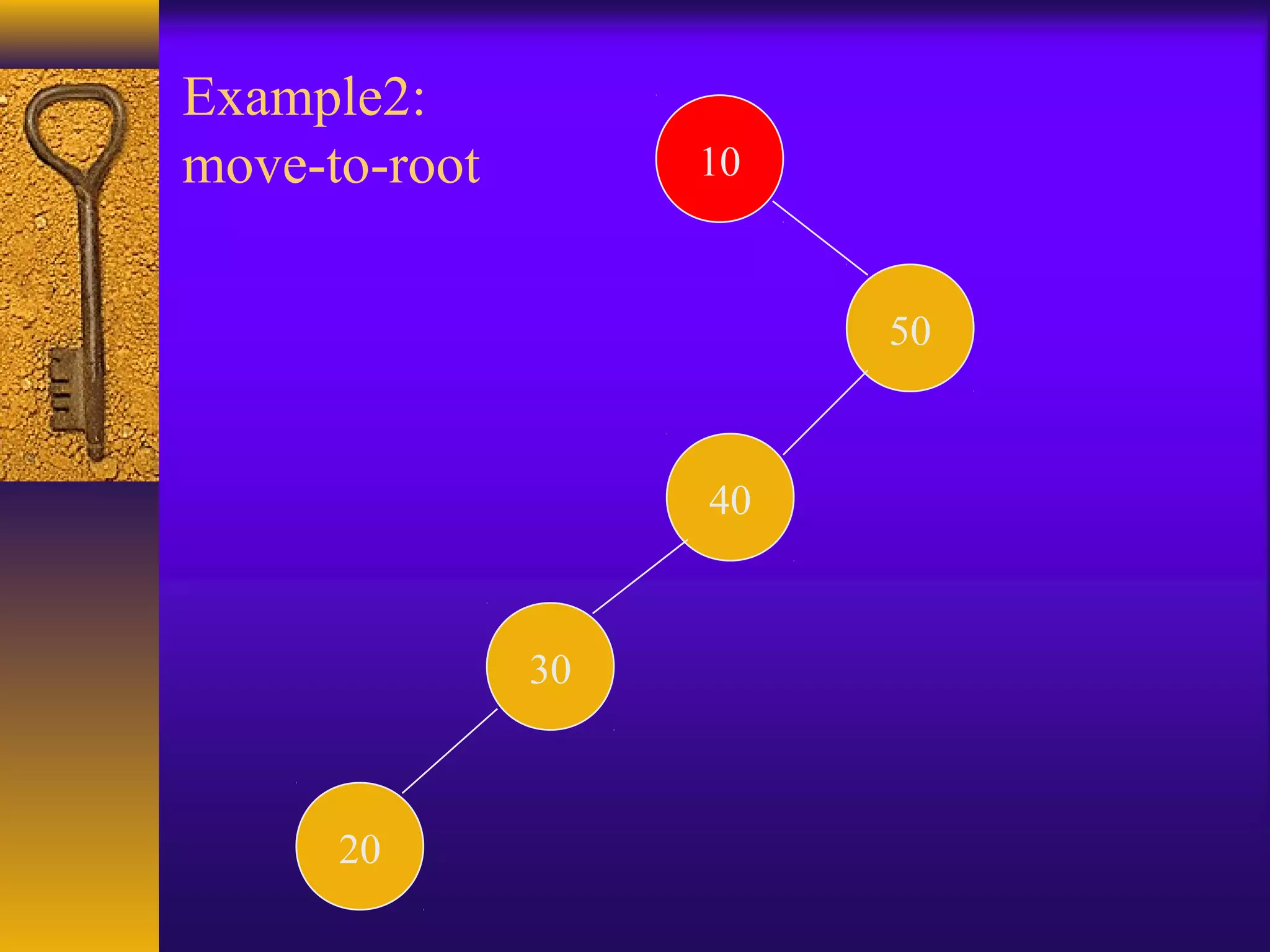

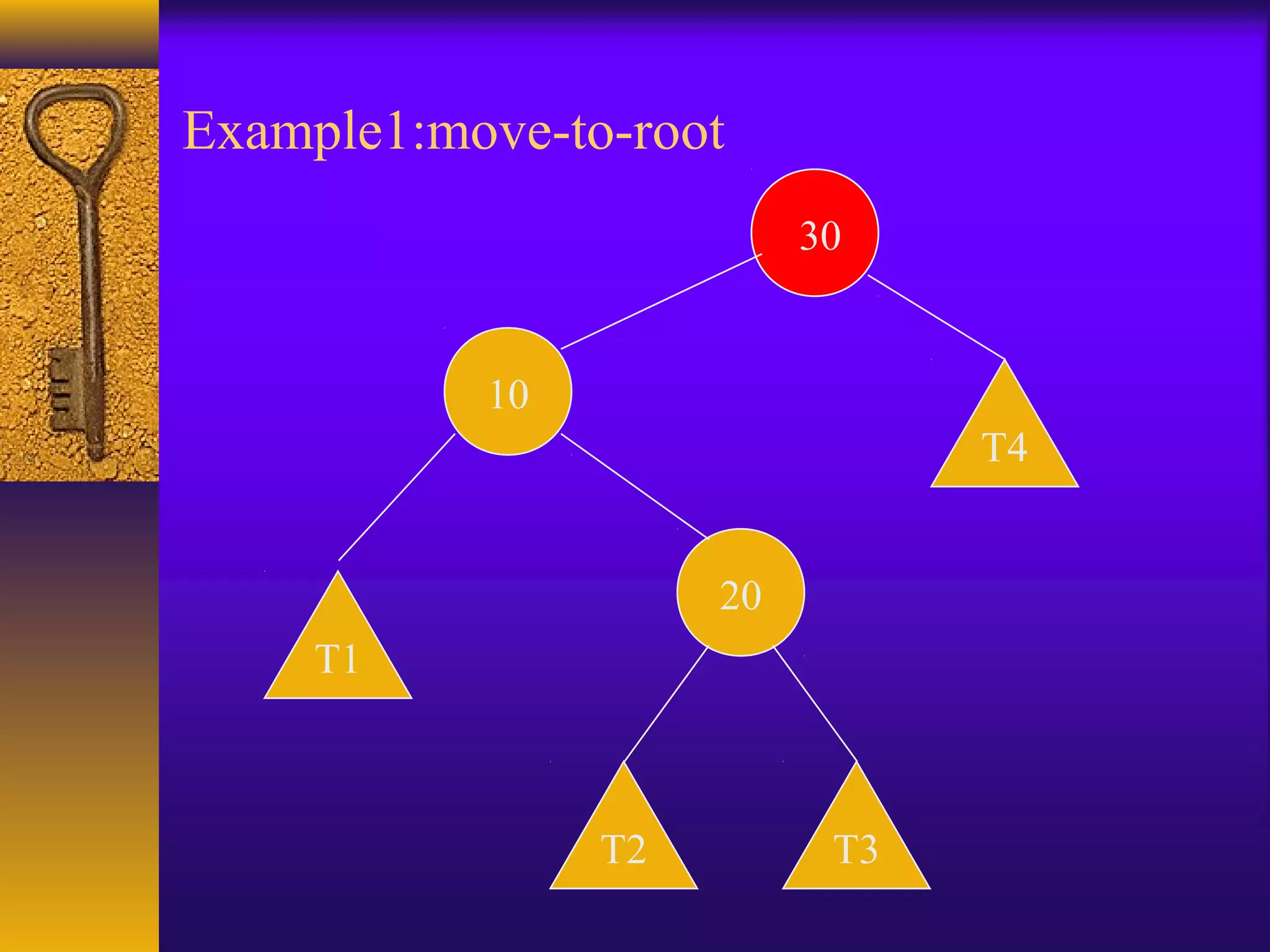

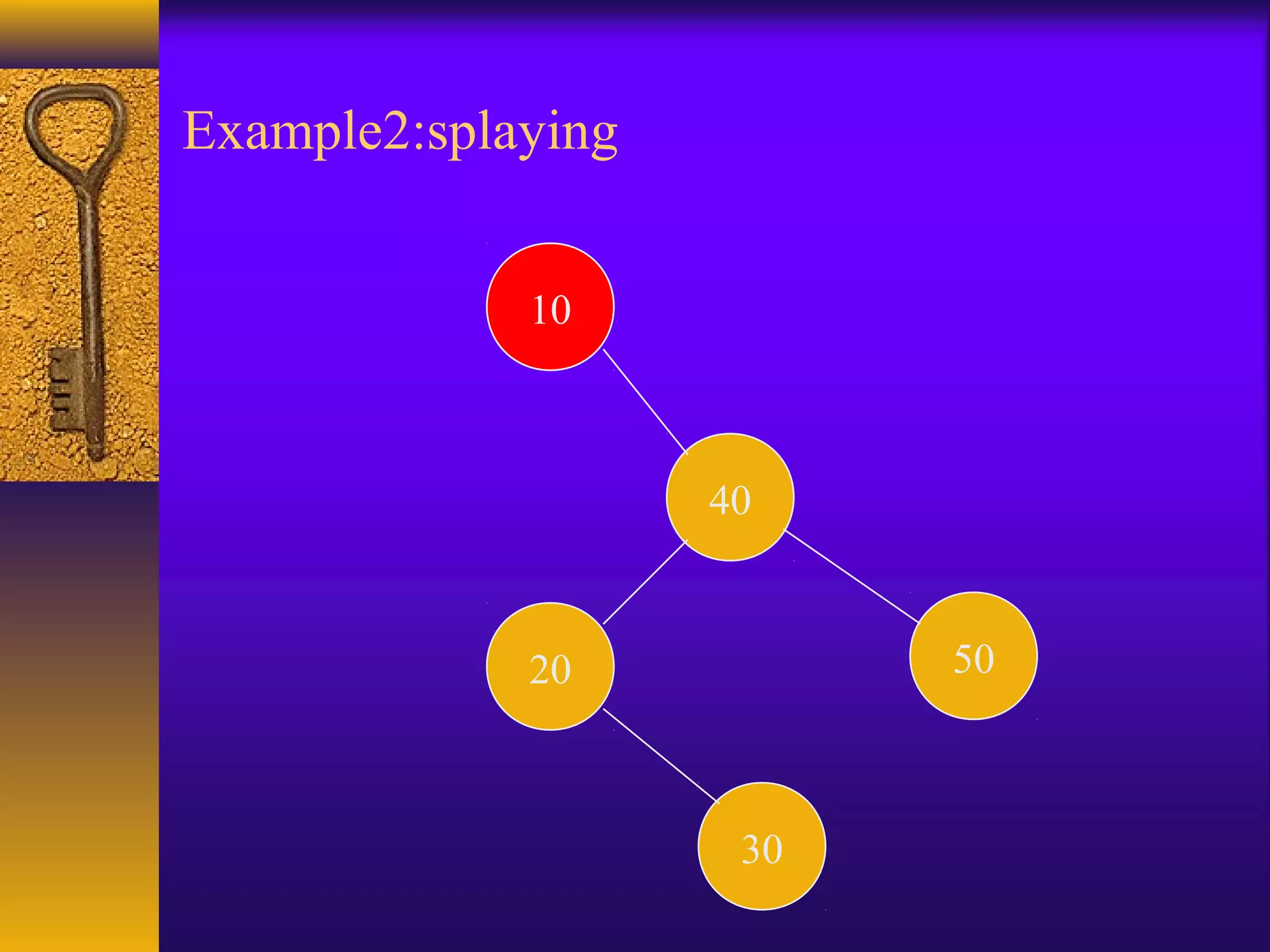

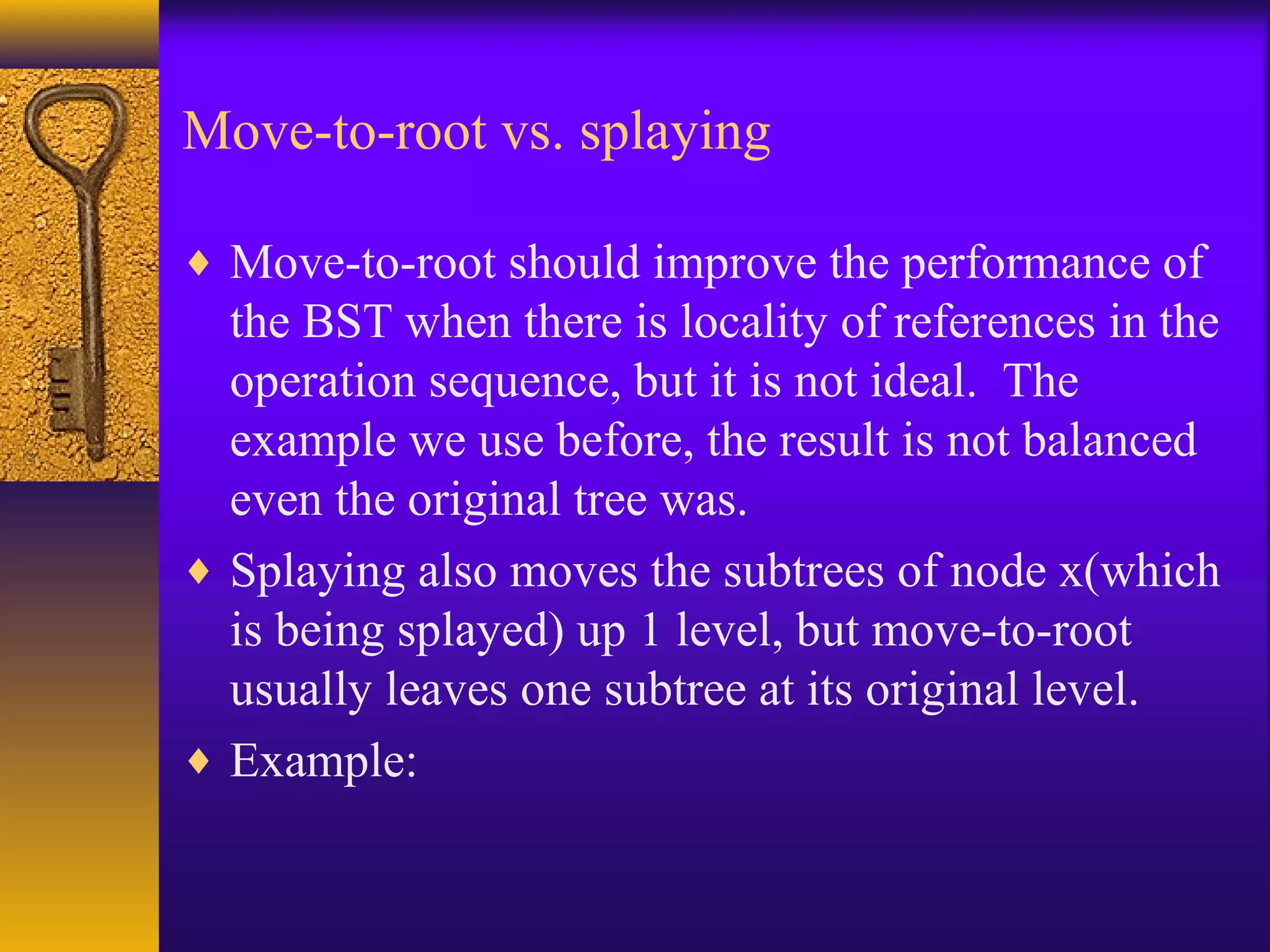

- 19. Move-to-root vs. splaying ♦Move-to-root should improve the performance of the BST when there is locality of references in the operation sequence, but it is not ideal. The example we use before, the result is not balanced even the original tree was. ♦ Splaying also moves the subtrees of node x(which is being splayed) up 1 level, but move-to-root usually leaves one subtree at its original level. ♦ Example:
- 20.
- 21.
- 22.

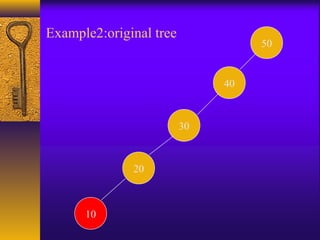

- 23.
- 24.
- 25.

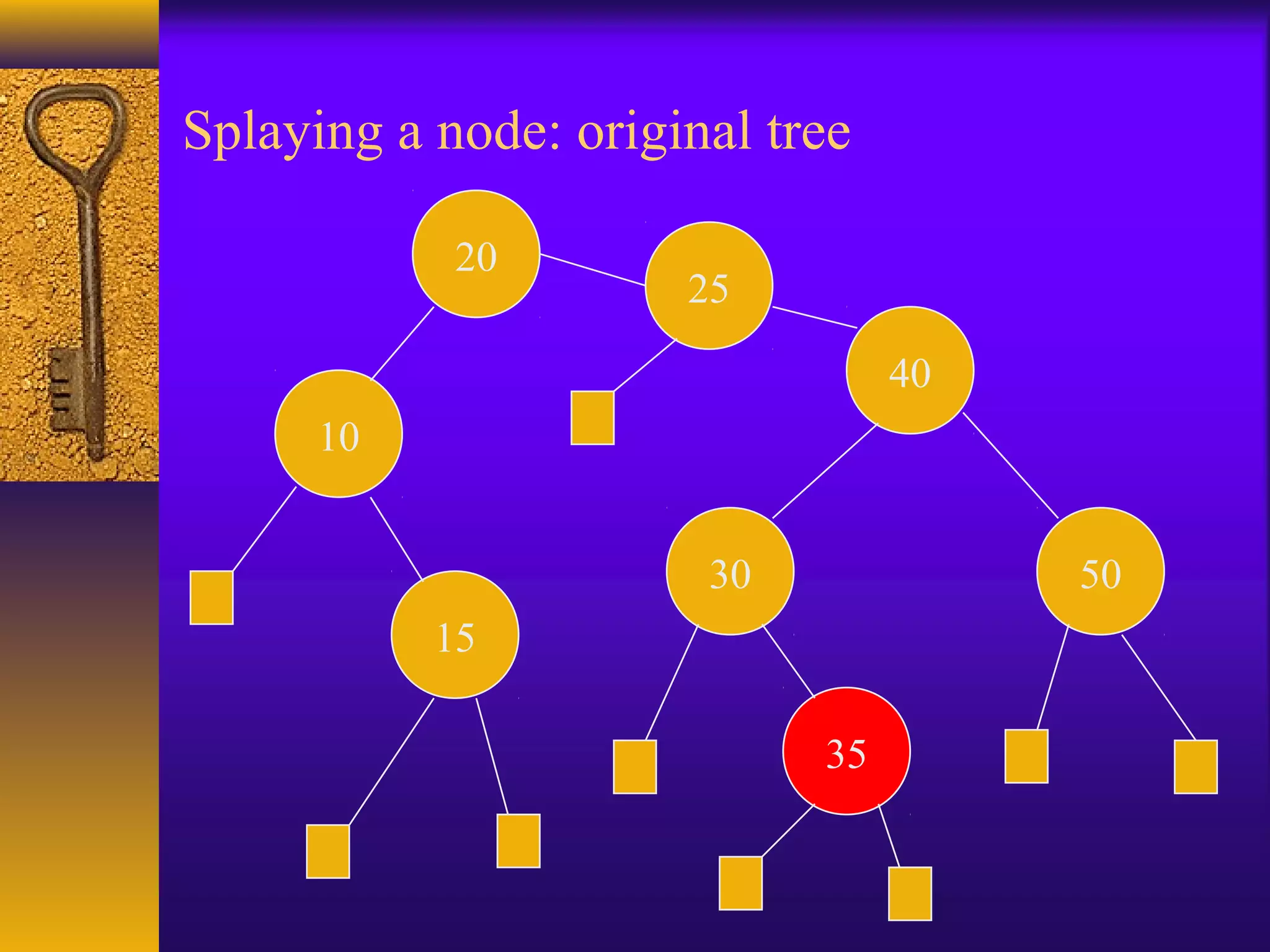

- 26. Splaying a node:original tree 50 35 30 40 25 20 10 15

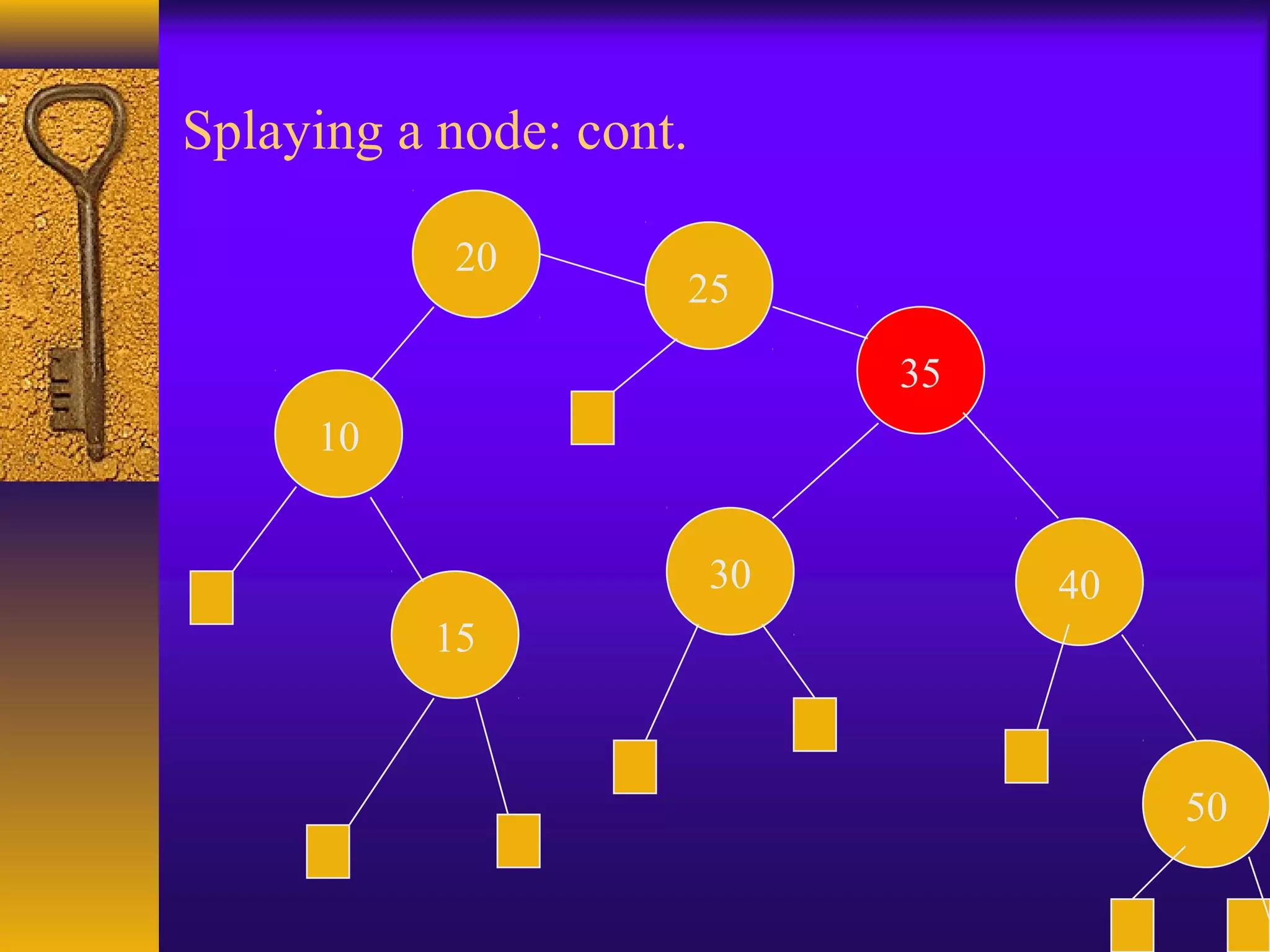

- 27. Splaying a node:cont. 50 35 30 40 25 20 10 15

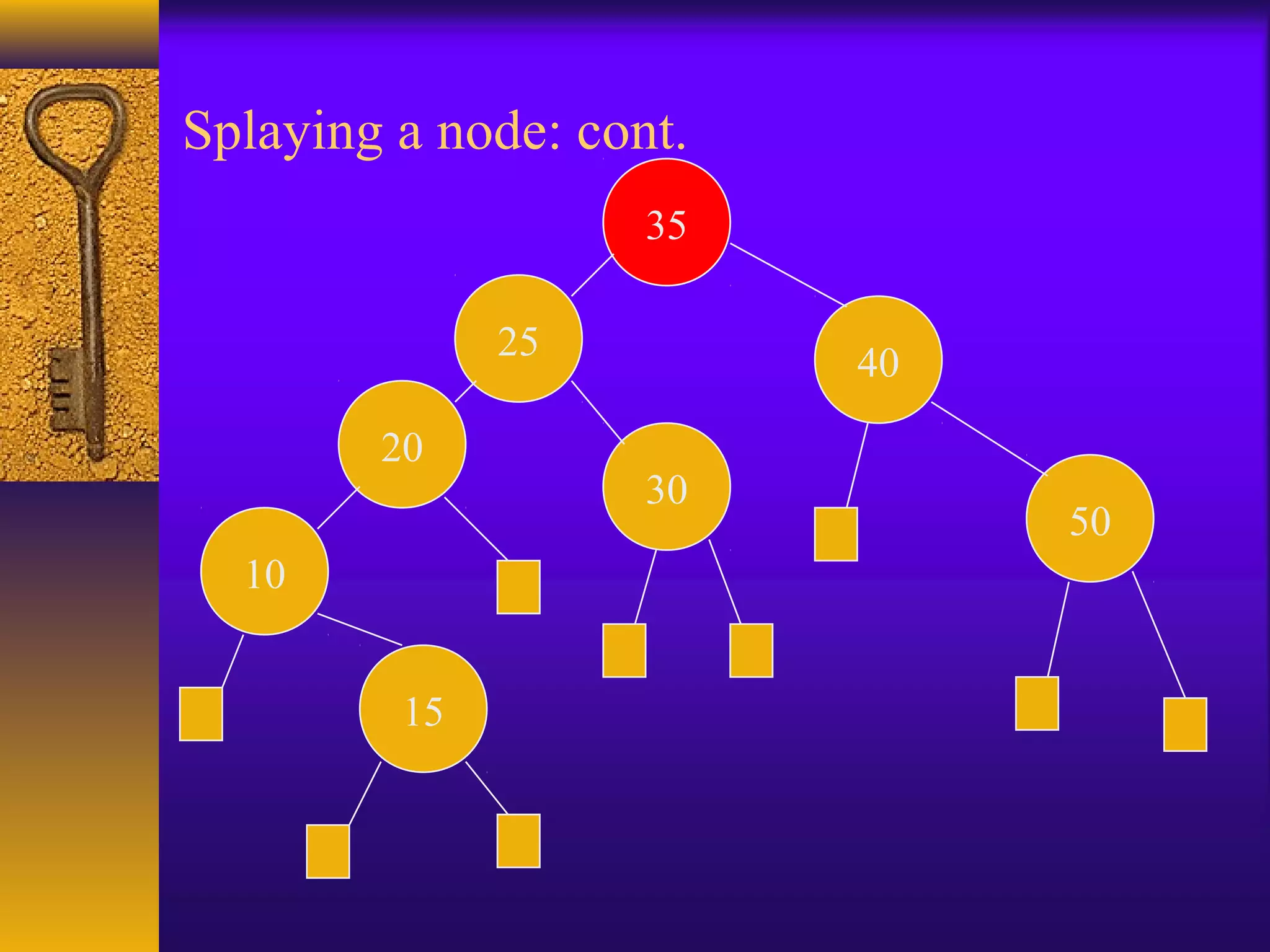

- 28. Splaying a node:cont. 50 35 30 40 25 20 10 15

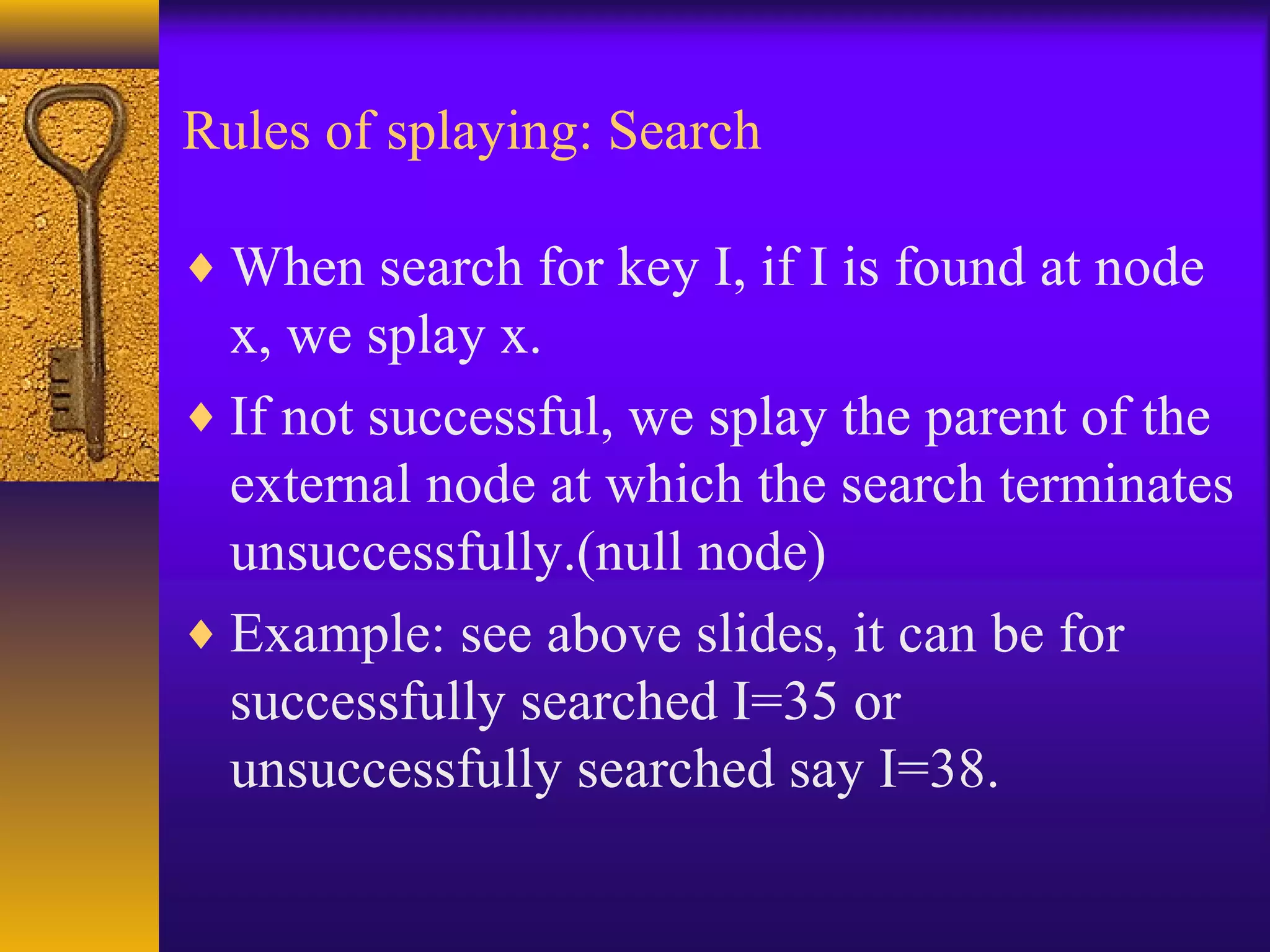

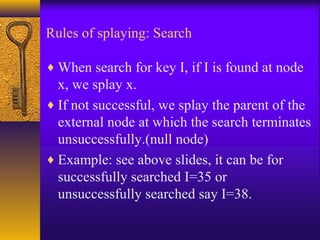

- 29. Rules of splaying:Search ♦ When search for key I, if I is found at node x, we splay x. ♦ If not successful, we splay the parent of the external node at which the search terminates unsuccessfully.(null node) ♦ Example: see above slides, it can be for successfully searched I=35 or unsuccessfully searched say I=38.

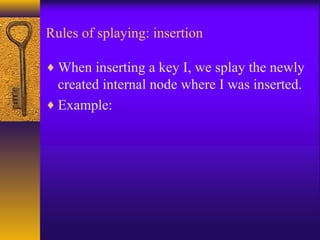

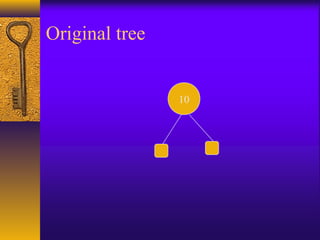

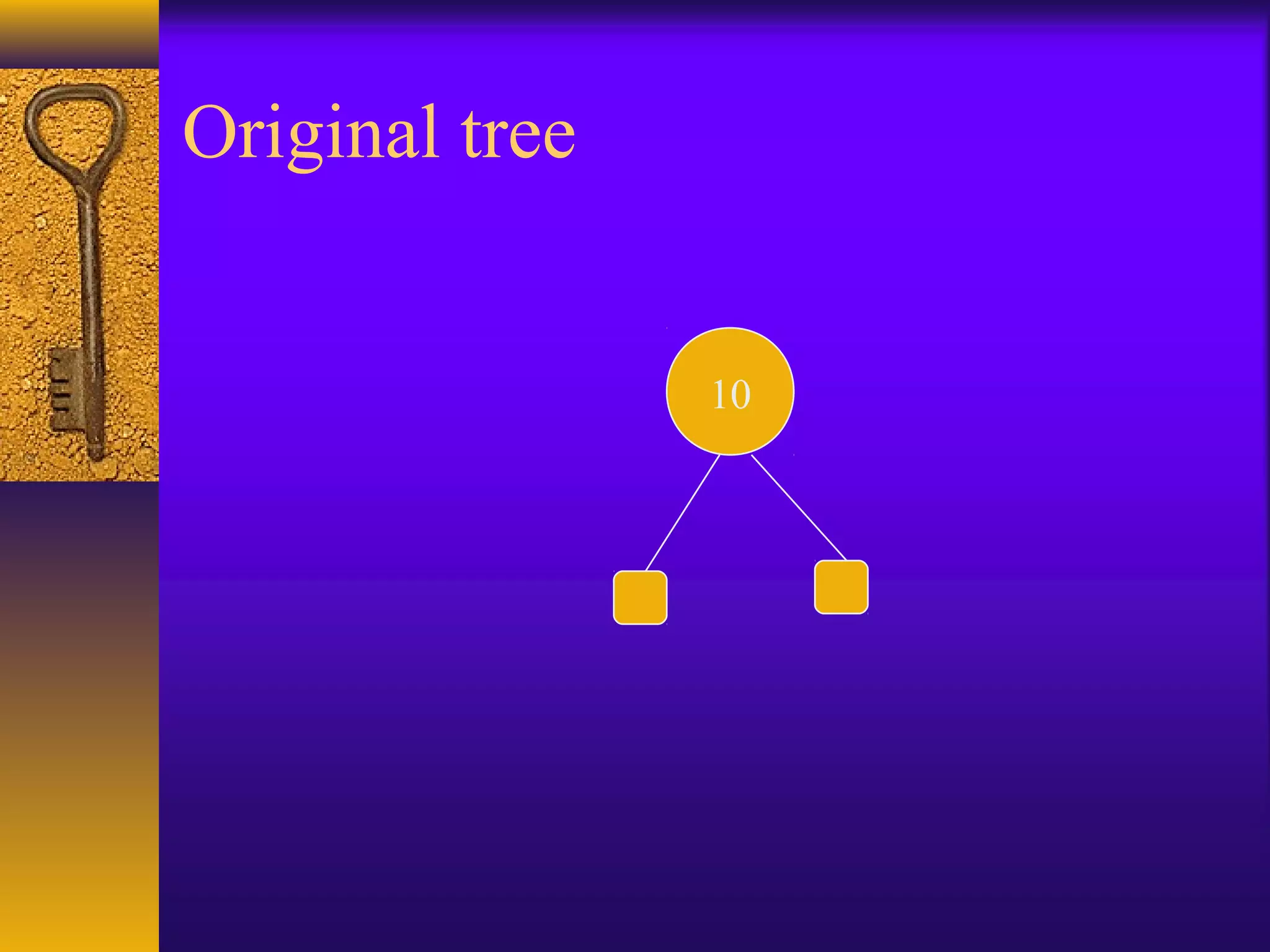

- 30. Rules of splaying:insertion ♦ When inserting a key I, we splay the newly created internal node where I was inserted. ♦ Example:
- 31.

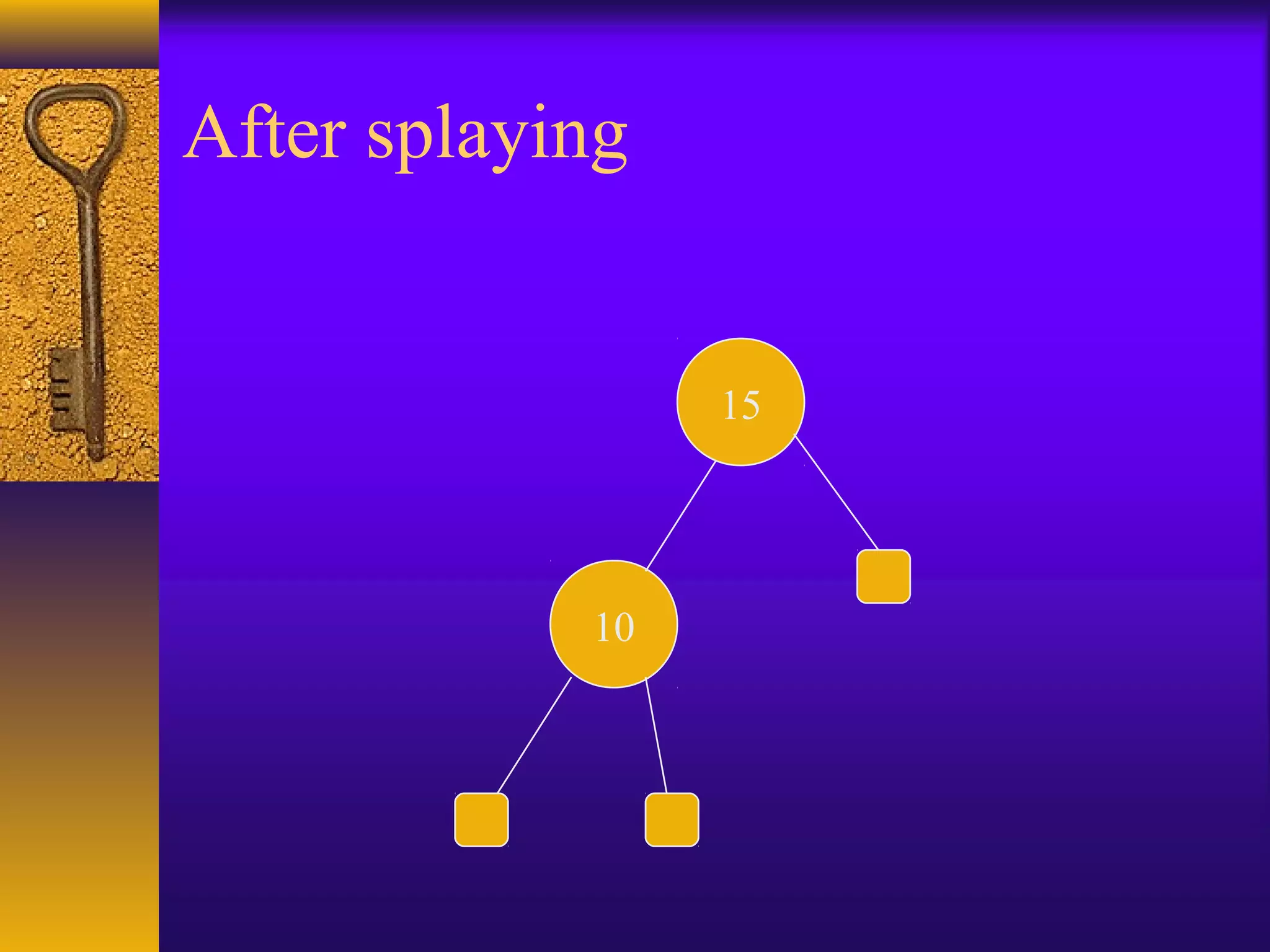

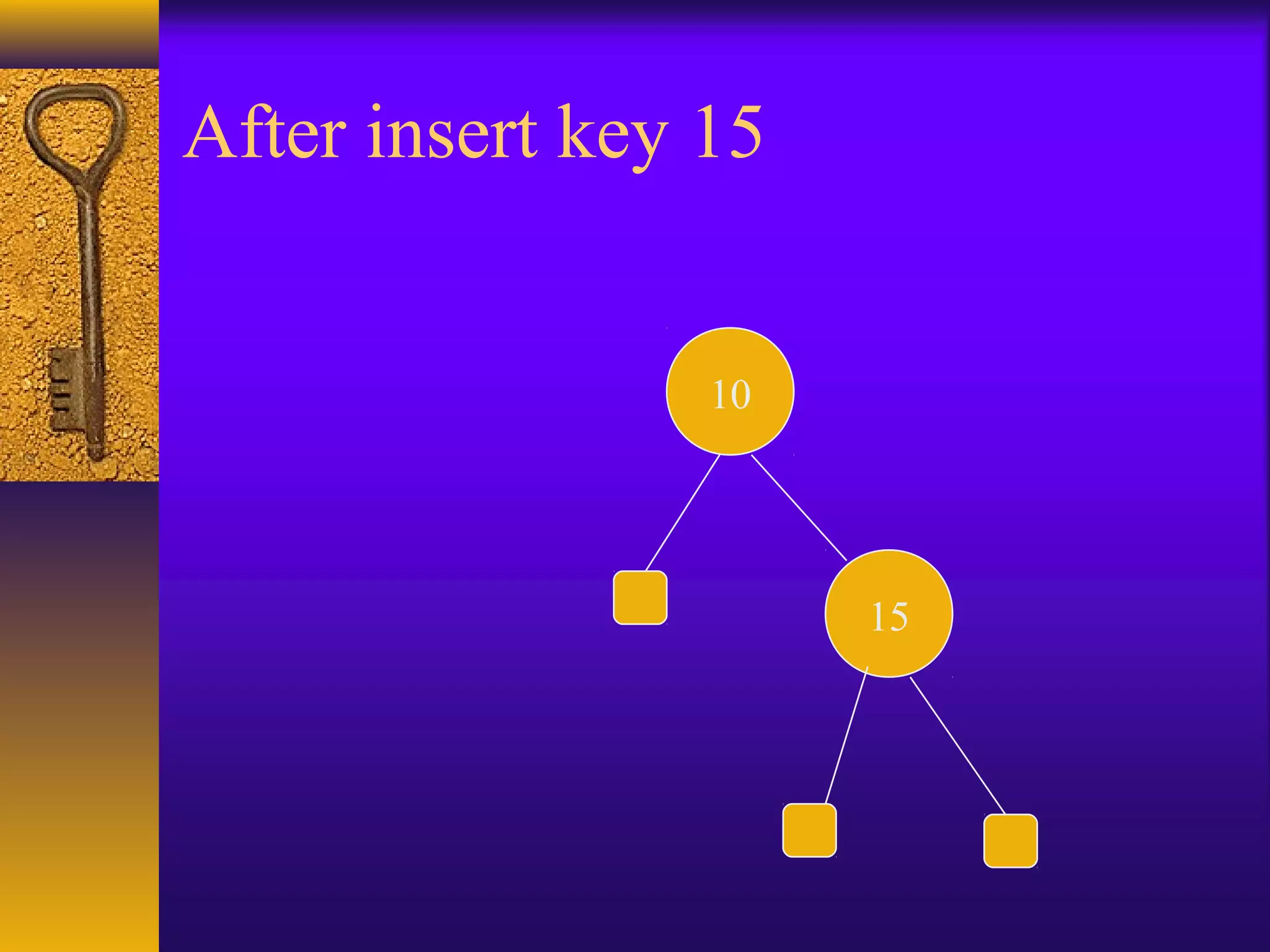

- 32. 10 After insert key15 15

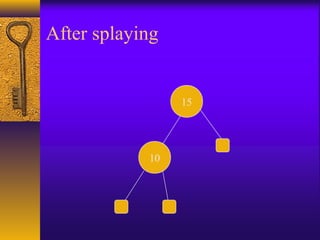

- 33.

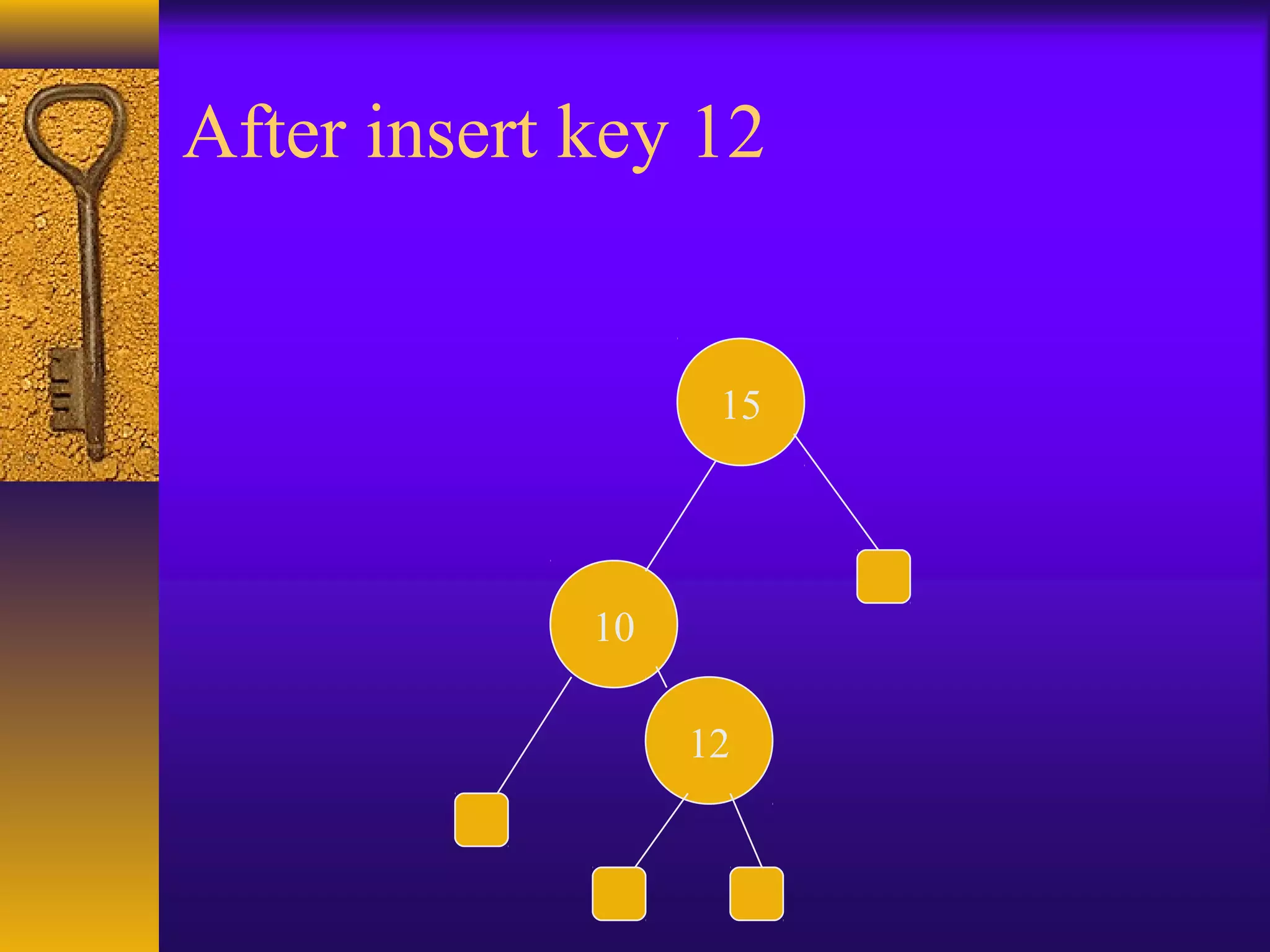

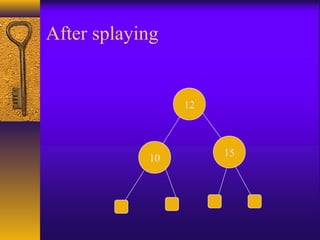

- 34. 10 After insert key12 15 12
- 35.

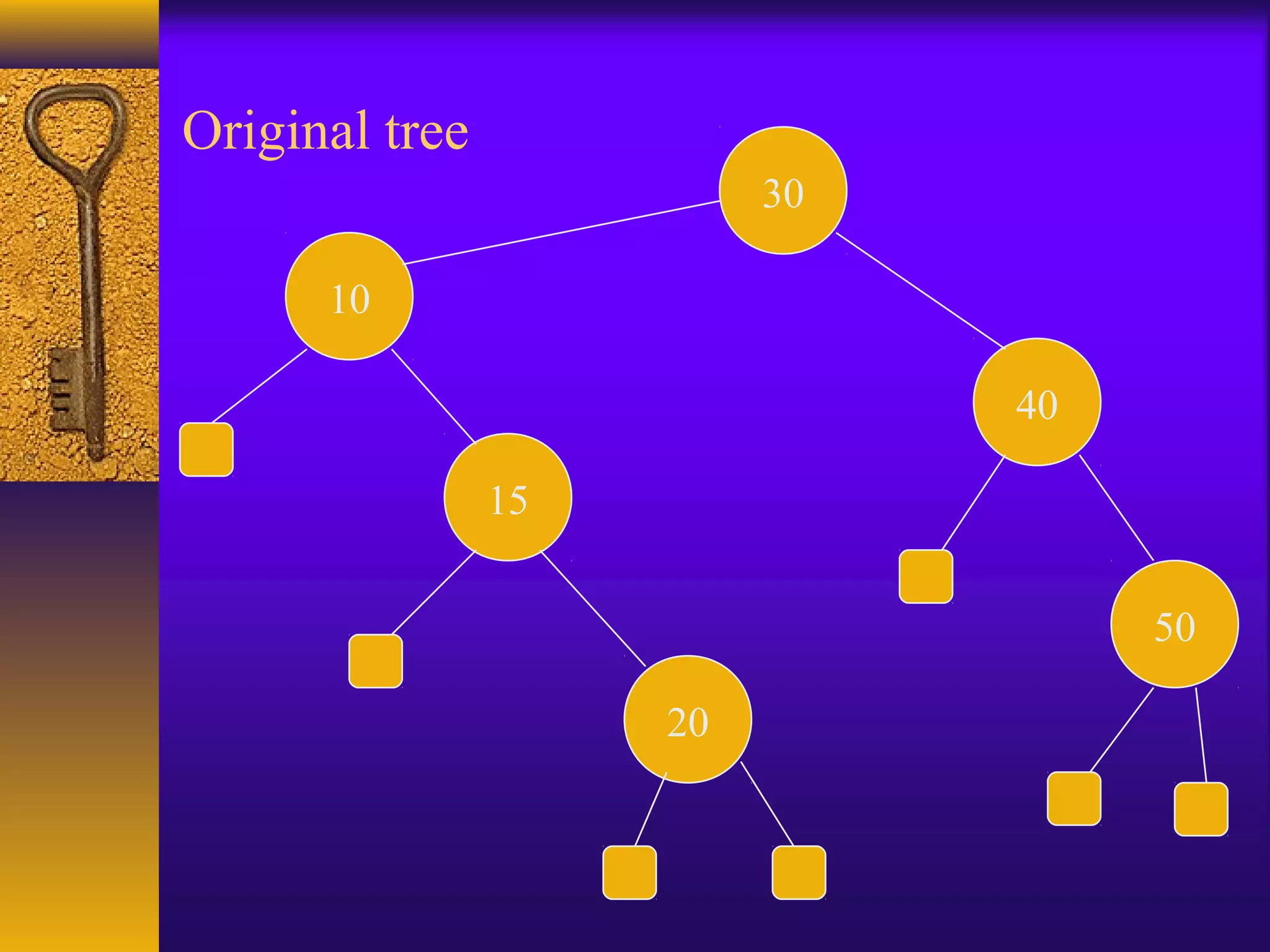

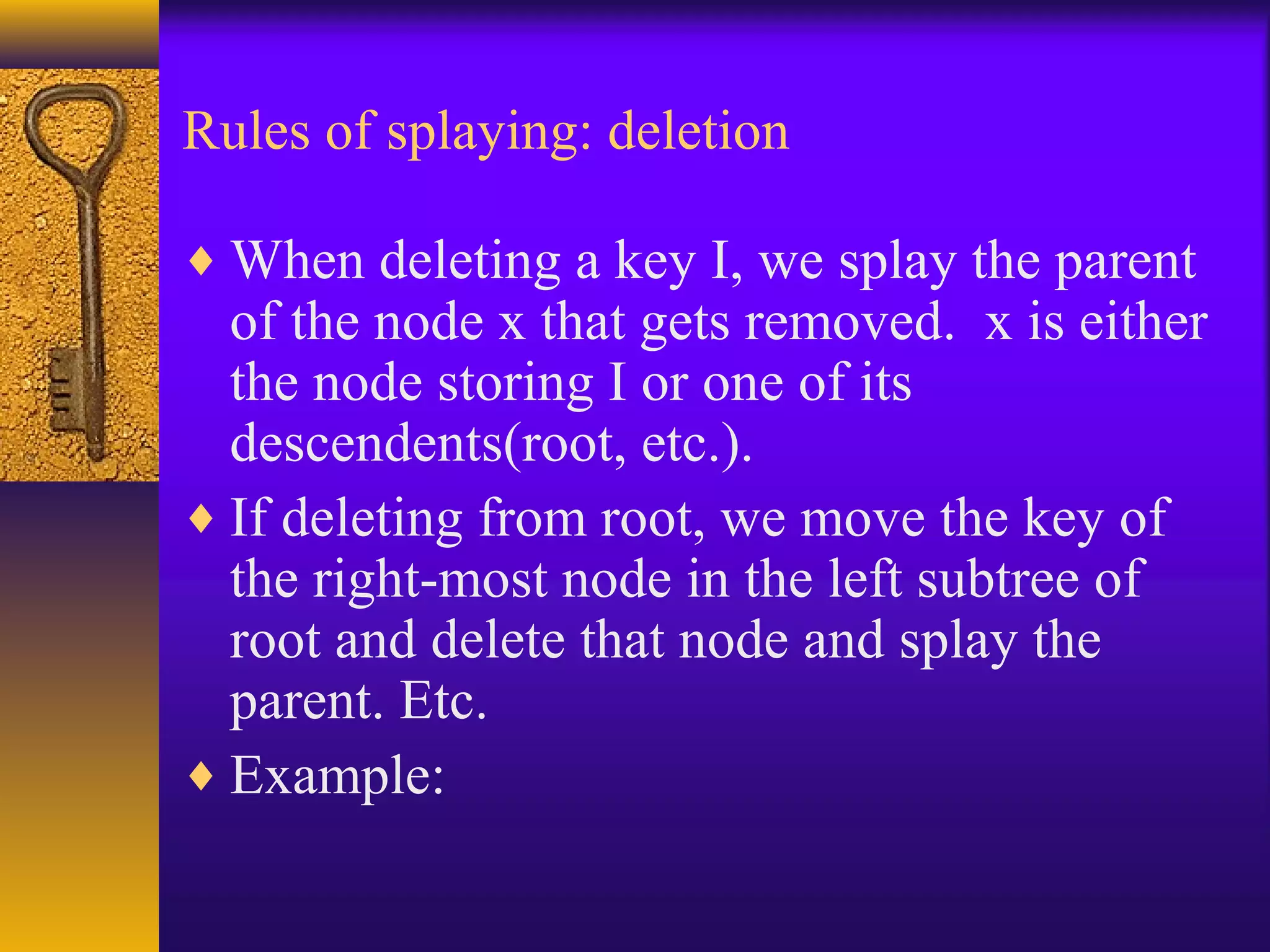

- 36. Rules of splaying:deletion ♦ When deleting a key I, we splay the parent of the node x that gets removed. x is either the node storing I or one of its descendents(root, etc.). ♦ If deleting from root, we move the key of the right-most node in the left subtree of root and delete that node and splay the parent. Etc. ♦ Example:
- 37.

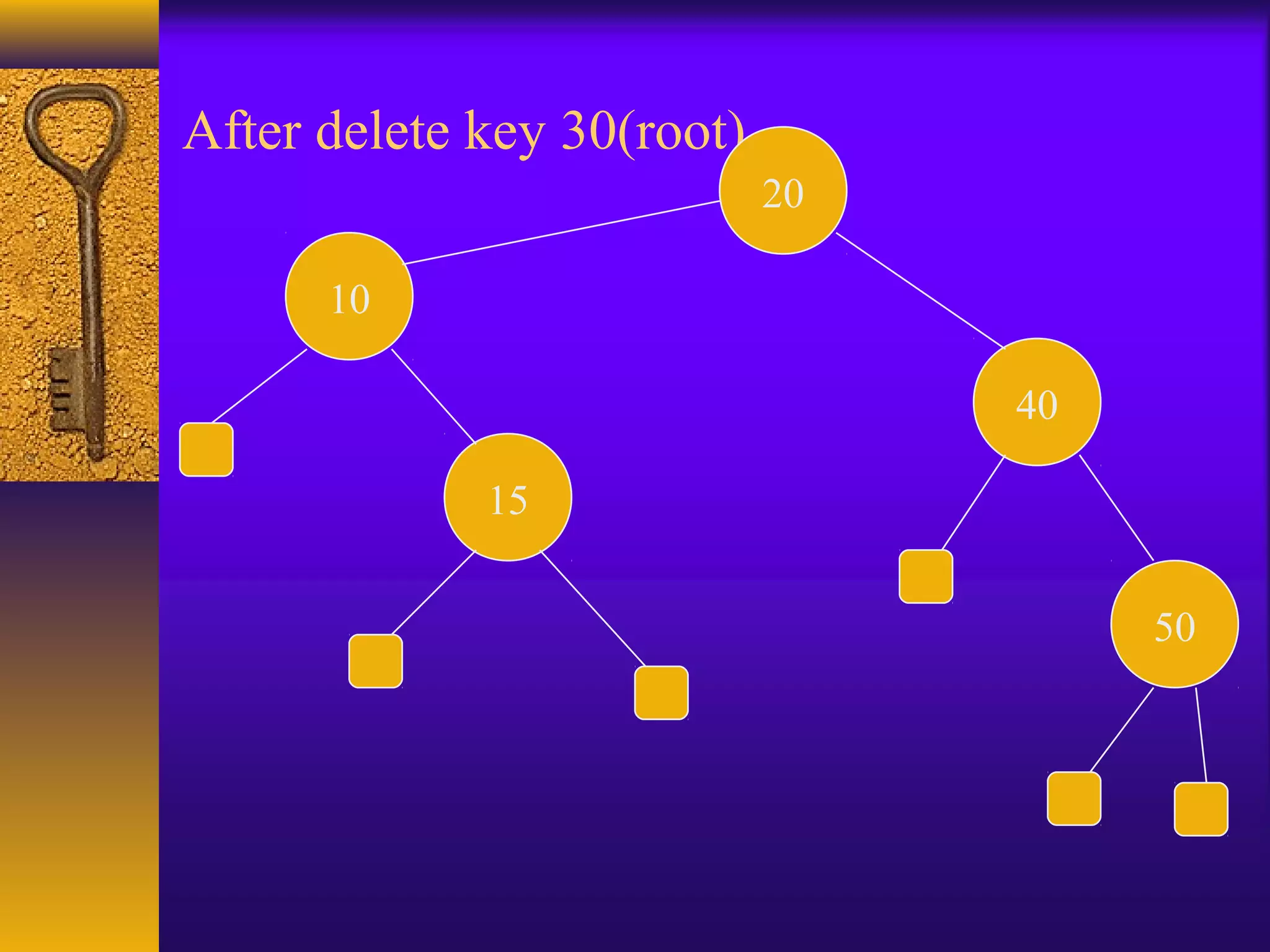

- 38. After delete key30(root) 20 15 10 40 50

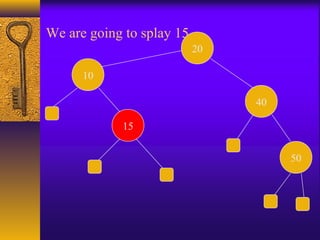

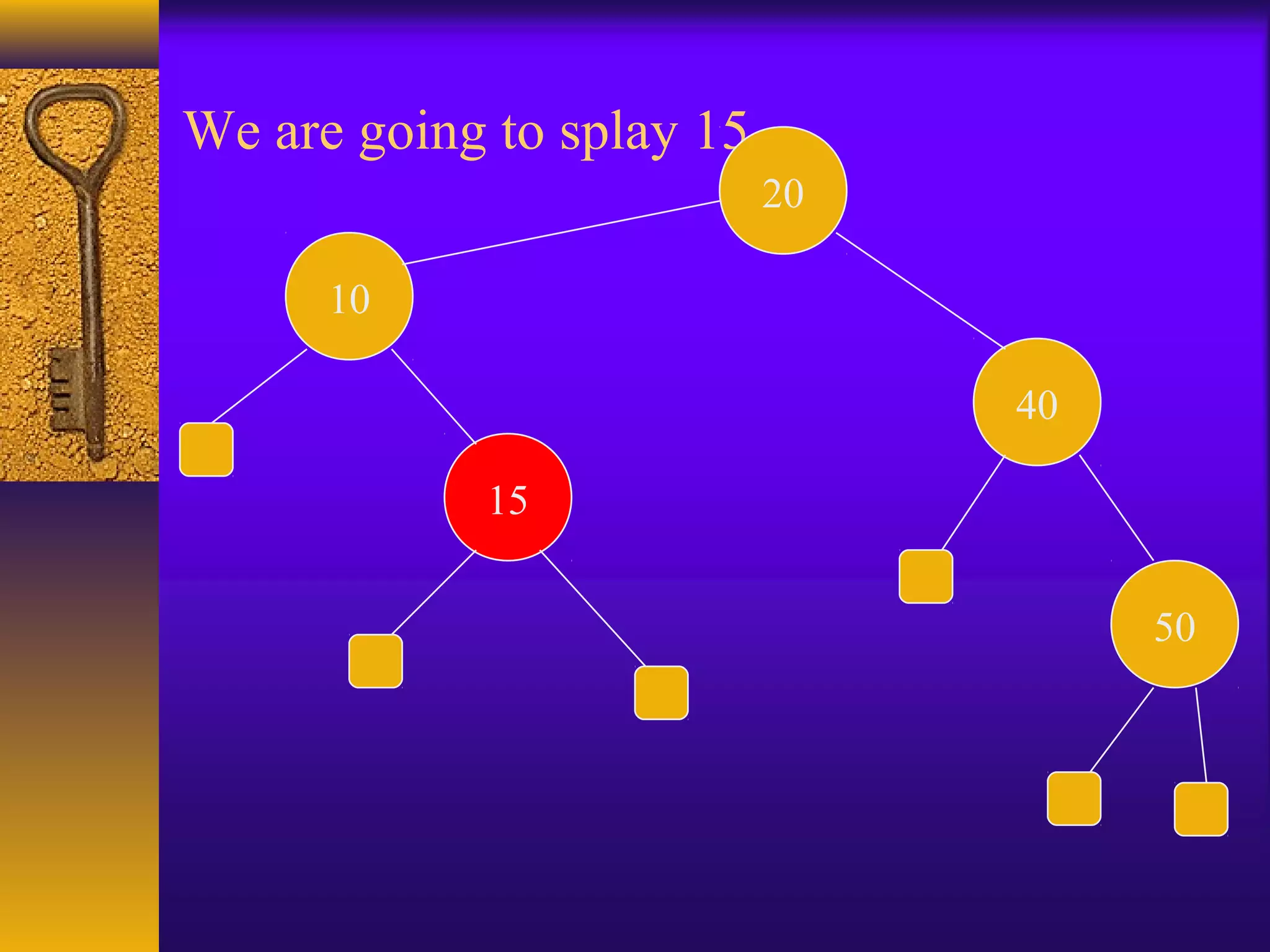

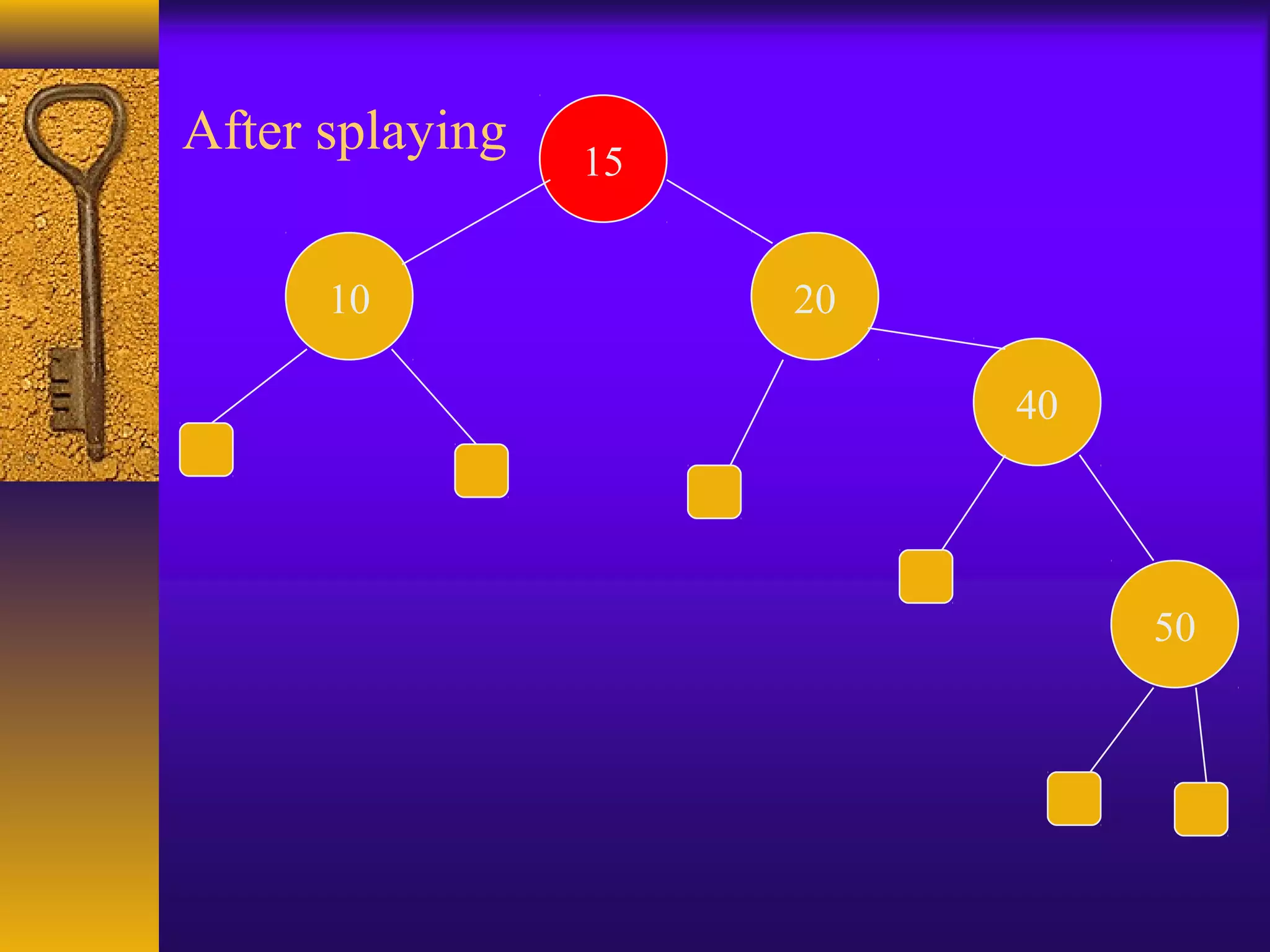

- 39. We are goingto splay 15 20 15 10 40 50
- 40.

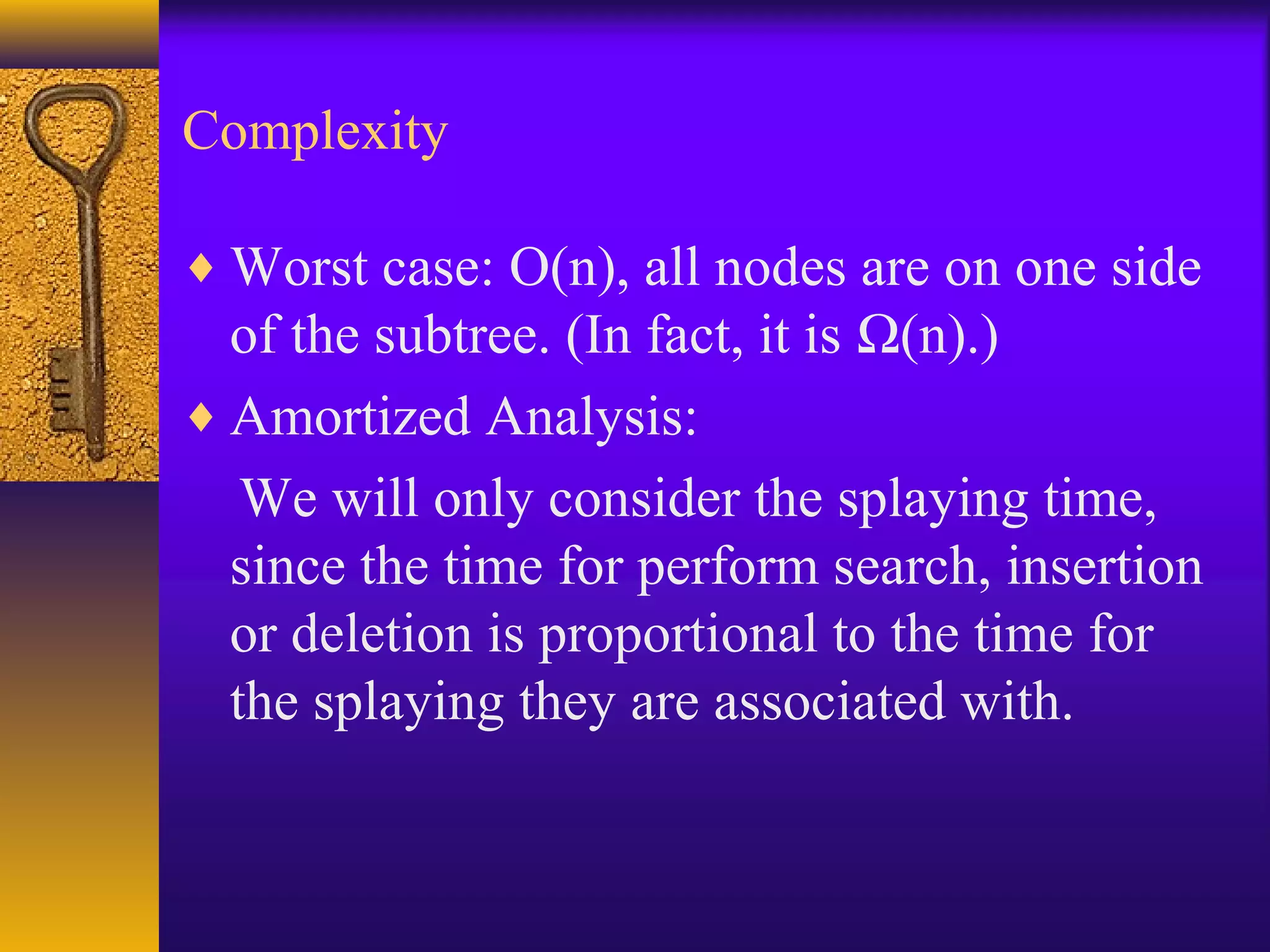

- 41. Complexity ♦ Worst case:O(n), all nodes are on one side of the subtree. (In fact, it is Ω(n).) ♦ Amortized Analysis: We will only consider the splaying time, since the time for perform search, insertion or deletion is proportional to the time for the splaying they are associated with.

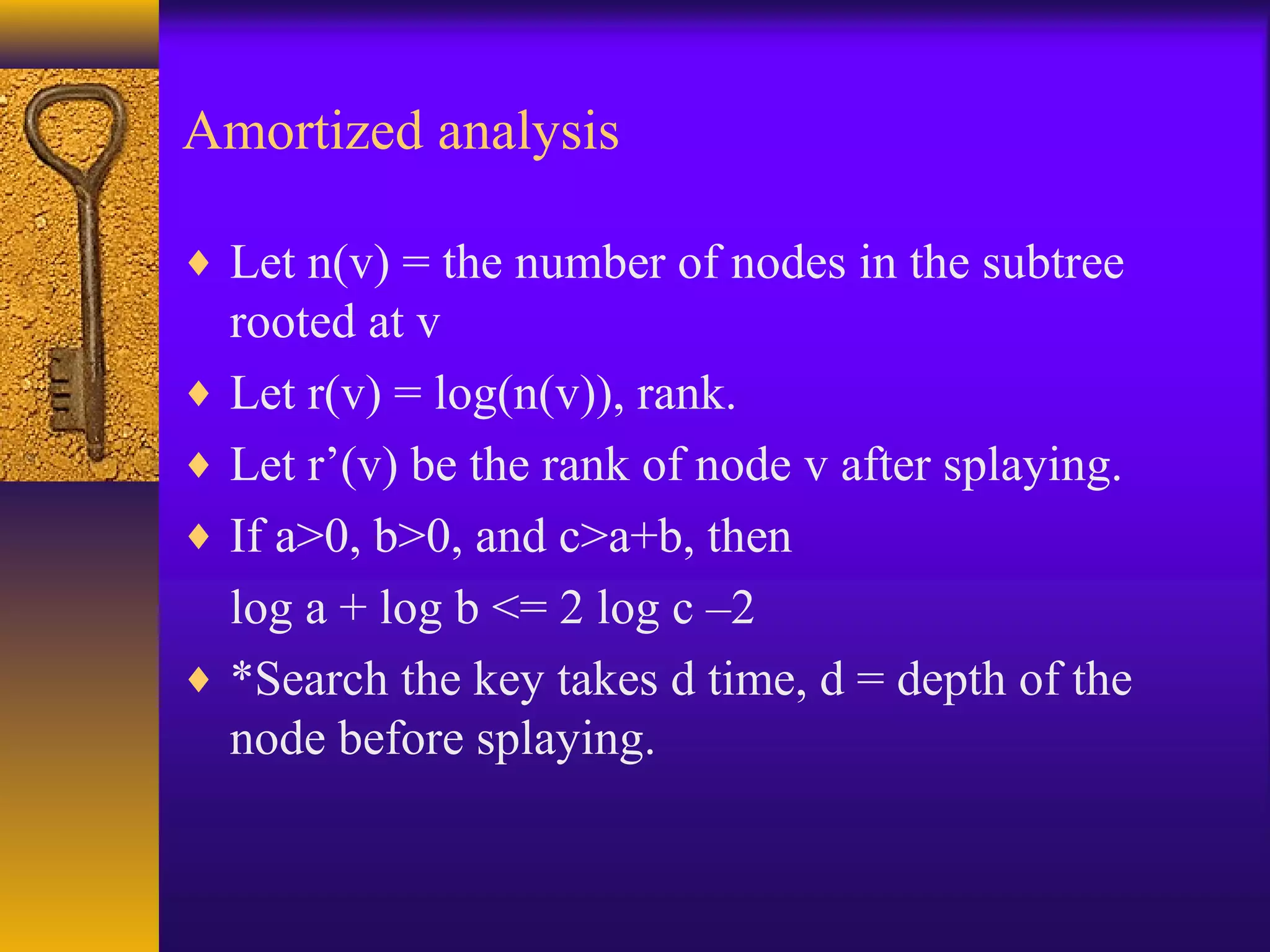

- 42. Amortized analysis ♦ Letn(v) = the number of nodes in the subtree rooted at v ♦ Let r(v) = log(n(v)), rank. ♦ Let r’(v) be the rank of node v after splaying. ♦ If a>0, b>0, and c>a+b, then log a + log b <= 2 log c –2 ♦ *Search the key takes d time, d = depth of the node before splaying.
- 43.
- 44.

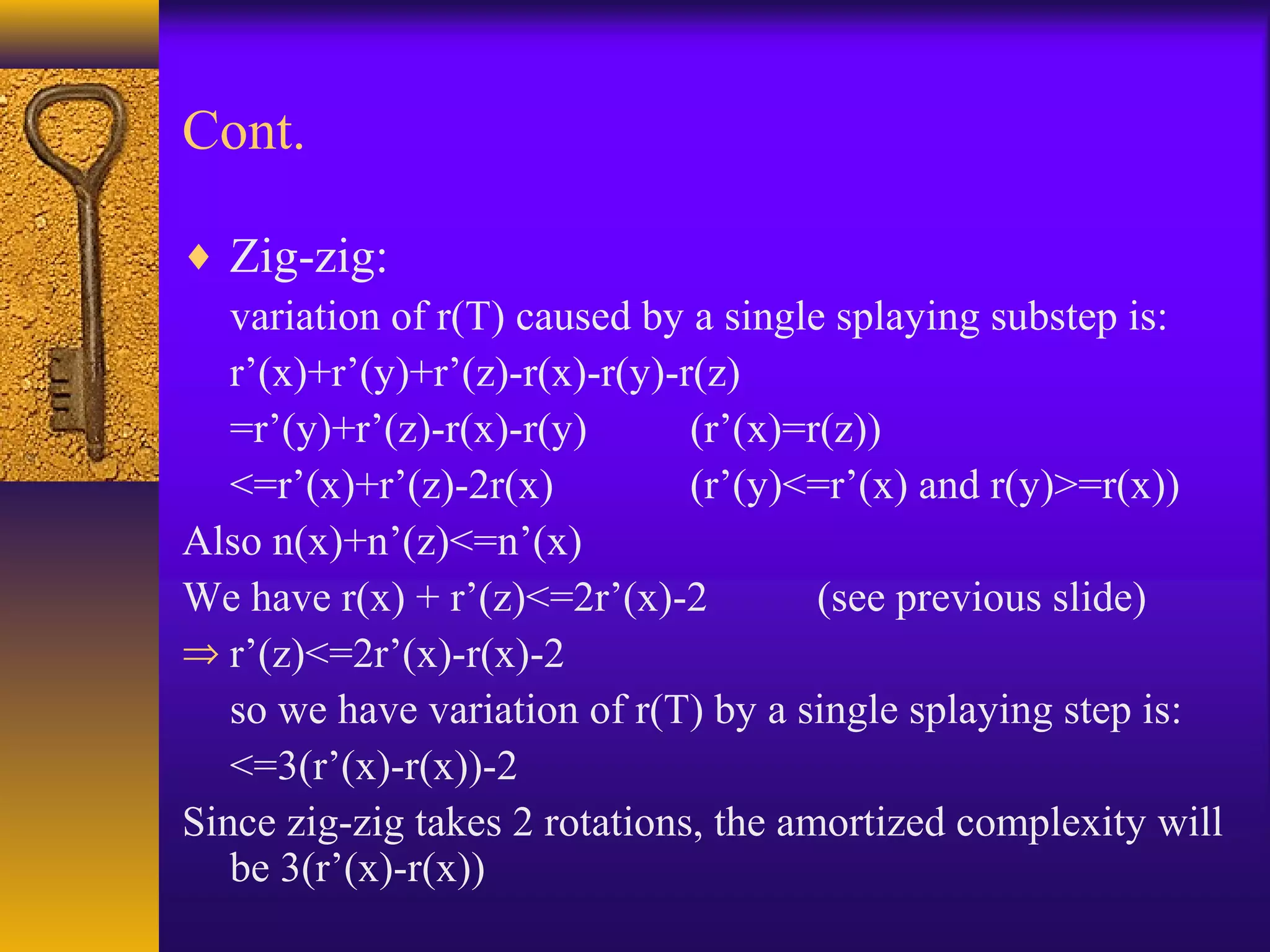

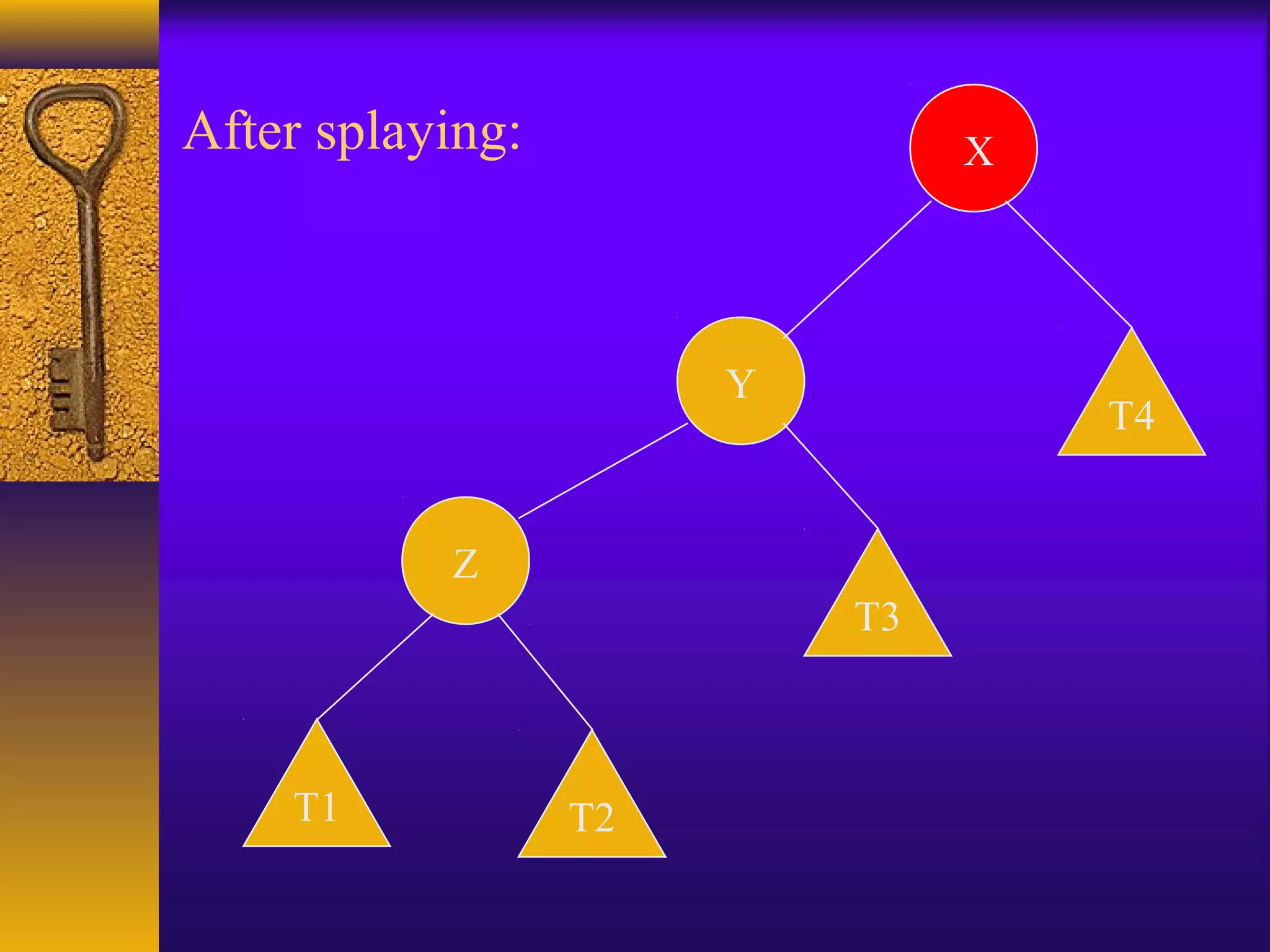

- 45. Cont. ♦ Zig-zig: variation ofr(T) caused by a single splaying substep is: r’(x)+r’(y)+r’(z)-r(x)-r(y)-r(z) =r’(y)+r’(z)-r(x)-r(y) (r’(x)=r(z)) <=r’(x)+r’(z)-2r(x) (r’(y)<=r’(x) and r(y)>=r(x)) Also n(x)+n’(z)<=n’(x) We have r(x) + r’(z)<=2r’(x)-2 (see previous slide) ⇒ r’(z)<=2r’(x)-r(x)-2 so we have variation of r(T) by a single splaying step is: <=3(r’(x)-r(x))-2 Since zig-zig takes 2 rotations, the amortized complexity will be 3(r’(x)-r(x))
- 46.
- 47.

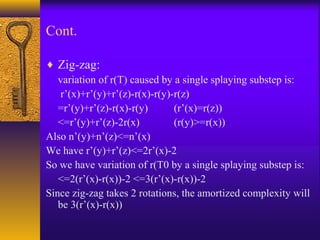

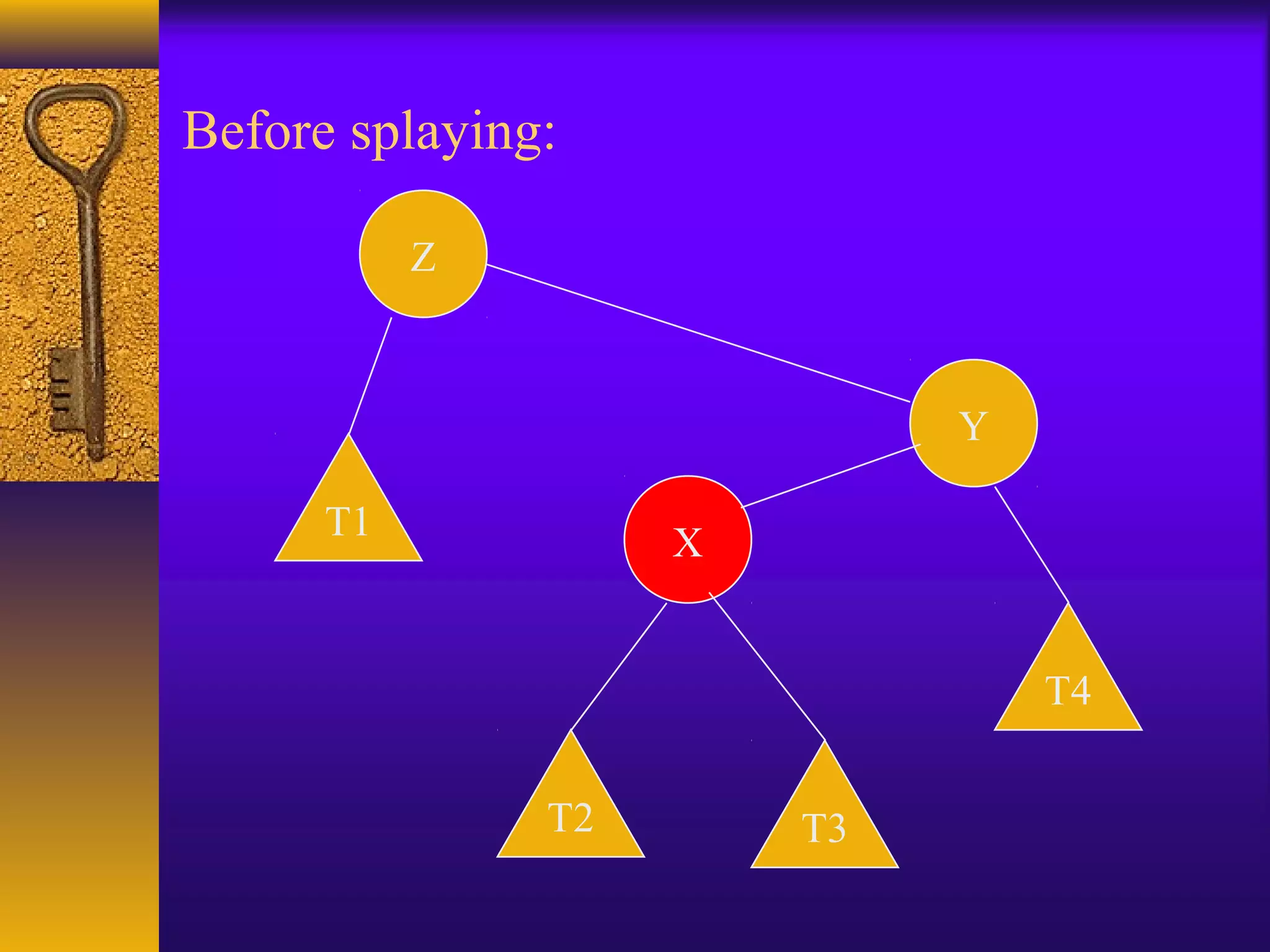

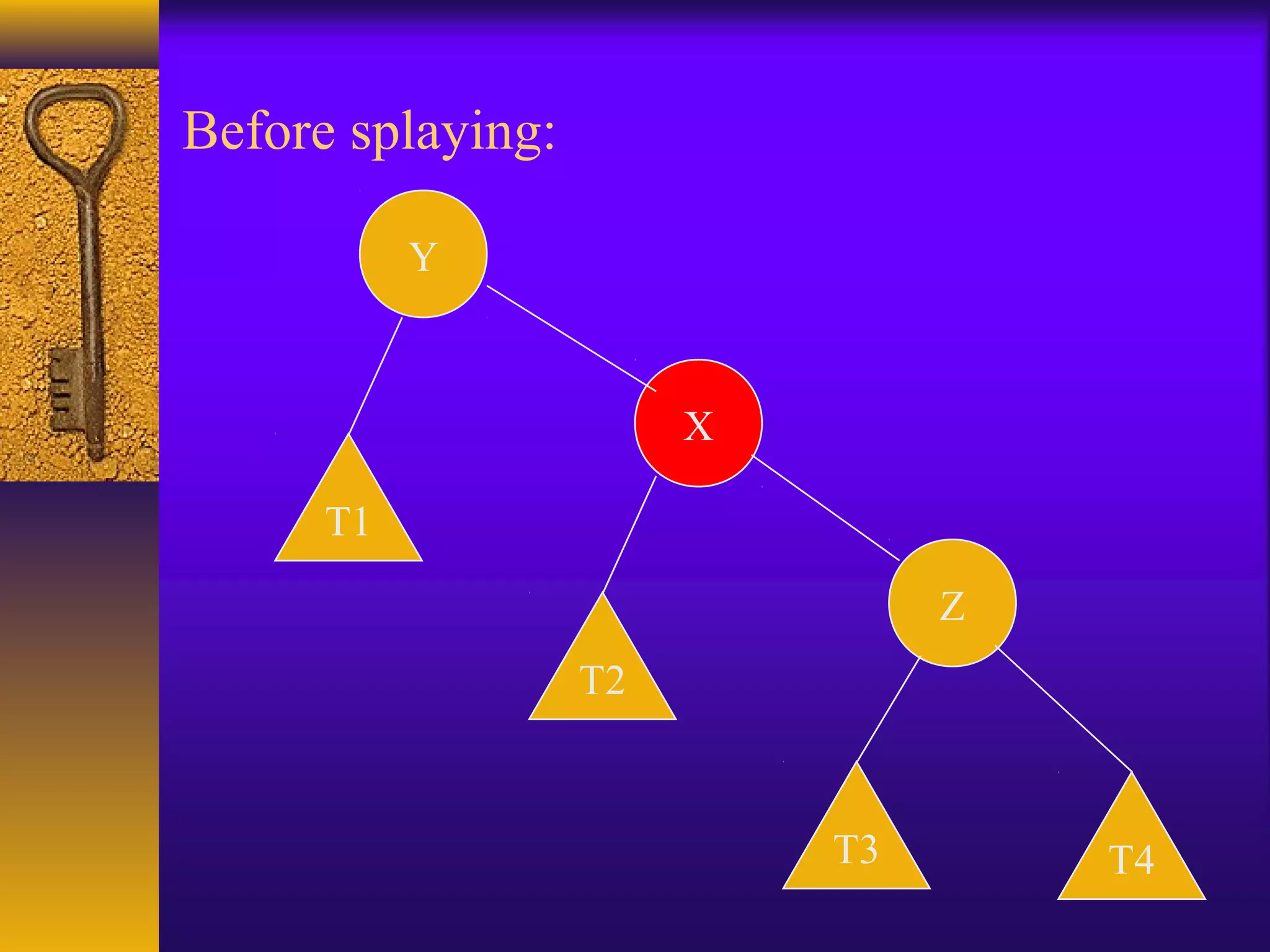

- 48. Cont. ♦ Zig-zag: variation ofr(T) caused by a single splaying substep is: r’(x)+r’(y)+r’(z)-r(x)-r(y)-r(z) =r’(y)+r’(z)-r(x)-r(y) (r’(x)=r(z)) <=r’(y)+r’(z)-2r(x) (r(y)>=r(x)) Also n’(y)+n’(z)<=n’(x) We have r’(y)+r’(z)<=2r’(x)-2 So we have variation of r(T0 by a single splaying substep is: <=2(r’(x)-r(x))-2 <=3(r’(x)-r(x))-2 Since zig-zag takes 2 rotations, the amortized complexity will be 3(r’(x)-r(x))
- 49.
- 50.

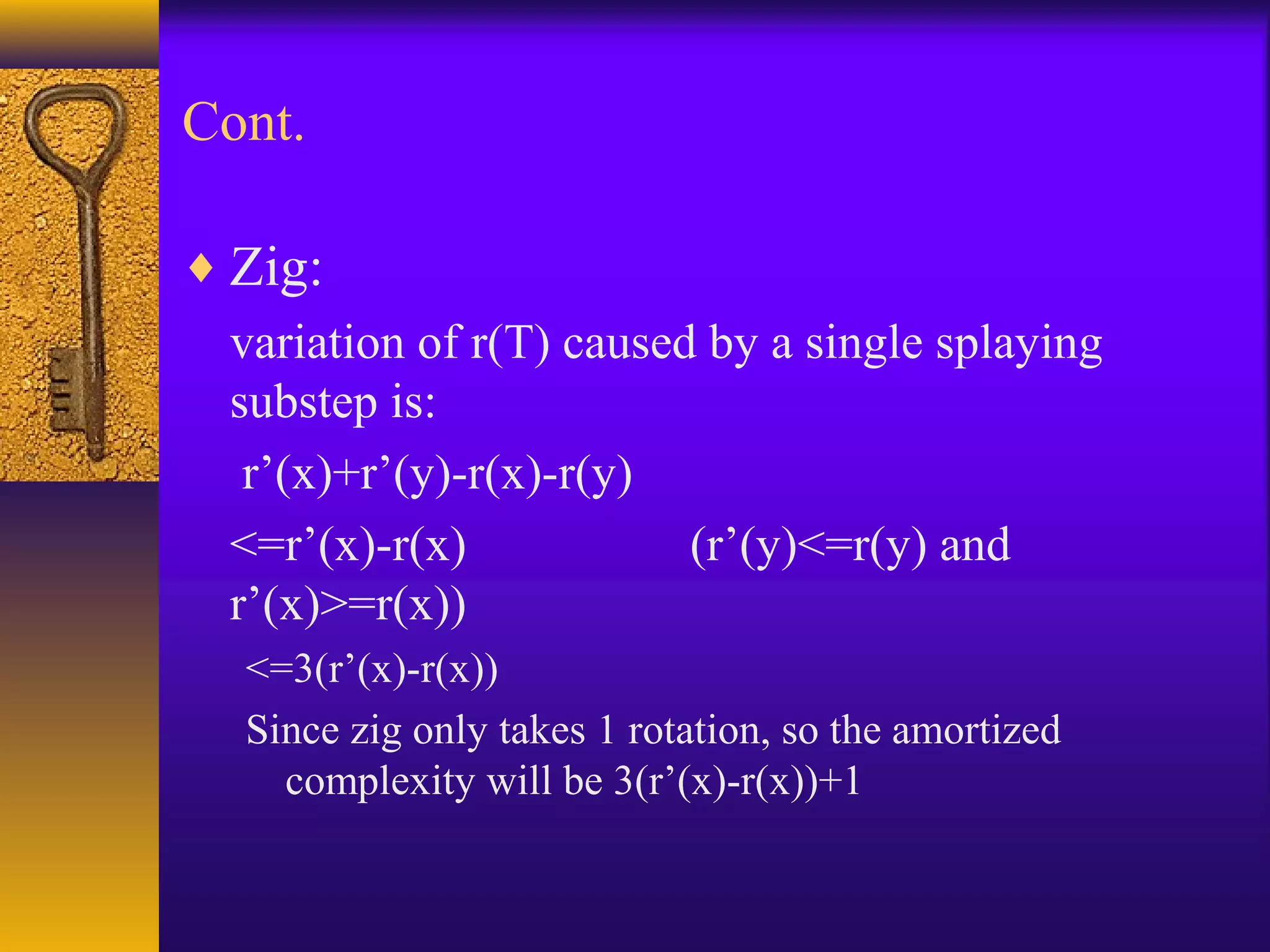

- 51. Cont. ♦ Zig: variation ofr(T) caused by a single splaying substep is: r’(x)+r’(y)-r(x)-r(y) <=r’(x)-r(x) (r’(y)<=r(y) and r’(x)>=r(x)) <=3(r’(x)-r(x)) Since zig only takes 1 rotation, so the amortized complexity will be 3(r’(x)-r(x))+1

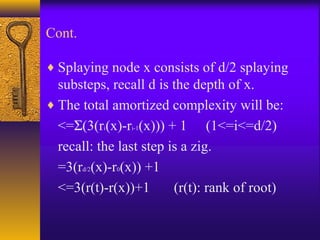

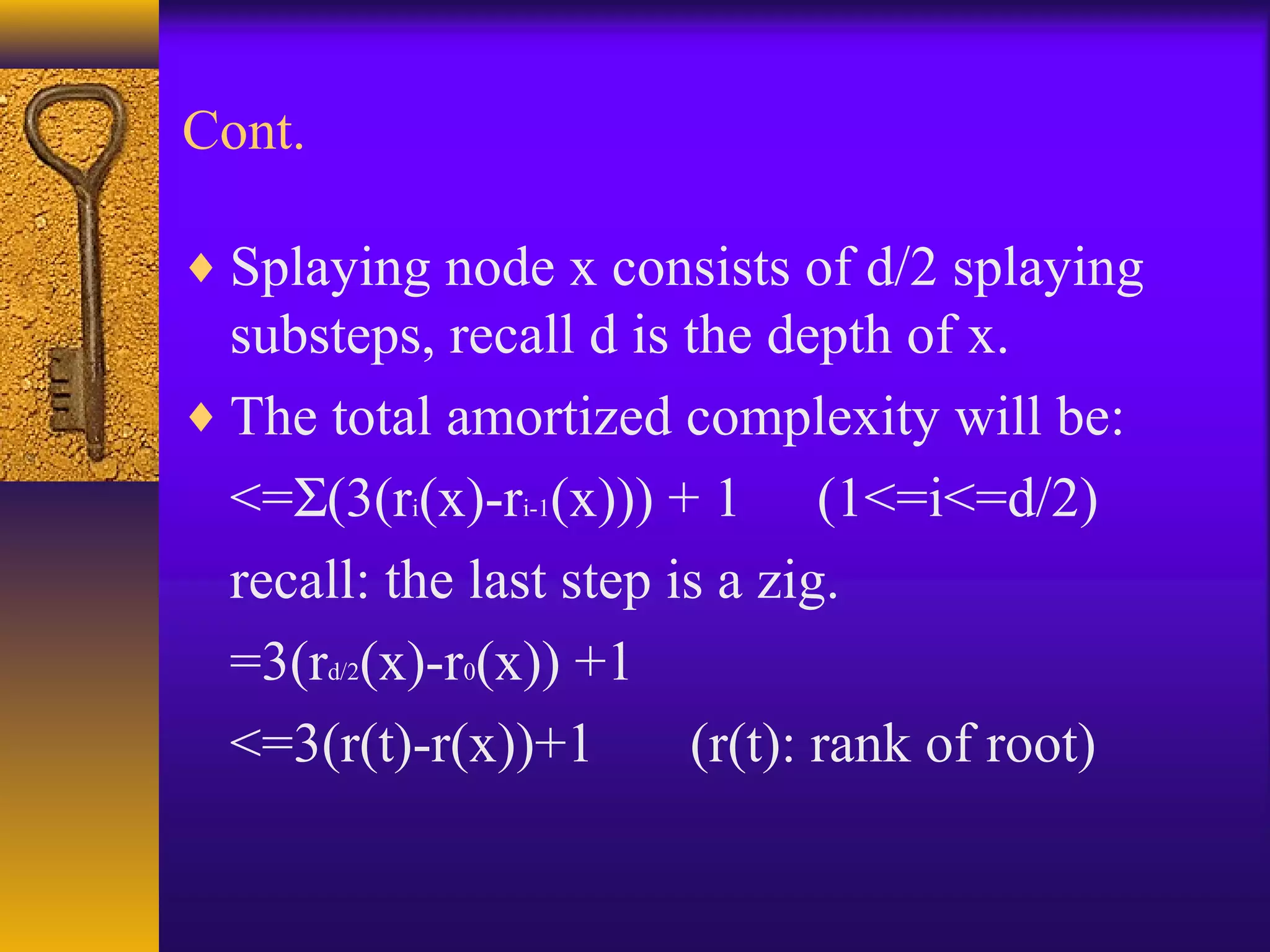

- 52. Cont. ♦ Splaying nodex consists of d/2 splaying substeps, recall d is the depth of x. ♦ The total amortized complexity will be: <=Σ(3(ri(x)-ri-1(x))) + 1 (1<=i<=d/2) recall: the last step is a zig. =3(rd/2(x)-r0(x)) +1 <=3(r(t)-r(x))+1 (r(t): rank of root)

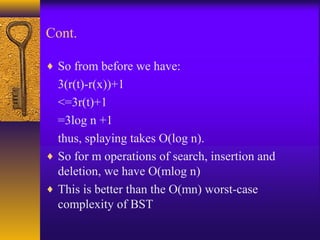

- 53. Cont. ♦ So frombefore we have: 3(r(t)-r(x))+1 <=3r(t)+1 =3log n +1 thus, splaying takes O(log n). ♦ So for m operations of search, insertion and deletion, we have O(mlog n) ♦ This is better than the O(mn) worst-case complexity of BST

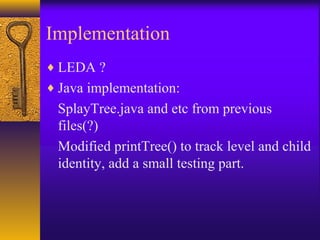

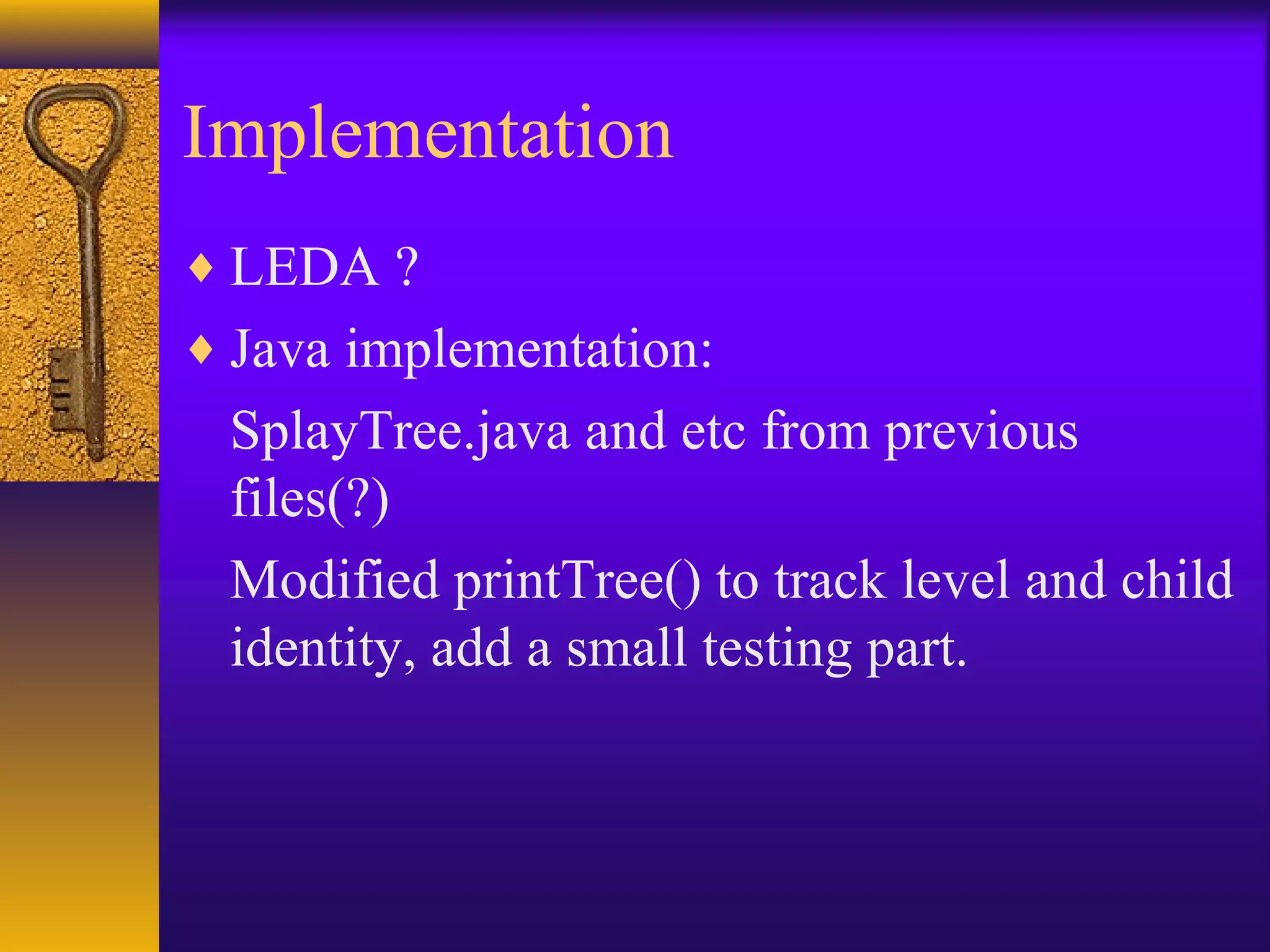

- 54. Implementation ♦ LEDA ? ♦Java implementation: SplayTree.java and etc from previous files(?) Modified printTree() to track level and child identity, add a small testing part.

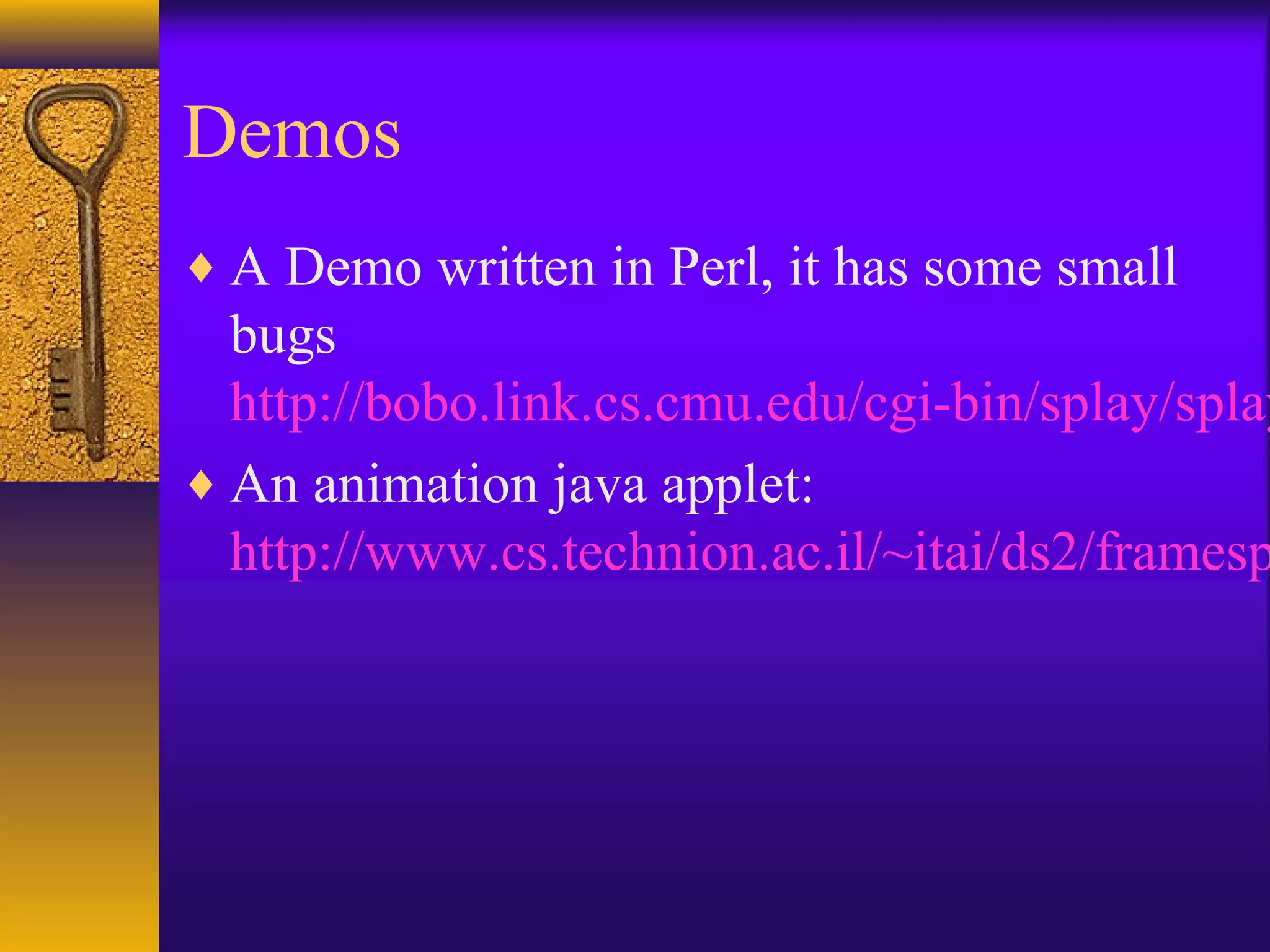

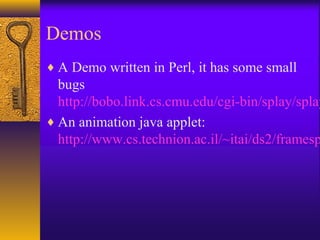

- 55. Demos ♦ A Demowritten in Perl, it has some small bugs http://bobo.link.cs.cmu.edu/cgi-bin/splay/splay ♦ An animation java applet: http://www.cs.technion.ac.il/~itai/ds2/framesp

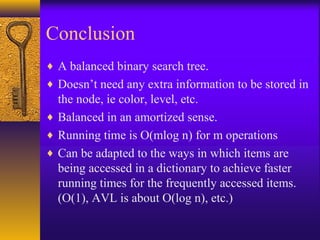

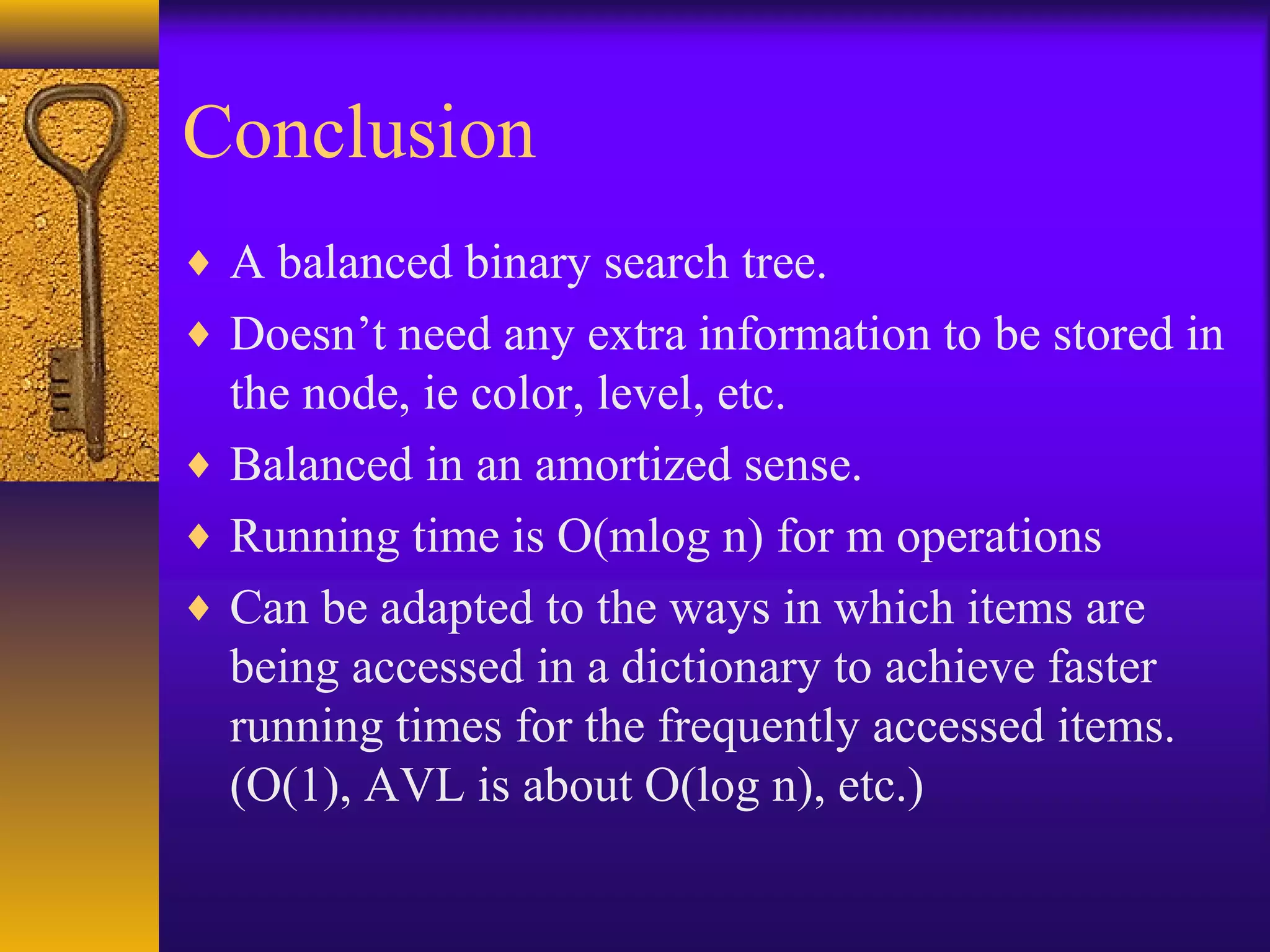

- 56. Conclusion ♦ A balancedbinary search tree. ♦ Doesn’t need any extra information to be stored in the node, ie color, level, etc. ♦ Balanced in an amortized sense. ♦ Running time is O(mlog n) for m operations ♦ Can be adapted to the ways in which items are being accessed in a dictionary to achieve faster running times for the frequently accessed items. (O(1), AVL is about O(log n), etc.)
