SQL Server Reporting Services: IT Best Practices
The document discusses best practices for deploying Microsoft SQL Server Reporting Services, covering critical areas such as backup/restore, security, performance, and upgrade strategies. It includes insights from real customer experiences and emphasizes the importance of proper configuration and monitoring. Additionally, it outlines various reporting services architectures, scalability solutions, and integration methods with SharePoint.
More Related Content
Similar to SQL Server Reporting Services: IT Best Practices
![Ensuring compliance of patient data with big data and bi [bdii 301-m] - (4078)](https://cdn.slidesharecdn.com/ss_thumbnails/ensuringcomplianceofpatientdatawithbigdataandbibdii-301-m-4078-130430231240-phpapp01-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
SQL Server Reporting Services: IT Best Practices

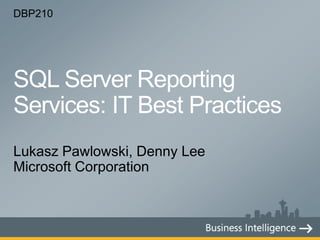

- 2. DBP210 Lukasz Pawlowski, DennyLee Microsoft Corporation

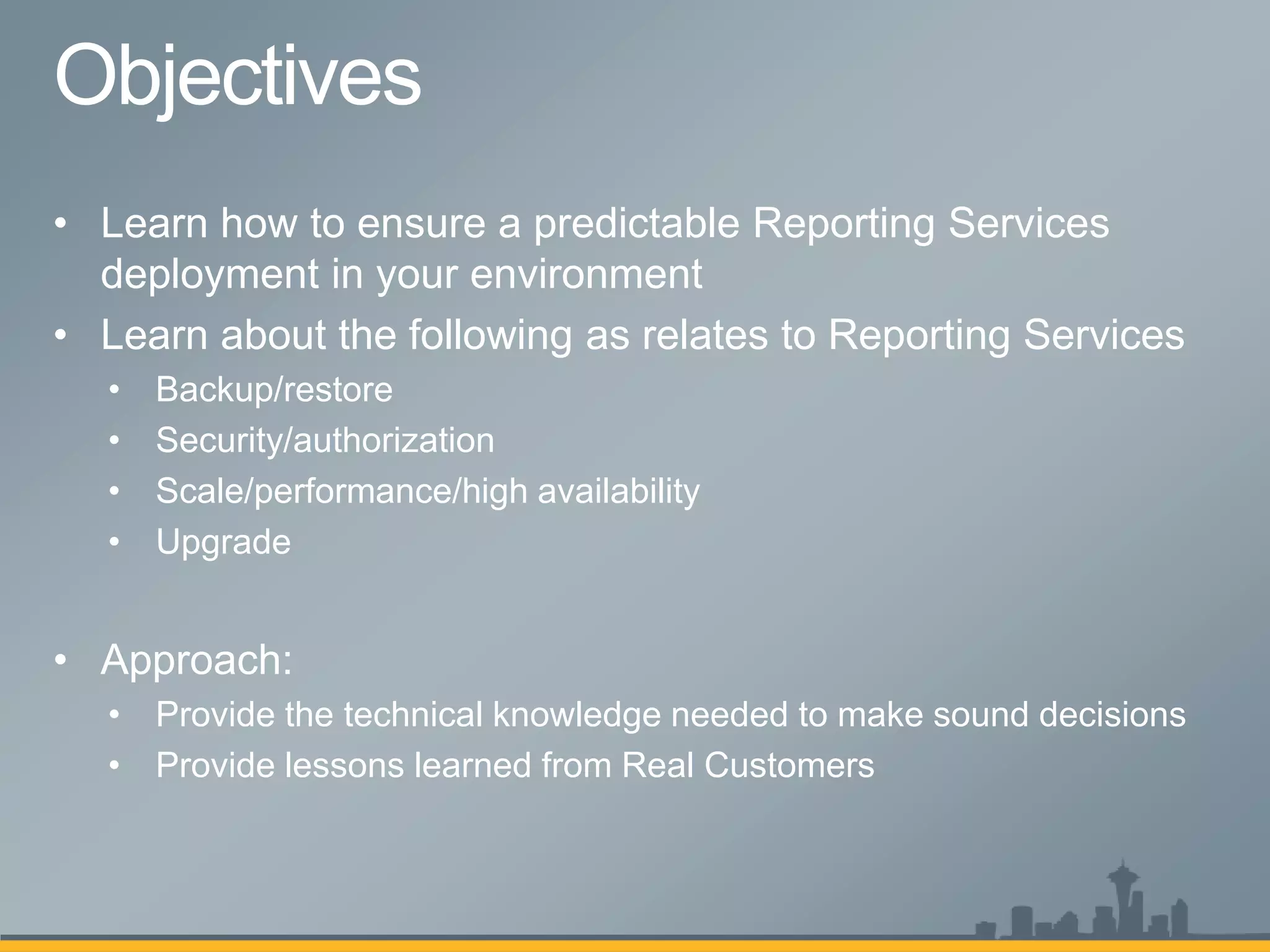

- 3. • Learn howto ensure a predictable Reporting Services deployment in your environment • Learn about the following as relates to Reporting Services • Backup/restore • Security/authorization • Scale/performance/high availability • Upgrade • Approach: • Provide the technical knowledge needed to make sound decisions • Provide lessons learned from Real Customers

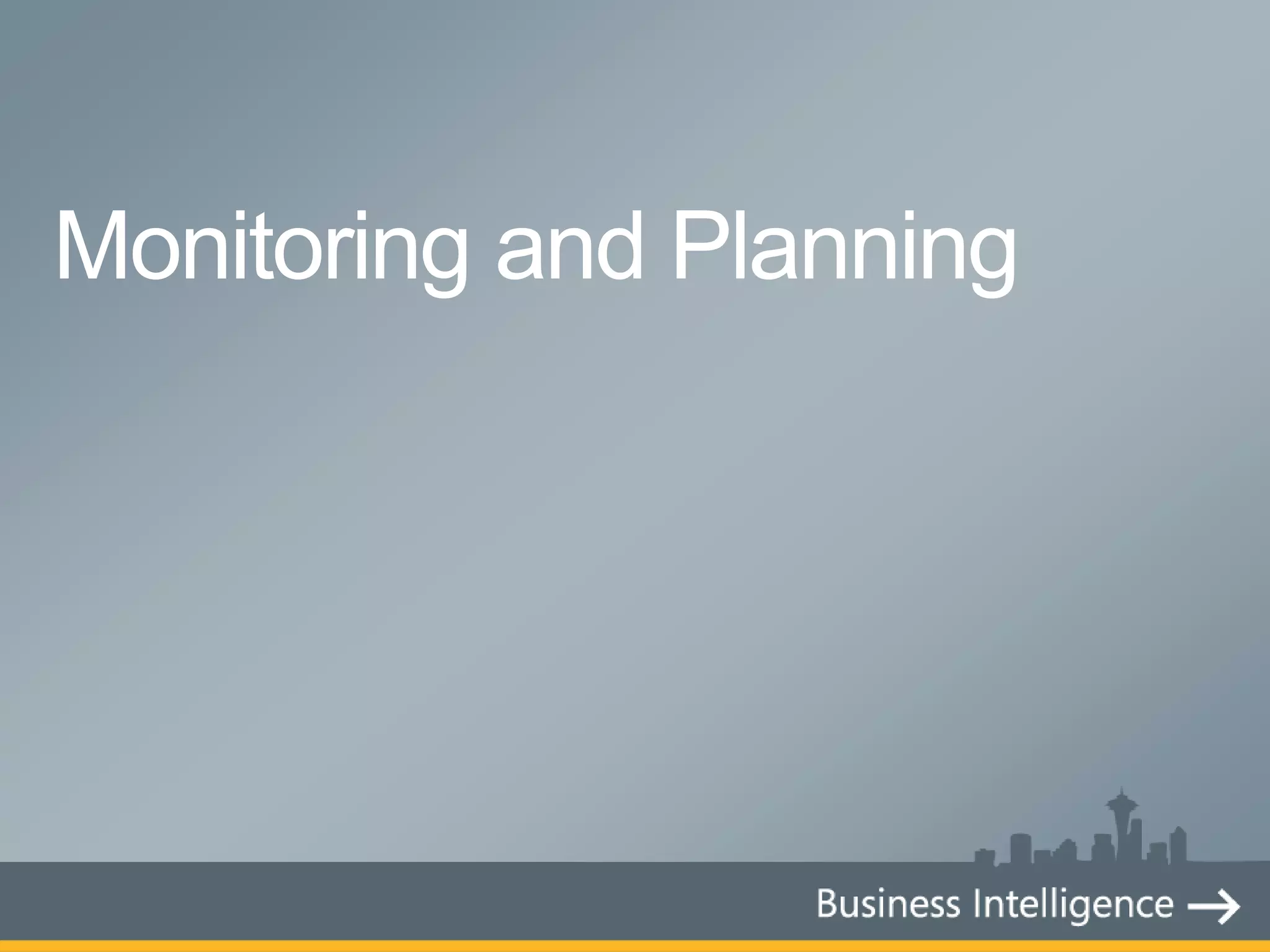

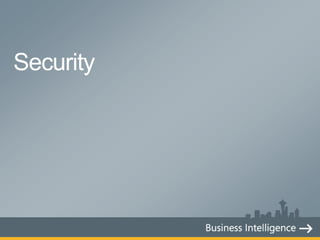

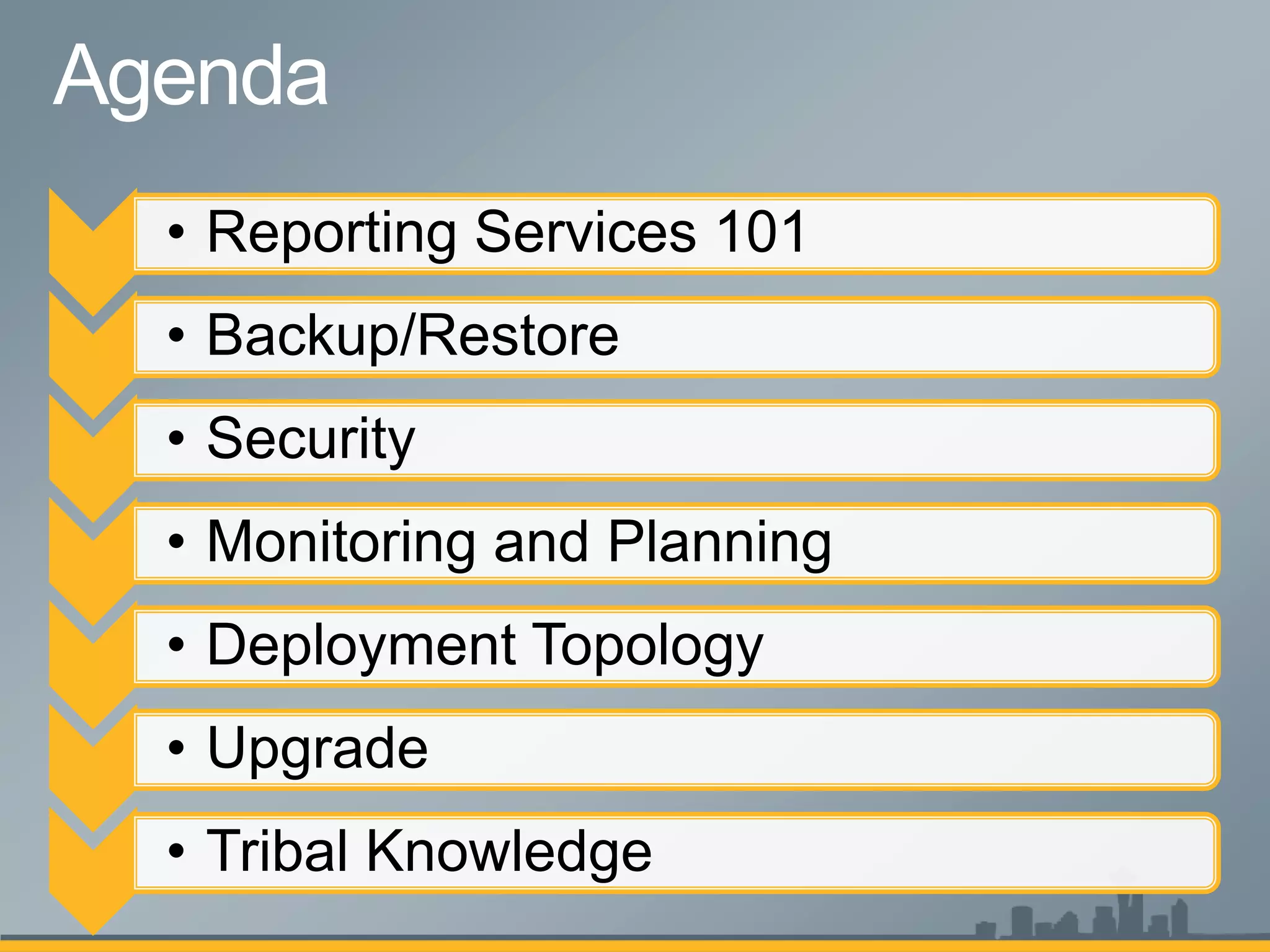

- 5. • Reporting Services101 • Backup/Restore • Security • Monitoring and Planning • Deployment Topology • Upgrade • Tribal Knowledge

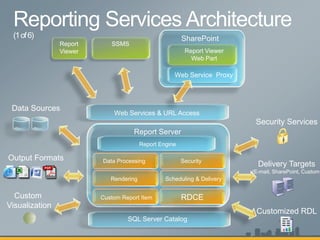

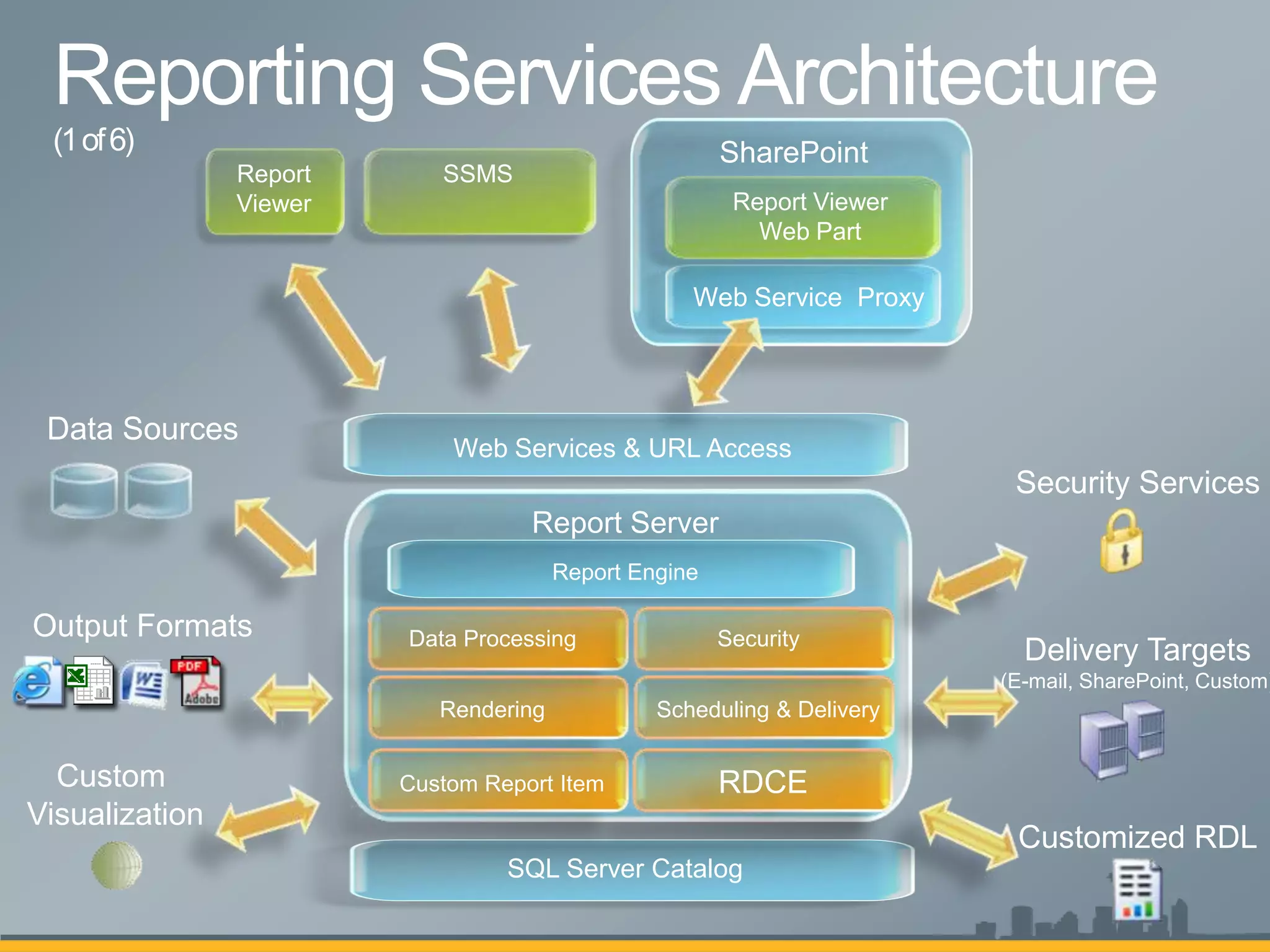

- 8. SharePoint Report SSMS Viewer Report Viewer Web Part Web Service Proxy Data Sources Web Services & URL Access Security Services Report Server Report Engine Output Formats Data Processing Security Delivery Targets (E-mail, SharePoint, Custom) Rendering Scheduling & Delivery Custom Custom Report Item RDCE Visualization Customized RDL SQL Server Catalog

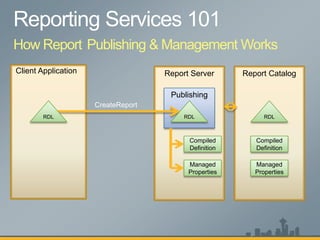

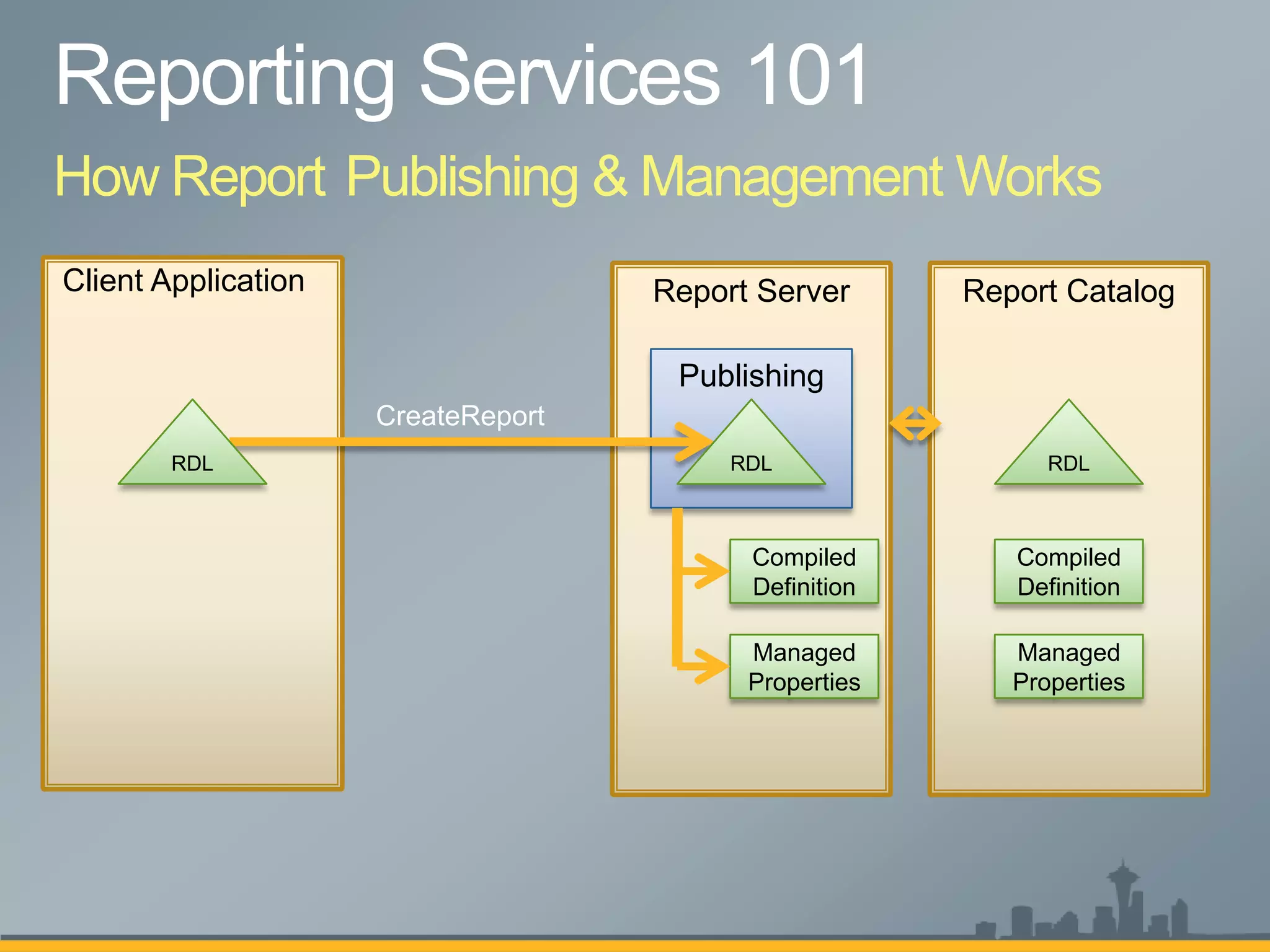

- 9. How Report Publishing& Management Works Client Application Report Server Report Catalog Publishing CreateReport RDL RDL RDL Compiled Compiled Definition Definition Managed Managed Properties Properties

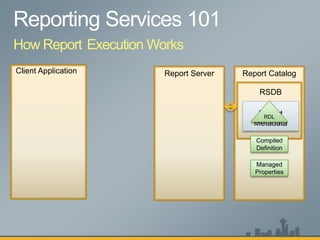

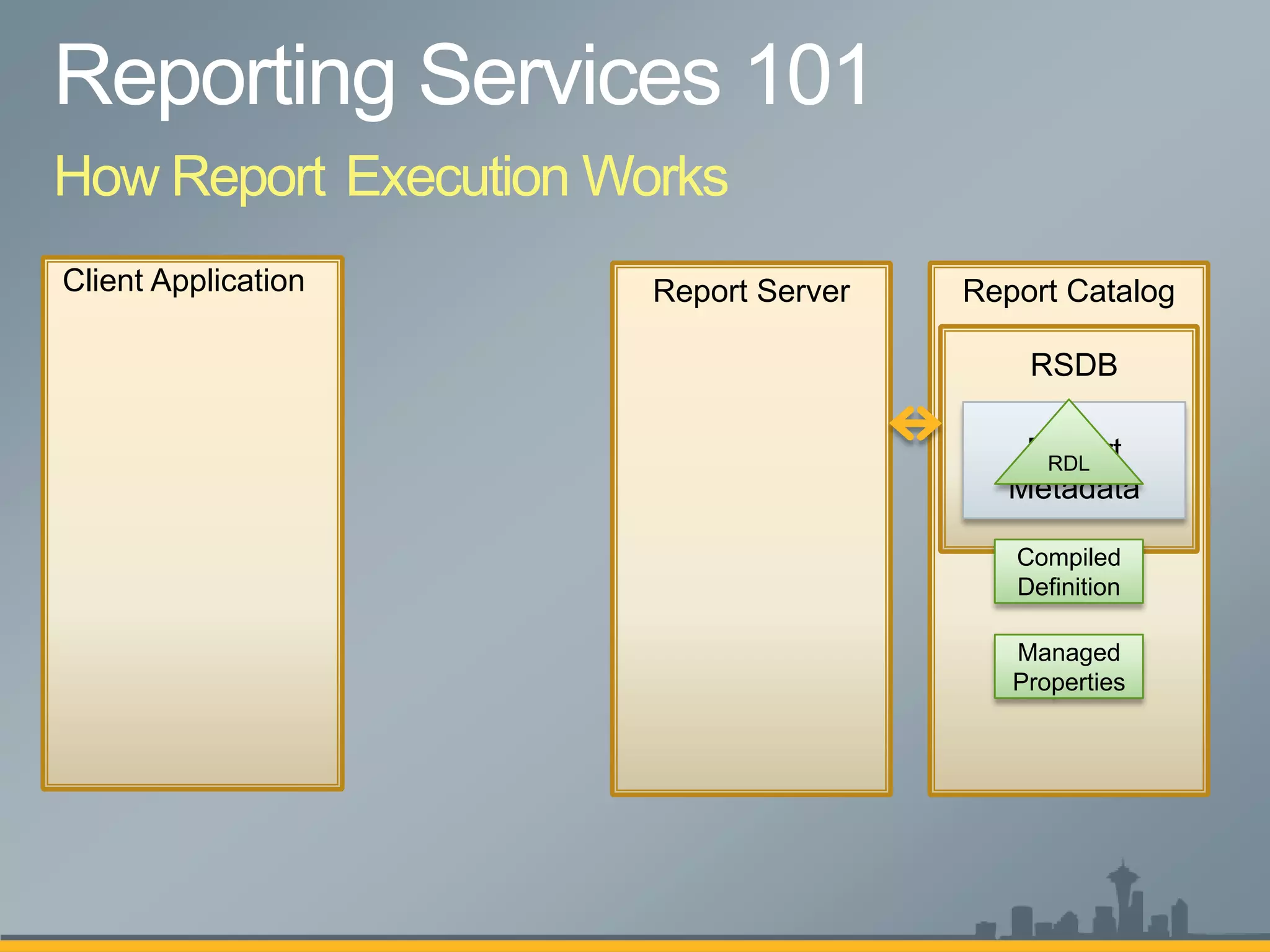

- 10. How Report ExecutionWorks Client Application Report Server Report Catalog RSDB Report RDL Metadata Compiled Definition Managed Properties

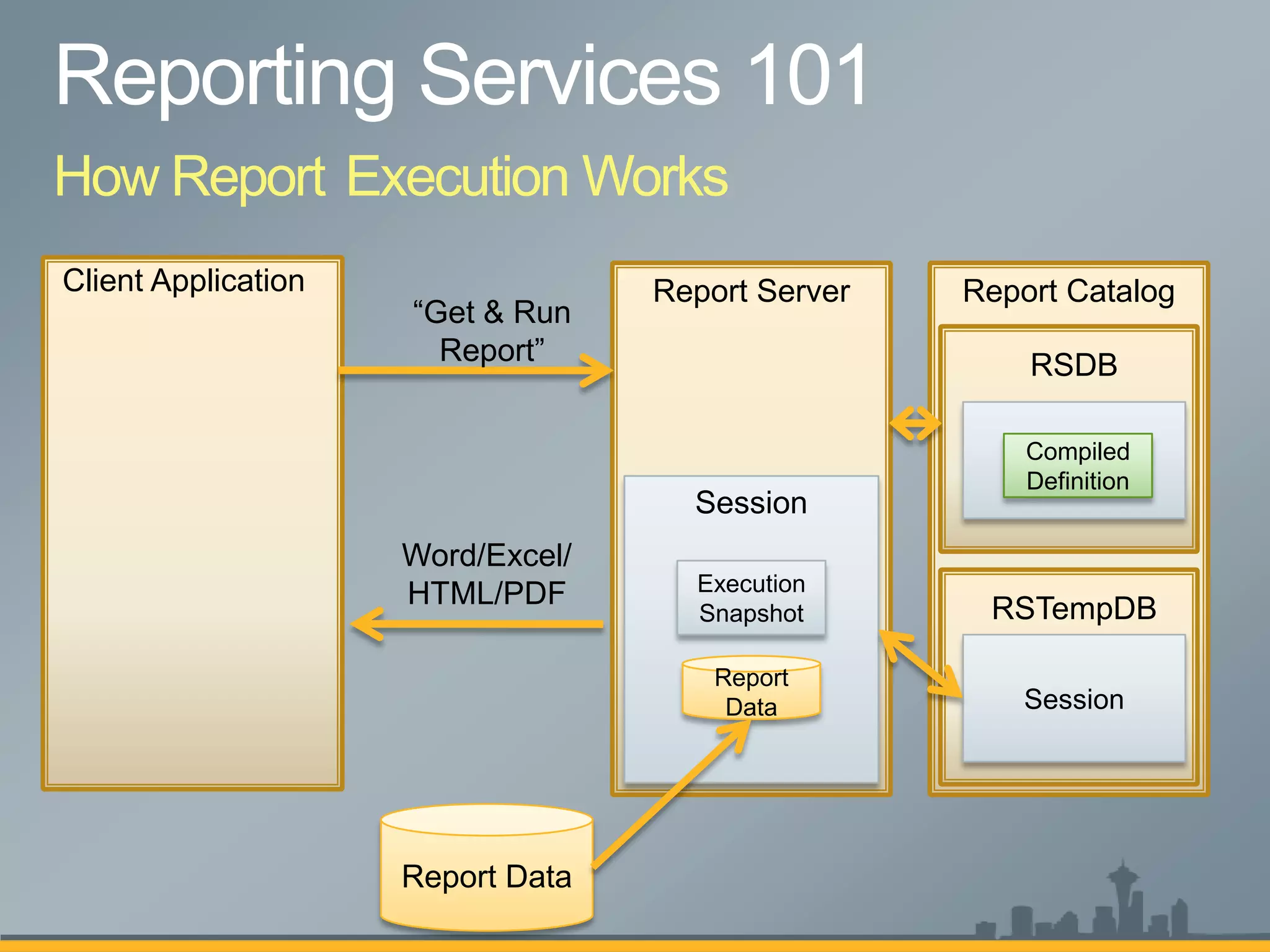

- 11. How Report ExecutionWorks Client Application Report Server Report Catalog “Get & Run Report” RSDB Report Compiled Metadata Definition Session Word/Excel/ HTML/PDF Execution Snapshot RSTempDB Report Data Session Report Data

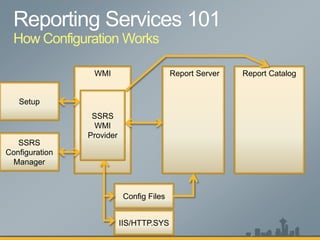

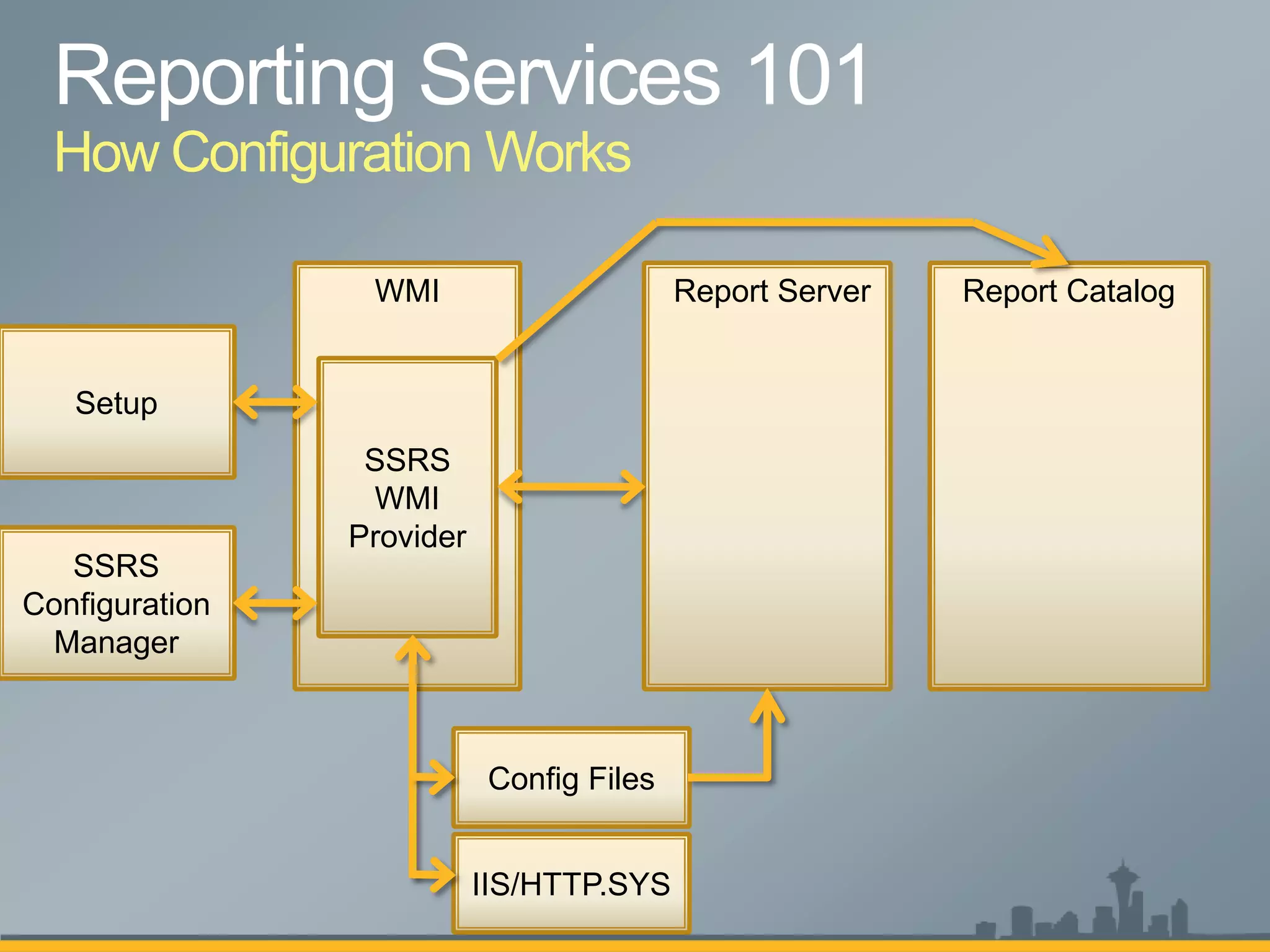

- 12. How Configuration Works WMI Report Server Report Catalog Setup SSRS WMI Provider SSRS Configuration Manager Config Files IIS/HTTP.SYS

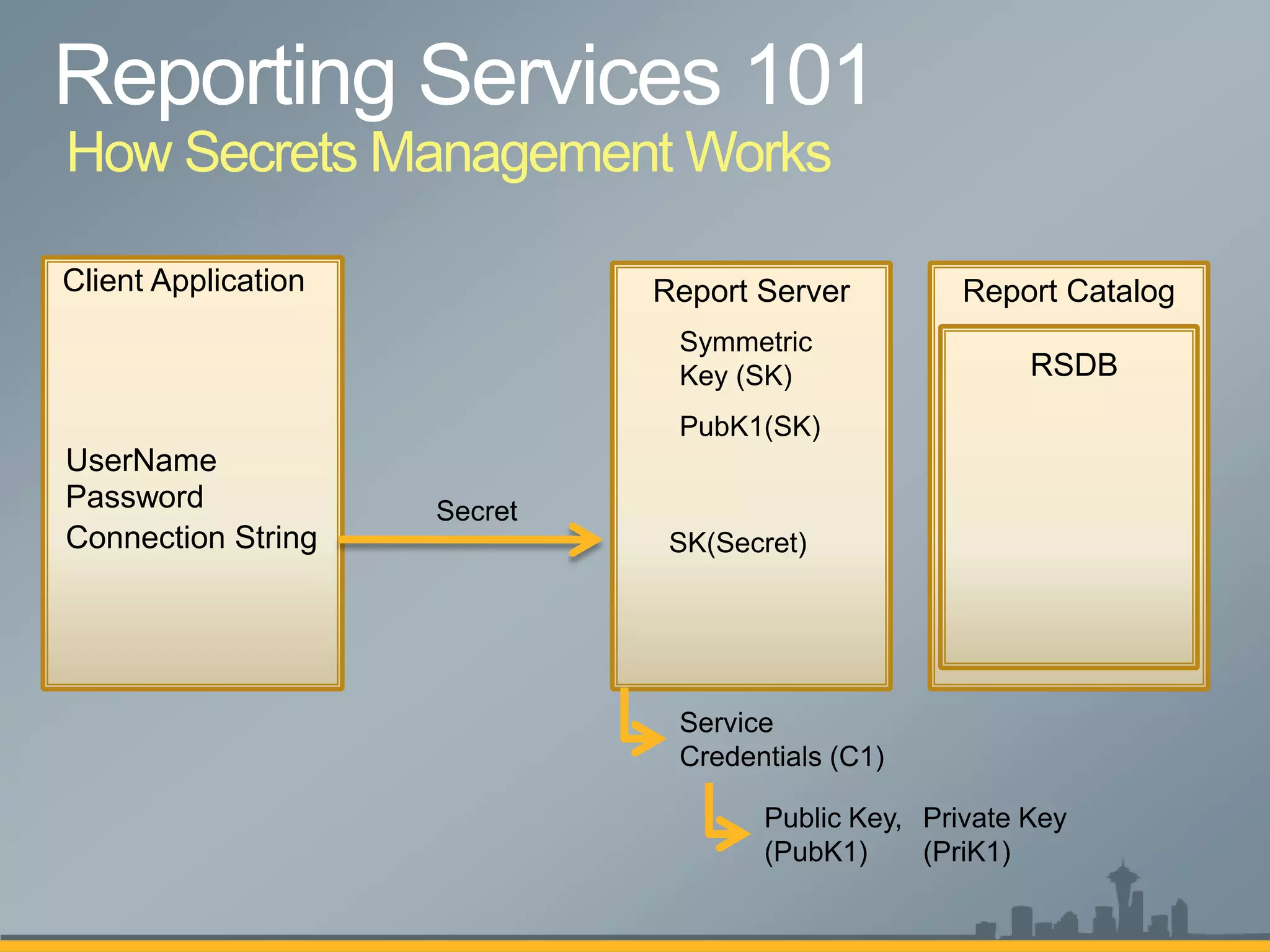

- 13. How Secrets ManagementWorks Client Application Report Server Report Catalog Symmetric Key (SK) RSDB PubK1(SK) UserName Password Secret Connection String SK(Secret) Service Credentials (C1) Public Key, Private Key (PubK1) (PriK1)

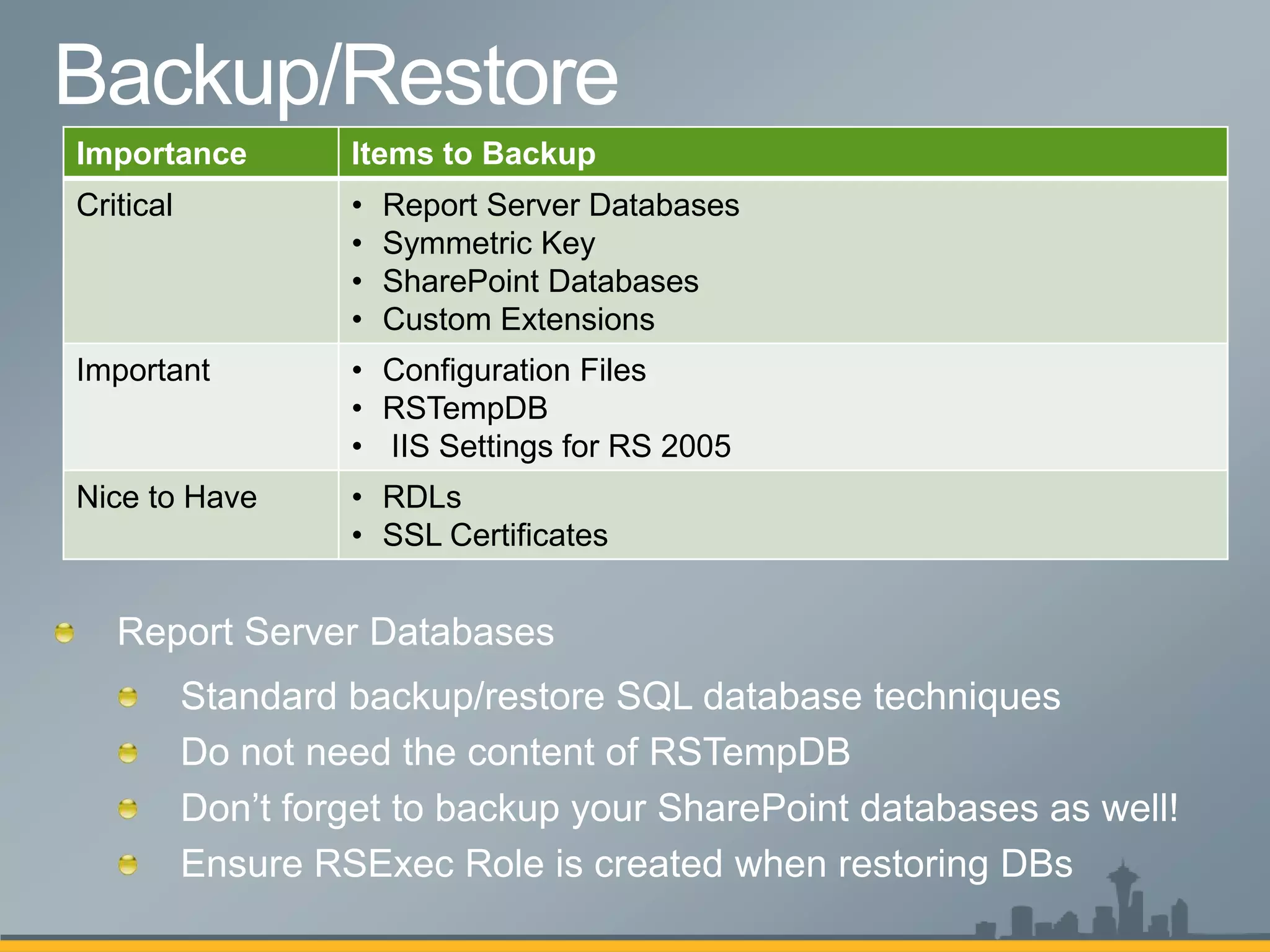

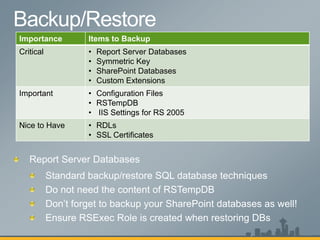

- 16. Importance Items to Backup Critical • Report Server Databases • Symmetric Key • SharePoint Databases • Custom Extensions Important • Configuration Files • RSTempDB • IIS Settings for RS 2005 Nice to Have • RDLs • SSL Certificates Standard backup/restore SQL database techniques Don’t forget to backup your SharePoint databases as well!

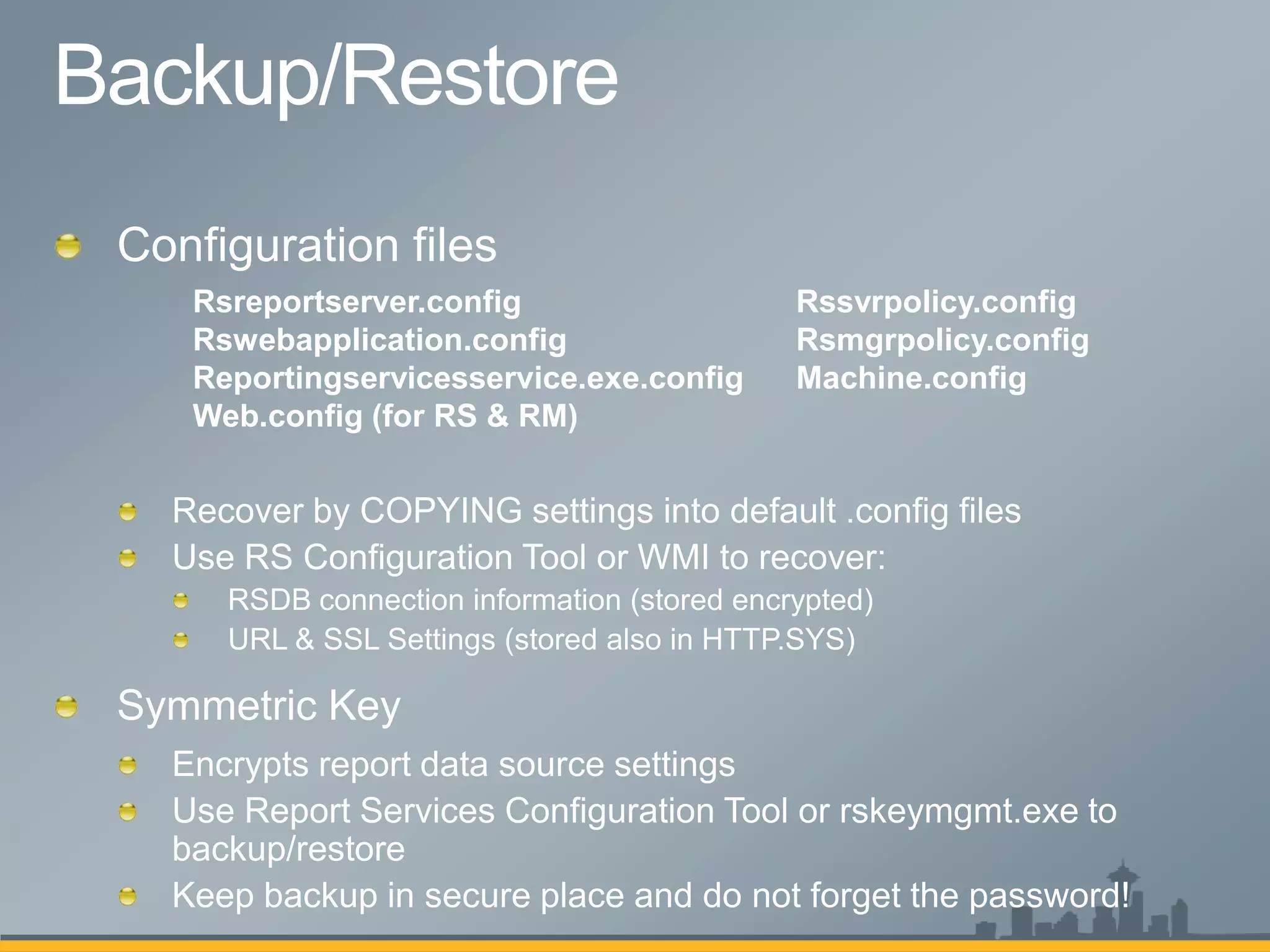

- 17. Rsreportserver.config Rssvrpolicy.config Rswebapplication.config Rsmgrpolicy.config Reportingservicesservice.exe.config Machine.config Web.config (for RS & RM)

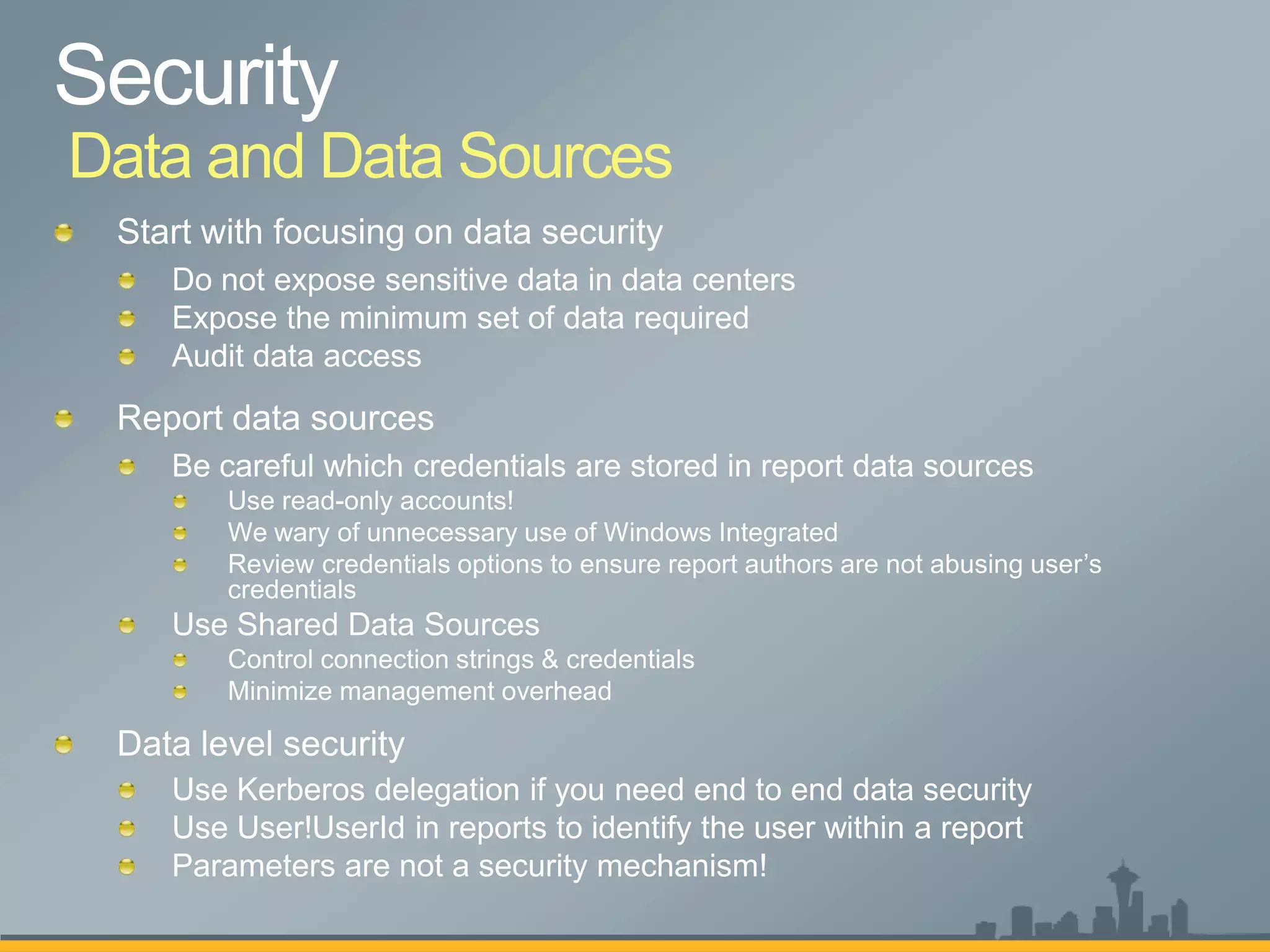

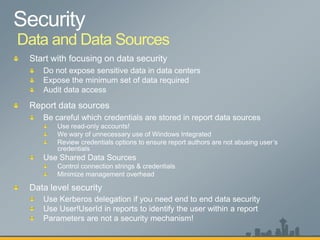

- 19. Data and DataSources

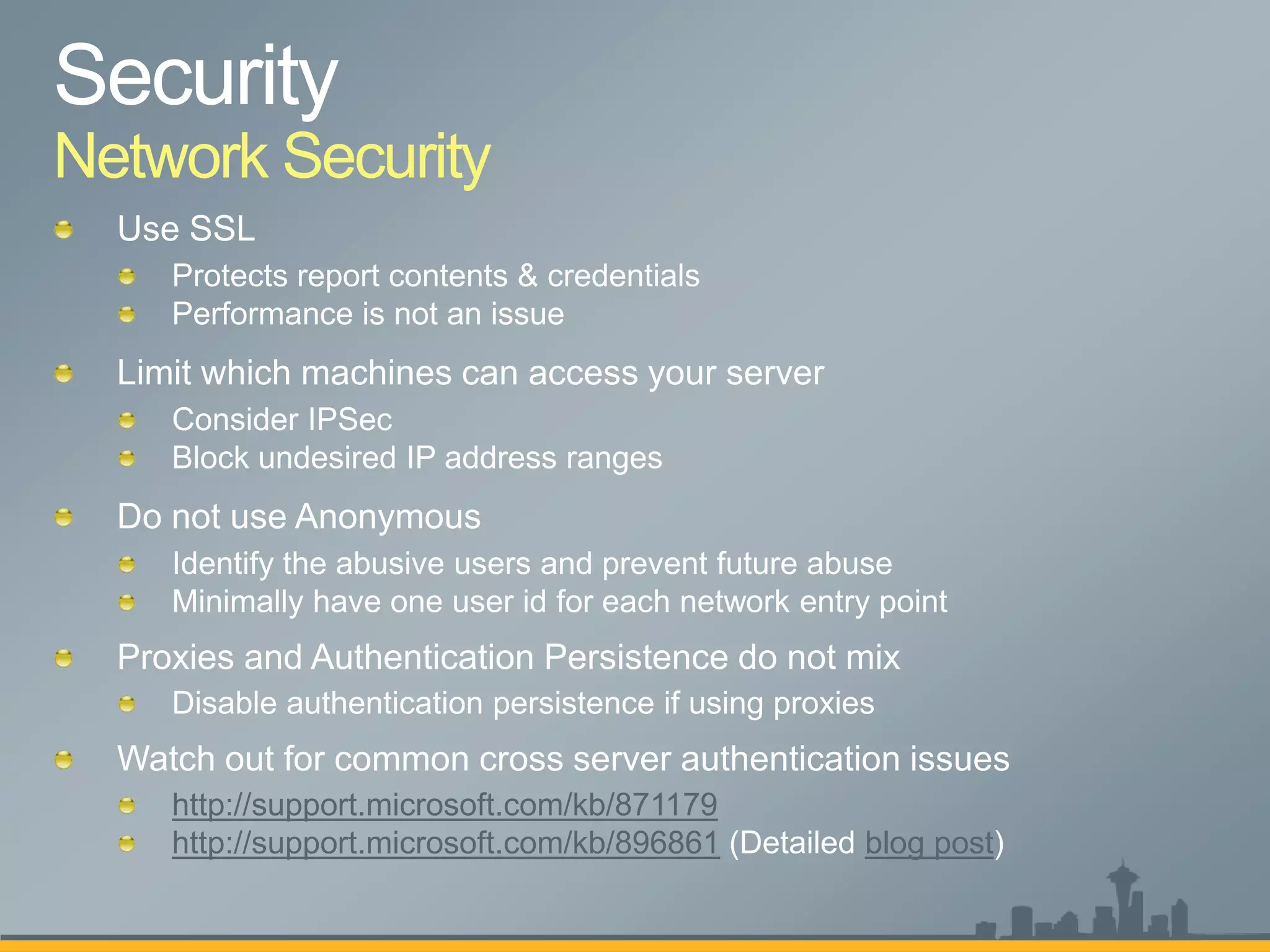

- 20. Network Security http://support.microsoft.com/kb/871179 http://support.microsoft.com/kb/896861 blog post

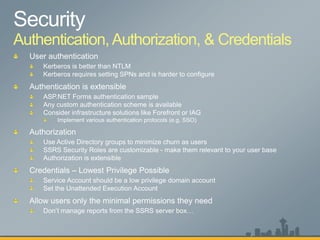

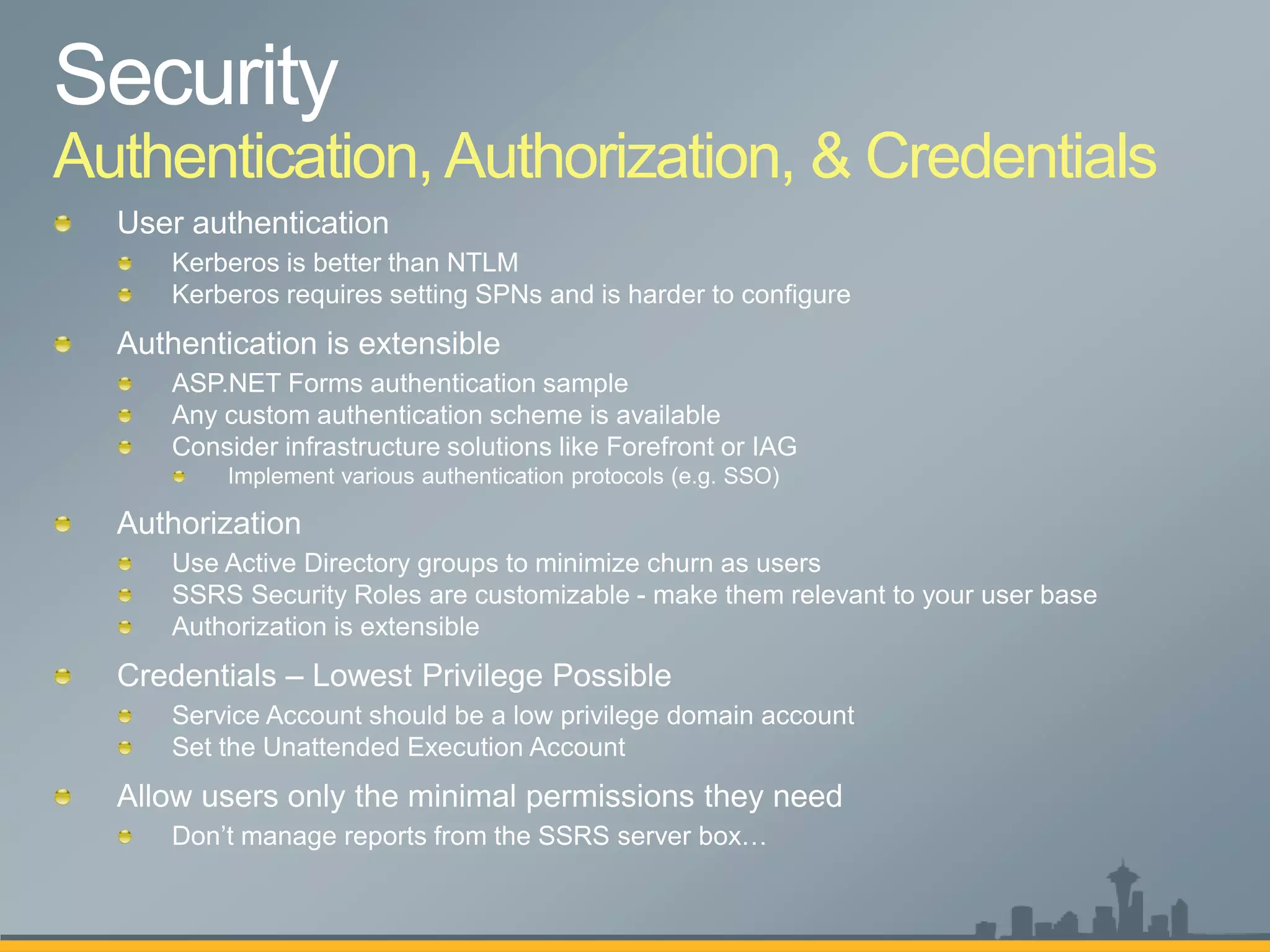

- 21. Authentication, Authorization, &Credentials
- 22.

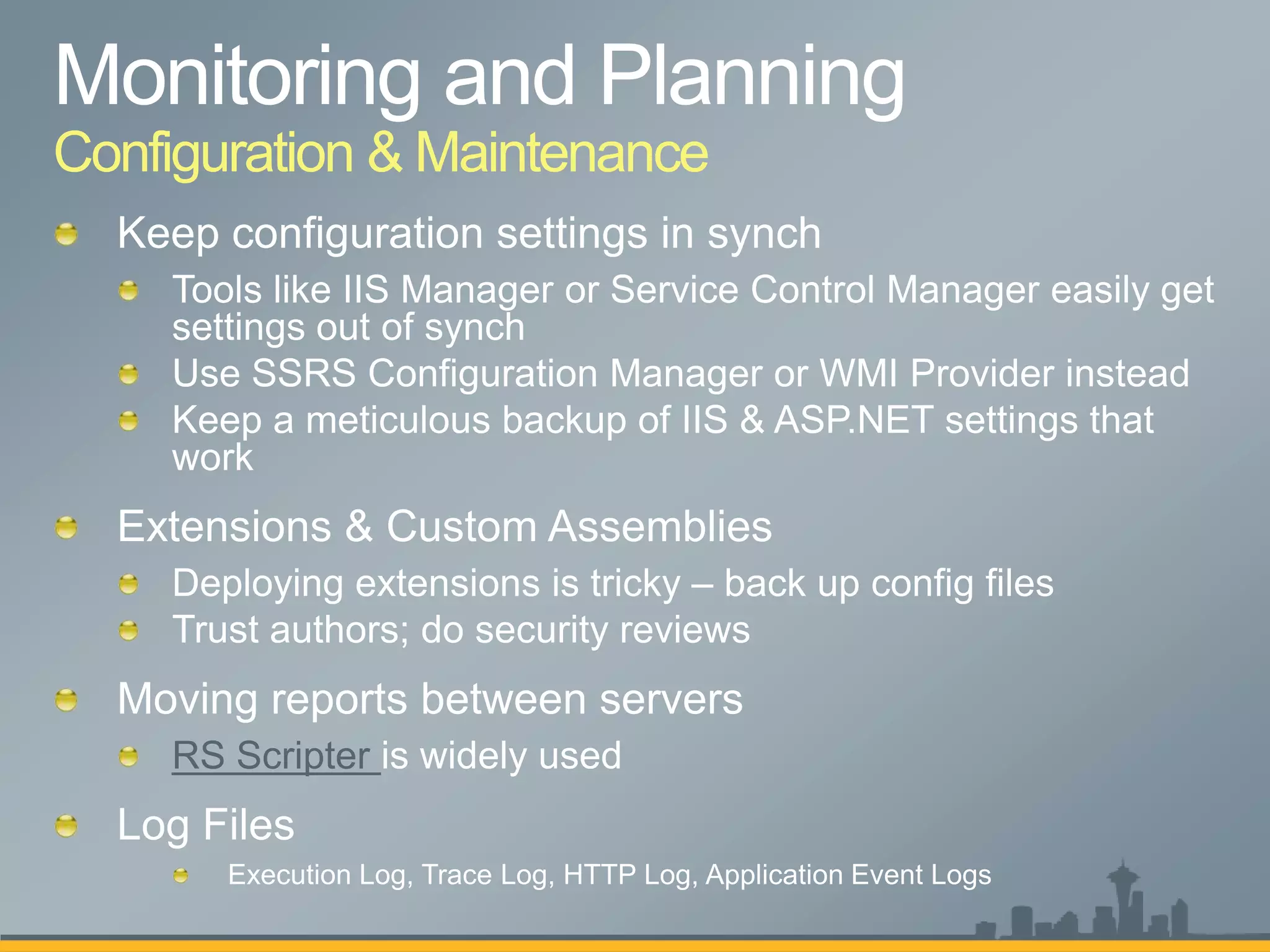

- 24. Configuration & Maintenance RS Scripter
- 25. Using Visual Studio2005 to Perform Load Testing on a SQL Server 2005 Reporting Services Report Server

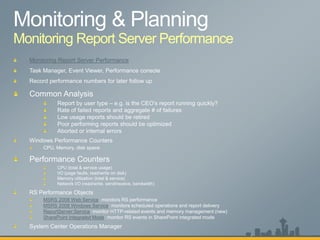

- 26. Monitoring Report ServerPerformance MSRS 2008 Web Service MSRS 2008 Windows Service ReportServer:Service SharePoint Integrated Mode

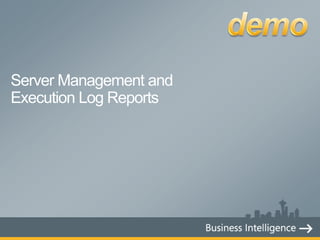

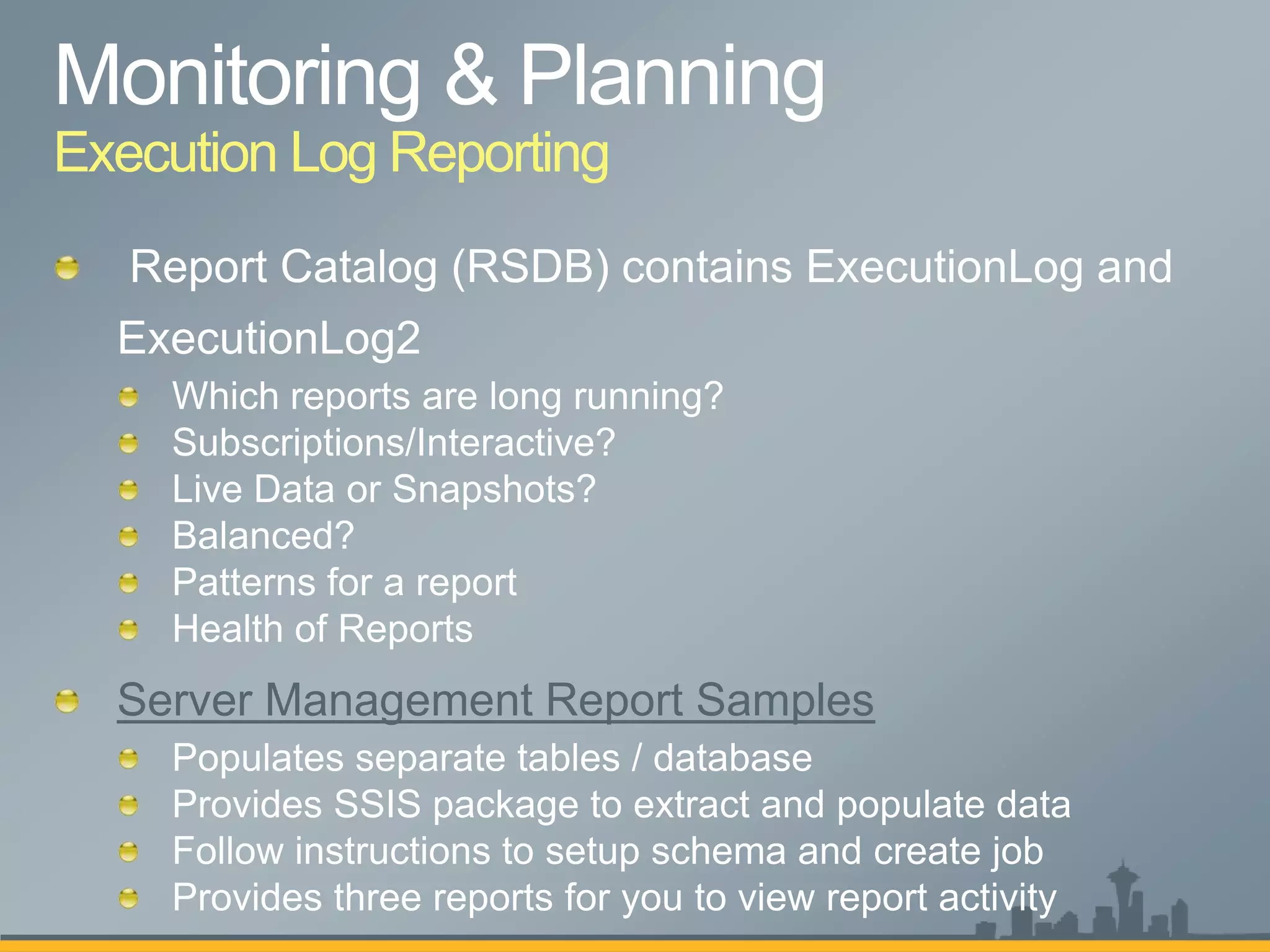

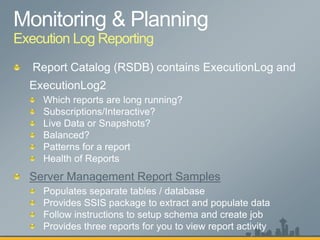

- 27. Execution Log Reporting Server Management Report Samples

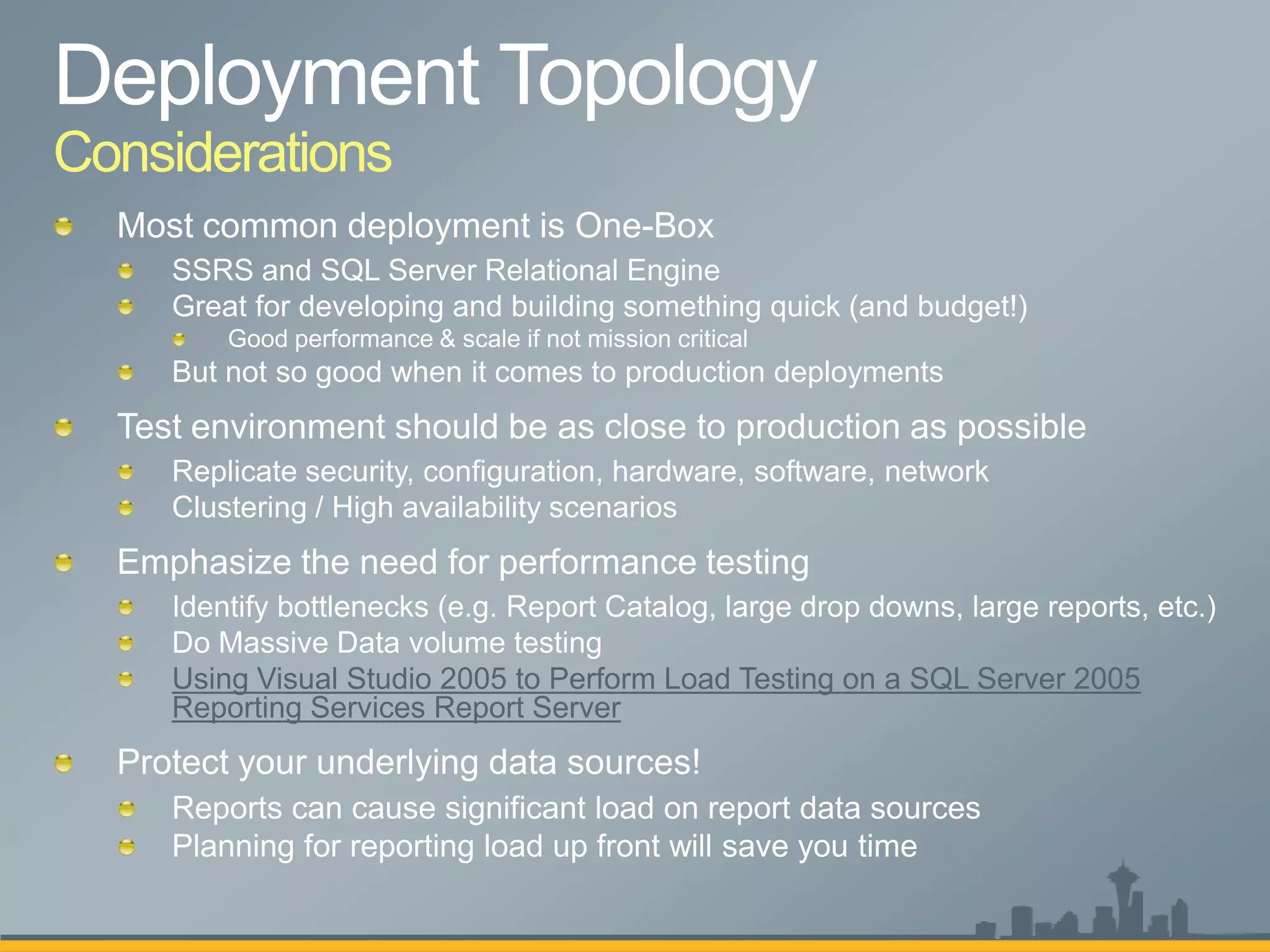

- 30. Considerations Using Visual Studio 2005 to Perform Load Testing on a SQL Server 2005 Reporting Services Report Server

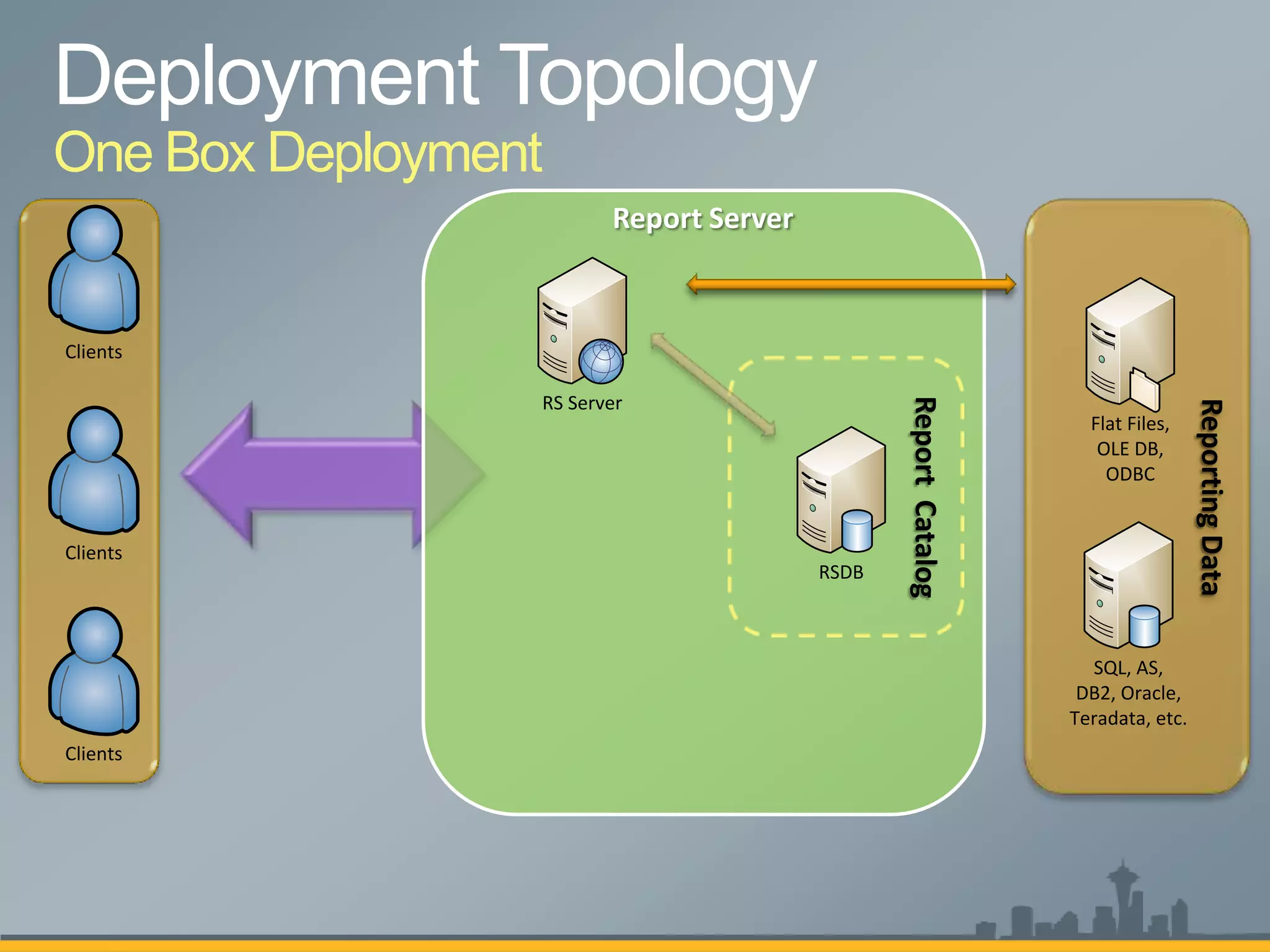

- 31. One Box Deployment Report Server Clients RS Server Report Catalog Reporting Data Flat Files, OLE DB, ODBC Clients RSDB SQL, AS, DB2, Oracle, Teradata, etc. Clients

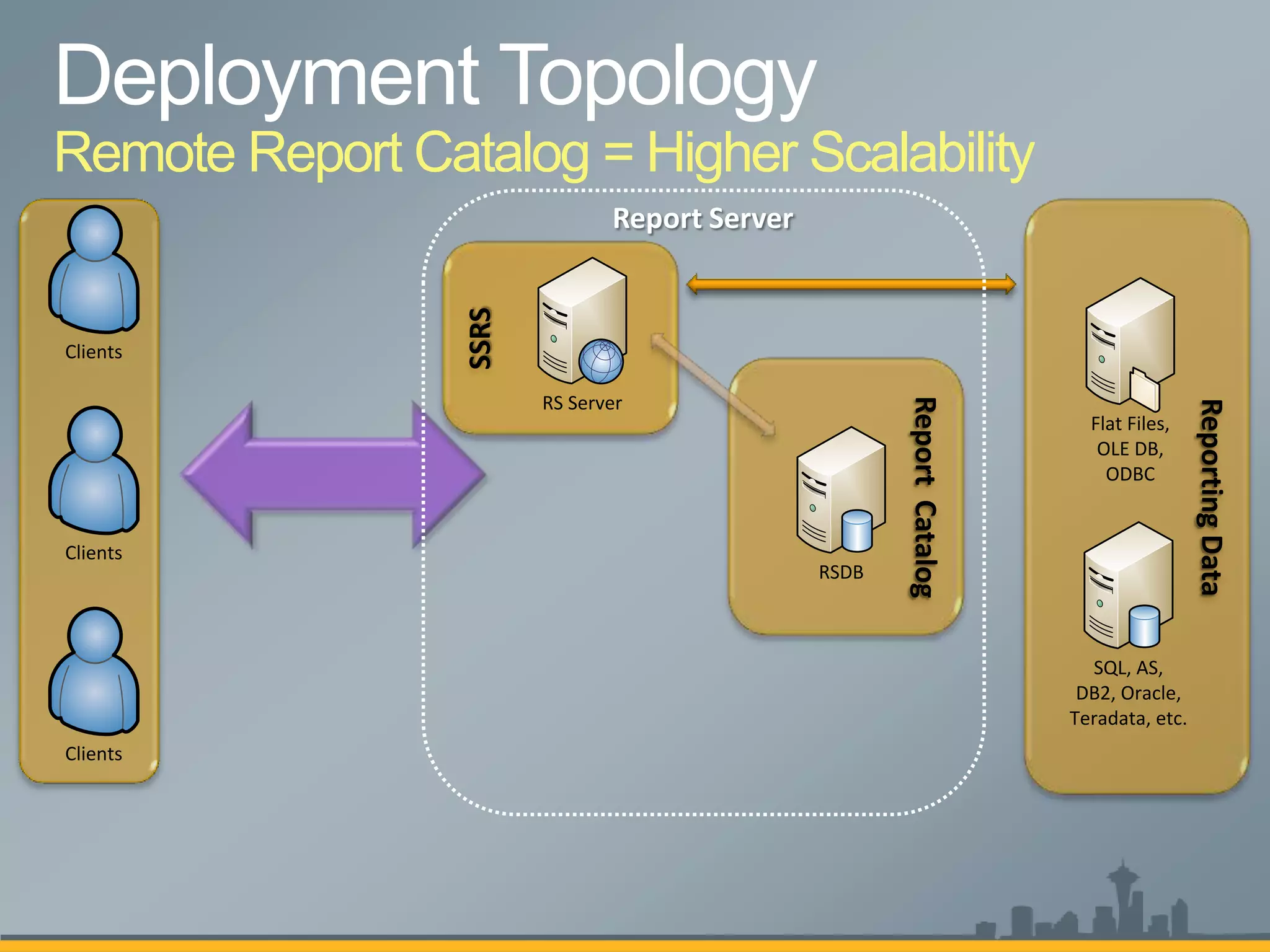

- 32. Remote Report Catalog= Higher Scalability Report Server SSRS Clients RS Server Report Catalog Reporting Data Flat Files, OLE DB, ODBC Clients RSDB SQL, AS, DB2, Oracle, Teradata, etc. Clients

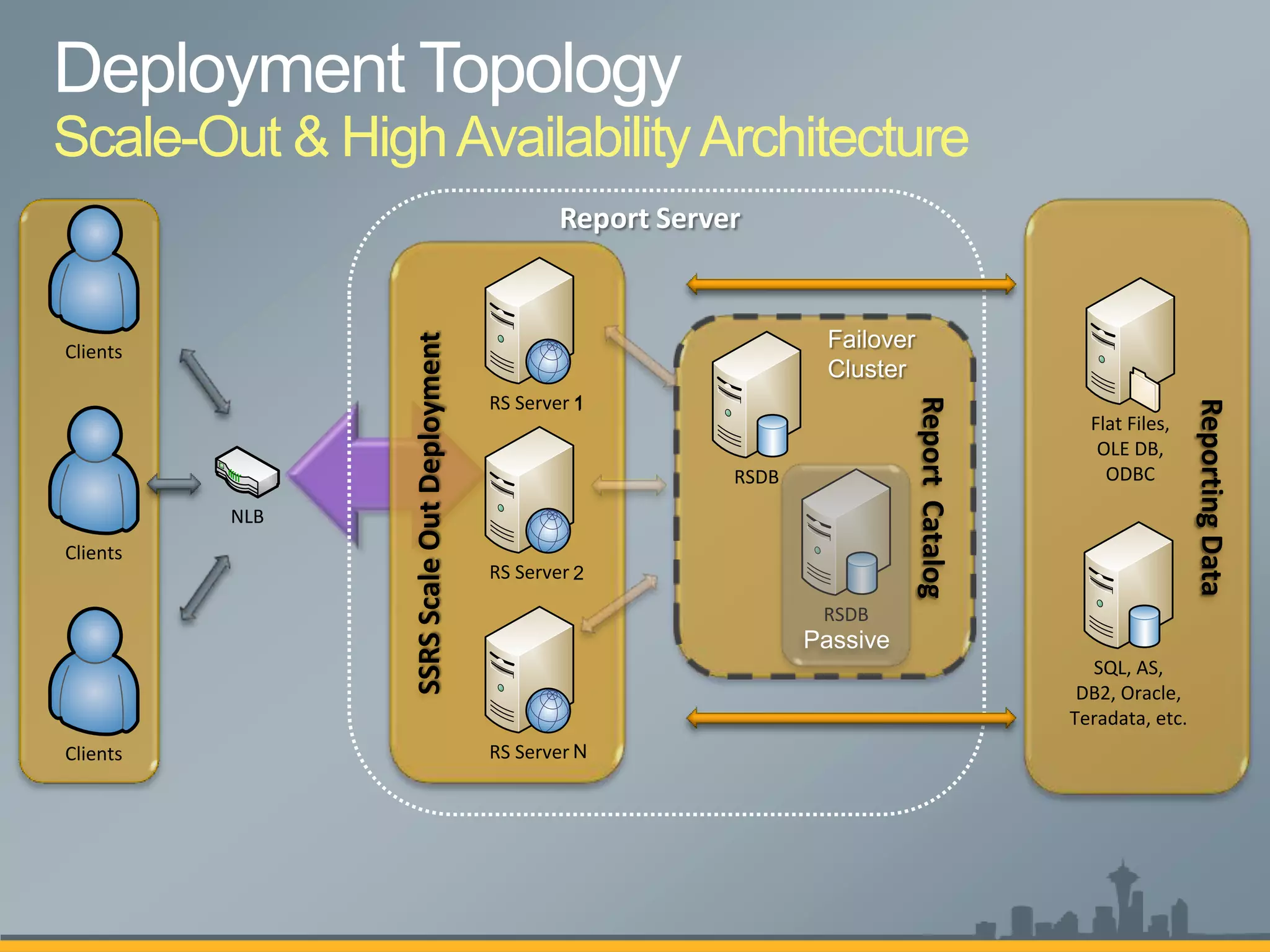

- 33. Scale-Out & HighAvailability Architecture Report Server SSRS Scale Out Deployment Clients RS Server 1 Report Catalog Reporting Data Flat Files, OLE DB, RSDB ODBC NLB Clients RS Server 2 RSDB SQL, AS, DB2, Oracle, Teradata, etc. Clients RS Server N

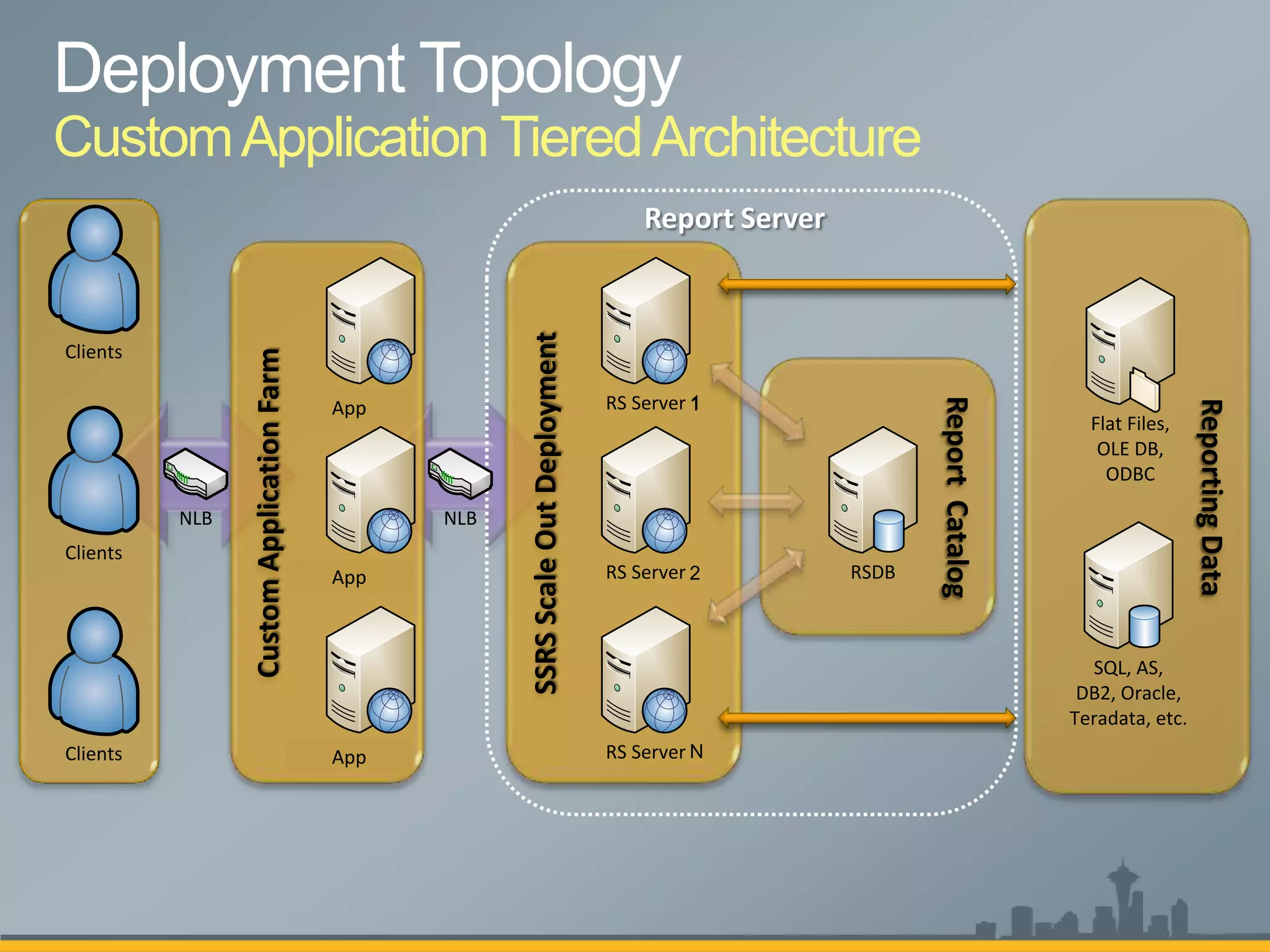

- 34. Custom Application TieredArchitecture Report Server SSRS Scale Out Deployment Clients Custom Application Farm RS Server RS Server 1 Report Catalog Reporting Data App Flat Files, OLE DB, ODBC NLB NLB Clients RS Server App RS Server 2 RSDB SQL, AS, DB2, Oracle, Teradata, etc. Clients RS Server App RS Server N

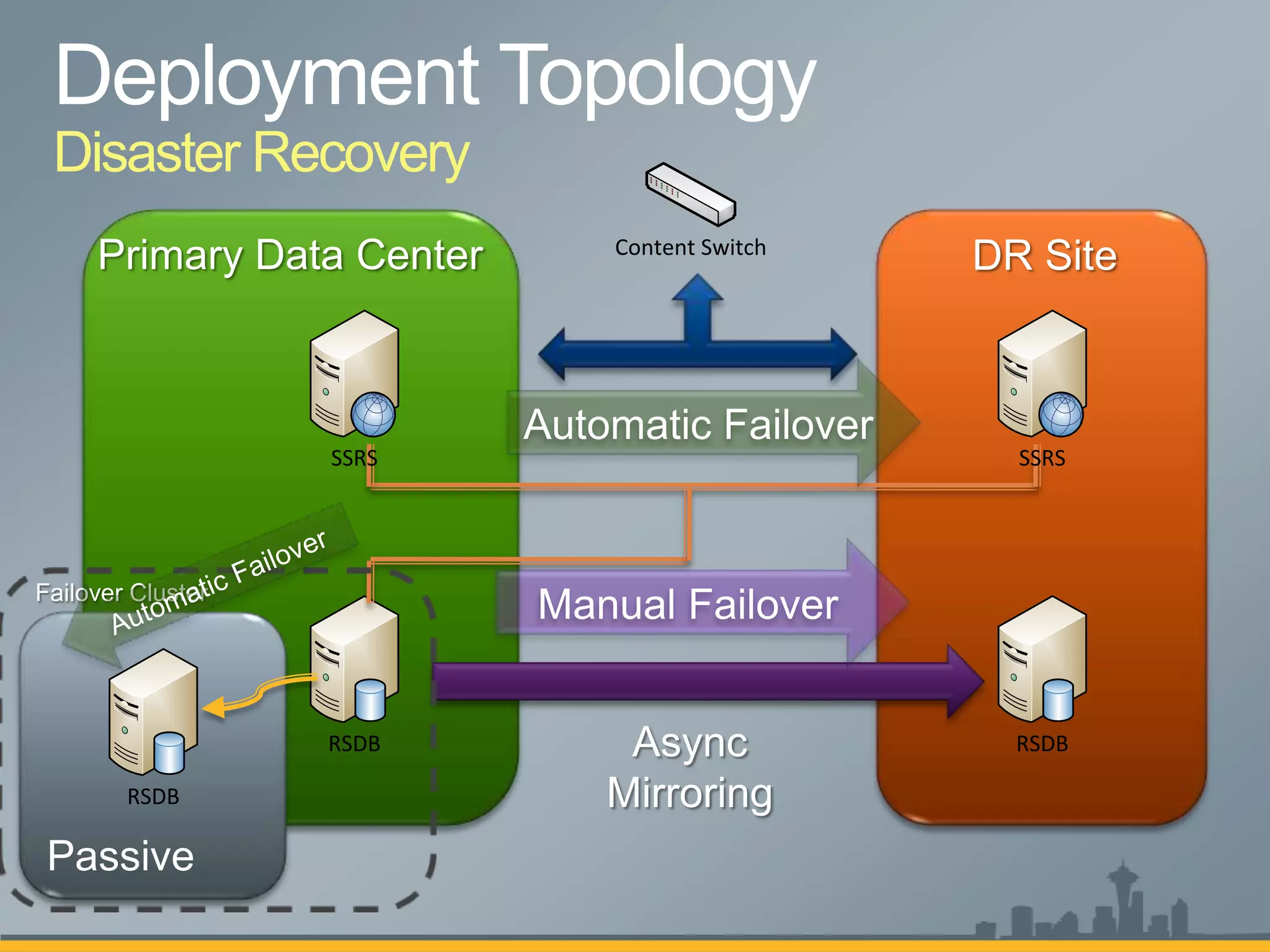

- 35. Disaster Recovery Content Switch SSRS SSRS RSDB RSDB RSDB

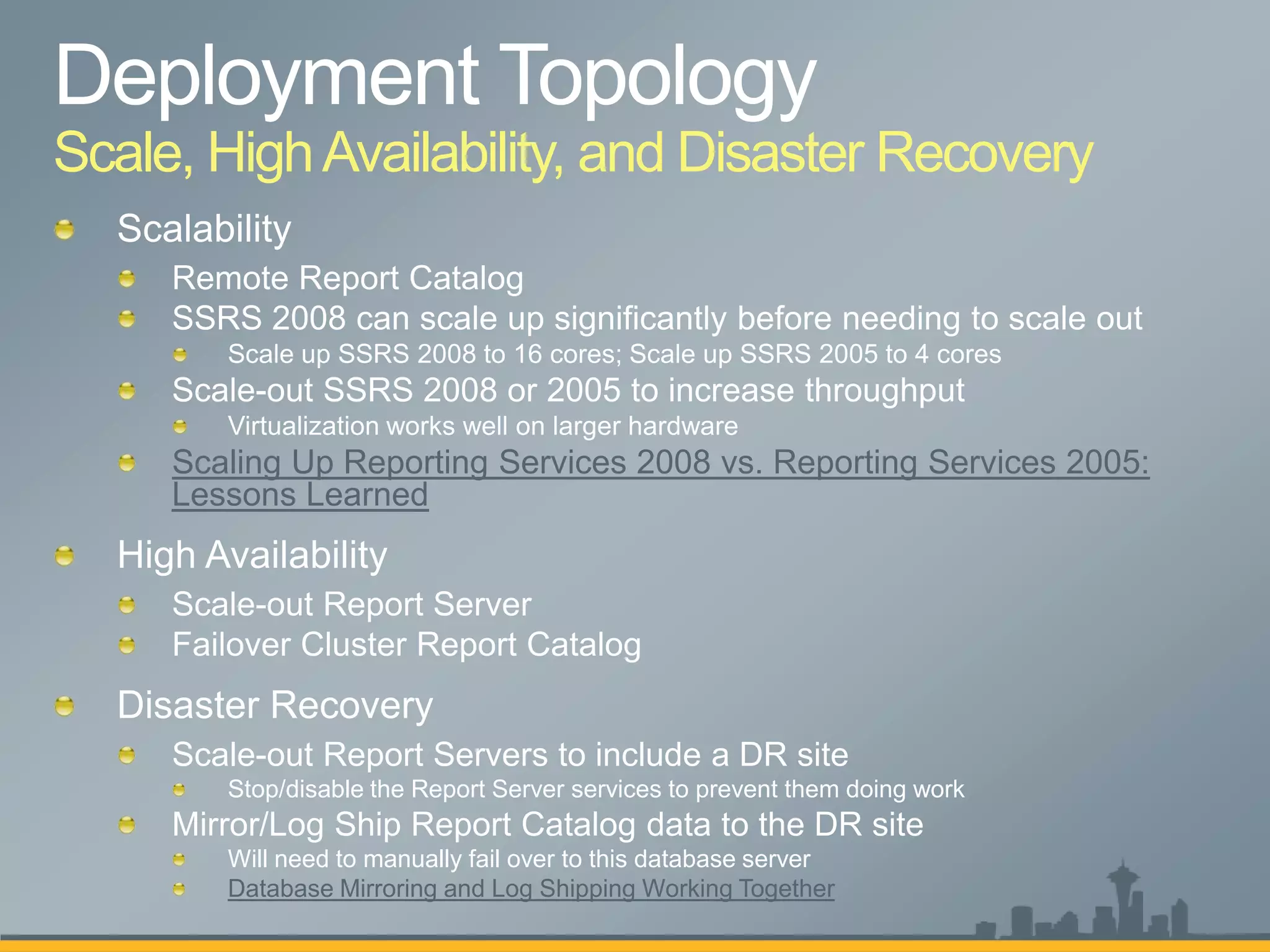

- 36. Scale, High Availability,and Disaster Recovery Scaling Up Reporting Services 2008 vs. Reporting Services 2005: Lessons Learned Scale-out Report Servers to include a DR site Stop/disable the Report Server services to prevent them doing work Mirror/Log Ship Report Catalog data to the DR site Will need to manually fail over to this database server Database Mirroring and Log Shipping Working Together

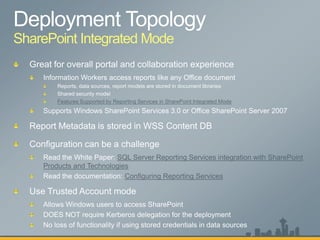

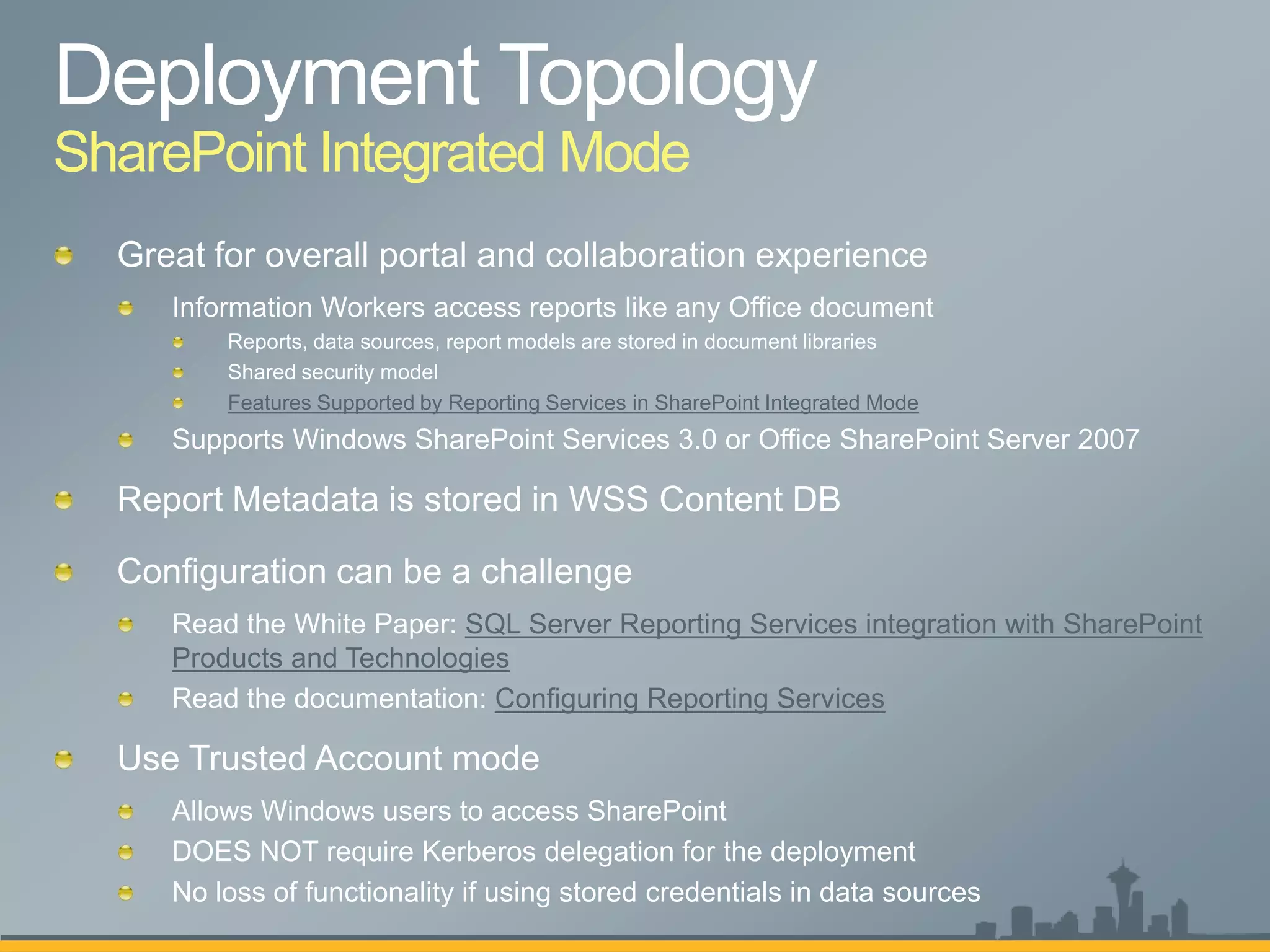

- 37. SharePoint Integrated Mode Features Supported by Reporting Services in SharePoint Integrated Mode SQL Server Reporting Services integration with SharePoint Products and Technologies Configuring Reporting Services

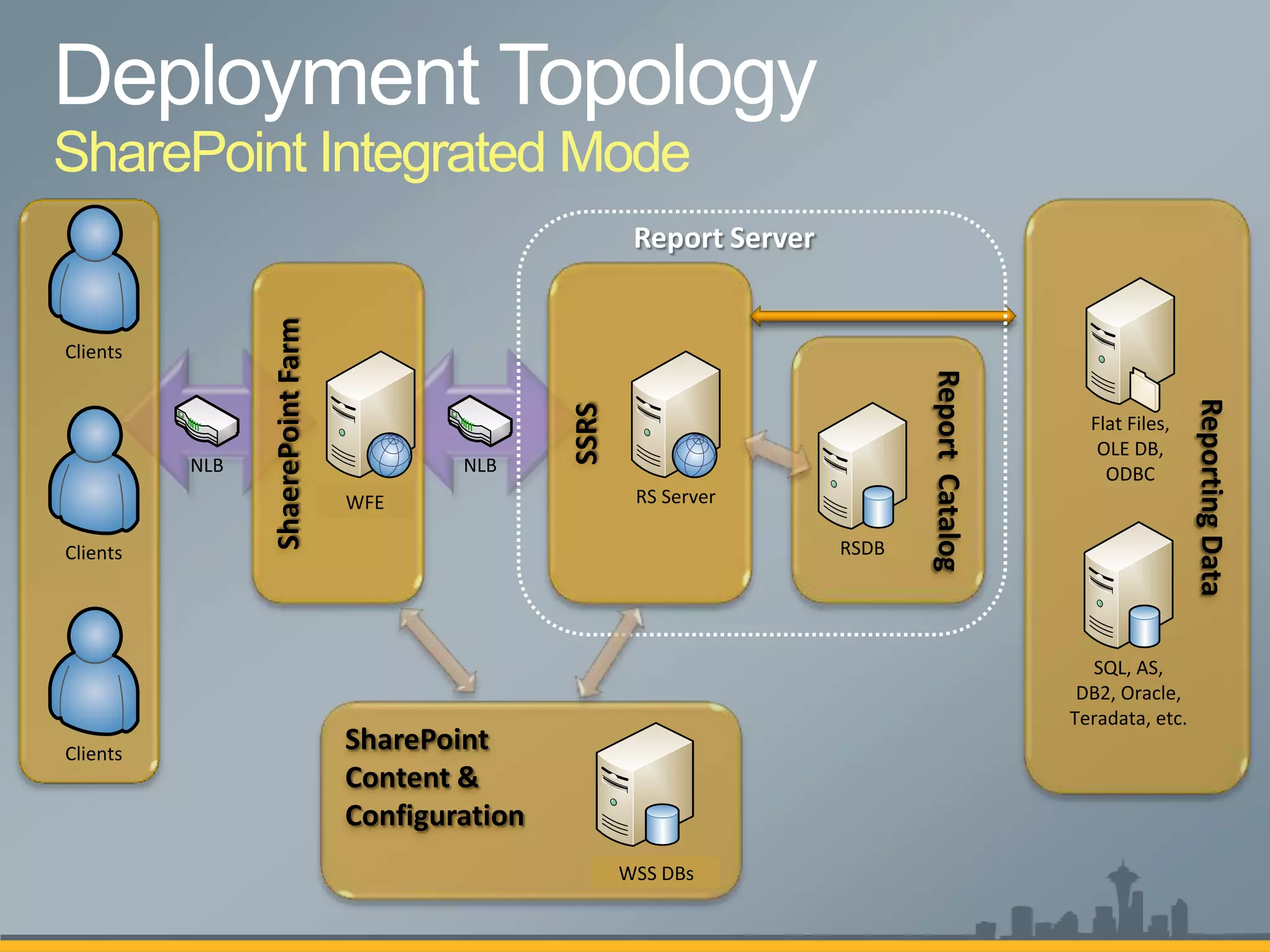

- 38. SharePoint Integrated Mode Report Server ShaerePoint Farm Clients Report Catalog Reporting Data SSRS Flat Files, OLE DB, NLB NLB ODBC RS Server WFE RS Server Clients RSDB SQL, AS, DB2, Oracle, Teradata, etc. Clients SharePoint Content & Configuration RSDB WSS DBs

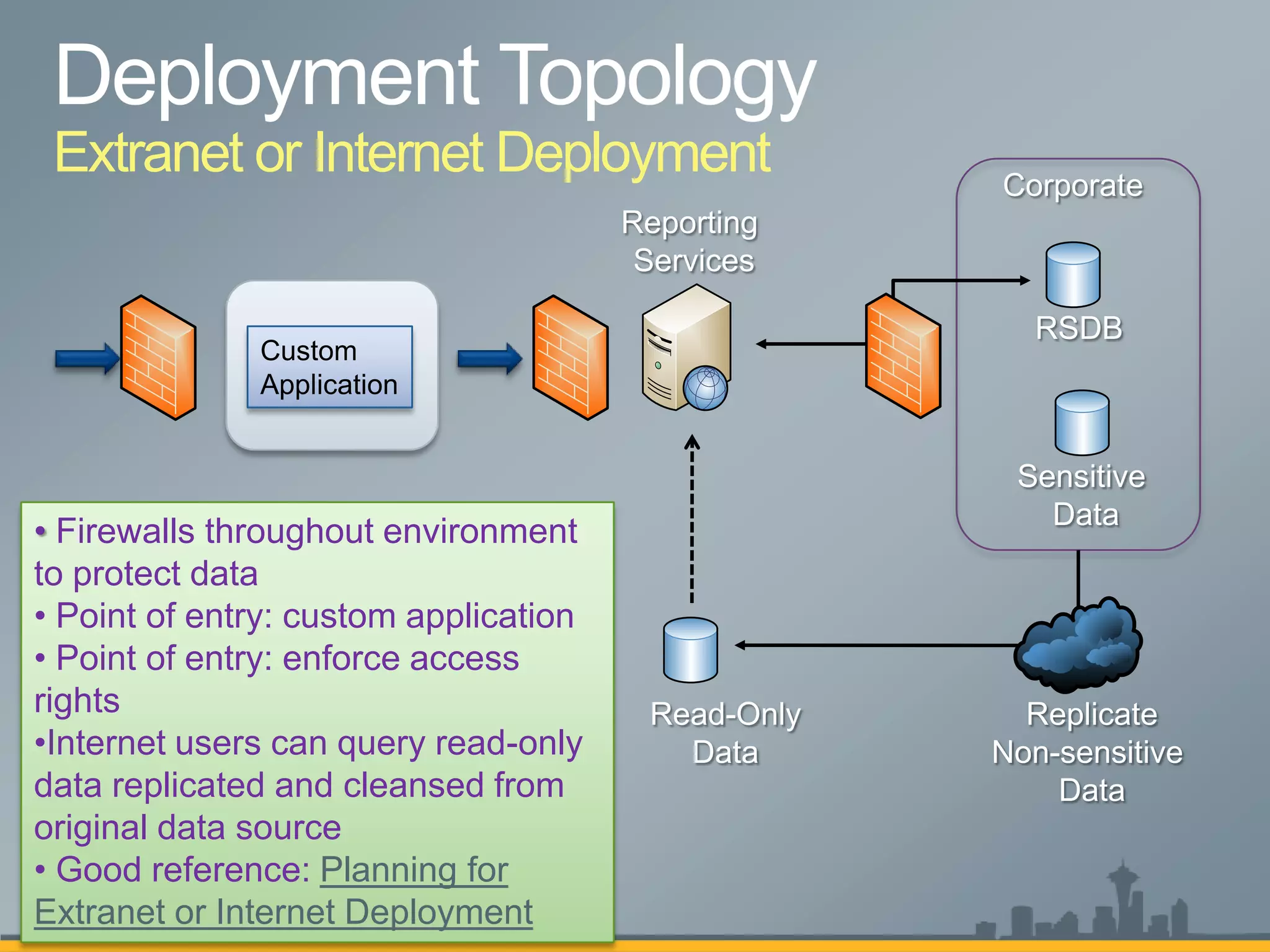

- 39. Extranet or InternetDeployment Custom Application • Firewalls throughout environment to protect data • Point of entry: custom application • Point of entry: enforce access rights •Internet users can query read-only data replicated and cleansed from original data source • Good reference: Planning for Extranet or Internet Deployment

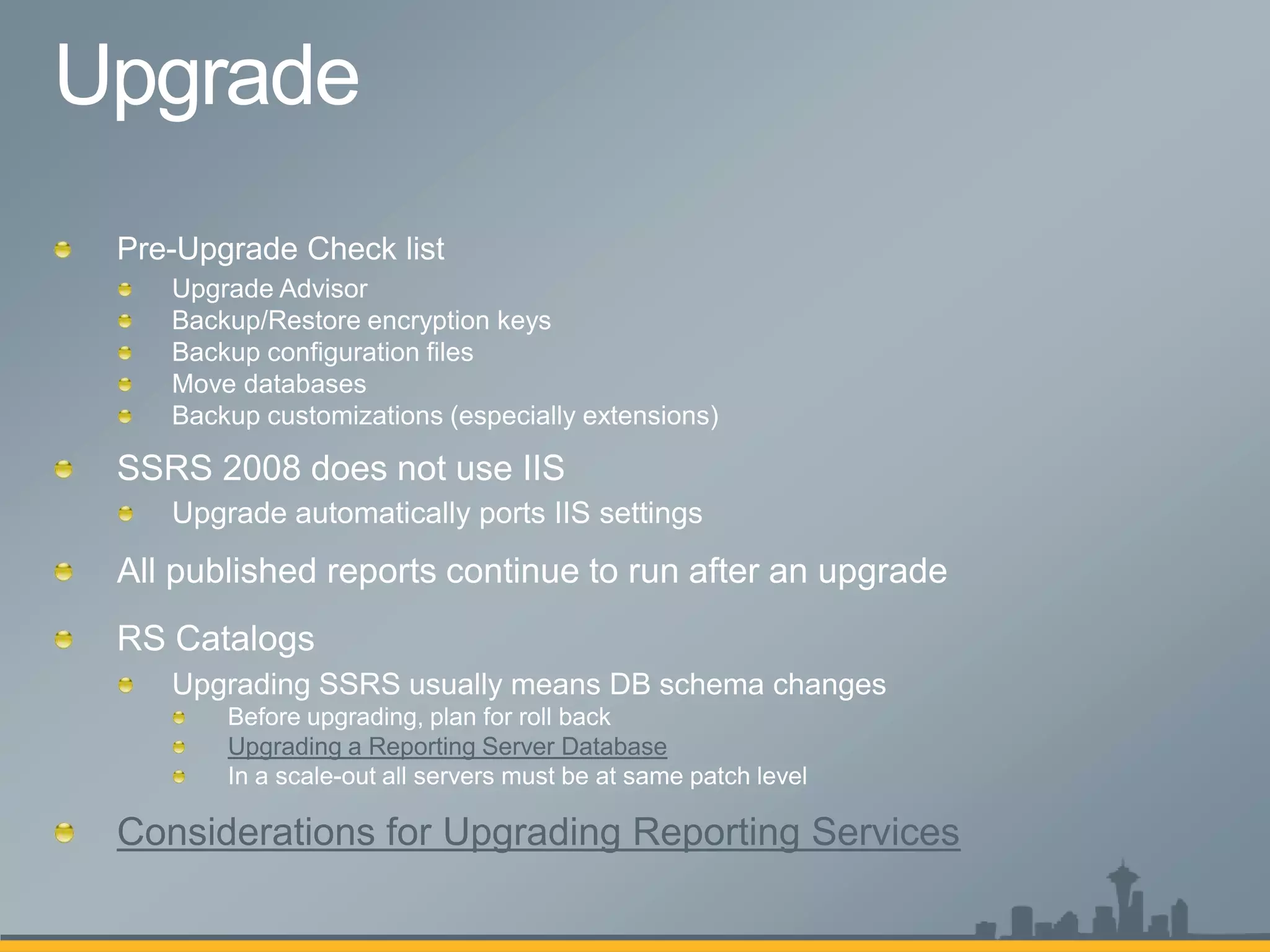

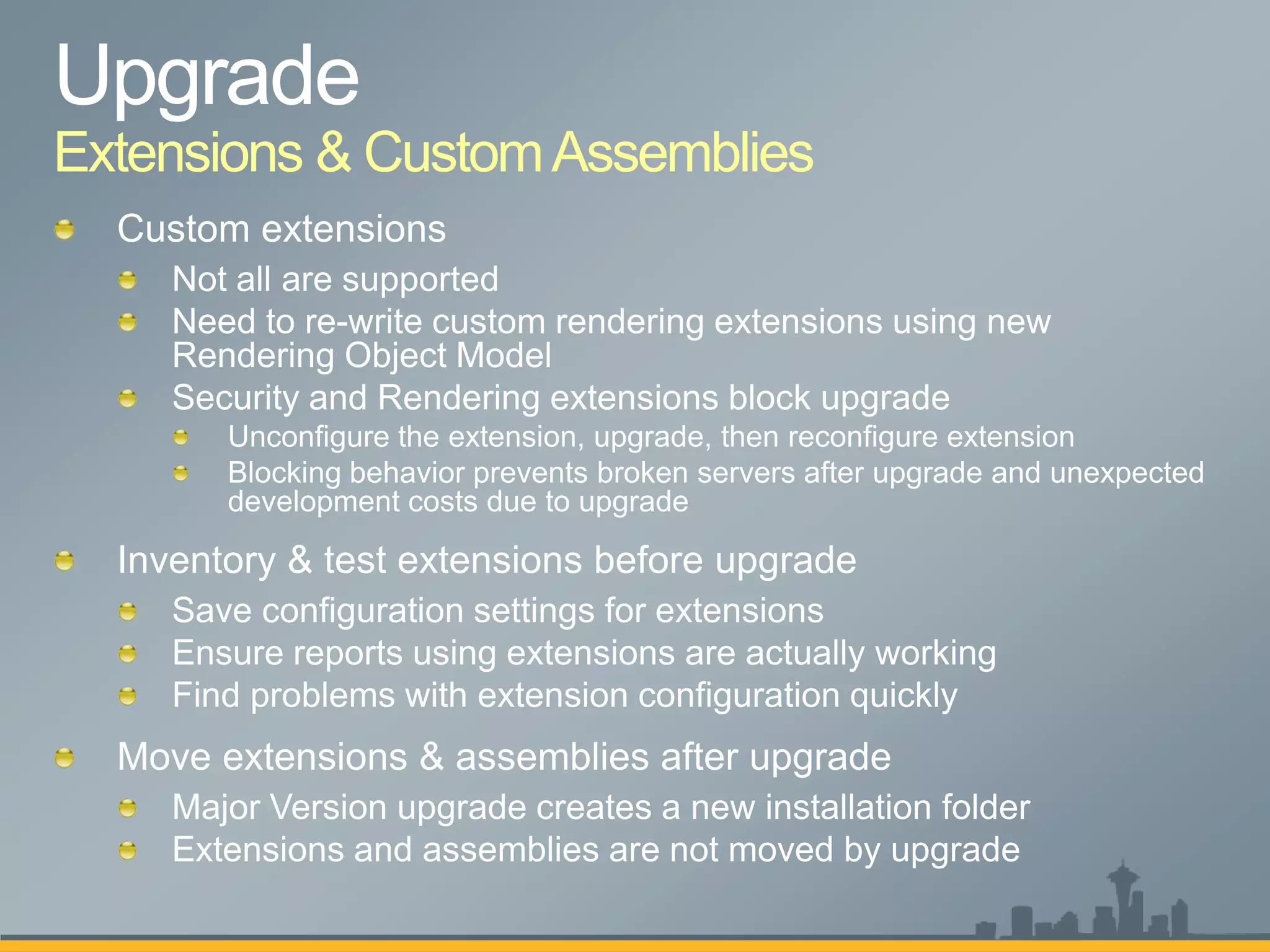

- 41. Upgrading a ReportingServer Database Considerations for Upgrading Reporting Services

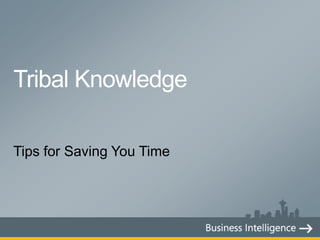

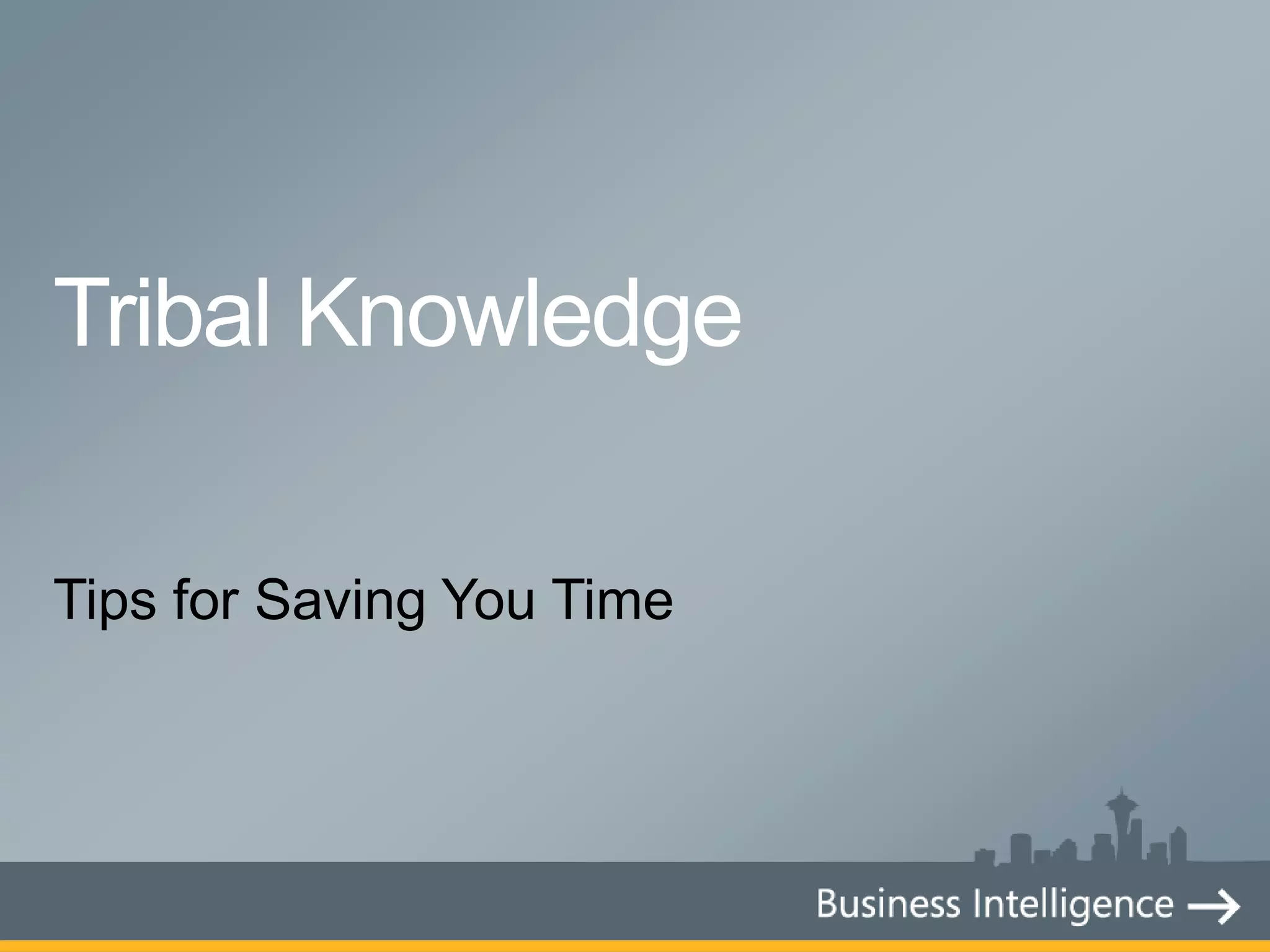

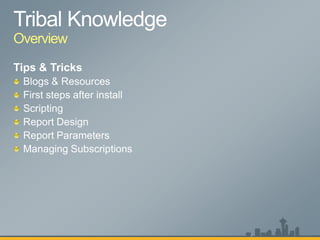

- 43. Tips for SavingYou Time
- 44.

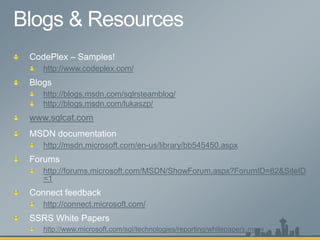

- 45. http://www.codeplex.com/ http://blogs.msdn.com/sqlrsteamblog/ http://blogs.msdn.com/lukaszp/ www.sqlcat.com http://msdn.microsoft.com/en-us/library/bb545450.aspx http://forums.microsoft.com/MSDN/ShowForum.aspx?ForumID=82&SiteID =1 http://connect.microsoft.com/ http://www.microsoft.com/sql/technologies/reporting/whitepapers.mspx
- 47.

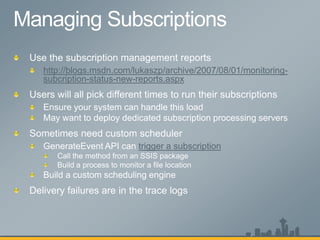

- 50.
Editor's Notes
- #17 RSExec Role – RSExec Role grants SSRS service permissions to access the SQL Server databases needed to store SSRS metadata. RSExec Role is created on a number of databases in SQL Server – MSDB, Master, RSDB, RSTempDB. If the role does not exist, SSRS will fail when doing certain operations. Ensure that you are able to recreate RSExec Role during Disaster Recovery. The easiest way to re-create the RSExec role is to create a new report server database using the SSRS Configuration Manager tool. When you do this, RSExec role is created on all required locations. Then you can attach your backup databases, replacing the database you just created. Following this, use the SSRS configuration manager to explicitly choose the database you attached – this may seem like duplicate work, but it is the easy way to ensure that the SSRS service has been correctly granted rights in the RSExec role. Otherwise, you can use SSMS or another tool to explicitly add the desired user/group to the RSExec role. Notes: RDLs are stored in RSDB - so if you only need the last version, you don’t need to save off previous versions. Previous versions could be stored in an content management system like Source Depot or Visual Source Safe.
- #18 Configuration FilesThe configuration files store a multitude of settings. Specific ones to think about are settings for RSDB connection information (DSN, LogonUser, LogonPassword, etc.) & URL configuration. Overlaying configuration files from one instance to another will not work. DSN and URL configuration are the most prone to breaking, but others such as InstallationID are also problematic. Best approach is to copy settings from one file to another or write a script to do so intelligently. For DSN and URL configuration, use the Reporting Services Configuration Manager tool to set these after recovering the databases. This will ensure they are correctly encrypted or stored in the OS (http.sys or IIS metabase). Symmetric KeyIf you lose Symmetric Key, you will not be able to access any reports. You can partially recover from this by Deleting Encrypted Content from the RSDB using the Reporting Services Configuration Manager or WMI. Once you do this, you will be able to access reports, but all report data source connection information will be lost. Likewise, any usernames & passwords stored in subscriptions will be lost. To avoid needing to re-enter all of the report data source connection information, backup the symmetric key and store it in a safe place. Memorize the password that protects the symmetric key.Report Data source settings include:Username, passwordConnection stringSubscription Settings can optionally include:Username, passwordCustom – any properties the delivery extension requests to be stored securely.
- #20 Security can be a daunting problem to consider. The question always comes up – “where to start?” The you should start by looking at the most ASSETS you want to protect. Then look at how users get access to those assets and what mitigations you have in place to ensure users don’t get too much access. For any reporting solution, the goal is to provide data to users. The data is your most precious asset. Figure out first how to protect the data. Every other decision you make about security in a reporting deployment will stem from protecting the data. When using Integrated Security credentials or Prompt credentials, it is easy for a malicious report author to use the user’s credentials to access an underlying data source. The malicious author has control over the SQL Statement/Query that is executed. If they choose they can run the statement under the user’s credentials which could lead to a ‘trojan report’. It is up to the SSRS administrator to ensure users are not preying on other users. You can address this by using:Shared Data Sources - to store prescribed credentials; admin controls these and can set them to be low privilege; also store connection strings meaning that reports use specific data sources rather than any data source the author choosesReview reports prior to publish or after publishing – scrutinize the use of embedded data sources to ensure there is a business purpose behind it. Deny users permission to publish reports in “official” foldersDon’t tell the report author the data source credentials of the production server For the paranoid – disable integrated authentication – See the SSRS System PropertiesNot using Kerberos delegation – without delegation, unless the user is on the local server computer, using Windows Integrated authentication doesn’t work; the request from SSRS to the data source will be an anonymous request. Does not help against the ‘prompt’ issue… By correlation, admins should be cautious about running un-trusted reports when while logged into the actual SSRS server computer; running the report from a remote client machine when Kerberos delegation is enabled avoids this problem. Use Read-only Accounts – effectively accounts that you don’t care if the password is disclosed.
- #26 Enable caching of reports – the report cache is best used for frequently run reports that DO NOT require up to the second data on every refresh. If a data latency of 5 to 15 or more minutes is OK for the user base, enabling caching can be very useful. Caching is per report parameter combination. Caching is not available for reports that have a user profile dependency or that use integrated security – if the data in the report is somehow user specific, we disable caching so users don’t get other user’s data. User profile dependency means using properties from the User!* Properties in RDL (i.e. User!UserId). Cache can be pre-populated using data driven subscriptions, null rendering extension and null delivery extension.Enable Scheduled snapshot creation – if report data is updated very infrequently, report queries take a long time to execute, or if all users need to see a single view of the data, then snapshots can significantly reduce overhead. Snapshots run once and then are available to all users with access to the report. This minimizes the number of times the queries are executed. It can also reduce the amount of time the user is waiting for the rendering since SSRS does not need to retrieve the data from the data source.At the extreme, a custom application may be needed to ensure your overall environment is not impaced. Example – One customer we talked to has a report that causes significant load on the underlying data source. 4 concurrent executions of the report cause the underlying data source to fail. Solution was to schedule report executions to avoid 4 concurrent executions. As part of their front end application to SSRS, the customer built a queuing mechanism to ensure serialize the report executions.
- #27 Monitoring RS Performance, i.e. How to know things work
- #29 Which reports are long running?Sort by ElapsedSec or RowCountReview TimeDataRetrieval, TimeProcessing, TimeRenderingIf high TimeDataRetrieval, you need to optimize data source (e.g. add indexes, hints, etc.)If high RowCount (e.g. >1000 rows):A lot of data aggregated, grouped, filtered, sorted by SSRS; have SQL do this as its faster at itA lot of details, provide aggregate reports and have them drill-through vs. manually digesting and determining patternsSubscriptions/Interactive?Sort by RequestTypeIf a lot of subscriptions, can determine the bottlenecks and stagger reportsLive Data or Snapshots?Sort by SourceIf reports can be snapshot (e.g. last week’s report), then create snapshot to avoid query execution, report processing, and report renderingBalanced?Sort by InstanceDetermine if NLB is handling request in balanced fashion Or Nodes down or not processing requestsPatterns for a reportSort by ReportPath and TimeStartE.g. expensive report (takes 5 min to run) running every 10 minHealth of ReportsSort by StatusFailures occur before (e.g. incorrect RDL) or after (e.g. subscription delivery error) report is processed Outdated information or settings (e.g. expired passwords, missing subreports, etc.)Based on this, can create data driven subscriptions:Errors > 5%Continual scale mode
- #37 A common approach to scaling Reporting Services is to scale up similar to the way we scale up SQL Server.While you can do this, the approach for scaling Reporting Services is really to scale out. The idea is that you can have multiple Report Servers that reference a remote catalog. You have multiple servers sharing the same catalog database so that way you can be sharing the state information between the all of the boxes.
- #38 A common approach to scaling Reporting Services is to scale up similar to the way we scale up SQL Server.While you can do this, the approach for scaling Reporting Services is really to scale out. The idea is that you can have multiple Report Servers that reference a remote catalog. You have multiple servers sharing the same catalog database so that way you can be sharing the state information between the all of the boxes.
- #39 Configure Affinity on the NLB – this saves processing time.A common approach to scaling Reporting Services is to scale up similar to the way we scale up SQL Server.While you can do this, the approach for scaling Reporting Services is really to scale out. The idea is that you can have multiple Report Servers that reference a remote catalog. You have multiple servers sharing the same catalog database so that way you can be sharing the state information between the all of the boxes.
- #40 A common approach to scaling Reporting Services is to scale up similar to the way we scale up SQL Server.While you can do this, the approach for scaling Reporting Services is really to scale out. The idea is that you can have multiple Report Servers that reference a remote catalog. You have multiple servers sharing the same catalog database so that way you can be sharing the state information between the all of the boxes.
- #41 Front ends connected to same cluster of databasesContent switch allows for automatic failover of SSRS servers (IP address remapping)Mirrored databases on disaster recovery site asynchronously (some metadata loss is okay)Manual failover from primary to disaster recovery siteDatabase Instance names are the same (e.g. REDMOND\\sql4, BAY\\sql4)
- #42 In SSRS 2005, adding more than 4 cores per SSRS instance does not help increase throughput on that instance. Adding memory is always beneficial to throughput.In SSRS 2008, more than 16 cores per SSRS instances does not help increase throughput on that instance. Adding memory is always beneficial throughput.SSRS supports scale-out deployments. Customers are employing virtualization to deploy more instances of SSRS on larger hardware boxes; they add Virtual Machines running SSRS nodes to a single scale-out deployment automatically based on Reporting load. This approach helps them consolidate hardware and therefore have fewer total servers to manage. Customers are reporting about a 30% decrease in throughput due to the overhead of virtualization. However, overall performance is acceptable to meet SLAs and customer are proceeding to roll these deployments into production. Customers have done this work on both Hyper-V and 3rd party virtualization solutions. In terms of server consolidation, there is no question that SSRS 2008 scales up much better than SSRS 2005. Therefore upgrading to SSRS 2008 can help you achieve your server consolidation objectives.
- #43 Hiding reports or datasources in SharePoint modeCannot do it SharePoint; confusing to users; Created a custom default view with document typesa
- #45 http://msdn.microsoft.com/en-us/library/ms159272.aspxAt the first entry point, customers often put a device that enforces security access. They tightly couple the access location of the user is trying to access with a set of static permissions. Various 3rd party and Microsoft products offer this capability; ForeFront and IAG server are examples.
- #47 Common troubleshooting issues:Backup encryption keysScenario: The report server installation is not initialized (rsReportServerNotActivated).Occurs when we point a new instance to an existing database; to initialize the instance you need to import encrypted keys to get it activatedRecall, upgrade involves schema changes:Schema upgraded automatically after setupSecurity descriptors upgraded on first use / after schemaPublished reports and compiled report snapshots are updated on first use
- #48 Configuration setting for extensions may be removed by service pack upgrades. This is being addressed. However, best to backup extensions; always best to know if extensions work/are configured correctly before upgrading.

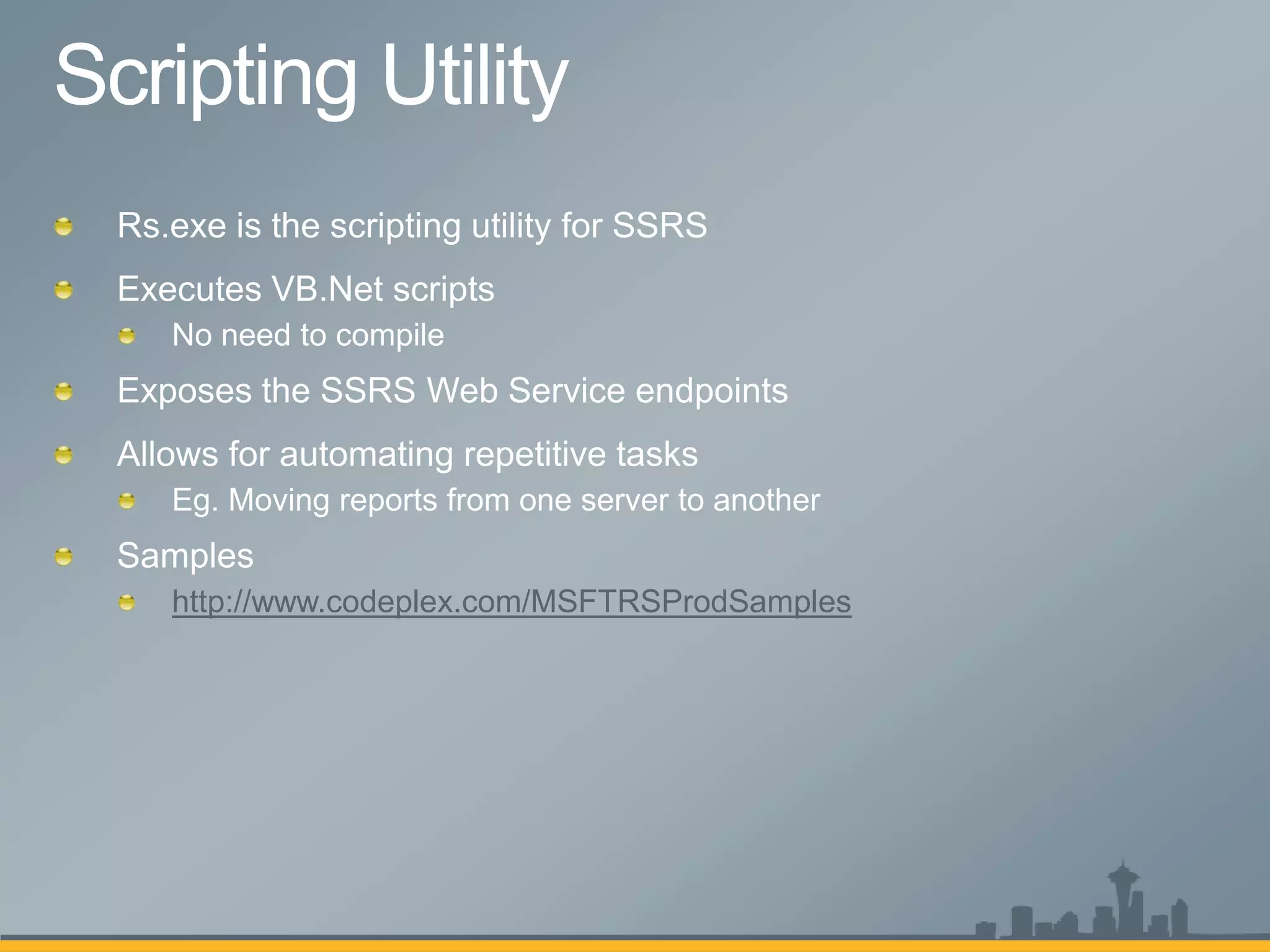

- #52 (Talk to):Automate using rs.exe scripting utilityCheck WMI status using WMI Provider & Power ShellCheck versions of servers easily by looking at Report Server Vdir or SOAP headersCreating Shared data source ensures your server can access secure information like usernames passwords and has a solid encryption key.
