The Raspberry Pi JavaFX Carputer

Is It A Car? Is It A Computer?
No, It’s The Raspberry Pi
JavaFX Informatics System
Simon Ritter
Principal Technology Evangelist
Oracle Corporation
@speakjava

The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions. The development, release, and timing of any
features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.

Program Agenda
 Cars and Computers
 The Raspberry Pi
 Embedded Java and JavaFX
 Building a Java Powered “Carputer”
 Demos

Cars And Computers

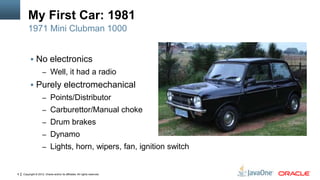

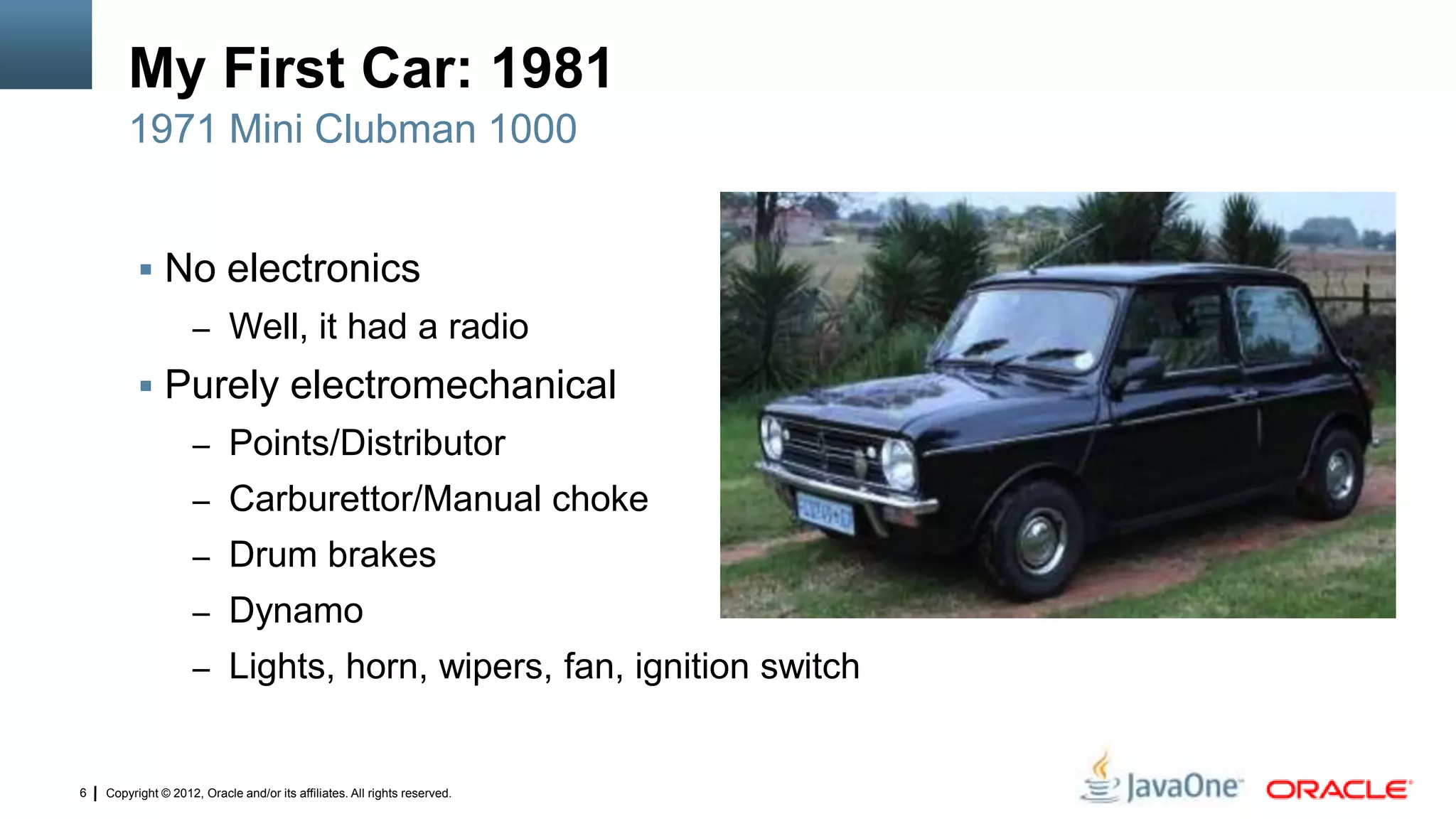

My First Car: 1981
 No electronics
– Well, it had a radio
 Purely electromechanical
– Points/Distributor
– Carburettor/Manual choke
– Drum brakes
– Dynamo
– Lights, horn, wipers, fan, ignition switch
1971 Mini Clubman 1000

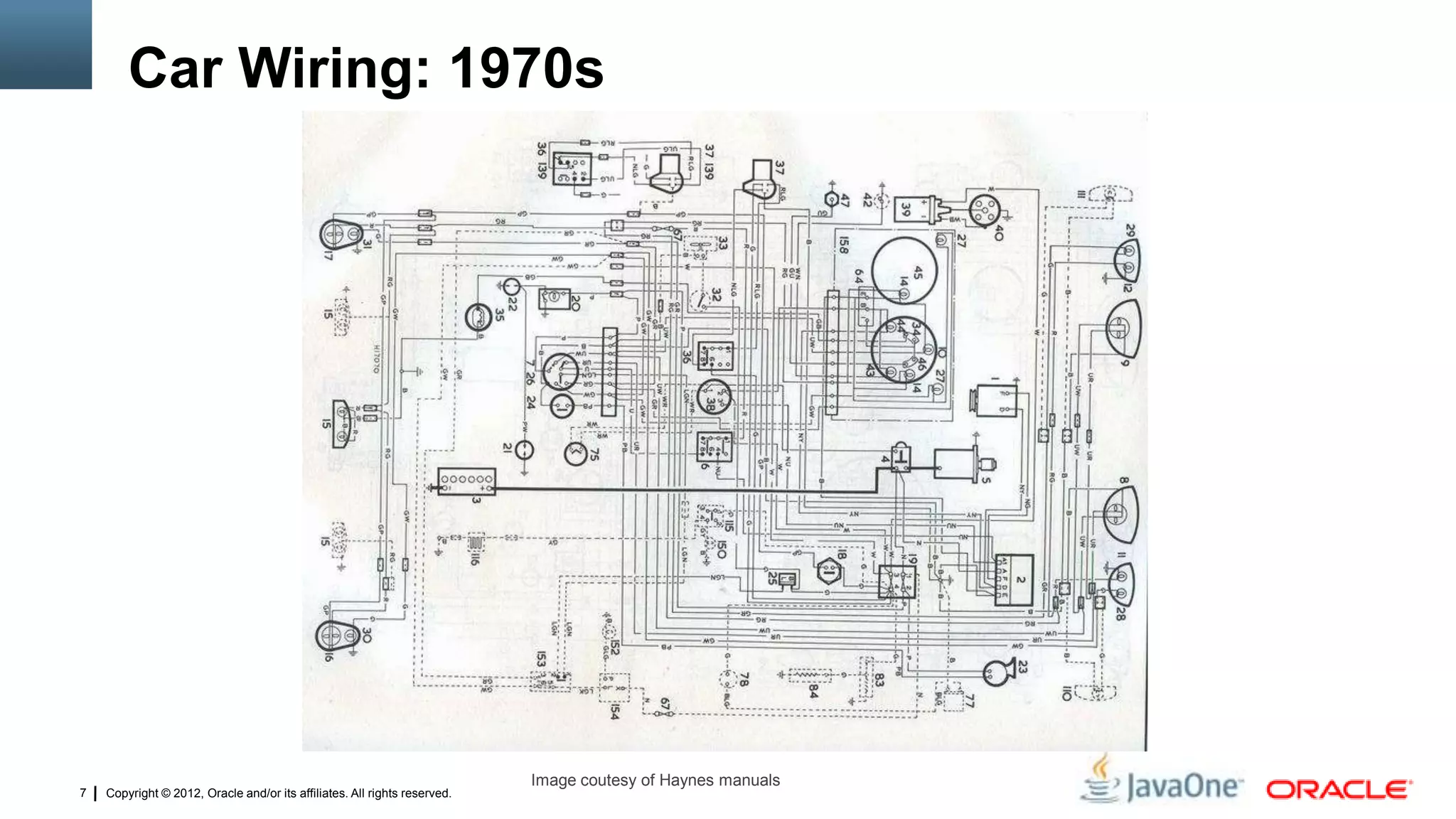

Car Wiring: 1970s
Image coutesy of Haynes manuals

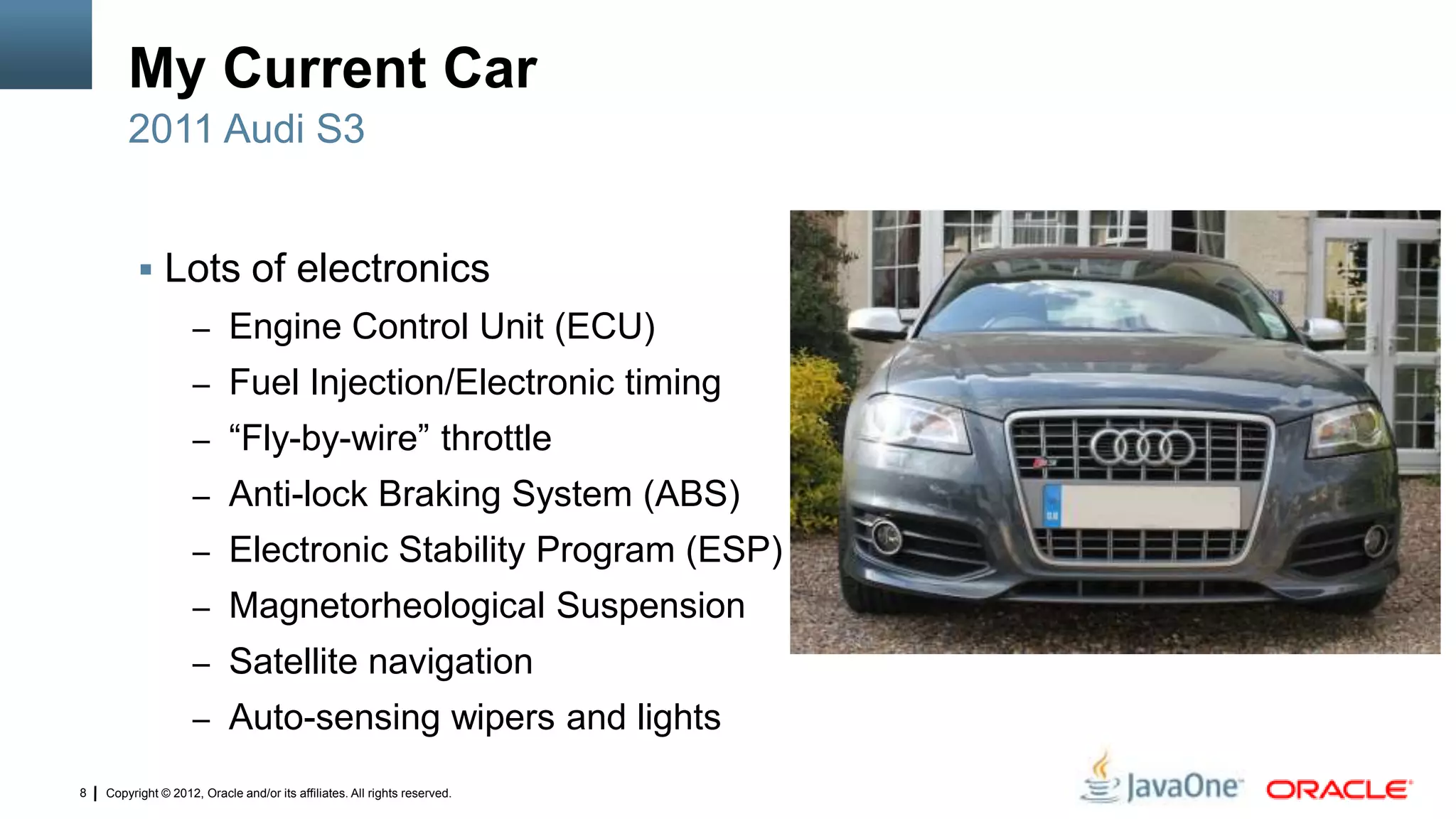

My Current Car
 Lots of electronics
– Engine Control Unit (ECU)
– Fuel Injection/Electronic timing
– “Fly-by-wire” throttle
– Anti-lock Braking System (ABS)
– Electronic Stability Program (ESP)
– Magnetorheological Suspension
– Satellite navigation
– Auto-sensing wipers and lights
2011 Audi S3

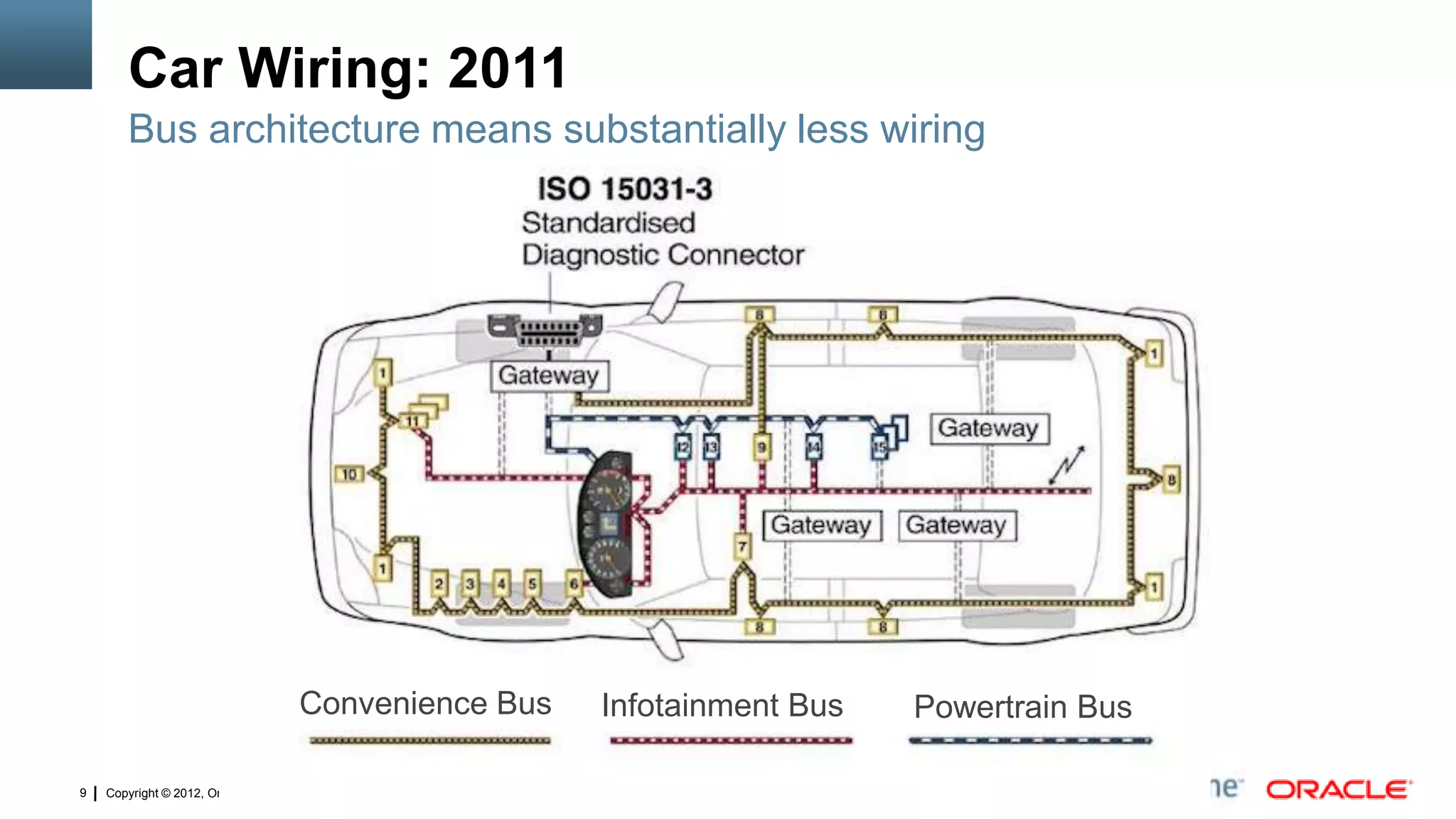

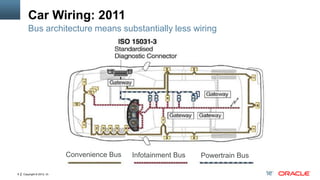

Car Wiring: 2011
Bus architecture means substantially less wiring
Convenience Bus Infotainment Bus Powertrain Bus

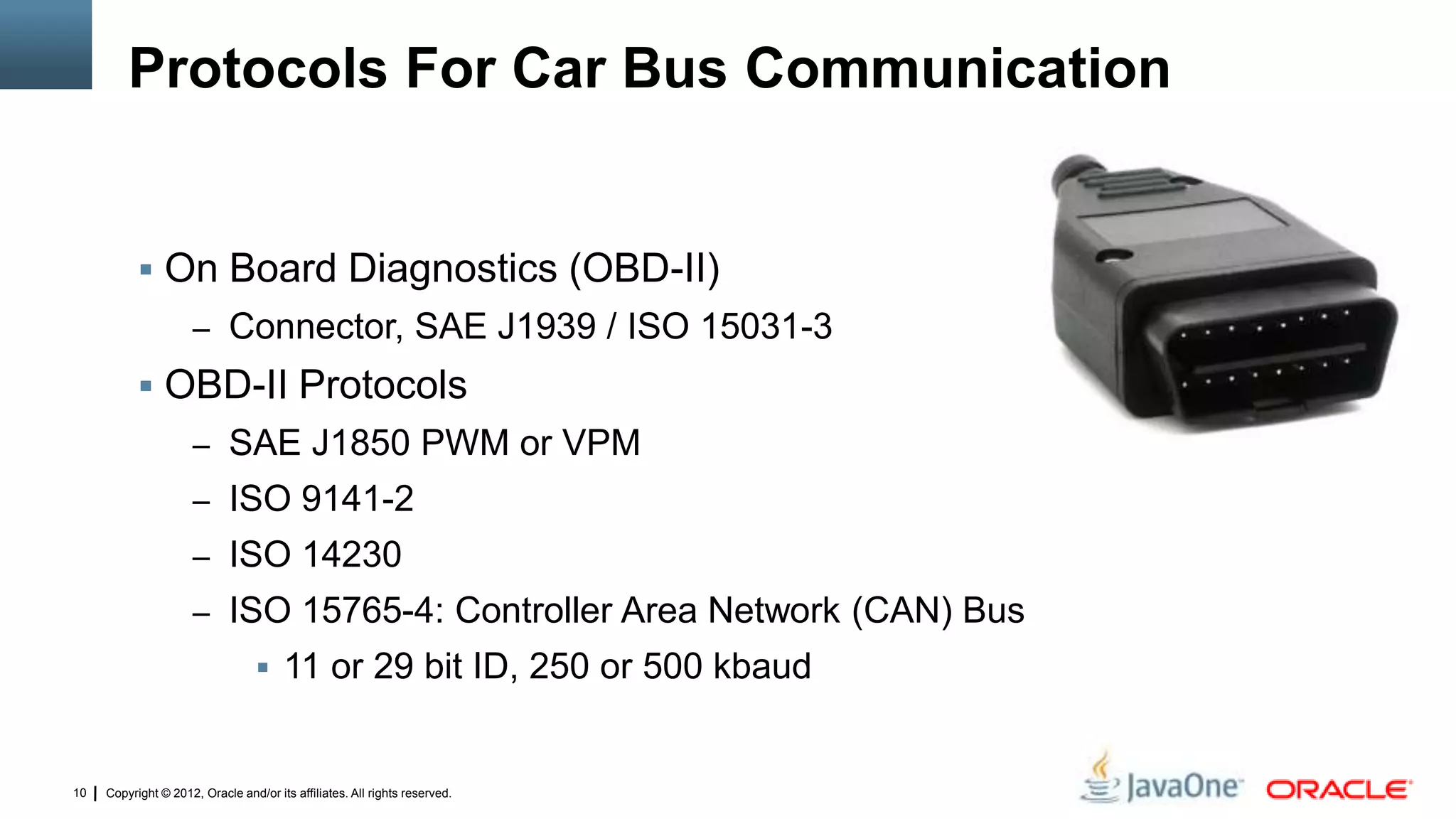

Protocols For Car Bus Communication
 On Board Diagnostics (OBD-II)
– Connector, SAE J1939 / ISO 15031-3
 OBD-II Protocols
– SAE J1850 PWM or VPM
– ISO 9141-2
– ISO 14230
– ISO 15765-4: Controller Area Network (CAN) Bus
 11 or 29 bit ID, 250 or 500 kbaud

The Raspberry Pi

Raspberry Pi
 Project started in 2006
– Goal was to devise a computer to inspire children
– Inspiration from the BBC Micro project from 1981
– Officially launched 29th Feb, 2012
– Over 1 million boards shipped so far

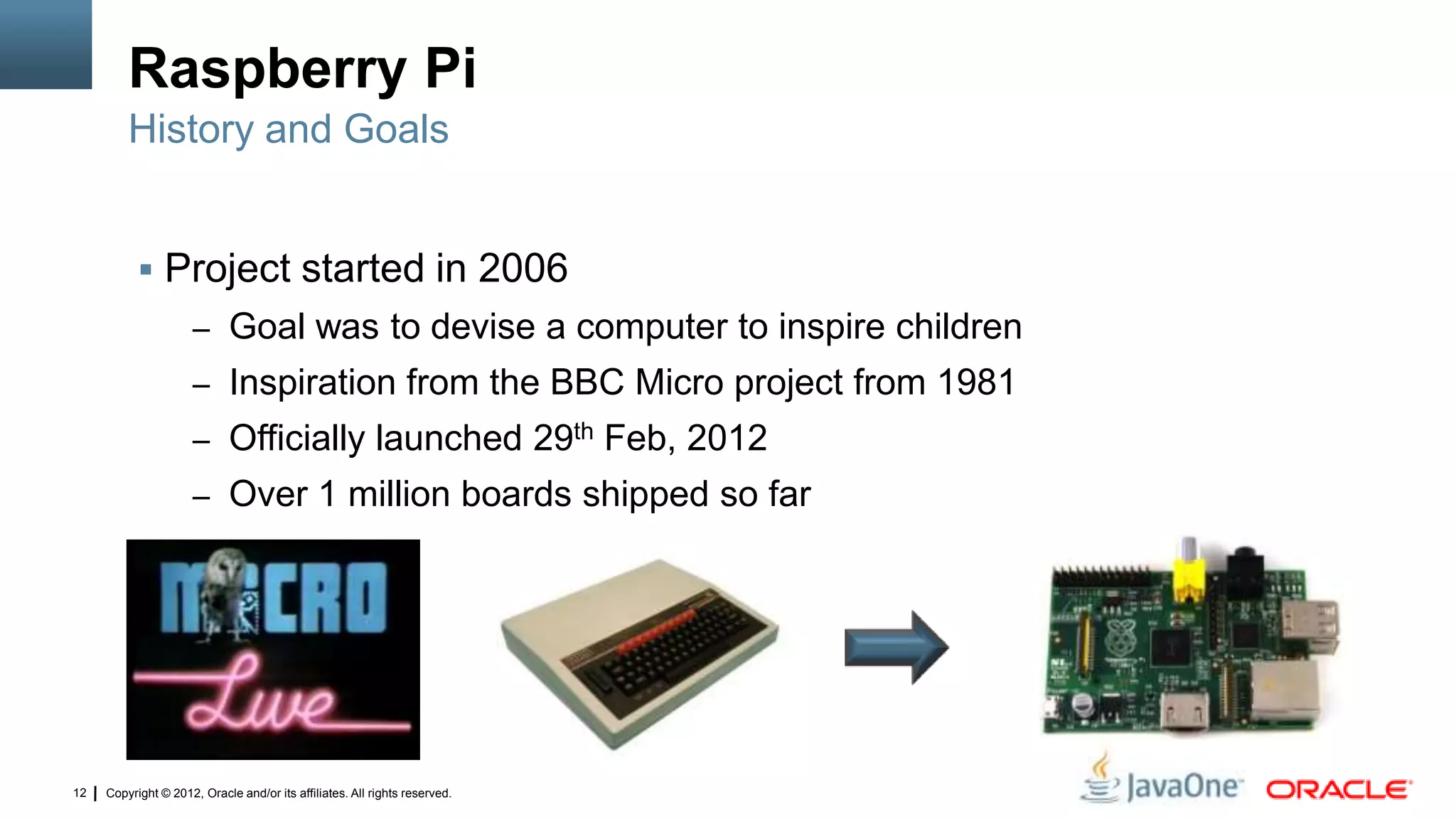

History and Goals

Raspberry Pi

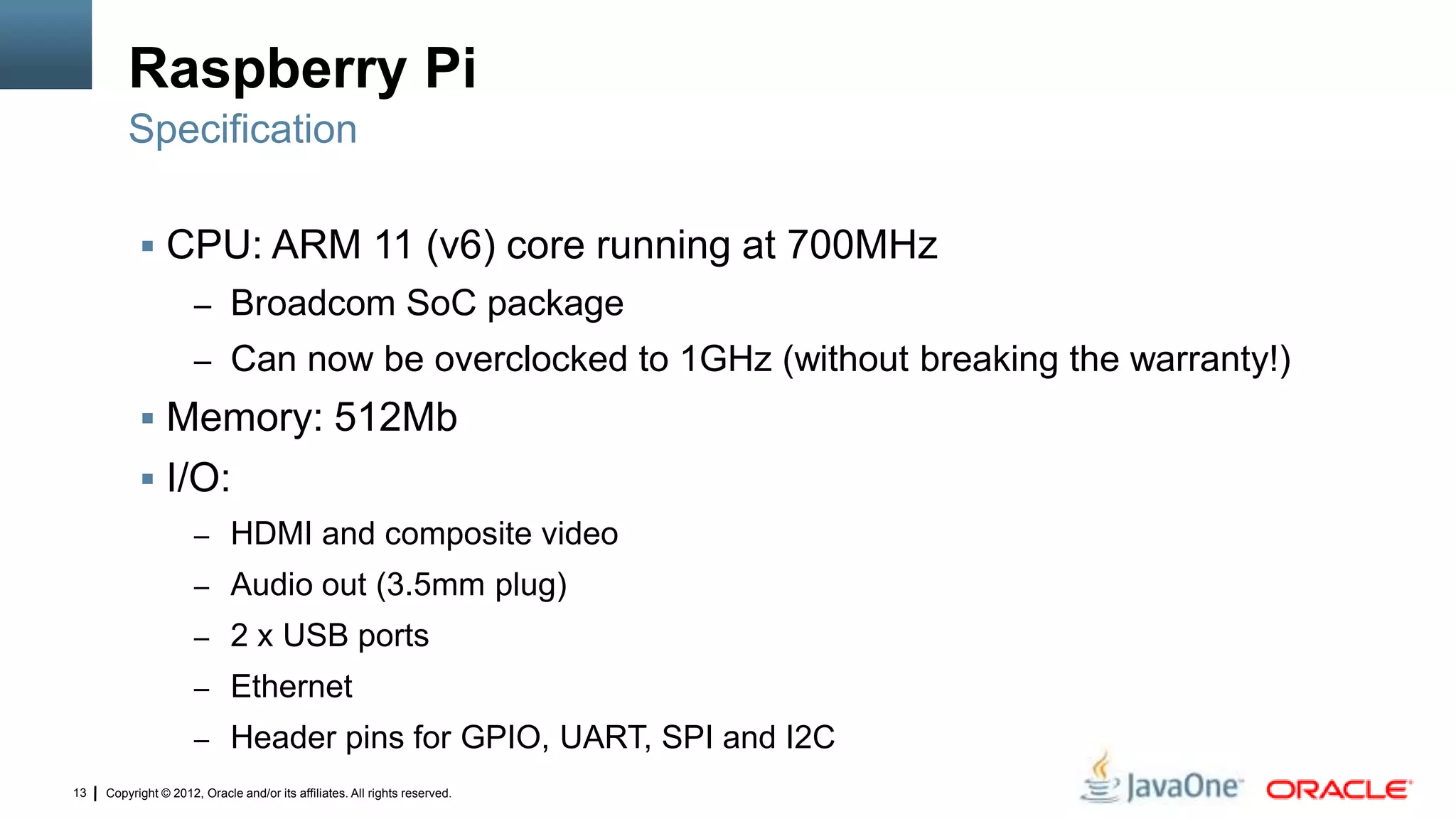

 CPU: ARM 11 (v6) core running at 700MHz
– Broadcom SoC package
– Can now be overclocked to 1GHz (without breaking the warranty!)
 Memory: 512Mb
 I/O:
– HDMI and composite video
– Audio out (3.5mm plug)
– 2 x USB ports
– Ethernet
– Header pins for GPIO, UART, SPI and I2C
Specification

Raspberry Pi Carputer

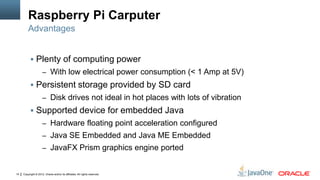

 Plenty of computing power
– With low electrical power consumption (< 1 Amp at 5V)
 Persistent storage provided by SD card
– Disk drives not ideal in hot places with lots of vibration
 Supported device for embedded Java
– Hardware floating point acceleration configured
– Java SE Embedded and Java ME Embedded
– JavaFX Prism graphics engine ported

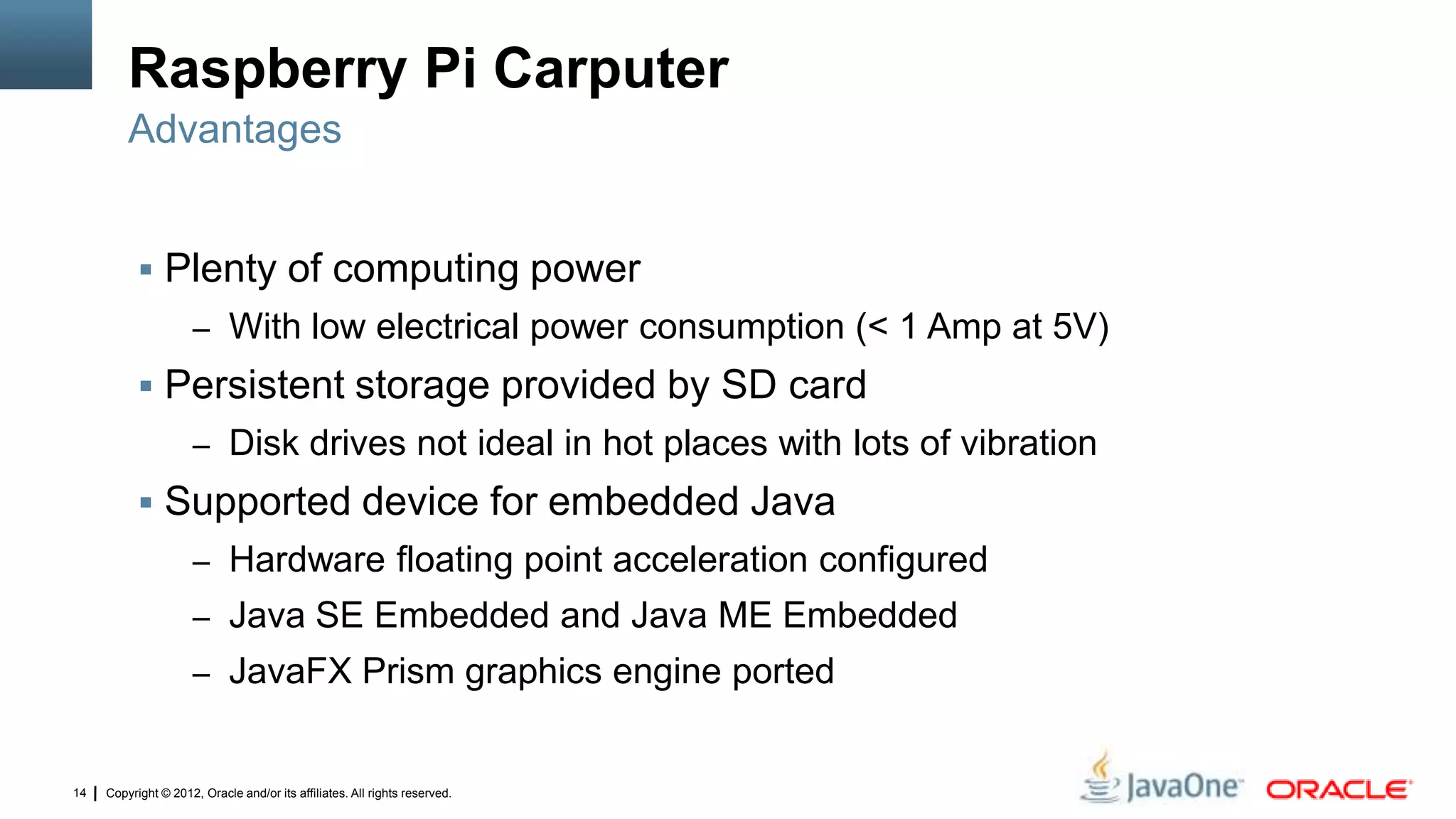

Advantages

Embedded Java and JavaFX

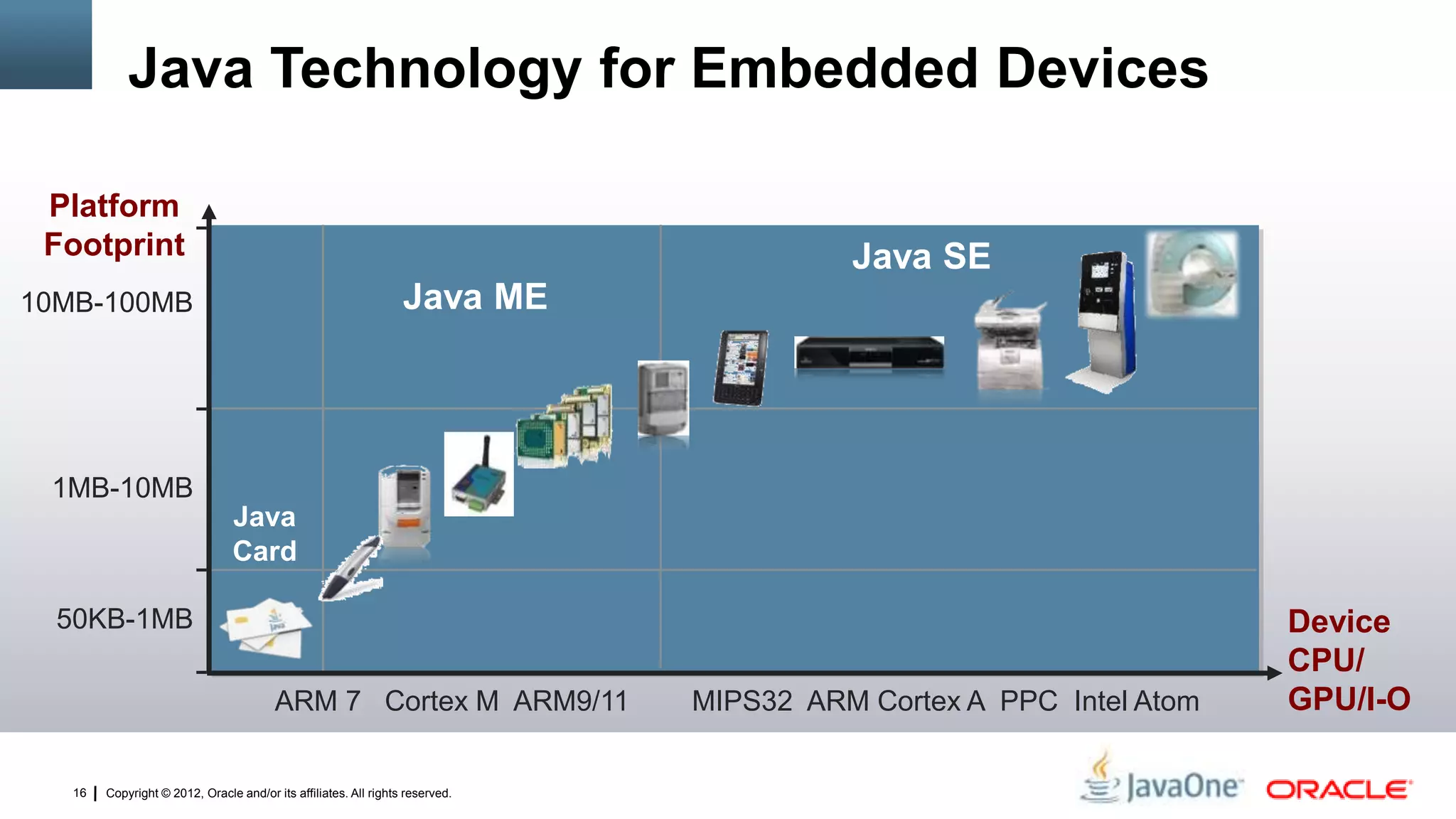

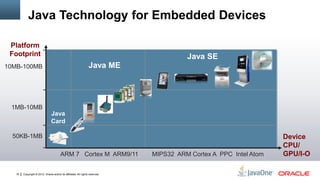

Java Technology for Embedded Devices
Platform
Footprint
Device
CPU/
GPU/I-OARM 7 Cortex M ARM9/11 MIPS32 ARM Cortex A PPC Intel Atom
50KB-1MB
1MB-10MB
10MB-100MB Java ME
Java SE
Java
Card

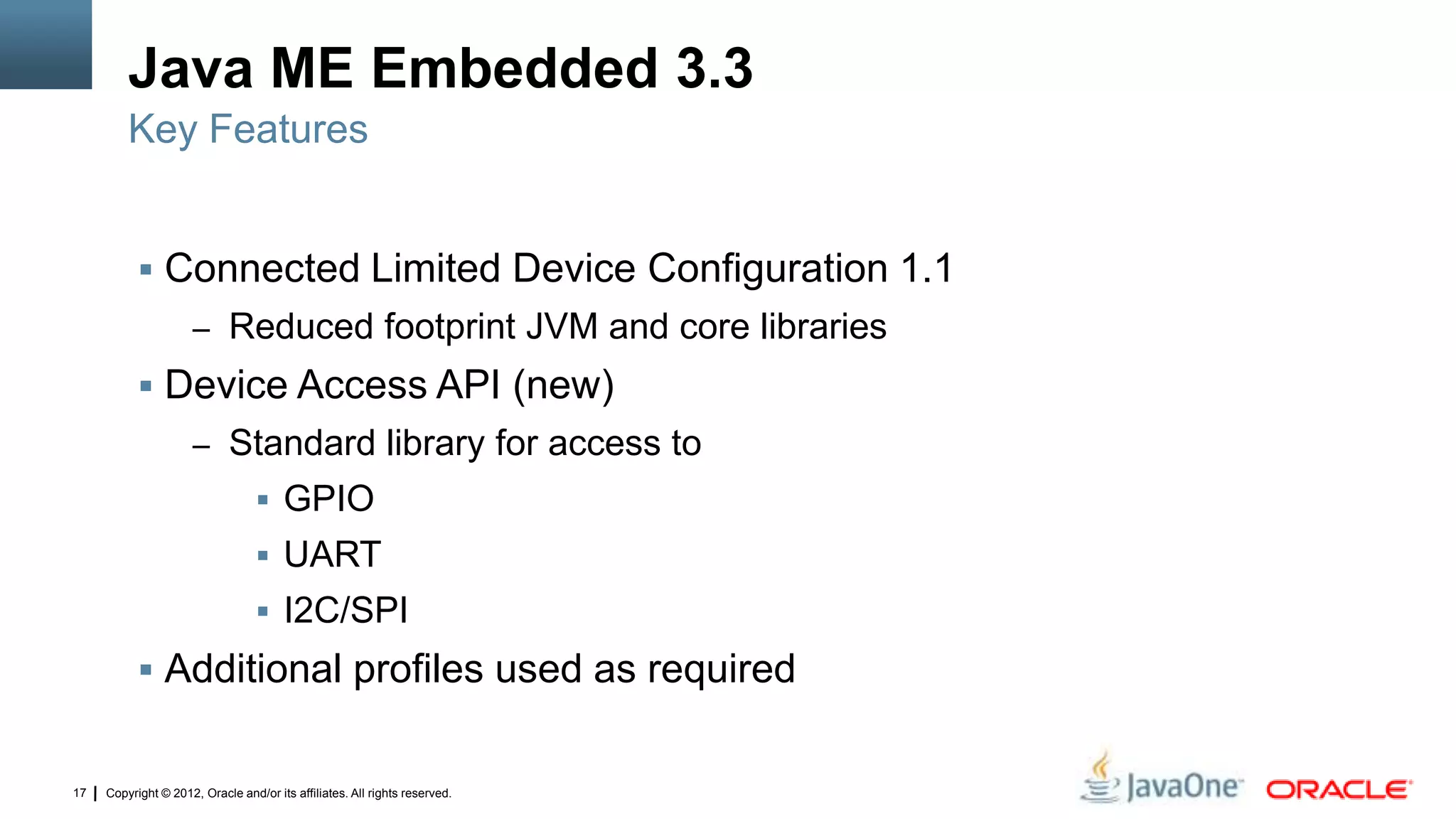

Java ME Embedded 3.3
 Connected Limited Device Configuration 1.1
– Reduced footprint JVM and core libraries
 Device Access API (new)
– Standard library for access to
 GPIO
 UART
 I2C/SPI
 Additional profiles used as required
Key Features

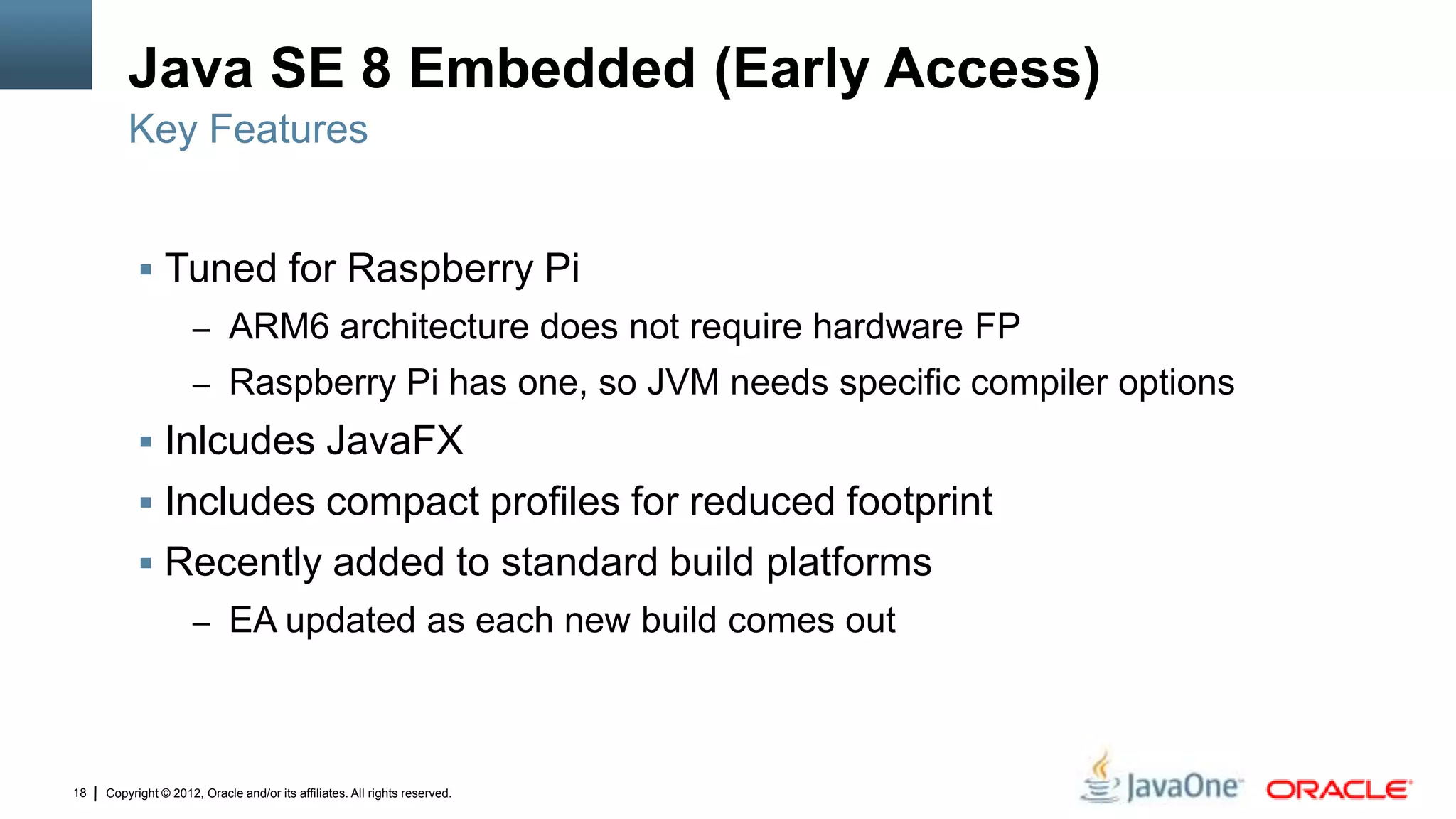

Java SE 8 Embedded (Early Access)
 Tuned for Raspberry Pi
– ARM6 architecture does not require hardware FP
– Raspberry Pi has one, so JVM needs specific compiler options
 Inlcudes JavaFX
 Includes compact profiles for reduced footprint
 Recently added to standard build platforms
– EA updated as each new build comes out
Key Features

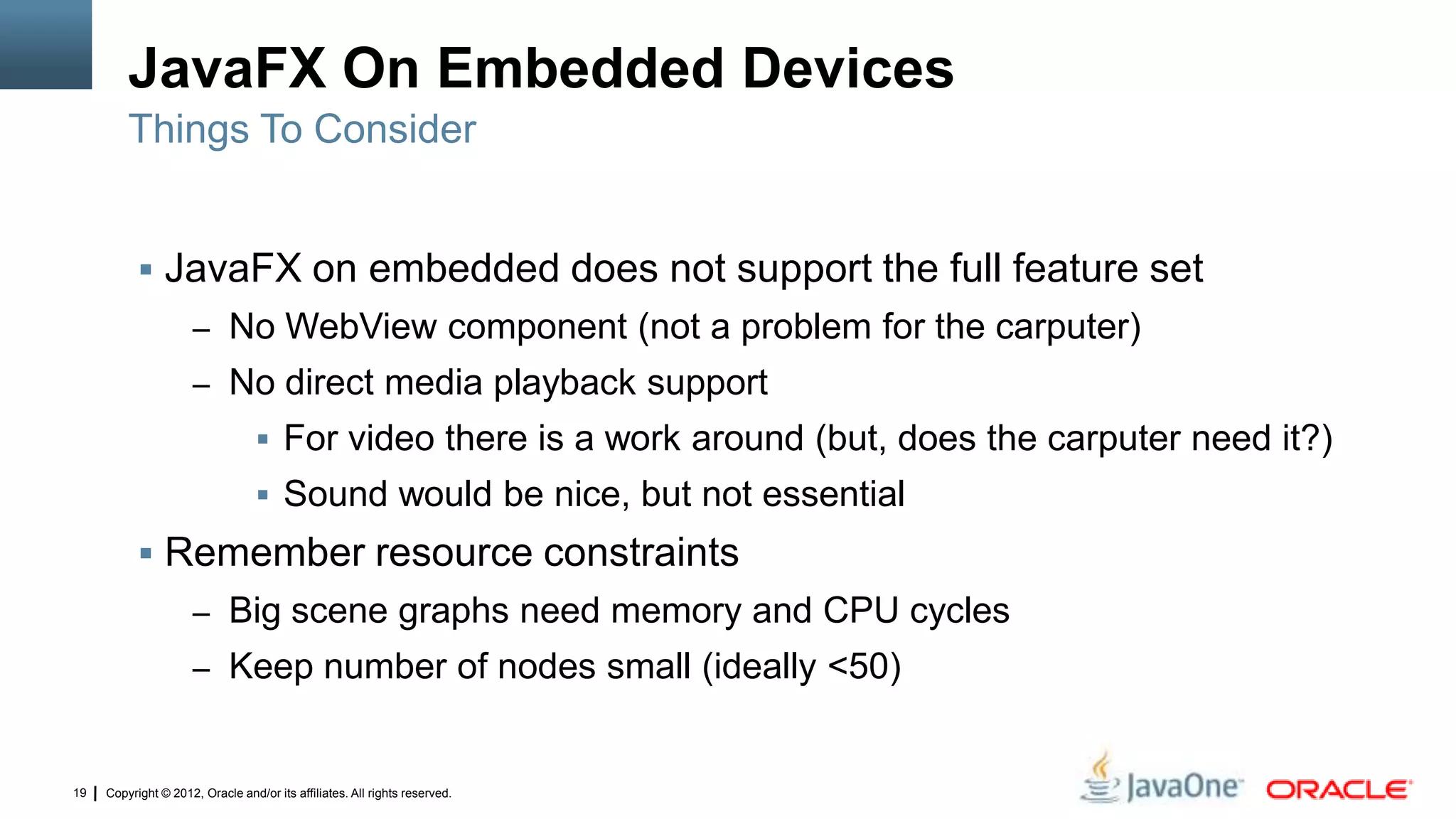

JavaFX On Embedded Devices
 JavaFX on embedded does not support the full feature set
– No WebView component (not a problem for the carputer)
– No direct media playback support
 For video there is a work around (but, does the carputer need it?)
 Sound would be nice, but not essential
 Remember resource constraints
– Big scene graphs need memory and CPU cycles
– Keep number of nodes small (ideally <50)
Things To Consider

Building a Java Powered
“Carputer”

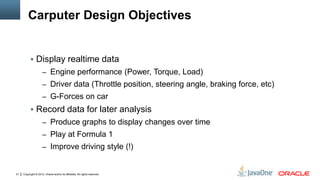

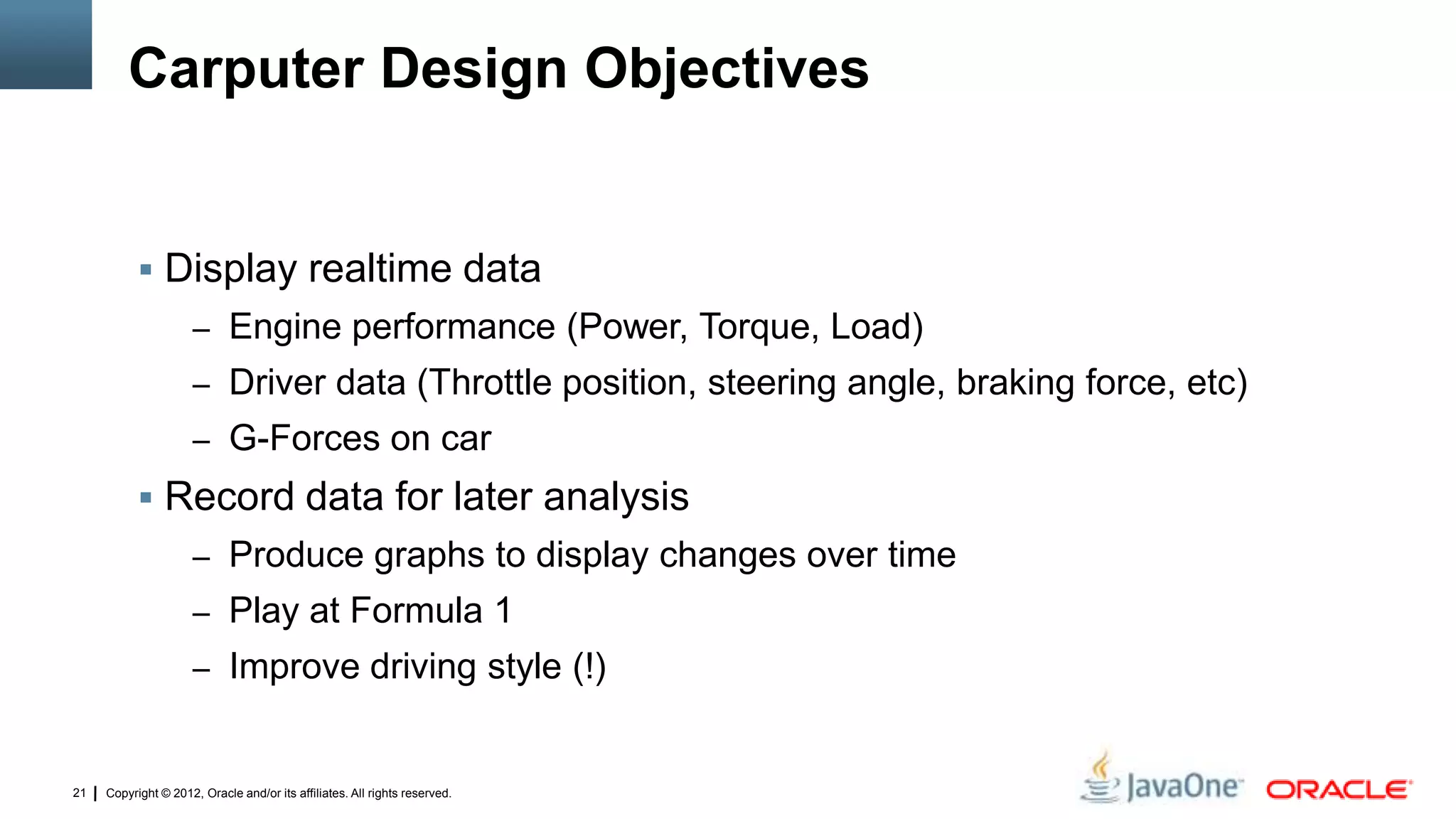

Carputer Design Objectives
 Display realtime data
– Engine performance (Power, Torque, Load)
– Driver data (Throttle position, steering angle, braking force, etc)
– G-Forces on car
 Record data for later analysis
– Produce graphs to display changes over time
– Play at Formula 1
– Improve driving style (!)

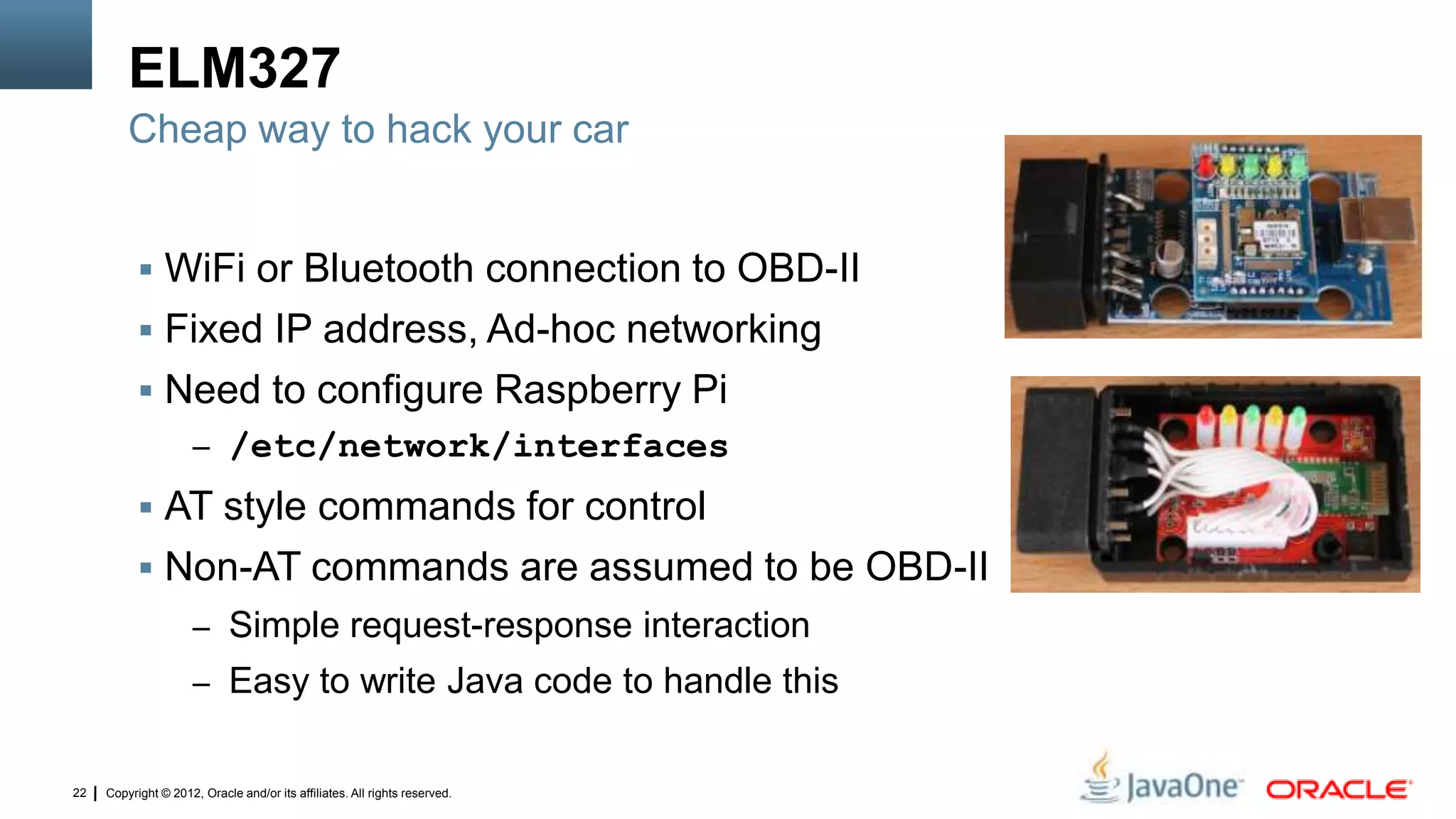

ELM327
 WiFi or Bluetooth connection to OBD-II
 Fixed IP address, Ad-hoc networking
 Need to configure Raspberry Pi
– /etc/network/interfaces
 AT style commands for control
 Non-AT commands are assumed to be OBD-II
– Simple request-response interaction
– Easy to write Java code to handle this
Cheap way to hack your car

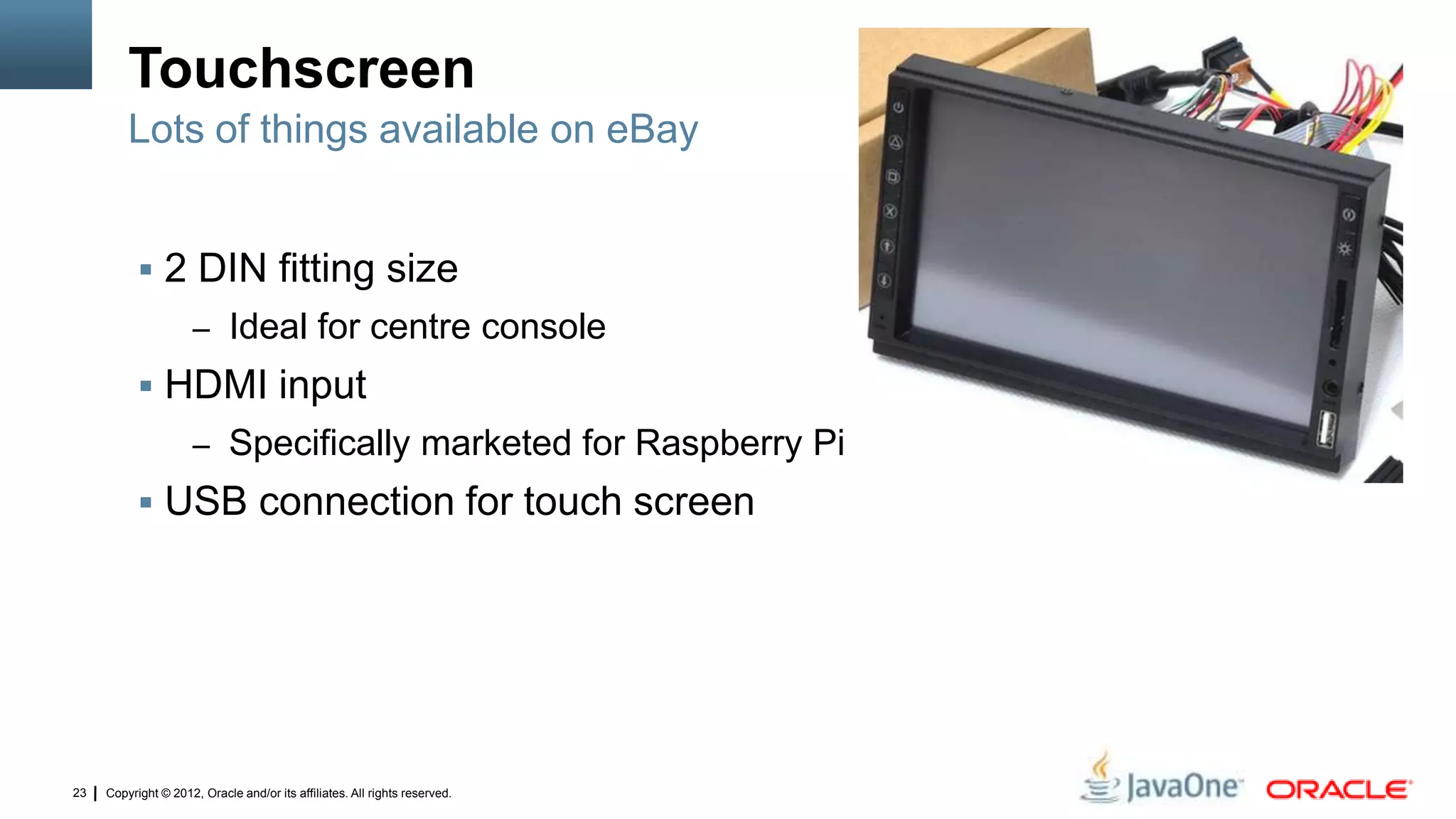

Touchscreen
 2 DIN fitting size
– Ideal for centre console
 HDMI input
– Specifically marketed for Raspberry Pi
 USB connection for touch screen
Lots of things available on eBay

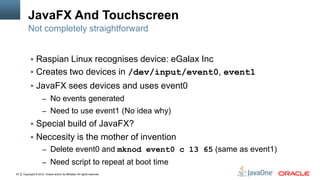

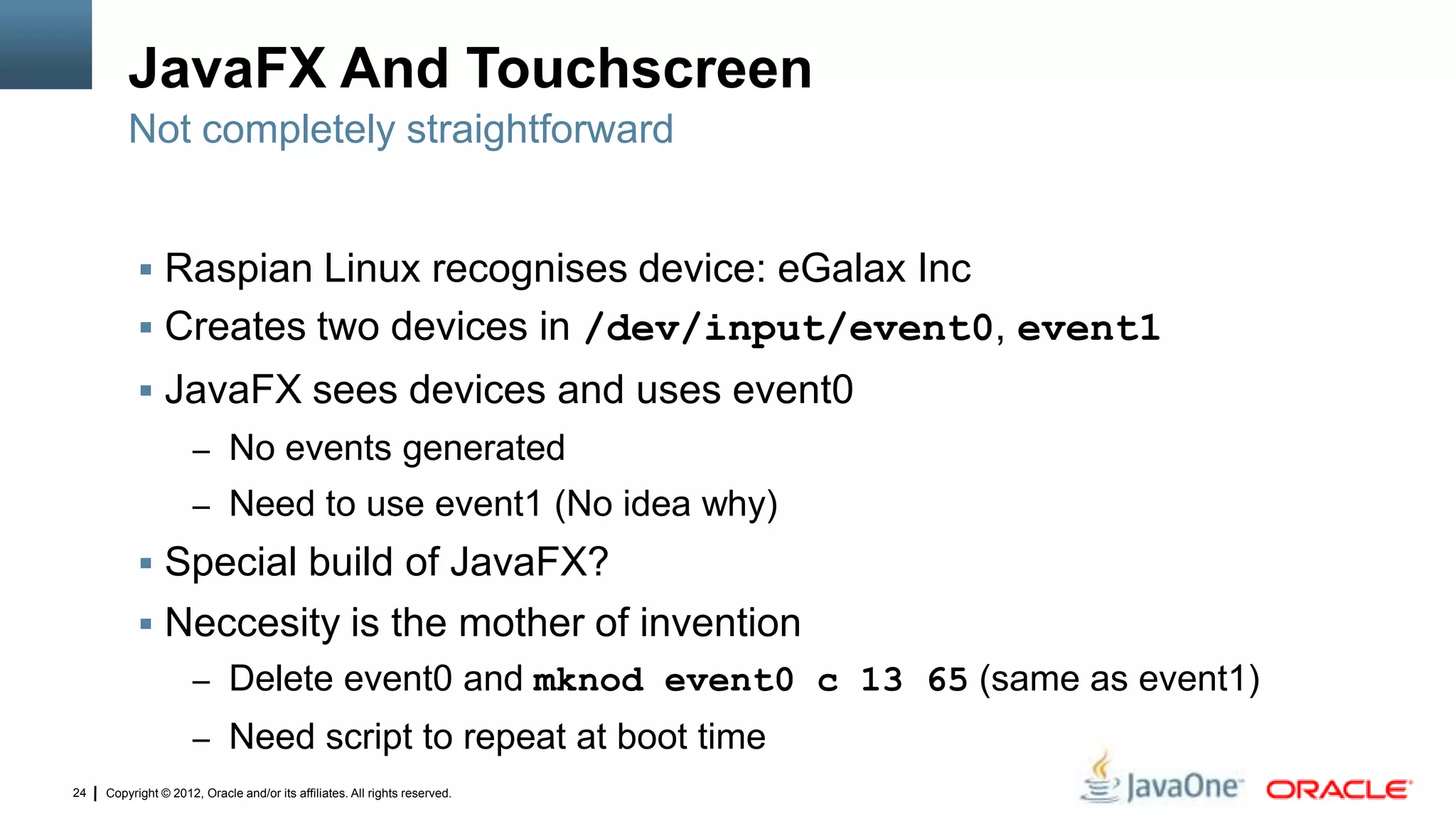

JavaFX And Touchscreen
 Raspian Linux recognises device: eGalax Inc
 Creates two devices in /dev/input/event0, event1
 JavaFX sees devices and uses event0
– No events generated
– Need to use event1 (No idea why)
 Special build of JavaFX?
 Neccesity is the mother of invention
– Delete event0 and mknod event0 c 13 65 (same as event1)
– Need script to repeat at boot time
Not completely straightforward

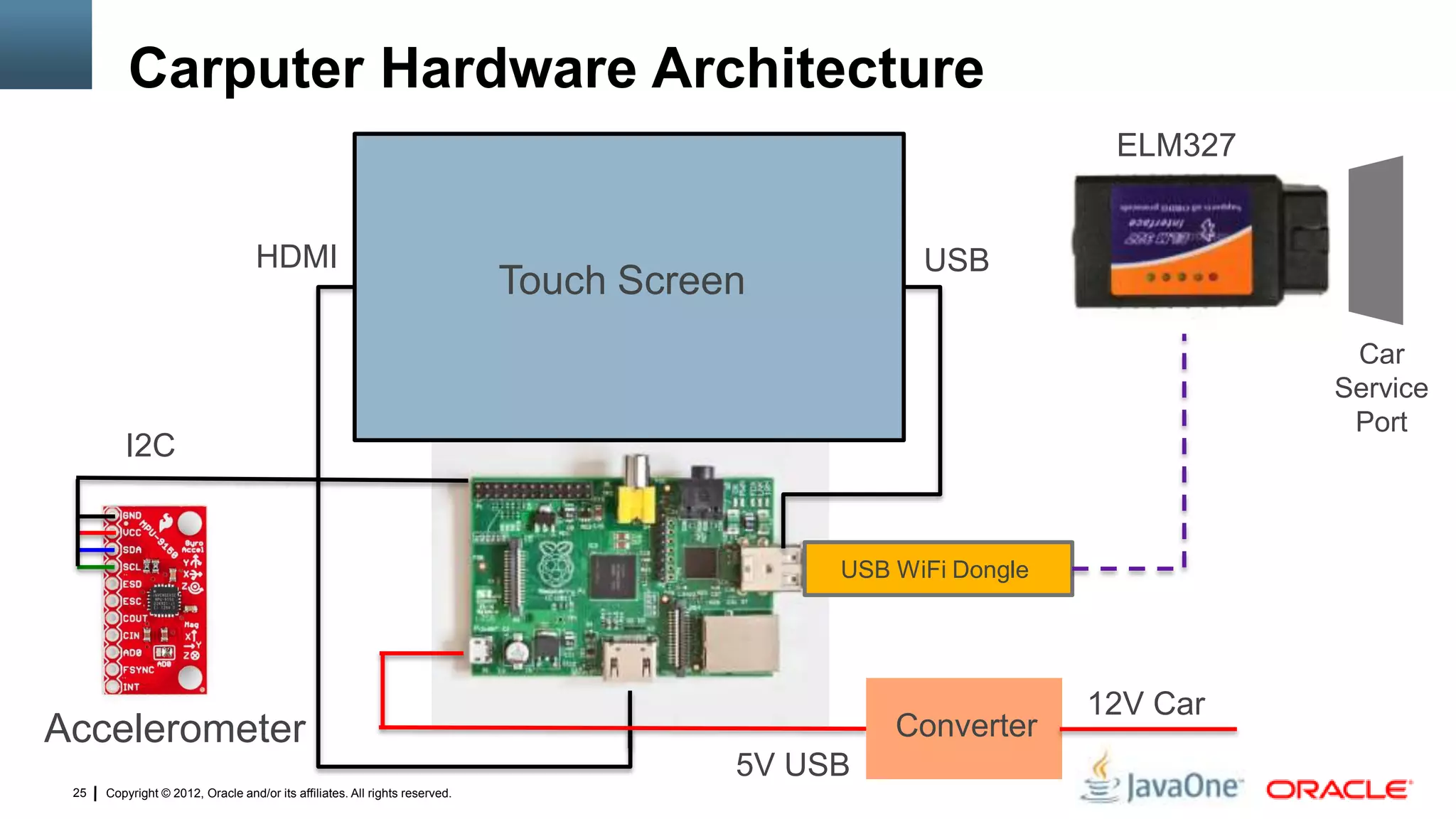

Carputer Hardware Architecture
USB WiFi Dongle
Touch Screen
Accelerometer
HDMI USB
I2C
12V Car
Converter
ELM327
Car
Service
Port
5V USB

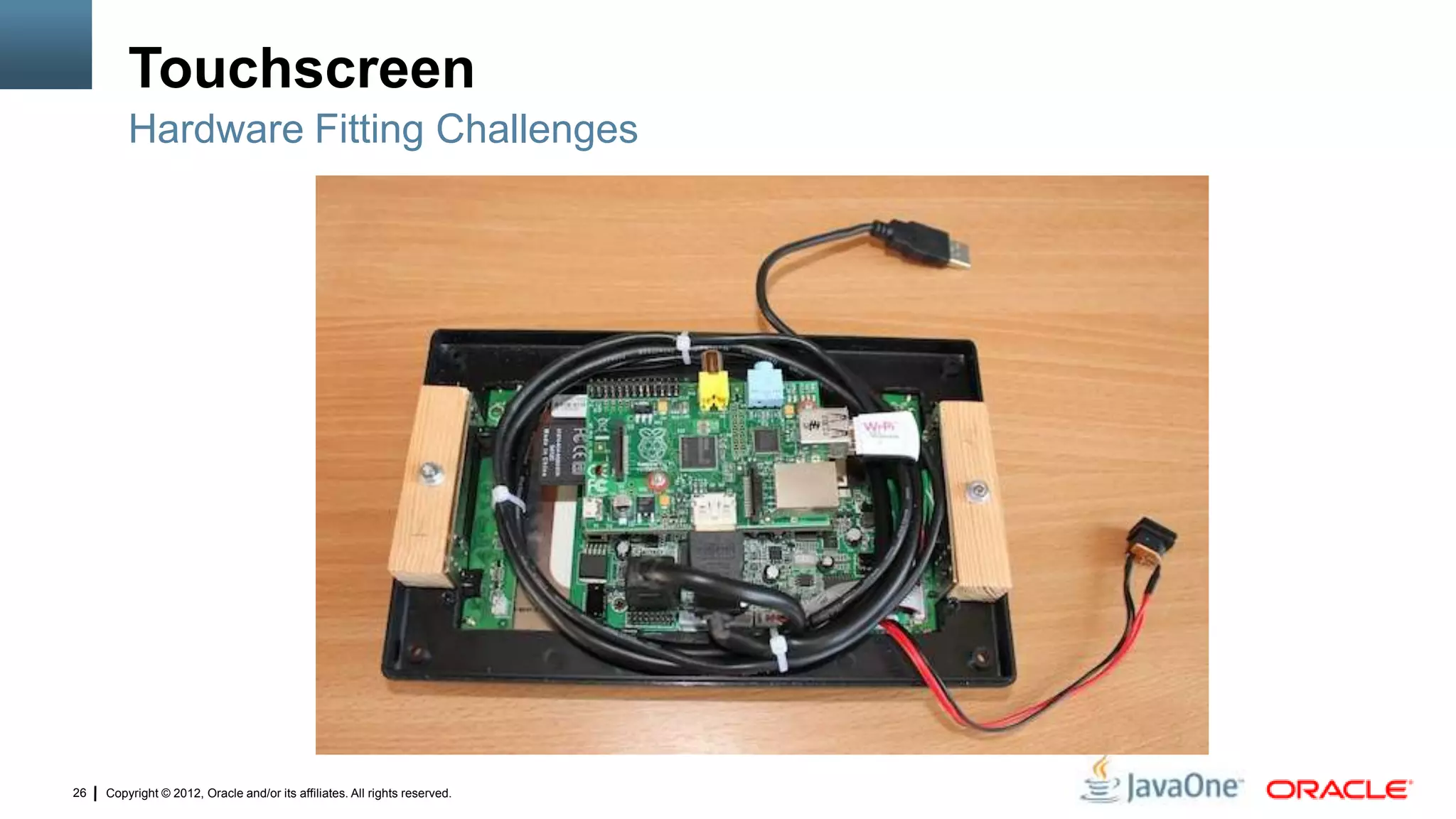

Touchscreen
Hardware Fitting Challenges

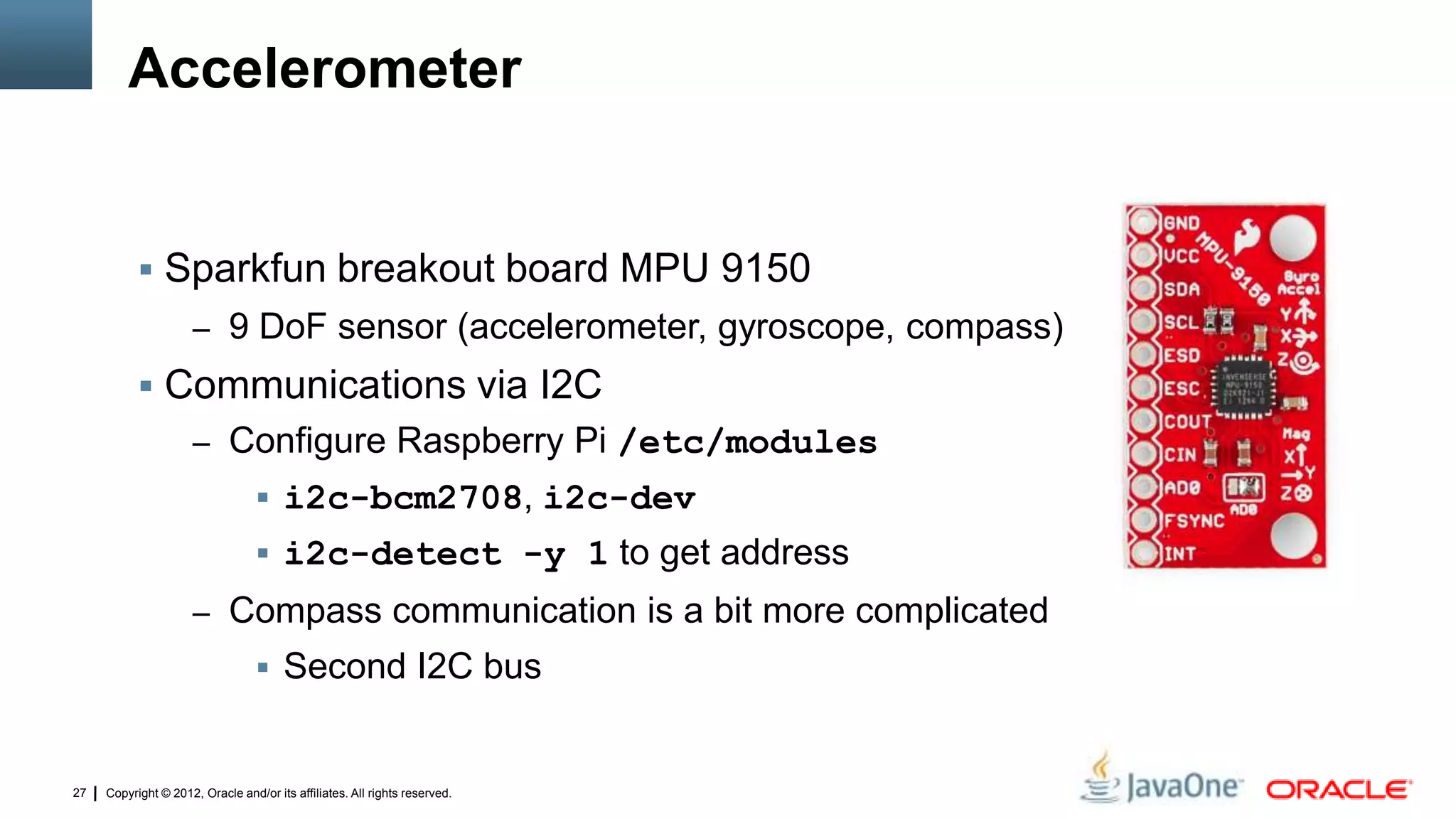

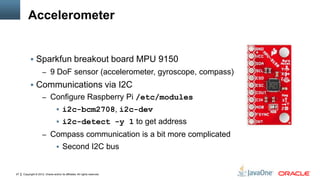

Accelerometer
 Sparkfun breakout board MPU 9150
– 9 DoF sensor (accelerometer, gyroscope, compass)
 Communications via I2C
– Configure Raspberry Pi /etc/modules
 i2c-bcm2708, i2c-dev
 i2c-detect -y 1 to get address
– Compass communication is a bit more complicated
 Second I2C bus

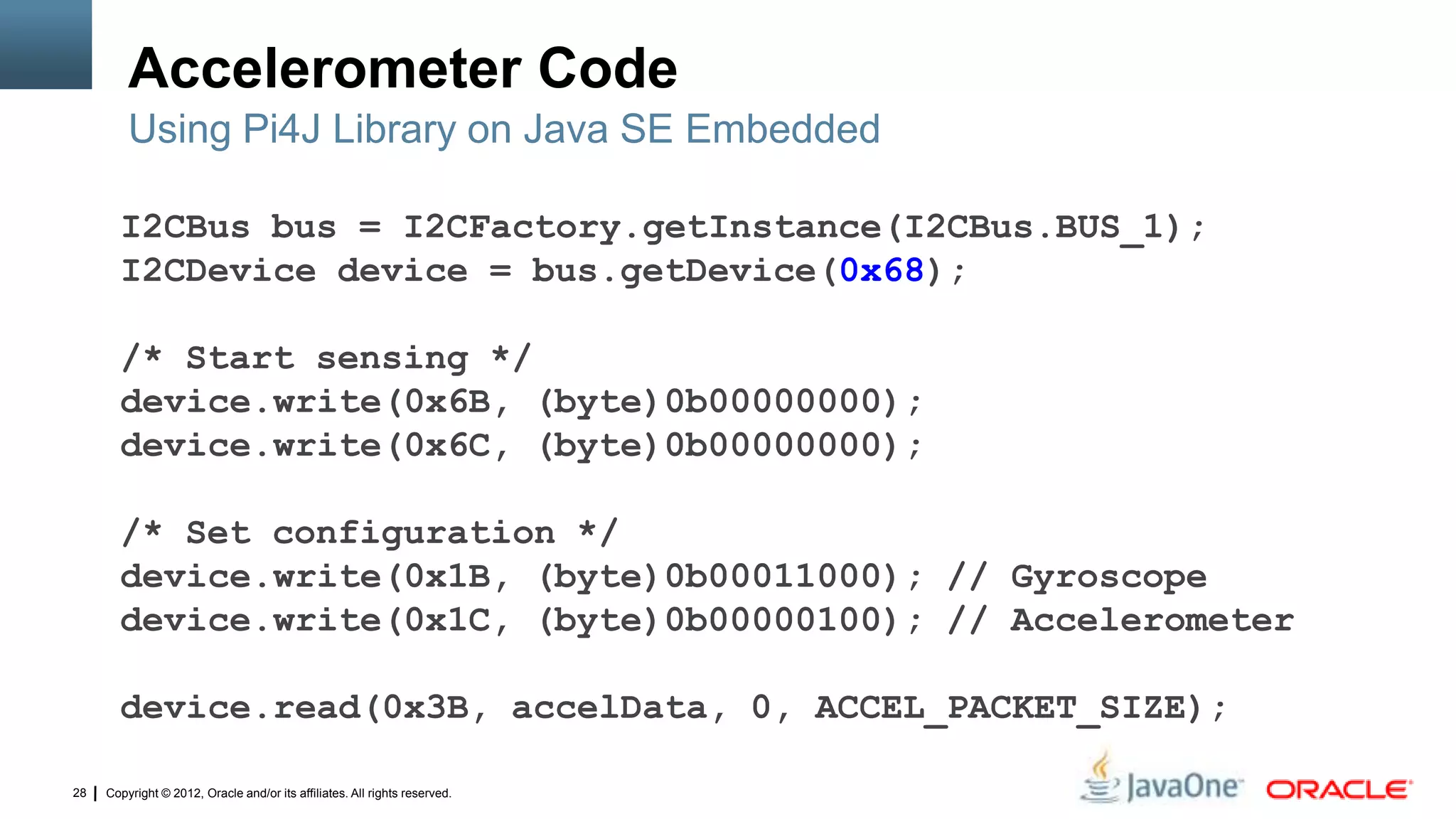

Accelerometer Code
Using Pi4J Library on Java SE Embedded
I2CBus bus = I2CFactory.getInstance(I2CBus.BUS_1);
I2CDevice device = bus.getDevice(0x68);
/* Start sensing */
device.write(0x6B, (byte)0b00000000);
device.write(0x6C, (byte)0b00000000);
/* Set configuration */
device.write(0x1B, (byte)0b00011000); // Gyroscope
device.write(0x1C, (byte)0b00000100); // Accelerometer
device.read(0x3B, accelData, 0, ACCEL_PACKET_SIZE);

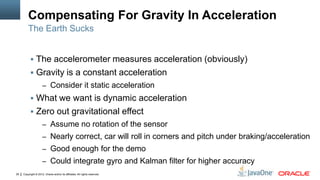

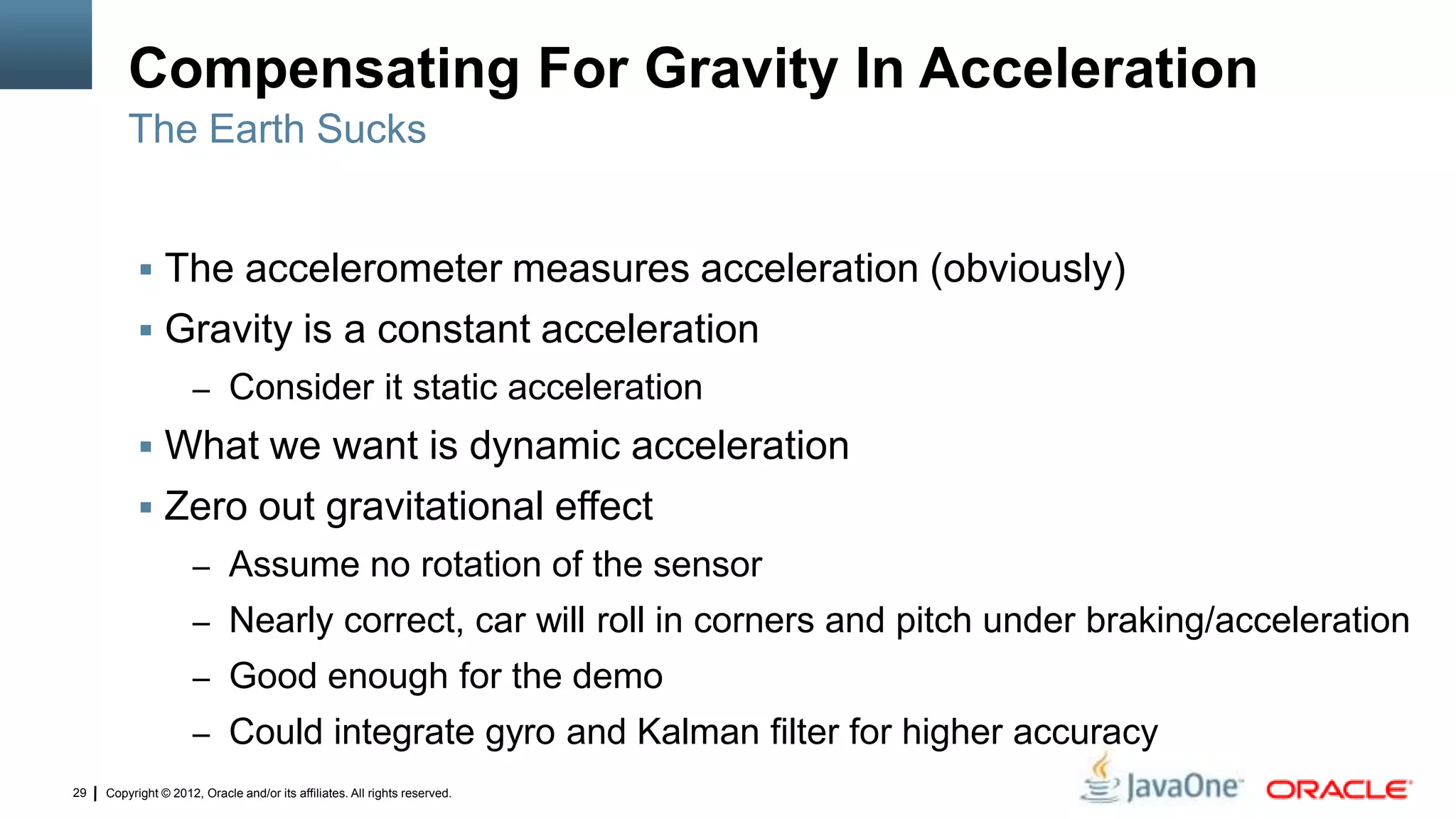

Compensating For Gravity In Acceleration
 The accelerometer measures acceleration (obviously)
 Gravity is a constant acceleration
– Consider it static acceleration
 What we want is dynamic acceleration
 Zero out gravitational effect
– Assume no rotation of the sensor
– Nearly correct, car will roll in corners and pitch under braking/acceleration
– Good enough for the demo
– Could integrate gyro and Kalman filter for higher accuracy
The Earth Sucks

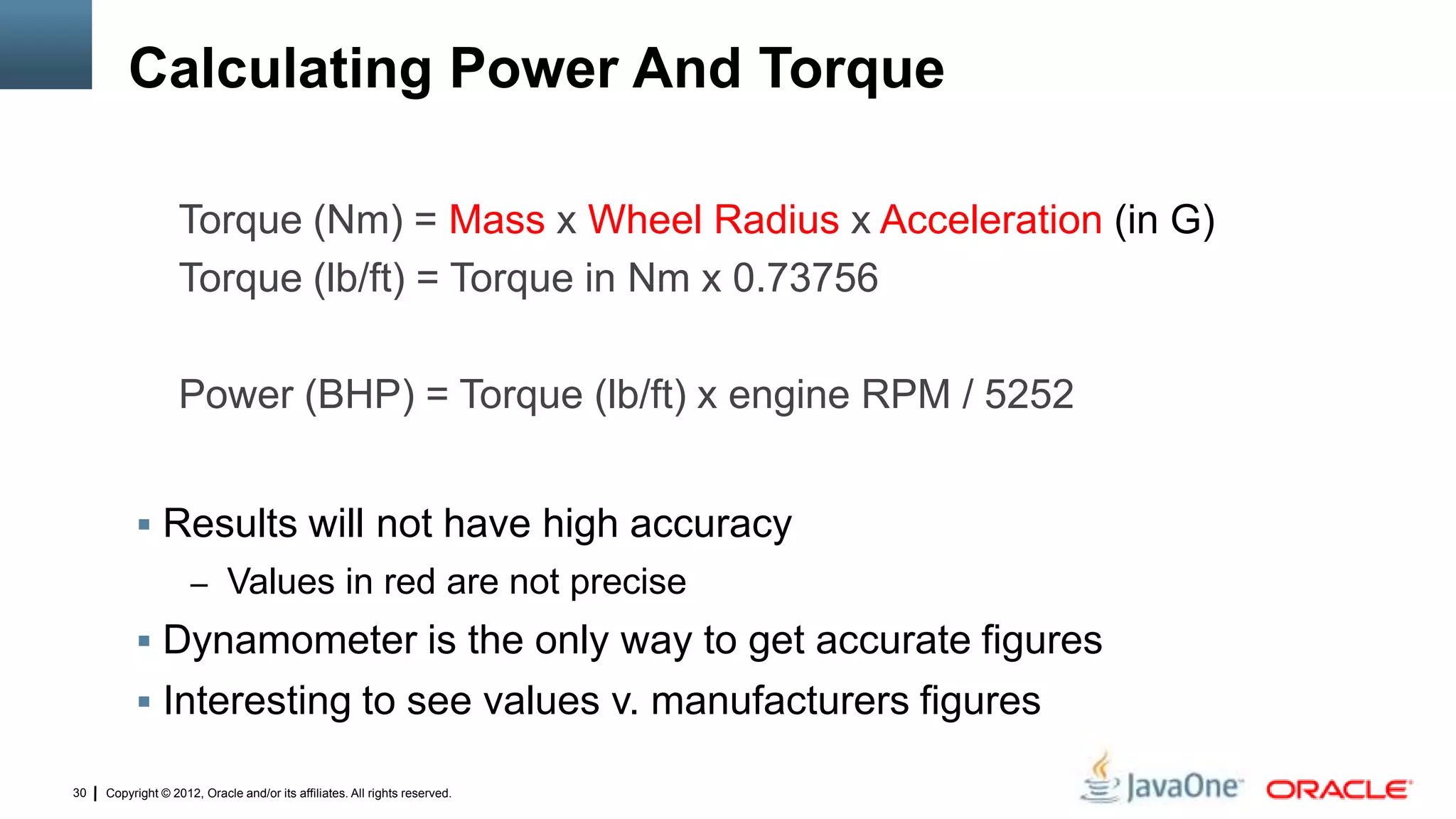

Calculating Power And Torque
 Results will not have high accuracy
– Values in red are not precise
 Dynamometer is the only way to get accurate figures
 Interesting to see values v. manufacturers figures
Torque (Nm) = Mass x Wheel Radius x Acceleration (in G)
Torque (lb/ft) = Torque in Nm x 0.73756
Power (BHP) = Torque (lb/ft) x engine RPM / 5252

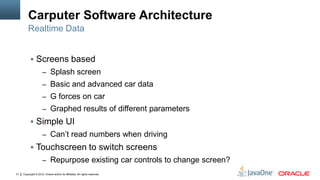

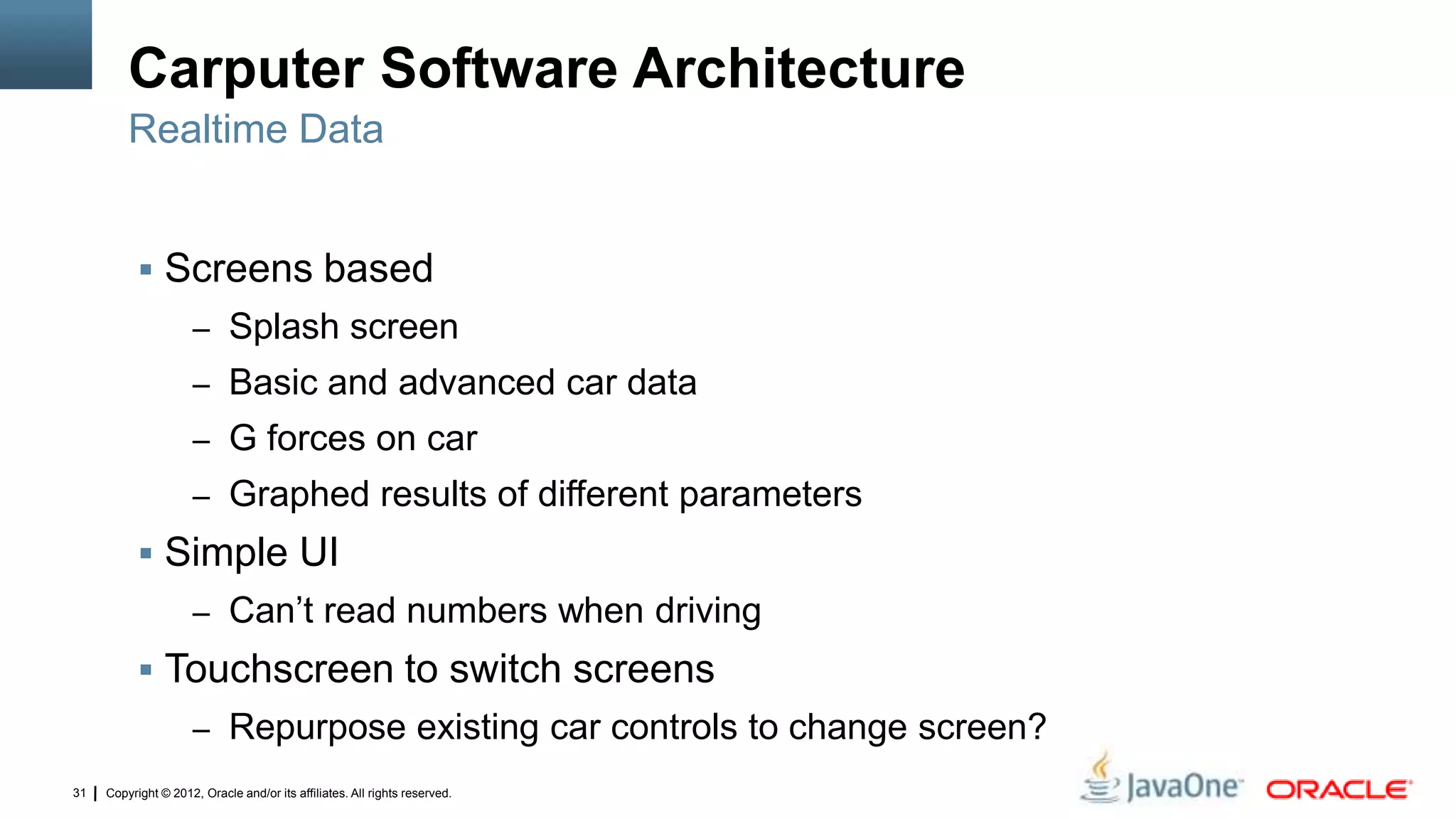

Carputer Software Architecture
 Screens based
– Splash screen
– Basic and advanced car data
– G forces on car
– Graphed results of different parameters
 Simple UI
– Can’t read numbers when driving
 Touchscreen to switch screens
– Repurpose existing car controls to change screen?
Realtime Data

UI Design Ideas

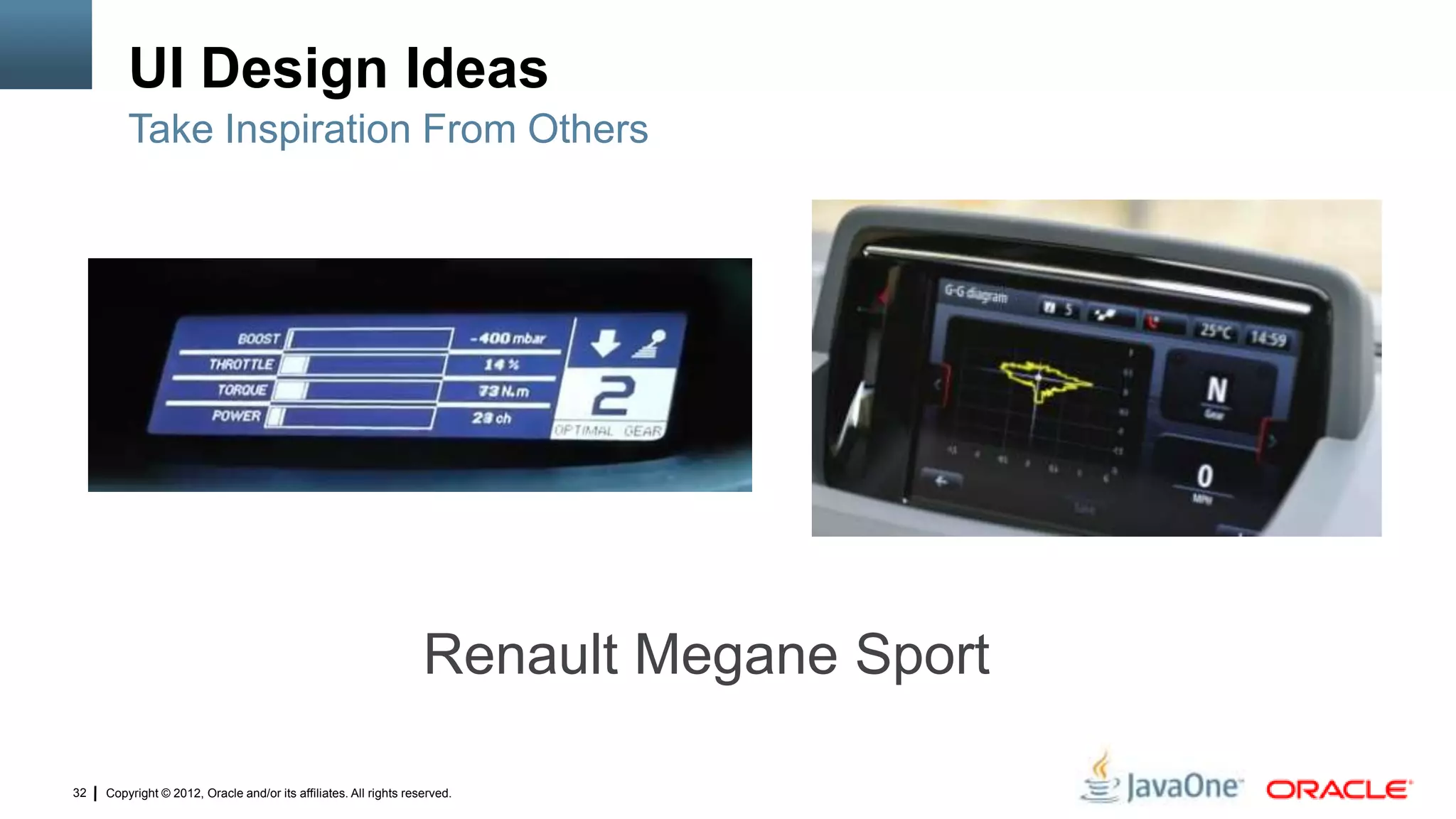

Take Inspiration From Others
Renault Megane Sport

UI Design Ideas

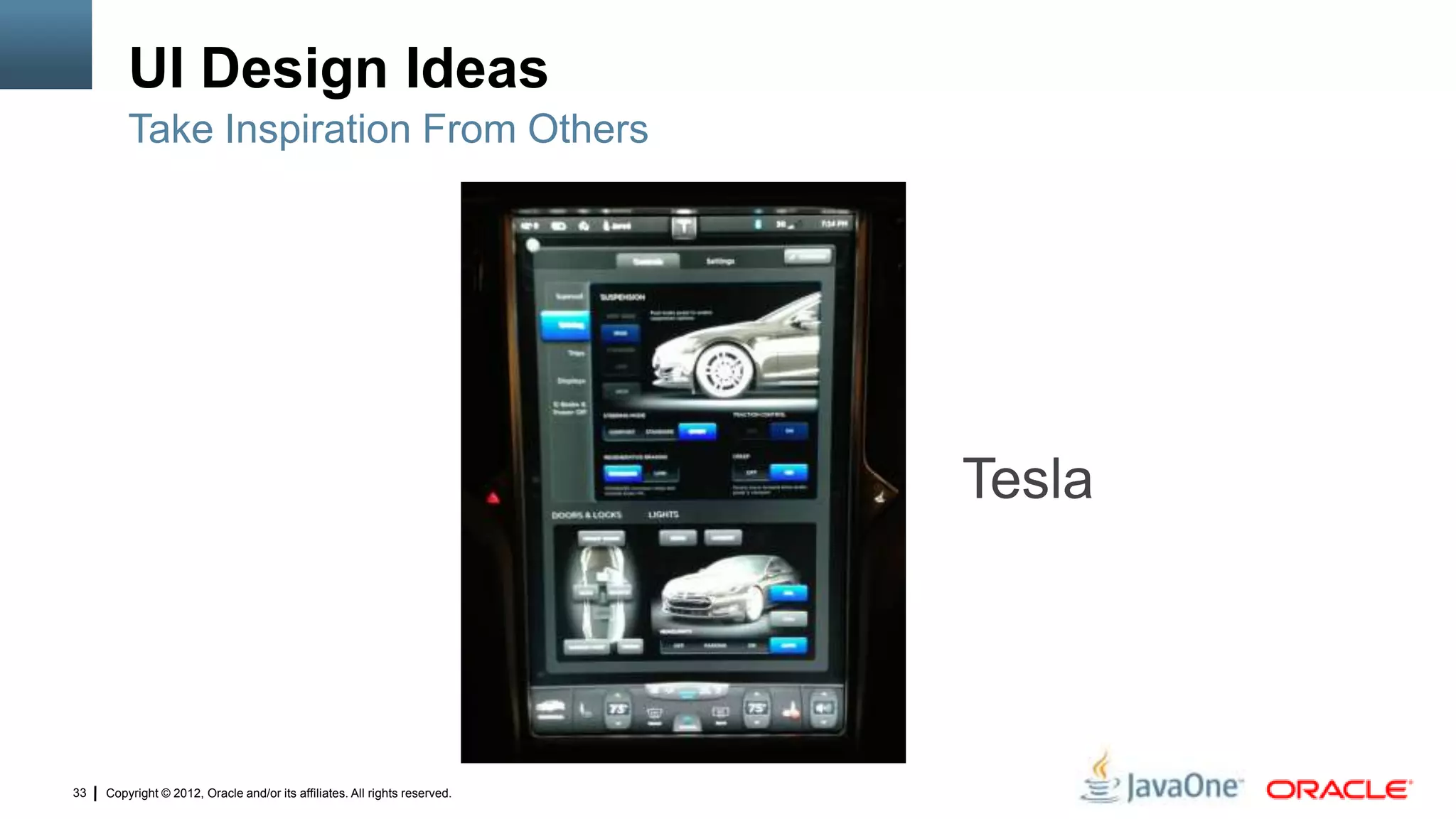

Tesla

UI Design Ideas

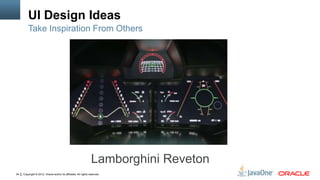

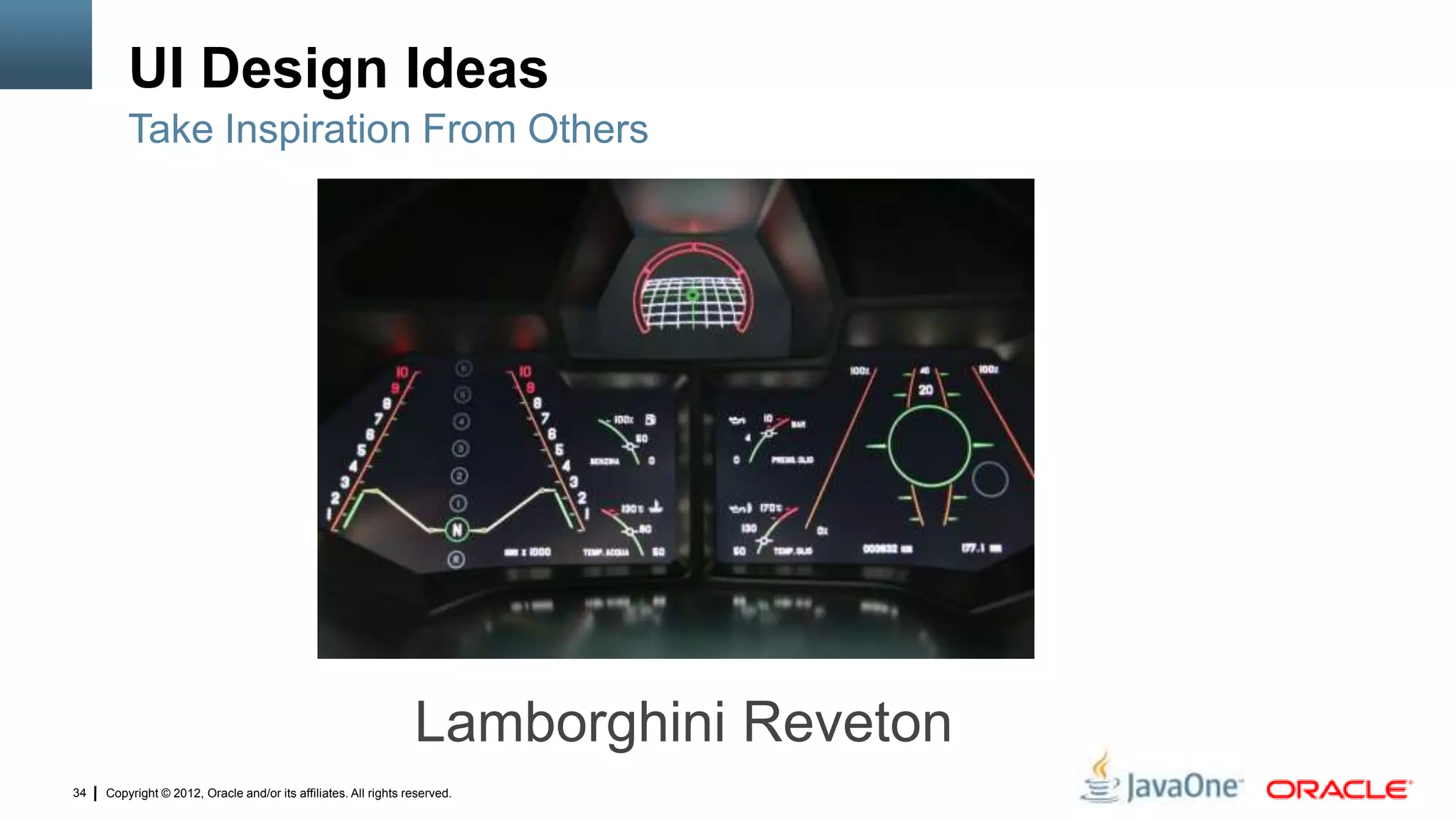

Lamborghini Reveton

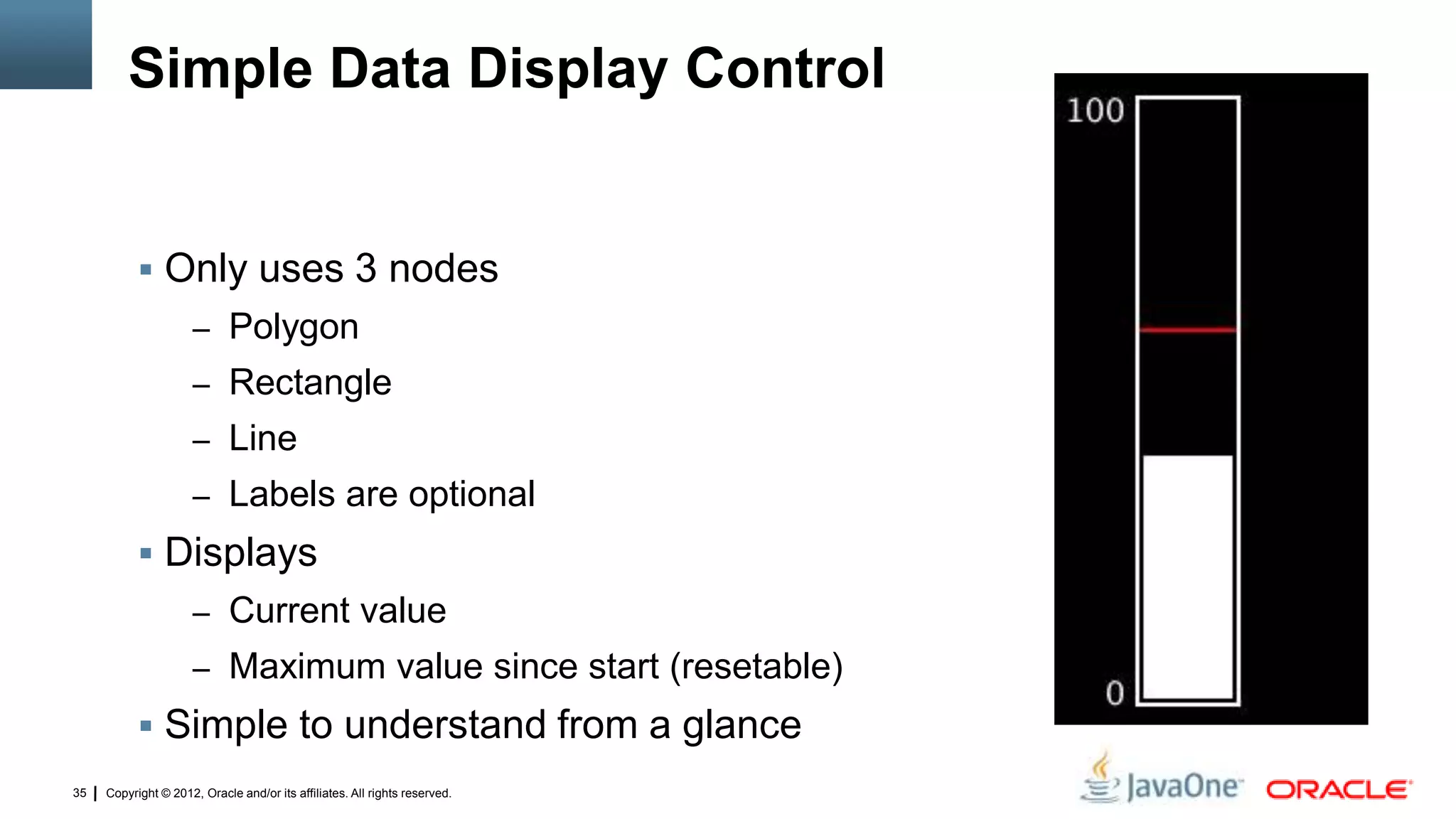

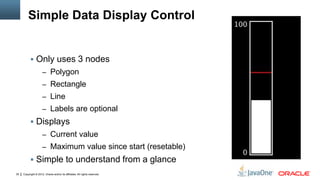

Simple Data Display Control
 Only uses 3 nodes
– Polygon
– Rectangle
– Line
– Labels are optional
 Displays
– Current value
– Maximum value since start (resetable)
 Simple to understand from a glance

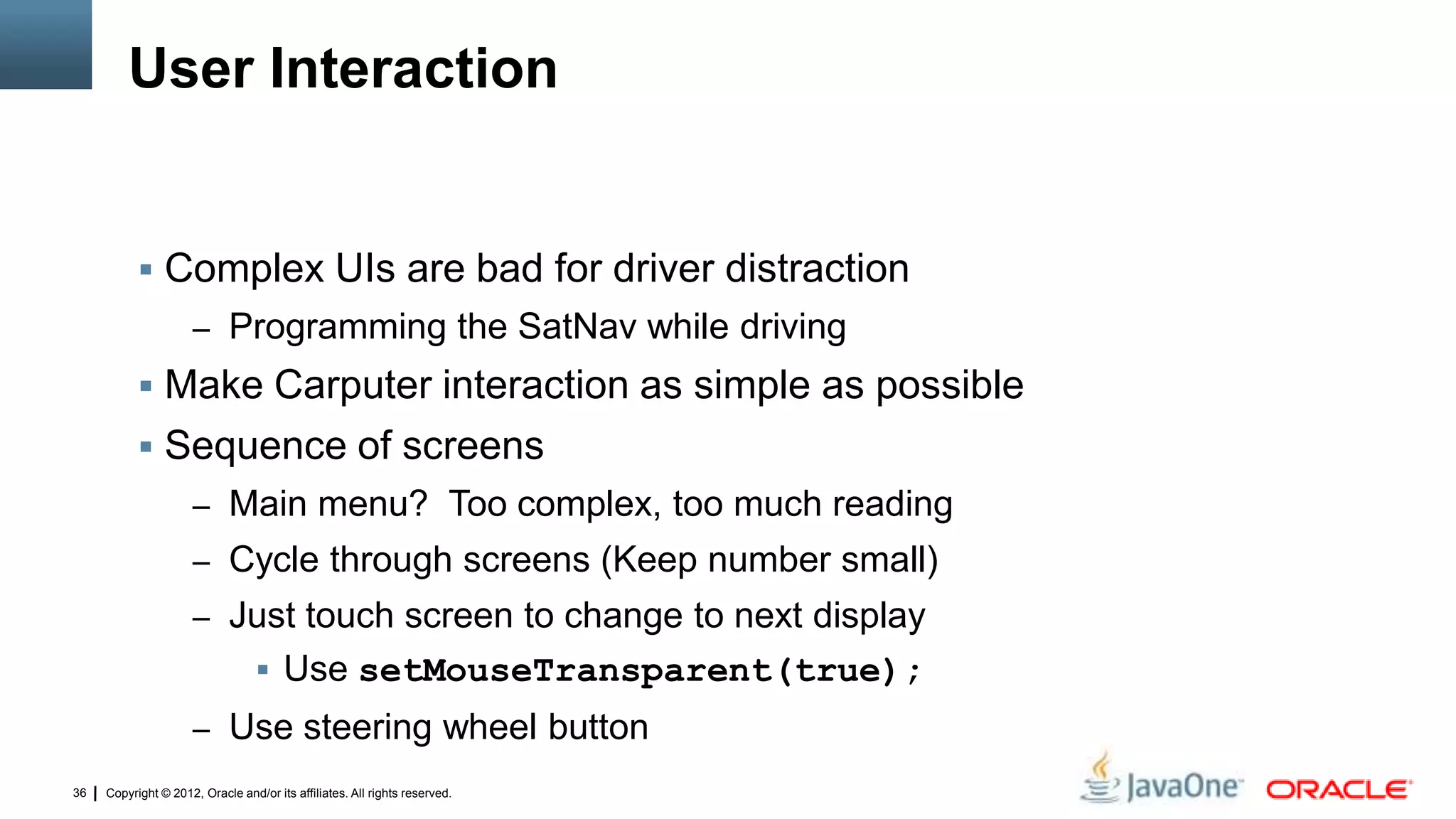

User Interaction
 Complex UIs are bad for driver distraction
– Programming the SatNav while driving
 Make Carputer interaction as simple as possible
 Sequence of screens
– Main menu? Too complex, too much reading
– Cycle through screens (Keep number small)
– Just touch screen to change to next display
 Use setMouseTransparent(true);
– Use steering wheel button

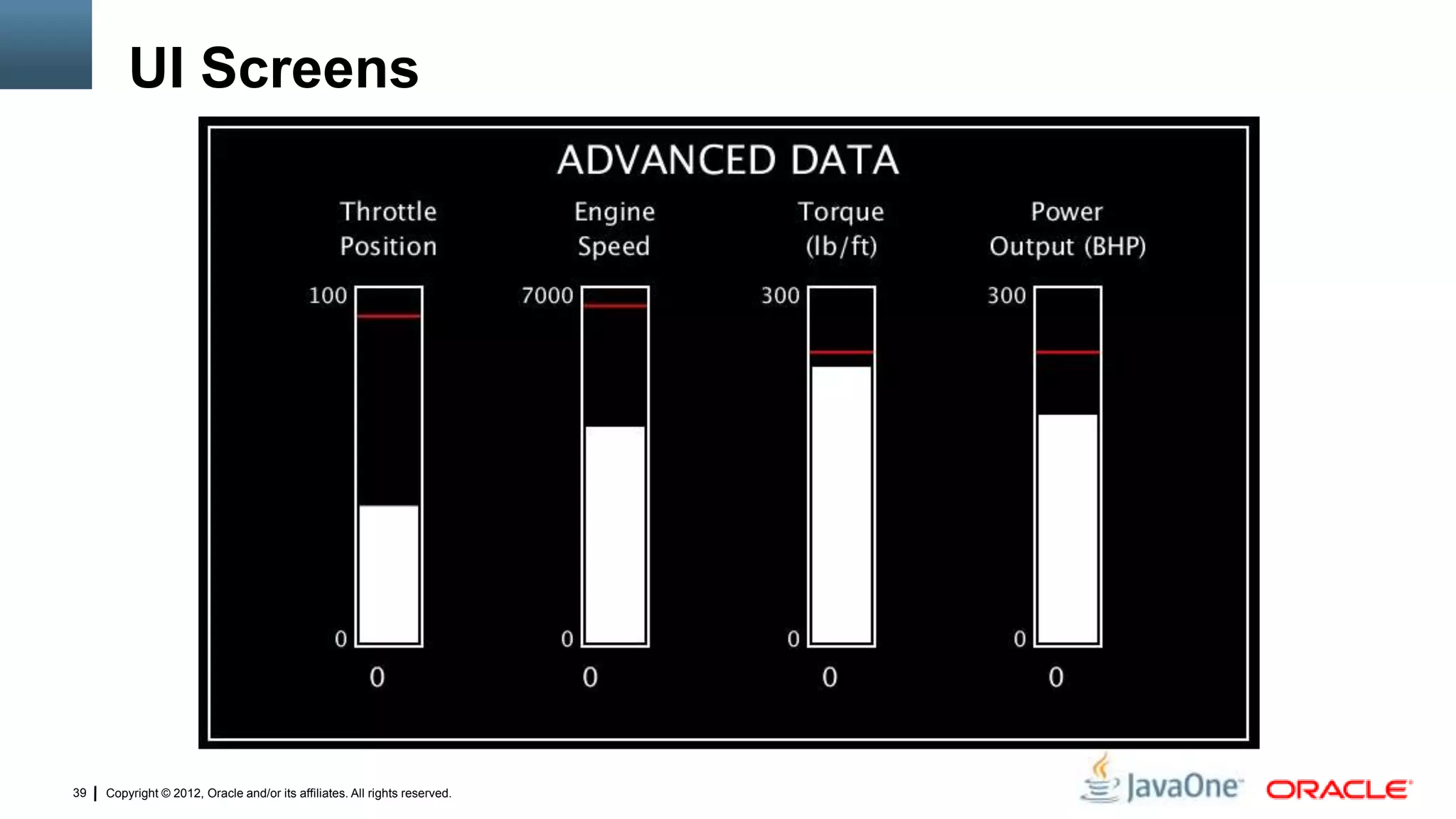

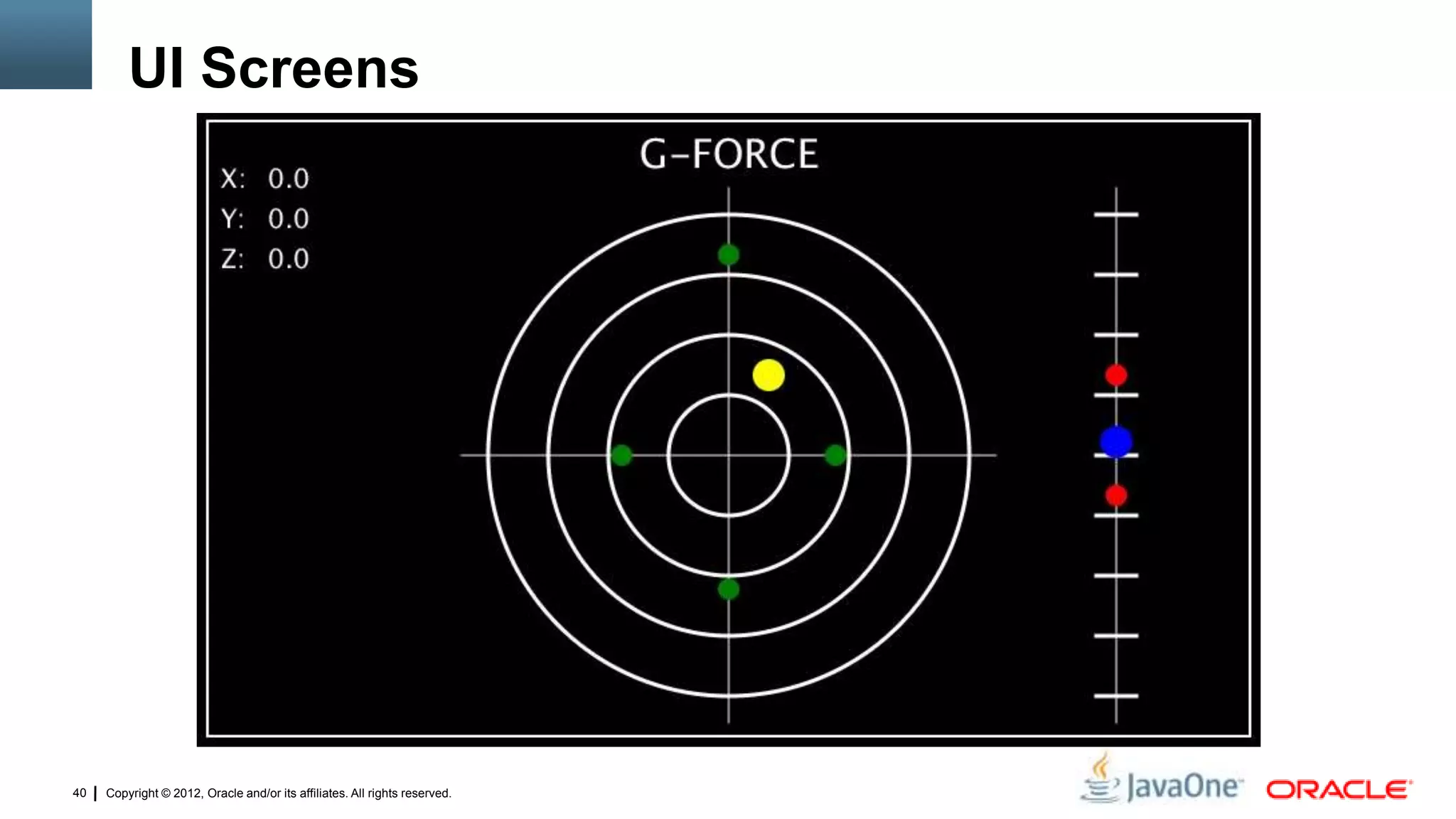

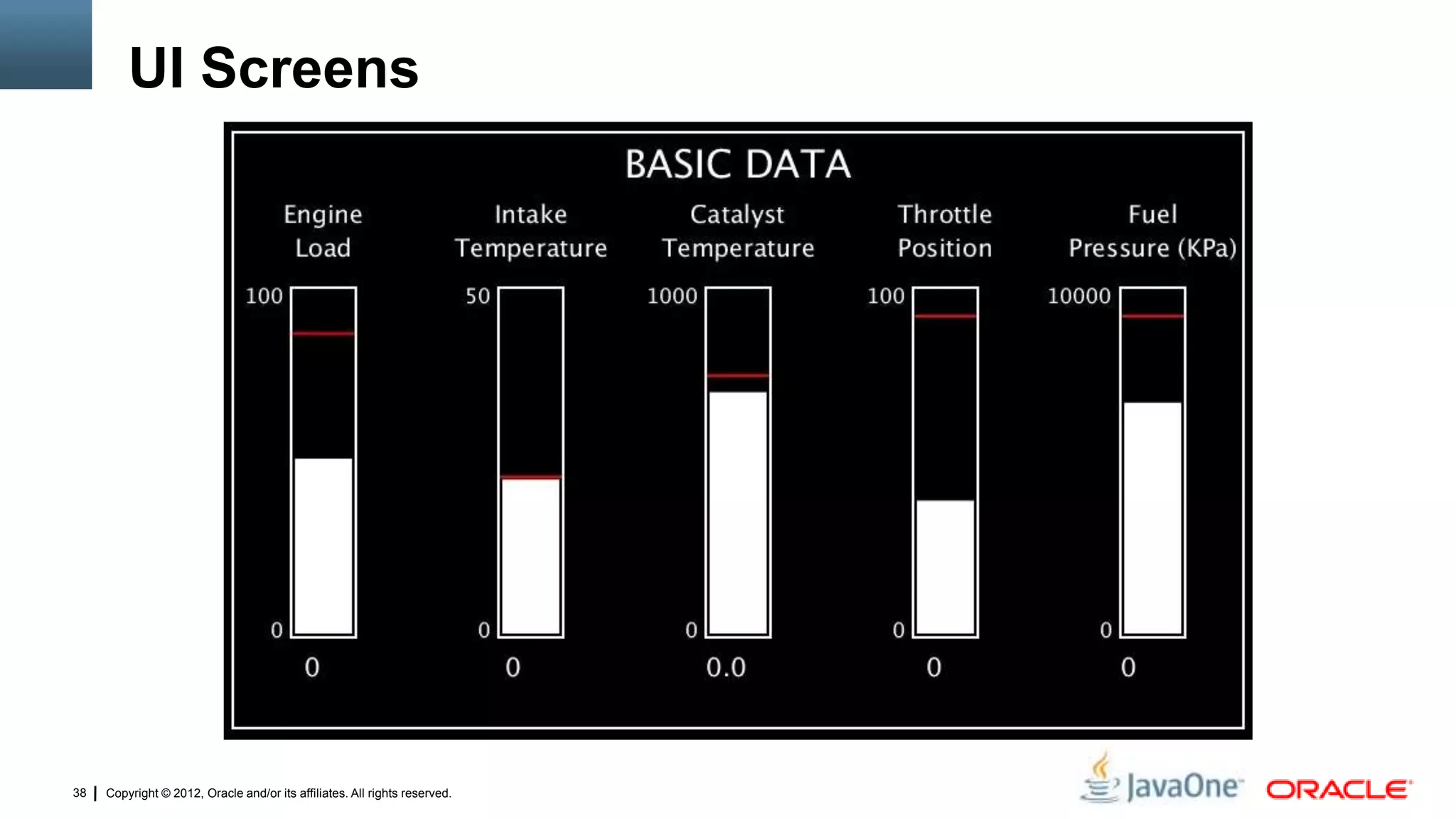

UI Screens

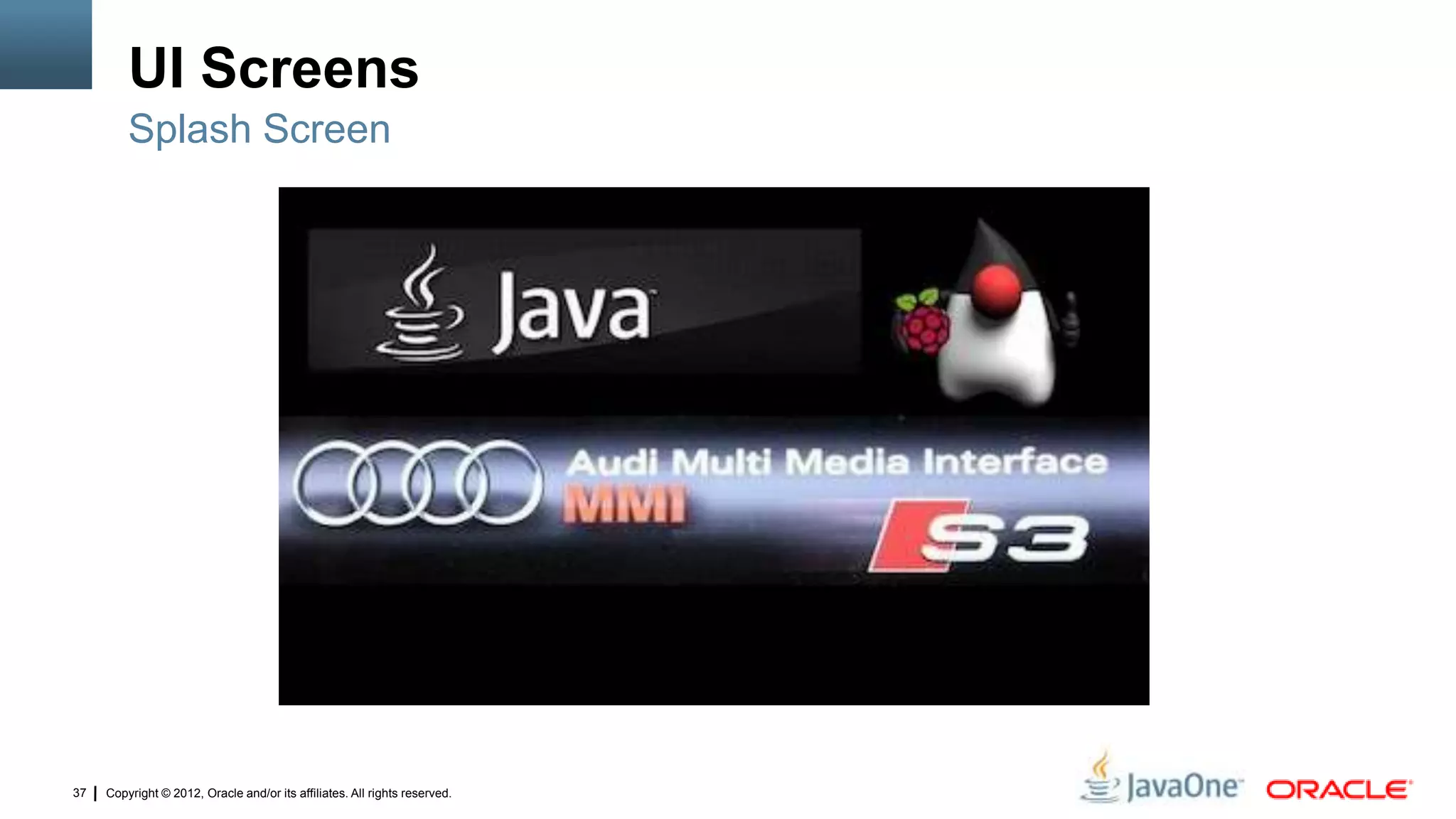

Splash Screen

UI Screens

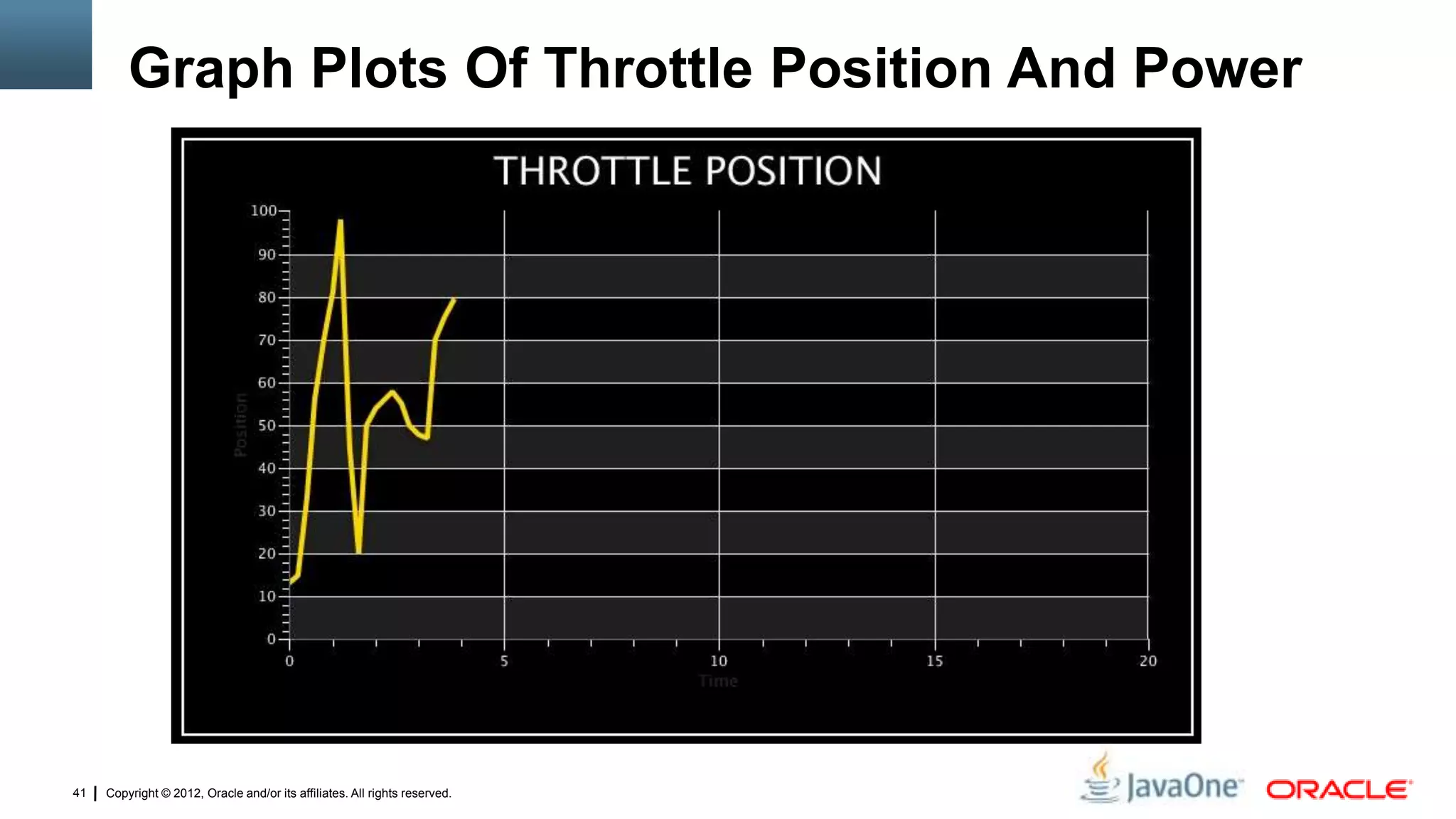

Graph Plots Of Throttle Position And Power

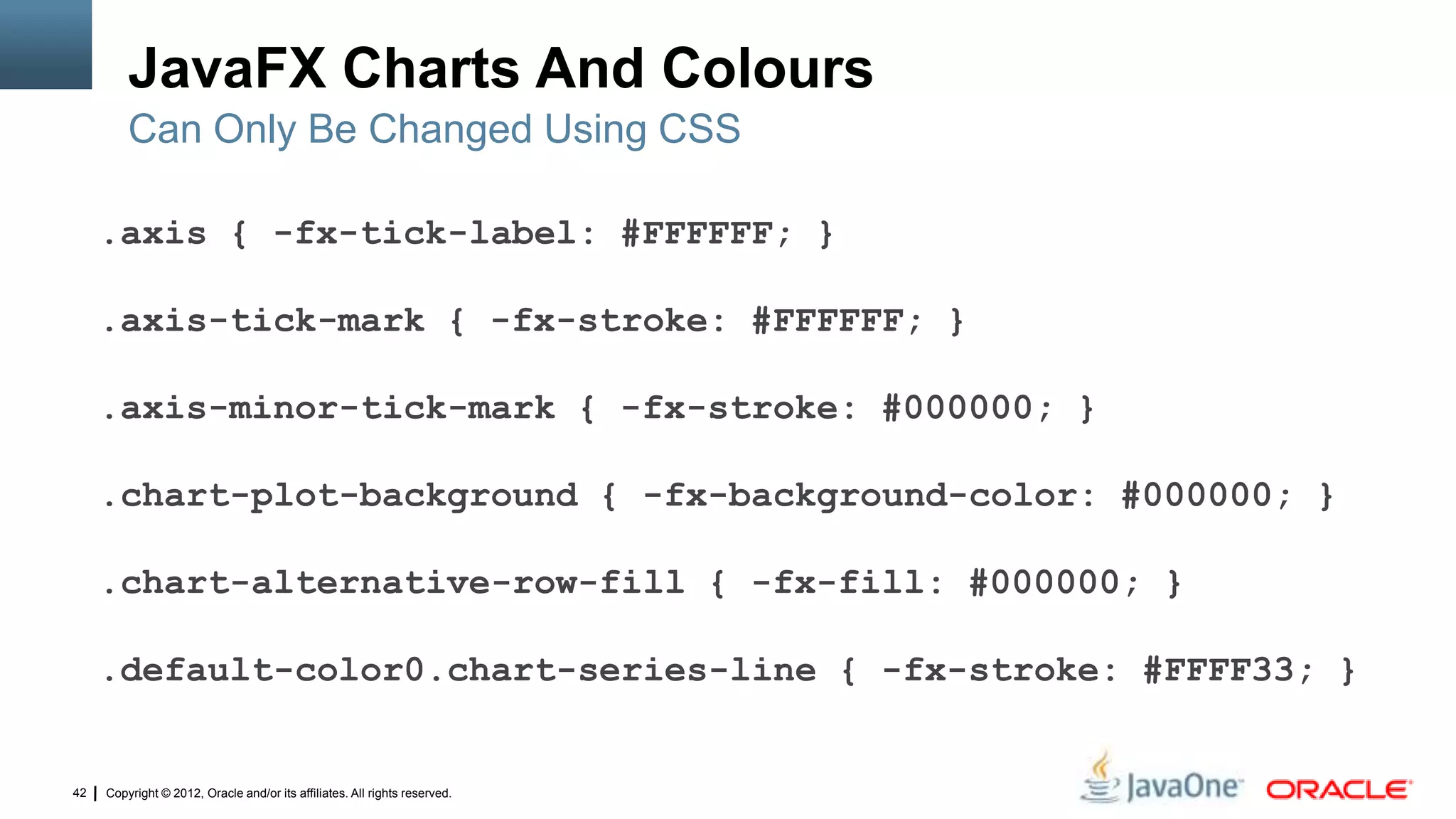

JavaFX Charts And Colours
Can Only Be Changed Using CSS
.axis { -fx-tick-label: #FFFFFF; }
.axis-tick-mark { -fx-stroke: #FFFFFF; }
.axis-minor-tick-mark { -fx-stroke: #000000; }
.chart-plot-background { -fx-background-color: #000000; }
.chart-alternative-row-fill { -fx-fill: #000000; }
.default-color0.chart-series-line { -fx-stroke: #FFFF33; }

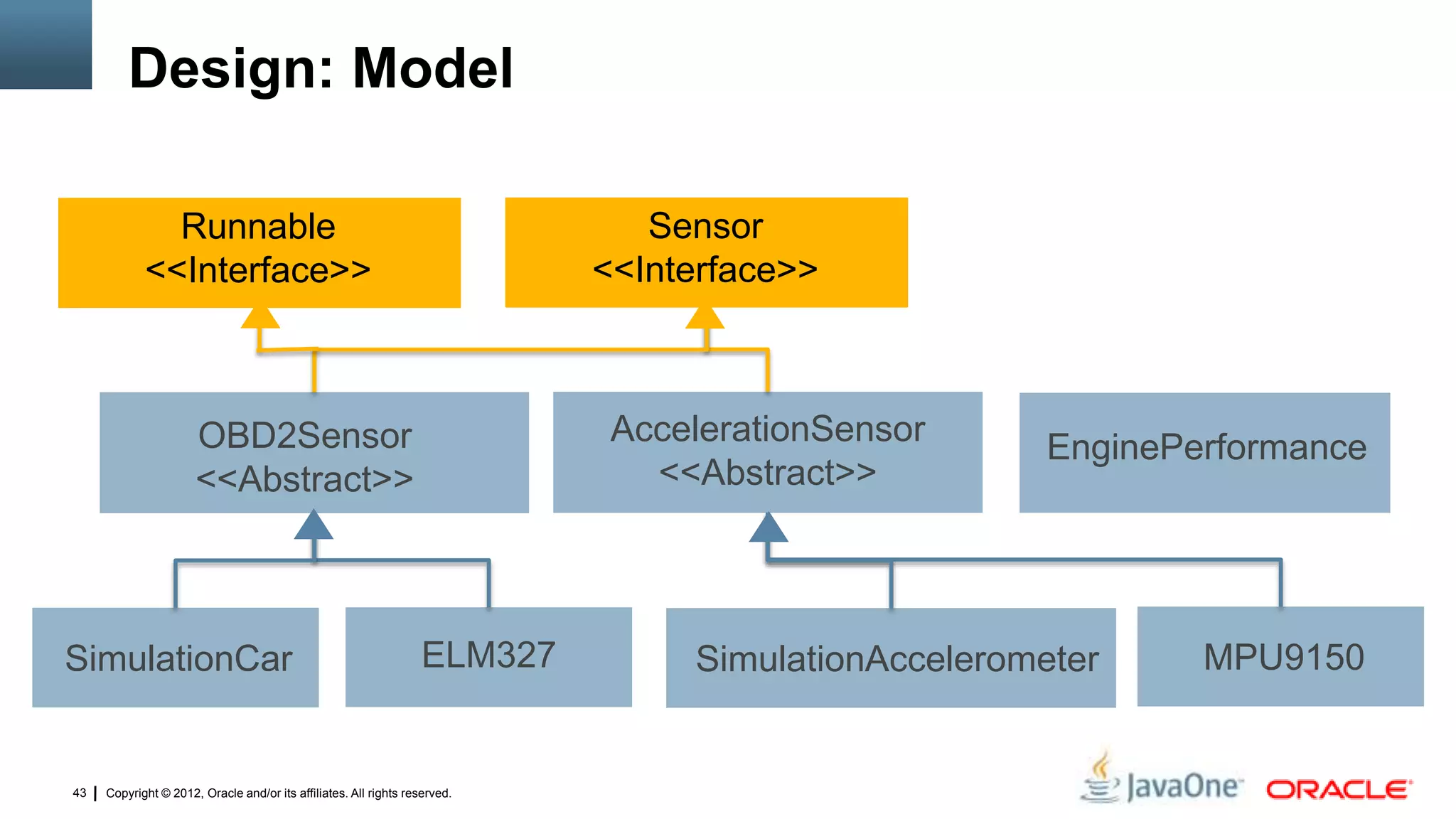

Design: Model
Sensor
<<Interface>>
Runnable
<<Interface>>
AccelerationSensor
<<Abstract>>
OBD2Sensor
<<Abstract>>
ELM327SimulationCar SimulationAccelerometer MPU9150
EnginePerformance

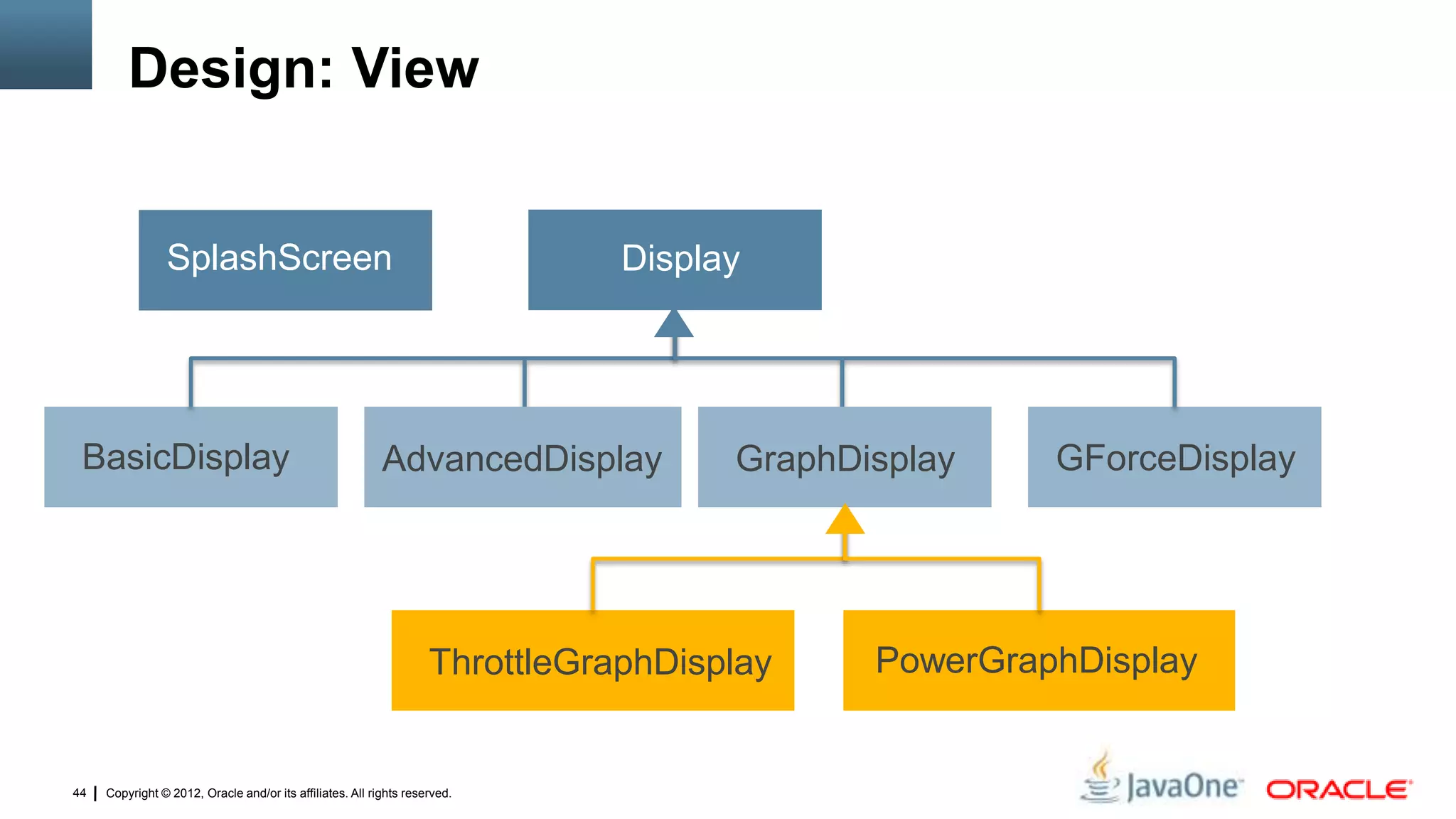

Design: View
Display
BasicDisplay AdvancedDisplay GraphDisplay GForceDisplay
ThrottleGraphDisplay PowerGraphDisplay
SplashScreen

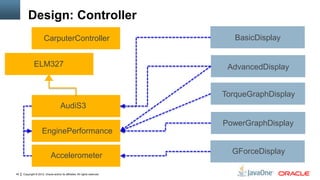

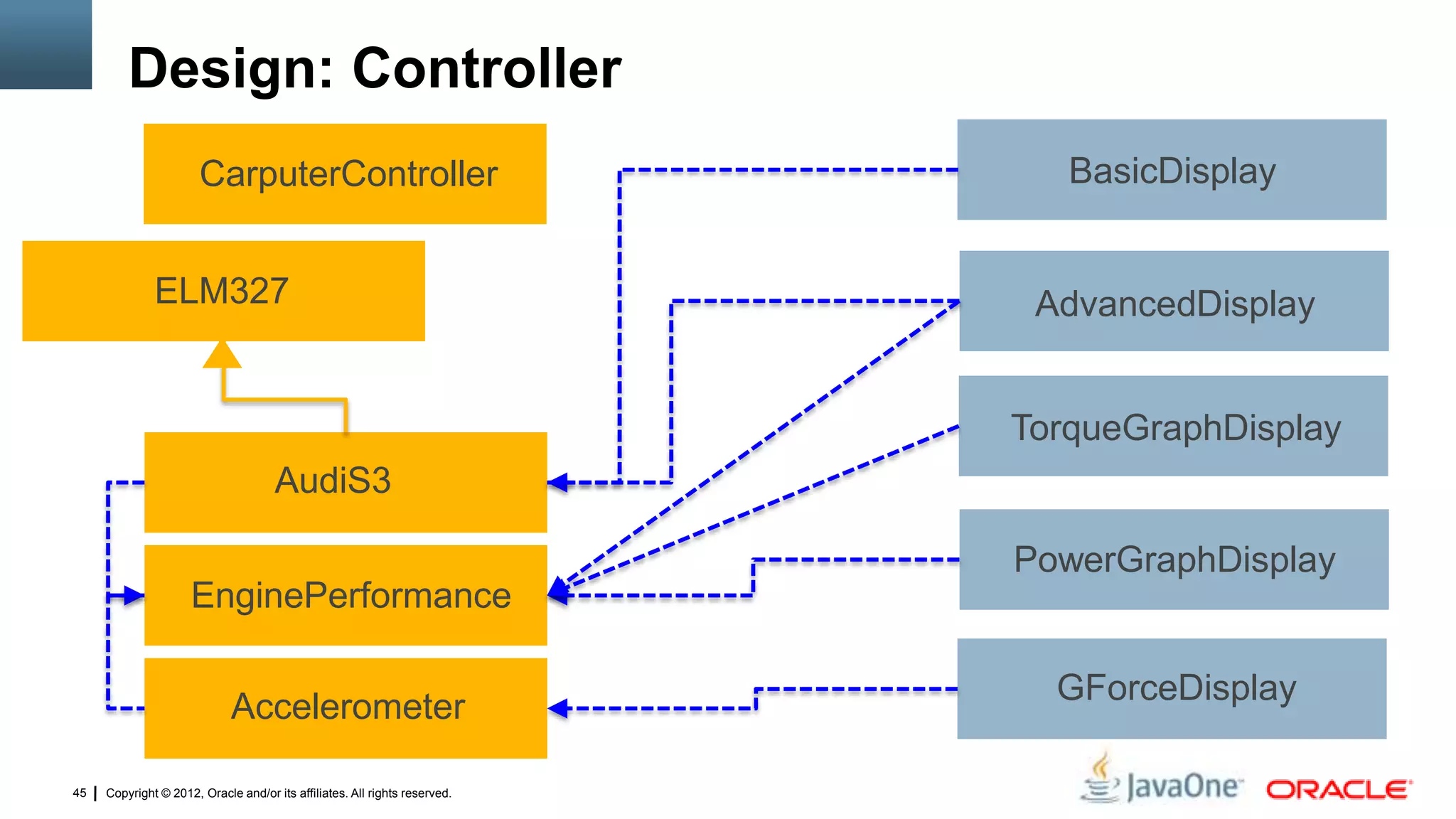

Design: Controller
BasicDisplay
AdvancedDisplay
TorqueGraphDisplay
GForceDisplay
CarputerController
Accelerometer
AudiS3
ELM327
EnginePerformance
PowerGraphDisplay

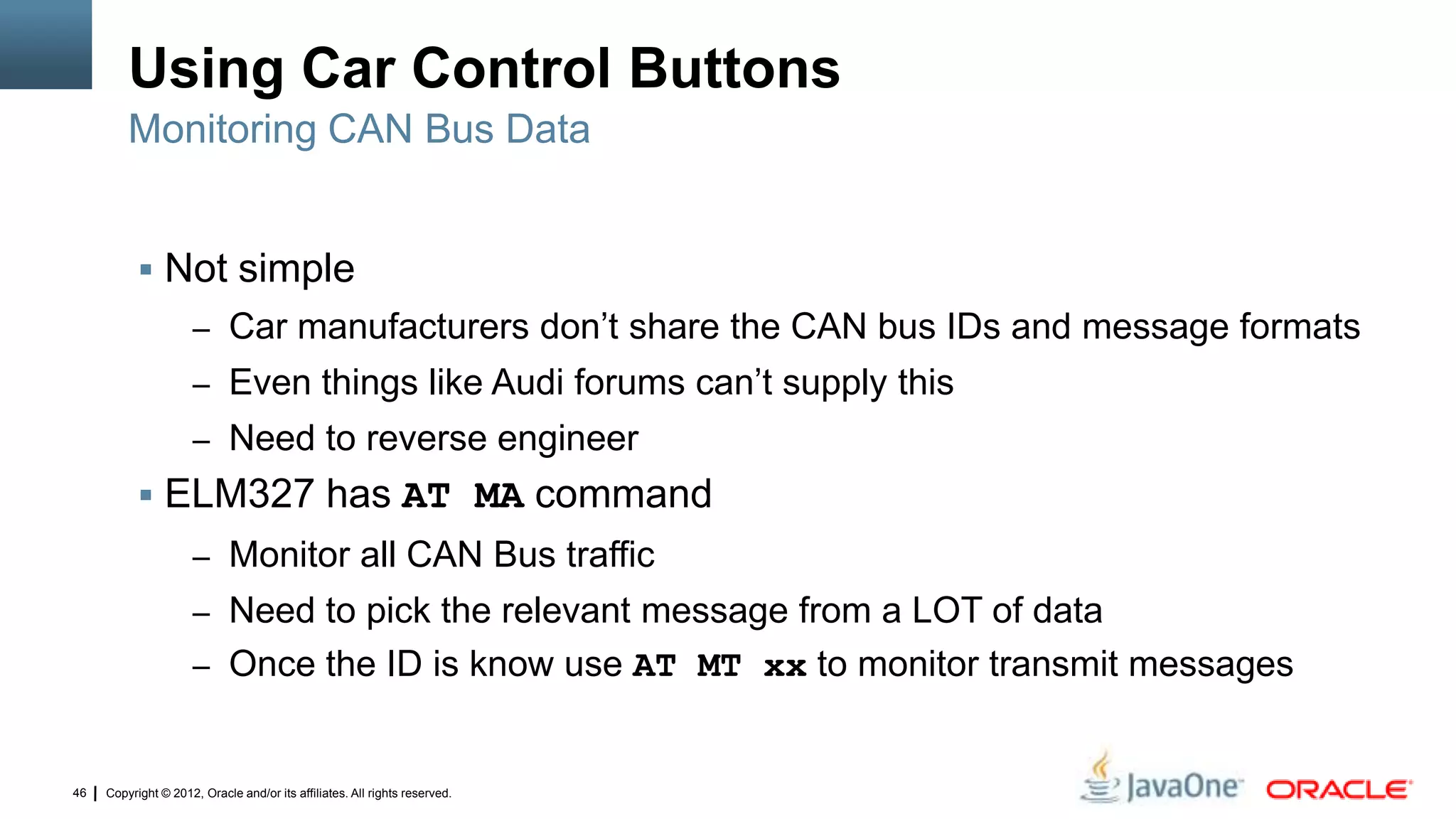

Using Car Control Buttons
 Not simple
– Car manufacturers don’t share the CAN bus IDs and message formats
– Even things like Audi forums can’t supply this
– Need to reverse engineer
 ELM327 has AT MA command
– Monitor all CAN Bus traffic
– Need to pick the relevant message from a LOT of data
– Once the ID is know use AT MT xx to monitor transmit messages
Monitoring CAN Bus Data

Future Ideas, Conclusions
and Resources

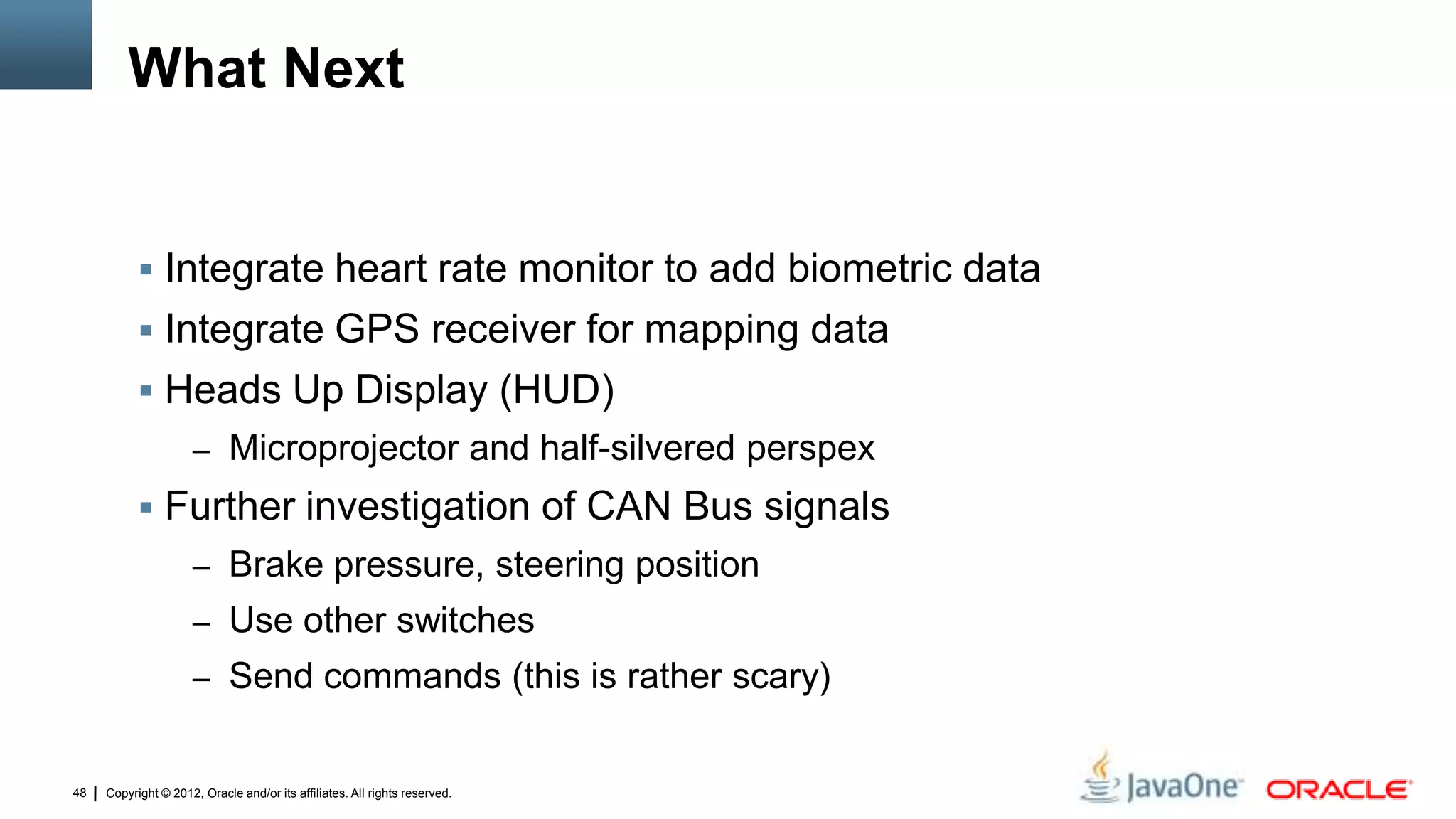

What Next
 Integrate heart rate monitor to add biometric data
 Integrate GPS receiver for mapping data
 Heads Up Display (HUD)
– Microprojector and half-silvered perspex
 Further investigation of CAN Bus signals
– Brake pressure, steering position
– Use other switches
– Send commands (this is rather scary)

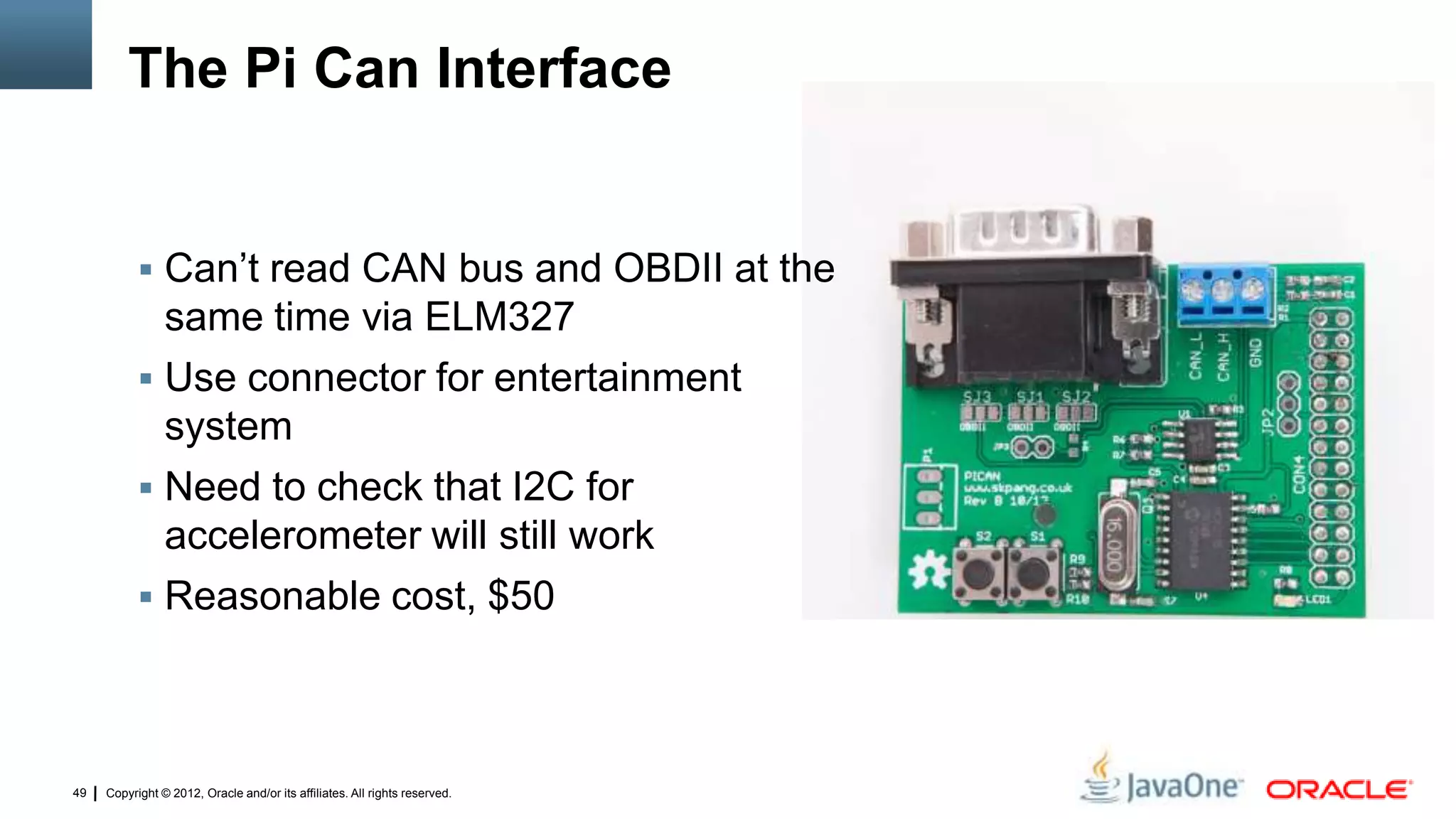

The Pi Can Interface
 Can’t read CAN bus and OBDII at the
same time via ELM327
 Use connector for entertainment
system
 Need to check that I2C for
accelerometer will still work
 Reasonable cost, $50

Resources
 www.audi.com
 www.raspberrypi.org
 javafx.oracle.com
 blogs.oracle.com/speakjava

Demos

Graphic Section Divider

The Raspberry Pi JavaFX Carputer
