Understanding The MVVM Pattern (TechDays Belgium)
- 2. Understanding the MVVM pattern LaurentBugnion Senior User Experience Integrator IdentityMine http://[blog|www].galasoft.ch

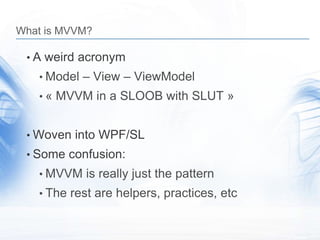

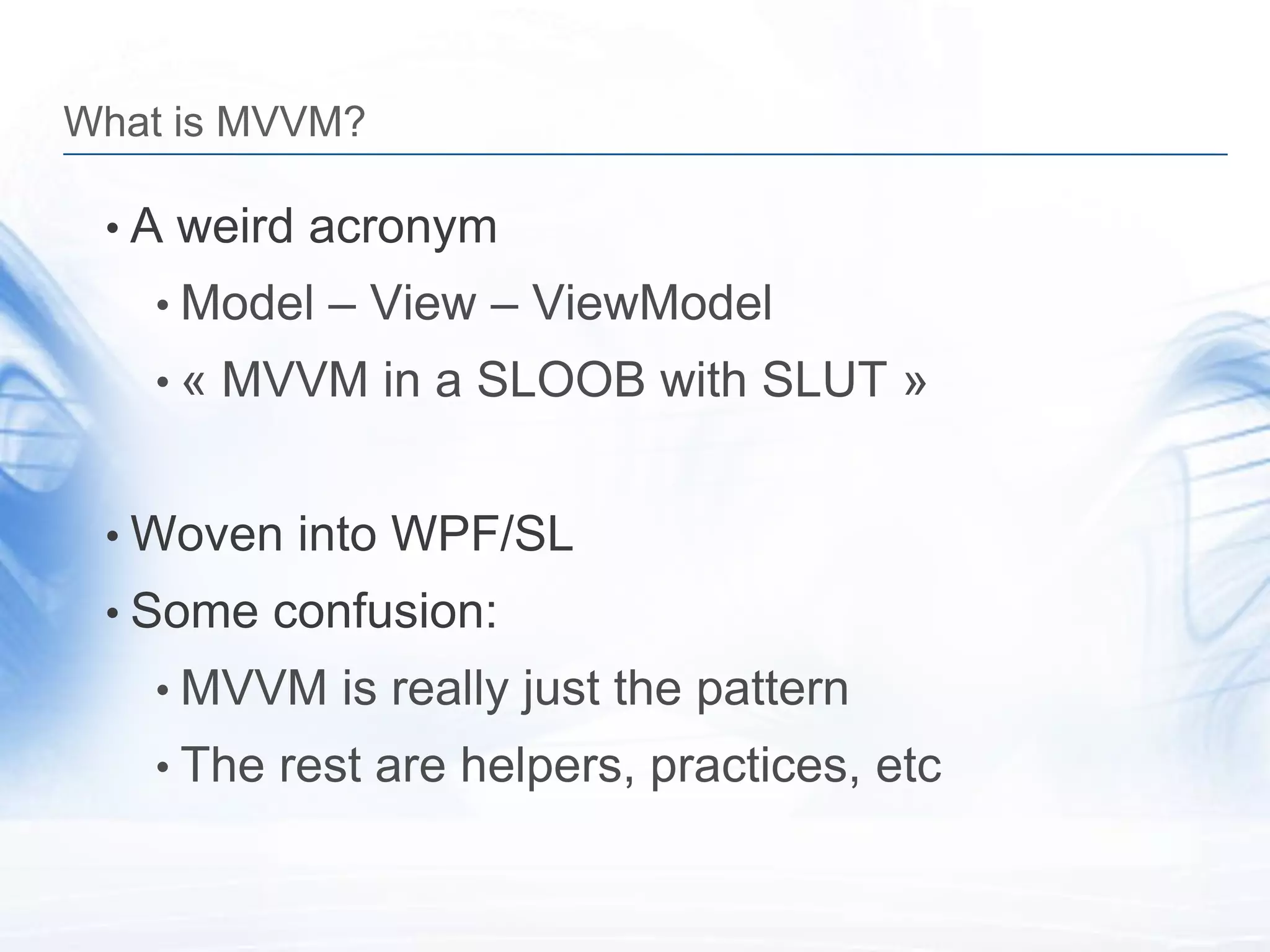

- 3. What is MVVM? • A weird acronym • Model – View – ViewModel • « MVVM in a SLOOB with SLUT » • Woven into WPF/SL • Some confusion: • MVVM is really just the pattern • The rest are helpers, practices, etc

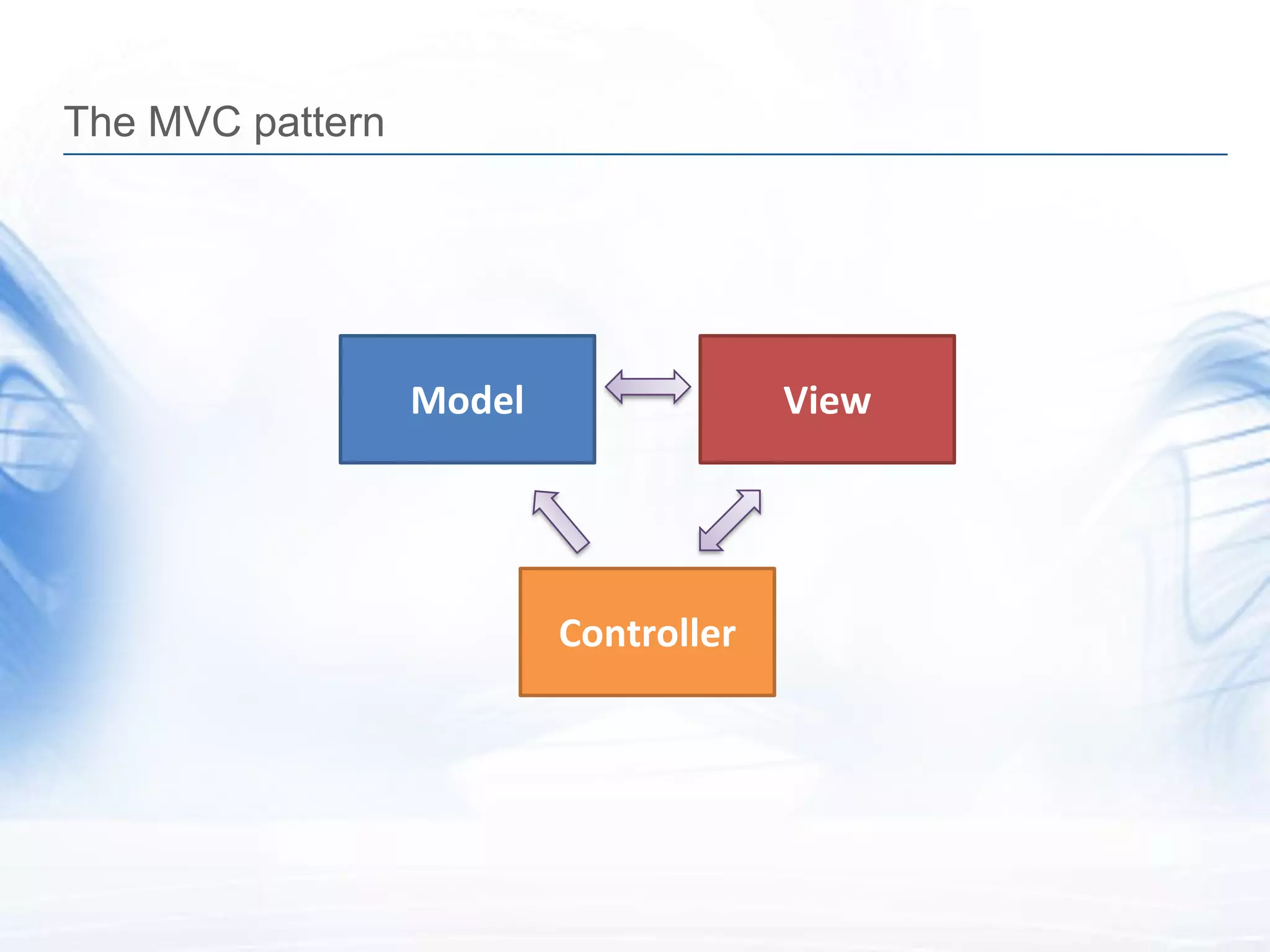

- 4. The MVC pattern Model View Controller

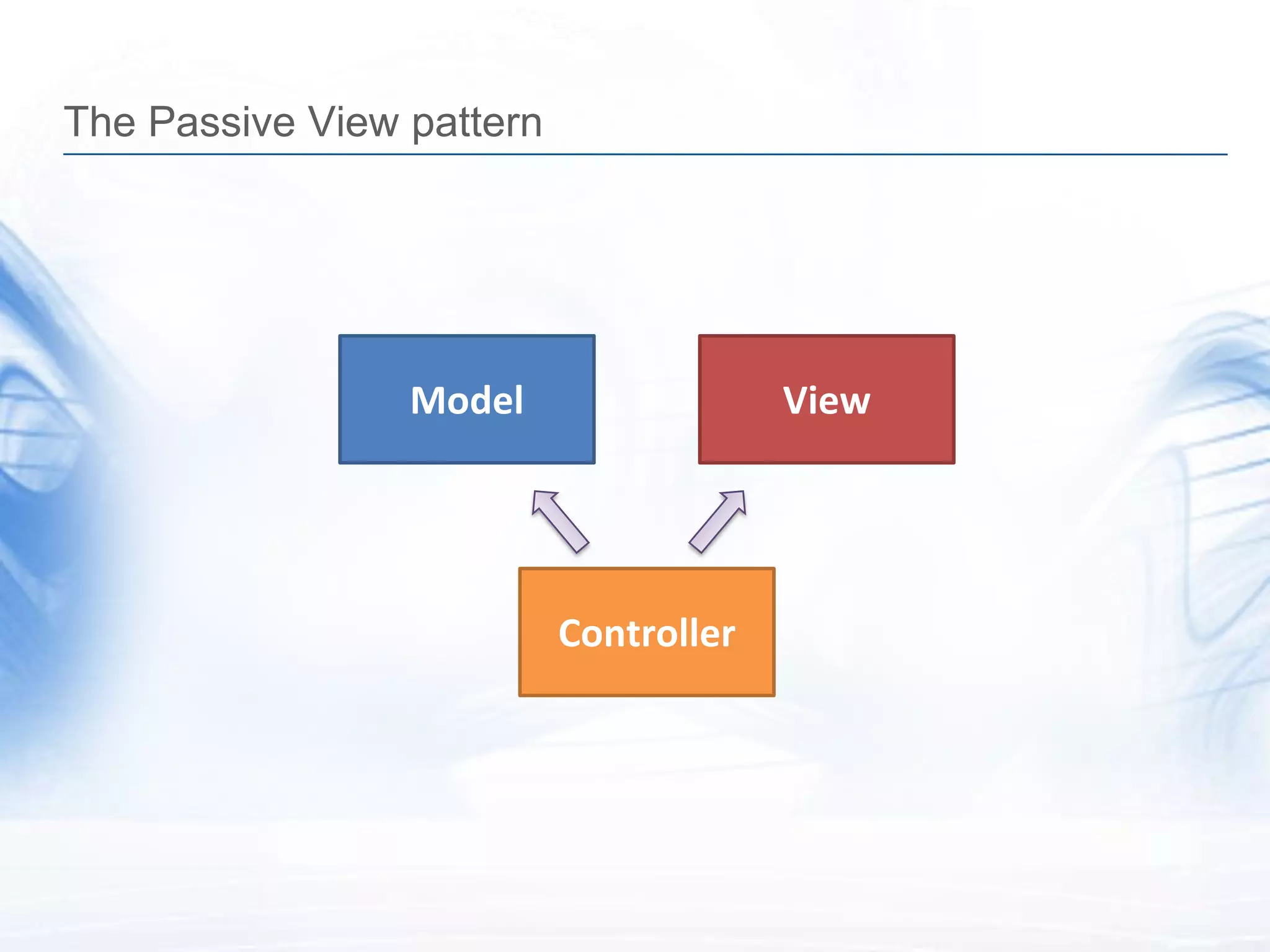

- 5. The Passive Viewpattern Model View Controller

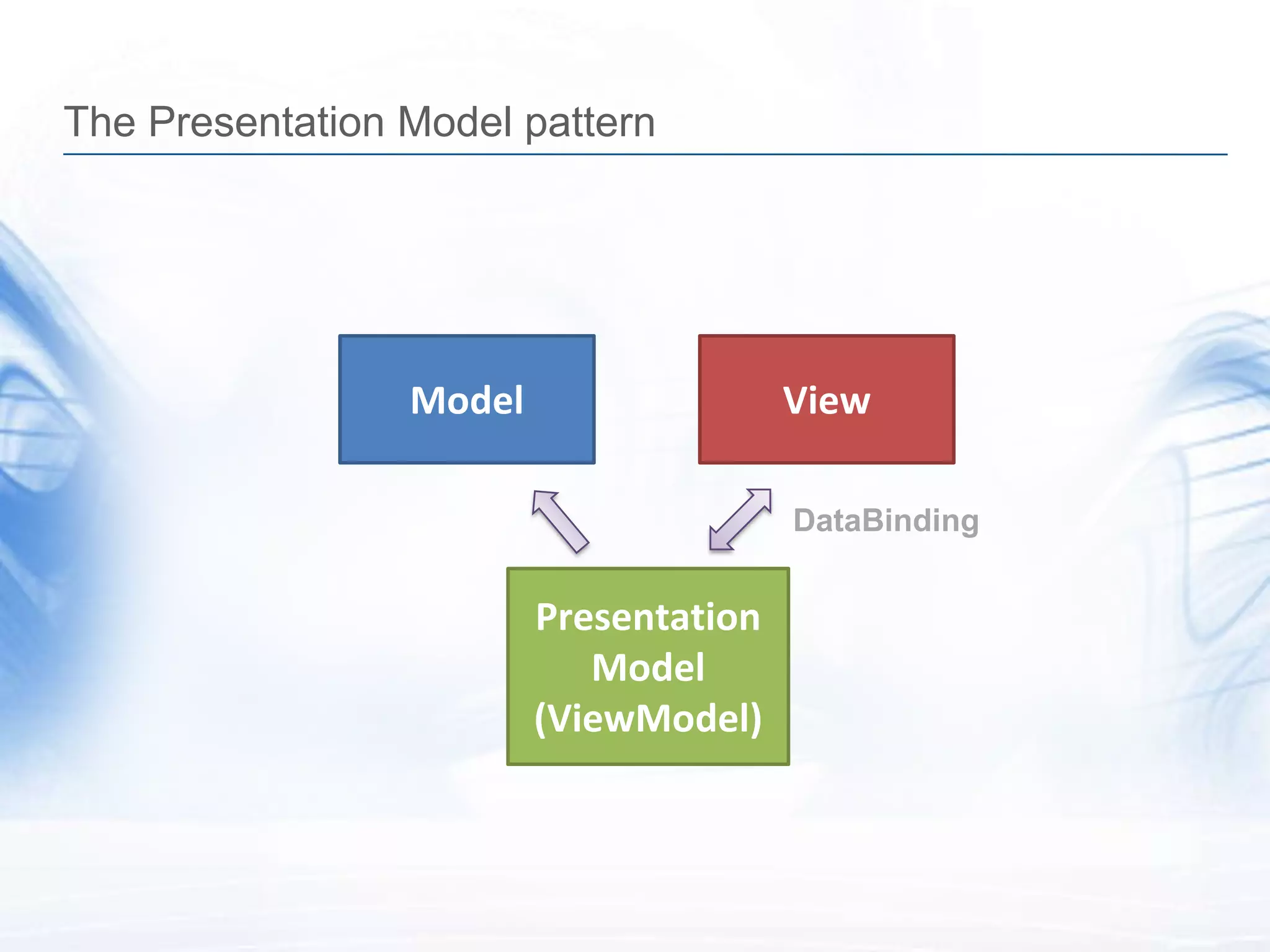

- 6. The Presentation Modelpattern Model View DataBinding Presentation Model (ViewModel)

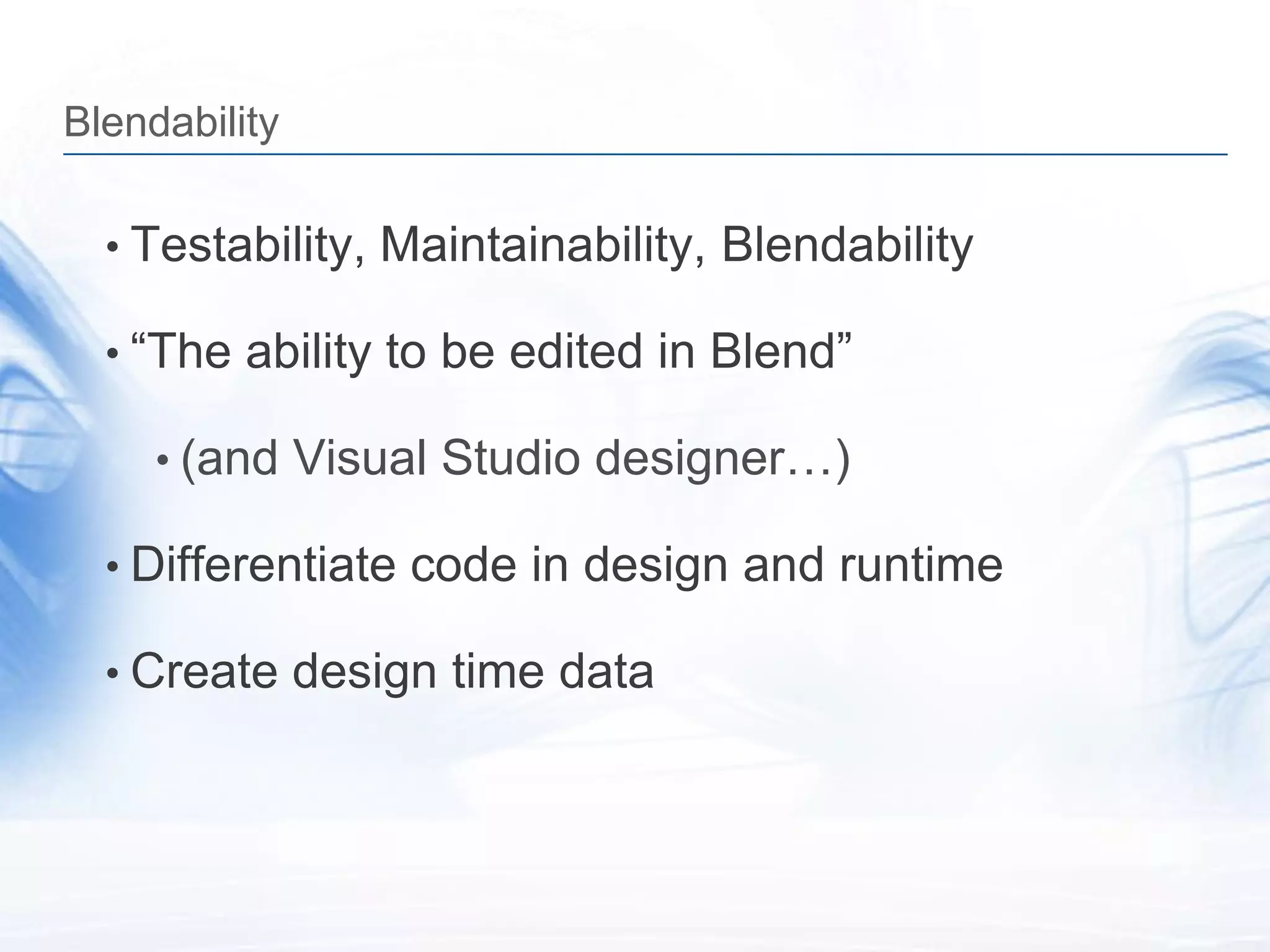

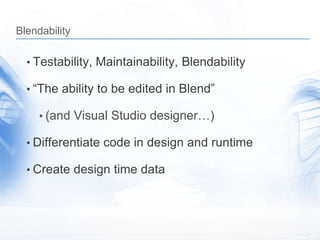

- 7. Blendability •Testability, Maintainability, Blendability • “The ability to be edited in Blend” • (and Visual Studio designer…) • Differentiate code in design and runtime • Create design time data
- 8. Hello MVVM (andHi Blend)

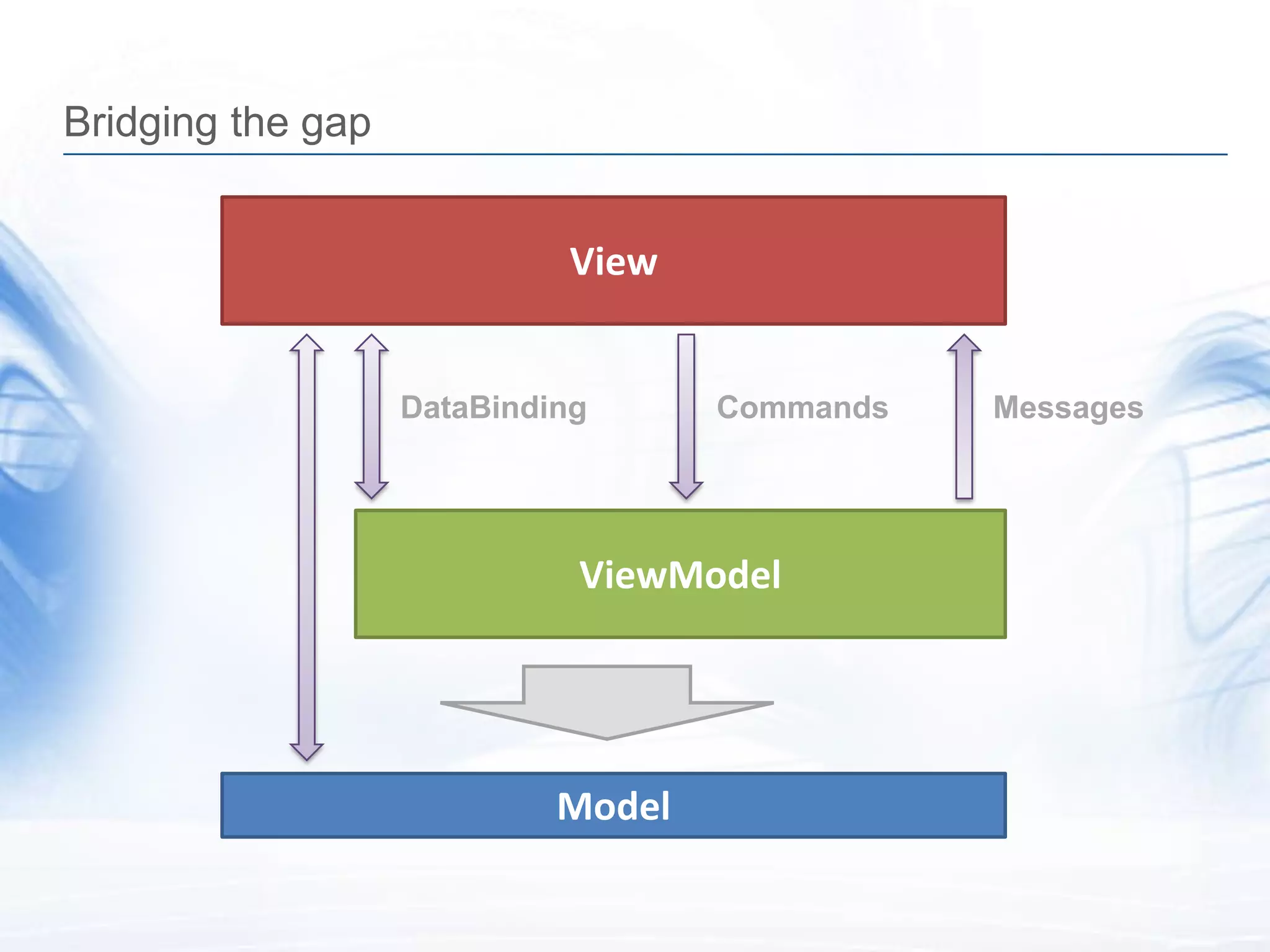

- 9. Bridging the gap View DataBinding Commands Messages ViewModel Model

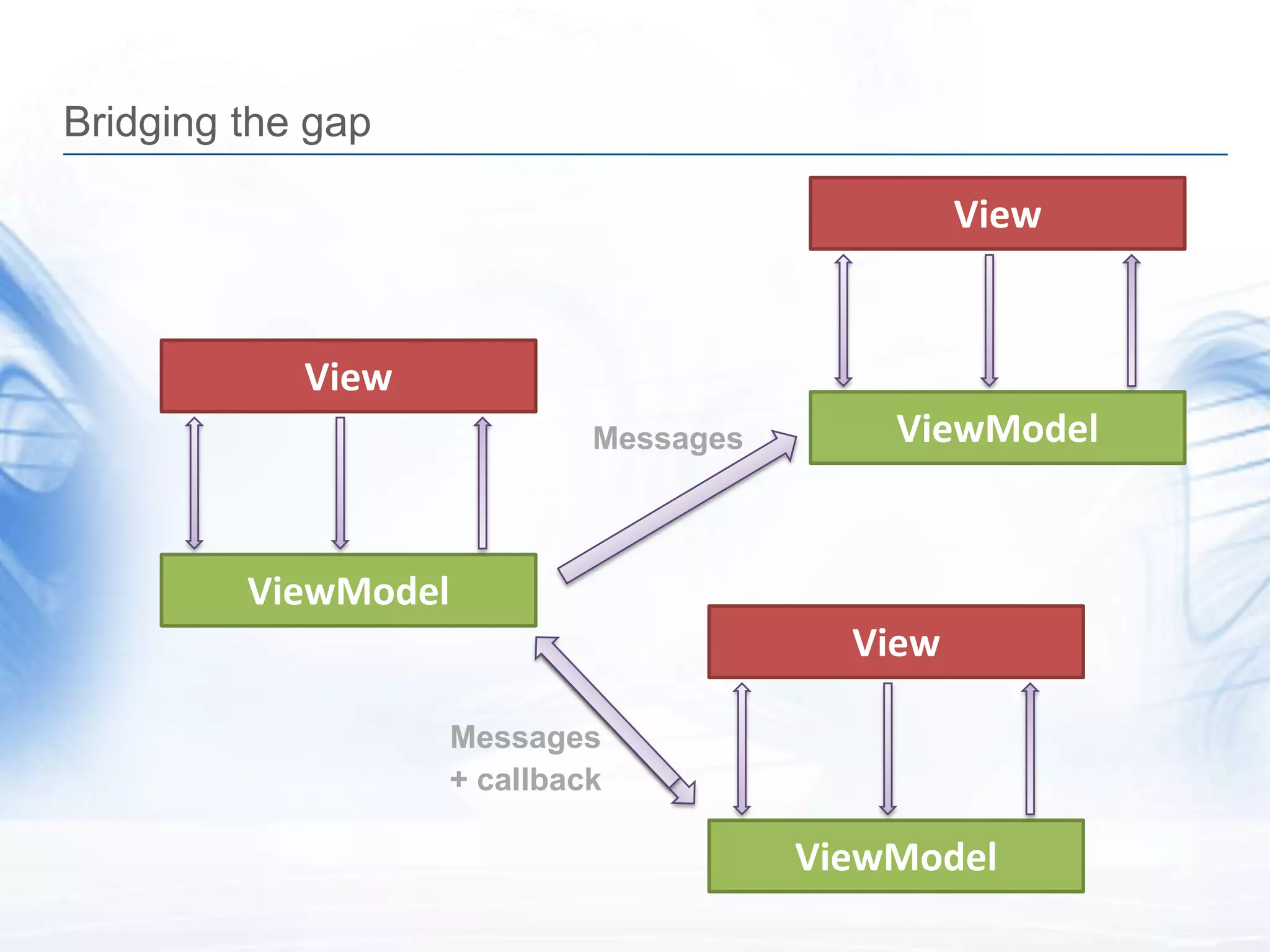

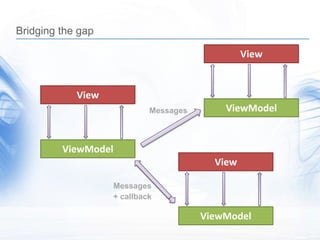

- 10. Bridging the gap View View Messages ViewModel ViewModel View Messages + callback ViewModel

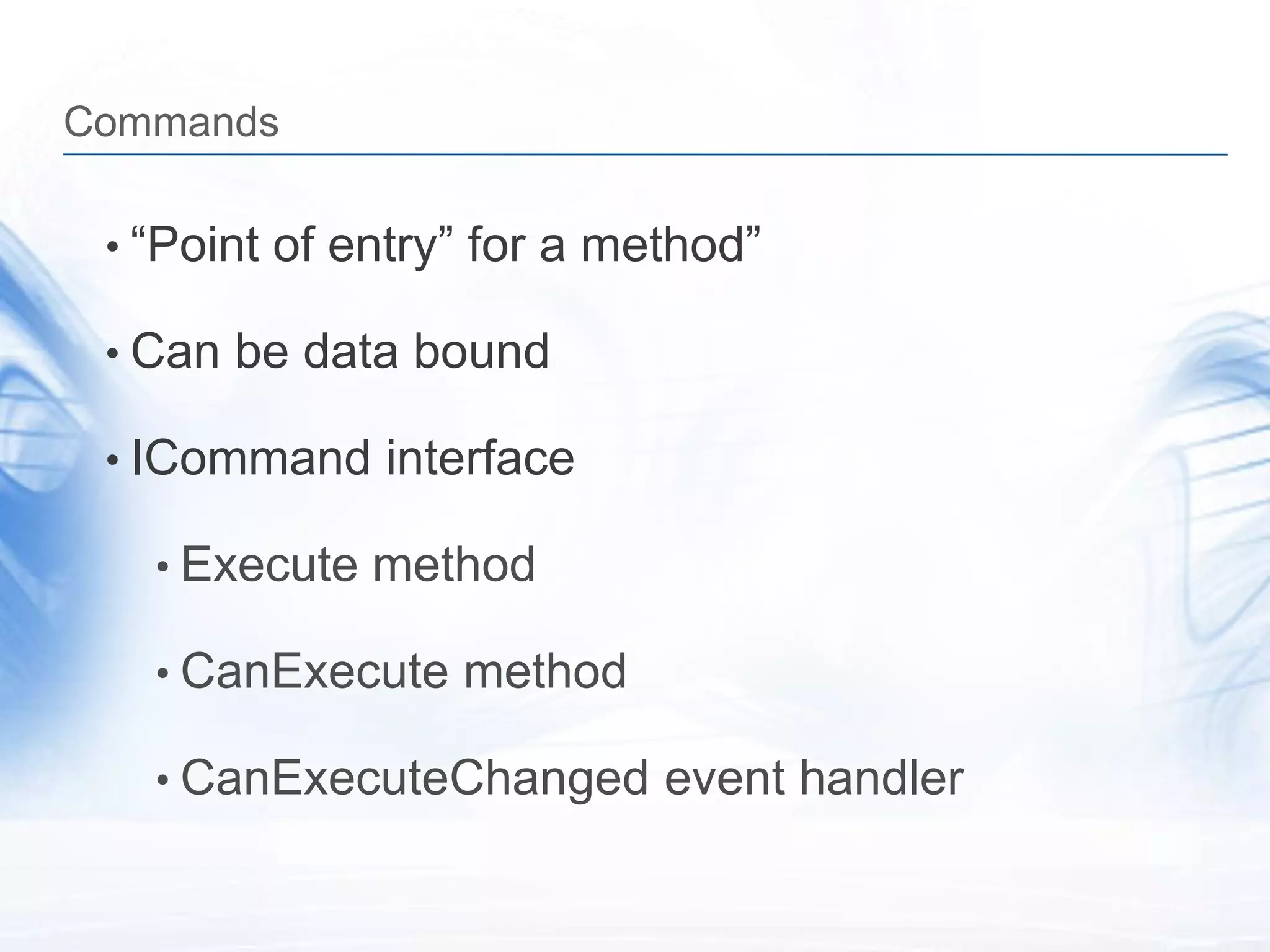

- 11. Commands • “Pointof entry” for a method” • Can be data bound • ICommand interface • Execute method • CanExecute method • CanExecuteChanged event handler
- 12.

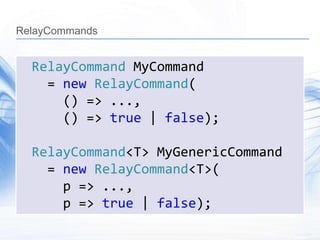

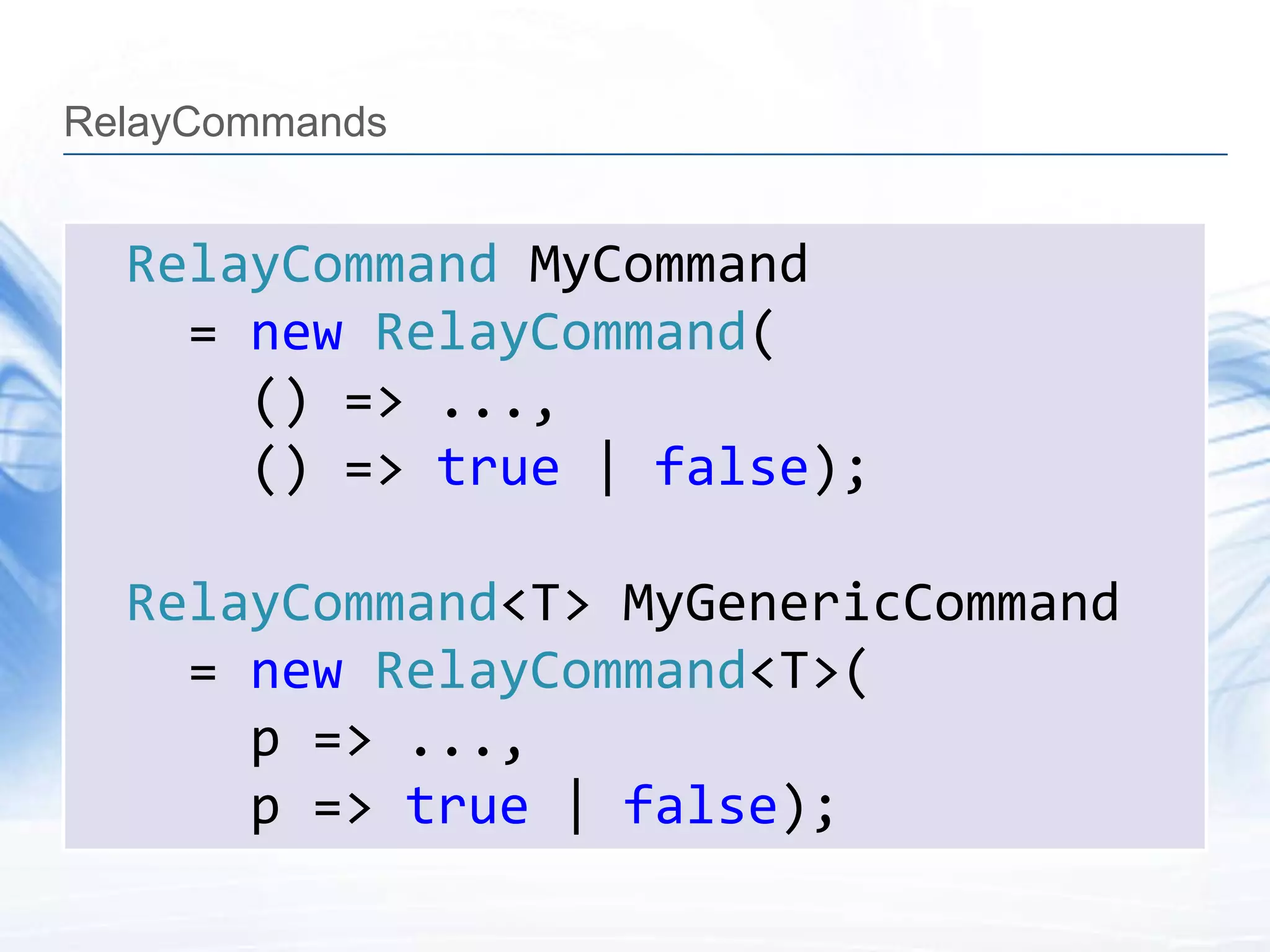

- 13. RelayCommands RelayCommandMyCommand = new RelayCommand( () => ..., () => true | false); RelayCommand<T> MyGenericCommand = new RelayCommand<T>( p => ..., p => true | false);

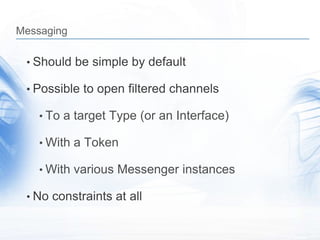

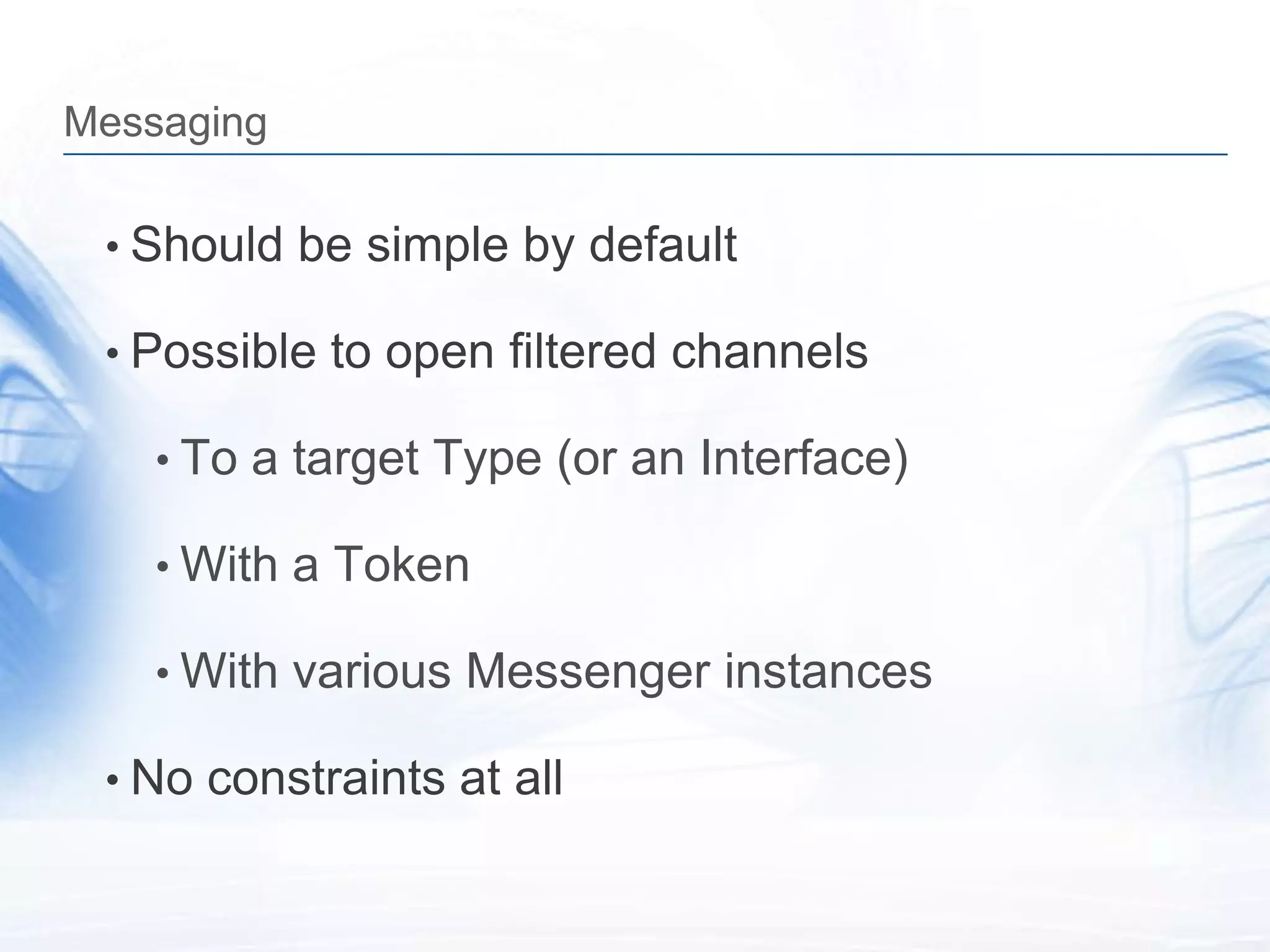

- 14. Messaging • Shouldbe simple by default • Possible to open filtered channels • To a target Type (or an Interface) • With a Token • With various Messenger instances • No constraints at all
- 15.

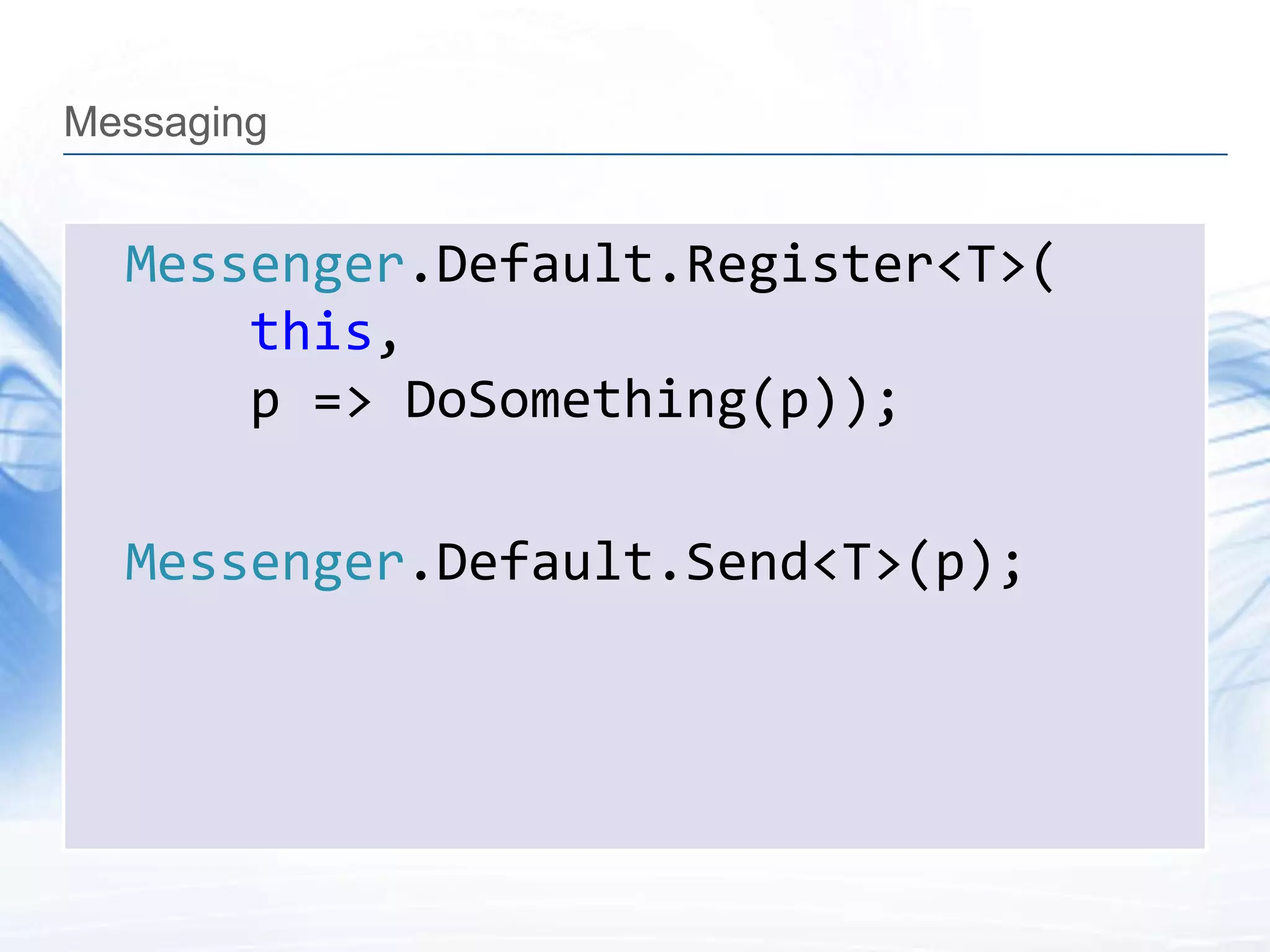

- 16. Messaging Messenger.Default.Register<T>( this, p => DoSomething(p)); Messenger.Default.Send<T>(p);

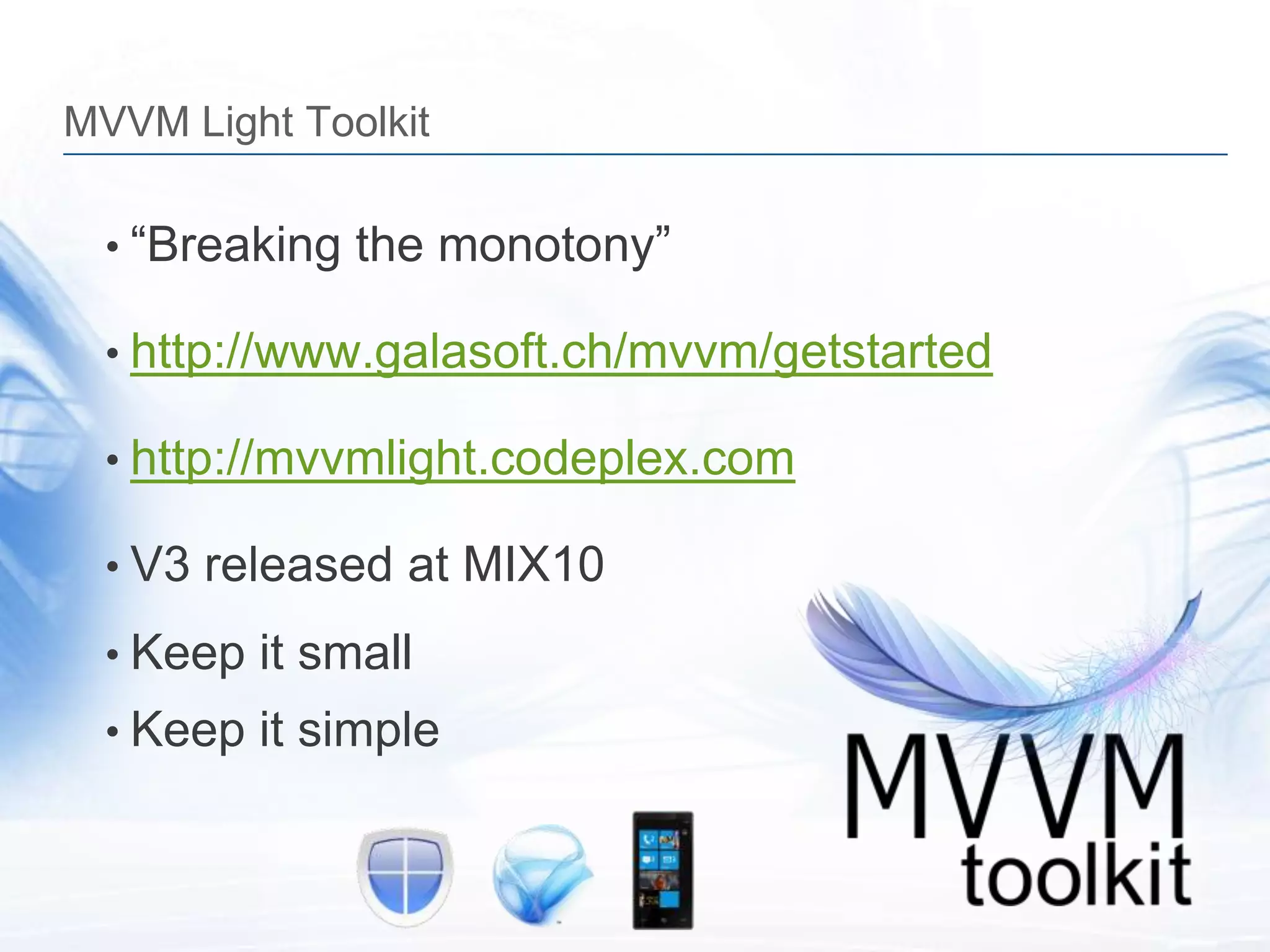

- 17. MVVM Light Toolkit • “Breaking the monotony” • http://www.galasoft.ch/mvvm/getstarted • http://mvvmlight.codeplex.com • V3 released at MIX10 • Keep it small • Keep it simple

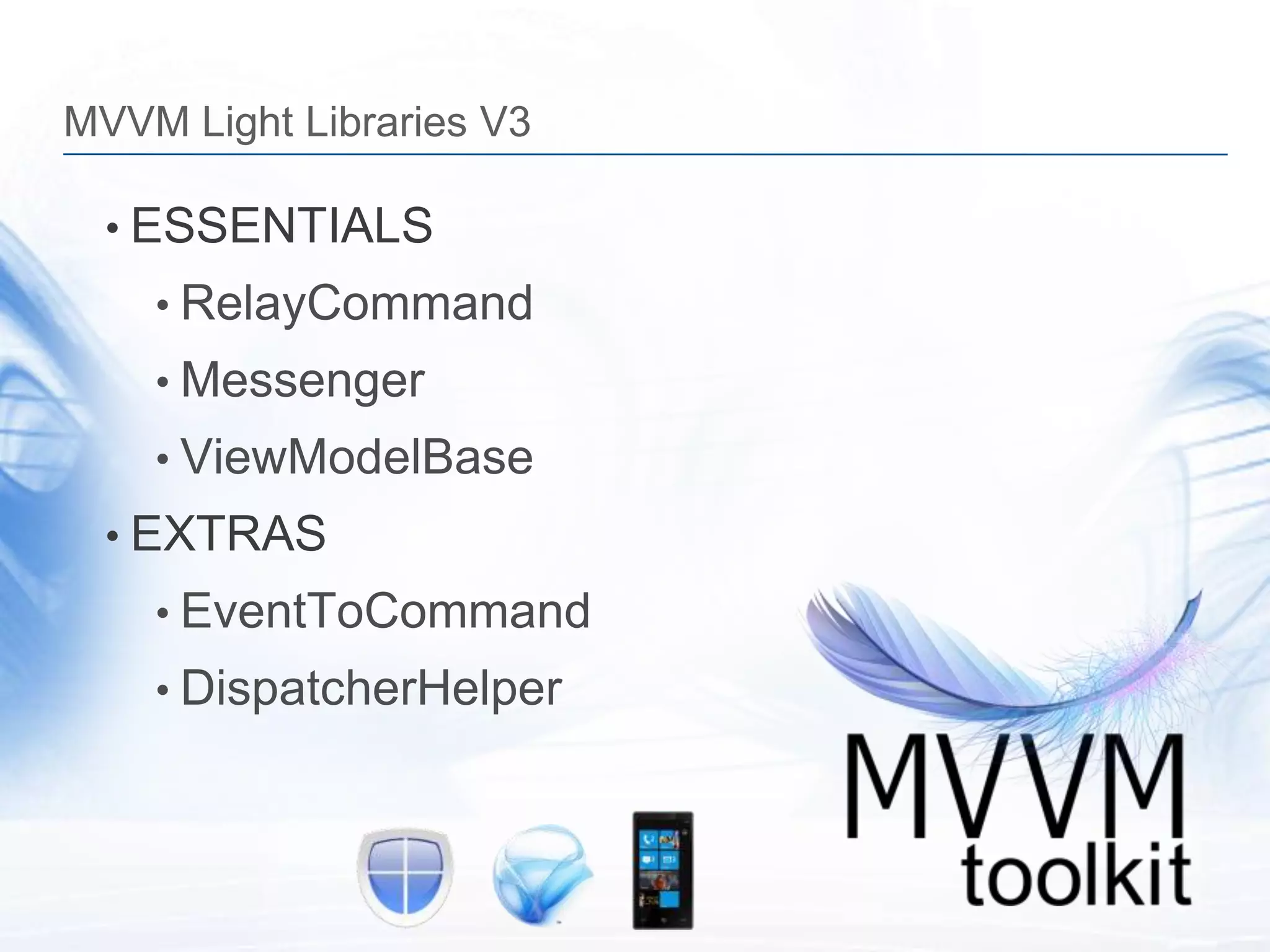

- 18. MVVM Light LibrariesV3 • ESSENTIALS • RelayCommand • Messenger • ViewModelBase • EXTRAS • EventToCommand • DispatcherHelper

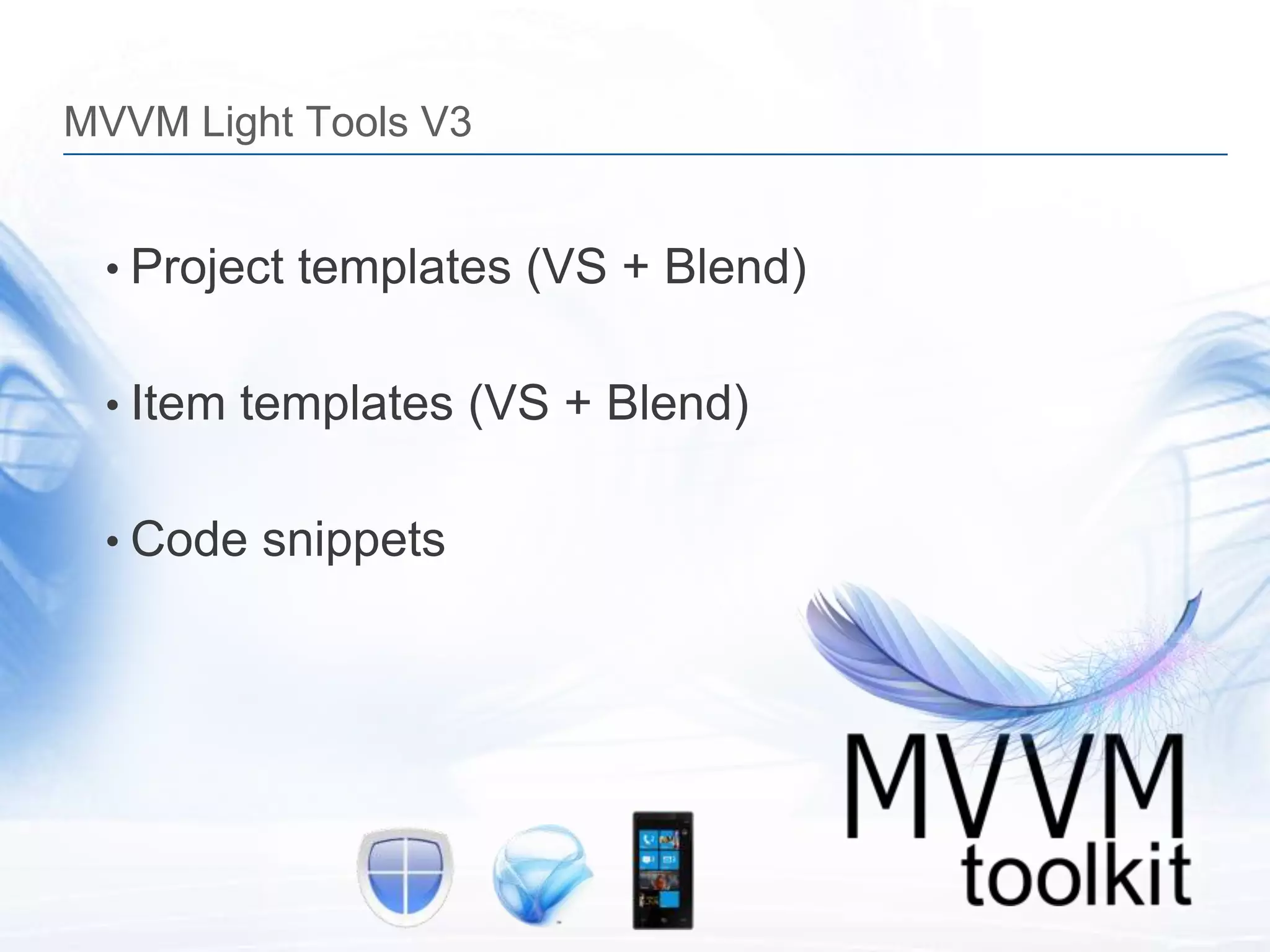

- 19. MVVM Light ToolsV3 • Project templates (VS + Blend) • Item templates (VS + Blend) • Code snippets
- 20.

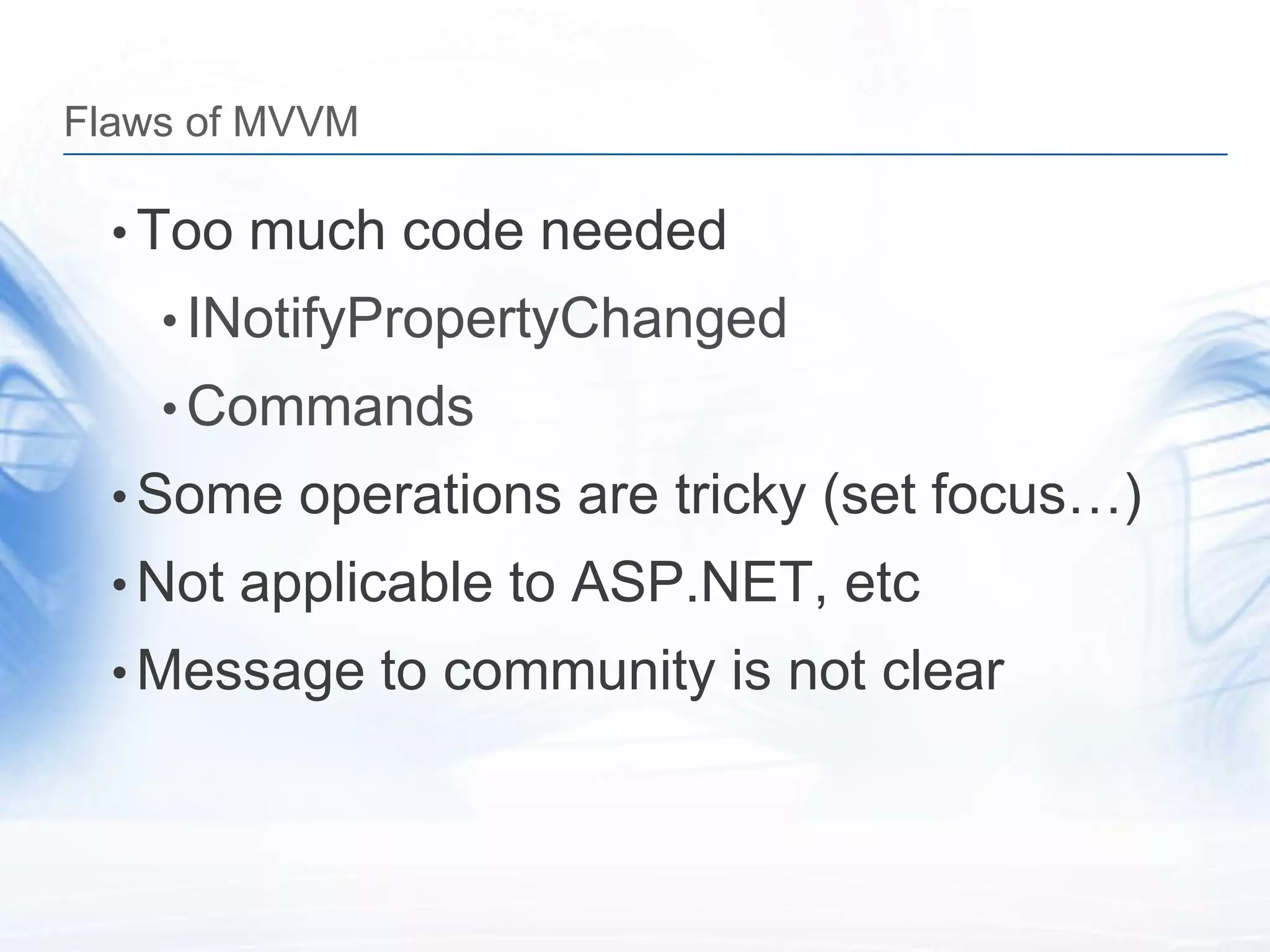

- 21. Flaws of MVVM • Too much code needed • INotifyPropertyChanged • Commands • Some operations are tricky (set focus…) • Not applicable to ASP.NET, etc • Message to community is not clear

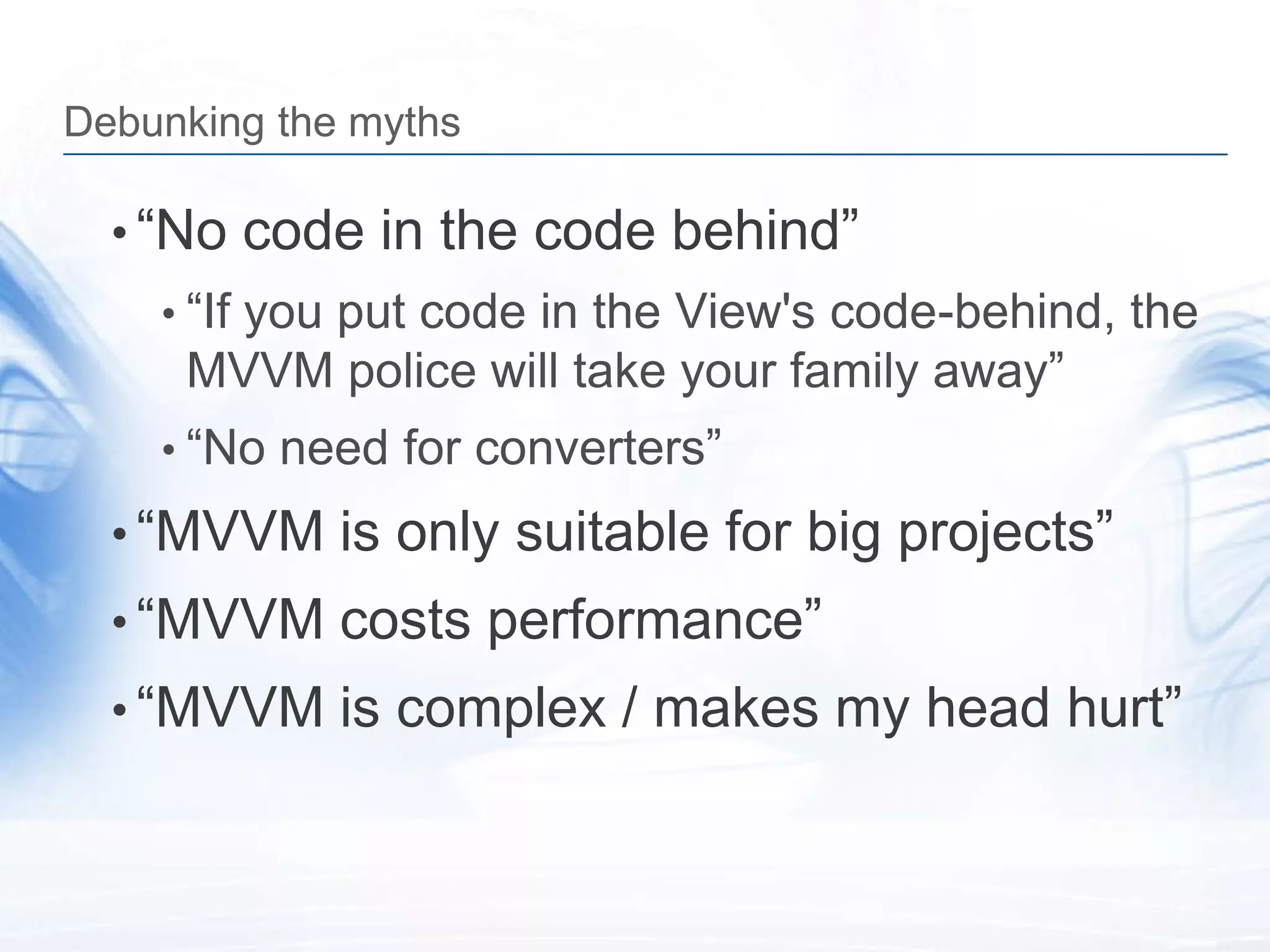

- 22. Debunking the myths • “No code in the code behind” • “If you put code in the View's code-behind, the MVVM police will take your family away” • “No need for converters” • “MVVM is only suitable for big projects” • “MVVM costs performance” • “MVVM is complex / makes my head hurt”

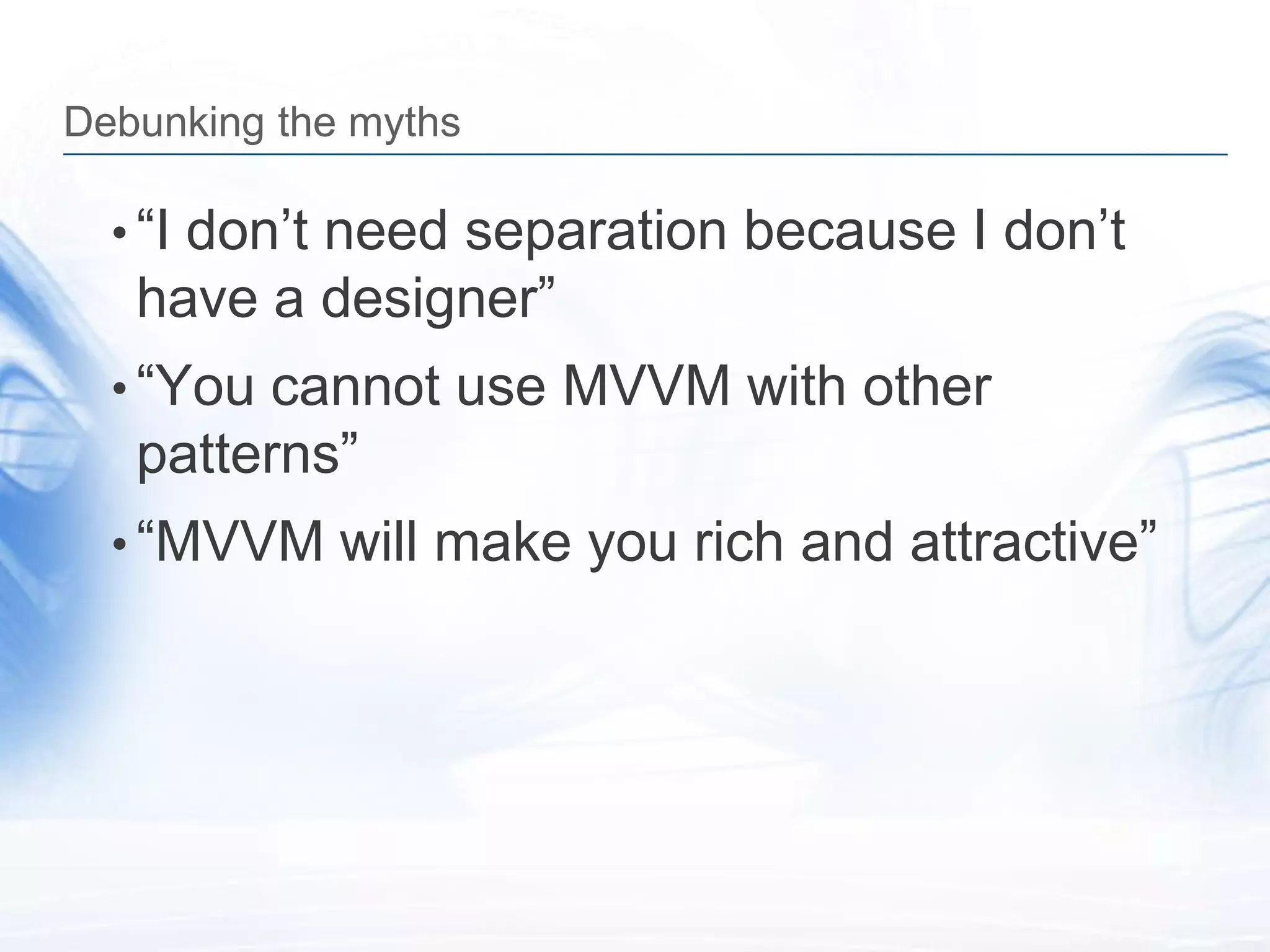

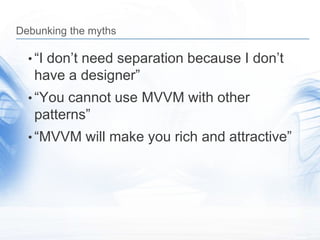

- 23. Debunking the myths • “I don’t need separation because I don’t have a designer” • “You cannot use MVVM with other patterns” • “MVVM will make you rich and attractive”
- 24. MVVM on the WindowsPhone 7
- 25.
Editor's Notes
- #9 Demo of connection to WCF service, fails in BlendShow how to attach to processIdentify problemIsInDesignMode
- #13 Demo of connection to WCF service, fails in BlendShow how to attach to processIdentify problemIsInDesignMode
- #16 Demo of connection to WCF service, fails in BlendShow how to attach to processIdentify problemIsInDesignMode
- #21 Demo of connection to WCF service, fails in BlendShow how to attach to processIdentify problemIsInDesignMode
- #25 Demo of connection to WCF service, fails in BlendShow how to attach to processIdentify problemIsInDesignMode
