Uploaded byUdaya Kumar
WPF For Beginners - Learn in 3 days
The document discusses the Model-View-ViewModel (MVVM) pattern. It was designed for WPF applications to better separate the view layer from the rest of the application. MVVM divides an application into three main parts: the model, the view, and the view model. The view model acts as a mediator between the model and view. It keeps the view clean of any logic code and makes the view model testable without needing the view. This allows for clear separation of responsibilities and easier maintenance of the application.
More Related Content
Similar to WPF For Beginners - Learn in 3 days
![UiPath Automation Suite Installation (Hands-On) [2/3]](https://cdn.slidesharecdn.com/ss_thumbnails/automationsuitecommunitysession2-251015095633-a6d862f1-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
WPF For Beginners - Learn in 3 days
- 2.
- 3.
- 4.
- 6.
- 8.

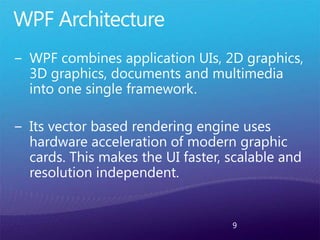

- 9.

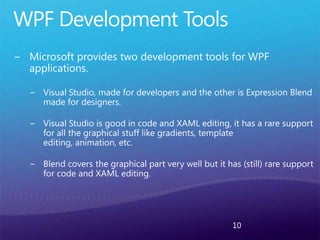

- 10.

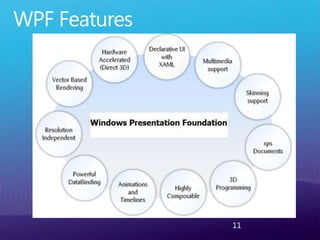

- 11.
- 12.
- 15.

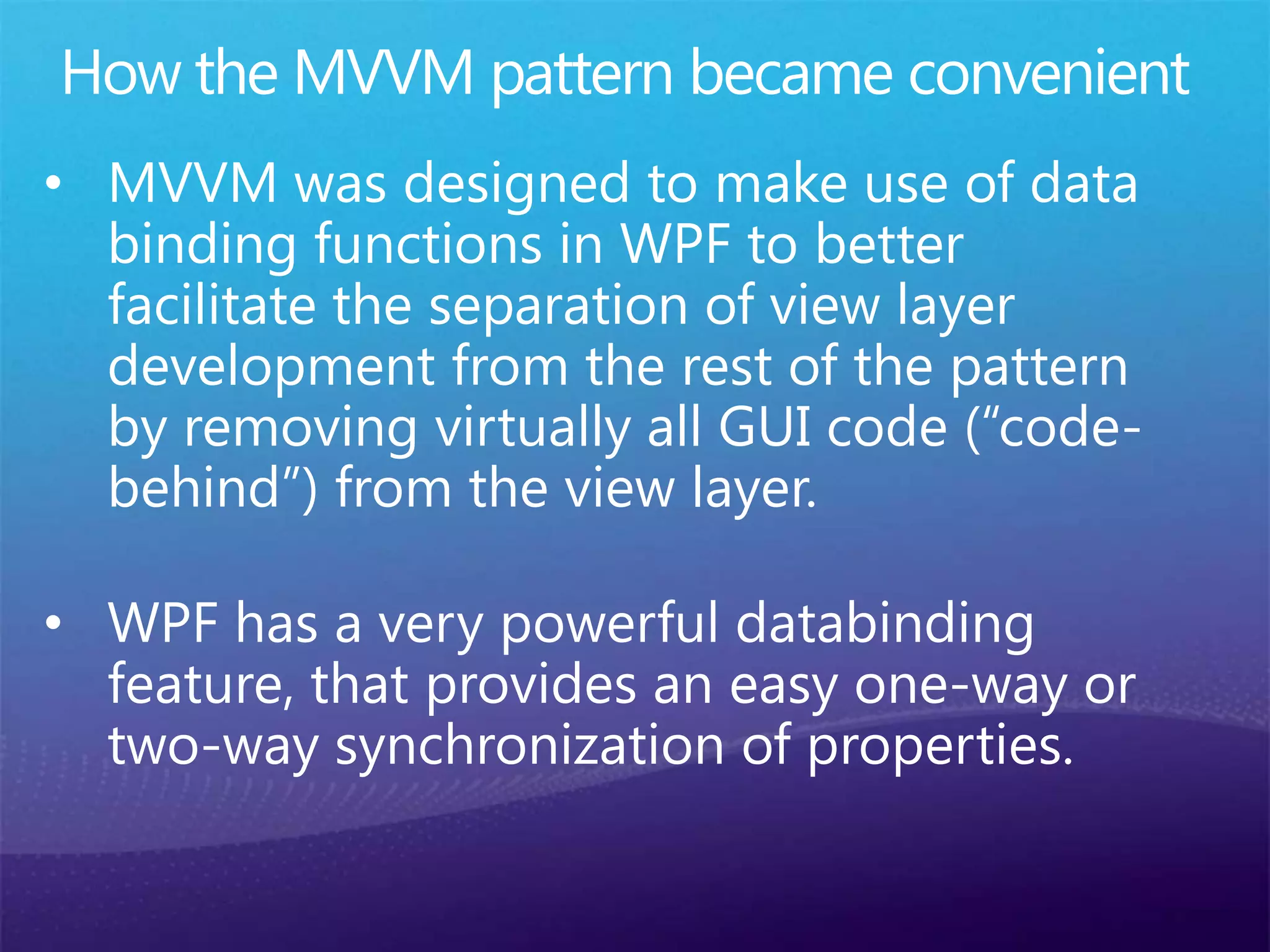

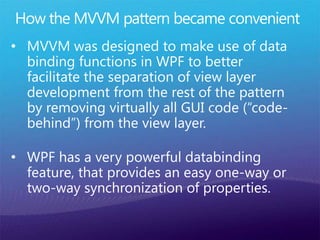

- 16. • MVVM wasdesigned to make use of data binding functions in WPF to better facilitate the separation of view layer development from the rest of the pattern by removing virtually all GUI code (“code- behind”) from the view layer.

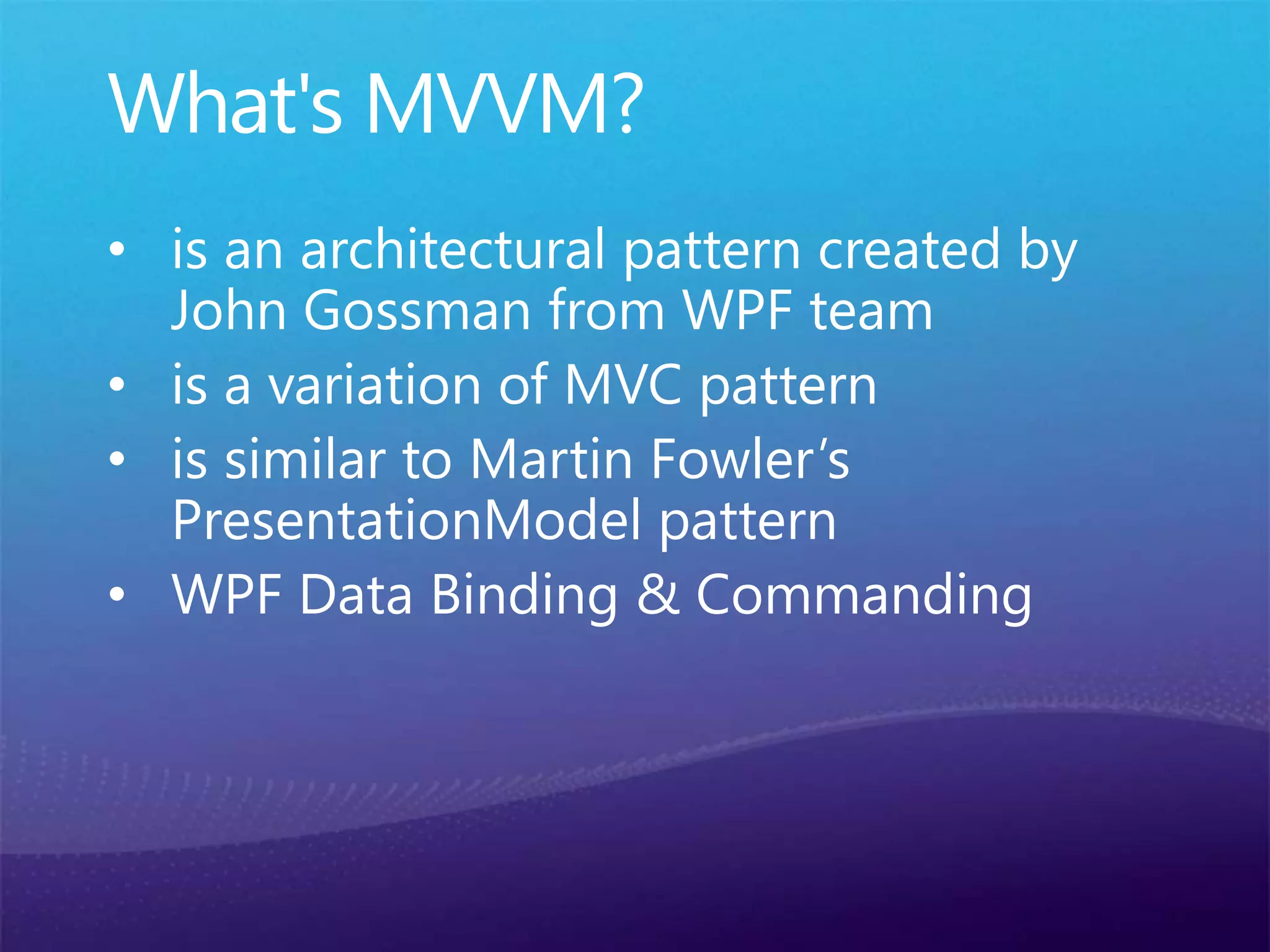

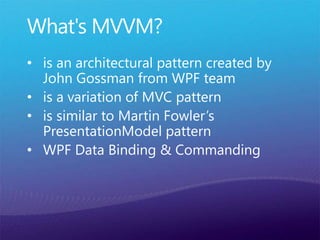

- 20. What's MVVM? • isan architectural pattern created by John Gossman from WPF team • is a variation of MVC pattern • is similar to Martin Fowler’s PresentationModel pattern • WPF Data Binding & Commanding

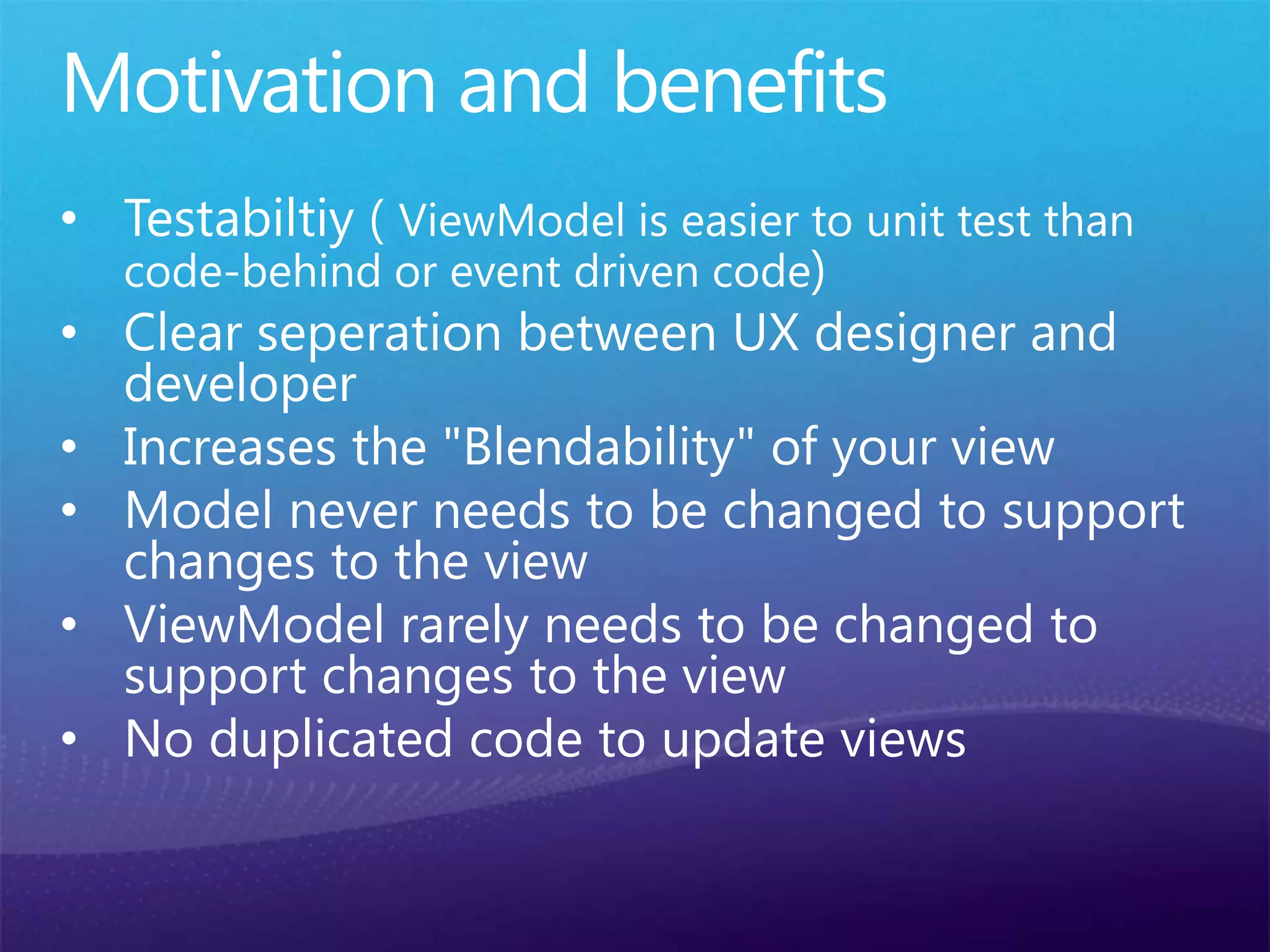

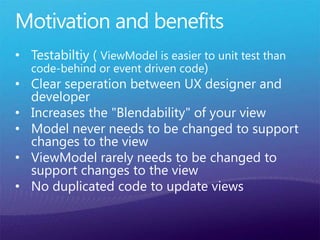

- 21. Motivation and benefits •Testabiltiy ( ViewModel is easier to unit test than code-behind or event driven code) • Clear seperation between UX designer and developer • Increases the "Blendability" of your view • Model never needs to be changed to support changes to the view • ViewModel rarely needs to be changed to support changes to the view • No duplicated code to update views

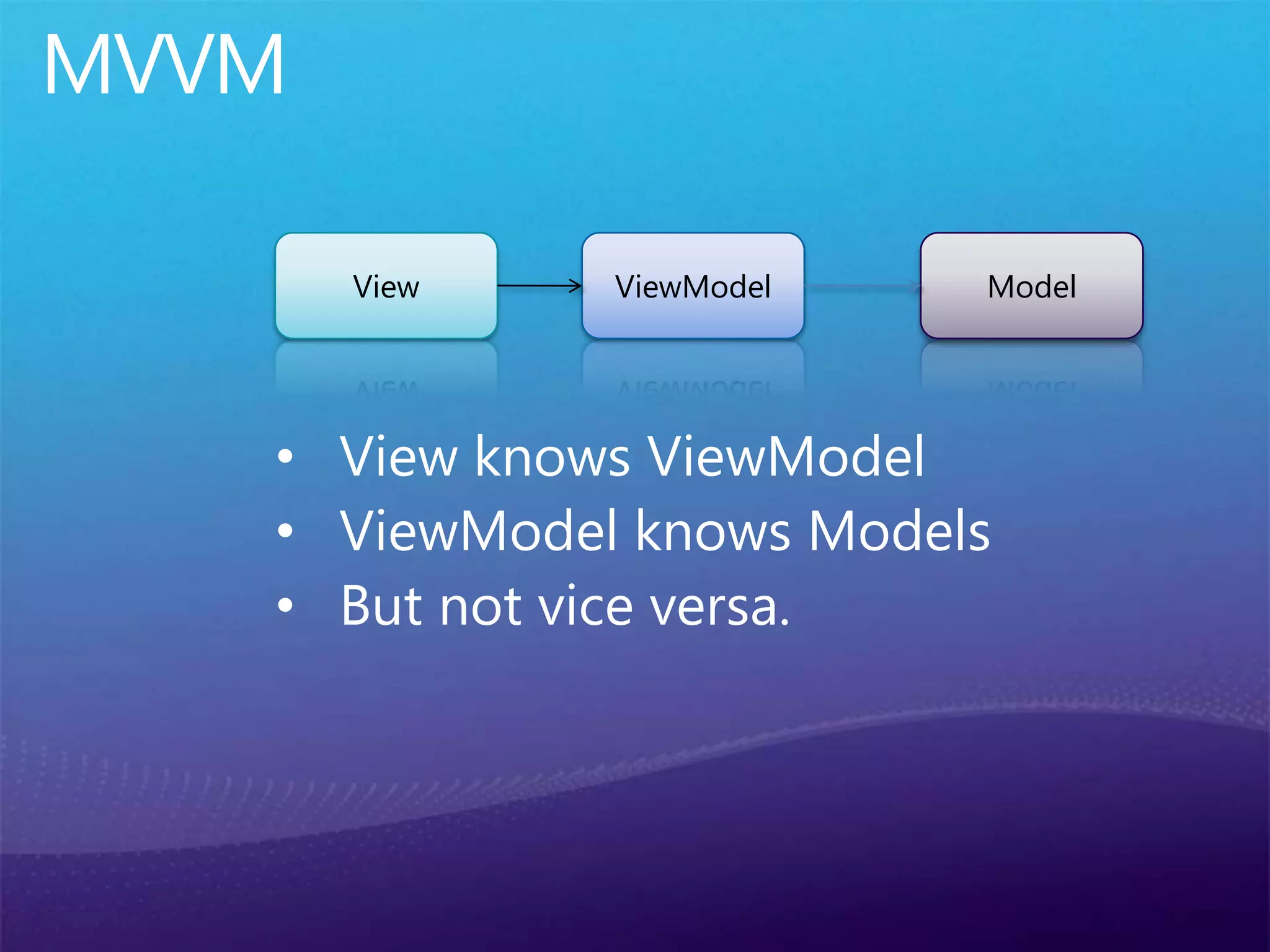

- 22. MVVM • View knowsViewModel • ViewModel knows Models • But not vice versa. View ViewModel Model

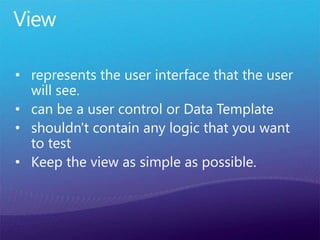

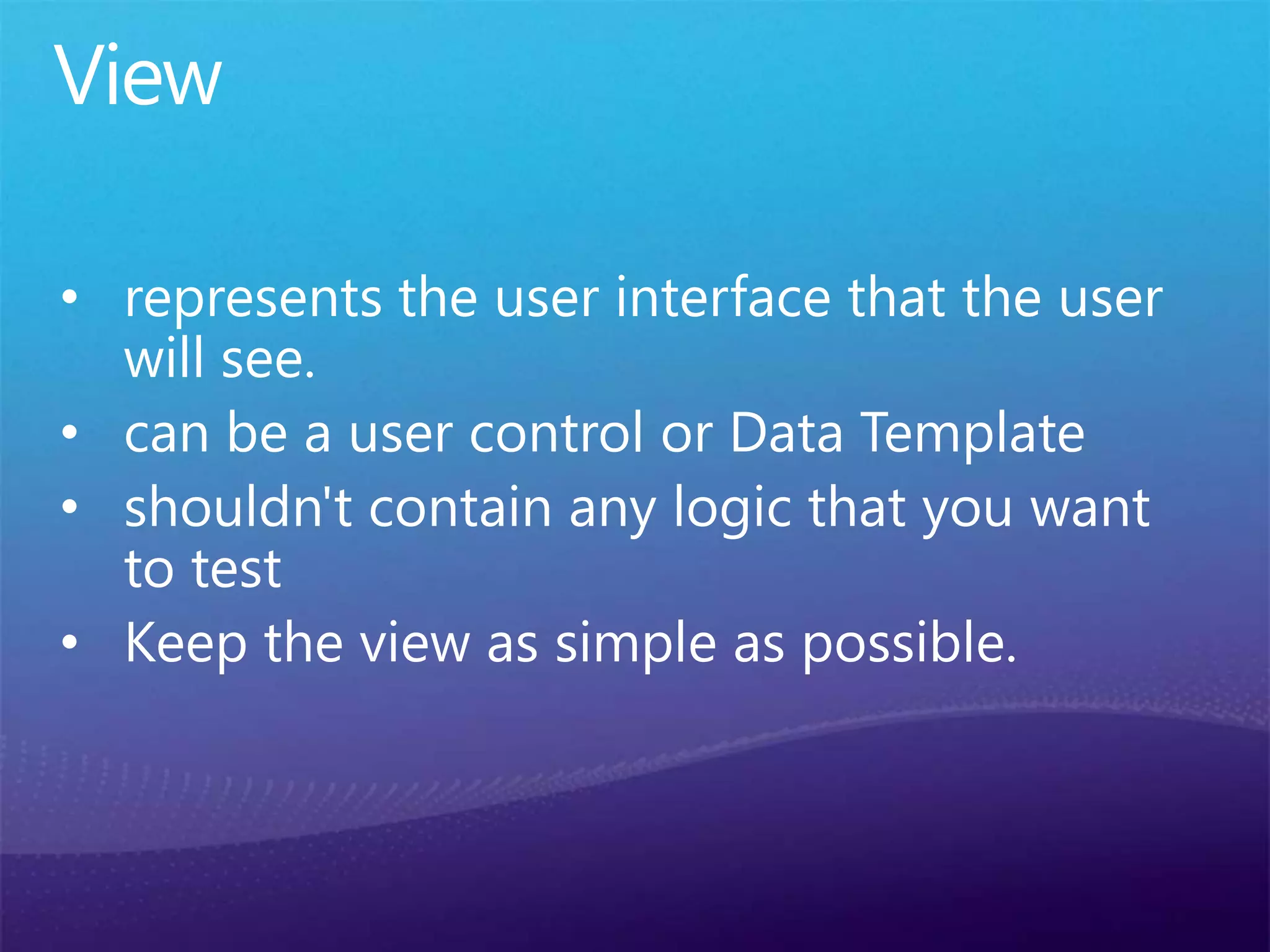

- 23. View • represents theuser interface that the user will see. • can be a user control or Data Template • shouldn't contain any logic that you want to test • Keep the view as simple as possible.

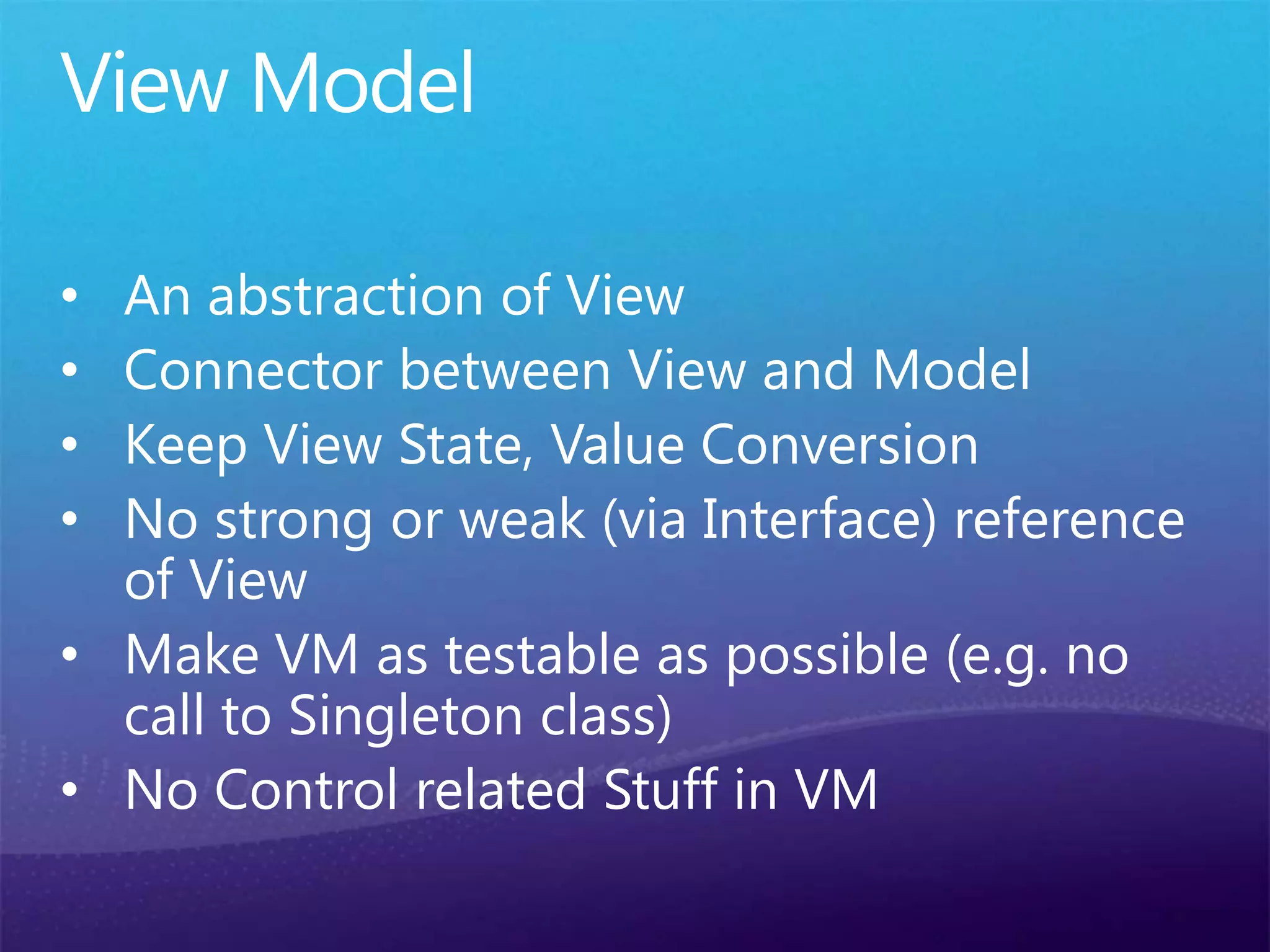

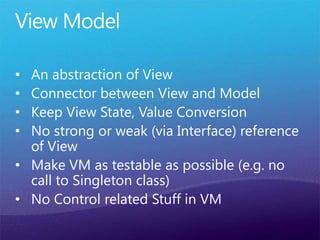

- 24. View Model • Anabstraction of View • Connector between View and Model • Keep View State, Value Conversion • No strong or weak (via Interface) reference of View • Make VM as testable as possible (e.g. no call to Singleton class) • No Control related Stuff in VM

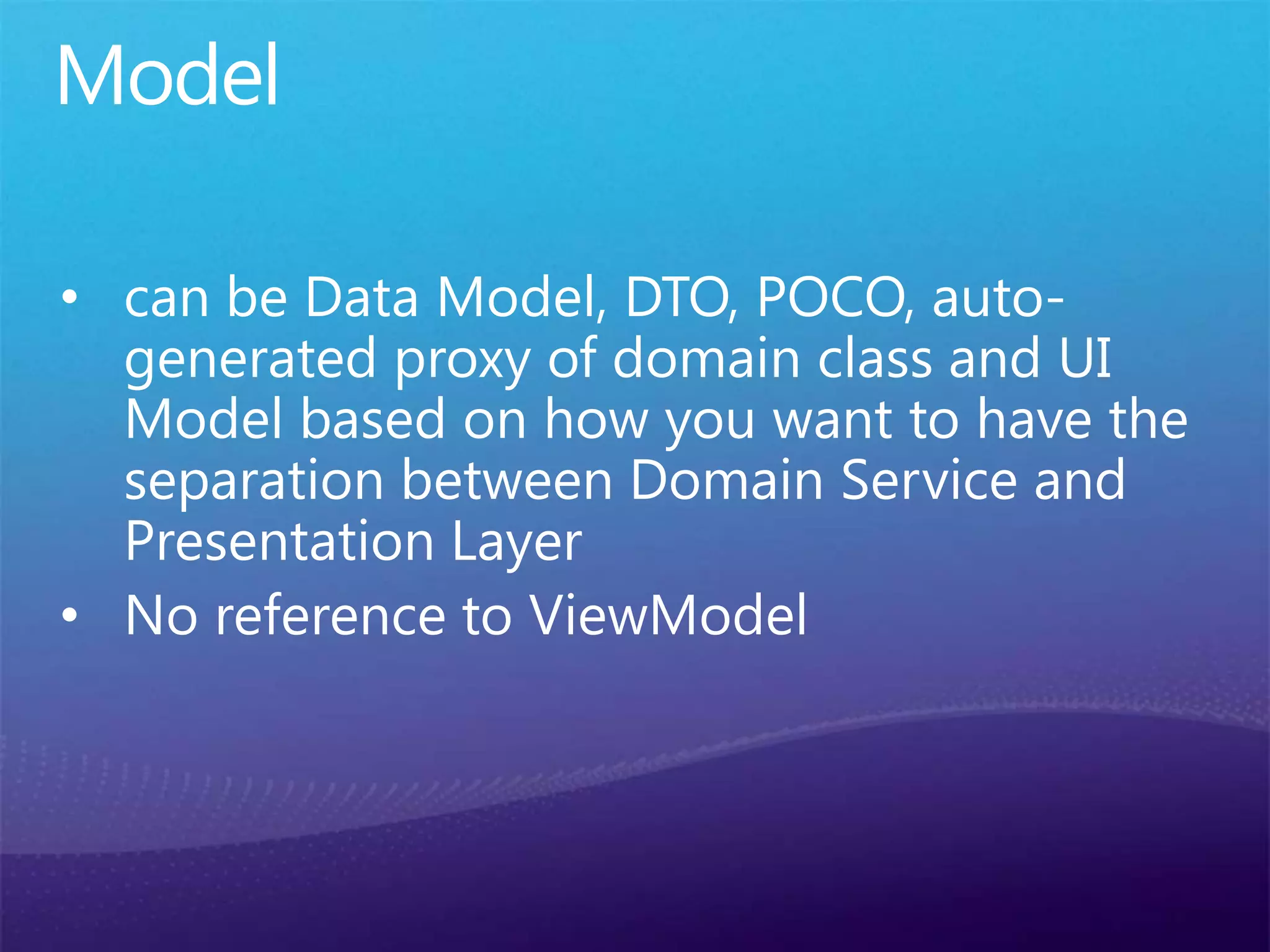

- 25. Model • can beData Model, DTO, POCO, auto- generated proxy of domain class and UI Model based on how you want to have the separation between Domain Service and Presentation Layer • No reference to ViewModel
- 26.
- 27.
- 28.

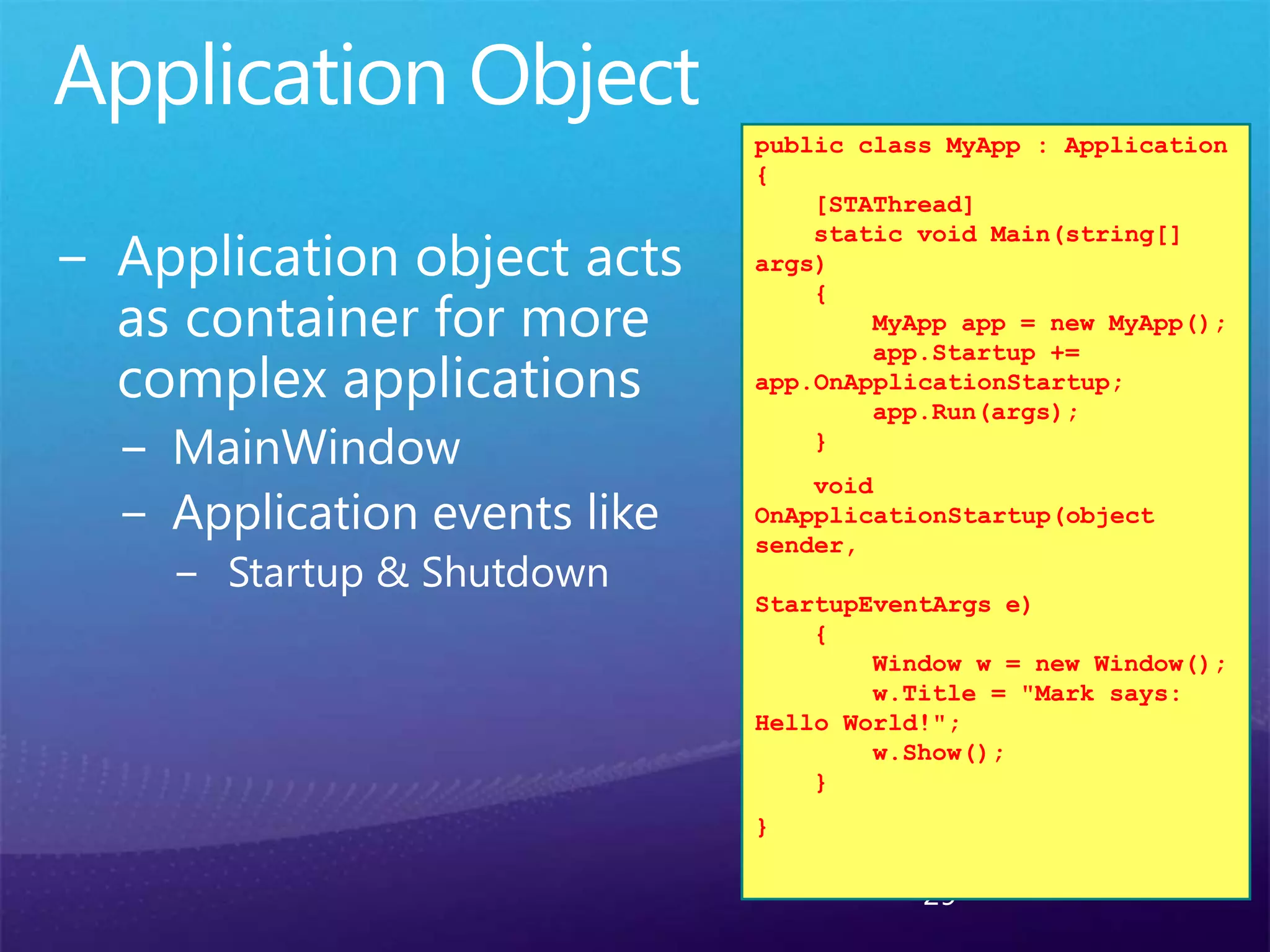

- 29. 29 public class MyApp: Application { [STAThread] static void Main(string[] args) { MyApp app = new MyApp(); app.Startup += app.OnApplicationStartup; app.Run(args); } void OnApplicationStartup(object sender, StartupEventArgs e) { Window w = new Window(); w.Title = "Mark says: Hello World!"; w.Show(); } }

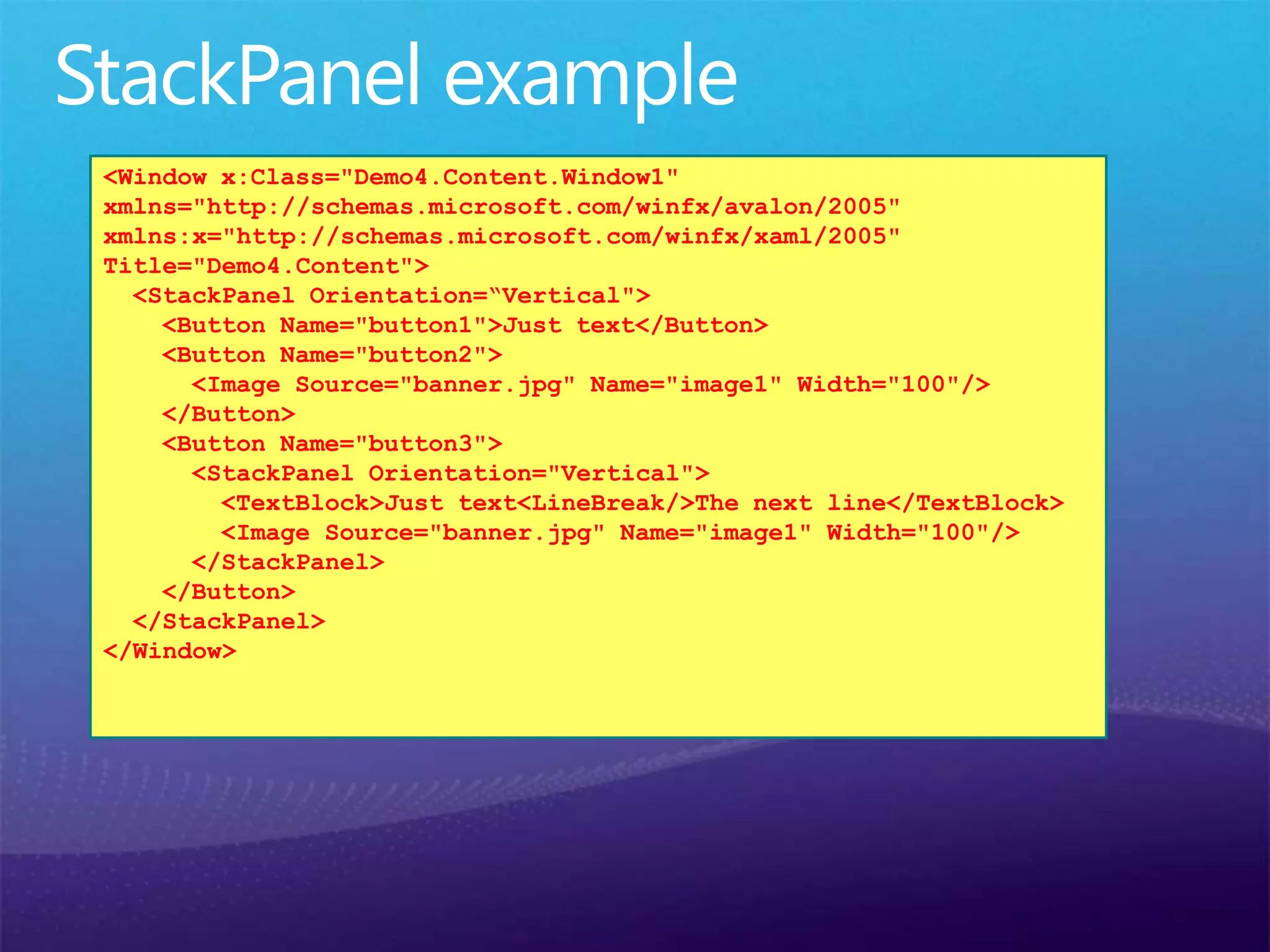

- 31. <Window x:Class="Demo4.Content.Window1" xmlns="http://schemas.microsoft.com/winfx/avalon/2005" xmlns:x="http://schemas.microsoft.com/winfx/xaml/2005" Title="Demo4.Content"> <StackPanel Orientation=“Vertical"> <ButtonName="button1">Just text</Button> <Button Name="button2"> <Image Source="banner.jpg" Name="image1" Width="100"/> </Button> <Button Name="button3"> <StackPanel Orientation="Vertical"> <TextBlock>Just text<LineBreak/>The next line</TextBlock> <Image Source="banner.jpg" Name="image1" Width="100"/> </StackPanel> </Button> </StackPanel> </Window>

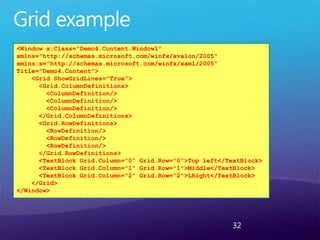

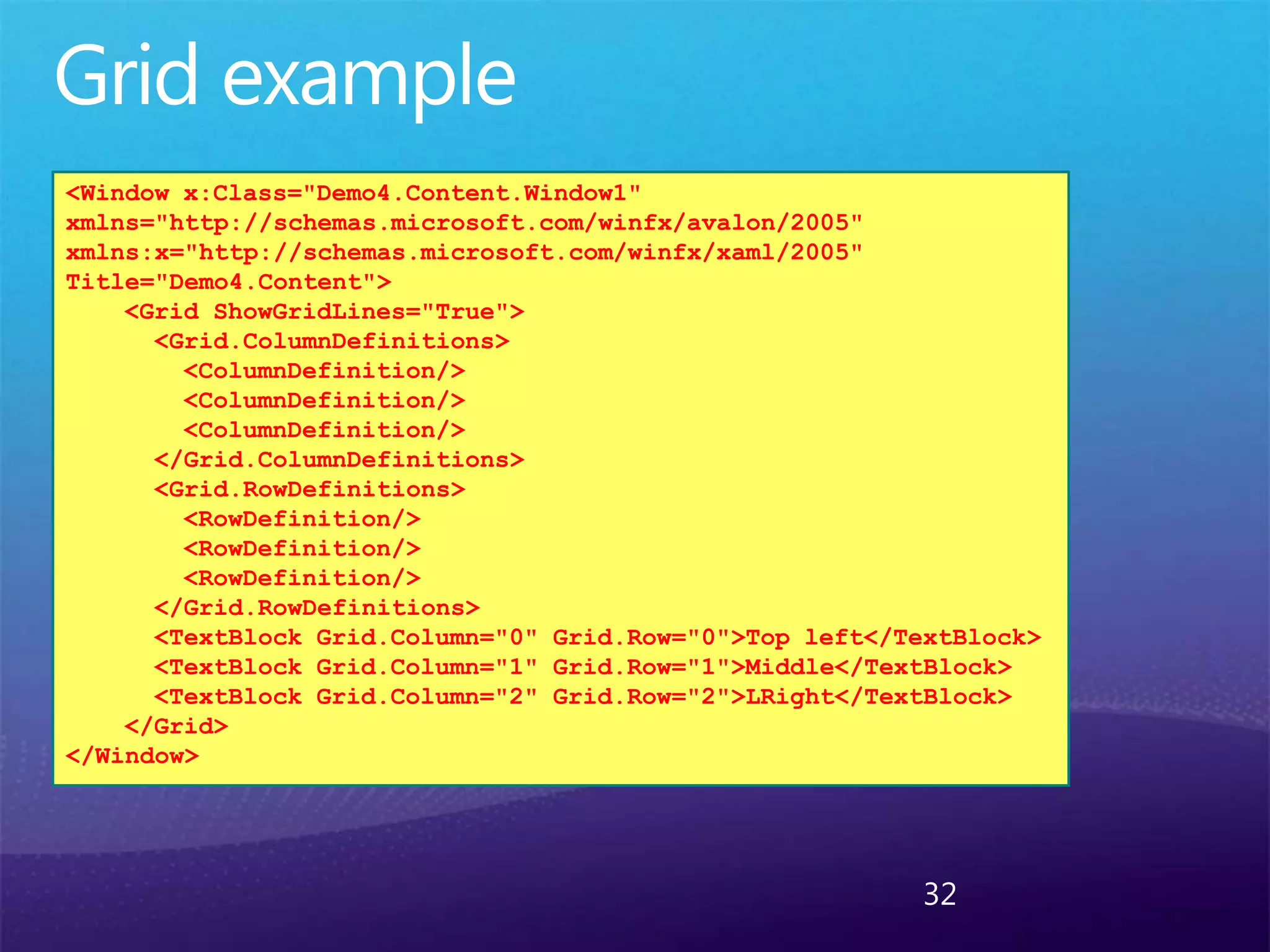

- 32. 32 <Window x:Class="Demo4.Content.Window1" xmlns="http://schemas.microsoft.com/winfx/avalon/2005" xmlns:x="http://schemas.microsoft.com/winfx/xaml/2005" Title="Demo4.Content"> <Grid ShowGridLines="True"> <Grid.ColumnDefinitions> <ColumnDefinition/> <ColumnDefinition/> <ColumnDefinition/> </Grid.ColumnDefinitions> <Grid.RowDefinitions> <RowDefinition/> <RowDefinition/> <RowDefinition/> </Grid.RowDefinitions> <TextBlockGrid.Column="0" Grid.Row="0">Top left</TextBlock> <TextBlock Grid.Column="1" Grid.Row="1">Middle</TextBlock> <TextBlock Grid.Column="2" Grid.Row="2">LRight</TextBlock> </Grid> </Window>

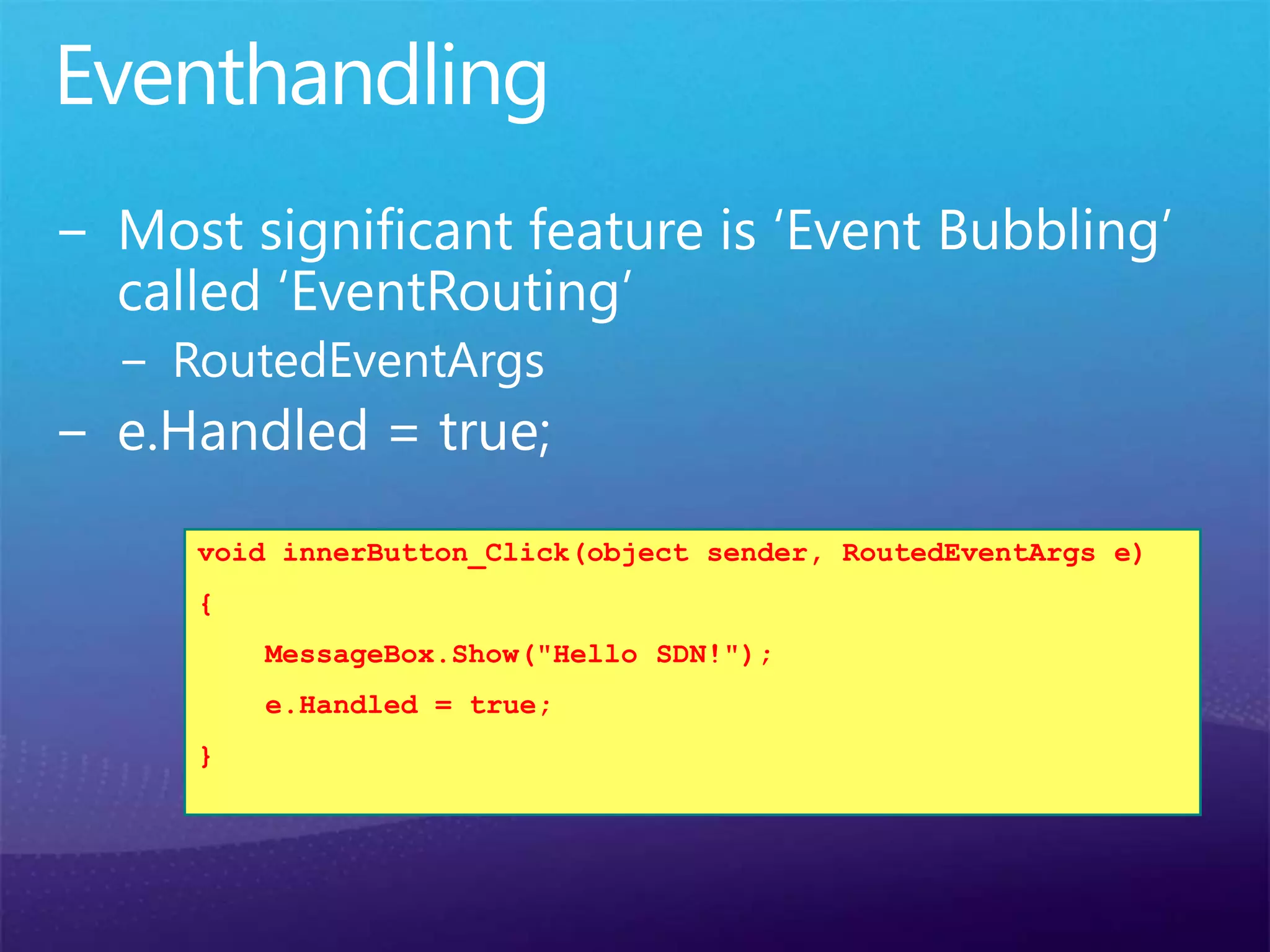

- 33. void innerButton_Click(object sender,RoutedEventArgs e) { MessageBox.Show("Hello SDN!"); e.Handled = true; }

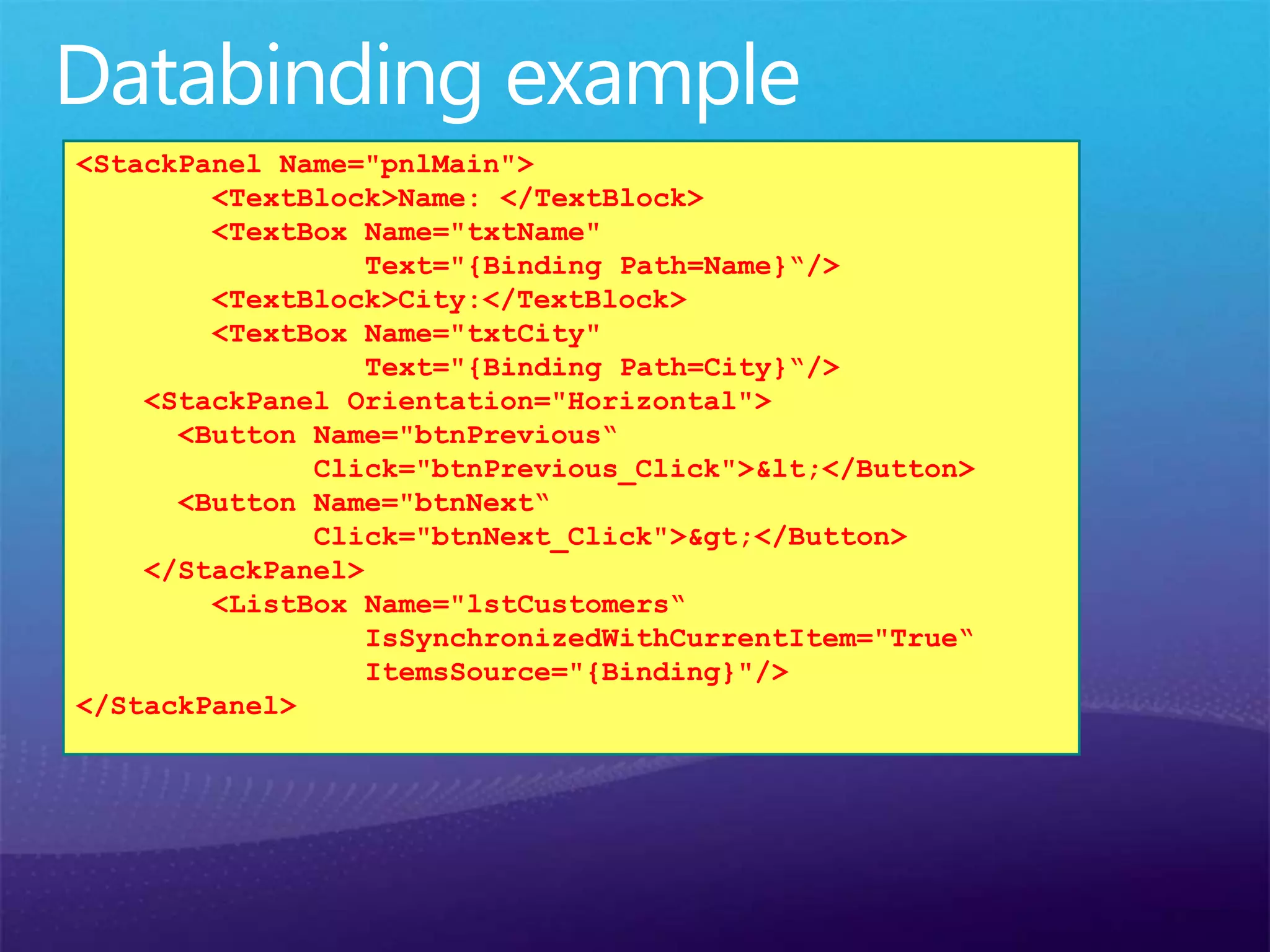

- 35. <StackPanel Name="pnlMain"> <TextBlock>Name: </TextBlock> <TextBoxName="txtName" Text="{Binding Path=Name}“/> <TextBlock>City:</TextBlock> <TextBox Name="txtCity" Text="{Binding Path=City}“/> <StackPanel Orientation="Horizontal"> <Button Name="btnPrevious“ Click="btnPrevious_Click"><</Button> <Button Name="btnNext“ Click="btnNext_Click">></Button> </StackPanel> <ListBox Name="lstCustomers“ IsSynchronizedWithCurrentItem="True“ ItemsSource="{Binding}"/> </StackPanel>
