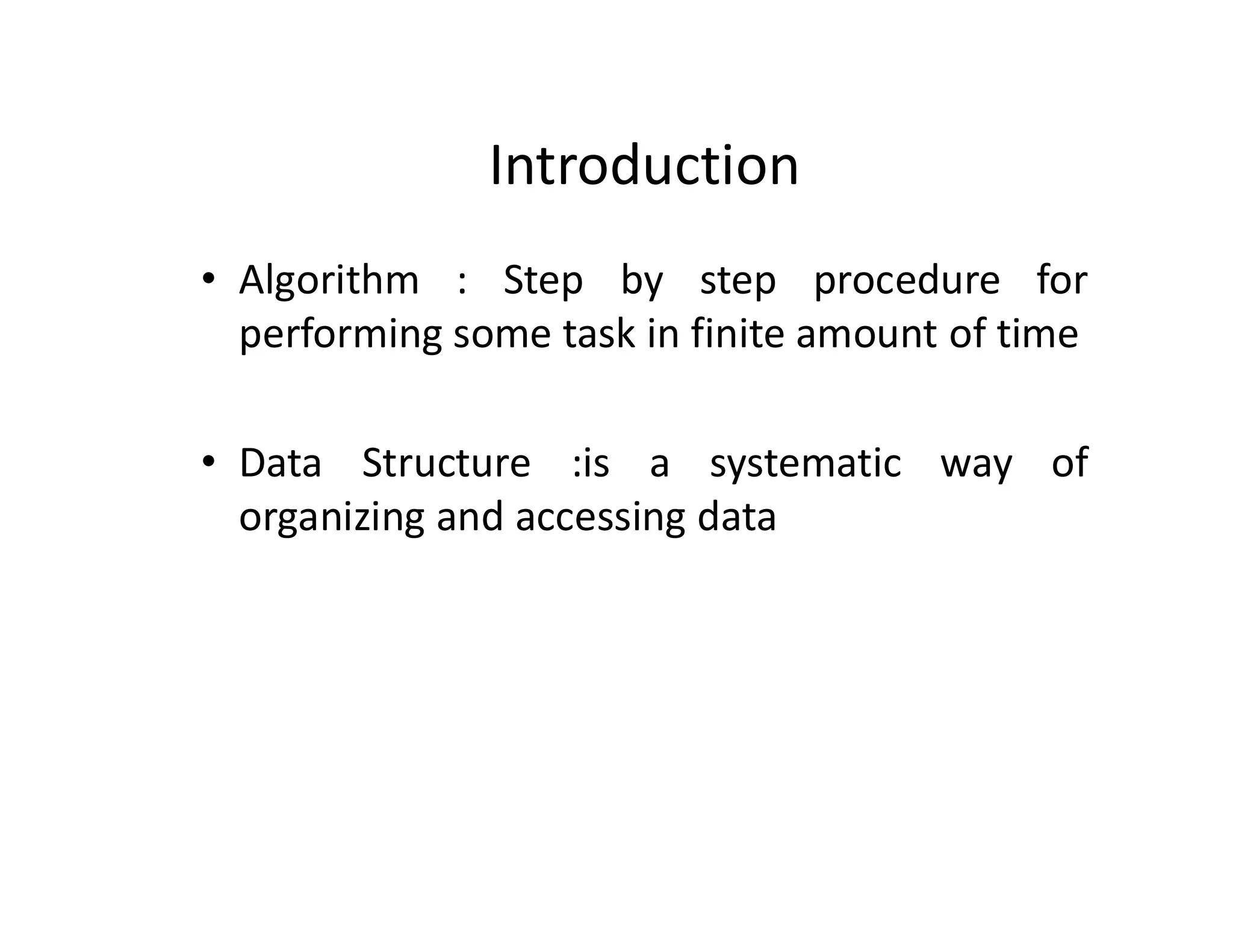

Introduction
• Algorithm : Step by step procedure for
performing some task in finite amount of time
• Data Structure :is a systematic way of
organizing and accessing data

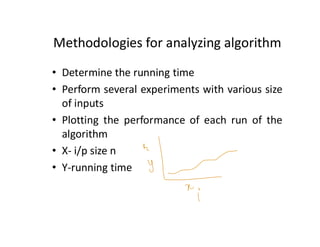

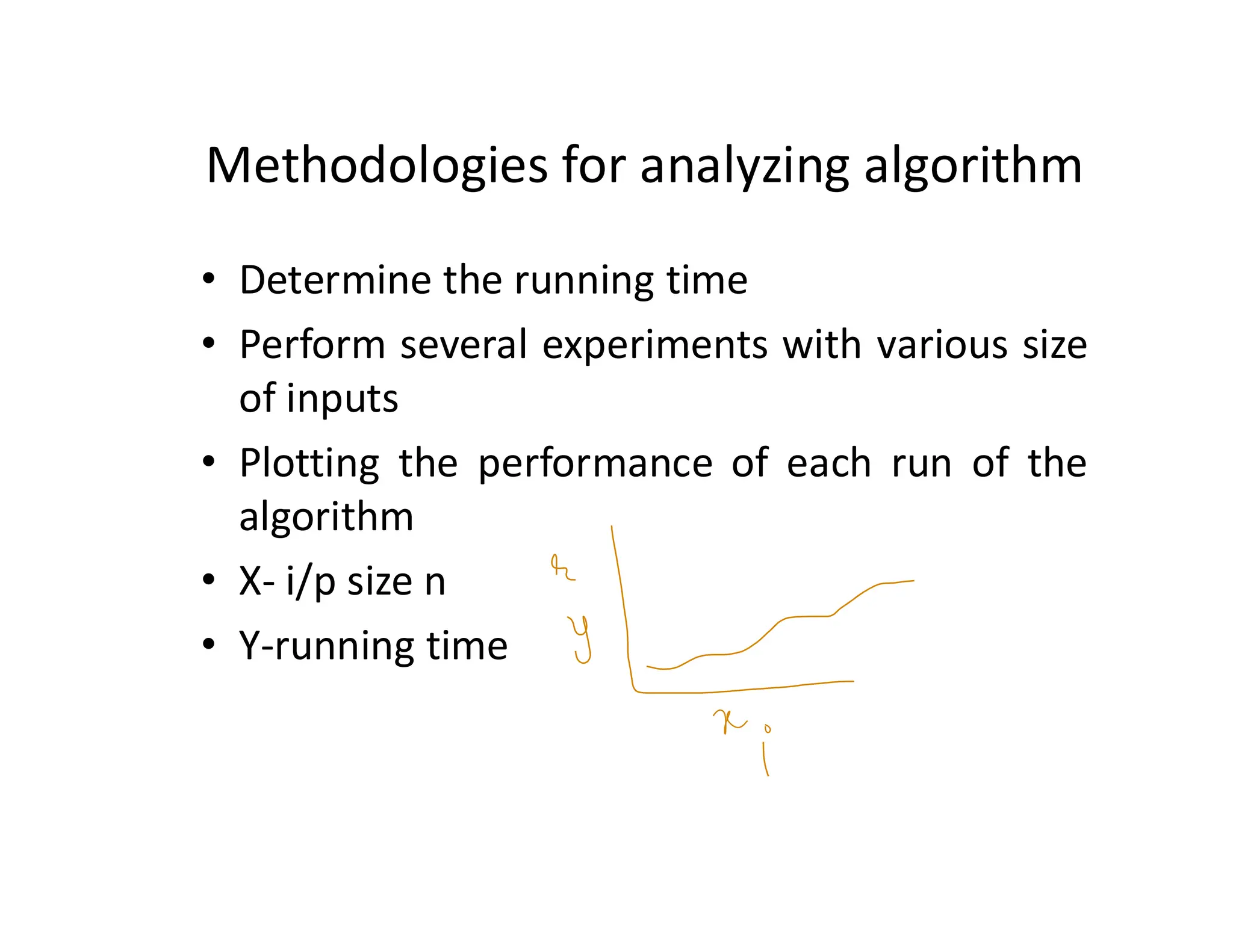

Methodologies for analyzing algorithm
• Determine the running time
• Perform several experiments with various size
of inputs
• Plotting the performance of each run of the
algorithm
• X- i/p size n
• Y-running time

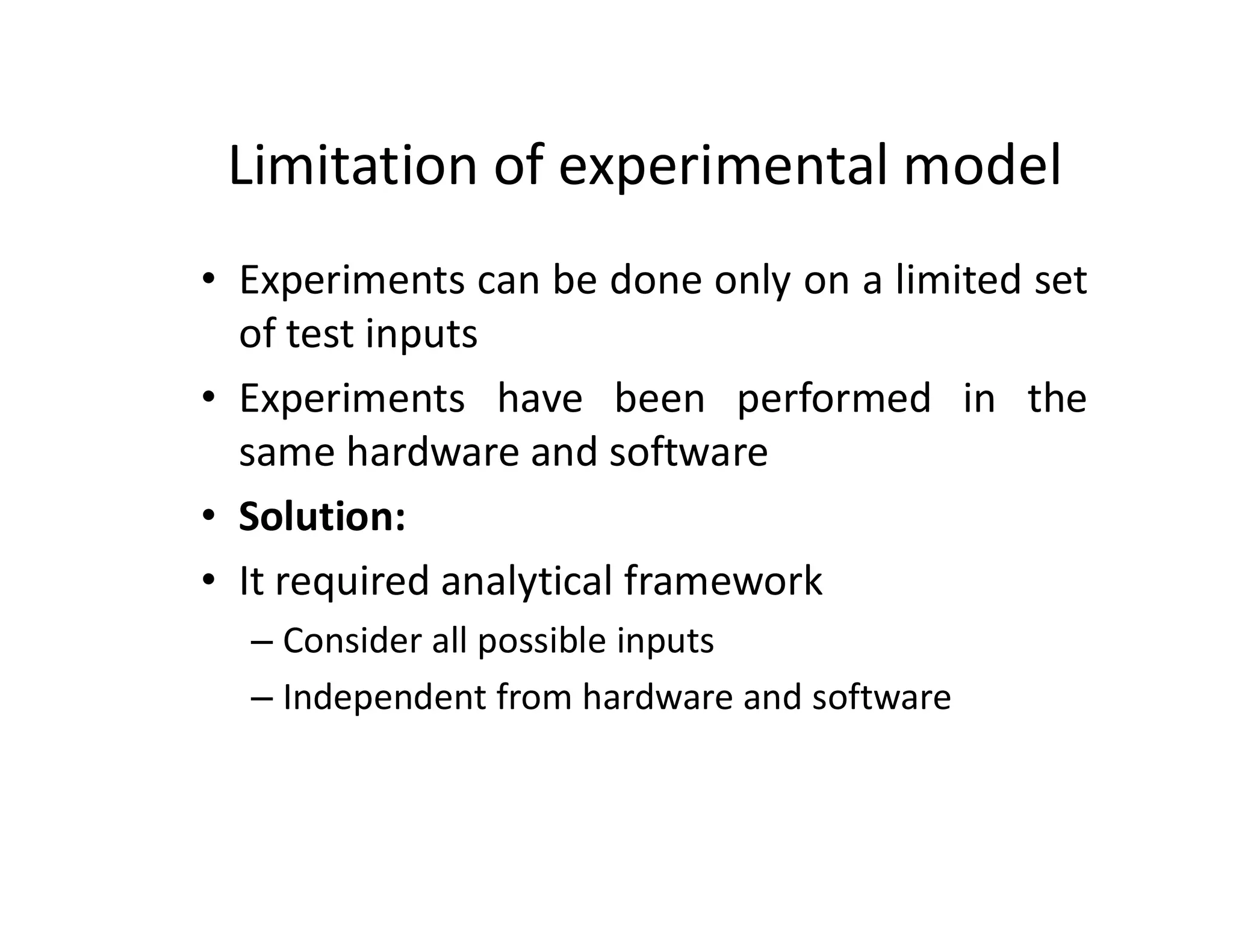

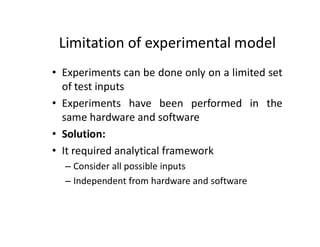

Limitation of experimental model
• Experiments can be done only on a limited set
of test inputs
• Experiments have been performed in the
same hardware and software
• Solution:
• It required analytical framework
– Consider all possible inputs
– Independent from hardware and software

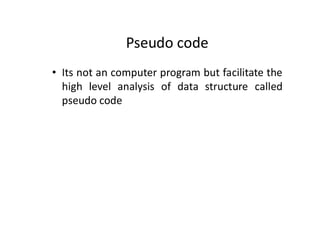

Pseudo code
• Its not an computer program but facilitate the
high level analysis of data structure called
pseudo code

RAM(Random Access model)
• we can define set of primitive operations that are
largely independent from the programming language
used.
• Identified them from the pseudo code
• Primitive operations include following:
– Assigning a value
– Calling a method
– Performing an arithmetic operation
– Comparing two variables
– Indexing in to an array
– Object reference
– Returning from a method

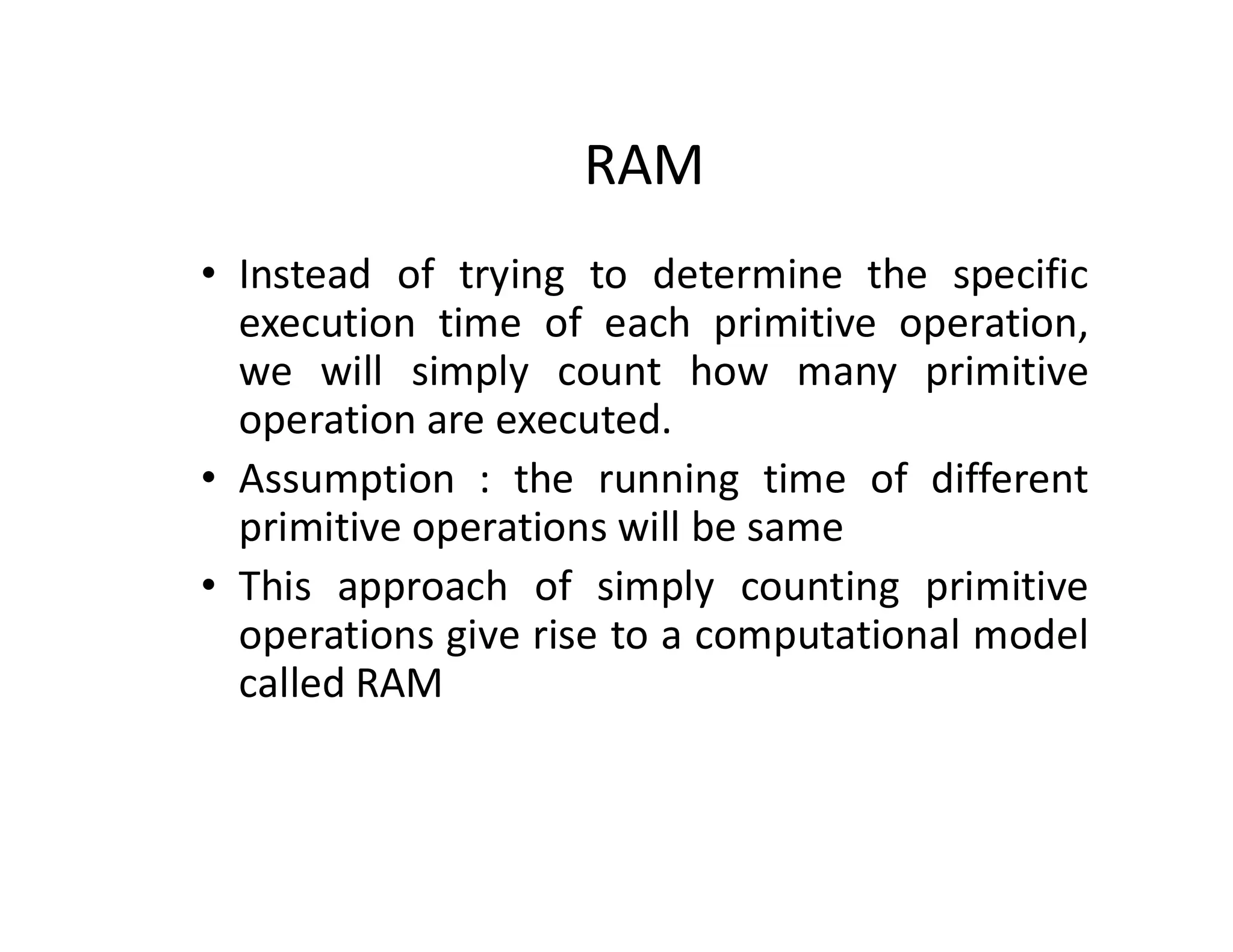

RAM
• Instead of trying to determine the specific
execution time of each primitive operation,
we will simply count how many primitive
operation are executed.
• Assumption : the running time of different
primitive operations will be same
• This approach of simply counting primitive
operations give rise to a computational model
called RAM

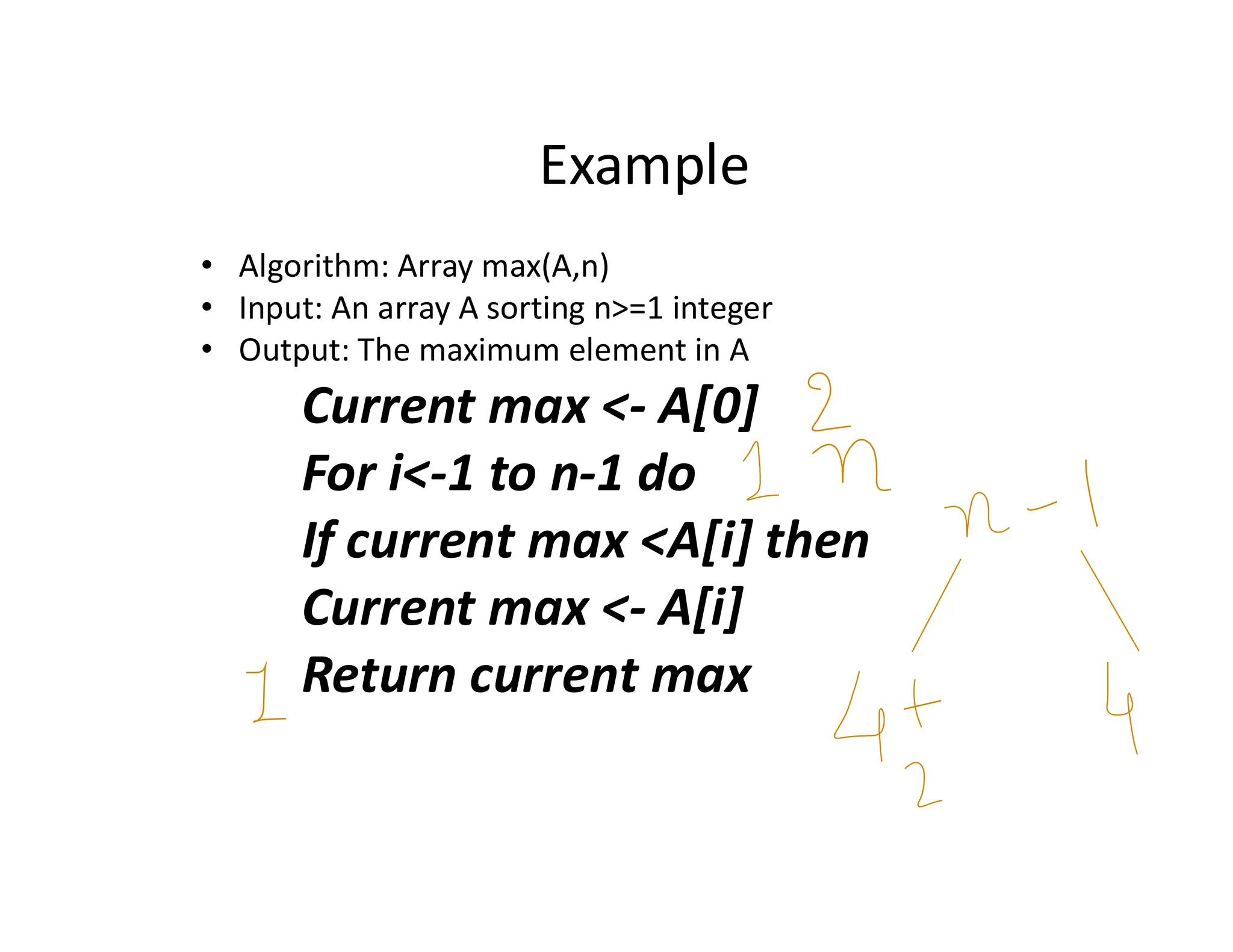

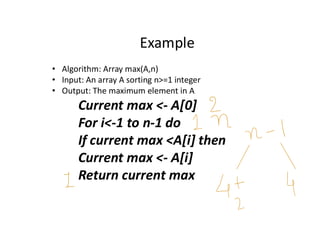

Example
• Algorithm: Array max(A,n)
• Input: An array A sorting n>=1 integer
• Output: The maximum element in A
Current max <- A[0]
For i<-1 to n-1 do
If current max <A[i] then
Current max <- A[i]
Return current max

Calculation of primitive operations
• Initializing the variable current max to A[0]
corresponds to two primitive operations.
(indexing in to an array and assigning a value)
• For loop I initialized to 1 (one primitive
operation)
• Before entering in to loop , termination
condition is checked , i<n (performing n times)

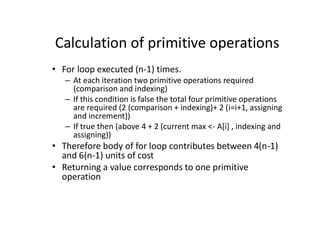

• For loop executed (n-1) times.
– At each iteration two primitive operations required
(comparison and indexing)
– If this condition is false the total four primitive operations
are required (2 (comparison + indexing)+ 2 (i=i+1, assigning
and increment))
– If true then (above 4 + 2 (current max <- A[i] , indexing and
assigning))
• Therefore body of for loop contributes between 4(n-1)
and 6(n-1) units of cost
• Returning a value corresponds to one primitive
operation

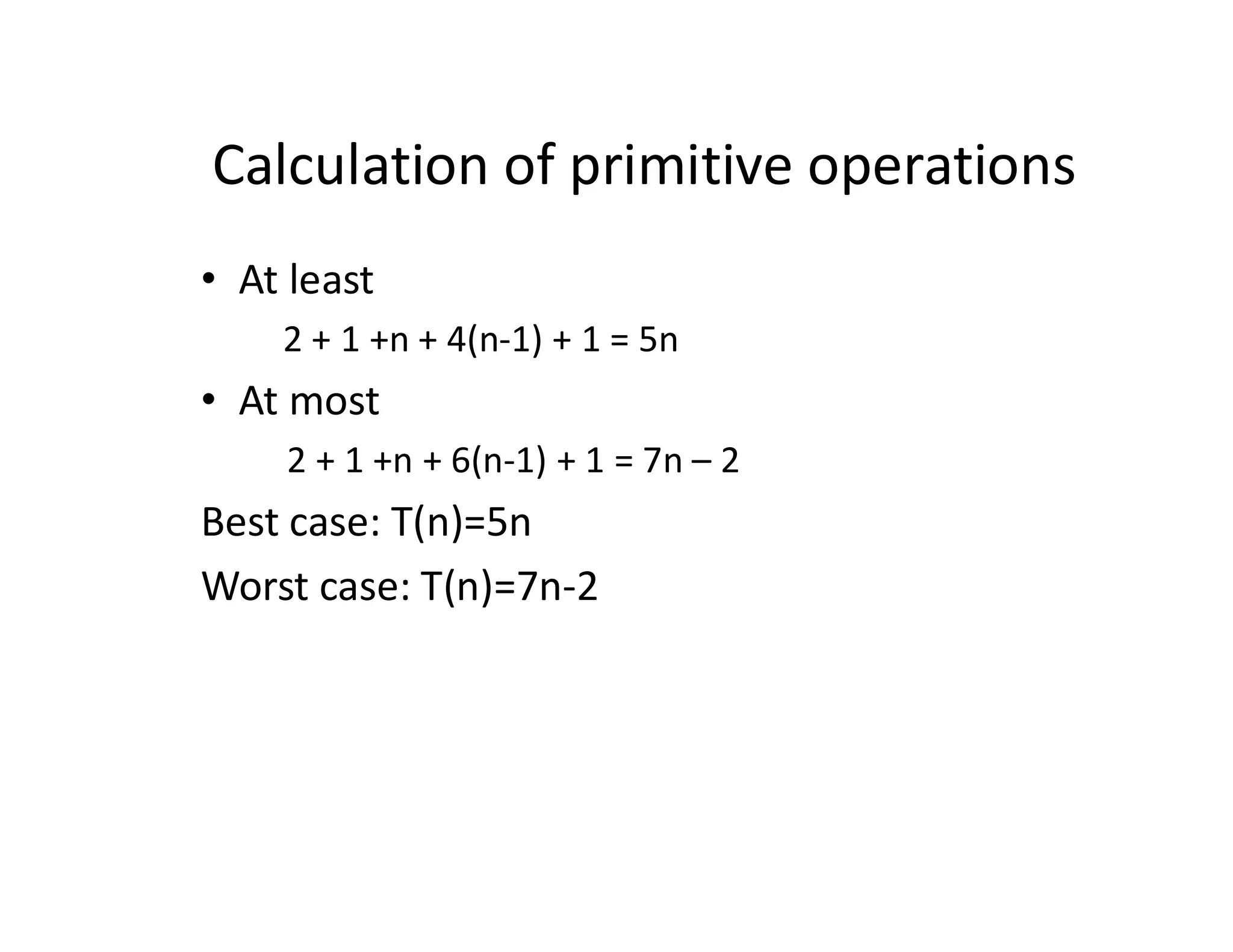

• At least
2 + 1 +n + 4(n-1) + 1 = 5n
• At most
2 + 1 +n + 6(n-1) + 1 = 7n – 2
Best case: T(n)=5n
Worst case: T(n)=7n-2

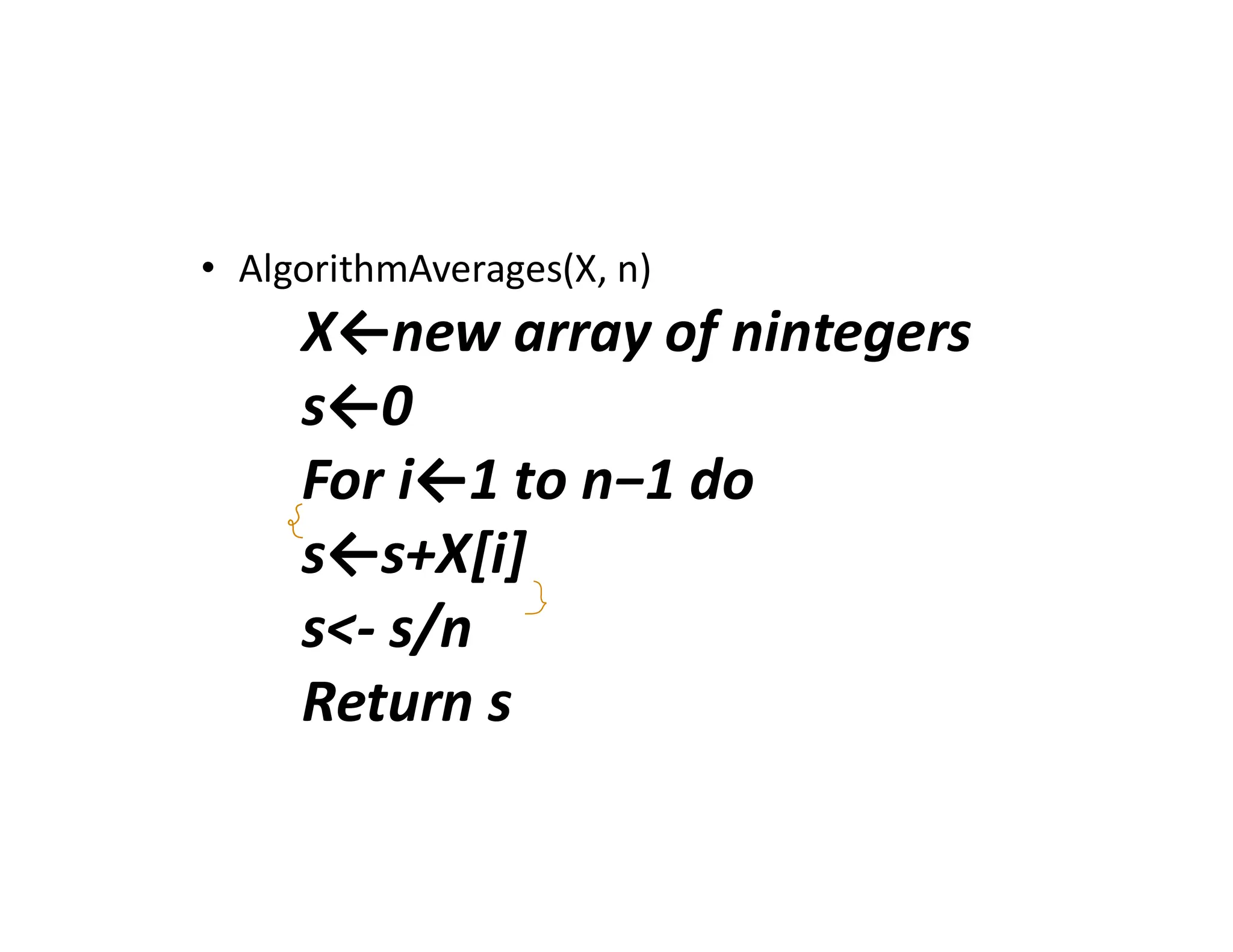

• AlgorithmAverages(X, n)
X←new array of nintegers
s←0
For i←1 to n−1 do
s←s+X[i]
s<- s/n
Return s

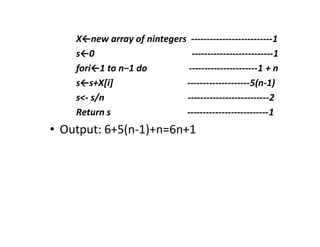

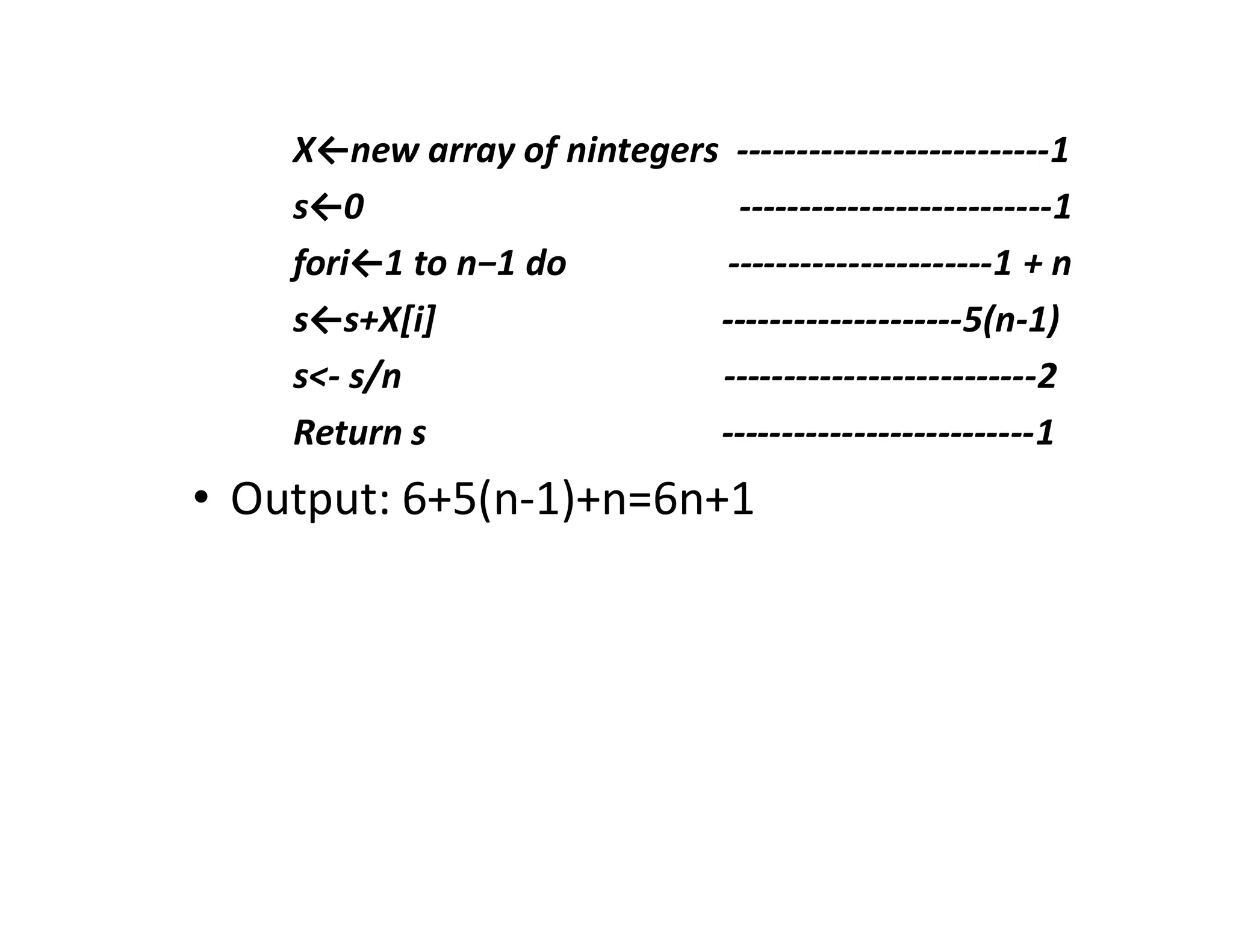

X←new array of nintegers --------------------------1
s←0 --------------------------1
fori←1 to n−1 do ----------------------1 + n
s←s+X[i] --------------------5(n-1)
s<- s/n --------------------------2
Return s --------------------------1
• Output: 6+5(n-1)+n=6n+1

• In such cases average case analysis would
often be valuable, it is typically quite
challenging.
• It requires to define probability distribution on
the set of inputs which is difficult task

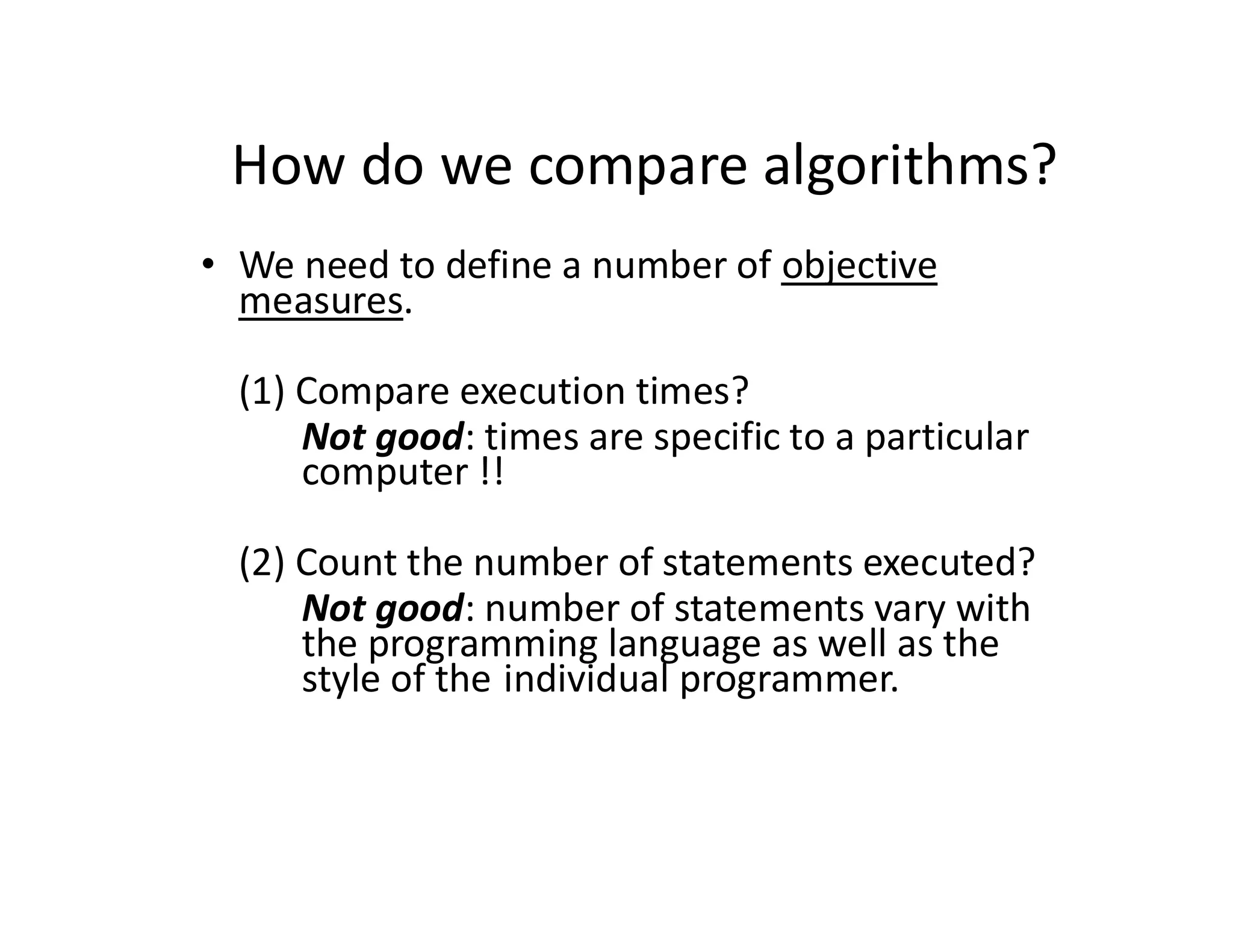

How do we compare algorithms?
• We need to define a number of objective
measures.
(1) Compare execution times?
Not good: times are specific to a particular
computer !!
(2) Count the number of statements executed?
Not good: number of statements vary with
the programming language as well as the
style of the individual programmer.

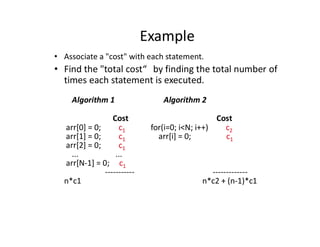

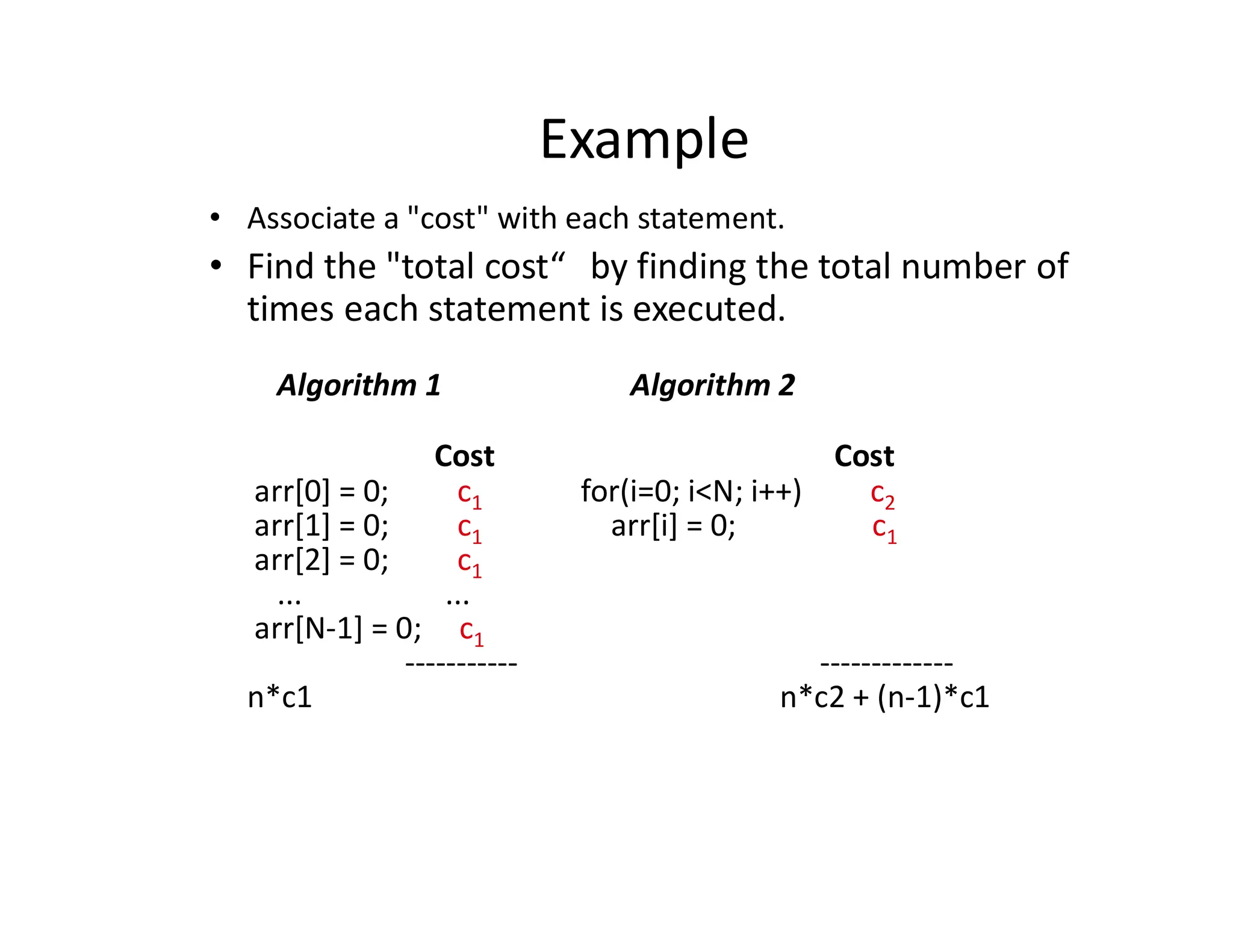

Example
• Associate a "cost" with each statement.
• Find the "total cost“ by finding the total number of
times each statement is executed.
Algorithm 1 Algorithm 2
Cost Cost
arr[0] = 0; c1 for(i=0; i<N; i++) c2
arr[1] = 0; c1 arr[i] = 0; c1
arr[2] = 0; c1
... ...
arr[N-1] = 0; c1
----------- -------------
n*c1 n*c2 + (n-1)*c1

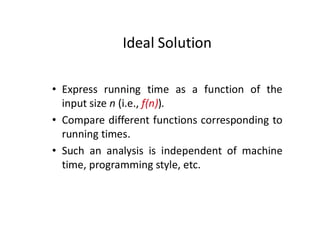

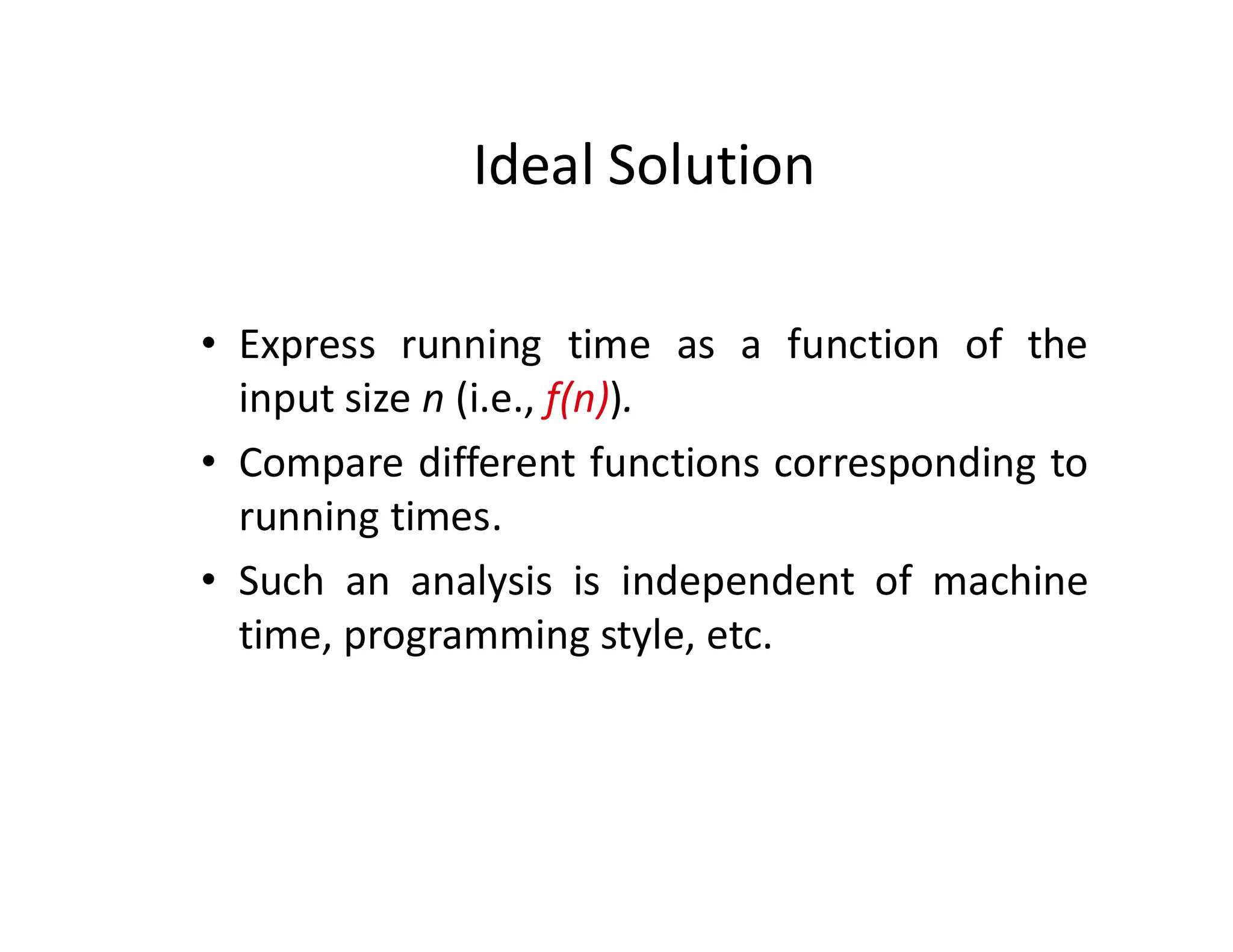

Ideal Solution
• Express running time as a function of the
input size n (i.e., f(n)).
• Compare different functions corresponding to
running times.
• Such an analysis is independent of machine
time, programming style, etc.

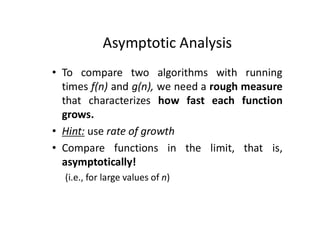

Asymptotic Analysis
• To compare two algorithms with running
times f(n) and g(n), we need a rough measure
that characterizes how fast each function
grows.
• Hint: use rate of growth
• Compare functions in the limit, that is,
asymptotically!
(i.e., for large values of n)

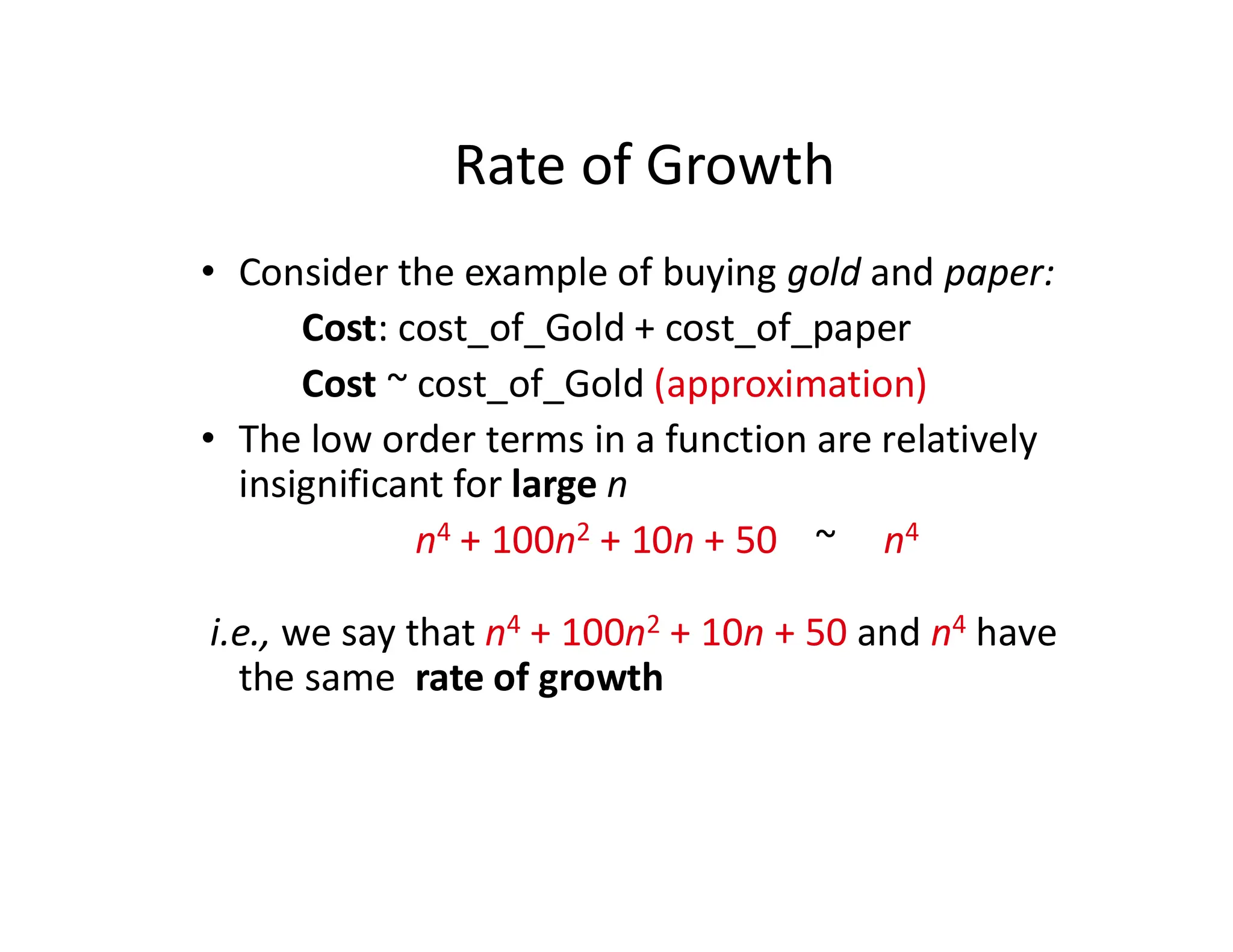

Rate of Growth
• Consider the example of buying gold and paper:
Cost: cost_of_Gold + cost_of_paper
Cost ~ cost_of_Gold (approximation)
• The low order terms in a function are relatively
insignificant for large n
n4 + 100n2 + 10n + 50 ~ n4
i.e., we say that n4 + 100n2 + 10n + 50 and n4 have
the same rate of growth

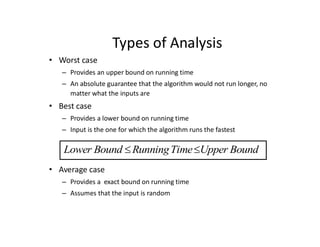

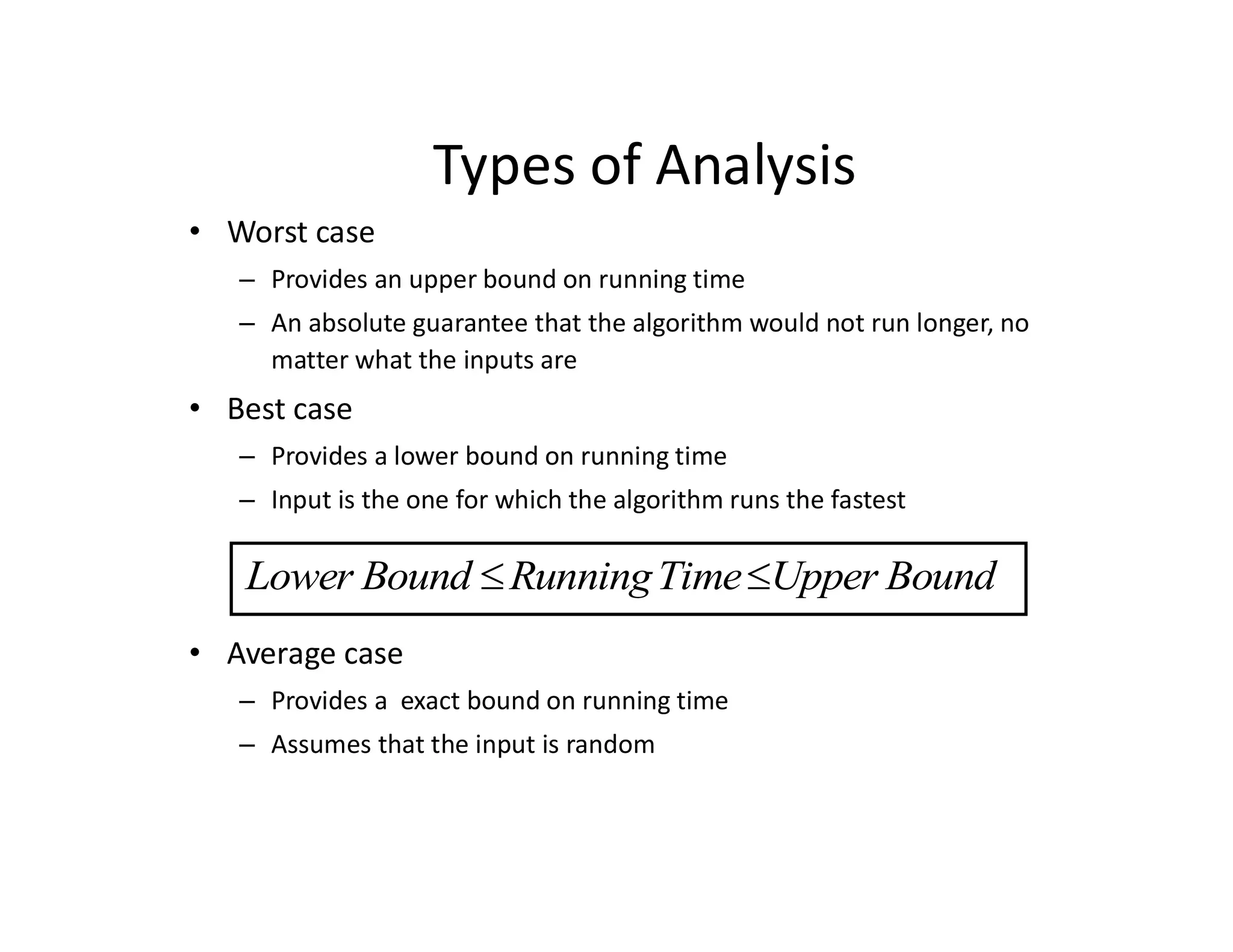

Types of Analysis
• Worst case
– Provides an upper bound on running time
– An absolute guarantee that the algorithm would not run longer, no
matter what the inputs are
• Best case
– Provides a lower bound on running time
– Input is the one for which the algorithm runs the fastest
• Average case
– Provides a exact bound on running time
– Assumes that the input is random
Lower Bound RunningTime Upper Bound
 

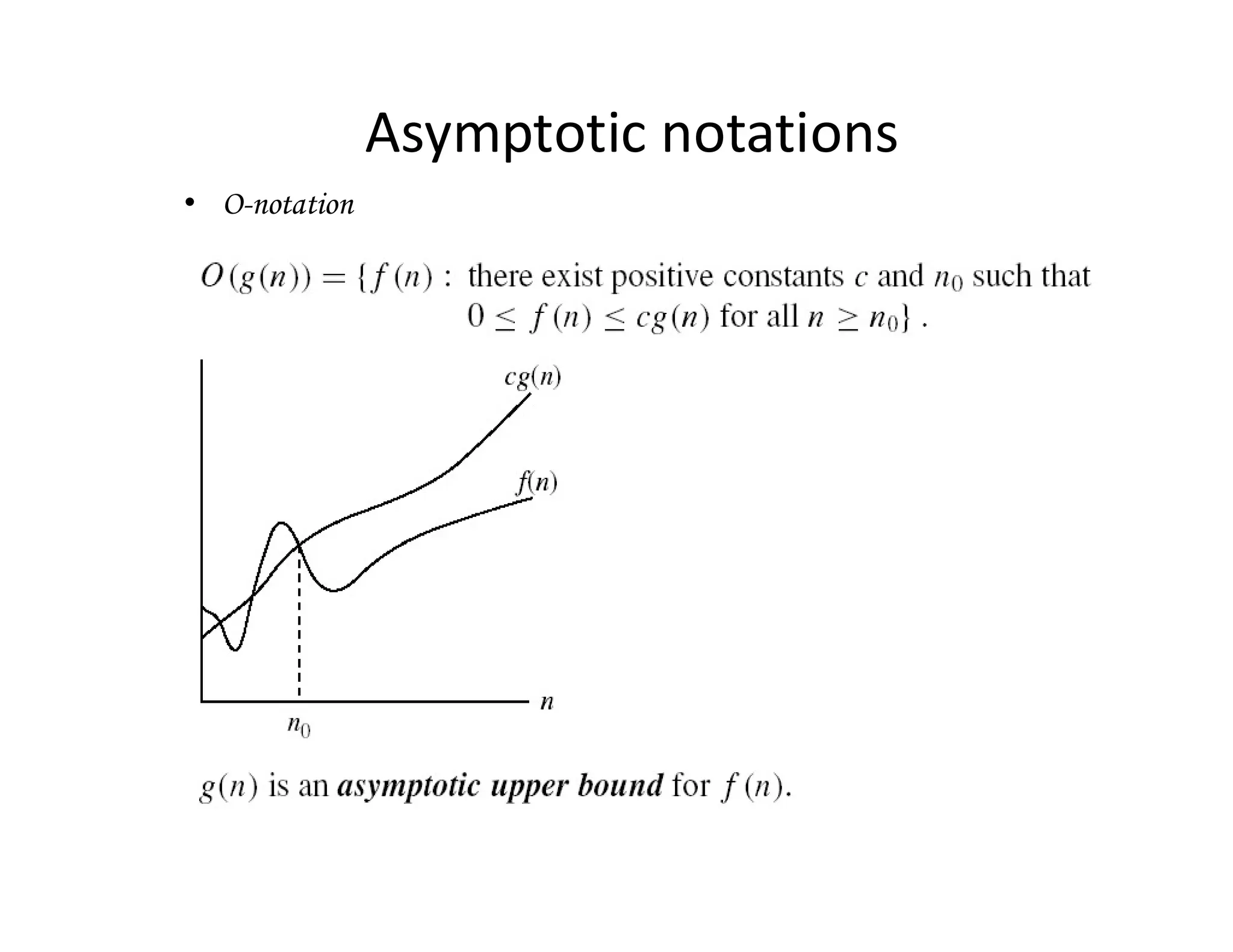

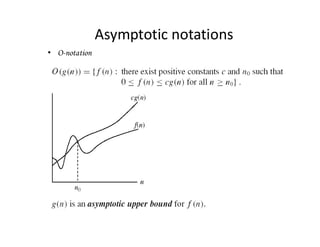

Asymptotic notations
• O-notation

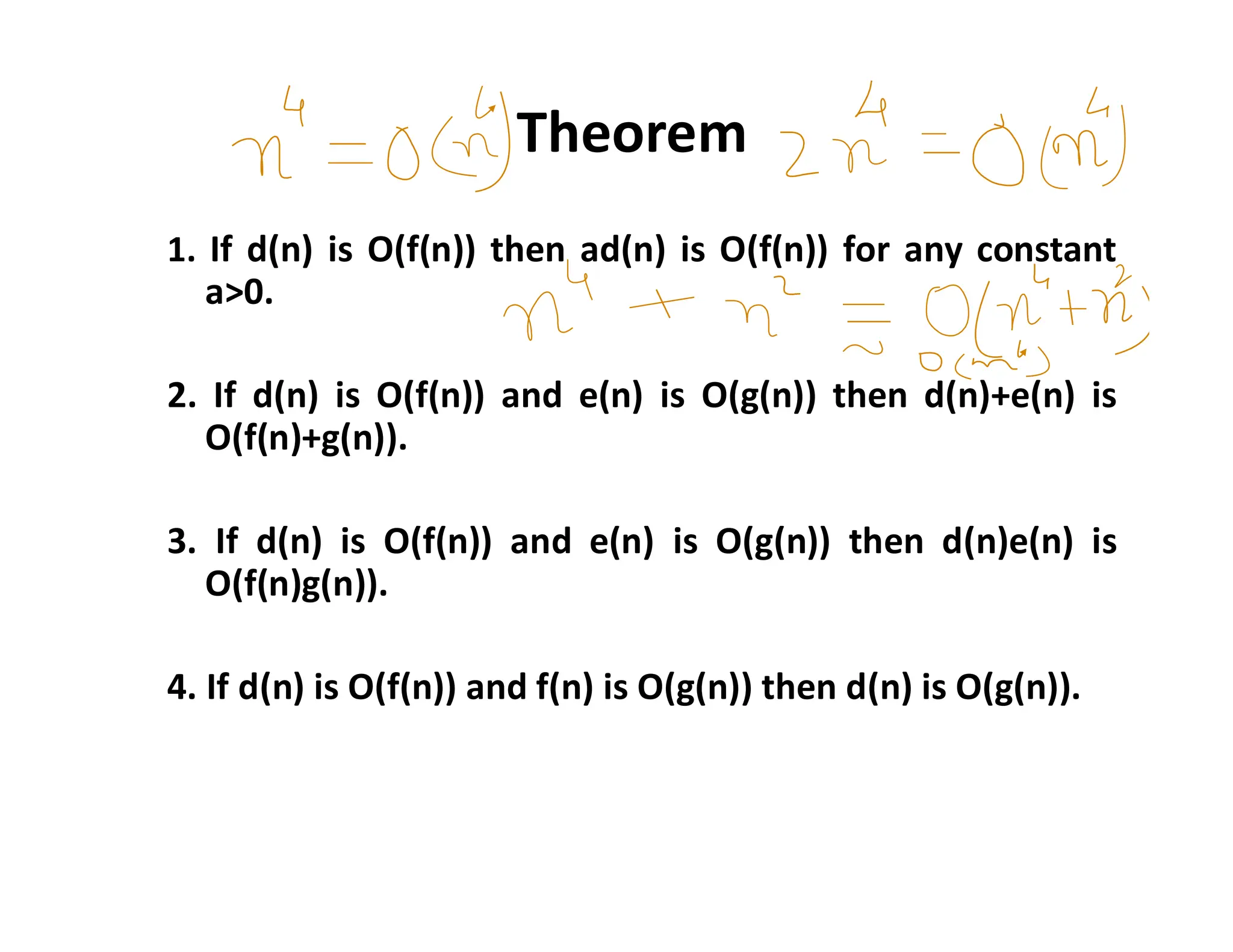

Theorem
1. If d(n) is O(f(n)) then ad(n) is O(f(n)) for any constant
a>0.
2. If d(n) is O(f(n)) and e(n) is O(g(n)) then d(n)+e(n) is
O(f(n)+g(n)).
3. If d(n) is O(f(n)) and e(n) is O(g(n)) then d(n)e(n) is
O(f(n)g(n)).
4. If d(n) is O(f(n)) and f(n) is O(g(n)) then d(n) is O(g(n)).

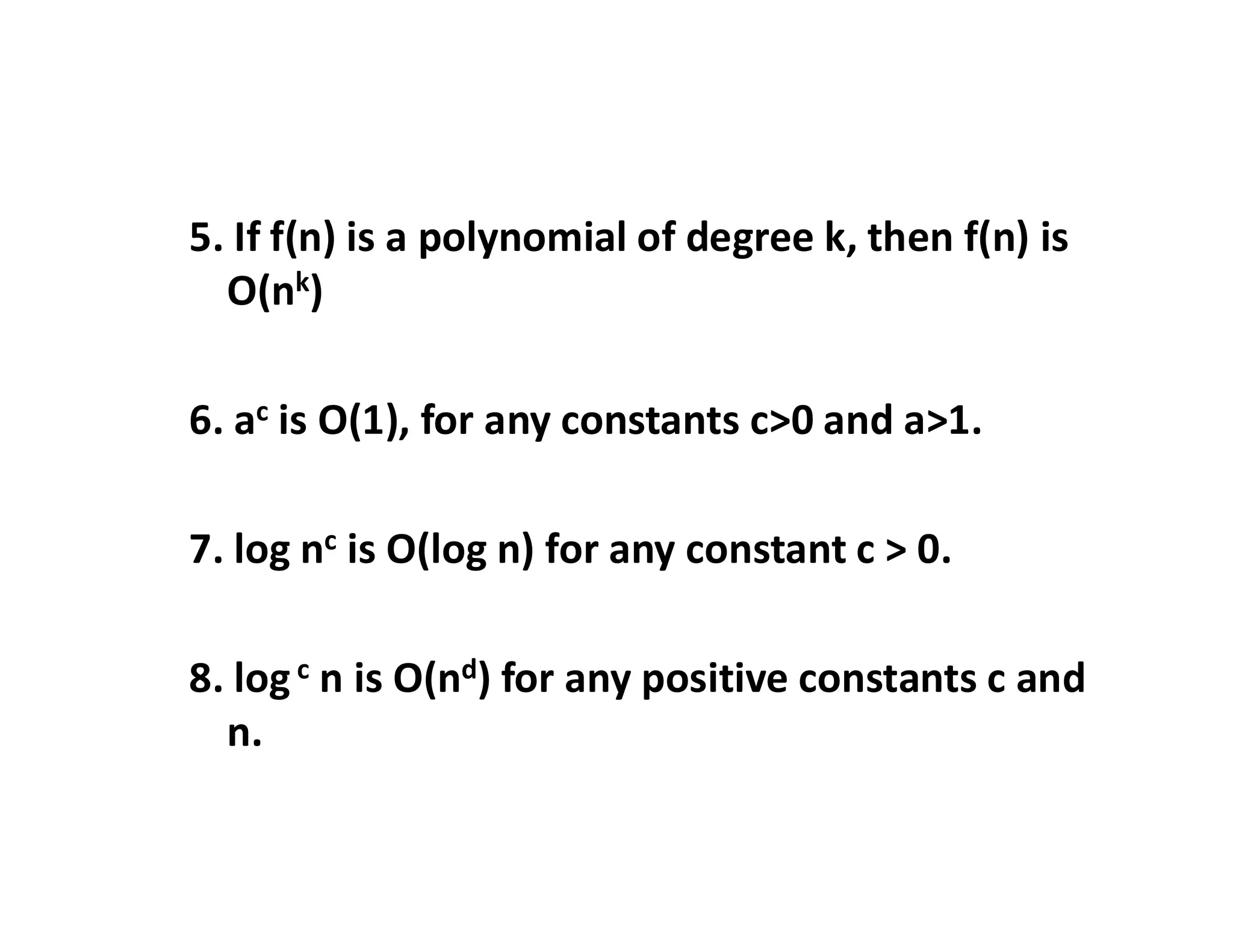

5. If f(n) is a polynomial of degree k, then f(n) is
O(nk)
6. ac is O(1), for any constants c>0 and a>1.
7. log nc is O(log n) for any constant c > 0.
8. logc n is O(nd) for any positive constants c and
n.

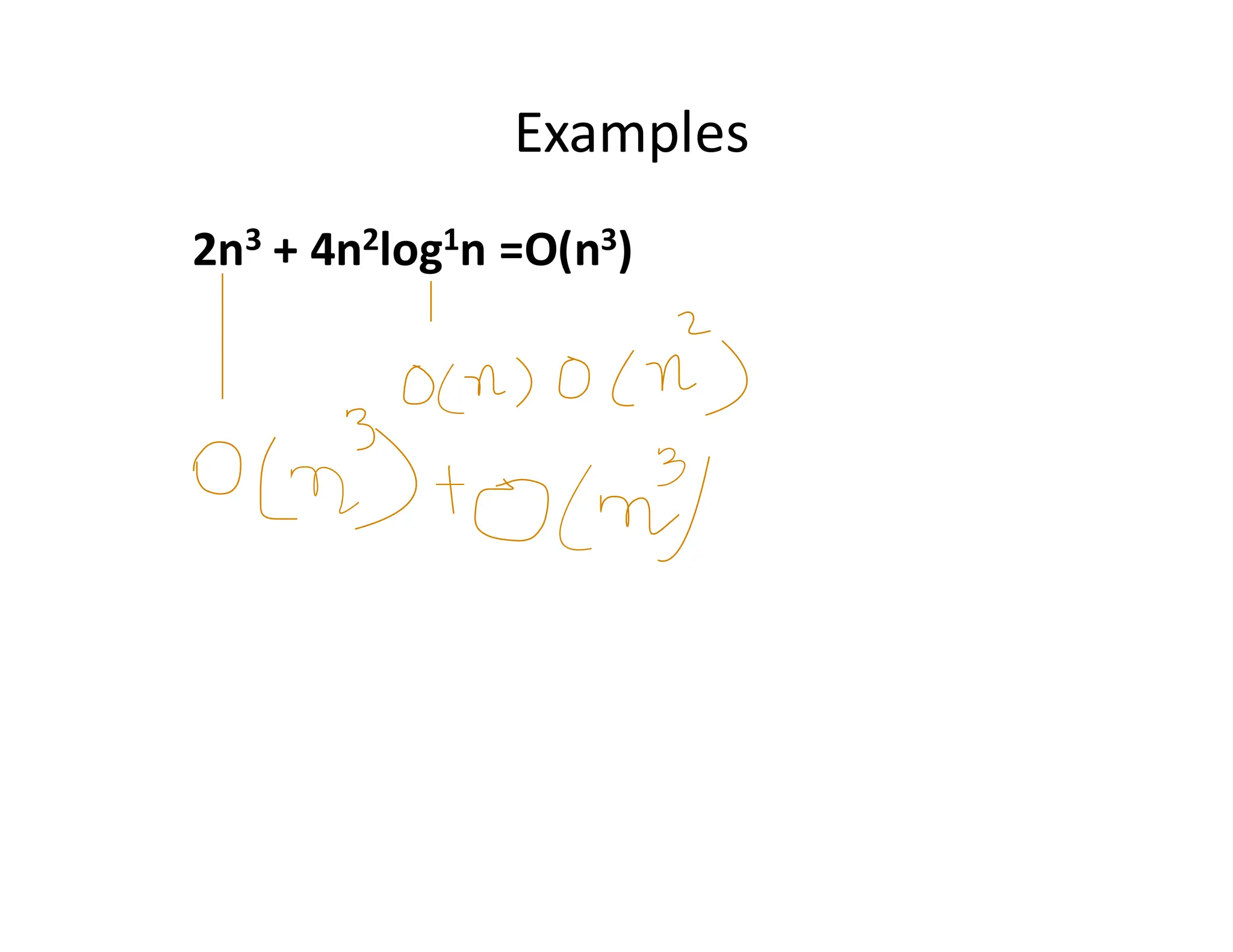

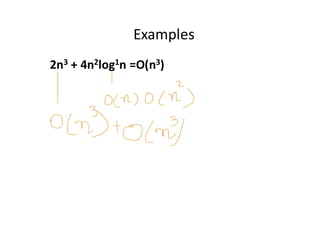

Examples
2n3 + 4n2log1n =O(n3)

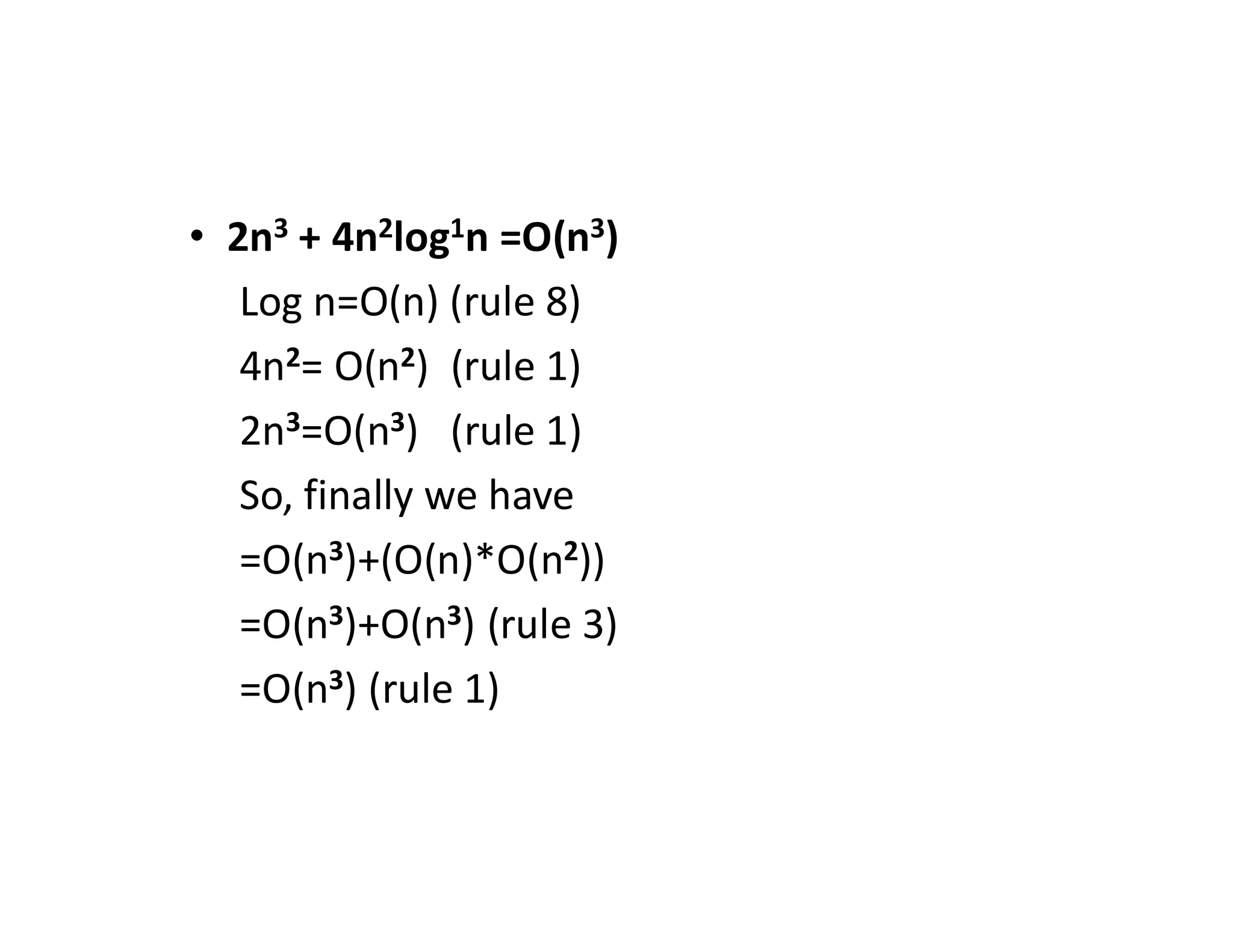

• 2n3 + 4n2log1n =O(n3)
Log n=O(n) (rule 8)
4n2= O(n2) (rule 1)
2n3=O(n3) (rule 1)
So, finally we have
=O(n3)+(O(n)*O(n2))
=O(n3)+O(n3) (rule 3)
=O(n3) (rule 1)

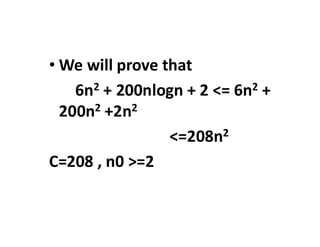

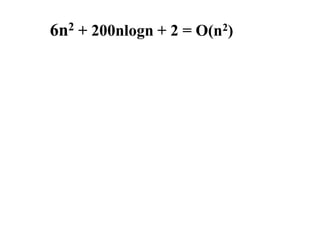

• We will prove that
6n2 + 200nlogn + 2 <= 6n2 +
200n2 +2n2
<=208n2
C=208 , n0 >=2

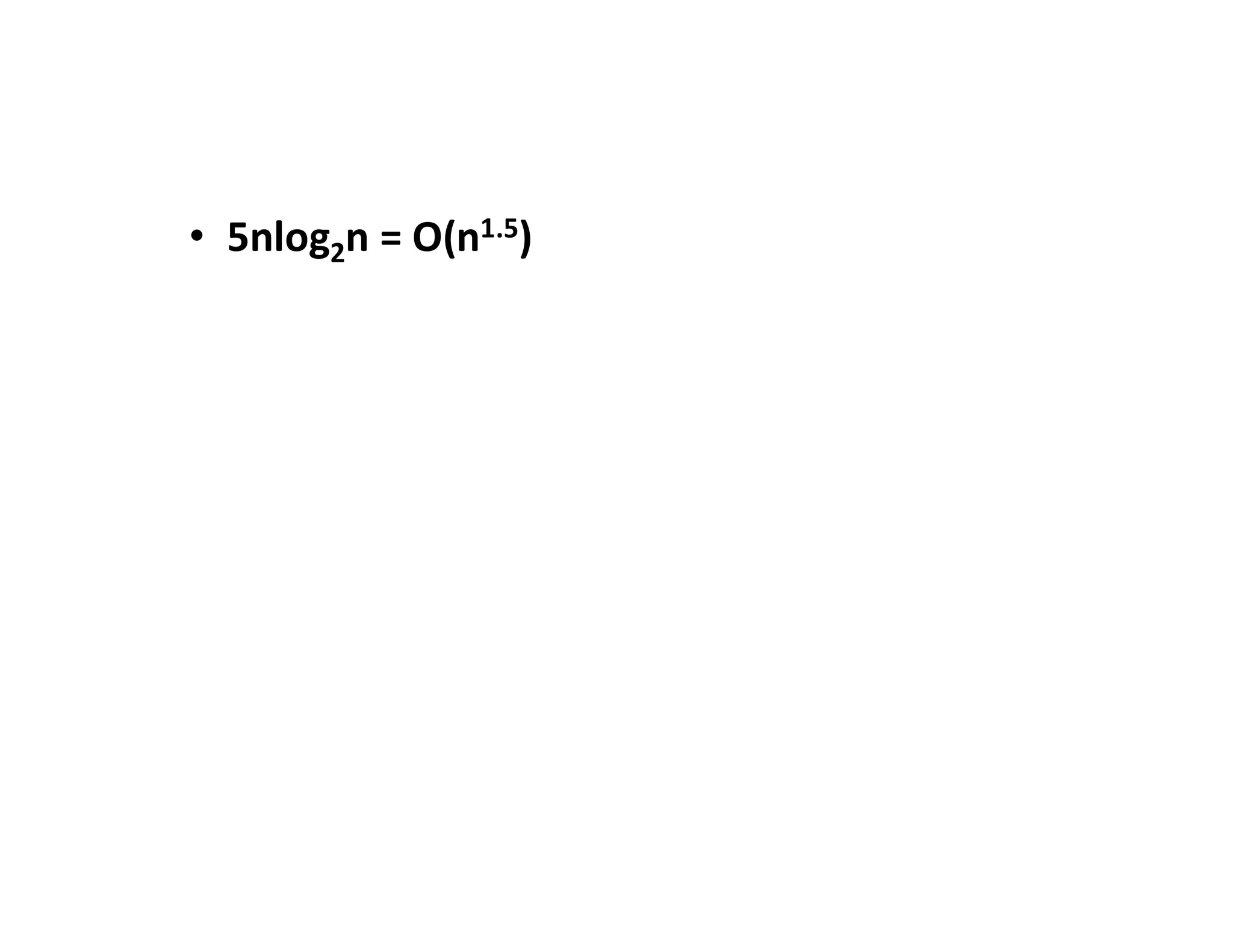

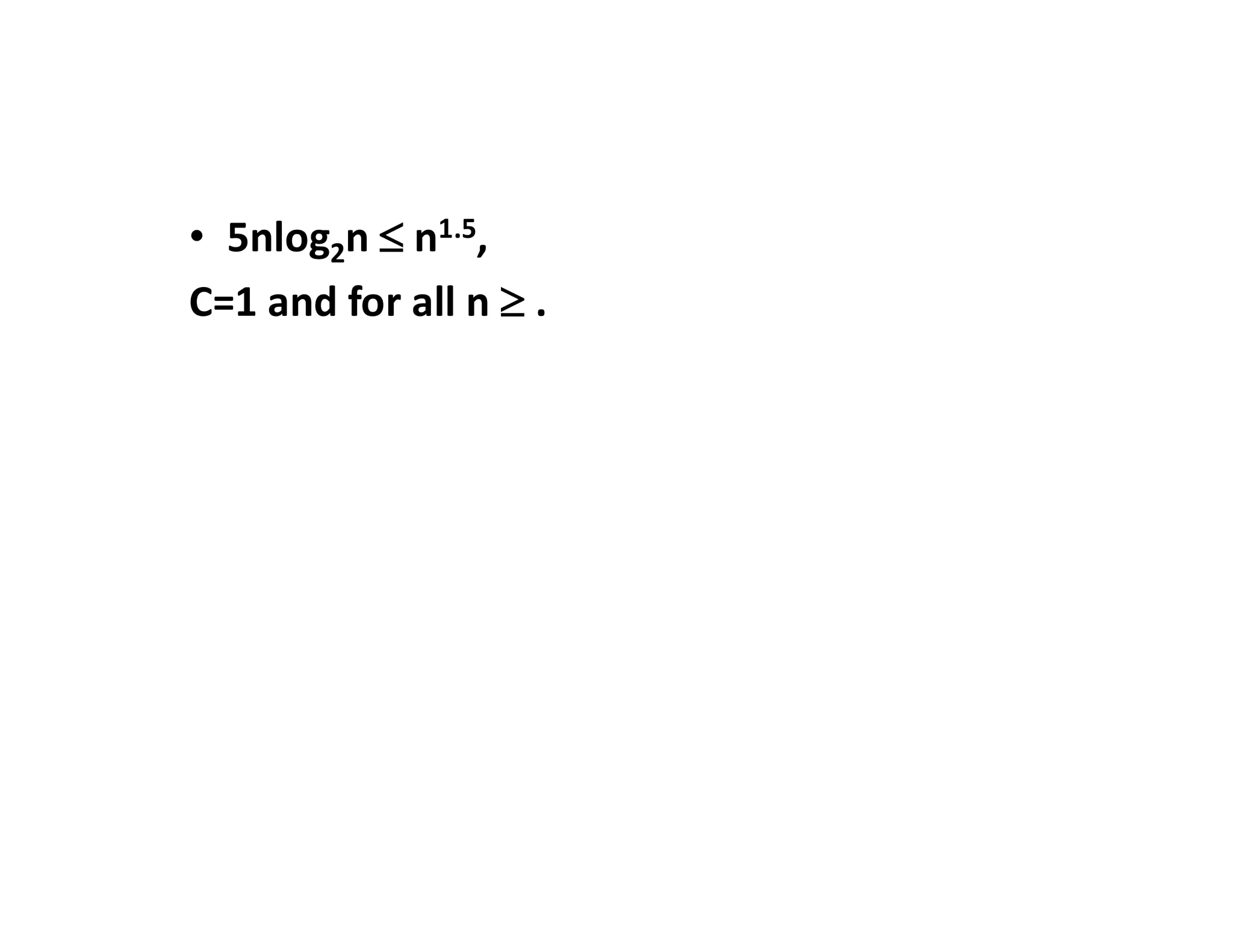

• 5nlog2n n1.5,
C=1 and for all n .

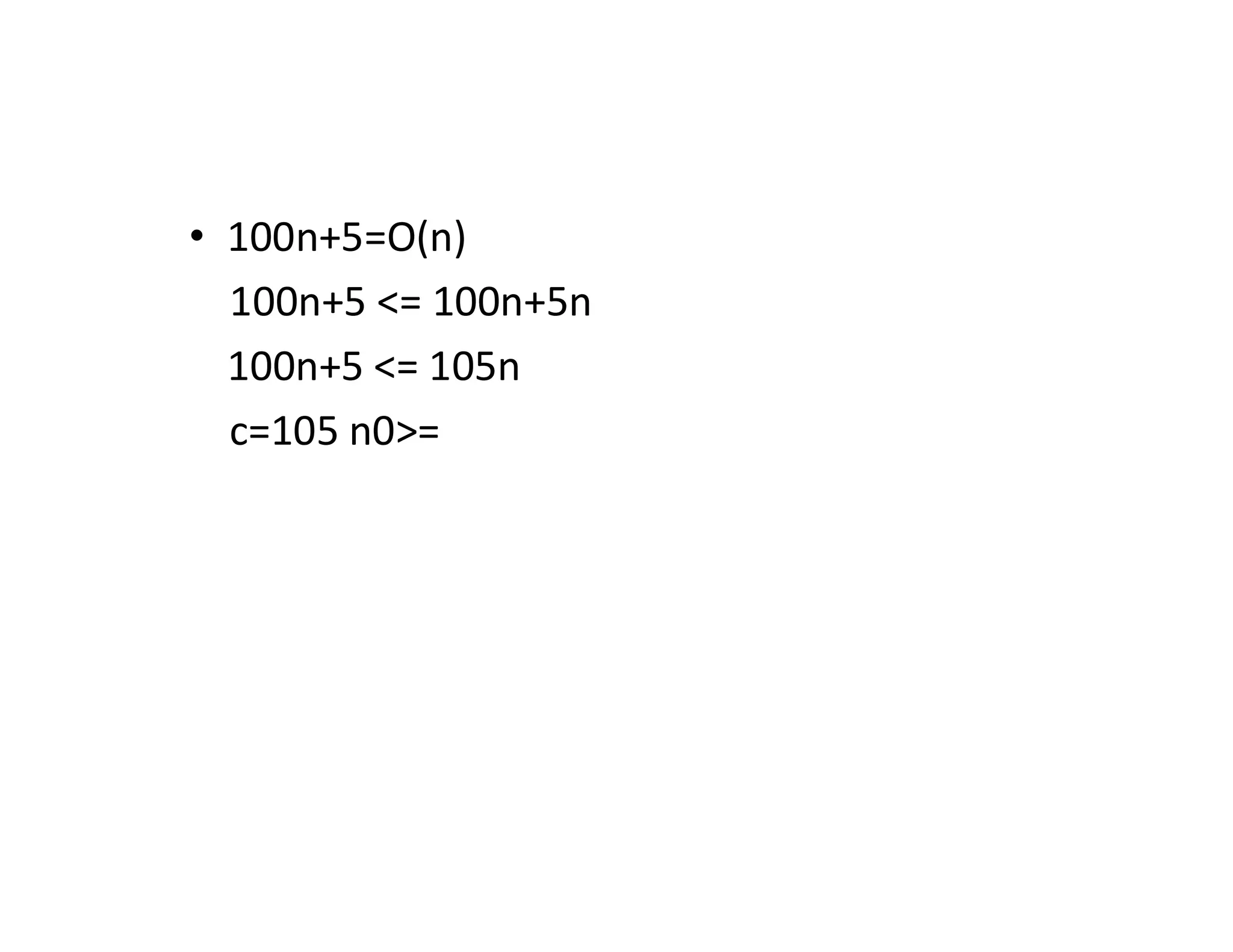

• 100n+5=O(n)
100n+5 <= 100n+5n
100n+5 <= 105n
c=105 n0>=

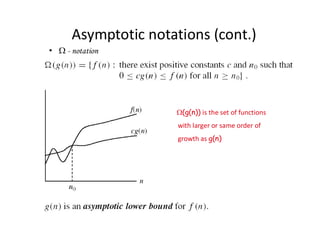

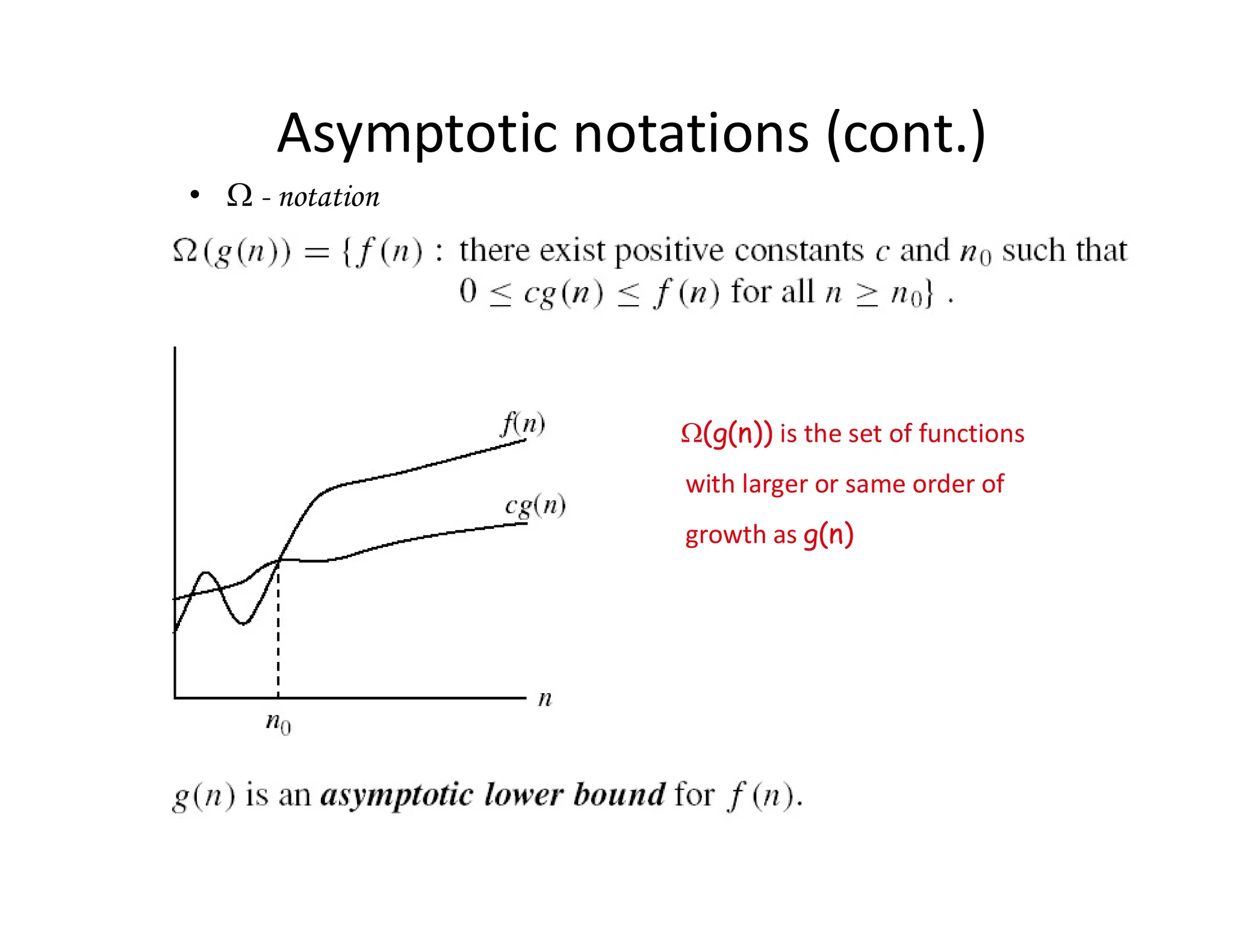

Asymptotic notations (cont.)
•  - notation
(g(n)) is the set of functions
with larger or same order of
growth as g(n)

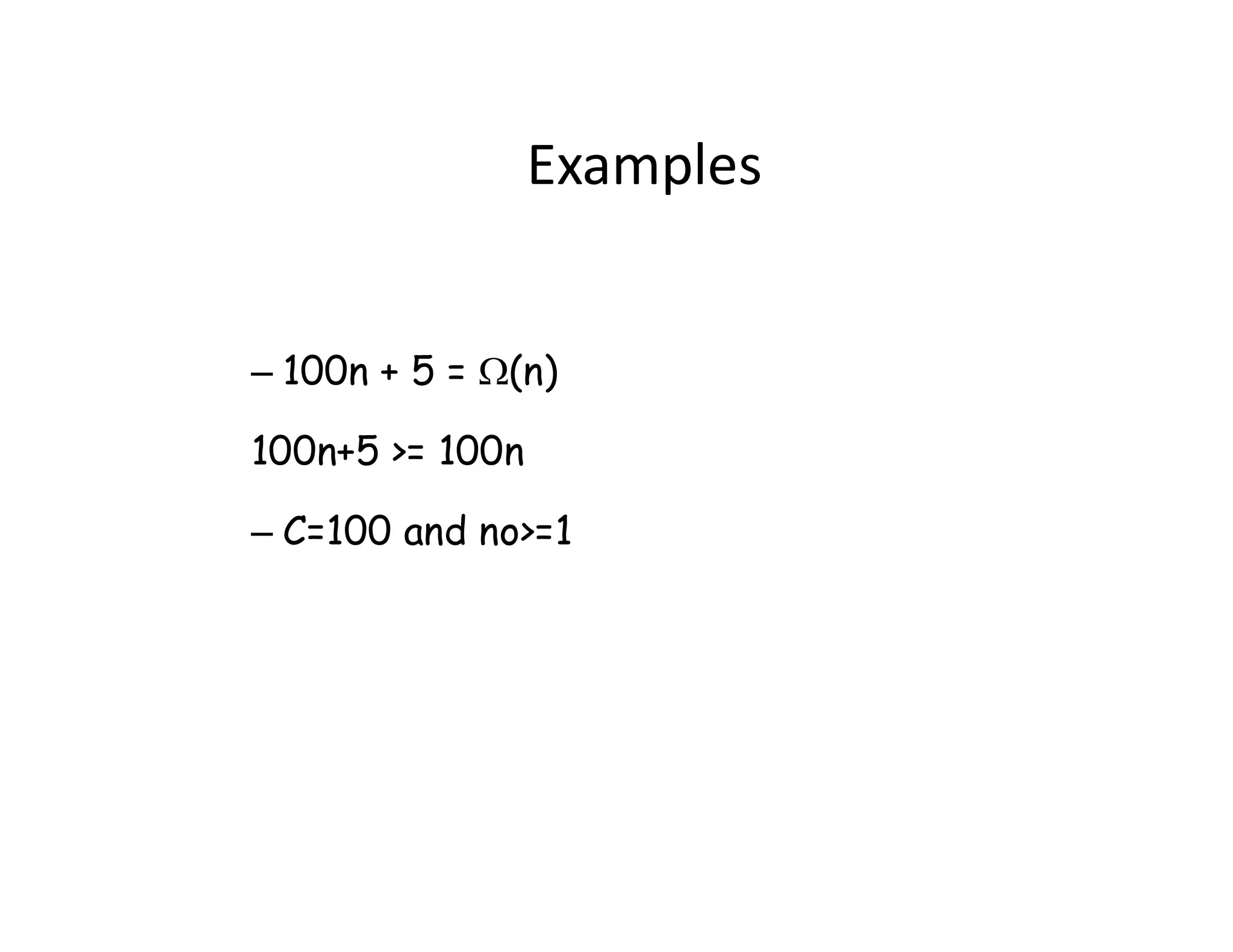

Examples

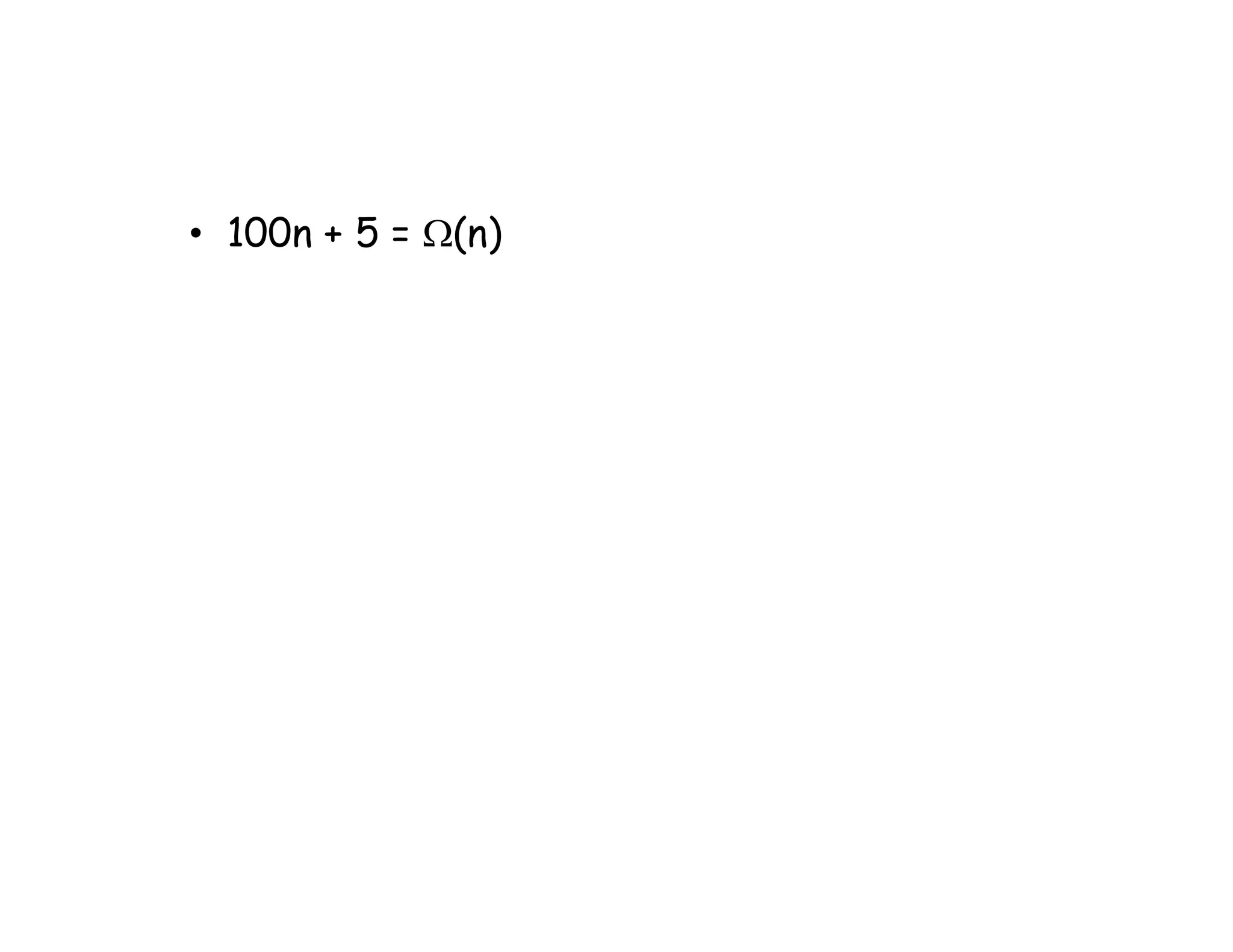

– 100n + 5 = (n)
100n+5 >= 100n
– C=100 and no>=1

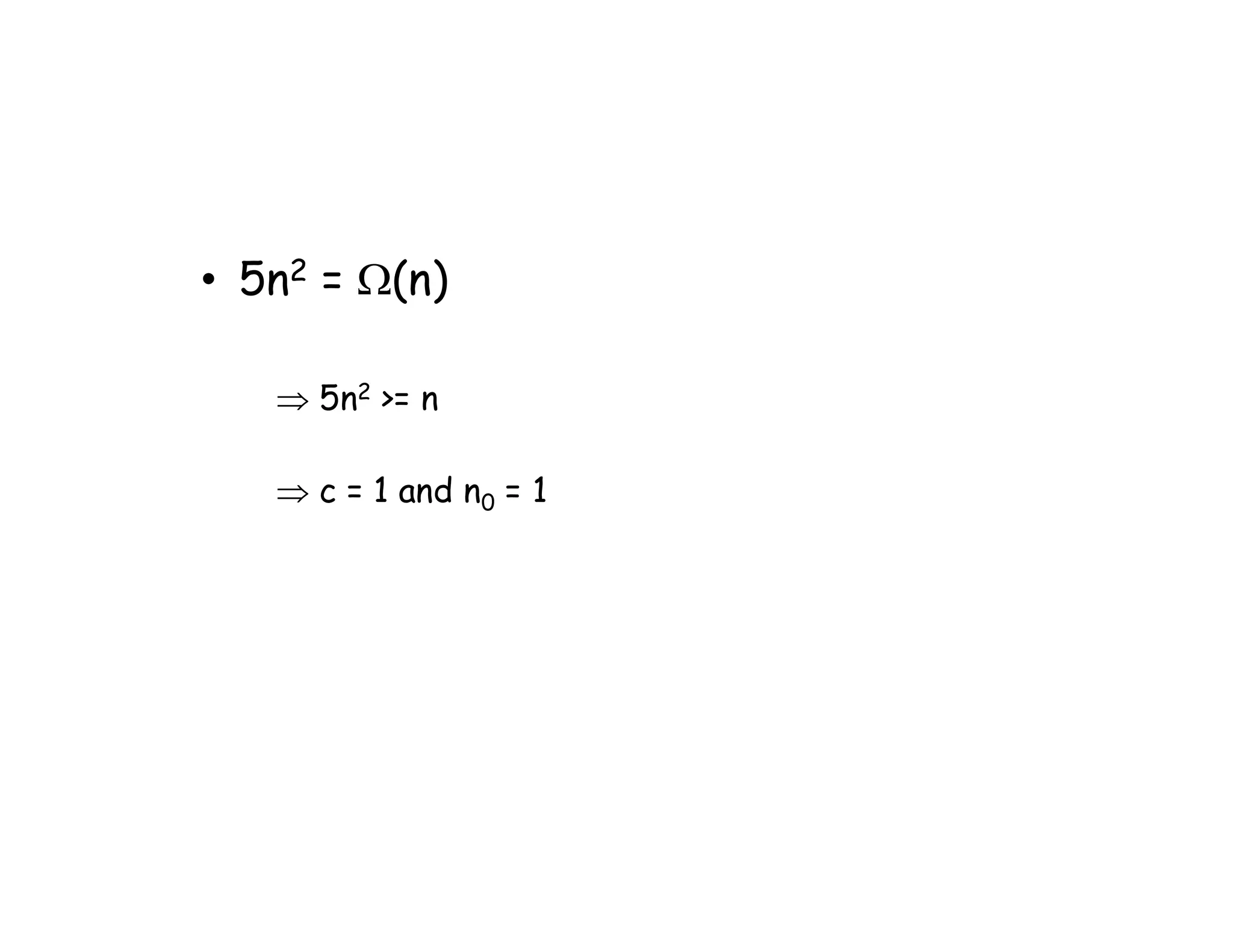

• 5n2 = (n)
 5n2 >= n
 c = 1 and n0 = 1

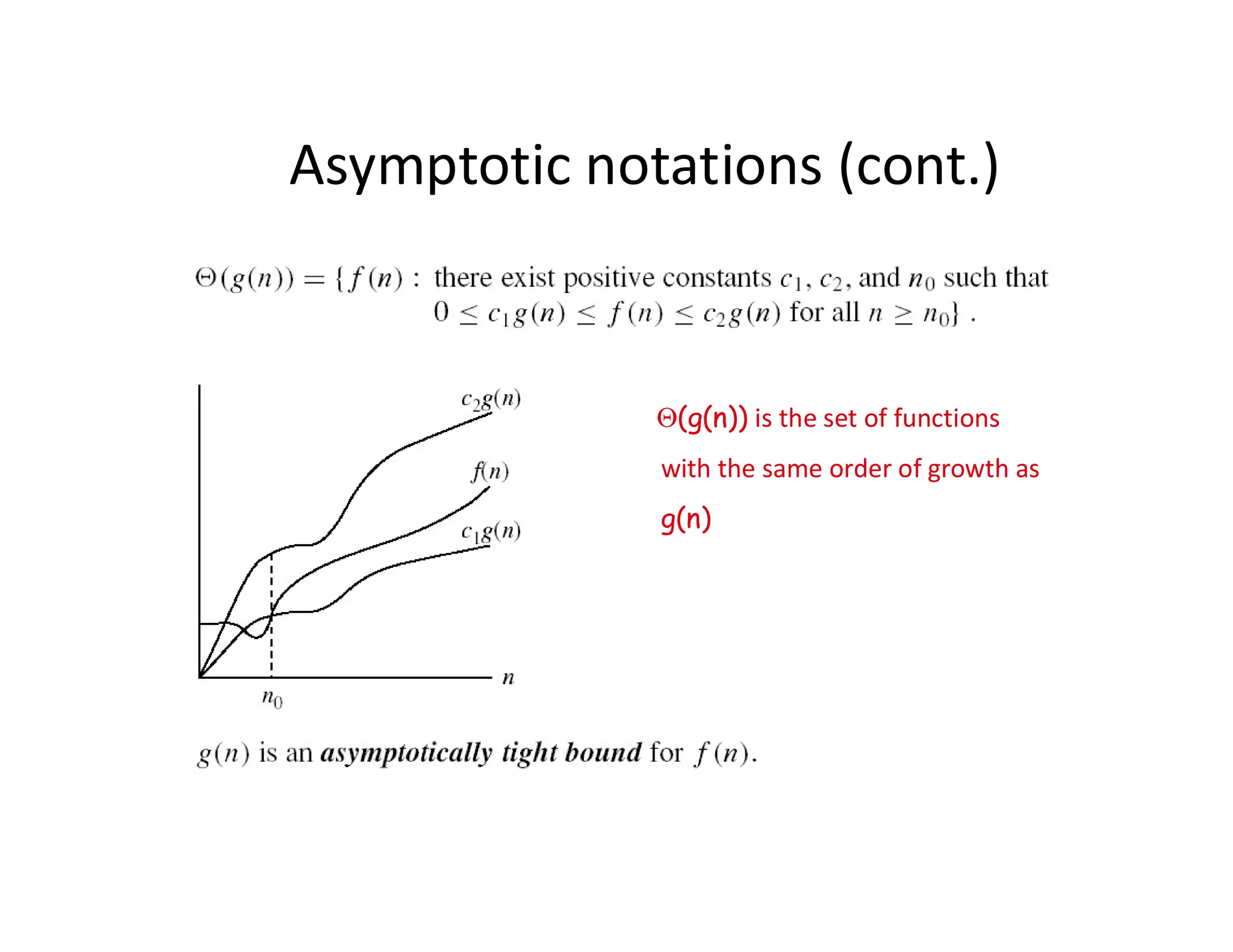

Asymptotic notations (cont.)
• -notation
(g(n)) is the set of functions
with the same order of growth as
g(n)

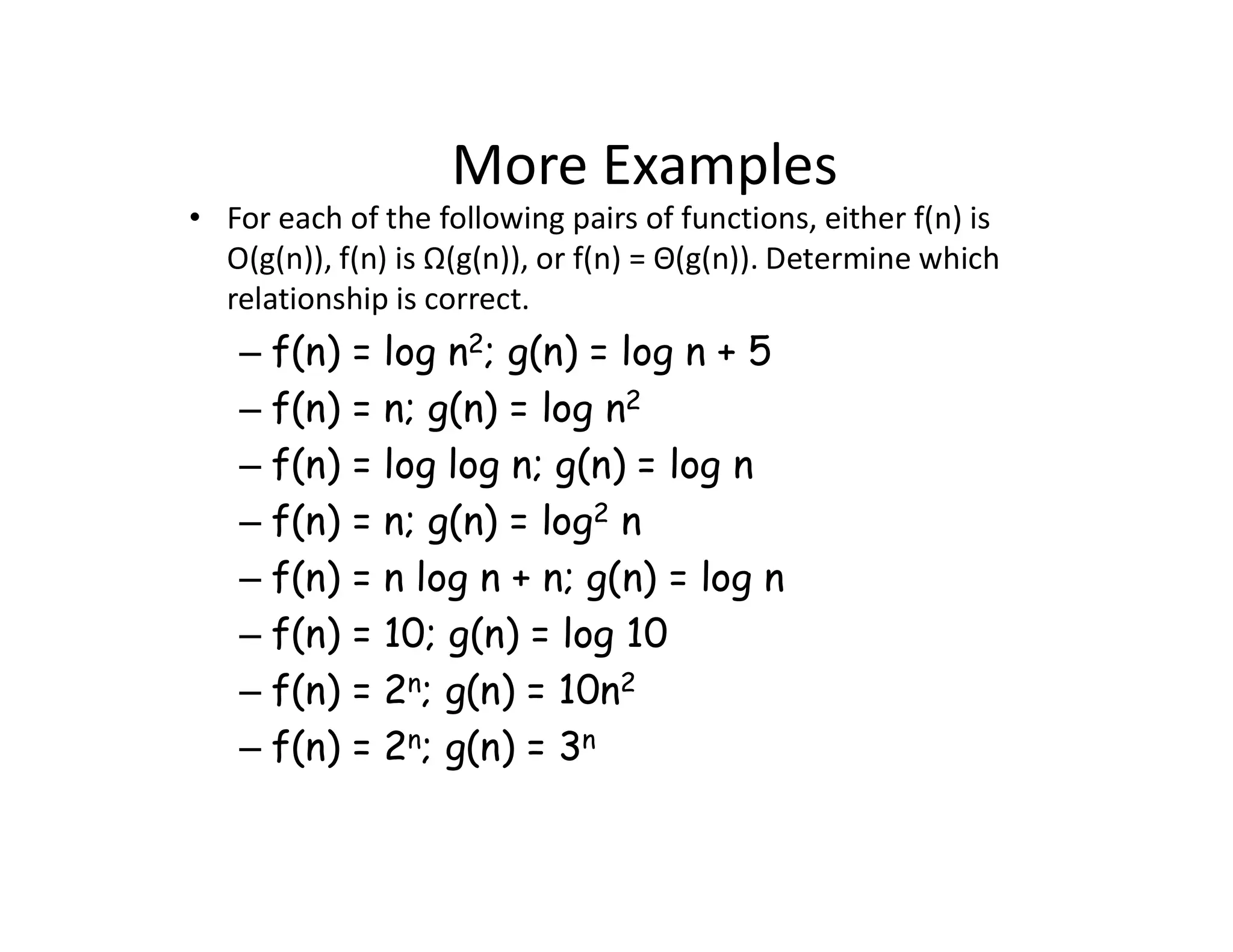

More Examples
• For each of the following pairs of functions, either f(n) is
O(g(n)), f(n) is Ω(g(n)), or f(n) = Θ(g(n)). Determine which
relationship is correct.
– f(n) = log n2; g(n) = log n + 5
– f(n) = n; g(n) = log n2
– f(n) = log log n; g(n) = log n
– f(n) = n; g(n) = log2 n
– f(n) = n log n + n; g(n) = log n
– f(n) = 10; g(n) = log 10
– f(n) = 2n; g(n) = 10n2
– f(n) = 2n; g(n) = 3n

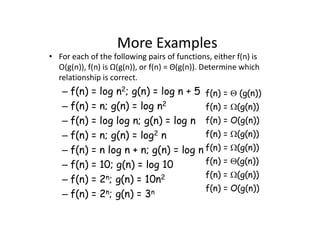

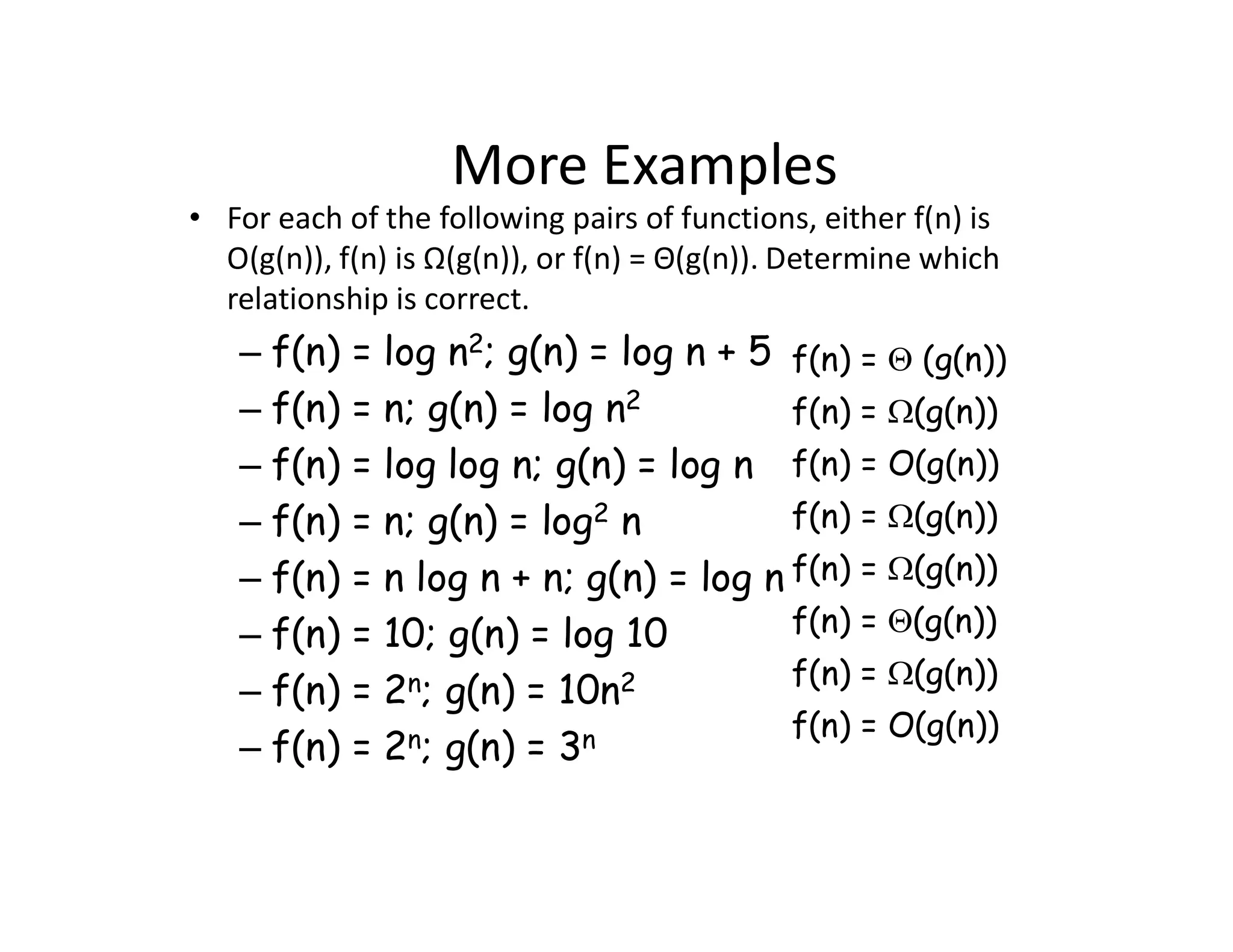

More Examples
• For each of the following pairs of functions, either f(n) is
O(g(n)), f(n) is Ω(g(n)), or f(n) = Θ(g(n)). Determine which
relationship is correct.
– f(n) = log n2; g(n) = log n + 5
– f(n) = n; g(n) = log n2
– f(n) = log log n; g(n) = log n
– f(n) = n; g(n) = log2 n
– f(n) = n log n + n; g(n) = log n
– f(n) = 10; g(n) = log 10
– f(n) = 2n; g(n) = 10n2
– f(n) = 2n; g(n) = 3n
f(n) =  (g(n))
f(n) = (g(n))
f(n) = O(g(n))
f(n) = (g(n))
f(n) = (g(n))
f(n) = (g(n))
f(n) = (g(n))
f(n) = O(g(n))
