Asymptotic Notation and Complexity

Complexity
Asymptotic Notation

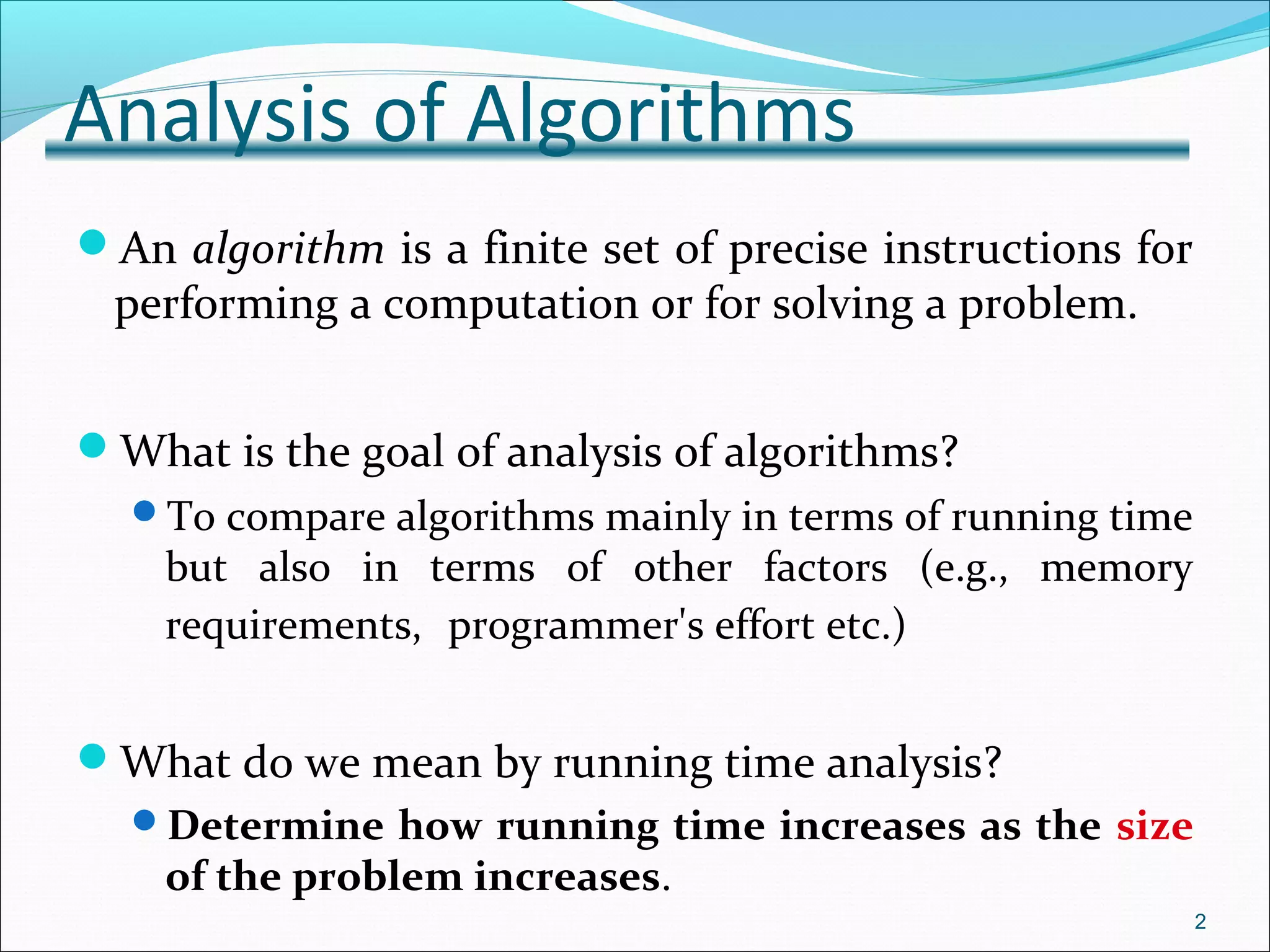

Analysis of Algorithms
An algorithm is a finite set of precise instructions for
performing a computation or for solving a problem.
What is the goal of analysis of algorithms?
To compare algorithms mainly in terms of running time
but also in terms of other factors (e.g., memory
requirements, programmer's effort etc.)
What do we mean by running time analysis?
Determine how running time increases as the size
of the problem increases.
2

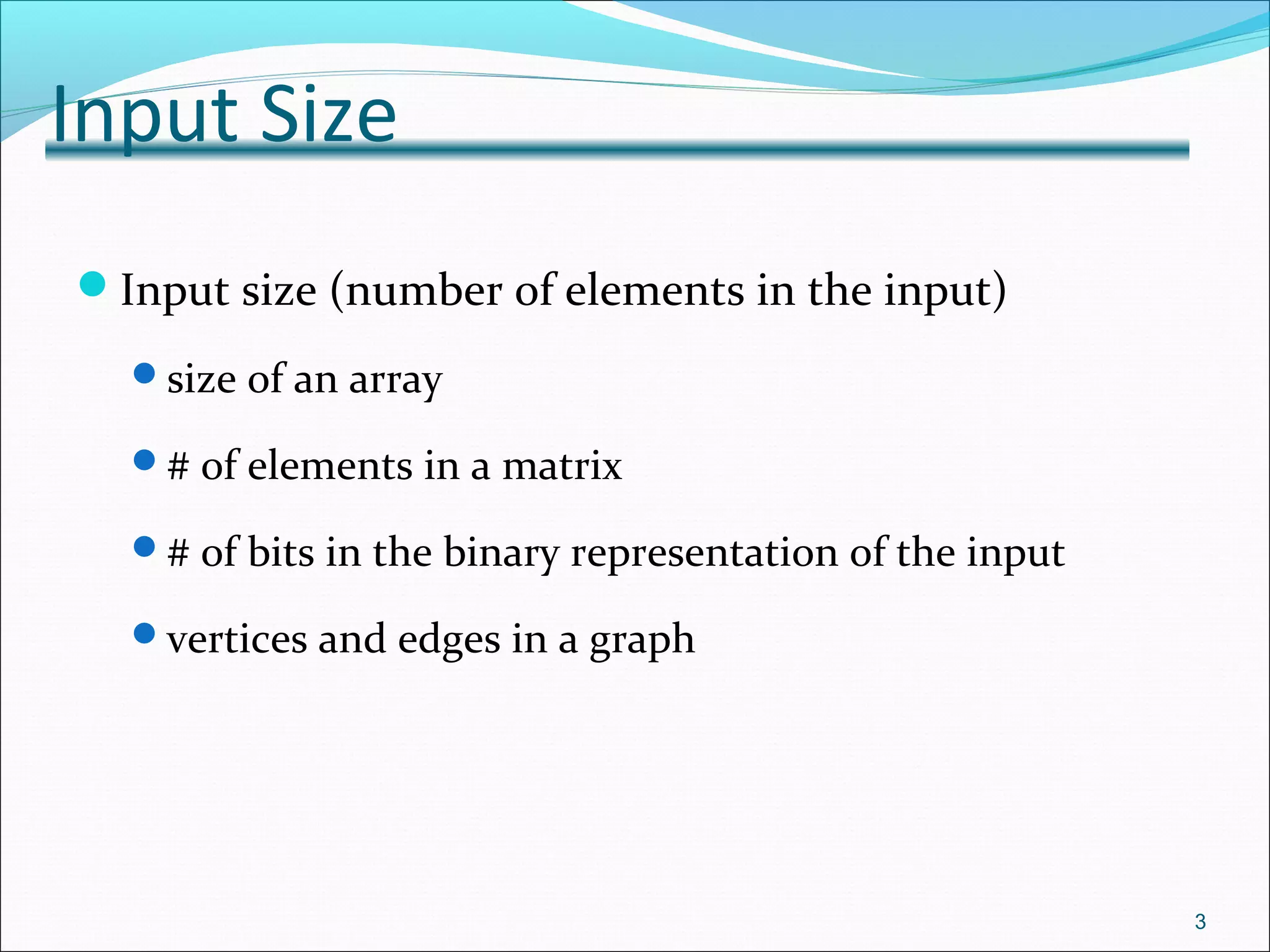

Input Size
Input size (number of elements in the input)
size of an array
# of elements in a matrix
# of bits in the binary representation of the input
vertices and edges in a graph
3

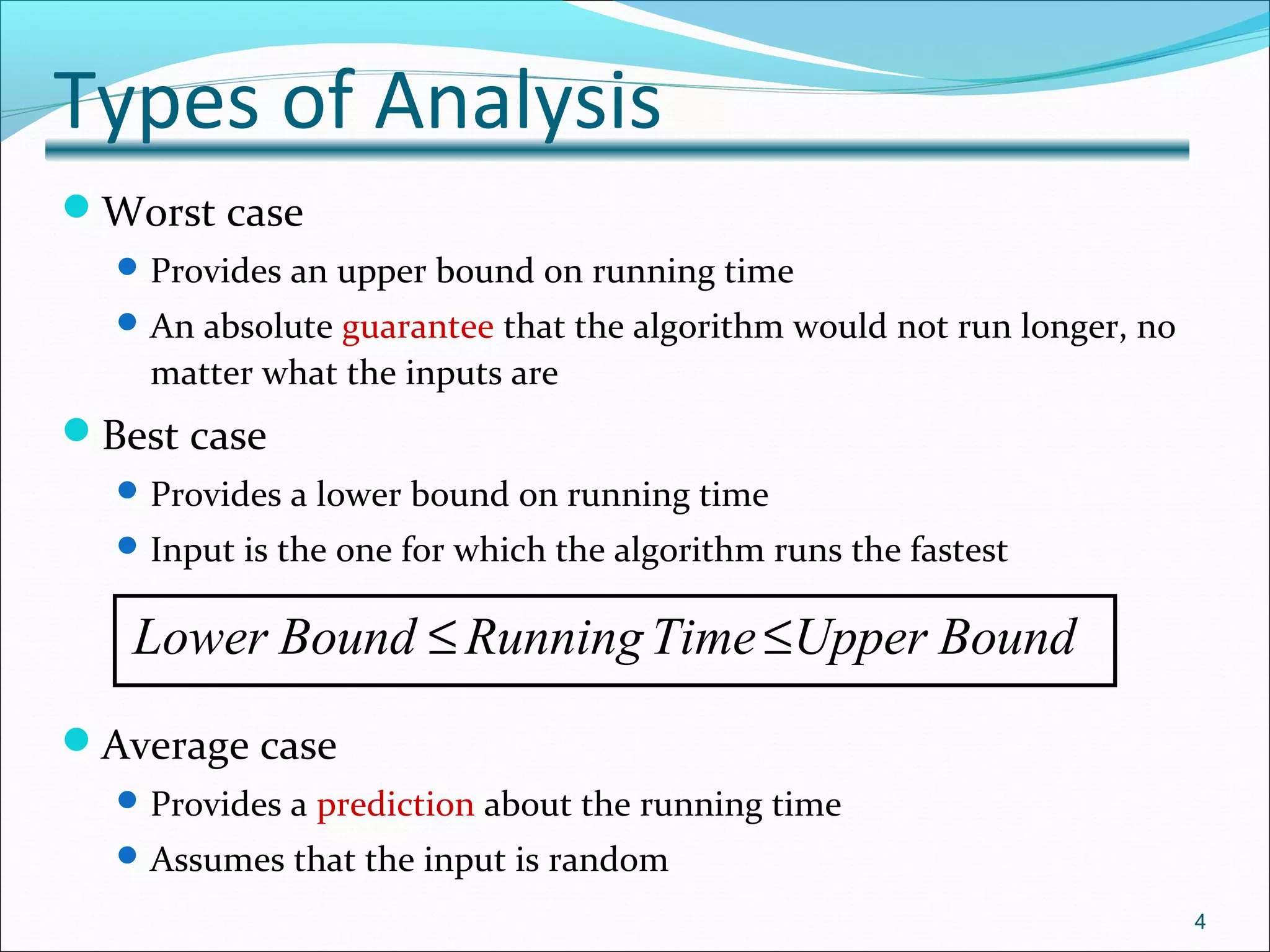

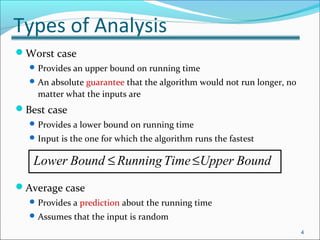

Types of Analysis
Worst case
Provides an upper bound on running time
An absolute guarantee that the algorithm would not run longer, no
matter what the inputs are
Best case
Provides a lower bound on running time
Input is the one for which the algorithm runs the fastest
Average case
Provides a prediction about the running time
Assumes that the input is random
4
Lower Bound RunningTime Upper Bound≤ ≤

Types of Analysis: Example
Example: Linear Search Complexity
Best Case : Item found at the beginning: One comparison
Worst Case : Item found at the end: n comparisons
Average Case :Item may be found at index 0, or 1, or 2, . . . or n - 1
Average number of comparisons is: (1 + 2 + . . . + n) / n = (n+1) / 2
 Worst and Average complexities of common sorting algorithms
5
Method Worst Case Average Case Best Case
Selection Sort n2
n2
n2
Insertion Sort n2
n2
n
Merge Sort nlogn nlogn nlogn
Quick Sort n2
nlogn nlogn

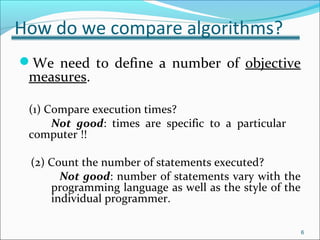

How do we compare algorithms?
We need to define a number of objective
measures.
(1) Compare execution times?
Not good: times are specific to a particular
computer !!
(2) Count the number of statements executed?
Not good: number of statements vary with the
programming language as well as the style of the
individual programmer.
6

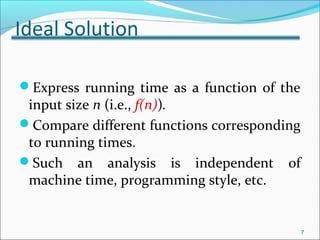

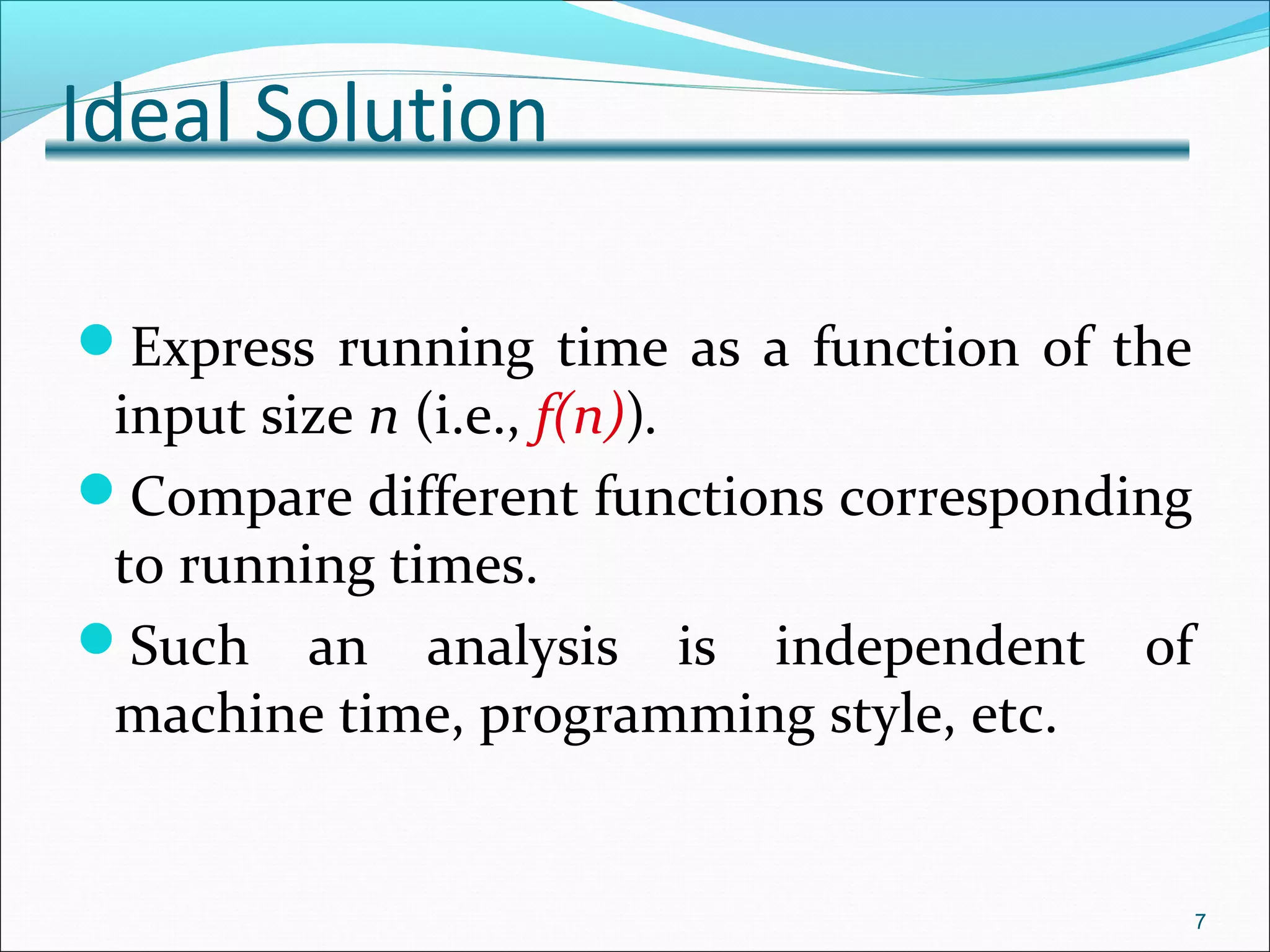

Ideal Solution
Express running time as a function of the
input size n (i.e., f(n)).
Compare different functions corresponding
to running times.
Such an analysis is independent of
machine time, programming style, etc.
7

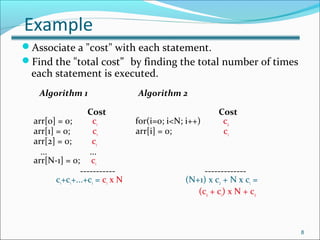

Example
Associate a "cost" with each statement.
Find the "total cost” by finding the total number of times
each statement is executed.
Algorithm 1 Algorithm 2
Cost Cost
arr[0] = 0; c1 for(i=0; i<N; i++) c2
arr[1] = 0; c1 arr[i] = 0; c1
arr[2] = 0; c1
... ...
arr[N-1] = 0; c1
----------- -------------
c1+c1+...+c1 = c1 x N (N+1) x c2 + N x c1 =
(c2 + c1) x N + c2
8

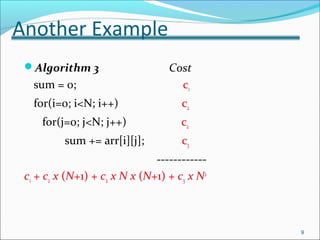

Another Example
Algorithm 3 Cost
sum = 0; c1
for(i=0; i<N; i++) c2
for(j=0; j<N; j++) c2
sum += arr[i][j]; c3
------------
c1 + c2 x (N+1) + c2 x N x (N+1) + c3 x N2
9

Asymptotic Analysis
To compare two algorithms with running
times f(n) and g(n), we need a rough
measure that characterizes how fast each
function grows.
Hint: use rate of growth
Compare functions in the limit, that is,
asymptotically!
(i.e., for large values of n)
10

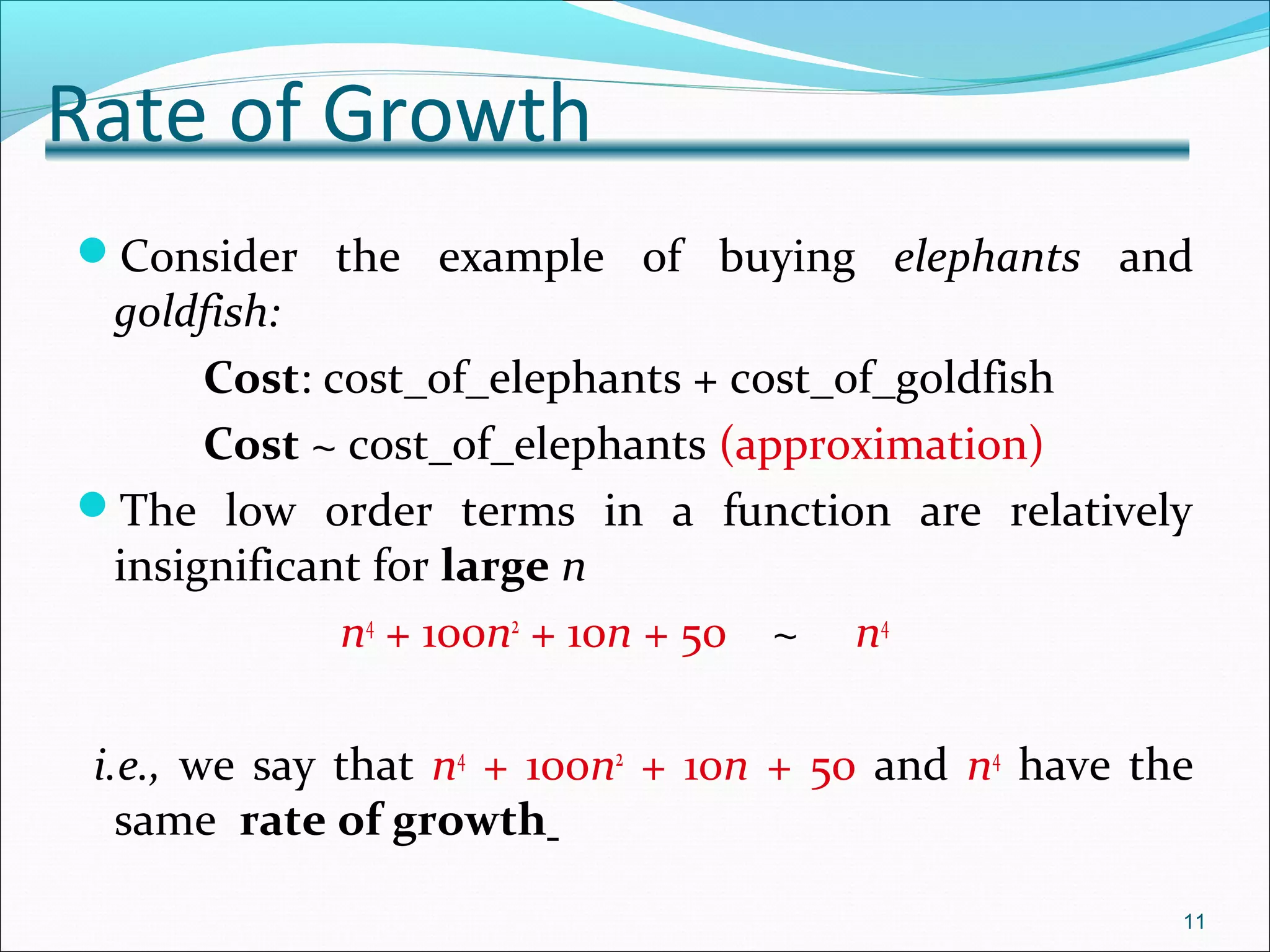

Rate of Growth
Consider the example of buying elephants and
goldfish:
Cost: cost_of_elephants + cost_of_goldfish
Cost ~ cost_of_elephants (approximation)
The low order terms in a function are relatively
insignificant for large n
n4
+ 100n2
+ 10n + 50 ~ n4
i.e., we say that n4
+ 100n2
+ 10n + 50 and n4
have the
same rate of growth
11

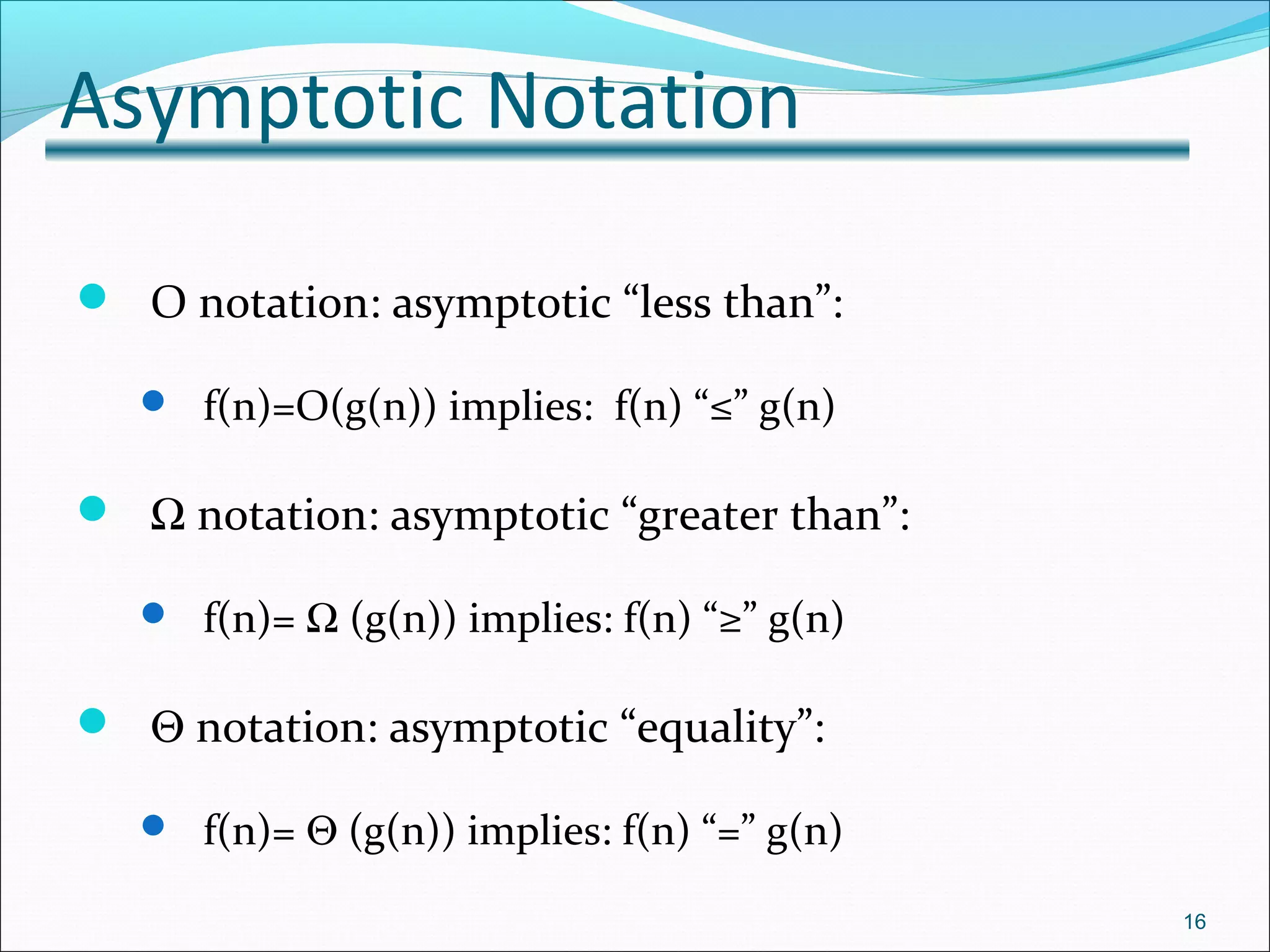

Asymptotic Notation
 O notation: asymptotic “less than”:
 f(n)=O(g(n)) implies: f(n) “≤” g(n)
 Ω notation: asymptotic “greater than”:
 f(n)= Ω (g(n)) implies: f(n) “≥” g(n)
 Θ notation: asymptotic “equality”:
 f(n)= Θ (g(n)) implies: f(n) “=” g(n)
16

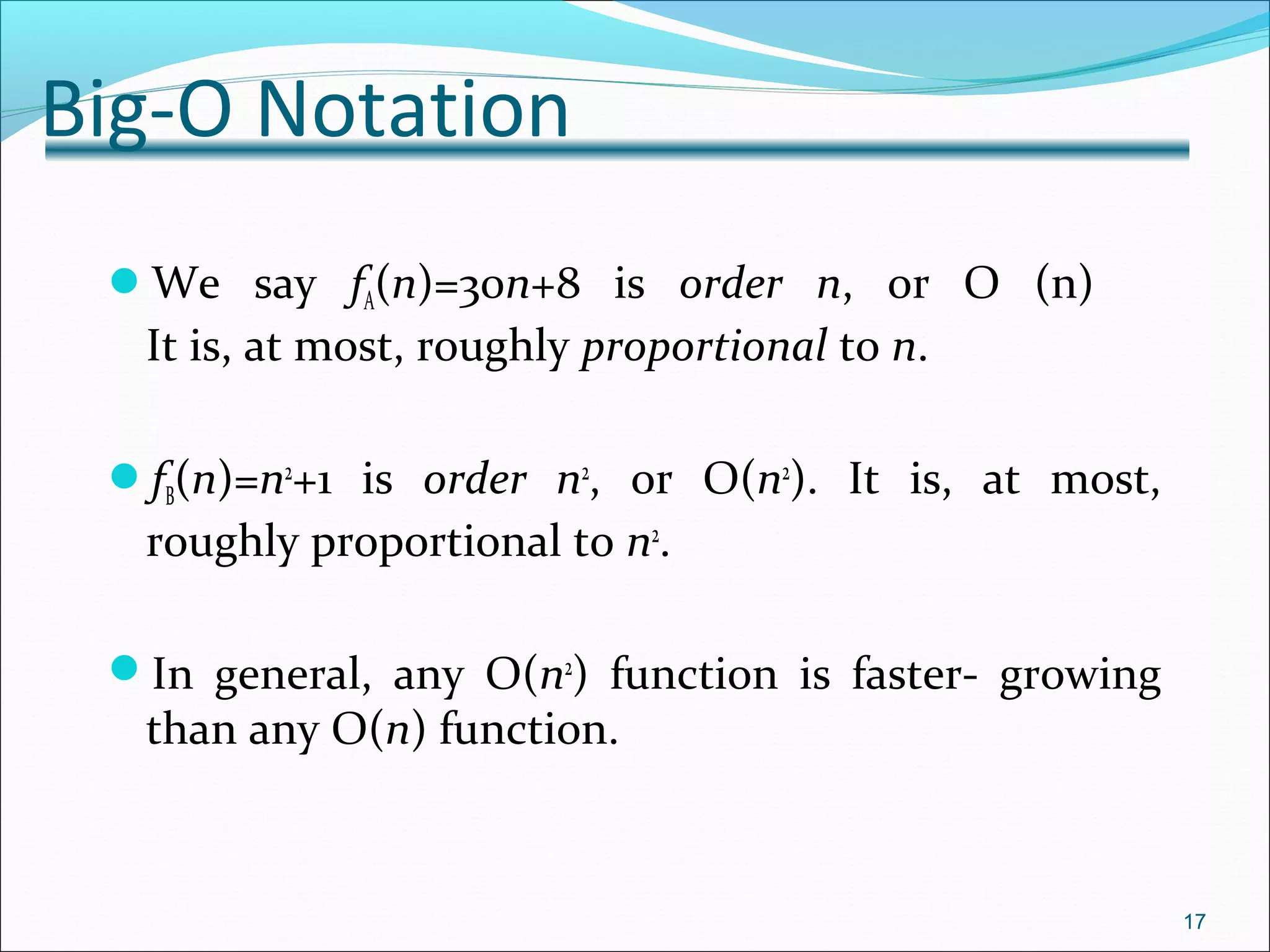

Big-O Notation
We say fA(n)=30n+8 is order n, or O (n)
It is, at most, roughly proportional to n.
fB(n)=n2
+1 is order n2
, or O(n2
). It is, at most,
roughly proportional to n2
.
In general, any O(n2
) function is faster- growing
than any O(n) function.
17

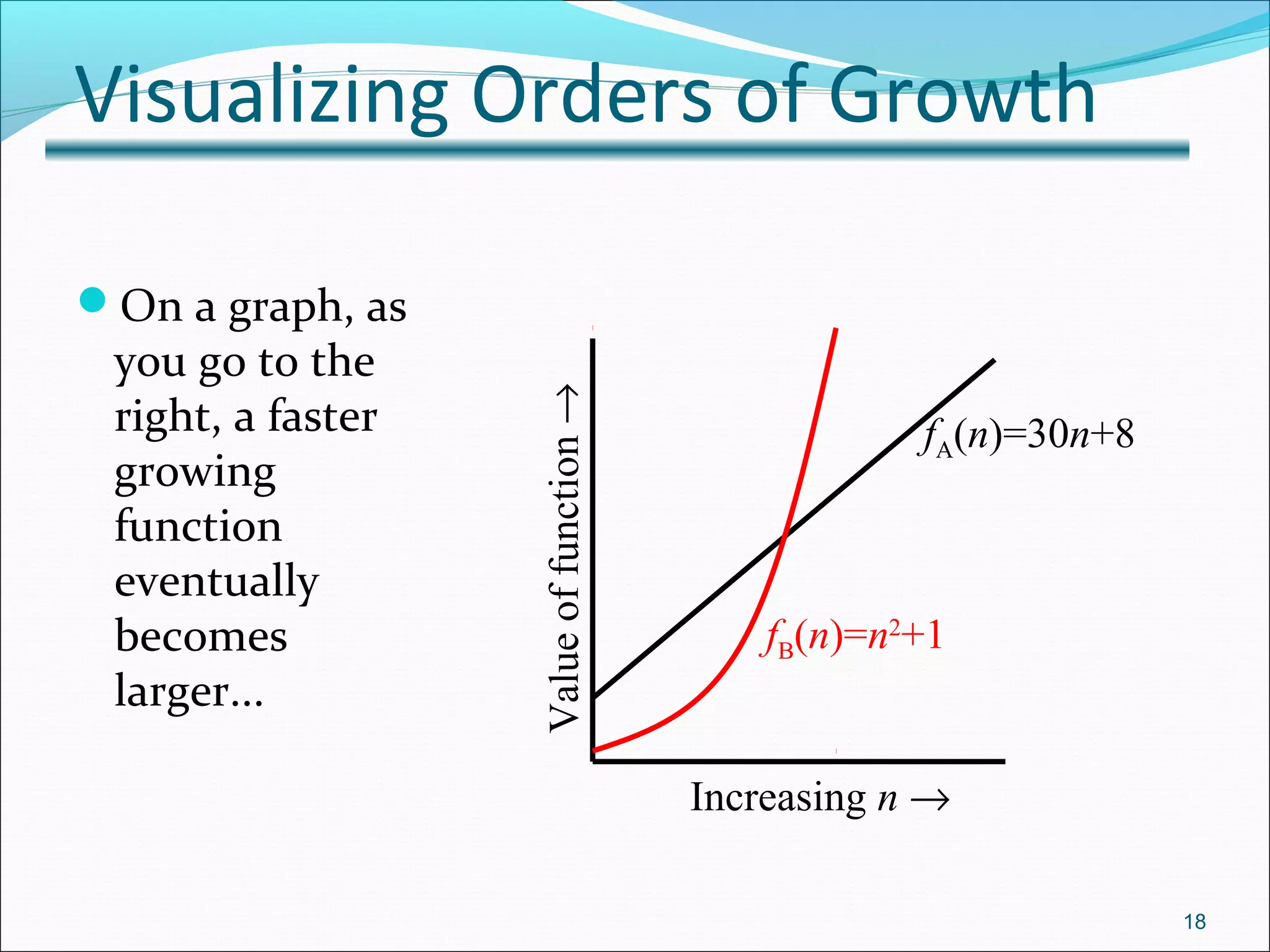

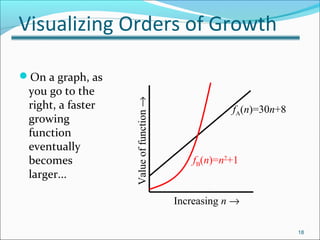

Visualizing Orders of Growth
On a graph, as
you go to the
right, a faster
growing
function
eventually
becomes
larger...
18
fA(n)=30n+8
Increasing n →
fB(n)=n2
+1
Valueoffunction→

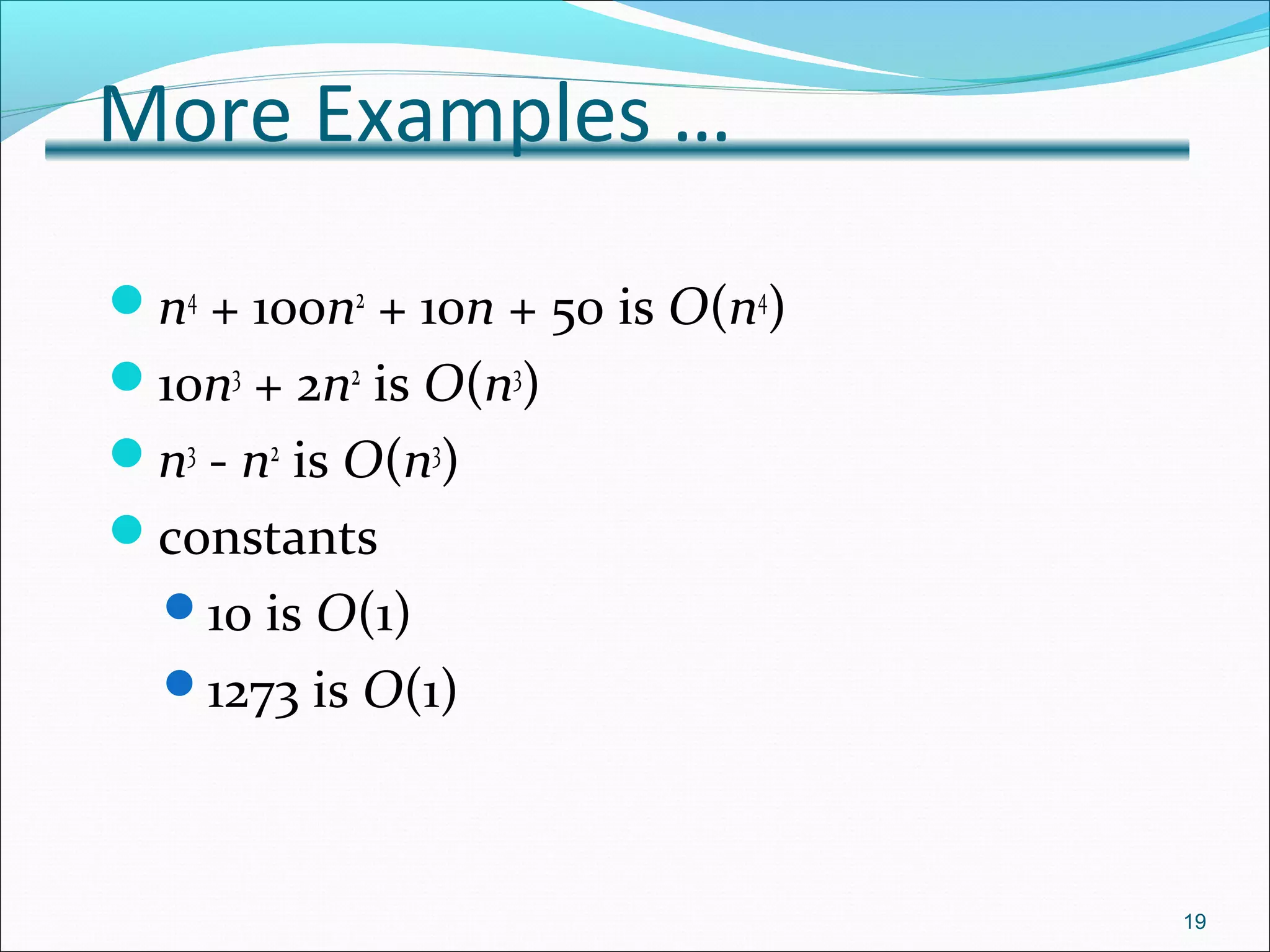

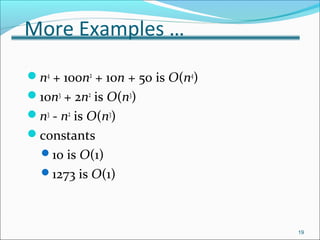

More Examples …
n4
+ 100n2
+ 10n + 50 is O(n4
)
10n3
+ 2n2
is O(n3
)
n3
- n2
is O(n3
)
constants
10 is O(1)
1273 is O(1)
19

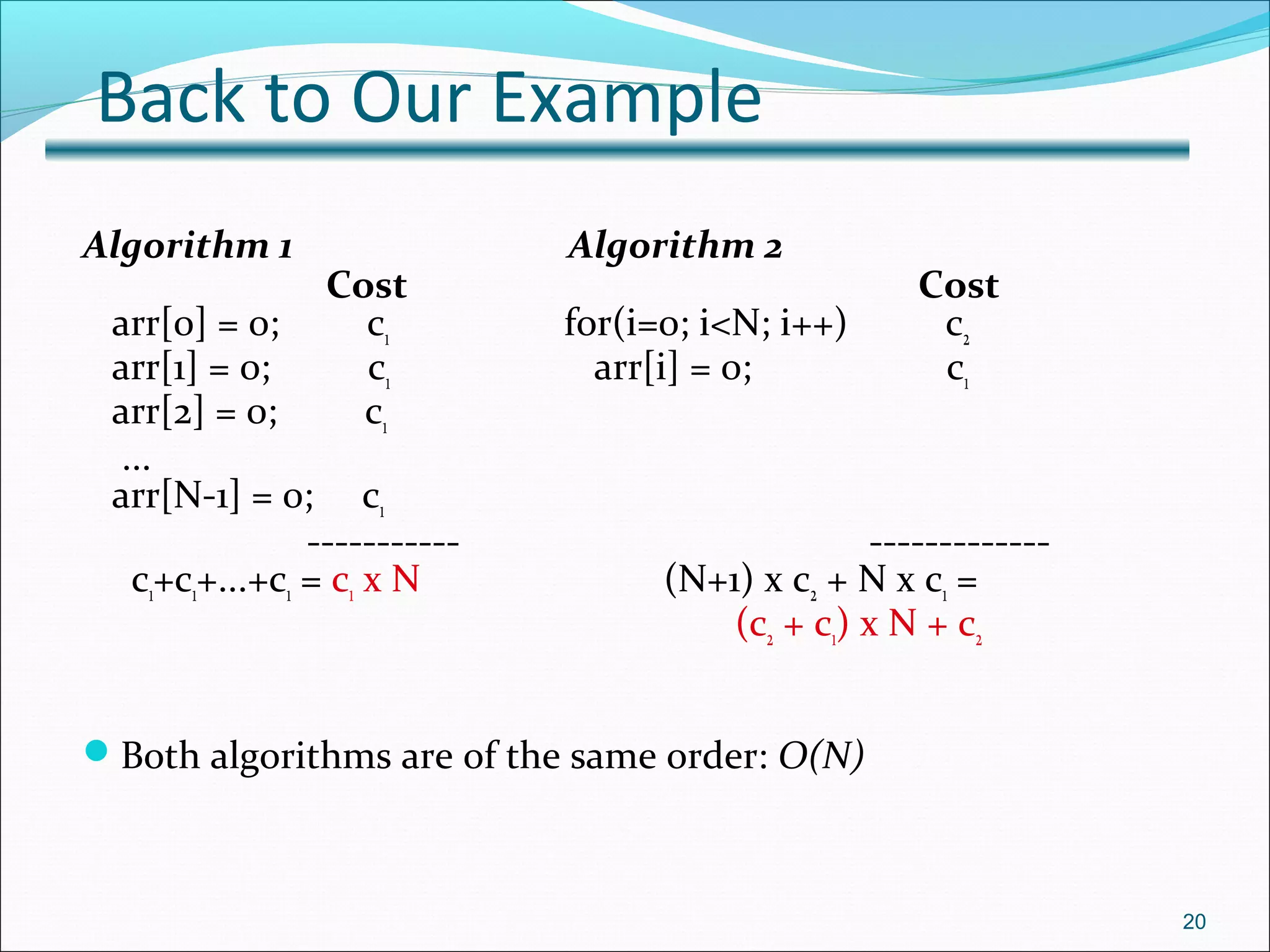

Back to Our Example
Algorithm 1 Algorithm 2
Cost Cost
arr[0] = 0; c1 for(i=0; i<N; i++) c2
arr[1] = 0; c1 arr[i] = 0; c1
arr[2] = 0; c1
...
arr[N-1] = 0; c1
----------- -------------
c1+c1+...+c1 = c1 x N (N+1) x c2 + N x c1 =
(c2 + c1) x N + c2
Both algorithms are of the same order: O(N)
20

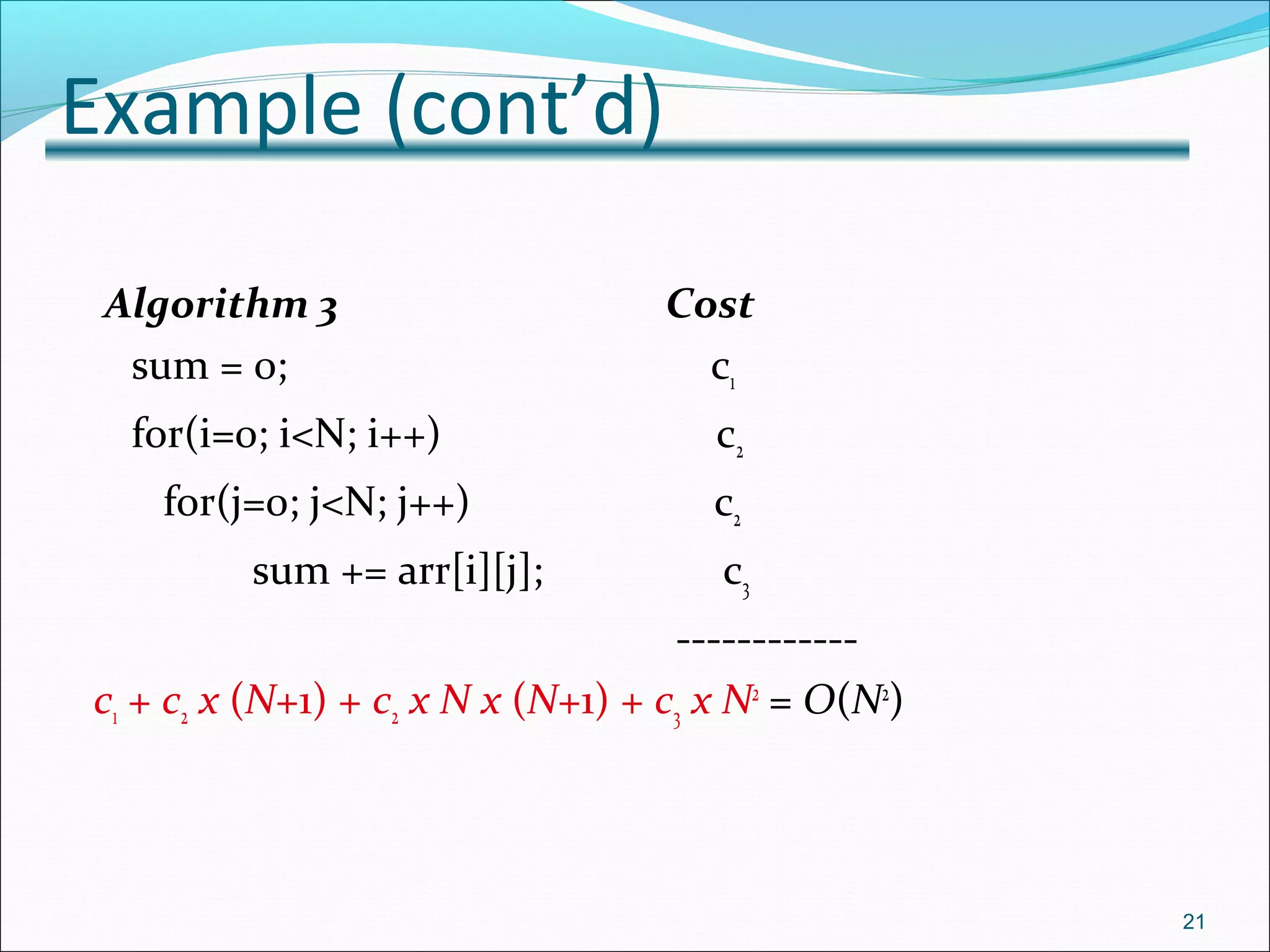

Example (cont’d)
Algorithm 3 Cost
sum = 0; c1
for(i=0; i<N; i++) c2
for(j=0; j<N; j++) c2
sum += arr[i][j]; c3
------------
c1 + c2 x (N+1) + c2 x N x (N+1) + c3 x N2
= O(N2
)
21

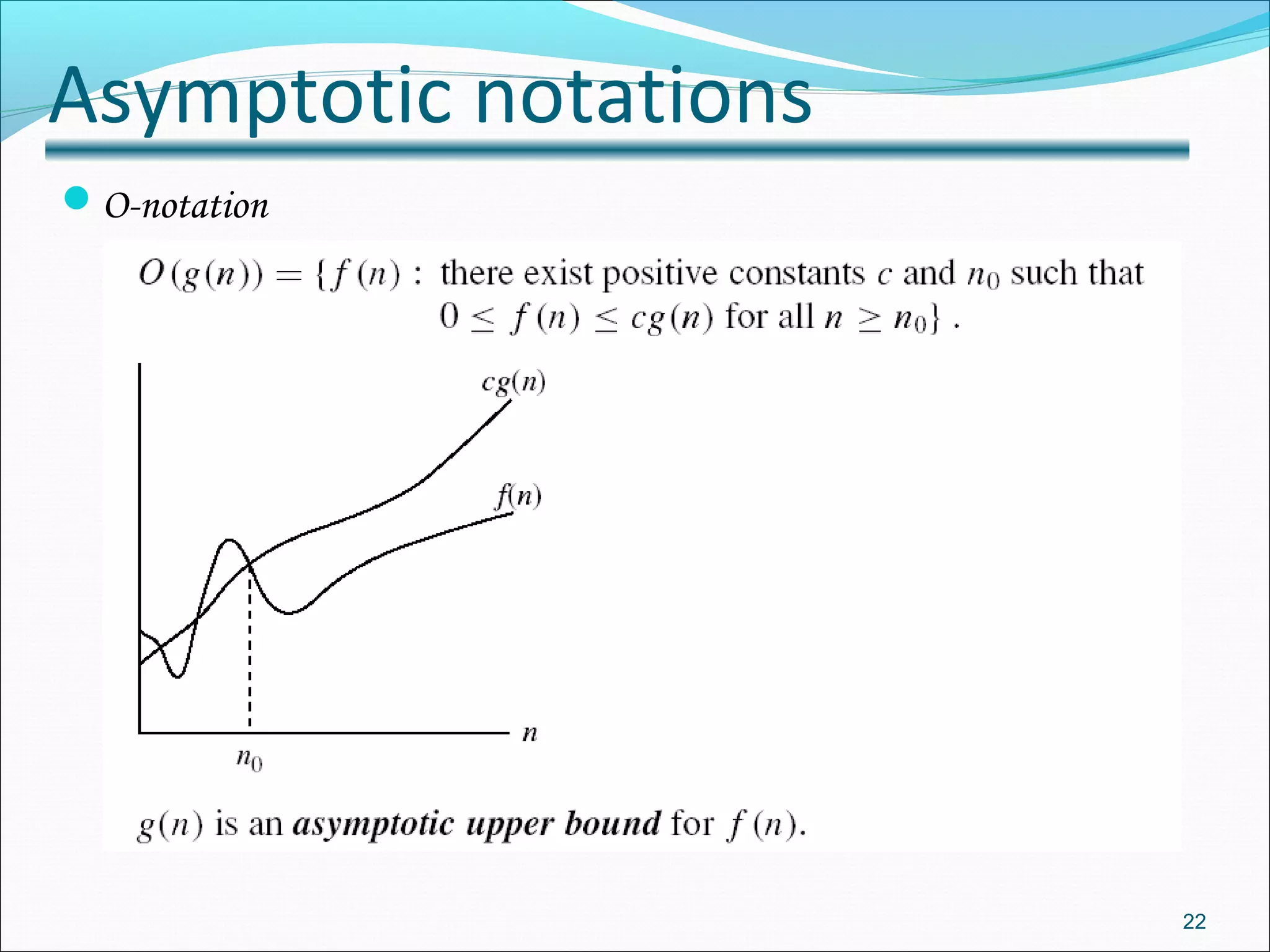

Asymptotic notations
O-notation
22

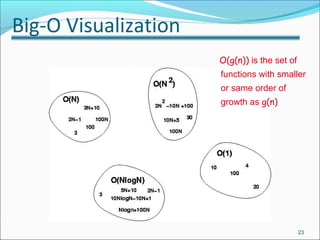

Big-O Visualization
23
O(g(n)) is the set of
functions with smaller
or same order of
growth as g(n)

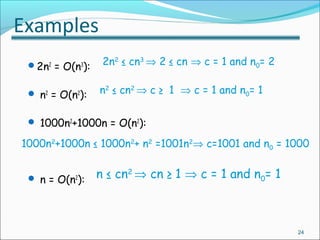

Examples
2n2
= O(n3
):
 n2
= O(n2
):
 1000n2
+1000n = O(n2
):
 n = O(n2
):
24
2n2
≤ cn3
⇒ 2 ≤ cn ⇒ c = 1 and n0= 2
n2
≤ cn2
⇒ c ≥ 1 ⇒ c = 1 and n0= 1
1000n2
+1000n ≤ 1000n2
+ n2
=1001n2
⇒ c=1001 and n0 = 1000
n ≤ cn2
⇒ cn ≥ 1 ⇒ c = 1 and n0= 1

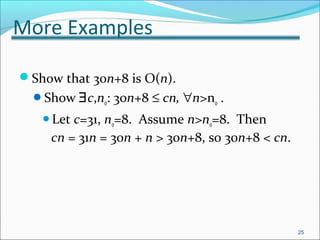

More Examples
Show that 30n+8 is O(n).
Show ∃c,n0: 30n+8 ≤ cn, ∀n>n0 .
Let c=31, n0=8. Assume n>n0=8. Then
cn = 31n = 30n + n > 30n+8, so 30n+8 < cn.
25

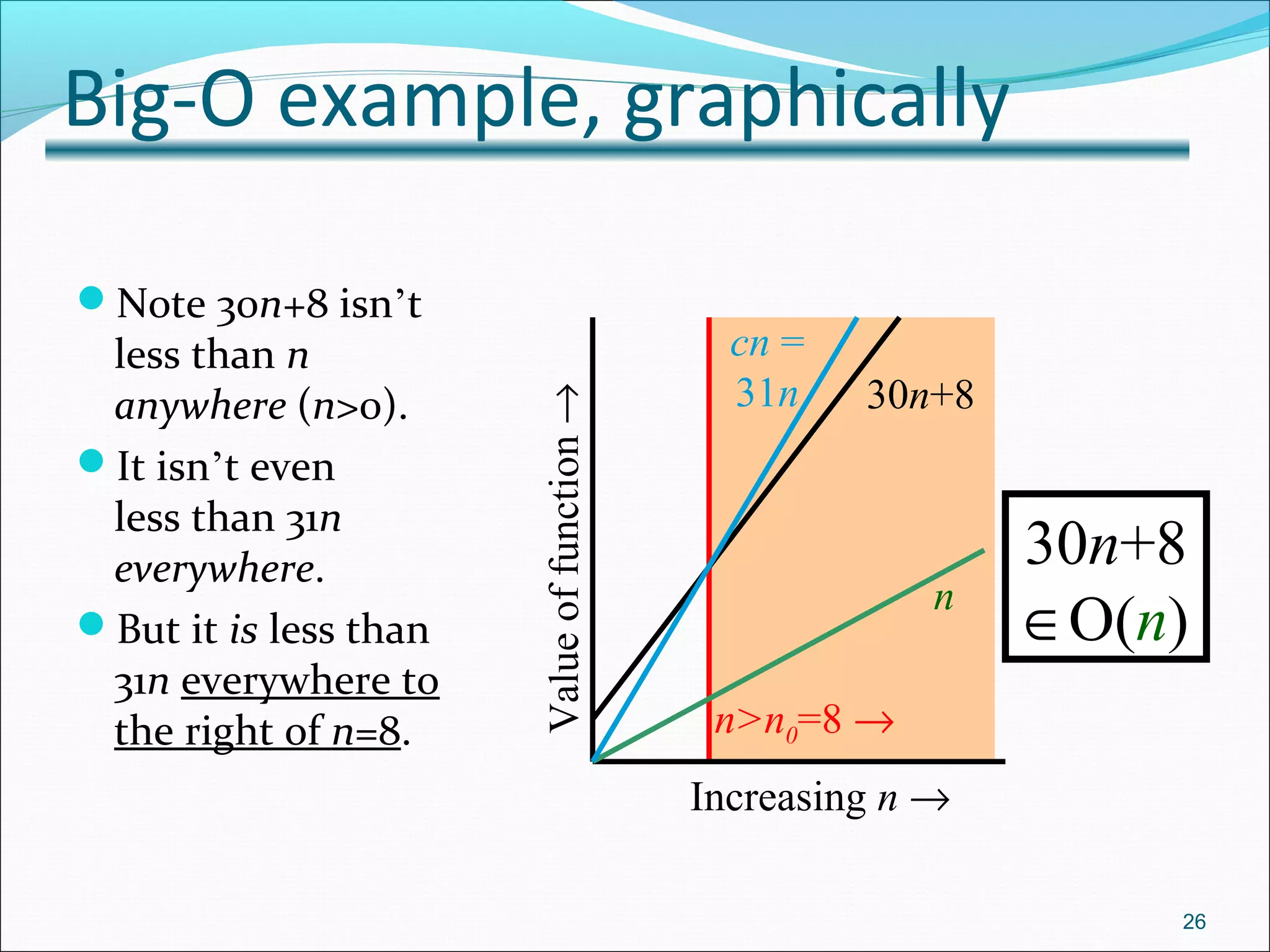

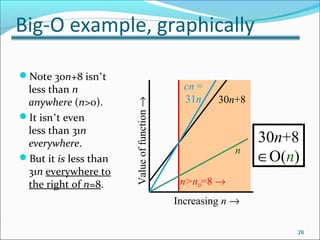

Big-O example, graphically
Note 30n+8 isn’t
less than n
anywhere (n>0).
It isn’t even
less than 31n
everywhere.
But it is less than
31n everywhere to
the right of n=8.
26
n>n0=8 →
Increasing n →
Valueoffunction→
n
30n+8
cn =
31n
30n+8
∈O(n)

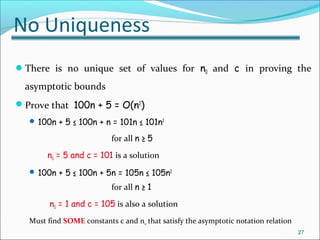

No Uniqueness
There is no unique set of values for n0 and c in proving the
asymptotic bounds
Prove that 100n + 5 = O(n2
)
 100n + 5 ≤ 100n + n = 101n ≤ 101n2
for all n ≥ 5
n0 = 5 and c = 101 is a solution
 100n + 5 ≤ 100n + 5n = 105n ≤ 105n2
for all n ≥ 1
n0 = 1 and c = 105 is also a solution
Must find SOME constants c and n0 that satisfy the asymptotic notation relation
27

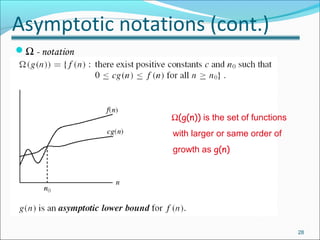

Asymptotic notations (cont.)
Ω - notation
28
Ω(g(n)) is the set of functions
with larger or same order of
growth as g(n)

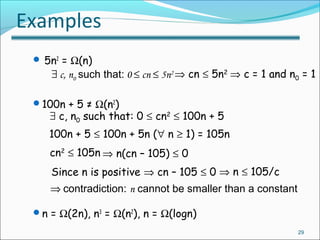

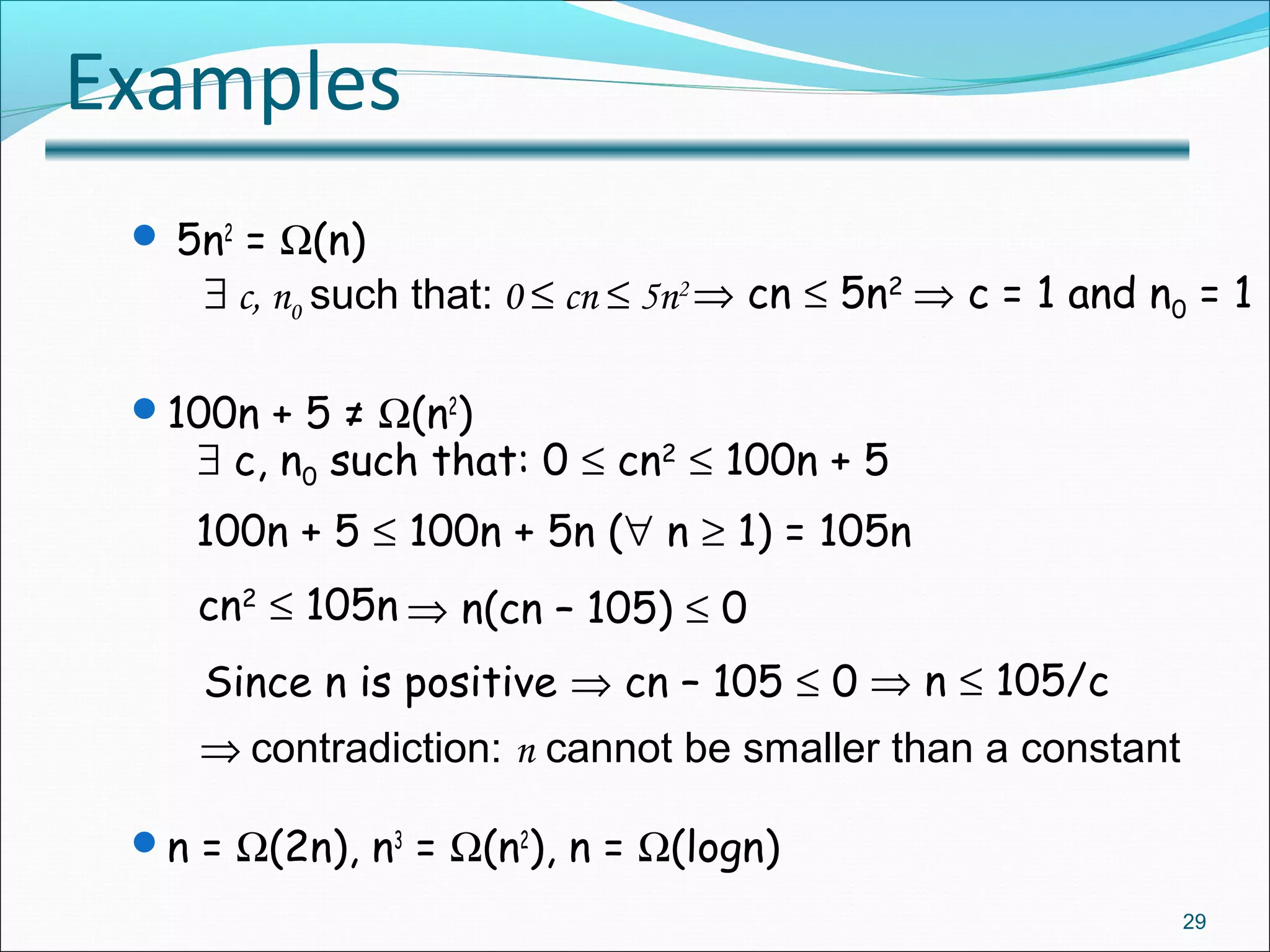

Examples
 5n2
= Ω(n)
100n + 5 ≠ Ω(n2
)
n = Ω(2n), n3
= Ω(n2
), n = Ω(logn)
29
∃ c, n0 such that: 0 ≤ cn ≤ 5n2 ⇒ cn ≤ 5n2
⇒ c = 1 and n0 = 1
∃ c, n0 such that: 0 ≤ cn2
≤ 100n + 5
100n + 5 ≤ 100n + 5n (∀ n ≥ 1) = 105n
cn2
≤ 105n ⇒ n(cn – 105) ≤ 0
Since n is positive ⇒ cn – 105 ≤ 0 ⇒ n ≤ 105/c
⇒ contradiction: n cannot be smaller than a constant

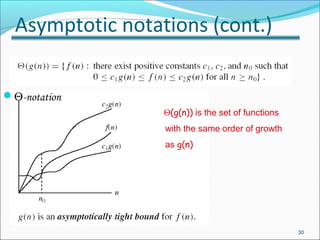

Asymptotic notations (cont.)
30
Θ-notation
Θ(g(n)) is the set of functions
with the same order of growth
as g(n)

Examples
n2
/2 –n/2 = Θ(n2
)
 ½ n2
- ½ n ≤ ½ n2
∀n ≥ 0 ⇒ c2= ½
 ½ n2
- ½ n ≥ ½ n2
- ½ n * ½ n ( ∀n ≥ 2 ) = ¼ n2
⇒ c1=
¼
n ≠ Θ(n2
): c1 n2
≤ n ≤ c2 n2
⇒ only holds for: n ≤ 1/c1
31

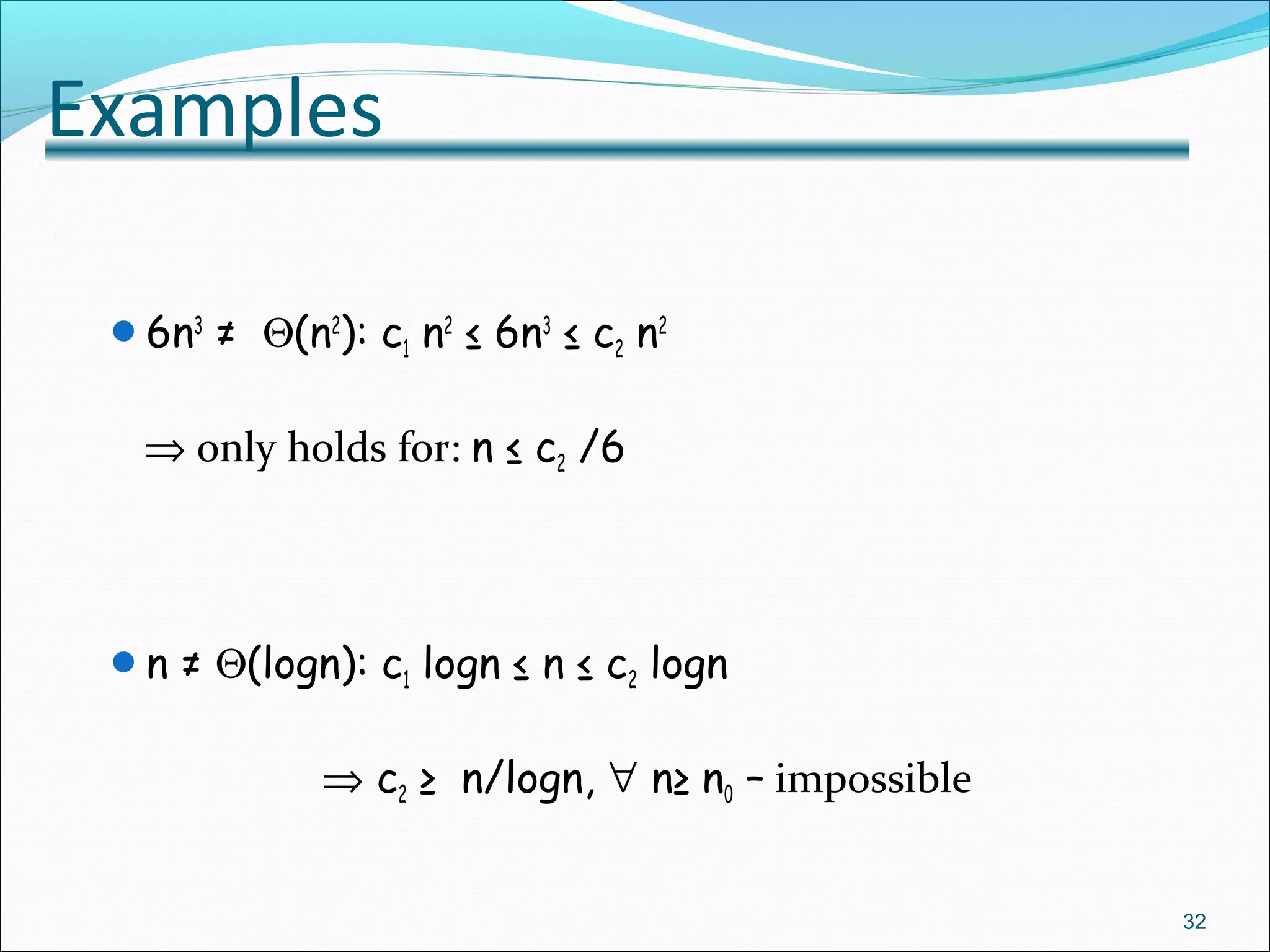

Examples
6n3
≠ Θ(n2
): c1 n2
≤ 6n3
≤ c2 n2
⇒ only holds for: n ≤ c2 /6
n ≠ Θ(logn): c1 logn ≤ n ≤ c2 logn
⇒ c2 ≥ n/logn, ∀ n≥ n0 – impossible
32

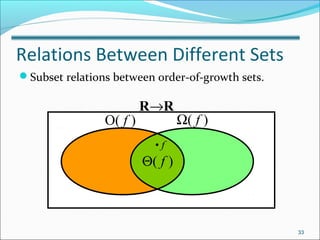

Relations Between Different Sets
Subset relations between order-of-growth sets.
33
R→R
Ω( f )O( f )
Θ( f )
• f

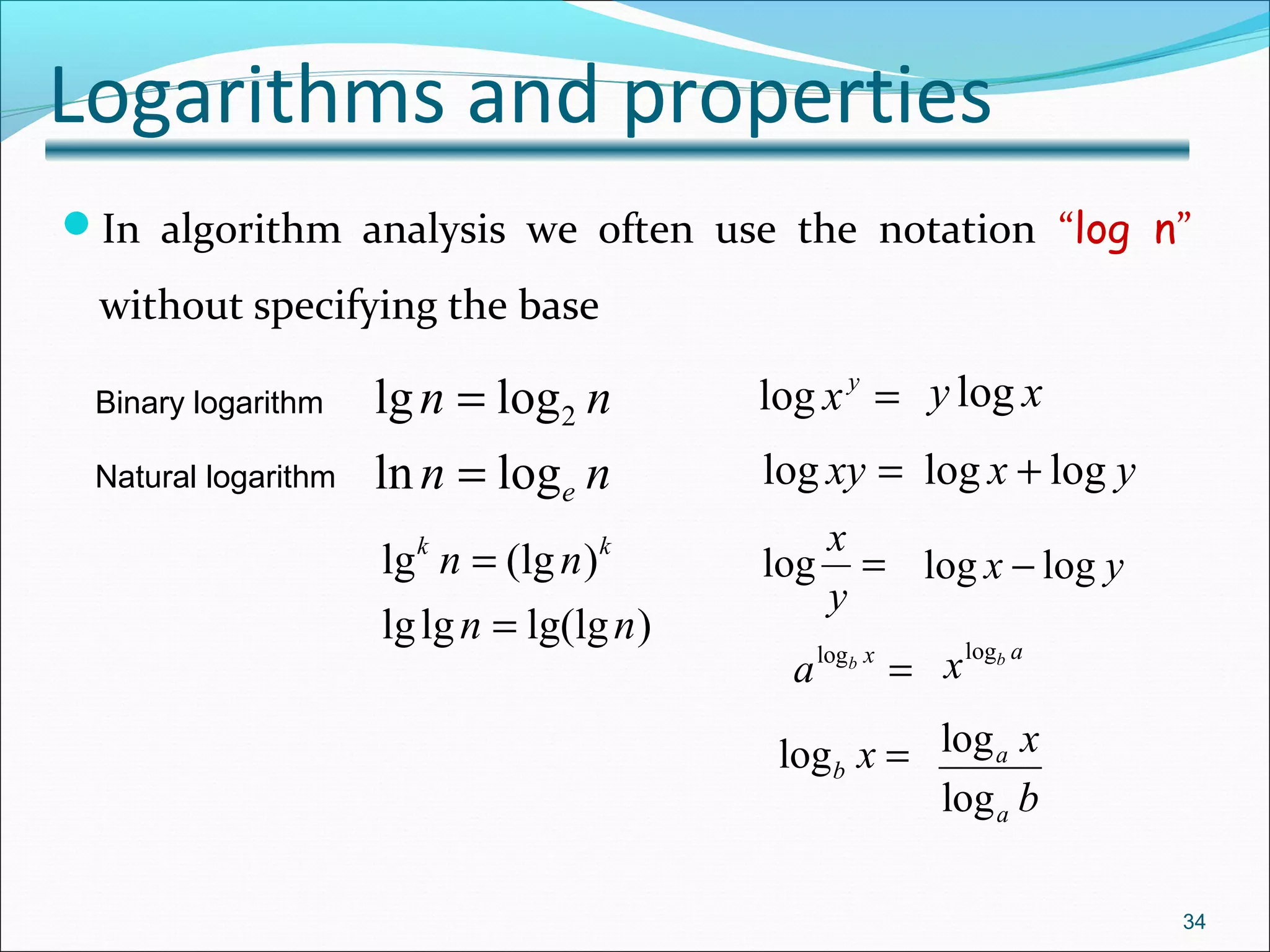

Logarithms and properties
In algorithm analysis we often use the notation “log n”
without specifying the base
nn
nn
elogln
loglg 2
=
= =y
xlog
34
Binary logarithm
Natural logarithm
)lg(lglglg
)(lglg
nn
nn kk
=
=
xy log
=xylog yx loglog +
=
y
x
log yx loglog −
logb x =
ab
xlog
=xb
alog
log
log
a
a
x
b

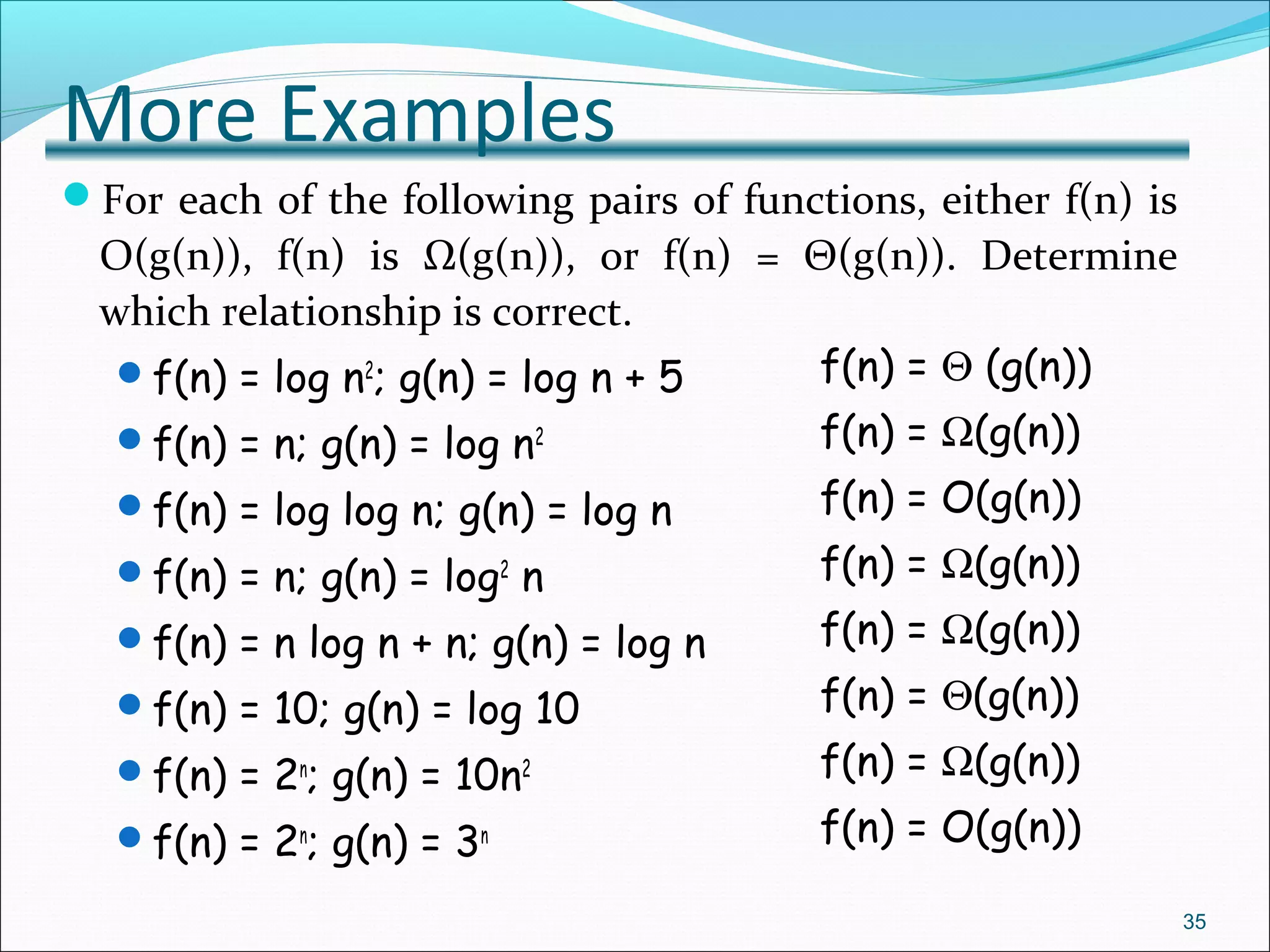

More Examples
For each of the following pairs of functions, either f(n) is
O(g(n)), f(n) is Ω(g(n)), or f(n) = Θ(g(n)). Determine
which relationship is correct.
f(n) = log n2
; g(n) = log n + 5
f(n) = n; g(n) = log n2
f(n) = log log n; g(n) = log n
f(n) = n; g(n) = log2
n
f(n) = n log n + n; g(n) = log n
f(n) = 10; g(n) = log 10
f(n) = 2n
; g(n) = 10n2
f(n) = 2n
; g(n) = 3n
35
f(n) = Θ (g(n))
f(n) = Ω(g(n))
f(n) = O(g(n))
f(n) = Ω(g(n))
f(n) = Ω(g(n))
f(n) = Θ(g(n))
f(n) = Ω(g(n))
f(n) = O(g(n))

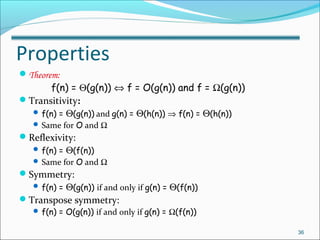

Properties
Theorem:
f(n) = Θ(g(n)) ⇔ f = O(g(n)) and f = Ω(g(n))
Transitivity:
 f(n) = Θ(g(n)) and g(n) = Θ(h(n)) ⇒ f(n) = Θ(h(n))
 Same for O and Ω
Reflexivity:
 f(n) = Θ(f(n))
 Same for O and Ω
Symmetry:
 f(n) = Θ(g(n)) if and only if g(n) = Θ(f(n))
Transpose symmetry:
 f(n) = O(g(n)) if and only if g(n) = Ω(f(n))
36

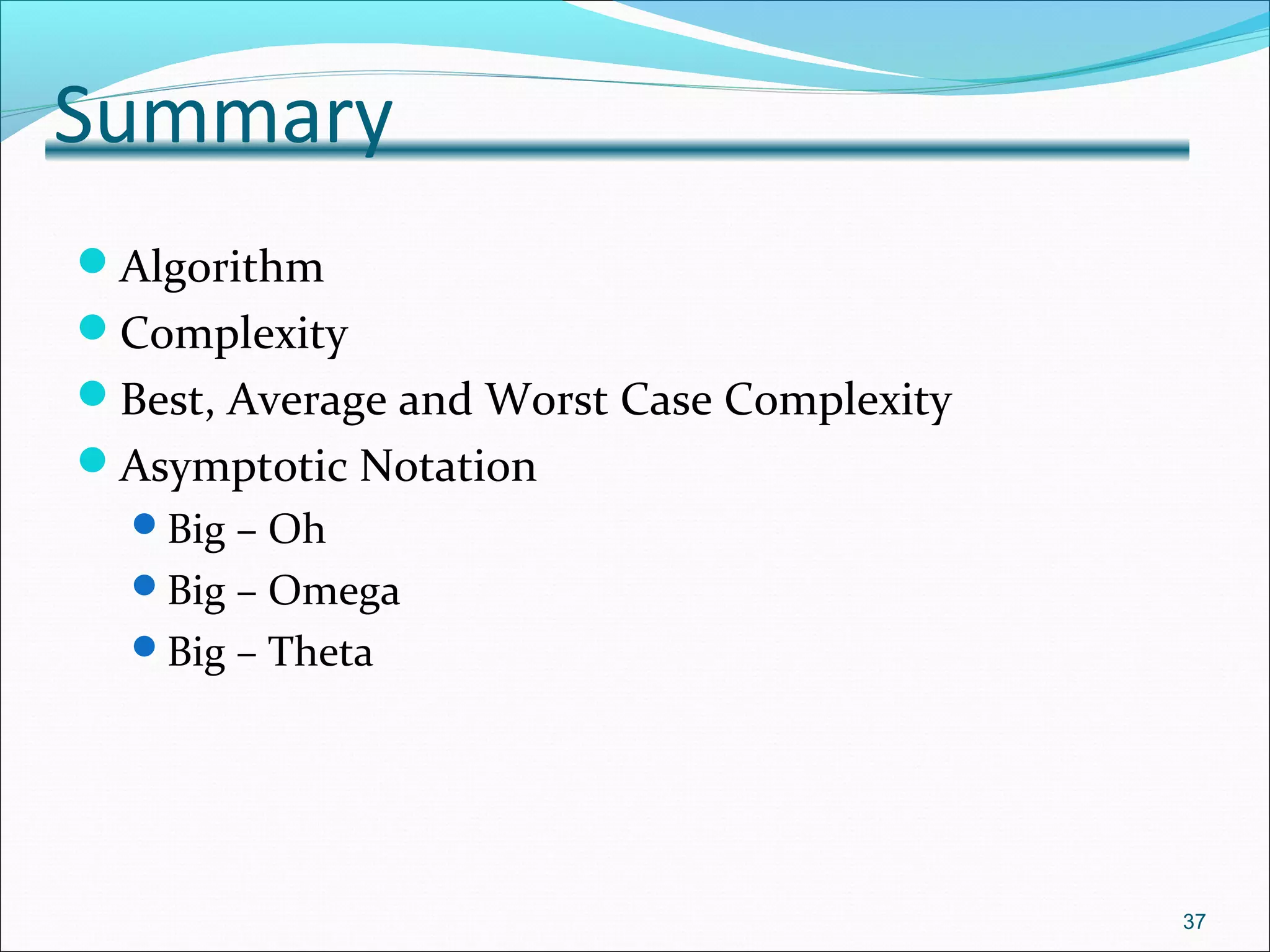

Summary
Algorithm
Complexity
Best, Average and Worst Case Complexity
Asymptotic Notation
Big – Oh
Big – Omega
Big – Theta
37
