Principles of Information Security, 2nd Edition 2

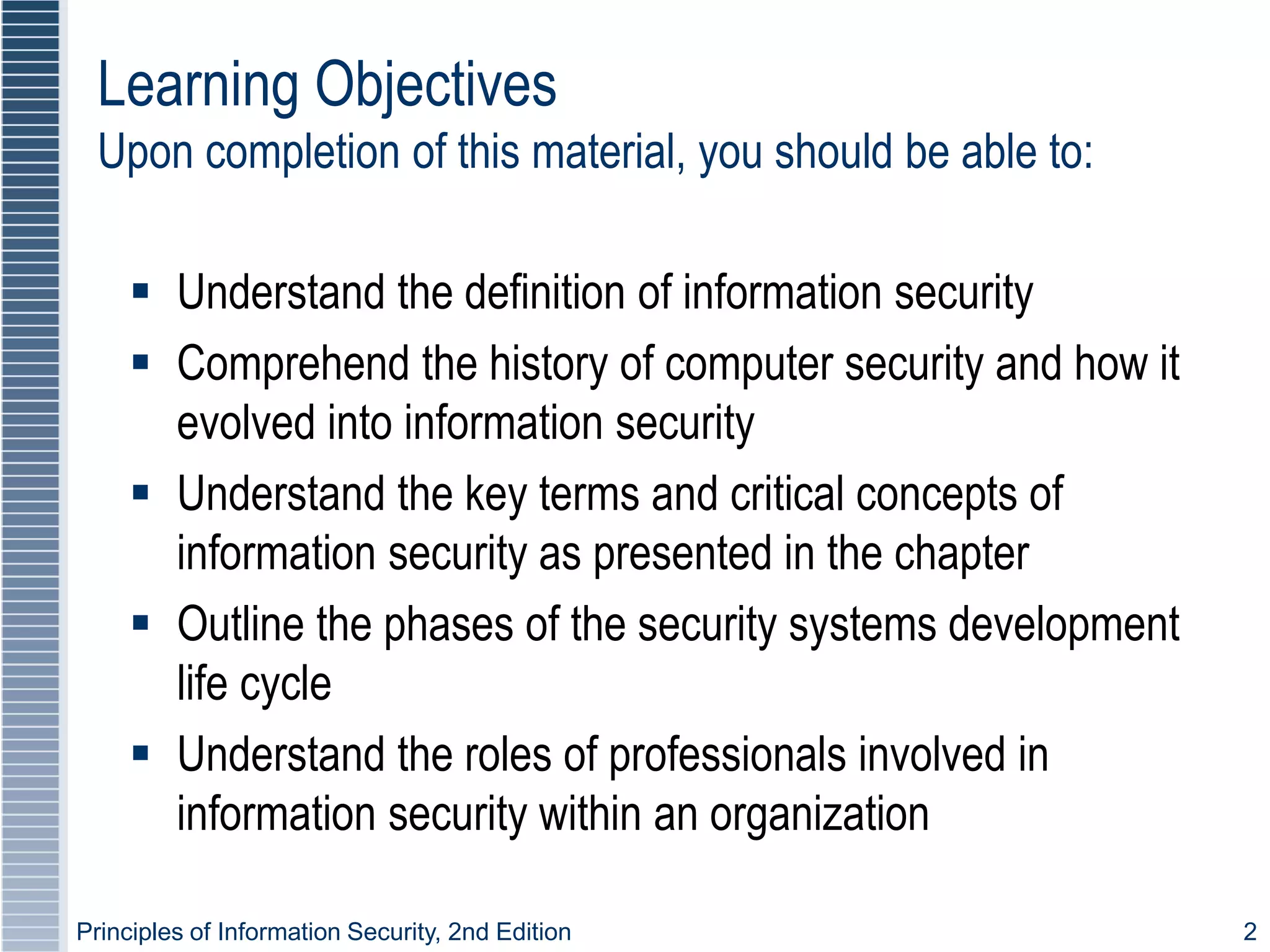

 Understand the definition of information security
 Comprehend the history of computer security and how it
evolved into information security
 Understand the key terms and critical concepts of
information security as presented in the chapter
 Outline the phases of the security systems development
life cycle
 Understand the roles of professionals involved in
information security within an organization
Learning Objectives
Upon completion of this material, you should be able to:

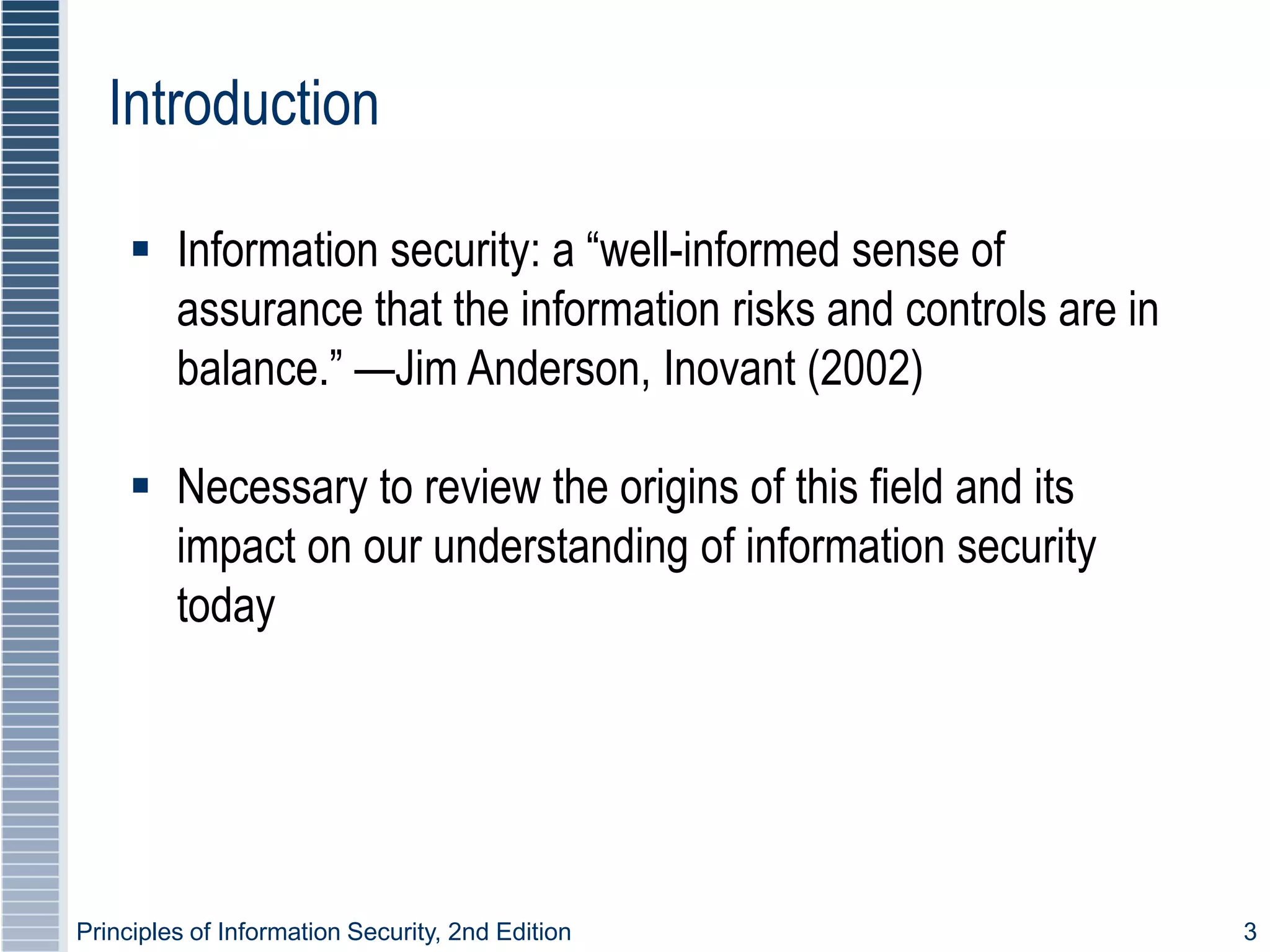

Introduction
 Information security: a “well-informed sense of
assurance that the information risks and controls are in
balance.” —Jim Anderson, Inovant (2002)
 Necessary to review the origins of this field and its
impact on our understanding of information security
today

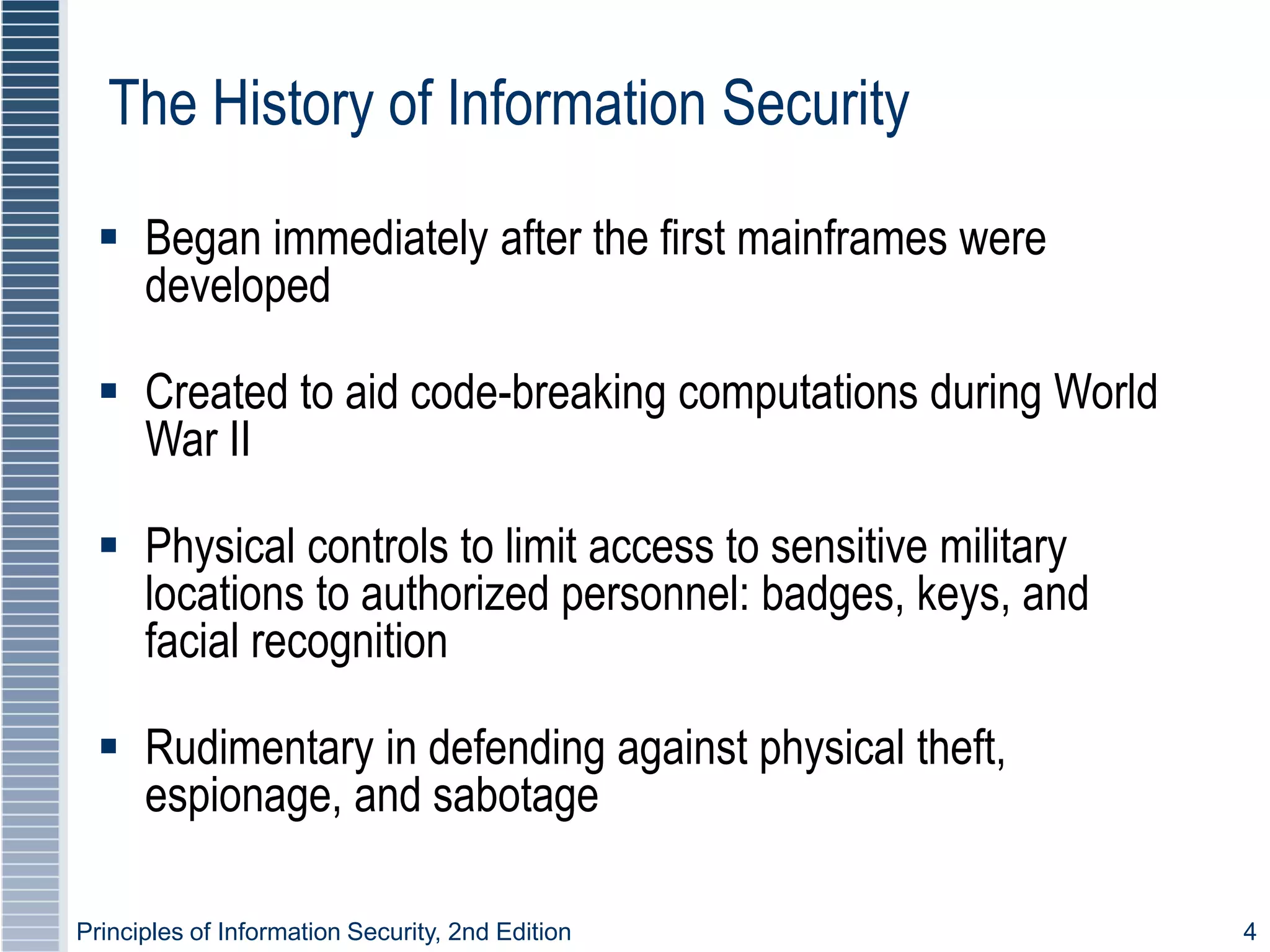

The History of Information Security
 Began immediately after the first mainframes were
developed
 Created to aid code-breaking computations during World
War II
 Physical controls to limit access to sensitive military
locations to authorized personnel: badges, keys, and
facial recognition
 Rudimentary in defending against physical theft,
espionage, and sabotage

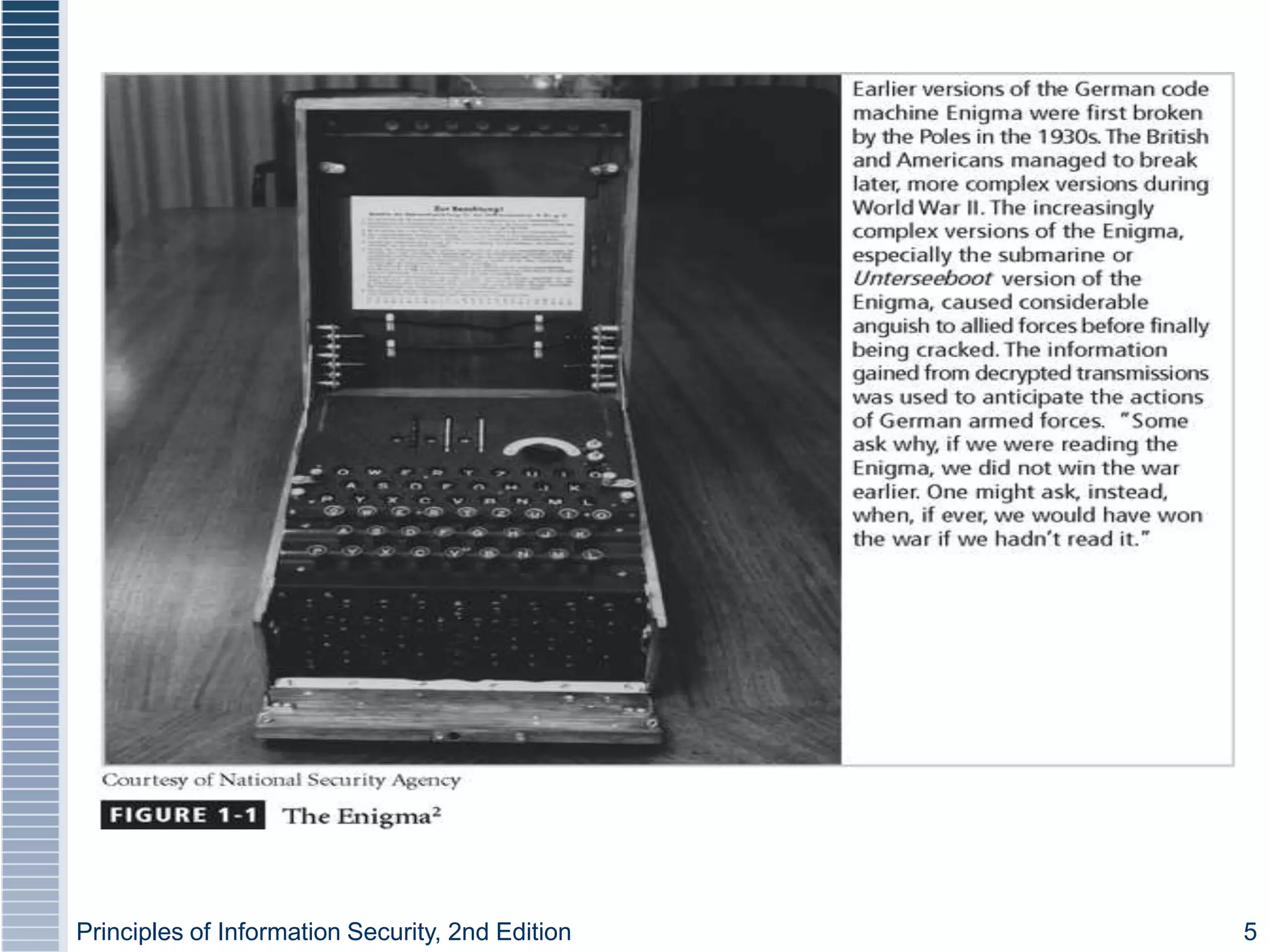

Figure 1-1 – The Enigma

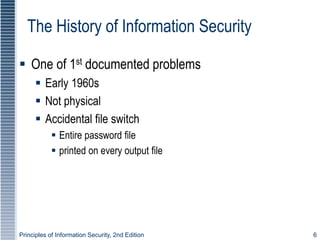

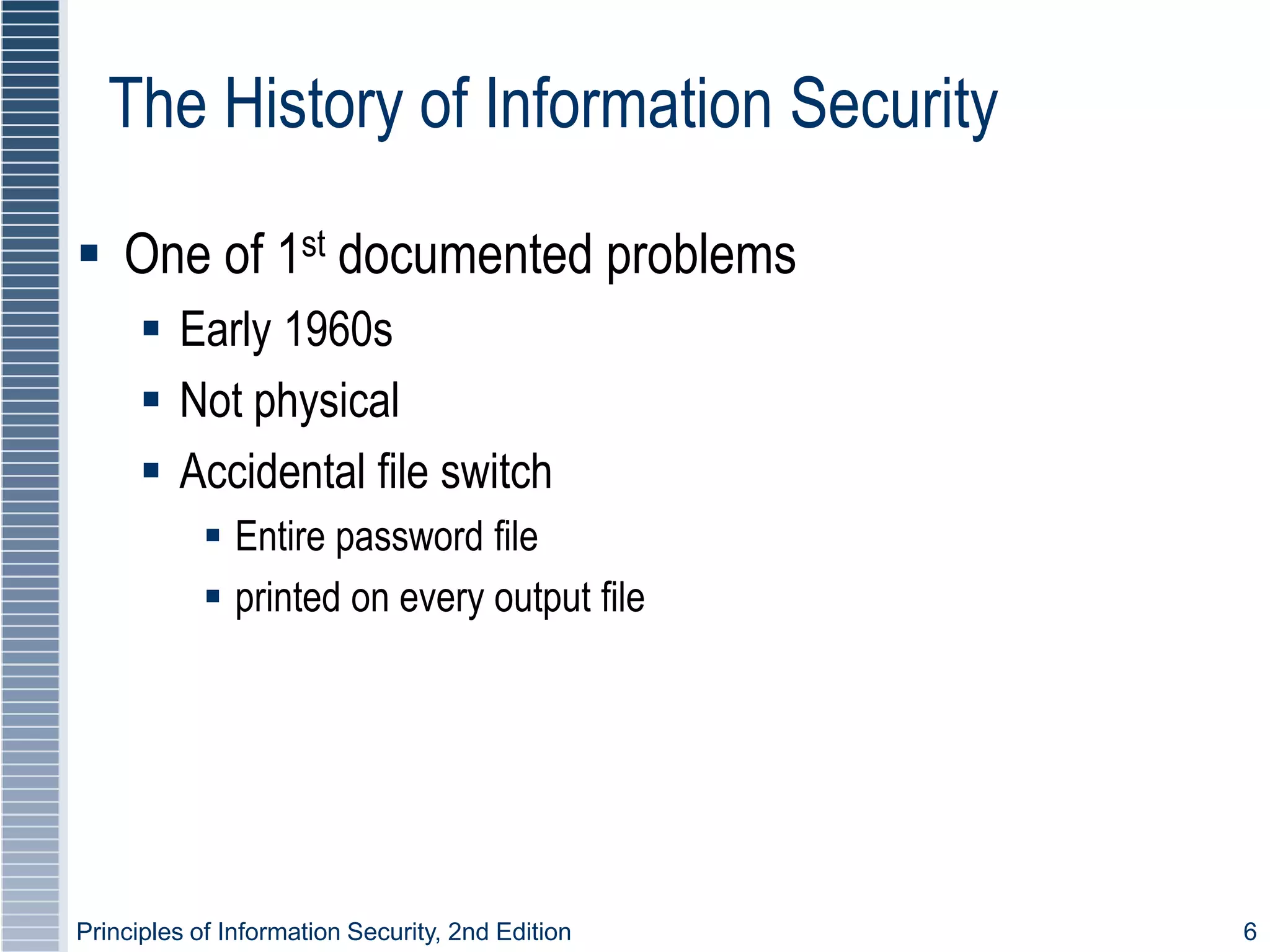

 One of 1st documented problems
 Early 1960s
 Not physical
 Accidental file switch
 Entire password file
 printed on every output file

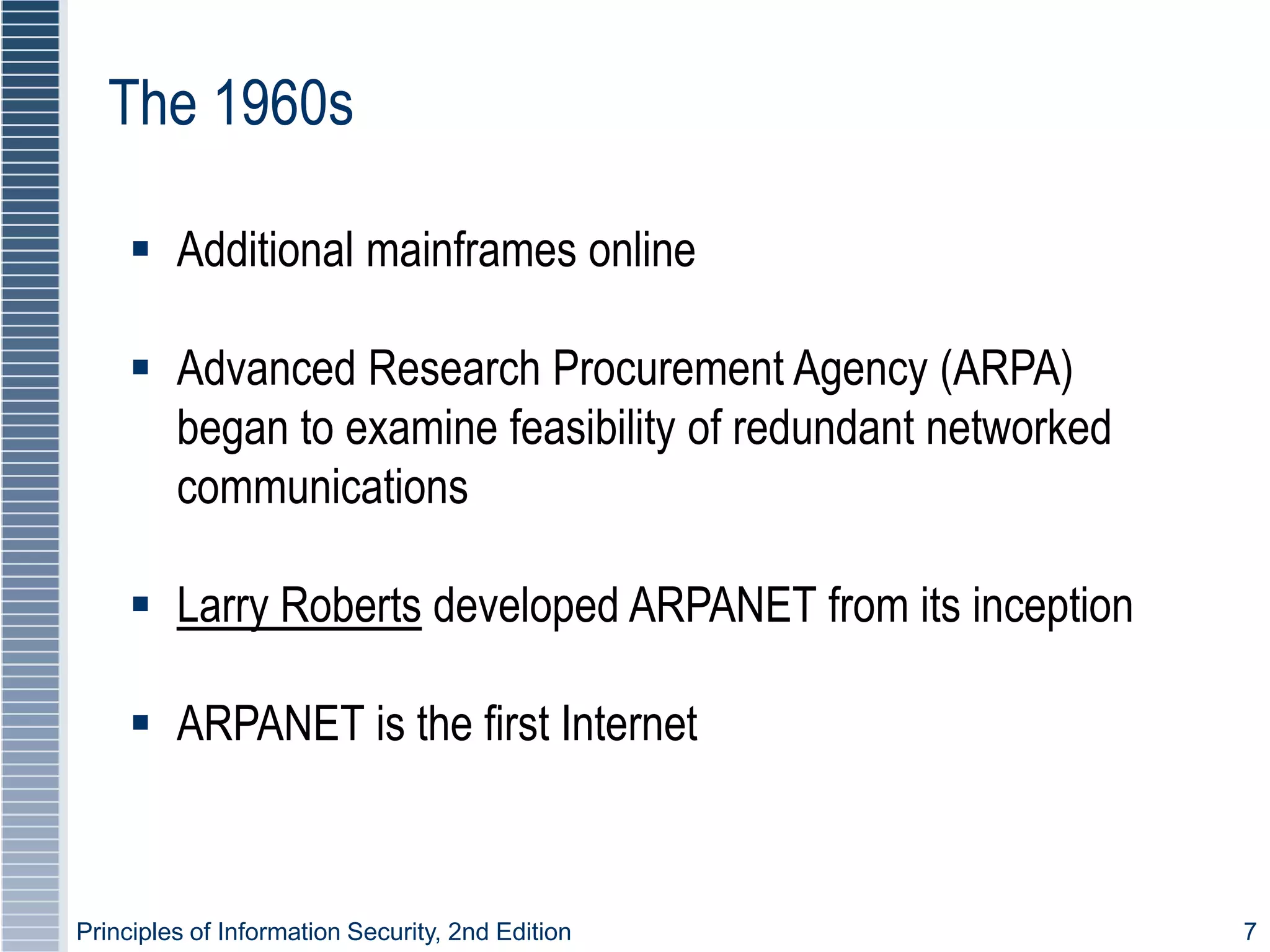

The 1960s
 Additional mainframes online
 Advanced Research Procurement Agency (ARPA)
began to examine feasibility of redundant networked
communications
 Larry Roberts developed ARPANET from its inception
 ARPANET is the first Internet

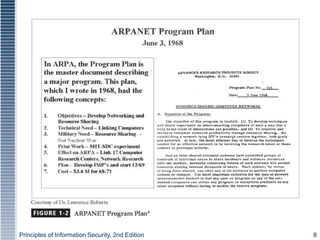

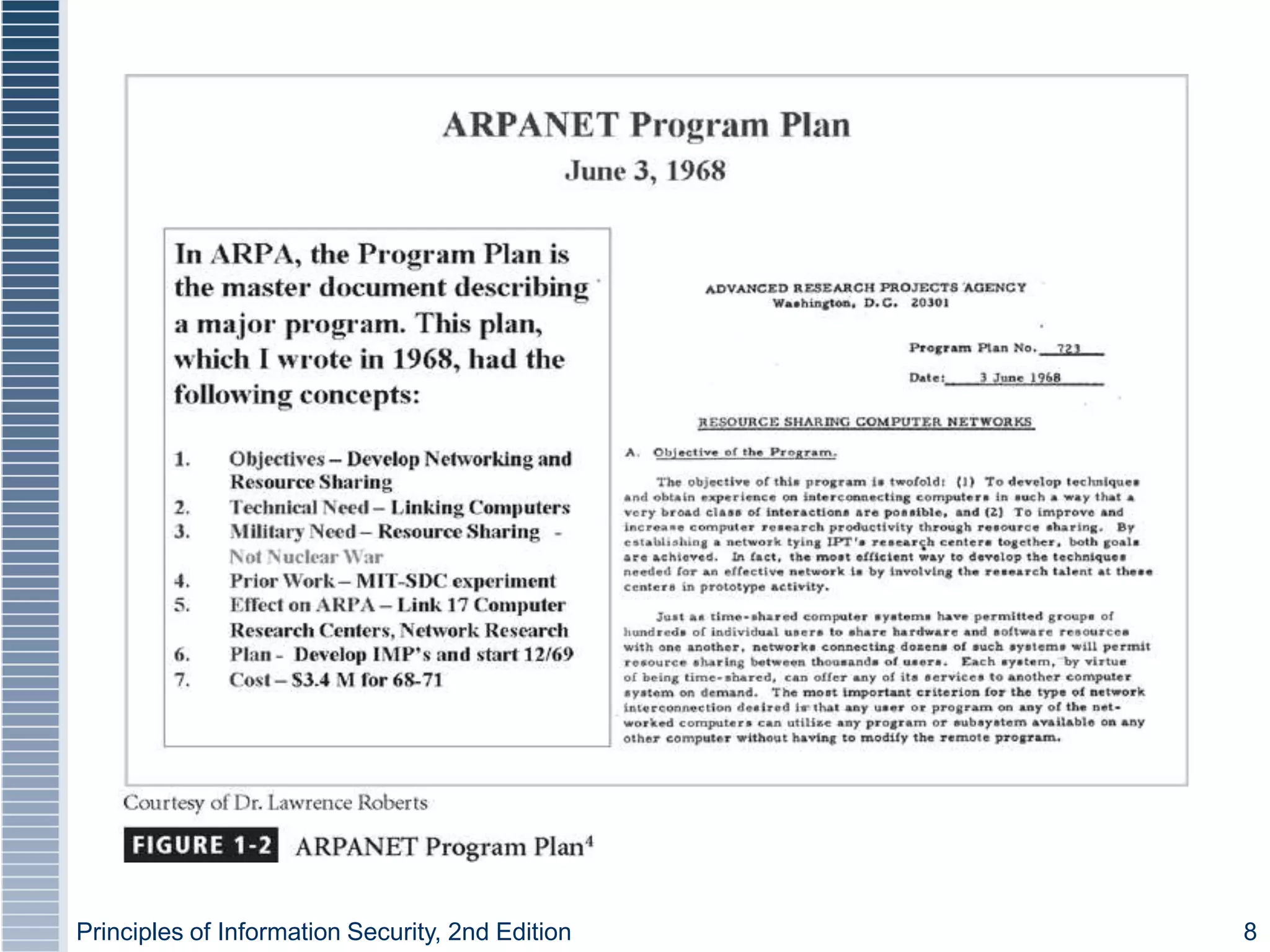

Figure 1-2 - ARPANET

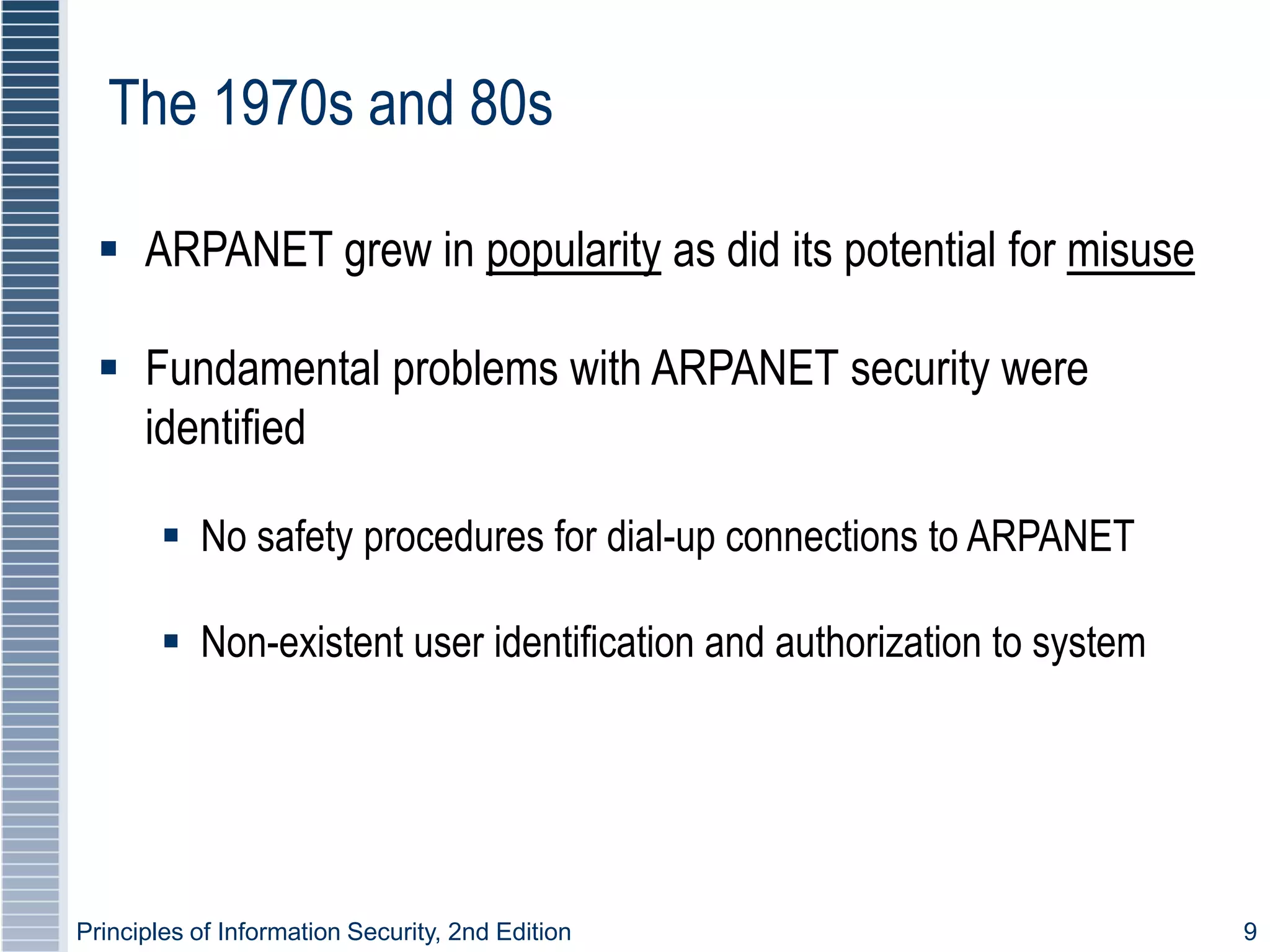

The 1970s and 80s
 ARPANET grew in popularity as did its potential for misuse
 Fundamental problems with ARPANET security were
identified
 No safety procedures for dial-up connections to ARPANET
 Non-existent user identification and authorization to system

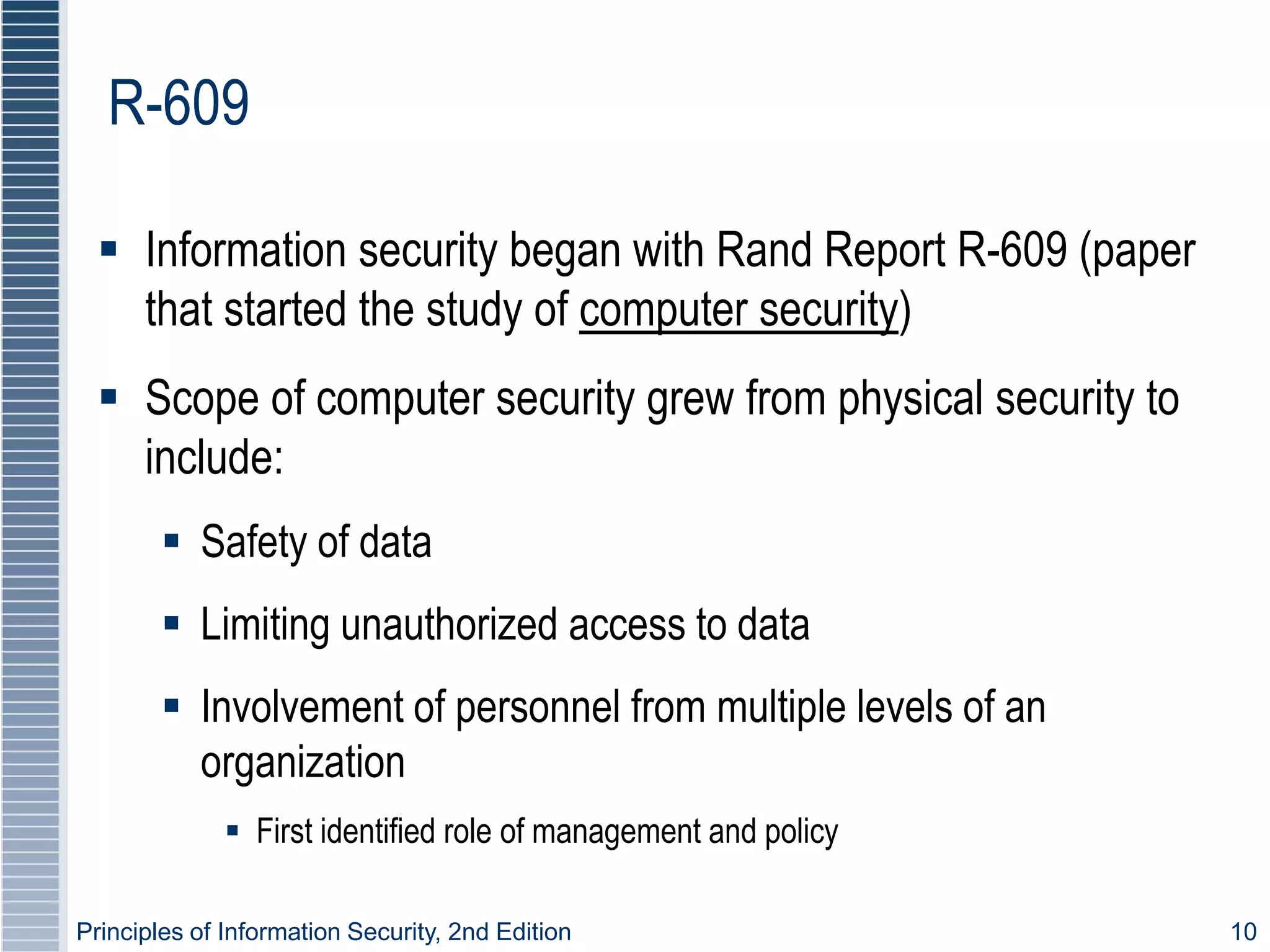

R-609
 Information security began with Rand Report R-609 (paper
that started the study of computer security)
 Scope of computer security grew from physical security to
include:
 Safety of data
 Limiting unauthorized access to data
 Involvement of personnel from multiple levels of an
organization
 First identified role of management and policy

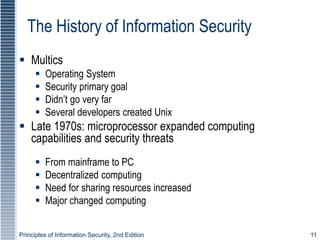

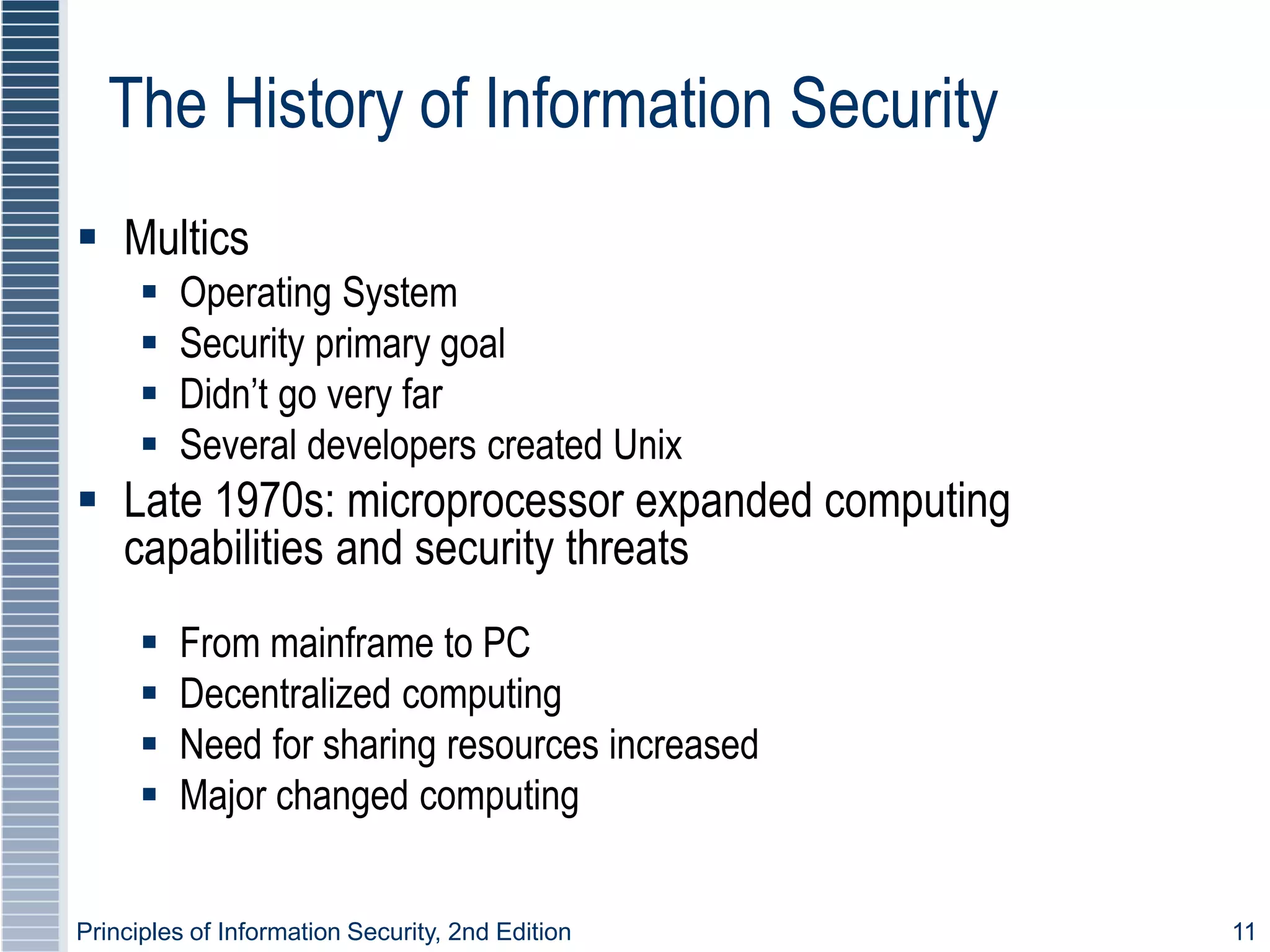

 Multics
 Operating System
 Security primary goal
 Didn’t go very far
 Several developers created Unix
 Late 1970s: microprocessor expanded computing
capabilities and security threats
 From mainframe to PC
 Decentralized computing
 Need for sharing resources increased
 Major changed computing

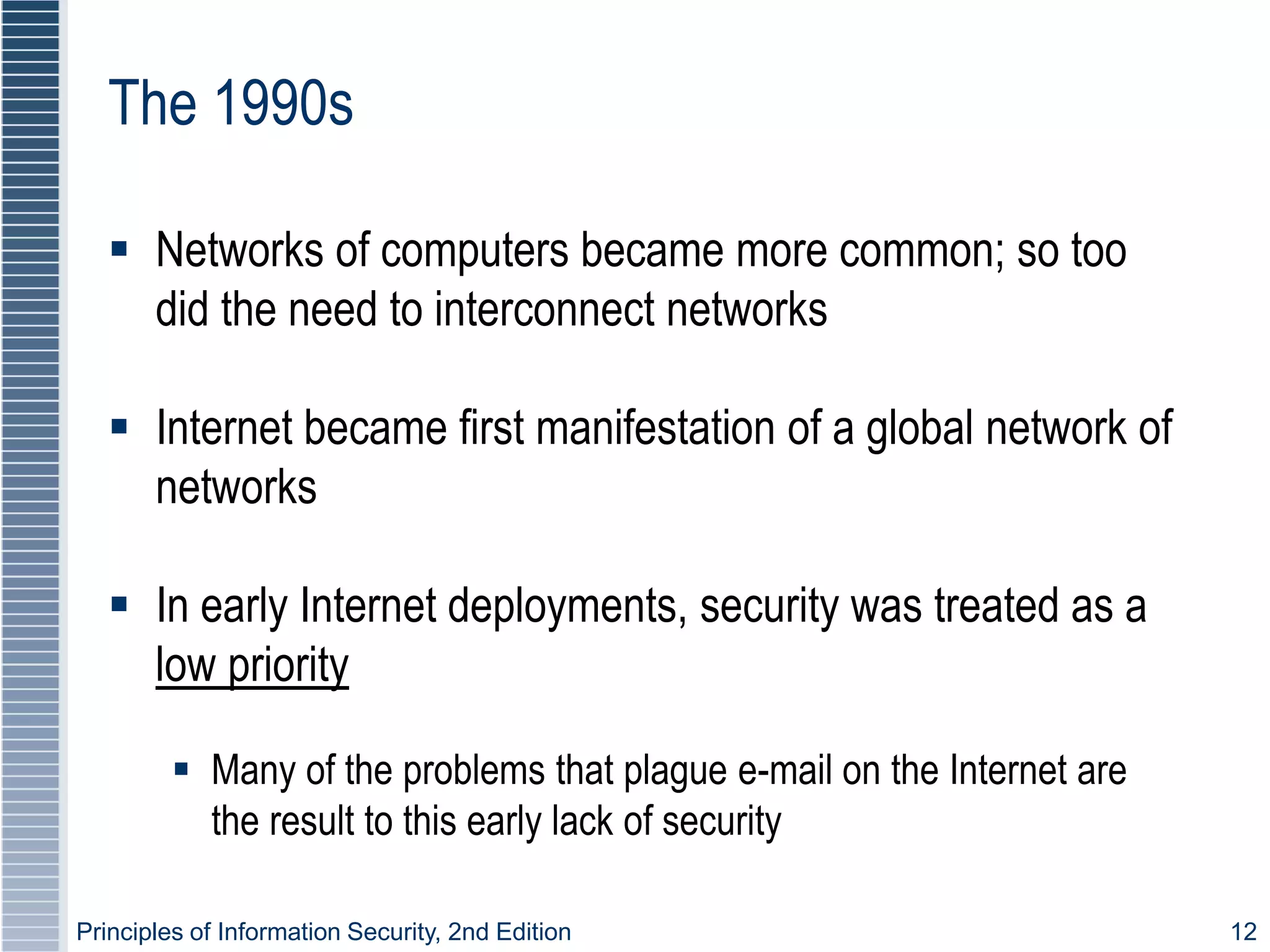

The 1990s
 Networks of computers became more common; so too
did the need to interconnect networks
 Internet became first manifestation of a global network of
networks
 In early Internet deployments, security was treated as a
low priority
 Many of the problems that plague e-mail on the Internet are
the result to this early lack of security

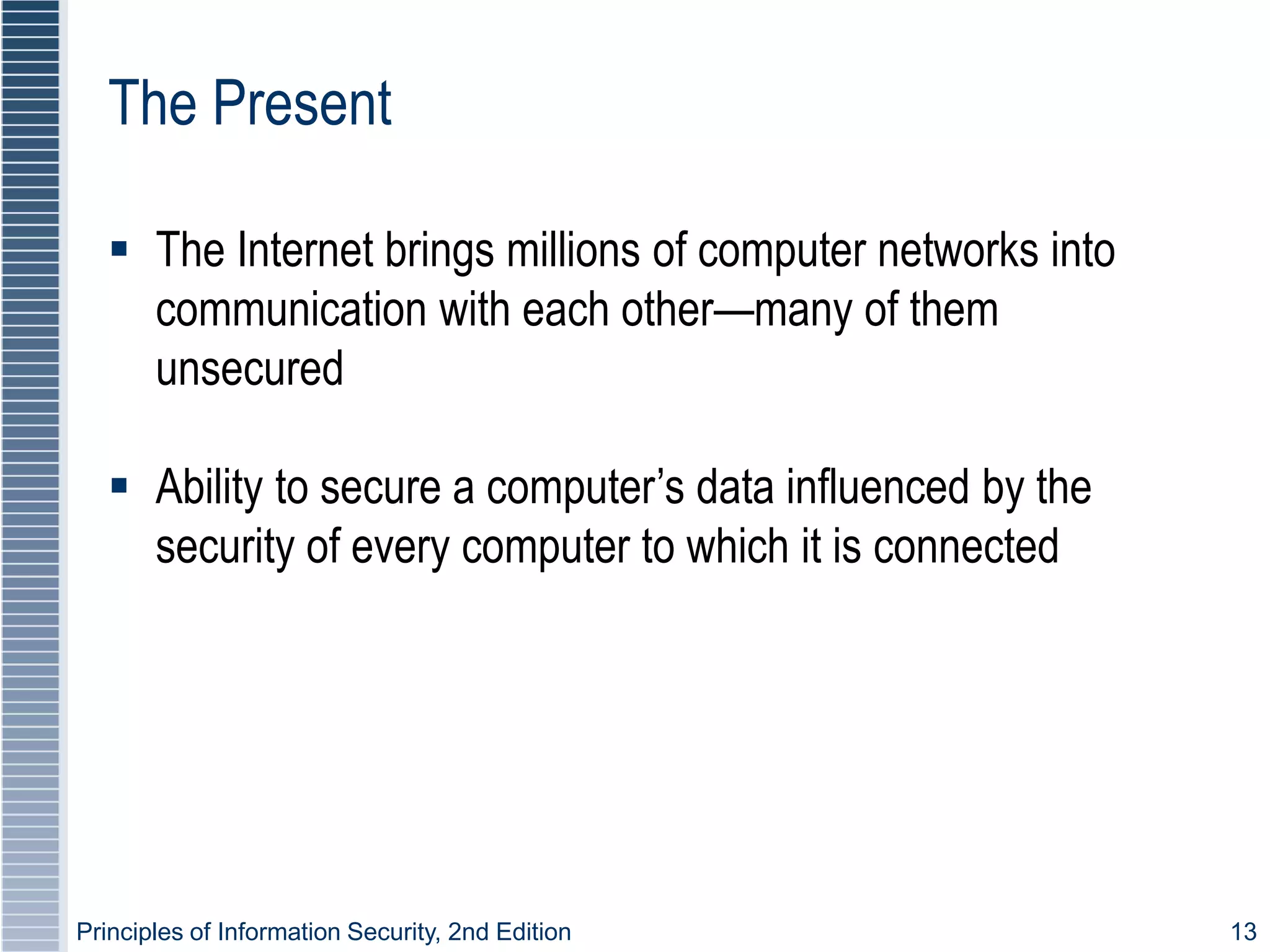

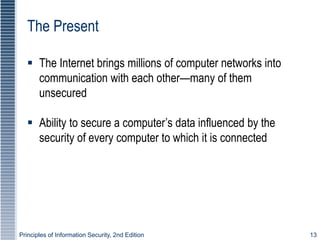

The Present
 The Internet brings millions of computer networks into
communication with each other—many of them
unsecured
 Ability to secure a computer’s data influenced by the
security of every computer to which it is connected

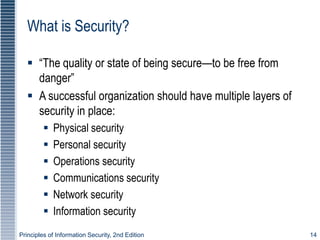

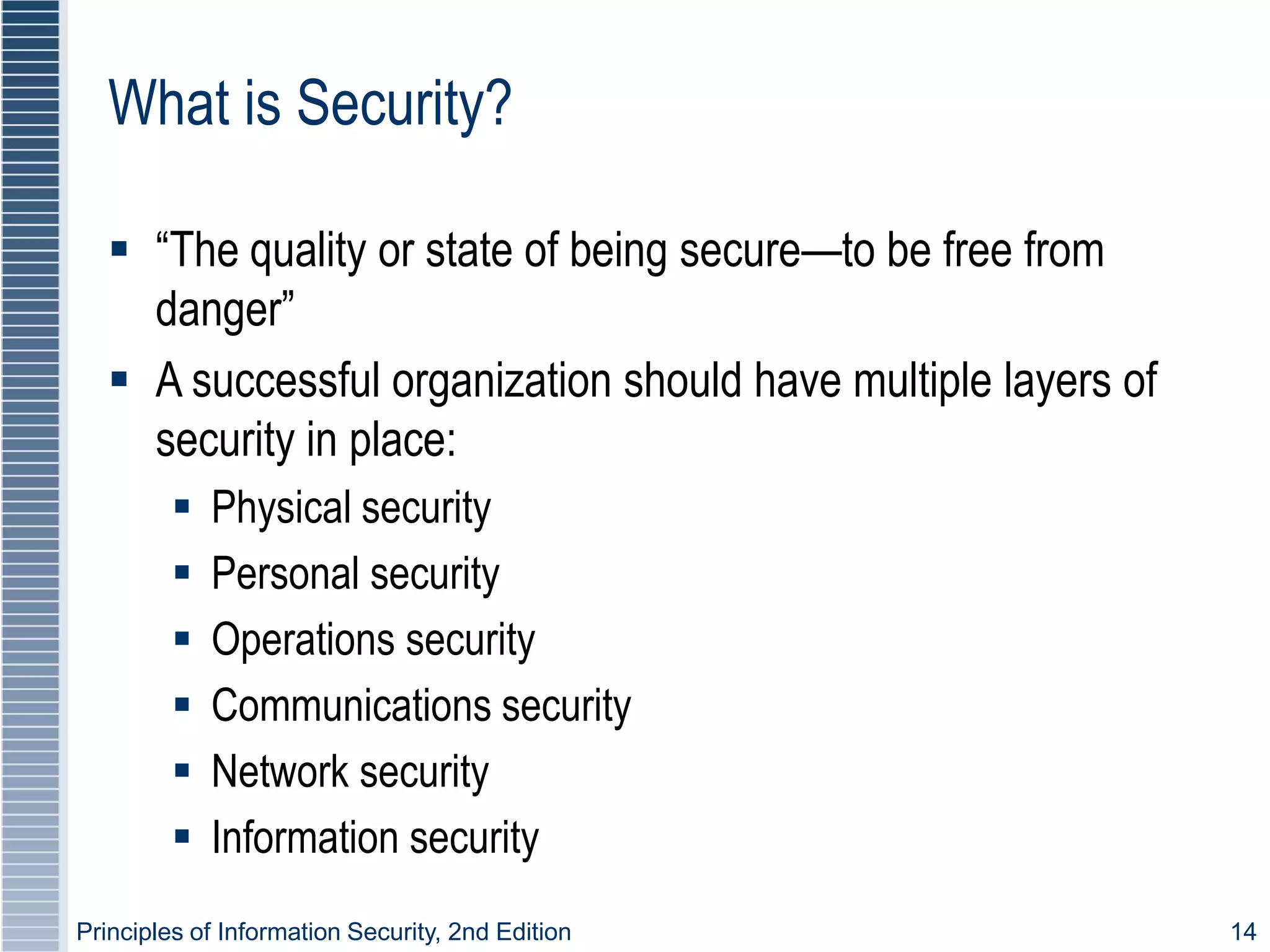

What is Security?
 “The quality or state of being secure—to be free from
danger”
 A successful organization should have multiple layers of
security in place:
 Physical security
 Personal security
 Operations security
 Communications security
 Network security
 Information security

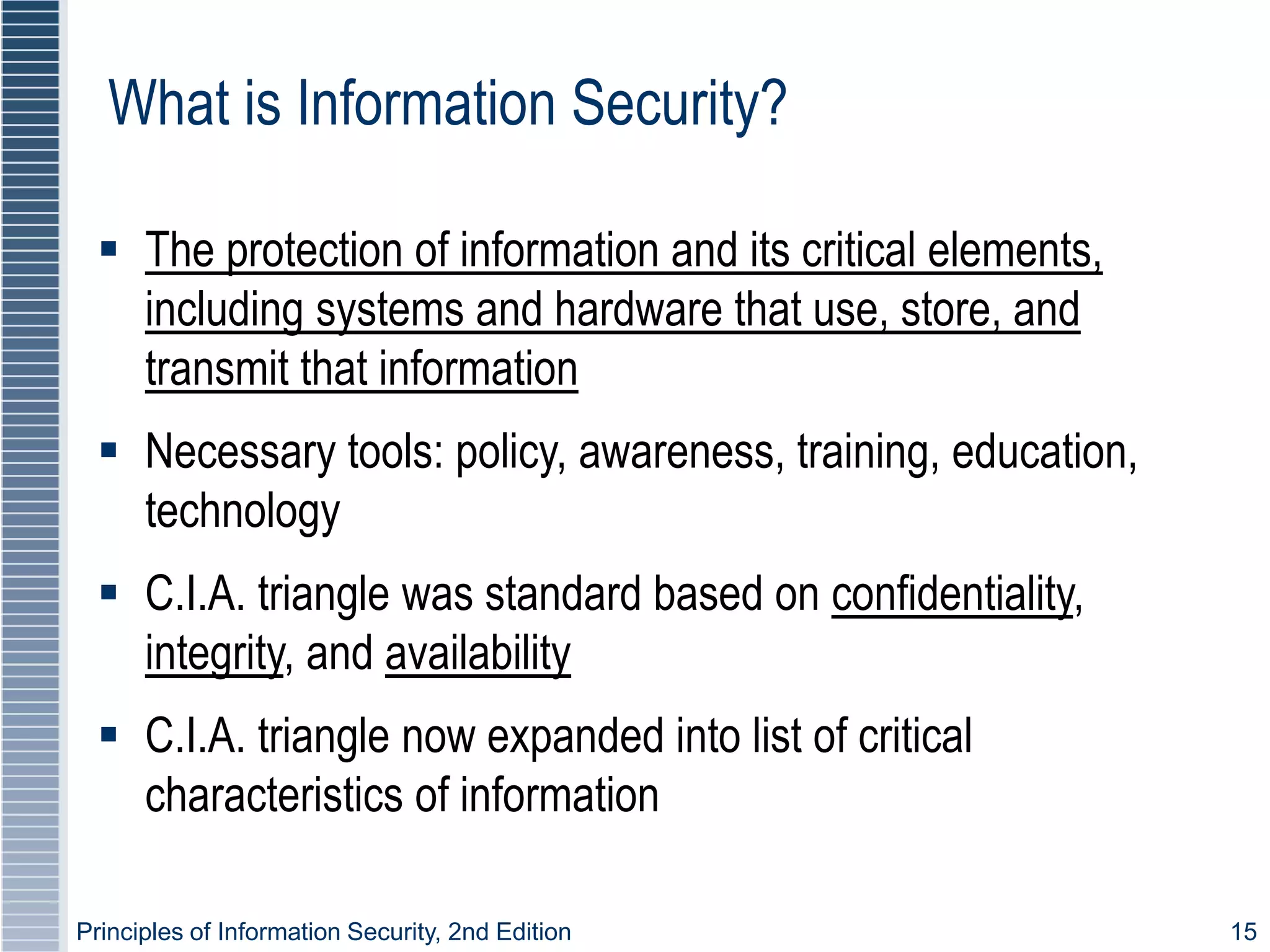

What is Information Security?
 The protection of information and its critical elements,
including systems and hardware that use, store, and
transmit that information
 Necessary tools: policy, awareness, training, education,
technology
 C.I.A. triangle was standard based on confidentiality,
integrity, and availability
 C.I.A. triangle now expanded into list of critical
characteristics of information

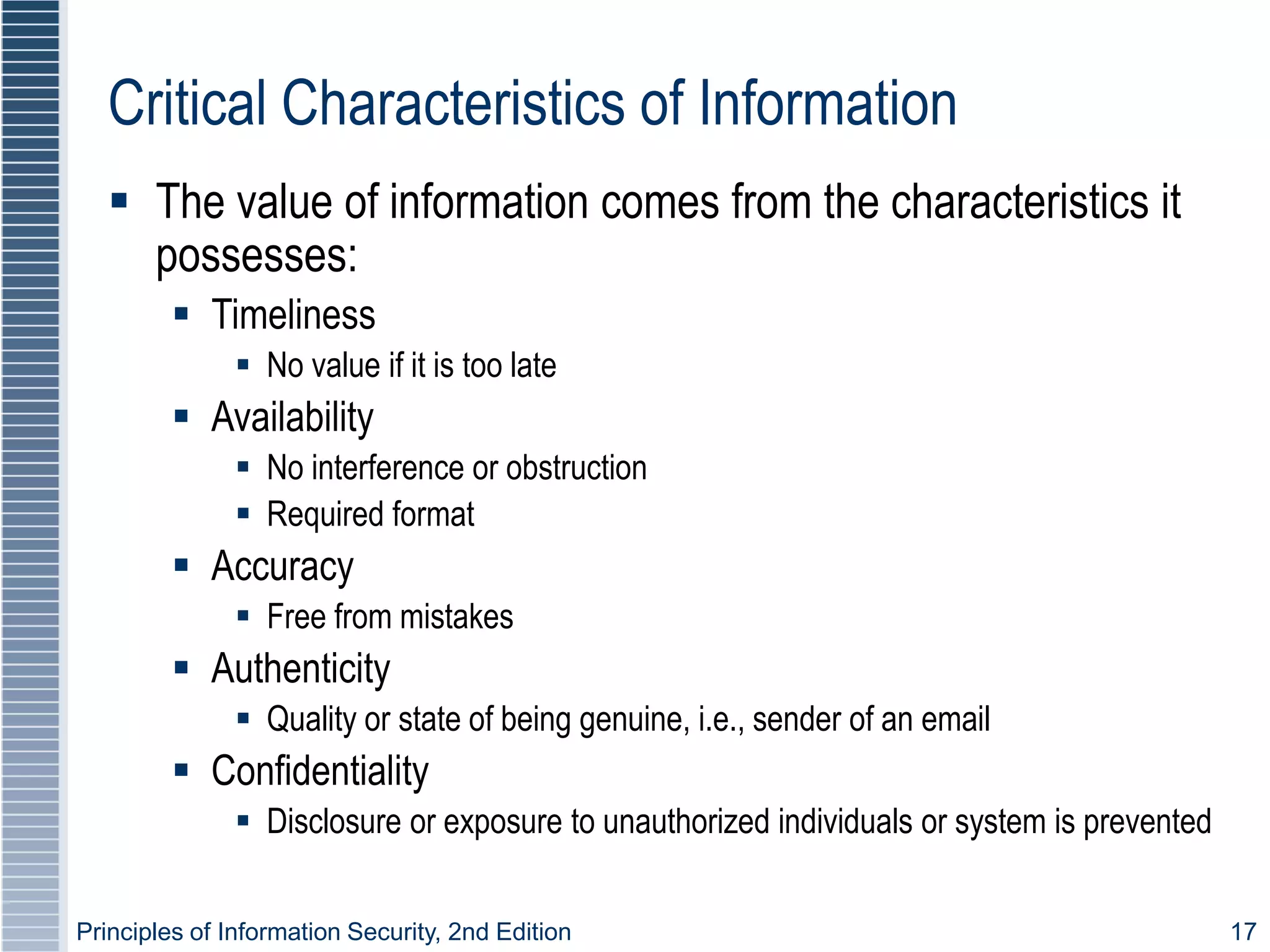

Critical Characteristics of Information
 The value of information comes from the characteristics it
possesses:
 Timeliness
 No value if it is too late
 Availability
 No interference or obstruction
 Required format
 Accuracy
 Free from mistakes
 Authenticity
 Quality or state of being genuine, i.e., sender of an email
 Confidentiality
 Disclosure or exposure to unauthorized individuals or system is prevented

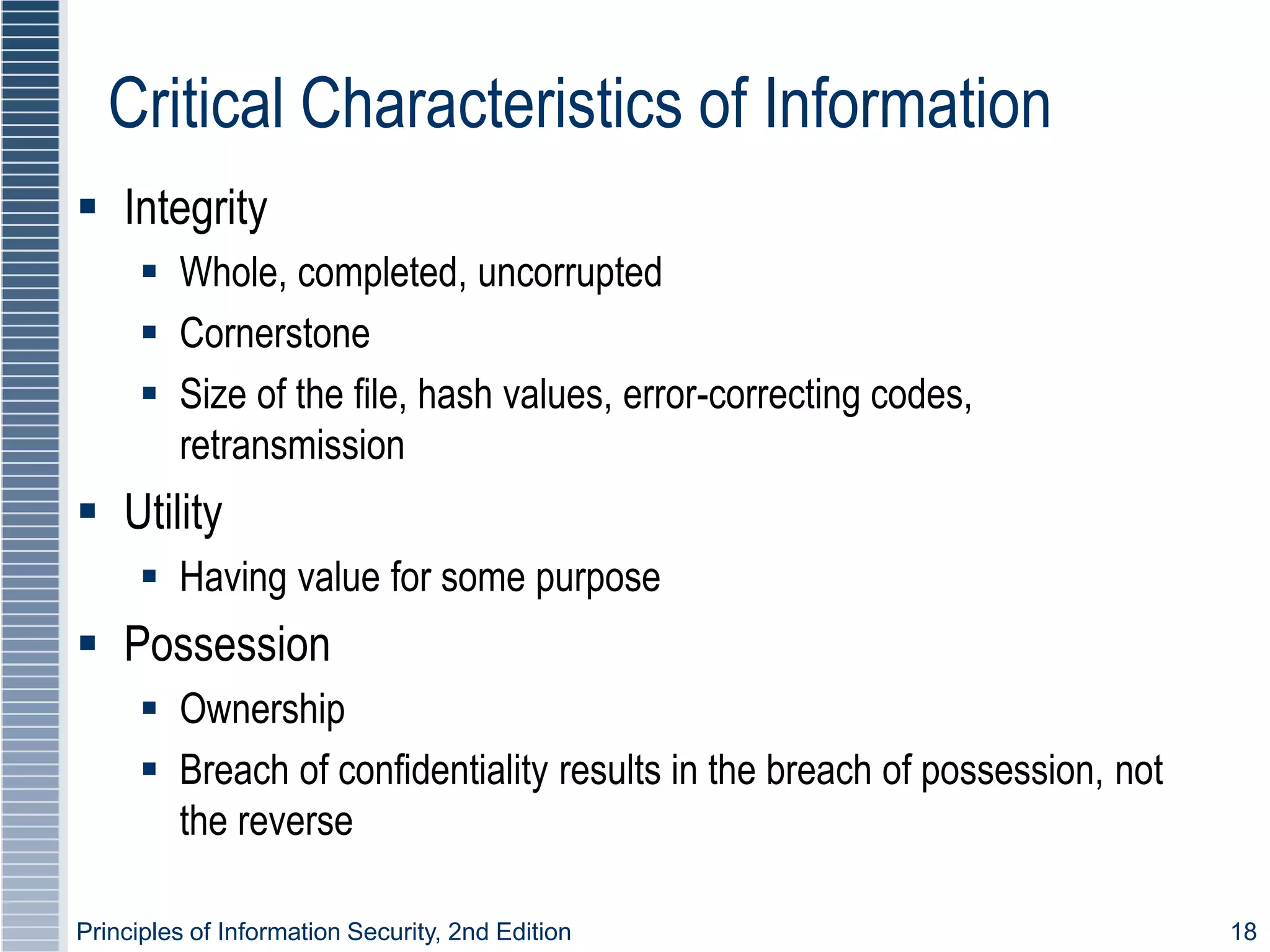

Critical Characteristics of Information
 Integrity
 Whole, completed, uncorrupted
 Cornerstone
 Size of the file, hash values, error-correcting codes,
retransmission
 Utility
 Having value for some purpose
 Possession
 Ownership
 Breach of confidentiality results in the breach of possession, not
the reverse

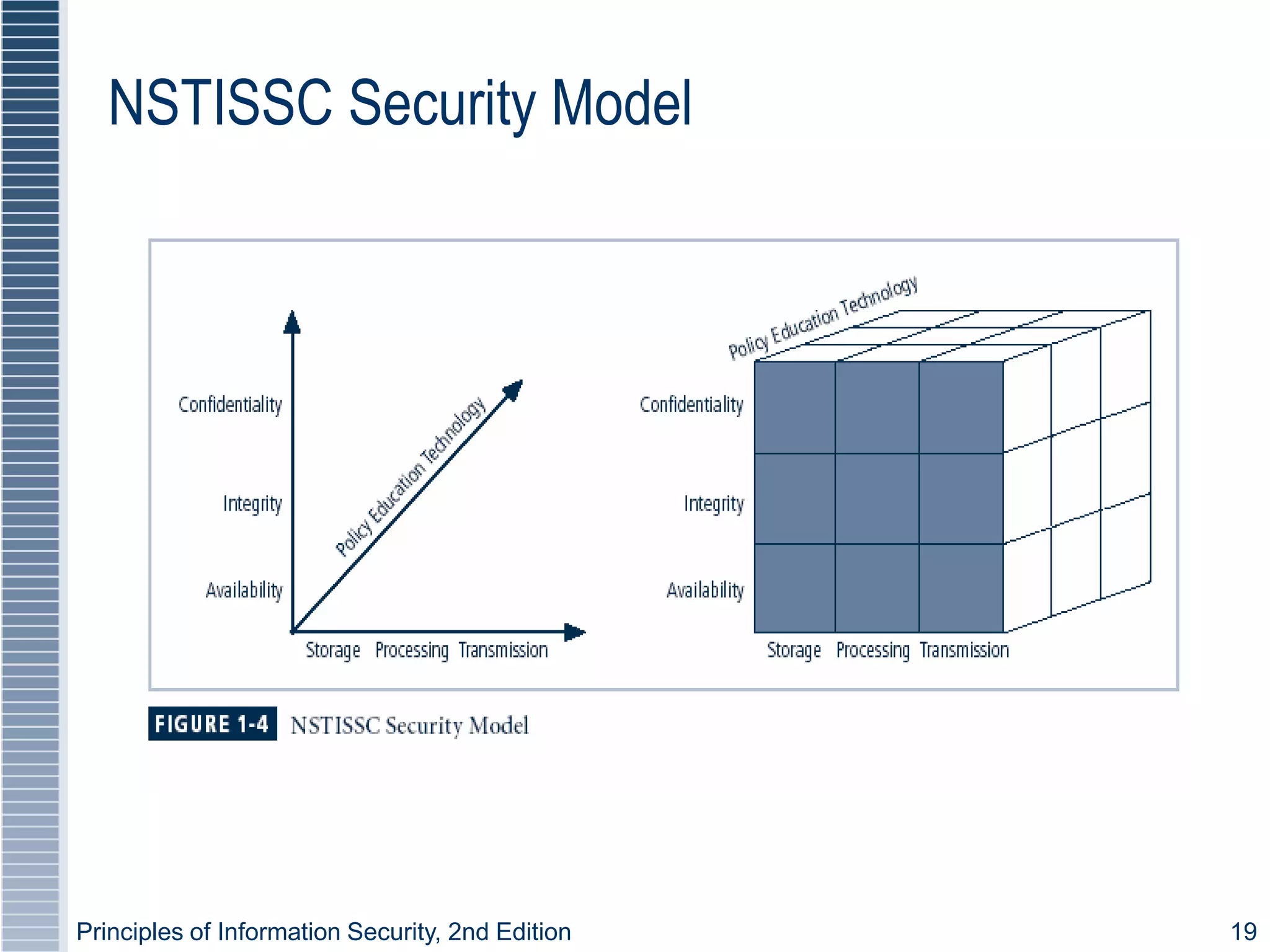

Figure 1-4 – NSTISSC Security
Model
NSTISSC Security Model

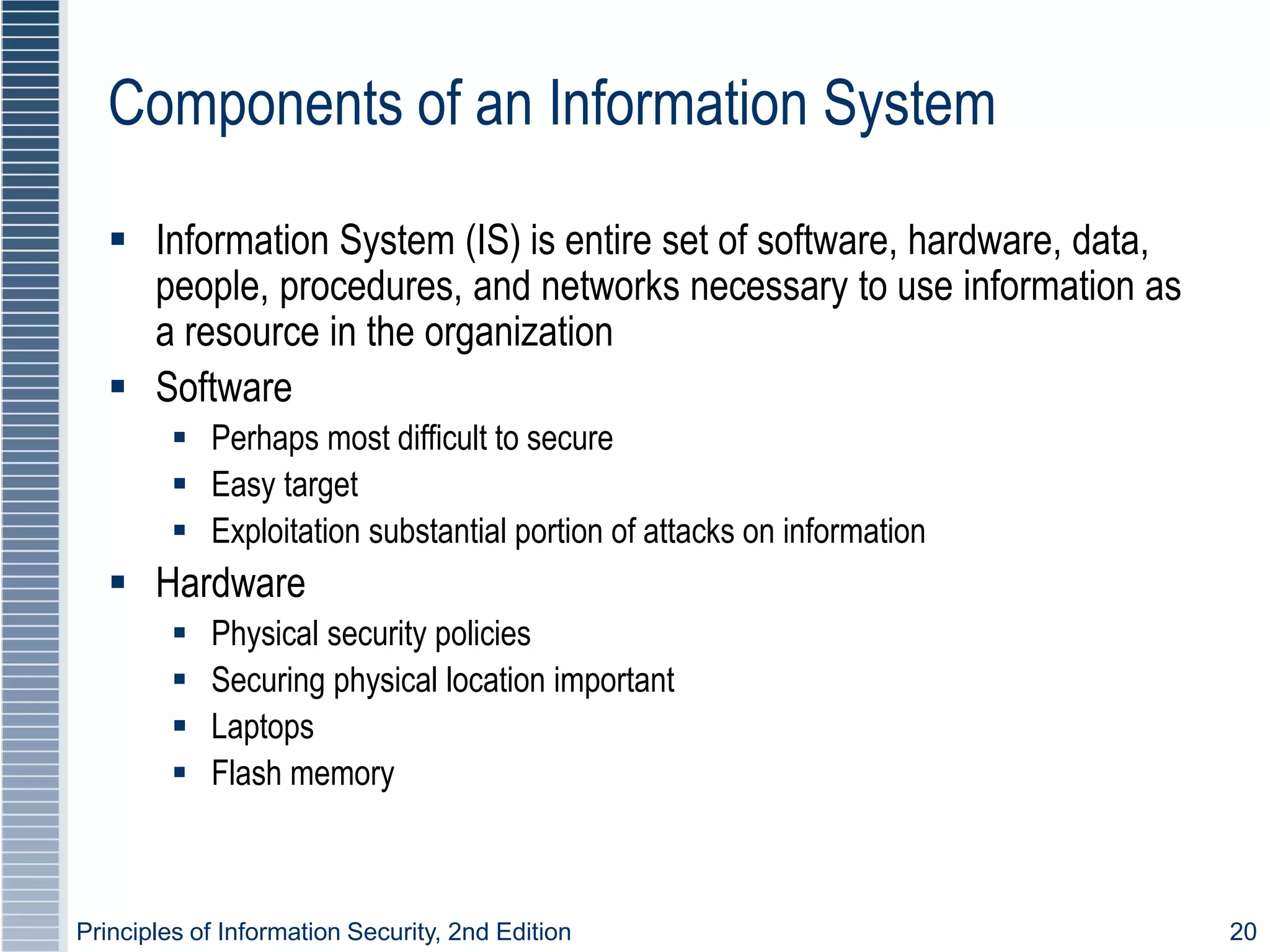

Components of an Information System
 Information System (IS) is entire set of software, hardware, data,
people, procedures, and networks necessary to use information as
a resource in the organization
 Software
 Perhaps most difficult to secure
 Easy target
 Exploitation substantial portion of attacks on information
 Hardware
 Physical security policies
 Securing physical location important
 Laptops
 Flash memory

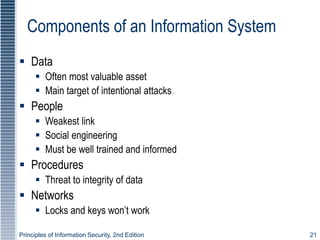

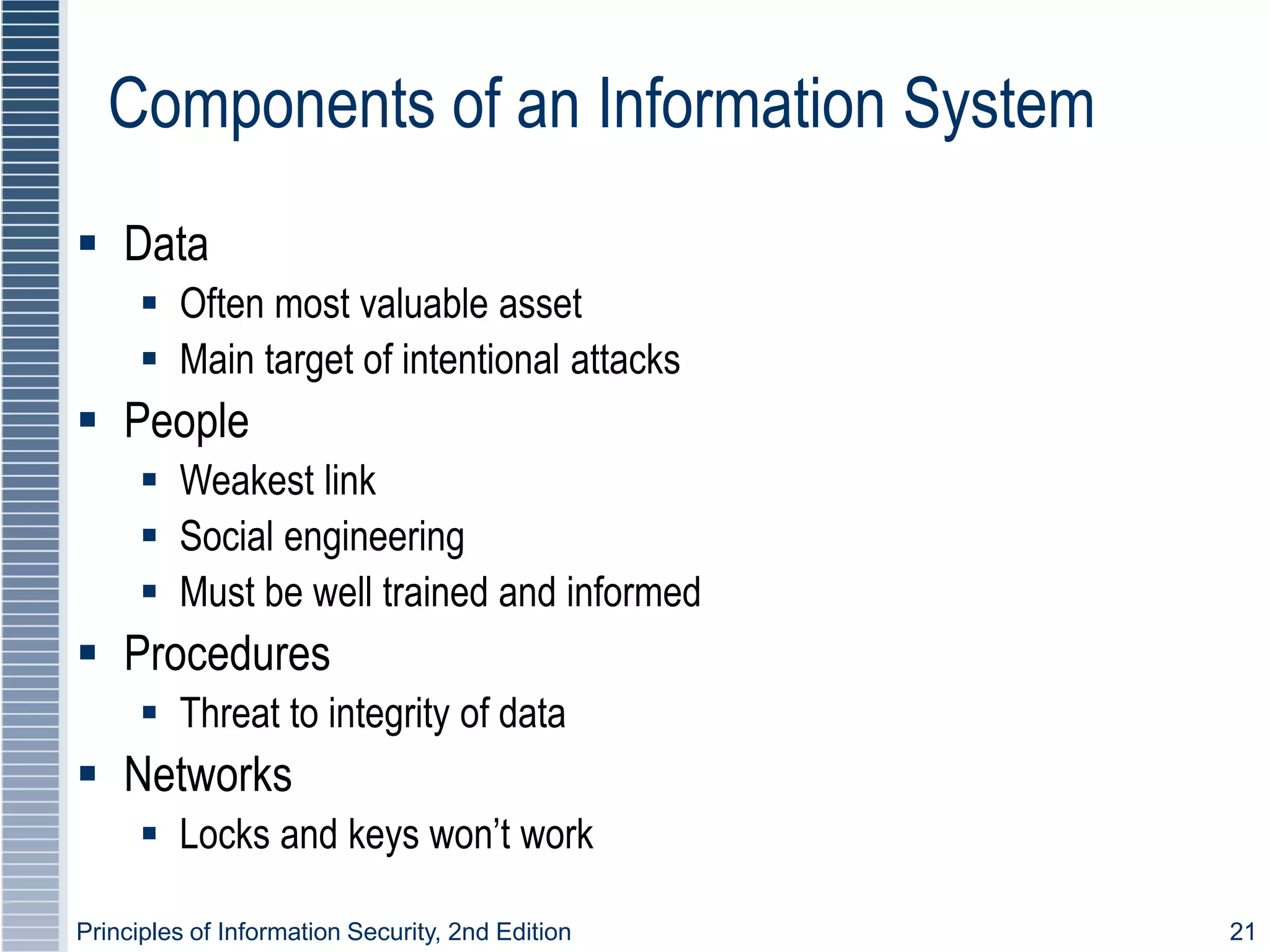

Components of an Information System
 Data
 Often most valuable asset
 Main target of intentional attacks
 People
 Weakest link
 Social engineering
 Must be well trained and informed
 Procedures
 Threat to integrity of data
 Networks
 Locks and keys won’t work

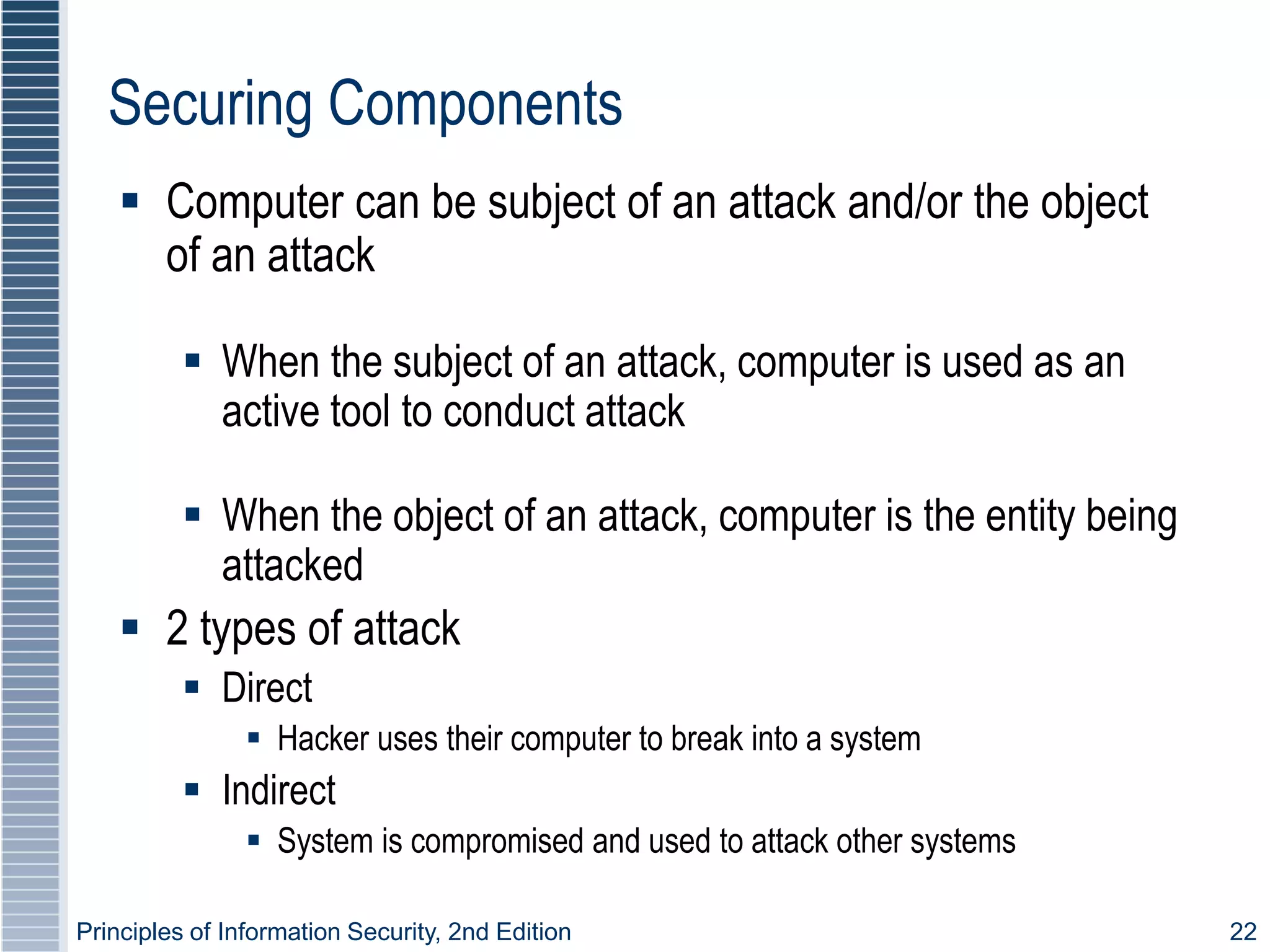

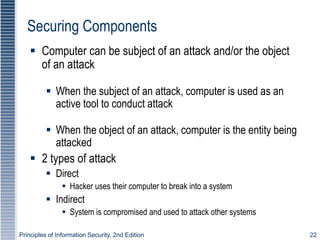

Securing Components
 Computer can be subject of an attack and/or the object
of an attack
 When the subject of an attack, computer is used as an
active tool to conduct attack
 When the object of an attack, computer is the entity being
attacked
 2 types of attack
 Direct
 Hacker uses their computer to break into a system
 Indirect
 System is compromised and used to attack other systems

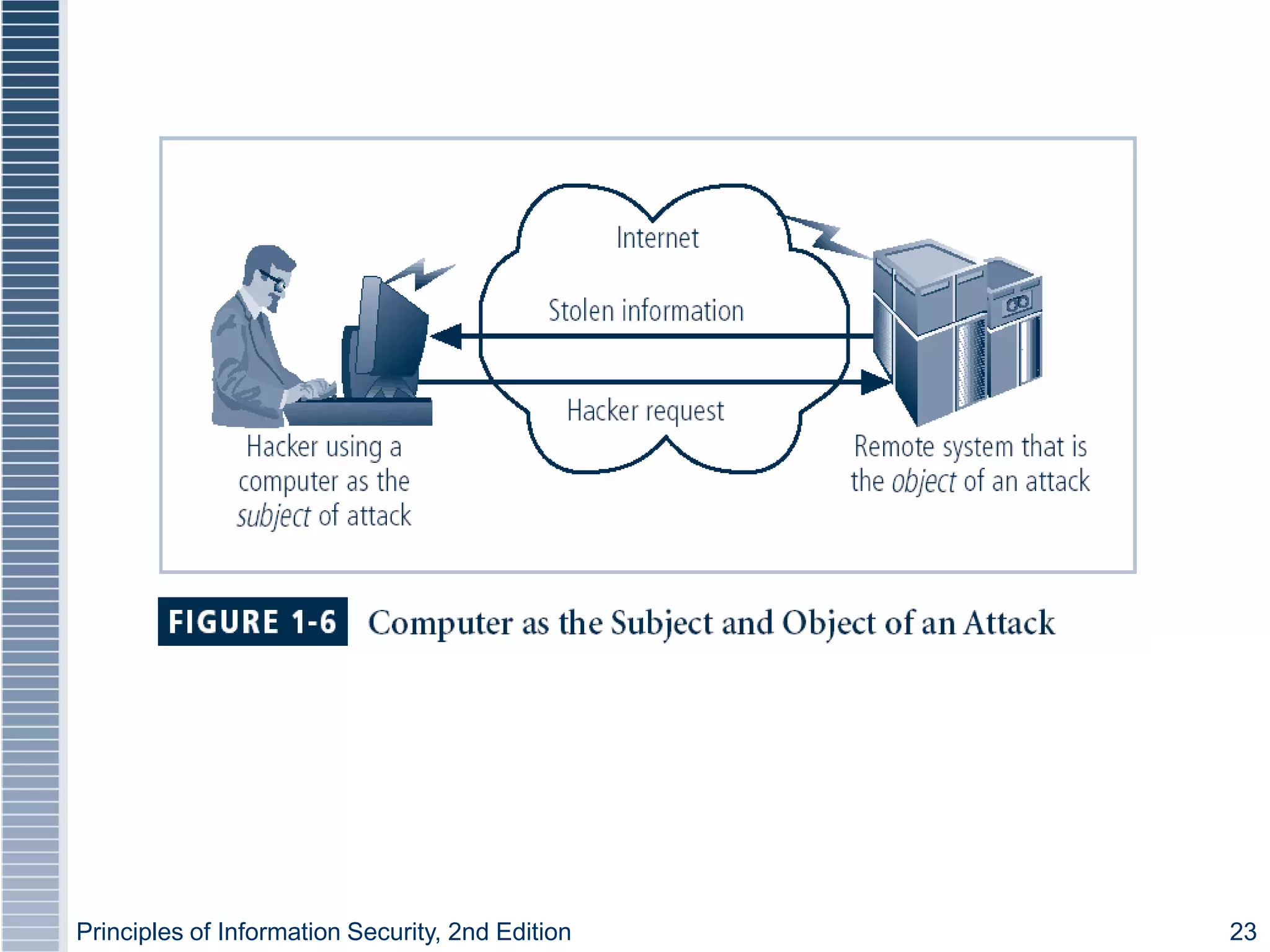

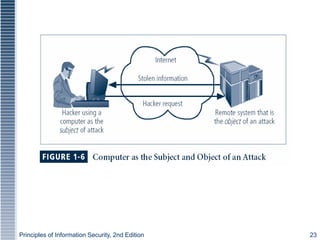

Figure 1-5 – Subject and Object of
Attack

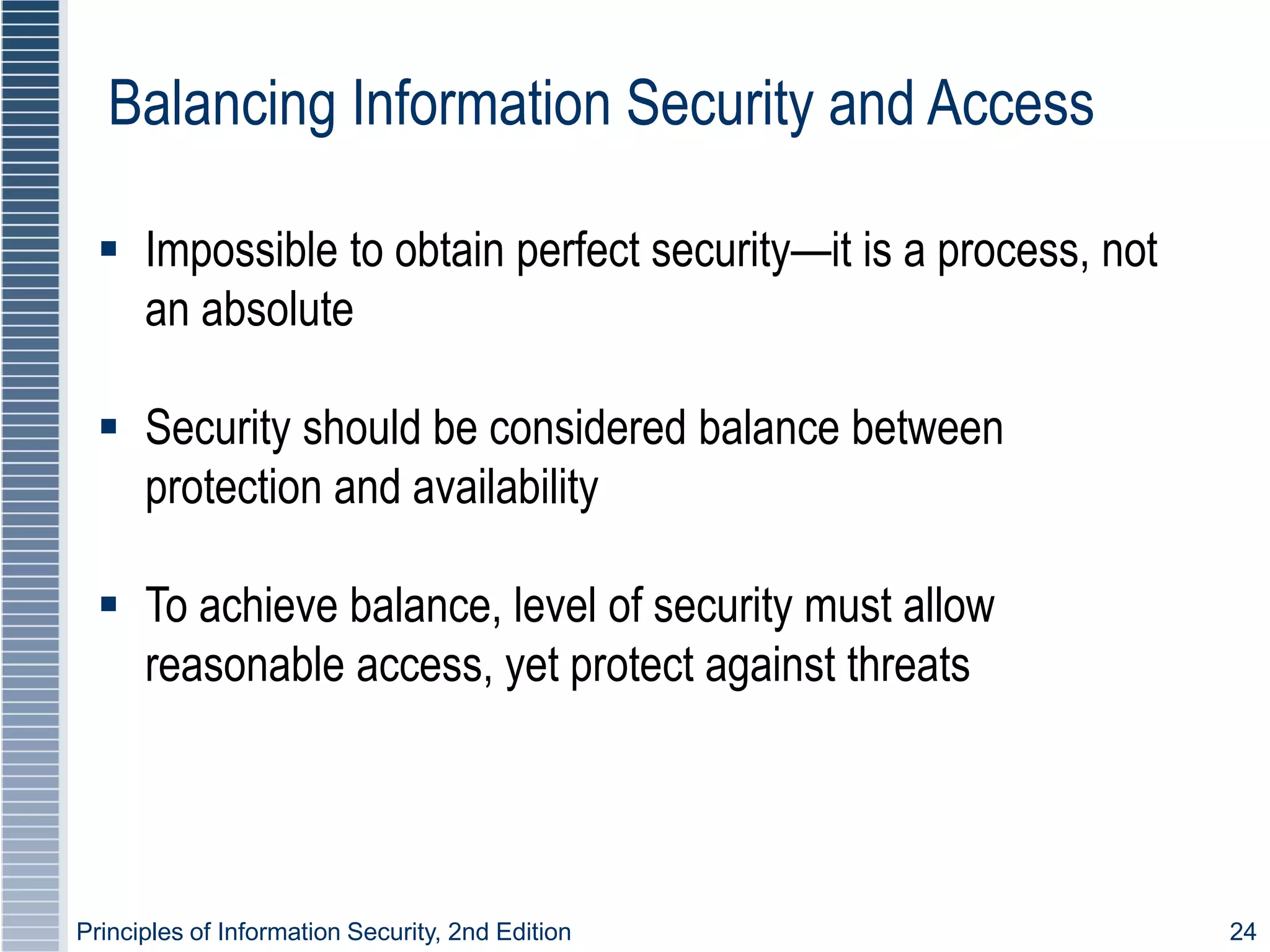

Balancing Information Security and Access
 Impossible to obtain perfect security—it is a process, not
an absolute
 Security should be considered balance between
protection and availability
 To achieve balance, level of security must allow
reasonable access, yet protect against threats

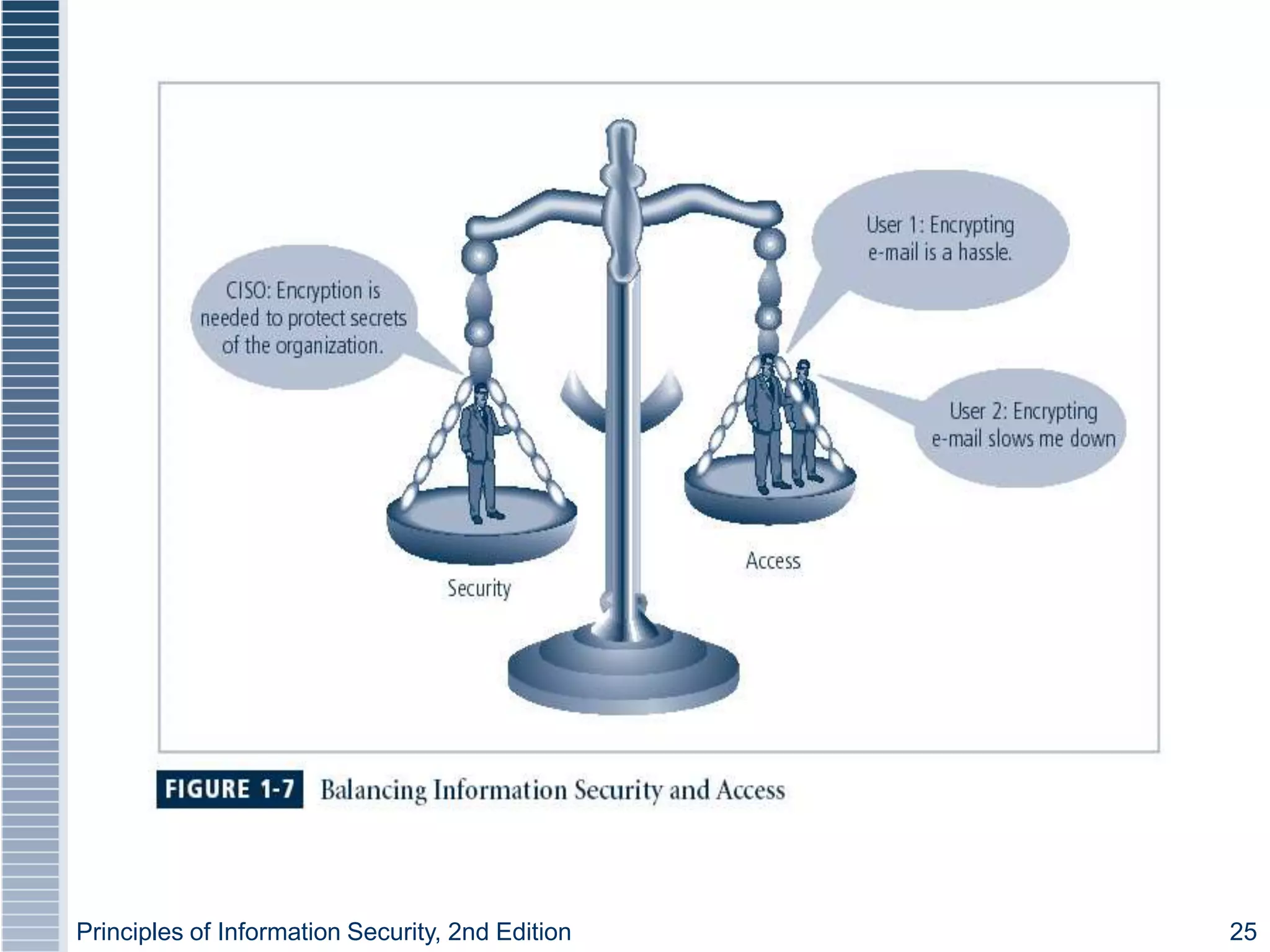

Figure 1-6 – Balancing Security and
Access

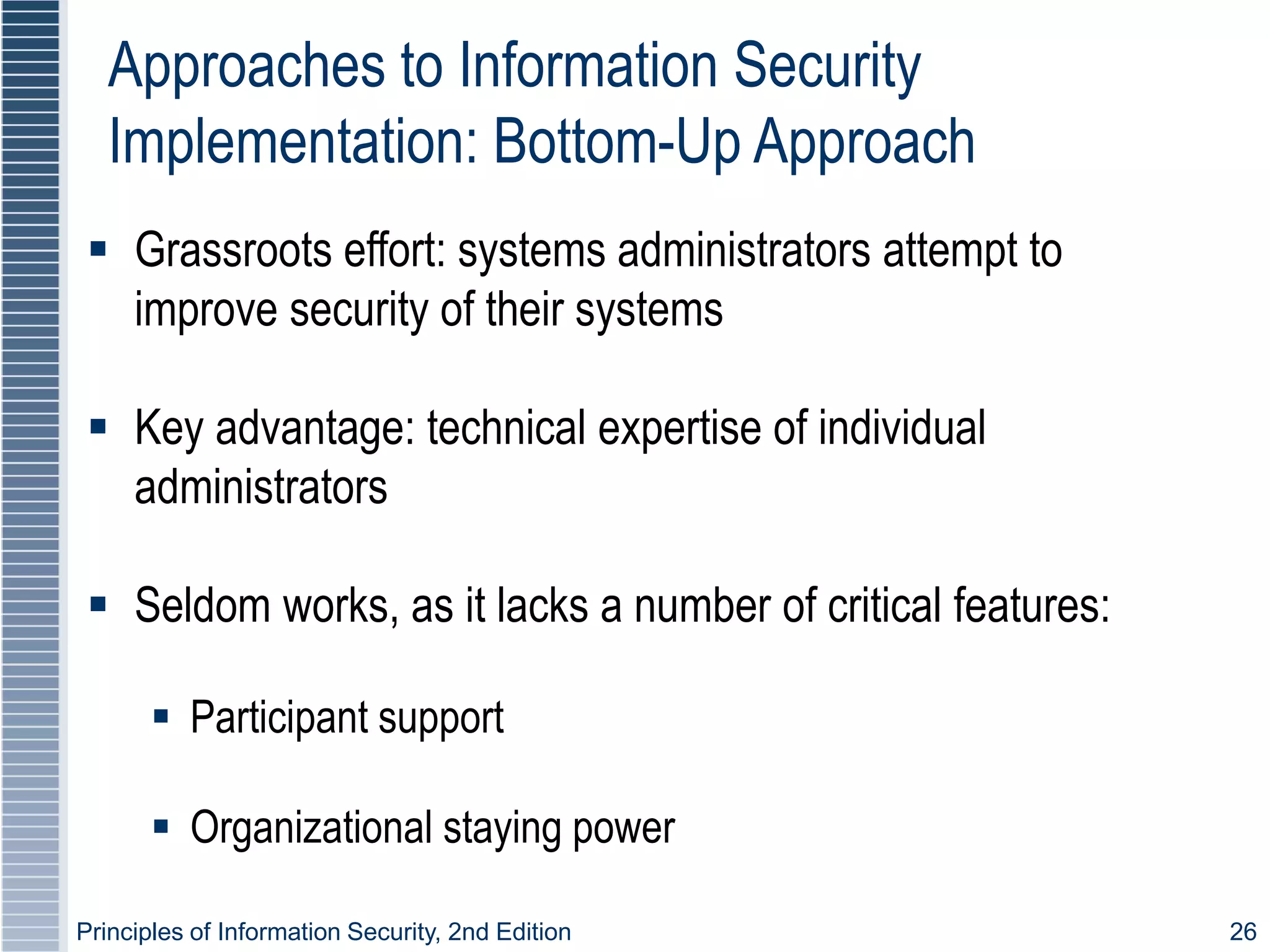

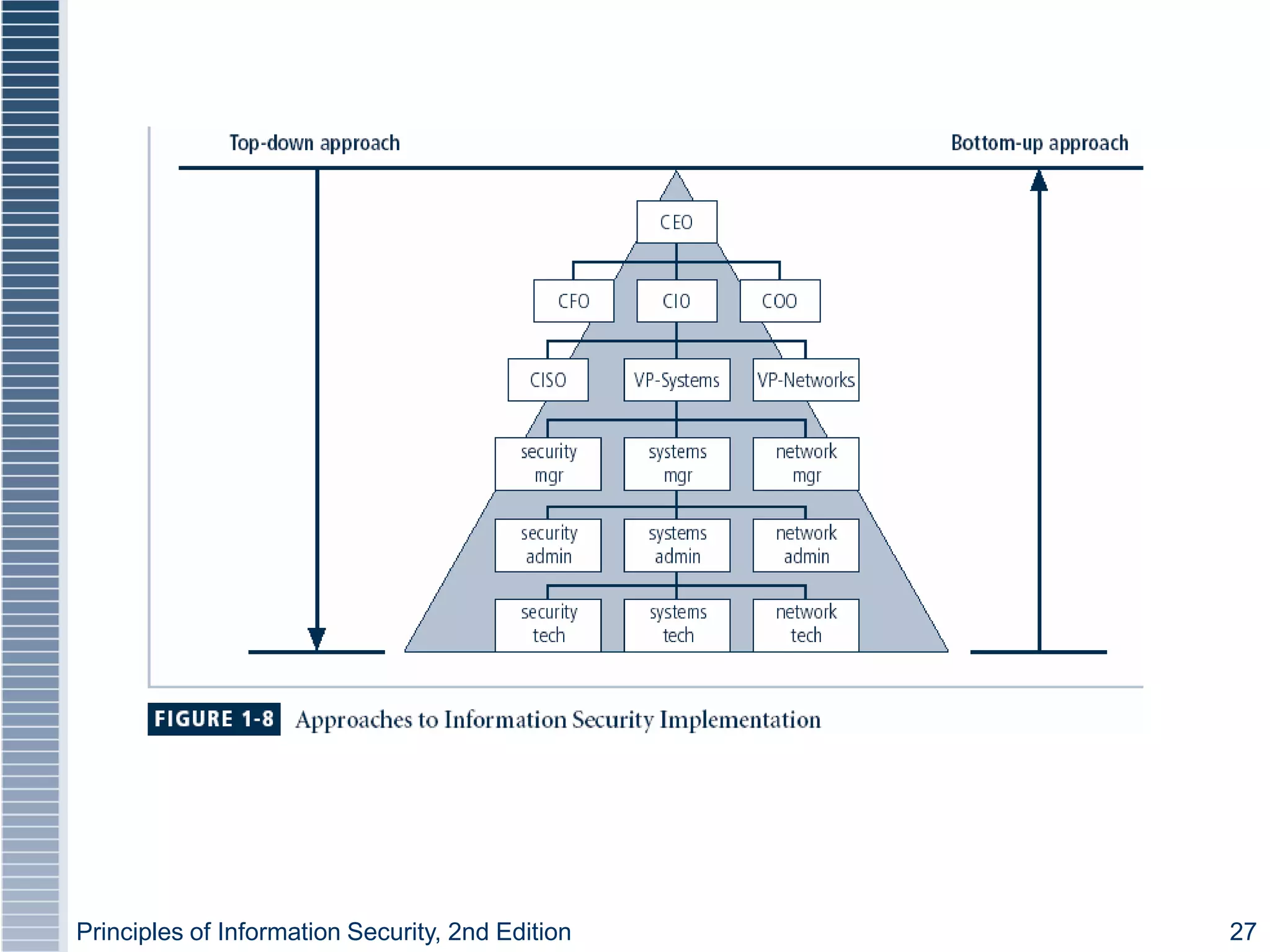

Approaches to Information Security
Implementation: Bottom-Up Approach
 Grassroots effort: systems administrators attempt to
improve security of their systems
 Key advantage: technical expertise of individual
administrators
 Seldom works, as it lacks a number of critical features:
 Participant support
 Organizational staying power

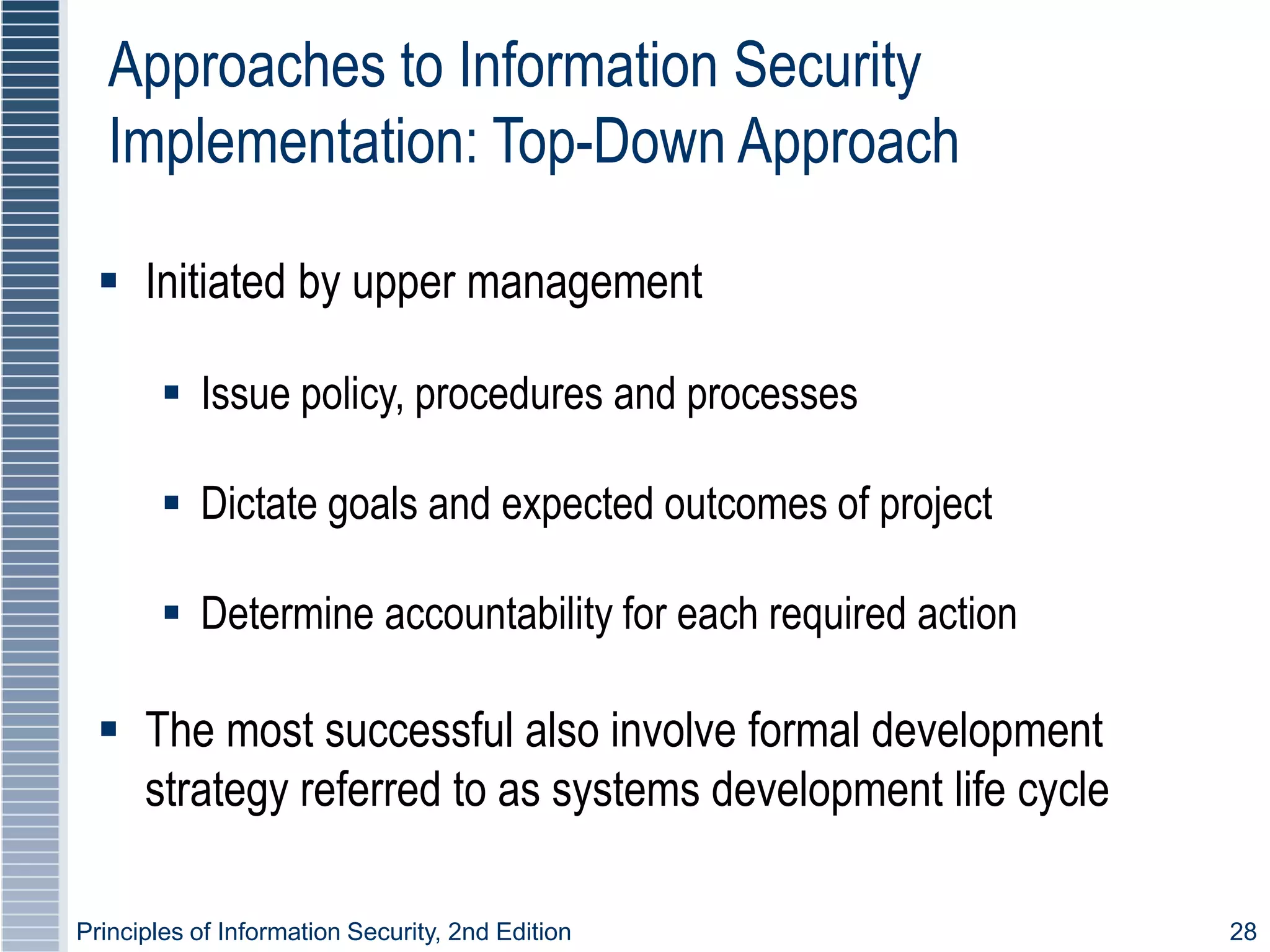

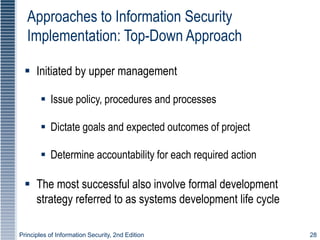

Approaches to Information Security
Implementation: Top-Down Approach
 Initiated by upper management
 Issue policy, procedures and processes
 Dictate goals and expected outcomes of project
 Determine accountability for each required action
 The most successful also involve formal development
strategy referred to as systems development life cycle

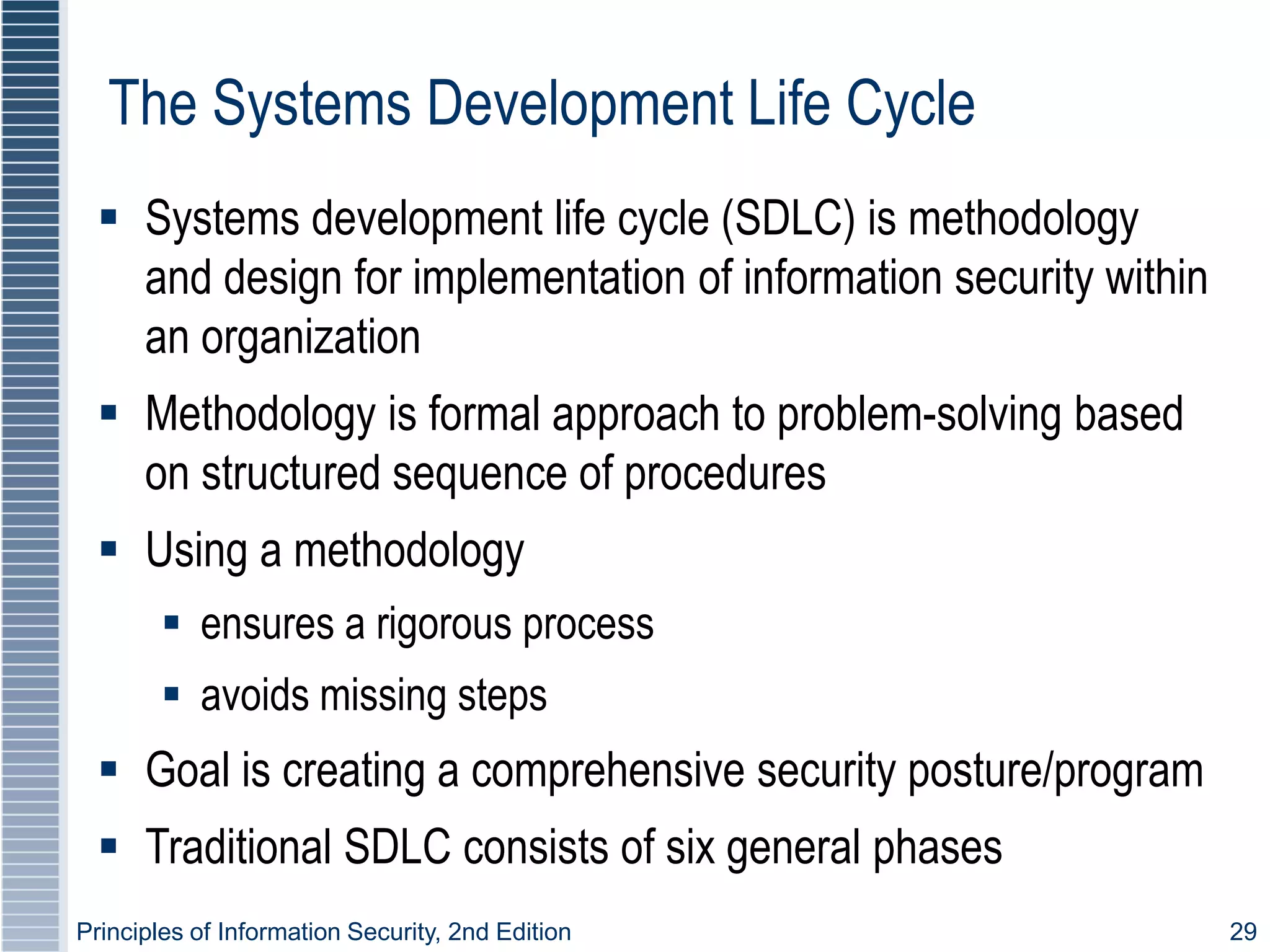

The Systems Development Life Cycle
 Systems development life cycle (SDLC) is methodology
and design for implementation of information security within
an organization
 Methodology is formal approach to problem-solving based
on structured sequence of procedures
 Using a methodology
 ensures a rigorous process
 avoids missing steps
 Goal is creating a comprehensive security posture/program

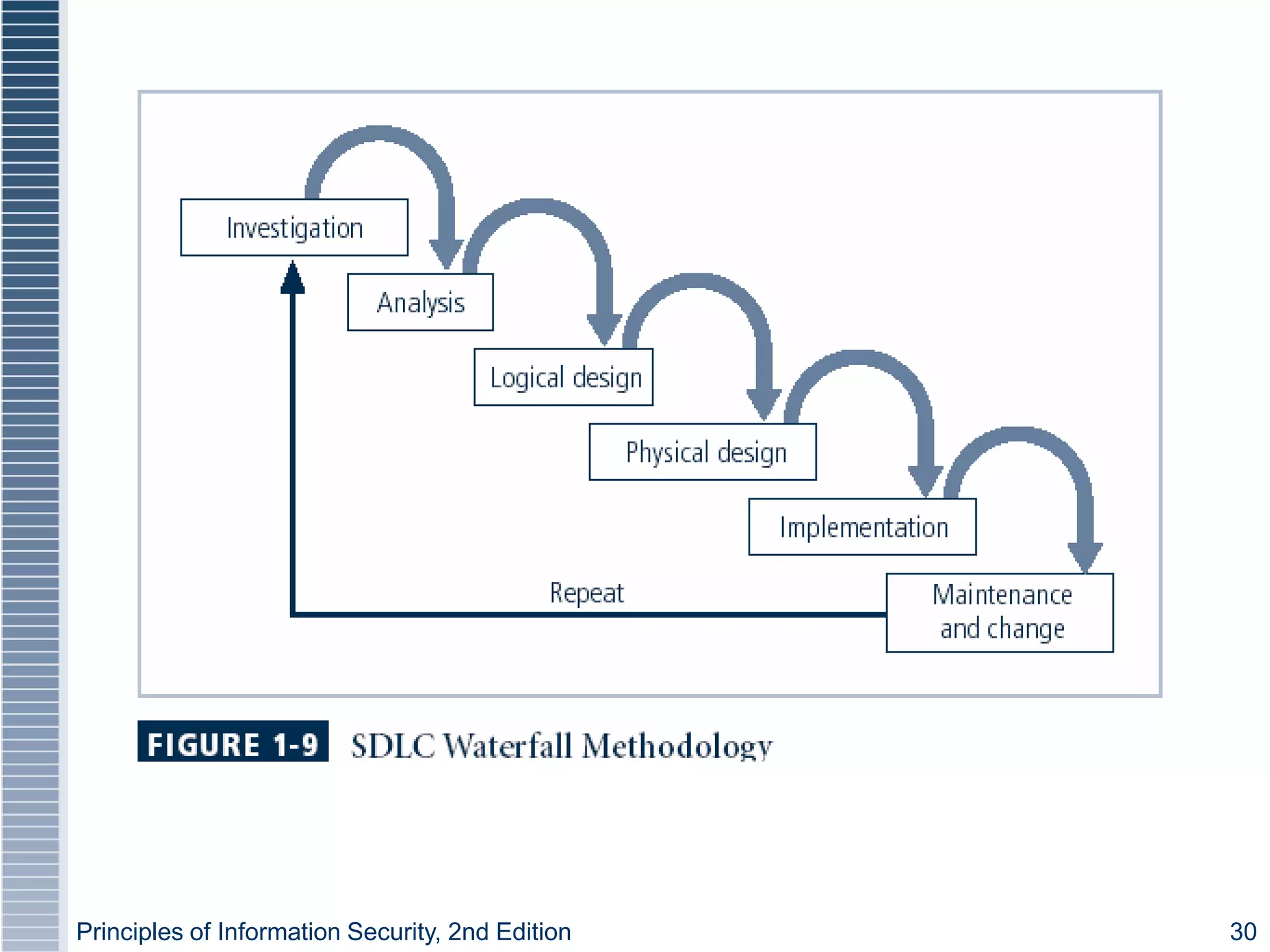

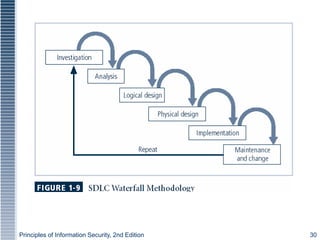

 Traditional SDLC consists of six general phases

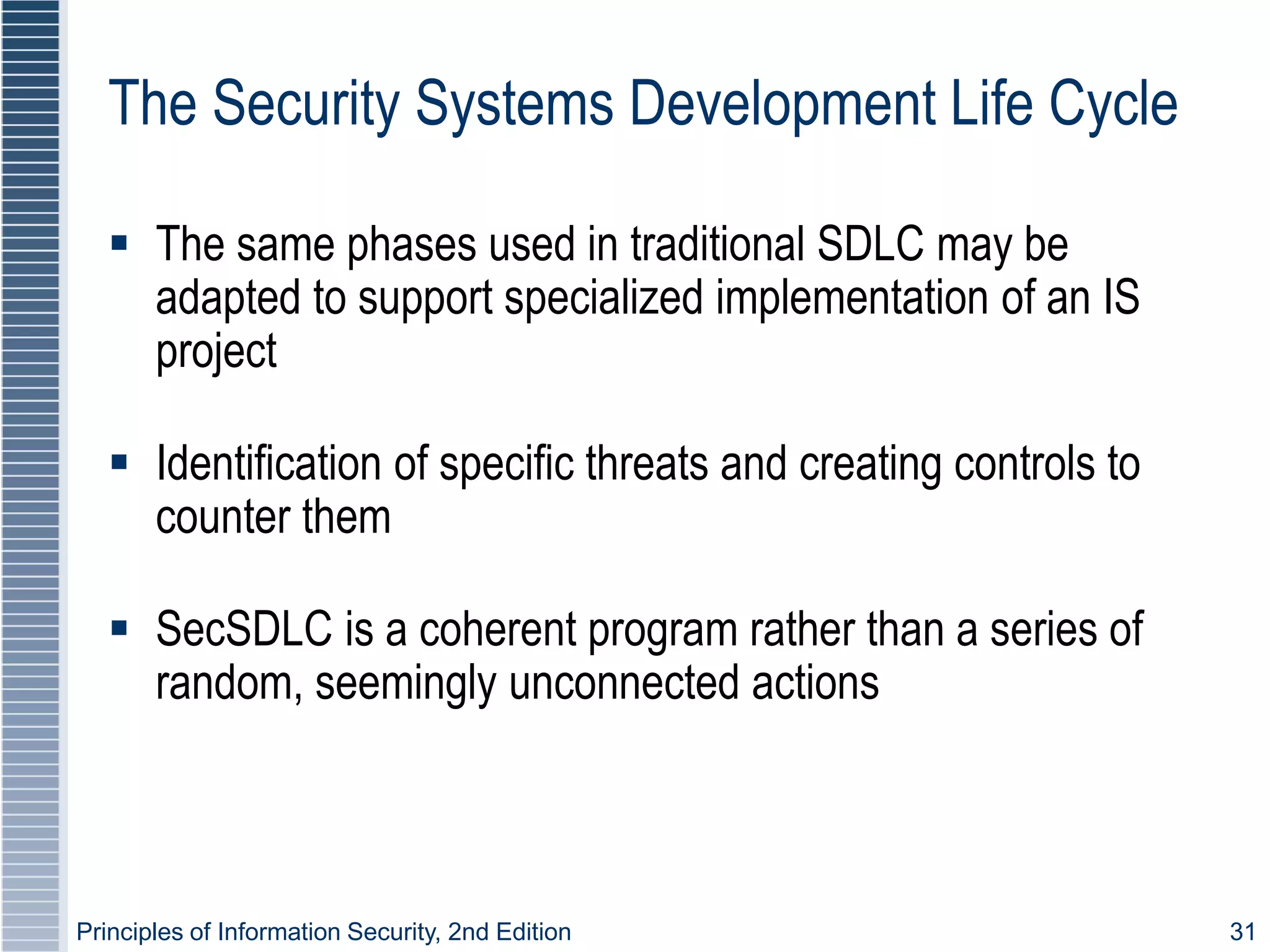

The Security Systems Development Life Cycle
 The same phases used in traditional SDLC may be
adapted to support specialized implementation of an IS
project
 Identification of specific threats and creating controls to
counter them
 SecSDLC is a coherent program rather than a series of
random, seemingly unconnected actions

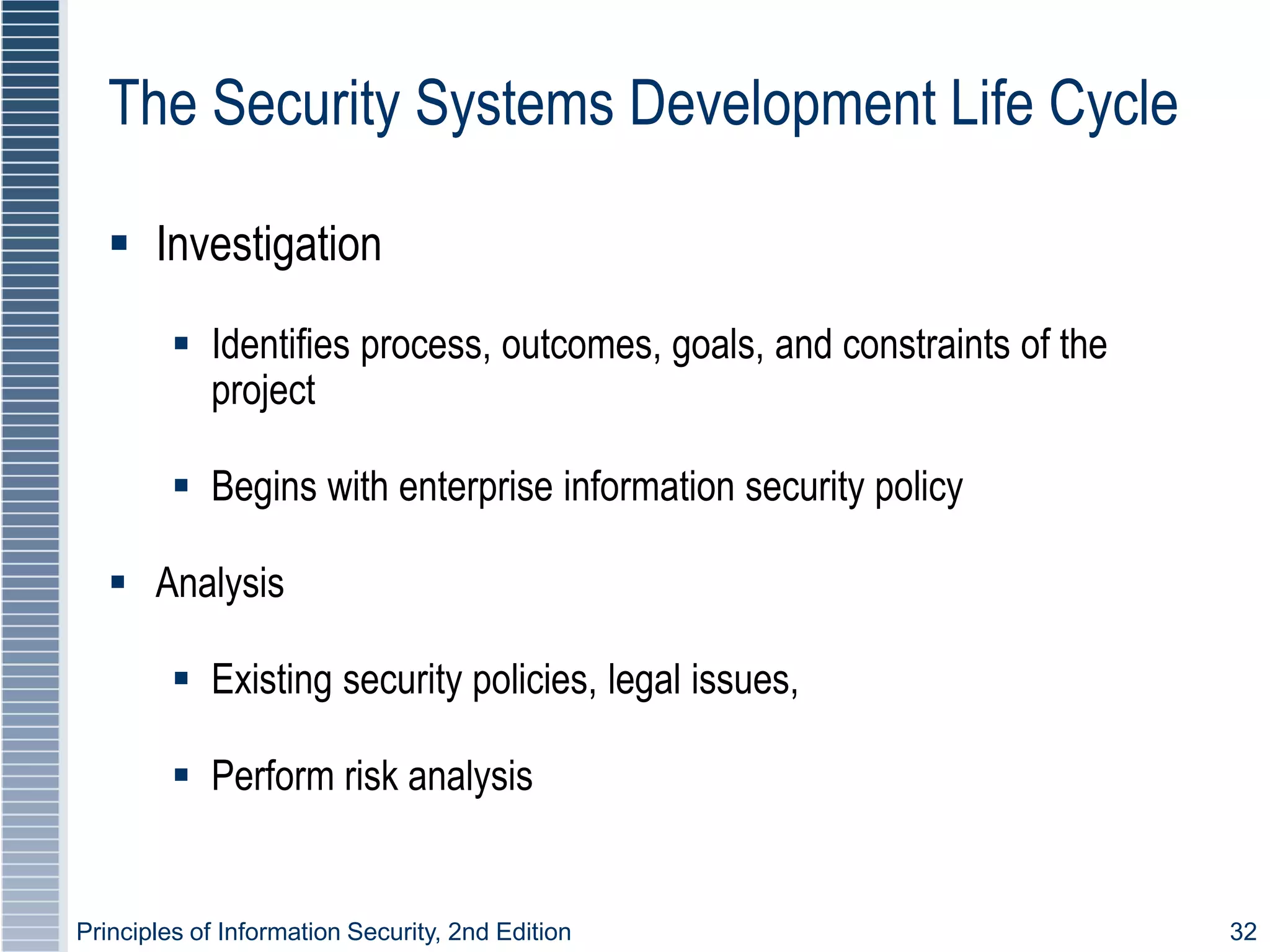

 Investigation
 Identifies process, outcomes, goals, and constraints of the
project
 Begins with enterprise information security policy
 Analysis
 Existing security policies, legal issues,
 Perform risk analysis

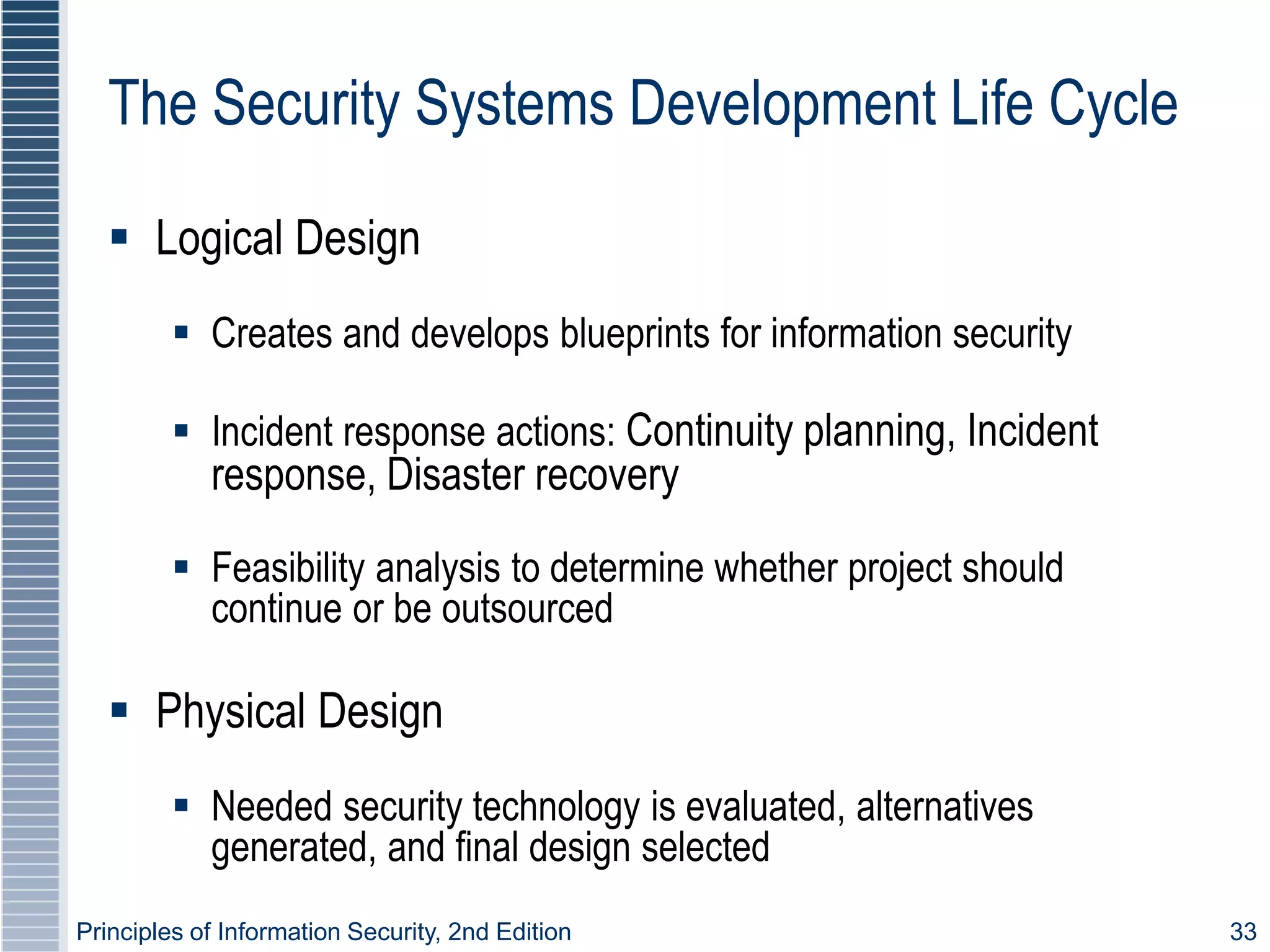

 Logical Design
 Creates and develops blueprints for information security
 Incident response actions: Continuity planning, Incident
response, Disaster recovery
 Feasibility analysis to determine whether project should
continue or be outsourced
 Physical Design
 Needed security technology is evaluated, alternatives
generated, and final design selected

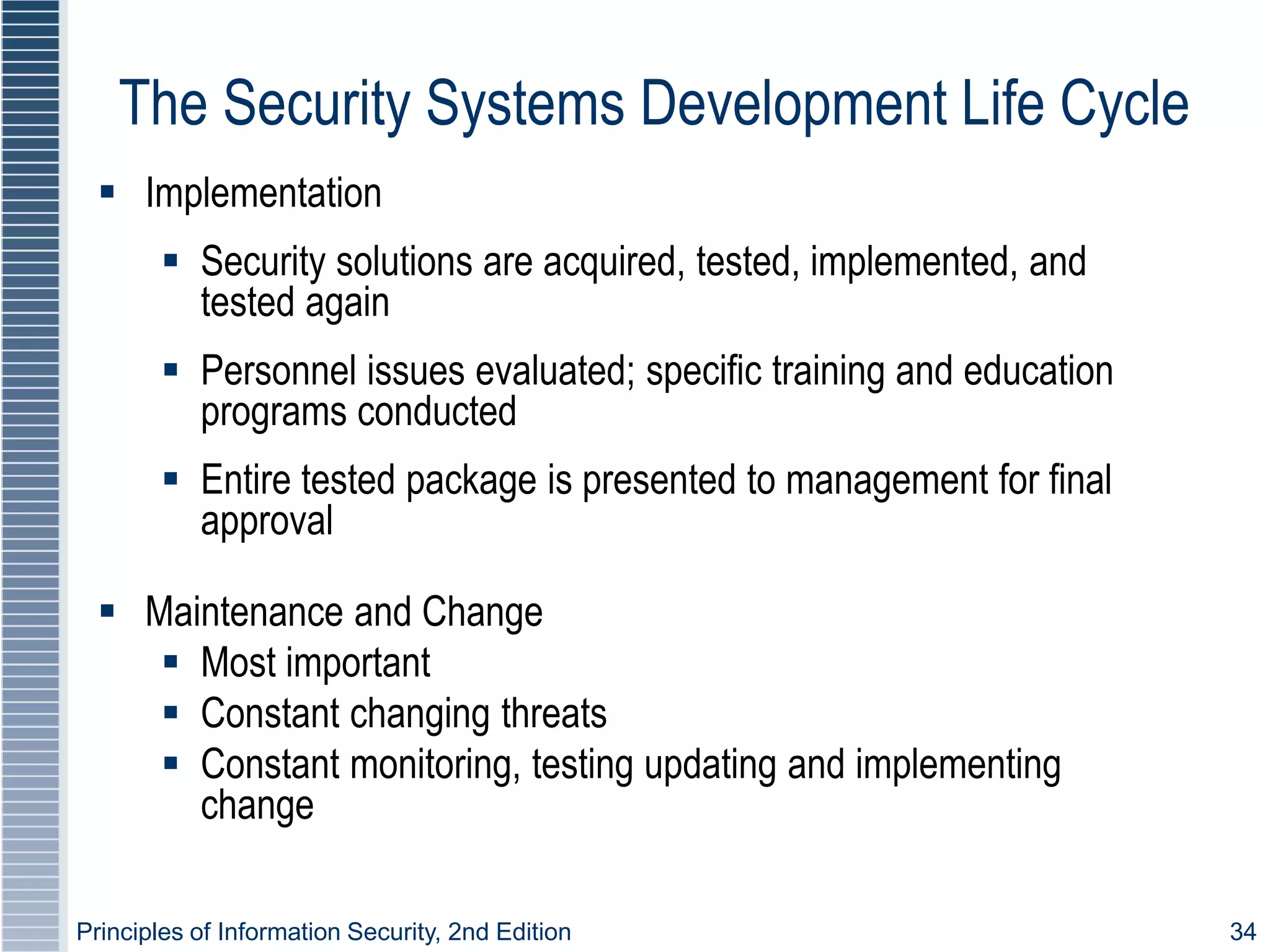

 Implementation
 Security solutions are acquired, tested, implemented, and
tested again
 Personnel issues evaluated; specific training and education
programs conducted
 Entire tested package is presented to management for final
approval
 Maintenance and Change
 Most important
 Constant changing threats
 Constant monitoring, testing updating and implementing
change

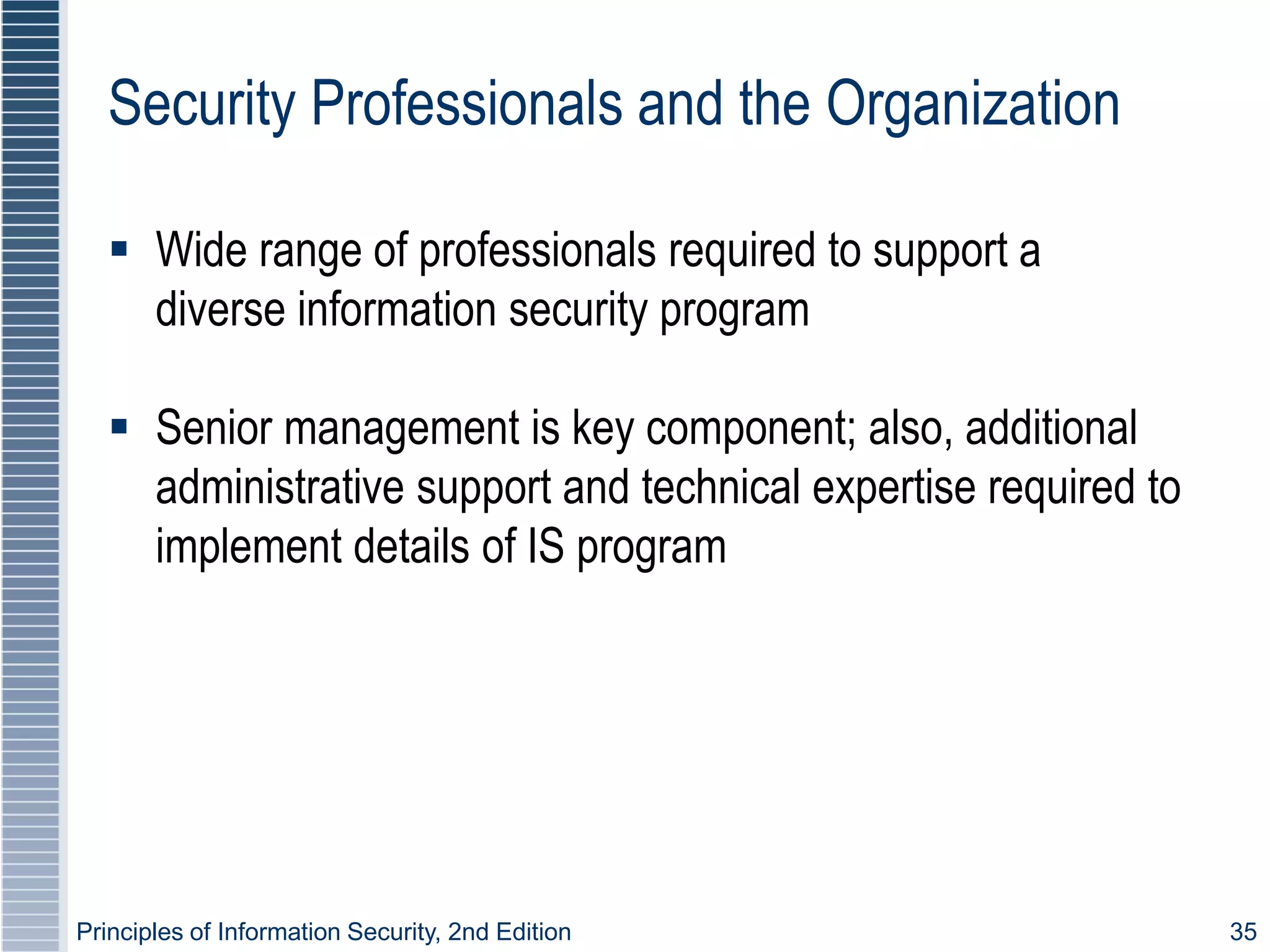

Security Professionals and the Organization
 Wide range of professionals required to support a
diverse information security program
 Senior management is key component; also, additional
administrative support and technical expertise required to
implement details of IS program

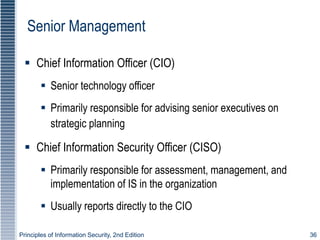

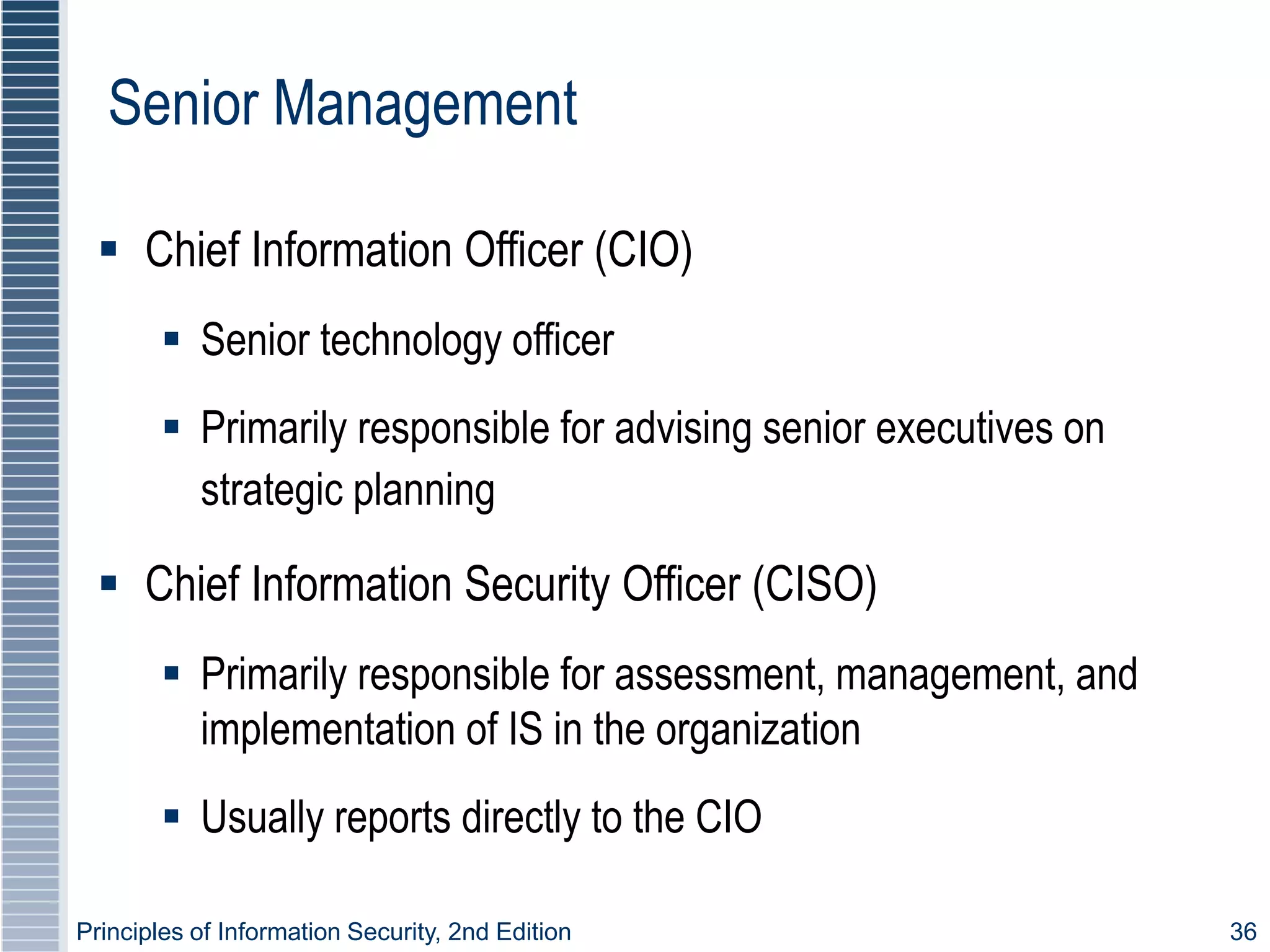

Senior Management
 Chief Information Officer (CIO)
 Senior technology officer
 Primarily responsible for advising senior executives on
strategic planning
 Chief Information Security Officer (CISO)
 Primarily responsible for assessment, management, and
implementation of IS in the organization
 Usually reports directly to the CIO

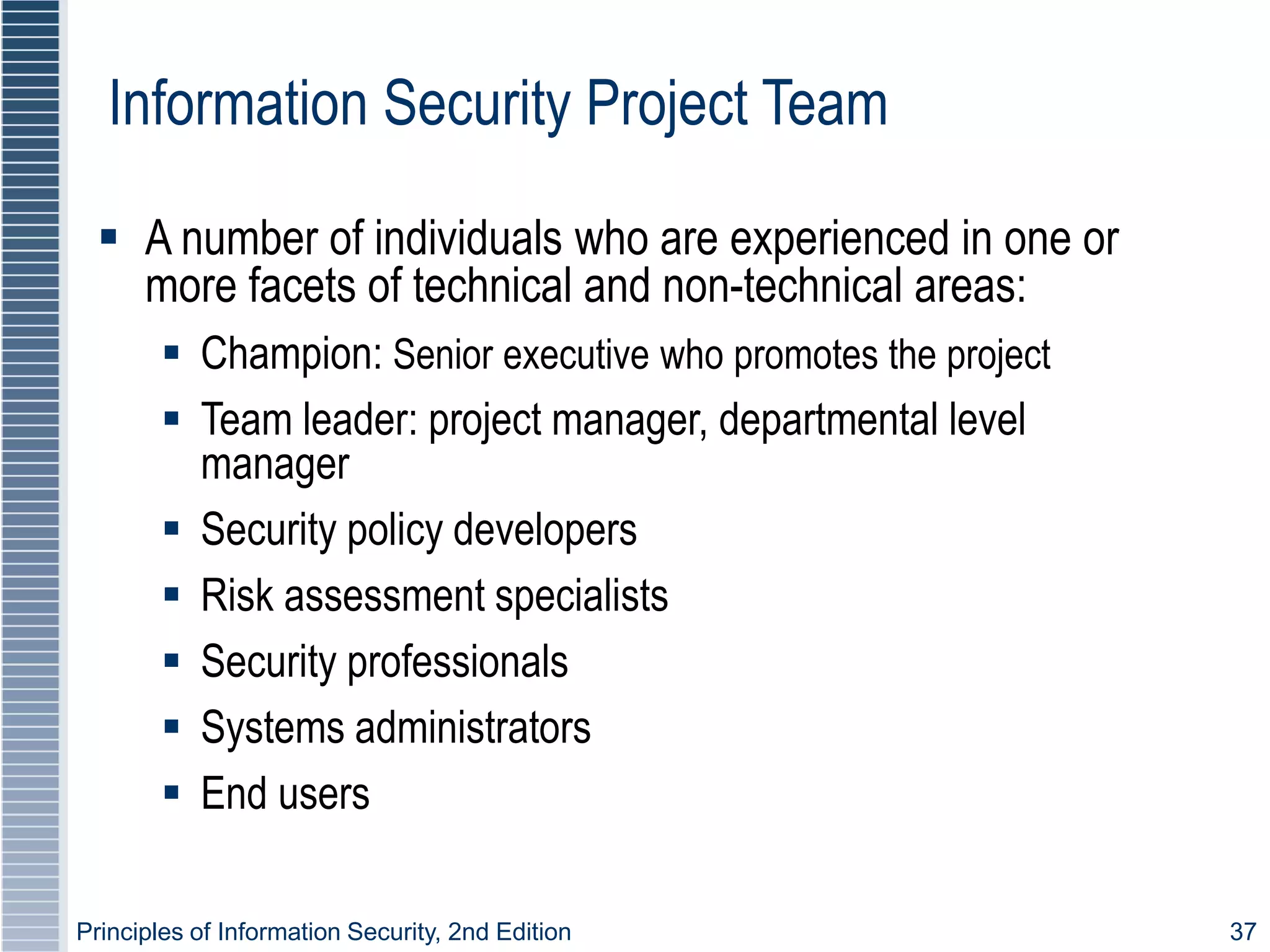

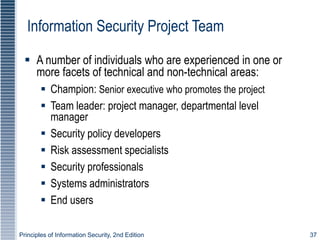

Information Security Project Team
 A number of individuals who are experienced in one or
more facets of technical and non-technical areas:
 Champion: Senior executive who promotes the project
 Team leader: project manager, departmental level
manager
 Security policy developers
 Risk assessment specialists
 Security professionals
 Systems administrators
 End users

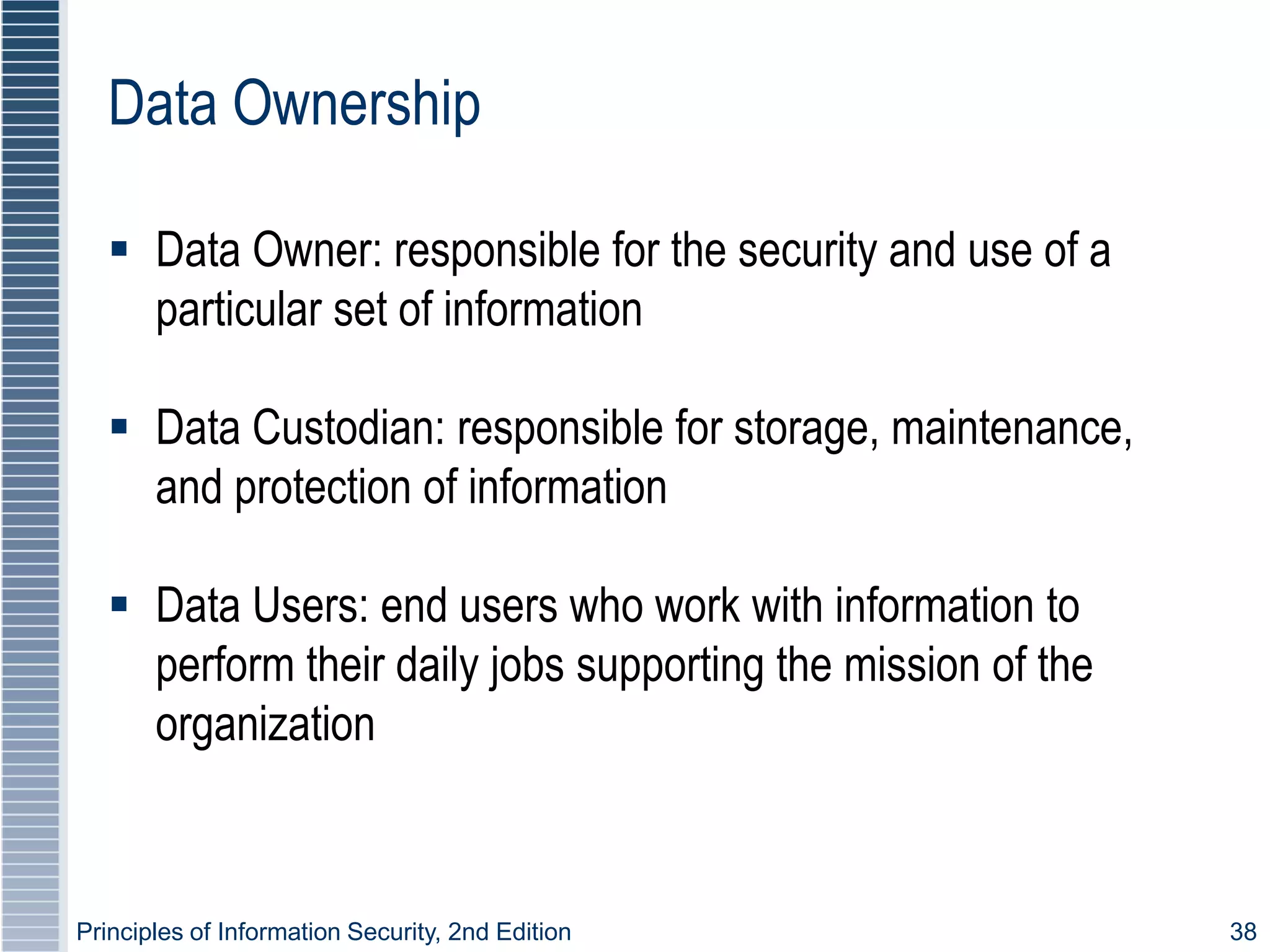

Data Ownership
 Data Owner: responsible for the security and use of a
particular set of information
 Data Custodian: responsible for storage, maintenance,
and protection of information
 Data Users: end users who work with information to
perform their daily jobs supporting the mission of the
organization

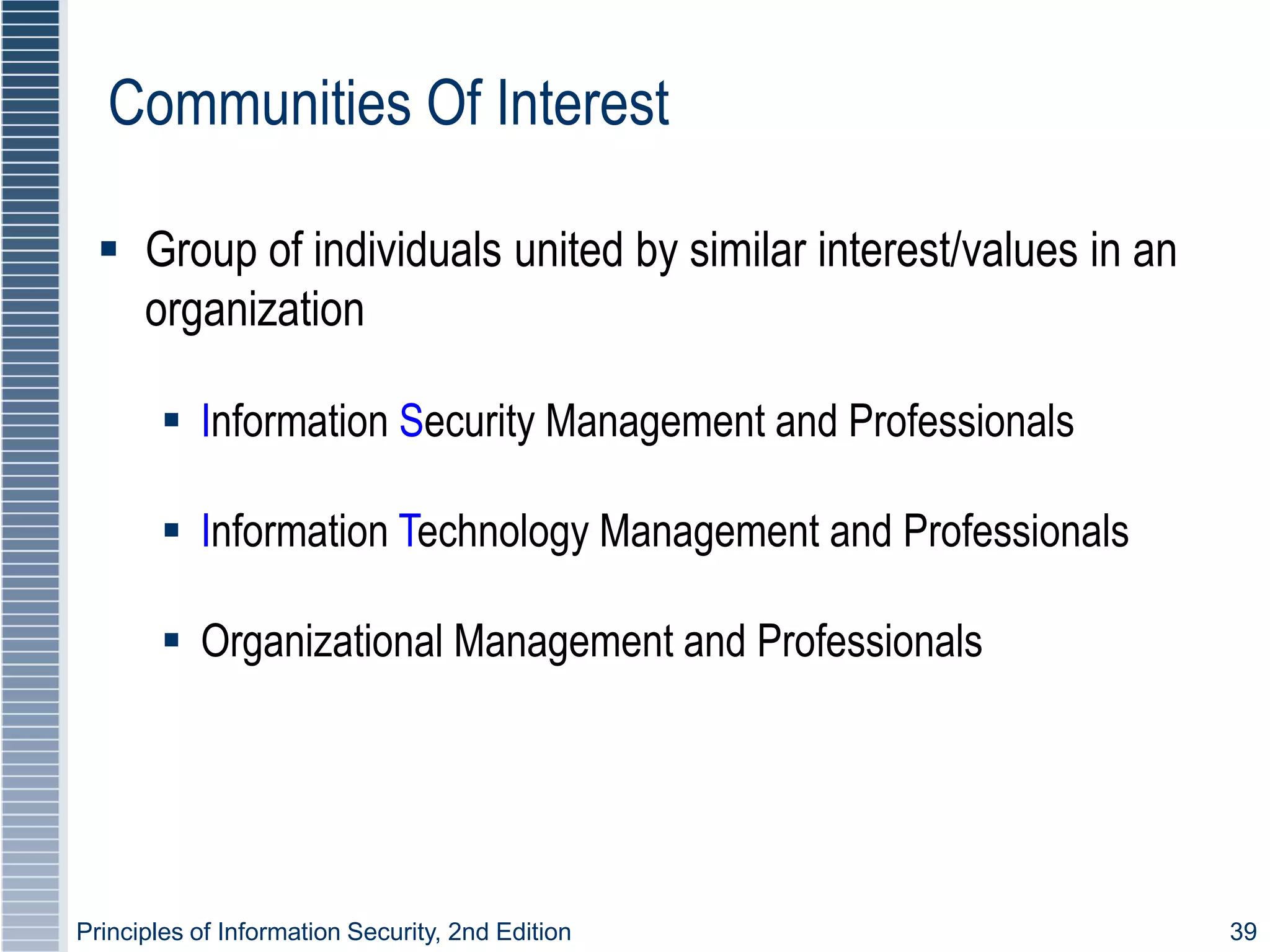

Communities Of Interest
 Group of individuals united by similar interest/values in an
organization
 Information Security Management and Professionals
 Information Technology Management and Professionals
 Organizational Management and Professionals

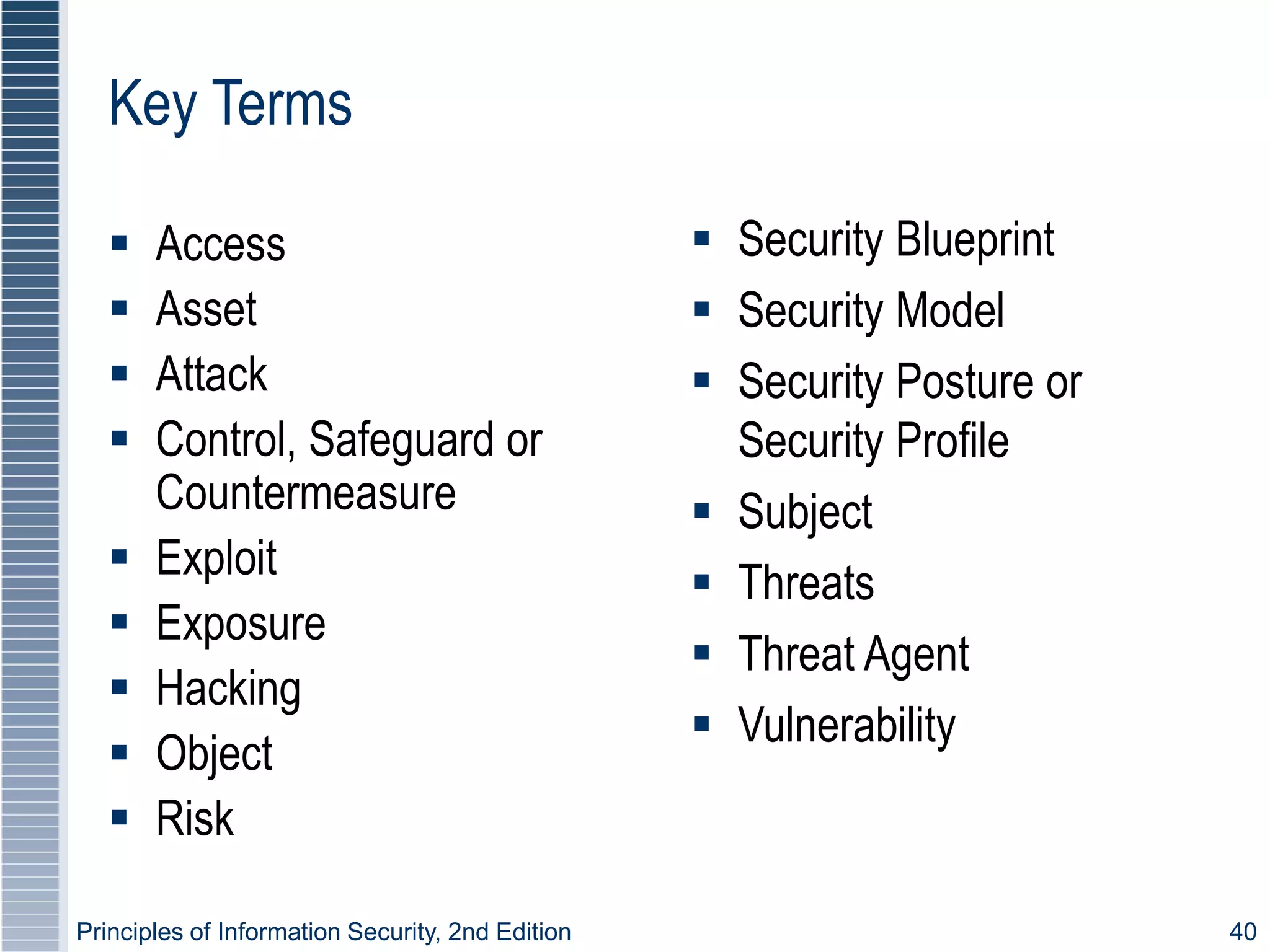

Key Terms
 Access
 Asset
 Attack
 Control, Safeguard or
Countermeasure
 Exploit
 Exposure
 Hacking
 Object
 Risk
 Security Blueprint
 Security Model
 Security Posture or
Security Profile
 Subject
 Threats
 Threat Agent
 Vulnerability

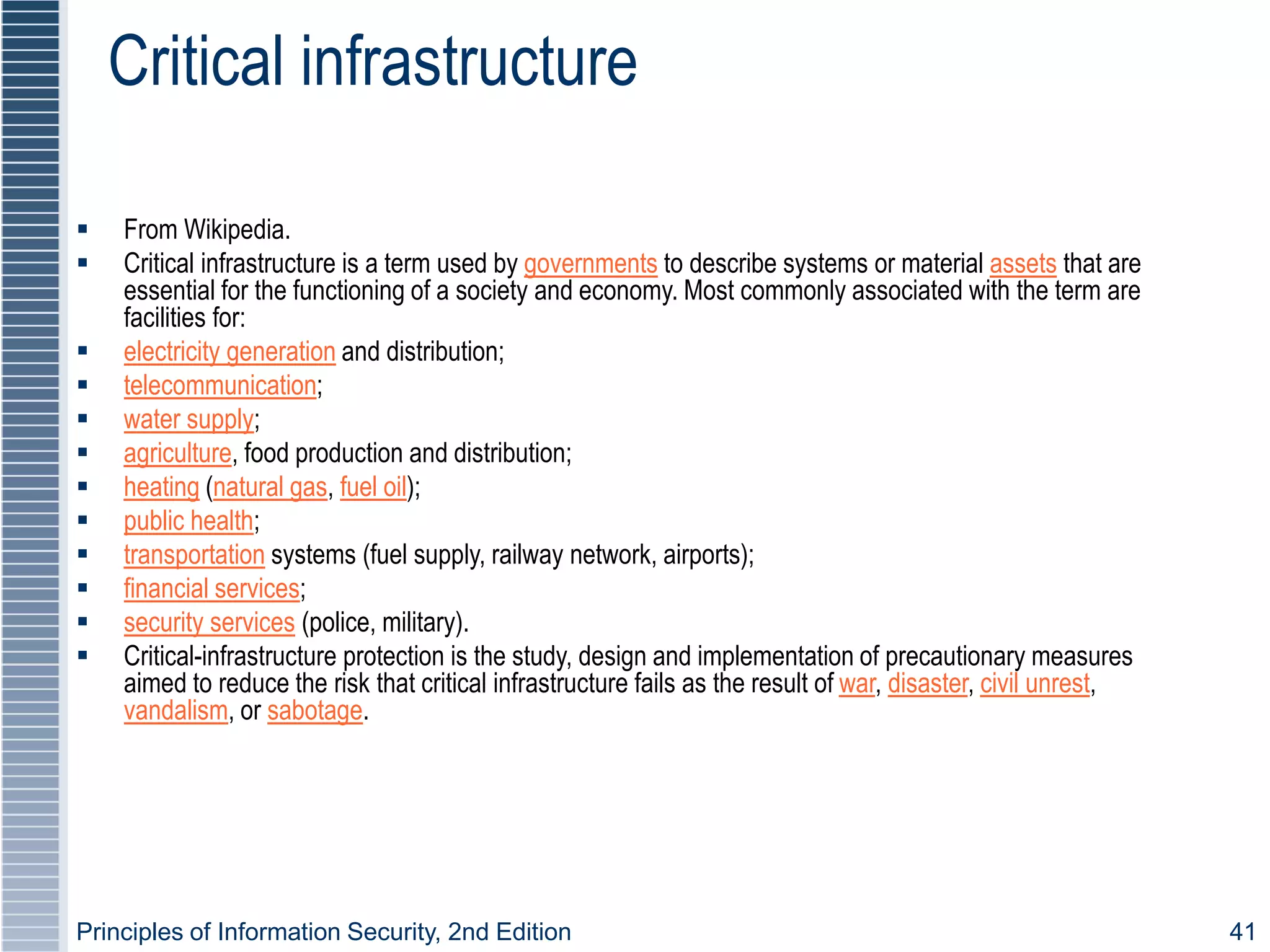

Critical infrastructure
 From Wikipedia.
 Critical infrastructure is a term used by governments to describe systems or material assets that are
essential for the functioning of a society and economy. Most commonly associated with the term are
facilities for:
 electricity generation and distribution;
 telecommunication;
 water supply;
 agriculture, food production and distribution;
 heating (natural gas, fuel oil);
 public health;
 transportation systems (fuel supply, railway network, airports);
 financial services;
 security services (police, military).
 Critical-infrastructure protection is the study, design and implementation of precautionary measures
aimed to reduce the risk that critical infrastructure fails as the result of war, disaster, civil unrest,
vandalism, or sabotage.

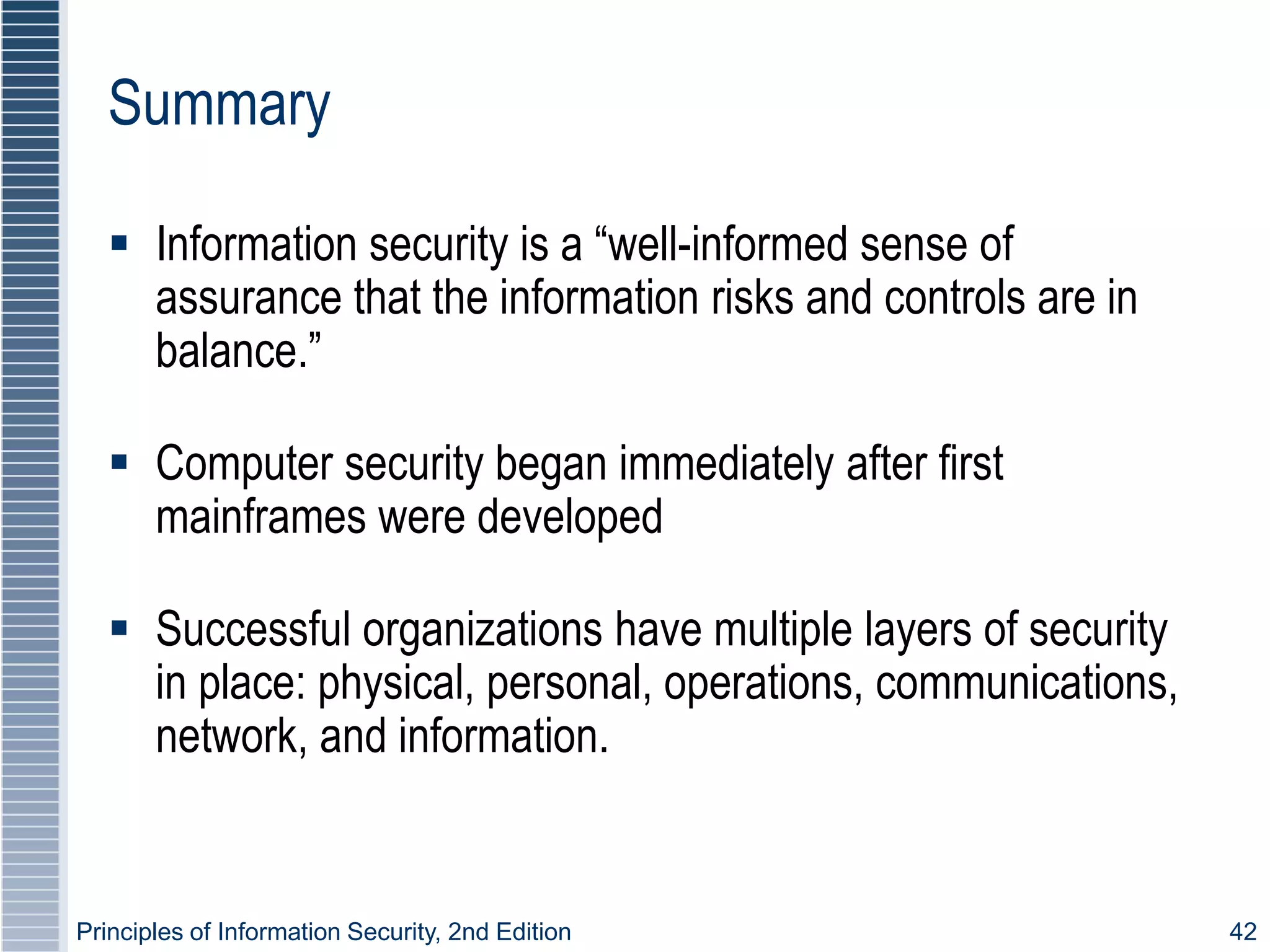

Summary
 Information security is a “well-informed sense of
assurance that the information risks and controls are in
balance.”
 Computer security began immediately after first
mainframes were developed
 Successful organizations have multiple layers of security
in place: physical, personal, operations, communications,
network, and information.

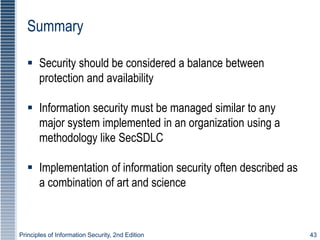

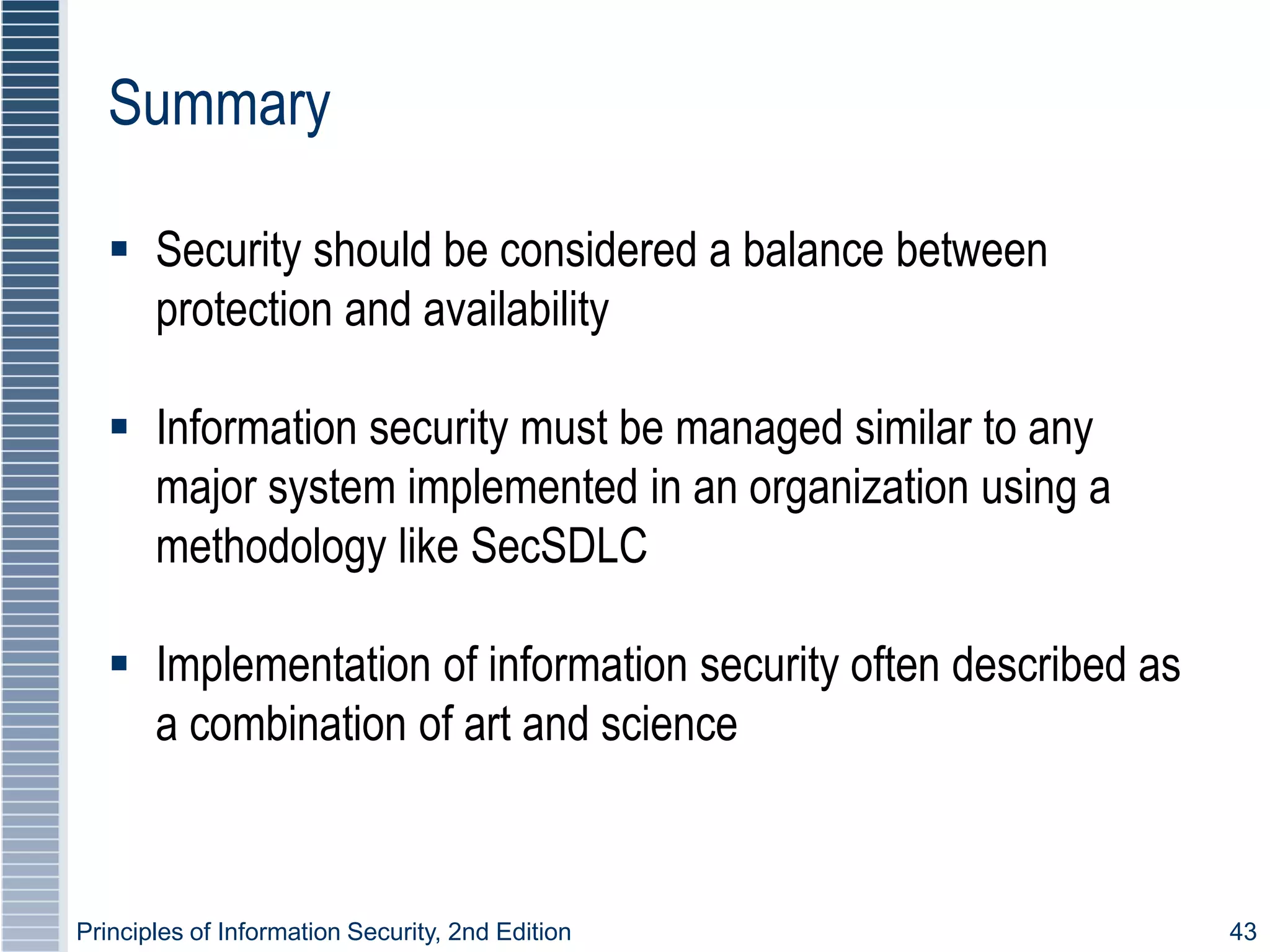

Summary
 Security should be considered a balance between
protection and availability
 Information security must be managed similar to any
major system implemented in an organization using a
methodology like SecSDLC
 Implementation of information security often described as
a combination of art and science

Ch01_Introduction_to_Information_Securit.ppt

More Related Content

Similar to Ch01_Introduction_to_Information_Securit.ppt

Recently uploaded

Ch01_Introduction_to_Information_Securit.ppt
