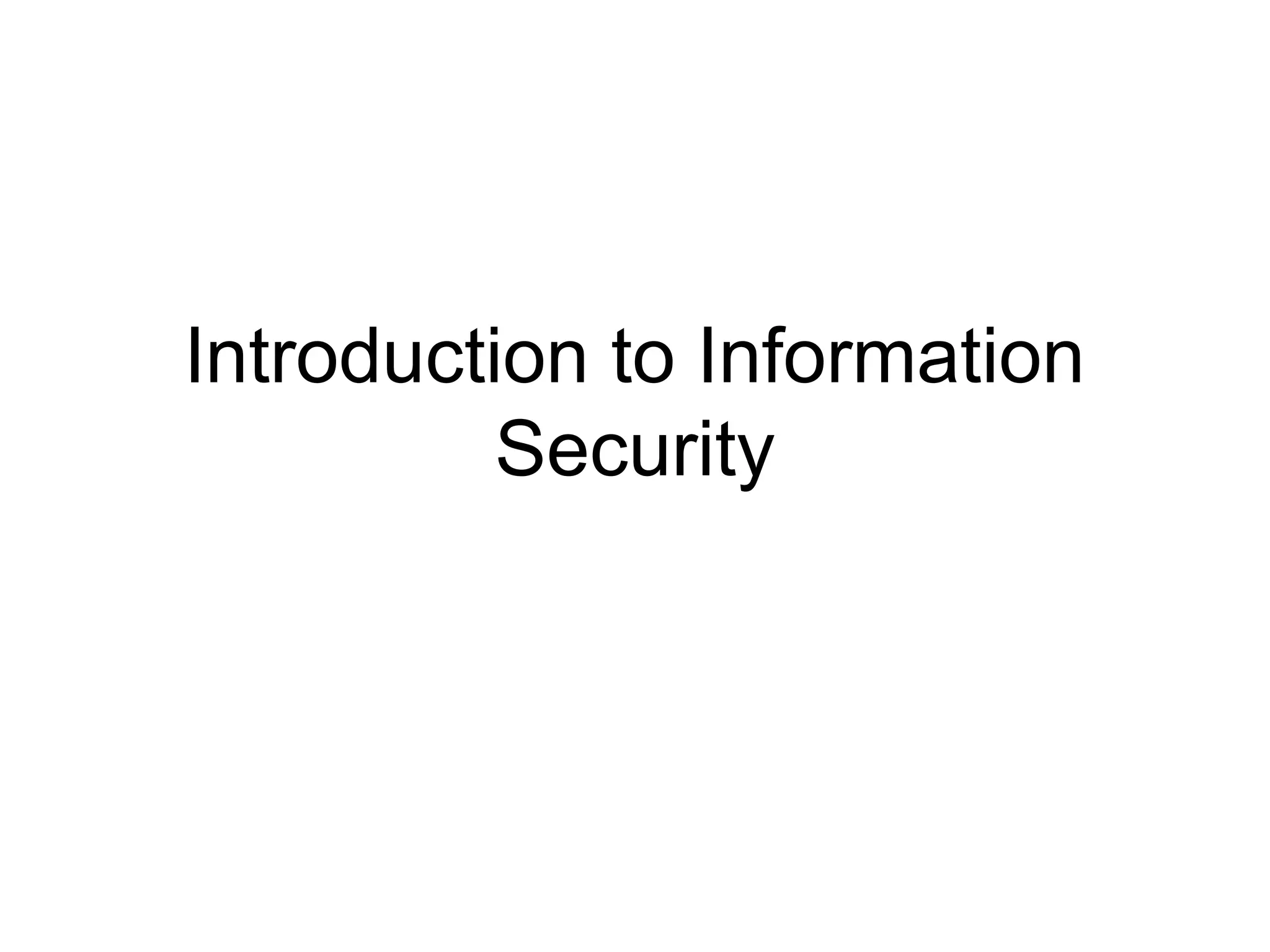

Introduction to information security

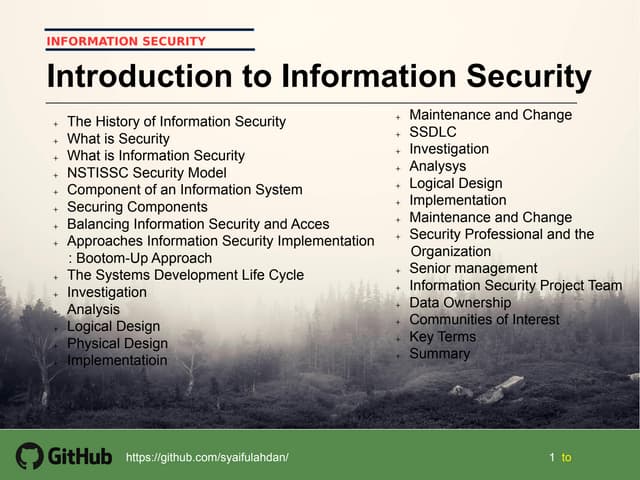

- 1.

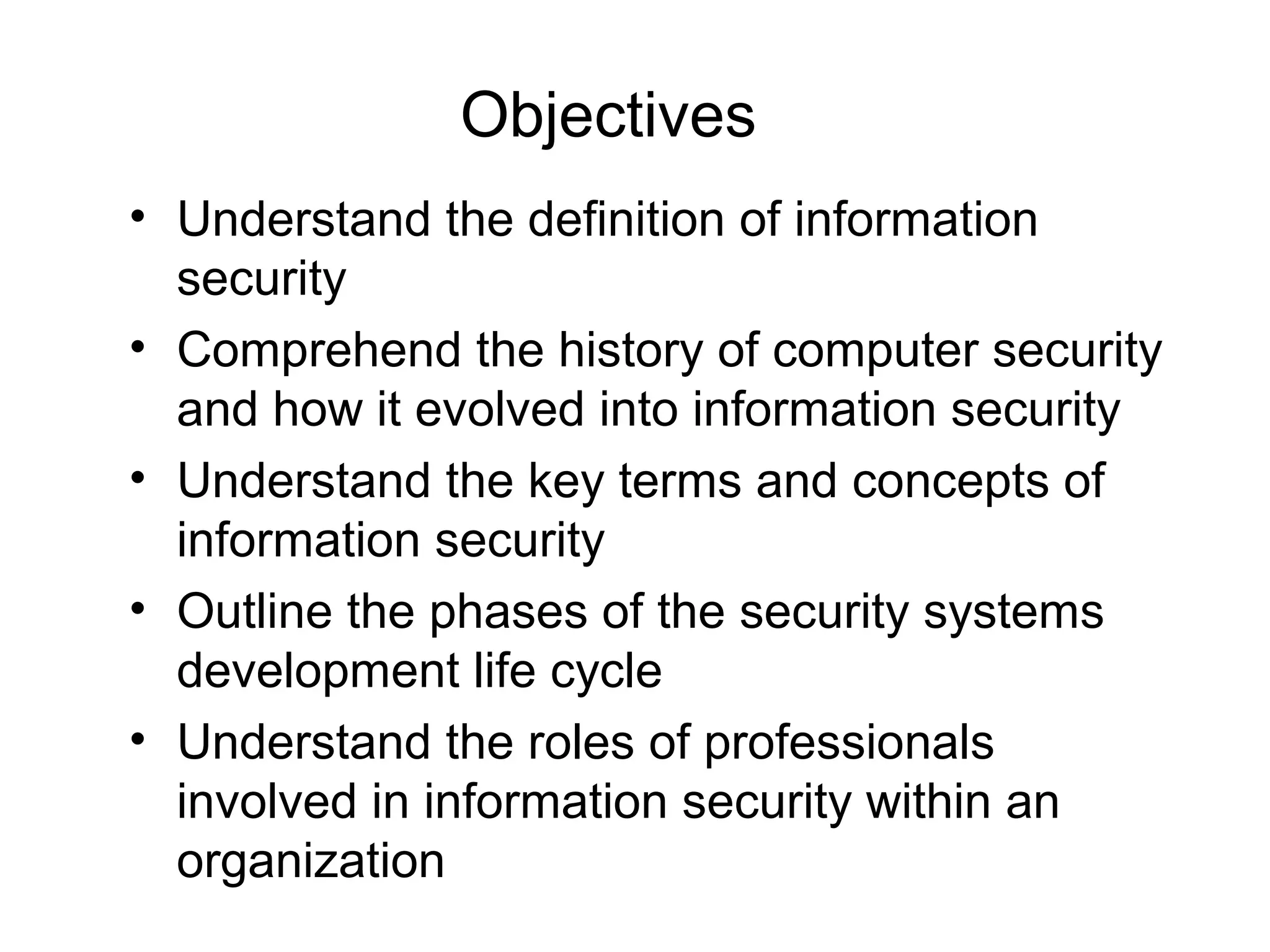

- 2. • Understand thedefinition of information security • Comprehend the history of computer security and how it evolved into information security • Understand the key terms and concepts of information security • Outline the phases of the security systems development life cycle • Understand the roles of professionals involved in information security within an organization Objectives

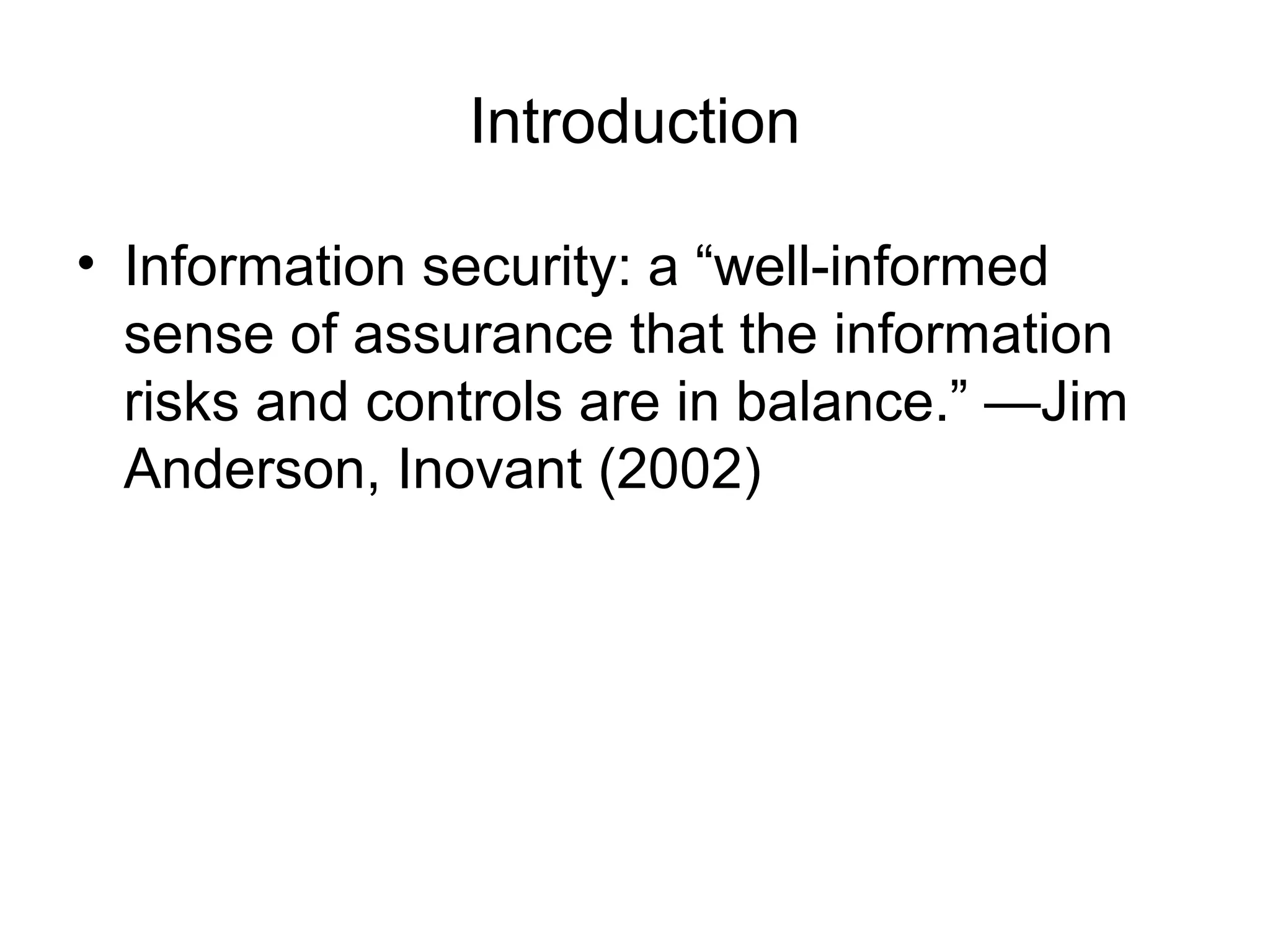

- 3. Introduction • Information security:a “well-informed sense of assurance that the information risks and controls are in balance.” —Jim Anderson, Inovant (2002)

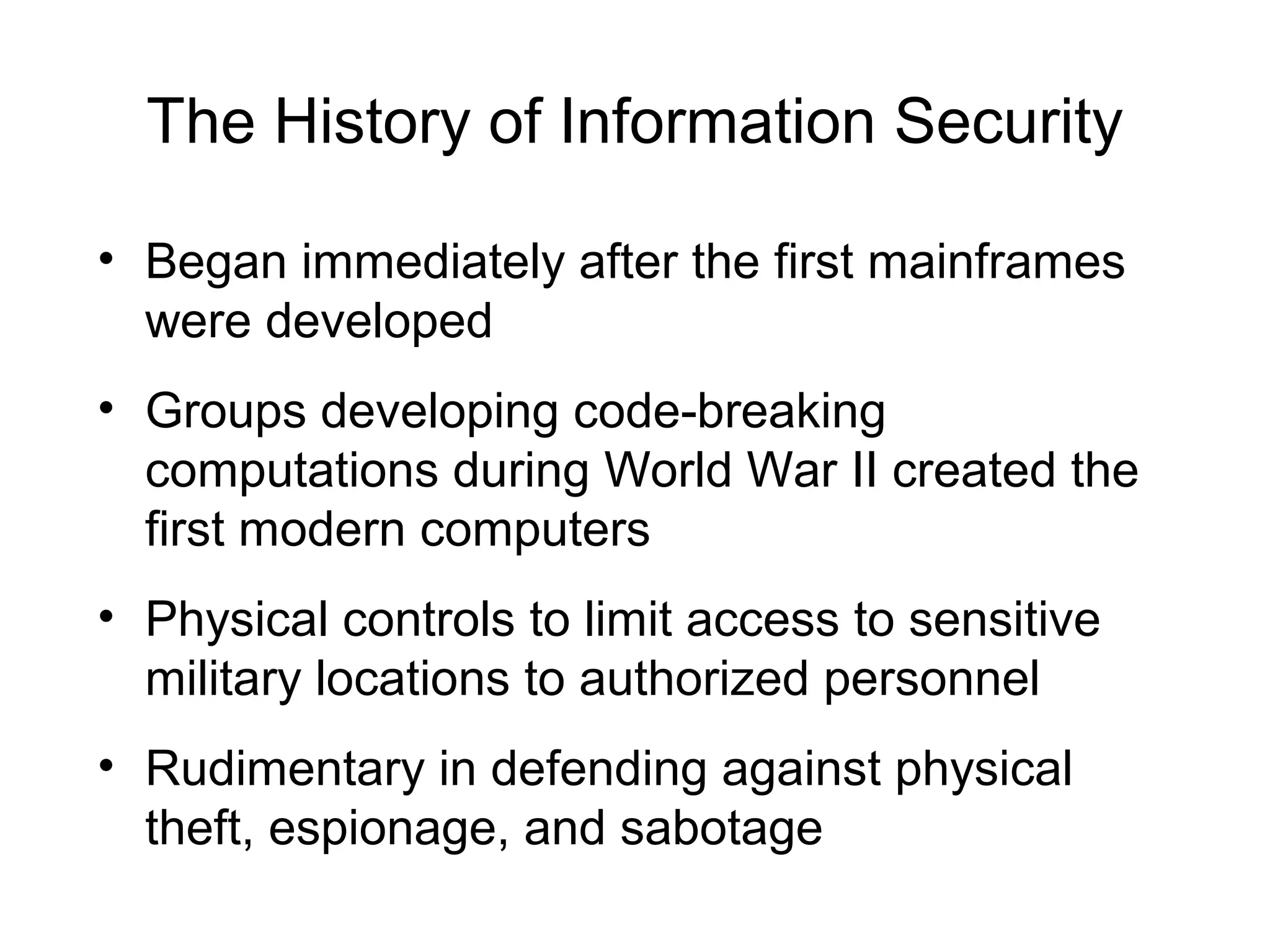

- 4. The History ofInformation Security • Began immediately after the first mainframes were developed • Groups developing code-breaking computations during World War II created the first modern computers • Physical controls to limit access to sensitive military locations to authorized personnel • Rudimentary in defending against physical theft, espionage, and sabotage

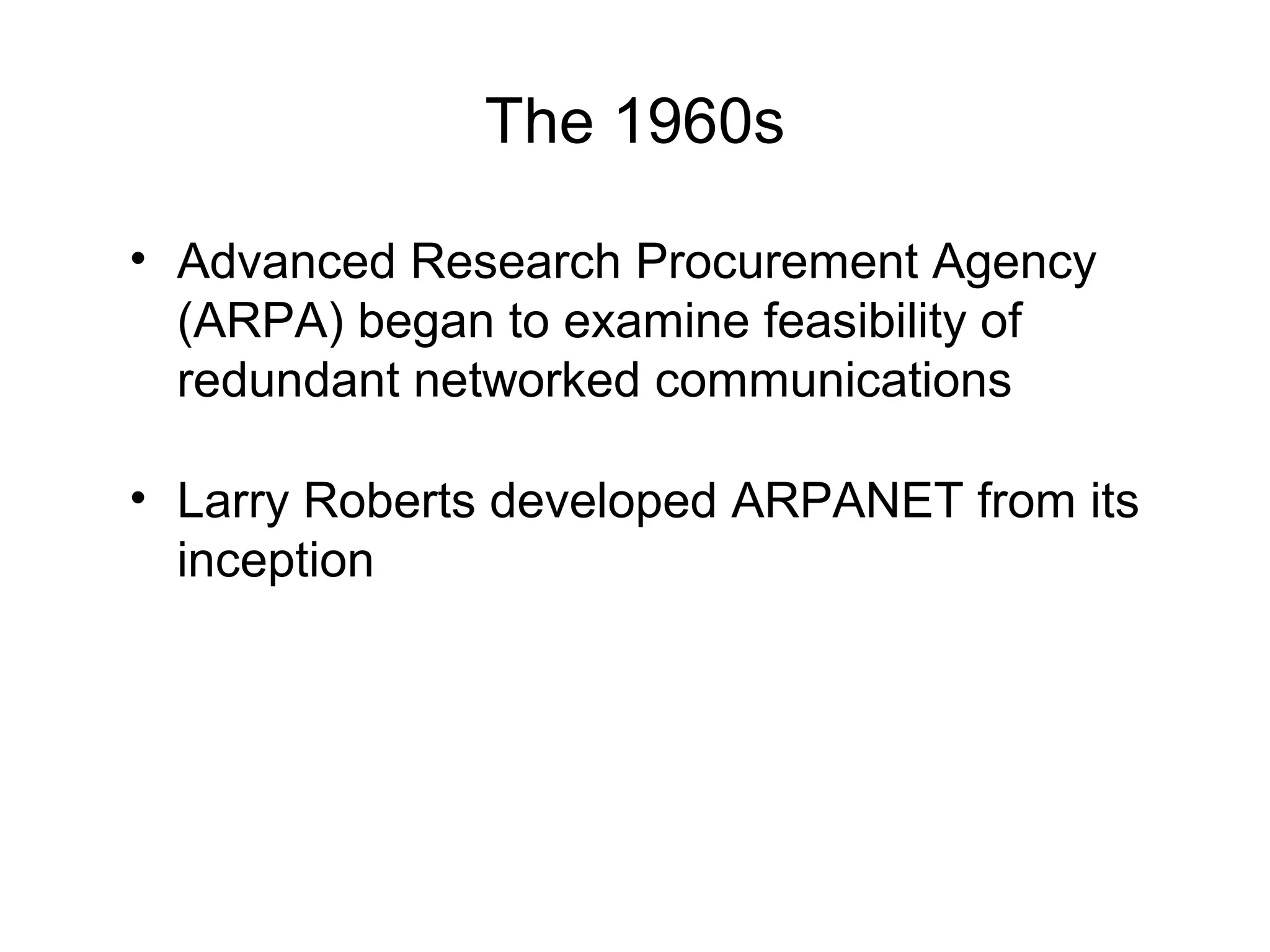

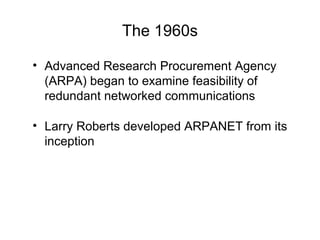

- 5. The 1960s • AdvancedResearch Procurement Agency (ARPA) began to examine feasibility of redundant networked communications • Larry Roberts developed ARPANET from its inception

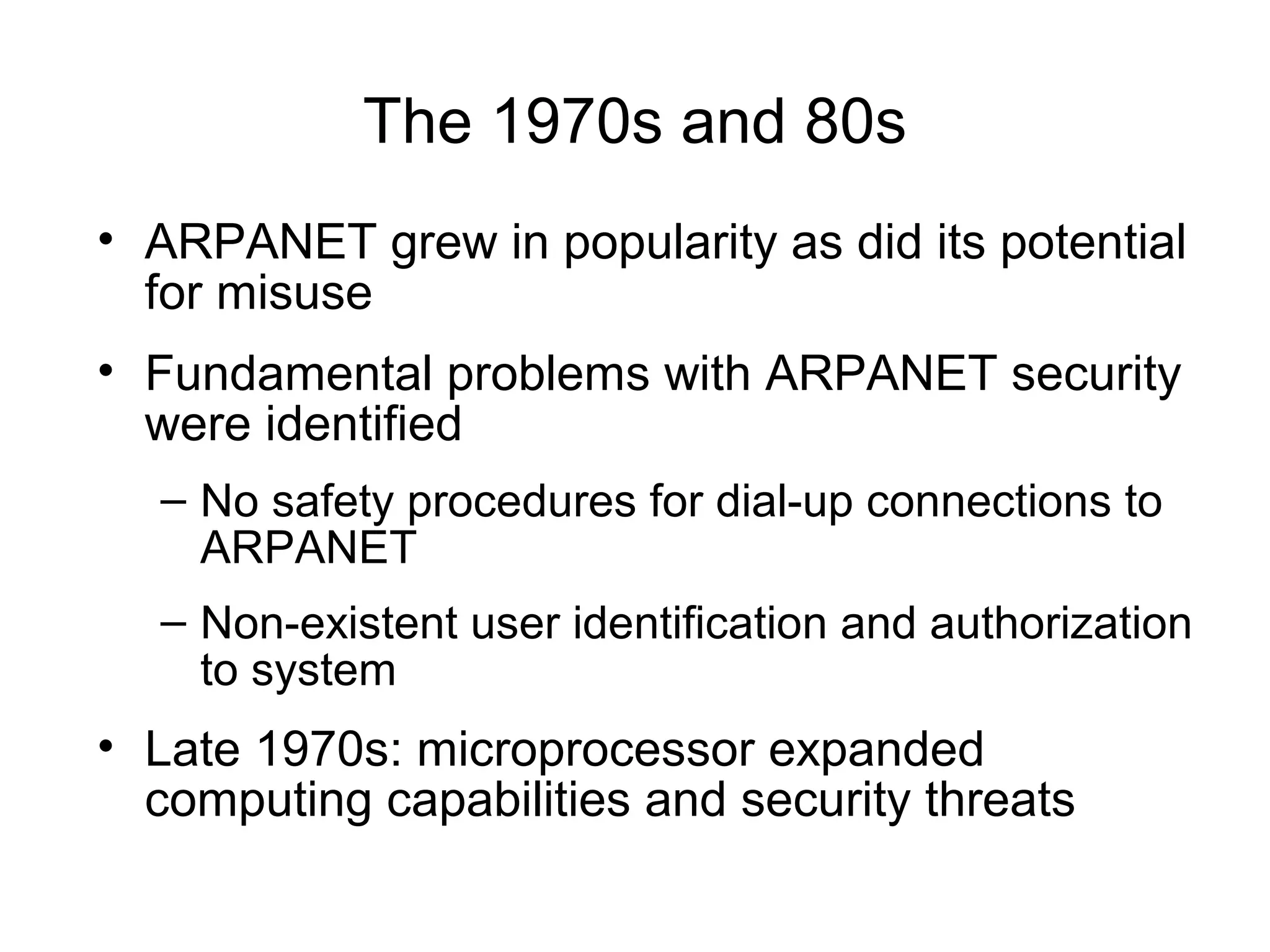

- 6. The 1970s and80s • ARPANET grew in popularity as did its potential for misuse • Fundamental problems with ARPANET security were identified – No safety procedures for dial-up connections to ARPANET – Non-existent user identification and authorization to system • Late 1970s: microprocessor expanded computing capabilities and security threats

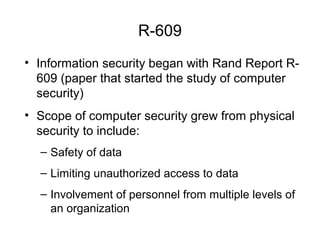

- 7. R-609 • Information securitybegan with Rand Report R- 609 (paper that started the study of computer security) • Scope of computer security grew from physical security to include: – Safety of data – Limiting unauthorized access to data – Involvement of personnel from multiple levels of an organization

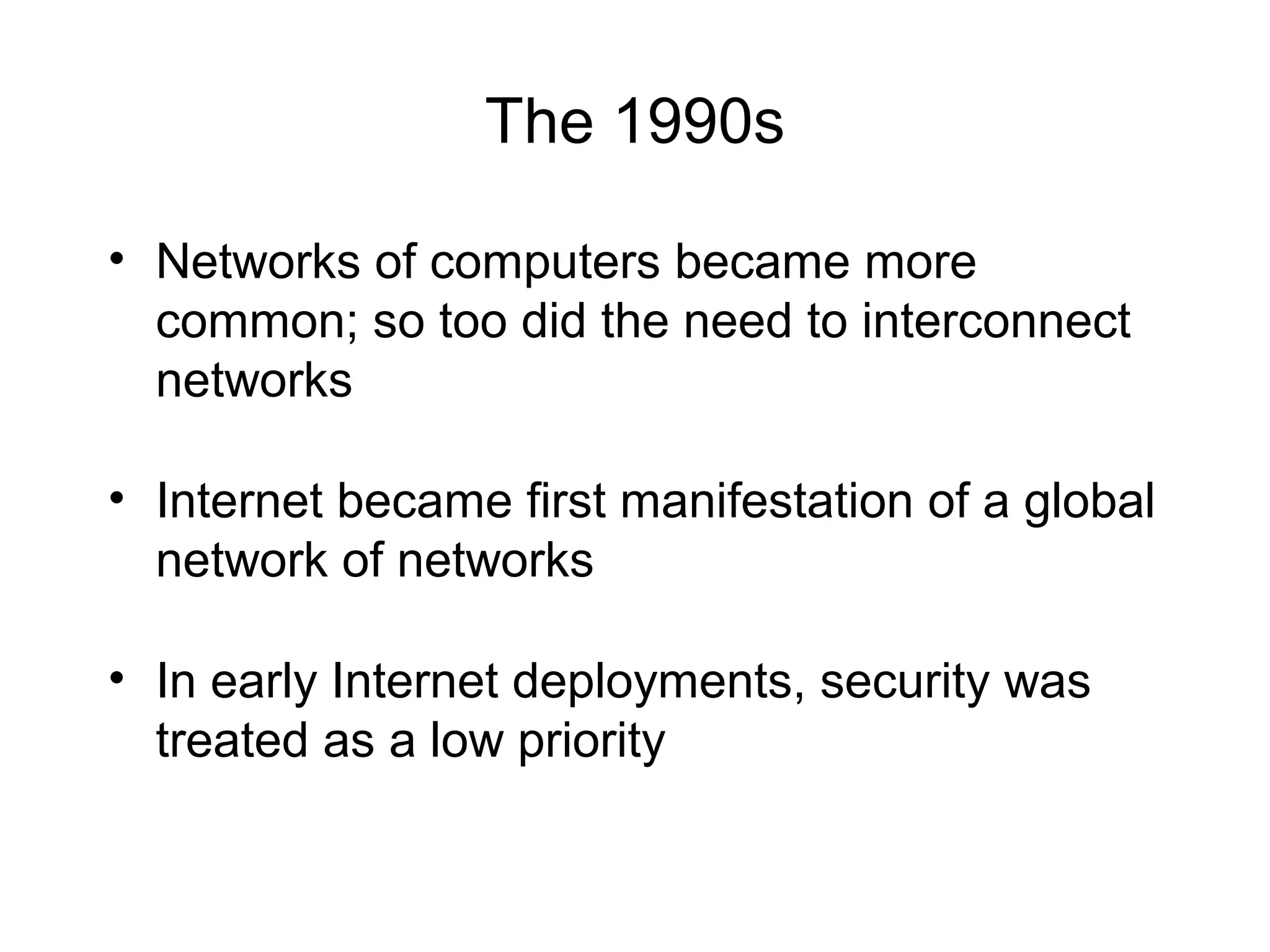

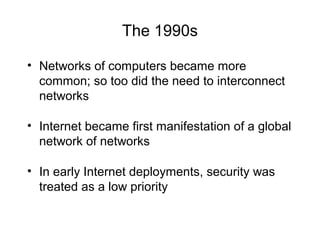

- 8. The 1990s • Networksof computers became more common; so too did the need to interconnect networks • Internet became first manifestation of a global network of networks • In early Internet deployments, security was treated as a low priority

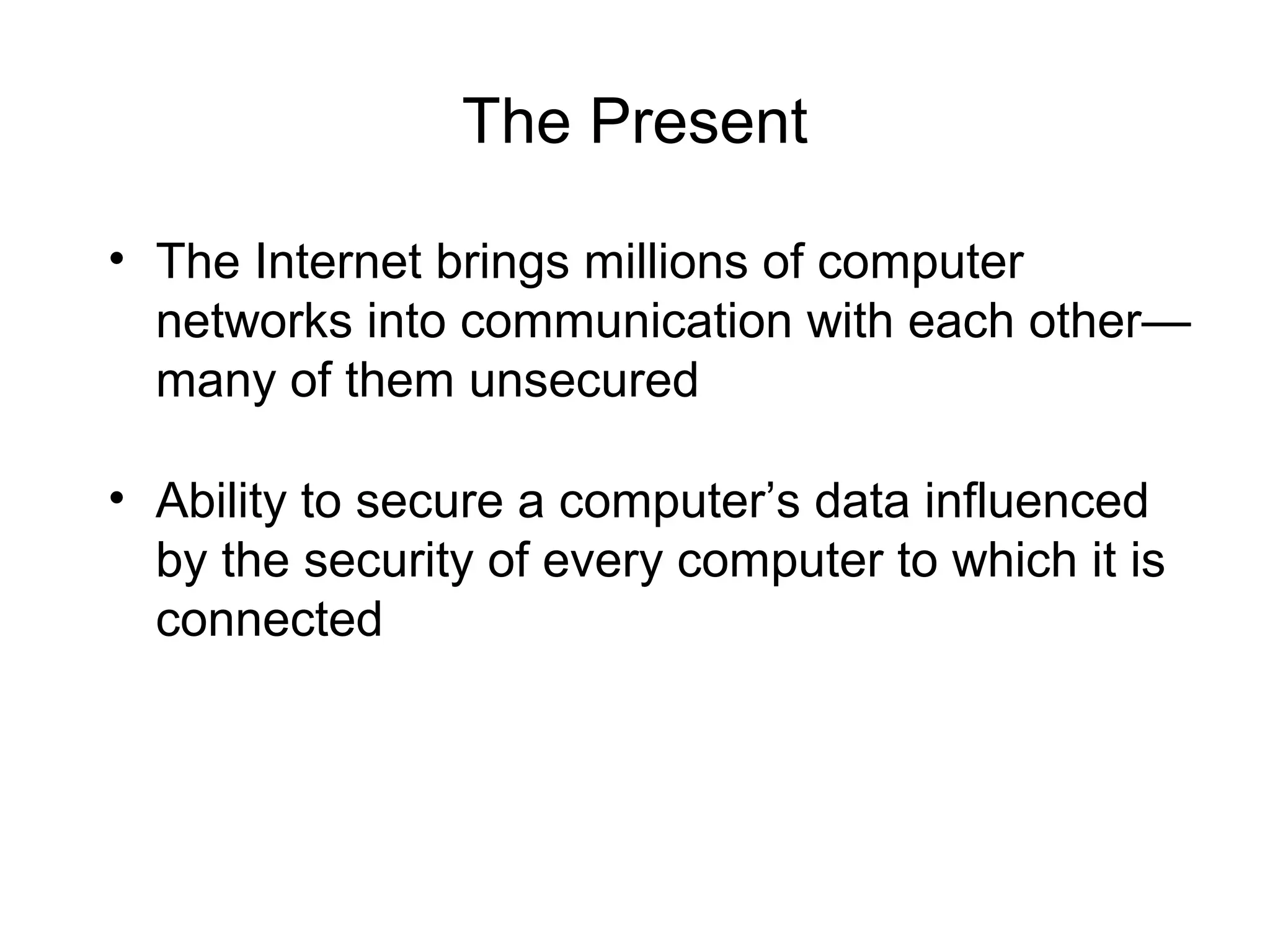

- 9. The Present • TheInternet brings millions of computer networks into communication with each other— many of them unsecured • Ability to secure a computer’s data influenced by the security of every computer to which it is connected

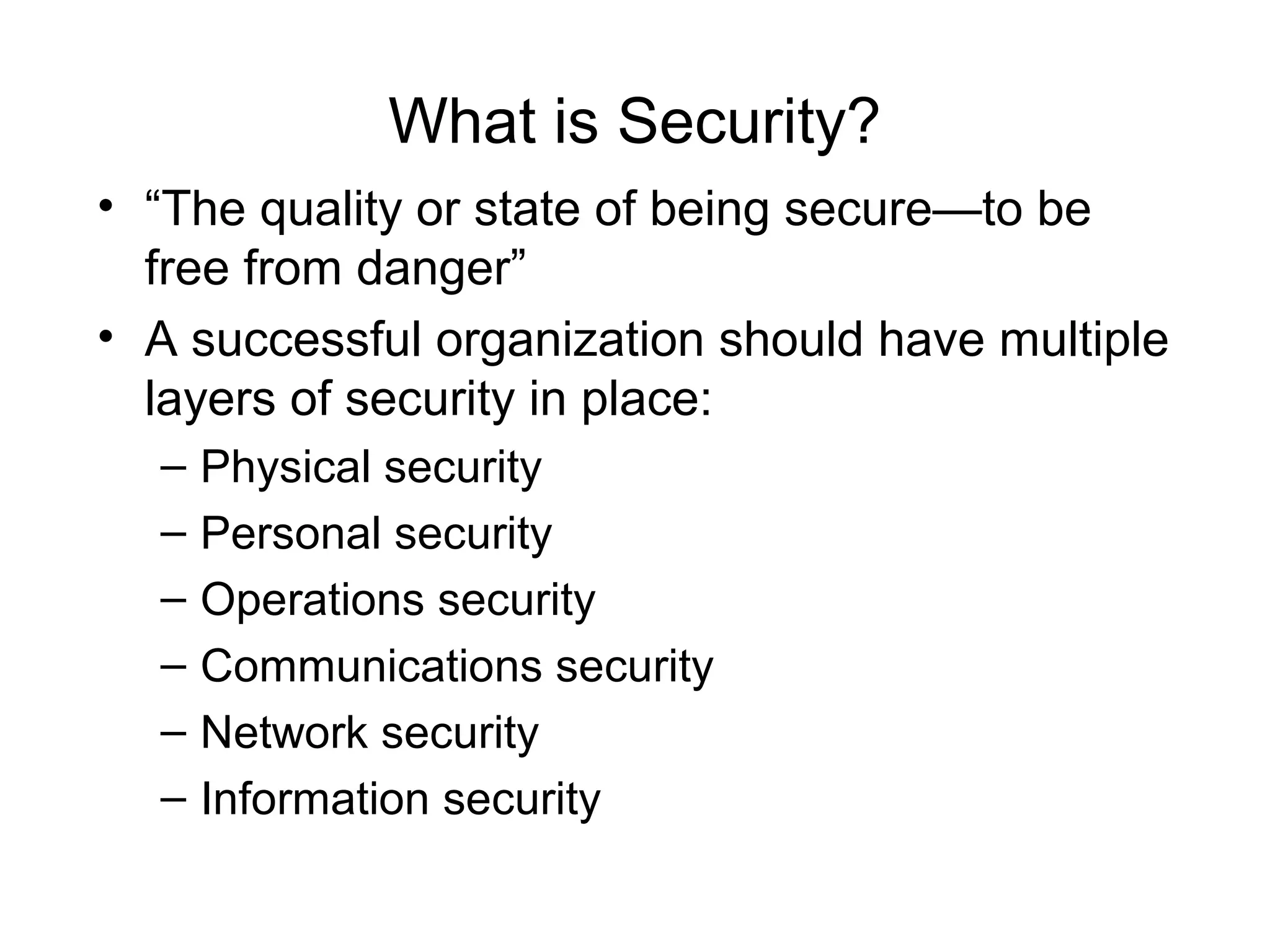

- 10. What is Security? •“The quality or state of being secure—to be free from danger” • A successful organization should have multiple layers of security in place: – Physical security – Personal security – Operations security – Communications security – Network security – Information security

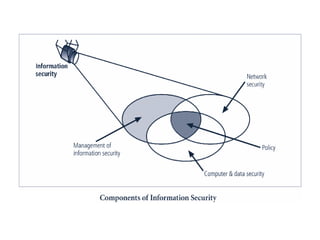

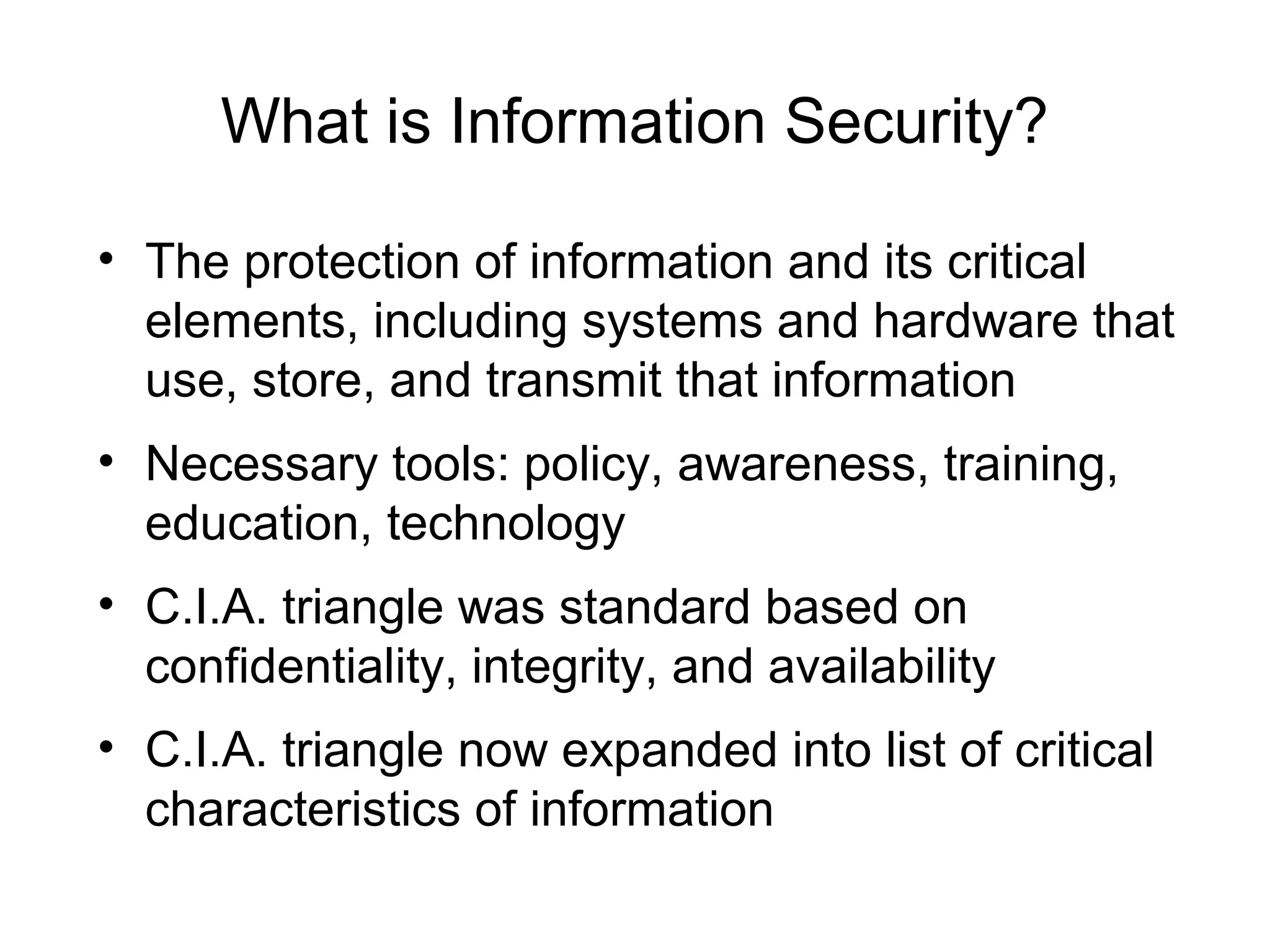

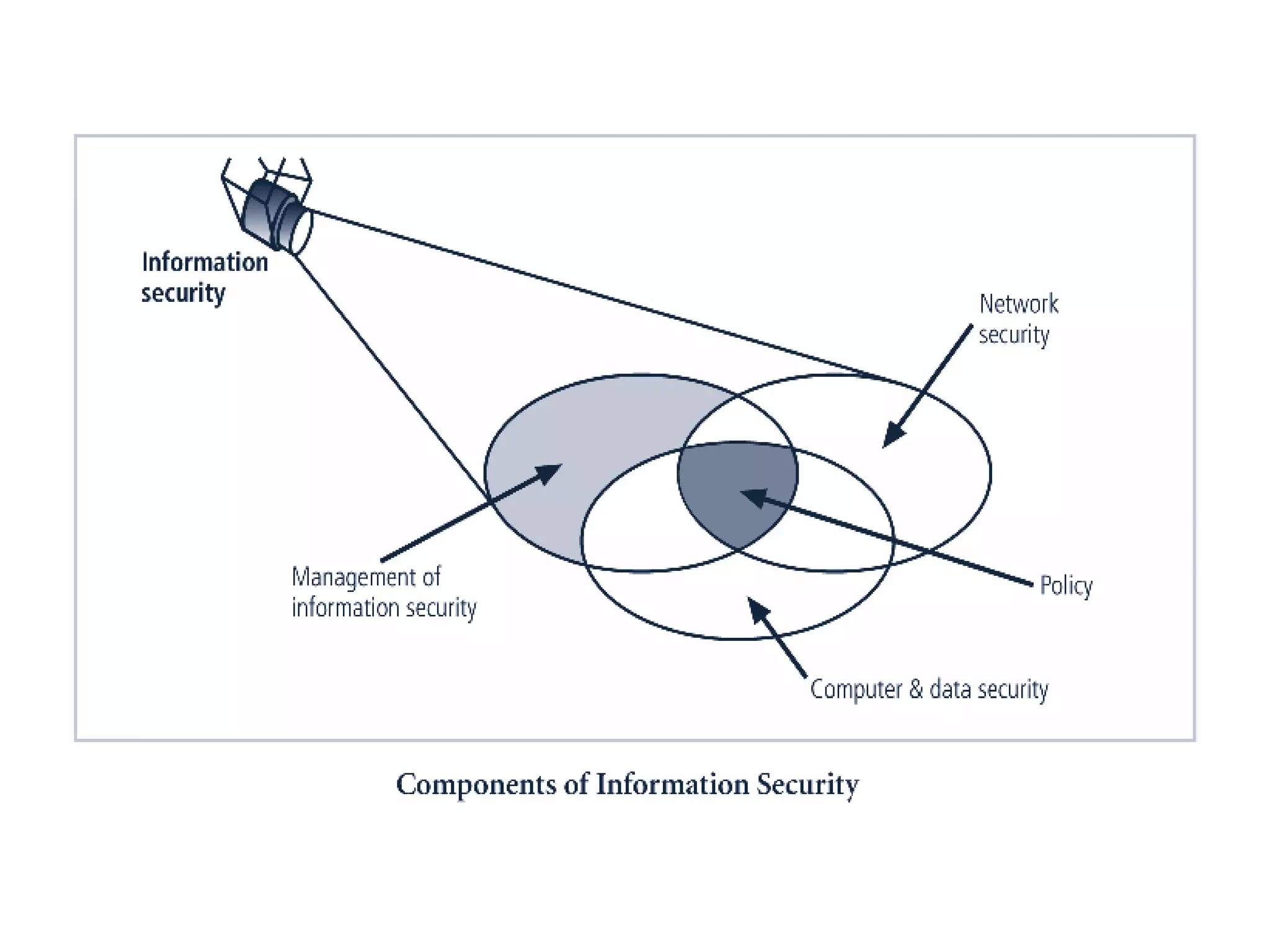

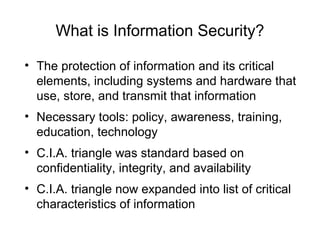

- 11. What is InformationSecurity? • The protection of information and its critical elements, including systems and hardware that use, store, and transmit that information • Necessary tools: policy, awareness, training, education, technology • C.I.A. triangle was standard based on confidentiality, integrity, and availability • C.I.A. triangle now expanded into list of critical characteristics of information

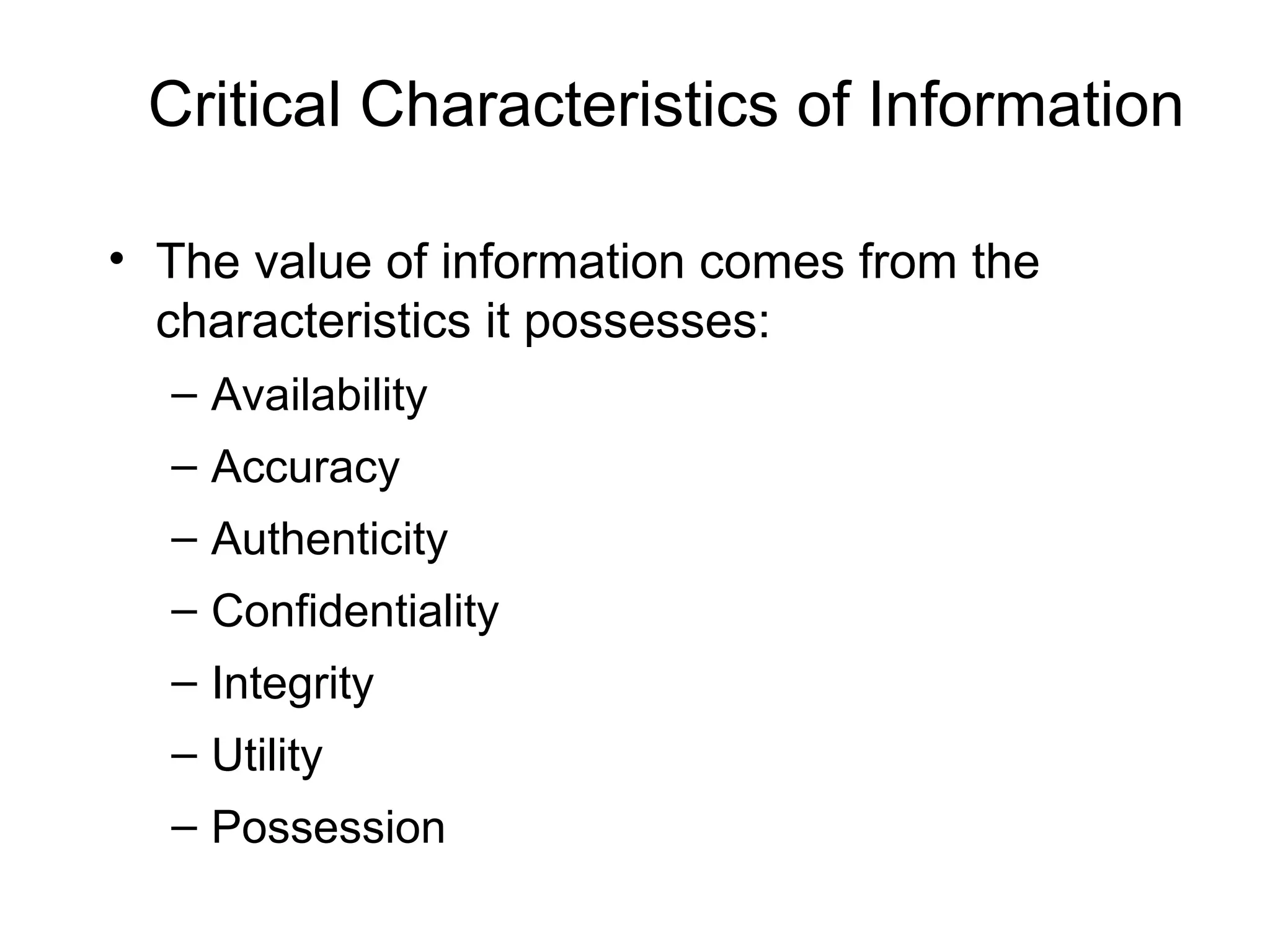

- 13. Critical Characteristics ofInformation • The value of information comes from the characteristics it possesses: – Availability – Accuracy – Authenticity – Confidentiality – Integrity – Utility – Possession

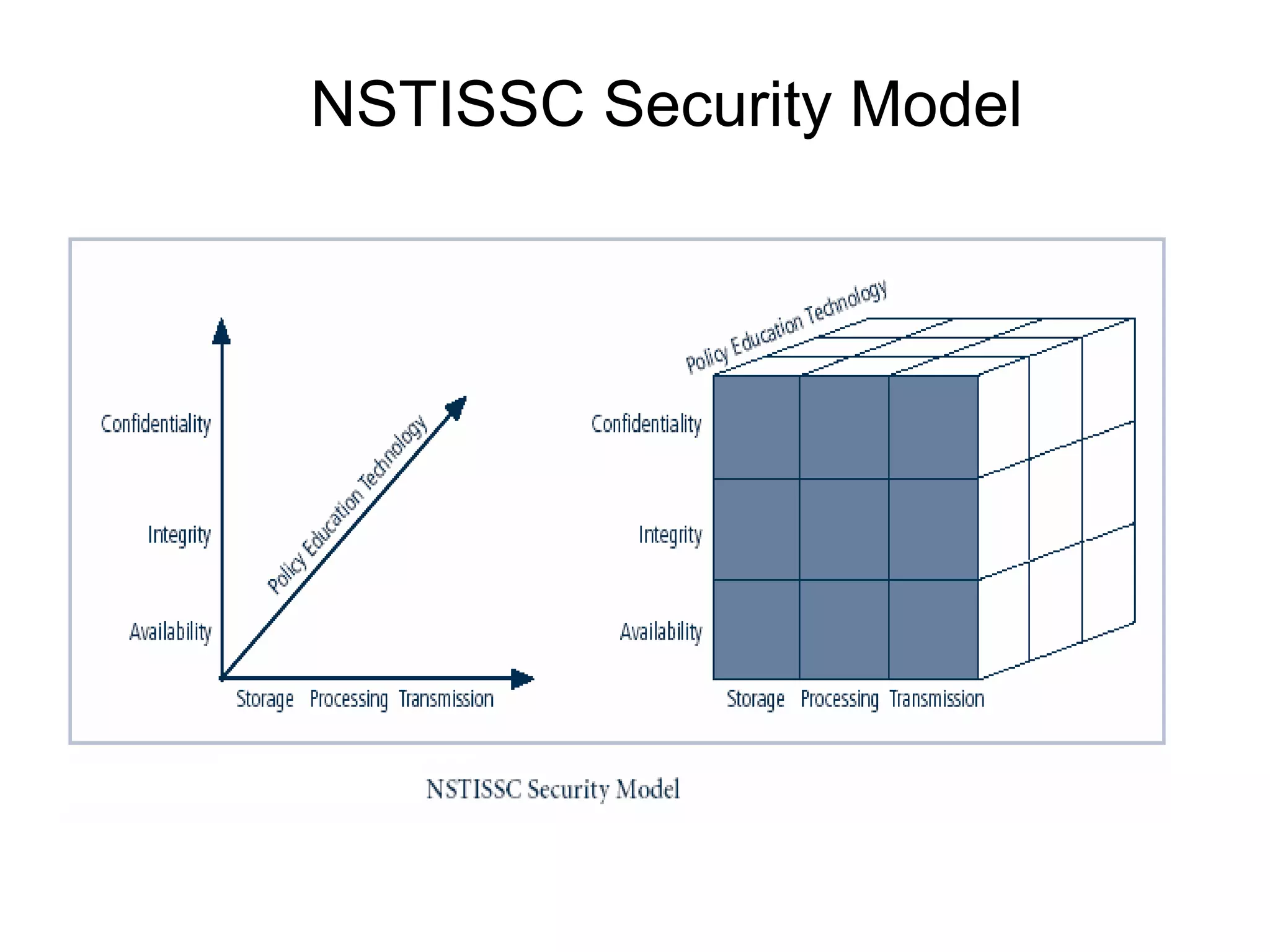

- 14. Figure 1-4 –NSTISSC Security Model NSTISSC Security Model

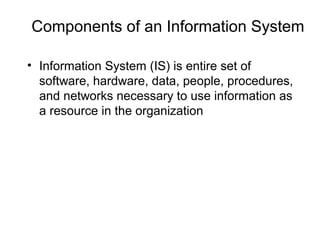

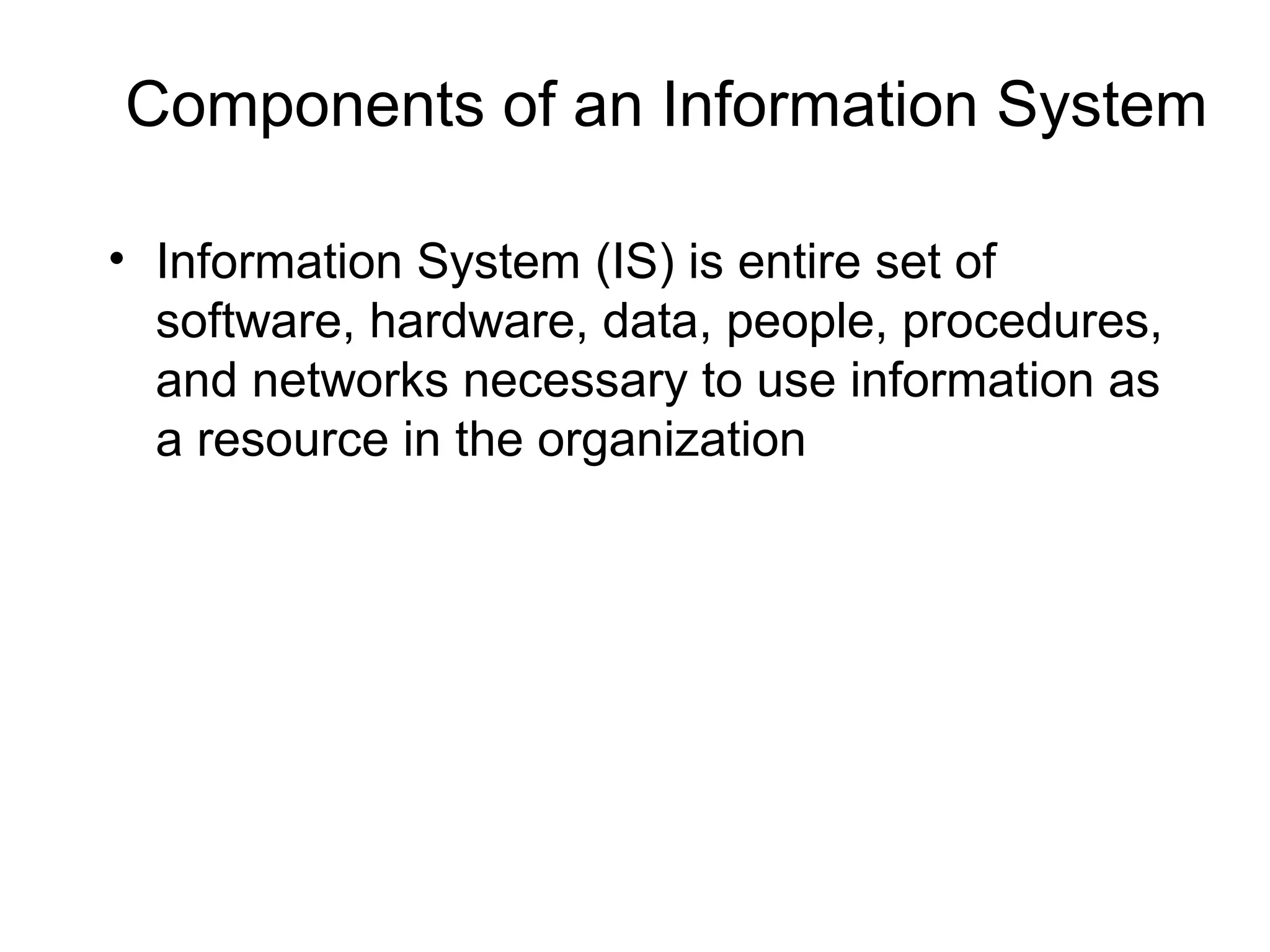

- 15. Components of anInformation System • Information System (IS) is entire set of software, hardware, data, people, procedures, and networks necessary to use information as a resource in the organization

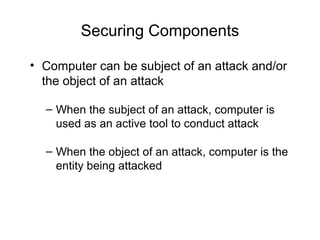

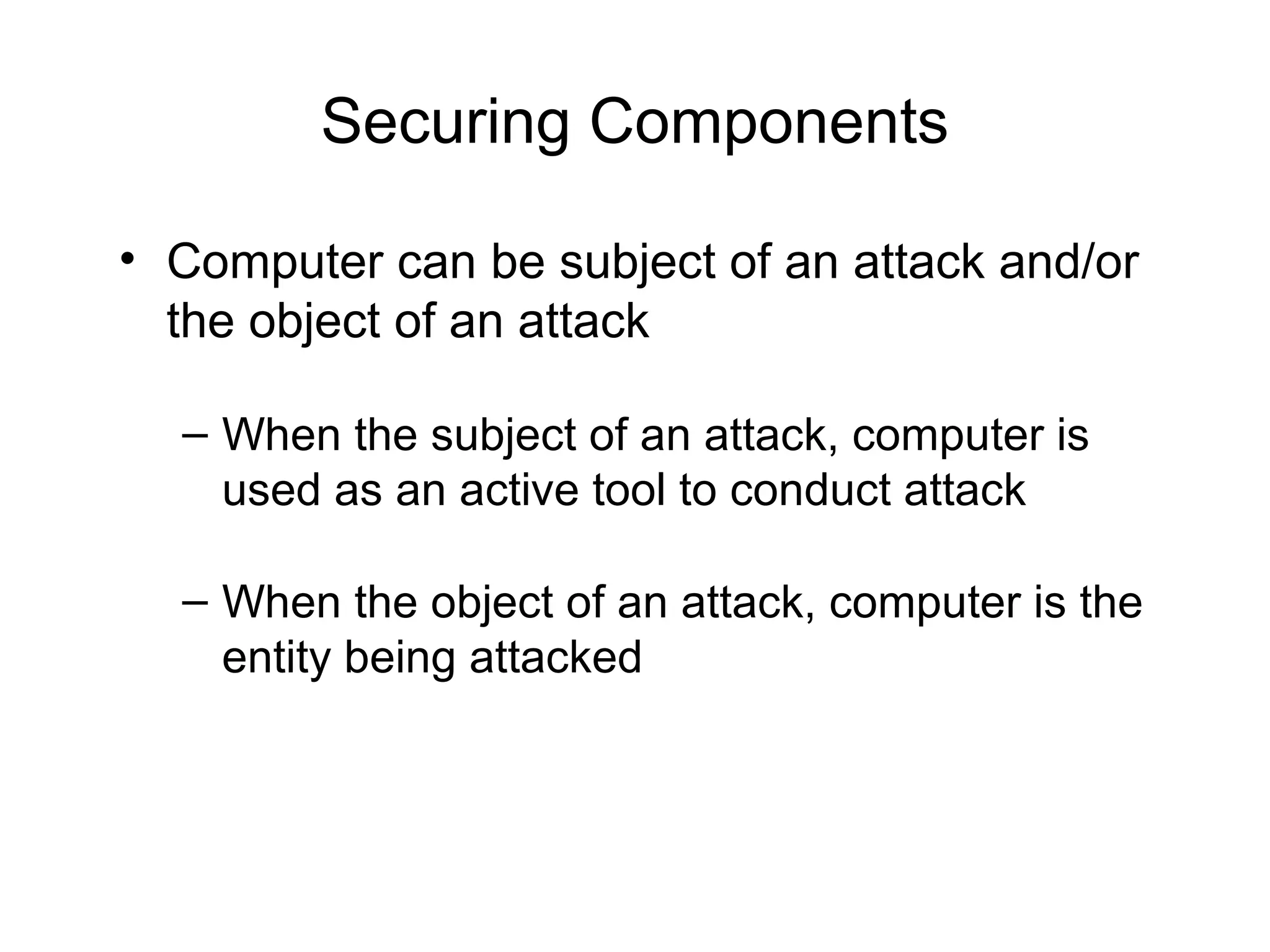

- 16. Securing Components • Computercan be subject of an attack and/or the object of an attack – When the subject of an attack, computer is used as an active tool to conduct attack – When the object of an attack, computer is the entity being attacked

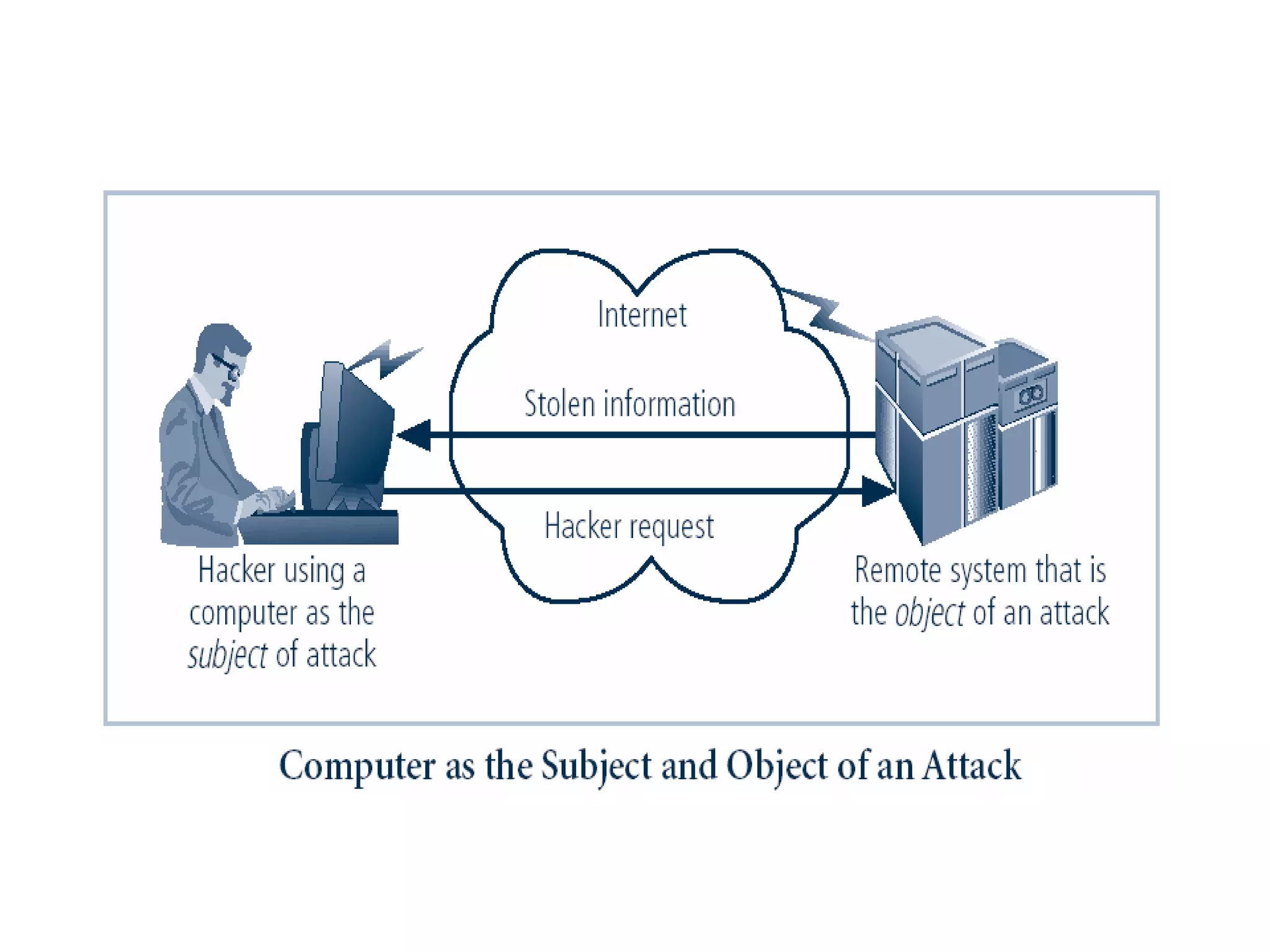

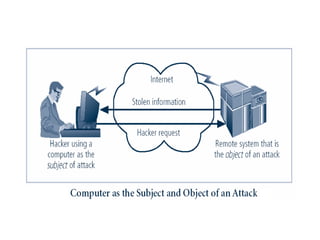

- 17. Figure 1-5 –Subject and Object of Attack

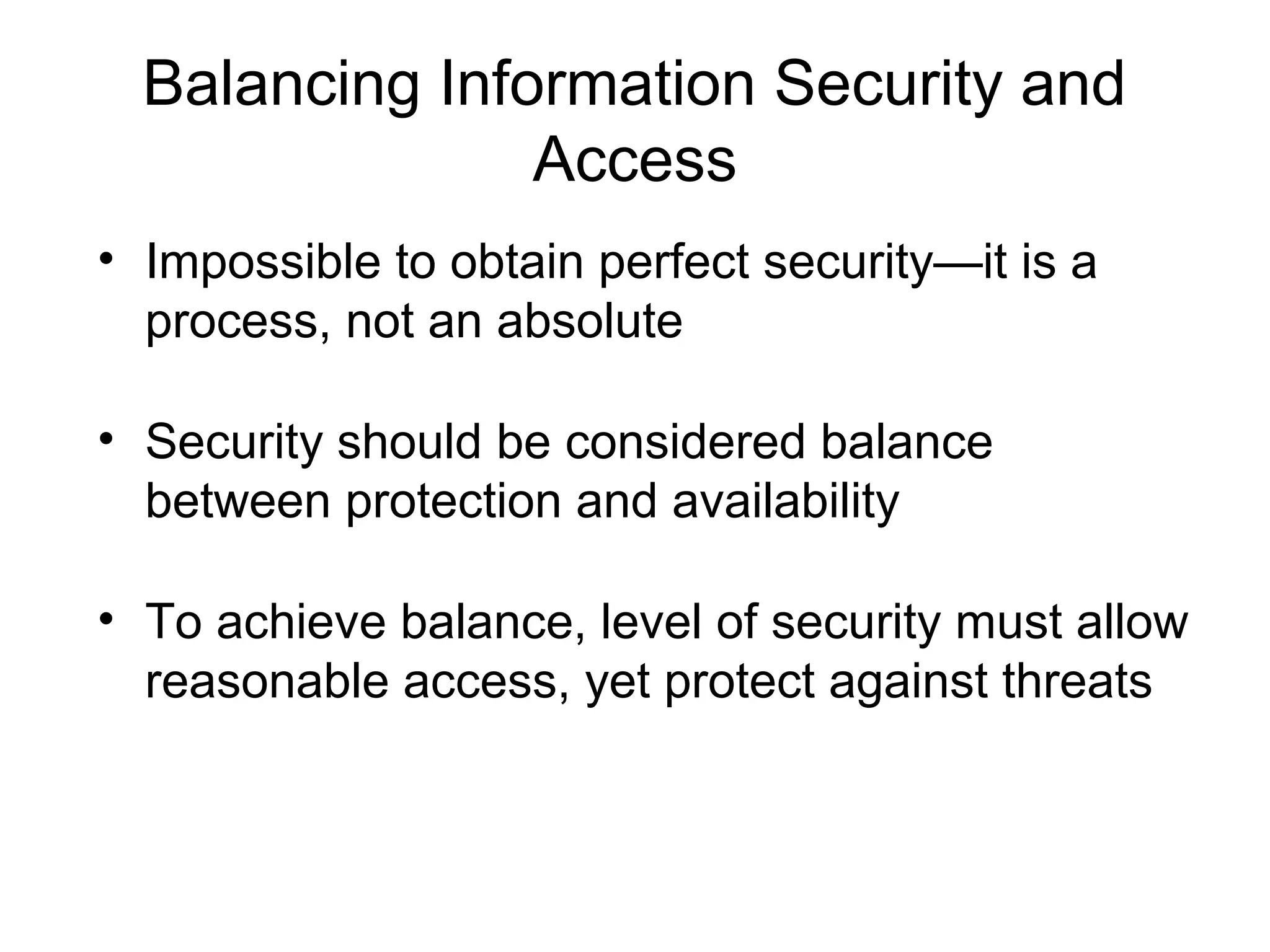

- 18. Balancing Information Securityand Access • Impossible to obtain perfect security—it is a process, not an absolute • Security should be considered balance between protection and availability • To achieve balance, level of security must allow reasonable access, yet protect against threats

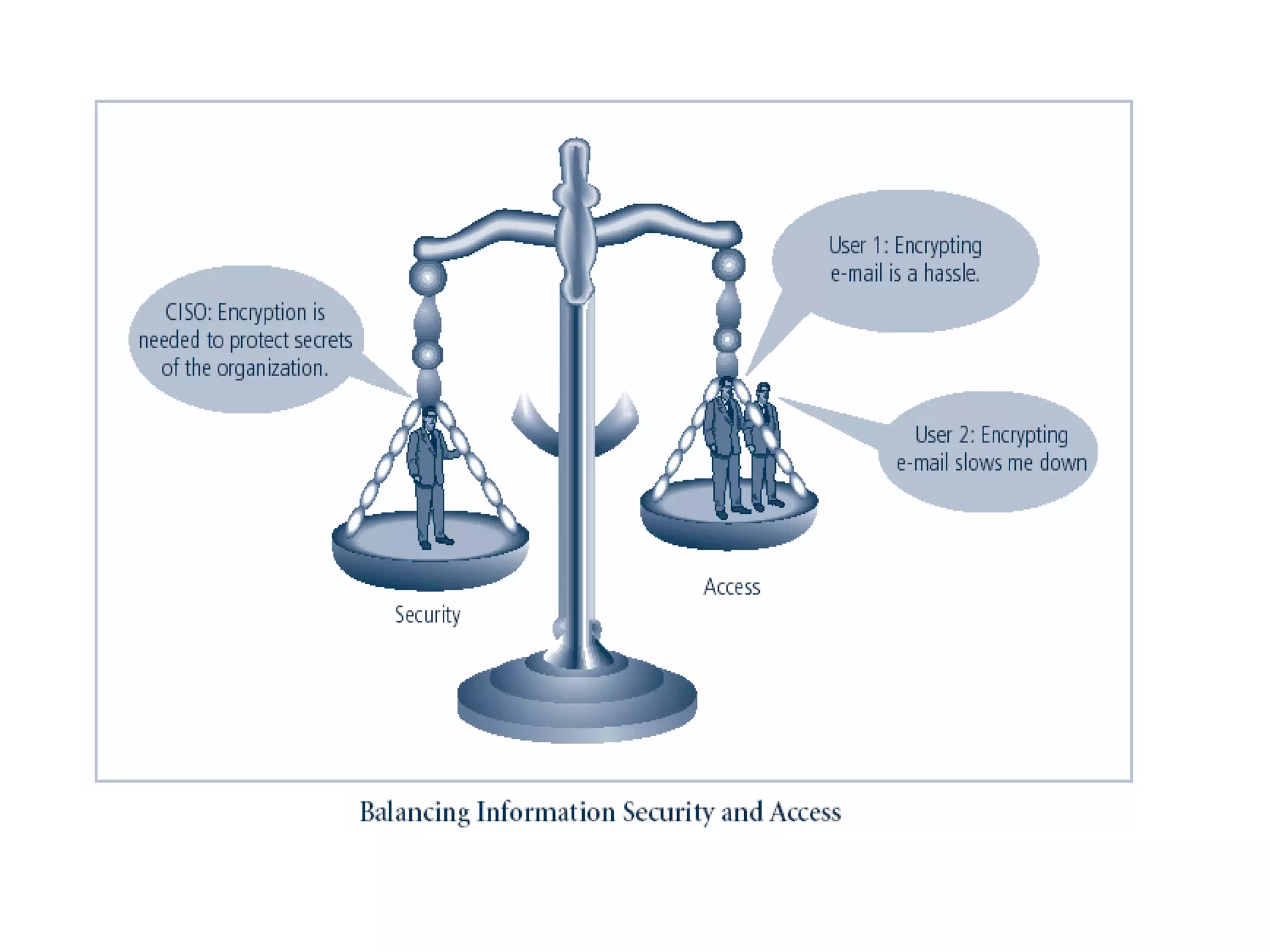

- 19. Figure 1-6 –Balancing Security and Access

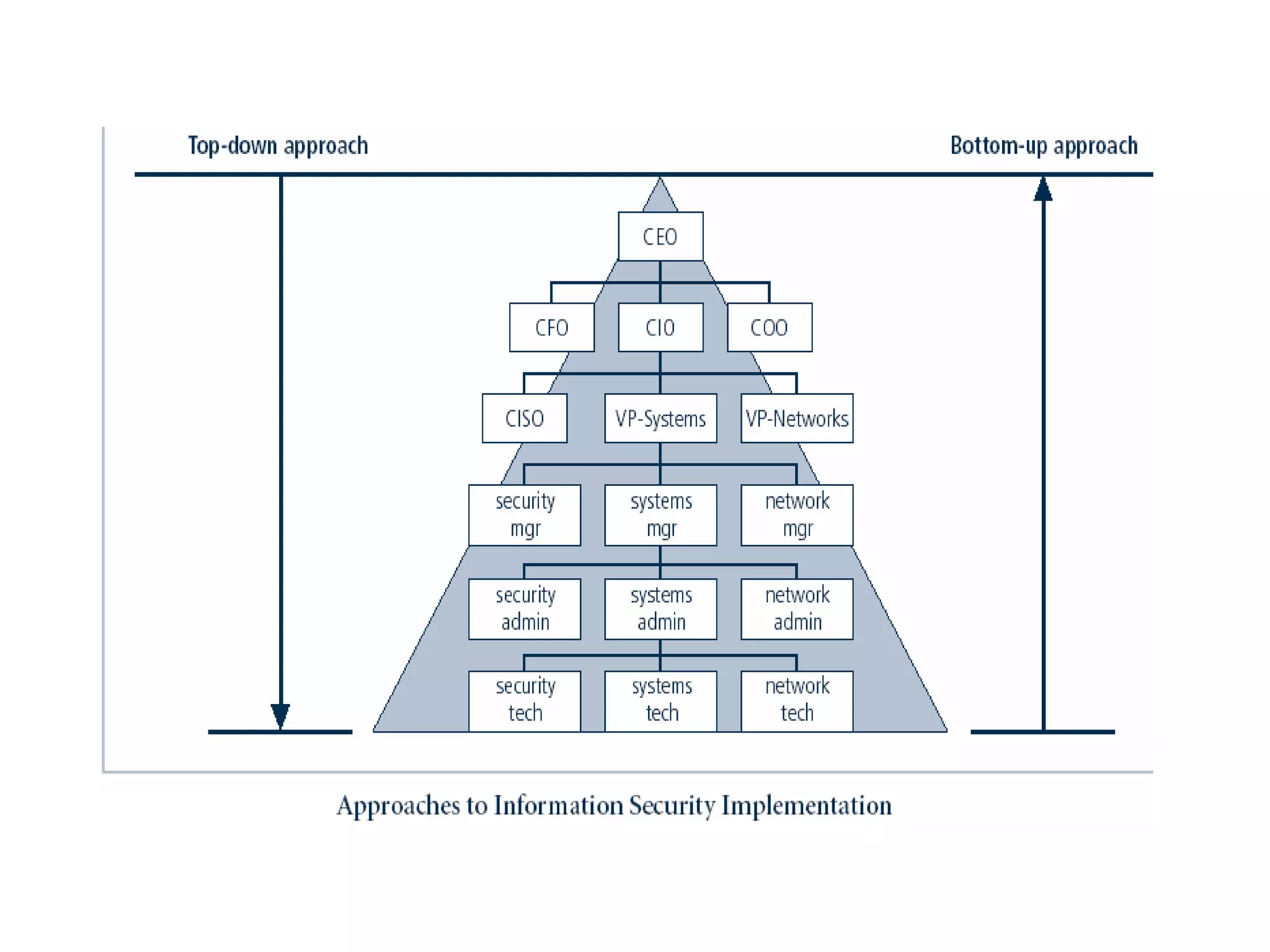

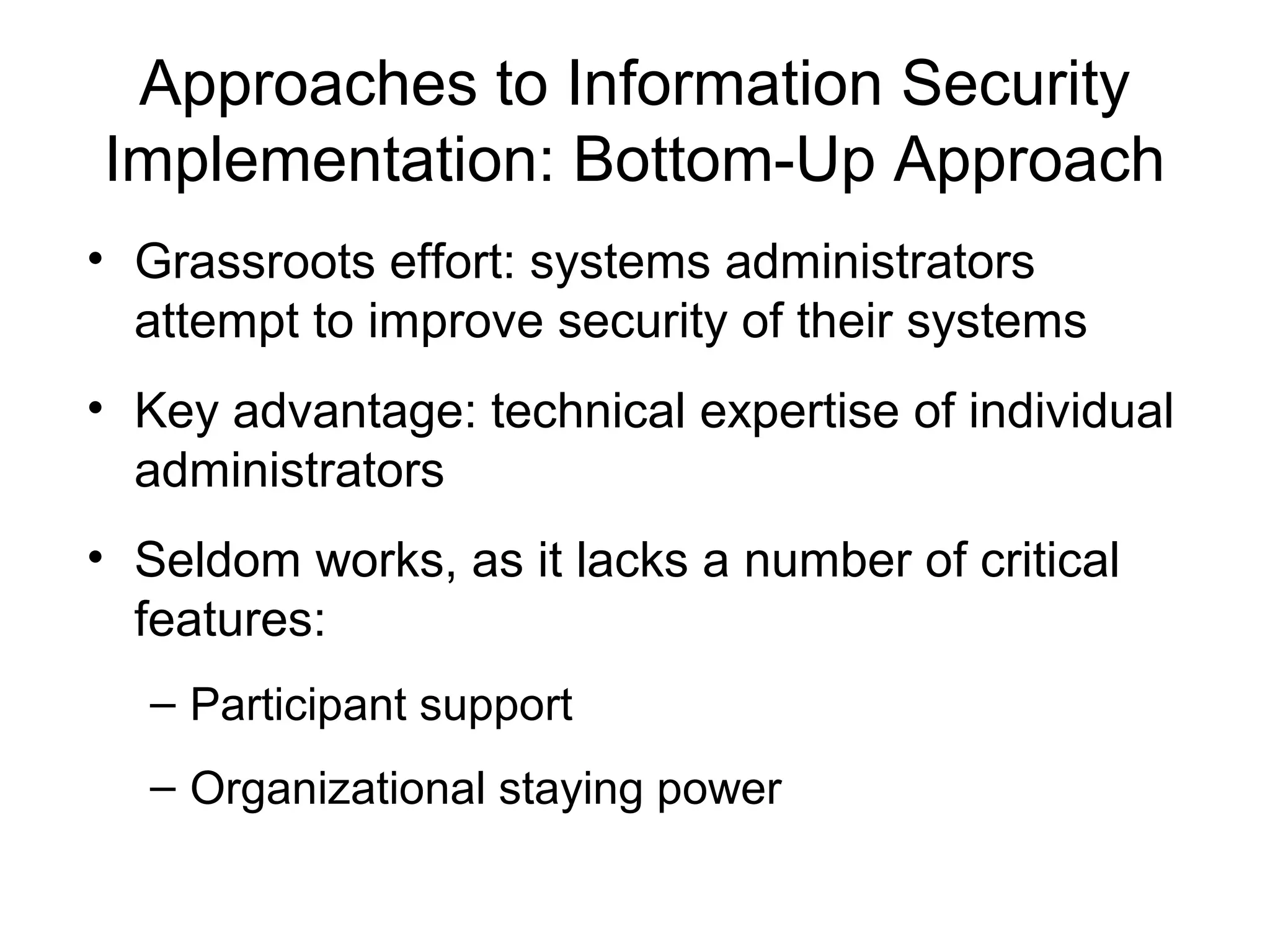

- 20. Approaches to InformationSecurity Implementation: Bottom-Up Approach • Grassroots effort: systems administrators attempt to improve security of their systems • Key advantage: technical expertise of individual administrators • Seldom works, as it lacks a number of critical features: – Participant support – Organizational staying power

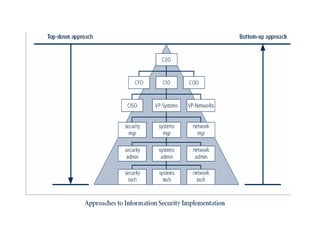

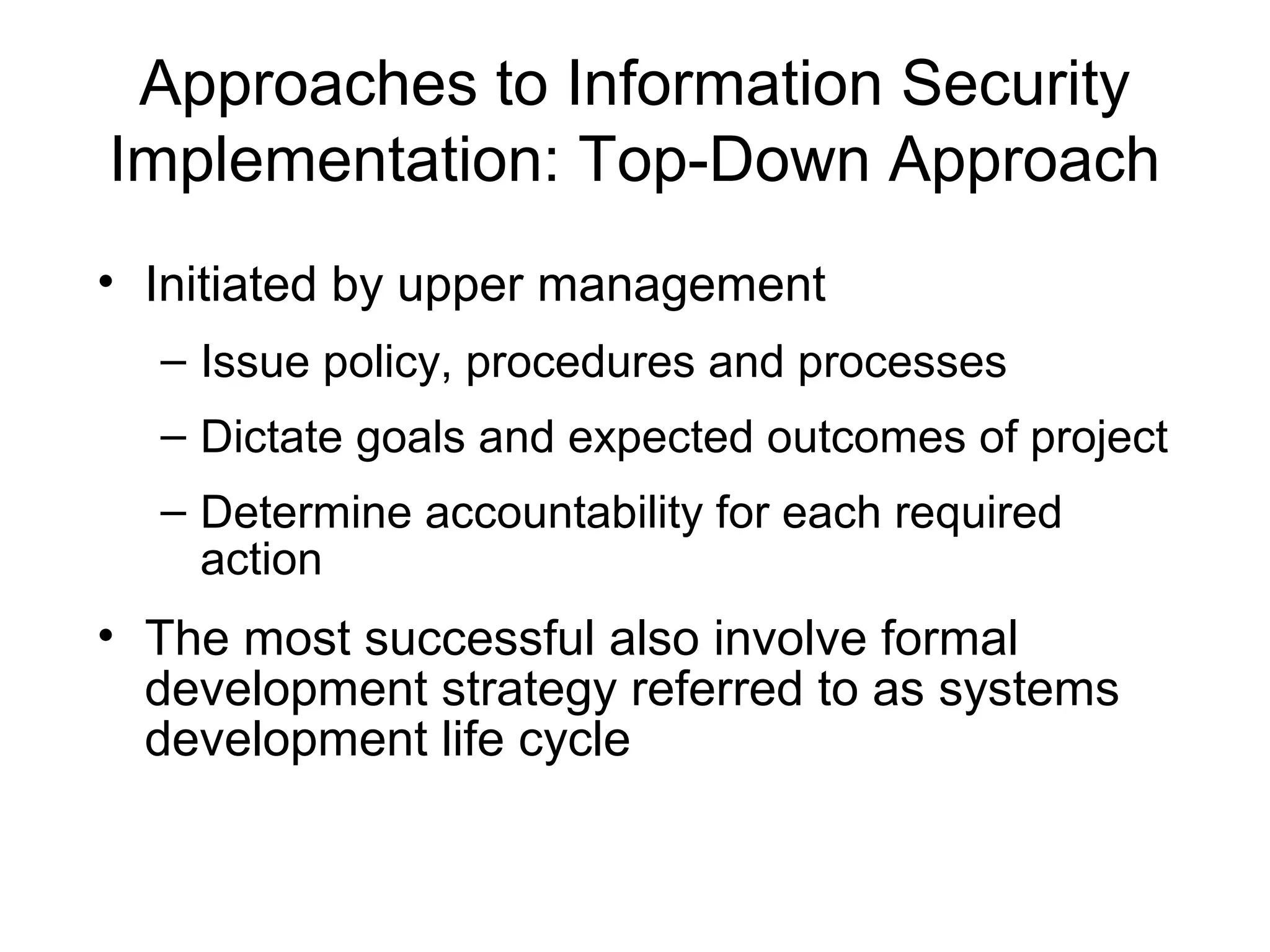

- 22. Approaches to InformationSecurity Implementation: Top-Down Approach • Initiated by upper management – Issue policy, procedures and processes – Dictate goals and expected outcomes of project – Determine accountability for each required action • The most successful also involve formal development strategy referred to as systems development life cycle

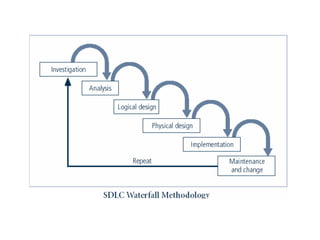

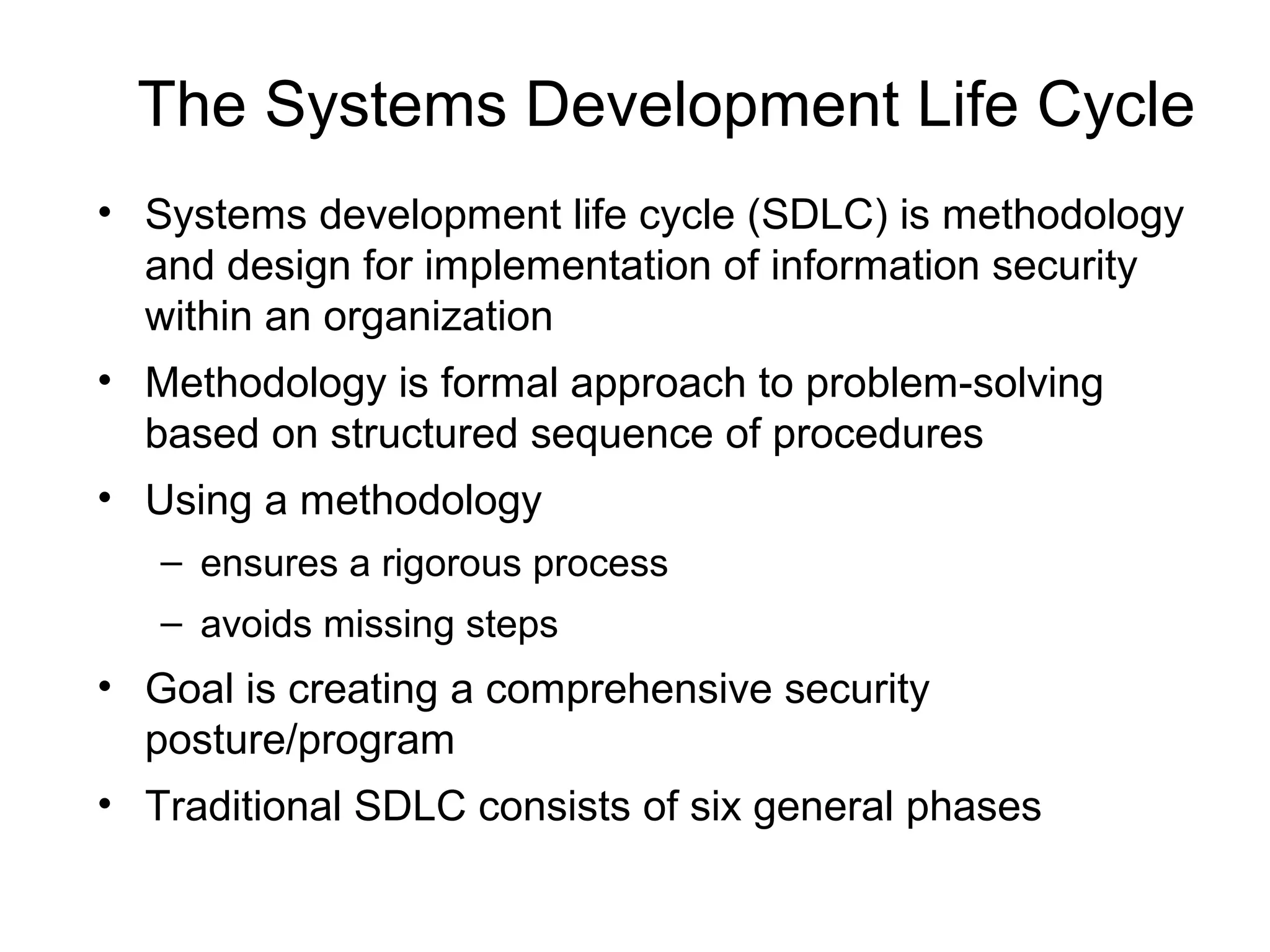

- 23. The Systems DevelopmentLife Cycle • Systems development life cycle (SDLC) is methodology and design for implementation of information security within an organization • Methodology is formal approach to problem-solving based on structured sequence of procedures • Using a methodology – ensures a rigorous process – avoids missing steps • Goal is creating a comprehensive security posture/program • Traditional SDLC consists of six general phases

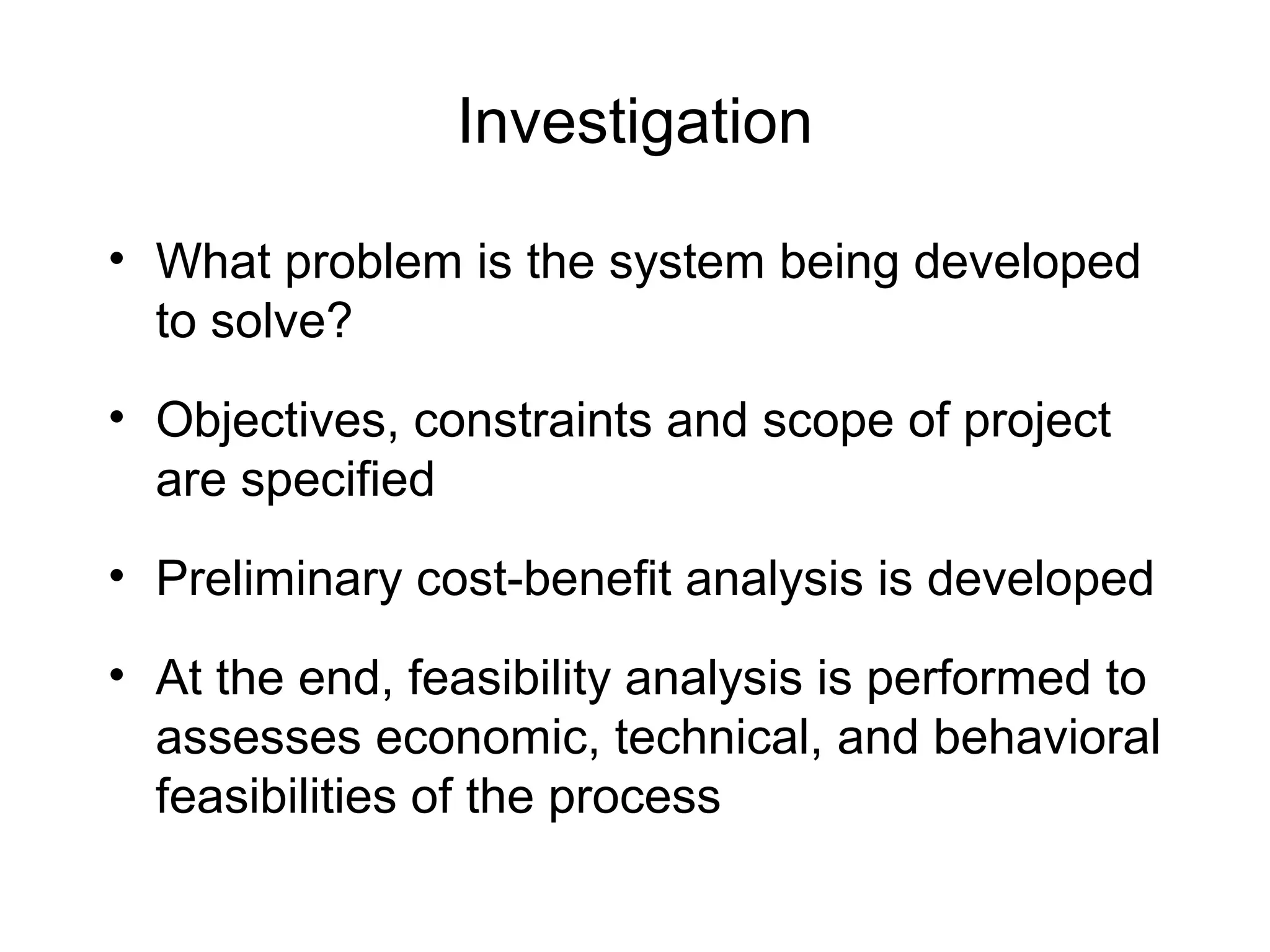

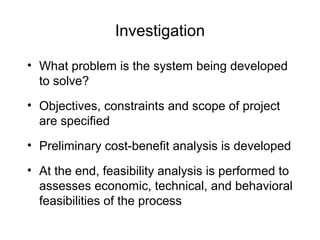

- 25. Investigation • What problemis the system being developed to solve? • Objectives, constraints and scope of project are specified • Preliminary cost-benefit analysis is developed • At the end, feasibility analysis is performed to assesses economic, technical, and behavioral feasibilities of the process

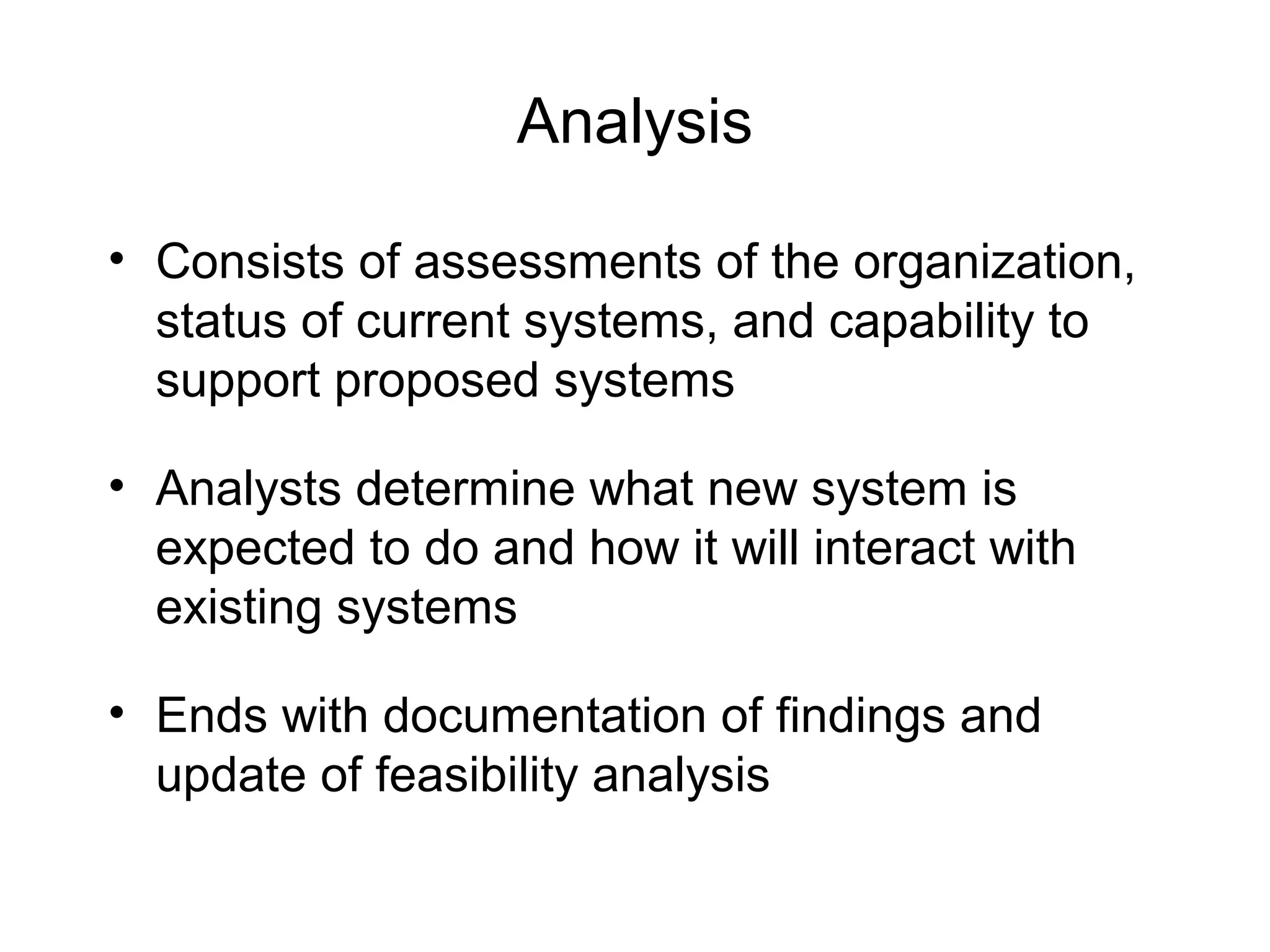

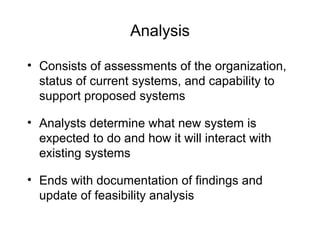

- 26. Analysis • Consists ofassessments of the organization, status of current systems, and capability to support proposed systems • Analysts determine what new system is expected to do and how it will interact with existing systems • Ends with documentation of findings and update of feasibility analysis

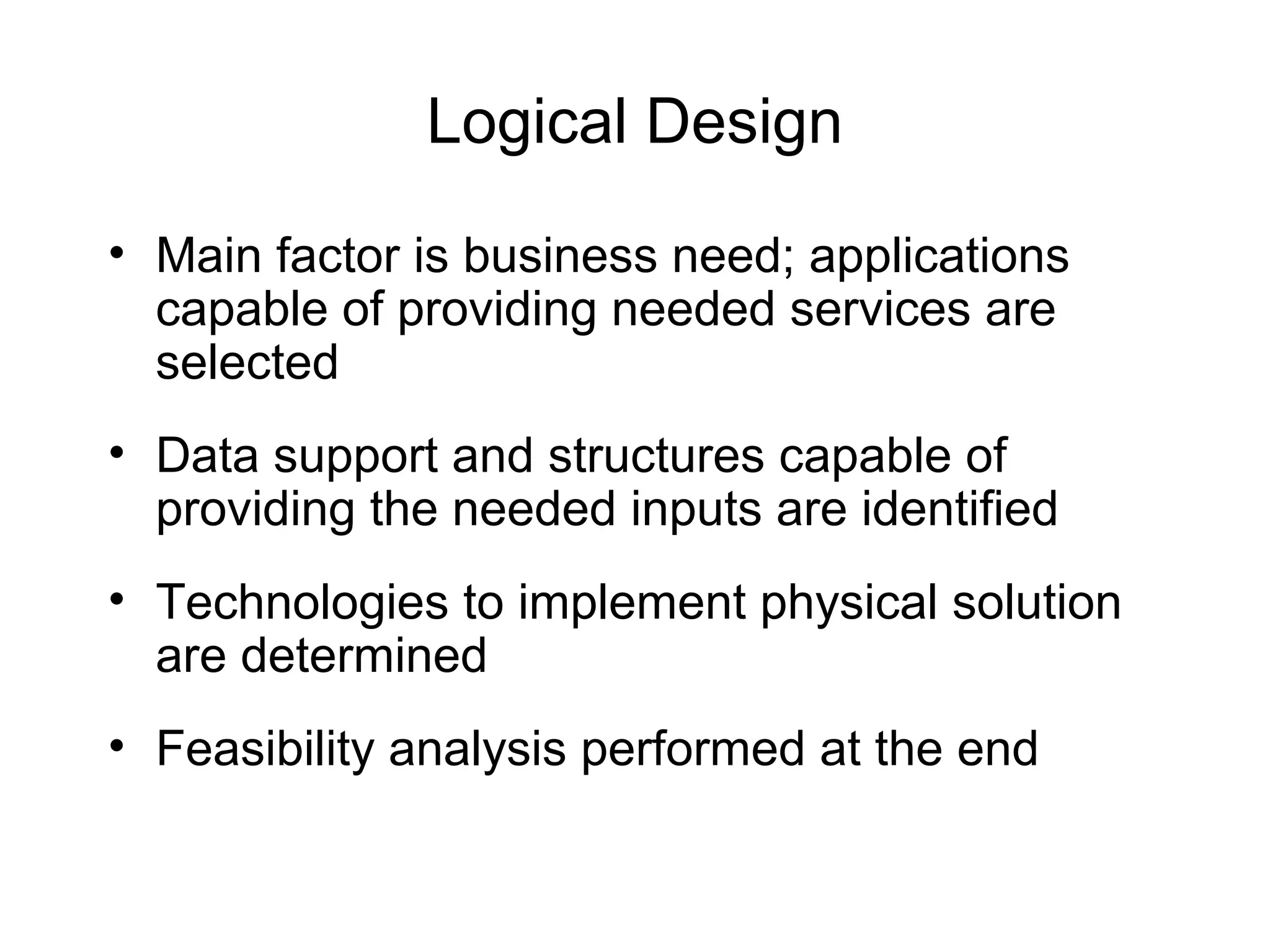

- 27. Logical Design • Mainfactor is business need; applications capable of providing needed services are selected • Data support and structures capable of providing the needed inputs are identified • Technologies to implement physical solution are determined • Feasibility analysis performed at the end

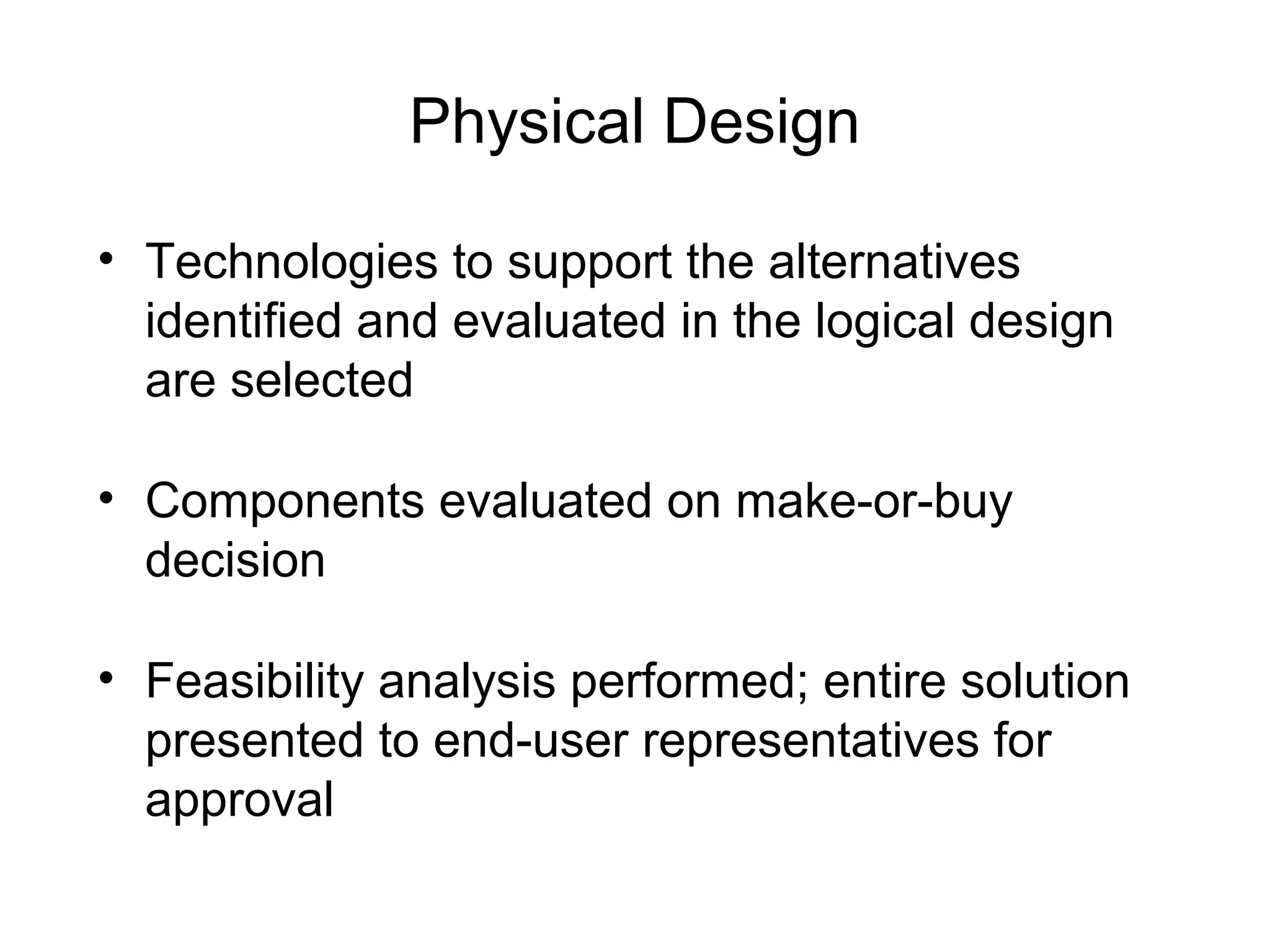

- 28. Physical Design • Technologiesto support the alternatives identified and evaluated in the logical design are selected • Components evaluated on make-or-buy decision • Feasibility analysis performed; entire solution presented to end-user representatives for approval

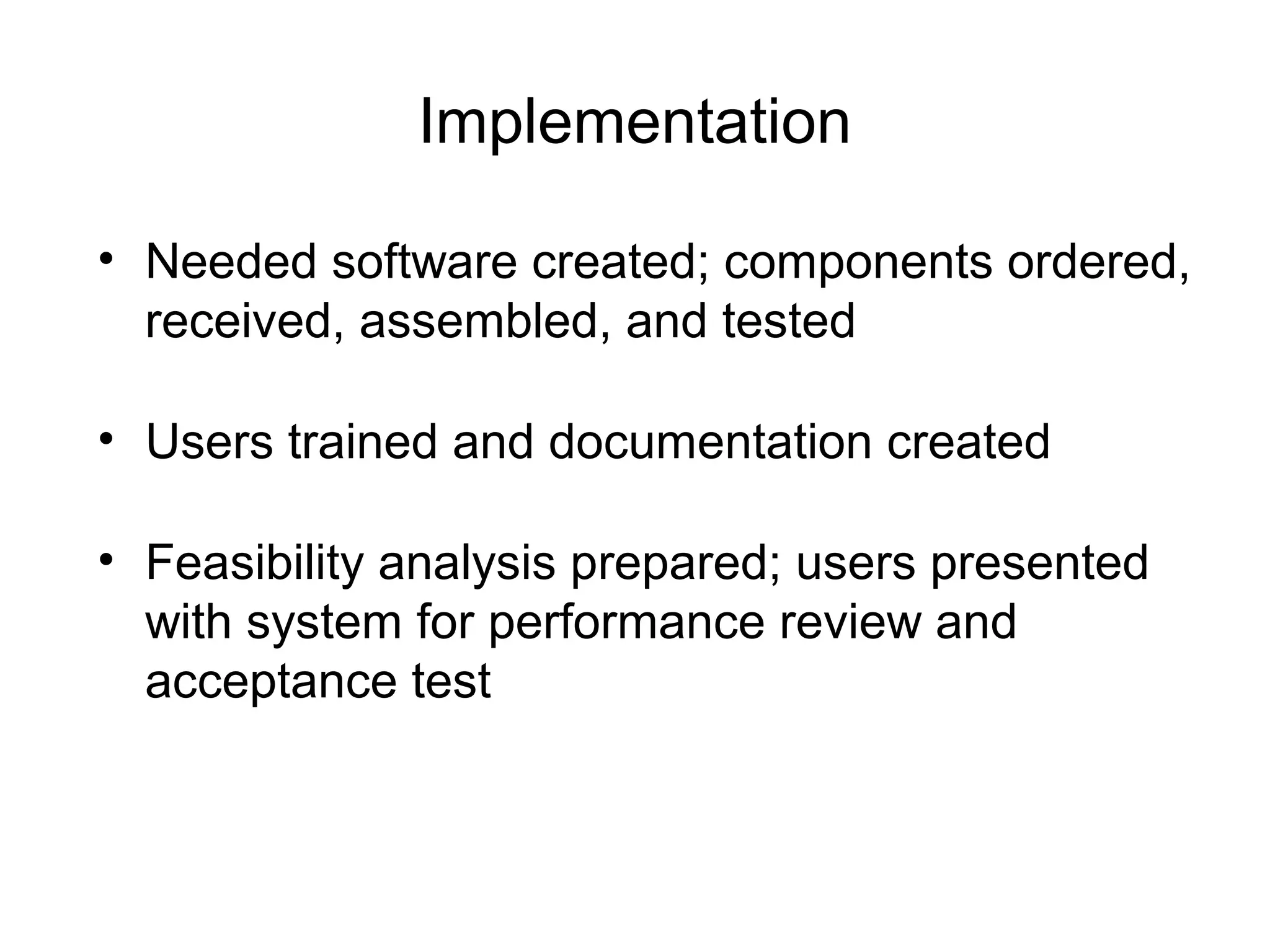

- 29. Implementation • Needed softwarecreated; components ordered, received, assembled, and tested • Users trained and documentation created • Feasibility analysis prepared; users presented with system for performance review and acceptance test

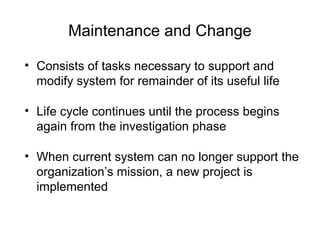

- 30. Maintenance and Change •Consists of tasks necessary to support and modify system for remainder of its useful life • Life cycle continues until the process begins again from the investigation phase • When current system can no longer support the organization’s mission, a new project is implemented

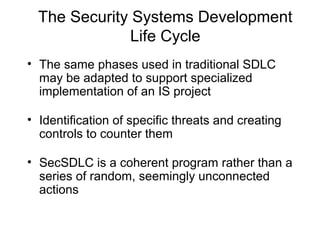

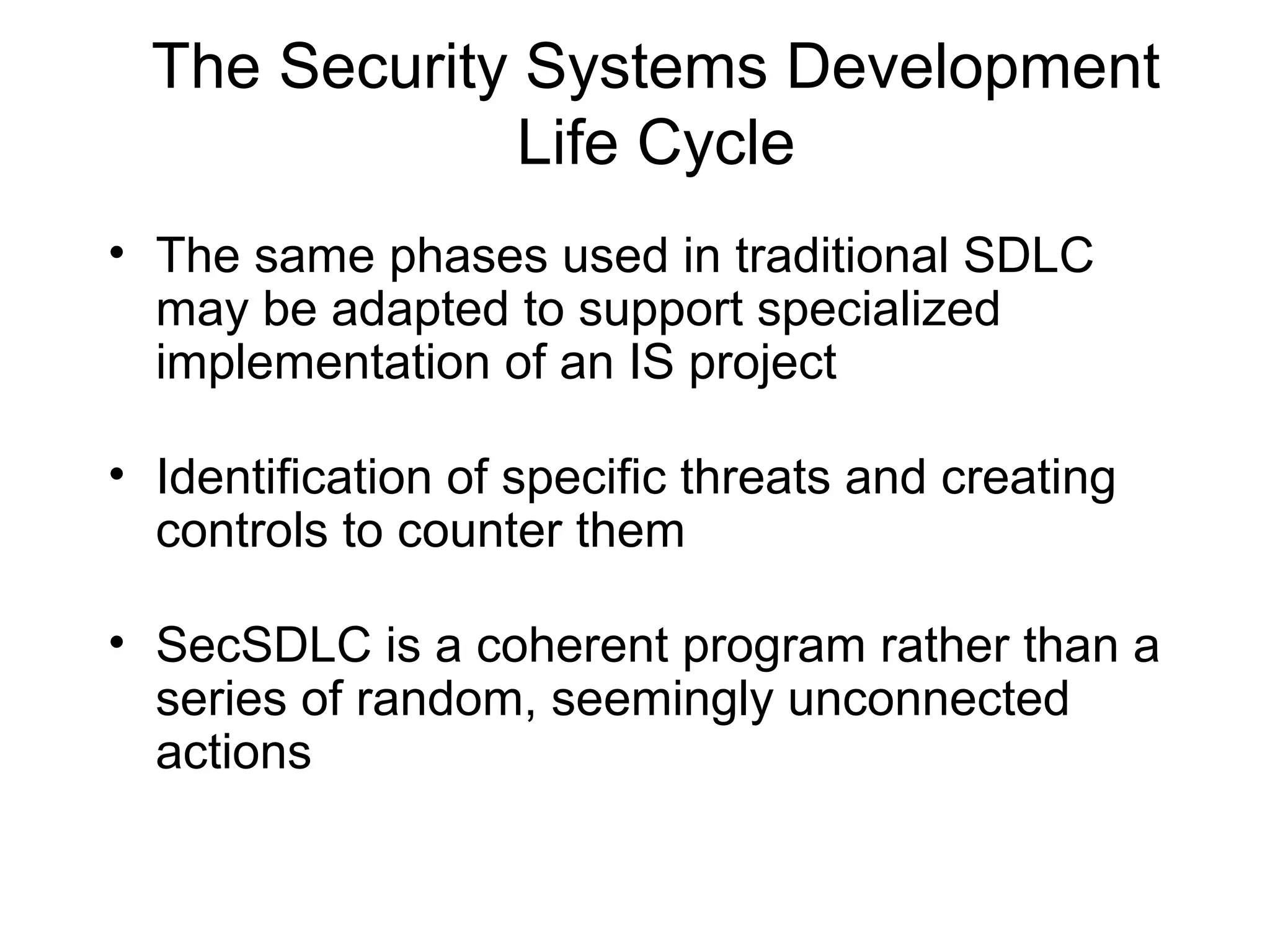

- 31. The Security SystemsDevelopment Life Cycle • The same phases used in traditional SDLC may be adapted to support specialized implementation of an IS project • Identification of specific threats and creating controls to counter them • SecSDLC is a coherent program rather than a series of random, seemingly unconnected actions

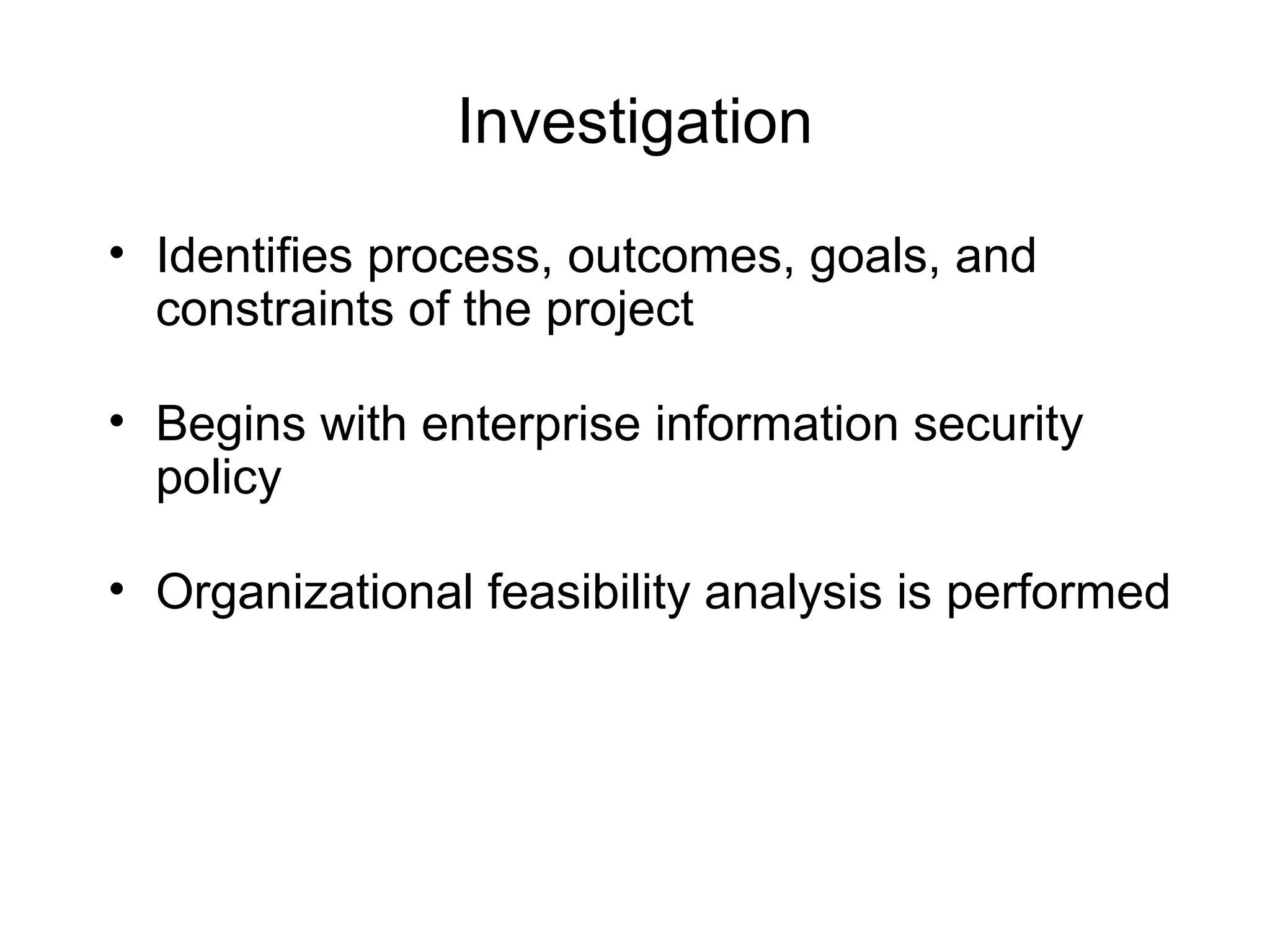

- 32. Investigation • Identifies process,outcomes, goals, and constraints of the project • Begins with enterprise information security policy • Organizational feasibility analysis is performed

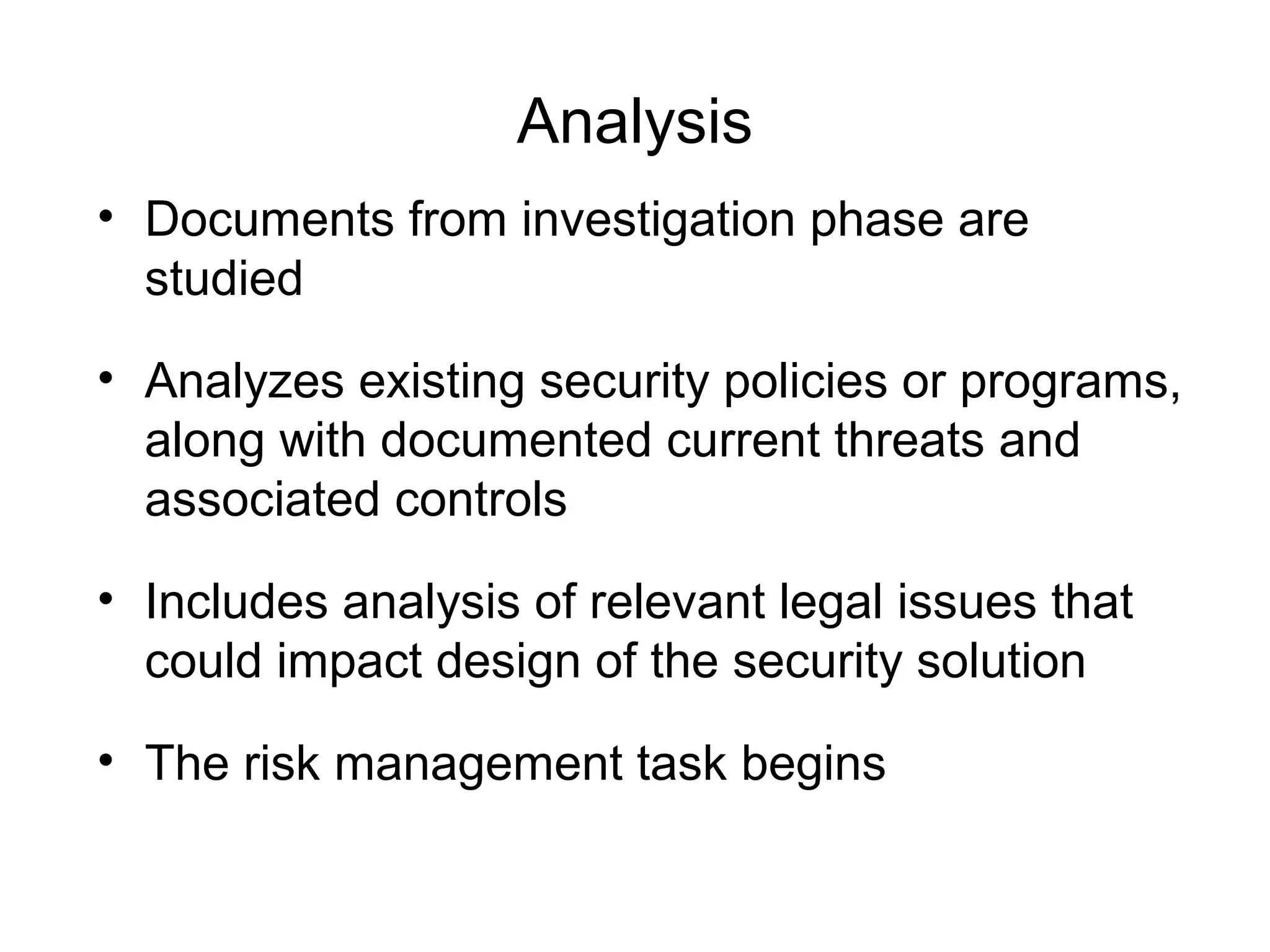

- 33. Analysis • Documents frominvestigation phase are studied • Analyzes existing security policies or programs, along with documented current threats and associated controls • Includes analysis of relevant legal issues that could impact design of the security solution • The risk management task begins

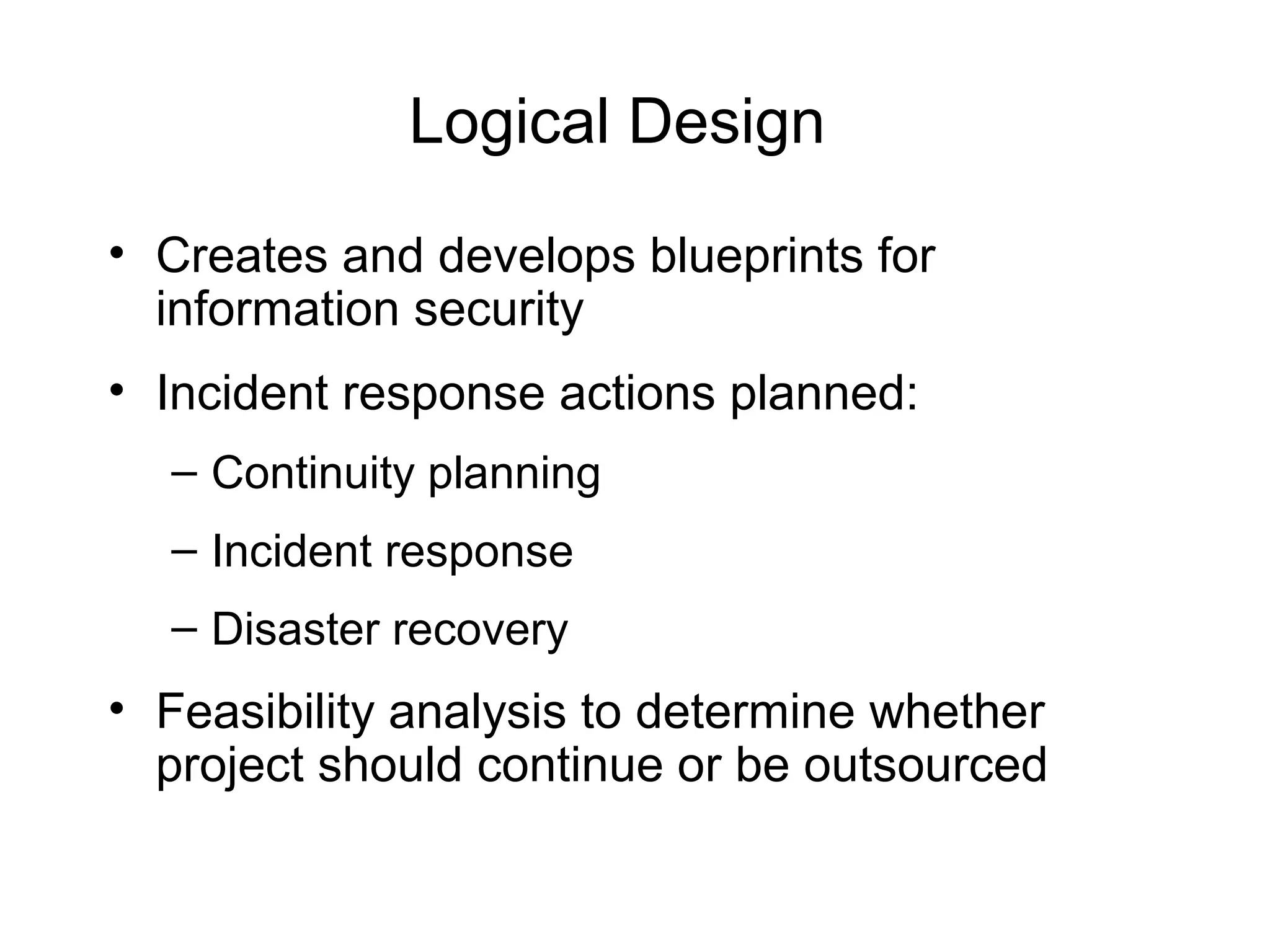

- 34. Logical Design • Createsand develops blueprints for information security • Incident response actions planned: – Continuity planning – Incident response – Disaster recovery • Feasibility analysis to determine whether project should continue or be outsourced

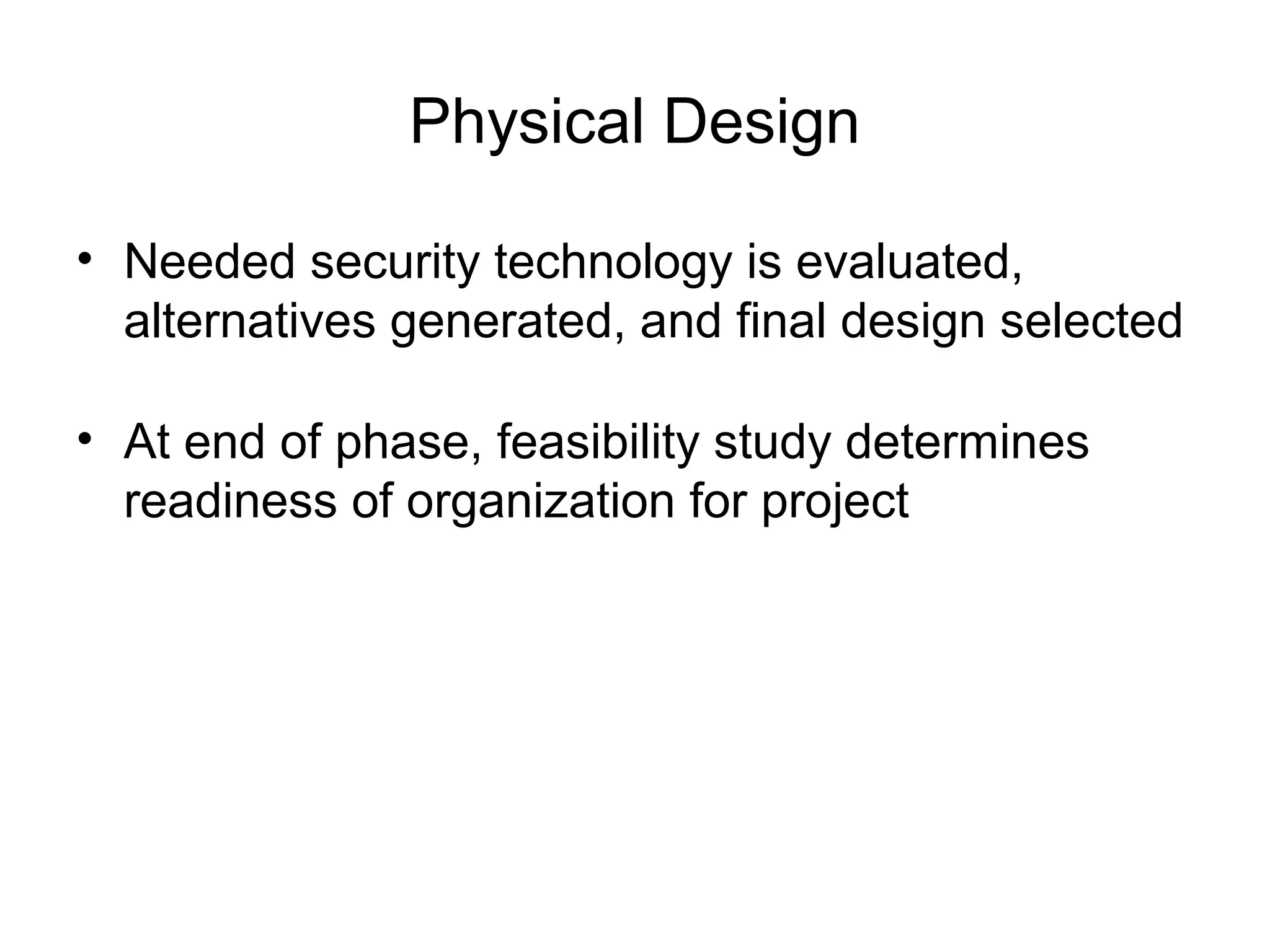

- 35. Physical Design • Neededsecurity technology is evaluated, alternatives generated, and final design selected • At end of phase, feasibility study determines readiness of organization for project

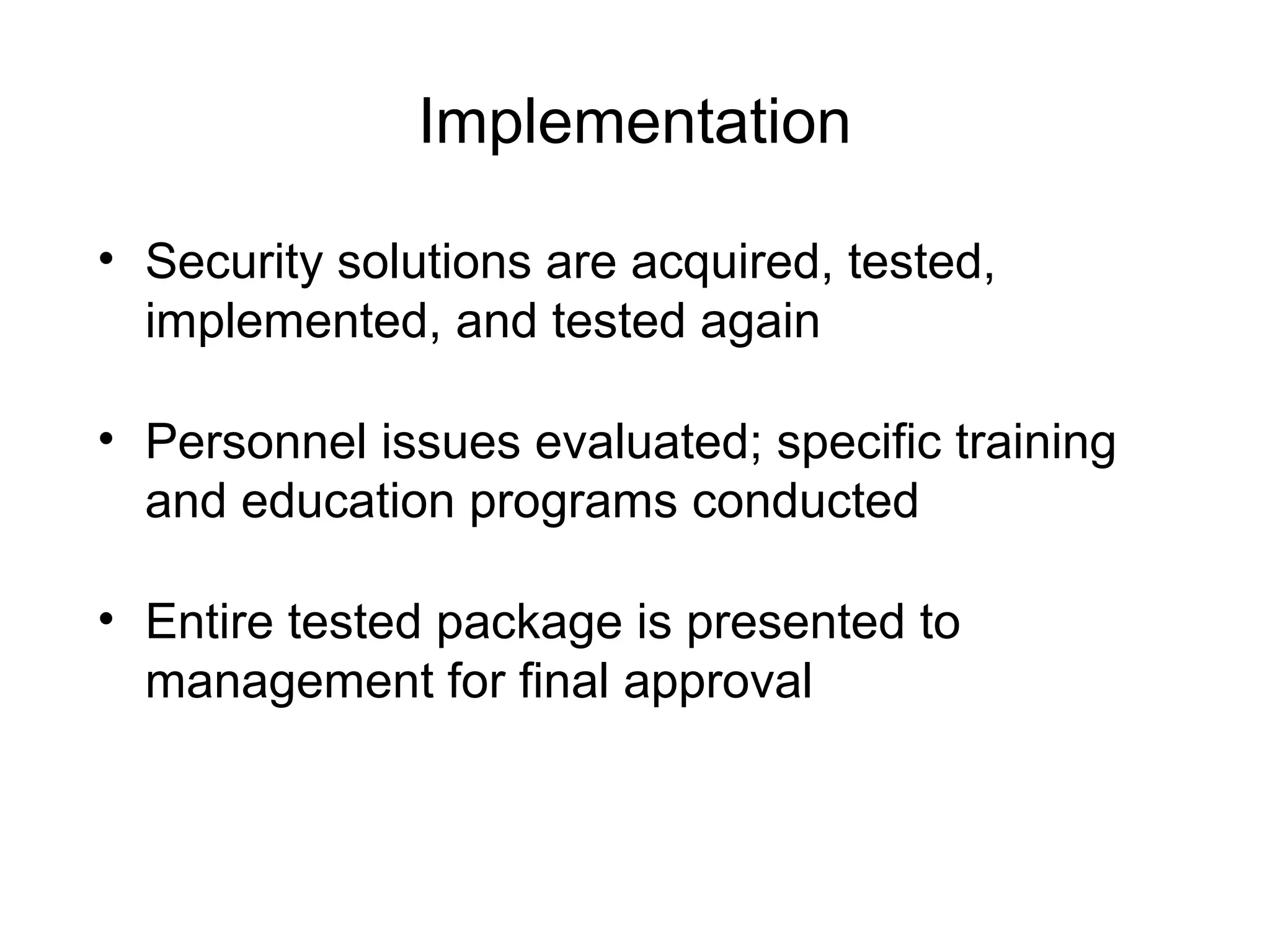

- 36. Implementation • Security solutionsare acquired, tested, implemented, and tested again • Personnel issues evaluated; specific training and education programs conducted • Entire tested package is presented to management for final approval

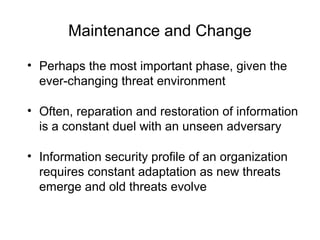

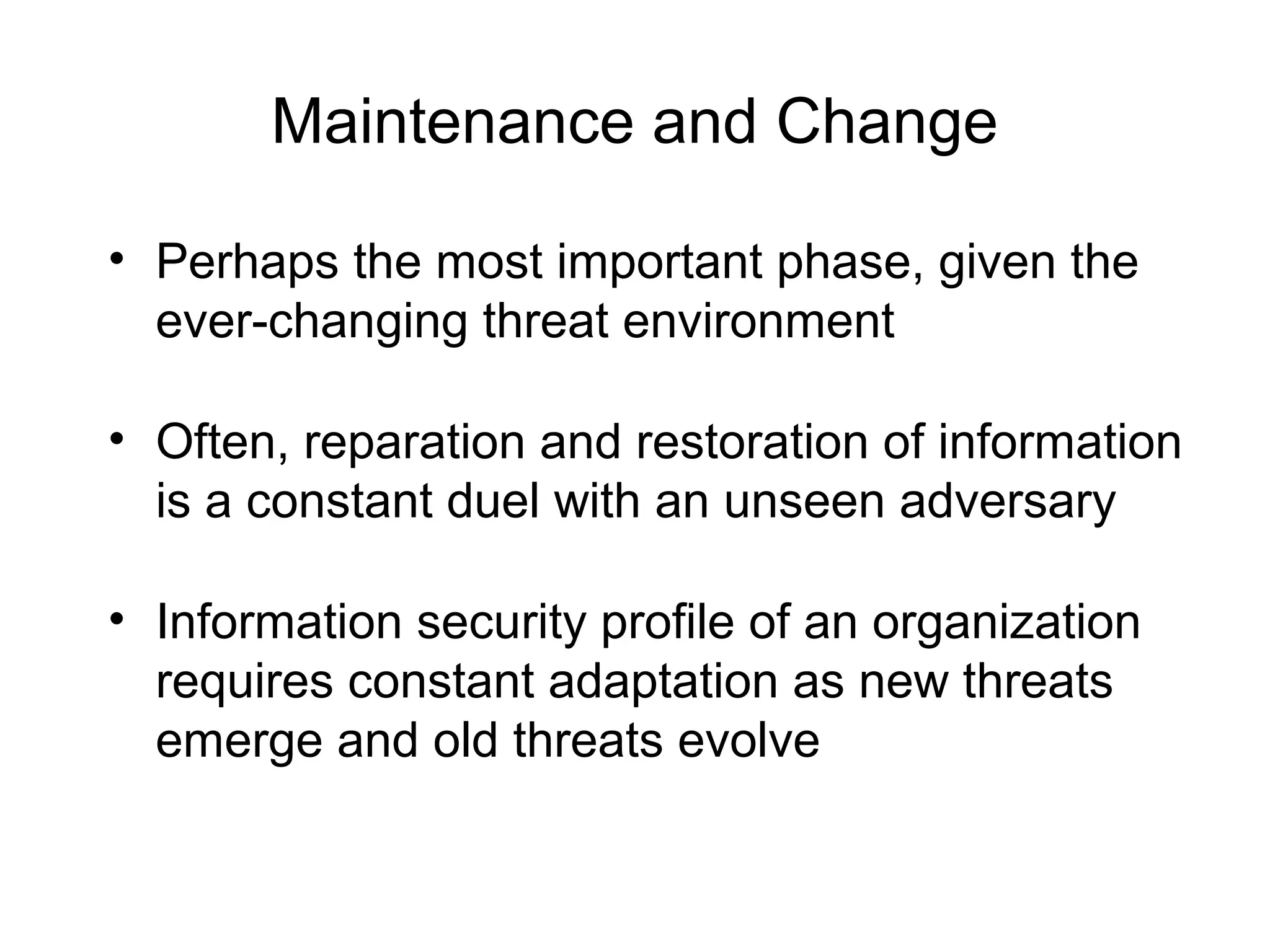

- 37. Maintenance and Change •Perhaps the most important phase, given the ever-changing threat environment • Often, reparation and restoration of information is a constant duel with an unseen adversary • Information security profile of an organization requires constant adaptation as new threats emerge and old threats evolve

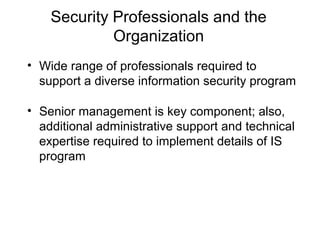

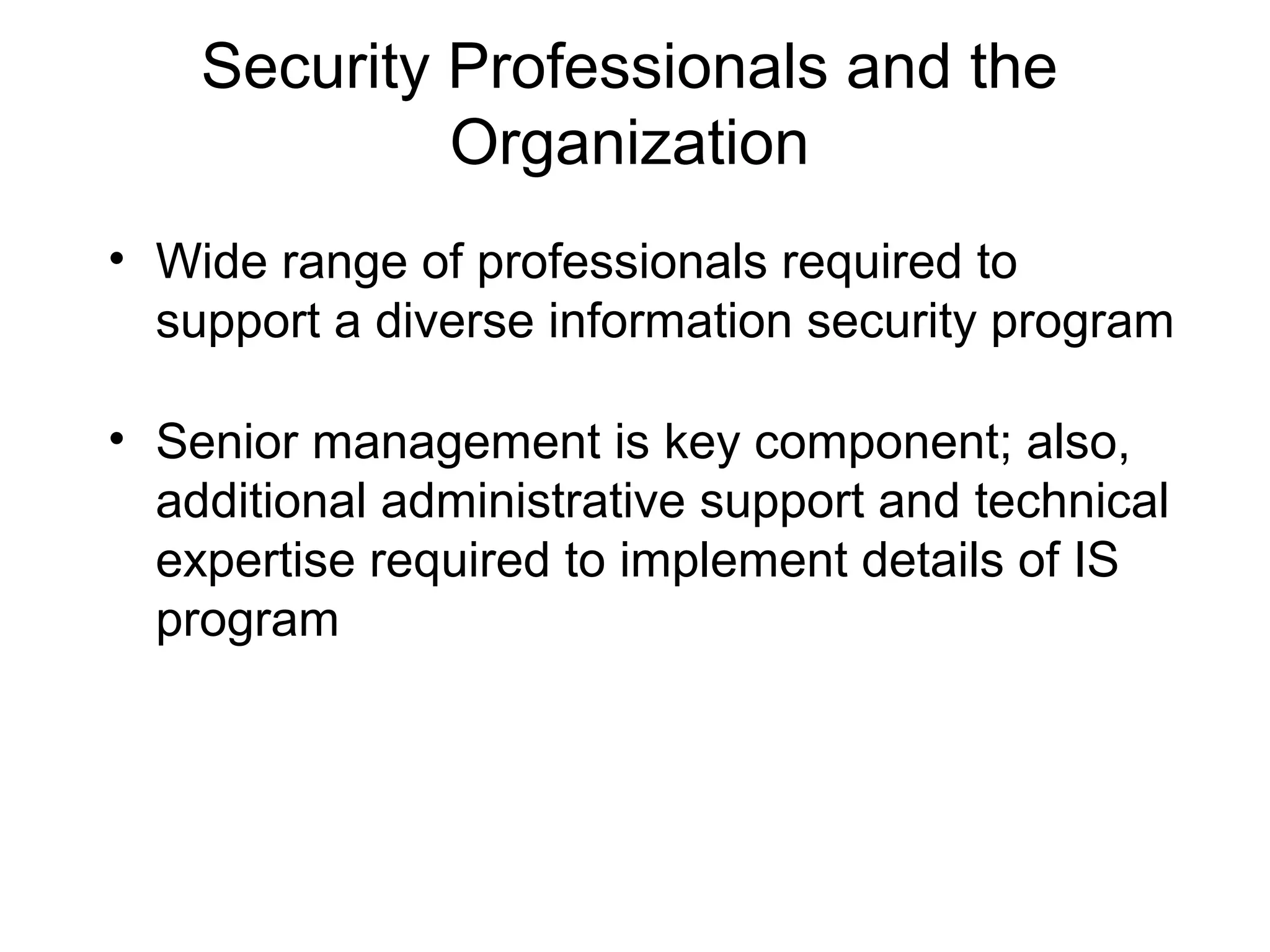

- 38. Security Professionals andthe Organization • Wide range of professionals required to support a diverse information security program • Senior management is key component; also, additional administrative support and technical expertise required to implement details of IS program

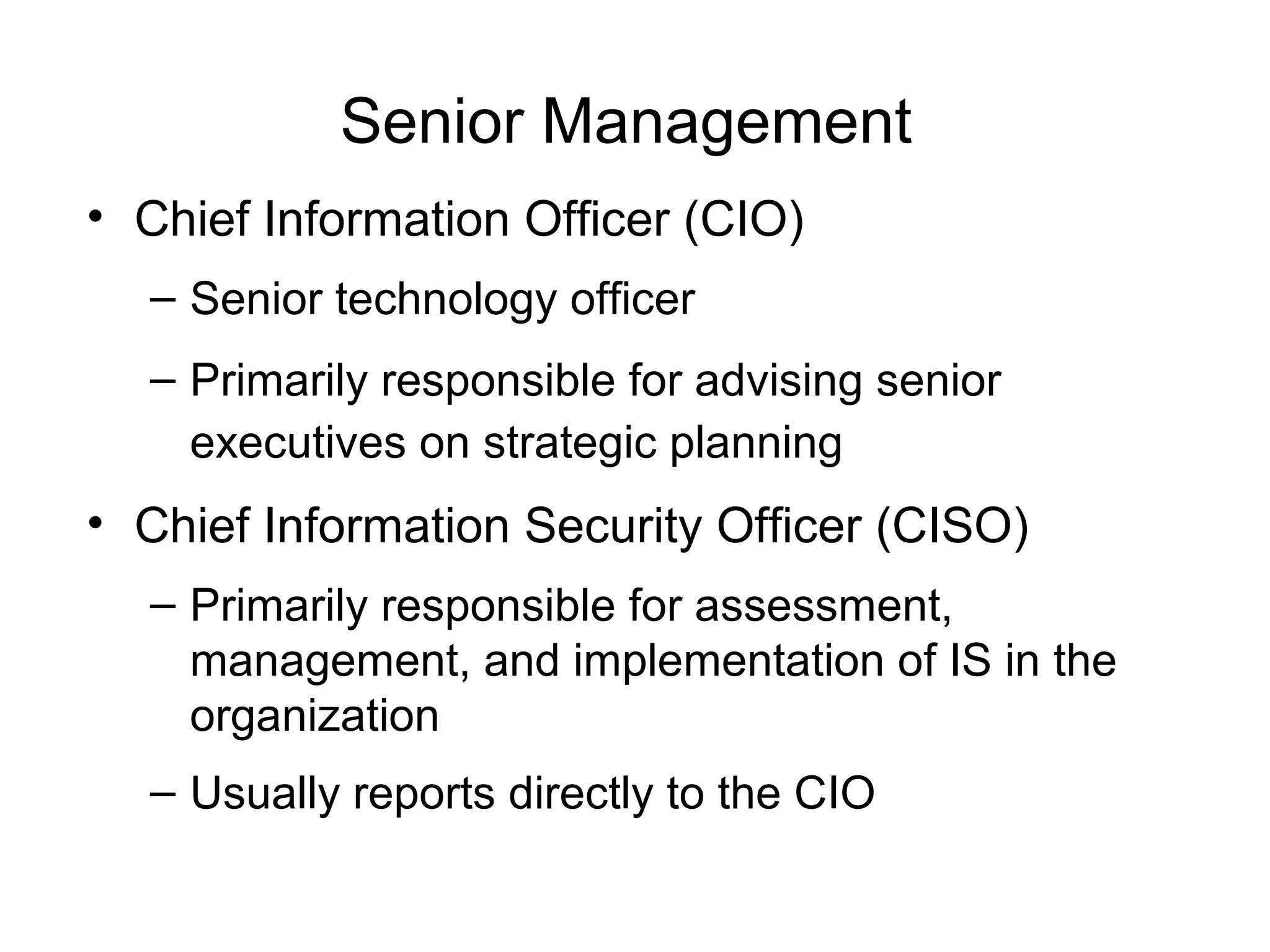

- 39. Senior Management • ChiefInformation Officer (CIO) – Senior technology officer – Primarily responsible for advising senior executives on strategic planning • Chief Information Security Officer (CISO) – Primarily responsible for assessment, management, and implementation of IS in the organization – Usually reports directly to the CIO

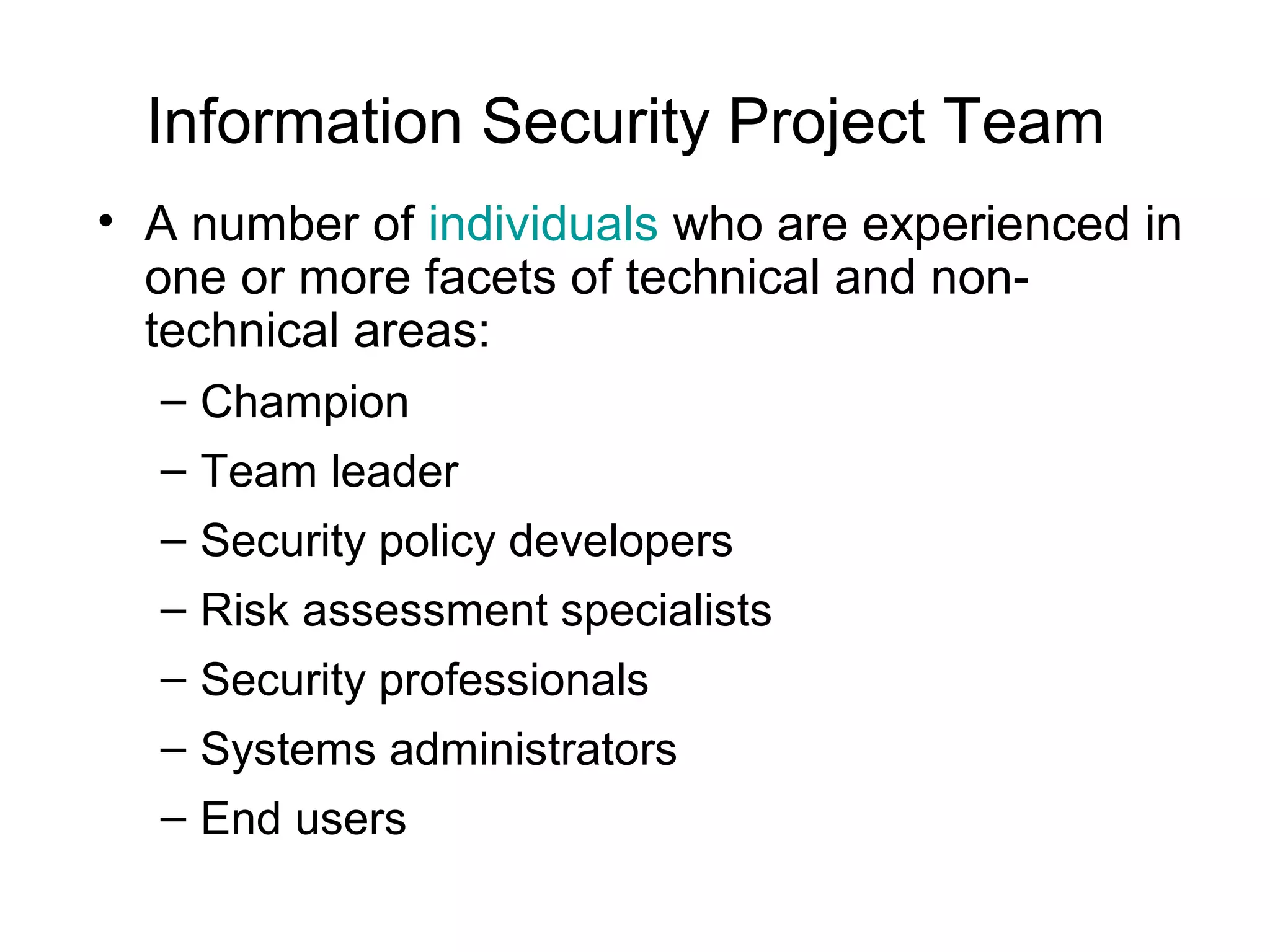

- 40. Information Security ProjectTeam • A number of individuals who are experienced in one or more facets of technical and non- technical areas: – Champion – Team leader – Security policy developers – Risk assessment specialists – Security professionals – Systems administrators – End users

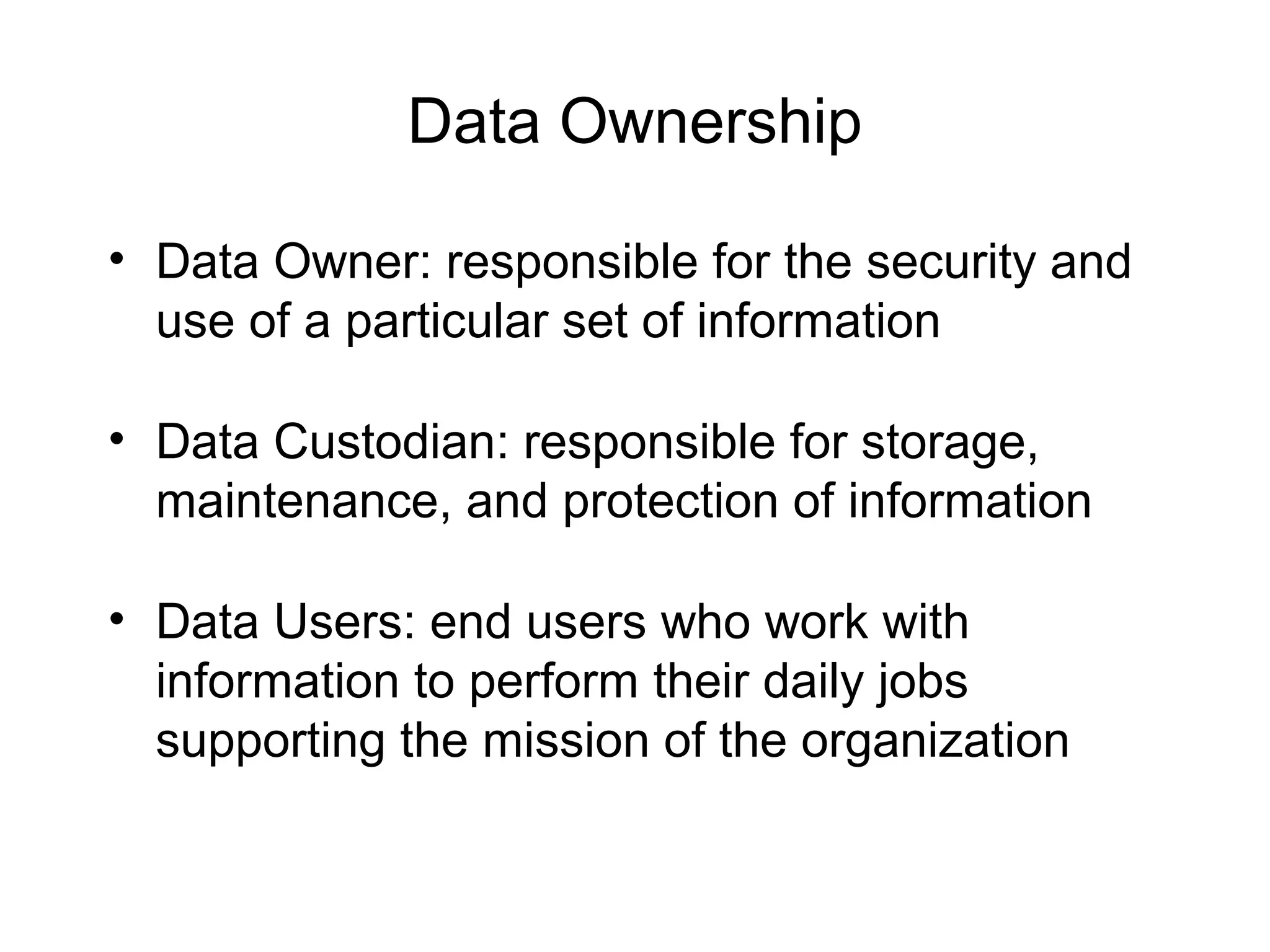

- 41. Data Ownership • DataOwner: responsible for the security and use of a particular set of information • Data Custodian: responsible for storage, maintenance, and protection of information • Data Users: end users who work with information to perform their daily jobs supporting the mission of the organization

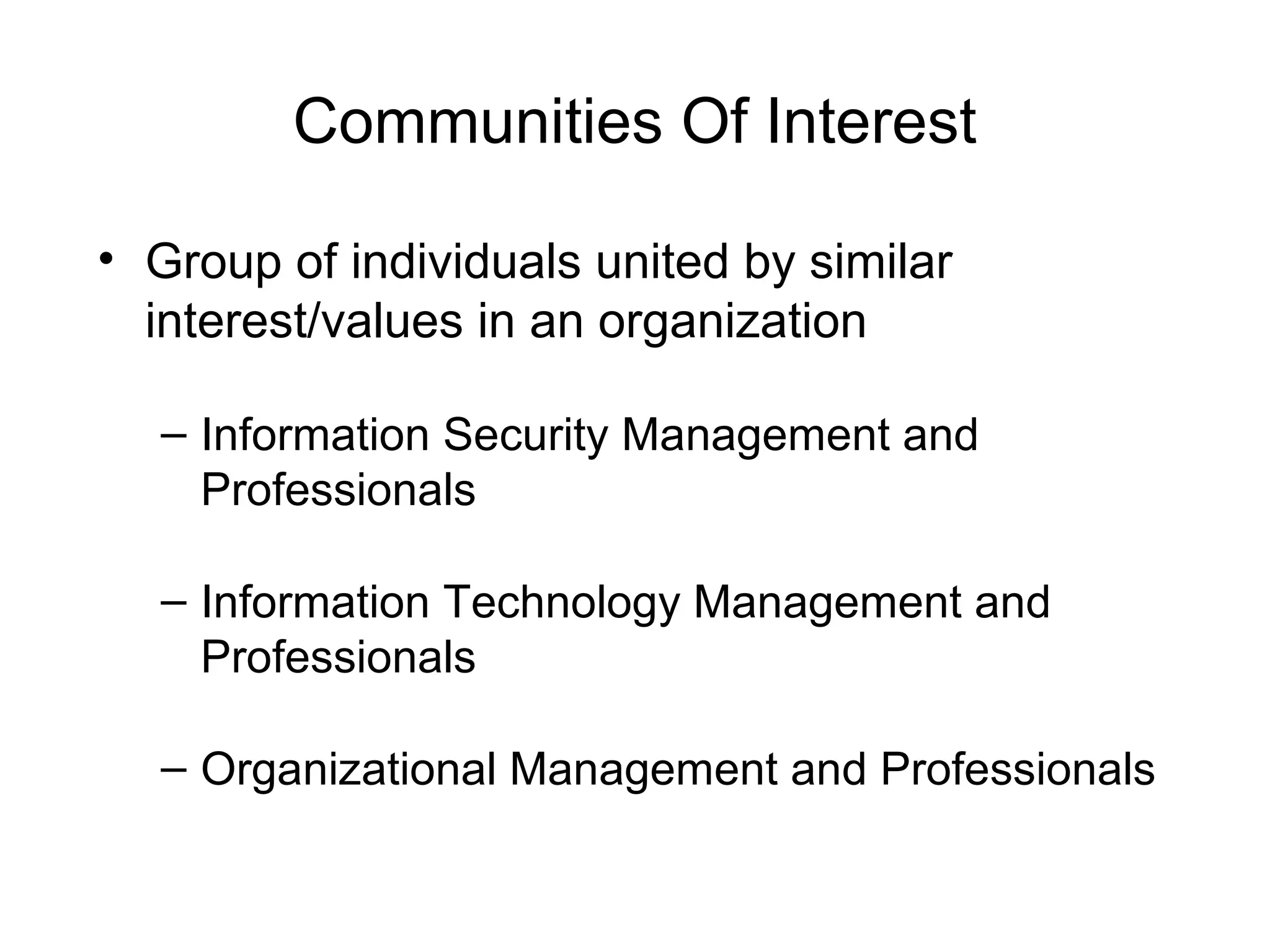

- 42. Communities Of Interest •Group of individuals united by similar interest/values in an organization – Information Security Management and Professionals – Information Technology Management and Professionals – Organizational Management and Professionals

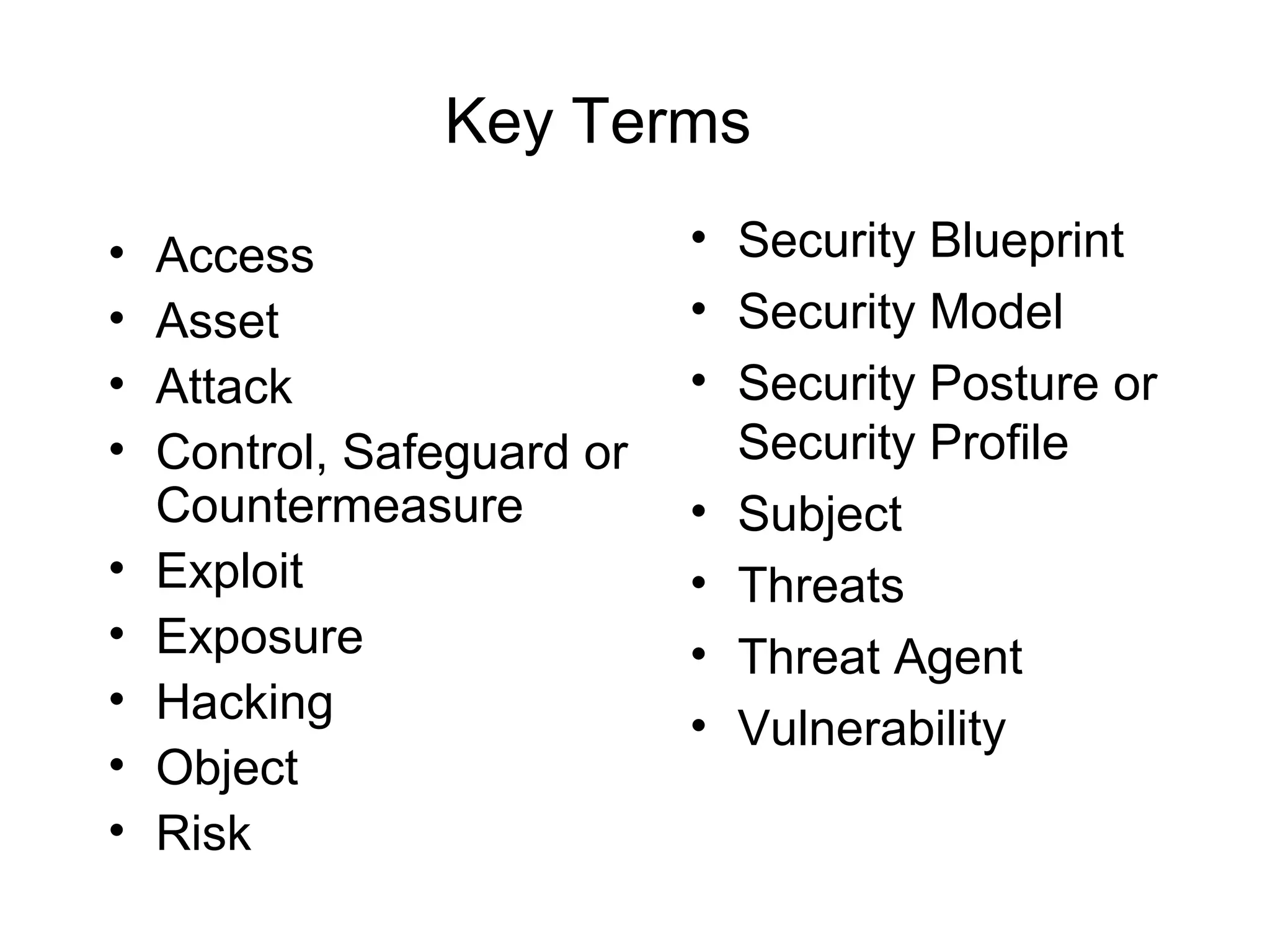

- 43. Key Terms • Access •Asset • Attack • Control, Safeguard or Countermeasure • Exploit • Exposure • Hacking • Object • Risk • Security Blueprint • Security Model • Security Posture or Security Profile • Subject • Threats • Threat Agent • Vulnerability

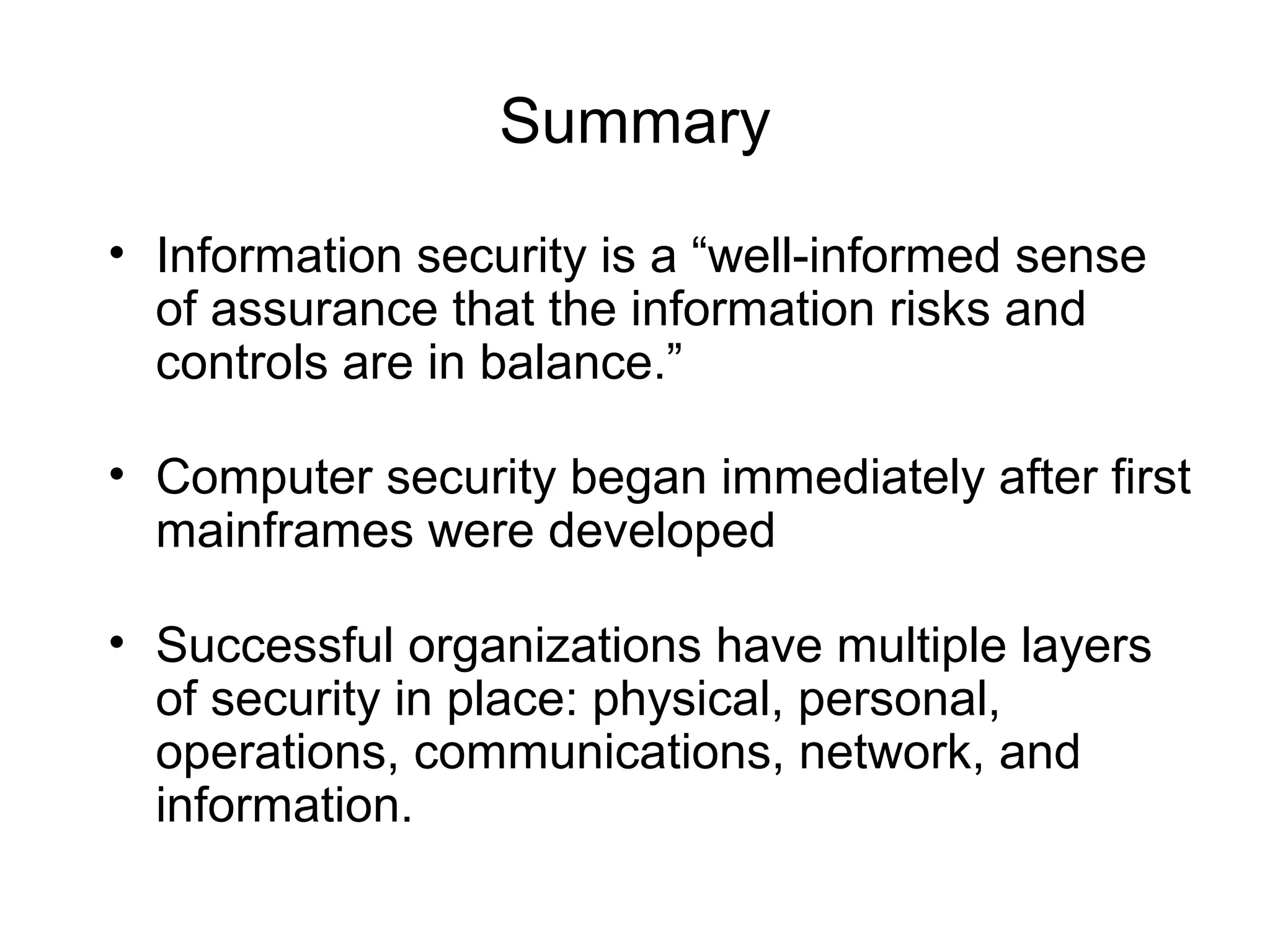

- 44. Summary • Information securityis a “well-informed sense of assurance that the information risks and controls are in balance.” • Computer security began immediately after first mainframes were developed • Successful organizations have multiple layers of security in place: physical, personal, operations, communications, network, and information.

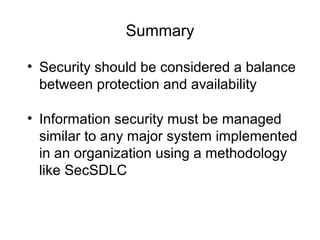

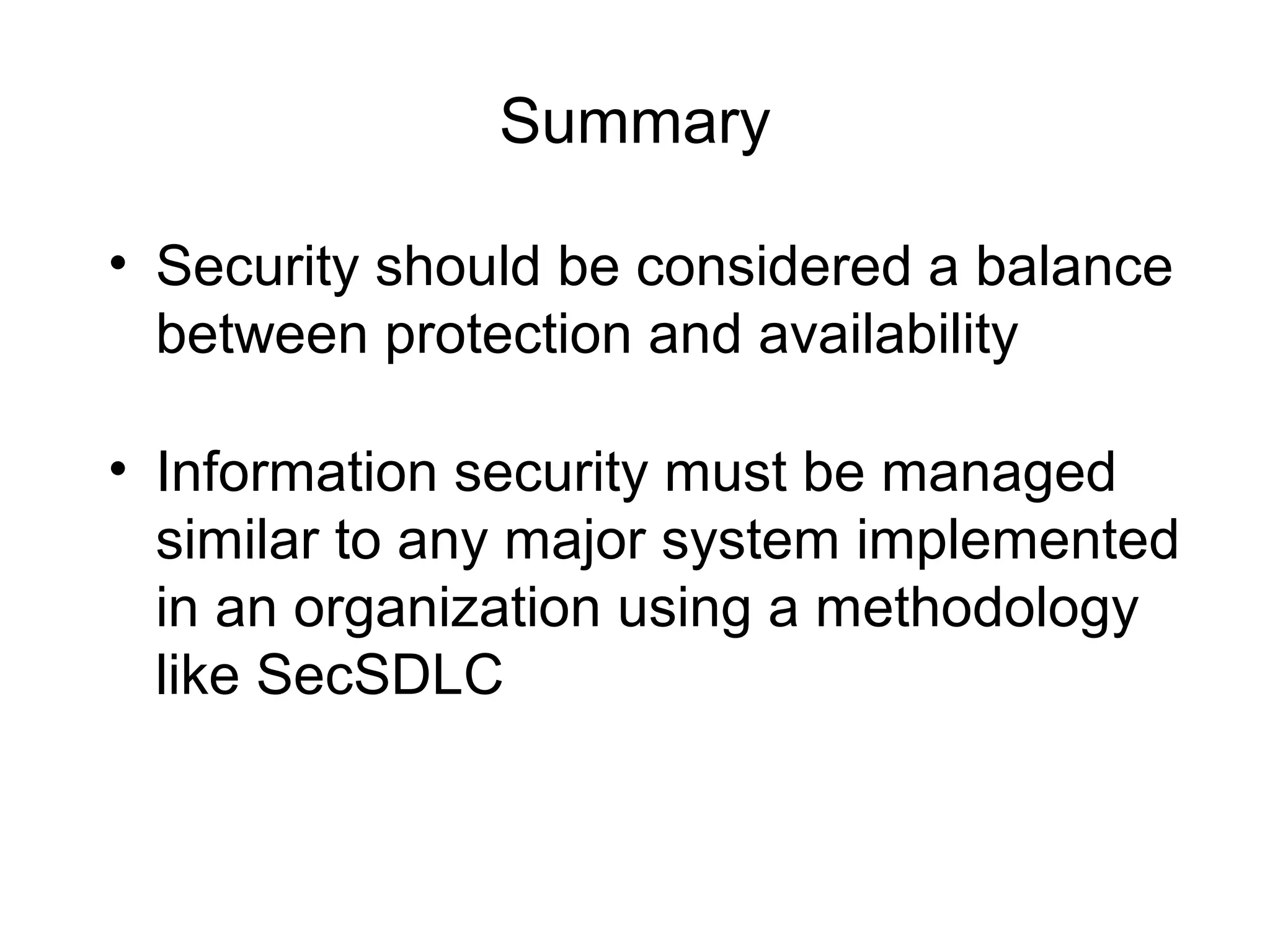

- 45. Summary • Security shouldbe considered a balance between protection and availability • Information security must be managed similar to any major system implemented in an organization using a methodology like SecSDLC
Editor's Notes
- #3 Upon completion of this chapter you should be able to: Understand what information security is and how it came to mean what it does today. Comprehend the history of computer security and how it evolved into information security. Understand the key terms and critical concepts of information security as presented in the chapter. Outline the phases of the security systems development life cycle Understand the role professionals involved in information security in an organizational structure.
- #4 What Is Information Security? Information security in today’s enterprise is a “well-informed sense of assurance that the information risks and controls are in balance.” –Jim Anderson, Inovant (2002) Before we can begin analyzing the details of information security, it is necessary to review the origins of this field and its impact on our understanding of information security today.
- #5 The History Of Information Security The need for computer security, or the need to secure the physical location of hardware from outside threats, began almost immediately after the first mainframes were developed. Groups developing code-breaking computations during World War II created the first modern computers . Badges, keys, and facial recognition of authorized personnel controlled access to sensitive military locations. In contrast, information security during these early years was rudimentary and mainly composed of simple document classification schemes. There were no application classification projects for computers or operating systems at this time, because the primary threats to security were physical theft of equipment, espionage against the products of the systems, and sabotage.
- #6 The 1960s During the 1960s, the Department of Defense’s Advanced Research Procurement Agency (ARPA) began examining the feasibility of a redundant networked communications system designed to support the military’s need to exchange information. Larry Roberts, known as the Founder of the Internet, developed the project from its inception.
- #7 The 1970s and 80s During the next decade, the ARPANET grew in popularity and use, and so did its potential for misuse. In December of 1973, Robert M. Metcalfe, indicated that there were fundamental problems with ARPANET security. Individual remote users’ sites did not have sufficient controls and safeguards to protect data against unauthorized remote users. There were no safety procedures for dial-up connections to the ARPANET. User identification and authorization to the system were non-existent. Phone numbers were widely distributed and openly publicized on the walls of rest rooms and phone booths, giving hackers easy access to ARPANET. Much of the focus for research on computer security centered on a system called MULTICS (Multiplexed Information and Computing Service). In mid-1969, not long after the restructuring of the MULTICS project, several of the key players created a new operating system called UNIX. While the MULTICS system had planned security with multiple security levels, and passwords, the UNIX system did not. In the late 1970s the microprocessor brought in a new age of computing capabilities and security threats as these microprocessors were networked.
- #8 The Paper that Started the Study of Computer Security It began with Rand Report R-609, sponsored by the Department of Defense, which attempted to define multiple controls and mechanisms necessary for the protection of a multi-level computer system. The scope of computer security grew from physical security to include: Safety of the data itself Limiting of random and unauthorized access to that data Involvement of personnel from multiple levels of the organization At this stage, the concept of computer security evolved into the more sophisticated system we call information security.
- #9 The 1990s At the close of the 20th century, as networks of computers became more common, so too did the need to connect the networks to each other. This gave rise to the Internet, the first manifestation of a global network of networks. There has been a price for the phenomenal growth of the Internet, however. When security was considered at all, early Internet deployment treated it as a low priority. As the requirement for networked computers became the dominant style of computing, the ability to physically secure that physical computer was lost, and the stored information became more exposed to security threats.
- #10 The Present Today, the Internet has brought millions of unsecured computer networks into communication with each other. Our ability to secure each computer’s stored information is now influenced by the security on each computer to which it is connected.
- #11 What Is Security? In general, security is “the quality or state of being secure--to be free from danger.” It means to be protected from adversaries--from those who would do harm, intentionally or otherwise. What Is Security? A successful organization should have the following multiple layers of security in place for the protection of its operations: Physical security - to protect the physical items, objects, or areas of an organization from unauthorized access and misuse. Personal security – to protect the individual or group of individuals who are authorized to access the organization and its operations. Operations security – to protect the details of a particular operation or series of activities. Communications security – to protect an organization’s communications media, technology, and content. Network security – to protect networking components, connections, and contents.
- #12 What Is Information Security? Information security, therefore, is the protection of information and its critical elements, including the systems and hardware that use, store, and transmit that information. But to protect the information and its related systems from danger, tools, such as policy, awareness, training, education, and technology are necessary. The C.I.A. triangle has been considered the industry standard for computer security since the development of the mainframe. It was solely based on three characteristics that described the utility of information: confidentiality, integrity, and availability. The C.I.A. triangle has expanded into a list of critical characteristics of information.
- #14 Critical Characteristics Of Information The value of information comes from the characteristics it possesses. Availability - enables users who need to access information to do so without interference or obstruction and in the required format. The information is said to be available to an authorized user when and where needed and in the correct format. Accuracy- free from mistake or error and having the value that the end-user expects. If information contains a value different from the user’s expectations due to the intentional or unintentional modification of its content, it is no longer accurate. Authenticity - the quality or state of being genuine or original, rather than a reproduction or fabrication. Information is authentic when it is the information that was originally created, placed, stored, or transferred. Confidentiality - the quality or state of preventing disclosure or exposure to unauthorized individuals or systems. Integrity - the quality or state of being whole, complete, and uncorrupted. The integrity of information is threatened when the information is exposed to corruption, damage, destruction, or other disruption of its authentic state. Utility - the quality or state of having value for some purpose or end. Information has value when it serves a particular purpose. This means that if information is available, but not in a format meaningful to the end-user, it is not useful. Possession - the quality or state of having ownership or control of some object or item. Information is said to be in possession if one obtains it, independent of format or other characteristic. While a breach of confidentiality always results in a breach of possession, a breach of possession does not always result in a breach of confidentiality.
- #15 This graphic informs the fundamental approach of the chapter and can be used to illustrate the intersection of information states (x-axis), key objectives of C.I.A. (y-axis) and the three primary means to implement (policy, education and technology).
- #16 Components Of An Information System To fully understand the importance of information security, it is necessary to briefly review the elements of an information system. An Information System (IS) is much more than computer hardware; it is the entire set of software, hardware, data, people, and procedures necessary to use information as a resource in the organization.
- #17 Securing The Components When considering the security of information systems components, it is important to understand the concept of the computer as the subject of an attack as opposed to the computer as the object of an attack. When a computer is the subject of an attack, it is used as an active tool to conduct the attack. When a computer is the object of an attack, it is the entity being attacked.
- #18 It is important to note that the same computer can be both the subject and object of an attack, especially in multi-user systems.
- #19 Security And Access Balancing When considering information security, it is important to realize that it is impossible to obtain perfect security. Security is not an absolute; it is a process not a goal. Security should be considered a balance between protection and availability. To achieve balance the level of security must allow reasonable access, yet protect against threats.
- #20 This graphic intends to show that tradeoffs between security and access.
- #21 Bottom Up Approach To Security Implementation Security can begin as a grass-roots effort when systems administrators attempt to improve the security of their systems. This is referred to as the bottom-up approach. The key advantage of the bottom-up approach is the technical expertise of the individual administrators. Unfortunately, this approach seldom works, as it lacks a number of critical features, such as participant support and organizational staying power.
- #22 Key concept here is the direction of the left and right side arrows to show where planning is sourced and from which direction the pressure for success if driven.
- #23 Top-down Approach to Security Implementation An alternative approach, which has a higher probability of success, is called the top-down approach. The project is initiated by upper management who issue policy, procedures and processes, dictate the goals and expected outcomes of the project, and determine who is accountable for each of the required actions. The top-down approach has strong upper management support, a dedicated champion, dedicated funding, clear planning and the opportunity to influence organizational culture. The most successful top-down approach also involves a formal development strategy referred to as a systems development life cycle.
- #24 The Systems Development Life Cycle Information security must be managed in a manner similar to any other major system implemented in the organization. The best approach for implementing an information security system in an organization with little or no formal security in place, is to use a variation of the Systems Development Life Cycle (SDLC): the Security Systems Development Life Cycle (SecSDLC). Methodology The SDLC is a methodology for the design and implementation of an information system in an organization. A methodology is a formal approach to solving a problem based on a structured sequence of procedures. Using a methodology ensures a rigorous process, and avoids missing those steps that can lead to compromising the end goal. The goal is creating a comprehensive security posture.

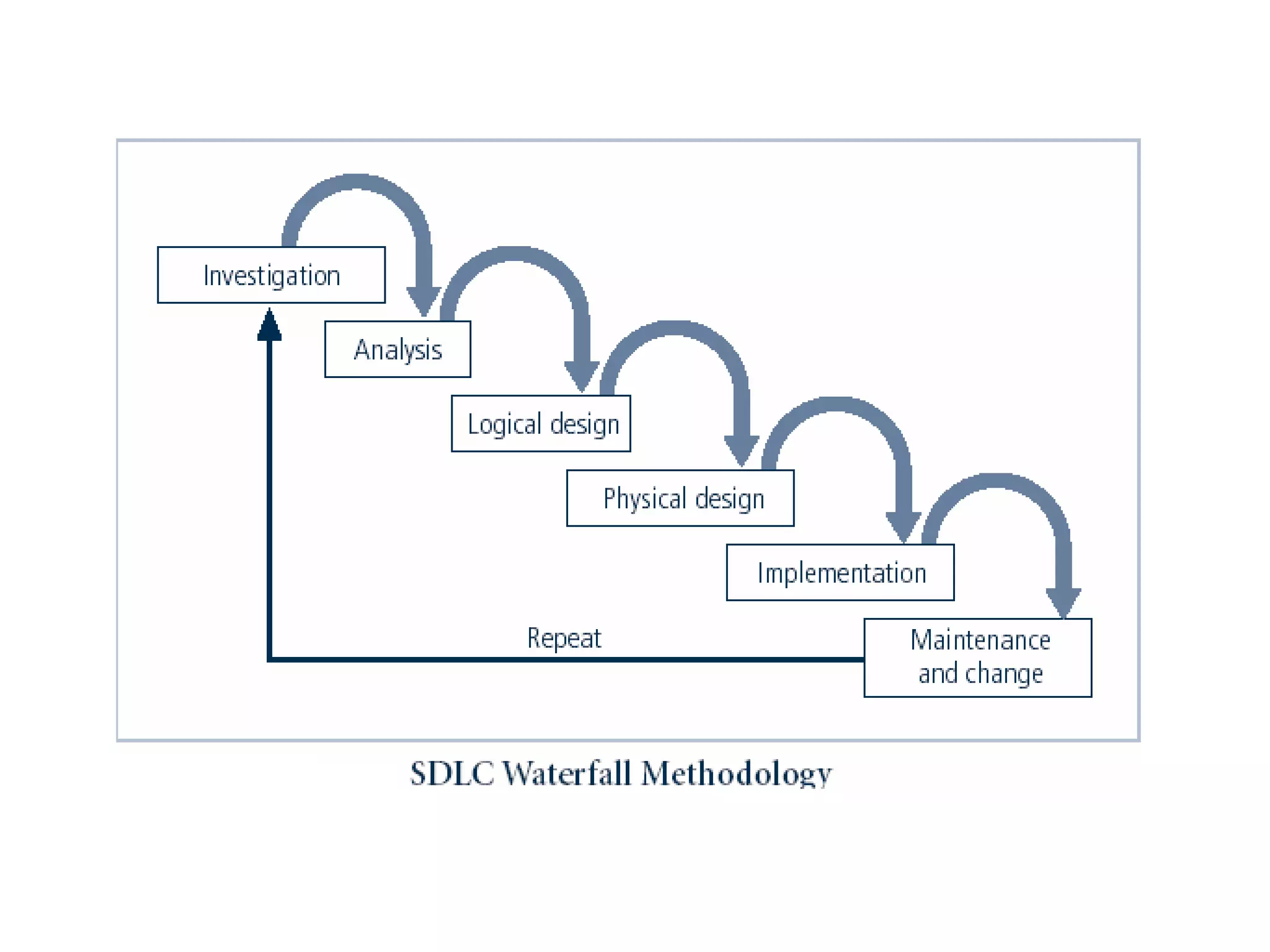

- #25 Very much a traditional SDLC diagram.
- #26 Investigation The first phase, investigation, is the most important. What is the problem the system is being developed to solve? This phase begins with an examination of the event or plan that initiates the process. The objectives, constraints and scope of the project are specified. A preliminary cost/benefit analysis is developed to evaluate the perceived benefits and the appropriate levels of cost an organization is willing to expend to obtain those benefits. A feasibility analysis is performed to assesses the economic, technical, and behavioral feasibilities of the process and to ensure that implementation is worth the organization’s time and effort.
- #27 Analysis The analysis phase begins with the information learned during the investigation phase. This phase consists primarily of assessments of the organization, the status of current systems, and the capability to support the proposed systems. Analysts begin to determine what the new system is expected to do, and how it will interact with existing systems. This phase ends with the documentation of the findings and a feasibility analysis update.
- #28 Logical Design In the logical design phase, the information gained from the analysis phase is used to begin creating a solution system for a business problem. Then, based on the business need, select applications capable of providing needed services. Based on the applications needed, select data support and structures capable of providing the needed inputs. Finally, based on all of the above, select specific technologies to implement the physical solution. In the end, another feasibility analysis is performed.
- #29 Physical Design During the physical design phase, specific technologies are selected to support the alternatives identified and evaluated in the logical design. The selected components are evaluated based on a make-or-buy decision (develop in-house or purchase from a vendor). Final designs integrate various components and technologies. After yet another feasibility analysis, the entire solution is presented to the end-user representatives for approval.
- #30 Implementation In the implementation phase, any needed software is created or purchased Components are ordered, received and tested. Afterwards, users are trained and supporting documentation created. Again a feasibility analysis is prepared, and the users are then presented with the system for a performance review and acceptance test.
- #31 Maintenance and Change The maintenance and change phase is the longest and most expensive phase of the process. This phase consists of the tasks necessary to support and modify the system for the remainder of its useful life cycle. Even though formal development may conclude during this phase, the life cycle of the project continues until it is determined that the process should begin again from the investigation phase. When the current system can no longer support the changed mission of the organization, the project is terminated and a new project is implemented.
- #32 The Security Systems Development Life Cycle The same phases used in the traditional SDLC can be adapted to support the specialized implementation of a security project. The fundamental process is the identification of specific threats and the creation of specific controls to counter those threats. The SecSDLC unifies the process and makes it a coherent program rather than a series of random, seemingly unconnected actions.
- #33 Investigation The investigation of the SecSDLC begins with a directive from upper management, dictating the process, outcomes and goals of the project, as well as the constraints placed on the activity. Frequently, this phase begins with a statement of program security policy that outlines the implementation of security. Teams of responsible managers, employees and contractors are organized, problems analyzed, and scope defined, including goals objectives, and constraints not covered in the program policy. Finally, an organizational feasibility analysis is performed to determine whether the organization has the resources and commitment necessary to conduct a successful security analysis and design.
- #34 Analysis In the analysis phase, the documents from the investigation phase are studied. The development team conducts a preliminary analysis of existing security policies or programs, along with documented current threats and associated controls. This phase also includes an analysis of relevant legal issues that could impact the design of the security solution. The risk management task - identifying, assessing and evaluating the levels of risk facing the organization, also begins in this stage.
- #35 Logical Design The logical design phase creates and develops the blueprints for security, and examines and implements key policies that influence later decisions. Also at this stage, critical planning is developed for incident response actions to be taken in the event of partial or catastrophic loss. Next, a feasibility analysis determines whether or not the project should continue or should be outsourced. Physical Design In the physical design phase, the security technology needed to support the blueprint outlined in the logical design is evaluated, alternative solutions generated, and a final design agreed upon. The security blueprint may be revisited to keep it synchronized with the changes needed when the physical design is completed. Criteria needed to determine the definition of successful solutions is also prepared during this phase. Included at this time are the designs for physical security measures to support the proposed technological solutions. At the end of this phase, a feasibility study should determine the readiness of the organization for the proposed project, and then the champion and users are presented with the design. At this time, all parties involved have a chance to approve the project before implementation begins.
- #37 Implementation The implementation phase is similar to the traditional SDLC. The security solutions are acquired (made or bought), tested, and implemented, and tested again. Personnel issues are evaluated and specific training and education programs conducted. Finally, the entire tested package is presented to upper management for final approval.
- #38 Maintenance and Change The maintenance and change phase, though last, is perhaps most important, given the high level of ingenuity in today’s threats. The reparation and restoration of information is a constant duel with an often-unseen adversary. As new threats emerge and old threats evolve, the information security profile of an organization requires constant adaptation to prevent threats from successfully penetrating sensitive data
- #39 Security Professionals And The Organization It takes a wide range of professionals to support a diverse information security program. To develop and execute specific security policies and procedures, additional administrative support and technical expertise is required
- #40 Senior Management Chief Information Officer - the senior technology officer, although other titles such as Vice President of Information, VP of Information Technology, and VP of Systems may be used. The CIO is primarily responsible for advising the Chief Executive Officer, President or company owner on the strategic planning that affects the management of information in the organization. Chief Information Security Officer - the individual primarily responsible for the assessment, management, and implementation of securing the information in the organization. The CISO may also be referred to as the Manager for Security, the Security Administrator, or a similar title.
- #41 Security Project Team A number of individuals who are experienced in one or multiple requirements of both the technical and non-technical areas. The champion: a senior executive who promotes the project and ensures its support, both financially and administratively, at the highest levels of the organization. The team leader: a project manager, who may be a departmental line manager or staff unit manager, who understands project management, personnel management, and information security technical requirements. Security policy developers: individuals who understand the organizational culture, policies, and requirements for developing and implementing successful policies. Risk assessment specialists: individuals who understand financial risk assessment techniques, the value of organizational assets, and the security methods to be used. Security professionals: dedicated, trained, and well-educated specialists in all aspects of information security from both technical and non-technical standpoints. Systems administrators: individuals with the primary responsibility for administering the systems that house the information used by the organization. End users: those the new system will most directly impact. Ideally, a selection of users from various departments, levels, and degrees of technical knowledge assist the team in focusing on the application of realistic controls applied in ways that do not disrupt the essential business activities they seek to safeguard.
- #42 Data Ownership Now that you understand the responsibilities of both senior management and the security project team, we can define the roles of those who own and safeguard the data. Data Owner - responsible for the security and use of a particular set of information. Data owners usually determine the level of data classification associated with the data, as well as changes to that classification required by organization change. Data Custodian - responsible for the storage, maintenance, and protection of the information. The duties of a data custodian often include overseeing data storage and backups, implementing the specific procedures and policies laid out in the security policies and plans, and reporting to the data owner. Data Users - the end systems users who work with the information to perform their daily jobs supporting the mission of the organization. Everyone in the organization is responsible for the security of data, so data users are included here as individuals with an information security role.
- #43 Communities Of Interest Each organization develops and maintains its own unique culture and values. Within that corporate culture, there are communities of interest. These include: Information Security Management and Professionals Information Technology Management and Professionals Organizational Management and Professionals
- #44 Key Terms Access - a subject or object’s ability to use, manipulate, modify, or affect another subject or object. Asset - the organizational resource that is being protected. Attack - an act that is an intentional or unintentional attempt to cause damage or compromise to the information and/or the systems that support it. Control, Safeguard or Countermeasure - security mechanisms, policies or procedures that can successfully counter attacks, reduce risk, resolve vulnerabilities, and otherwise improve the security within an organization. Exploit – to take advantage of weaknesses or vulnerability in a system. Exposure - a single instance of being open to damage. Hack - Good: to use computers or systems for enjoyment; Bad: to illegally gain access to a computer or system. Object - a passive entity in the information system that receives or contains information. Risk - the probability that something can happen. Security Blueprint - the plan for the implementation of new security measures in the organization. Security Model - a collection of specific security rules that represents the implementation of a security policy. Security Posture or Security Profile - a general label for the combination of all policy, procedures, technology, and programs that make up the total security effort currently in place. Subject - an active entity that interacts with an information system and causes information to move through the system for a specific end purpose Threats - a category of objects, persons, or other entities that represents a potential danger to an asset. Threat Agent - a specific instance or component of a more general threat. Vulnerability - weaknesses or faults in a system or protection mechanism that expose information to attack or damage.
