- 1. LECTURE 5: VRAUDIO AND TRACKING COMP 4010 – Virtual Reality Semester 5 – 2016 Bruce Thomas, Mark Billinghurst University of South Australia August 23rd 2016

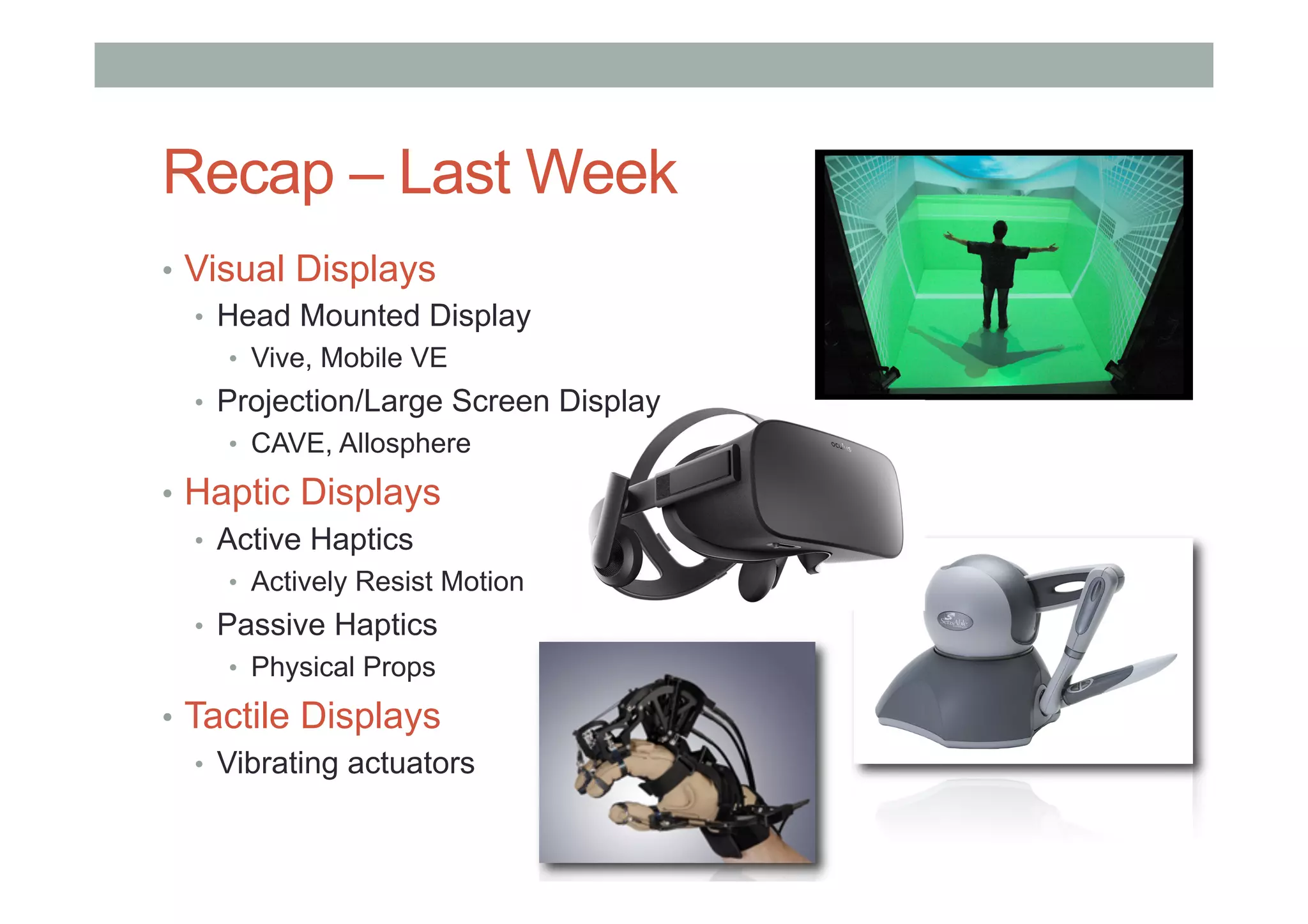

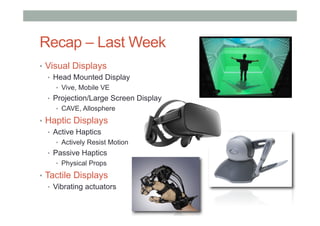

- 2. Recap – LastWeek • Visual Displays • Head Mounted Display • Vive, Mobile VE • Projection/Large Screen Display • CAVE, Allosphere • Haptic Displays • Active Haptics • Actively Resist Motion • Passive Haptics • Physical Props • Tactile Displays • Vibrating actuators
- 3.

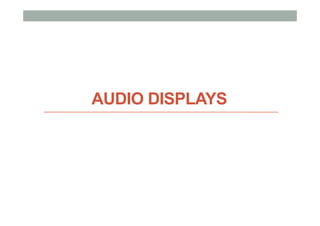

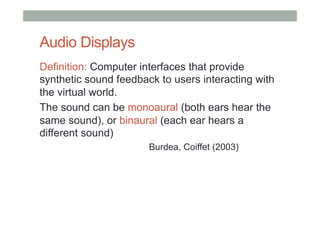

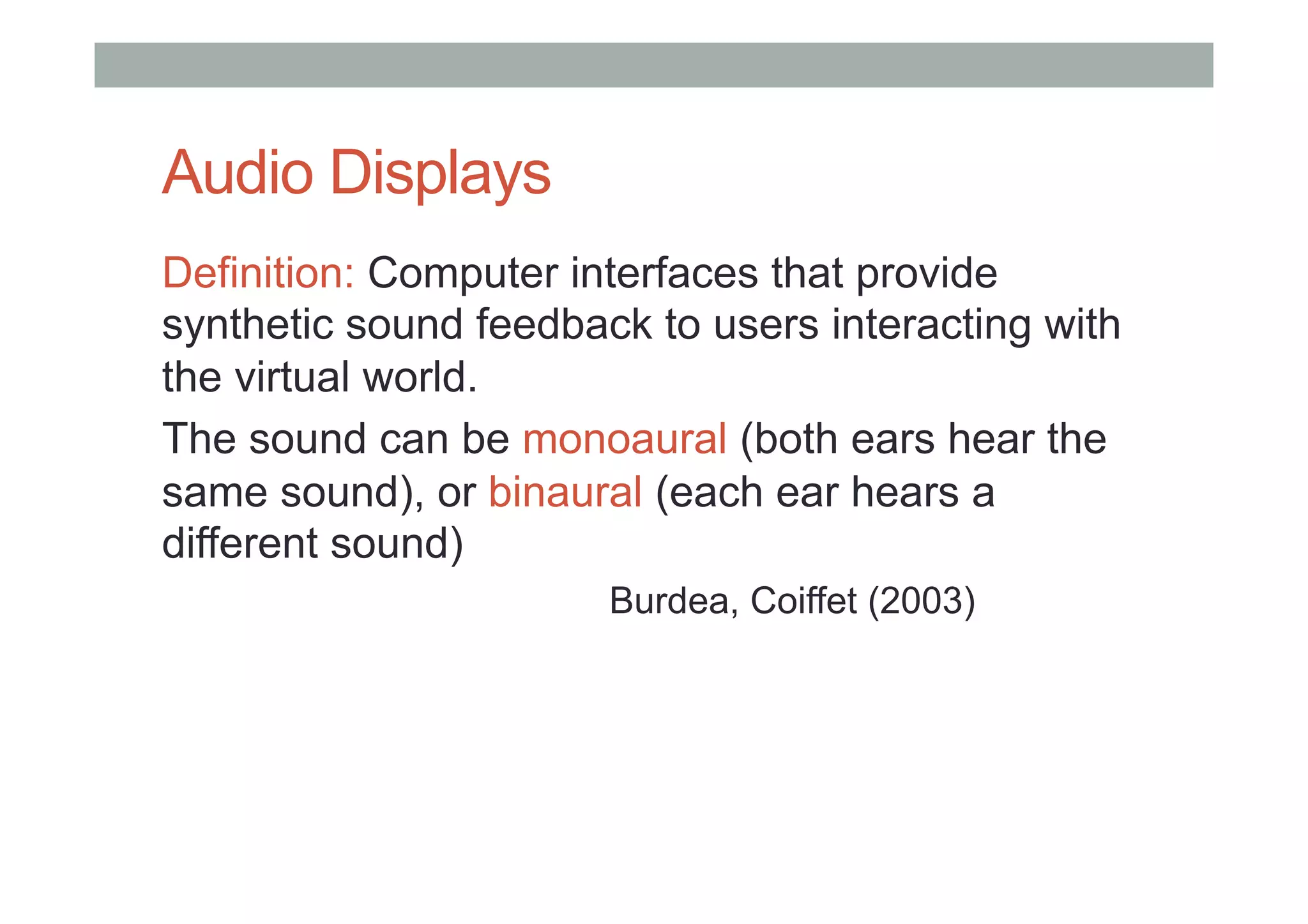

- 4. Audio Displays Definition: Computerinterfaces that provide synthetic sound feedback to users interacting with the virtual world. The sound can be monoaural (both ears hear the same sound), or binaural (each ear hears a different sound) Burdea, Coiffet (2003)

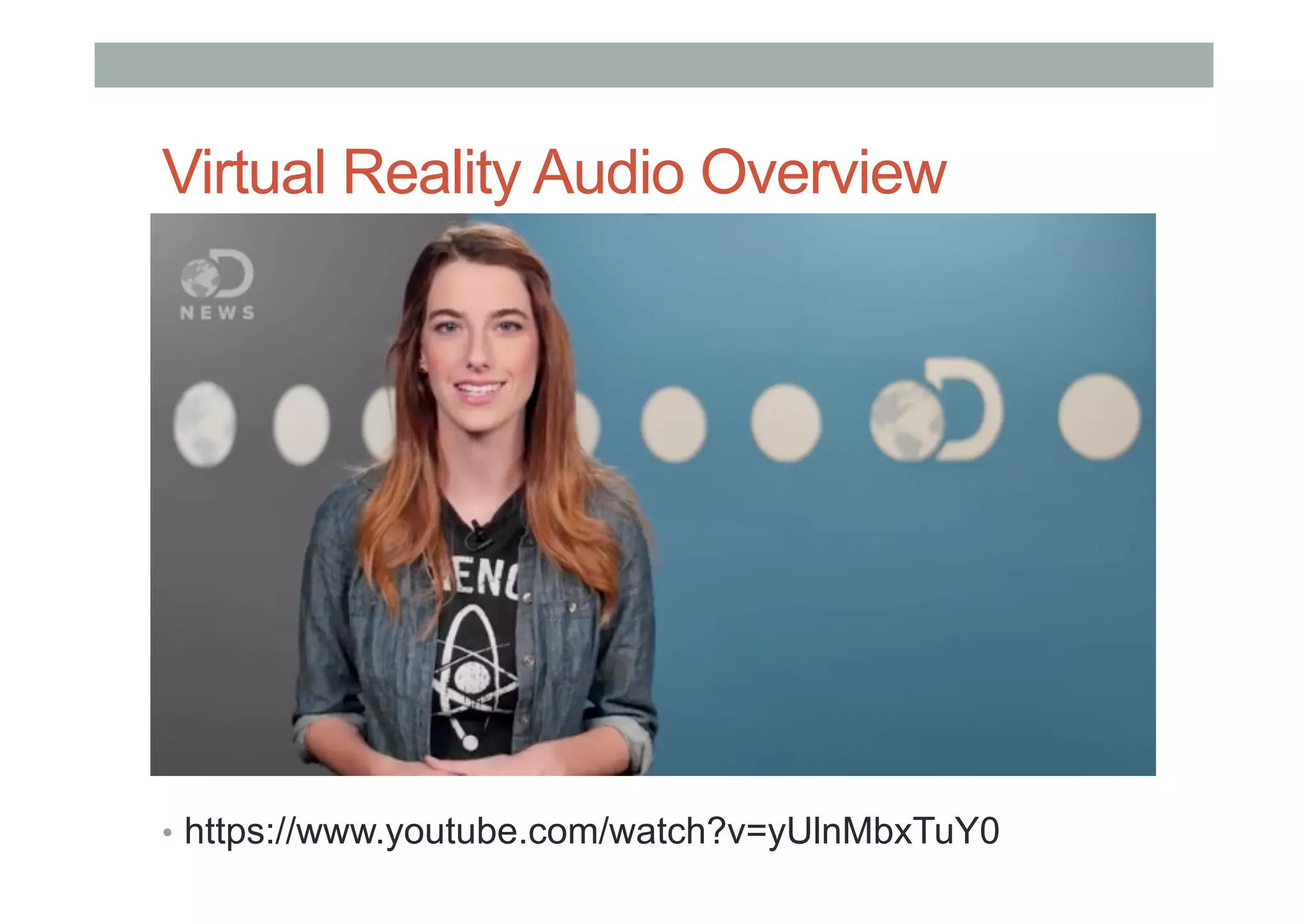

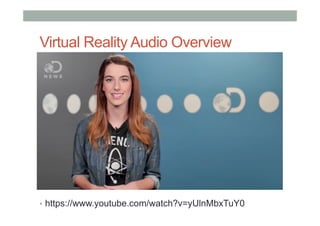

- 5. Virtual Reality AudioOverview • https://www.youtube.com/watch?v=yUlnMbxTuY0

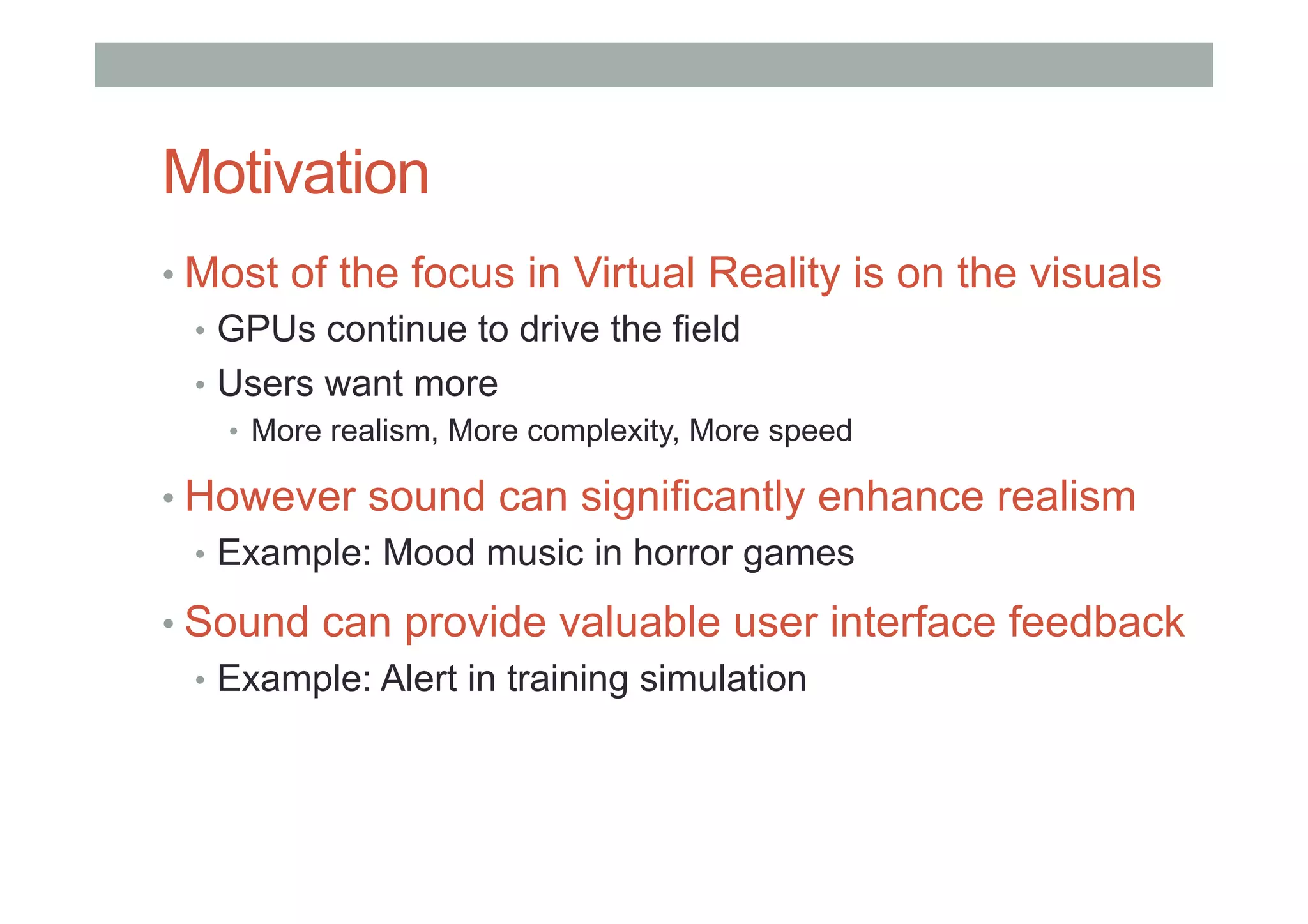

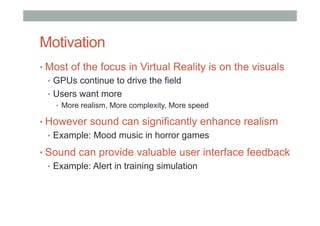

- 6. Motivation • Most of thefocus in Virtual Reality is on the visuals • GPUs continue to drive the field • Users want more • More realism, More complexity, More speed • However sound can significantly enhance realism • Example: Mood music in horror games • Sound can provide valuable user interface feedback • Example: Alert in training simulation

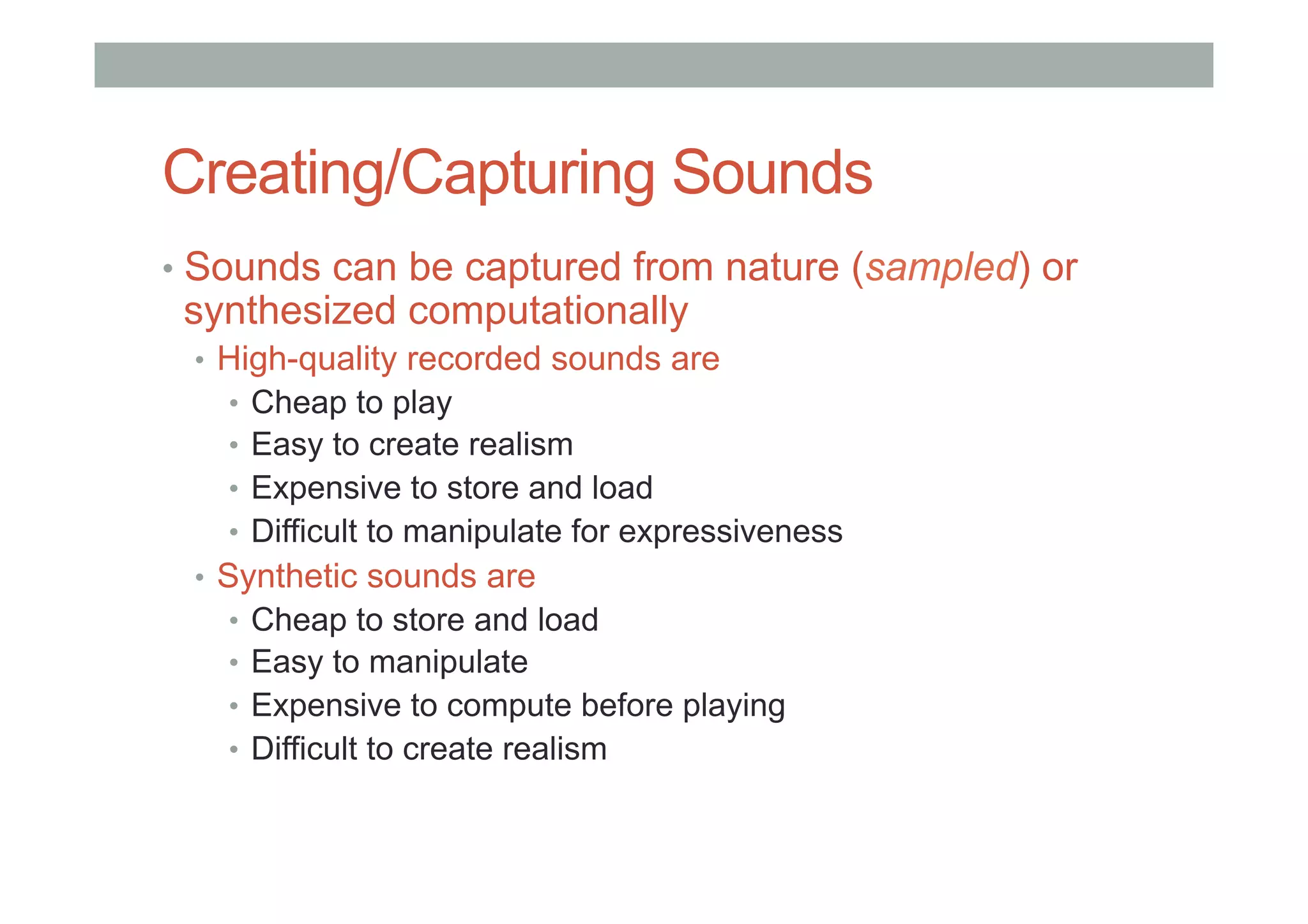

- 7. Creating/Capturing Sounds • Soundscan be captured from nature (sampled) or synthesized computationally • High-quality recorded sounds are • Cheap to play • Easy to create realism • Expensive to store and load • Difficult to manipulate for expressiveness • Synthetic sounds are • Cheap to store and load • Easy to manipulate • Expensive to compute before playing • Difficult to create realism

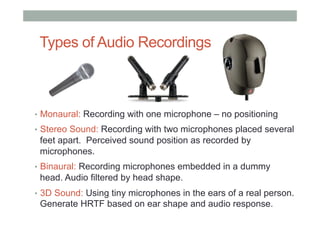

- 8. Types of AudioRecordings • Monaural: Recording with one microphone – no positioning • Stereo Sound: Recording with two microphones placed several feet apart. Perceived sound position as recorded by microphones. • Binaural: Recording microphones embedded in a dummy head. Audio filtered by head shape. • 3D Sound: Using tiny microphones in the ears of a real person. Generate HRTF based on ear shape and audio response.

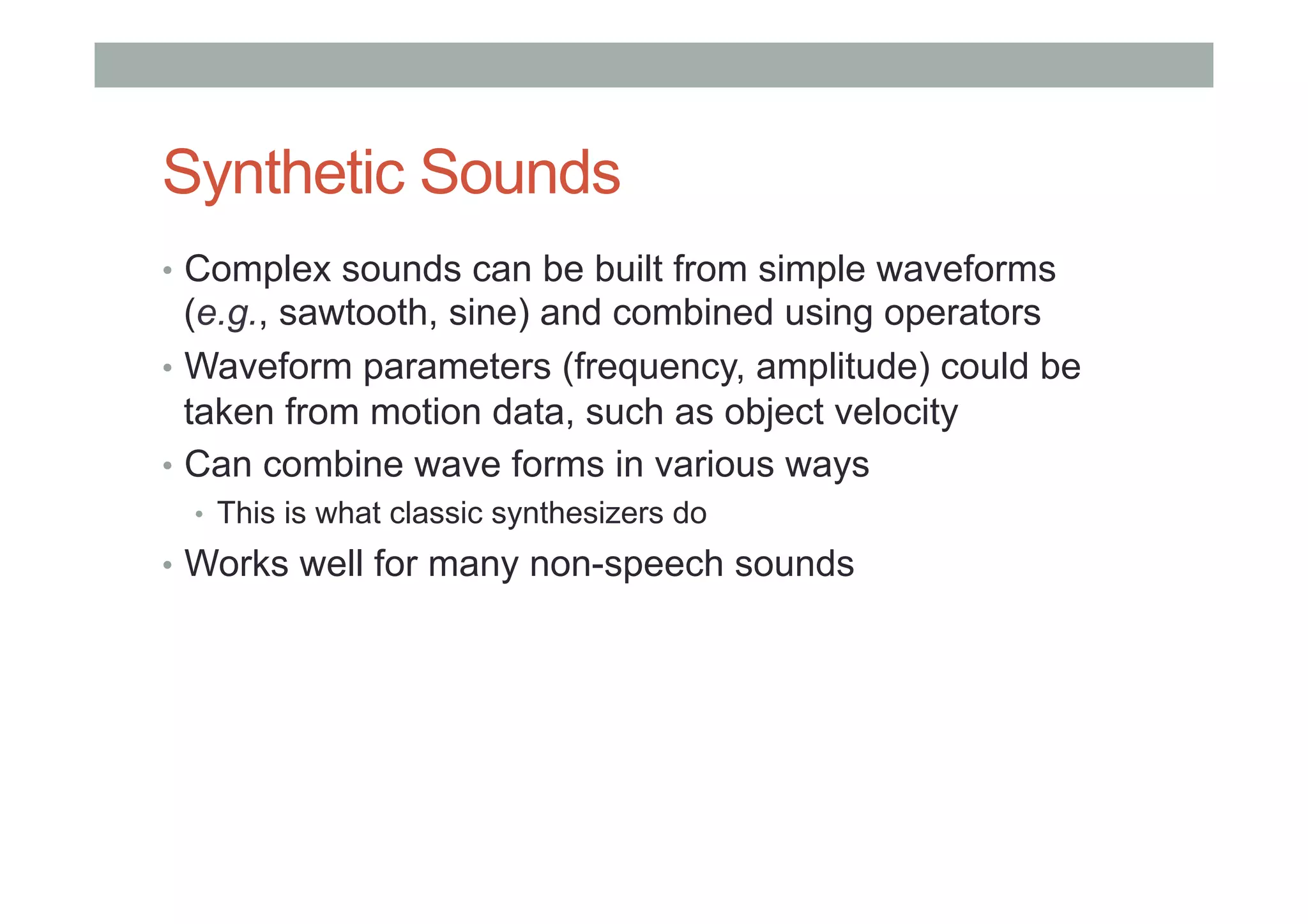

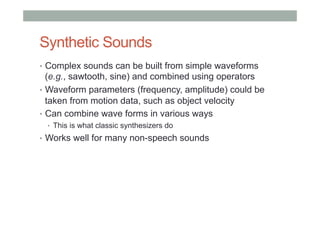

- 9. Synthetic Sounds • Complexsounds can be built from simple waveforms (e.g., sawtooth, sine) and combined using operators • Waveform parameters (frequency, amplitude) could be taken from motion data, such as object velocity • Can combine wave forms in various ways • This is what classic synthesizers do • Works well for many non-speech sounds

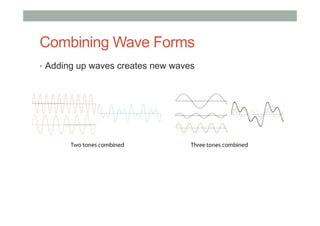

- 10. Combining Wave Forms • Adding up waves creates new waves

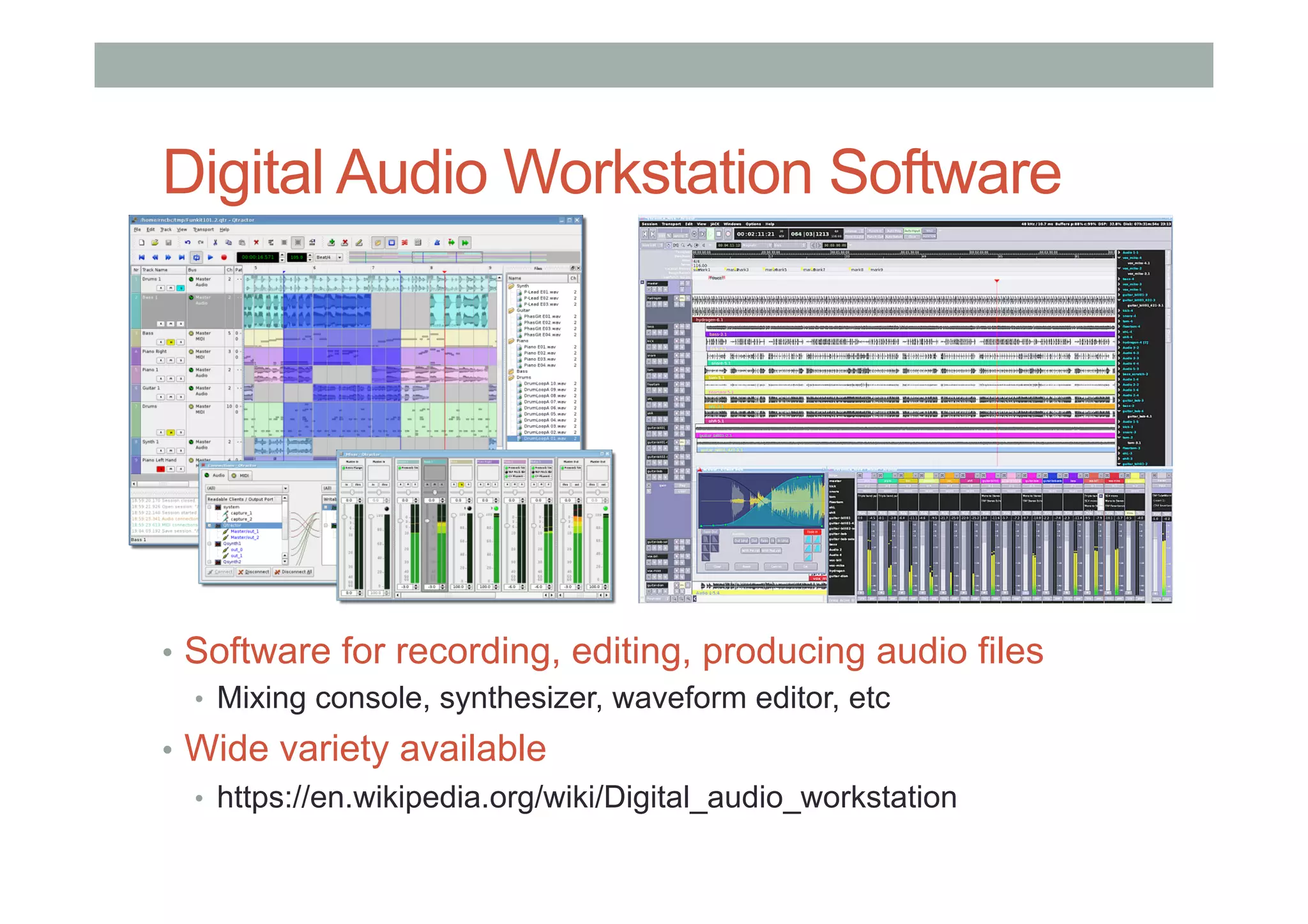

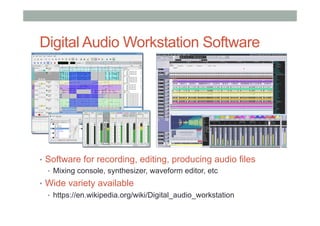

- 11. Digital Audio WorkstationSoftware • Software for recording, editing, producing audio files • Mixing console, synthesizer, waveform editor, etc • Wide variety available • https://en.wikipedia.org/wiki/Digital_audio_workstation

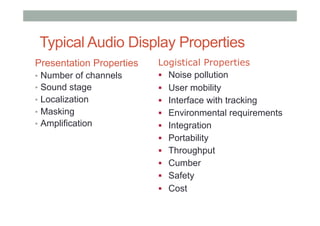

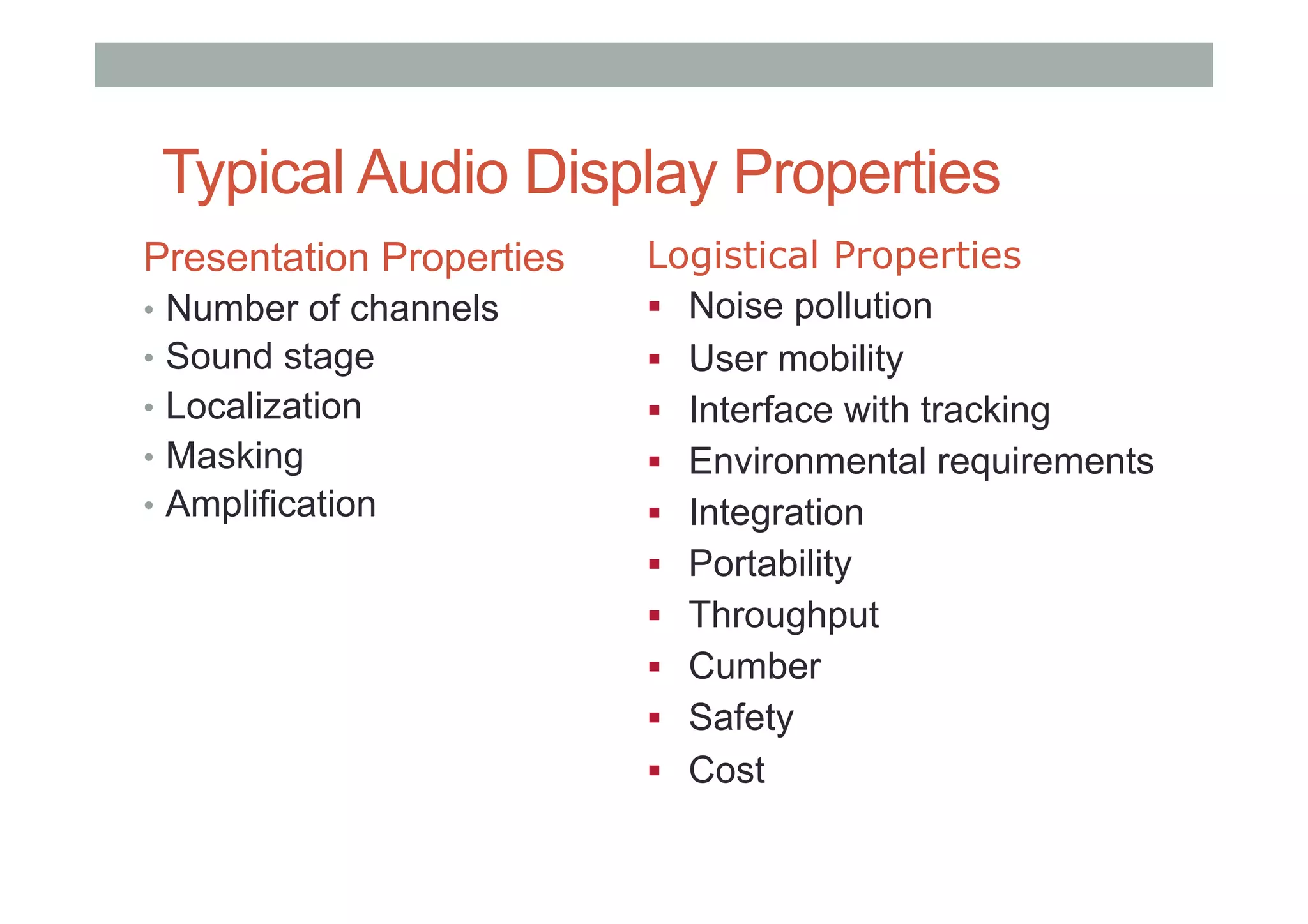

- 12. Typical Audio DisplayProperties Presentation Properties • Number of channels • Sound stage • Localization • Masking • Amplification Logistical Properties ! Noise pollution ! User mobility ! Interface with tracking ! Environmental requirements ! Integration ! Portability ! Throughput ! Cumber ! Safety ! Cost

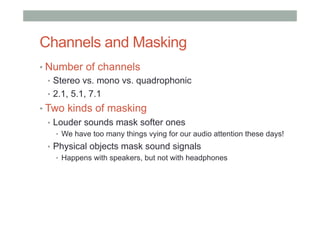

- 13. Channels and Masking • Numberof channels • Stereo vs. mono vs. quadrophonic • 2.1, 5.1, 7.1 • Two kinds of masking • Louder sounds mask softer ones • We have too many things vying for our audio attention these days! • Physical objects mask sound signals • Happens with speakers, but not with headphones

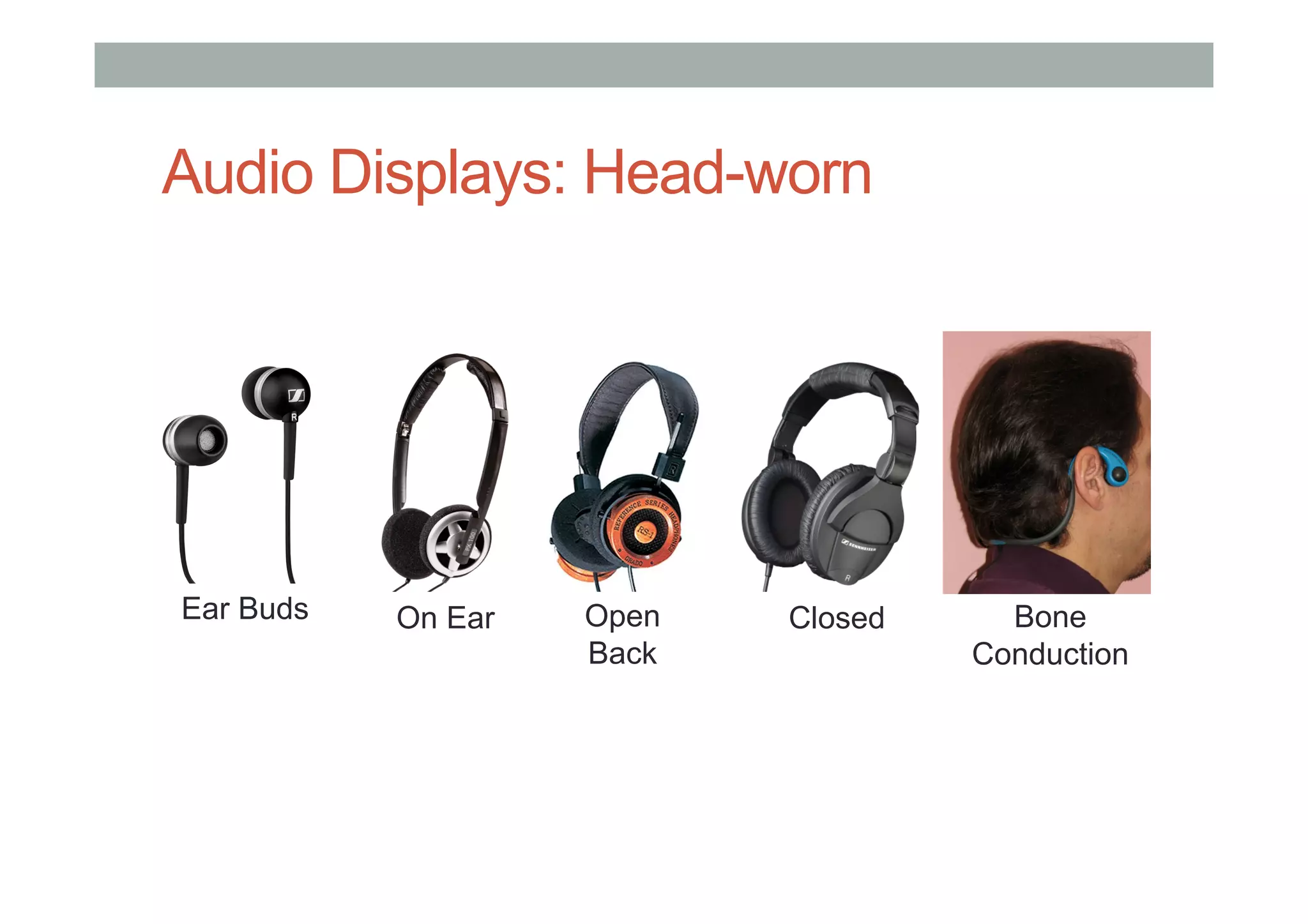

- 14. Audio Displays: Head-worn EarBuds On Ear Open Back Closed Bone Conduction

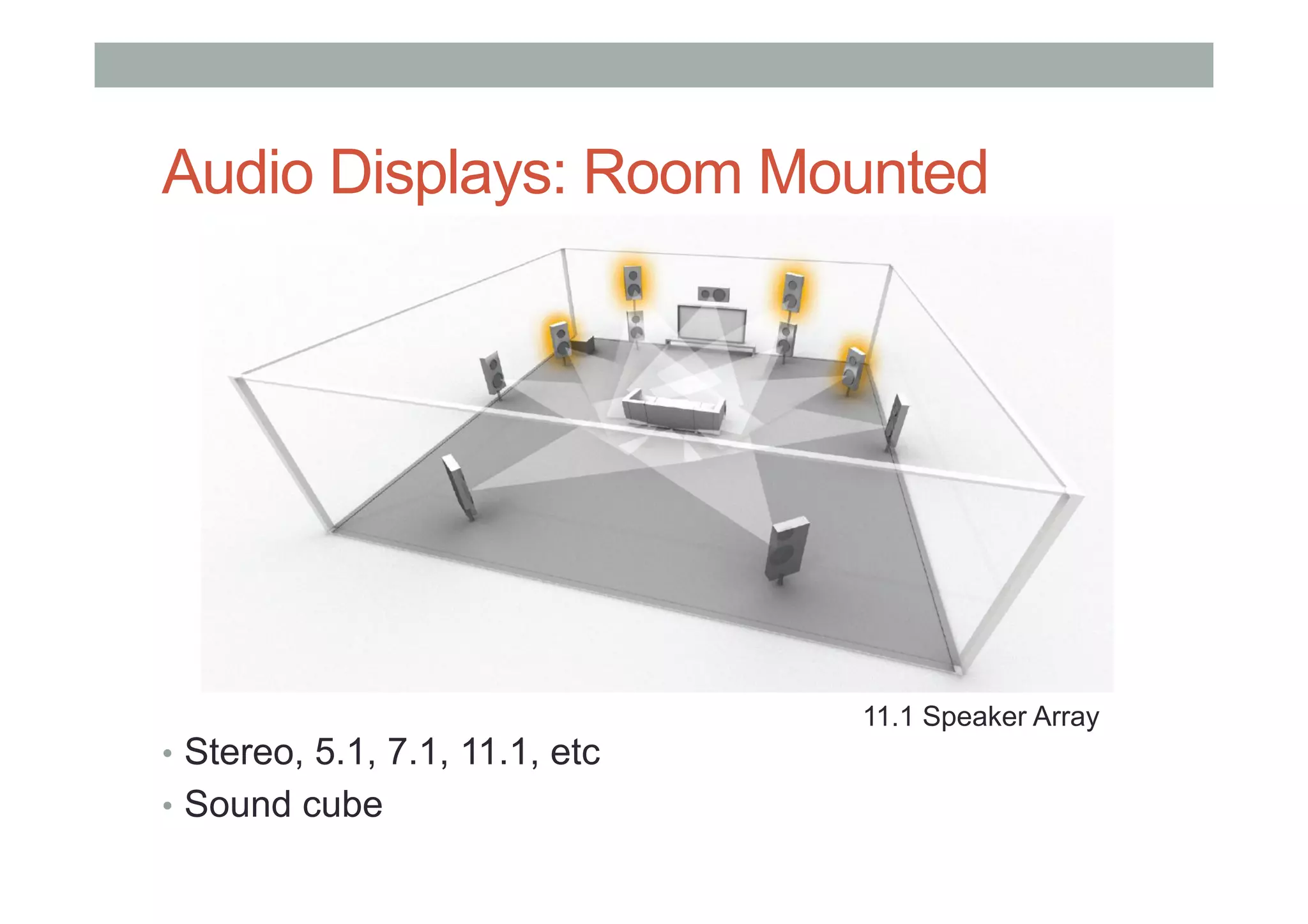

- 15. Audio Displays: RoomMounted • Stereo, 5.1, 7.1, 11.1, etc • Sound cube 11.1 Speaker Array

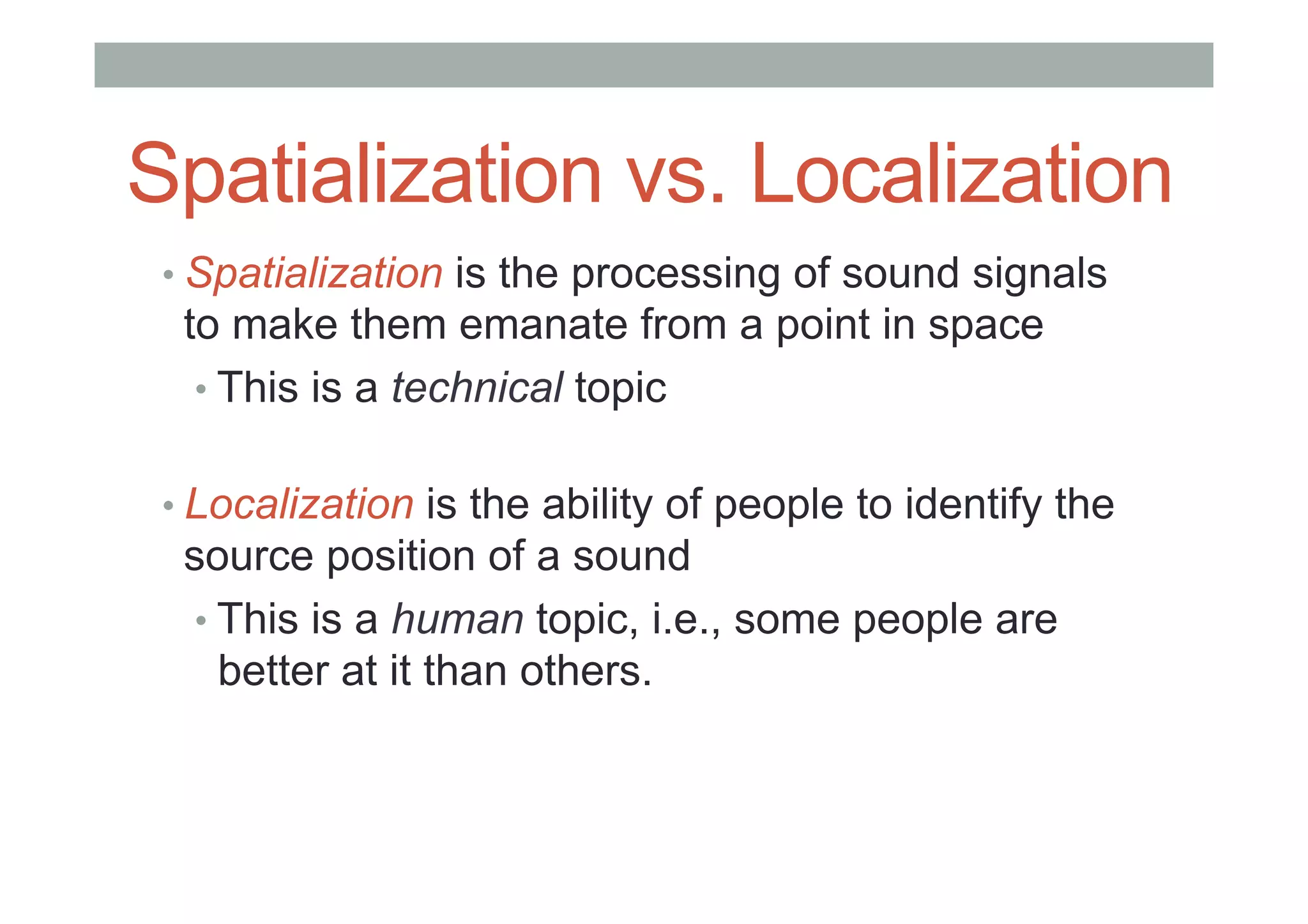

- 16. Spatialization vs. Localization • Spatializationis the processing of sound signals to make them emanate from a point in space • This is a technical topic • Localization is the ability of people to identify the source position of a sound • This is a human topic, i.e., some people are better at it than others.

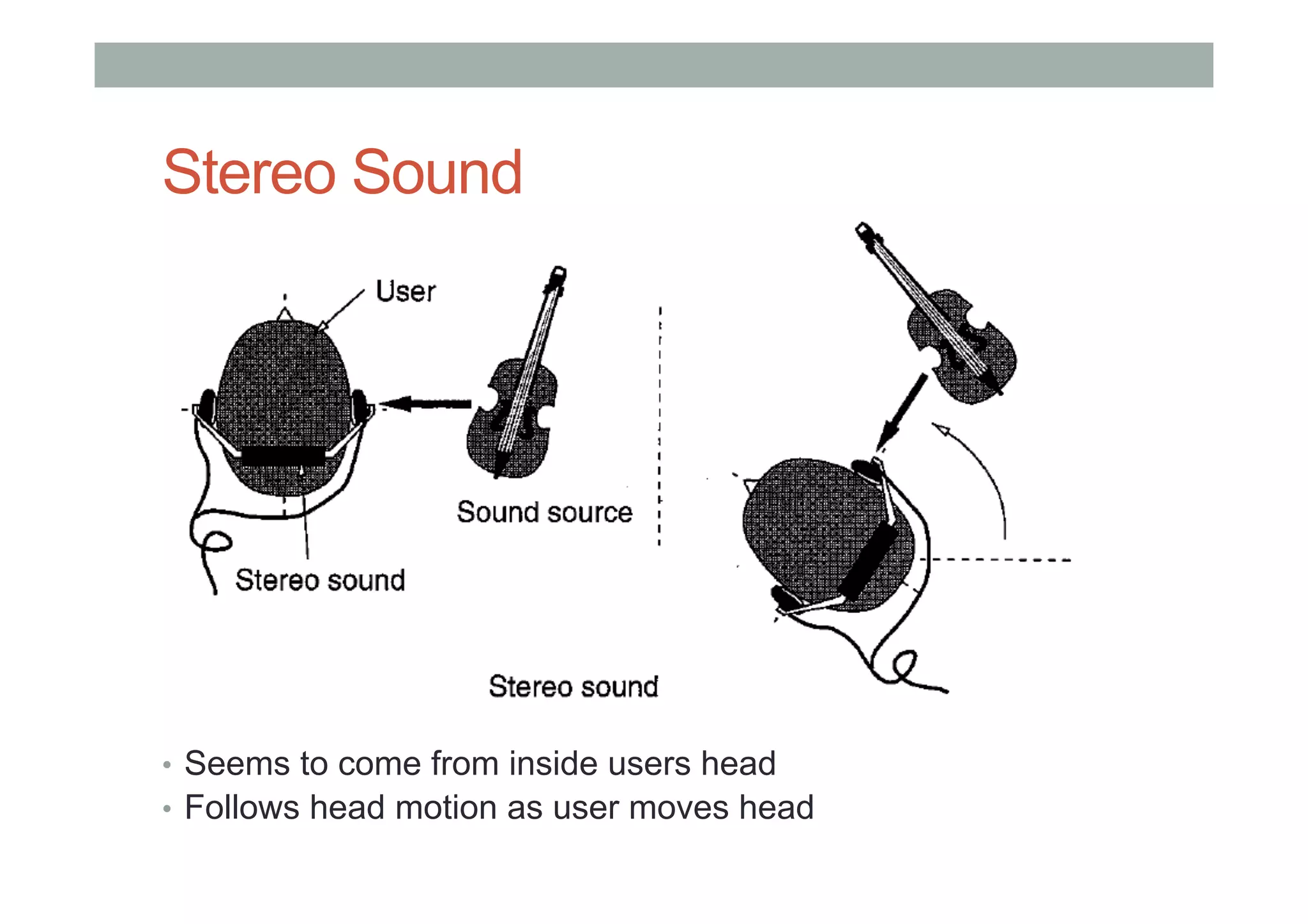

- 17. Stereo Sound • Seemsto come from inside users head • Follows head motion as user moves head

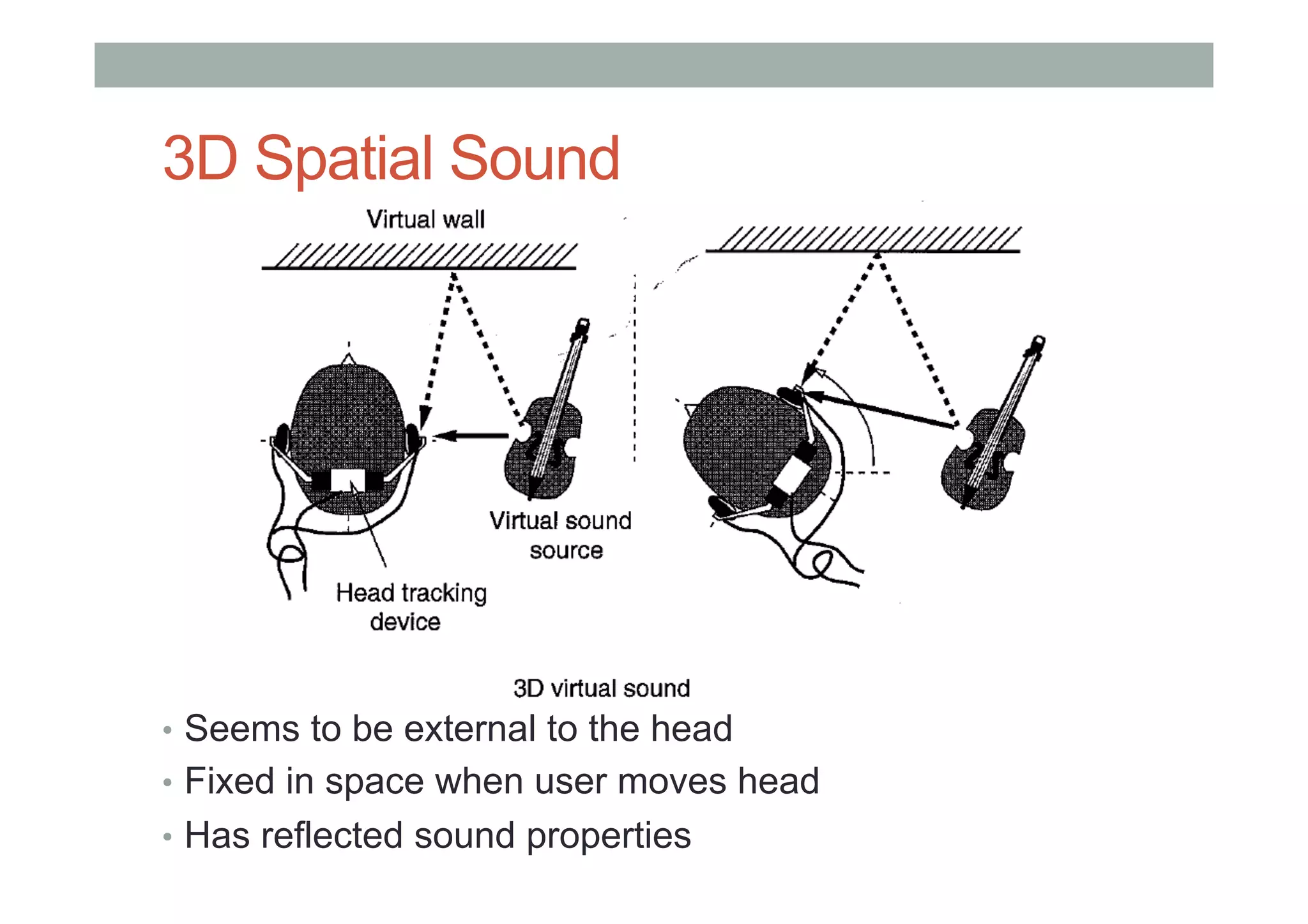

- 18. 3D Spatial Sound • Seems to be external to the head • Fixed in space when user moves head • Has reflected sound properties

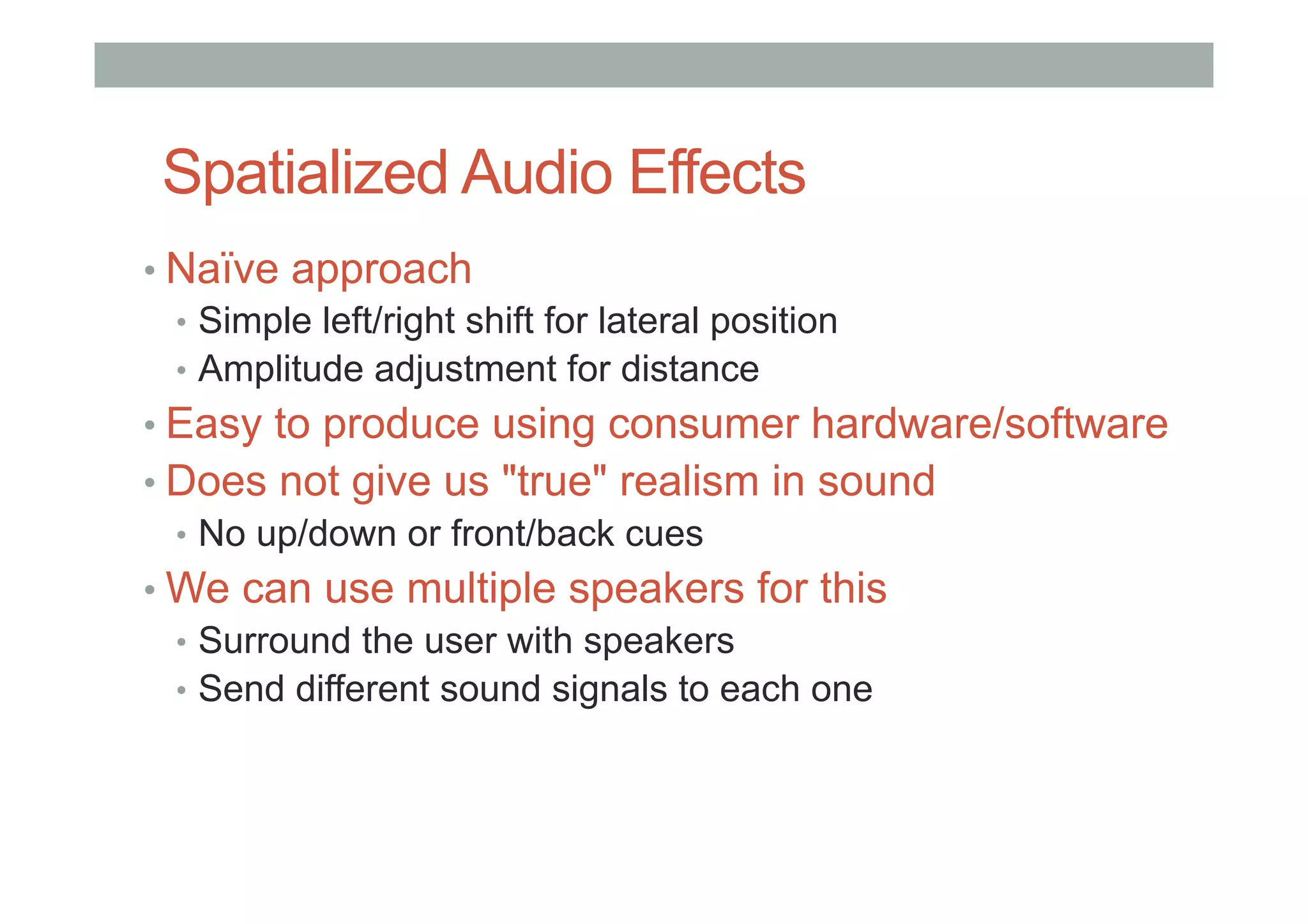

- 19. Spatialized Audio Effects • Naïveapproach • Simple left/right shift for lateral position • Amplitude adjustment for distance • Easy to produce using consumer hardware/software • Does not give us "true" realism in sound • No up/down or front/back cues • We can use multiple speakers for this • Surround the user with speakers • Send different sound signals to each one

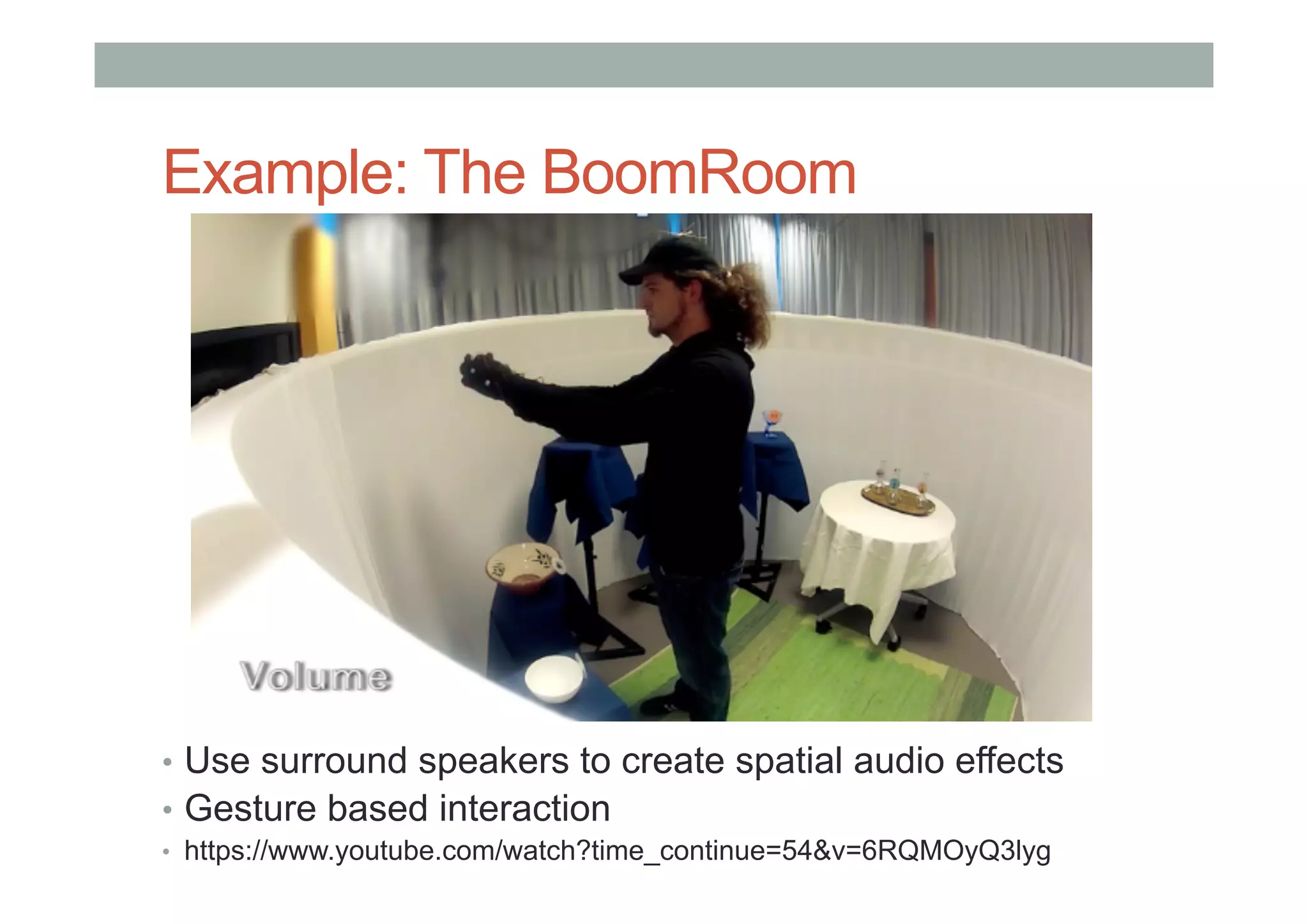

- 20. Example: The BoomRoom • Use surround speakers to create spatial audio effects • Gesture based interaction • https://www.youtube.com/watch?time_continue=54&v=6RQMOyQ3lyg

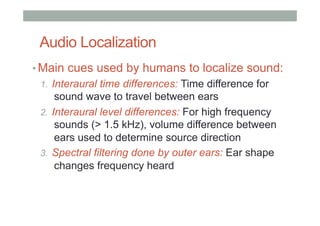

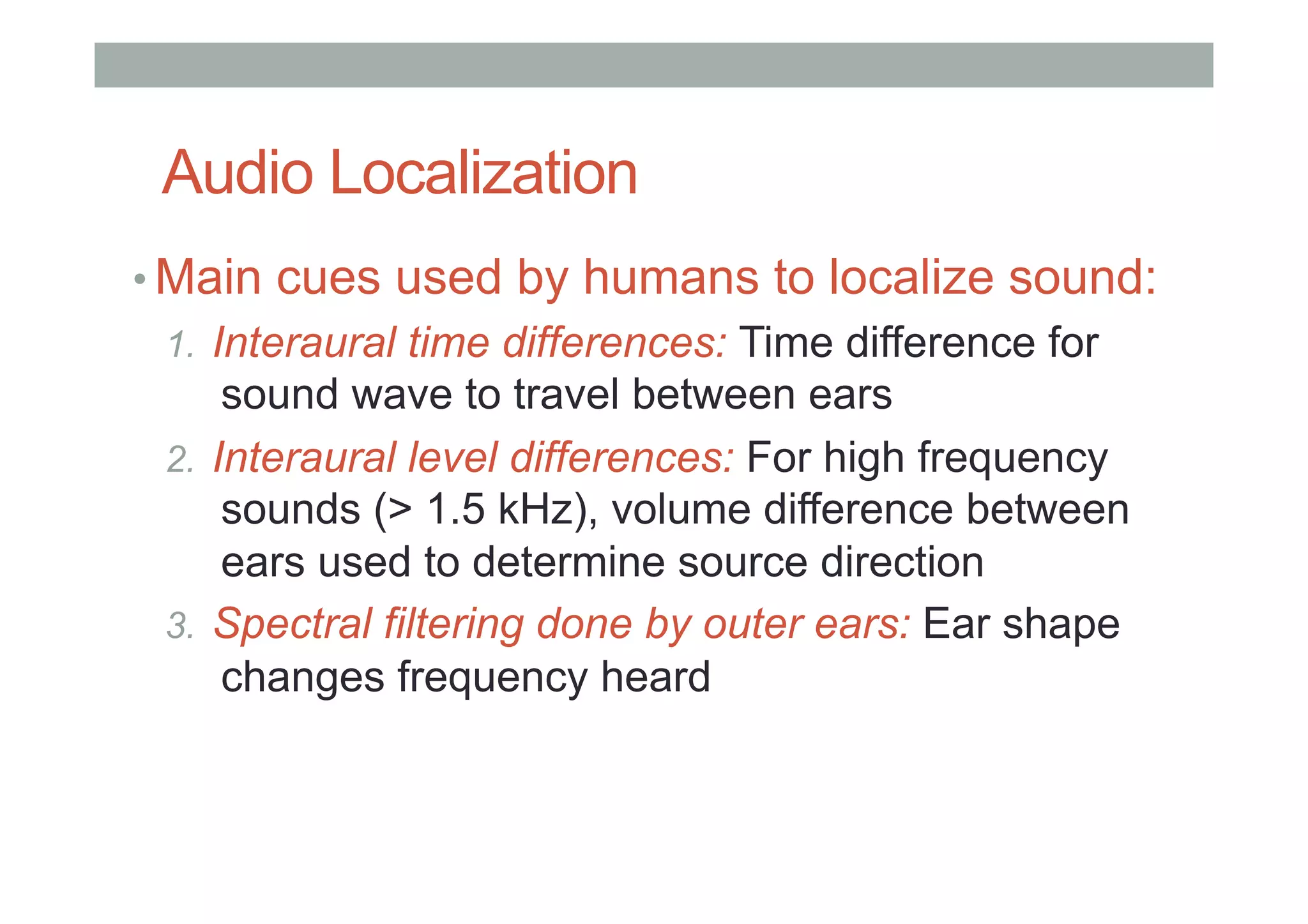

- 21. Audio Localization • Main cuesused by humans to localize sound: 1. Interaural time differences: Time difference for sound wave to travel between ears 2. Interaural level differences: For high frequency sounds (> 1.5 kHz), volume difference between ears used to determine source direction 3. Spectral filtering done by outer ears: Ear shape changes frequency heard

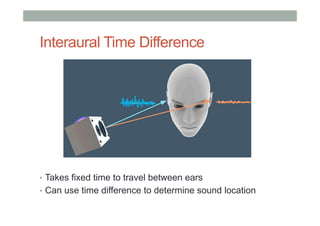

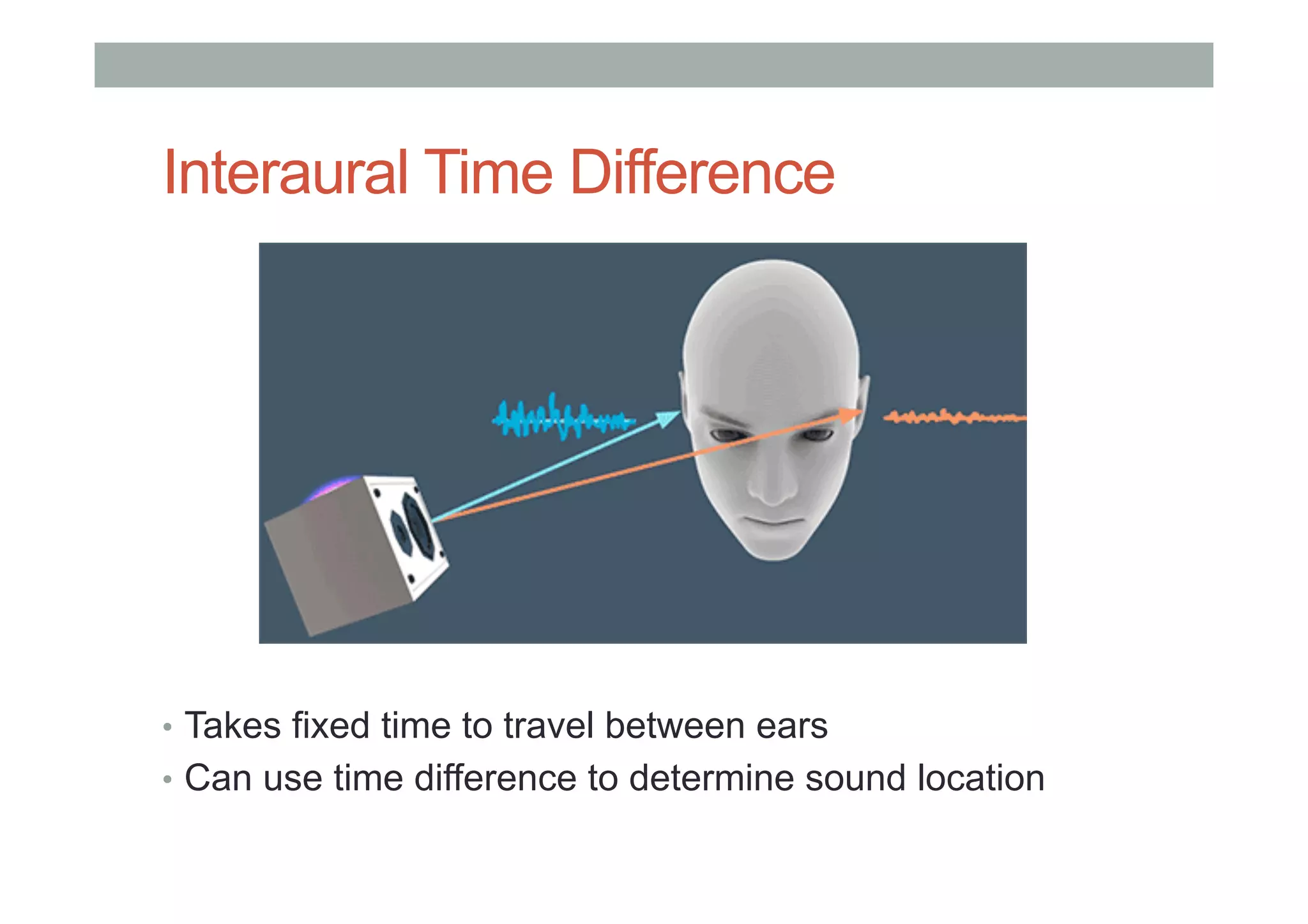

- 22. Interaural Time Difference • Takes fixed time to travel between ears • Can use time difference to determine sound location

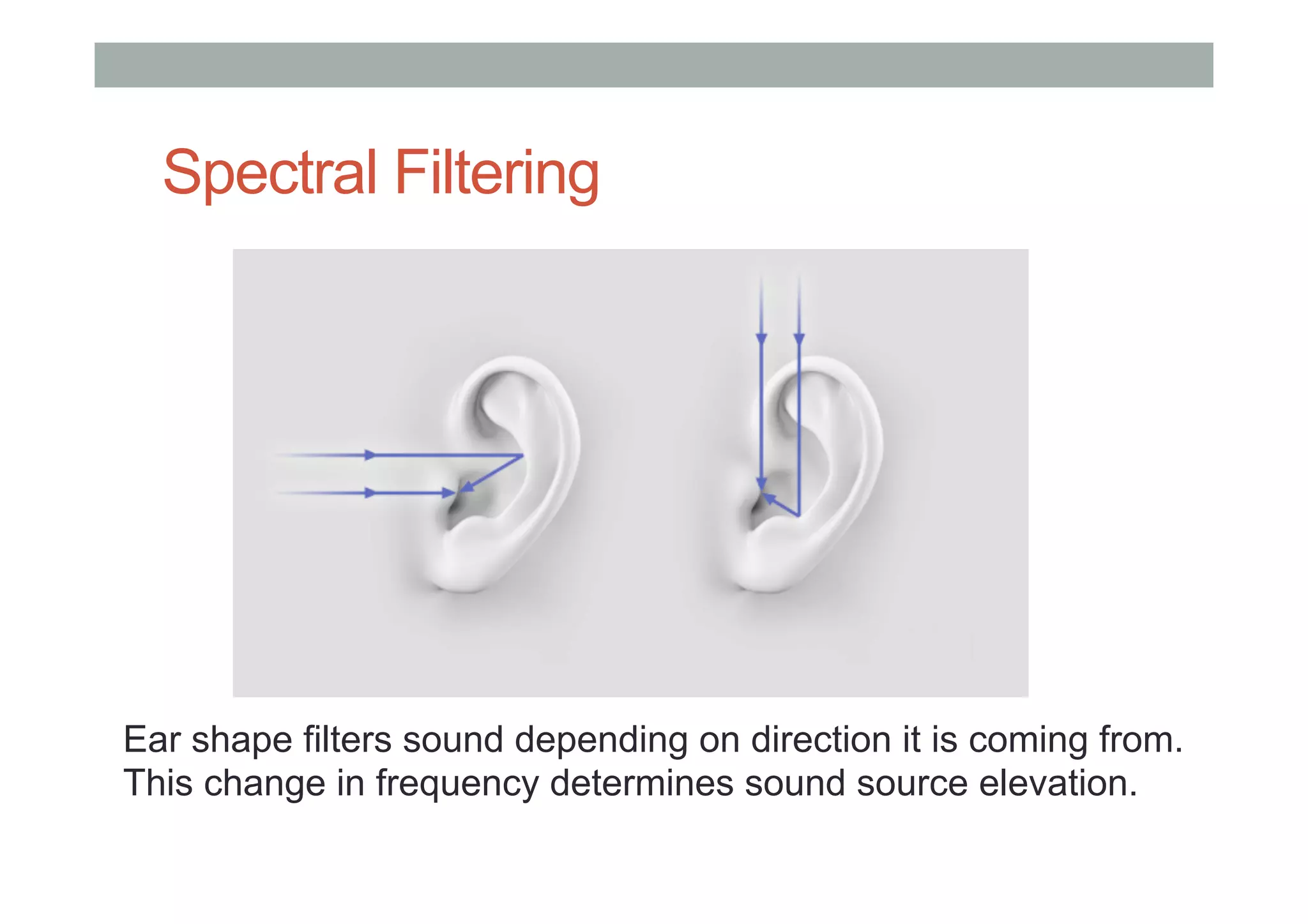

- 23. Spectral Filtering Ear shapefilters sound depending on direction it is coming from. This change in frequency determines sound source elevation.

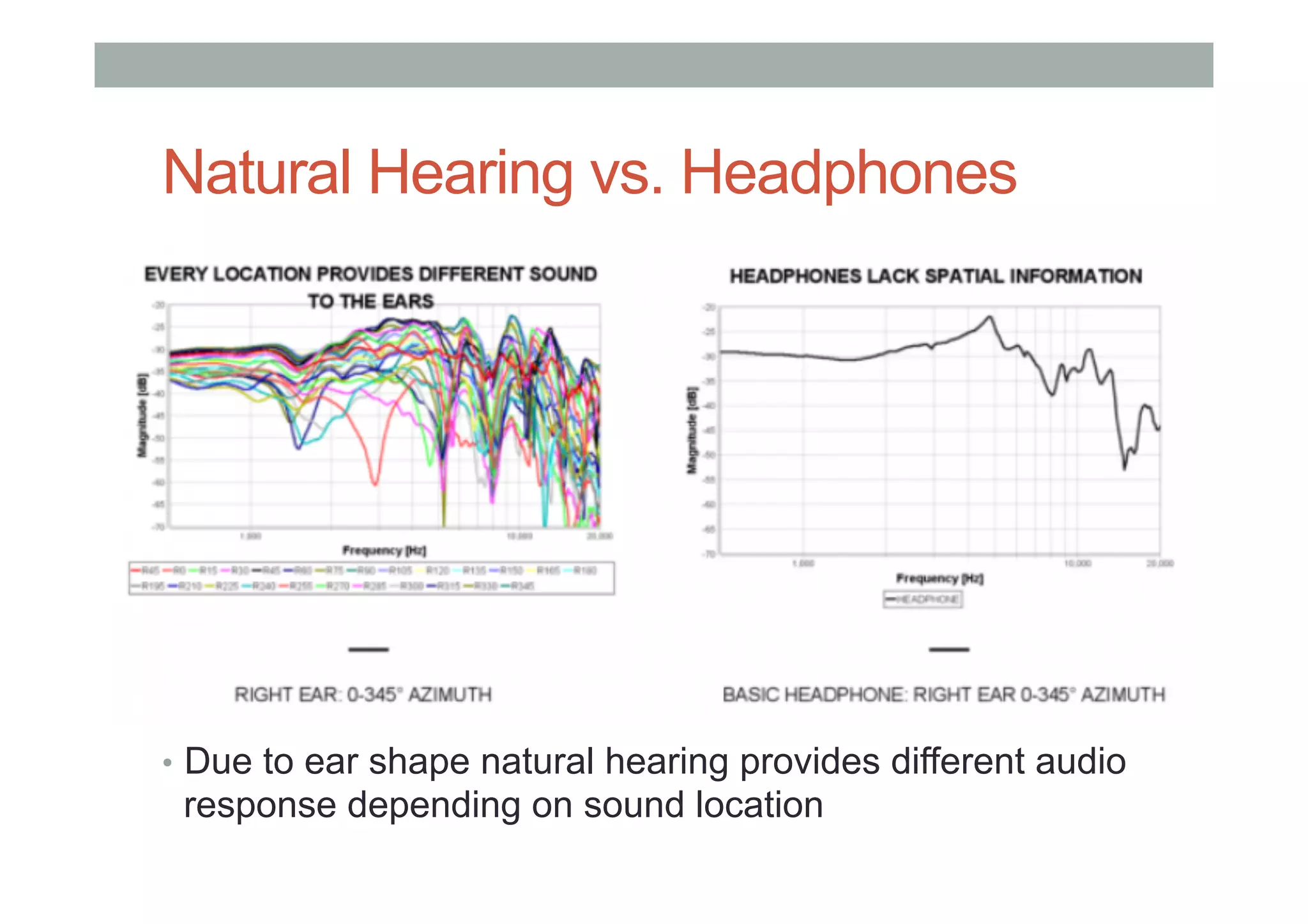

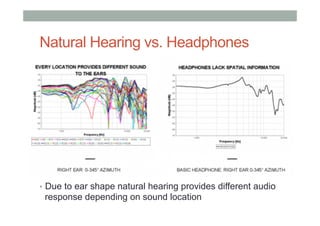

- 24. Natural Hearing vs.Headphones • Due to ear shape natural hearing provides different audio response depending on sound location

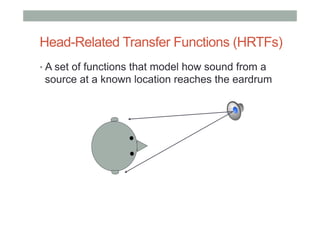

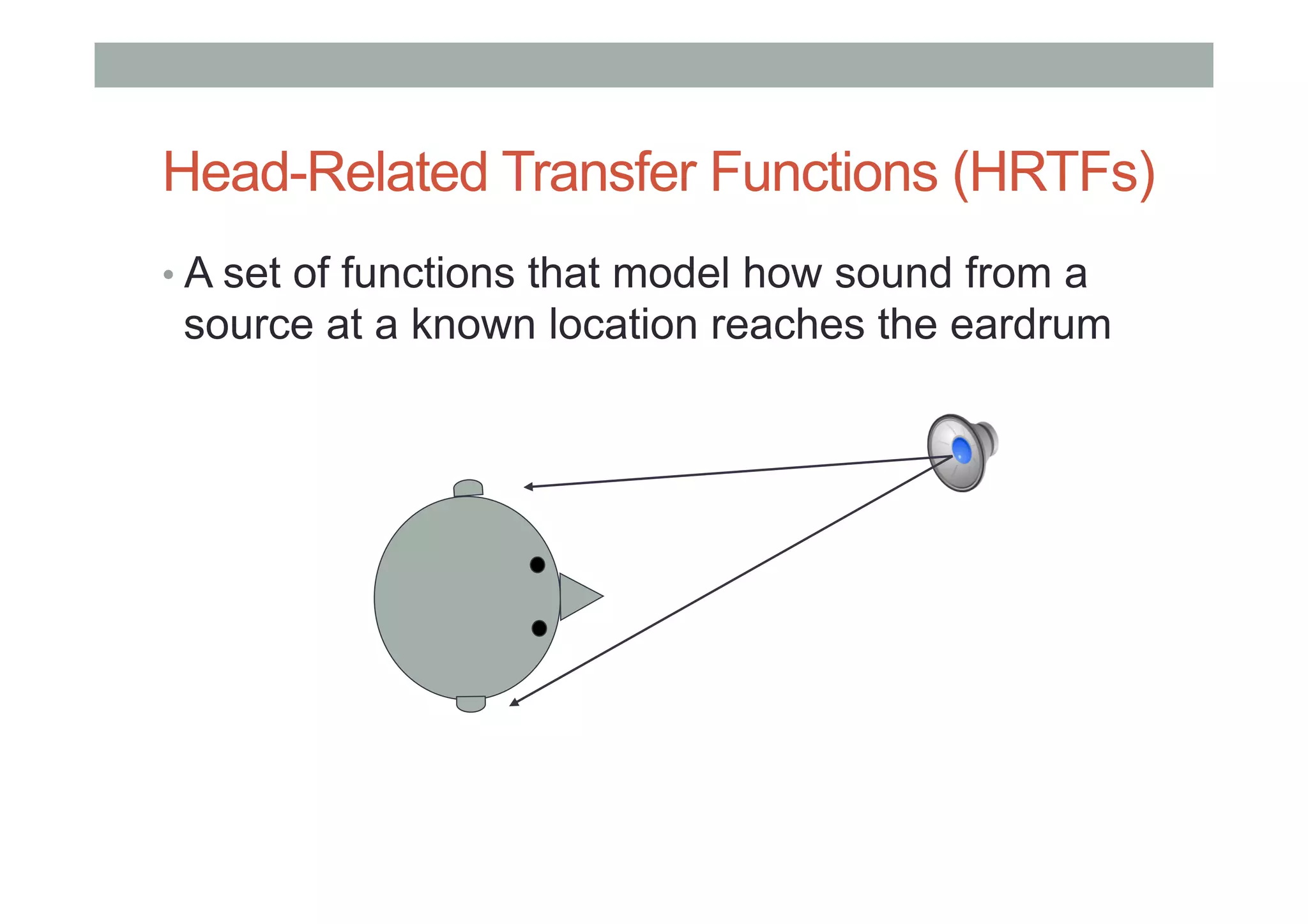

- 25. Head-Related Transfer Functions(HRTFs) • A set of functions that model how sound from a source at a known location reaches the eardrum

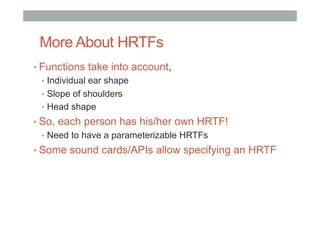

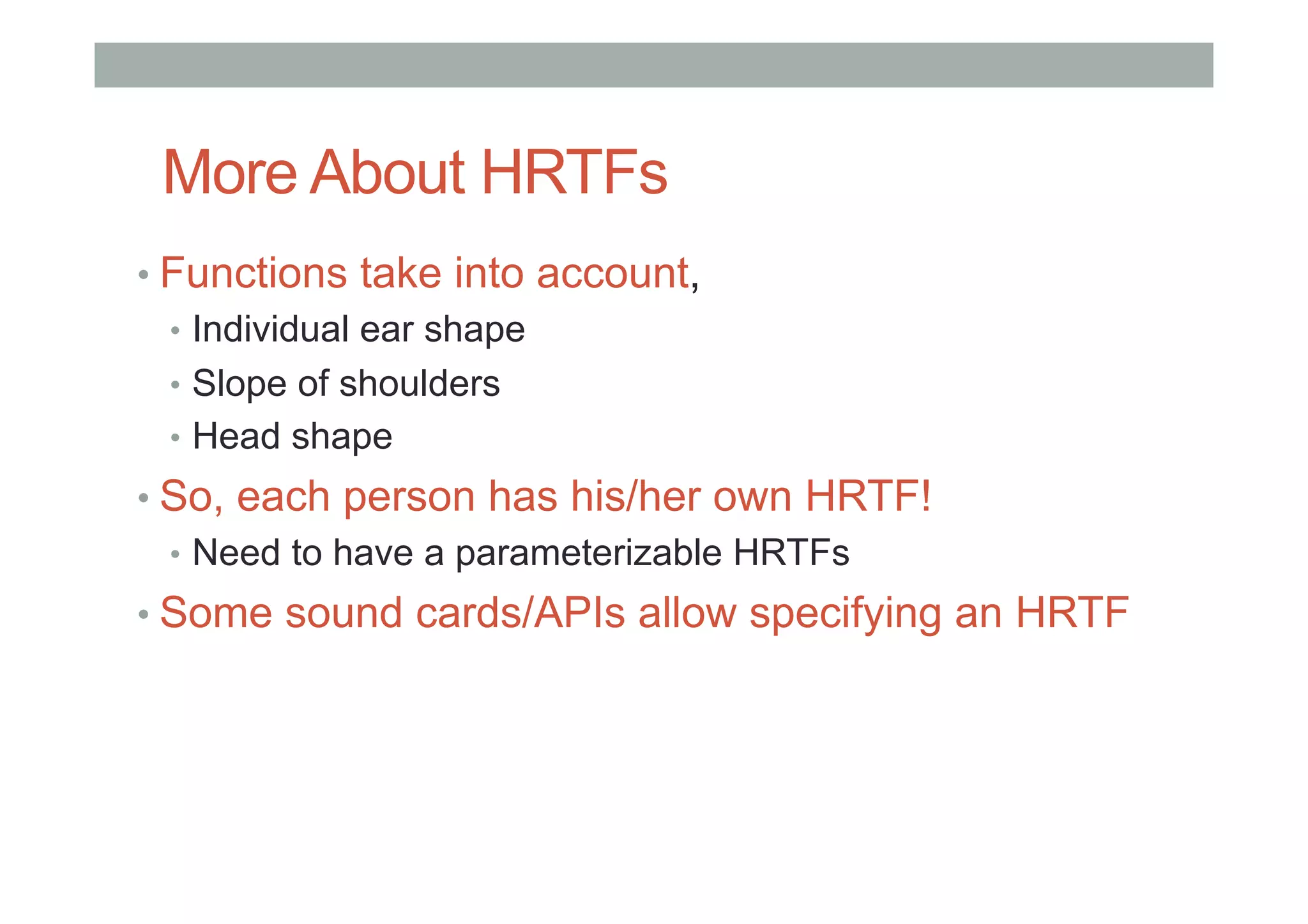

- 26. More About HRTFs • Functionstake into account, • Individual ear shape • Slope of shoulders • Head shape • So, each person has his/her own HRTF! • Need to have a parameterizable HRTFs • Some sound cards/APIs allow specifying an HRTF

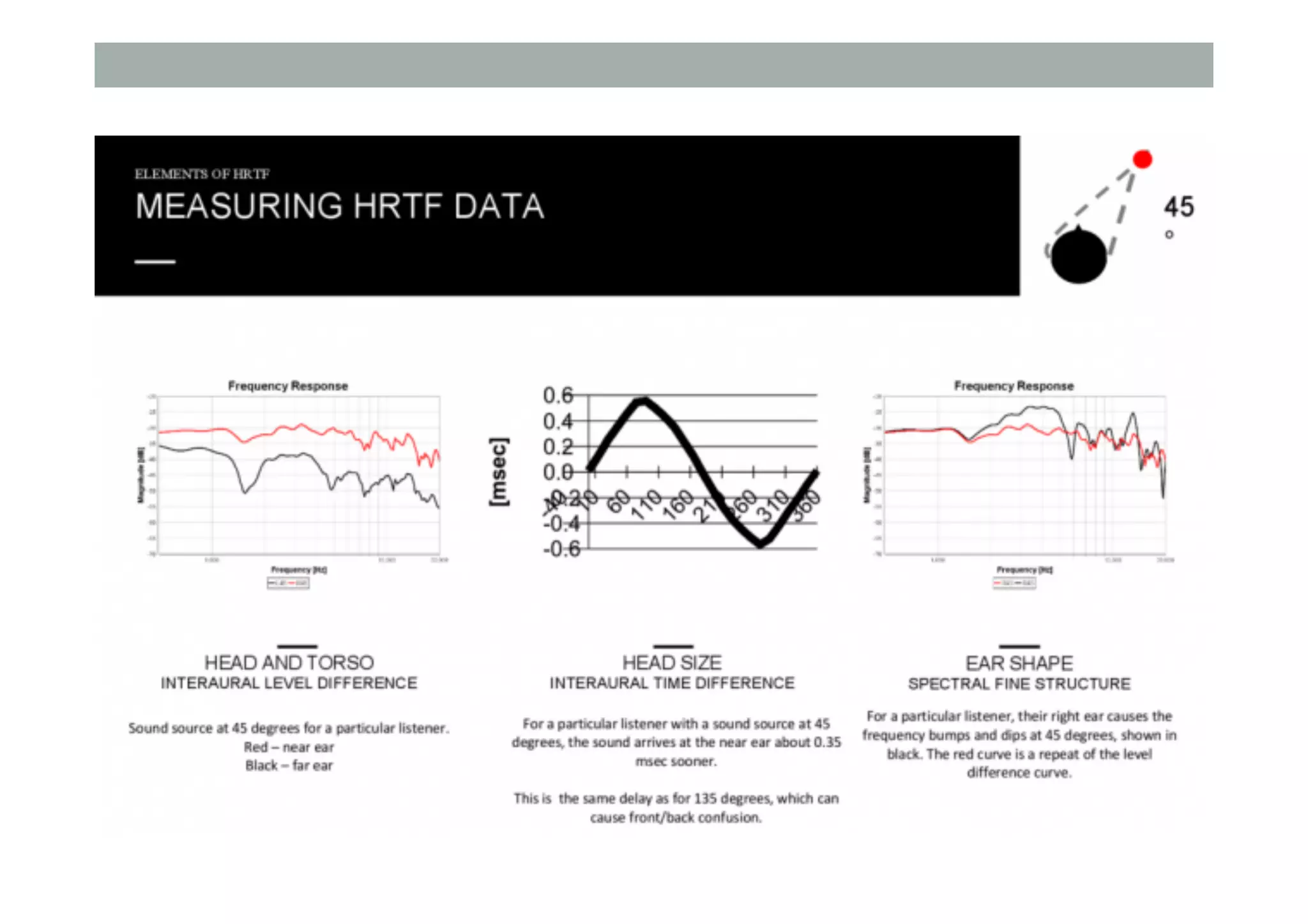

- 27.

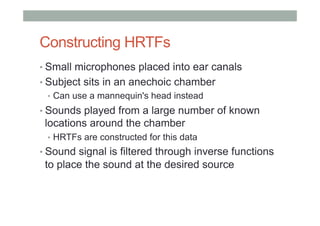

- 28. Constructing HRTFs • Small microphonesplaced into ear canals • Subject sits in an anechoic chamber • Can use a mannequin's head instead • Sounds played from a large number of known locations around the chamber • HRTFs are constructed for this data • Sound signal is filtered through inverse functions to place the sound at the desired source

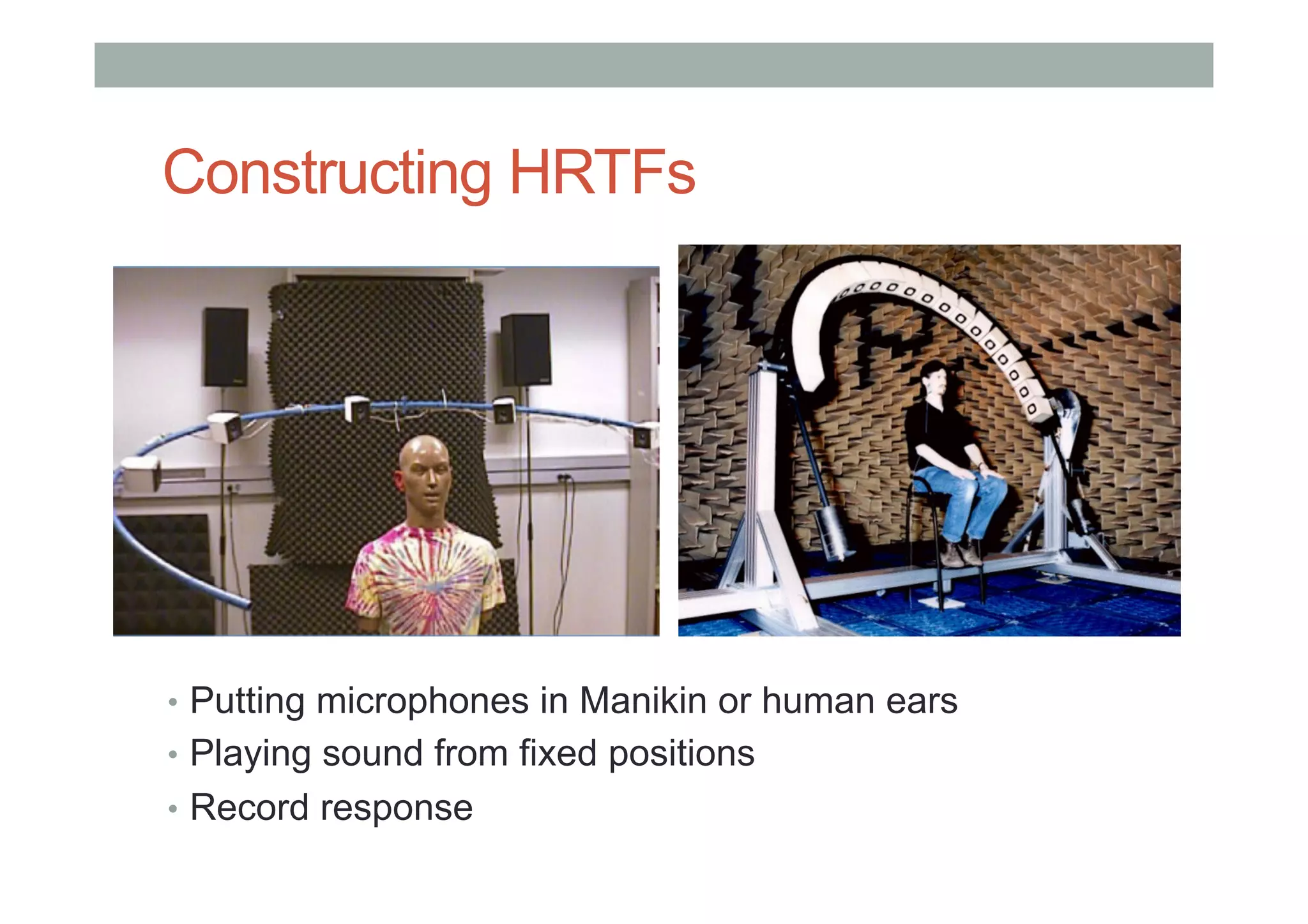

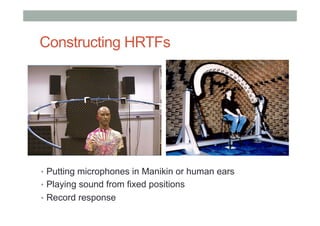

- 29. Constructing HRTFs • Puttingmicrophones in Manikin or human ears • Playing sound from fixed positions • Record response

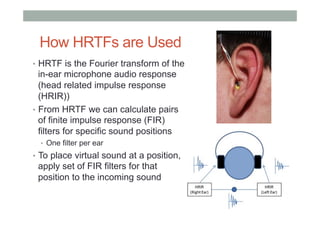

- 30. How HRTFs areUsed • HRTF is the Fourier transform of the in-ear microphone audio response (head related impulse response (HRIR)) • From HRTF we can calculate pairs of finite impulse response (FIR) filters for specific sound positions • One filter per ear • To place virtual sound at a position, apply set of FIR filters for that position to the incoming sound

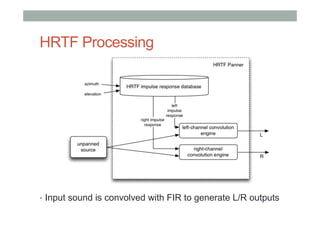

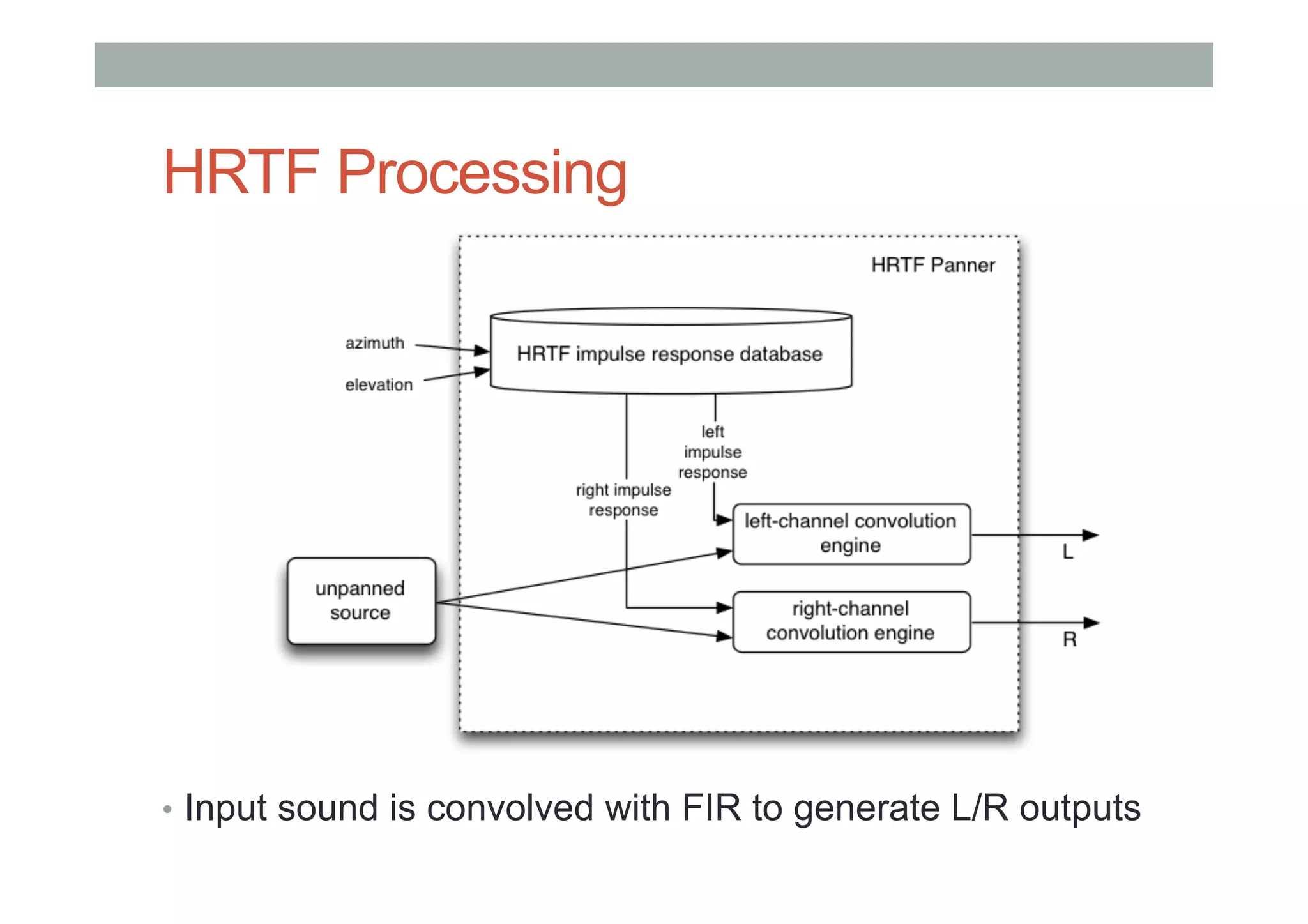

- 31. HRTF Processing • Inputsound is convolved with FIR to generate L/R outputs

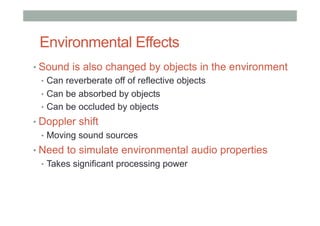

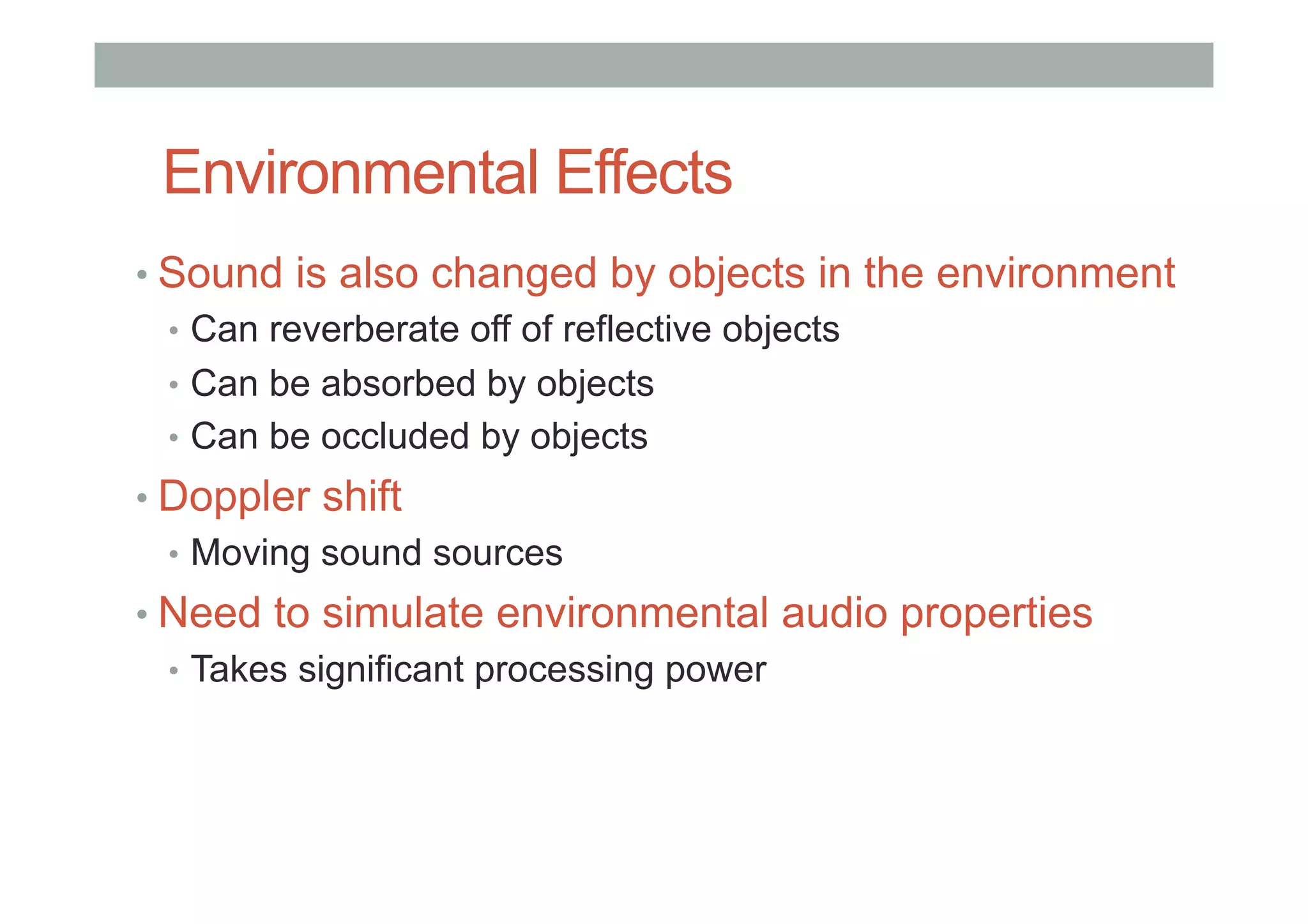

- 32. Environmental Effects • Sound isalso changed by objects in the environment • Can reverberate off of reflective objects • Can be absorbed by objects • Can be occluded by objects • Doppler shift • Moving sound sources • Need to simulate environmental audio properties • Takes significant processing power

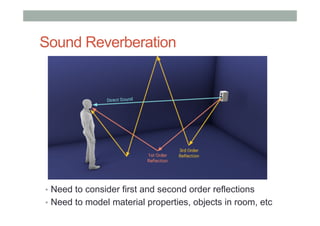

- 33. Sound Reverberation • Needto consider first and second order reflections • Need to model material properties, objects in room, etc

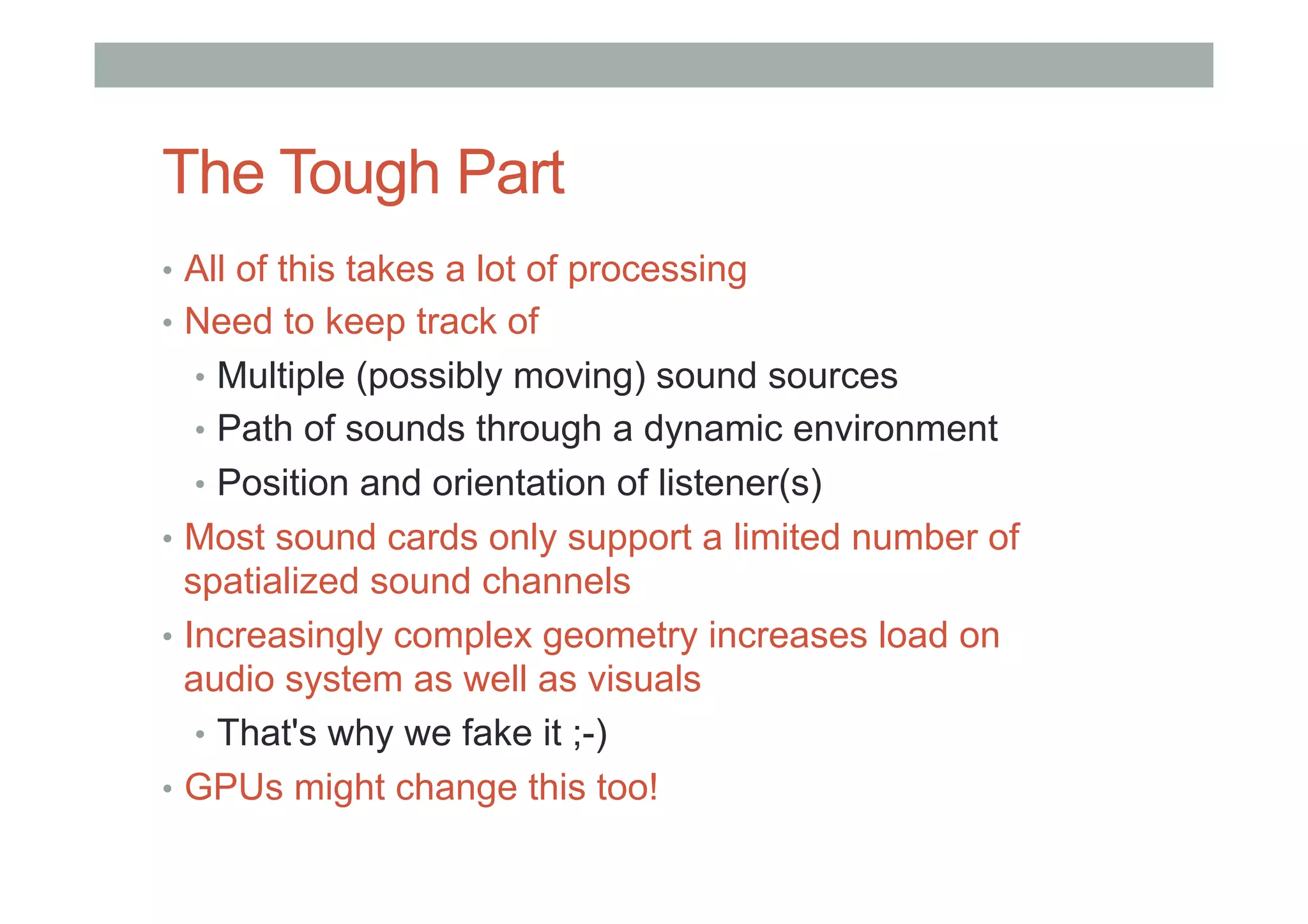

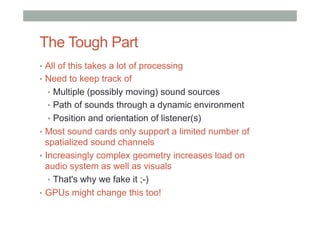

- 34. The Tough Part • All of this takes a lot of processing • Need to keep track of • Multiple (possibly moving) sound sources • Path of sounds through a dynamic environment • Position and orientation of listener(s) • Most sound cards only support a limited number of spatialized sound channels • Increasingly complex geometry increases load on audio system as well as visuals • That's why we fake it ;-) • GPUs might change this too!

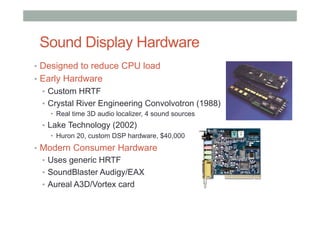

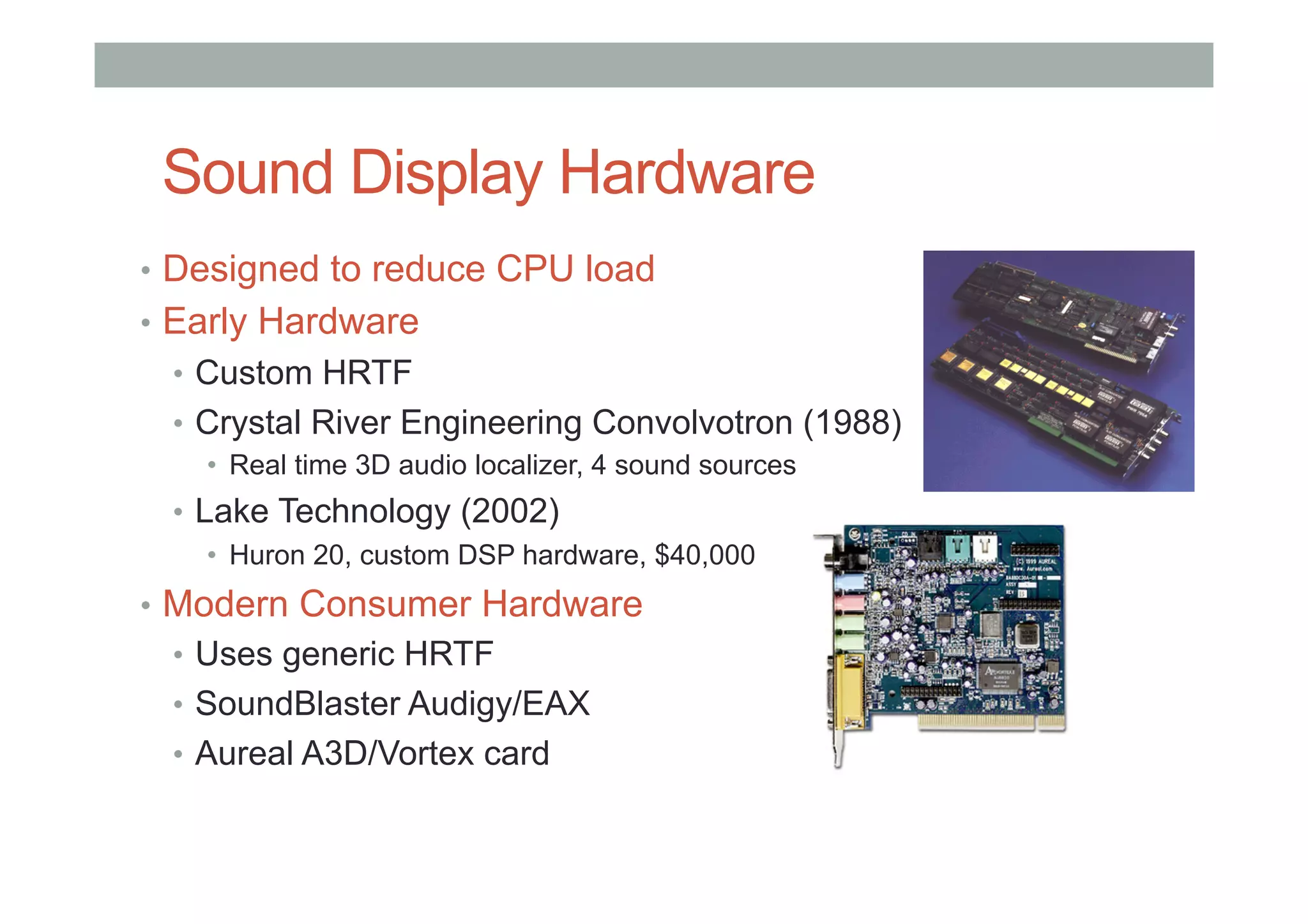

- 35. Sound Display Hardware • Designed to reduce CPU load • Early Hardware • Custom HRTF • Crystal River Engineering Convolvotron (1988) • Real time 3D audio localizer, 4 sound sources • Lake Technology (2002) • Huron 20, custom DSP hardware, $40,000 • Modern Consumer Hardware • Uses generic HRTF • SoundBlaster Audigy/EAX • Aureal A3D/Vortex card

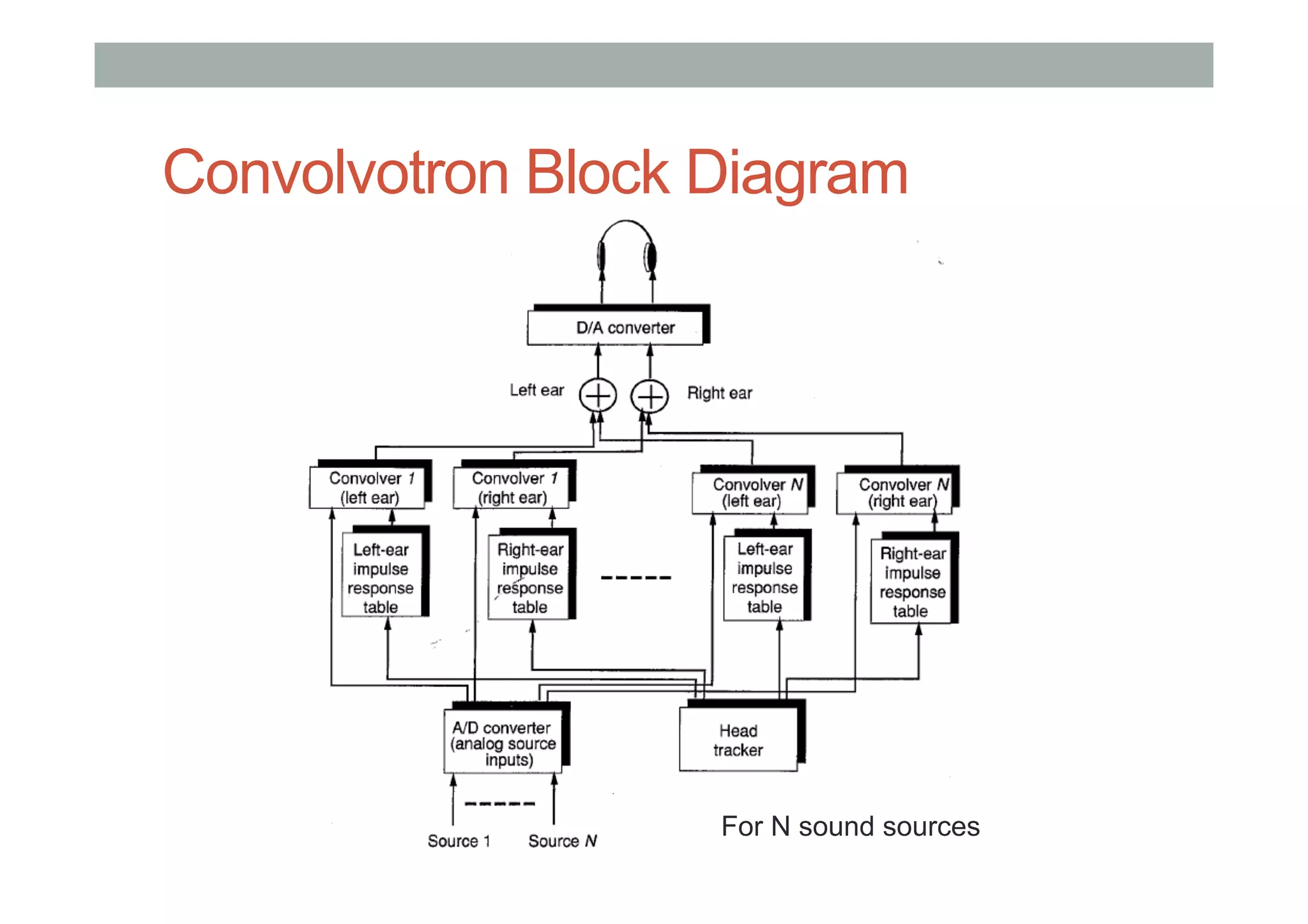

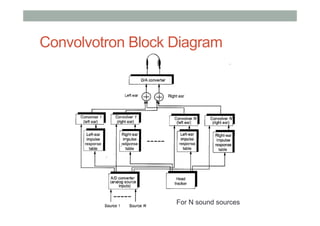

- 36. Convolvotron Block Diagram ForN sound sources

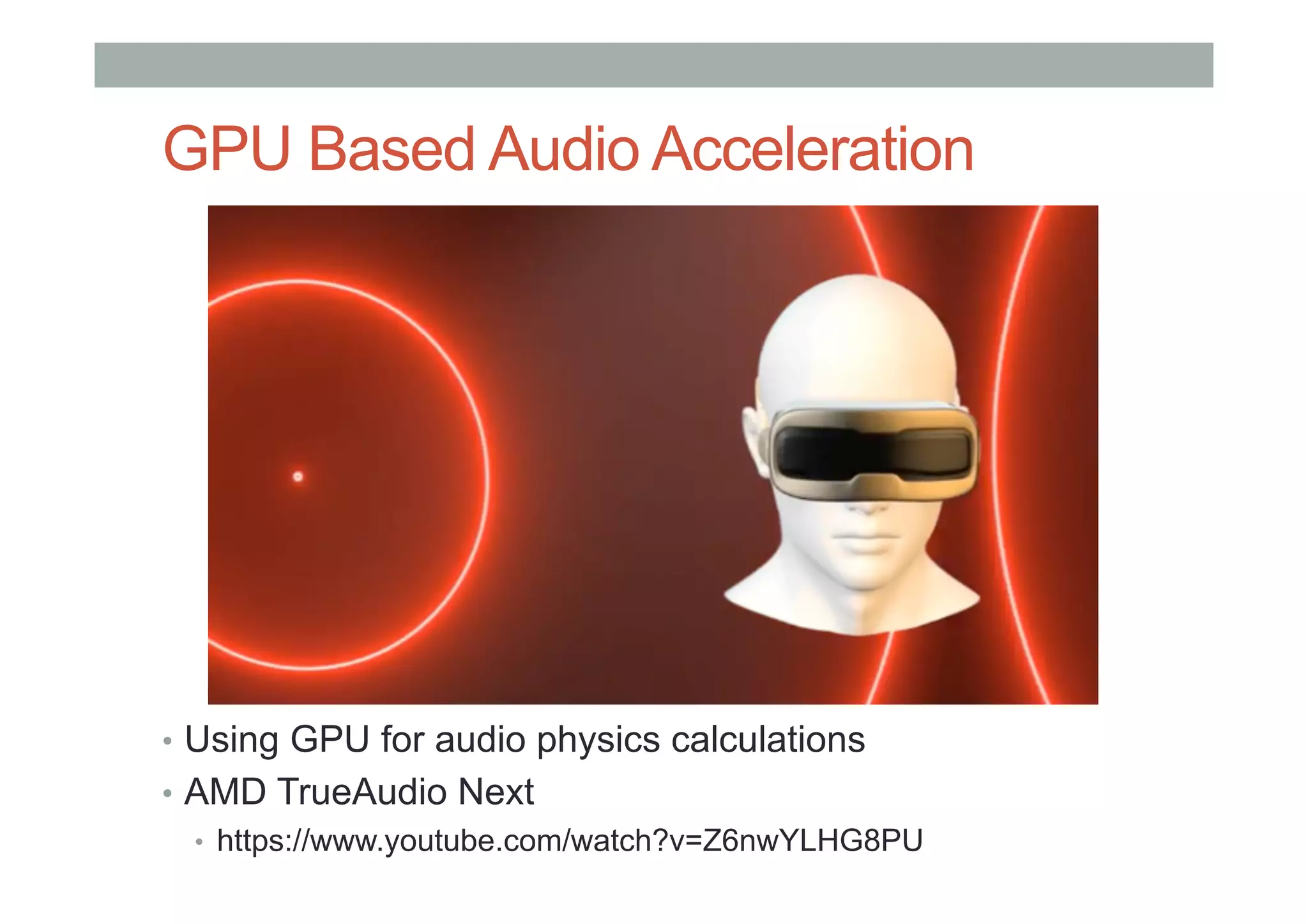

- 37. GPU Based AudioAcceleration • Using GPU for audio physics calculations • AMD TrueAudio Next • https://www.youtube.com/watch?v=Z6nwYLHG8PU

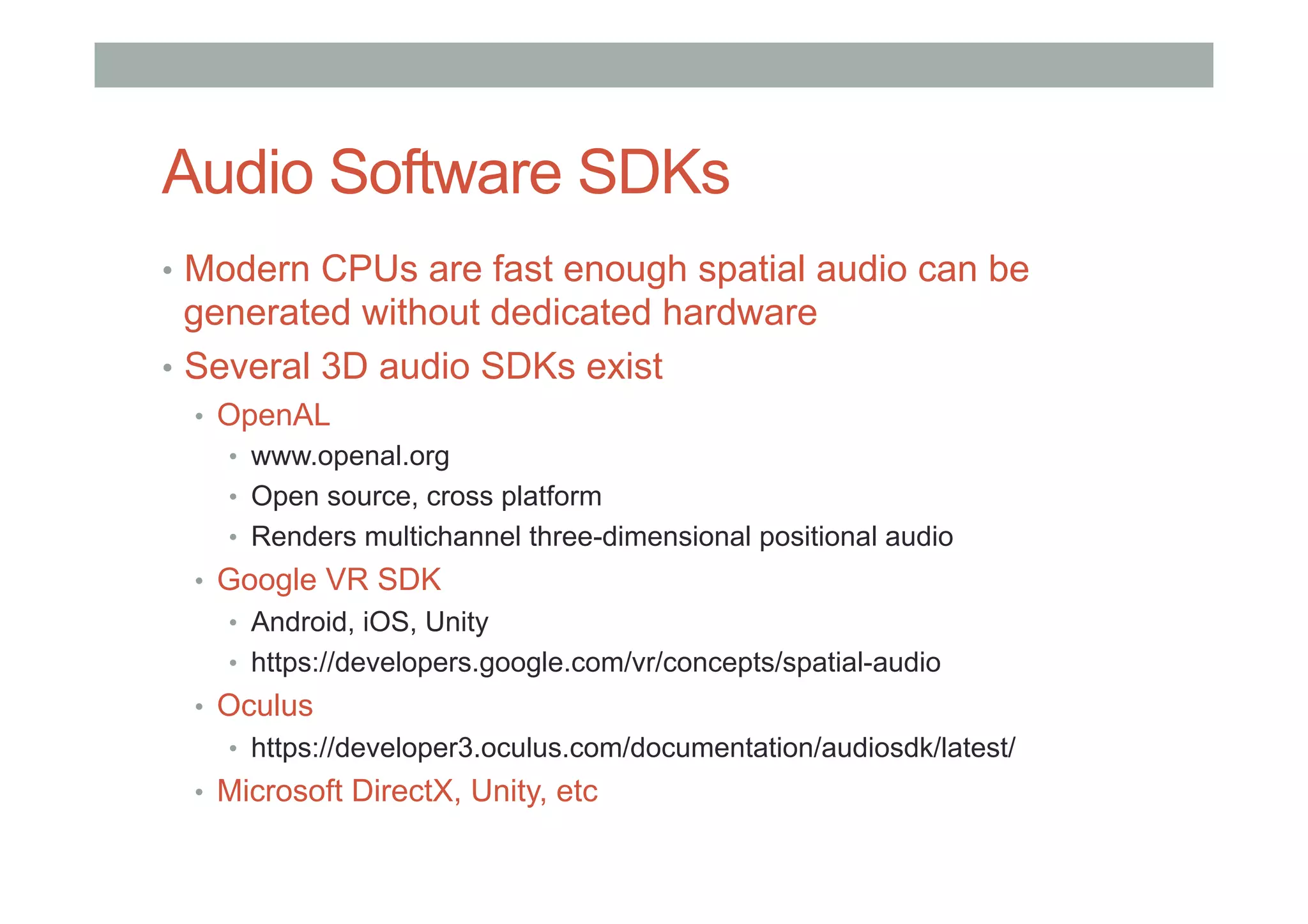

- 38. Audio Software SDKs • Modern CPUs are fast enough spatial audio can be generated without dedicated hardware • Several 3D audio SDKs exist • OpenAL • www.openal.org • Open source, cross platform • Renders multichannel three-dimensional positional audio • Google VR SDK • Android, iOS, Unity • https://developers.google.com/vr/concepts/spatial-audio • Oculus • https://developer3.oculus.com/documentation/audiosdk/latest/ • Microsoft DirectX, Unity, etc

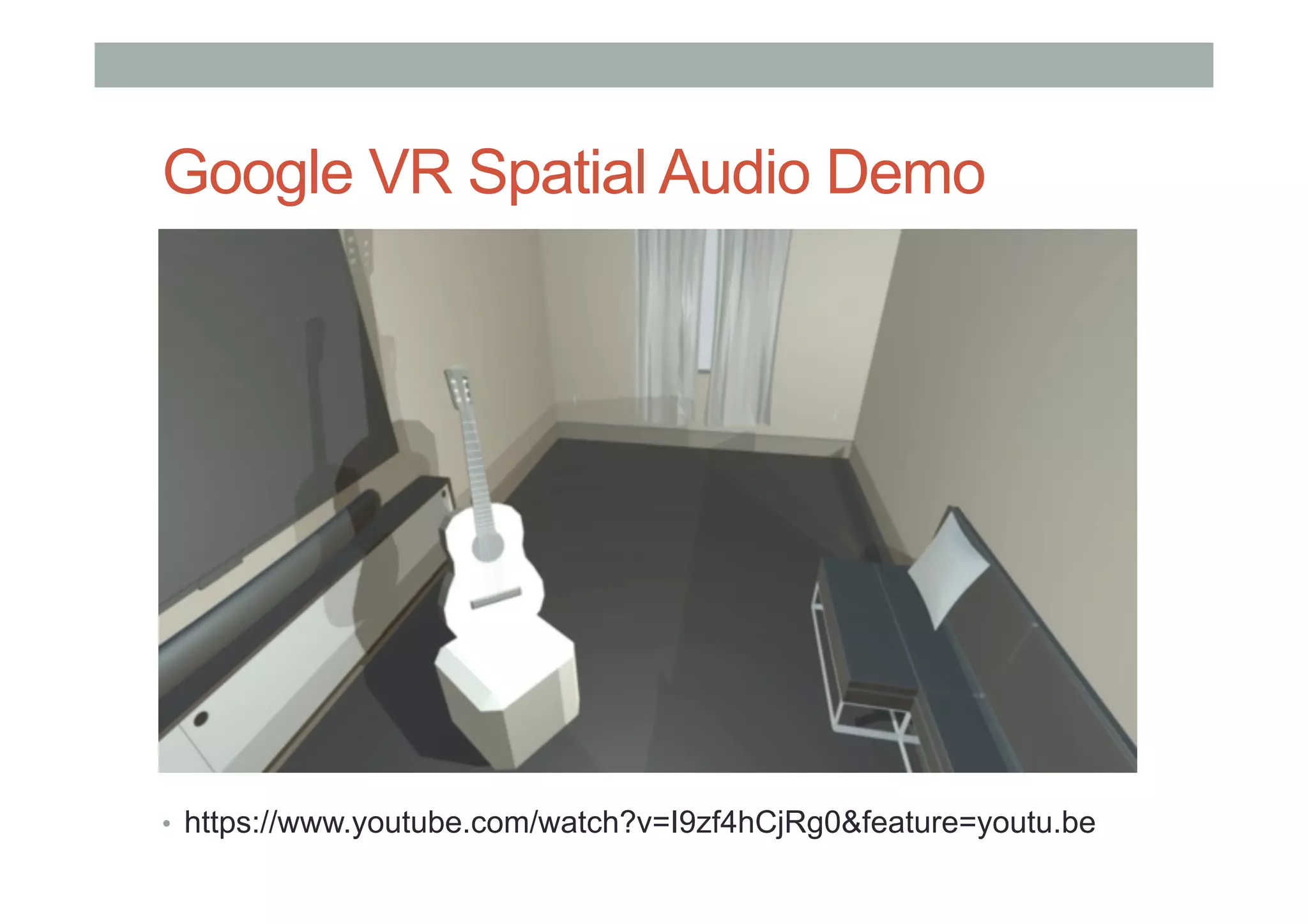

- 39. Google VR SpatialAudio Demo • https://www.youtube.com/watch?v=I9zf4hCjRg0&feature=youtu.be

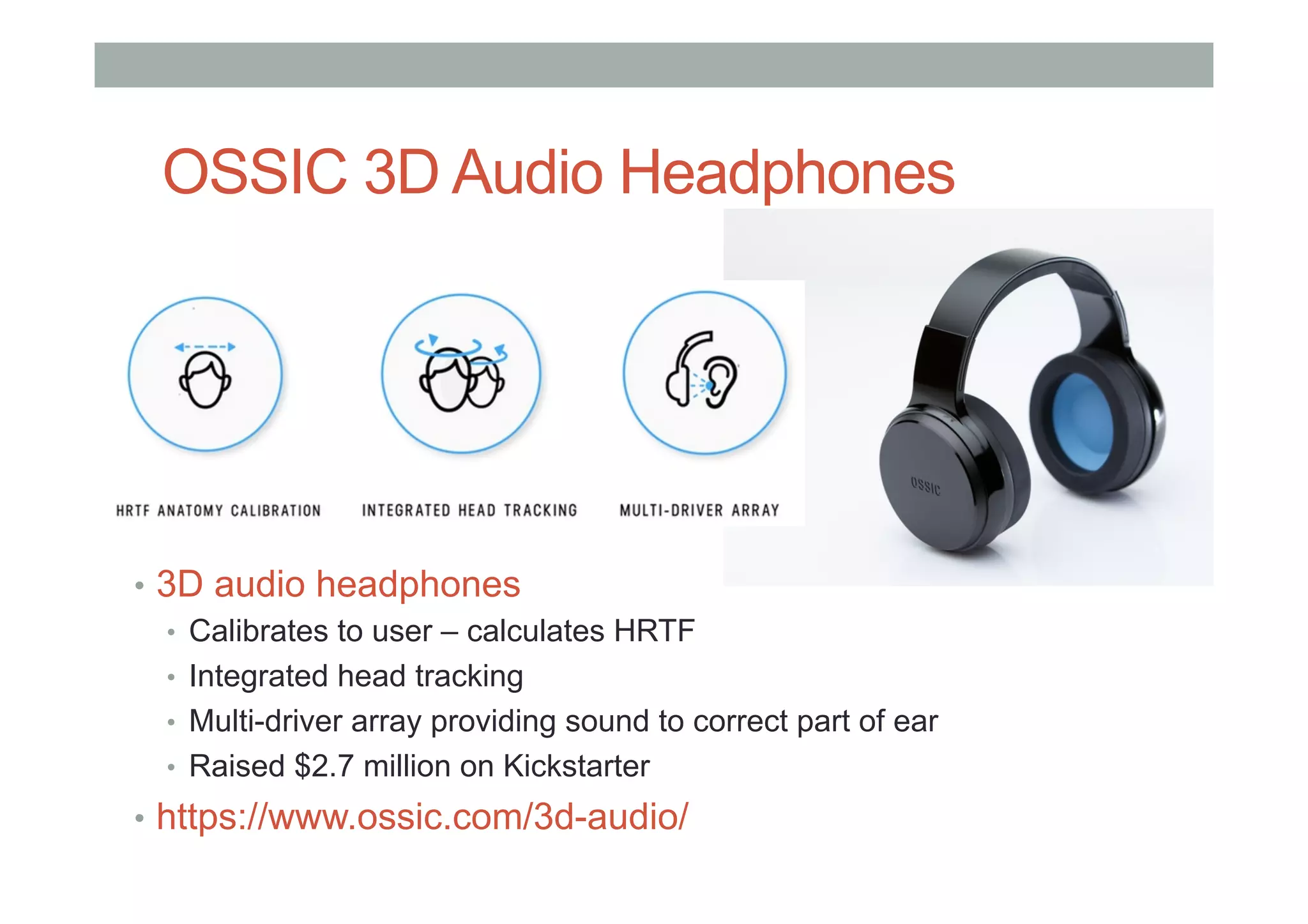

- 40. OSSIC 3D AudioHeadphones • 3D audio headphones • Calibrates to user – calculates HRTF • Integrated head tracking • Multi-driver array providing sound to correct part of ear • Raised $2.7 million on Kickstarter • https://www.ossic.com/3d-audio/

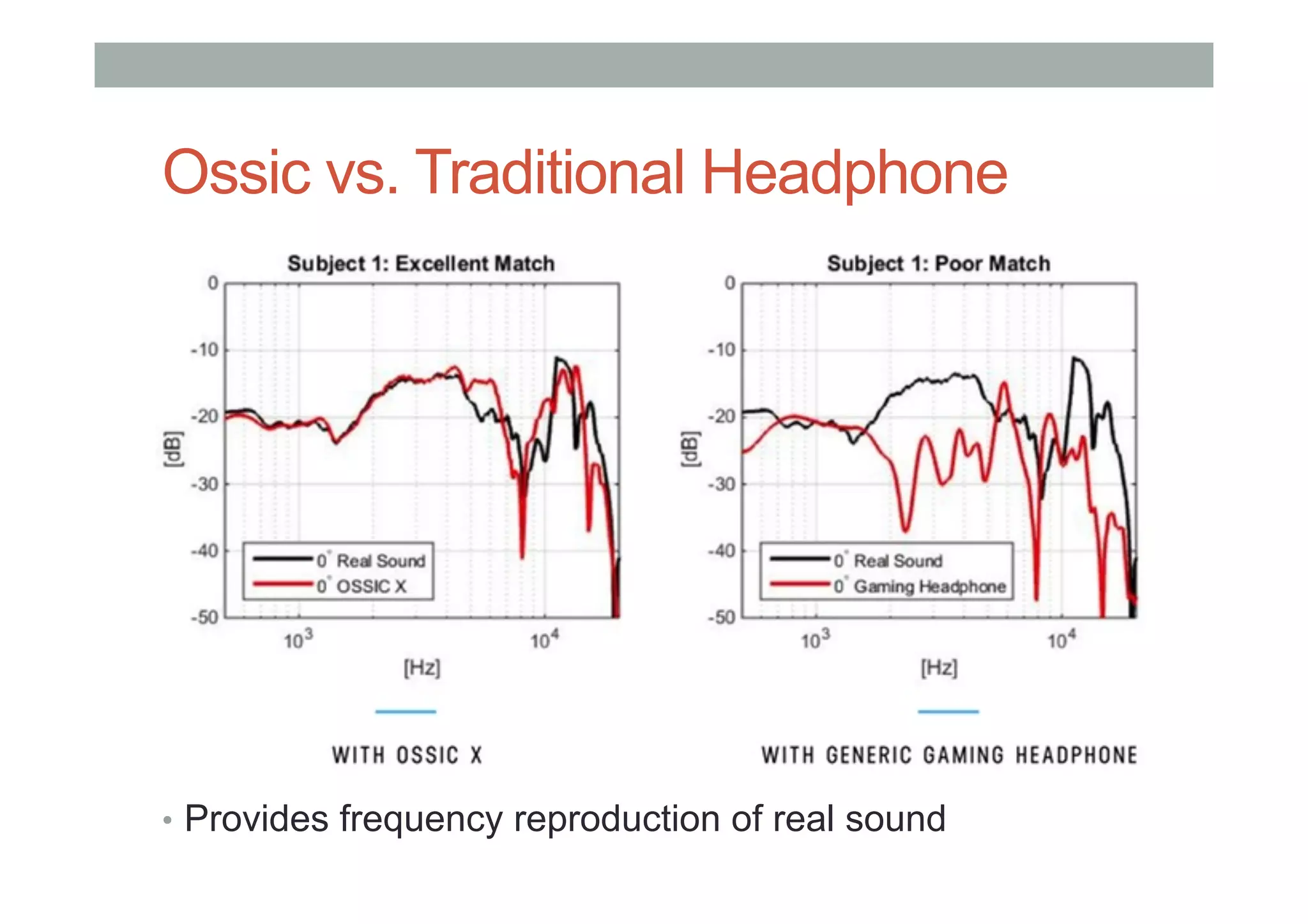

- 41. Ossic vs. TraditionalHeadphone • Provides frequency reproduction of real sound

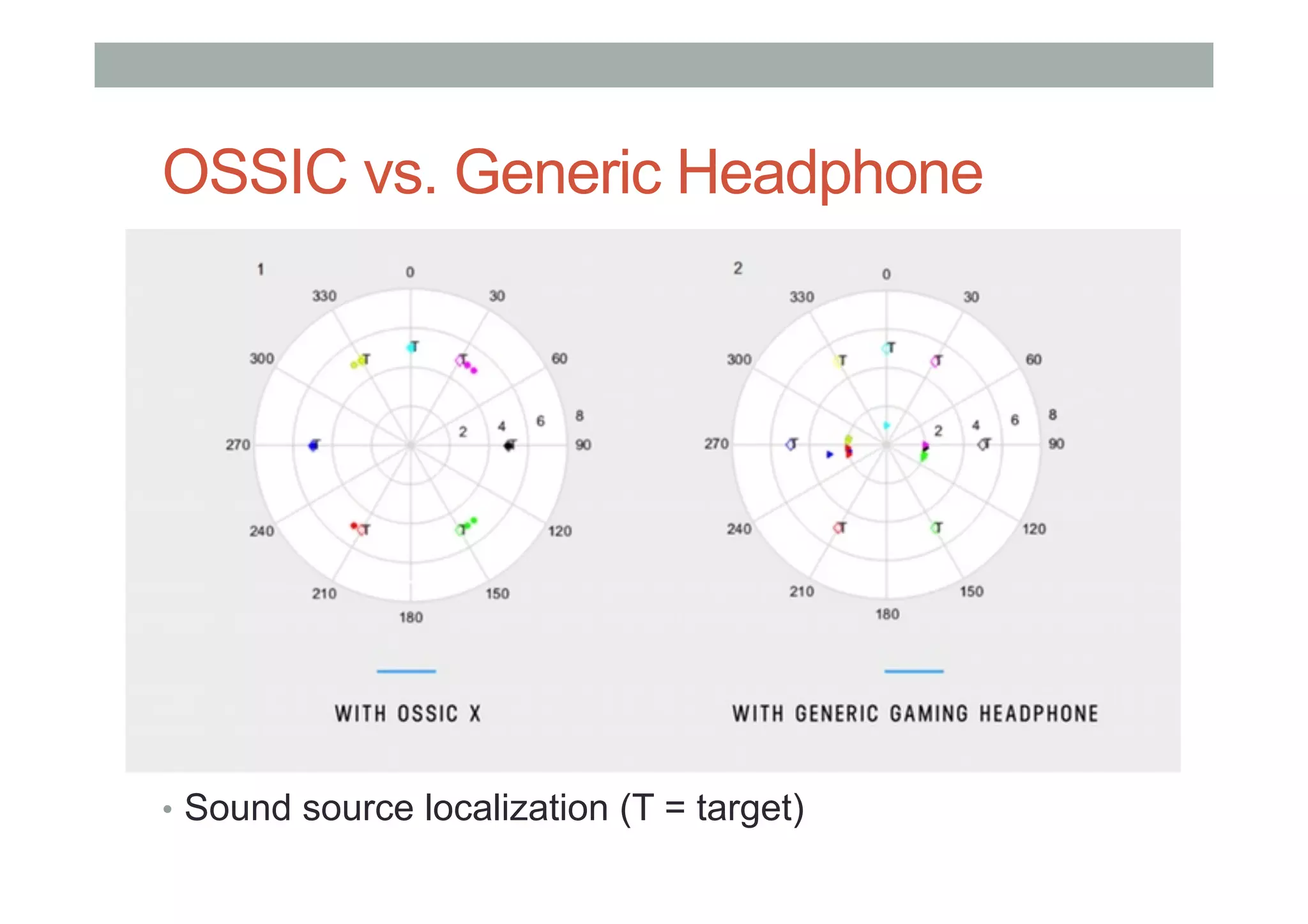

- 42. OSSIC vs. GenericHeadphone • Sound source localization (T = target)
- 43.

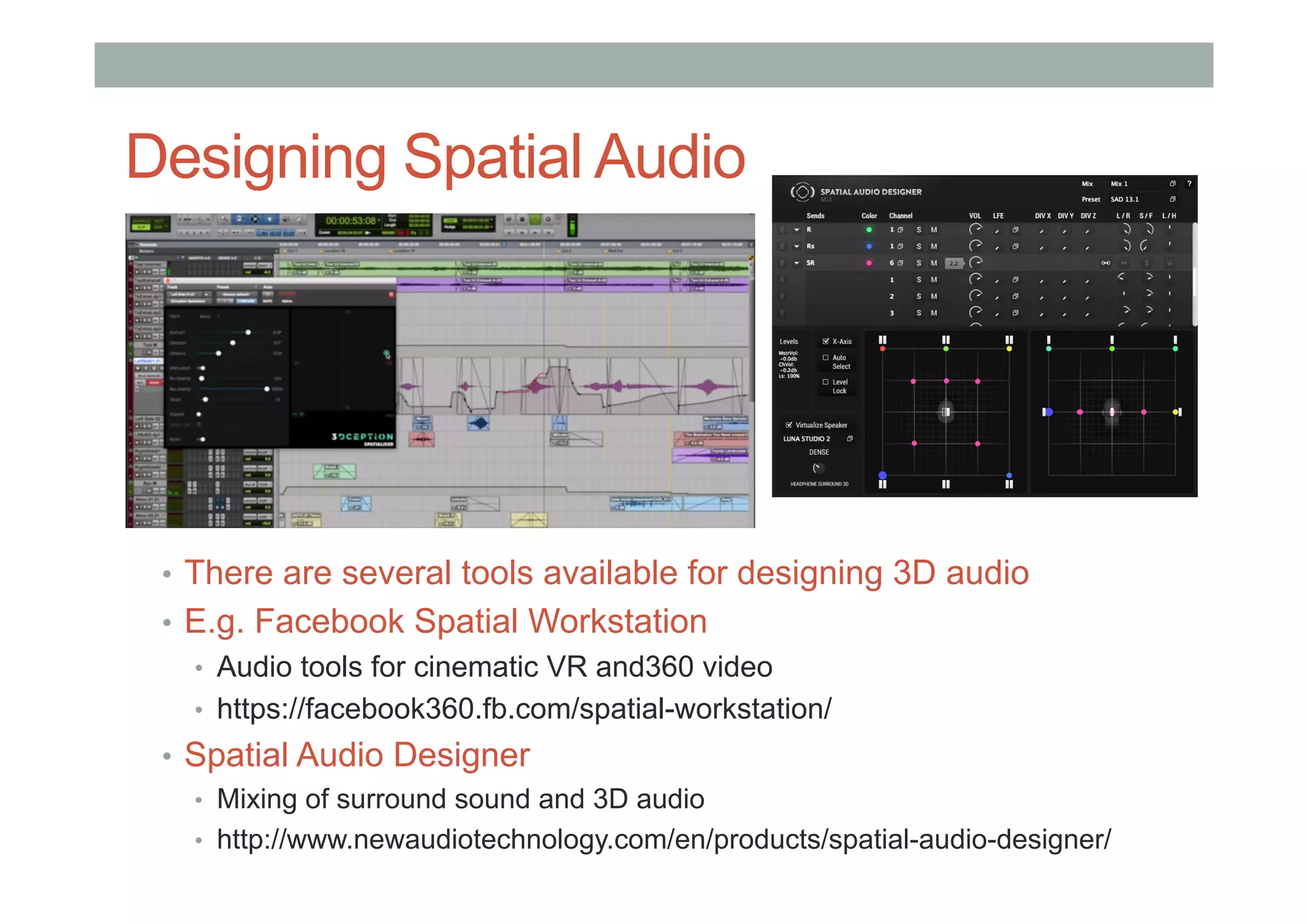

- 44. Designing Spatial Audio • There are several tools available for designing 3D audio • E.g. Facebook Spatial Workstation • Audio tools for cinematic VR and360 video • https://facebook360.fb.com/spatial-workstation/ • Spatial Audio Designer • Mixing of surround sound and 3D audio • http://www.newaudiotechnology.com/en/products/spatial-audio-designer/

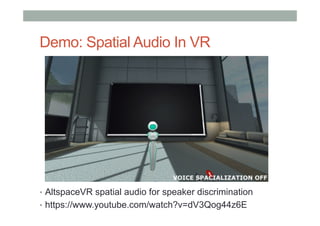

- 45. Demo: Spatial AudioIn VR • AltspaceVR spatial audio for speaker discrimination • https://www.youtube.com/watch?v=dV3Qog44z6E
- 46.

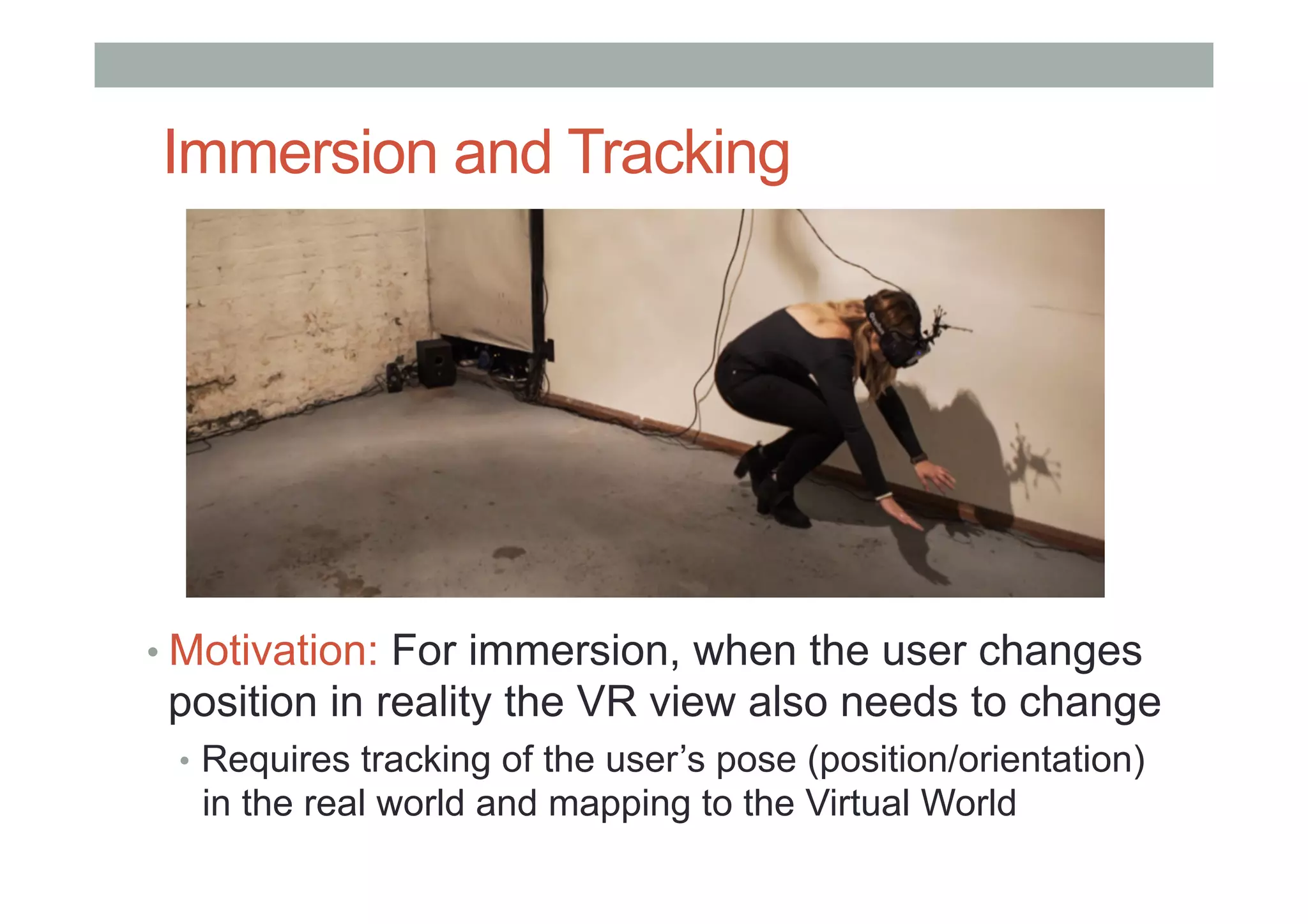

- 47. Immersion and Tracking • Motivation:For immersion, when the user changes position in reality the VR view also needs to change • Requires tracking of the user’s pose (position/orientation) in the real world and mapping to the Virtual World

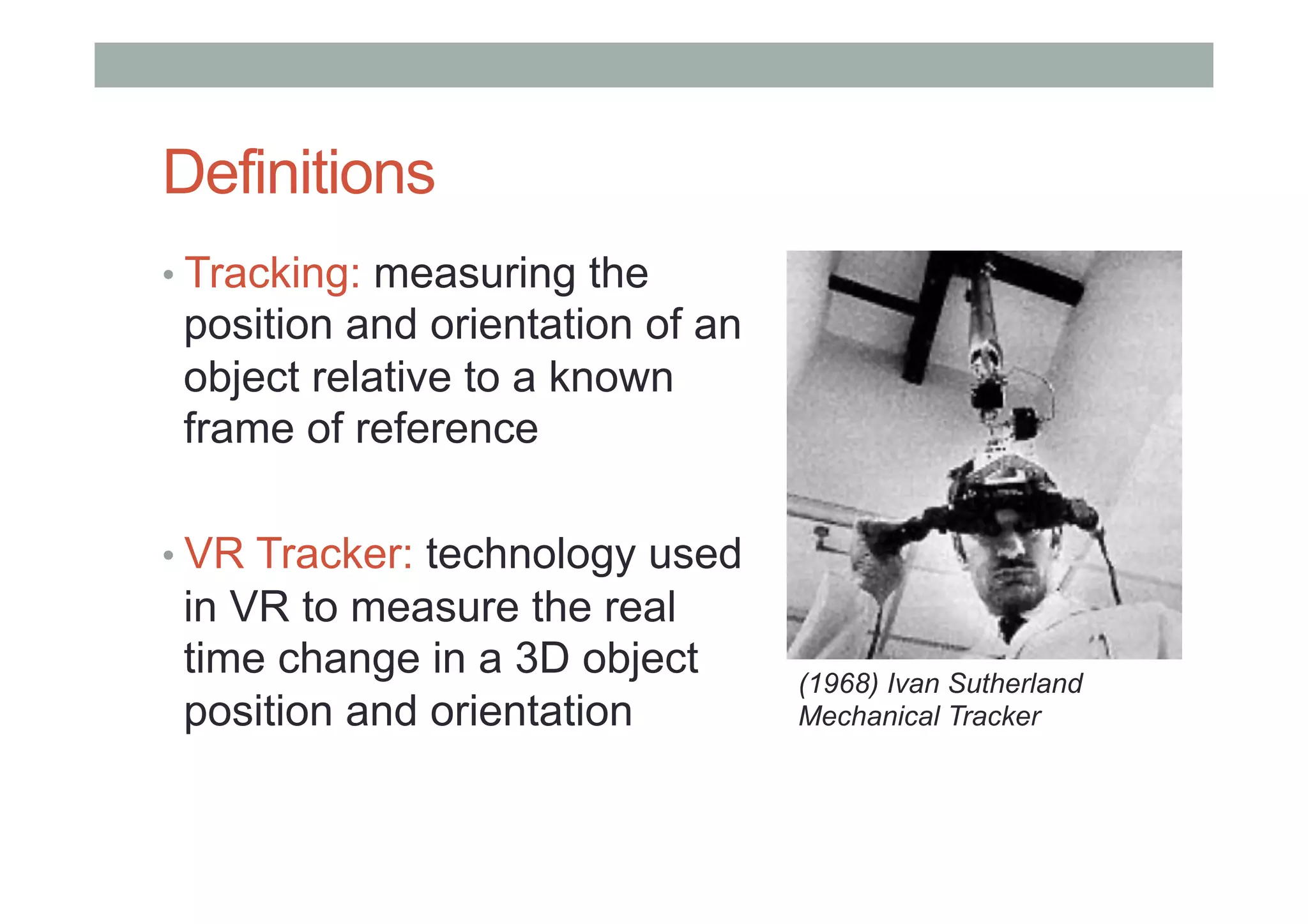

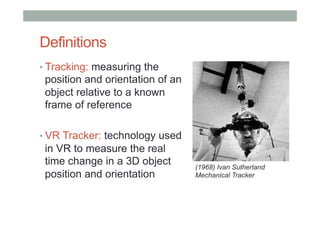

- 48. Definitions • Tracking: measuring the positionand orientation of an object relative to a known frame of reference • VR Tracker: technology used in VR to measure the real time change in a 3D object position and orientation (1968) Ivan Sutherland Mechanical Tracker

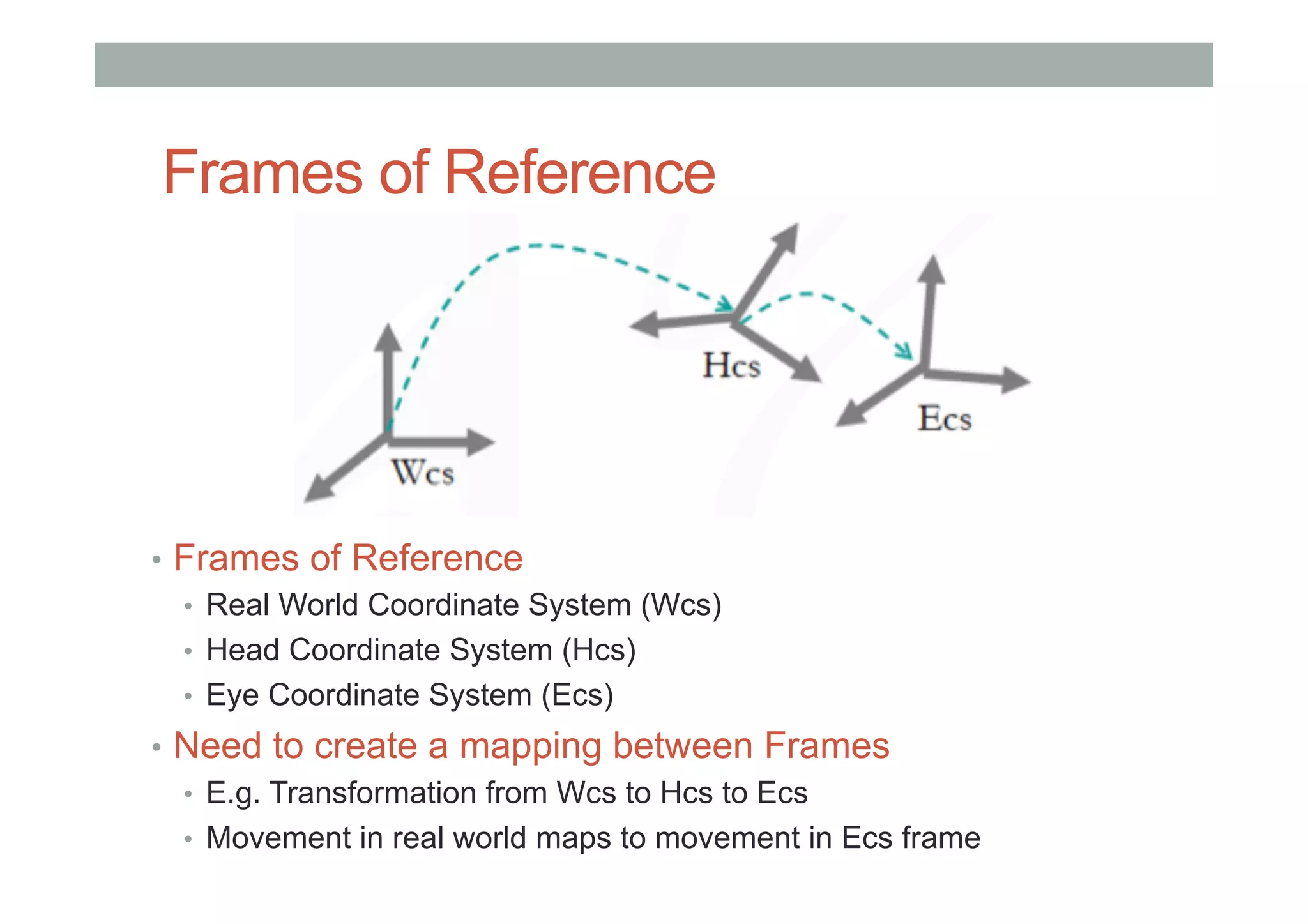

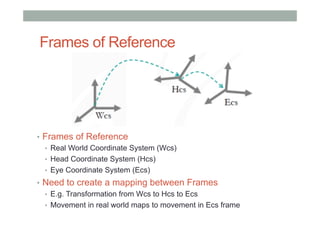

- 49. • Frames ofReference • Real World Coordinate System (Wcs) • Head Coordinate System (Hcs) • Eye Coordinate System (Ecs) • Need to create a mapping between Frames • E.g. Transformation from Wcs to Hcs to Ecs • Movement in real world maps to movement in Ecs frame Frames of Reference

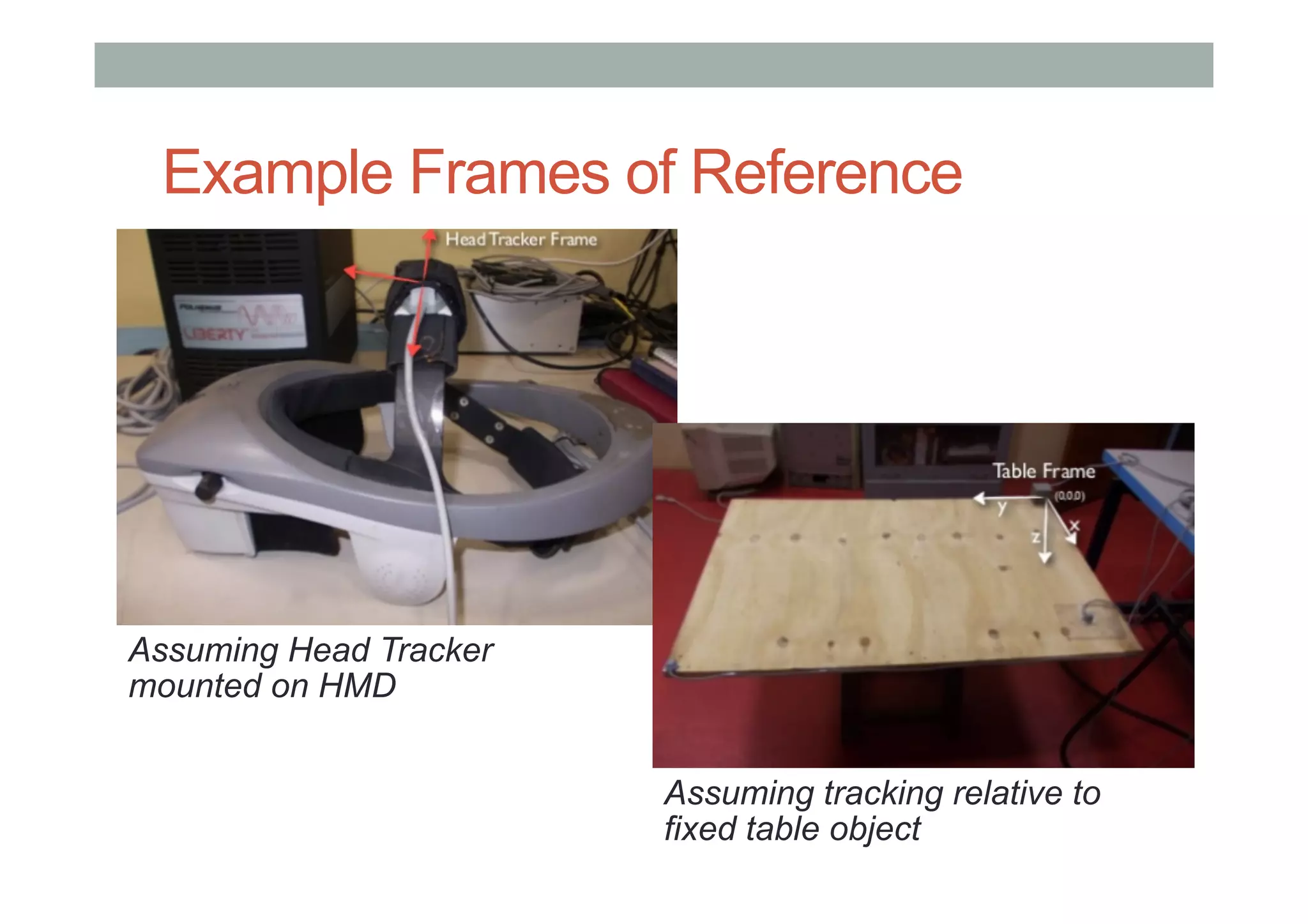

- 50. Example Frames ofReference Assuming Head Tracker mounted on HMD Assuming tracking relative to fixed table object

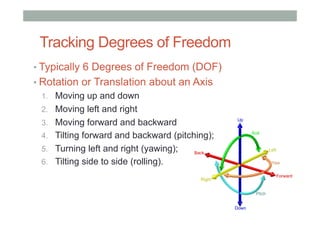

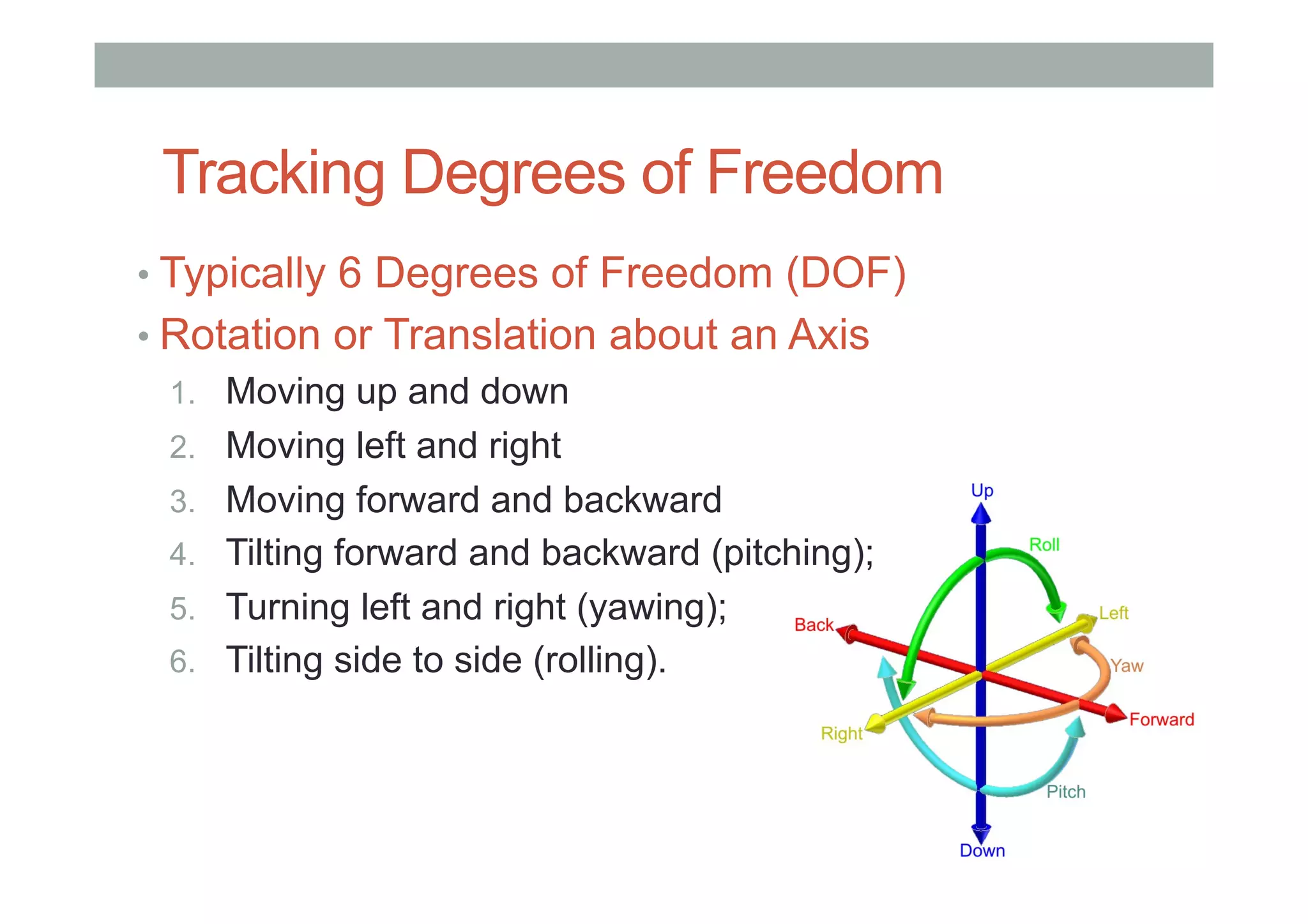

- 51. Tracking Degrees ofFreedom • Typically 6 Degrees of Freedom (DOF) • Rotation or Translation about an Axis 1. Moving up and down 2. Moving left and right 3. Moving forward and backward 4. Tilting forward and backward (pitching); 5. Turning left and right (yawing); 6. Tilting side to side (rolling).

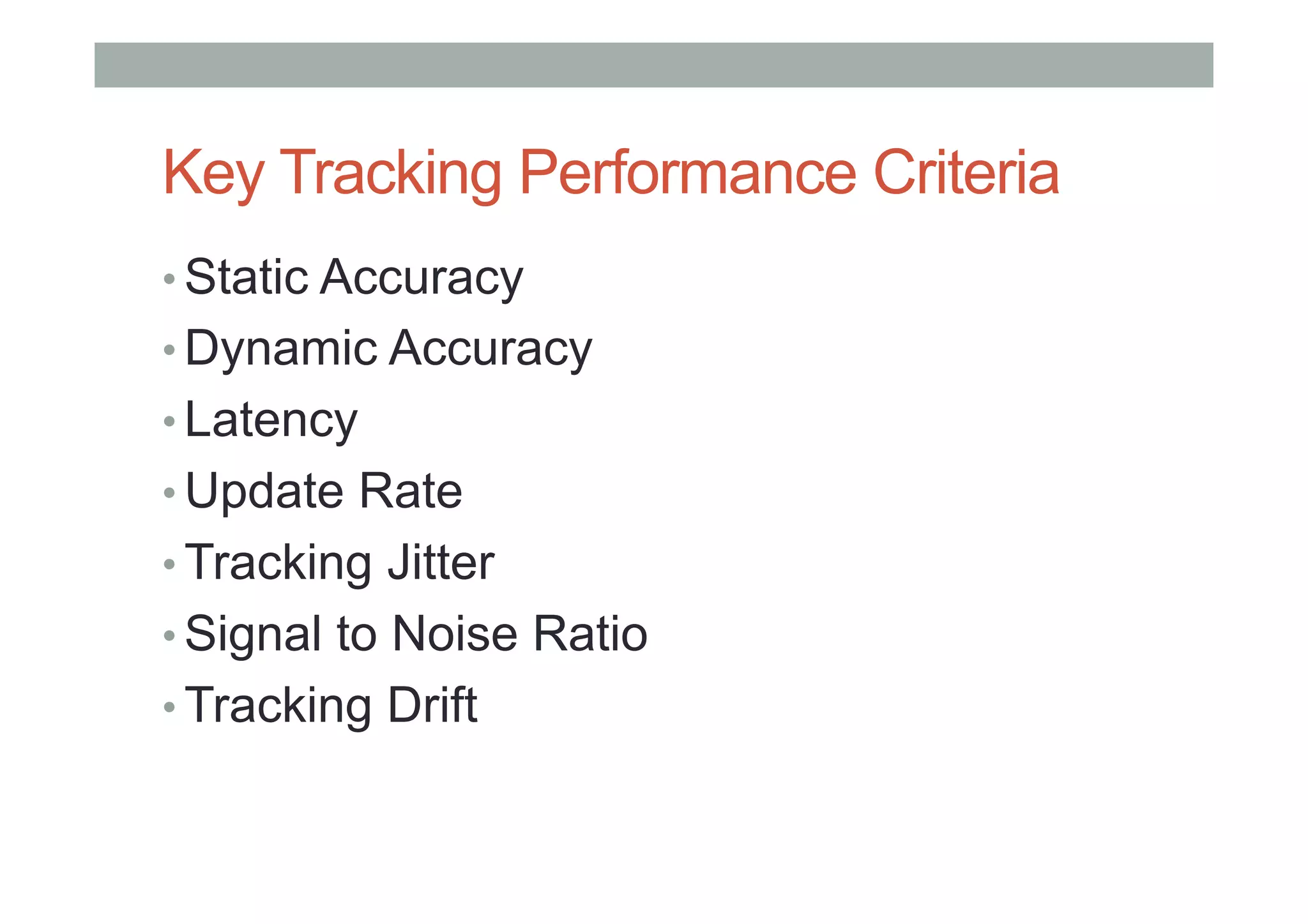

- 52. Key Tracking PerformanceCriteria • Static Accuracy • Dynamic Accuracy • Latency • Update Rate • Tracking Jitter • Signal to Noise Ratio • Tracking Drift

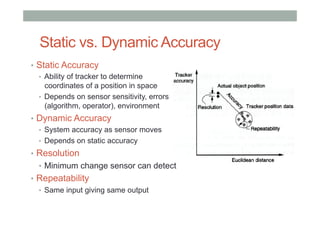

- 53. Static vs. DynamicAccuracy • Static Accuracy • Ability of tracker to determine coordinates of a position in space • Depends on sensor sensitivity, errors (algorithm, operator), environment • Dynamic Accuracy • System accuracy as sensor moves • Depends on static accuracy • Resolution • Minimum change sensor can detect • Repeatability • Same input giving same output

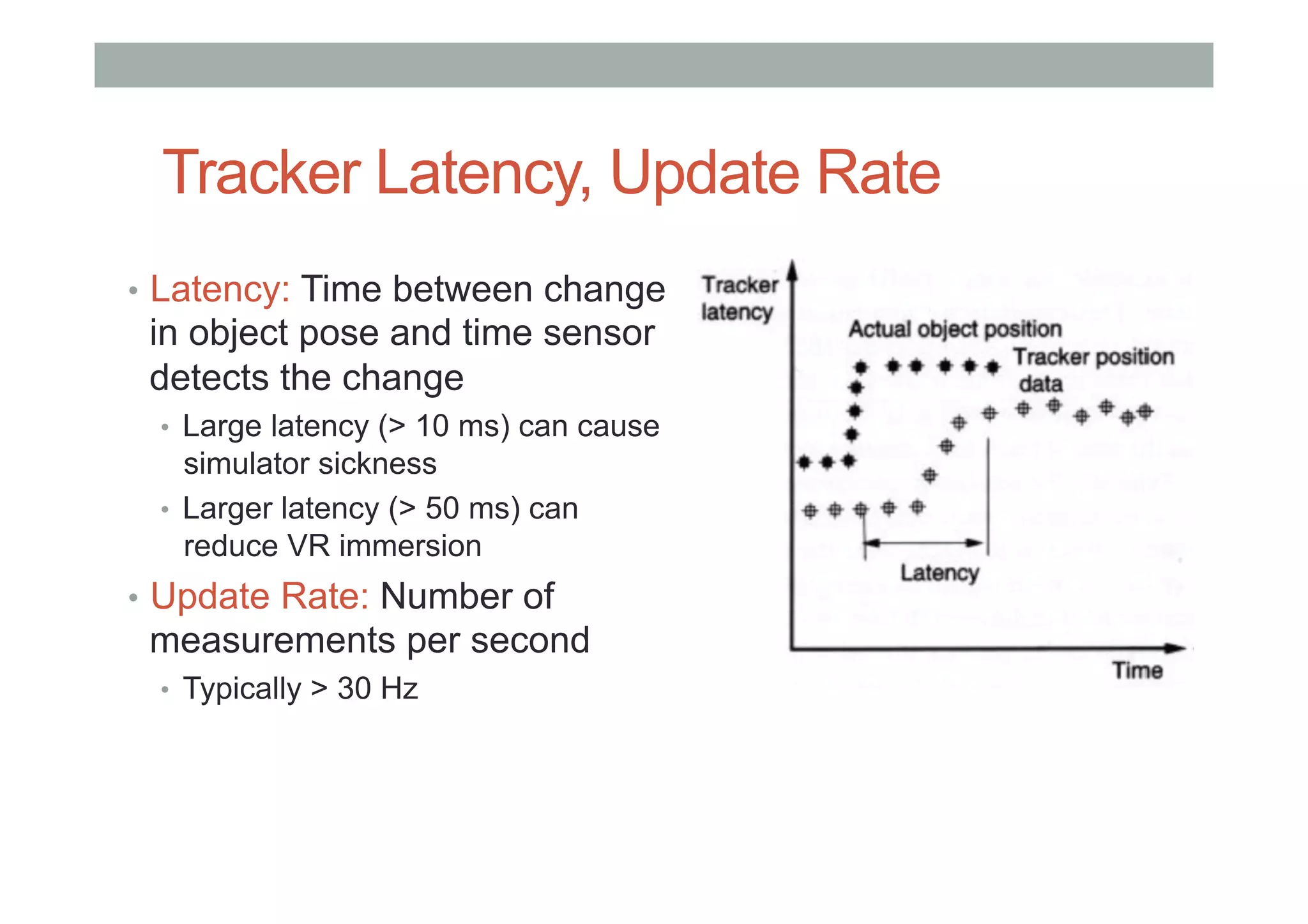

- 54. Tracker Latency, UpdateRate • Latency: Time between change in object pose and time sensor detects the change • Large latency (> 10 ms) can cause simulator sickness • Larger latency (> 50 ms) can reduce VR immersion • Update Rate: Number of measurements per second • Typically > 30 Hz

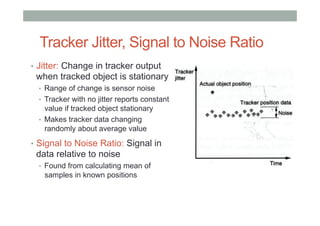

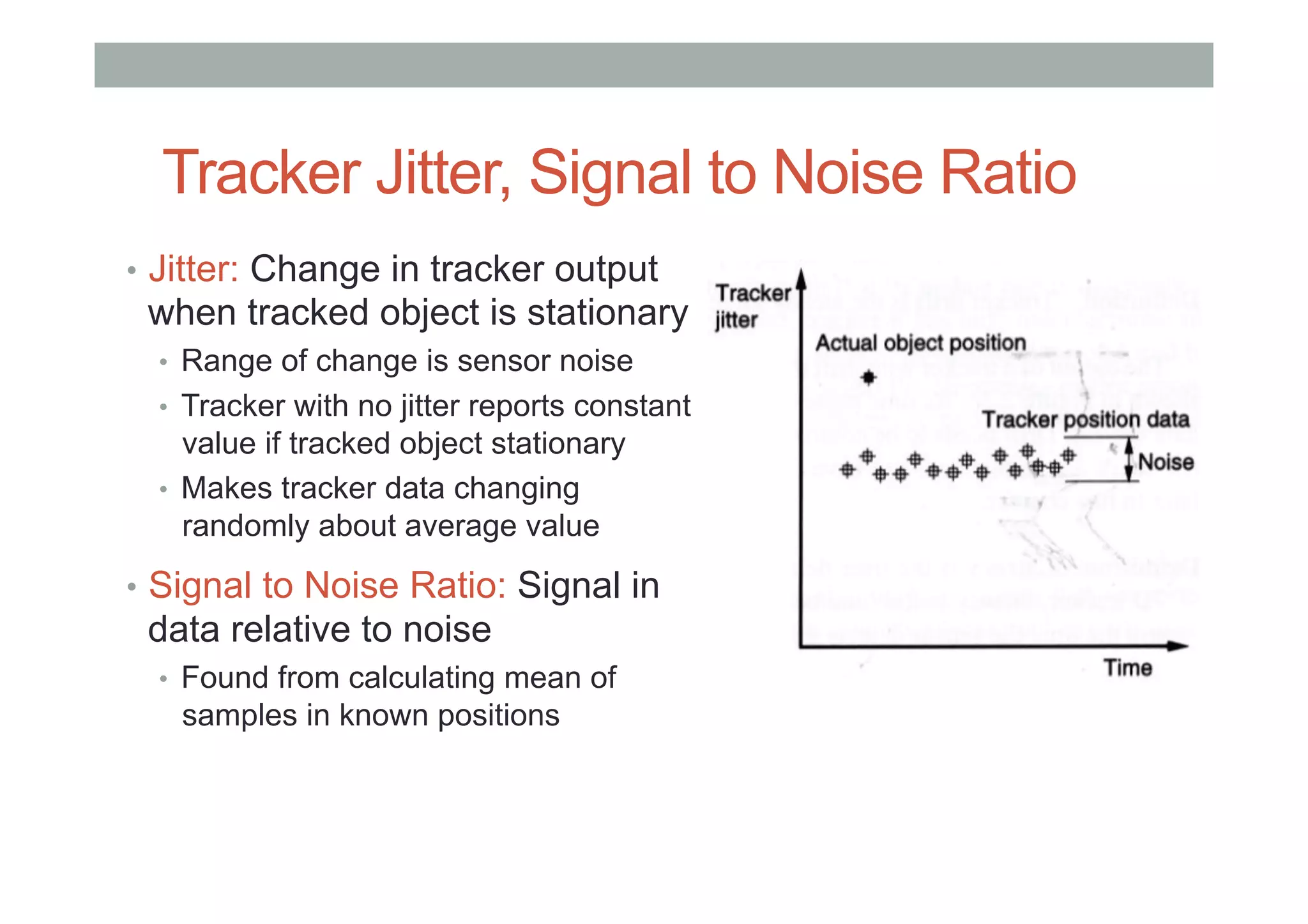

- 55. Tracker Jitter, Signalto Noise Ratio • Jitter: Change in tracker output when tracked object is stationary • Range of change is sensor noise • Tracker with no jitter reports constant value if tracked object stationary • Makes tracker data changing randomly about average value • Signal to Noise Ratio: Signal in data relative to noise • Found from calculating mean of samples in known positions

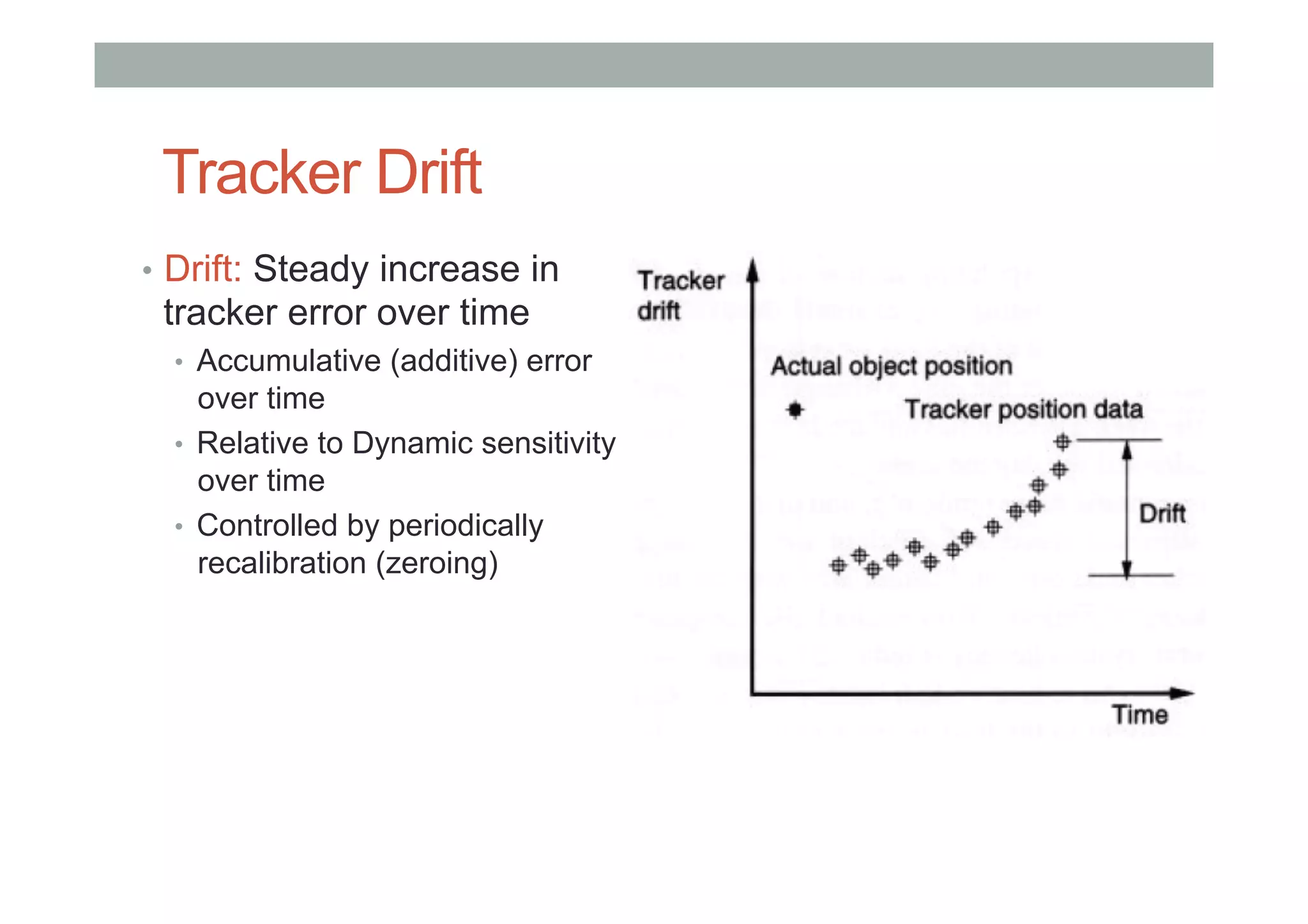

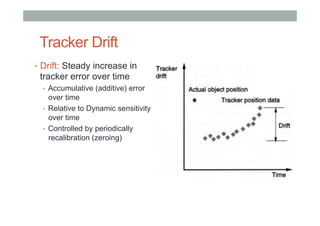

- 56. Tracker Drift • Drift:Steady increase in tracker error over time • Accumulative (additive) error over time • Relative to Dynamic sensitivity over time • Controlled by periodically recalibration (zeroing)

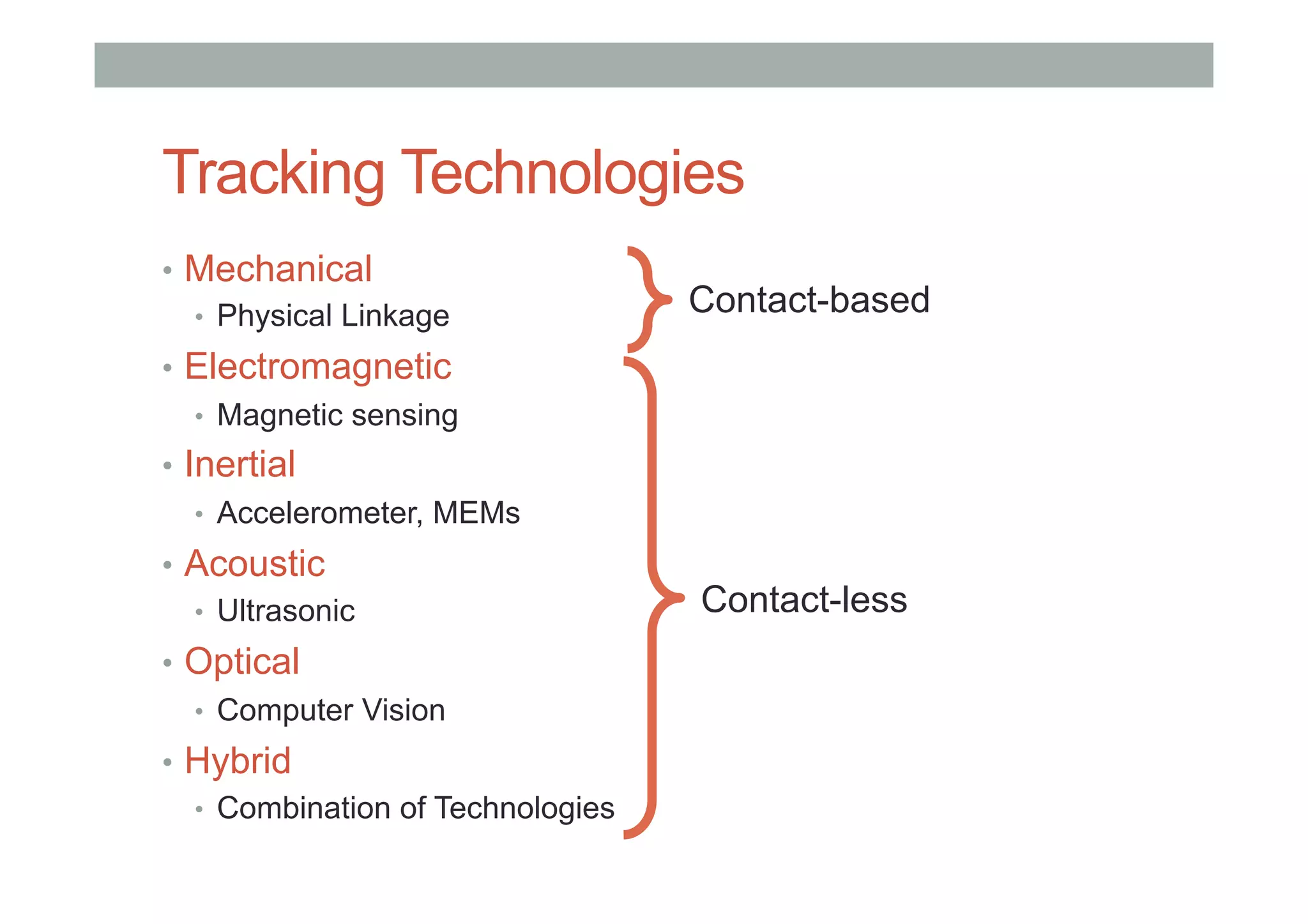

- 57. Tracking Technologies • Mechanical • Physical Linkage • Electromagnetic • Magnetic sensing • Inertial • Accelerometer, MEMs • Acoustic • Ultrasonic • Optical • Computer Vision • Hybrid • Combination of Technologies Contact-less Contact-based

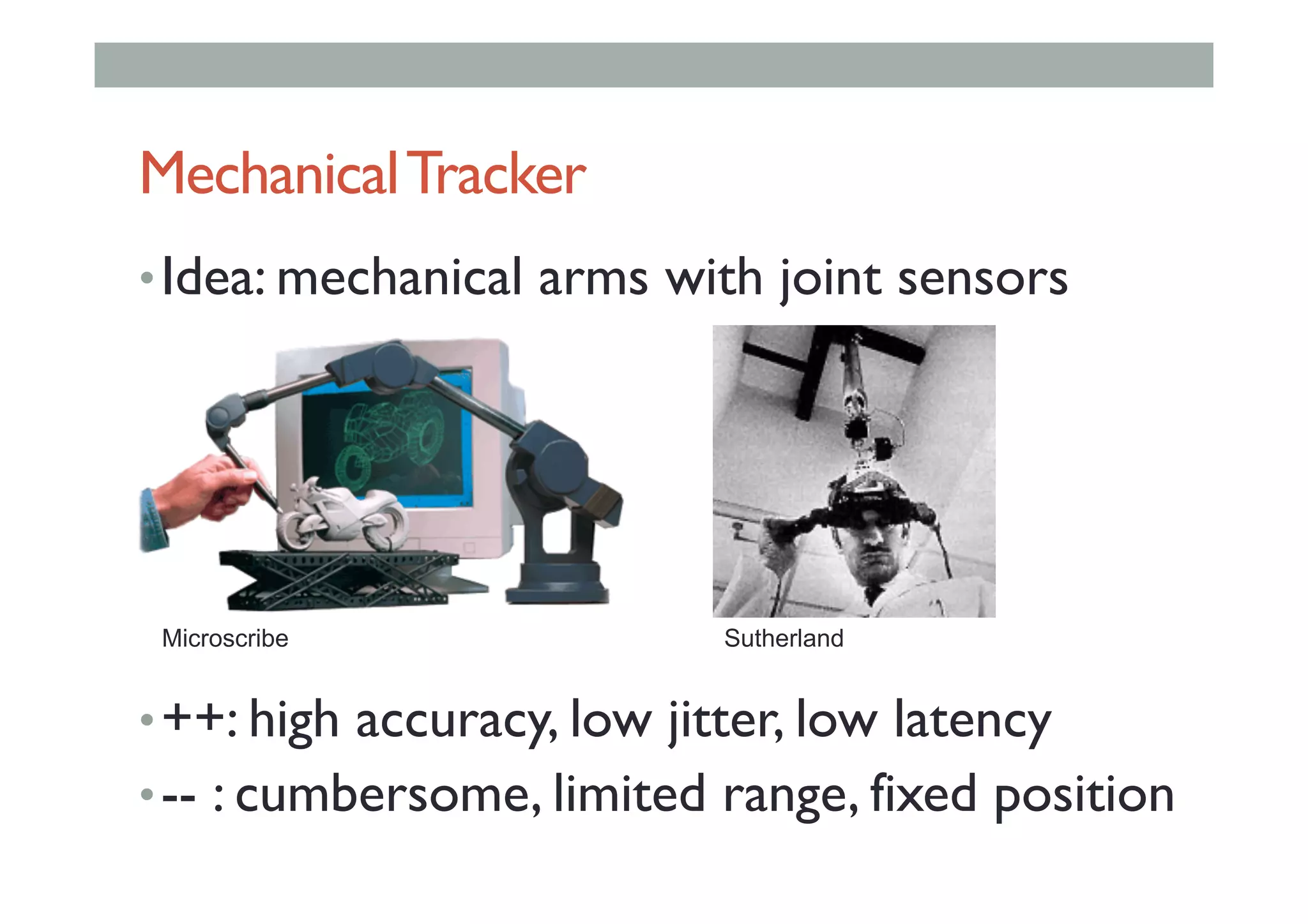

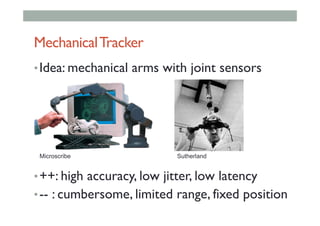

- 58. MechanicalTracker • Idea: mechanical armswith joint sensors • ++: high accuracy, low jitter, low latency • -- : cumbersome, limited range, fixed position Microscribe Sutherland

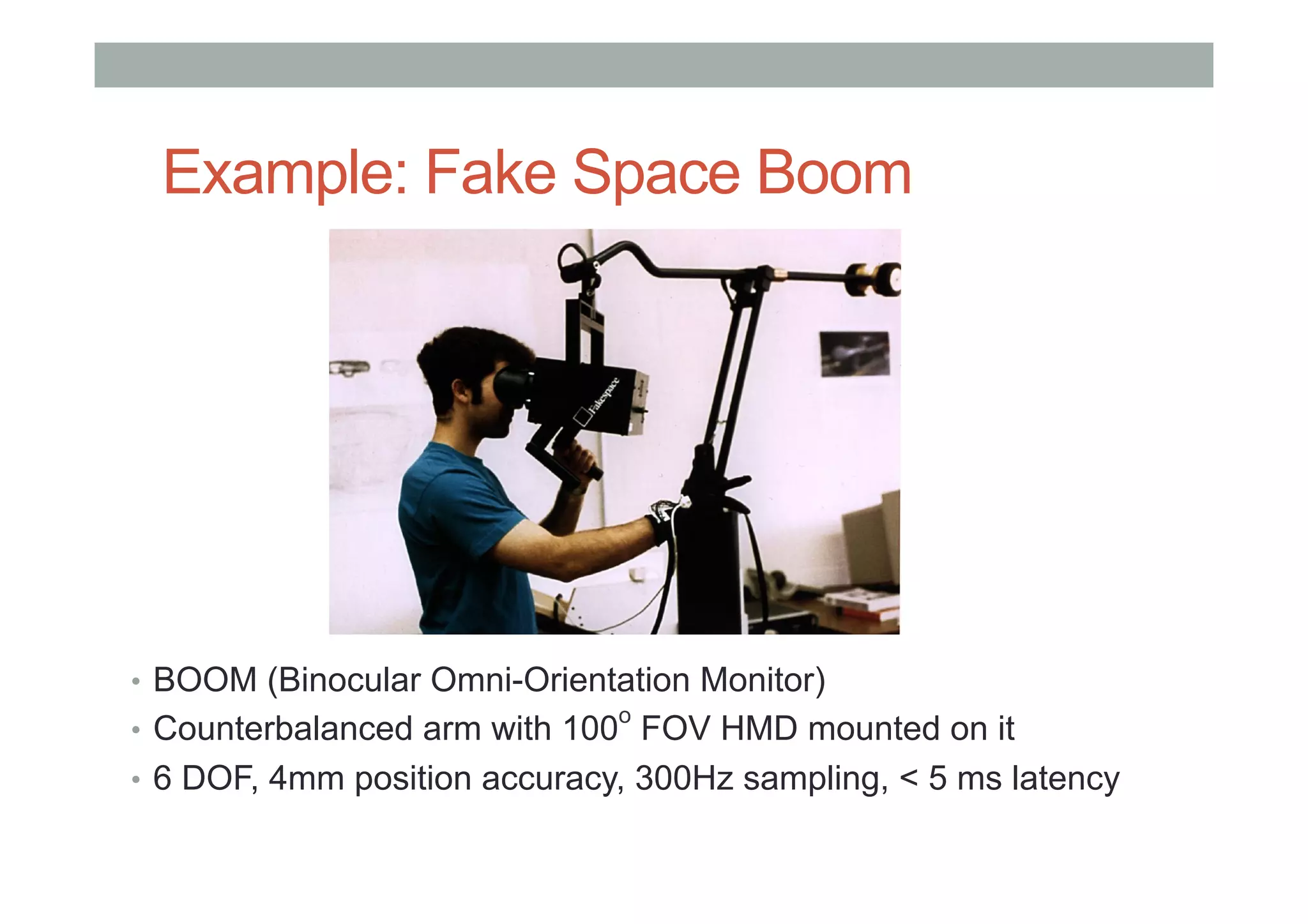

- 59. Example: Fake SpaceBoom • BOOM (Binocular Omni-Orientation Monitor) • Counterbalanced arm with 100 o FOV HMD mounted on it • 6 DOF, 4mm position accuracy, 300Hz sampling, < 5 ms latency

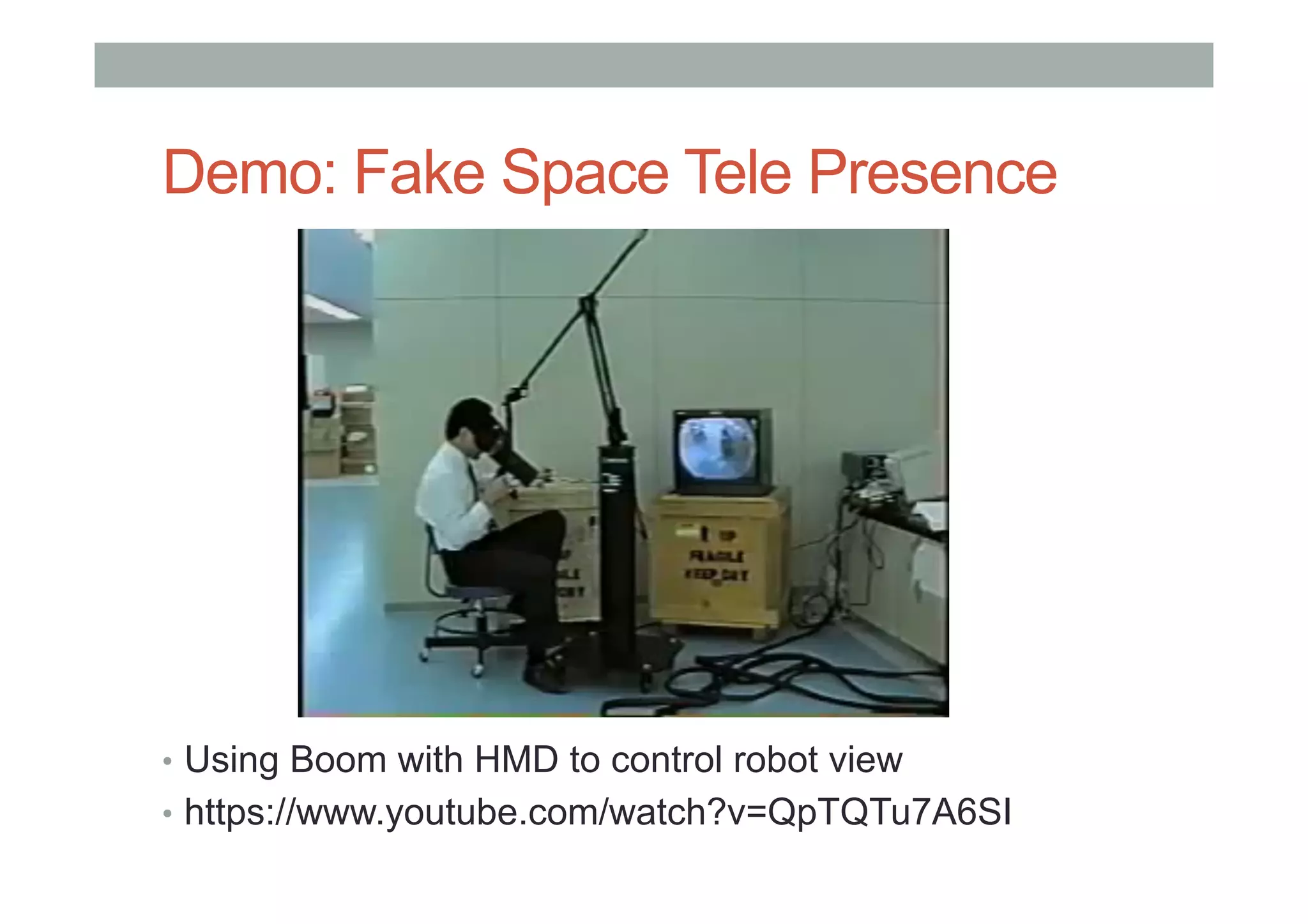

- 60. Demo: Fake SpaceTele Presence • Using Boom with HMD to control robot view • https://www.youtube.com/watch?v=QpTQTu7A6SI

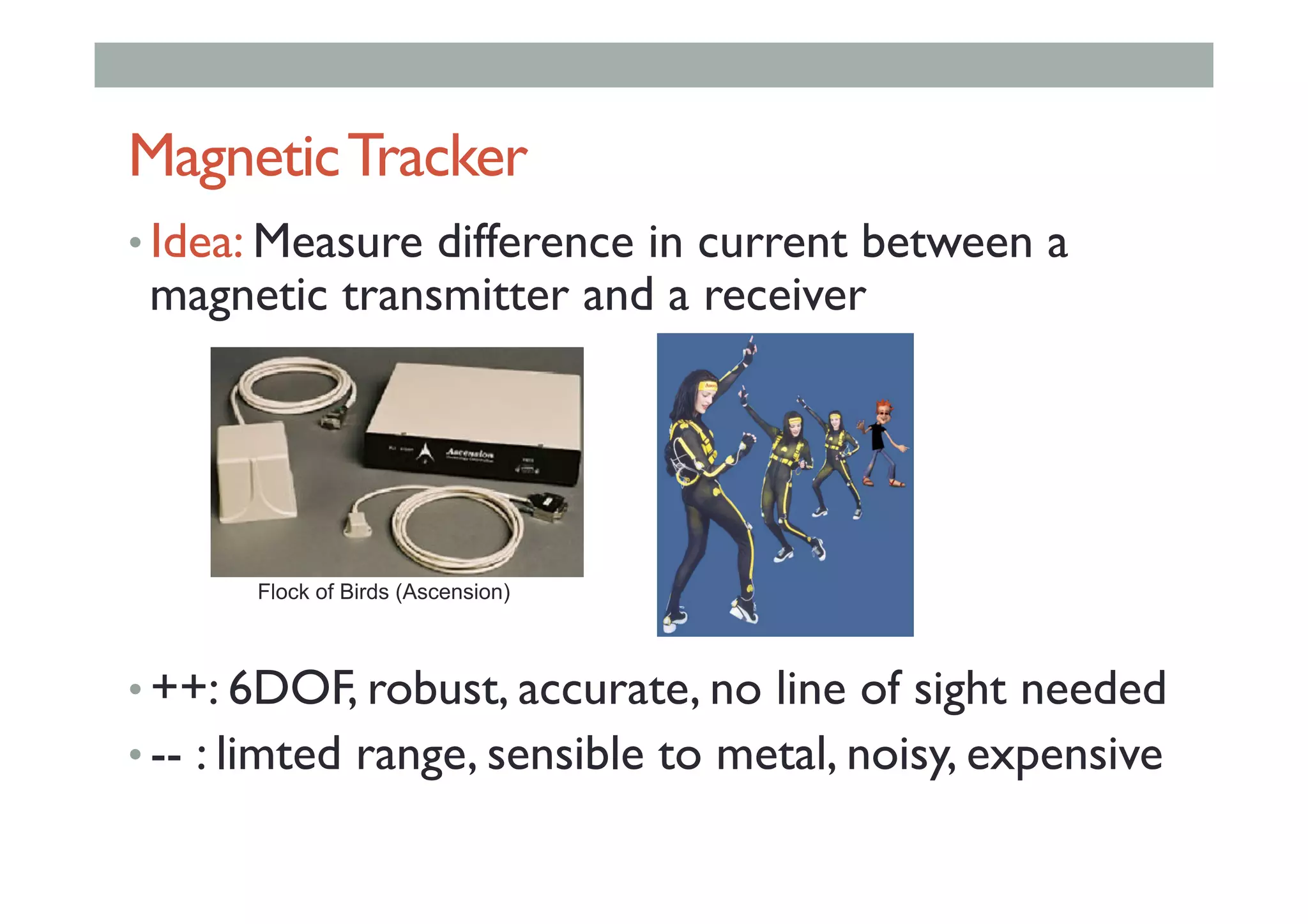

- 61. MagneticTracker • Idea: Measure differencein current between a magnetic transmitter and a receiver • ++: 6DOF, robust, accurate, no line of sight needed • -- : limted range, sensible to metal, noisy, expensive Flock of Birds (Ascension)

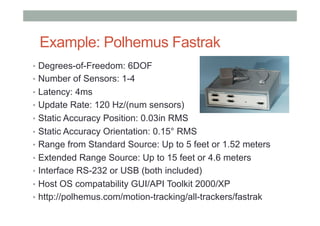

- 62. Example: Polhemus Fastrak • Degrees-of-Freedom: 6DOF • Number of Sensors: 1-4 • Latency: 4ms • Update Rate: 120 Hz/(num sensors) • Static Accuracy Position: 0.03in RMS • Static Accuracy Orientation: 0.15° RMS • Range from Standard Source: Up to 5 feet or 1.52 meters • Extended Range Source: Up to 15 feet or 4.6 meters • Interface RS-232 or USB (both included) • Host OS compatability GUI/API Toolkit 2000/XP • http://polhemus.com/motion-tracking/all-trackers/fastrak

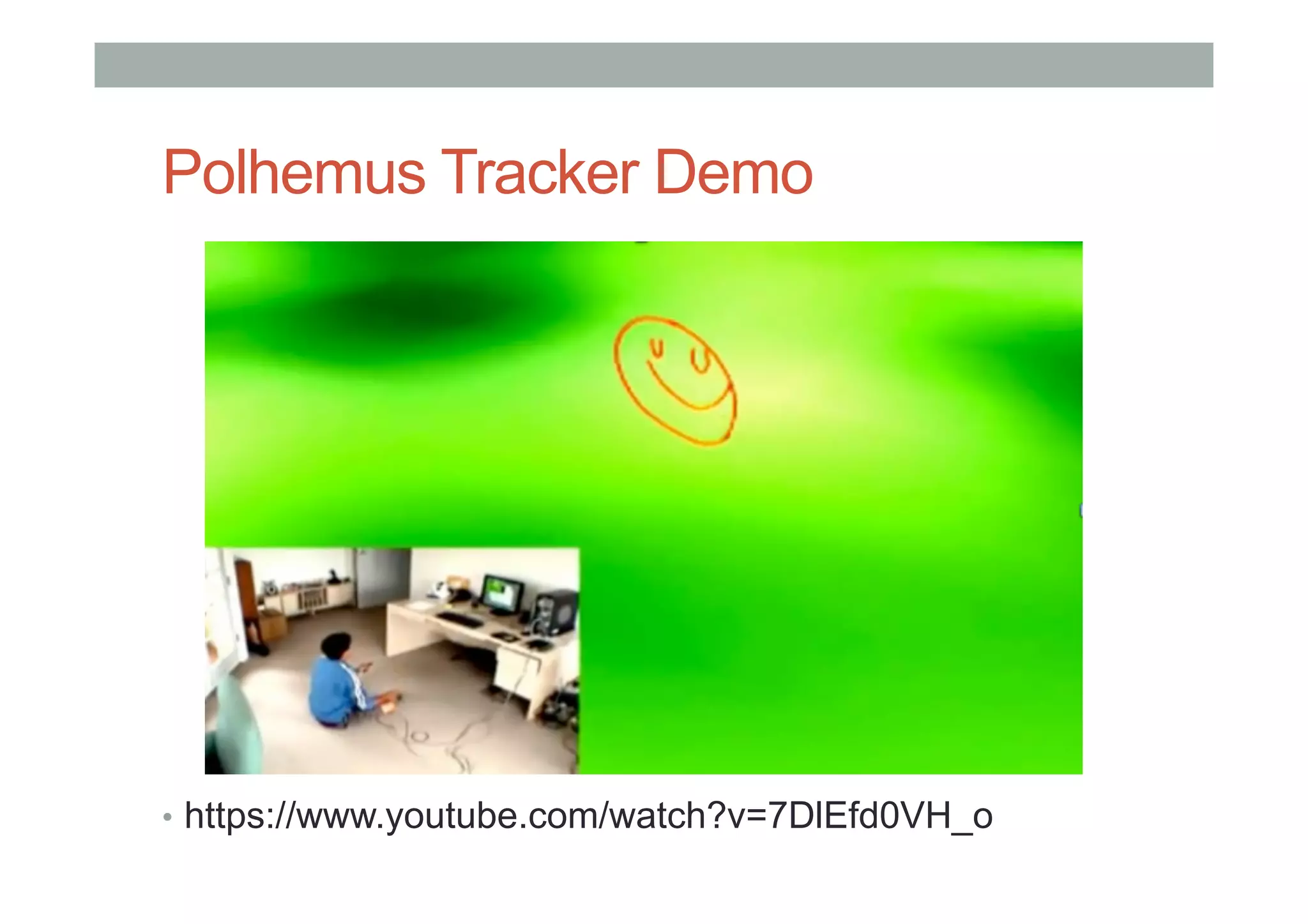

- 63. Polhemus Tracker Demo • https://www.youtube.com/watch?v=7DlEfd0VH_o

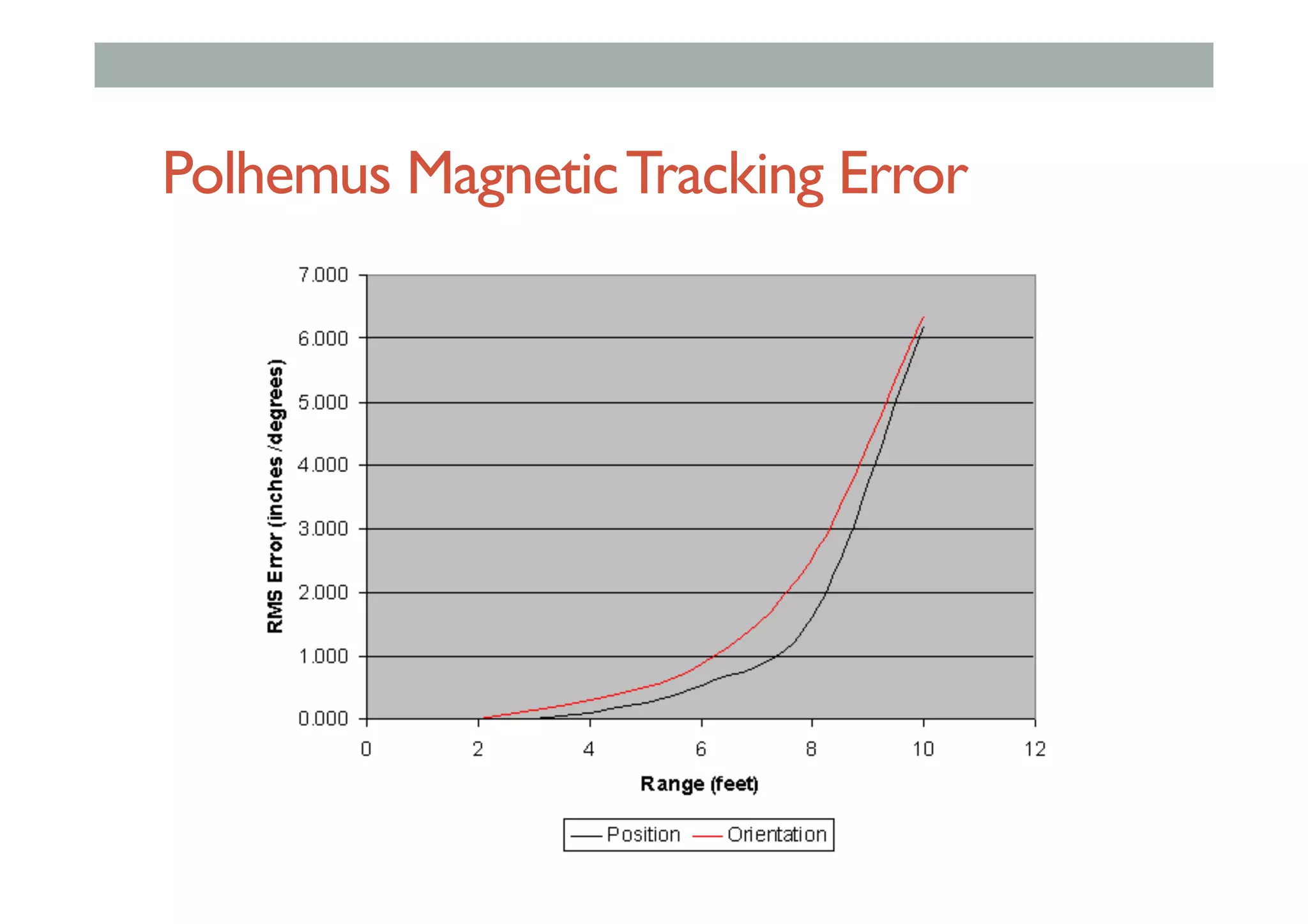

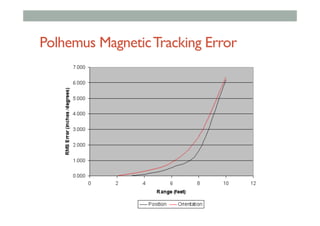

- 64.

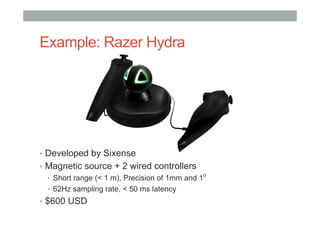

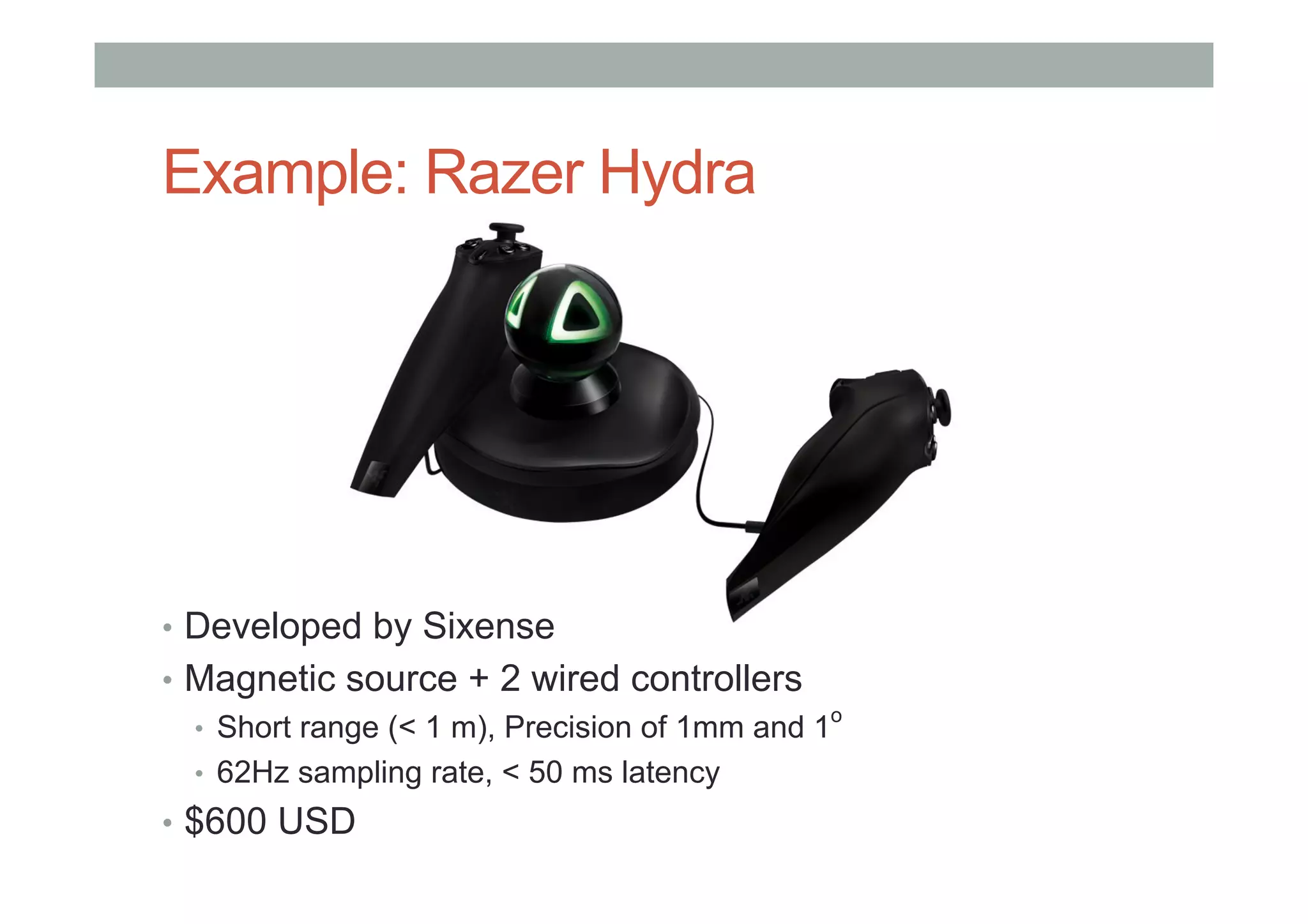

- 65. Example: Razer Hydra • Developed by Sixense • Magnetic source + 2 wired controllers • Short range (< 1 m), Precision of 1mm and 1 o • 62Hz sampling rate, < 50 ms latency • $600 USD

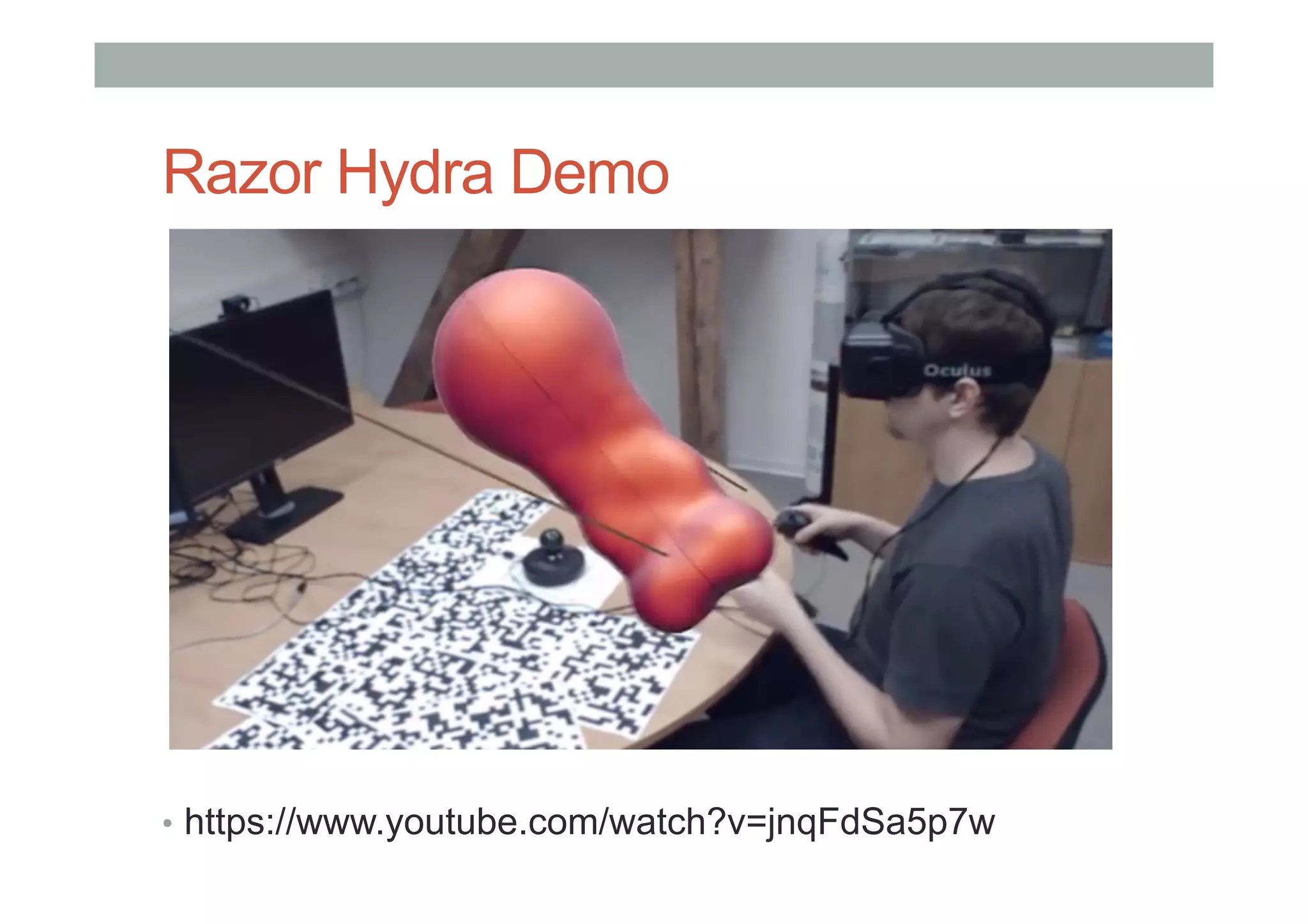

- 66. Razor Hydra Demo • https://www.youtube.com/watch?v=jnqFdSa5p7w

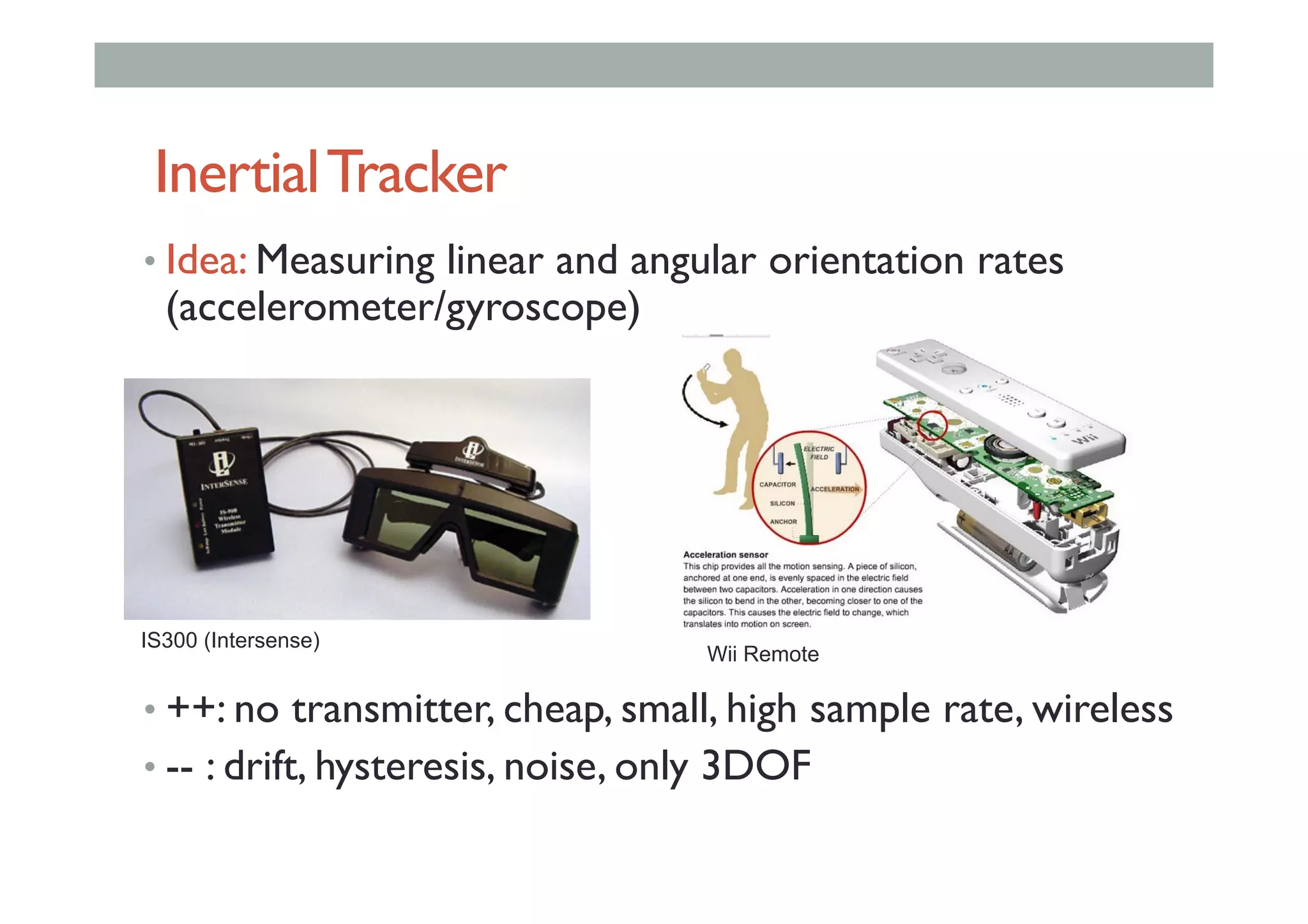

- 67. InertialTracker • Idea: Measuring linearand angular orientation rates (accelerometer/gyroscope) • ++: no transmitter, cheap, small, high sample rate, wireless • -- : drift, hysteresis, noise, only 3DOF IS300 (Intersense) Wii Remote

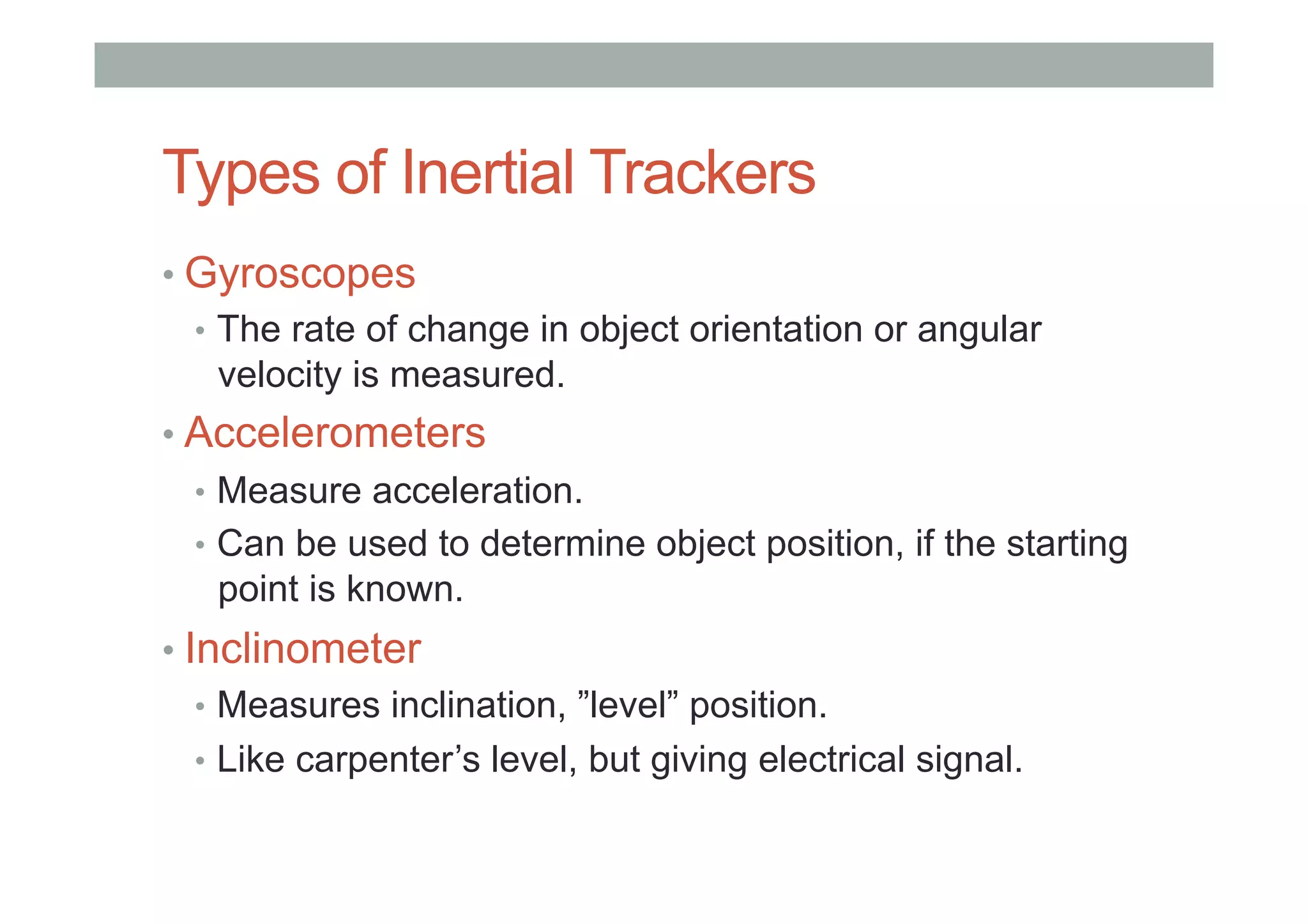

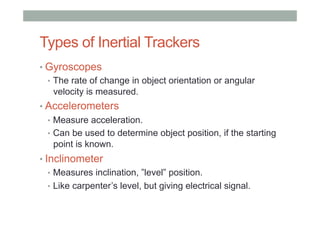

- 68. Types of InertialTrackers • Gyroscopes • The rate of change in object orientation or angular velocity is measured. • Accelerometers • Measure acceleration. • Can be used to determine object position, if the starting point is known. • Inclinometer • Measures inclination, ”level” position. • Like carpenter’s level, but giving electrical signal.

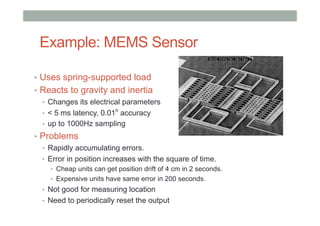

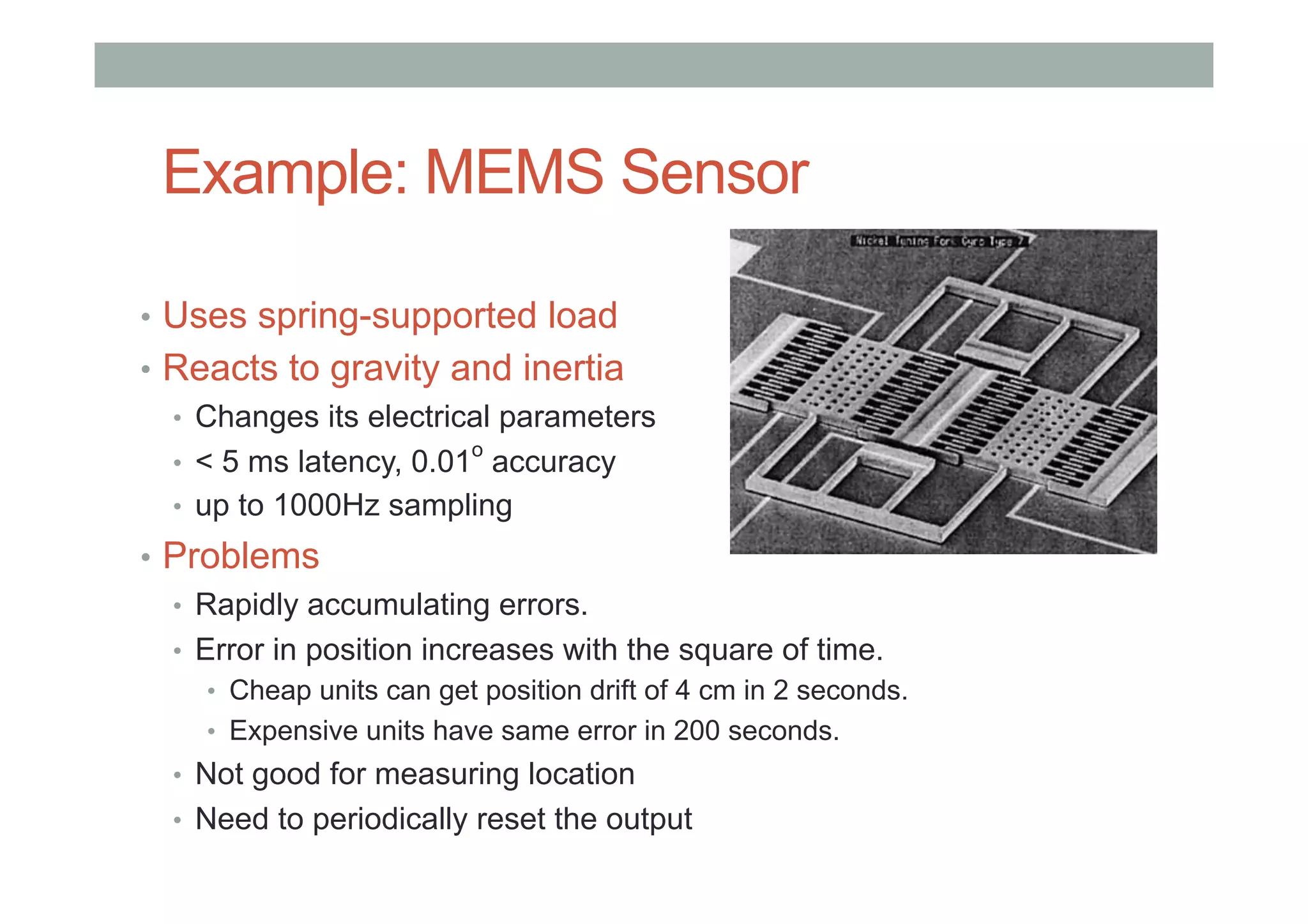

- 69. Example: MEMS Sensor • Uses spring-supported load • Reacts to gravity and inertia • Changes its electrical parameters • < 5 ms latency, 0.01 o accuracy • up to 1000Hz sampling • Problems • Rapidly accumulating errors. • Error in position increases with the square of time. • Cheap units can get position drift of 4 cm in 2 seconds. • Expensive units have same error in 200 seconds. • Not good for measuring location • Need to periodically reset the output

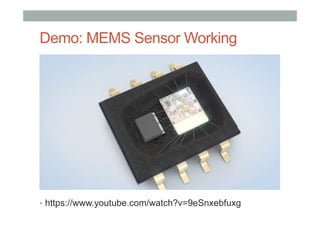

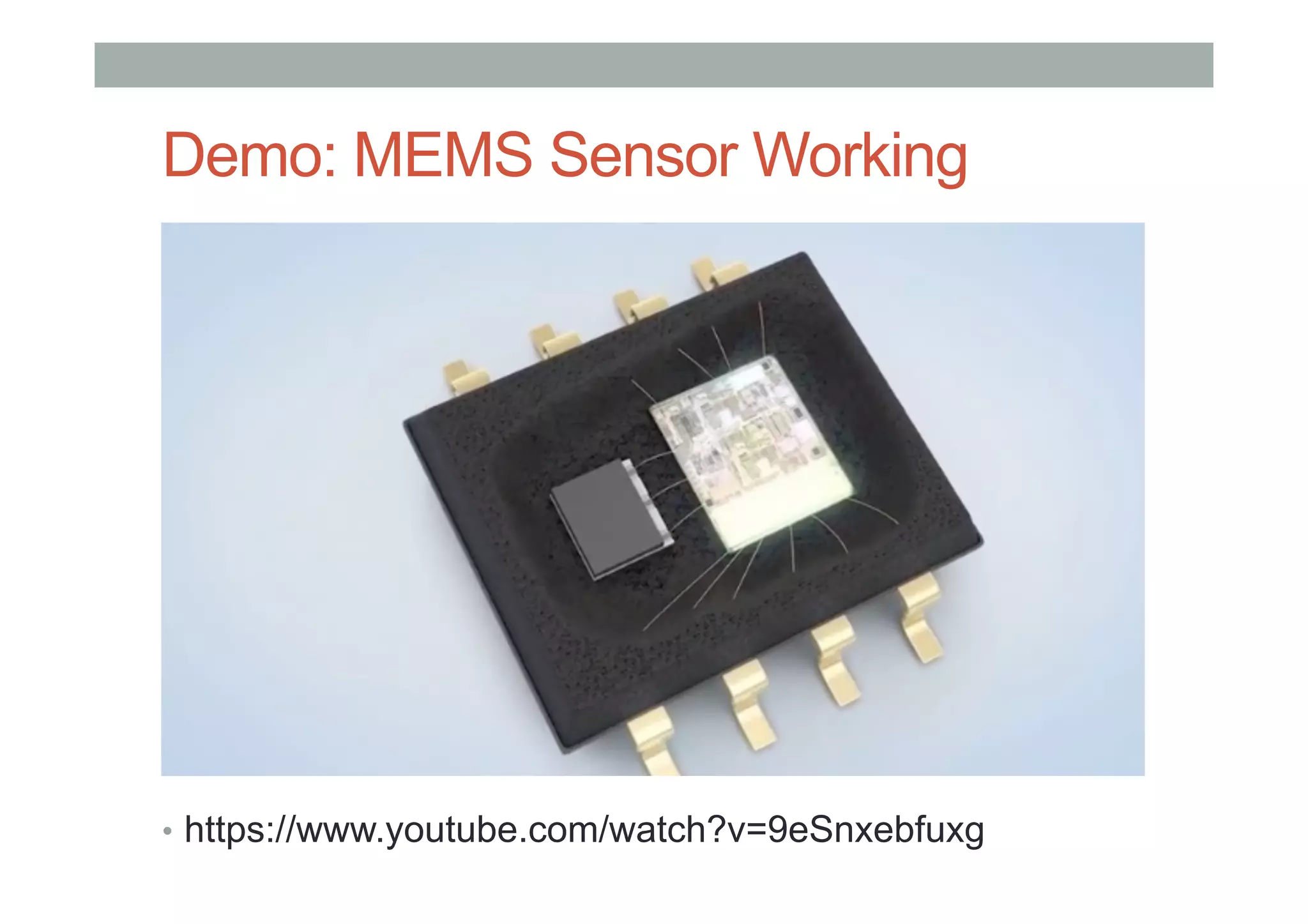

- 70. Demo: MEMS SensorWorking • https://www.youtube.com/watch?v=9eSnxebfuxg

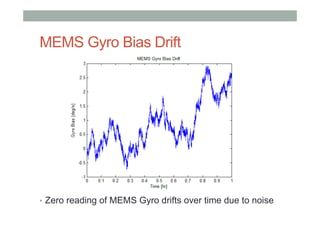

- 71. MEMS Gyro BiasDrift • Zero reading of MEMS Gyro drifts over time due to noise

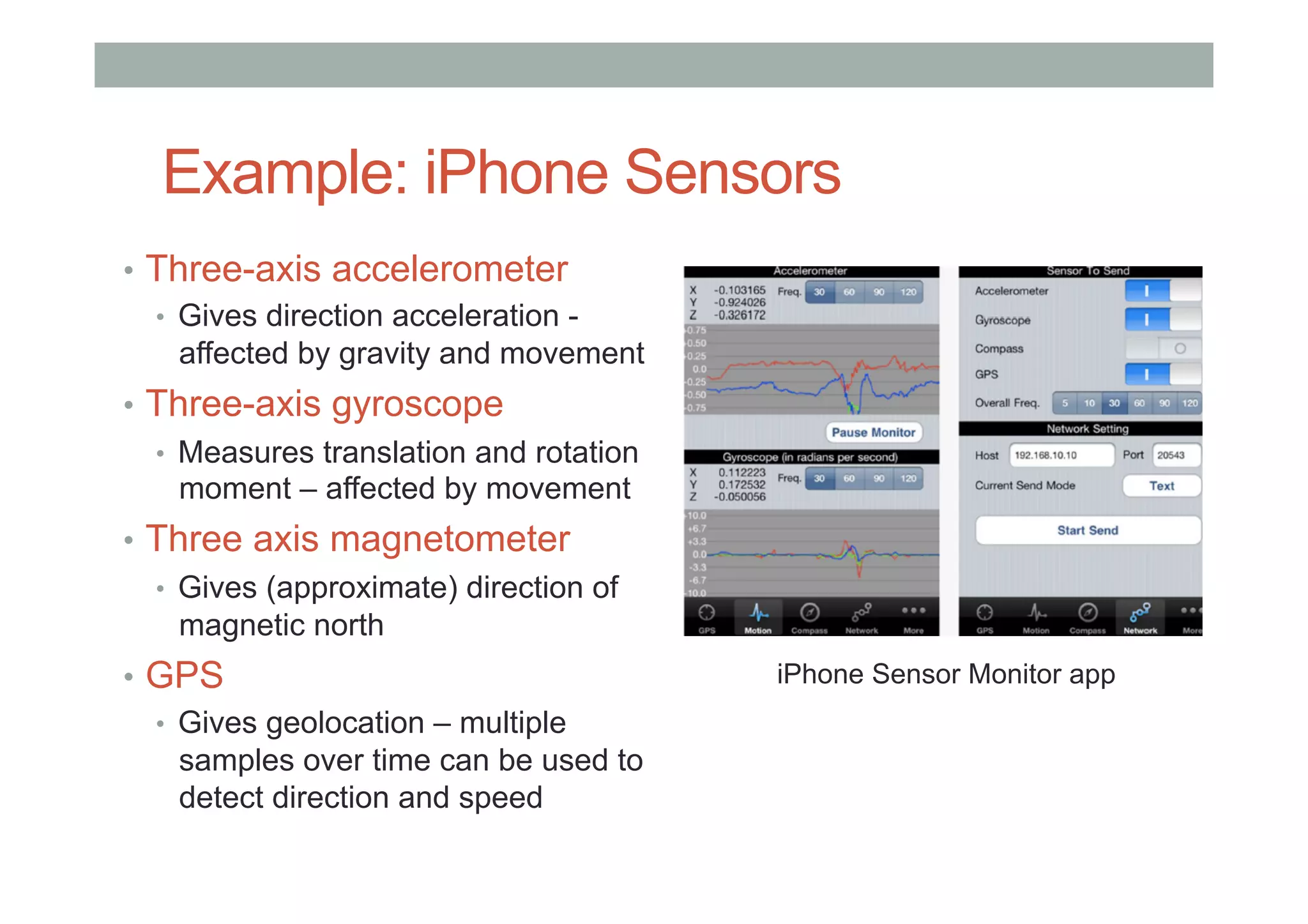

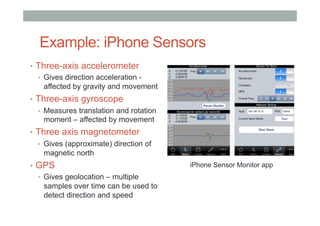

- 72. Example: iPhone Sensors • Three-axis accelerometer • Gives direction acceleration - affected by gravity and movement • Three-axis gyroscope • Measures translation and rotation moment – affected by movement • Three axis magnetometer • Gives (approximate) direction of magnetic north • GPS • Gives geolocation – multiple samples over time can be used to detect direction and speed iPhone Sensor Monitor app

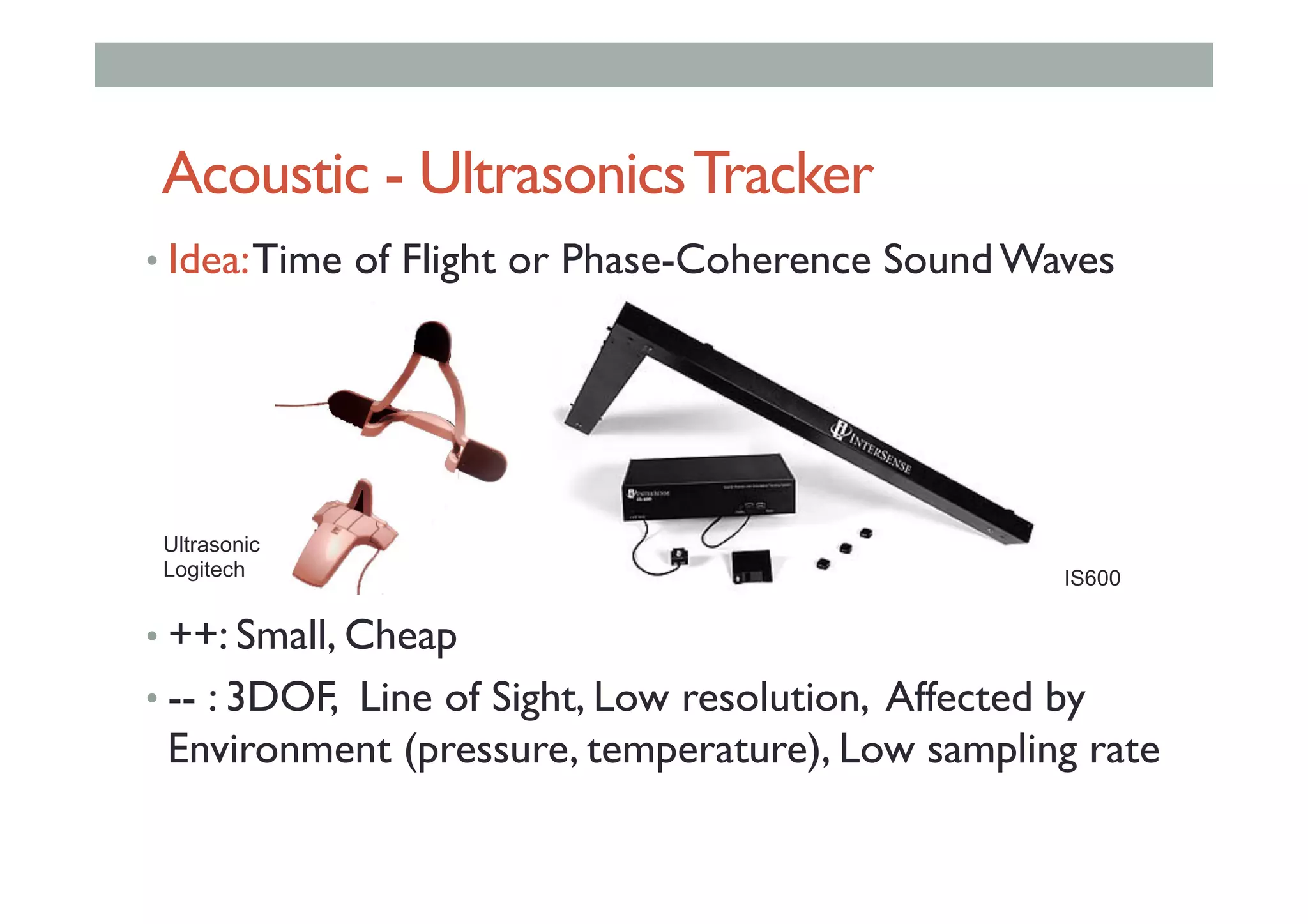

- 73. Acoustic - UltrasonicsTracker • Idea:Timeof Flight or Phase-Coherence Sound Waves • ++: Small, Cheap • -- : 3DOF, Line of Sight, Low resolution, Affected by Environment (pressure, temperature), Low sampling rate Ultrasonic Logitech IS600

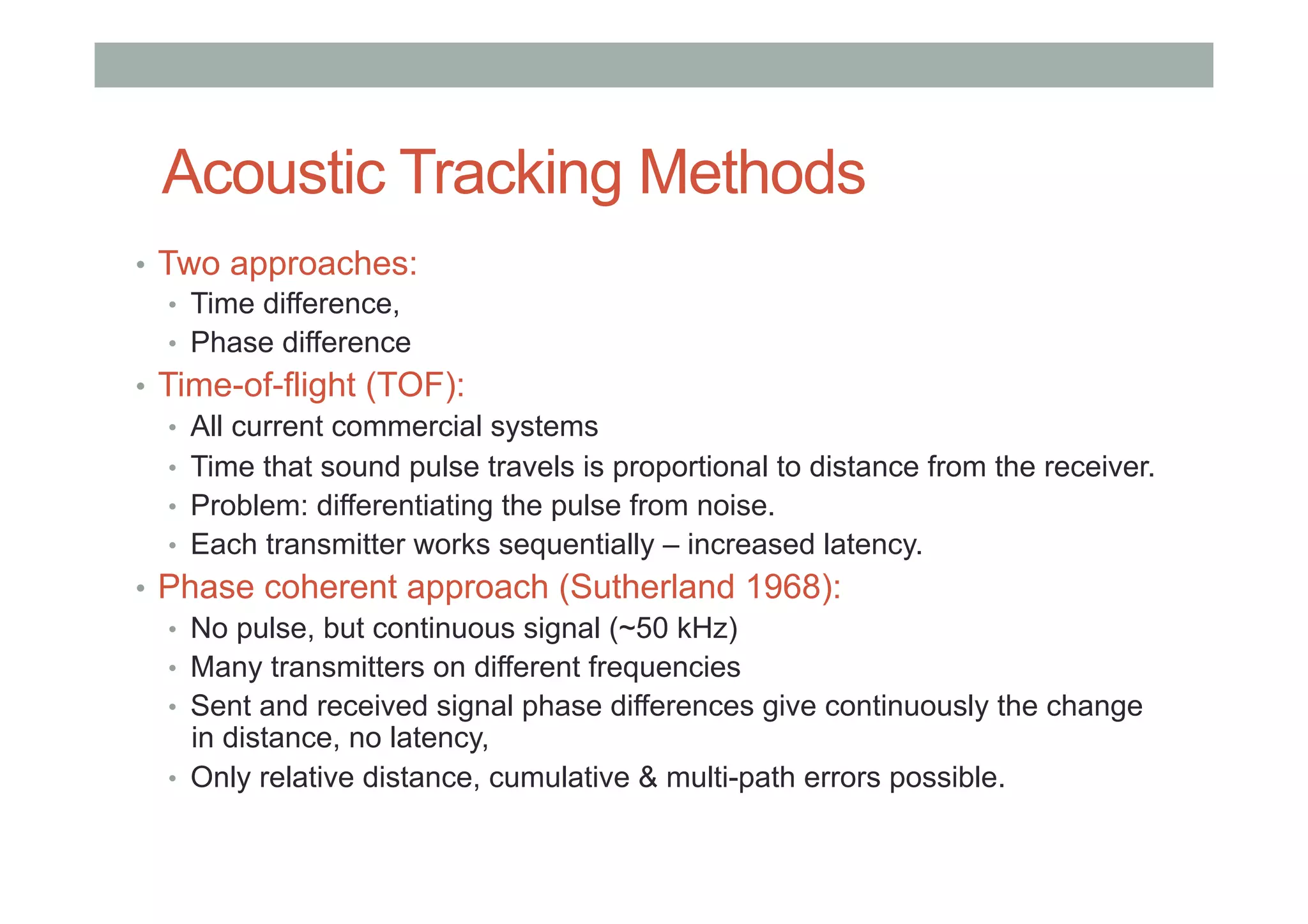

- 74. Acoustic Tracking Methods • Two approaches: • Time difference, • Phase difference • Time-of-flight (TOF): • All current commercial systems • Time that sound pulse travels is proportional to distance from the receiver. • Problem: differentiating the pulse from noise. • Each transmitter works sequentially – increased latency. • Phase coherent approach (Sutherland 1968): • No pulse, but continuous signal (~50 kHz) • Many transmitters on different frequencies • Sent and received signal phase differences give continuously the change in distance, no latency, • Only relative distance, cumulative & multi-path errors possible.

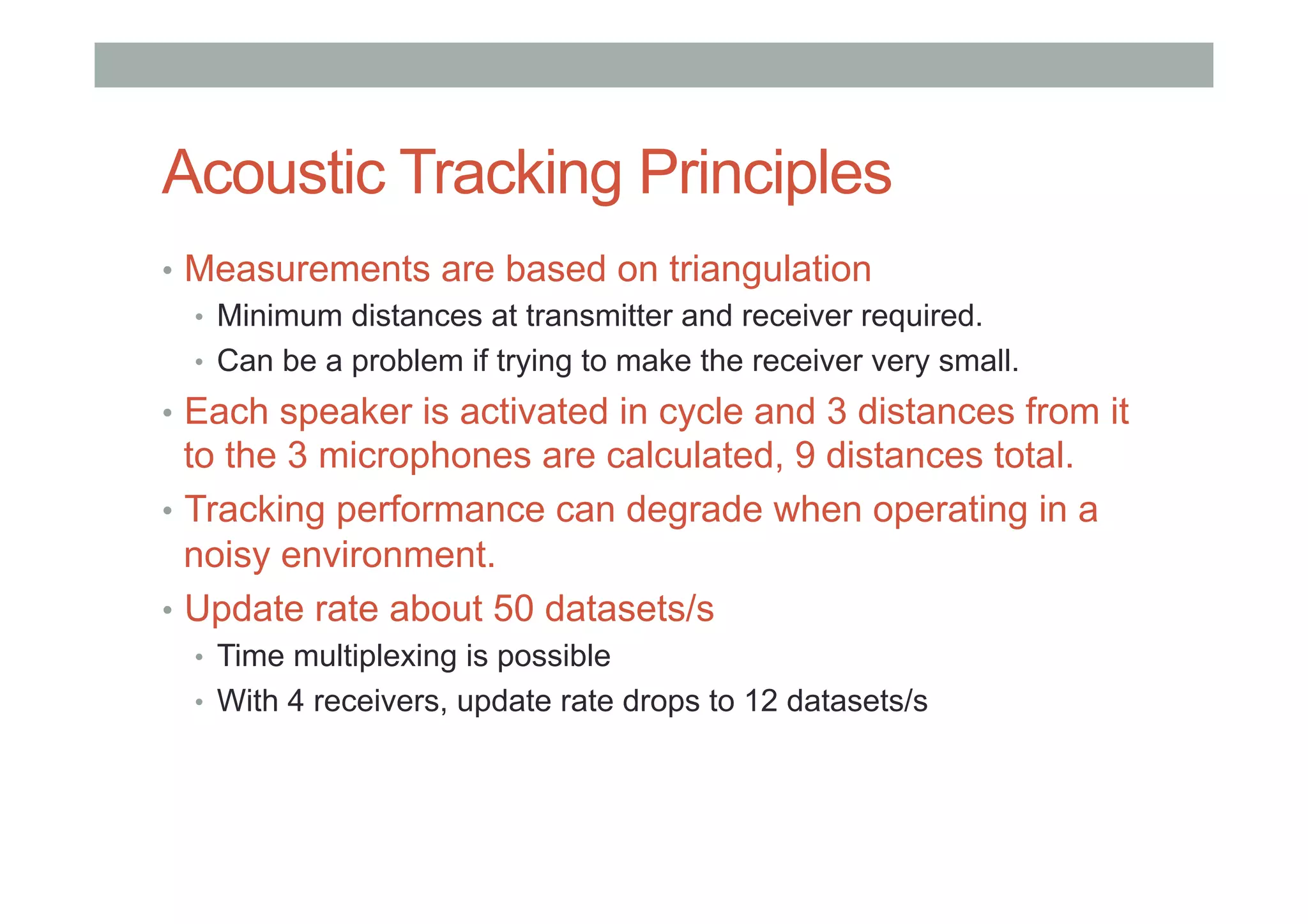

- 75. Acoustic Tracking Principles • Measurements are based on triangulation • Minimum distances at transmitter and receiver required. • Can be a problem if trying to make the receiver very small. • Each speaker is activated in cycle and 3 distances from it to the 3 microphones are calculated, 9 distances total. • Tracking performance can degrade when operating in a noisy environment. • Update rate about 50 datasets/s • Time multiplexing is possible • With 4 receivers, update rate drops to 12 datasets/s

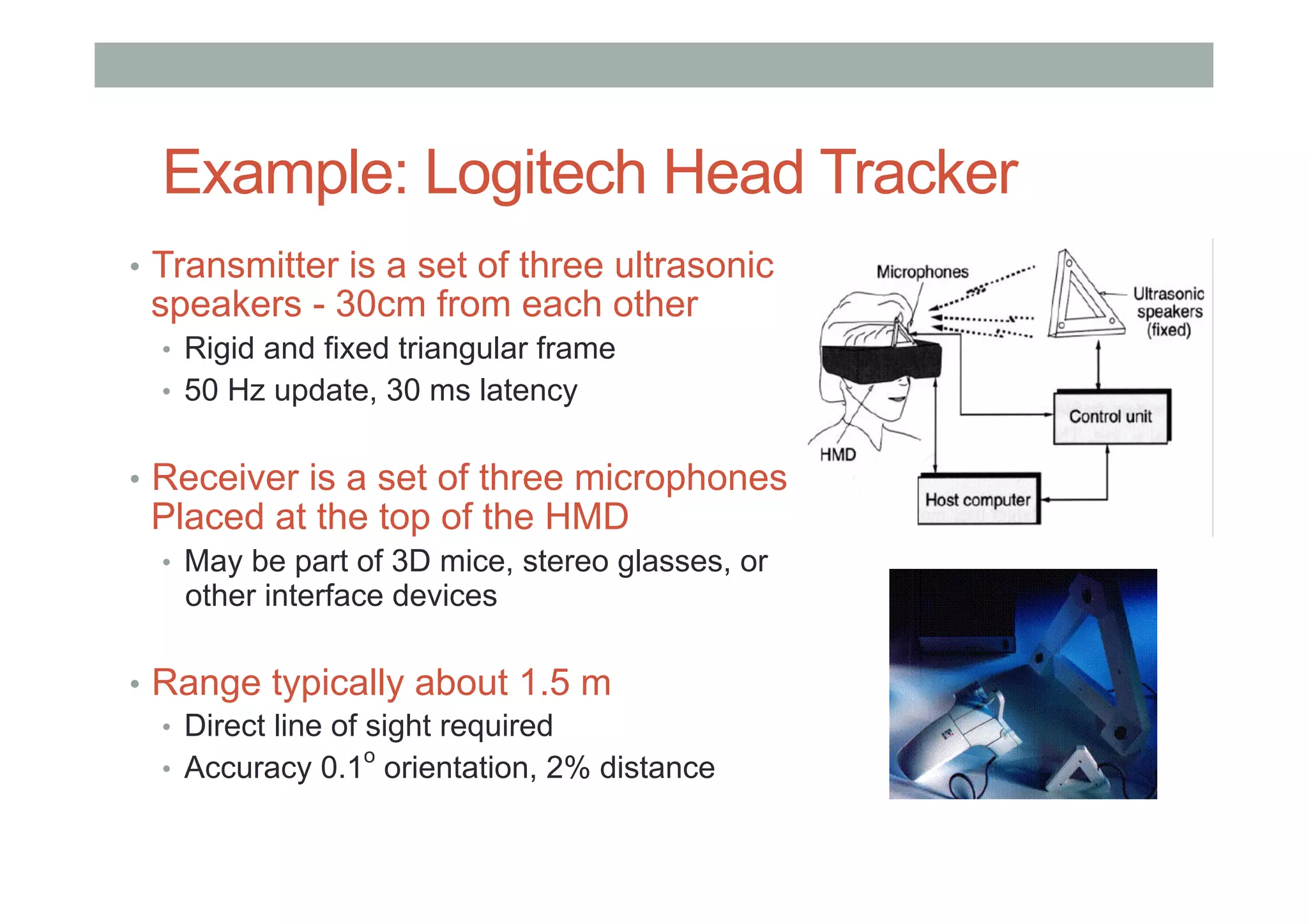

- 76. Example: Logitech HeadTracker • Transmitter is a set of three ultrasonic speakers - 30cm from each other • Rigid and fixed triangular frame • 50 Hz update, 30 ms latency • Receiver is a set of three microphones Placed at the top of the HMD • May be part of 3D mice, stereo glasses, or other interface devices • Range typically about 1.5 m • Direct line of sight required • Accuracy 0.1 o orientation, 2% distance

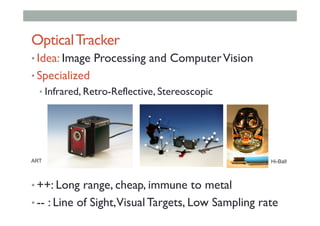

- 77. OpticalTracker • Idea: Image Processingand ComputerVision • Specialized • Infrared, Retro-Reflective, Stereoscopic • ++: Long range, cheap, immune to metal • -- : Line of Sight,Visual Targets, Low Sampling rate ART Hi-Ball

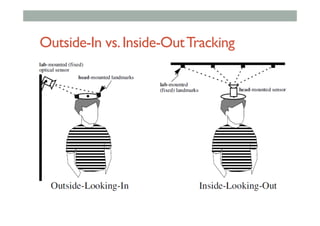

- 78.

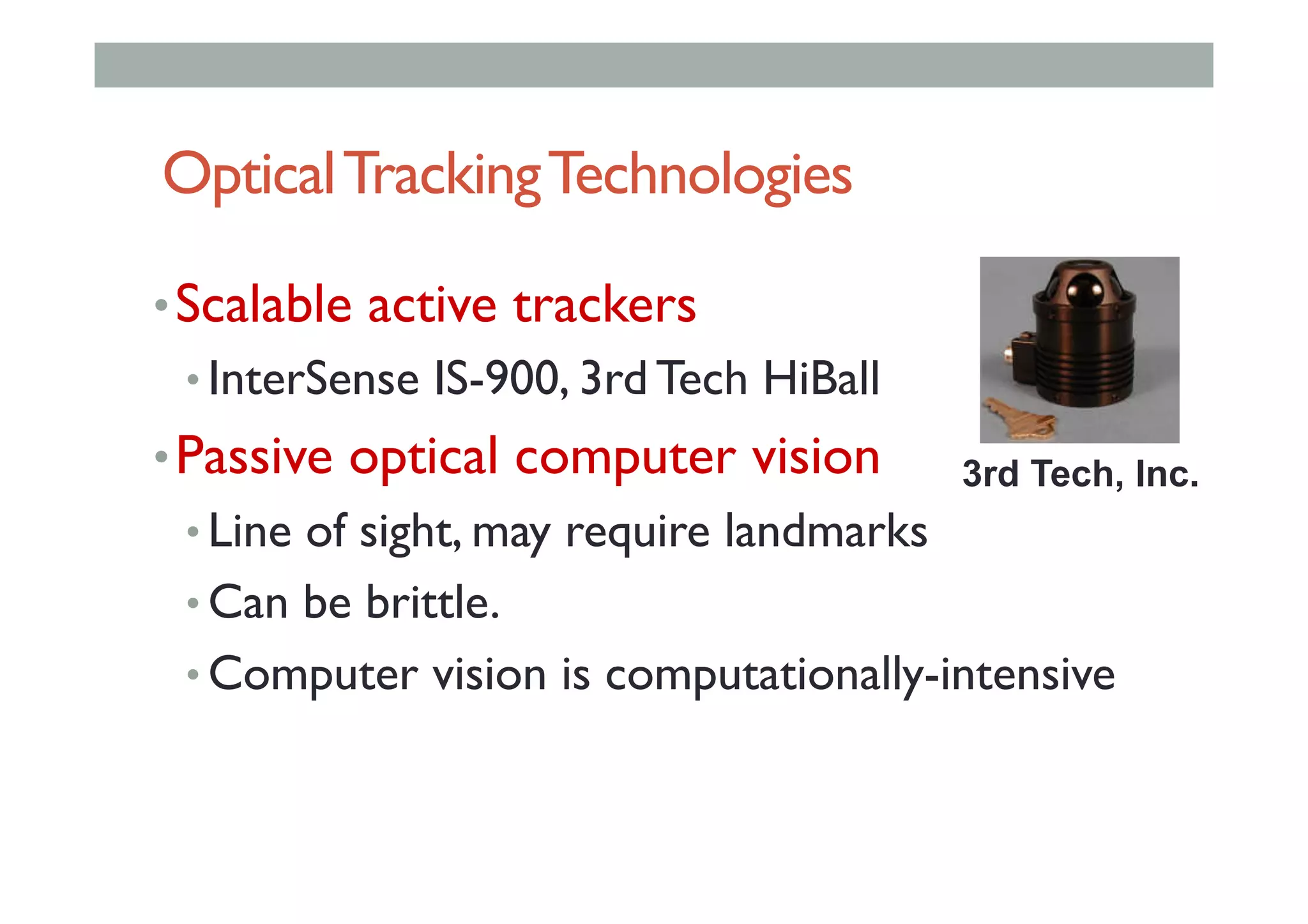

- 79. OpticalTrackingTechnologies • Scalable active trackers • InterSenseIS-900, 3rd Tech HiBall • Passive optical computer vision • Line of sight, may require landmarks • Can be brittle. • Computer vision is computationally-intensive 3rd Tech, Inc.

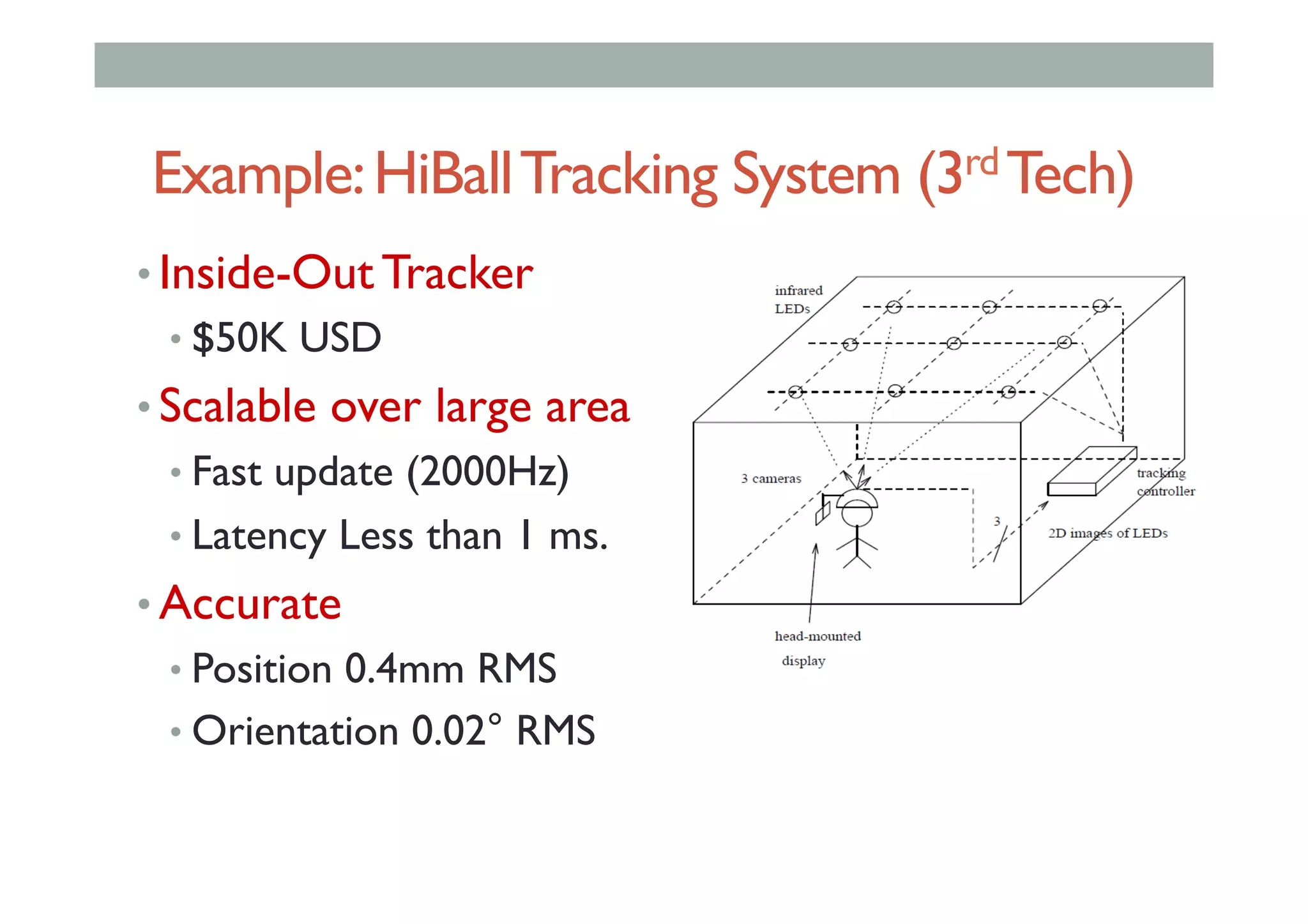

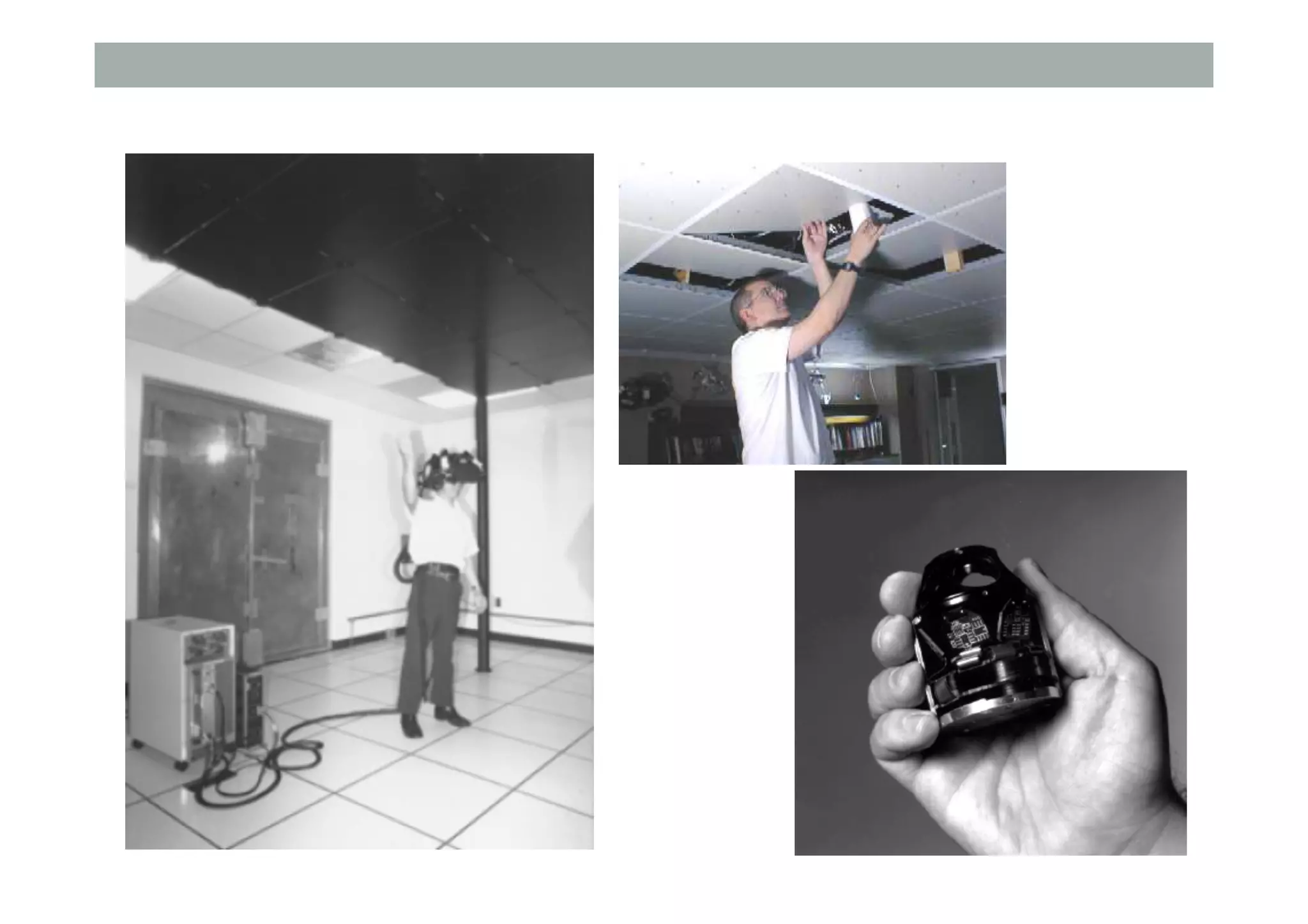

- 80. Example:HiBallTracking System (3rdTech) • Inside-Out Tracker • $50K USD • Scalable over large area • Fast update (2000Hz) • Latency Less than 1 ms. • Accurate • Position 0.4mm RMS • Orientation 0.02° RMS

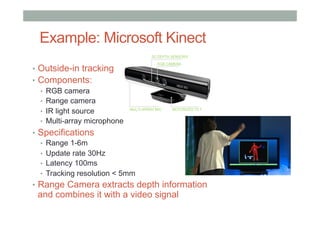

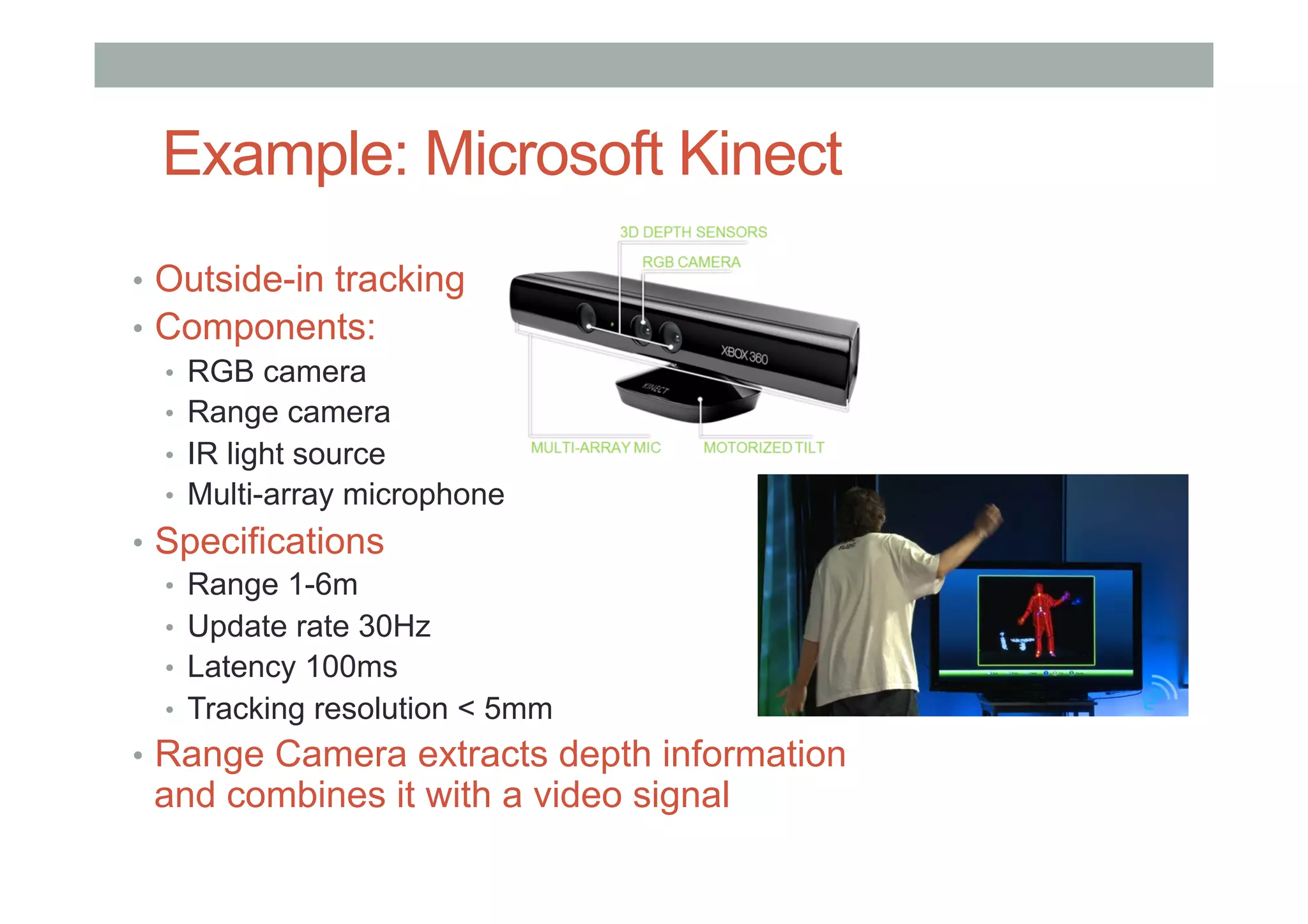

- 82. Example: Microsoft Kinect • Outside-in tracking • Components: • RGB camera • Range camera • IR light source • Multi-array microphone • Specifications • Range 1-6m • Update rate 30Hz • Latency 100ms • Tracking resolution < 5mm • Range Camera extracts depth information and combines it with a video signal

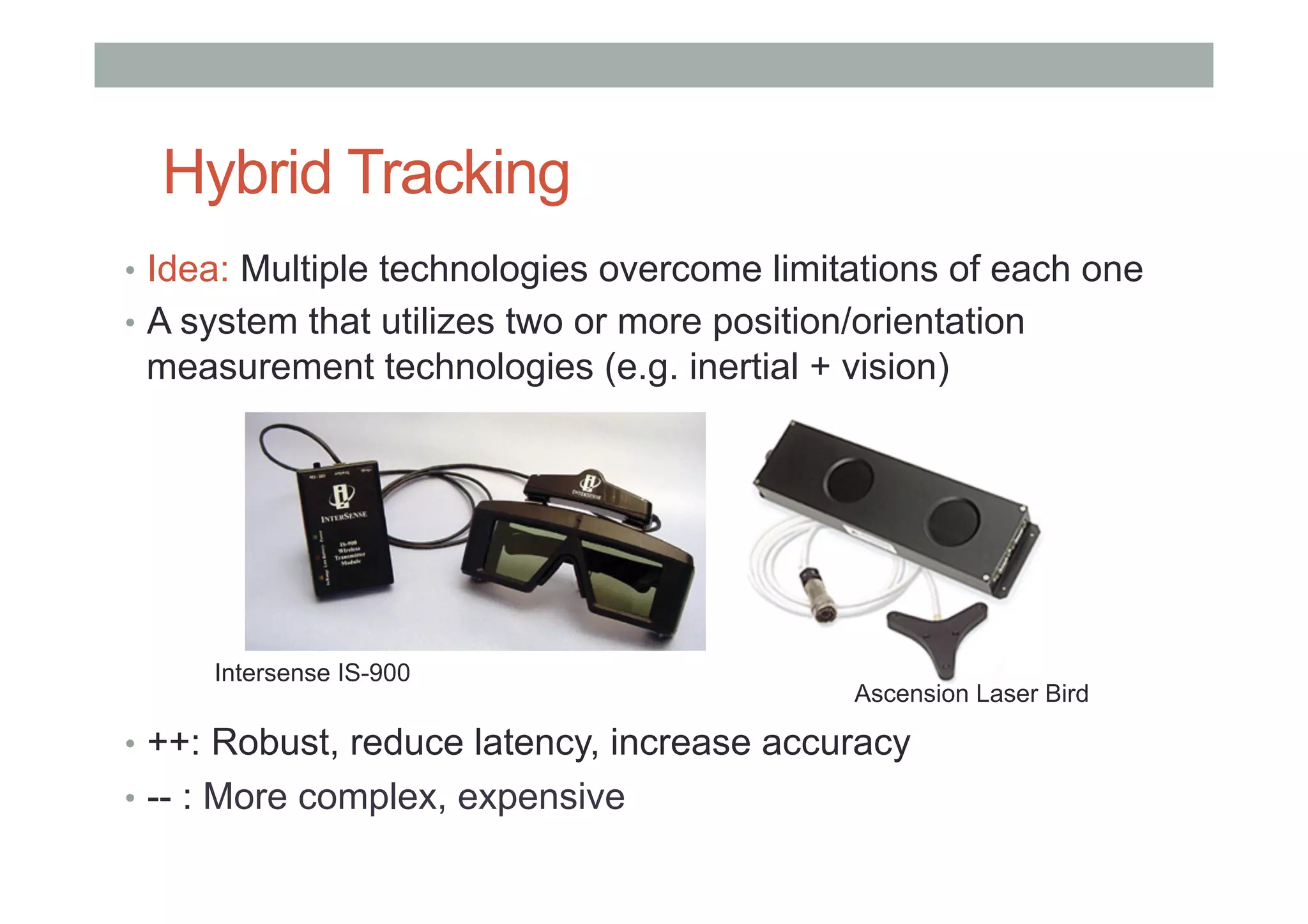

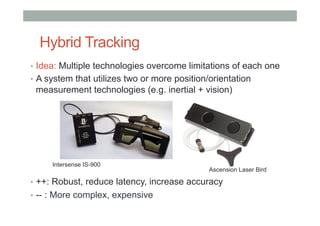

- 83. Hybrid Tracking • Idea:Multiple technologies overcome limitations of each one • A system that utilizes two or more position/orientation measurement technologies (e.g. inertial + vision) • ++: Robust, reduce latency, increase accuracy • -- : More complex, expensive Intersense IS-900 Ascension Laser Bird

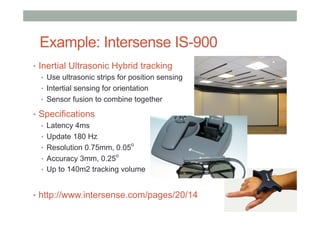

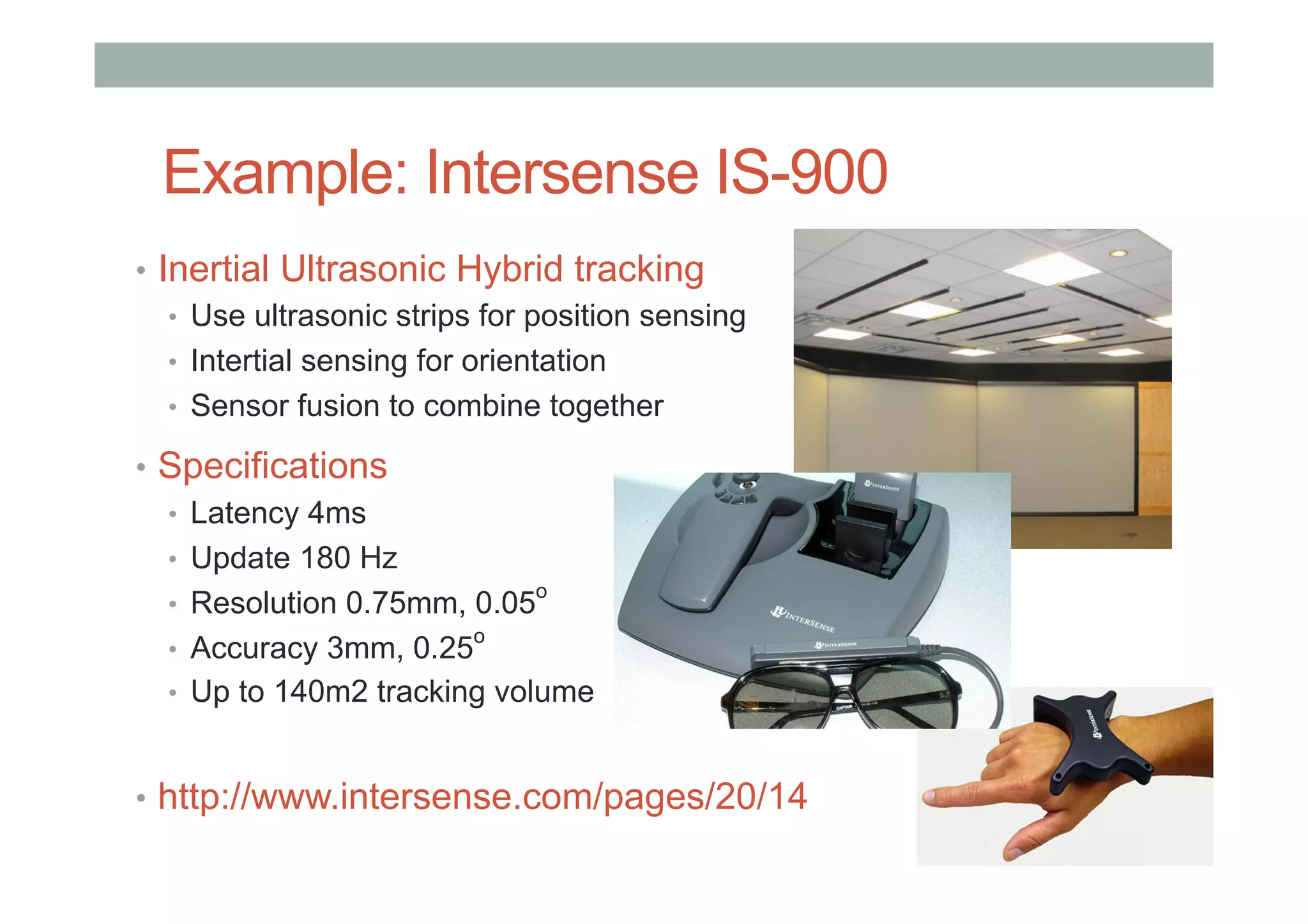

- 84. Example: Intersense IS-900 • Inertial Ultrasonic Hybrid tracking • Use ultrasonic strips for position sensing • Intertial sensing for orientation • Sensor fusion to combine together • Specifications • Latency 4ms • Update 180 Hz • Resolution 0.75mm, 0.05 o • Accuracy 3mm, 0.25 o • Up to 140m2 tracking volume • http://www.intersense.com/pages/20/14

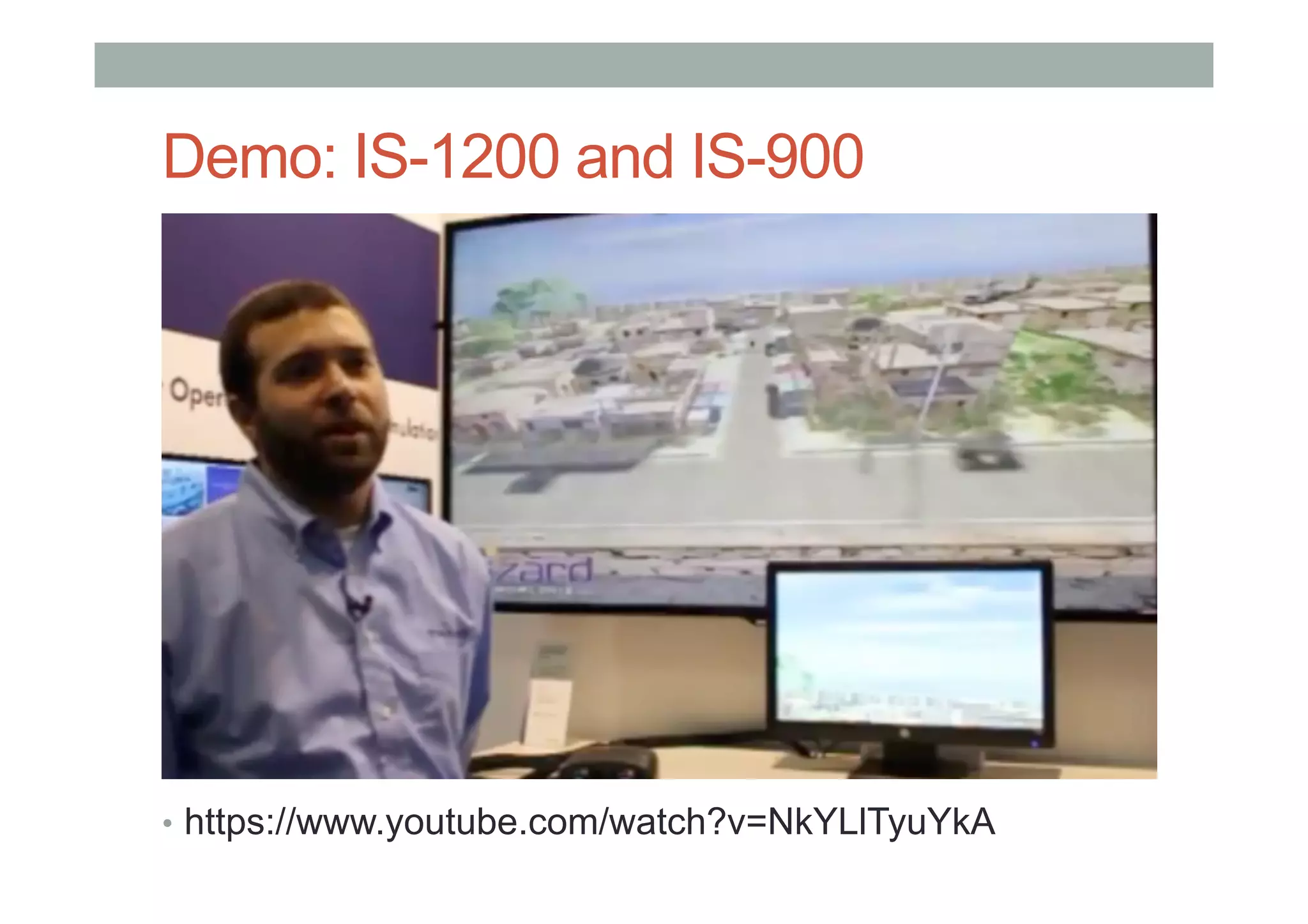

- 85. Demo: IS-1200 andIS-900 • https://www.youtube.com/watch?v=NkYLlTyuYkA

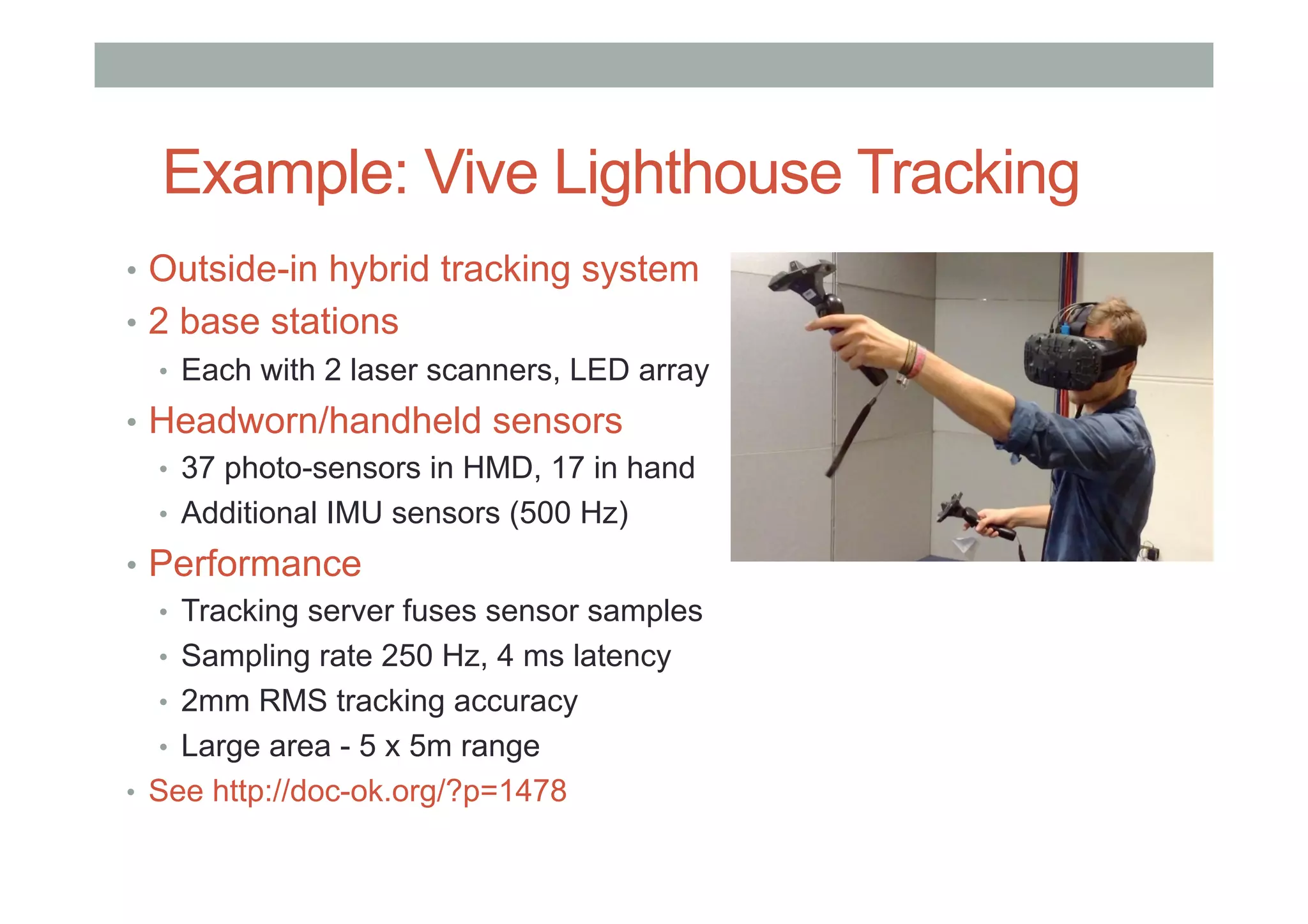

- 86. Example: Vive LighthouseTracking • Outside-in hybrid tracking system • 2 base stations • Each with 2 laser scanners, LED array • Headworn/handheld sensors • 37 photo-sensors in HMD, 17 in hand • Additional IMU sensors (500 Hz) • Performance • Tracking server fuses sensor samples • Sampling rate 250 Hz, 4 ms latency • 2mm RMS tracking accuracy • Large area - 5 x 5m range • See http://doc-ok.org/?p=1478

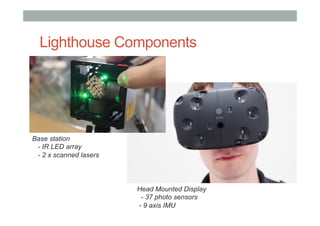

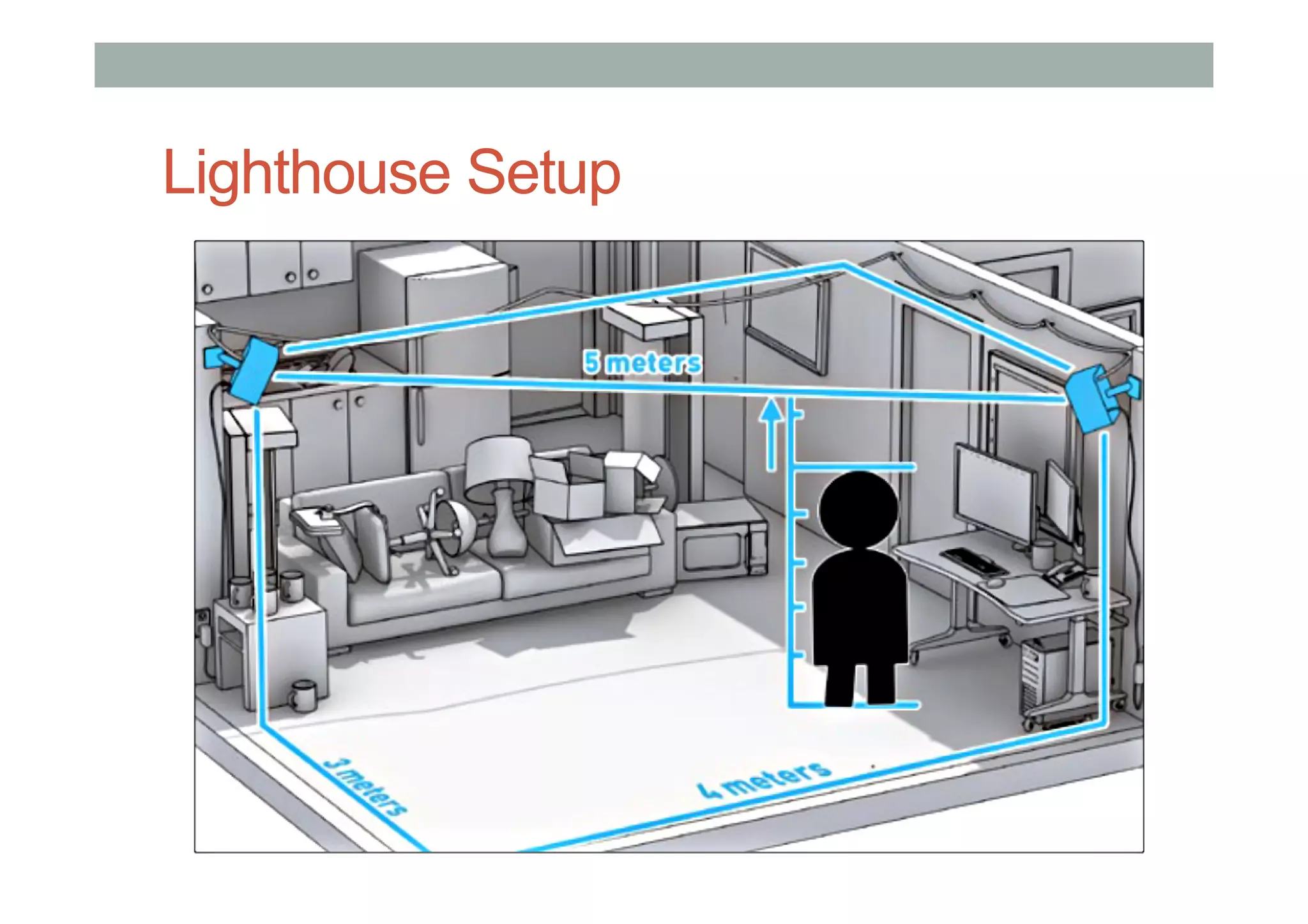

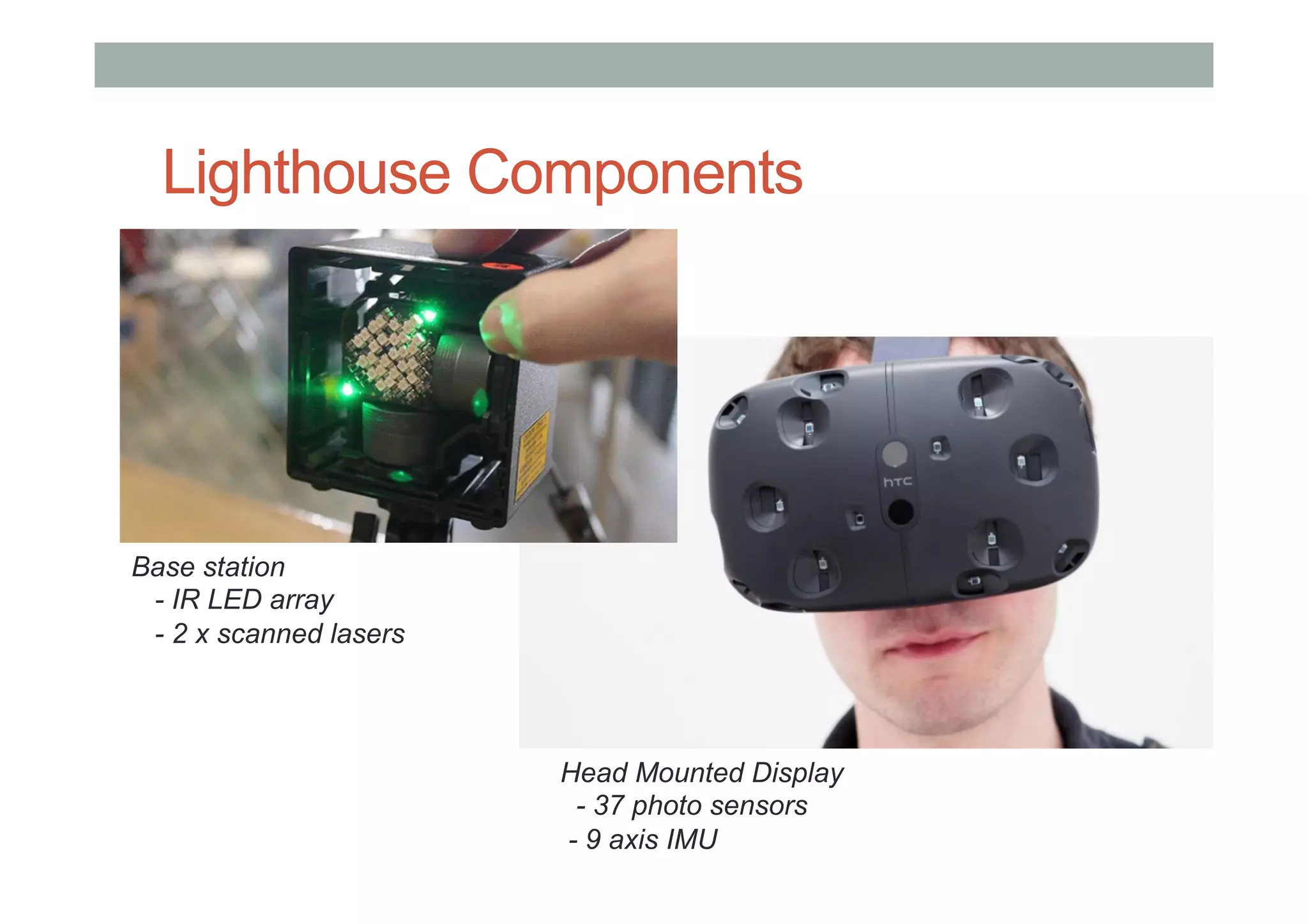

- 87. Lighthouse Components • sd Basestation - IR LED array - 2 x scanned lasers Head Mounted Display - 37 photo sensors - 9 axis IMU
- 88.

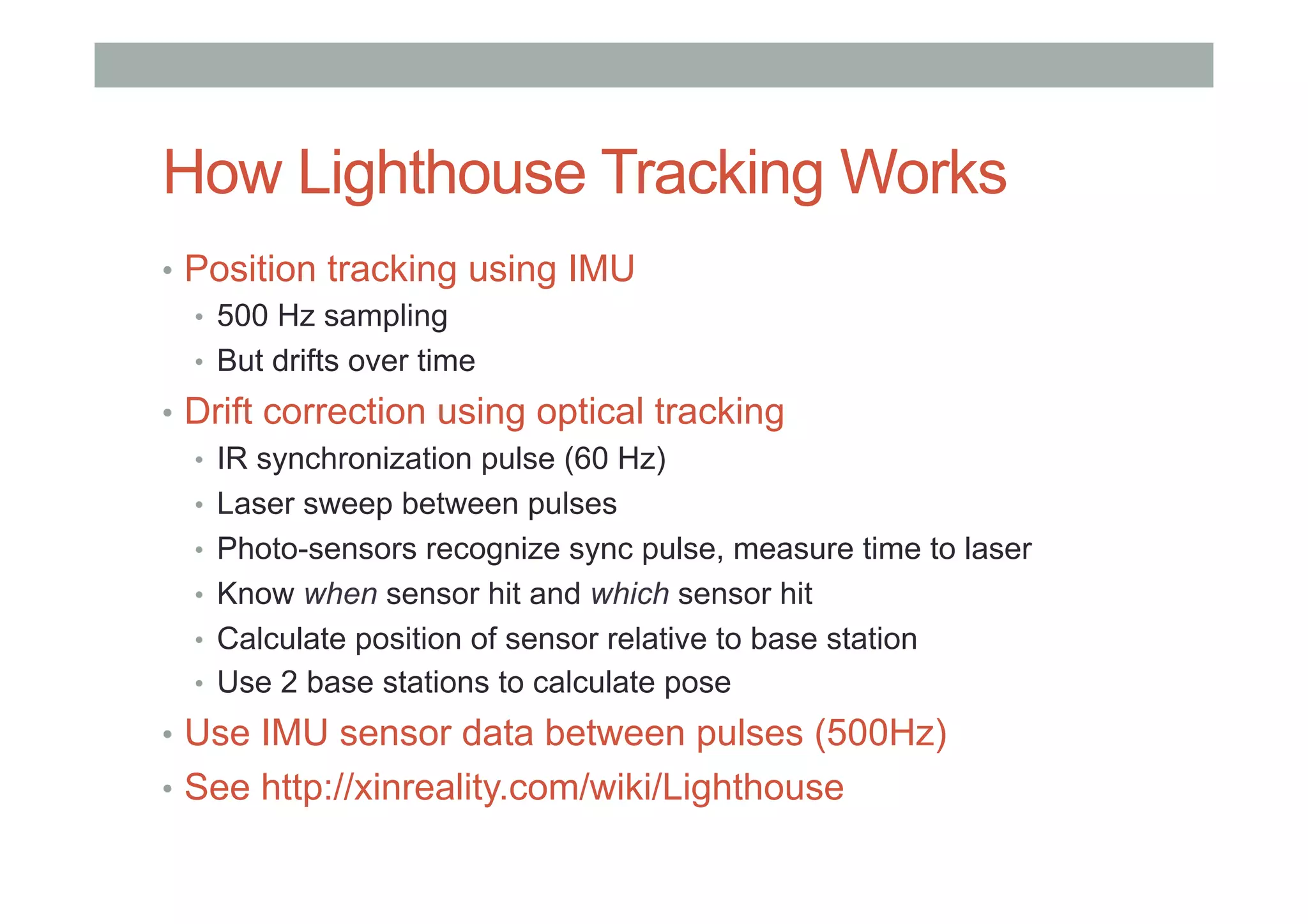

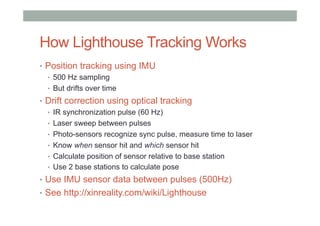

- 89. How Lighthouse TrackingWorks • Position tracking using IMU • 500 Hz sampling • But drifts over time • Drift correction using optical tracking • IR synchronization pulse (60 Hz) • Laser sweep between pulses • Photo-sensors recognize sync pulse, measure time to laser • Know when sensor hit and which sensor hit • Calculate position of sensor relative to base station • Use 2 base stations to calculate pose • Use IMU sensor data between pulses (500Hz) • See http://xinreality.com/wiki/Lighthouse

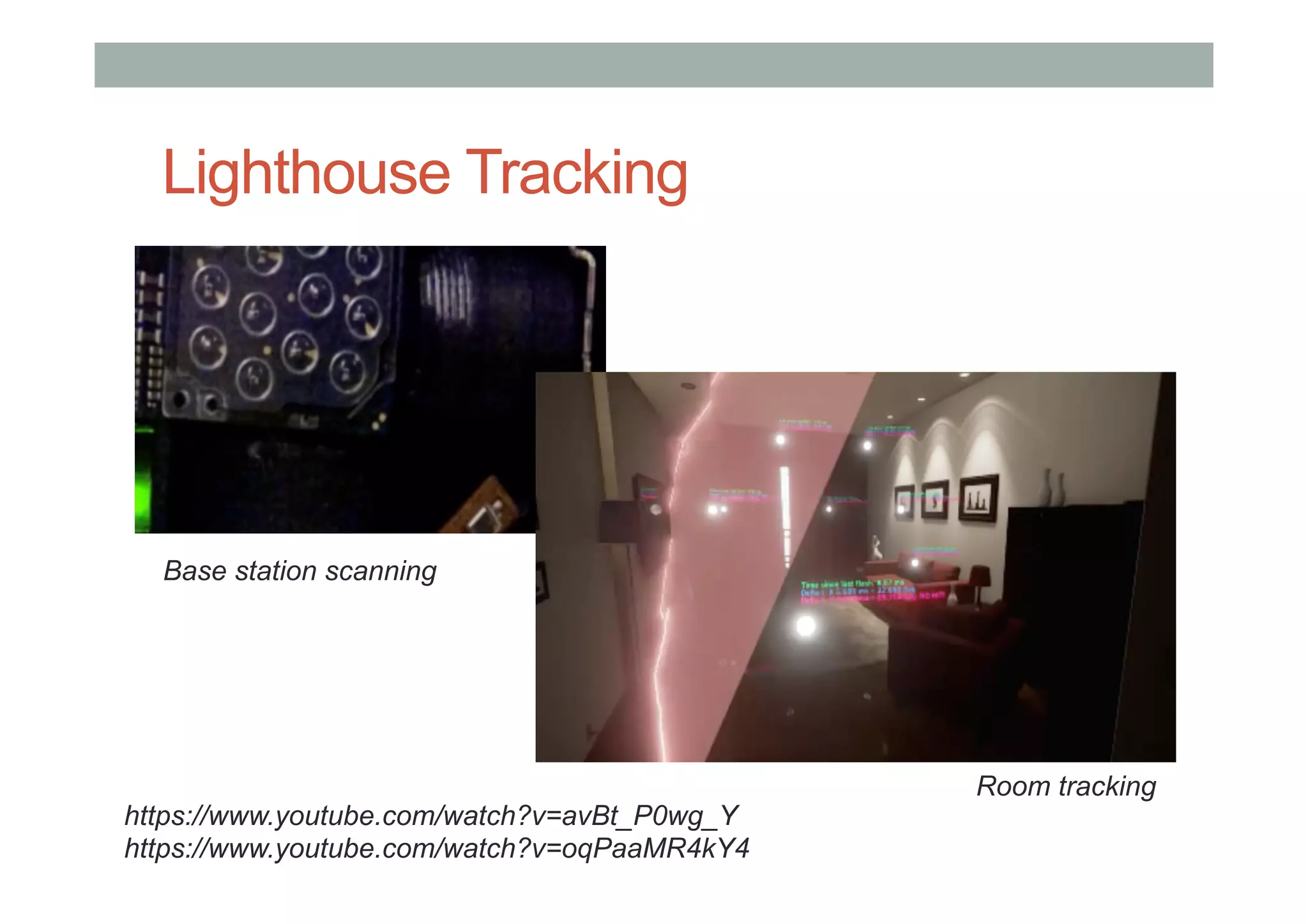

- 90. Lighthouse Tracking Base stationscanning https://www.youtube.com/watch?v=avBt_P0wg_Y https://www.youtube.com/watch?v=oqPaaMR4kY4 Room tracking
