Creating and Processing Web Forms

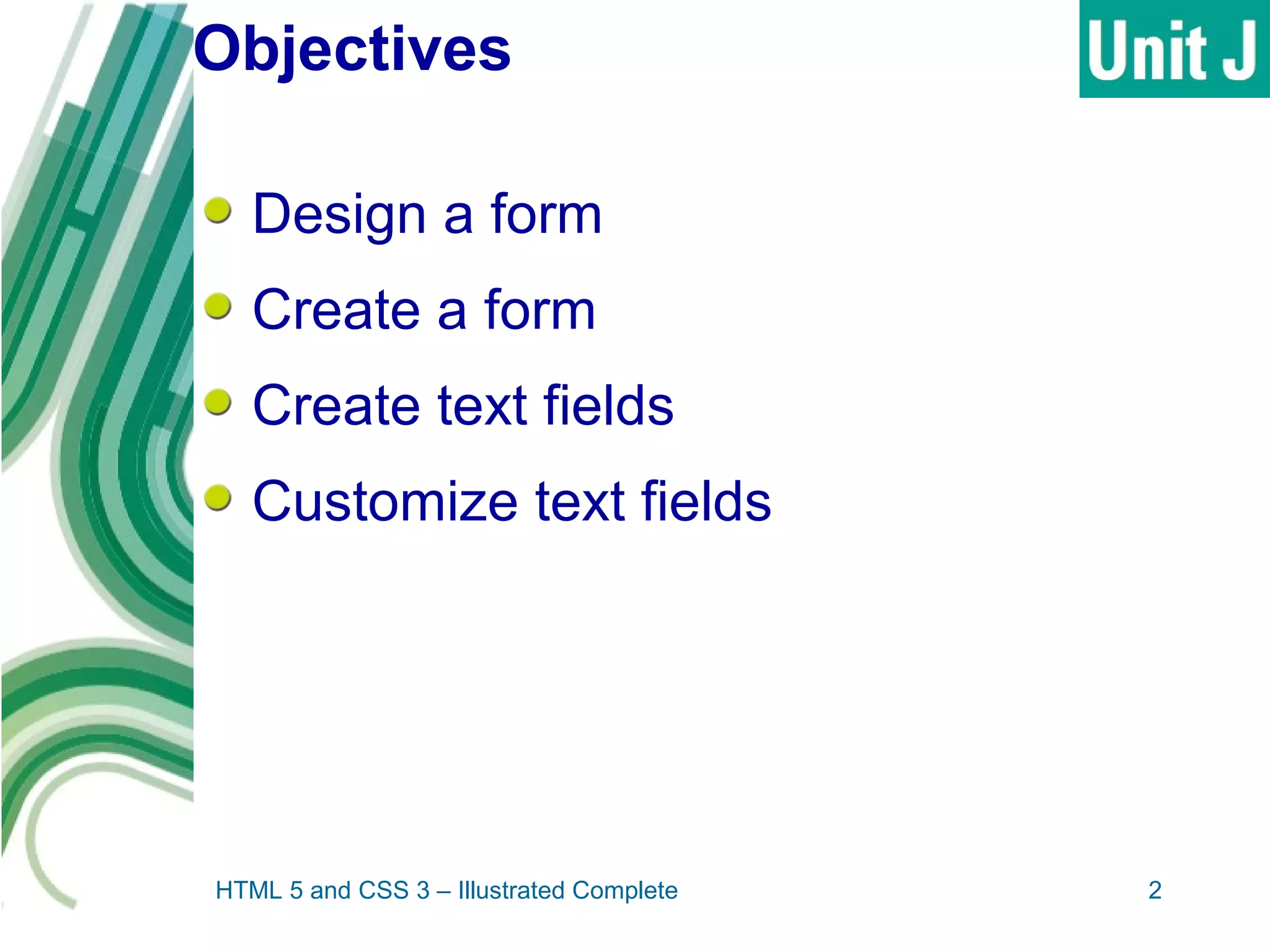

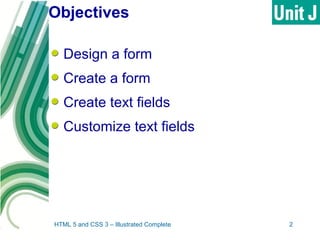

Objectives
Design a form
Create a form
Create text fields
Customize text fields
HTML 5 and CSS 3 – Illustrated Complete 2

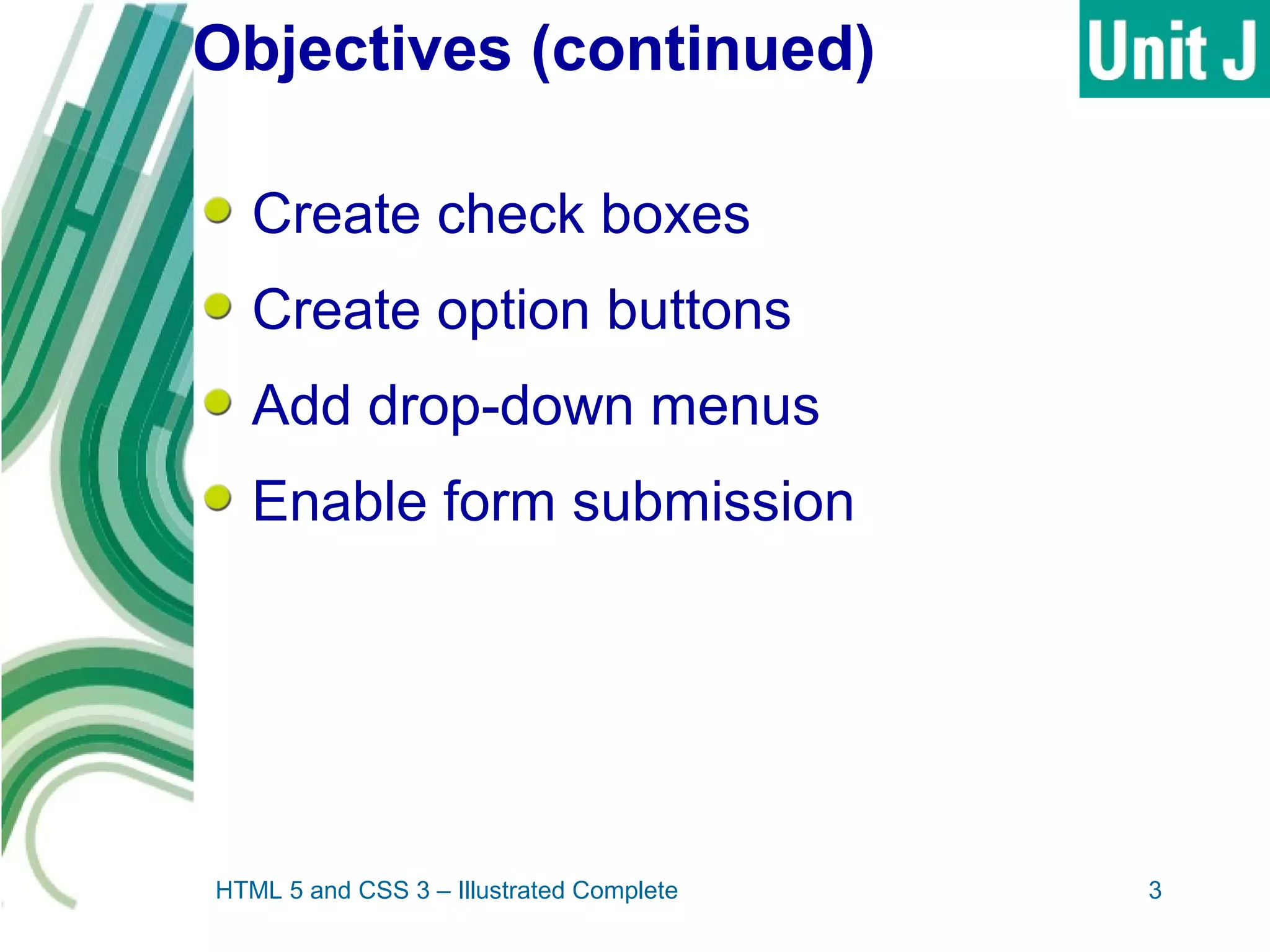

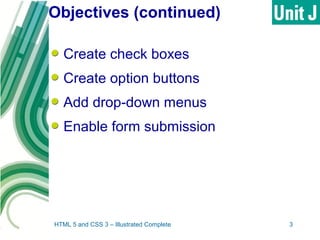

Objectives (continued)
Create check boxes
Create option buttons
Add drop-down menus
Enable form submission

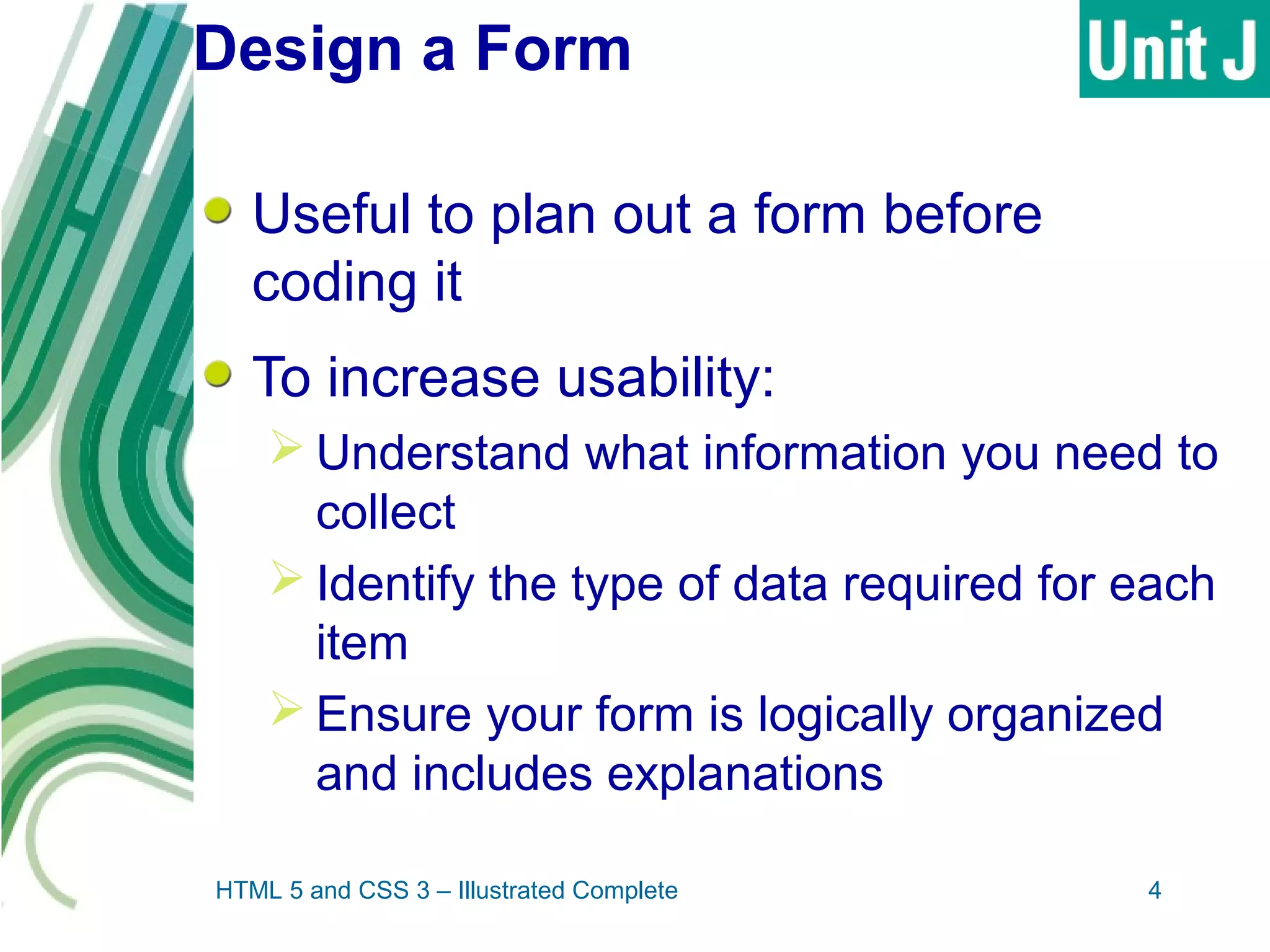

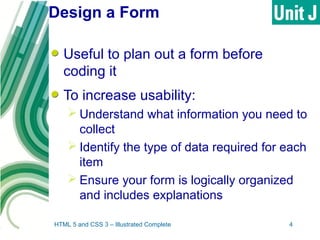

Design a Form
Useful to plan out a form before
coding it
To increase usability:
 Understand what information you need to
collect
 Identify the type of data required for each
item
 Ensure your form is logically organized
and includes explanations

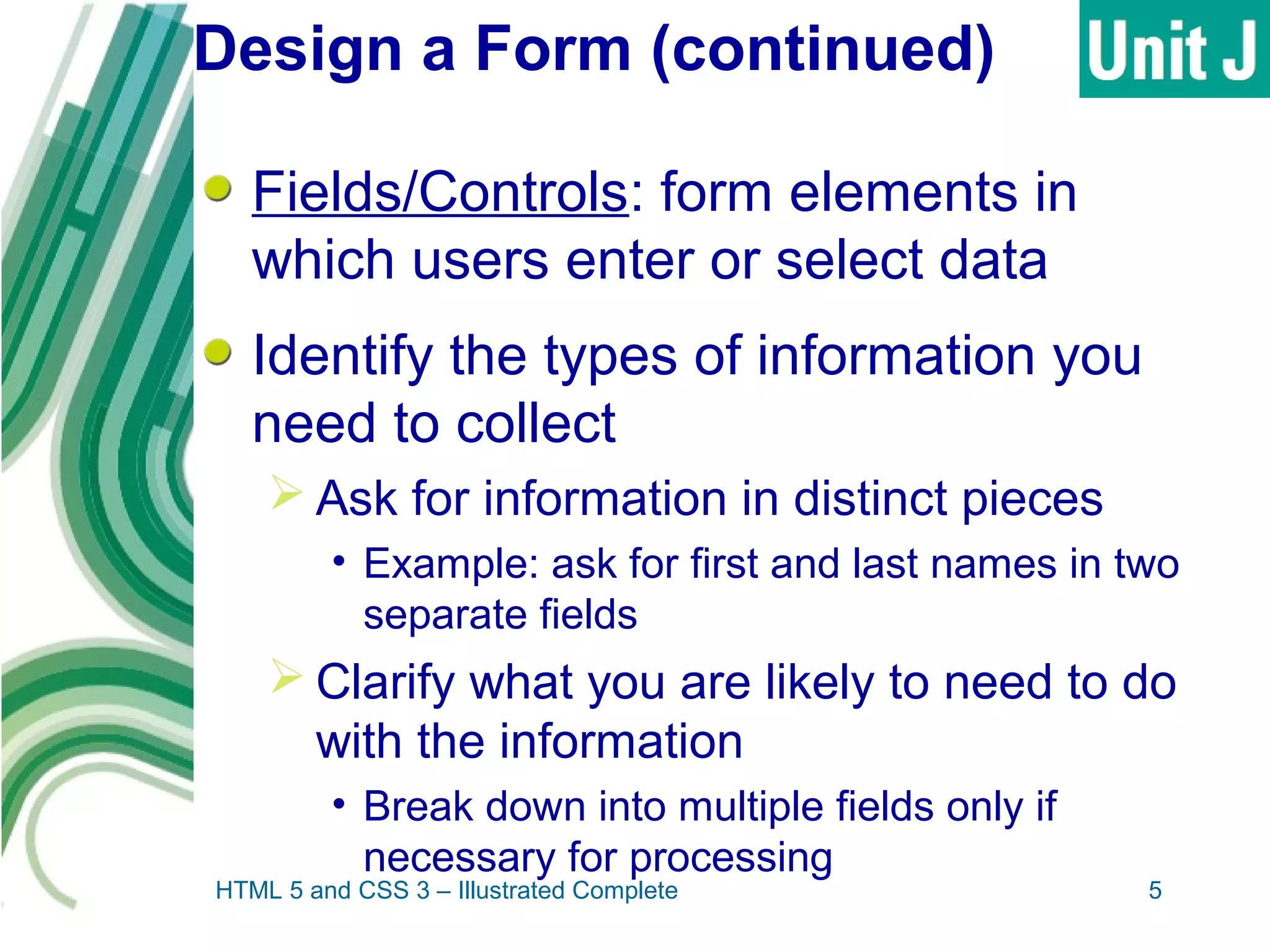

Design a Form (continued)
Fields/Controls: form elements in
which users enter or select data
Identify the types of information you
need to collect
 Ask for information in distinct pieces
• Example: ask for first and last names in two
separate fields
 Clarify what you are likely to need to do
with the information
• Break down into multiple fields only if
necessary for processing

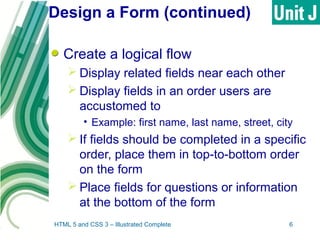

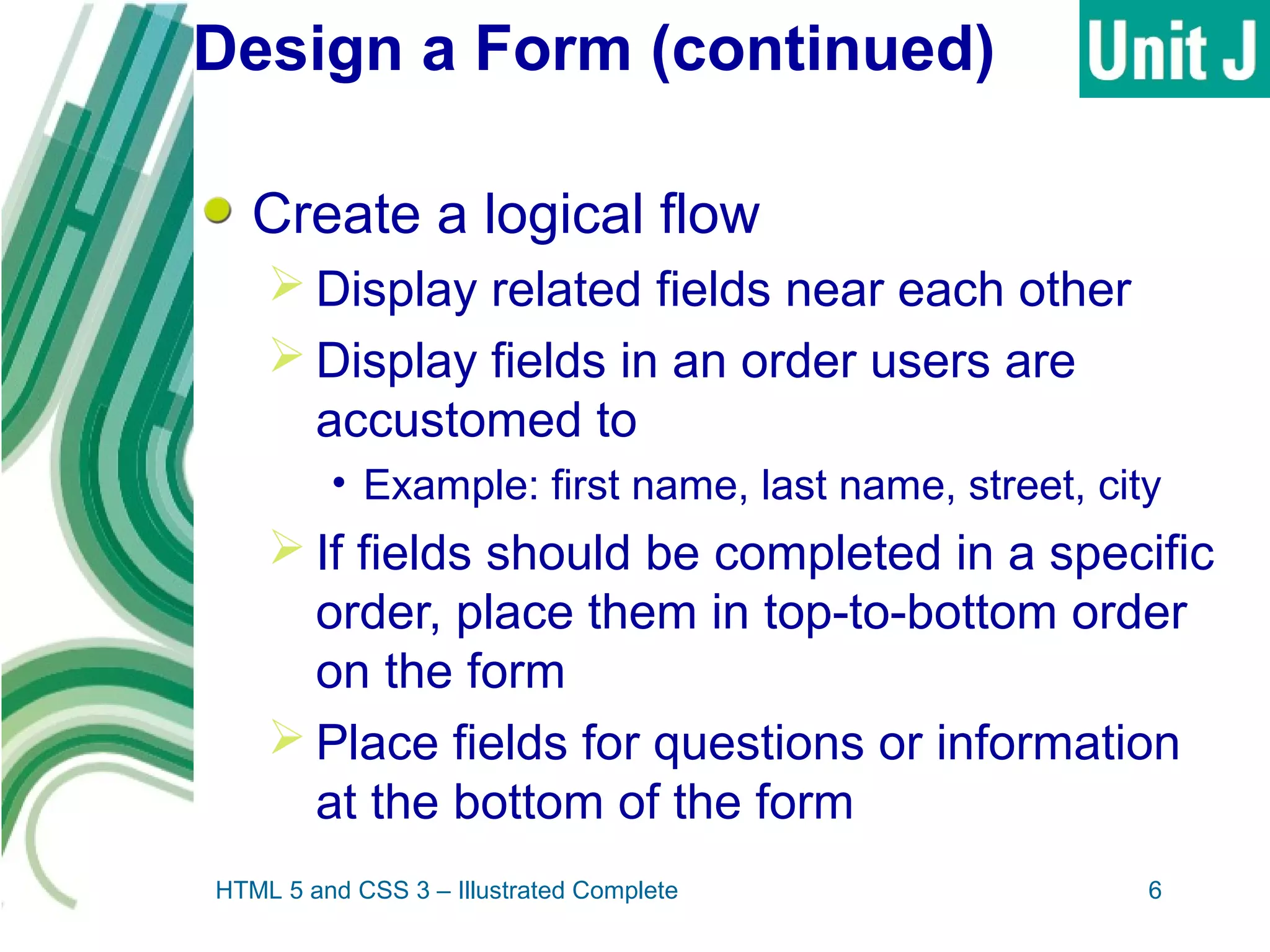

Create a logical flow
 Display related fields near each other
 Display fields in an order users are
accustomed to
• Example: first name, last name, street, city
 If fields should be completed in a specific
order, place them in top-to-bottom order
on the form
 Place fields for questions or information
at the bottom of the form

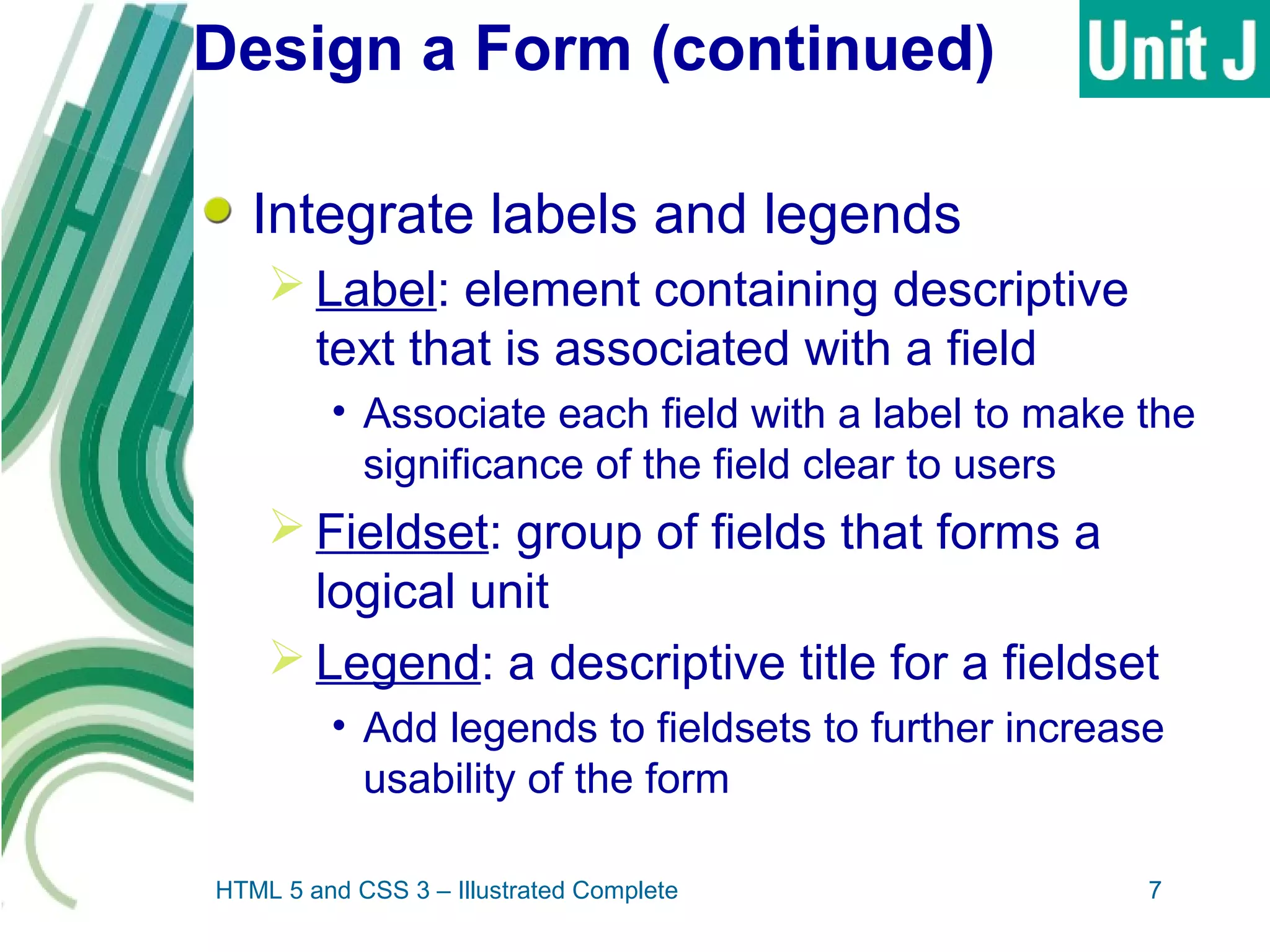

Integrate labels and legends
 Label: element containing descriptive
text that is associated with a field
• Associate each field with a label to make the
significance of the field clear to users
 Fieldset: group of fields that forms a
logical unit
 Legend: a descriptive title for a fieldset
• Add legends to fieldsets to further increase
usability of the form

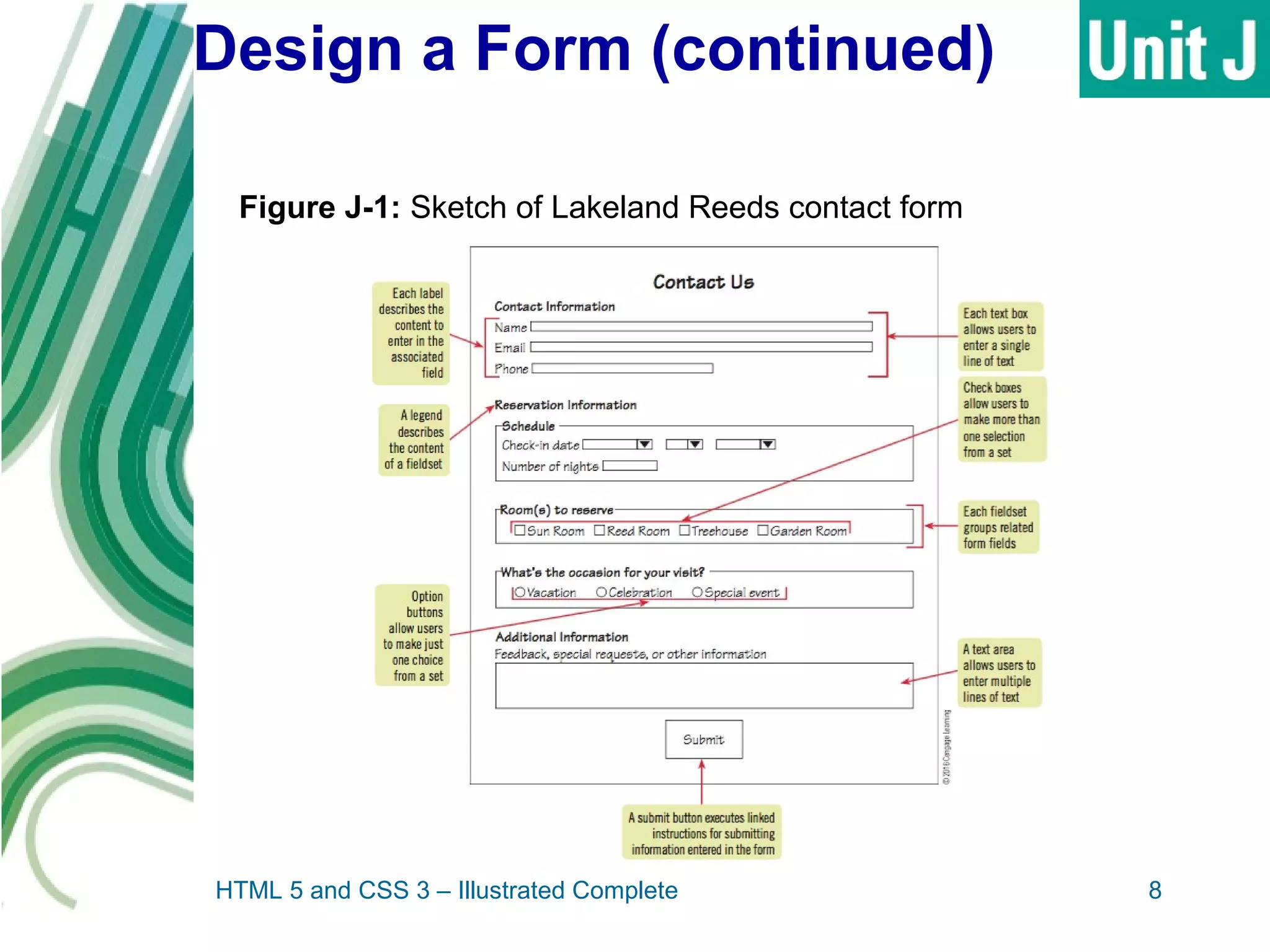

Figure J-1: Sketch of Lakeland Reeds contact form

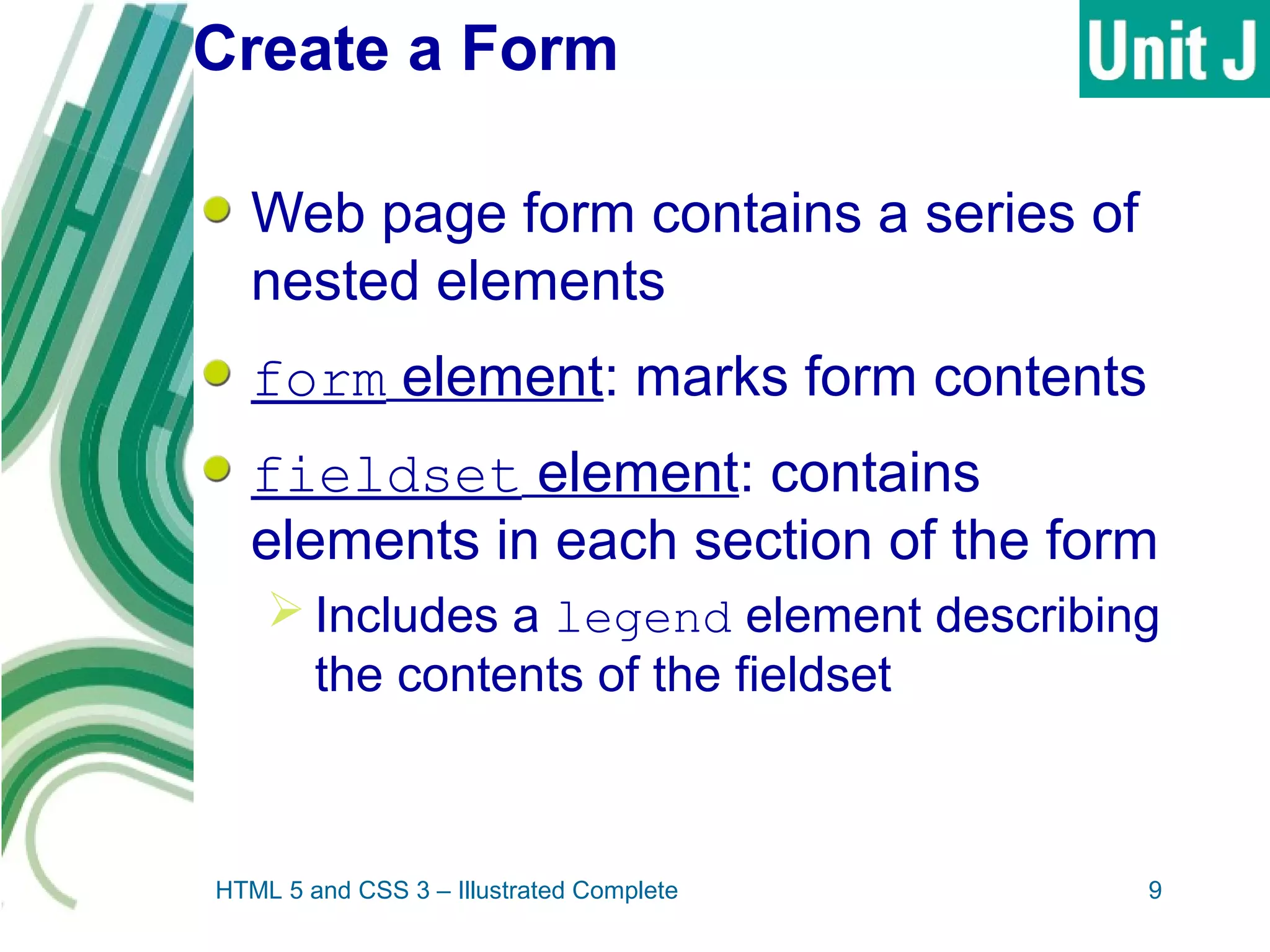

Create a Form
Web page form contains a series of
nested elements
form element: marks form contents
fieldset element: contains
elements in each section of the form
 Includes a legend element describing
the contents of the fieldset

Create a Form (continued)

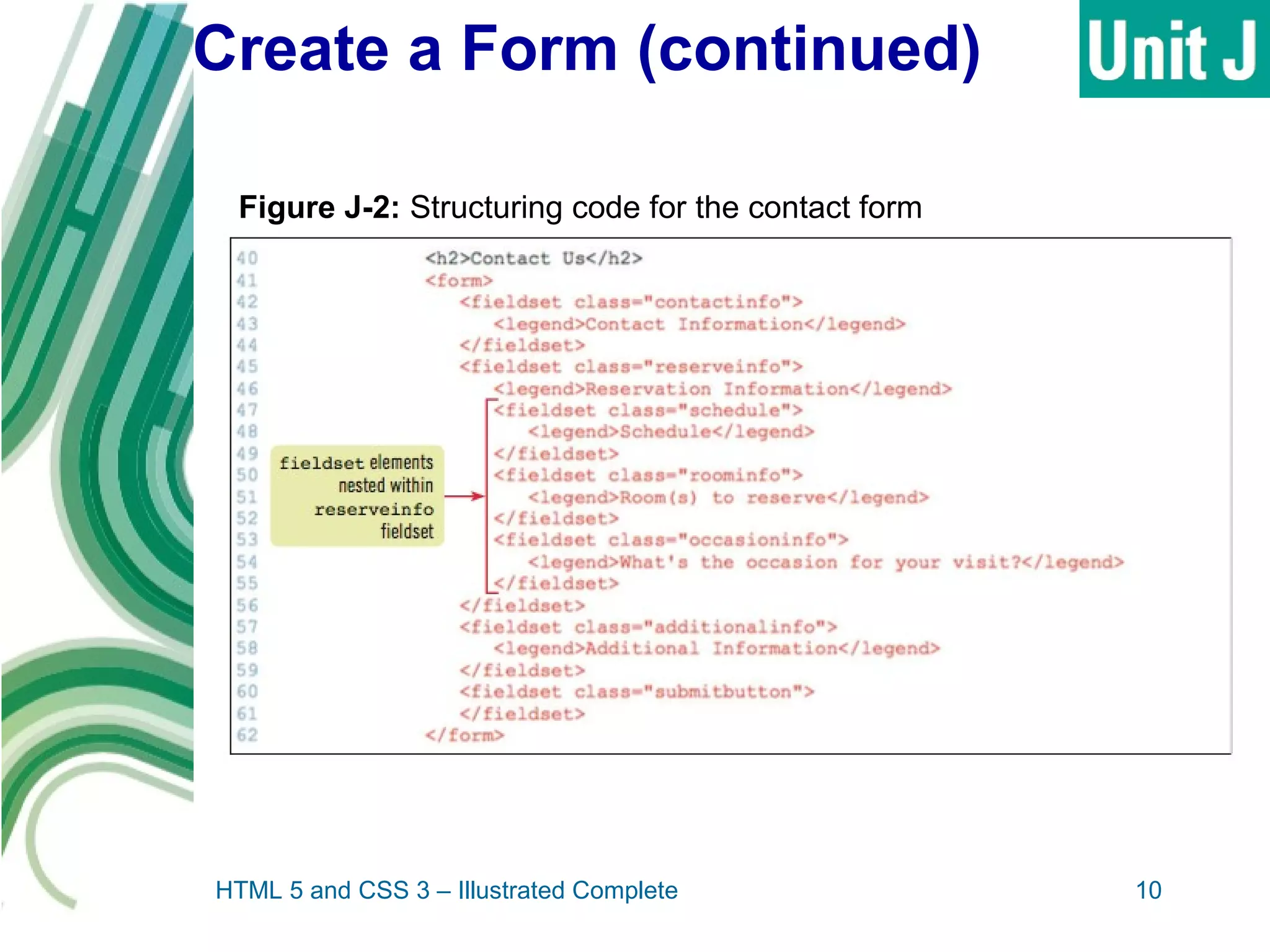

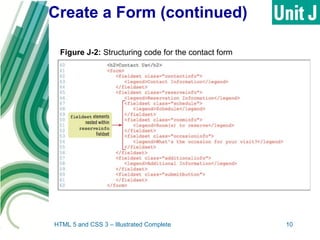

Figure J-2: Structuring code for the contact form

Create a Form (continued)

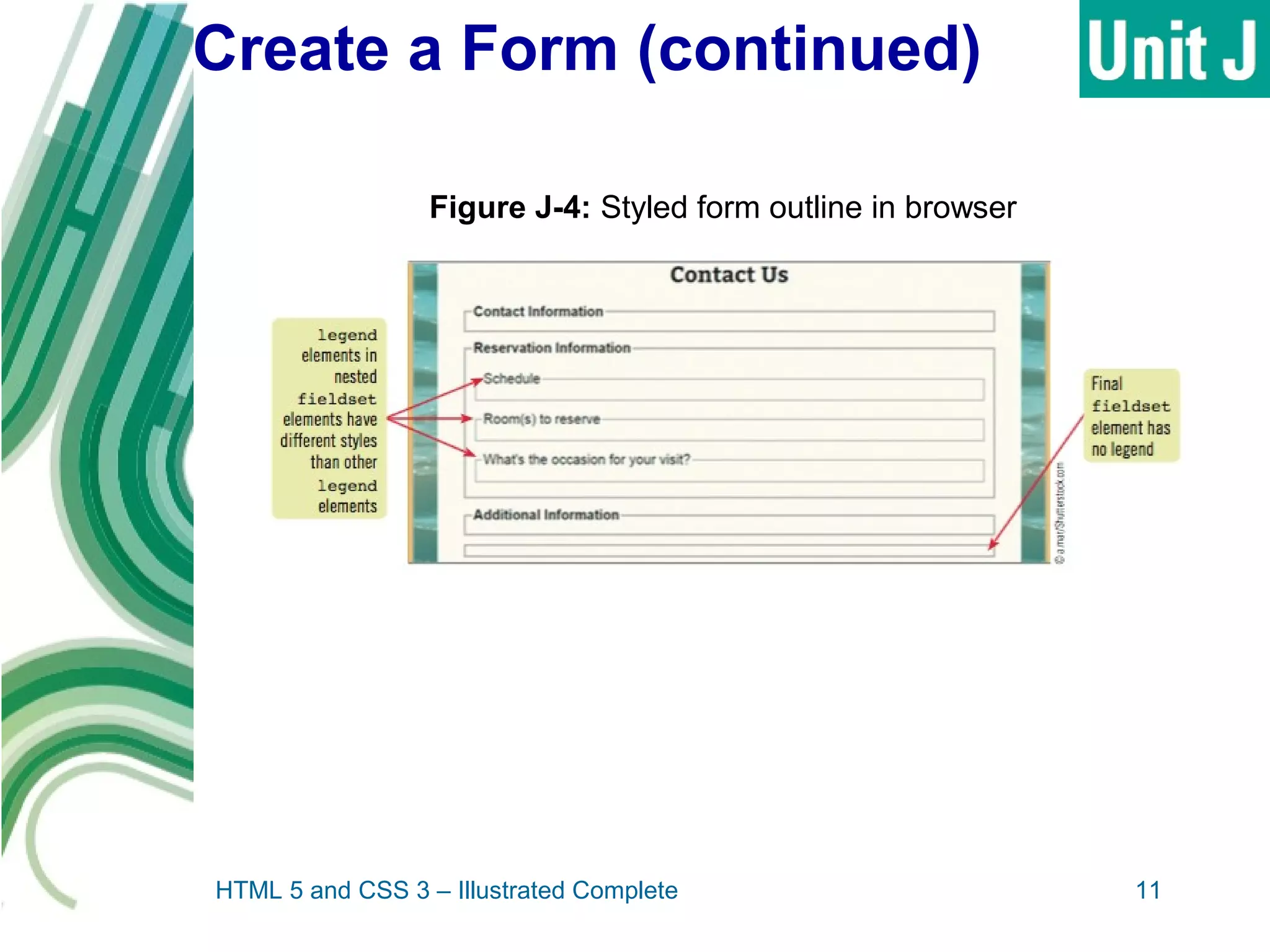

Figure J-4: Styled form outline in browser

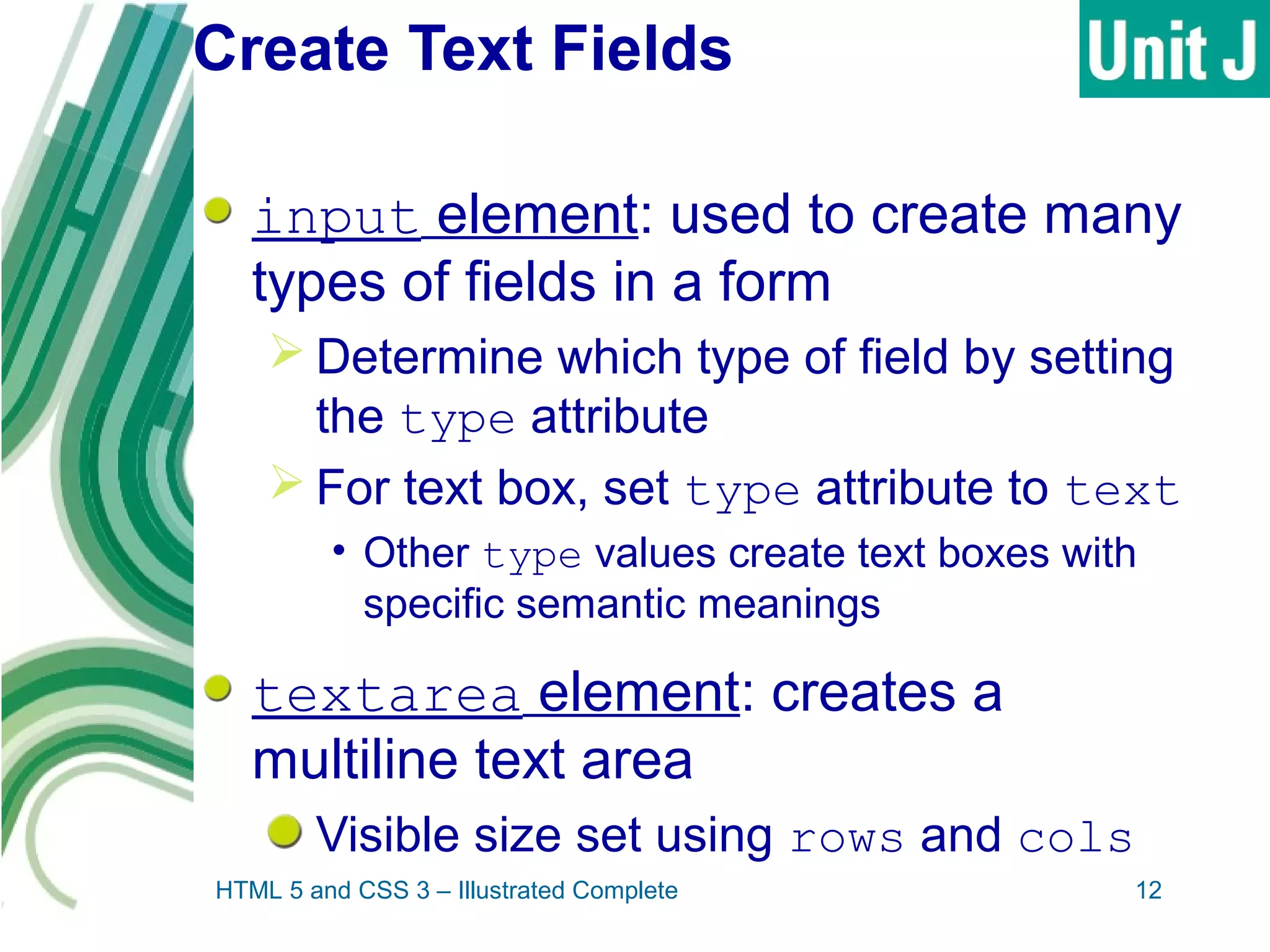

Create Text Fields
input element: used to create many
types of fields in a form
 Determine which type of field by setting
the type attribute
 For text box, set type attribute to text
• Other type values create text boxes with
specific semantic meanings
textarea element: creates a
multiline text area
Visible size set using rows and cols

Create Text Fields
(continued)

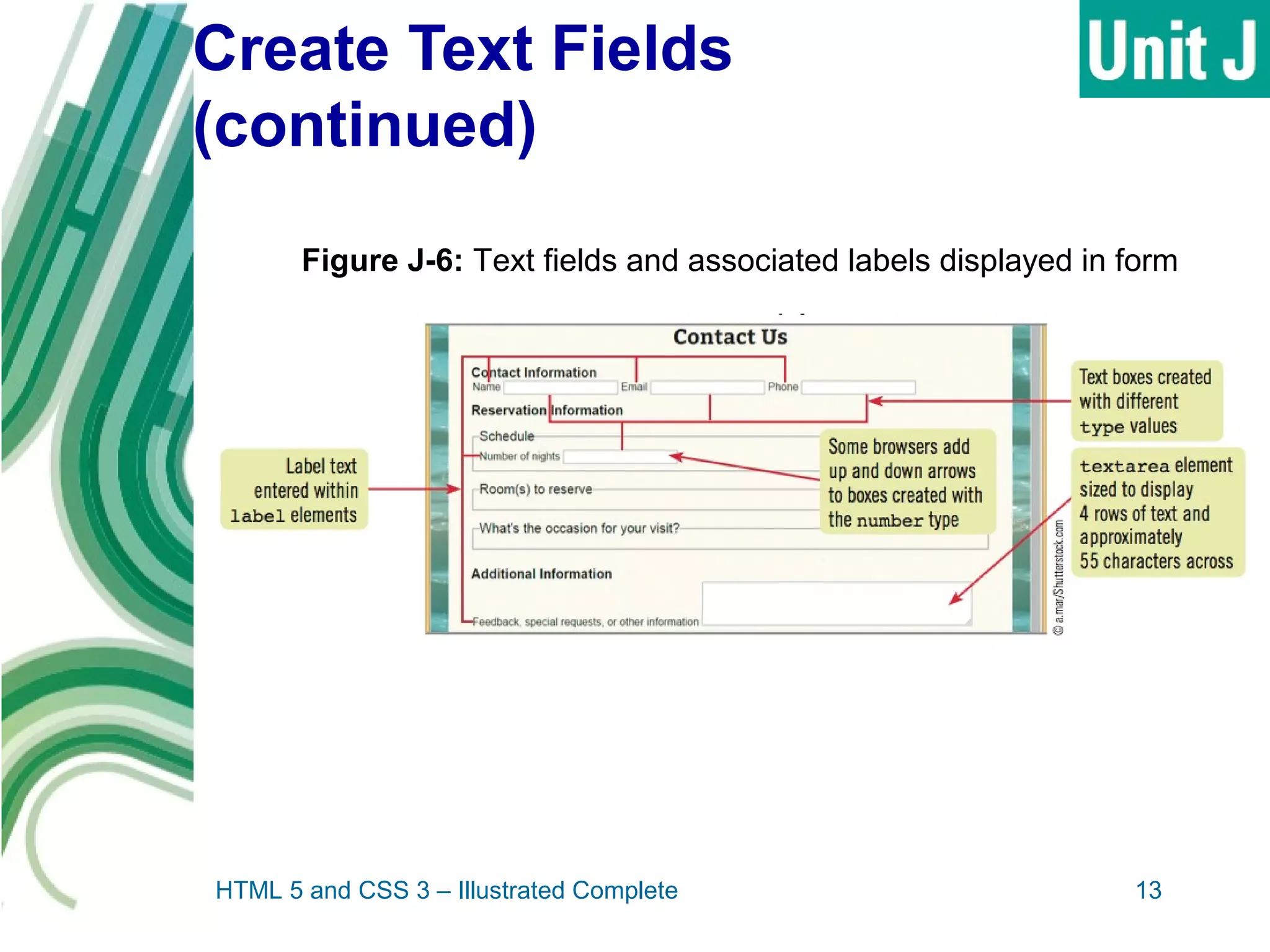

Figure J-6: Text fields and associated labels displayed in form

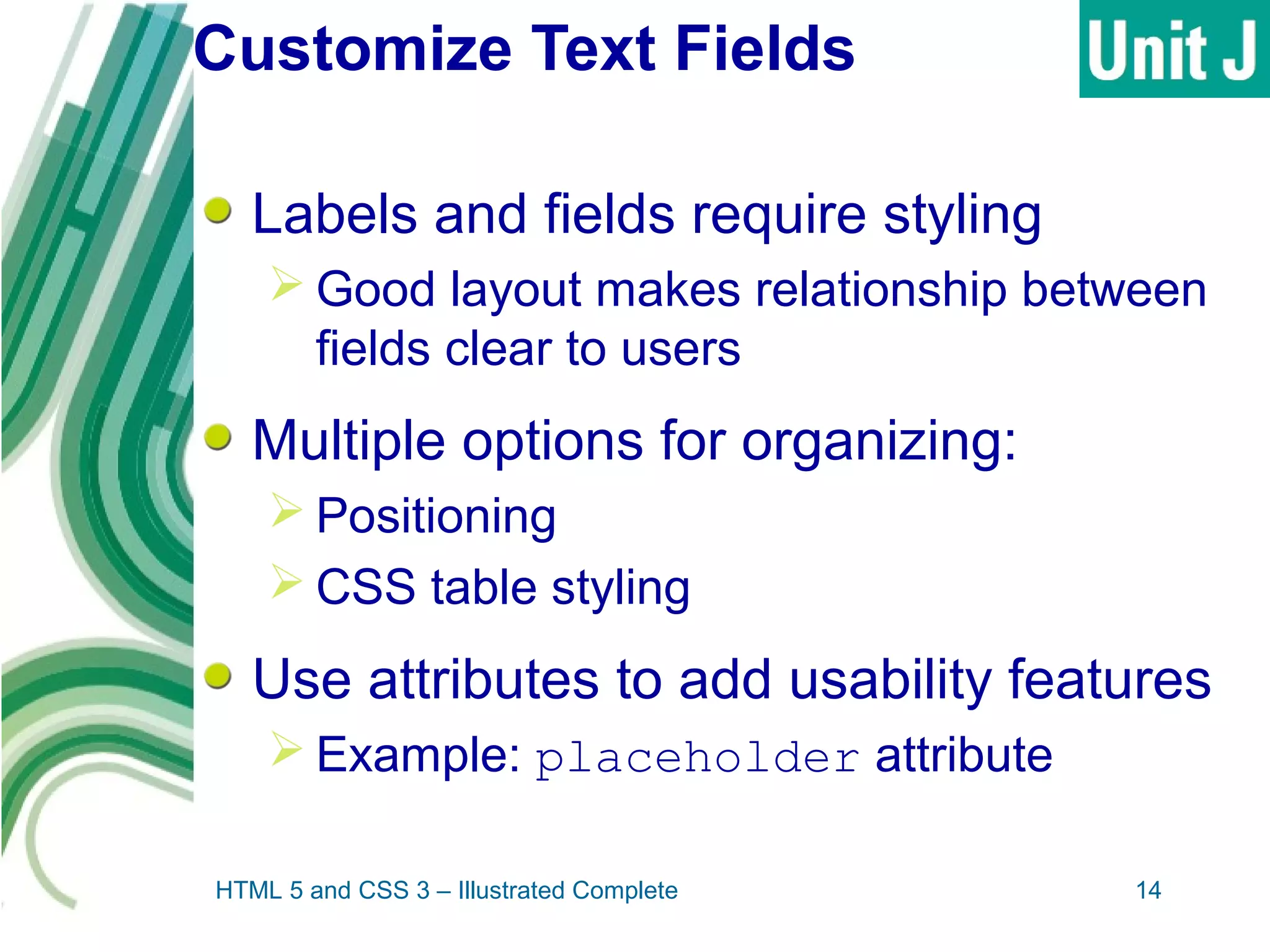

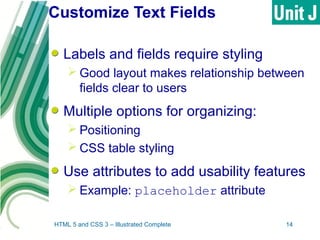

Customize Text Fields
Labels and fields require styling
 Good layout makes relationship between
fields clear to users
Multiple options for organizing:
 Positioning
 CSS table styling
Use attributes to add usability features
 Example: placeholder attribute

(continued)

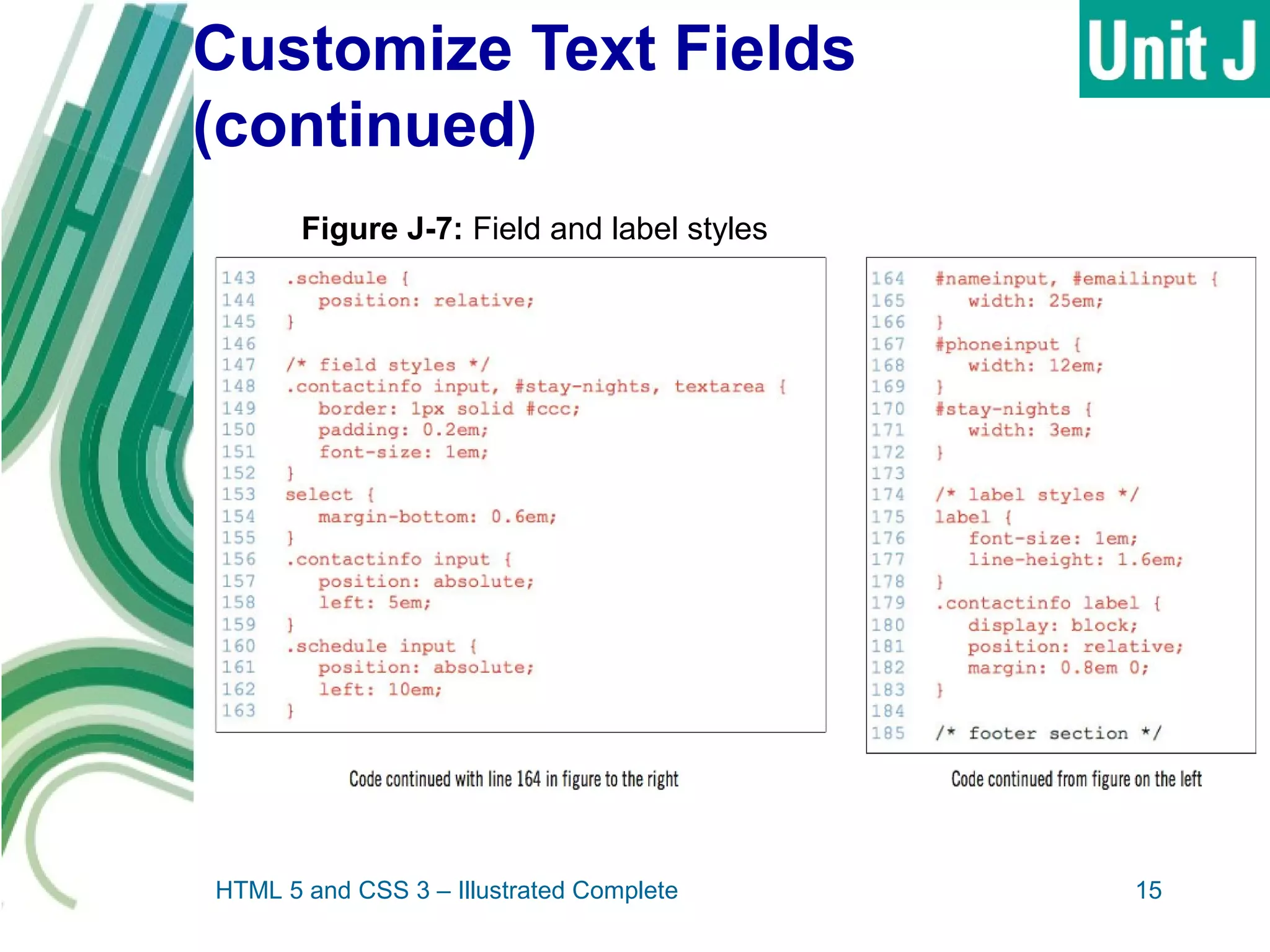

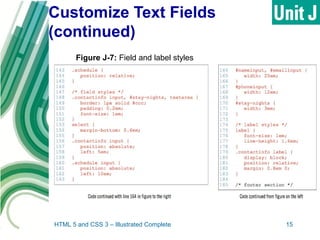

Figure J-7: Field and label styles

(continued)

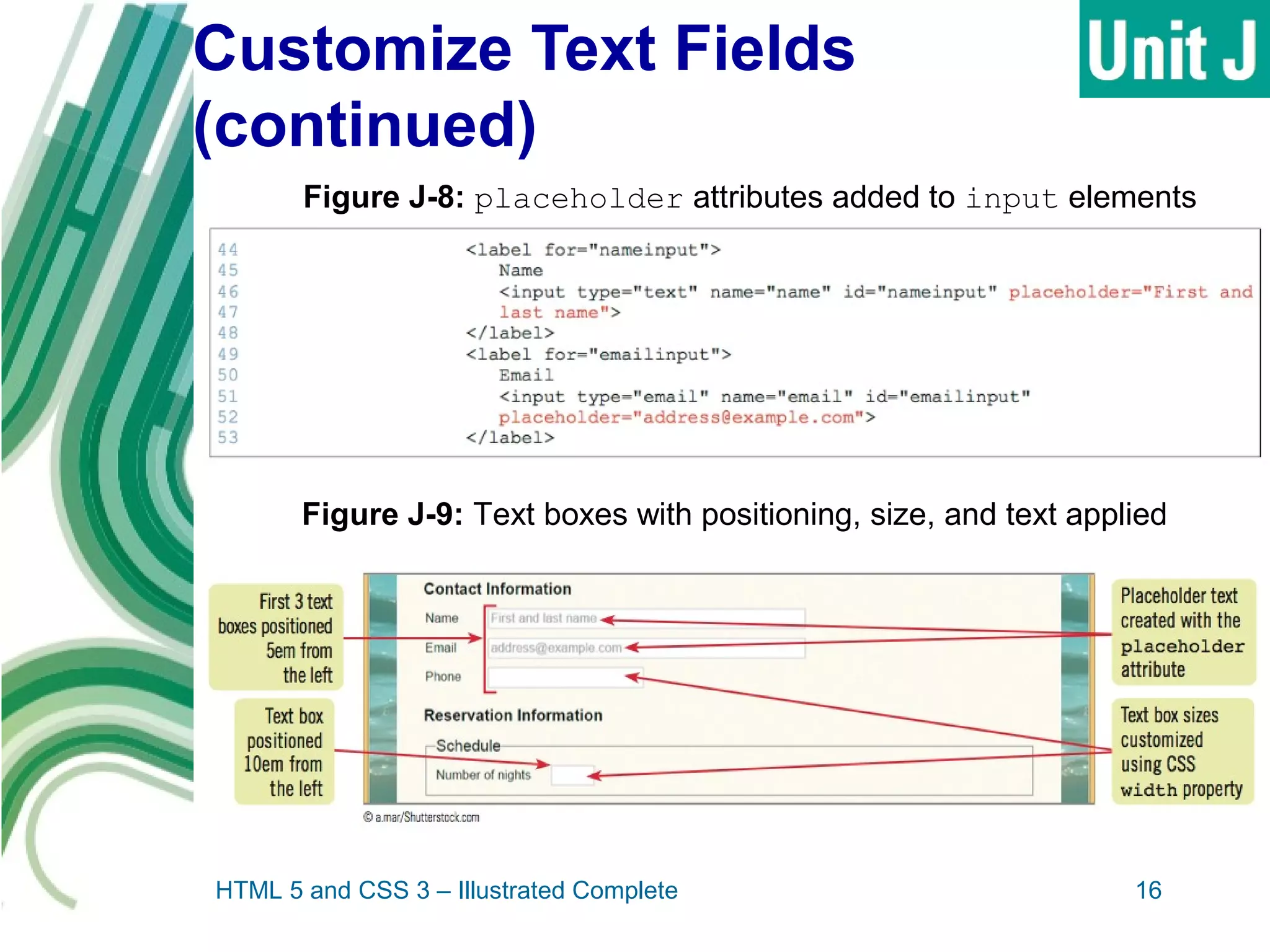

Figure J-8: placeholder attributes added to input elements
Figure J-9: Text boxes with positioning, size, and text applied

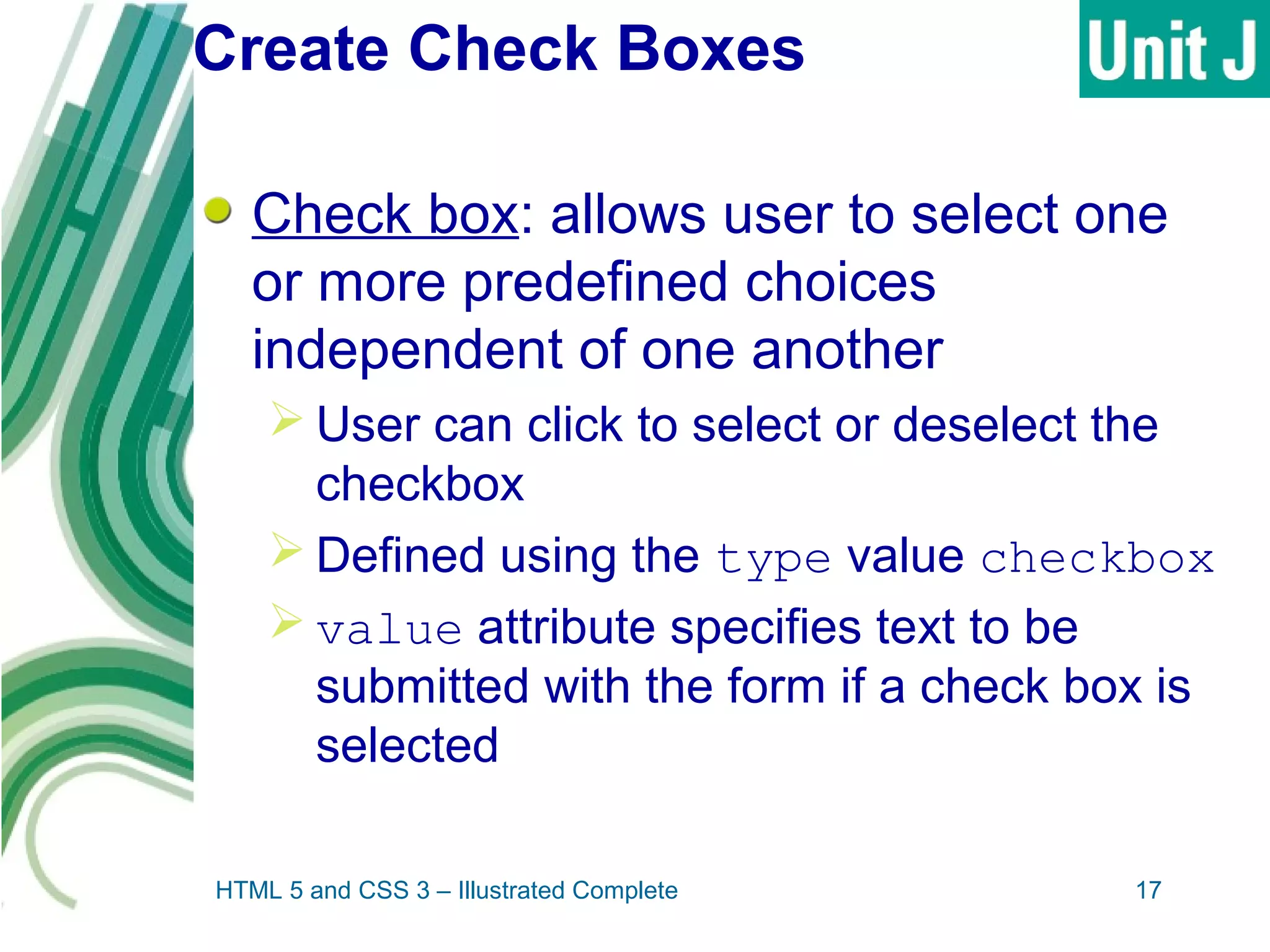

Create Check Boxes
Check box: allows user to select one
or more predefined choices
independent of one another
 User can click to select or deselect the
checkbox
 Defined using the type value checkbox
 value attribute specifies text to be
submitted with the form if a check box is
selected

Create Check Boxes
(continued)

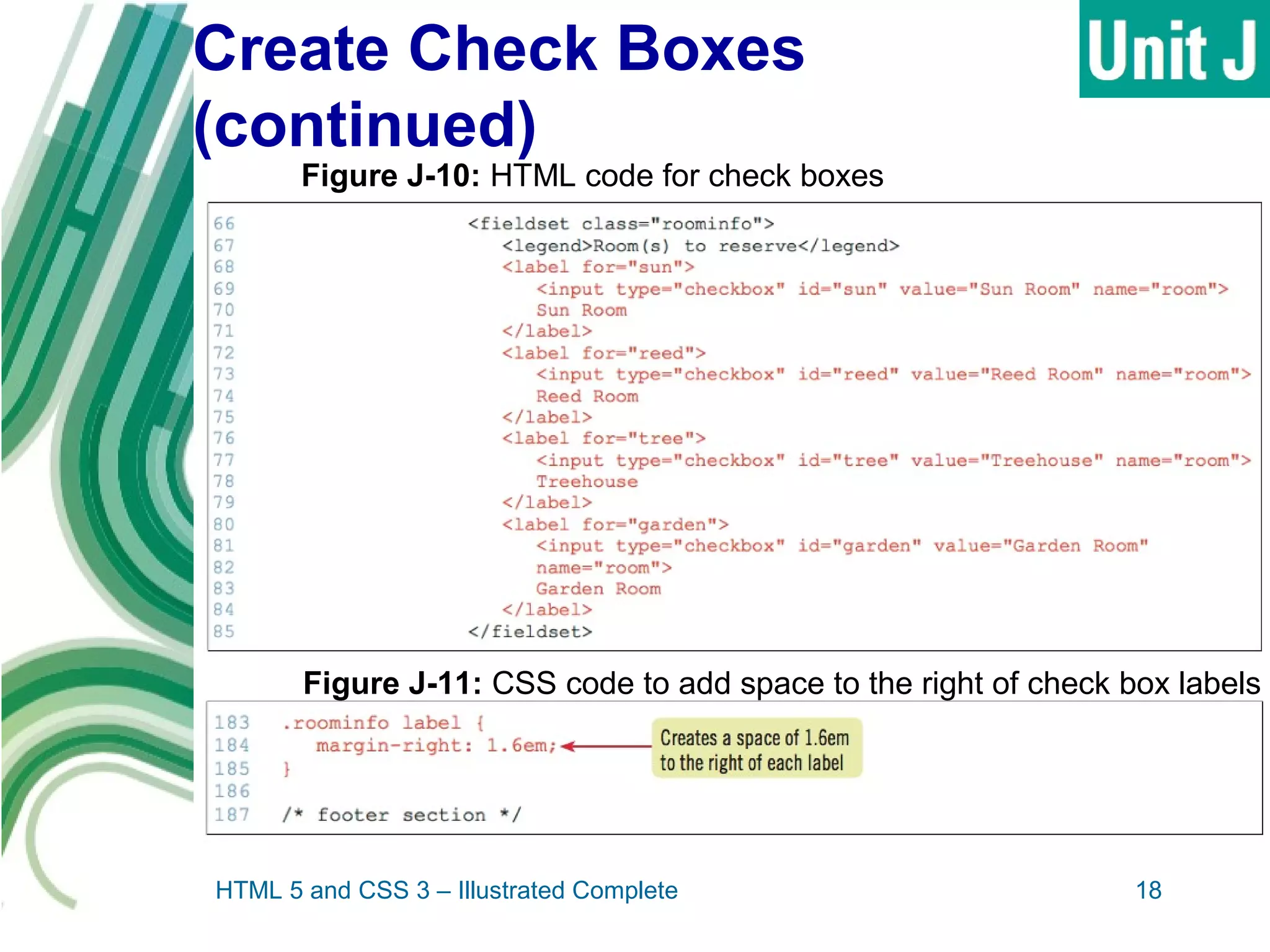

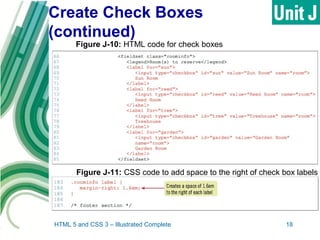

Figure J-10: HTML code for check boxes
Figure J-11: CSS code to add space to the right of check box labels

Create Check Boxes
(continued)

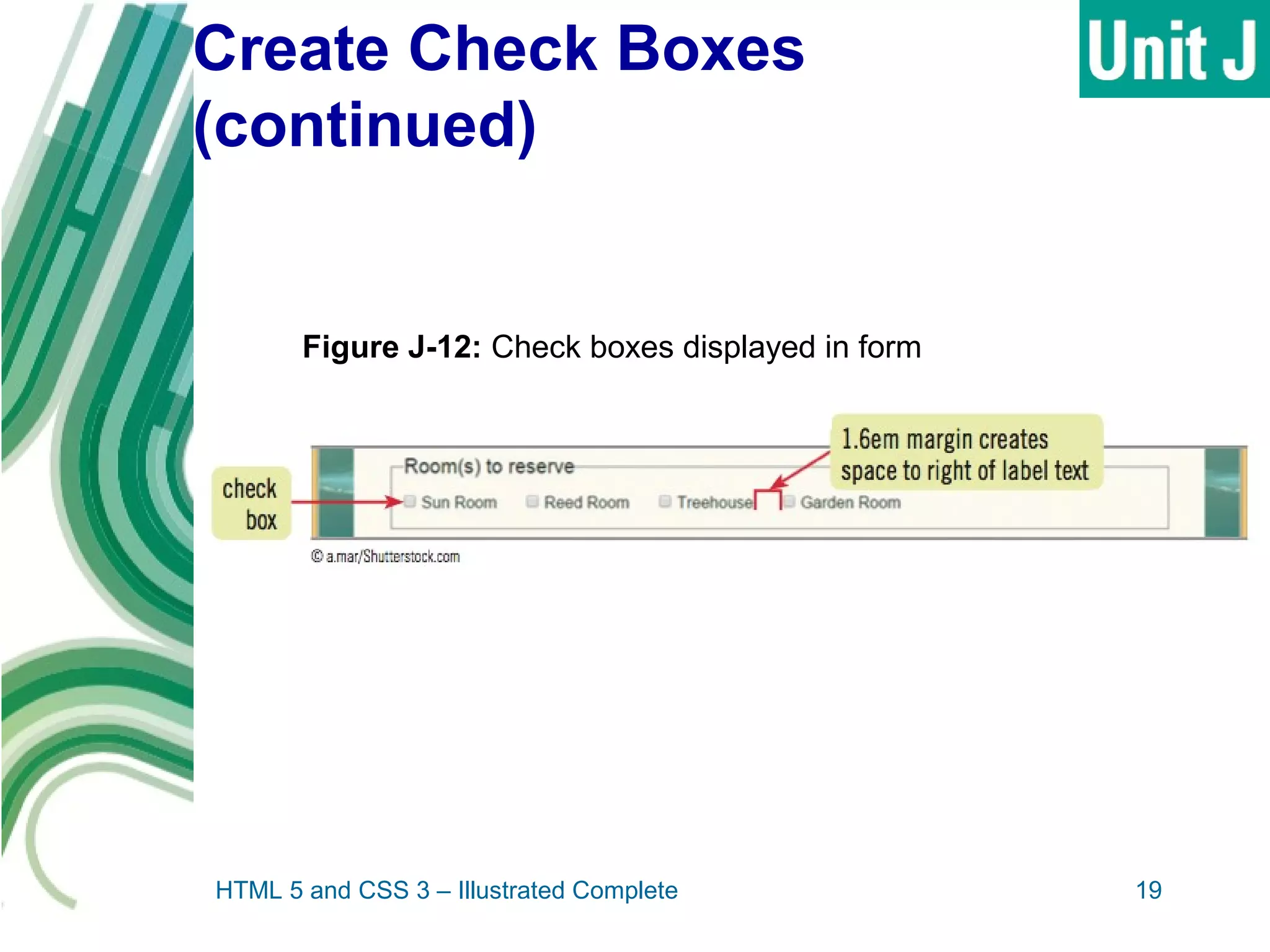

Figure J-12: Check boxes displayed in form

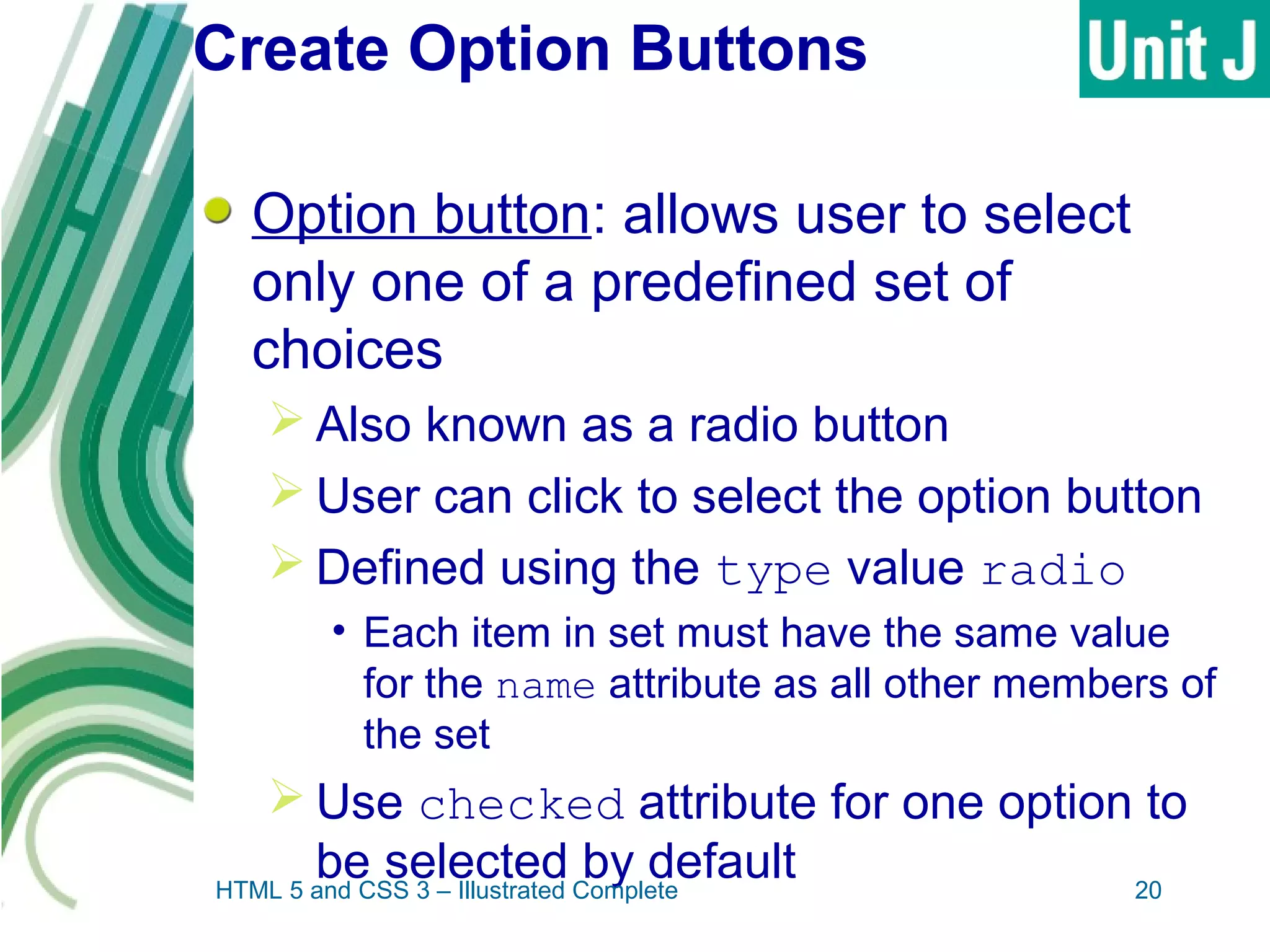

Create Option Buttons
Option button: allows user to select
only one of a predefined set of
choices
 Also known as a radio button
 User can click to select the option button
 Defined using the type value radio
• Each item in set must have the same value
for the name attribute as all other members of
the set
 Use checked attribute for one option to
be selected by defaultHTML 5 and CSS 3 – Illustrated Complete 20

(continued)

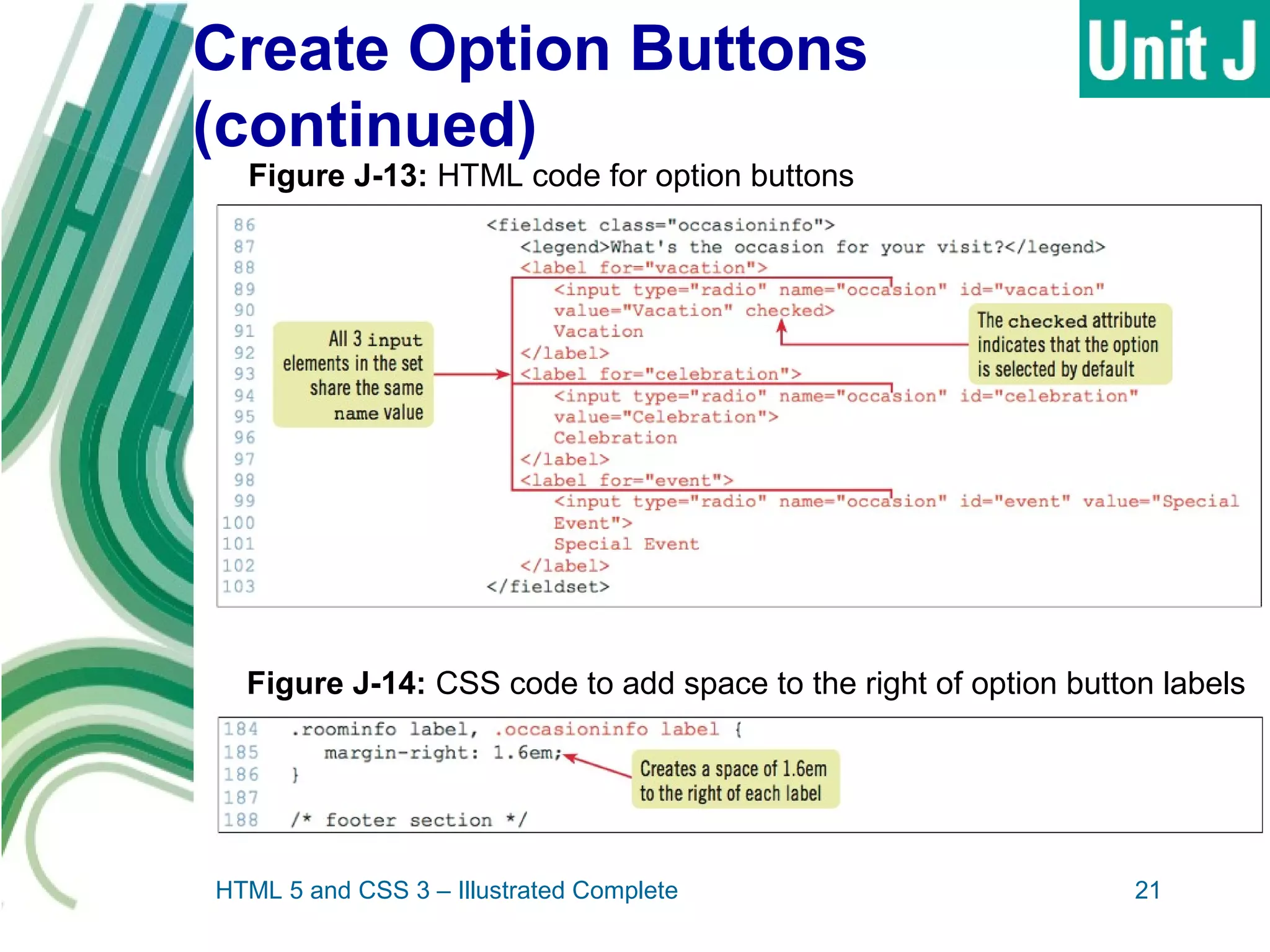

Figure J-13: HTML code for option buttons
Figure J-14: CSS code to add space to the right of option button labels

(continued)

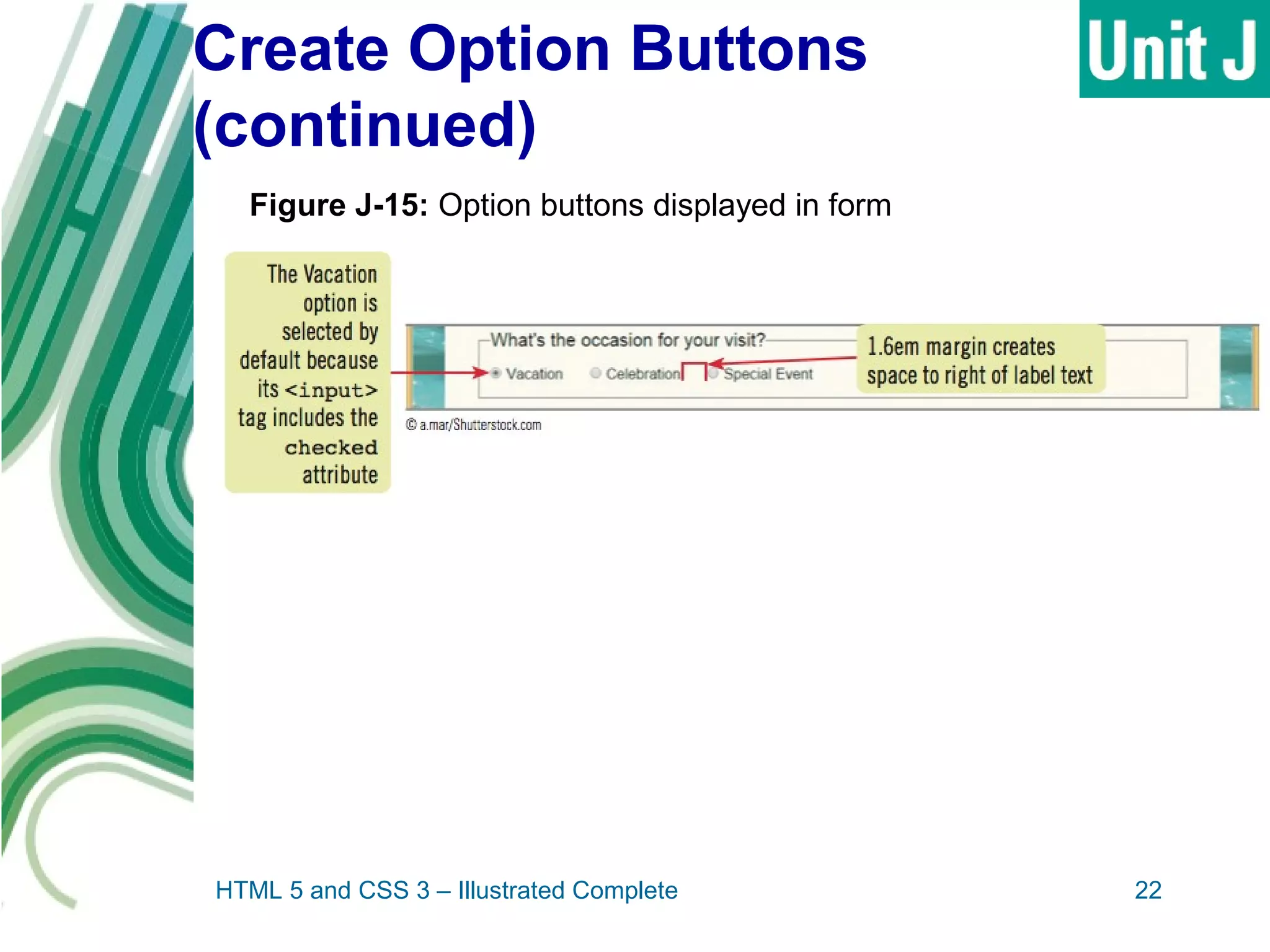

Figure J-15: Option buttons displayed in form

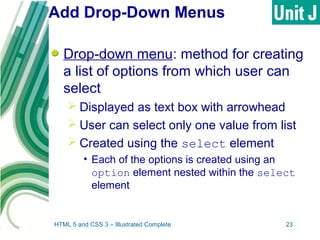

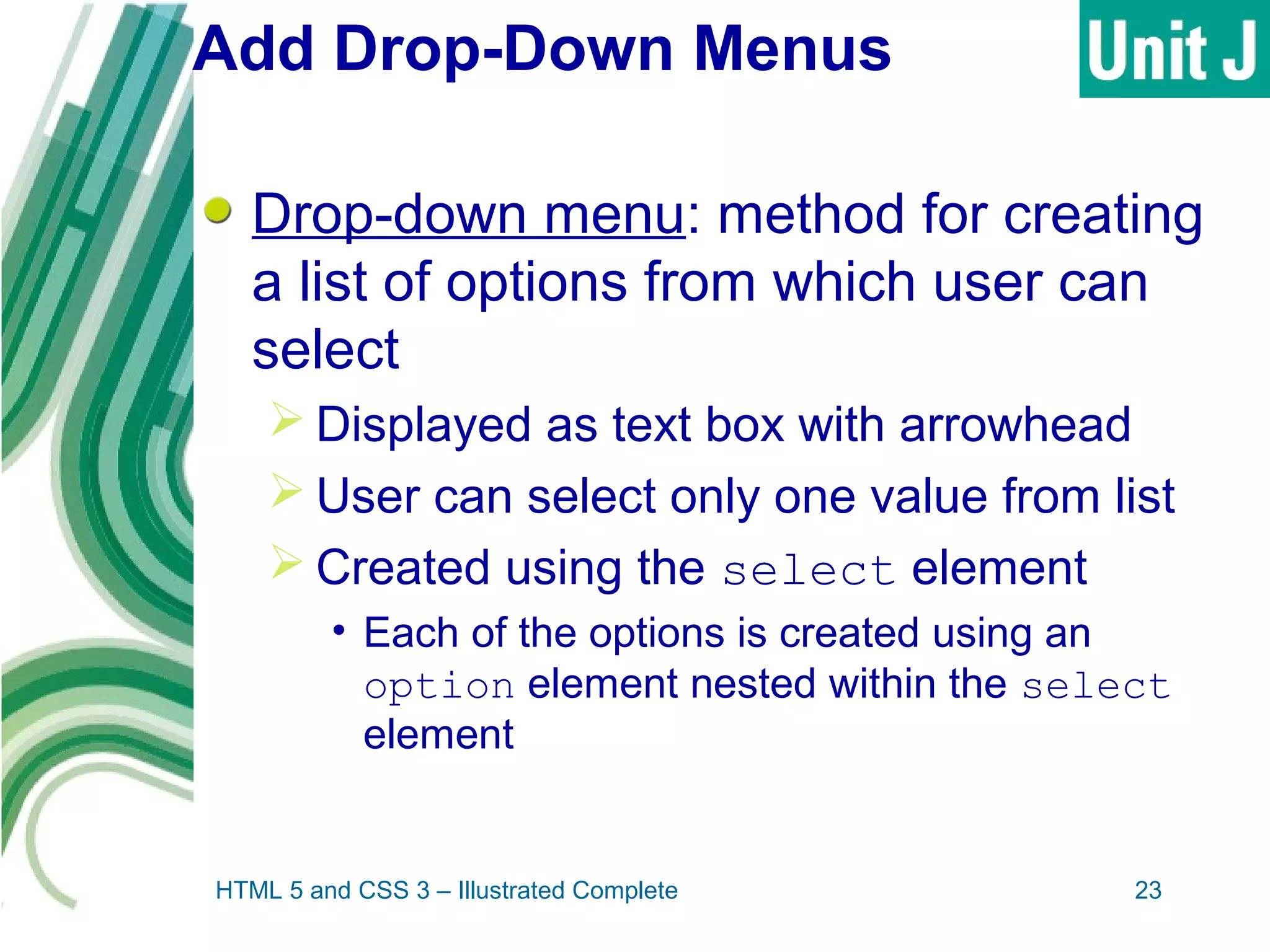

Add Drop-Down Menus
Drop-down menu: method for creating
a list of options from which user can
select
 Displayed as text box with arrowhead
 User can select only one value from list
 Created using the select element
• Each of the options is created using an
option element nested within the select
element

Add Drop-Down Menus
(continued)

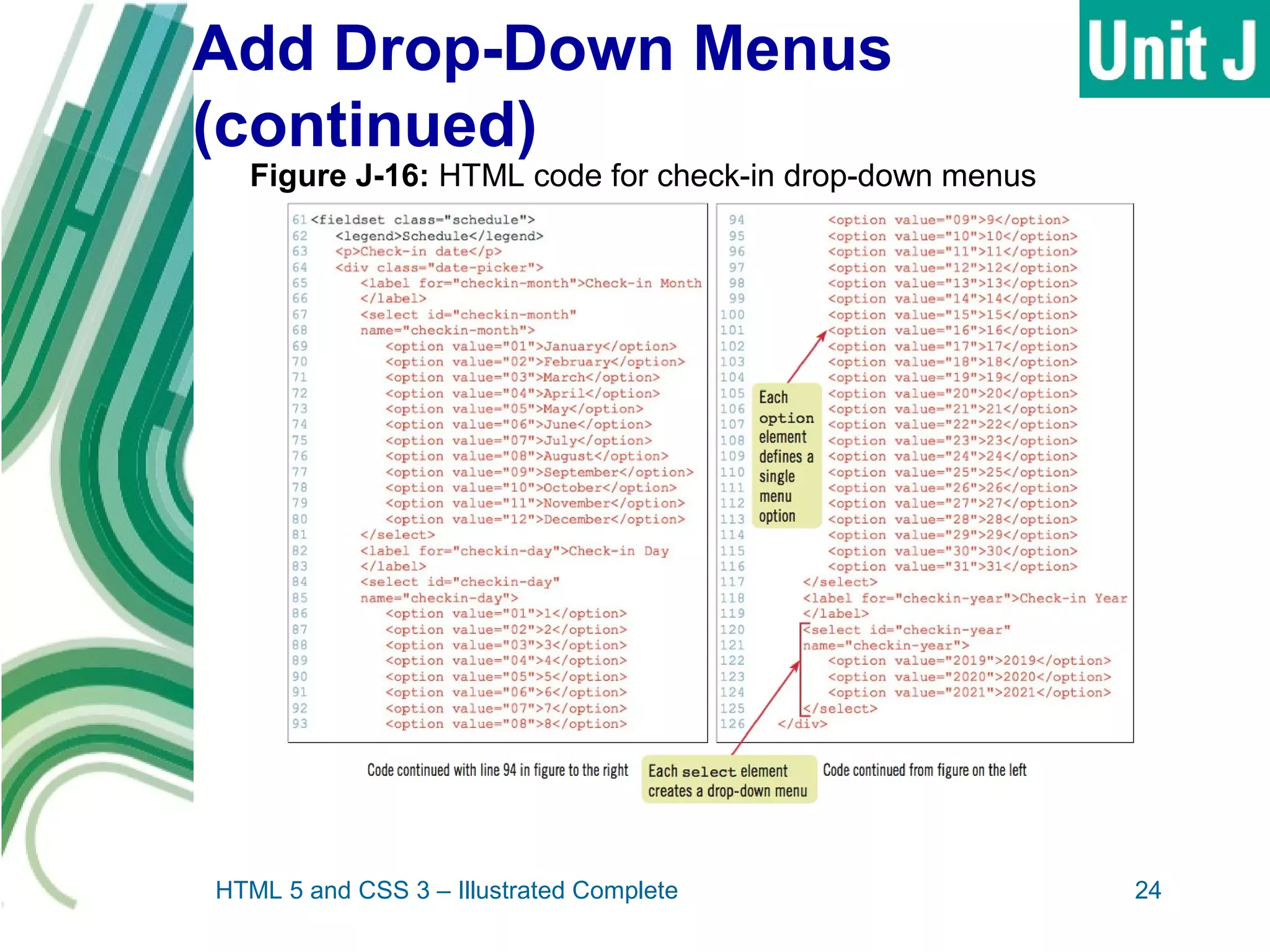

Figure J-16: HTML code for check-in drop-down menus

Add Drop-Down Menus
(continued)

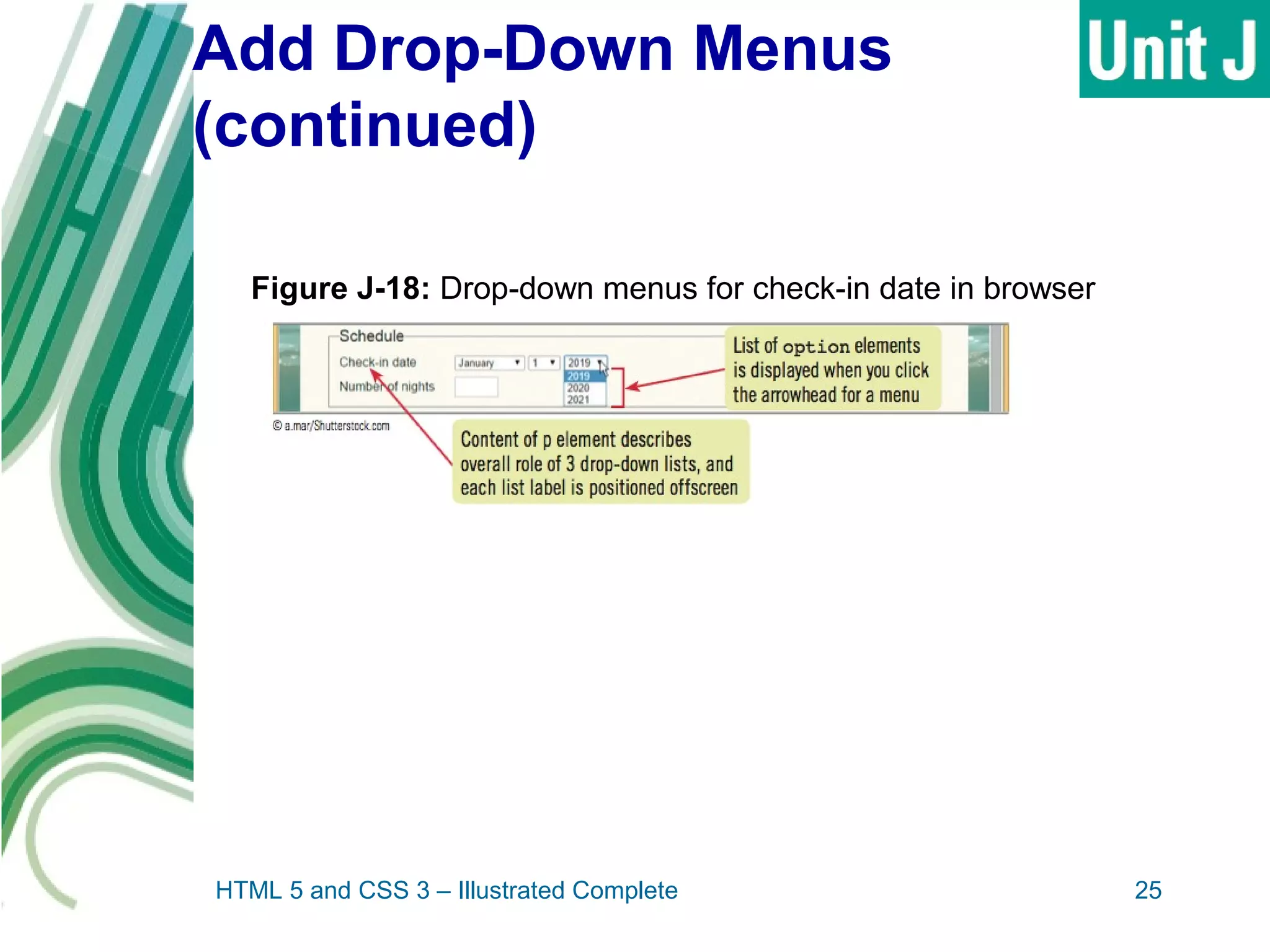

Figure J-18: Drop-down menus for check-in date in browser

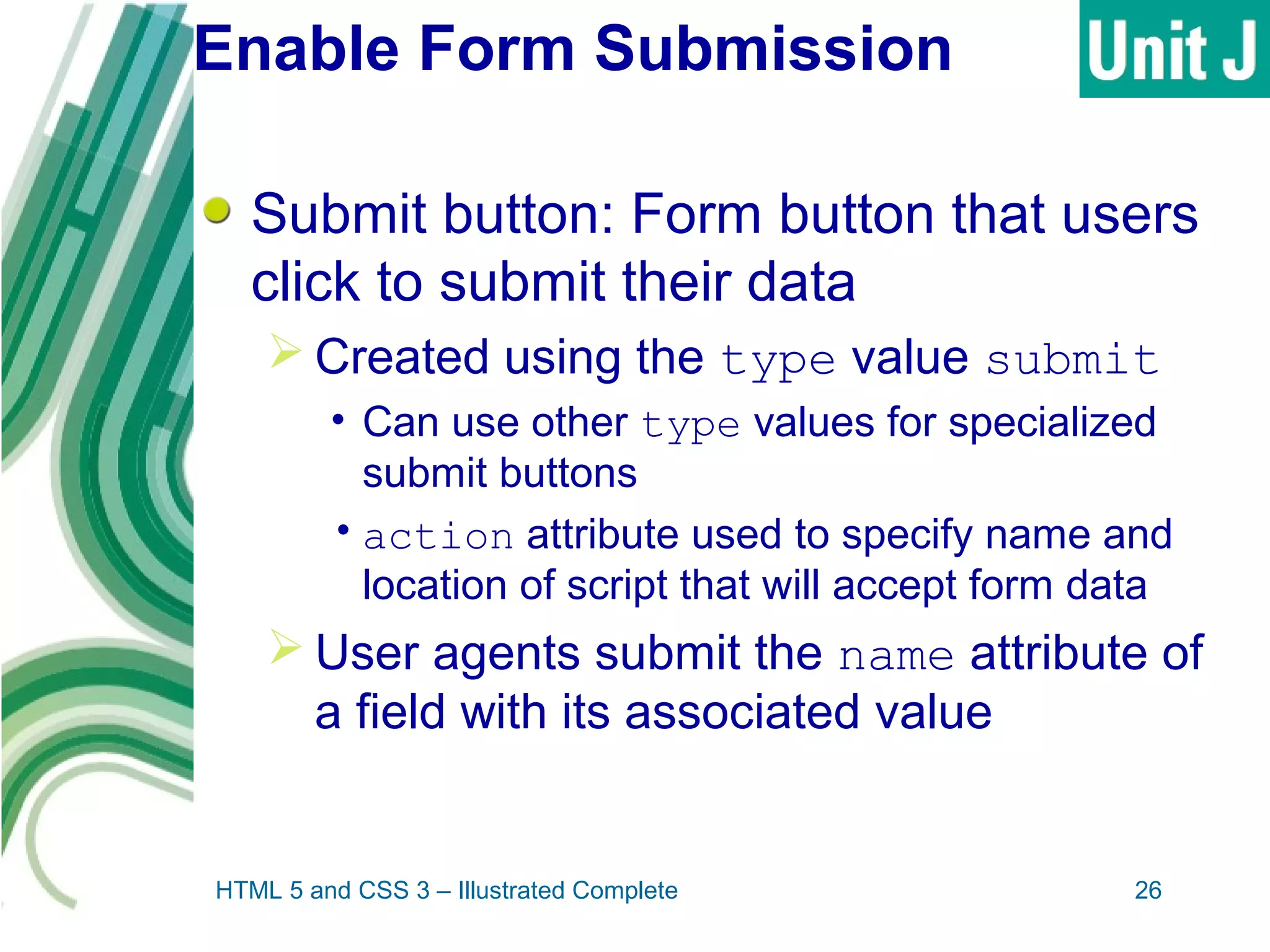

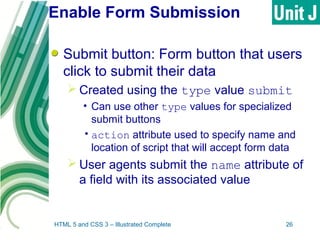

Enable Form Submission
Submit button: Form button that users
click to submit their data
 Created using the type value submit
• Can use other type values for specialized
submit buttons
•action attribute used to specify name and
location of script that will accept form data
 User agents submit the name attribute of
a field with its associated value

Enable Form Submission
(continued)

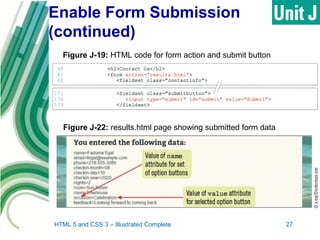

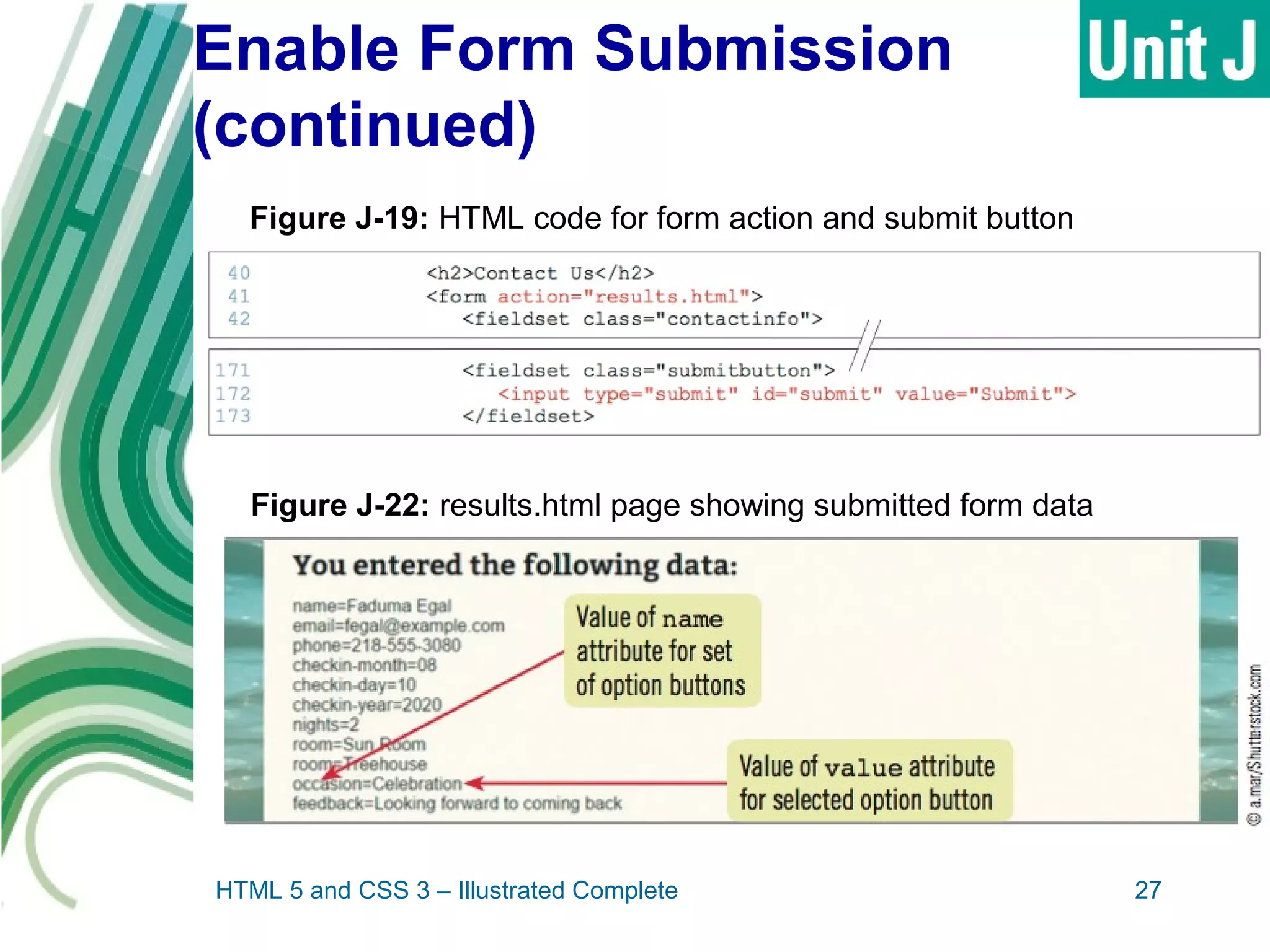

Figure J-19: HTML code for form action and submit button
Figure J-22: results.html page showing submitted form data

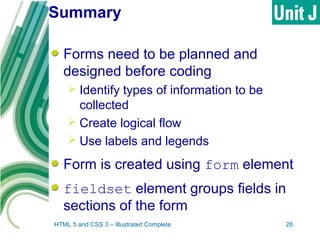

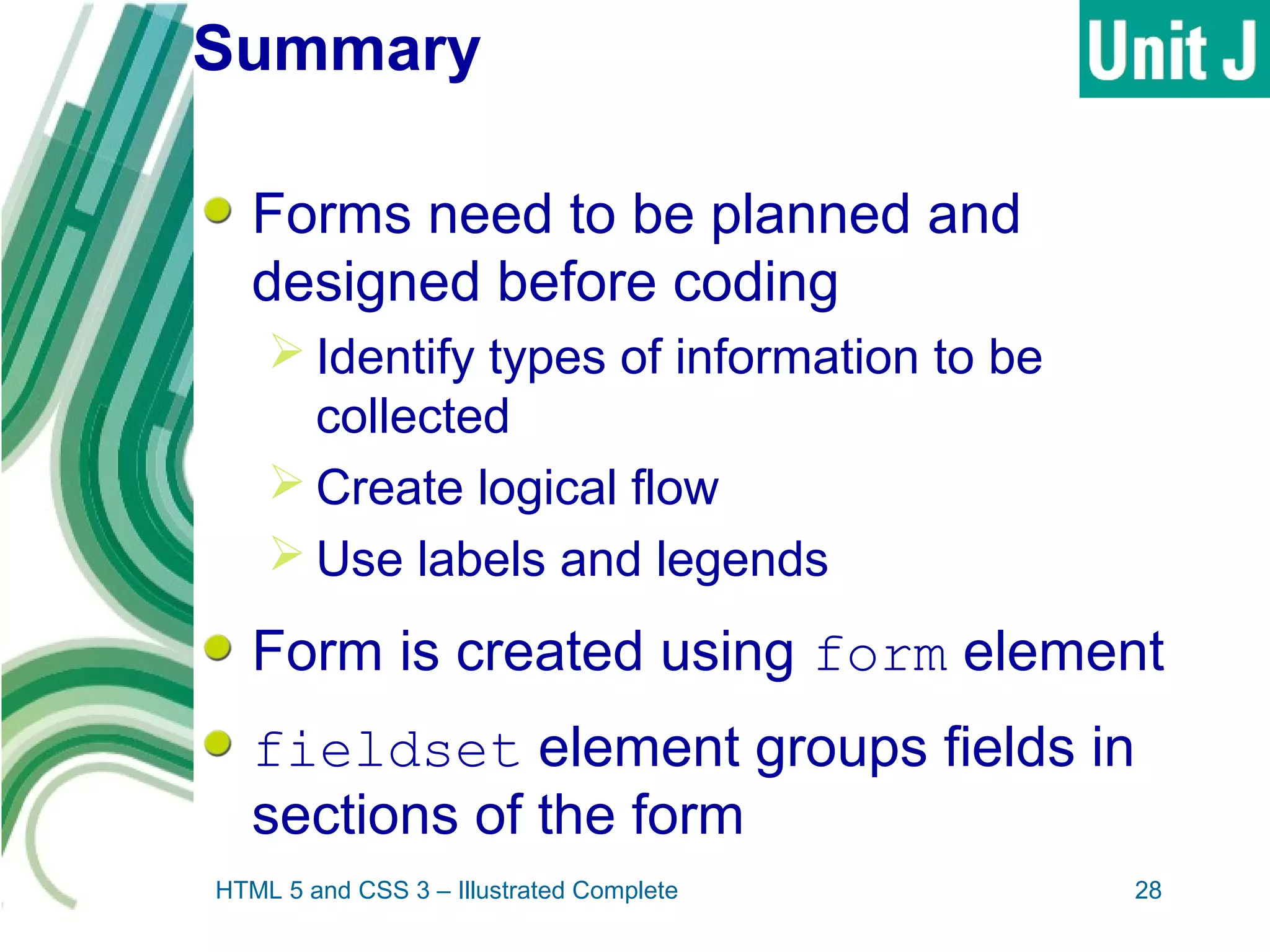

Summary
Forms need to be planned and
designed before coding
 Identify types of information to be
collected
 Create logical flow
 Use labels and legends
Form is created using form element
fieldset element groups fields in
sections of the form

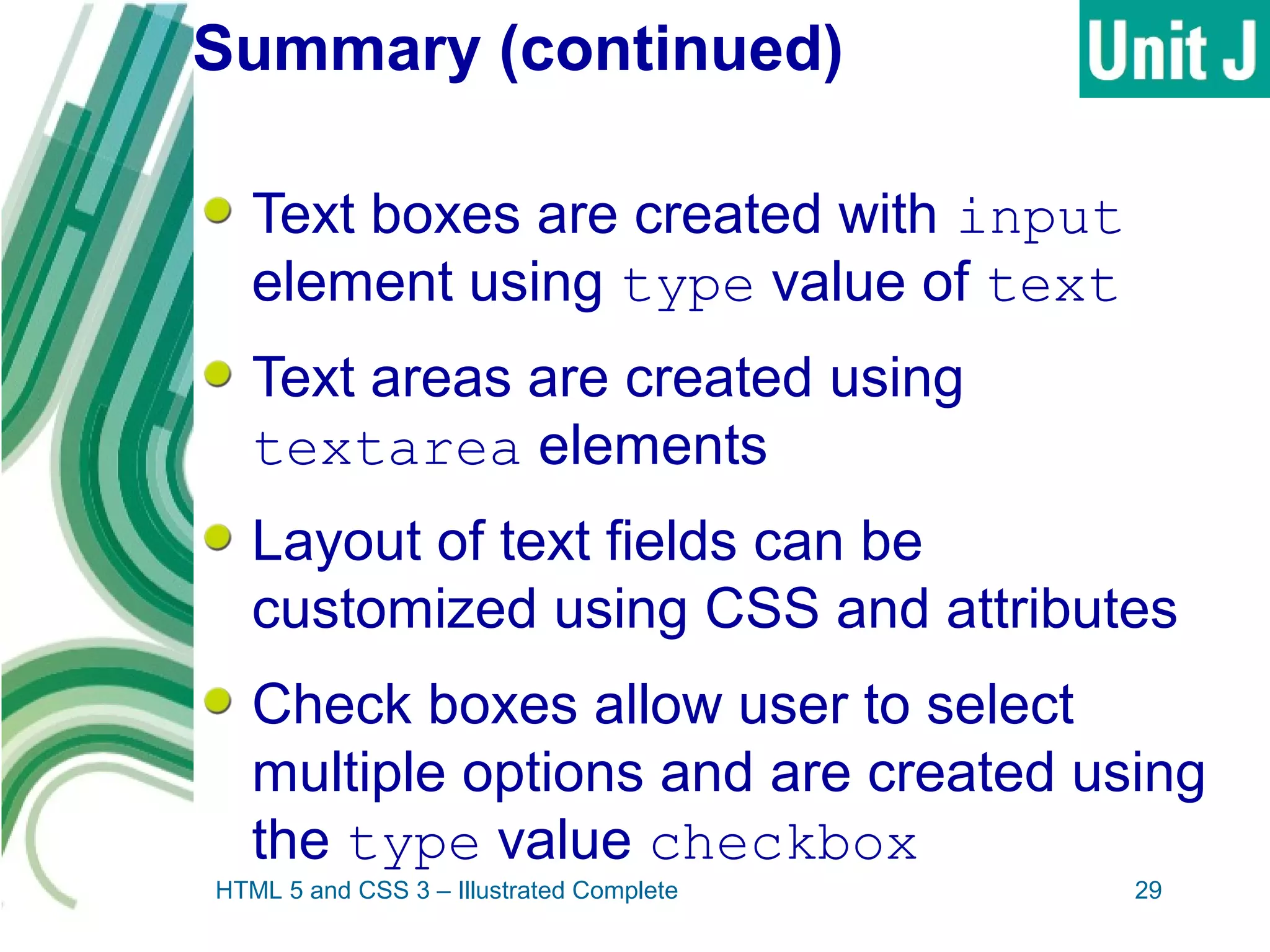

Summary (continued)
Text boxes are created with input
element using type value of text
Text areas are created using
textarea elements
Layout of text fields can be
customized using CSS and attributes
Check boxes allow user to select
multiple options and are created using
the type value checkbox

Summary (continued)

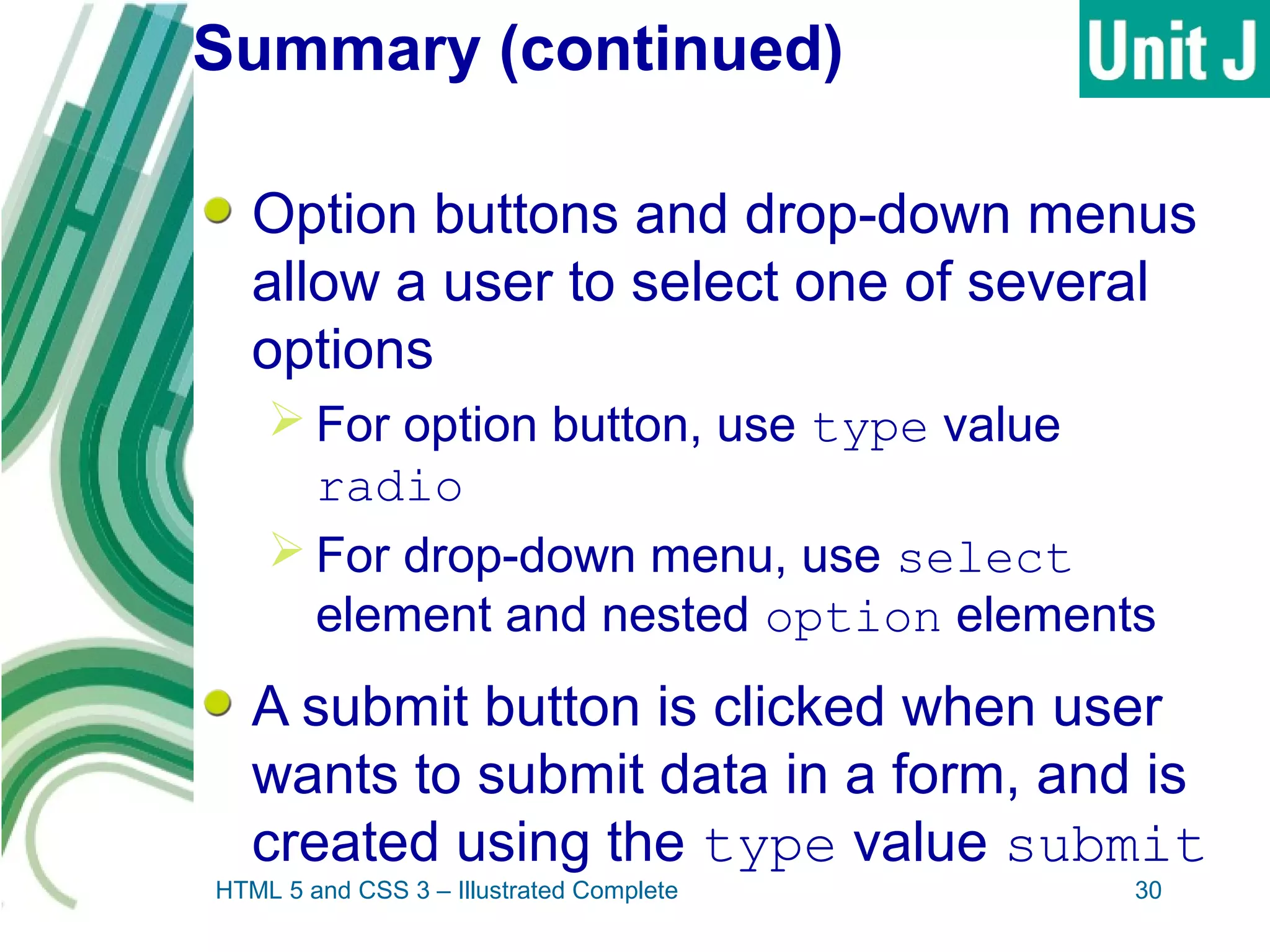

Option buttons and drop-down menus
allow a user to select one of several
options
 For option button, use type value
radio
 For drop-down menu, use select
element and nested option elements
A submit button is clicked when user
wants to submit data in a form, and is
created using the type value submit
