Data Structures- Part5 recursion

Data Structures I (CPCS-204)
Week # 5: Recursion

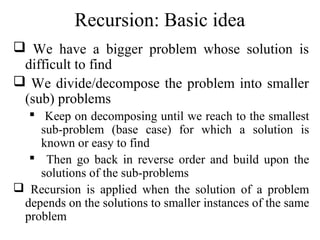

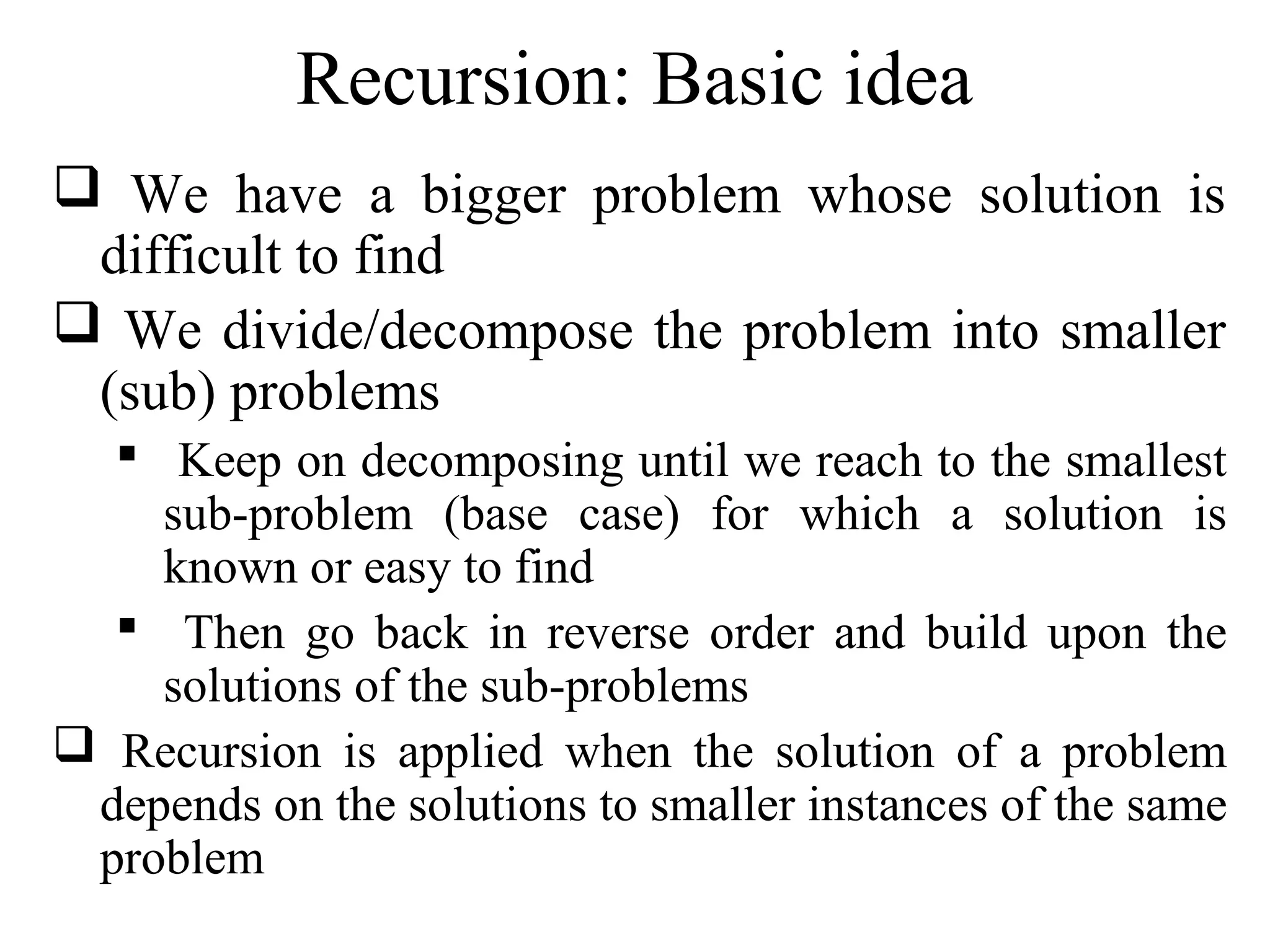

Recursion: Basic idea
 We have a bigger problem whose solution is
difficult to find
 We divide/decompose the problem into smaller
(sub) problems
 Keep on decomposing until we reach to the smallest
sub-problem (base case) for which a solution is
known or easy to find
 Then go back in reverse order and build upon the
solutions of the sub-problems
 Recursion is applied when the solution of a problem
depends on the solutions to smaller instances of the same
problem

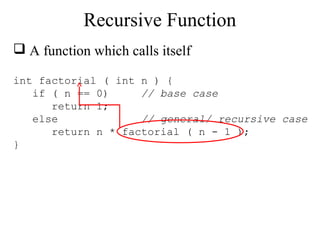

Recursive Function
 A function which calls itself
int factorial ( int n ) {
if ( n == 0) // base case
return 1;
else // general/ recursive case
return n * factorial ( n - 1 );
}

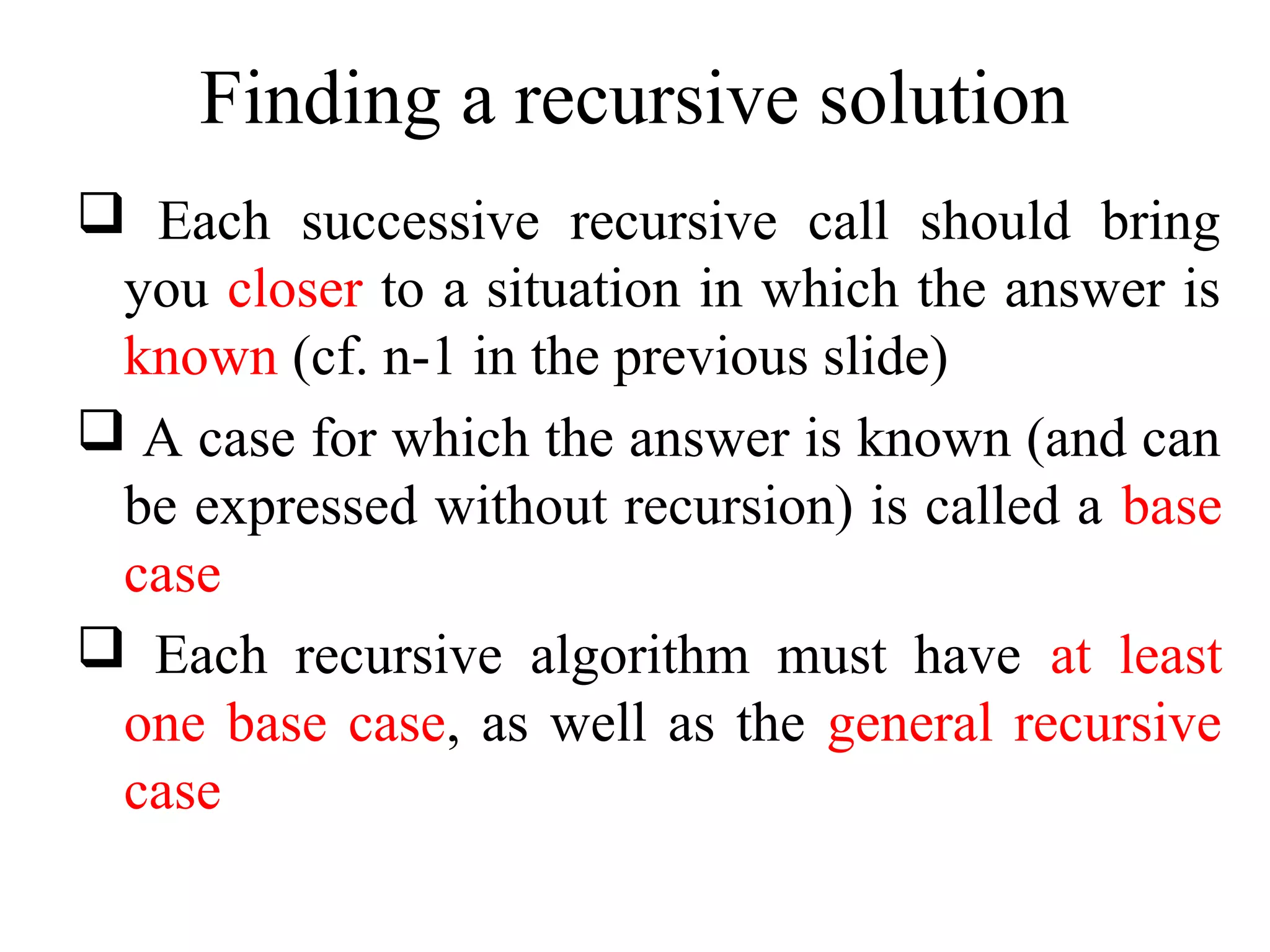

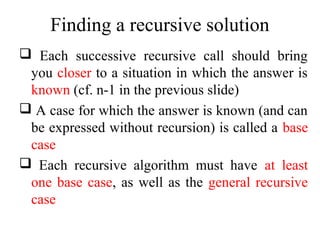

Finding a recursive solution
 Each successive recursive call should bring
you closer to a situation in which the answer is
known (cf. n-1 in the previous slide)
 A case for which the answer is known (and can
be expressed without recursion) is called a base
case
 Each recursive algorithm must have at least
one base case, as well as the general recursive
case

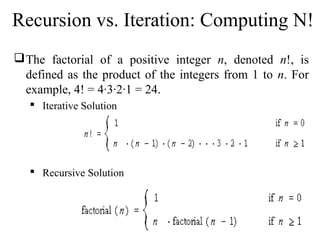

Recursion vs. Iteration: Computing N!
The factorial of a positive integer n, denoted n!, is
defined as the product of the integers from 1 to n. For
example, 4! = 4·3·2·1 = 24.
 Iterative Solution
 Recursive Solution

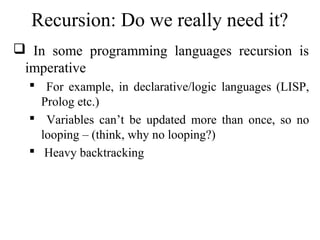

Recursion: Do we really need it?
 In some programming languages recursion is
imperative
 For example, in declarative/logic languages (LISP,
Prolog etc.)
 Variables can’t be updated more than once, so no
looping – (think, why no looping?)
 Heavy backtracking

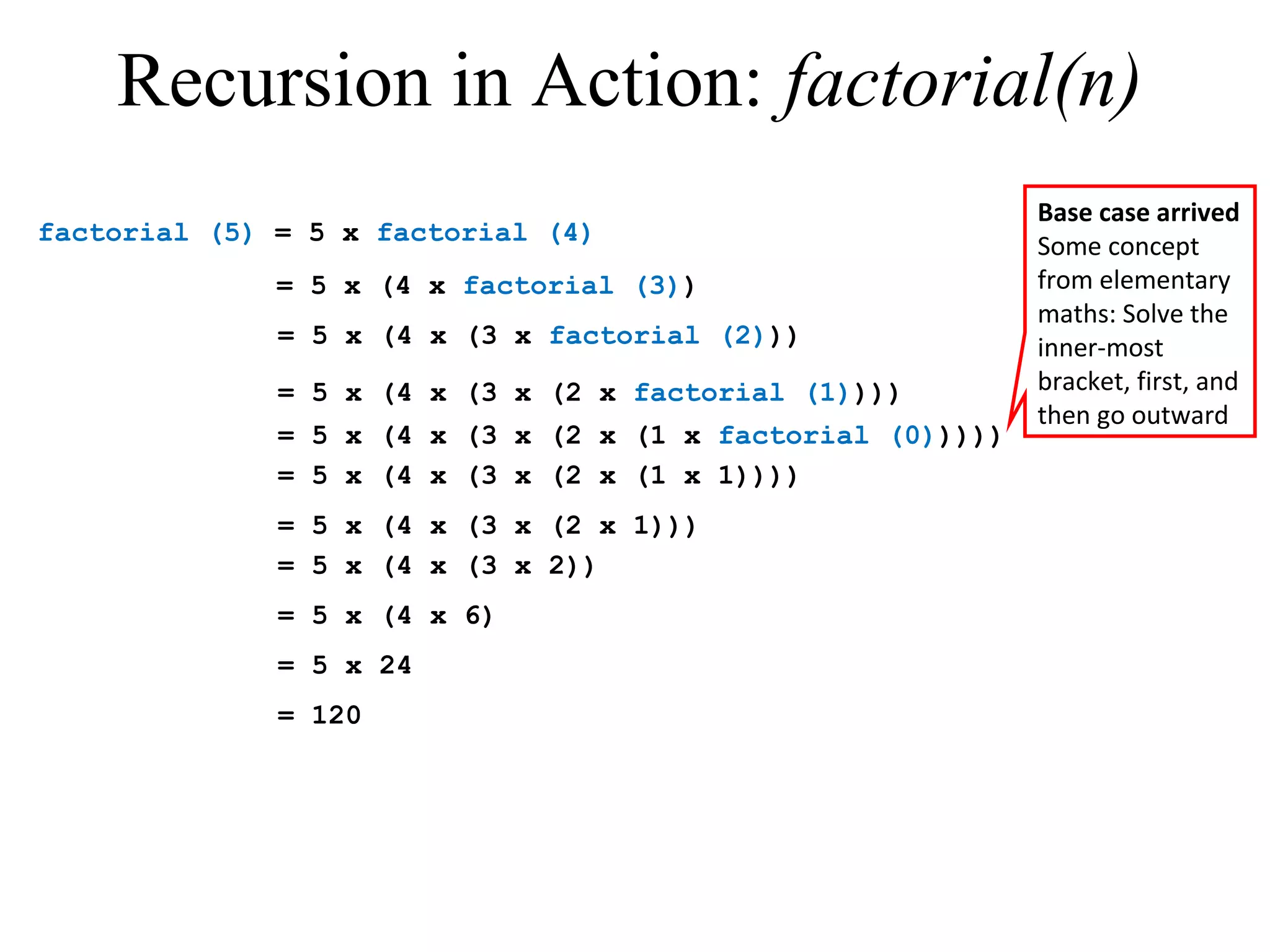

Recursion in Action: factorial(n)
factorial (5) = 5 x factorial (4)
= 5 x (4 x factorial (3))
= 5 x (4 x (3 x factorial (2)))
= 5 x (4 x (3 x (2 x factorial (1))))
= 5 x (4 x (3 x (2 x (1 x factorial (0)))))
Base case arrived
Some concept
from elementary
maths: Solve the
inner-most
bracket, first, and
then go outward
= 5 x (4 x (3 x (2 x (1 x 1))))
= 5 x (4 x (3 x (2 x 1)))
= 5 x (4 x (3 x 2))
= 5 x (4 x 6)
= 5 x 24
= 120

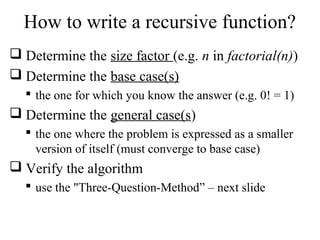

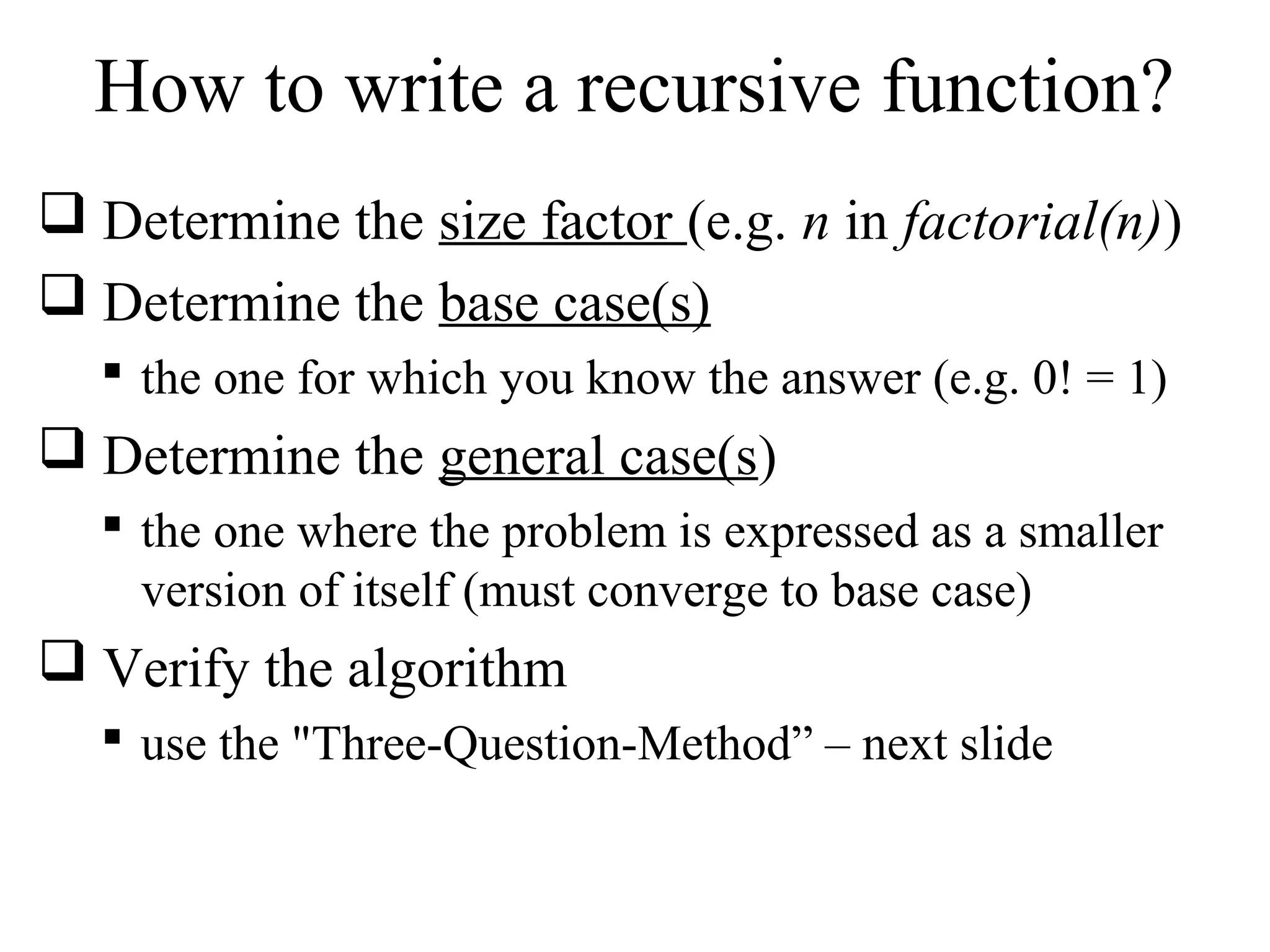

How to write a recursive function?
 Determine the size factor (e.g. n in factorial(n))
 Determine the base case(s)
 the one for which you know the answer (e.g. 0! = 1)
 Determine the general case(s)
 the one where the problem is expressed as a smaller
version of itself (must converge to base case)
 Verify the algorithm
 use the "Three-Question-Method” – next slide

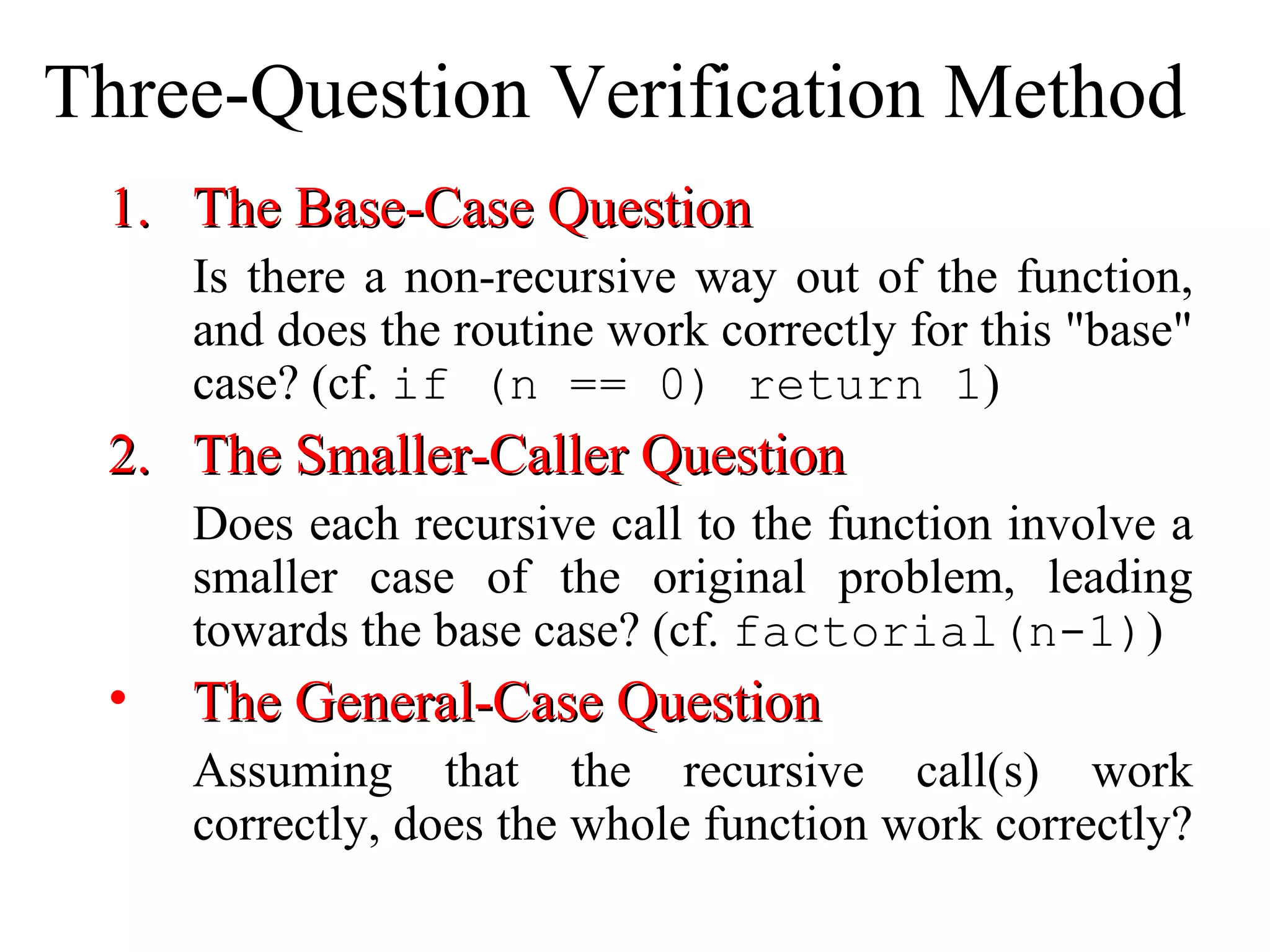

Three-Question Verification Method
11.. TThhee BBaassee--CCaassee QQuueessttiioonn
Is there a non-recursive way out of the function,
and does the routine work correctly for this "base"
case? (cf. if (n == 0) return 1)
22.. TThhee SSmmaalllleerr--CCaalllleerr QQuueessttiioonn
Does each recursive call to the function involve a
smaller case of the original problem, leading
towards the base case? (cf. factorial(n-1))
• TThhee GGeenneerraall--CCaassee QQuueessttiioonn
Assuming that the recursive call(s) work
correctly, does the whole function work correctly?

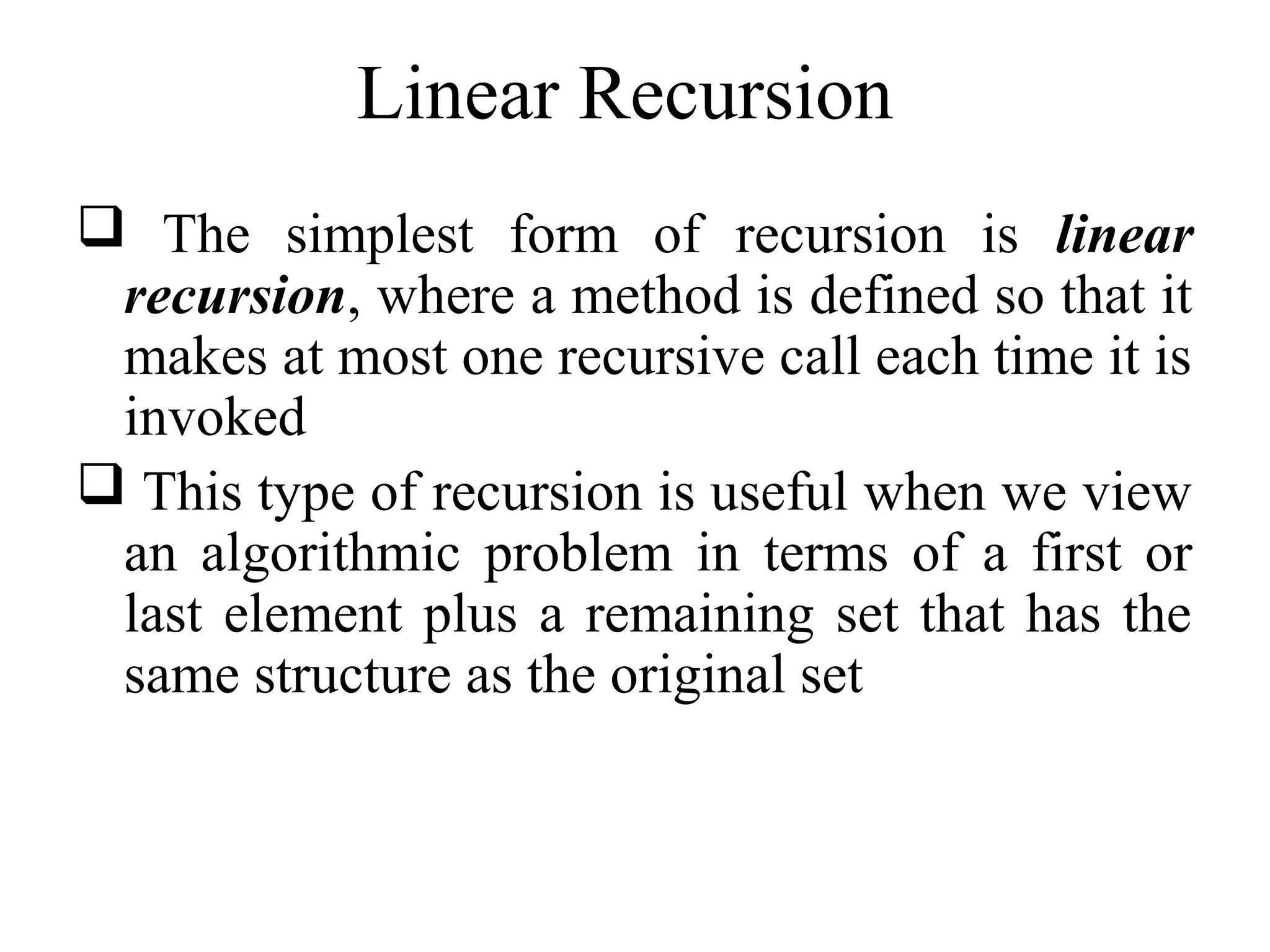

Linear Recursion
 The simplest form of recursion is linear
recursion, where a method is defined so that it
makes at most one recursive call each time it is
invoked
 This type of recursion is useful when we view
an algorithmic problem in terms of a first or
last element plus a remaining set that has the
same structure as the original set

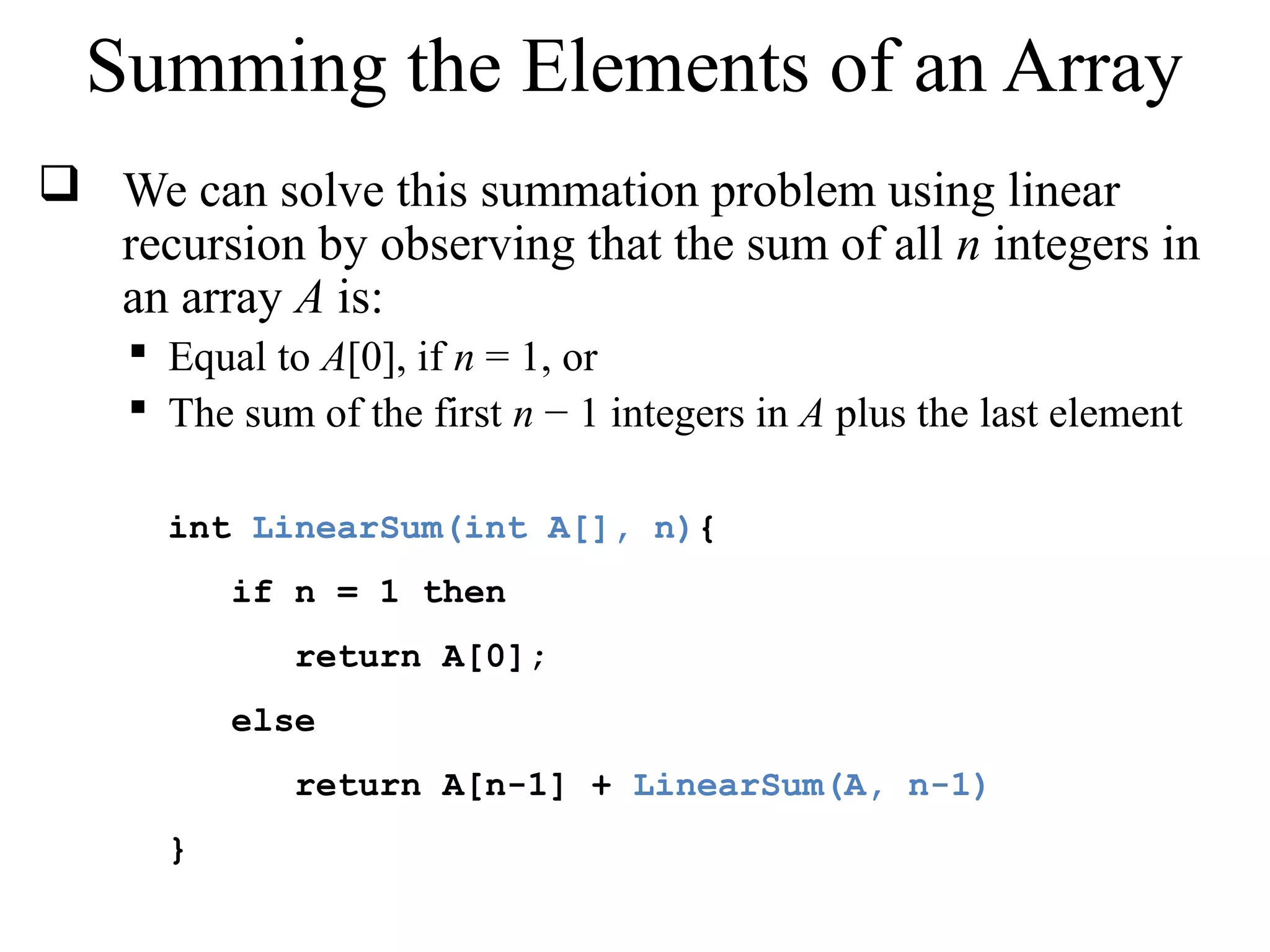

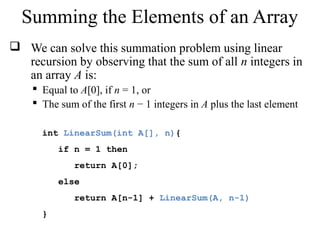

Summing the Elements of an Array
 We can solve this summation problem using linear
recursion by observing that the sum of all n integers in
an array A is:
 Equal to A[0], if n = 1, or
 The sum of the first n − 1 integers in A plus the last element
int LinearSum(int A[], n){
if n = 1 then
return A[0];
else
return A[n-1] + LinearSum(A, n-1)
}

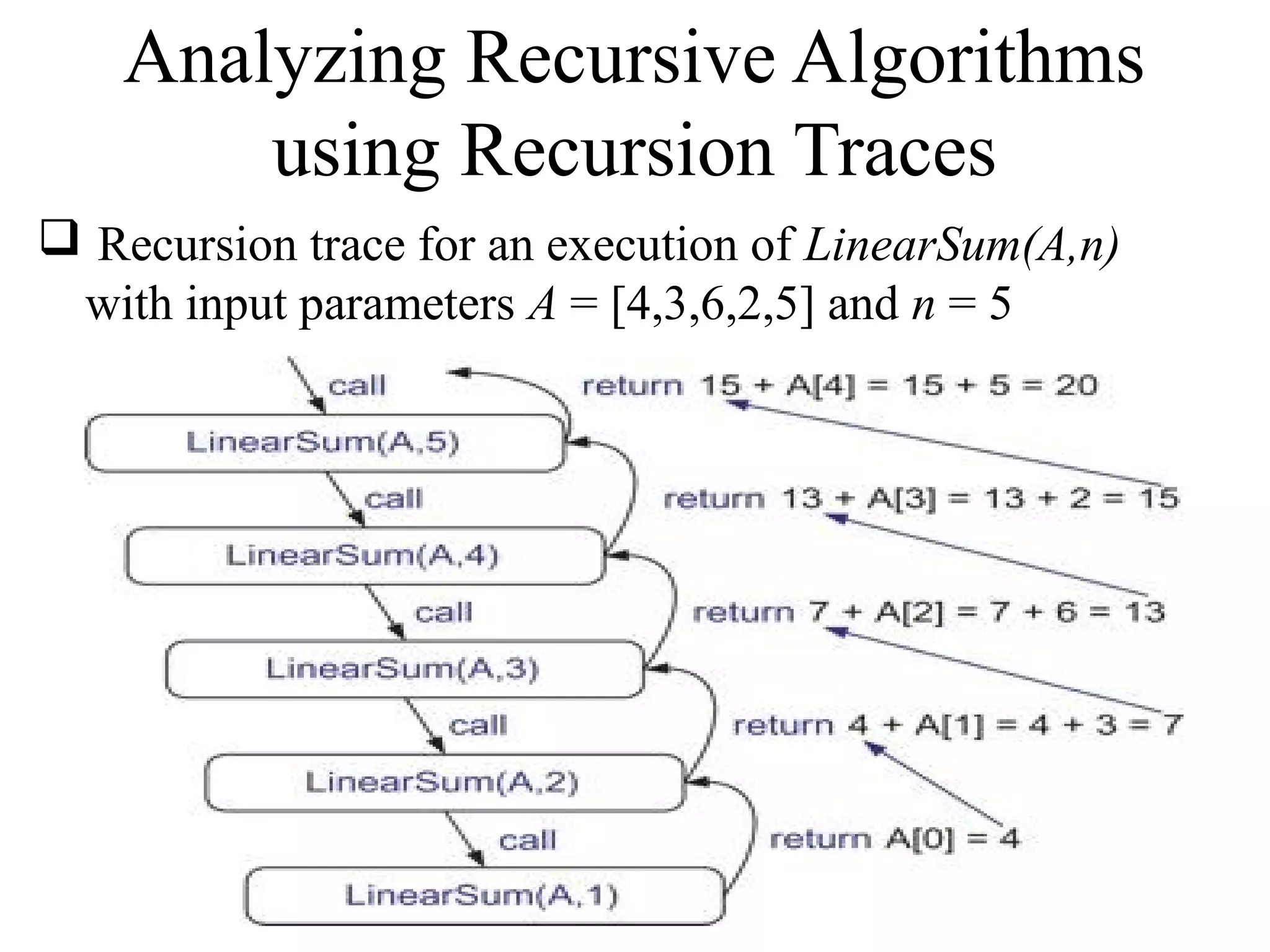

Analyzing Recursive Algorithms
using Recursion Traces
 Recursion trace for an execution of LinearSum(A,n)
with input parameters A = [4,3,6,2,5] and n = 5

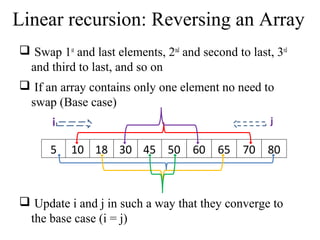

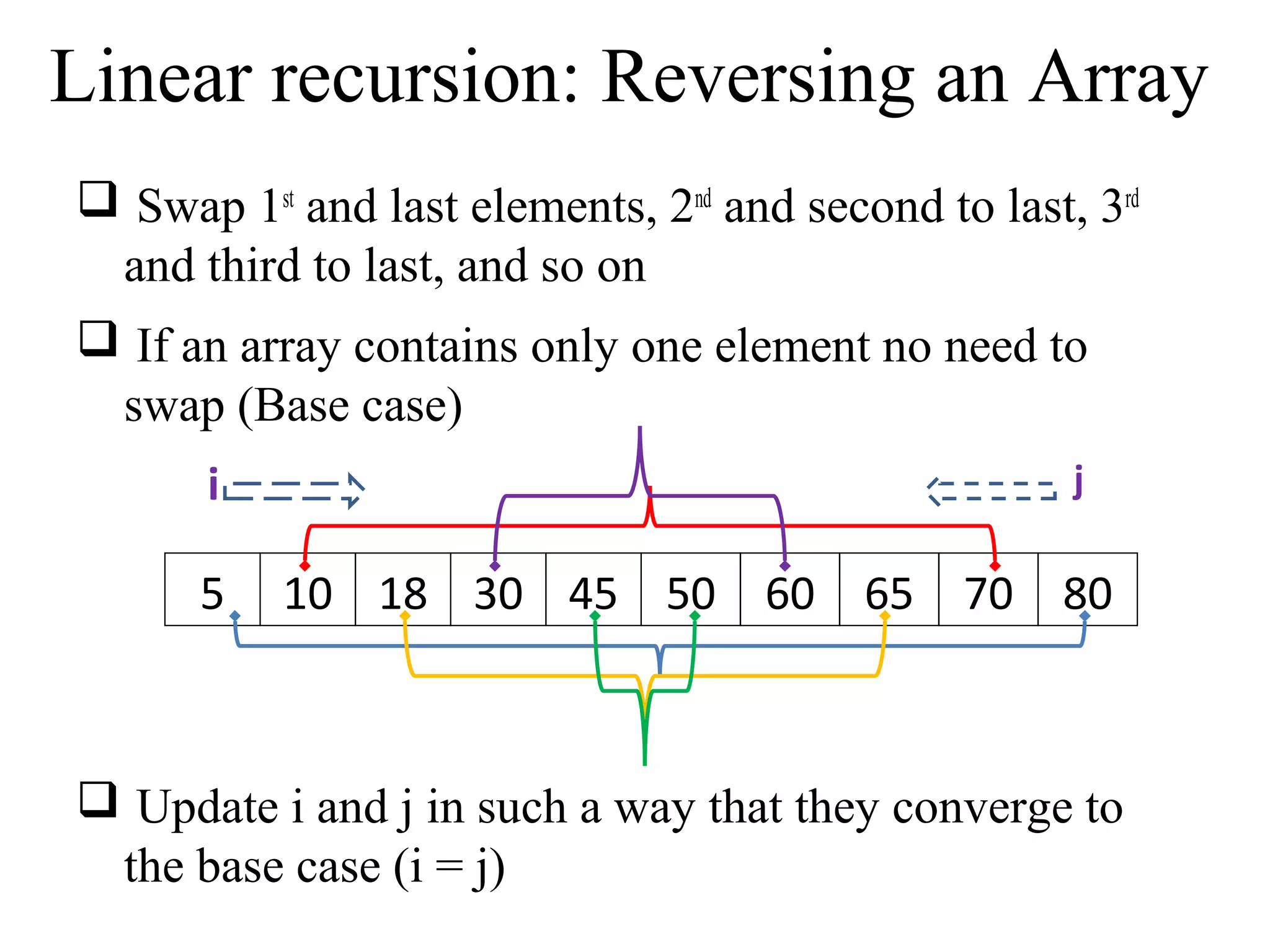

Linear recursion: Reversing an Array
 Swap 1st and last elements, 2nd and second to last, 3rd
and third to last, and so on
 If an array contains only one element no need to
swap (Base case)
i j
5 10 18 30 45 50 60 65 70 80
 Update i and j in such a way that they converge to
the base case (i = j)

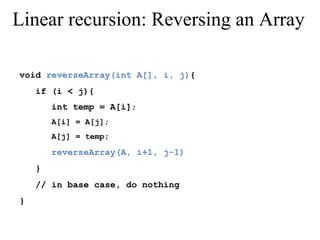

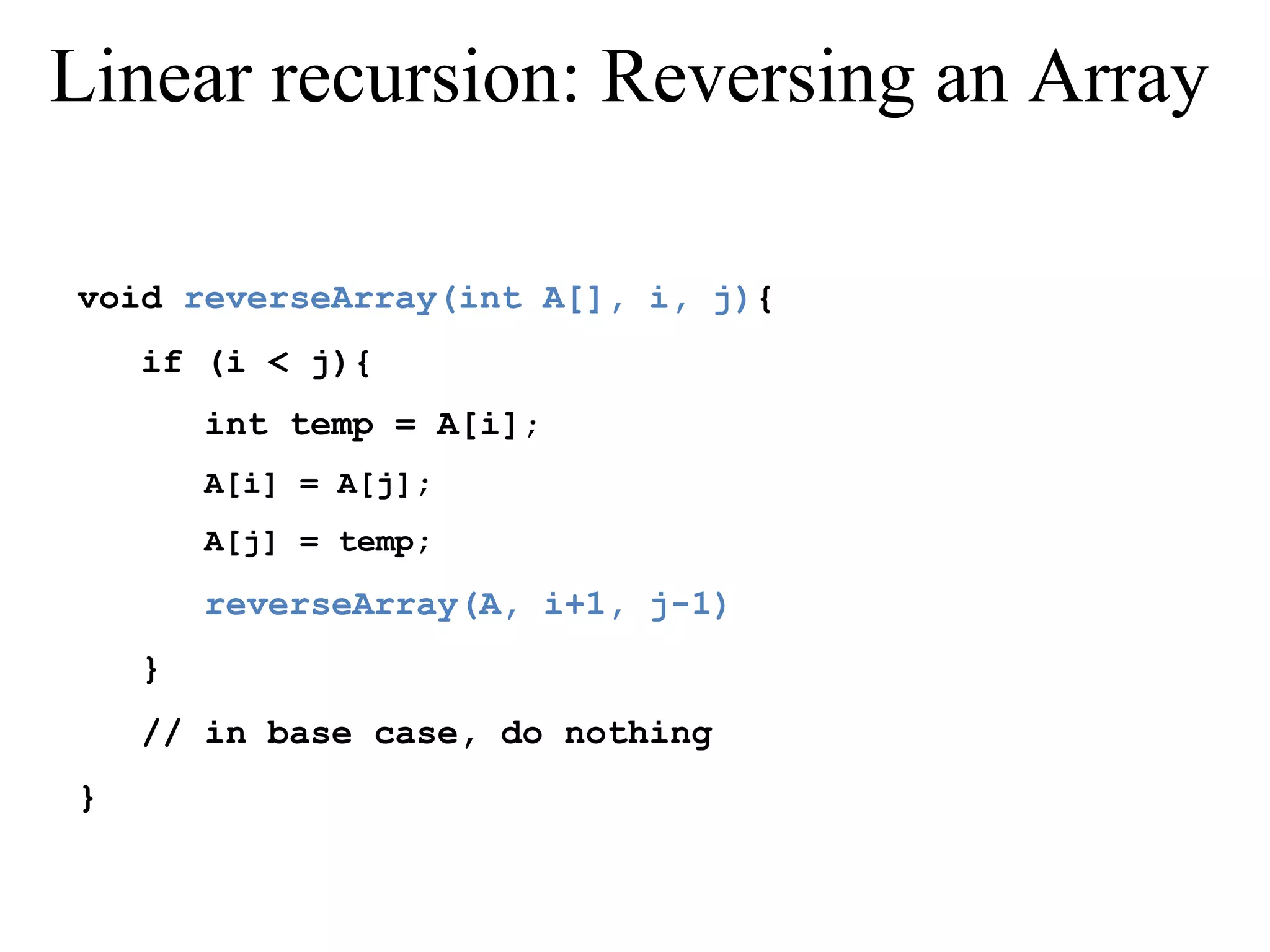

Linear recursion: Reversing an Array
void reverseArray(int A[], i, j){
if (i < j){
int temp = A[i];
A[i] = A[j];
A[j] = temp;
reverseArray(A, i+1, j-1)
}
// in base case, do nothing
}

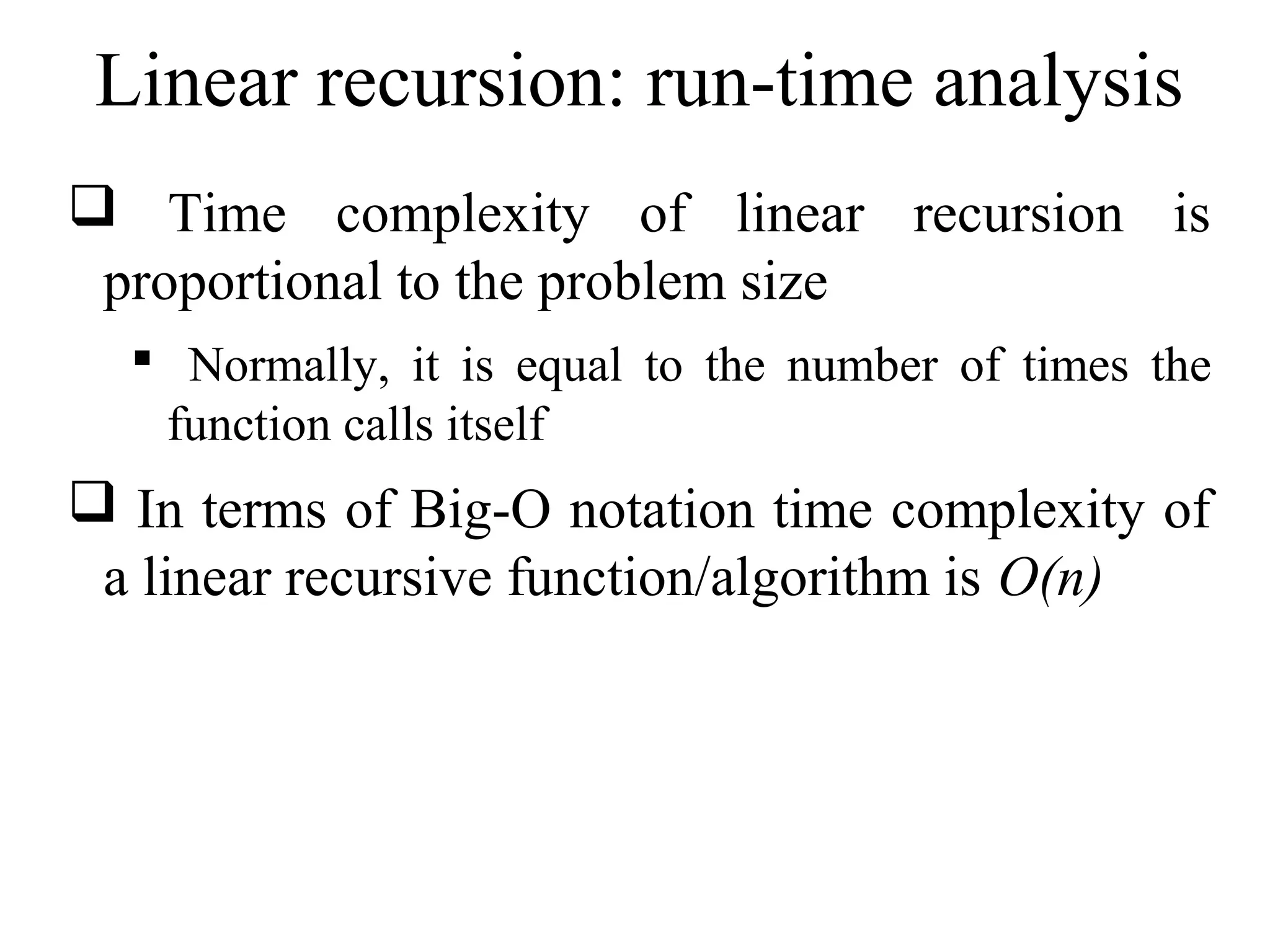

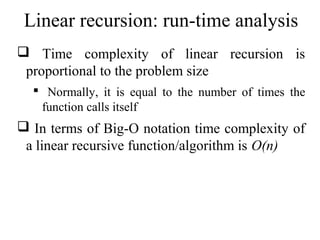

Linear recursion: run-time analysis
 Time complexity of linear recursion is
proportional to the problem size
 Normally, it is equal to the number of times the
function calls itself
 In terms of Big-O notation time complexity of
a linear recursive function/algorithm is O(n)

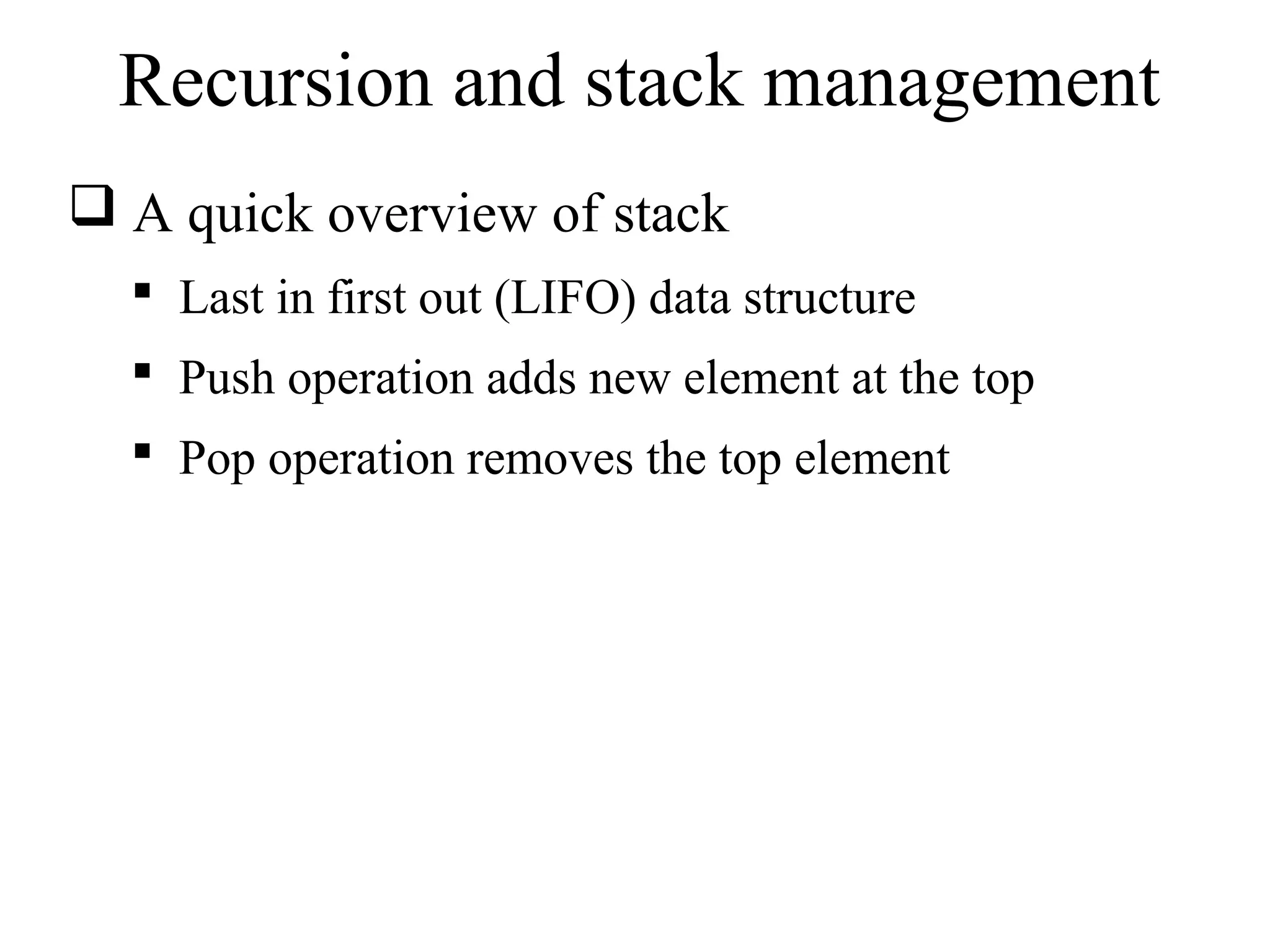

Recursion and stack management
 A quick overview of stack
 Last in first out (LIFO) data structure
 Push operation adds new element at the top
 Pop operation removes the top element

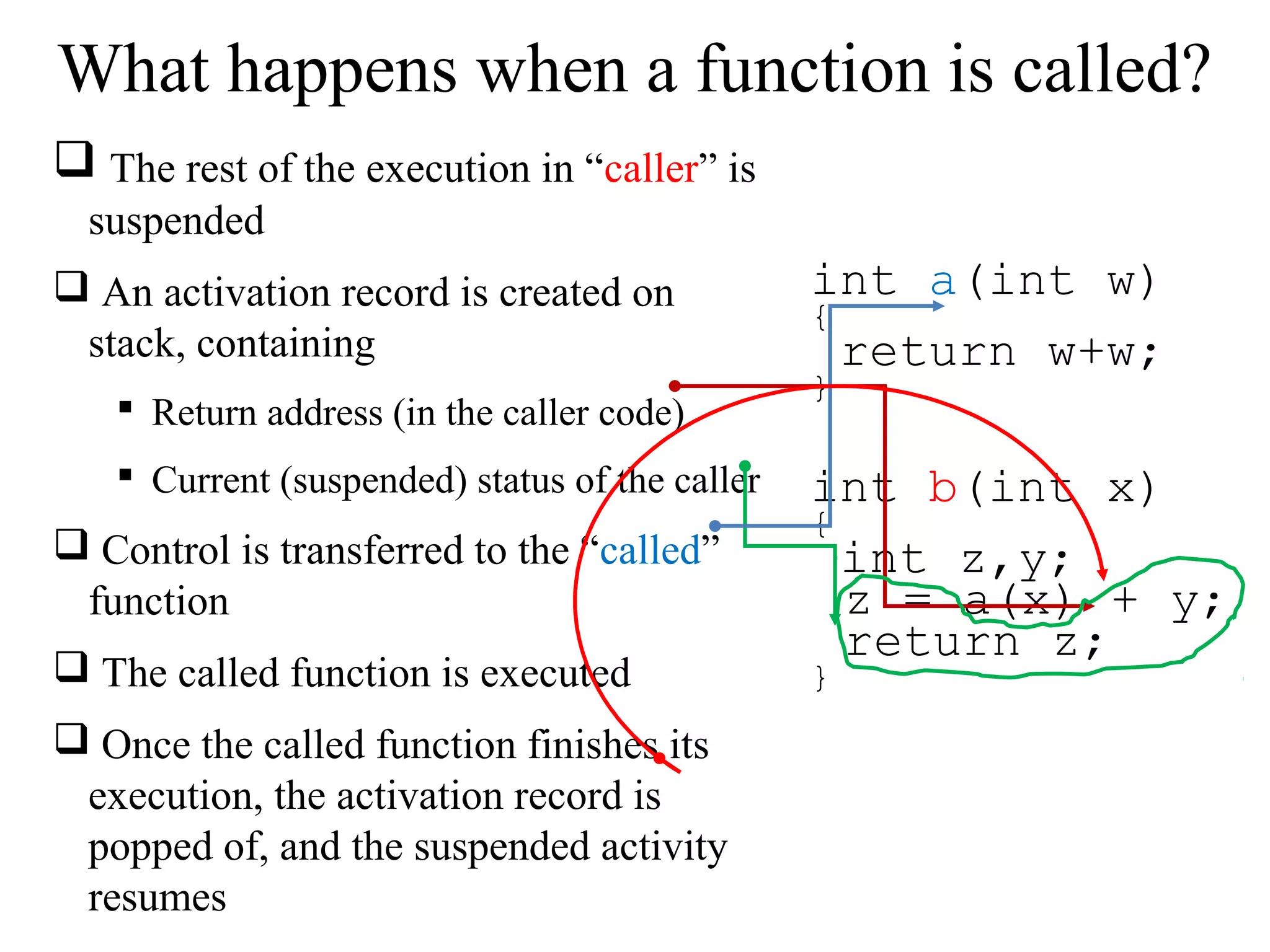

What happens when a function is called?
 The rest of the execution in “caller” is
suspended
 An activation record is created on
stack, containing
 Return address (in the caller code)
 Current (suspended) status of the caller
 Control is transferred to the “called”
function
 The called function is executed
 Once the called function finishes its
execution, the activation record is
popped of, and the suspended activity
resumes
int a(int w)
{
return w+w;
}
int b(int x)
{
int z,y;
z = a(x) + y;
return z;
}

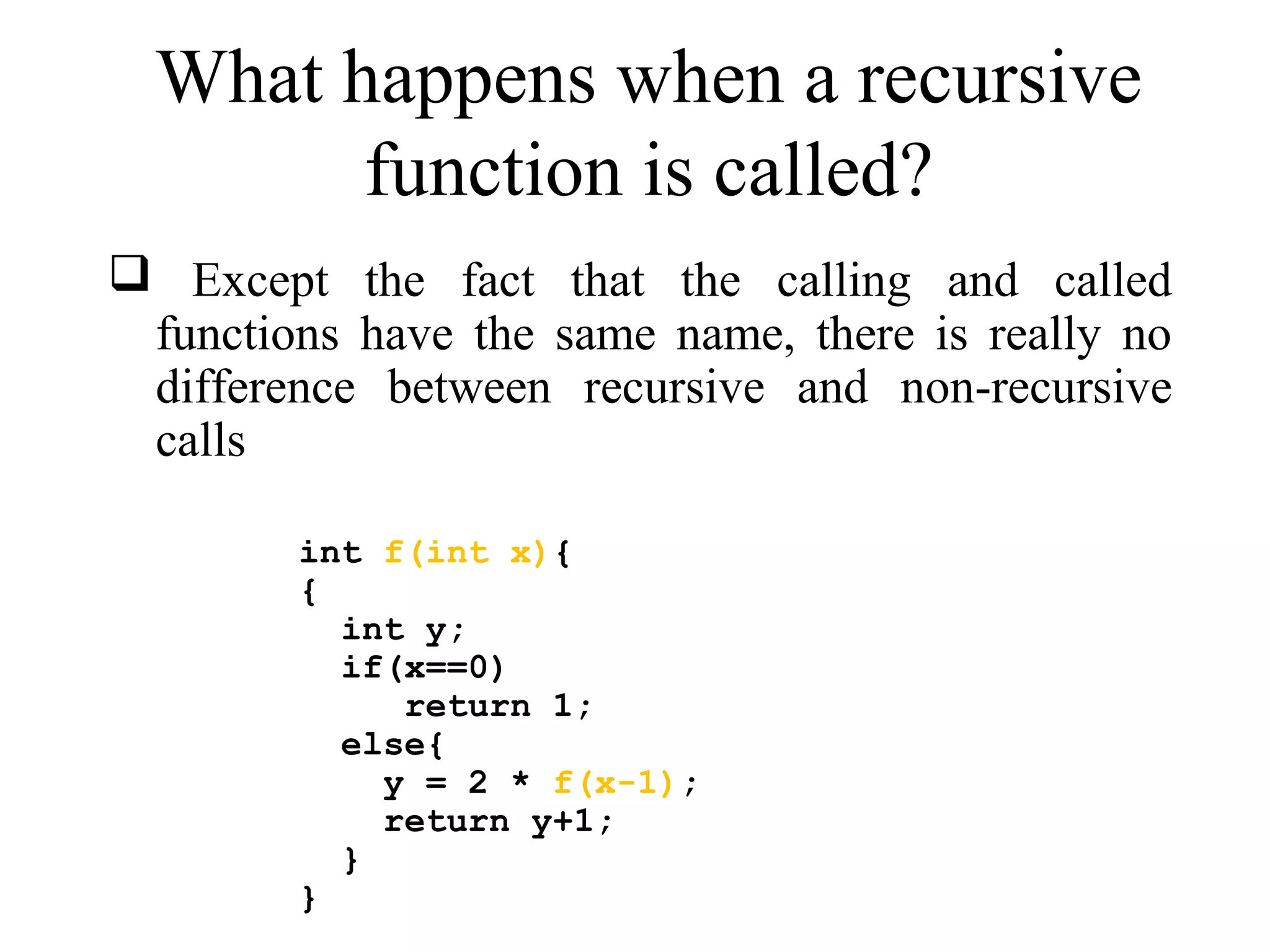

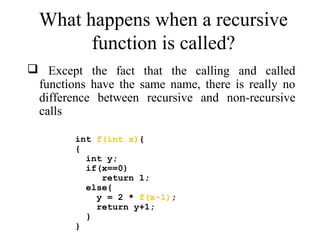

What happens when a recursive
function is called?
 Except the fact that the calling and called
functions have the same name, there is really no
difference between recursive and non-recursive
calls
int f(int x){
{
int y;
if(x==0)
return 1;
else{
y = 2 * f(x-1);
return y+1;
}
}

=f(2)
=f(3)
=f(1)
2*f(2)
2*f(1)
2*f(0)
=f(0)

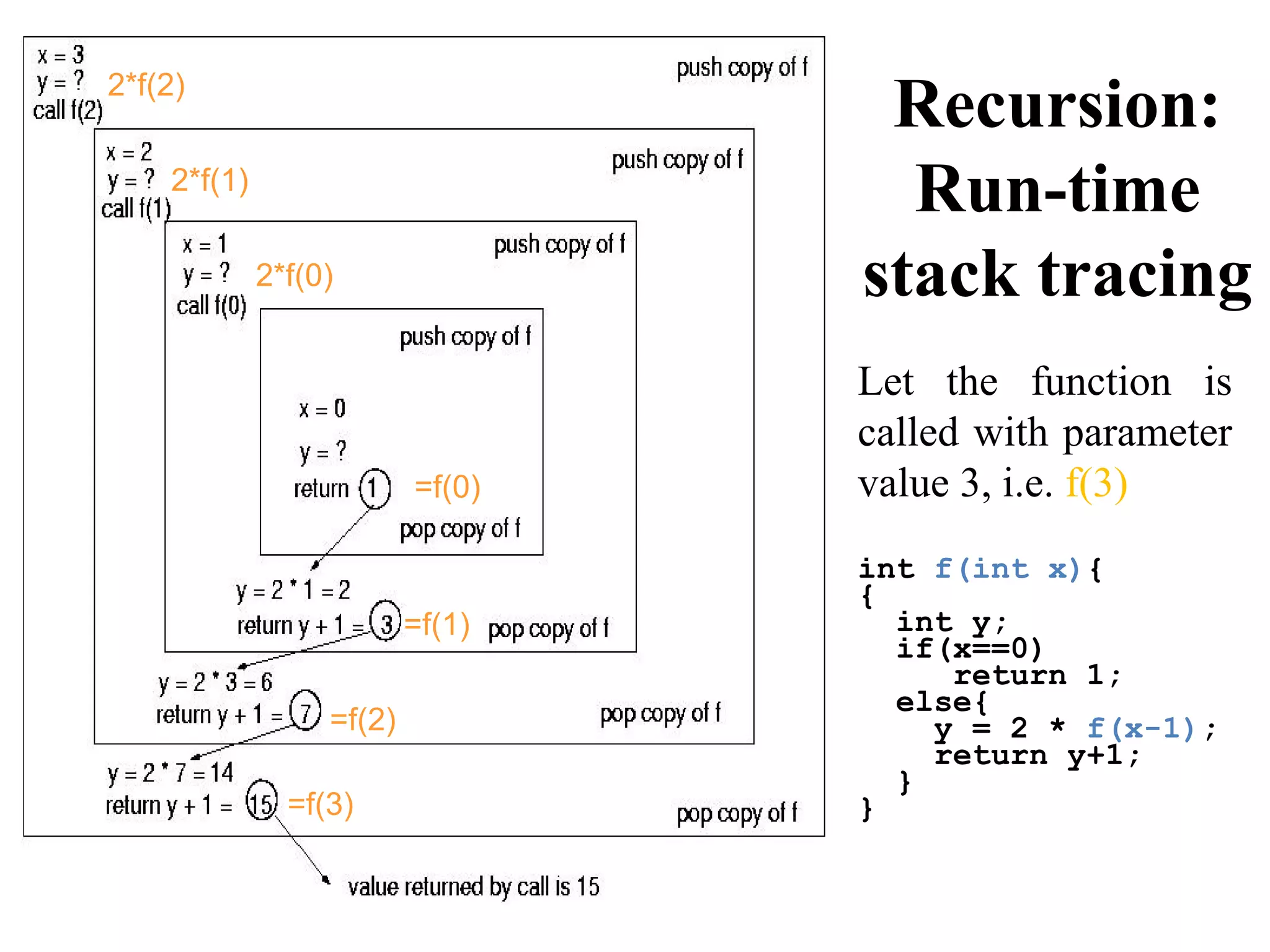

Recursion:
Run-time
stack tracing
Let the function is
called with parameter
value 3, i.e. f(3)
int f(int x){
{
int y;
if(x==0)
return 1;
else{
y = 2 * f(x-1);
return y+1;
}
}

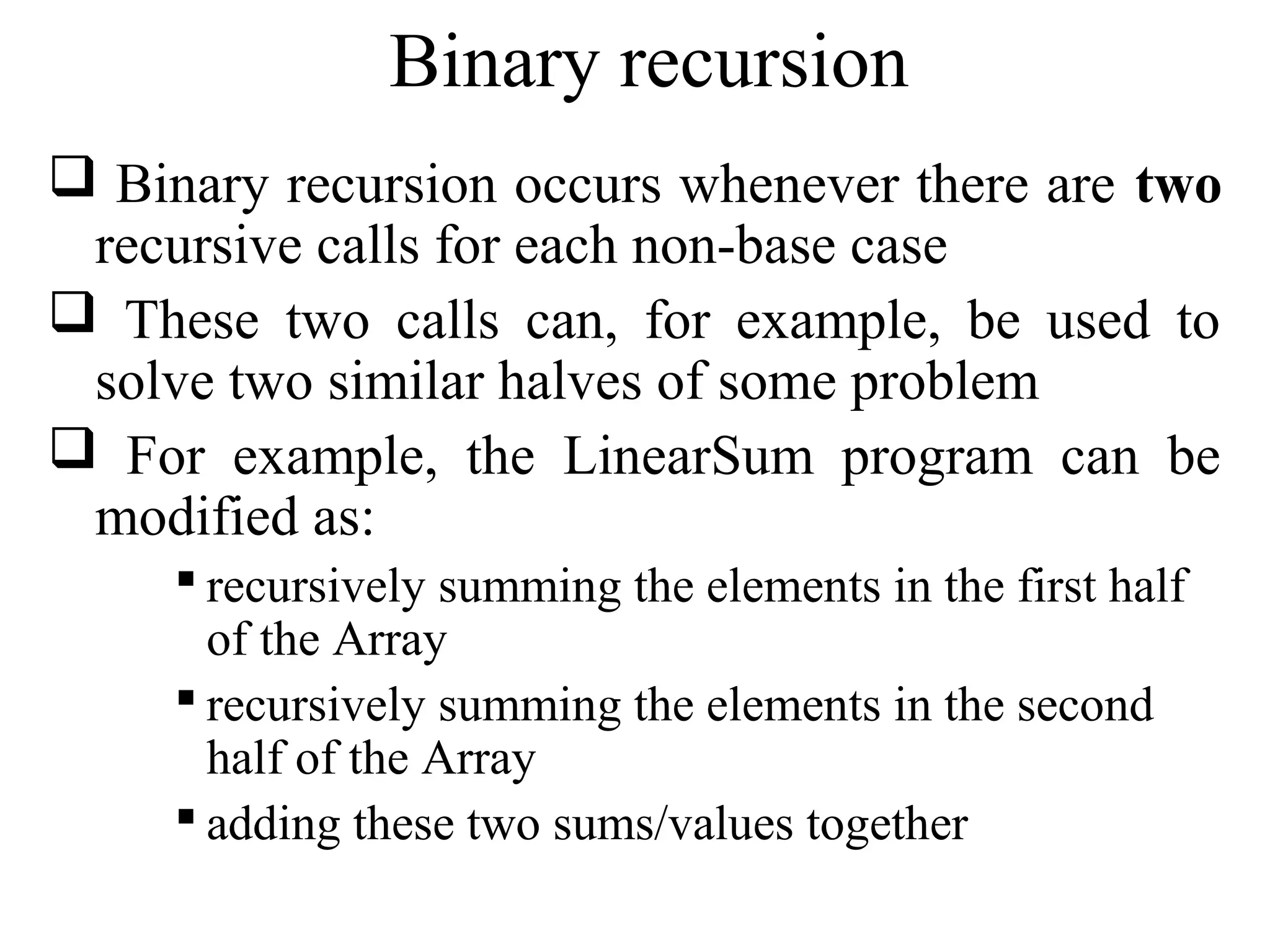

Binary recursion
 Binary recursion occurs whenever there are two
recursive calls for each non-base case
 These two calls can, for example, be used to
solve two similar halves of some problem
 For example, the LinearSum program can be
modified as:
 recursively summing the elements in the first half
of the Array
 recursively summing the elements in the second
half of the Array
 adding these two sums/values together

 A is an array, i is initialised as 0, and n is initialised as array size
int BinarySum(int A[], int i, int n){
if (n == 1)then // base case
return A[i];
else // recursive case I
return BinarySum(A, i, n/2) + BinarySum(A, i+n/2, n/2);
}

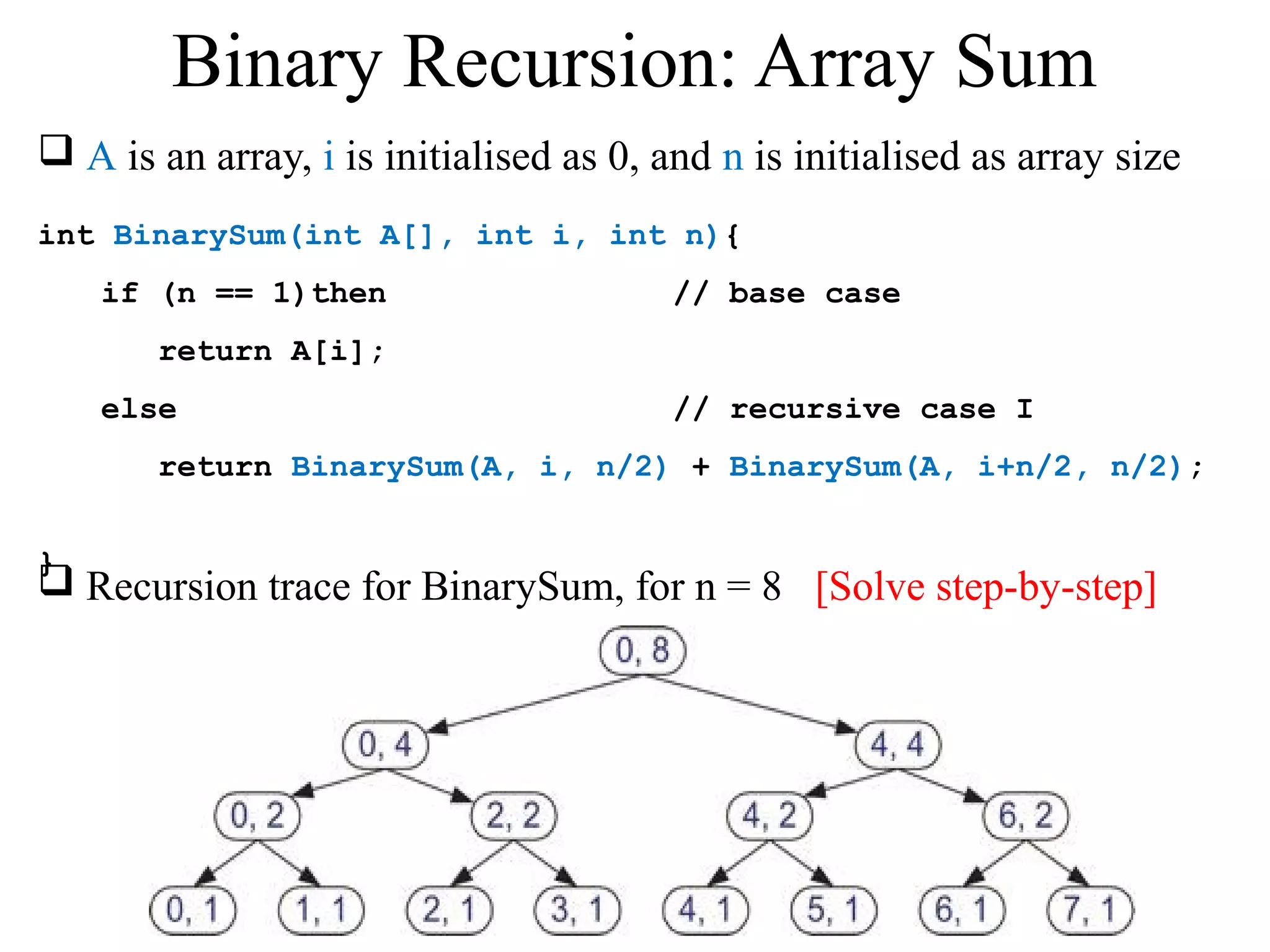

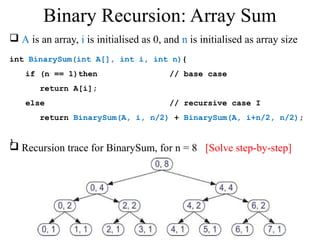

Binary Recursion: Array Sum
 Recursion trace for BinarySum, for n = 8 [Solve step-by-step]

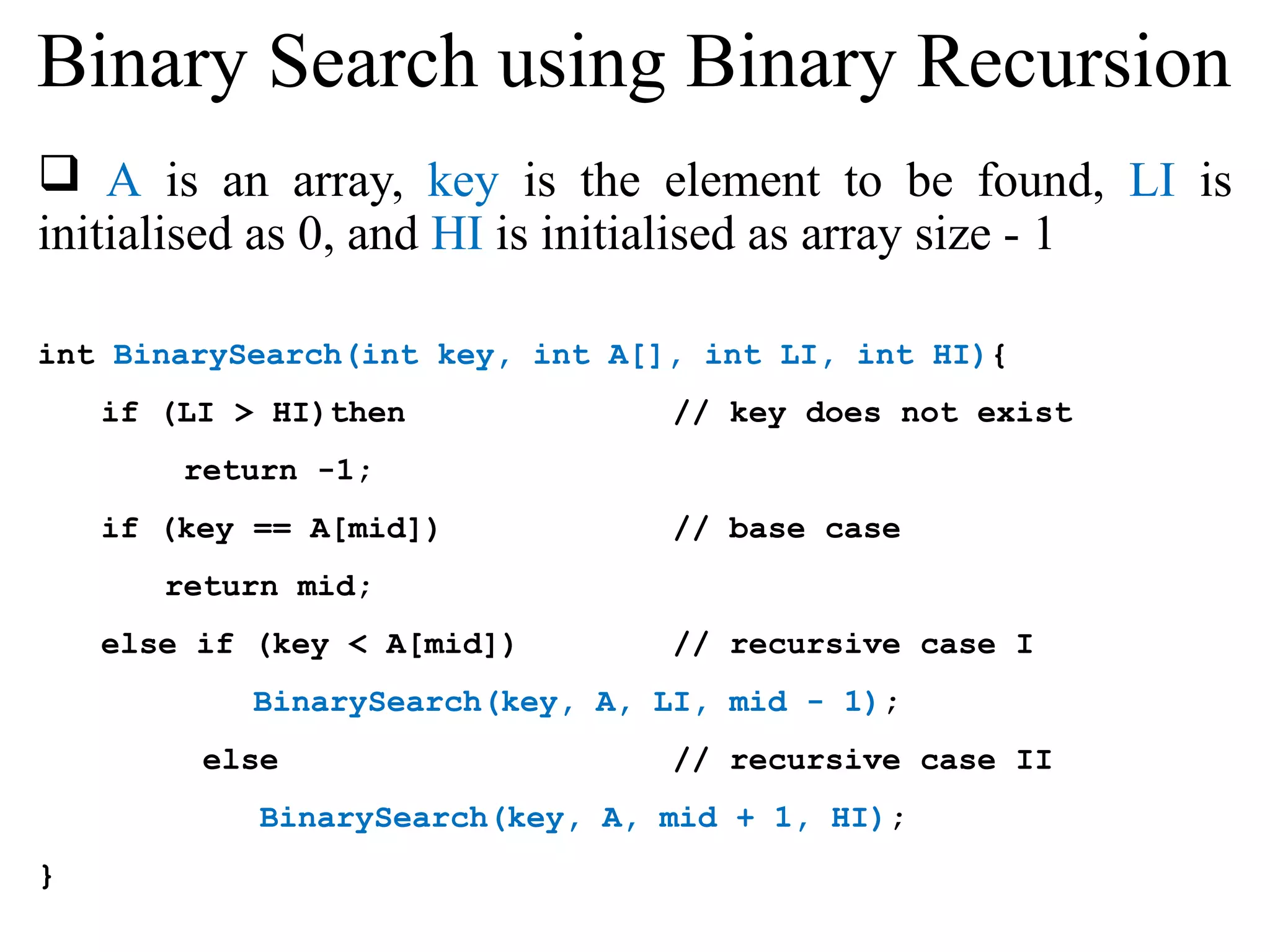

Binary Search using Binary Recursion
 A is an array, key is the element to be found, LI is
initialised as 0, and HI is initialised as array size - 1
int BinarySearch(int key, int A[], int LI, int HI){
if (LI > HI)then // key does not exist
return -1;
if (key == A[mid]) // base case
return mid;
else if (key < A[mid]) // recursive case I
BinarySearch(key, A, LI, mid - 1);
else // recursive case II
BinarySearch(key, A, mid + 1, HI);
}

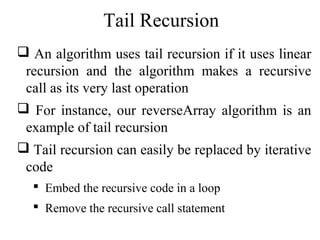

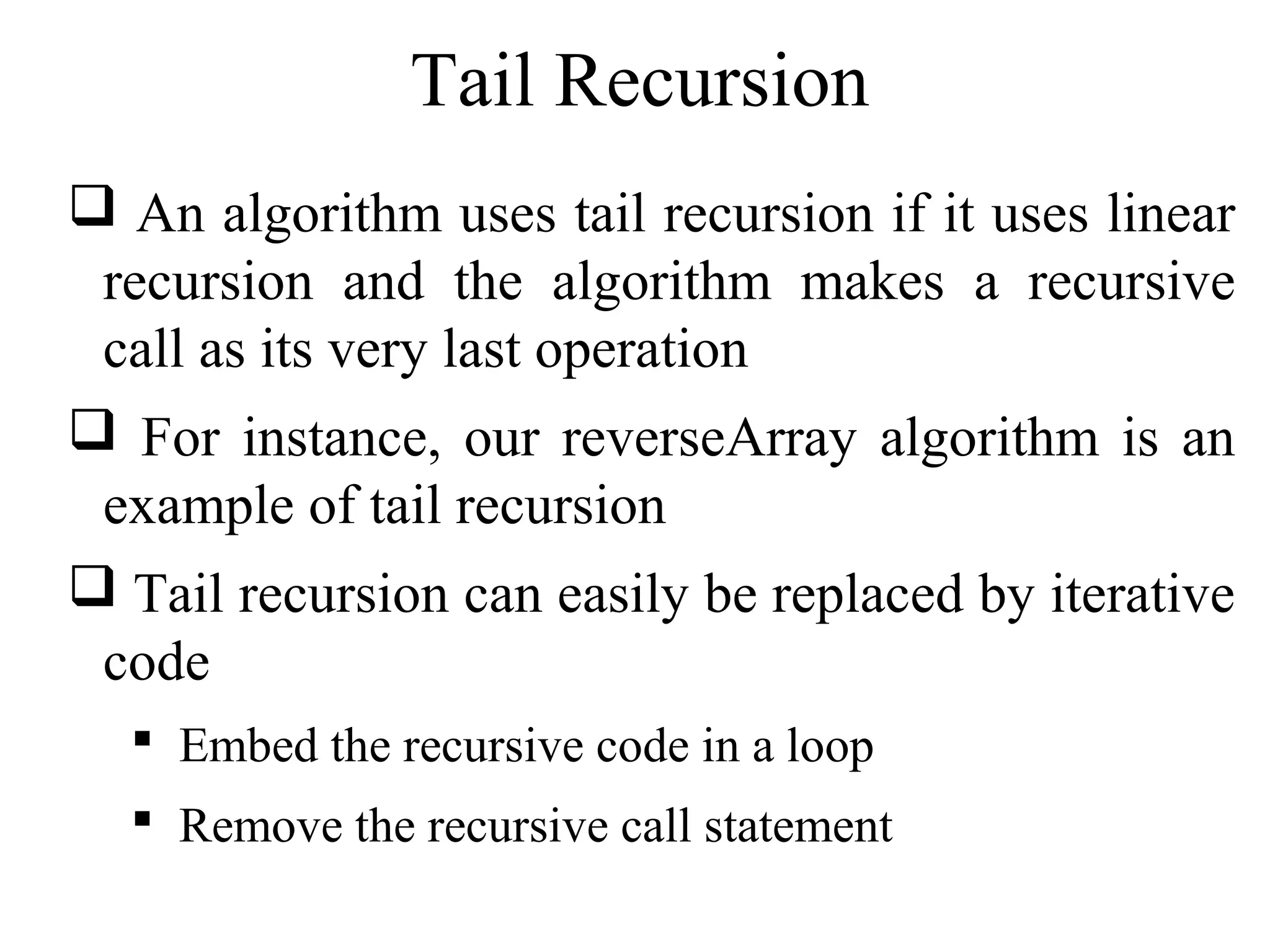

Tail Recursion
 An algorithm uses tail recursion if it uses linear
recursion and the algorithm makes a recursive
call as its very last operation
 For instance, our reverseArray algorithm is an
example of tail recursion
 Tail recursion can easily be replaced by iterative
code
 Embed the recursive code in a loop
 Remove the recursive call statement

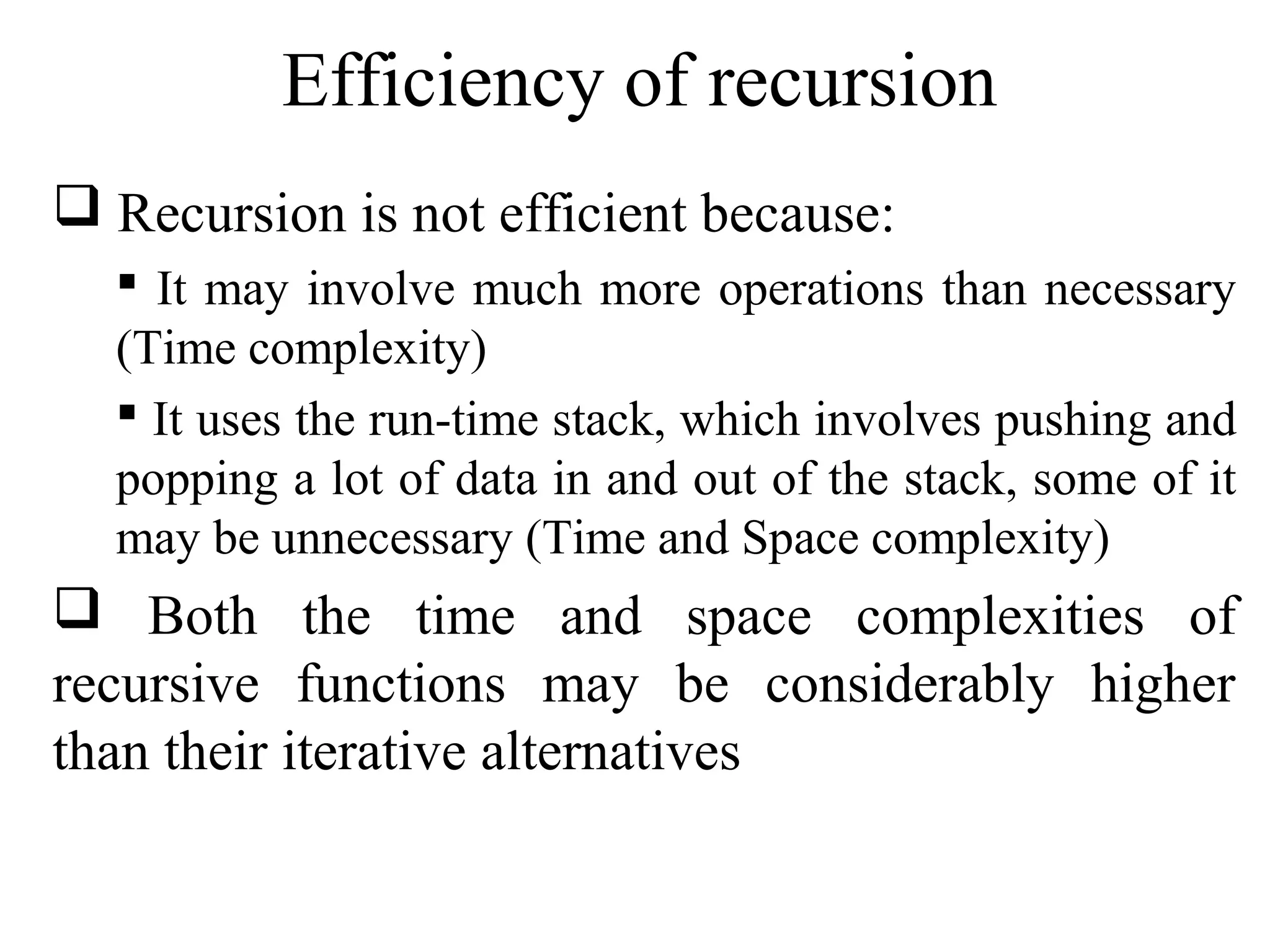

Efficiency of recursion
 Recursion is not efficient because:
 It may involve much more operations than necessary
(Time complexity)
 It uses the run-time stack, which involves pushing and
popping a lot of data in and out of the stack, some of it
may be unnecessary (Time and Space complexity)
 Both the time and space complexities of
recursive functions may be considerably higher
than their iterative alternatives

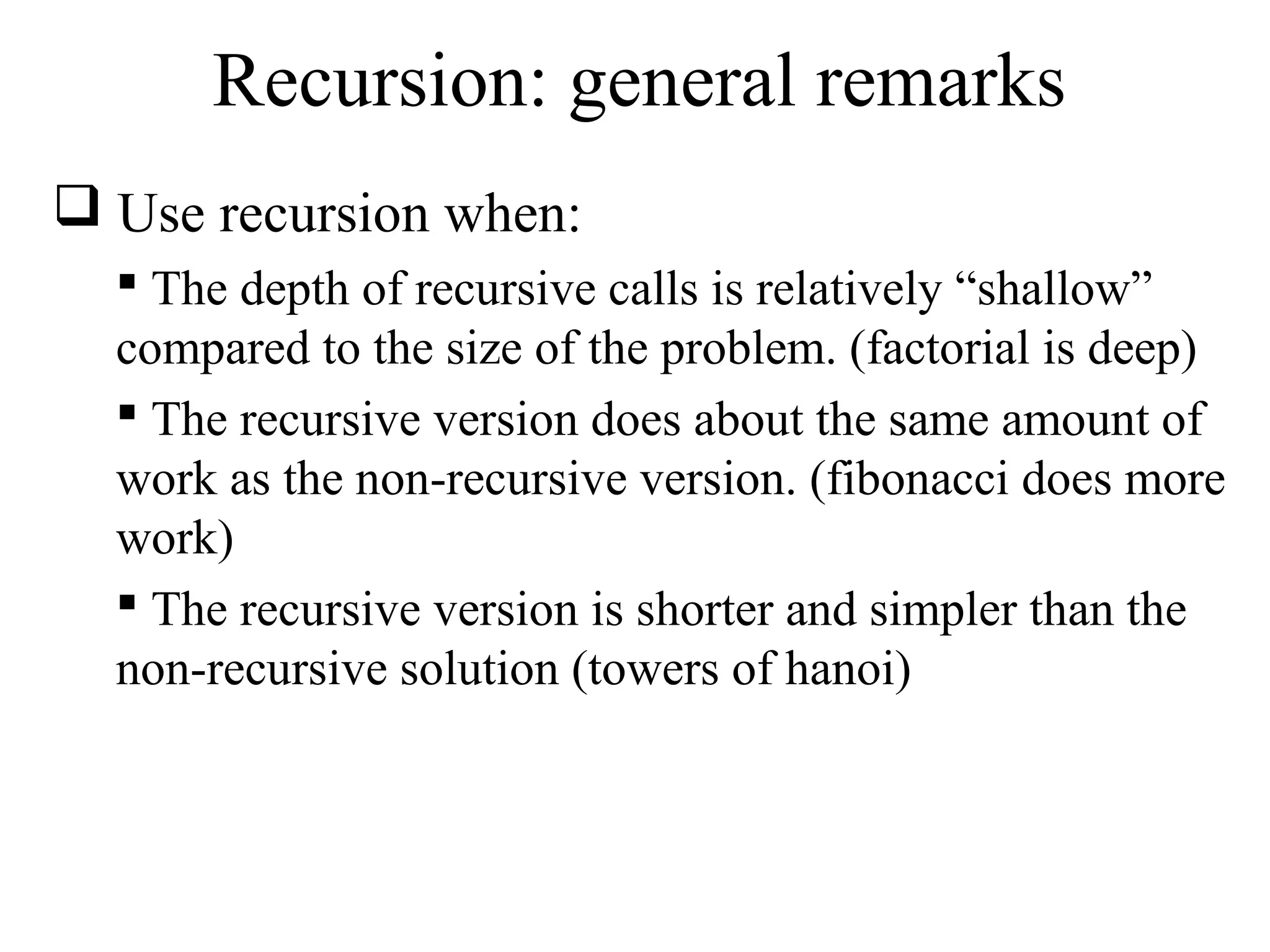

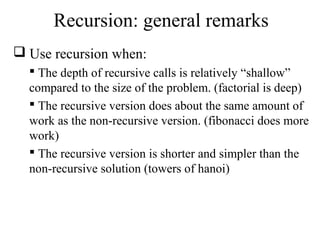

Recursion: general remarks
 Use recursion when:
 The depth of recursive calls is relatively “shallow”
compared to the size of the problem. (factorial is deep)
 The recursive version does about the same amount of
work as the non-recursive version. (fibonacci does more
work)
 The recursive version is shorter and simpler than the
non-recursive solution (towers of hanoi)

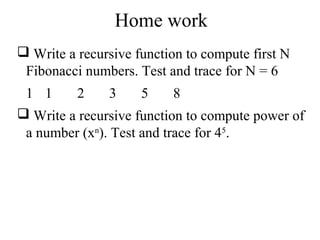

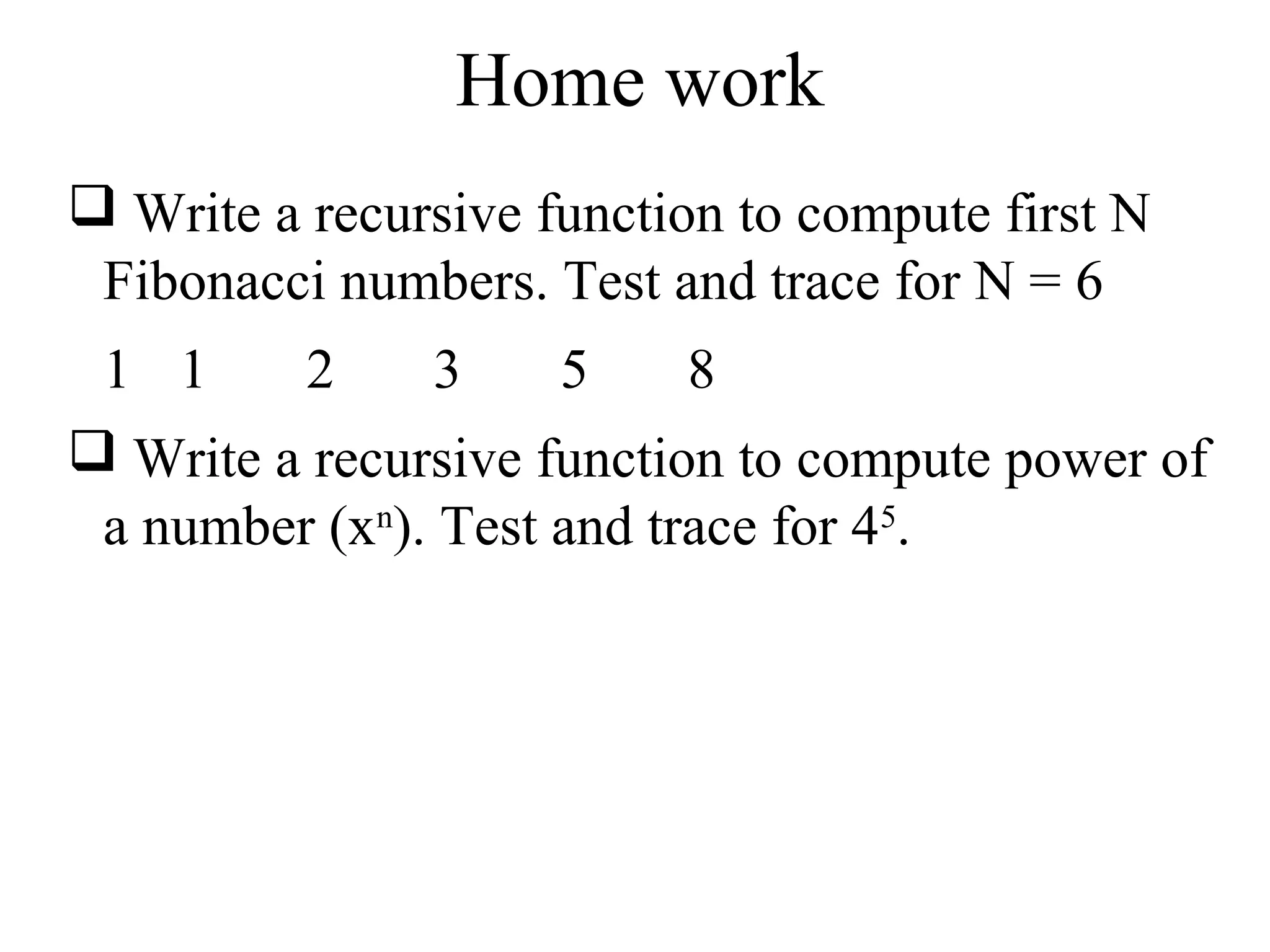

Home work
 Write a recursive function to compute first N
Fibonacci numbers. Test and trace for N = 6
1 1 2 3 5 8
 Write a recursive function to compute power of
a number (xn). Test and trace for 45.

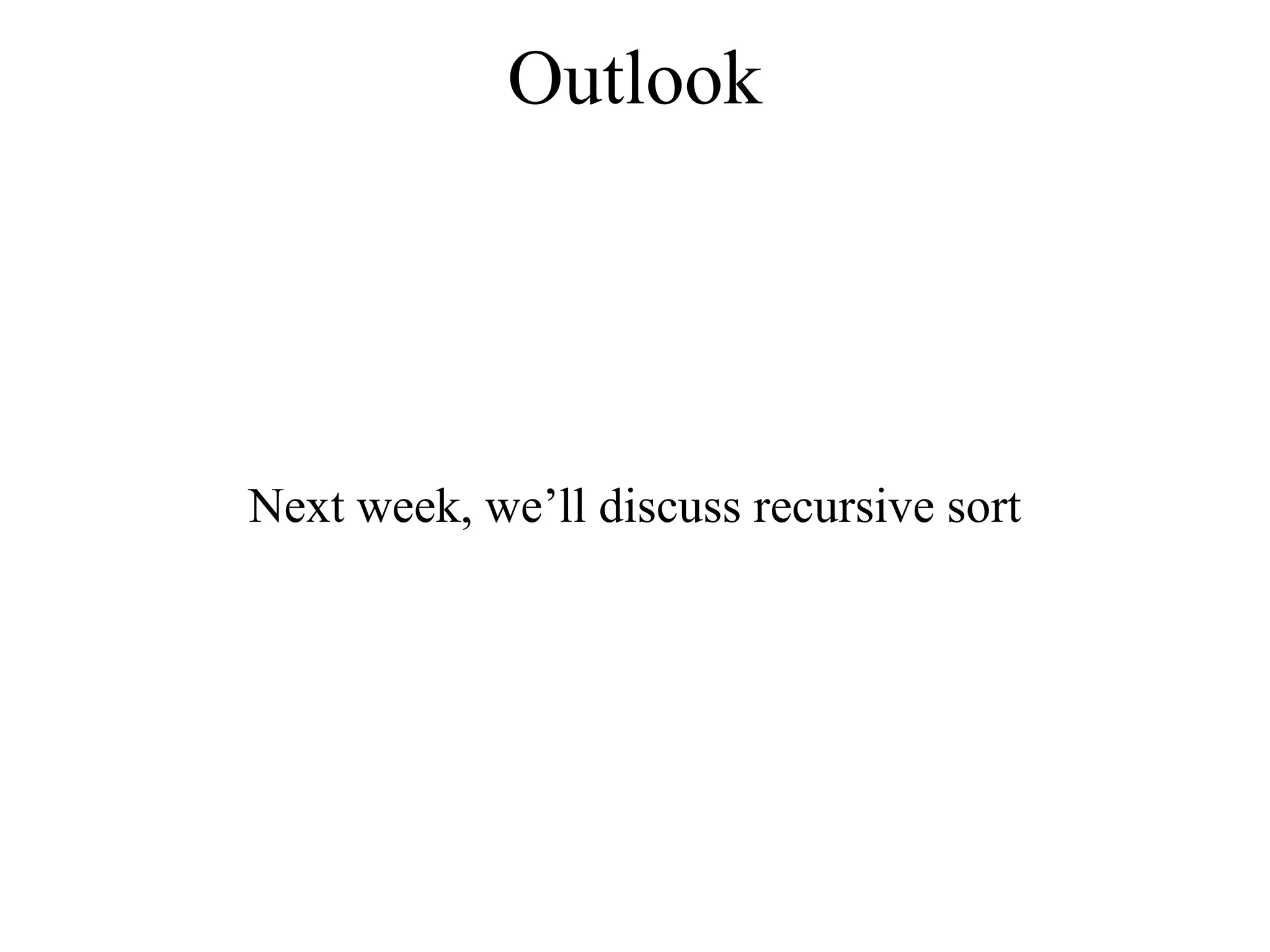

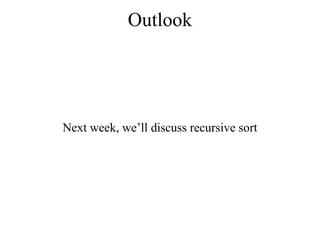

Outlook
Next week, we’ll discuss recursive sort
