Data, Text and Web Mining

Comparison Between Data
Mining, Web Mining and Text
Mining

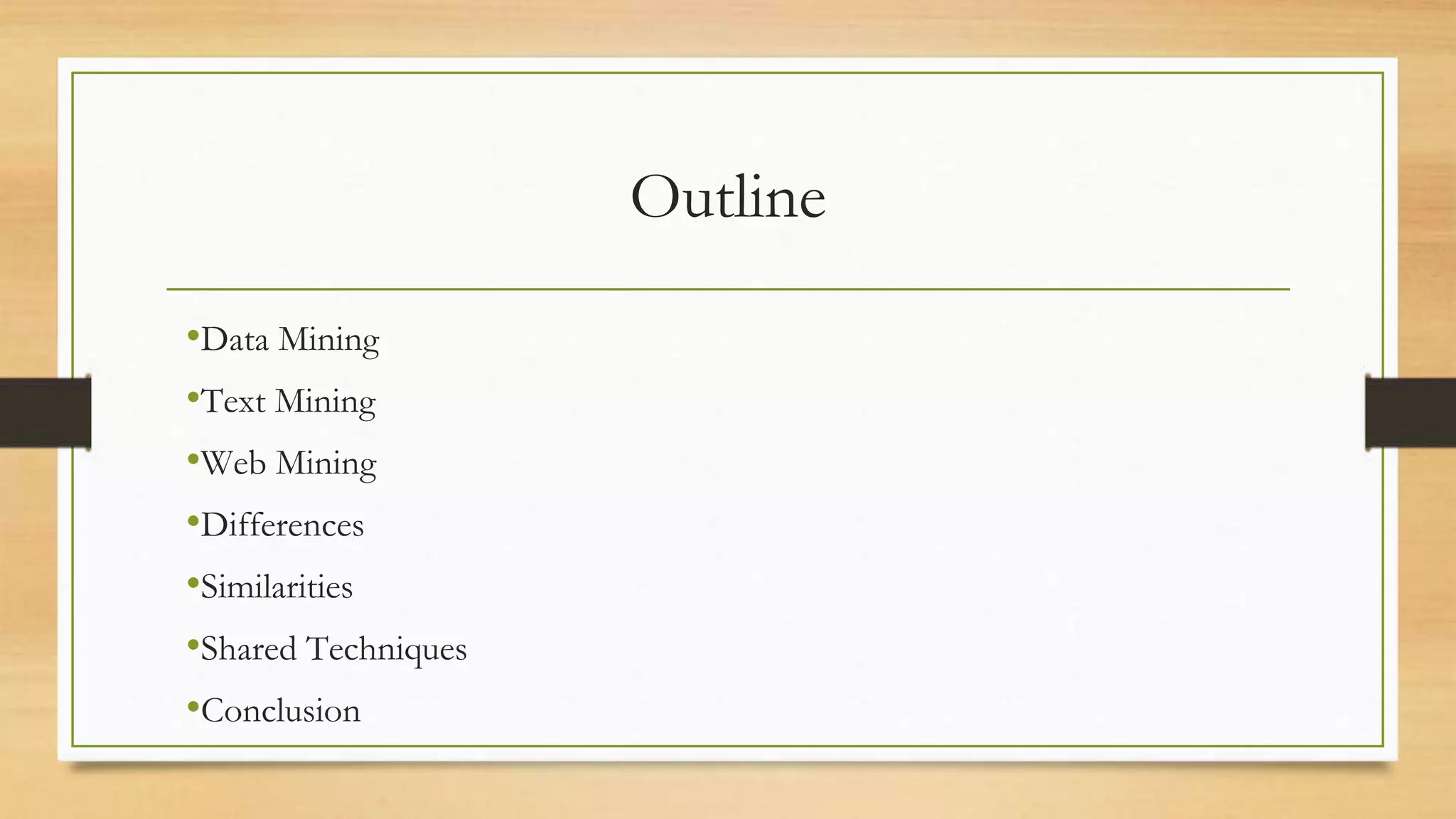

Outline
•Data Mining
•Text Mining
•Web Mining
•Differences
•Similarities
•Shared Techniques
•Conclusion

OVERVIEW
Data Mining: The
task of discovering
interesting patterns
from large amounts
of data.

Why Data Mining
Data, Data everywhere yet…….
I can’t find the data I need
I can’t get the data I need
I can’t remember the data I
found
I can’t use the data I found

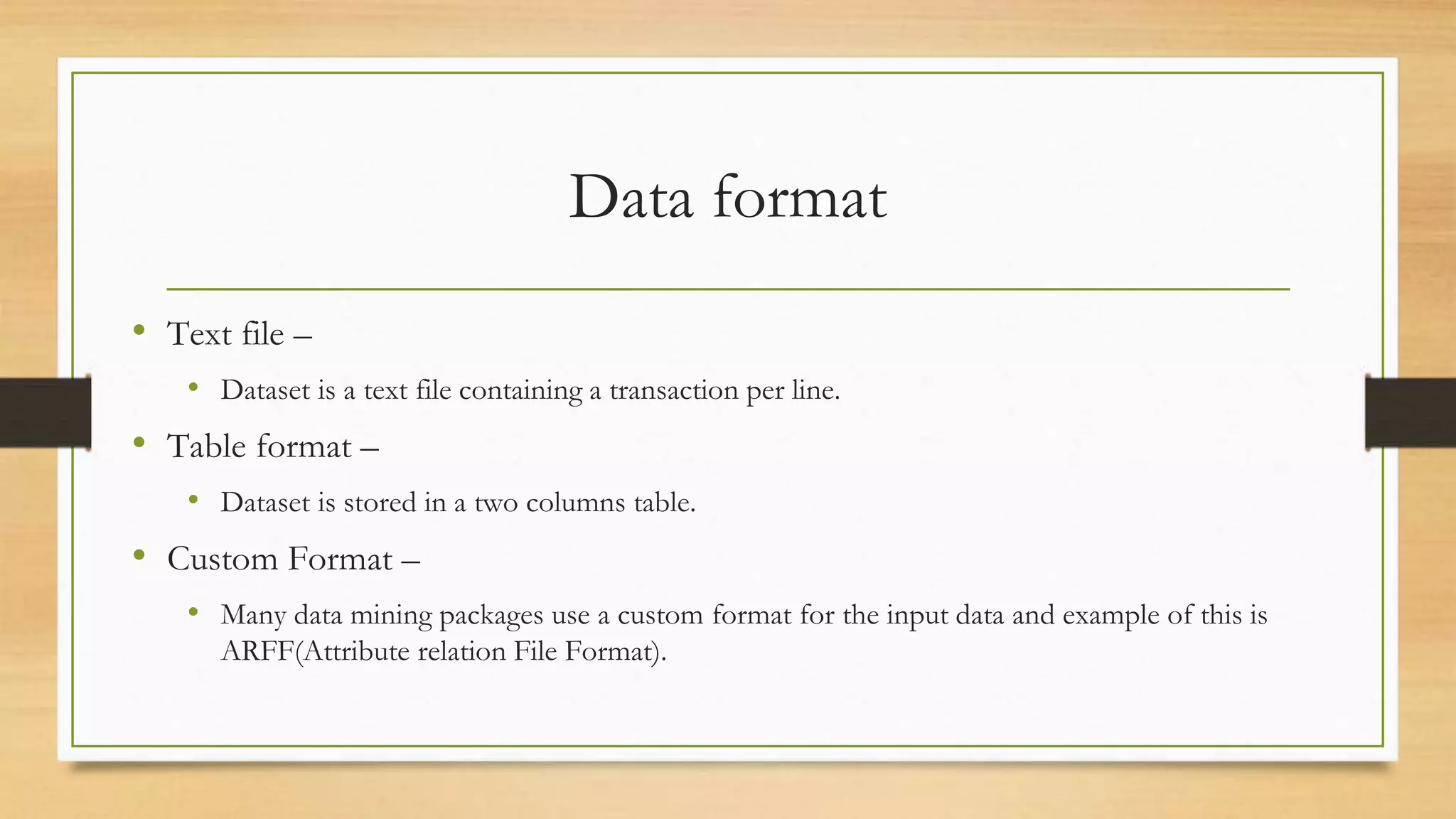

Data format
• Text file –
• Dataset is a text file containing a transaction per line.
• Table format –
• Dataset is stored in a two columns table.
• Custom Format –
• Many data mining packages use a custom format for the input data and example of this is
ARFF(Attribute relation File Format).

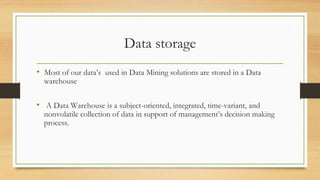

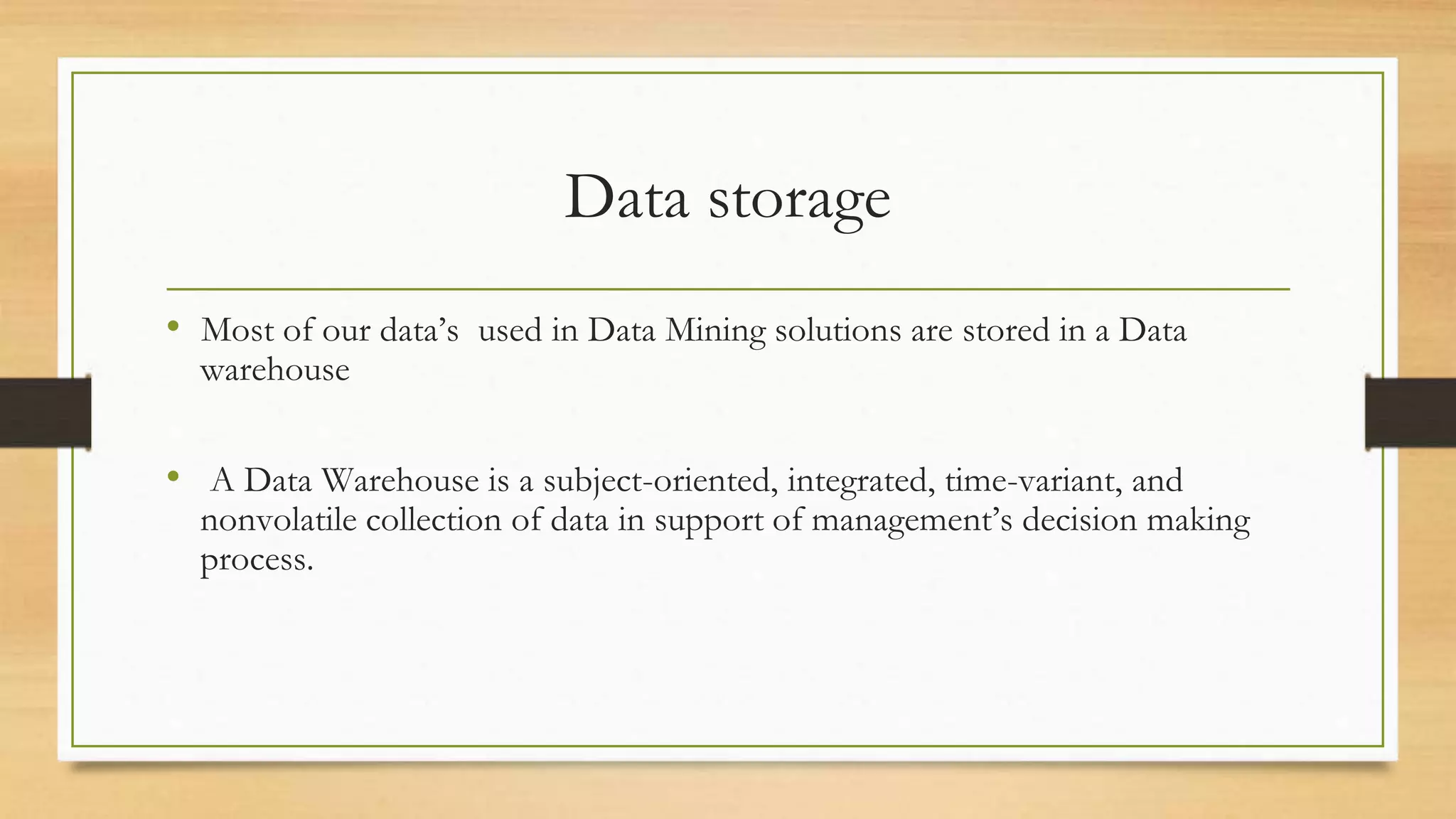

Data storage
• Most of our data’s used in Data Mining solutions are stored in a Data
warehouse
• A Data Warehouse is a subject-oriented, integrated, time-variant, and
nonvolatile collection of data in support of management’s decision making
process.

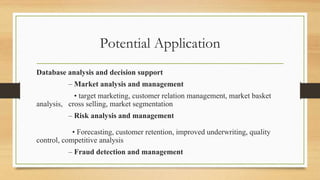

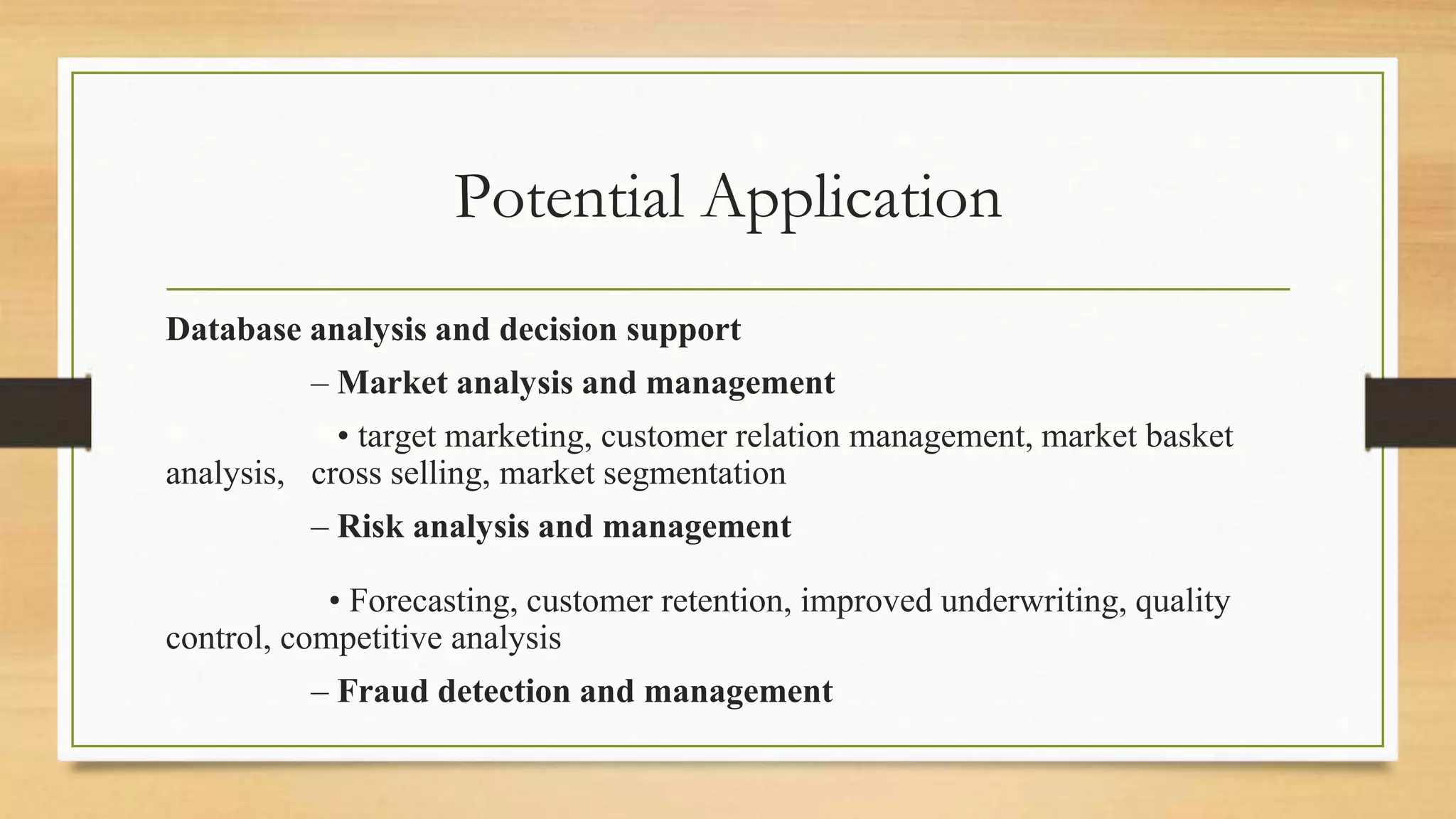

Potential Application
Database analysis and decision support
– Market analysis and management
• target marketing, customer relation management, market basket
analysis, cross selling, market segmentation
– Risk analysis and management
• Forecasting, customer retention, improved underwriting, quality
control, competitive analysis
– Fraud detection and management

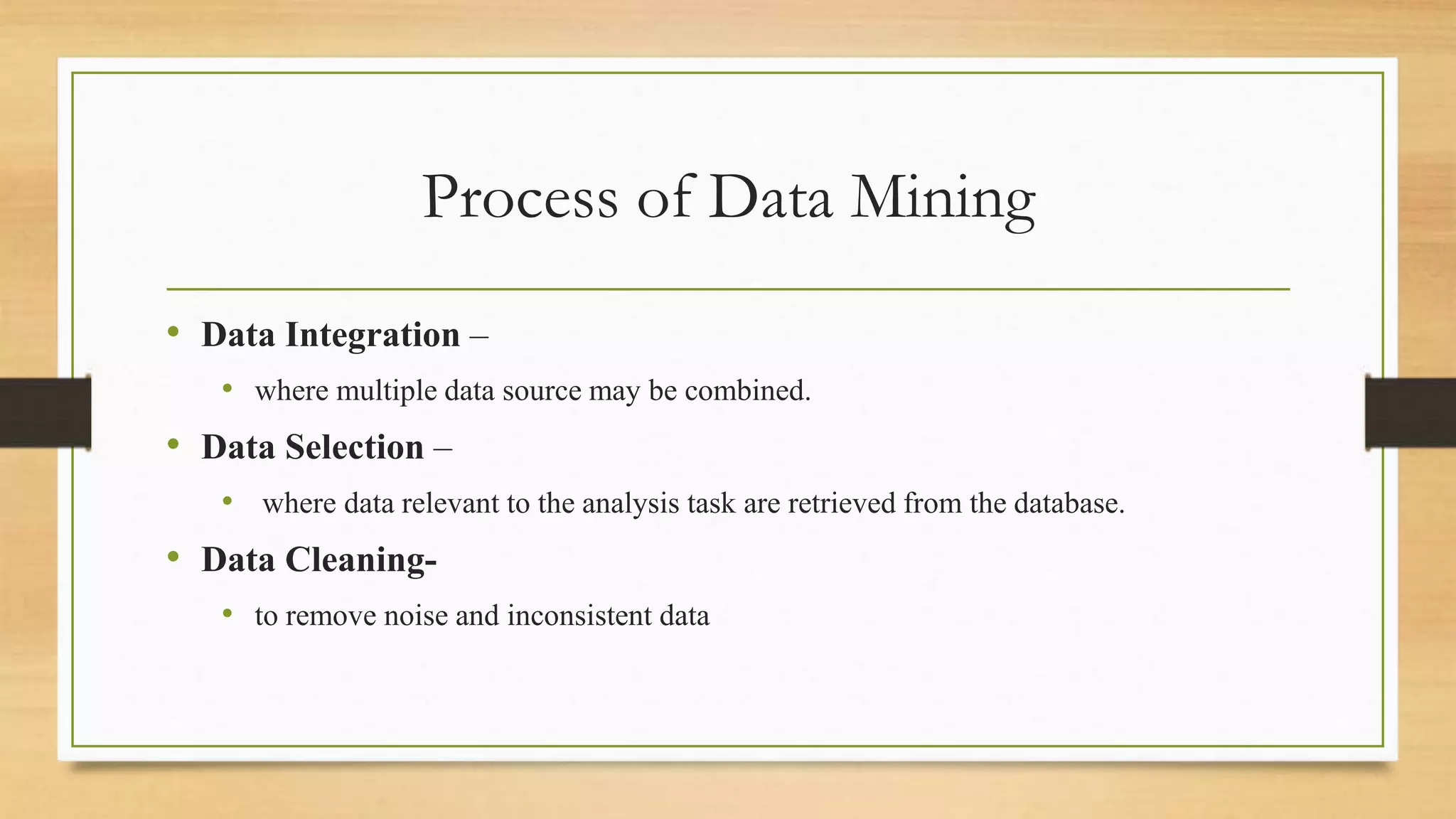

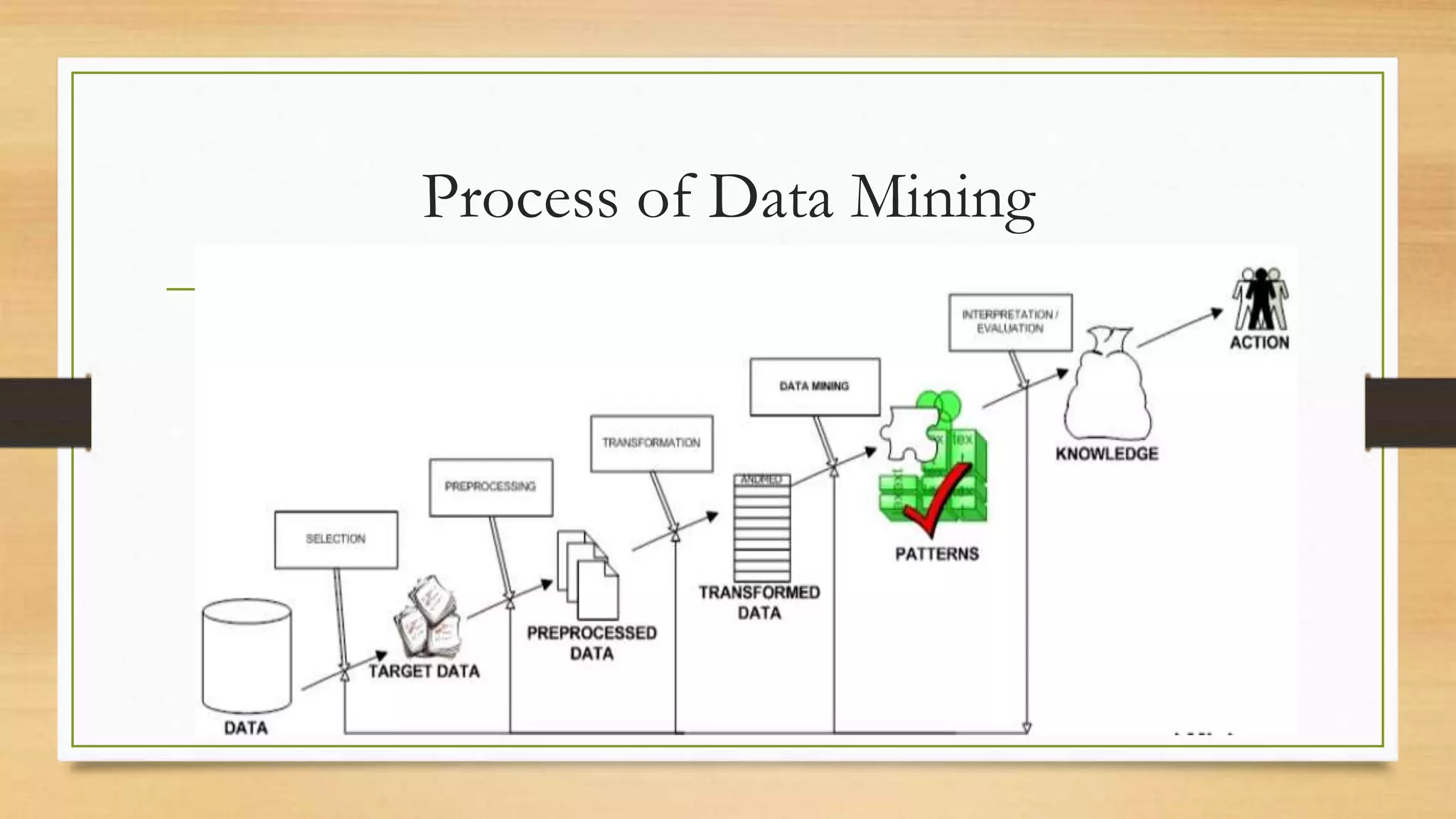

Process of Data Mining
• Data Integration –
• where multiple data source may be combined.
• Data Selection –
• where data relevant to the analysis task are retrieved from the database.
• Data Cleaning-
• to remove noise and inconsistent data

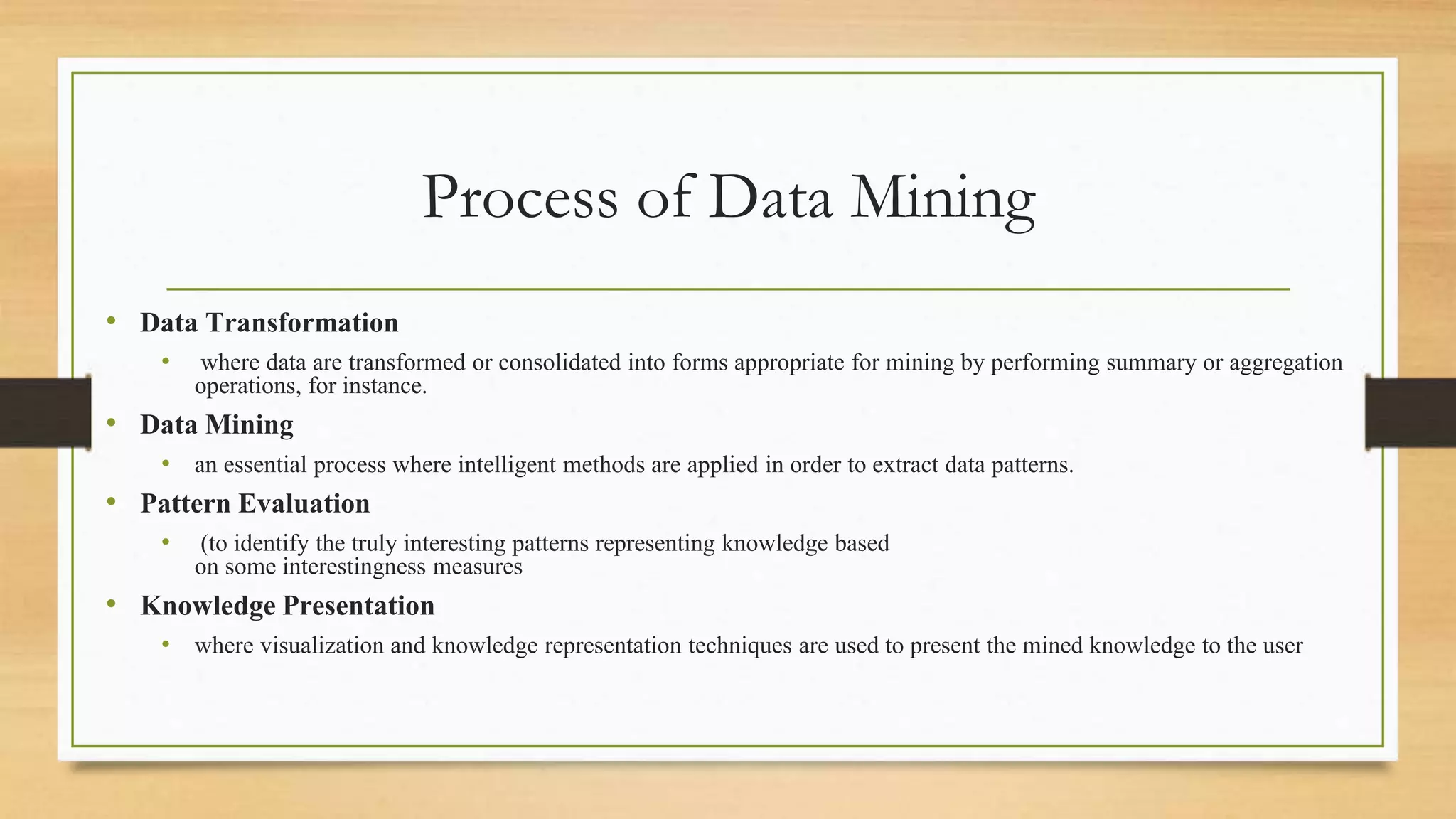

Process of Data Mining
• Data Transformation
• where data are transformed or consolidated into forms appropriate for mining by performing summary or aggregation
operations, for instance.
• Data Mining
• an essential process where intelligent methods are applied in order to extract data patterns.
• Pattern Evaluation
• (to identify the truly interesting patterns representing knowledge based
on some interestingness measures
• Knowledge Presentation
• where visualization and knowledge representation techniques are used to present the mined knowledge to the user

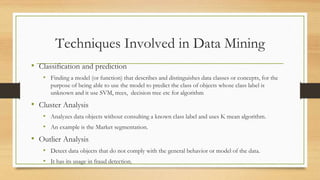

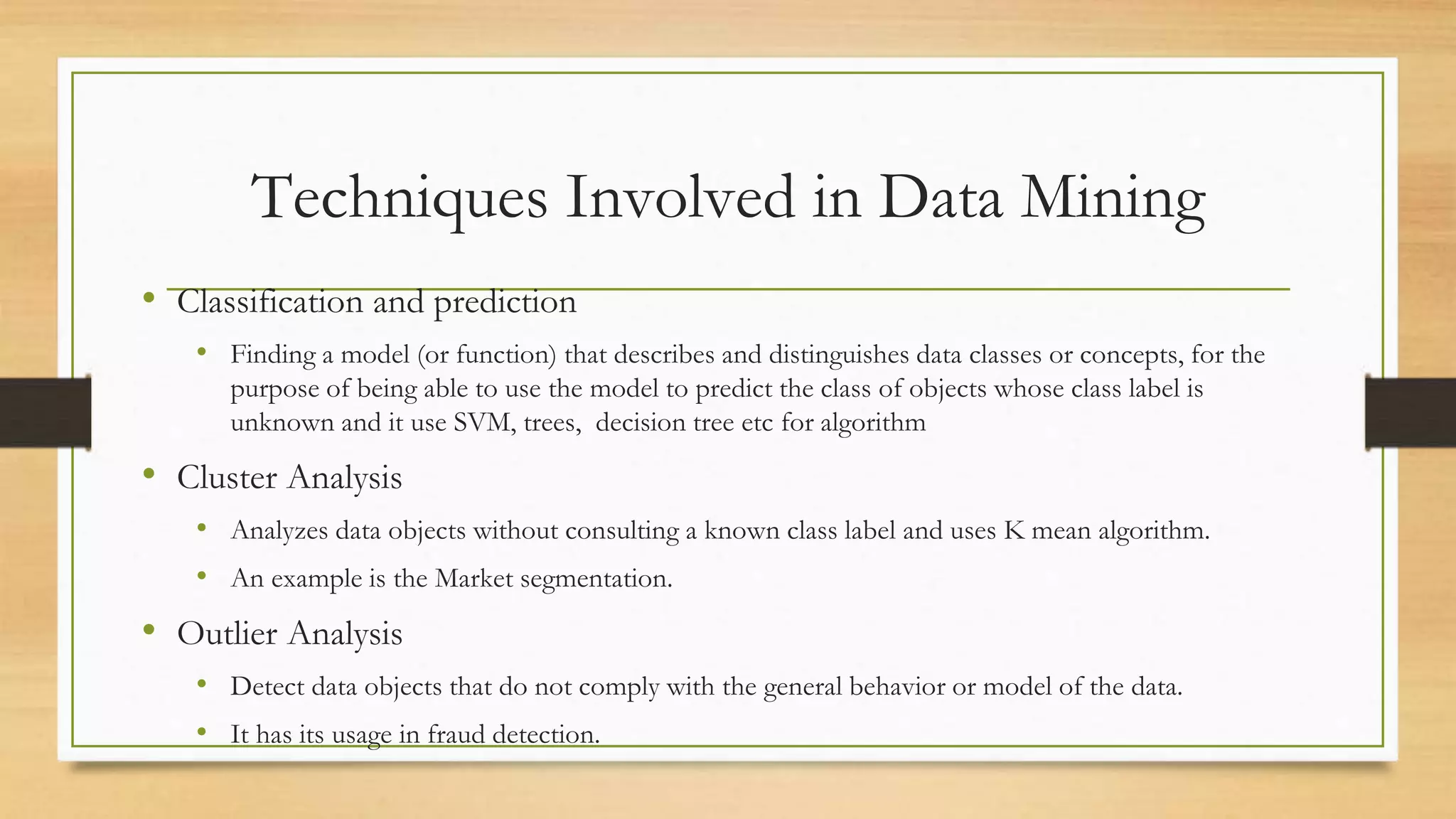

Techniques Involved in Data Mining
• Classification and prediction
• Finding a model (or function) that describes and distinguishes data classes or concepts, for the
purpose of being able to use the model to predict the class of objects whose class label is
unknown and it use SVM, trees, decision tree etc for algorithm
• Cluster Analysis
• Analyzes data objects without consulting a known class label and uses K mean algorithm.
• An example is the Market segmentation.
• Outlier Analysis
• Detect data objects that do not comply with the general behavior or model of the data.
• It has its usage in fraud detection.

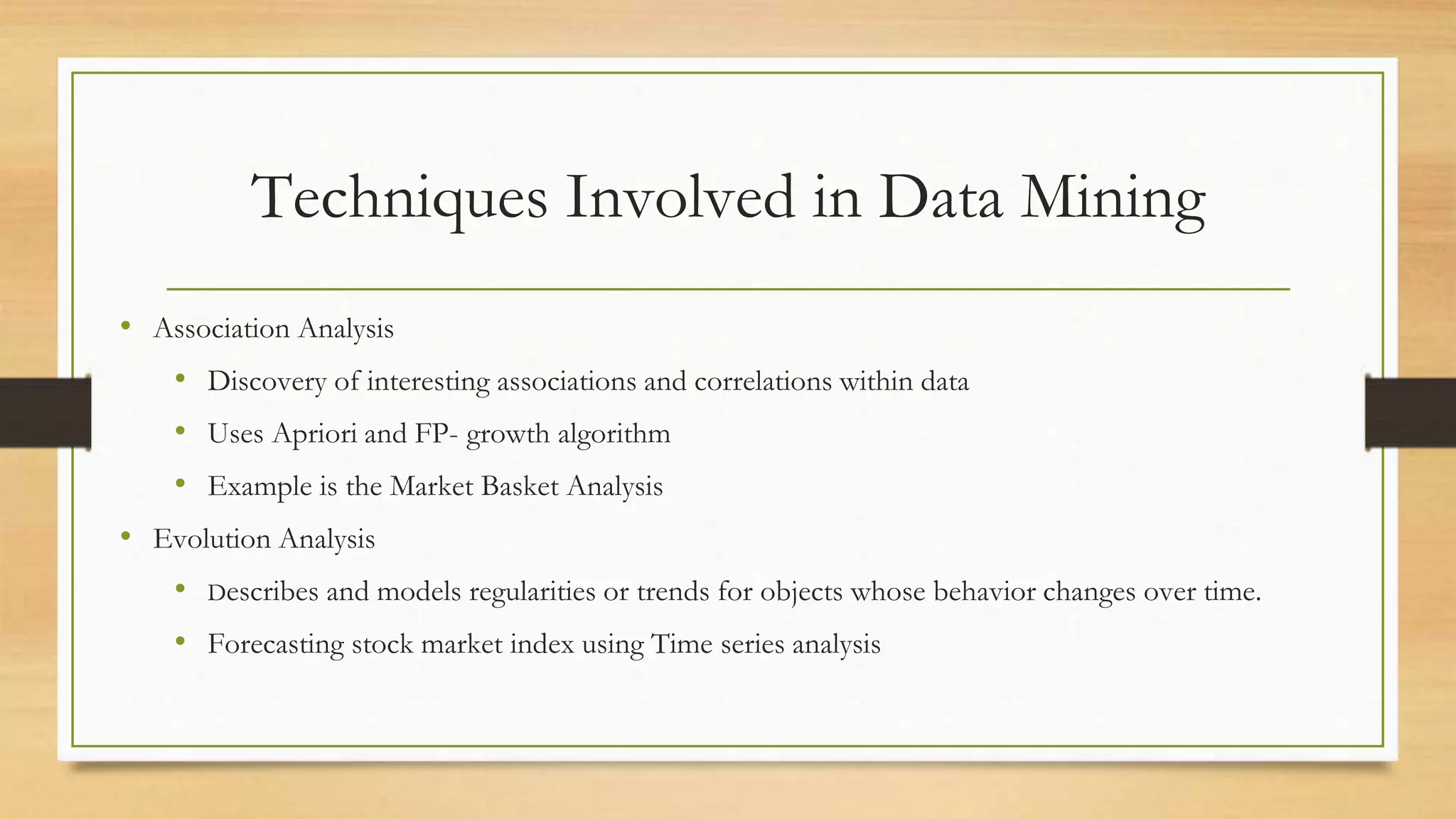

Techniques Involved in Data Mining
• Association Analysis
• Discovery of interesting associations and correlations within data
• Uses Apriori and FP- growth algorithm
• Example is the Market Basket Analysis
• Evolution Analysis
• Describes and models regularities or trends for objects whose behavior changes over time.
• Forecasting stock market index using Time series analysis

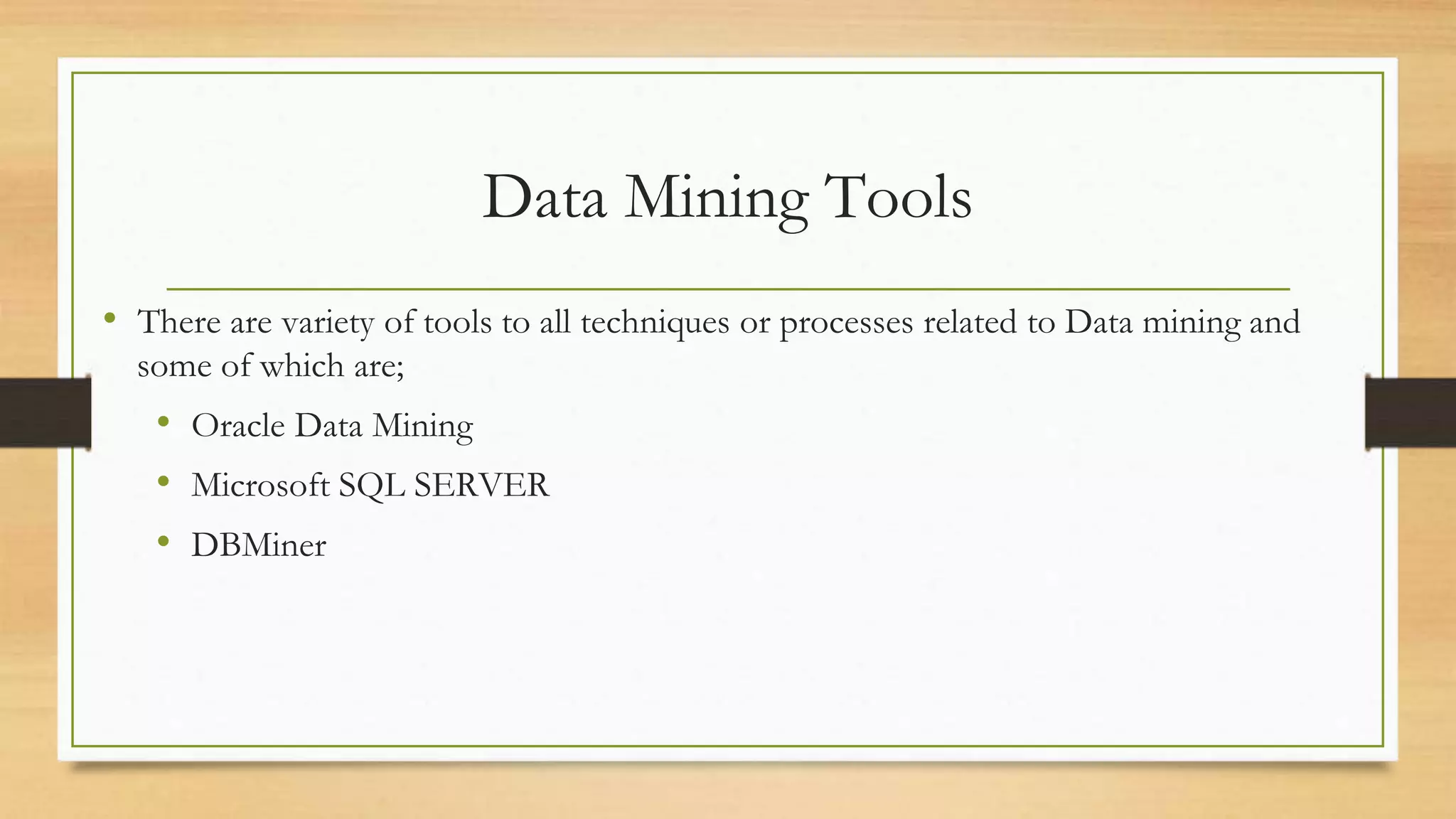

Data Mining Tools
• There are variety of tools to all techniques or processes related to Data mining and
some of which are;
• Oracle Data Mining
• Microsoft SQL SERVER
• DBMiner

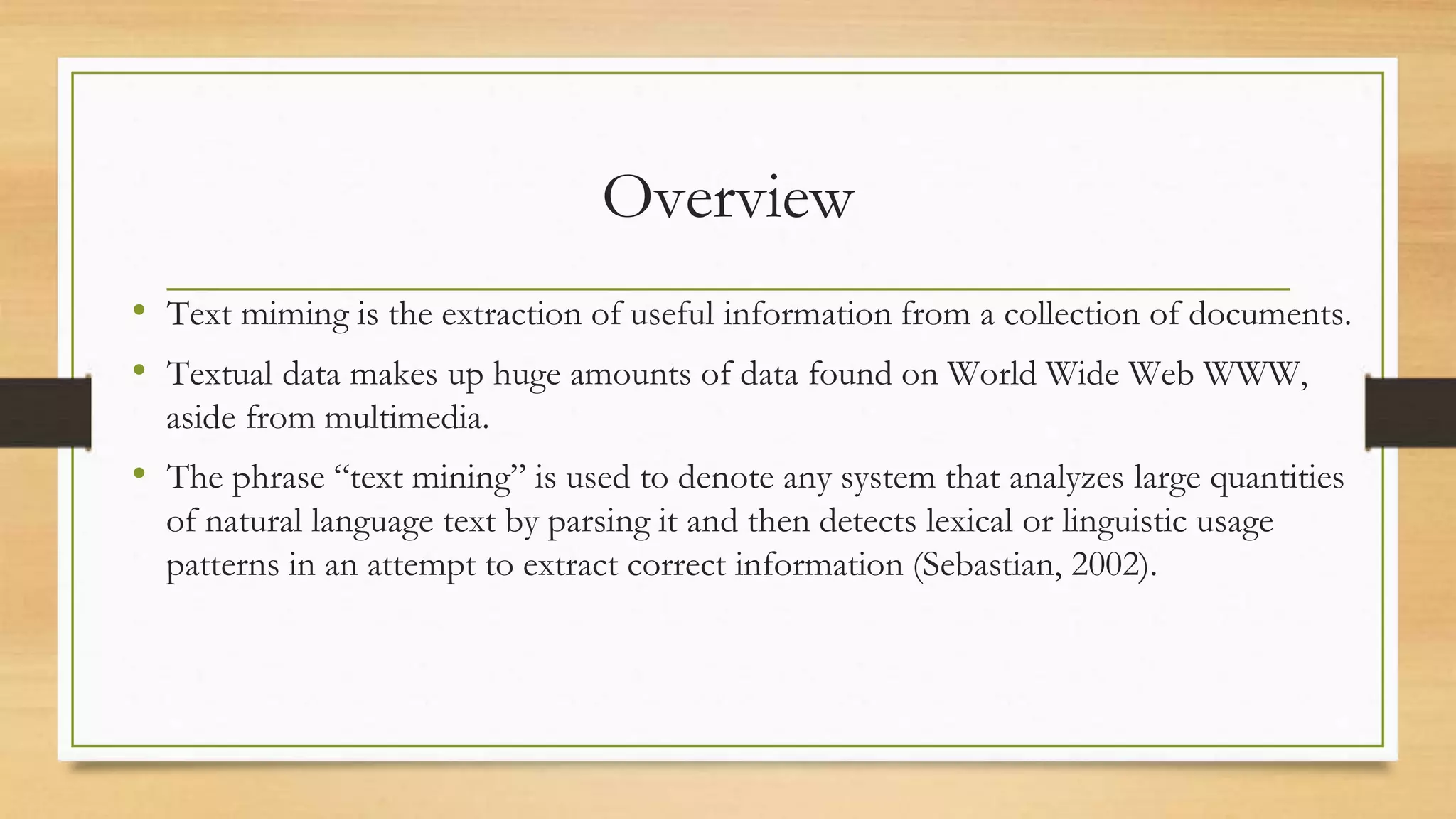

Overview
• Text miming is the extraction of useful information from a collection of documents.
• Textual data makes up huge amounts of data found on World Wide Web WWW,
aside from multimedia.
• The phrase “text mining” is used to denote any system that analyzes large quantities
of natural language text by parsing it and then detects lexical or linguistic usage
patterns in an attempt to extract correct information (Sebastian, 2002).

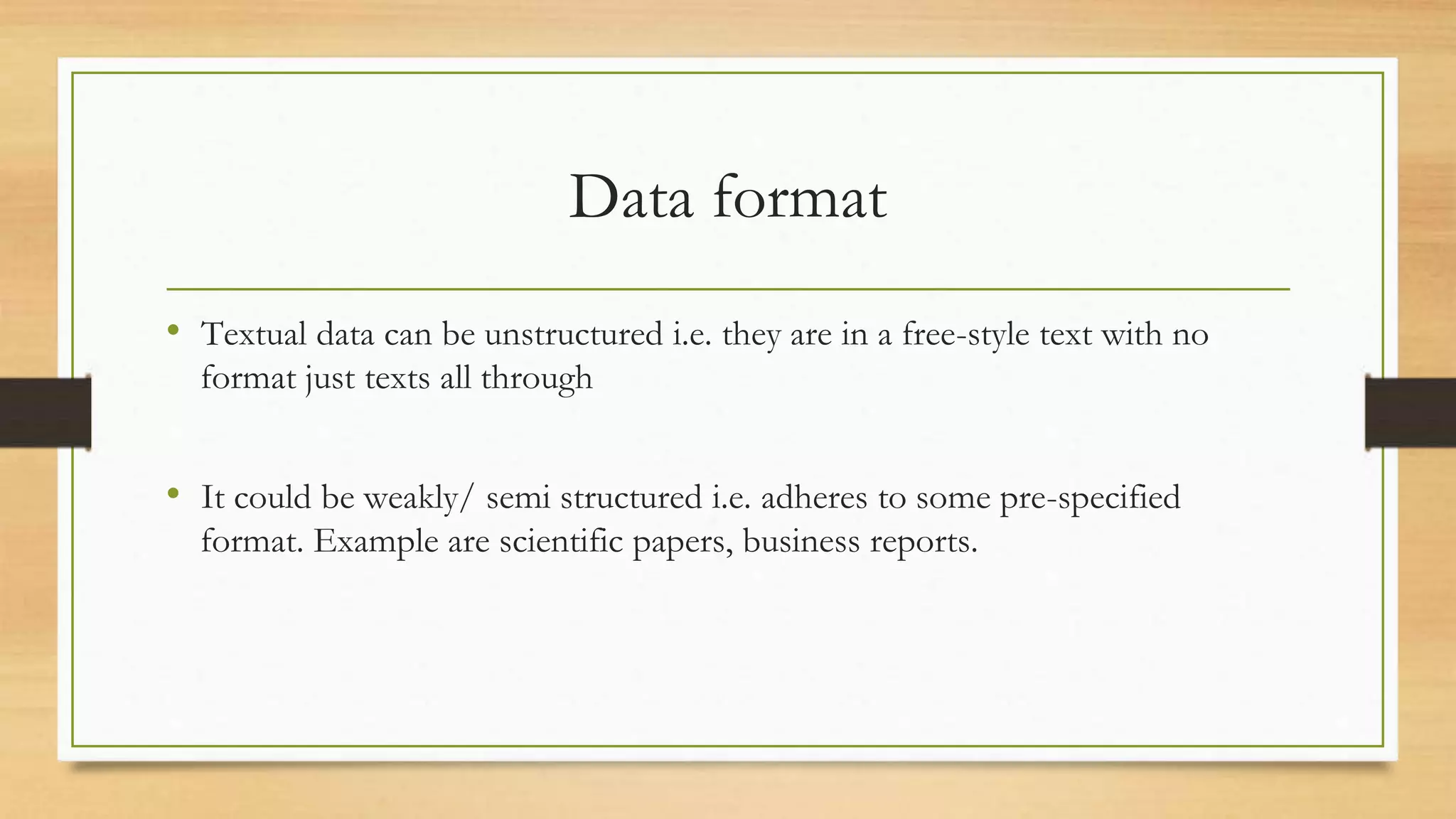

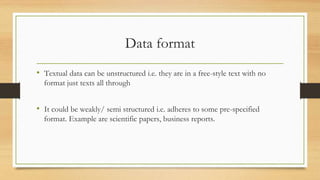

Data format
• Textual data can be unstructured i.e. they are in a free-style text with no
format just texts all through
• It could be weakly/ semi structured i.e. adheres to some pre-specified
format. Example are scientific papers, business reports.

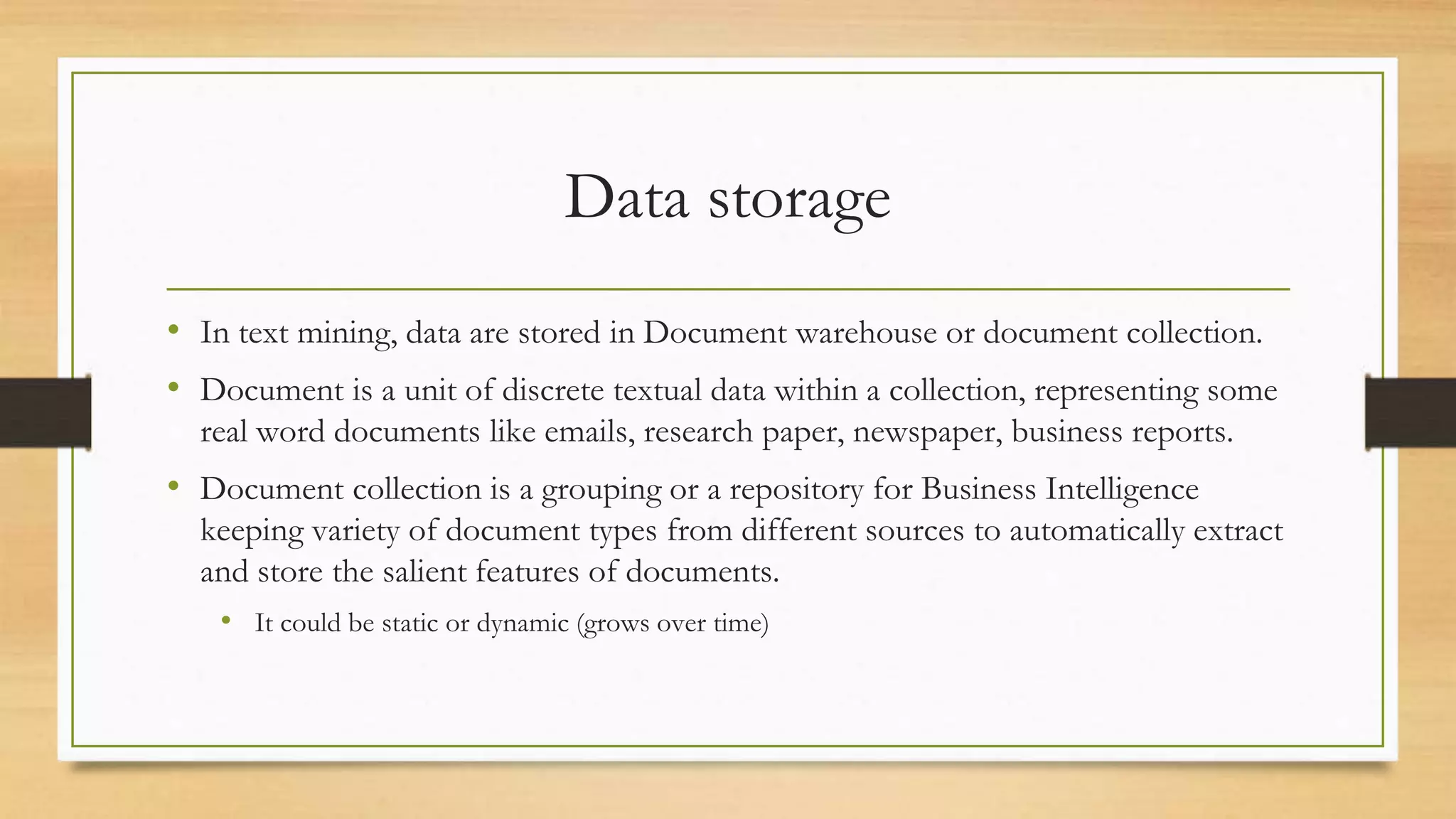

Data storage
• In text mining, data are stored in Document warehouse or document collection.
• Document is a unit of discrete textual data within a collection, representing some
real word documents like emails, research paper, newspaper, business reports.
• Document collection is a grouping or a repository for Business Intelligence
keeping variety of document types from different sources to automatically extract
and store the salient features of documents.
• It could be static or dynamic (grows over time)

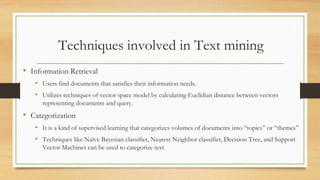

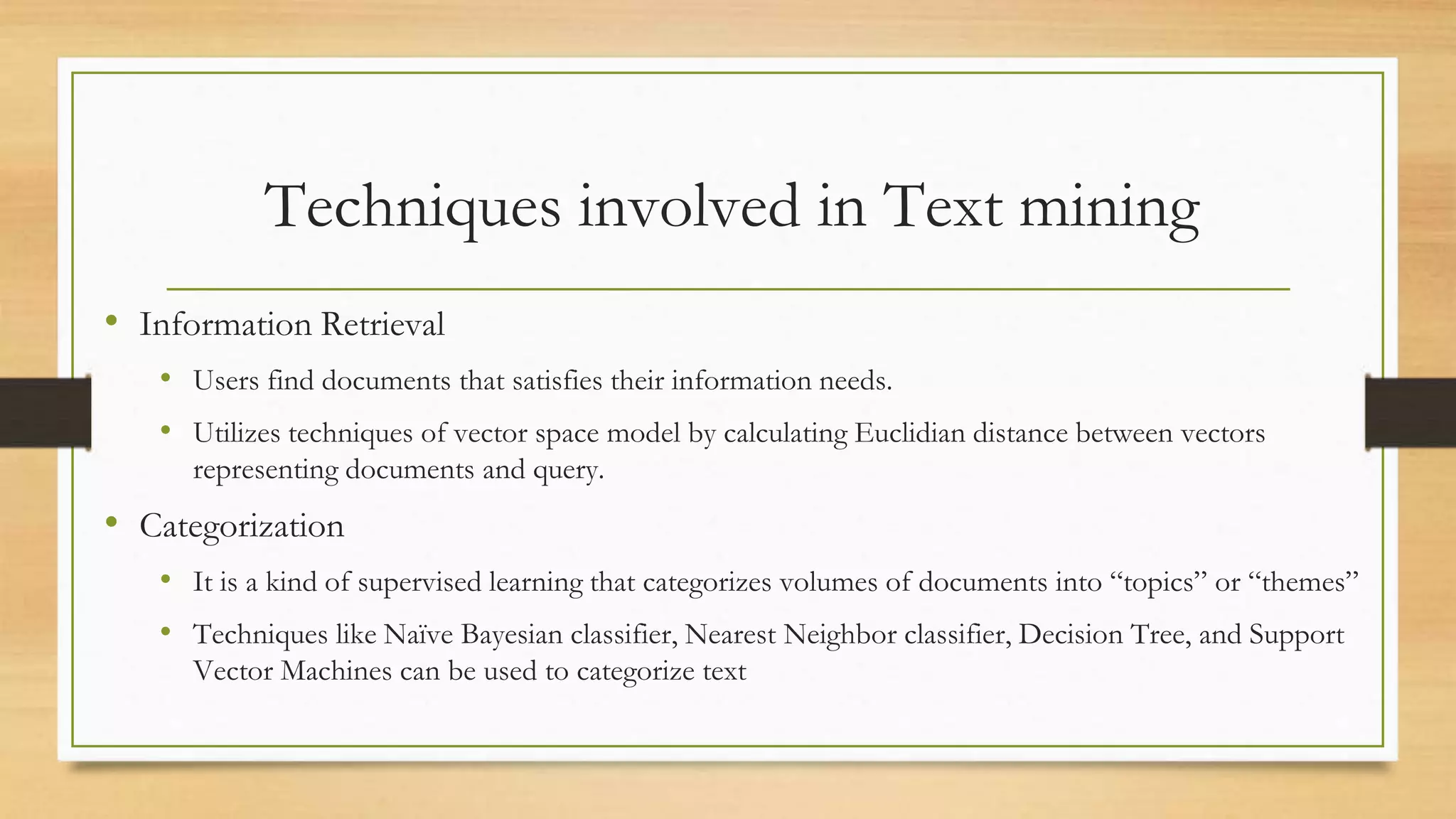

Techniques involved in Text mining
• Information Retrieval
• Users find documents that satisfies their information needs.
• Utilizes techniques of vector space model by calculating Euclidian distance between vectors
representing documents and query.
• Categorization
• It is a kind of supervised learning that categorizes volumes of documents into “topics” or “themes”
• Techniques like Naïve Bayesian classifier, Nearest Neighbor classifier, Decision Tree, and Support
Vector Machines can be used to categorize text

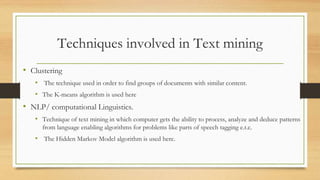

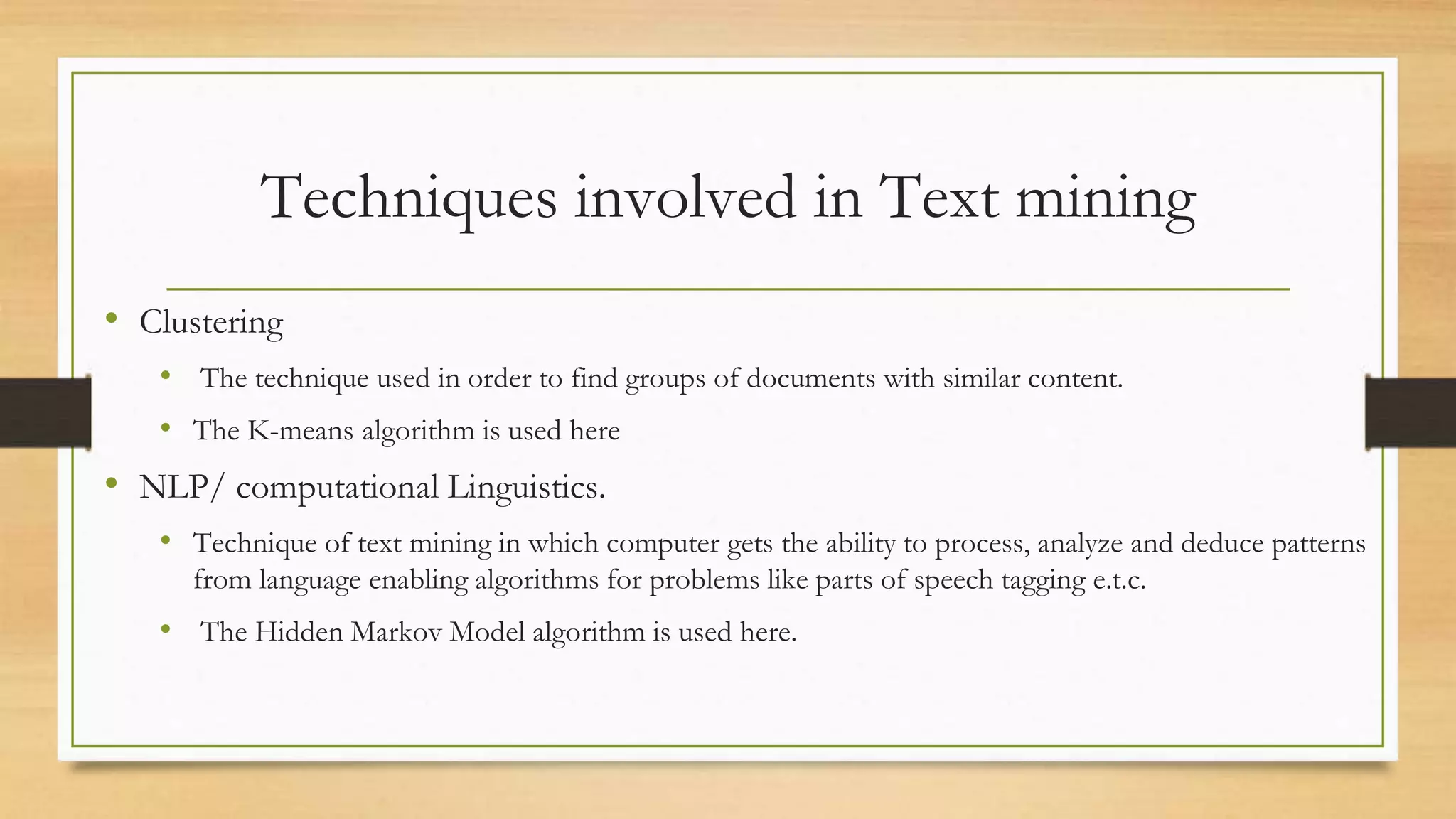

• Clustering
• The technique used in order to find groups of documents with similar content.
• The K-means algorithm is used here
• NLP/ computational Linguistics.
• Technique of text mining in which computer gets the ability to process, analyze and deduce patterns
from language enabling algorithms for problems like parts of speech tagging e.t.c.
• The Hidden Markov Model algorithm is used here.

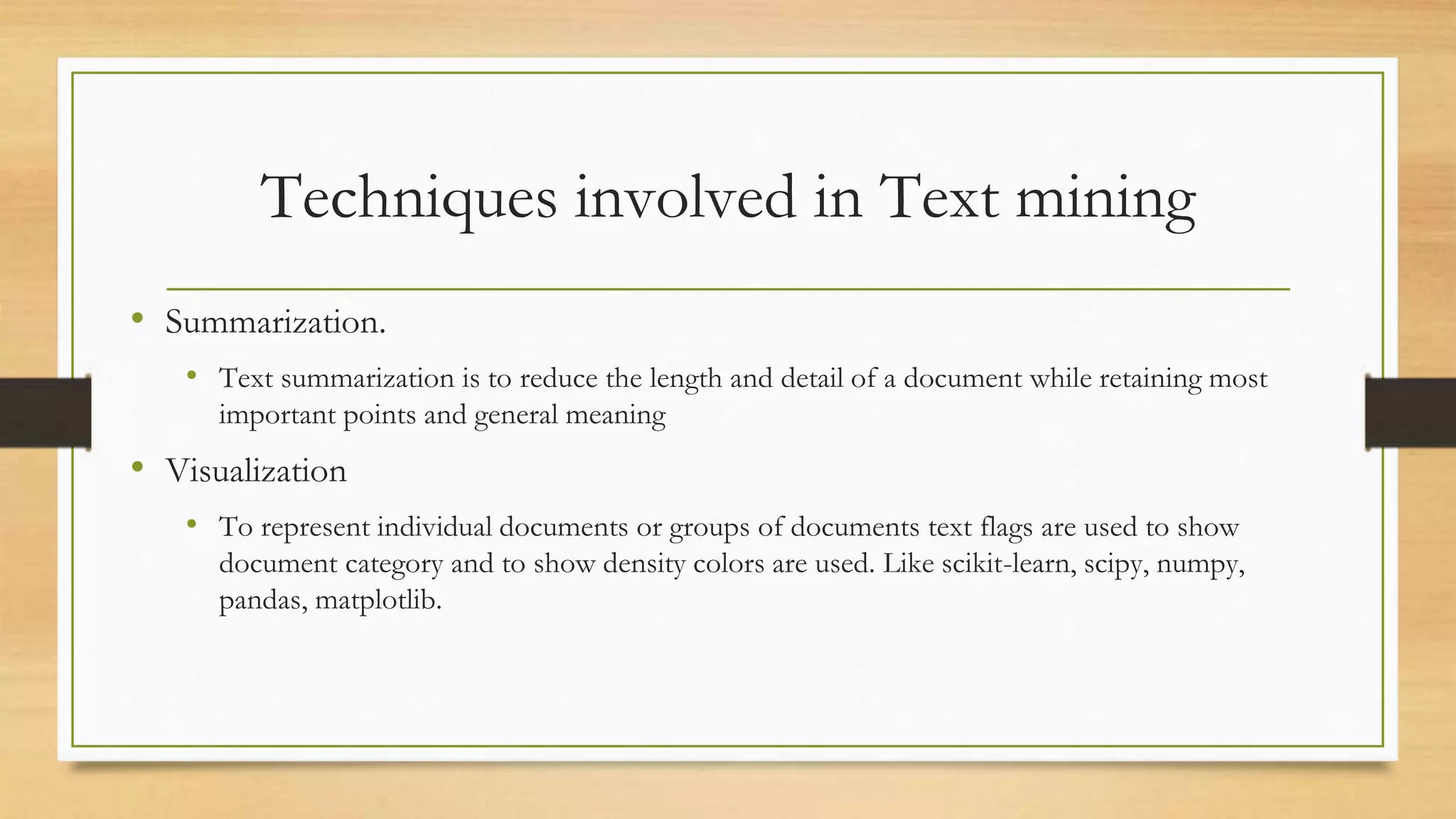

• Summarization.
• Text summarization is to reduce the length and detail of a document while retaining most
important points and general meaning
• Visualization
• To represent individual documents or groups of documents text flags are used to show
document category and to show density colors are used. Like scikit-learn, scipy, numpy,
pandas, matplotlib.

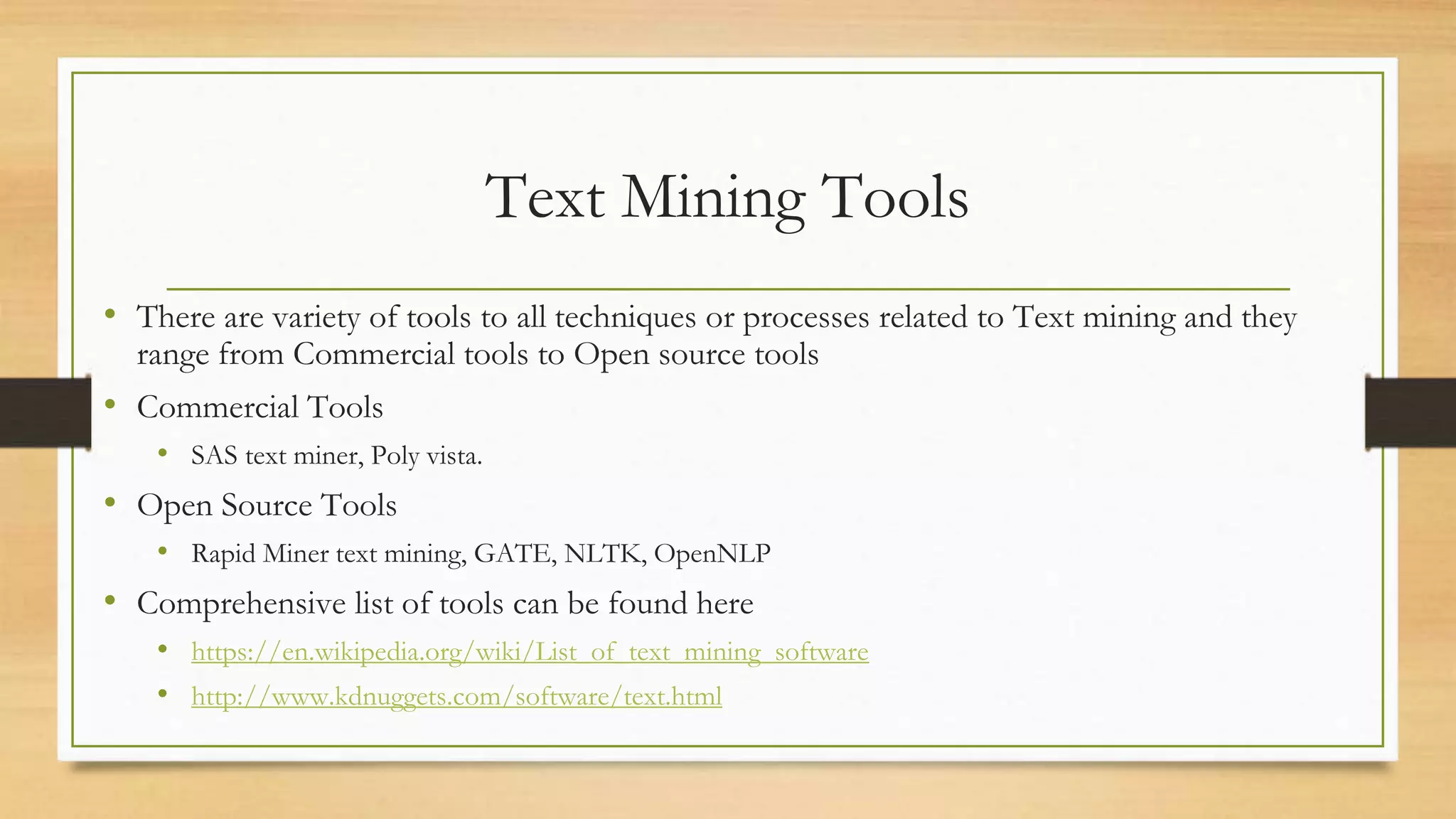

Text Mining Tools
• There are variety of tools to all techniques or processes related to Text mining and they
range from Commercial tools to Open source tools
• Commercial Tools
• SAS text miner, Poly vista.
• Open Source Tools
• Rapid Miner text mining, GATE, NLTK, OpenNLP
• Comprehensive list of tools can be found here
• https://en.wikipedia.org/wiki/List_of_text_mining_software
• http://www.kdnuggets.com/software/text.html

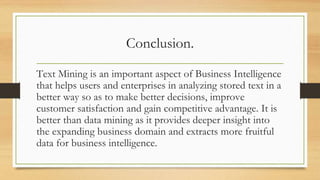

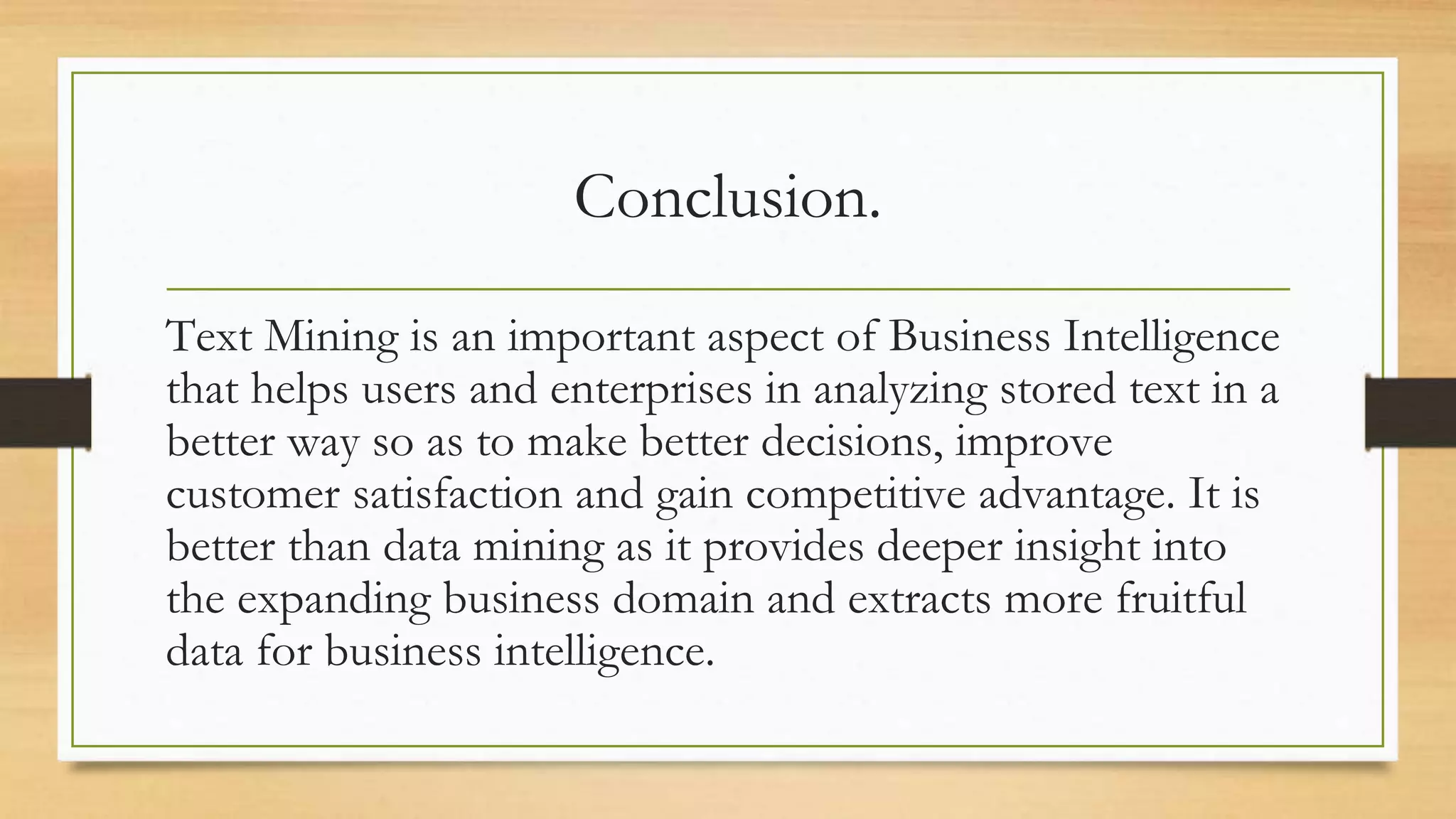

Conclusion.
Text Mining is an important aspect of Business Intelligence
that helps users and enterprises in analyzing stored text in a
better way so as to make better decisions, improve
customer satisfaction and gain competitive advantage. It is
better than data mining as it provides deeper insight into
the expanding business domain and extracts more fruitful
data for business intelligence.

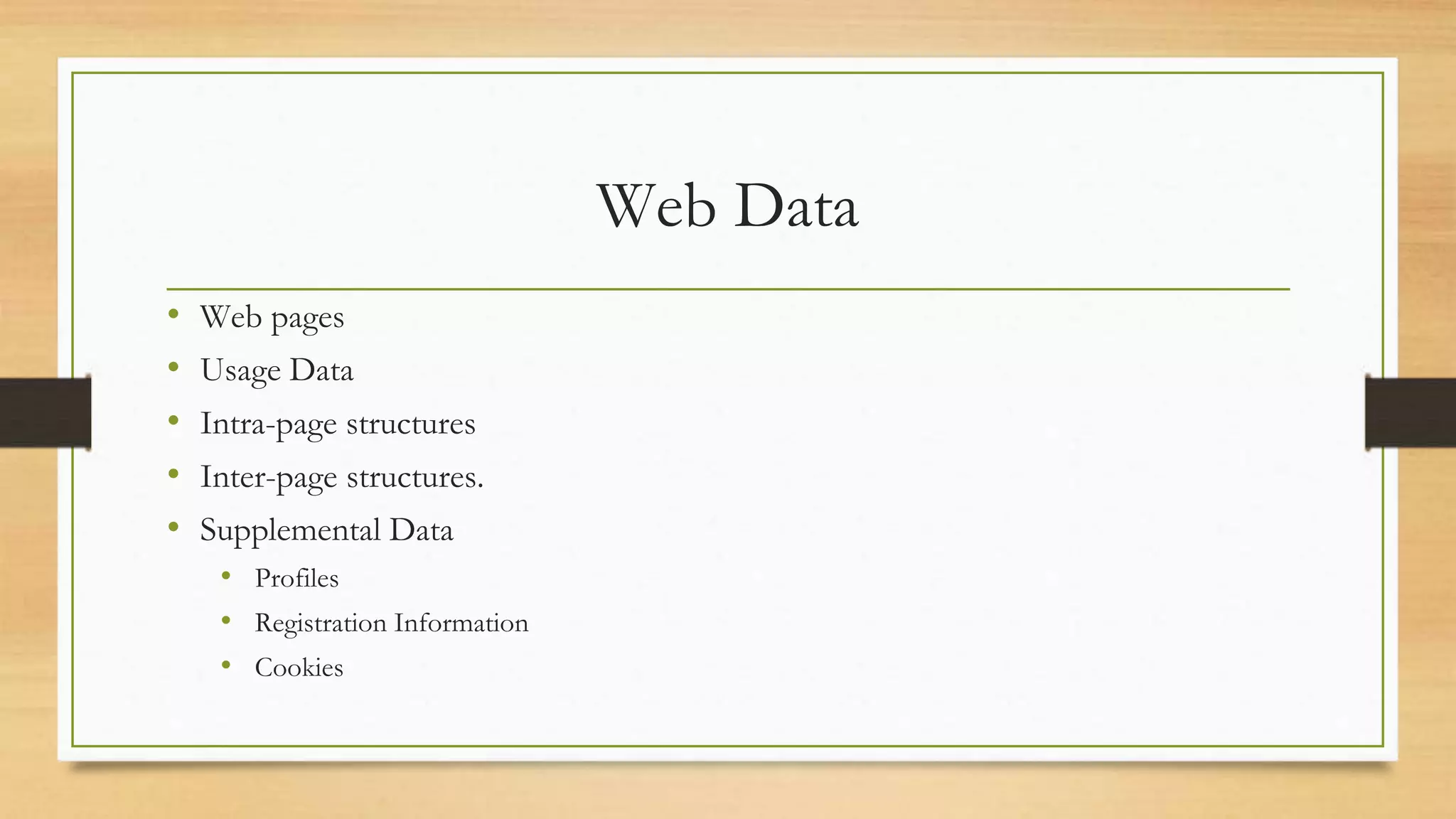

Web Data
• Web pages
• Usage Data
• Intra-page structures
• Inter-page structures.
• Supplemental Data
• Profiles
• Registration Information
• Cookies

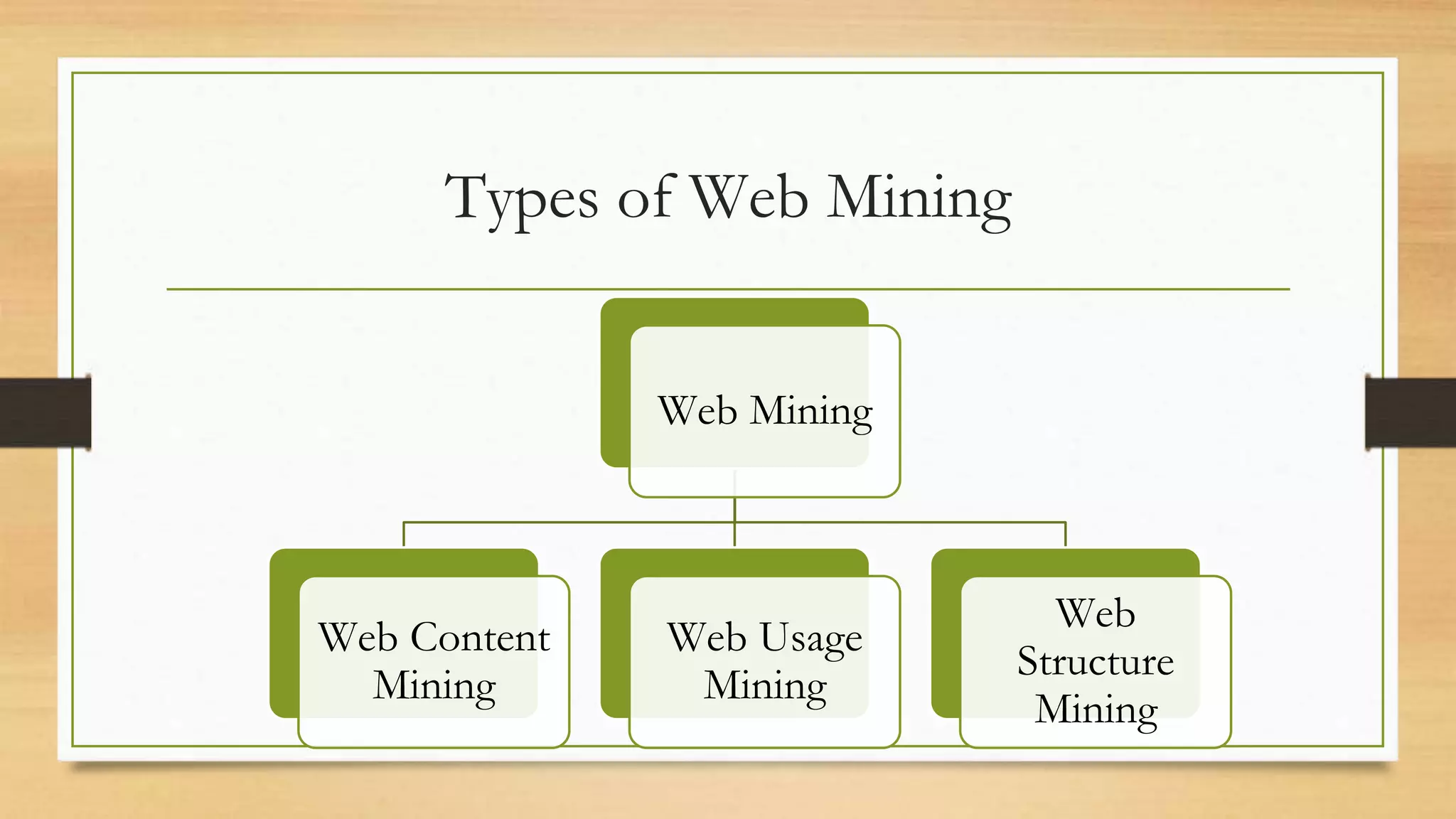

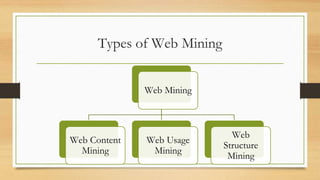

Types of Web Mining
Web Mining
Web Content
Mining
Web Usage
Mining
Web
Structure
Mining

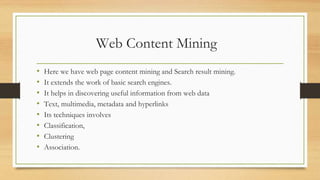

Web Content Mining
• Here we have web page content mining and Search result mining.
• It extends the work of basic search engines.
• It helps in discovering useful information from web data
• Text, multimedia, metadata and hyperlinks
• Its techniques involves
• Classification,
• Clustering
• Association.

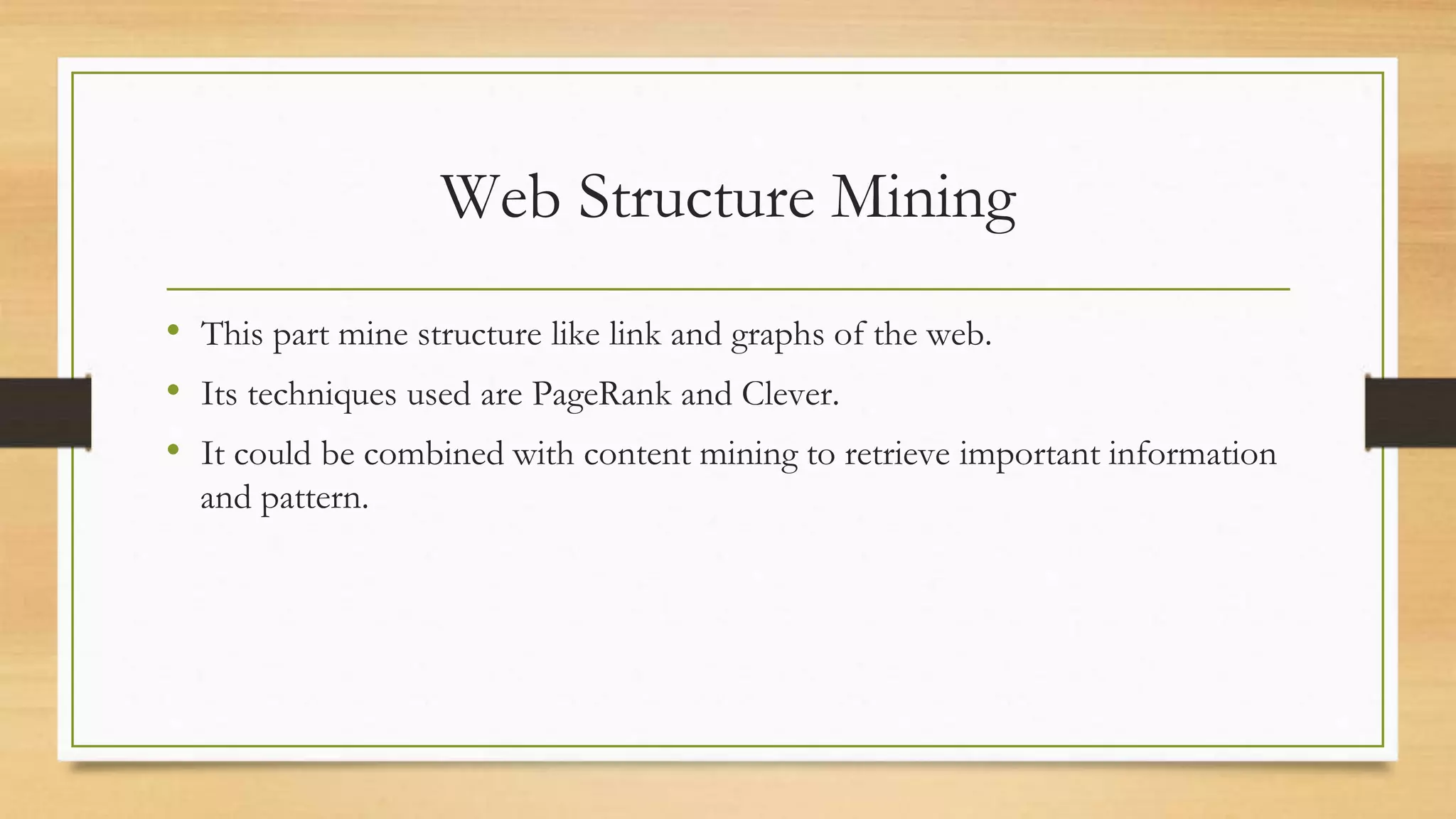

Web Structure Mining
• This part mine structure like link and graphs of the web.
• Its techniques used are PageRank and Clever.
• It could be combined with content mining to retrieve important information
and pattern.

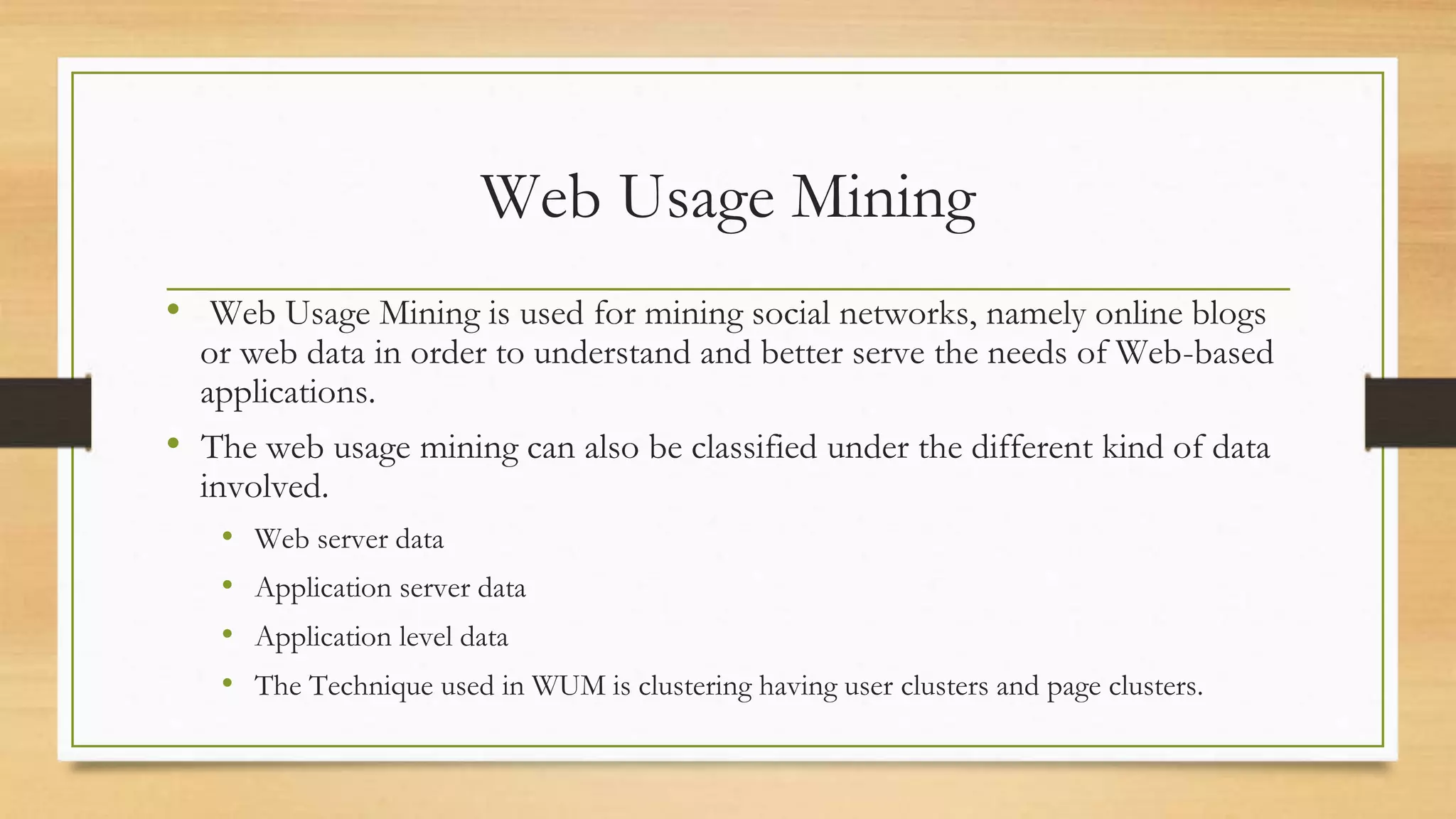

Web Usage Mining
• Web Usage Mining is used for mining social networks, namely online blogs
or web data in order to understand and better serve the needs of Web-based
applications.
• The web usage mining can also be classified under the different kind of data
involved.
• Web server data
• Application server data
• Application level data
• The Technique used in WUM is clustering having user clusters and page clusters.

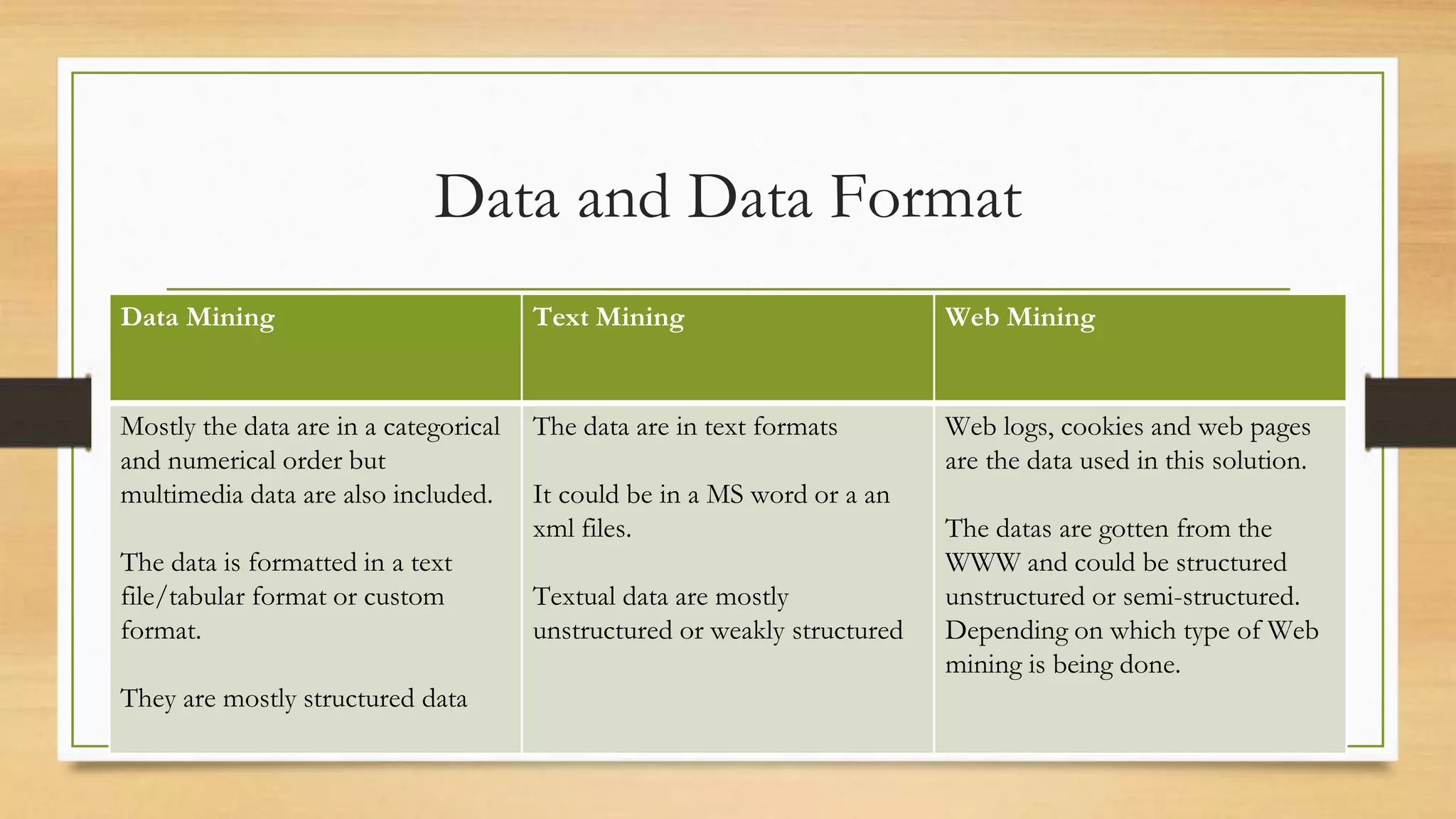

Data and Data Format
Data Mining Text Mining Web Mining
Mostly the data are in a categorical
and numerical order but
multimedia data are also included.
The data is formatted in a text
file/tabular format or custom
format.
They are mostly structured data
The data are in text formats
It could be in a MS word or a an
xml files.
Textual data are mostly
unstructured or weakly structured
Web logs, cookies and web pages
are the data used in this solution.
The datas are gotten from the
WWW and could be structured
unstructured or semi-structured.
Depending on which type of Web
mining is being done.

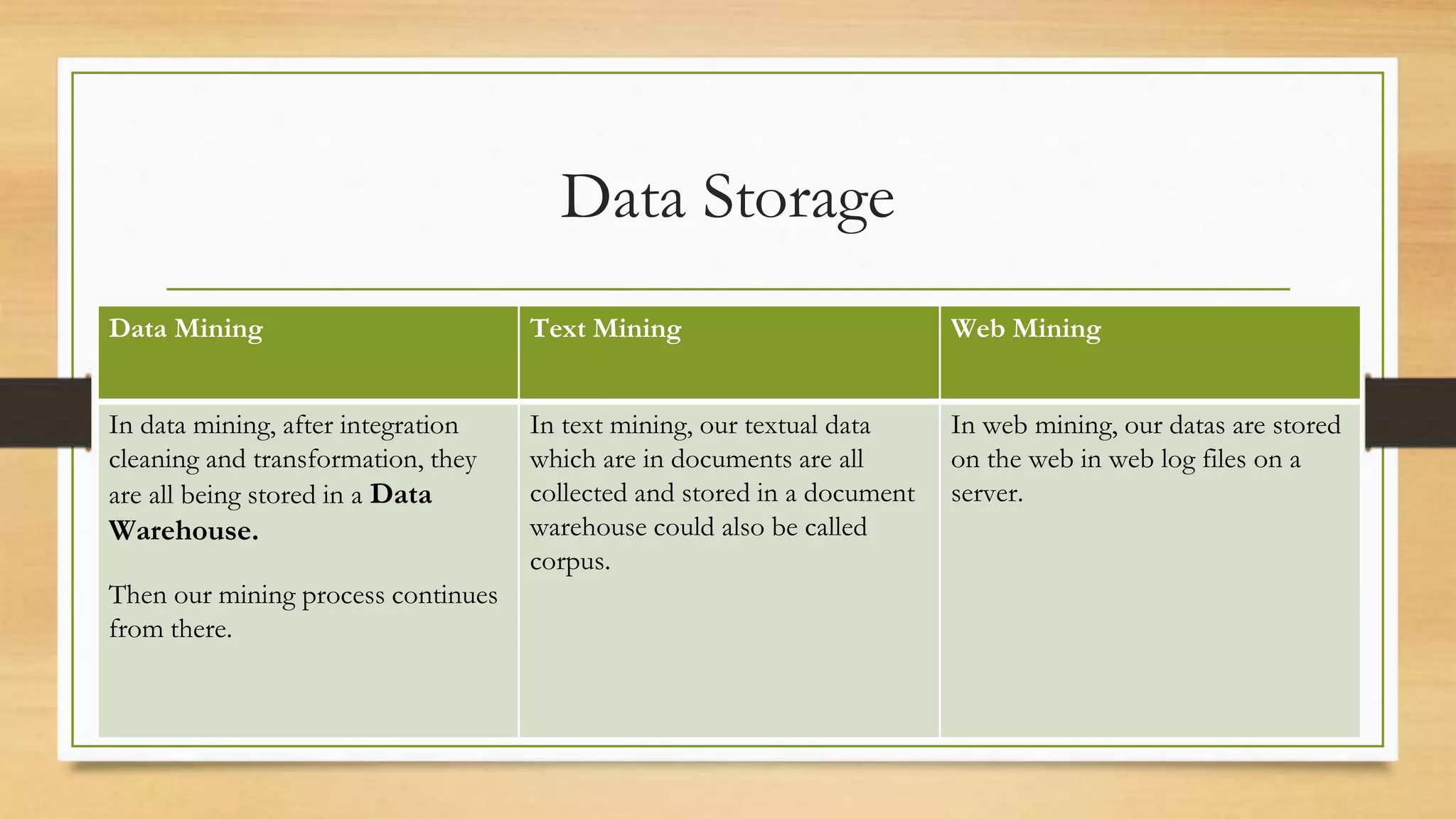

Data Storage
In data mining, after integration
cleaning and transformation, they
are all being stored in a Data
Warehouse.
Then our mining process continues
from there.
In text mining, our textual data
which are in documents are all
collected and stored in a document
warehouse could also be called
corpus.
In web mining, our datas are stored
on the web in web log files on a
server.

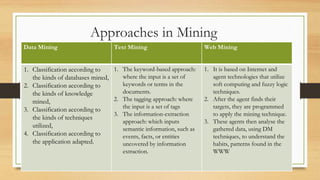

Approaches in Mining
1. Classification according to
the kinds of databases mined,
the kinds of knowledge
mined,
the kinds of techniques
utilized,
the application adapted.
1. The keyword-based approach:
where the input is a set of
keywords or terms in the
documents.
2. The tagging approach: where
the input is a set of tags
3. The information-extraction
approach: which inputs
semantic information, such as
events, facts, or entities
uncovered by information
extraction.
1. It is based on Internet and
agent technologies that utilize
soft computing and fuzzy logic
techniques.
2. After the agent finds their
targets, they are programmed
to apply the mining technique.
3. These agents then analyse the
gathered data, using DM
techniques, to understand the
habits, patterns found in the
WWW

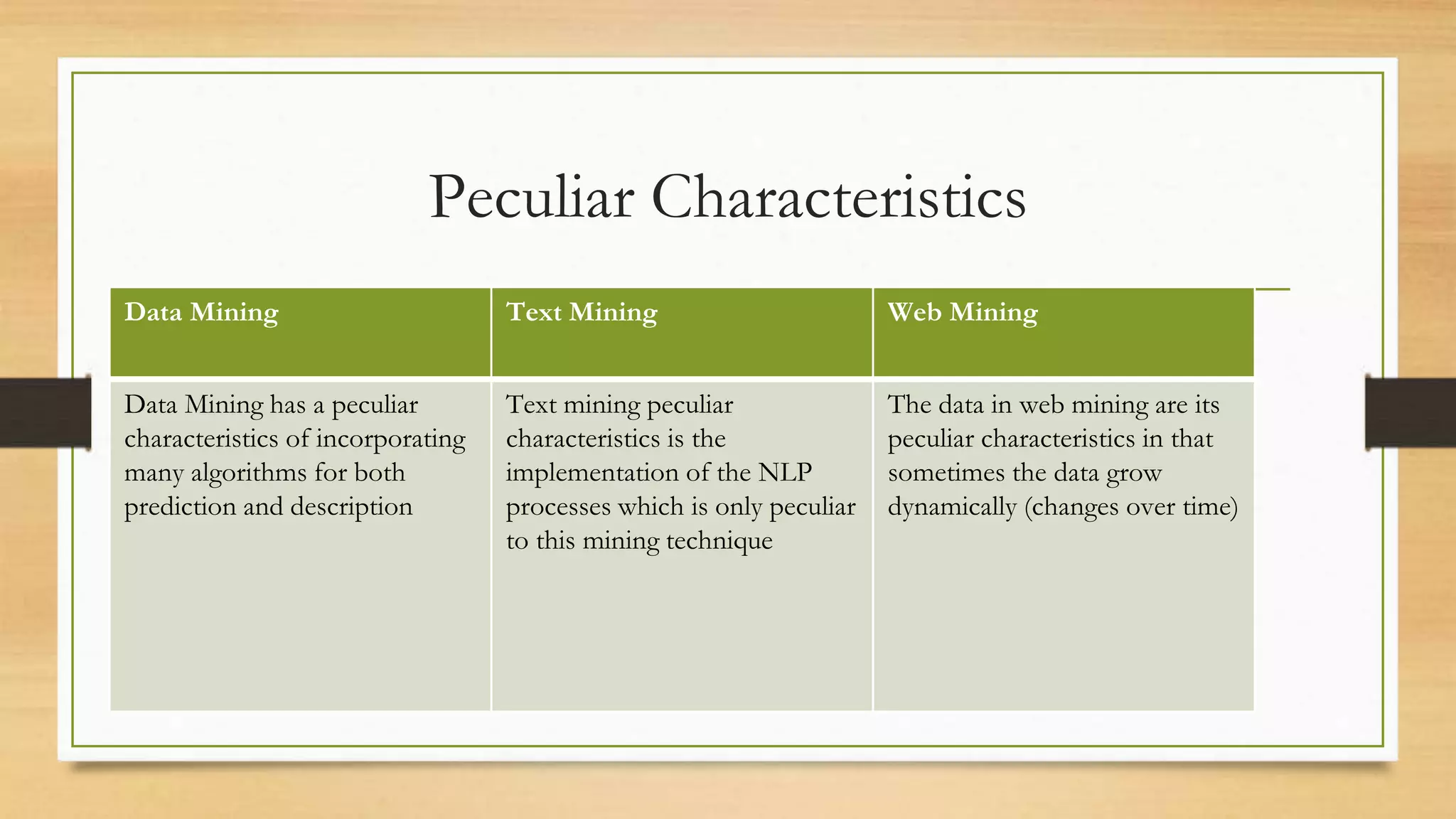

Peculiar Characteristics
Data Mining has a peculiar
characteristics of incorporating
many algorithms for both
prediction and description
Text mining peculiar
characteristics is the
implementation of the NLP
processes which is only peculiar
to this mining technique
The data in web mining are its
peculiar characteristics in that
sometimes the data grow
dynamically (changes over time)

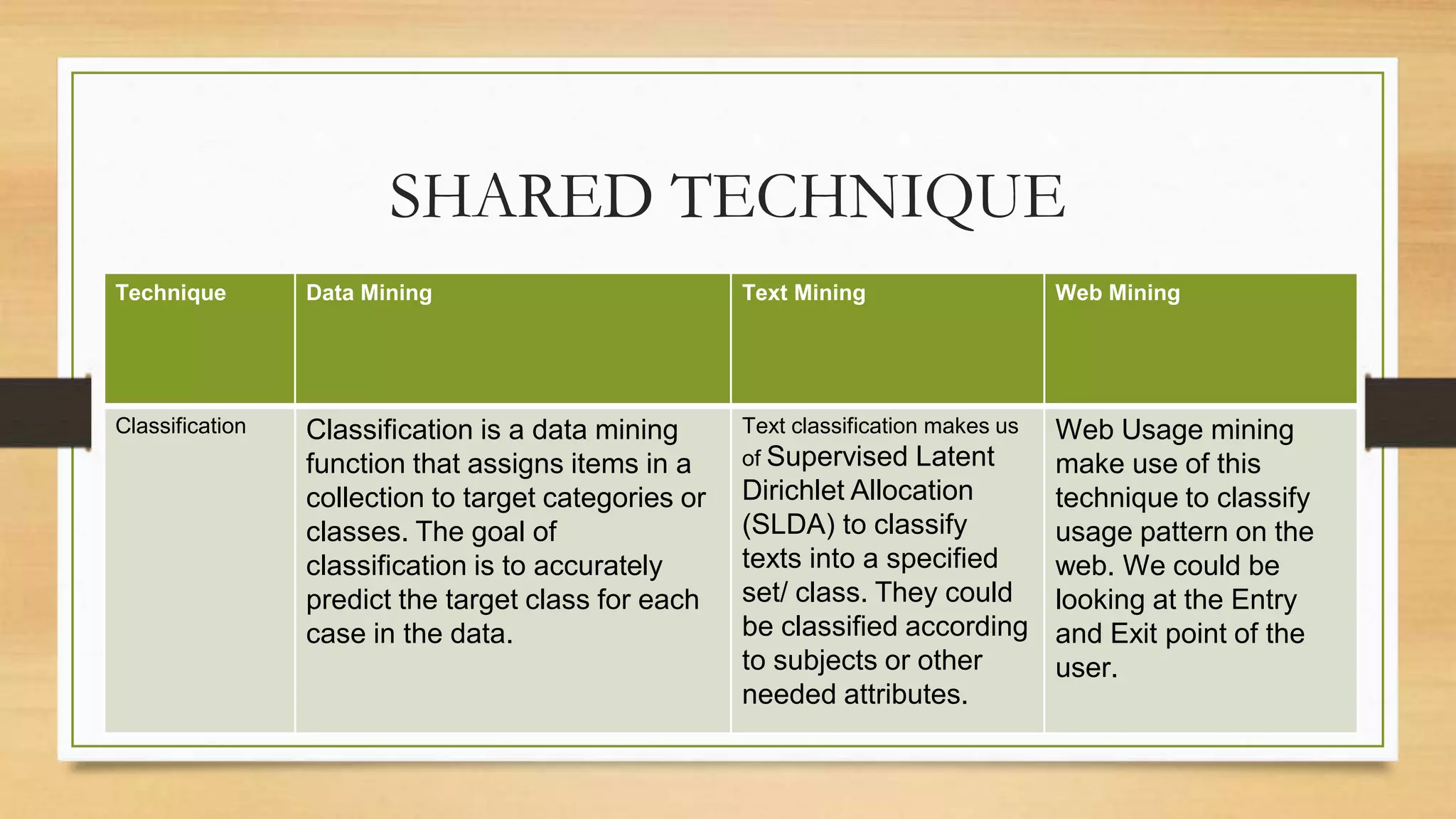

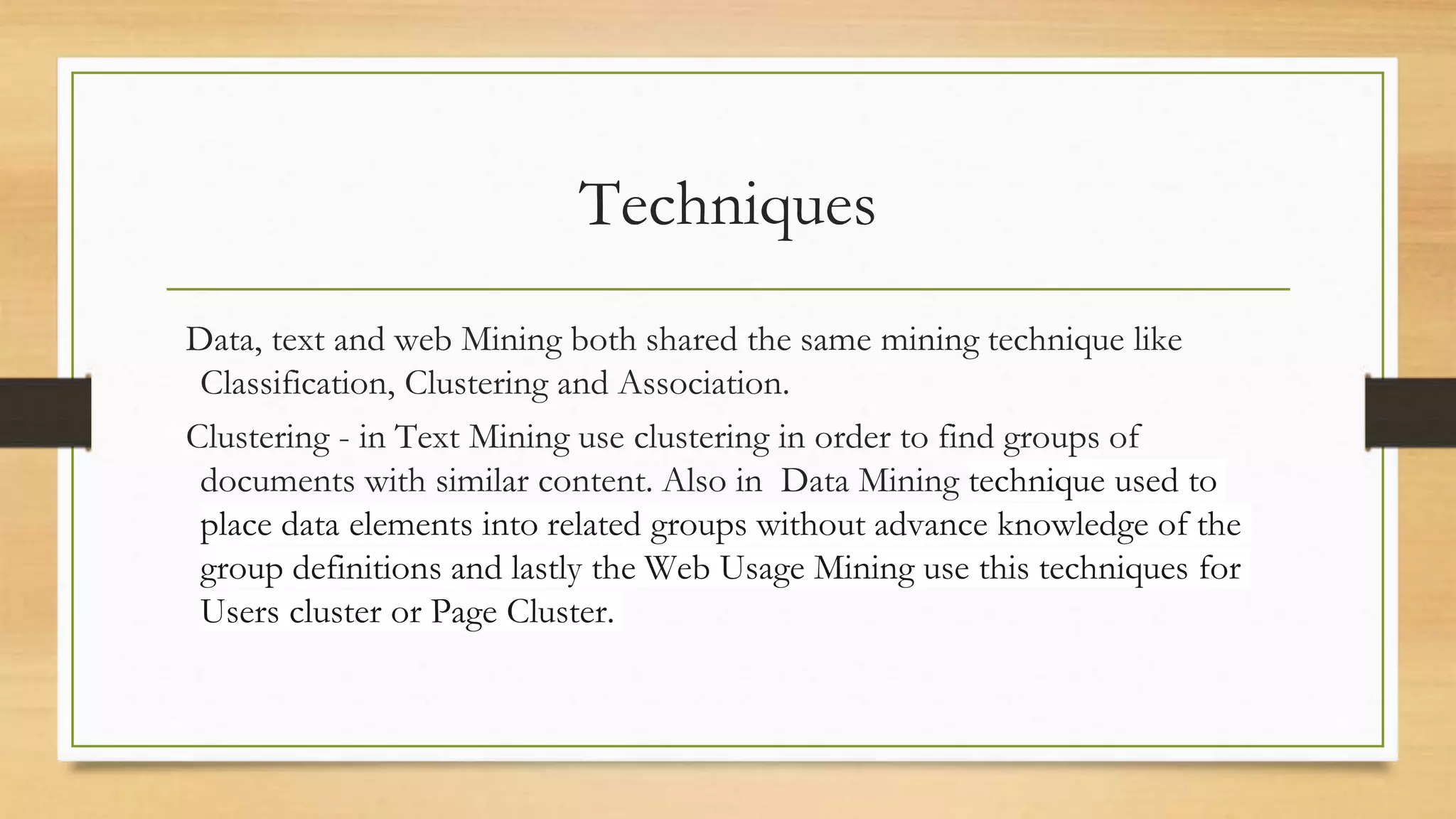

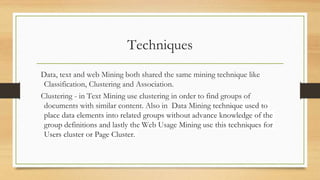

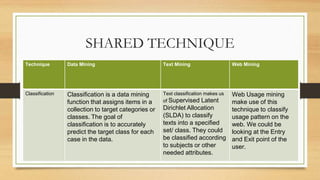

Techniques
Data, text and web Mining both shared the same mining technique like
Classification, Clustering and Association.

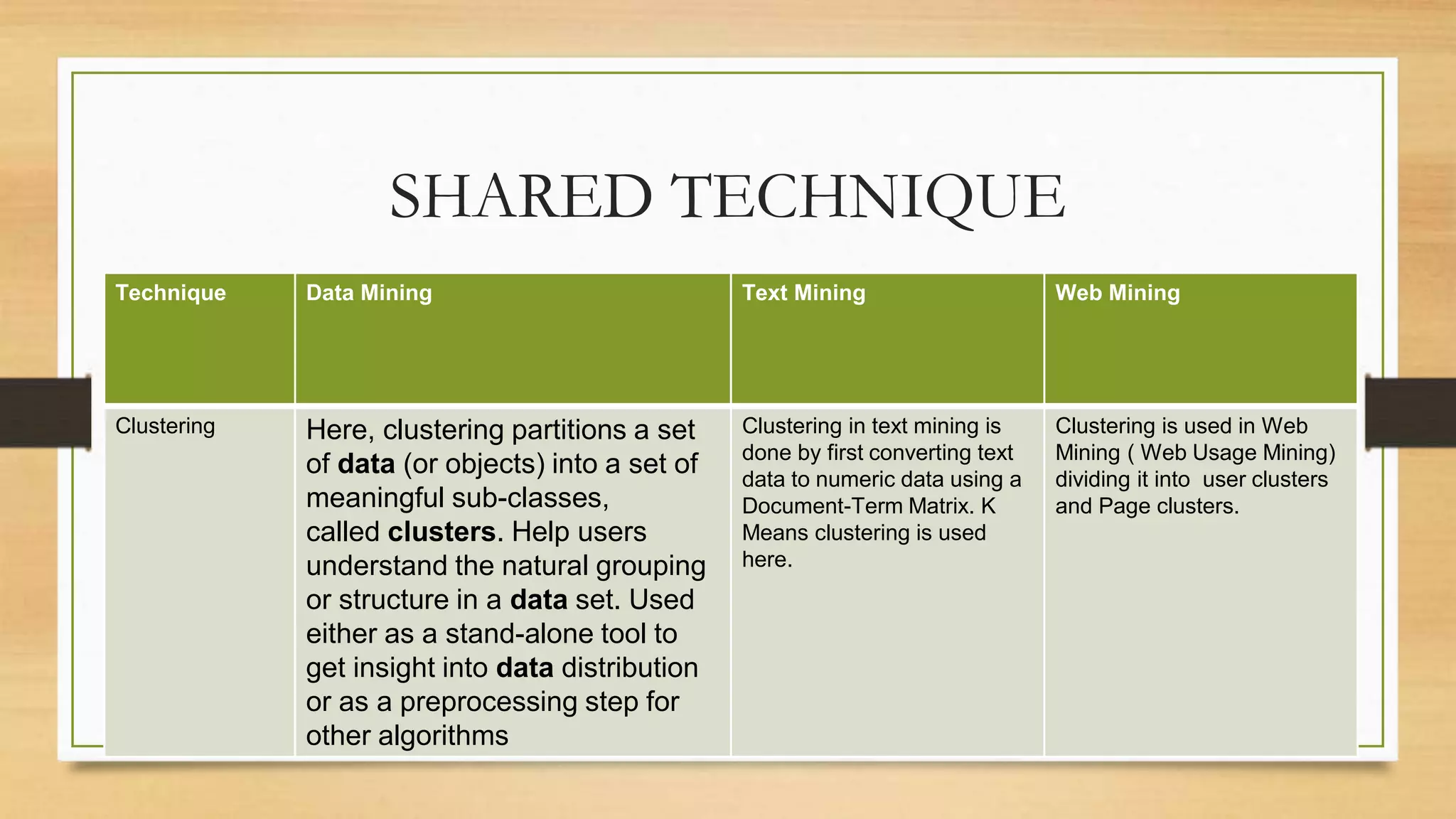

Clustering - in Text Mining use clustering in order to find groups of
documents with similar content. Also in Data Mining technique used to
place data elements into related groups without advance knowledge of the
group definitions and lastly the Web Usage Mining use this techniques for
Users cluster or Page Cluster.

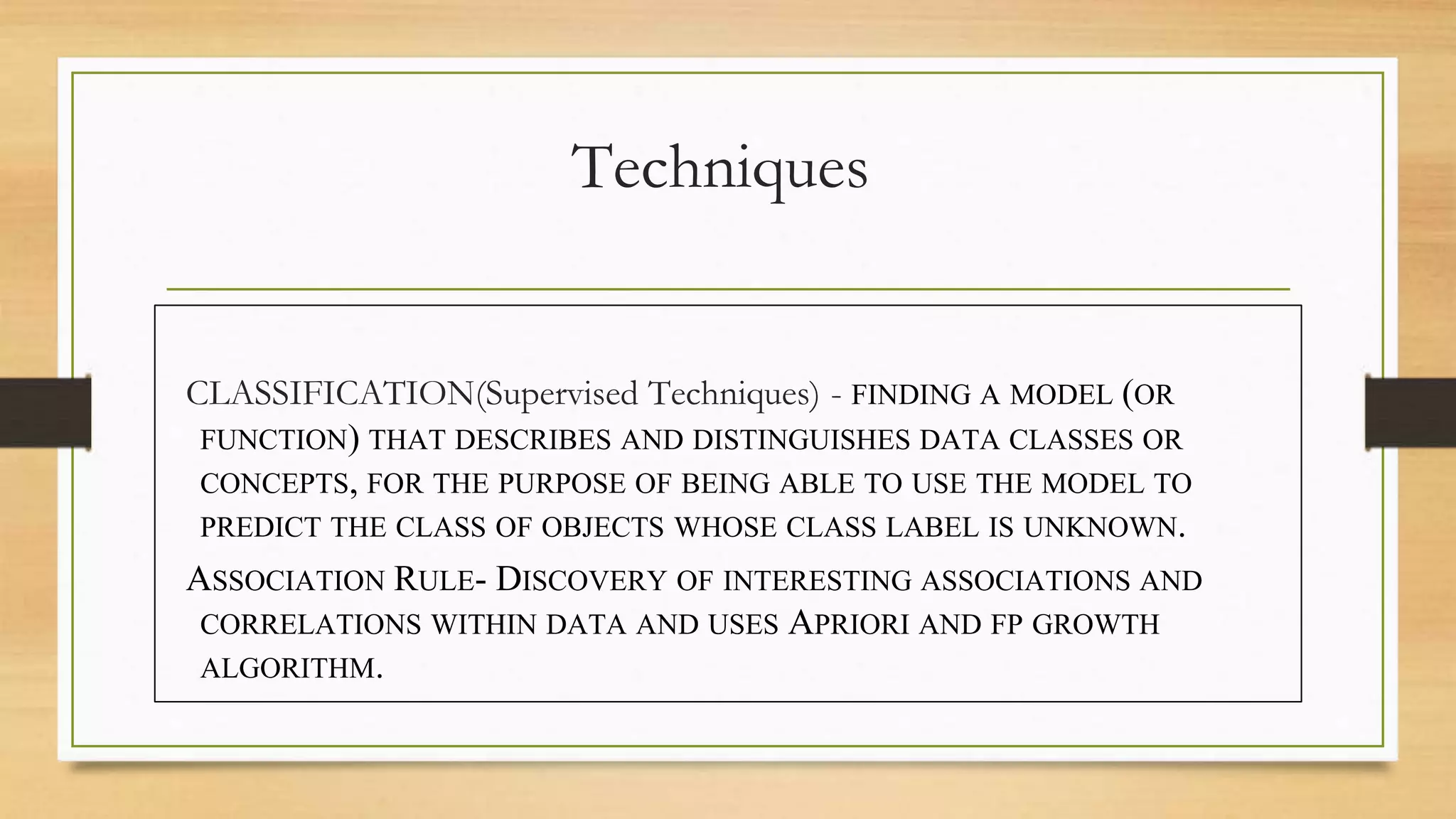

Techniques
CLASSIFICATION(Supervised Techniques) - FINDING A MODEL (OR
FUNCTION) THAT DESCRIBES AND DISTINGUISHES DATA CLASSES OR
CONCEPTS, FOR THE PURPOSE OF BEING ABLE TO USE THE MODEL TO
PREDICT THE CLASS OF OBJECTS WHOSE CLASS LABEL IS UNKNOWN.
ASSOCIATION RULE- DISCOVERY OF INTERESTING ASSOCIATIONS AND
CORRELATIONS WITHIN DATA AND USES APRIORI AND FP GROWTH
ALGORITHM.

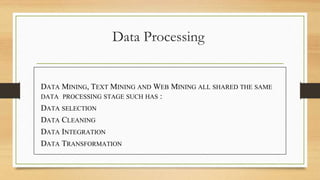

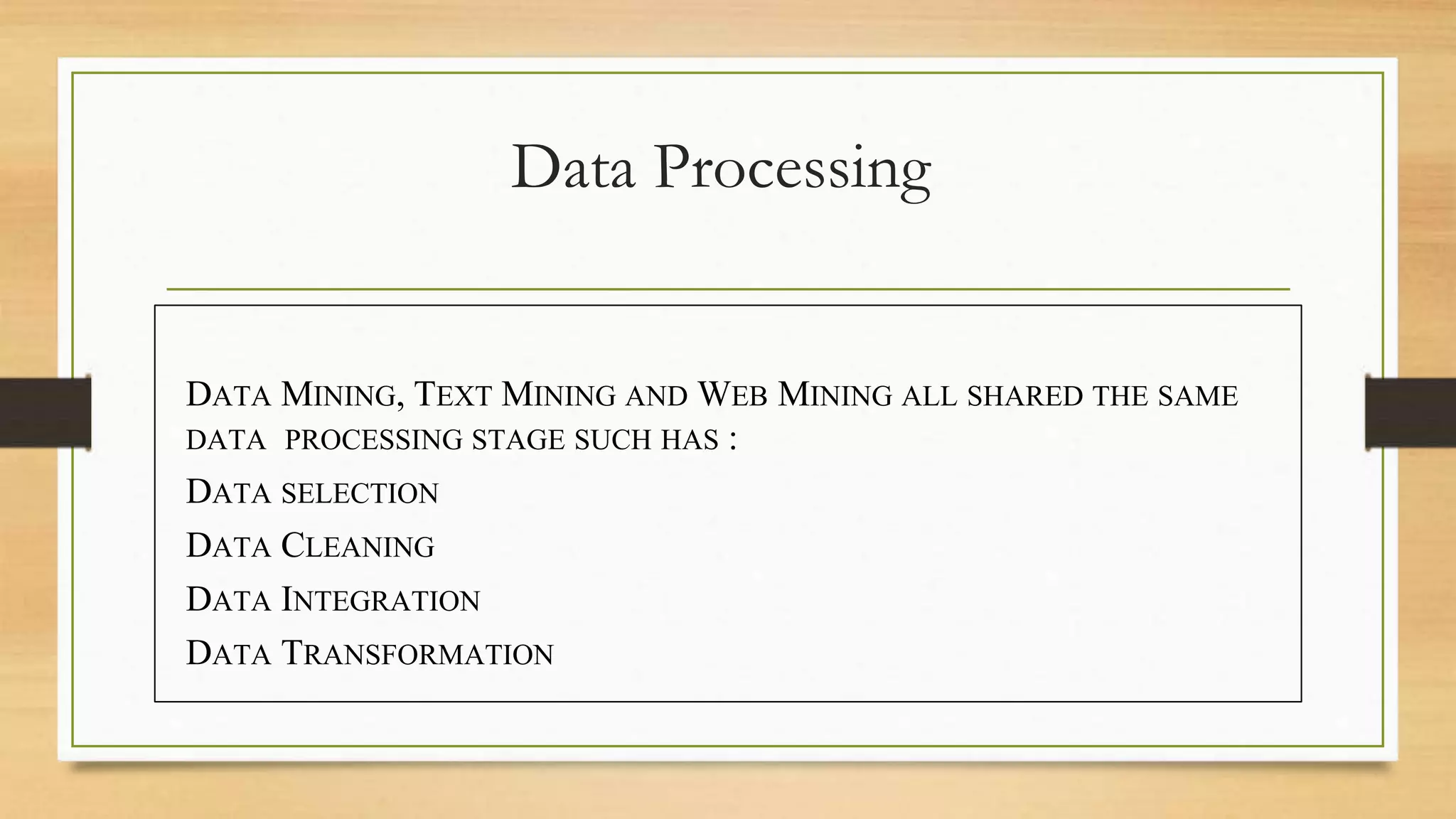

Data Processing
DATA MINING, TEXT MINING AND WEB MINING ALL SHARED THE SAME
DATA PROCESSING STAGE SUCH HAS :
DATA SELECTION
DATA CLEANING
DATA INTEGRATION
DATA TRANSFORMATION

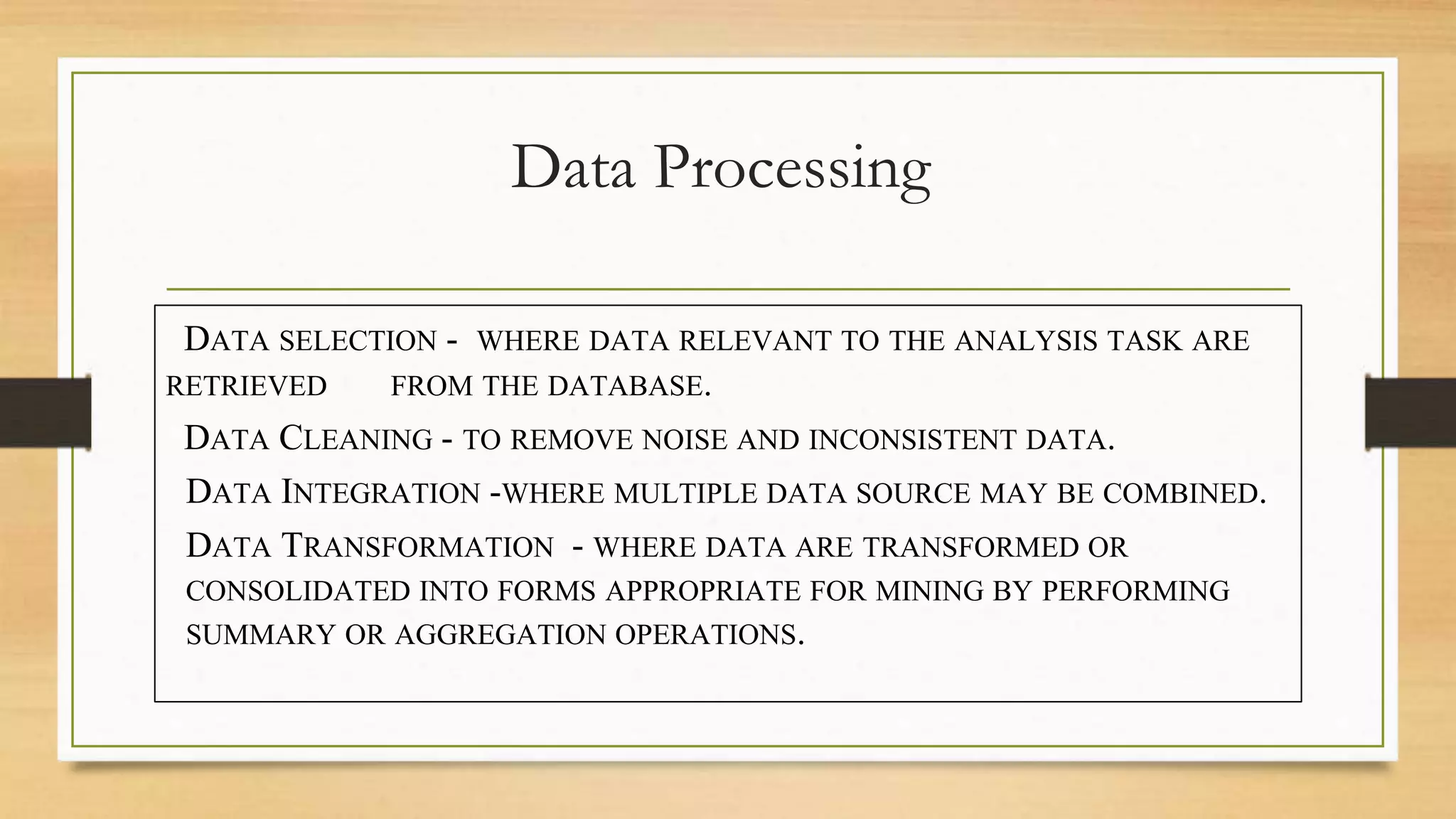

Data Processing
DATA SELECTION - WHERE DATA RELEVANT TO THE ANALYSIS TASK ARE
RETRIEVED FROM THE DATABASE.
DATA CLEANING - TO REMOVE NOISE AND INCONSISTENT DATA.
DATA INTEGRATION -WHERE MULTIPLE DATA SOURCE MAY BE COMBINED.
DATA TRANSFORMATION - WHERE DATA ARE TRANSFORMED OR
CONSOLIDATED INTO FORMS APPROPRIATE FOR MINING BY PERFORMING
SUMMARY OR AGGREGATION OPERATIONS.

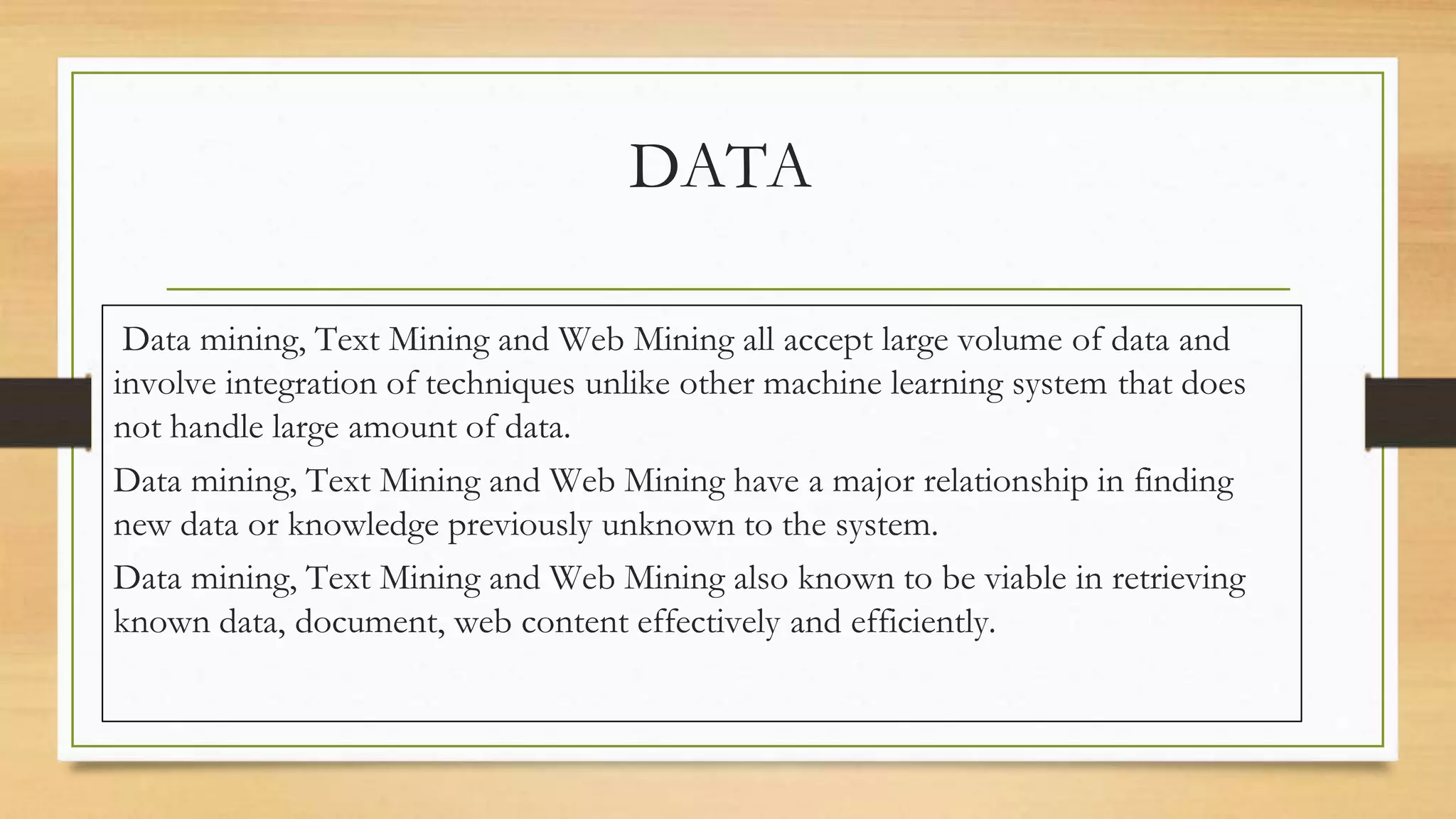

DATA
Data mining, Text Mining and Web Mining all accept large volume of data and
involve integration of techniques unlike other machine learning system that does
not handle large amount of data.
Data mining, Text Mining and Web Mining have a major relationship in finding
new data or knowledge previously unknown to the system.
Data mining, Text Mining and Web Mining also known to be viable in retrieving
known data, document, web content effectively and efficiently.

SHARED TECHNIQUE
Technique Data Mining Text Mining Web Mining
Clustering Here, clustering partitions a set
of data (or objects) into a set of
meaningful sub-classes,
called clusters. Help users
understand the natural grouping
or structure in a data set. Used
either as a stand-alone tool to
get insight into data distribution
or as a preprocessing step for
other algorithms

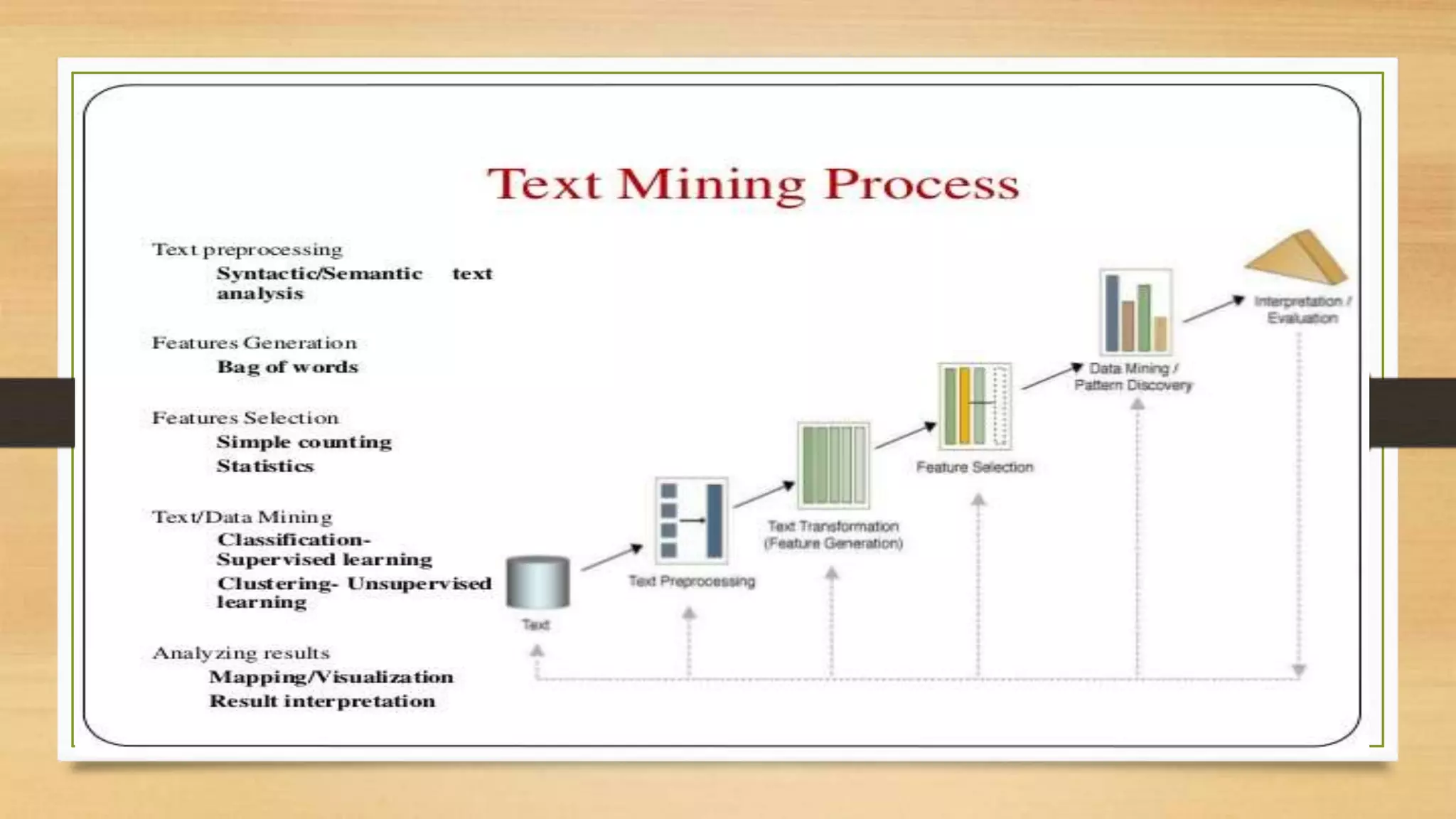

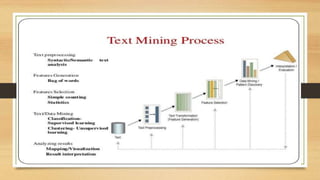

Clustering in text mining is
done by first converting text
data to numeric data using a
Document-Term Matrix. K
Means clustering is used
here.
Clustering is used in Web
Mining ( Web Usage Mining)
dividing it into user clusters
and Page clusters.

SHARED TECHNIQUE
Technique Data Mining Text Mining Web Mining
Classification Classification is a data mining
function that assigns items in a
collection to target categories or
classes. The goal of
classification is to accurately
predict the target class for each
case in the data.
Text classification makes us
of Supervised Latent
Dirichlet Allocation
(SLDA) to classify
texts into a specified
set/ class. They could
be classified according
to subjects or other
needed attributes.
Web Usage mining
make use of this
technique to classify
usage pattern on the
web. We could be
looking at the Entry
and Exit point of the
user.

Data, Text and Web Mining

More Related Content

What's hot

Similar to Data, Text and Web Mining

Recently uploaded

In this document

Data, Text and Web Mining
