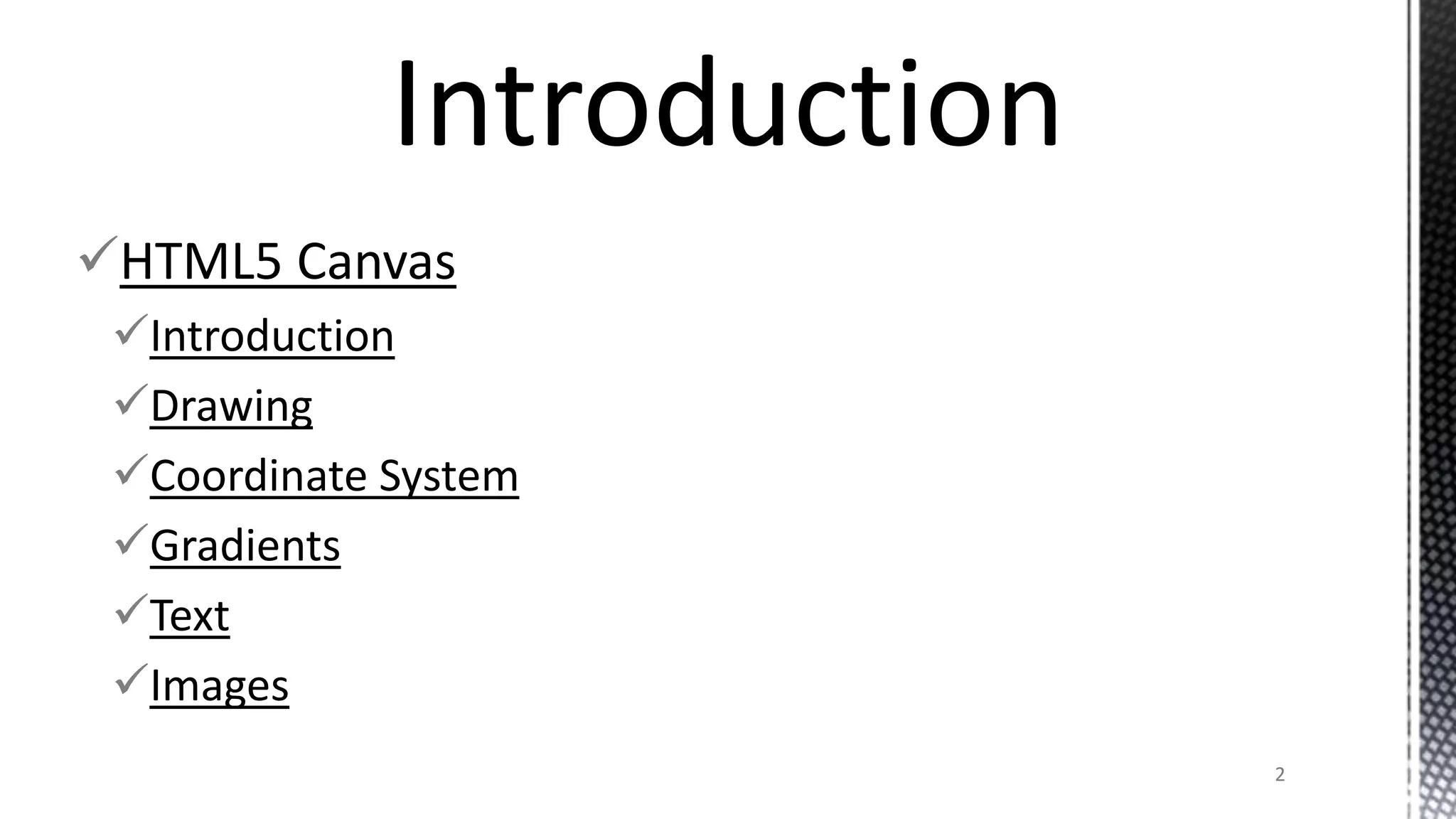

HTML5 Canvas
Introduction
Drawing
Coordinate System
Gradients
Text
Images
2

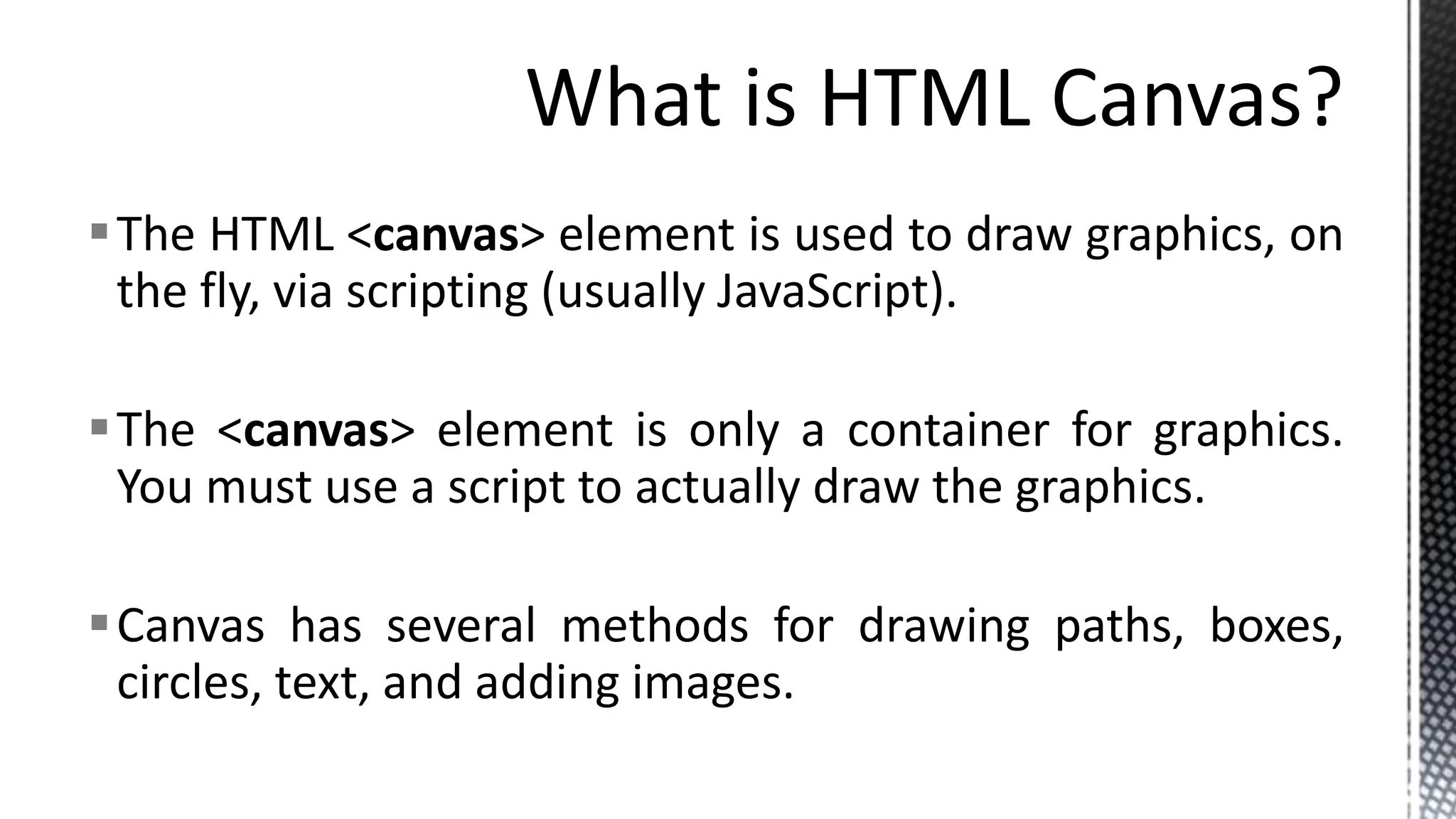

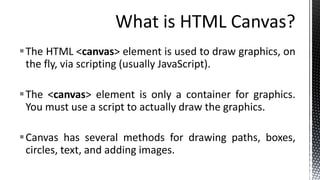

The HTML <canvas> element is used to draw graphics, on
the fly, via scripting (usually JavaScript).
The <canvas> element is only a container for graphics.
You must use a script to actually draw the graphics.
Canvas has several methods for drawing paths, boxes,
circles, text, and adding images.

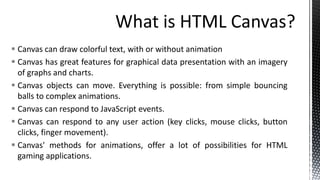

 Canvas can draw colorful text, with or without animation
 Canvas has great features for graphical data presentation with an imagery
of graphs and charts.
 Canvas objects can move. Everything is possible: from simple bouncing
balls to complex animations.
 Canvas can respond to JavaScript events.
 Canvas can respond to any user action (key clicks, mouse clicks, button
clicks, finger movement).
 Canvas' methods for animations, offer a lot of possibilities for HTML
gaming applications.

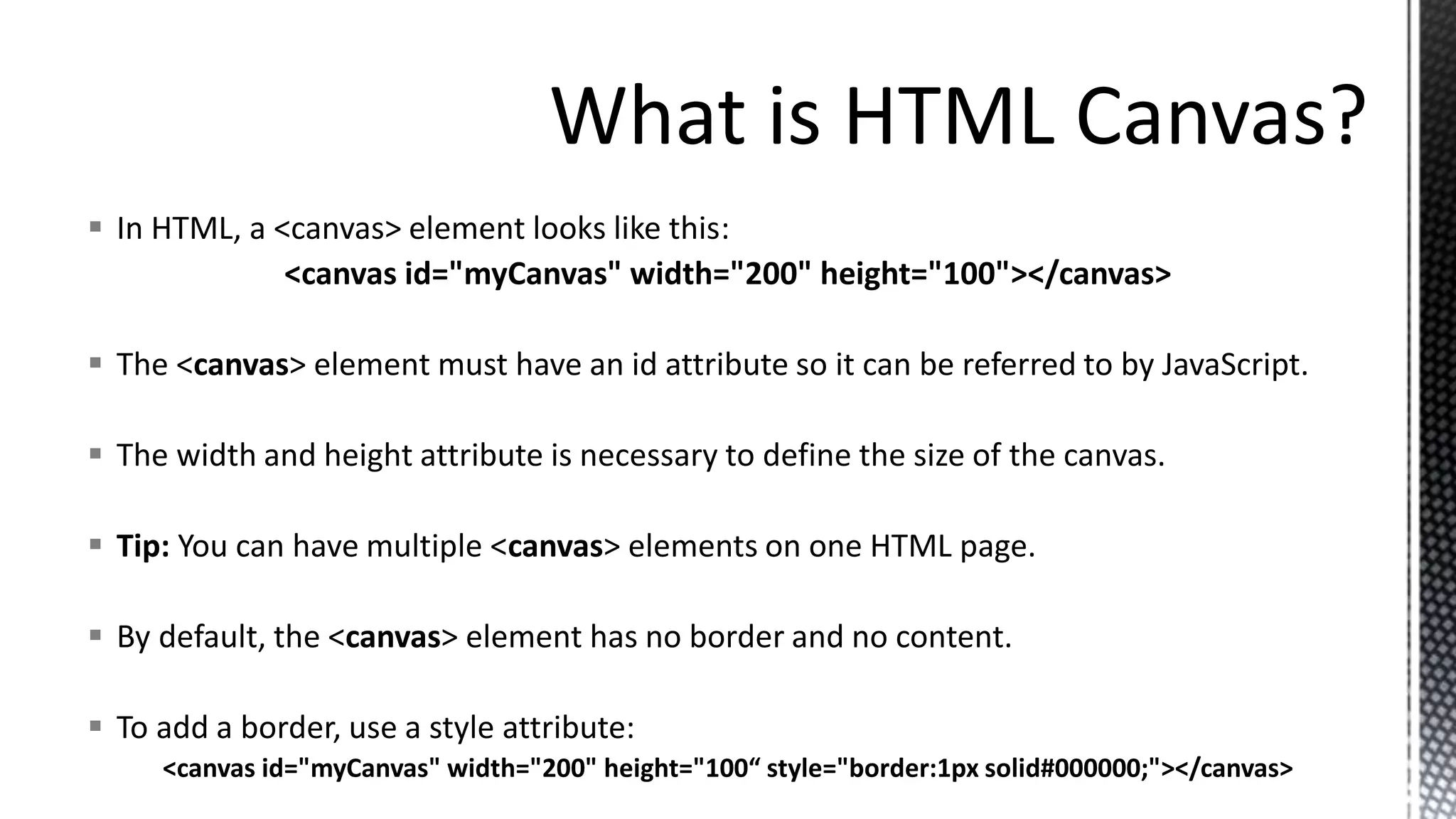

 In HTML, a <canvas> element looks like this:
<canvas id="myCanvas" width="200" height="100"></canvas>
 The <canvas> element must have an id attribute so it can be referred to by JavaScript.
 The width and height attribute is necessary to define the size of the canvas.
 Tip: You can have multiple <canvas> elements on one HTML page.
 By default, the <canvas> element has no border and no content.
 To add a border, use a style attribute:
<canvas id="myCanvas" width="200" height="100“ style="border:1px solid#000000;"></canvas>

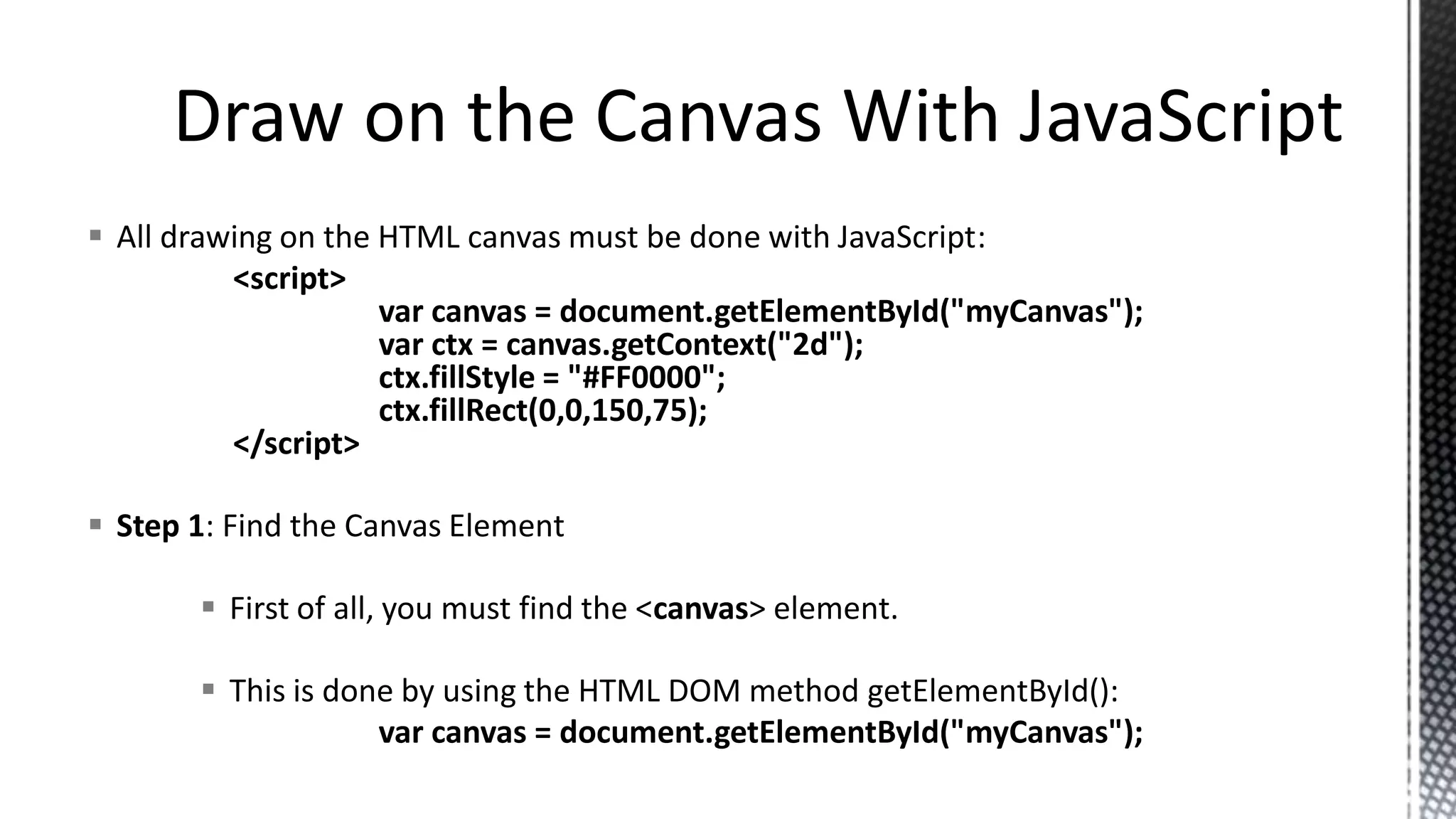

 All drawing on the HTML canvas must be done with JavaScript:
<script>
var canvas = document.getElementById("myCanvas");
var ctx = canvas.getContext("2d");
ctx.fillStyle = "#FF0000";
ctx.fillRect(0,0,150,75);
</script>
 Step 1: Find the Canvas Element
 First of all, you must find the <canvas> element.
 This is done by using the HTML DOM method getElementById():

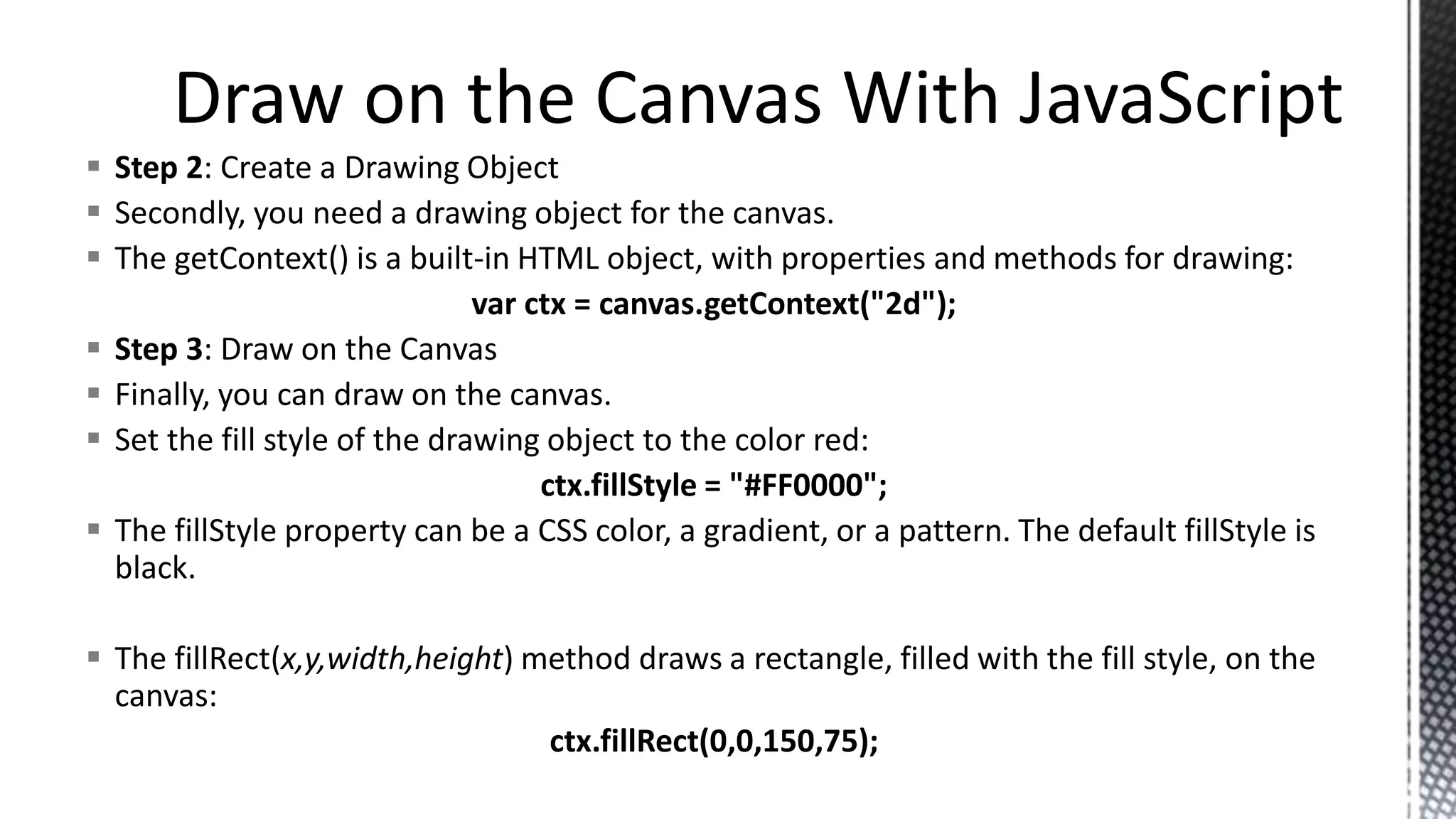

 Step 2: Create a Drawing Object
 Secondly, you need a drawing object for the canvas.
 The getContext() is a built-in HTML object, with properties and methods for drawing:
 Step 3: Draw on the Canvas
 Finally, you can draw on the canvas.
 Set the fill style of the drawing object to the color red:
ctx.fillStyle = "#FF0000";
 The fillStyle property can be a CSS color, a gradient, or a pattern. The default fillStyle is
black.
 The fillRect(x,y,width,height) method draws a rectangle, filled with the fill style, on the
canvas:

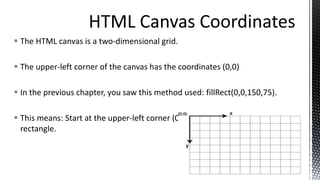

 The HTML canvas is a two-dimensional grid.
 The upper-left corner of the canvas has the coordinates (0,0)
 In the previous chapter, you saw this method used: fillRect(0,0,150,75).
 This means: Start at the upper-left corner (0,0) and draw a 150x75 pixels
rectangle.

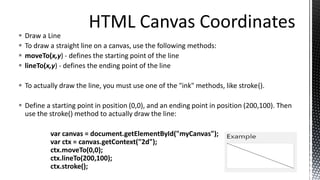

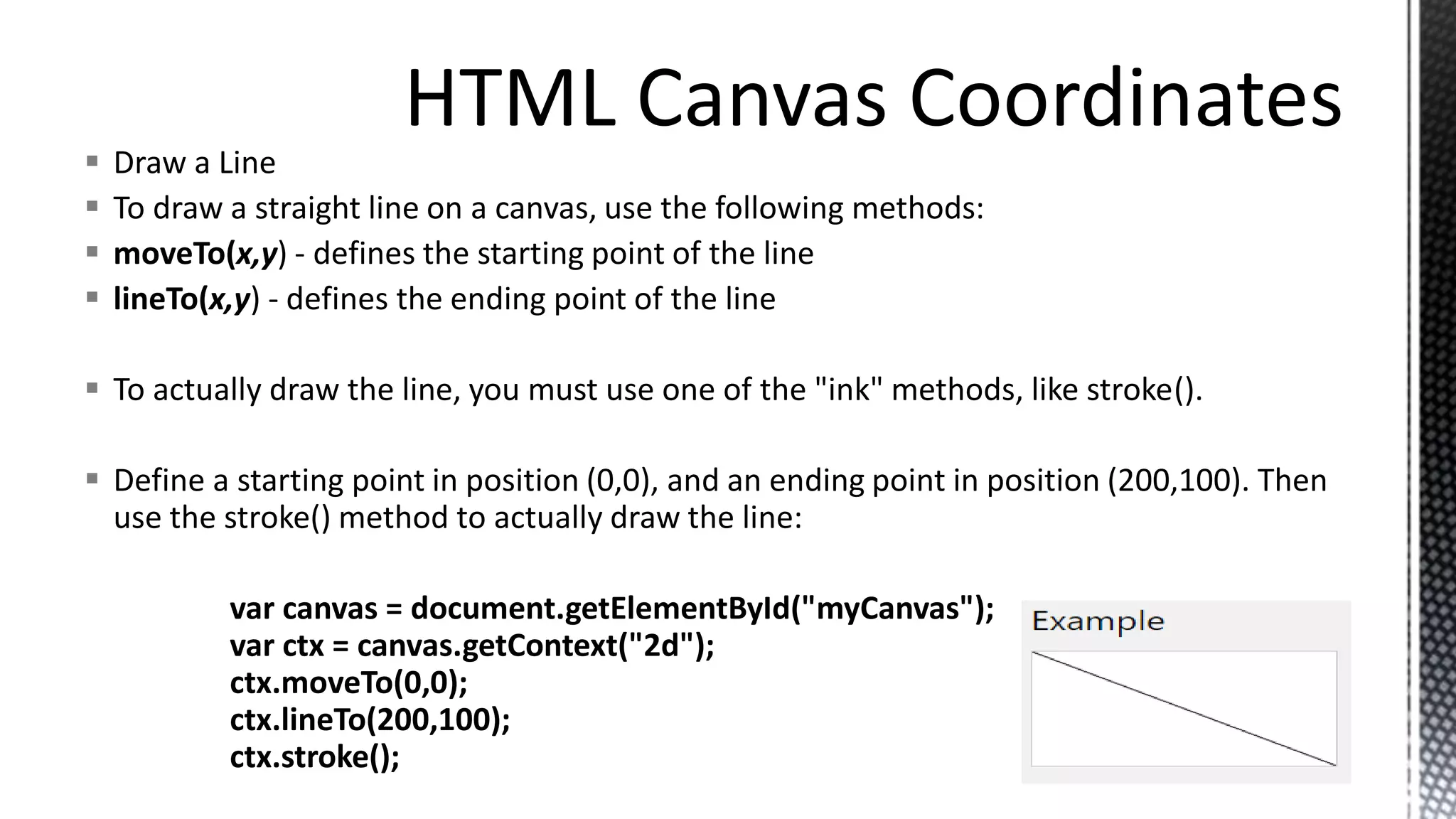

 Draw a Line
 To draw a straight line on a canvas, use the following methods:
 moveTo(x,y) - defines the starting point of the line
 lineTo(x,y) - defines the ending point of the line
 To actually draw the line, you must use one of the "ink" methods, like stroke().
 Define a starting point in position (0,0), and an ending point in position (200,100). Then
use the stroke() method to actually draw the line:
ctx.moveTo(0,0);
ctx.lineTo(200,100);
ctx.stroke();

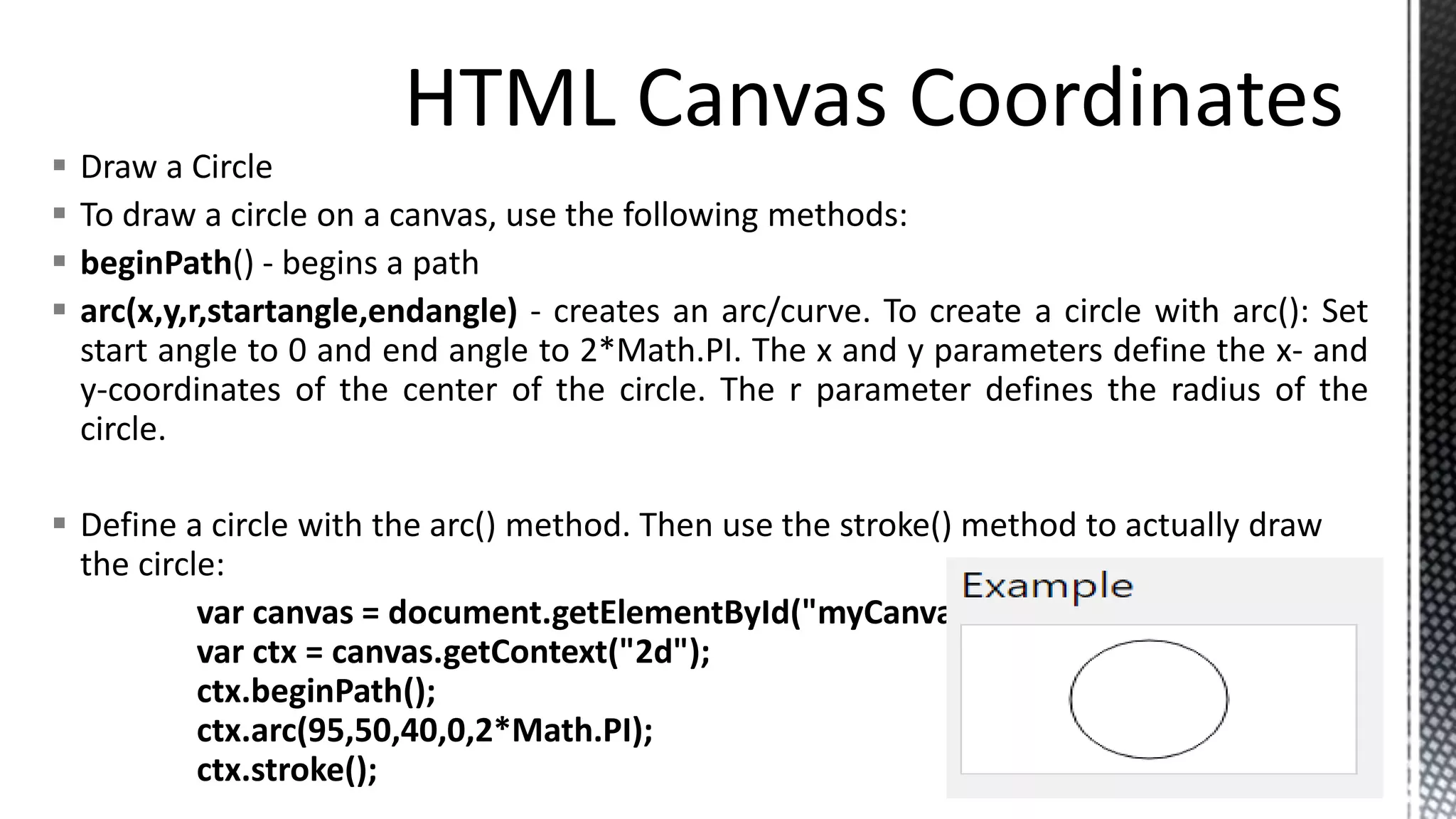

 Draw a Circle
 To draw a circle on a canvas, use the following methods:
 beginPath() - begins a path
 arc(x,y,r,startangle,endangle) - creates an arc/curve. To create a circle with arc(): Set
start angle to 0 and end angle to 2*Math.PI. The x and y parameters define the x- and
y-coordinates of the center of the circle. The r parameter defines the radius of the
circle.
 Define a circle with the arc() method. Then use the stroke() method to actually draw
the circle:
ctx.beginPath();
ctx.arc(95,50,40,0,2*Math.PI);
ctx.stroke();

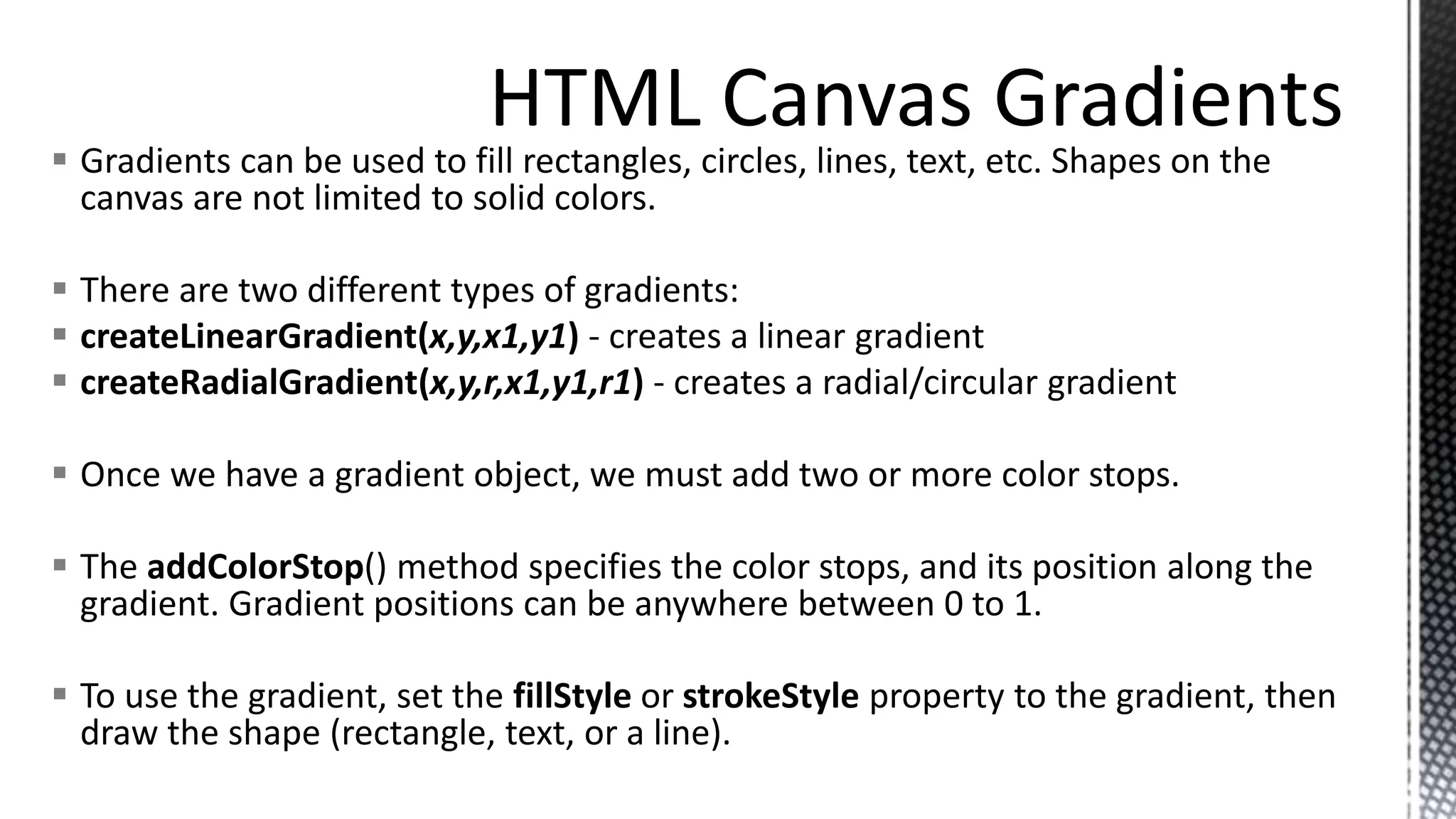

 Gradients can be used to fill rectangles, circles, lines, text, etc. Shapes on the
canvas are not limited to solid colors.
 There are two different types of gradients:
 createLinearGradient(x,y,x1,y1) - creates a linear gradient
 createRadialGradient(x,y,r,x1,y1,r1) - creates a radial/circular gradient
 Once we have a gradient object, we must add two or more color stops.
 The addColorStop() method specifies the color stops, and its position along the
gradient. Gradient positions can be anywhere between 0 to 1.
 To use the gradient, set the fillStyle or strokeStyle property to the gradient, then
draw the shape (rectangle, text, or a line).

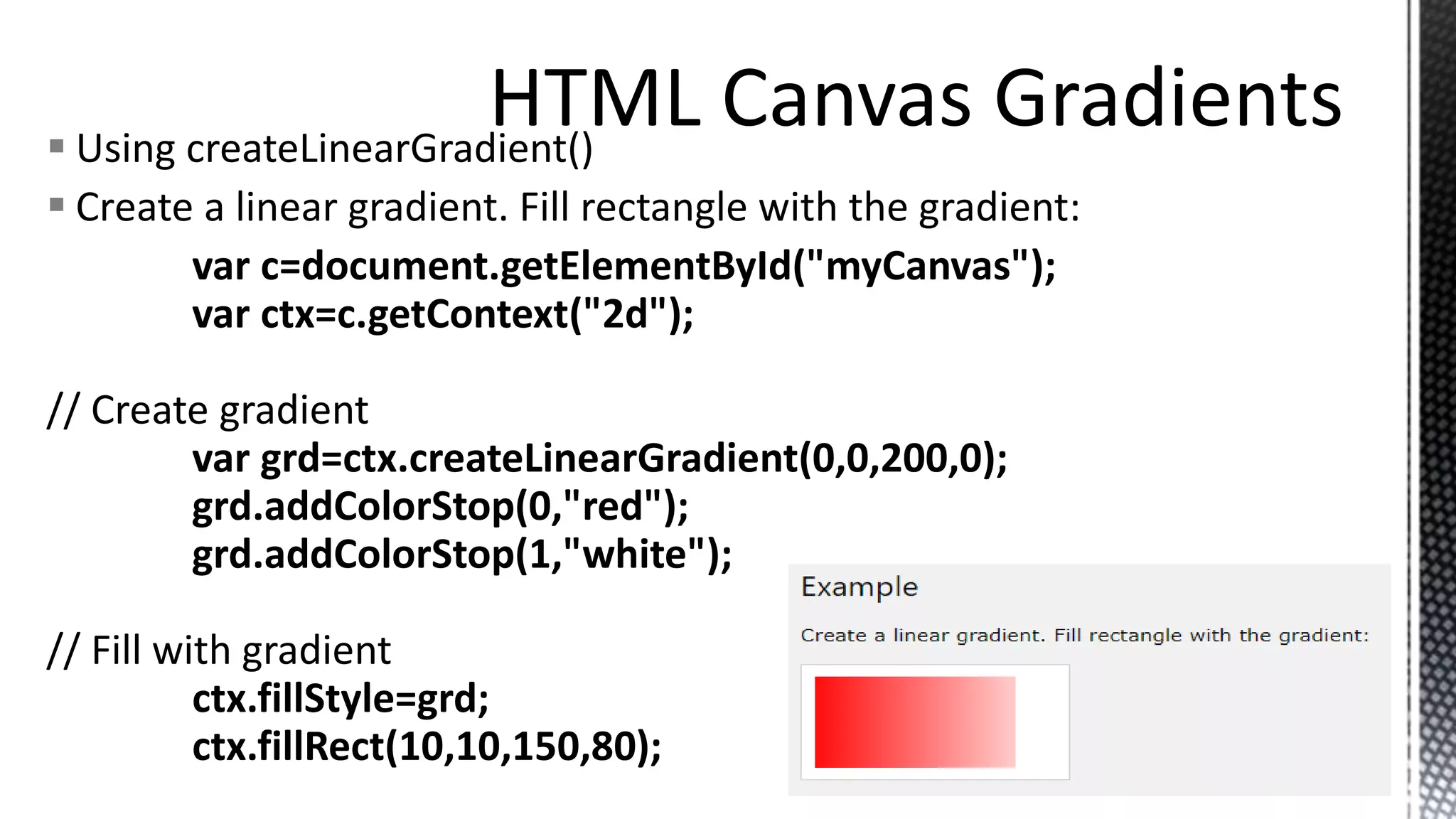

 Using createLinearGradient()
 Create a linear gradient. Fill rectangle with the gradient:
var c=document.getElementById("myCanvas");
var ctx=c.getContext("2d");
// Create gradient
var grd=ctx.createLinearGradient(0,0,200,0);
grd.addColorStop(0,"red");
grd.addColorStop(1,"white");
// Fill with gradient
ctx.fillStyle=grd;

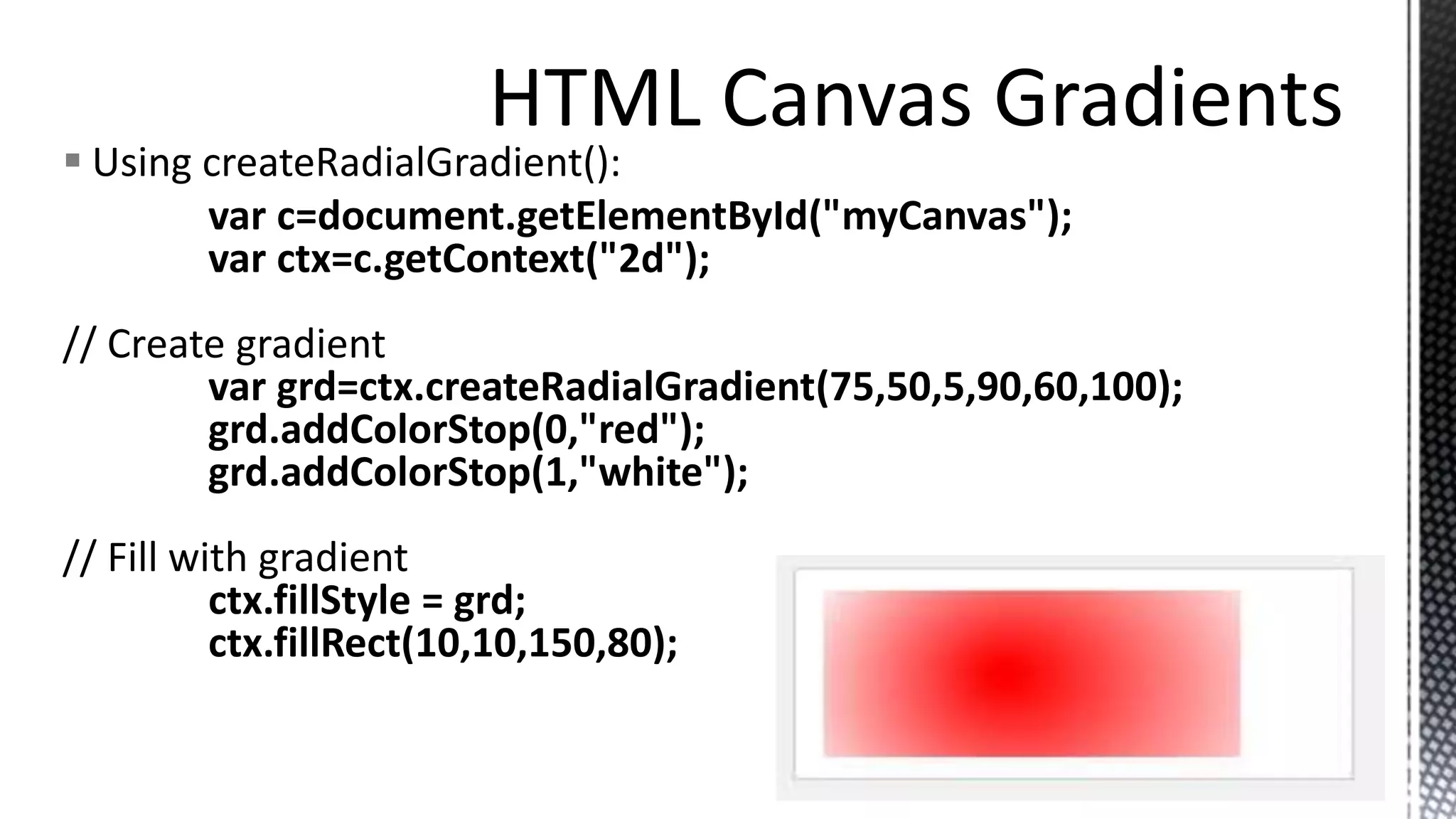

 Using createRadialGradient():
var c=document.getElementById("myCanvas");
var ctx=c.getContext("2d");
// Create gradient
var grd=ctx.createRadialGradient(75,50,5,90,60,100);
grd.addColorStop(0,"red");
grd.addColorStop(1,"white");
// Fill with gradient
ctx.fillStyle = grd;

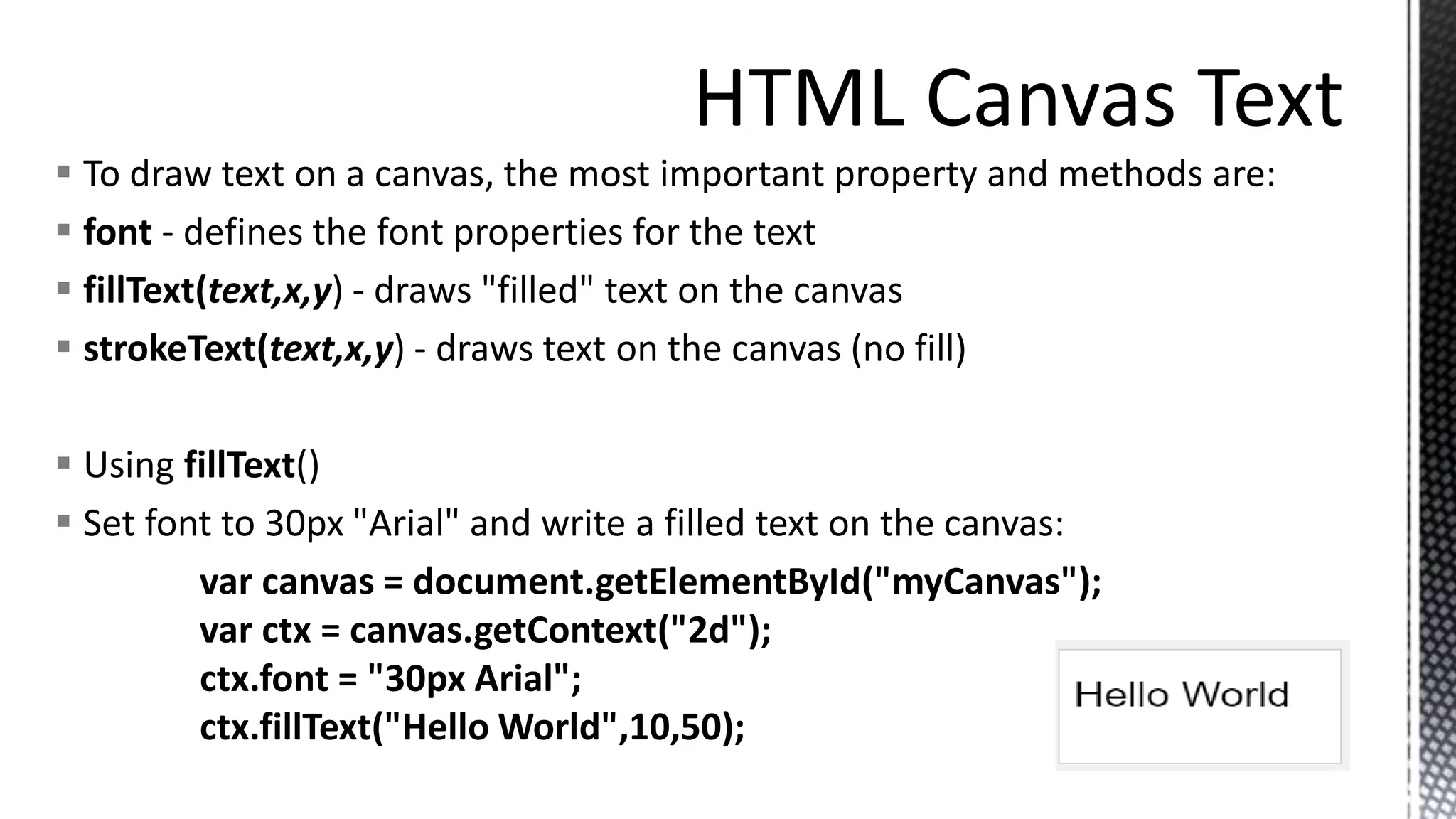

 To draw text on a canvas, the most important property and methods are:
 font - defines the font properties for the text
 fillText(text,x,y) - draws "filled" text on the canvas
 strokeText(text,x,y) - draws text on the canvas (no fill)
 Using fillText()
 Set font to 30px "Arial" and write a filled text on the canvas:
ctx.font = "30px Arial";
ctx.fillText("Hello World",10,50);

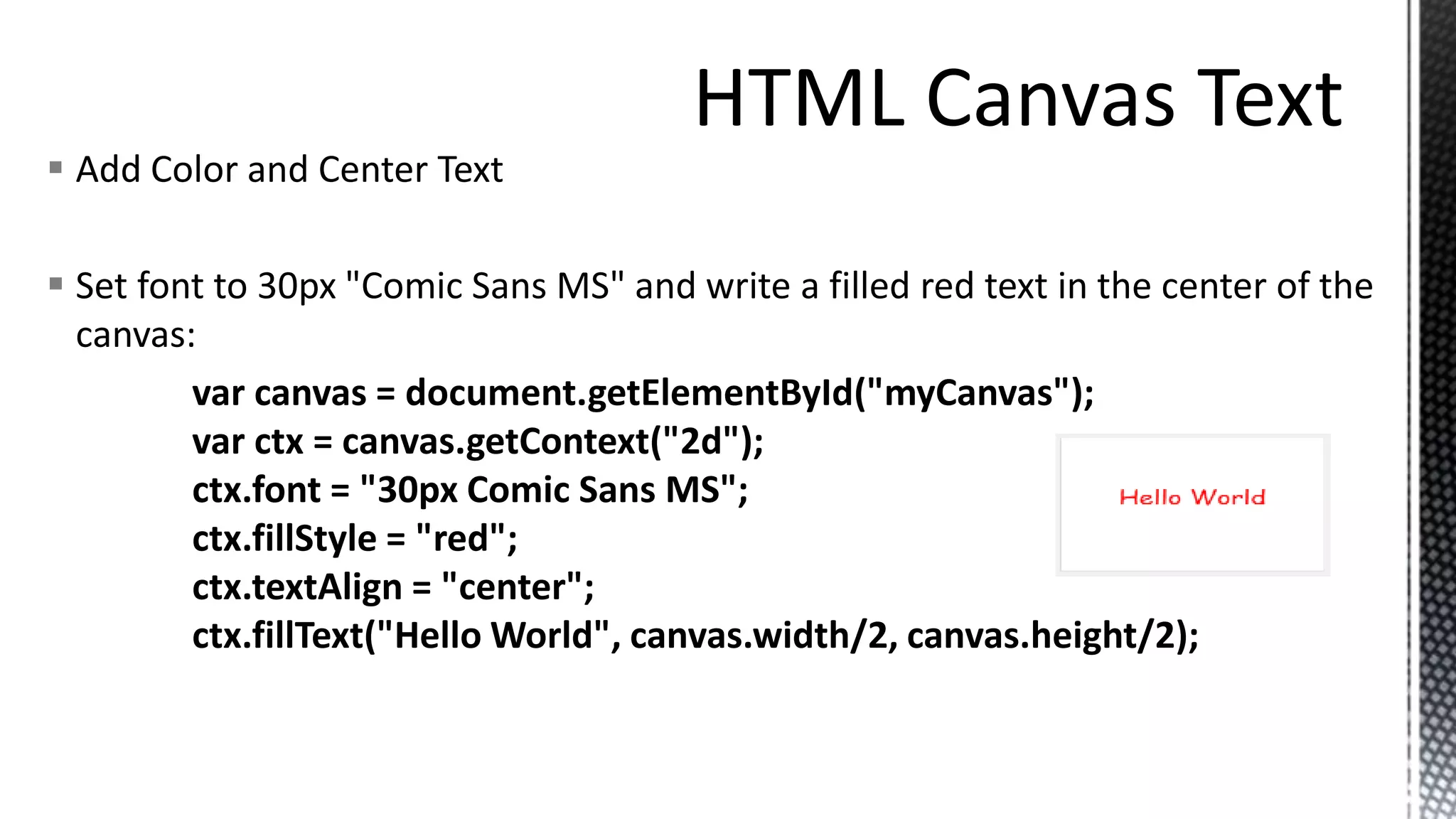

 Add Color and Center Text
 Set font to 30px "Comic Sans MS" and write a filled red text in the center of the
canvas:
ctx.font = "30px Comic Sans MS";
ctx.fillStyle = "red";
ctx.textAlign = "center";
ctx.fillText("Hello World", canvas.width/2, canvas.height/2);
