Improving Game Performance in the Browser

Increasing the
performance of Web
based games
Michael “Mickey” MacDonald
Indie Game Developer & @ScruffyFurn
Extreme Video Game Geek

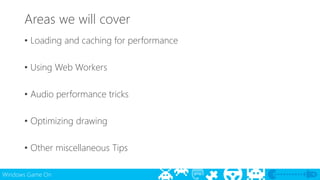

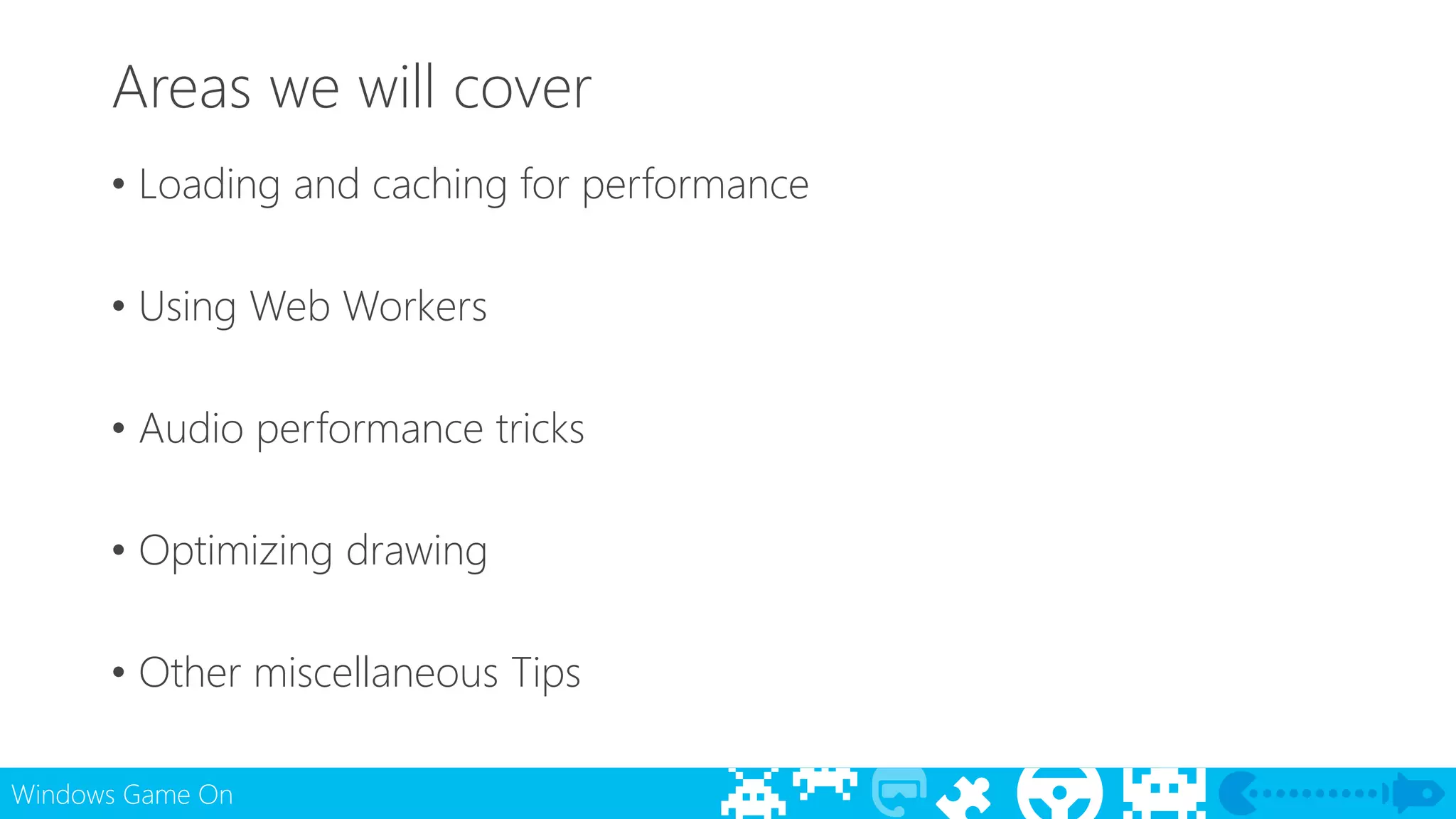

Areas we will cover
• Loading and caching for performance
• Using Web Workers
• Audio performance tricks
• Optimizing drawing
• Other miscellaneous Tips
Windows Game On

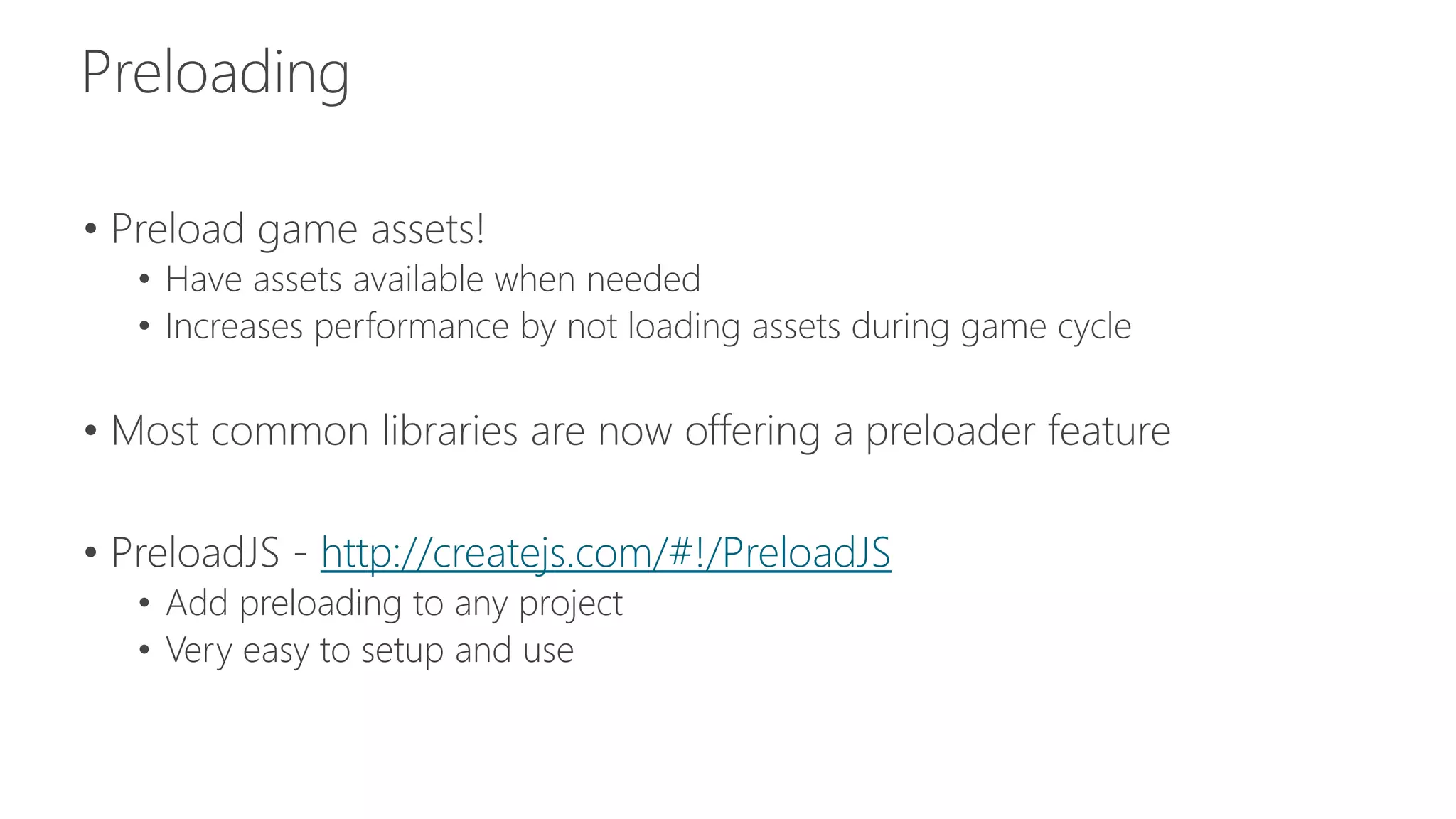

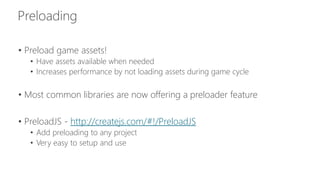

• Preload game assets!
• Have assets available when needed
• Increases performance by not loading assets during game cycle
• Most common libraries are now offering a preloader feature
• PreloadJS - http://createjs.com/#!/PreloadJS
• Add preloading to any project
• Very easy to setup and use

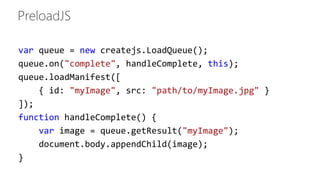

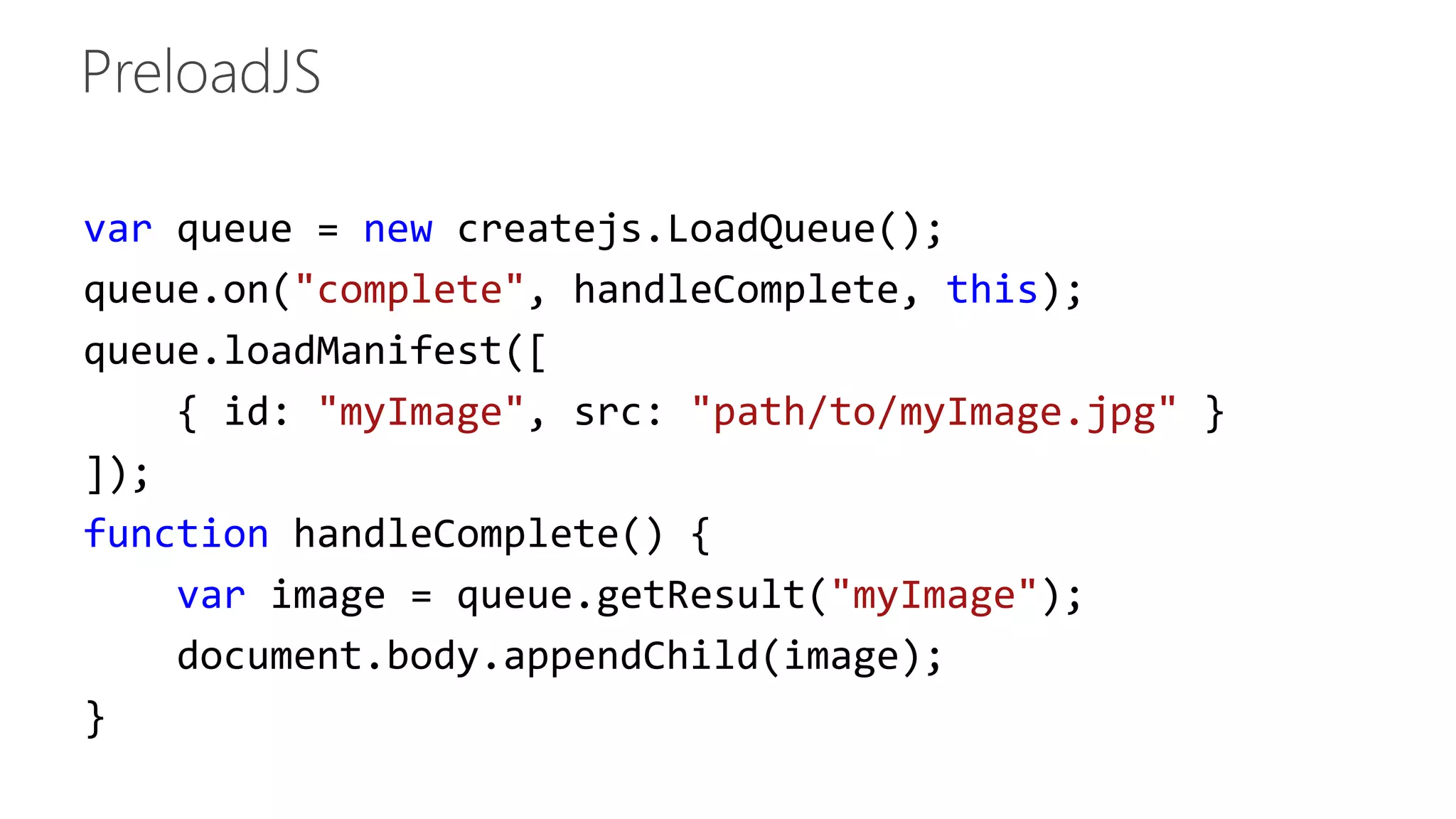

var queue = new createjs.LoadQueue();
queue.on("complete", handleComplete, this);
queue.loadManifest([
{ id: "myImage", src: "path/to/myImage.jpg" }
]);
function handleComplete() {
var image = queue.getResult("myImage");
document.body.appendChild(image);
}

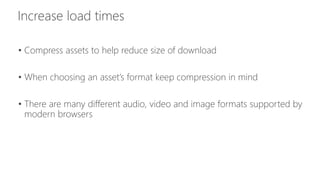

• Compress assets to help reduce size of download
• When choosing an asset’s format keep compression in mind
• There are many different audio, video and image formats supported by
modern browsers

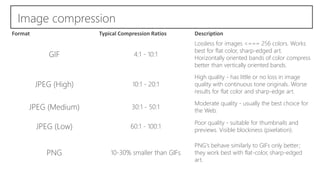

Format Typical Compression Ratios Description
GIF 4:1 - 10:1
Lossless for images <=== 256 colors. Works
best for flat color, sharp-edged art.
Horizontally oriented bands of color compress
better than vertically oriented bands.
JPEG (High) 10:1 - 20:1
High quality - has little or no loss in image
quality with continuous tone originals. Worse
results for flat color and sharp-edge art.
JPEG (Medium) 30:1 - 50:1
Moderate quality - usually the best choice for
the Web.
JPEG (Low) 60:1 - 100:1
Poor quality - suitable for thumbnails and
previews. Visible blockiness (pixelation).
PNG 10-30% smaller than GIFs
PNG's behave similarly to GIFs only better;
they work best with flat-color, sharp-edged
art.

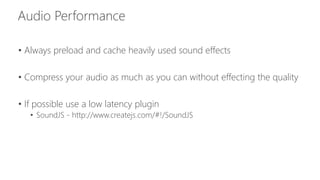

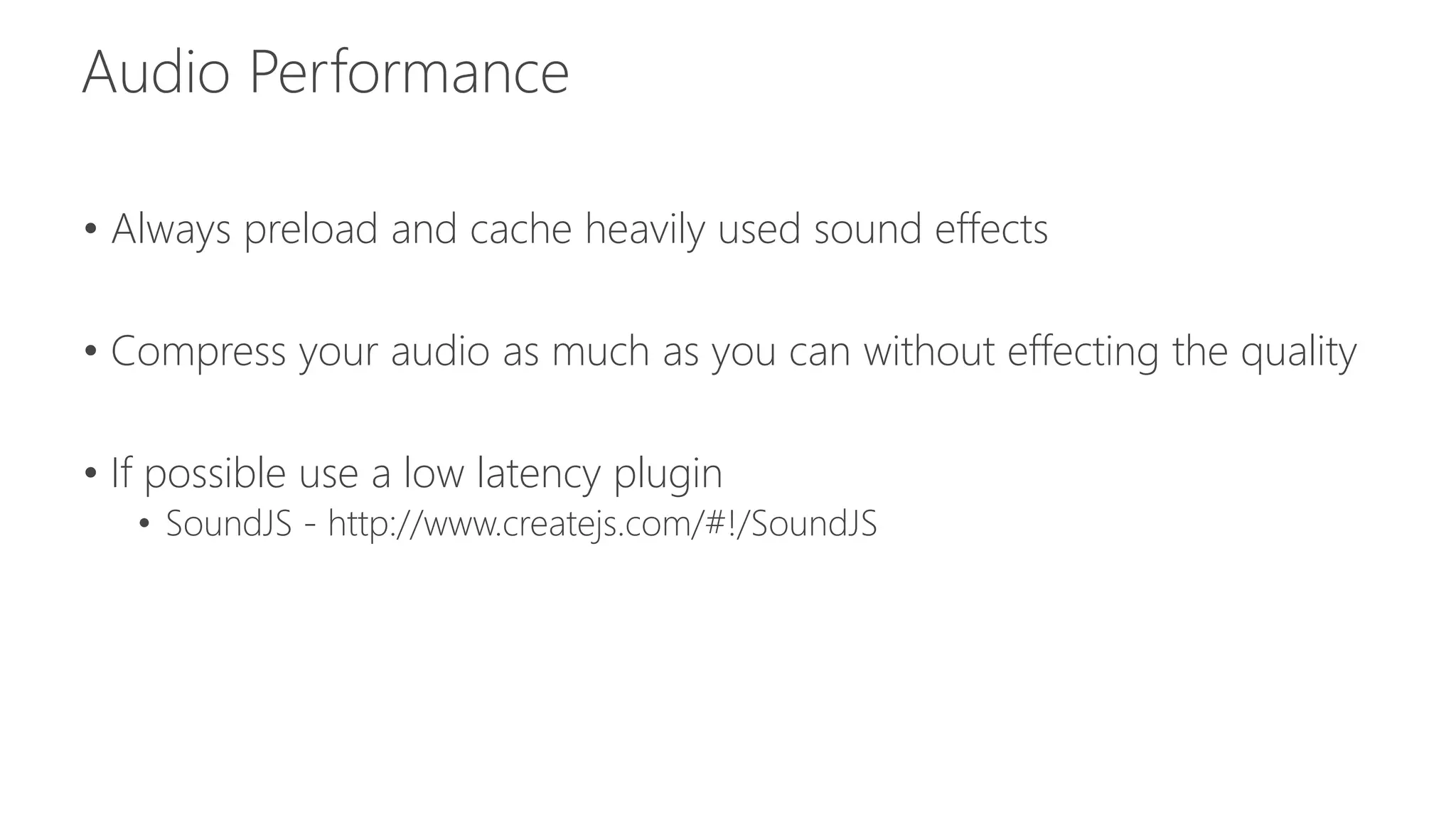

• Always preload and cache heavily used sound effects
• Compress your audio as much as you can without effecting the quality
• If possible use a low latency plugin
• SoundJS - http://www.createjs.com/#!/SoundJS

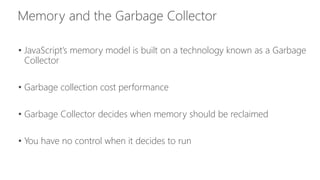

• JavaScript’s memory model is built on a technology known as a Garbage
Collector
• Garbage collection cost performance
• Garbage Collector decides when memory should be reclaimed
• You have no control when it decides to run

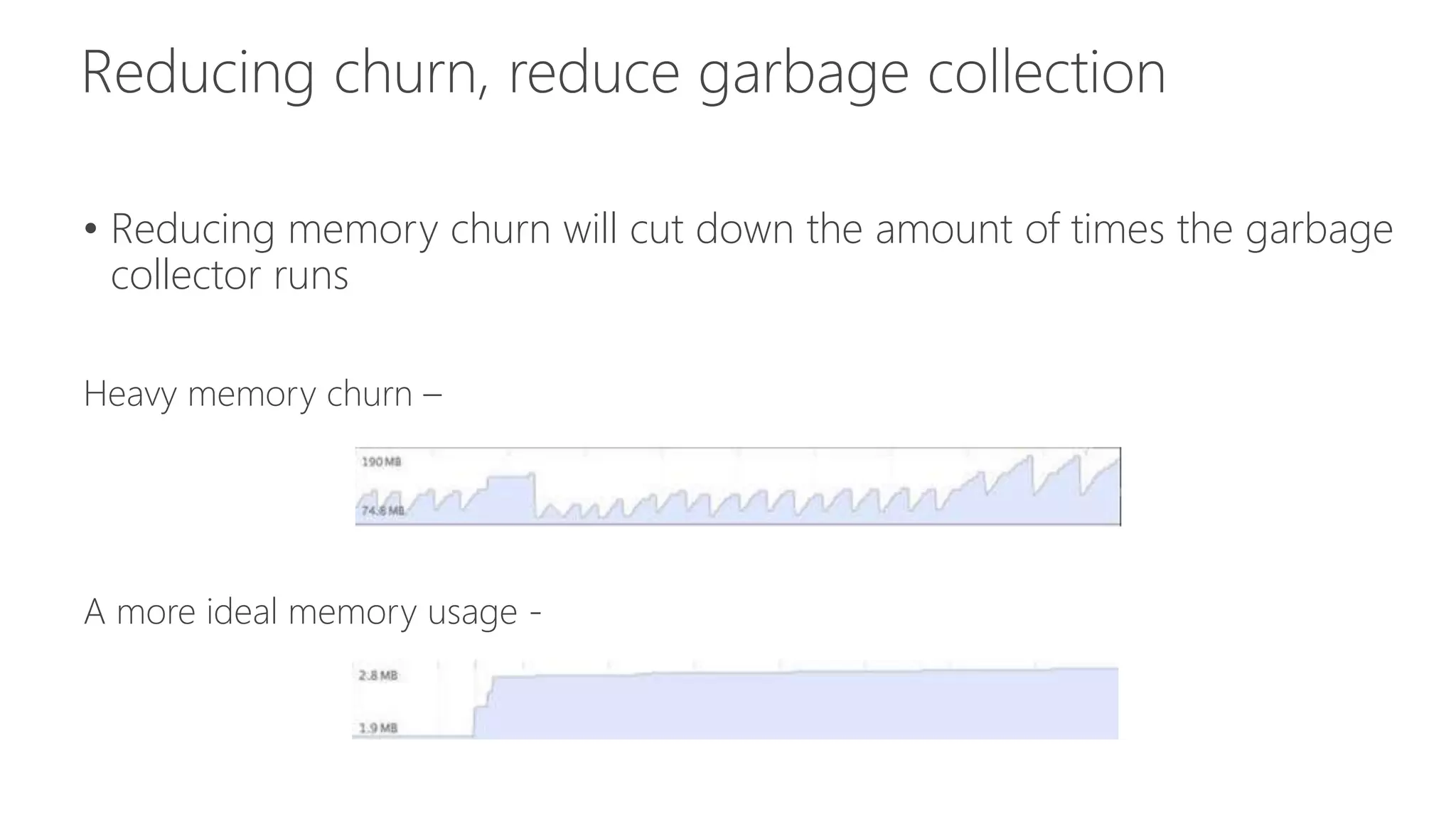

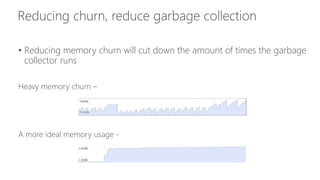

• Reducing memory churn will cut down the amount of times the garbage
collector runs
Heavy memory churn –
A more ideal memory usage -

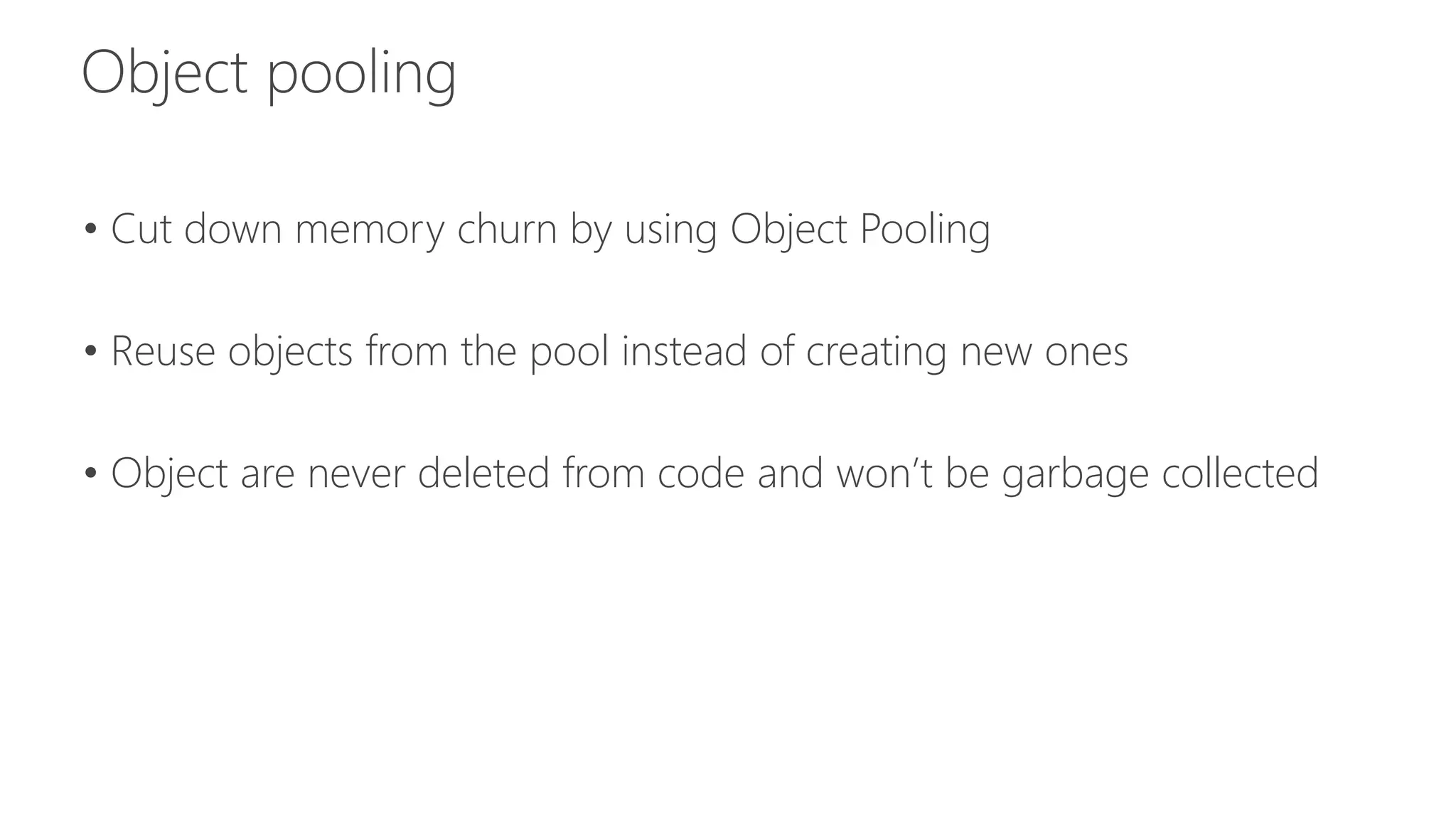

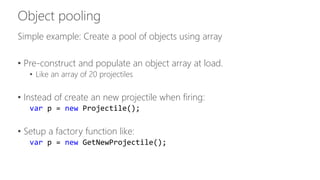

• Cut down memory churn by using Object Pooling
• Reuse objects from the pool instead of creating new ones
• Object are never deleted from code and won’t be garbage collected

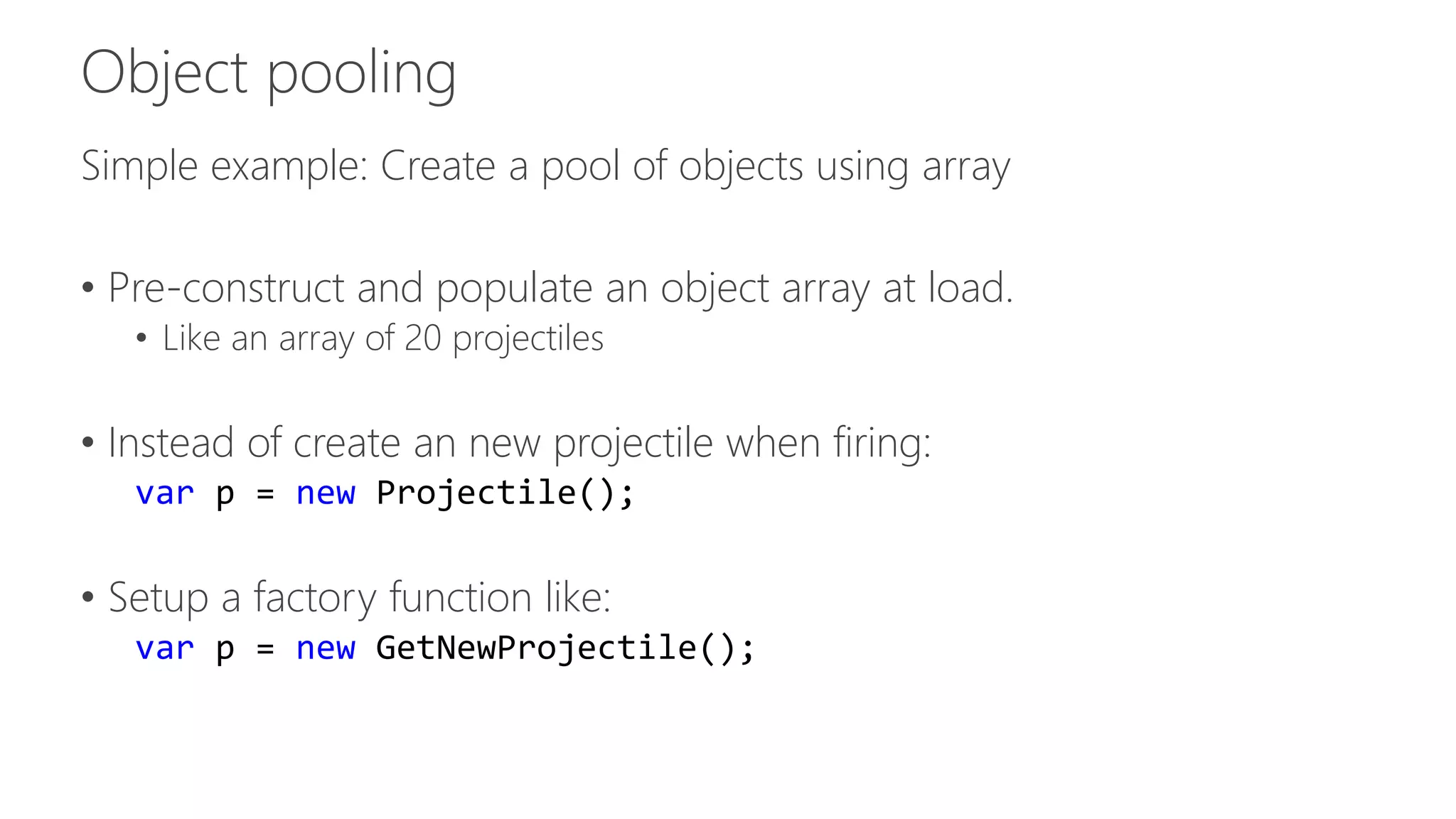

Simple example: Create a pool of objects using array
• Pre-construct and populate an object array at load.
• Like an array of 20 projectiles
• Instead of create an new projectile when firing:
var p = new Projectile();
• Setup a factory function like:
var p = new GetNewProjectile();

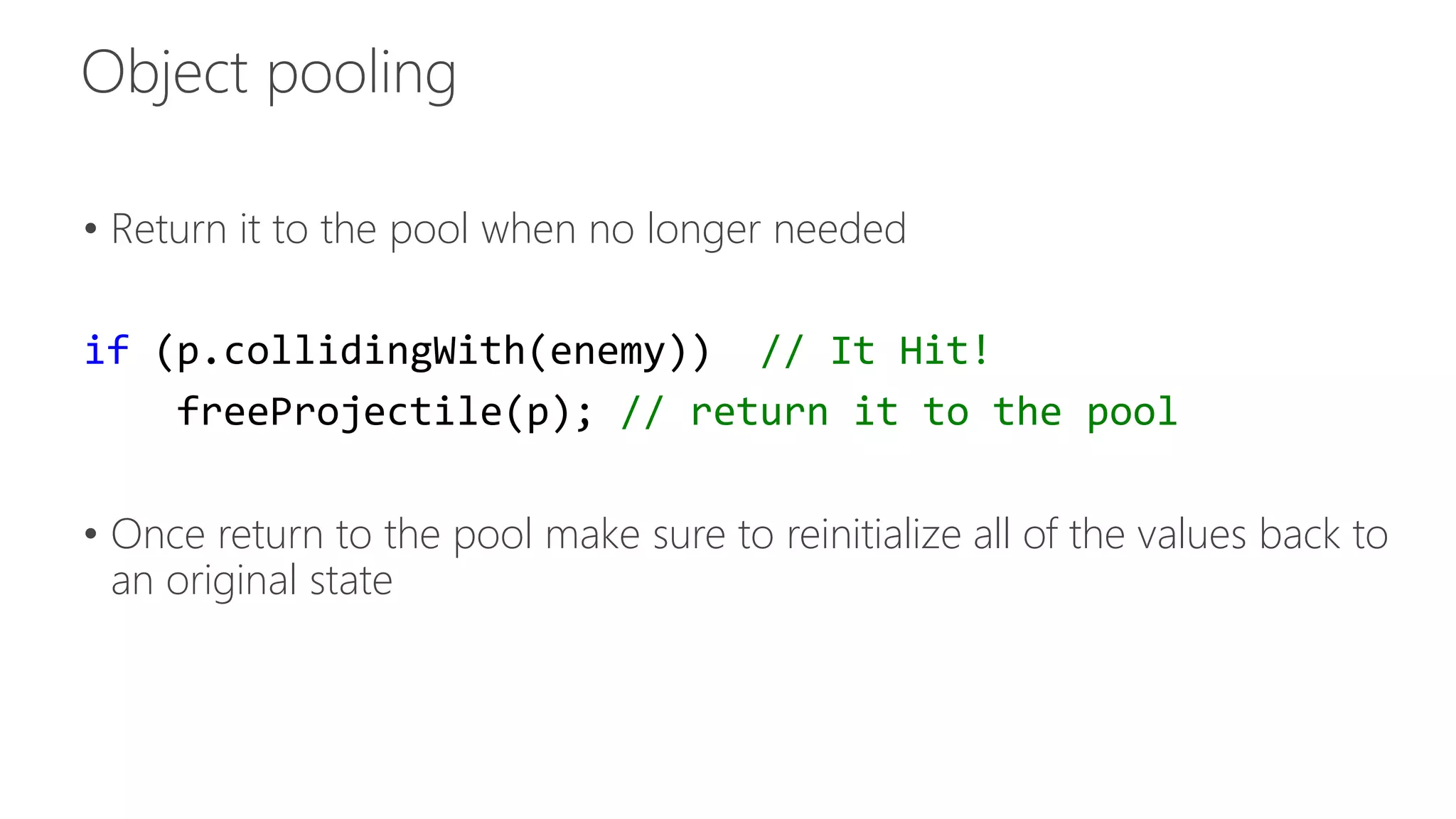

• Return it to the pool when no longer needed
if (p.collidingWith(enemy)) // It Hit!
freeProjectile(p); // return it to the pool
• Once return to the pool make sure to reinitialize all of the values back to
an original state

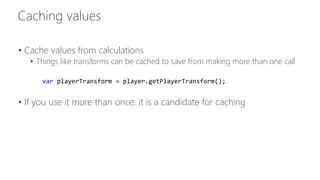

• Cache values from calculations
• Things like transforms can be cached to save from making more than one call
var playerTransform = player.getPlayerTransform();
• If you use it more than once, it is a candidate for caching

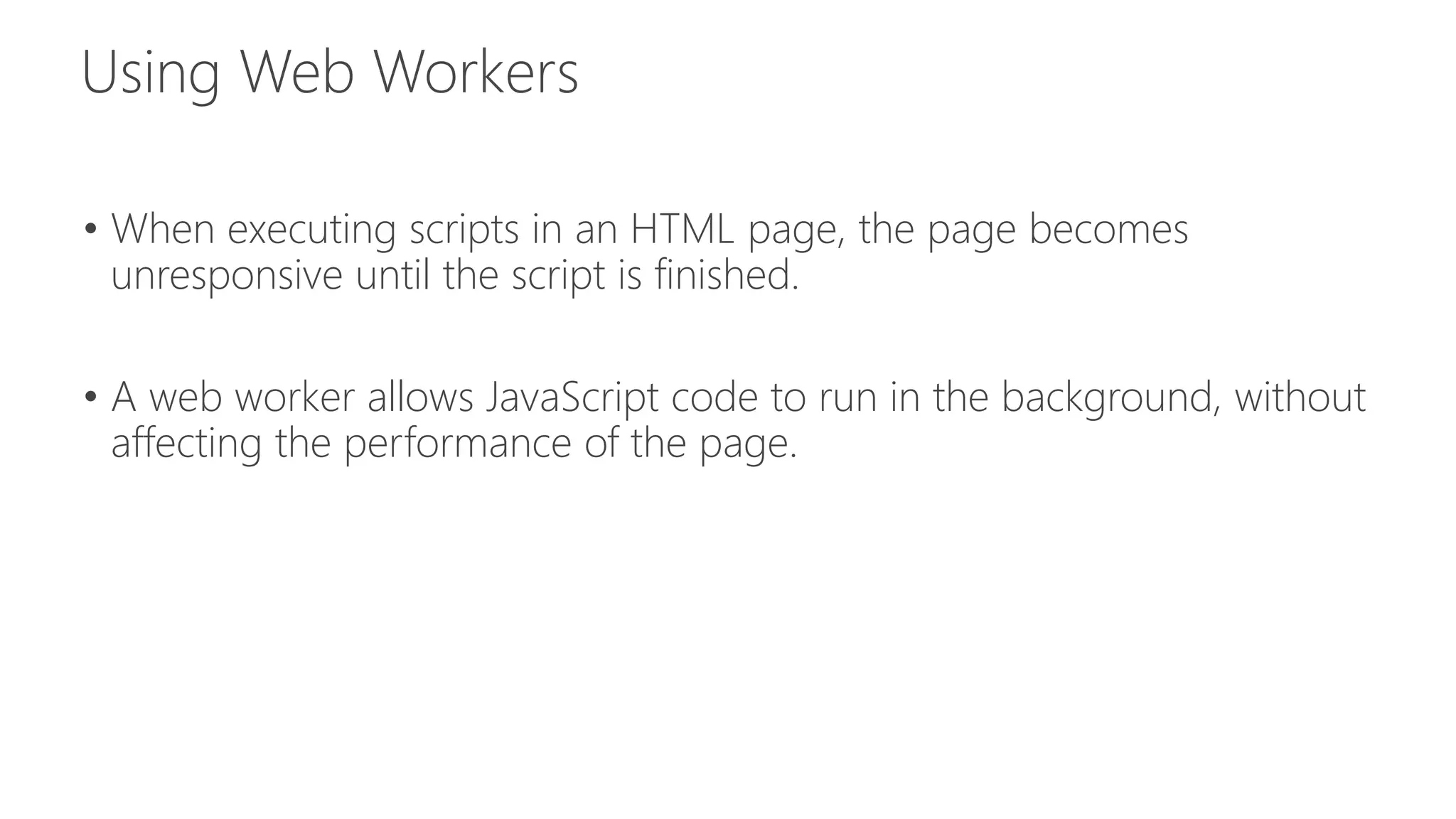

• When executing scripts in an HTML page, the page becomes
unresponsive until the script is finished.
• A web worker allows JavaScript code to run in the background, without
affecting the performance of the page.

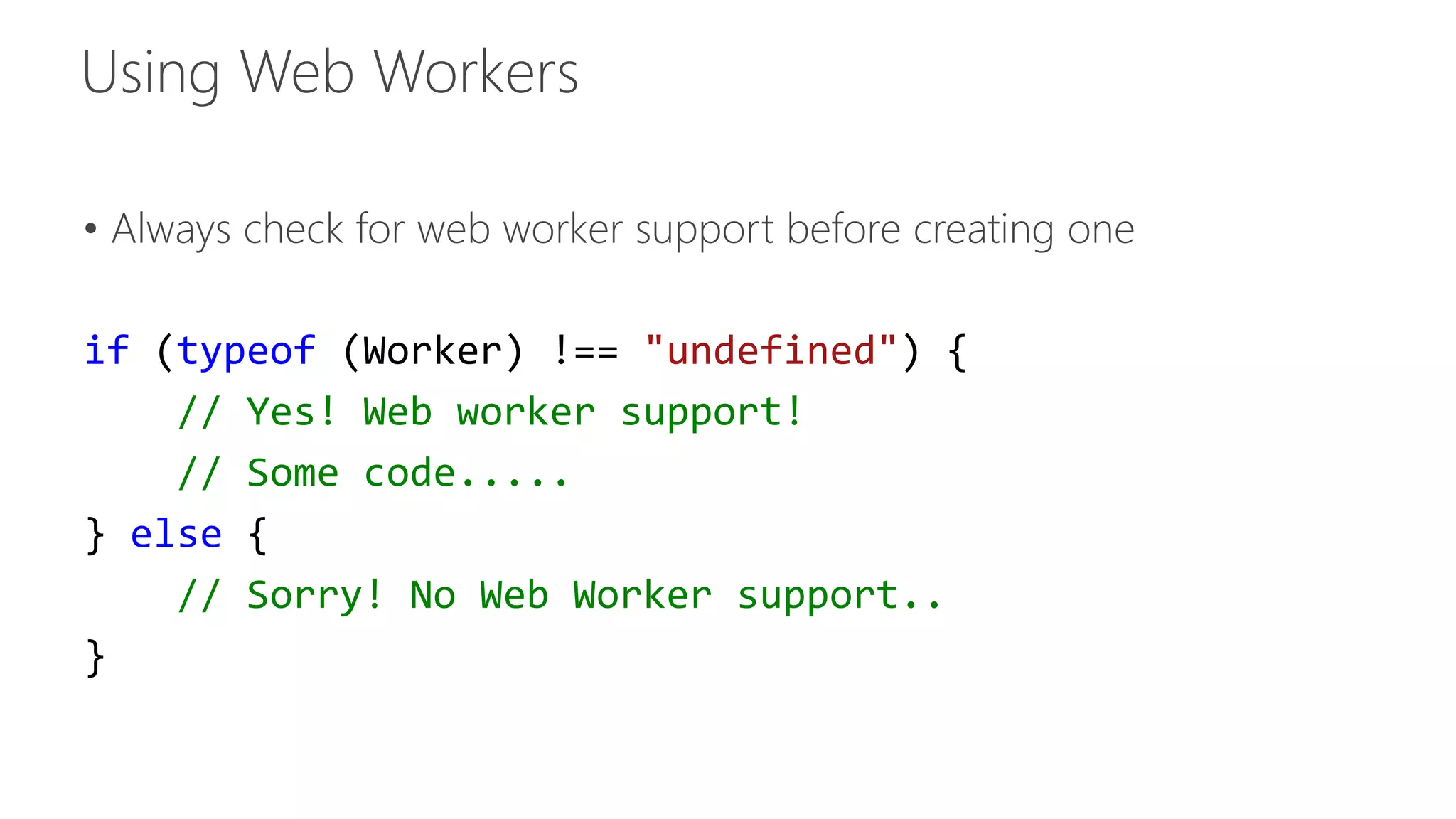

• Always check for web worker support before creating one
if (typeof (Worker) !== "undefined") {
// Yes! Web worker support!
// Some code.....
} else {
// Sorry! No Web Worker support..
}

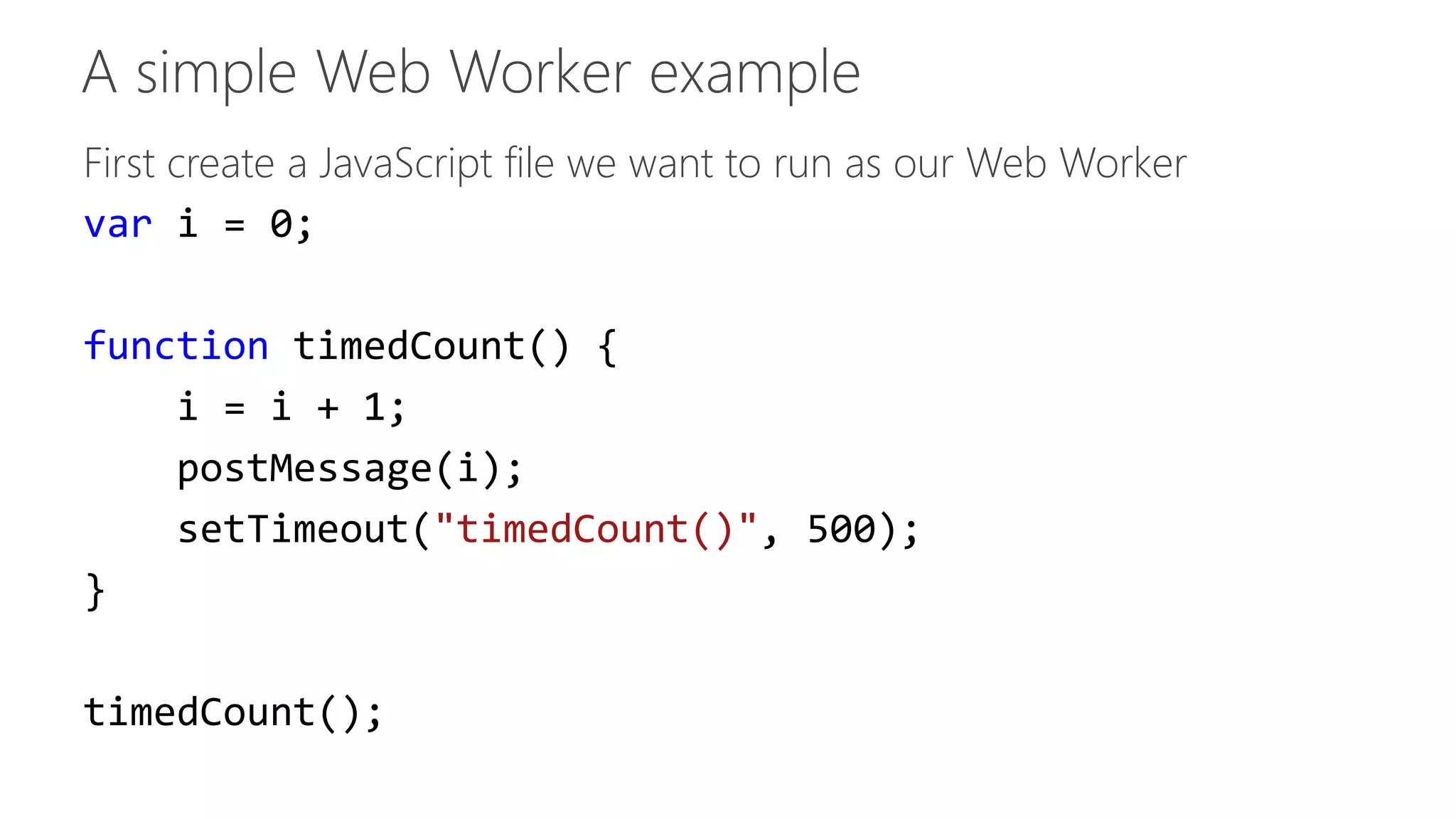

First create a JavaScript file we want to run as our Web Worker
var i = 0;
function timedCount() {
i = i + 1;
postMessage(i);
setTimeout("timedCount()", 500);
}
timedCount();

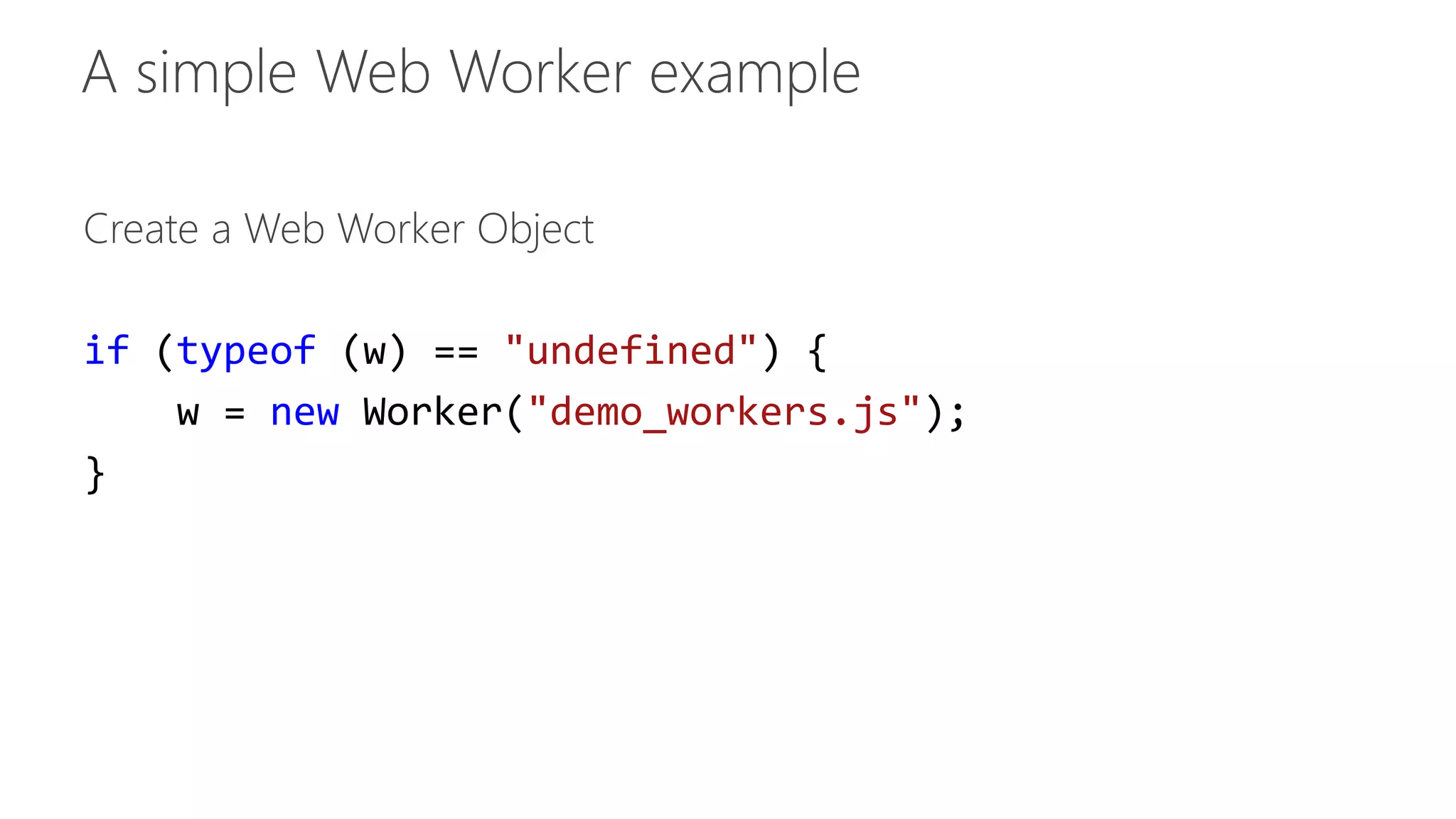

Create a Web Worker Object
if (typeof (w) == "undefined") {
w = new Worker("demo_workers.js");
}

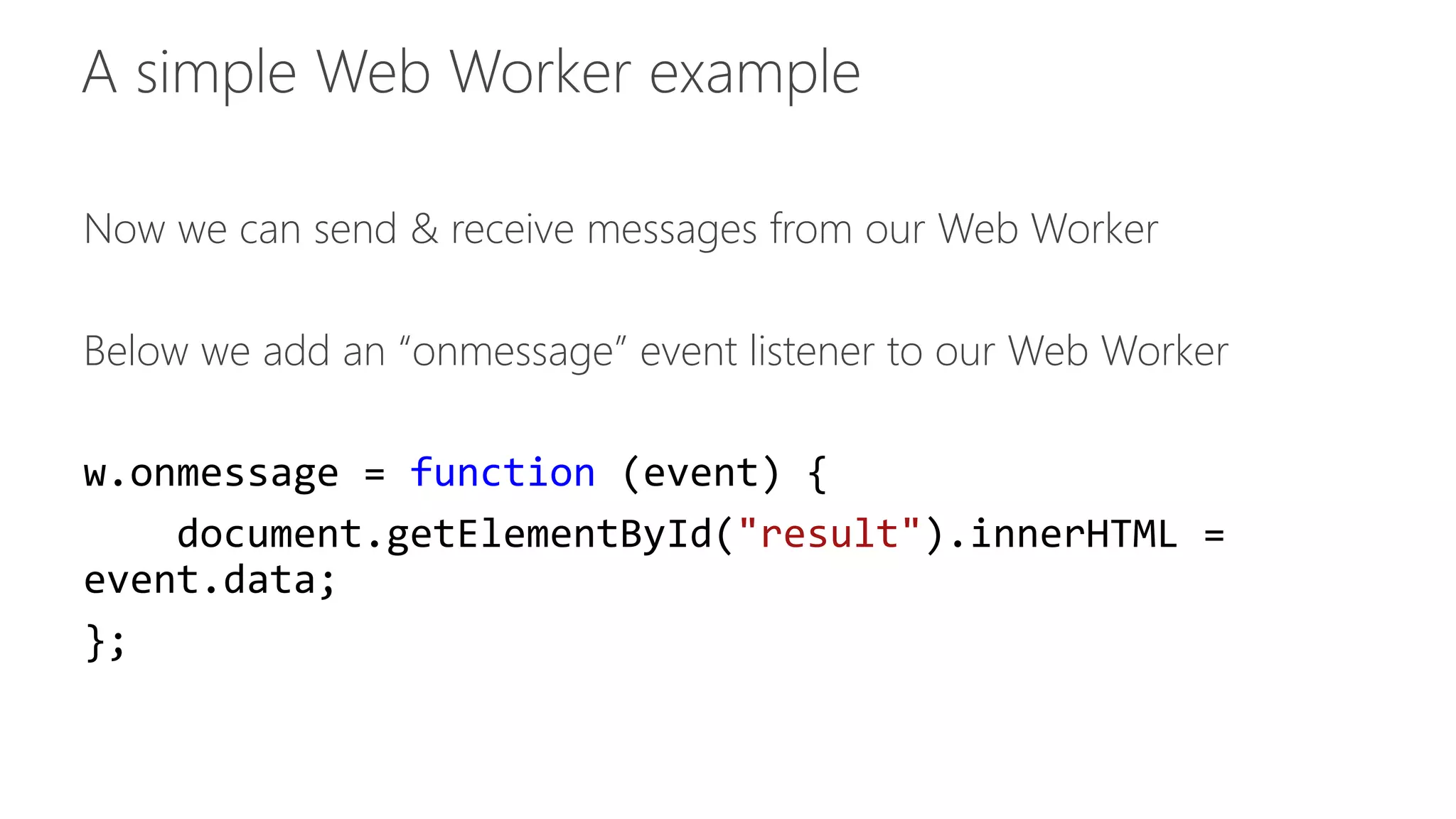

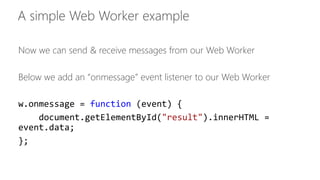

Now we can send & receive messages from our Web Worker
Below we add an “onmessage” event listener to our Web Worker
w.onmessage = function (event) {
document.getElementById("result").innerHTML =
event.data;
};

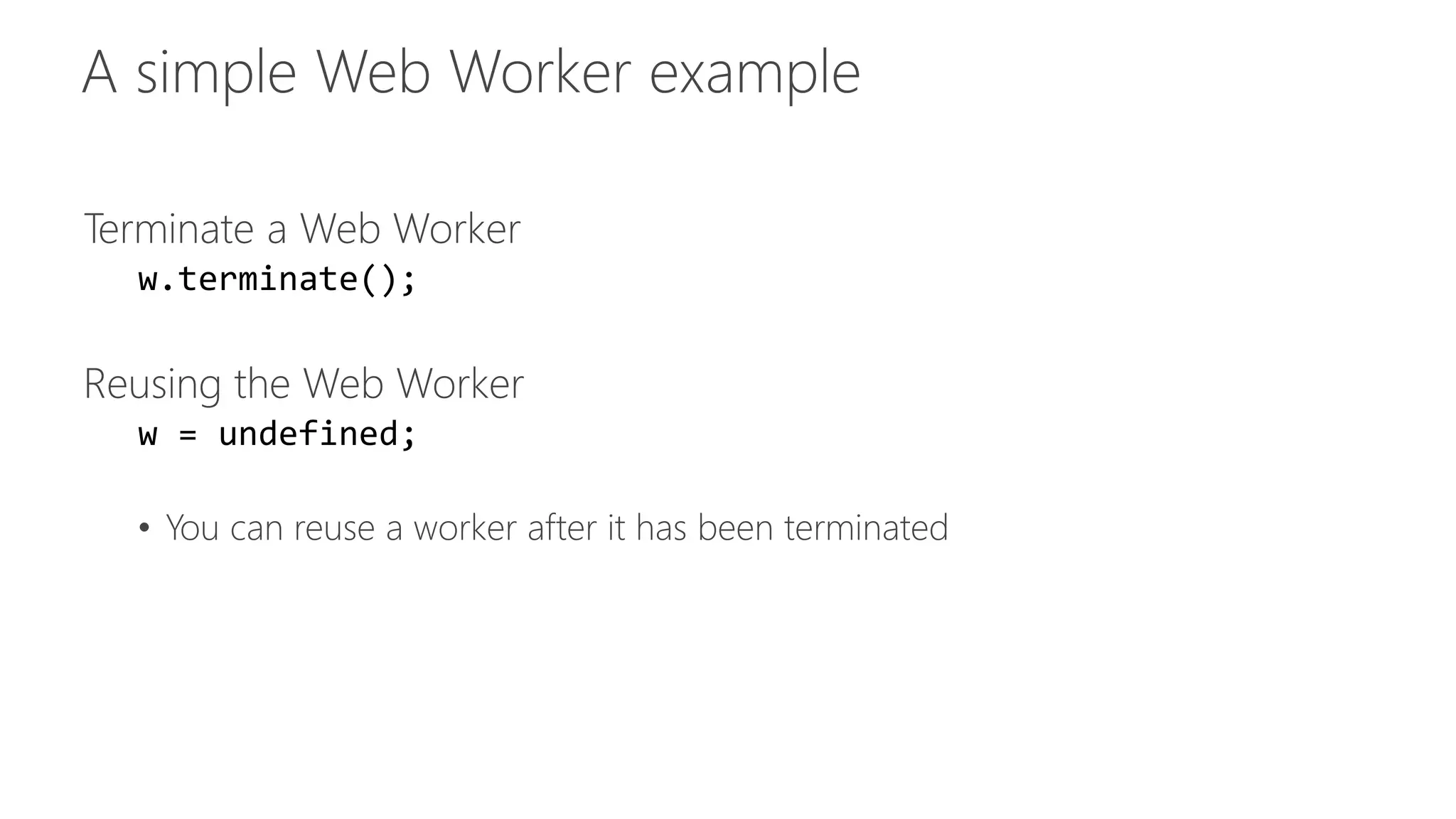

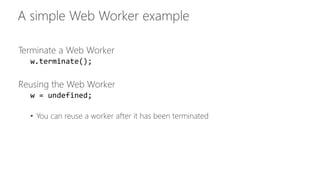

Terminate a Web Worker
w.terminate();
Reusing the Web Worker
w = undefined;
• You can reuse a worker after it has been terminated

Demo
Simple Web Worker Example

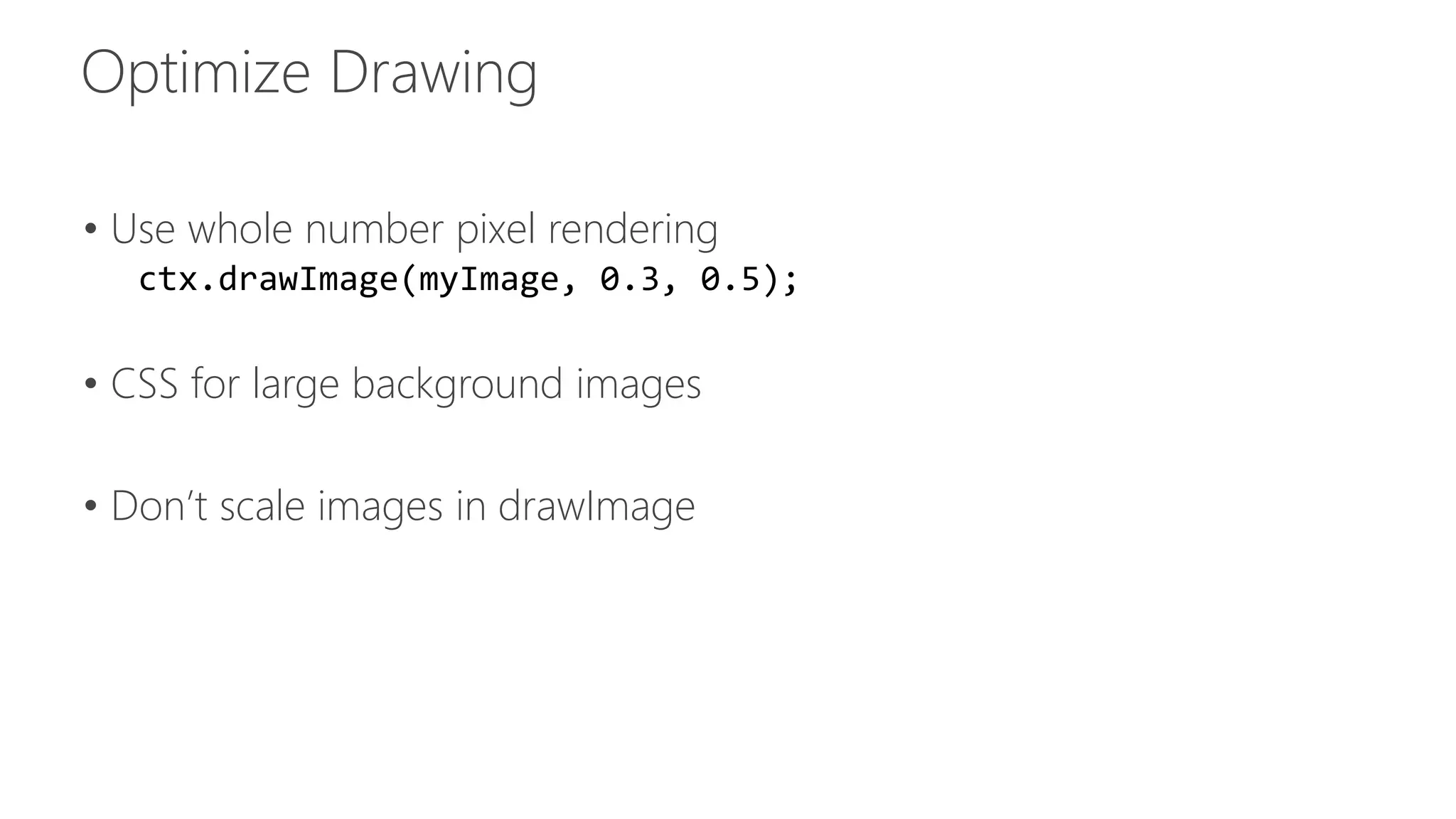

• Use whole number pixel rendering
ctx.drawImage(myImage, 0.3, 0.5);
• CSS for large background images
• Don’t scale images in drawImage

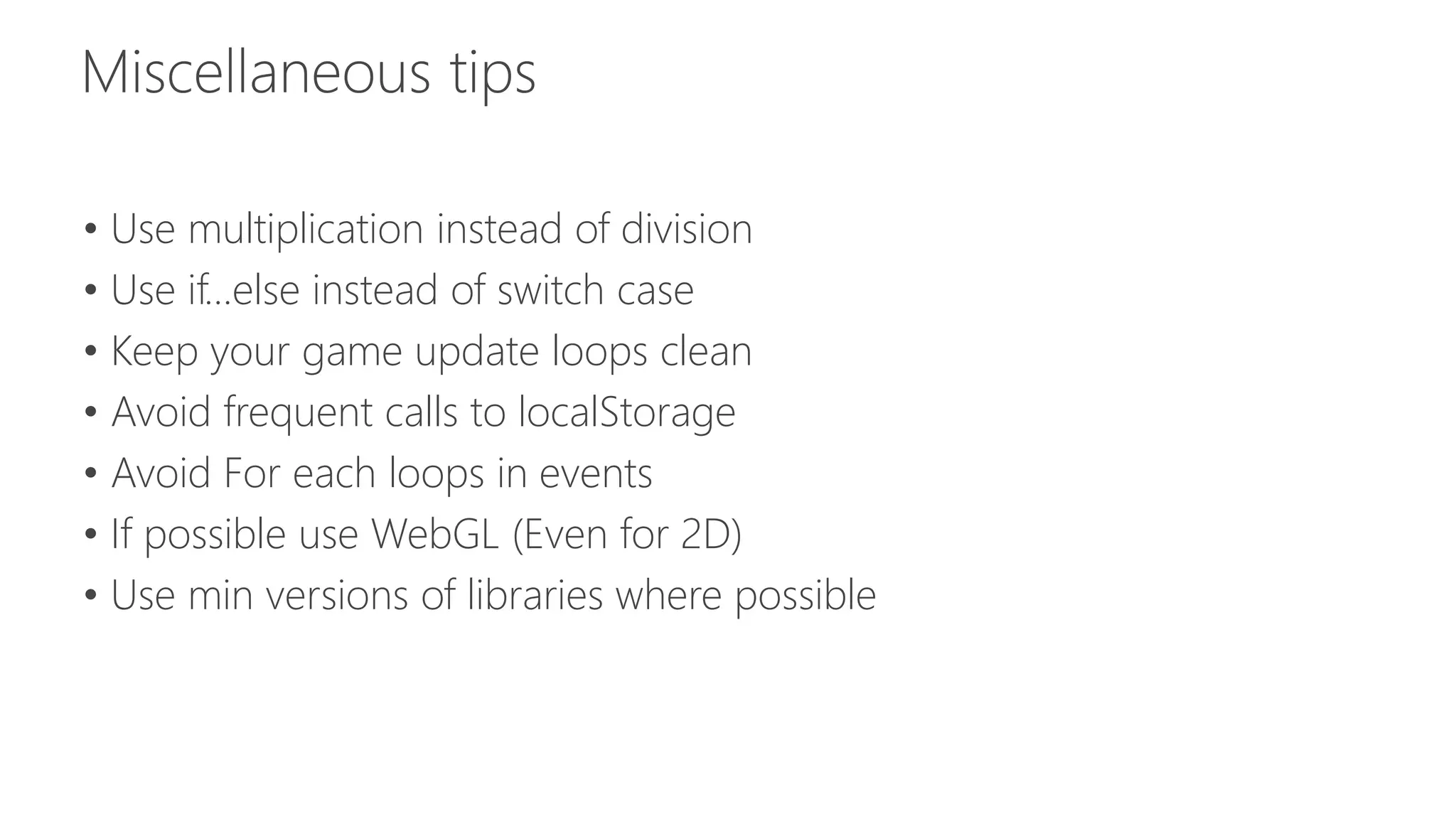

• Use multiplication instead of division
• Use if…else instead of switch case
• Keep your game update loops clean
• Avoid frequent calls to localStorage
• Avoid For each loops in events
• If possible use WebGL (Even for 2D)
• Use min versions of libraries where possible

Windows Game On
Thank you!
Happy Coding
