Reactive programming

Reactive programming
Introduction to ReactiveX API
Jianbin LIN
jianbin.lin@live.com

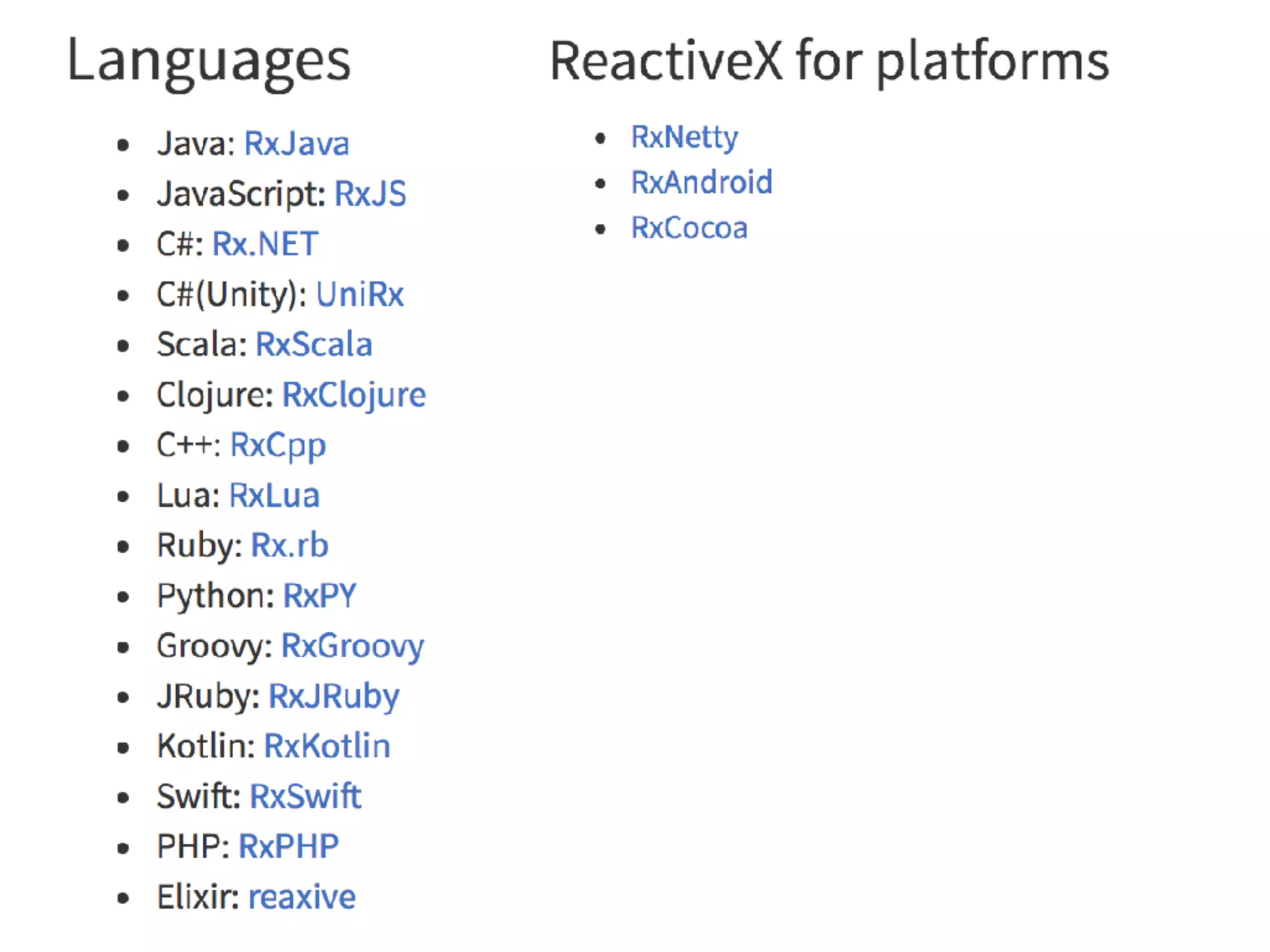

ReactiveX
• An API for asynchronous programming with
observable streams

Ready ?
Start with some quizzes !

Usage of constant
Let result be 3 times of a
let a = 36
result = ?

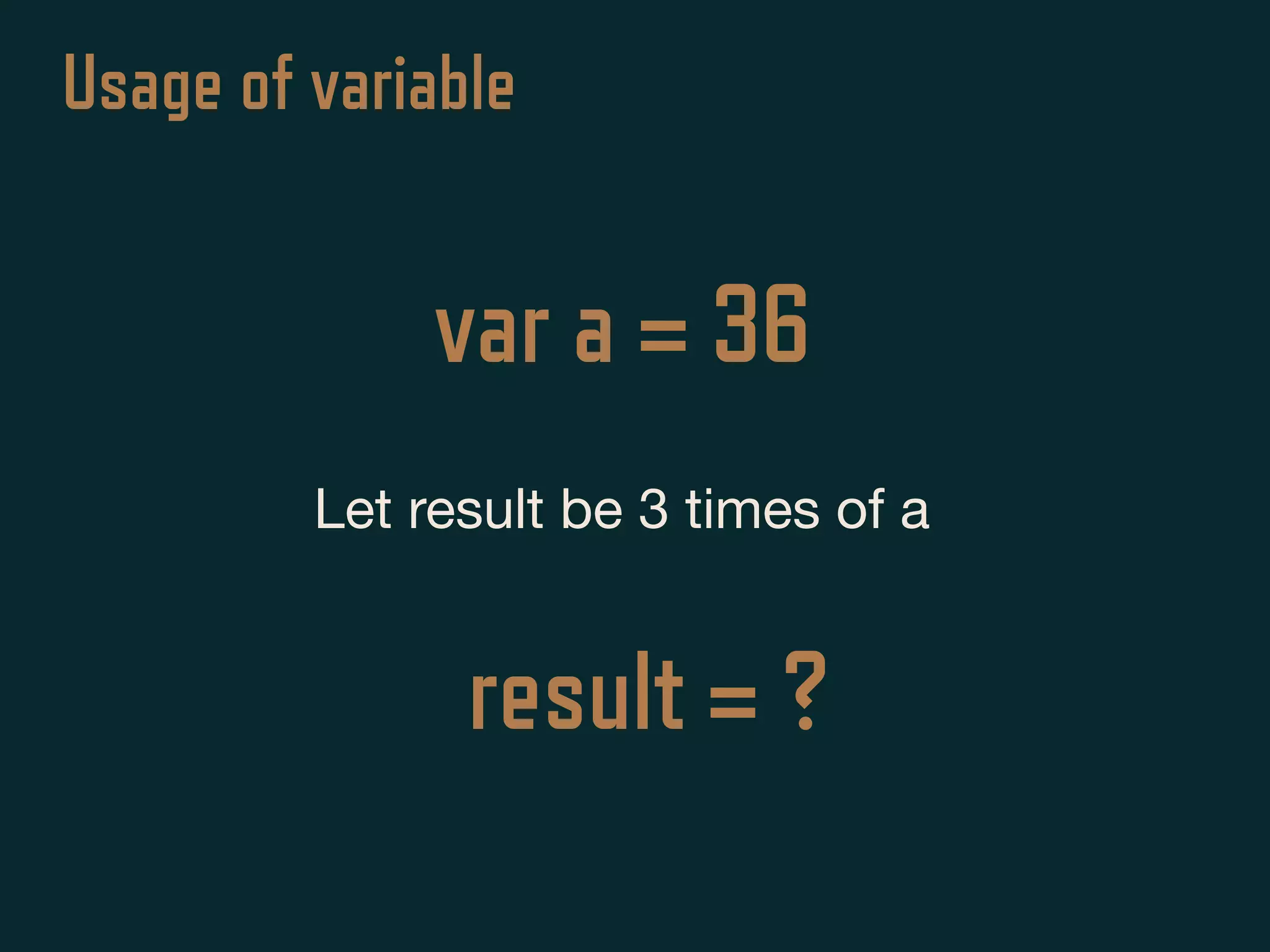

var a = 36
Let result be 3 times of a
Usage of variable
result = ?

108

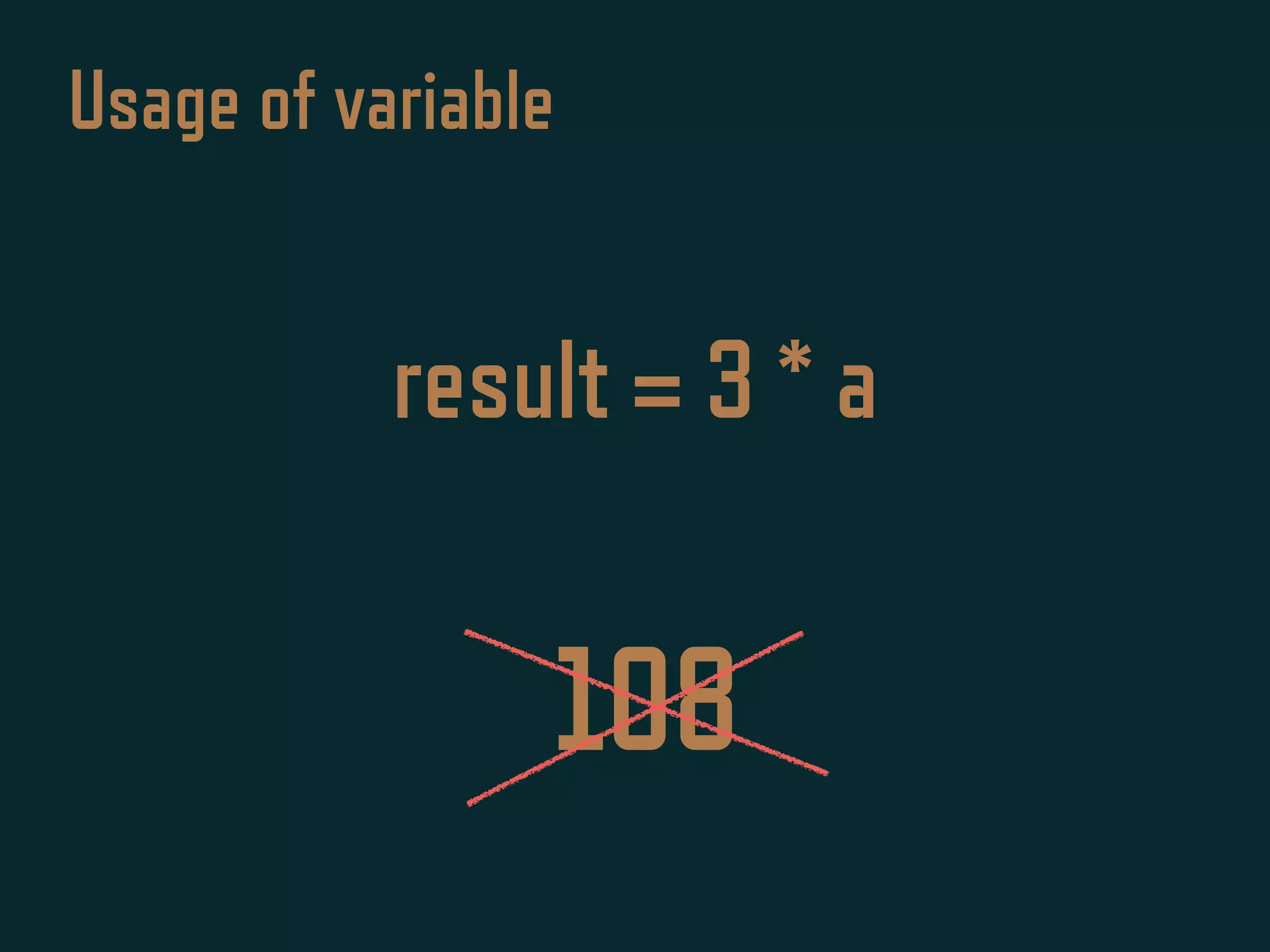

Usage of variable

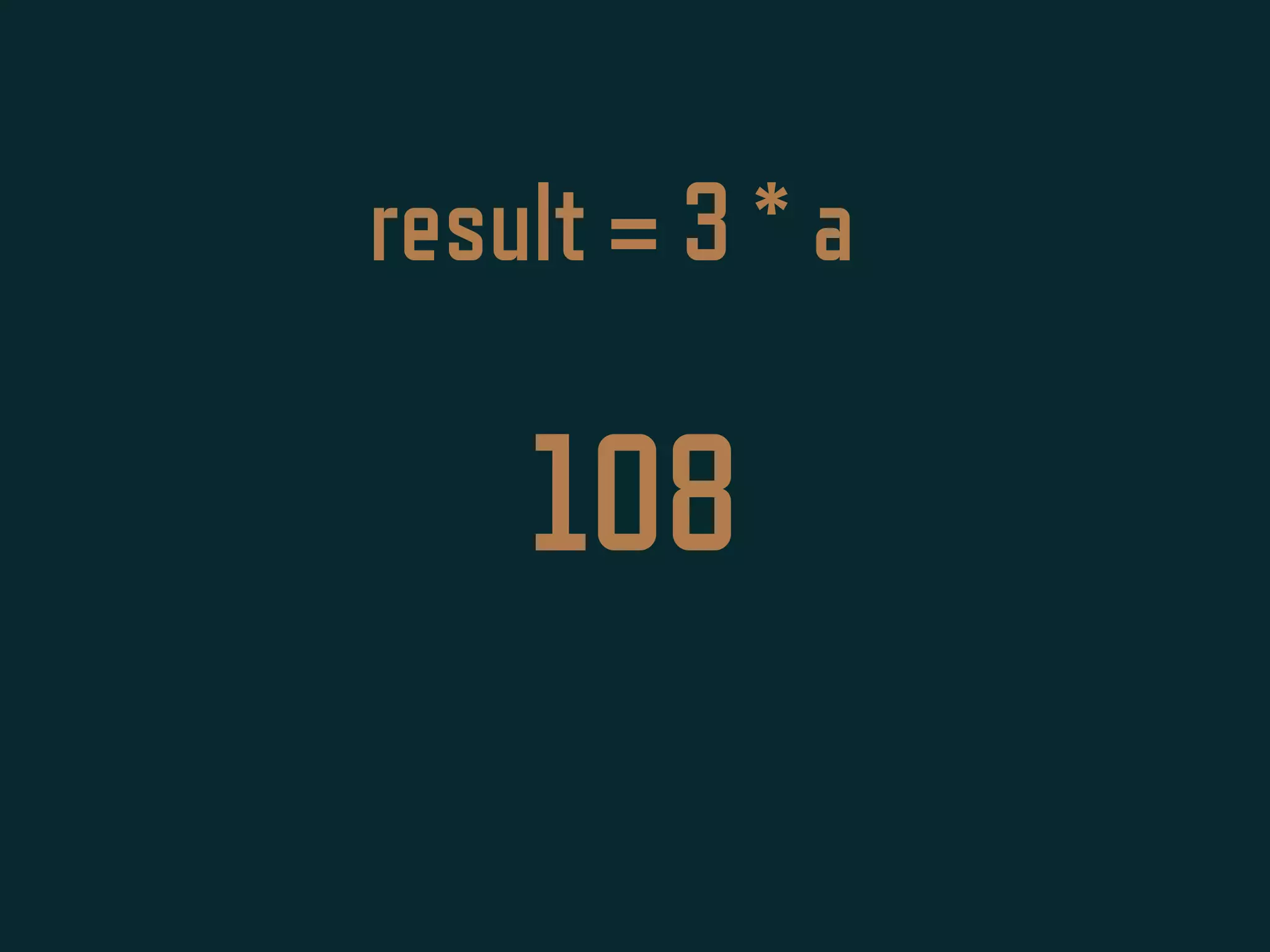

result = 3 * a

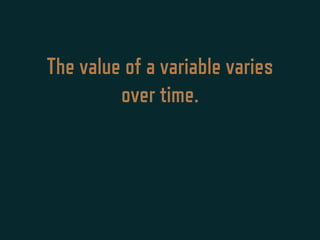

The value of a variable varies
over time.

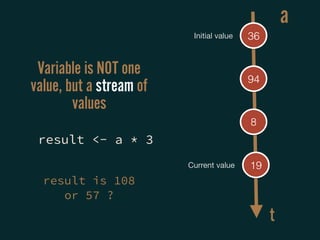

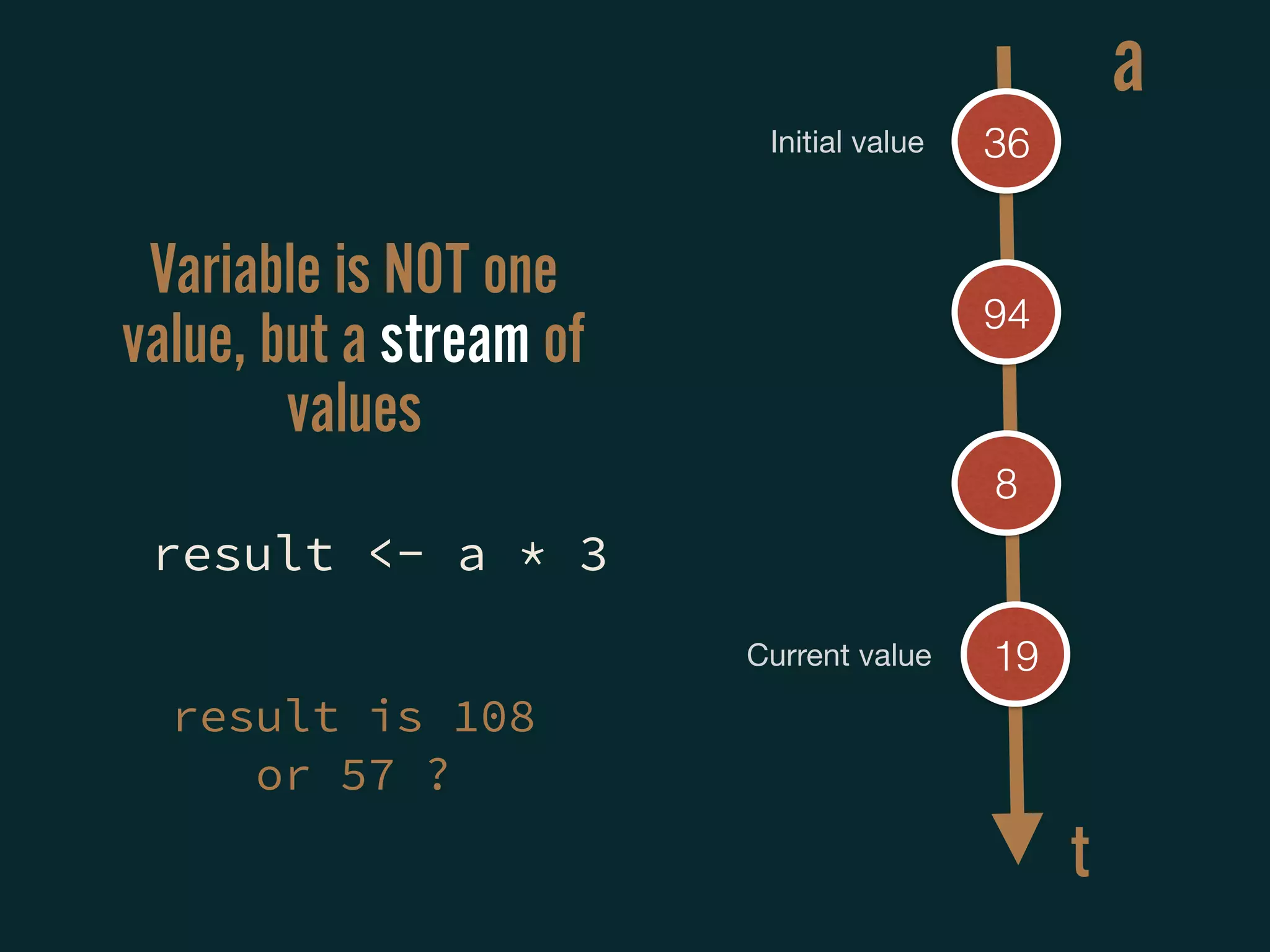

Variable is NOT one
value, but a stream of
values
36
94
8
19
a
t
Initial value
Current value

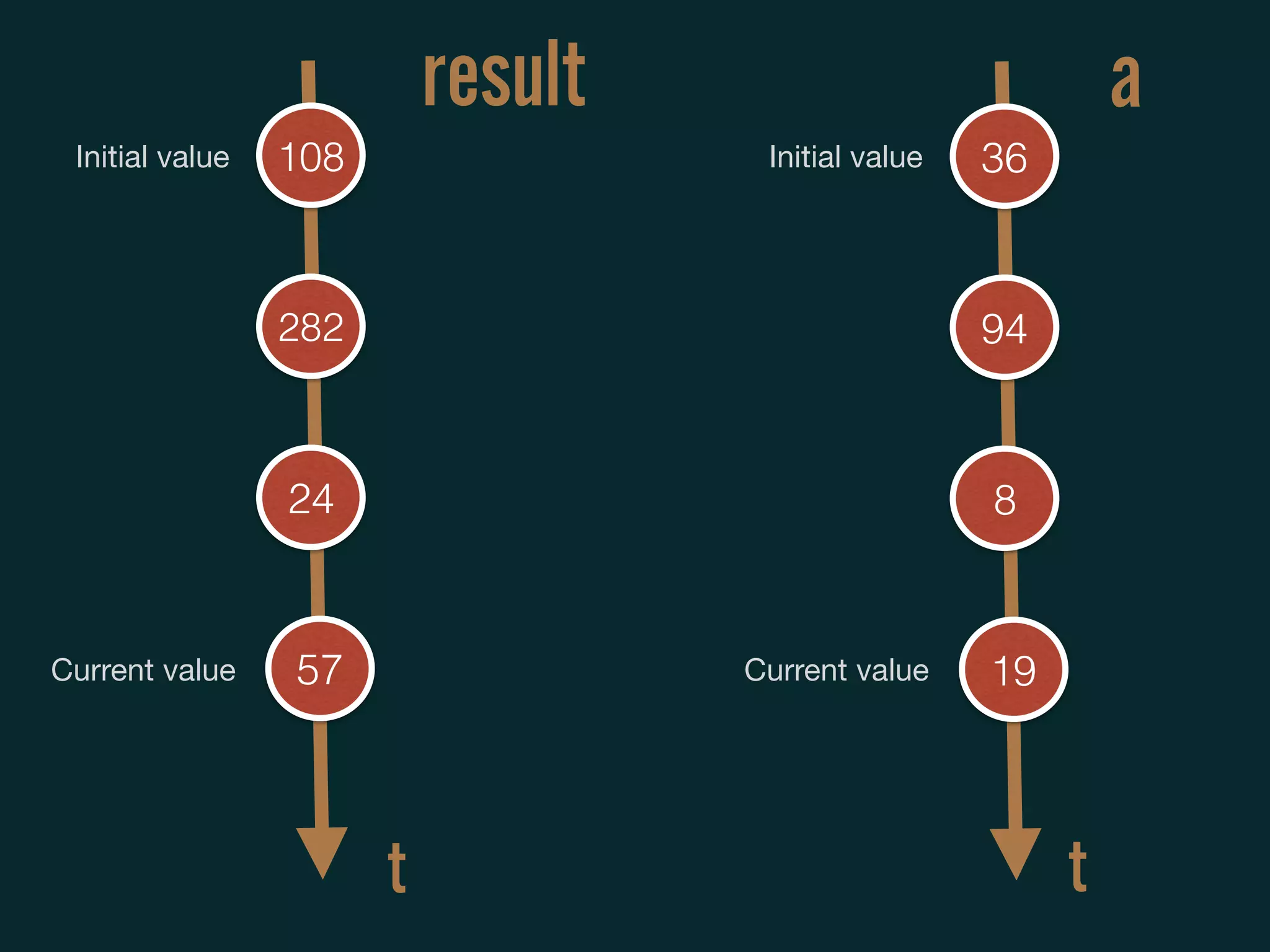

result <- a * 3
result is 108
or 57 ?

108
282
24
57
result
t
Initial value
Current value
36
94
8
19
a
t
Initial value
Current value

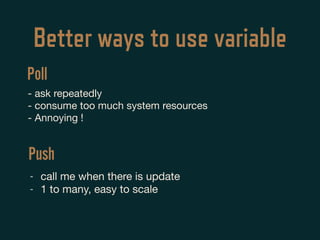

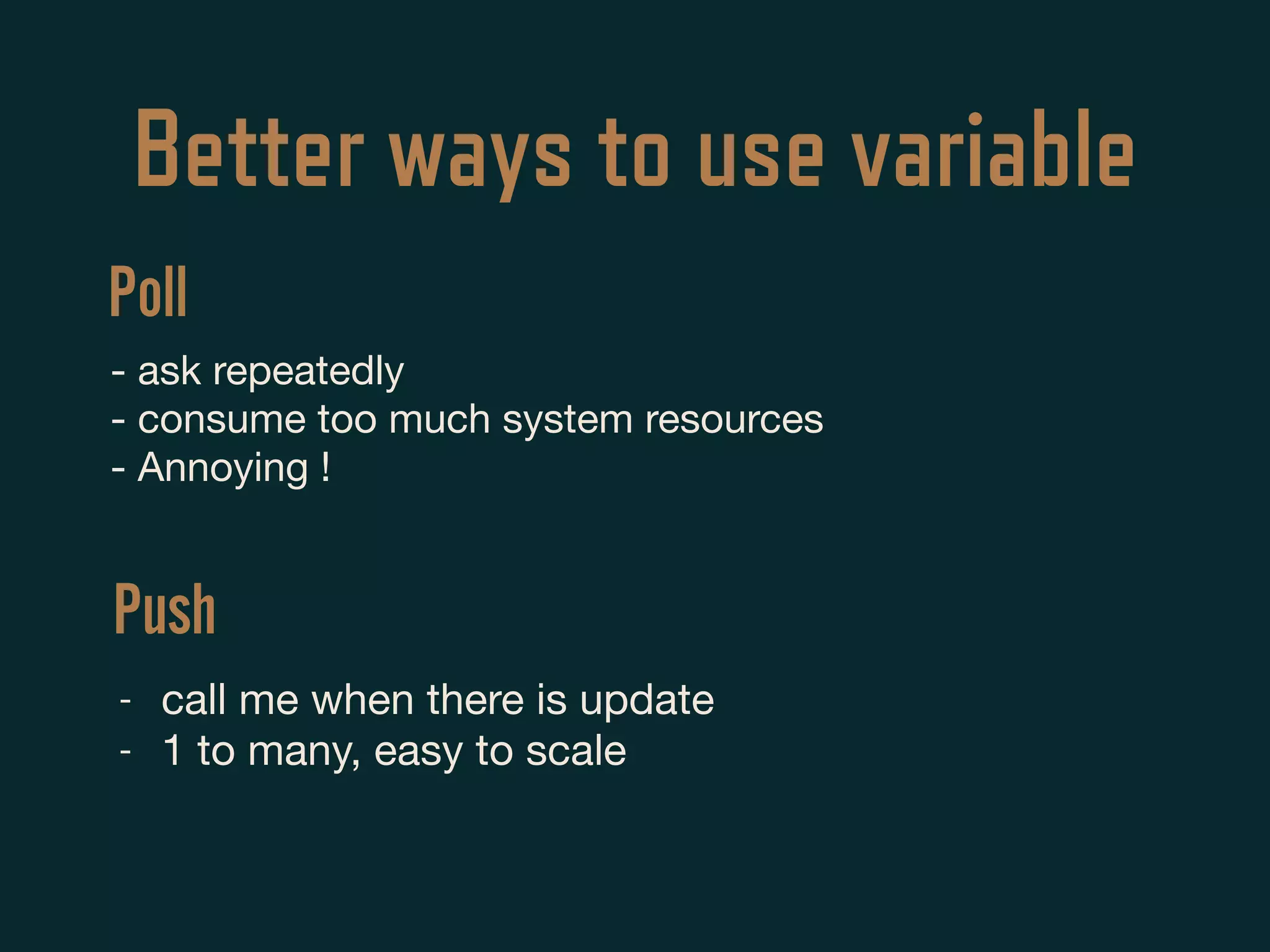

Better ways to use variable
- ask repeatedly

- consume too much system resources

- Annoying !
- call me when there is update

- 1 to many, easy to scale
Poll
Push

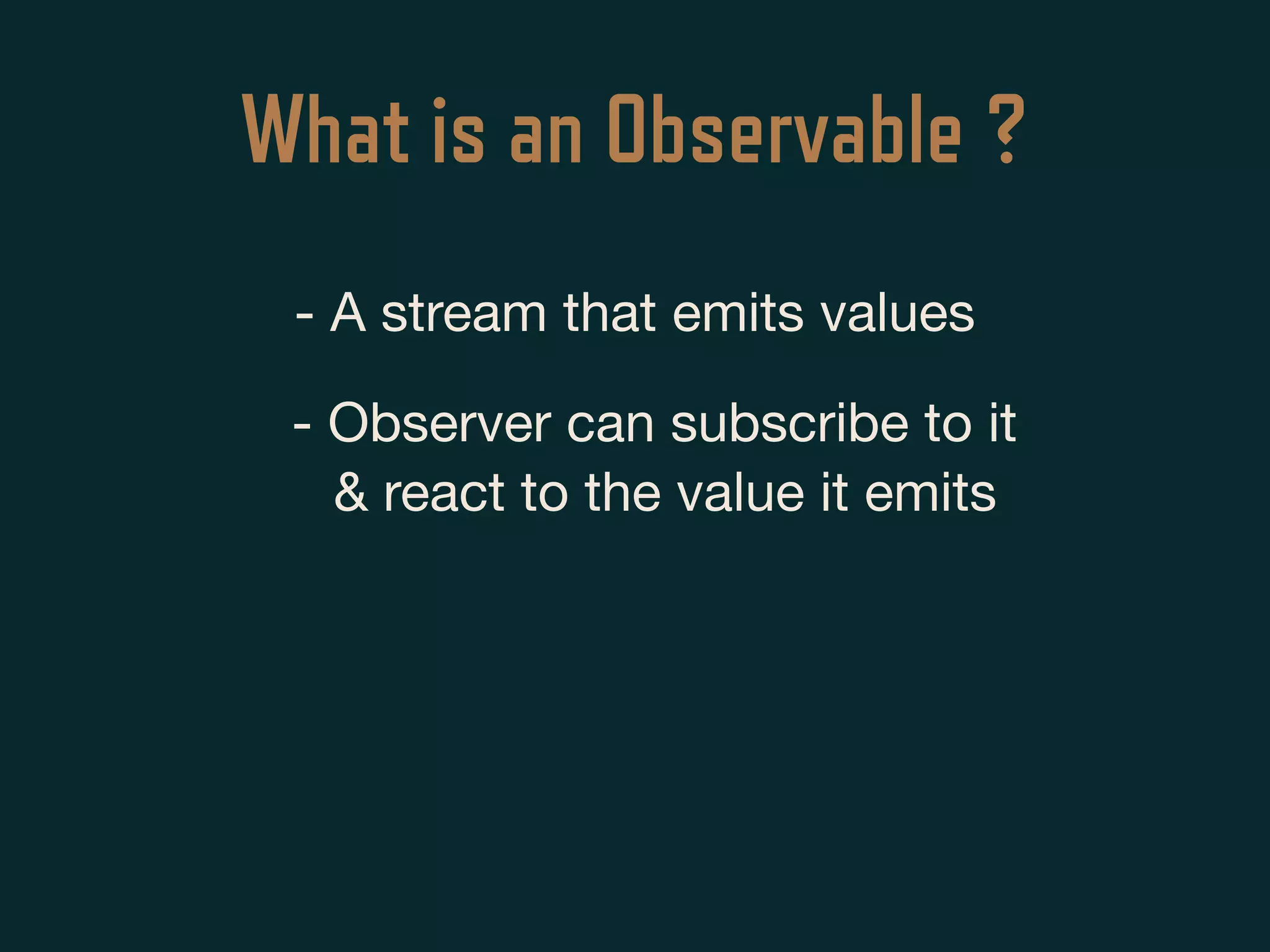

What is an Observable ?
- A stream that emits values
- Observer can subscribe to it
& react to the value it emits

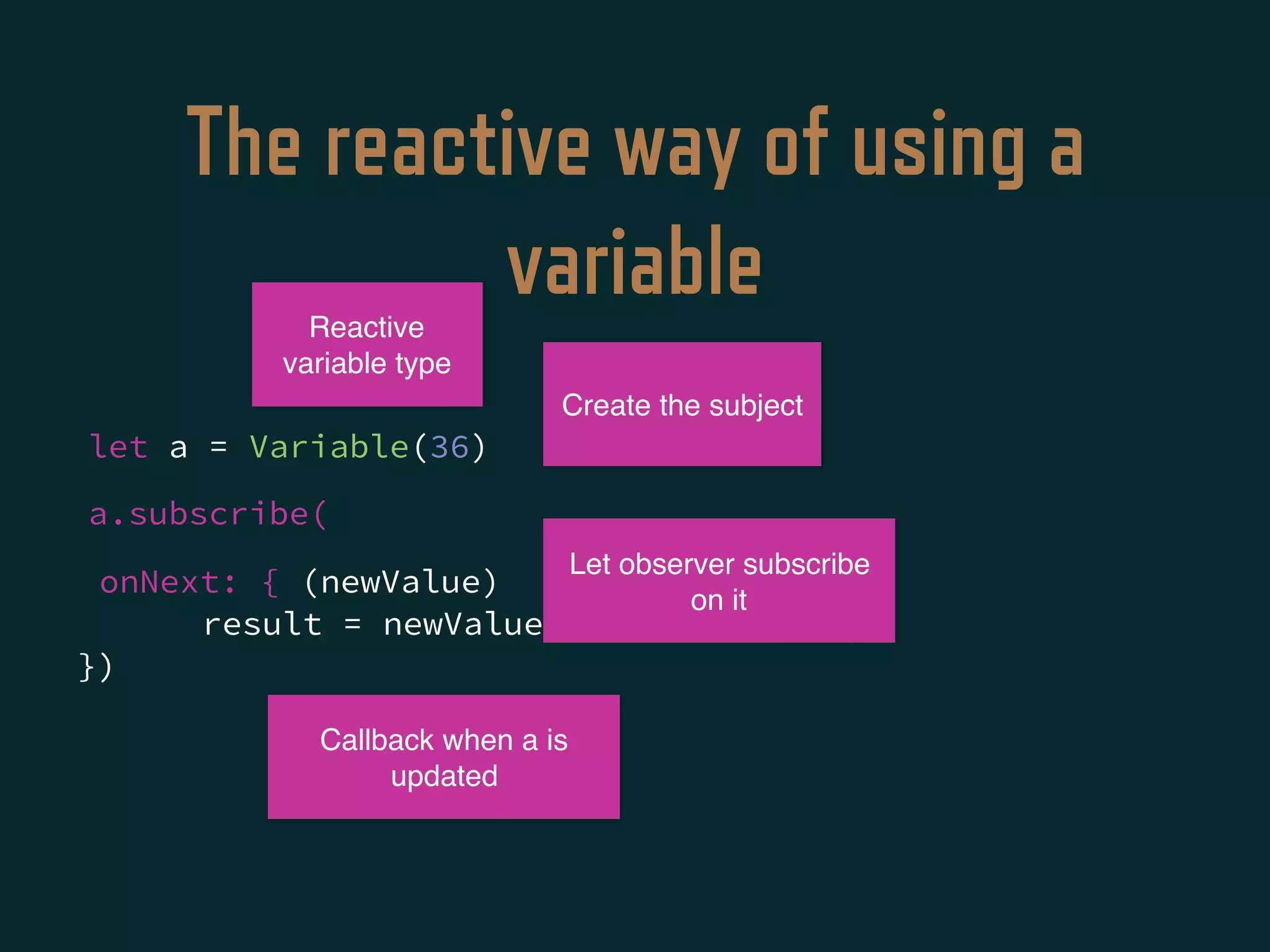

The reactive way of using a
variable
onNext: { (newValue)
result = newValue * 3
})
Reactive
variable type
Create the subject
Let observer subscribe
on it
Callback when a is
updated
let a = Variable(36)
a.subscribe(

What can be emitted from a
Observable stream ?

Any value
Integer
Double
Network request response
Other custom object

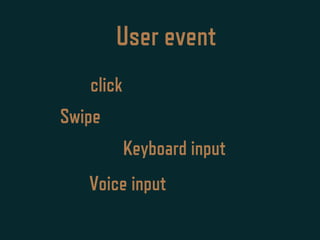

User event
click
Swipe
Keyboard input
Voice input

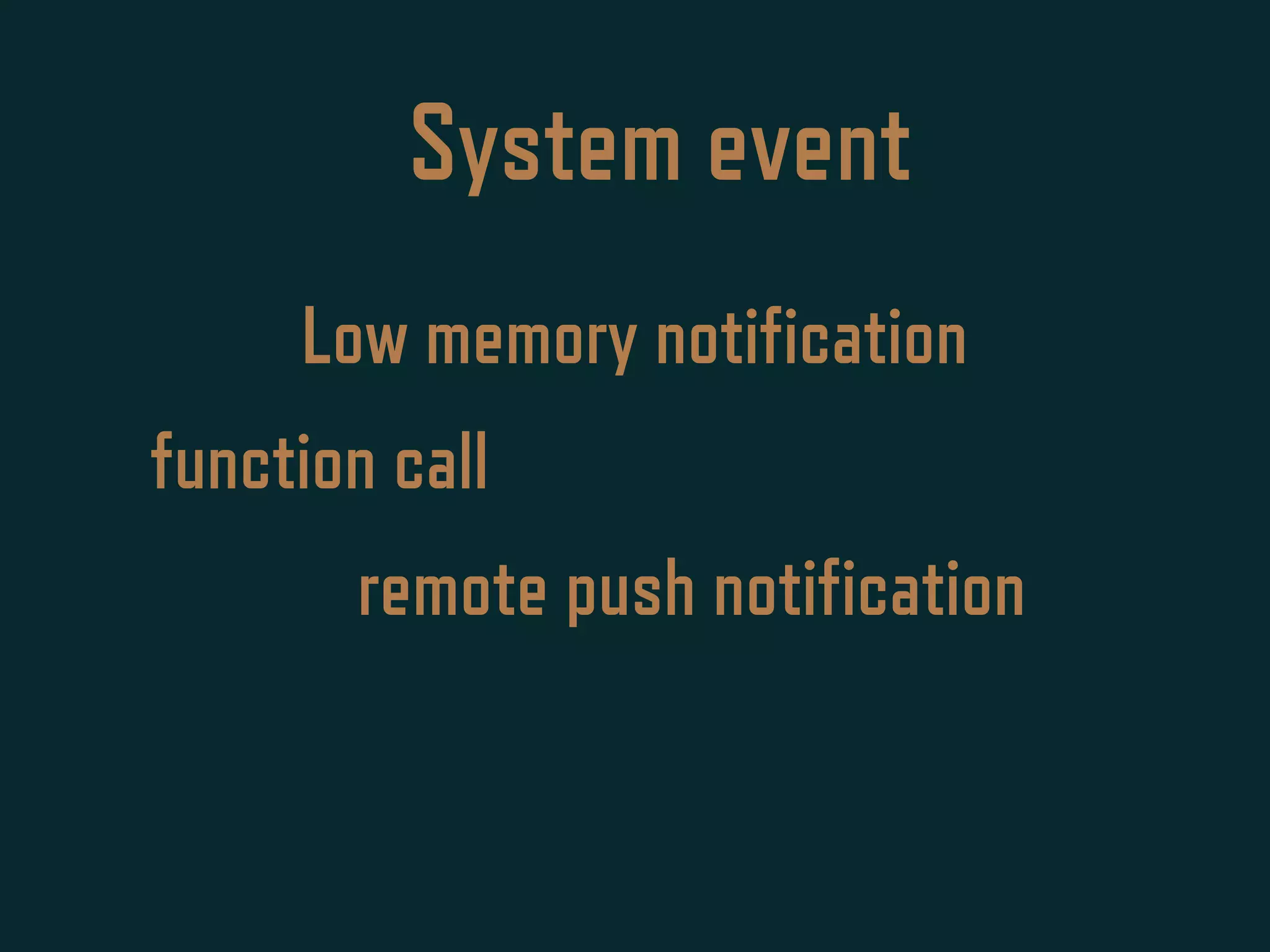

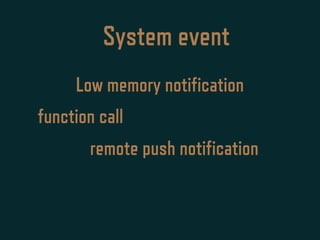

System event
Low memory notification
function call
remote push notification

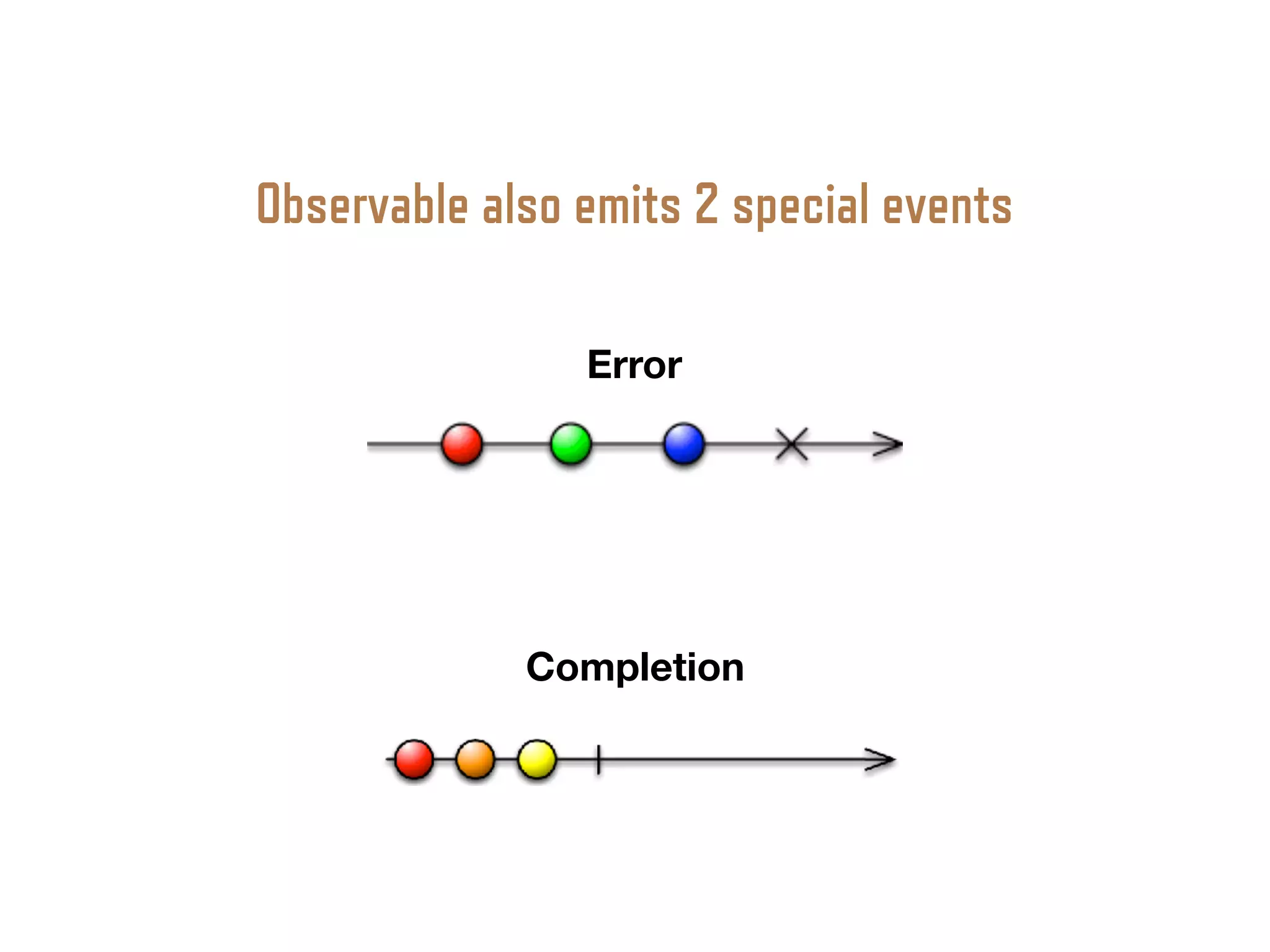

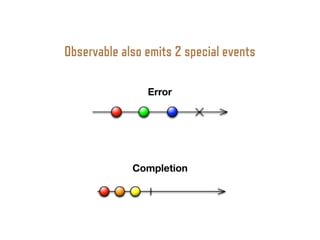

Observable also emits 2 special events
Error
Completion

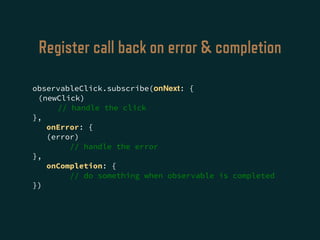

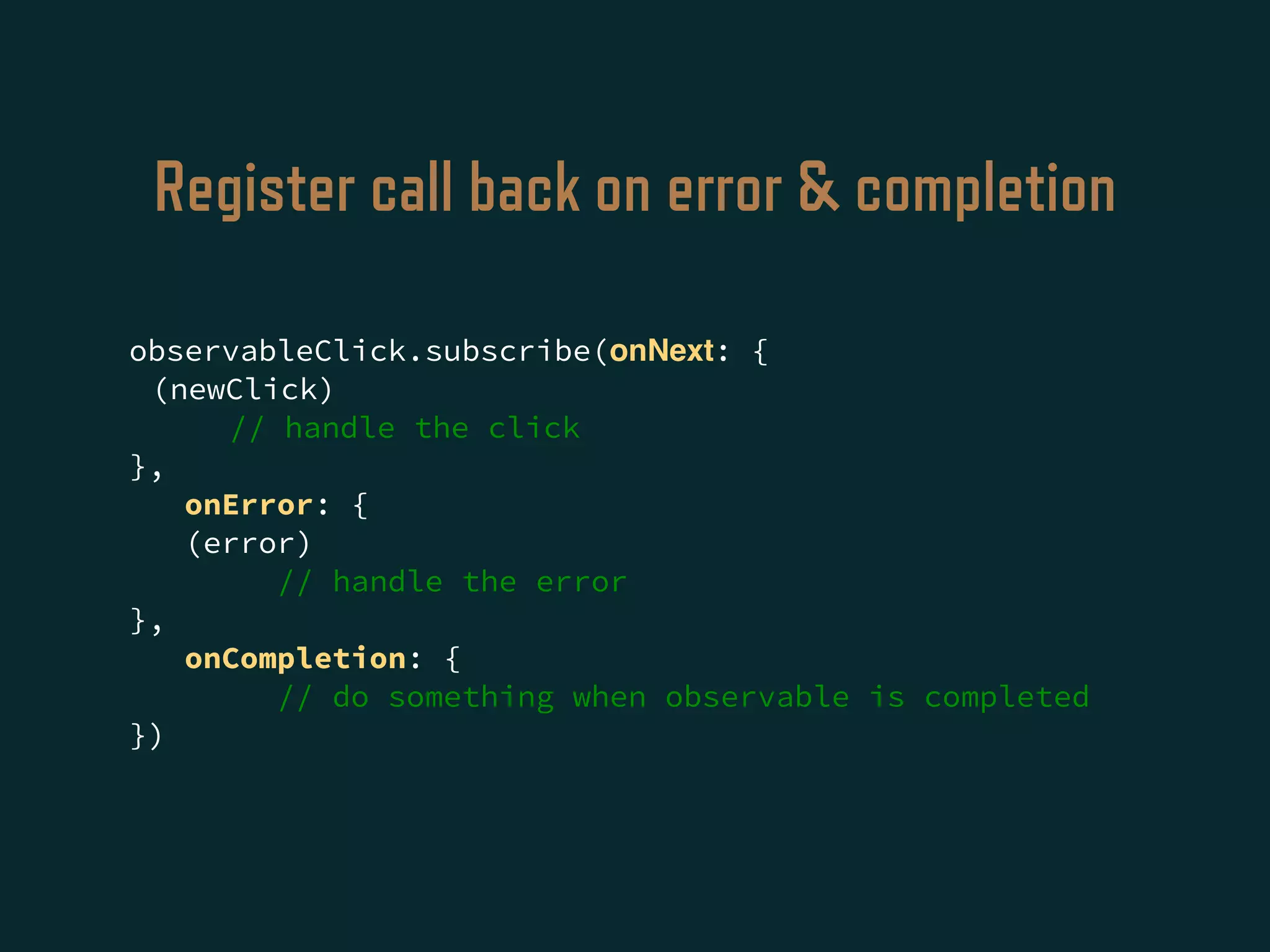

Register call back on error & completion
observableClick.subscribe(onNext: {
(newClick)
// handle the click
},
onError: {
(error)
// handle the error
},
onCompletion: {
// do something when observable is completed
})

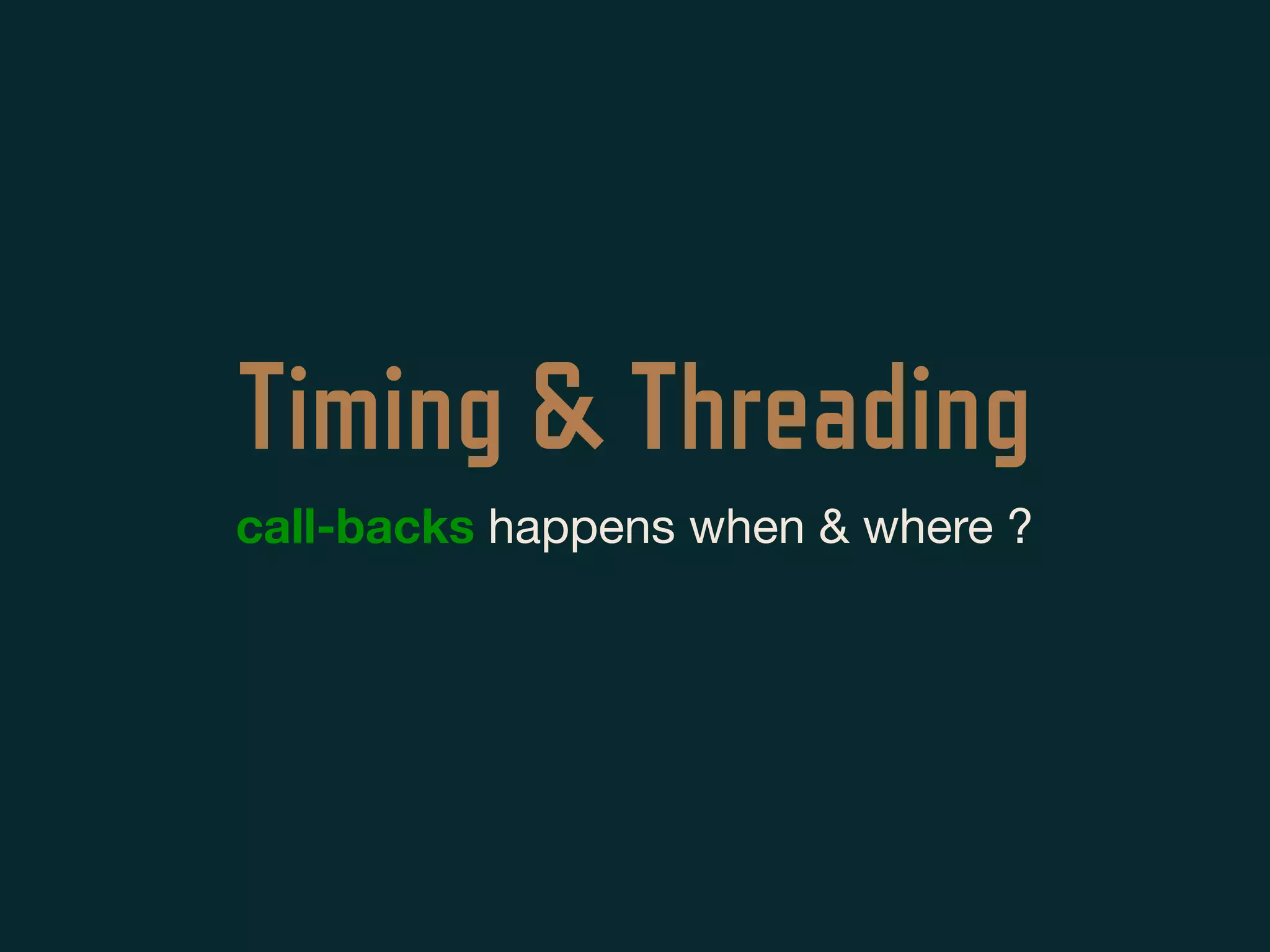

Timing & Threading
call-backs happens when & where ?

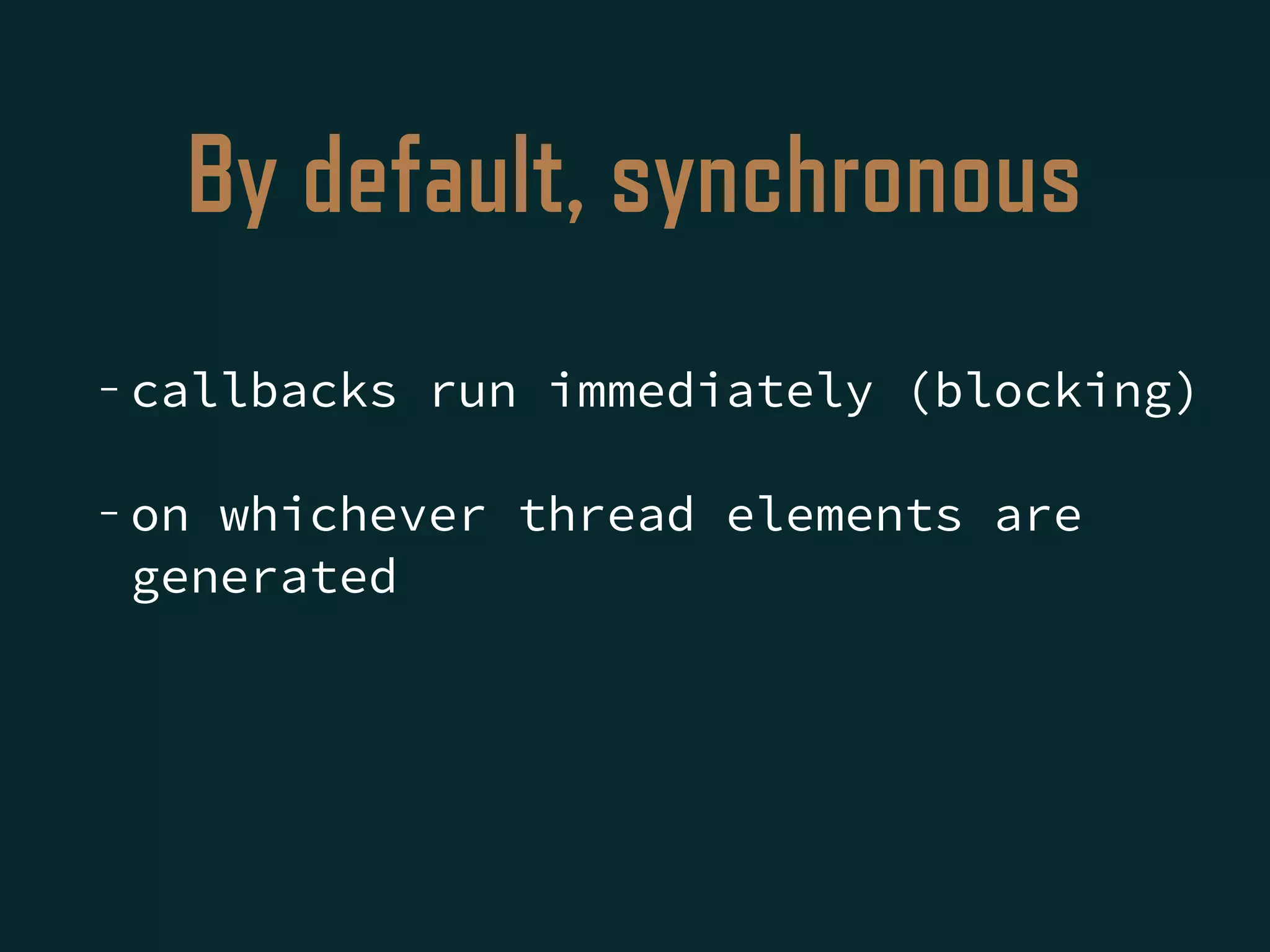

By default, synchronous
- callbacks run immediately (blocking)
- on whichever thread elements are
generated

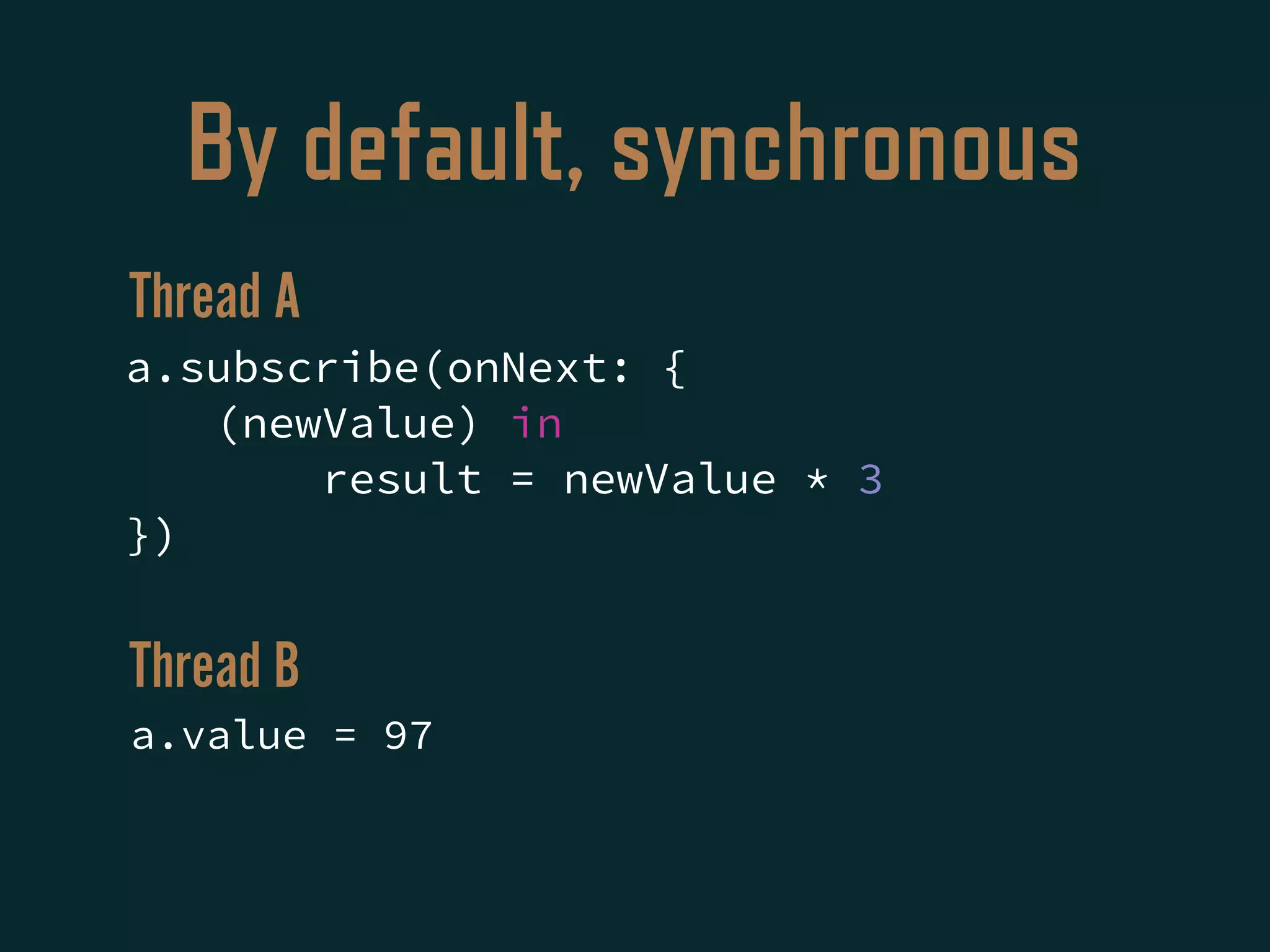

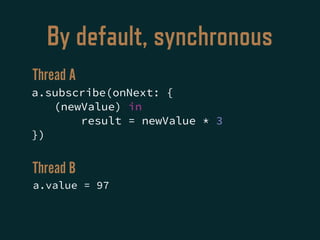

By default, synchronous
a.subscribe(onNext: {
(newValue) in
})
a.value = 97
Thread A
Thread B

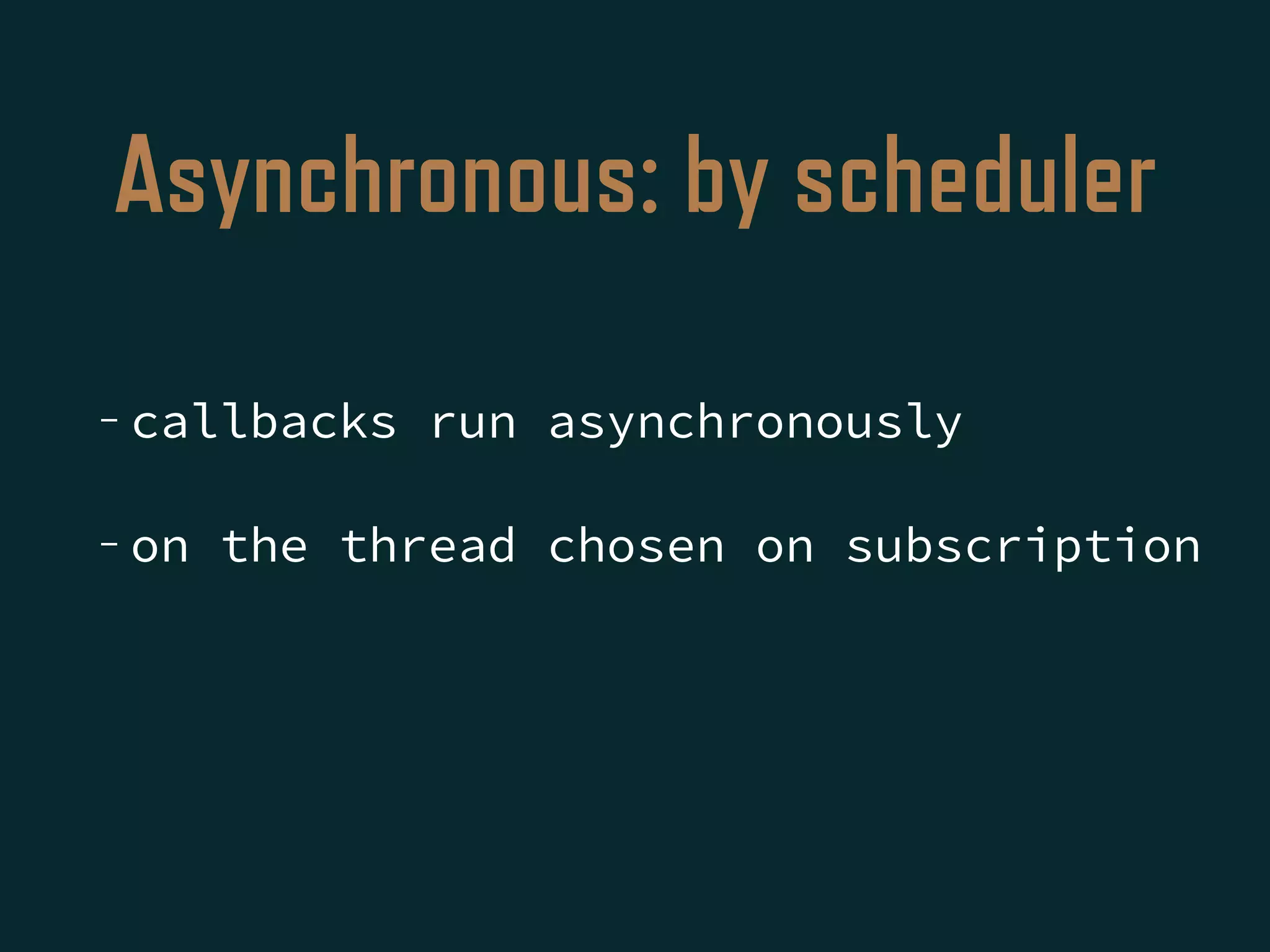

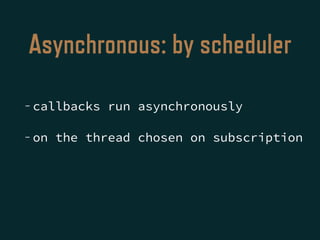

Asynchronous: by scheduler
- callbacks run asynchronously
- on the thread chosen on subscription

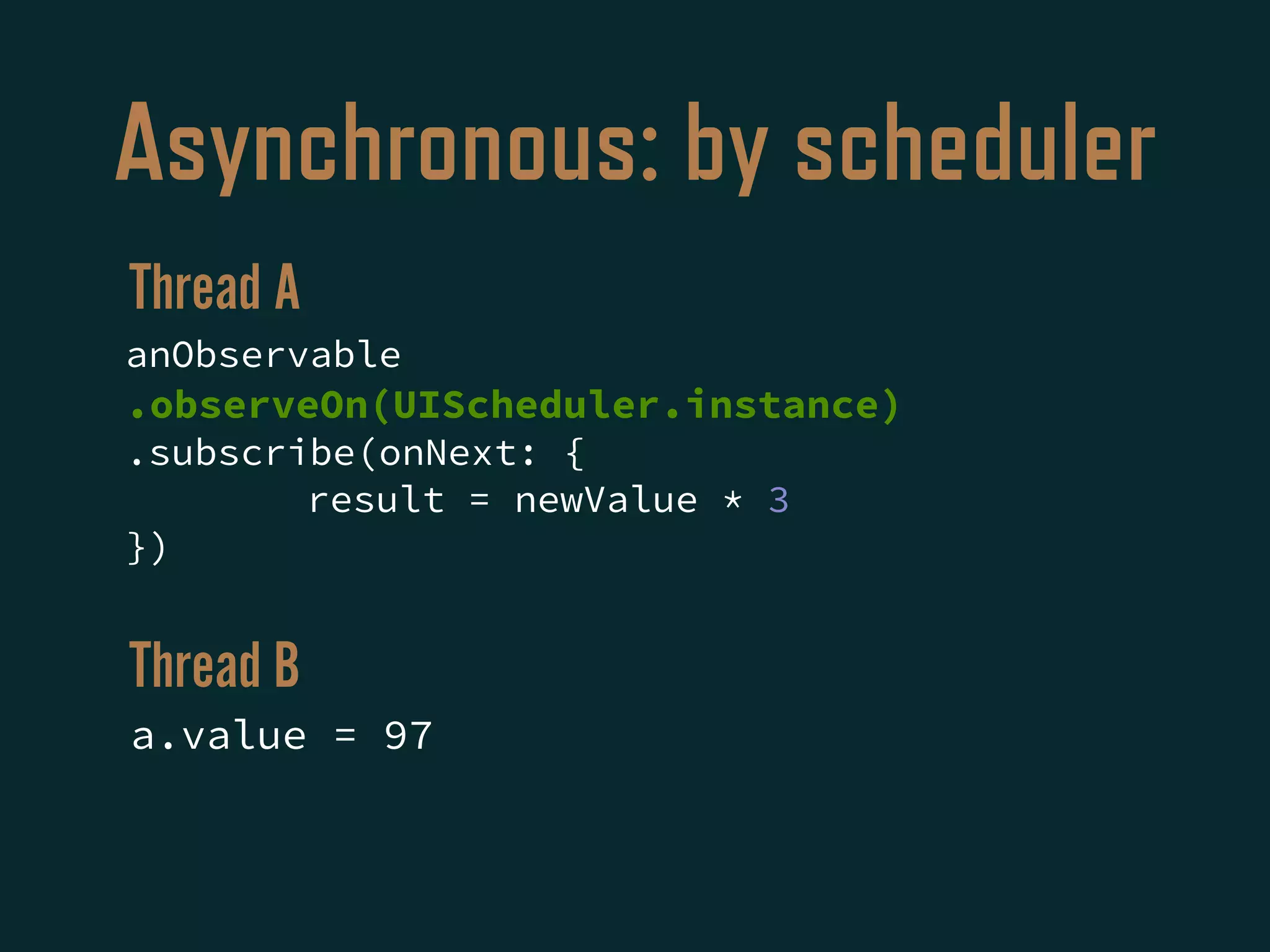

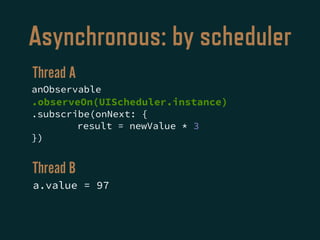

Asynchronous: by scheduler
anObservable
.observeOn(UIScheduler.instance)
.subscribe(onNext: {
})
a.value = 97
Thread A
Thread B

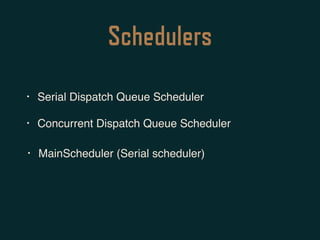

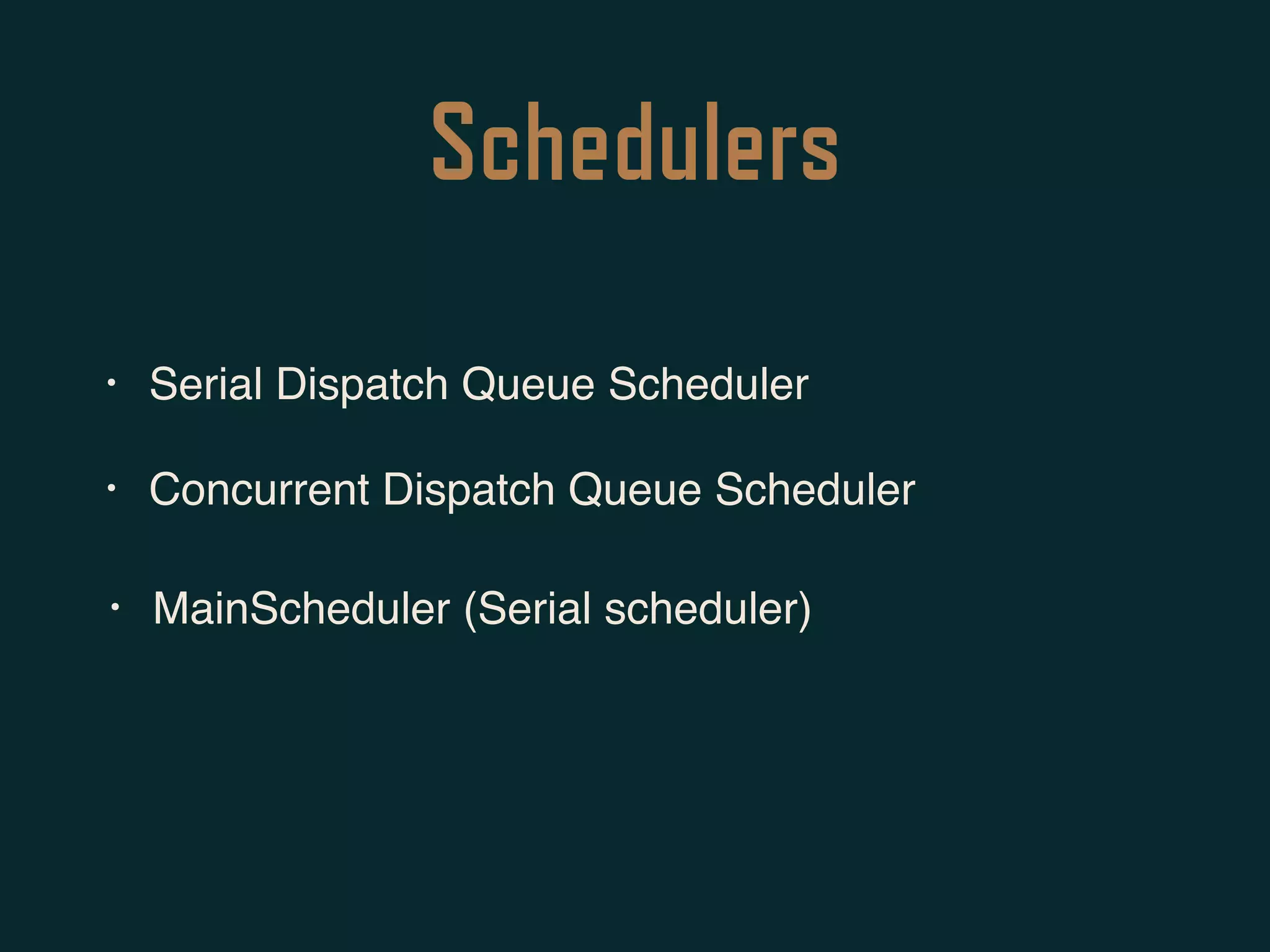

Schedulers
• Serial Dispatch Queue Scheduler
• Concurrent Dispatch Queue Scheduler
• MainScheduler (Serial scheduler)

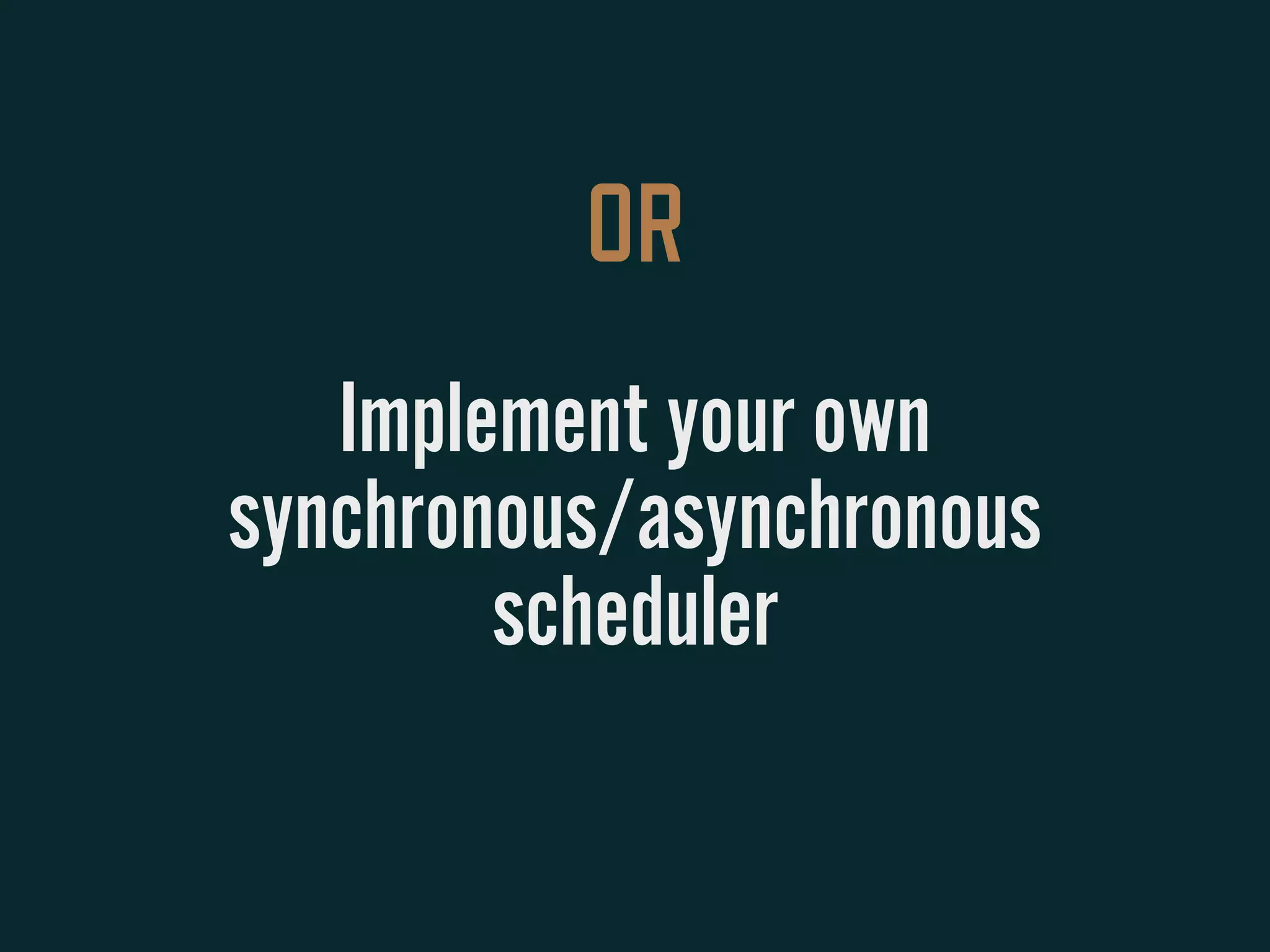

OR
Implement your own
synchronous/asynchronous
scheduler

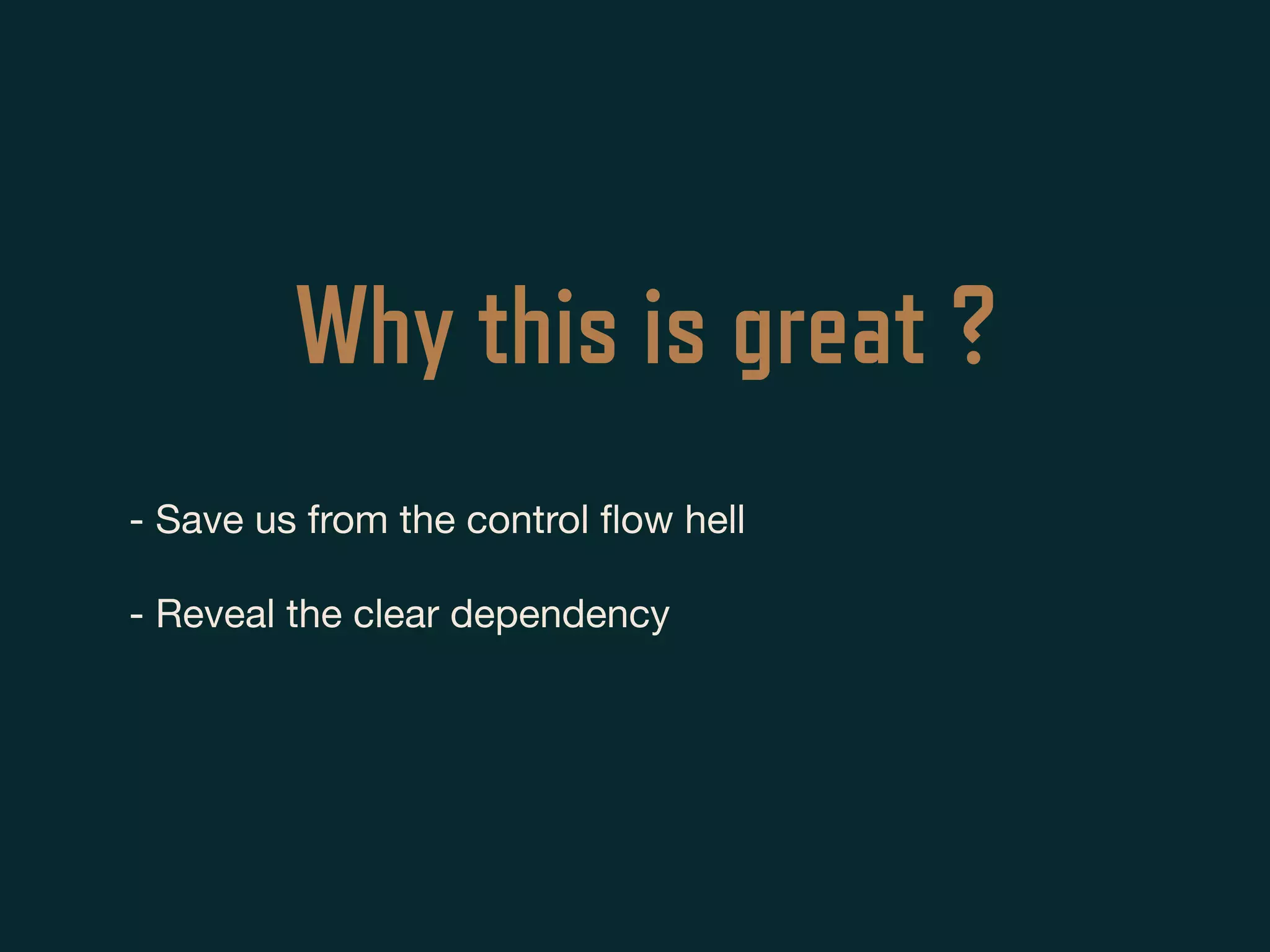

Why this is great ?
- Save us from the control ﬂow hell

- Reveal the clear dependency

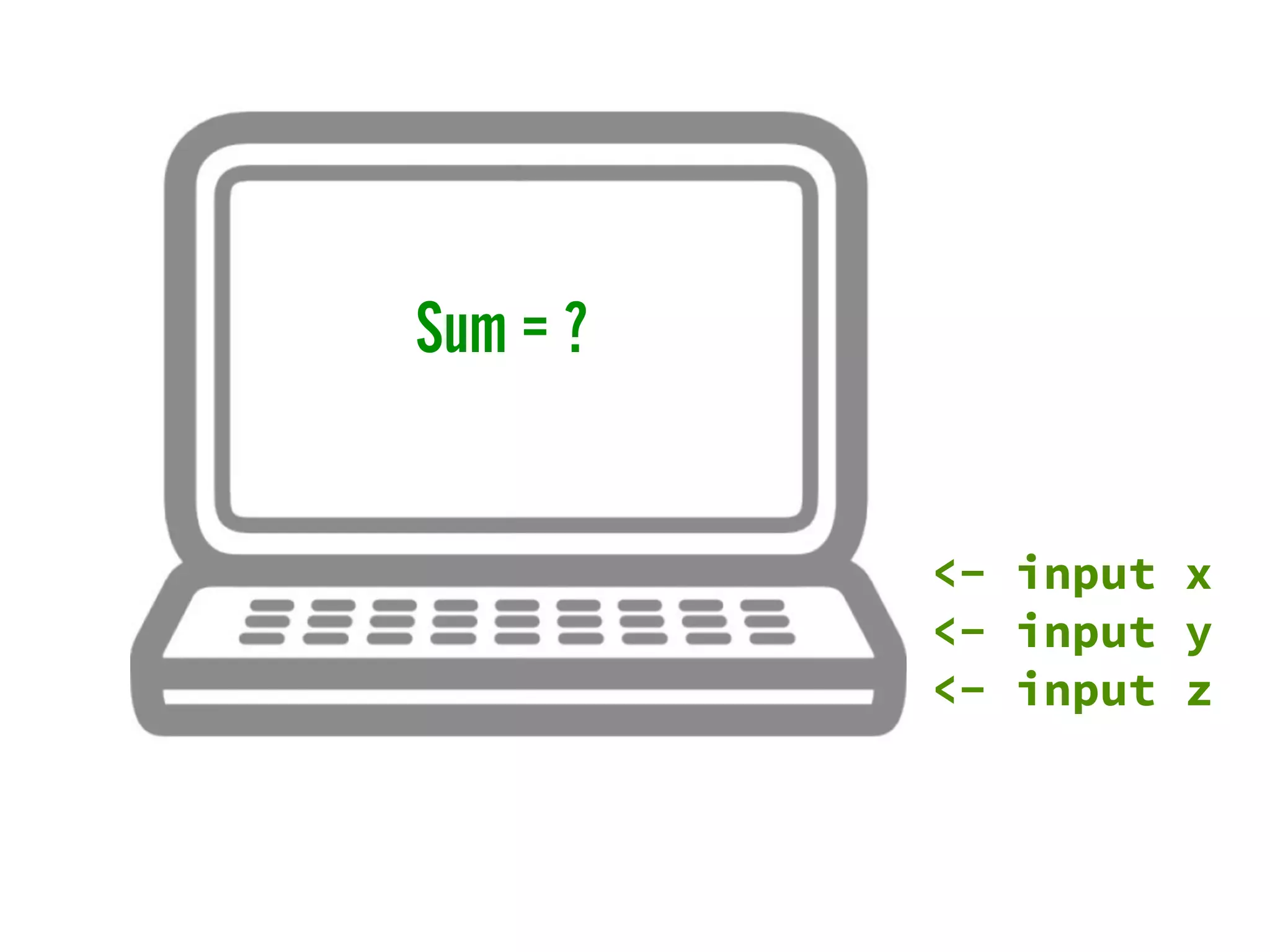

Sum = ?
<- input x
<- input y
<- input z

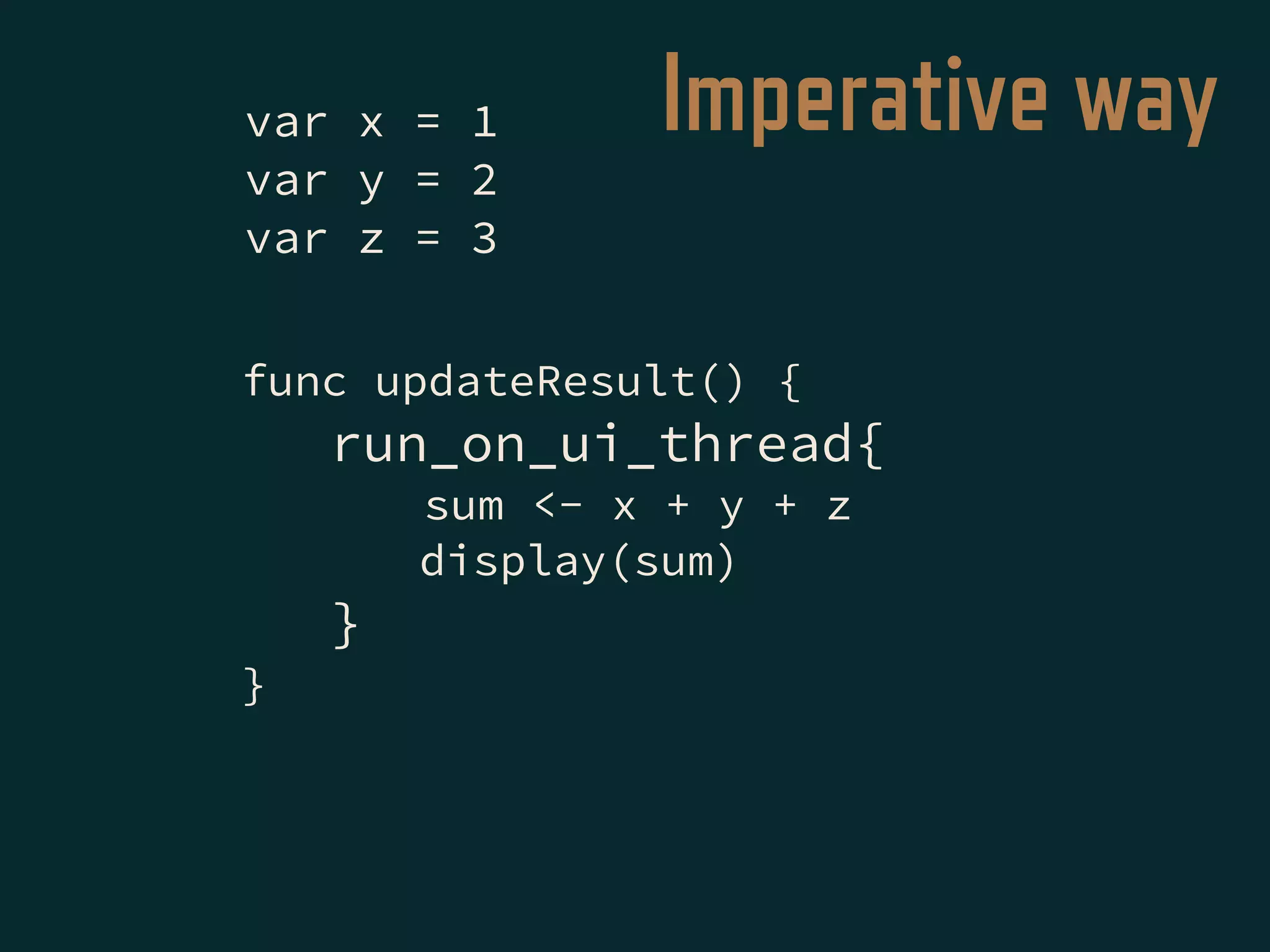

func updateResult() {
run_on_ui_thread{
sum <- x + y + z
display(sum)
}
}
var x = 1
var y = 2
var z = 3
Imperative way

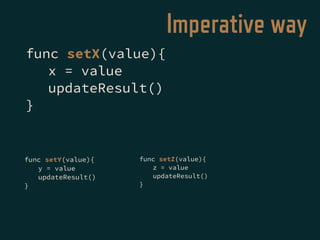

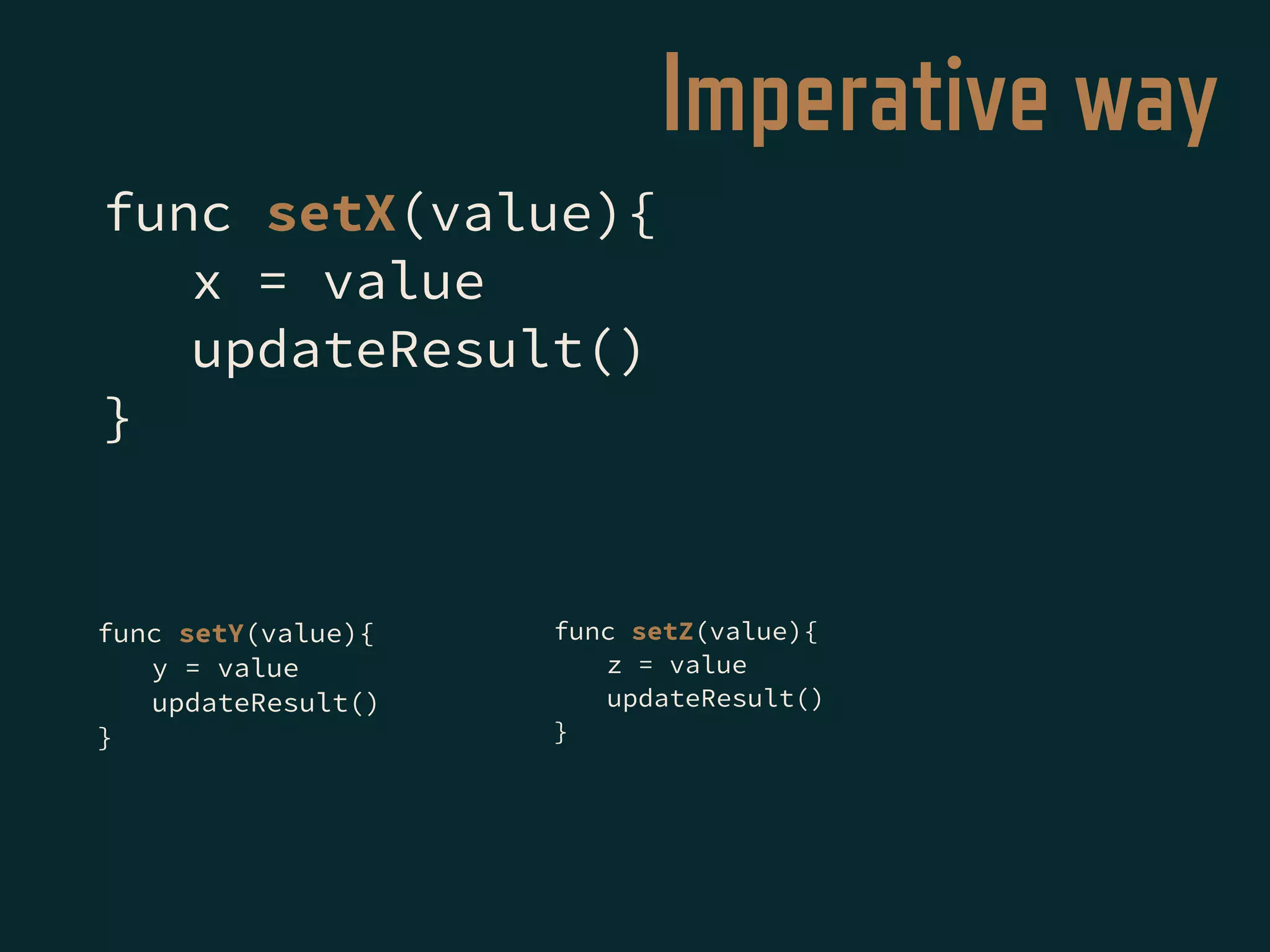

func setX(value){
x = value
updateResult()
}
func setY(value){
y = value
updateResult()
}
func setZ(value){
z = value
updateResult()
}
Imperative way

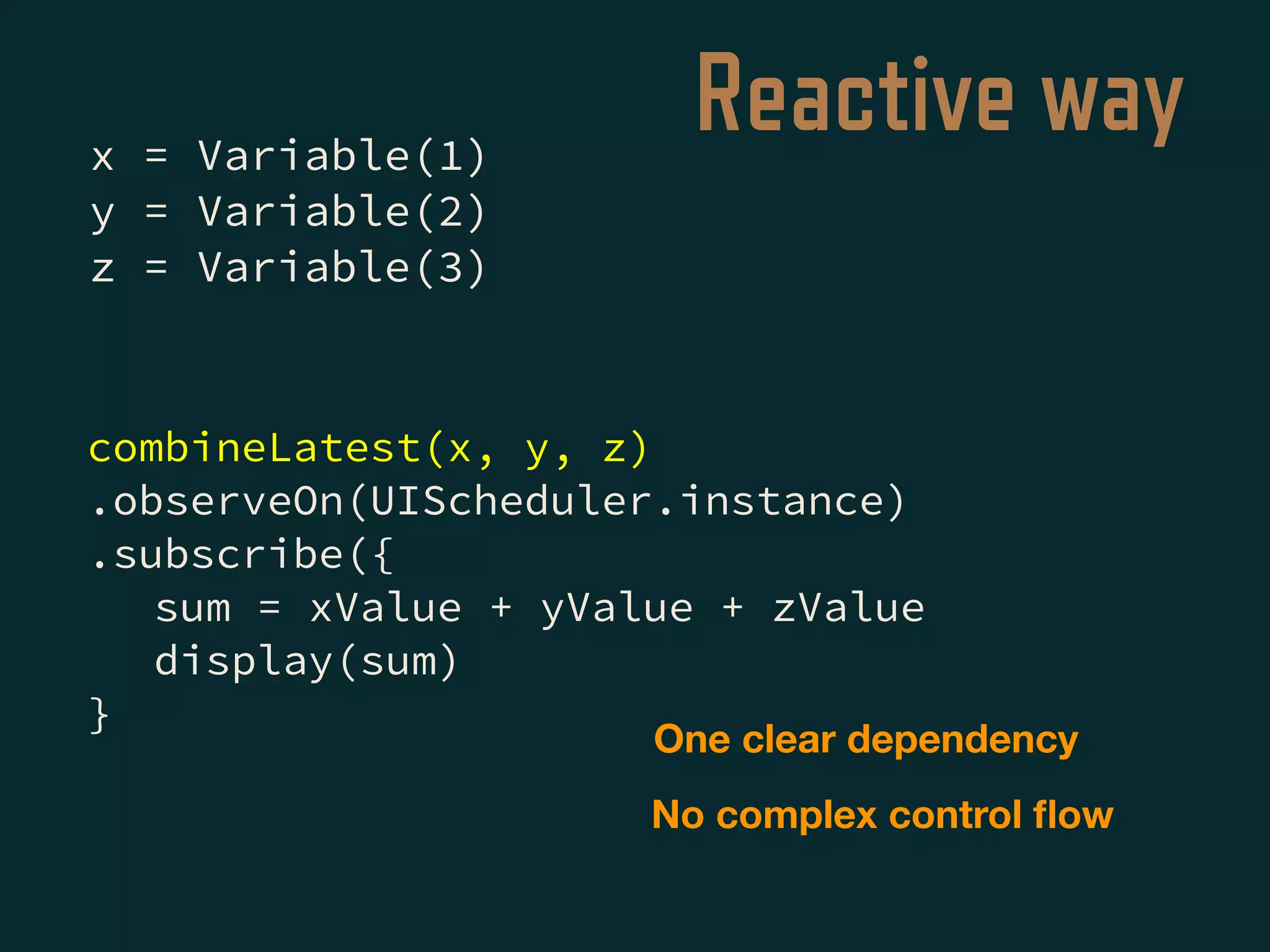

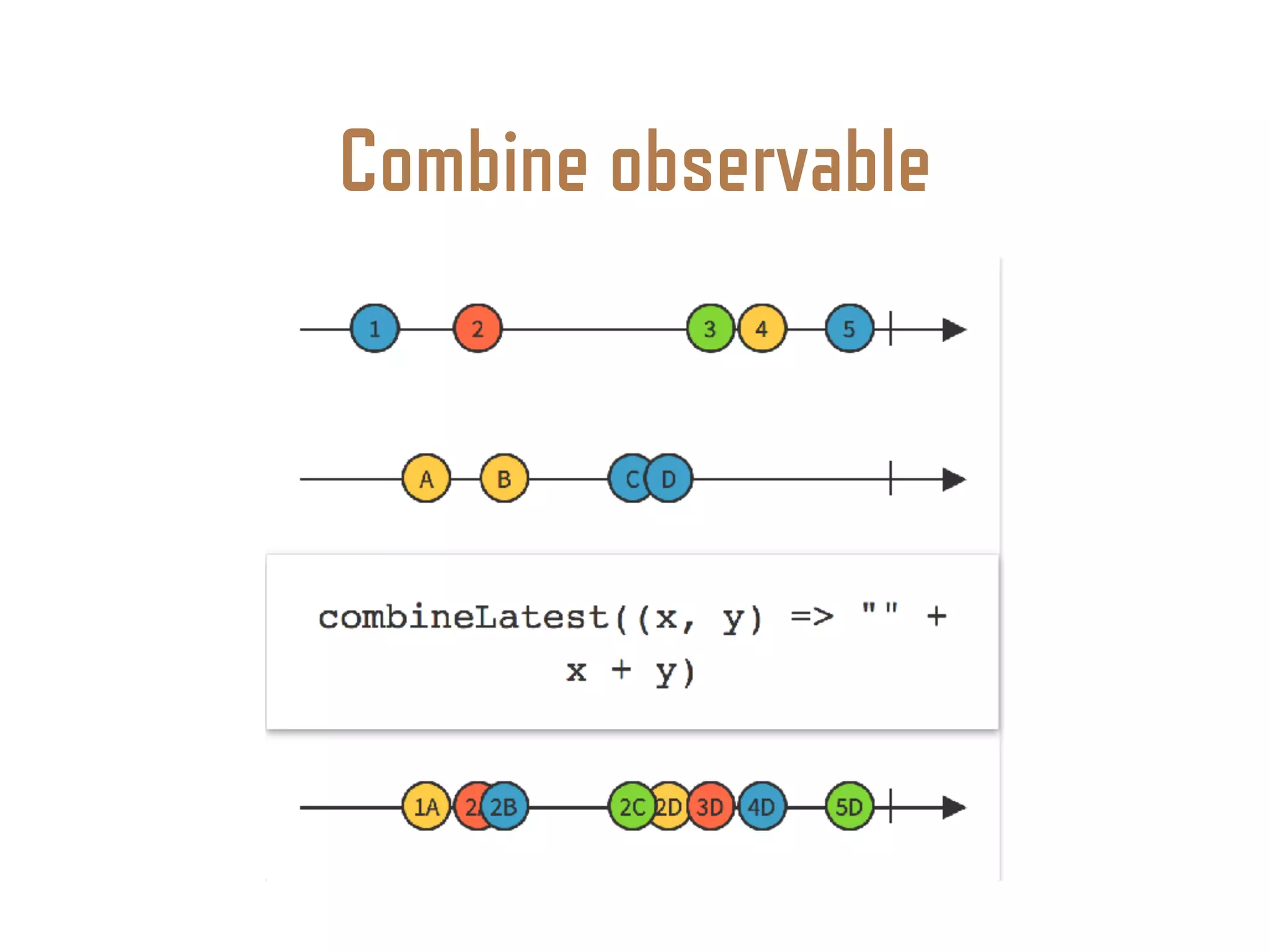

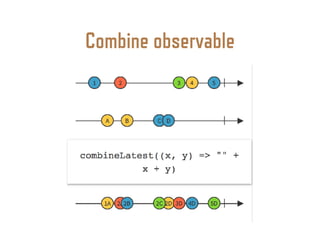

combineLatest(x, y, z)
.subscribe({
sum = xValue + yValue + zValue
display(sum)
}
Reactive wayx = Variable(1)
y = Variable(2)
z = Variable(3)
One clear dependency
No complex control ﬂow

Not bad !
But just toy problem
Questions ?

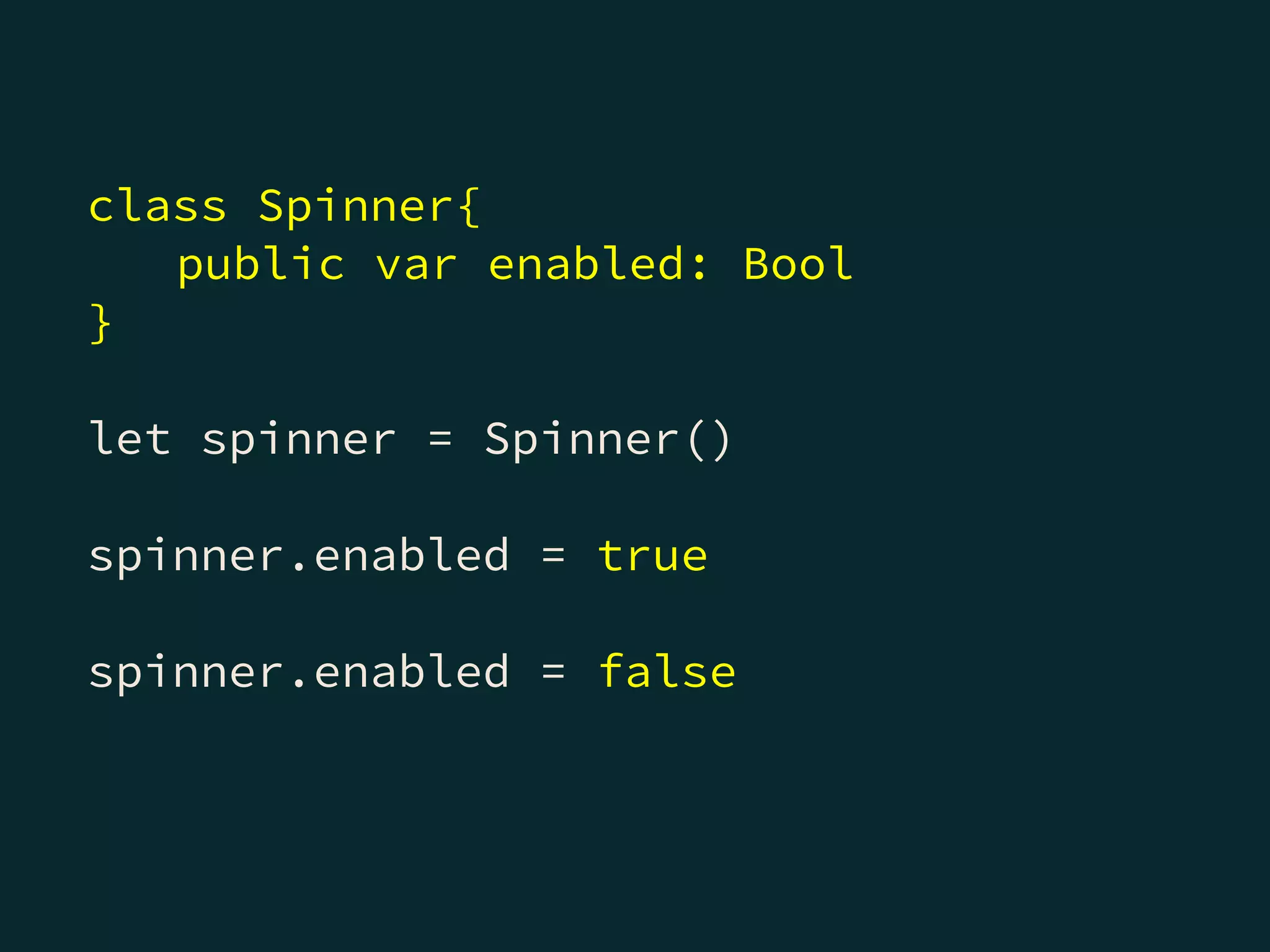

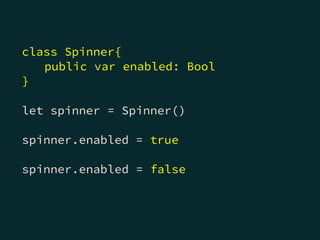

class Spinner{
public var enabled: Bool
}
let spinner = Spinner()
spinner.enabled = true
spinner.enabled = false

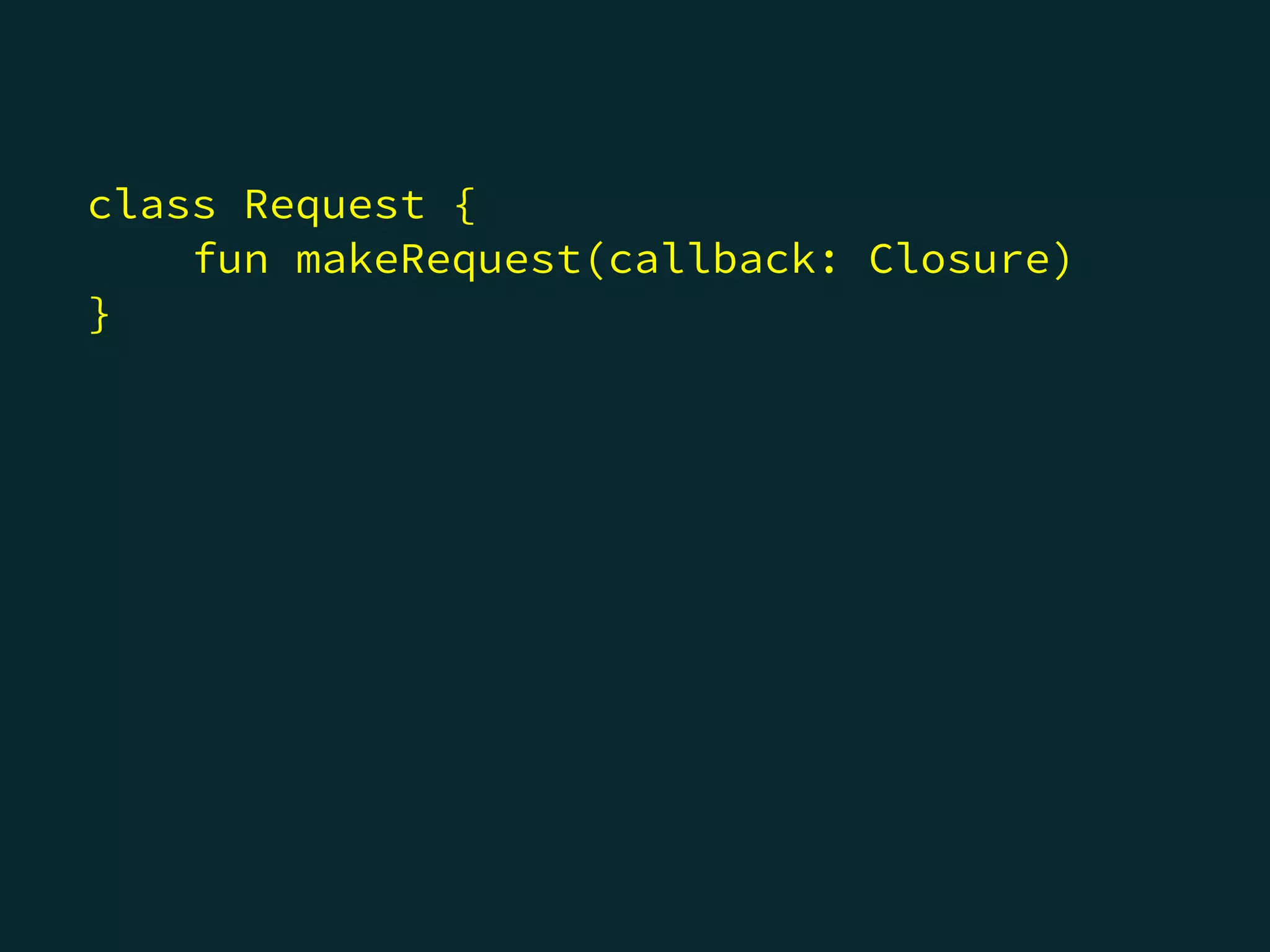

class Request {
fun makeRequest(callback: Closure)
}

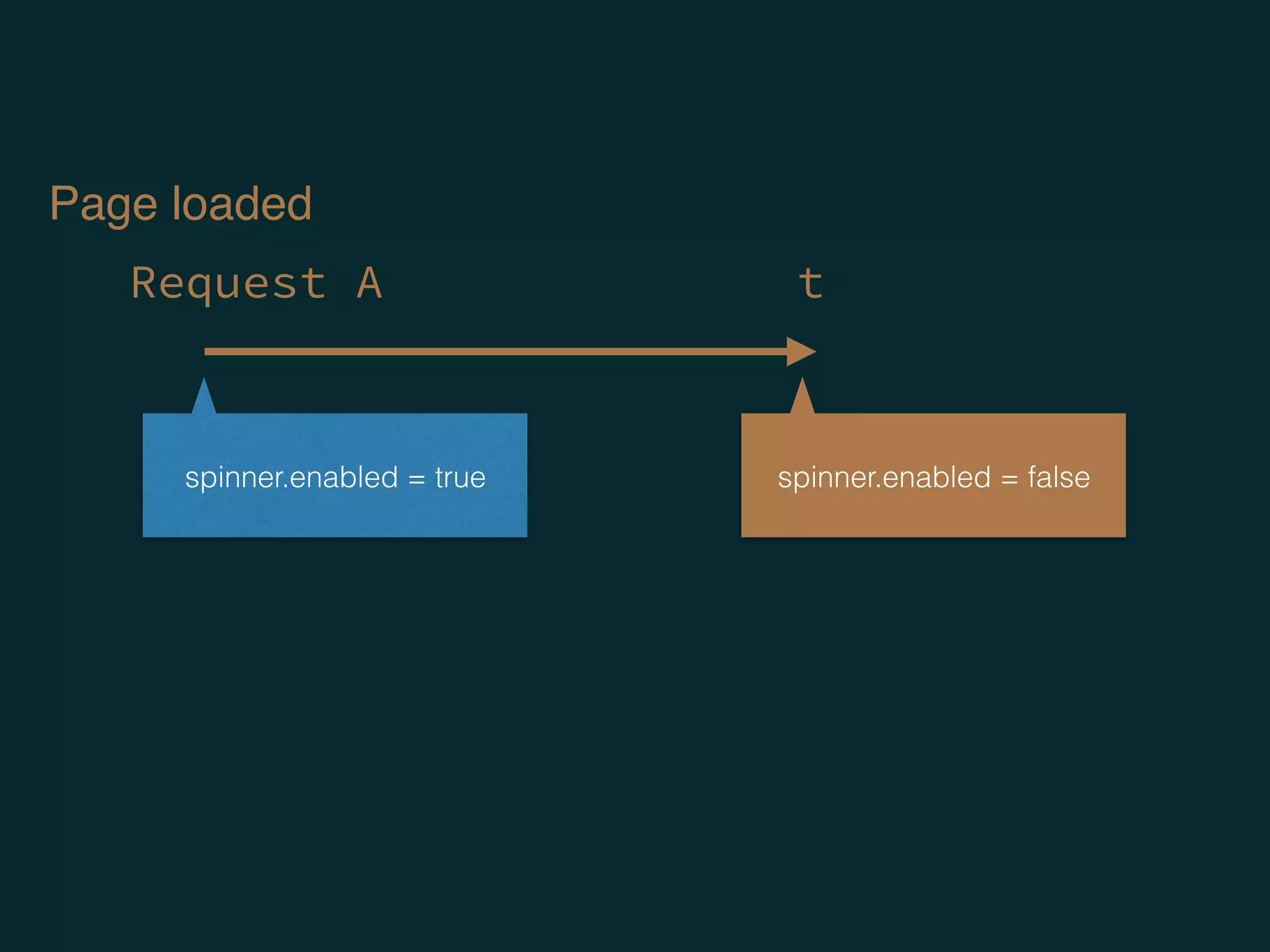

Request A
Page loaded
spinner.enabled = true spinner.enabled = false
t

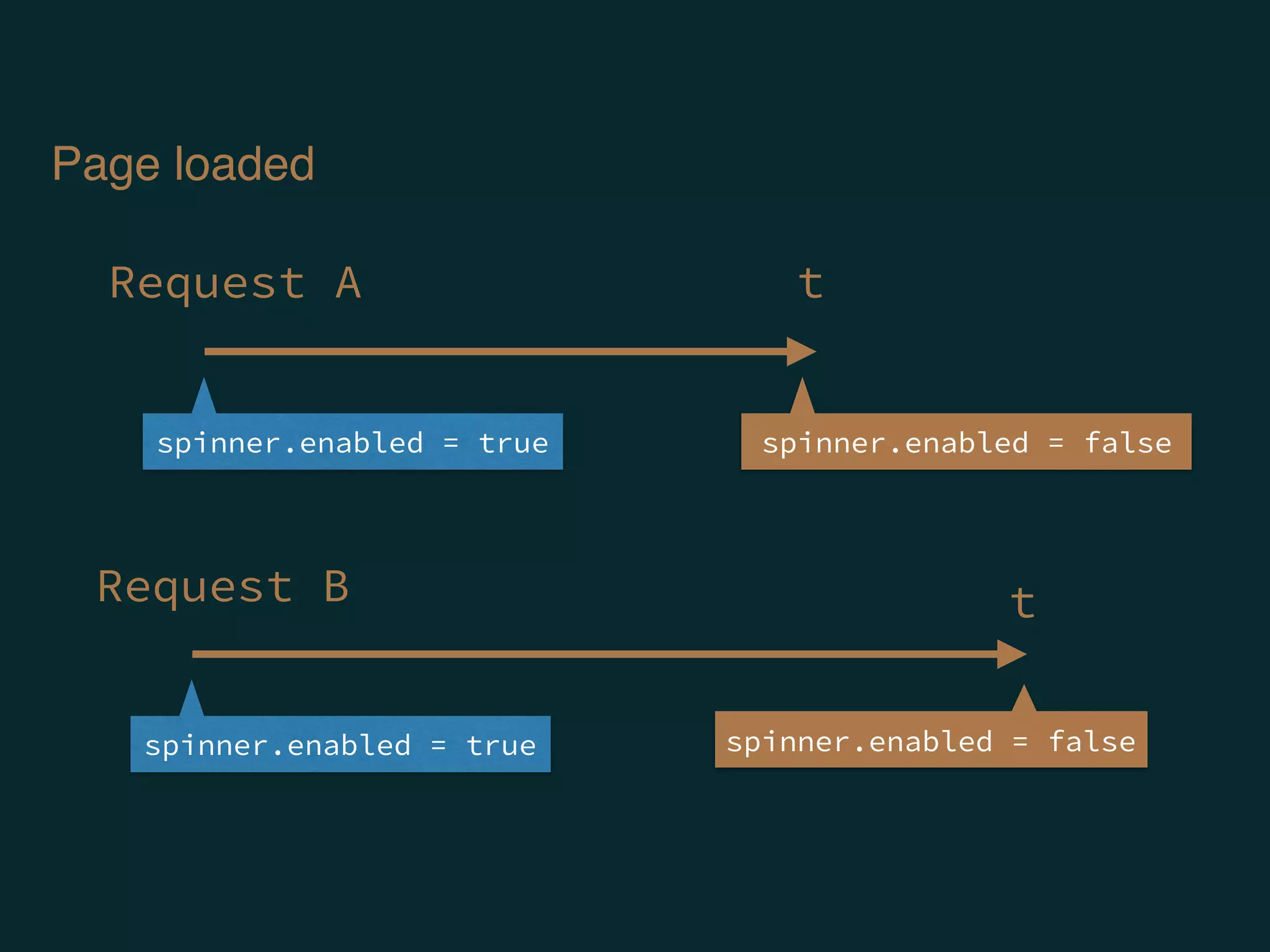

Request A
Page loaded
Request B
t
t

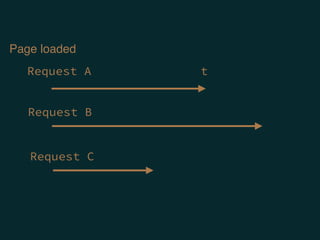

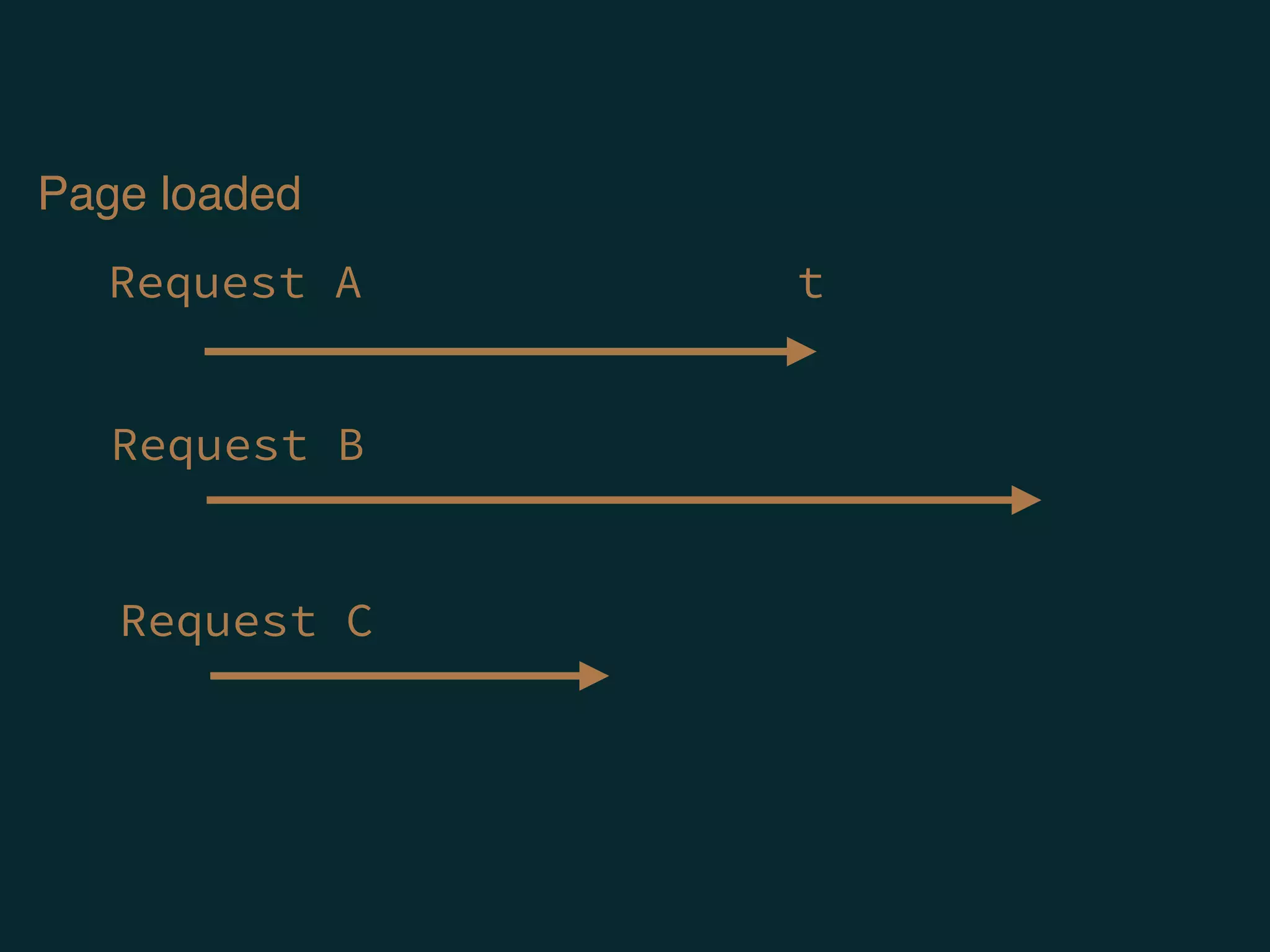

Request A
Page loaded
Request B
t
Request C

What are the causes of the
problem ?

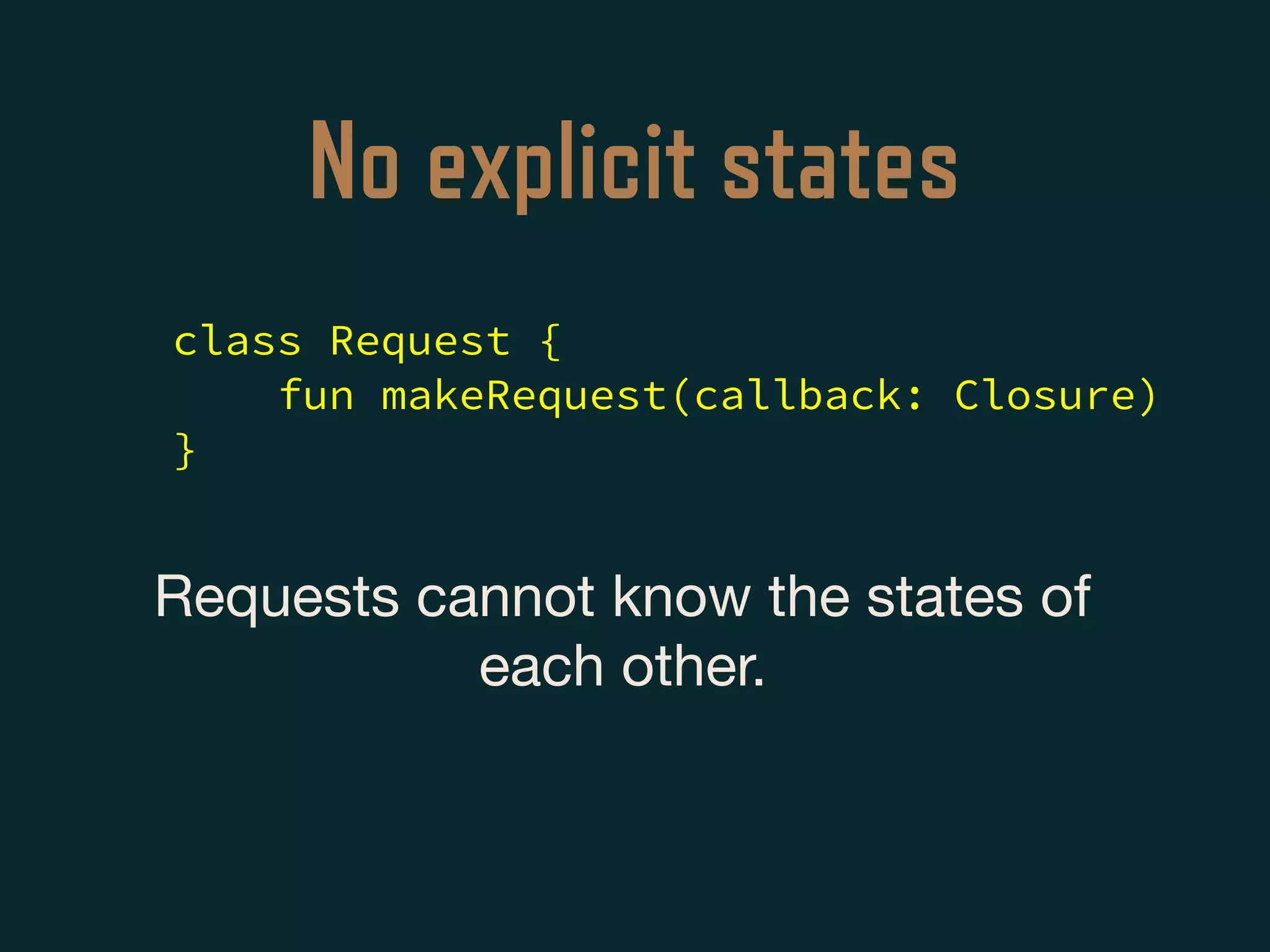

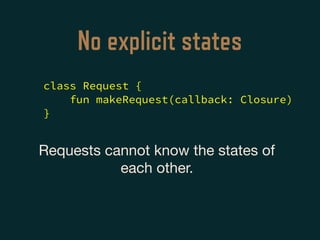

No explicit states
Requests cannot know the states of
each other.

class Request {
fun makeRequest(callback: Closure)
}

Encapsulation is violated
Request A
t

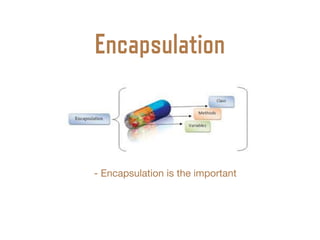

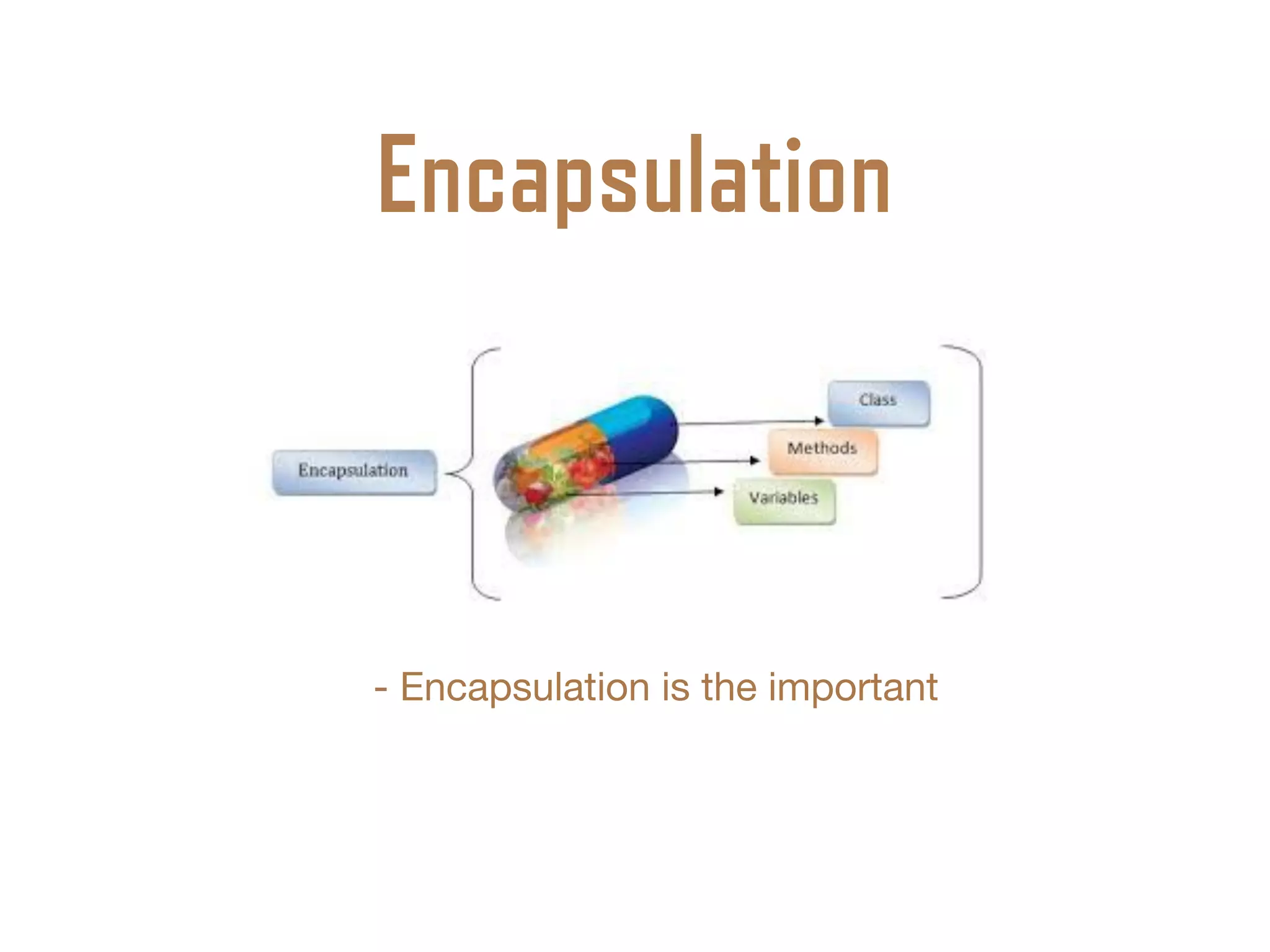

Encapsulation
- Encapsulation is the important

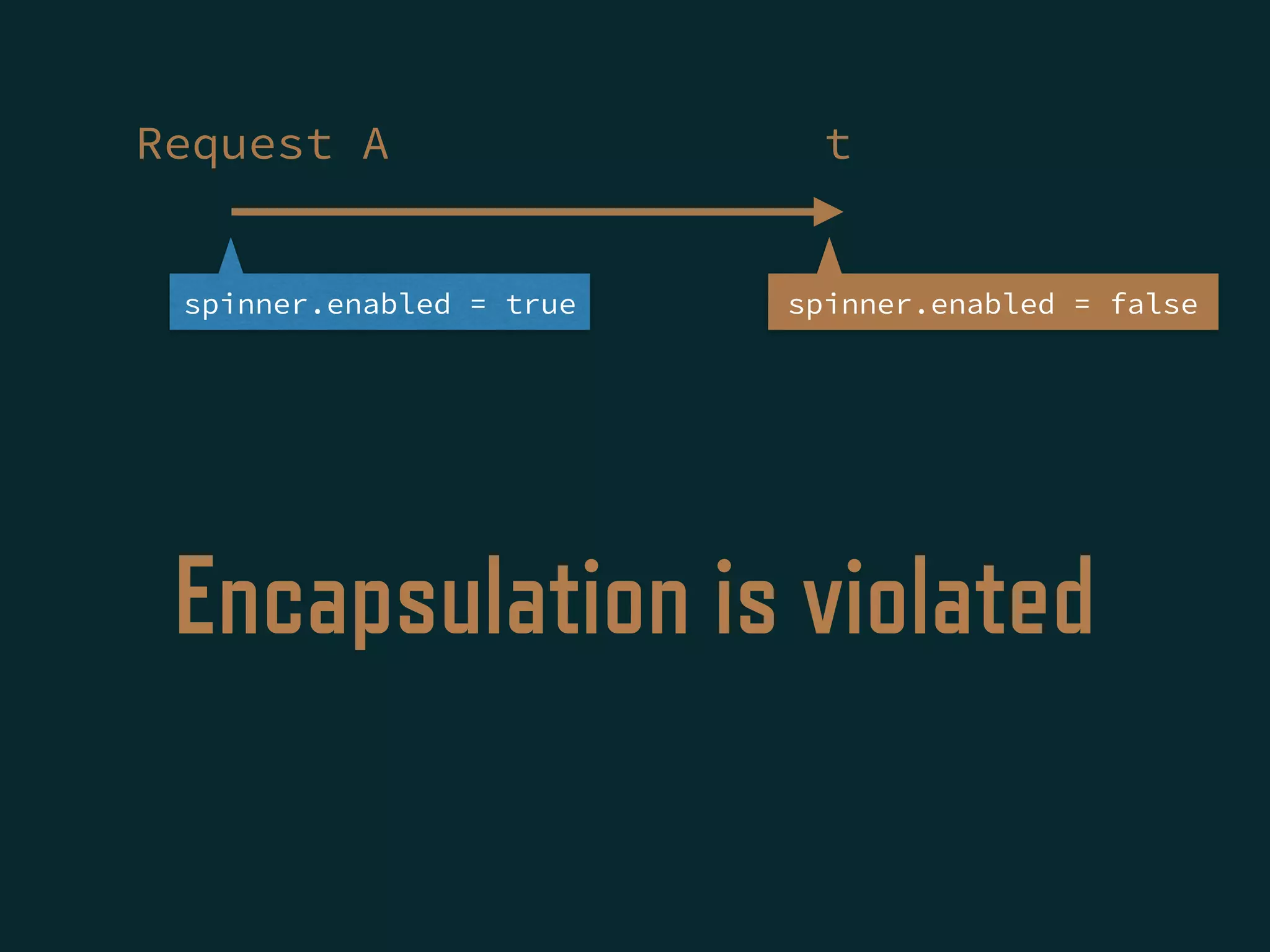

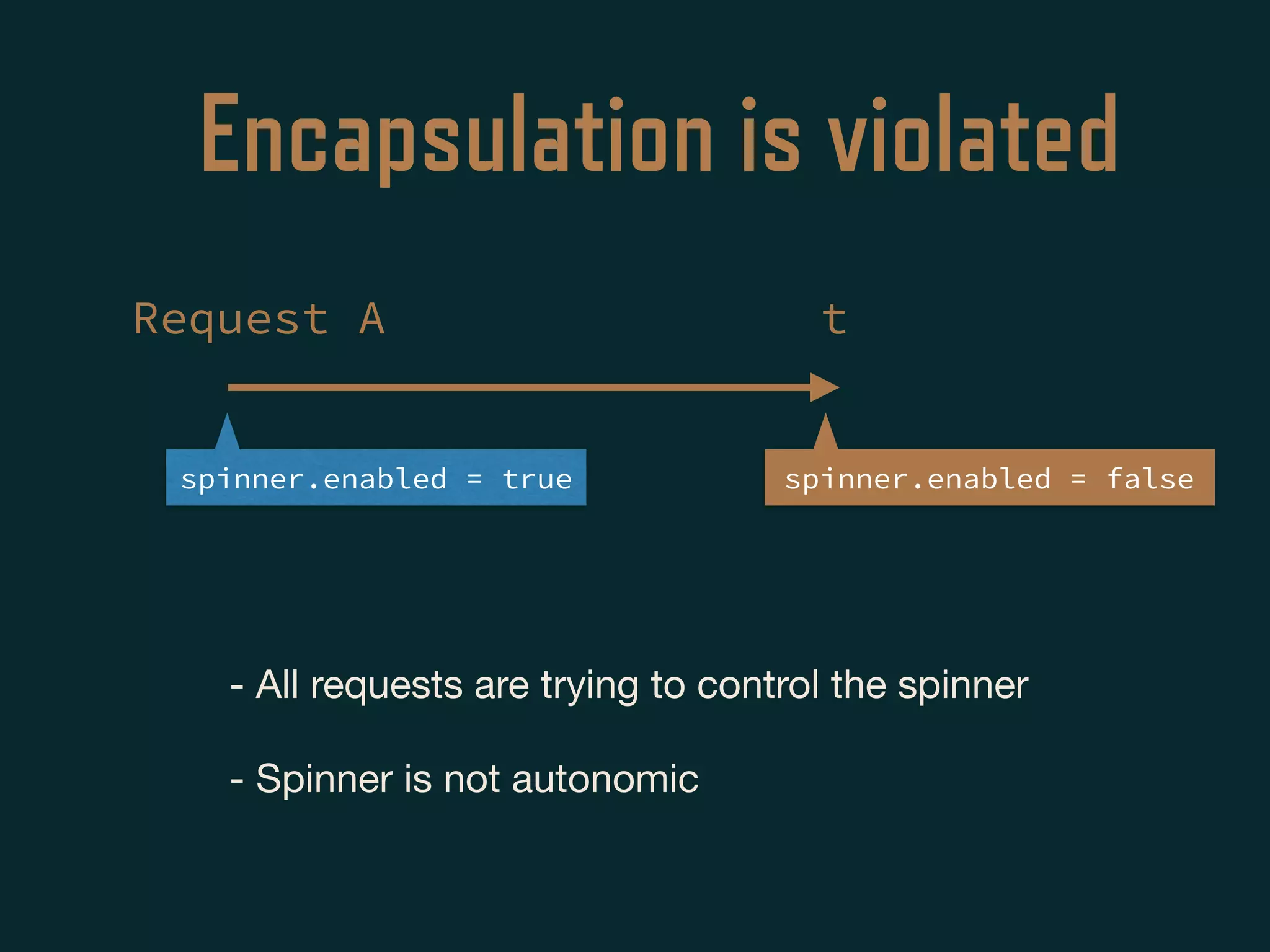

Encapsulation is violated
Request A
t
- All requests are trying to control the spinner

- Spinner is not autonomic

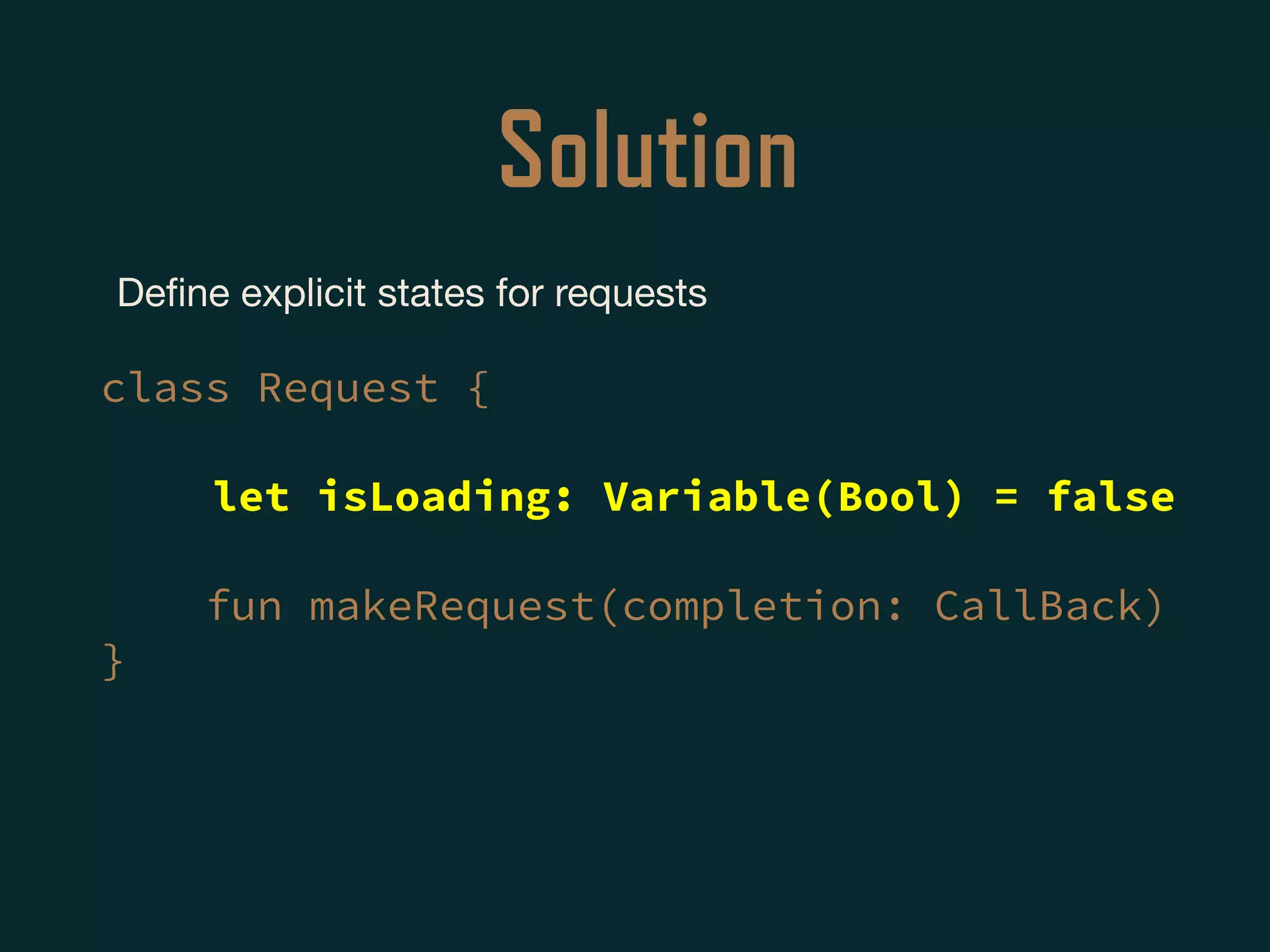

Solution
Deﬁne explicit states for requests

class Request {
let isLoading: Variable(Bool) = false
fun makeRequest(completion: CallBack)
}

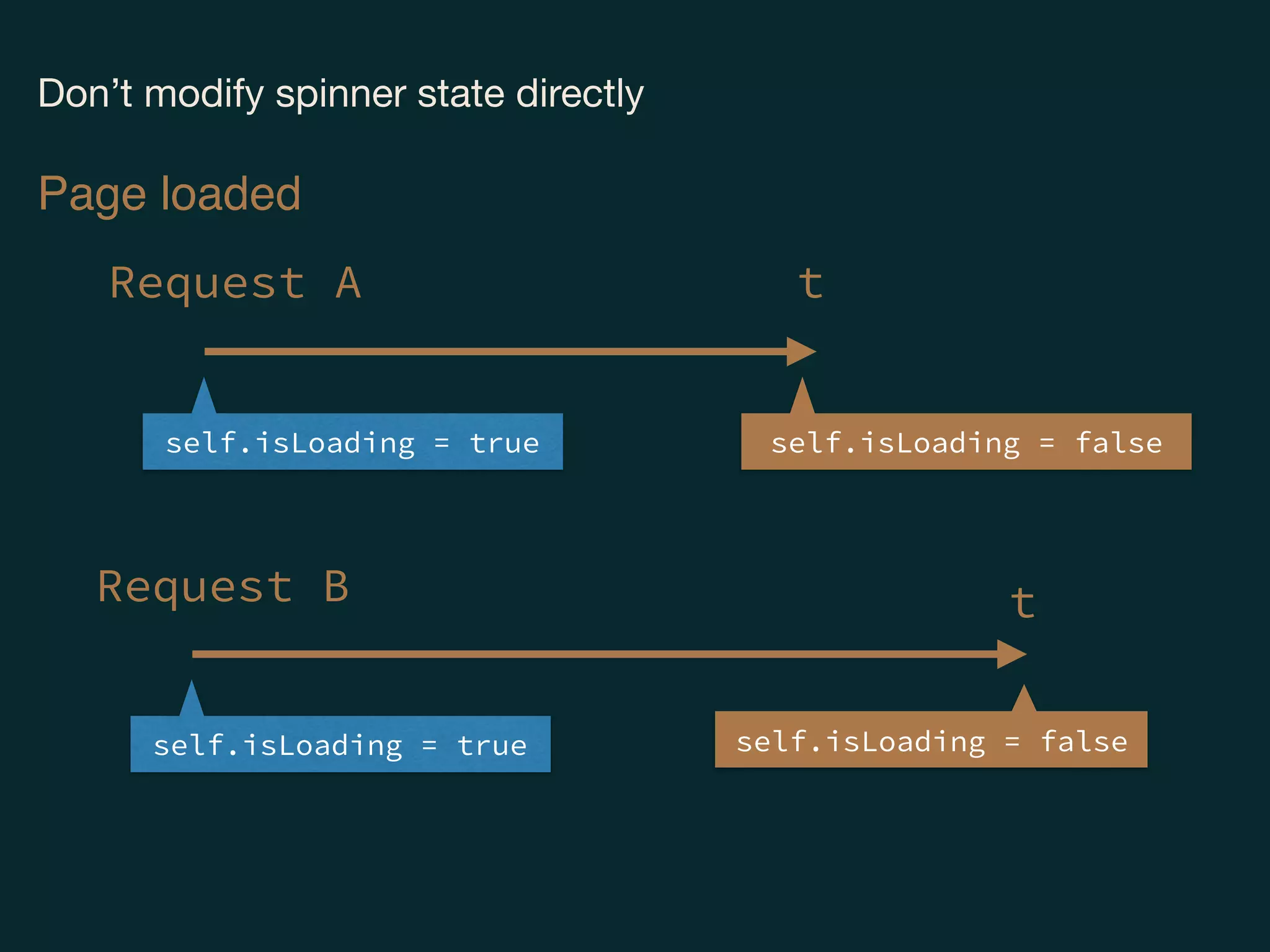

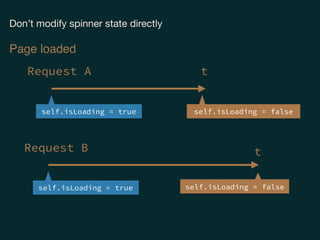

Request A
Page loaded
self.isLoading = true self.isLoading = false
Request B
self.isLoading = true self.isLoading = false
t
t
Don’t modify spinner state directly

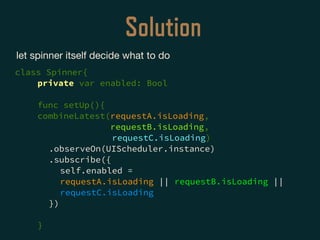

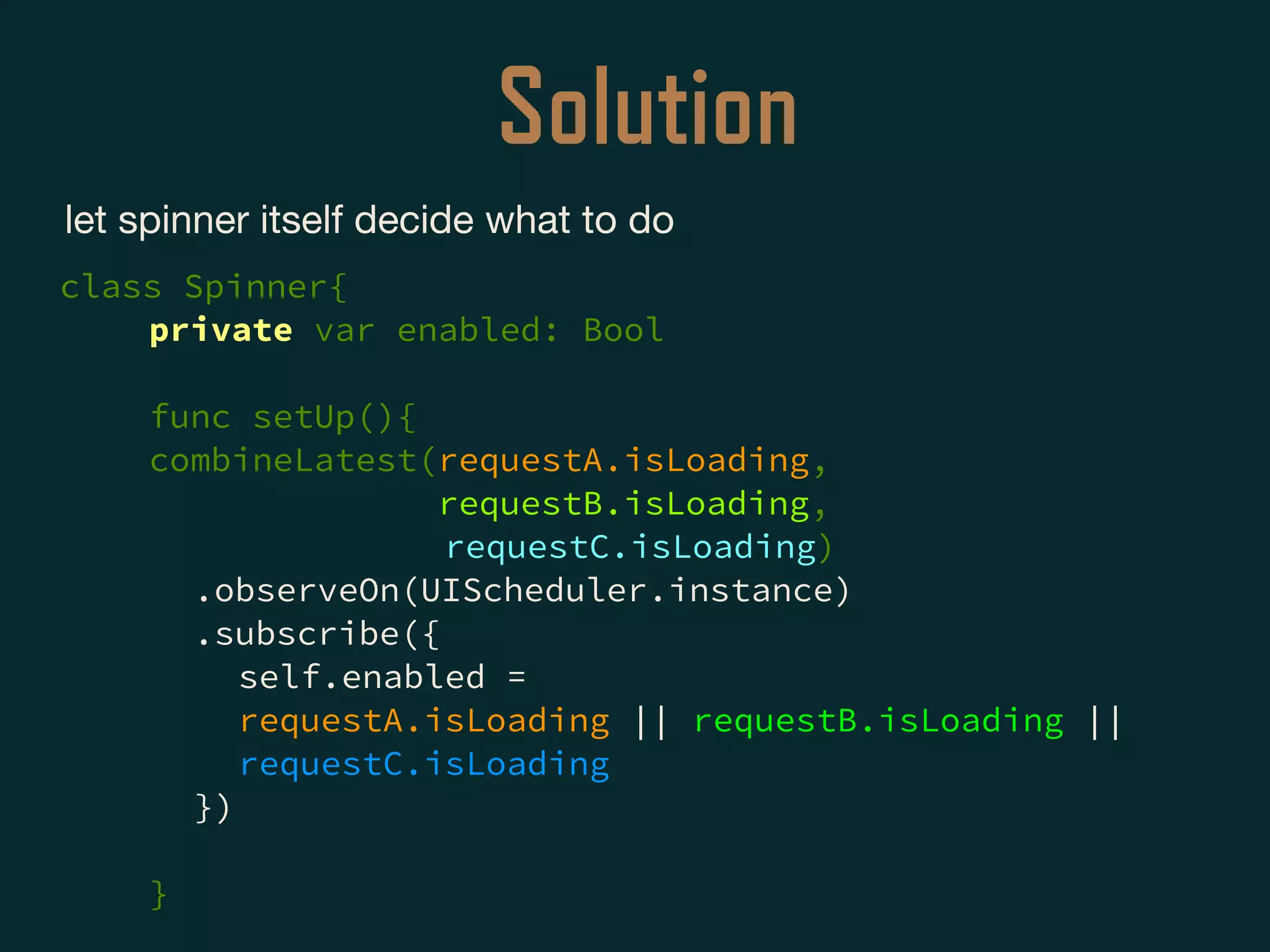

Solution
let spinner itself decide what to do

class Spinner{
private var enabled: Bool
func setUp(){
combineLatest(requestA.isLoading,
requestB.isLoading,
requestC.isLoading)
.subscribe({
self.enabled =
requestA.isLoading || requestB.isLoading ||
requestC.isLoading
})
}

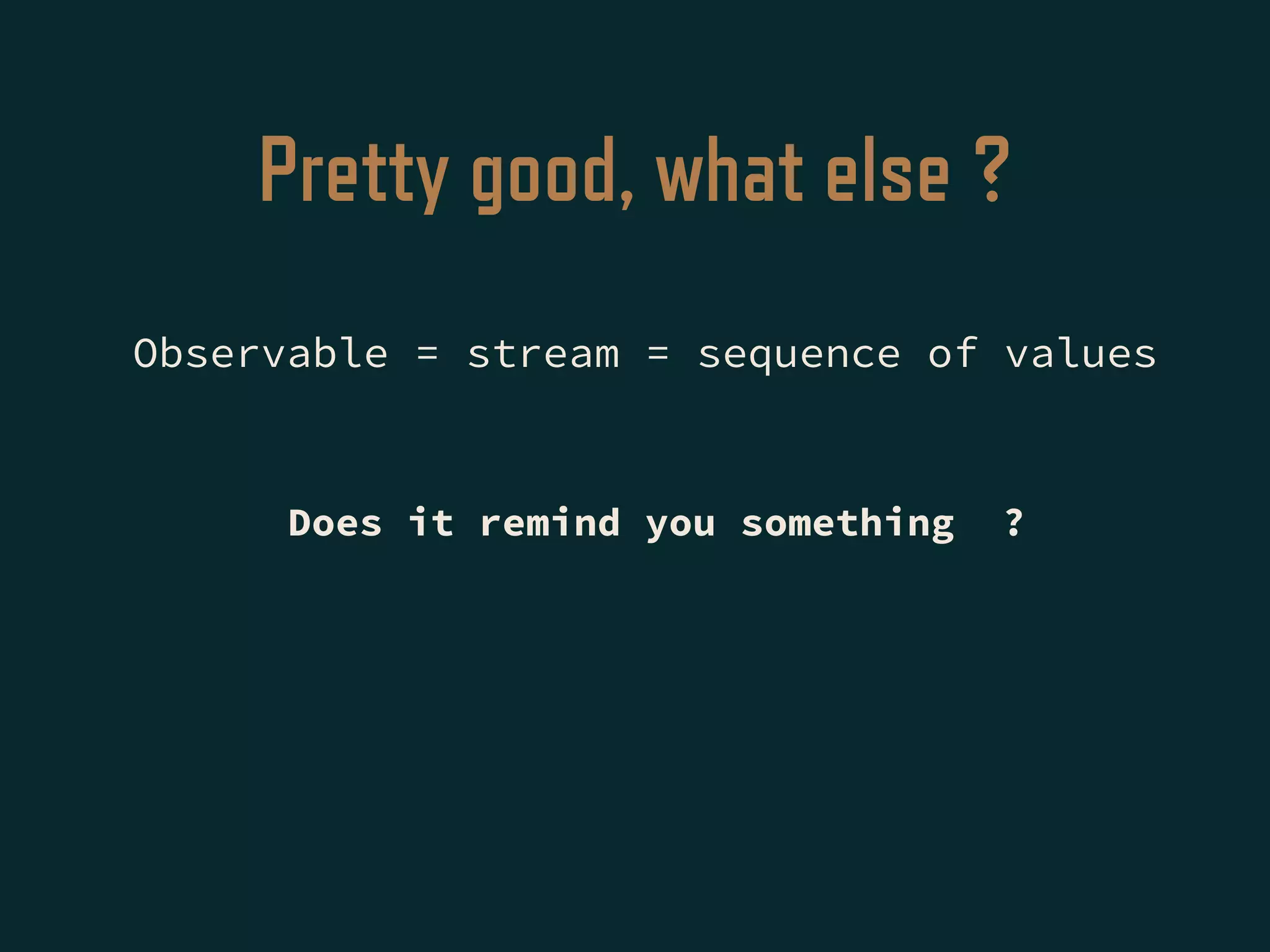

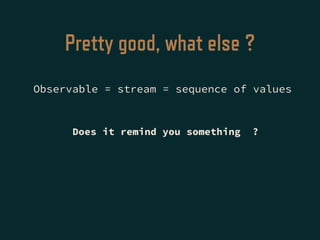

Pretty good, what else ?
Observable = stream = sequence of values
Does it remind you something ?

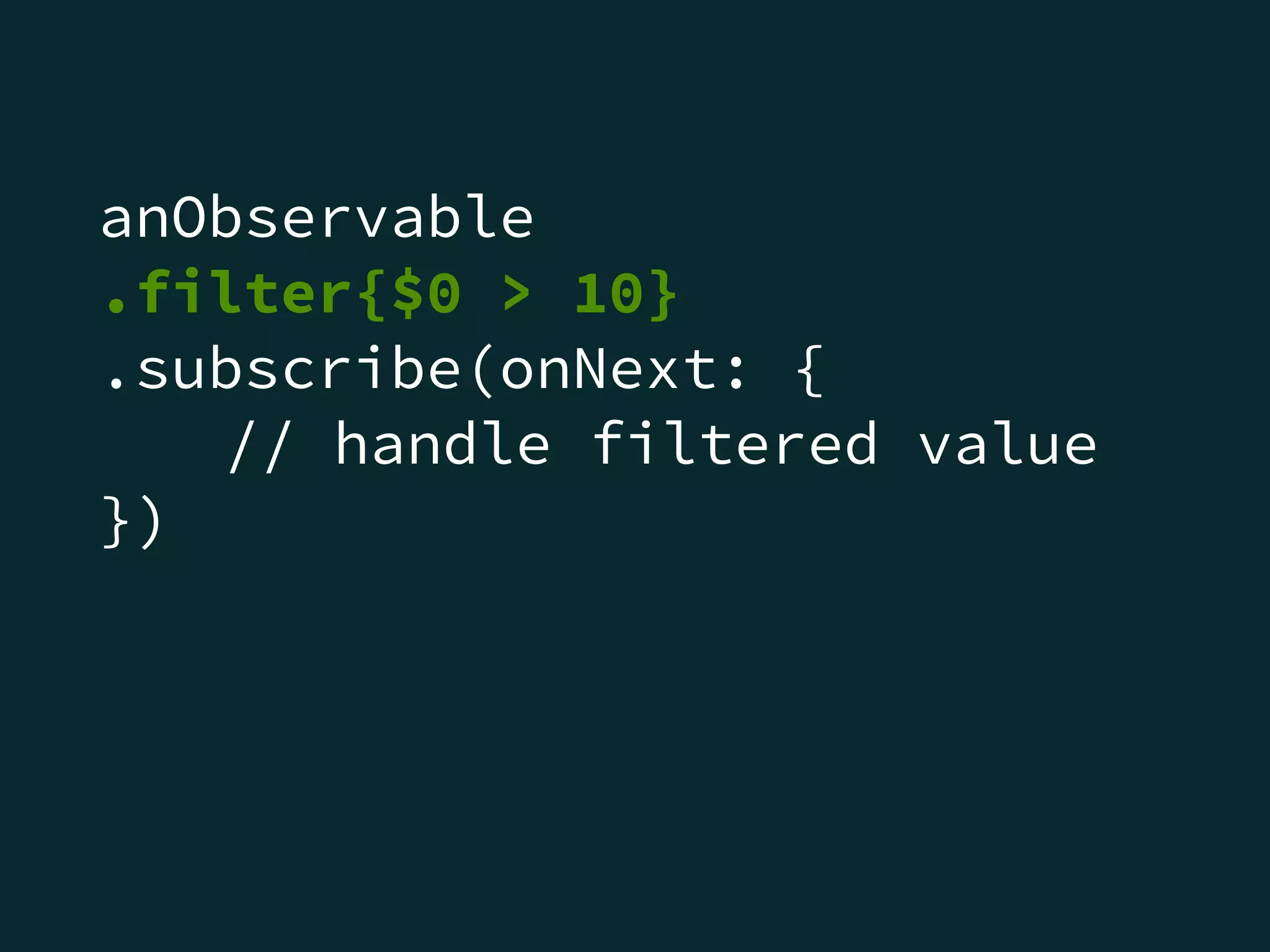

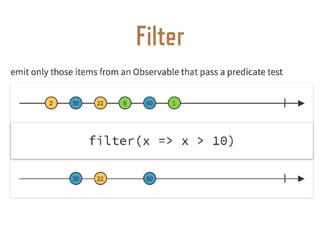

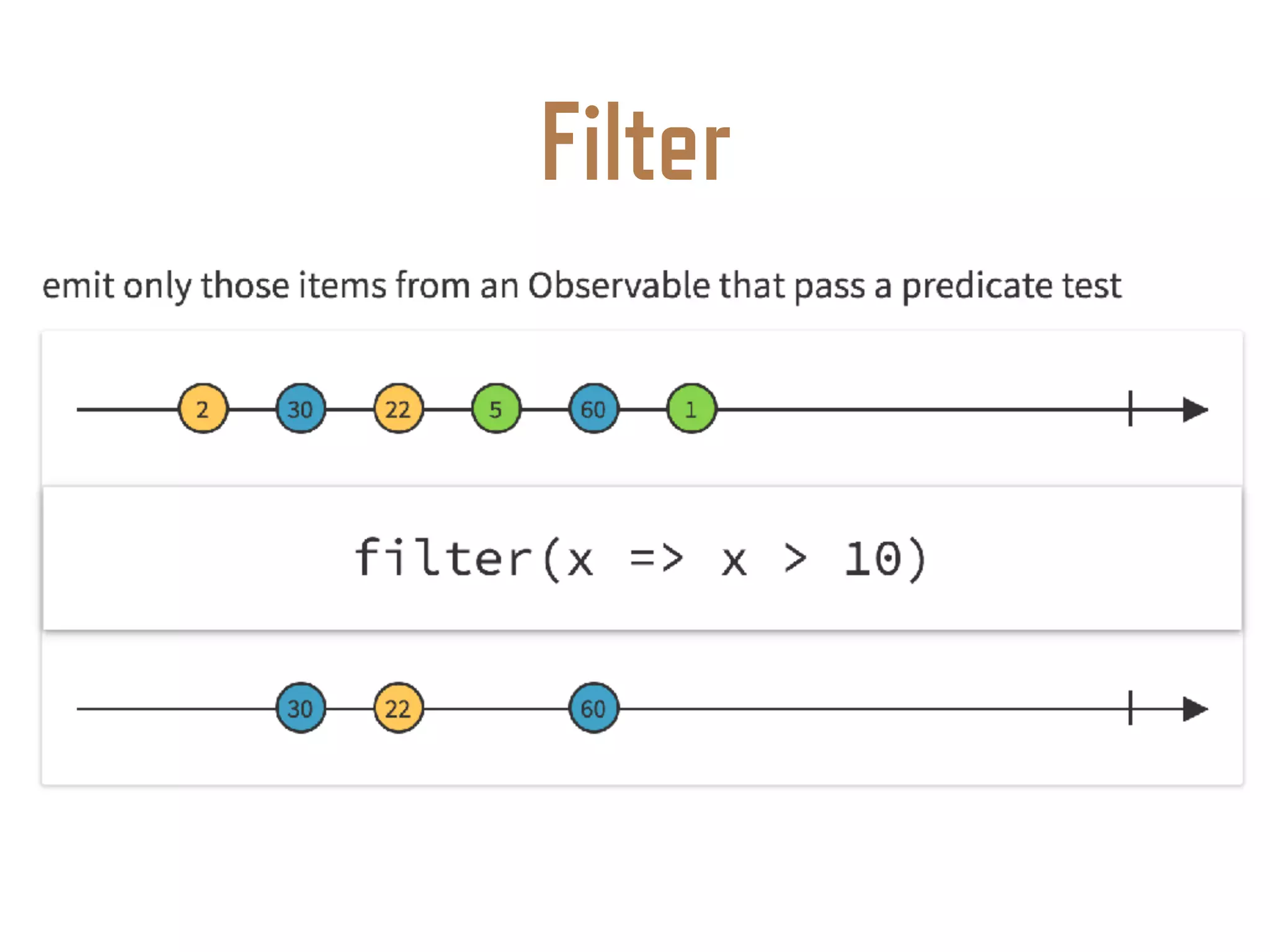

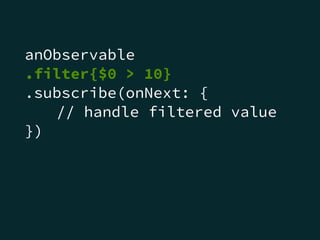

anObservable
.filter{$0 > 10}
// handle filtered value
})

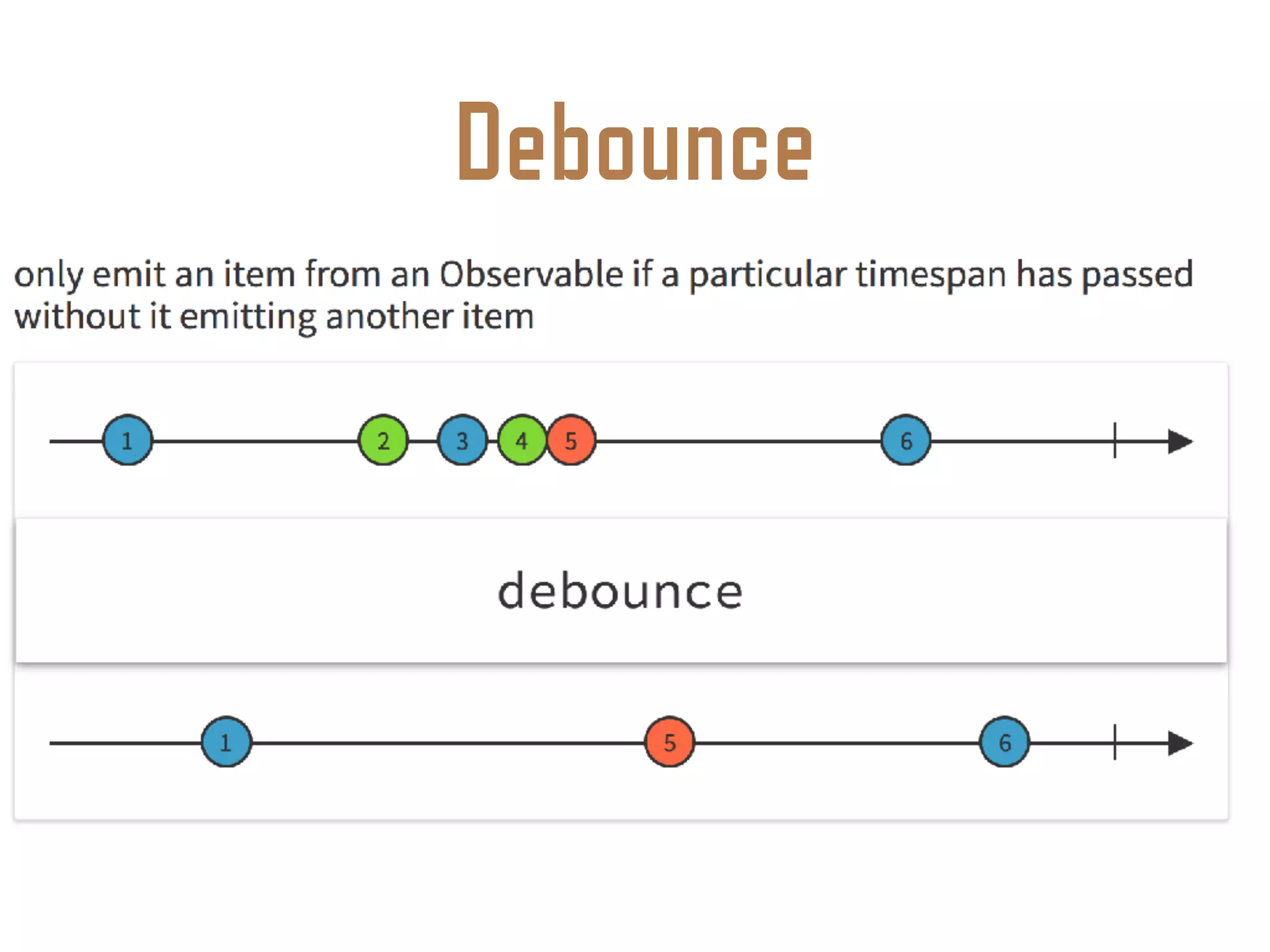

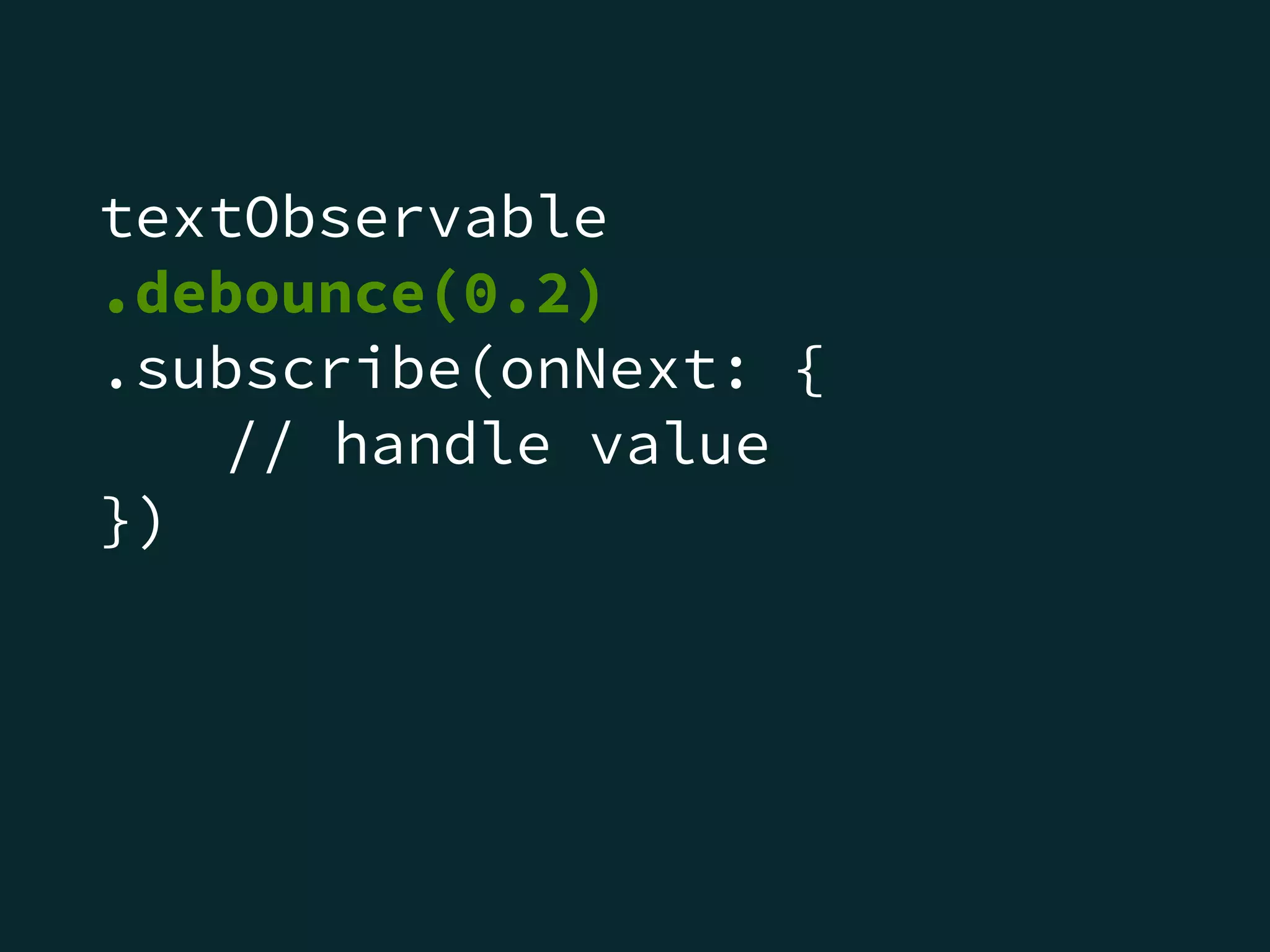

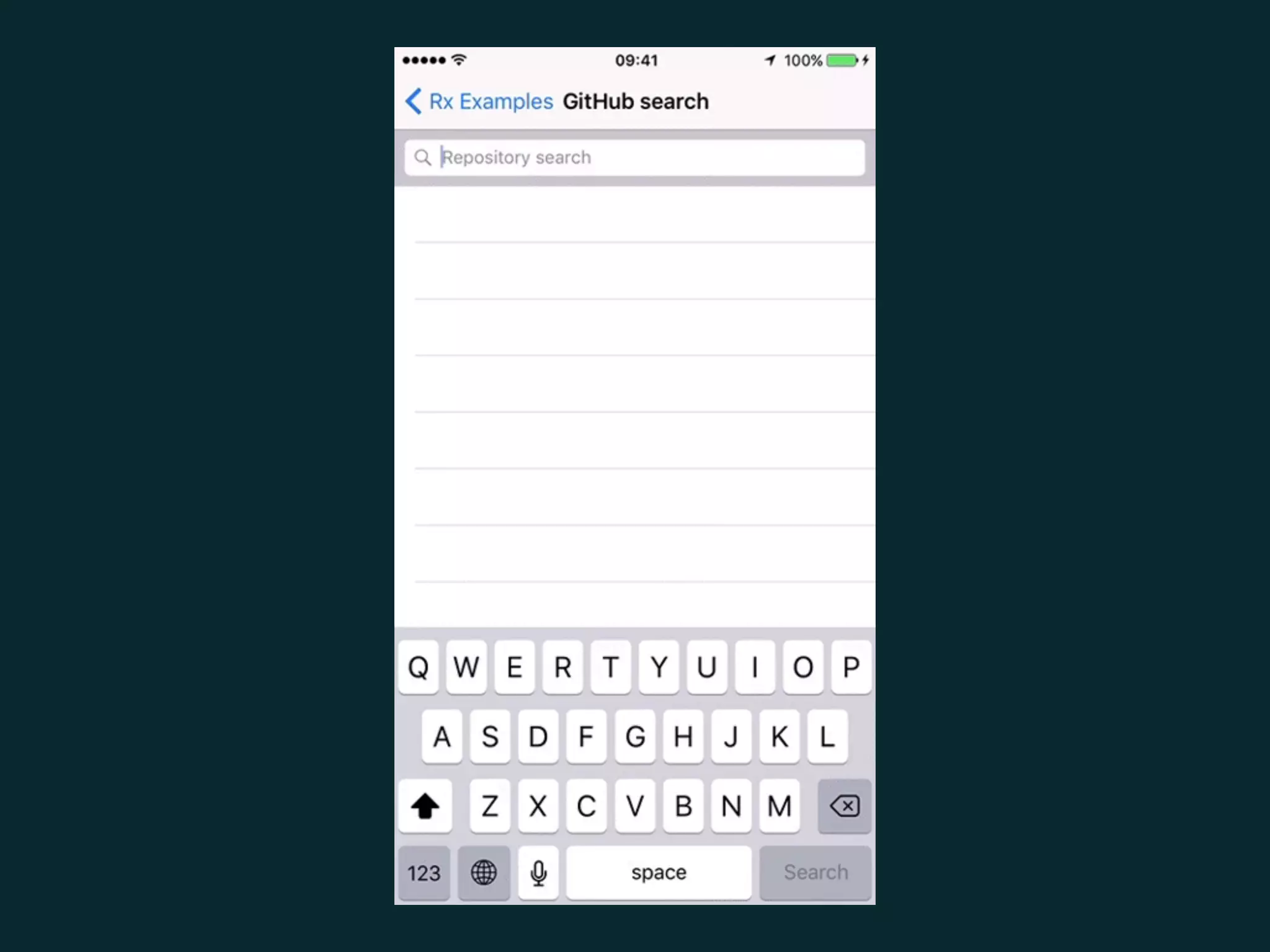

textObservable
.debounce(0.2)
// handle value
})

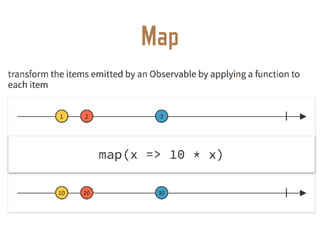

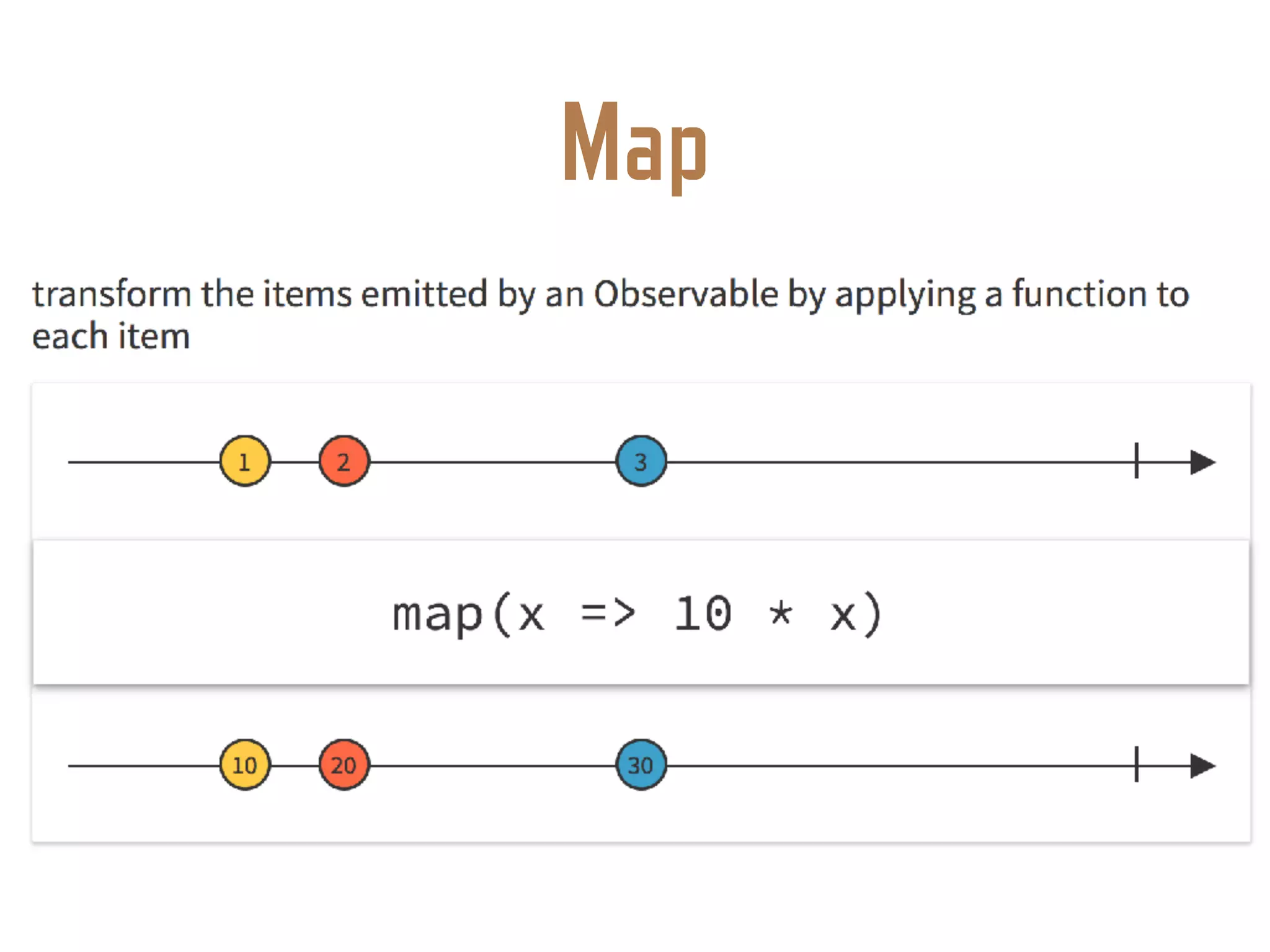

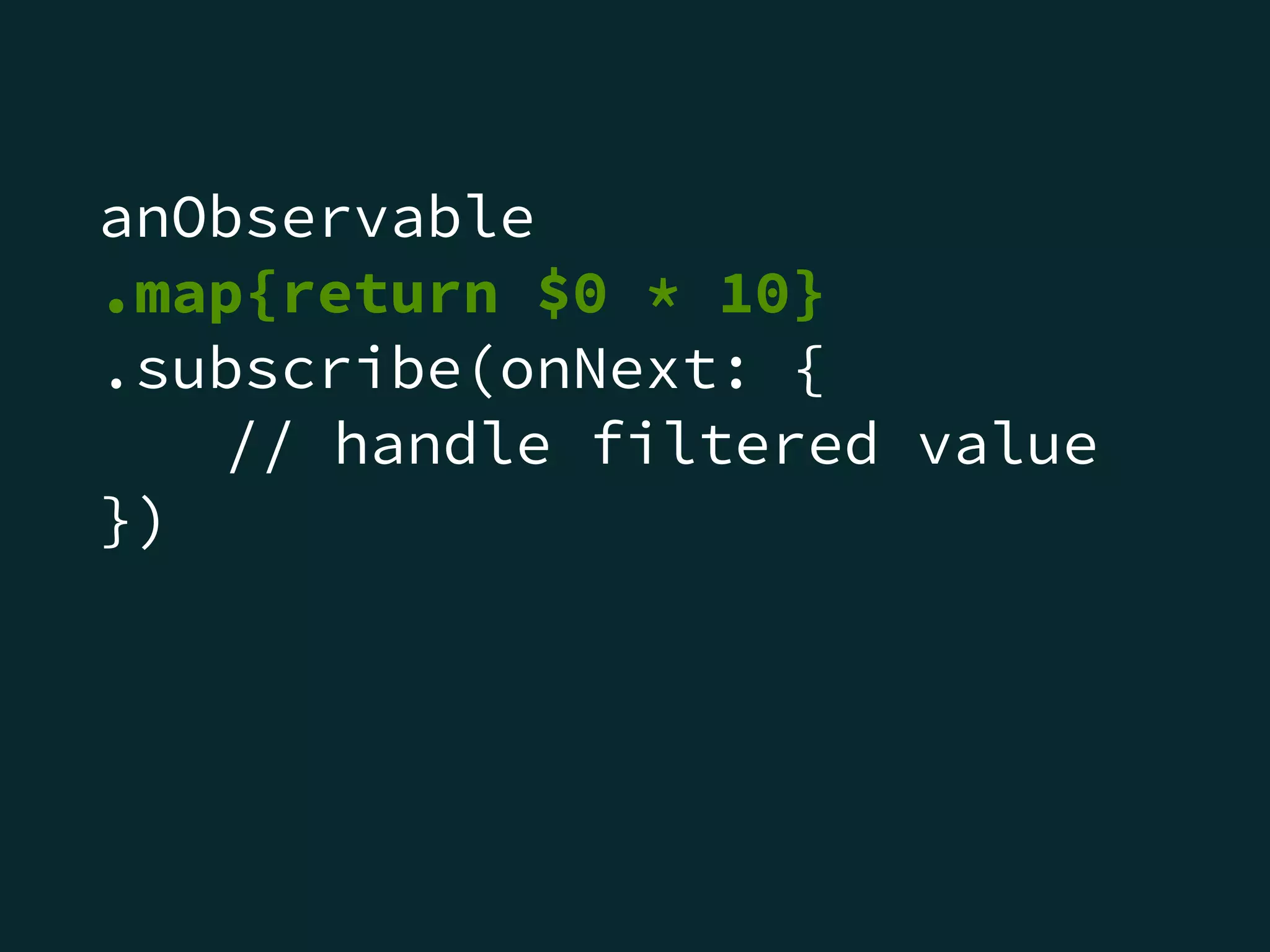

anObservable
.map{return $0 * 10}
// handle filtered value
})

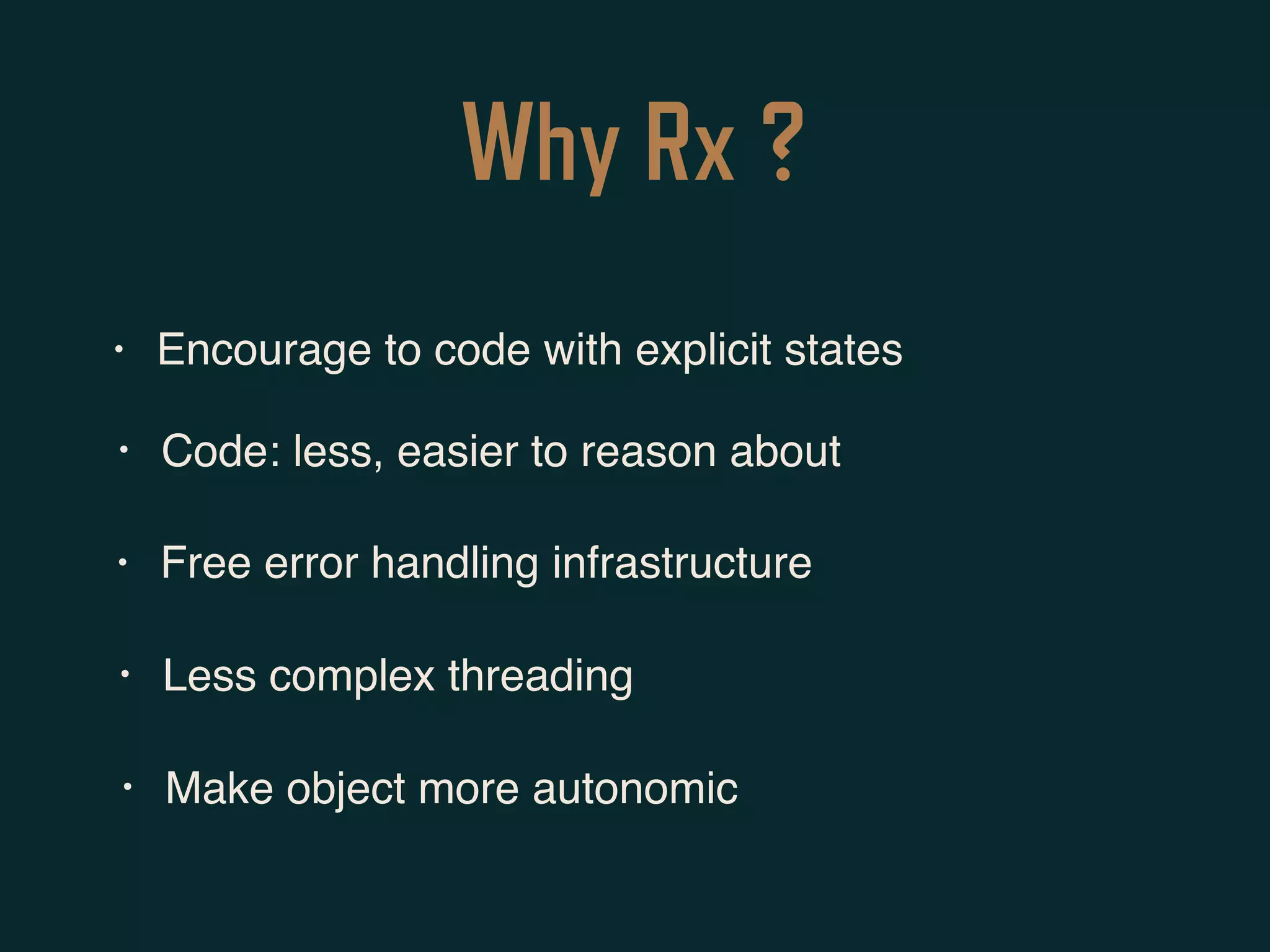

Why Rx ?
• Encourage to code with explicit states
• Code: less, easier to reason about
• Free error handling infrastructure
• Less complex threading
• Make object more autonomic

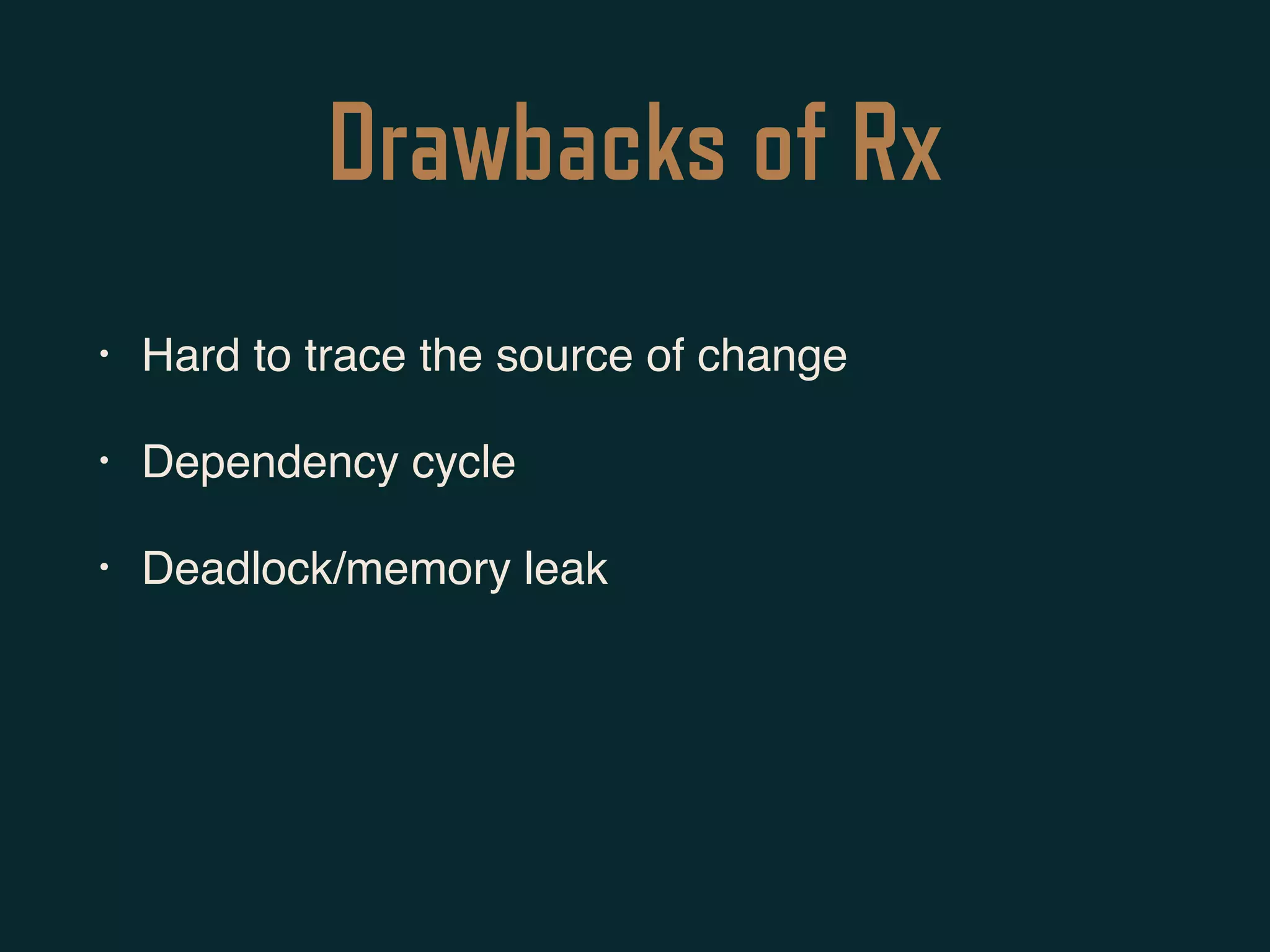

Drawbacks of Rx
• Hard to trace the source of change
• Dependency cycle
• Deadlock/memory leak

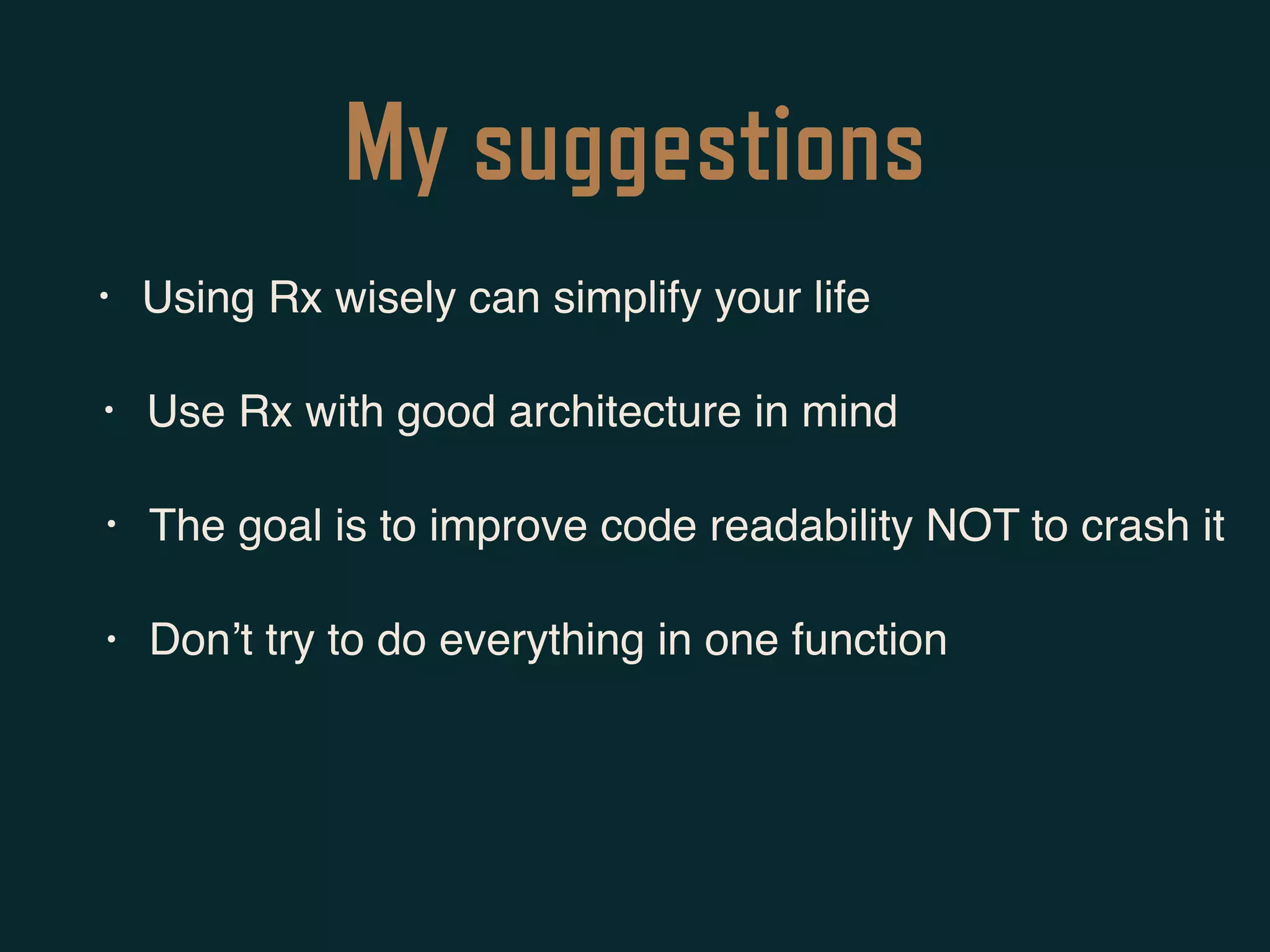

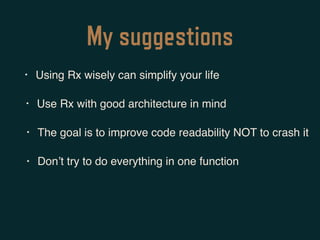

My suggestions
• Using Rx wisely can simplify your life
• Use Rx with good architecture in mind
• The goal is to improve code readability NOT to crash it
• Don’t try to do everything in one function

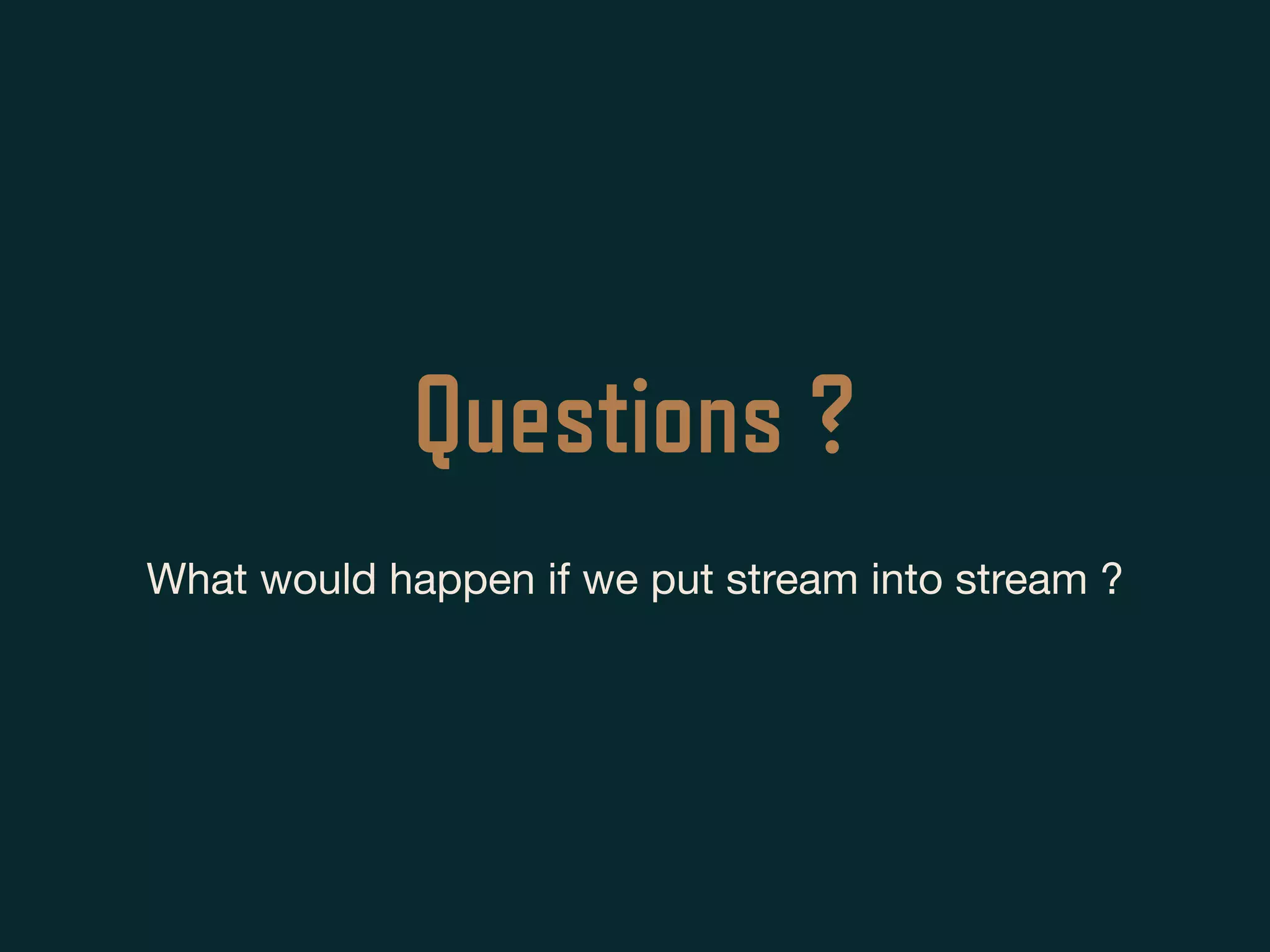

Questions ?
What would happen if we put stream into stream ?
