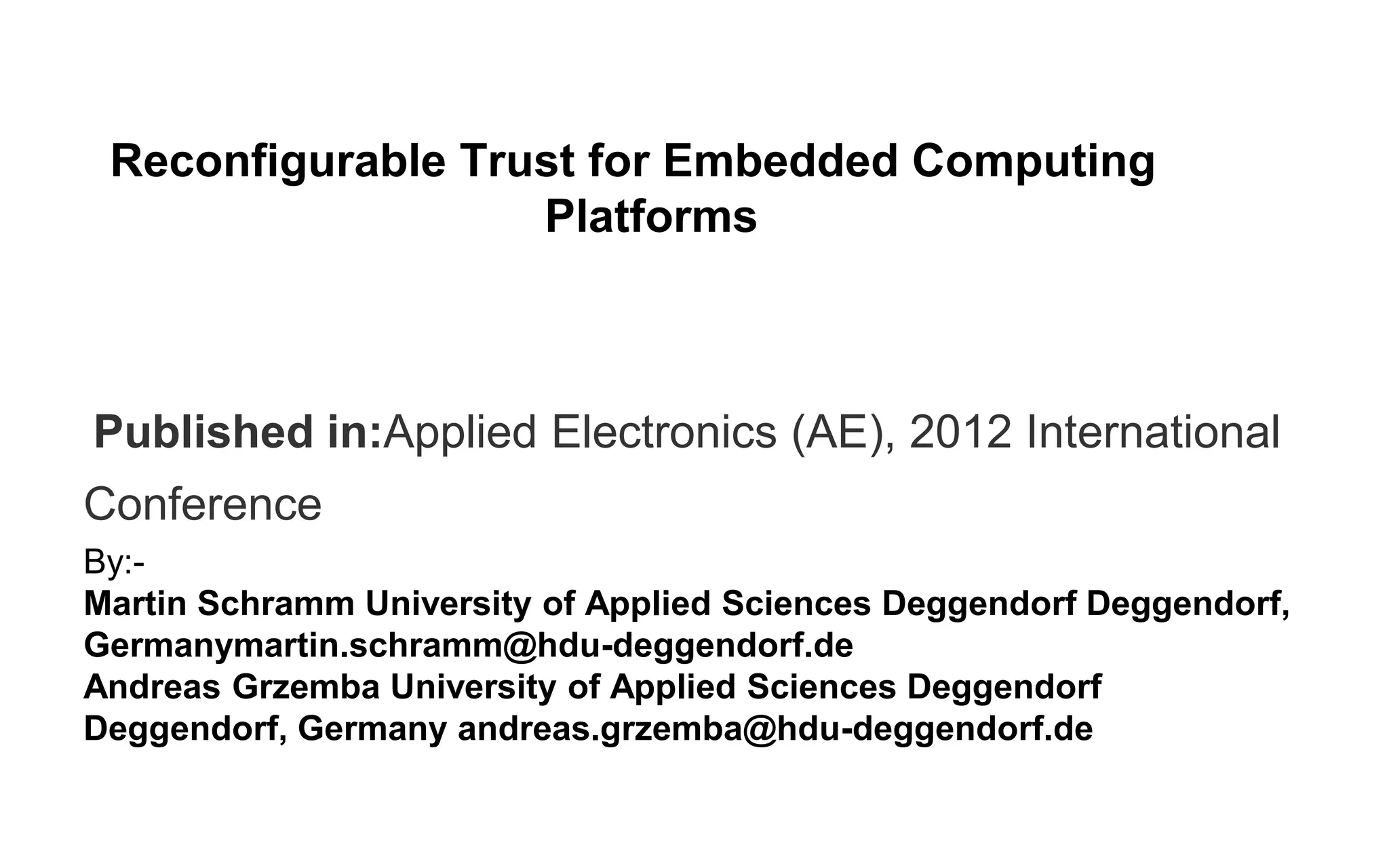

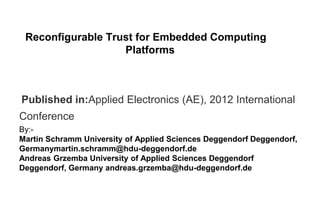

Reconfigurable trust forembeddedcomputingplatforms

Published in:Applied Electronics (AE), 2012 International
Conference
By:-
Martin Schramm University of Applied Sciences Deggendorf Deggendorf,
Germanymartin.schramm@hdu-deggendorf.de
Andreas Grzemba University of Applied Sciences Deggendorf
Deggendorf, Germany andreas.grzemba@hdu-deggendorf.de
Reconfigurable Trust for Embedded Computing
Platforms

INTRODUCTION

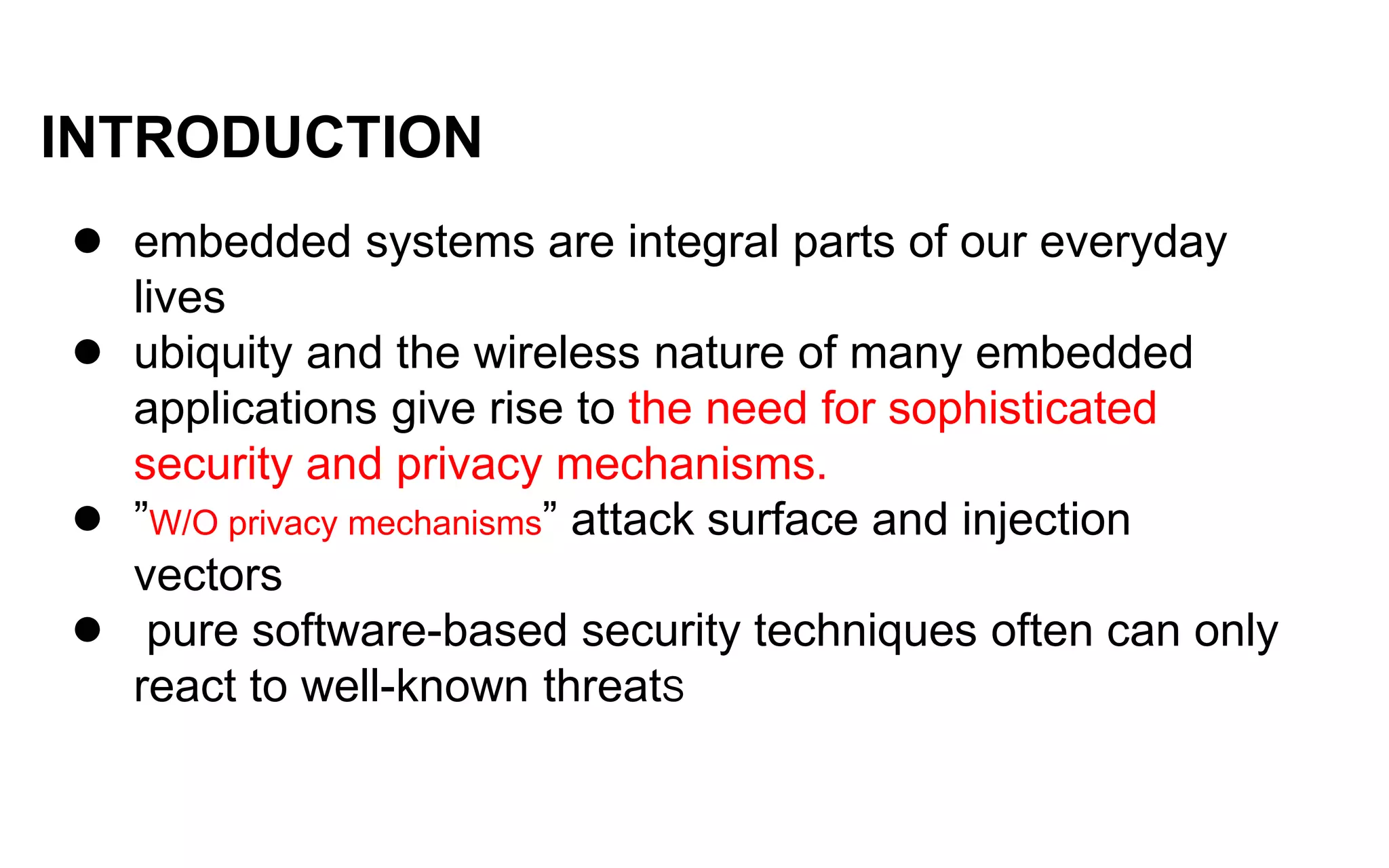

● embedded systems are integral parts of our everyday
lives
● ubiquity and the wireless nature of many embedded
applications give rise to the need for sophisticated
security and privacy mechanisms.
● ”W/O privacy mechanisms” attack surface and injection
vectors
● pure software-based security techniques often can only
react to well-known threatS

INTRODUCTION

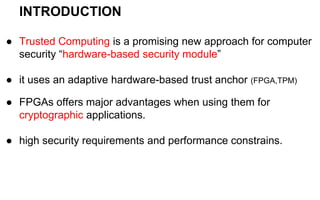

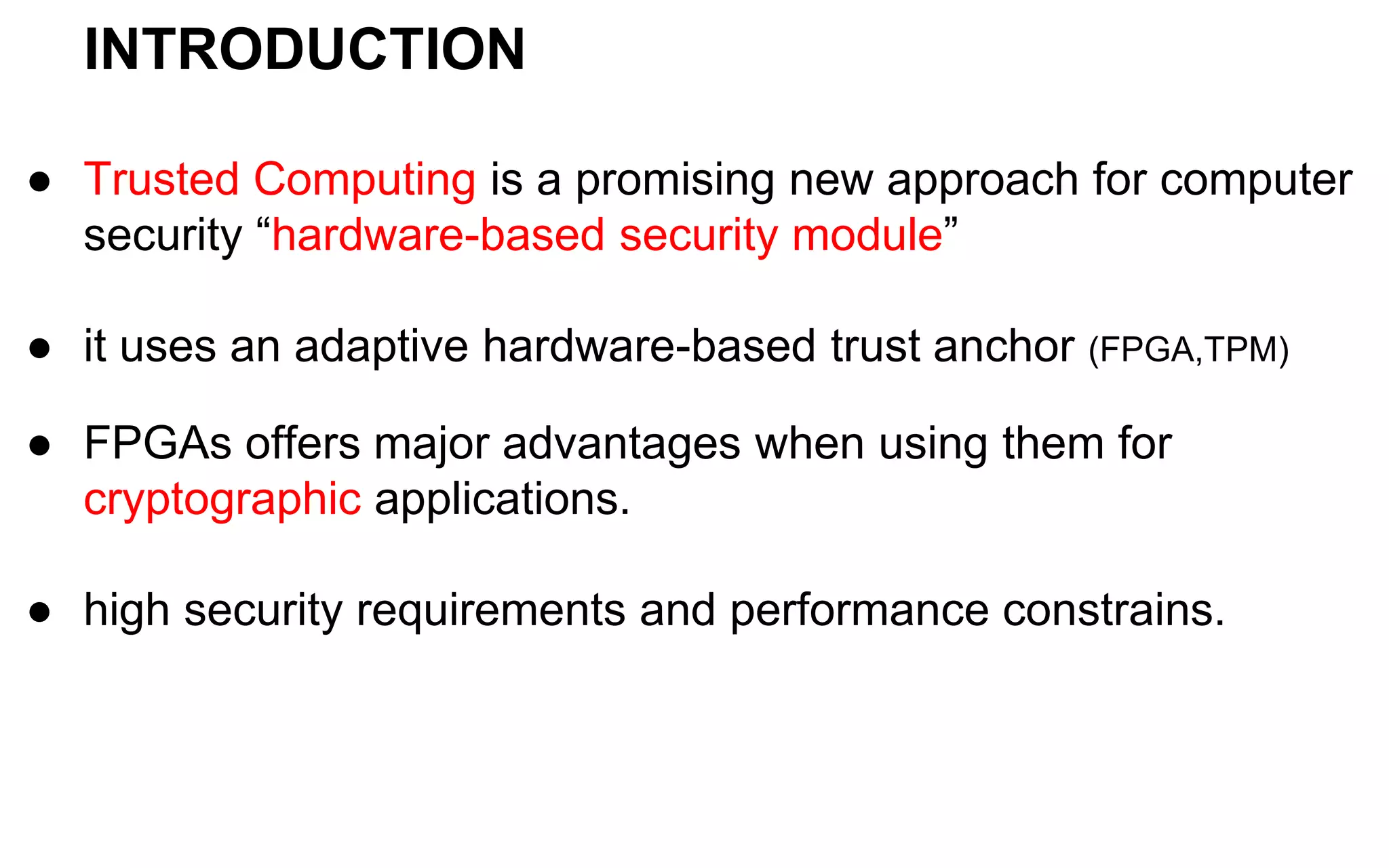

● Trusted Computing is a promising new approach for computer
security “hardware-based security module”
● it uses an adaptive hardware-based trust anchor (FPGA,TPM)
● FPGAs offers major advantages when using them for
cryptographic applications.
● high security requirements and performance constrains.

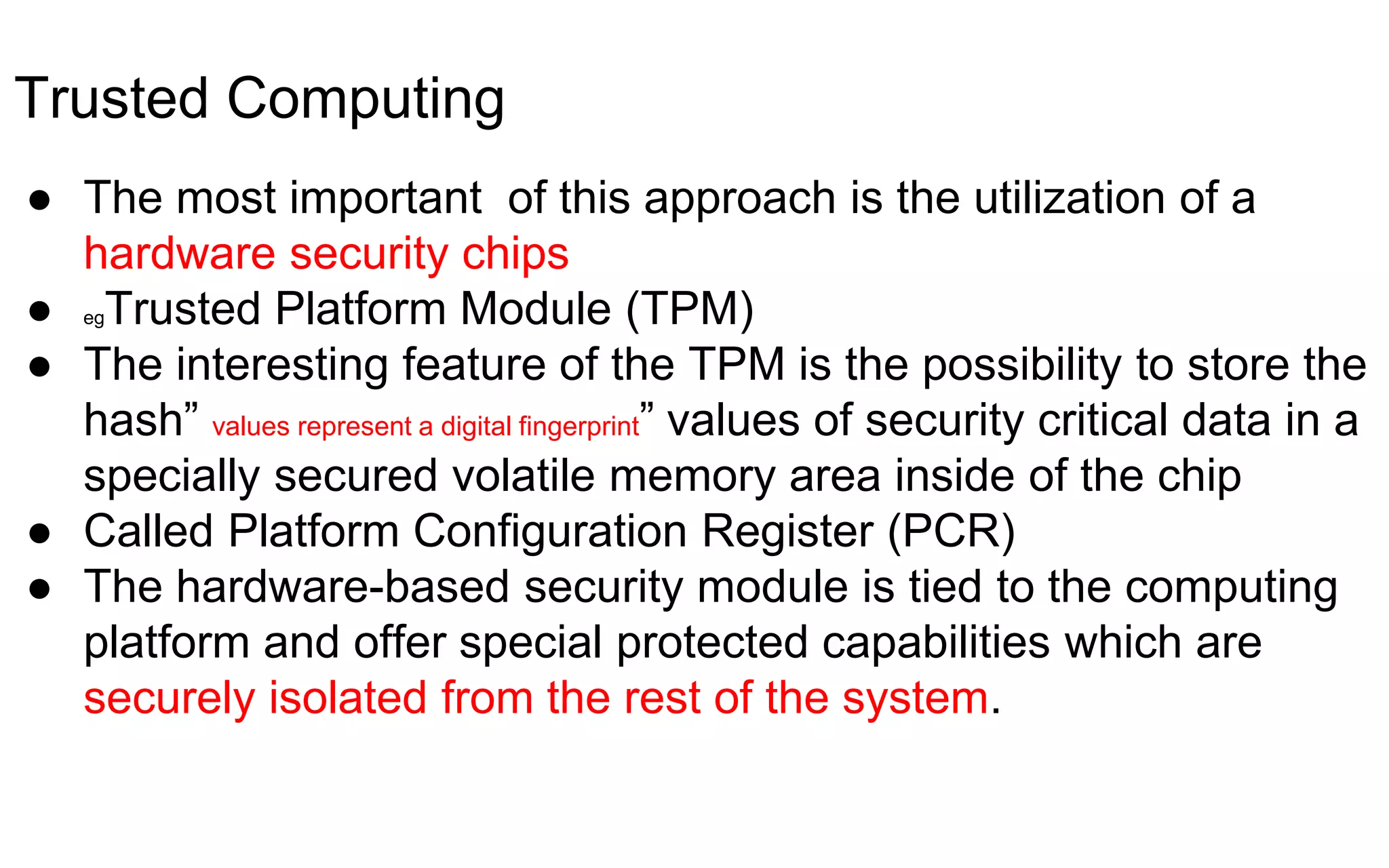

Trusted Computing
● The most important of this approach is the utilization of a
hardware security chips
● egTrusted Platform Module (TPM)
● The interesting feature of the TPM is the possibility to store the
hash” values represent a digital fingerprint” values of security critical data in a
specially secured volatile memory area inside of the chip
● Called Platform Configuration Register (PCR)
● The hardware-based security module is tied to the computing
platform and offer special protected capabilities which are
securely isolated from the rest of the system.

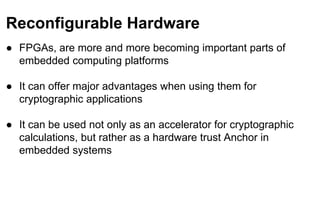

Reconfigurable Hardware
● FPGAs, are more and more becoming important parts of
embedded computing platforms
● It can offer major advantages when using them for
cryptographic applications
● It can be used not only as an accelerator for cryptographic
calculations, but rather as a hardware trust Anchor in
embedded systems

FPGA-BASED TRUST ANCHOR
● This section deals with
the concept of an
adaptive Trust Anchor
which is based on a
FPGA chip.

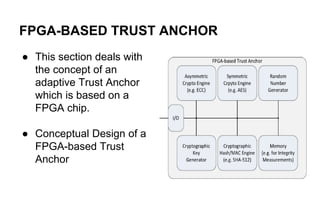

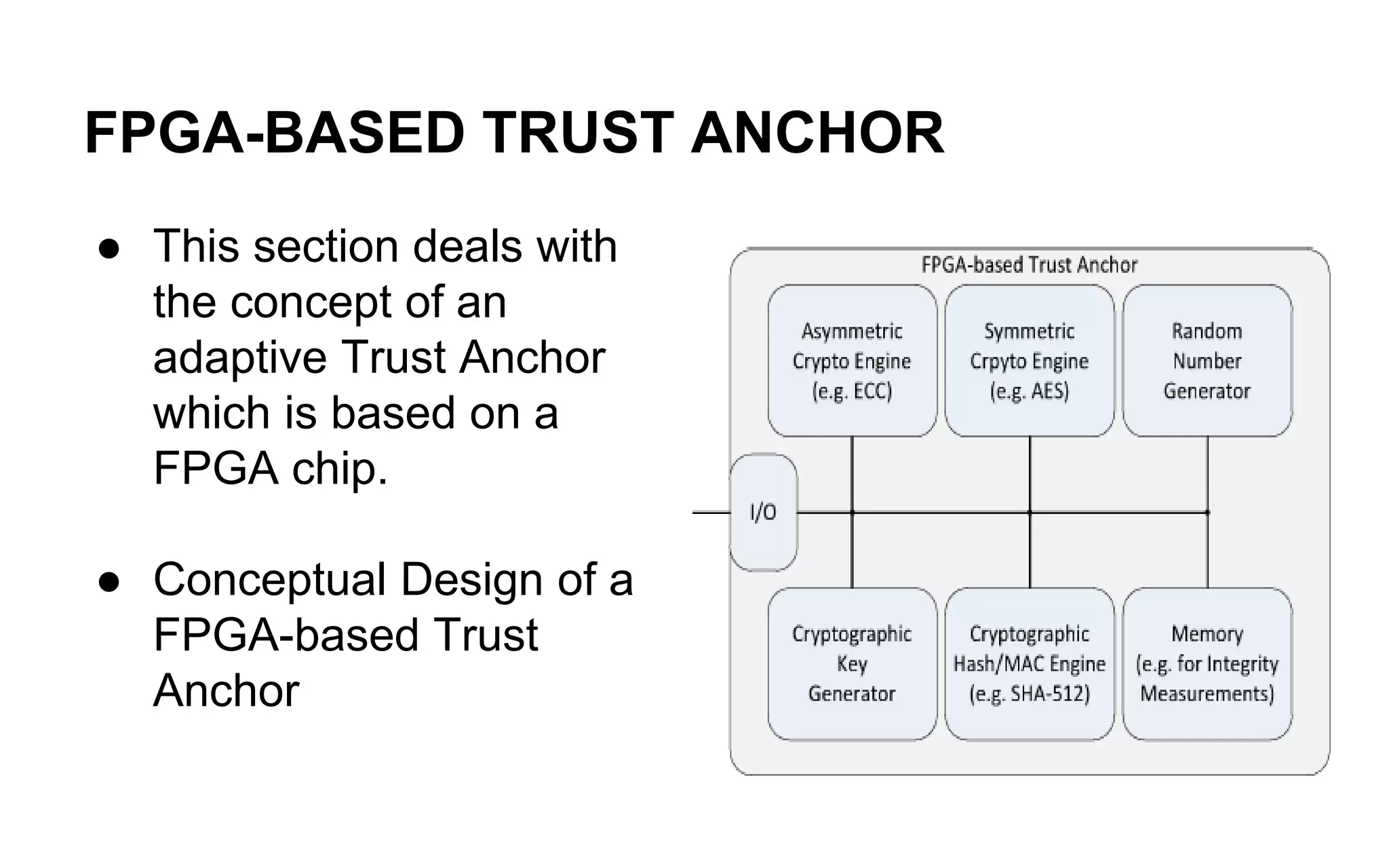

● Conceptual Design of a
FPGA-based Trust
Anchor

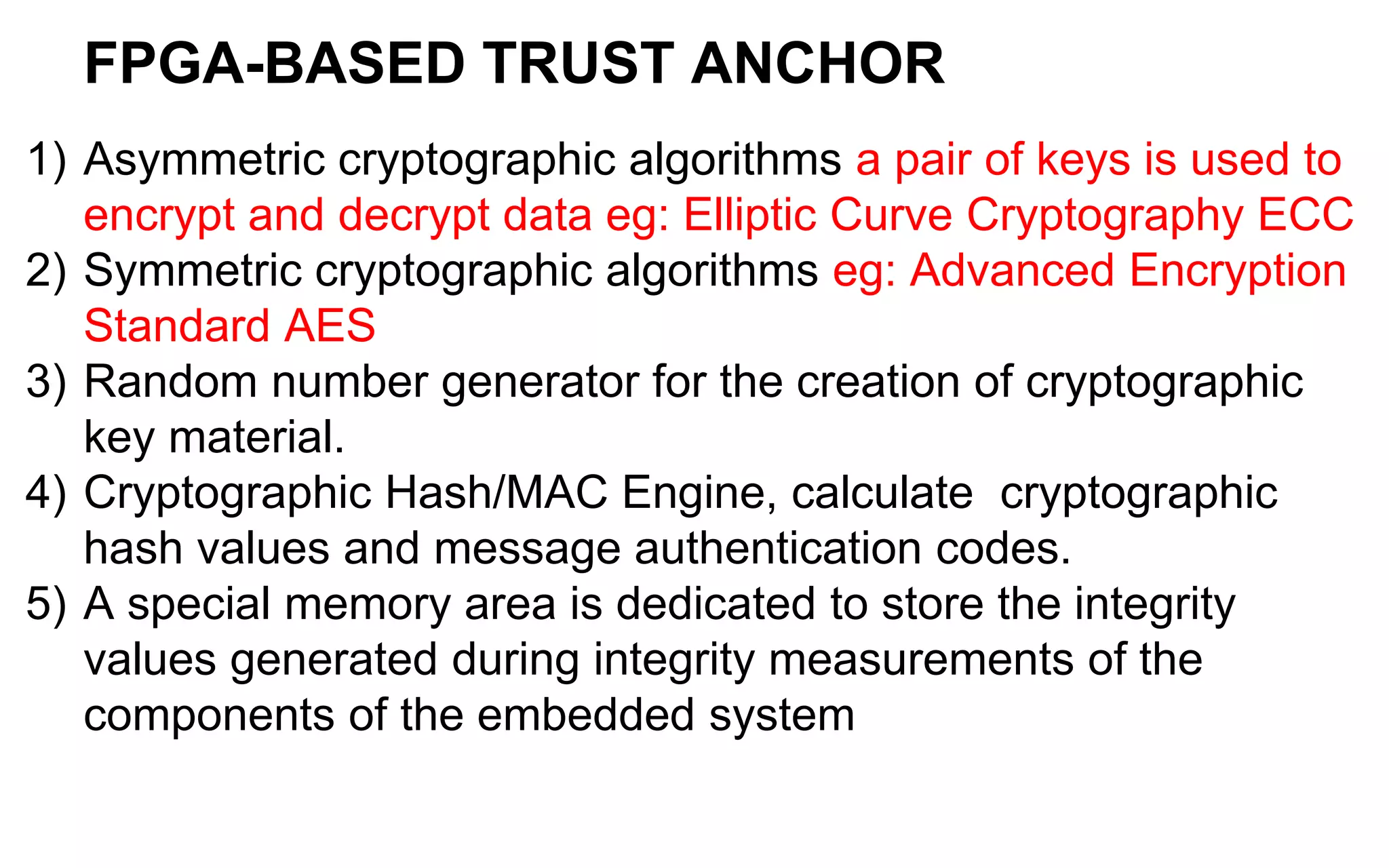

1) Asymmetric cryptographic algorithms a pair of keys is used to
encrypt and decrypt data eg: Elliptic Curve Cryptography ECC
2) Symmetric cryptographic algorithms eg: Advanced Encryption
Standard AES
3) Random number generator for the creation of cryptographic
key material.
4) Cryptographic Hash/MAC Engine, calculate cryptographic
hash values and message authentication codes.
5) A special memory area is dedicated to store the integrity
values generated during integrity measurements of the
components of the embedded system

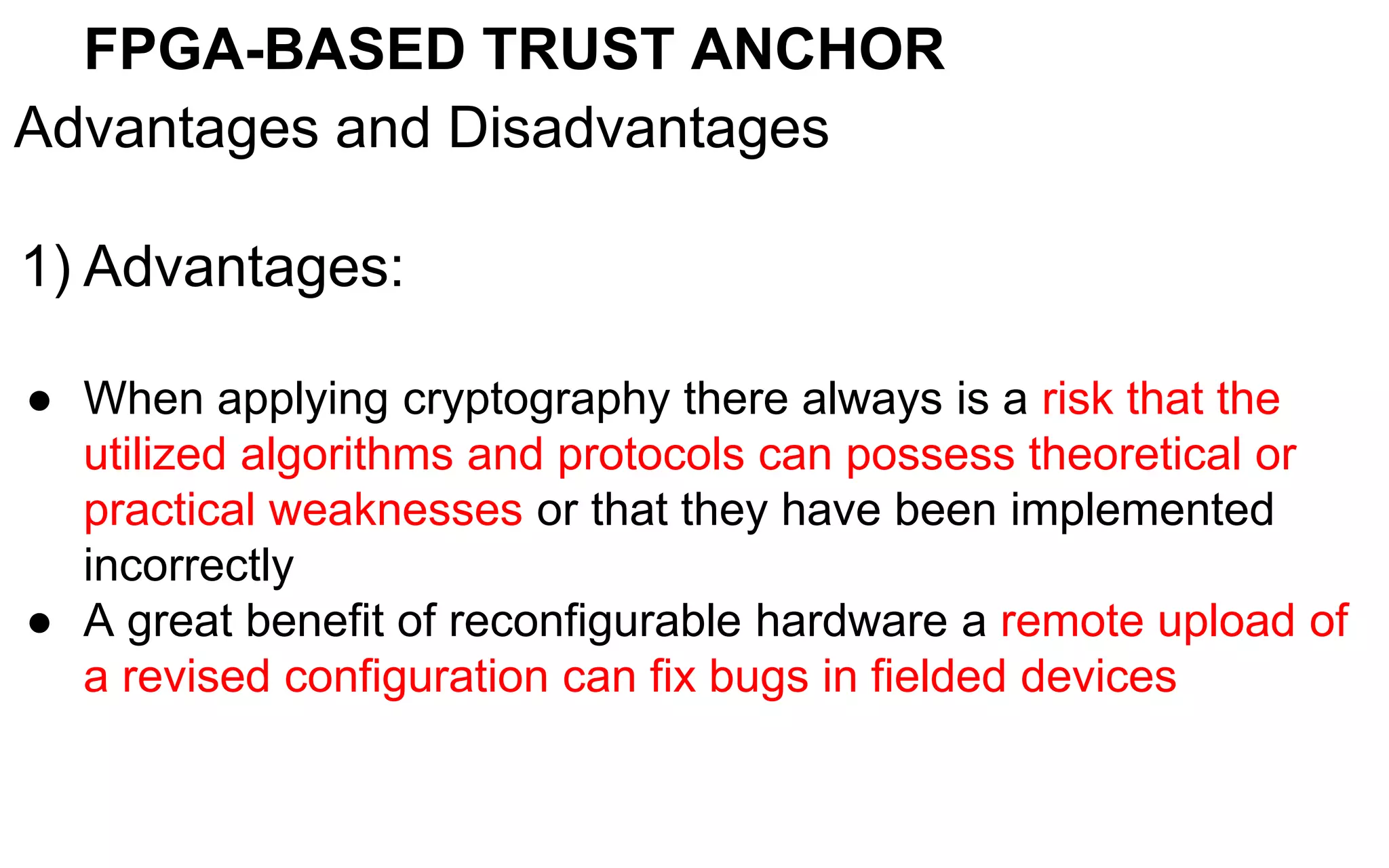

Advantages and Disadvantages
1) Advantages:
● When applying cryptography there always is a risk that the
utilized algorithms and protocols can possess theoretical or
practical weaknesses or that they have been implemented
incorrectly
● A great benefit of reconfigurable hardware a remote upload of
a revised configuration can fix bugs in fielded devices

1) Advantages.

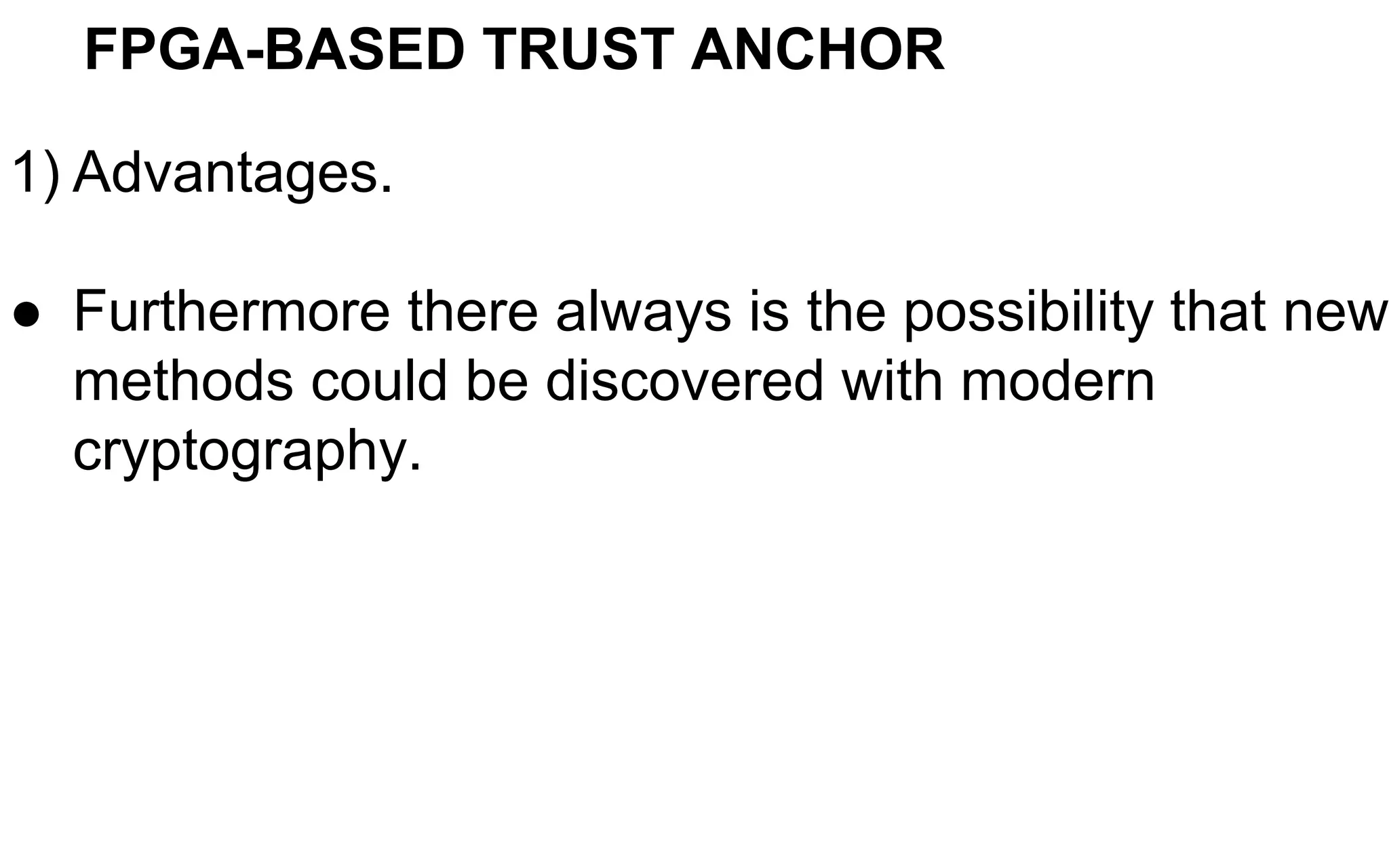

● Furthermore there always is the possibility that new
methods could be discovered with modern
cryptography.

2) Shortcomings

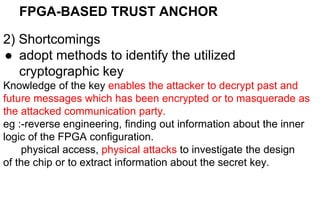

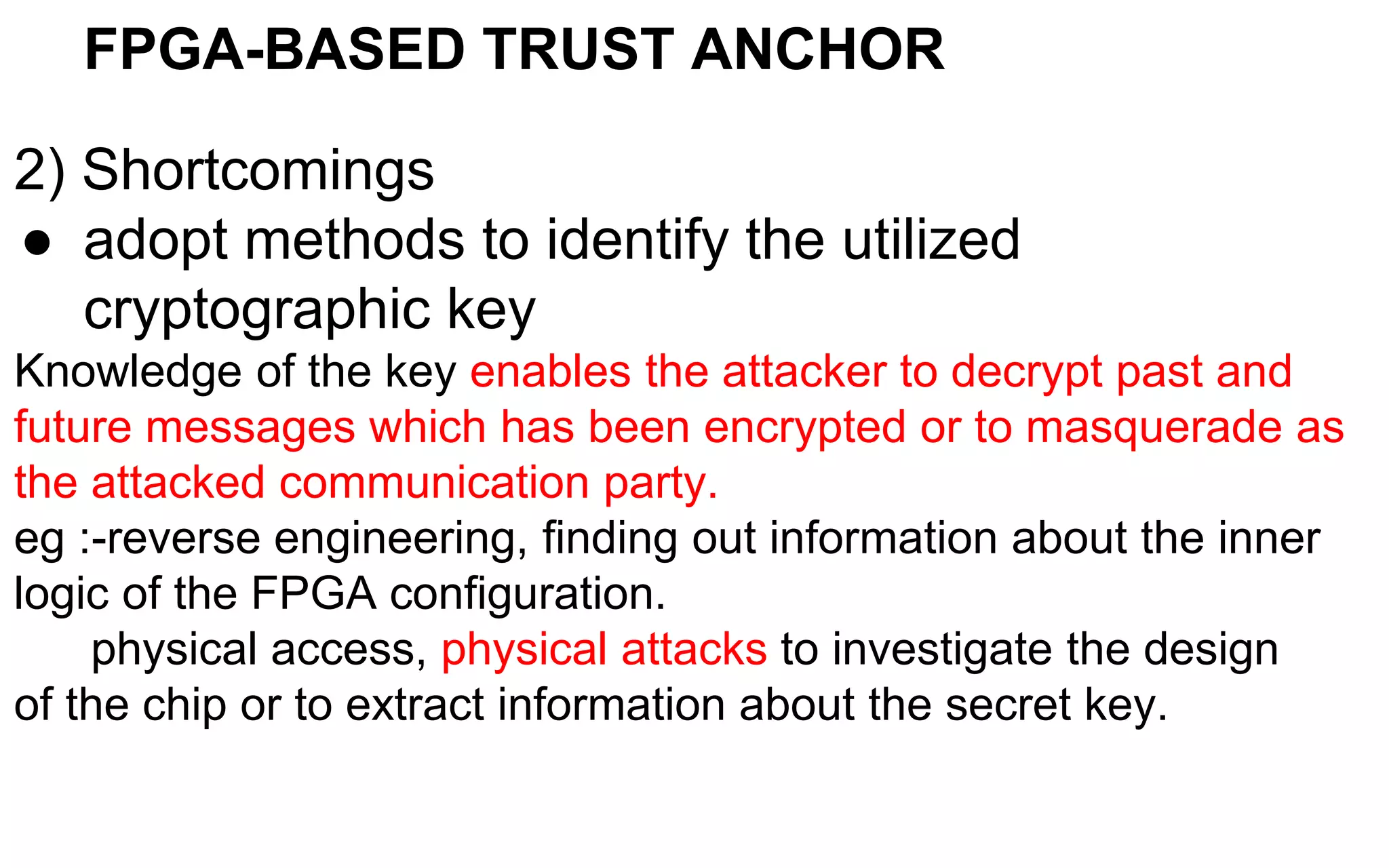

● adopt methods to identify the utilized
cryptographic key
Knowledge of the key enables the attacker to decrypt past and
future messages which has been encrypted or to masquerade as
the attacked communication party.
eg :-reverse engineering, finding out information about the inner
logic of the FPGA configuration.
physical access, physical attacks to investigate the design
of the chip or to extract information about the secret key.

2) Shortcomings

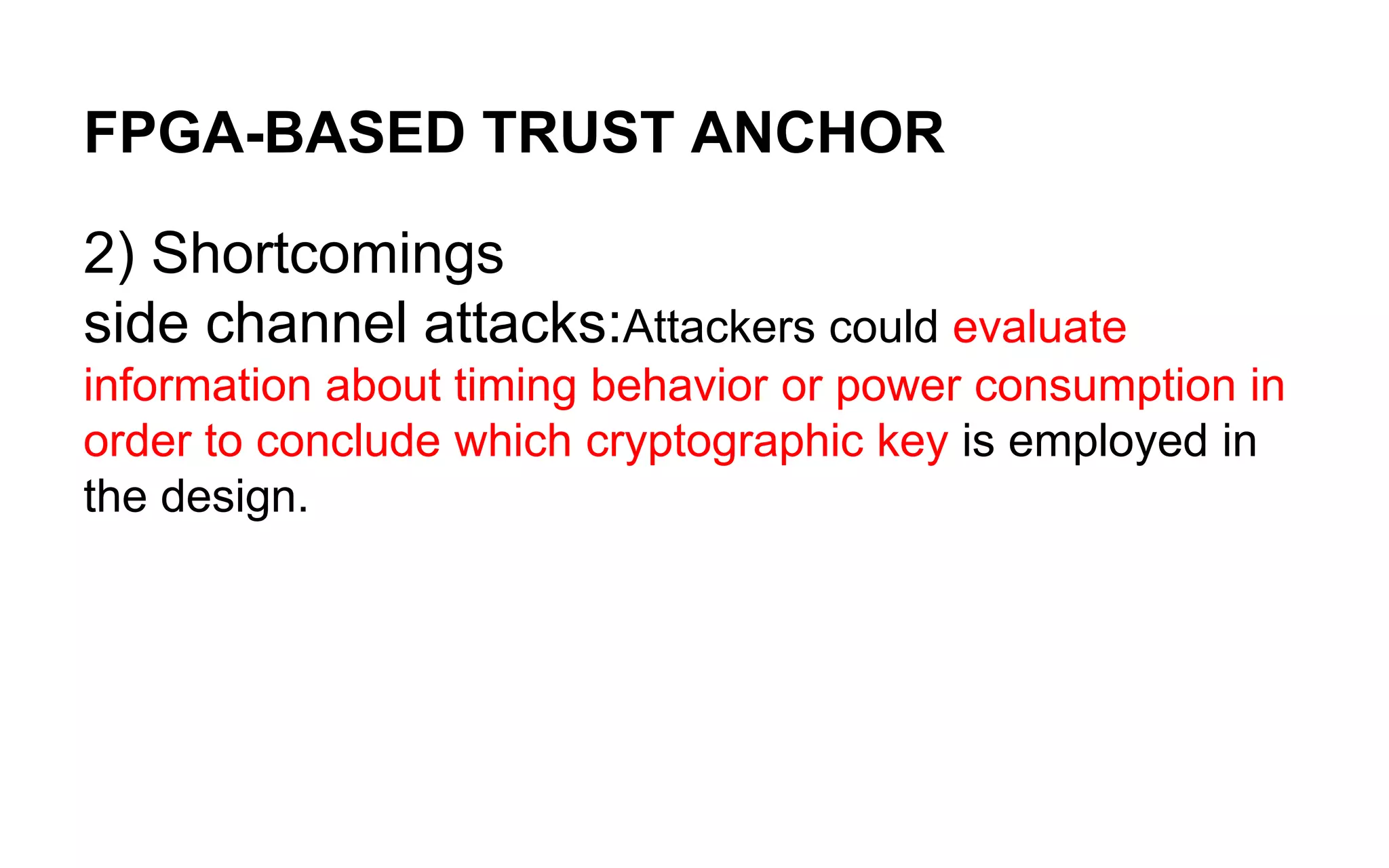

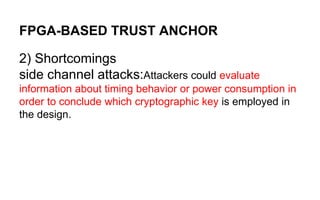

side channel attacks:Attackers could evaluate
information about timing behavior or power consumption in
order to conclude which cryptographic key is employed in
the design.

2) Shortcomings

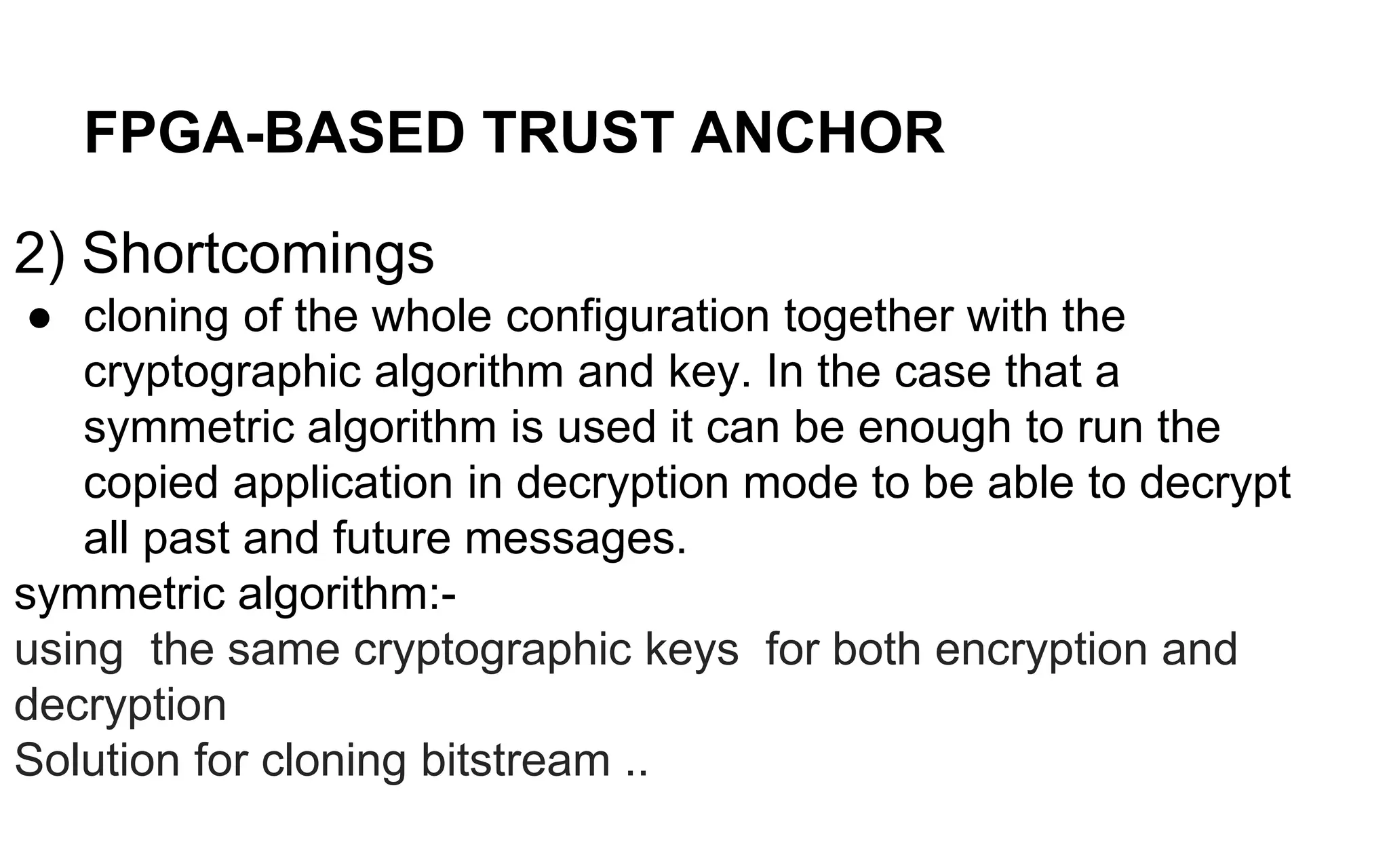

● cloning of the whole configuration together with the
cryptographic algorithm and key. In the case that a
symmetric algorithm is used it can be enough to run the
copied application in decryption mode to be able to decrypt
all past and future messages.
symmetric algorithm:-
using the same cryptographic keys for both encryption and
decryption
Solution for cloning bitstream ..

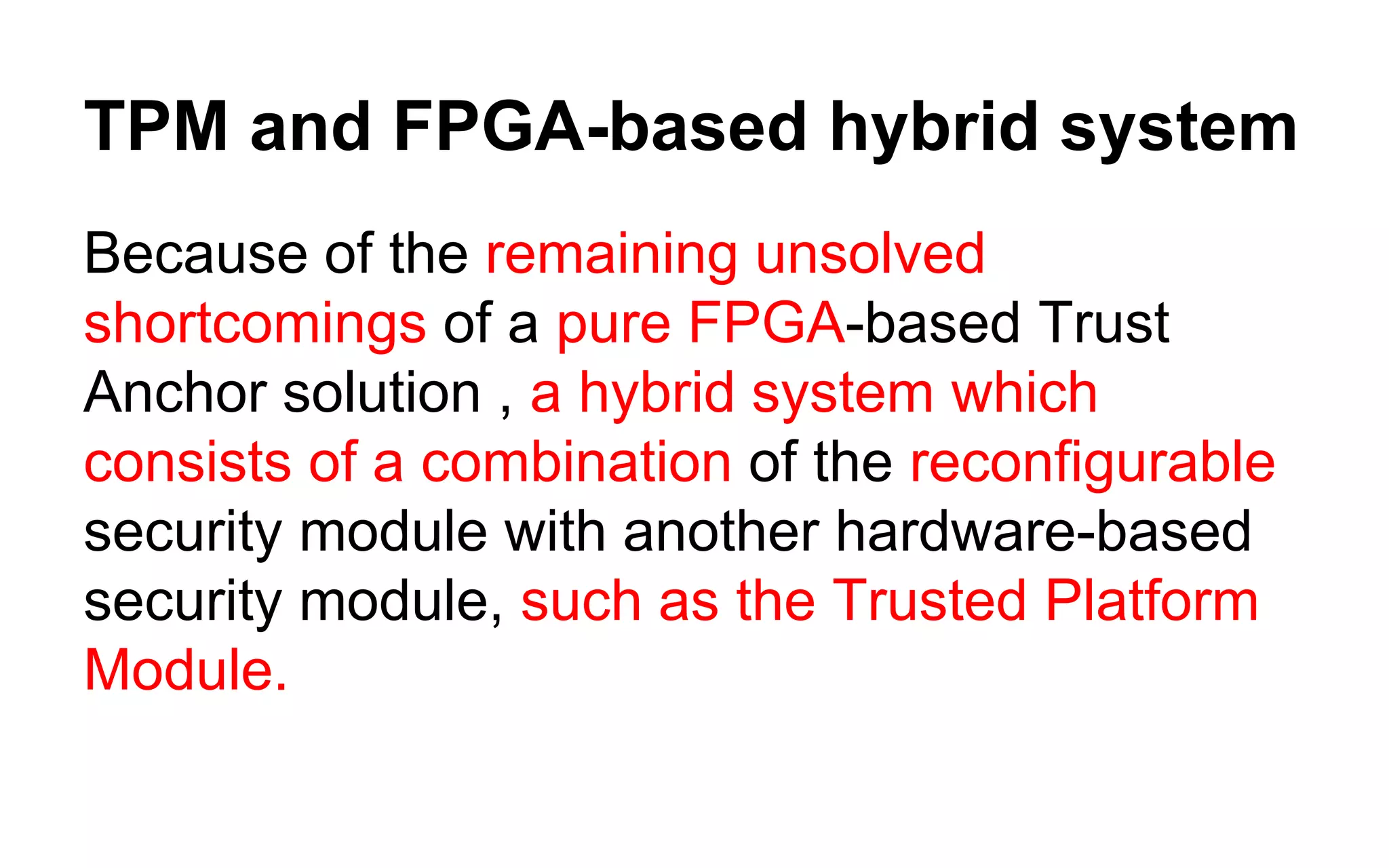

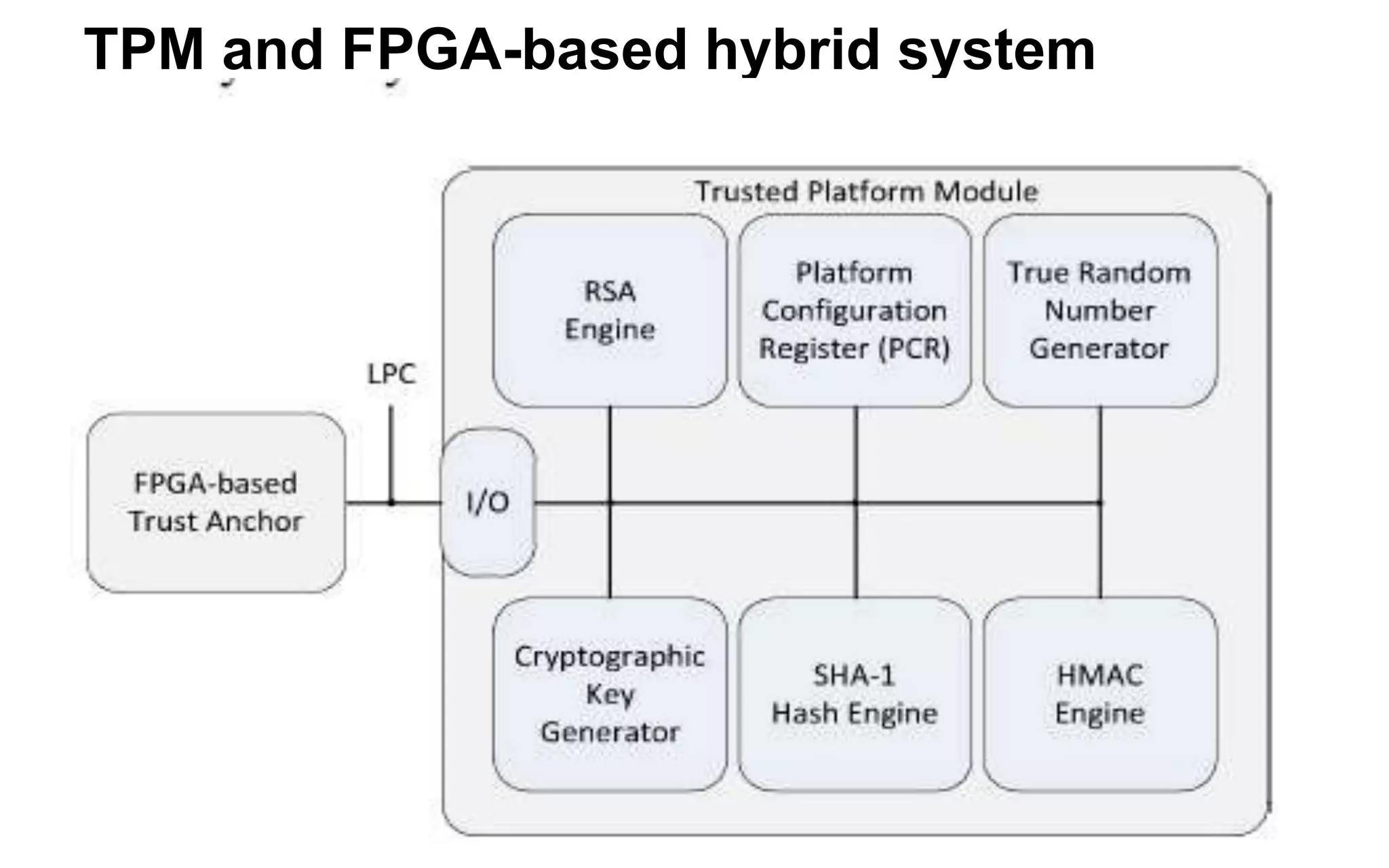

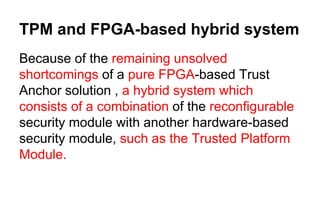

TPM and FPGA-based hybrid system
Because of the remaining unsolved
shortcomings of a pure FPGA-based Trust
Anchor solution , a hybrid system which
consists of a combination of the reconfigurable
security module with another hardware-based
security module, such as the Trusted Platform
Module.

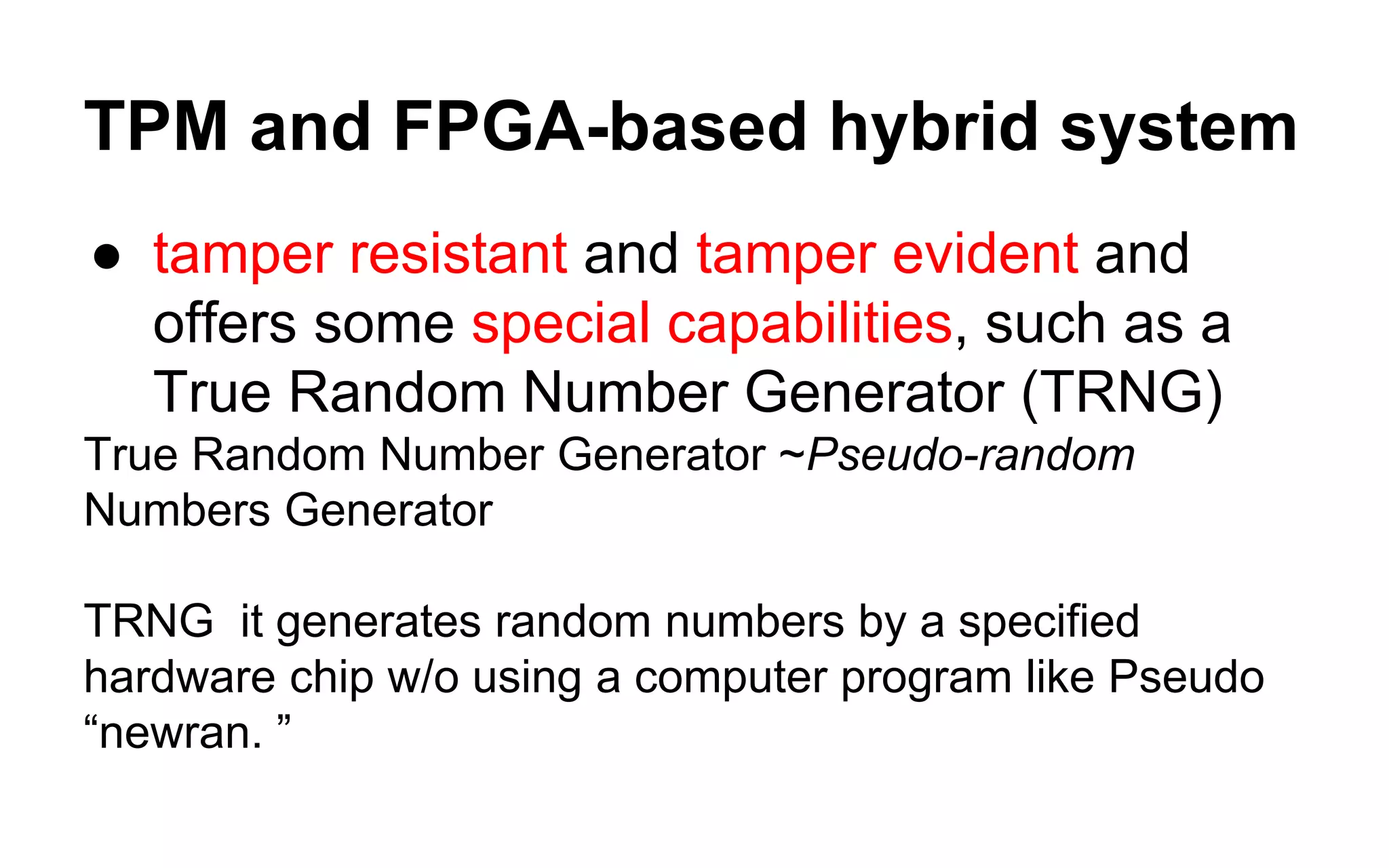

● tamper resistant and tamper evident and
offers some special capabilities, such as a
True Random Number Generator (TRNG)
True Random Number Generator ~Pseudo-random
Numbers Generator
TRNG it generates random numbers by a specified
hardware chip w/o using a computer program like Pseudo
“newran. ”

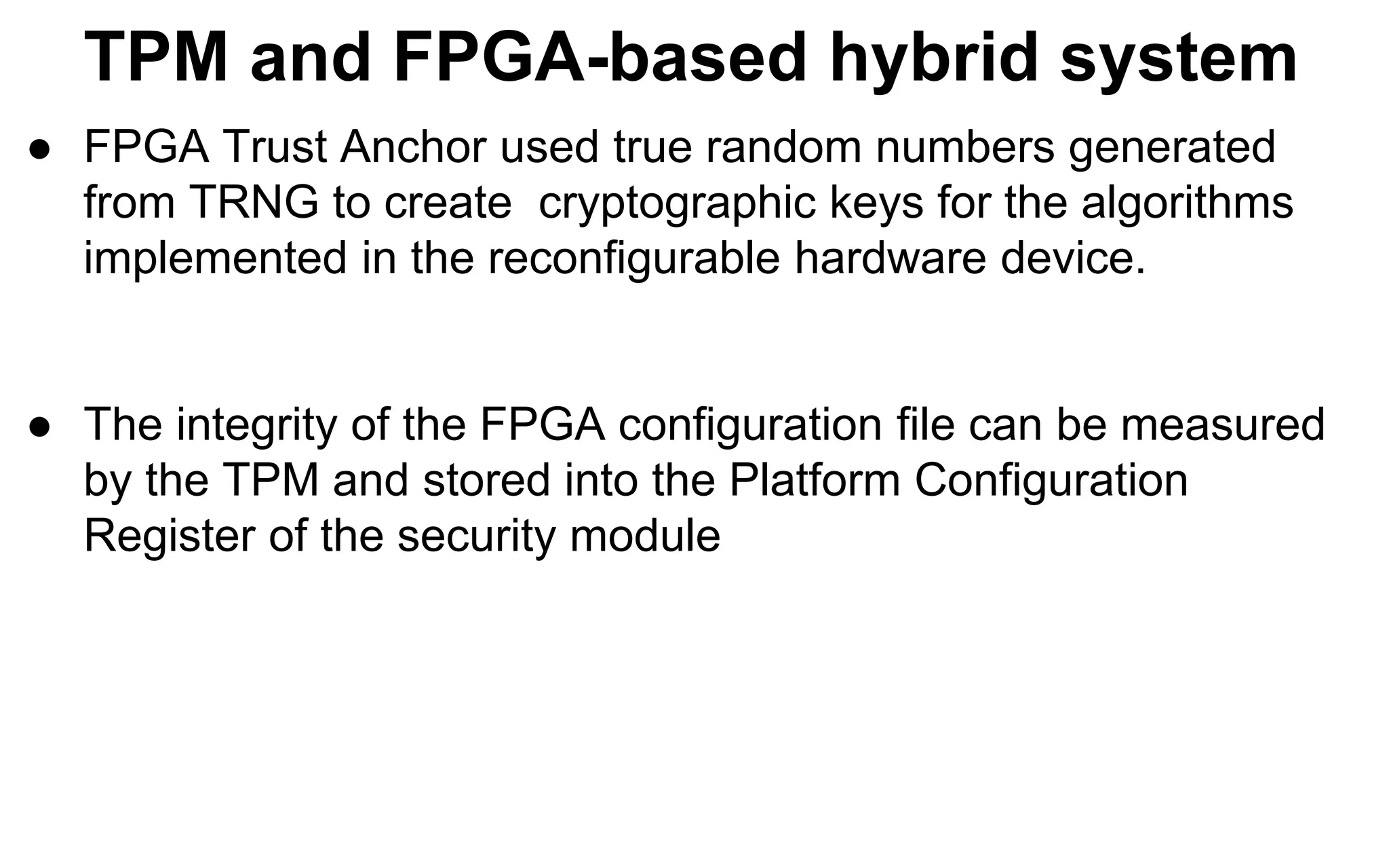

● FPGA Trust Anchor used true random numbers generated
from TRNG to create cryptographic keys for the algorithms
implemented in the reconfigurable hardware device.
● The integrity of the FPGA configuration file can be measured
by the TPM and stored into the Platform Configuration
Register of the security module

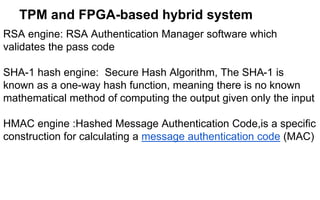

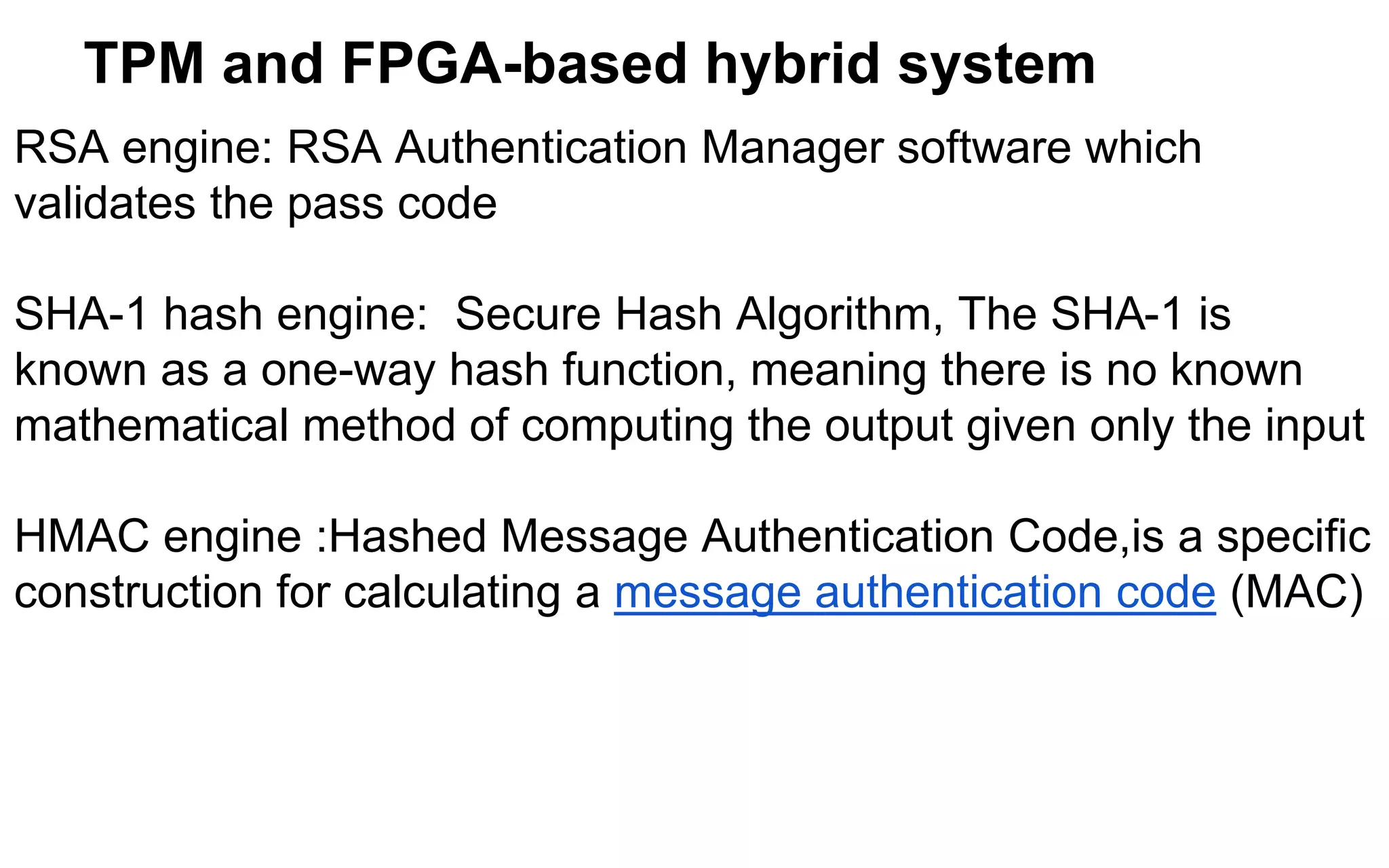

RSA engine: RSA Authentication Manager software which
validates the pass code
SHA-1 hash engine: Secure Hash Algorithm, The SHA-1 is
known as a one-way hash function, meaning there is no known
mathematical method of computing the output given only the input
HMAC engine :Hashed Message Authentication Code,is a specific
construction for calculating a message authentication code (MAC)

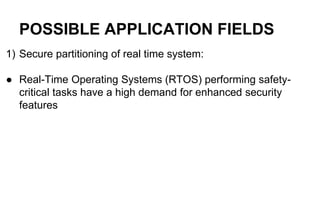

POSSIBLE APPLICATION FIELDS

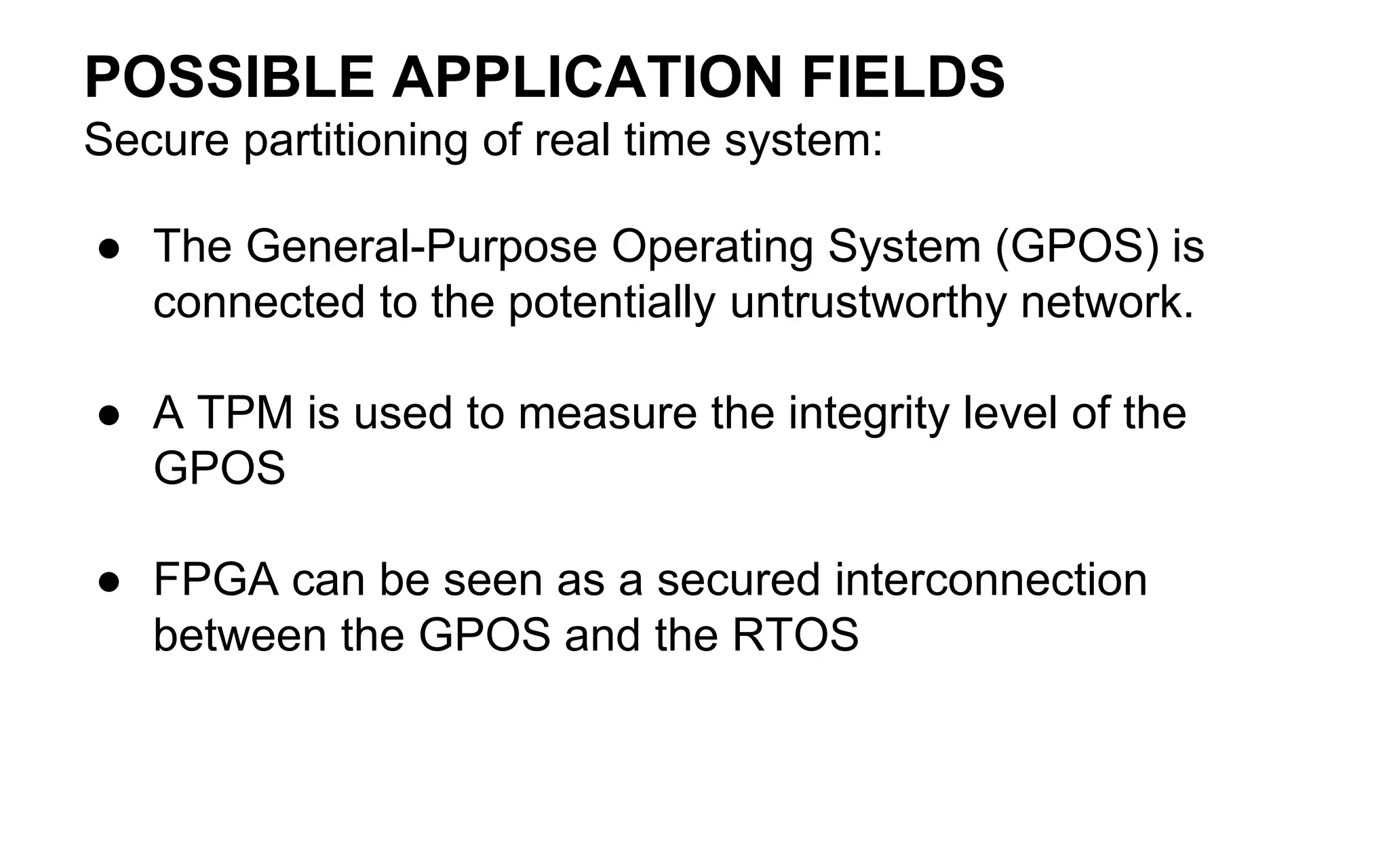

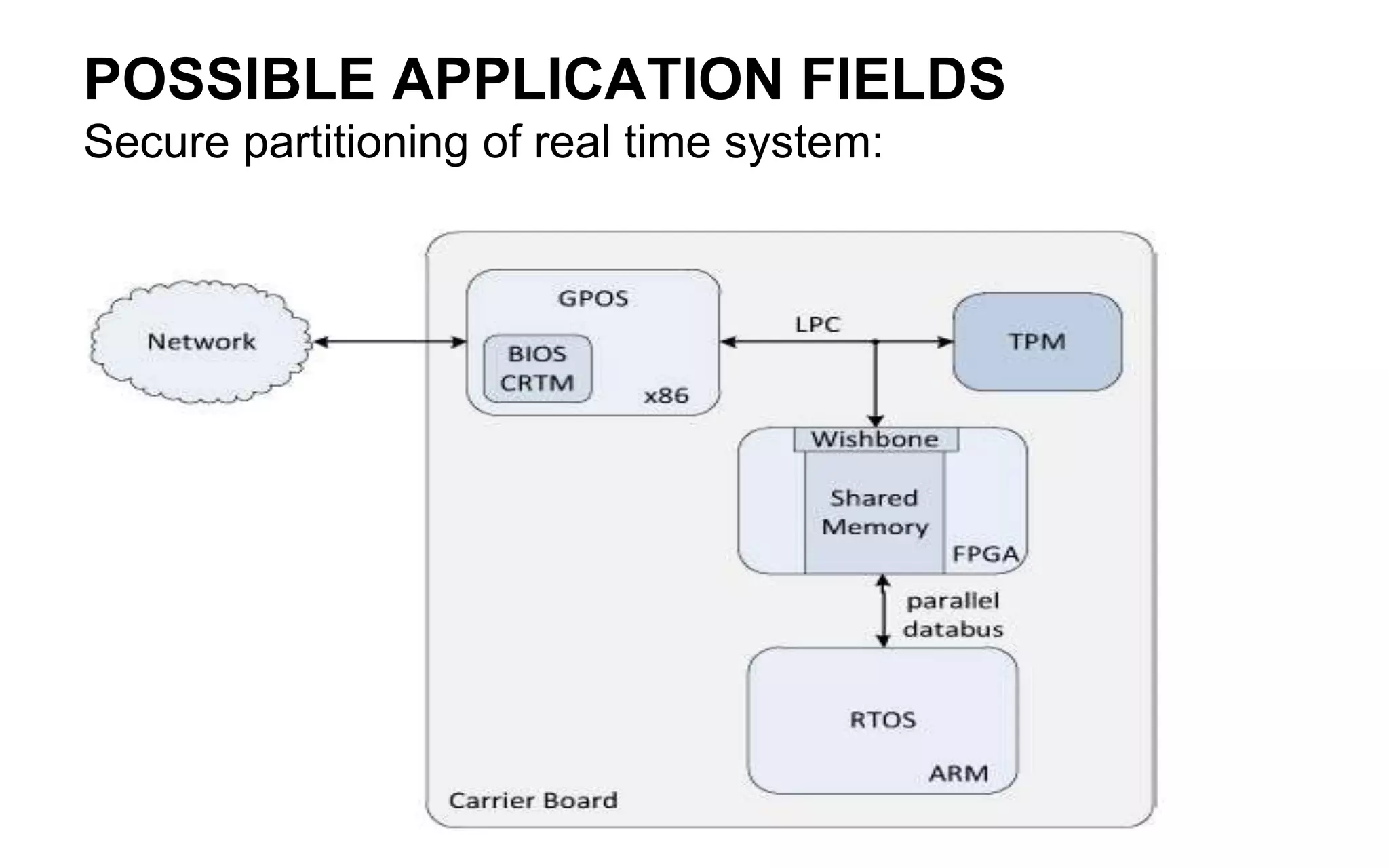

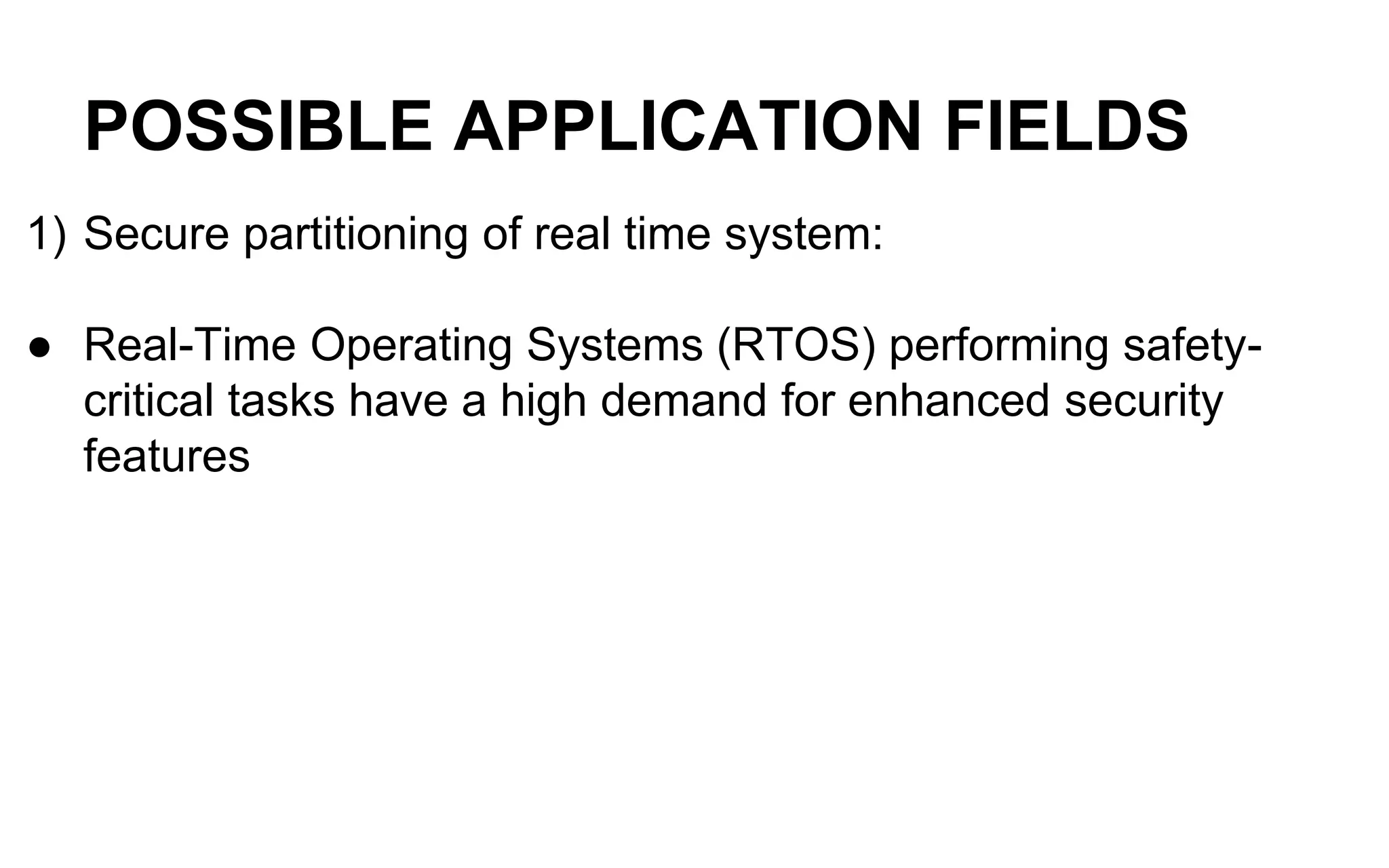

1) Secure partitioning of real time system:
● Real-Time Operating Systems (RTOS) performing safety-
critical tasks have a high demand for enhanced security
features

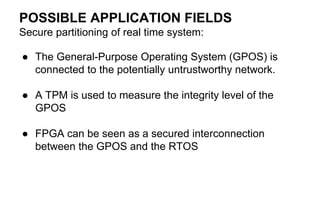

Secure partitioning of real time system:

Secure partitioning of real time system:
● The General-Purpose Operating System (GPOS) is
connected to the potentially untrustworthy network.
● A TPM is used to measure the integrity level of the
GPOS
● FPGA can be seen as a secured interconnection
between the GPOS and the RTOS

2) Securing individual
nodes of a networked
system
● The proposed concept
of a reconfigurable
hardware security
module could help
securing individual
nodes from a networked
system

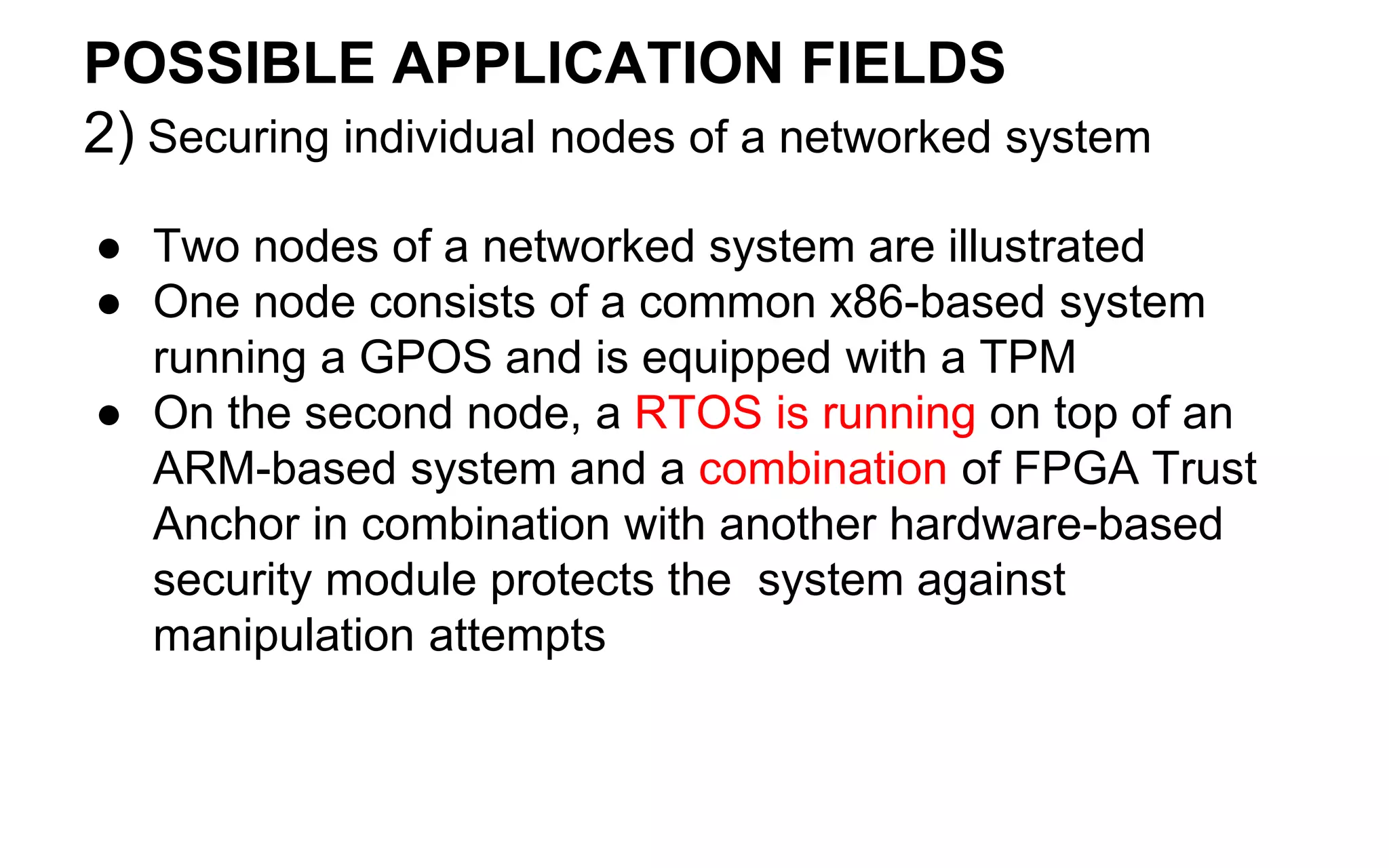

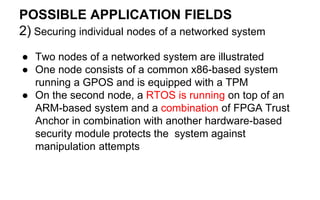

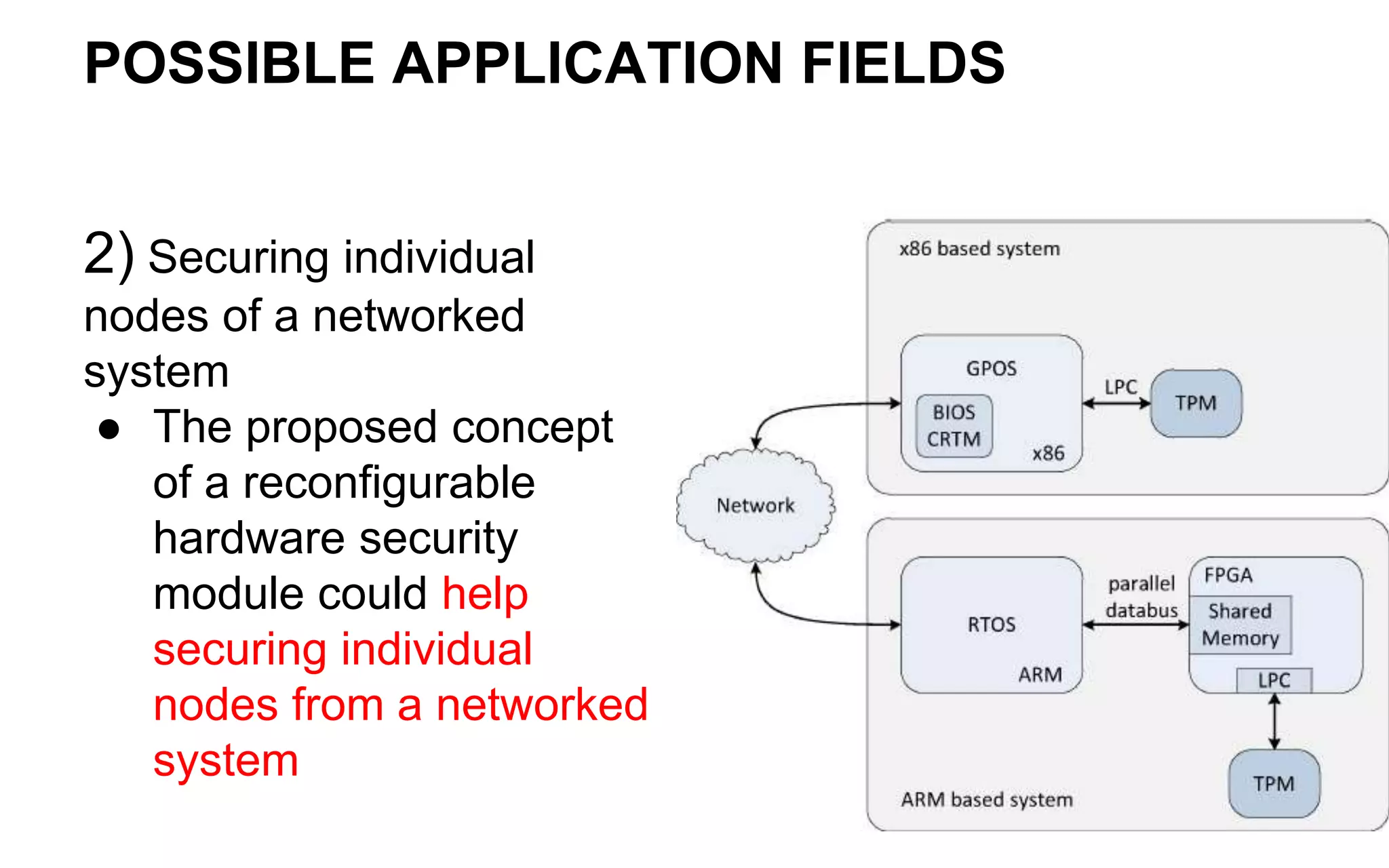

2) Securing individual nodes of a networked system
● Two nodes of a networked system are illustrated
● One node consists of a common x86-based system
running a GPOS and is equipped with a TPM
● On the second node, a RTOS is running on top of an
ARM-based system and a combination of FPGA Trust
Anchor in combination with another hardware-based
security module protects the system against
manipulation attempts

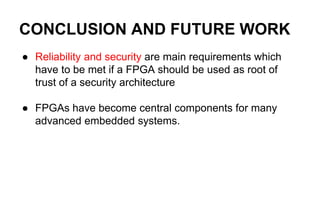

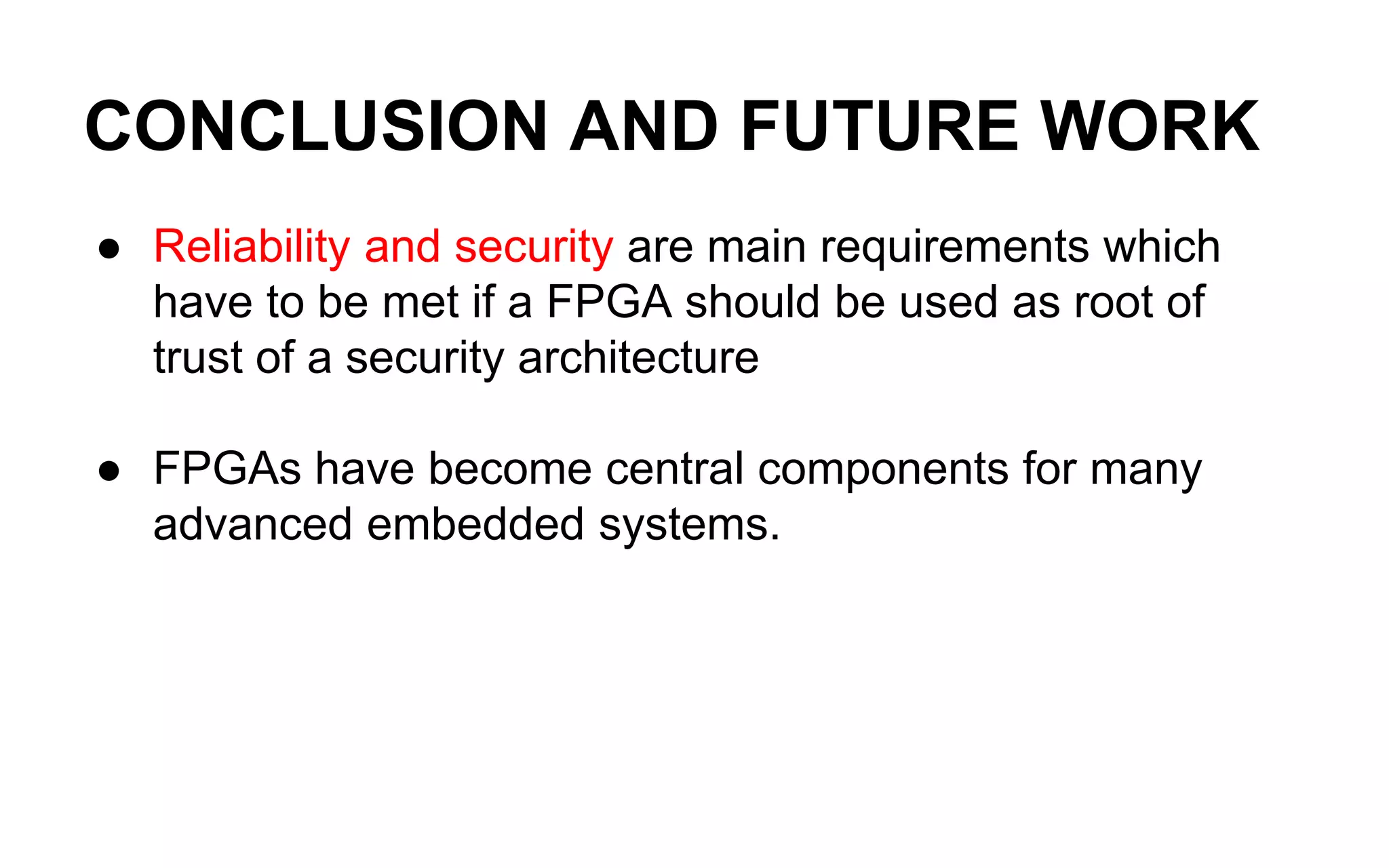

CONCLUSION AND FUTURE WORK
● Reliability and security are main requirements which
have to be met if a FPGA should be used as root of
trust of a security architecture
● FPGAs have become central components for many
advanced embedded systems.

CONCLUSION AND FUTURE WORK

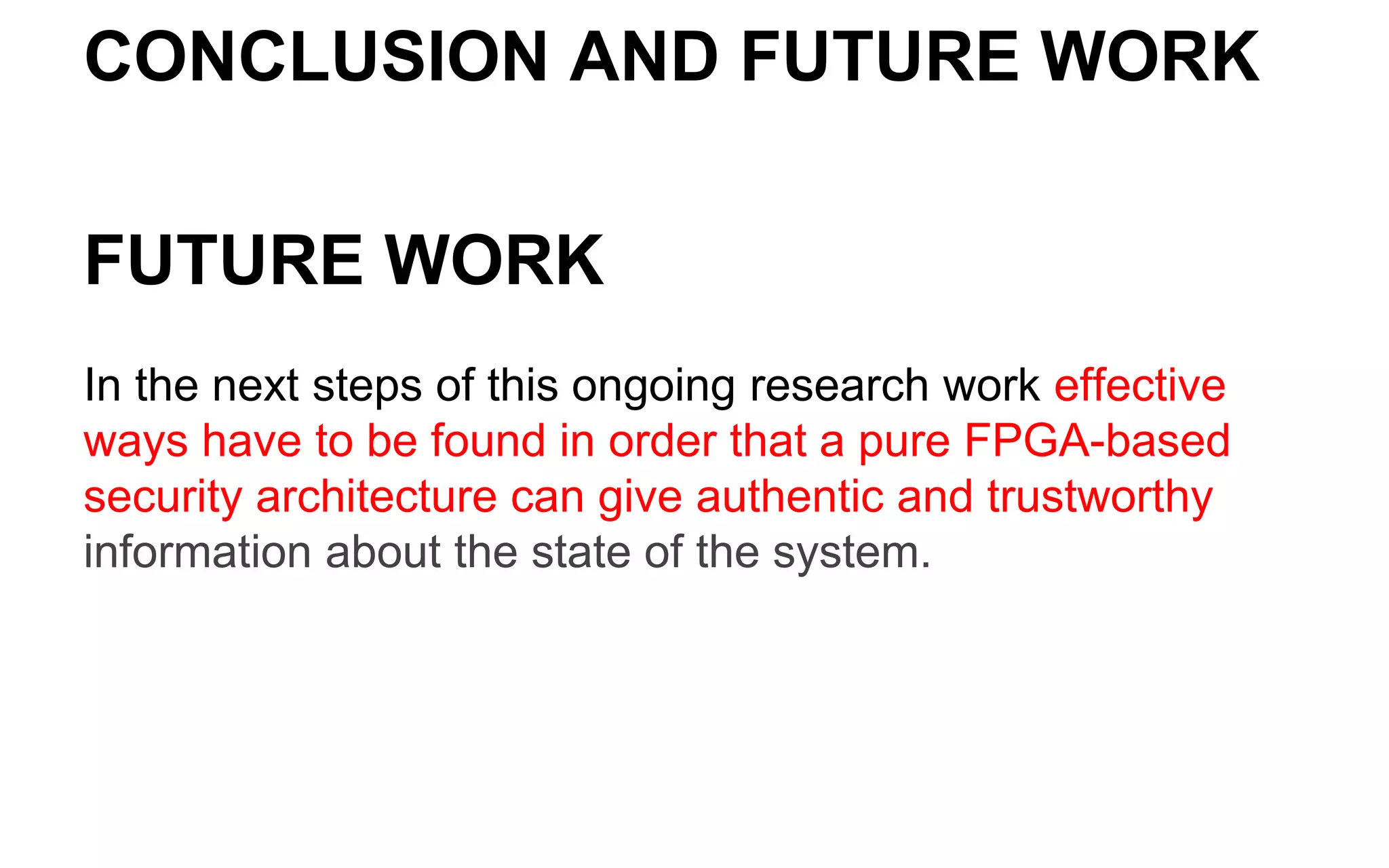

FUTURE WORK
In the next steps of this ongoing research work effective
ways have to be found in order that a pure FPGA-based
security architecture can give authentic and trustworthy
information about the state of the system.

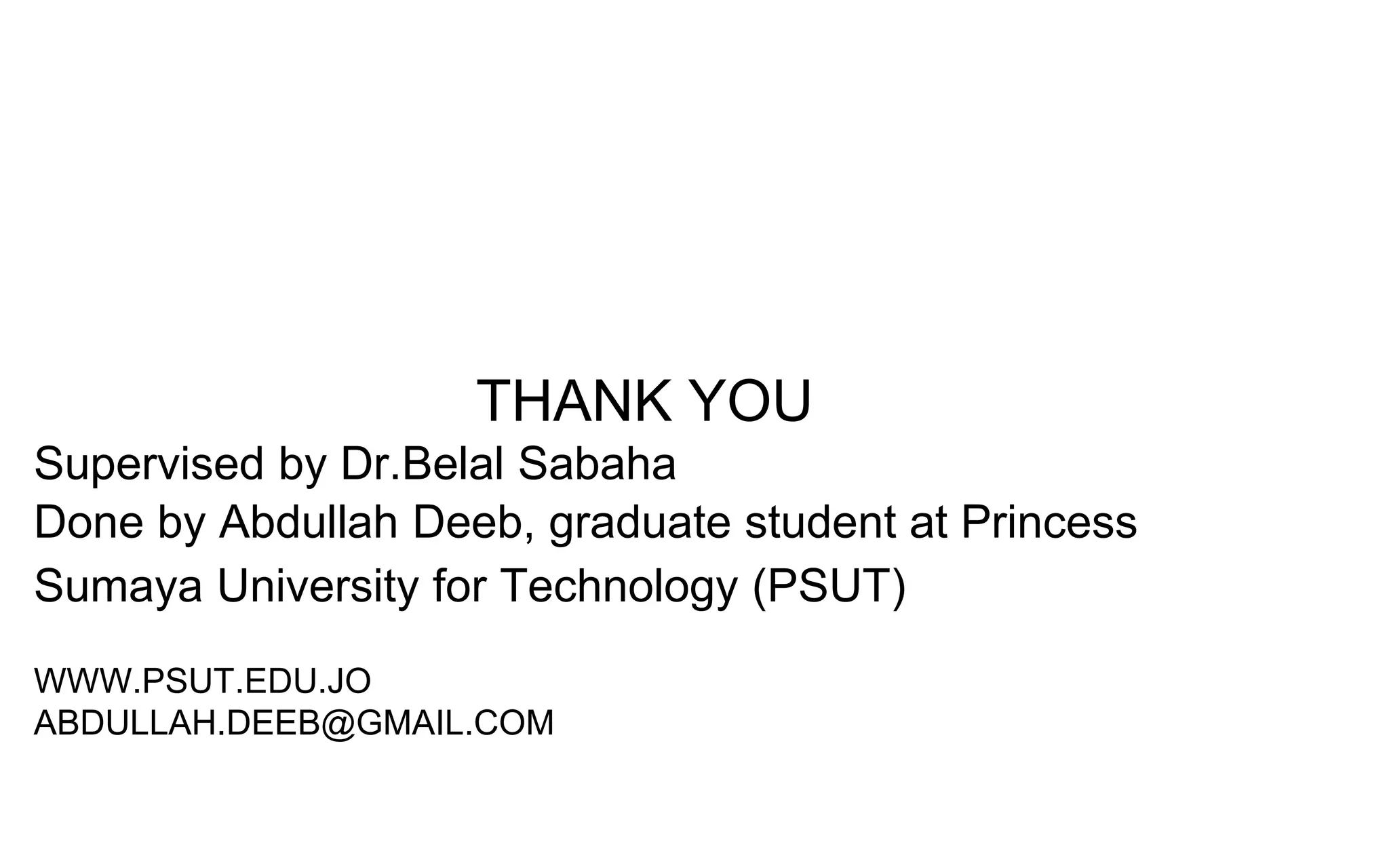

THANK YOU
Supervised by Dr.Belal Sabaha
Done by Abdullah Deeb, graduate student at Princess
Sumaya University for Technology (PSUT)
WWW.PSUT.EDU.JO
