Risc and cisc eugene clewlow

RISC and CISC
by Eugene Clewlow

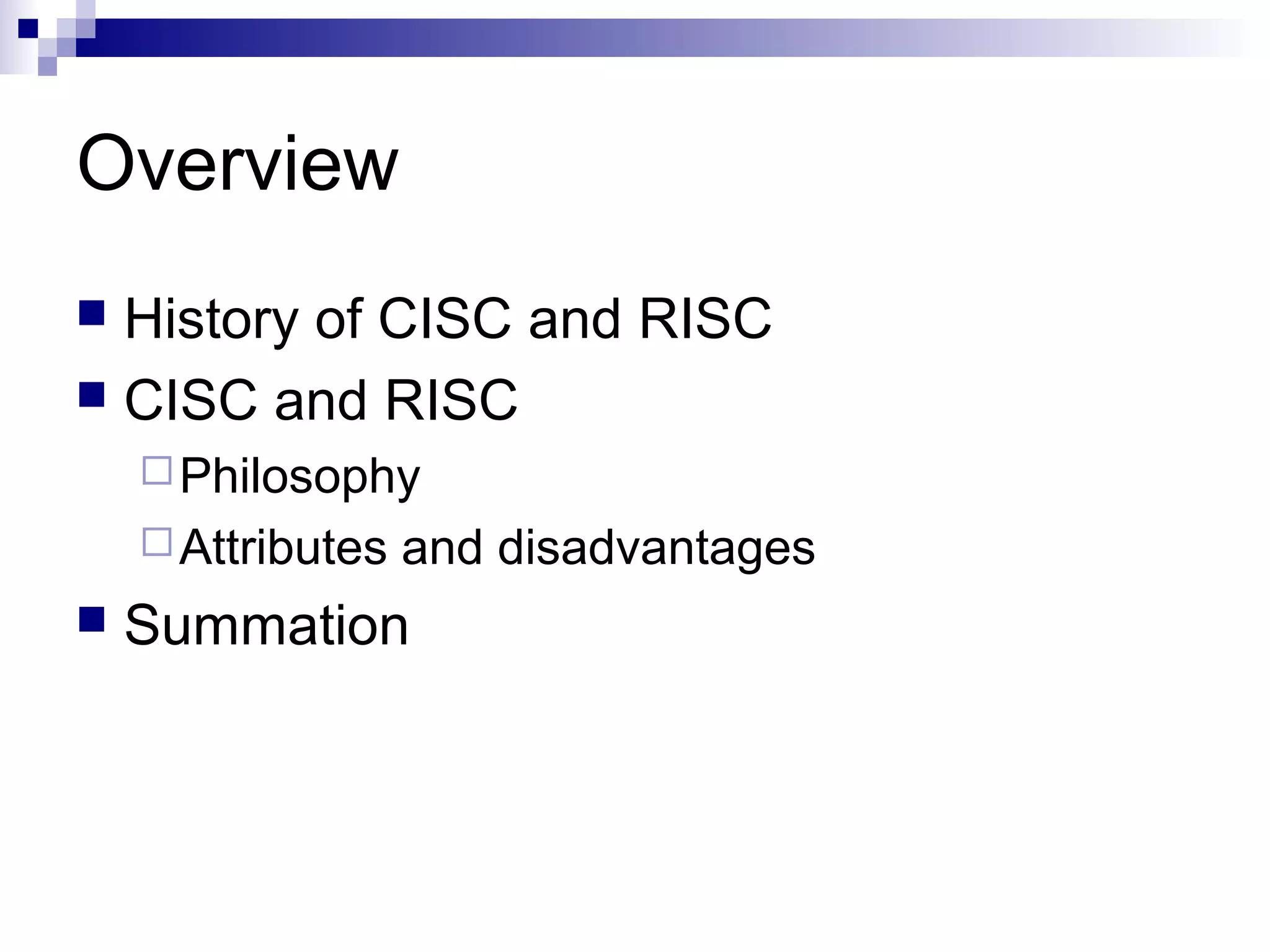

Overview
 History of CISC and RISC
 CISC and RISC
Philosophy
Attributes and disadvantages
 Summation

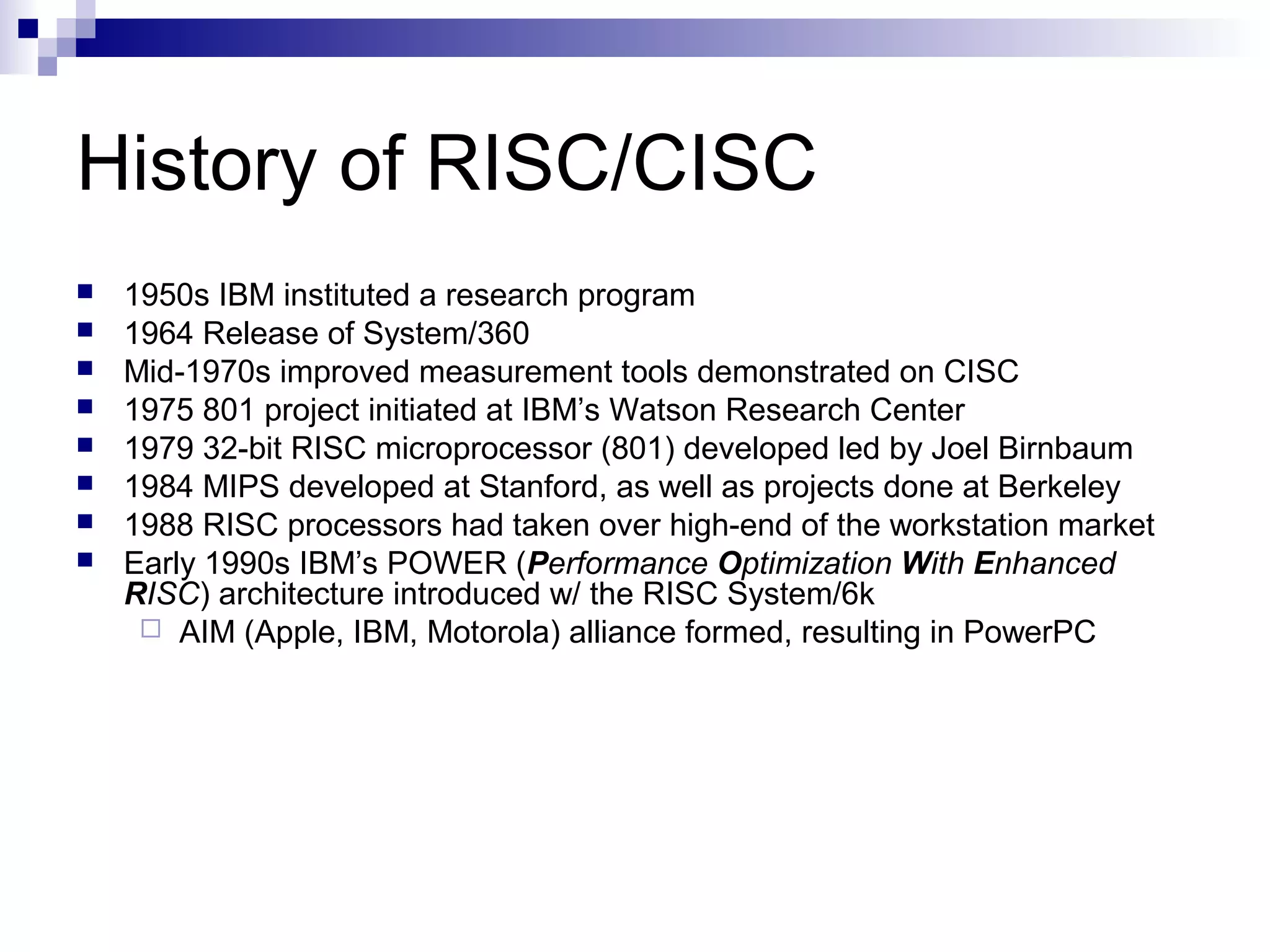

History of RISC/CISC
 1950s IBM instituted a research program
 1964 Release of System/360
 Mid-1970s improved measurement tools demonstrated on CISC
 1975 801 project initiated at IBM’s Watson Research Center
 1979 32-bit RISC microprocessor (801) developed led by Joel Birnbaum
 1984 MIPS developed at Stanford, as well as projects done at Berkeley
 1988 RISC processors had taken over high-end of the workstation market
 Early 1990s IBM’s POWER (Performance Optimization With Enhanced
RISC) architecture introduced w/ the RISC System/6k
 AIM (Apple, IBM, Motorola) alliance formed, resulting in PowerPC

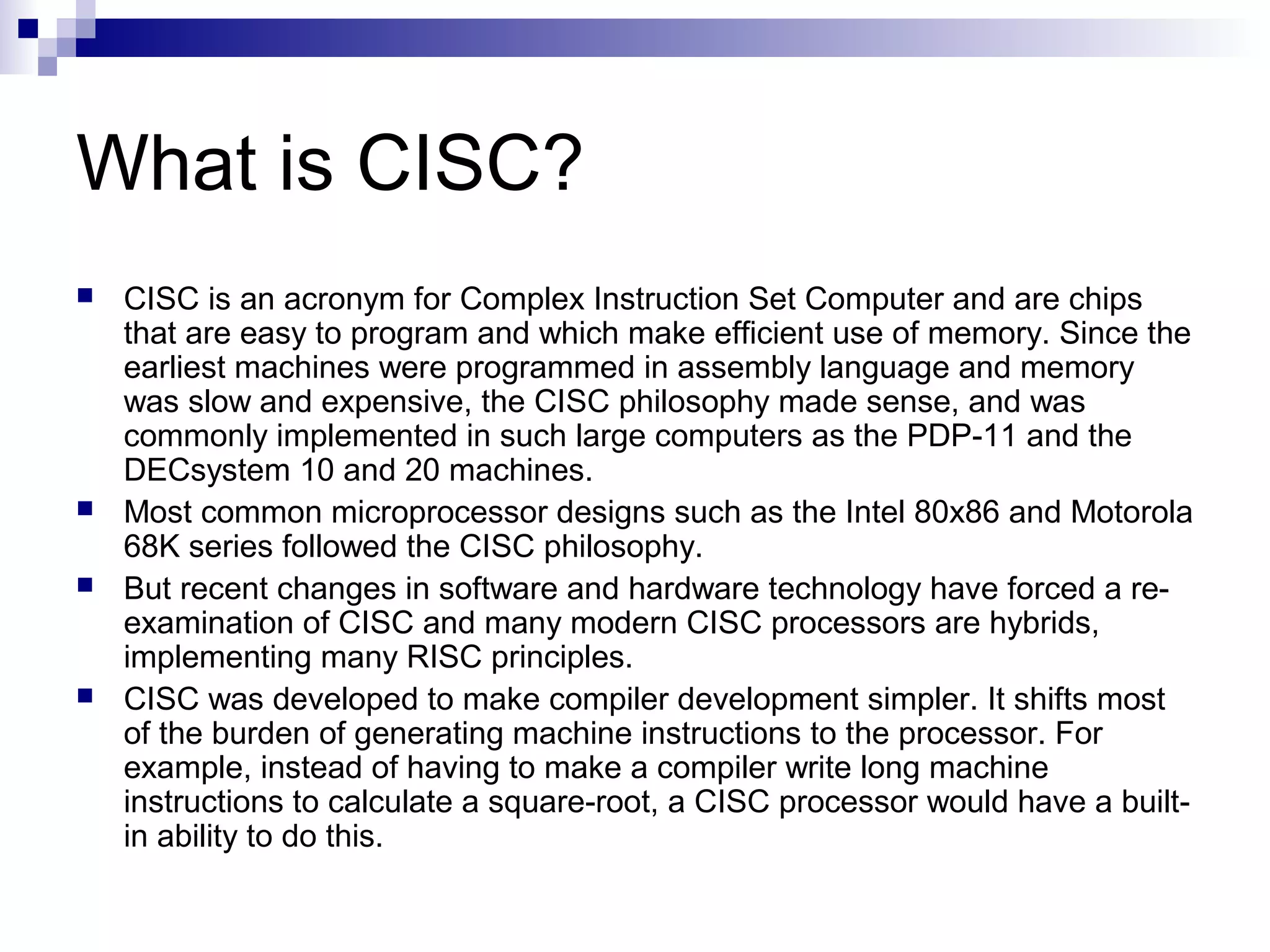

What is CISC?
 CISC is an acronym for Complex Instruction Set Computer and are chips
that are easy to program and which make efficient use of memory. Since the
earliest machines were programmed in assembly language and memory
was slow and expensive, the CISC philosophy made sense, and was
commonly implemented in such large computers as the PDP-11 and the
DECsystem 10 and 20 machines.
 Most common microprocessor designs such as the Intel 80x86 and Motorola
68K series followed the CISC philosophy.
 But recent changes in software and hardware technology have forced a re-
examination of CISC and many modern CISC processors are hybrids,
implementing many RISC principles.
 CISC was developed to make compiler development simpler. It shifts most
of the burden of generating machine instructions to the processor. For
example, instead of having to make a compiler write long machine
instructions to calculate a square-root, a CISC processor would have a built-
in ability to do this.

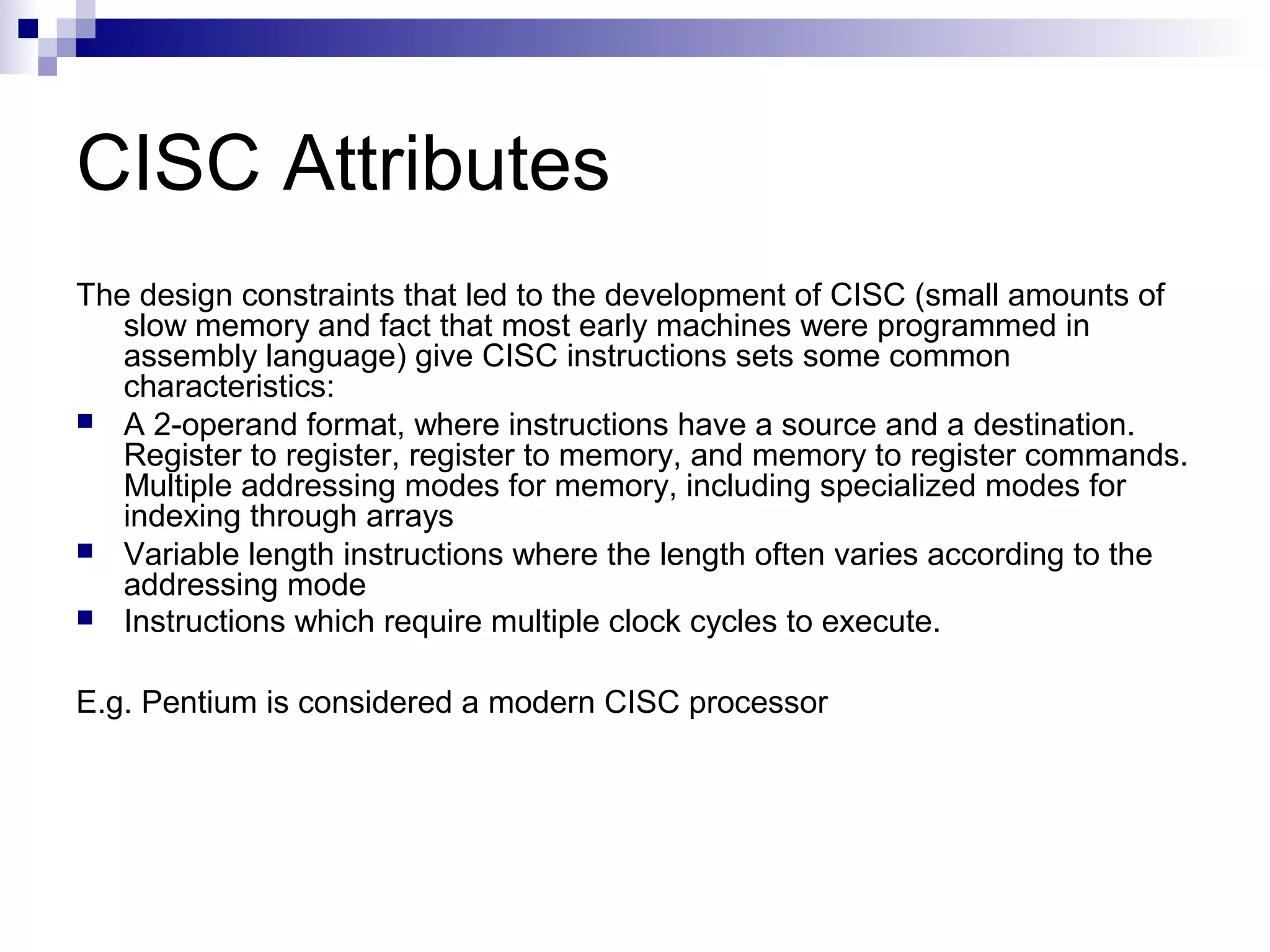

CISC Attributes
The design constraints that led to the development of CISC (small amounts of
slow memory and fact that most early machines were programmed in
assembly language) give CISC instructions sets some common
characteristics:
 A 2-operand format, where instructions have a source and a destination.
Register to register, register to memory, and memory to register commands.
Multiple addressing modes for memory, including specialized modes for
indexing through arrays
 Variable length instructions where the length often varies according to the
addressing mode
 Instructions which require multiple clock cycles to execute.
E.g. Pentium is considered a modern CISC processor

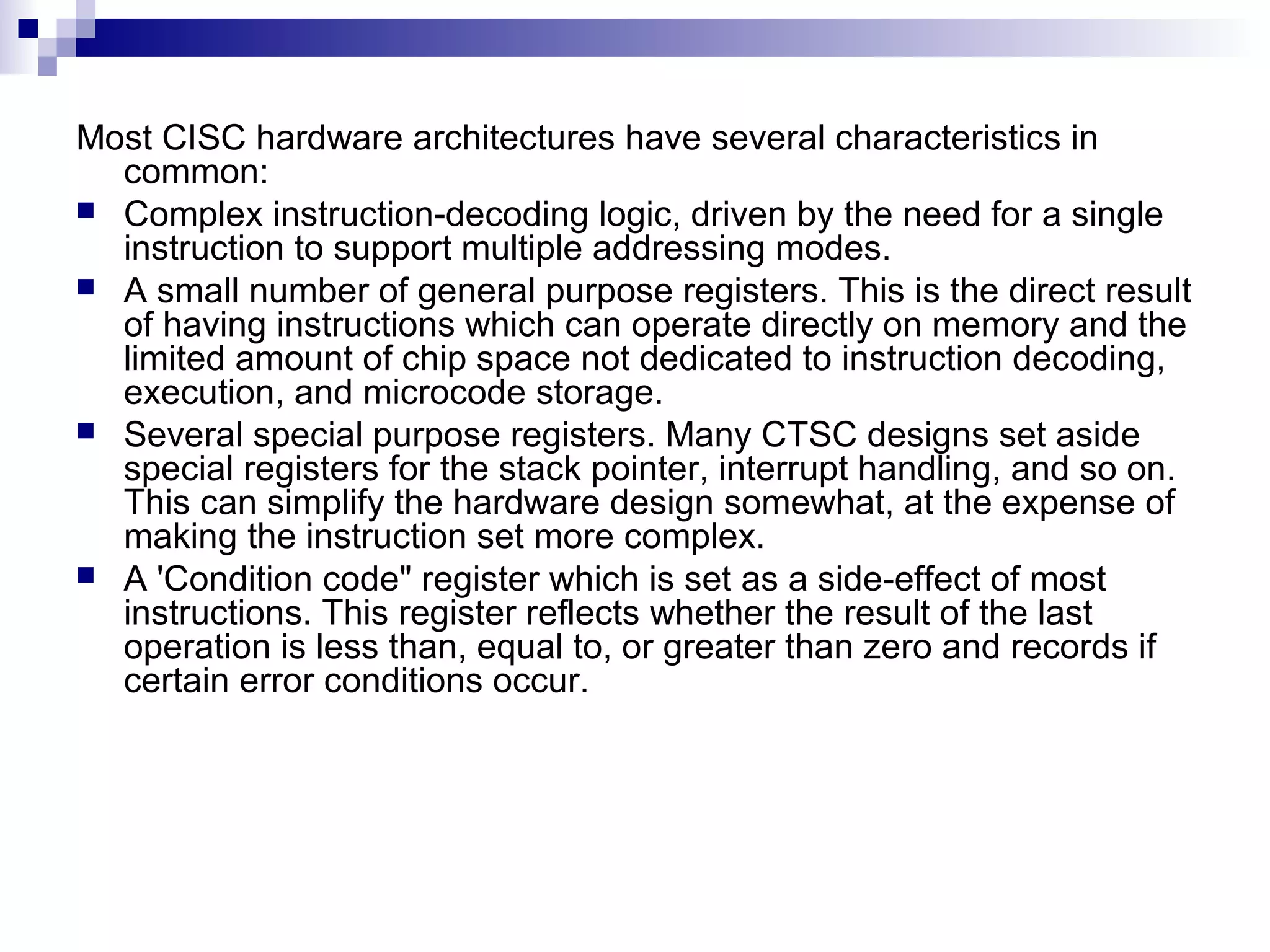

Most CISC hardware architectures have several characteristics in
common:
 Complex instruction-decoding logic, driven by the need for a single
instruction to support multiple addressing modes.
 A small number of general purpose registers. This is the direct result
of having instructions which can operate directly on memory and the
limited amount of chip space not dedicated to instruction decoding,
execution, and microcode storage.
 Several special purpose registers. Many CTSC designs set aside
special registers for the stack pointer, interrupt handling, and so on.
This can simplify the hardware design somewhat, at the expense of
making the instruction set more complex.
 A 'Condition code" register which is set as a side-effect of most
instructions. This register reflects whether the result of the last
operation is less than, equal to, or greater than zero and records if
certain error conditions occur.

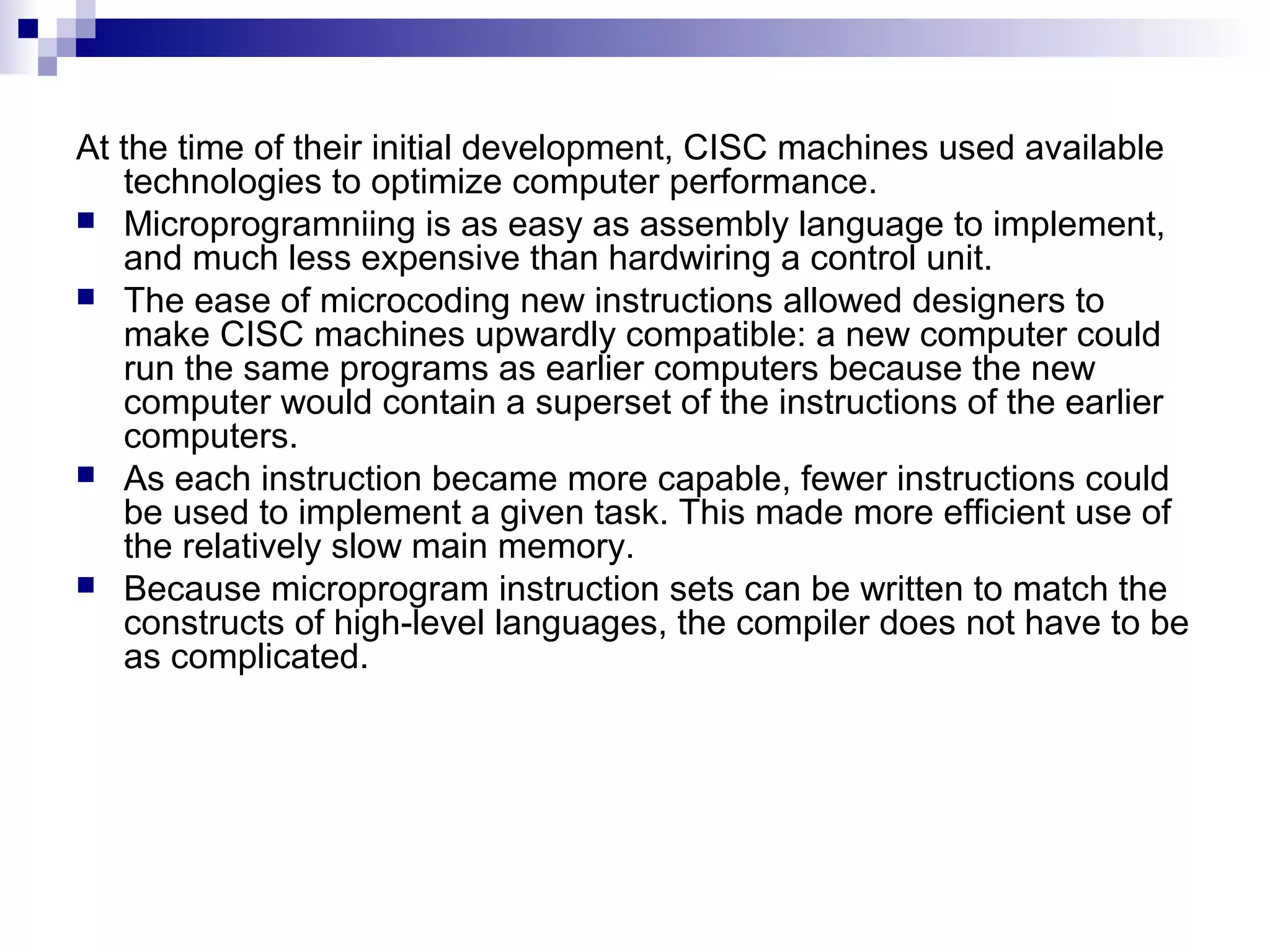

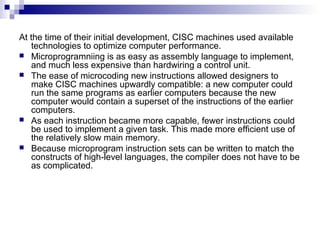

At the time of their initial development, CISC machines used available
technologies to optimize computer performance.
 Microprogramniing is as easy as assembly language to implement,
and much less expensive than hardwiring a control unit.
 The ease of microcoding new instructions allowed designers to
make CISC machines upwardly compatible: a new computer could
run the same programs as earlier computers because the new
computer would contain a superset of the instructions of the earlier
computers.
 As each instruction became more capable, fewer instructions could
be used to implement a given task. This made more efficient use of
the relatively slow main memory.
 Because microprogram instruction sets can be written to match the
constructs of high-level languages, the compiler does not have to be
as complicated.

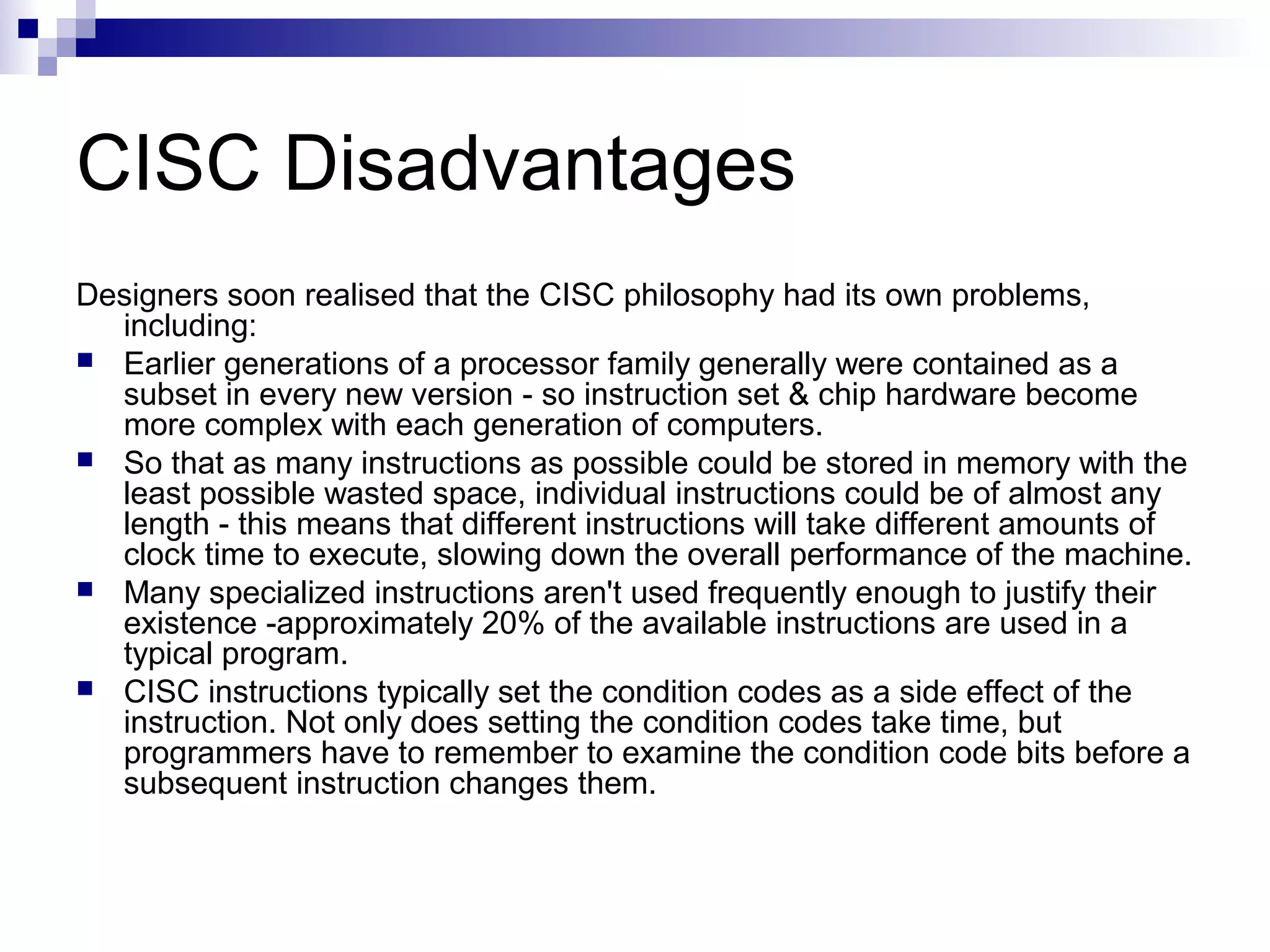

CISC Disadvantages
Designers soon realised that the CISC philosophy had its own problems,
including:
 Earlier generations of a processor family generally were contained as a
subset in every new version - so instruction set & chip hardware become
more complex with each generation of computers.
 So that as many instructions as possible could be stored in memory with the
least possible wasted space, individual instructions could be of almost any
length - this means that different instructions will take different amounts of
clock time to execute, slowing down the overall performance of the machine.
 Many specialized instructions aren't used frequently enough to justify their
existence -approximately 20% of the available instructions are used in a
typical program.
 CISC instructions typically set the condition codes as a side effect of the
instruction. Not only does setting the condition codes take time, but
programmers have to remember to examine the condition code bits before a
subsequent instruction changes them.

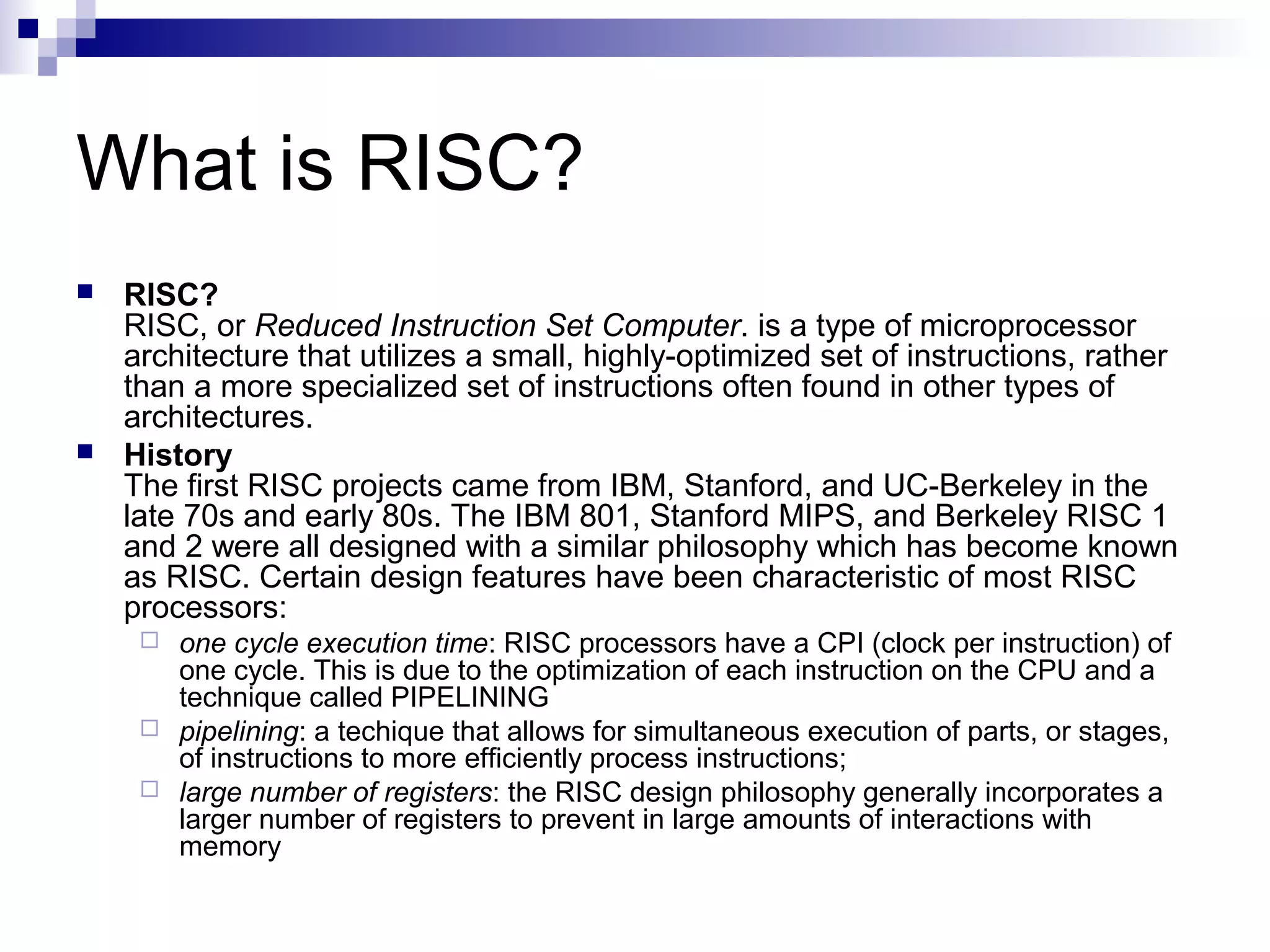

What is RISC?
 RISC?
RISC, or Reduced Instruction Set Computer. is a type of microprocessor
architecture that utilizes a small, highly-optimized set of instructions, rather
than a more specialized set of instructions often found in other types of
architectures.
 History
The first RISC projects came from IBM, Stanford, and UC-Berkeley in the
late 70s and early 80s. The IBM 801, Stanford MIPS, and Berkeley RISC 1
and 2 were all designed with a similar philosophy which has become known
as RISC. Certain design features have been characteristic of most RISC
processors:
 one cycle execution time: RISC processors have a CPI (clock per instruction) of
one cycle. This is due to the optimization of each instruction on the CPU and a
technique called PIPELINING
 pipelining: a techique that allows for simultaneous execution of parts, or stages,
of instructions to more efficiently process instructions;
 large number of registers: the RISC design philosophy generally incorporates a
larger number of registers to prevent in large amounts of interactions with
memory

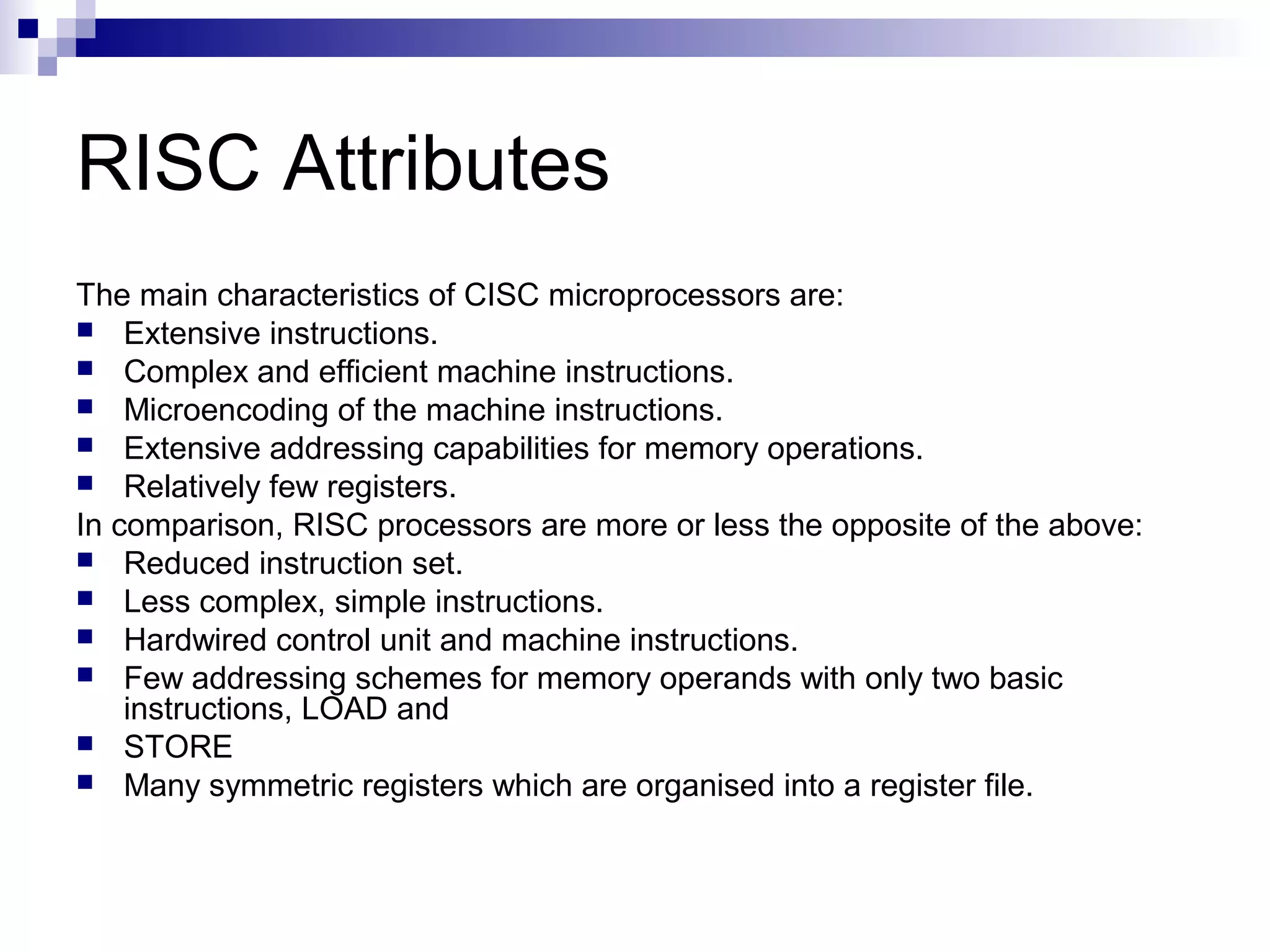

RISC Attributes
The main characteristics of CISC microprocessors are:
 Extensive instructions.
 Complex and efficient machine instructions.
 Microencoding of the machine instructions.
 Extensive addressing capabilities for memory operations.
 Relatively few registers.
In comparison, RISC processors are more or less the opposite of the above:
 Reduced instruction set.
 Less complex, simple instructions.
 Hardwired control unit and machine instructions.
 Few addressing schemes for memory operands with only two basic
instructions, LOAD and
 STORE
 Many symmetric registers which are organised into a register file.

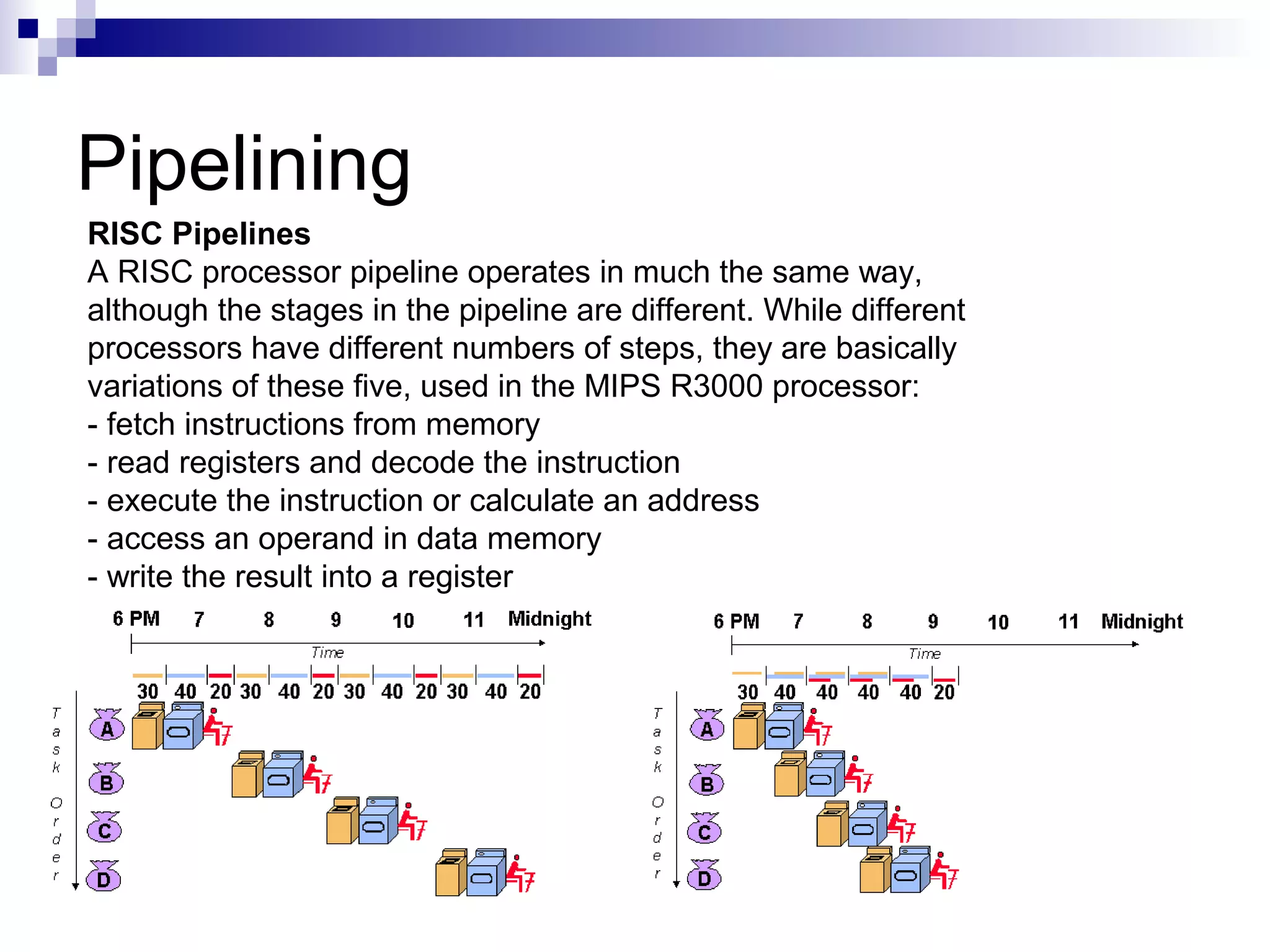

Pipelining
RISC Pipelines
A RISC processor pipeline operates in much the same way,
although the stages in the pipeline are different. While different
processors have different numbers of steps, they are basically
variations of these five, used in the MIPS R3000 processor:
- fetch instructions from memory
- read registers and decode the instruction
- execute the instruction or calculate an address
- access an operand in data memory
- write the result into a register

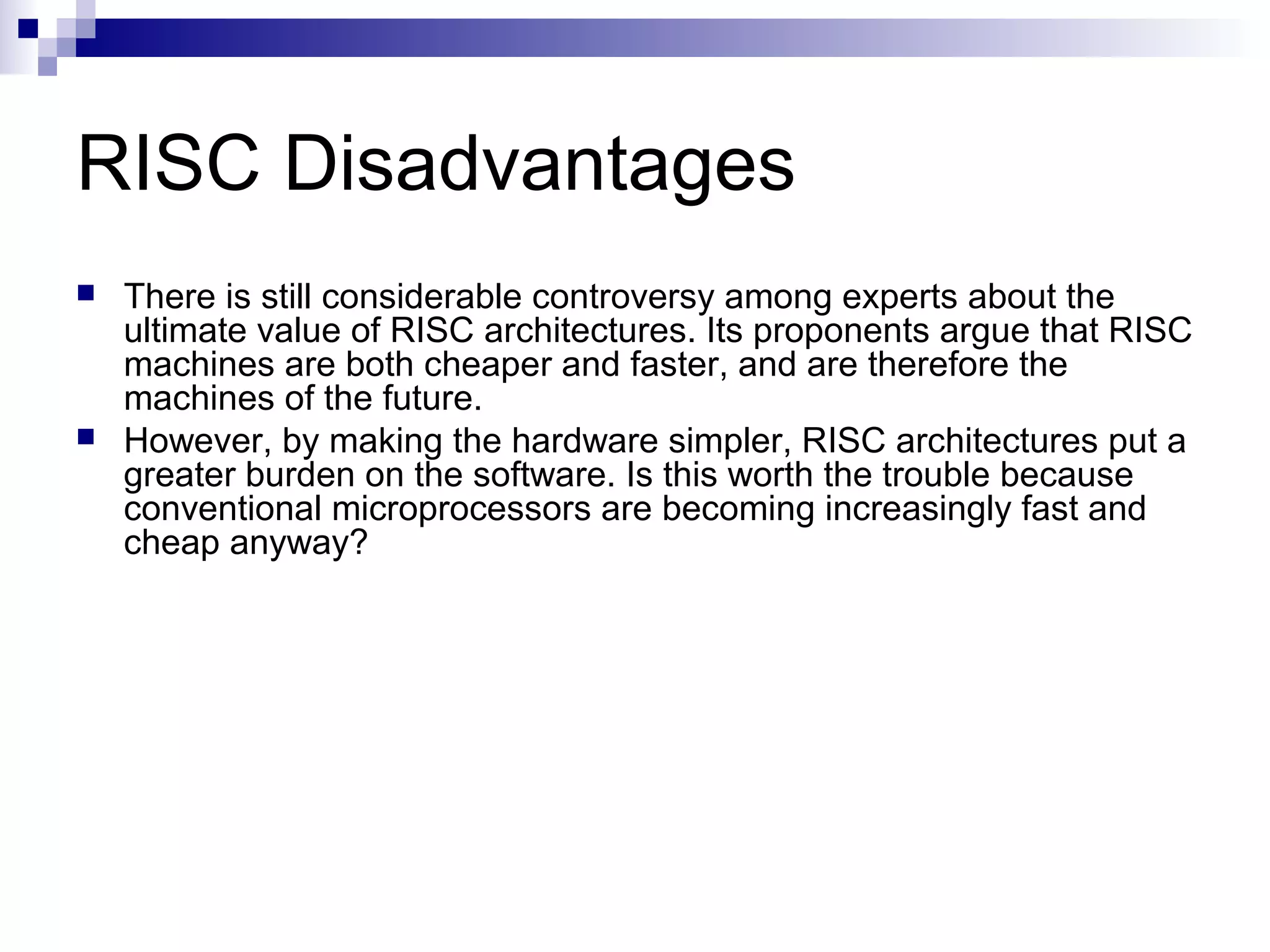

RISC Disadvantages
 There is still considerable controversy among experts about the
ultimate value of RISC architectures. Its proponents argue that RISC
machines are both cheaper and faster, and are therefore the
machines of the future.
 However, by making the hardware simpler, RISC architectures put a
greater burden on the software. Is this worth the trouble because
conventional microprocessors are becoming increasingly fast and
cheap anyway?

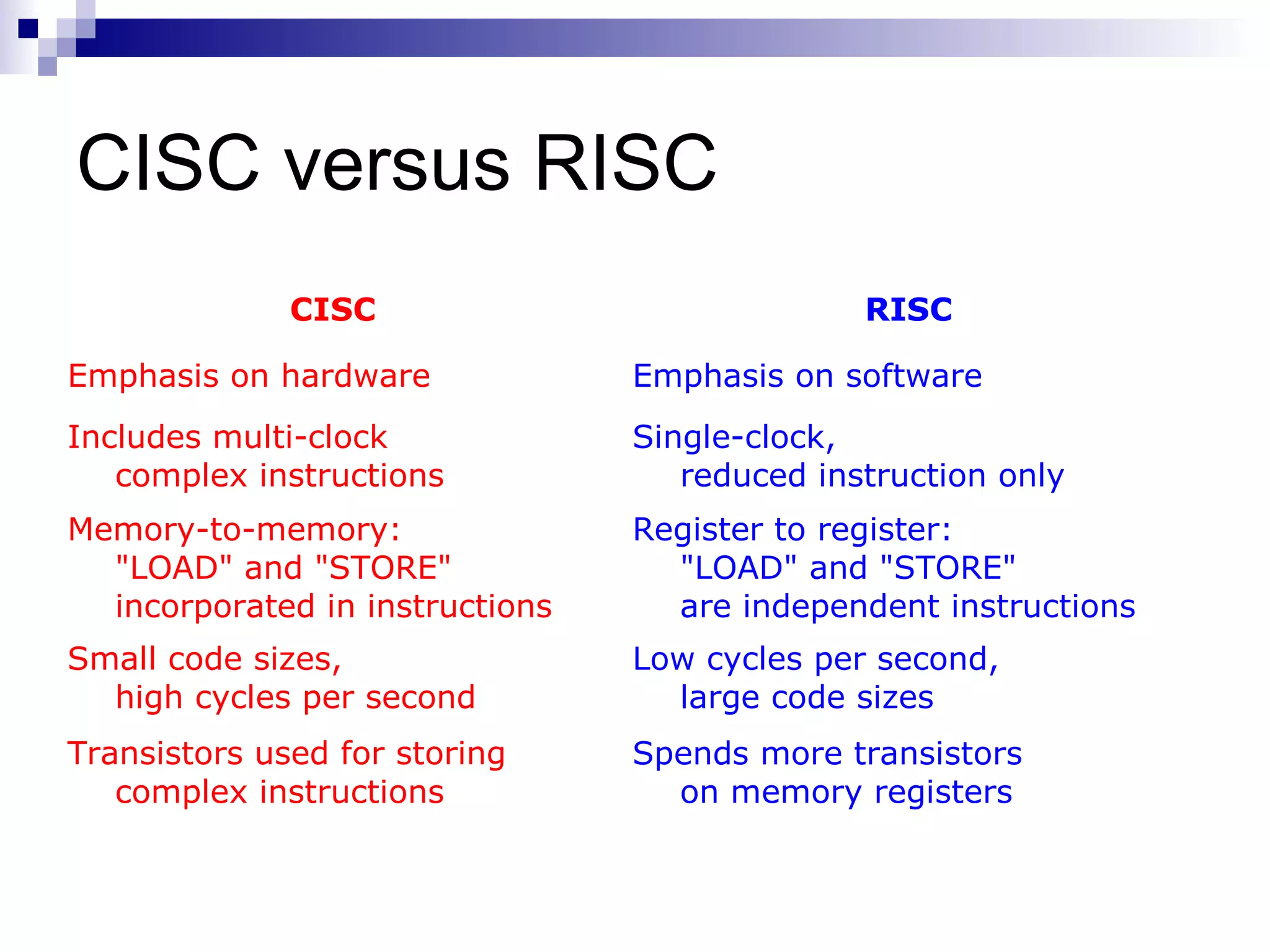

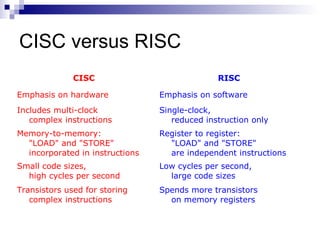

CISC versus RISC
CISC RISC
Emphasis on hardware Emphasis on software
Includes multi-clock
complex instructions
Single-clock,
reduced instruction only
Memory-to-memory:
"LOAD" and "STORE"
incorporated in instructions
Register to register:
"LOAD" and "STORE"
are independent instructions
Small code sizes,
high cycles per second
Low cycles per second,
large code sizes
Transistors used for storing
complex instructions
Spends more transistors
on memory registers

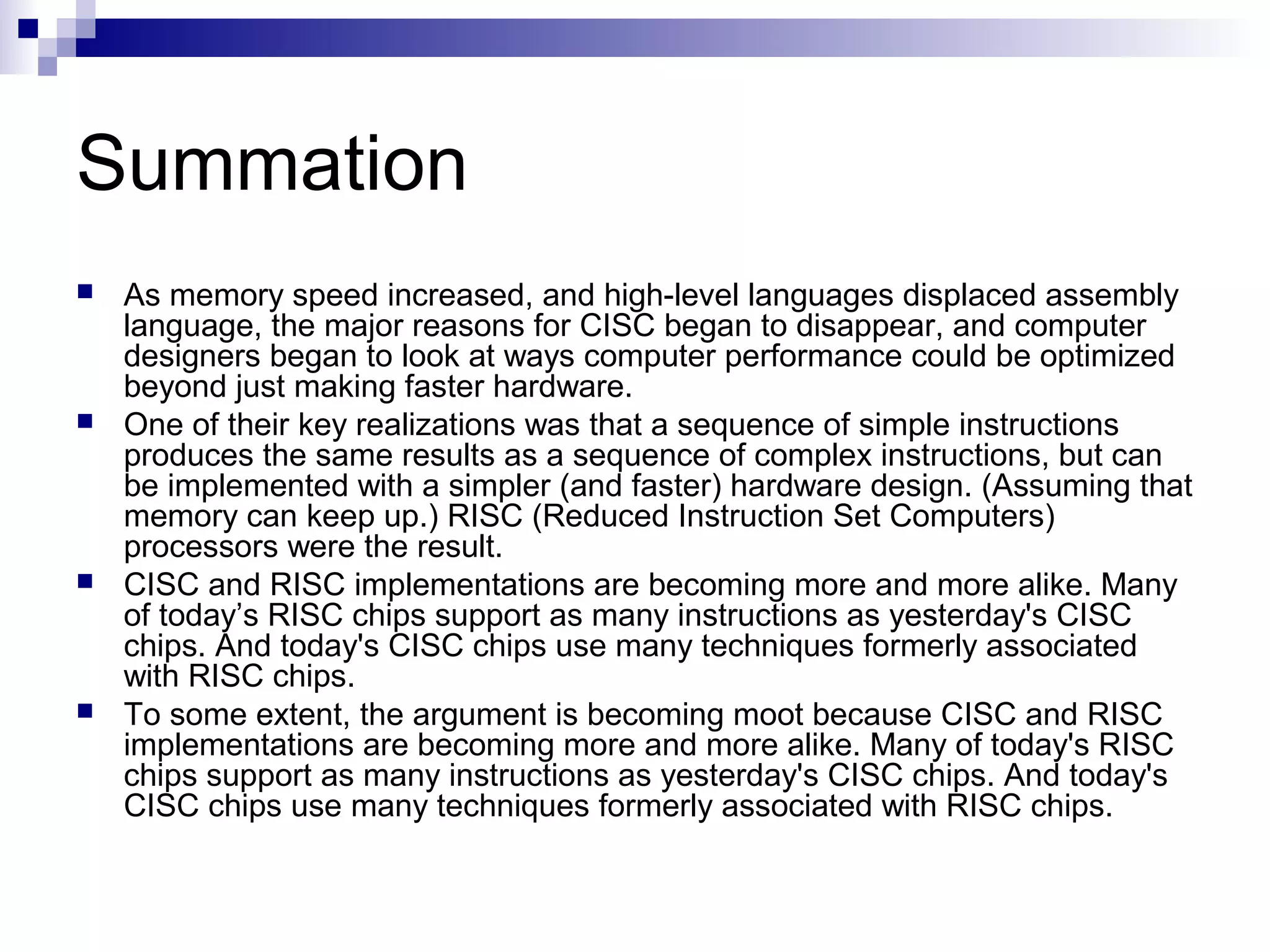

Summation
 As memory speed increased, and high-level languages displaced assembly
language, the major reasons for CISC began to disappear, and computer
designers began to look at ways computer performance could be optimized
beyond just making faster hardware.
 One of their key realizations was that a sequence of simple instructions
produces the same results as a sequence of complex instructions, but can
be implemented with a simpler (and faster) hardware design. (Assuming that
memory can keep up.) RISC (Reduced Instruction Set Computers)
processors were the result.
 CISC and RISC implementations are becoming more and more alike. Many
of today’s RISC chips support as many instructions as yesterday's CISC
chips. And today's CISC chips use many techniques formerly associated
with RISC chips.
 To some extent, the argument is becoming moot because CISC and RISC
implementations are becoming more and more alike. Many of today's RISC
chips support as many instructions as yesterday's CISC chips. And today's
CISC chips use many techniques formerly associated with RISC chips.

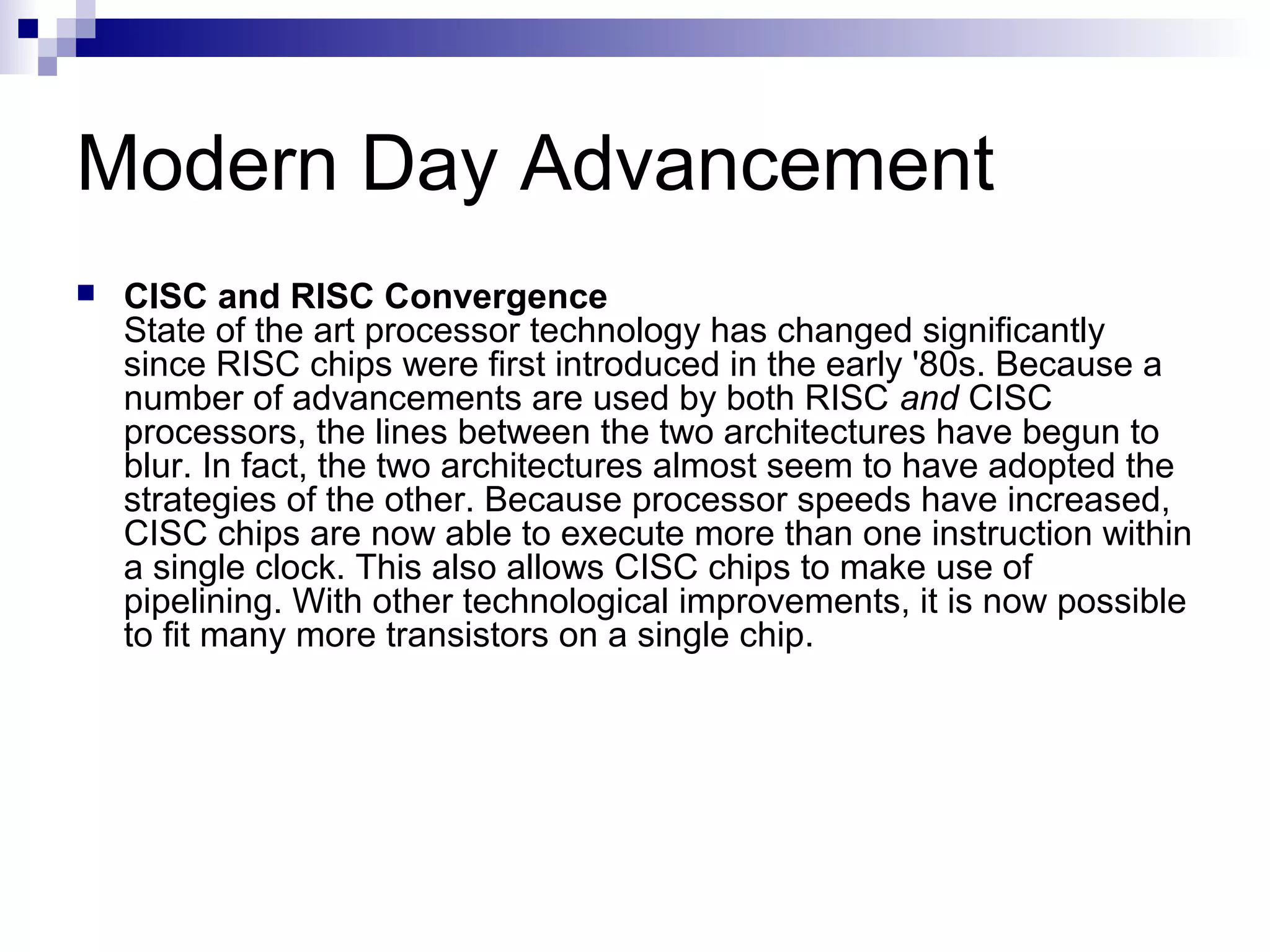

Modern Day Advancement
 CISC and RISC Convergence
State of the art processor technology has changed significantly
since RISC chips were first introduced in the early '80s. Because a
number of advancements are used by both RISC and CISC
processors, the lines between the two architectures have begun to
blur. In fact, the two architectures almost seem to have adopted the
strategies of the other. Because processor speeds have increased,
CISC chips are now able to execute more than one instruction within
a single clock. This also allows CISC chips to make use of
pipelining. With other technological improvements, it is now possible
to fit many more transistors on a single chip.

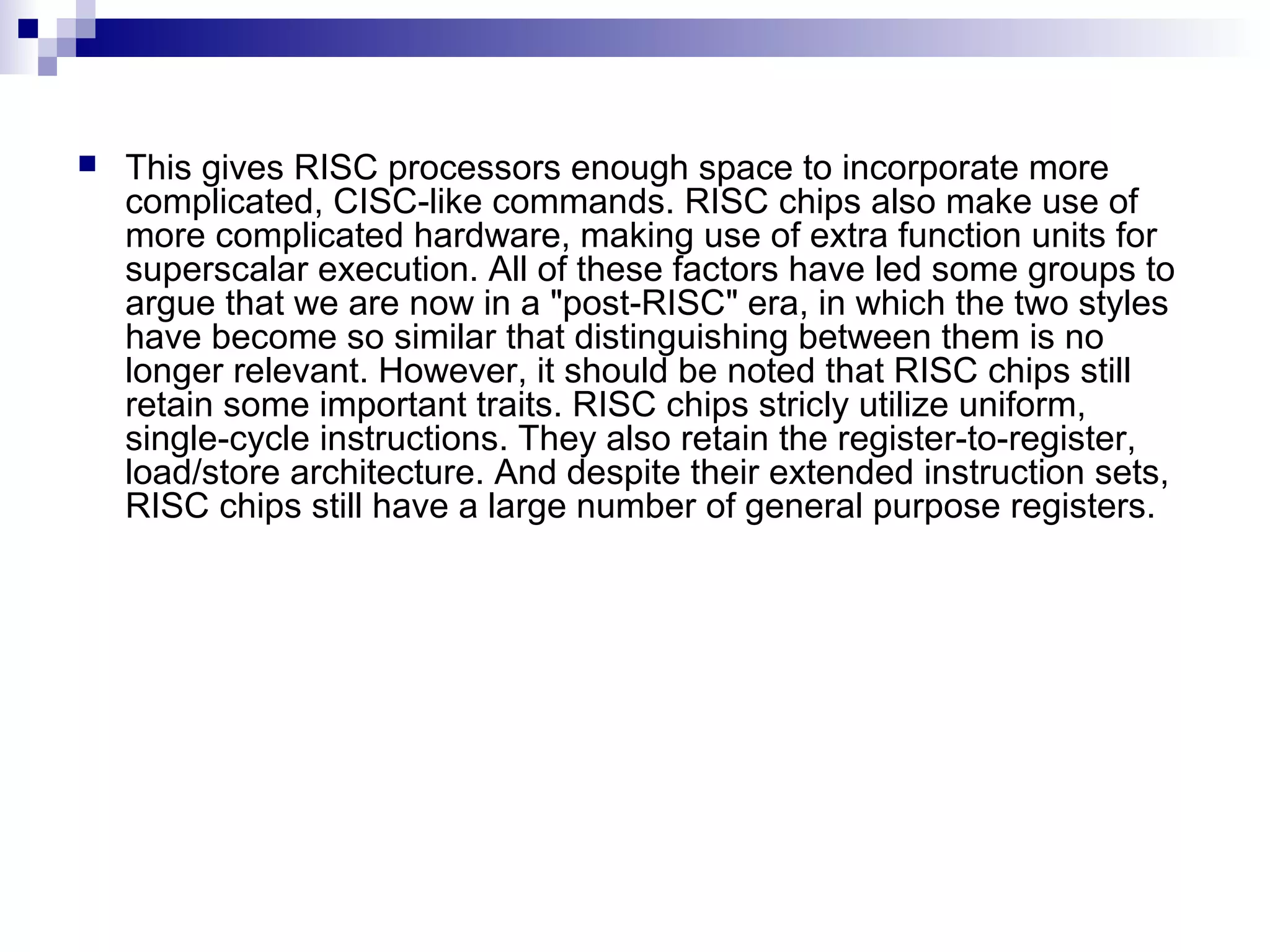

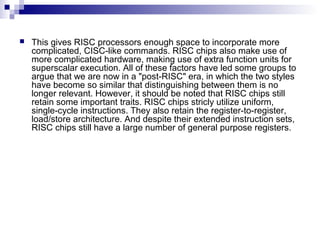

 This gives RISC processors enough space to incorporate more
complicated, CISC-like commands. RISC chips also make use of
more complicated hardware, making use of extra function units for
superscalar execution. All of these factors have led some groups to
argue that we are now in a "post-RISC" era, in which the two styles
have become so similar that distinguishing between them is no
longer relevant. However, it should be noted that RISC chips still
retain some important traits. RISC chips stricly utilize uniform,
single-cycle instructions. They also retain the register-to-register,
load/store architecture. And despite their extended instruction sets,
RISC chips still have a large number of general purpose registers.

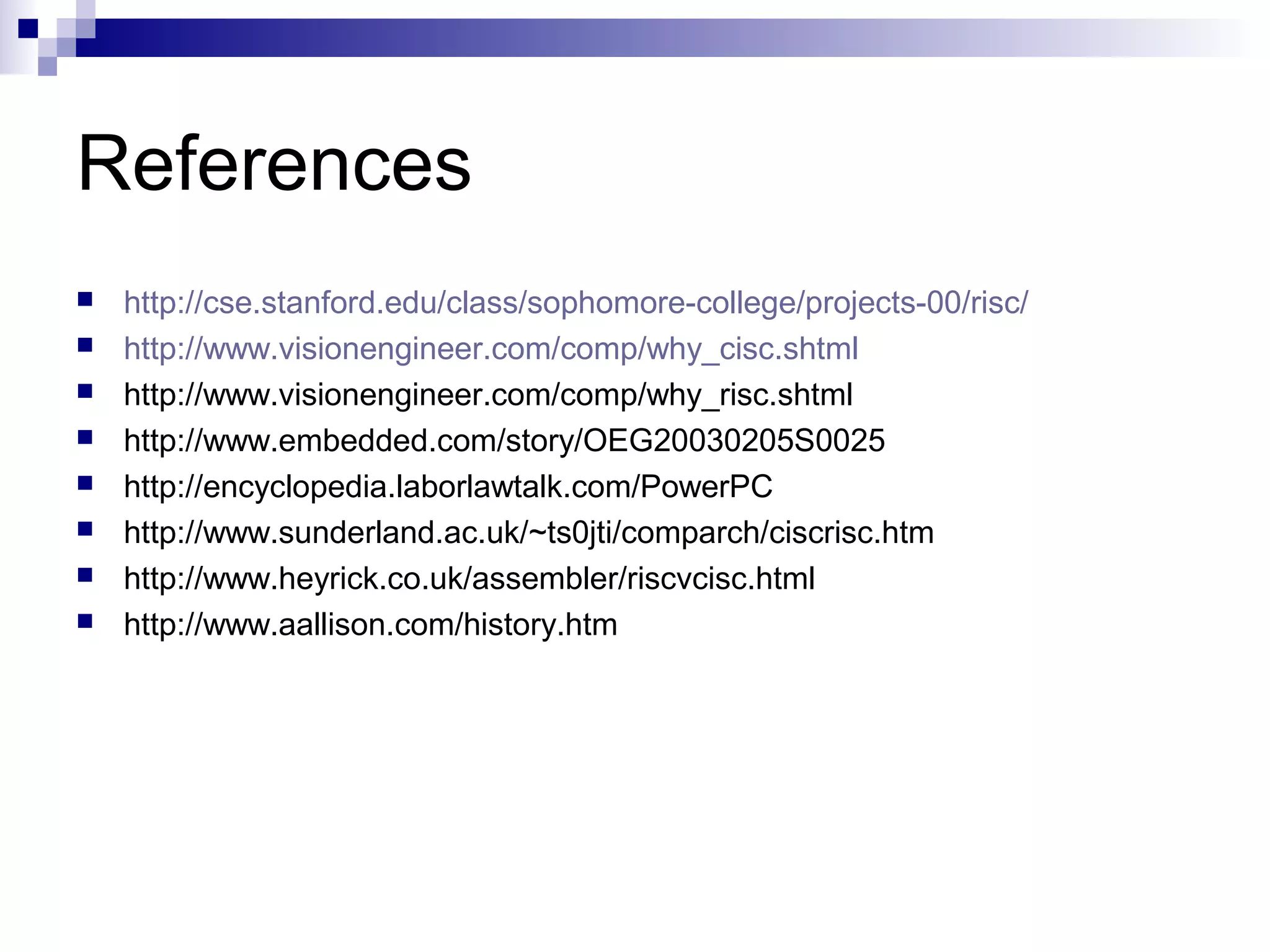

References
 http://cse.stanford.edu/class/sophomore-college/projects-00/risc/
 http://www.visionengineer.com/comp/why_cisc.shtml
 http://www.visionengineer.com/comp/why_risc.shtml
 http://www.embedded.com/story/OEG20030205S0025
 http://encyclopedia.laborlawtalk.com/PowerPC
 http://www.sunderland.ac.uk/~ts0jti/comparch/ciscrisc.htm
 http://www.heyrick.co.uk/assembler/riscvcisc.html
 http://www.aallison.com/history.htm

Risc and cisc eugene clewlow

More Related Content

What's hot

Viewers also liked

Similar to Risc and cisc eugene clewlow

Recently uploaded

In this document

Risc and cisc eugene clewlow
