Arduino Programming

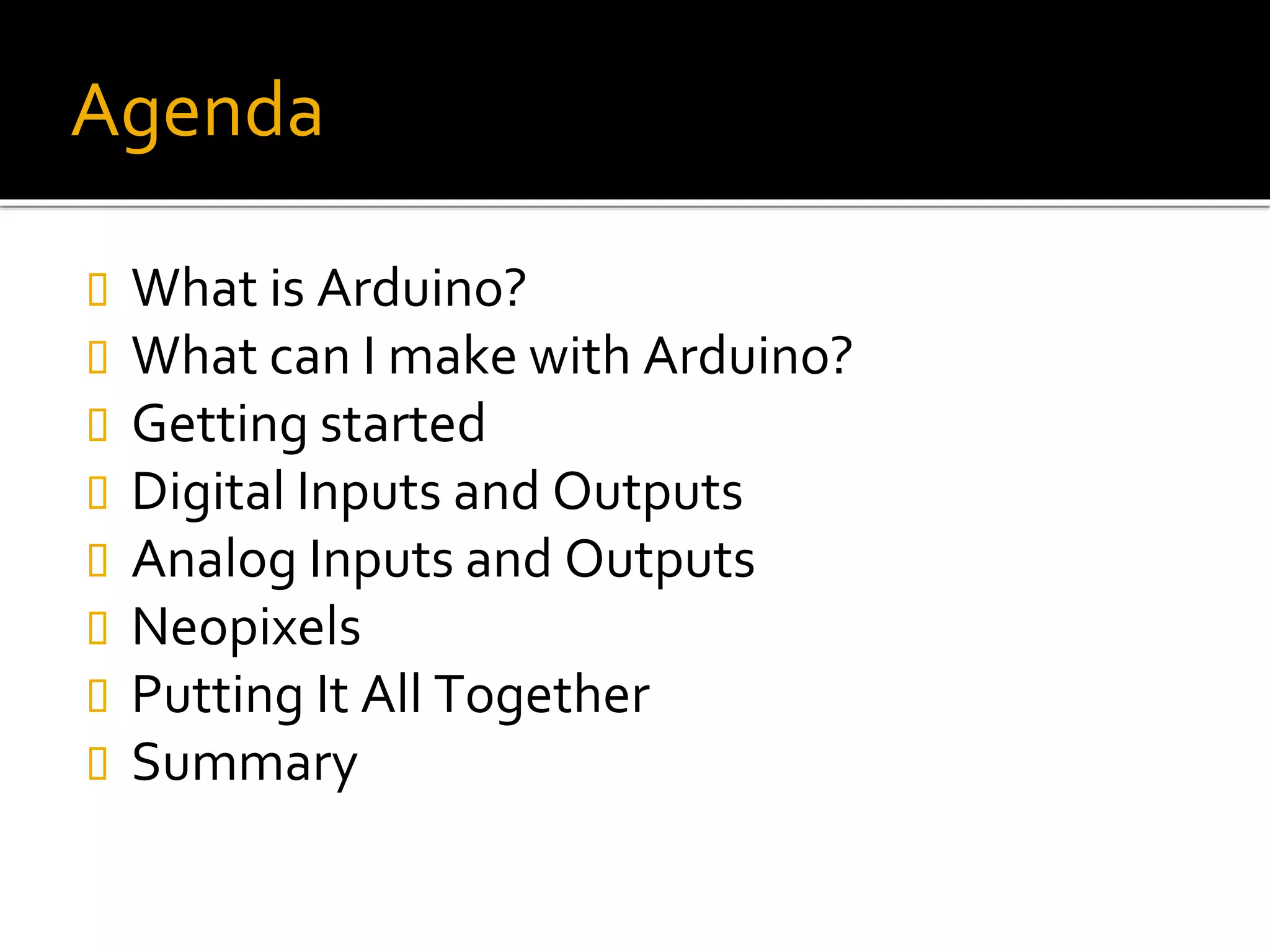

Agenda
 What is Arduino?
 What can I make with Arduino?
 Getting started
 Digital Inputs and Outputs
 Analog Inputs and Outputs
 Neopixels
 Putting It All Together
 Summary

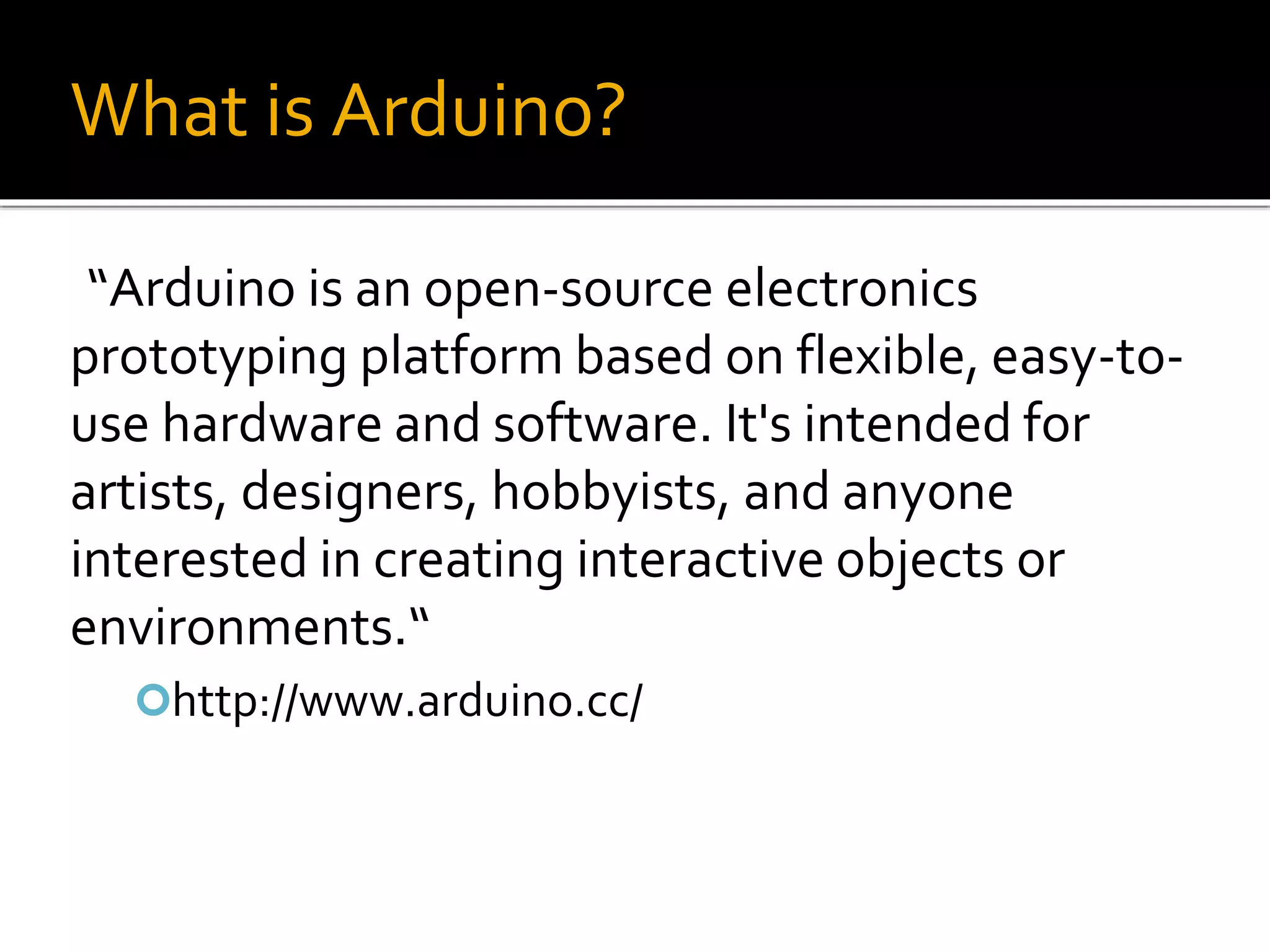

What is Arduino?
“Arduino is an open-source electronics
prototyping platform based on flexible, easy-to-
use hardware and software. It's intended for
artists, designers, hobbyists, and anyone
interested in creating interactive objects or
environments.“
http://www.arduino.cc/

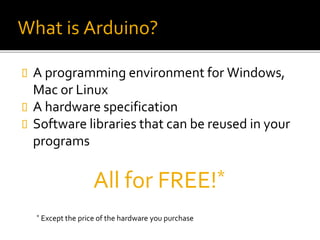

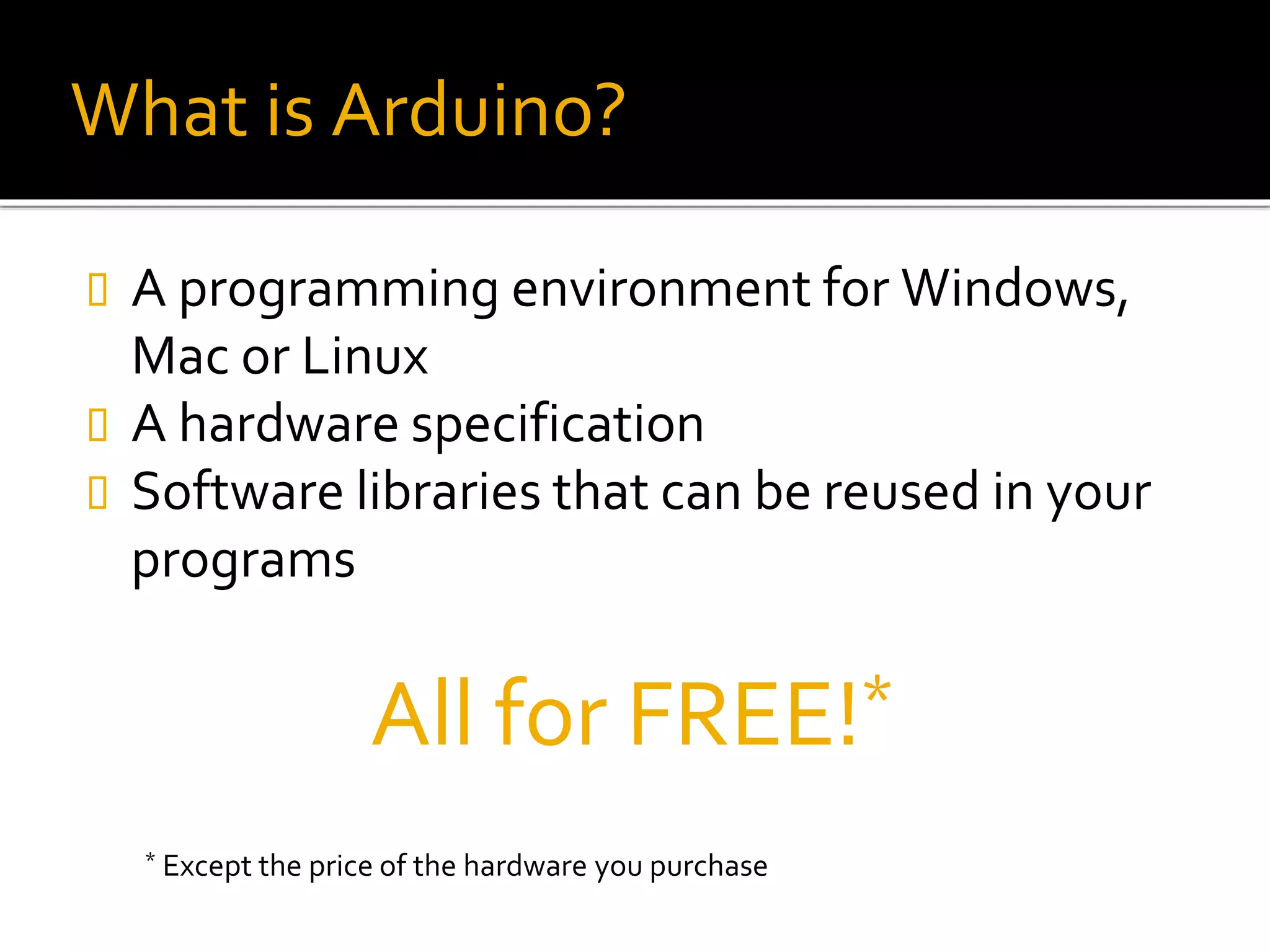

What is Arduino?
 A programming environment for Windows,
Mac or Linux
 A hardware specification
 Software libraries that can be reused in your
programs
All for FREE!*
* Except the price of the hardware you purchase

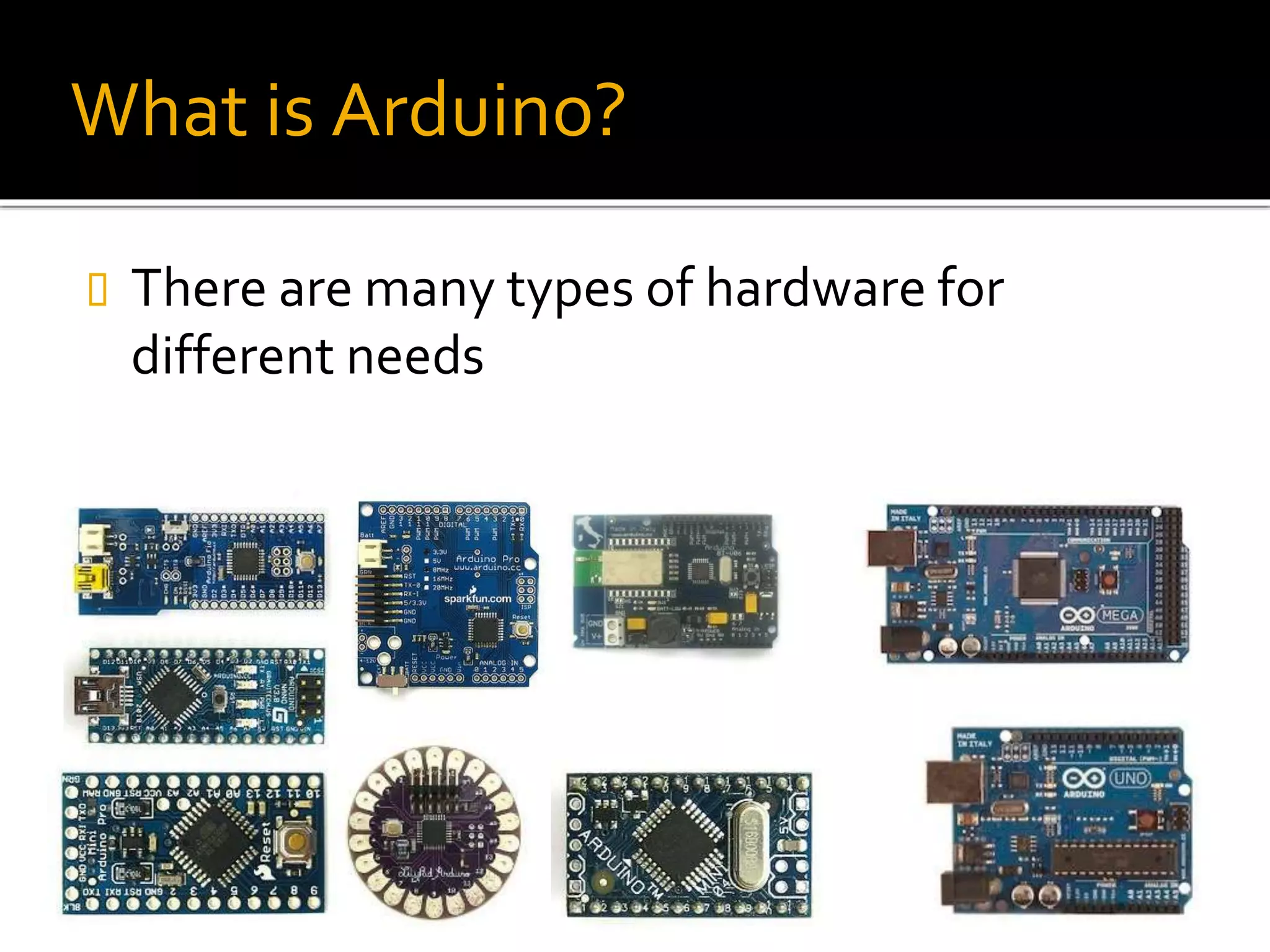

What is Arduino?
 There are many types of hardware for
different needs

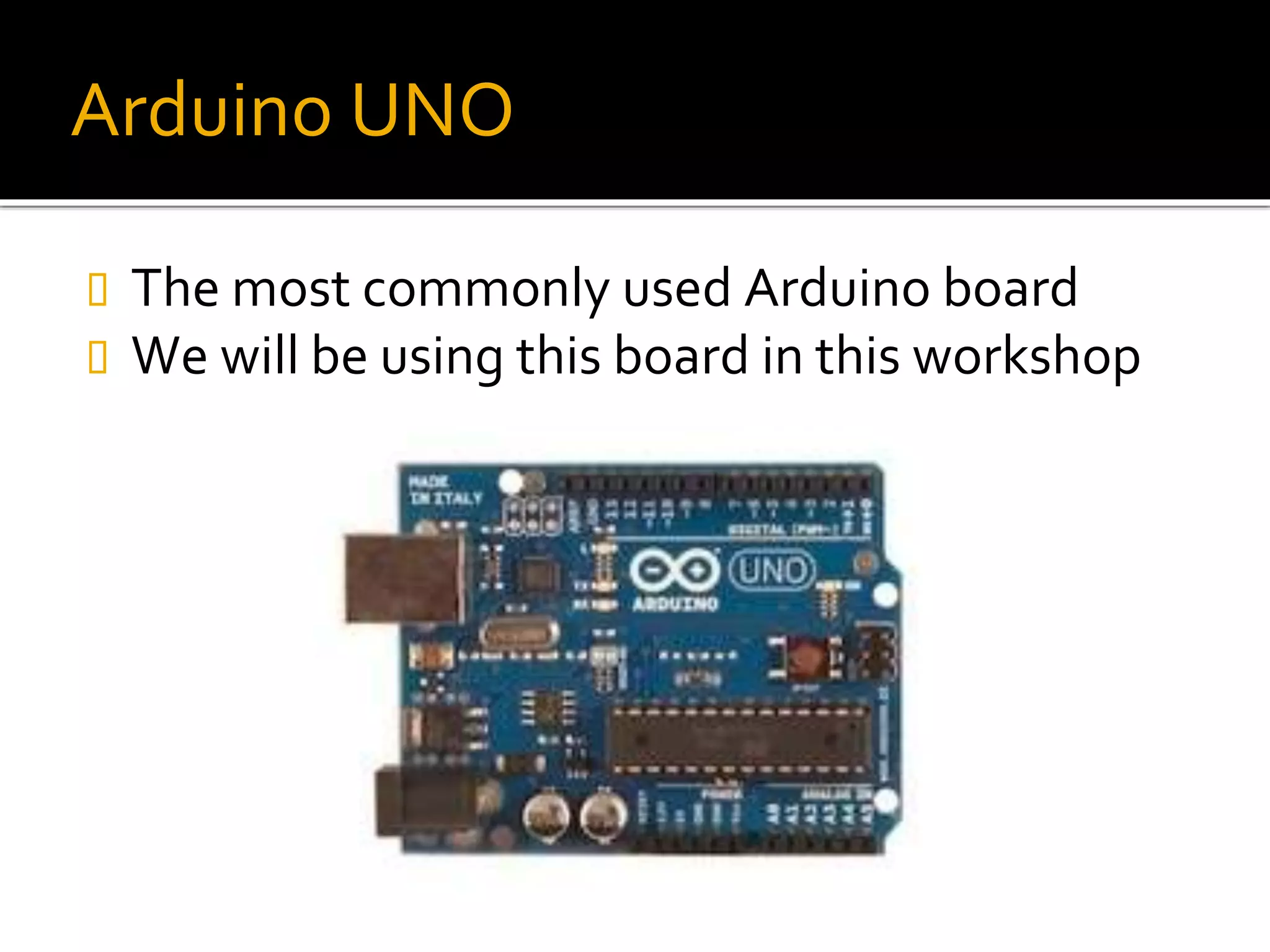

Arduino UNO
 The most commonly used Arduino board
 We will be using this board in this workshop

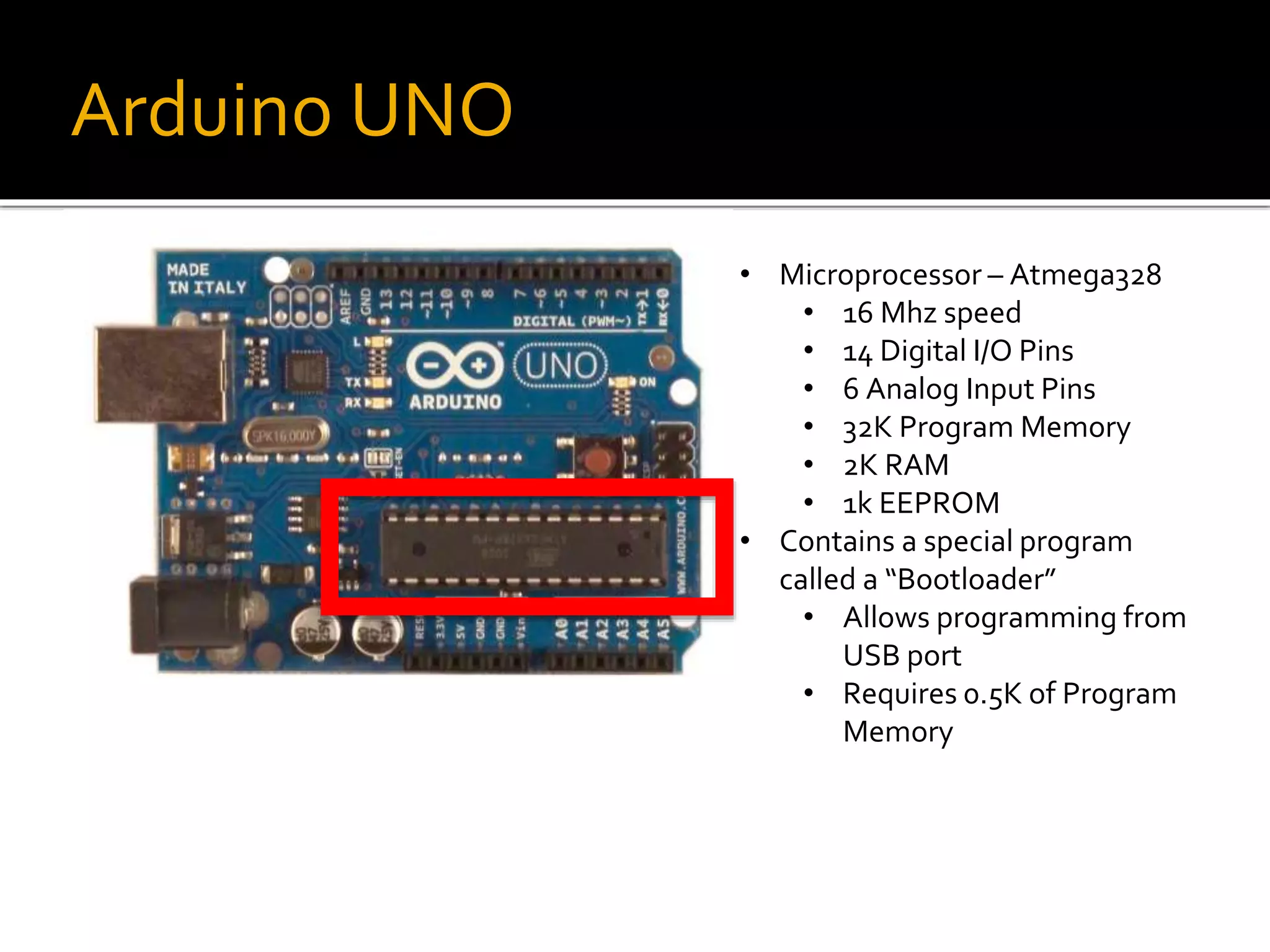

Arduino UNO
• Microprocessor – Atmega328
• 16 Mhz speed
• 14 Digital I/O Pins
• 6 Analog Input Pins
• 32K Program Memory
• 2K RAM
• 1k EEPROM
• Contains a special program
called a “Bootloader”
• Allows programming from
USB port
• Requires 0.5K of Program
Memory

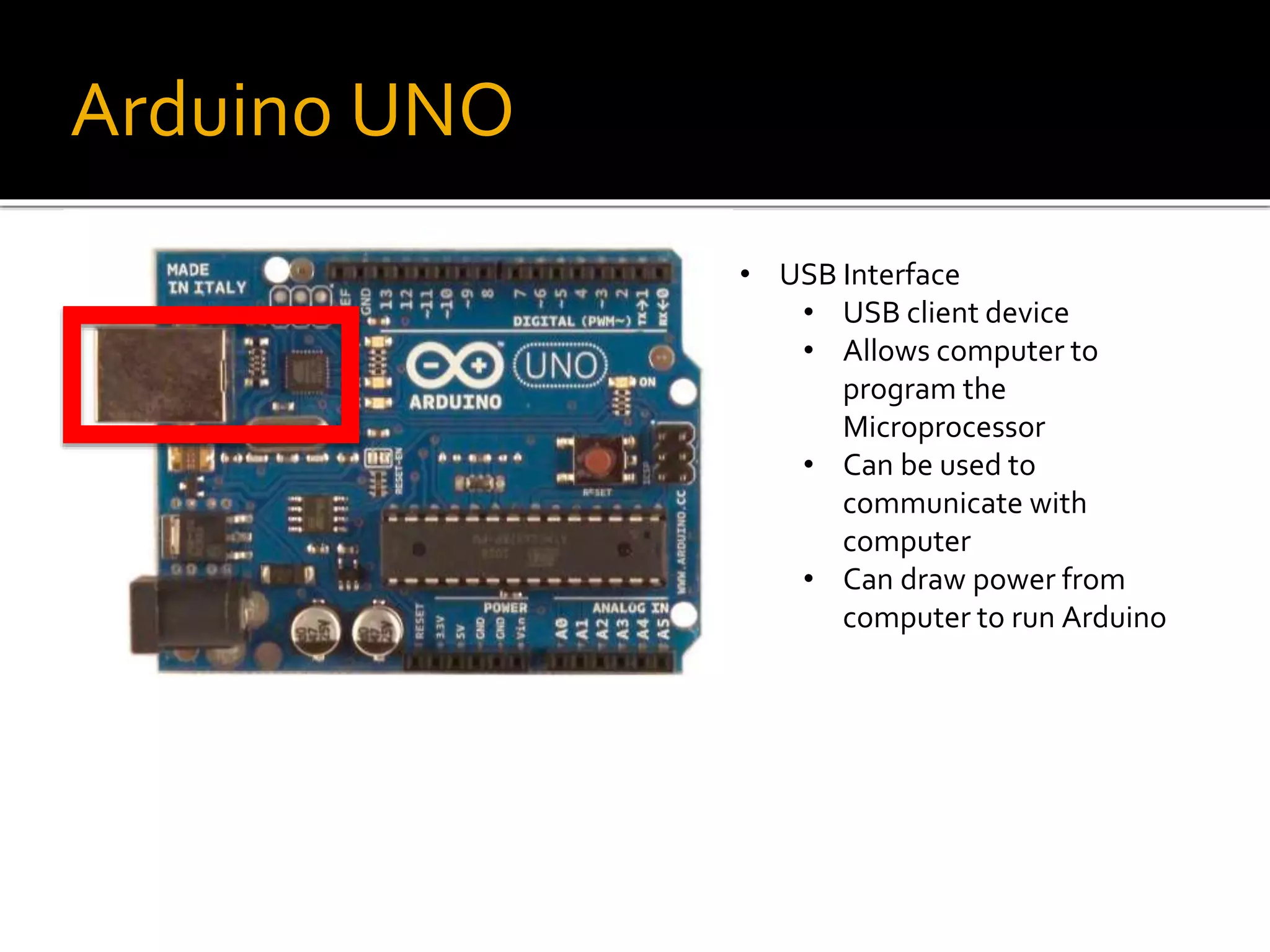

Arduino UNO
• USB Interface
• USB client device
• Allows computer to
program the
Microprocessor
• Can be used to
communicate with
computer
• Can draw power from
computer to run Arduino

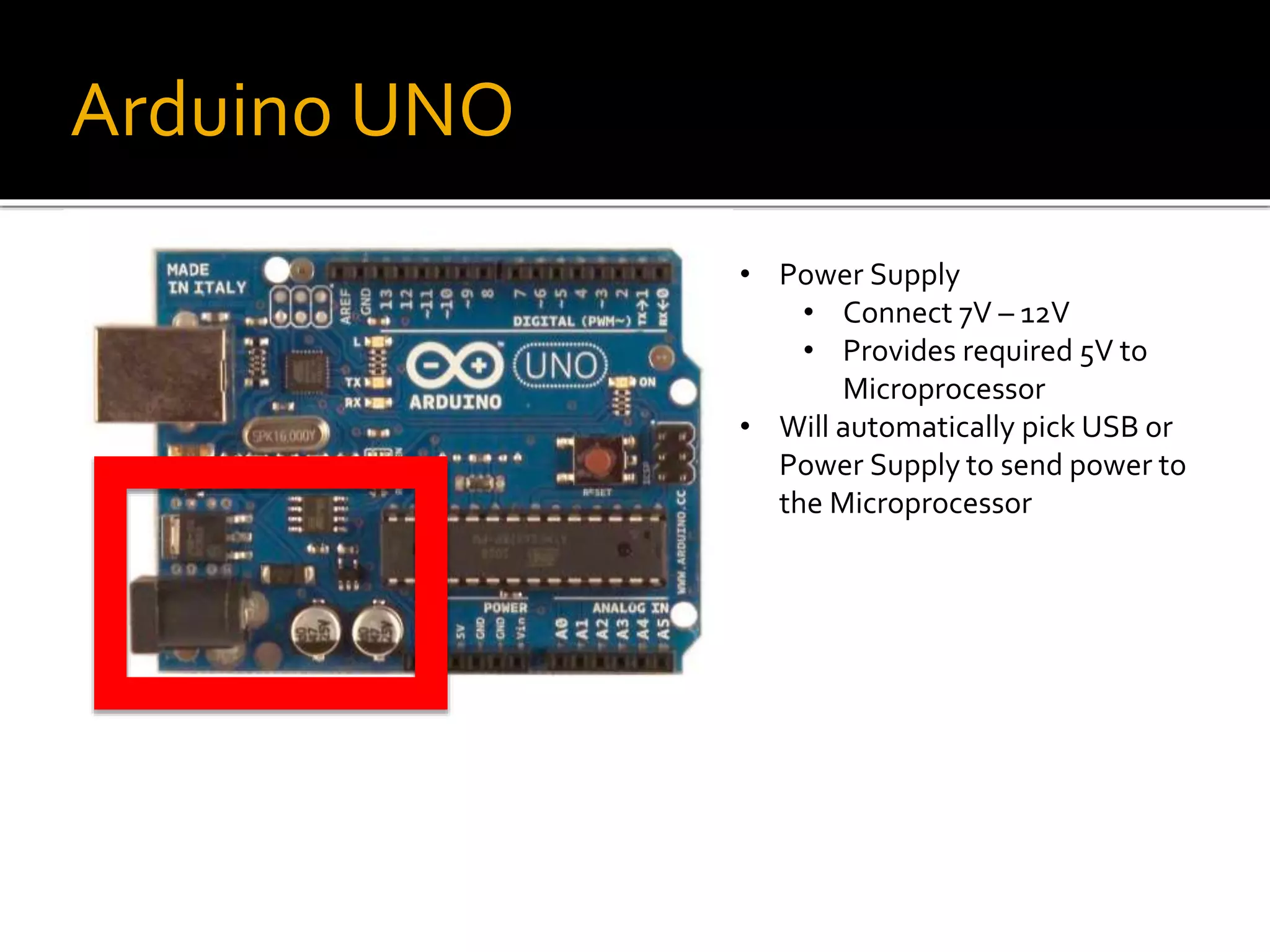

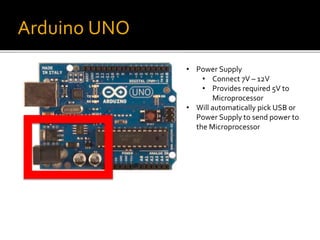

Arduino UNO
• Power Supply
• Connect 7V – 12V
• Provides required 5V to
Microprocessor
• Will automatically pick USB or
Power Supply to send power to
the Microprocessor

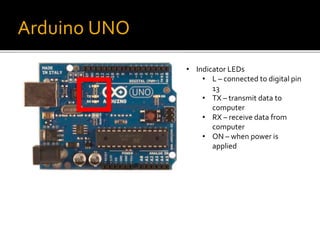

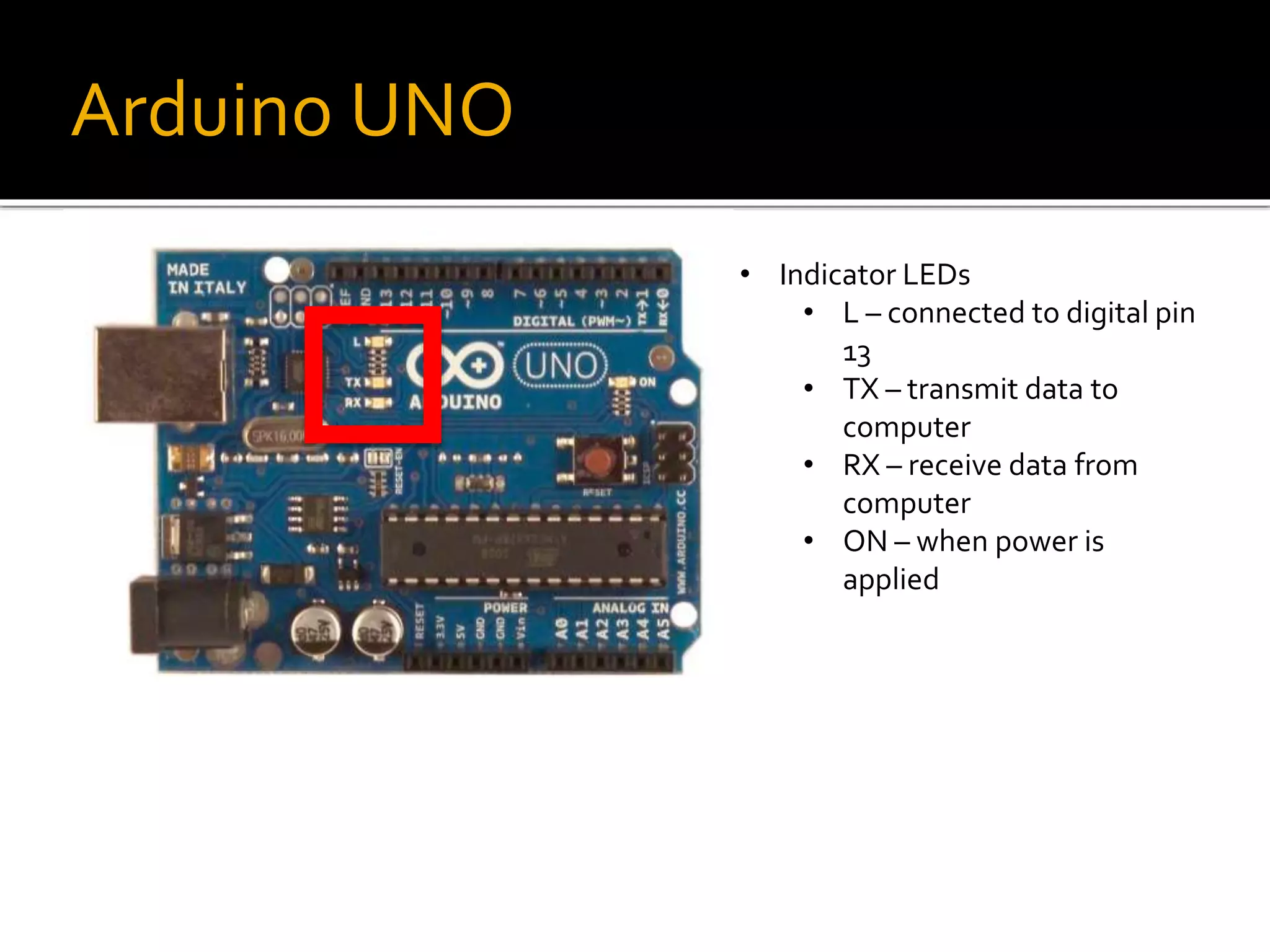

Arduino UNO
• Indicator LEDs
• L – connected to digital pin
13
• TX – transmit data to
computer
• RX – receive data from
computer
• ON – when power is
applied

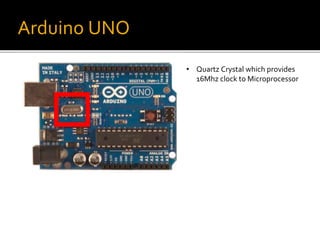

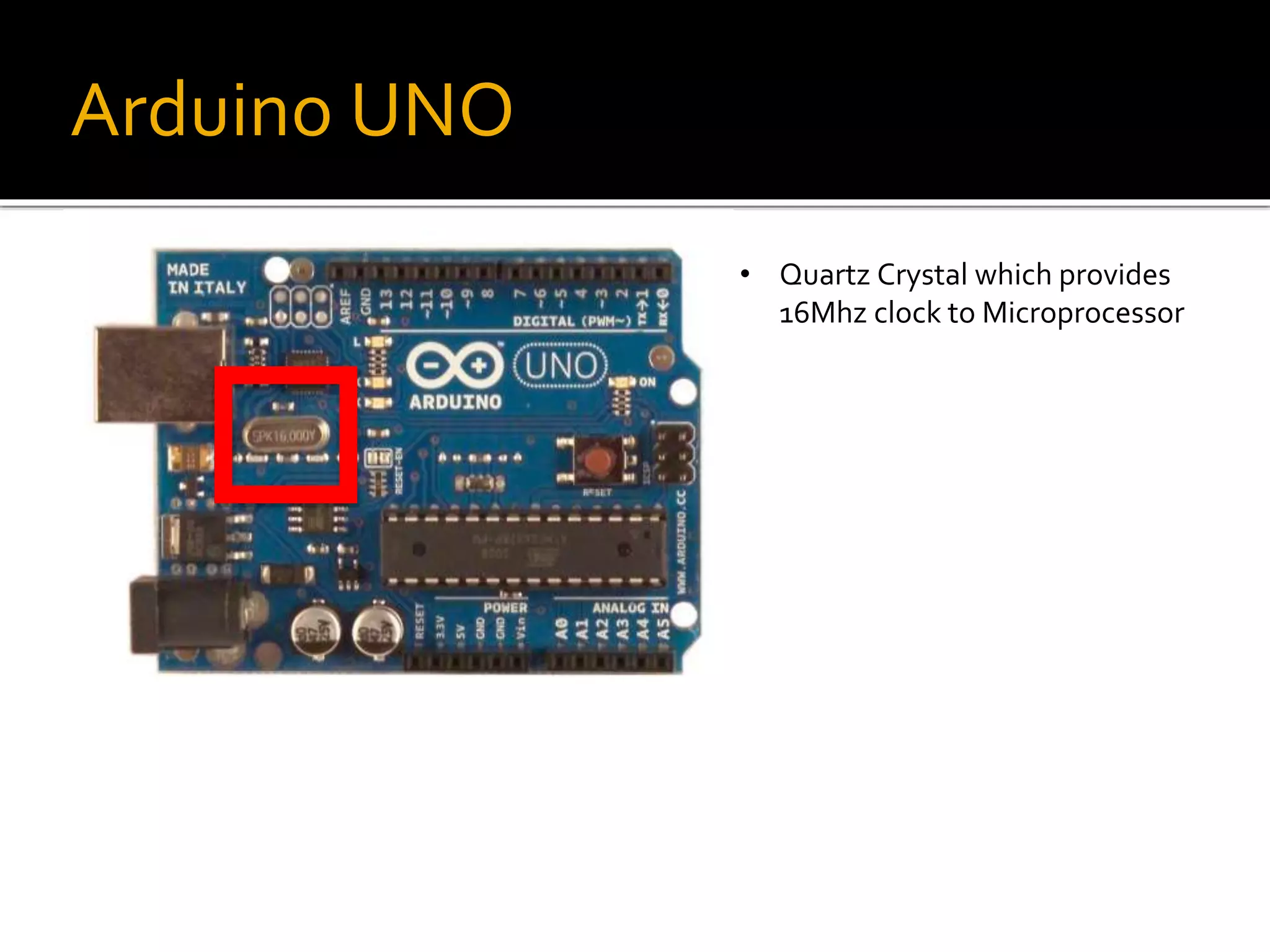

Arduino UNO
• Quartz Crystal which provides
16Mhz clock to Microprocessor

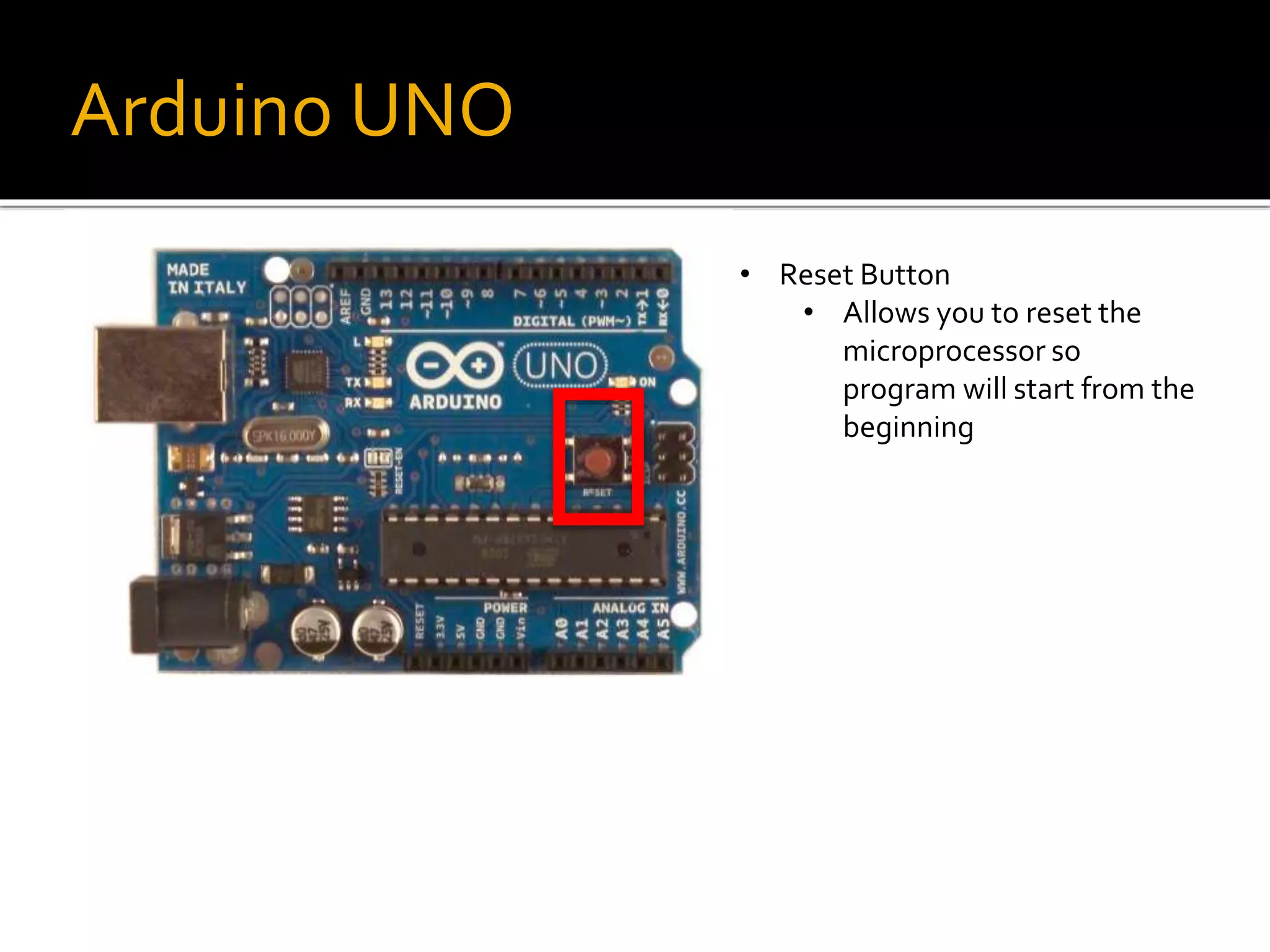

Arduino UNO
• Reset Button
• Allows you to reset the
microprocessor so
program will start from the
beginning

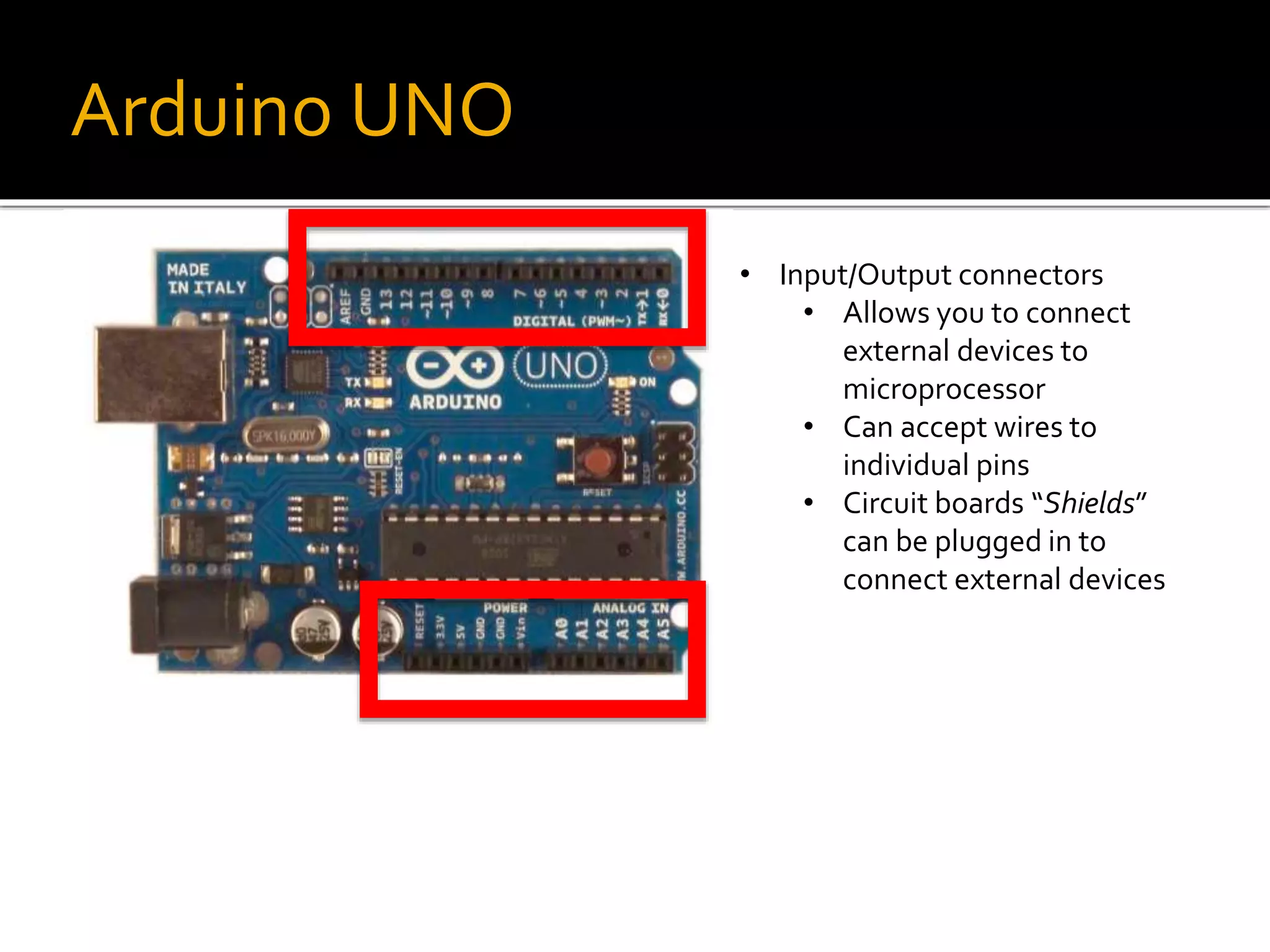

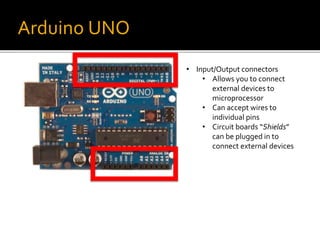

Arduino UNO
• Input/Output connectors
• Allows you to connect
external devices to
microprocessor
• Can accept wires to
individual pins
• Circuit boards “Shields”
can be plugged in to
connect external devices

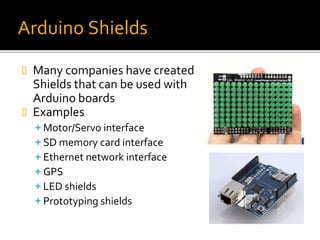

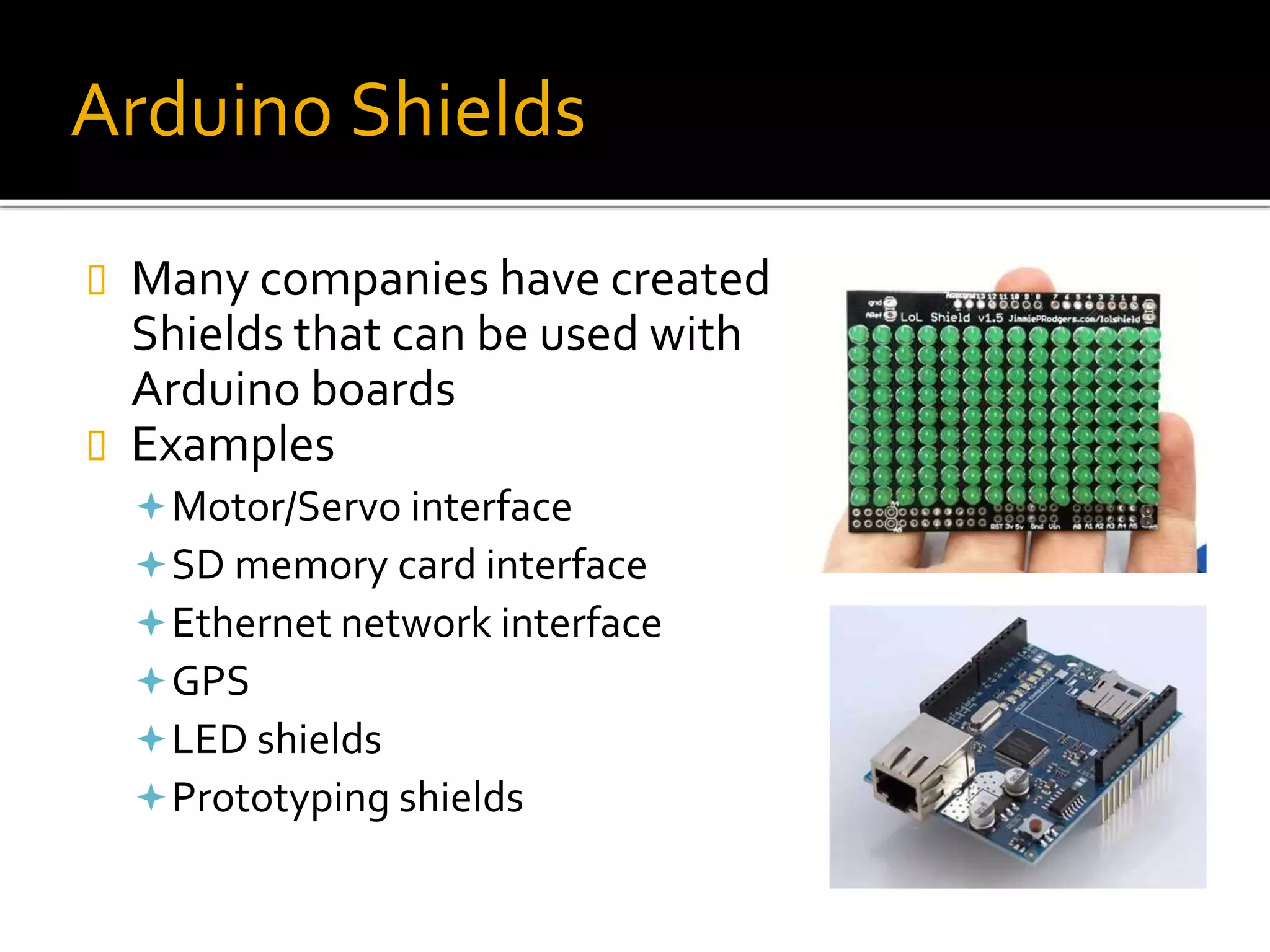

Arduino Shields
 Many companies have created
Shields that can be used with
Arduino boards
 Examples
Motor/Servo interface
SD memory card interface
Ethernet network interface
GPS
LED shields
Prototyping shields

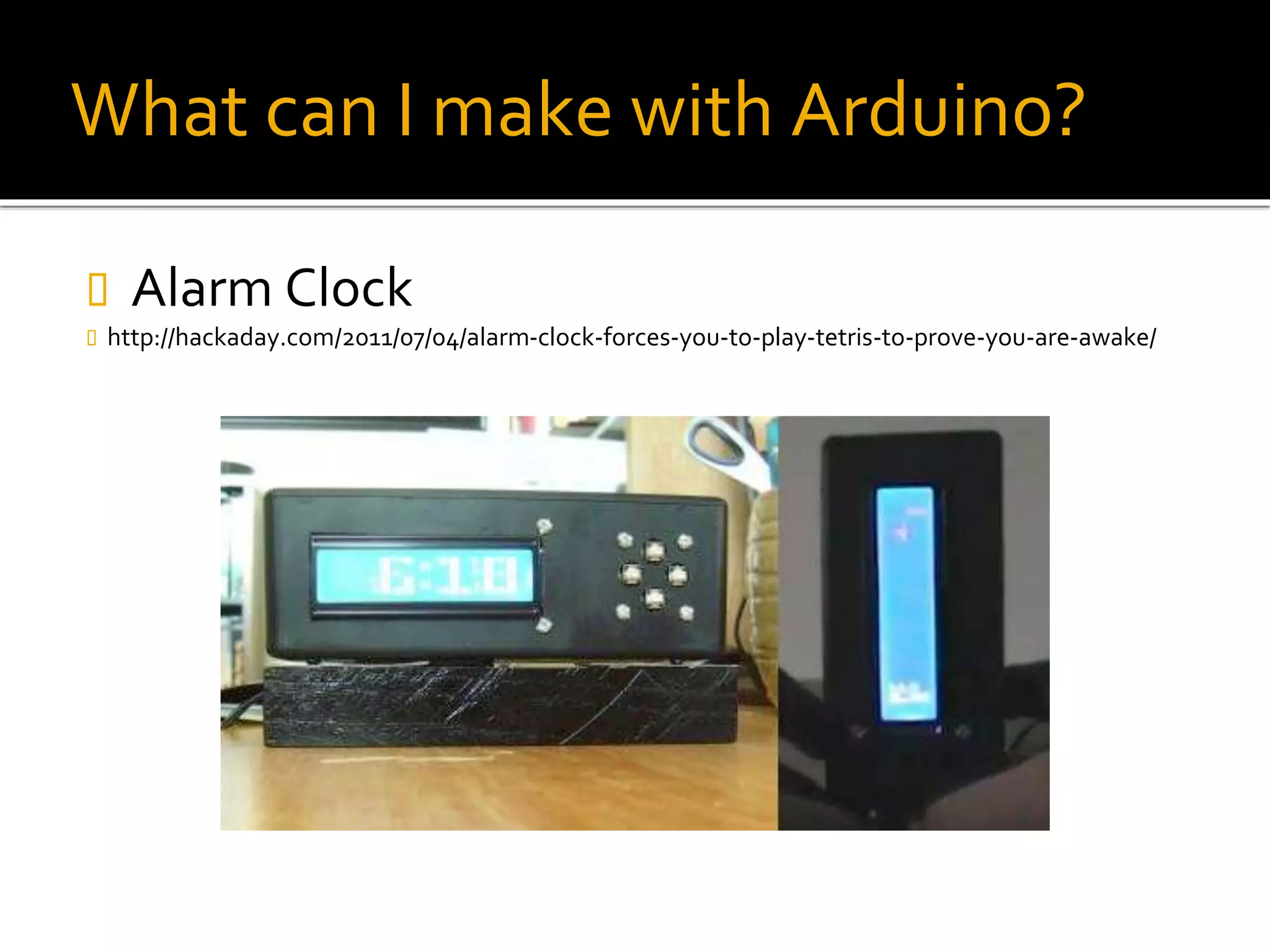

What can I make with Arduino?
 Alarm Clock
 http://hackaday.com/2011/07/04/alarm-clock-forces-you-to-play-tetris-to-prove-you-are-awake/
What can I make with Arduino?
 Textpresso
 http://www.geekwire.com/2012/greatest-invention-textspresso-machine-change-coffee-ordering/

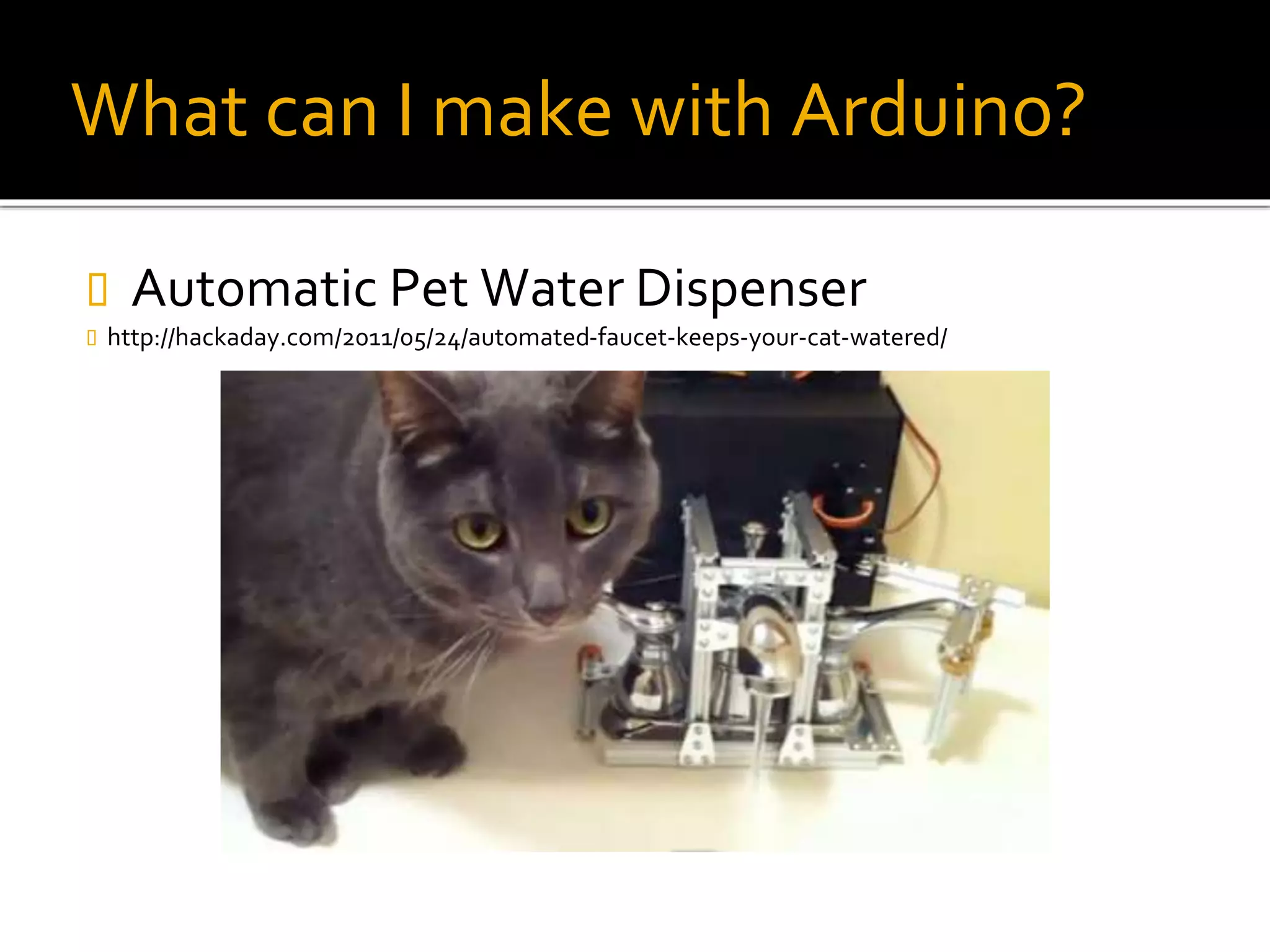

What can I make with Arduino?
 Automatic Pet Water Dispenser
 http://hackaday.com/2011/05/24/automated-faucet-keeps-your-cat-watered/

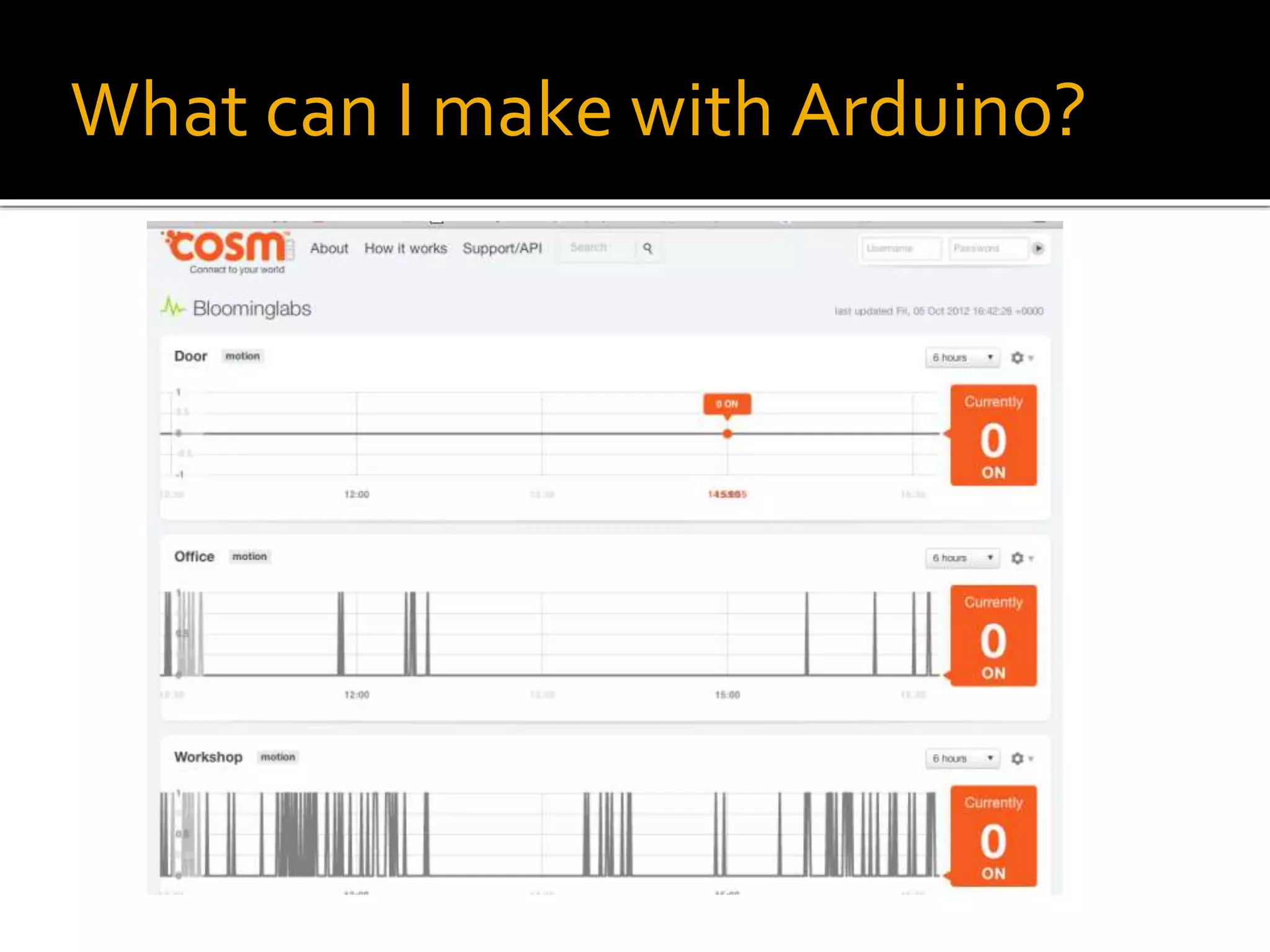

What can I make with Arduino?

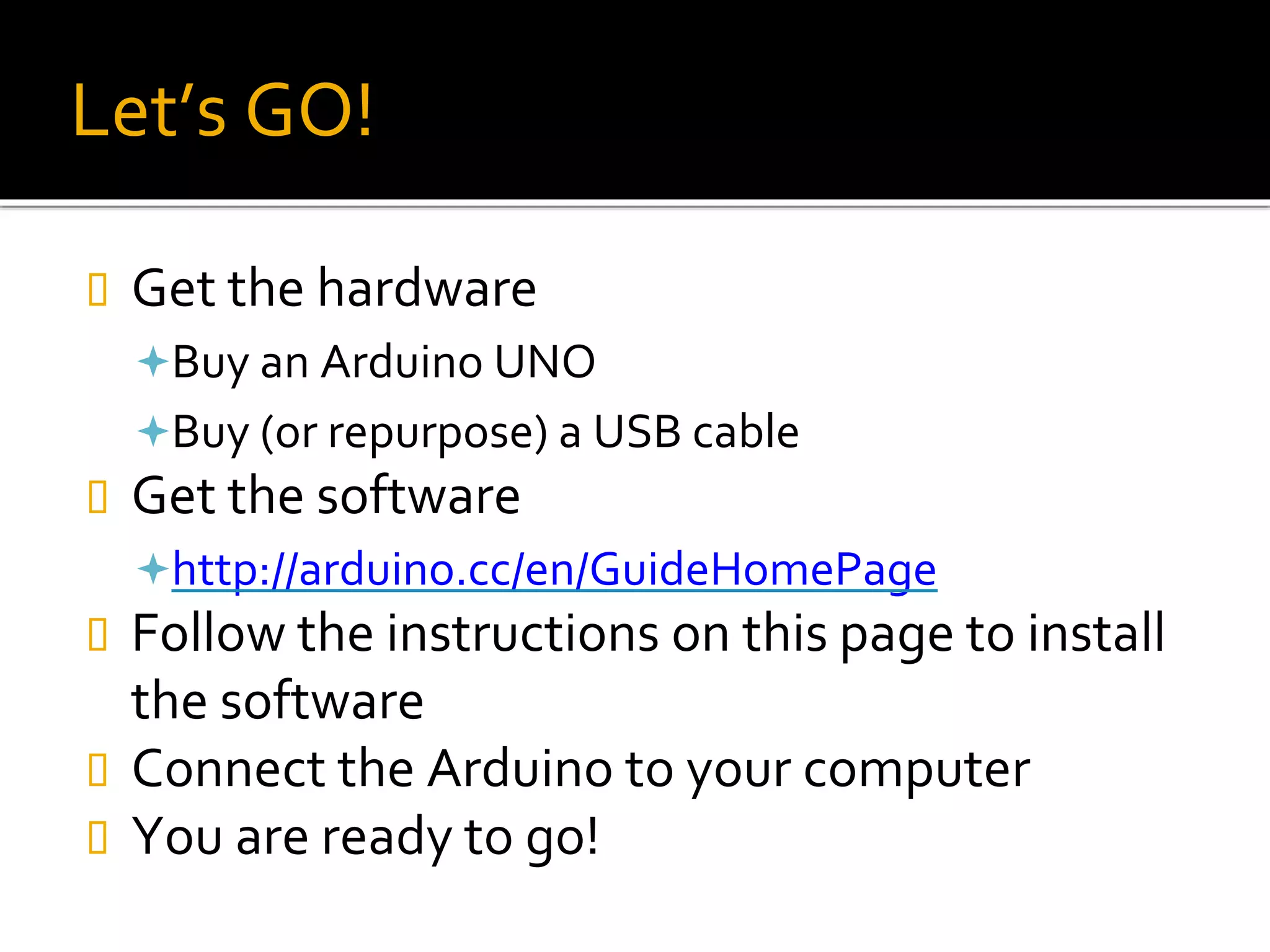

Let’s GO!
 Get the hardware
Buy an Arduino UNO
Buy (or repurpose) a USB cable
 Get the software
http://arduino.cc/en/GuideHomePage
 Follow the instructions on this page to install
the software
 Connect the Arduino to your computer
 You are ready to go!

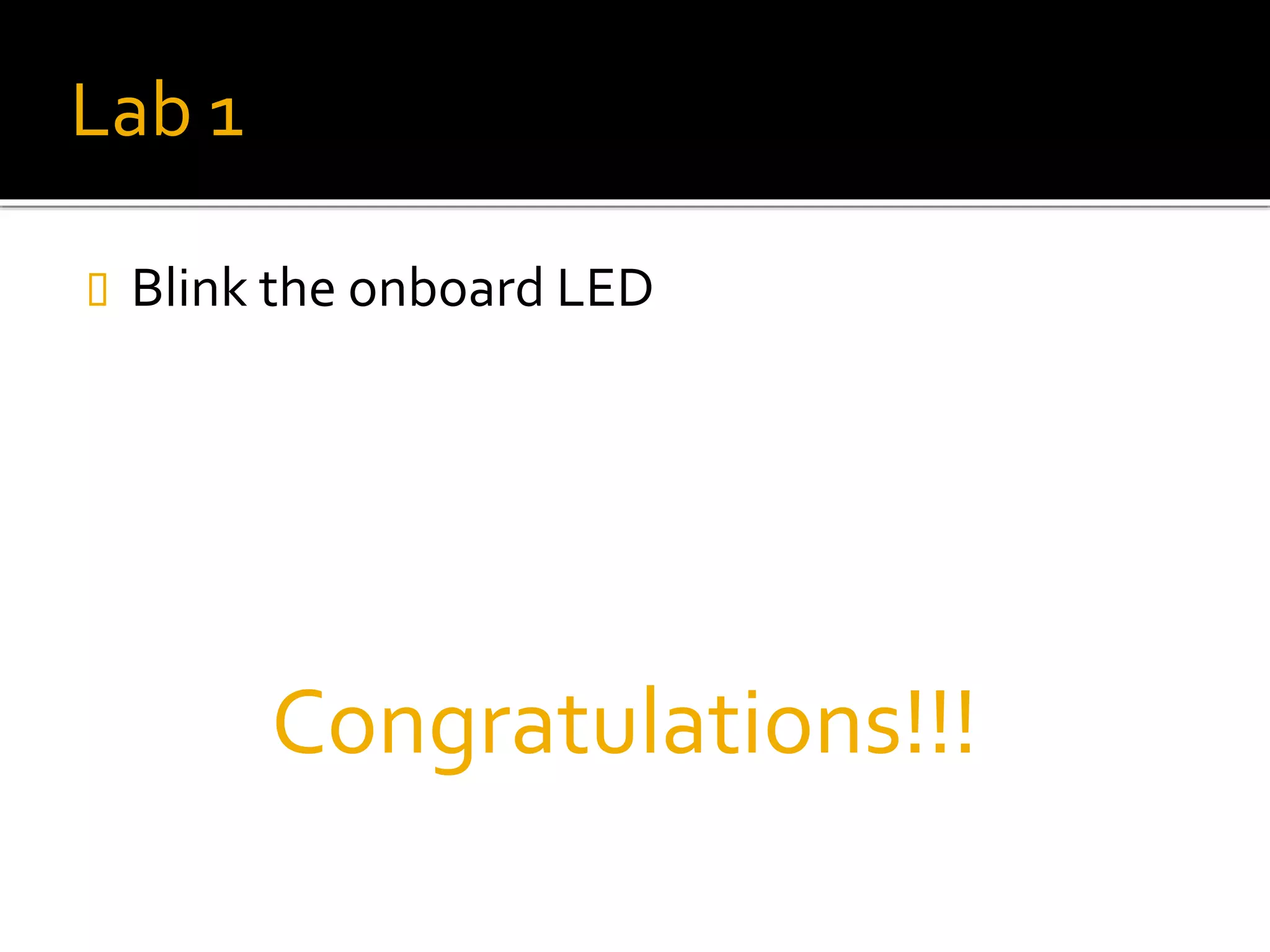

Lab 1
 Blink the onboard LED
Congratulations!!!

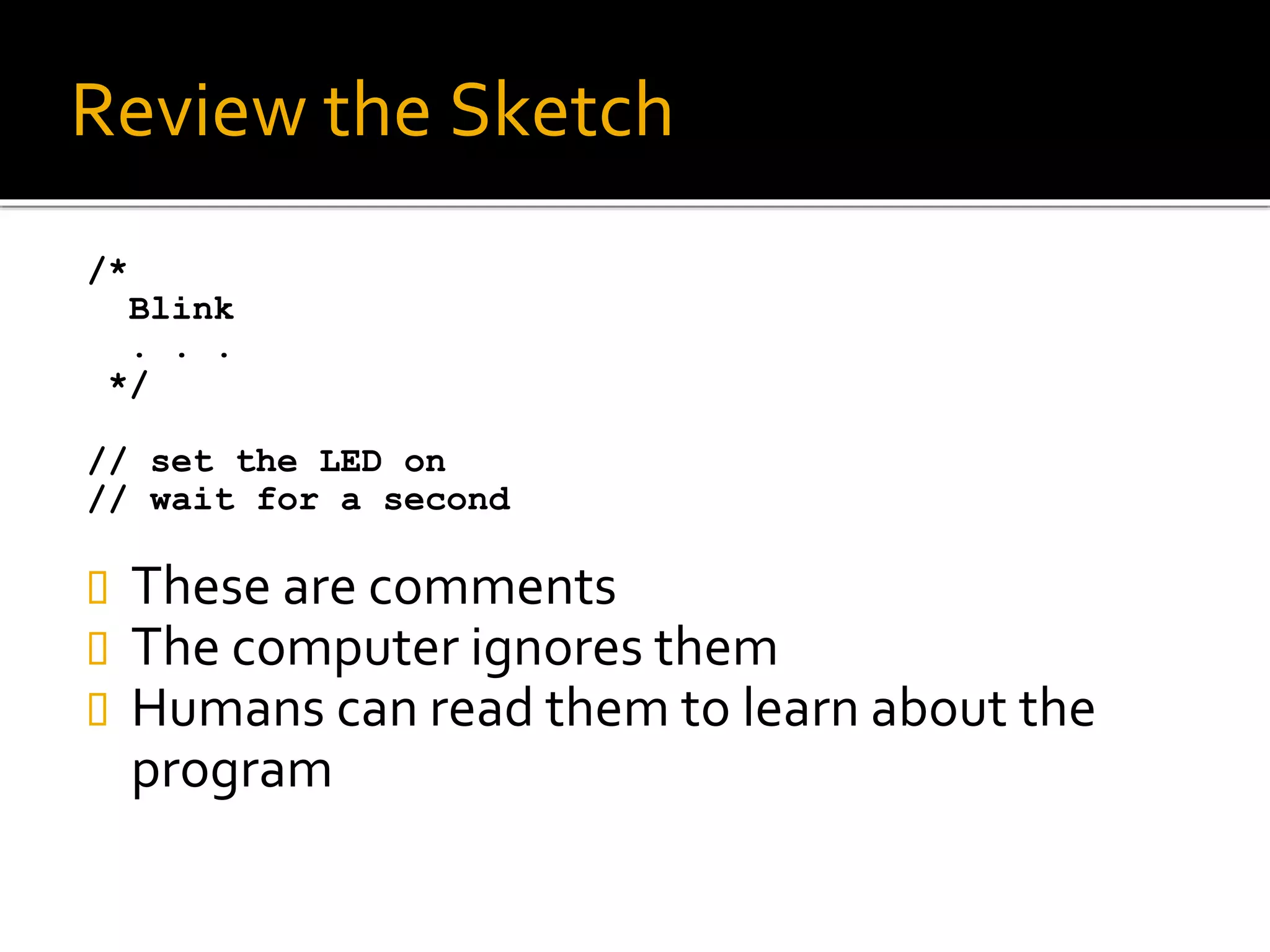

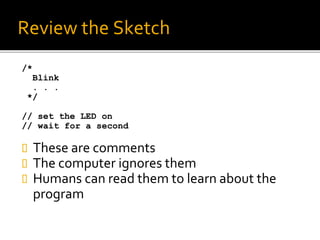

Review the Sketch
/*
Blink
. . .
*/
// set the LED on
// wait for a second
 These are comments
 The computer ignores them
 Humans can read them to learn about the
program

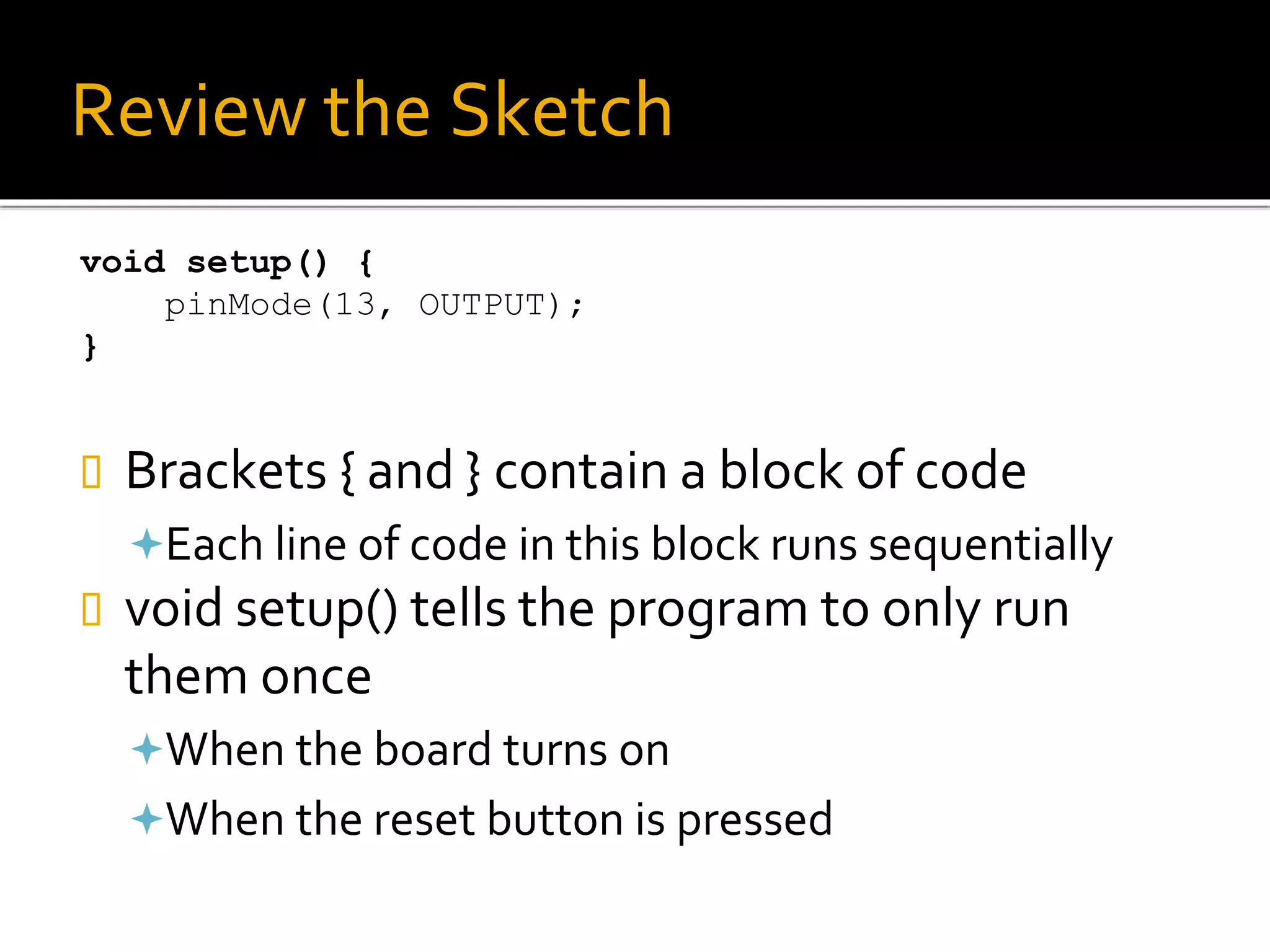

Review the Sketch
void setup() {
pinMode(13, OUTPUT);
}
 Brackets { and } contain a block of code
Each line of code in this block runs sequentially
 void setup() tells the program to only run
them once
When the board turns on
When the reset button is pressed

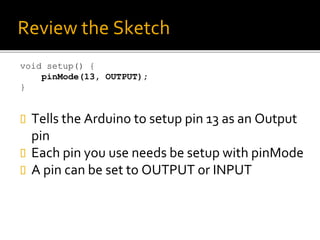

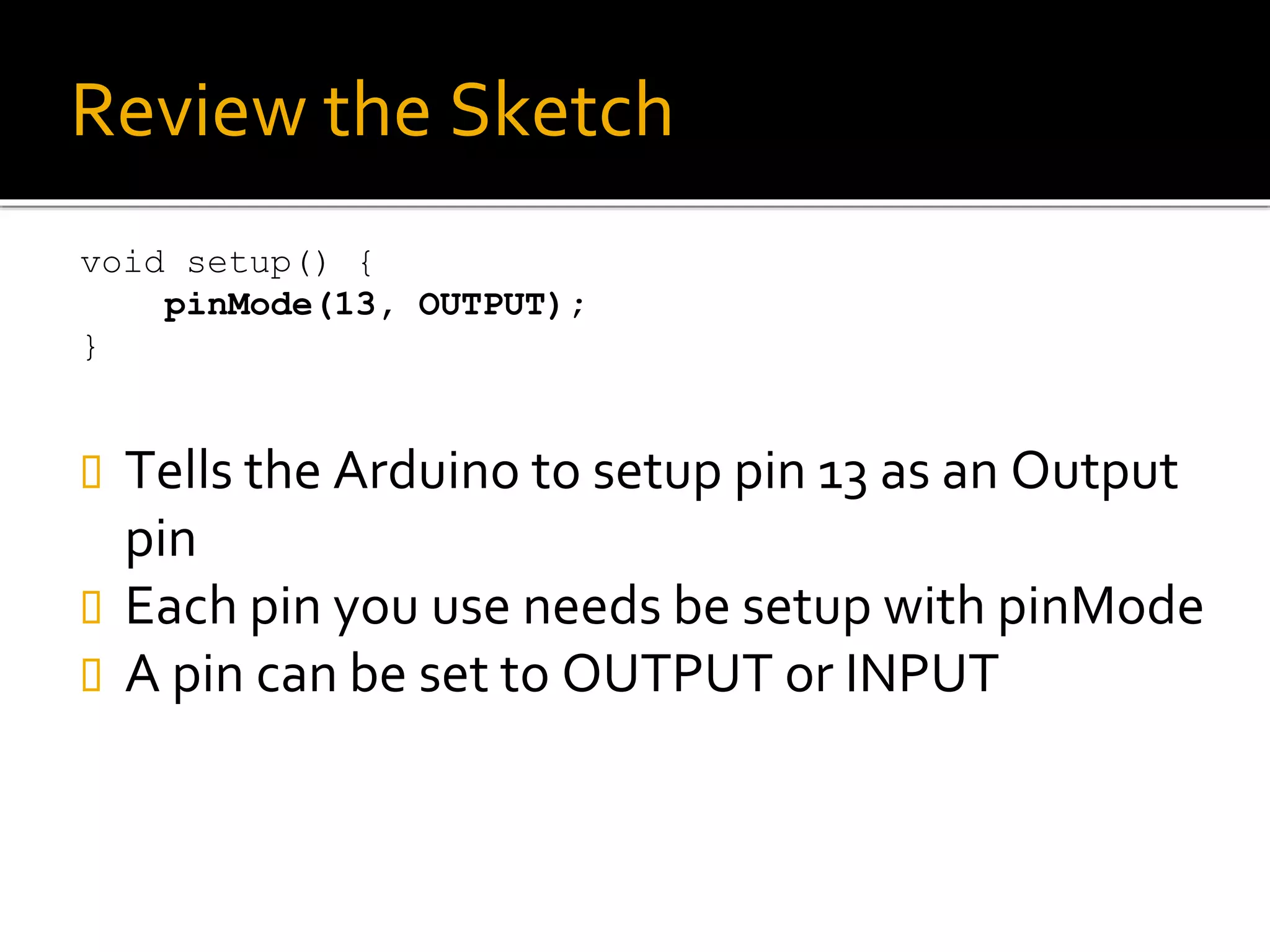

Review the Sketch
void setup() {
pinMode(13, OUTPUT);
}
 Tells the Arduino to setup pin 13 as an Output
pin
 Each pin you use needs be setup with pinMode
 A pin can be set to OUTPUT or INPUT
Review the Sketch
void loop() {
digitalWrite(13, HIGH);
delay(1000);
digitalWrite(13, LOW);
delay(1000);
}
 void loop () runs the code block over and over
until you turn off the Arduino
 This code block only runs after setup is
finished

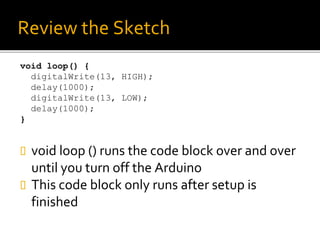

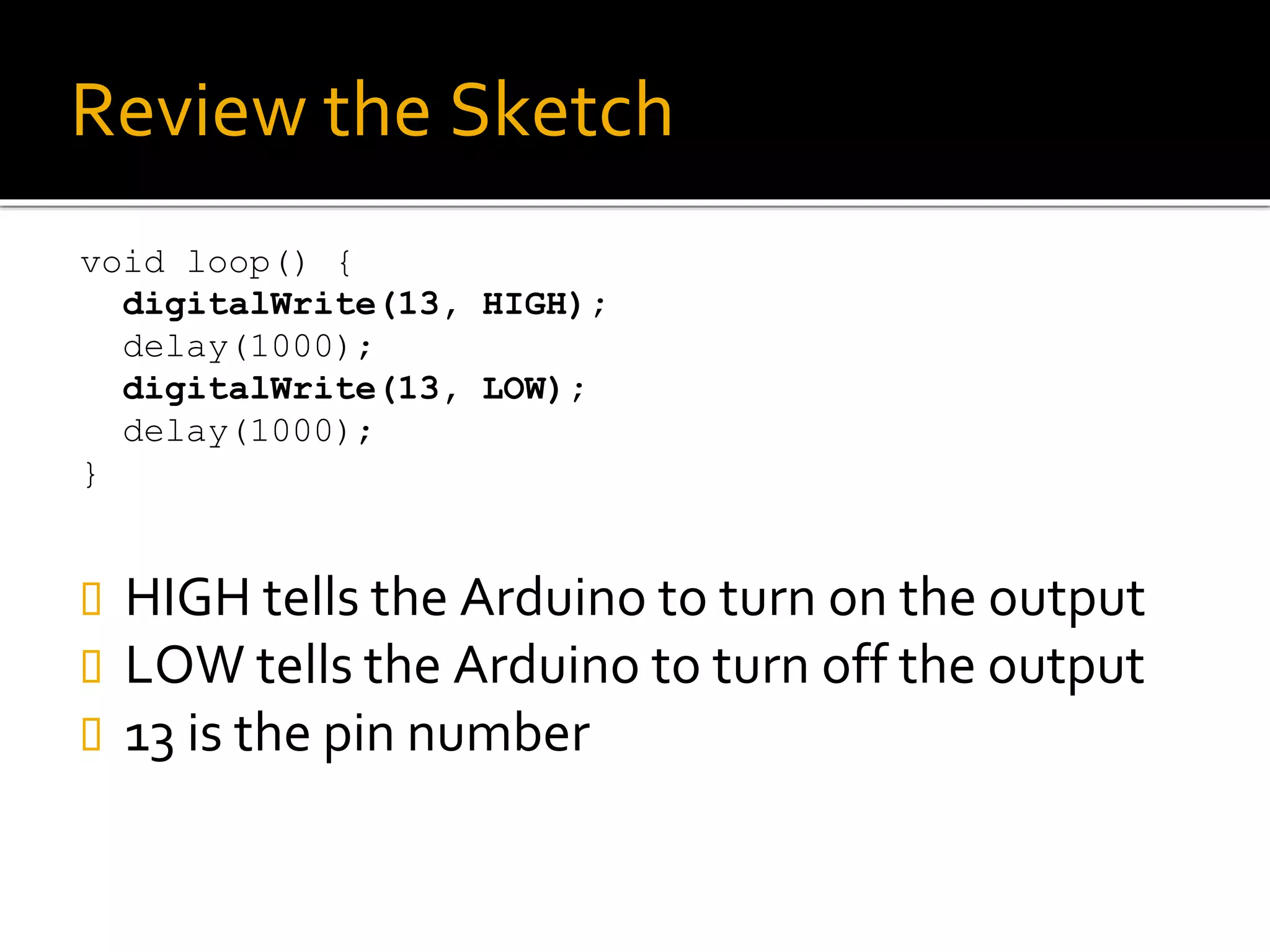

Review the Sketch
void loop() {
digitalWrite(13, HIGH);
delay(1000);
digitalWrite(13, LOW);
delay(1000);
}
 HIGH tells the Arduino to turn on the output
 LOW tells the Arduino to turn off the output
 13 is the pin number

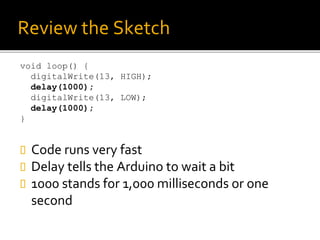

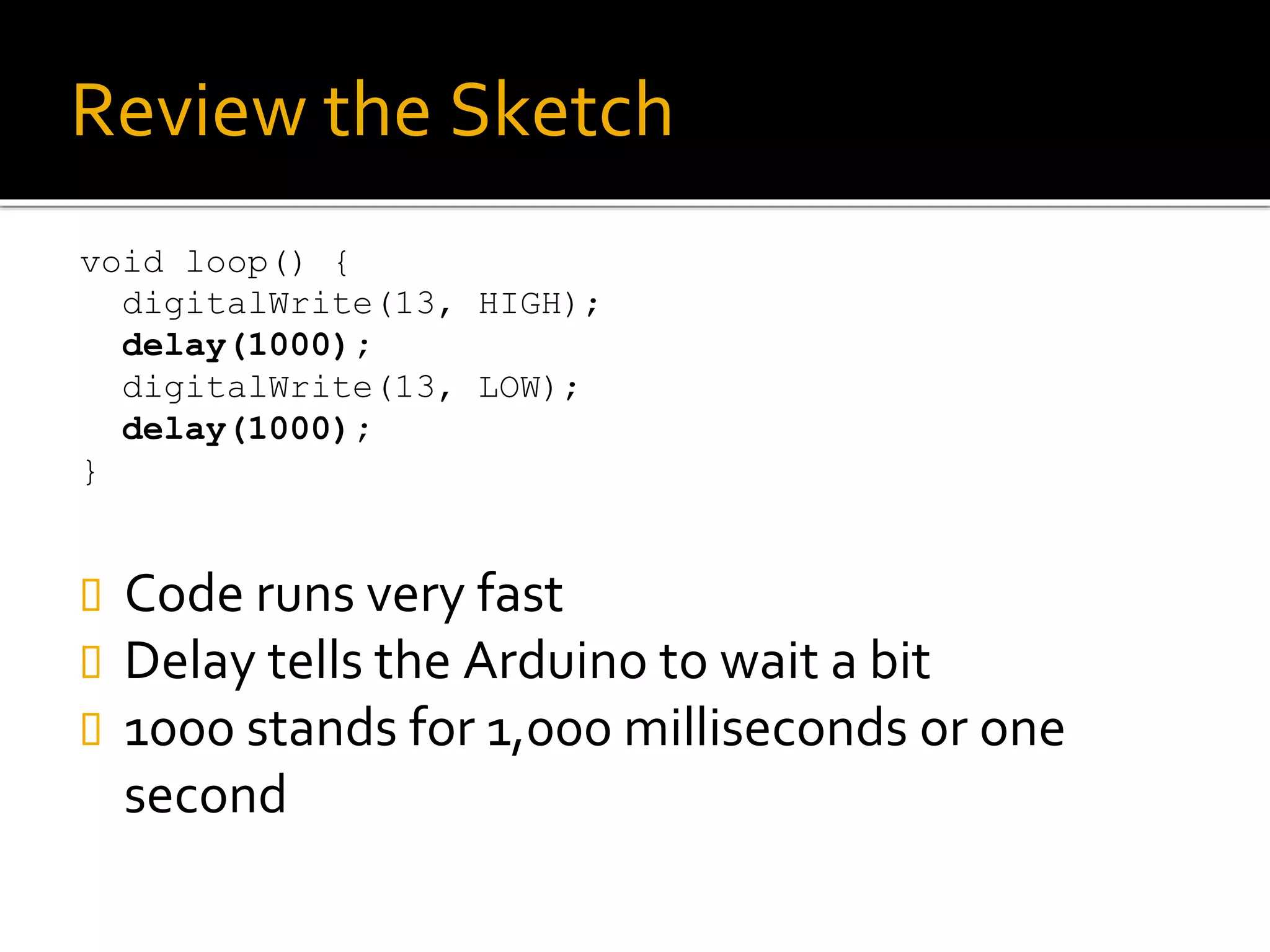

Review the Sketch
void loop() {
digitalWrite(13, HIGH);
delay(1000);
digitalWrite(13, LOW);
delay(1000);
}
 Code runs very fast
 Delay tells the Arduino to wait a bit
 1000 stands for 1,000 milliseconds or one
second

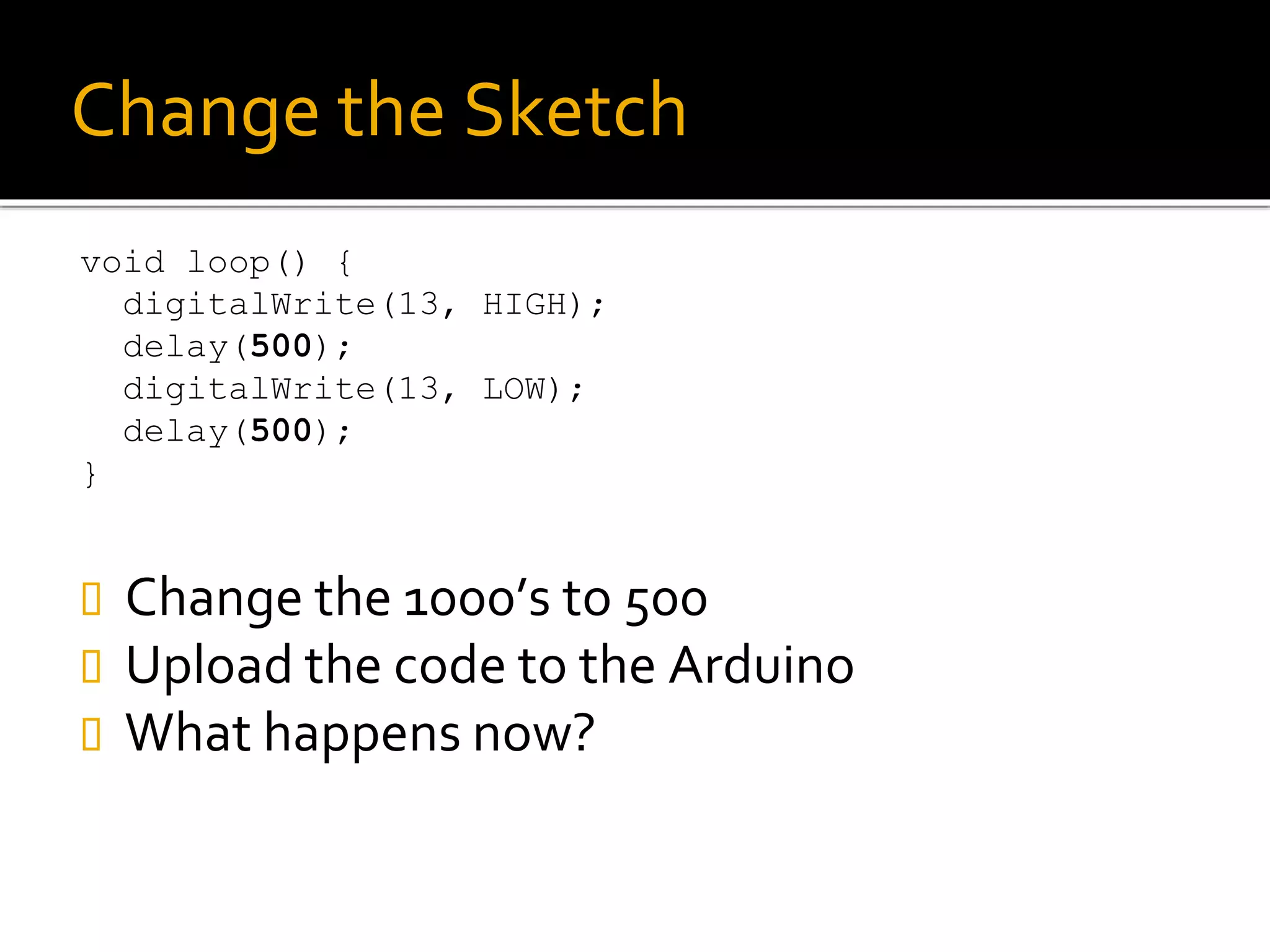

Change the Sketch
void loop() {
digitalWrite(13, HIGH);
delay(500);
digitalWrite(13, LOW);
delay(500);
}
 Change the 1000’s to 500
 Upload the code to the Arduino
 What happens now?

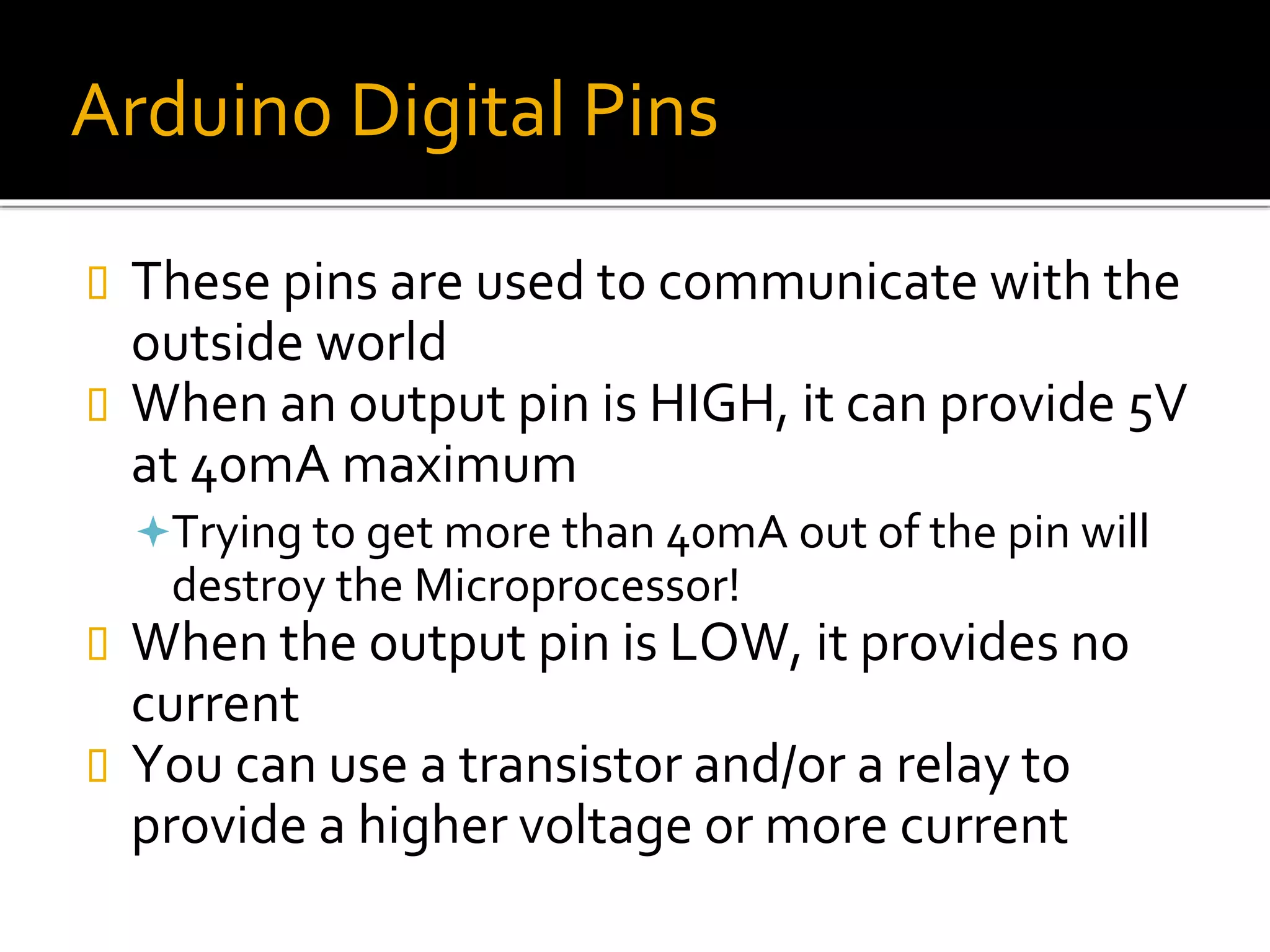

Arduino Digital Pins
 These pins are used to communicate with the
outside world
 When an output pin is HIGH, it can provide 5V
at 40mA maximum
Trying to get more than 40mA out of the pin will
destroy the Microprocessor!
 When the output pin is LOW, it provides no
current
 You can use a transistor and/or a relay to
provide a higher voltage or more current

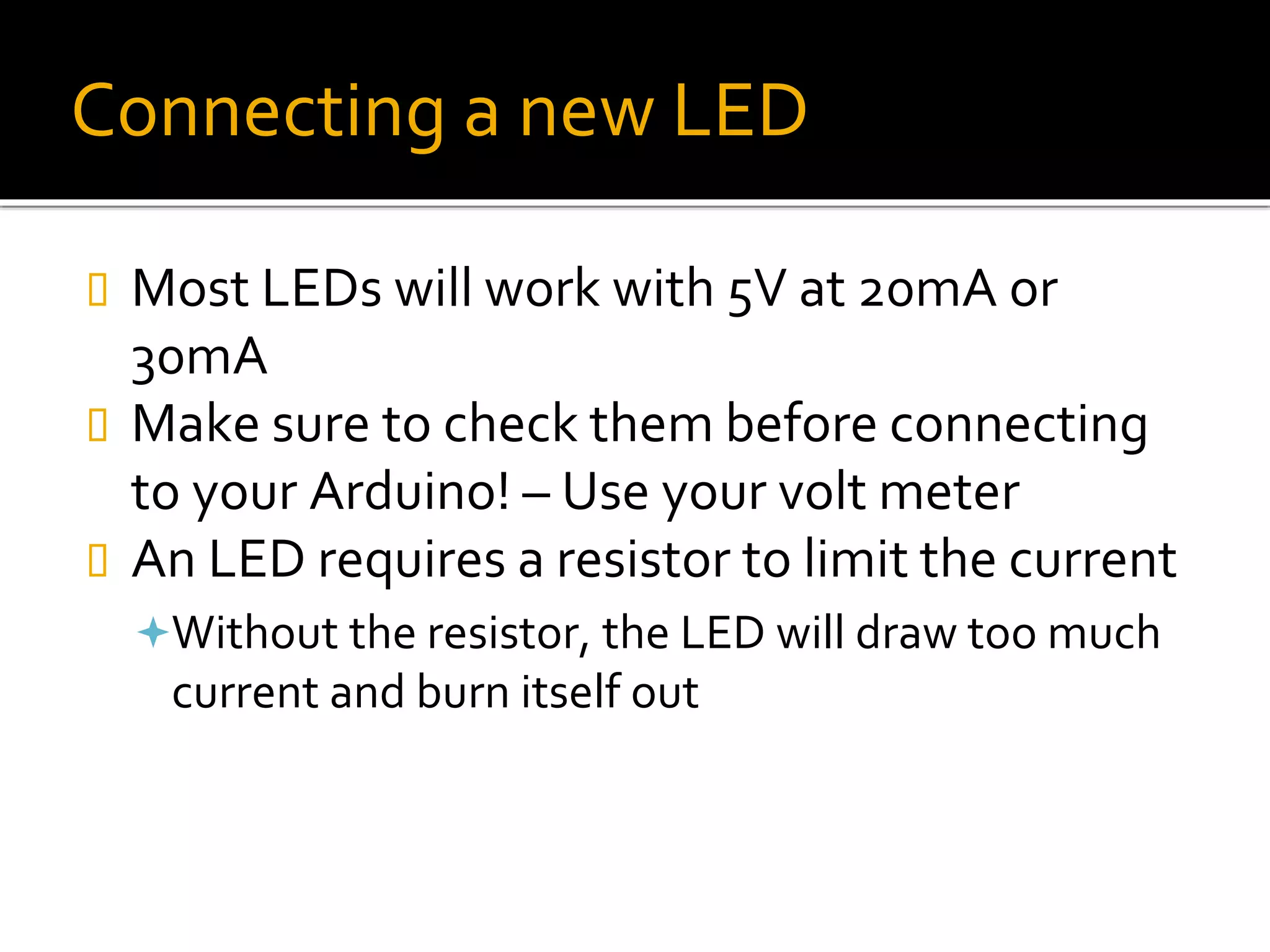

Connecting a new LED
 Most LEDs will work with 5V at 20mA or
30mA
 Make sure to check them before connecting
to your Arduino! – Use your volt meter
 An LED requires a resistor to limit the current
Without the resistor, the LED will draw too much
current and burn itself out

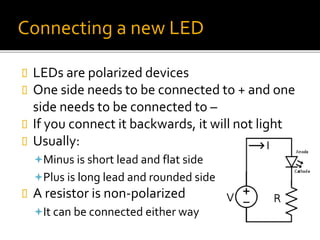

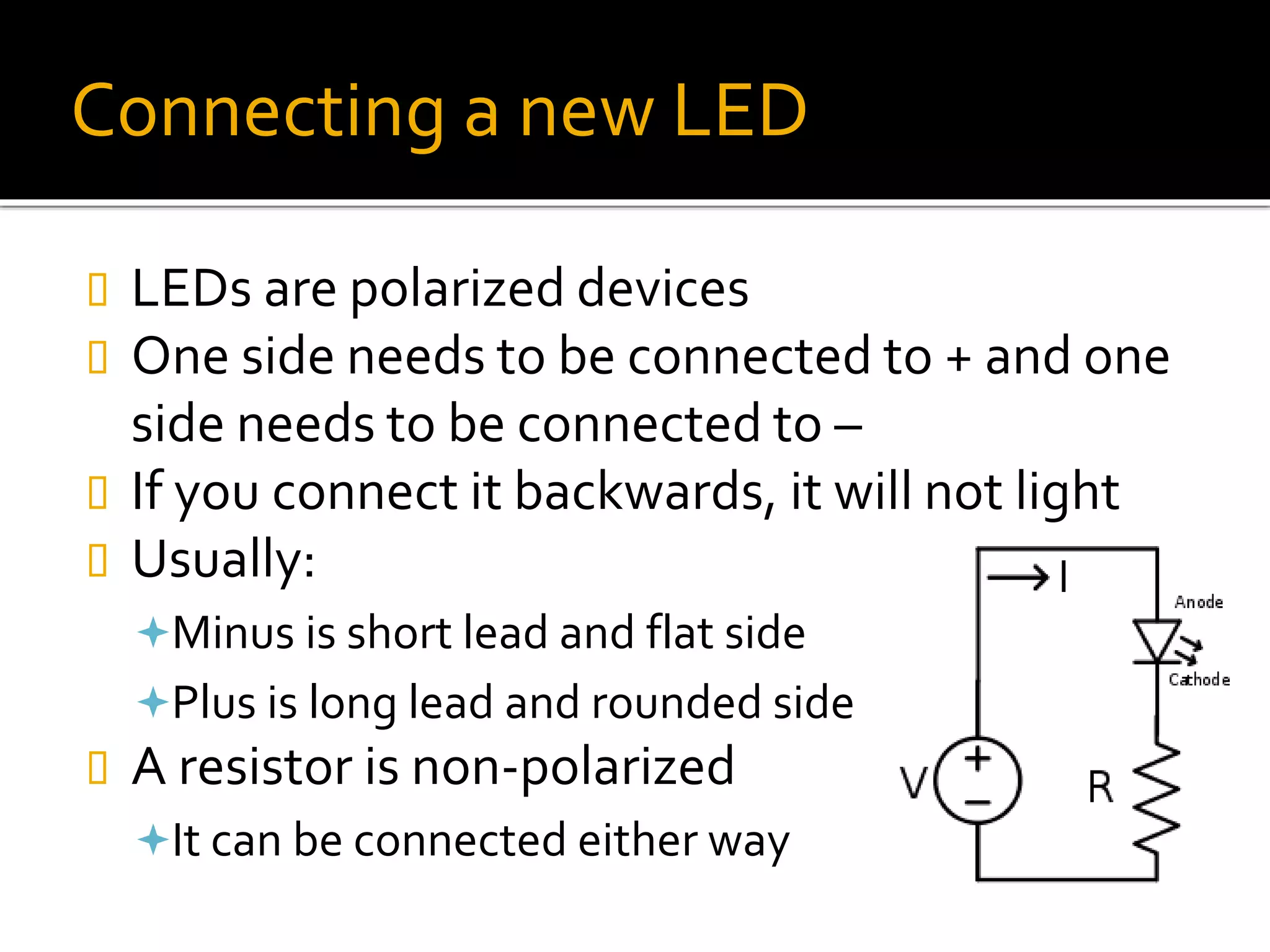

Connecting a new LED
 LEDs are polarized devices
 One side needs to be connected to + and one
side needs to be connected to –
 If you connect it backwards, it will not light
 Usually:
Minus is short lead and flat side
Plus is long lead and rounded side
 A resistor is non-polarized
It can be connected either way

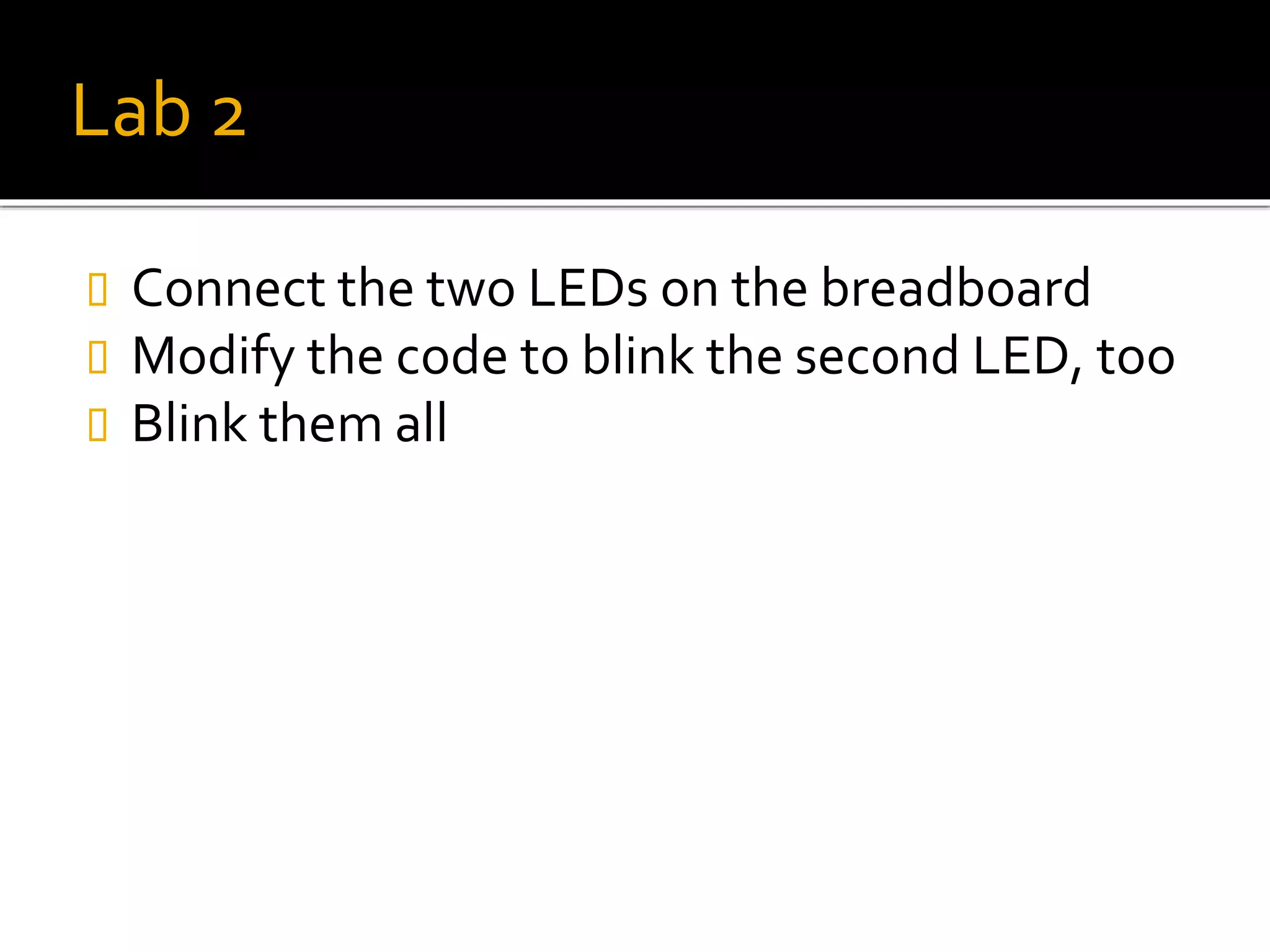

Lab 2
 Connect the two LEDs on the breadboard
 Modify the code to blink the second LED, too
 Blink them all

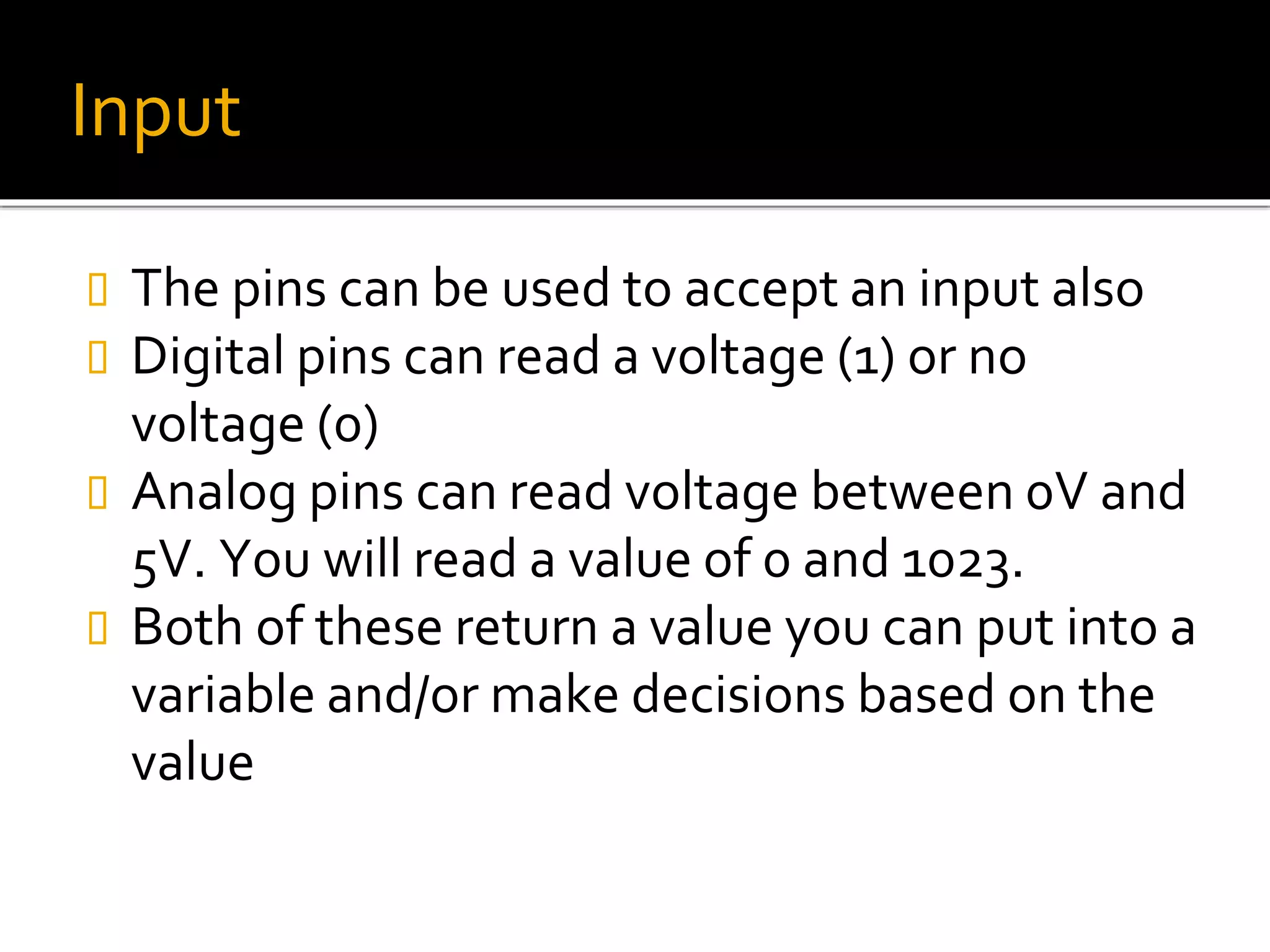

Input
 The pins can be used to accept an input also
 Digital pins can read a voltage (1) or no
voltage (0)
 Analog pins can read voltage between 0V and
5V. You will read a value of 0 and 1023.
 Both of these return a value you can put into a
variable and/or make decisions based on the
value

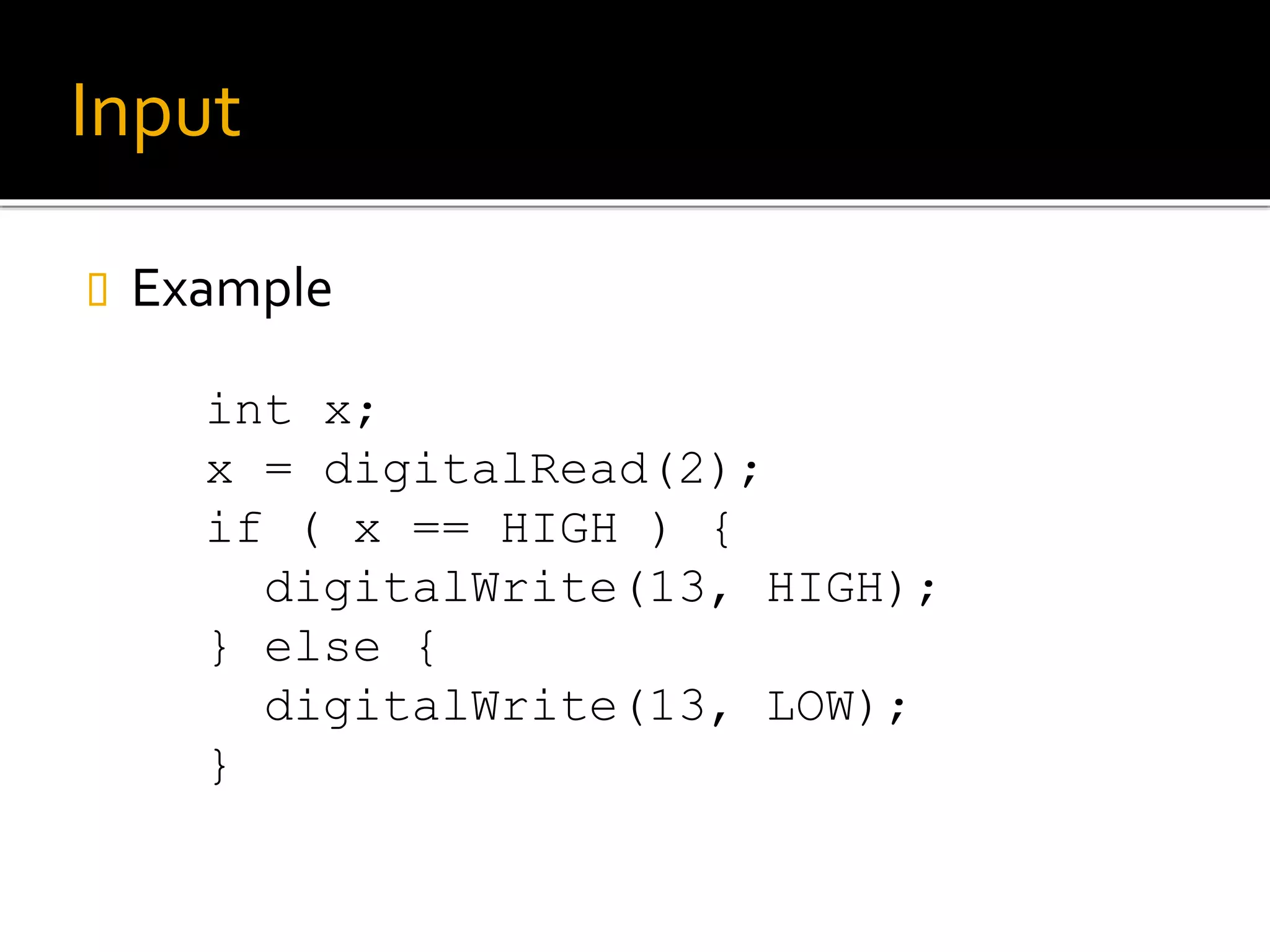

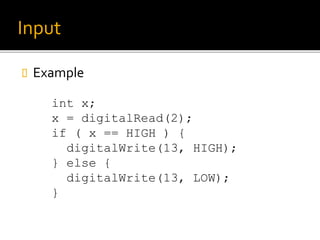

Input
 Example
int x;
x = digitalRead(2);
if ( x == HIGH ) {
digitalWrite(13, HIGH);
} else {
digitalWrite(13, LOW);
}

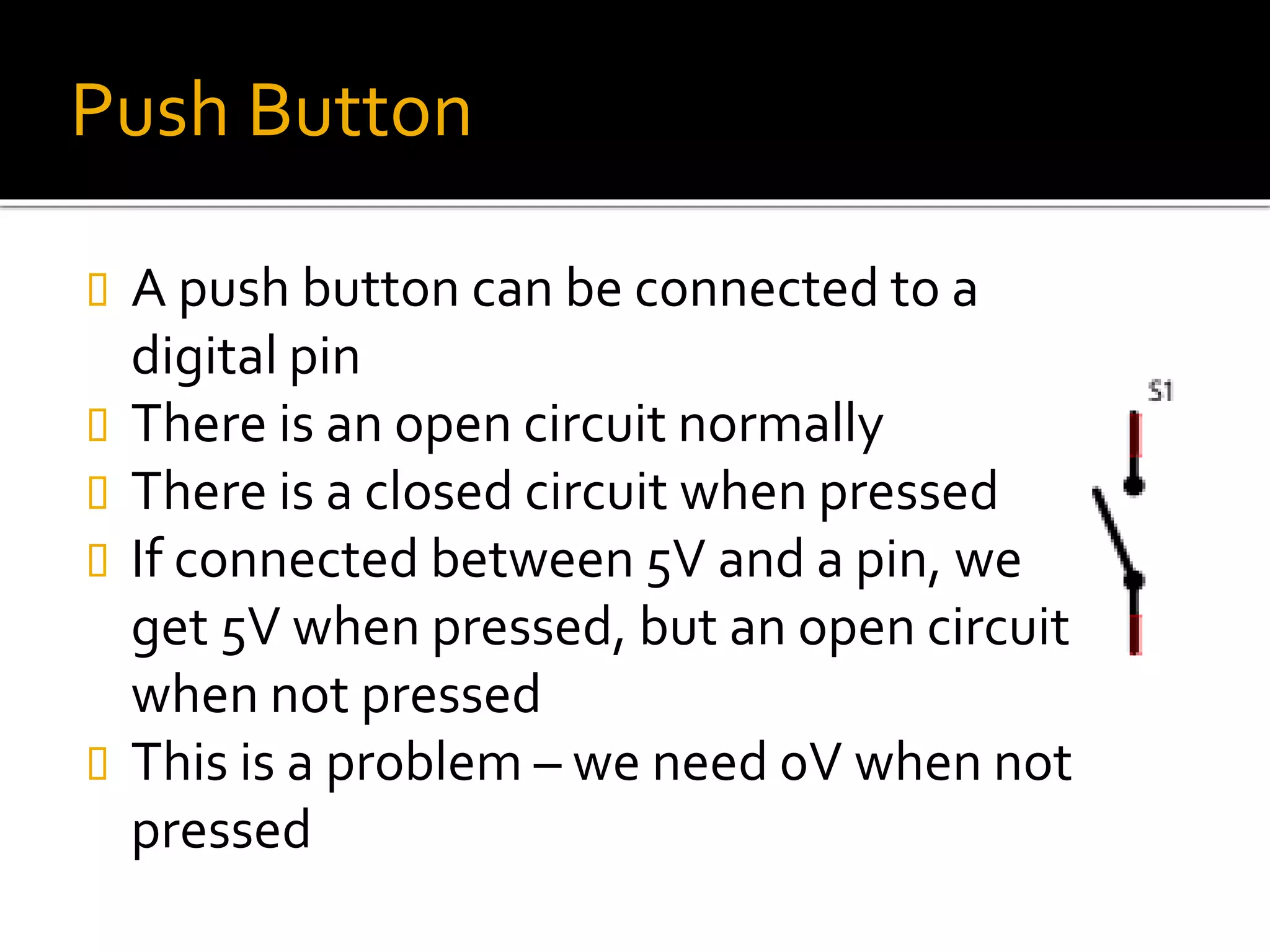

Push Button
 A push button can be connected to a
digital pin
 There is an open circuit normally
 There is a closed circuit when pressed
 If connected between 5V and a pin, we
get 5V when pressed, but an open circuit
when not pressed
 This is a problem – we need 0V when not
pressed

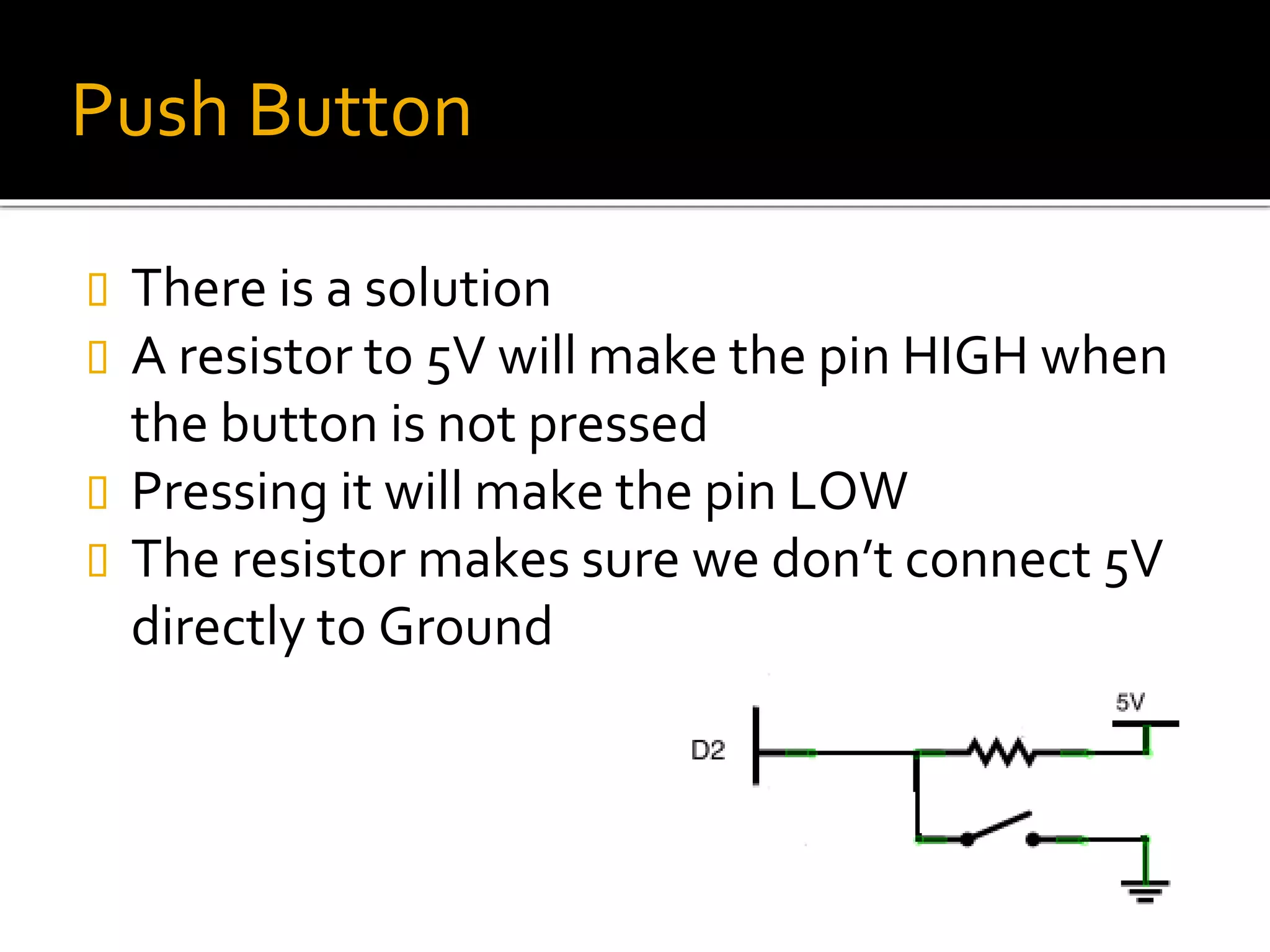

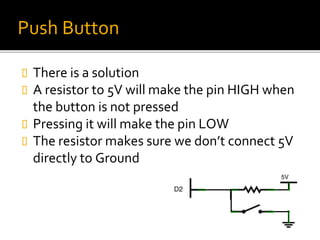

Push Button
 There is a solution
 A resistor to 5V will make the pin HIGH when
the button is not pressed
 Pressing it will make the pin LOW
 The resistor makes sure we don’t connect 5V
directly to Ground

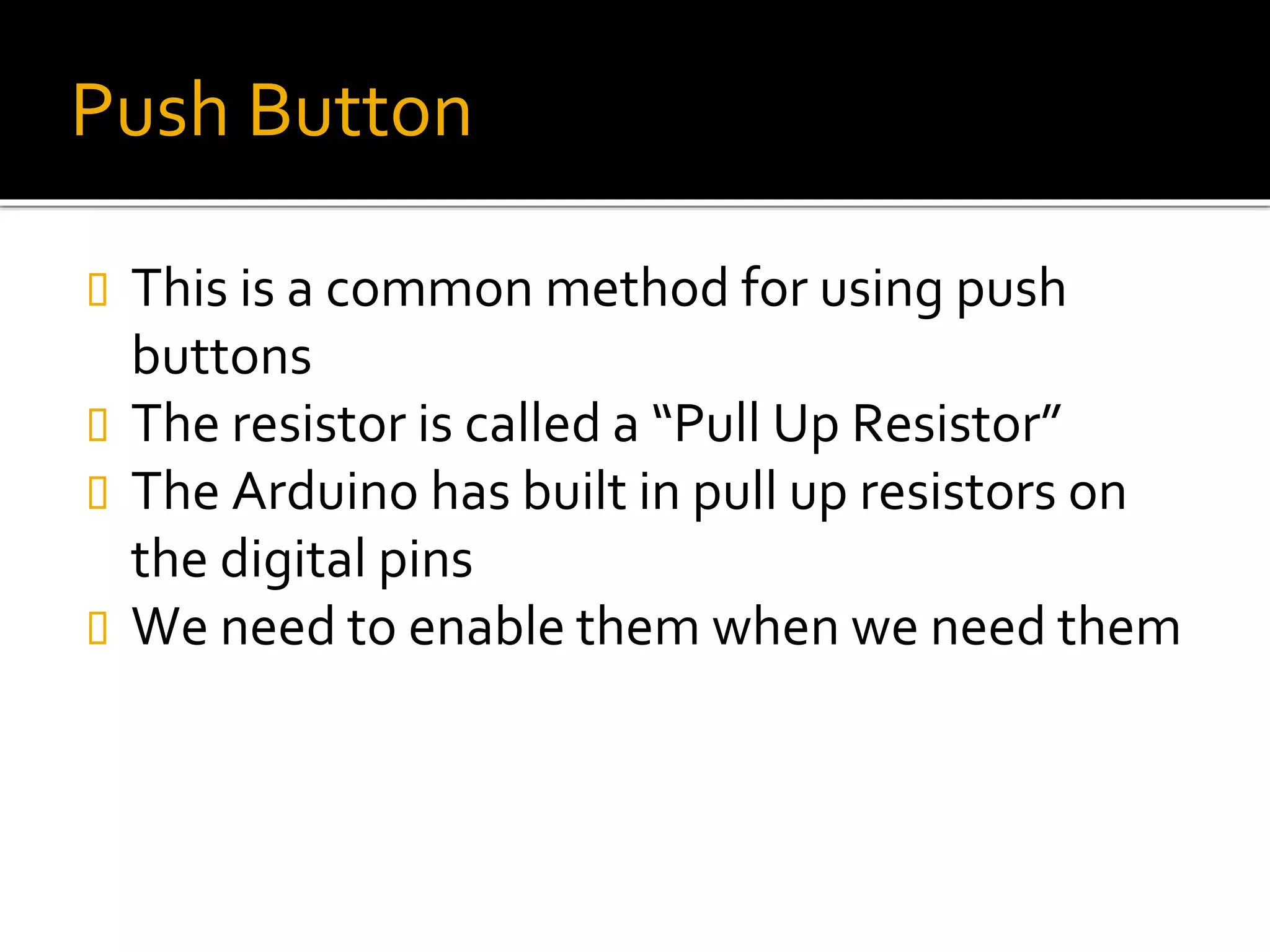

Push Button
 This is a common method for using push
buttons
 The resistor is called a “Pull Up Resistor”
 The Arduino has built in pull up resistors on
the digital pins
 We need to enable them when we need them

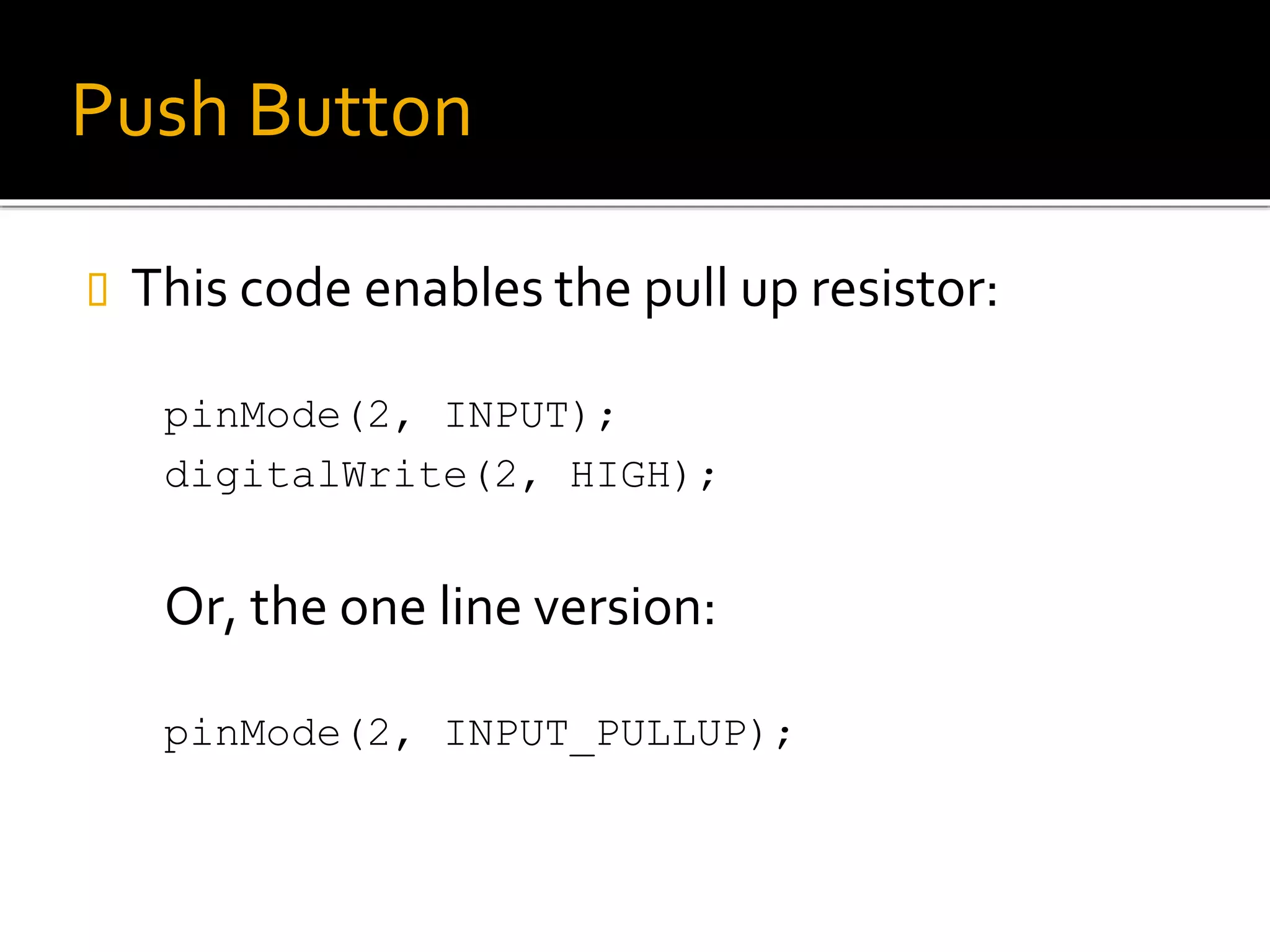

Push Button
 This code enables the pull up resistor:
pinMode(2, INPUT);
digitalWrite(2, HIGH);
Or, the one line version:
pinMode(2, INPUT_PULLUP);

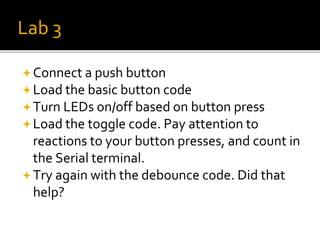

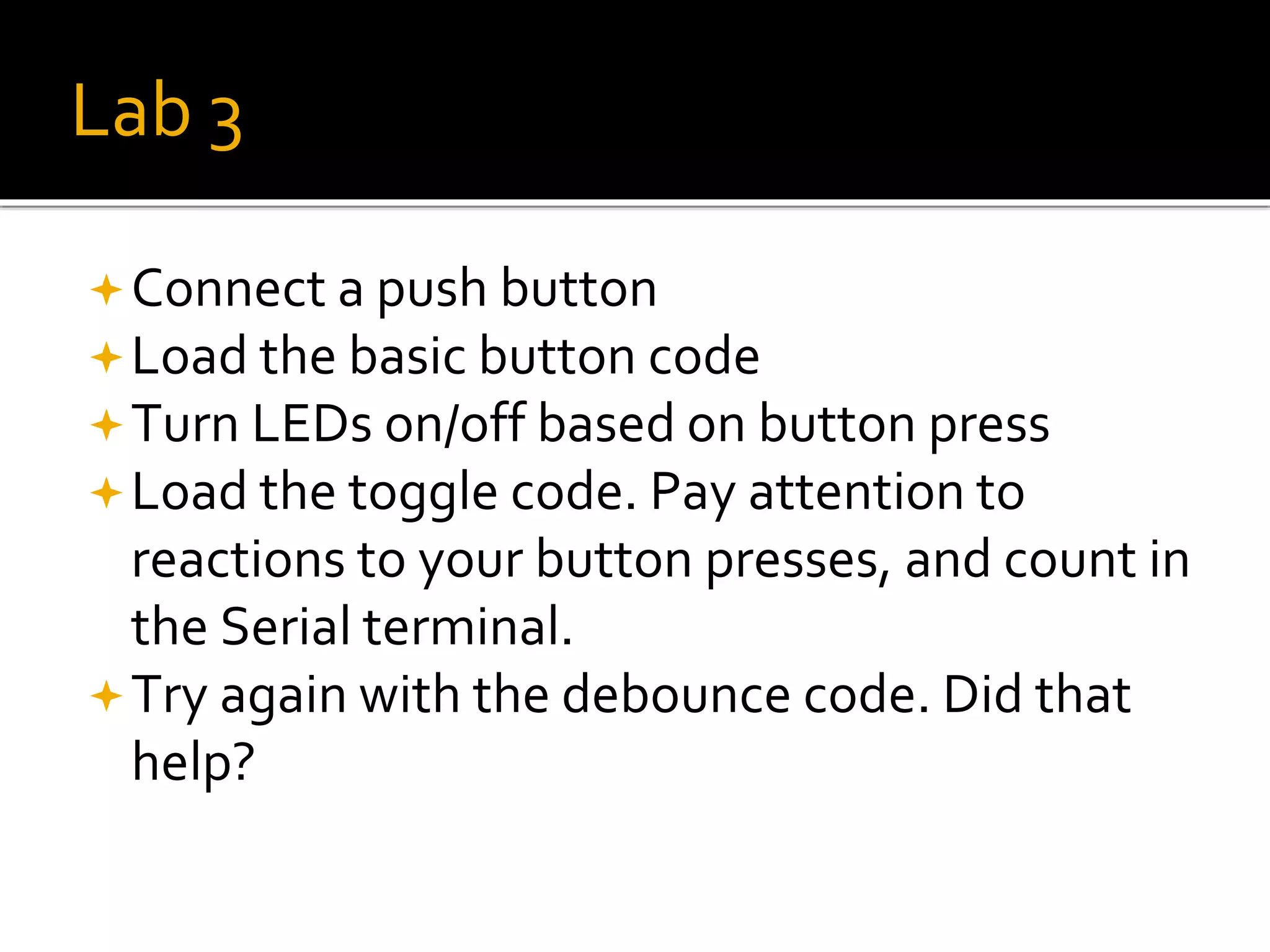

Lab 3
Connect a push button
Load the basic button code
Turn LEDs on/off based on button press
Load the toggle code. Pay attention to
reactions to your button presses, and count in
the Serial terminal.
Try again with the debounce code. Did that
help?

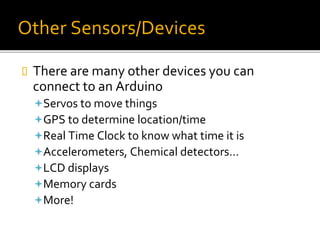

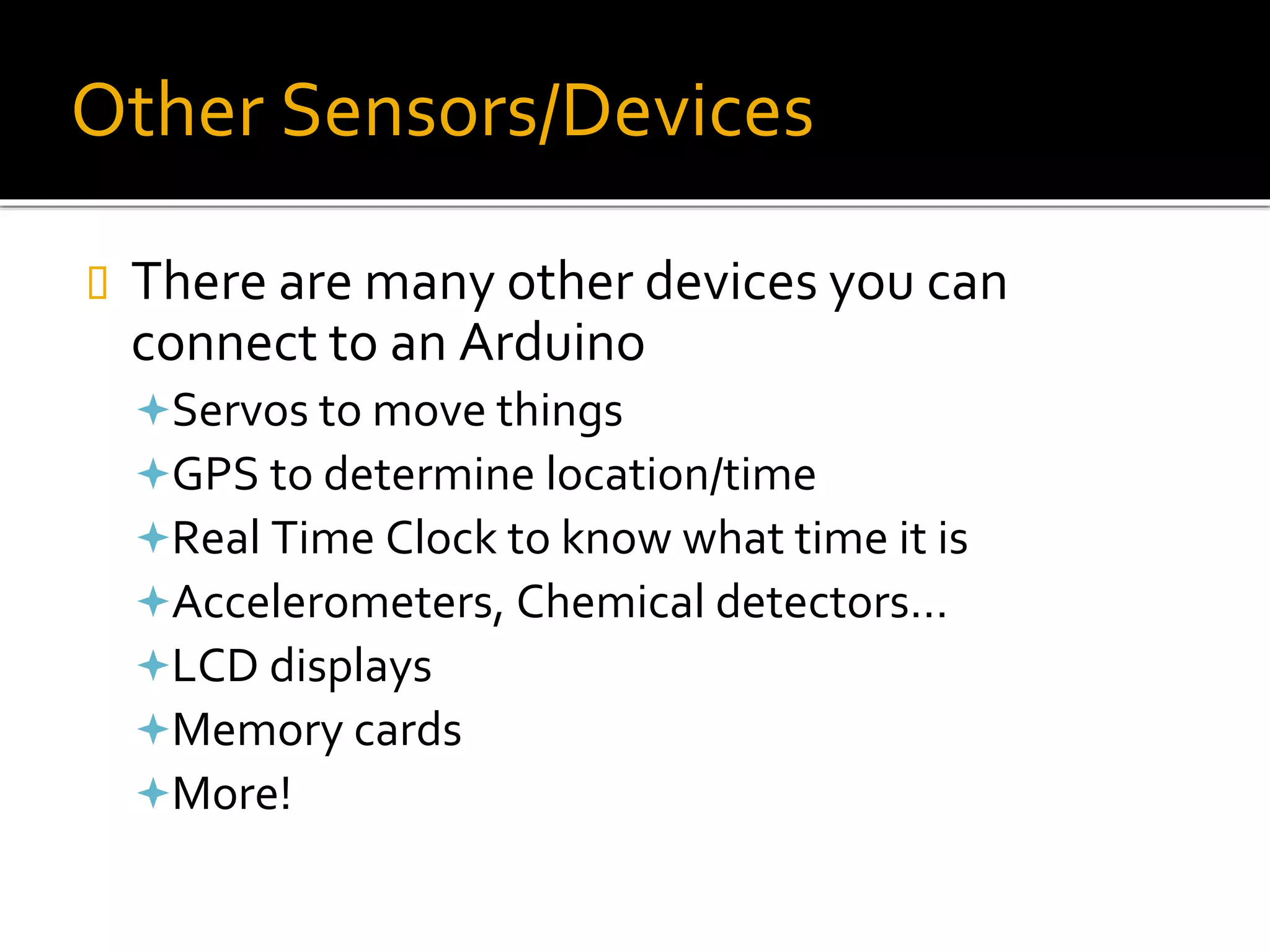

Other Sensors/Devices
 There are many other devices you can
connect to an Arduino
Servos to move things
GPS to determine location/time
Real Time Clock to know what time it is
Accelerometers, Chemical detectors…
LCD displays
Memory cards
More!

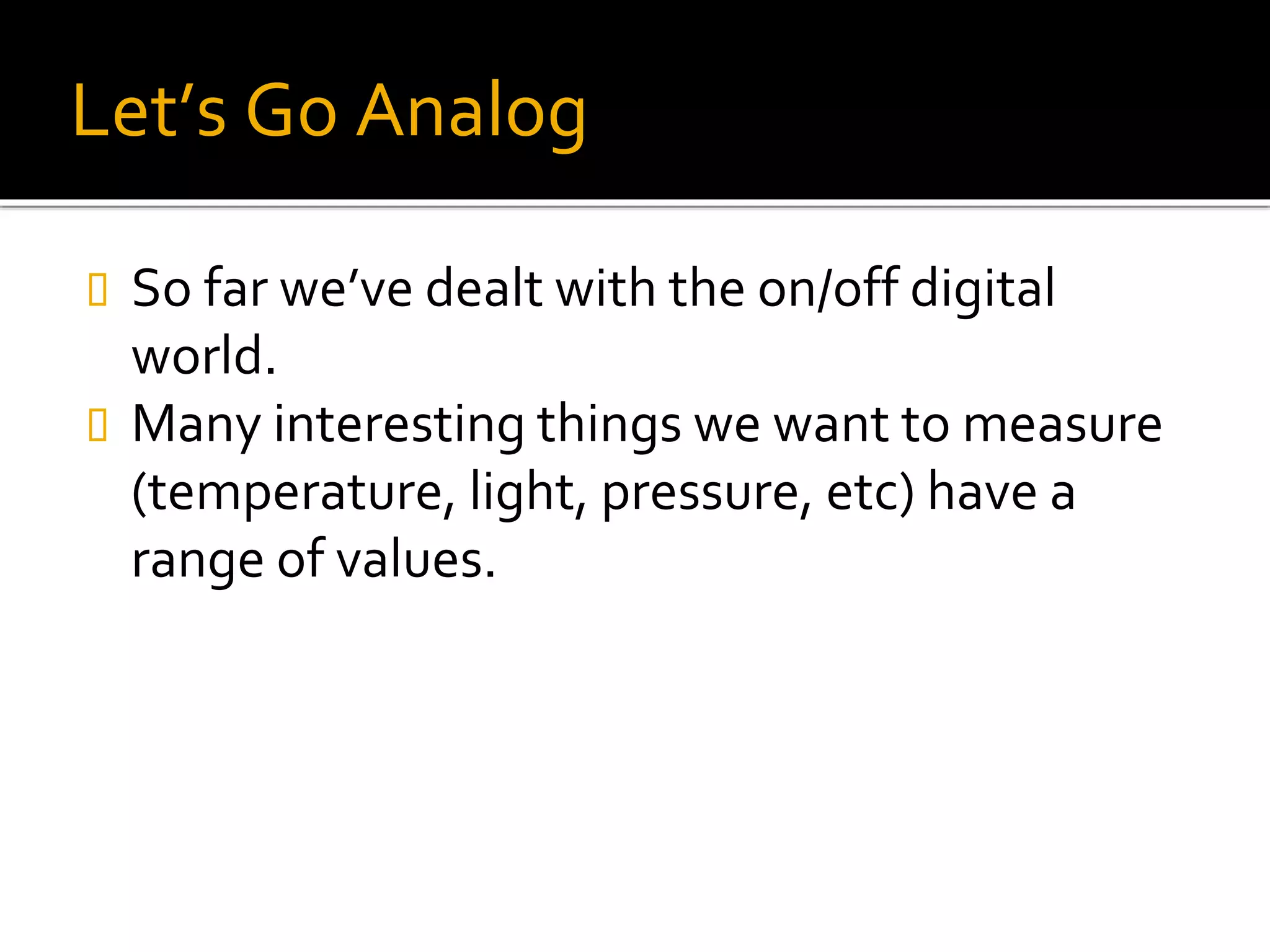

Let’s Go Analog
 So far we’ve dealt with the on/off digital
world.
 Many interesting things we want to measure
(temperature, light, pressure, etc) have a
range of values.

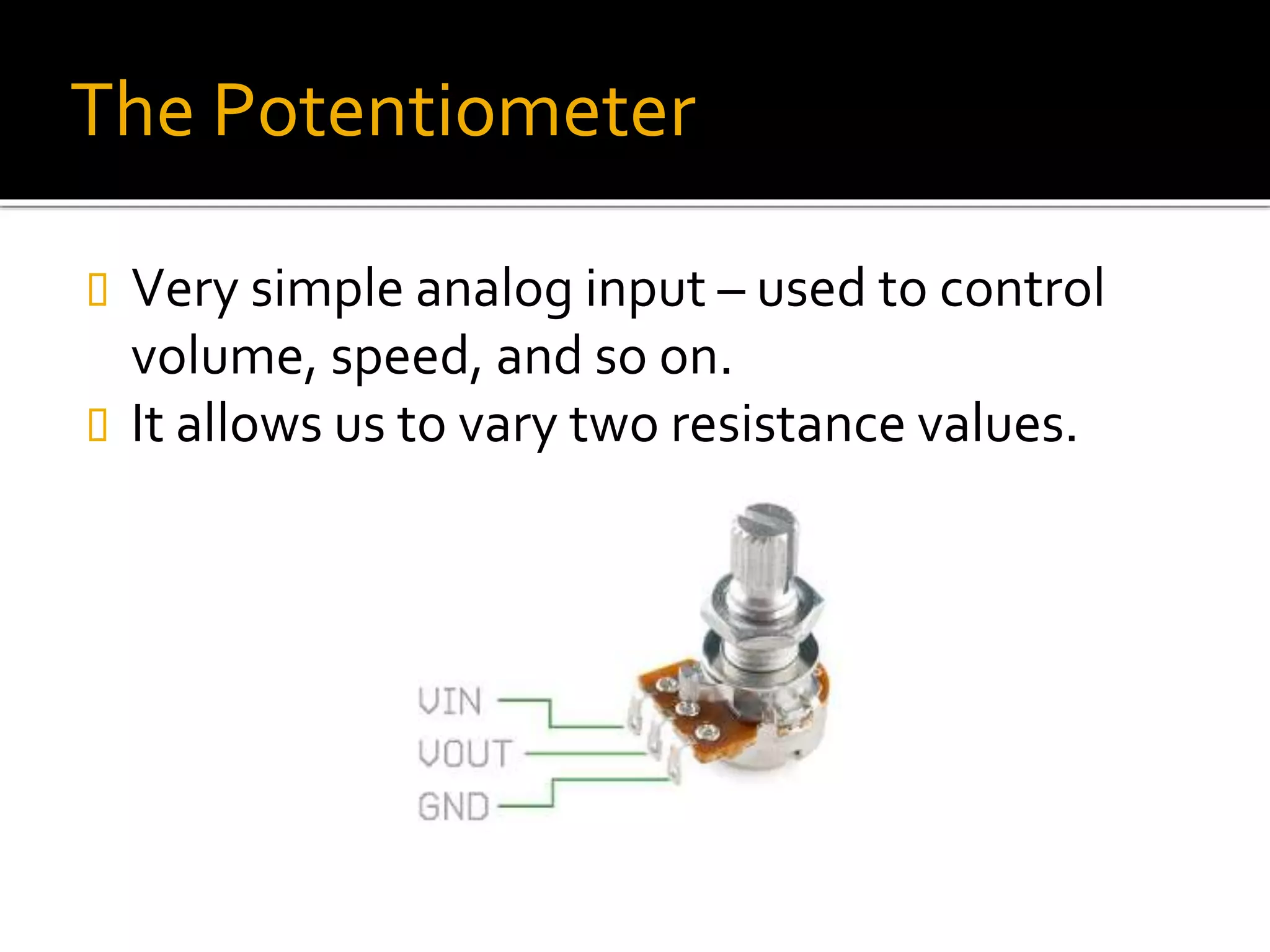

The Potentiometer
 Very simple analog input – used to control
volume, speed, and so on.
 It allows us to vary two resistance values.

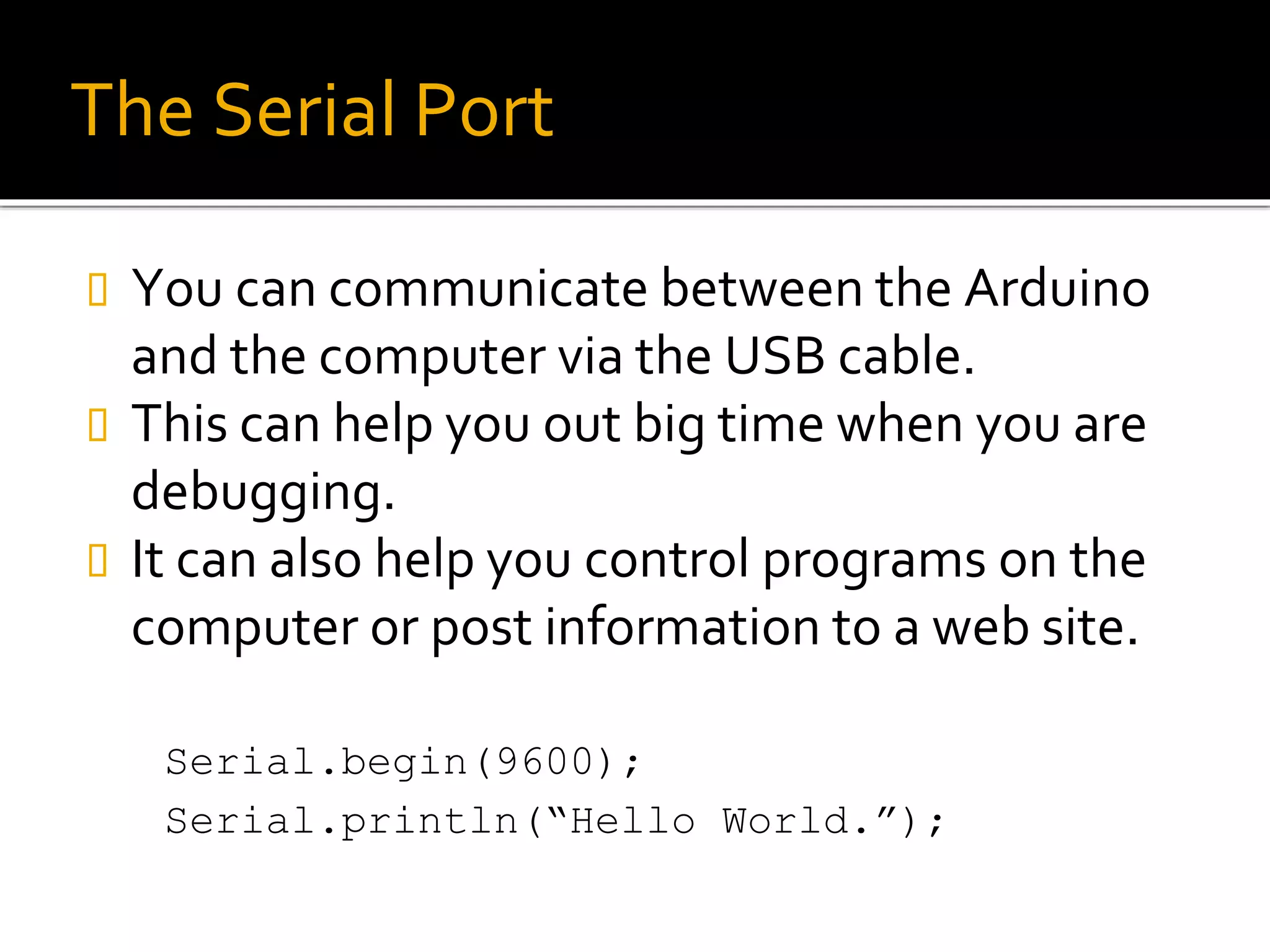

The Serial Port
 You can communicate between the Arduino
and the computer via the USB cable.
 This can help you out big time when you are
debugging.
 It can also help you control programs on the
computer or post information to a web site.
Serial.begin(9600);
Serial.println(“Hello World.”);

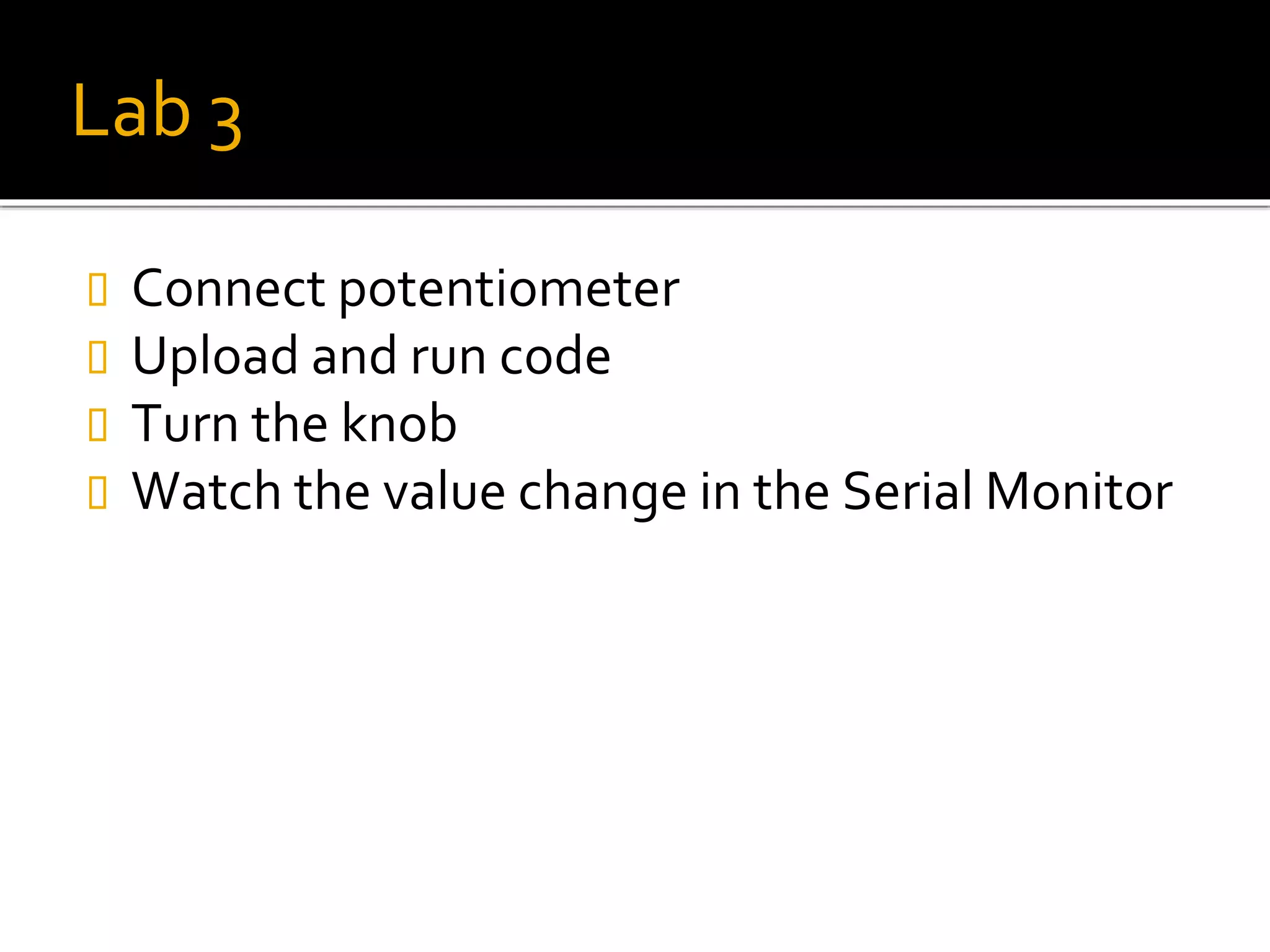

Lab 3
 Connect potentiometer
 Upload and run code
 Turn the knob
 Watch the value change in the Serial Monitor

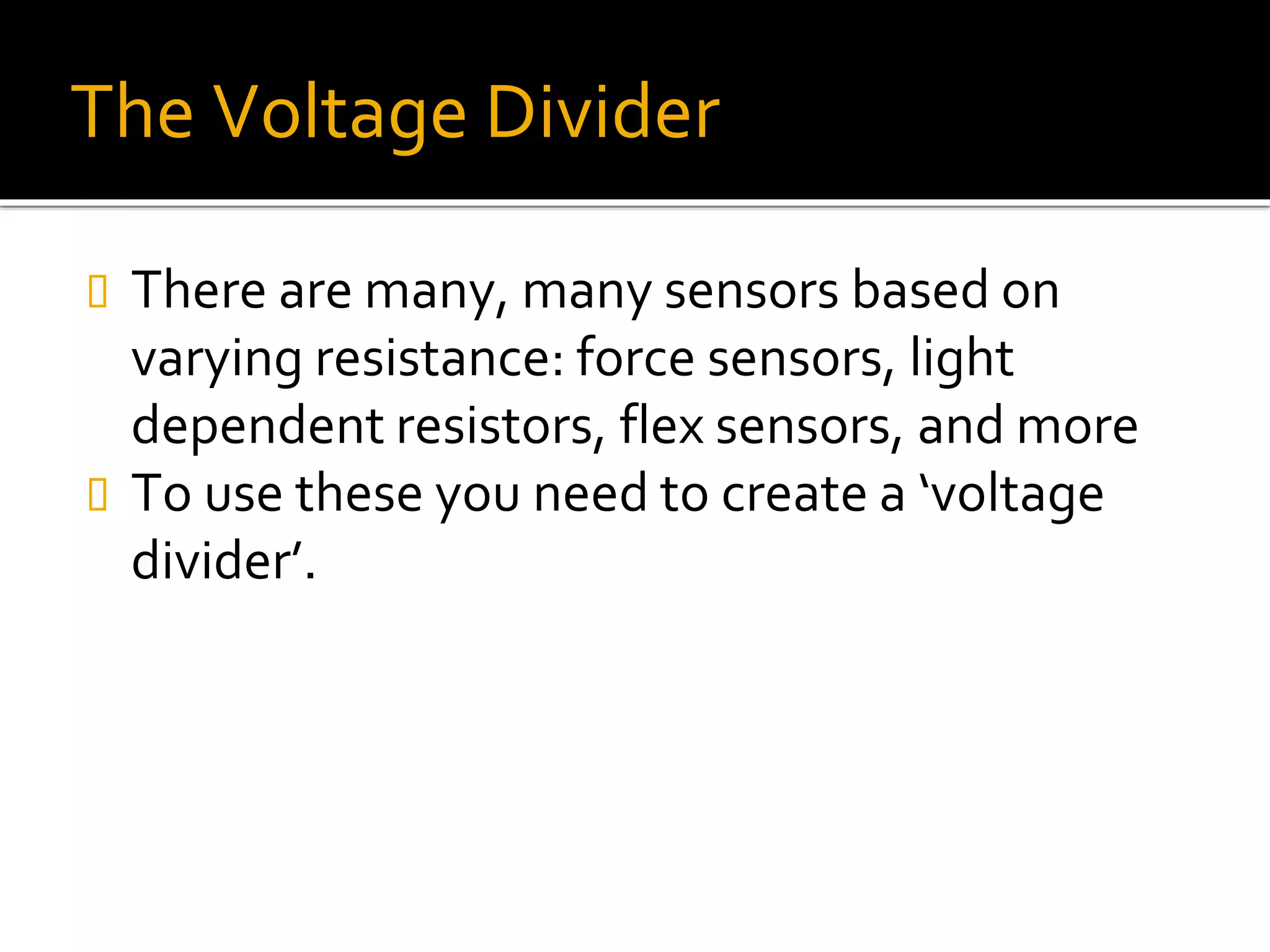

The Voltage Divider
 There are many, many sensors based on
varying resistance: force sensors, light
dependent resistors, flex sensors, and more
 To use these you need to create a ‘voltage
divider’.

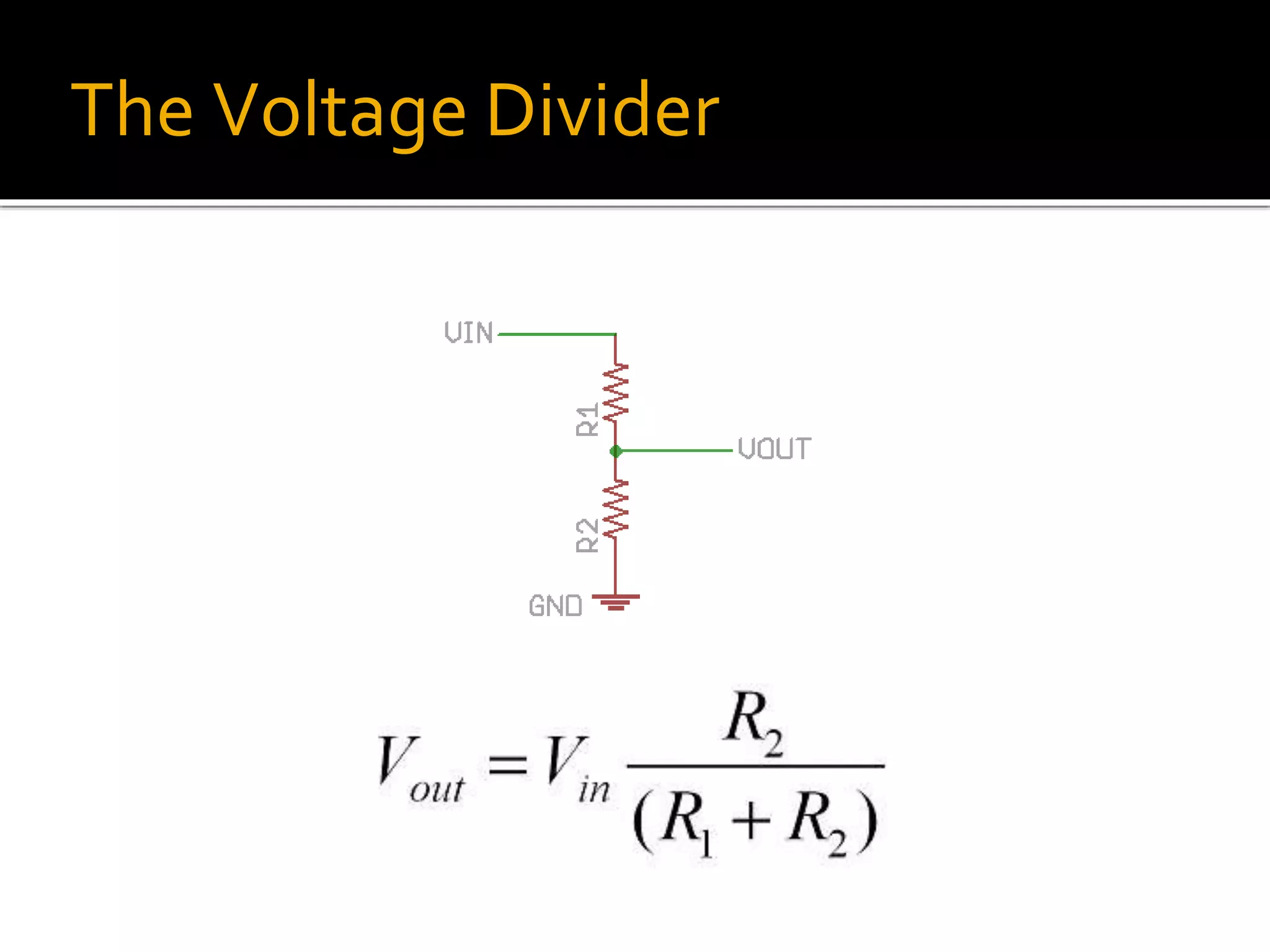

The Voltage Divider

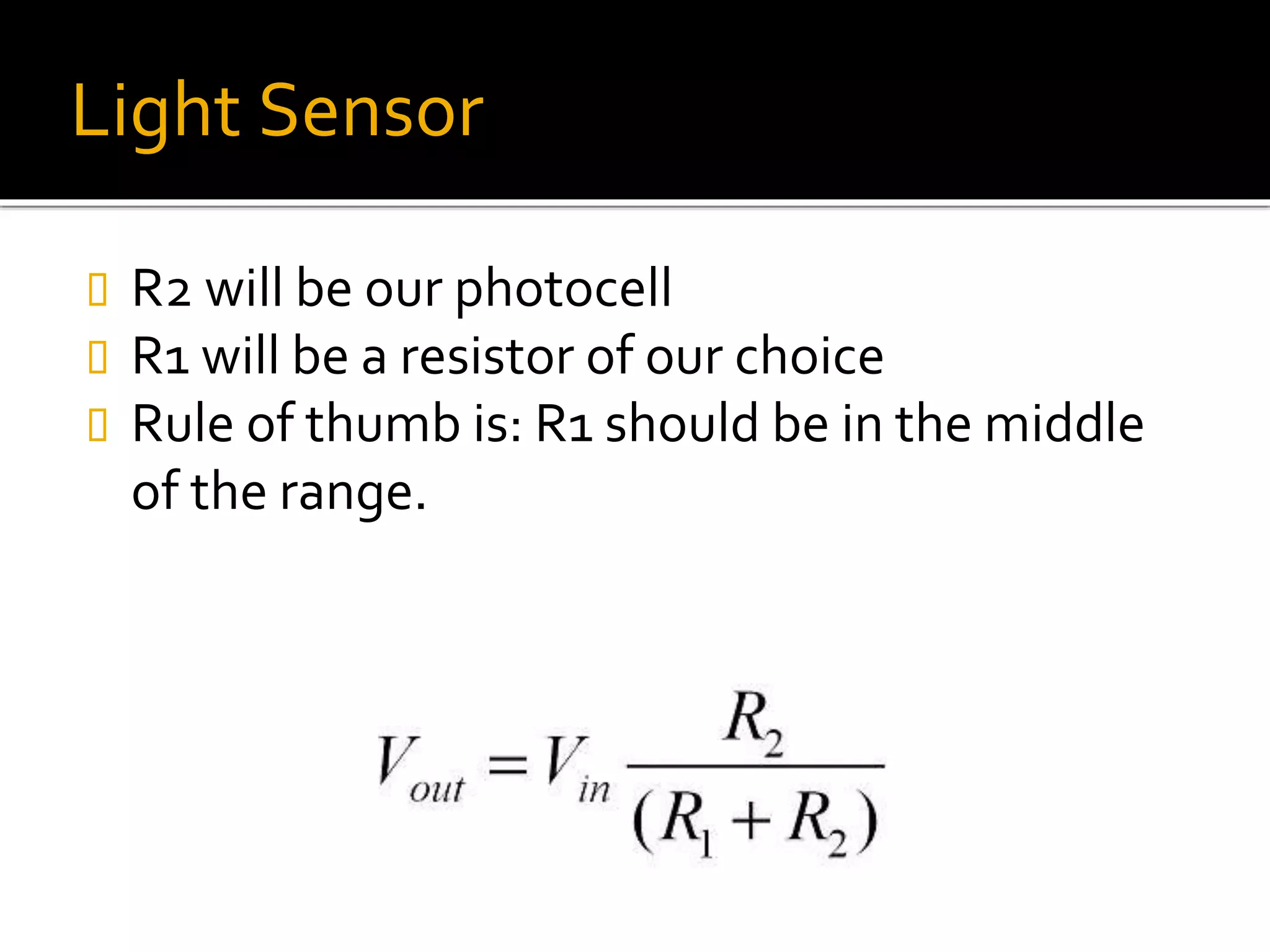

Light Sensor
 R2 will be our photocell
 R1 will be a resistor of our choice
 Rule of thumb is: R1 should be in the middle
of the range.

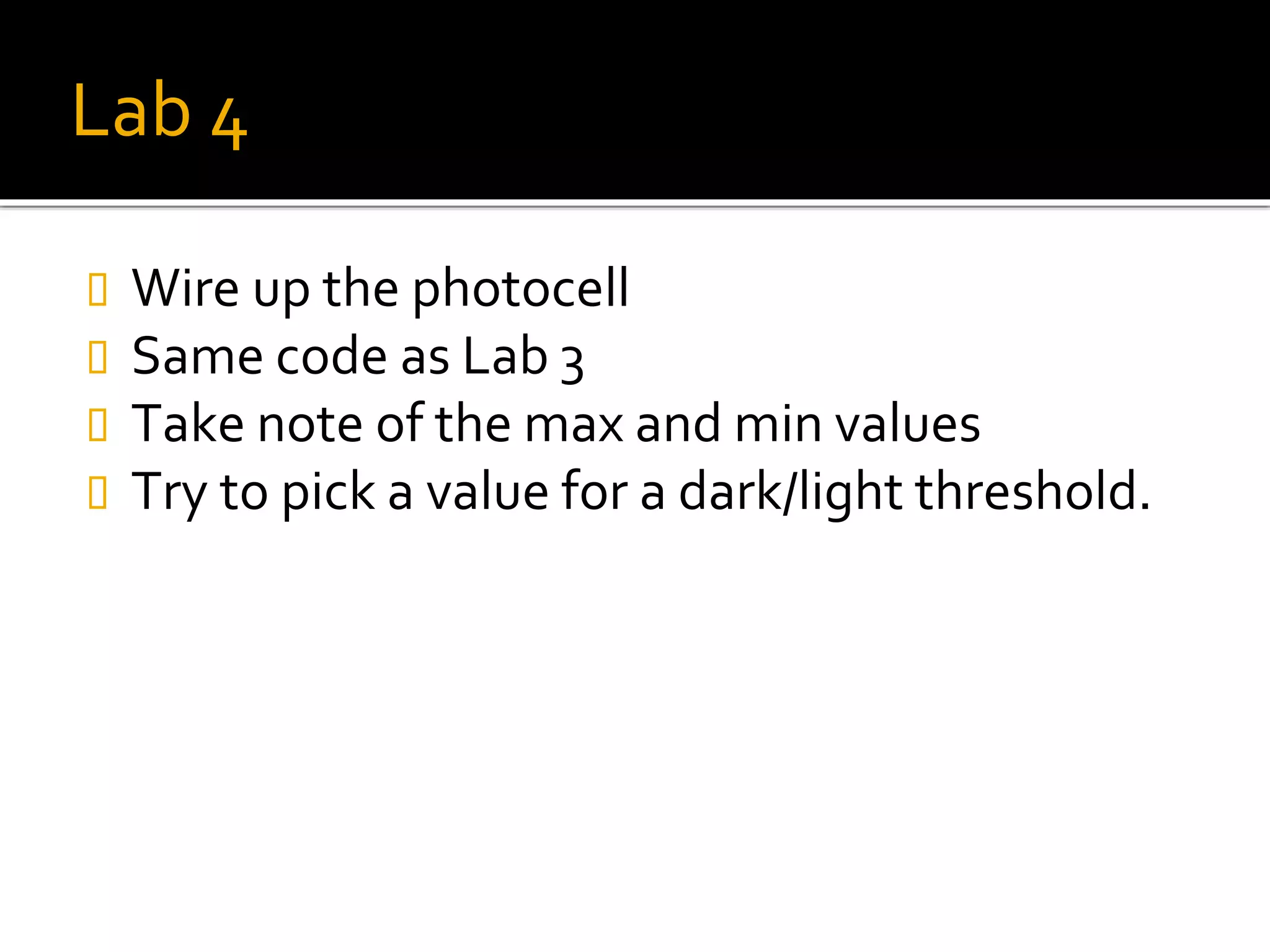

Lab 4
 Wire up the photocell
 Same code as Lab 3
 Take note of the max and min values
 Try to pick a value for a dark/light threshold.

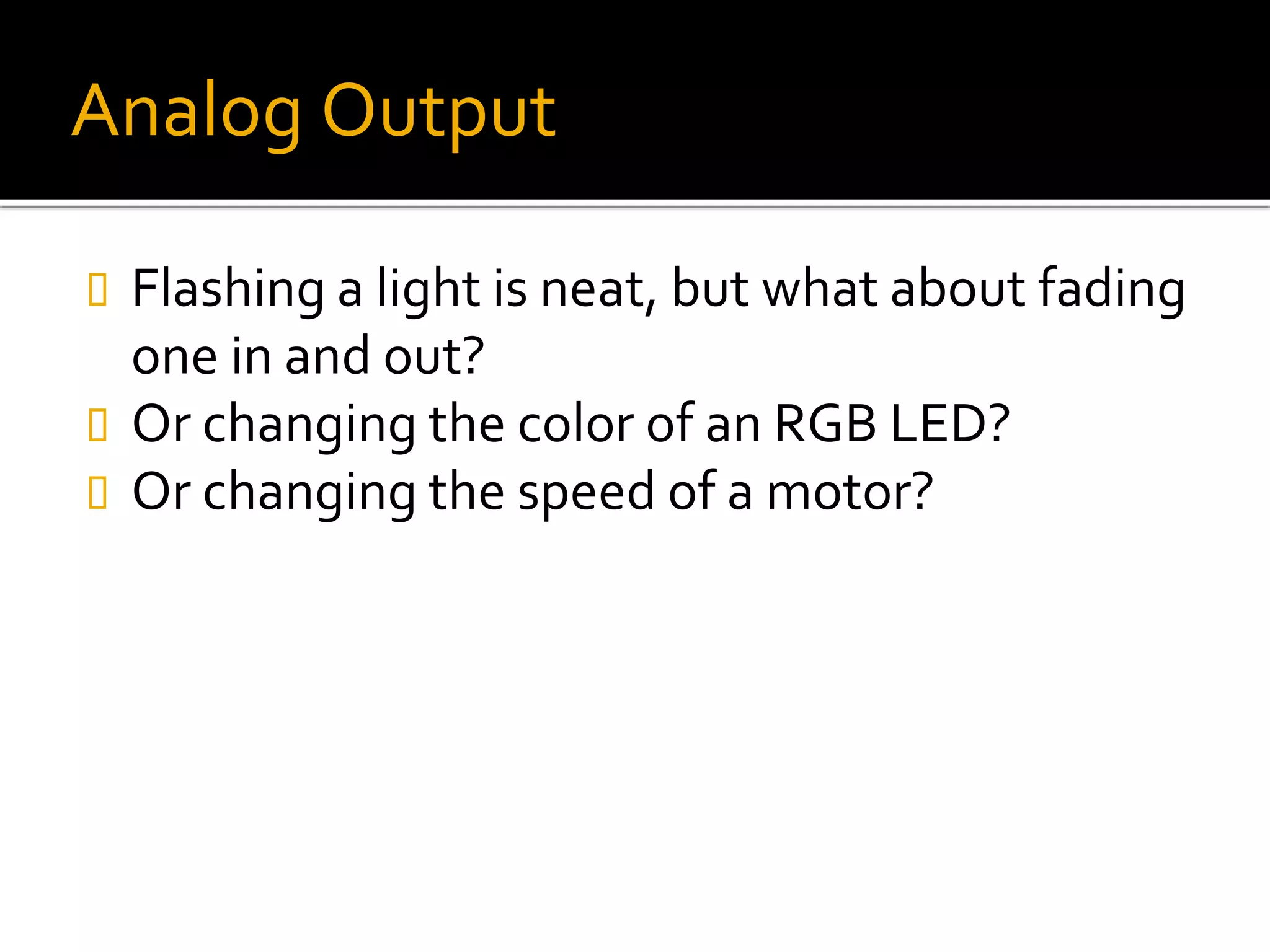

Analog Output
 Flashing a light is neat, but what about fading
one in and out?
 Or changing the color of an RGB LED?
 Or changing the speed of a motor?

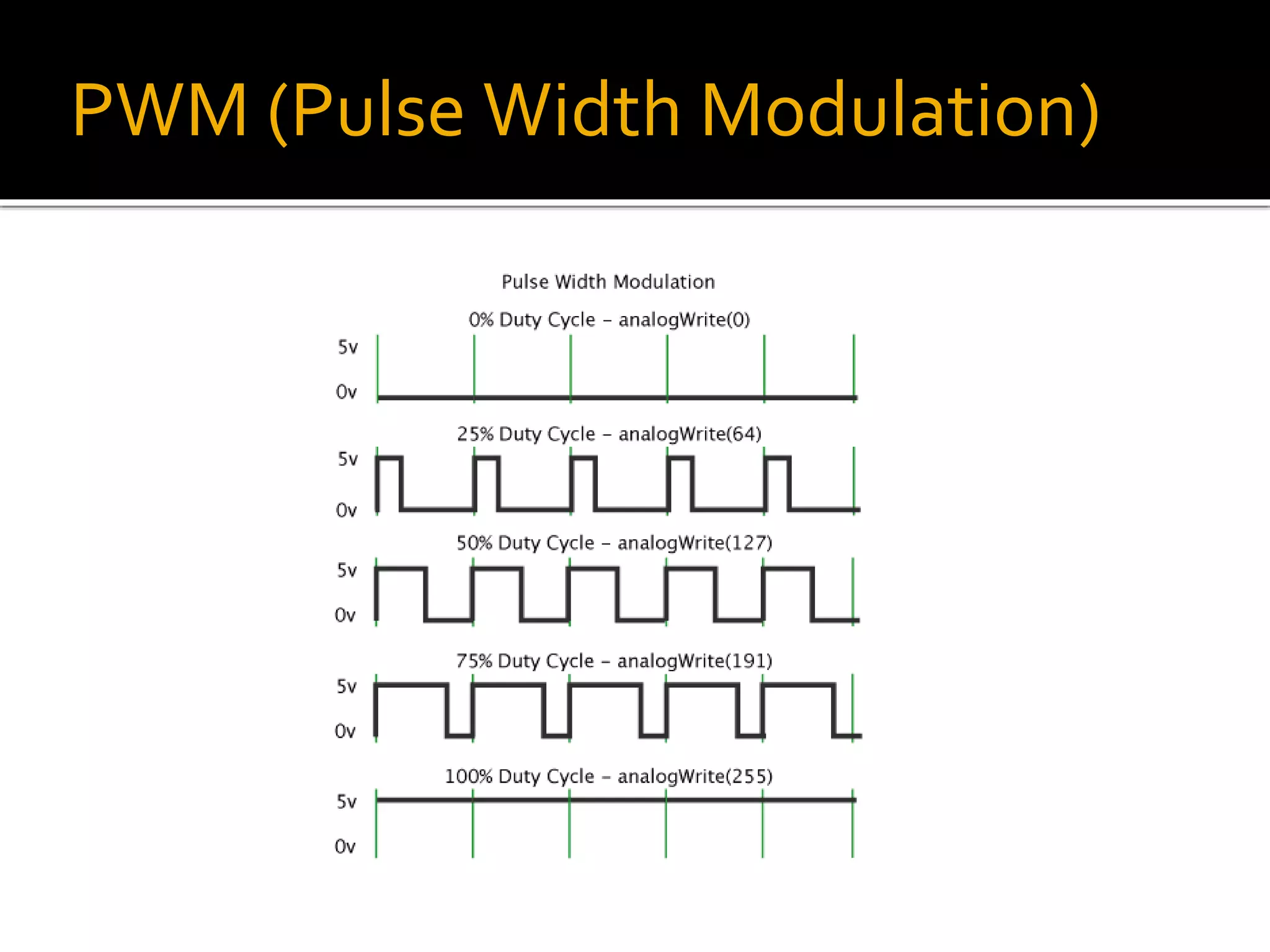

PWM (Pulse Width Modulation)

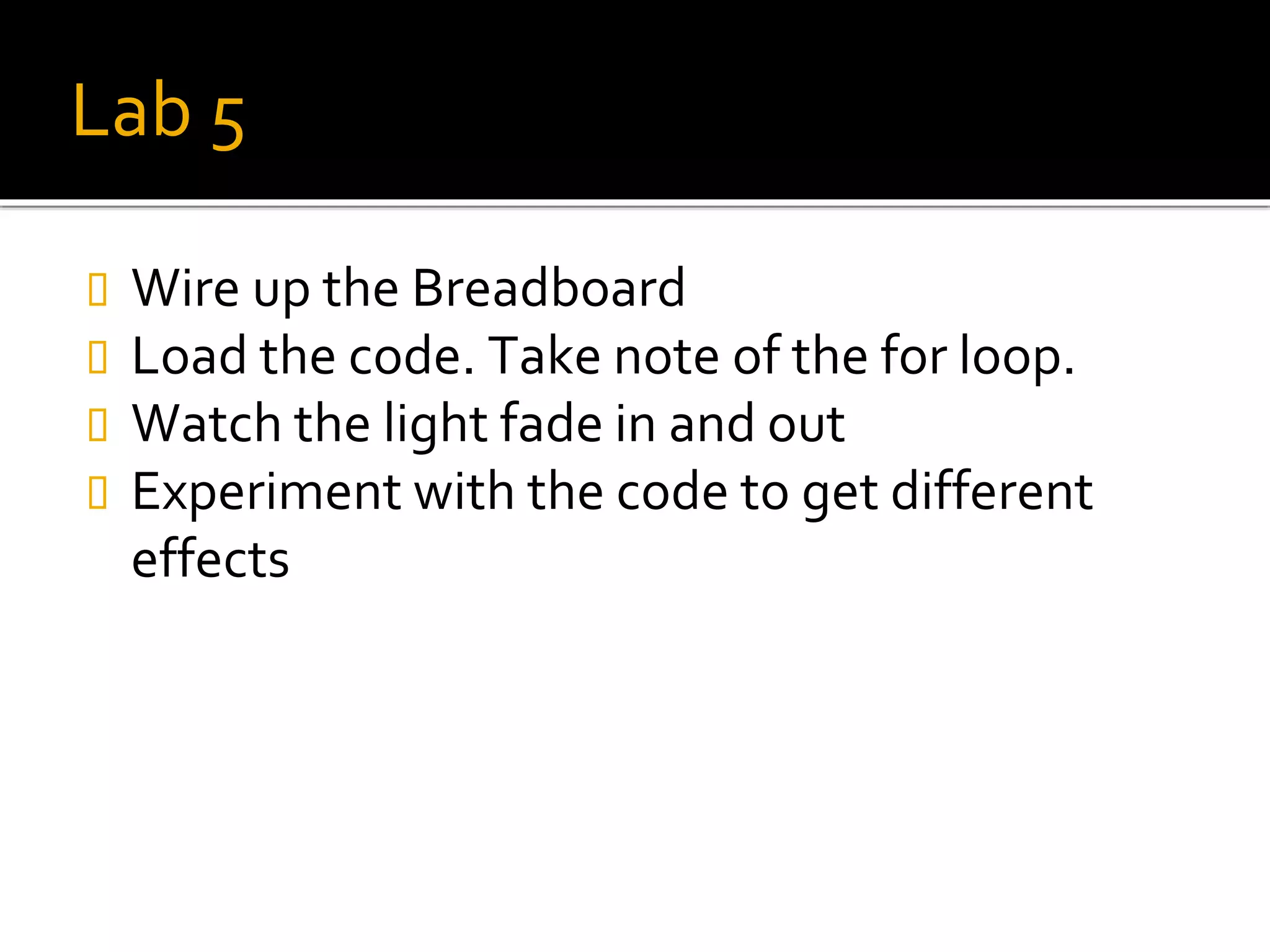

Lab 5
 Wire up the Breadboard
 Load the code. Take note of the for loop.
 Watch the light fade in and out
 Experiment with the code to get different
effects

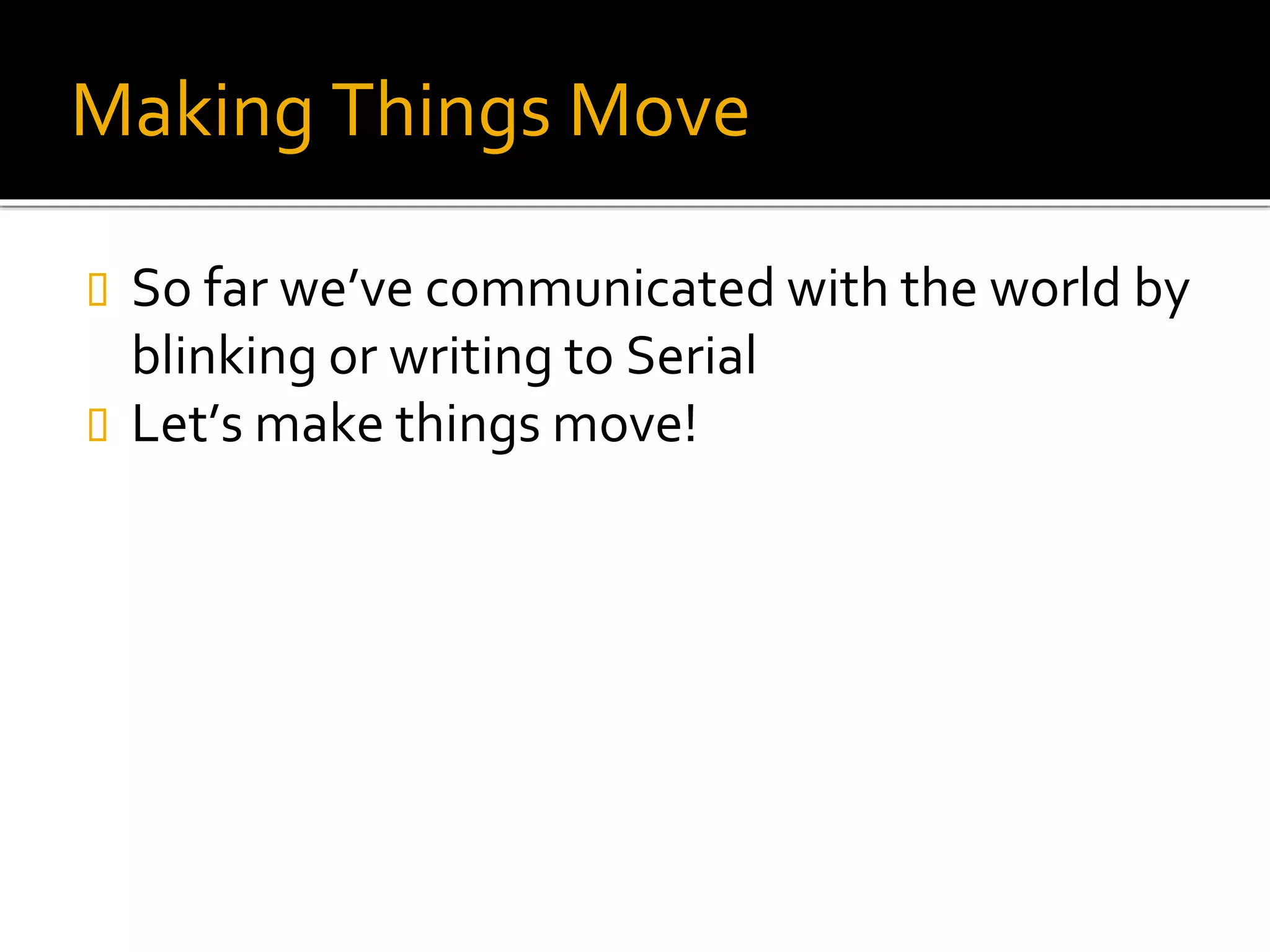

Making Things Move
 So far we’ve communicated with the world by
blinking or writing to Serial
 Let’s make things move!

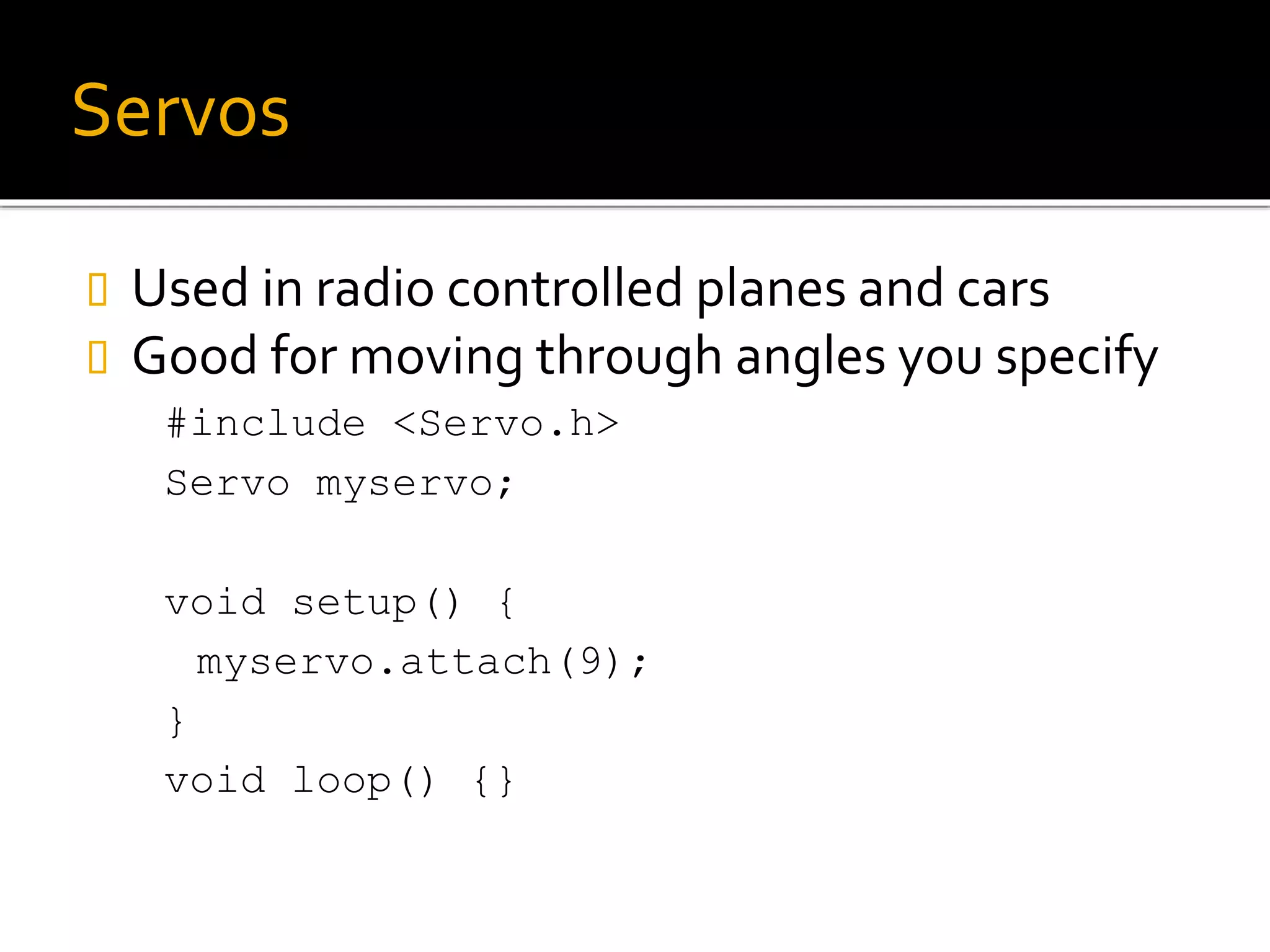

Servos
 Used in radio controlled planes and cars
 Good for moving through angles you specify
#include <Servo.h>
Servo myservo;
void setup() {
myservo.attach(9);
}
void loop() {}

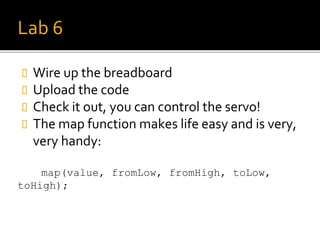

Lab 6
 Wire up the breadboard
 Upload the code
 Check it out, you can control the servo!
 The map function makes life easy and is very,
very handy:
map(value, fromLow, fromHigh, toLow,
toHigh);

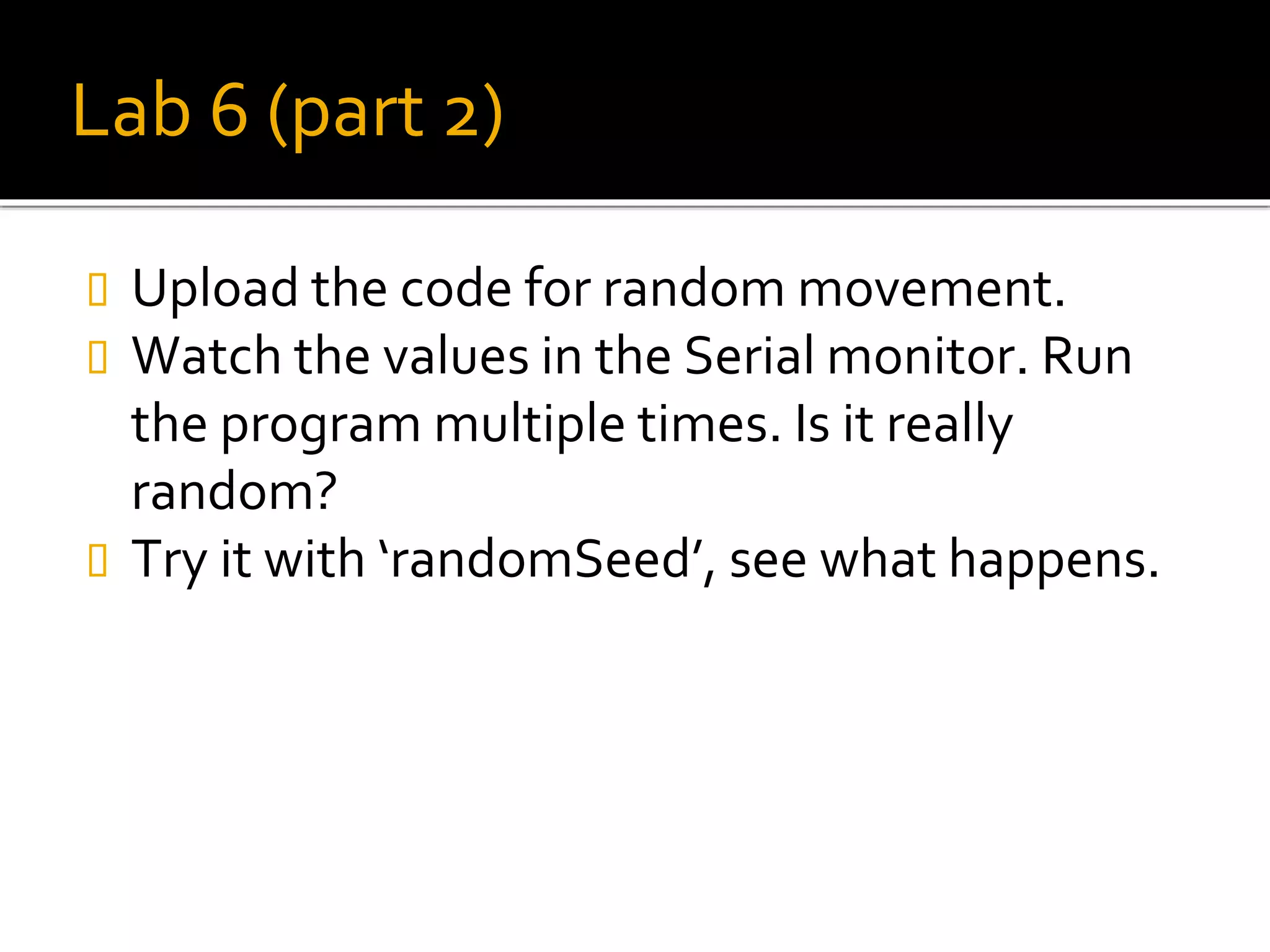

Lab 6 (part 2)
 Upload the code for random movement.
 Watch the values in the Serial monitor. Run
the program multiple times. Is it really
random?
 Try it with ‘randomSeed’, see what happens.

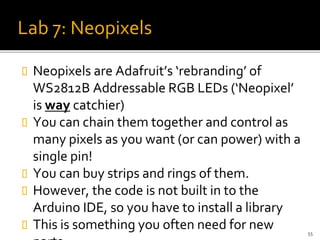

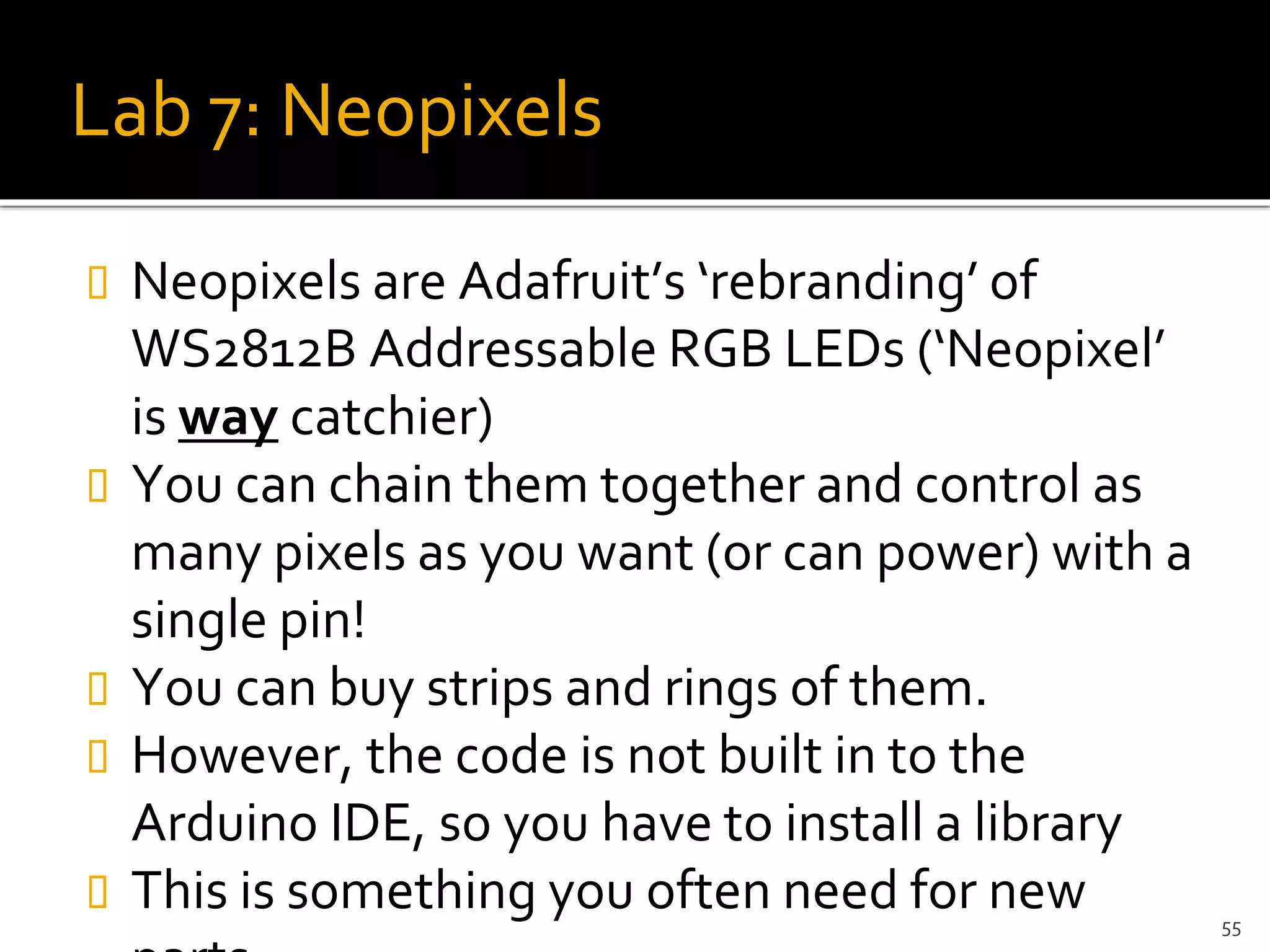

Lab 7: Neopixels
 Neopixels are Adafruit’s ‘rebranding’ of
WS2812B Addressable RGB LEDs (‘Neopixel’
is way catchier)
 You can chain them together and control as
many pixels as you want (or can power) with a
single pin!
 You can buy strips and rings of them.
 However, the code is not built in to the
Arduino IDE, so you have to install a library
 This is something you often need for new 55

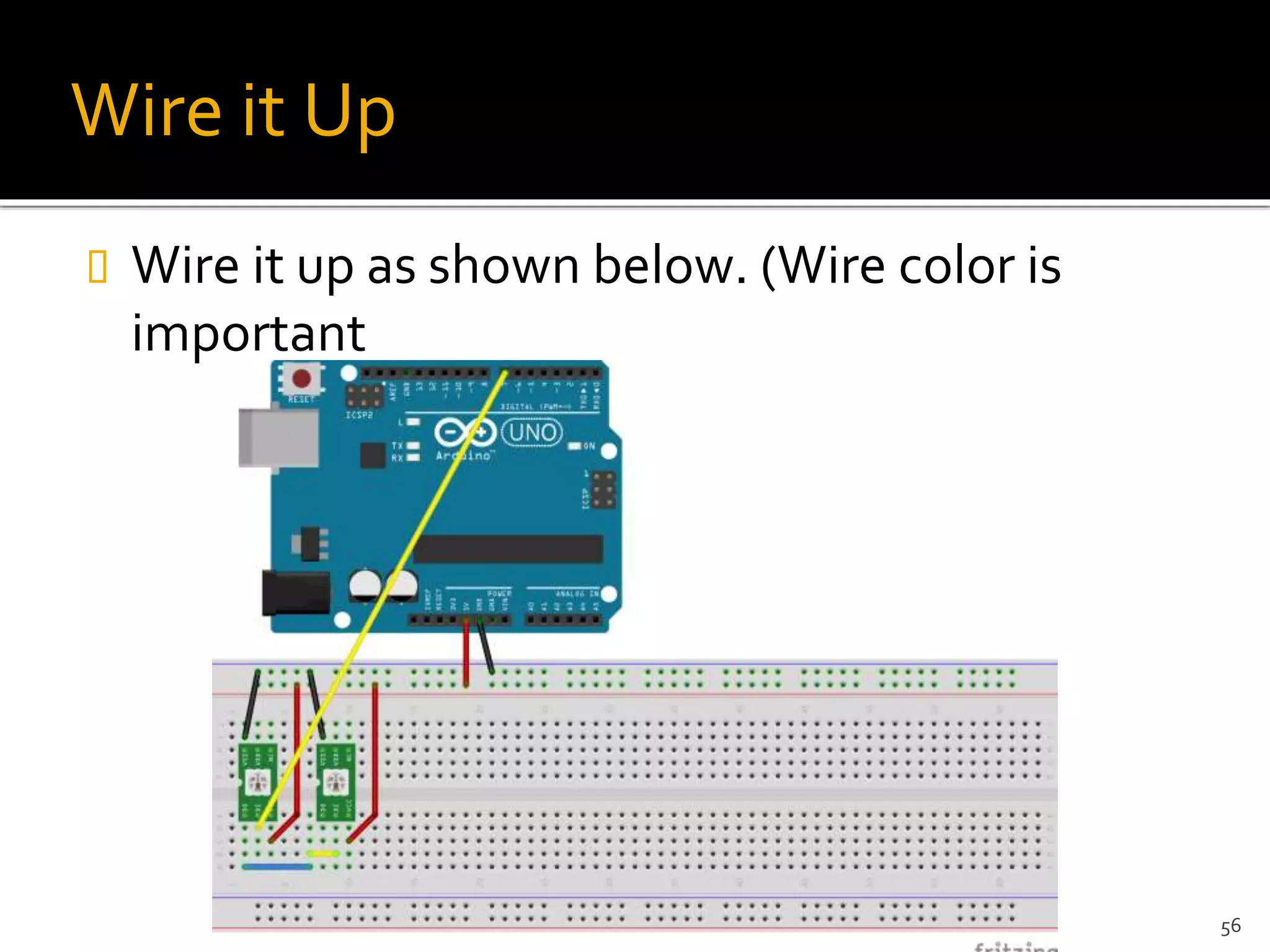

Wire it Up
 Wire it up as shown below. (Wire color is
important
56

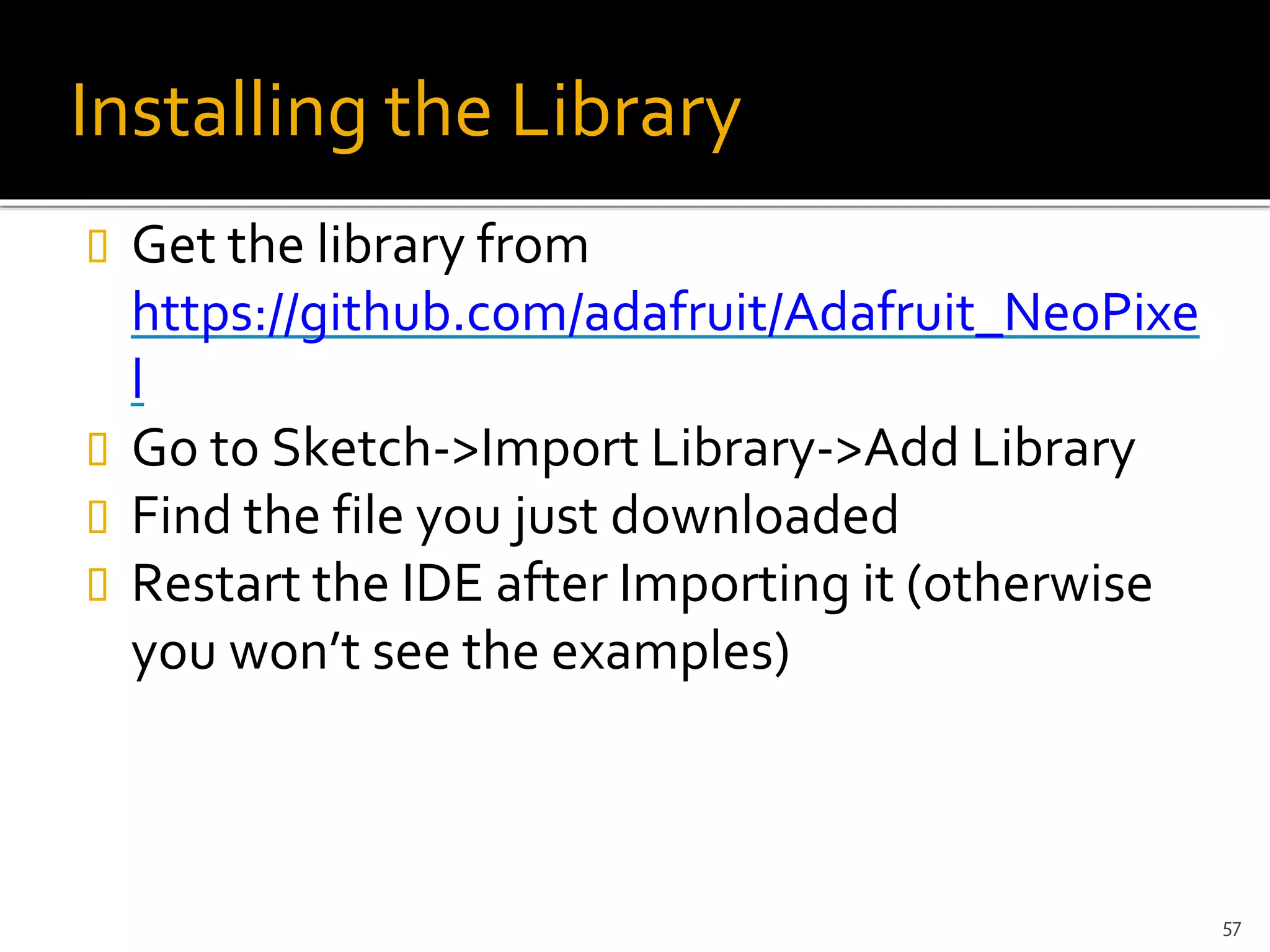

Installing the Library
 Get the library from
https://github.com/adafruit/Adafruit_NeoPixe
l
 Go to Sketch->Import Library->Add Library
 Find the file you just downloaded
 Restart the IDE after Importing it (otherwise
you won’t see the examples)
57

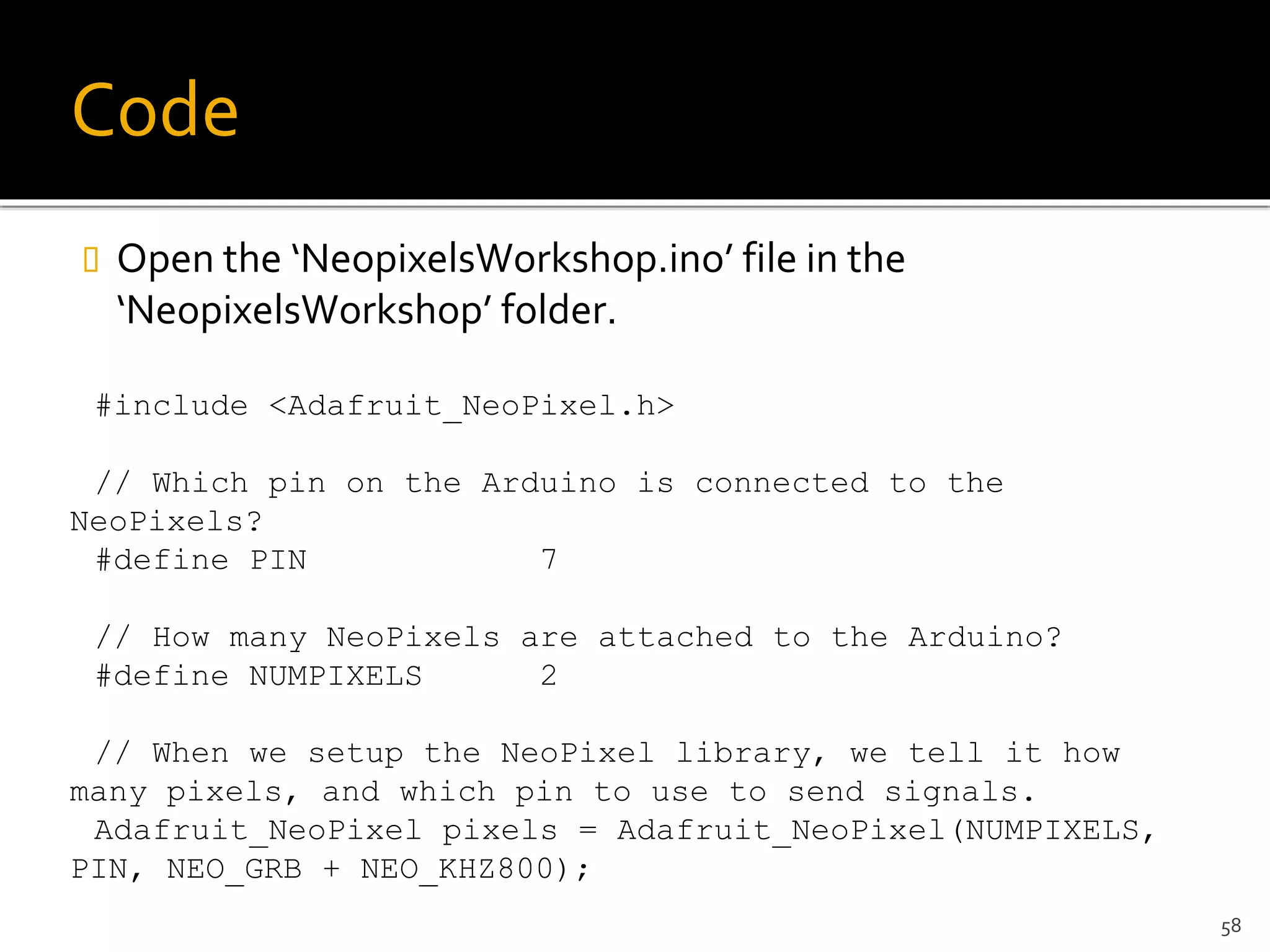

Code
 Open the ‘NeopixelsWorkshop.ino’ file in the
‘NeopixelsWorkshop’ folder.
#include <Adafruit_NeoPixel.h>
// Which pin on the Arduino is connected to the
NeoPixels?
#define PIN 7
// How many NeoPixels are attached to the Arduino?
#define NUMPIXELS 2
// When we setup the NeoPixel library, we tell it how
many pixels, and which pin to use to send signals.
Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS,
PIN, NEO_GRB + NEO_KHZ800);
58

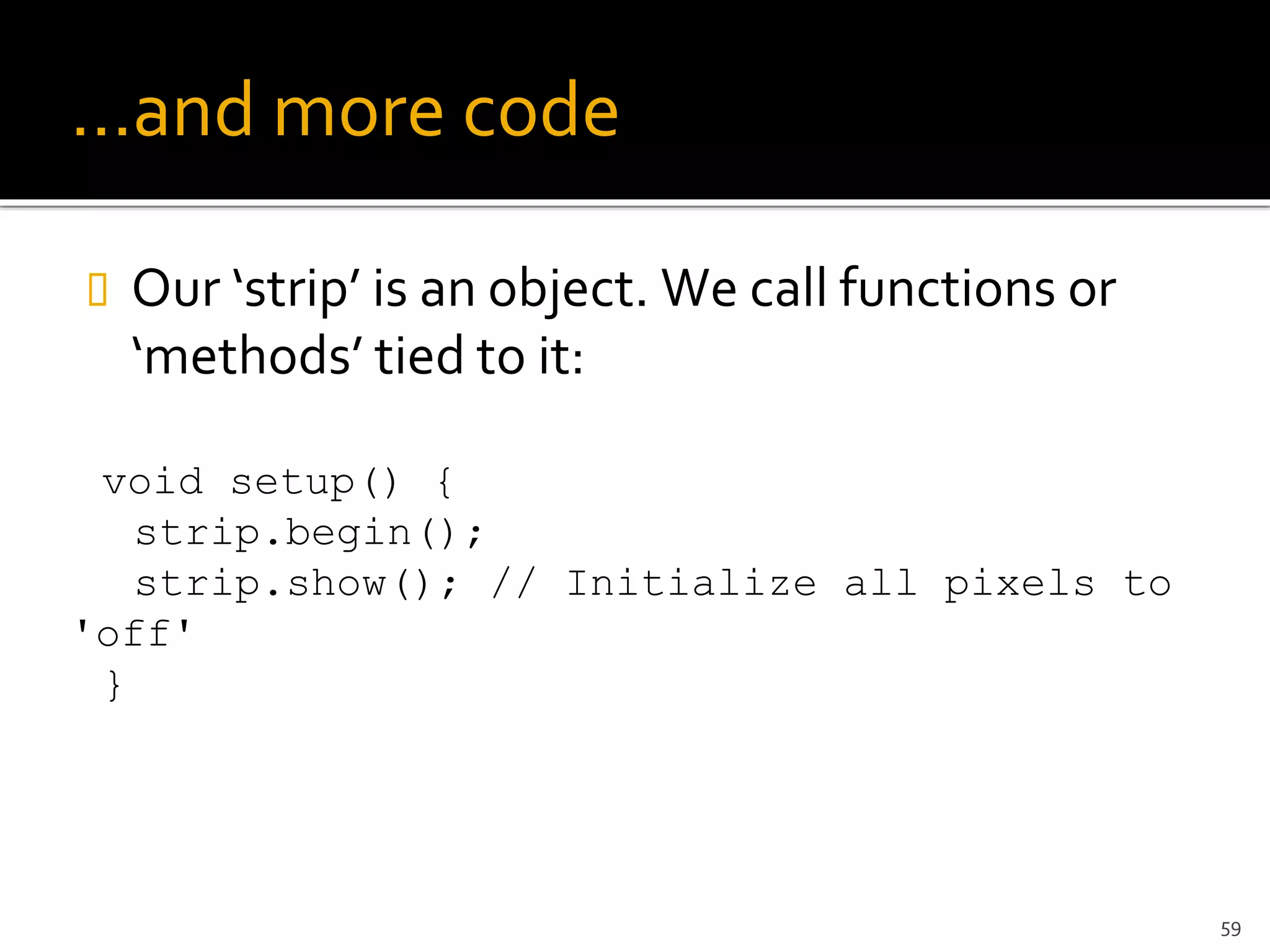

…and more code
 Our ‘strip’ is an object. We call functions or
‘methods’ tied to it:
void setup() {
strip.begin();
strip.show(); // Initialize all pixels to
'off'
}
59
…and more

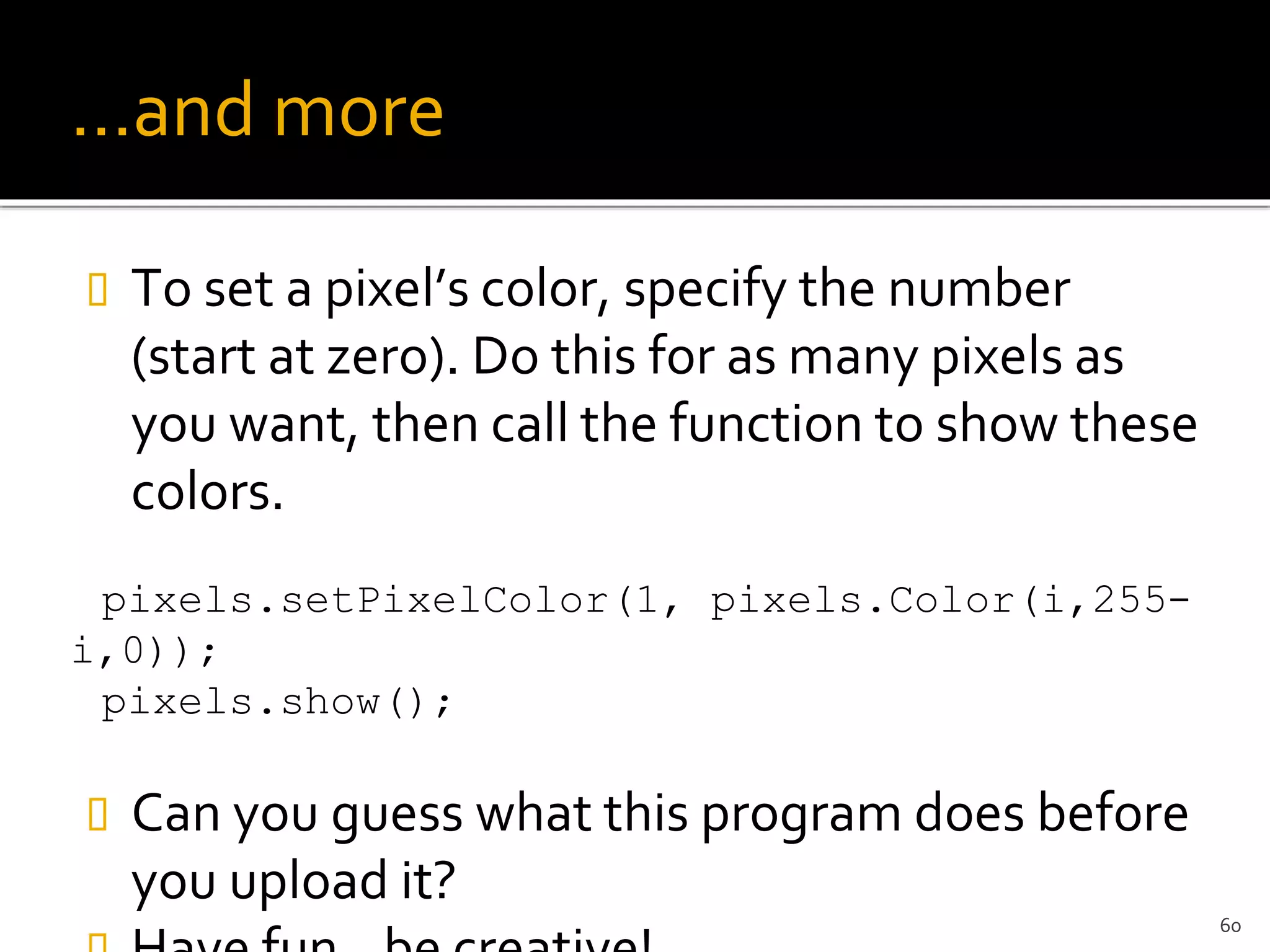

 To set a pixel’s color, specify the number
(start at zero). Do this for as many pixels as
you want, then call the function to show these
colors.
pixels.setPixelColor(1, pixels.Color(i,255-
i,0));
pixels.show();
 Can you guess what this program does before
you upload it?
60

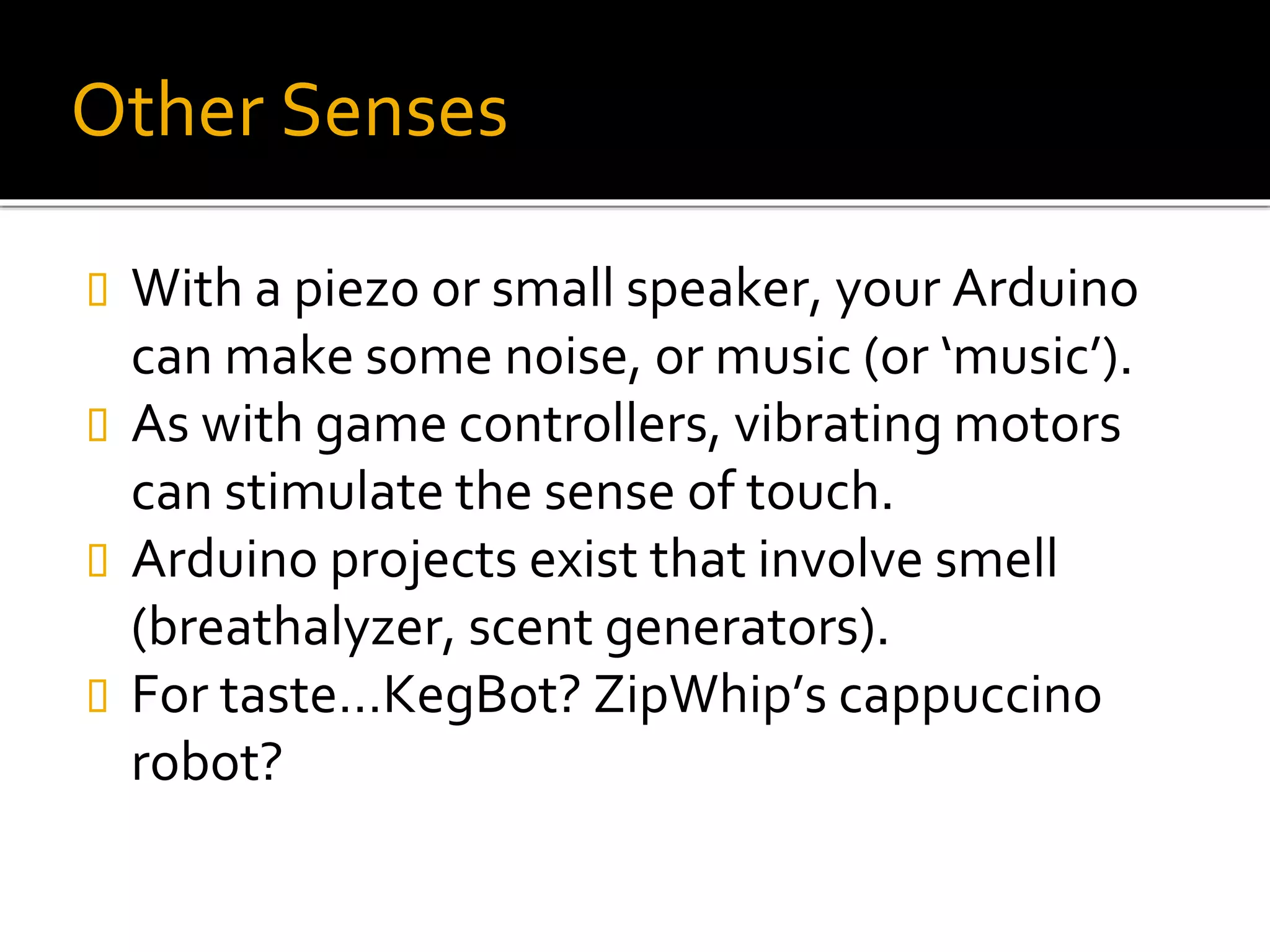

Other Senses
 With a piezo or small speaker, your Arduino
can make some noise, or music (or ‘music’).
 As with game controllers, vibrating motors
can stimulate the sense of touch.
 Arduino projects exist that involve smell
(breathalyzer, scent generators).
 For taste…KegBot? ZipWhip’s cappuccino
robot?

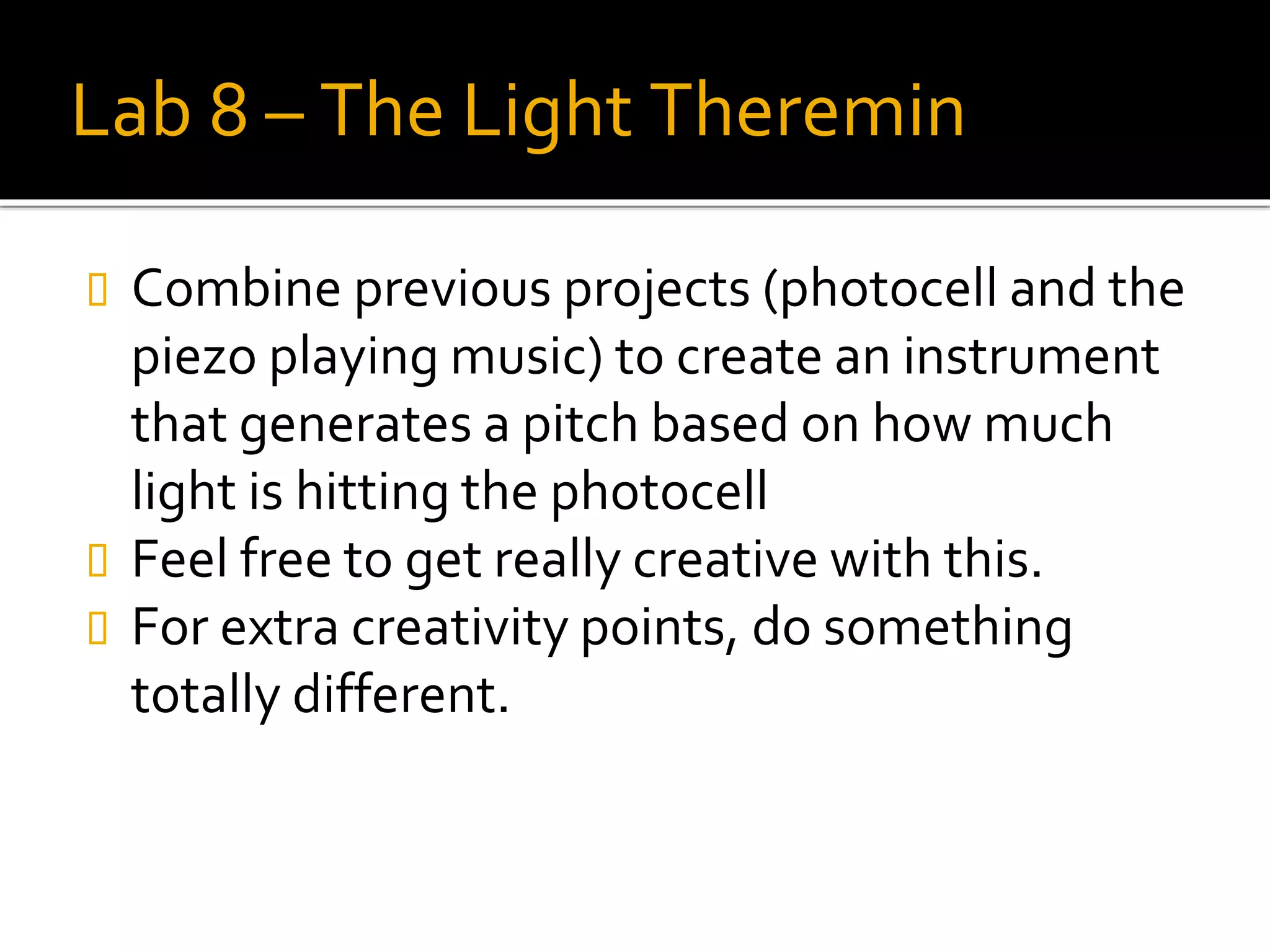

Lab 8 – The Light Theremin
 Combine previous projects (photocell and the
piezo playing music) to create an instrument
that generates a pitch based on how much
light is hitting the photocell
 Feel free to get really creative with this.
 For extra creativity points, do something
totally different.

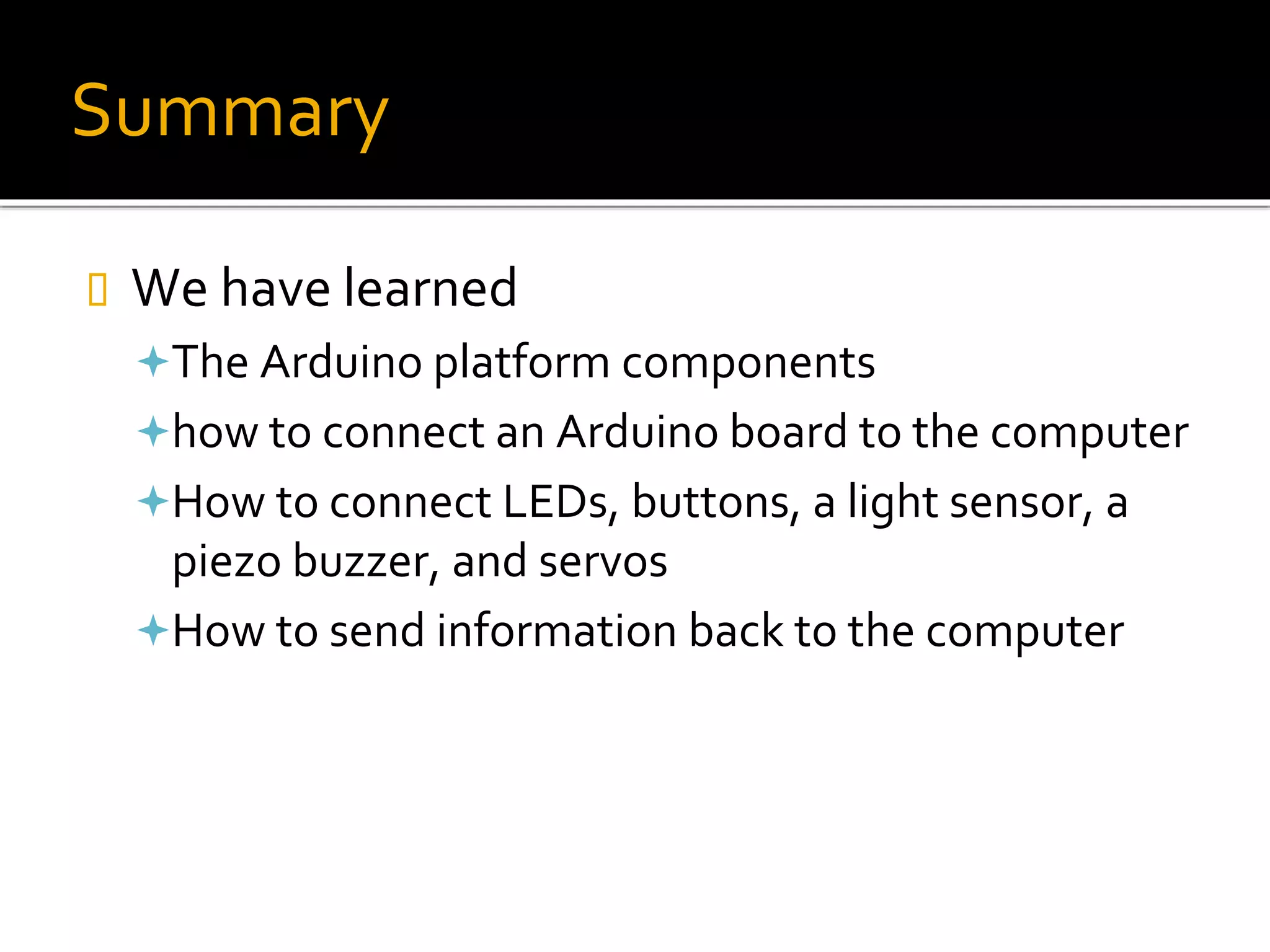

Summary
 We have learned
The Arduino platform components
how to connect an Arduino board to the computer
How to connect LEDs, buttons, a light sensor, a
piezo buzzer, and servos
How to send information back to the computer

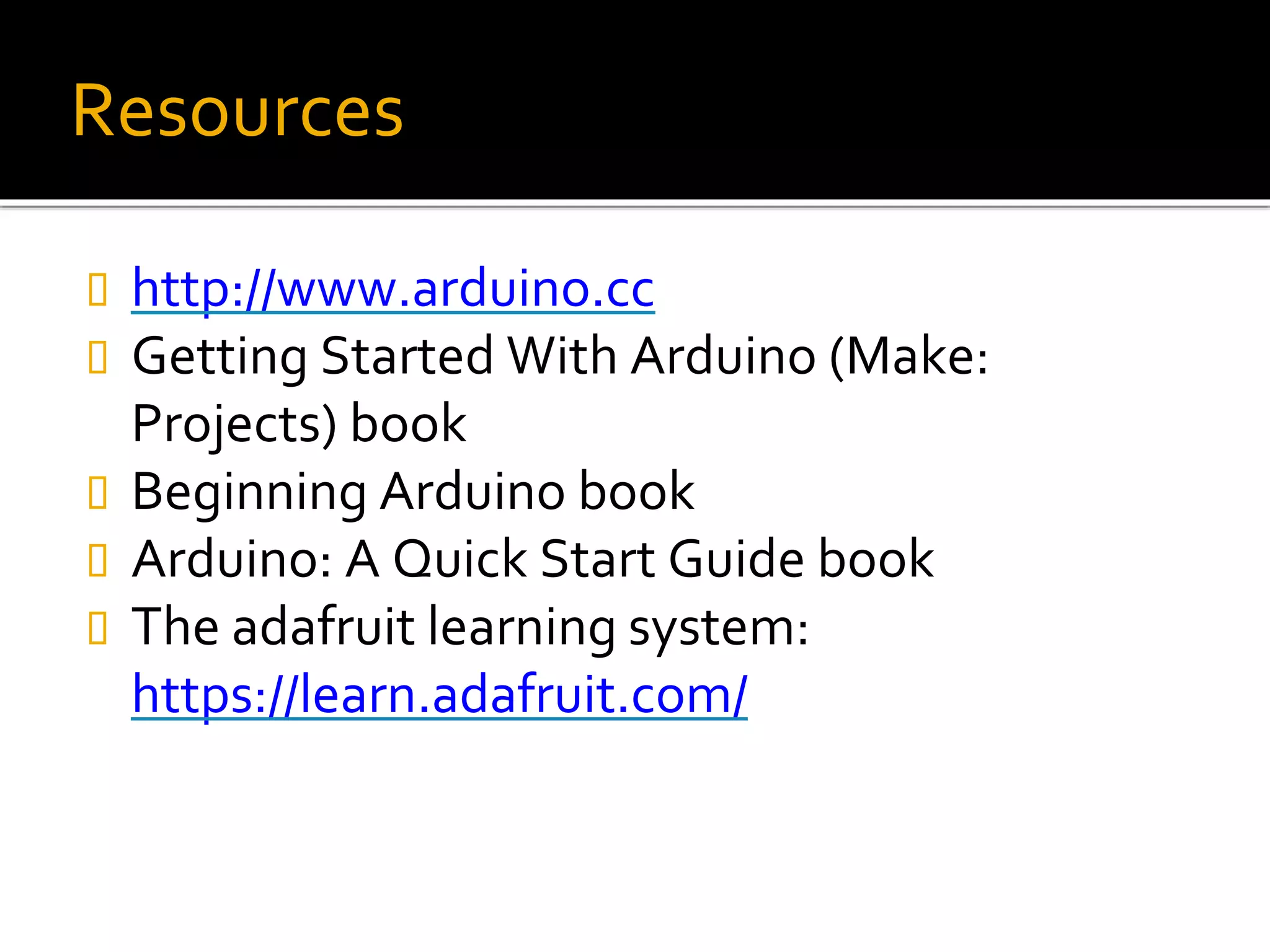

Resources
 http://www.arduino.cc
 Getting Started With Arduino (Make:
Projects) book
 Beginning Arduino book
 Arduino: A Quick Start Guide book
 The adafruit learning system:
https://learn.adafruit.com/

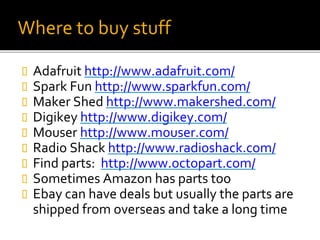

Where to buy stuff
 Adafruit http://www.adafruit.com/
 Spark Fun http://www.sparkfun.com/
 Maker Shed http://www.makershed.com/
 Digikey http://www.digikey.com/
 Mouser http://www.mouser.com/
 Radio Shack http://www.radioshack.com/
 Find parts: http://www.octopart.com/
 Sometimes Amazon has parts too
 Ebay can have deals but usually the parts are
shipped from overseas and take a long time

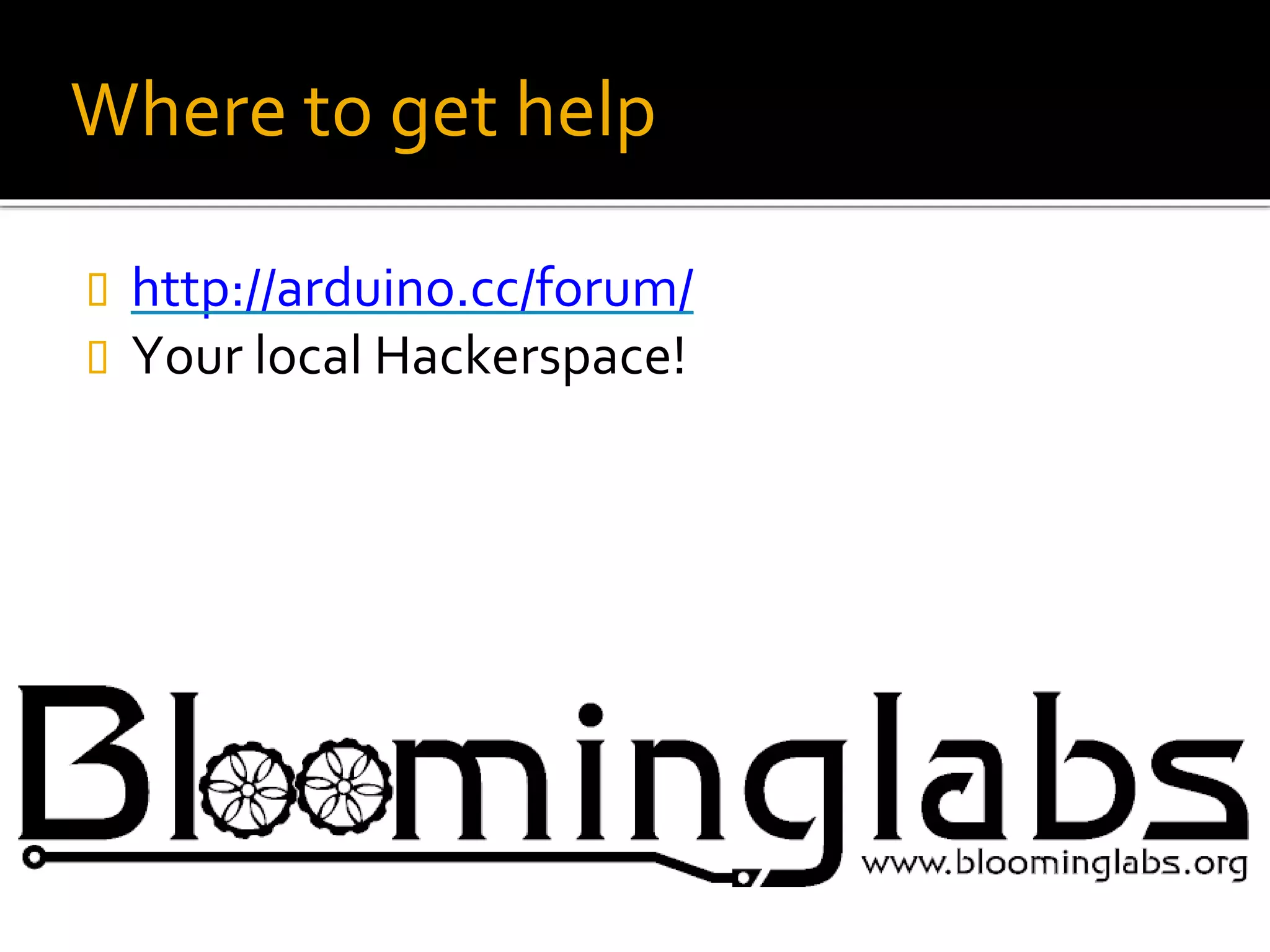

Where to get help
 http://arduino.cc/forum/
 Your local Hackerspace!

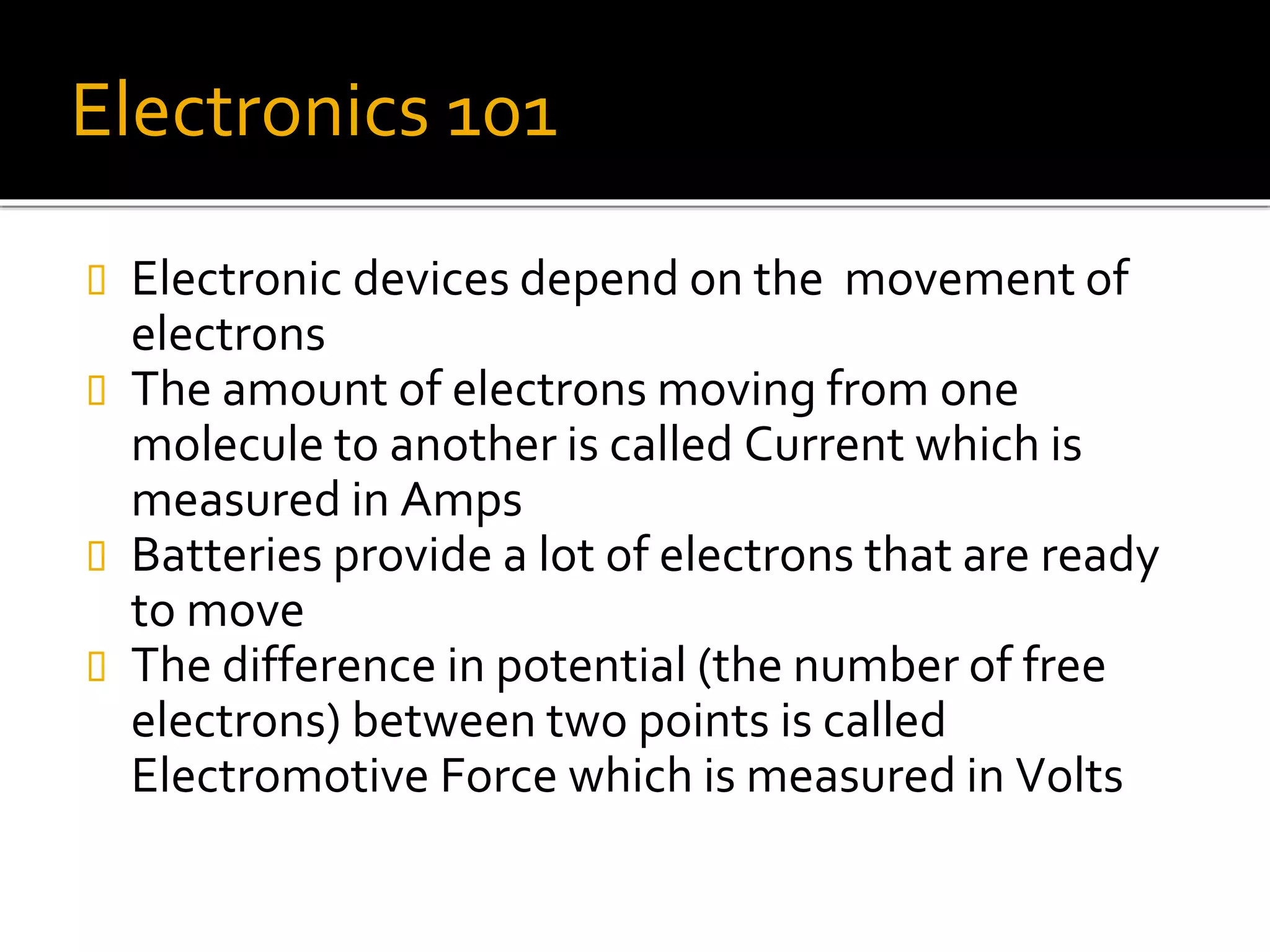

Electronics 101
 Electronic devices depend on the movement of
electrons
 The amount of electrons moving from one
molecule to another is called Current which is
measured in Amps
 Batteries provide a lot of electrons that are ready
to move
 The difference in potential (the number of free
electrons) between two points is called
Electromotive Force which is measured in Volts
Electronics 101

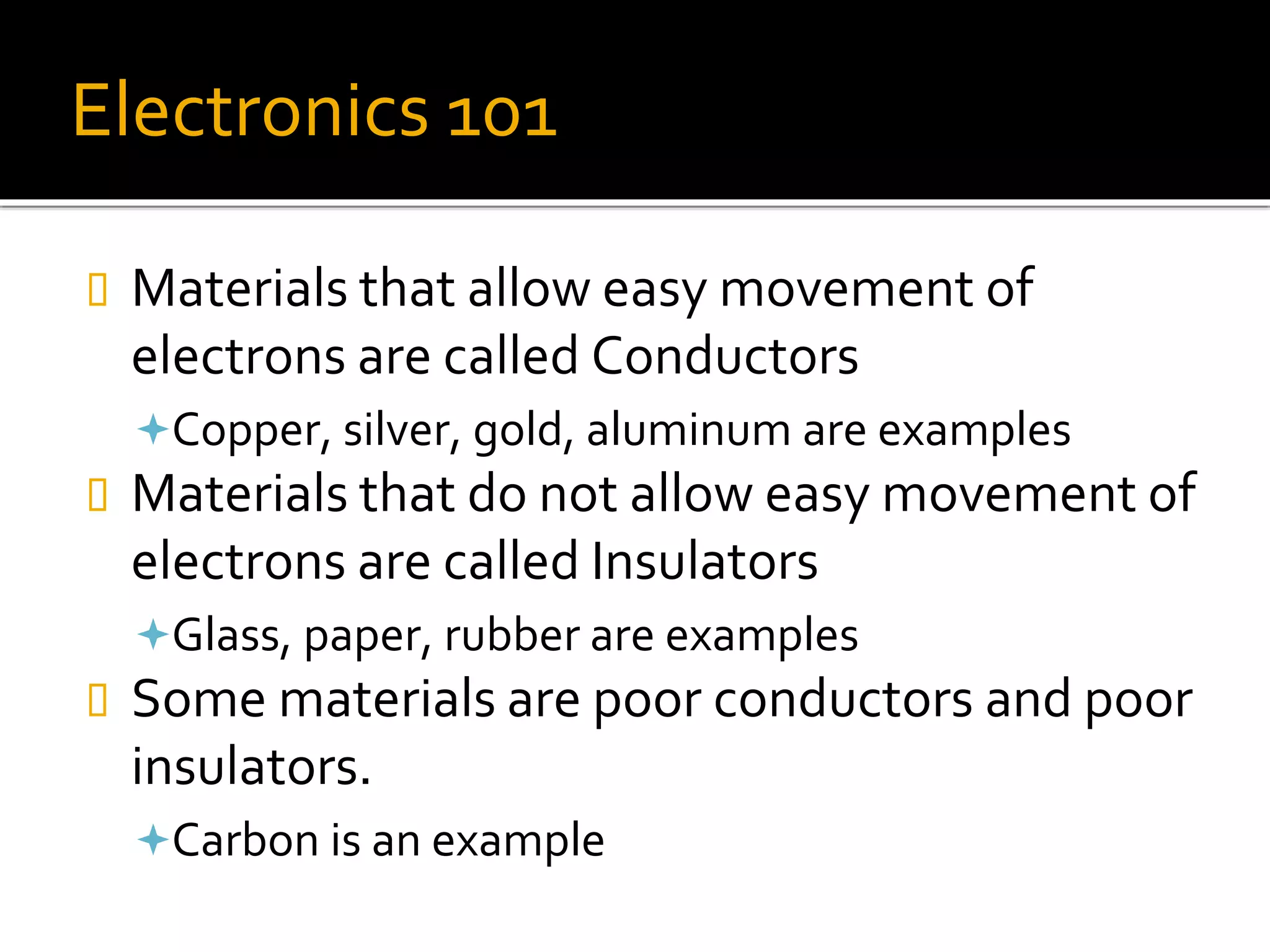

 Materials that allow easy movement of
electrons are called Conductors
Copper, silver, gold, aluminum are examples
 Materials that do not allow easy movement of
electrons are called Insulators
Glass, paper, rubber are examples
 Some materials are poor conductors and poor
insulators.
Carbon is an example

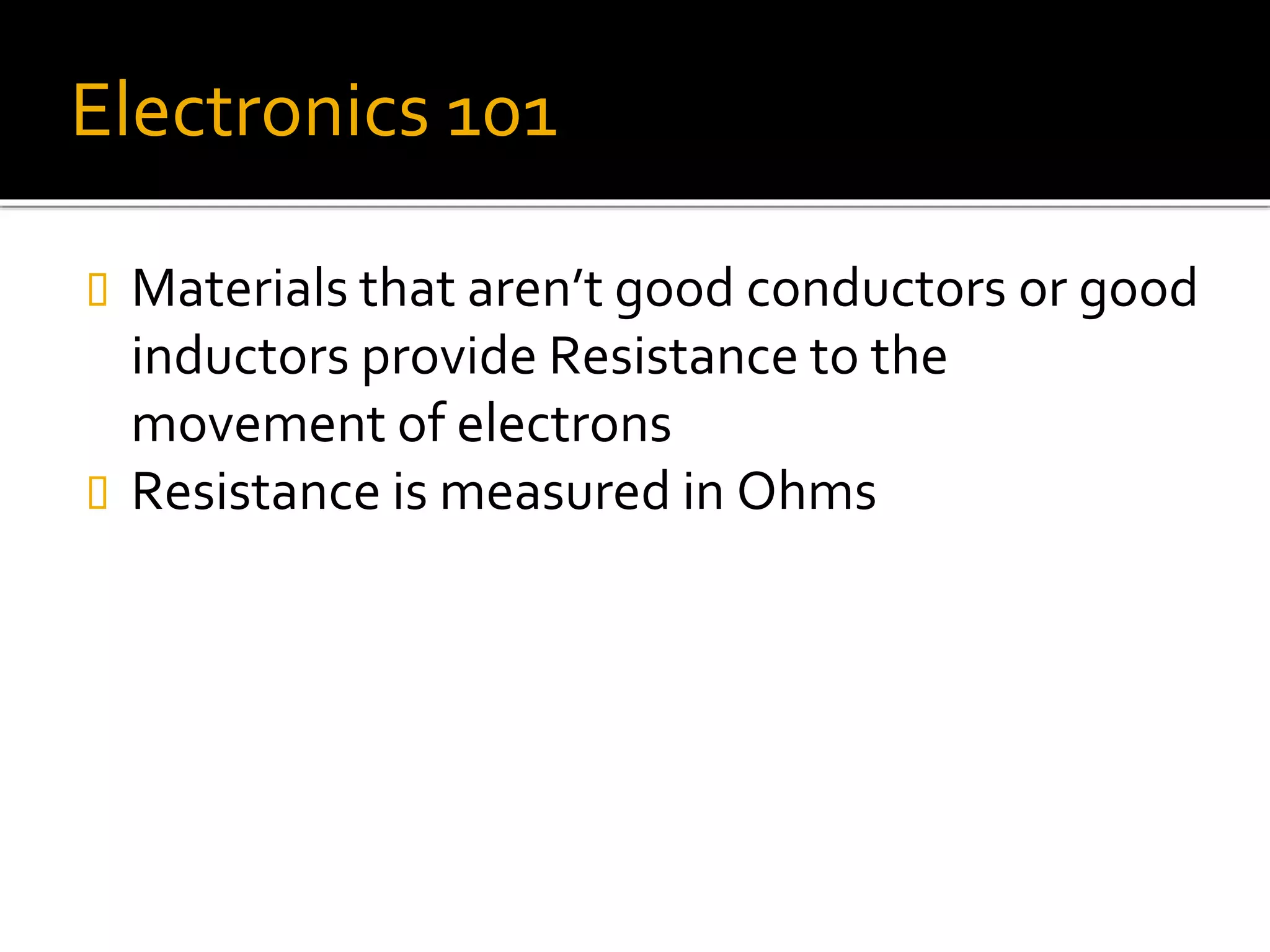

Electronics 101

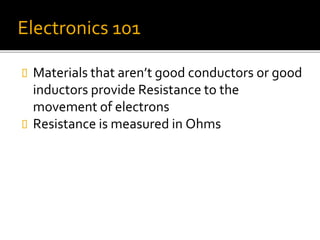

 Materials that aren’t good conductors or good
inductors provide Resistance to the
movement of electrons
 Resistance is measured in Ohms

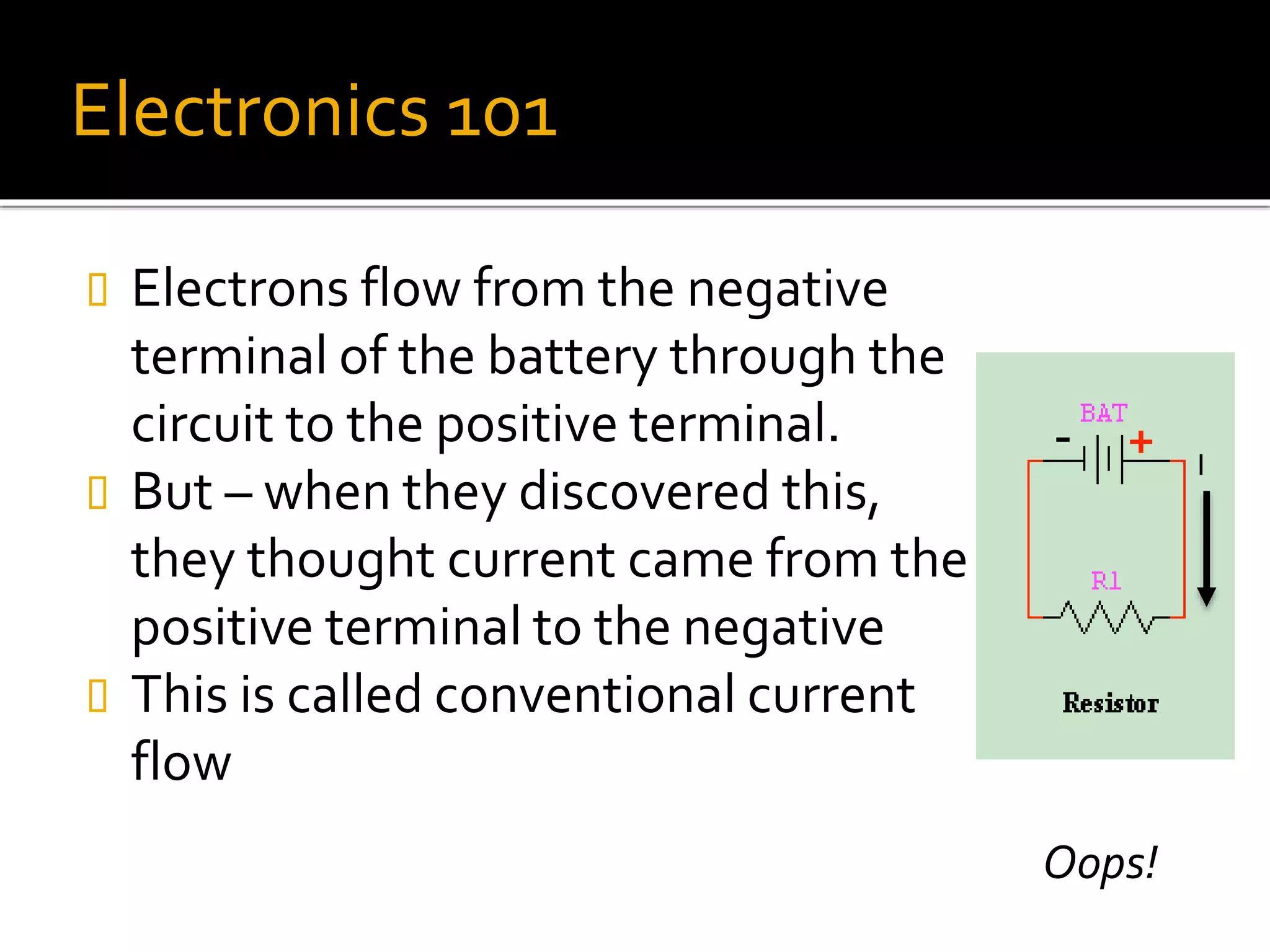

Electronics 101

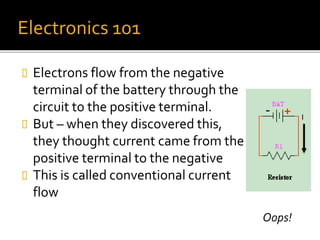

 Electrons flow from the negative
terminal of the battery through the
circuit to the positive terminal.
 But – when they discovered this,
they thought current came from the
positive terminal to the negative
 This is called conventional current
flow
I
Oops!

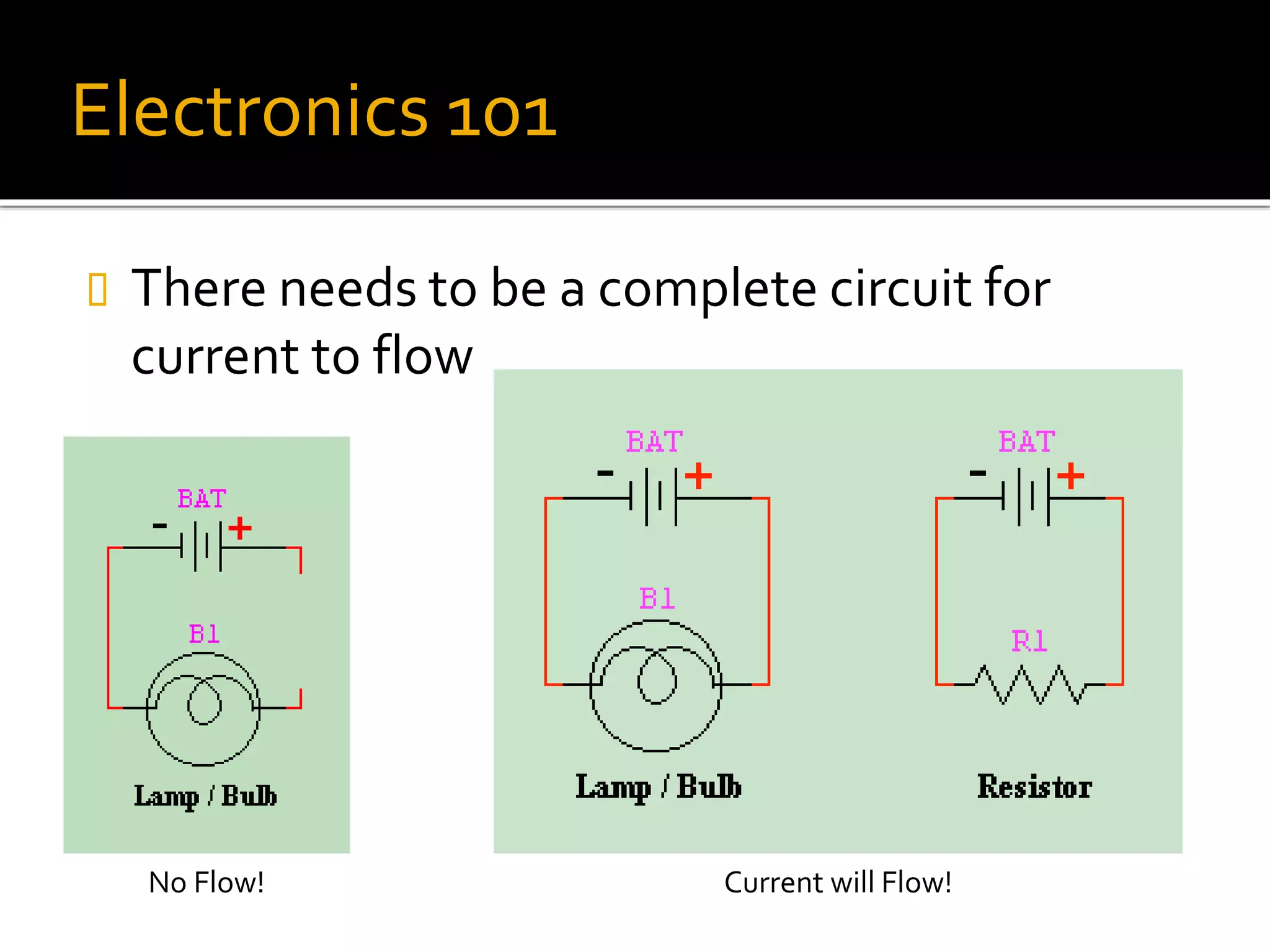

Electronics 101
 There needs to be a complete circuit for
current to flow
No Flow! Current will Flow!

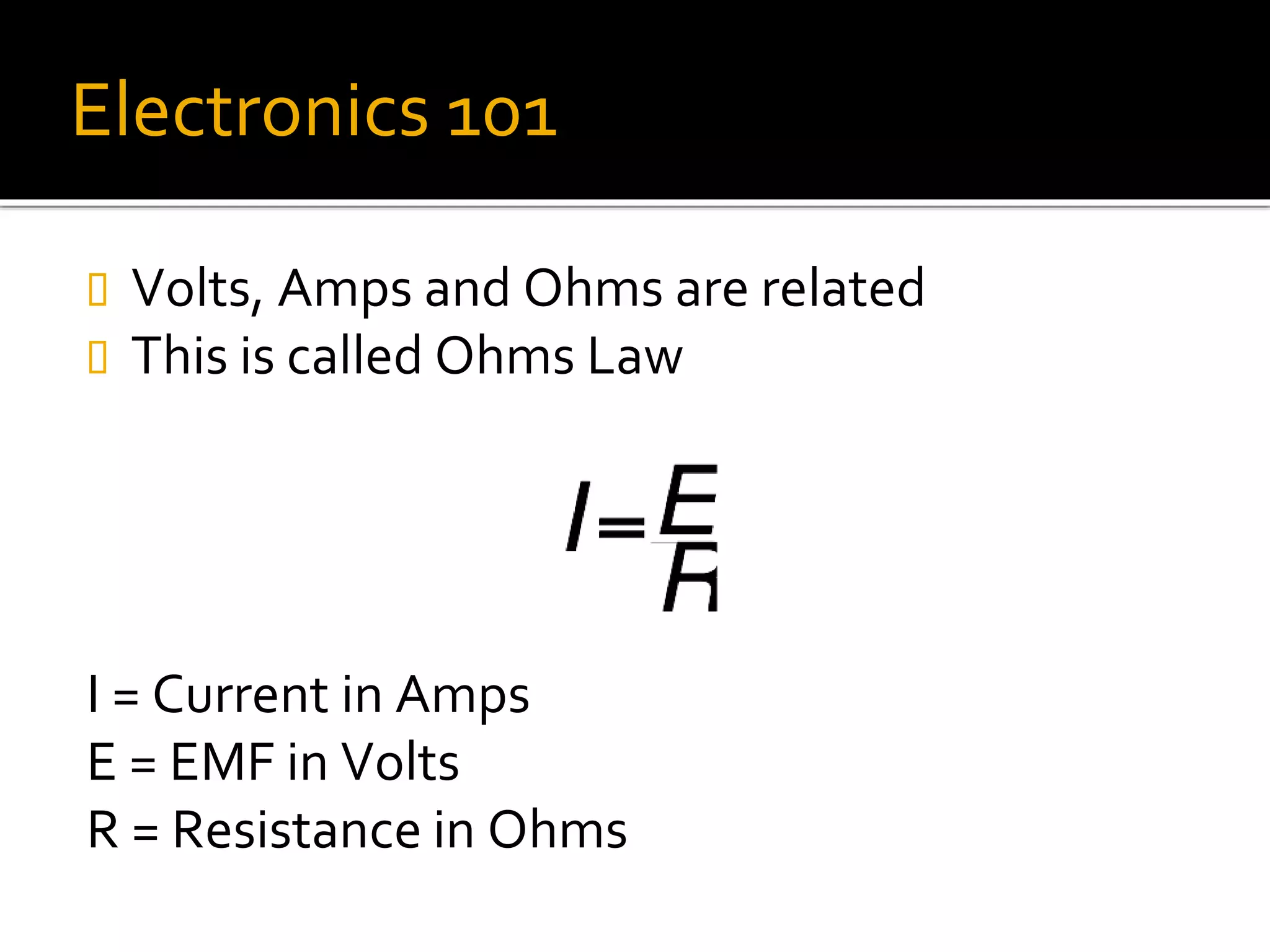

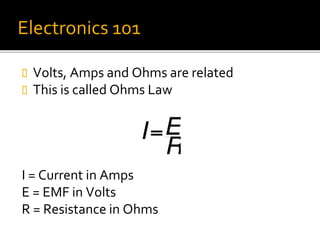

Electronics 101
 Volts, Amps and Ohms are related
 This is called Ohms Law
I = Current in Amps
E = EMF in Volts
R = Resistance in Ohms

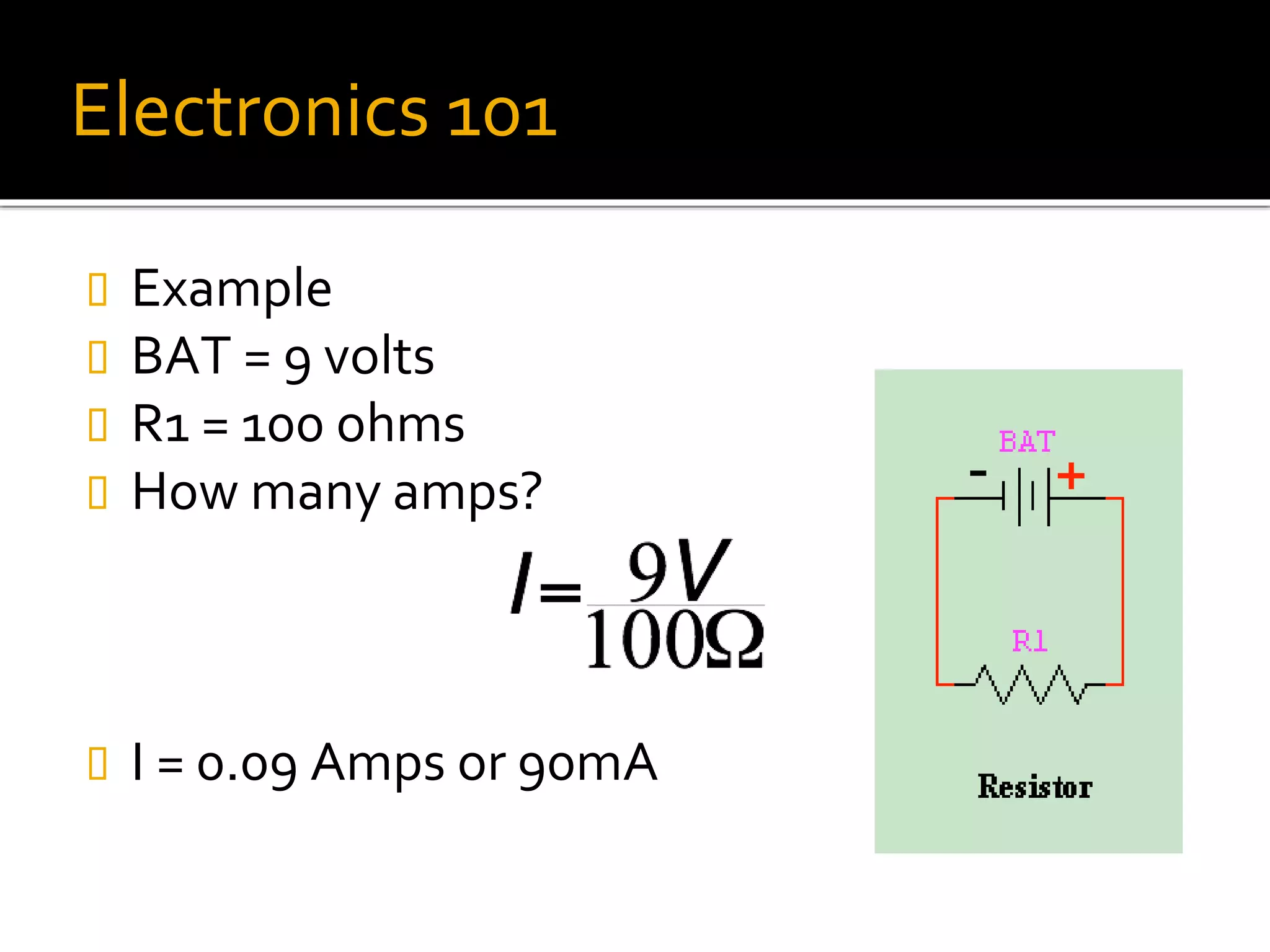

Electronics 101
 Example
 BAT = 9 volts
 R1 = 100 ohms
 How many amps?
 I = 0.09 Amps or 90mA
Electronics 101

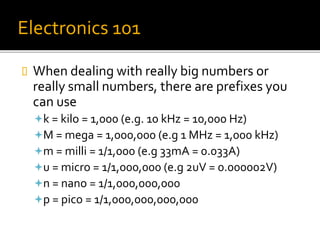

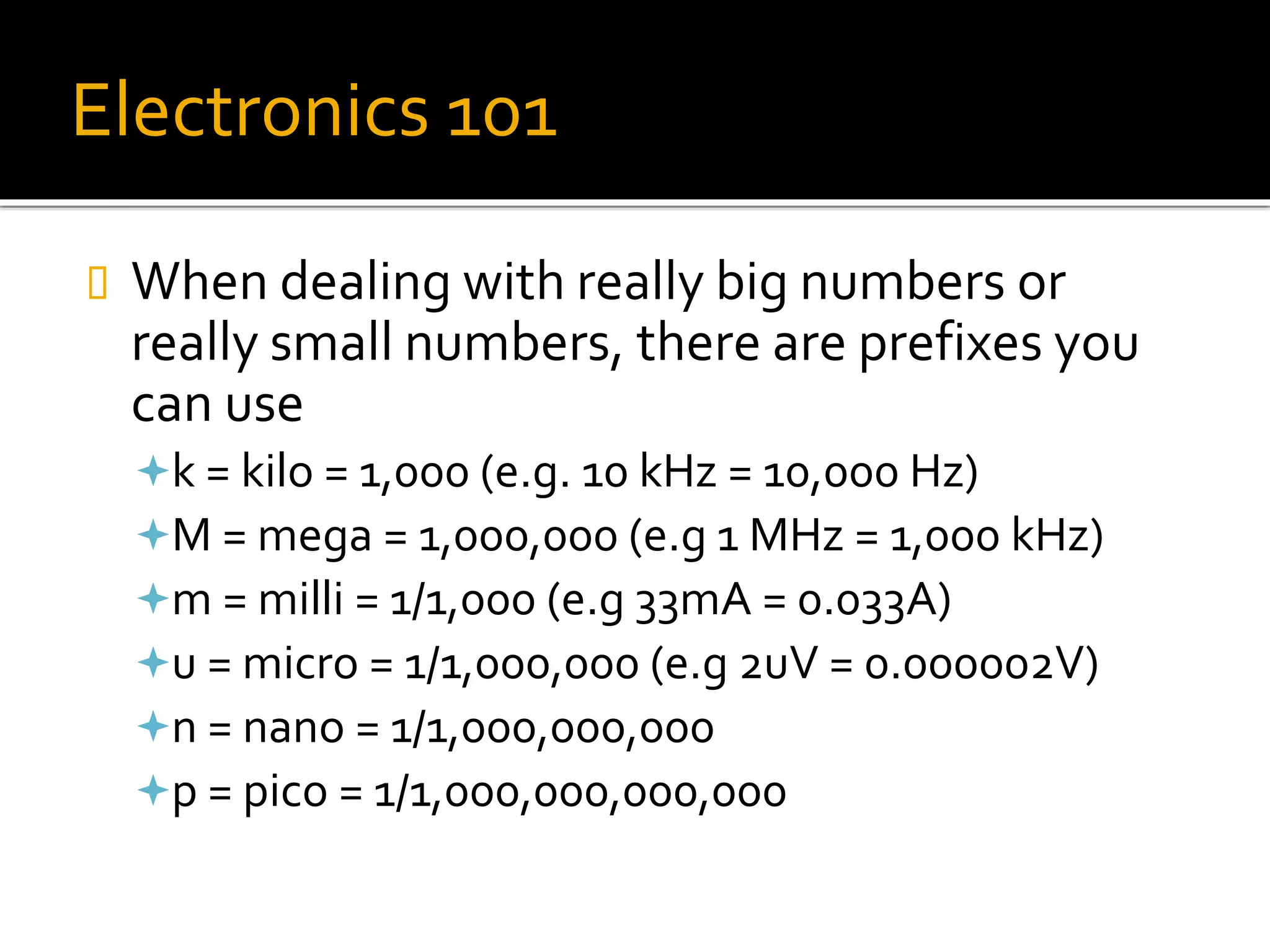

 When dealing with really big numbers or
really small numbers, there are prefixes you
can use
k = kilo = 1,000 (e.g. 10 kHz = 10,000 Hz)
M = mega = 1,000,000 (e.g 1 MHz = 1,000 kHz)
m = milli = 1/1,000 (e.g 33mA = 0.033A)
u = micro = 1/1,000,000 (e.g 2uV = 0.000002V)
n = nano = 1/1,000,000,000
p = pico = 1/1,000,000,000,000

Arduino Slides With Neopixels

  • 1.
  • 2.
    Agenda  What isArduino?  What can I make with Arduino?  Getting started  Digital Inputs and Outputs  Analog Inputs and Outputs  Neopixels  Putting It All Together  Summary
  • 3.
    What is Arduino? “Arduinois an open-source electronics prototyping platform based on flexible, easy-to- use hardware and software. It's intended for artists, designers, hobbyists, and anyone interested in creating interactive objects or environments.“ http://www.arduino.cc/
  • 4.
    What is Arduino? A programming environment for Windows, Mac or Linux  A hardware specification  Software libraries that can be reused in your programs All for FREE!* * Except the price of the hardware you purchase
  • 5.
    What is Arduino? There are many types of hardware for different needs
  • 6.
    Arduino UNO  Themost commonly used Arduino board  We will be using this board in this workshop
  • 7.
    Arduino UNO • Microprocessor– Atmega328 • 16 Mhz speed • 14 Digital I/O Pins • 6 Analog Input Pins • 32K Program Memory • 2K RAM • 1k EEPROM • Contains a special program called a “Bootloader” • Allows programming from USB port • Requires 0.5K of Program Memory
  • 8.
    Arduino UNO • USBInterface • USB client device • Allows computer to program the Microprocessor • Can be used to communicate with computer • Can draw power from computer to run Arduino
  • 9.
    Arduino UNO • PowerSupply • Connect 7V – 12V • Provides required 5V to Microprocessor • Will automatically pick USB or Power Supply to send power to the Microprocessor
  • 10.
    Arduino UNO • IndicatorLEDs • L – connected to digital pin 13 • TX – transmit data to computer • RX – receive data from computer • ON – when power is applied
  • 11.
    Arduino UNO • QuartzCrystal which provides 16Mhz clock to Microprocessor
  • 12.
    Arduino UNO • ResetButton • Allows you to reset the microprocessor so program will start from the beginning
  • 13.
    Arduino UNO • Input/Outputconnectors • Allows you to connect external devices to microprocessor • Can accept wires to individual pins • Circuit boards “Shields” can be plugged in to connect external devices
  • 14.
    Arduino Shields  Manycompanies have created Shields that can be used with Arduino boards  Examples Motor/Servo interface SD memory card interface Ethernet network interface GPS LED shields Prototyping shields
  • 15.
    What can Imake with Arduino?  Alarm Clock  http://hackaday.com/2011/07/04/alarm-clock-forces-you-to-play-tetris-to-prove-you-are-awake/
  • 16.
    What can Imake with Arduino?  Textpresso  http://www.geekwire.com/2012/greatest-invention-textspresso-machine-change-coffee-ordering/
  • 17.
    What can Imake with Arduino?  Automatic Pet Water Dispenser  http://hackaday.com/2011/05/24/automated-faucet-keeps-your-cat-watered/
  • 18.
    What can Imake with Arduino?
  • 19.
    Let’s GO!  Getthe hardware Buy an Arduino UNO Buy (or repurpose) a USB cable  Get the software http://arduino.cc/en/GuideHomePage  Follow the instructions on this page to install the software  Connect the Arduino to your computer  You are ready to go!
  • 20.
    Lab 1  Blinkthe onboard LED Congratulations!!!
  • 21.
    Review the Sketch /* Blink .. . */ // set the LED on // wait for a second  These are comments  The computer ignores them  Humans can read them to learn about the program
  • 22.
    Review the Sketch voidsetup() { pinMode(13, OUTPUT); }  Brackets { and } contain a block of code Each line of code in this block runs sequentially  void setup() tells the program to only run them once When the board turns on When the reset button is pressed
  • 23.
    Review the Sketch voidsetup() { pinMode(13, OUTPUT); }  Tells the Arduino to setup pin 13 as an Output pin  Each pin you use needs be setup with pinMode  A pin can be set to OUTPUT or INPUT
  • 24.
    Review the Sketch voidloop() { digitalWrite(13, HIGH); delay(1000); digitalWrite(13, LOW); delay(1000); }  void loop () runs the code block over and over until you turn off the Arduino  This code block only runs after setup is finished
  • 25.
    Review the Sketch voidloop() { digitalWrite(13, HIGH); delay(1000); digitalWrite(13, LOW); delay(1000); }  HIGH tells the Arduino to turn on the output  LOW tells the Arduino to turn off the output  13 is the pin number
  • 26.
    Review the Sketch voidloop() { digitalWrite(13, HIGH); delay(1000); digitalWrite(13, LOW); delay(1000); }  Code runs very fast  Delay tells the Arduino to wait a bit  1000 stands for 1,000 milliseconds or one second
  • 27.
    Change the Sketch voidloop() { digitalWrite(13, HIGH); delay(500); digitalWrite(13, LOW); delay(500); }  Change the 1000’s to 500  Upload the code to the Arduino  What happens now?
  • 28.
    Arduino Digital Pins These pins are used to communicate with the outside world  When an output pin is HIGH, it can provide 5V at 40mA maximum Trying to get more than 40mA out of the pin will destroy the Microprocessor!  When the output pin is LOW, it provides no current  You can use a transistor and/or a relay to provide a higher voltage or more current
  • 29.
    Connecting a newLED  Most LEDs will work with 5V at 20mA or 30mA  Make sure to check them before connecting to your Arduino! – Use your volt meter  An LED requires a resistor to limit the current Without the resistor, the LED will draw too much current and burn itself out
  • 30.
    Connecting a newLED  LEDs are polarized devices  One side needs to be connected to + and one side needs to be connected to –  If you connect it backwards, it will not light  Usually: Minus is short lead and flat side Plus is long lead and rounded side  A resistor is non-polarized It can be connected either way
  • 31.
    Lab 2  Connectthe two LEDs on the breadboard  Modify the code to blink the second LED, too  Blink them all
  • 32.
    Input  The pinscan be used to accept an input also  Digital pins can read a voltage (1) or no voltage (0)  Analog pins can read voltage between 0V and 5V. You will read a value of 0 and 1023.  Both of these return a value you can put into a variable and/or make decisions based on the value
  • 33.
    Input  Example int x; x= digitalRead(2); if ( x == HIGH ) { digitalWrite(13, HIGH); } else { digitalWrite(13, LOW); }
  • 34.
    Push Button  Apush button can be connected to a digital pin  There is an open circuit normally  There is a closed circuit when pressed  If connected between 5V and a pin, we get 5V when pressed, but an open circuit when not pressed  This is a problem – we need 0V when not pressed
  • 35.
    Push Button  Thereis a solution  A resistor to 5V will make the pin HIGH when the button is not pressed  Pressing it will make the pin LOW  The resistor makes sure we don’t connect 5V directly to Ground
  • 36.
    Push Button  Thisis a common method for using push buttons  The resistor is called a “Pull Up Resistor”  The Arduino has built in pull up resistors on the digital pins  We need to enable them when we need them
  • 37.
    Push Button  Thiscode enables the pull up resistor: pinMode(2, INPUT); digitalWrite(2, HIGH); Or, the one line version: pinMode(2, INPUT_PULLUP);
  • 38.
    Lab 3 Connect apush button Load the basic button code Turn LEDs on/off based on button press Load the toggle code. Pay attention to reactions to your button presses, and count in the Serial terminal. Try again with the debounce code. Did that help?
  • 39.
    Other Sensors/Devices  Thereare many other devices you can connect to an Arduino Servos to move things GPS to determine location/time Real Time Clock to know what time it is Accelerometers, Chemical detectors… LCD displays Memory cards More!
  • 40.
    Let’s Go Analog So far we’ve dealt with the on/off digital world.  Many interesting things we want to measure (temperature, light, pressure, etc) have a range of values.
  • 41.
    The Potentiometer  Verysimple analog input – used to control volume, speed, and so on.  It allows us to vary two resistance values.
  • 42.
    The Serial Port You can communicate between the Arduino and the computer via the USB cable.  This can help you out big time when you are debugging.  It can also help you control programs on the computer or post information to a web site. Serial.begin(9600); Serial.println(“Hello World.”);
  • 43.
    Lab 3  Connectpotentiometer  Upload and run code  Turn the knob  Watch the value change in the Serial Monitor
  • 44.
    The Voltage Divider There are many, many sensors based on varying resistance: force sensors, light dependent resistors, flex sensors, and more  To use these you need to create a ‘voltage divider’.
  • 45.
  • 46.
    Light Sensor  R2will be our photocell  R1 will be a resistor of our choice  Rule of thumb is: R1 should be in the middle of the range.
  • 47.
    Lab 4  Wireup the photocell  Same code as Lab 3  Take note of the max and min values  Try to pick a value for a dark/light threshold.
  • 48.
    Analog Output  Flashinga light is neat, but what about fading one in and out?  Or changing the color of an RGB LED?  Or changing the speed of a motor?
  • 49.
    PWM (Pulse WidthModulation)
  • 50.
    Lab 5  Wireup the Breadboard  Load the code. Take note of the for loop.  Watch the light fade in and out  Experiment with the code to get different effects
  • 51.
    Making Things Move So far we’ve communicated with the world by blinking or writing to Serial  Let’s make things move!
  • 52.
    Servos  Used inradio controlled planes and cars  Good for moving through angles you specify #include <Servo.h> Servo myservo; void setup() { myservo.attach(9); } void loop() {}
  • 53.
    Lab 6  Wireup the breadboard  Upload the code  Check it out, you can control the servo!  The map function makes life easy and is very, very handy: map(value, fromLow, fromHigh, toLow, toHigh);
  • 54.
    Lab 6 (part2)  Upload the code for random movement.  Watch the values in the Serial monitor. Run the program multiple times. Is it really random?  Try it with ‘randomSeed’, see what happens.
  • 55.
    Lab 7: Neopixels Neopixels are Adafruit’s ‘rebranding’ of WS2812B Addressable RGB LEDs (‘Neopixel’ is way catchier)  You can chain them together and control as many pixels as you want (or can power) with a single pin!  You can buy strips and rings of them.  However, the code is not built in to the Arduino IDE, so you have to install a library  This is something you often need for new 55
  • 56.
    Wire it Up Wire it up as shown below. (Wire color is important 56
  • 57.
    Installing the Library Get the library from https://github.com/adafruit/Adafruit_NeoPixe l  Go to Sketch->Import Library->Add Library  Find the file you just downloaded  Restart the IDE after Importing it (otherwise you won’t see the examples) 57
  • 58.
    Code  Open the‘NeopixelsWorkshop.ino’ file in the ‘NeopixelsWorkshop’ folder. #include <Adafruit_NeoPixel.h> // Which pin on the Arduino is connected to the NeoPixels? #define PIN 7 // How many NeoPixels are attached to the Arduino? #define NUMPIXELS 2 // When we setup the NeoPixel library, we tell it how many pixels, and which pin to use to send signals. Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800); 58
  • 59.
    …and more code Our ‘strip’ is an object. We call functions or ‘methods’ tied to it: void setup() { strip.begin(); strip.show(); // Initialize all pixels to 'off' } 59
  • 60.
    …and more  Toset a pixel’s color, specify the number (start at zero). Do this for as many pixels as you want, then call the function to show these colors. pixels.setPixelColor(1, pixels.Color(i,255- i,0)); pixels.show();  Can you guess what this program does before you upload it? 60
  • 61.
    Other Senses  Witha piezo or small speaker, your Arduino can make some noise, or music (or ‘music’).  As with game controllers, vibrating motors can stimulate the sense of touch.  Arduino projects exist that involve smell (breathalyzer, scent generators).  For taste…KegBot? ZipWhip’s cappuccino robot?
  • 62.
    Lab 8 –The Light Theremin  Combine previous projects (photocell and the piezo playing music) to create an instrument that generates a pitch based on how much light is hitting the photocell  Feel free to get really creative with this.  For extra creativity points, do something totally different.
  • 63.
    Summary  We havelearned The Arduino platform components how to connect an Arduino board to the computer How to connect LEDs, buttons, a light sensor, a piezo buzzer, and servos How to send information back to the computer
  • 64.
    Resources  http://www.arduino.cc  GettingStarted With Arduino (Make: Projects) book  Beginning Arduino book  Arduino: A Quick Start Guide book  The adafruit learning system: https://learn.adafruit.com/
  • 65.
    Where to buystuff  Adafruit http://www.adafruit.com/  Spark Fun http://www.sparkfun.com/  Maker Shed http://www.makershed.com/  Digikey http://www.digikey.com/  Mouser http://www.mouser.com/  Radio Shack http://www.radioshack.com/  Find parts: http://www.octopart.com/  Sometimes Amazon has parts too  Ebay can have deals but usually the parts are shipped from overseas and take a long time
  • 66.
    Where to gethelp  http://arduino.cc/forum/  Your local Hackerspace!
  • 67.
    Electronics 101  Electronicdevices depend on the movement of electrons  The amount of electrons moving from one molecule to another is called Current which is measured in Amps  Batteries provide a lot of electrons that are ready to move  The difference in potential (the number of free electrons) between two points is called Electromotive Force which is measured in Volts
  • 68.
    Electronics 101  Materialsthat allow easy movement of electrons are called Conductors Copper, silver, gold, aluminum are examples  Materials that do not allow easy movement of electrons are called Insulators Glass, paper, rubber are examples  Some materials are poor conductors and poor insulators. Carbon is an example
  • 69.
    Electronics 101  Materialsthat aren’t good conductors or good inductors provide Resistance to the movement of electrons  Resistance is measured in Ohms
  • 70.
    Electronics 101  Electronsflow from the negative terminal of the battery through the circuit to the positive terminal.  But – when they discovered this, they thought current came from the positive terminal to the negative  This is called conventional current flow I Oops!
  • 71.
    Electronics 101  Thereneeds to be a complete circuit for current to flow No Flow! Current will Flow!
  • 72.
    Electronics 101  Volts,Amps and Ohms are related  This is called Ohms Law I = Current in Amps E = EMF in Volts R = Resistance in Ohms
  • 73.
    Electronics 101  Example BAT = 9 volts  R1 = 100 ohms  How many amps?  I = 0.09 Amps or 90mA
  • 74.
    Electronics 101  Whendealing with really big numbers or really small numbers, there are prefixes you can use k = kilo = 1,000 (e.g. 10 kHz = 10,000 Hz) M = mega = 1,000,000 (e.g 1 MHz = 1,000 kHz) m = milli = 1/1,000 (e.g 33mA = 0.033A) u = micro = 1/1,000,000 (e.g 2uV = 0.000002V) n = nano = 1/1,000,000,000 p = pico = 1/1,000,000,000,000
