Developing Web Graphics with WebGL

developing web graphics
with WebGL
tony parisi
October 22, 2013

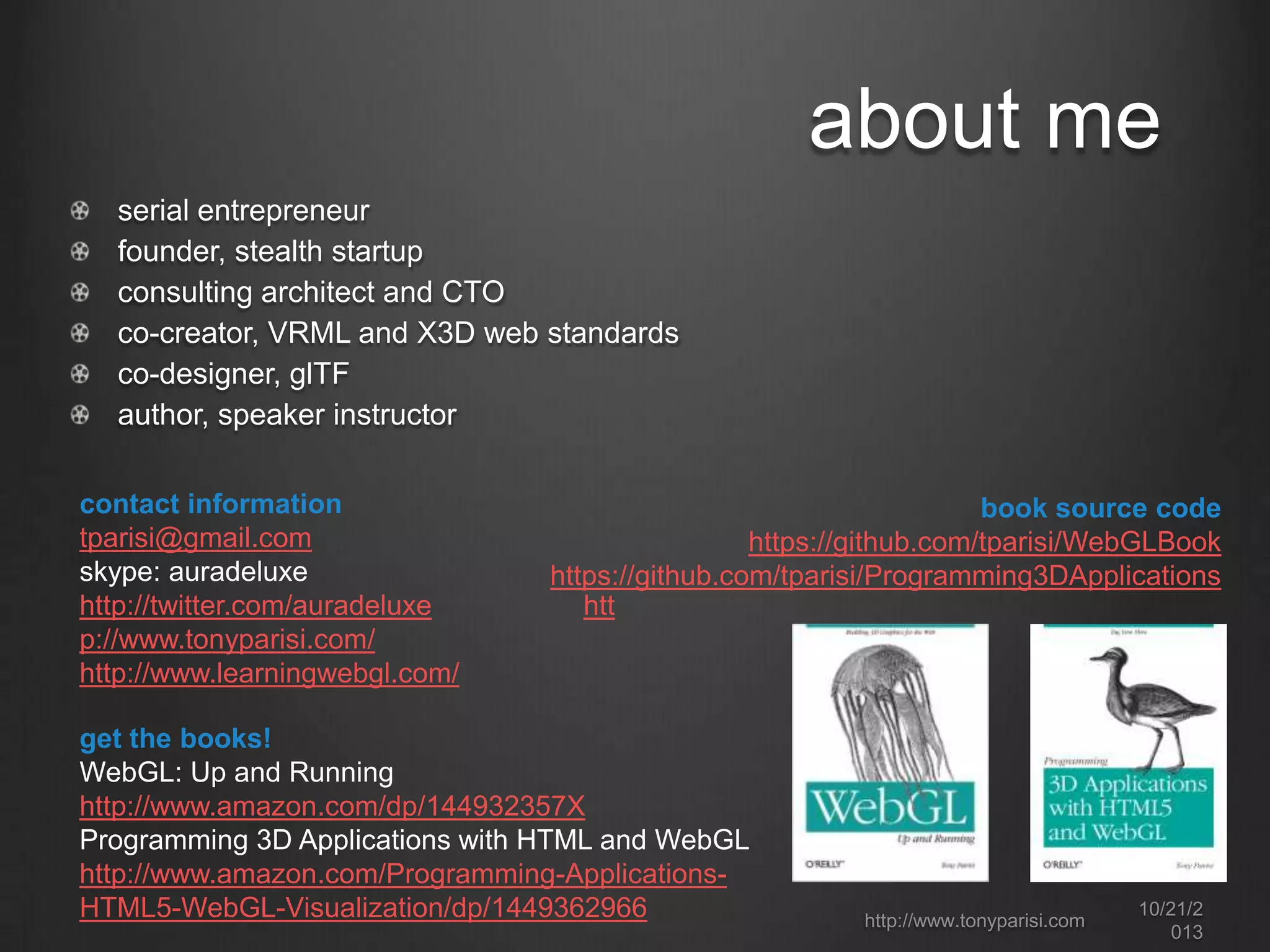

about me
serial entrepreneur
founder, stealth startup
consulting architect and CTO
co-creator, VRML and X3D web standards
co-designer, glTF
author, speaker instructor

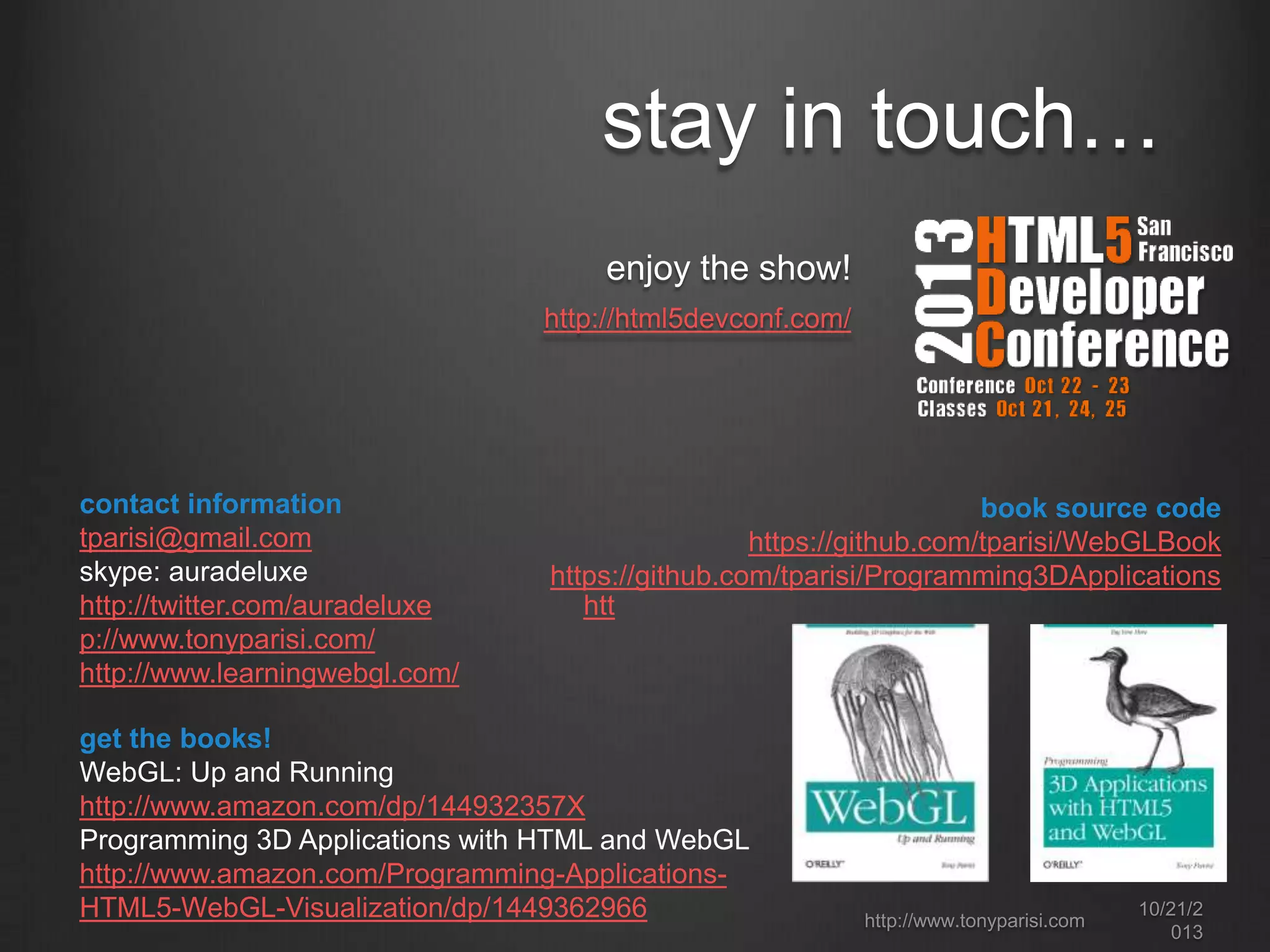

contact information
tparisi@gmail.com
skype: auradeluxe
http://twitter.com/auradeluxe
p://www.tonyparisi.com/
http://www.learningwebgl.com/

book source code
https://github.com/tparisi/WebGLBook
https://github.com/tparisi/Programming3DApplications
htt

get the books!
WebGL: Up and Running
http://www.amazon.com/dp/144932357X
Programming 3D Applications with HTML and WebGL
http://www.amazon.com/Programming-ApplicationsHTML5-WebGL-Visualization/dp/1449362966

http://www.tonyparisi.com

10/22/2
013

RIP: 1995-2013

Image: Eric Dye


10/22/2
013

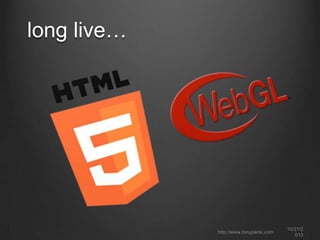

long live…


10/22/2
013

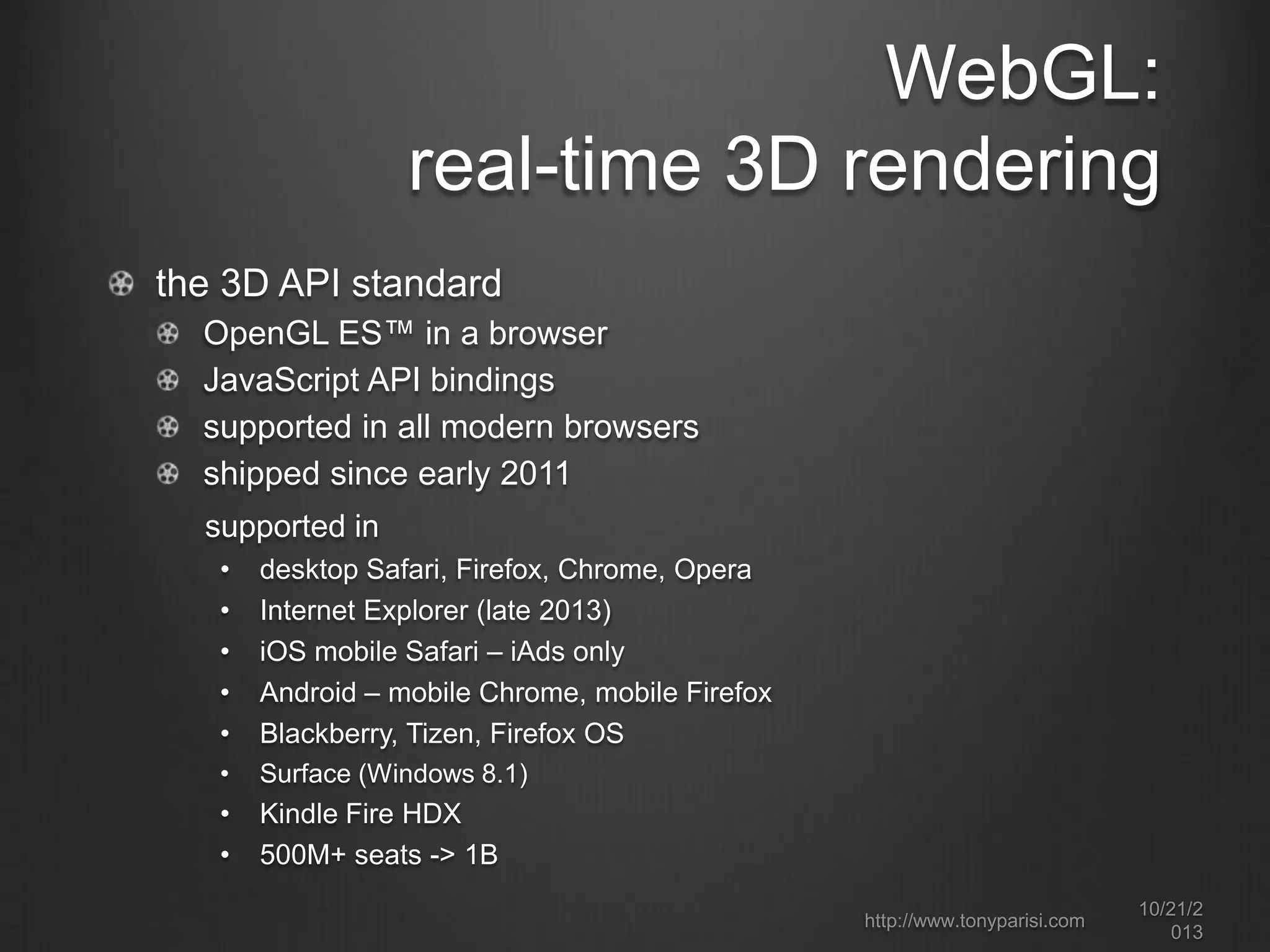

WebGL:
real-time 3D rendering
the 3D API standard
OpenGL ES™ in a browser
JavaScript API bindings
supported in all modern browsers
shipped since early 2011
supported in
•
•
•
•
•

desktop Safari, Firefox, Chrome, Opera
Internet Explorer (late 2013)
iOS mobile Safari – iAds only
Android – mobile Chrome, mobile Firefox
Blackberry, Tizen, Firefox OS

•

Surface (Windows 8.1)

•
•

Kindle Fire HDX
500M+ seats -> 1B

10/22/2
013

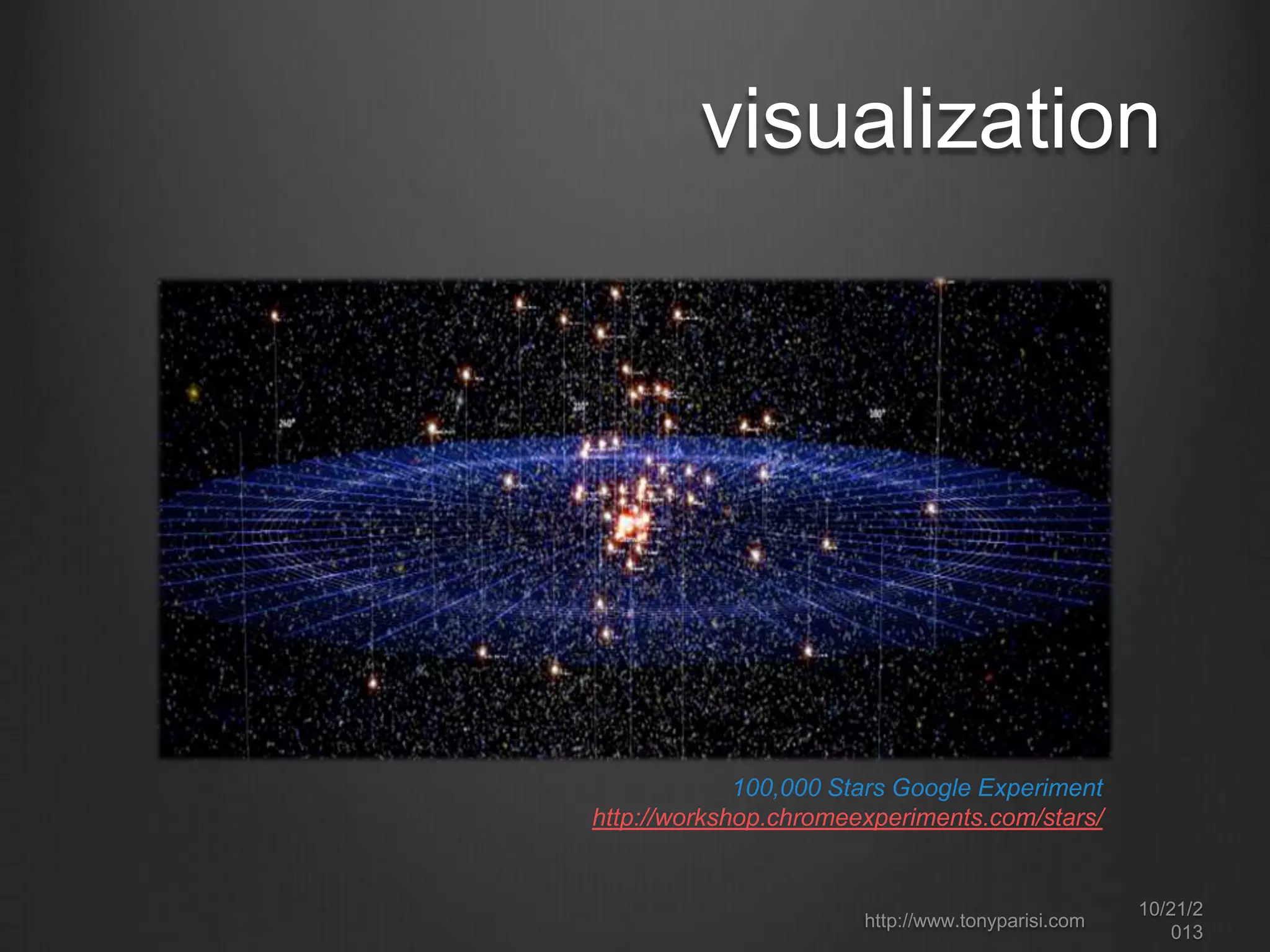

science and education

100,000 Stars Google Experiment
http://workshop.chromeexperiments.com/stars/


10/22/2
013

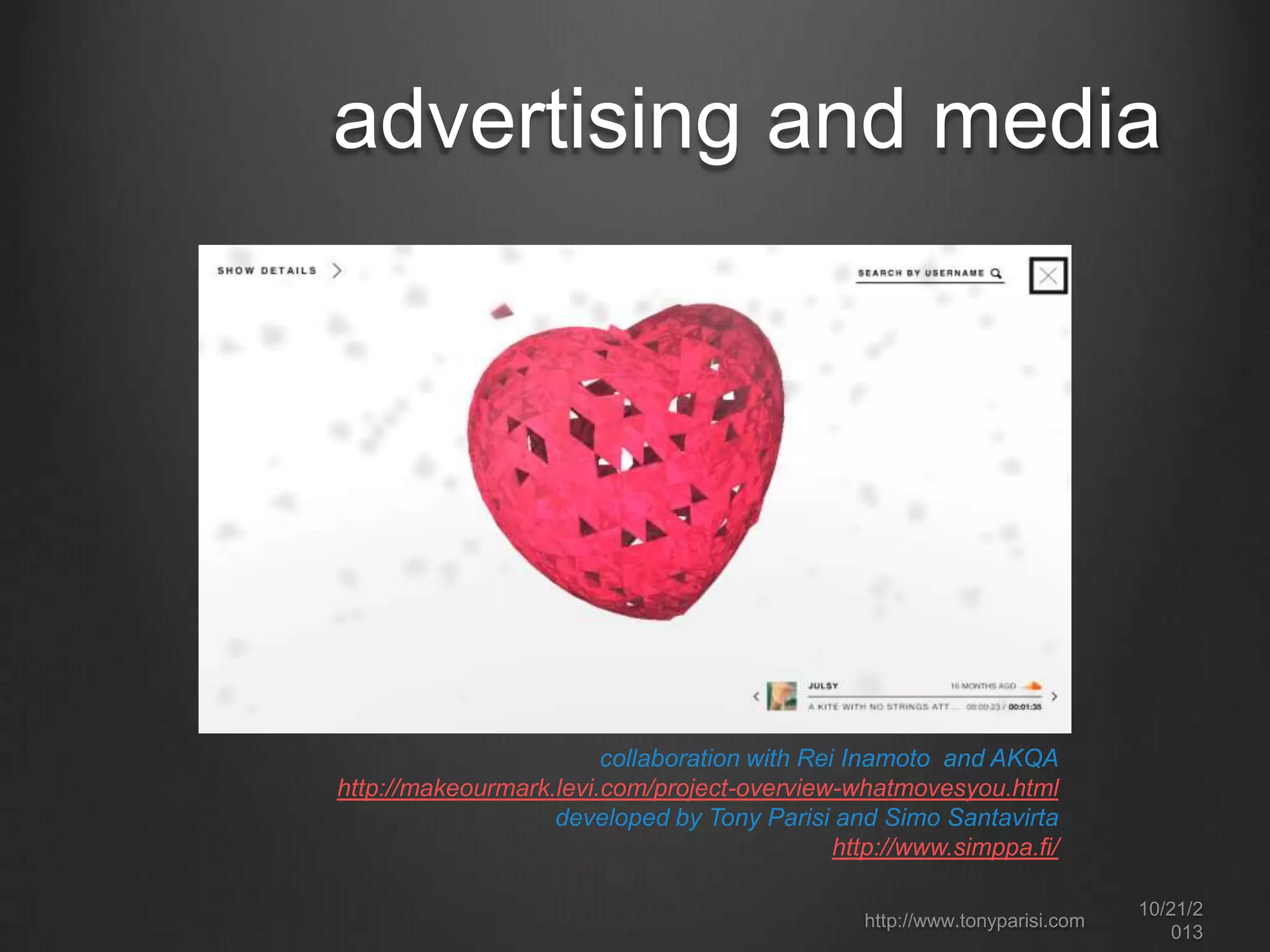

advertising and media

collaboration with Rei Inamoto and AKQA
http://makeourmark.levi.com/project-overview-whatmovesyou.html
developed by Tony Parisi and Simo Santavirta
http://www.simppa.fi/

10/22/2
013

data visualization


10/22/2
013

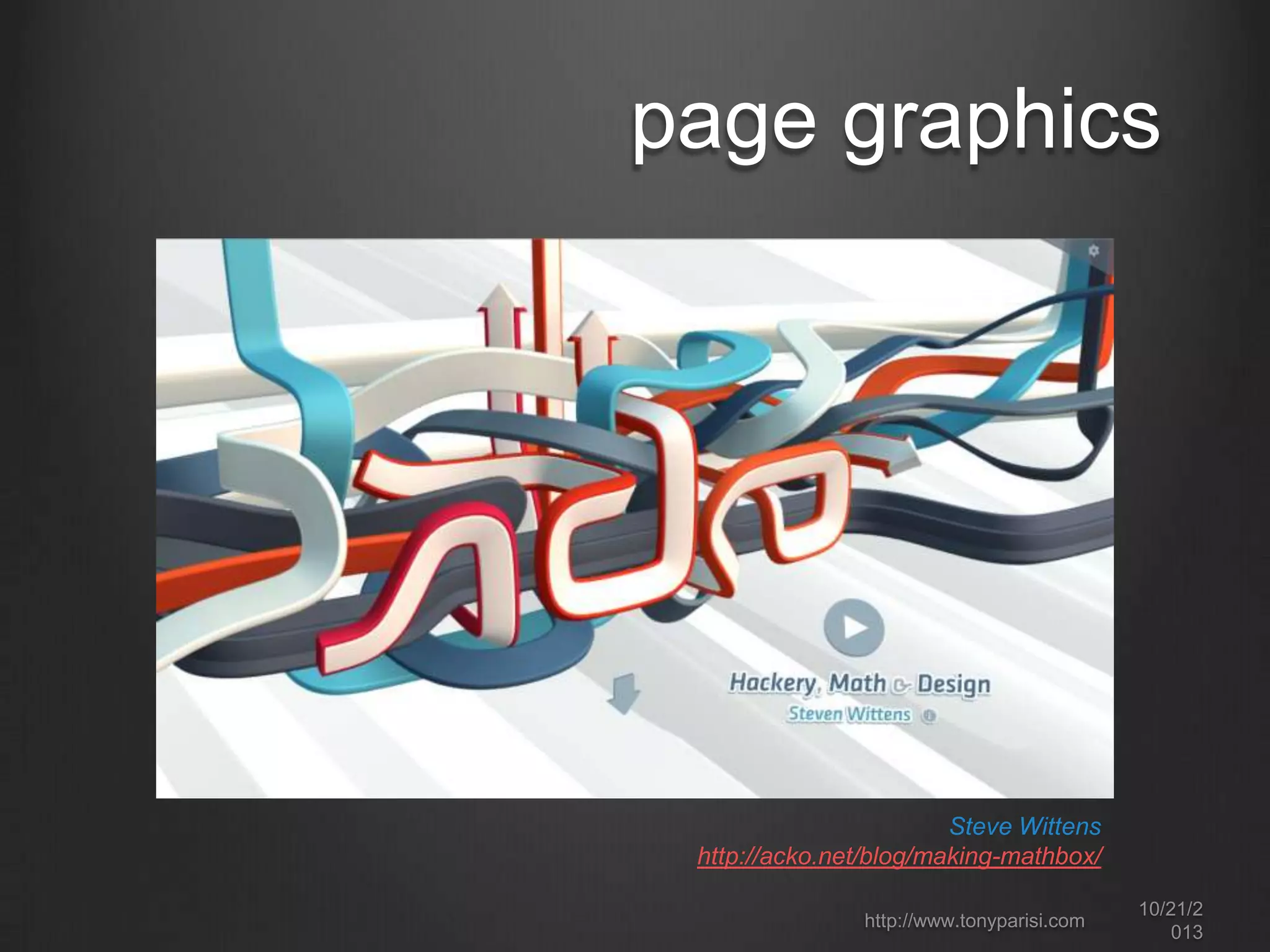

page graphics

Steve Wittens
http://acko.net/blog/making-mathbox/

10/22/2
013

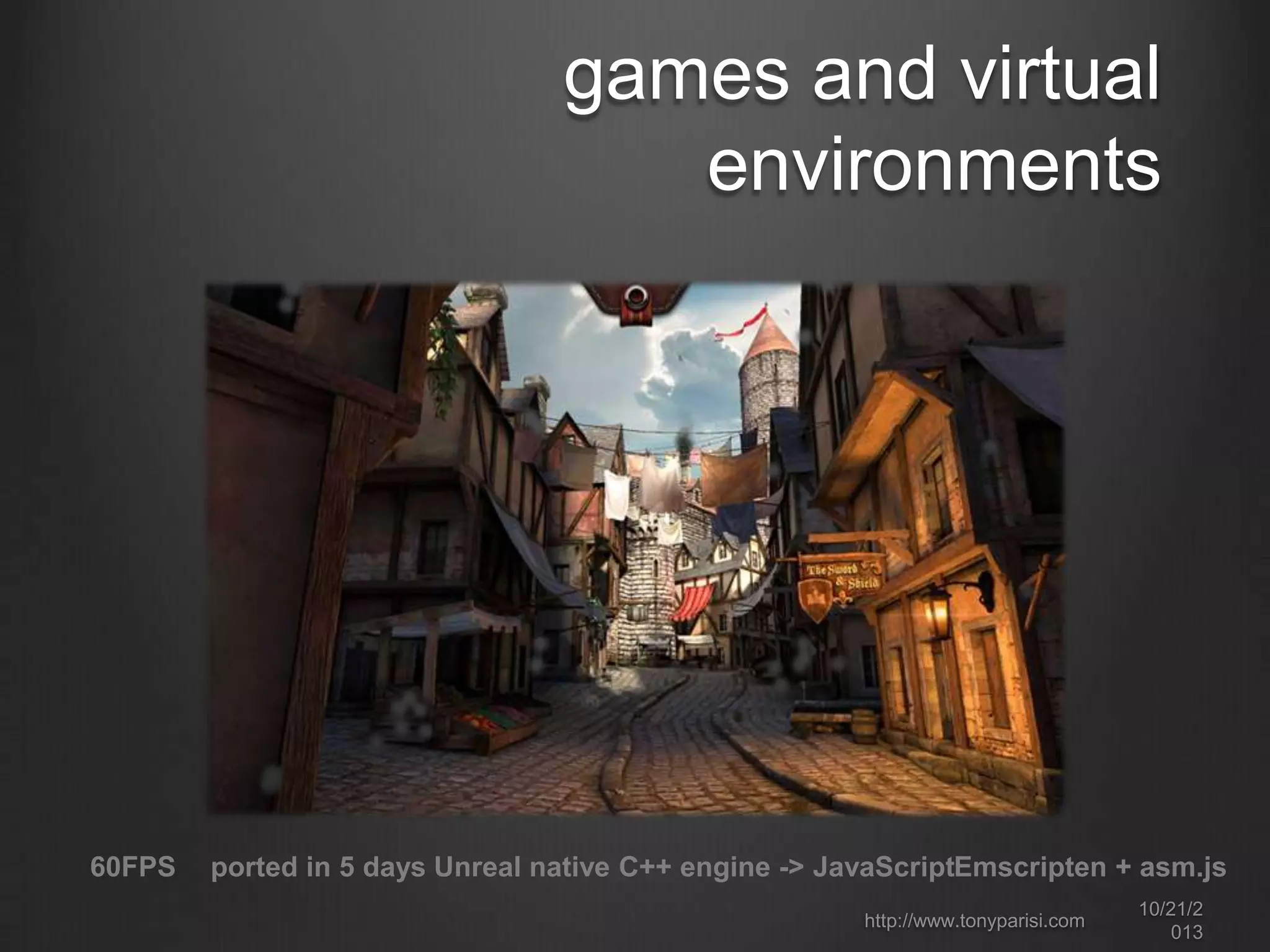

games and virtual
environments

60FPS

ported in 5 days Unreal native C++ engine -> JavaScriptEmscripten + asm.js

10/22/2
013

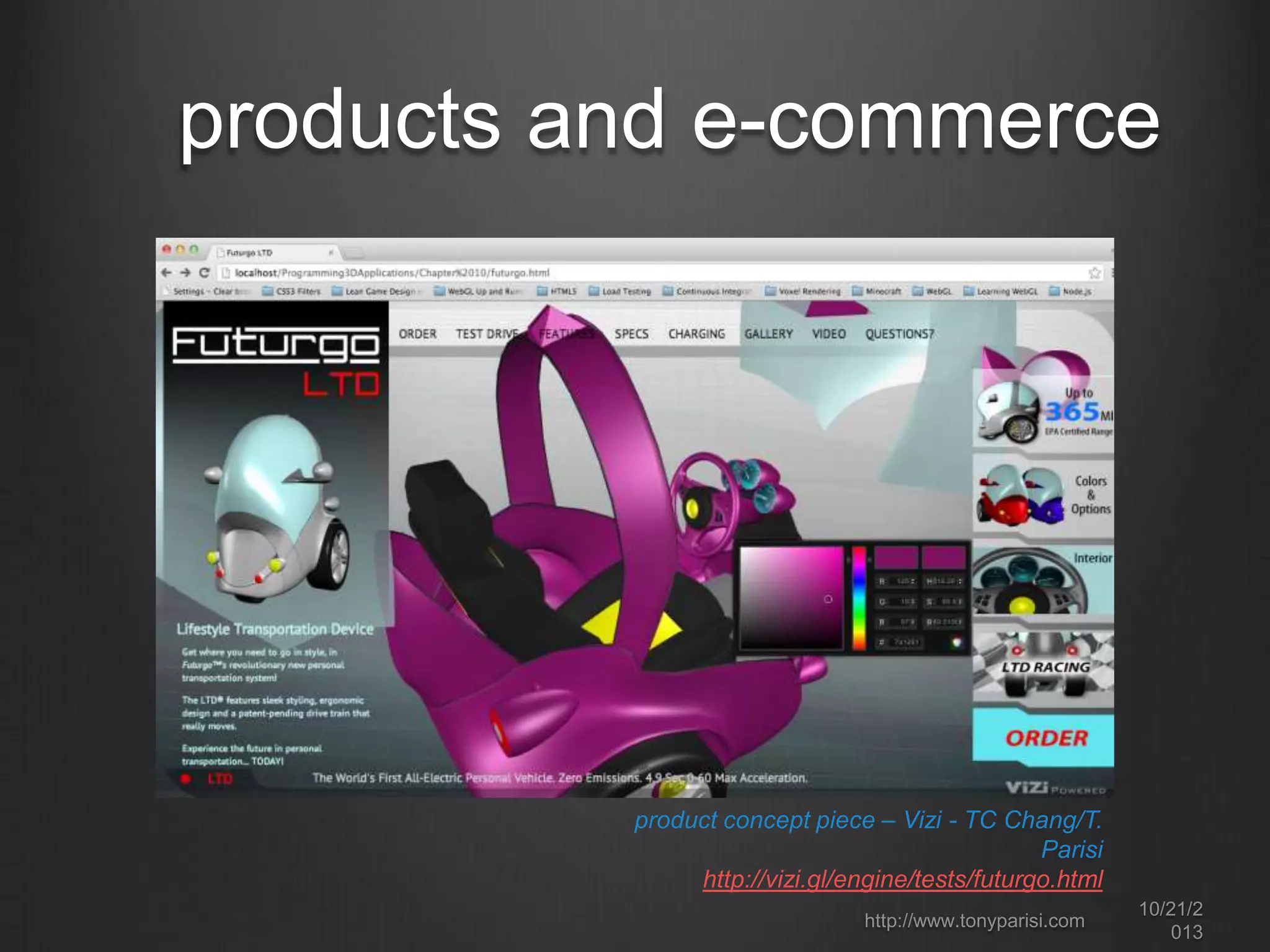

products and e-commerce

product concept piece – Vizi - TC Chang/T.
Parisi
http://vizi.gl/engine/tests/futurgo.html

10/22/2
013

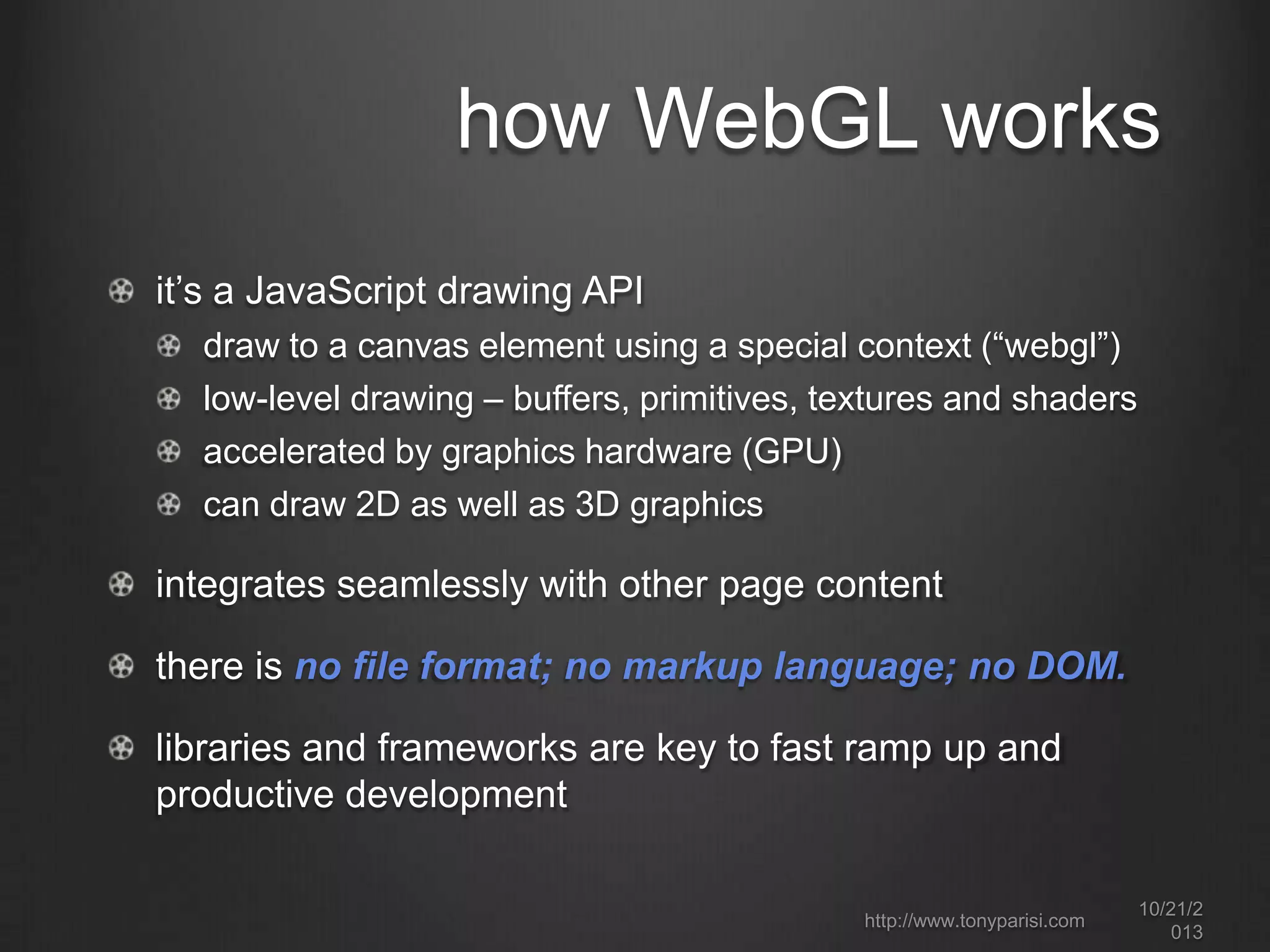

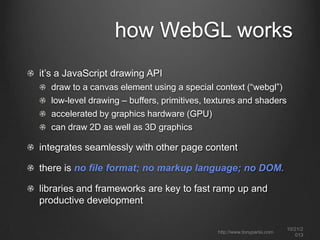

how WebGL works
it’s a JavaScript drawing API
draw to a canvas element using a special context (“webgl”)
low-level drawing – buffers, primitives, textures and shaders
accelerated by graphics hardware (GPU)
can draw 2D as well as 3D graphics

integrates seamlessly with other page content
there is no file format; no markup language; no DOM.
libraries and frameworks are key to fast ramp up and
productive development


10/22/2
013

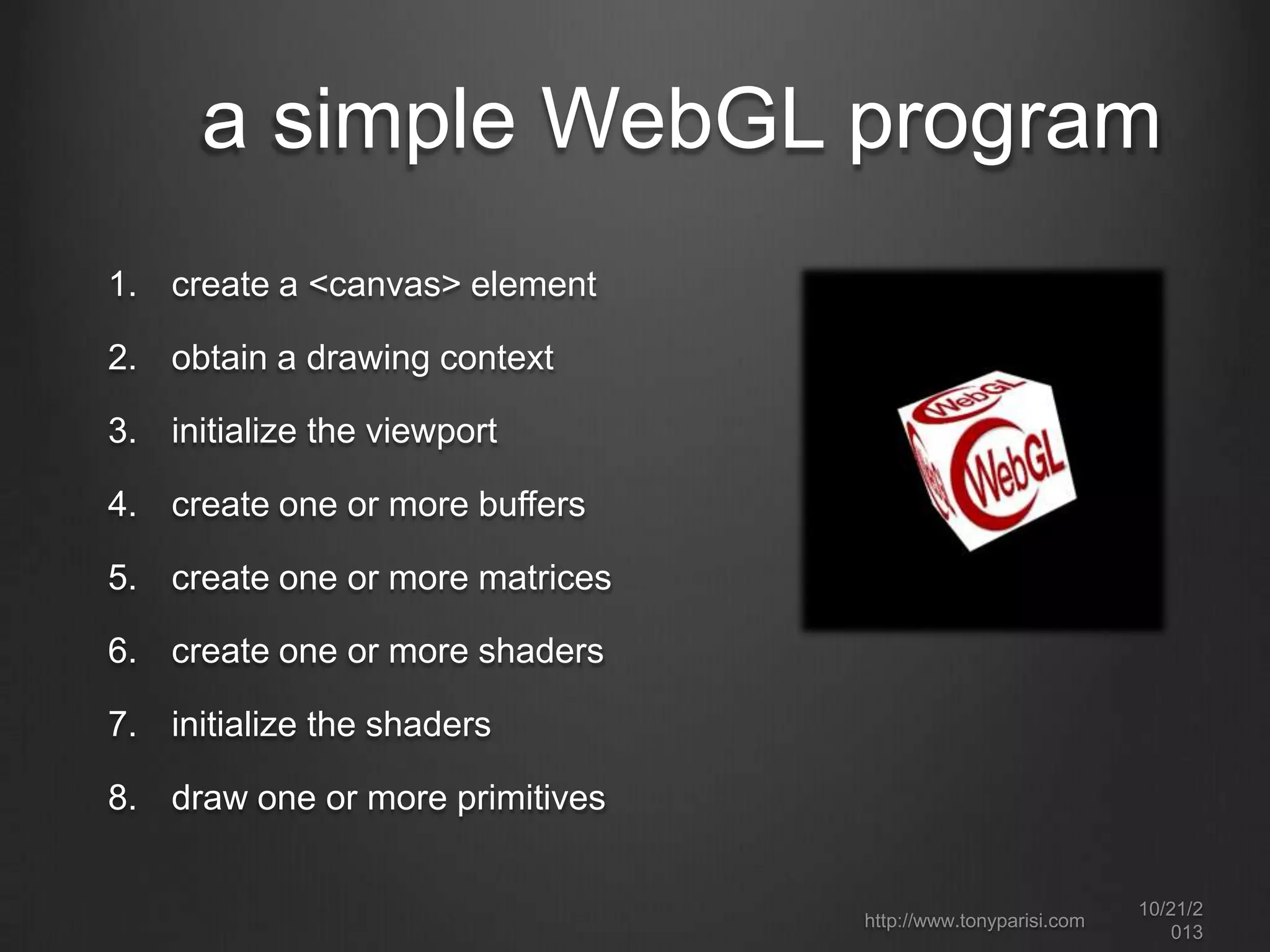

a simple WebGL program
1. create a <canvas> element
2. obtain a drawing context
3. initialize the viewport

4. create one or more buffers
5. create one or more matrices
6. create one or more shaders

7. initialize the shaders
8. draw one or more primitives


10/22/2
013

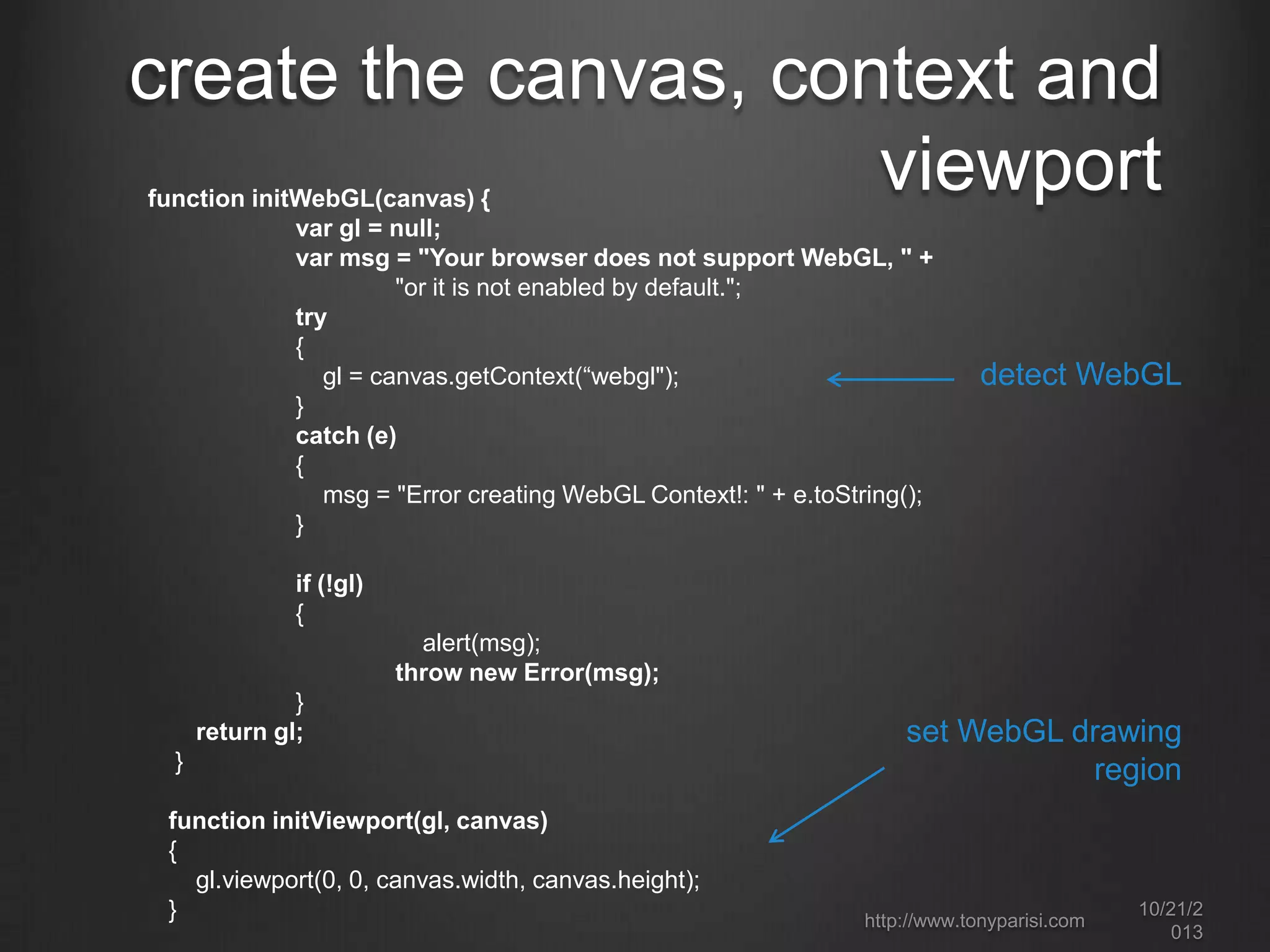

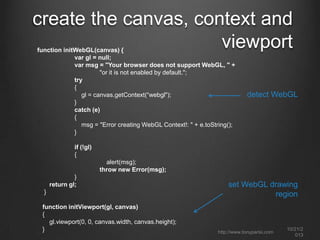

create the canvas, context and
viewport
function initWebGL(canvas) {
var gl = null;
var msg = "Your browser does not support WebGL, " +
"or it is not enabled by default.";
try
{
gl = canvas.getContext(“webgl");
}
catch (e)
{
msg = "Error creating WebGL Context!: " + e.toString();
}

detect WebGL

if (!gl)
{
alert(msg);
throw new Error(msg);
}
return gl;
}
function initViewport(gl, canvas)
{
gl.viewport(0, 0, canvas.width, canvas.height);
}

set WebGL drawing
region


10/22/2
013

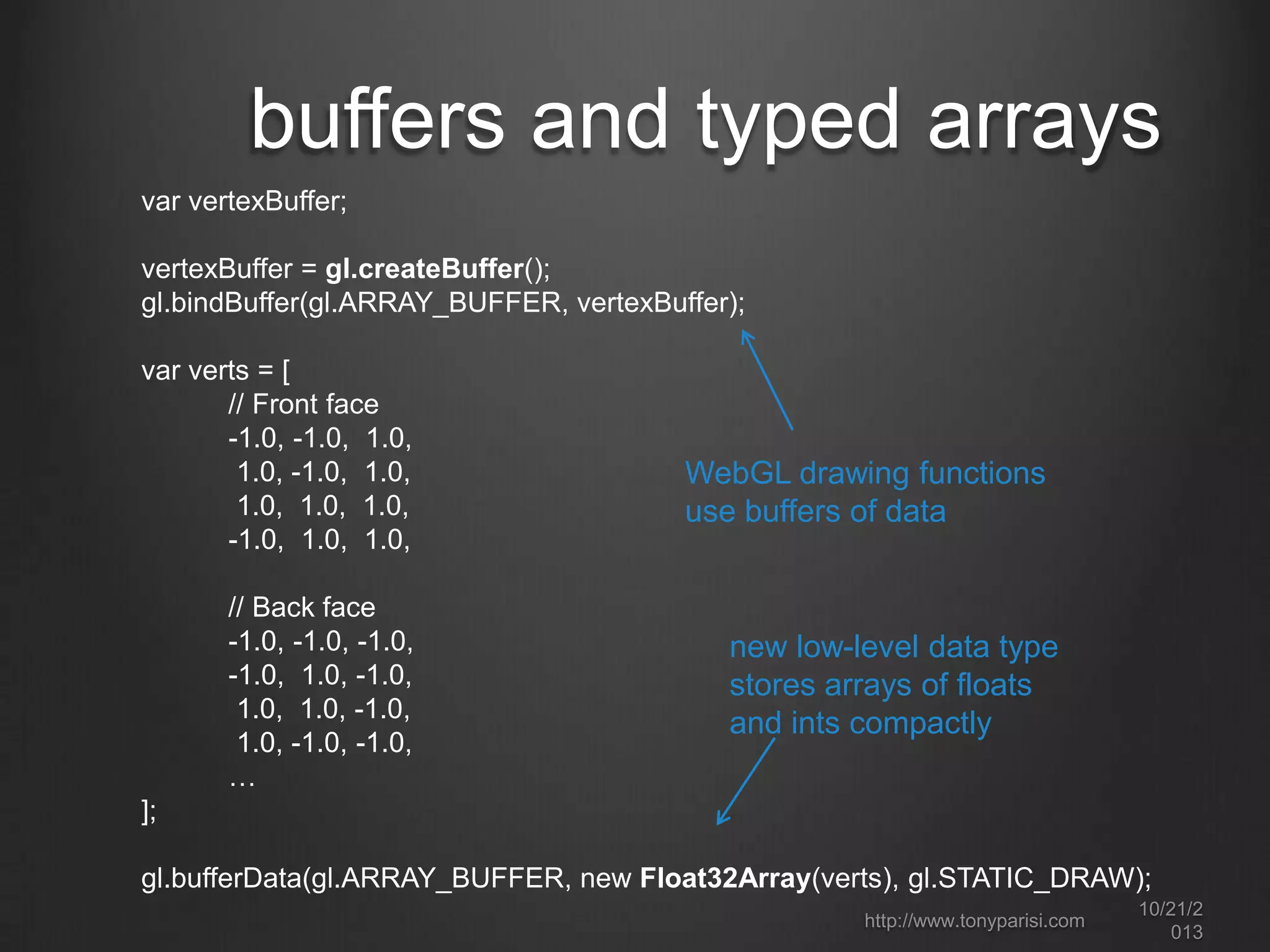

buffers and typed arrays
var vertexBuffer;
vertexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
var verts = [
// Front face
-1.0, -1.0, 1.0,
1.0, -1.0, 1.0,
1.0, 1.0, 1.0,
-1.0, 1.0, 1.0,
// Back face
-1.0, -1.0, -1.0,
-1.0, 1.0, -1.0,
1.0, 1.0, -1.0,
1.0, -1.0, -1.0,
…

WebGL drawing functions
use buffers of data

new low-level data type
stores arrays of floats
and ints compactly

];
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(verts), gl.STATIC_DRAW);

10/22/2
013

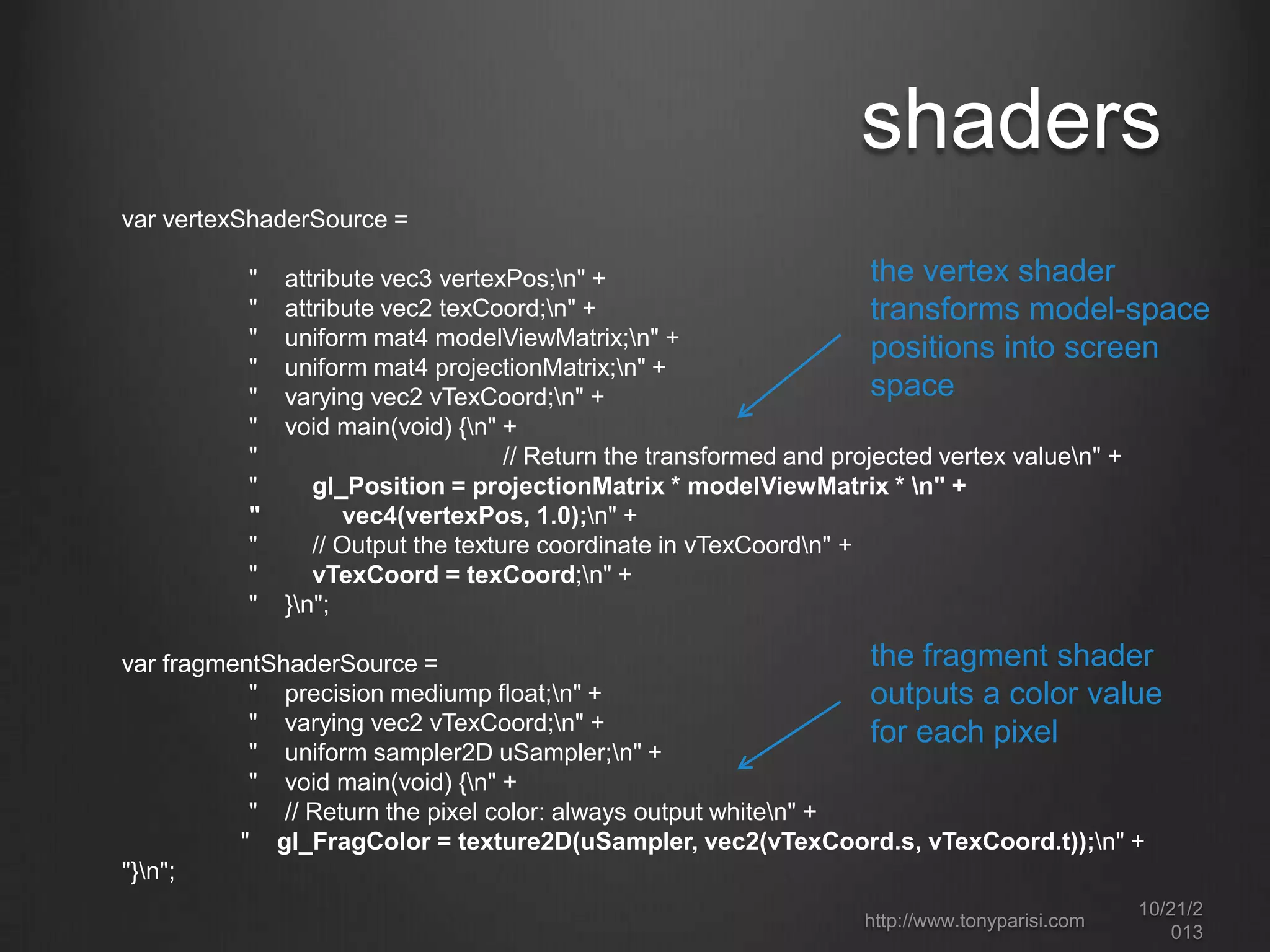

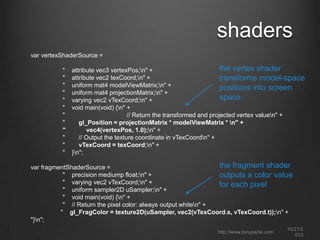

shaders
var vertexShaderSource =
"
"
"
"
"
"
"
"
"
"
"
"

the vertex shader
attribute vec3 vertexPos;n" +
attribute vec2 texCoord;n" +
transforms model-space
uniform mat4 modelViewMatrix;n" +
positions into screen
uniform mat4 projectionMatrix;n" +
space
varying vec2 vTexCoord;n" +
void main(void) {n" +
// Return the transformed and projected vertex valuen" +
gl_Position = projectionMatrix * modelViewMatrix * n" +
vec4(vertexPos, 1.0);n" +
// Output the texture coordinate in vTexCoordn" +
vTexCoord = texCoord;n" +
}n";

the fragment shader
var fragmentShaderSource =
" precision mediump float;n" +
outputs a color value
" varying vec2 vTexCoord;n" +
for each pixel
" uniform sampler2D uSampler;n" +
" void main(void) {n" +
" // Return the pixel color: always output whiten" +
" gl_FragColor = texture2D(uSampler, vec2(vTexCoord.s, vTexCoord.t));n" +
"}n";

10/22/2
013

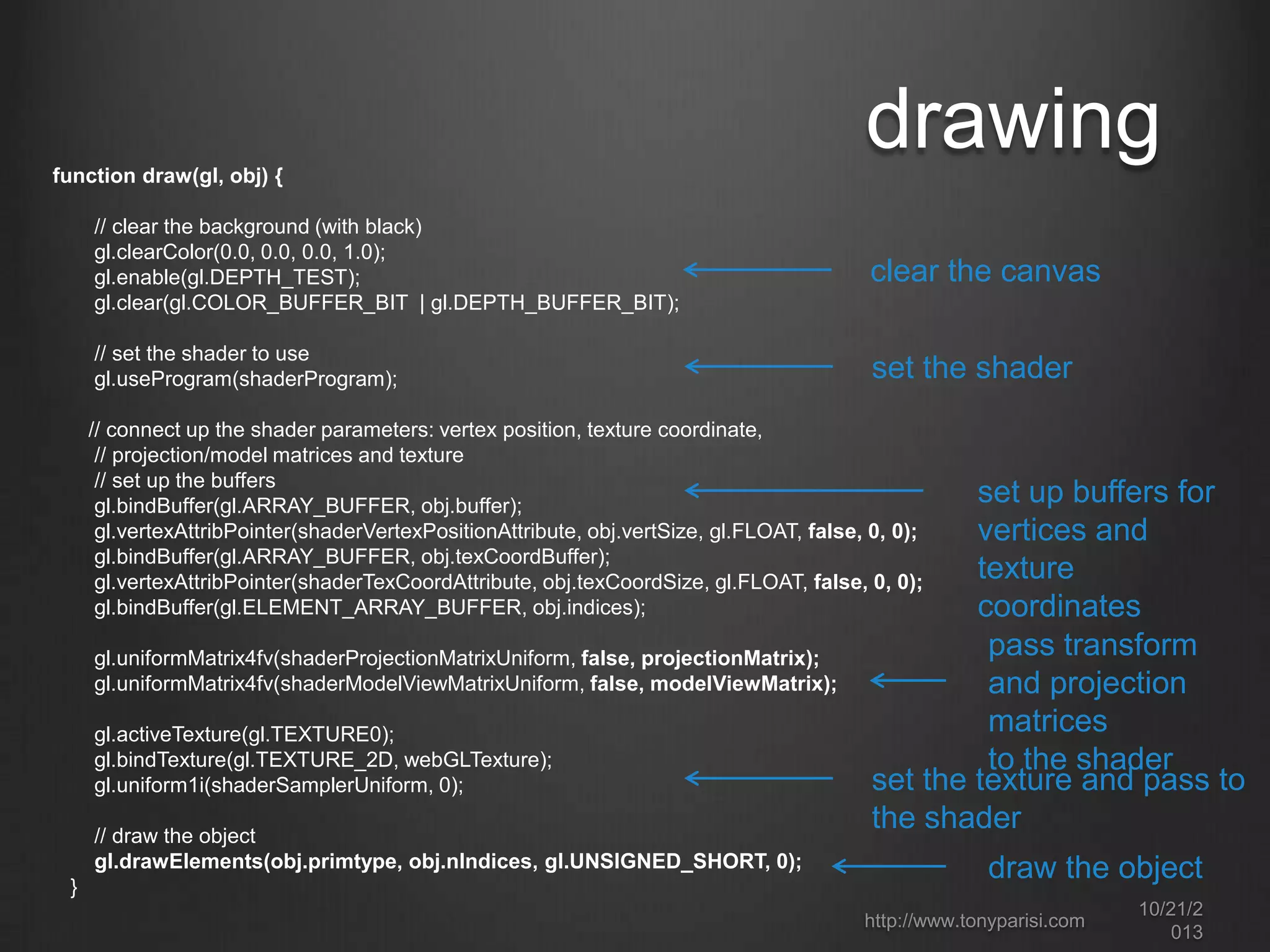

drawing
function draw(gl, obj) {
// clear the background (with black)
gl.clearColor(0.0, 0.0, 0.0, 1.0);
gl.enable(gl.DEPTH_TEST);
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);

clear the canvas

// set the shader to use
gl.useProgram(shaderProgram);

set the shader

// connect up the shader parameters: vertex position, texture coordinate,
// projection/model matrices and texture
// set up the buffers
gl.bindBuffer(gl.ARRAY_BUFFER, obj.buffer);
gl.vertexAttribPointer(shaderVertexPositionAttribute, obj.vertSize, gl.FLOAT, false, 0, 0);
gl.bindBuffer(gl.ARRAY_BUFFER, obj.texCoordBuffer);
gl.vertexAttribPointer(shaderTexCoordAttribute, obj.texCoordSize, gl.FLOAT, false, 0, 0);
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, obj.indices);
gl.uniformMatrix4fv(shaderProjectionMatrixUniform, false, projectionMatrix);
gl.uniformMatrix4fv(shaderModelViewMatrixUniform, false, modelViewMatrix);
gl.activeTexture(gl.TEXTURE0);
gl.bindTexture(gl.TEXTURE_2D, webGLTexture);
gl.uniform1i(shaderSamplerUniform, 0);
// draw the object
gl.drawElements(obj.primtype, obj.nIndices, gl.UNSIGNED_SHORT, 0);
}

set up buffers for
vertices and
texture
coordinates
pass transform
and projection
matrices
to the shader
set the texture and pass to
the shader
draw the object


10/22/2
013

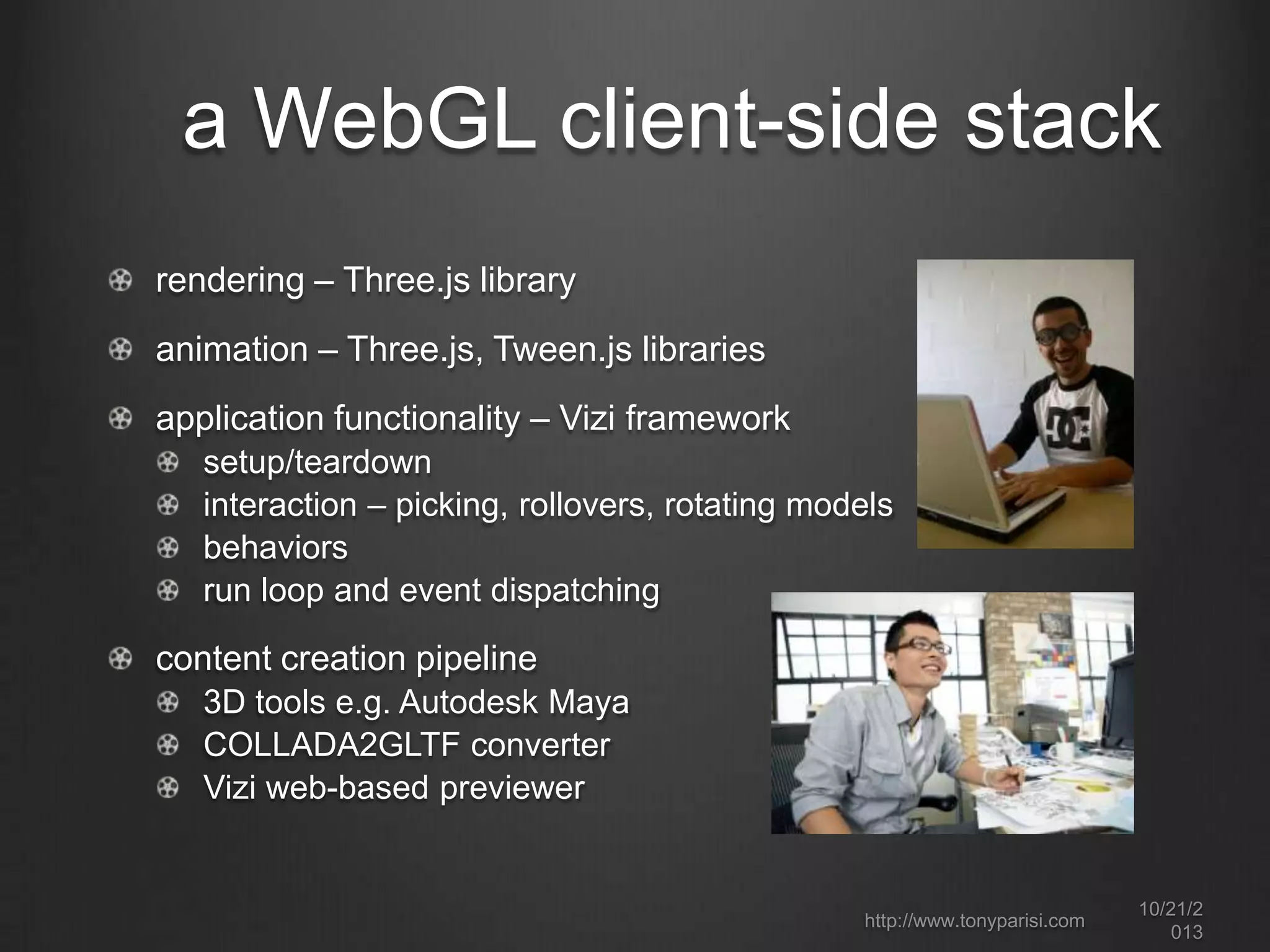

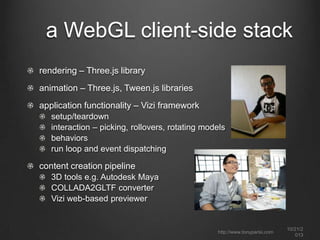

a WebGL client-side stack
rendering – Three.js library
animation – Three.js, Tween.js libraries
application functionality – Vizi framework
setup/teardown
interaction – picking, rollovers, rotating models
behaviors
run loop and event dispatching

content creation pipeline
3D tools e.g. Autodesk Maya
COLLADA2GLTF converter
Vizi web-based previewer


10/22/2
013

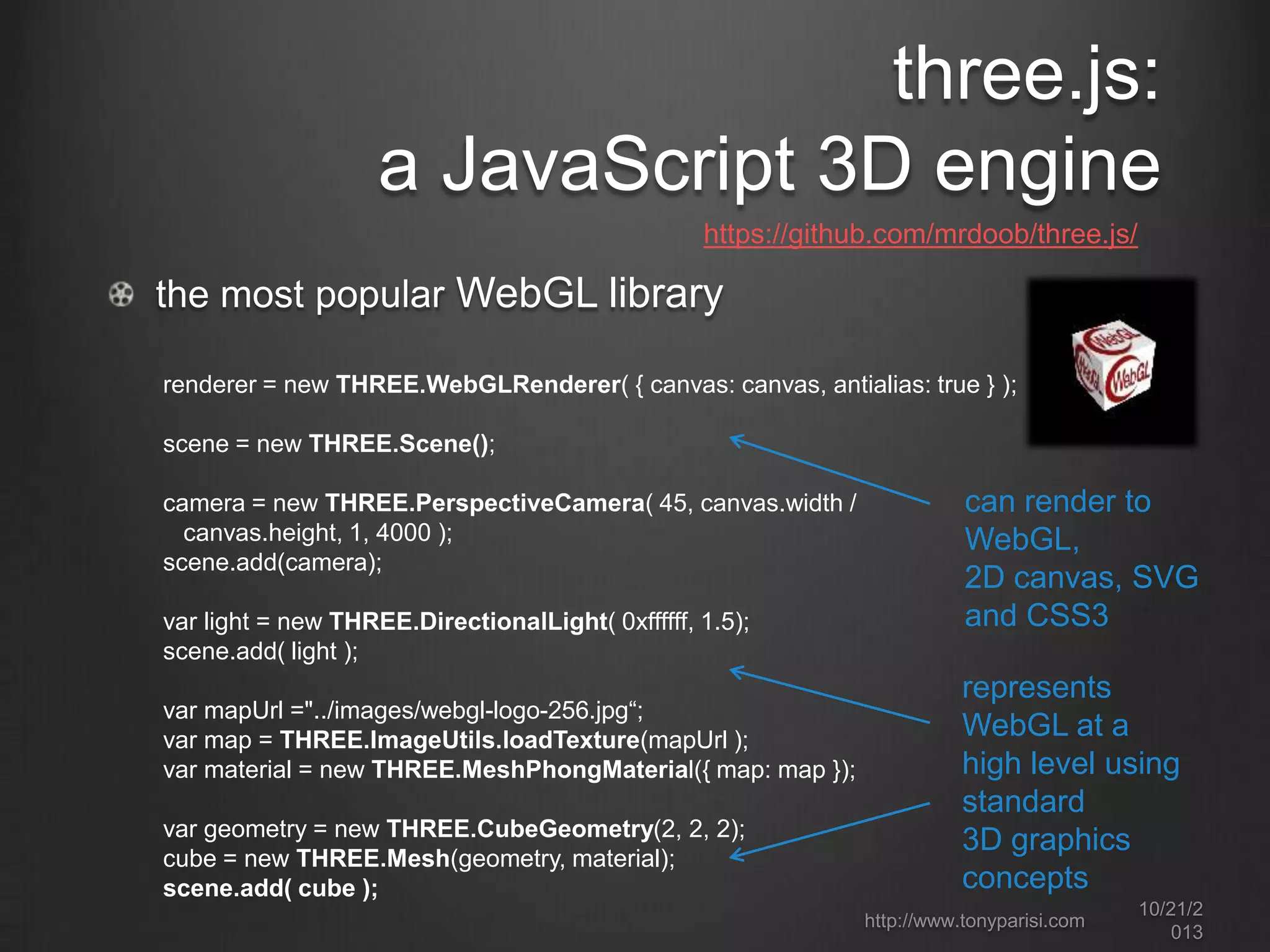

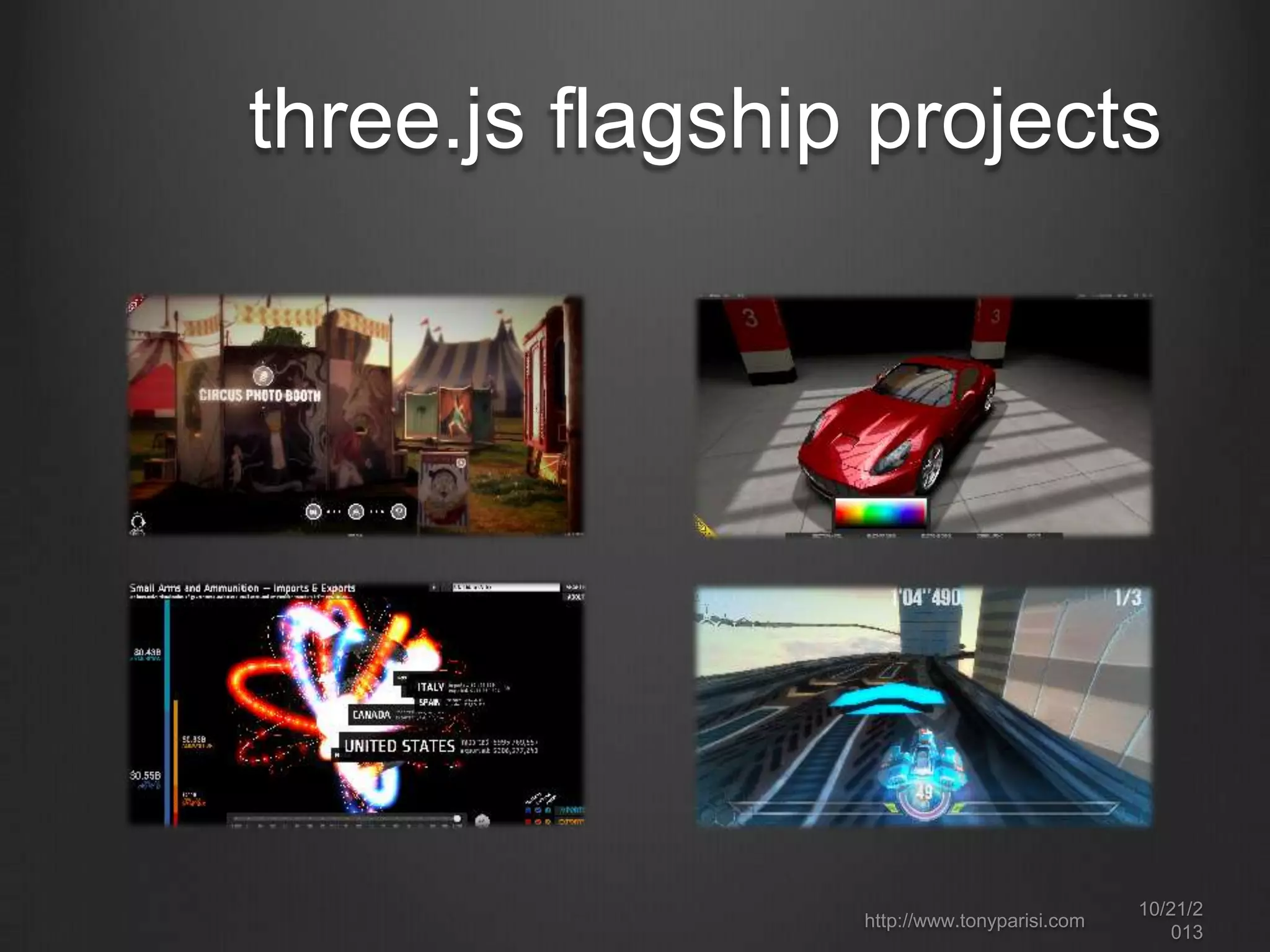

three.js:
a JavaScript 3D engine
https://github.com/mrdoob/three.js/

the most popular WebGL library
renderer = new THREE.WebGLRenderer( { canvas: canvas, antialias: true } );
scene = new THREE.Scene();
camera = new THREE.PerspectiveCamera( 45, canvas.width /
canvas.height, 1, 4000 );
scene.add(camera);
var light = new THREE.DirectionalLight( 0xffffff, 1.5);
scene.add( light );
var mapUrl ="../images/webgl-logo-256.jpg“;
var map = THREE.ImageUtils.loadTexture(mapUrl );
var material = new THREE.MeshPhongMaterial({ map: map });
var geometry = new THREE.CubeGeometry(2, 2, 2);
cube = new THREE.Mesh(geometry, material);
scene.add( cube );

can render to
WebGL,
2D canvas, SVG
and CSS3
represents
WebGL at a
high level using
standard
3D graphics
concepts

10/22/2
013

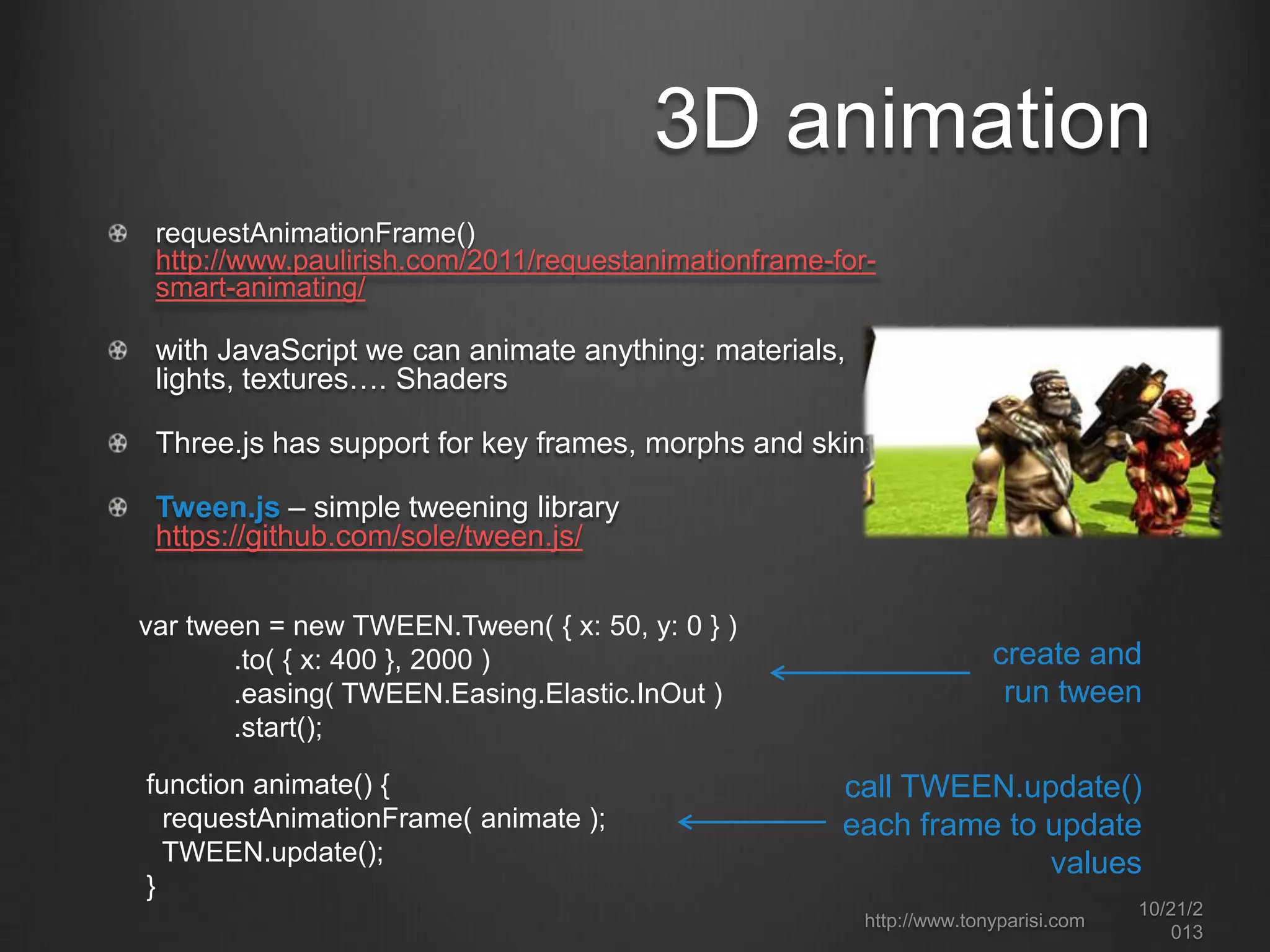

3D animation
requestAnimationFrame()
http://www.paulirish.com/2011/requestanimationframe-forsmart-animating/

with JavaScript we can animate anything: materials,
lights, textures…. Shaders
Three.js has support for key frames, morphs and skins

Tween.js – simple tweening library
https://github.com/sole/tween.js/
var tween = new TWEEN.Tween( { x: 50, y: 0 } )
.to( { x: 400 }, 2000 )
.easing( TWEEN.Easing.Elastic.InOut )
.start();
function animate() {
requestAnimationFrame( animate );
TWEEN.update();
}

create and
run tween
call TWEEN.update()
each frame to update
values

10/22/2
013

creating the car (site) of the future


10/22/2
013

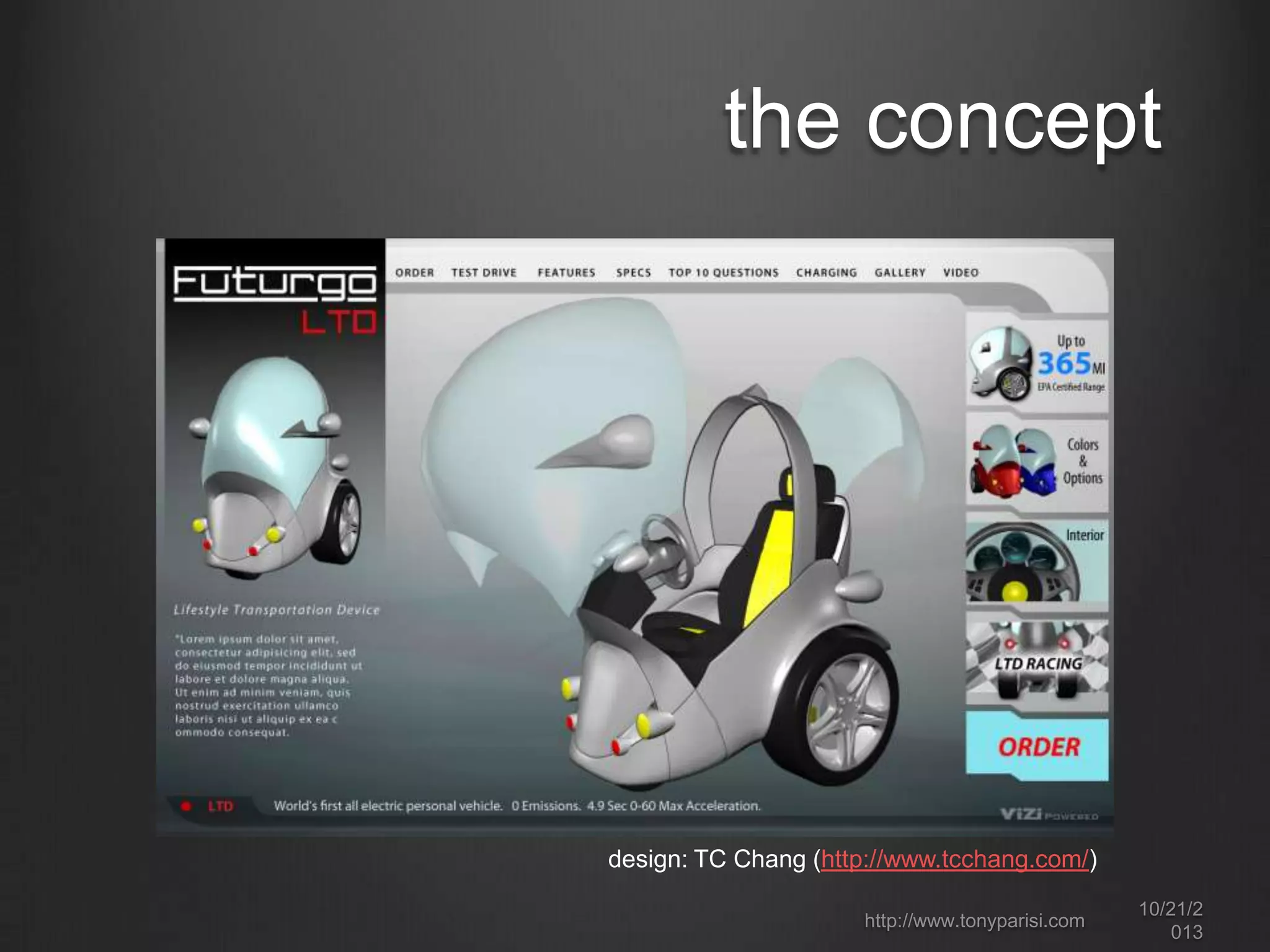

the concept

design: TC Chang (http://www.tcchang.com/)

10/22/2
013

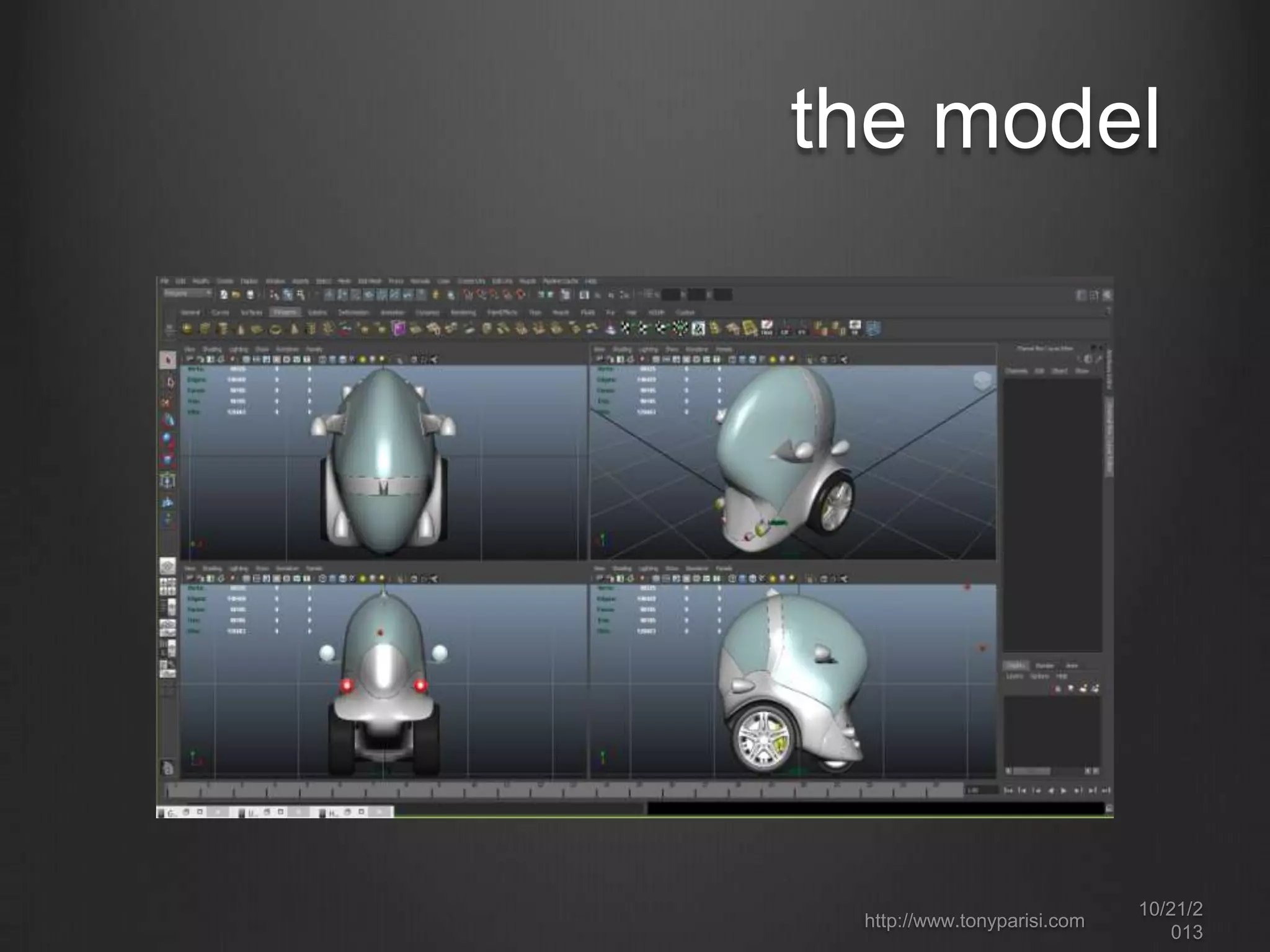

the model


10/22/2
013

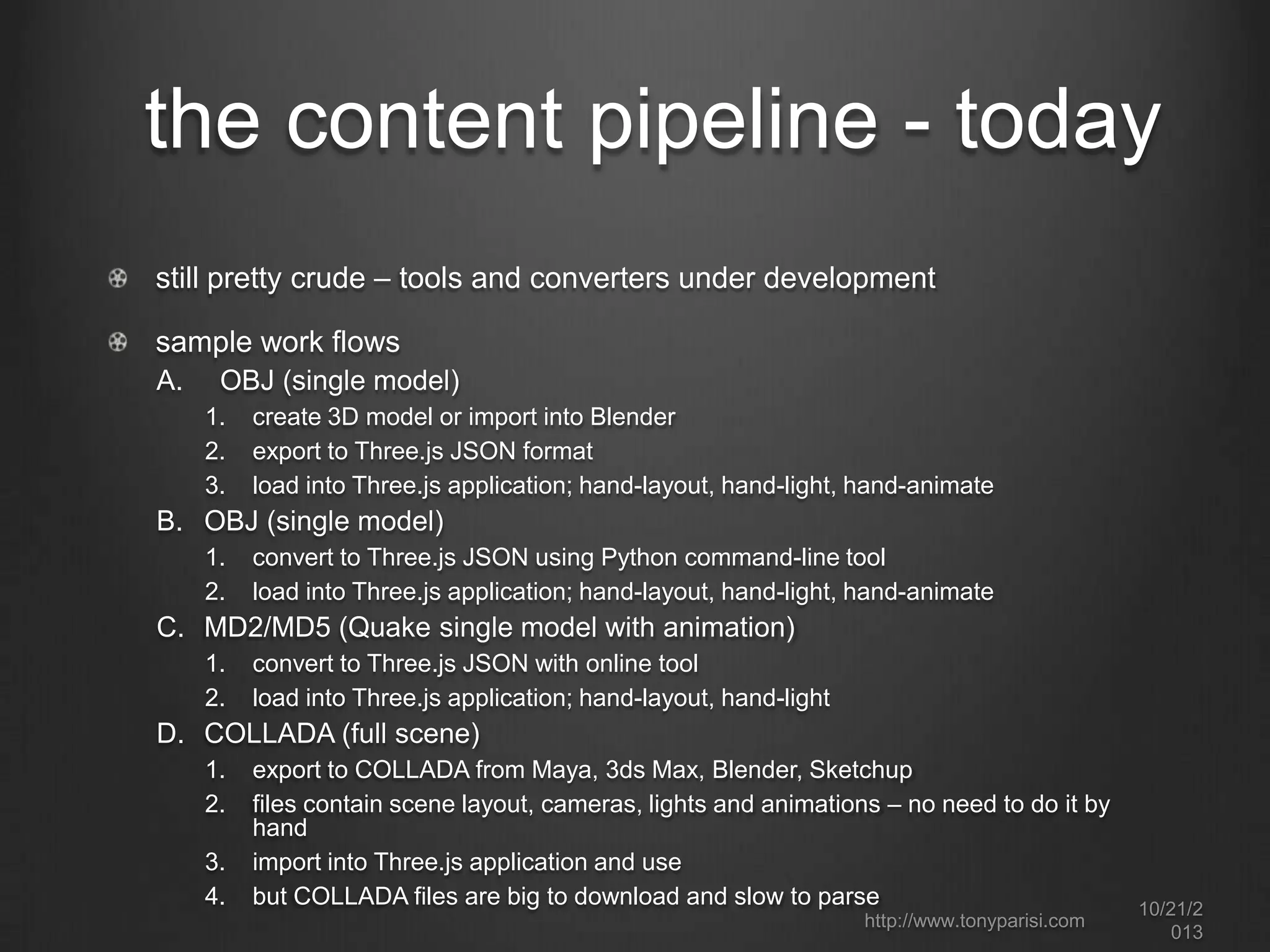

the content pipeline - today
still pretty crude – tools and converters under development
sample work flows
A.

OBJ (single model)
1.
2.
3.

create 3D model or import into Blender
export to Three.js JSON format
load into Three.js application; hand-layout, hand-light, hand-animate

B. OBJ (single model)
1.
2.

convert to Three.js JSON using Python command-line tool
load into Three.js application; hand-layout, hand-light, hand-animate

C. MD2/MD5 (Quake single model with animation)
1.
2.

convert to Three.js JSON with online tool
load into Three.js application; hand-layout, hand-light

D. COLLADA (full scene)
1.
2.
3.
4.

export to COLLADA from Maya, 3ds Max, Blender, Sketchup
files contain scene layout, cameras, lights and animations – no need to do it by
hand
import into Three.js application and use
but COLLADA files are big to download and slow to parse

10/22/2
013

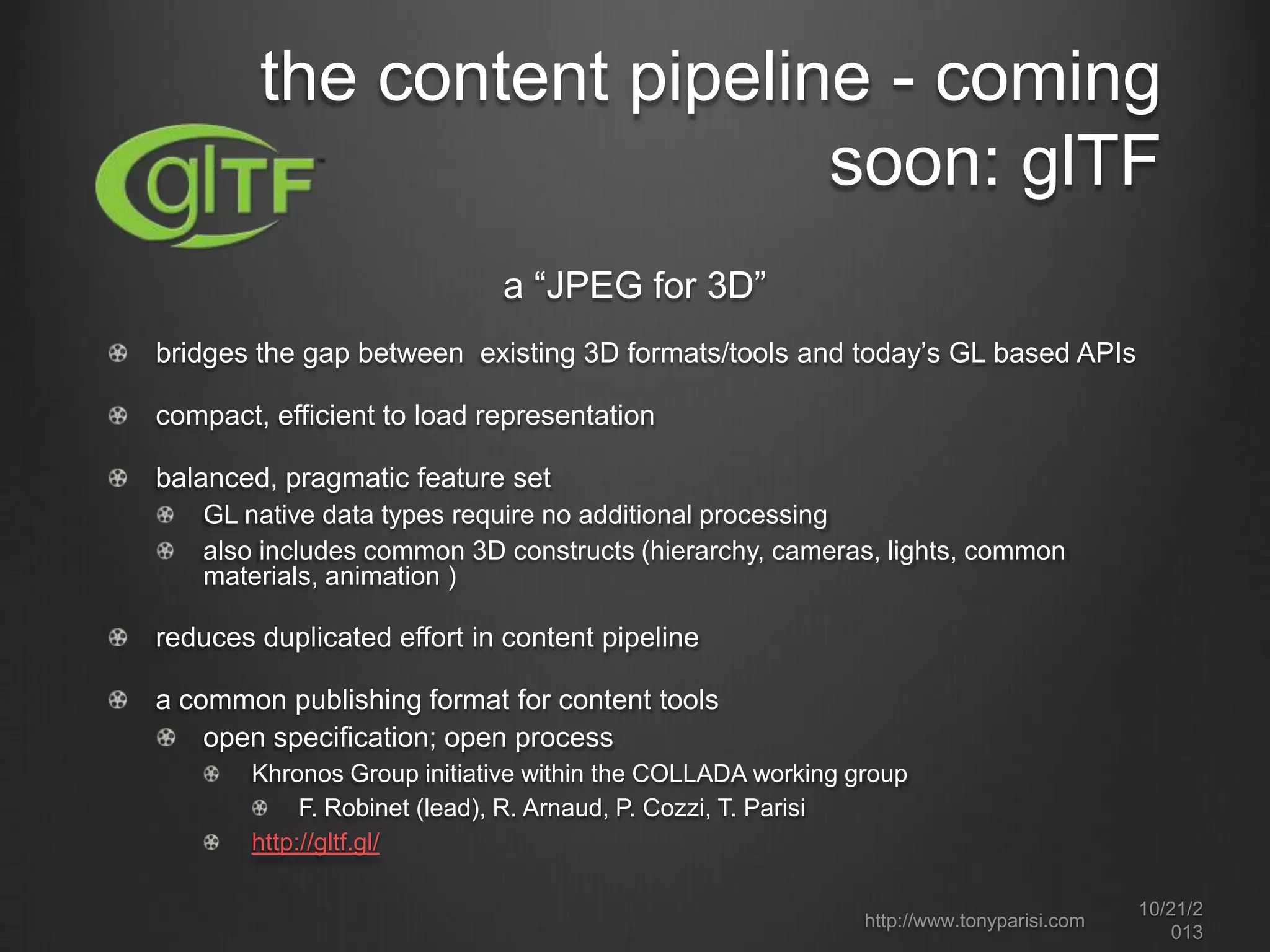

the content pipeline - coming
soon: glTF
a “JPEG for 3D”
bridges the gap between existing 3D formats/tools and today’s GL based APIs
compact, efficient to load representation
balanced, pragmatic feature set
GL native data types require no additional processing
also includes common 3D constructs (hierarchy, cameras, lights, common
materials, animation )

reduces duplicated effort in content pipeline
a common publishing format for content tools
open specification; open process
Khronos Group initiative within the COLLADA working group
F. Robinet (lead), R. Arnaud, P. Cozzi, T. Parisi
http://gltf.gl/

10/22/2
013

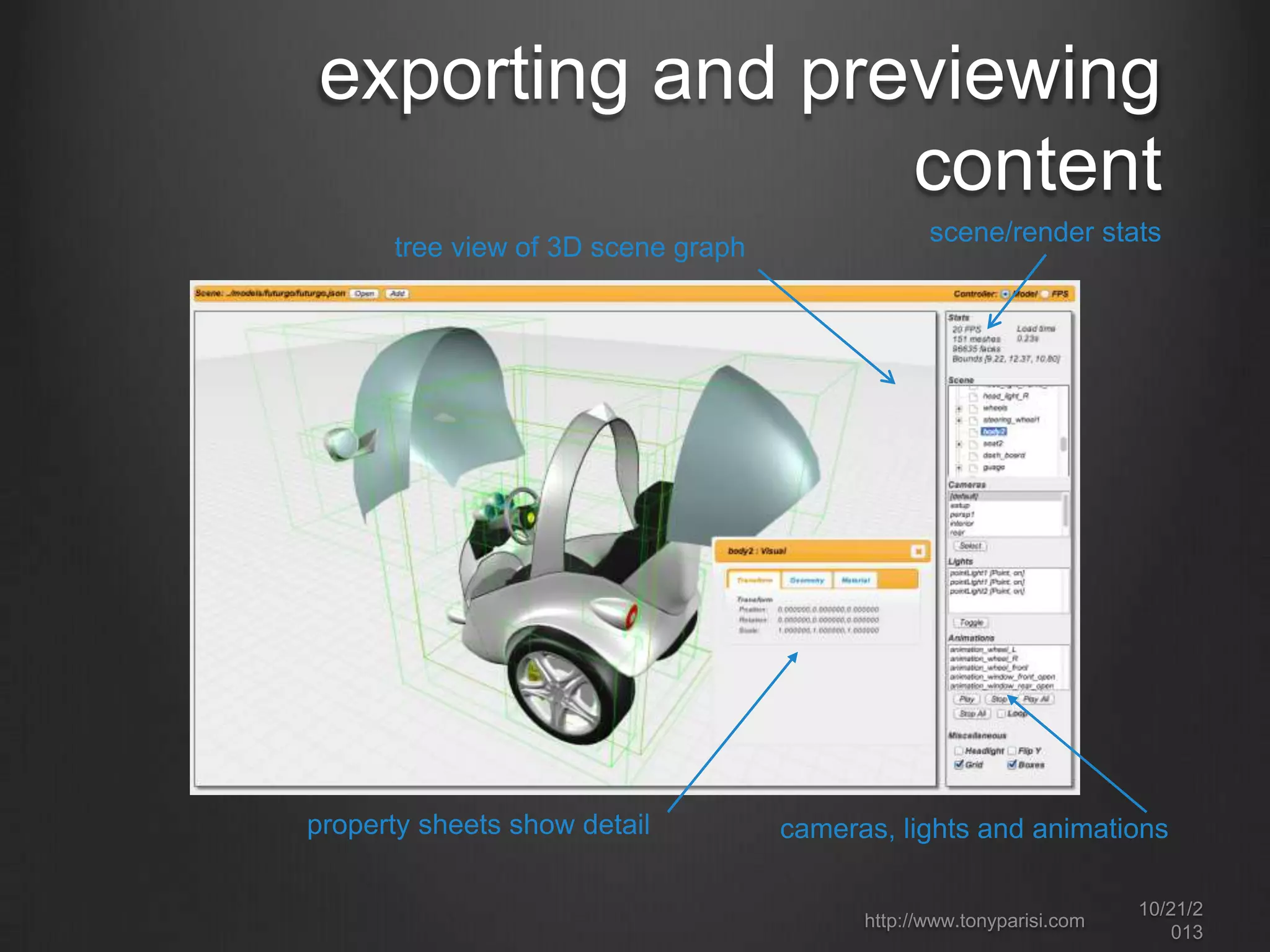

exporting and previewing
content
tree view of 3D scene graph

property sheets show detail

scene/render stats

cameras, lights and animations

10/22/2
013

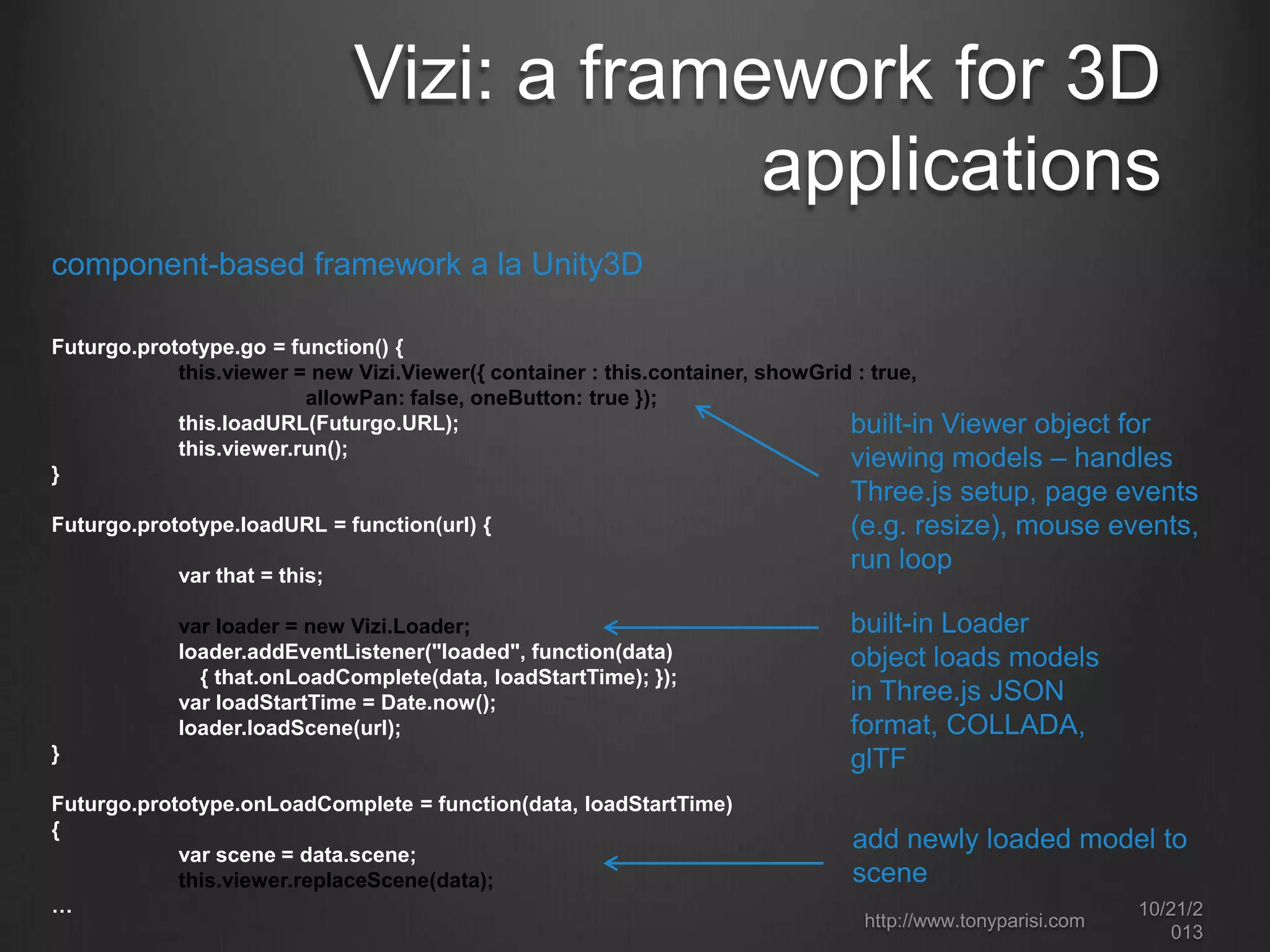

Vizi: a framework for 3D
applications
component-based framework a la Unity3D
Futurgo.prototype.go = function() {
this.viewer = new Vizi.Viewer({ container : this.container, showGrid : true,
allowPan: false, oneButton: true });
this.loadURL(Futurgo.URL);
built-in Viewer object for
this.viewer.run();
viewing models – handles
}
Futurgo.prototype.loadURL = function(url) {
var that = this;
var loader = new Vizi.Loader;
loader.addEventListener("loaded", function(data)
{ that.onLoadComplete(data, loadStartTime); });
var loadStartTime = Date.now();
loader.loadScene(url);
}
Futurgo.prototype.onLoadComplete = function(data, loadStartTime)
{
var scene = data.scene;
this.viewer.replaceScene(data);
…

Three.js setup, page events
(e.g. resize), mouse
events, run loop
built-in Loader
object loads models
in Three.js JSON
format, COLLADA,
glTF
add newly loaded model to
scene

10/22/2
013

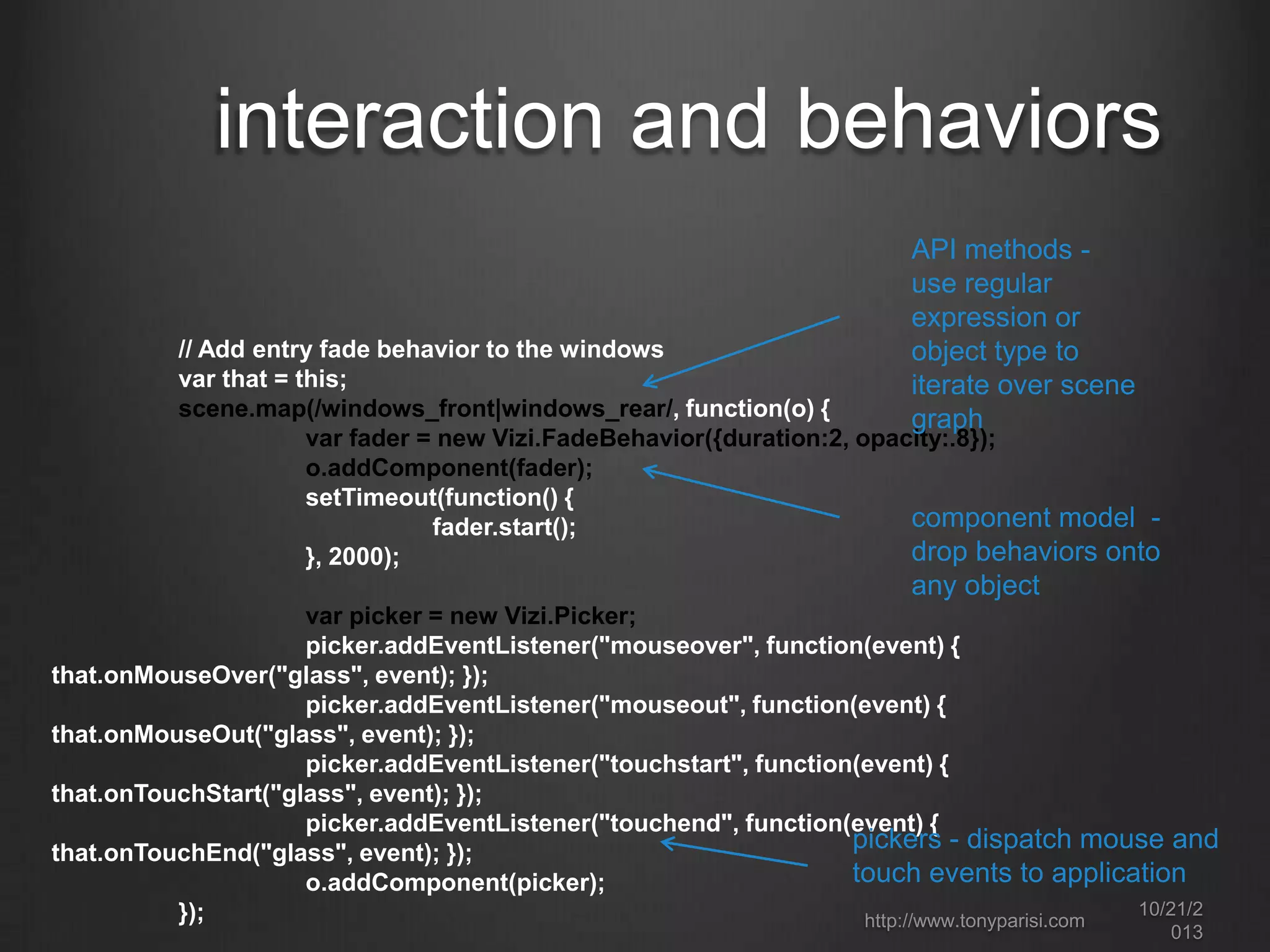

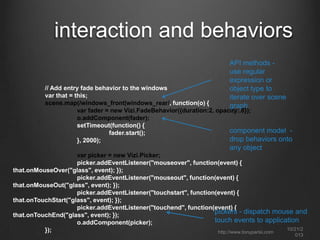

interaction and behaviors
API methods use regular
expression or
object type to
iterate over scene
graph

// Add entry fade behavior to the windows
var that = this;
scene.map(/windows_front|windows_rear/, function(o) {
var fader = new Vizi.FadeBehavior({duration:2, opacity:.8});
o.addComponent(fader);
setTimeout(function() {
component model fader.start();
drop behaviors onto
}, 2000);

any object
var picker = new Vizi.Picker;
picker.addEventListener("mouseover", function(event) {
that.onMouseOver("glass", event); });
picker.addEventListener("mouseout", function(event) {
that.onMouseOut("glass", event); });
picker.addEventListener("touchstart", function(event) {
that.onTouchStart("glass", event); });
picker.addEventListener("touchend", function(event) {
pickers - dispatch mouse and
that.onTouchEnd("glass", event); });
touch events to application
o.addComponent(picker);
10/22/2
});
013

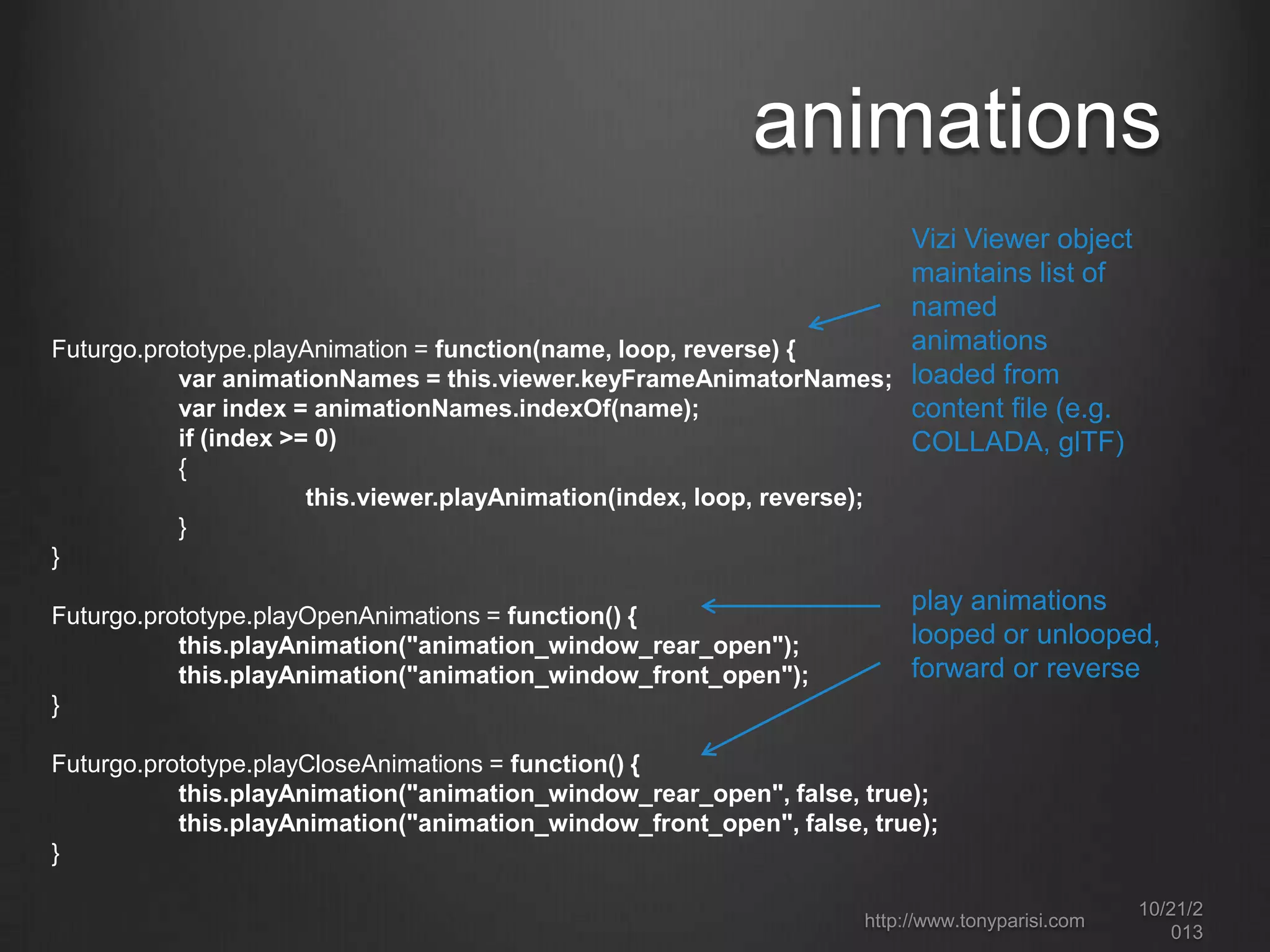

animations
Vizi Viewer object
maintains list of
named
animations
Futurgo.prototype.playAnimation = function(name, loop, reverse) {
var animationNames = this.viewer.keyFrameAnimatorNames; loaded from
var index = animationNames.indexOf(name);
content file (e.g.
if (index >= 0)
COLLADA, glTF)
{
this.viewer.playAnimation(index, loop, reverse);
}
}
Futurgo.prototype.playOpenAnimations = function() {
this.playAnimation("animation_window_rear_open");
this.playAnimation("animation_window_front_open");
}

play animations
looped or
unlooped, forward
or reverse

Futurgo.prototype.playCloseAnimations = function() {
this.playAnimation("animation_window_rear_open", false, true);
this.playAnimation("animation_window_front_open", false, true);
}

10/22/2
013

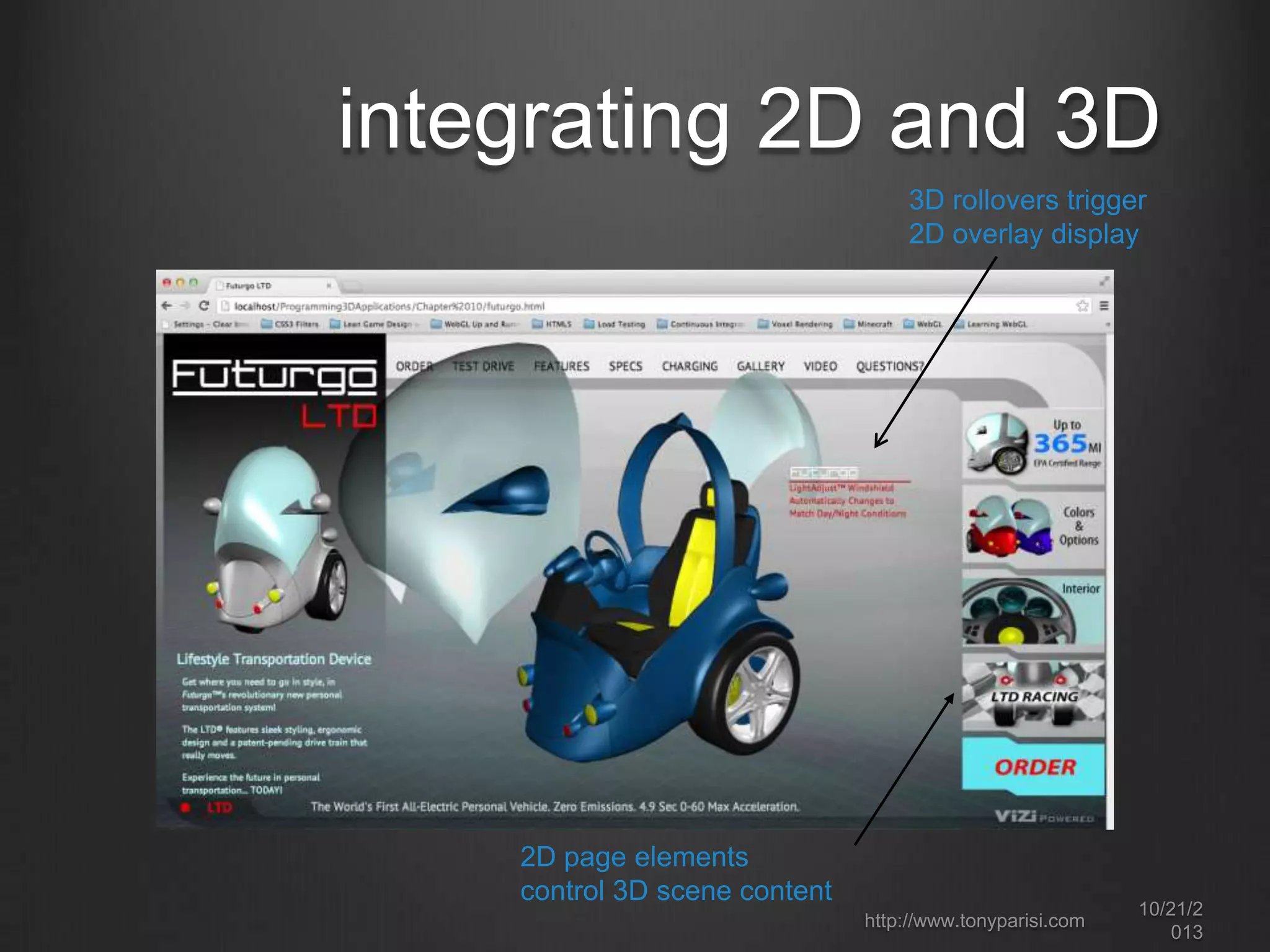

integrating 2D and 3D
3D rollovers trigger
2D overlay display

2D page elements
control 3D scene content

10/22/2
013

links
game engines/IDEs

libraries/frameworks

PlayCanvas
http://www.playcanvas.com/

Three.js

Turbulenz https://turbulenz.com/

SceneJS

Goo
Enginehttp://www.gootechnologies.c
om/

http://threejs.org/

http://scenejs.org/

BabylonJS
http://www.babylonjs.com/

Artillery Engine
https://artillery.com/

Voodoo.js
http://www.voodoojs.com/

Verold http://verold.com/
tQuery
Sketchfab https://sketchfab.com/

http://jeromeetienne.github.io/tquery/

Unreal… ?

Vizi (VERY preliminary)

http://www.extremetech.com/gaming/15190
0-unreal-engine-3-ported-to-javascript-andwebgl-works-in-any-modern-browser

https://github.com/tparisi/Vizi


10/22/2
013

stay in touch…
enjoy the show!
http://html5devconf.com/

contact information
tparisi@gmail.com
skype: auradeluxe
http://twitter.com/auradeluxe
p://www.tonyparisi.com/
http://www.learningwebgl.com/

book source code
https://github.com/tparisi/WebGLBook
https://github.com/tparisi/Programming3DApplications
htt

get the books!
WebGL: Up and Running
http://www.amazon.com/dp/144932357X
Programming 3D Applications with HTML and WebGL
http://www.amazon.com/Programming-ApplicationsHTML5-WebGL-Visualization/dp/1449362966


10/22/2
013

Developing Web Graphics with WebGL

More Related Content

What's hot

Viewers also liked

Similar to Developing Web Graphics with WebGL

More from Tony Parisi

Recently uploaded

Developing Web Graphics with WebGL
