Introduction to three.js & Leap Motion

three.js
& leap motion
An introduction & overview of 3D graphics in the browser

• 3D primer
• What is three.js
• First steps with three.js
• What is a Leap Motion Controller

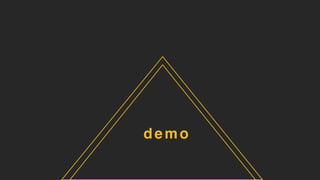

• Leap demo
• Washington Post special project review

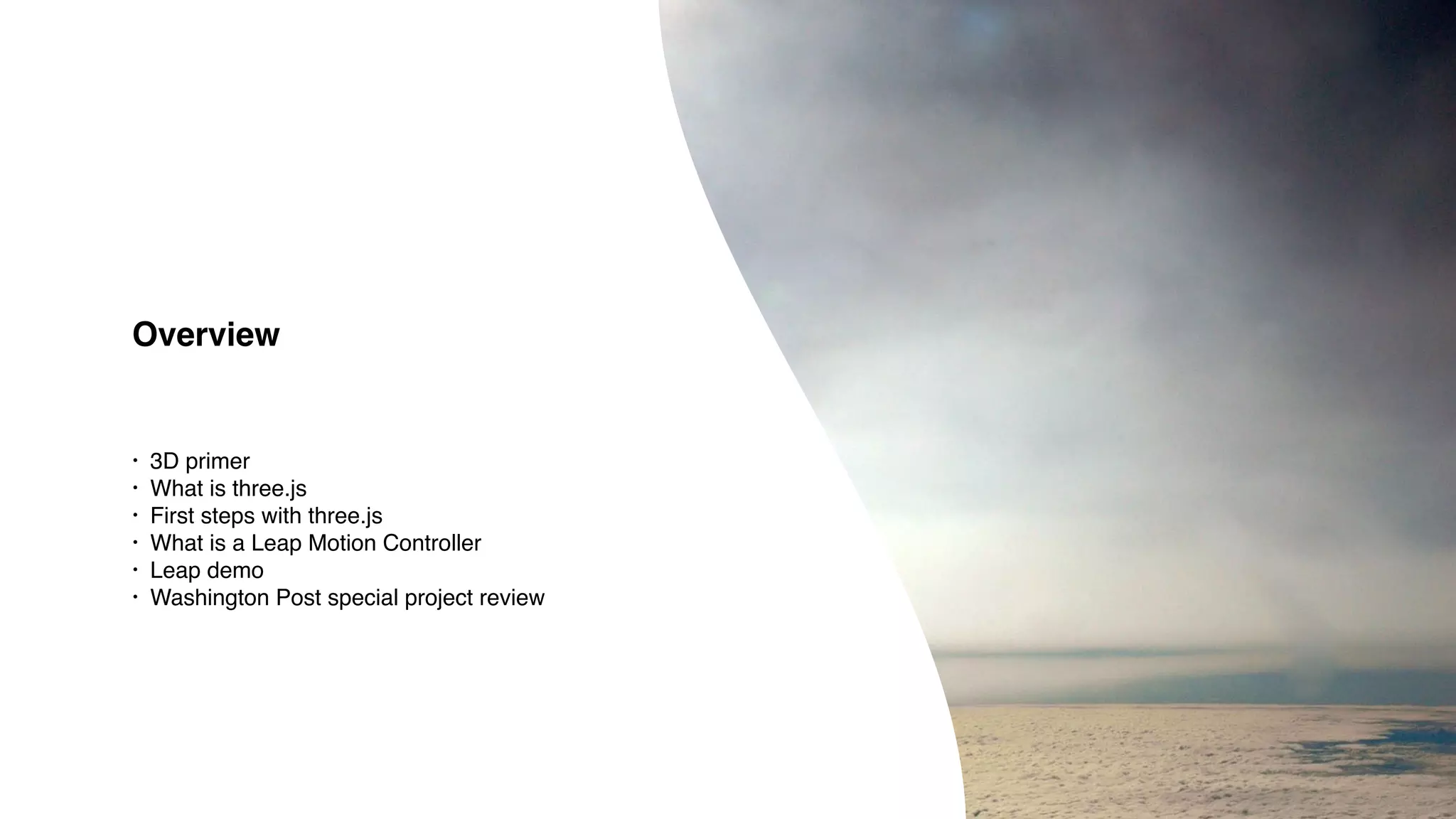

Overview

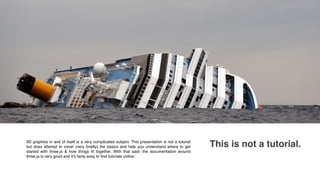

This is not a tutorial.3D graphics in and of itself is a very complicated subject. This presentation is not a tutorial
but does attempt to cover (very briefly) the basics and help you understand where to get
started with three.js & how things fit together. With that said- the documentation around
three.js is very good and it’s fairly easy to find tutorials online.

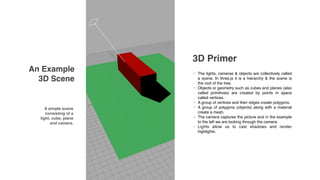

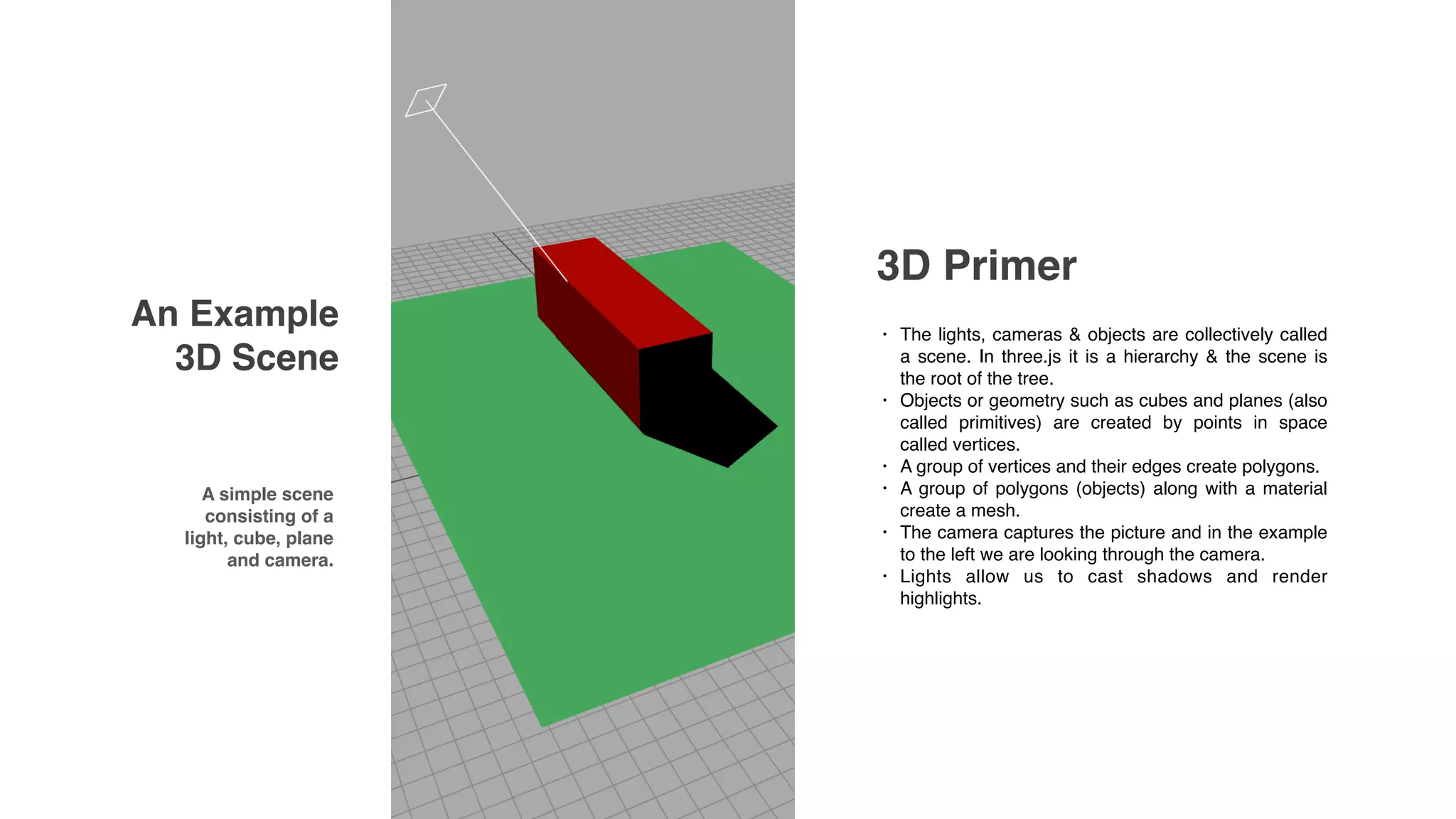

A simple scene
consisting of a
light, cube, plane
and camera.
An Example
3D Scene
3D Primer
• The lights, cameras & objects are collectively called
a scene. In three.js it is a hierarchy & the scene is
the root of the tree.
• Objects or geometry such as cubes and planes (also
called primitives) are created by points in space
called vertices.
• A group of vertices and their edges create polygons.
• A group of polygons (objects) along with a material
create a mesh.
• The camera captures the picture and in the example
to the left we are looking through the camera.
• Lights allow us to cast shadows and render
highlights.

First Steps
with
three.js
• Follow the three.js “Getting Started” section in the docs. 
https://threejs.org/docs/index.html#Manual/Introduction/Creating_a_scene
• Load a custom model instead of using geometry.
• Add a light & cast shadows.

.

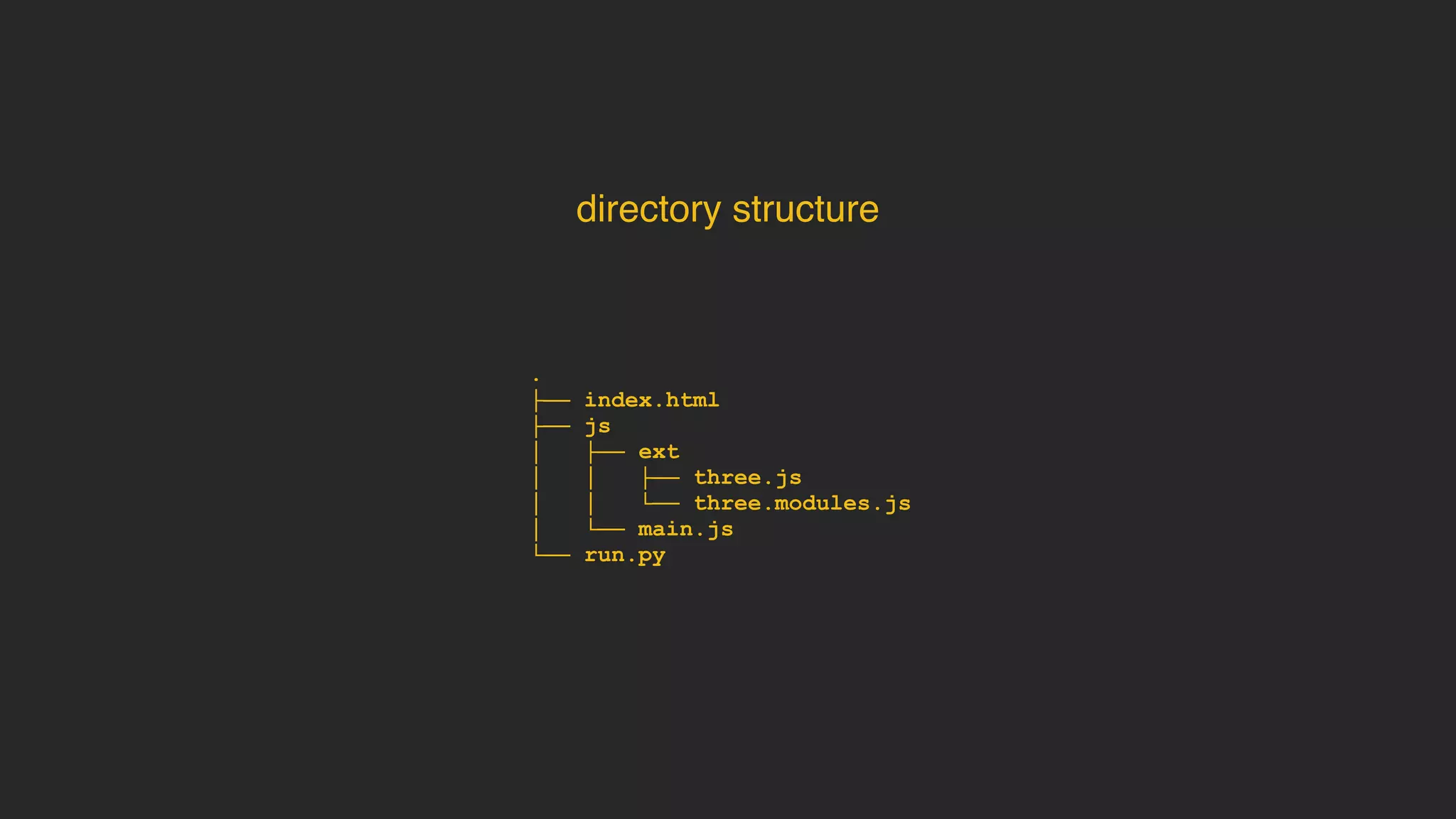

├── index.html
├── js
│ ├── ext
│ │ ├── three.js
│ │ └── three.modules.js
│ └── main.js
└── run.py

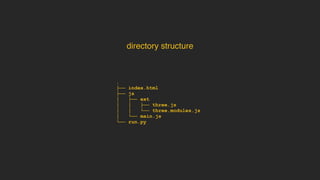

directory structure

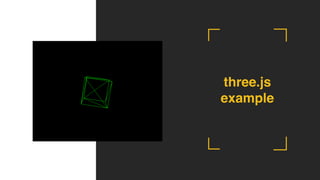

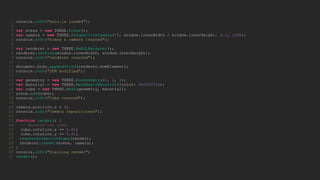

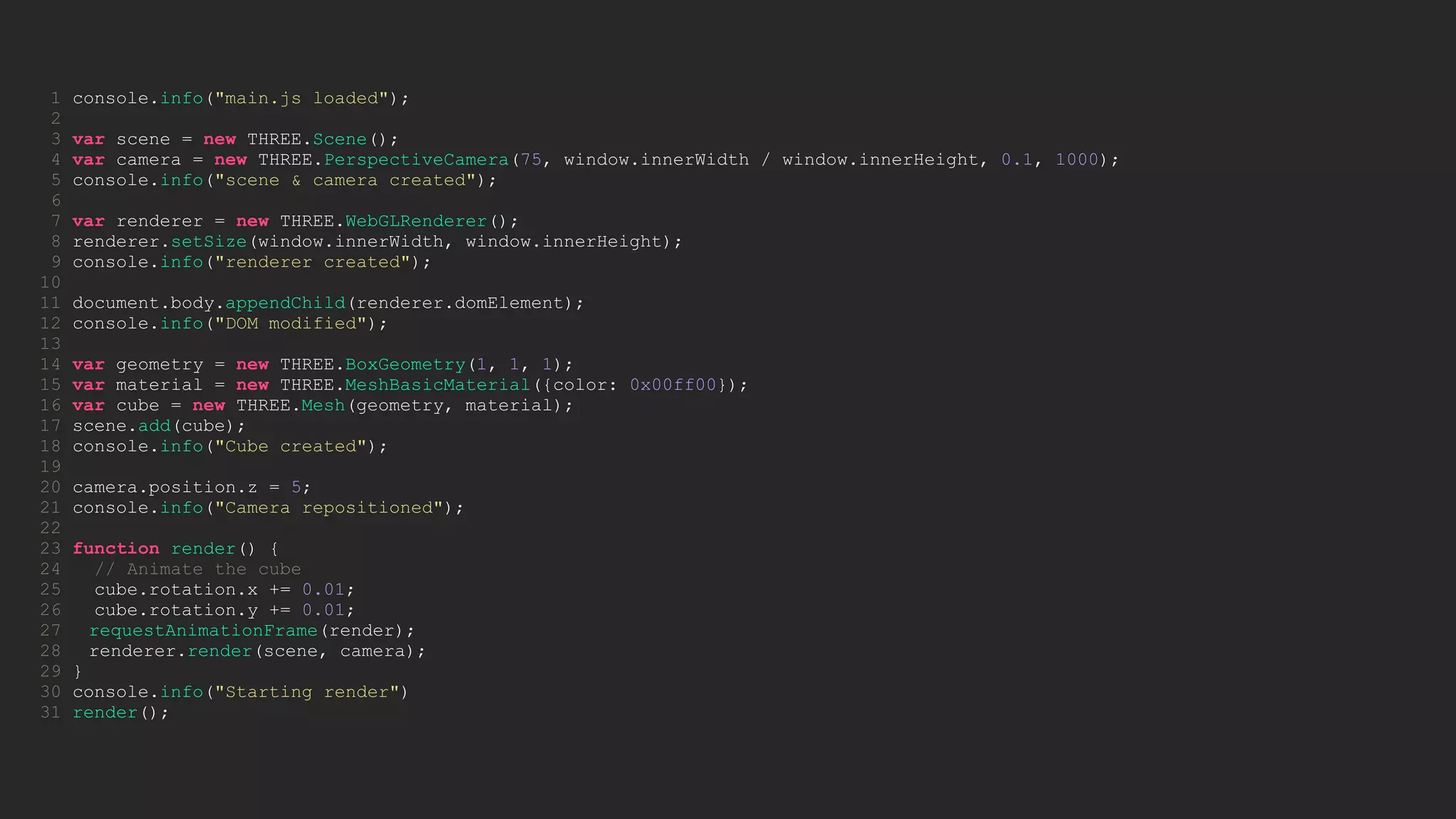

1 console.info("main.js loaded");
2
3 var scene = new THREE.Scene();
4 var camera = new THREE.PerspectiveCamera(75, window.innerWidth / window.innerHeight, 0.1, 1000);
5 console.info("scene & camera created");
6
7 var renderer = new THREE.WebGLRenderer();
8 renderer.setSize(window.innerWidth, window.innerHeight);
9 console.info("renderer created");
10
11 document.body.appendChild(renderer.domElement);
12 console.info("DOM modified");
13
14 var geometry = new THREE.BoxGeometry(1, 1, 1);
15 var material = new THREE.MeshBasicMaterial({color: 0x00ff00});
16 var cube = new THREE.Mesh(geometry, material);
17 scene.add(cube);
18 console.info("Cube created");
19
20 camera.position.z = 5;
21 console.info("Camera repositioned");
22
23 function render() {
24 // Animate the cube
25 cube.rotation.x += 0.01;
26 cube.rotation.y += 0.01;
27 requestAnimationFrame(render);
28 renderer.render(scene, camera);
29 }
30 console.info("Starting render")
31 render();

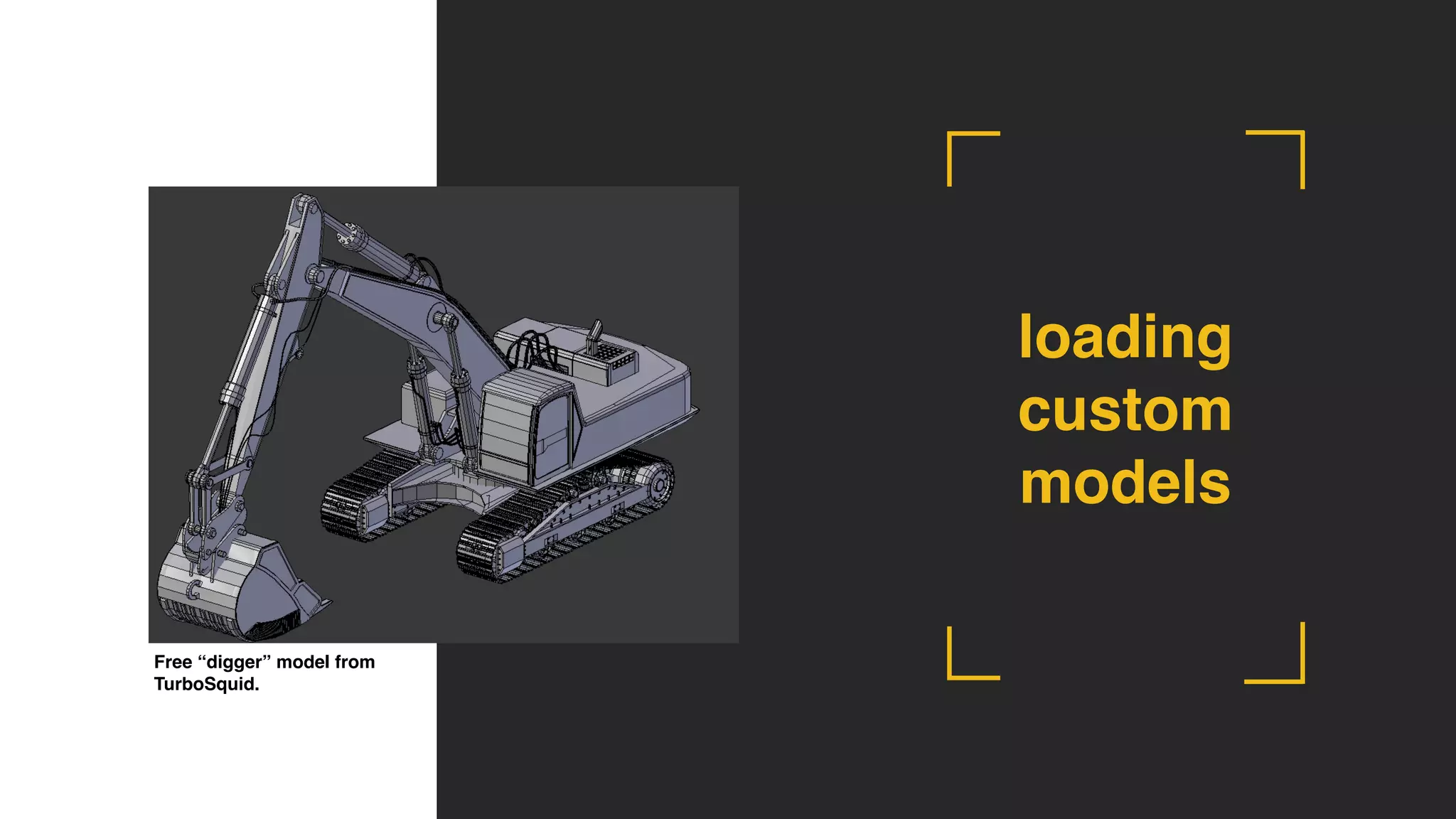

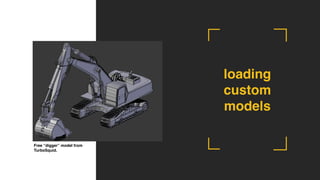

Free “digger” model from
TurboSquid.
loading
custom
models

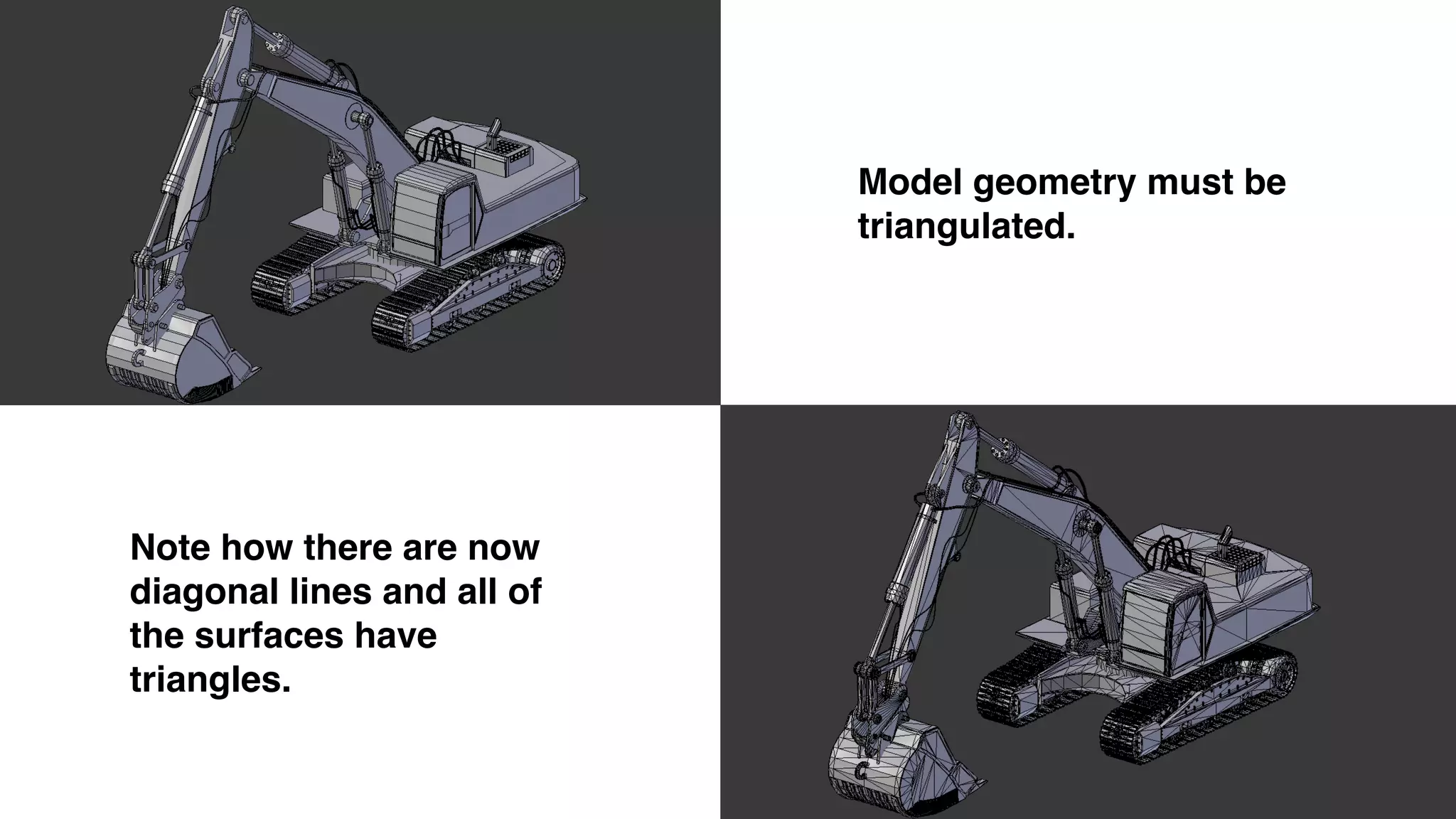

Model geometry must be
triangulated.
Note how there are now
diagonal lines and all of
the surfaces have
triangles.

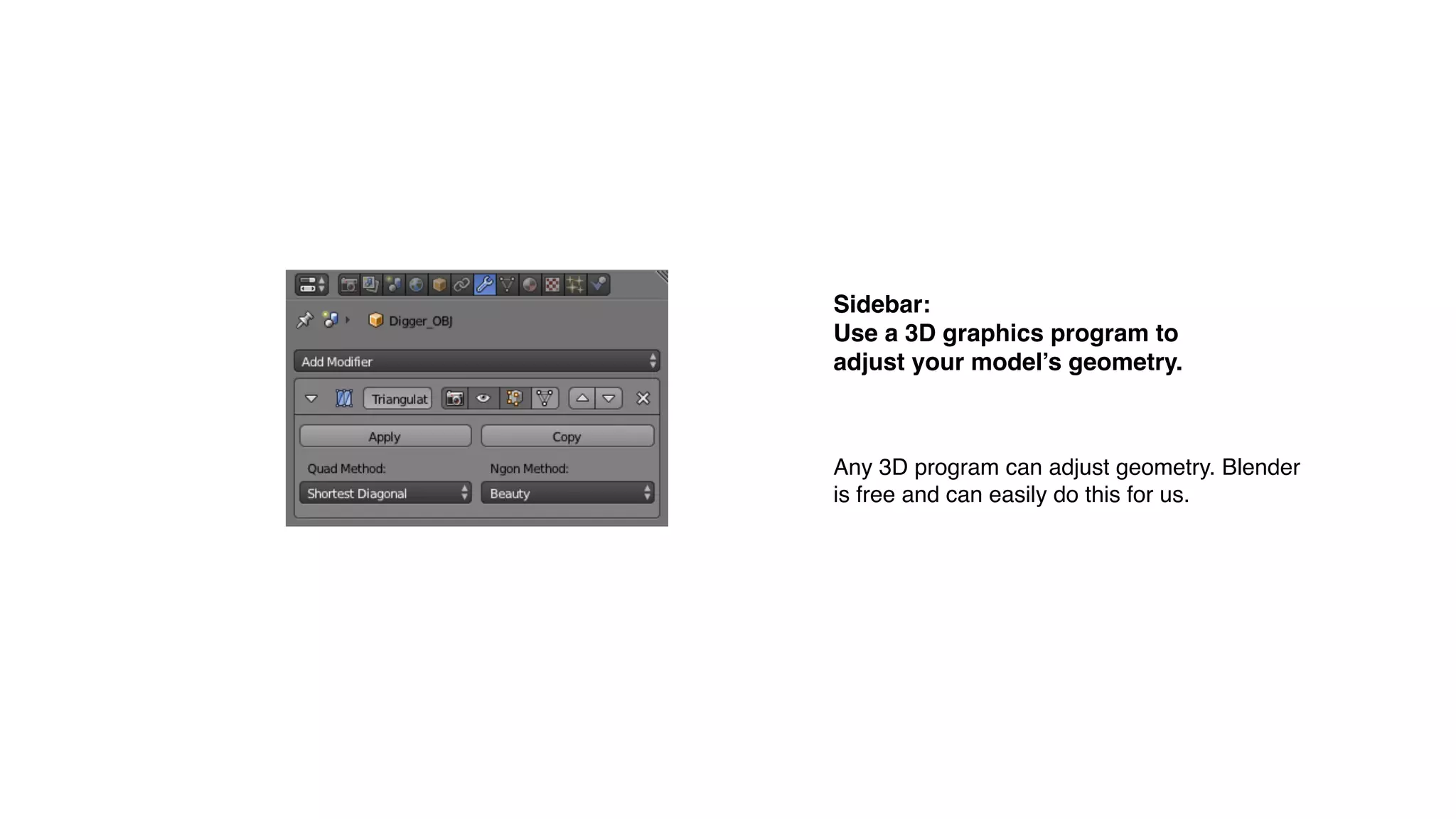

Sidebar:
Use a 3D graphics program to
adjust your model’s geometry.
Any 3D program can adjust geometry. Blender
is free and can easily do this for us.

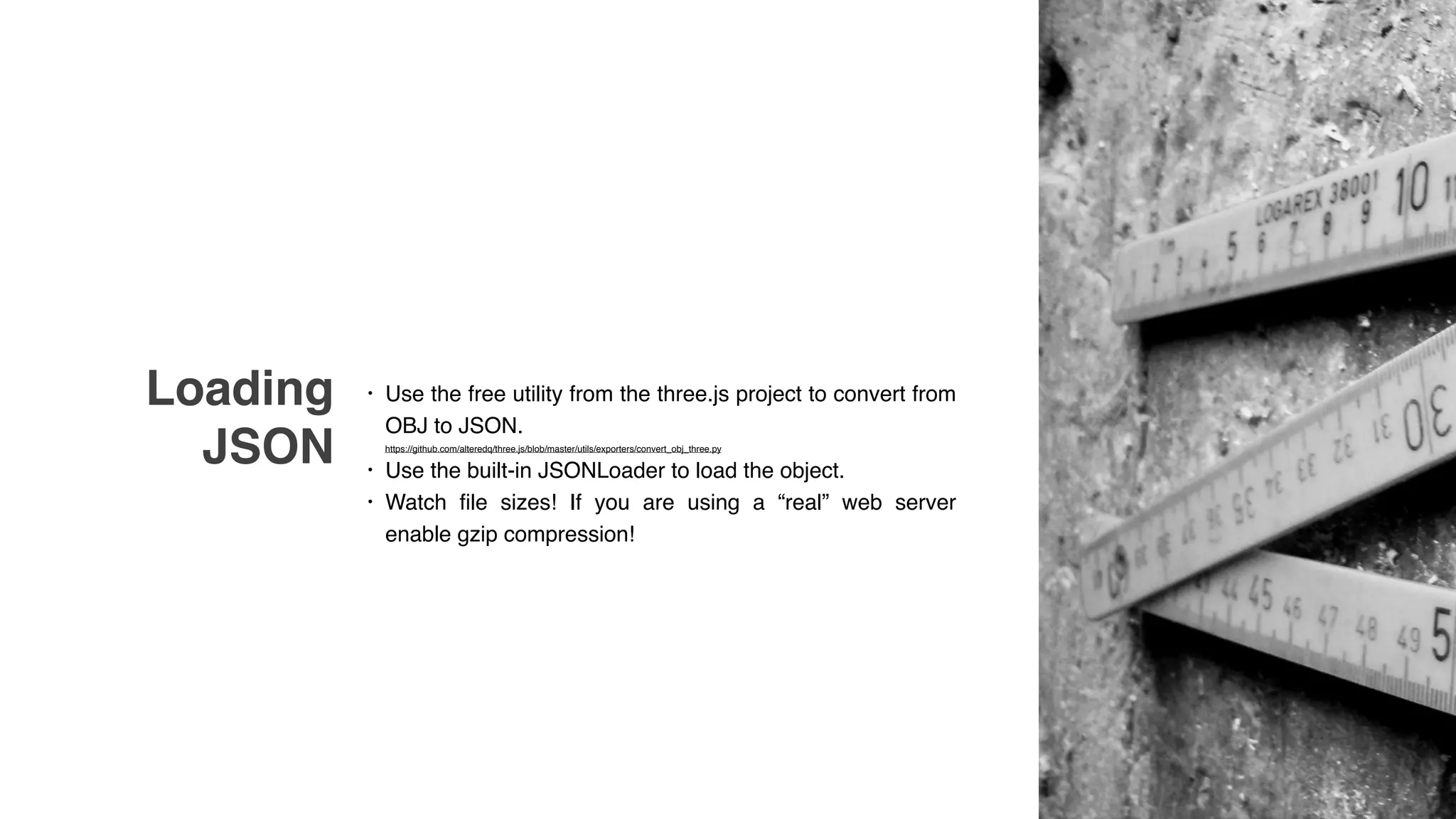

Loading
JSON
• Use the free utility from the three.js project to convert from
OBJ to JSON. 
https://github.com/alteredq/three.js/blob/master/utils/exporters/convert_obj_three.py
• Use the built-in JSONLoader to load the object.
• Watch file sizes! If you are using a “real” web server
enable gzip compression!

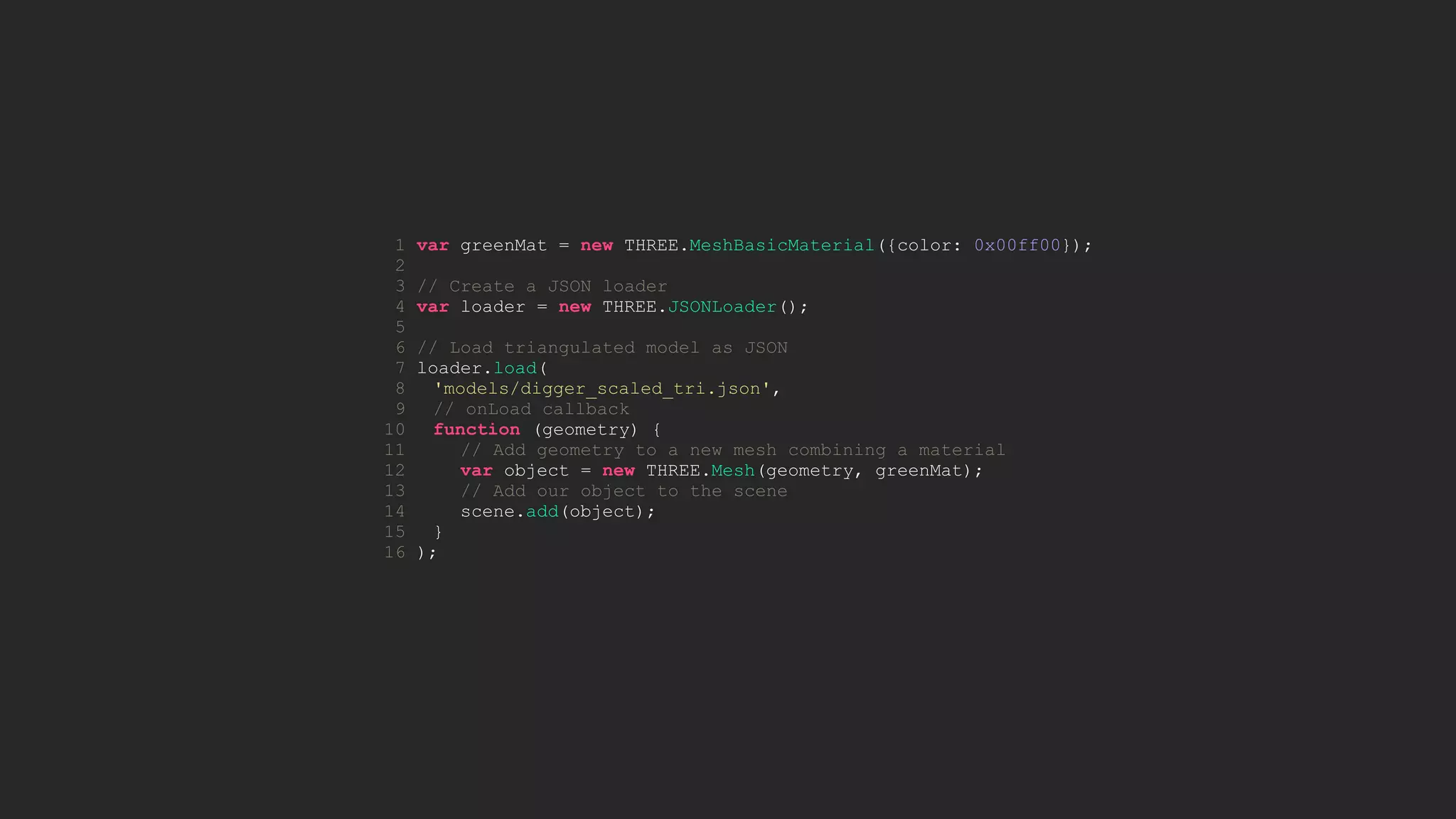

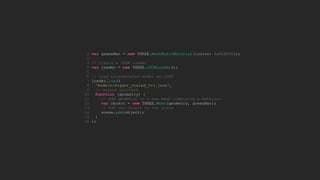

1 var greenMat = new THREE.MeshBasicMaterial({color: 0x00ff00});
2
3 // Create a JSON loader
4 var loader = new THREE.JSONLoader();
5
6 // Load triangulated model as JSON
7 loader.load(
8 'models/digger_scaled_tri.json',
9 // onLoad callback
10 function (geometry) {
11 // Add geometry to a new mesh combining a material
12 var object = new THREE.Mesh(geometry, greenMat);
13 // Add our object to the scene
14 scene.add(object);
15 }
16 );

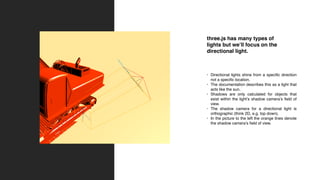

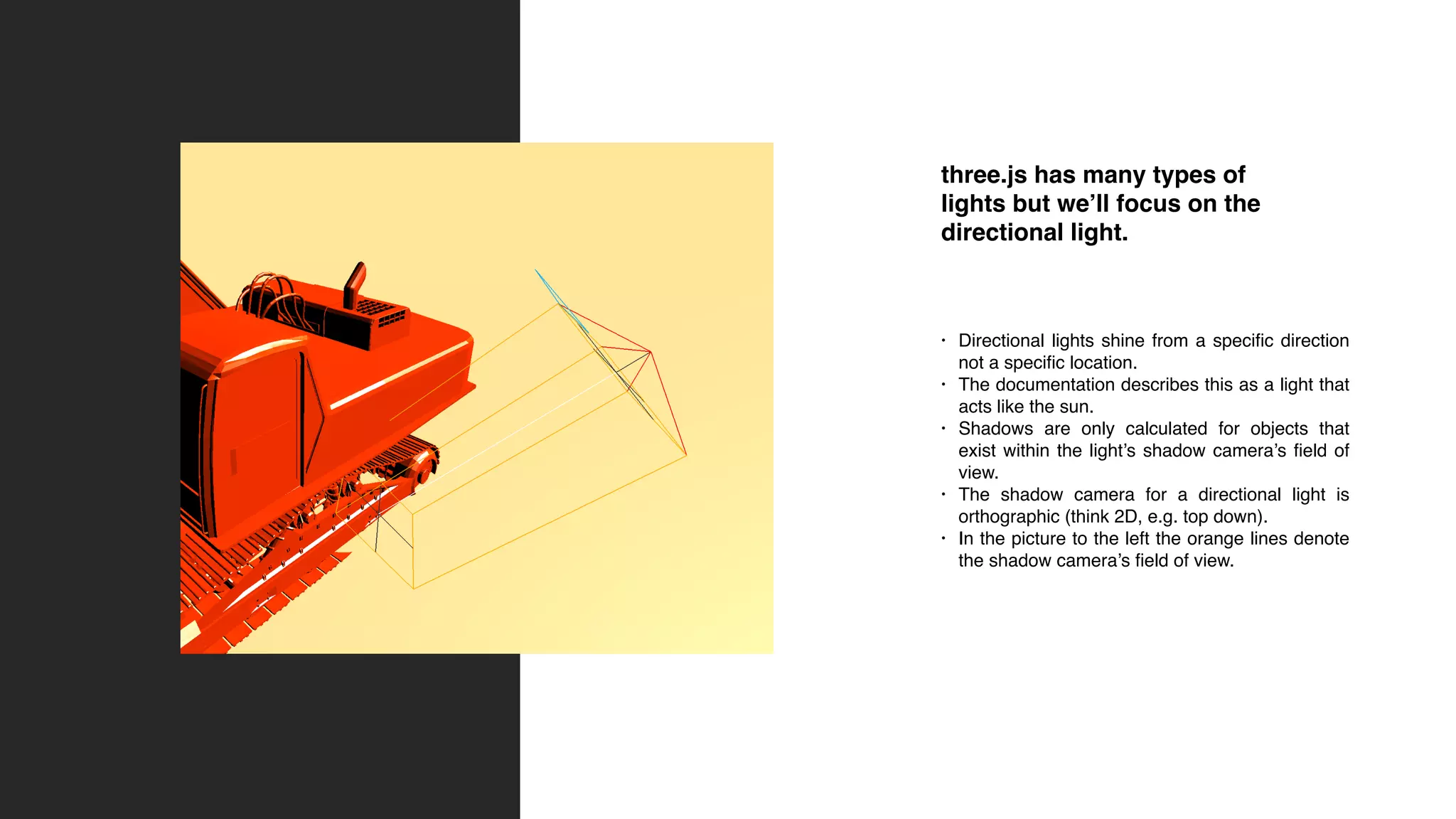

three.js has many types of
lights but we’ll focus on the
directional light.
• Directional lights shine from a specific direction
not a specific location.
• The documentation describes this as a light that
acts like the sun.
• Shadows are only calculated for objects that
exist within the light’s shadow camera’s field of
view.
• The shadow camera for a directional light is
orthographic (think 2D, e.g. top down).
• In the picture to the left the orange lines denote
the shadow camera’s field of view.

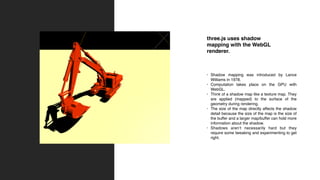

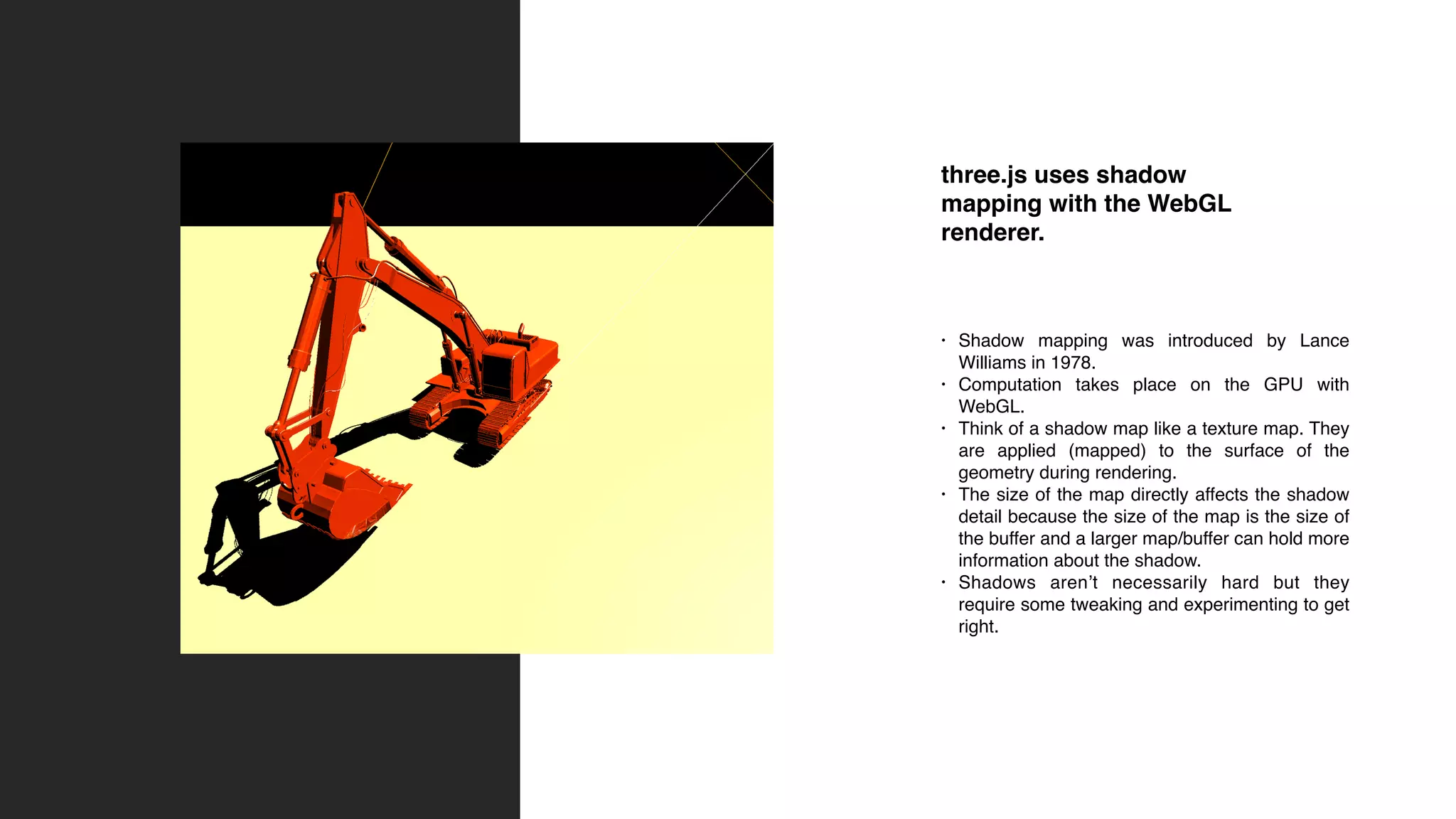

three.js uses shadow
mapping with the WebGL
renderer.
• Shadow mapping was introduced by Lance
Williams in 1978.
• Computation takes place on the GPU with
WebGL.
• Think of a shadow map like a texture map. They
are applied (mapped) to the surface of the
geometry during rendering.
• The size of the map directly affects the shadow
detail because the size of the map is the size of
the buffer and a larger map/buffer can hold more
information about the shadow.
• Shadows aren’t necessarily hard but they
require some tweaking and experimenting to get
right.

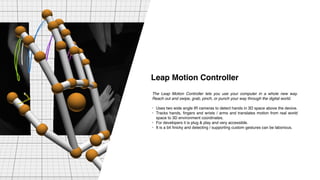

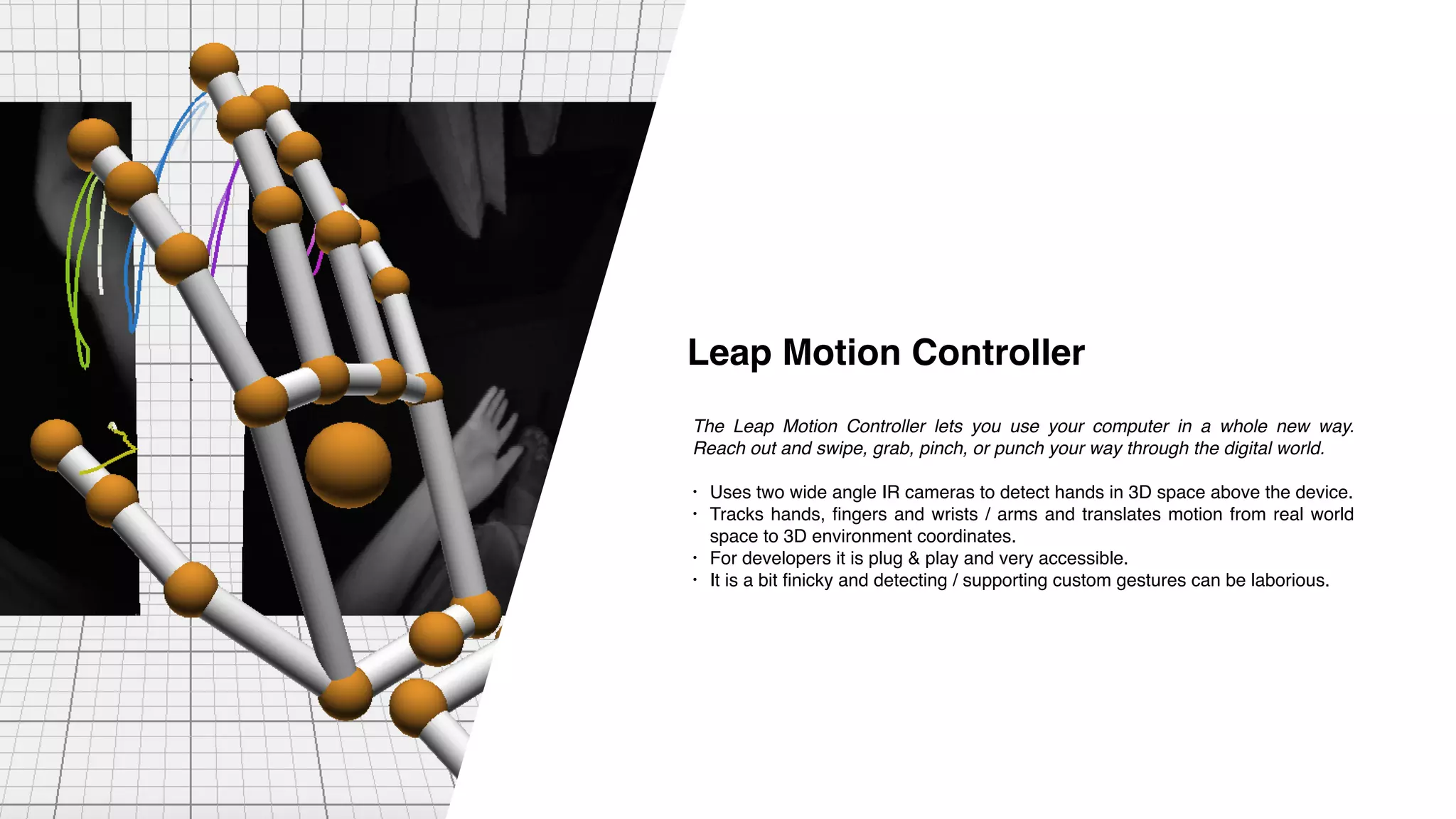

The Leap Motion Controller lets you use your computer in a whole new way.
Reach out and swipe, grab, pinch, or punch your way through the digital world.
• Uses two wide angle IR cameras to detect hands in 3D space above the device.
• Tracks hands, fingers and wrists / arms and translates motion from real world
space to 3D environment coordinates.
• For developers it is plug & play and very accessible.
• It is a bit finicky and detecting / supporting custom gestures can be laborious.
Leap Motion Controller

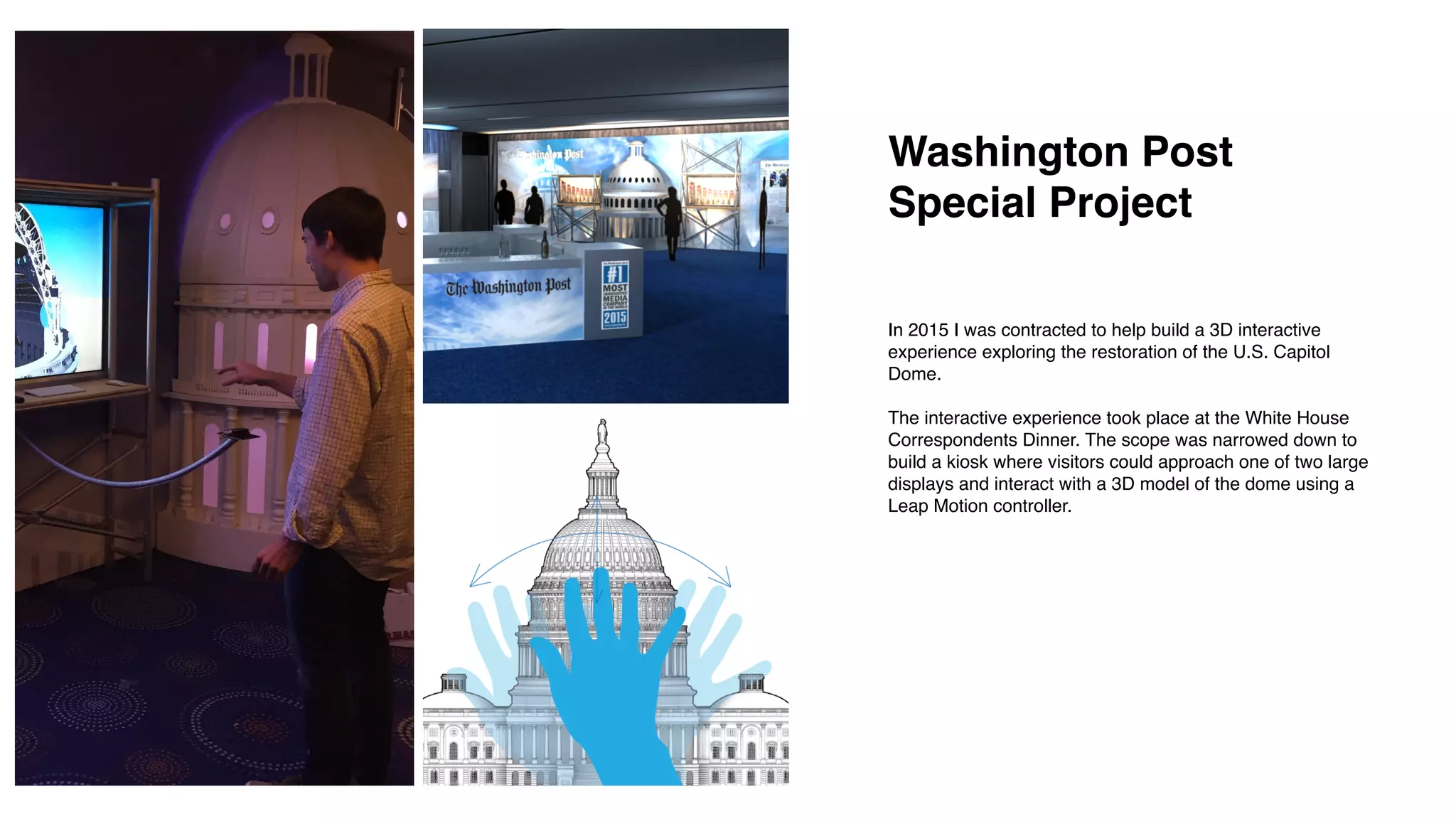

In 2015 I was contracted to help build a 3D interactive
experience exploring the restoration of the U.S. Capitol
Dome.
The interactive experience took place at the White House
Correspondents Dinner. The scope was narrowed down to
build a kiosk where visitors could approach one of two large
displays and interact with a 3D model of the dome using a
Leap Motion controller.
Washington Post
Special Project

3D
Model

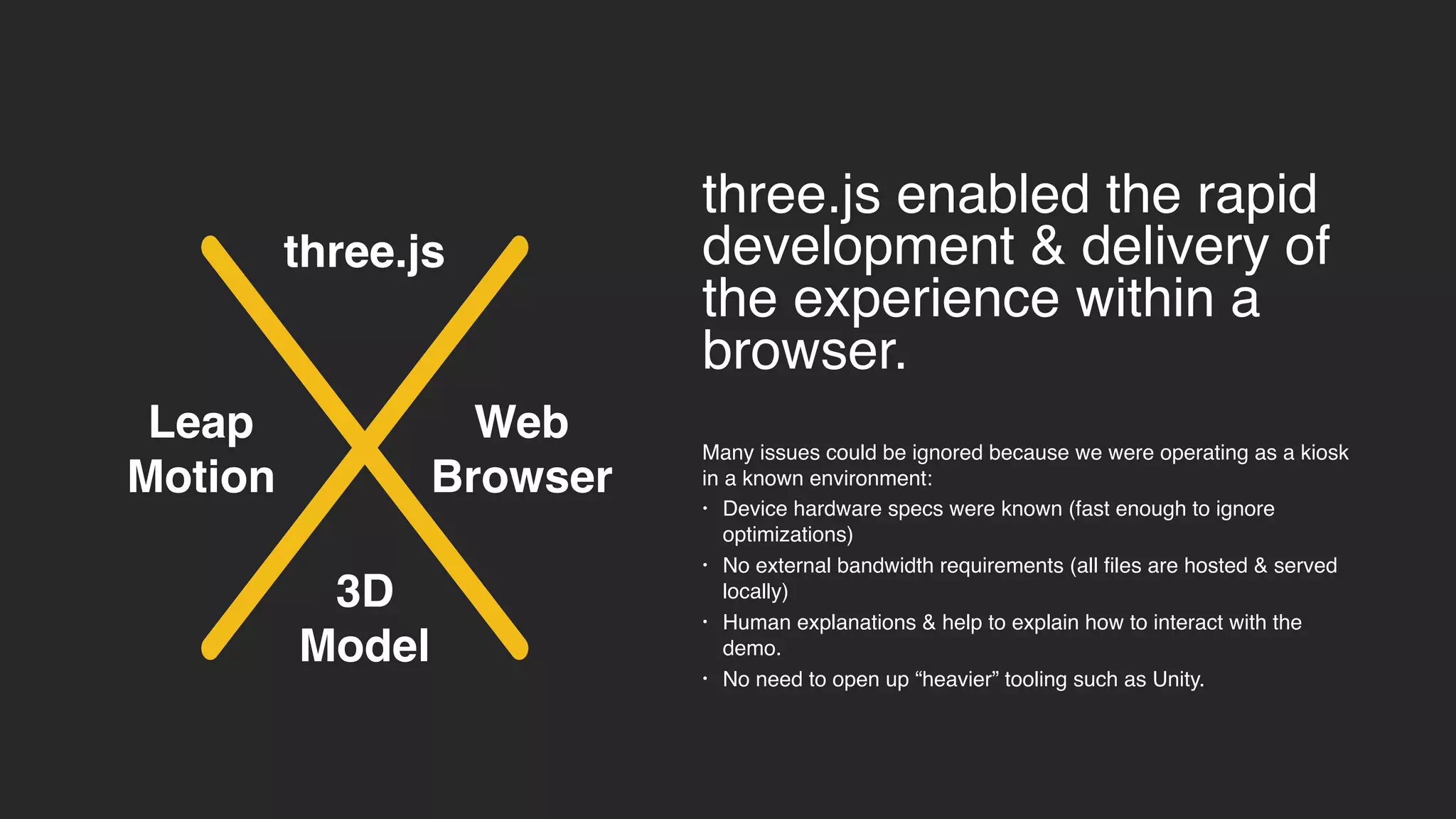

three.js enabled the rapid
development & delivery of
the experience within a
browser.
Many issues could be ignored because we were operating as a kiosk
in a known environment:
• Device hardware specs were known (fast enough to ignore
optimizations)
• No external bandwidth requirements (all files are hosted & served
locally)
• Human explanations & help to explain how to interact with the
demo.
• No need to open up “heavier” tooling such as Unity.
Leap
Motion
Web
Browser
three.js

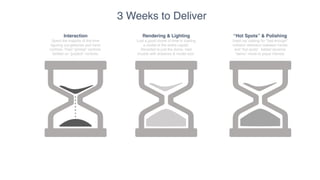

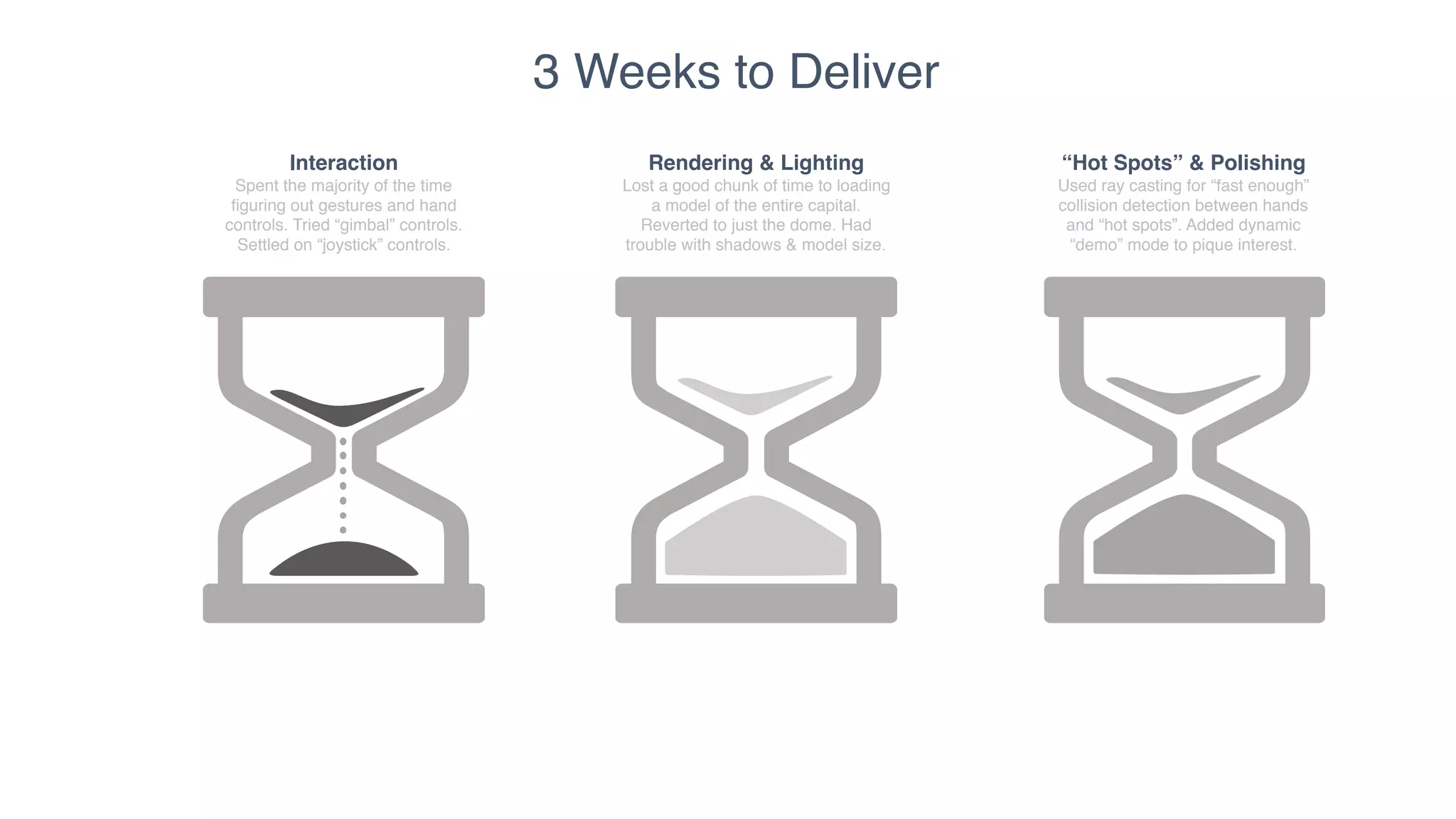

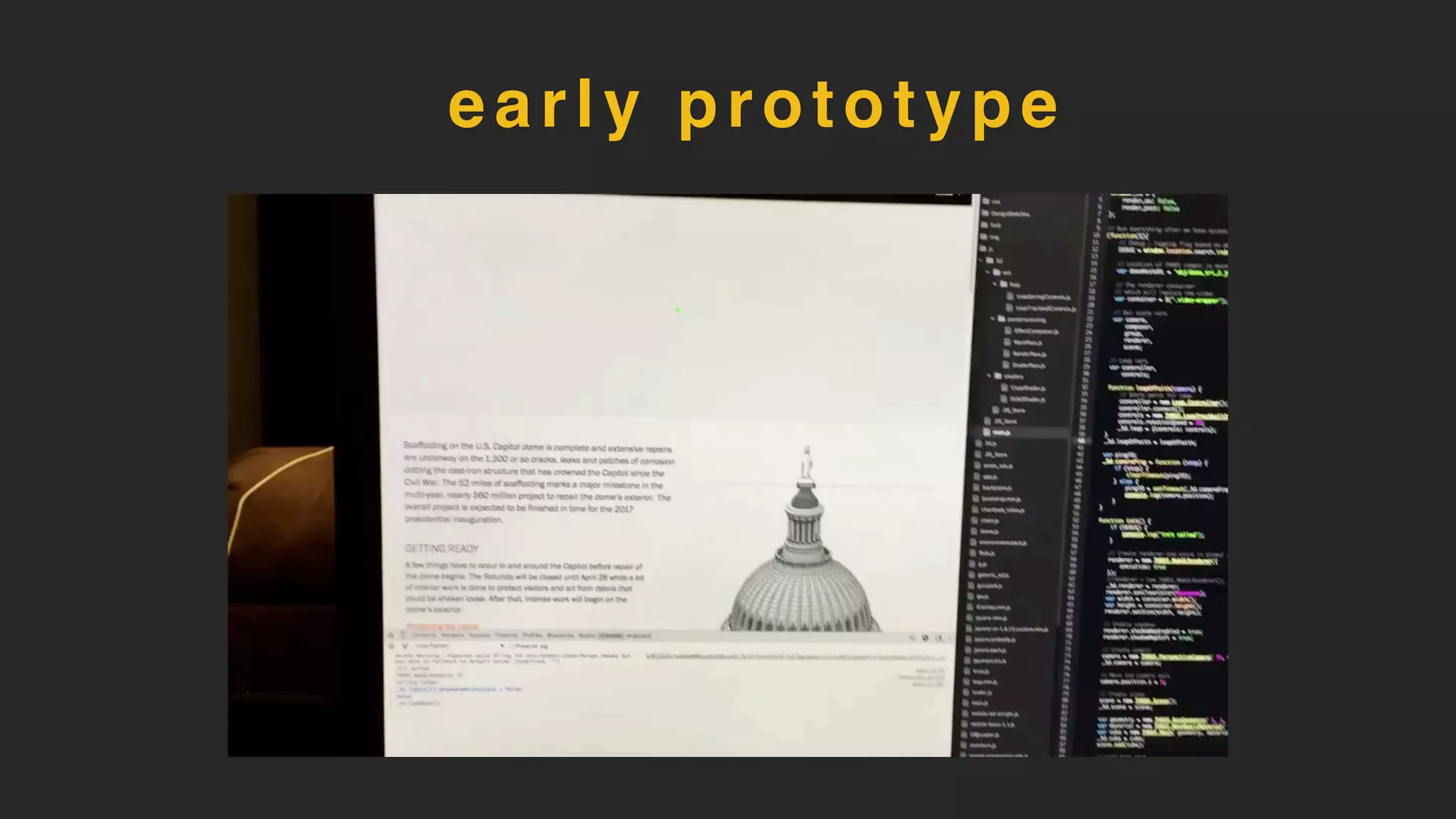

3 Weeks to Deliver
Interaction 
Spent the majority of the time
figuring out gestures and hand
controls. Tried “gimbal” controls.
Settled on “joystick” controls.
“Hot Spots” & Polishing 
Used ray casting for “fast enough”
collision detection between hands
and “hot spots”. Added dynamic
“demo” mode to pique interest.
Rendering & Lighting 
Lost a good chunk of time to loading
a model of the entire capital.
Reverted to just the dome. Had
trouble with shadows & model size.
