Insertion Sort, Quick Sort And Their complexity
This document provides information on insertion sort, quicksort, and their time complexities. It describes how insertion sort works by dividing an array into sorted and unsorted parts, iterating through elements to insert them in the correct position. Quicksort chooses a pivot element and partitions the array into sub-arrays of smaller size, recursively sorting them. For worst-case complexities, insertion sort is O(n^2) while quicksort can also be O(n^2) if the array is already sorted. On average, insertion sort is still O(n^2) whereas quicksort has a lower complexity of O(nlogn).
More Related Content
Similar to Insertion Sort, Quick Sort And Their complexity
![UNIT V Searching Sorting Hashing Techniques [Autosaved].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/unitvsearchingsortinghashingtechniquesautosaved-241126054304-95a69c51-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
![UNIT V Searching Sorting Hashing Techniques [Autosaved].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/unitvsearchingsortinghashingtechniquesautosaved-241014040608-74caa0f6-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Insertion Sort, Quick Sort And Their complexity
- 1. Insertion Sort, Quick SortAnd Their Complexity Presented by: 1.Niaz Mahmud Roll:1507111 2.M A Muit Sowrav Roll:1507112 3.Tanim Ahmed Roll:1507113 4.Motaleb Hossen Manik Roll:1507114 5.Arafat Mahmud Roll:1507115 1

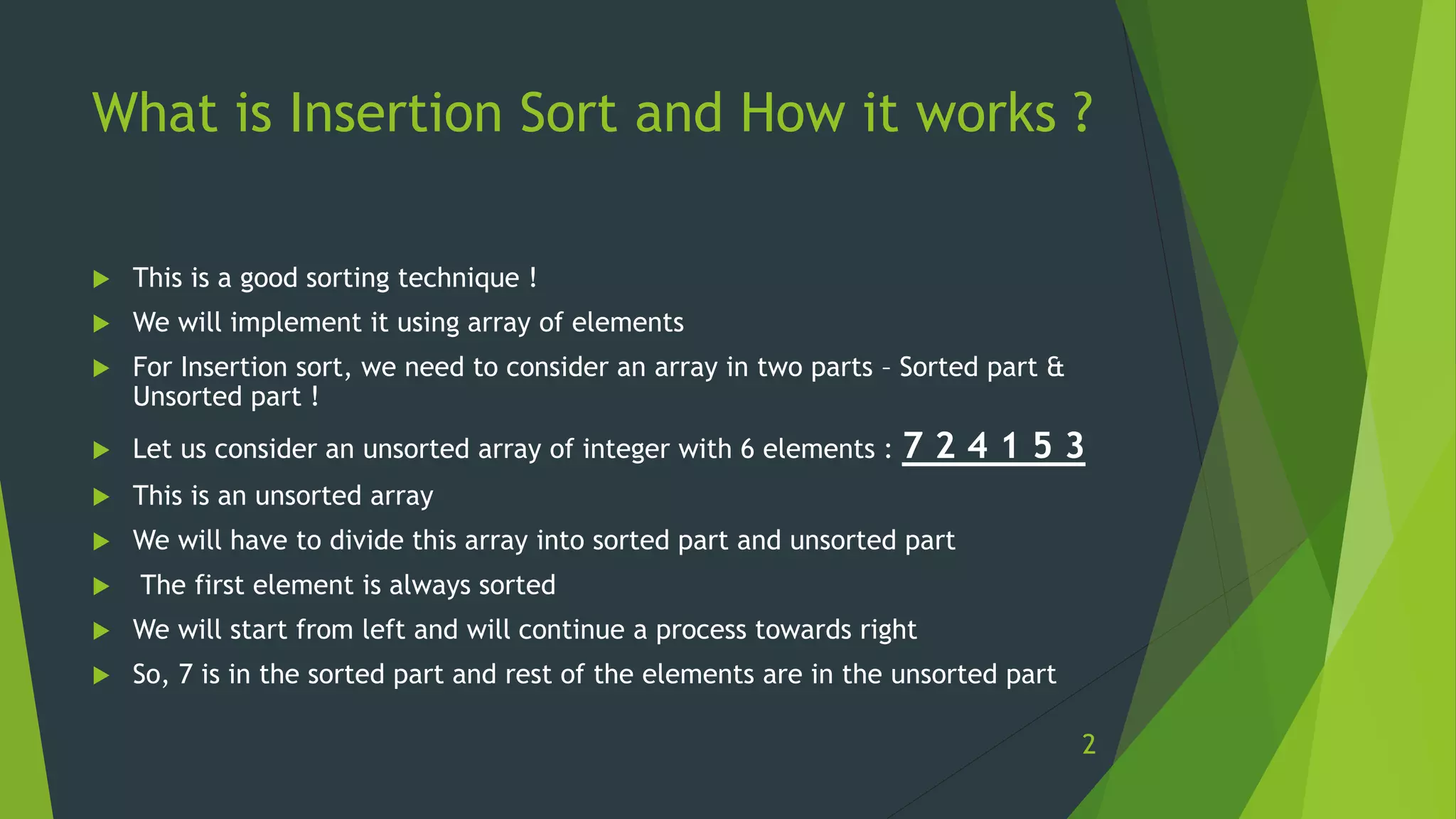

- 2. What is InsertionSort and How it works ? This is a good sorting technique ! We will implement it using array of elements For Insertion sort, we need to consider an array in two parts – Sorted part & Unsorted part ! Let us consider an unsorted array of integer with 6 elements : 7 2 4 1 5 3 This is an unsorted array We will have to divide this array into sorted part and unsorted part The first element is always sorted We will start from left and will continue a process towards right So, 7 is in the sorted part and rest of the elements are in the unsorted part 2

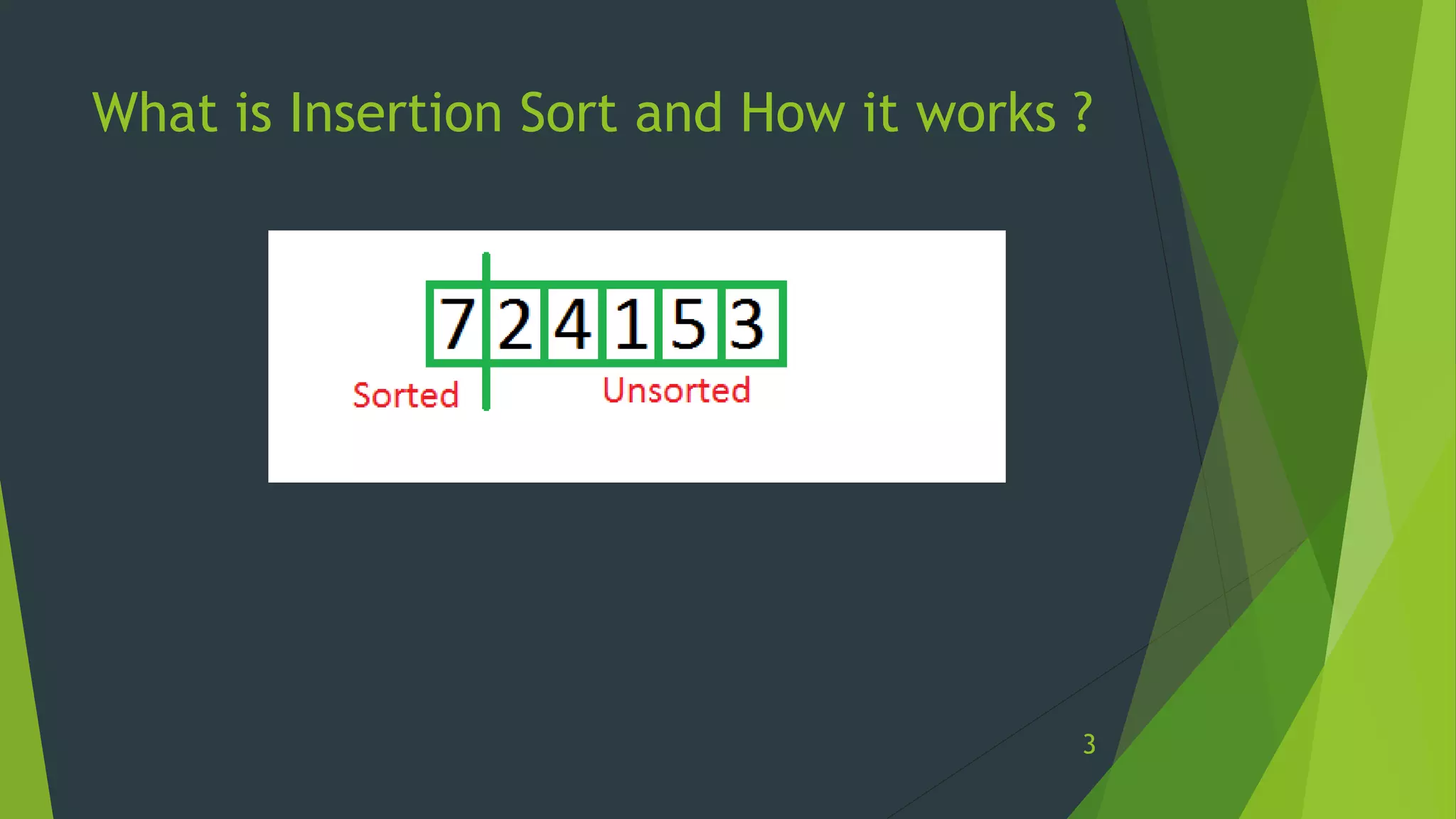

- 3. What is InsertionSort and How it works ? 3
- 4. What is InsertionSort and How it works ? 4

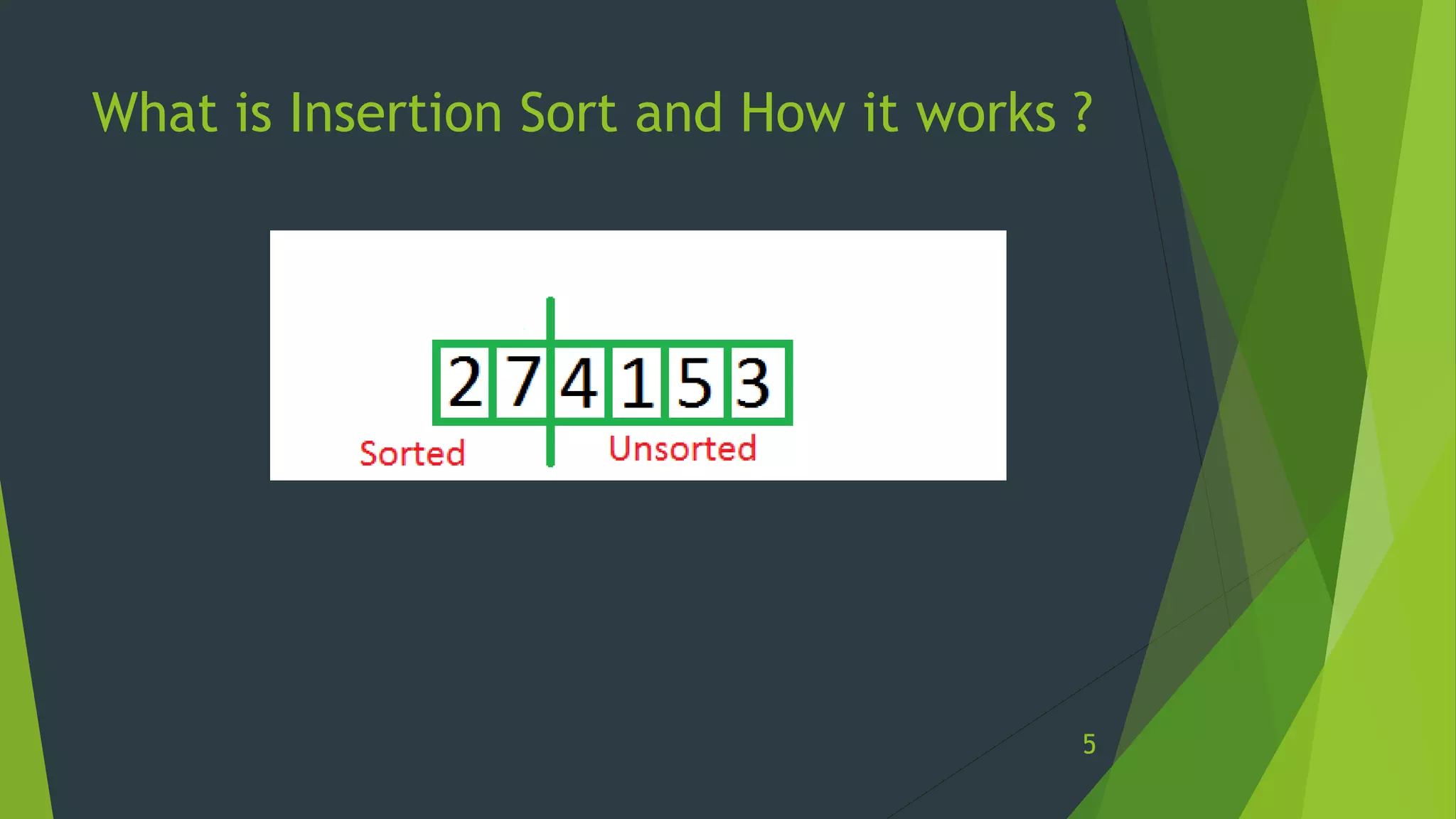

- 5. What is InsertionSort and How it works ? 5
- 6. What is InsertionSort and How it works ? 6
- 7. What is InsertionSort and How it works ? 7

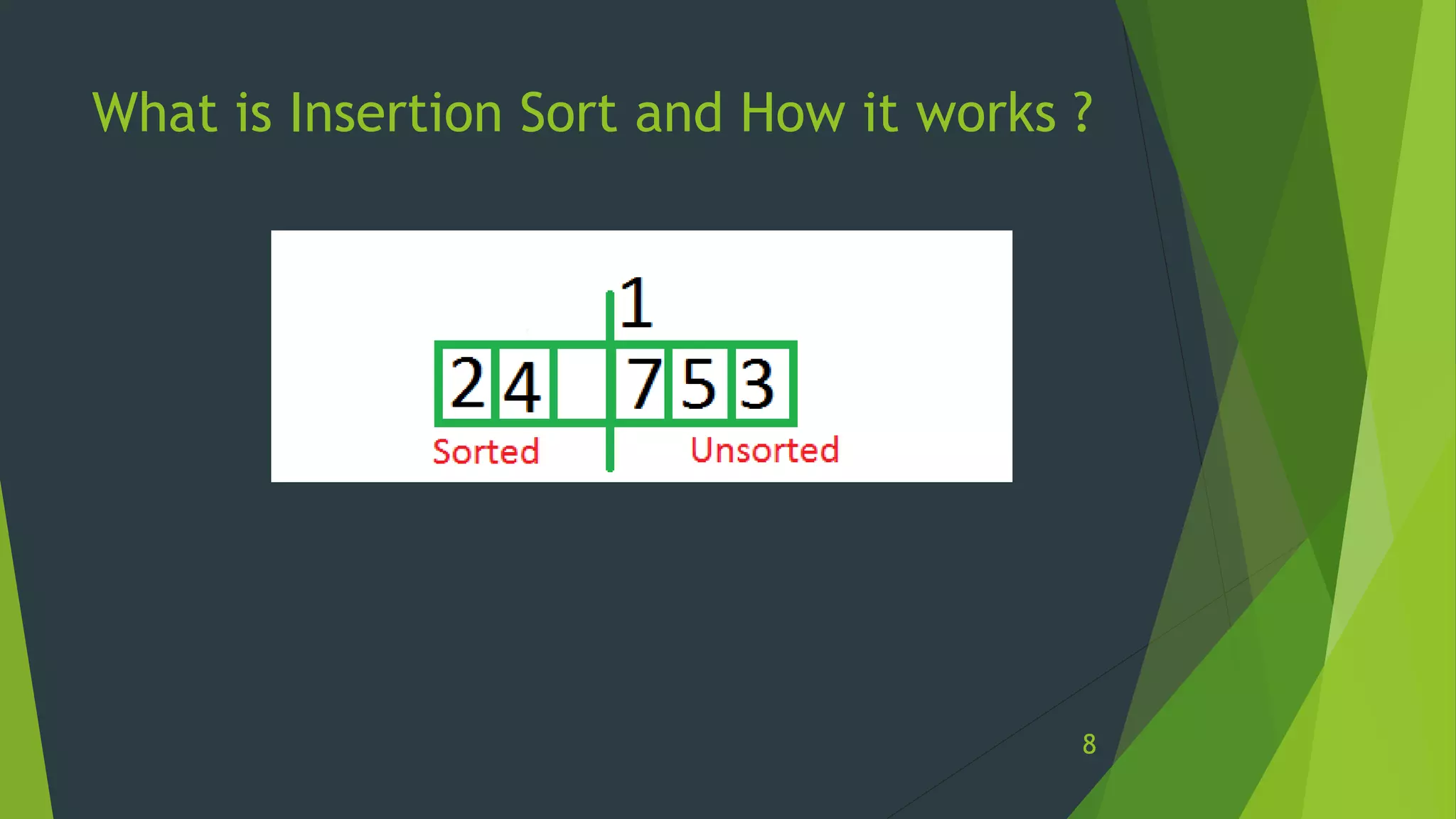

- 8. What is InsertionSort and How it works ? 8
- 9. What is InsertionSort and How it works ? 9

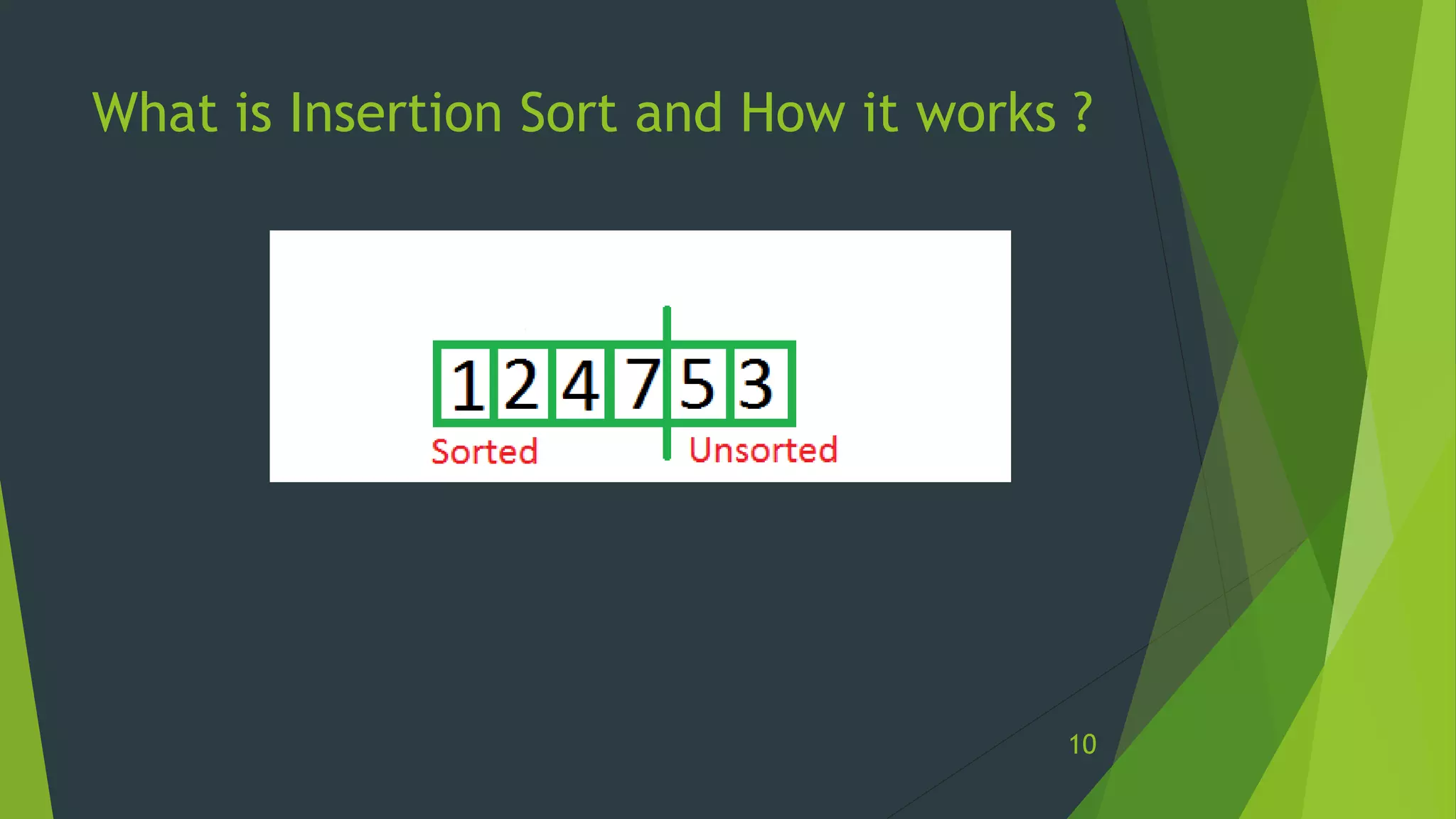

- 10. What is InsertionSort and How it works ? 10
- 11. What is InsertionSort and How it works ? 11

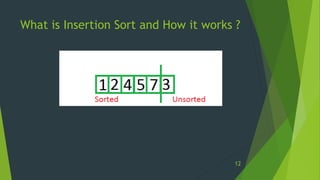

- 12. What is InsertionSort and How it works ? 12
- 13. What is InsertionSort and How it works ? 13

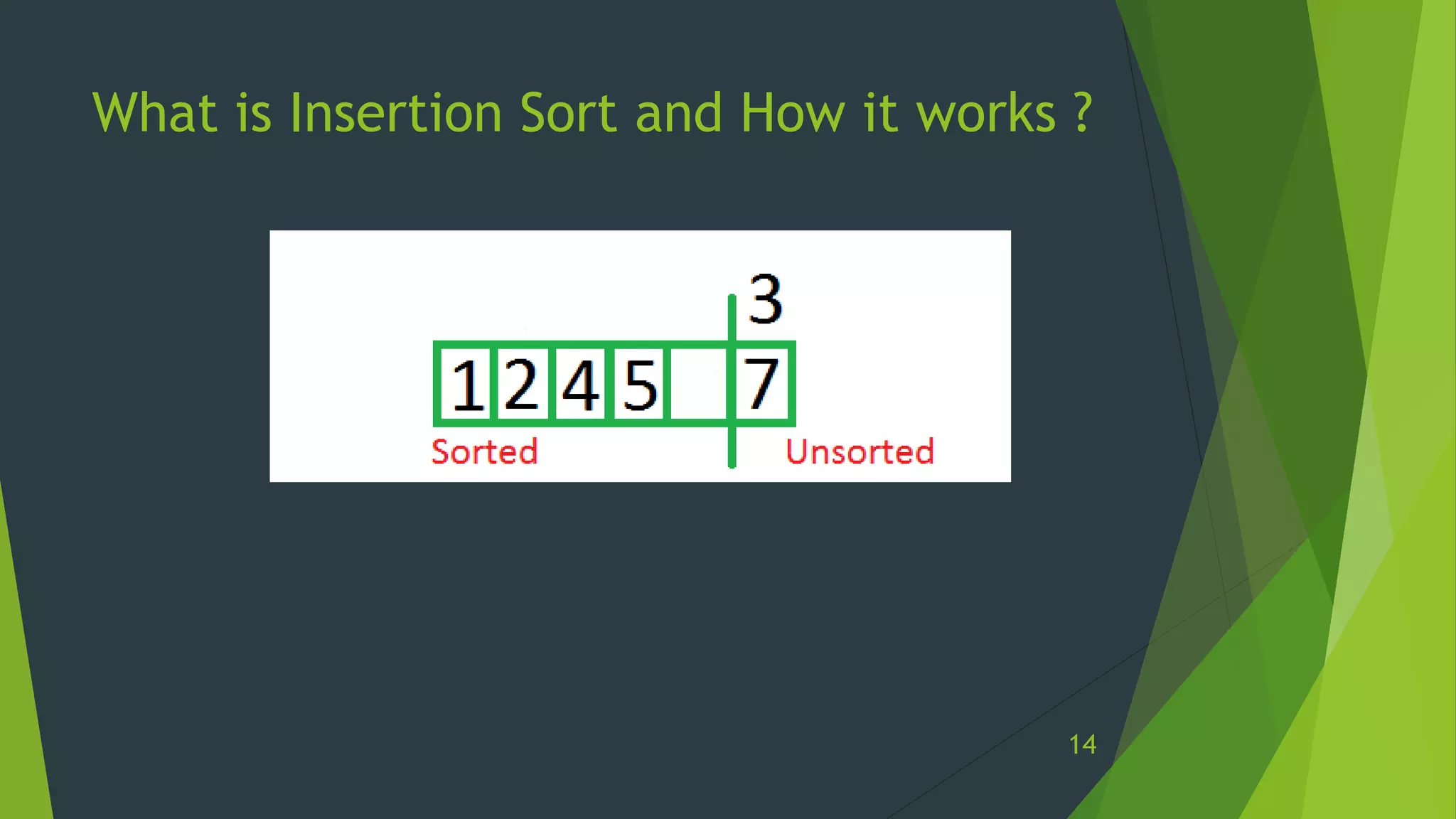

- 14. What is InsertionSort and How it works ? 14
- 15. What is InsertionSort and How it works ? 15
- 16. What is InsertionSort and How it works ? 16
- 17. What is InsertionSort and How it works ? 17
- 18. What is InsertionSort and How it works ? So, this is our sorted array ! 18

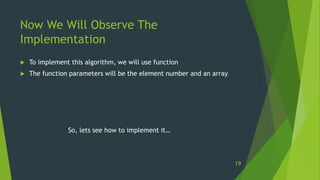

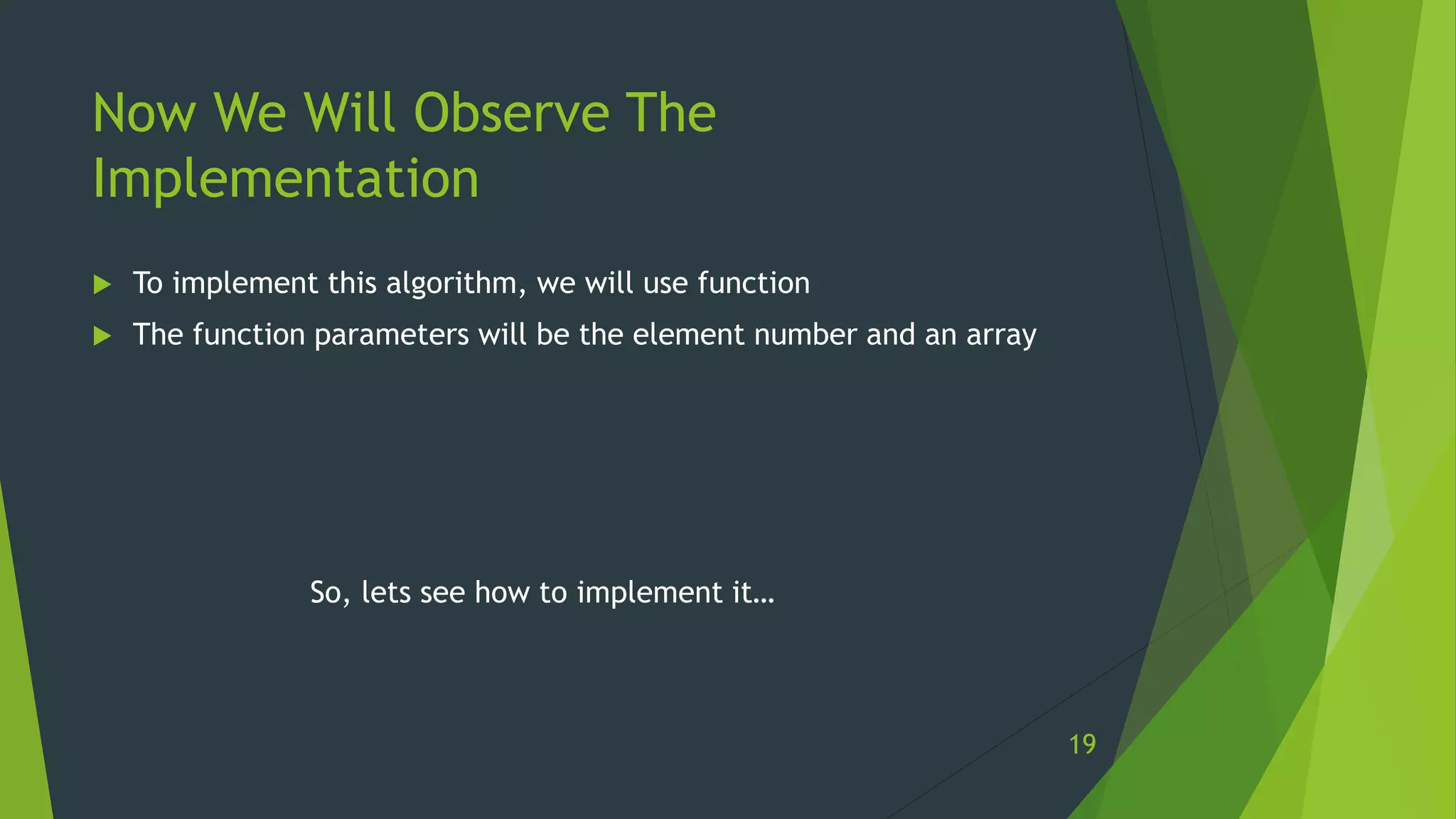

- 19. Now We WillObserve The Implementation To implement this algorithm, we will use function The function parameters will be the element number and an array So, lets see how to implement it… 19

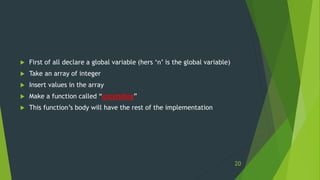

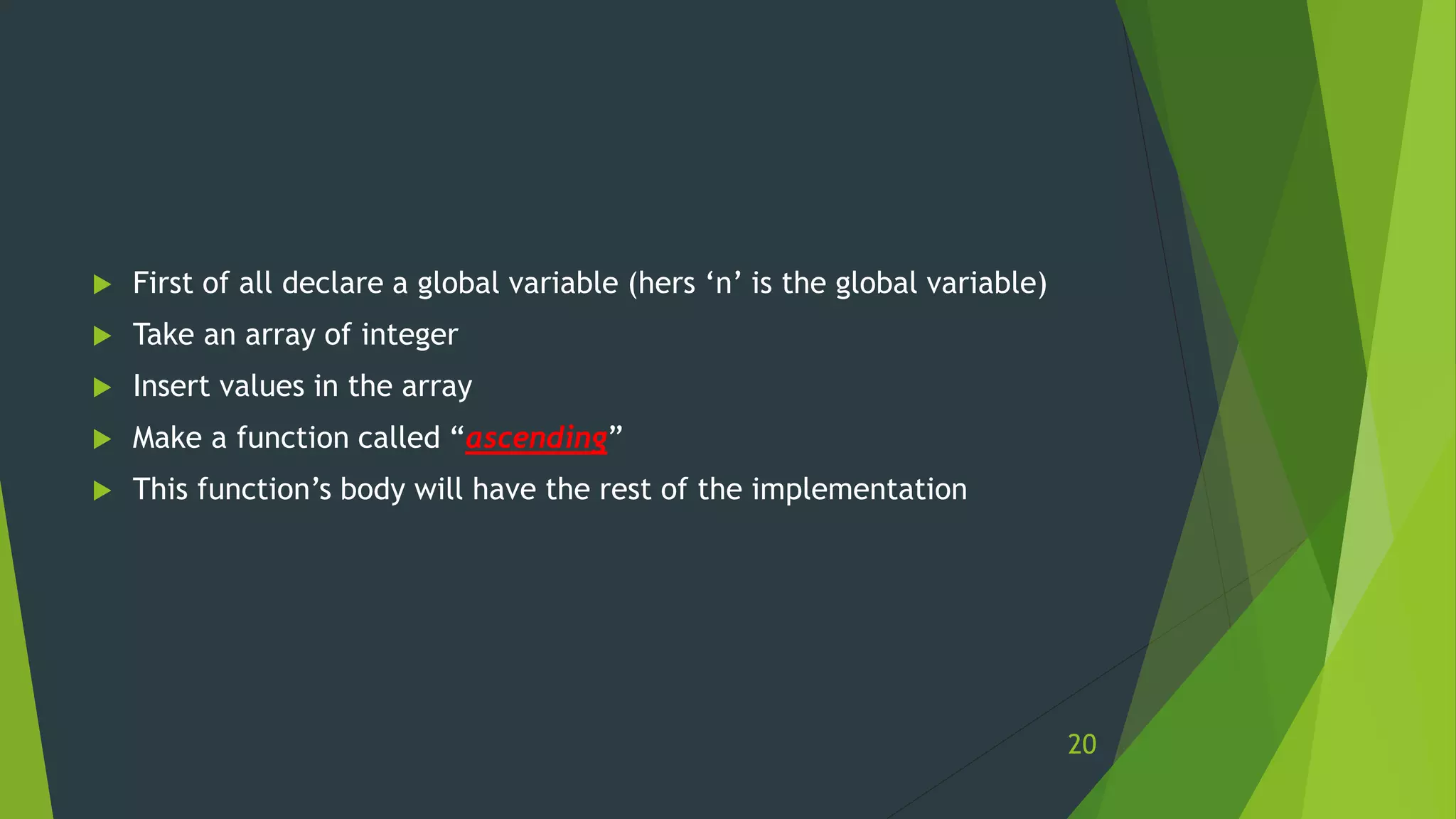

- 20. First ofall declare a global variable (hers ‘n’ is the global variable) Take an array of integer Insert values in the array Make a function called “ascending” This function’s body will have the rest of the implementation 20

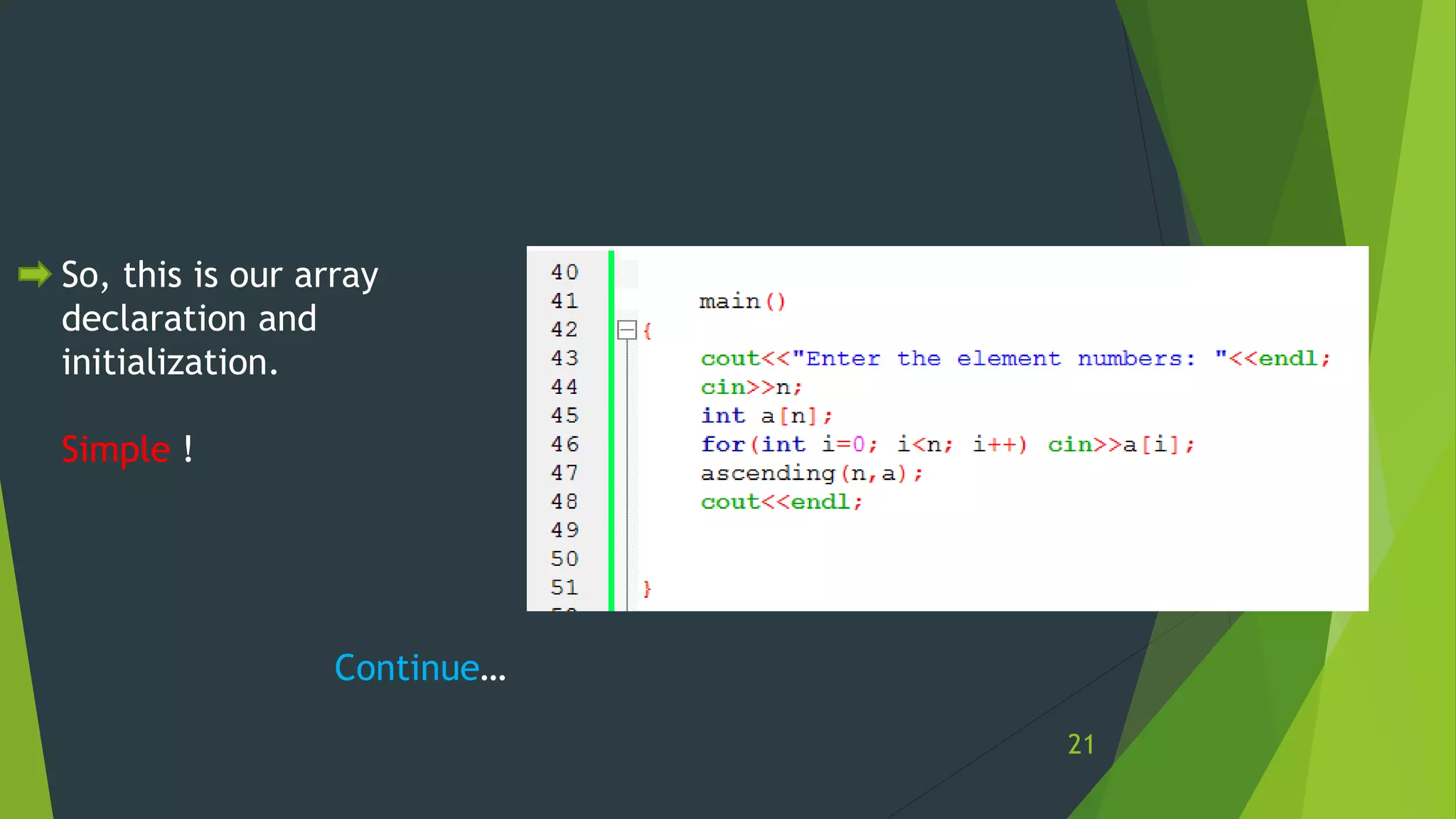

- 21. So, this isour array declaration and initialization. Simple ! Continue… 21

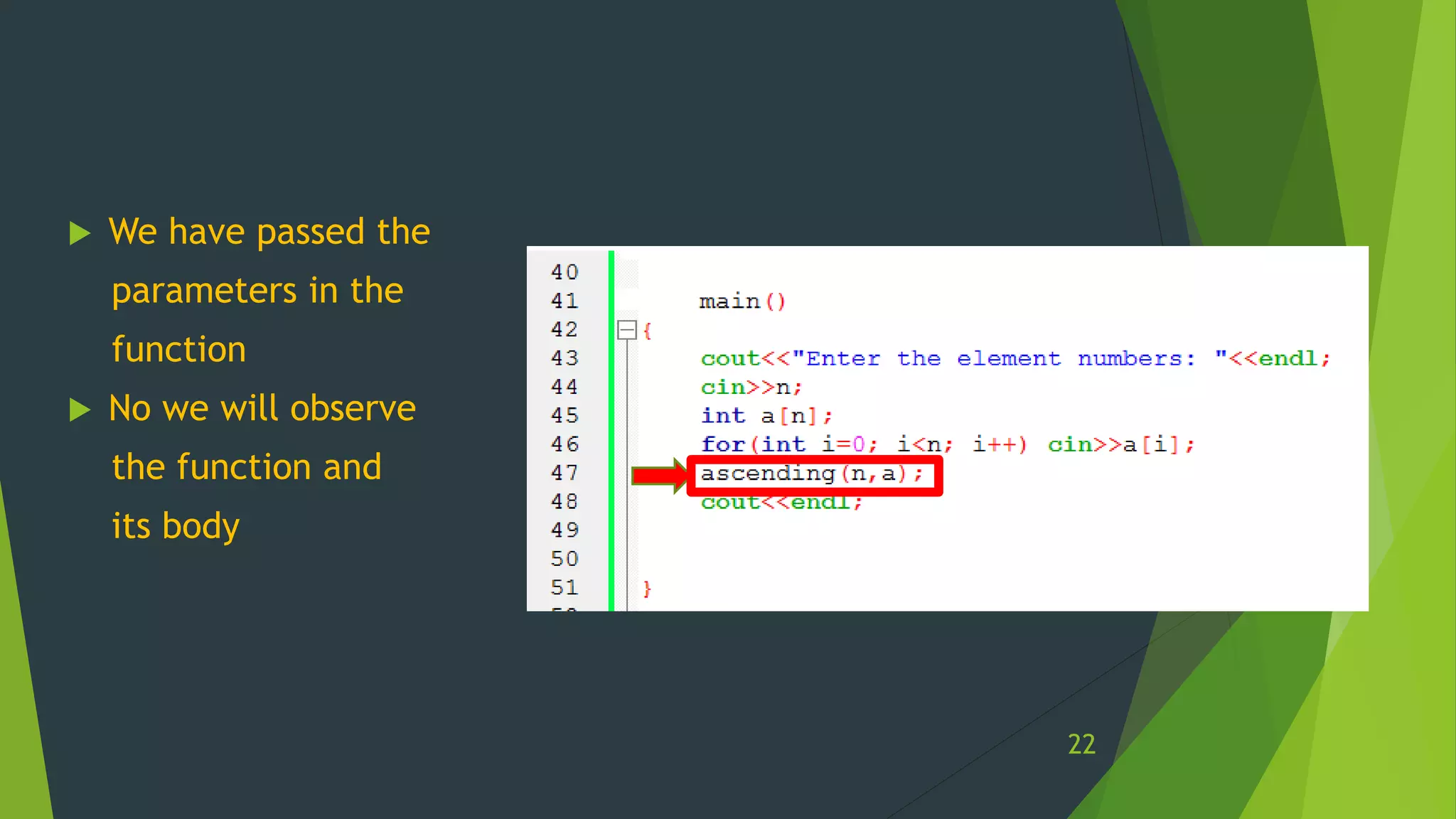

- 22. We havepassed the parameters in the function No we will observe the function and its body 22

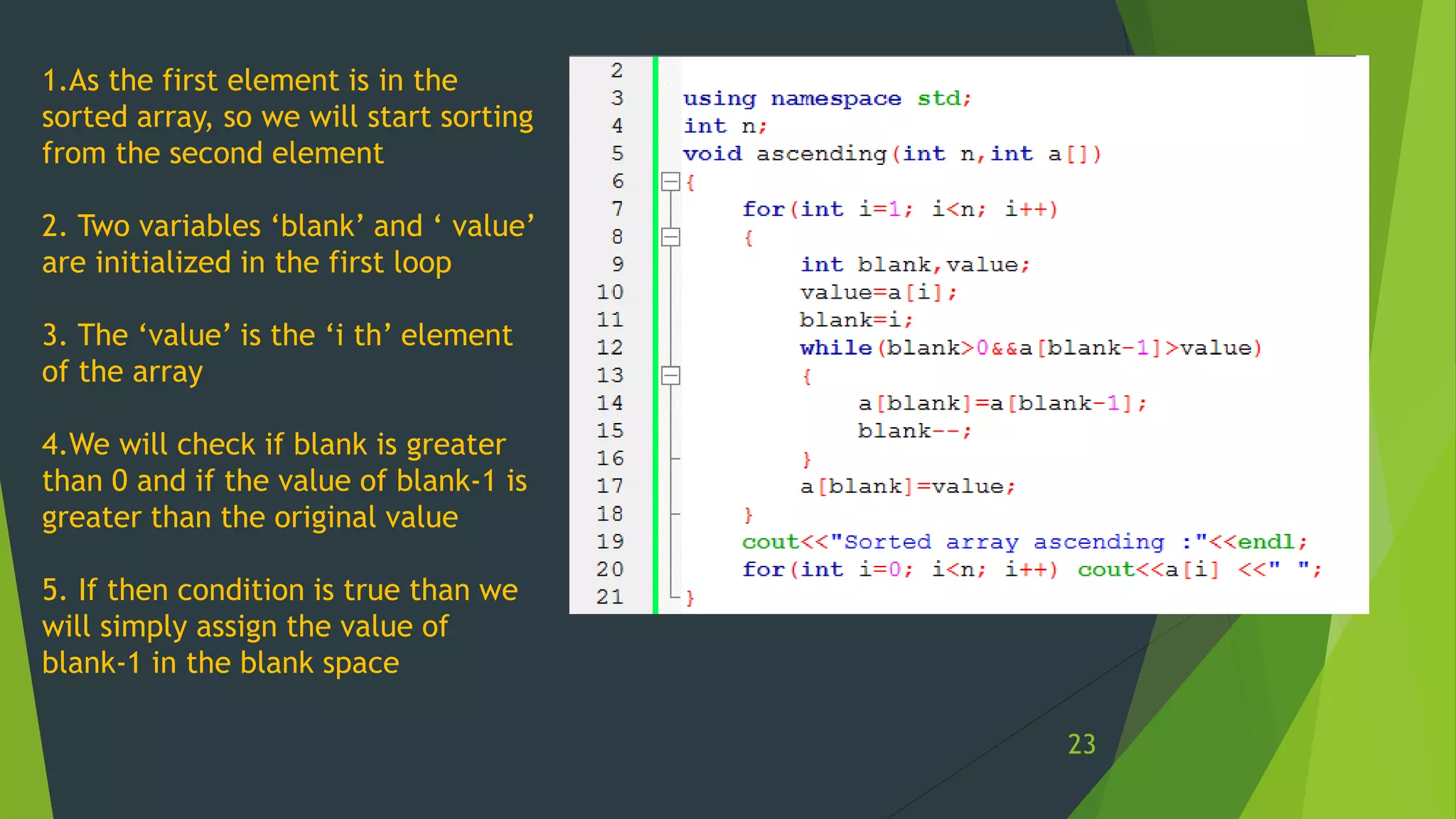

- 23. 1.As the firstelement is in the sorted array, so we will start sorting from the second element 2. Two variables ‘blank’ and ‘ value’ are initialized in the first loop 3. The ‘value’ is the ‘i th’ element of the array 4.We will check if blank is greater than 0 and if the value of blank-1 is greater than the original value 5. If then condition is true than we will simply assign the value of blank-1 in the blank space 23

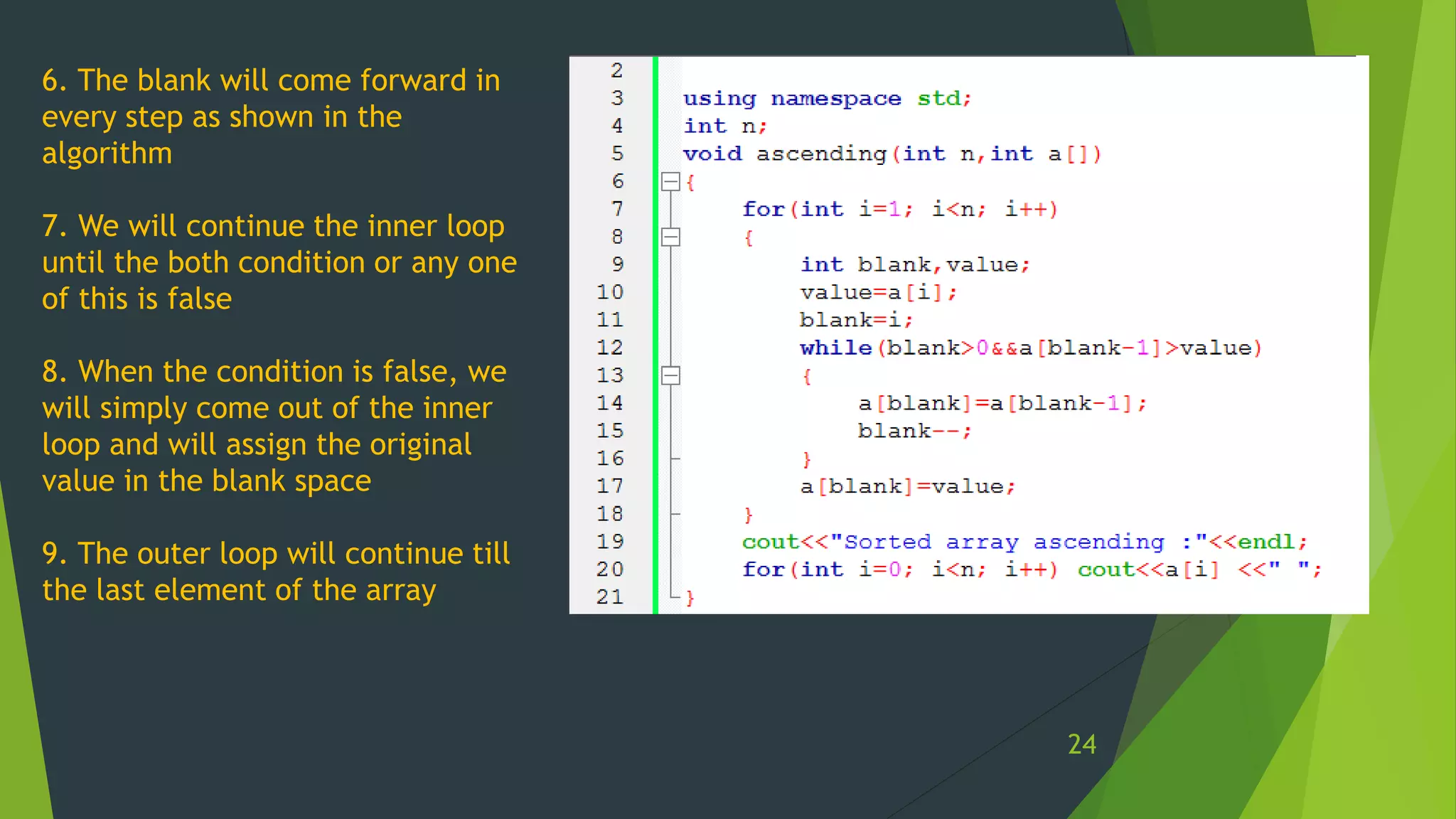

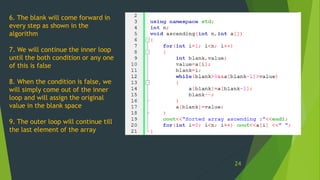

- 24. 6. The blankwill come forward in every step as shown in the algorithm 7. We will continue the inner loop until the both condition or any one of this is false 8. When the condition is false, we will simply come out of the inner loop and will assign the original value in the blank space 9. The outer loop will continue till the last element of the array 24

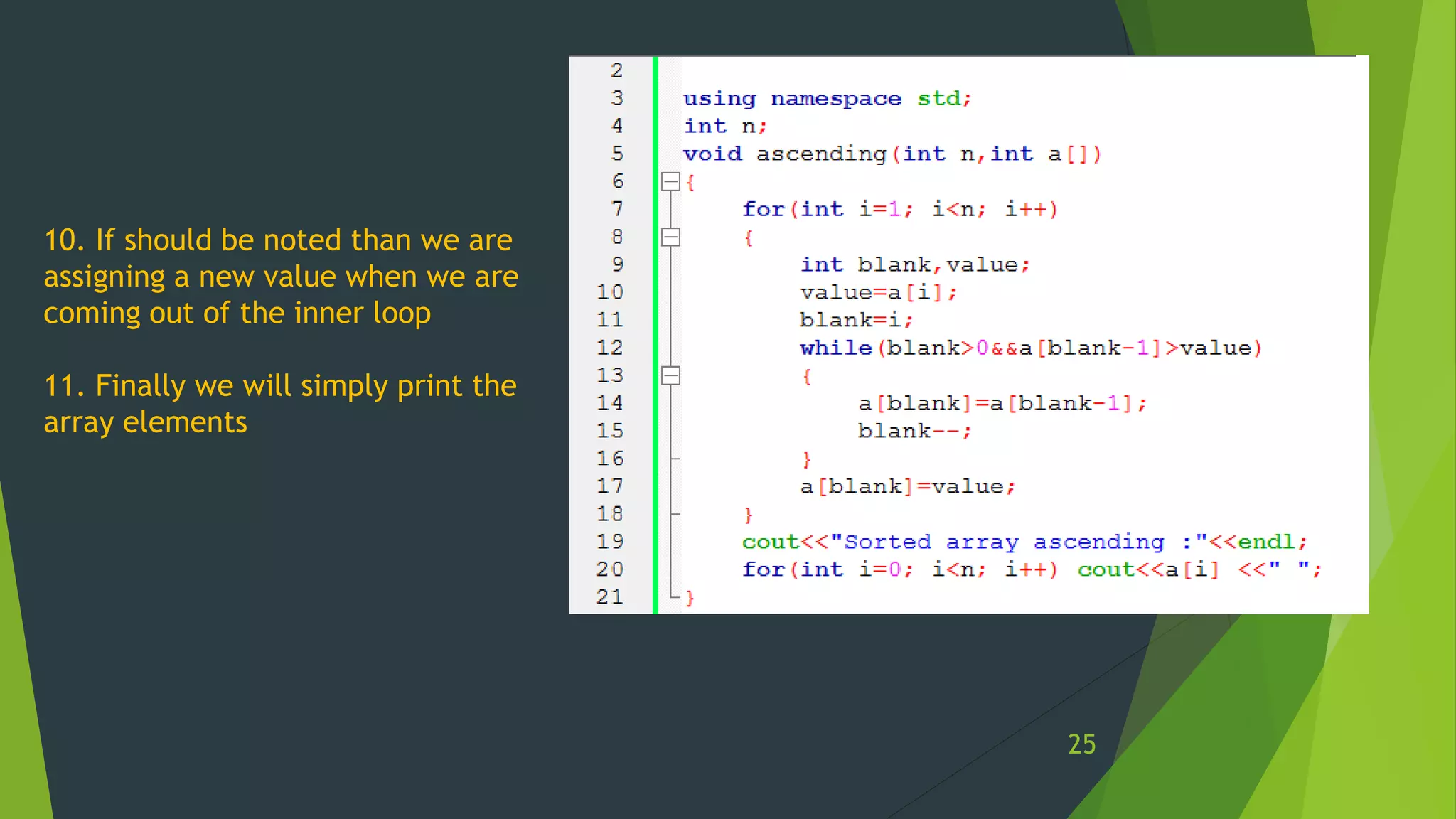

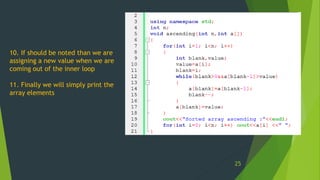

- 25. 10. If shouldbe noted than we are assigning a new value when we are coming out of the inner loop 11. Finally we will simply print the array elements 25

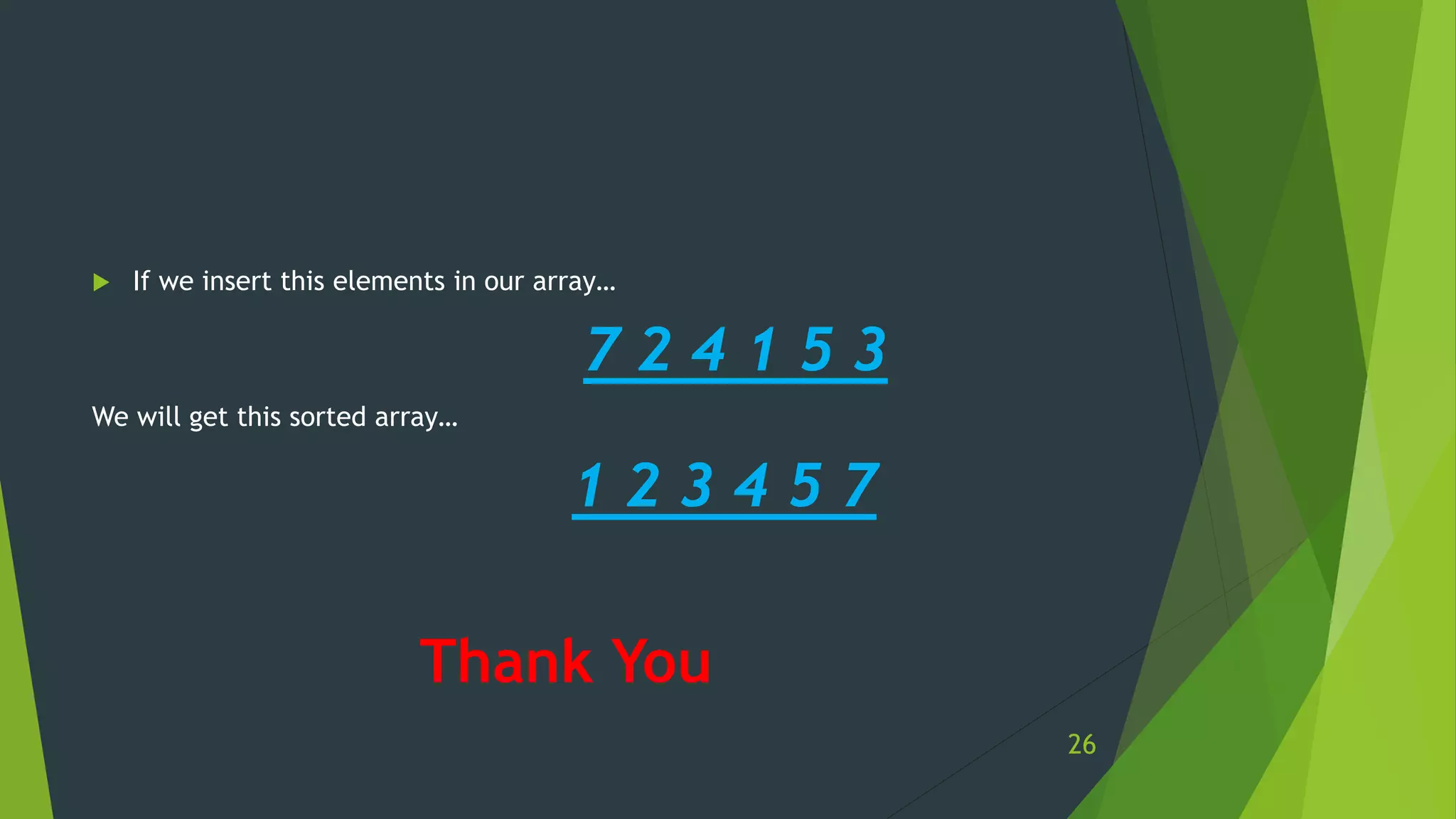

- 26. If weinsert this elements in our array… 7 2 4 1 5 3 We will get this sorted array… 1 2 3 4 5 7 Thank You 26

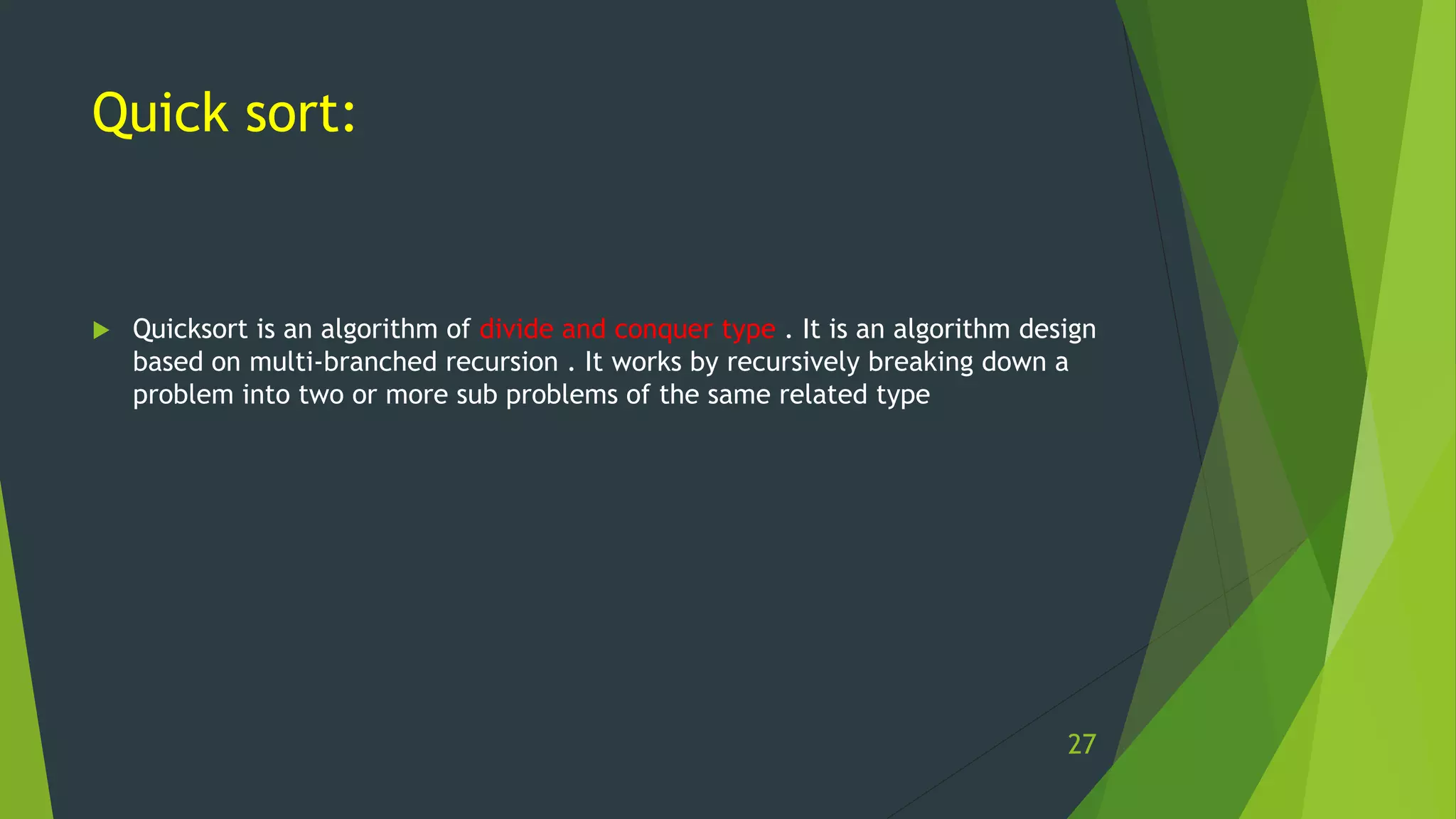

- 27. Quick sort: Quicksortis an algorithm of divide and conquer type . It is an algorithm design based on multi-branched recursion . It works by recursively breaking down a problem into two or more sub problems of the same related type 27

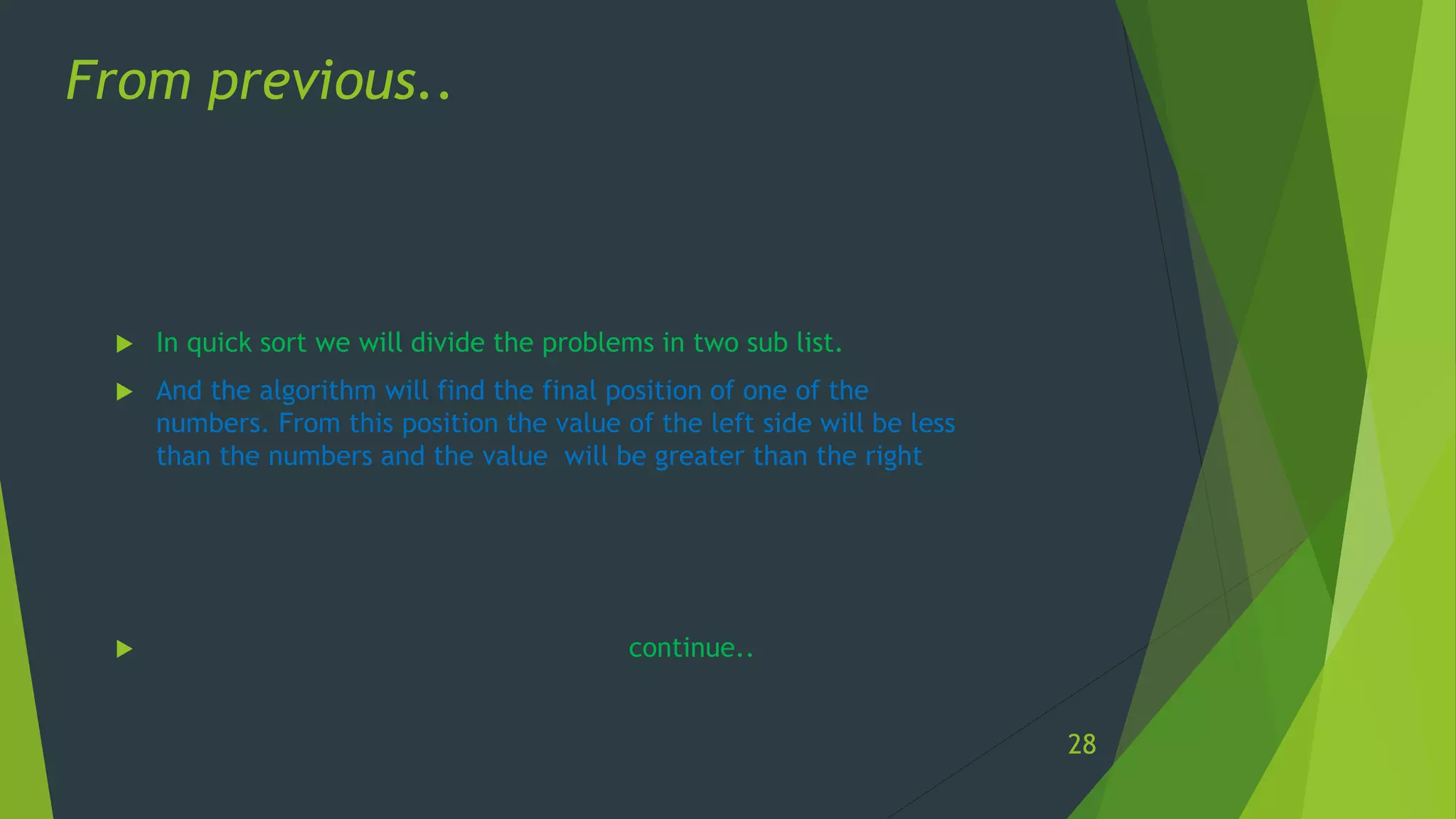

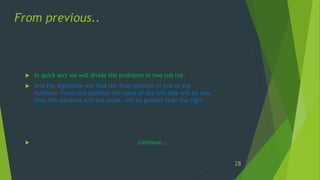

- 28. In quicksort we will divide the problems in two sub list. And the algorithm will find the final position of one of the numbers. From this position the value of the left side will be less than the numbers and the value will be greater than the right continue.. From previous.. 28

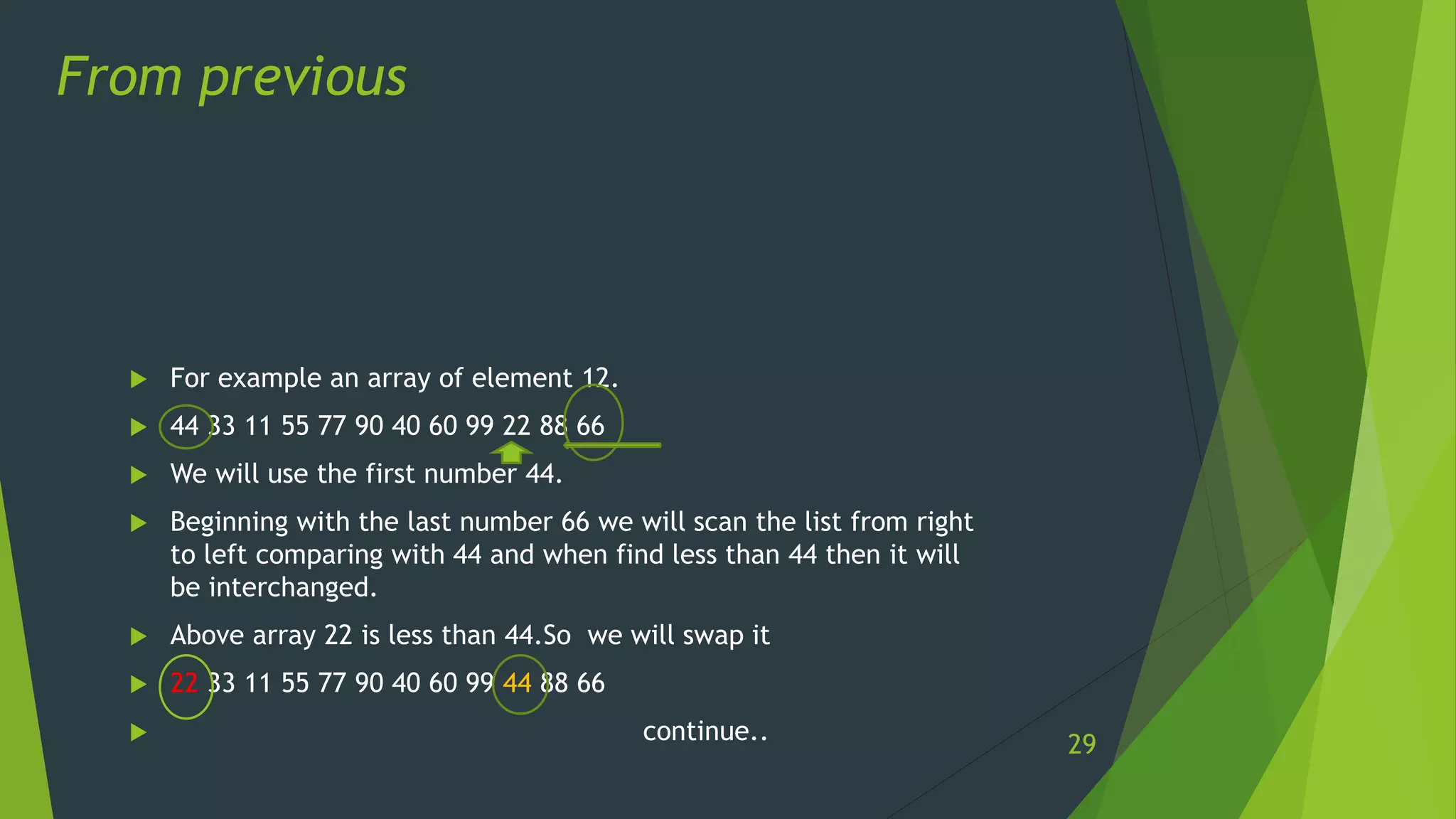

- 29. For examplean array of element 12. 44 33 11 55 77 90 40 60 99 22 88 66 We will use the first number 44. Beginning with the last number 66 we will scan the list from right to left comparing with 44 and when find less than 44 then it will be interchanged. Above array 22 is less than 44.So we will swap it 22 33 11 55 77 90 40 60 99 44 88 66 continue.. From previous 29

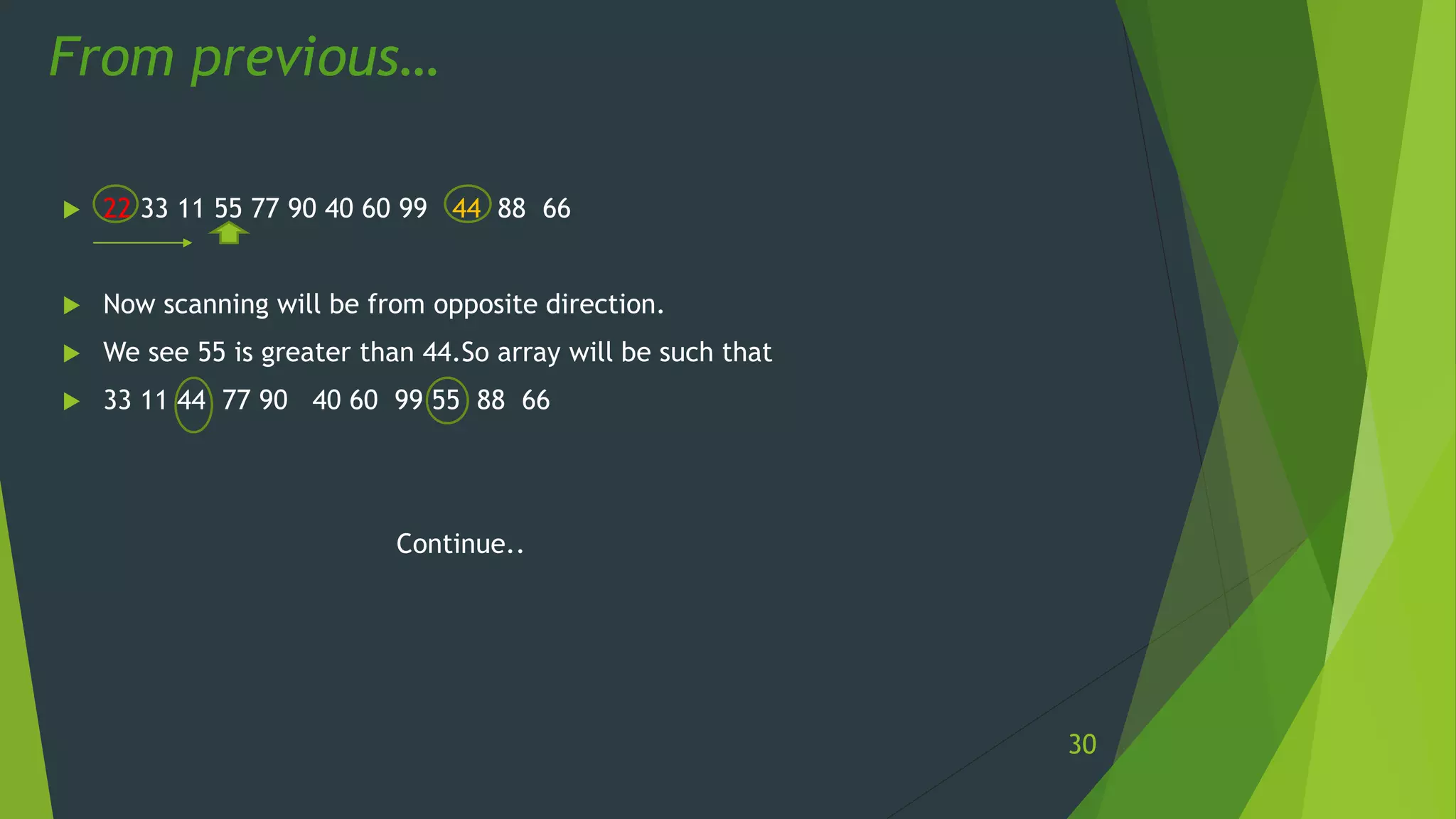

- 30. 22 3311 55 77 90 40 60 99 44 88 66 Now scanning will be from opposite direction. We see 55 is greater than 44.So array will be such that 33 11 44 77 90 40 60 99 55 88 66 Continue.. From previous… 30

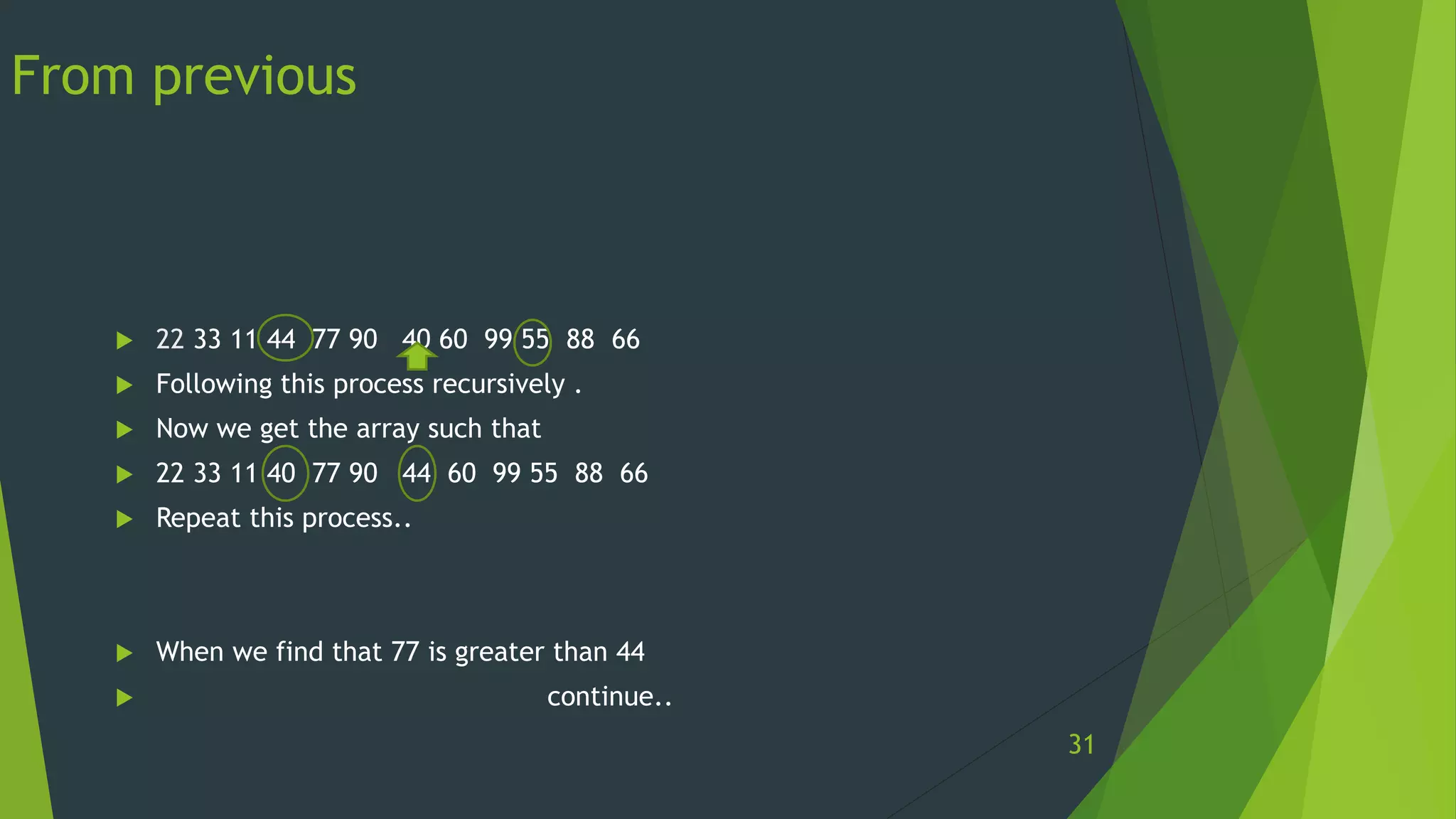

- 31. 22 3311 44 77 90 40 60 99 55 88 66 Following this process recursively . Now we get the array such that 22 33 11 40 77 90 44 60 99 55 88 66 Repeat this process.. When we find that 77 is greater than 44 continue.. From previous 31

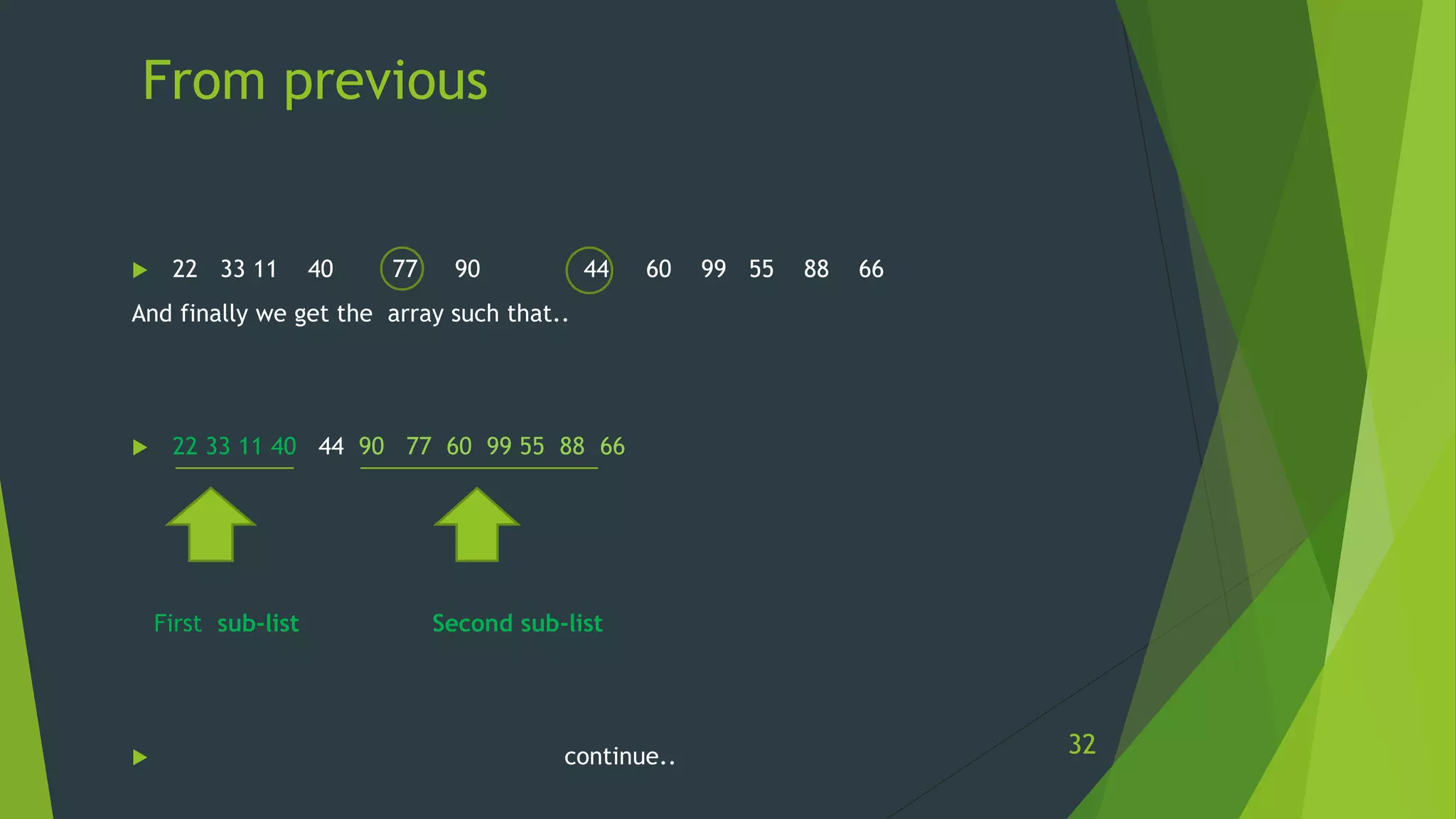

- 32. 22 3311 40 77 90 44 60 99 55 88 66 And finally we get the array such that.. 22 33 11 40 44 90 77 60 99 55 88 66 First sub-list Second sub-list continue.. From previous 32

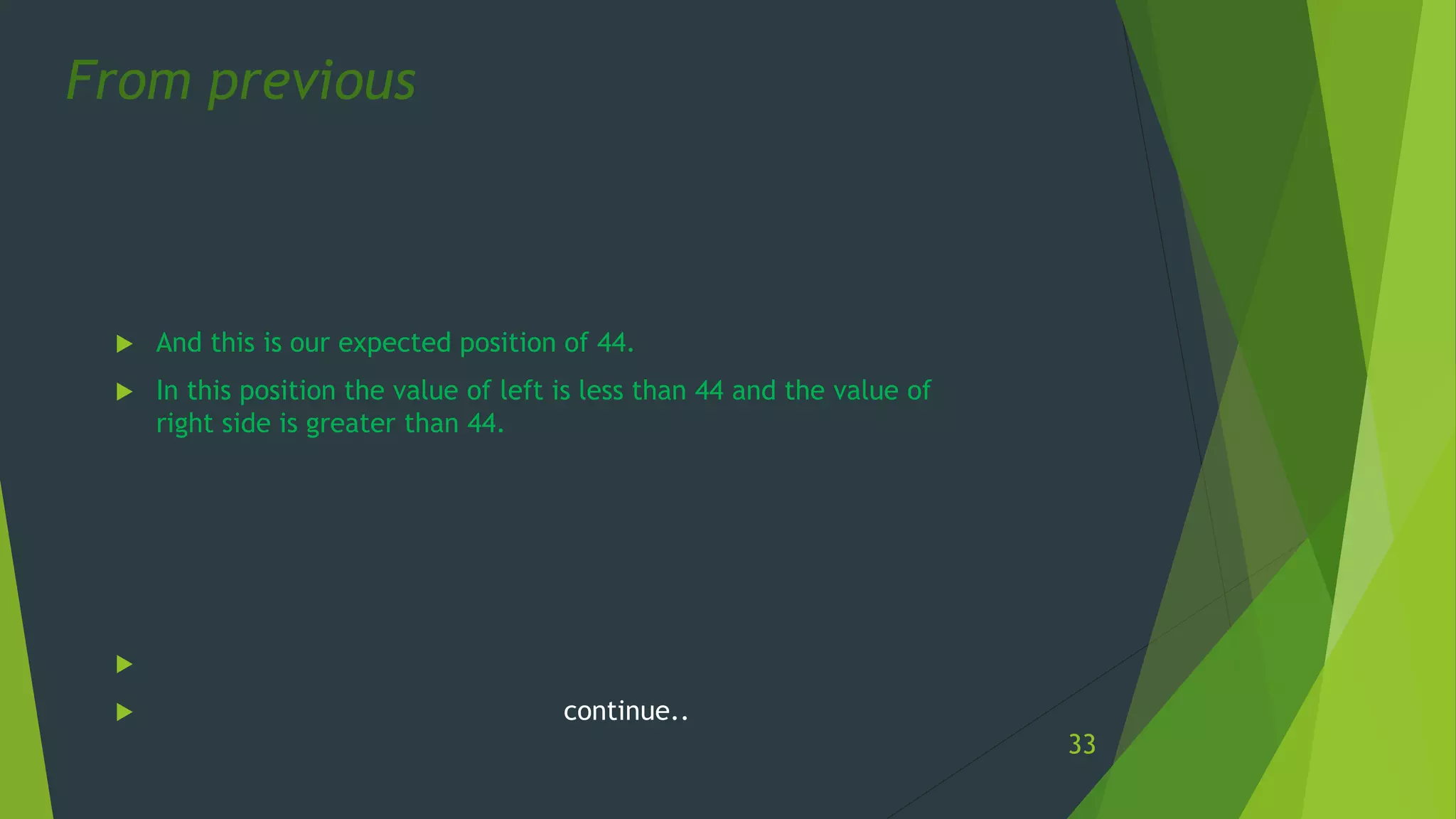

- 33. And thisis our expected position of 44. In this position the value of left is less than 44 and the value of right side is greater than 44. continue.. From previous 33

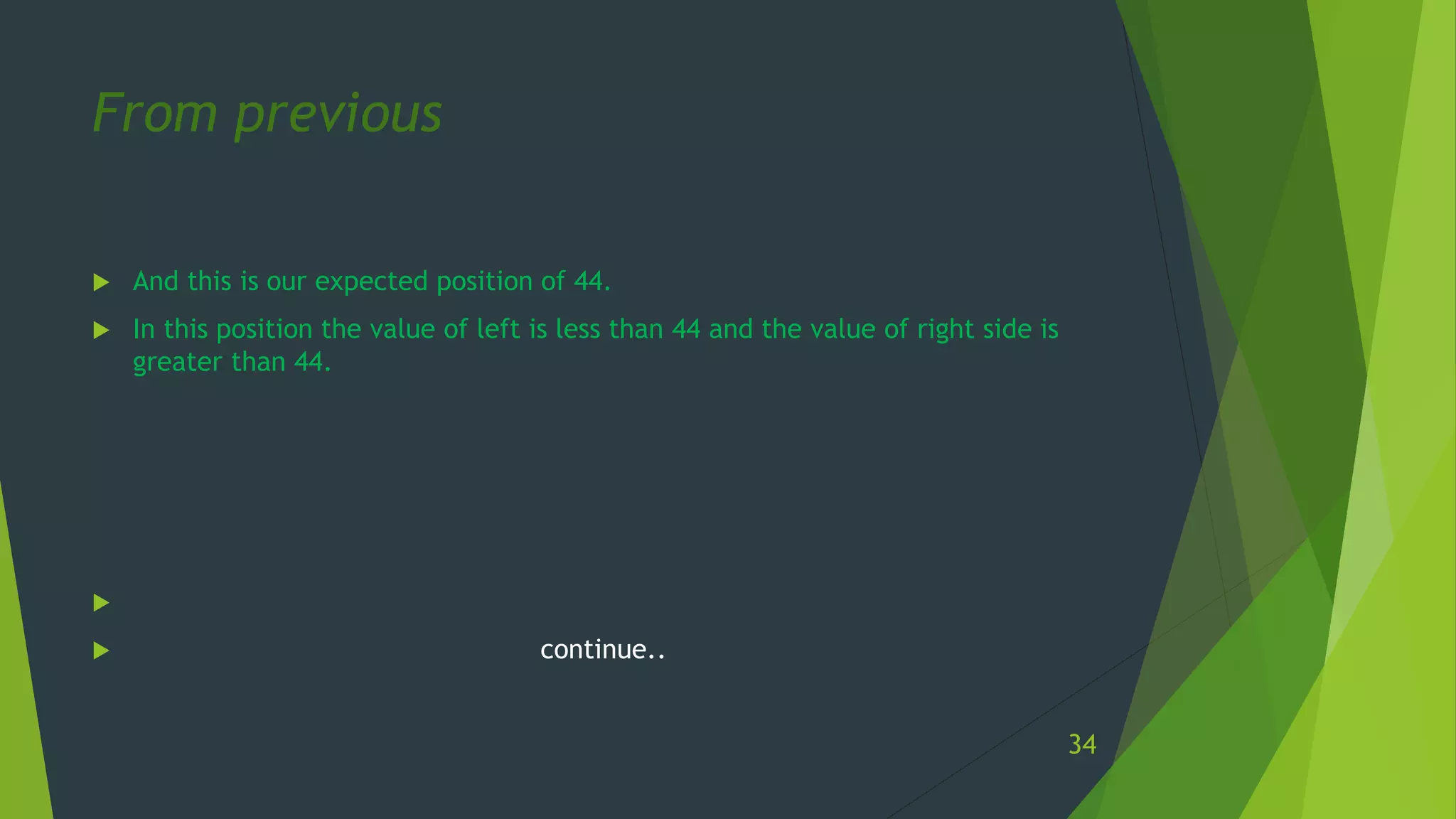

- 34. And thisis our expected position of 44. In this position the value of left is less than 44 and the value of right side is greater than 44. continue.. From previous 34

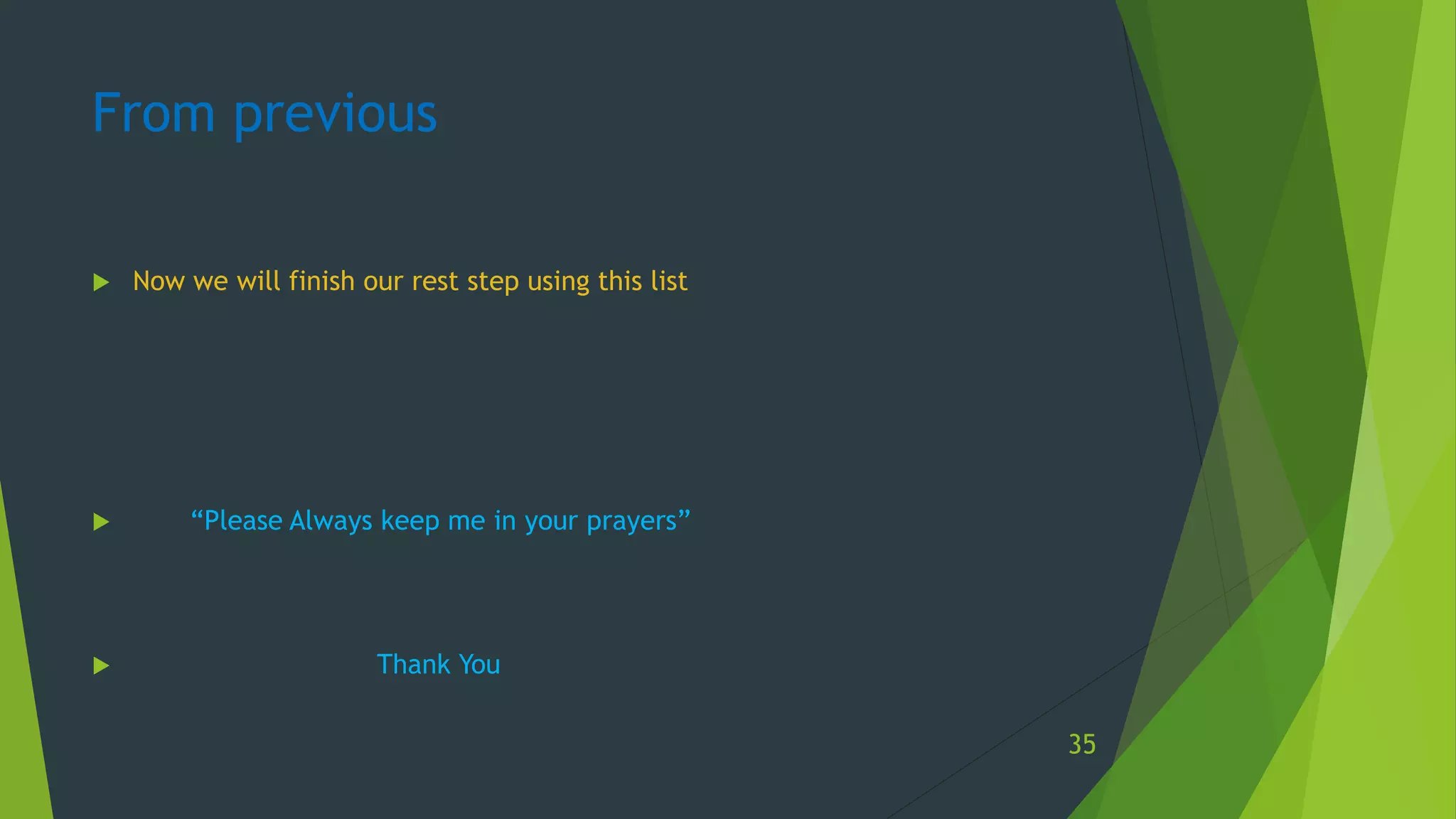

- 35. Now wewill finish our rest step using this list “Please Always keep me in your prayers” Thank You From previous 35

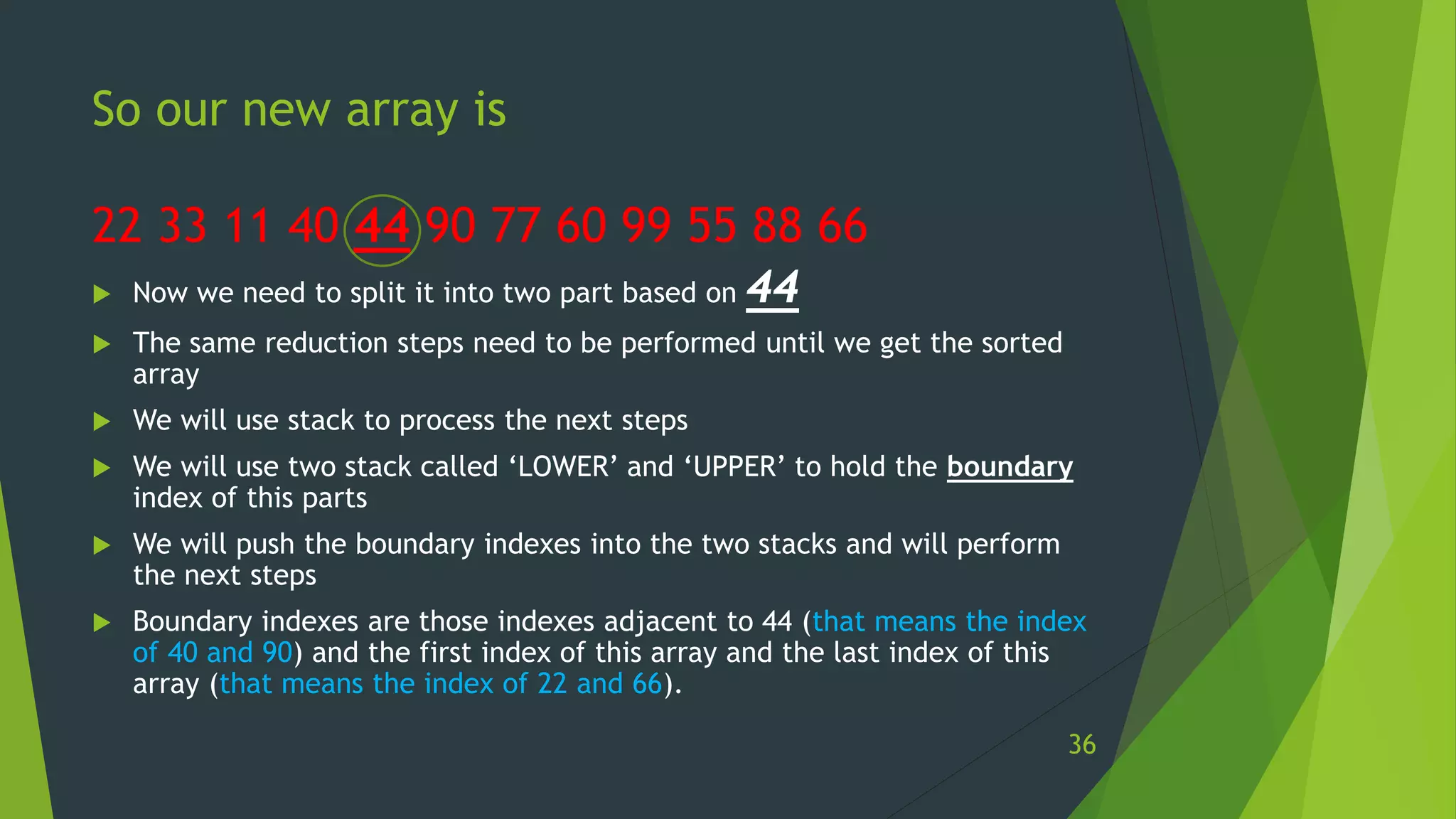

- 36. So our newarray is 22 33 11 40 44 90 77 60 99 55 88 66 Now we need to split it into two part based on 44 The same reduction steps need to be performed until we get the sorted array We will use stack to process the next steps We will use two stack called ‘LOWER’ and ‘UPPER’ to hold the boundary index of this parts We will push the boundary indexes into the two stacks and will perform the next steps Boundary indexes are those indexes adjacent to 44 (that means the index of 40 and 90) and the first index of this array and the last index of this array (that means the index of 22 and 66). 36

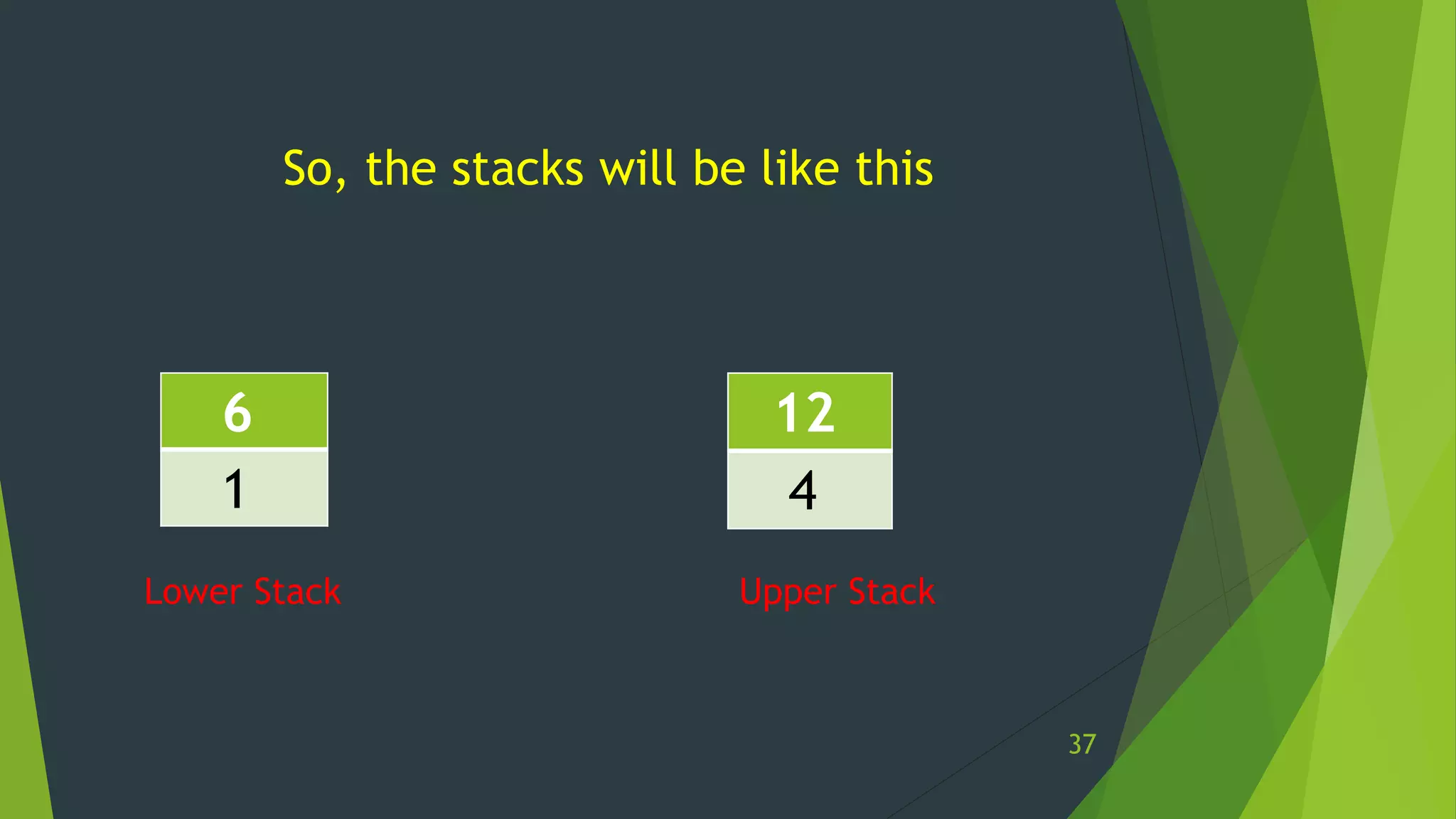

- 37. 6 1 12 4 Lower Stack UpperStack So, the stacks will be like this 37

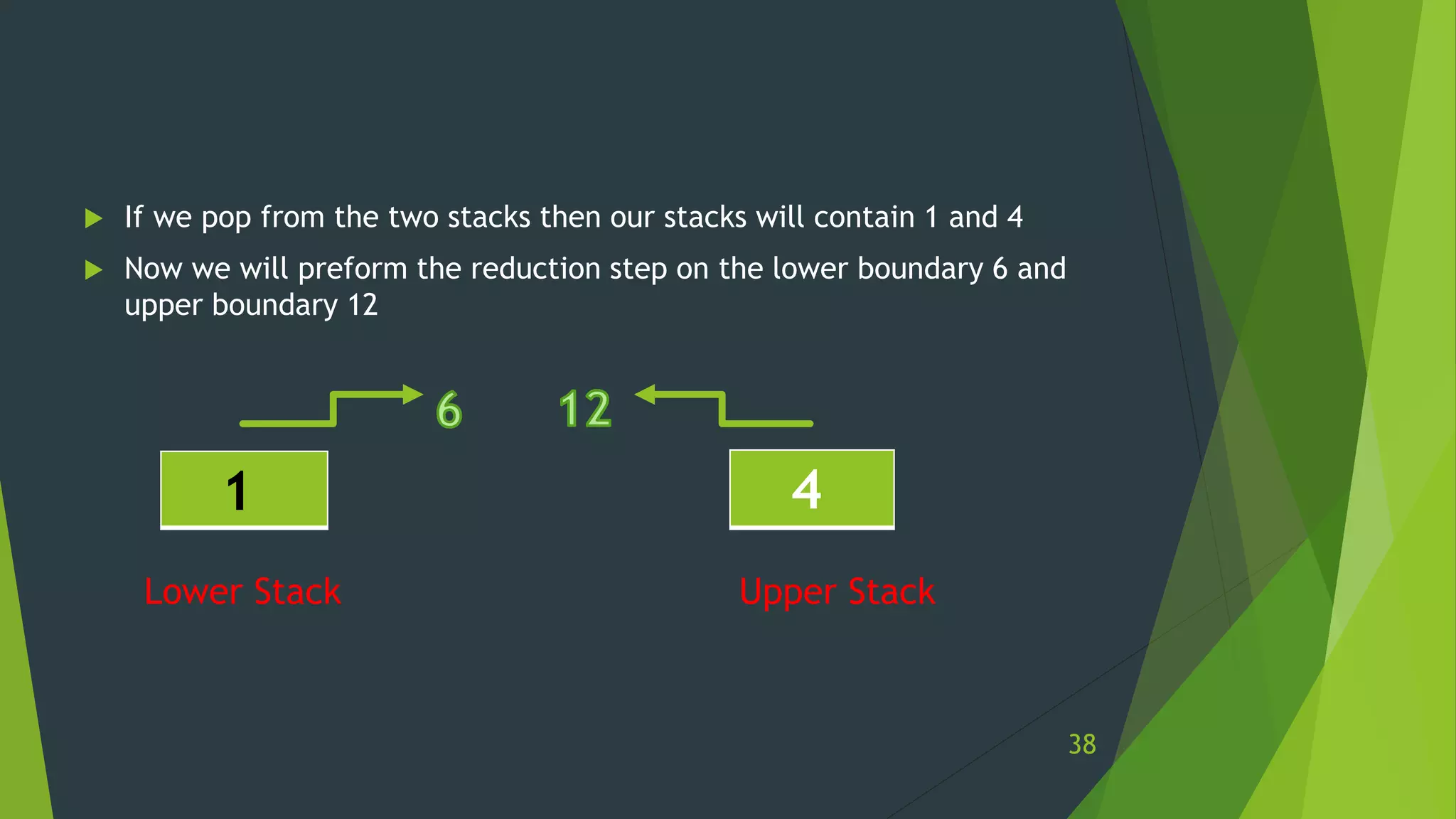

- 38. If wepop from the two stacks then our stacks will contain 1 and 4 Now we will preform the reduction step on the lower boundary 6 and upper boundary 12 1 4 Lower Stack Upper Stack 38

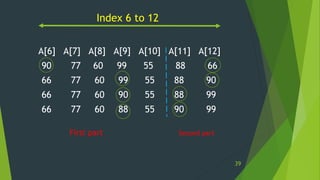

- 39. A[6] A[7] A[8]A[9] A[10] A[11] A[12] 90 77 60 99 55 88 66 66 77 60 99 55 88 90 66 77 60 90 55 88 99 66 77 60 88 55 90 99 First part Second part Index 6 to 12 39

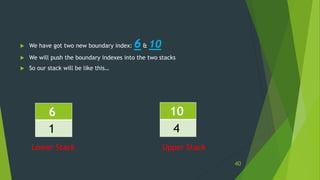

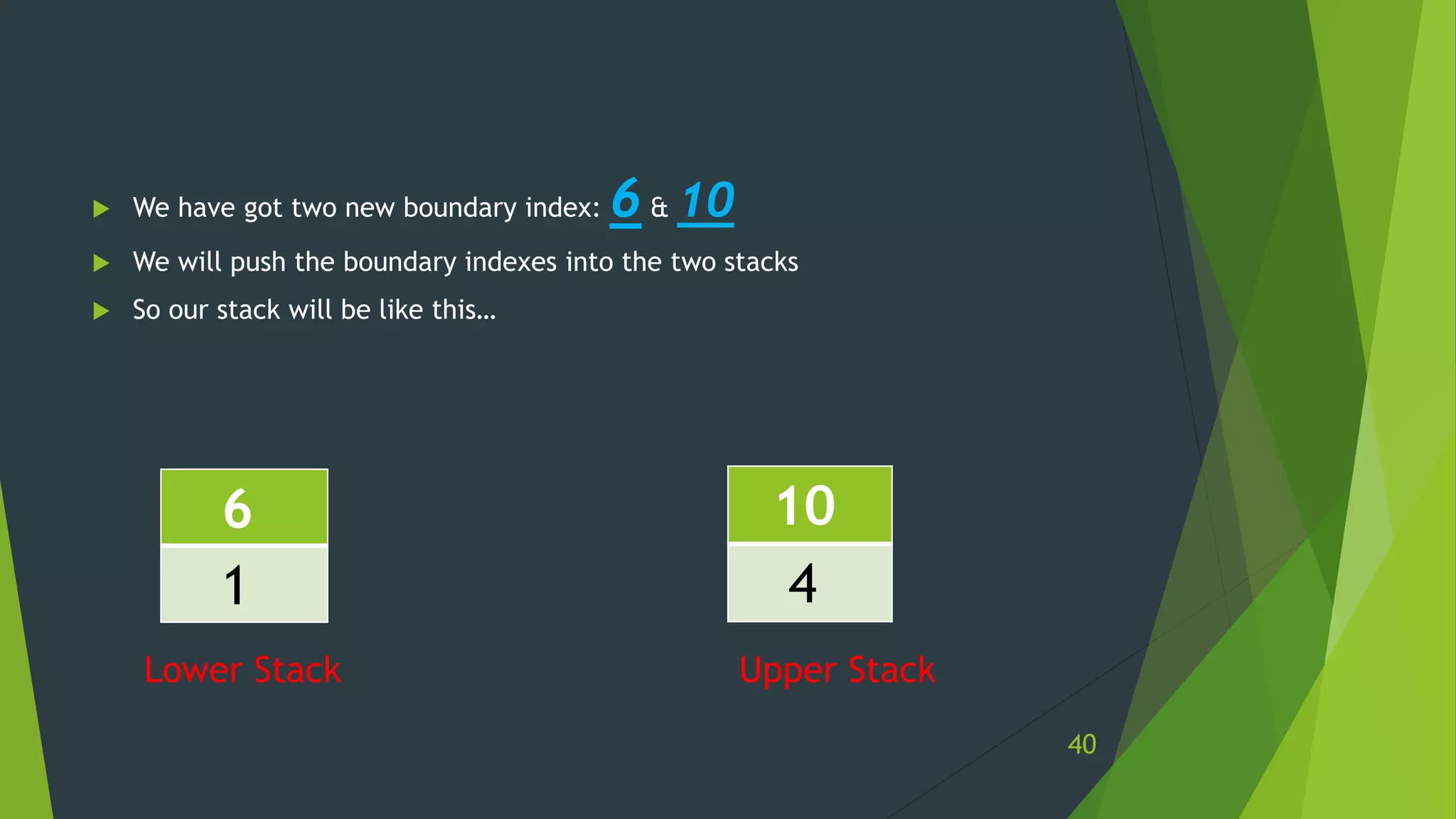

- 40. We havegot two new boundary index: 6 & 10 We will push the boundary indexes into the two stacks So our stack will be like this… 6 1 10 4 Lower Stack Upper Stack 40

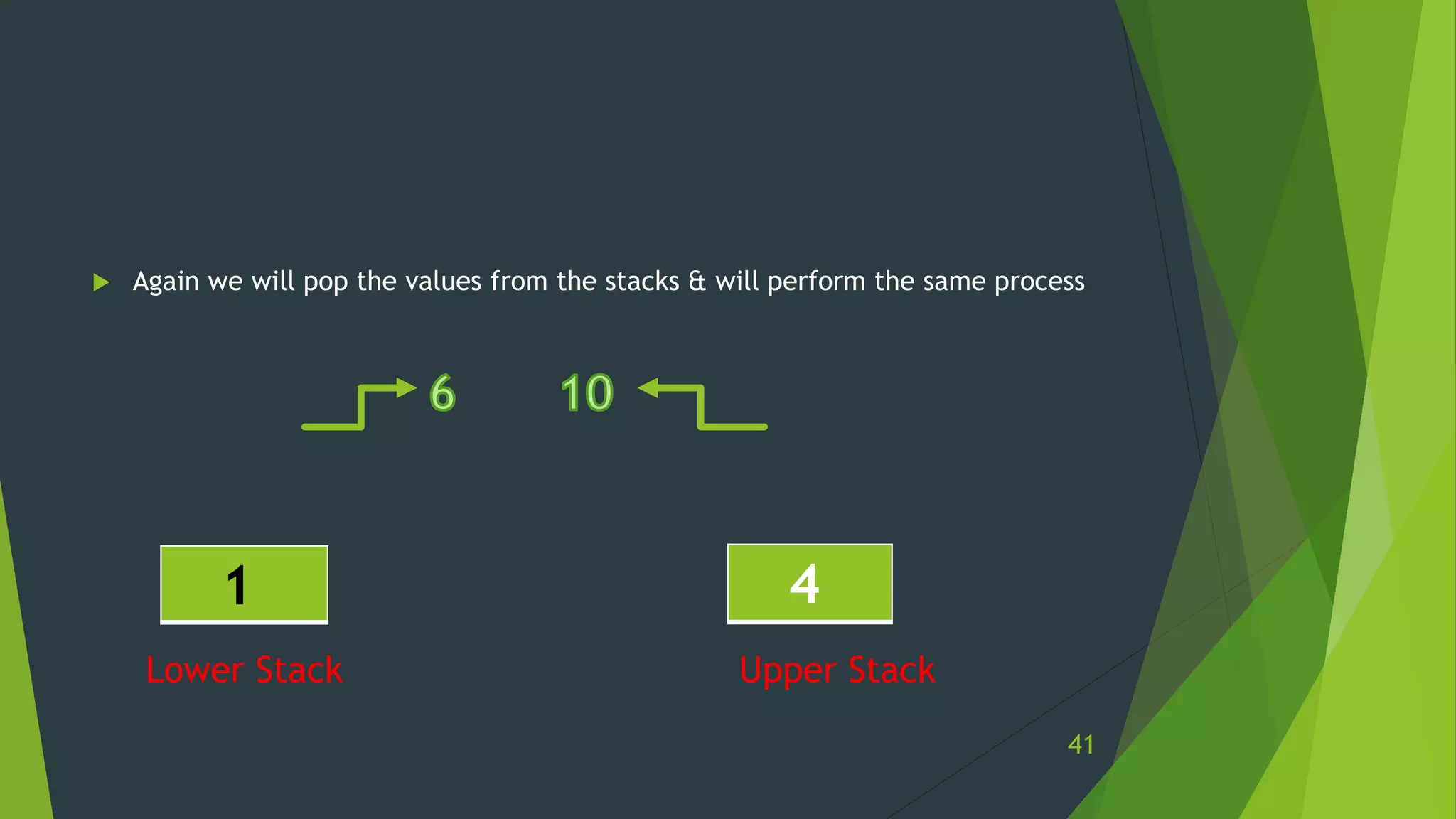

- 41. Again wewill pop the values from the stacks & will perform the same process 1 4 Lower Stack Upper Stack 41

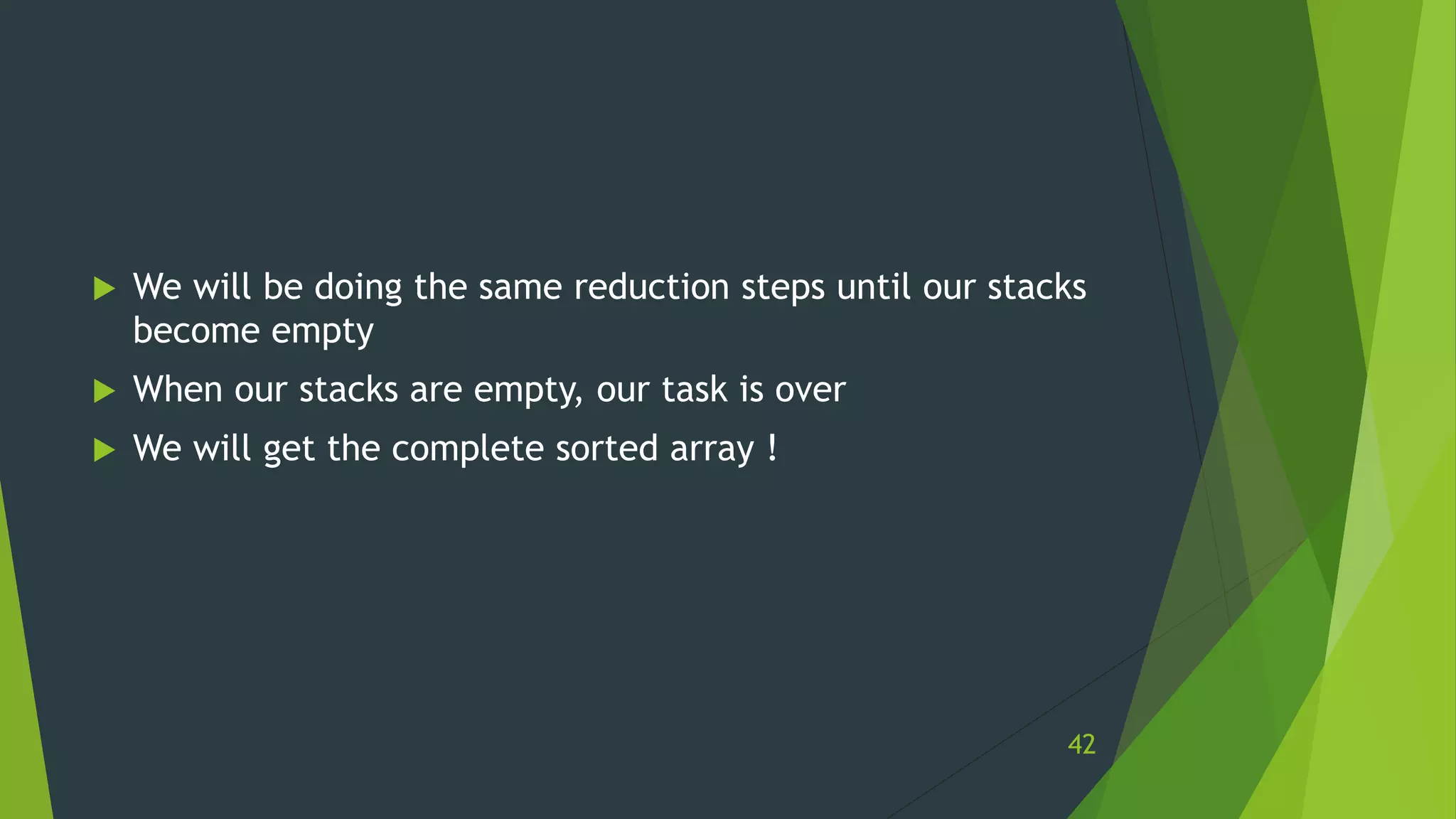

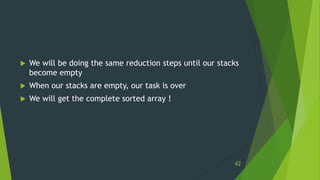

- 42. We willbe doing the same reduction steps until our stacks become empty When our stacks are empty, our task is over We will get the complete sorted array ! 42

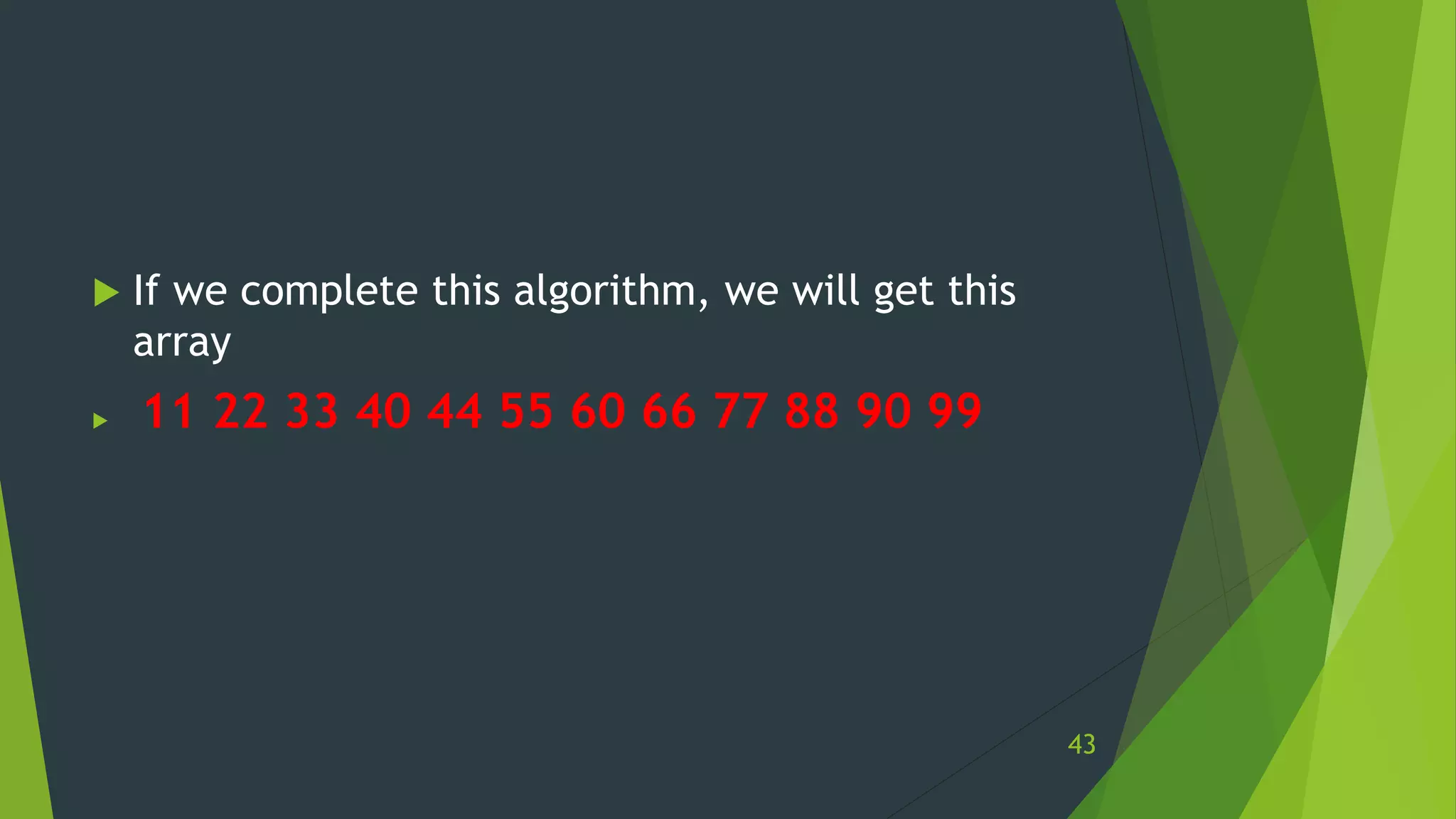

- 43. If wecomplete this algorithm, we will get this array 11 22 33 40 44 55 60 66 77 88 90 99 43
- 44.

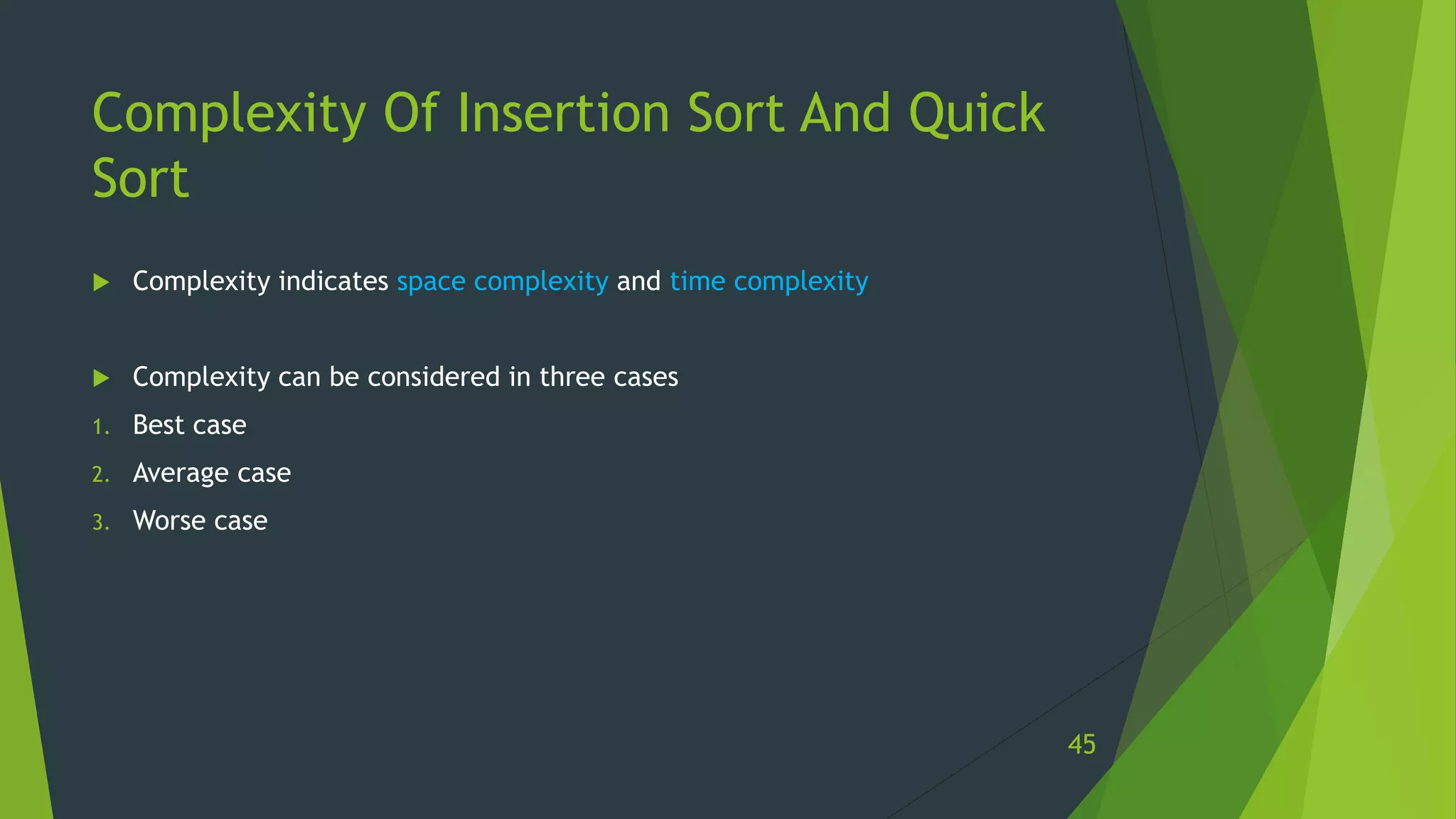

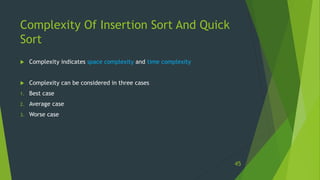

- 45. Complexity Of InsertionSort And Quick Sort Complexity indicates space complexity and time complexity Complexity can be considered in three cases 1. Best case 2. Average case 3. Worse case 45

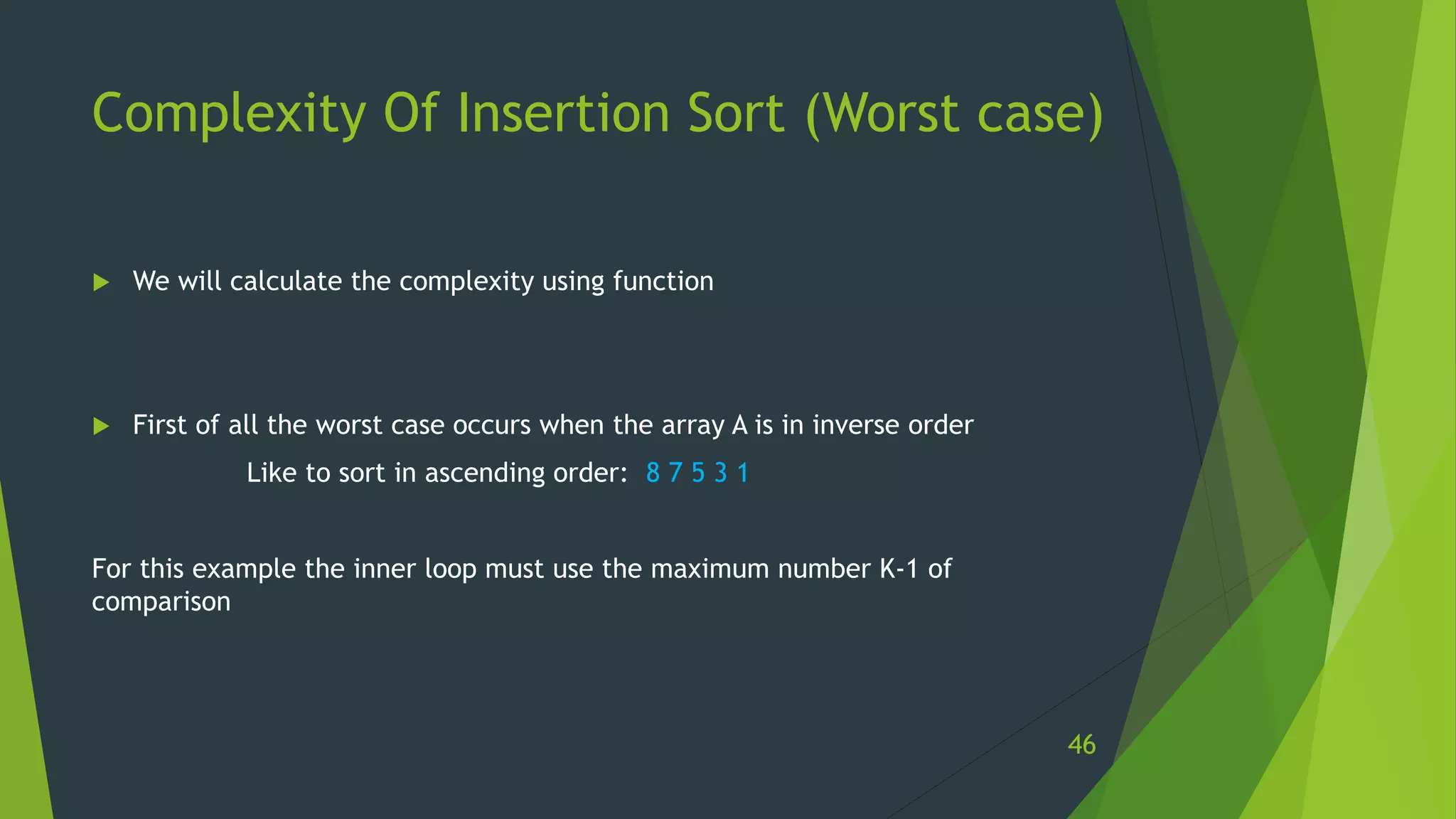

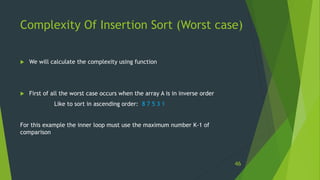

- 46. Complexity Of InsertionSort (Worst case) We will calculate the complexity using function First of all the worst case occurs when the array A is in inverse order Like to sort in ascending order: 8 7 5 3 1 For this example the inner loop must use the maximum number K-1 of comparison 46

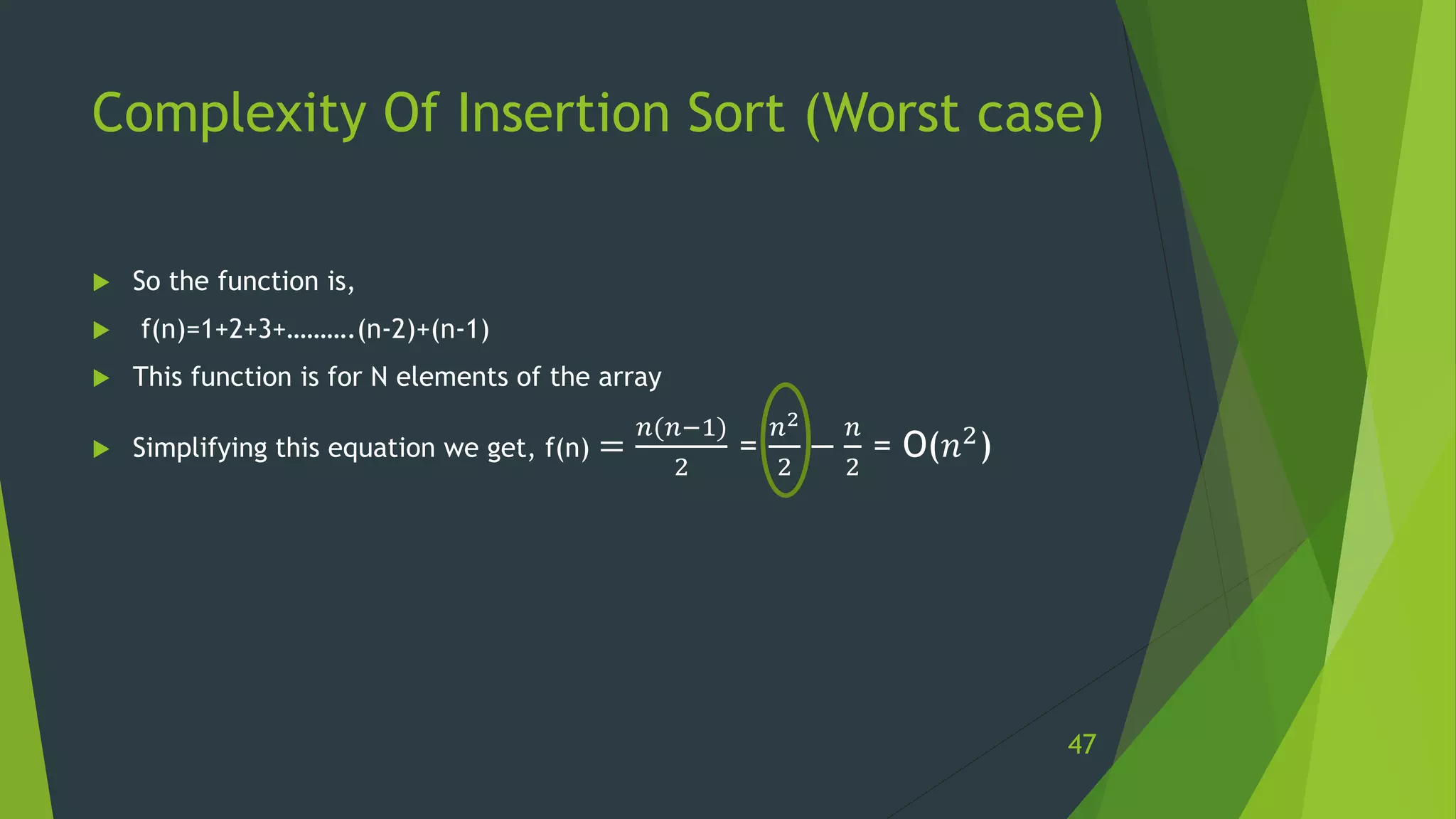

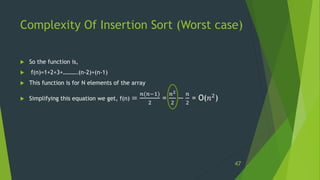

- 47. Complexity Of InsertionSort (Worst case) So the function is, f(n)=1+2+3+……….(n-2)+(n-1) This function is for N elements of the array Simplifying this equation we get, f(n) = 𝑛(𝑛−1) 2 = 𝑛2 2 − 𝑛 2 = O(𝑛2) 47

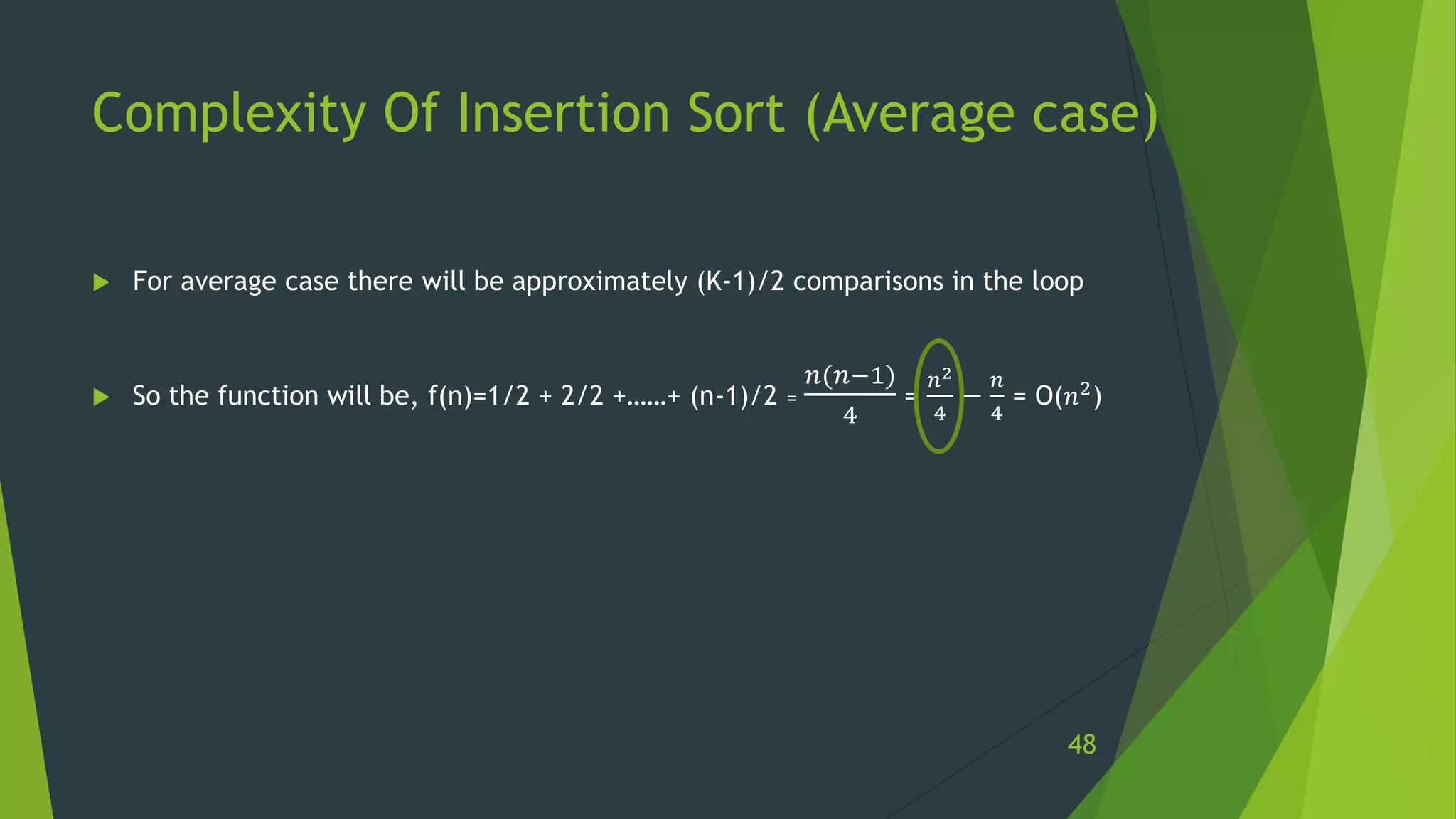

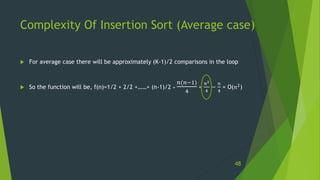

- 48. Complexity Of InsertionSort (Average case) For average case there will be approximately (K-1)/2 comparisons in the loop So the function will be, f(n)=1/2 + 2/2 +……+ (n-1)/2 = 𝑛(𝑛−1) 4 = 𝑛2 4 − 𝑛 4 = O(𝑛2) 48

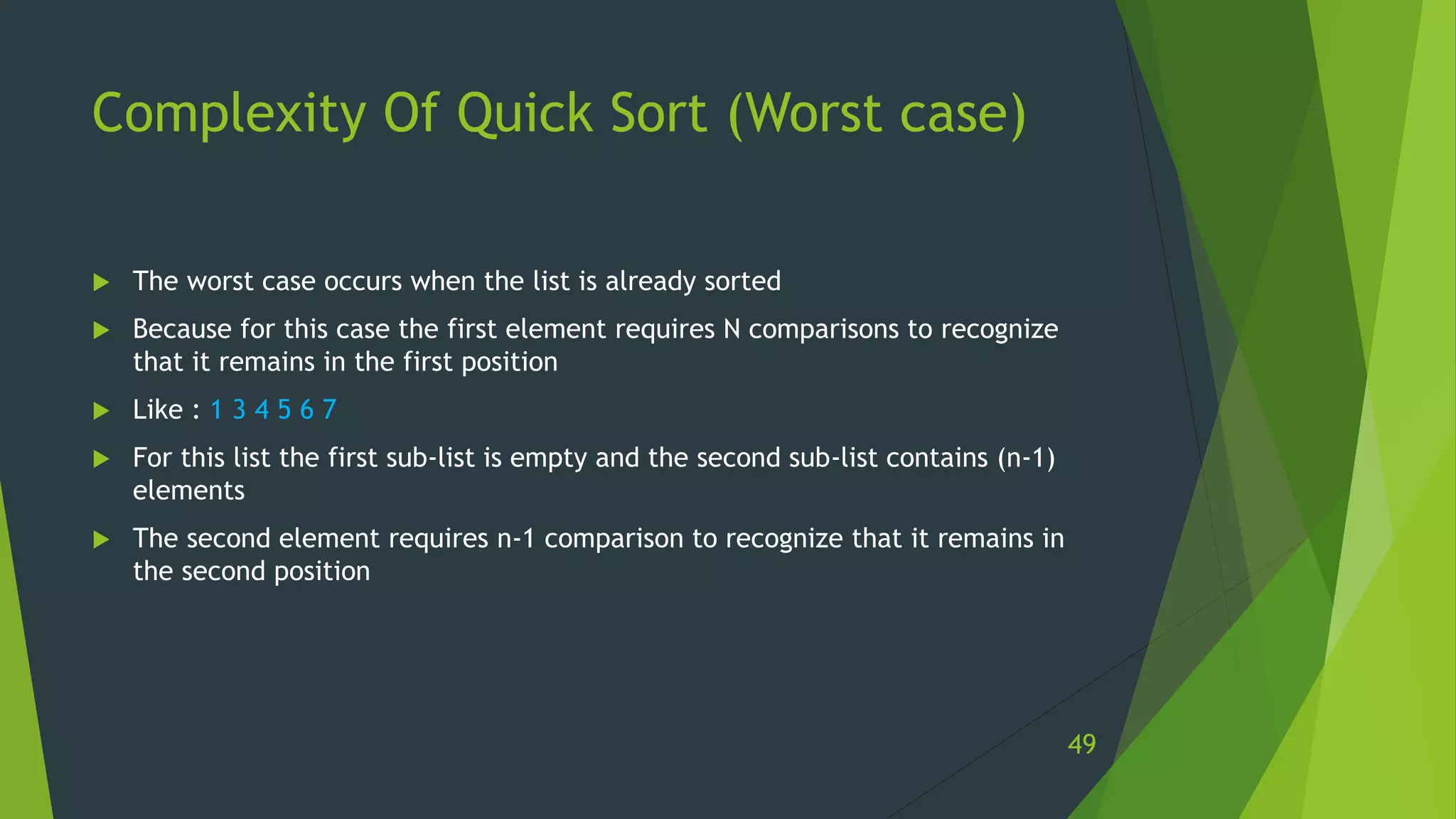

- 49. Complexity Of QuickSort (Worst case) The worst case occurs when the list is already sorted Because for this case the first element requires N comparisons to recognize that it remains in the first position Like : 1 3 4 5 6 7 For this list the first sub-list is empty and the second sub-list contains (n-1) elements The second element requires n-1 comparison to recognize that it remains in the second position 49

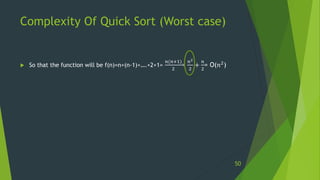

- 50. Complexity Of QuickSort (Worst case) So that the function will be f(n)=n+(n-1)+….+2+1= 𝑛(𝑛+1) 2 = 𝑛2 2 + 𝑛 2 = O(𝑛2) 50

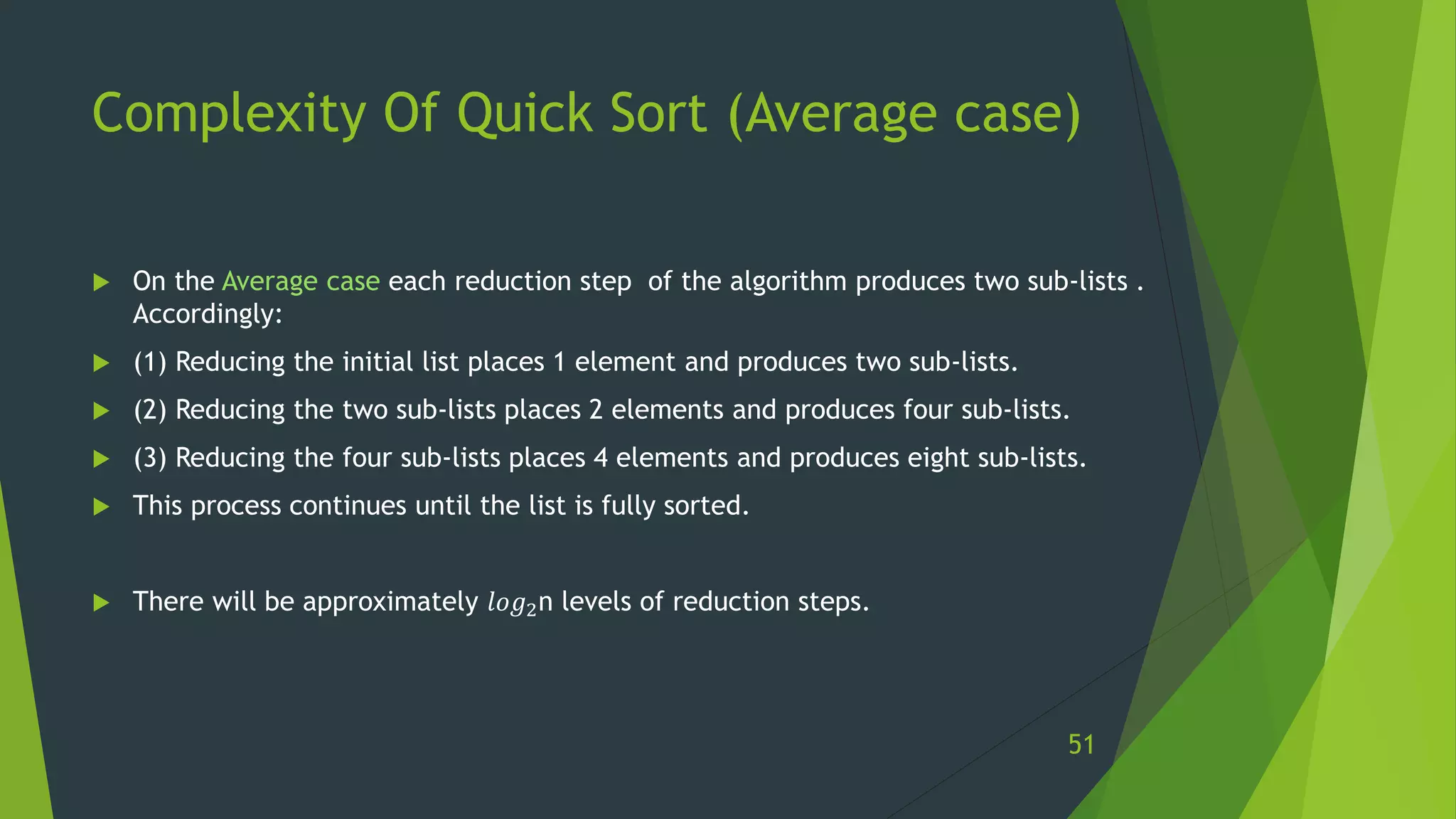

- 51. Complexity Of QuickSort (Average case) On the Average case each reduction step of the algorithm produces two sub-lists . Accordingly: (1) Reducing the initial list places 1 element and produces two sub-lists. (2) Reducing the two sub-lists places 2 elements and produces four sub-lists. (3) Reducing the four sub-lists places 4 elements and produces eight sub-lists. This process continues until the list is fully sorted. There will be approximately 𝑙𝑜𝑔2n levels of reduction steps. 51

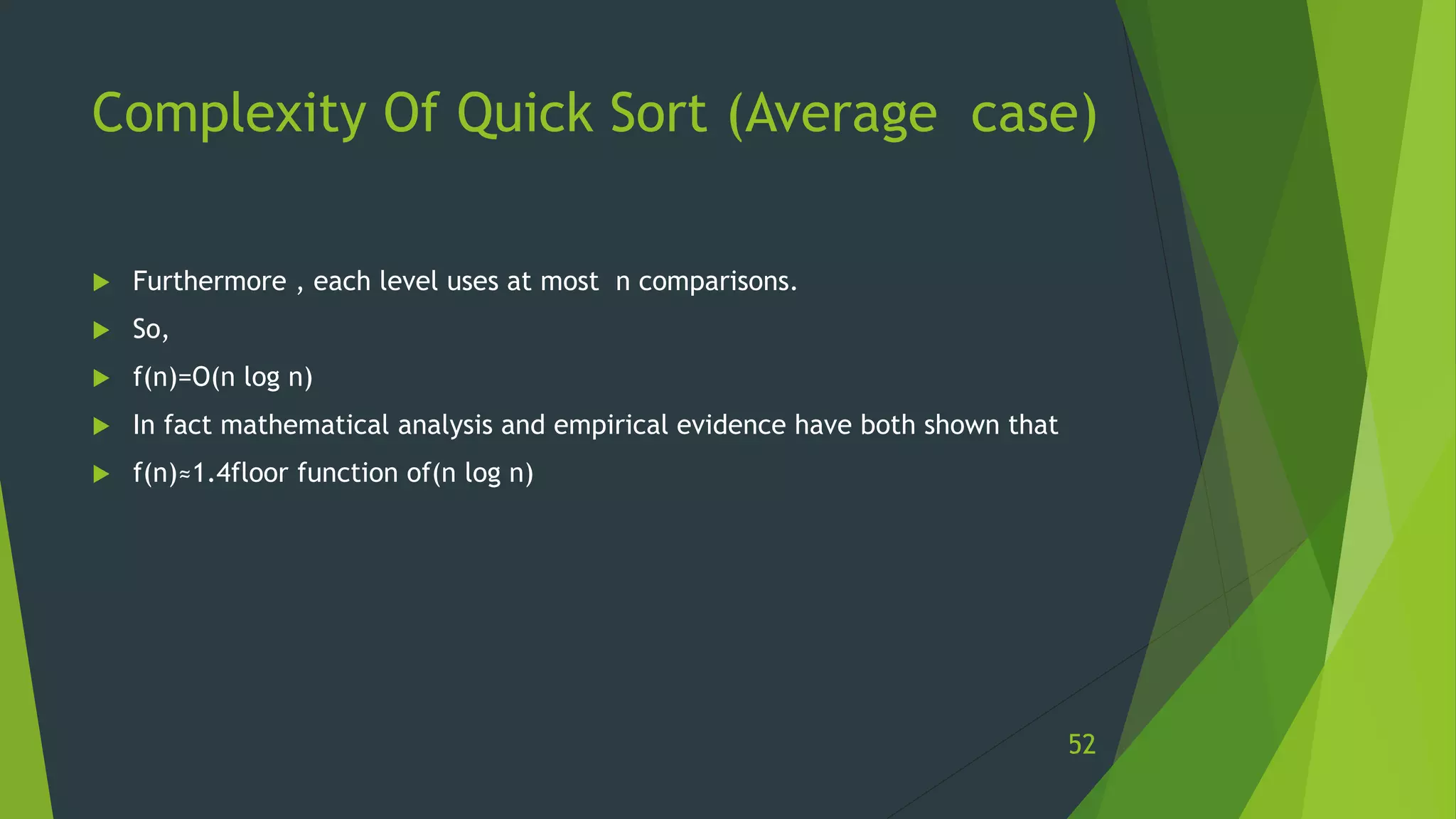

- 52. Complexity Of QuickSort (Average case) Furthermore , each level uses at most n comparisons. So, f(n)=O(n log n) In fact mathematical analysis and empirical evidence have both shown that f(n)≈1.4floor function of(n log n) 52
- 53. Thank You All! 53
